Limited 2024 Availability
2360 Bay
2024
2360 Bay
w/ 250 XL Pro XS FourStroke DTS Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$92595
USD
|

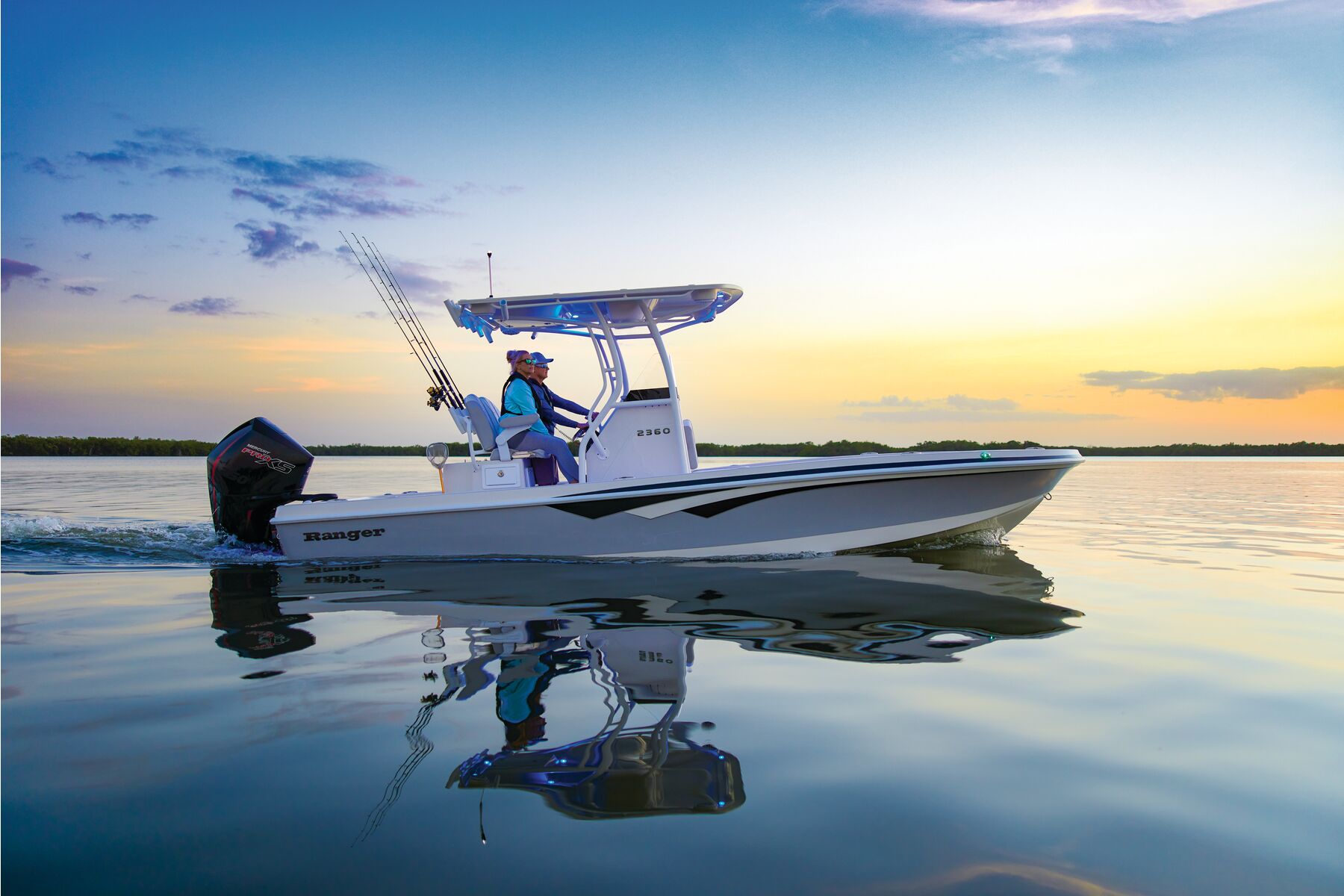

The Bay Boat, Evolved

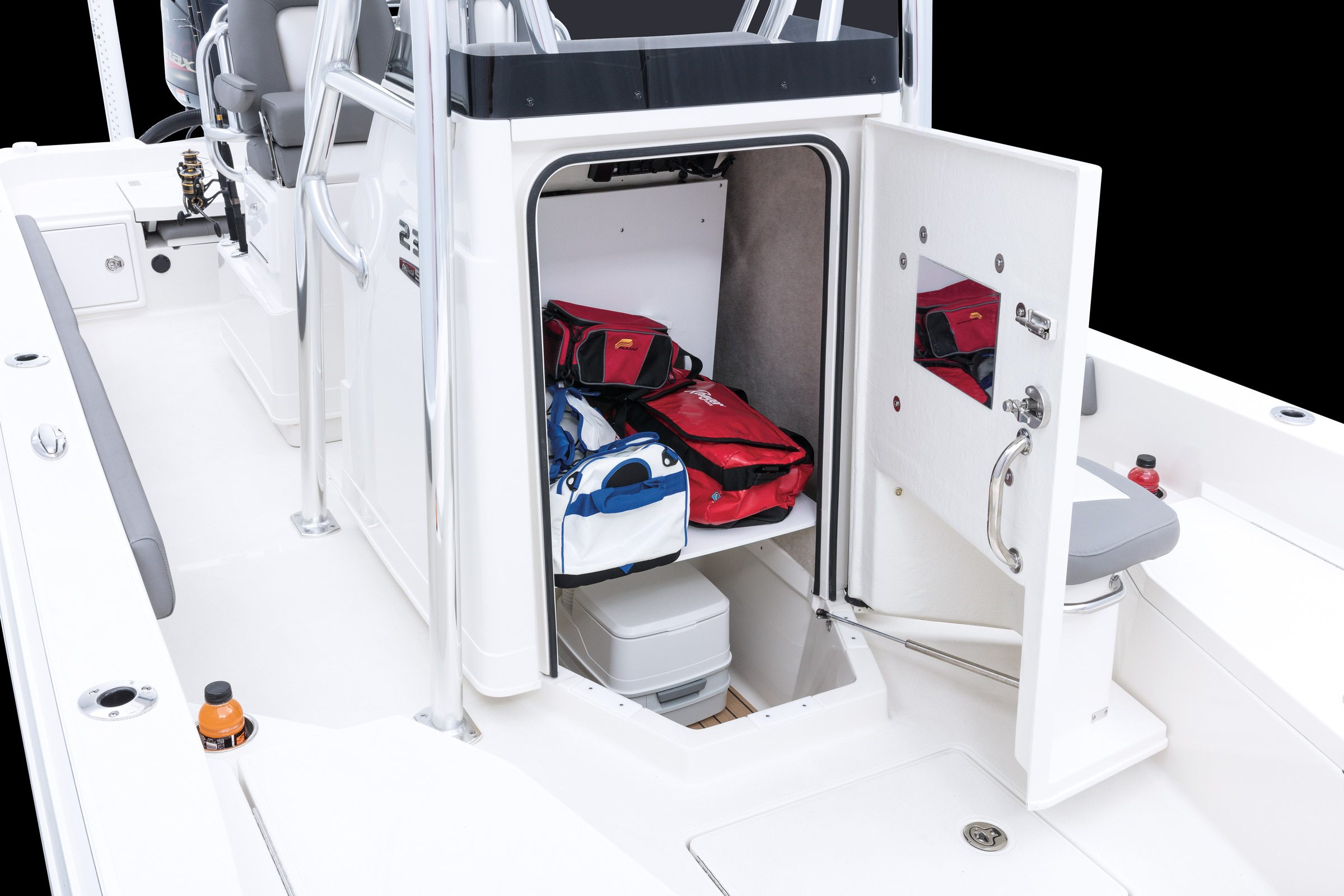

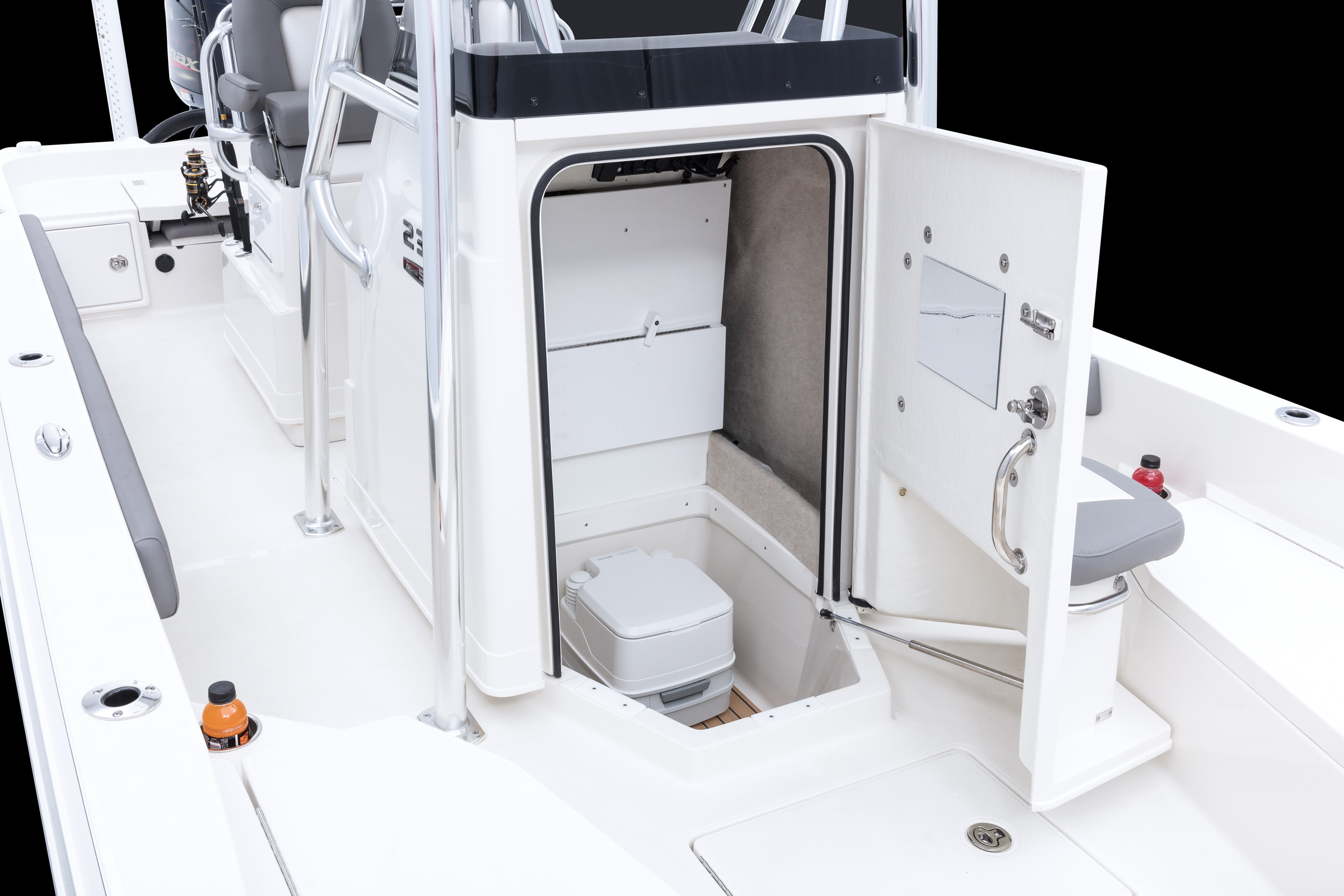

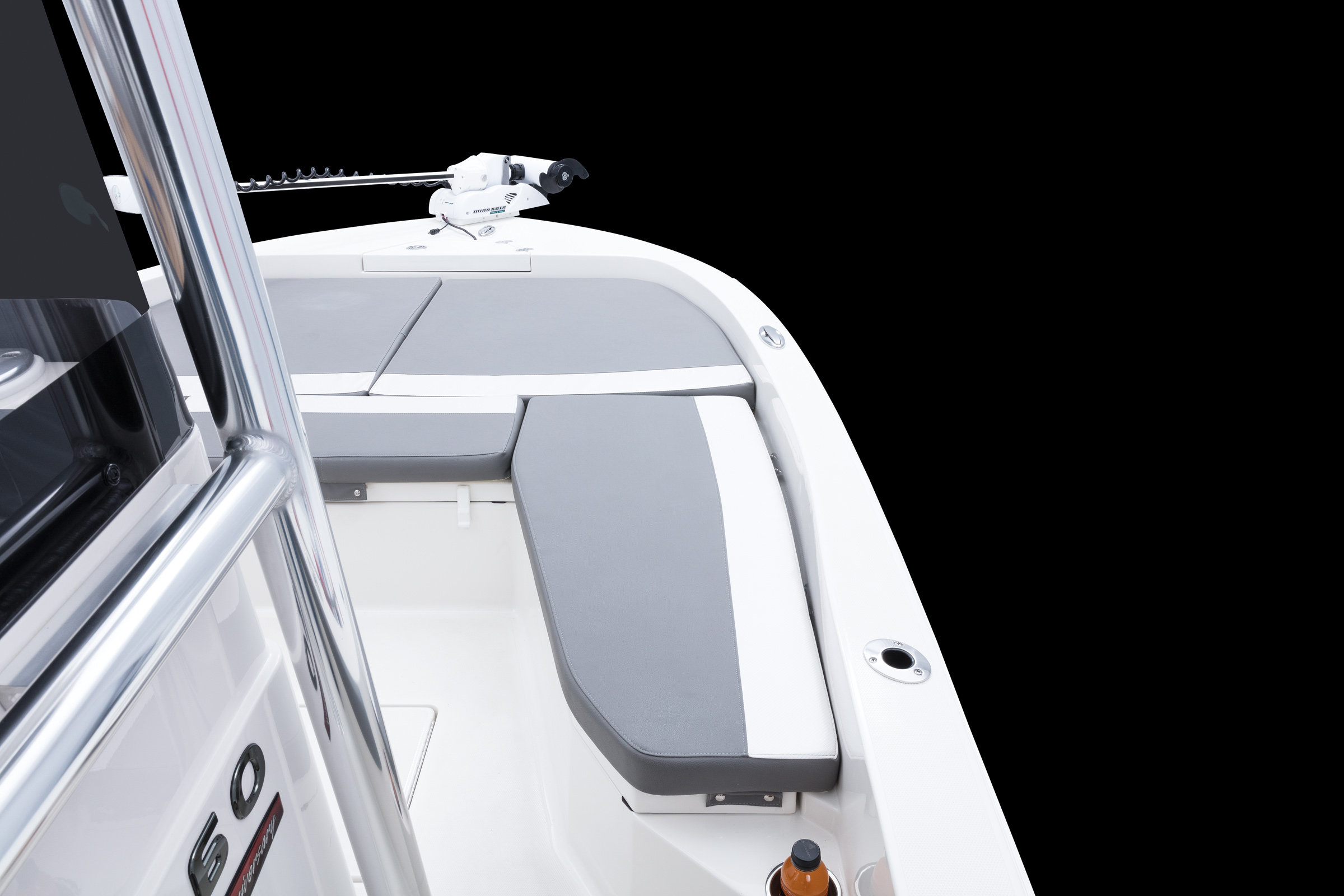

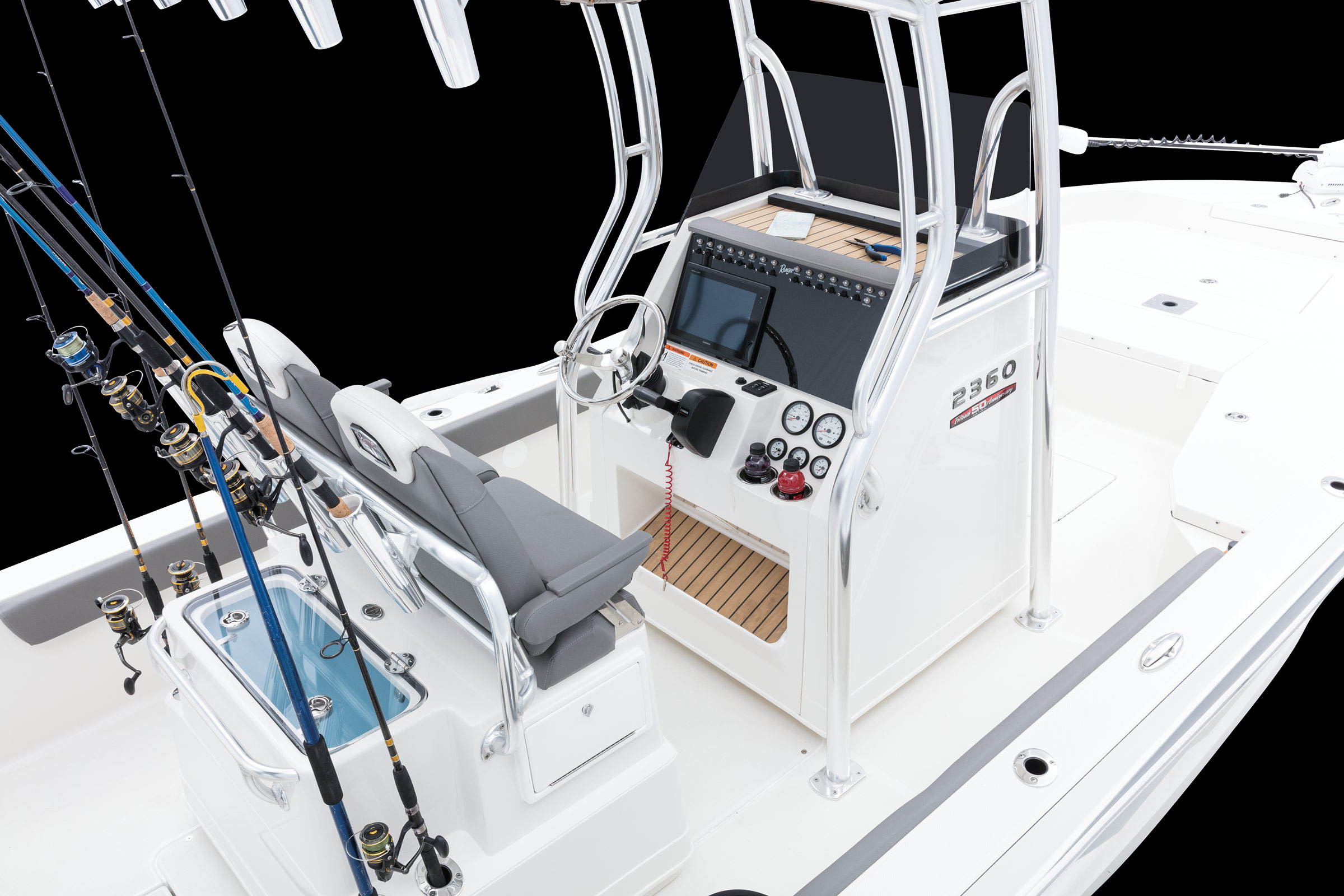

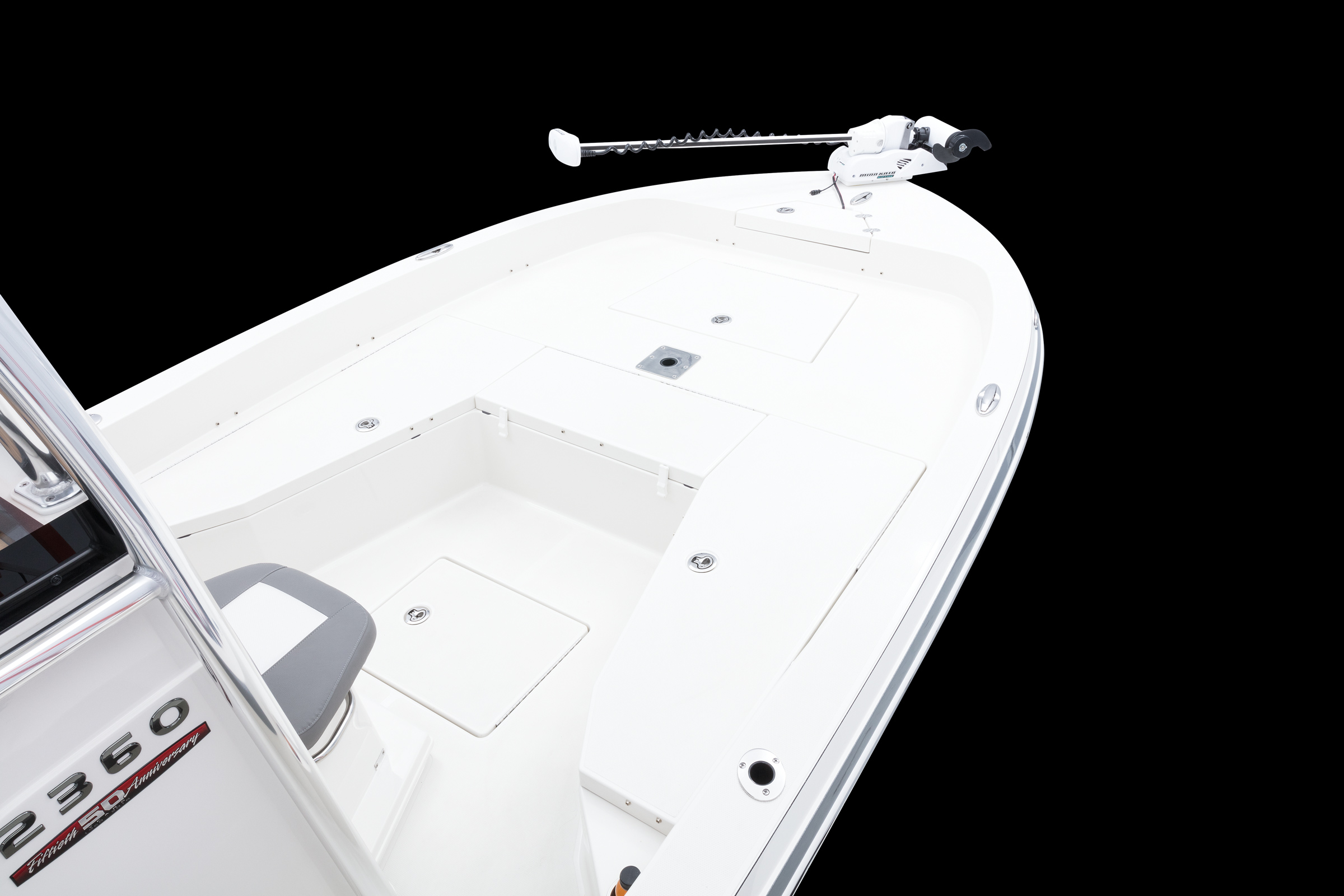

The Ranger® 2360 is designed for maximum confidence and comfort offshore, with stealth and a respectable draft for prowling the flats. At 23' 5" the 2360 carries a 300-horsepower rating and an expertly flared bow to smooth out rough seas. The angler-designed interior boasts a clutter-free layout and clever storage with plenty of room for bouncing bottom, kite fishing or trolling weed lines. Conveniences are integrated from bow to stern from the rear fold-down jump seats, large center console that can comfortably house a portable toilet to the lower, easier-to-access front casting deck. Within the hull is a massive stringer system with solid, reinforced chines and a world of our signature foam flotation that deliver that famous one-piece feel, along with our patented, stronger-than-steel pultruded fiberglass material. The Ranger 2360 truly is the bay boat, evolved.
Key Features
- Exceptionally well-appointed for fishing or cruising

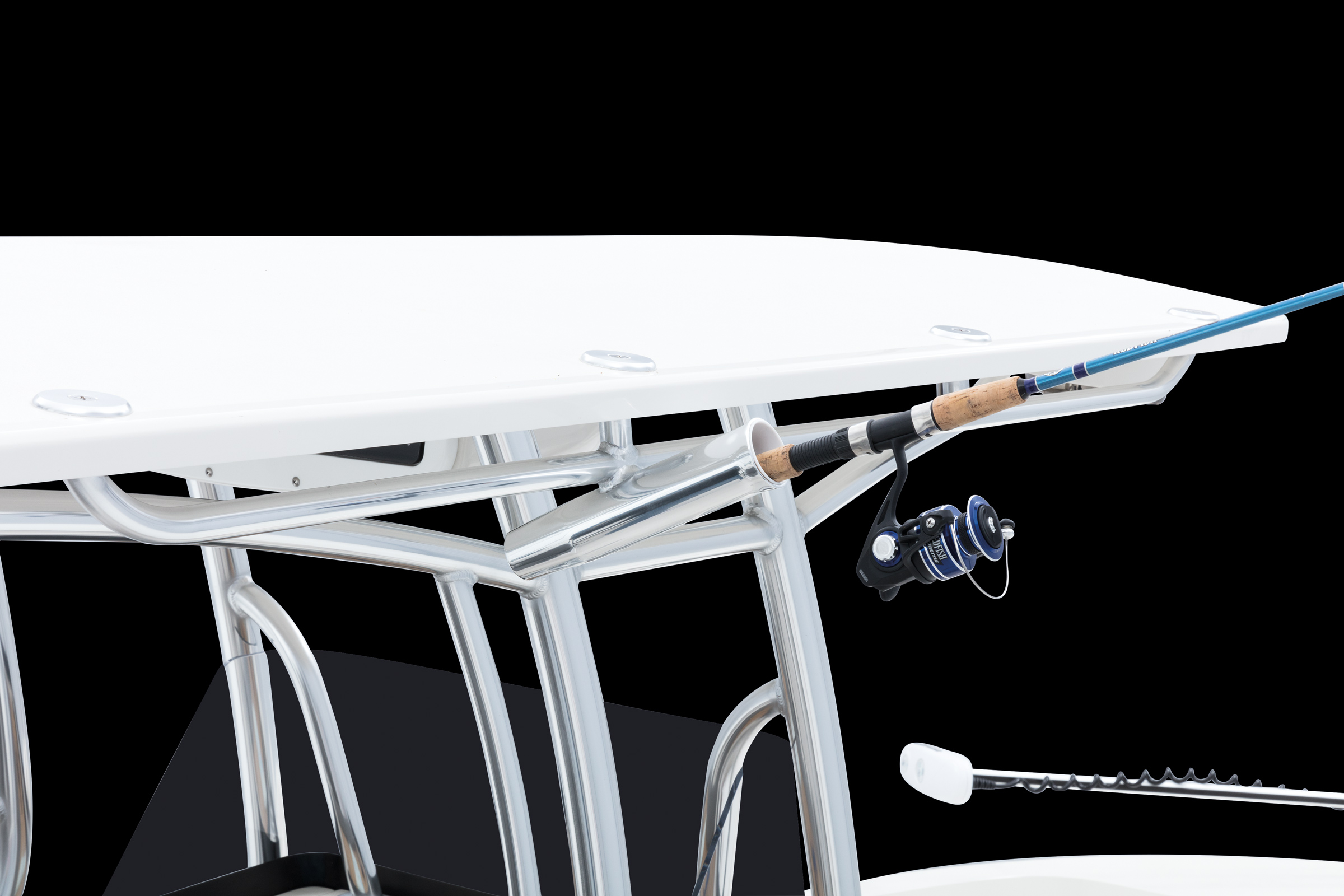

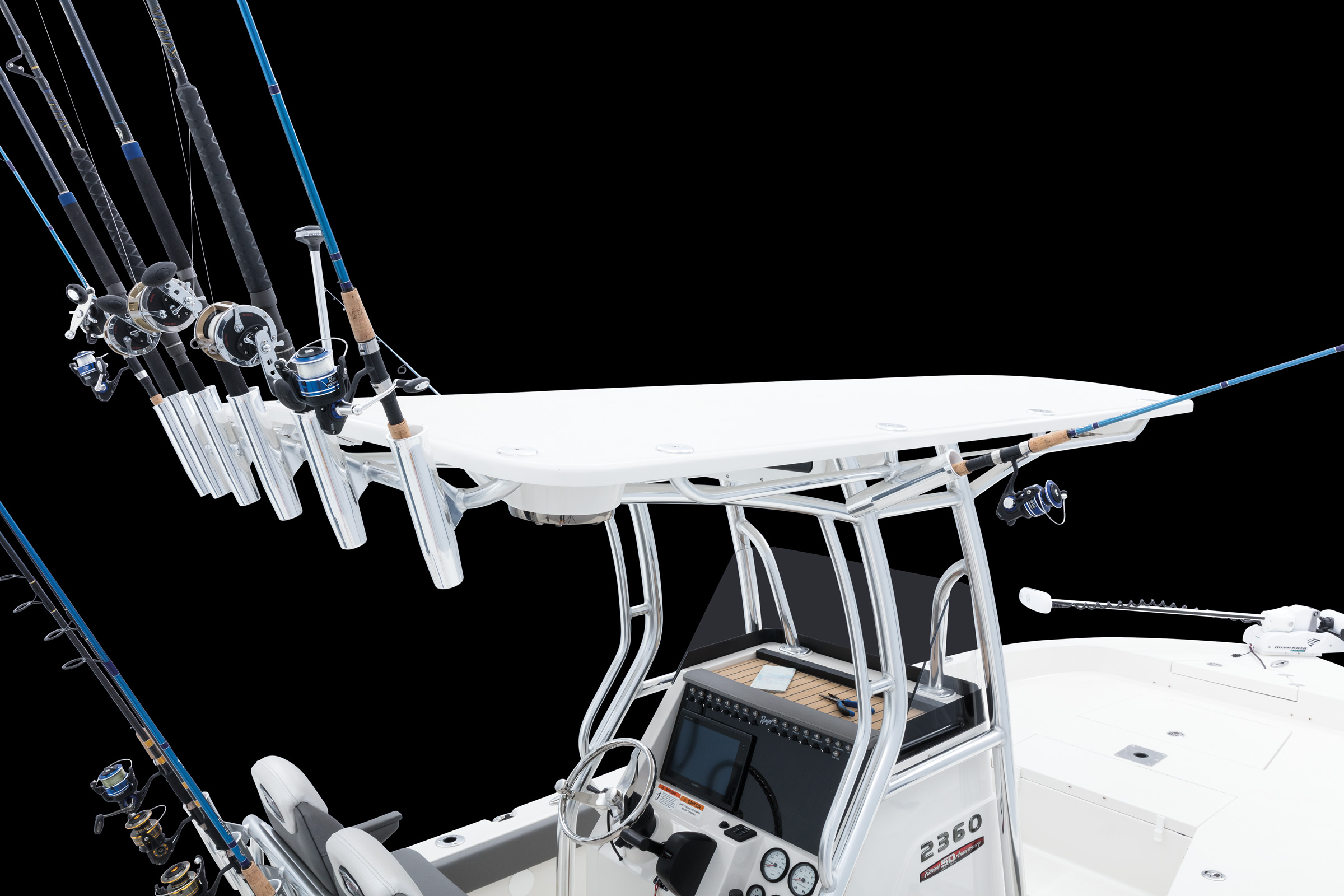

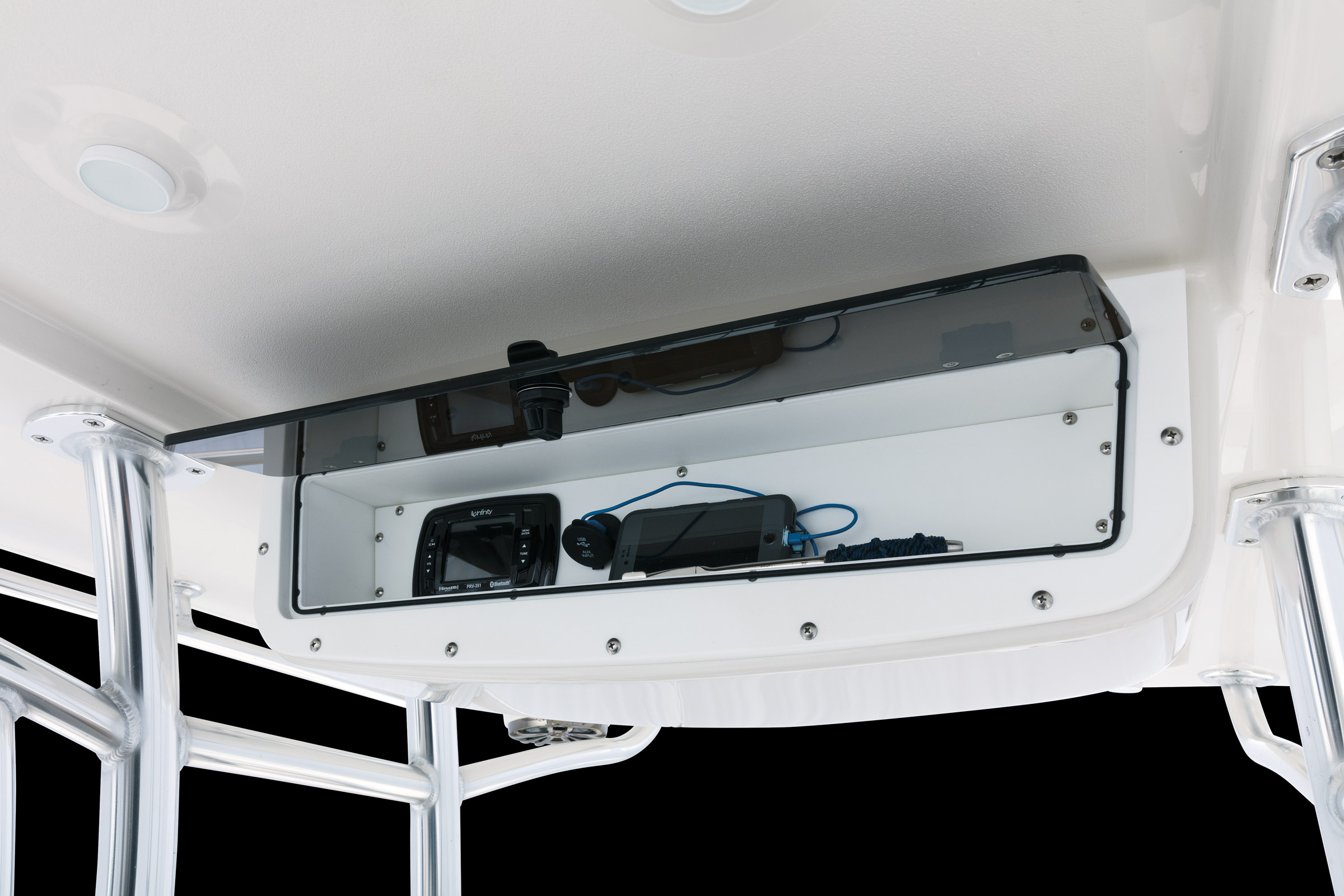

- Optional T-Top for versatility
- Capable nearshore hull with bay-friendly draft
- Huge built-in cooler
- Flip-down rear seats
Specifications
| Length | 7.14 m | 23' 5'' |
| Hull Length | 7.14 m | 23' 5'' |
| Beam | 2.59 m | 102'' |
| Max. Recommended HP | 300 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 48.26 cm | 19'' |
| Draft (Engine, Bait, Fuel, Accessories) | 35.56 cm | 14'' |
| Fuel Capacity | 306.59 L | 81 gal. |
| Baitwell Capacity | 151.4 L | 40 gal. |
| Total Person, Motor, Gear | 1224.7 kg | 2700 lbs. |
| Approximate Boat Weight (Add 300lbs for T-Top) | 1542.21 kg | 3400 lbs. |
| Rod Box Length - Port | 2.74 m | 9' |
| Max. Person Capacity | 10 persons | |
| Trailer GVWR | 3084.43 kg | 6800 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.99 m | 29' 6'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 8.38 m | 27' 6'' |
| Width On Trailer | 2.59 m | 102'' |
| Height On Trailer (Add Approx 3' for T-Top) | 2.54 m | 8' 4'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250 XL FourStroke DTS Warm Fusion |
$93595 USD
|
Select Dealer | |||
| 250 XL Pro XS FourStroke DTS |
$92595 USD
|
Select Dealer | |||
| 300 XL FourStroke DTS Warm Fusion |
$95695 USD
|
Select Dealer | |||
| 300 XL Pro XS FourStroke DTS |
$95795 USD
|
Select Dealer | |||
| Mercury® Verado® | |||||
| 250 XL |
$93925 USD
|
Select Dealer | |||
| 250 XL Warm Fusion |
$95255 USD
|
Select Dealer | |||
| 300 XL |
$95955 USD
|
Select Dealer | |||
| 300 XL Warm Fusion |
$97255 USD
|
Select Dealer | |||
Standard Features
Custom Details

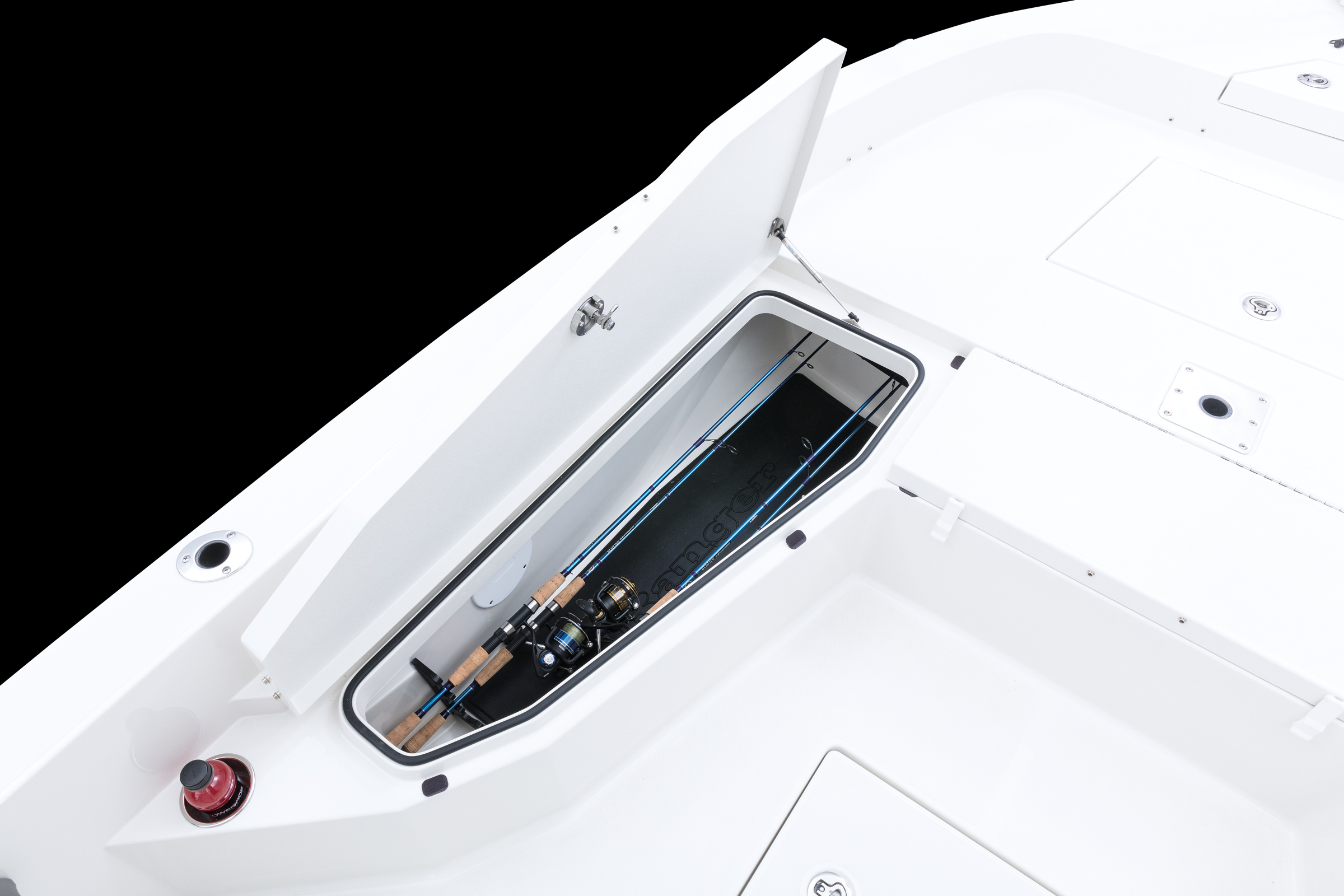

- Integrated rod storage
- Deck mounted rod holders
- Rod storage & port rod tubes

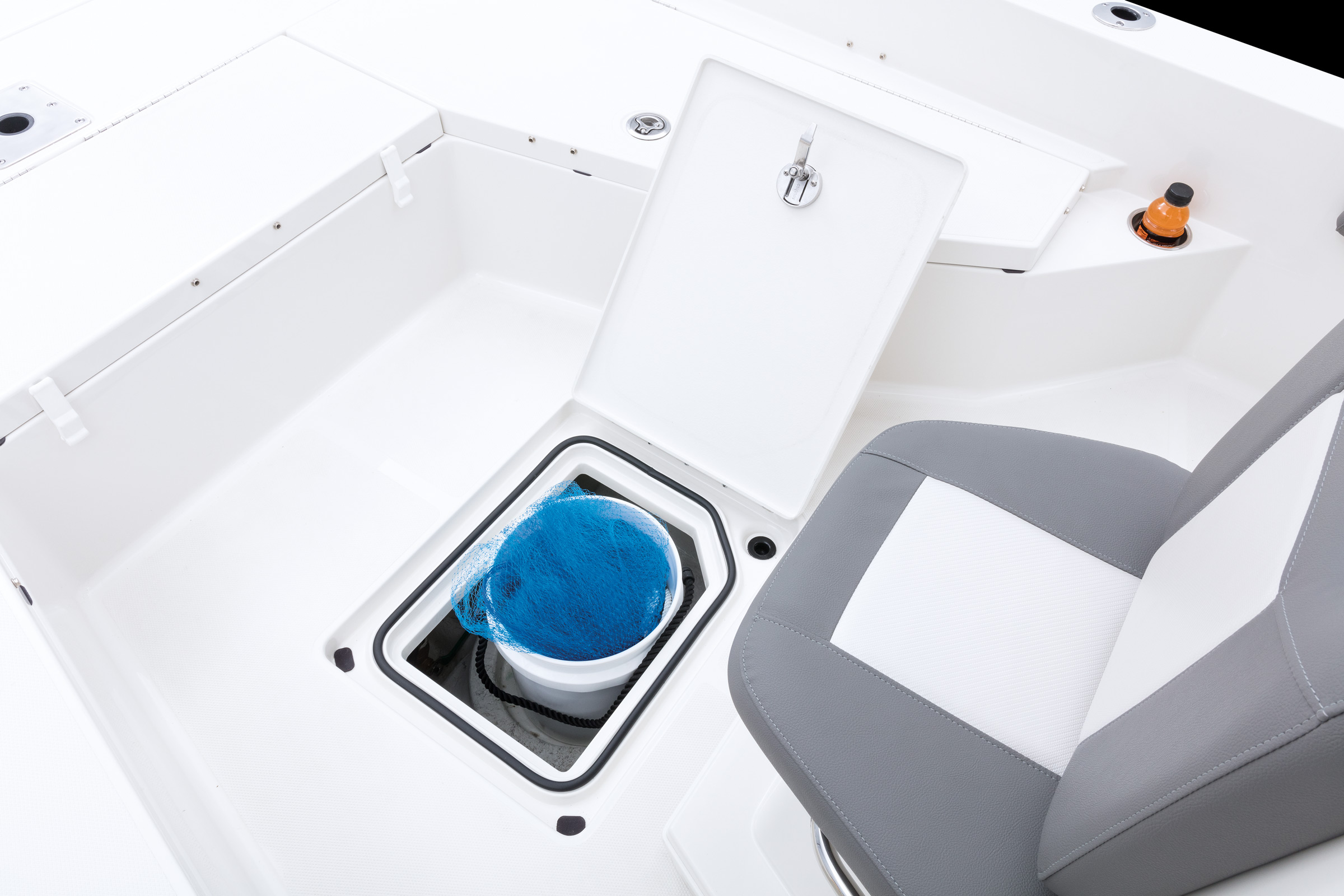

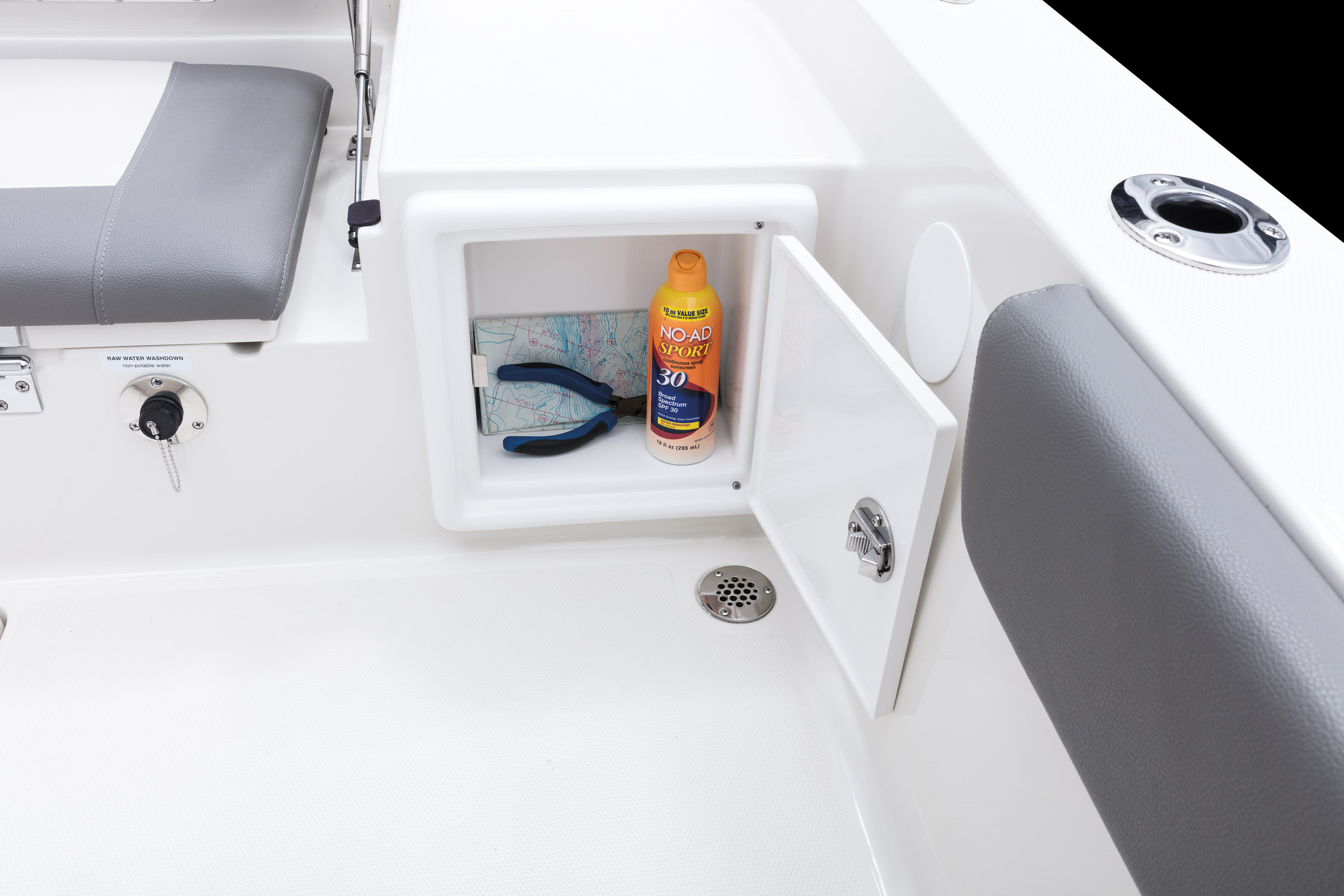

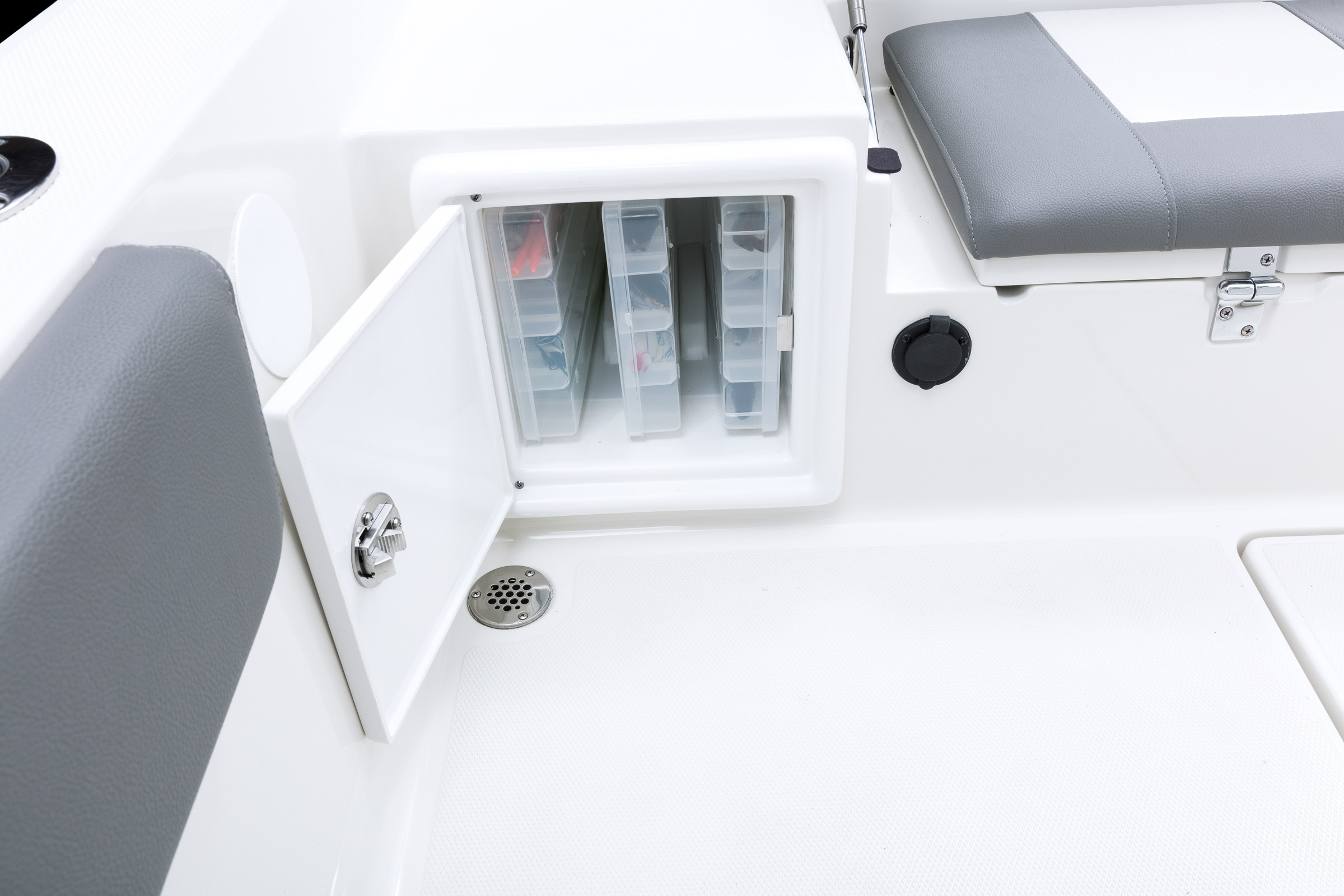

- Storage under front & rear deck
- Gelcoated storage boxes

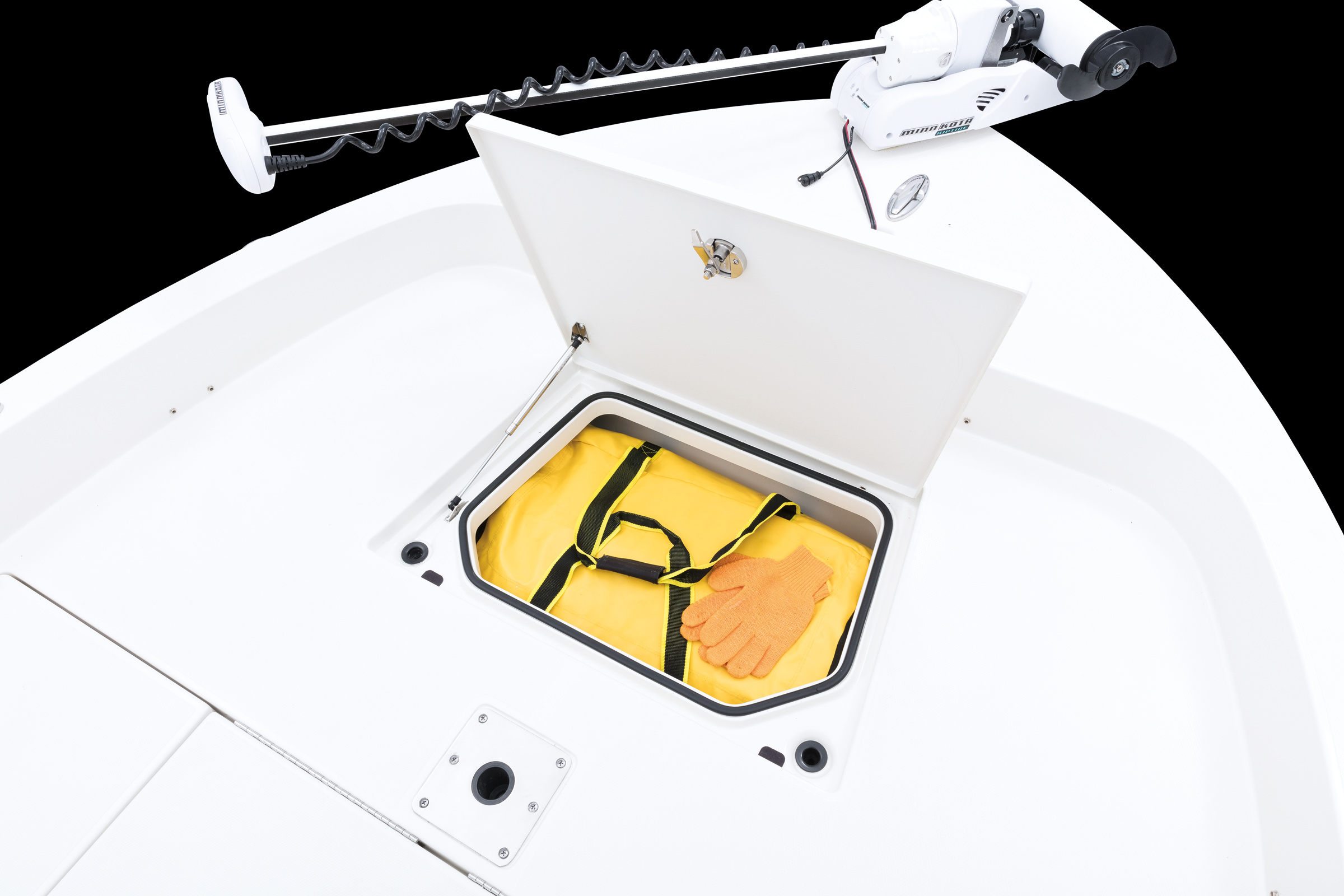

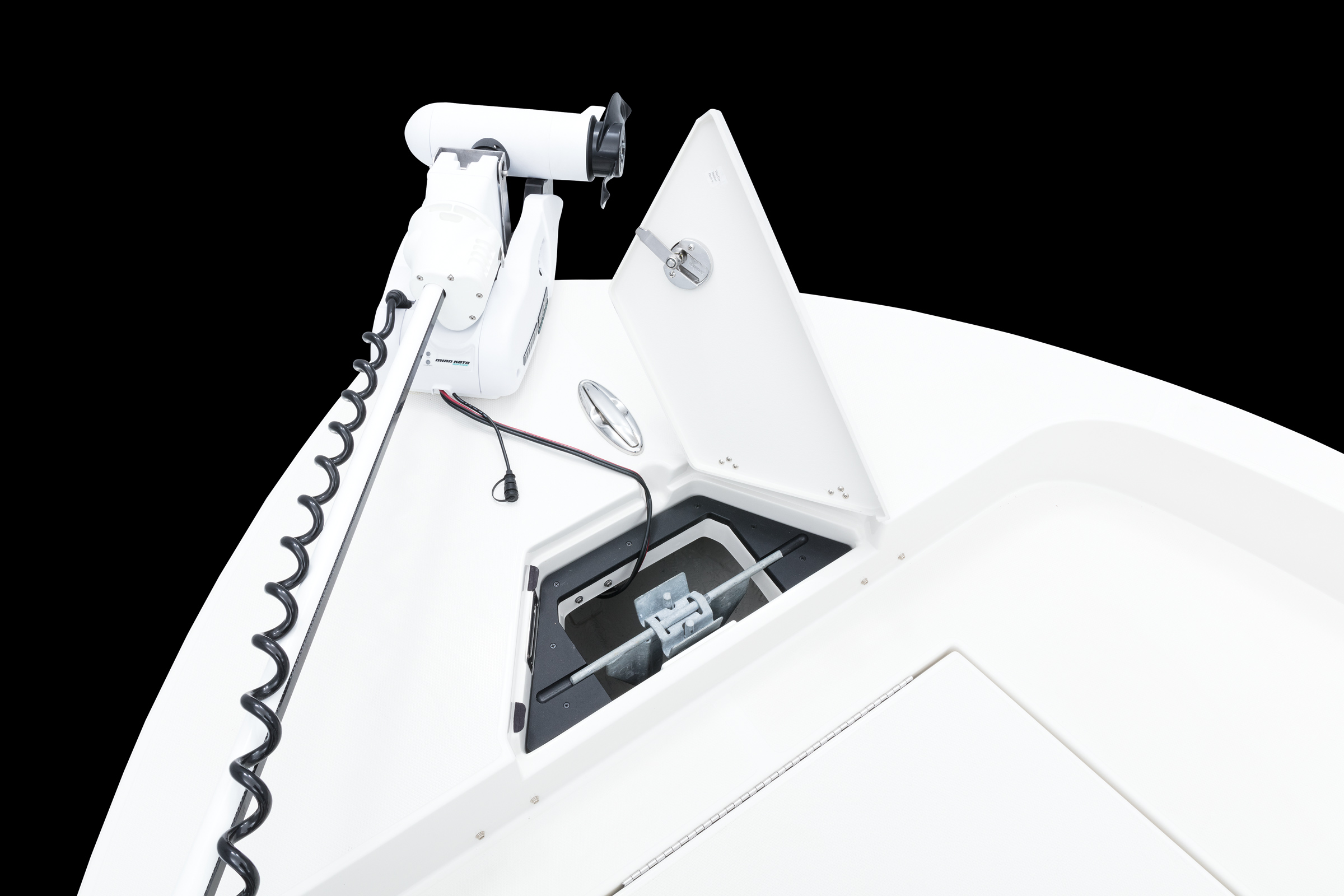

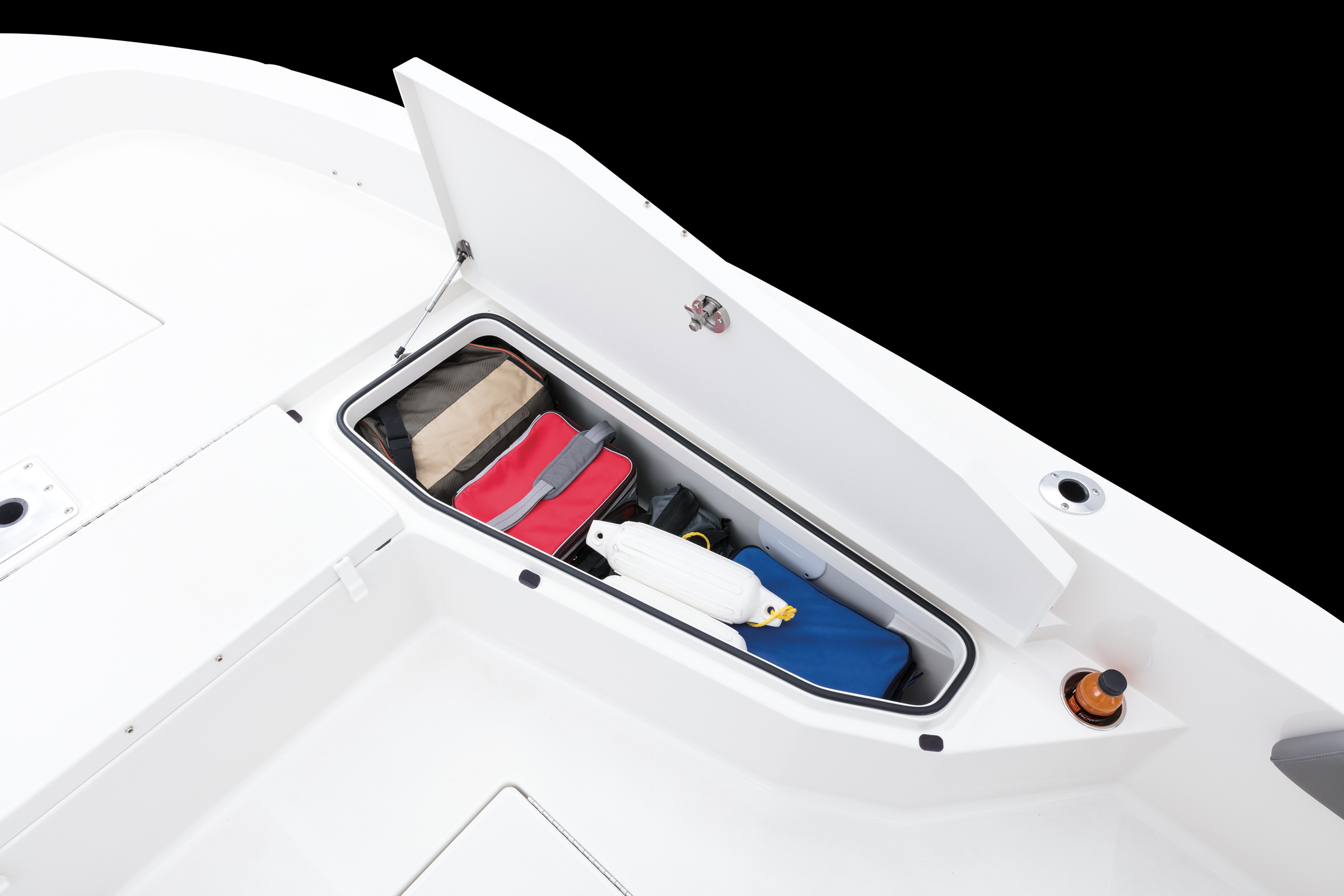

- Anchor locker w/ protective stainless steel plate for tie-off

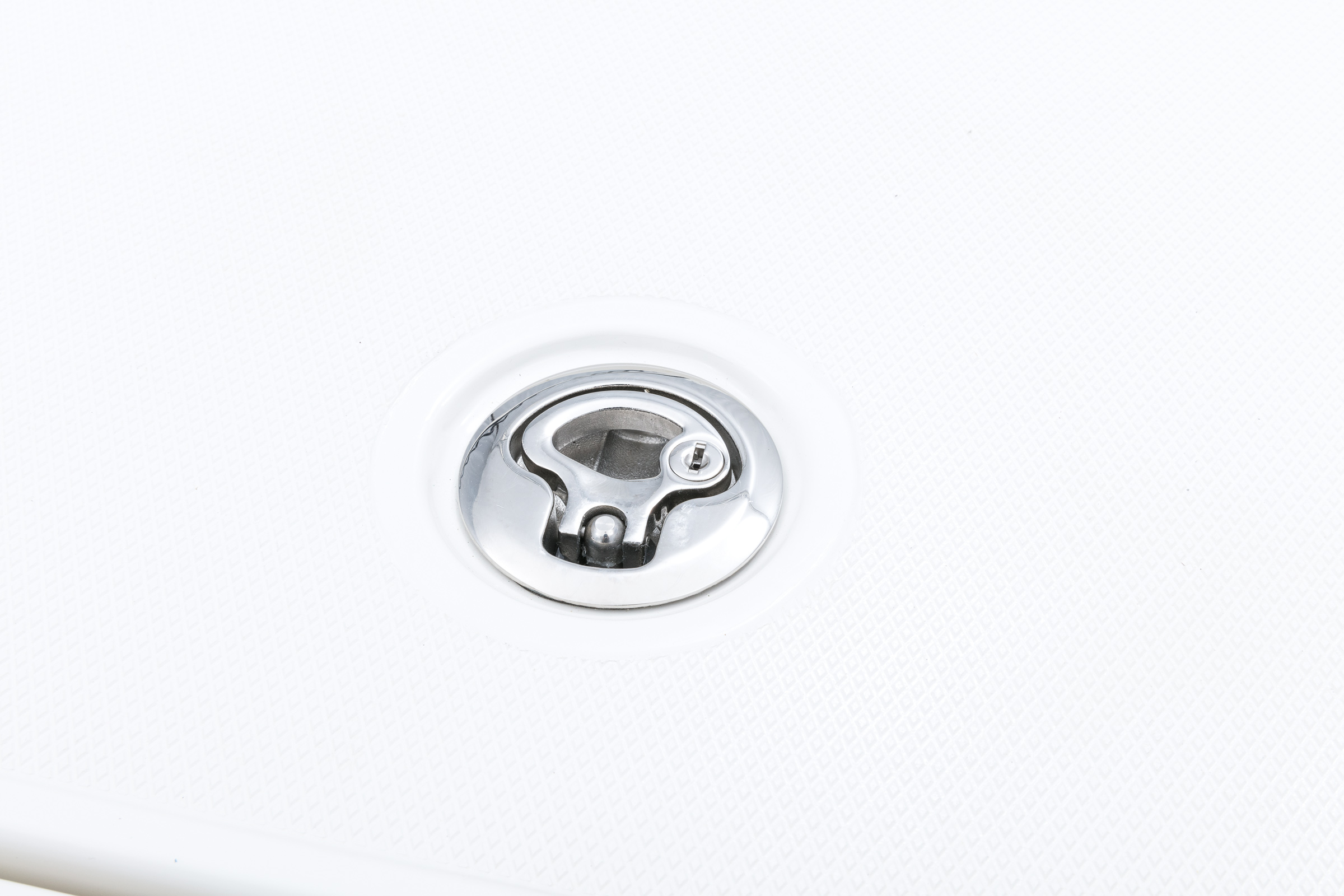

- Stainless steel compression lid locks
- Stainless steel fittings
- Stainless steel gas spring lid assist
- Custom 240 quart fish box w/ large overboard drain

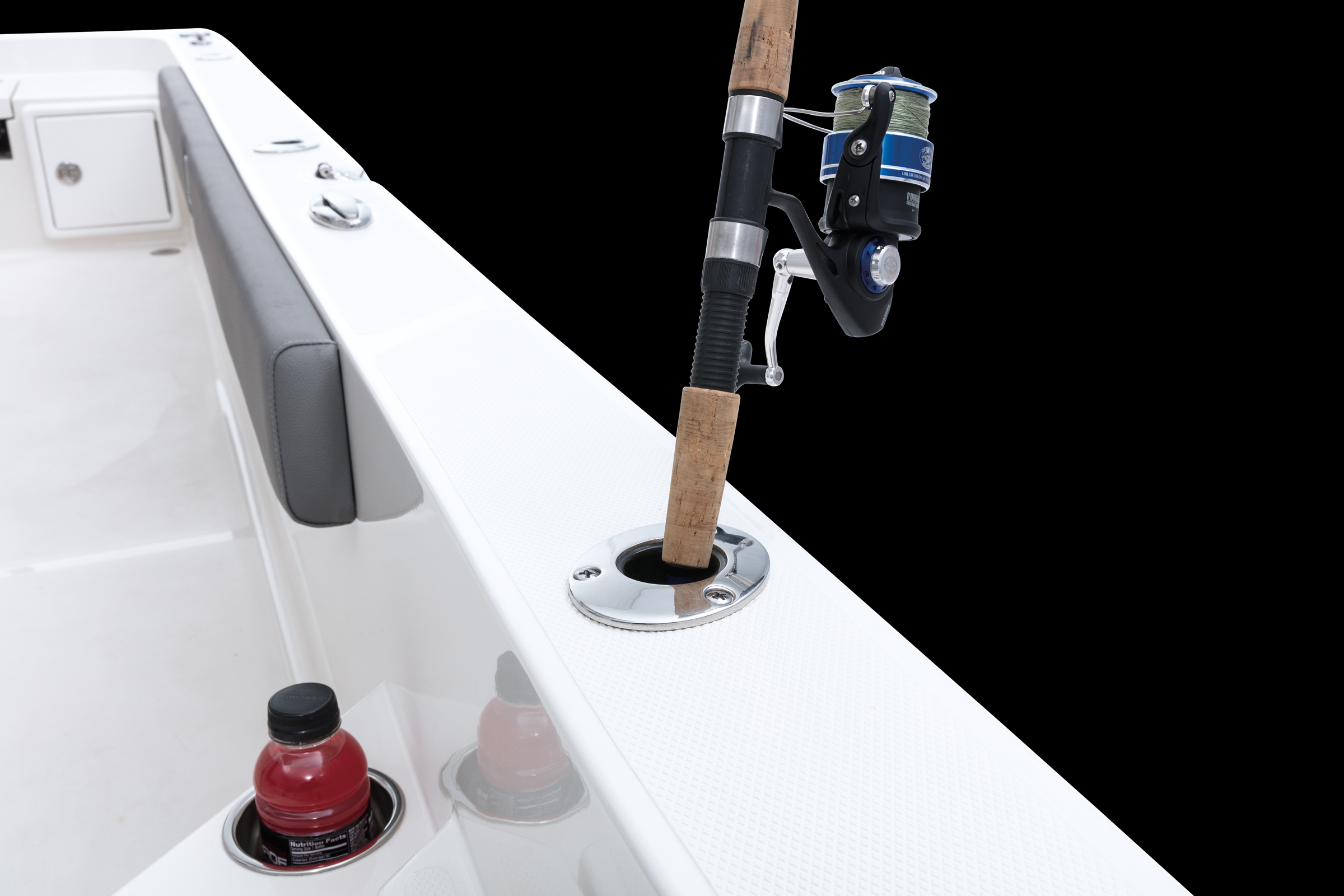

- Gunnel & transom rod holders (8)
- Leaning post rod holders (4)
- Polished stainless steel pedestal base

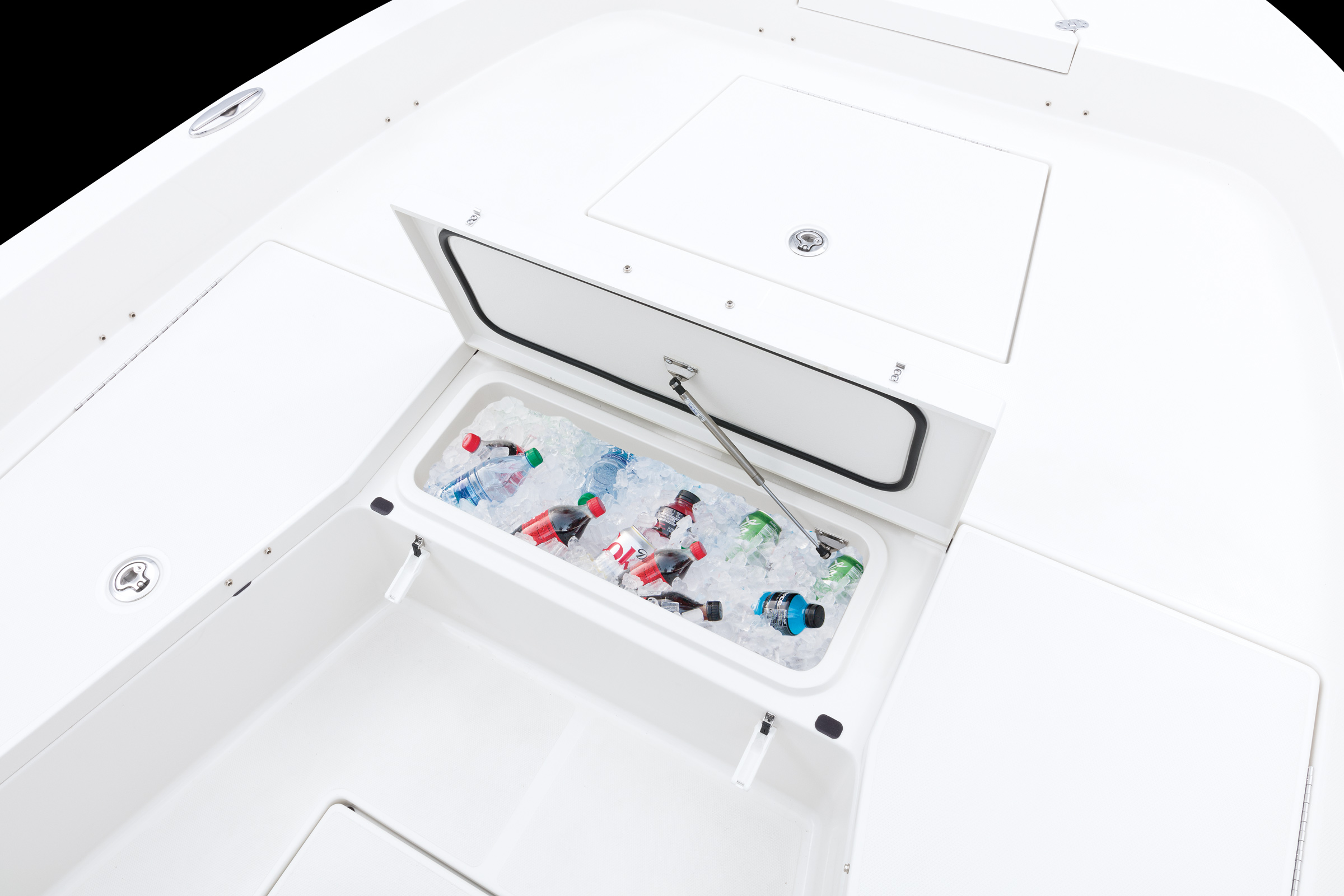

- Built-in 100 quart cooler

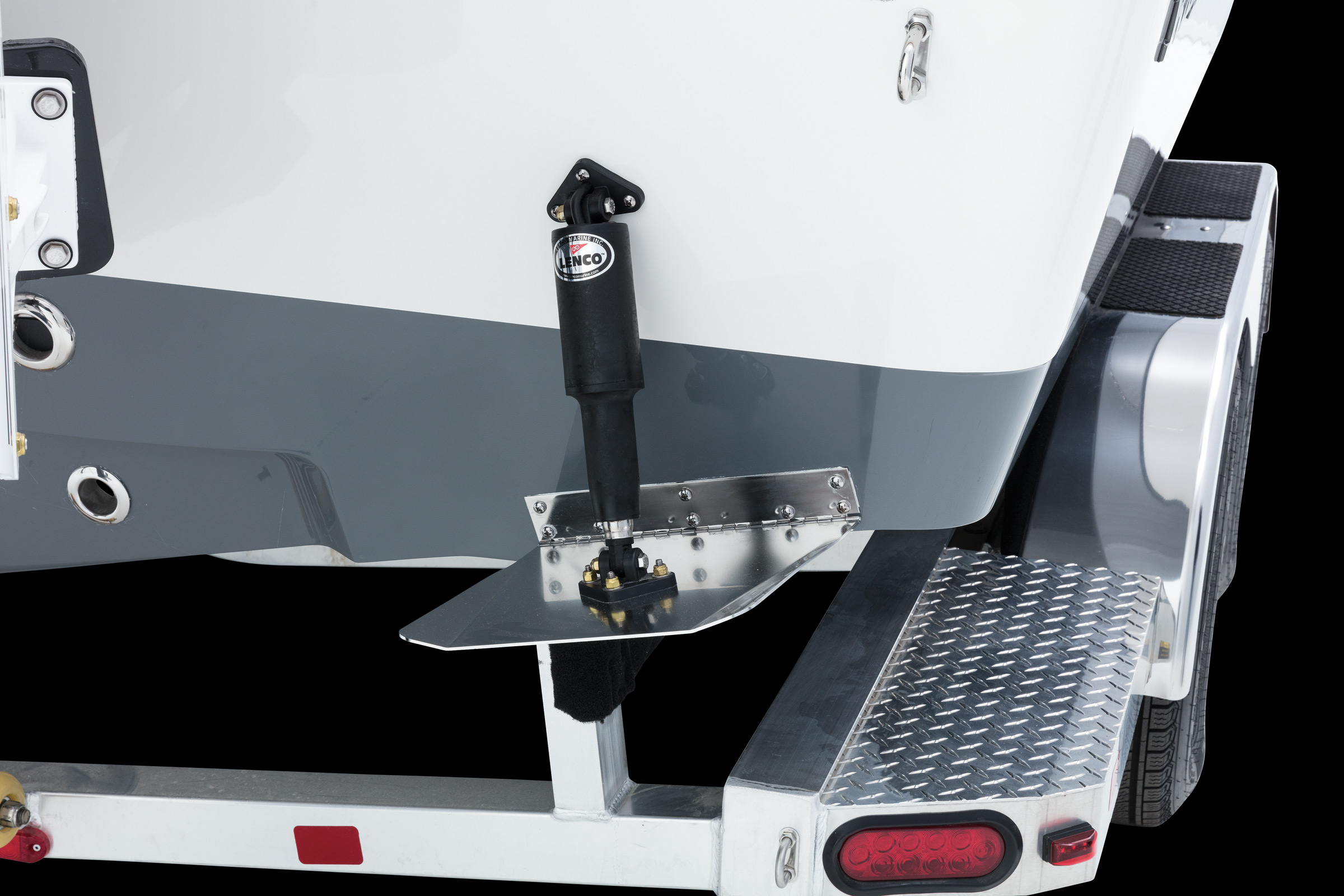

- Trim tabs 12"x12"

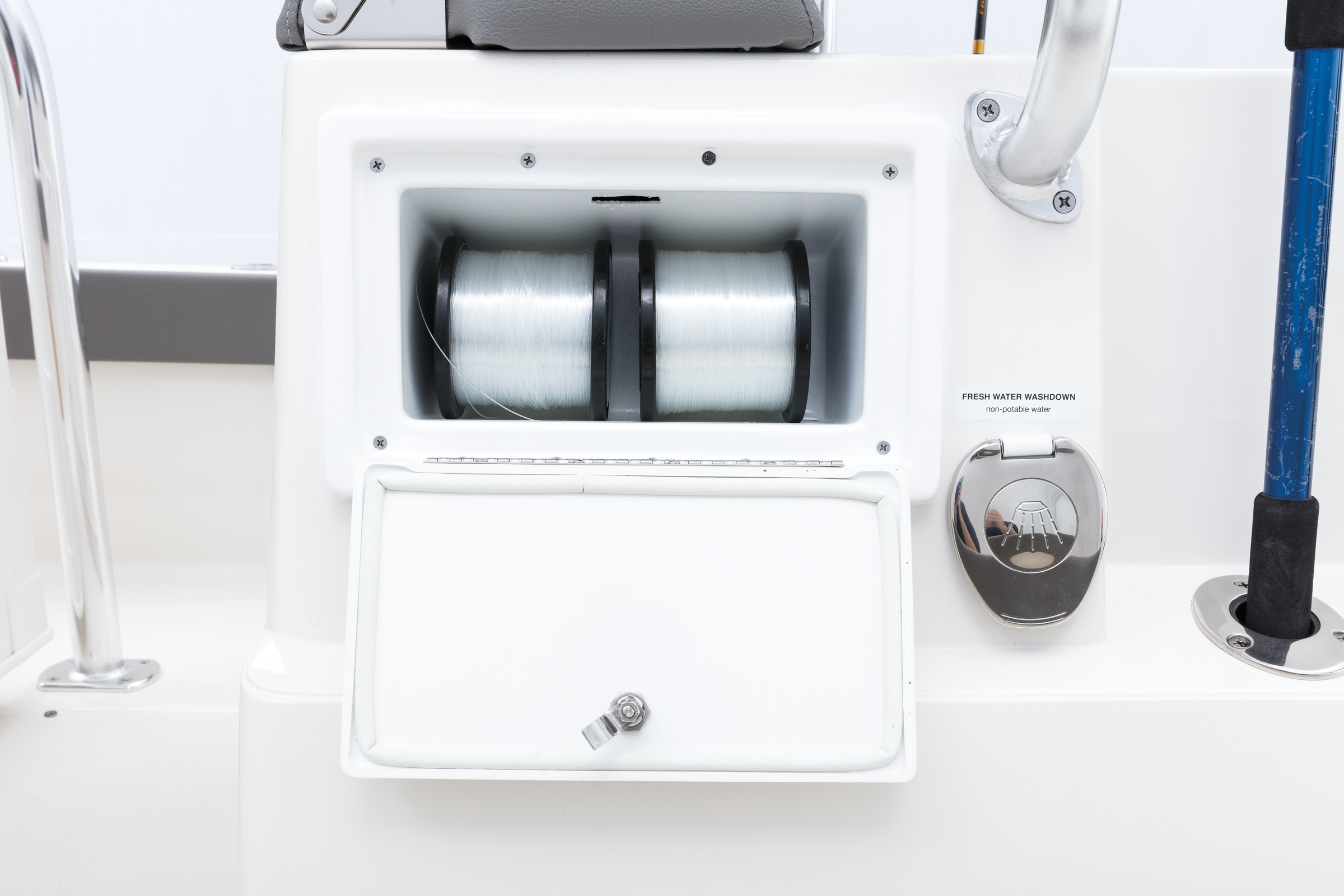

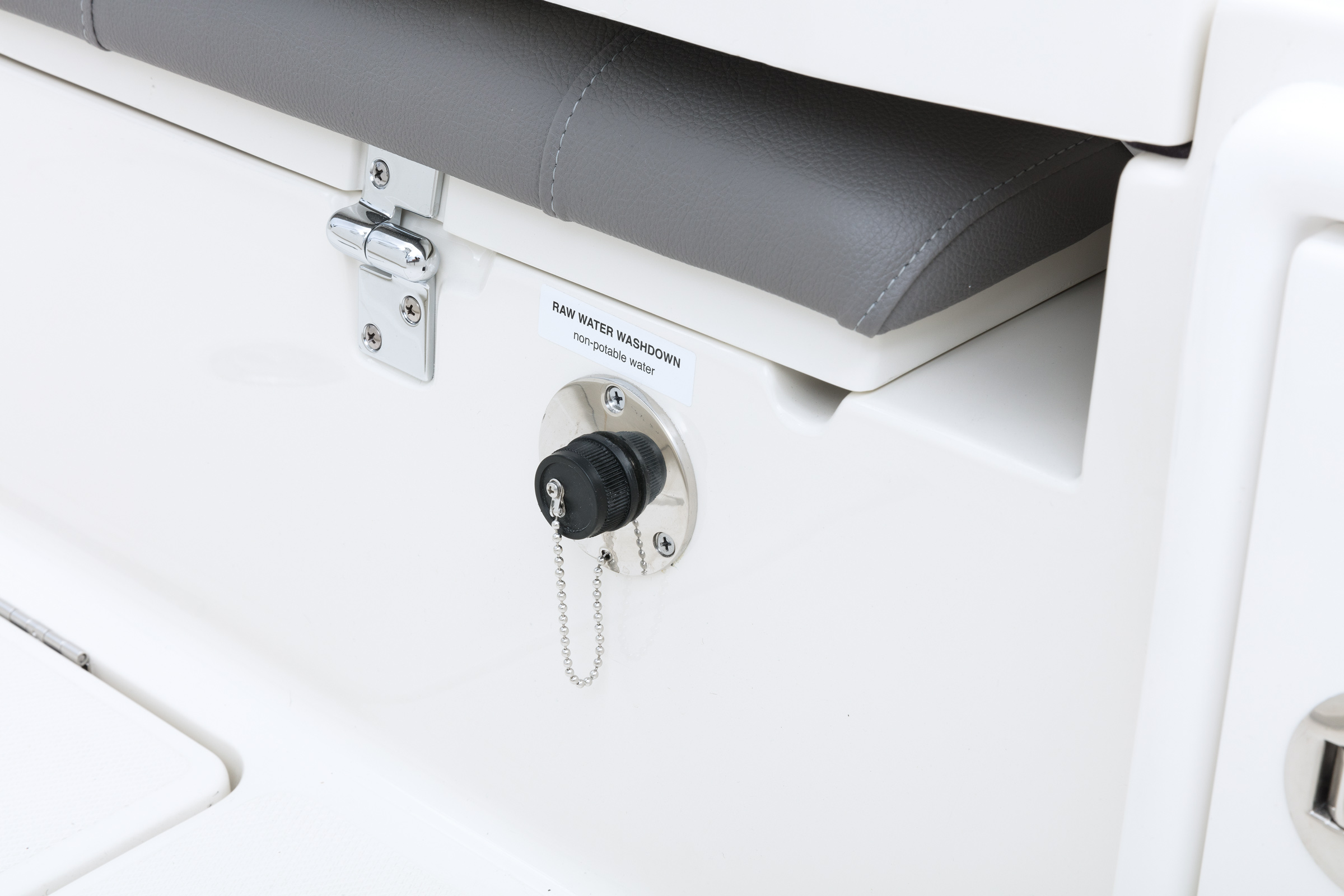

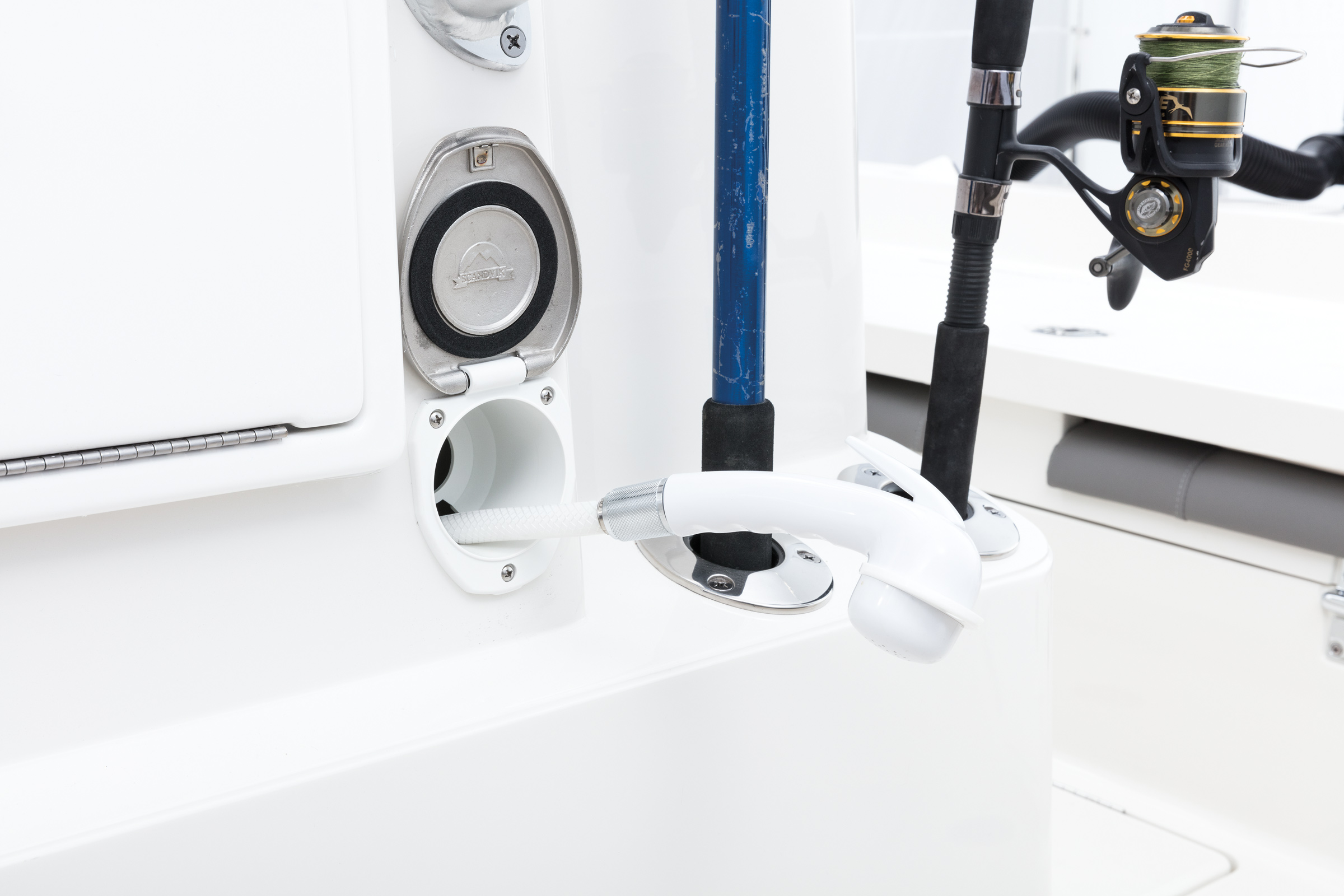

- Fresh water and raw water washdowns
Electronics
- Digital speedometer, Tach, Fuel, Trim & Water Pressure by engine manufacturer
- Heavy duty 6 ga. TM wiring w/60 amp breakers
- Corrosion resistant wiring w/ resettable breakers
- 12V DC power receptacle

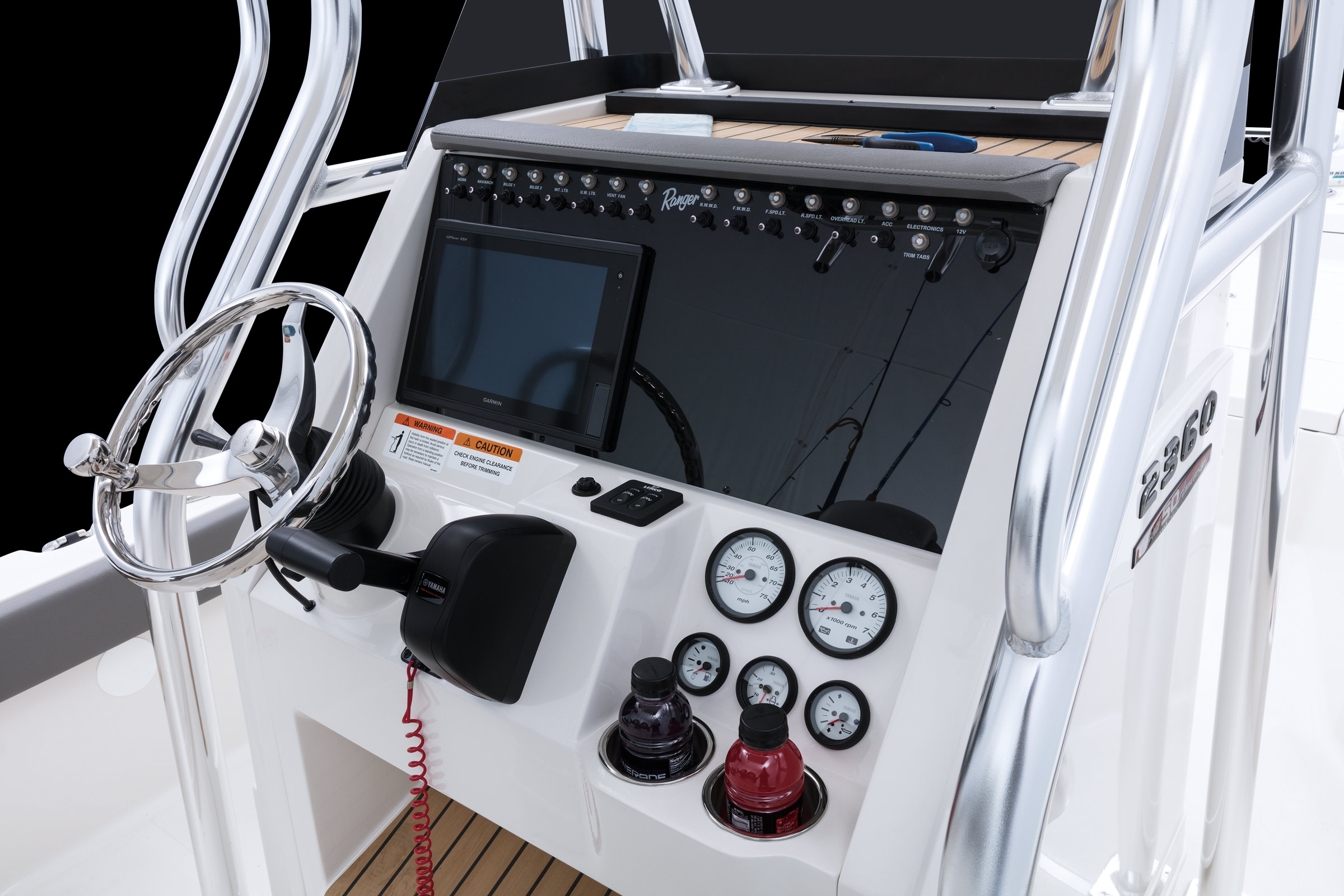

- Console panel w/ stainless push-button switching w/ 30 amp breaker
- LED cockpit, compartment & livewell light package
- LED under water lights
Power/Performance

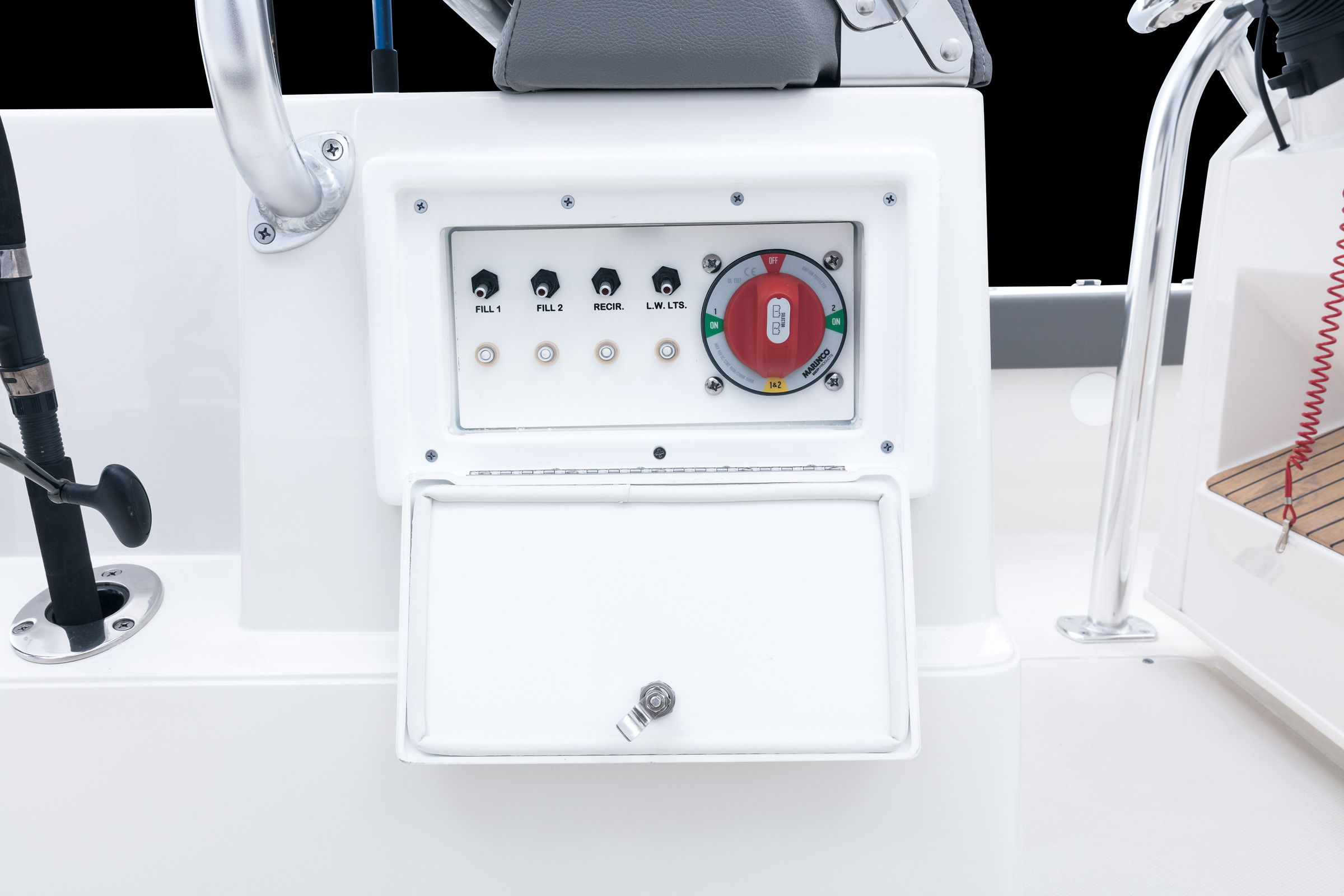

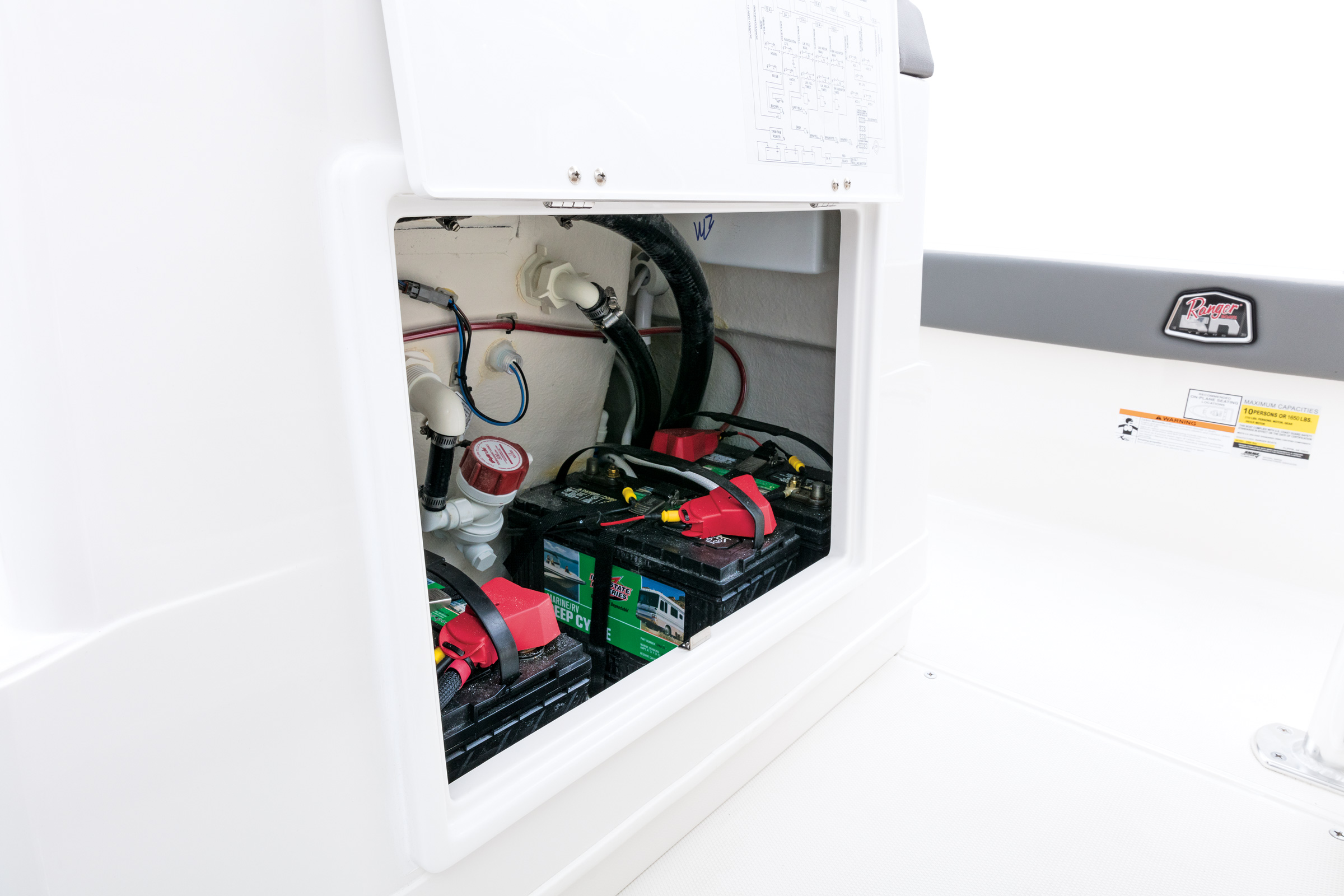

- Master battery switch
- Binnacle throttle control
- High performance stainless steel prop
- Pultruded Fiberglass Transom
- Fiberglass stringer system
- Stainless steel steering wheel w/ knob assist
- Hydraulic tilt steering (may vary with engine model and setback plate)

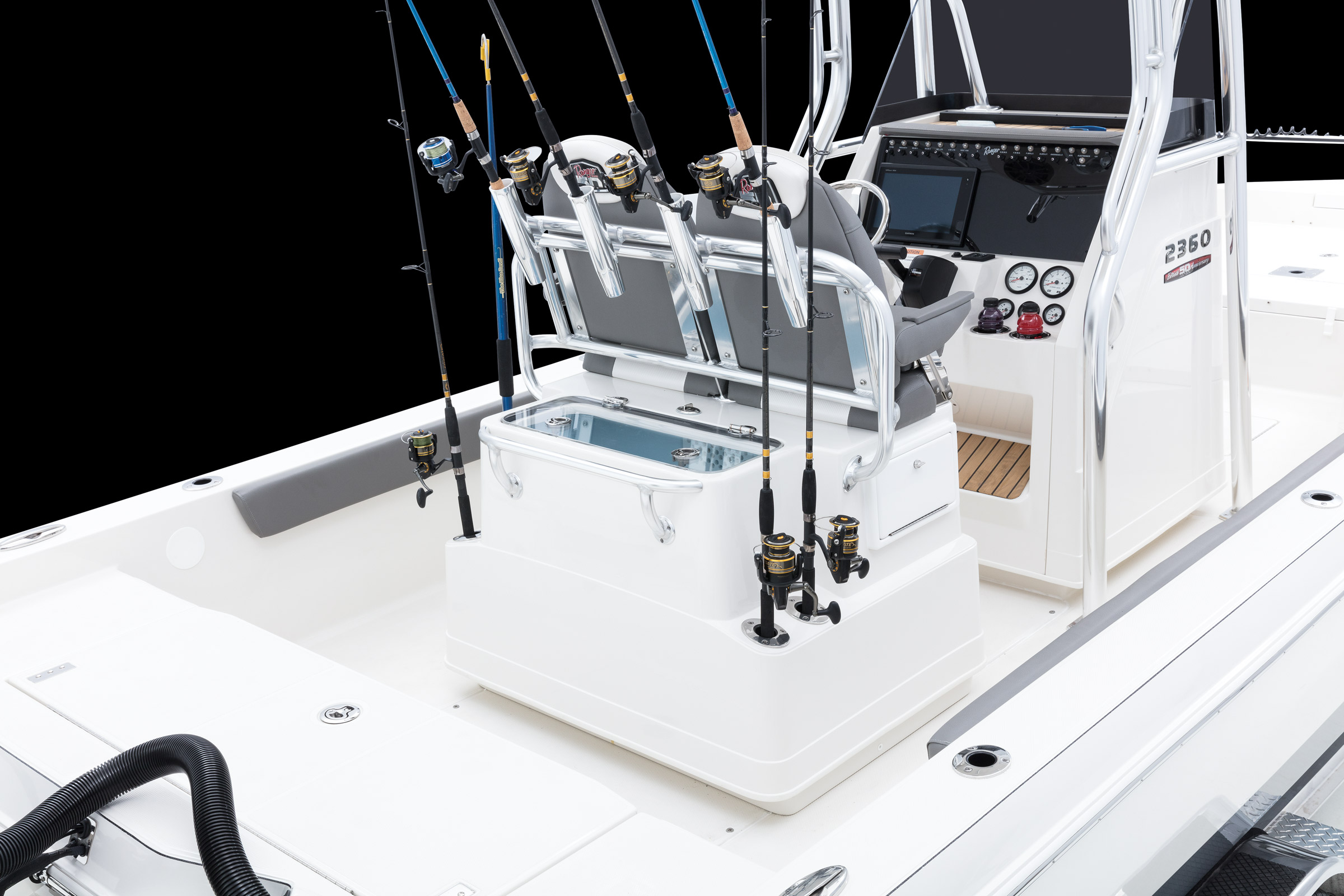

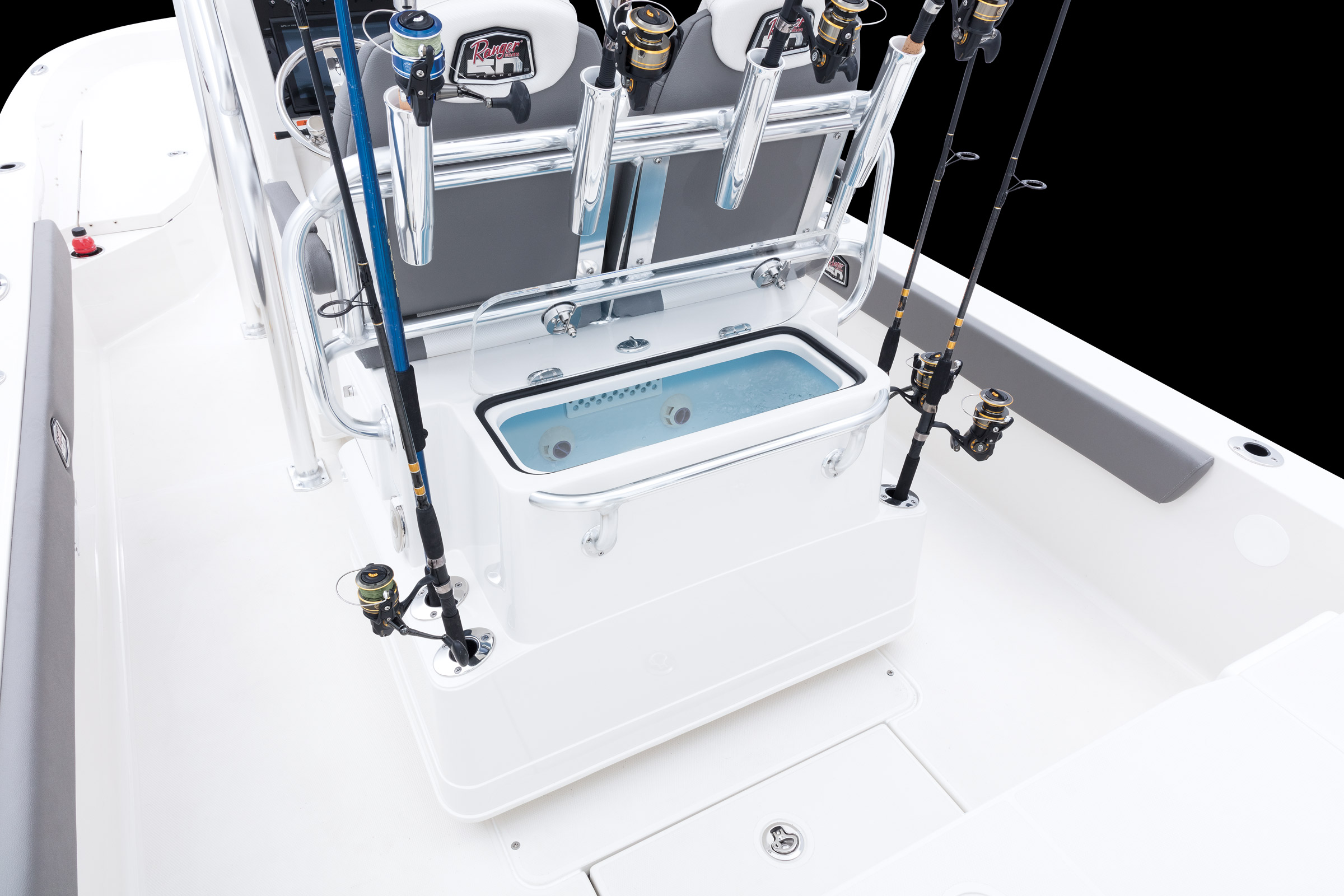

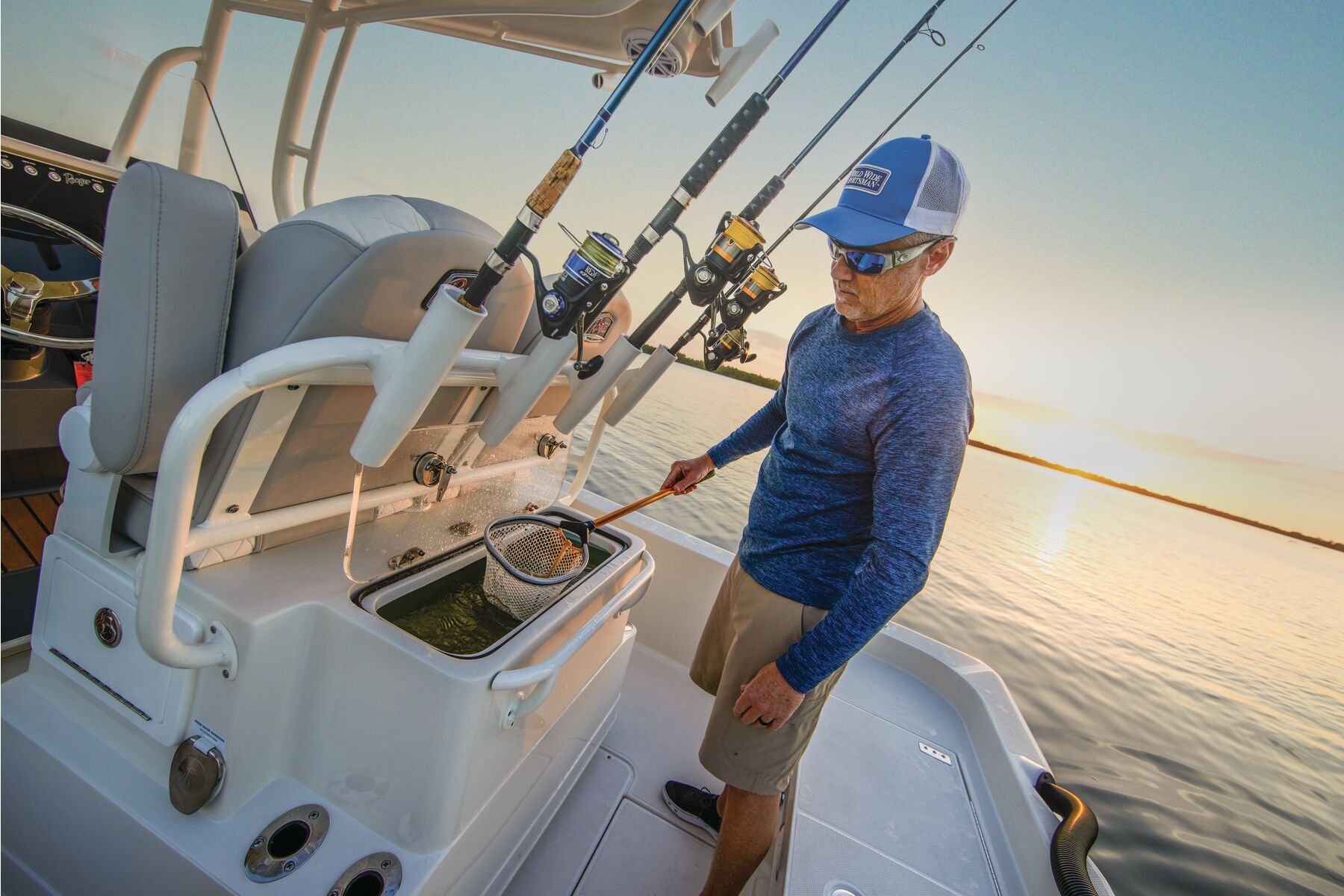

- Recirculating aerated livewell/baitwell leaning post combination w/ high speed pickup, dual pumps & in-line filter, rear
- Hydraulic setback plate
Safety/Comfort
- Heavy duty rubrail w/ stainless steel insert
- Fire extinguisher & horn
- Step in console
- Skid-resistant deck & interior
- Plexi windshield
- Upright, level flotation

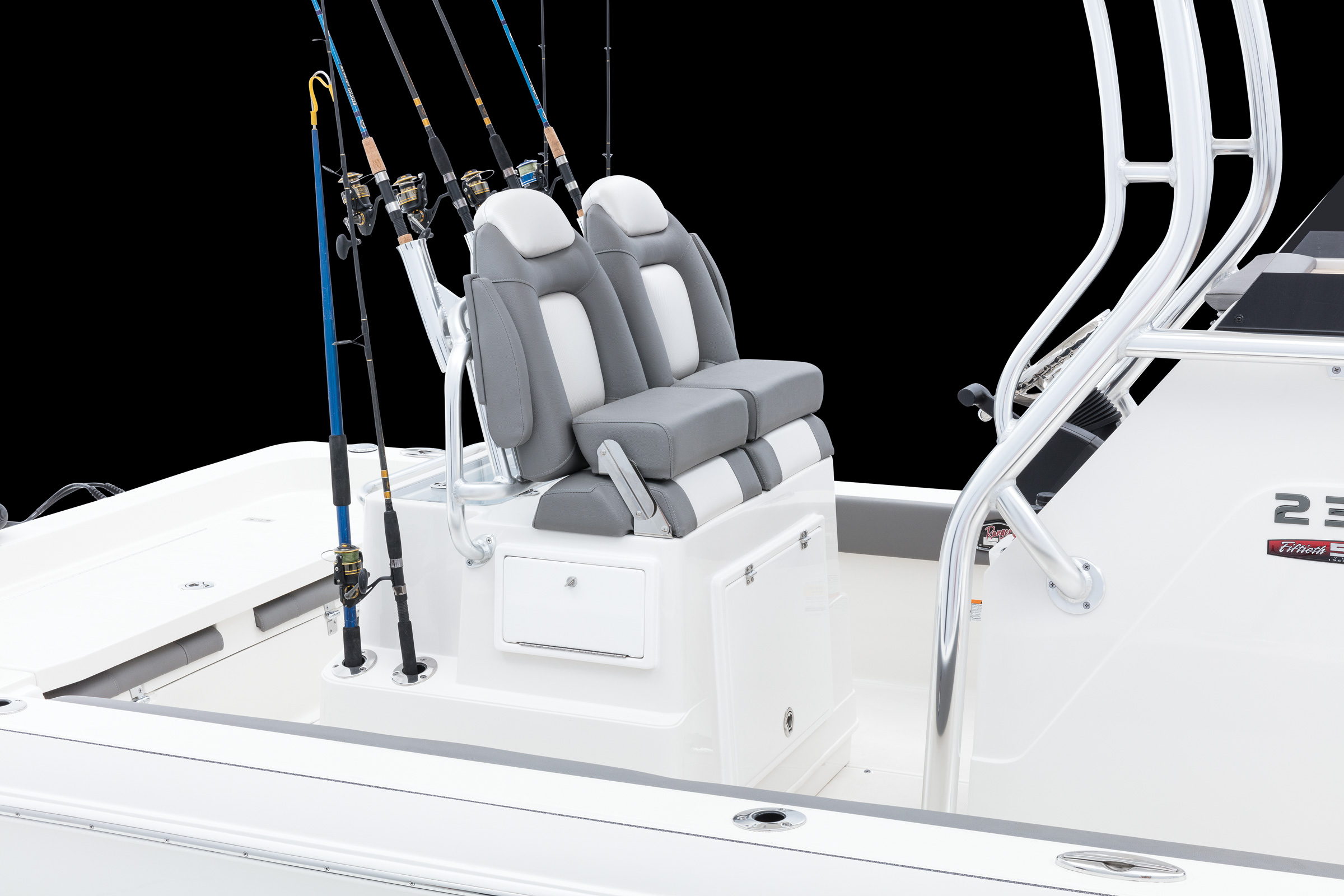

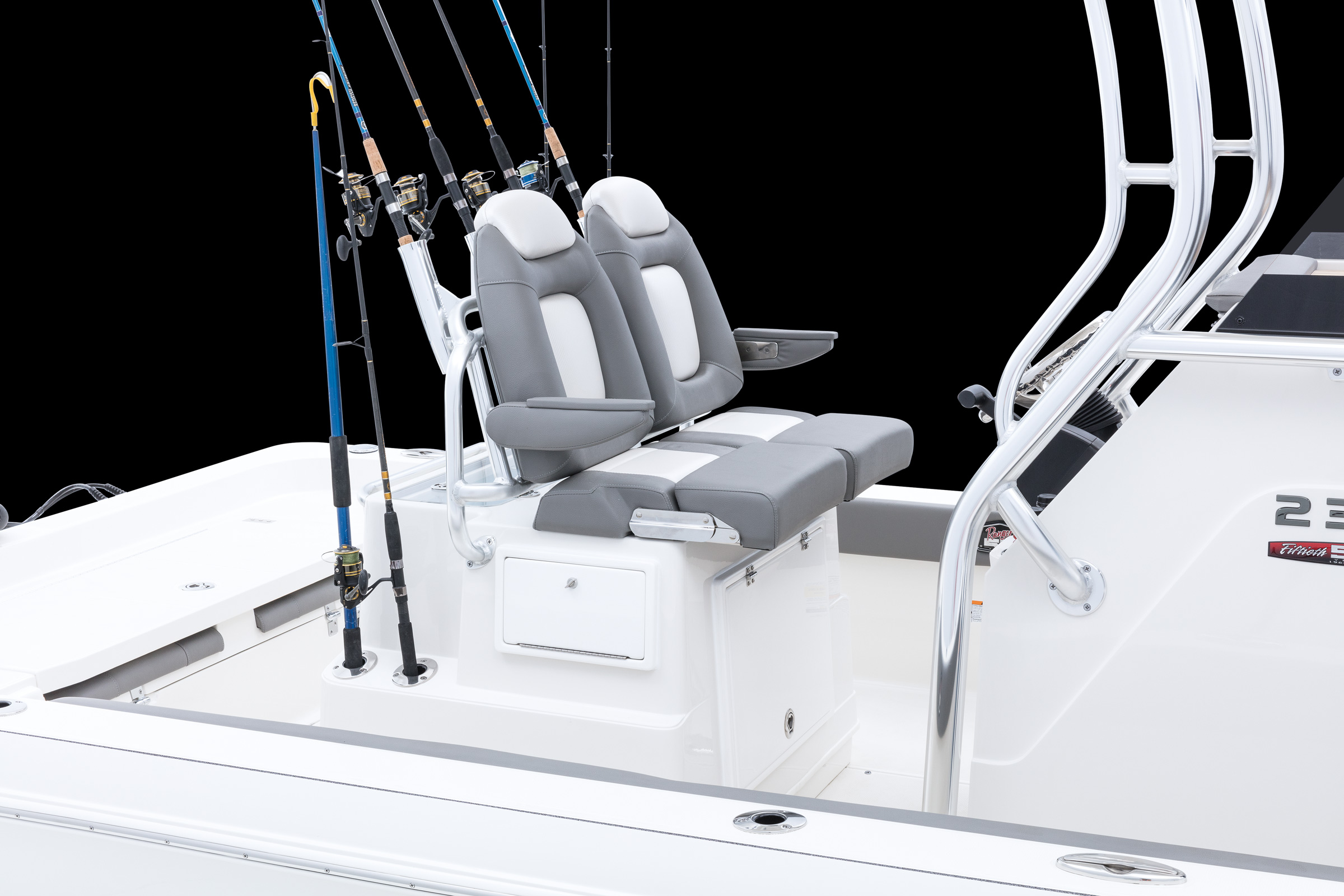

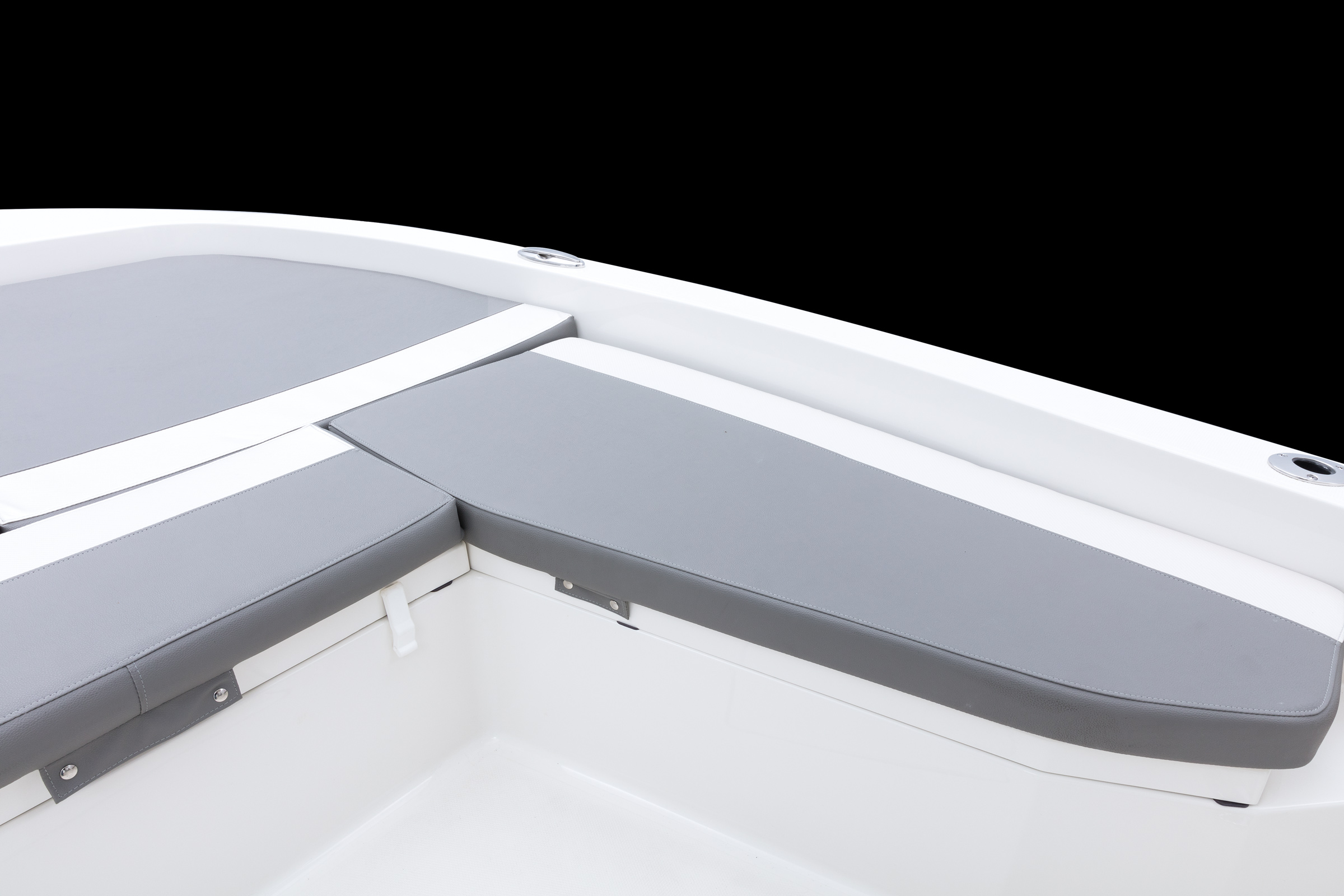

- Custom-fitted premium marine upholstery: leaning post w/ 40 gal. baitwell & added storage
- Folding rear bench seat w/ storage
- Self-bailing cockpit w/ stainless steel scuppers

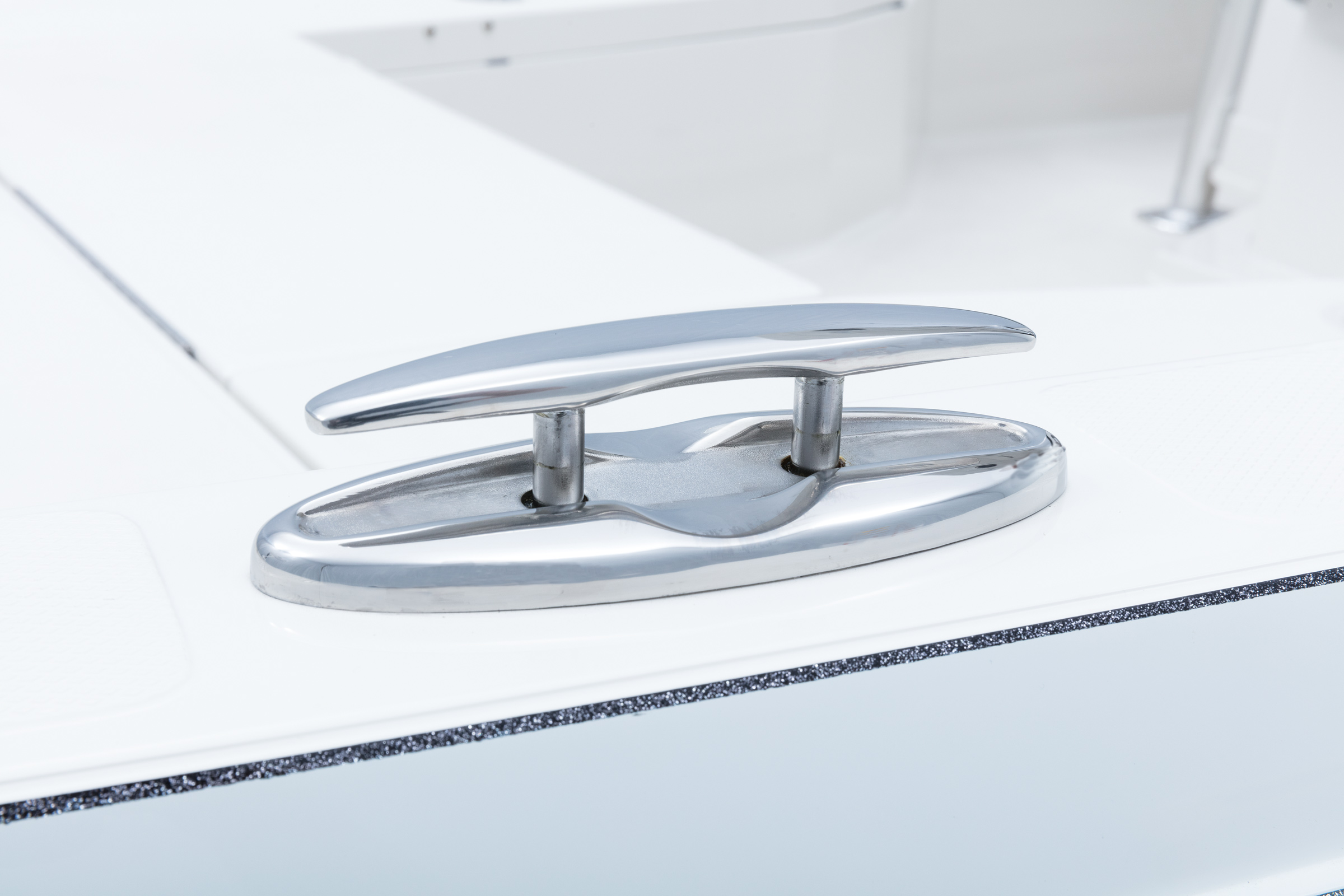

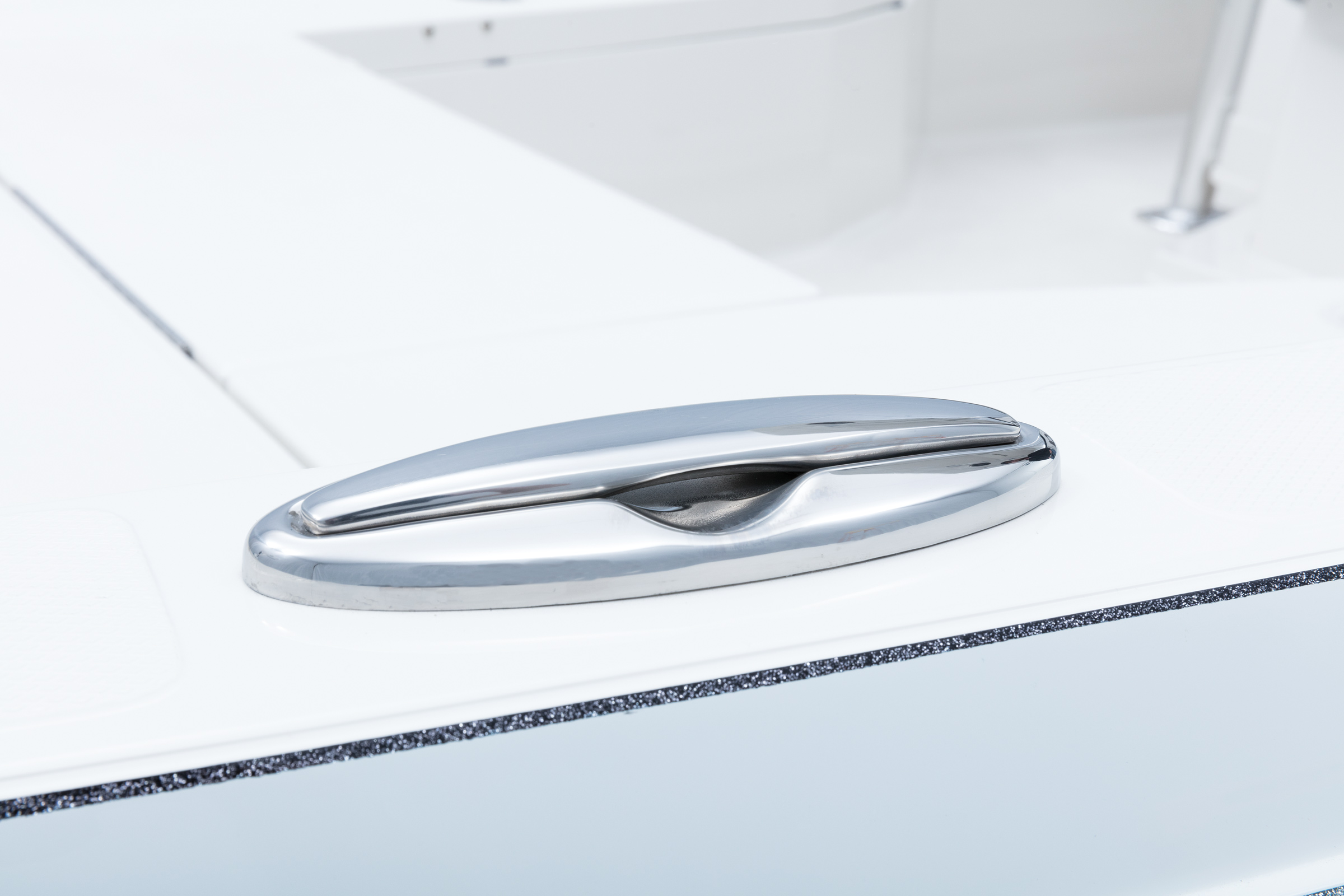

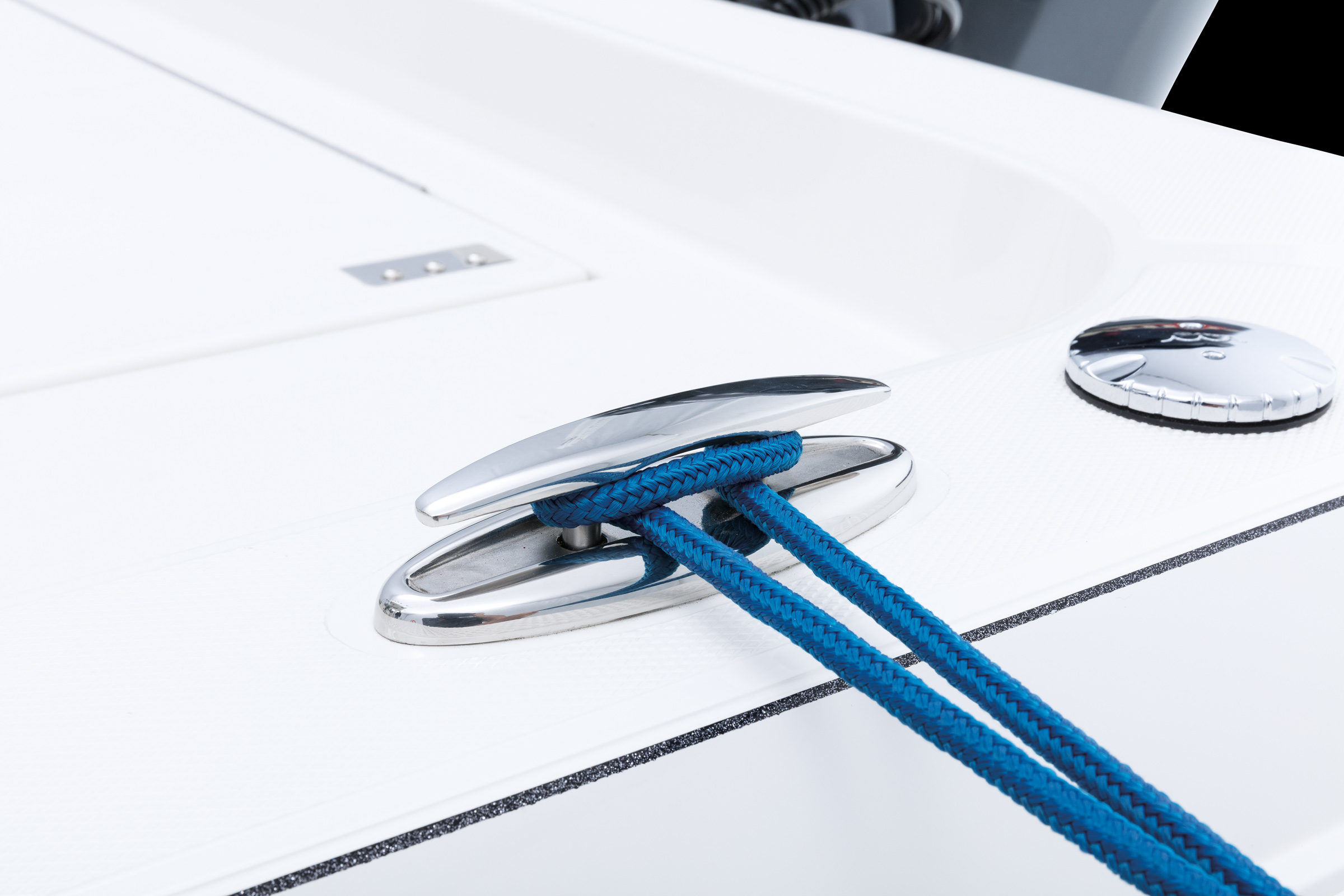

- Stainless steel pull up tie cleats/ fore, aft, & midship
- Swim platform w/ boarding ladder
- Mirror on console cabin door

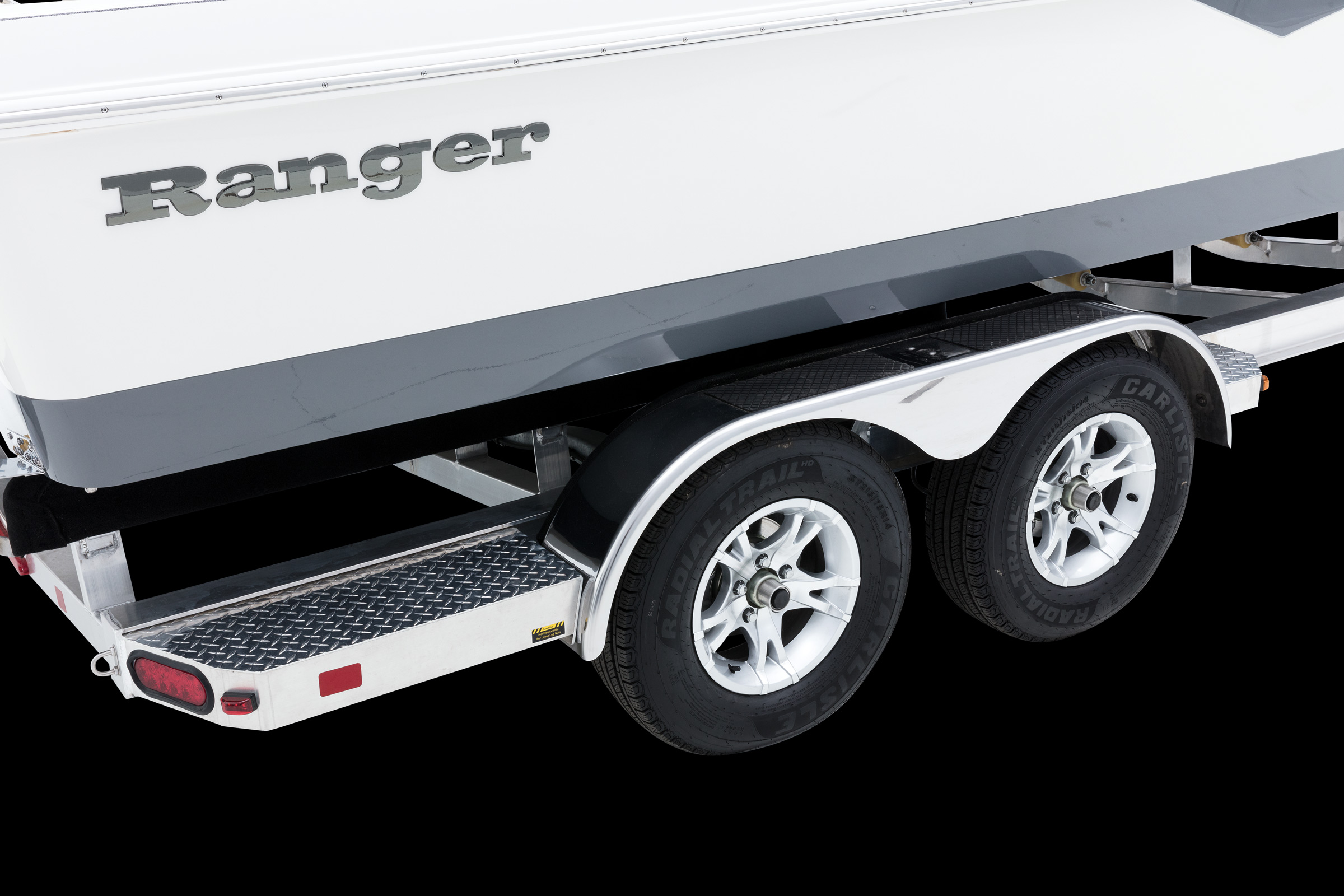

Trailer Features
- Swing-away tongue
- Aluminum Wheels w/matching spare tire & wheel
- Center swing jack
- Fenders (Stainless steel)
- Hydraulic surge disc brakes
- LED lighting
- Ranger Trail® Vault® Hub lubrication system
- Torsion axles
- NMMA®/NATM certified
