Limited 2024 Availability
223C
Photos may show optional equipment.
2025
223C
w/ 150 L FourStroke Mercury®

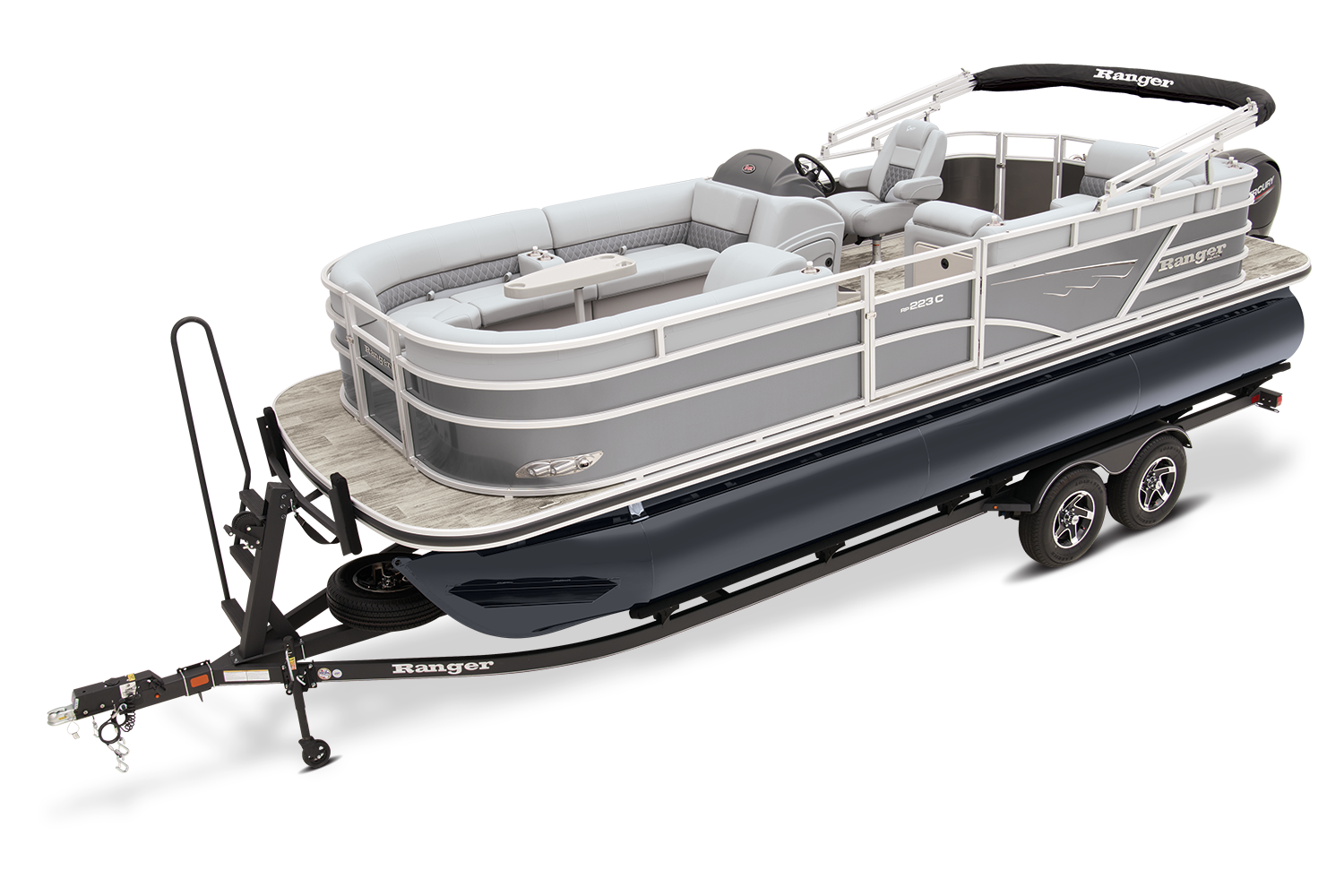

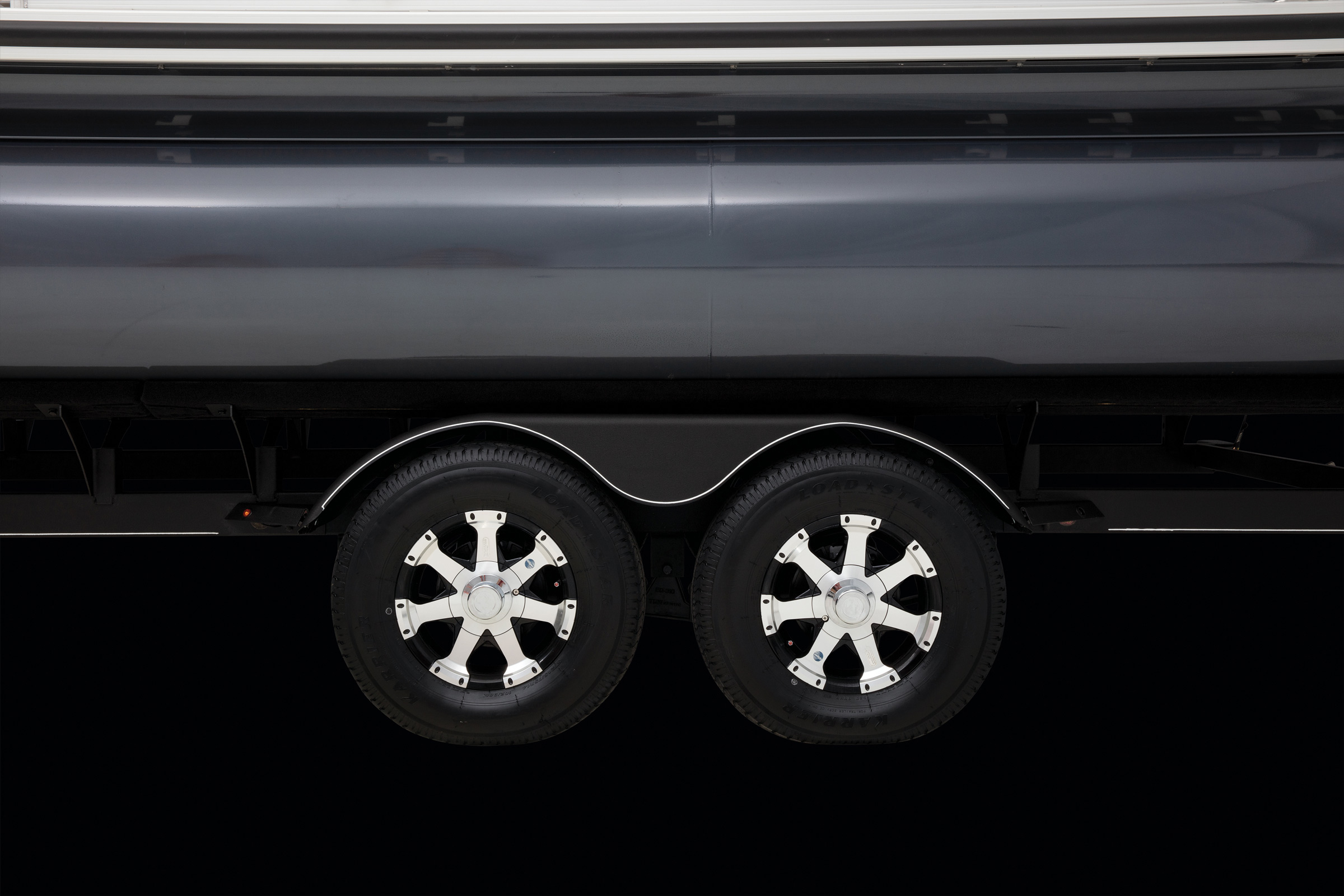

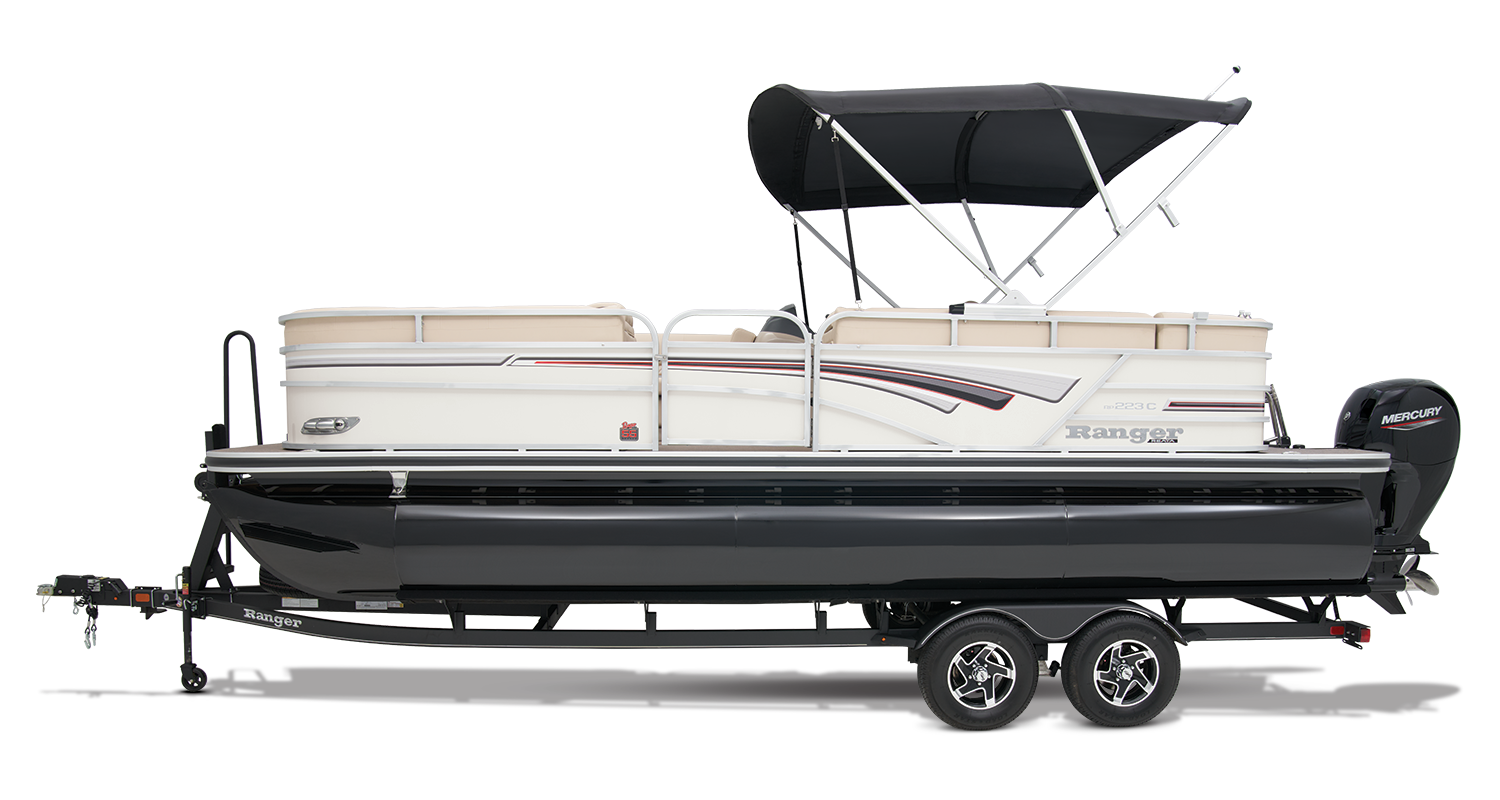

Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$57995
USD
|
High performance at 0 MPH

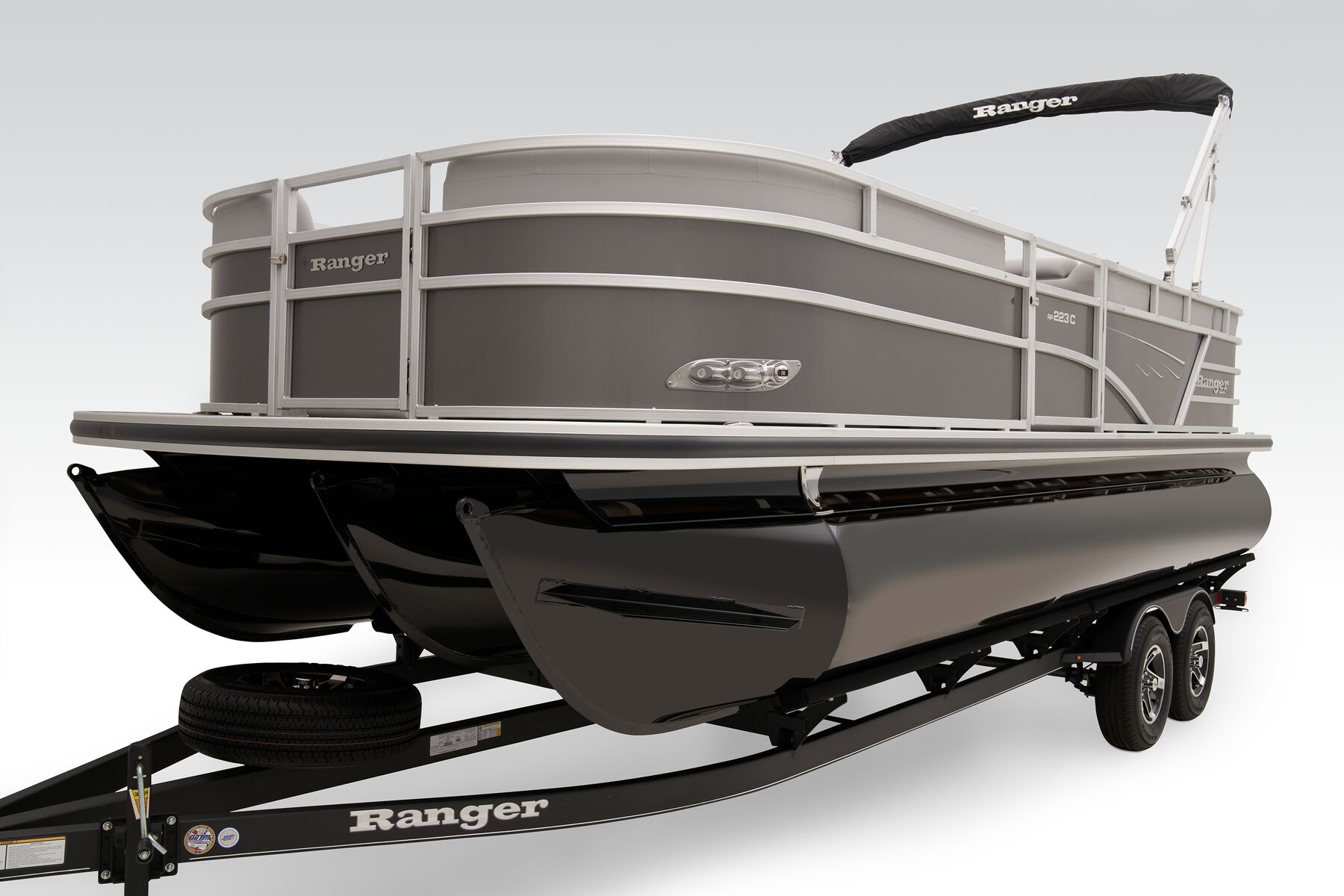

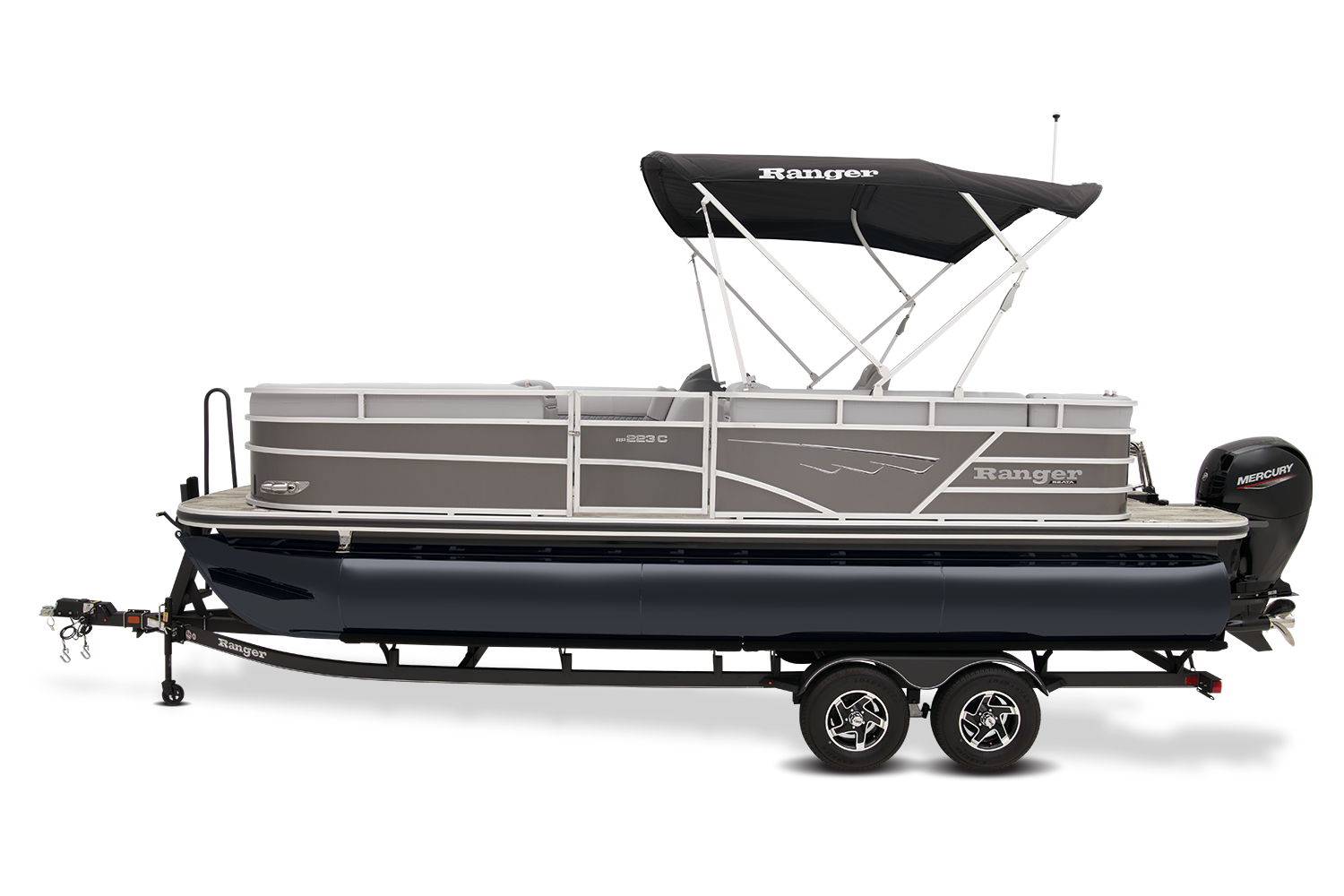

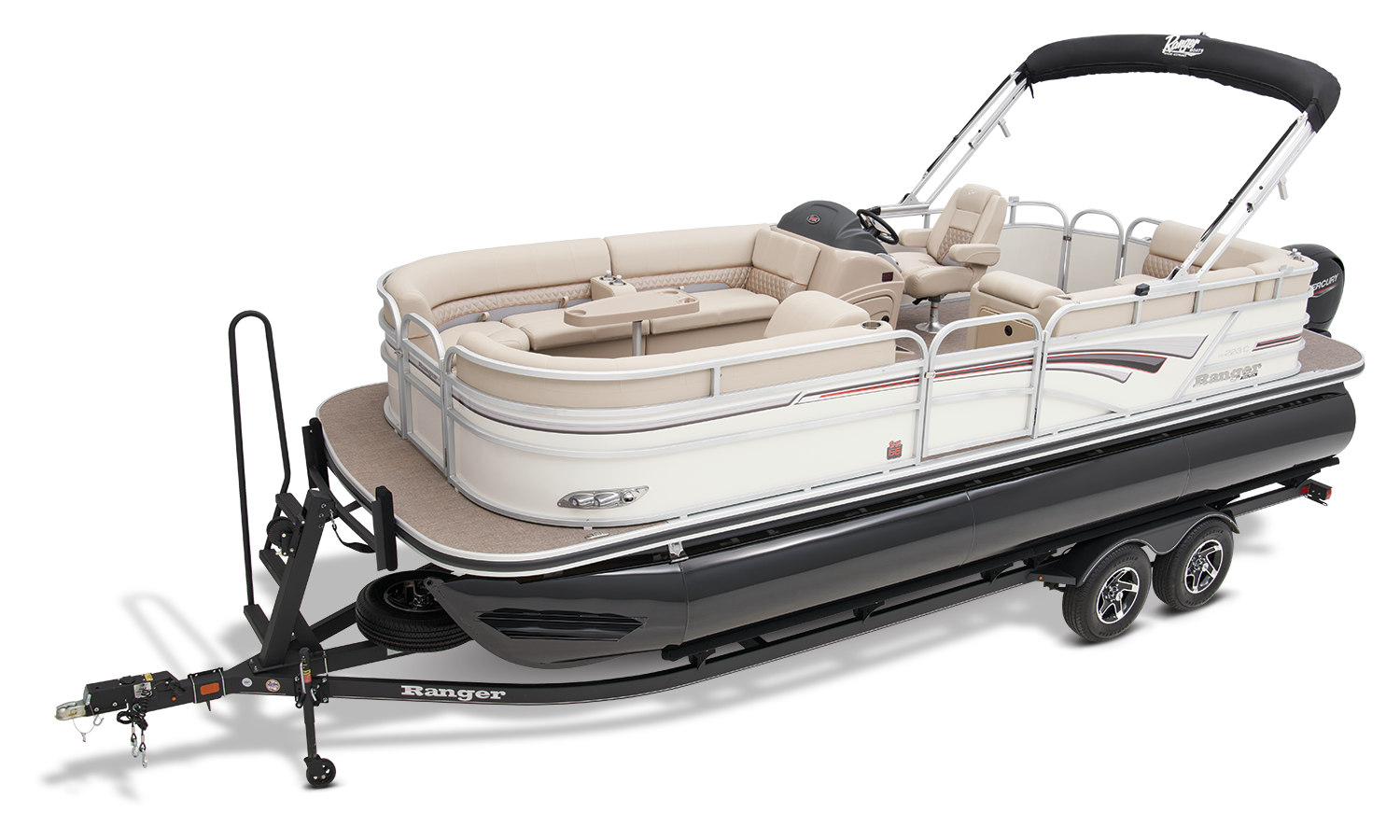

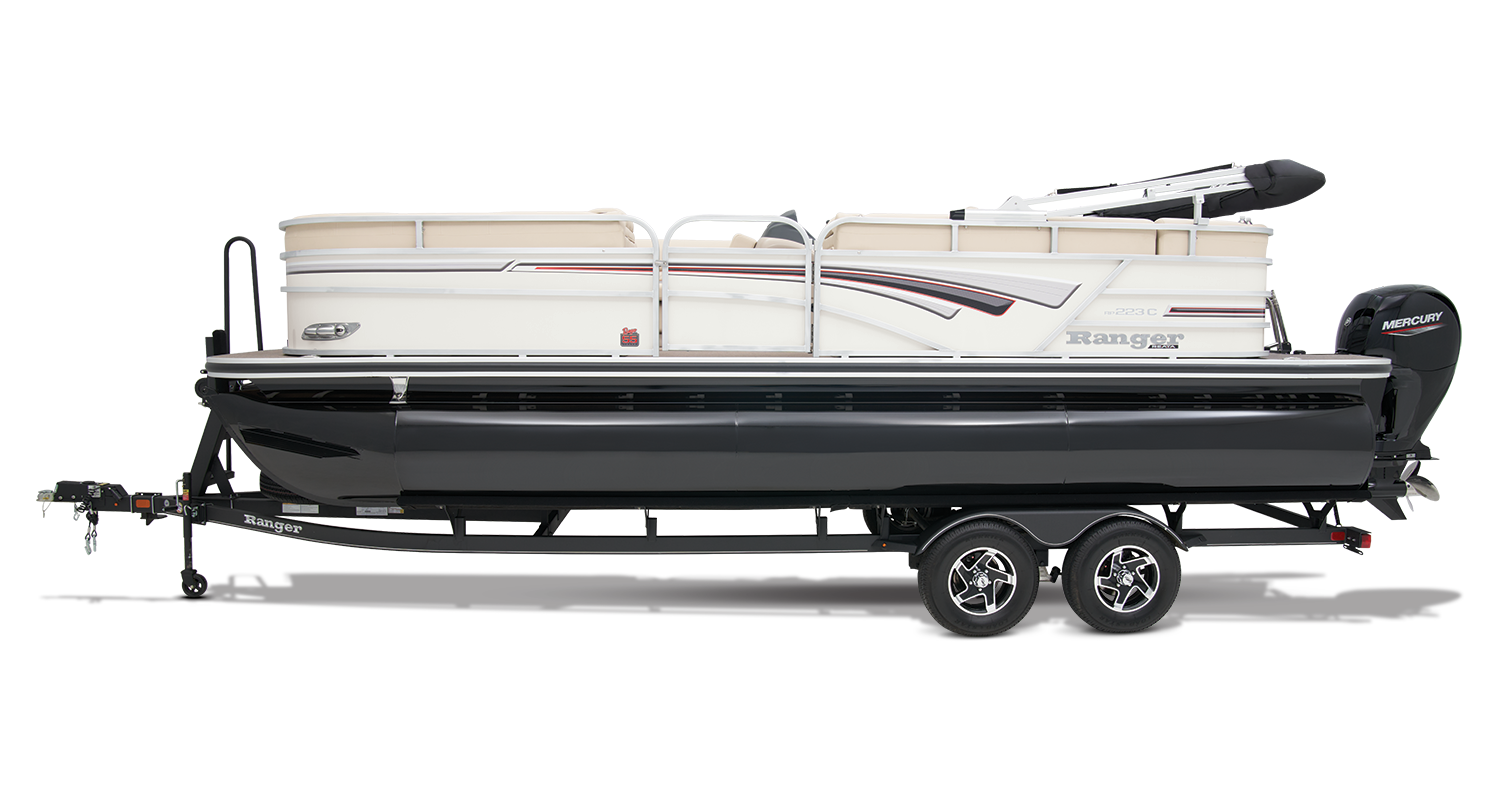

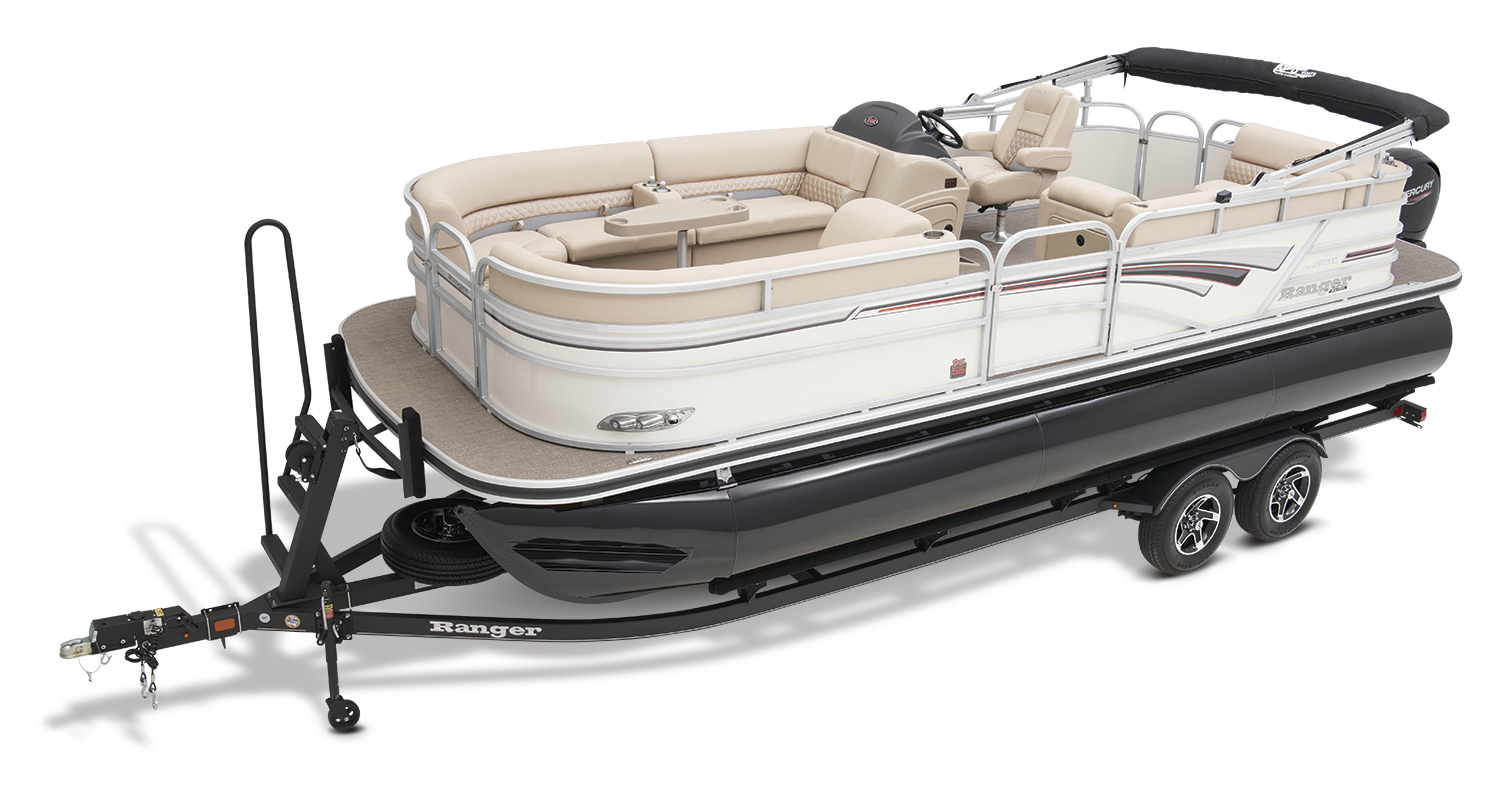

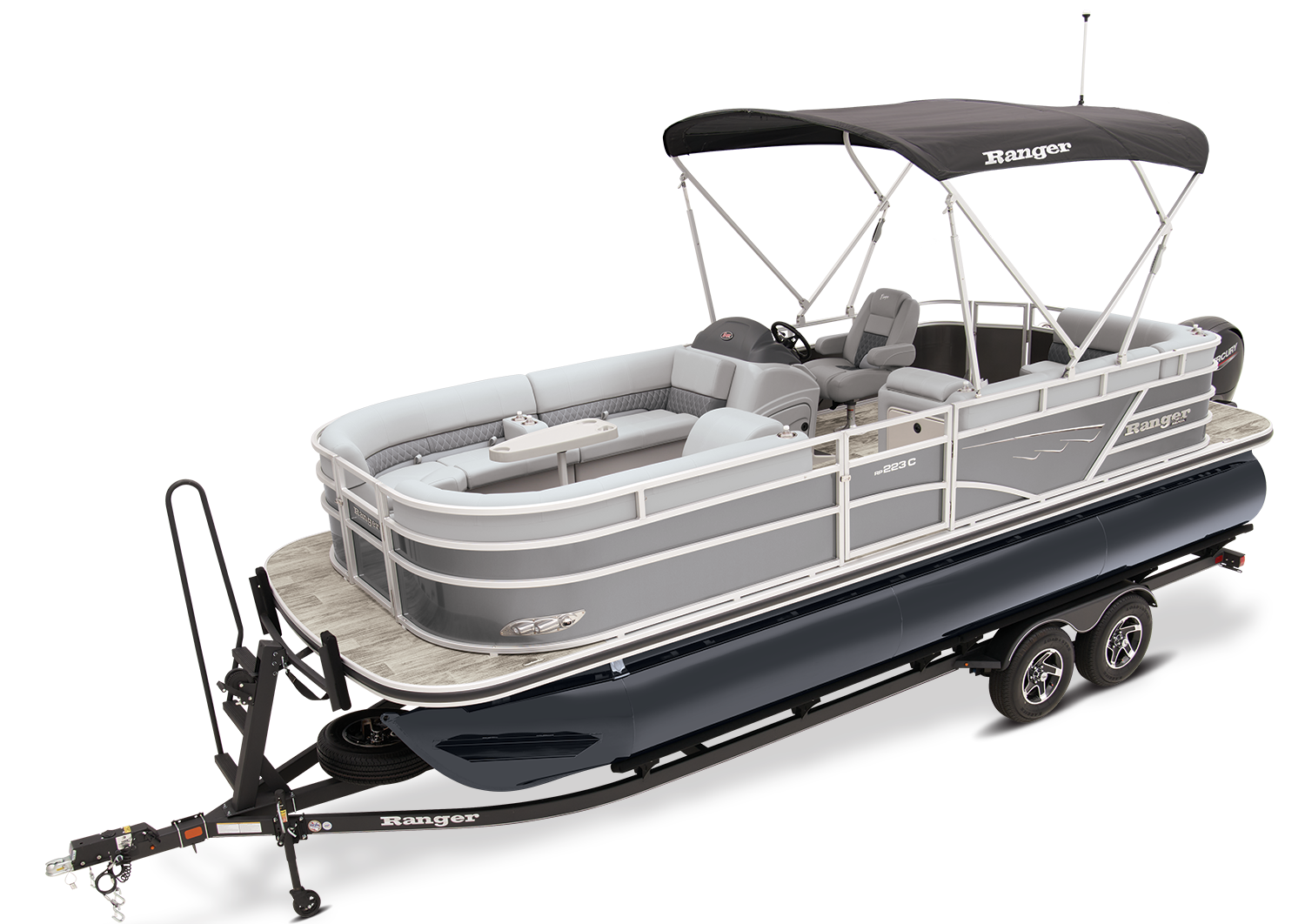

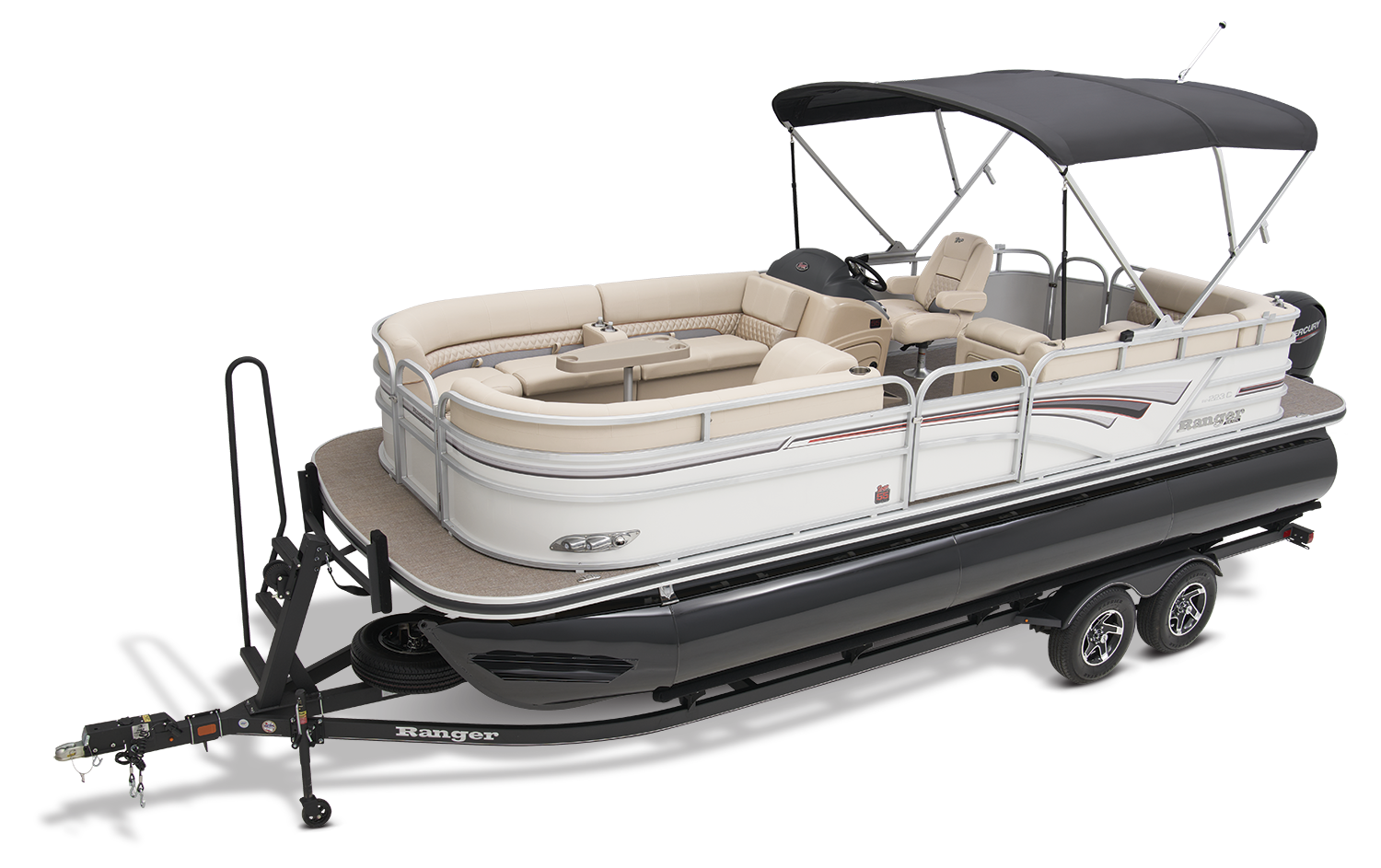

With the increased stability of a tritoon design and a long list of luxury features, the 2025 Ranger® Reata® 223C has much to offer to your weekend getaway.

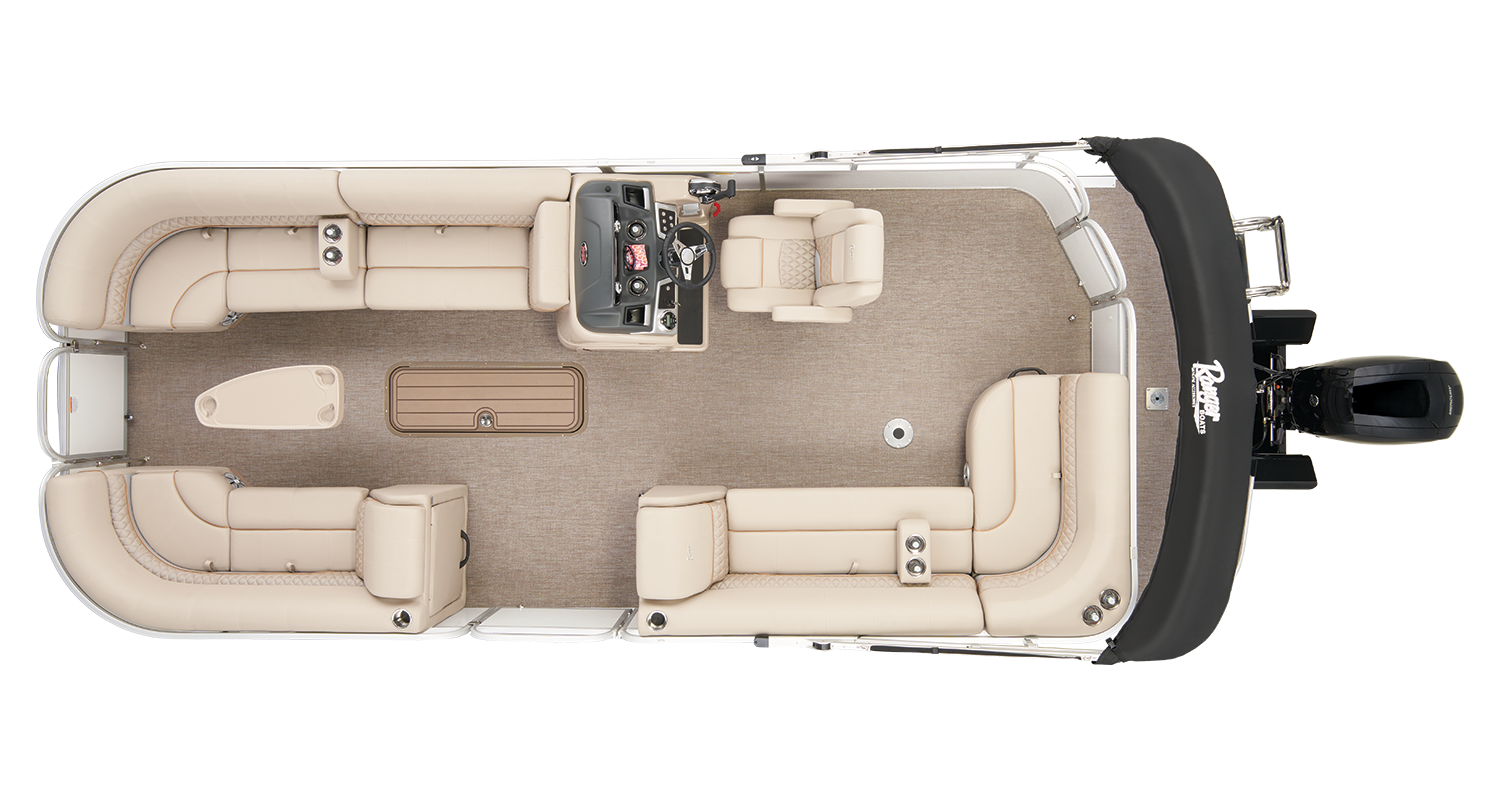

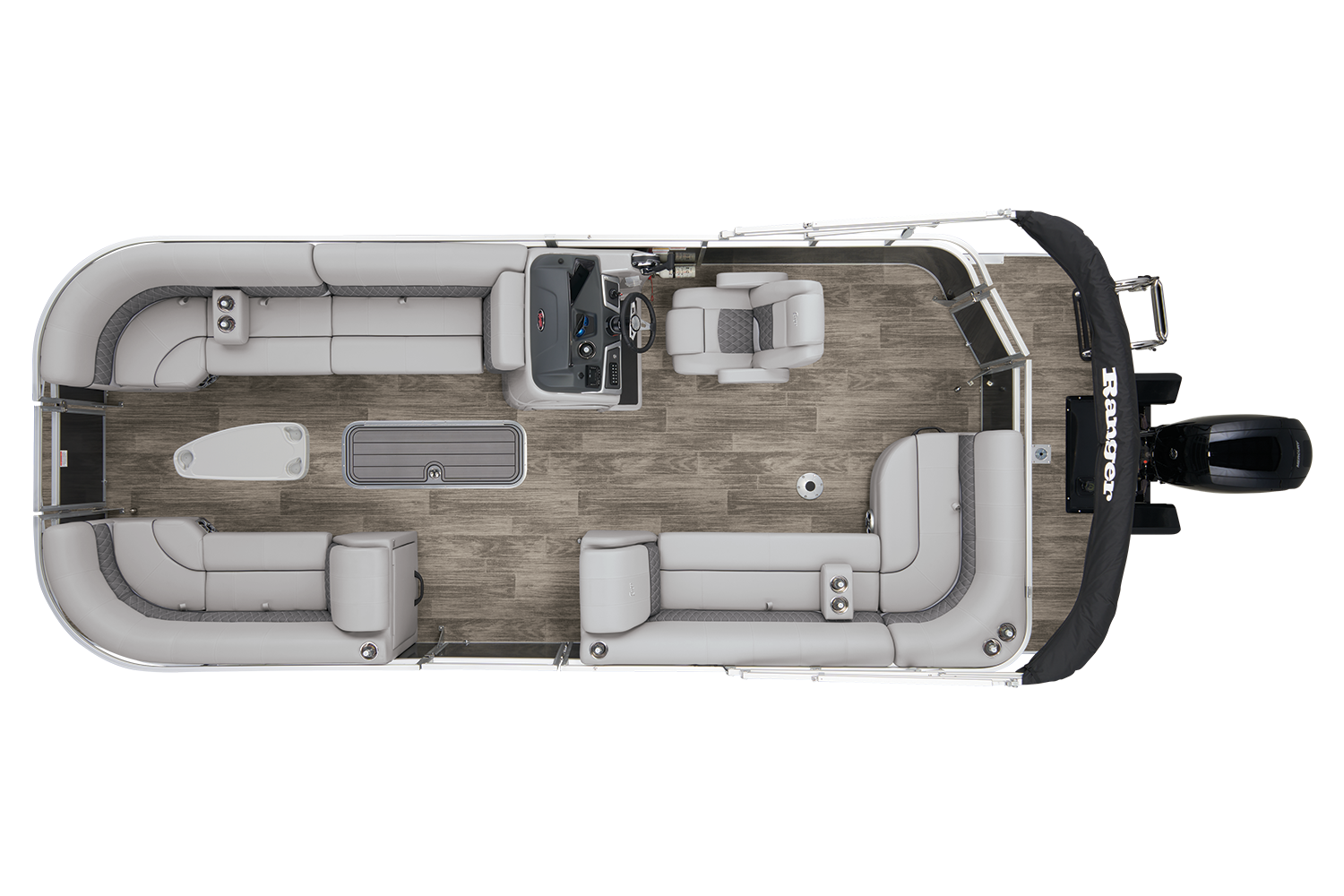

Set out and explore the lake from the luxurious comfort of this Ranger's 22'1" deck big enough for 11 passengers to enjoy. This pontoon boat caters to a wide range of explorers. Enjoy the water from the full-width aft swim platform with a fold-down boarding ladder. Chase those thrills with the optional ski-tow pylon. Simply enjoy being in the moment while relaxing in 1 of the 3 plush corner lounges. However you want to enjoy the lake, this is your next favorite home away from home.

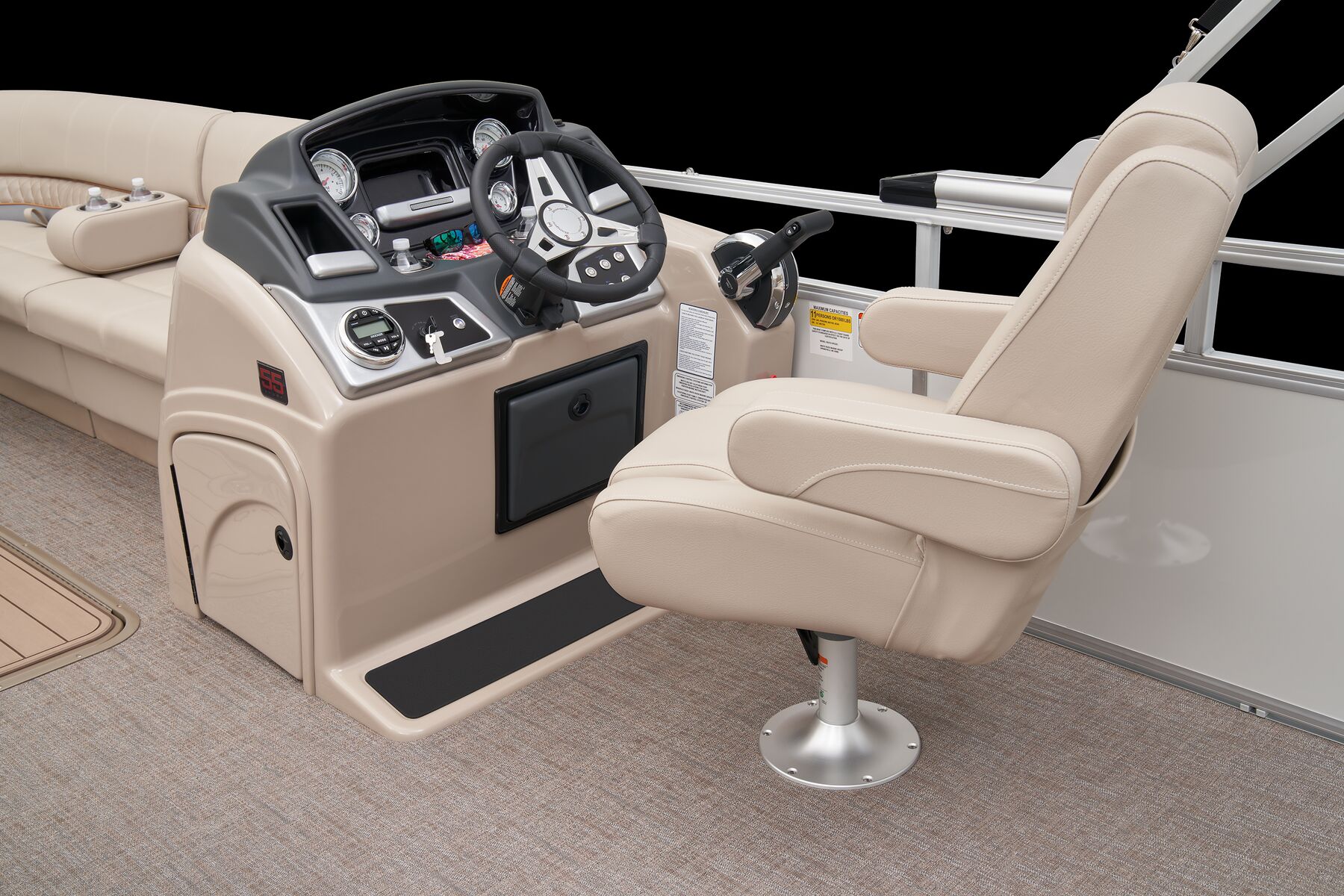

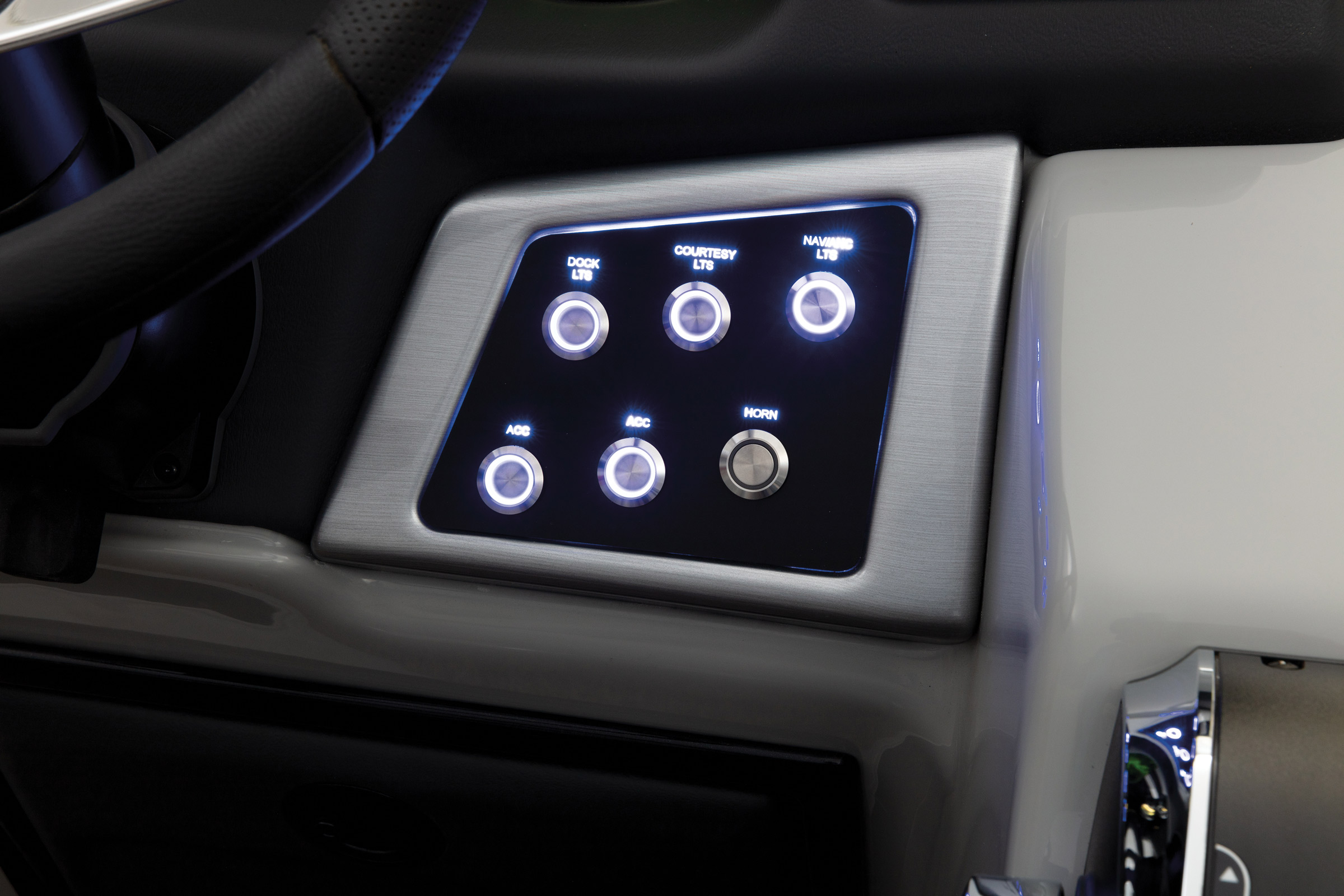

The captain can take full control at the top-tier console. This helm boasts a touch-screen dashboard with a 12-button switch panel. Relax in the adjustable, swiveling, and reclining captain's chair under the standard 10' Dowco® EasyLift bimini top. The 4-speaker Wet Sounds® stereo with Bluetooth® compatibility allows you to set the soundtrack to create your ideal day on the water.

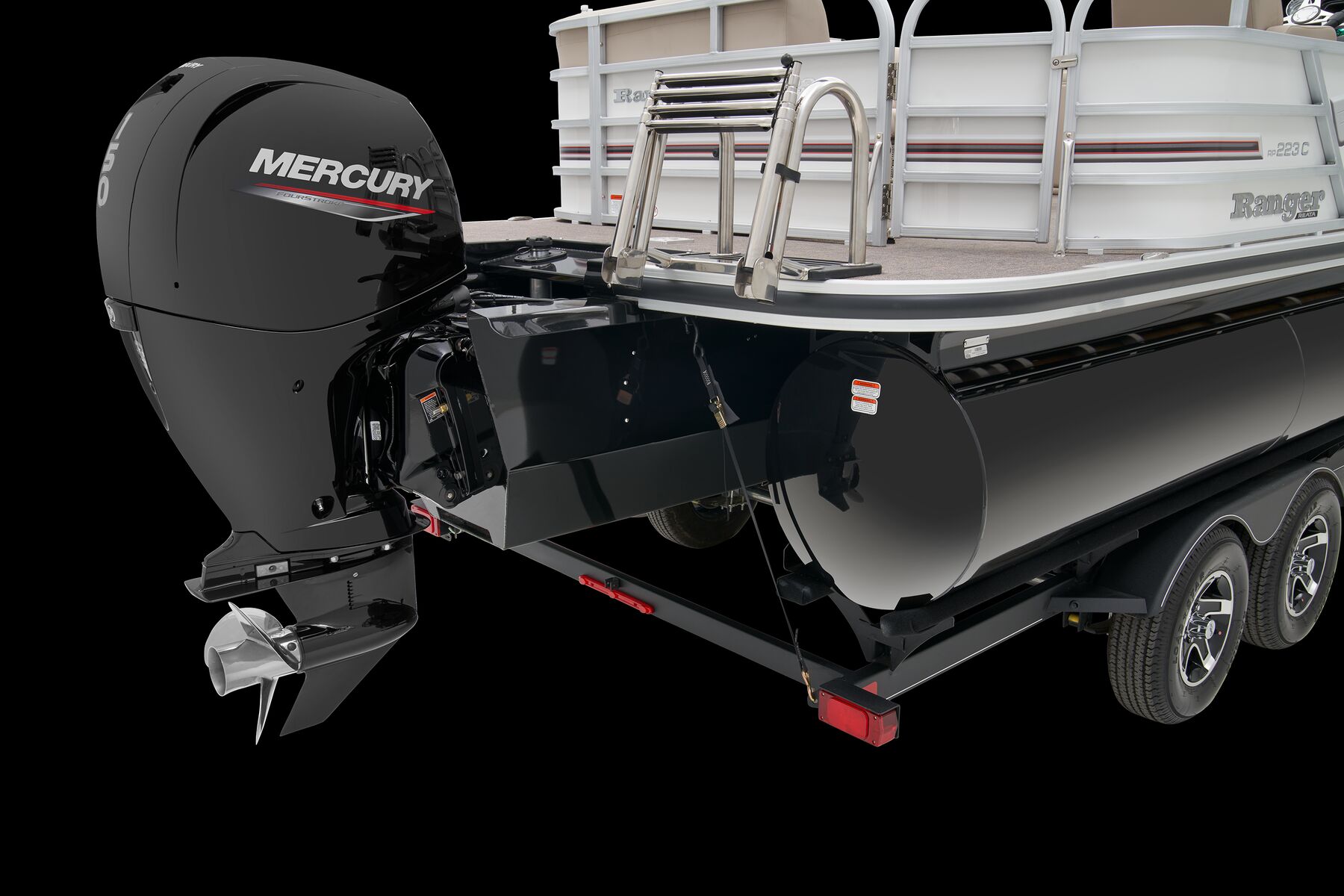

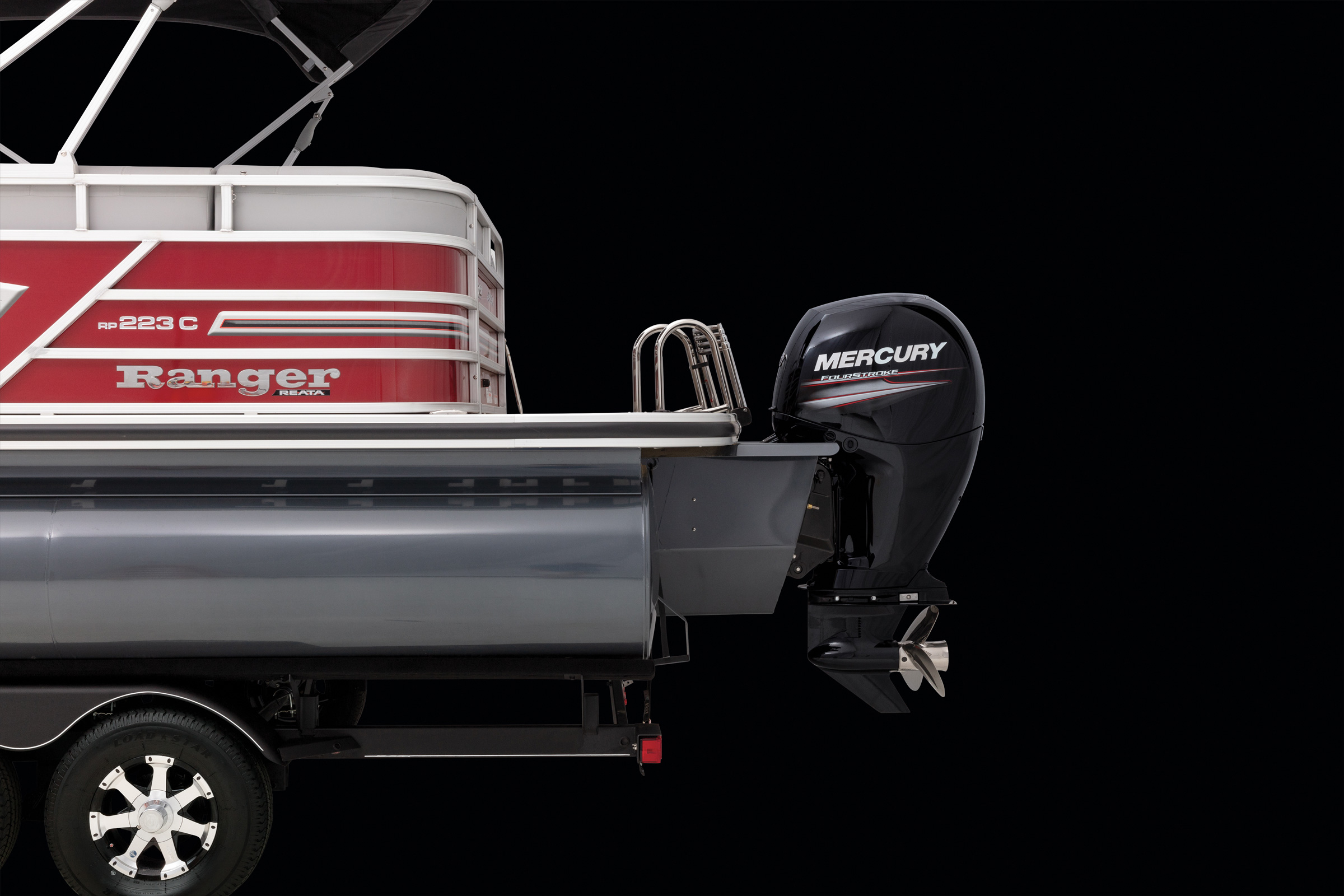

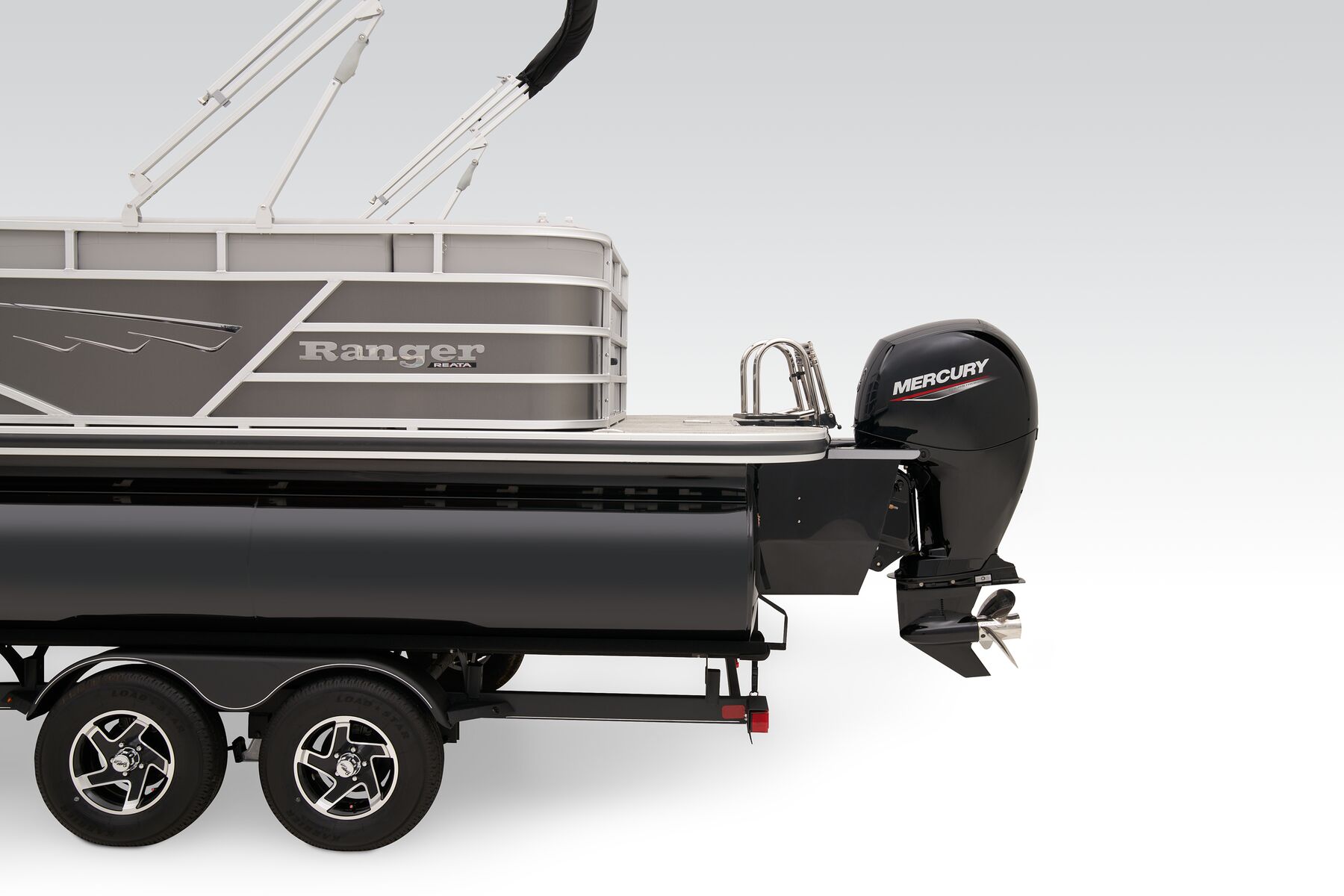

The 2025 Ranger® Reata® 223C comes standard with a 150hp Mercury® L FourStroke outboard motor and has a recommended maximum 200hp rating.
Key Features

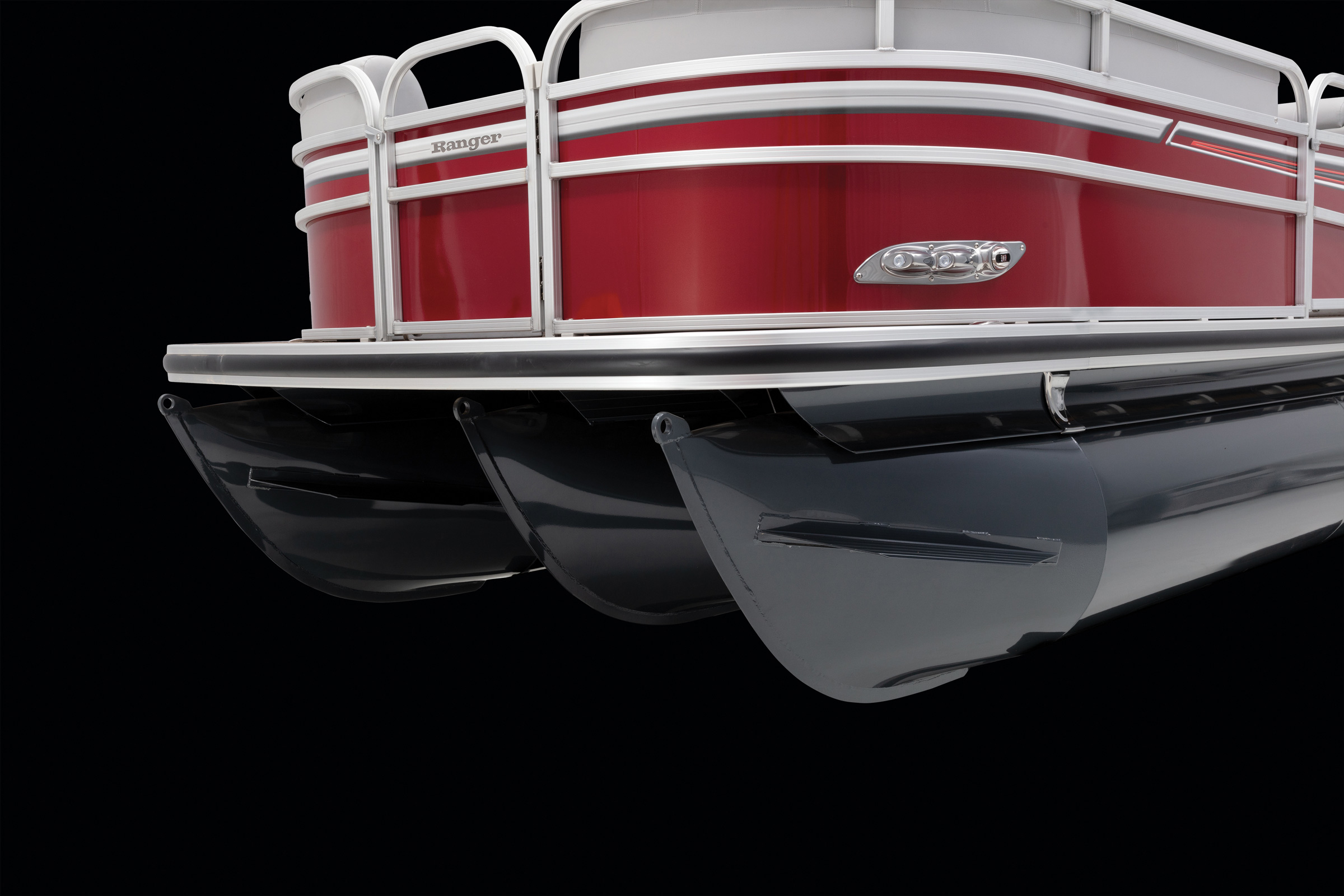

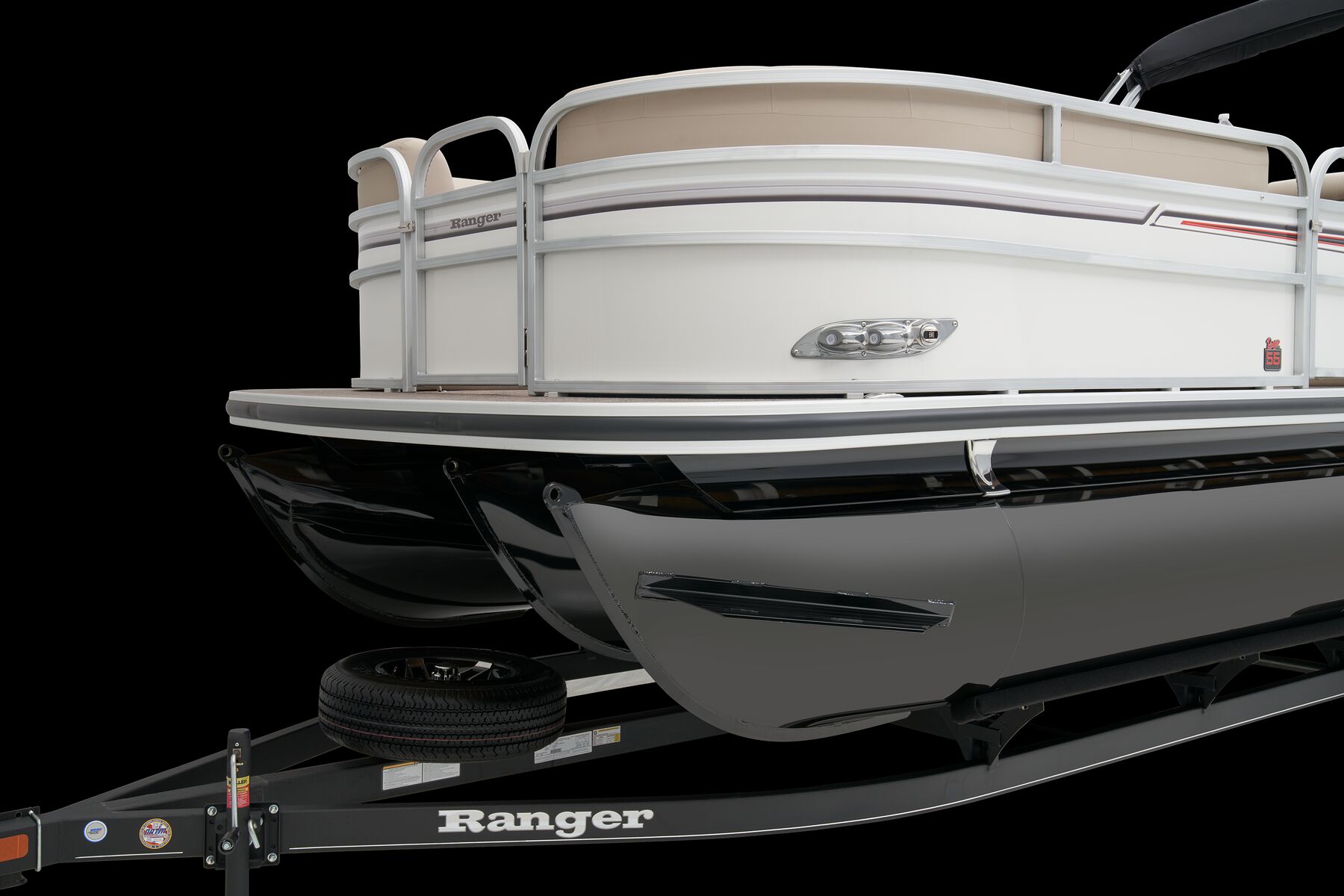

- Three 24' powder and clear-coated pontoon logs with two lifting strakes apiece
- Front porch area and full-width swim platform with mount for optional ski tow

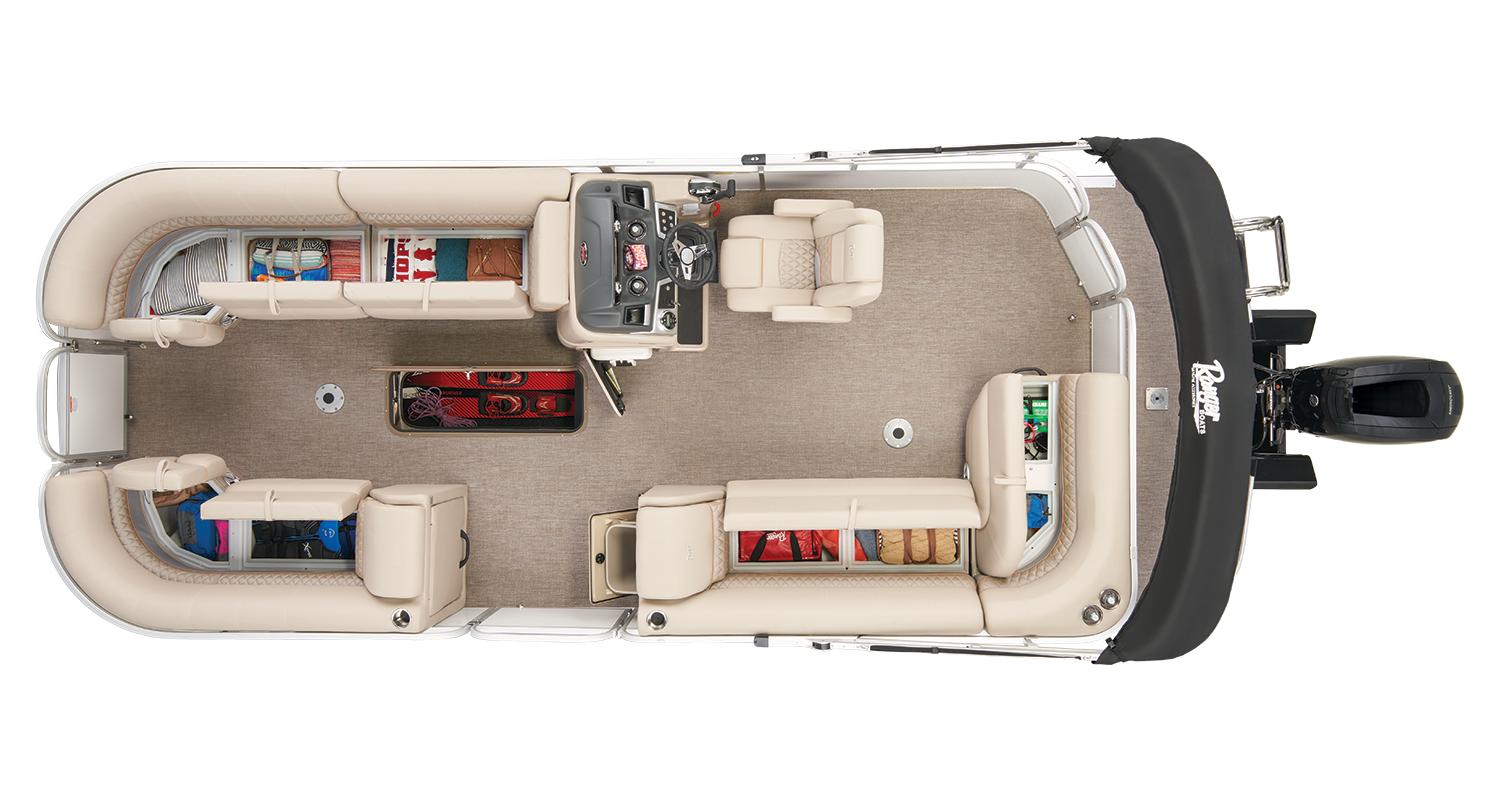

- Plush port and starboard bow lounges with rotomolded, drained storage
- Stowable floating table with molded drink holders
Specifications
| Length | 7.37 m | 24' 2'' |
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 102'' |
| Max. Recommended HP | 200 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 7.59 m | 24' 11'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 11 persons | |
| Max. Person Weight | 680.39 kg | 1500 lbs. |
| Max. Persons/Motor/Gear Weight | 1043.26 kg | 2300 lbs. |
| Interior Depth | 60.96 cm | 24'' |
| Average Dry Weight | 1333.11 kg | 2939 lbs. |
| Average Package Weight | 2238.48 kg | 4935 lbs. |
| Package Height | 2.67 m | 8' 9'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.91 m | 32' 6'' |
| Storage Length | 9.91 m | 32' 6'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 200 L FourStroke |
$62795 USD
|
Select Dealer | |||
| 115 ELPT Pro XS FourStroke Command Thrust |
$55645 USD
|
Select Dealer | |||
| 150 L FourStroke |
$57995 USD
|
Select Dealer | |||
Standard Features
Exterior
- 4:2 rotary steering w/ tilt
- Factory-rigged Mercury® outboard motors
- Factory-matched propeller

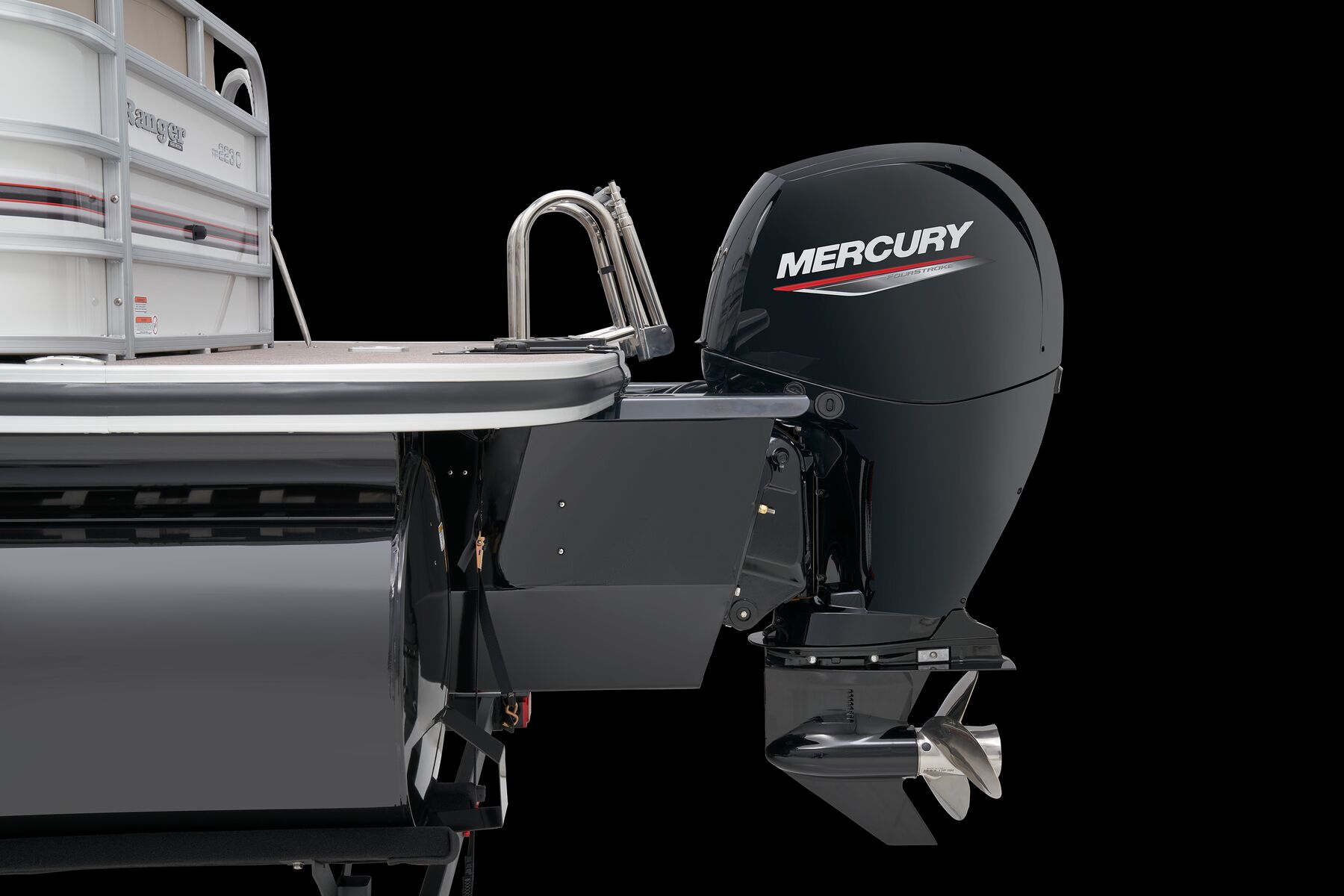

- Performance enhancing extended motor pod
- Powder-coated pontoon logs
Craftsmanship
- ABYC® approved
- 26" (66.04 cm) diameter, .100 pontoon logs w/ individual chambers & internal supports
- 3/4" (1.91 cm) pressure-treated deck w/ every panel mechanically fastened to Z-bars
- All-aluminum, box beam transom
- Full-width extruded Z-bar deck support hidden fastener system
- Fire extinguisher & horn
- Heavy-duty reinforced deck trim
- Heavy-duty, 1-piece extruded M-bracket deck support throughout

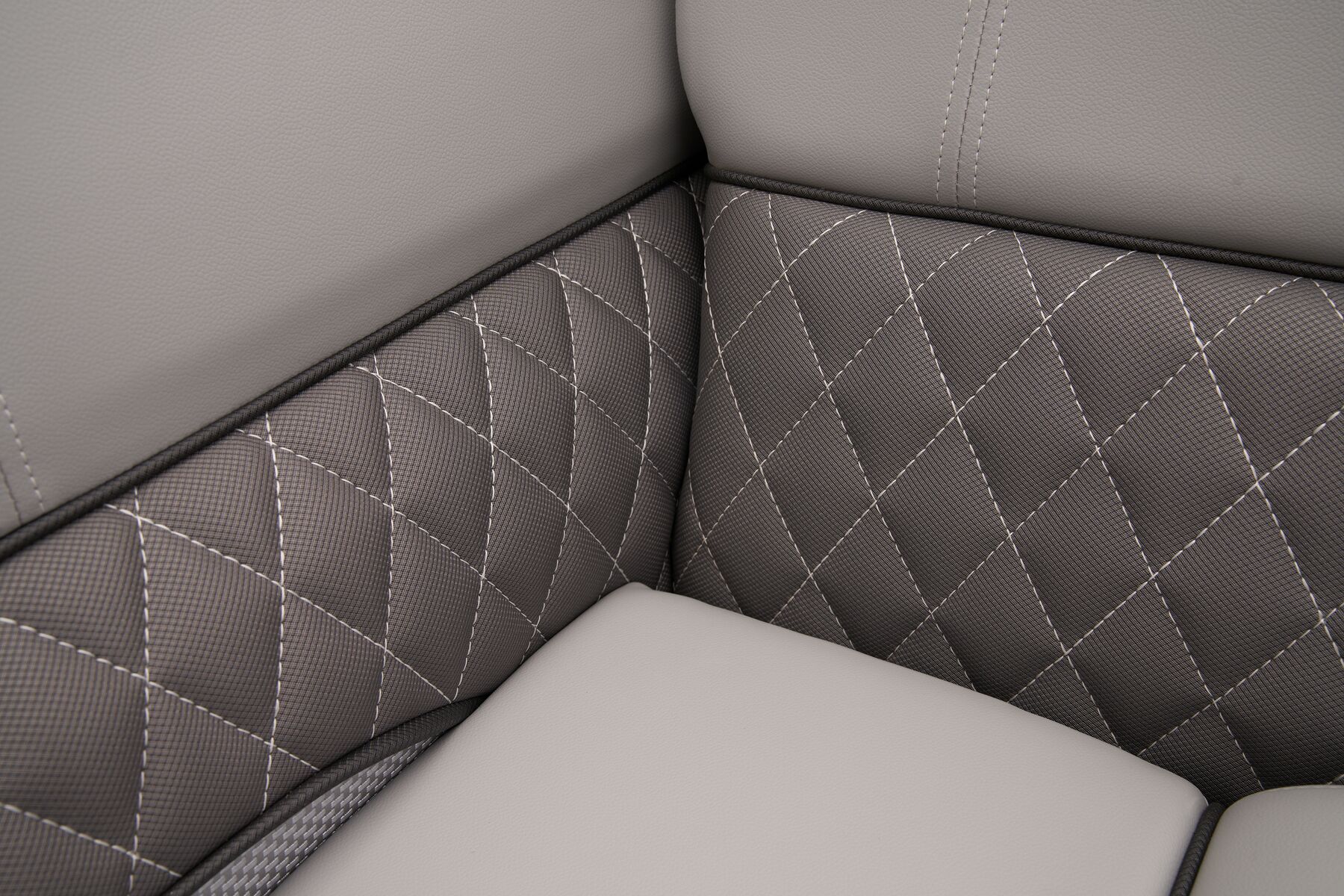

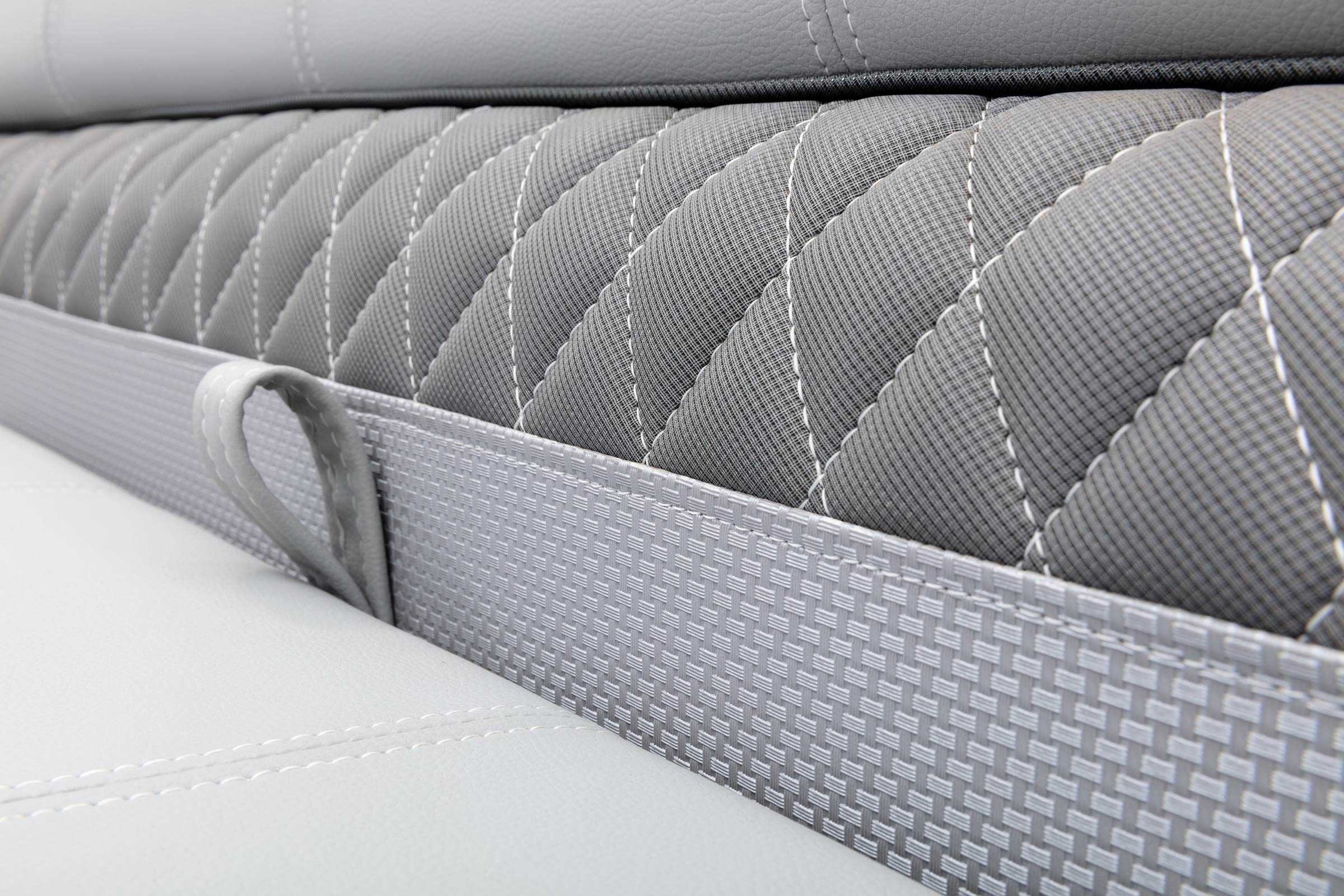

- Multi-density furniture foam for maximum comfort

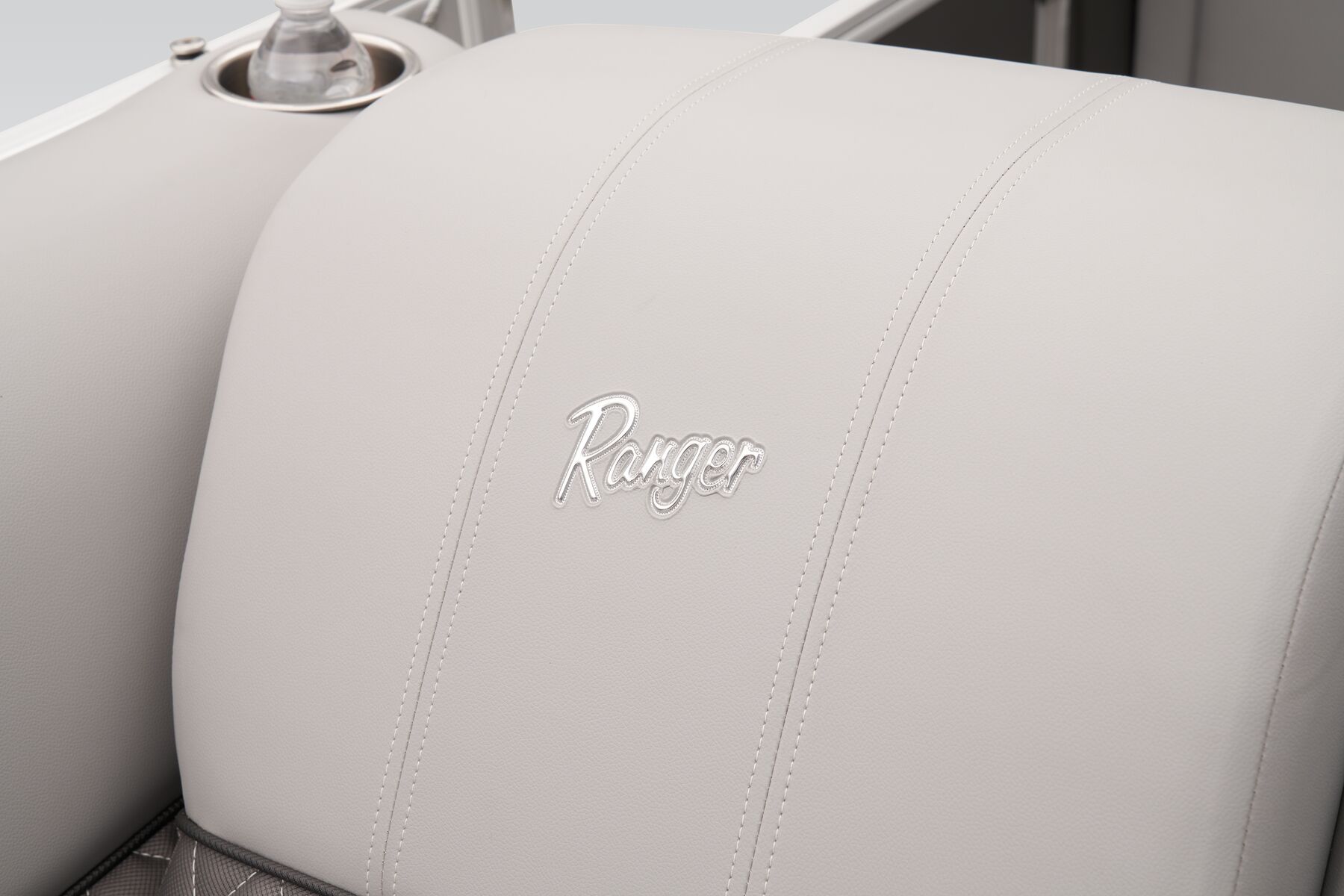

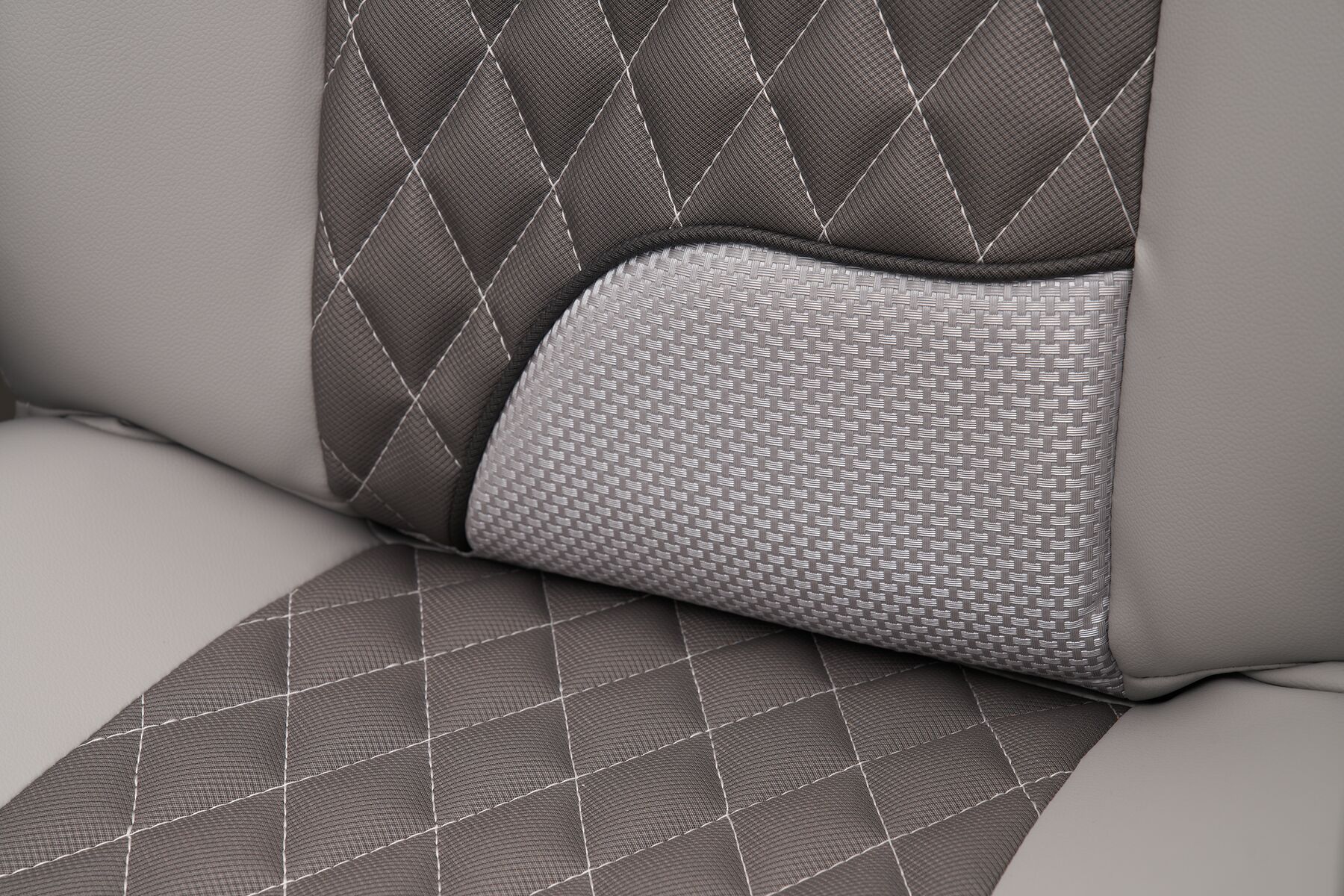

- Premium marine upholstery
- Stainless steel & coated carbon steel fasteners
- Ranger® 10-Year Lifetime Limited Structural Warranty
Electrical

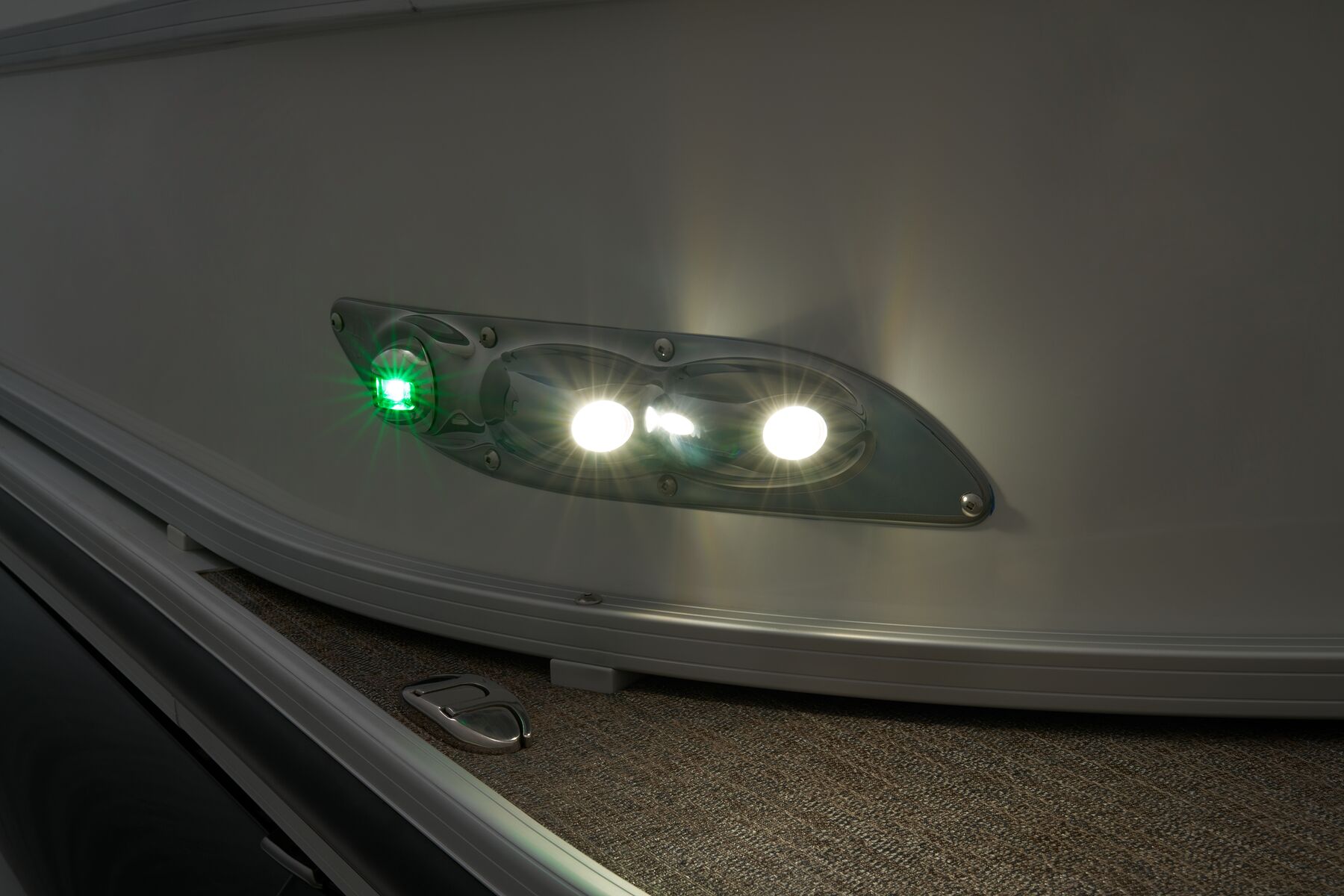

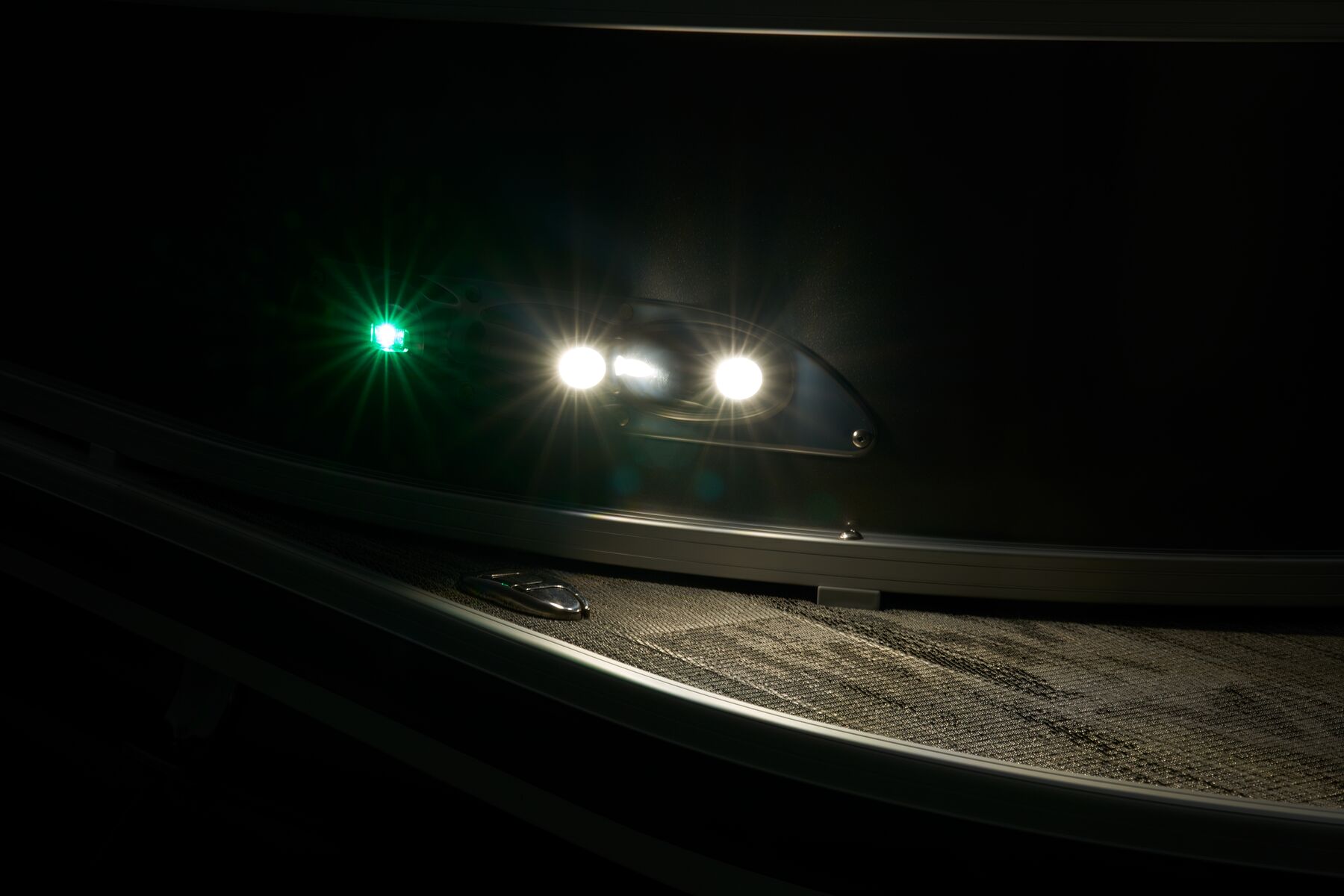

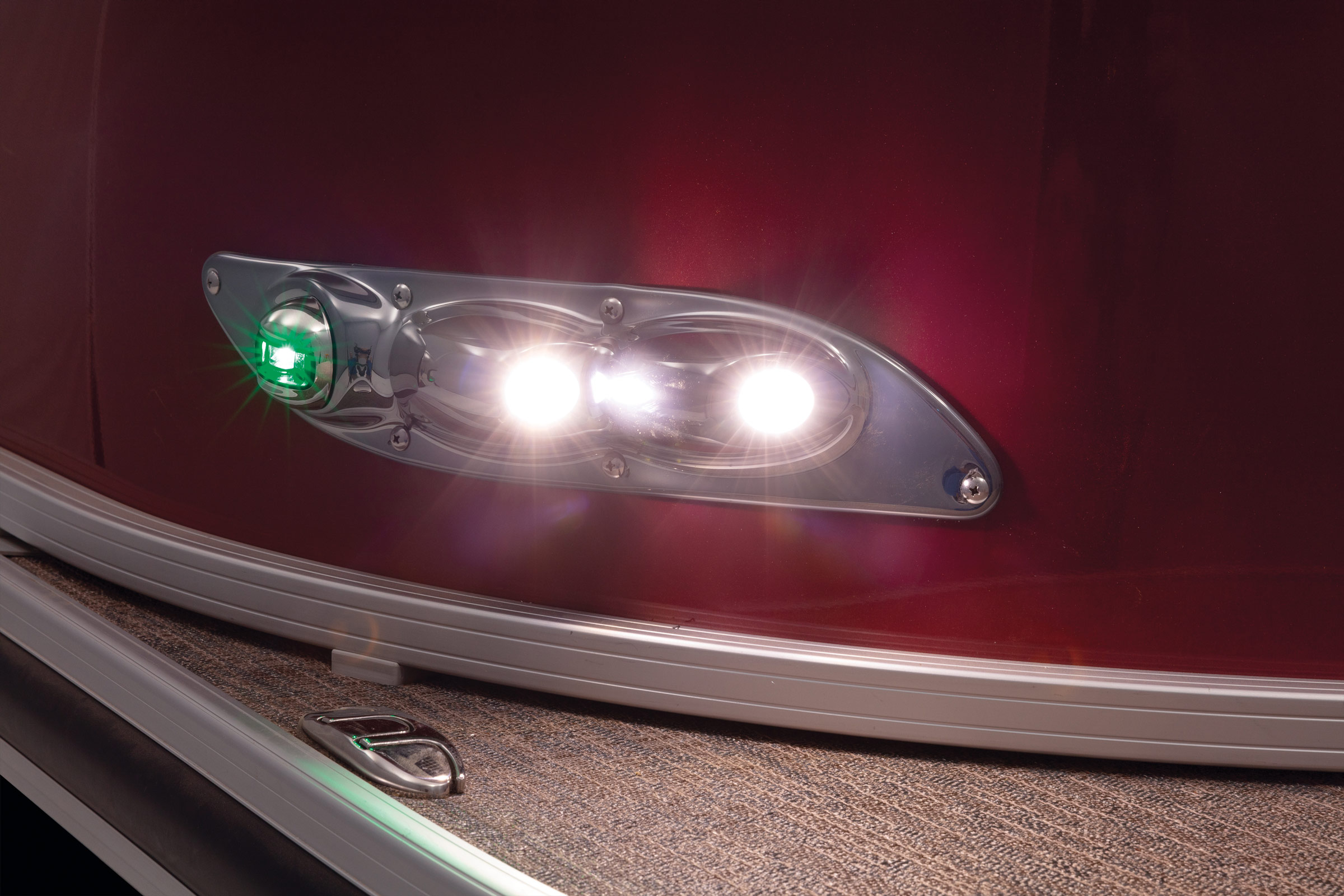

- LED navigation lights & built-in docking lights

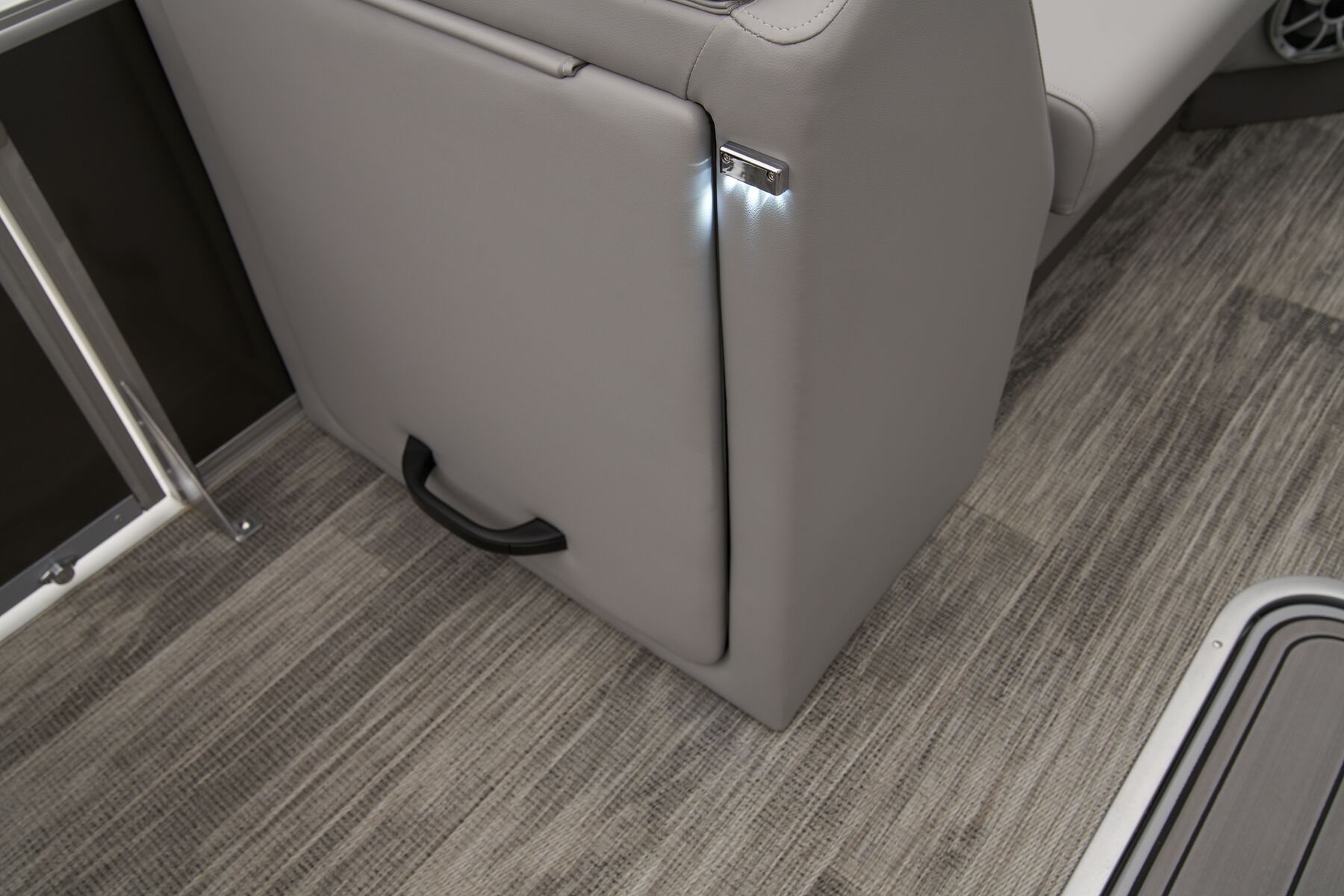

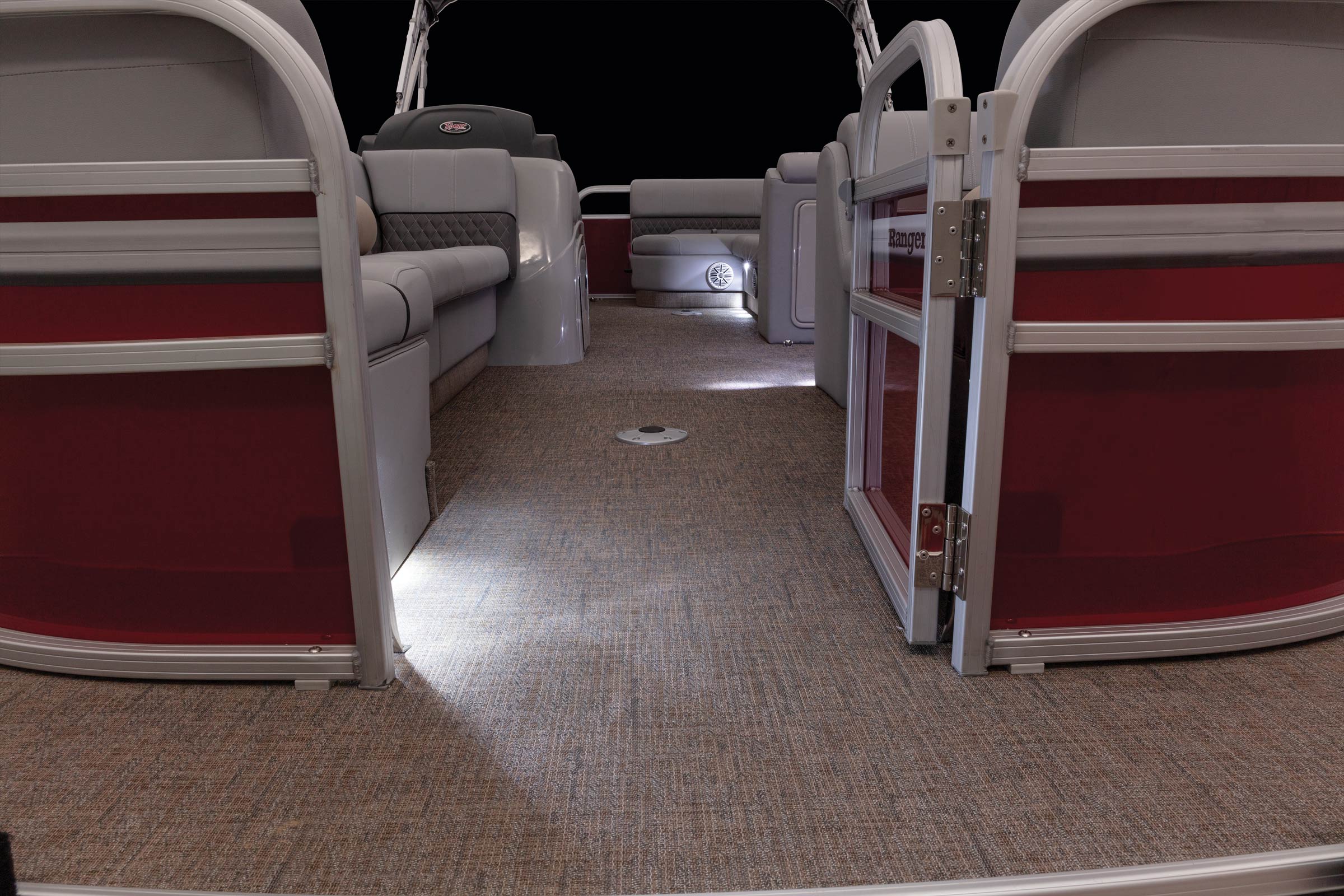

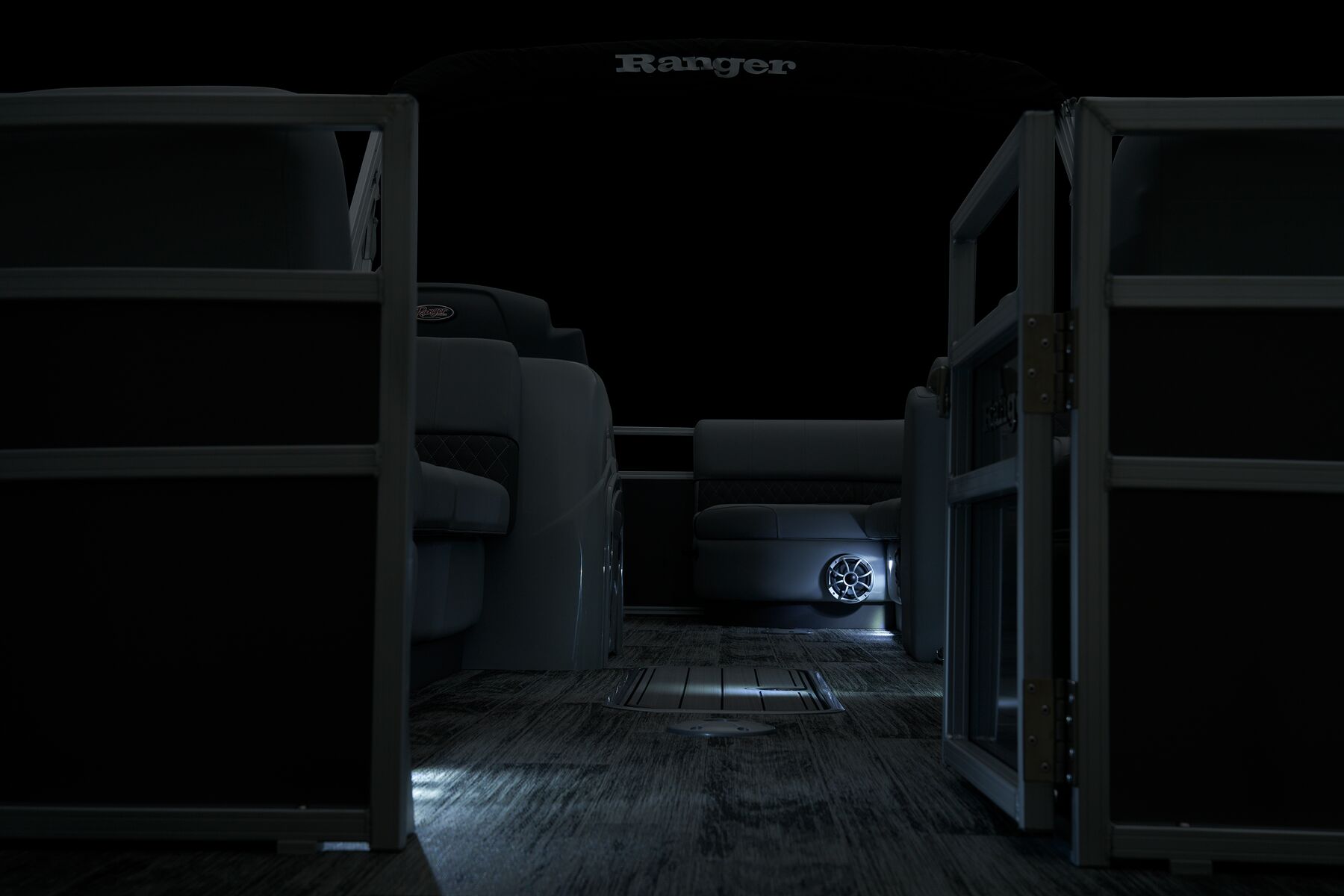

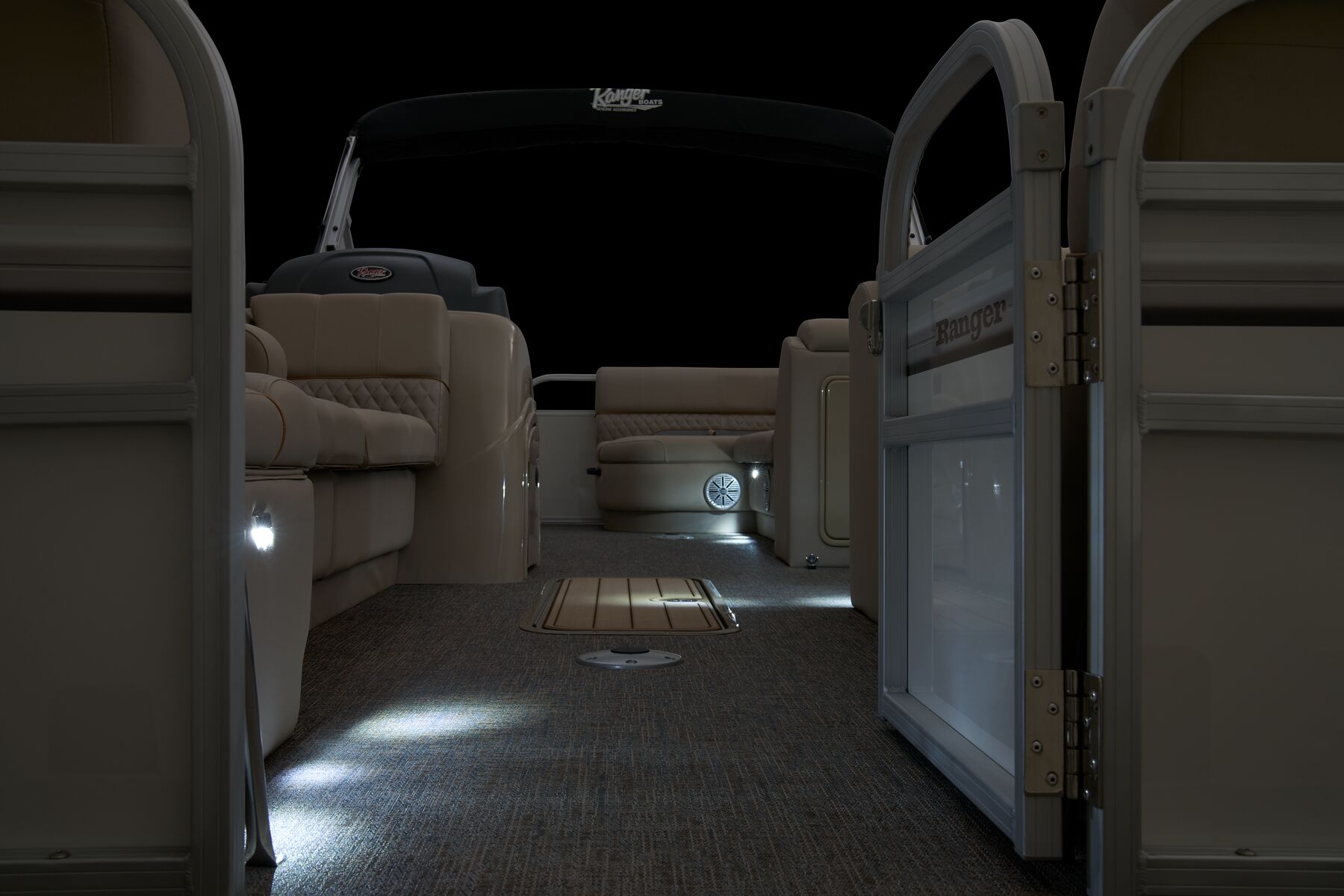

- LED courtesy lighting throughout
- Motor kill switch w/ lanyard
- Phone management system w/ power outlets
- Sealed wiring connectors
- Wiring encased in conduit to prevent chafing

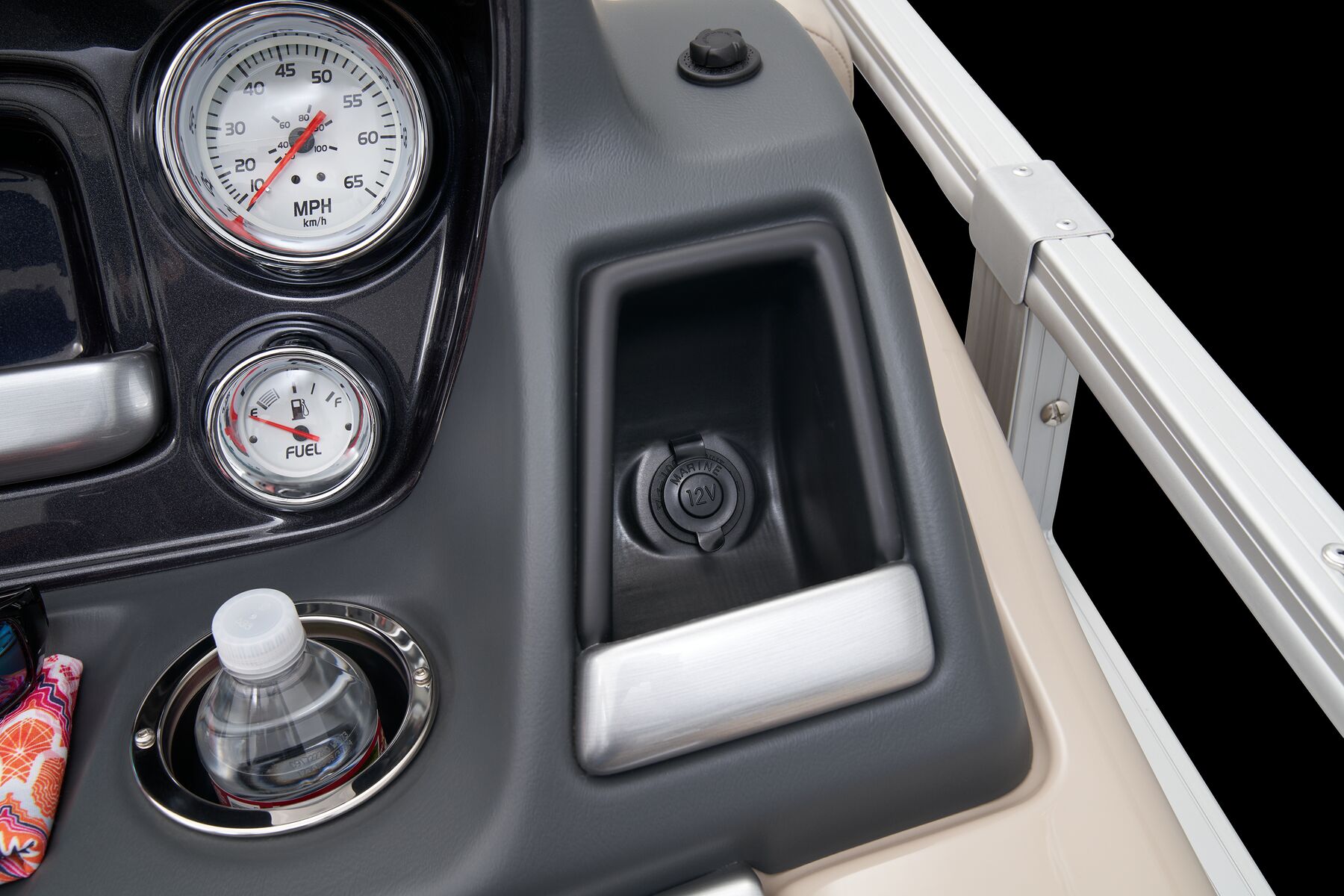

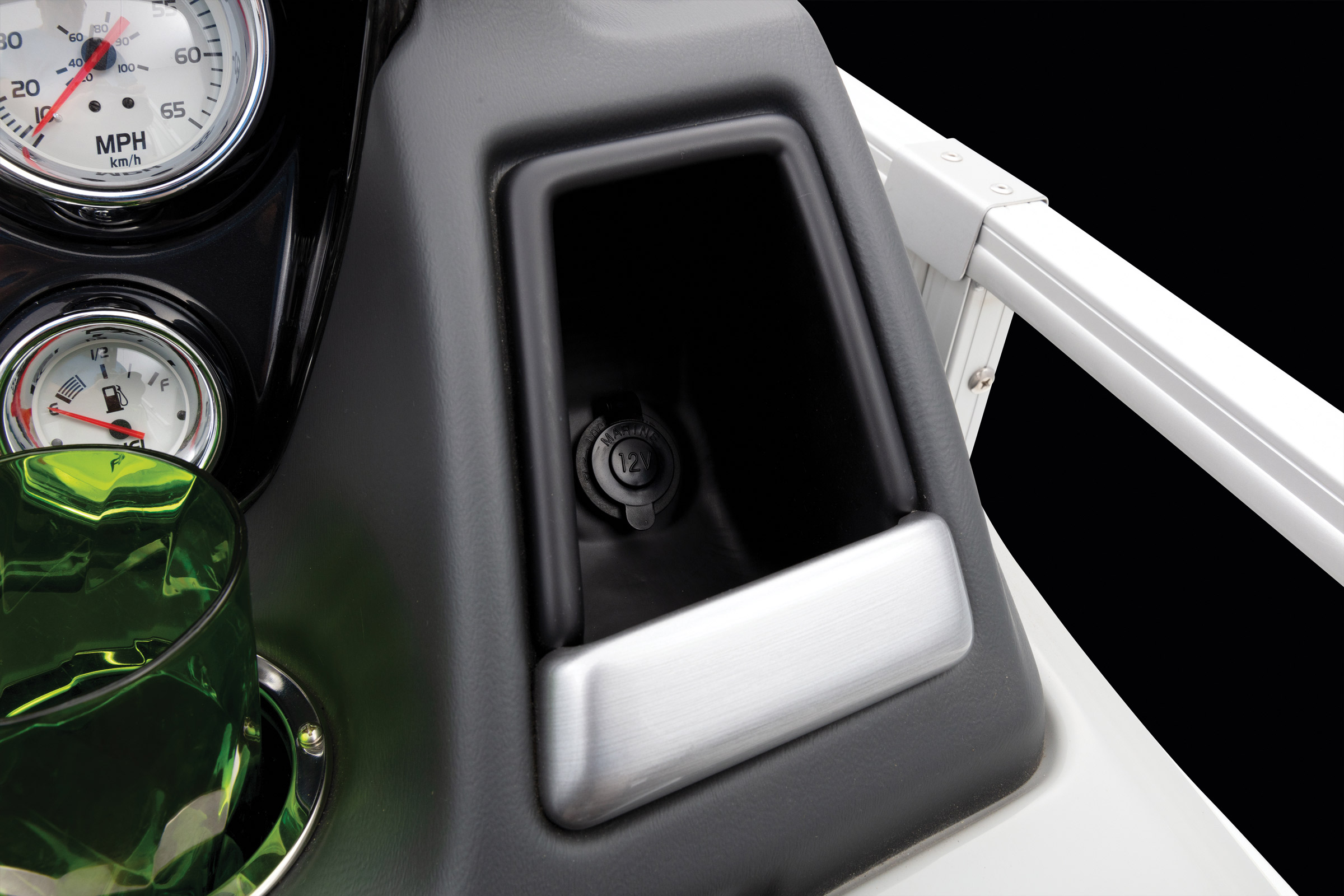

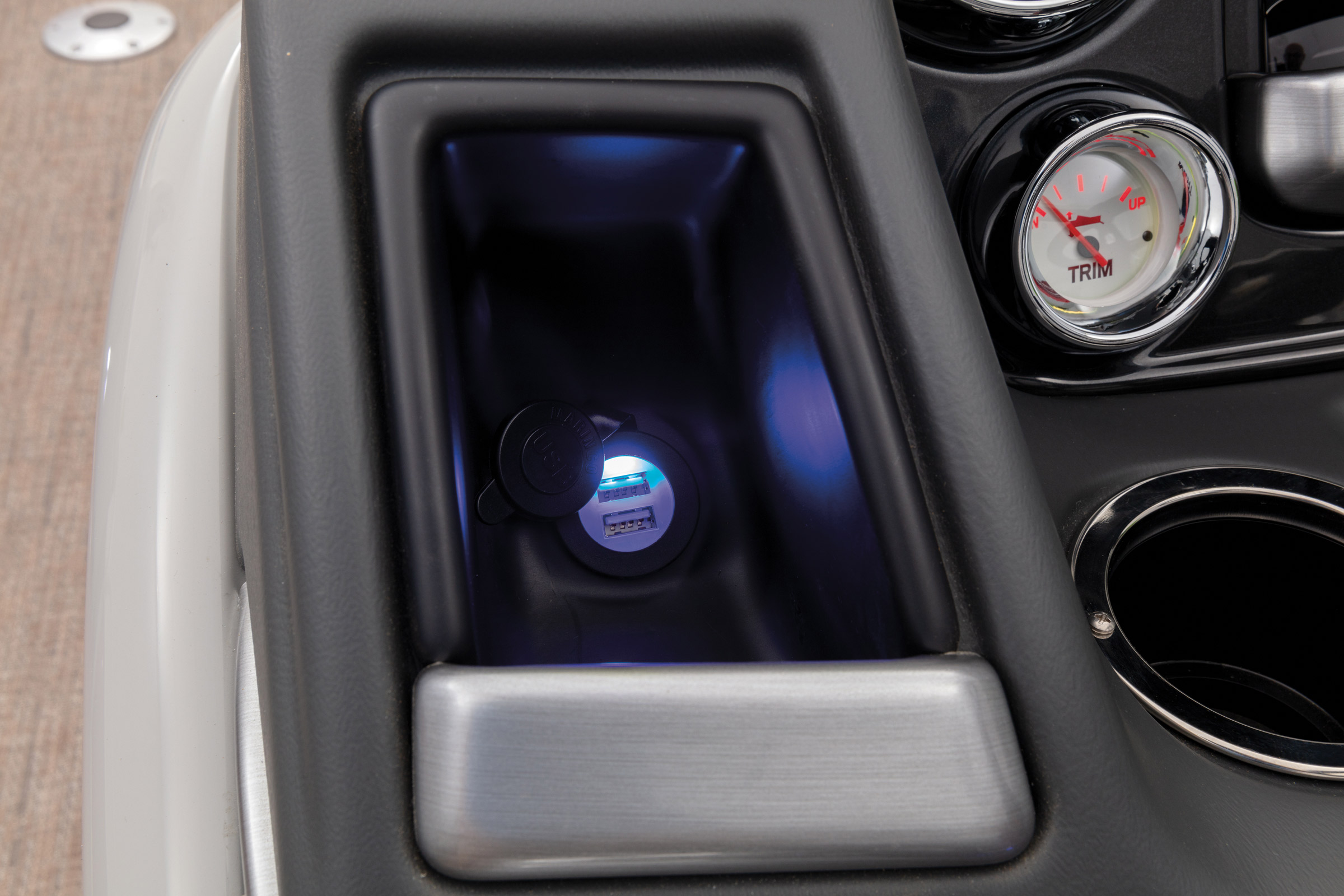

- Conveniently located 12V & USB outlets
Exterior

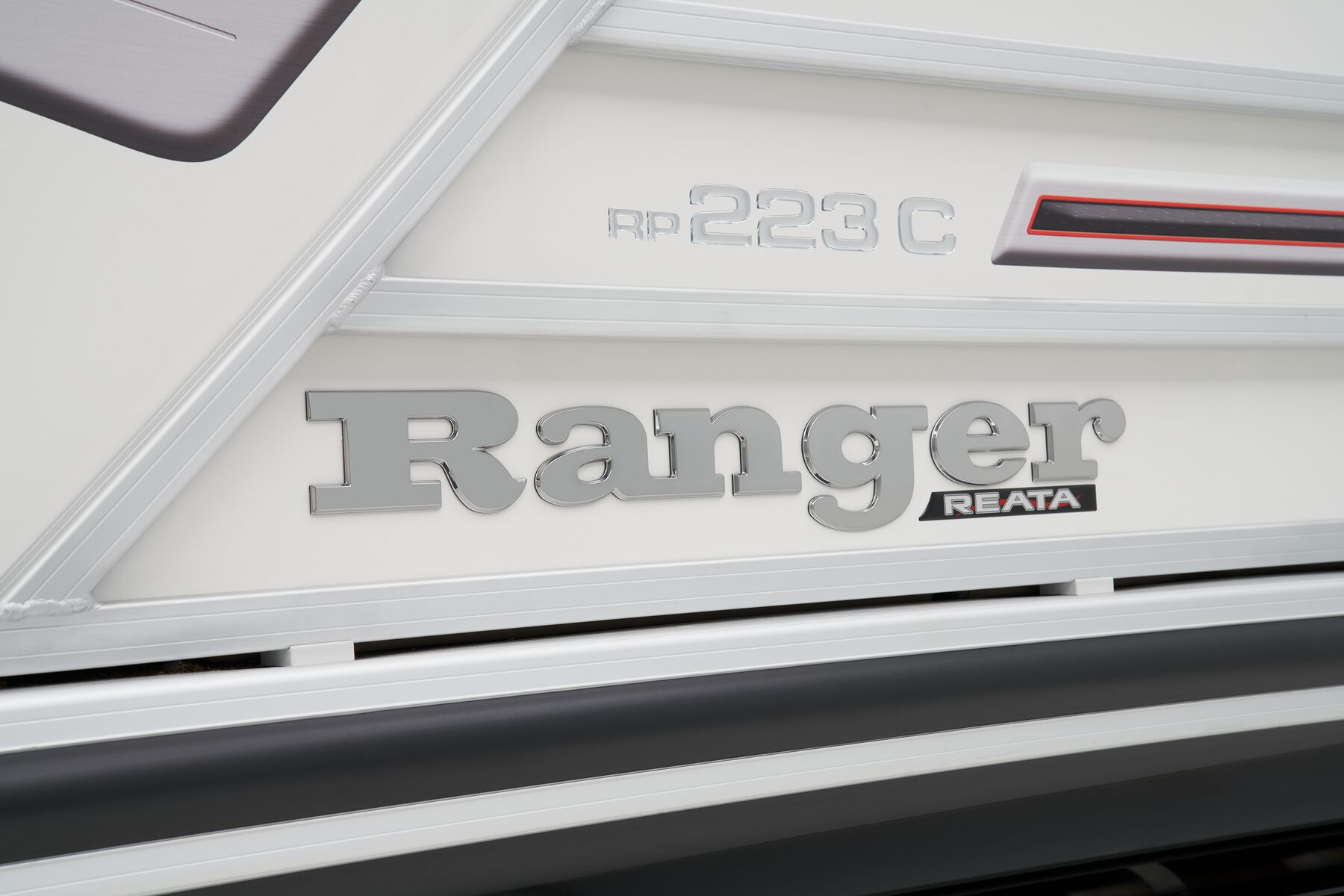

- NEW - Updated, modern graphics

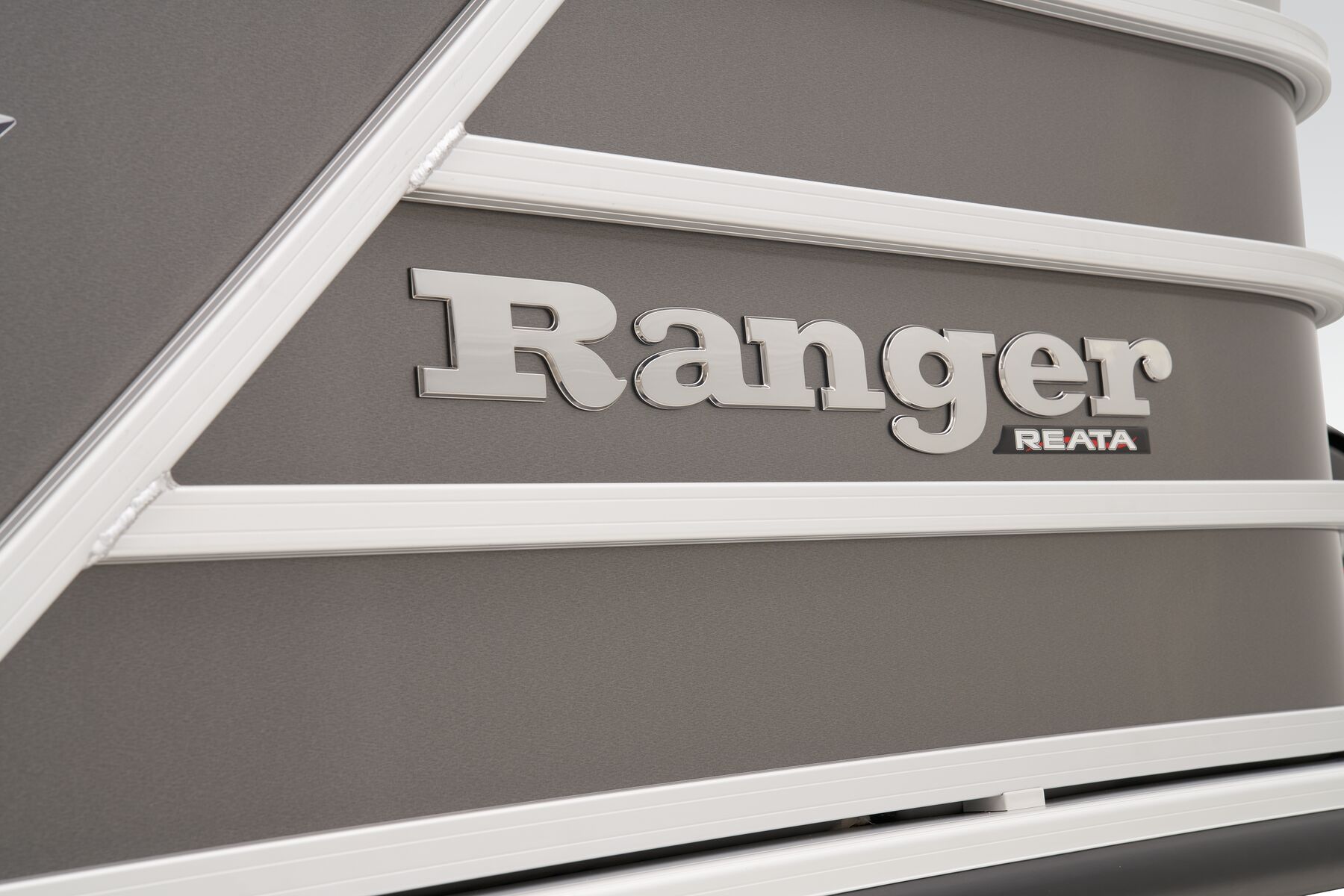

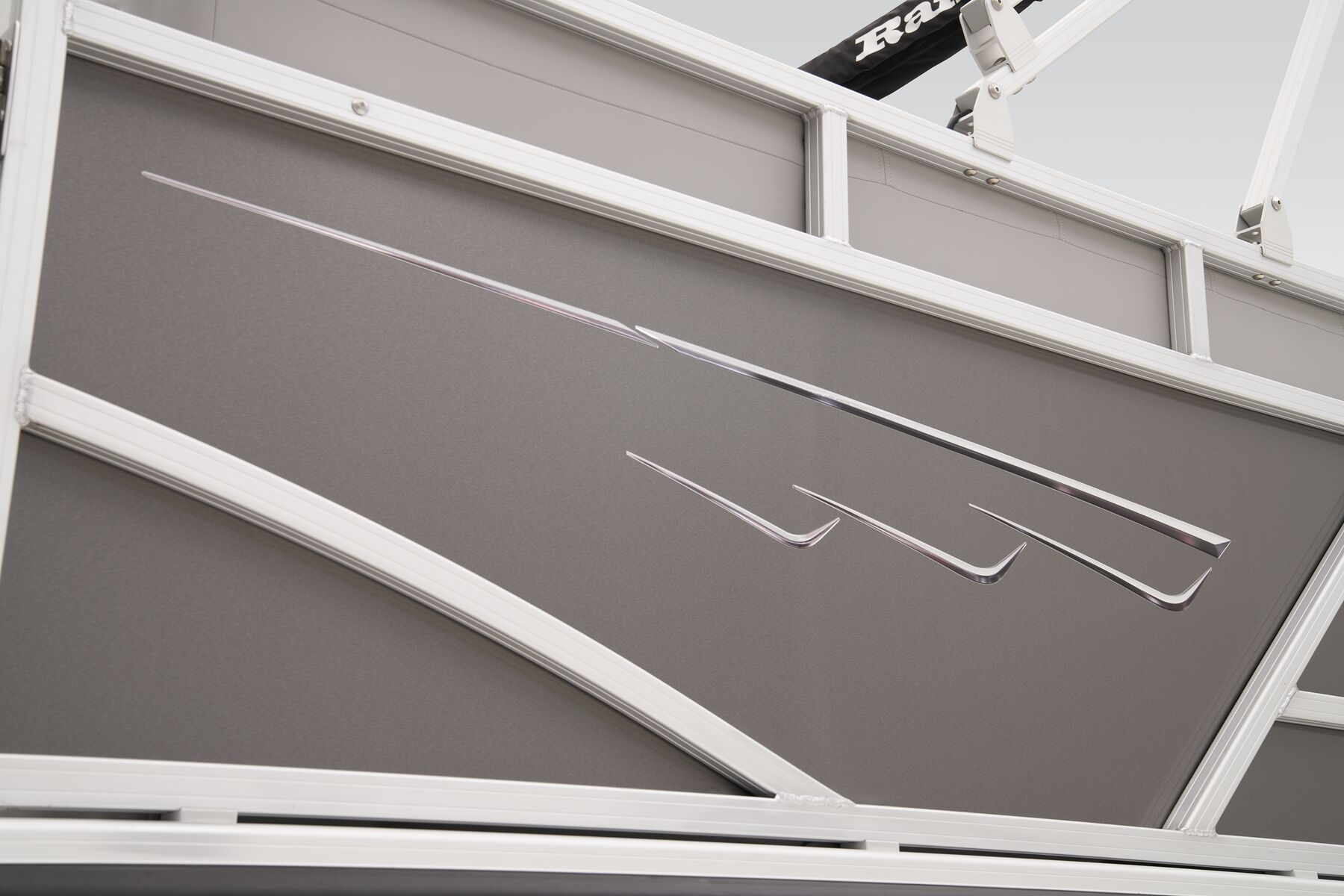

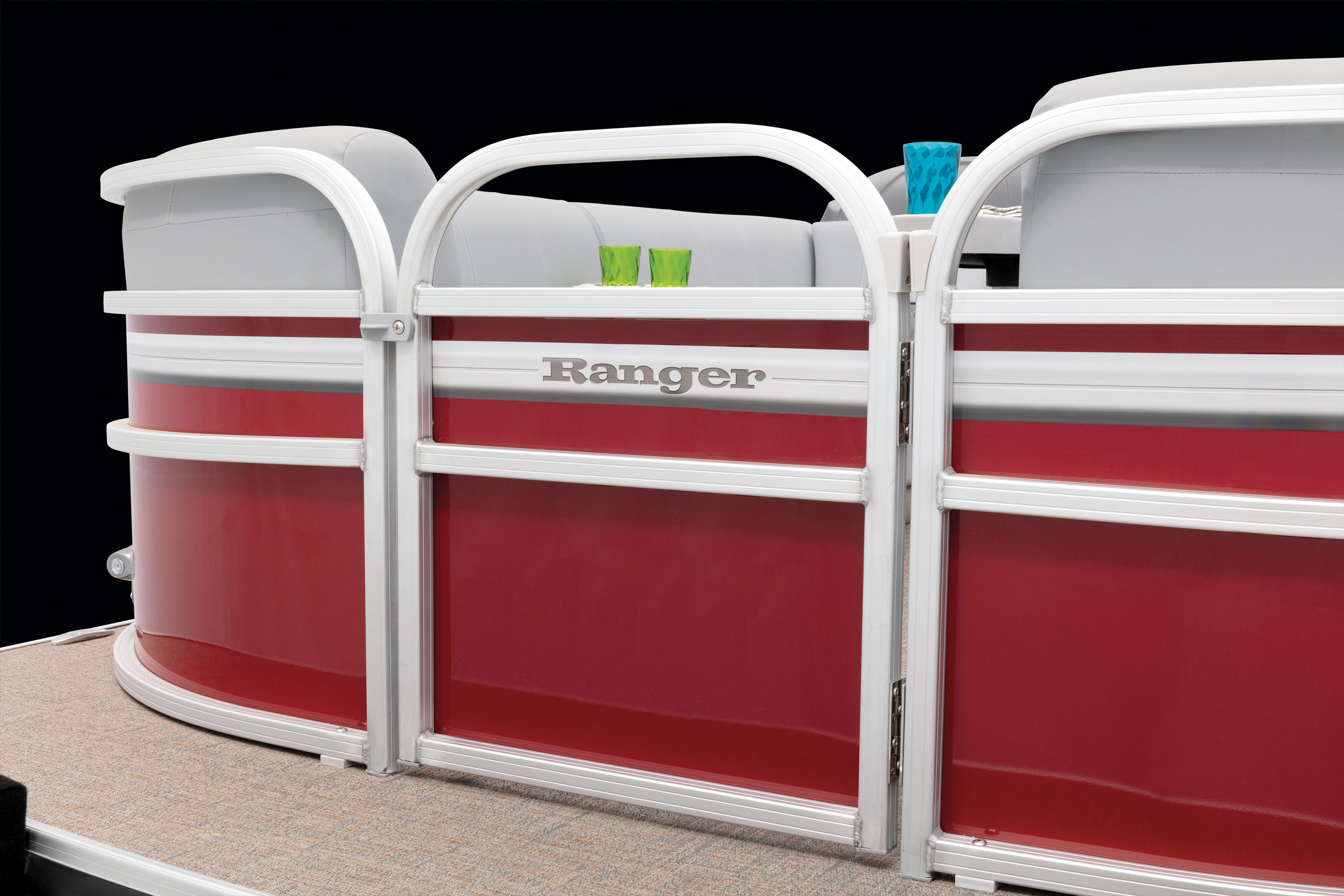

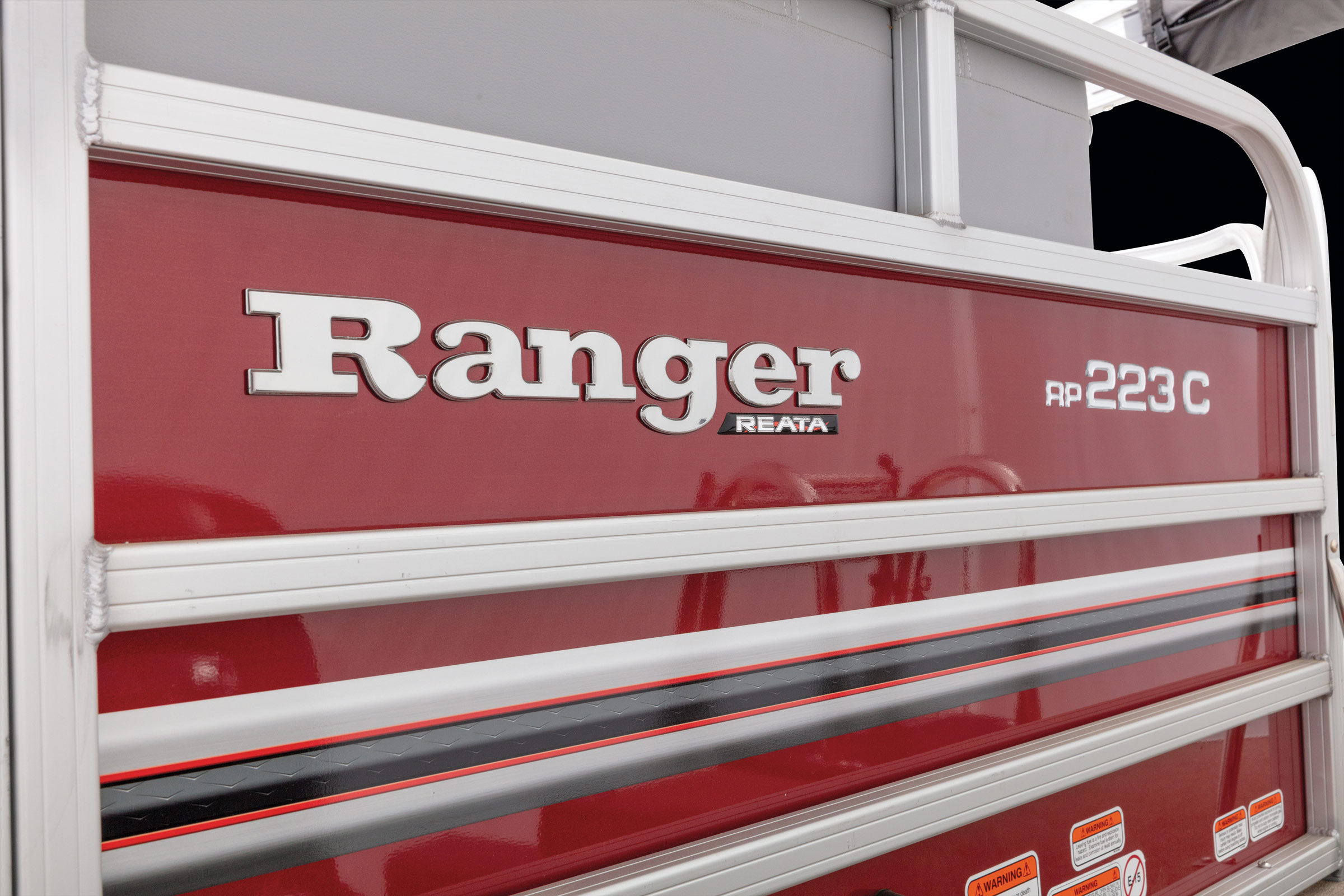

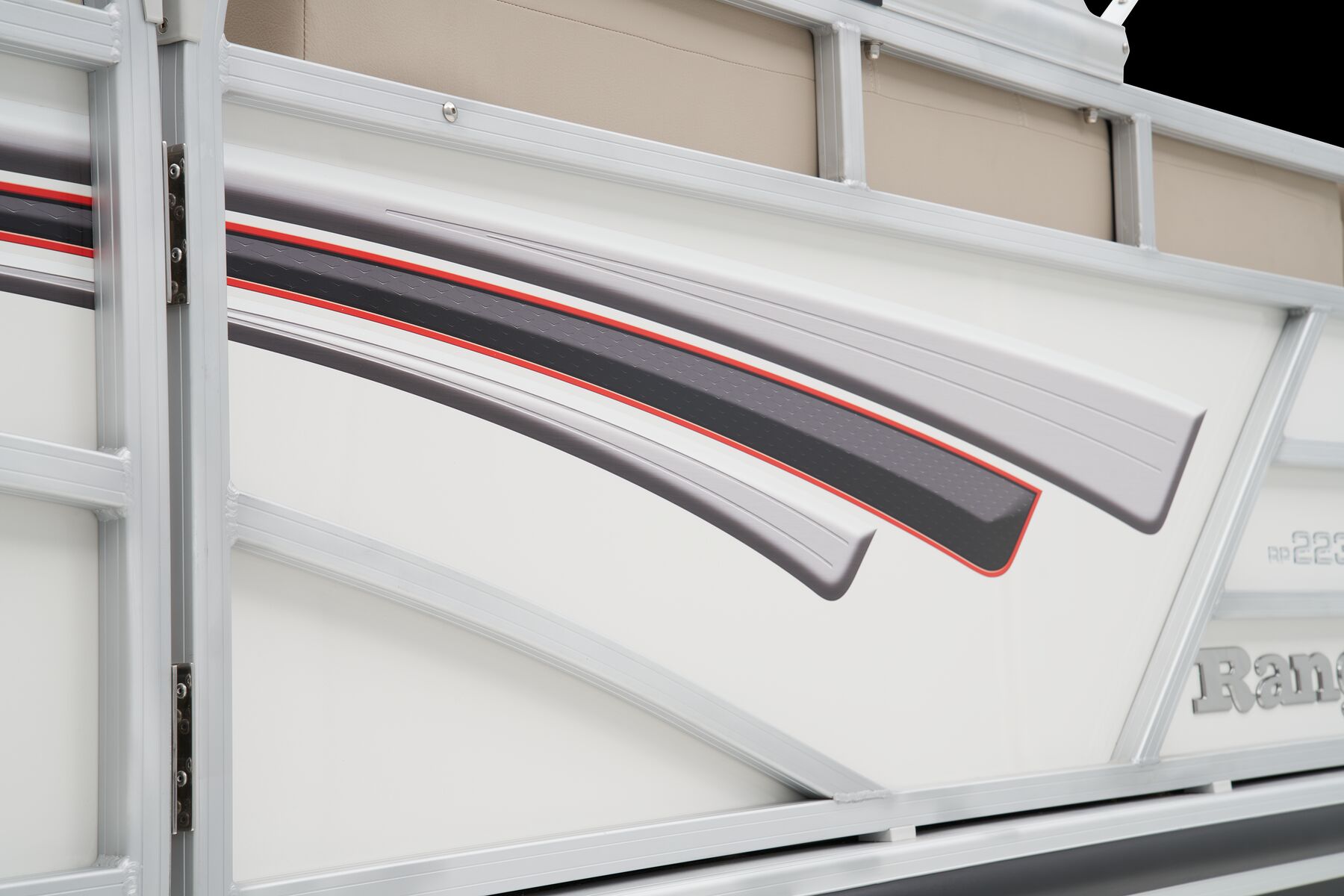

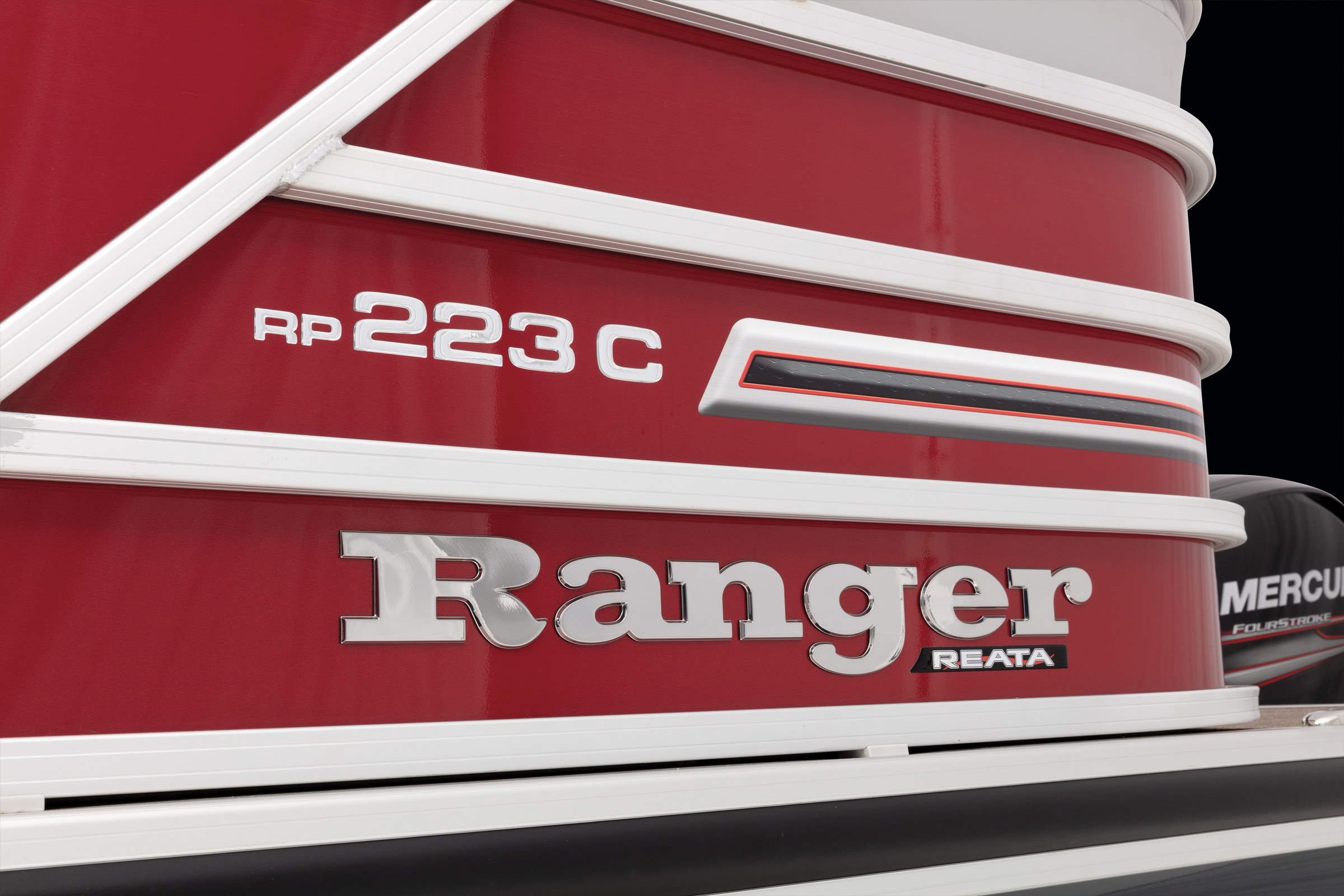

- Bold exterior styling combining dimensional chrome graphics & externally-mounted anodized railings

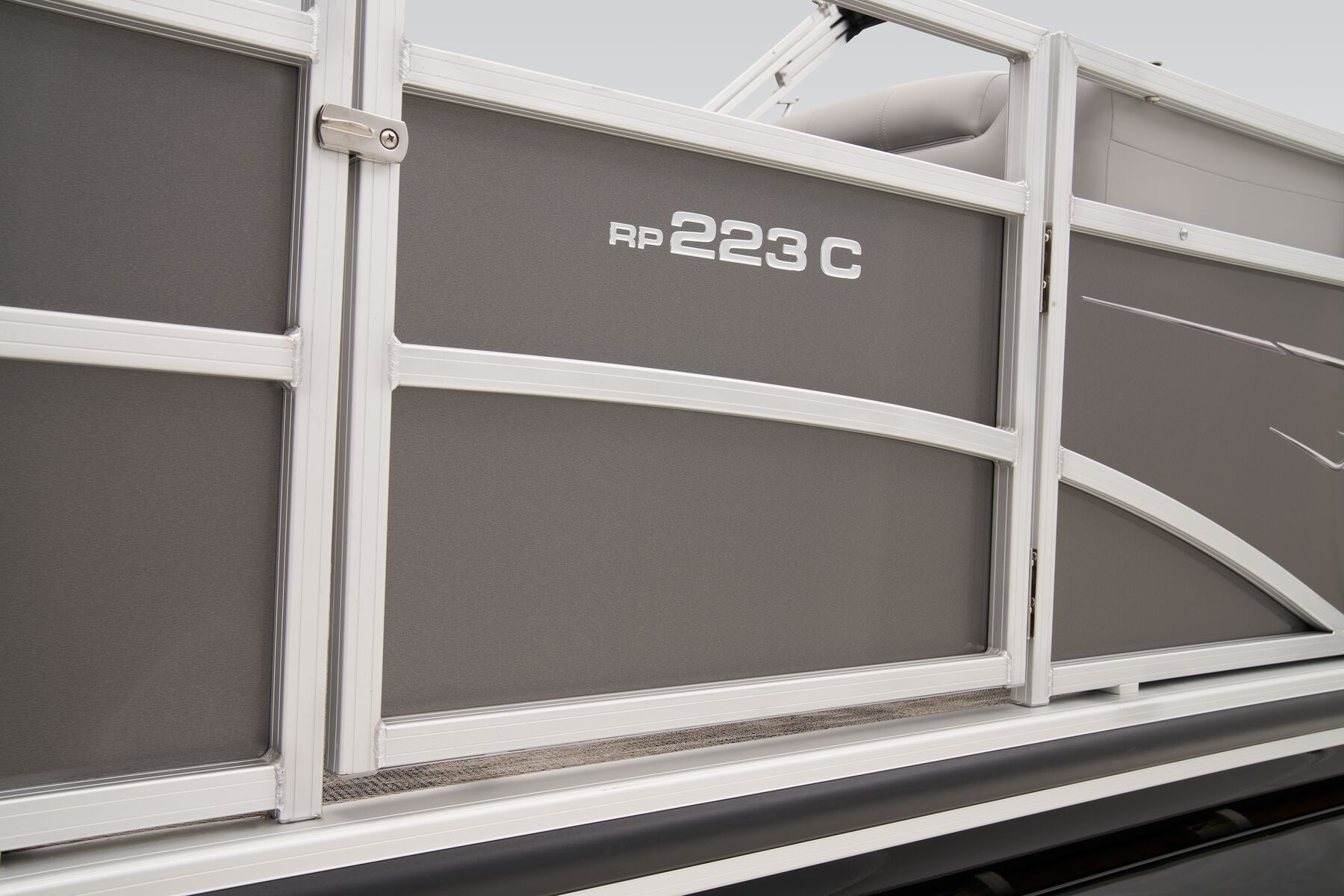

- .040"-thick (1.02 mm) high-sheen fence panels
- Available colors: charcoal metallic, black metallic, Ranger blue, pearl white, or matador red
- Aluminum deck undercladding
- Noise-dampening fence insulation
- Stylish deck trim w/ rub rail & highly polished aft corner castings
- 1-1/4" (3.2 cm) railing w/ mooring cover mounting track
- Snapless, trailerable mooring cover w/ removable bow extension for full coverage at home, in the slip or on the road

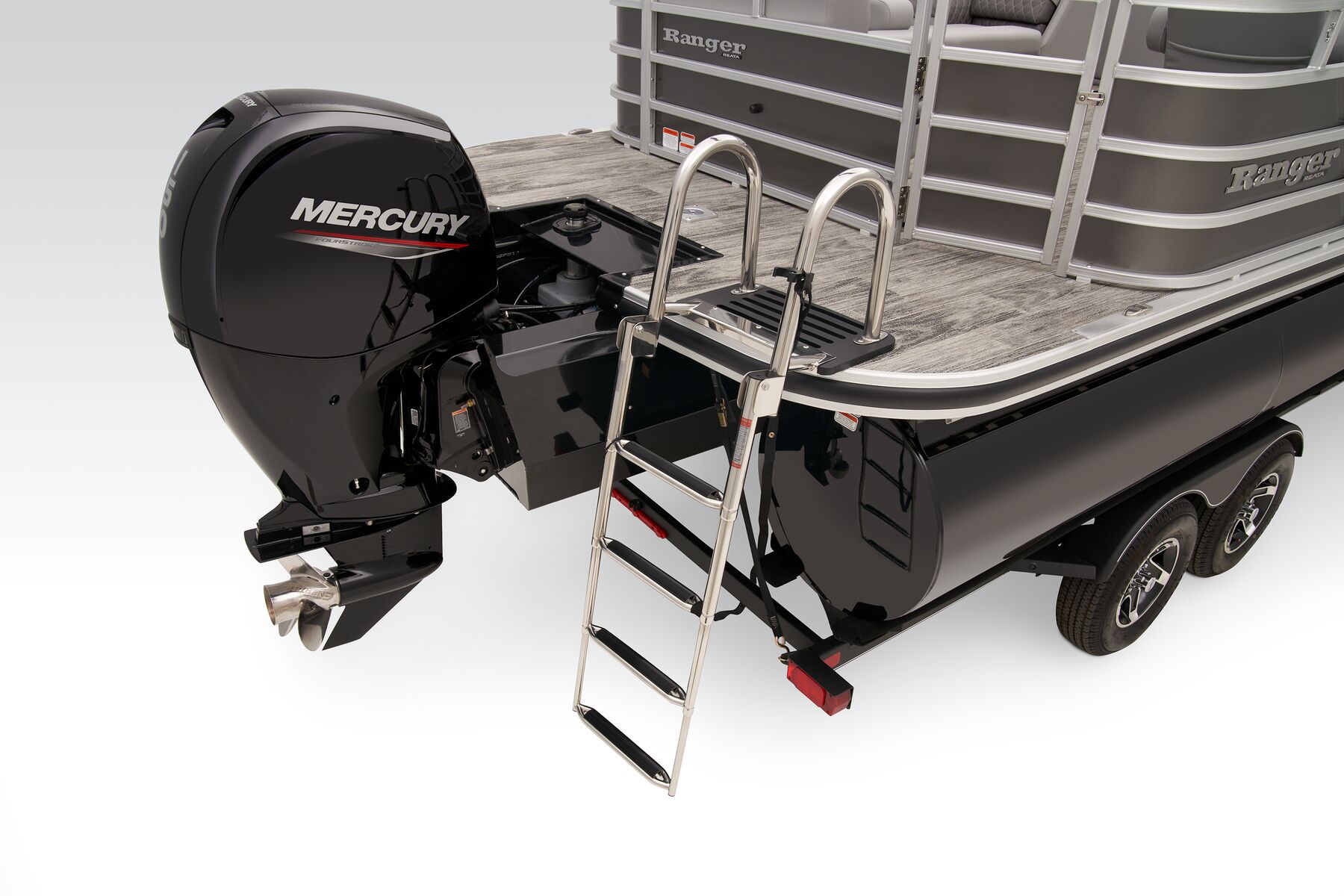

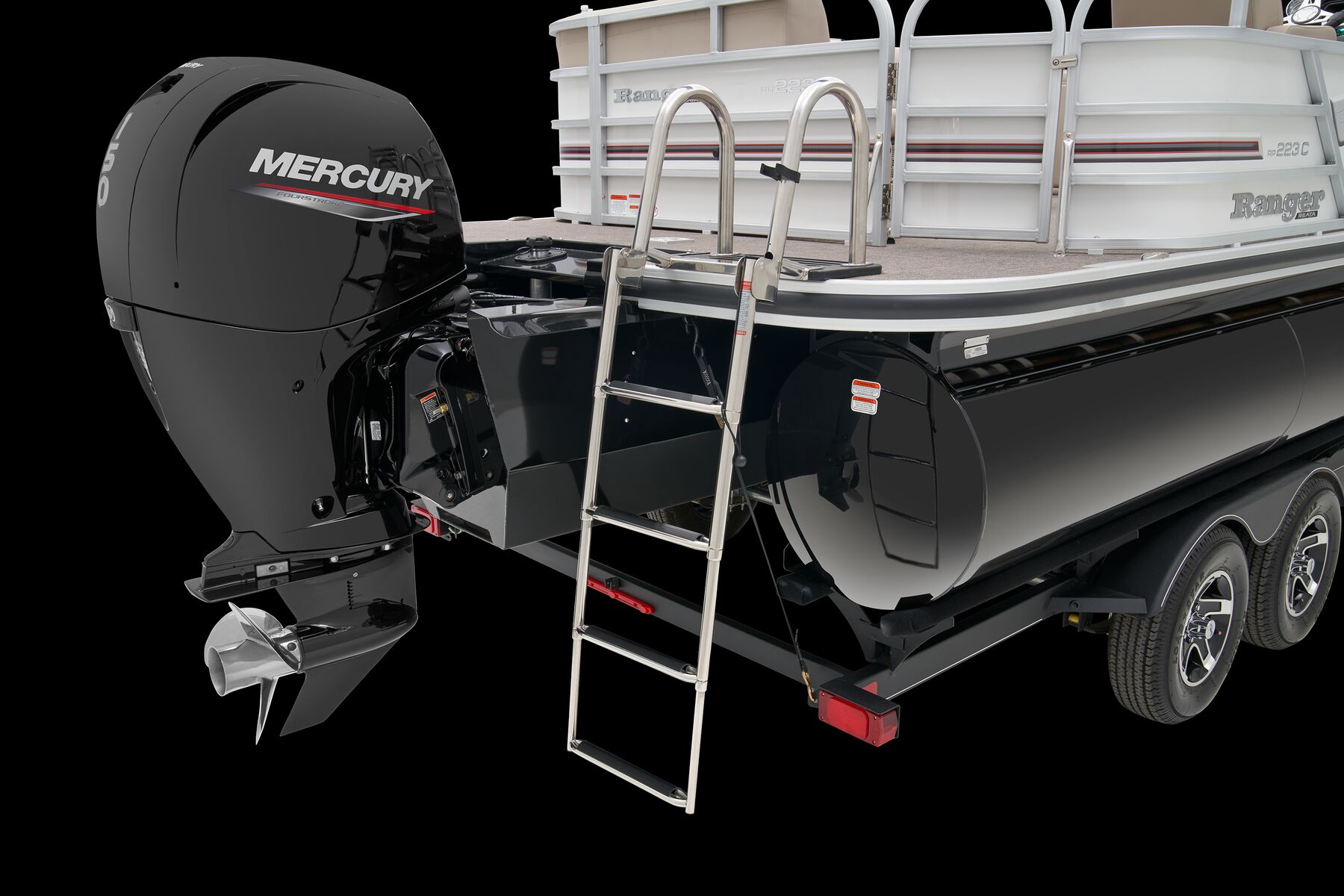

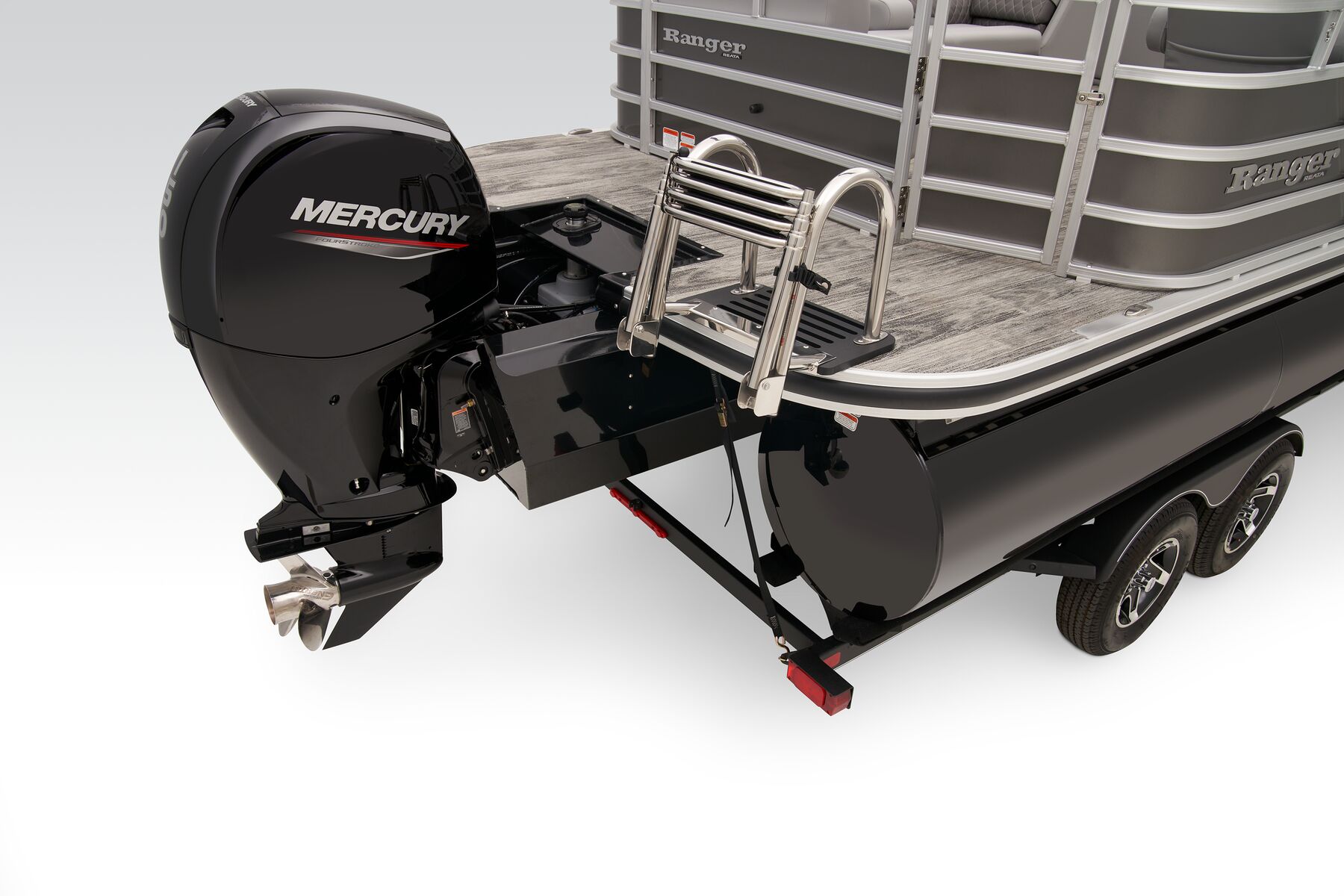

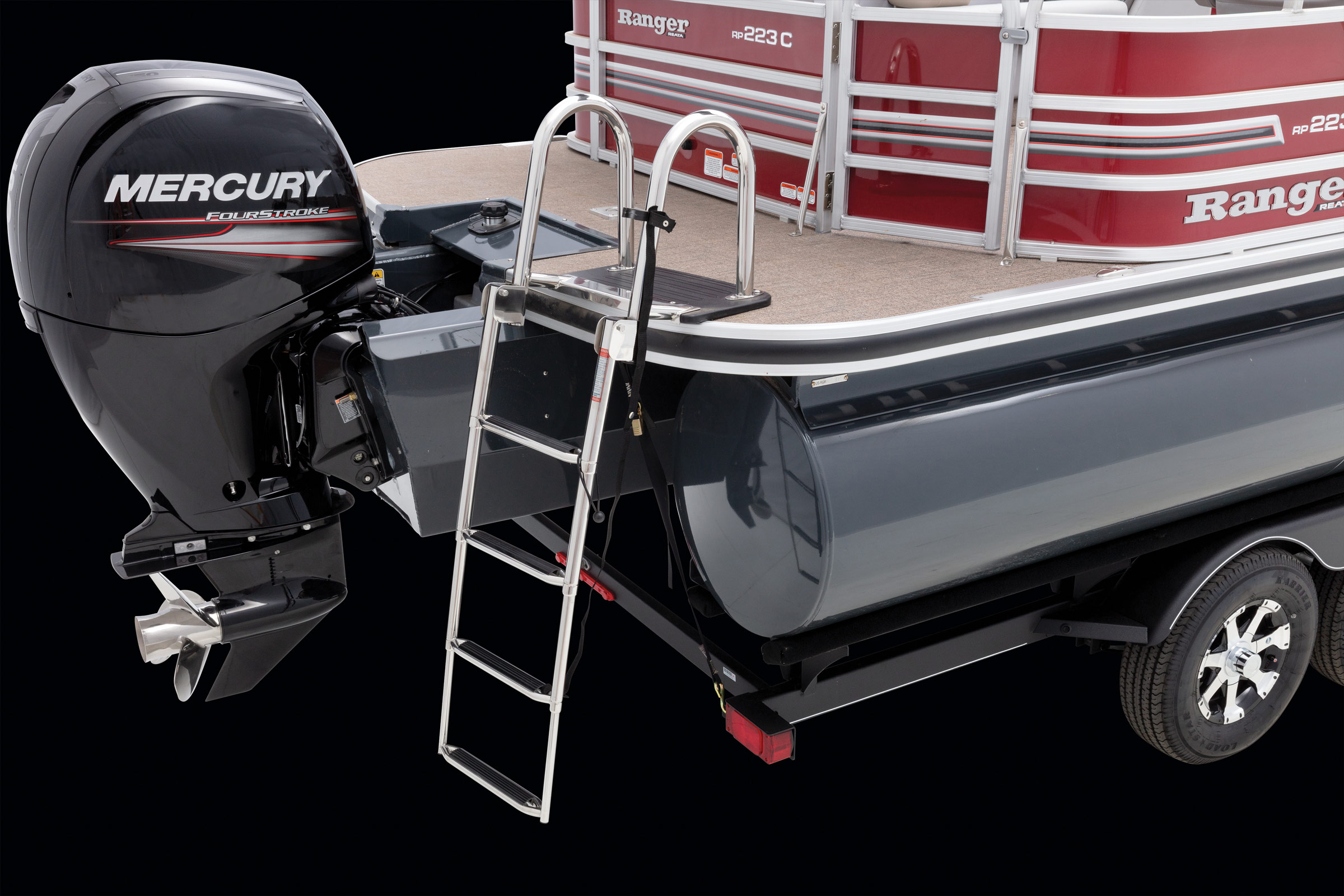

- 4-step, fold-down, telescoping stainless steel boarding ladder w/ two tall handrails
- Elevated fencing for better drainage & ventilation
- 4 Fold-down stainless steel cleats

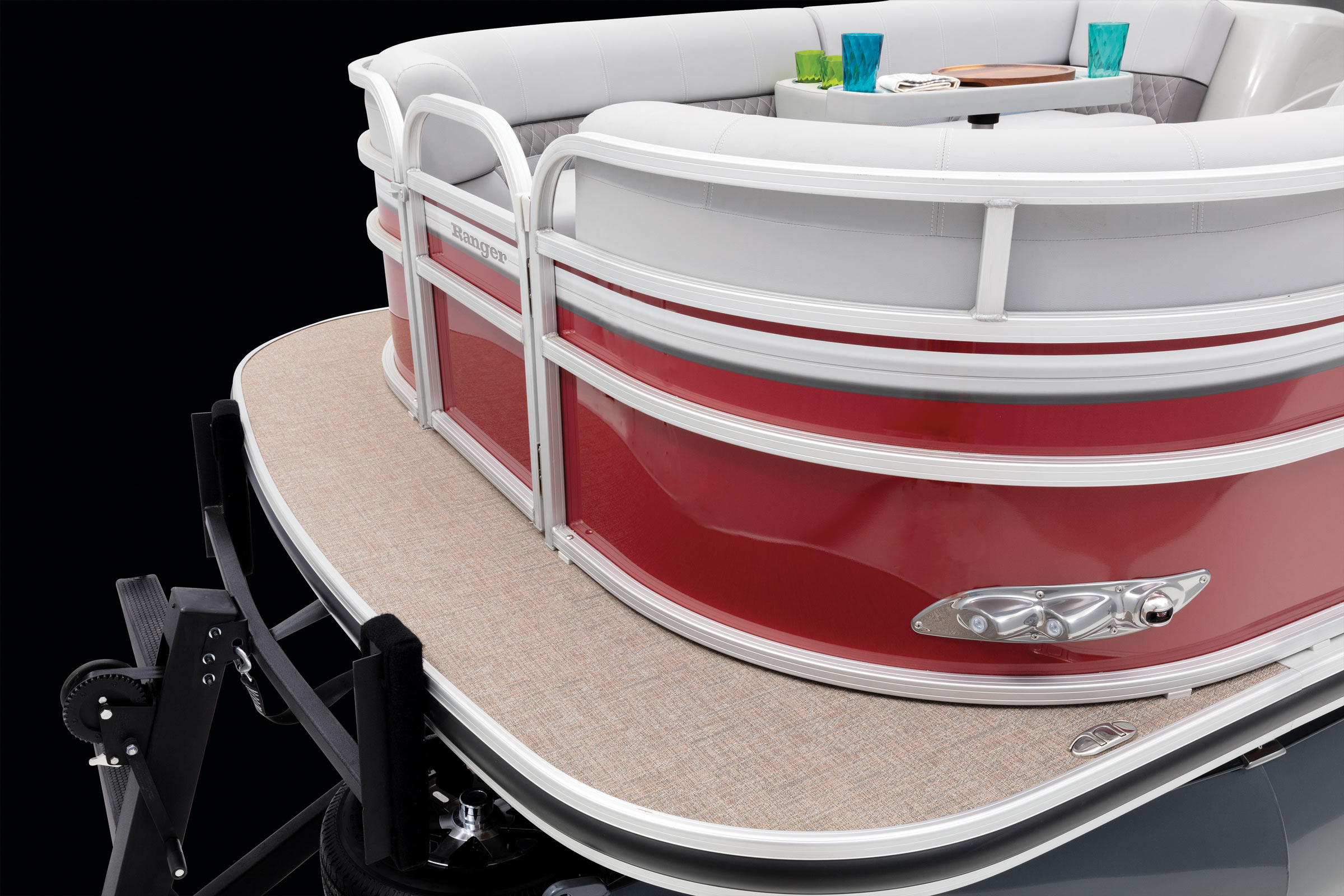

- Front porch area

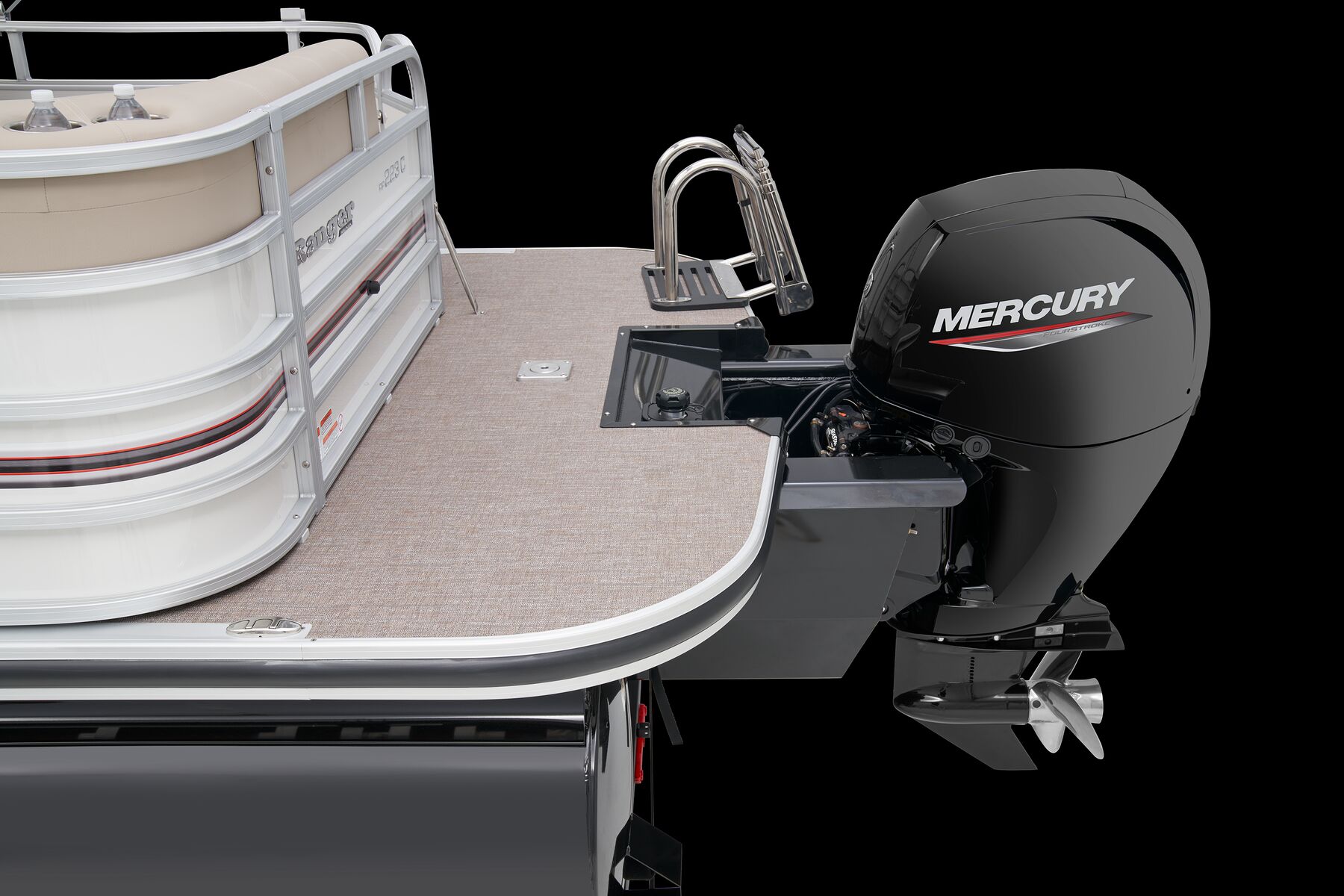

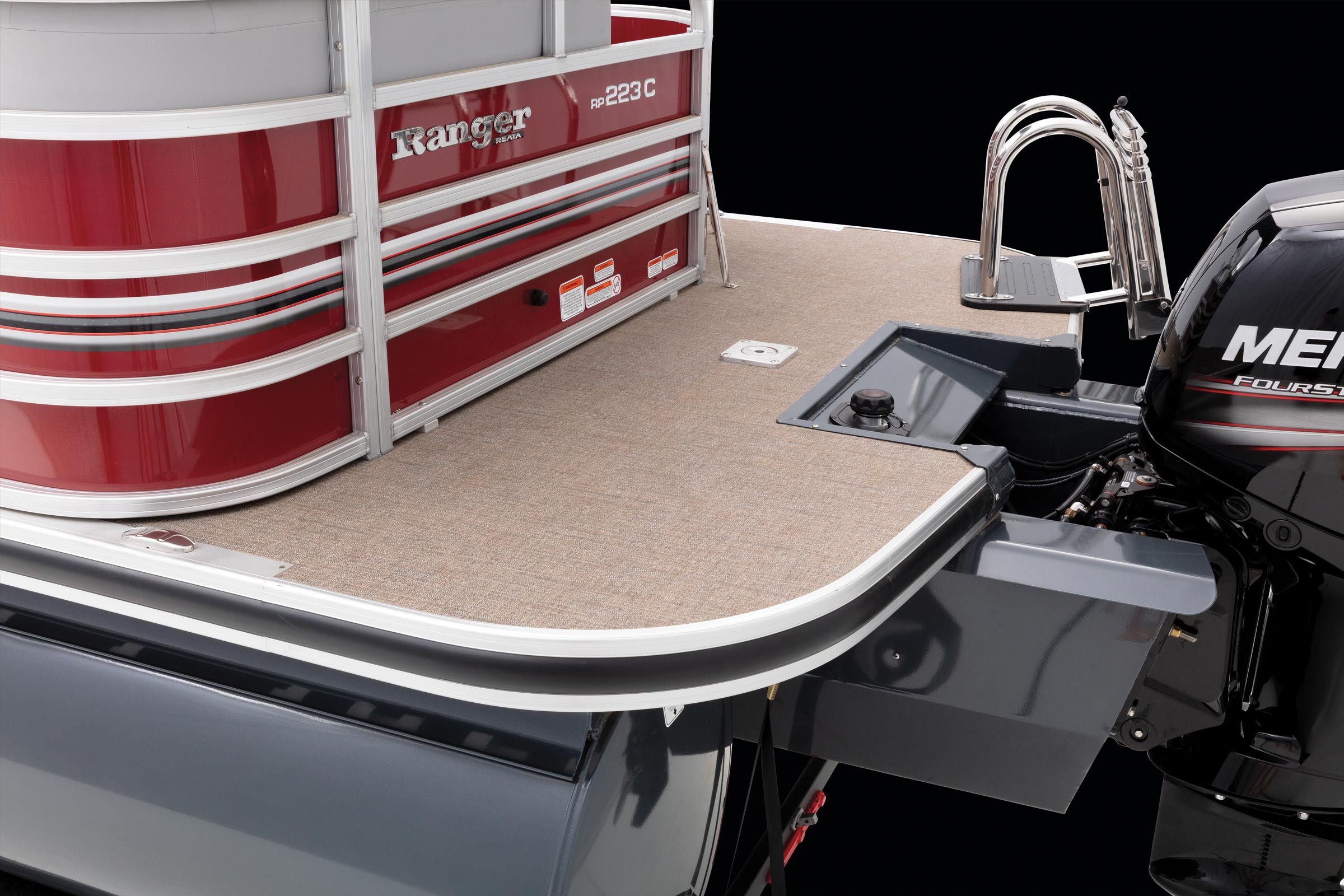

- Full-width swim platform w/ mount for optional ski tow pylon

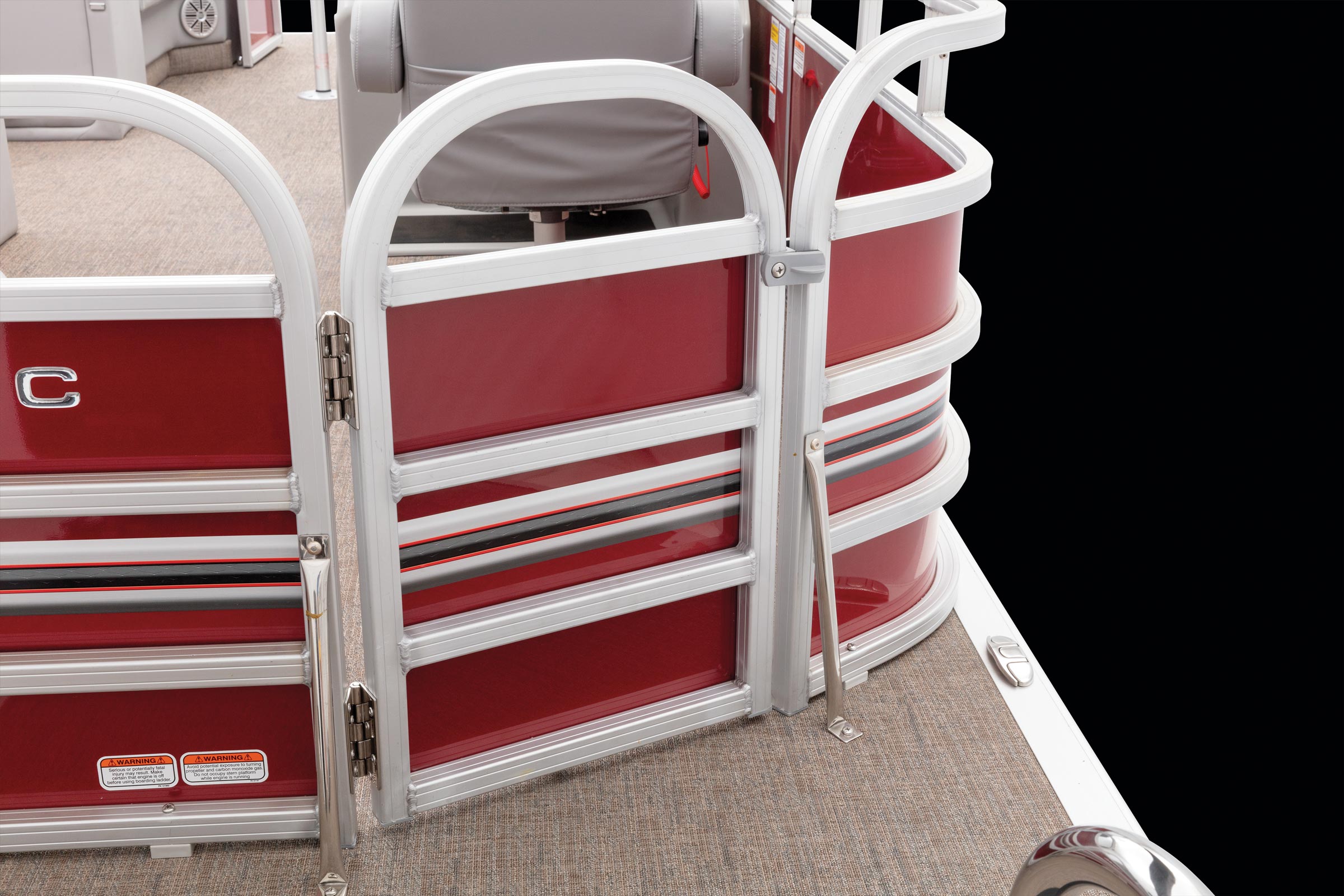

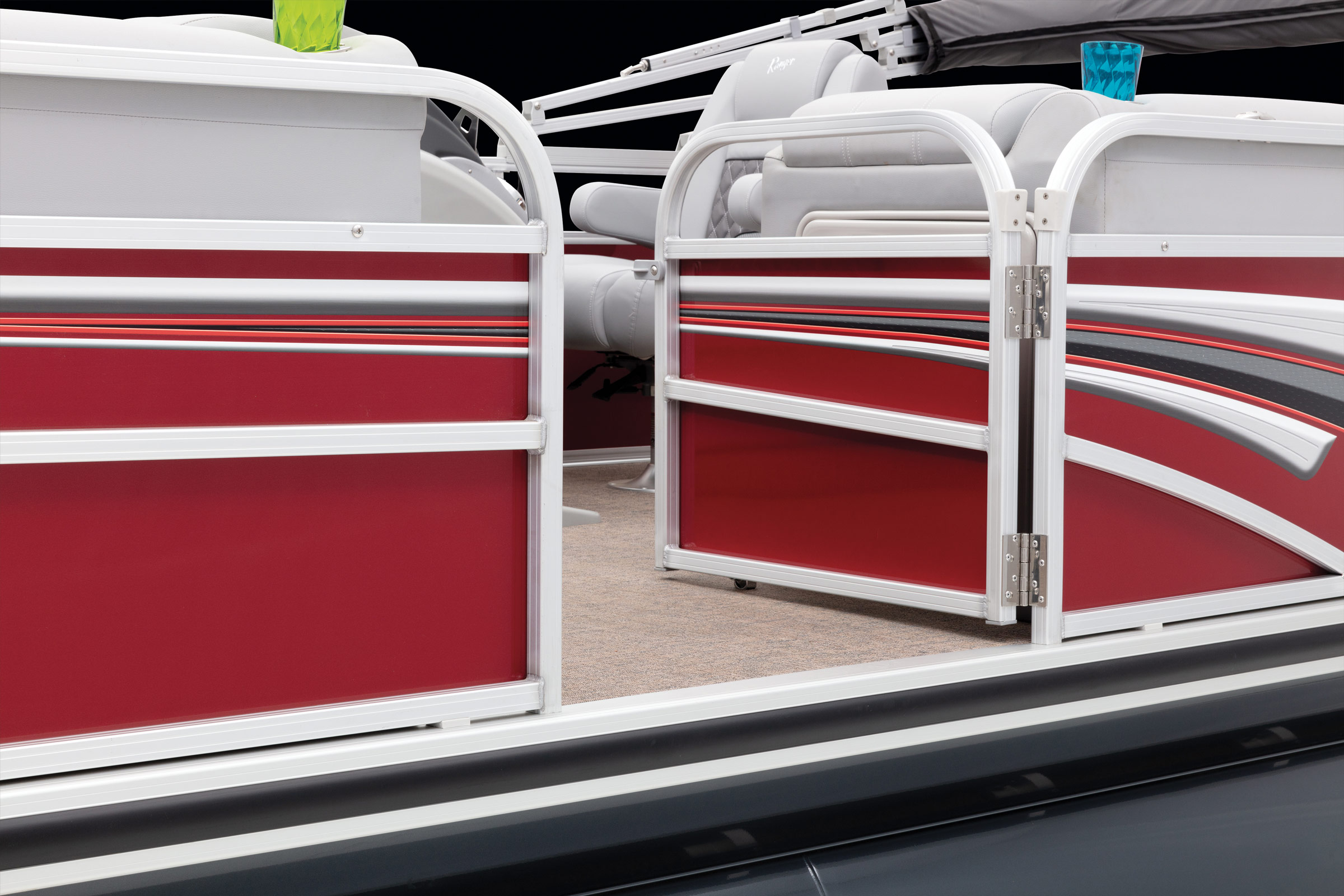

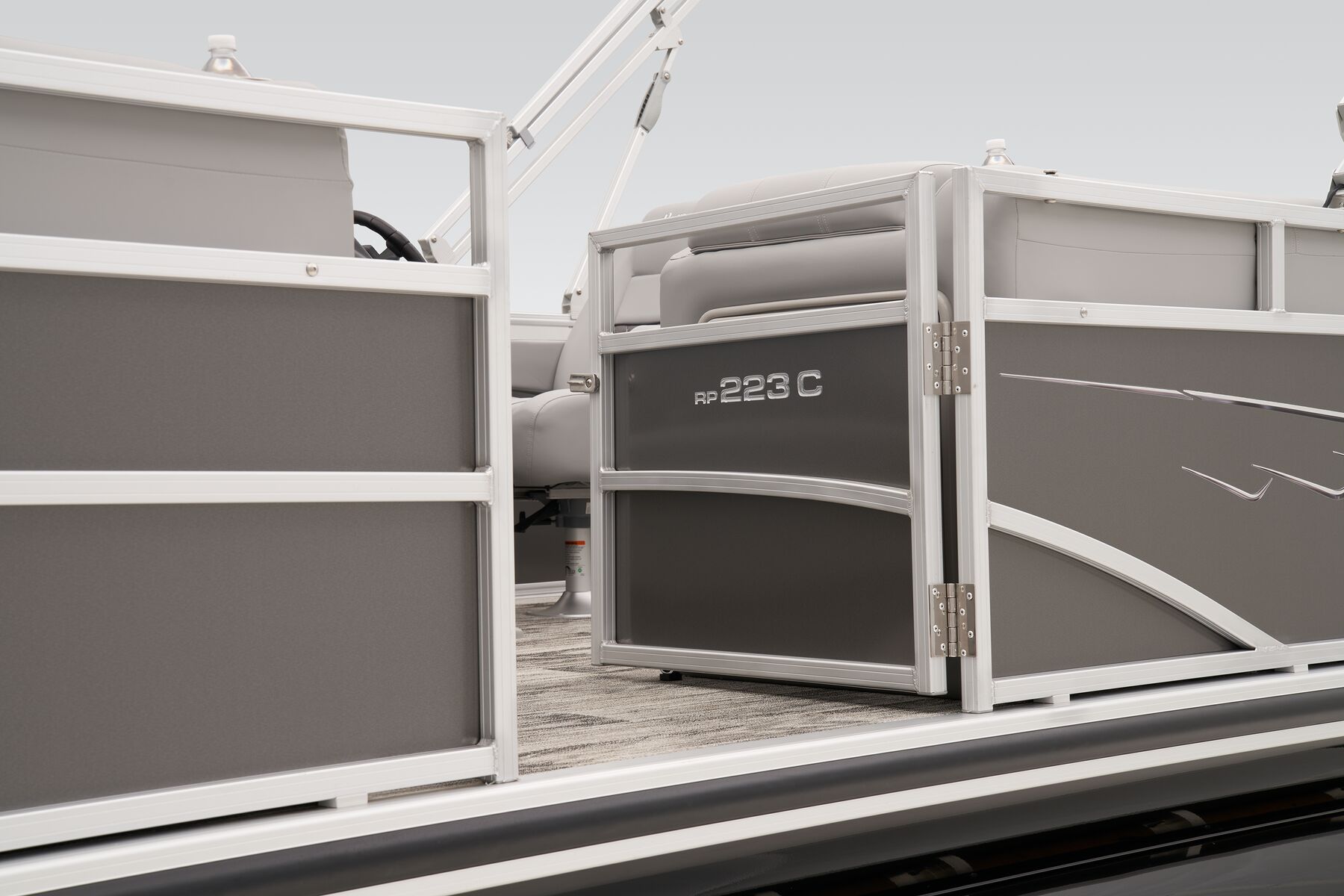

- Port wheelchair-accessible gate

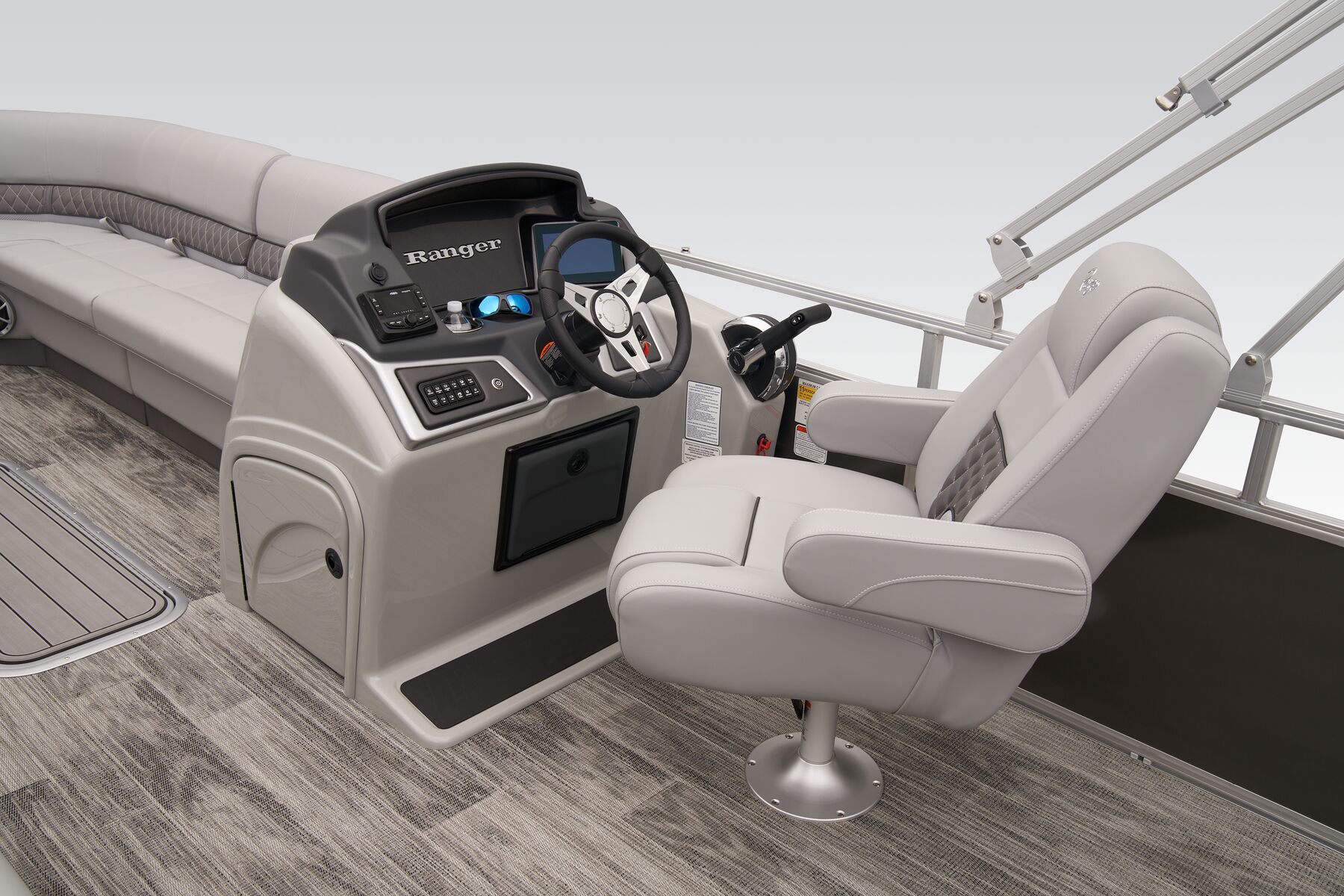

Helm

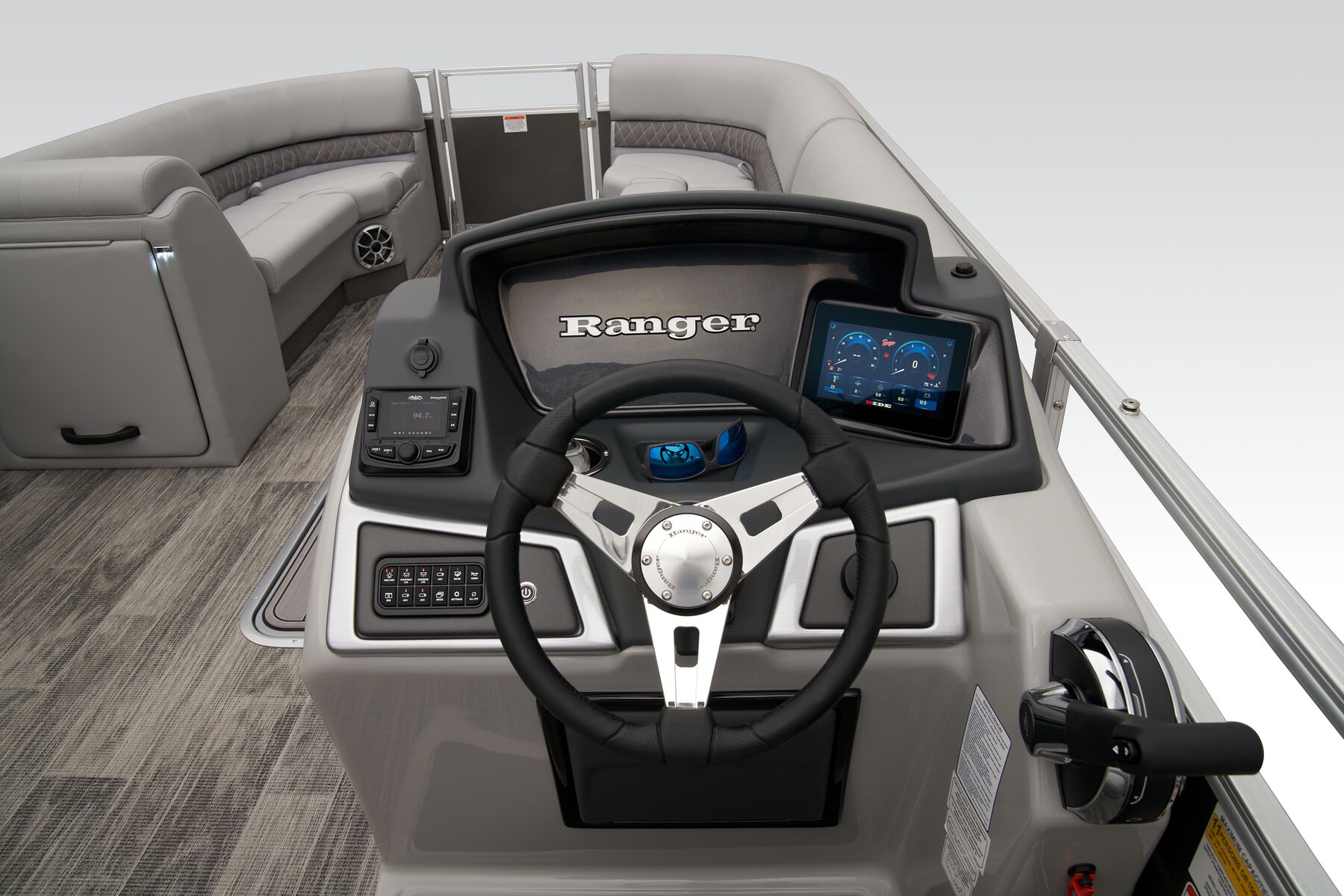

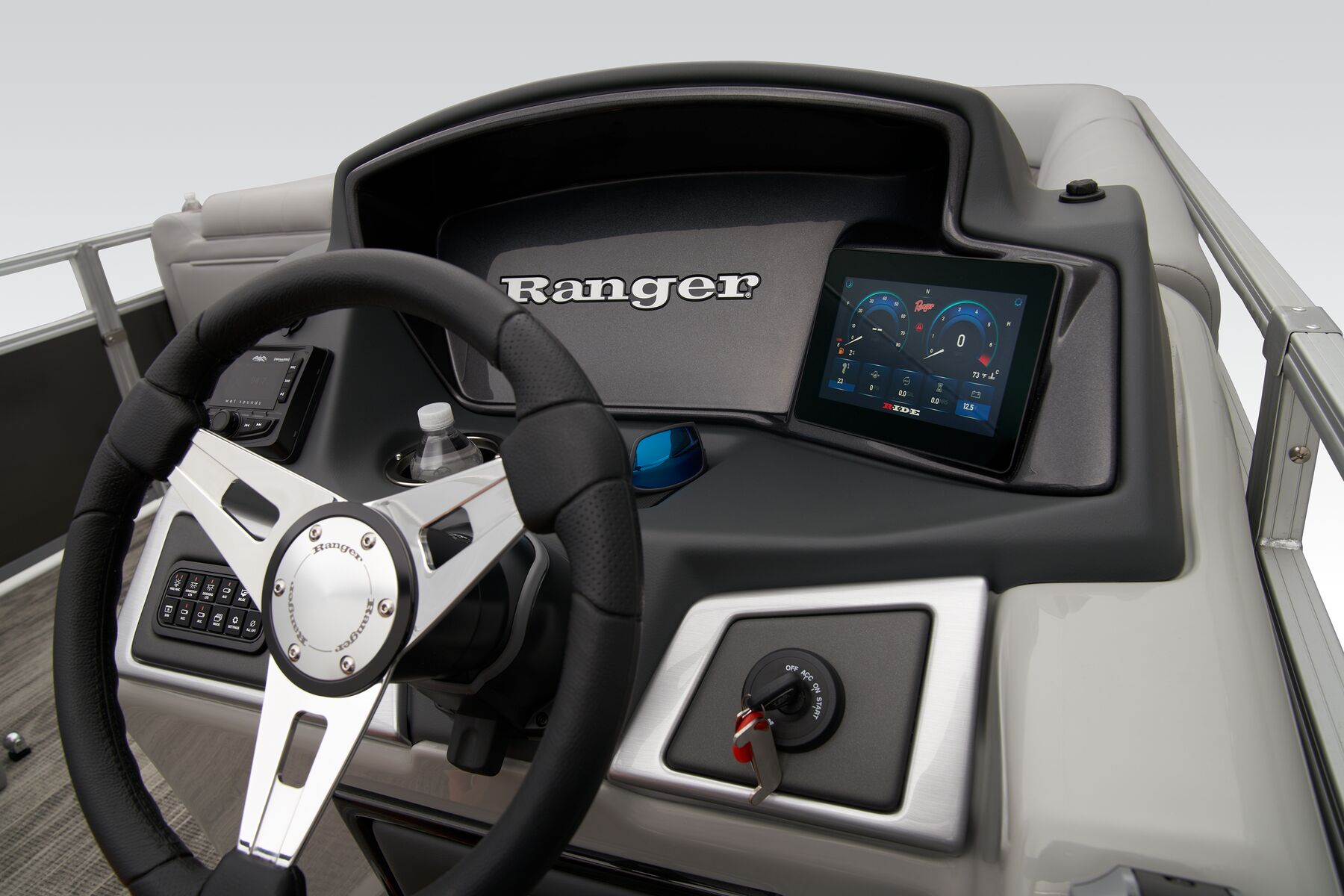

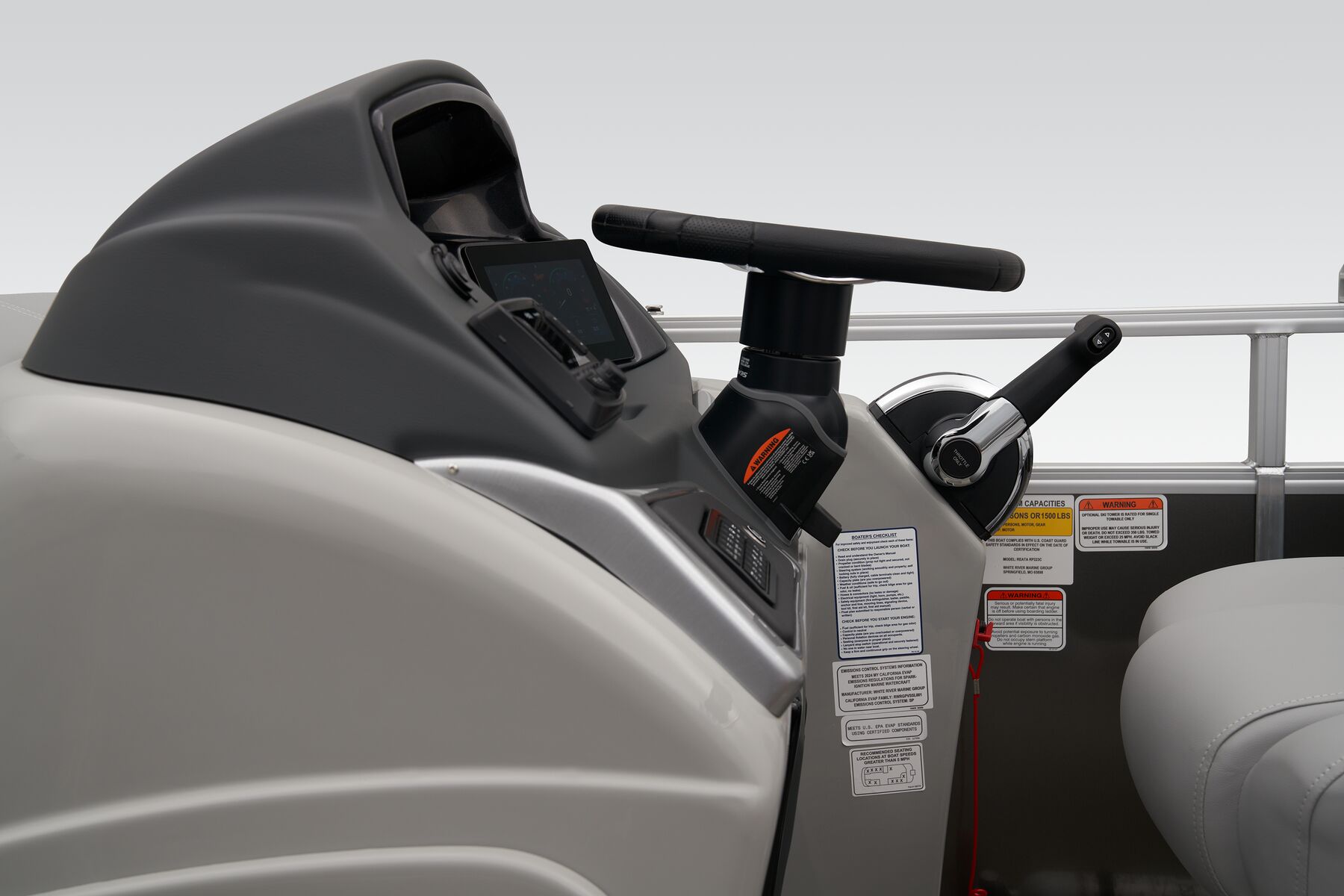

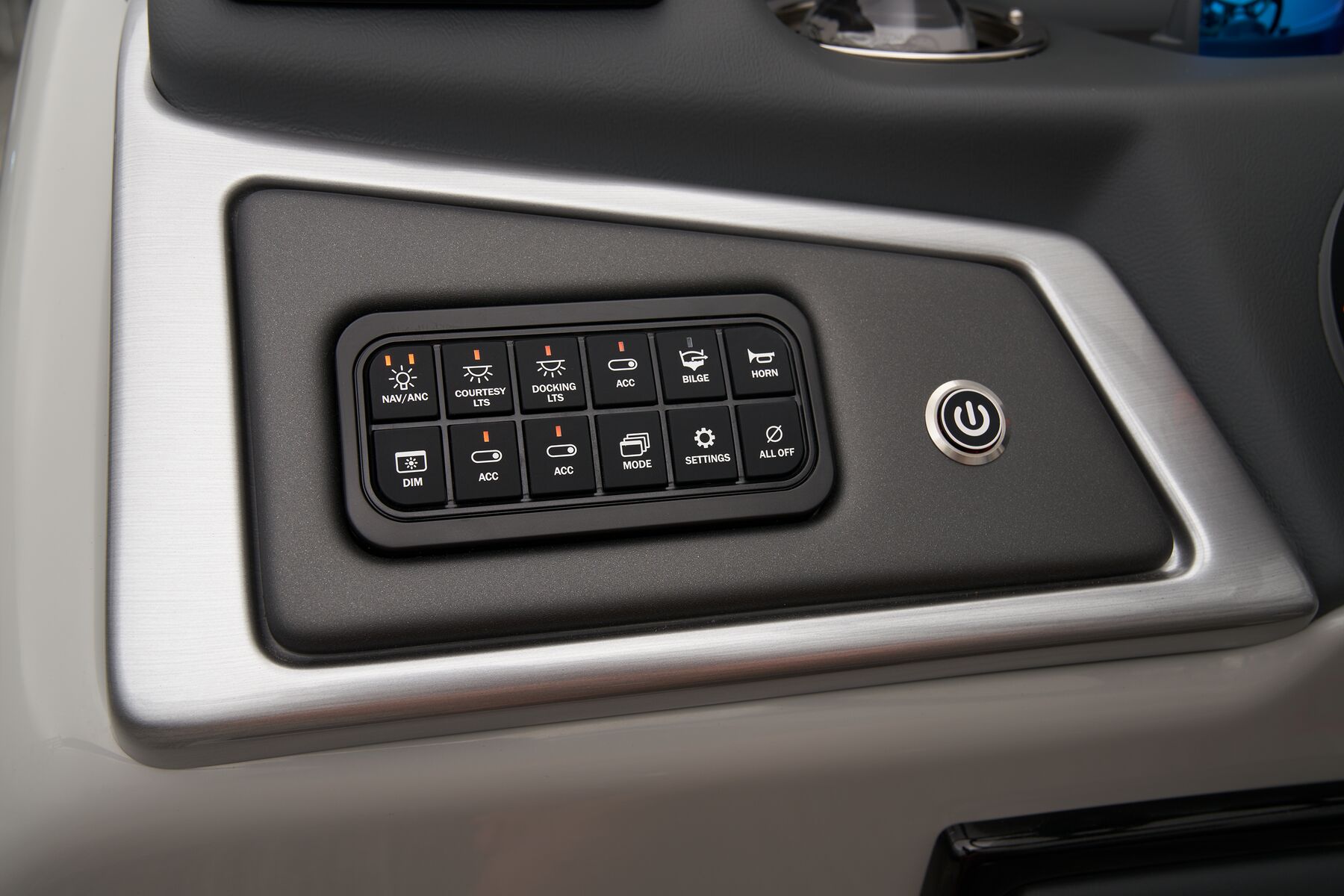

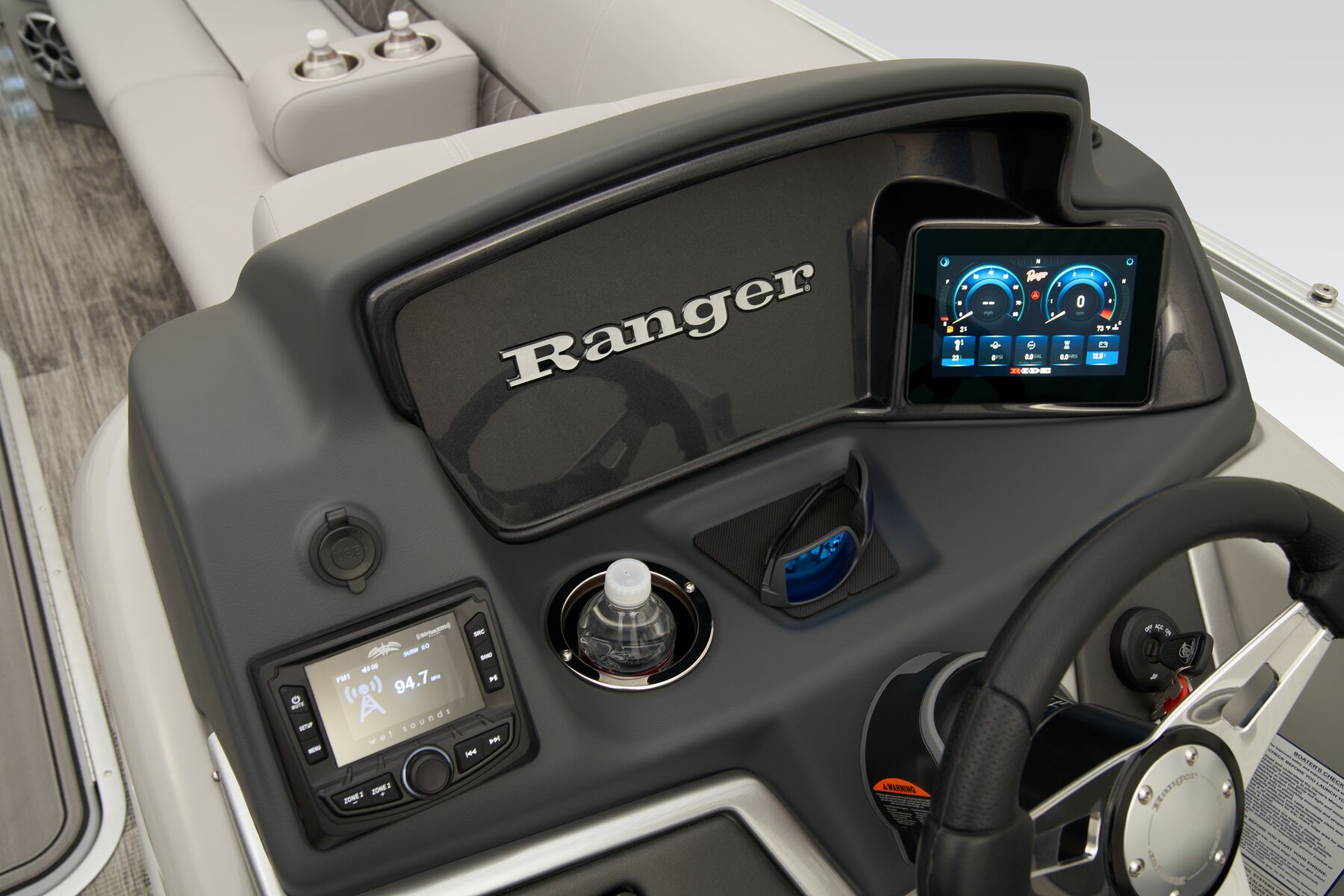

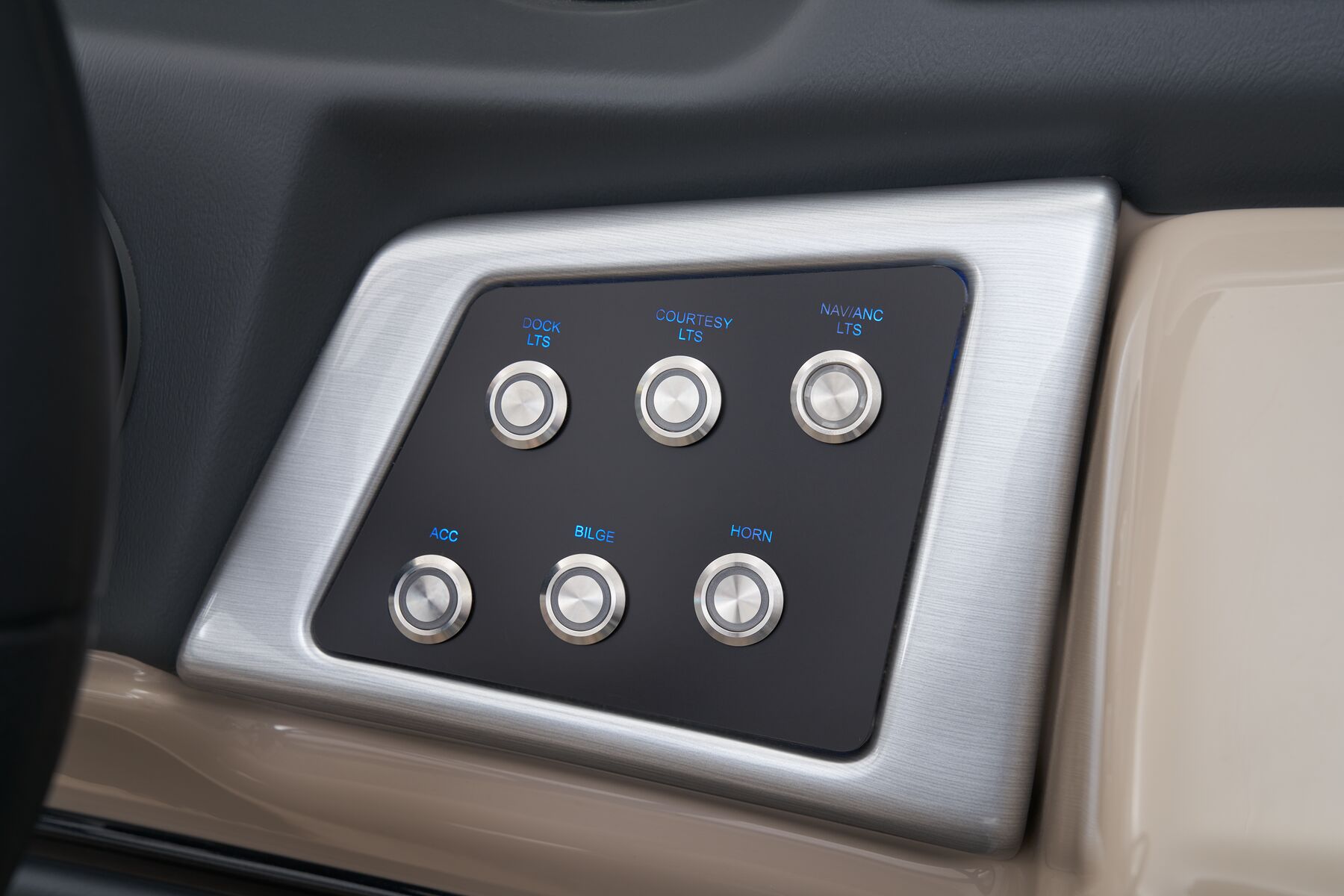

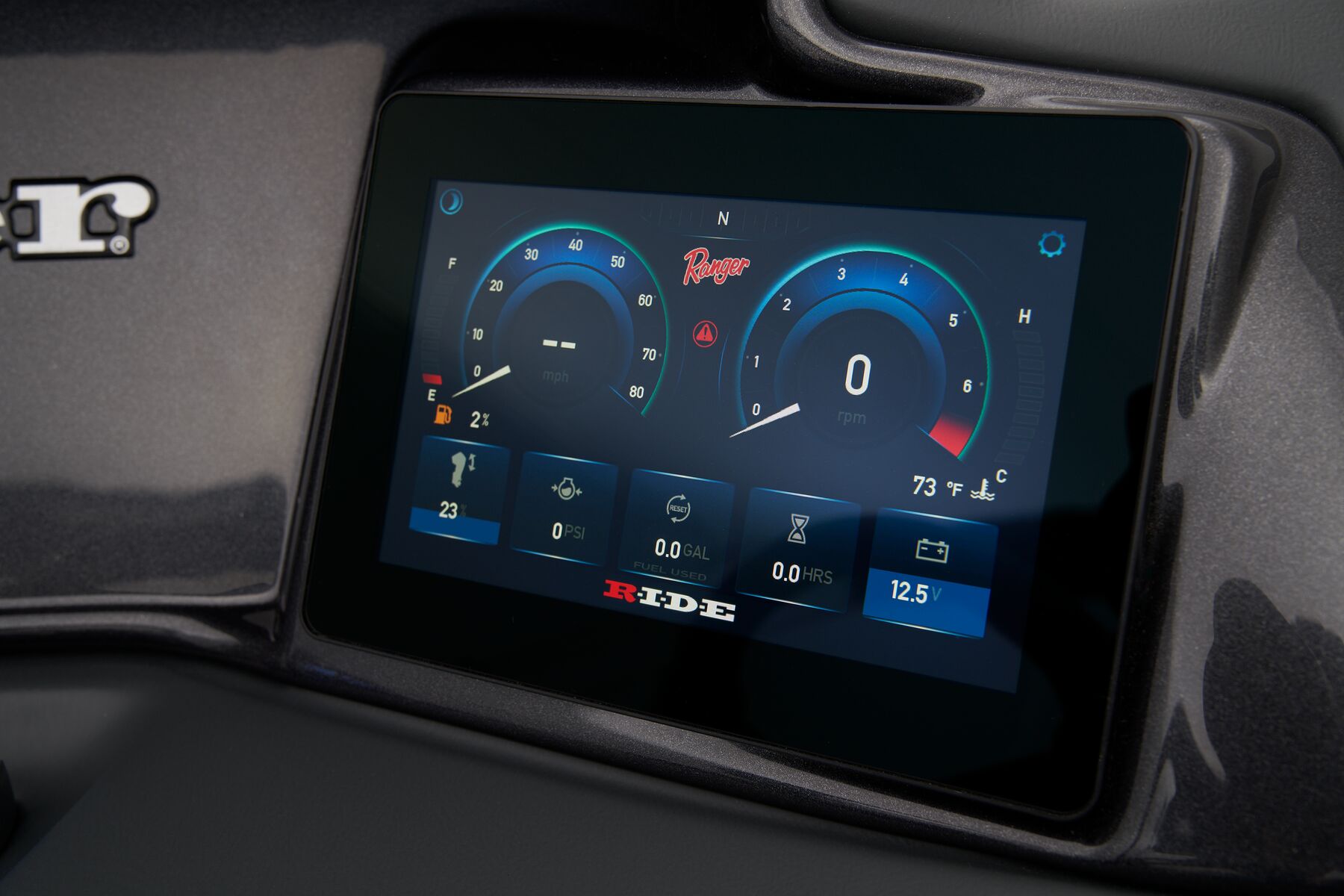

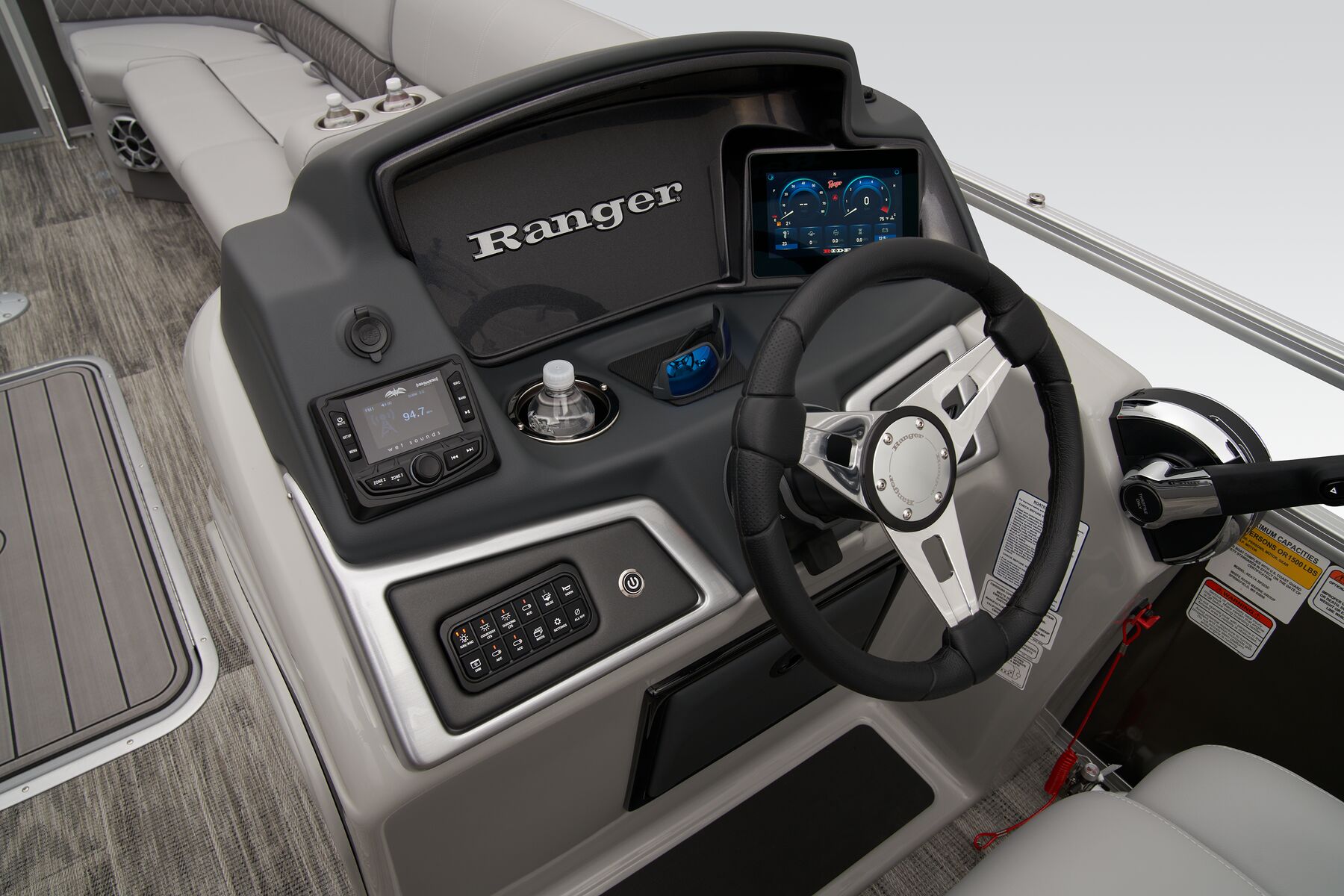

- NEW - Ranger® System Monitor - 7" Touchscreen that displays all boat and engine data at a glance, eliminating the need for gauges and 12-button switch panel

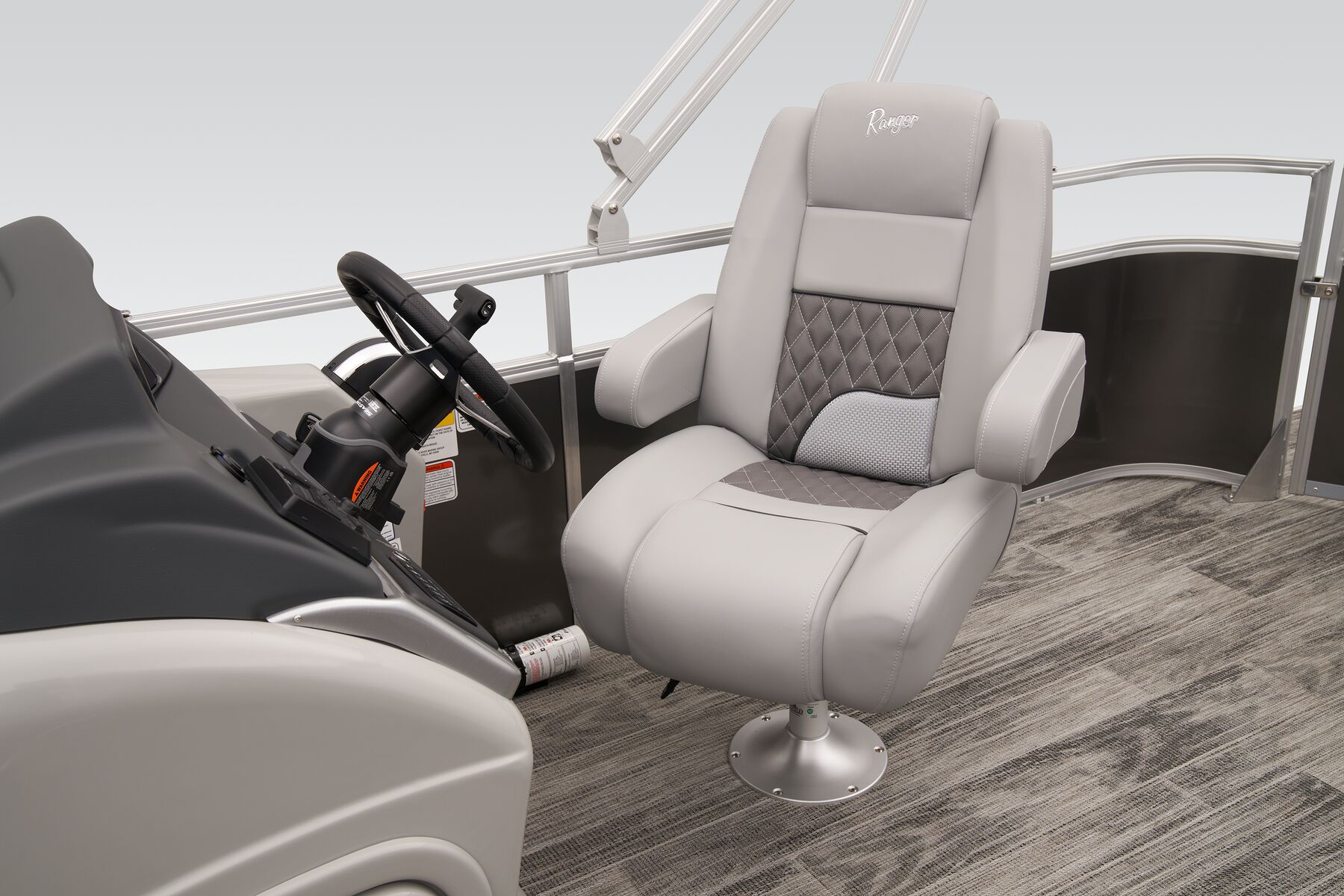

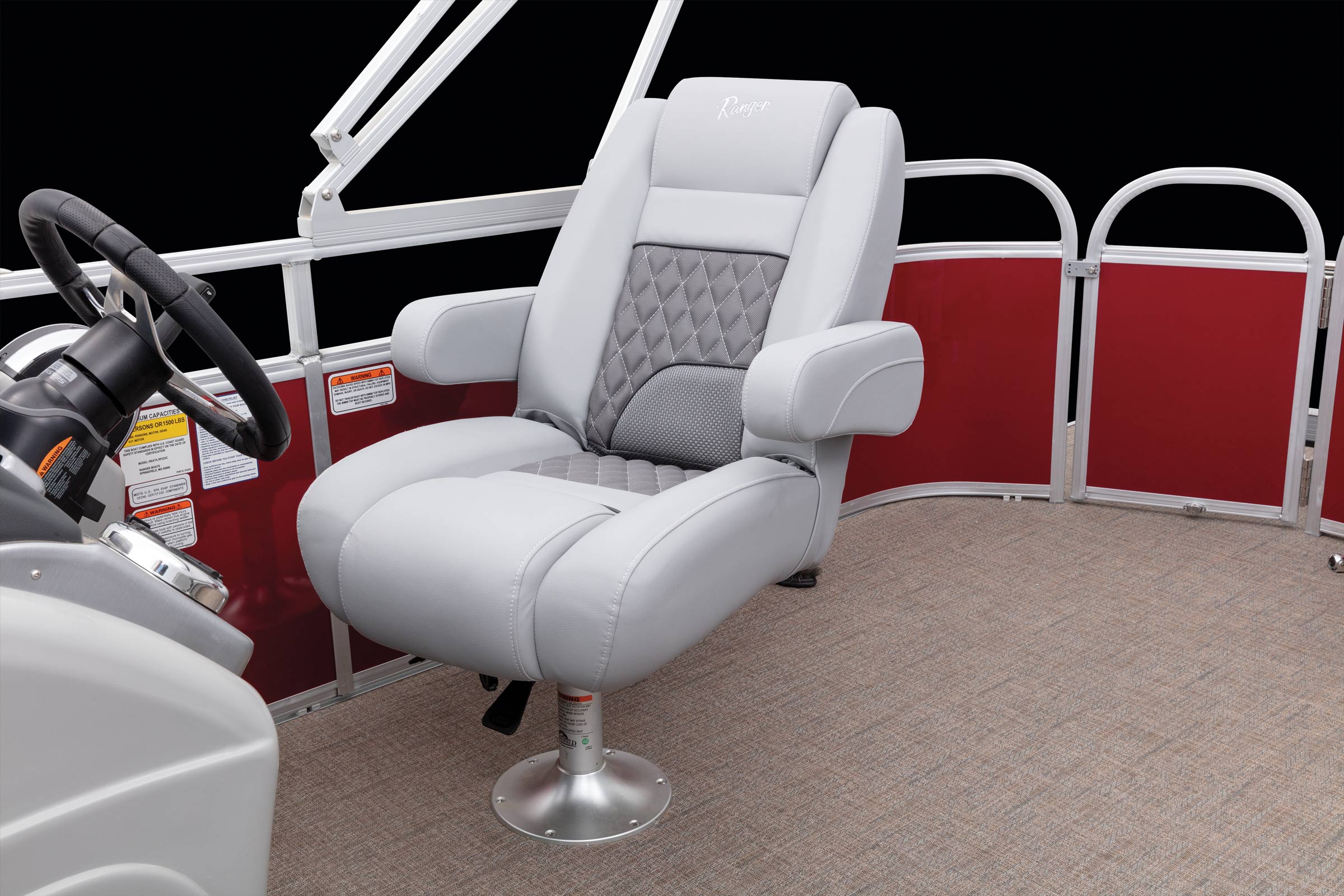

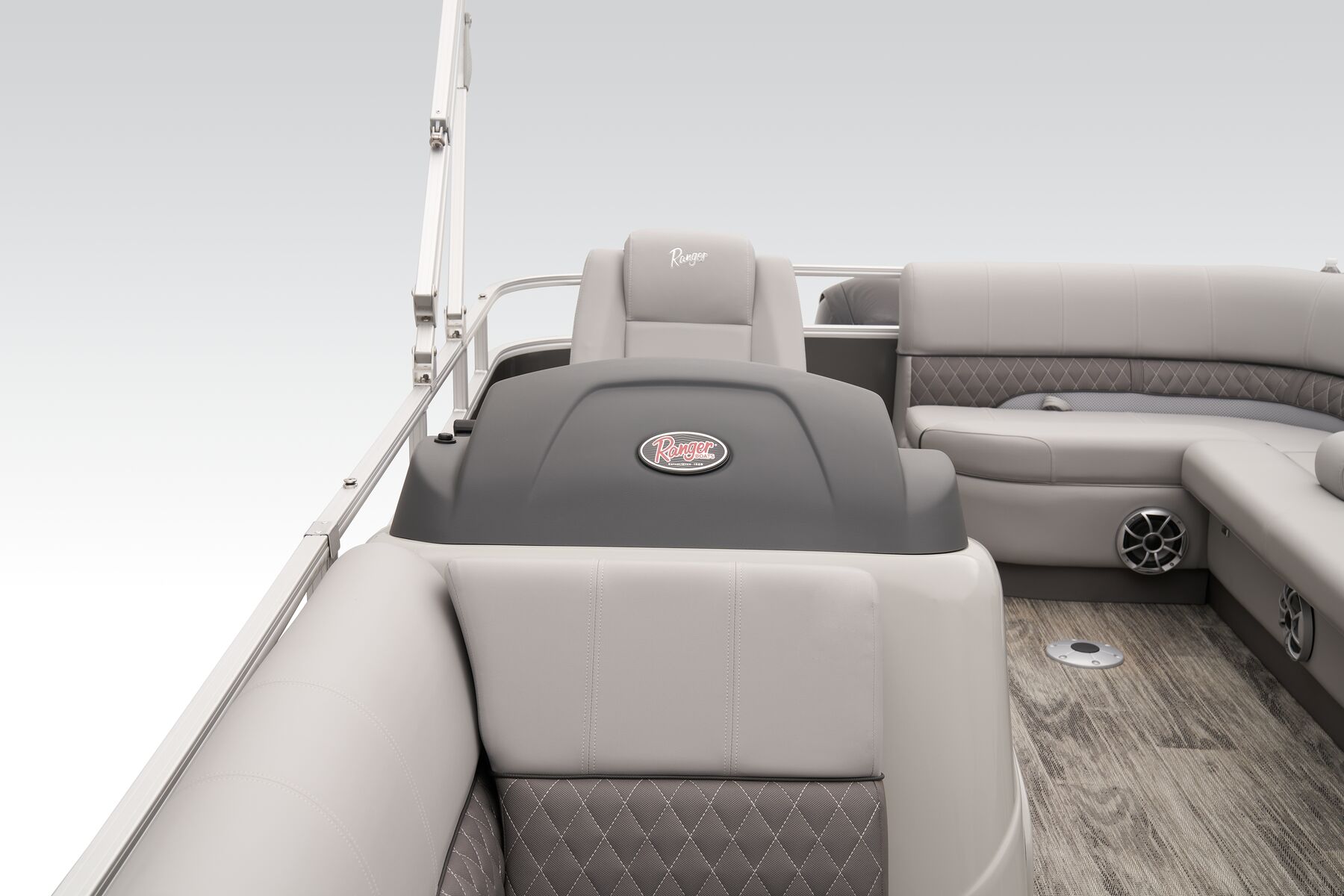

- Adjustable, swiveling & reclining helm chair w/ self-leveling arms & storage pouch

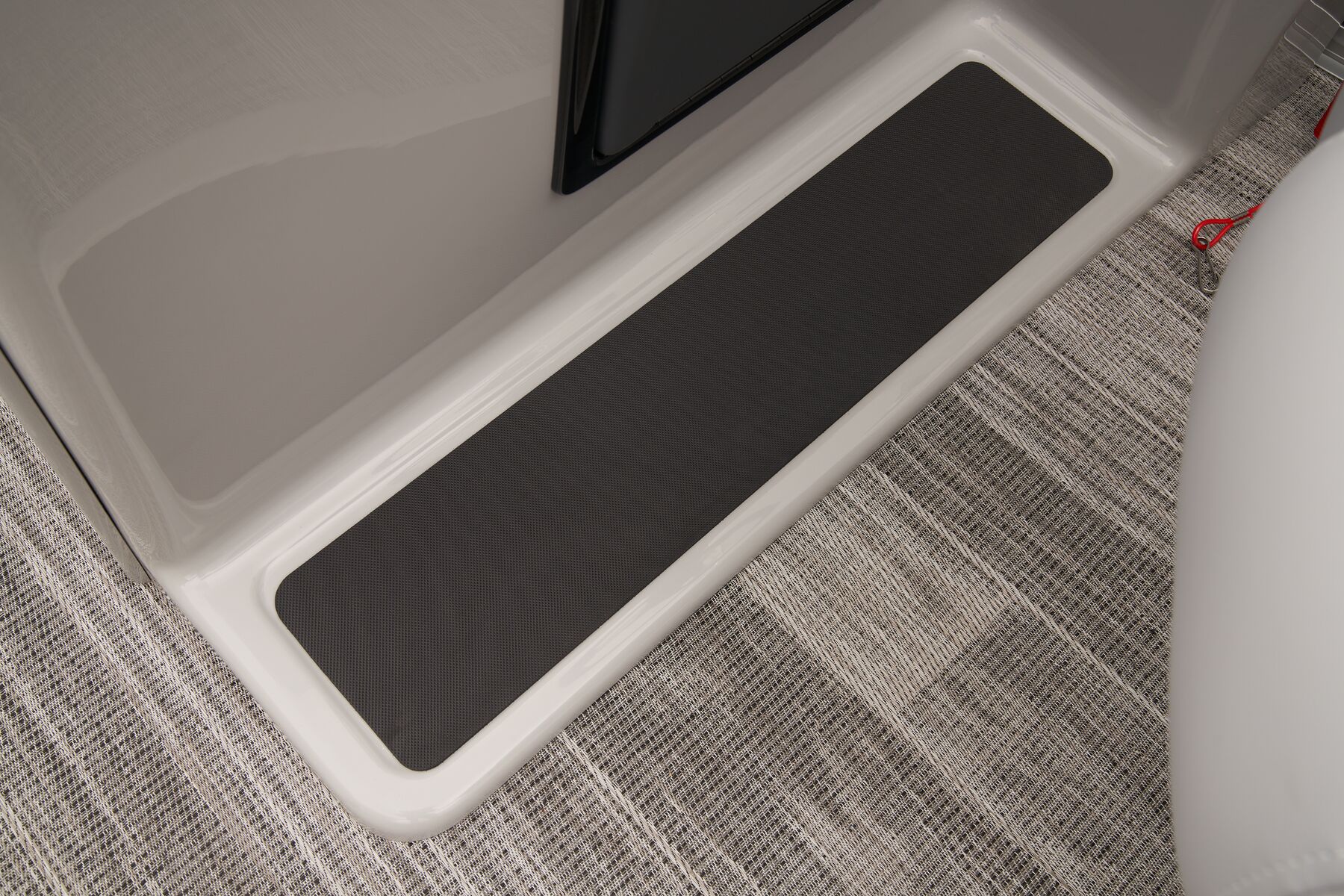

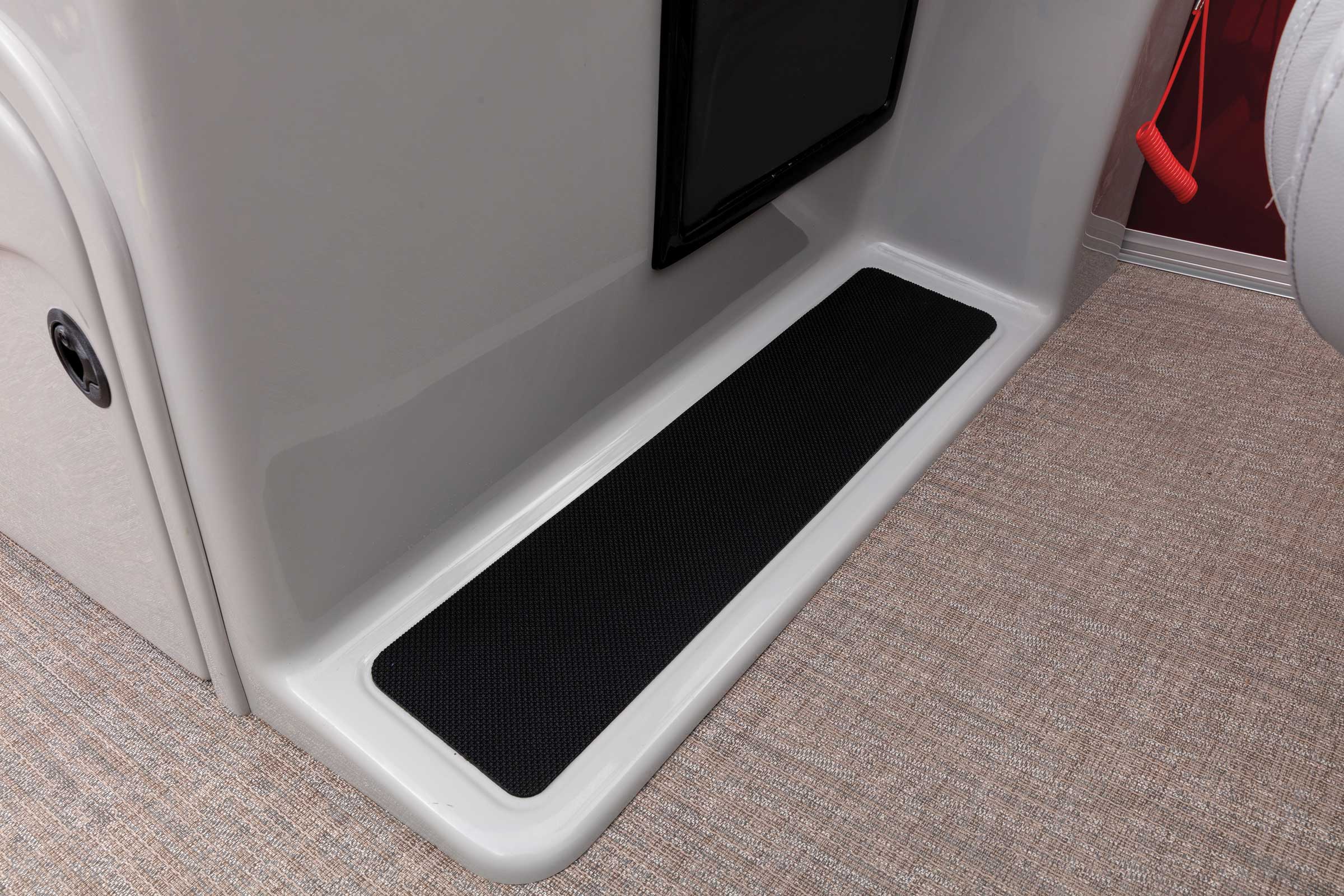

- Built-in footrest

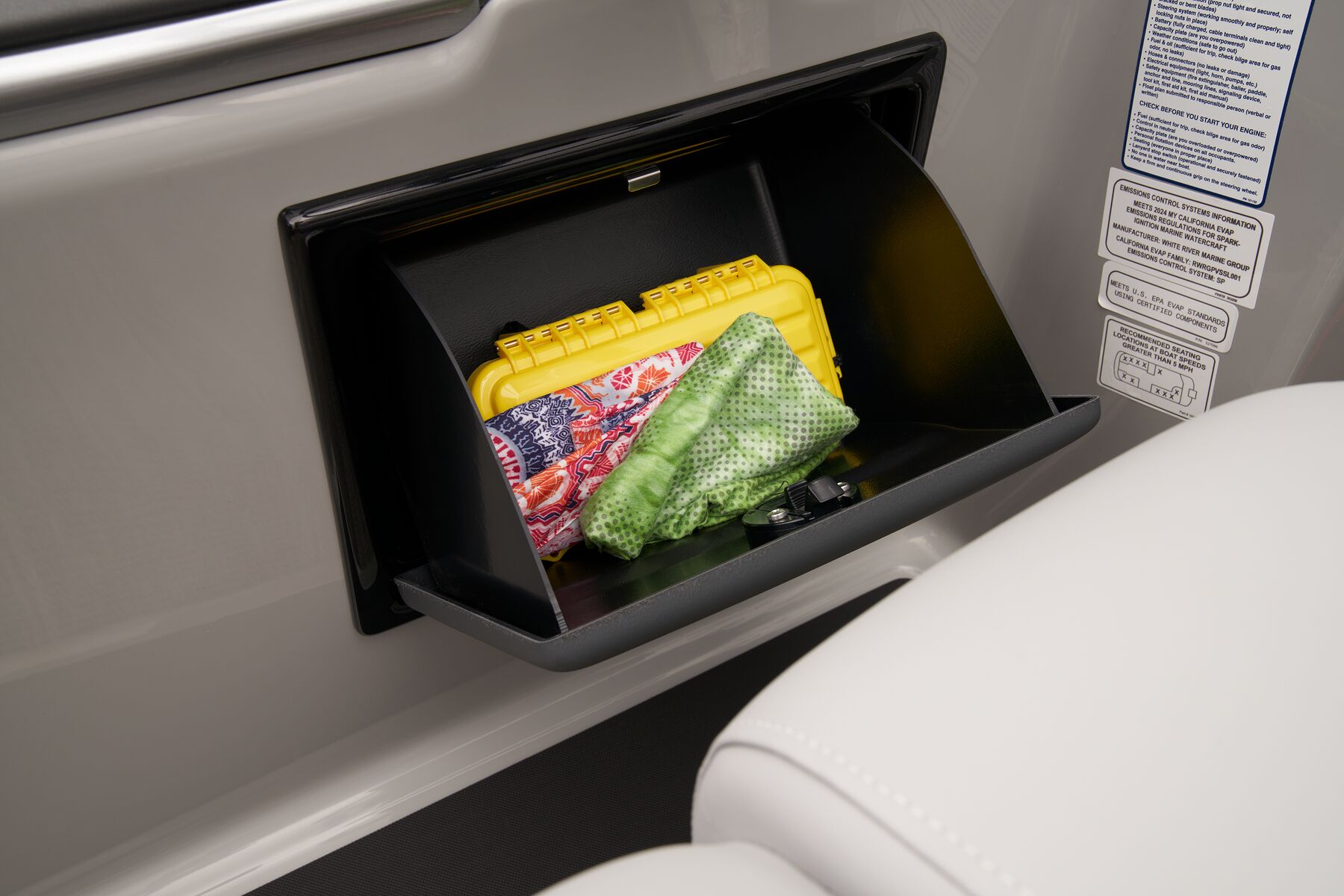

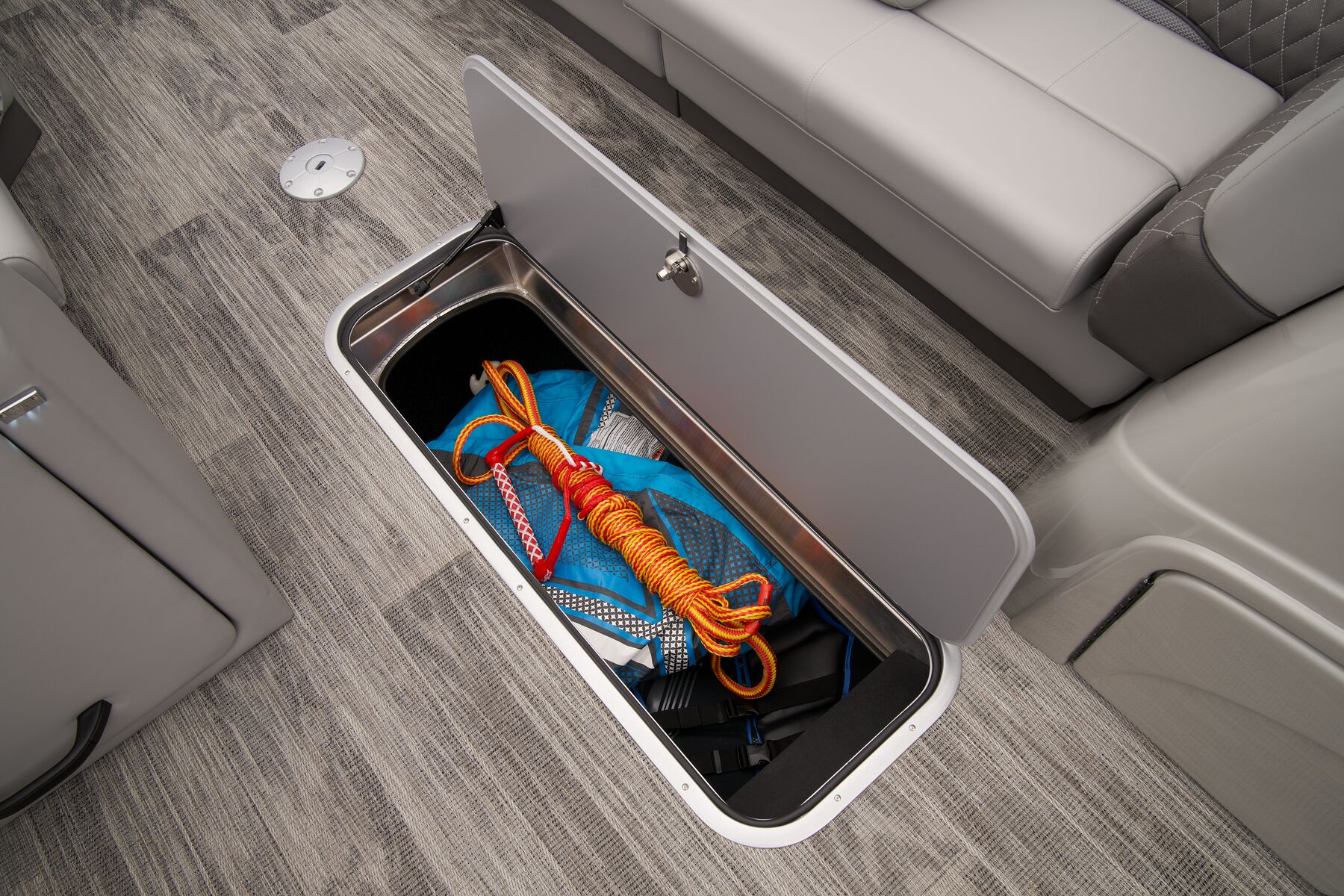

- Recessed storage area

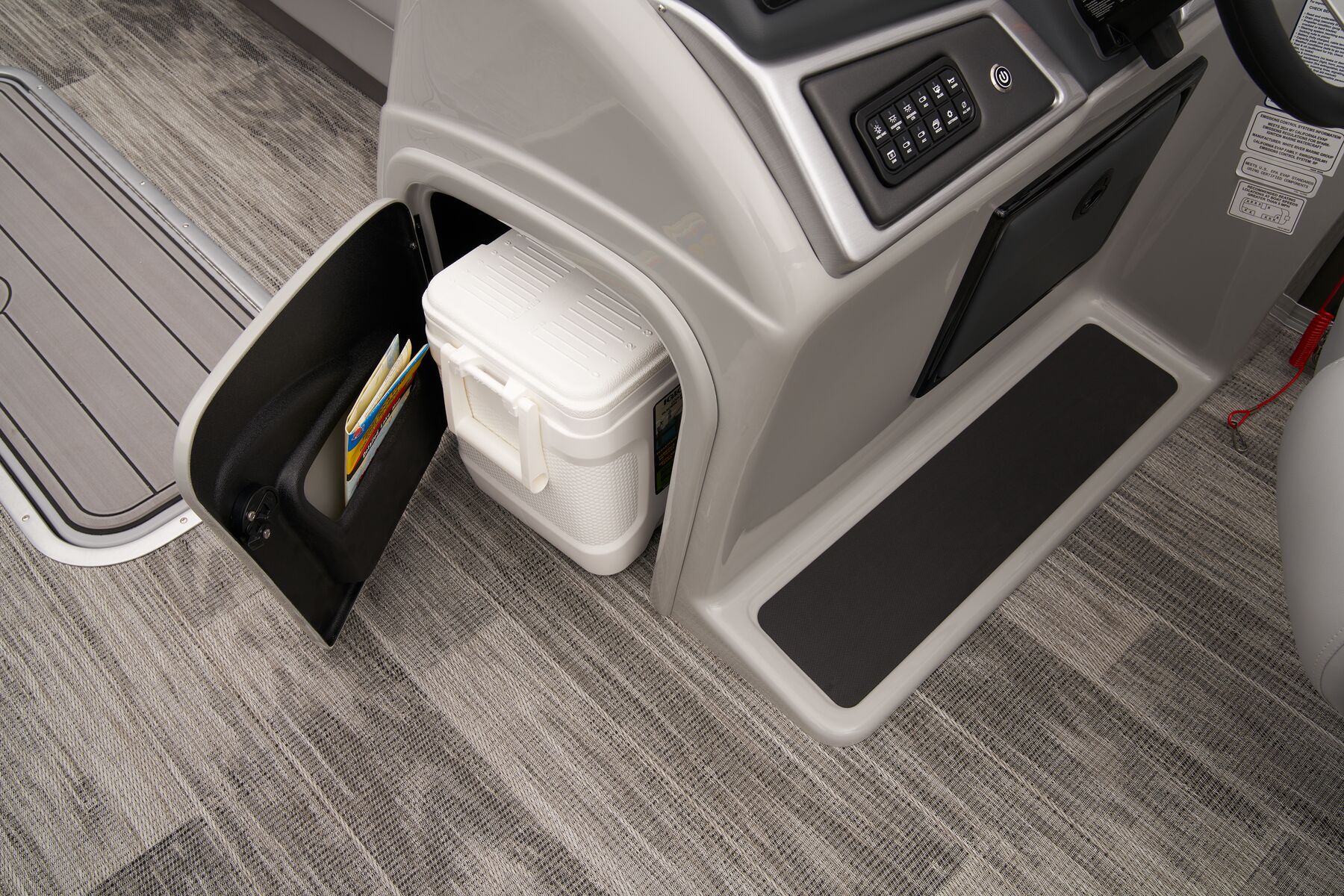

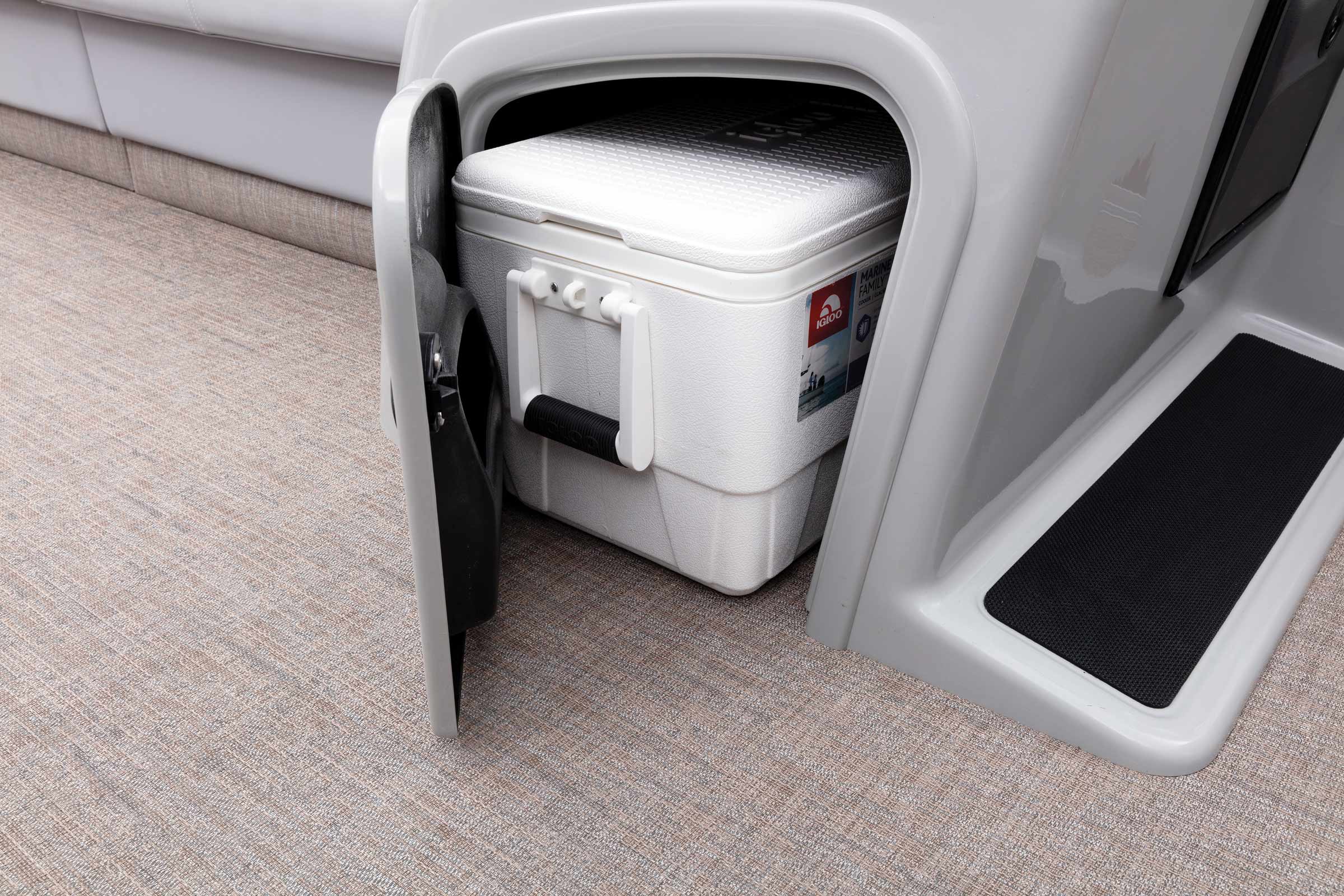

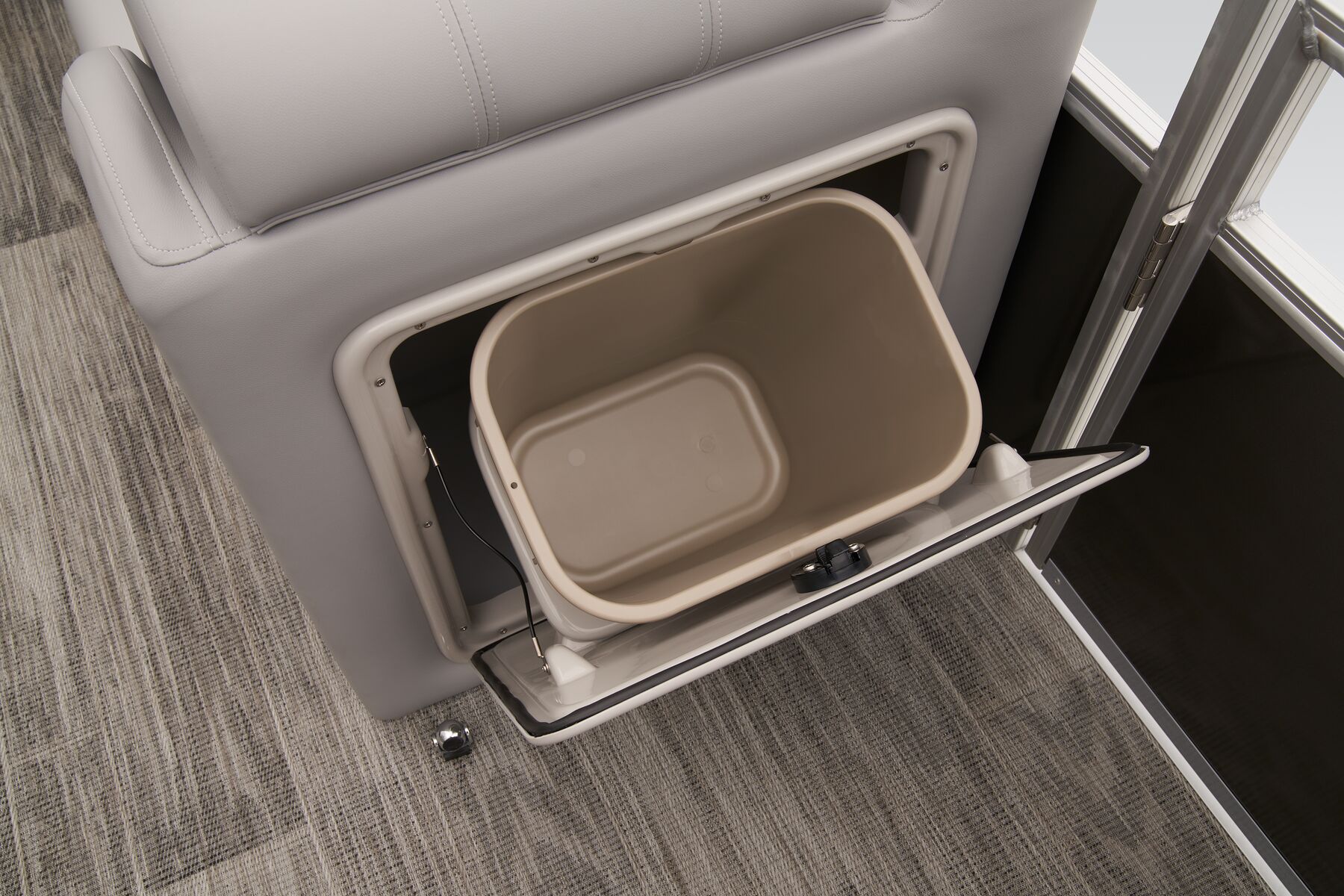

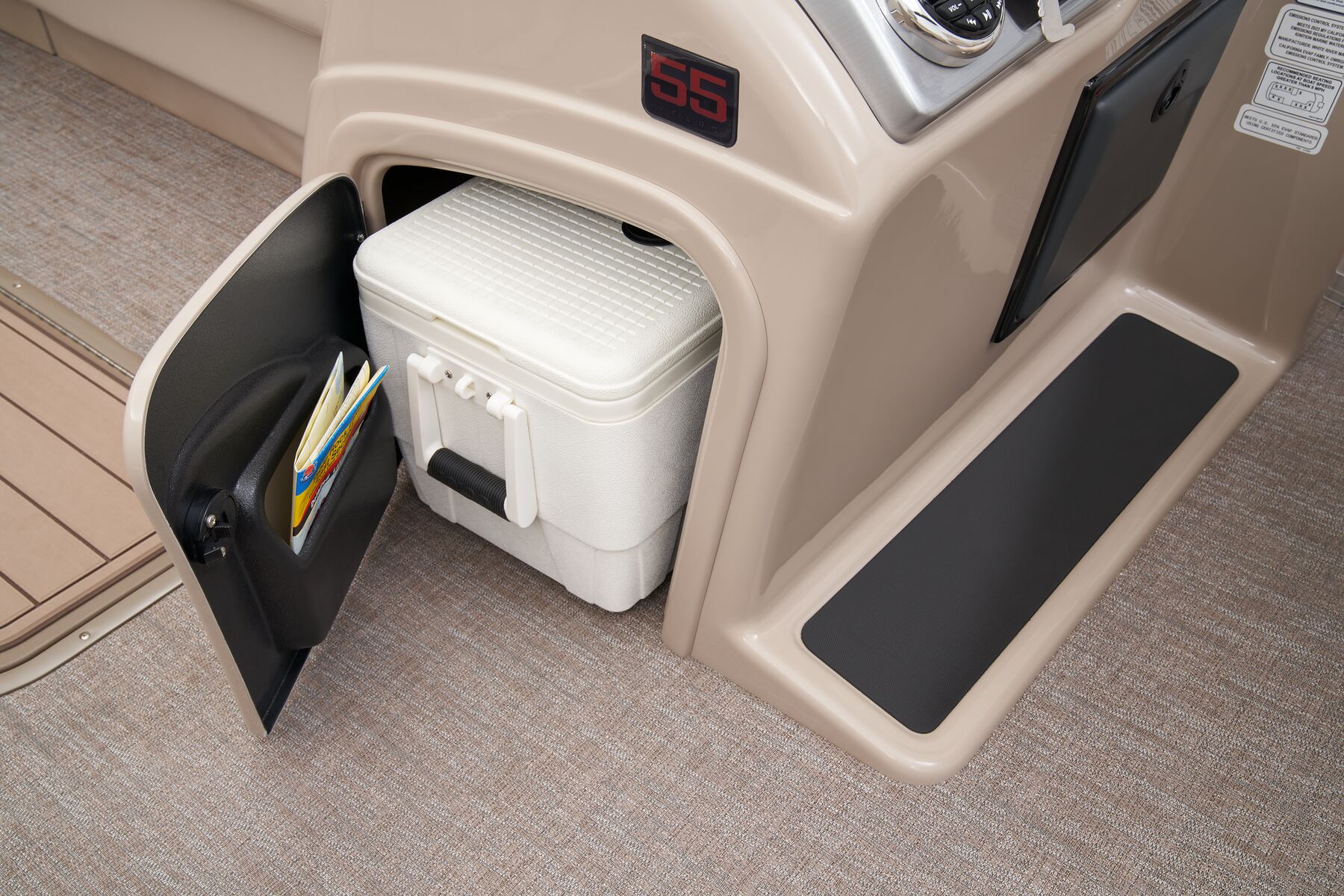

- Enclosed in-console cooler compartment w/ door-mounted molded storage

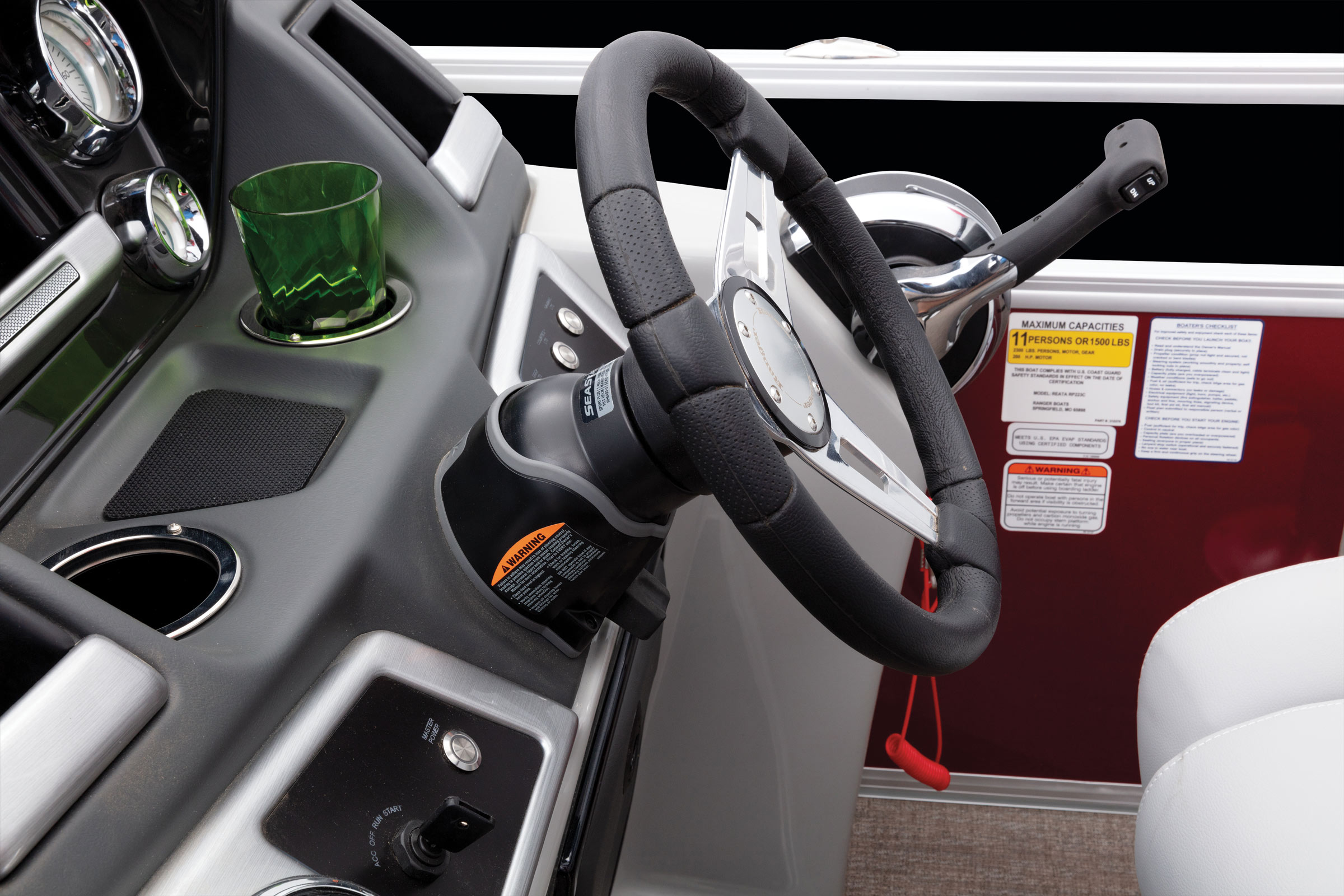

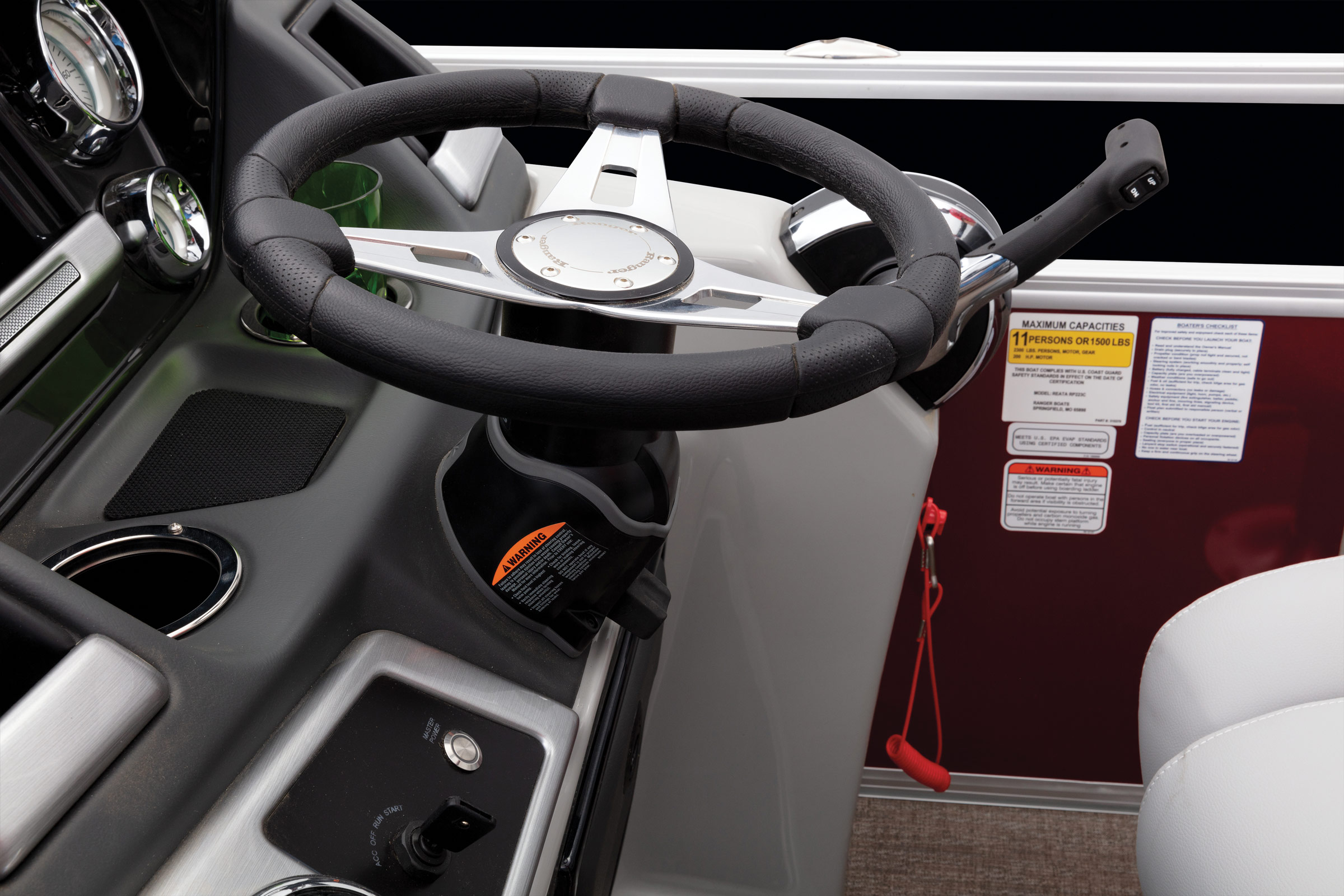

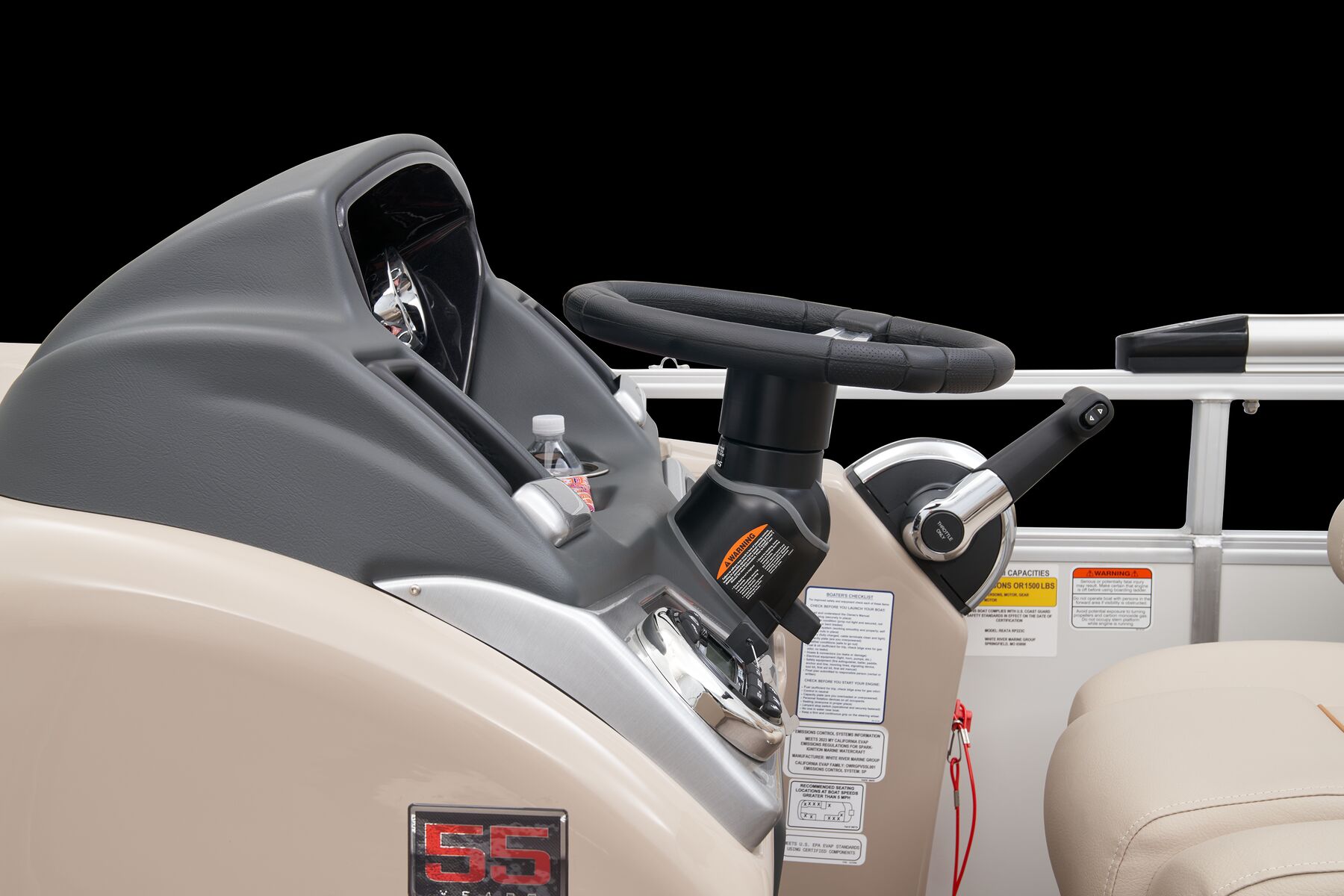

- Ergonomically-located throttle & steering wheel
- Tilt steering wheel
- Fire extinguisher
- Horn

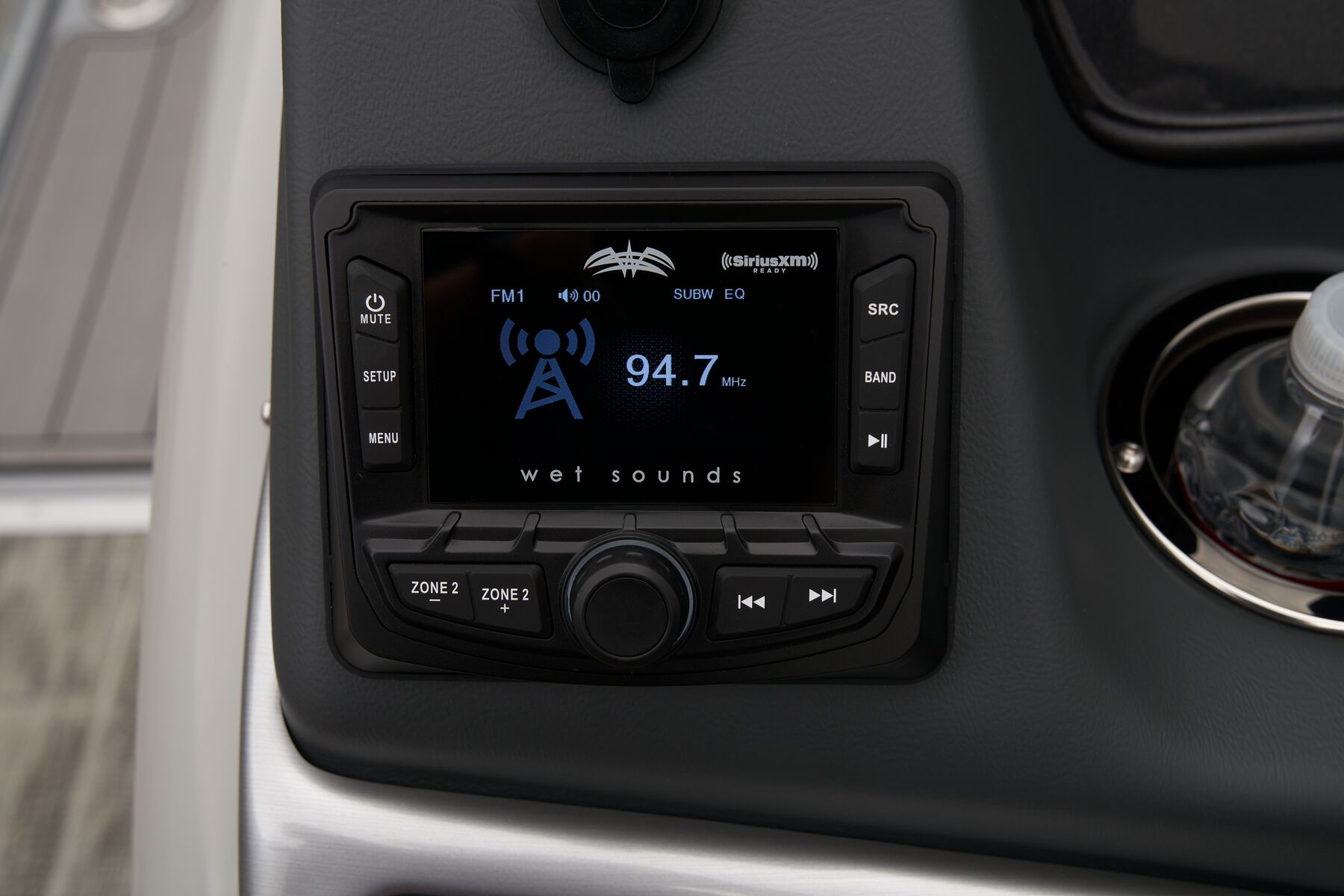

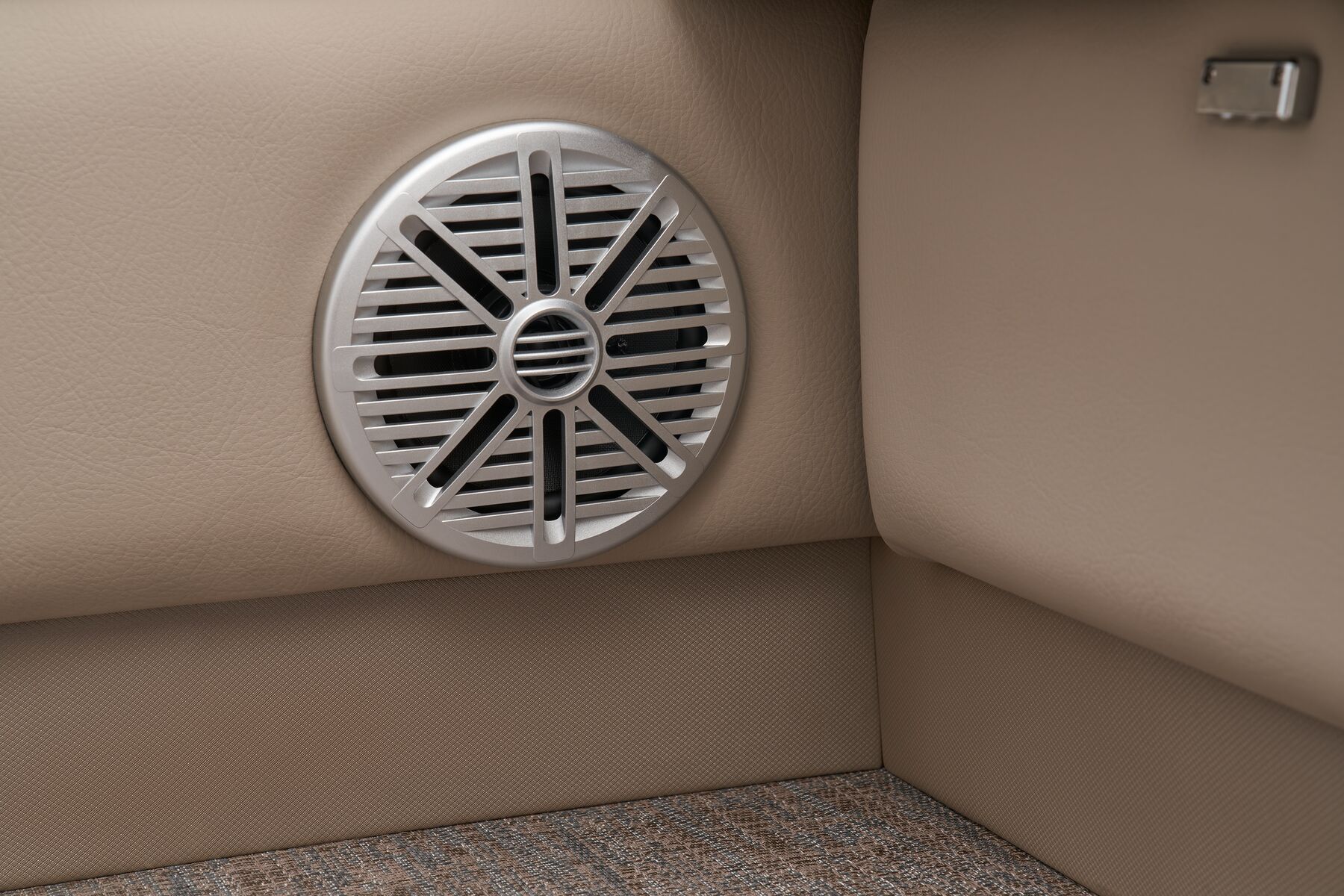

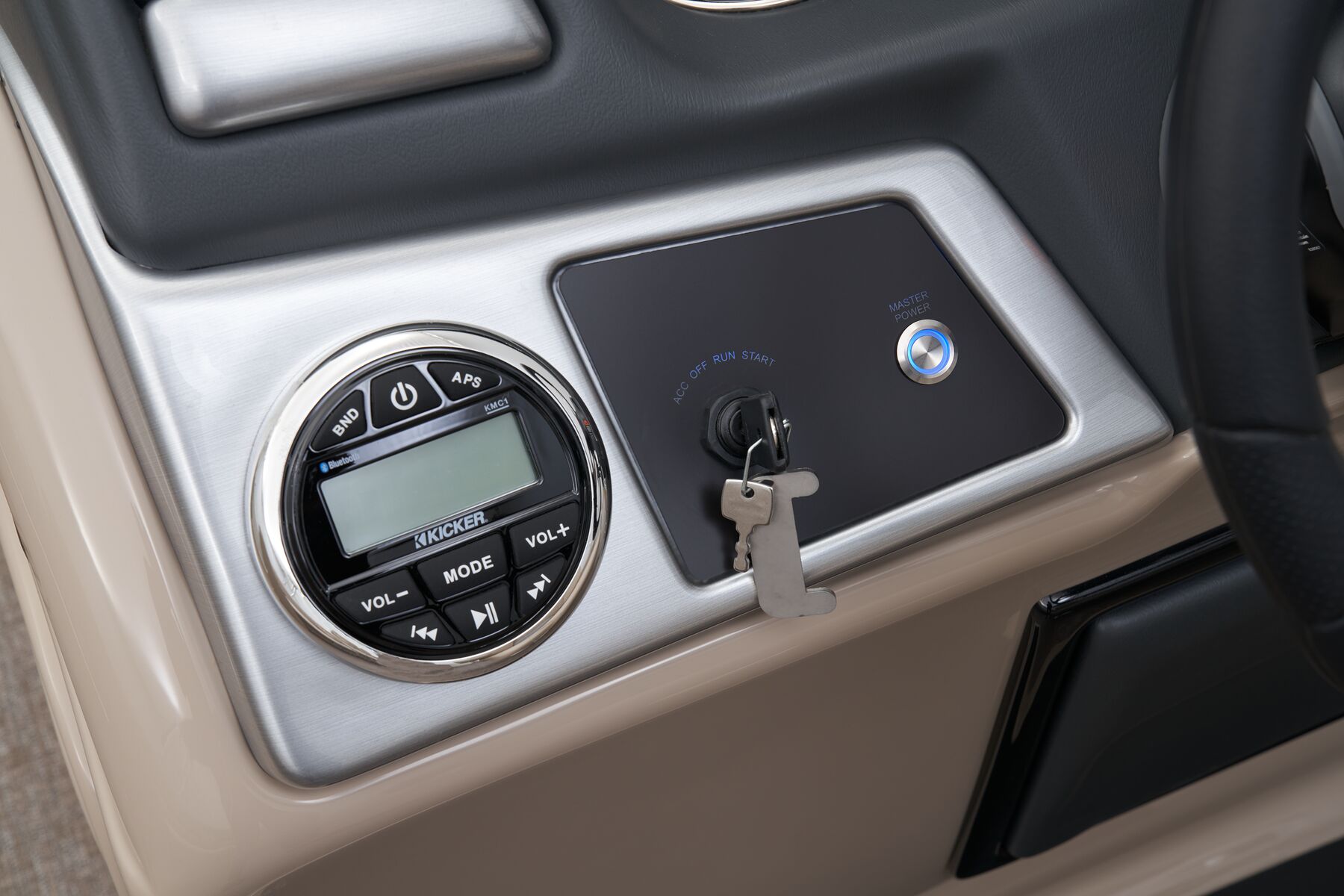

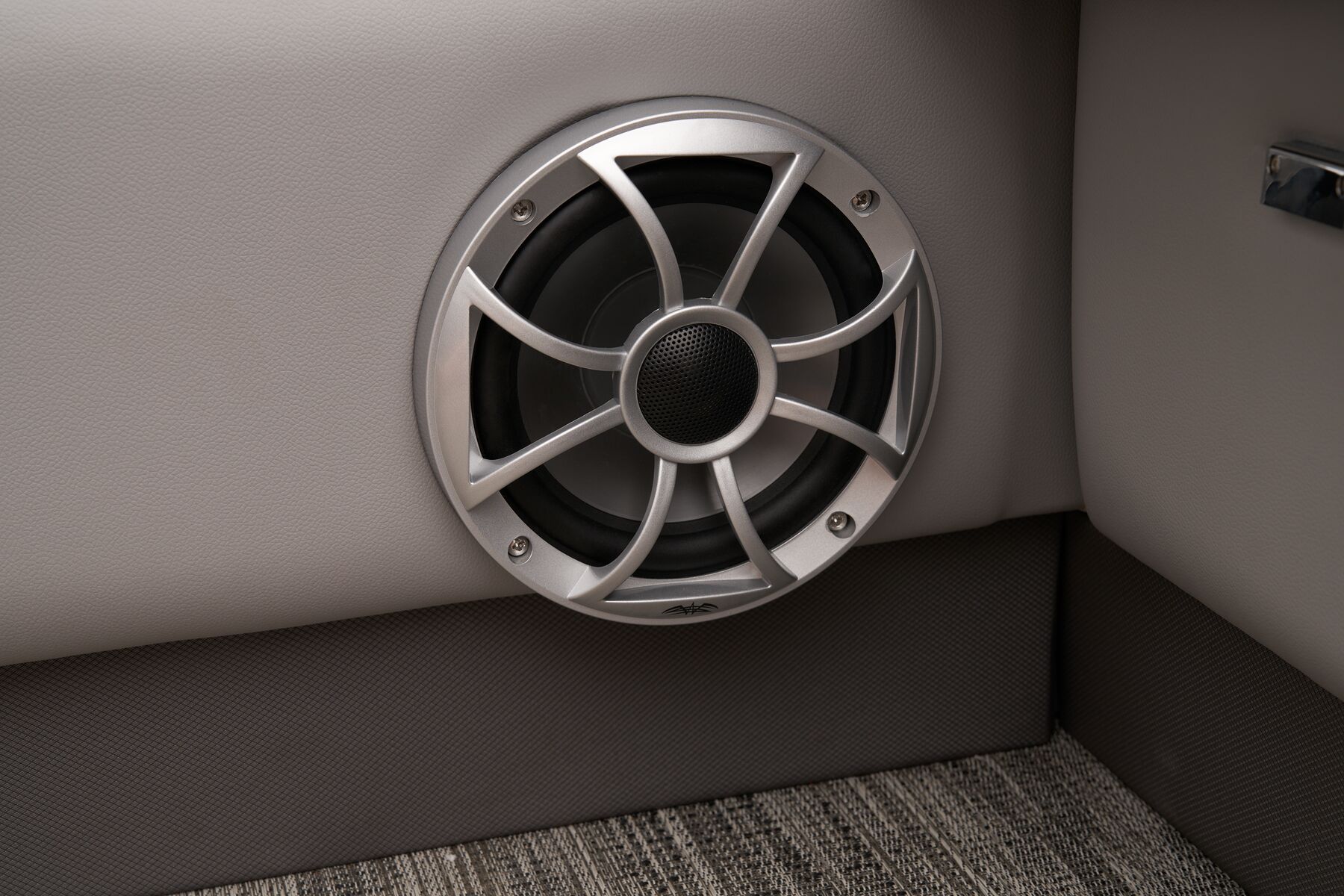

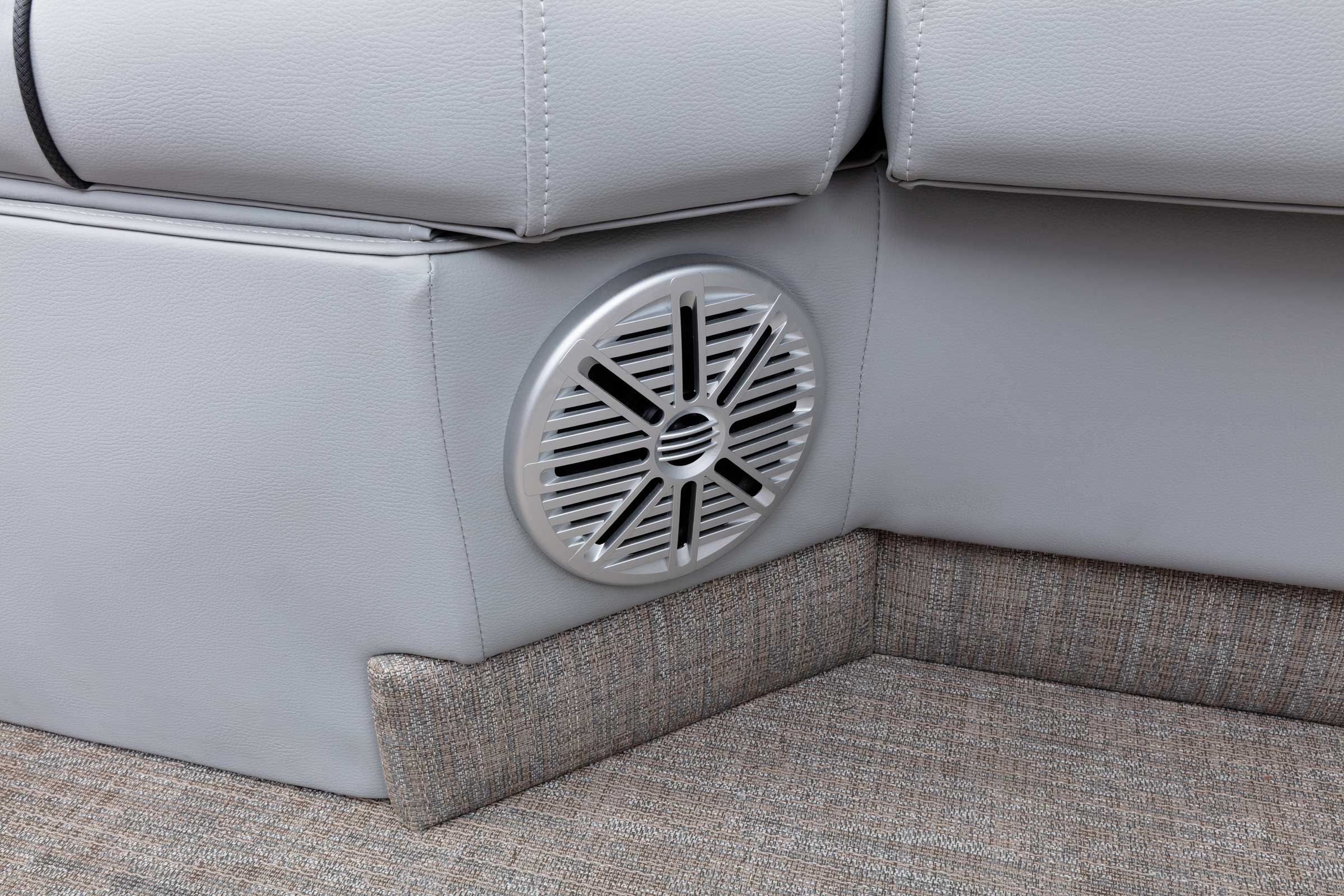

- NEW - Wet Sounds® stereo w/Bluetooth & 4 upholstery speakers

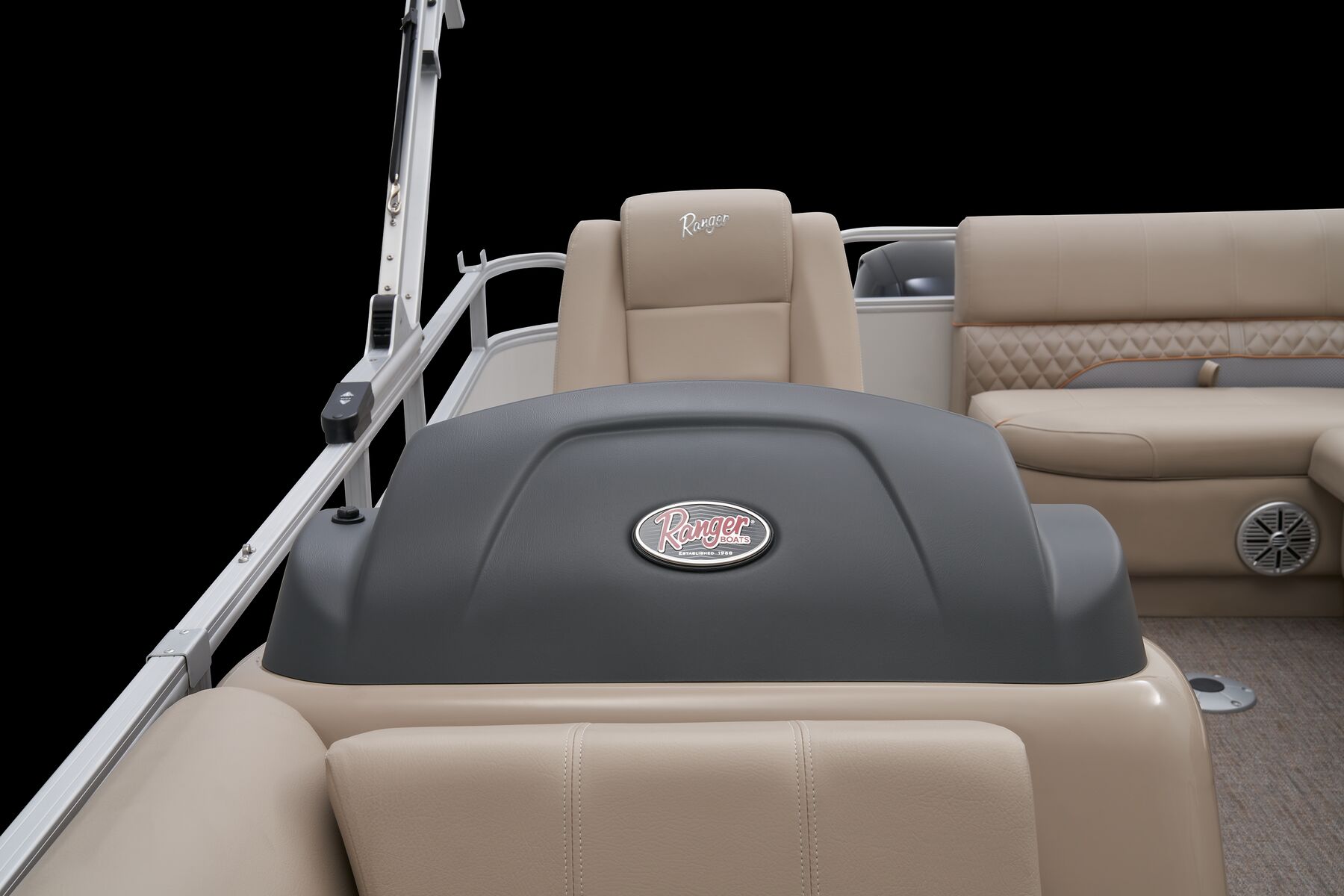

- Molded shroud w/ soft-touch finish
- Automotive-style fuse panel
Interior
- NEW - Luxury woven cushioned floor

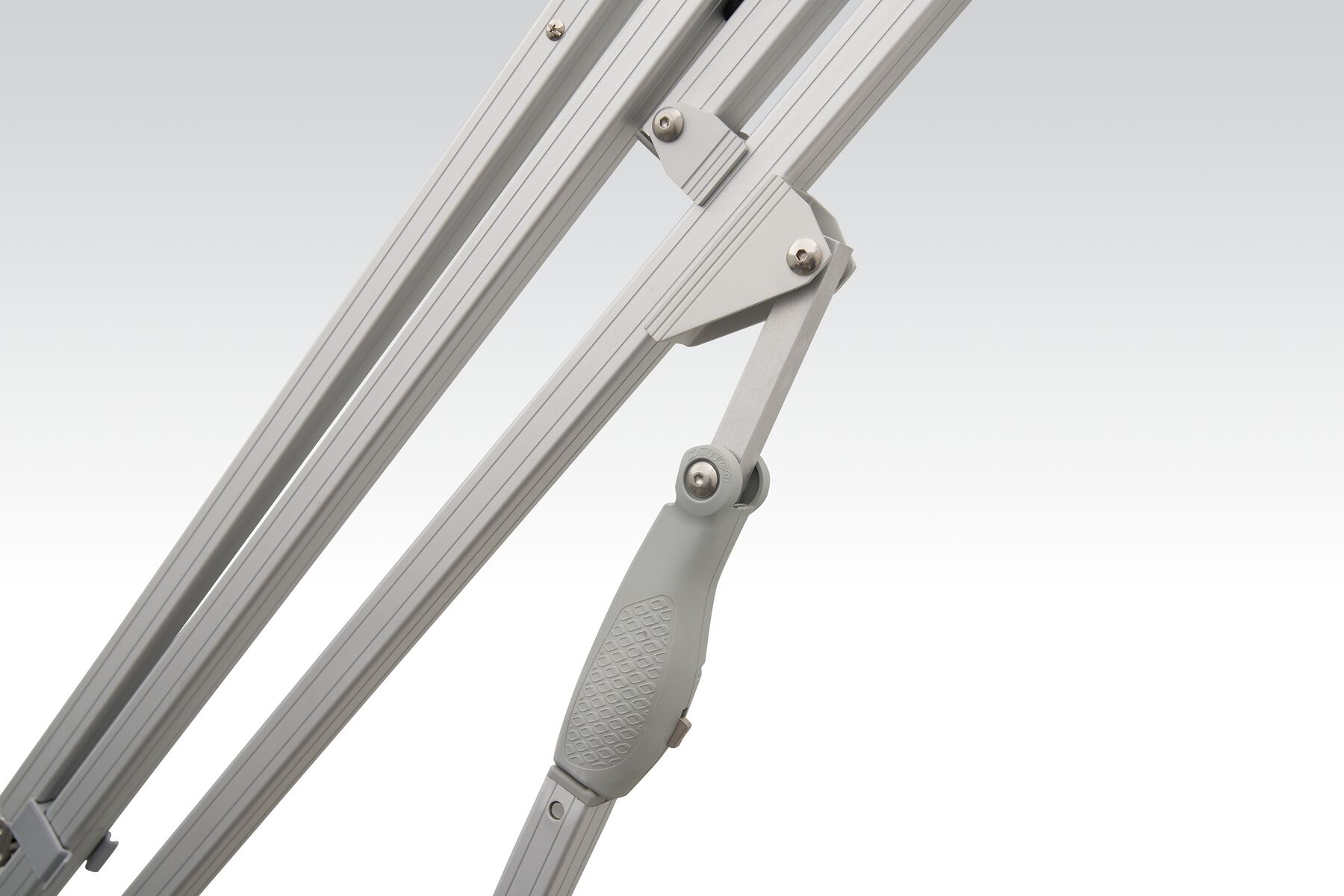

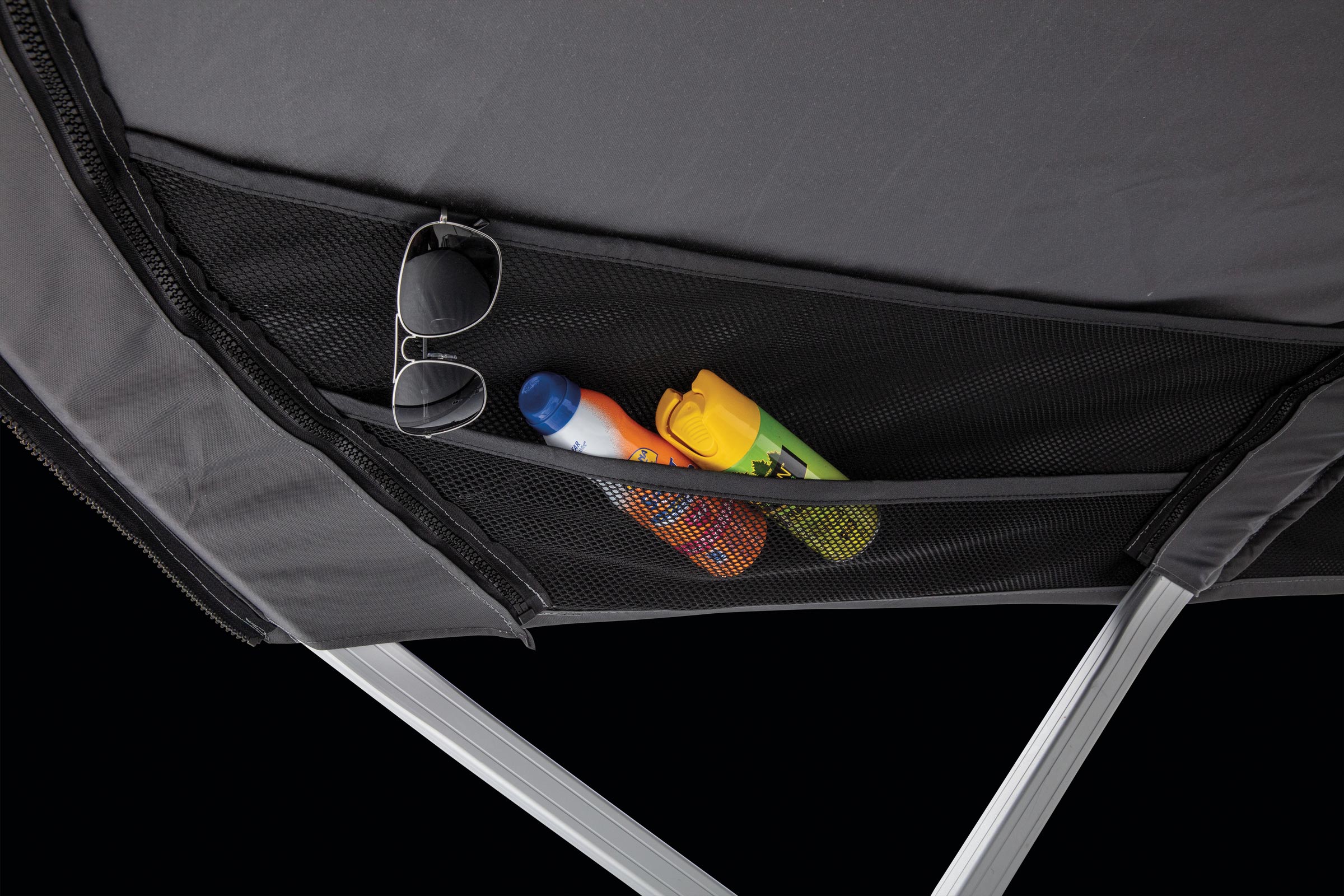

- NEW - 10' (3.05 m) EasyLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot
- Extra deep rain channels on all molded couch bases for drier storage

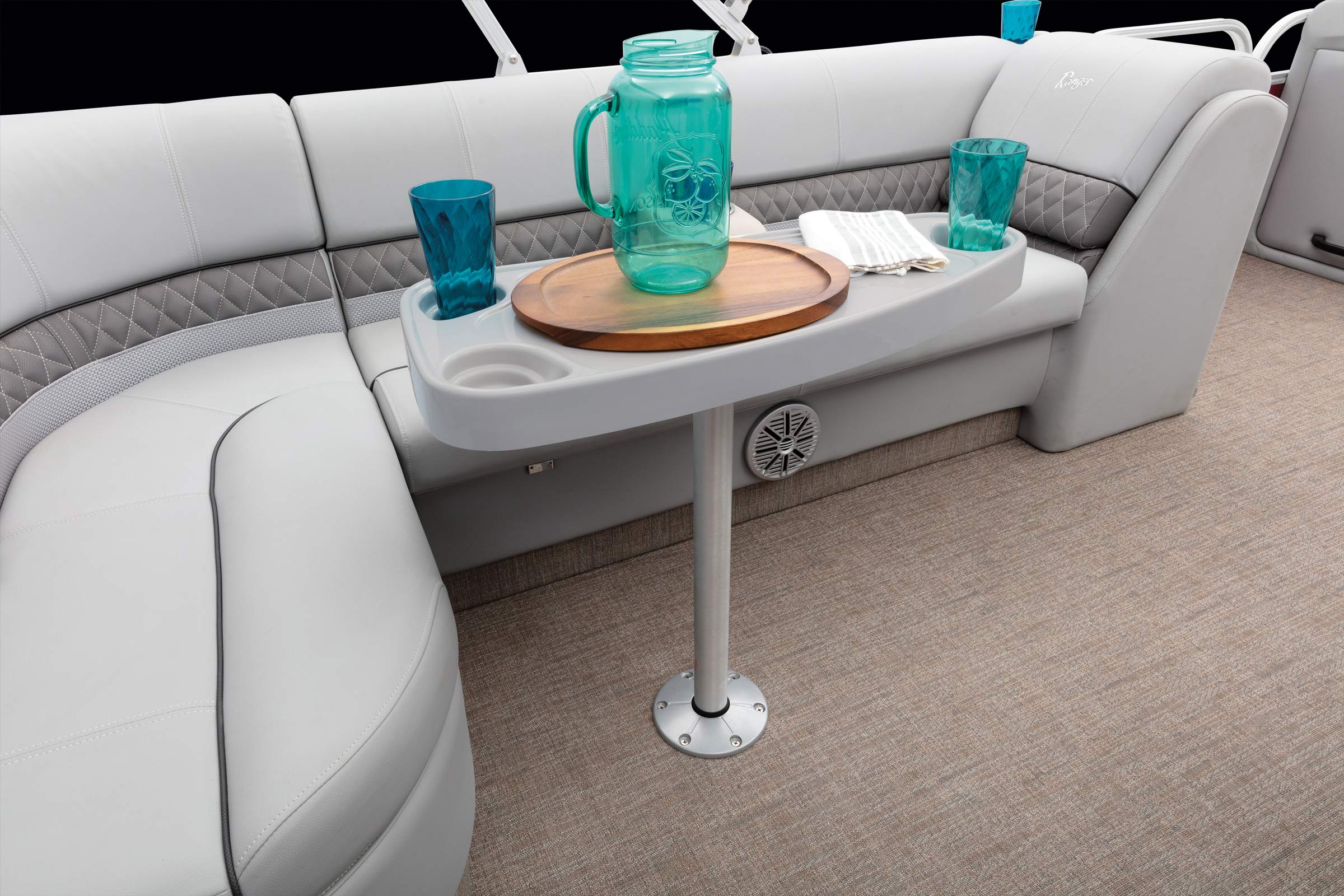

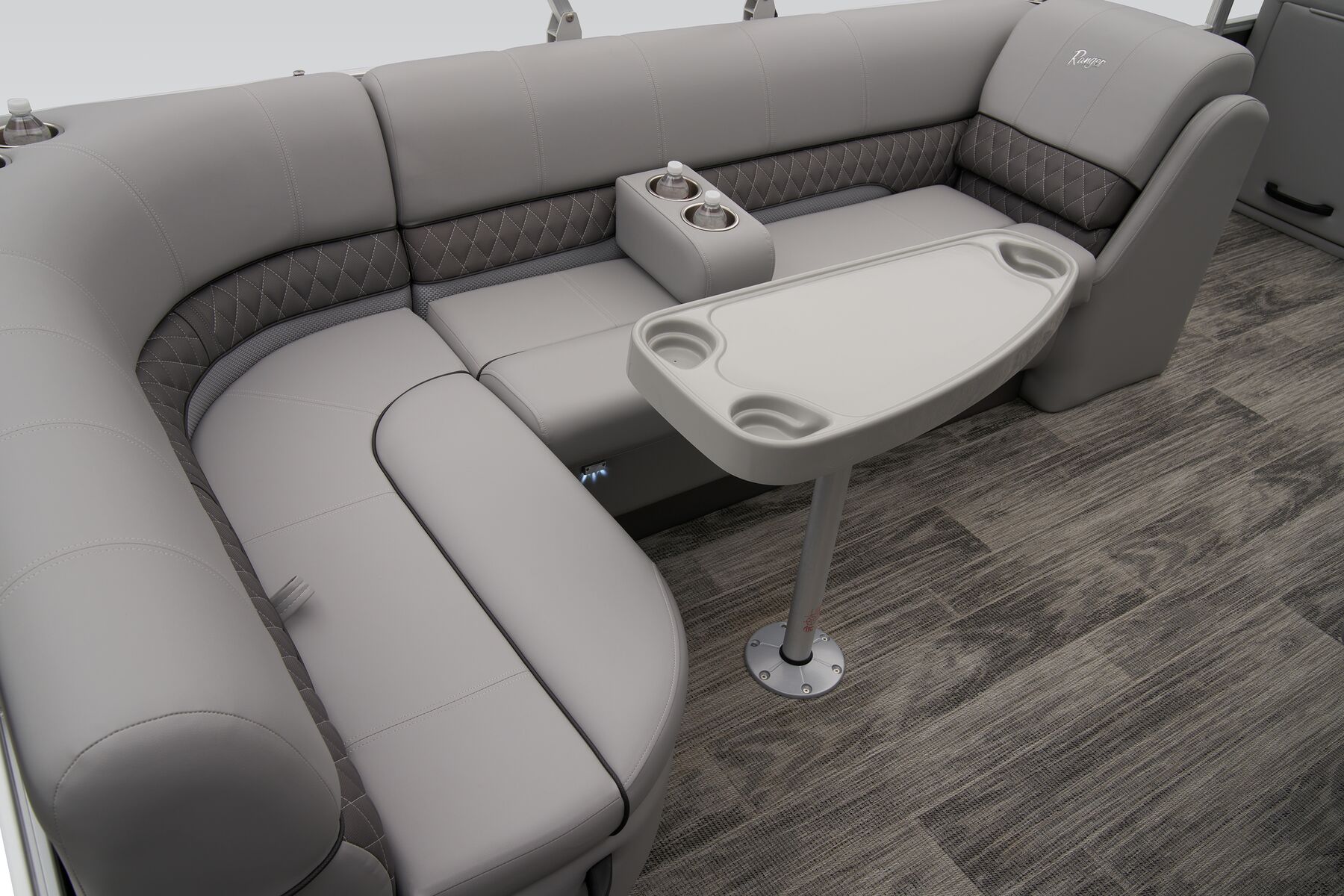

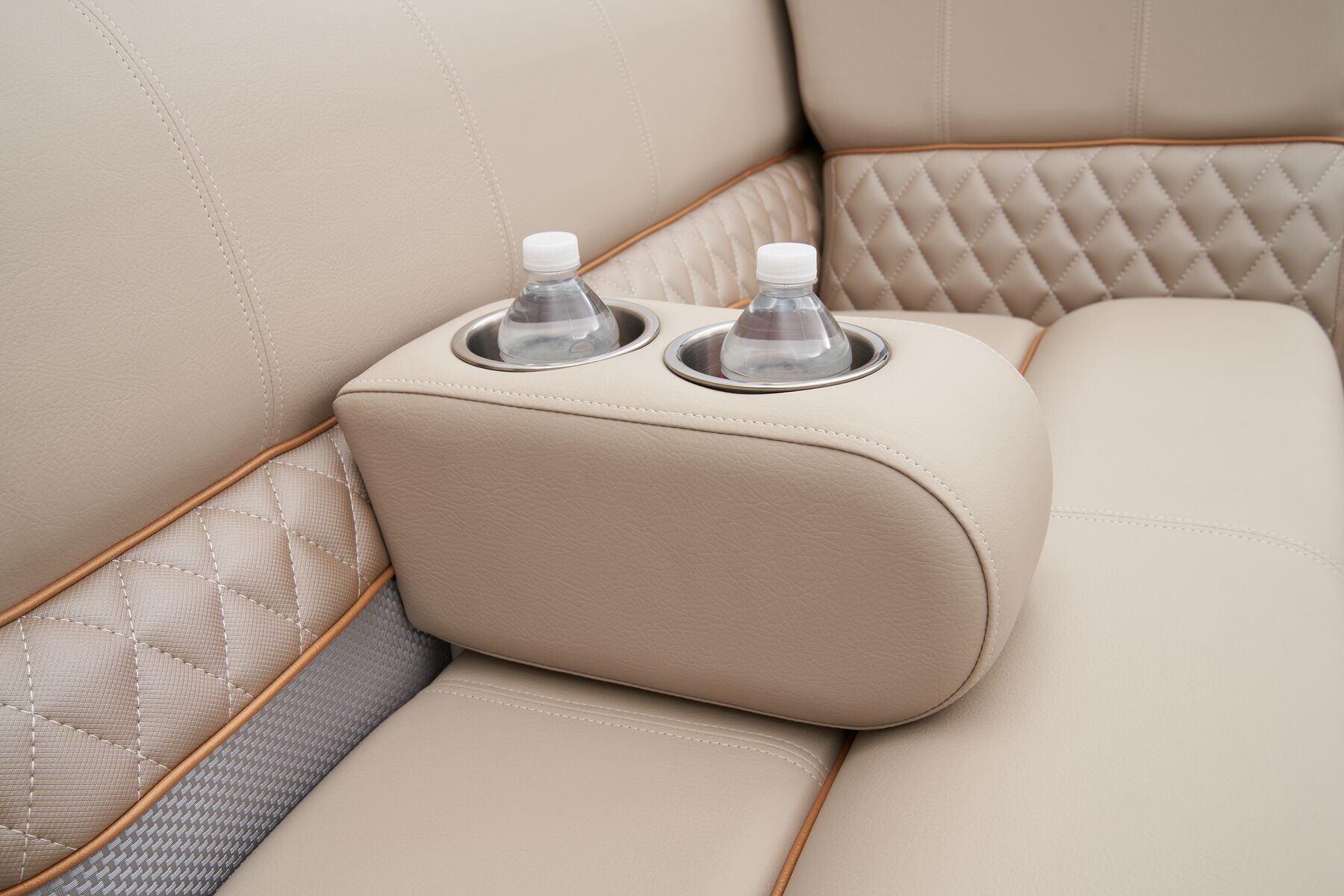

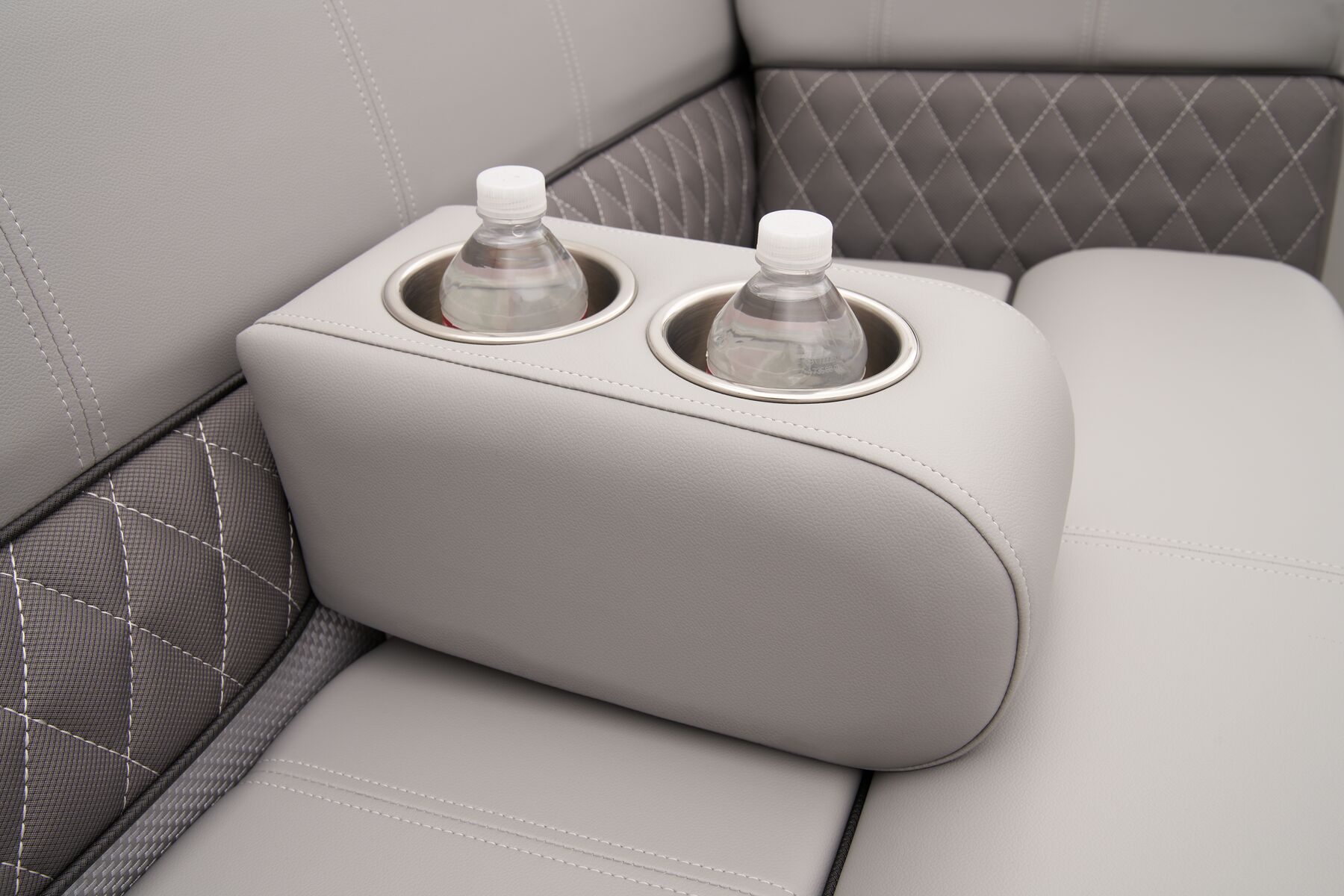

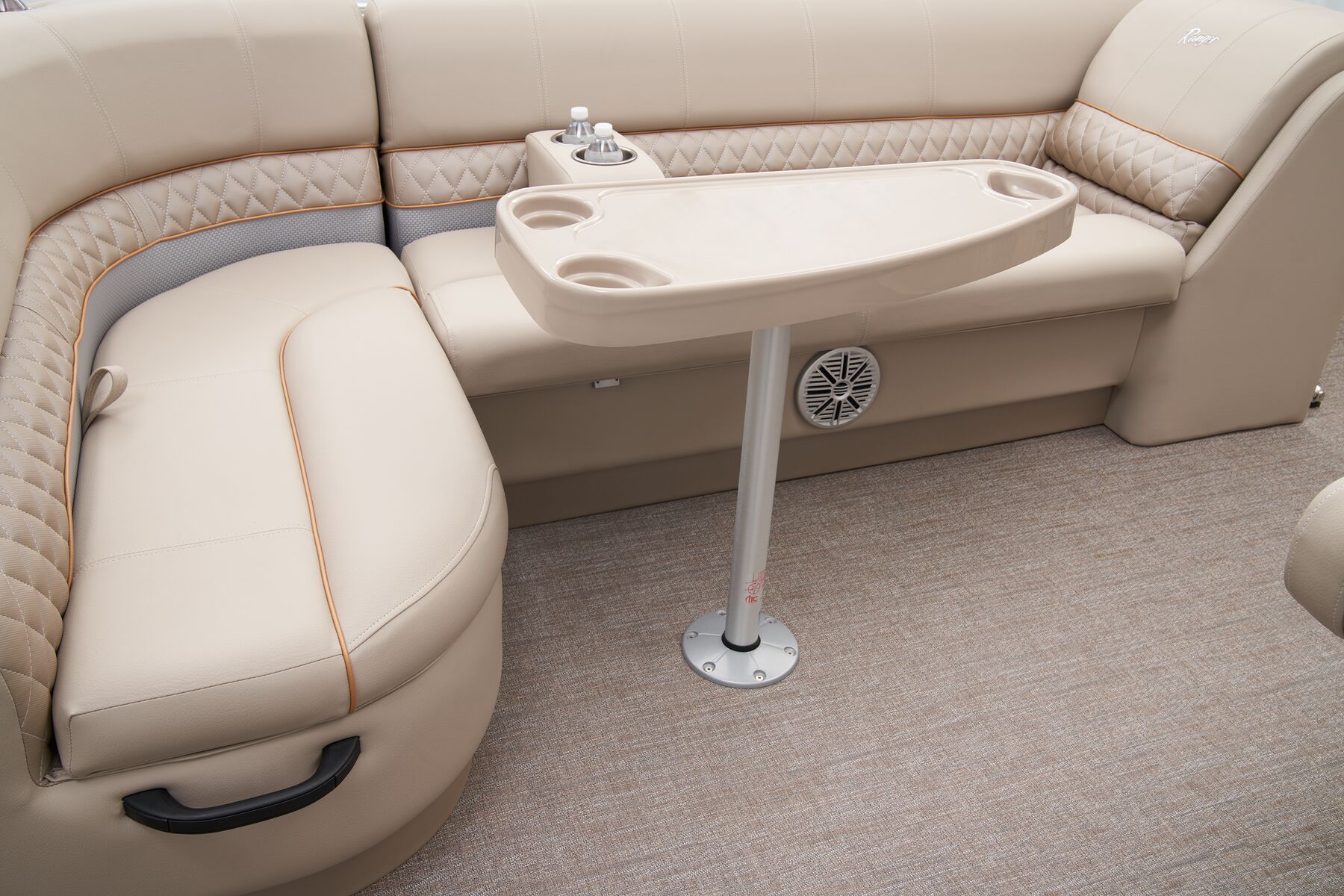

- Stowable table w/ molded-in drink holders

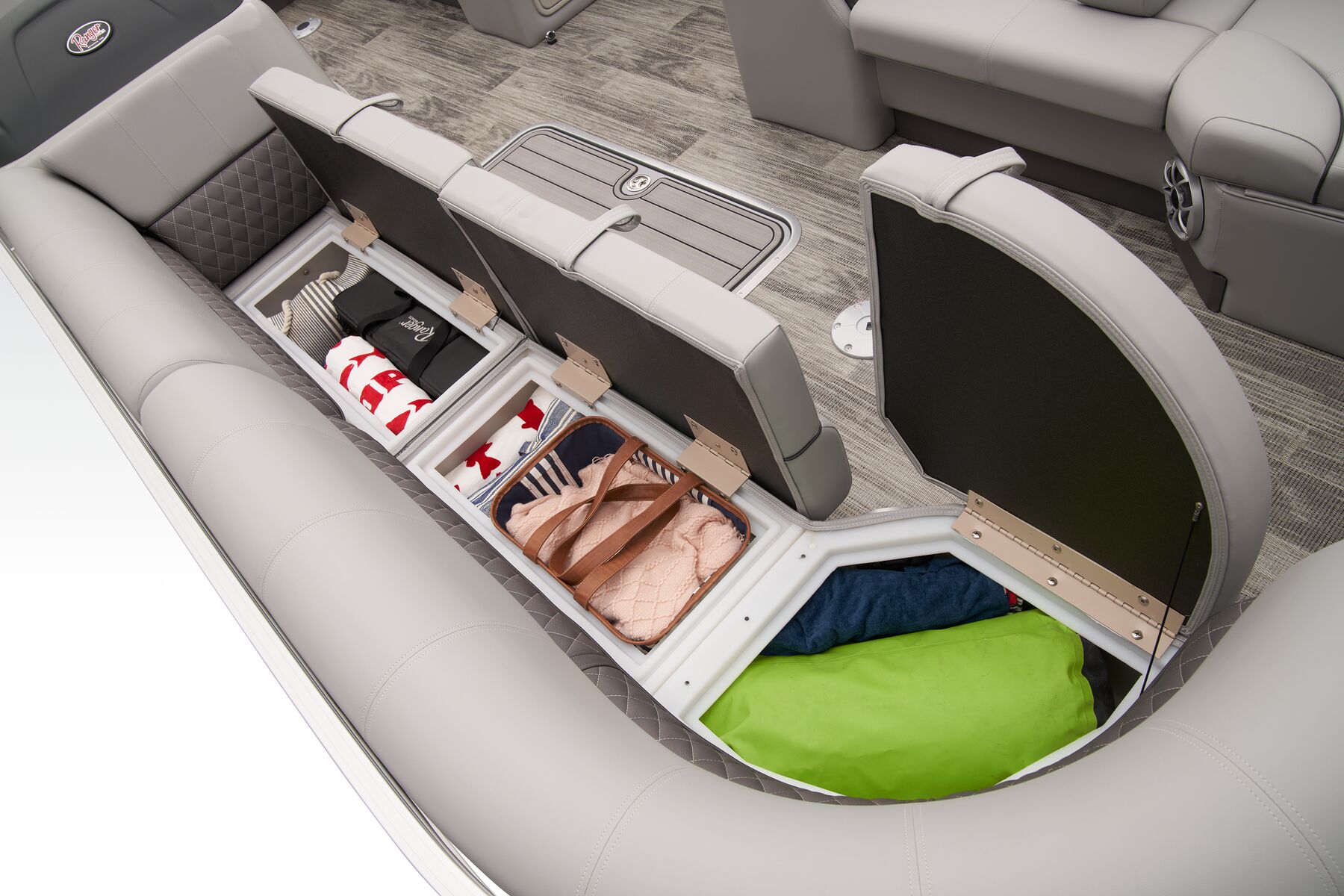

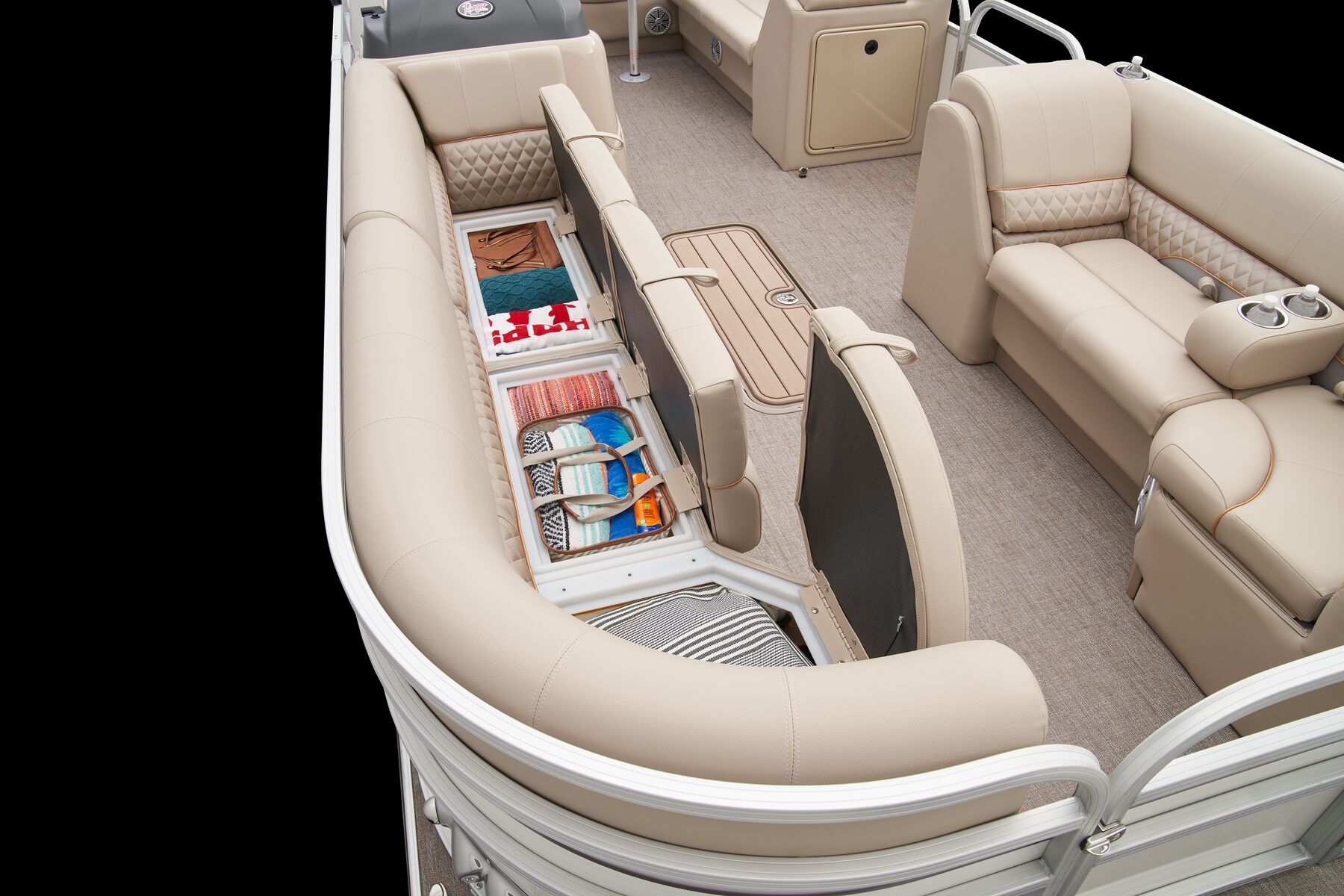

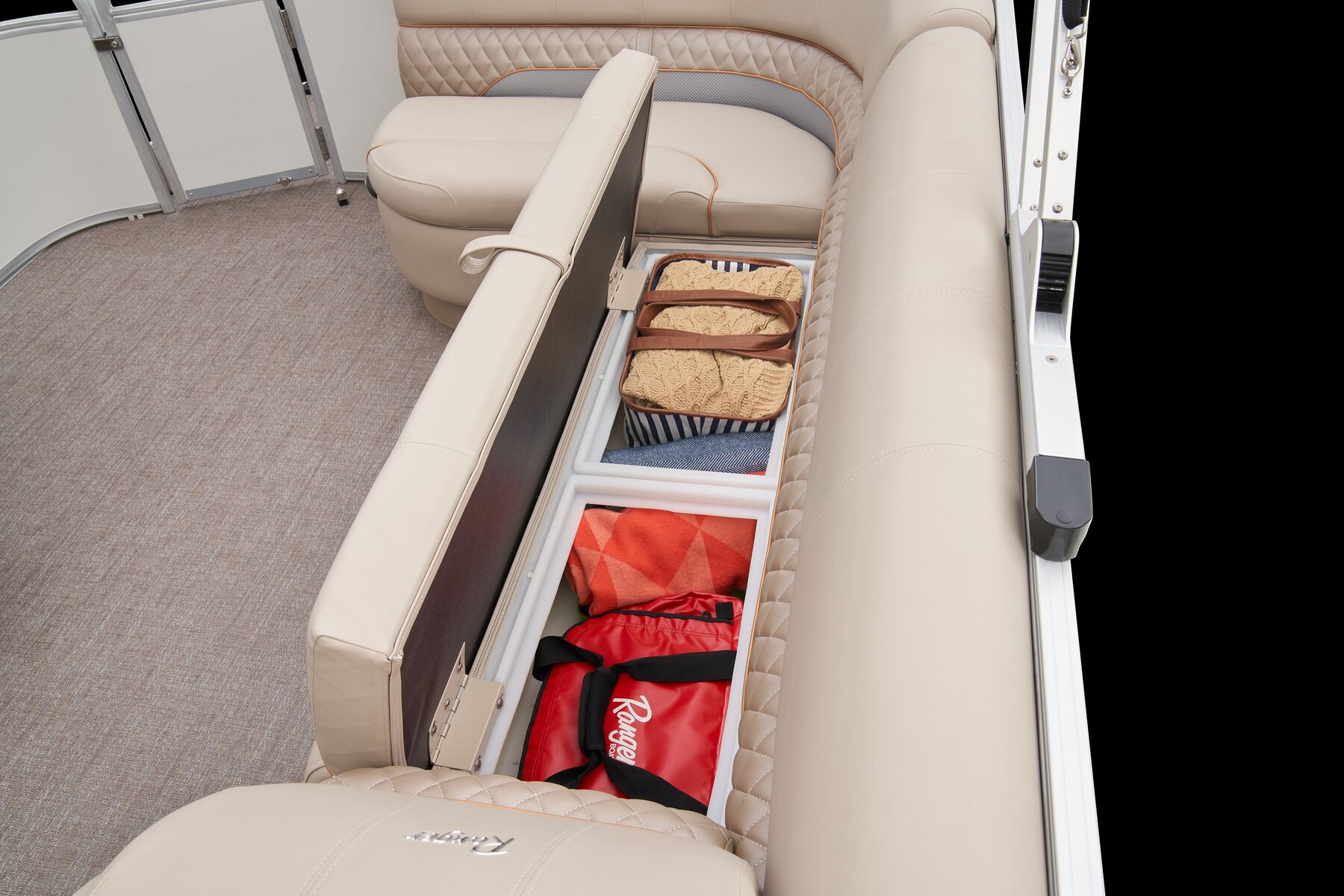

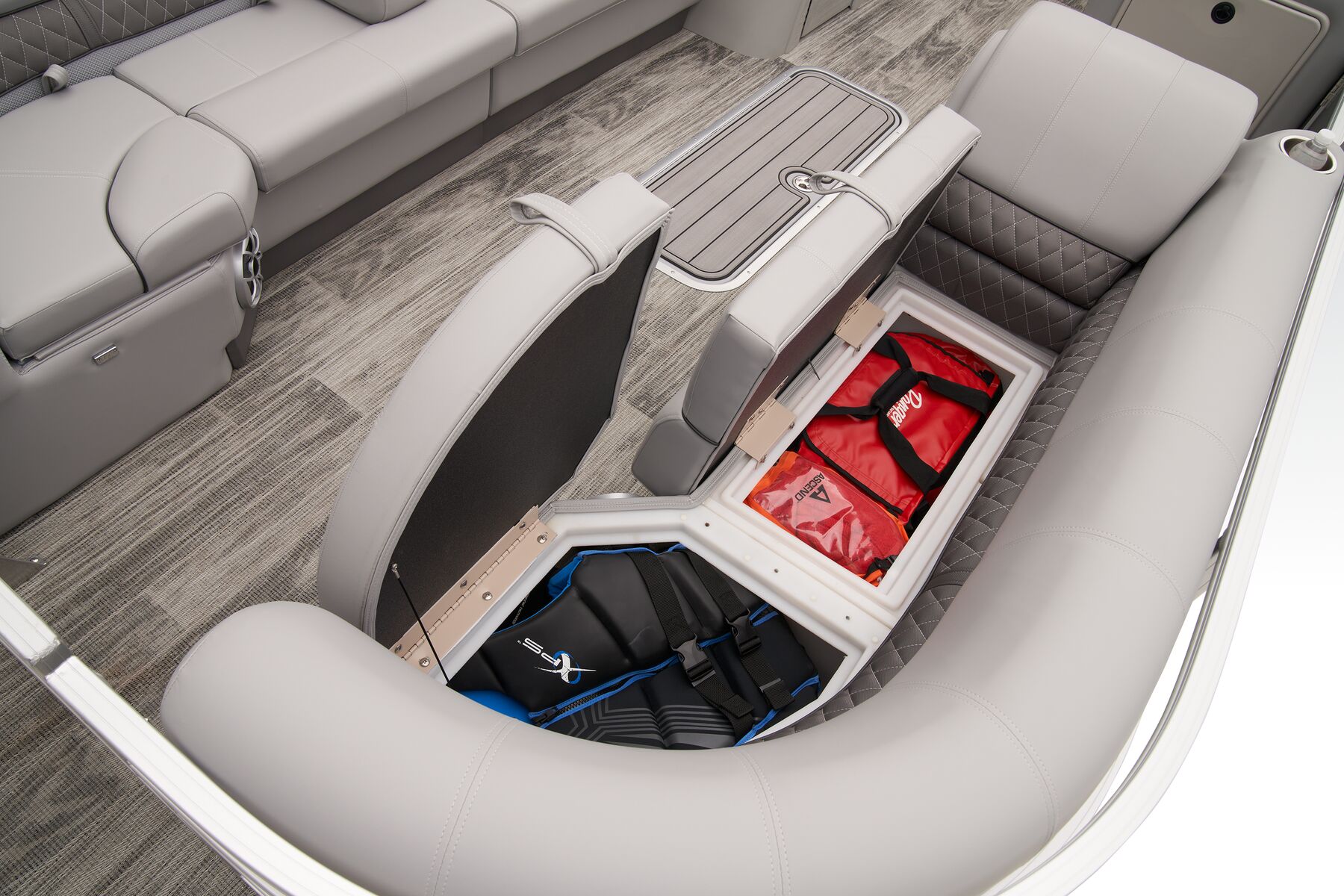

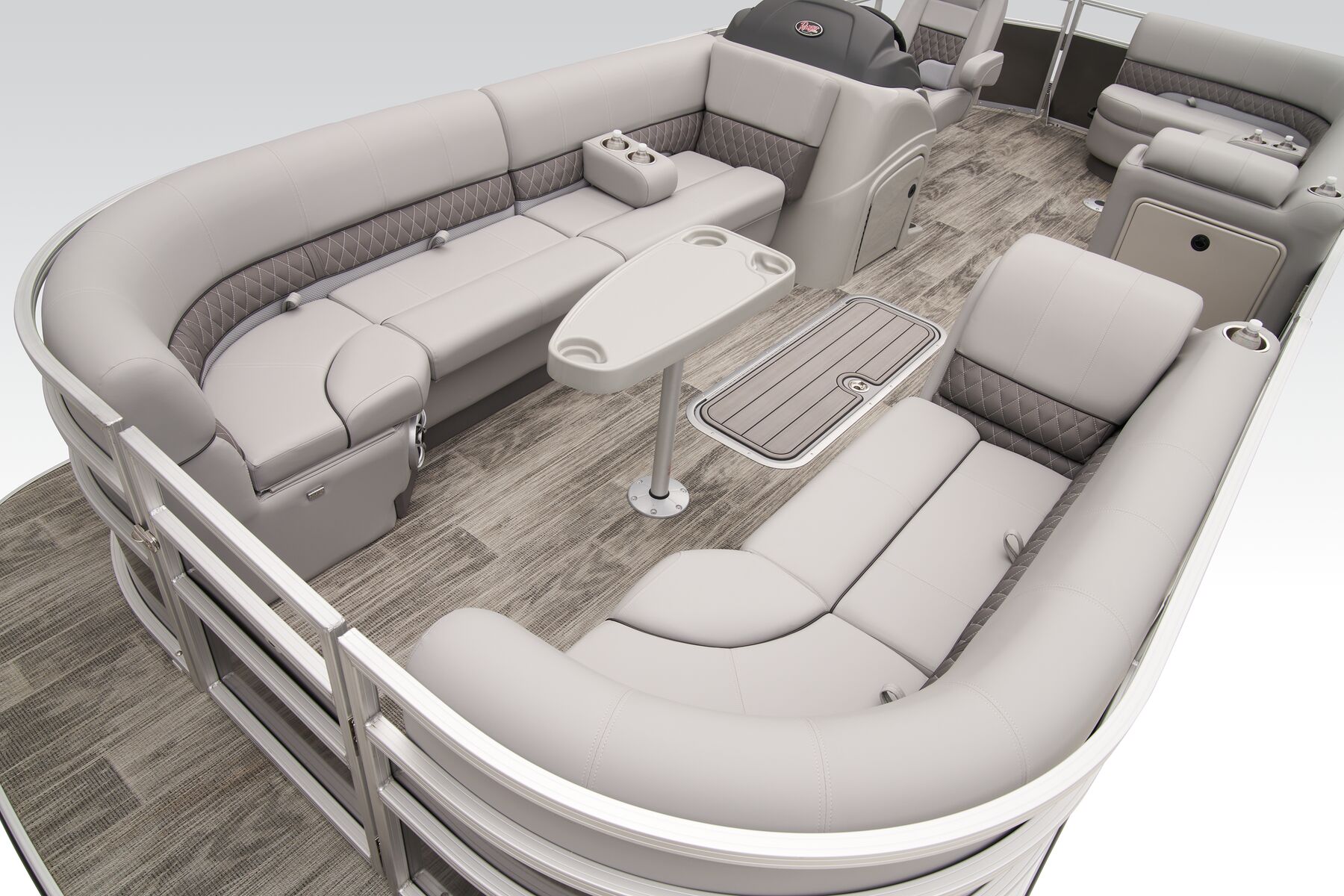

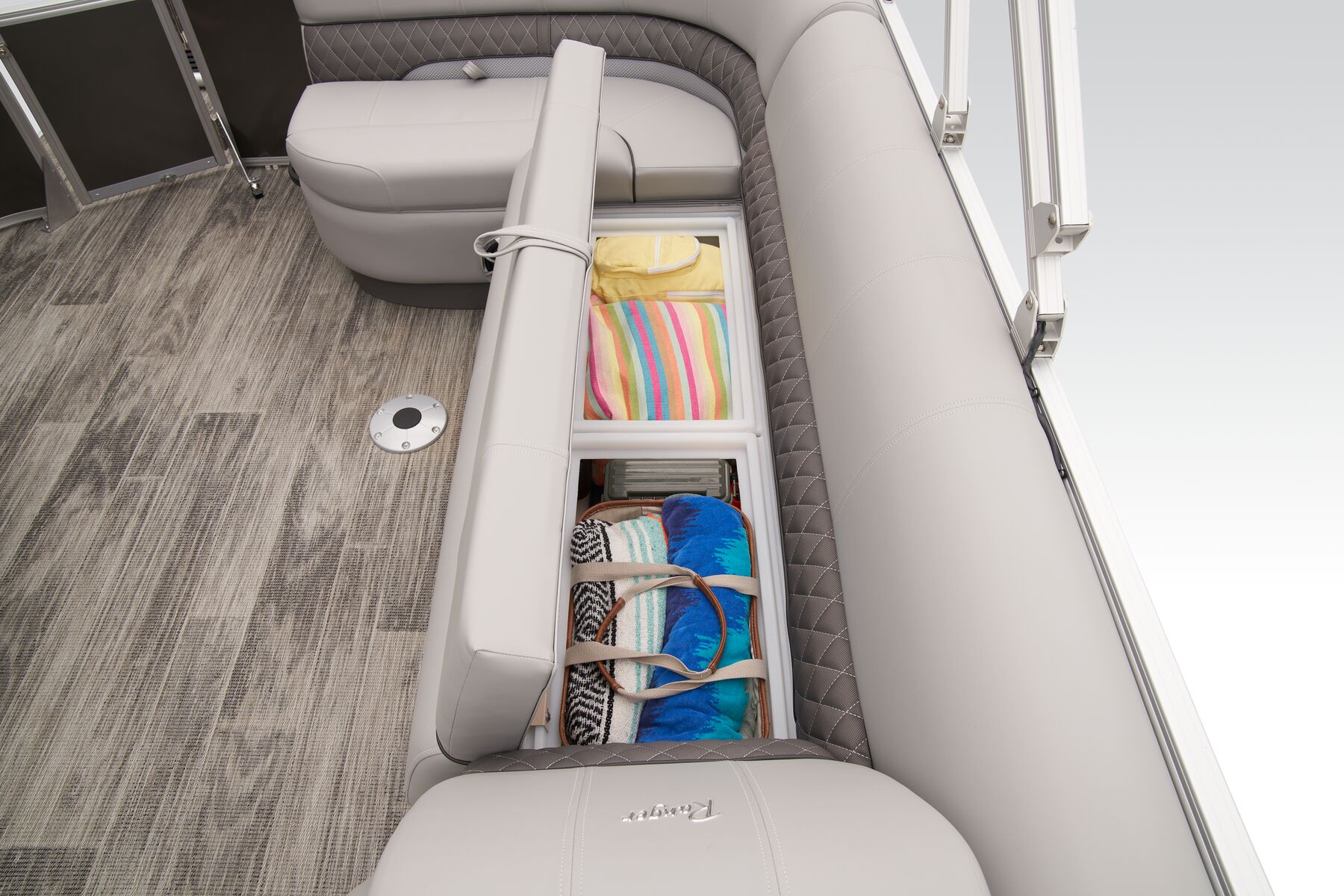

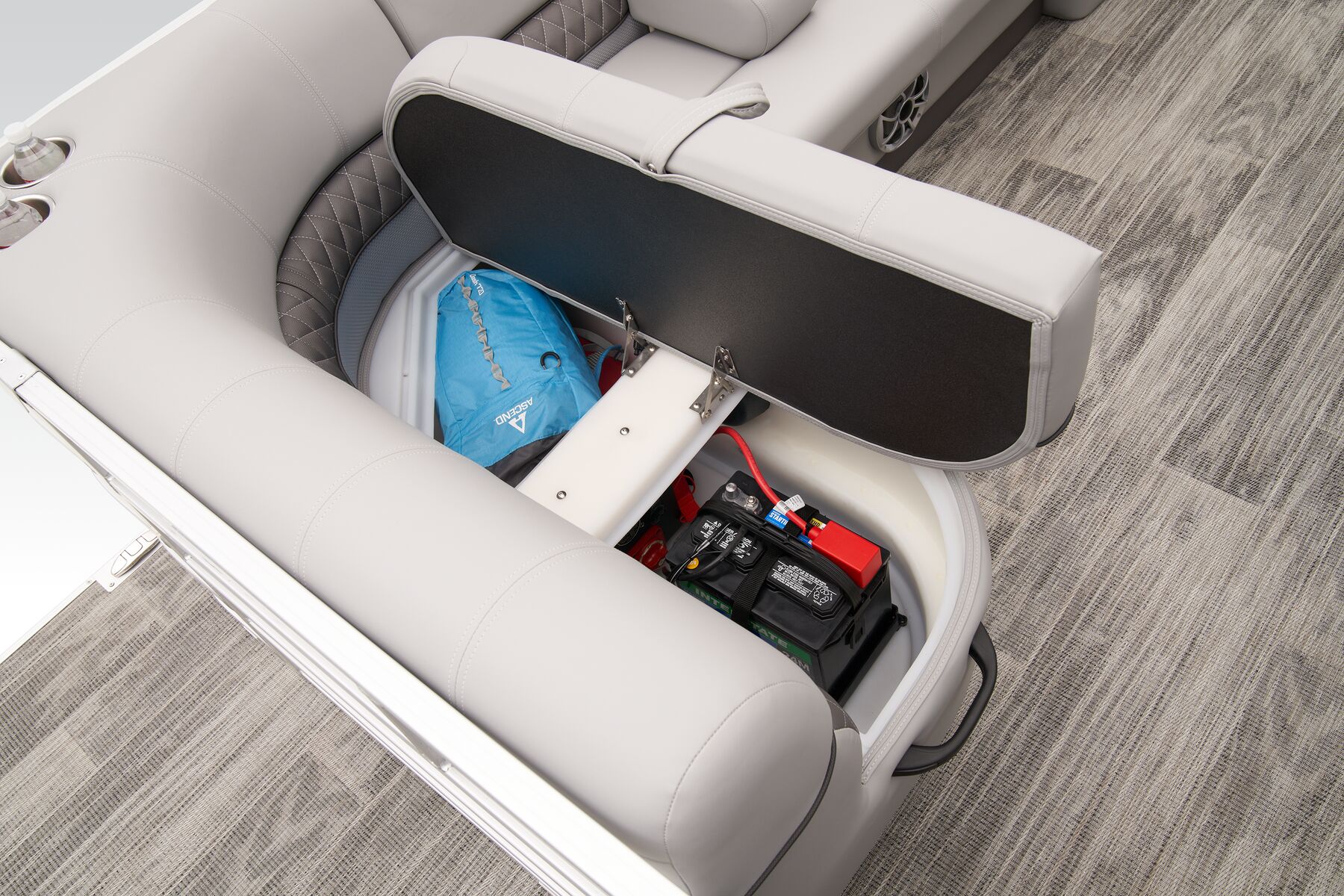

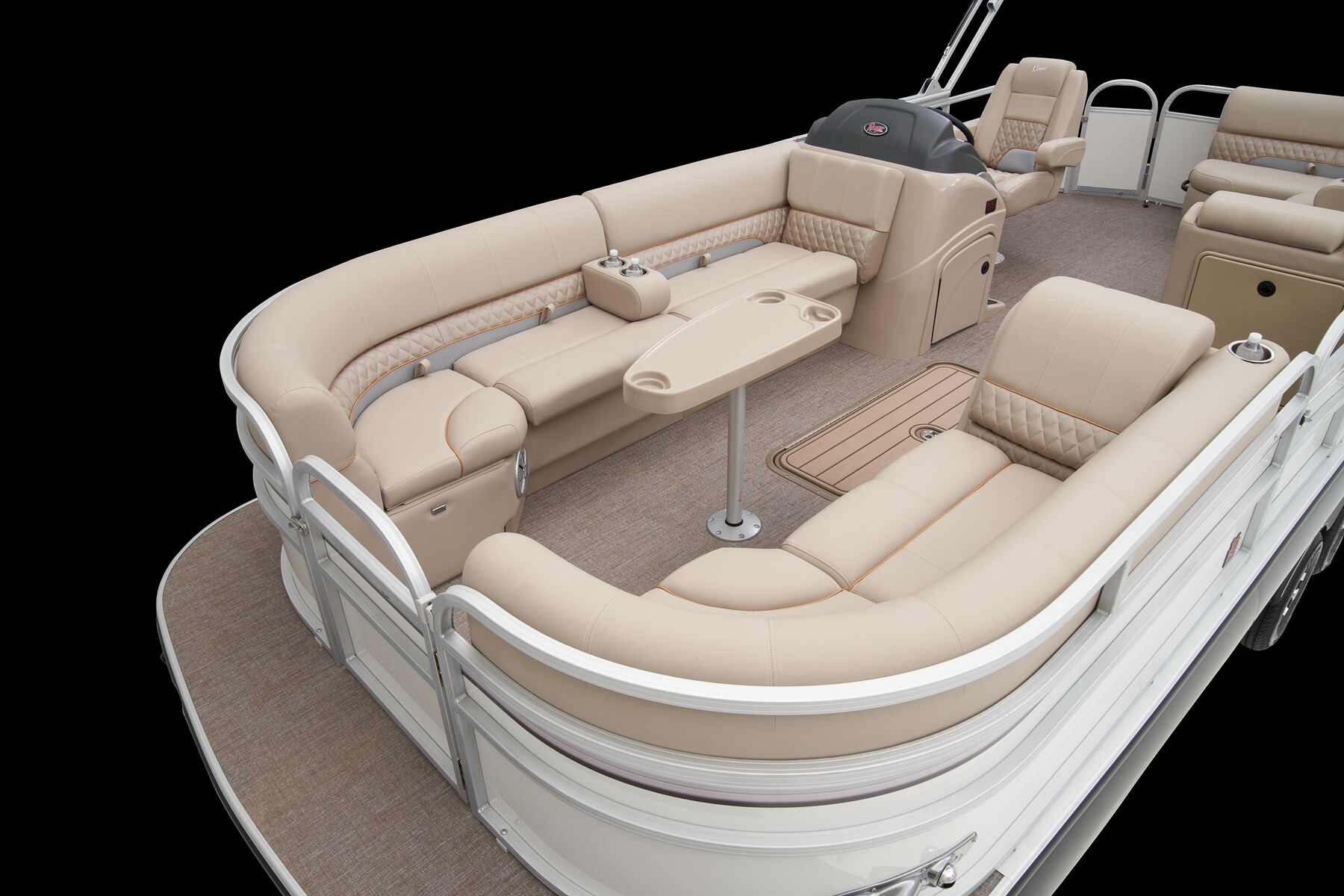

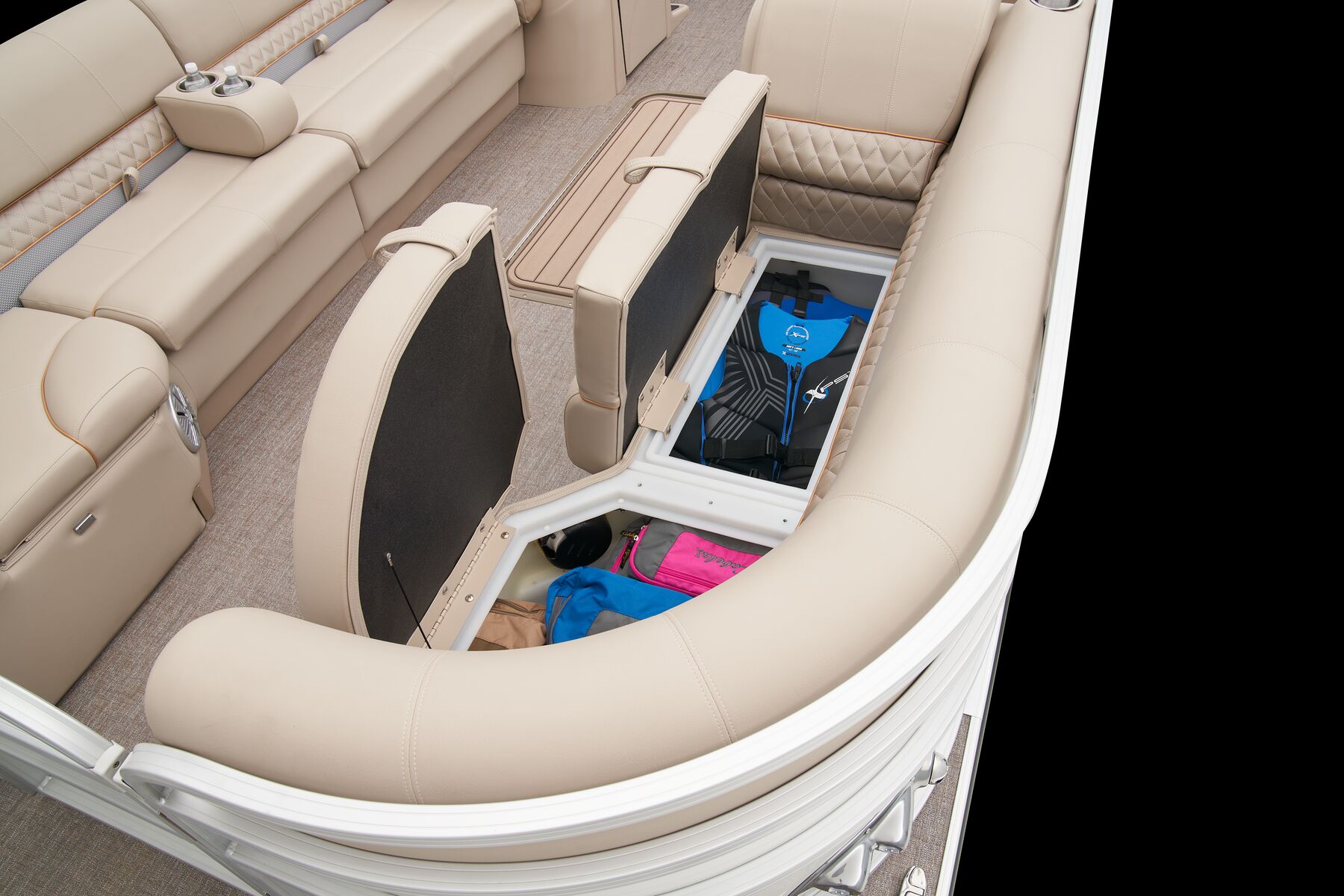

- Plush port & starboard bow lounges w/ rotomolded, drained storage

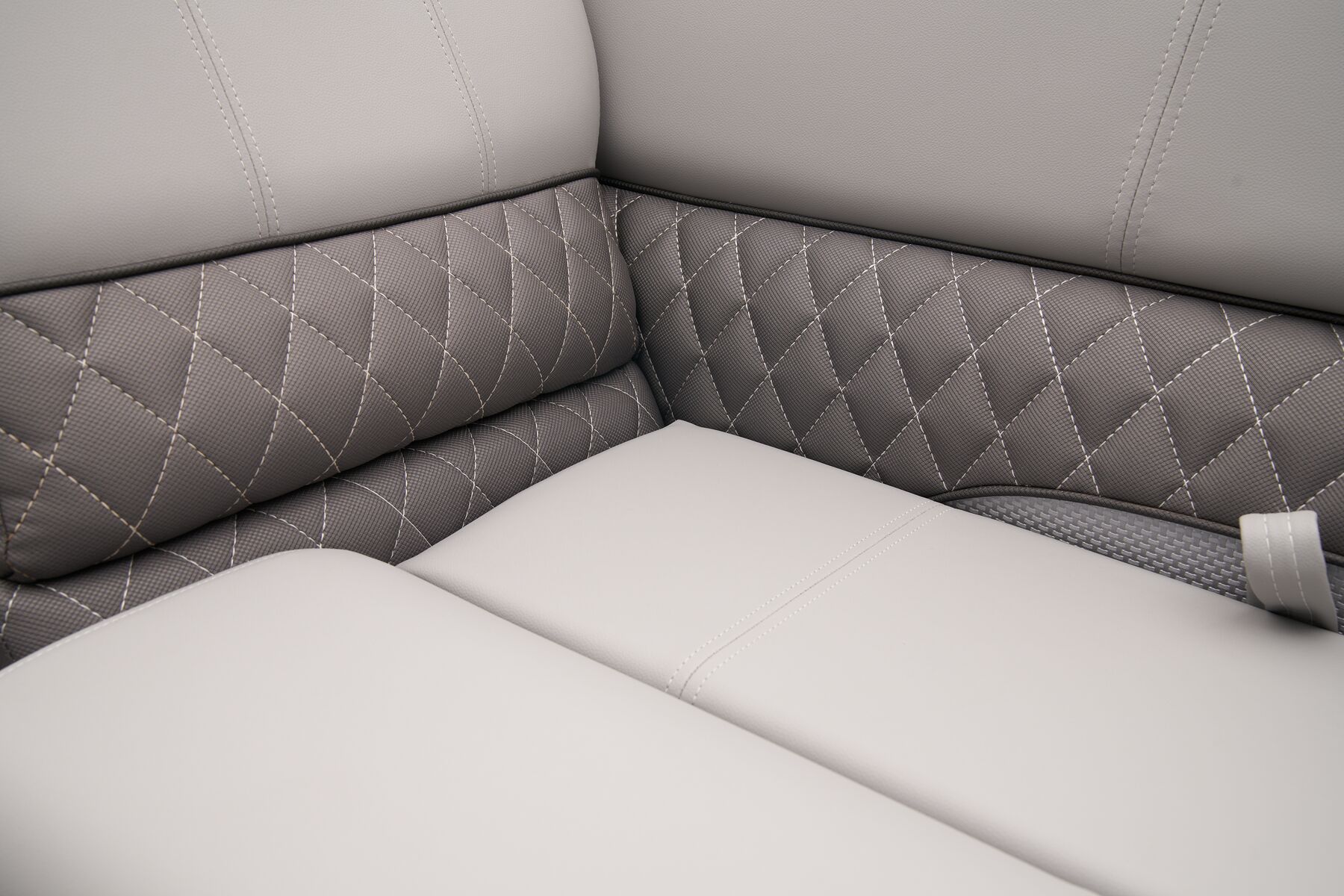

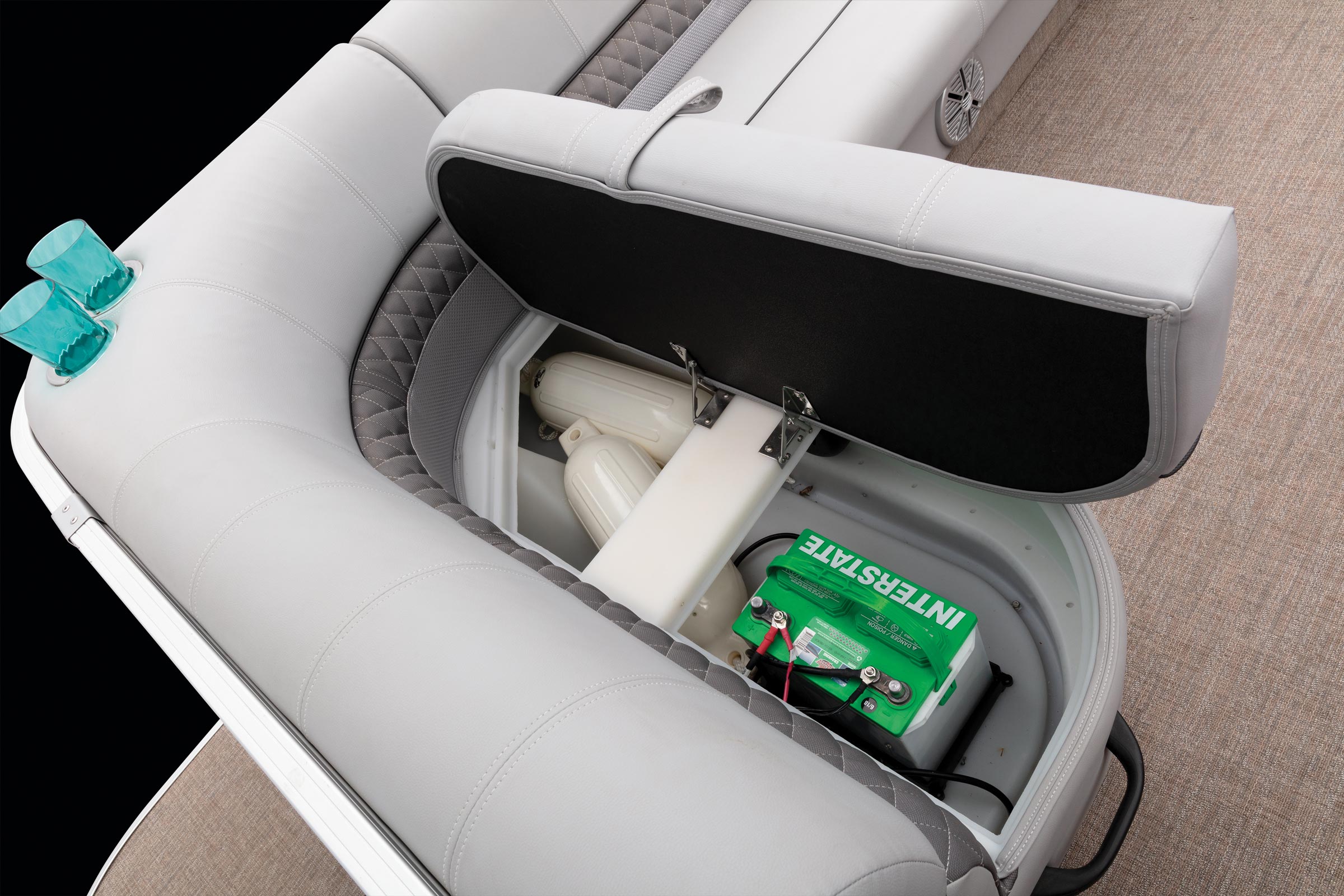

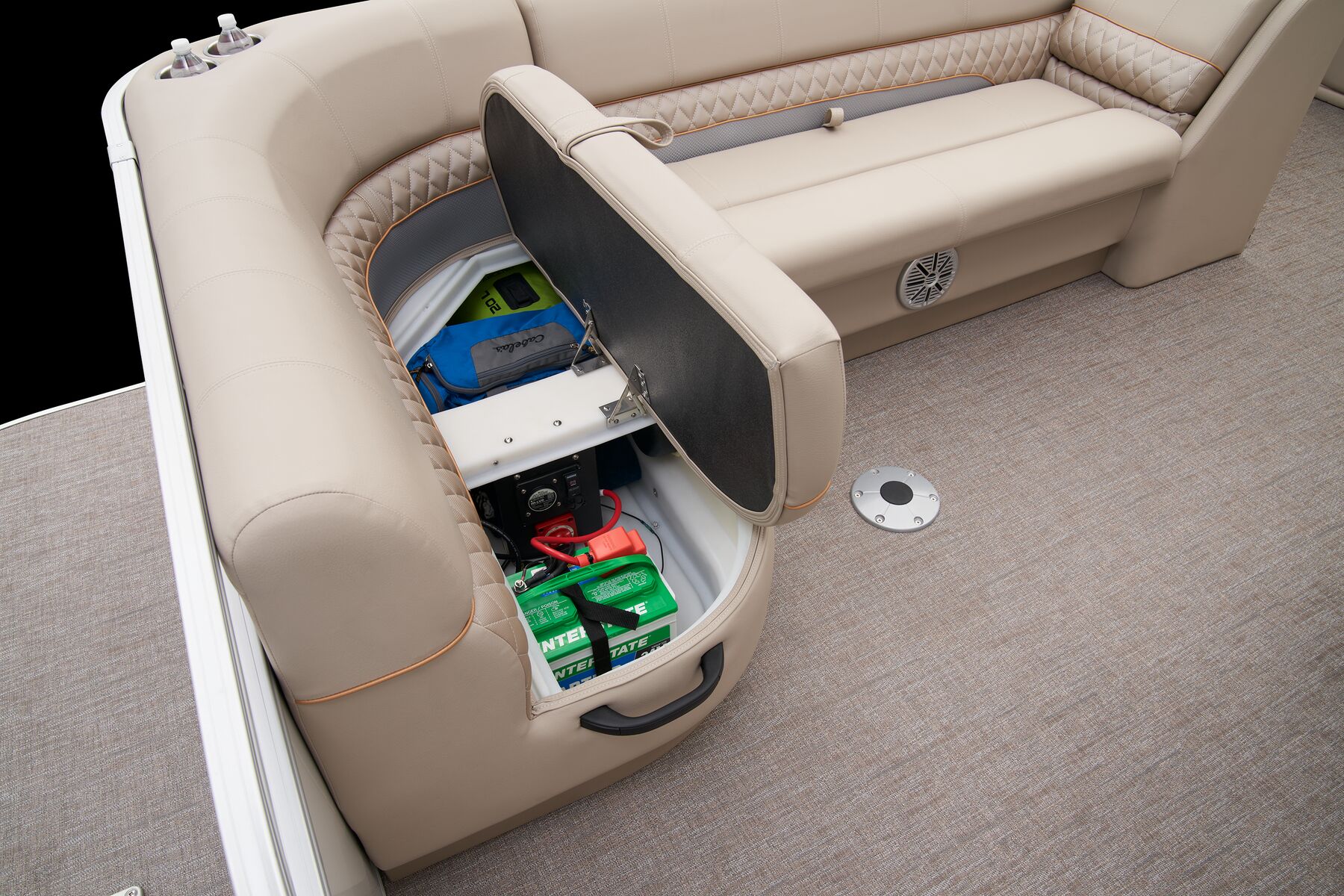

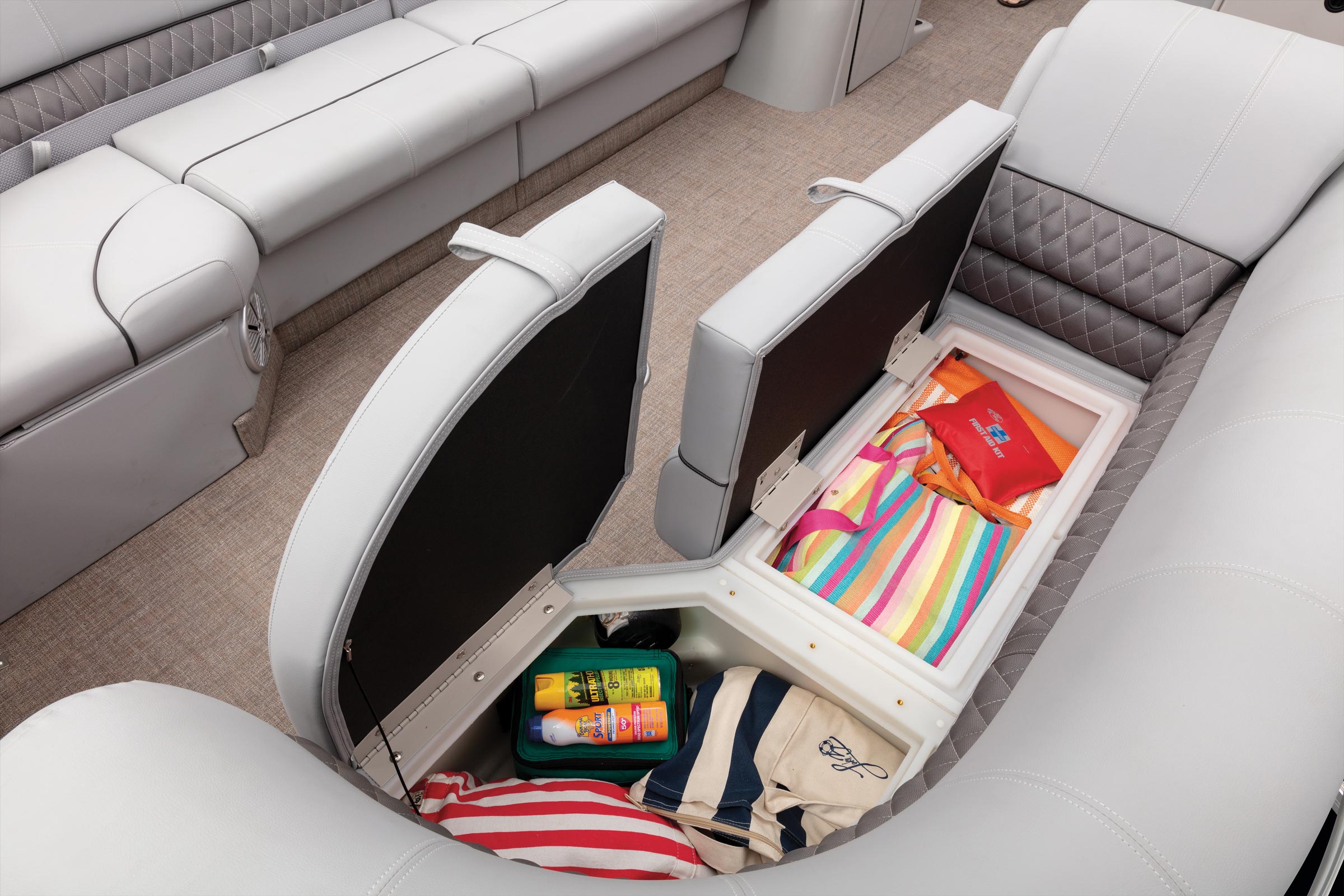

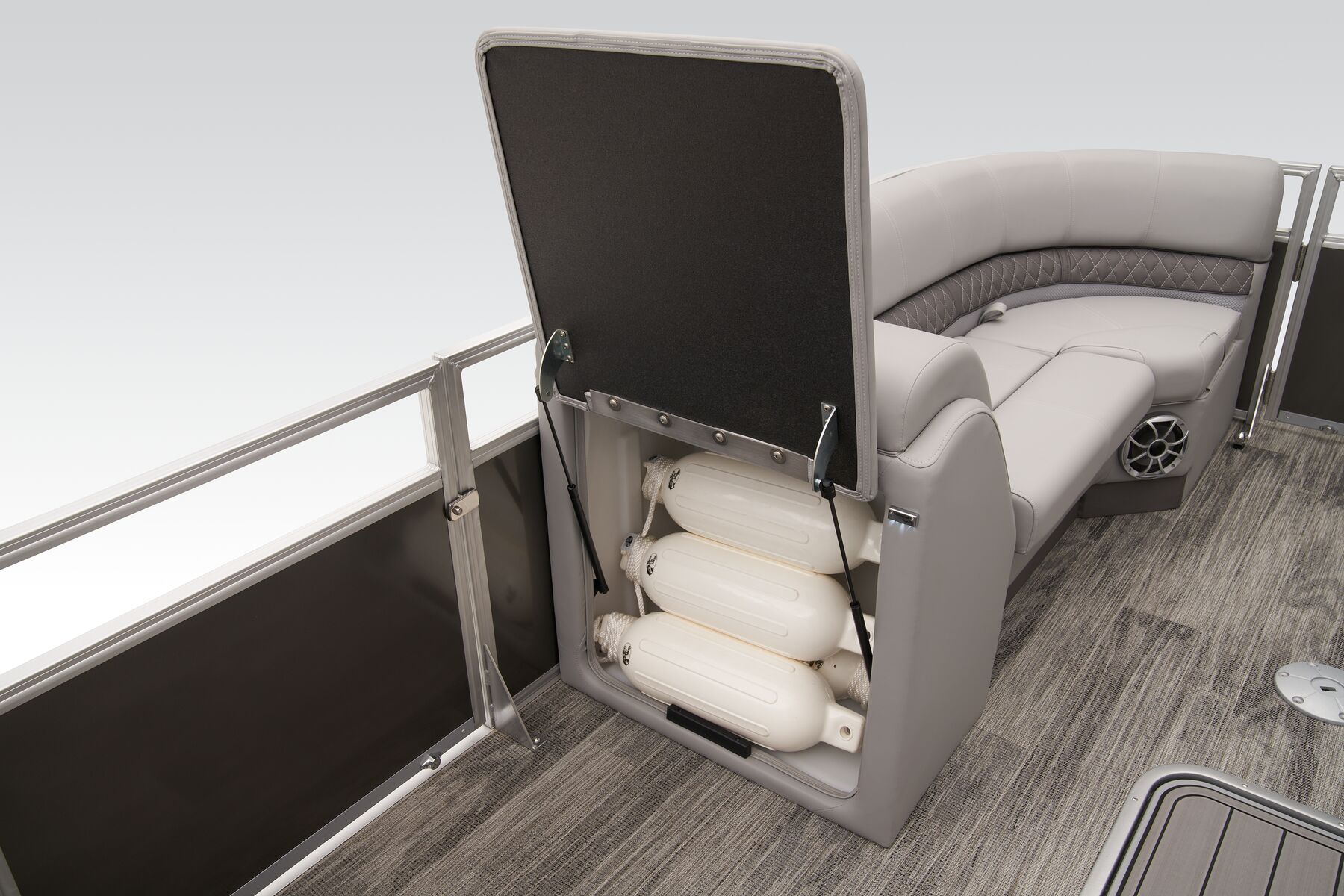

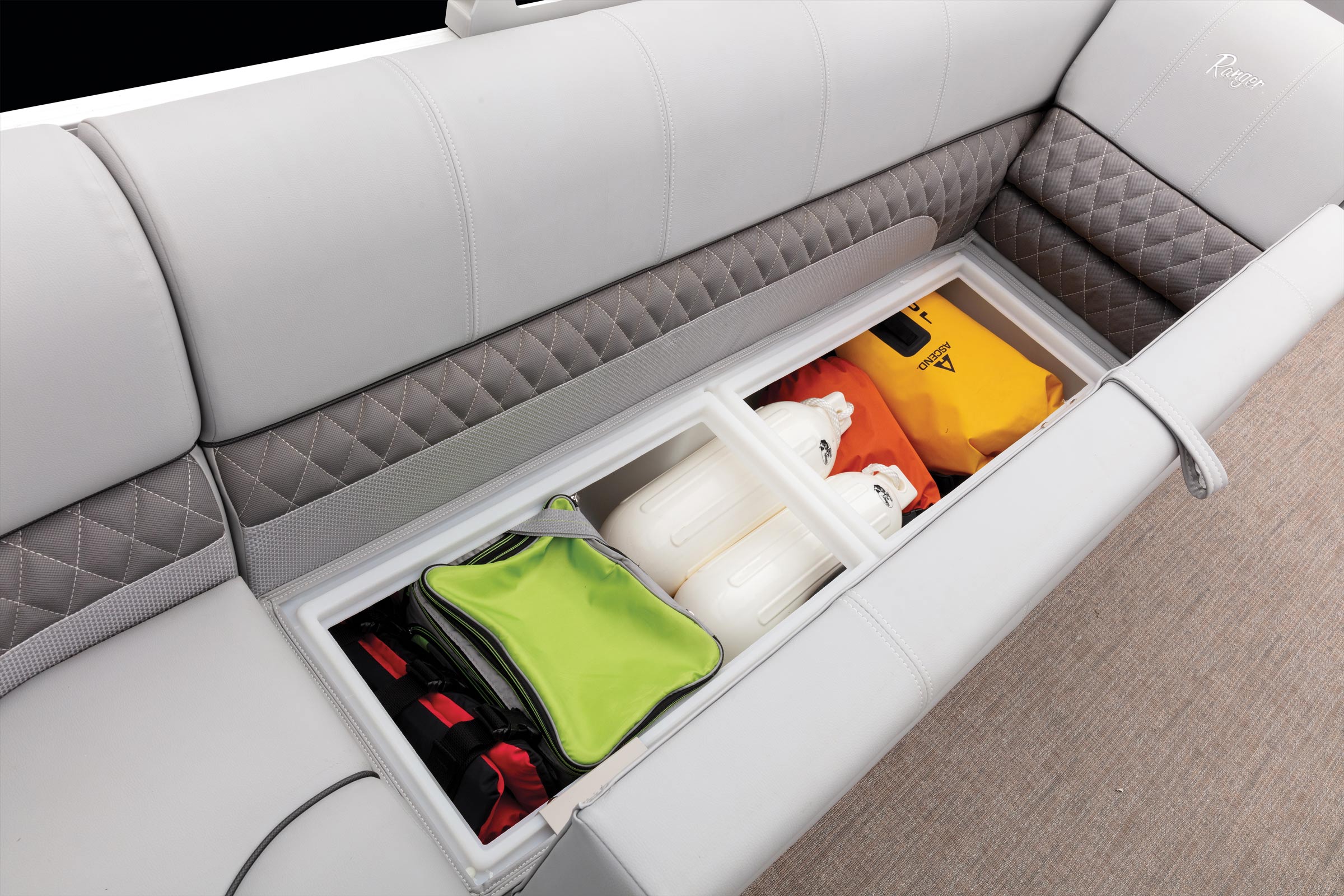

- Aft L-lounge w/ rotomolded, drained storage
