Limited 2024 Availability
ALL-NEW

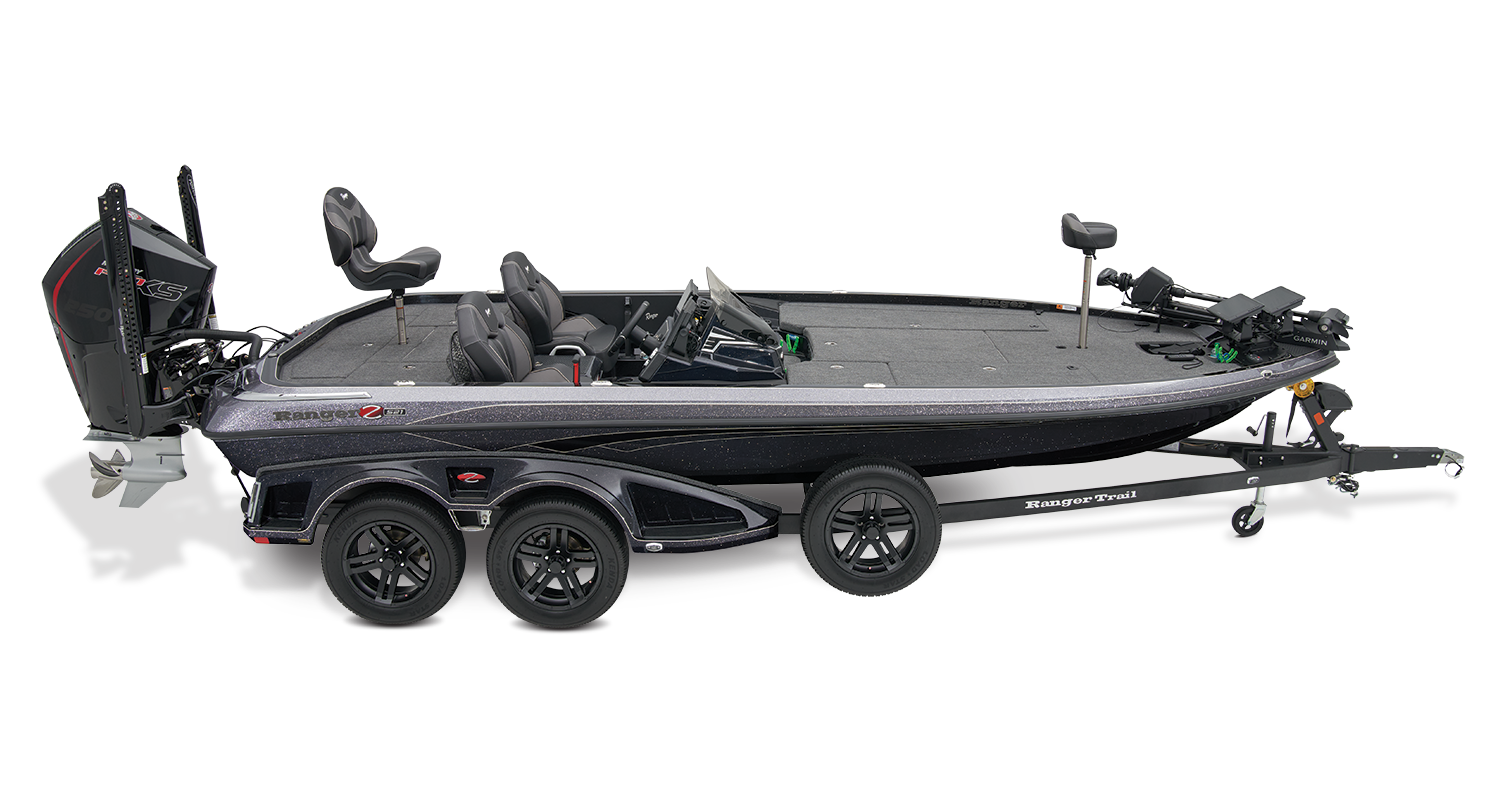

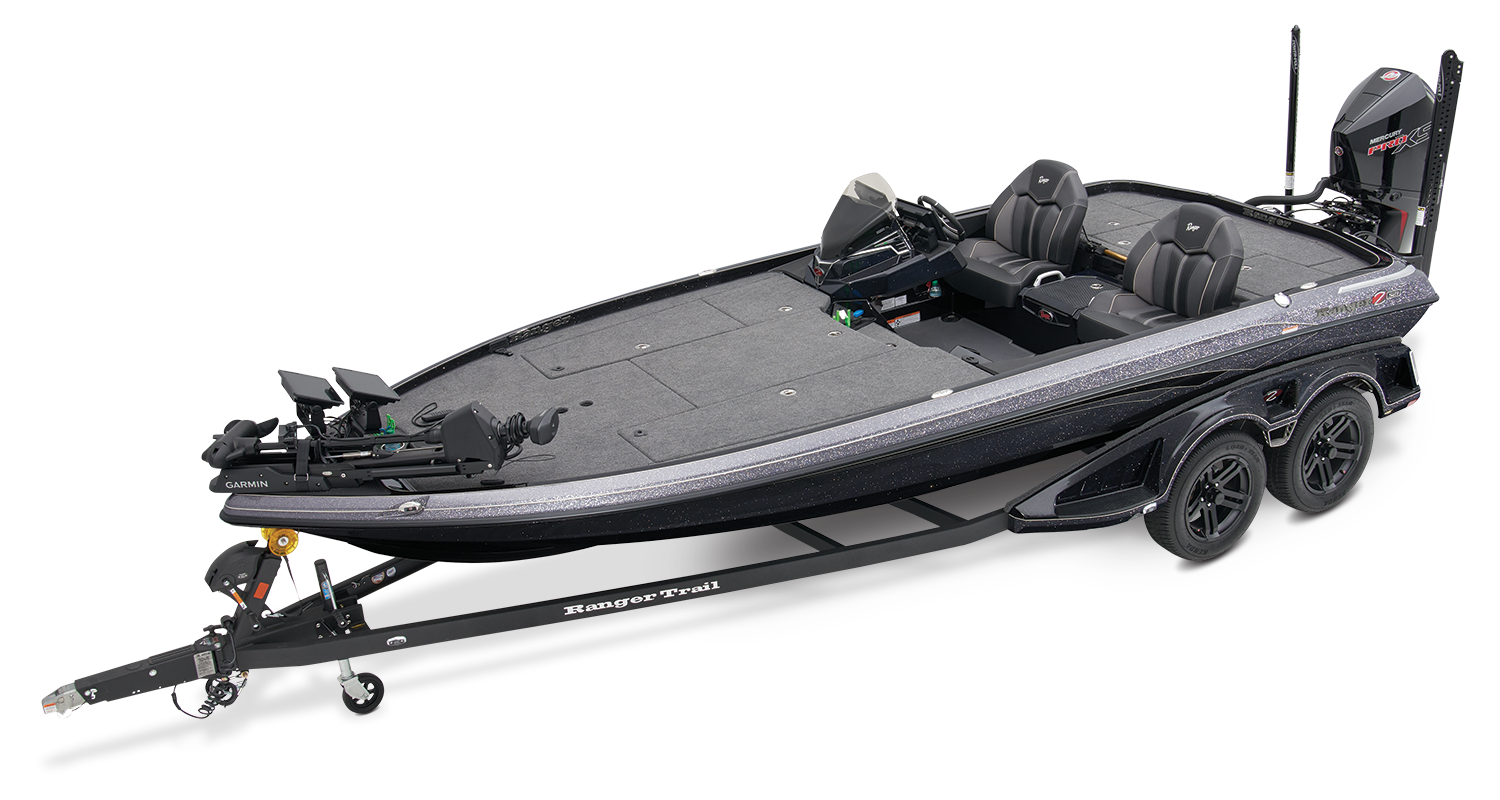

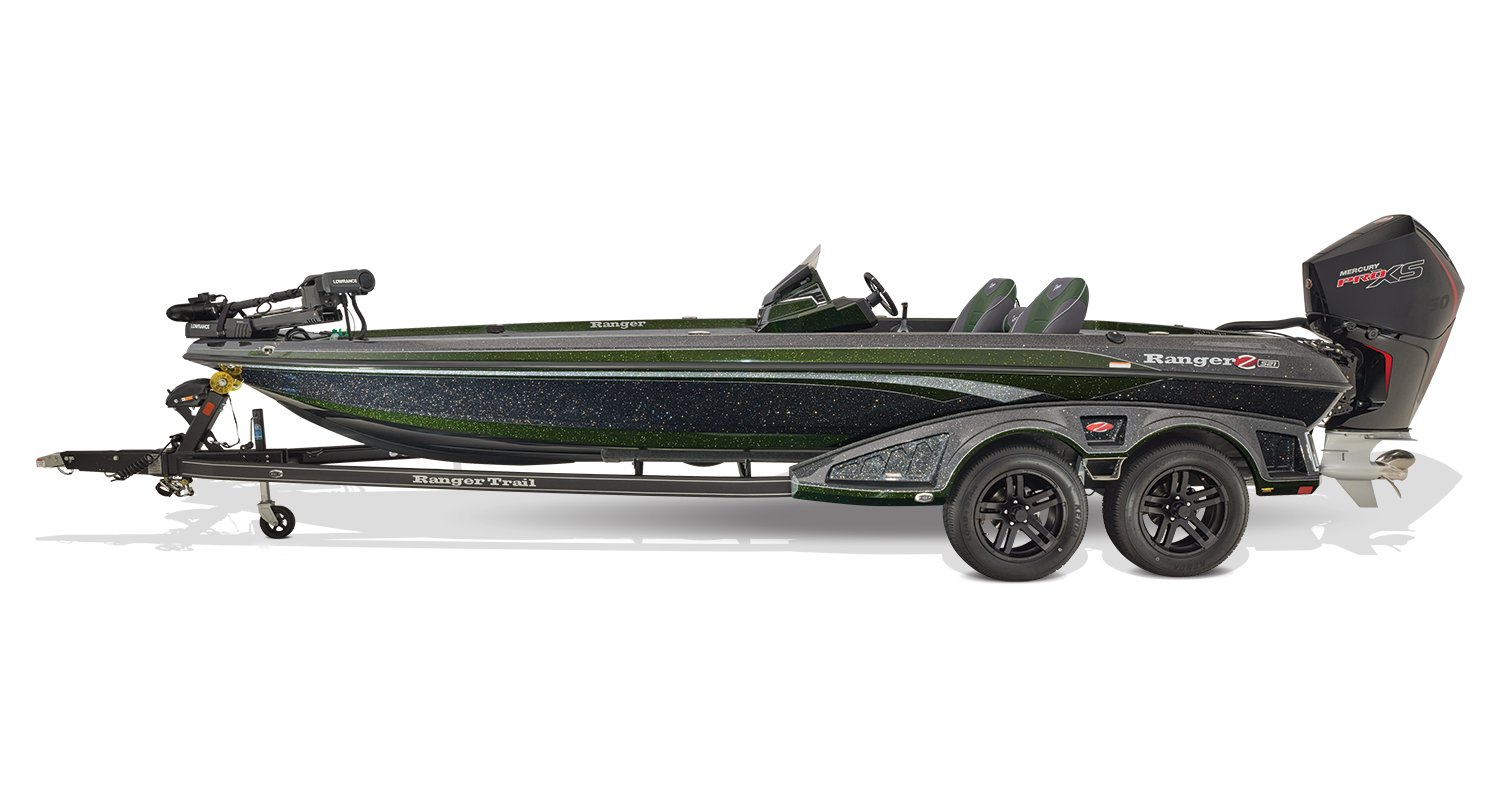

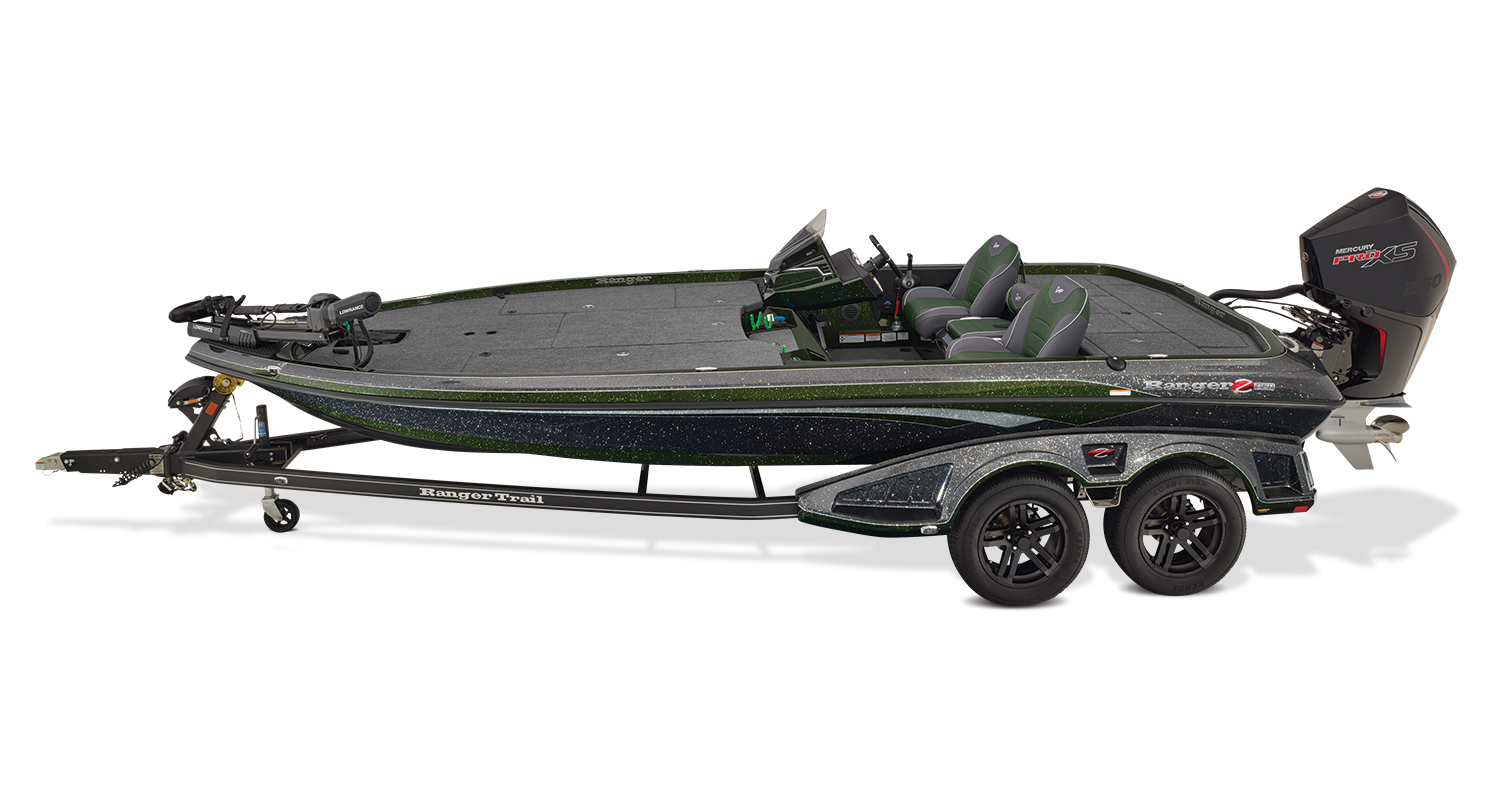

Z521
Photos may show optional equipment.
2025
Z521

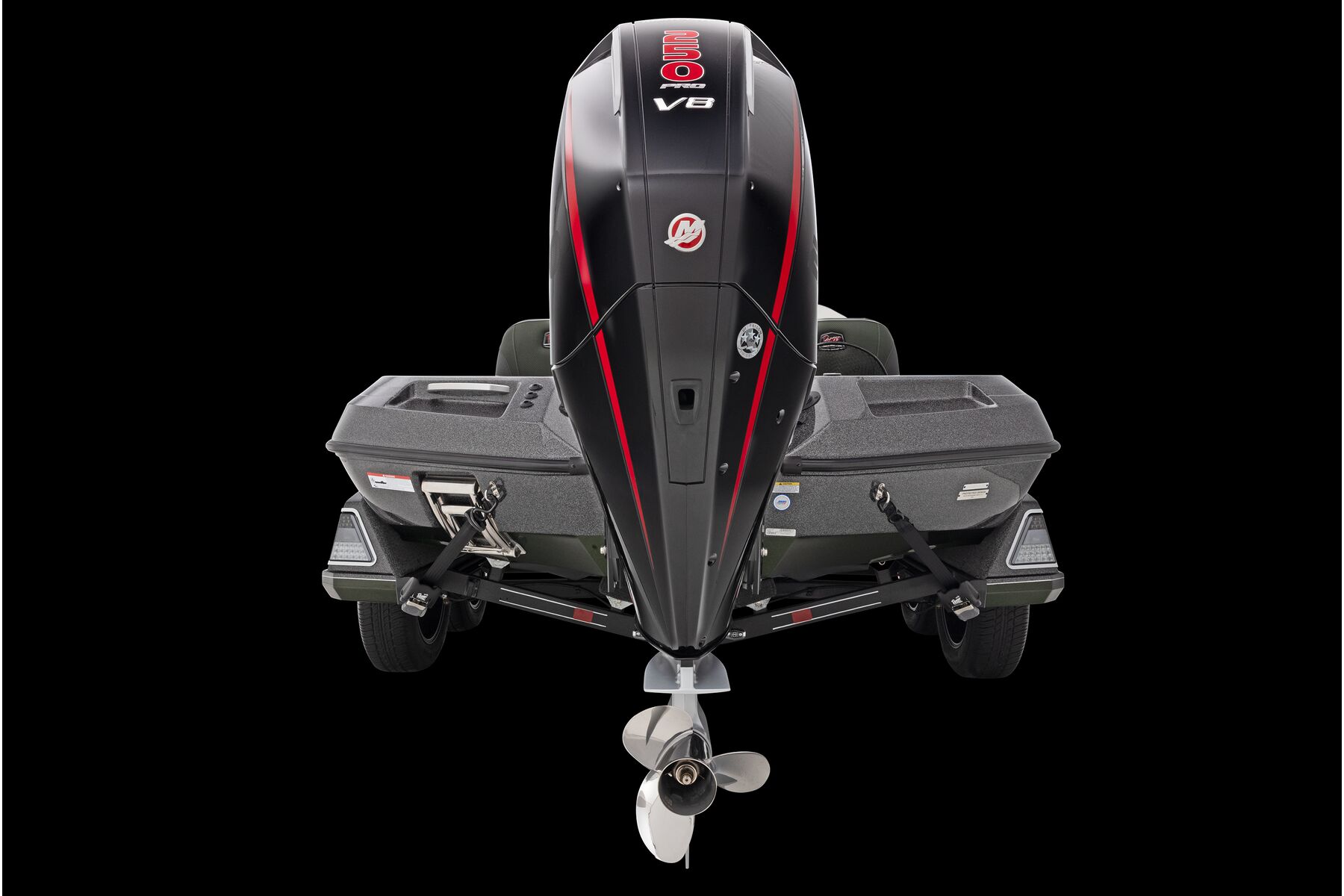

w/ 250L Pro XS Torque Master Mercury®

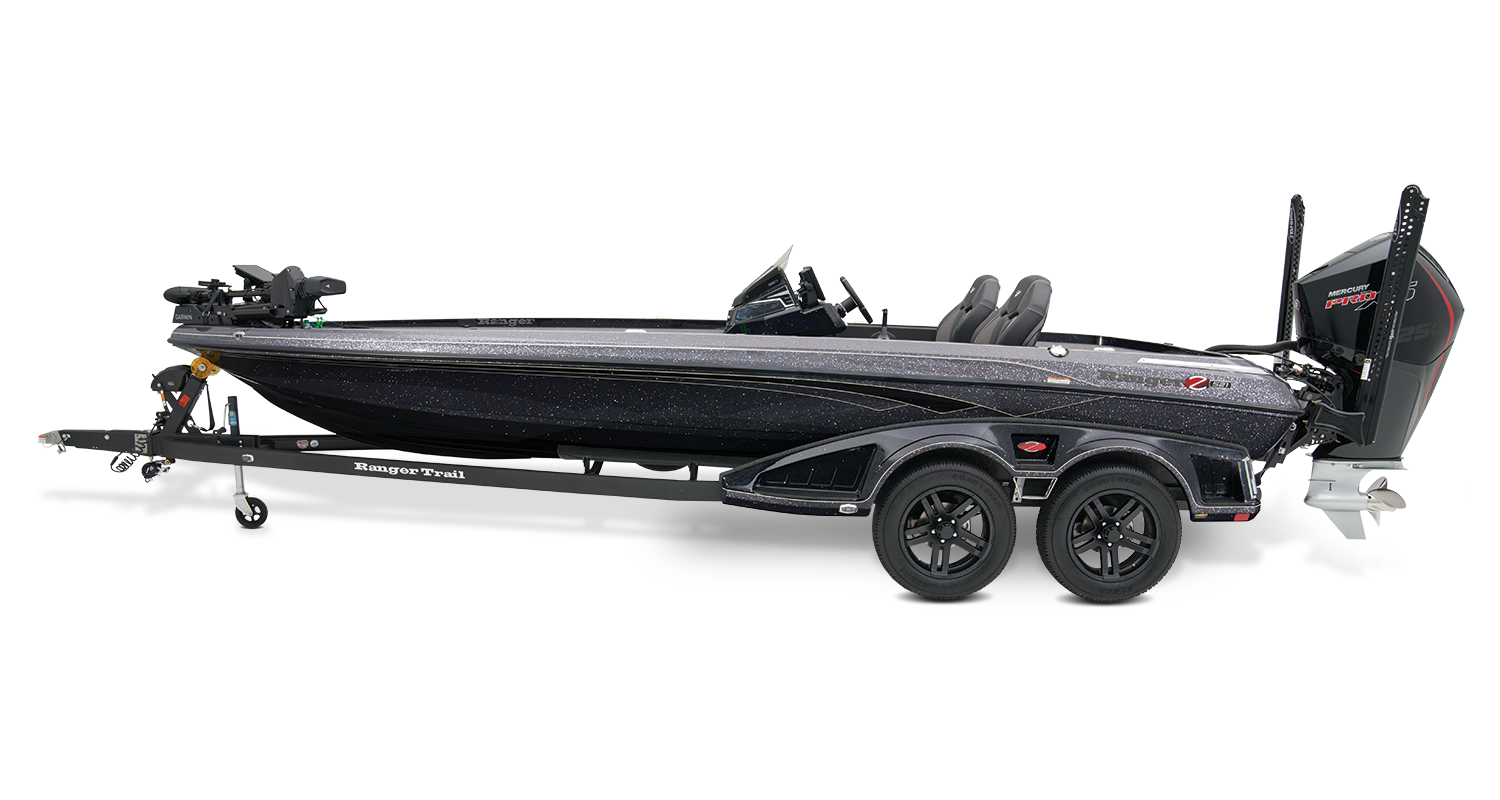

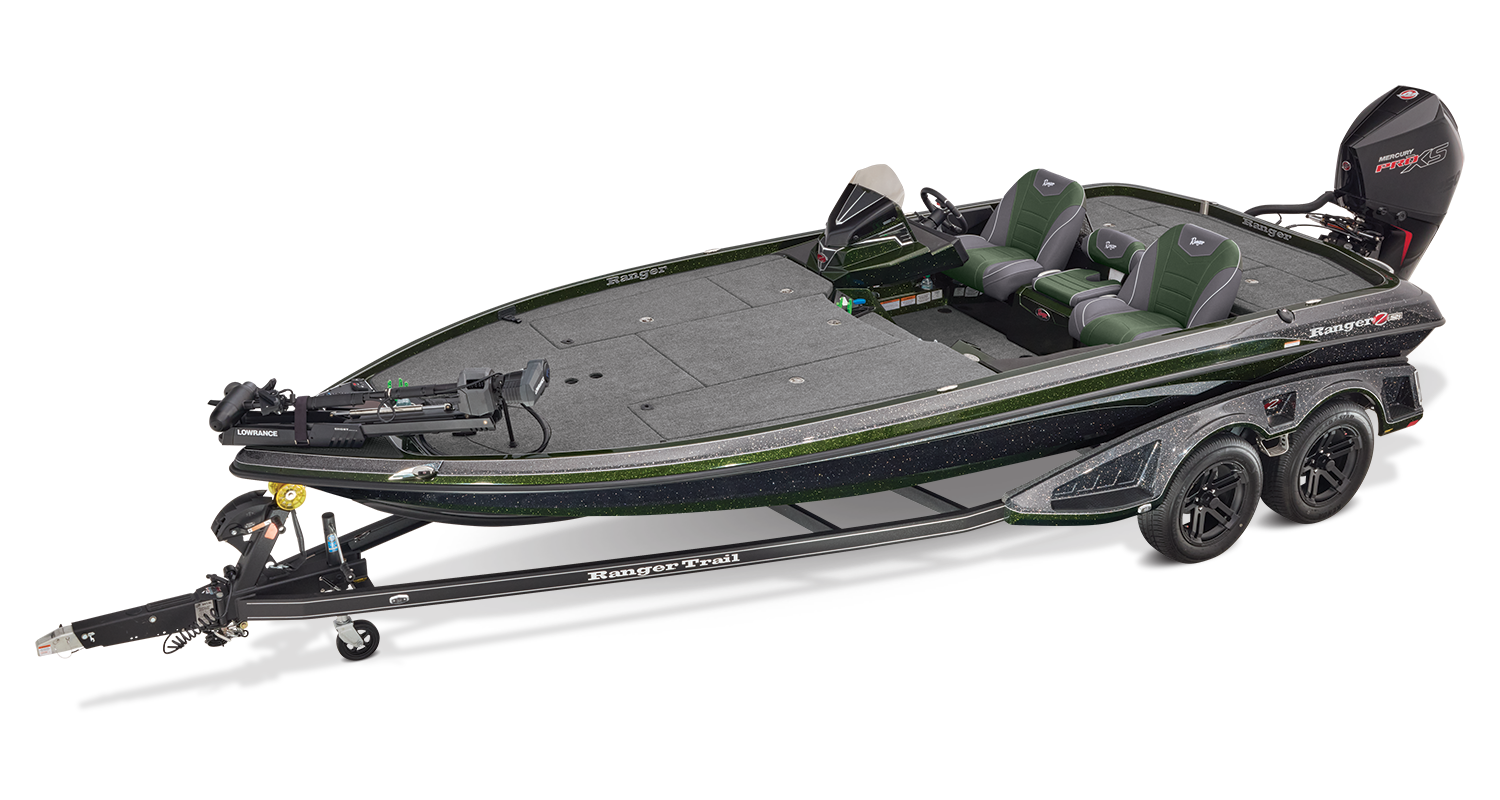

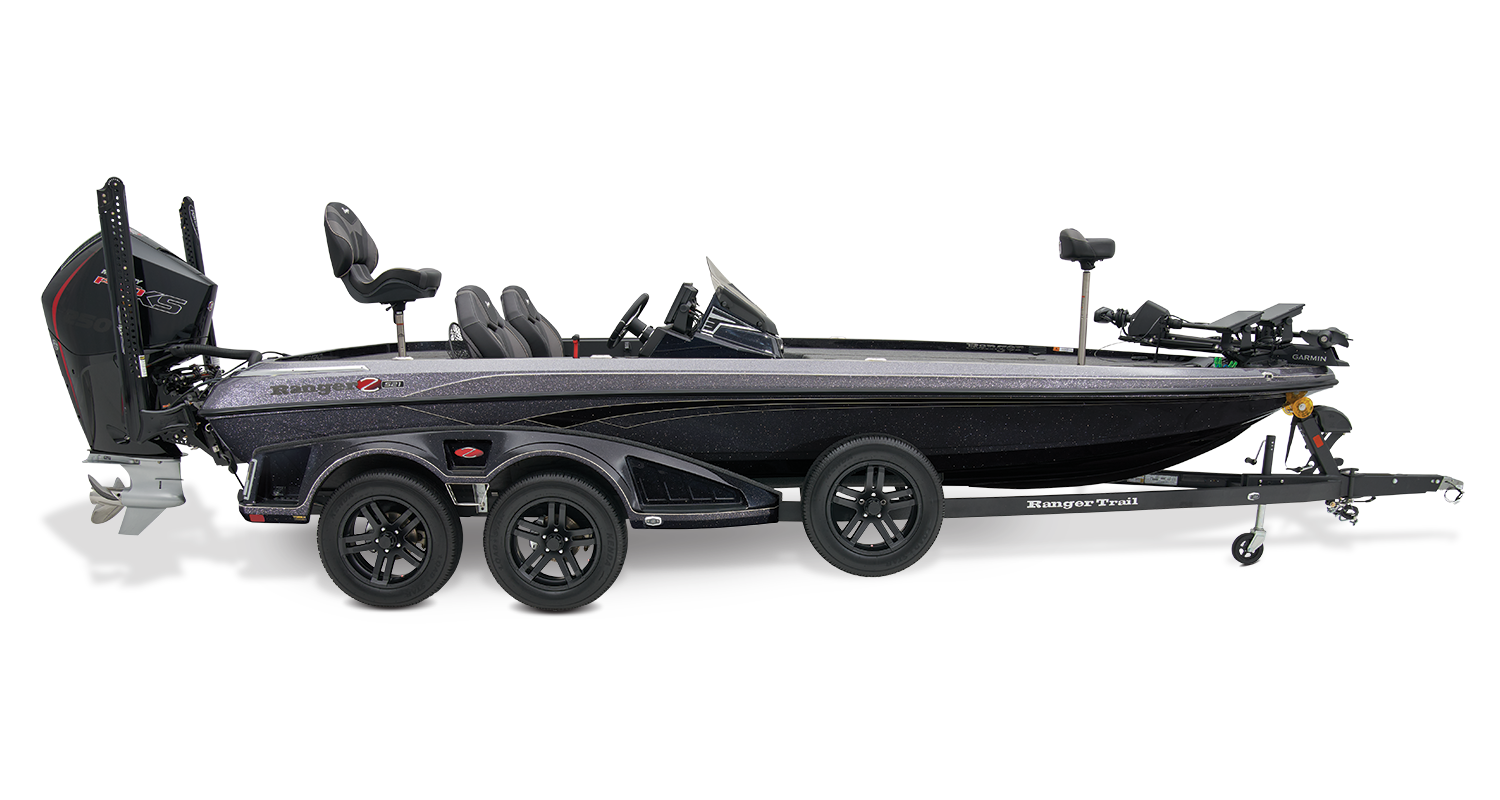

Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$84995
USD
|
WINNING DNA COMES STANDARD

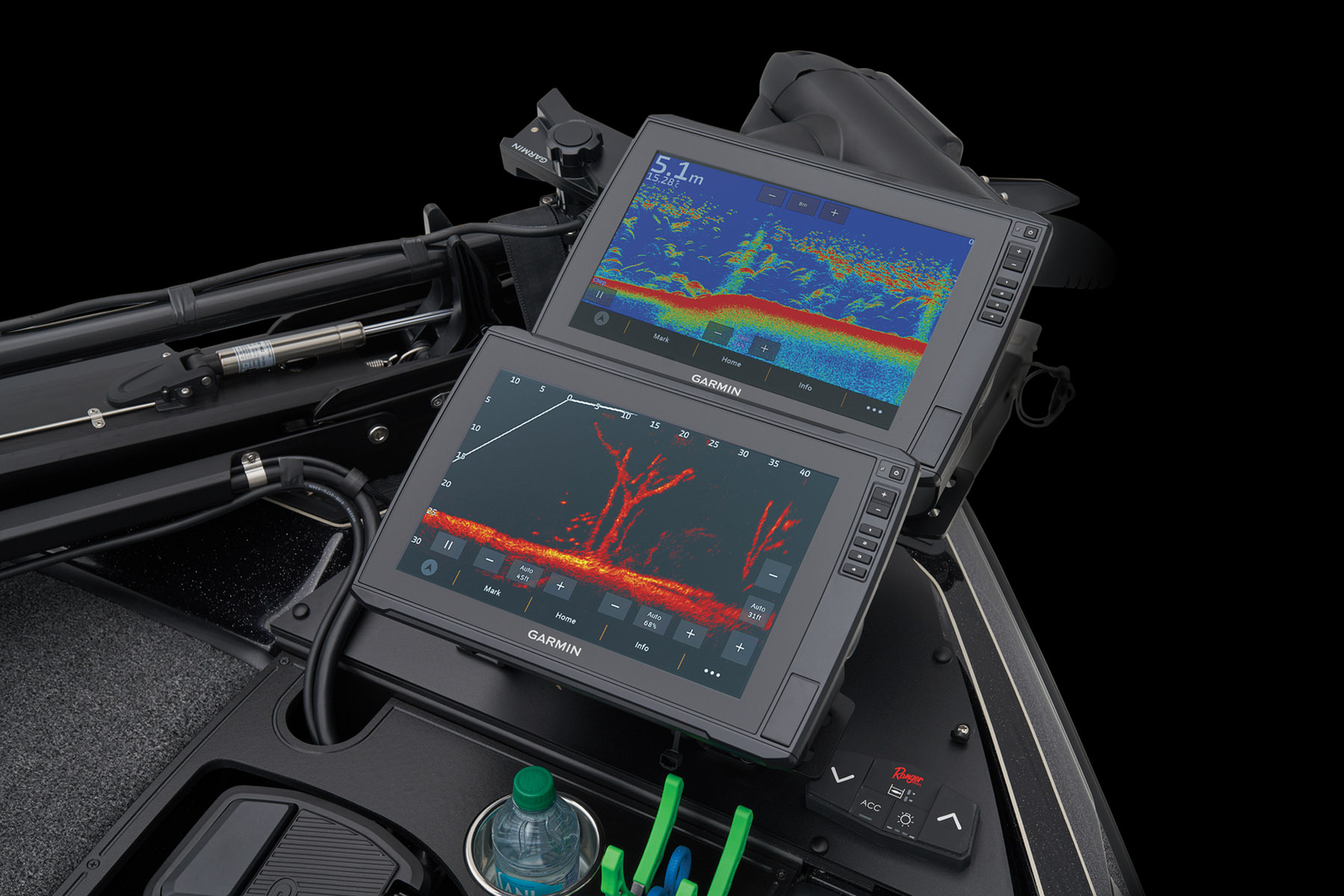

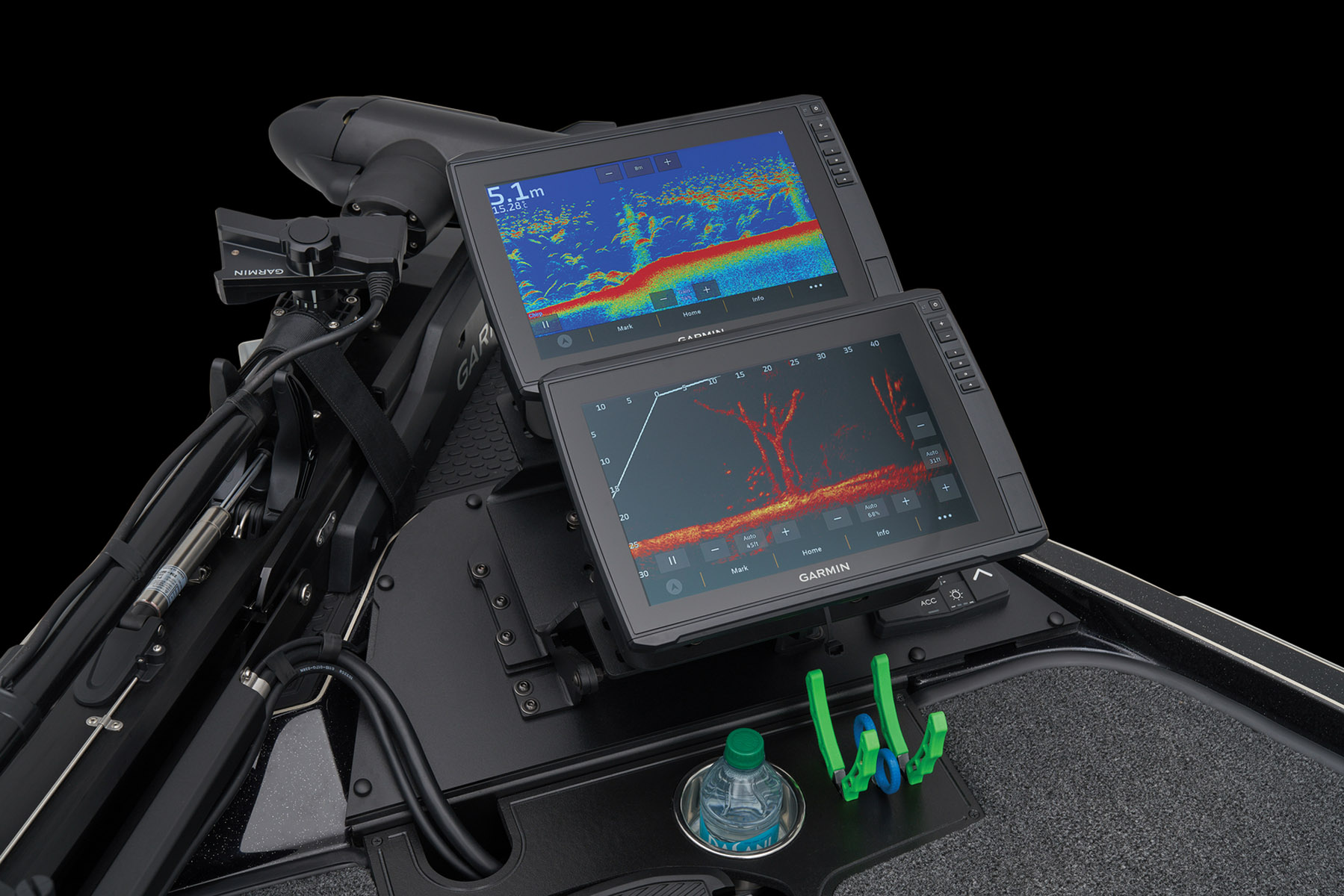

With flagship size and performance that blends maximum fishability and convenience, the new Ranger Z521 is the most dominating bass rig in its class. And for 2025, we’ve added in new features that make it an even more capable threat on the water. A Ranger Umbilical™ dedicated electronics harness simplifies wiring, while push-button solid-state switching and a keyed ignition adds simplicity to controls. A MercMonitor with SmartCraft gauges keep you in the know while push-to-close latches remove tripping hazards and make accessing your boxes easier. For increased fishability we’ve added a Minn Kota® Fortrex and optional BBT dual bow graph mount.

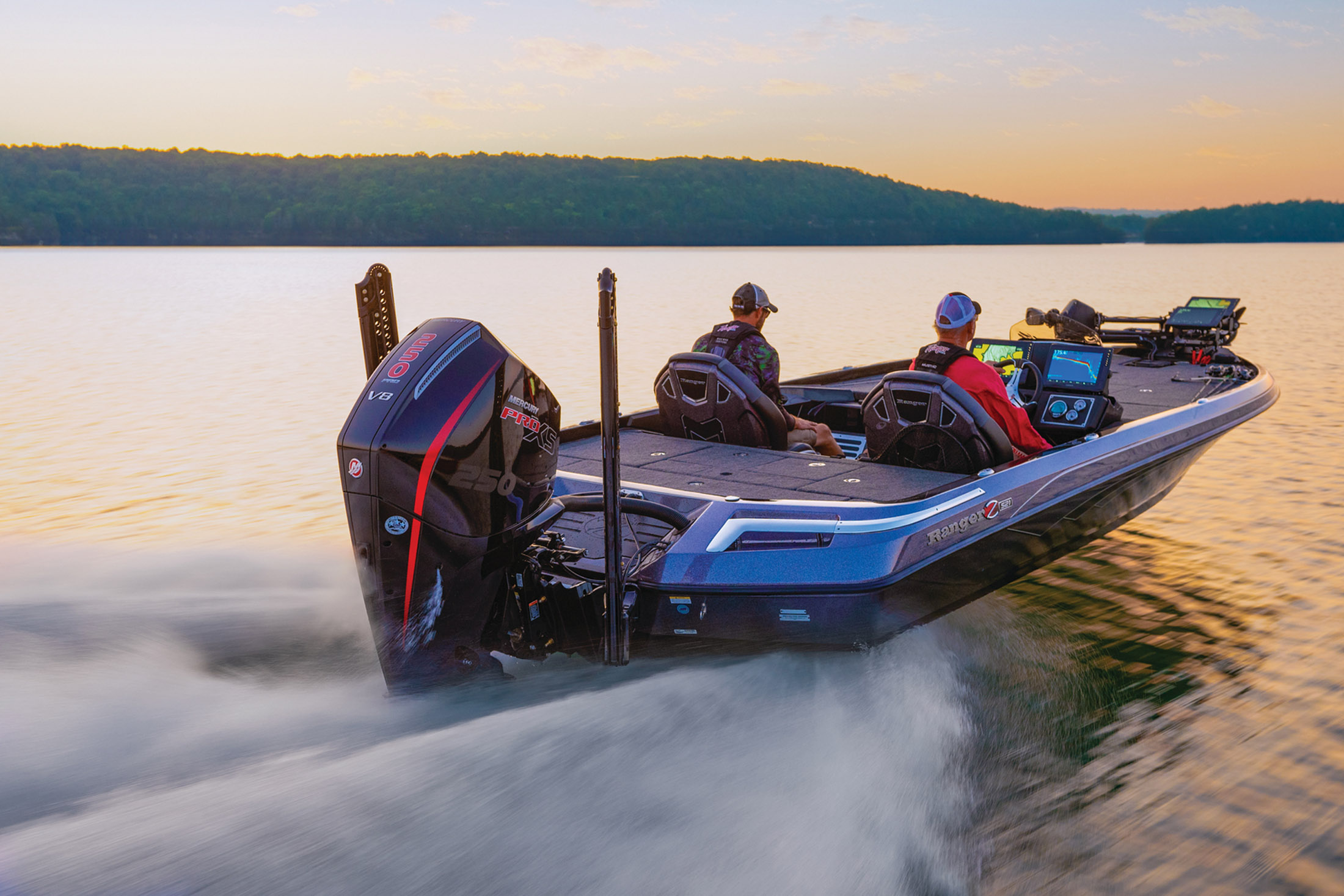

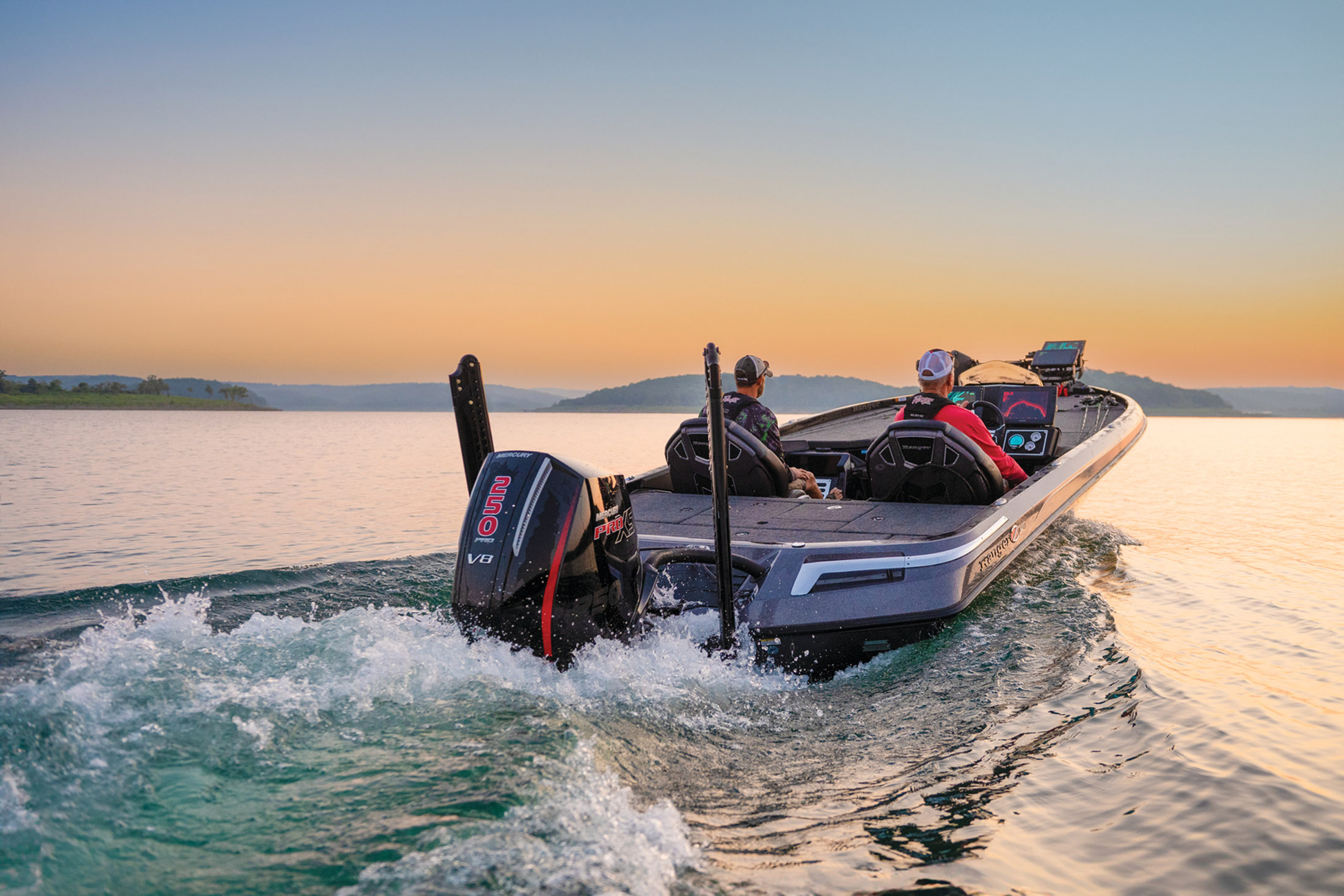

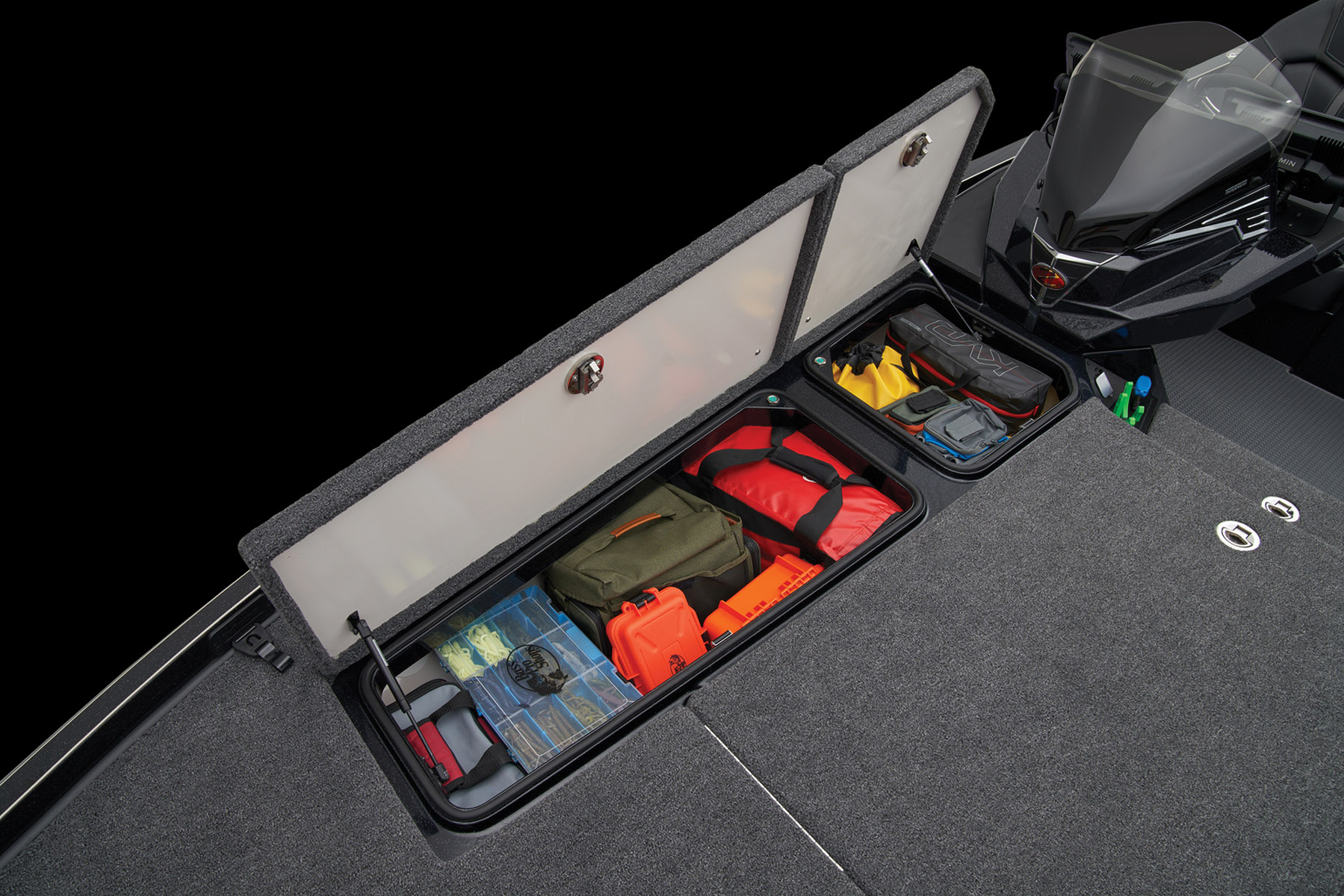

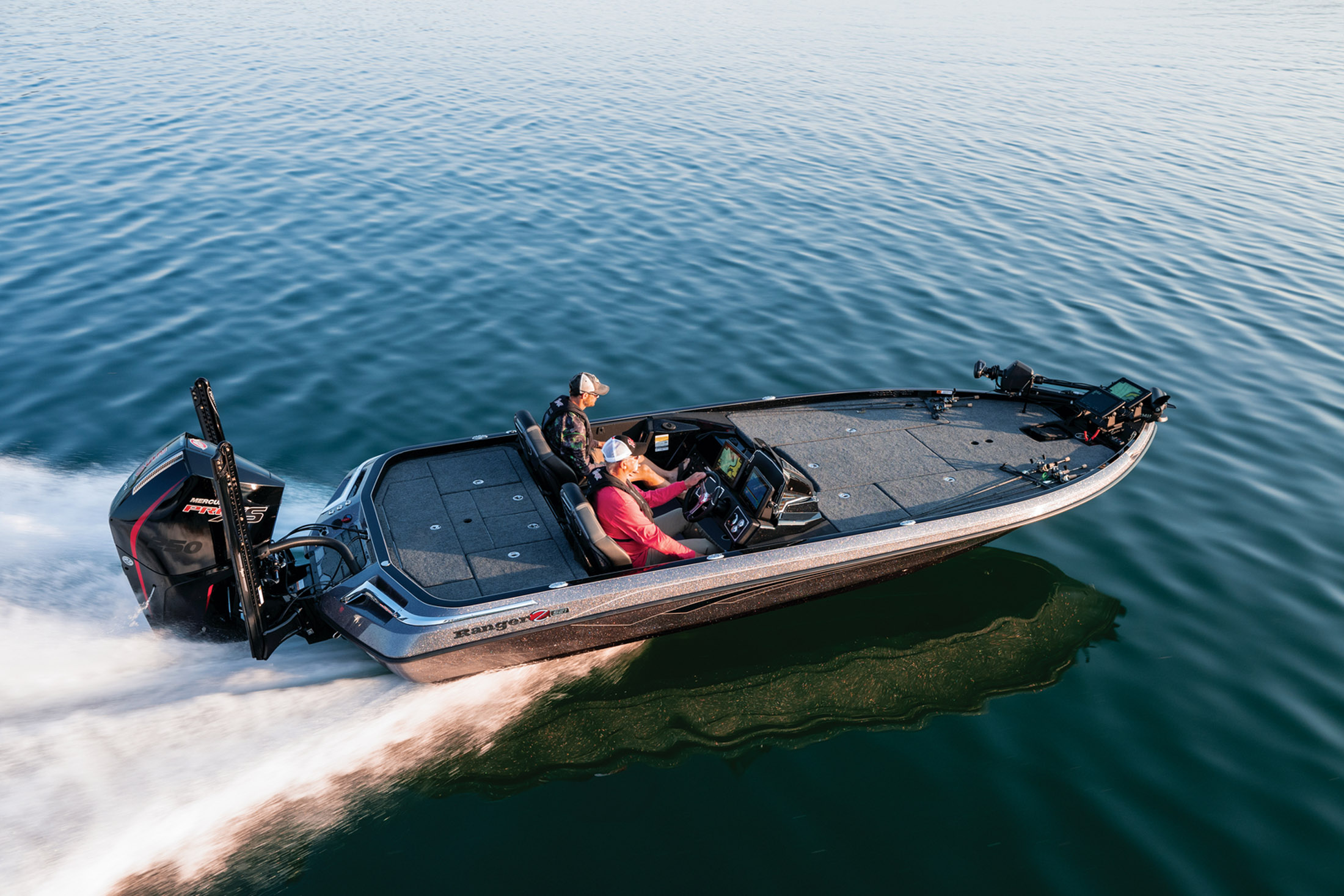

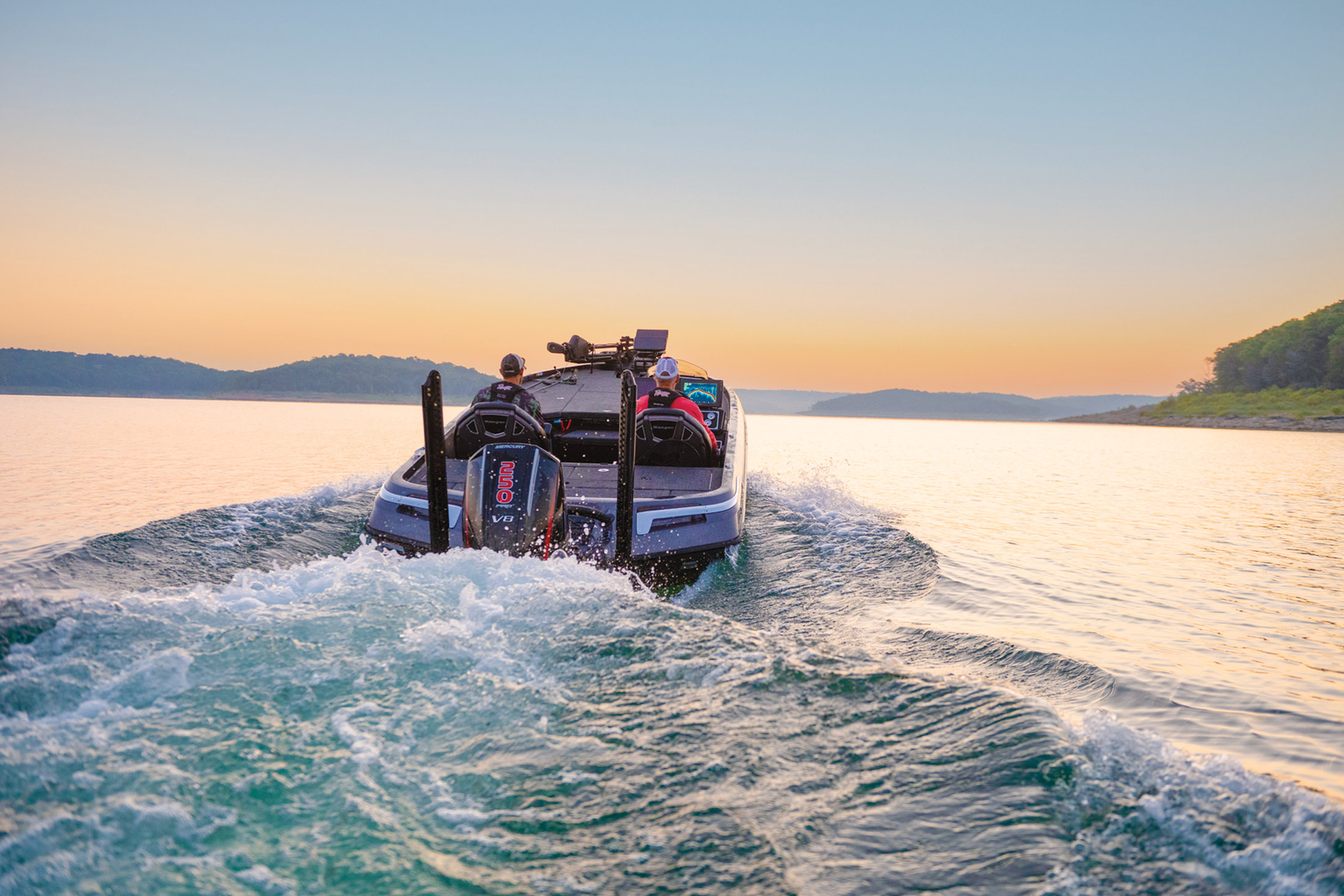

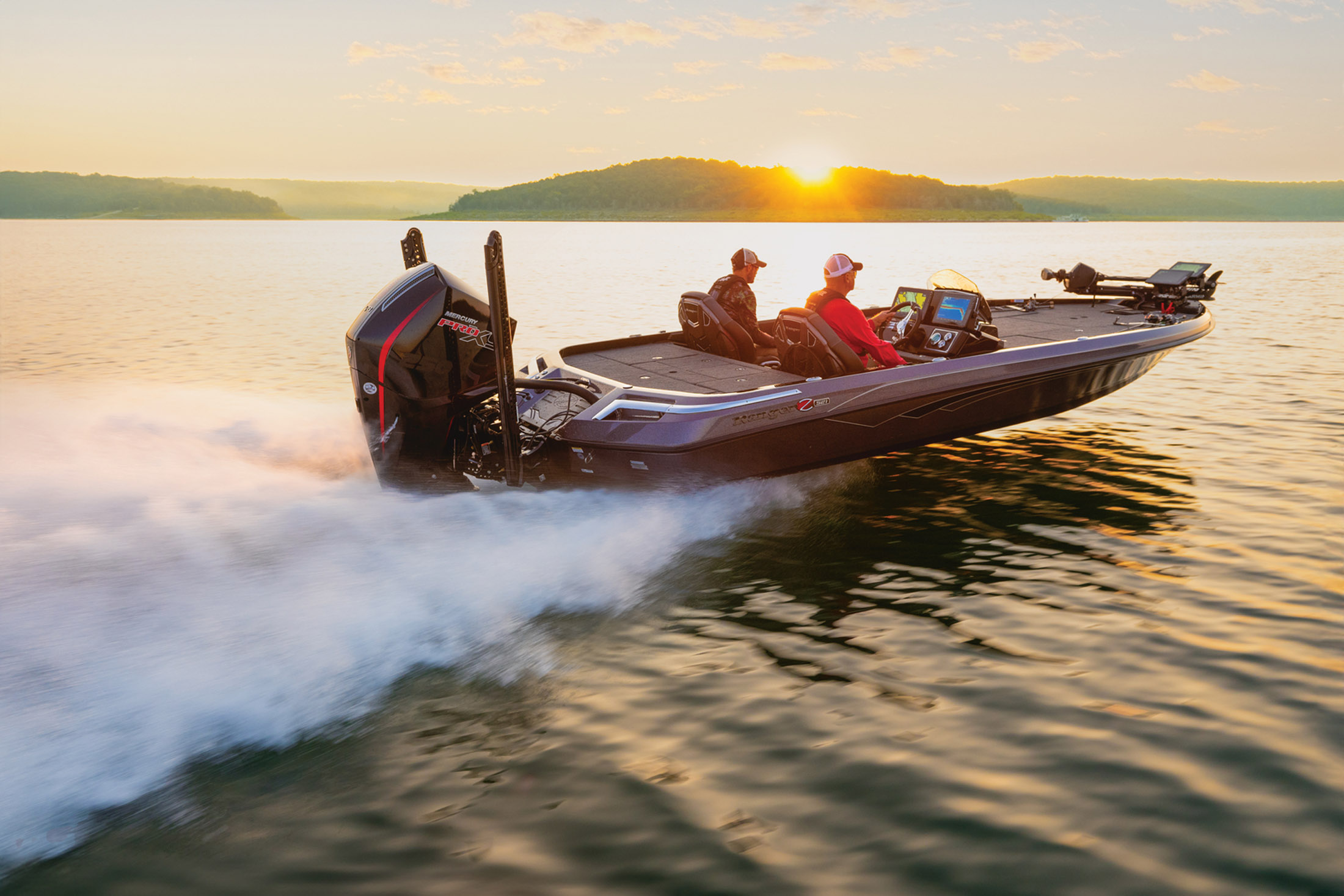

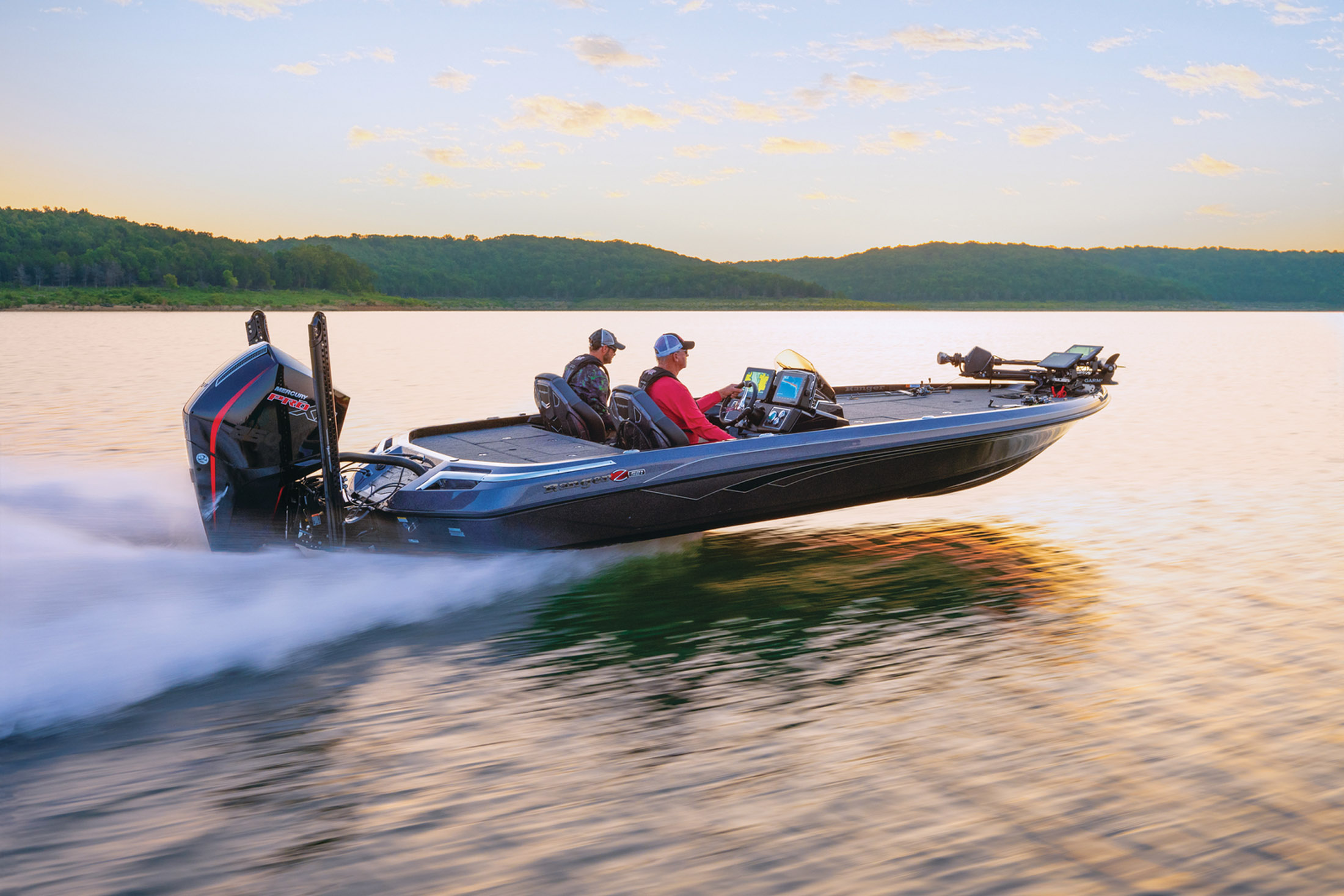

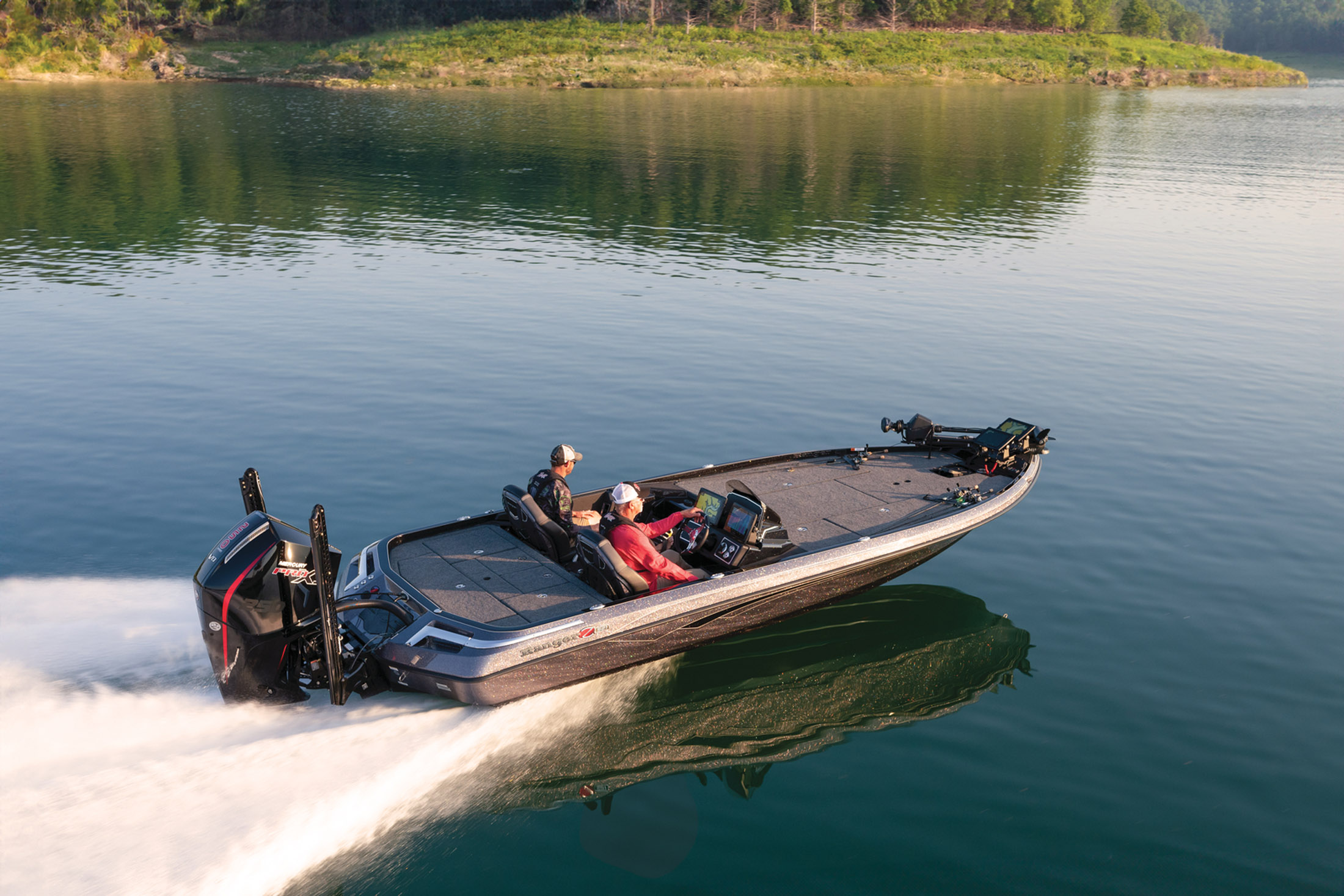

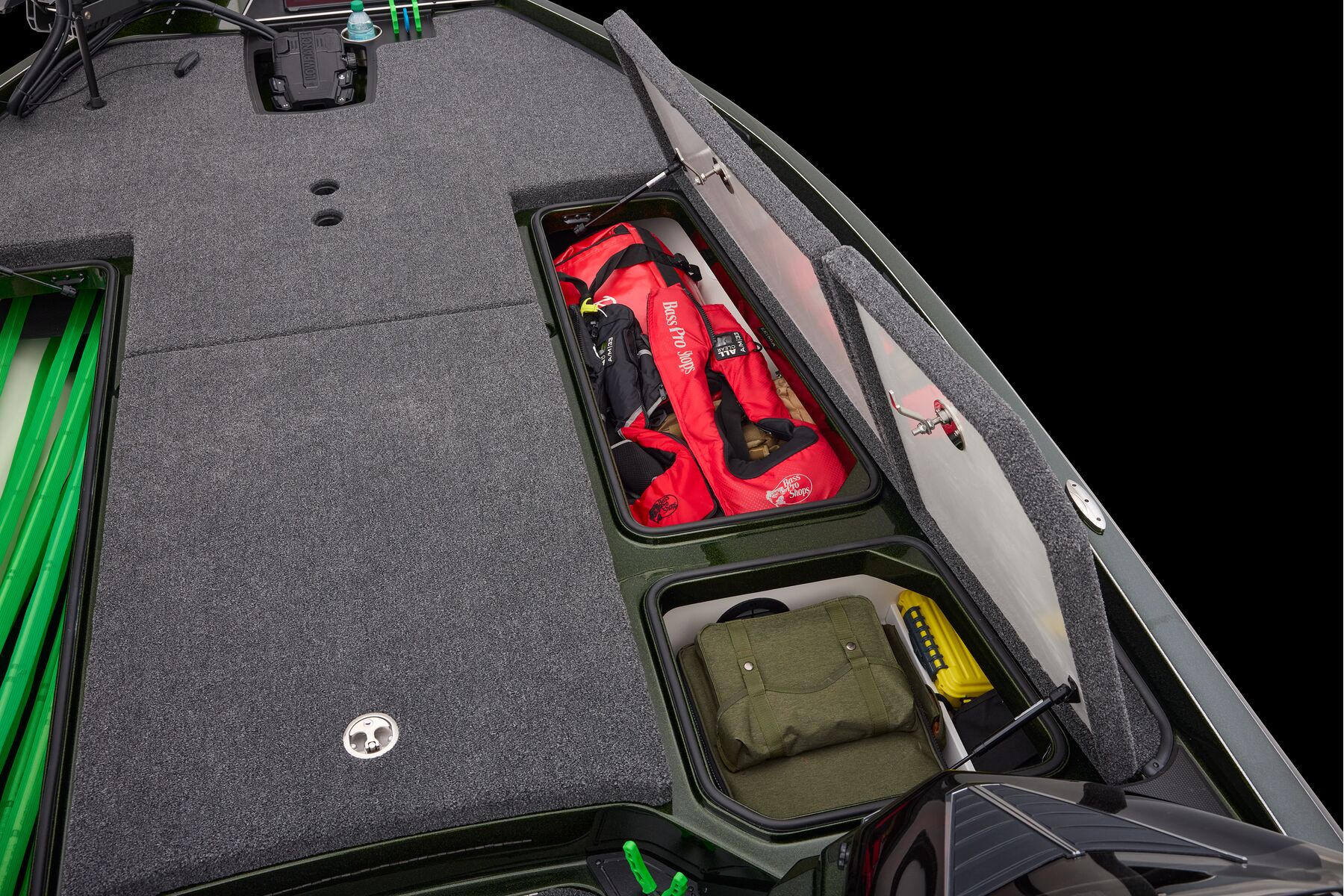

On the water, wide-open performance and rock-solid stability at speed are delivered by a finely tuned hull that delivers on-rails handling at all speeds. The massive front deck offers more fishing space and storage while the extra length spans rollers with incredible smoothness. Inside is a full dose of Ranger’s insulating foam flotation for legendary rigidity and safety, while the whole package is cradled by a custom-built trailer designed just for the hull riding on it. The Ranger Z521 delivers everything you need to dominate.
Key Features
- Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories
- Push-Button solid-state digital switching
- Keyed ignition
- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
- Padded Front Casting Deck
- Pultruded Fiberglass Transom

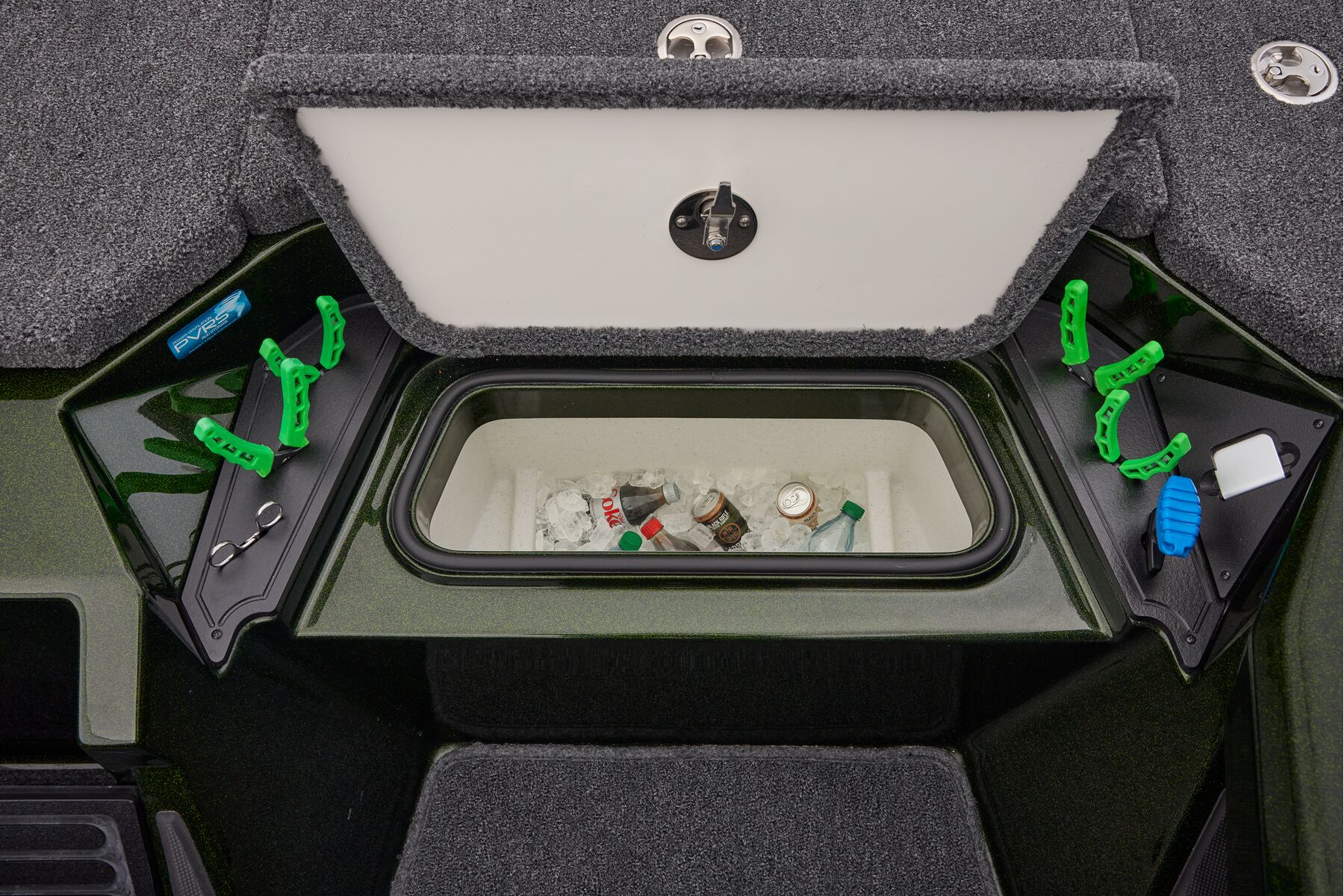

- Insulated 40 qt. step-up cooler
- Push-to-Close Latches
Gallery
Specifications
| Length | 6.63 m | 21' 9'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 300 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 53.34 cm | 21'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 861.83 kg | 1900 lbs. |
| Approximate Boat Weight | 1043.26 kg | 2300 lbs. |
| Rod Box Length - Port Bottom Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Port Middle Shelf | 8 ft. | |
| Rod Box Length - Port Top Shelf | 9 ft. | |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 8 ft. | |
| Rod Box Length - Starboard Top Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Starboard Bottom Shelf | 2.03 m | 6' 8'' |
| Max. Person Capacity | 5 persons | |
| Trailer GVWR | 2449.4 kg | 5400 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.51 m | 27' 11'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.65 m | 25' 1'' |
| Width On Trailer | 2.59 m | 102'' |
| Package Height | 2.01 m | 79'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||

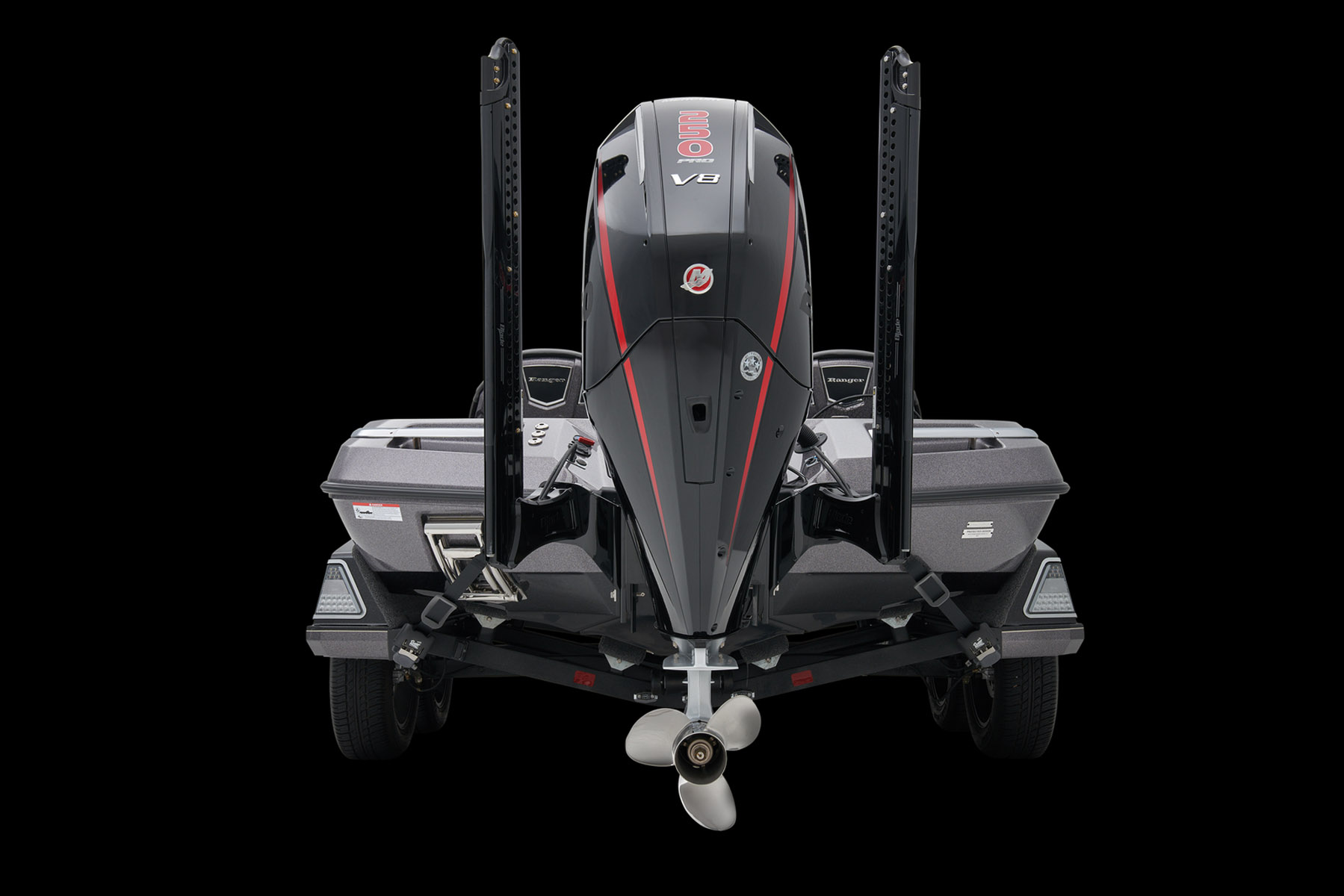

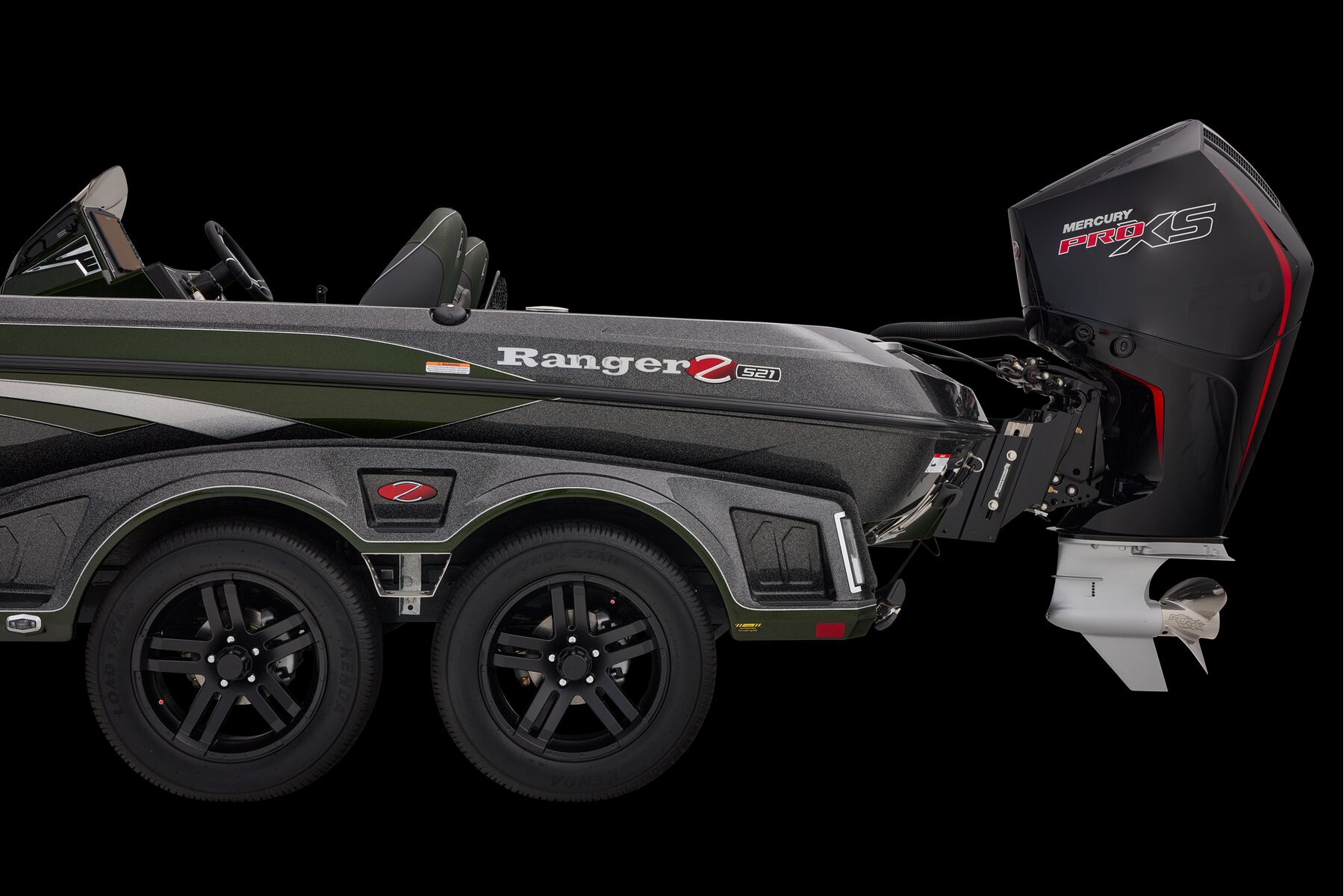

| 250L Pro XS Torque Master |
$84995 USD
|
Select Dealer | |||
| 300L Pro XS Torque Master |
$88665 USD
|
Select Dealer | |||
Standard Features
Custom Details

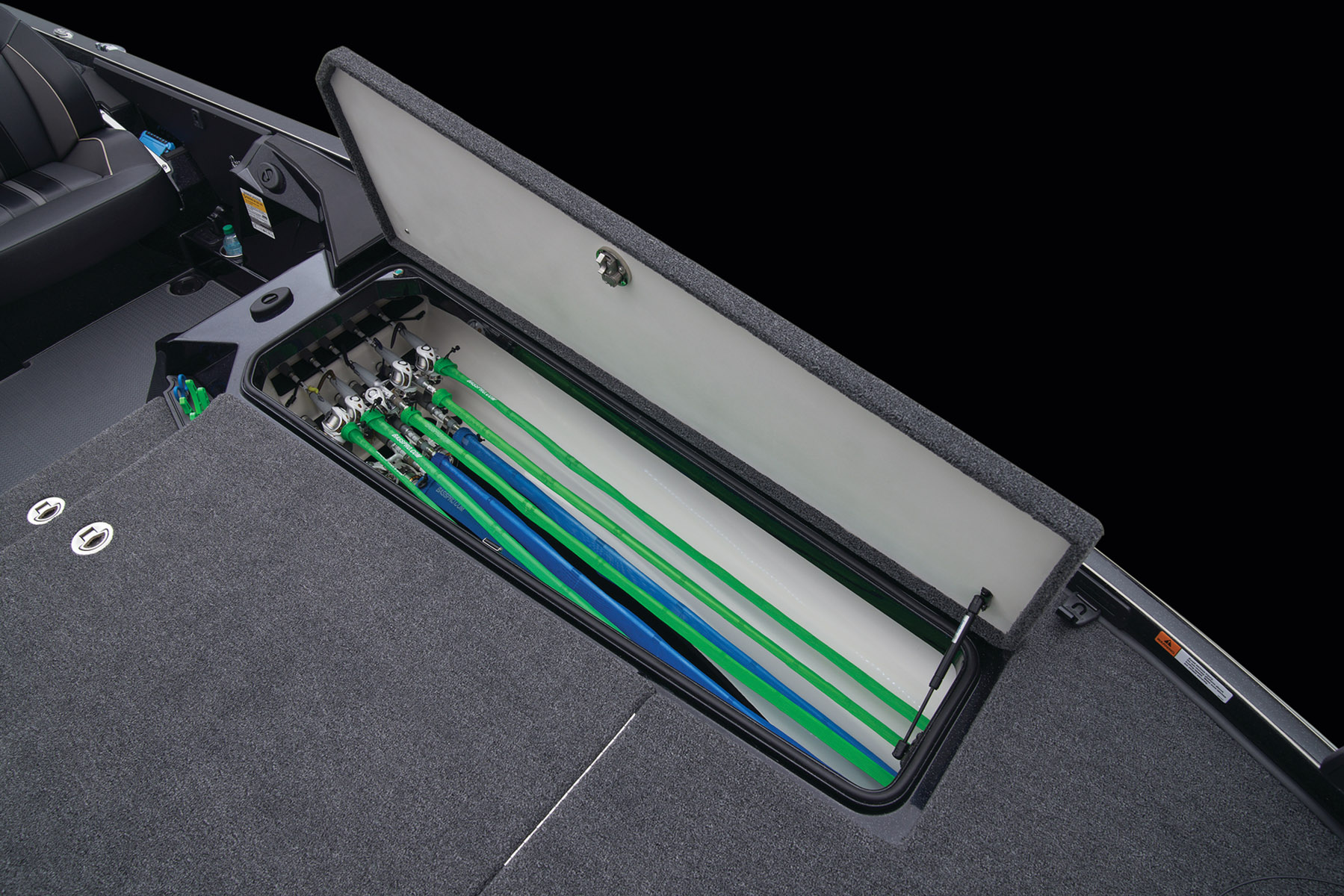

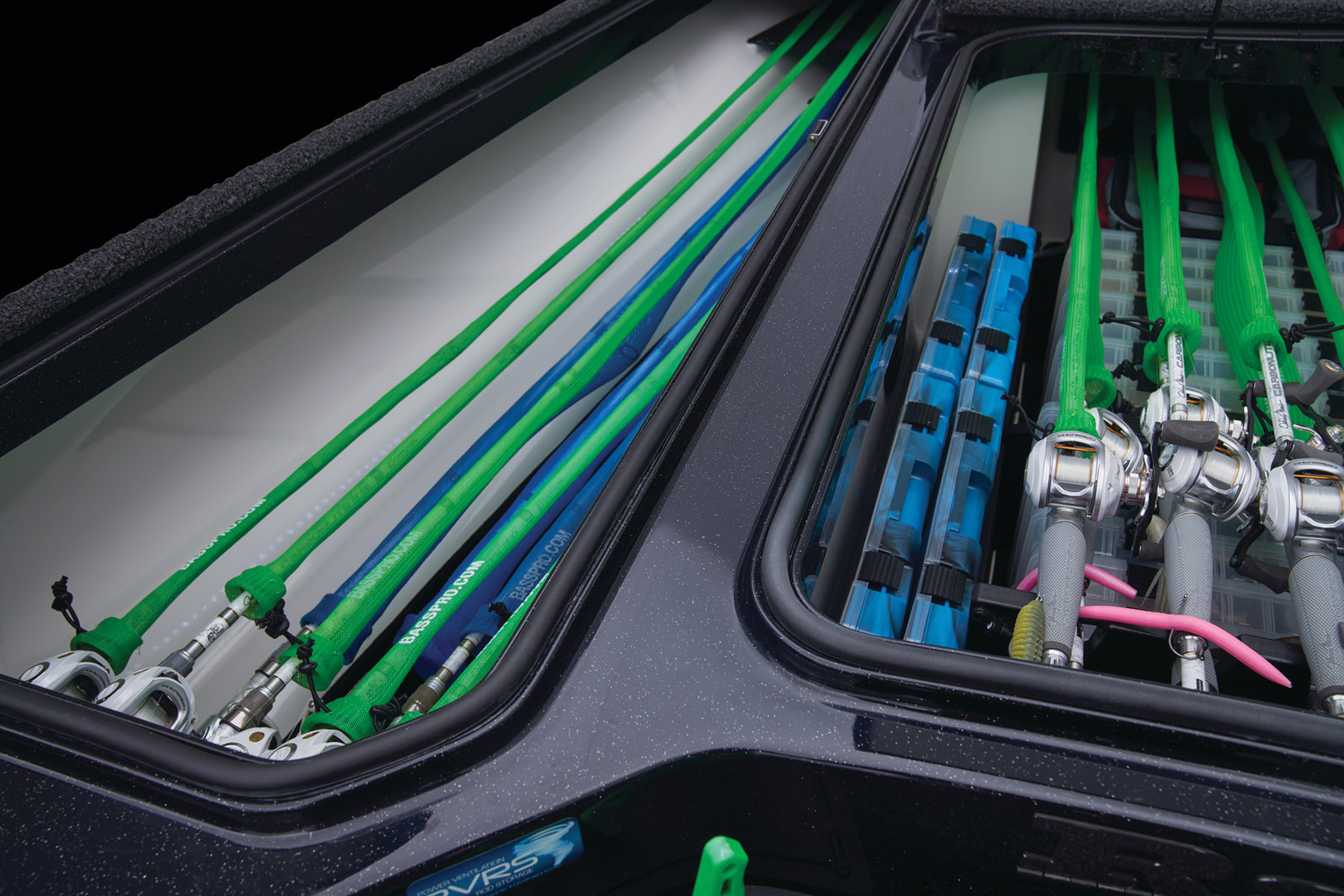

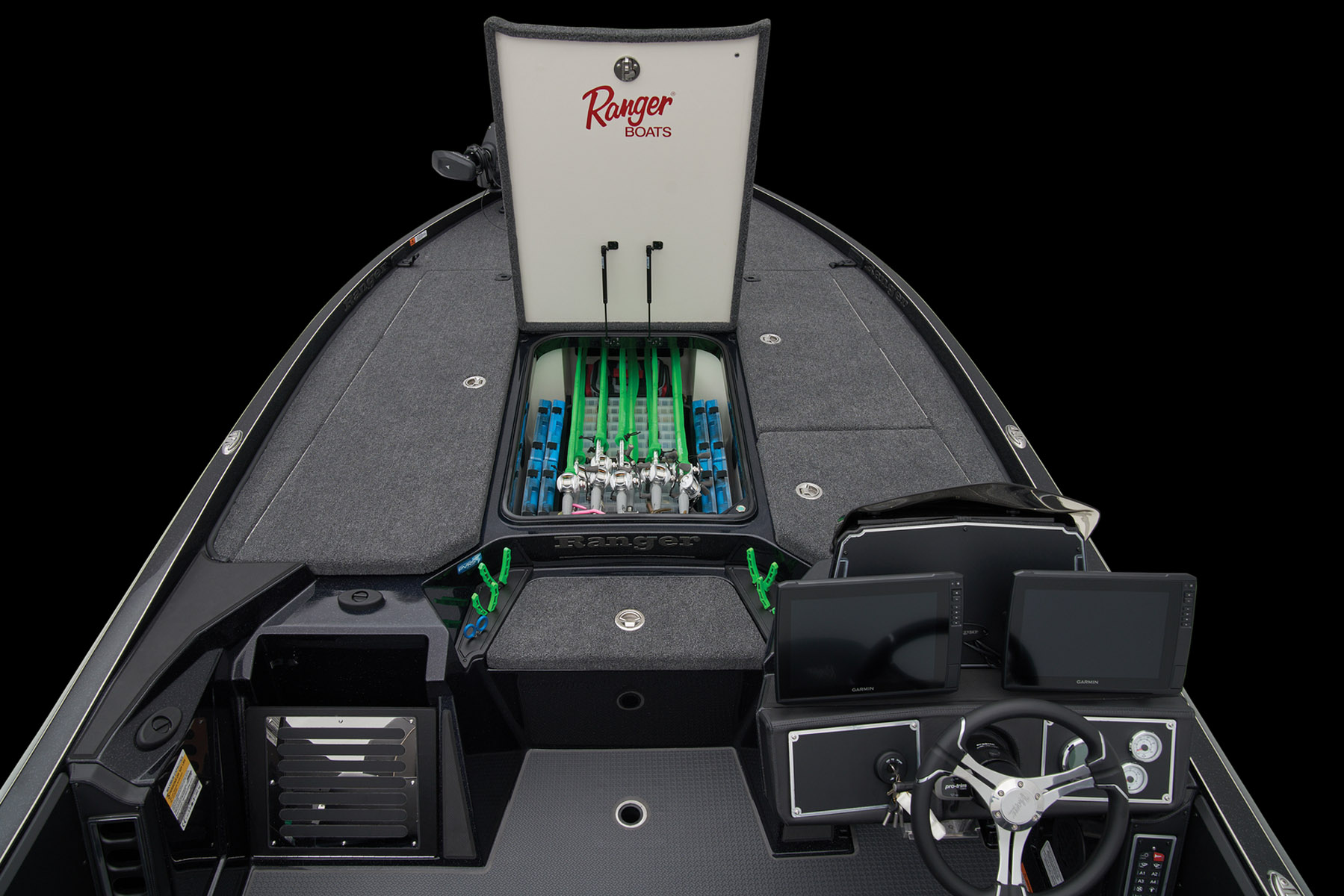

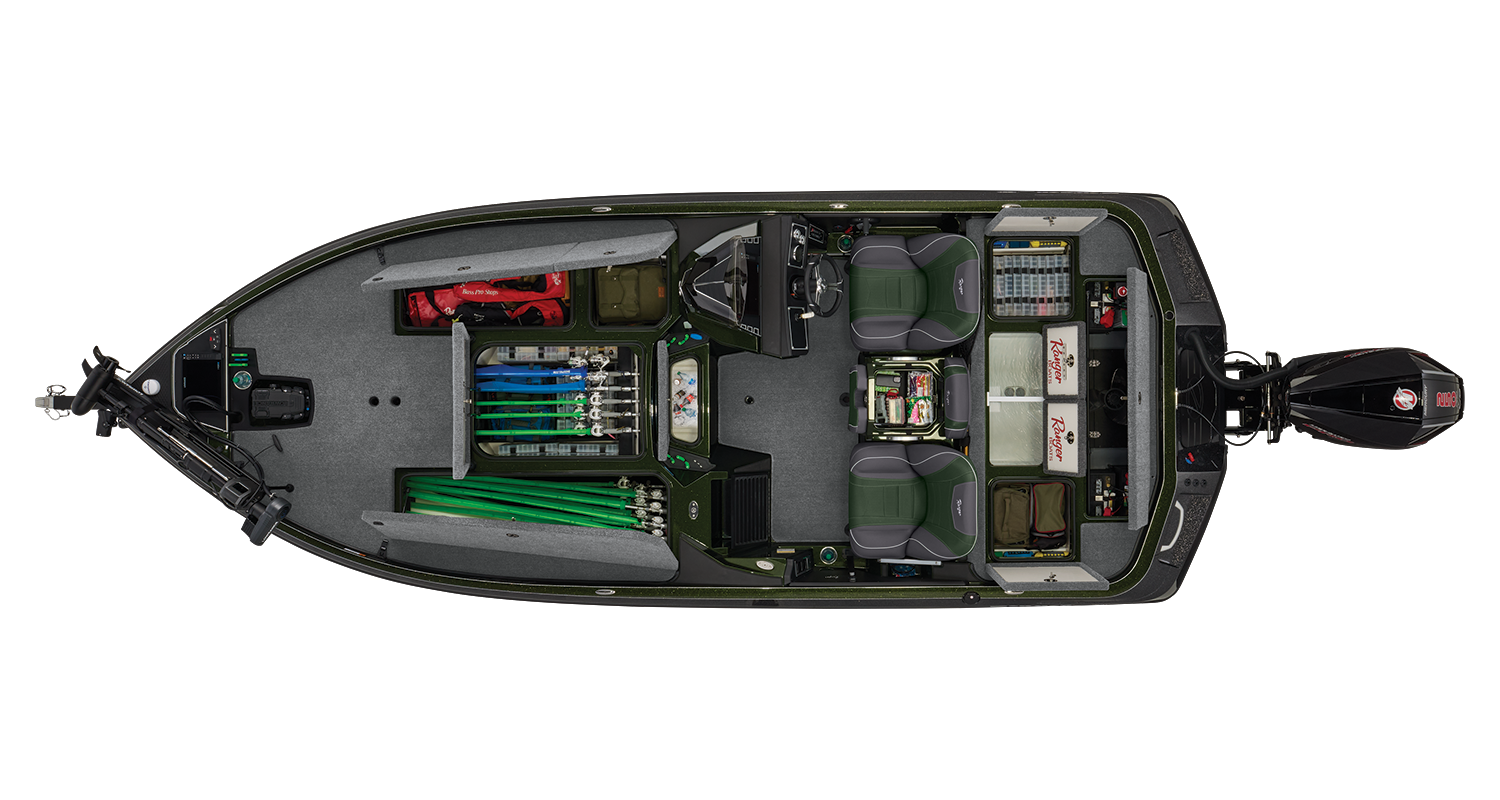

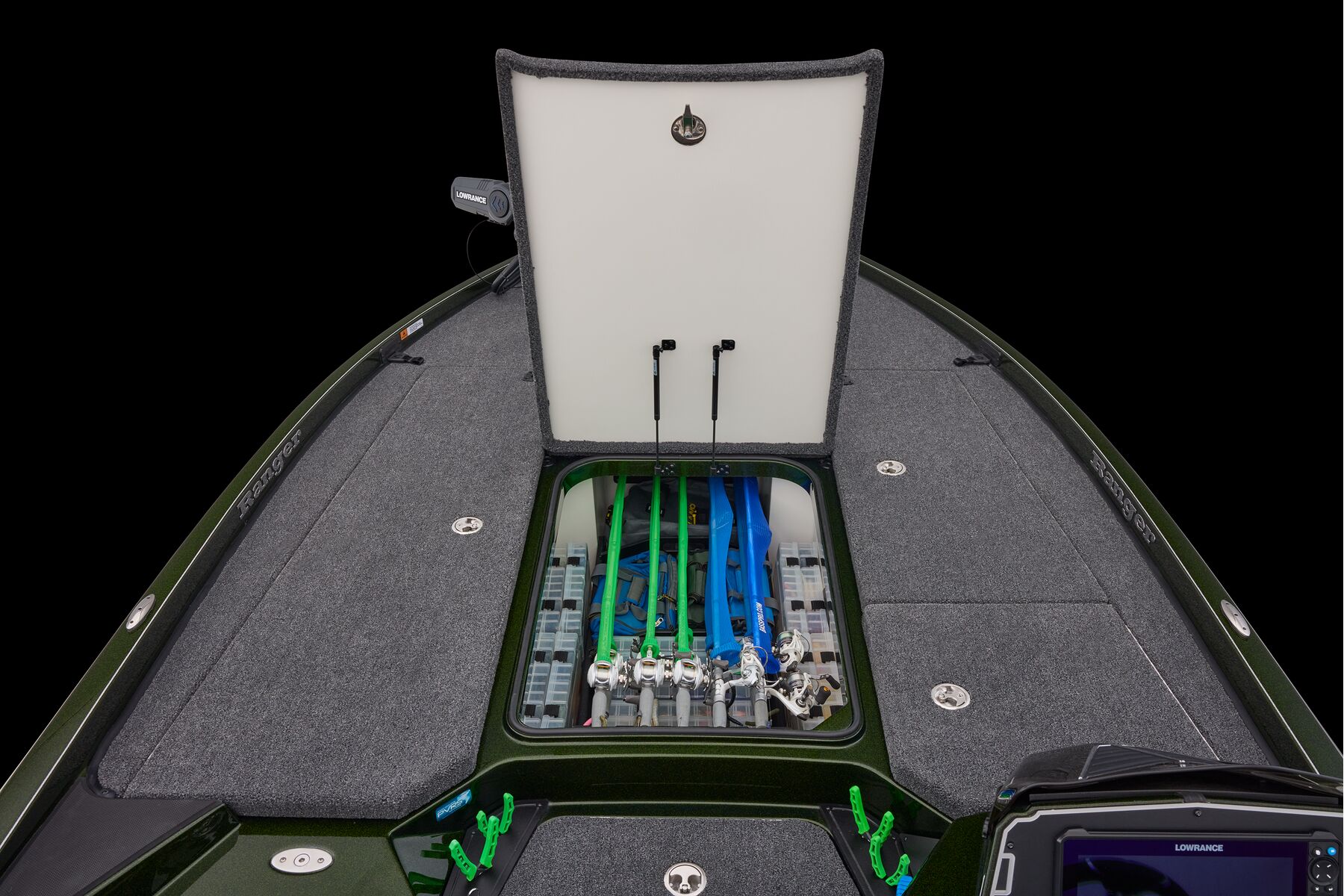

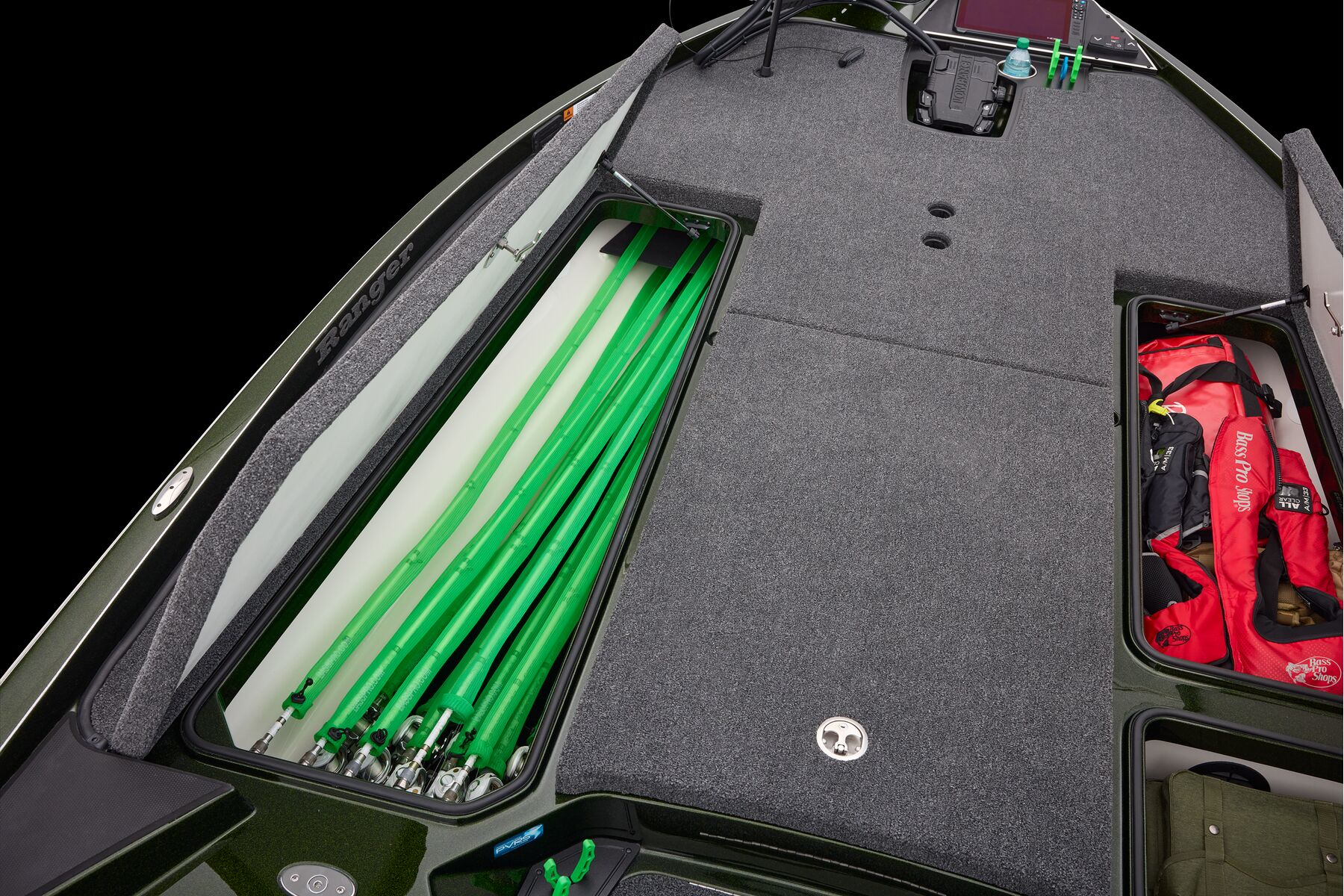

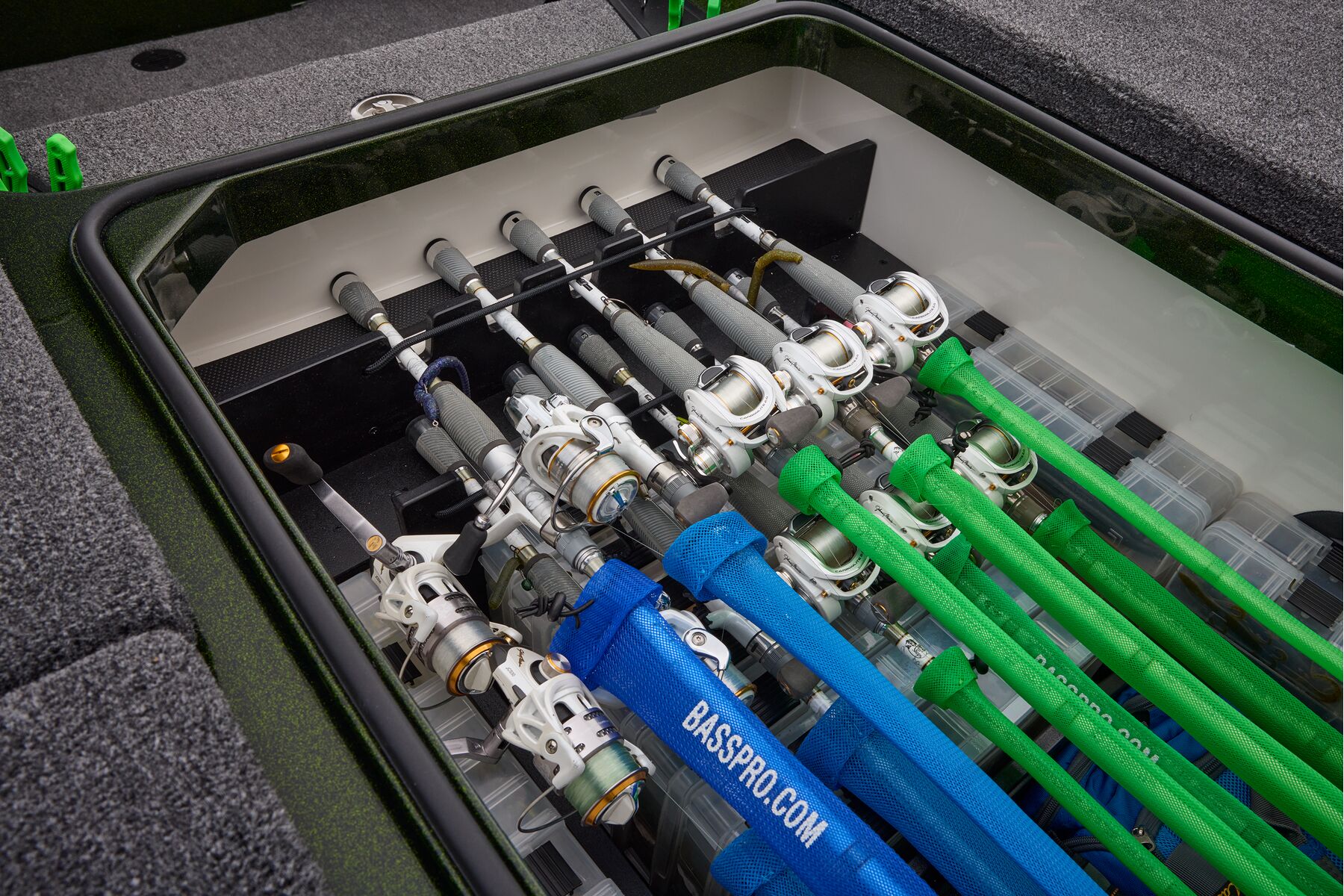

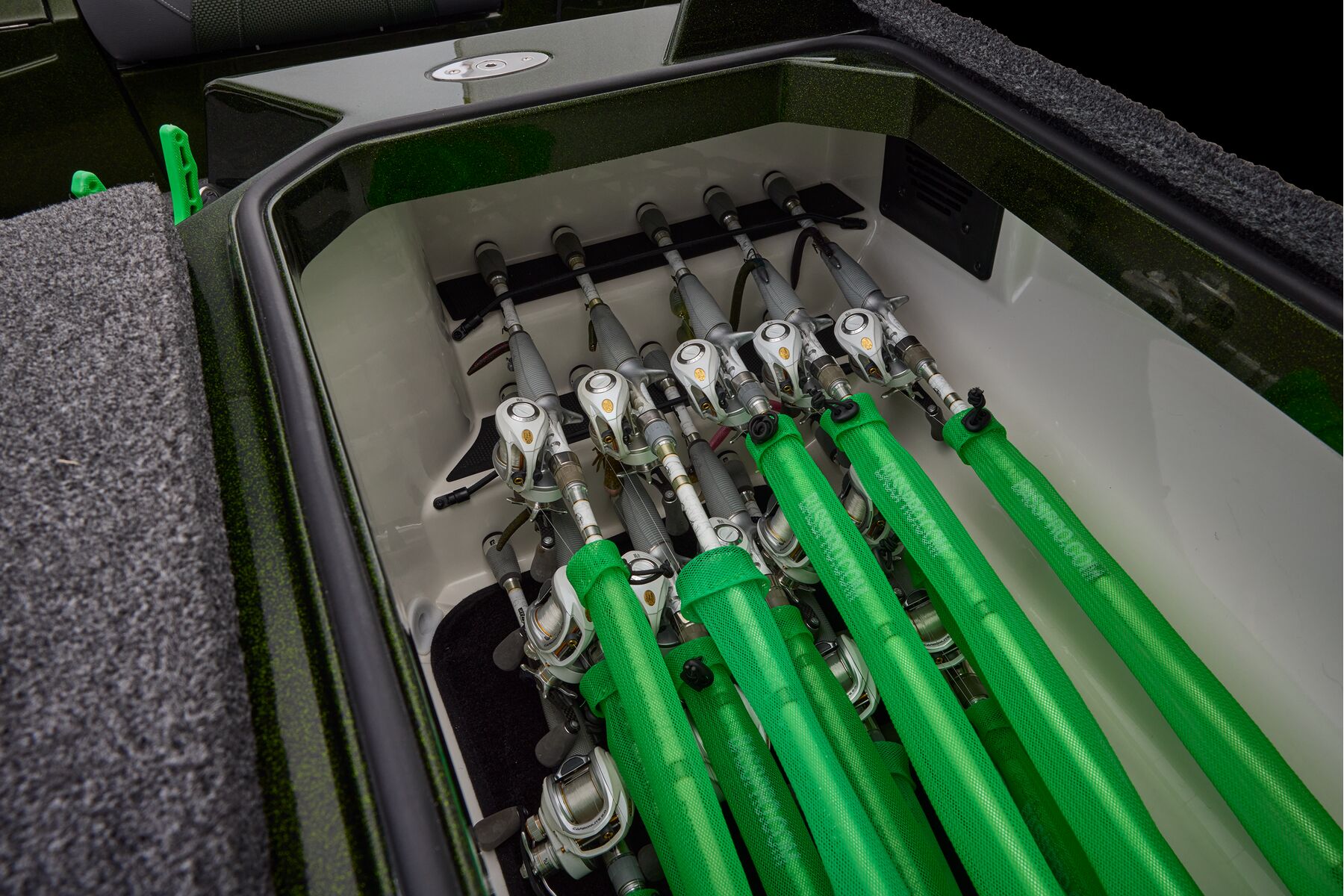

- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers

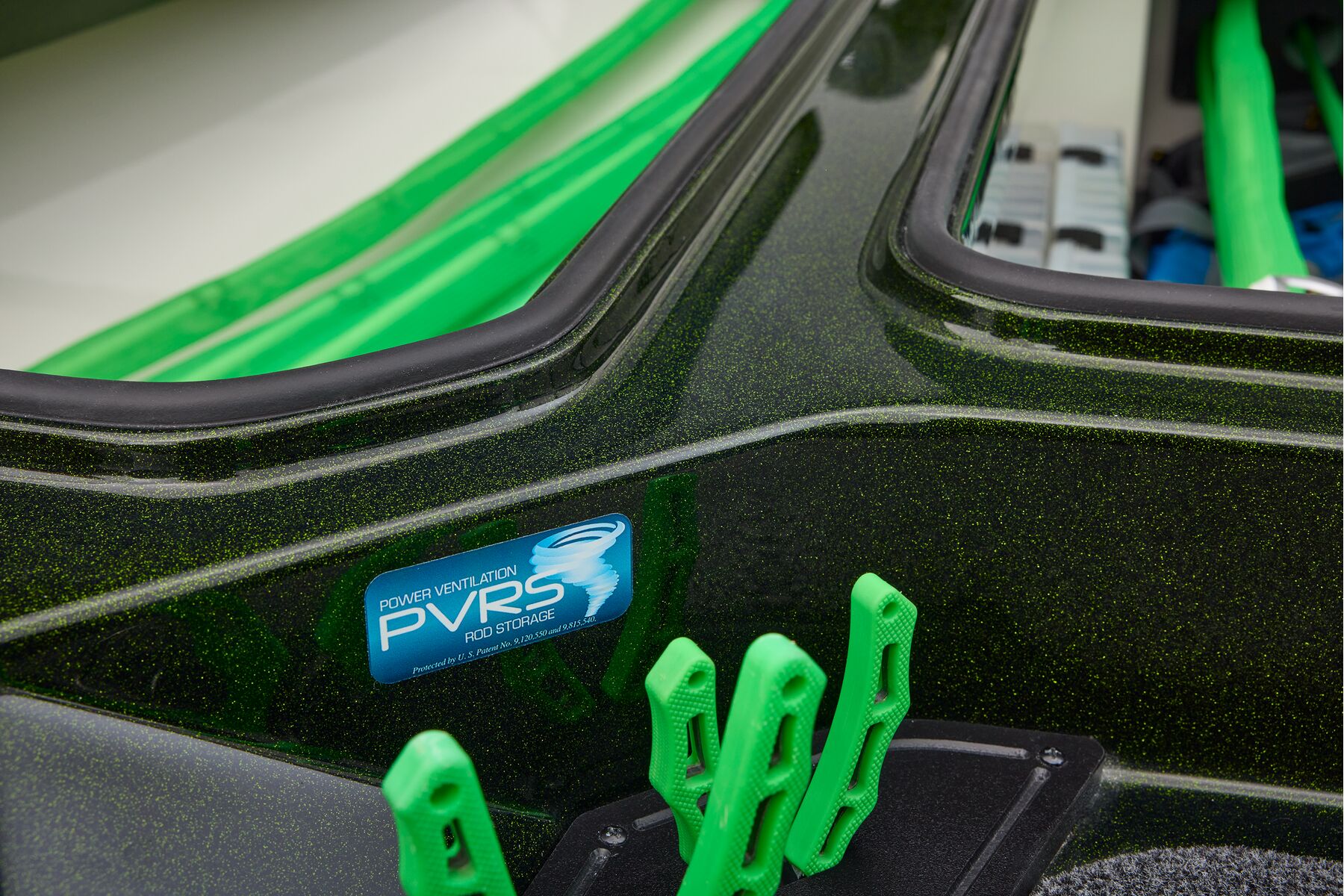

- Power Ventilation Rod Storage™

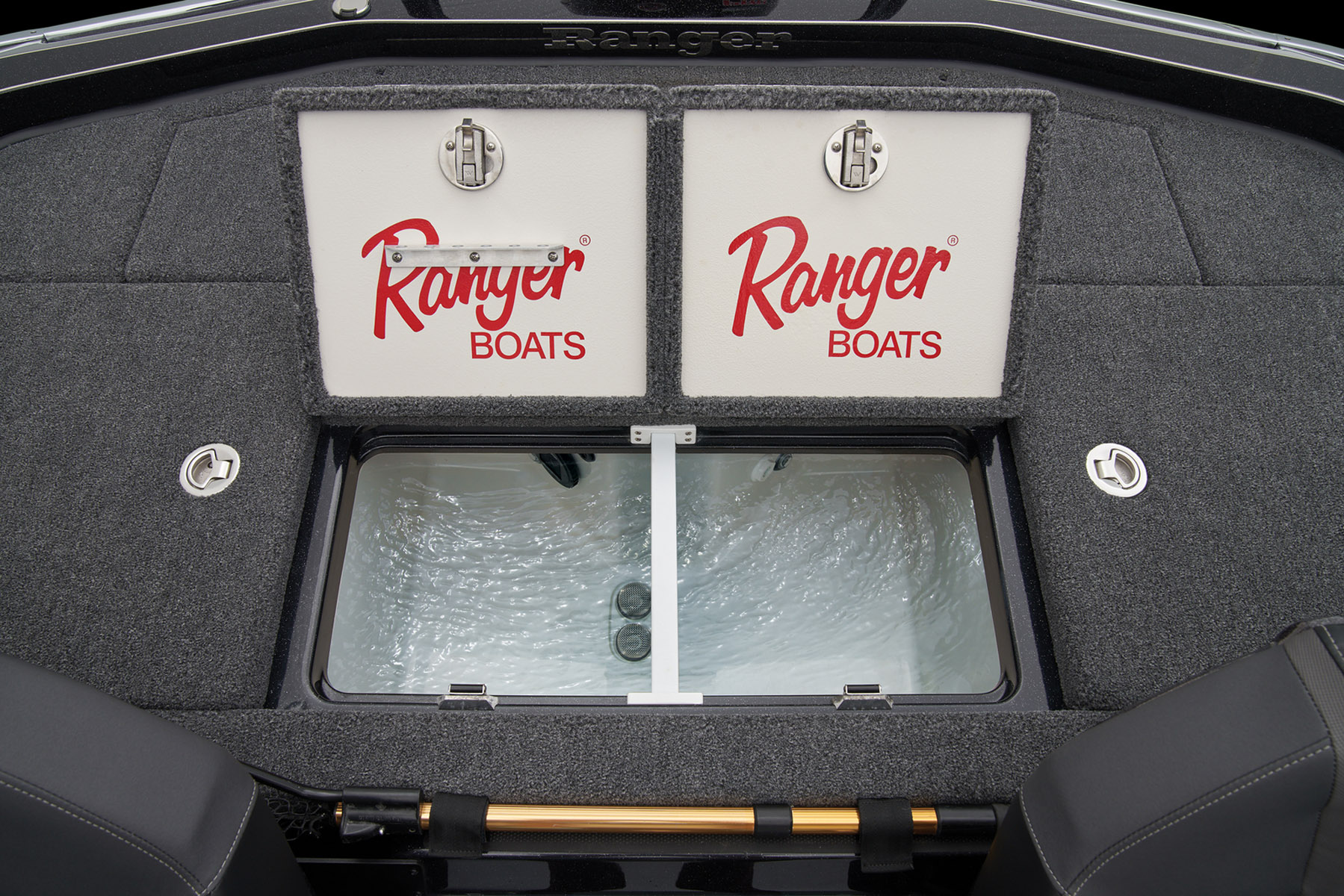

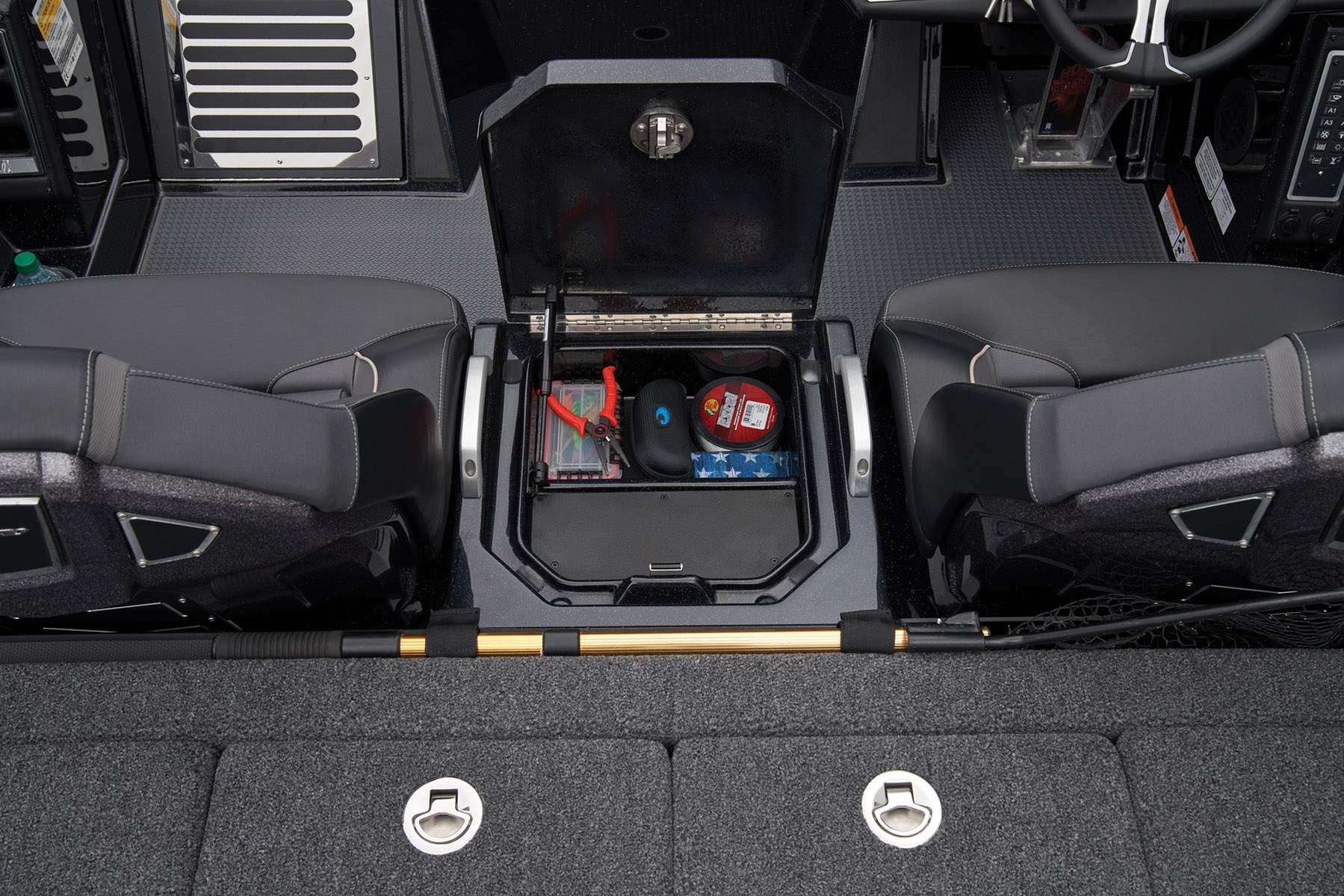

- Insulated 40 qt. step-up cooler

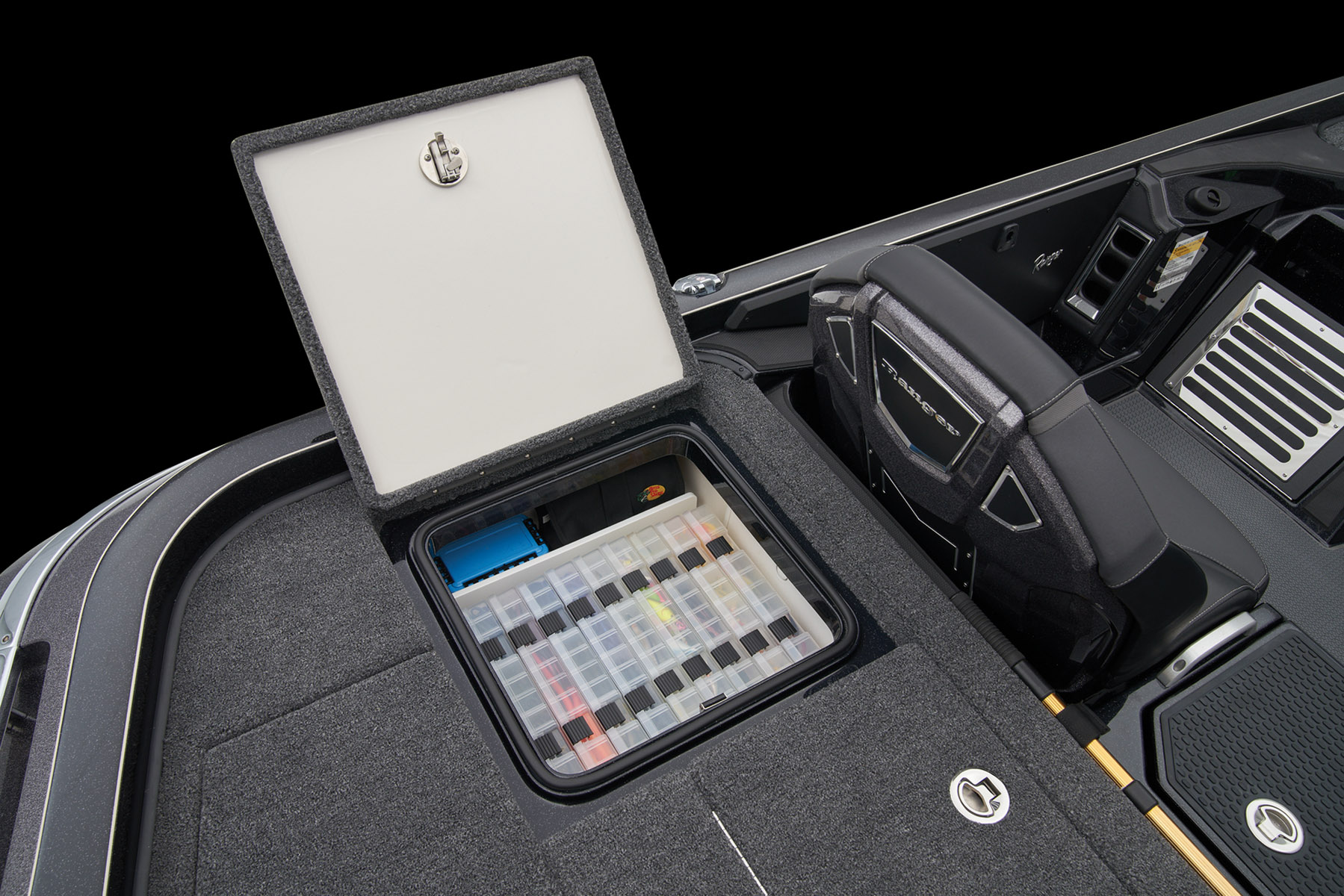

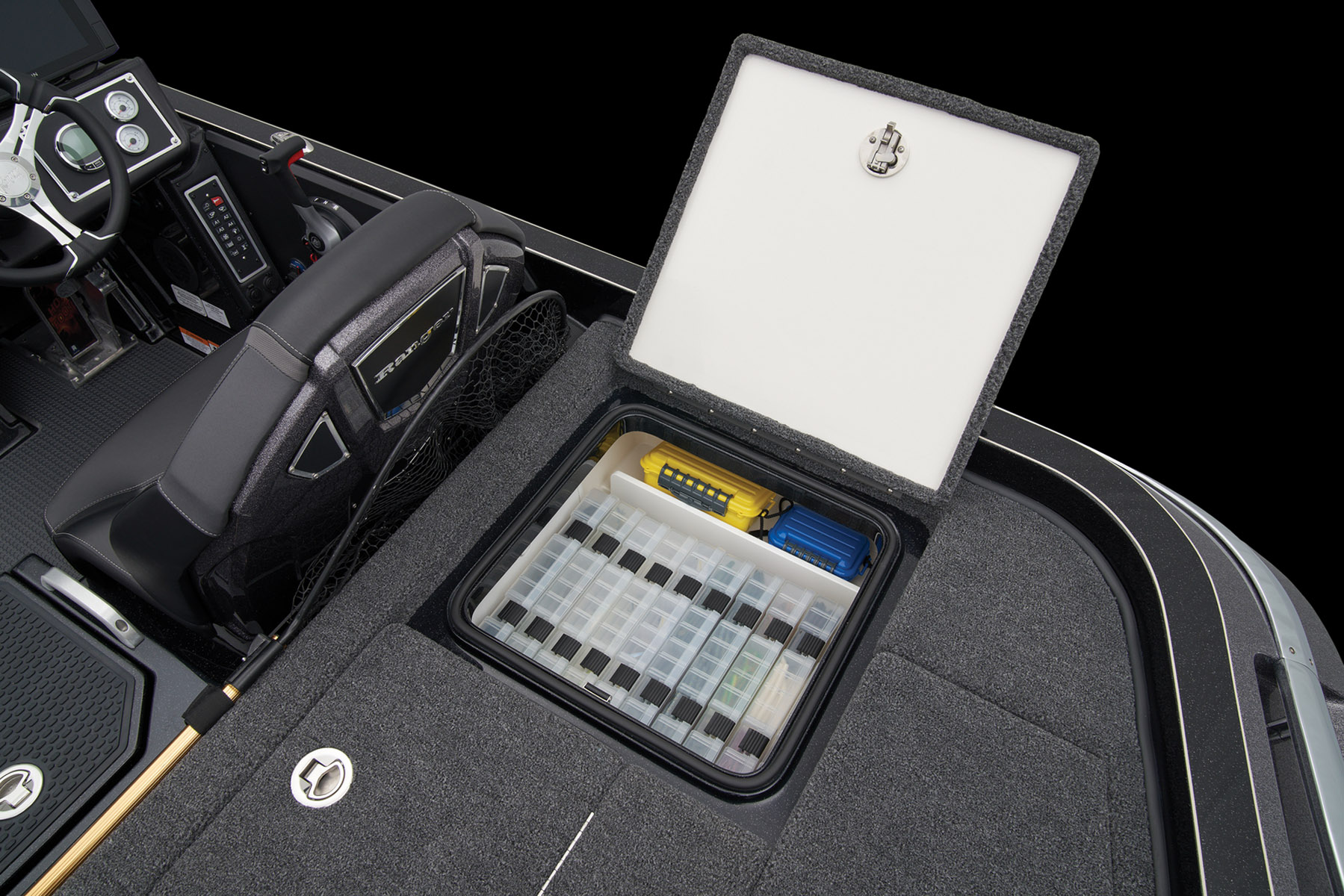

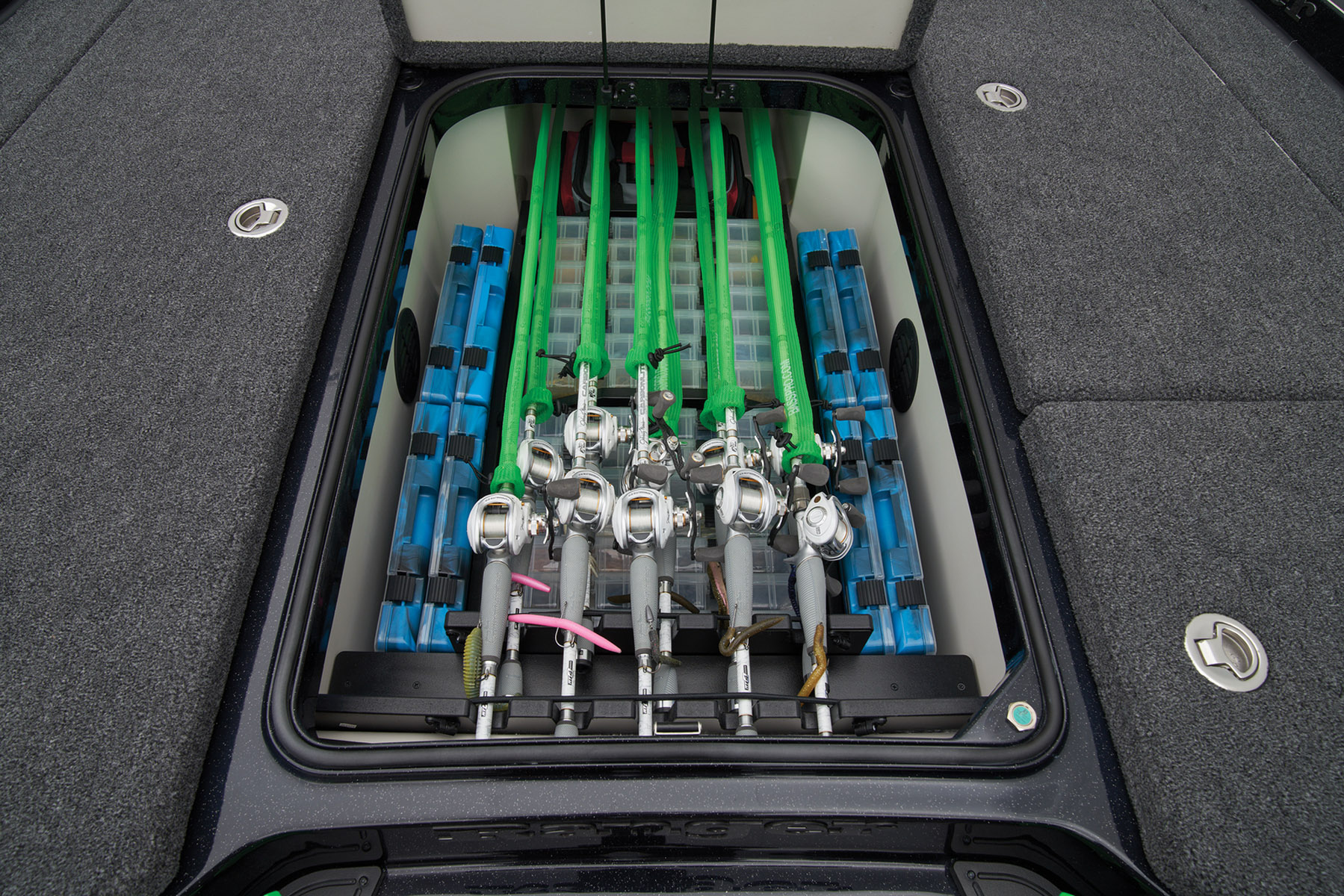

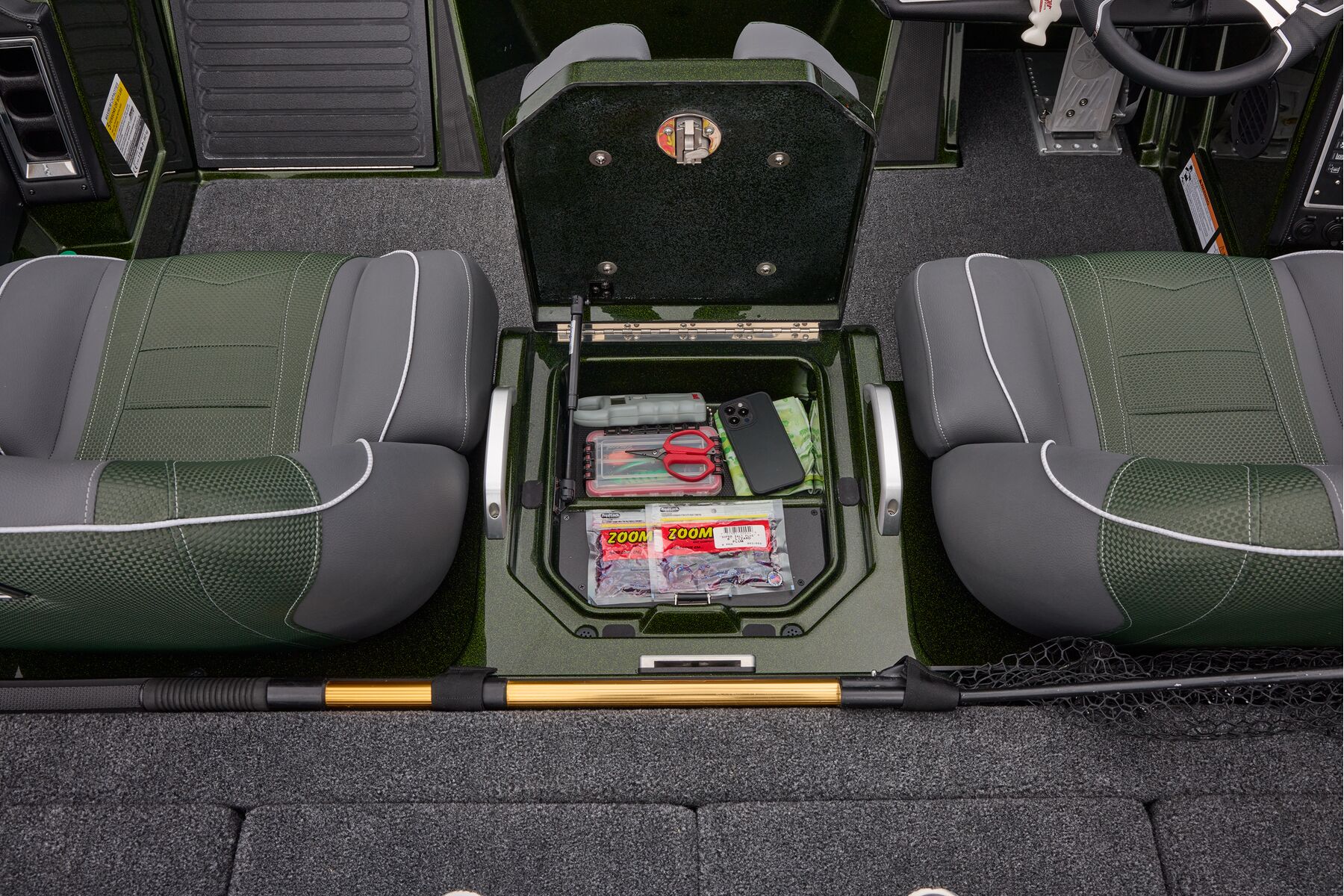

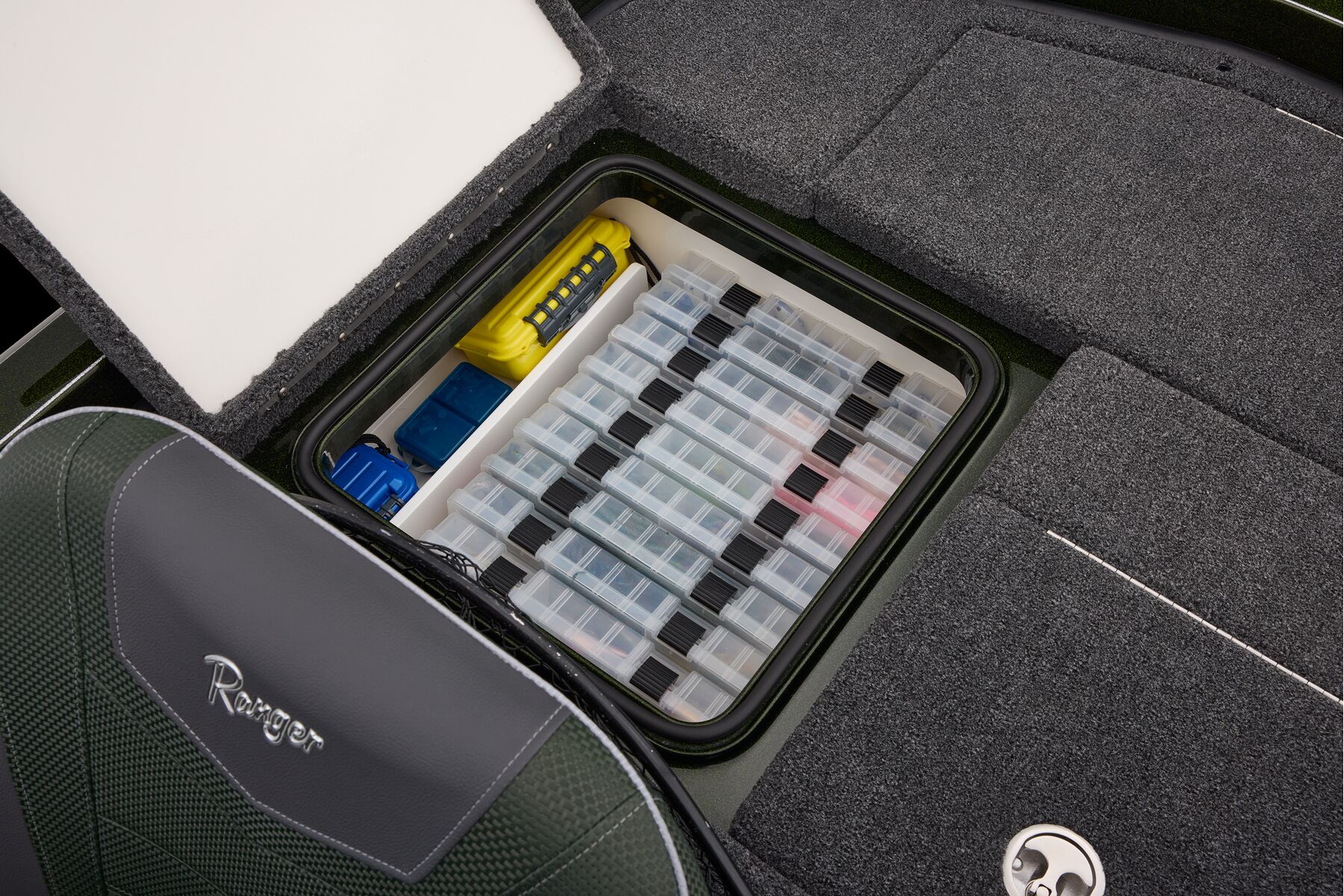

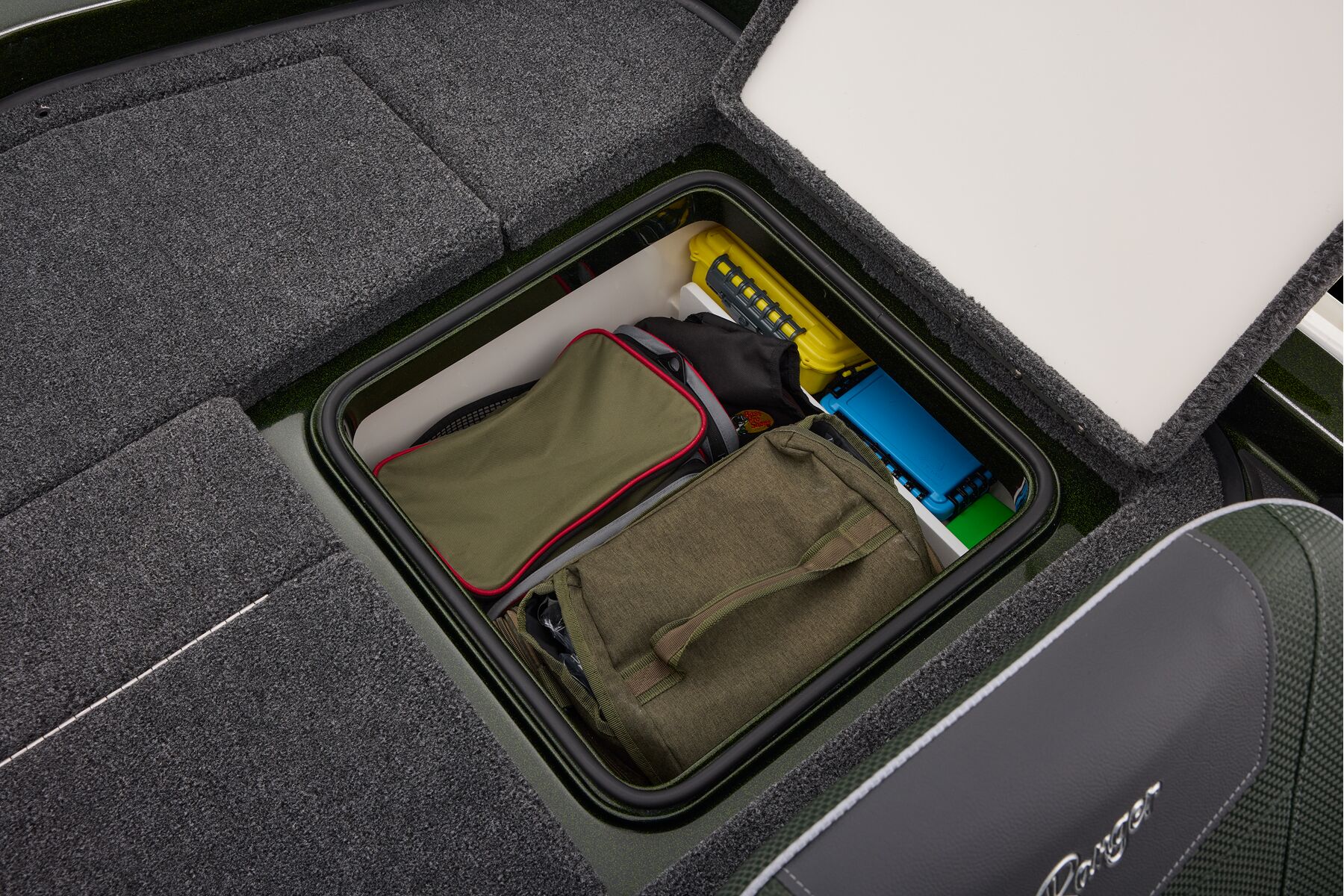

- Integrated center-storage rod & tackle management system

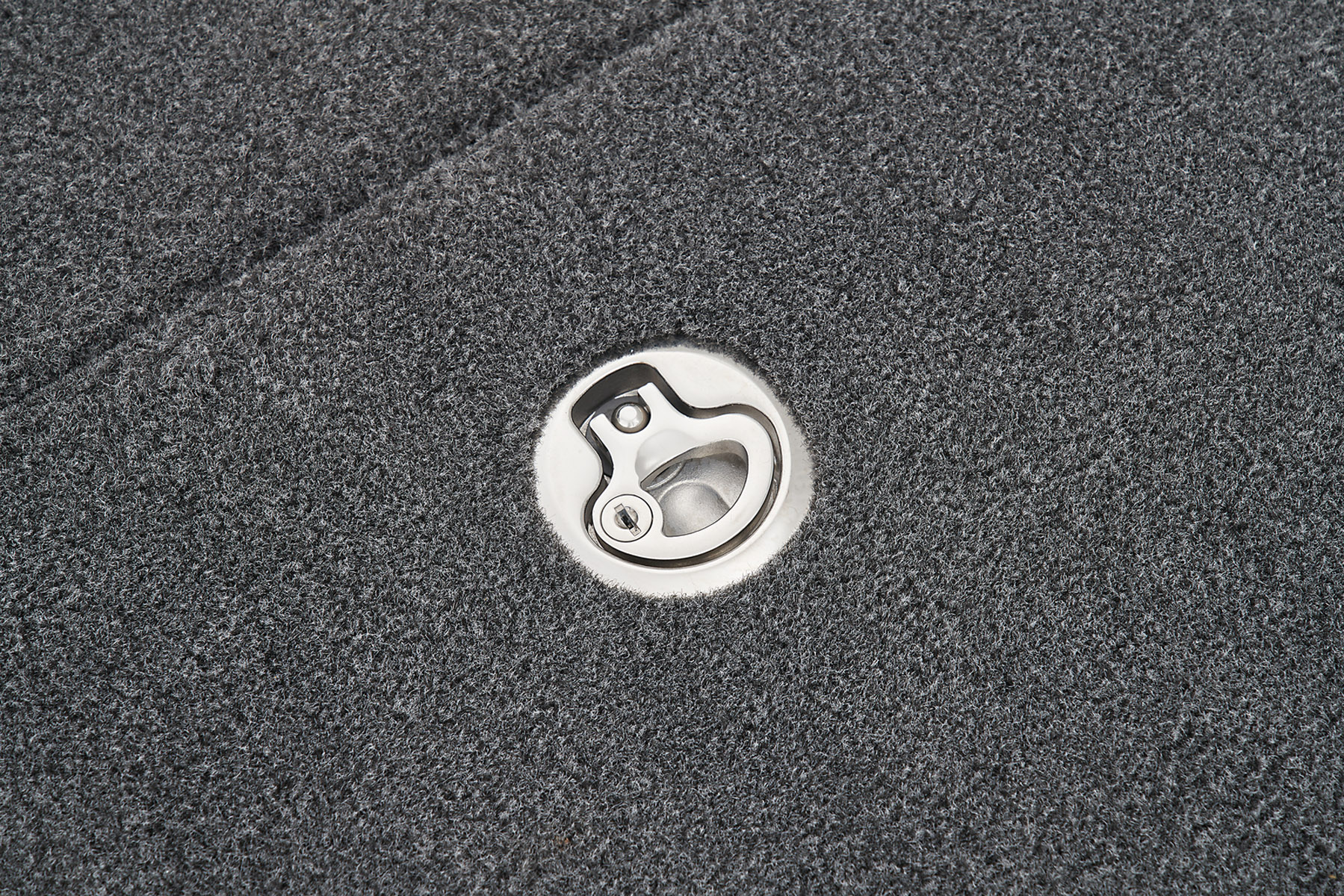

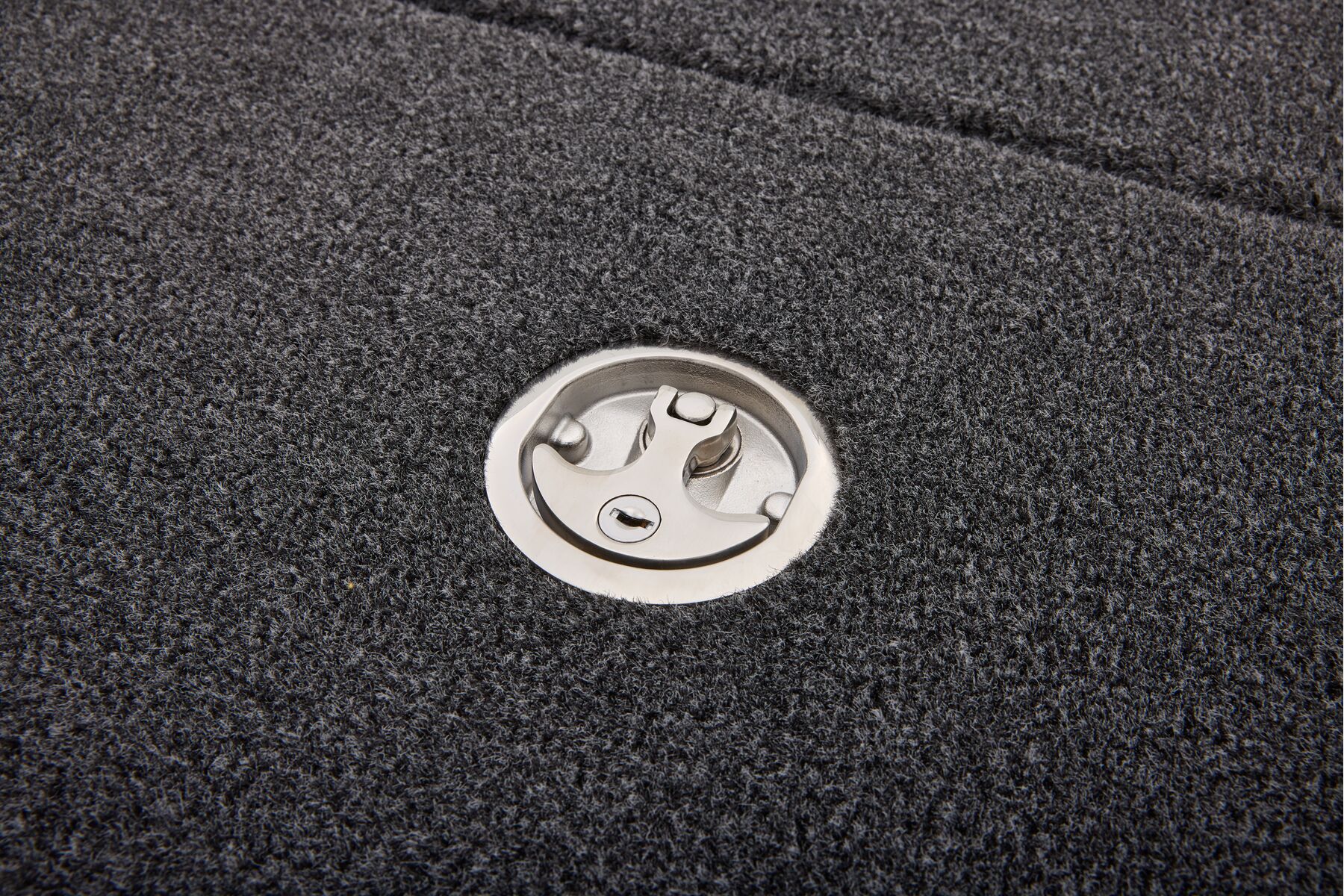

- Stainless steel push-to-close locking latches
- Carpeted cockpit floor and compartment liner mats

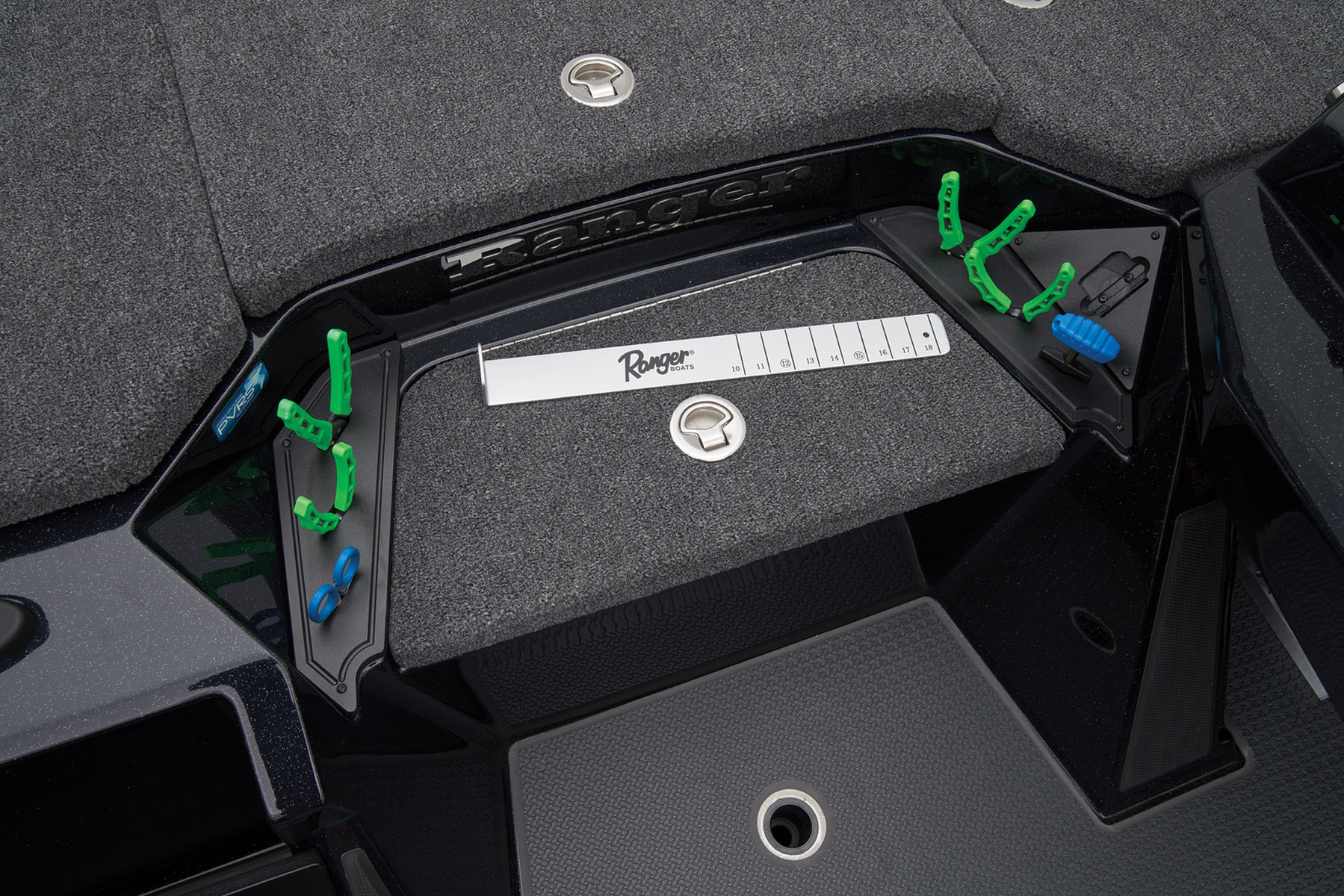

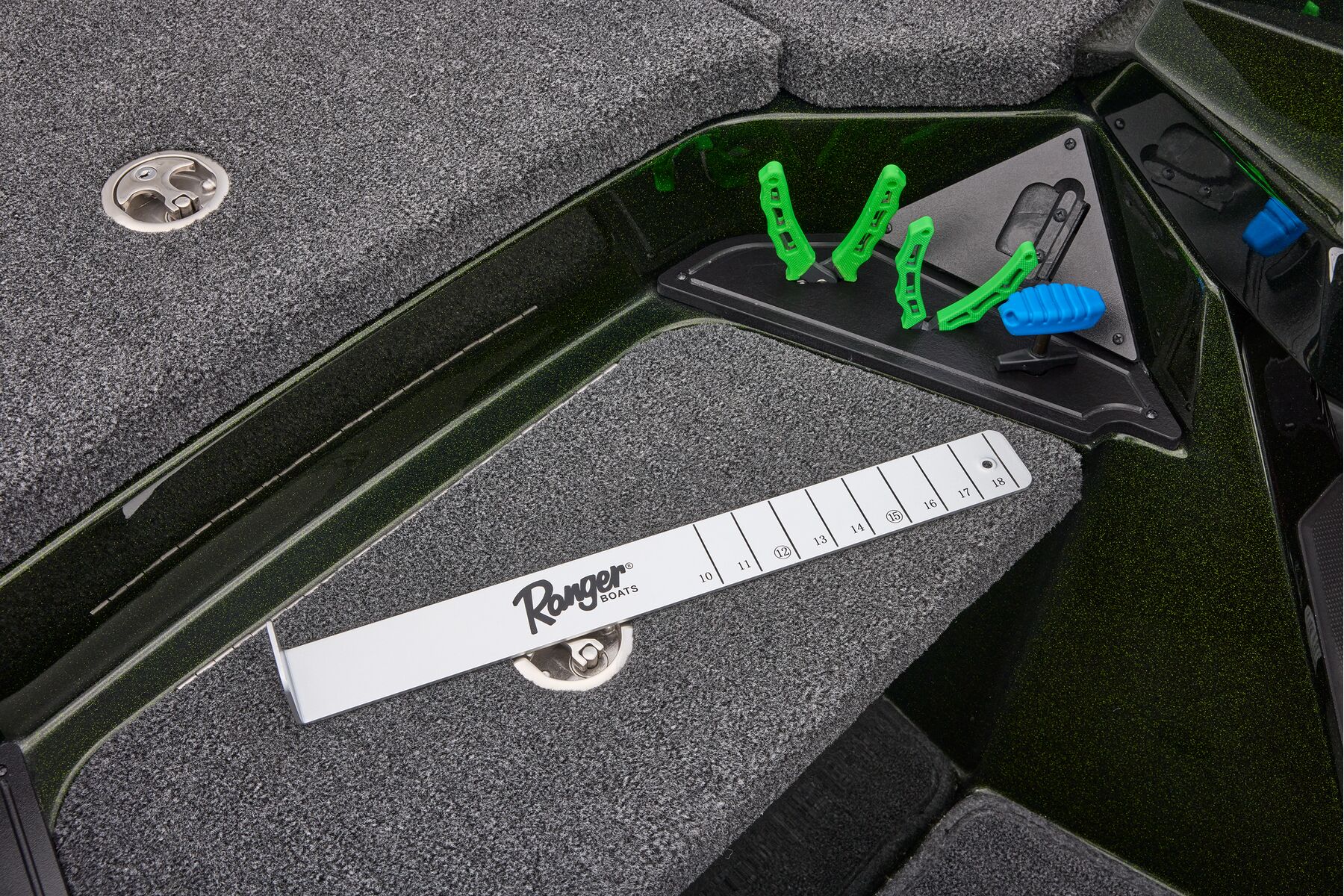

- Ranger® tournament measuring board integrated at front deck step

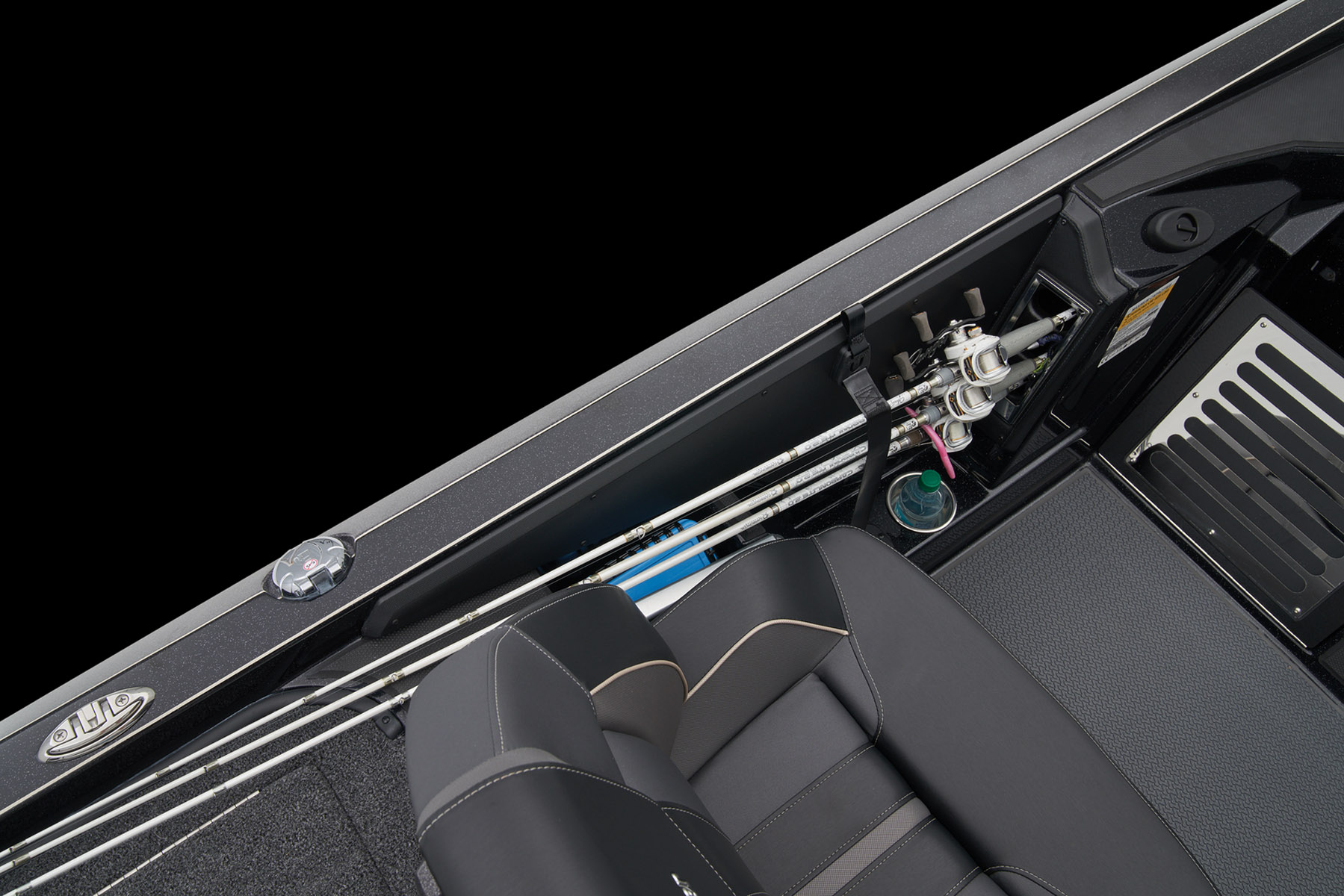

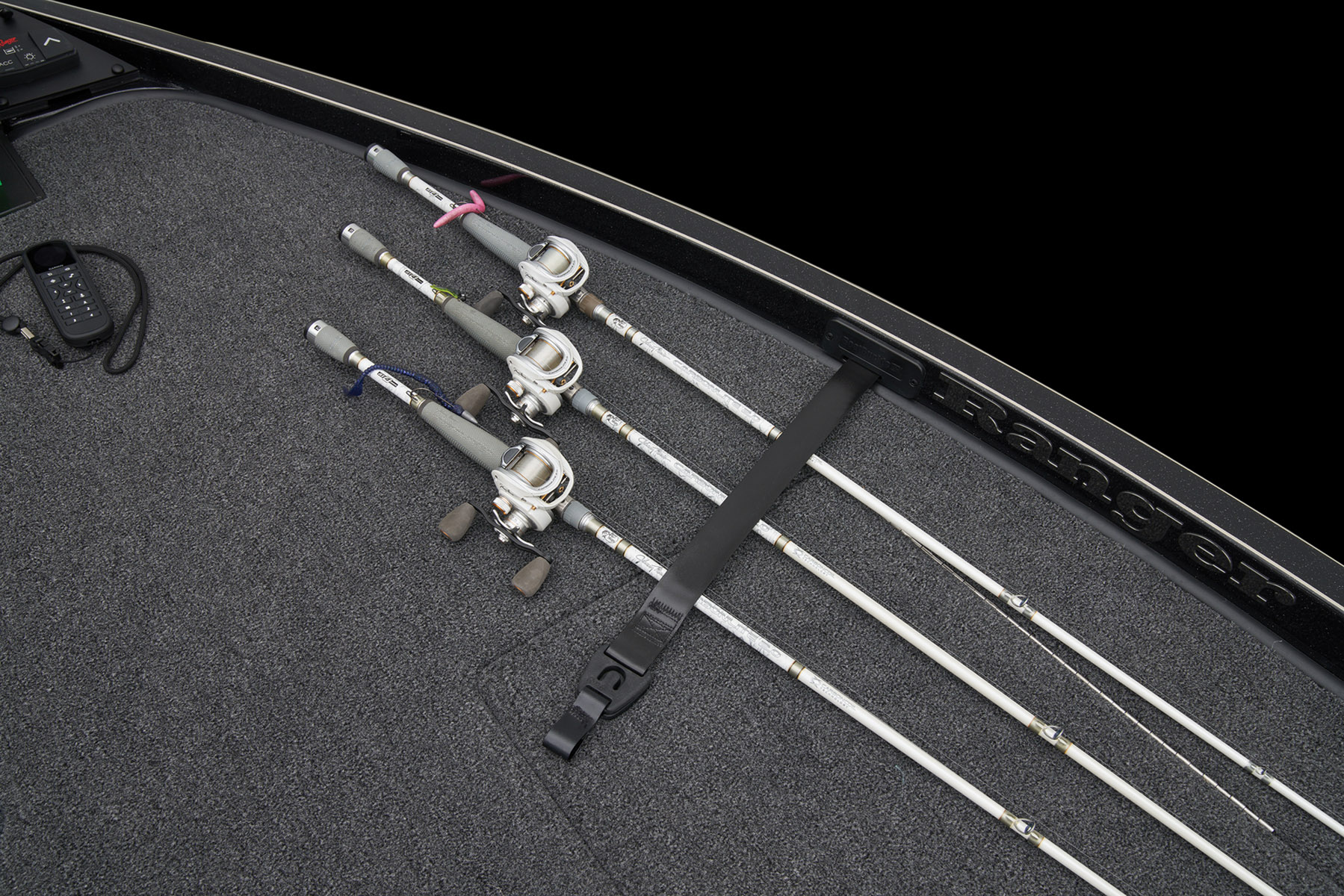

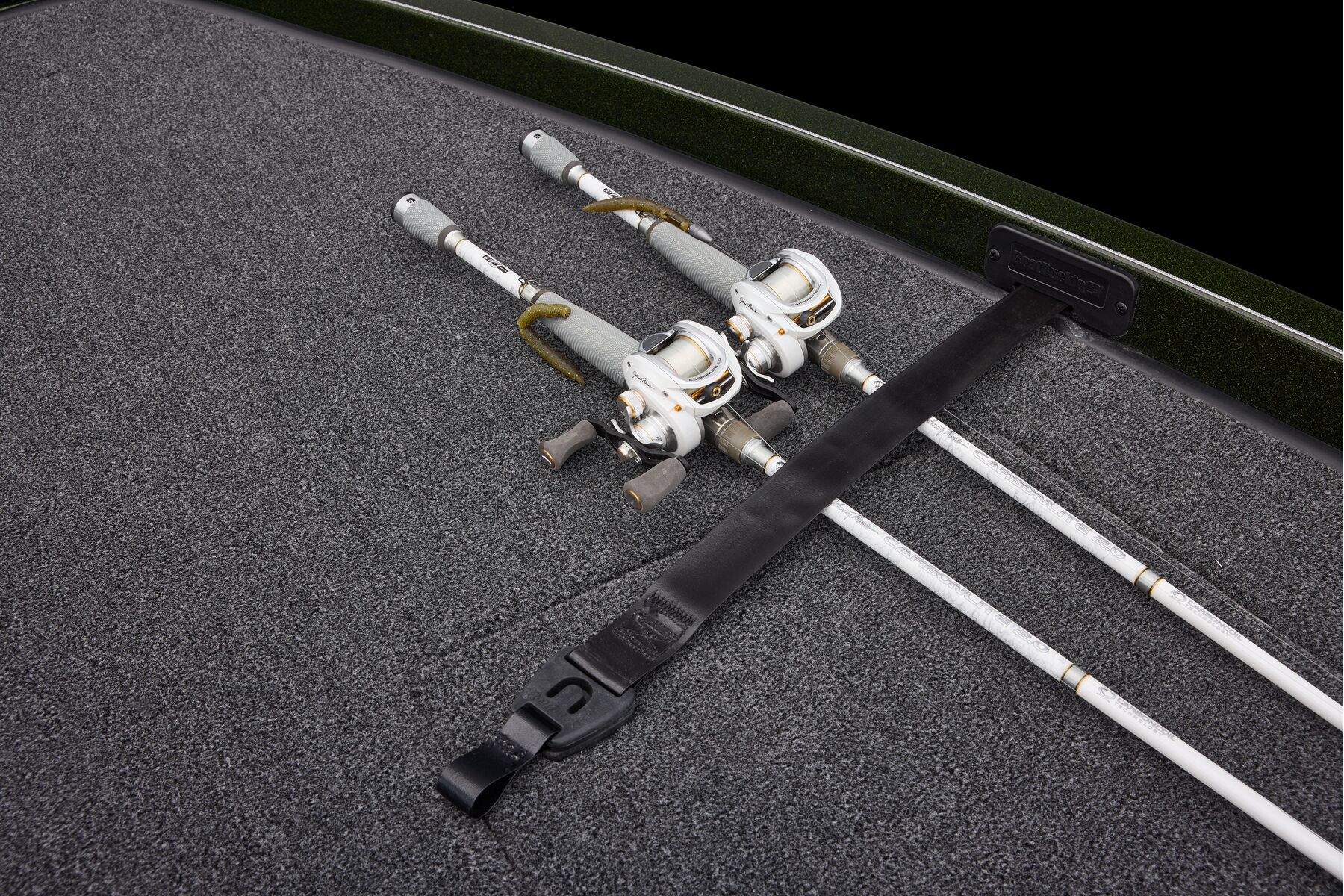

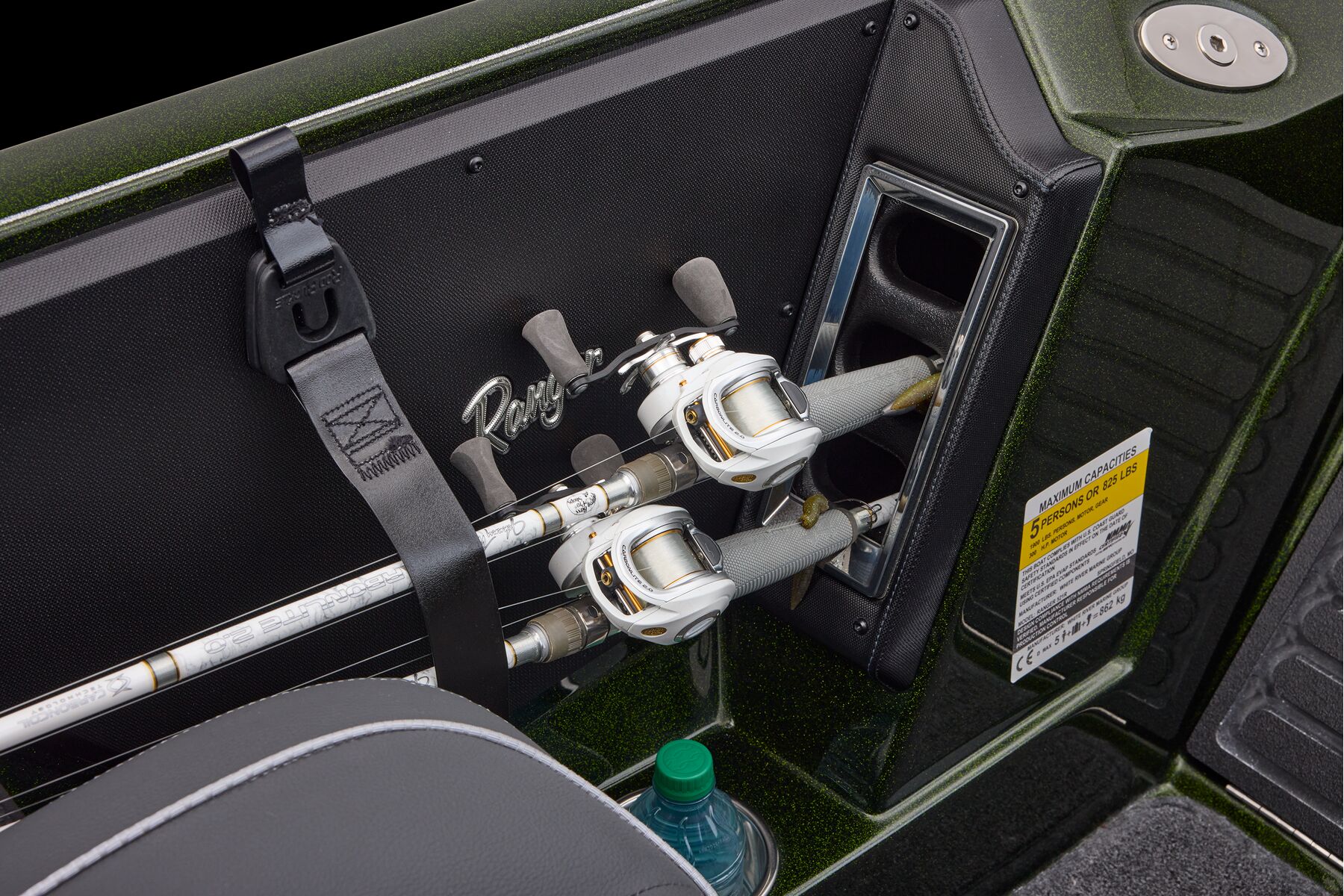

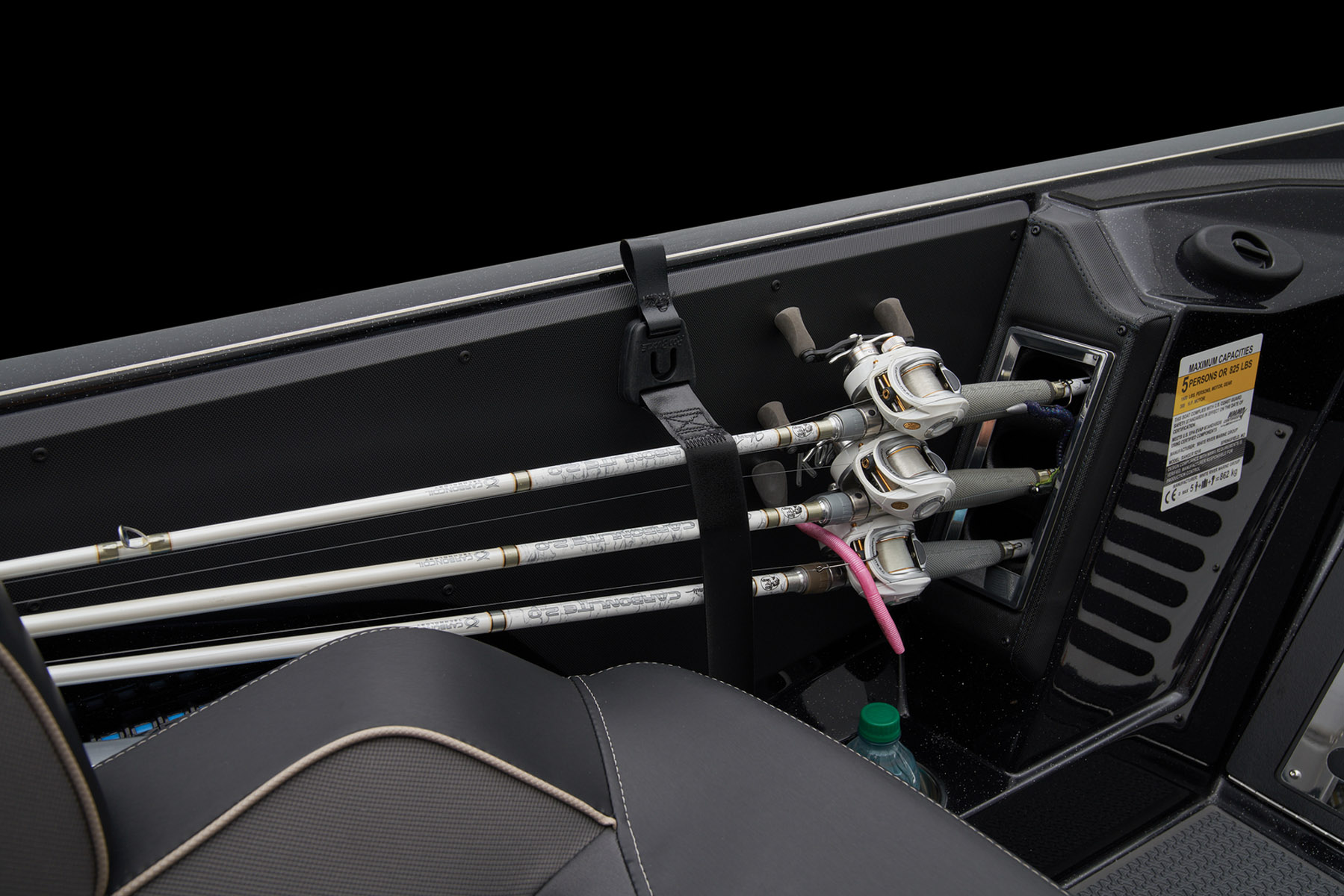

- Runnin' rod rack w/ retractable strap

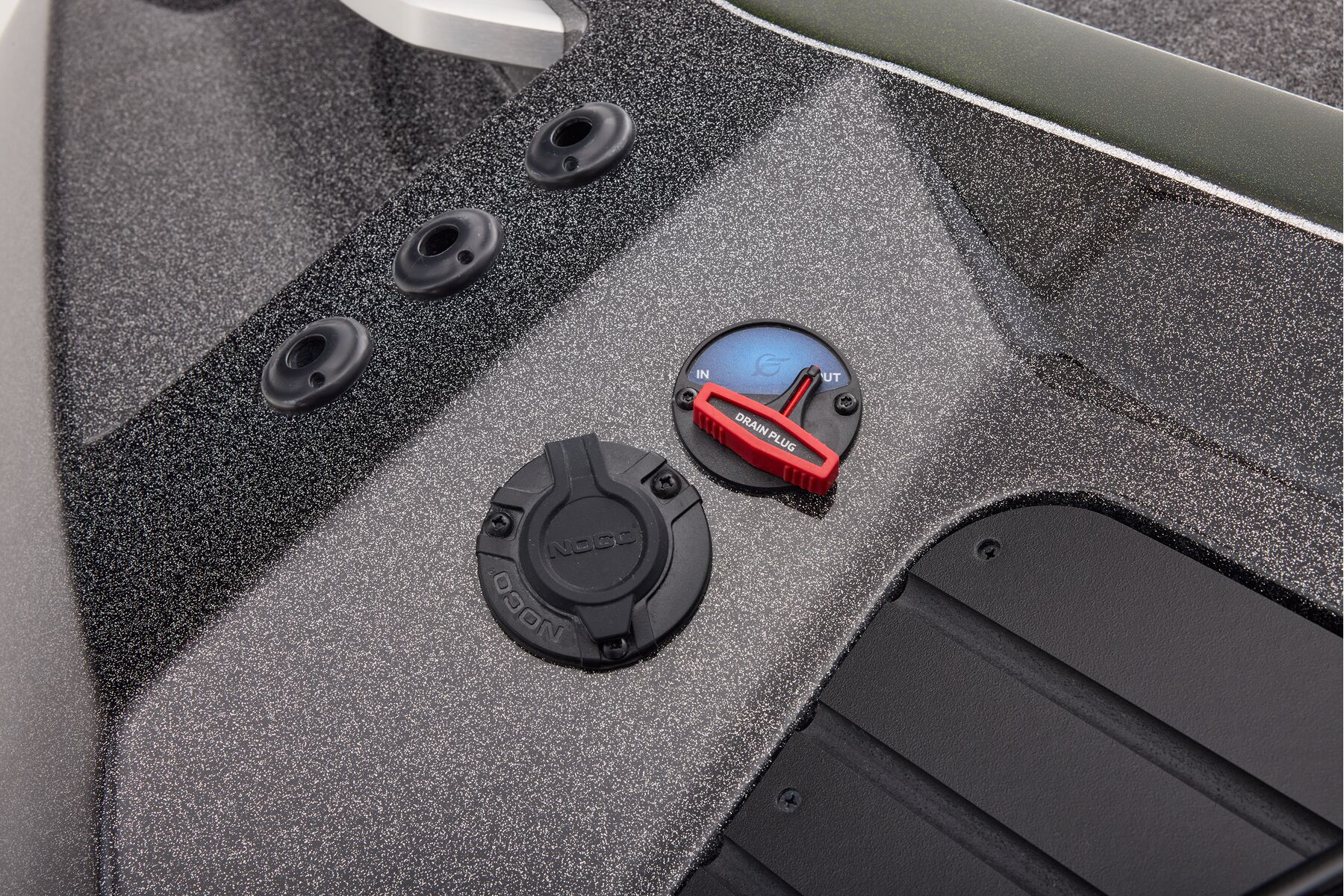

- Remote drain plug

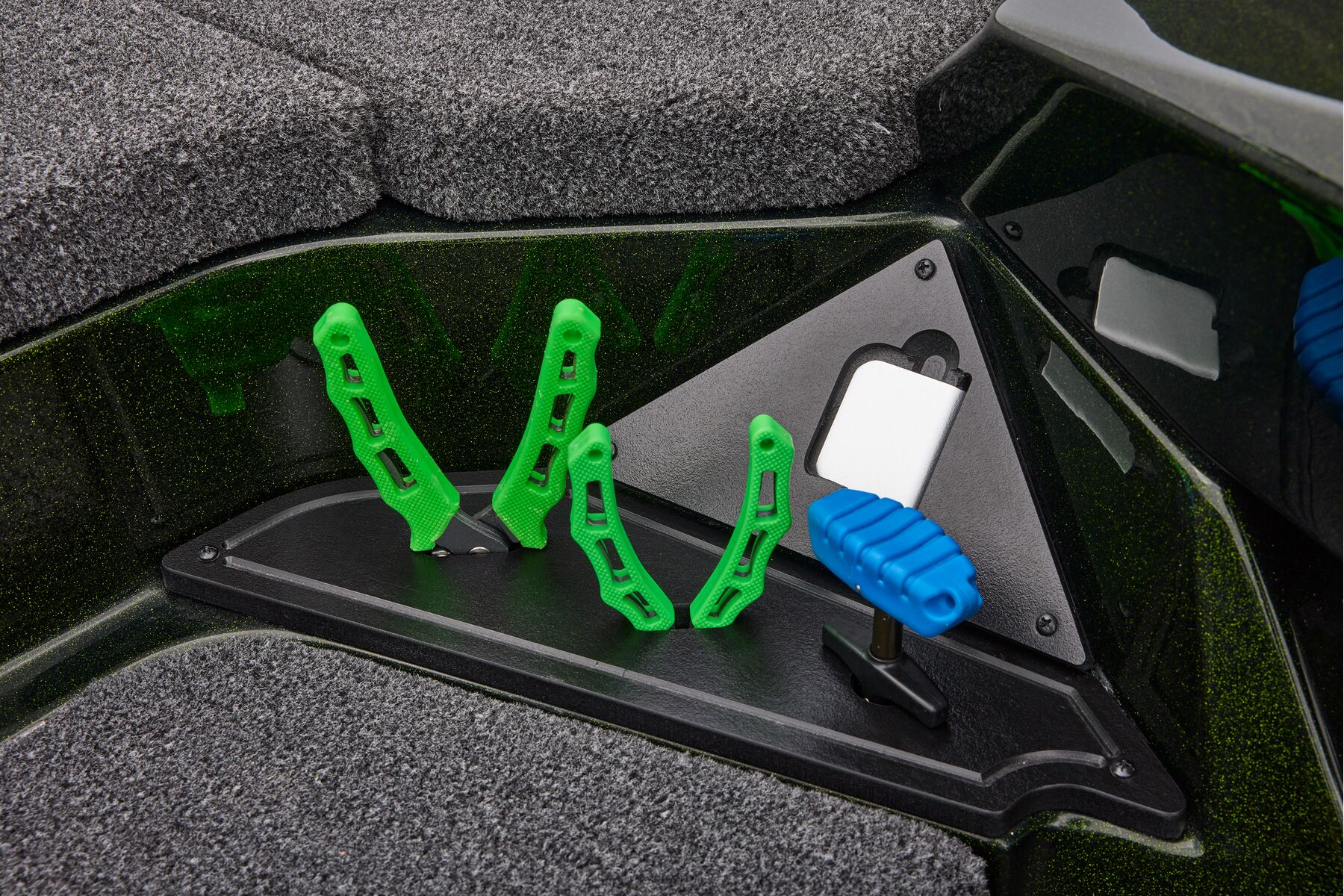

- Tool holders at bow and front deck step

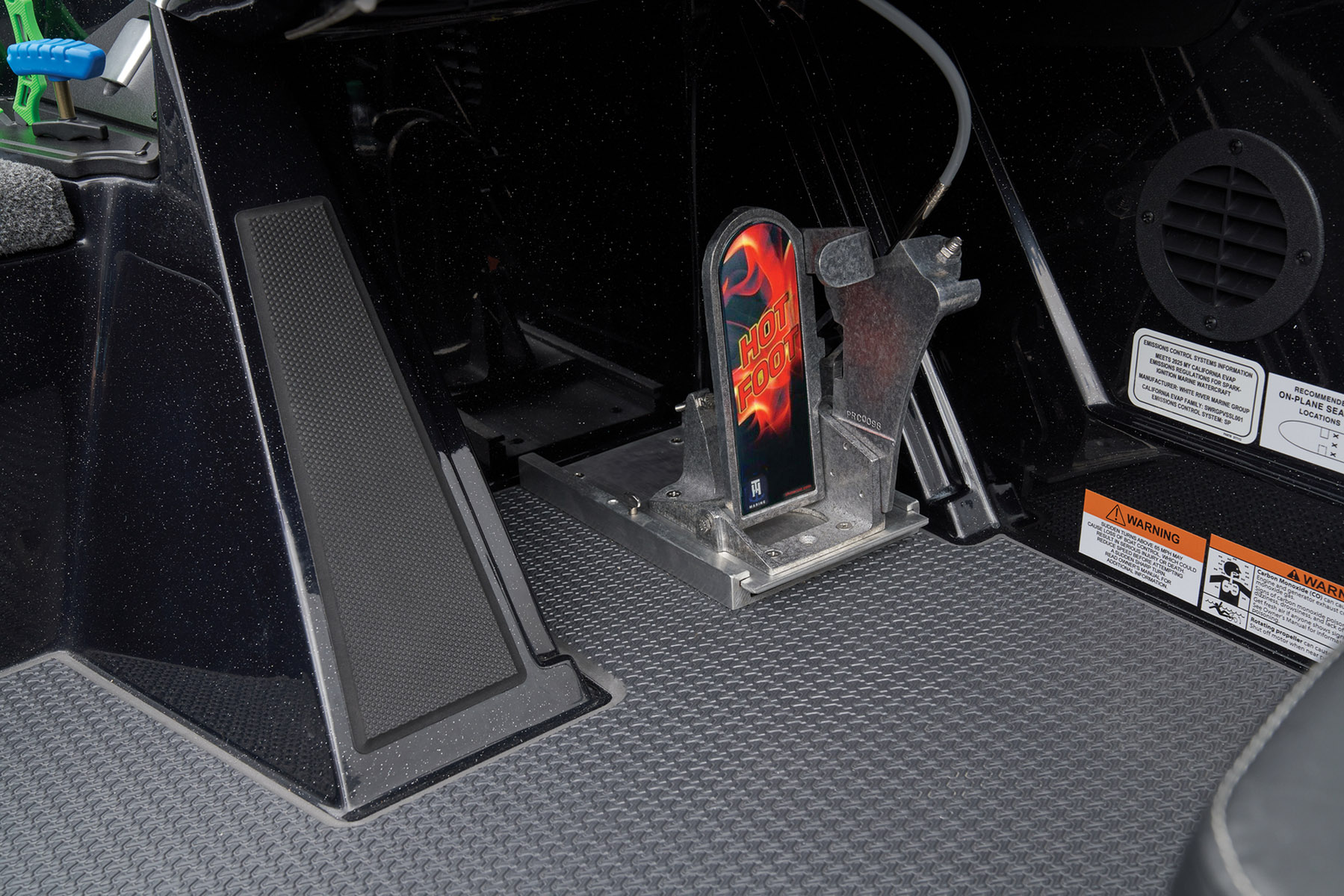

- Molded-in driver / passenger footrests

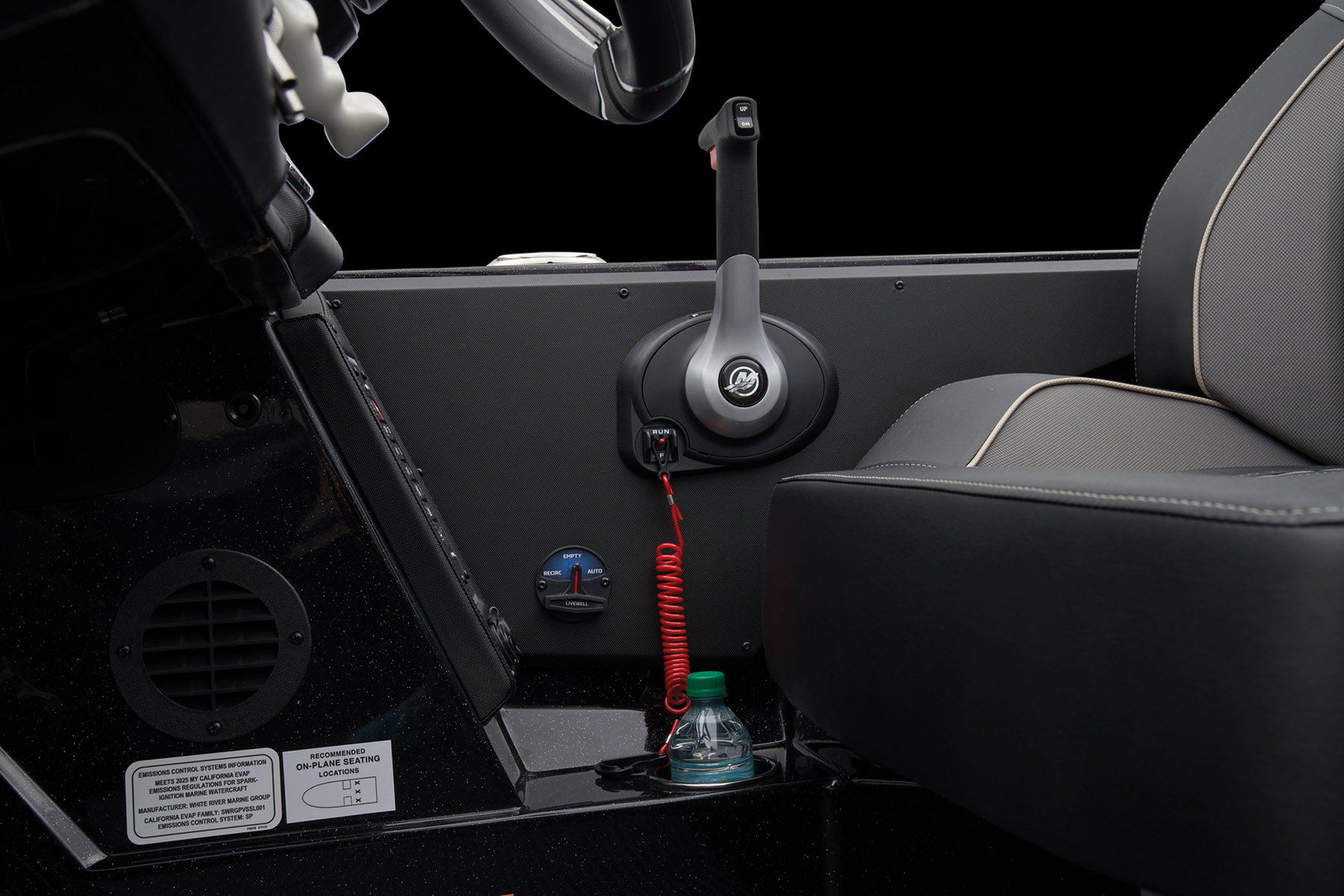

- Integrated stainless steel cup holders
Electronics
- Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories

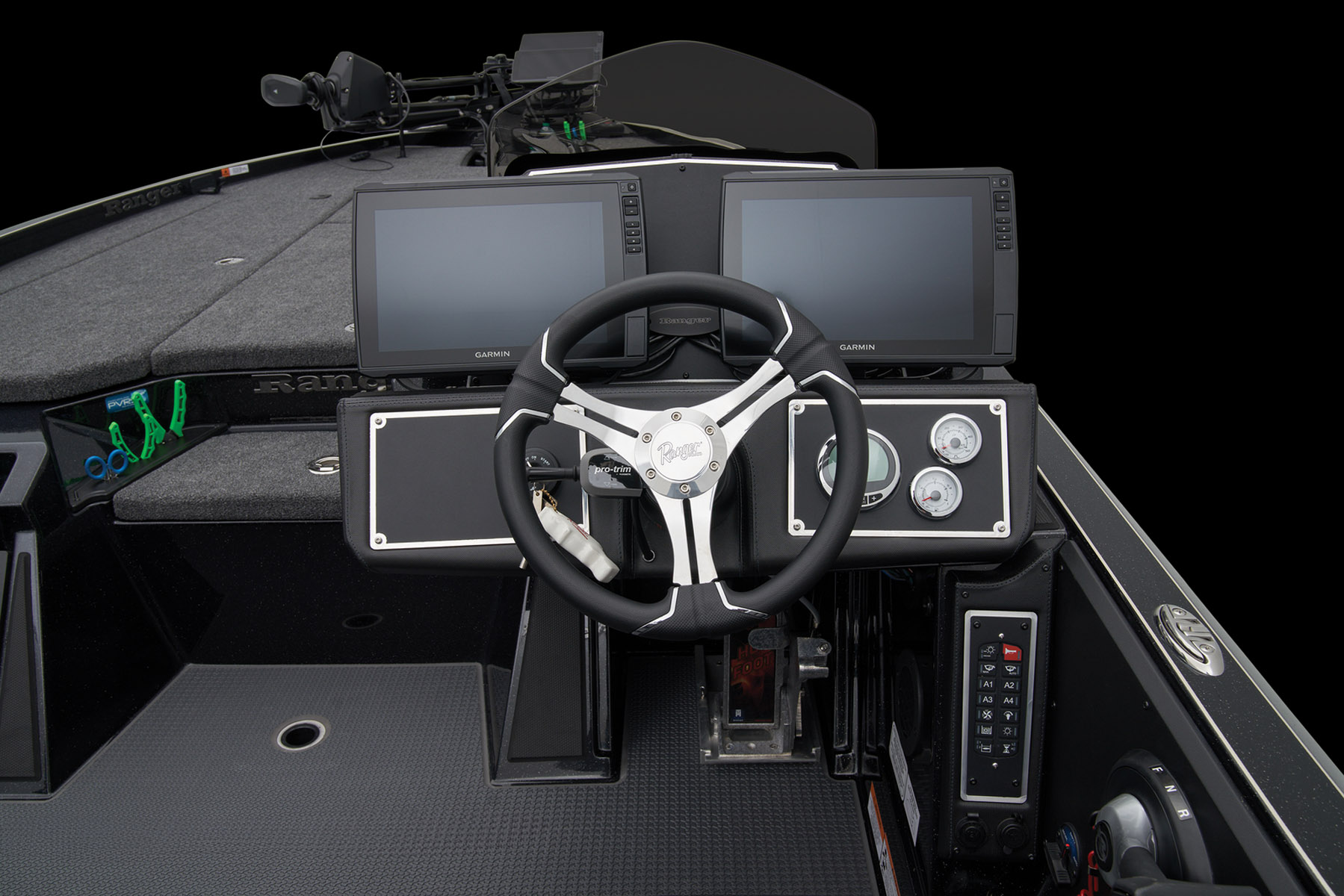

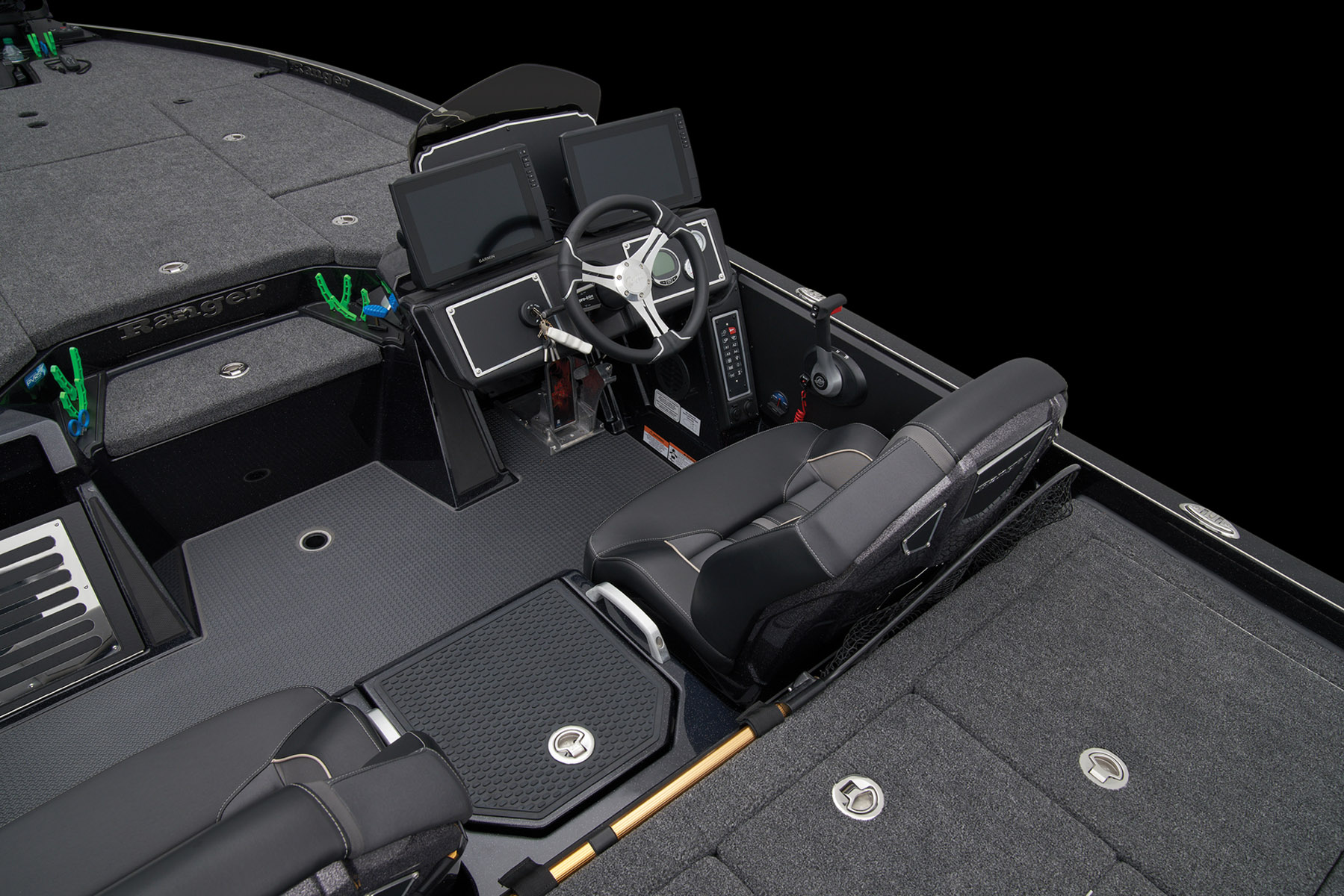

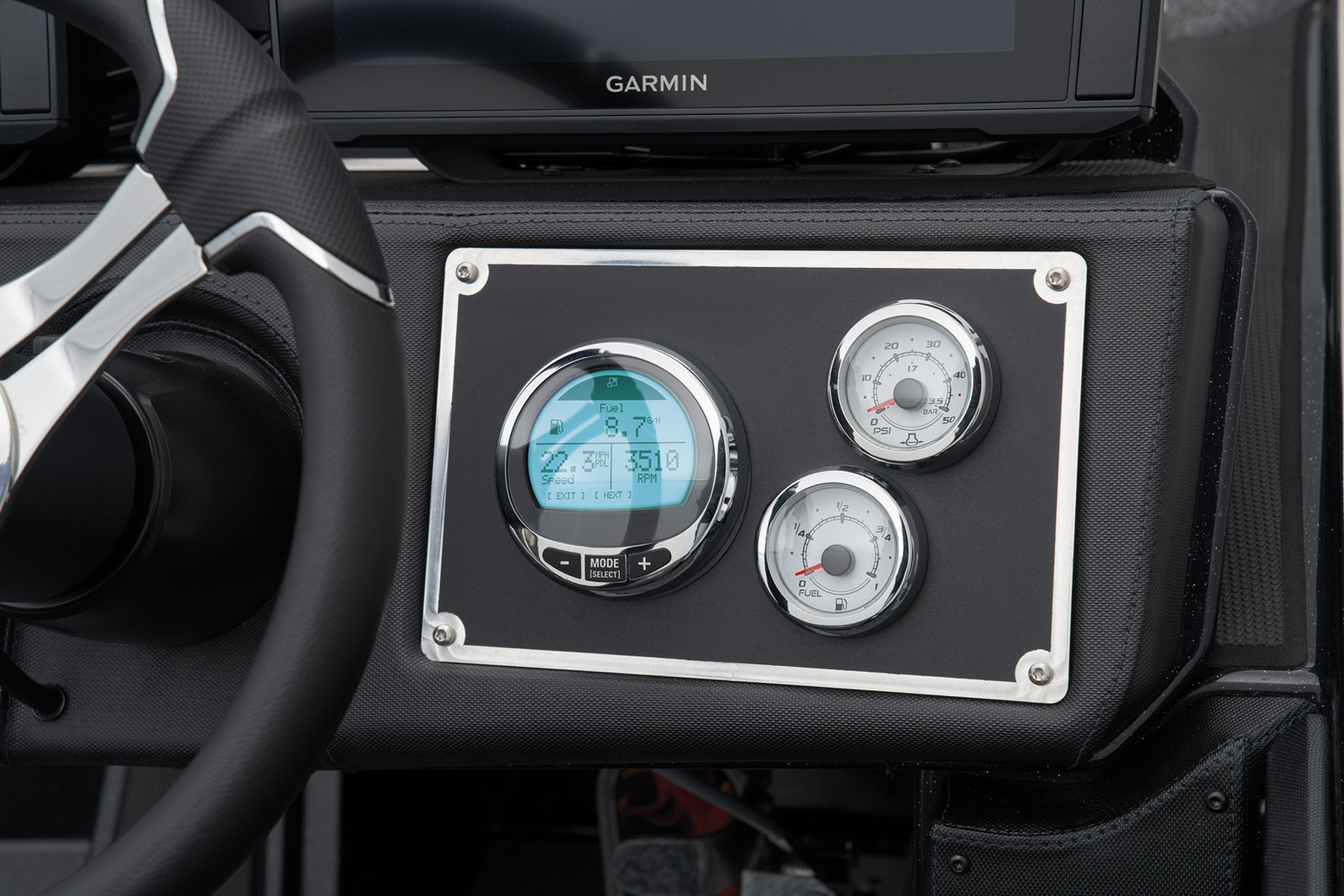

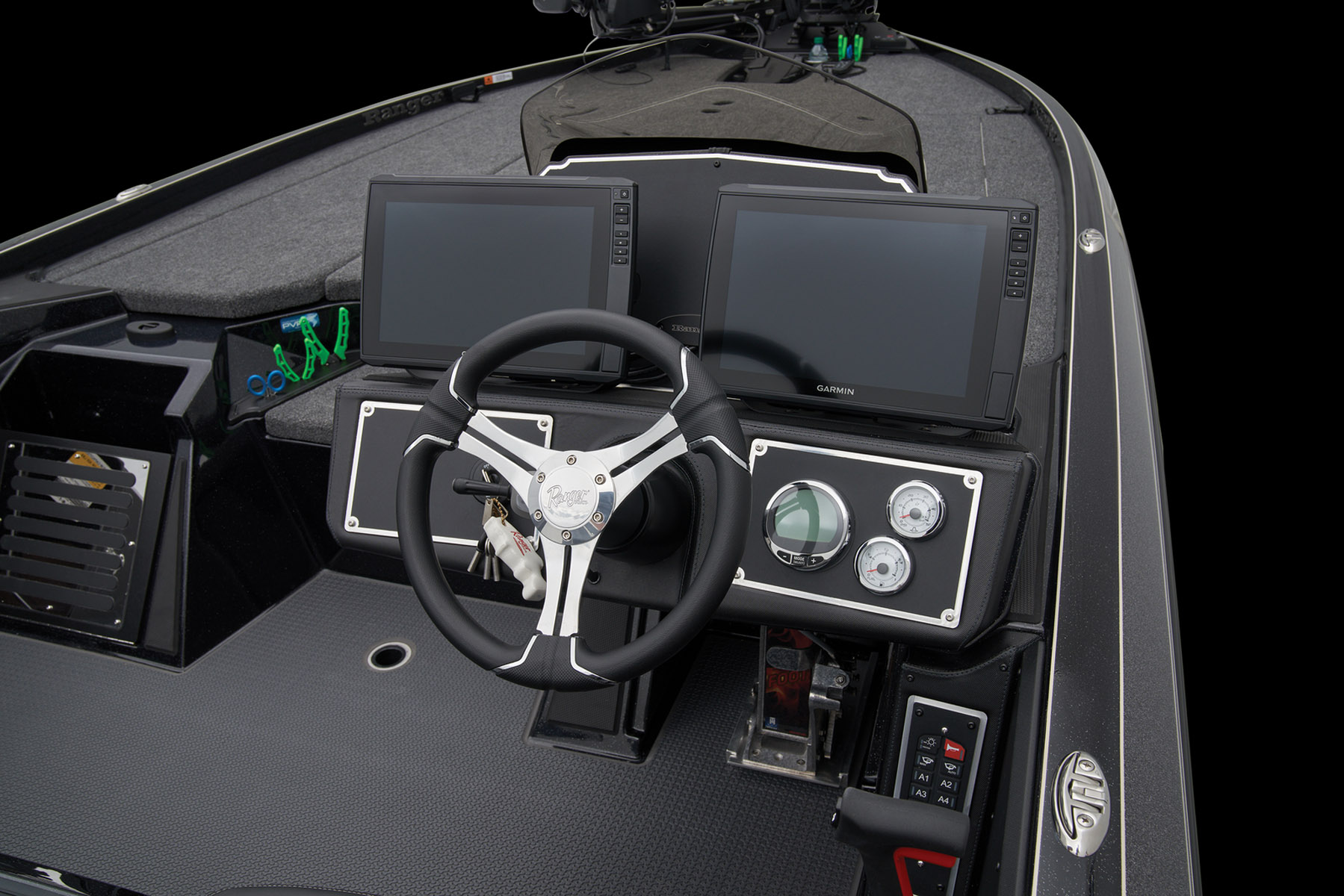

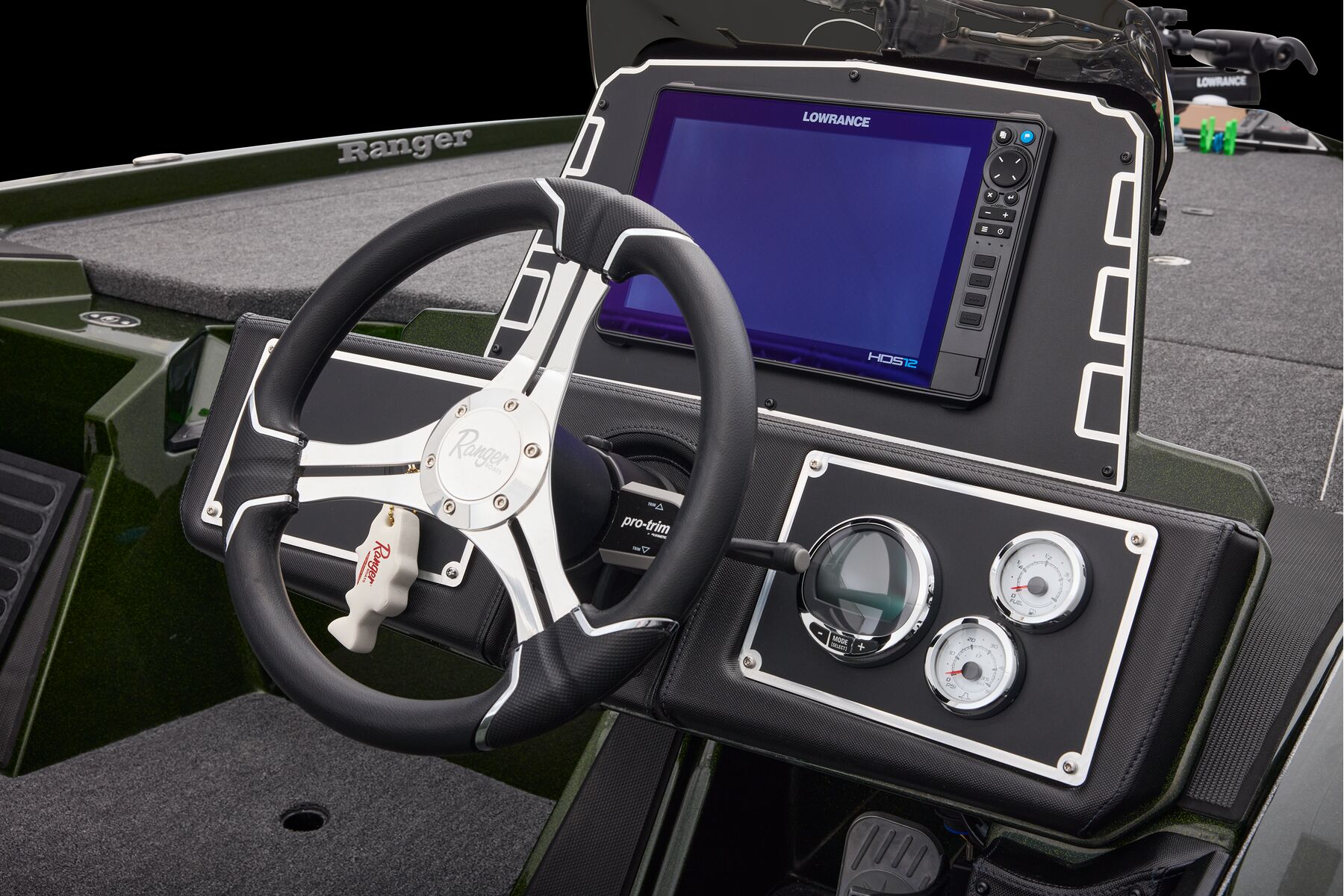

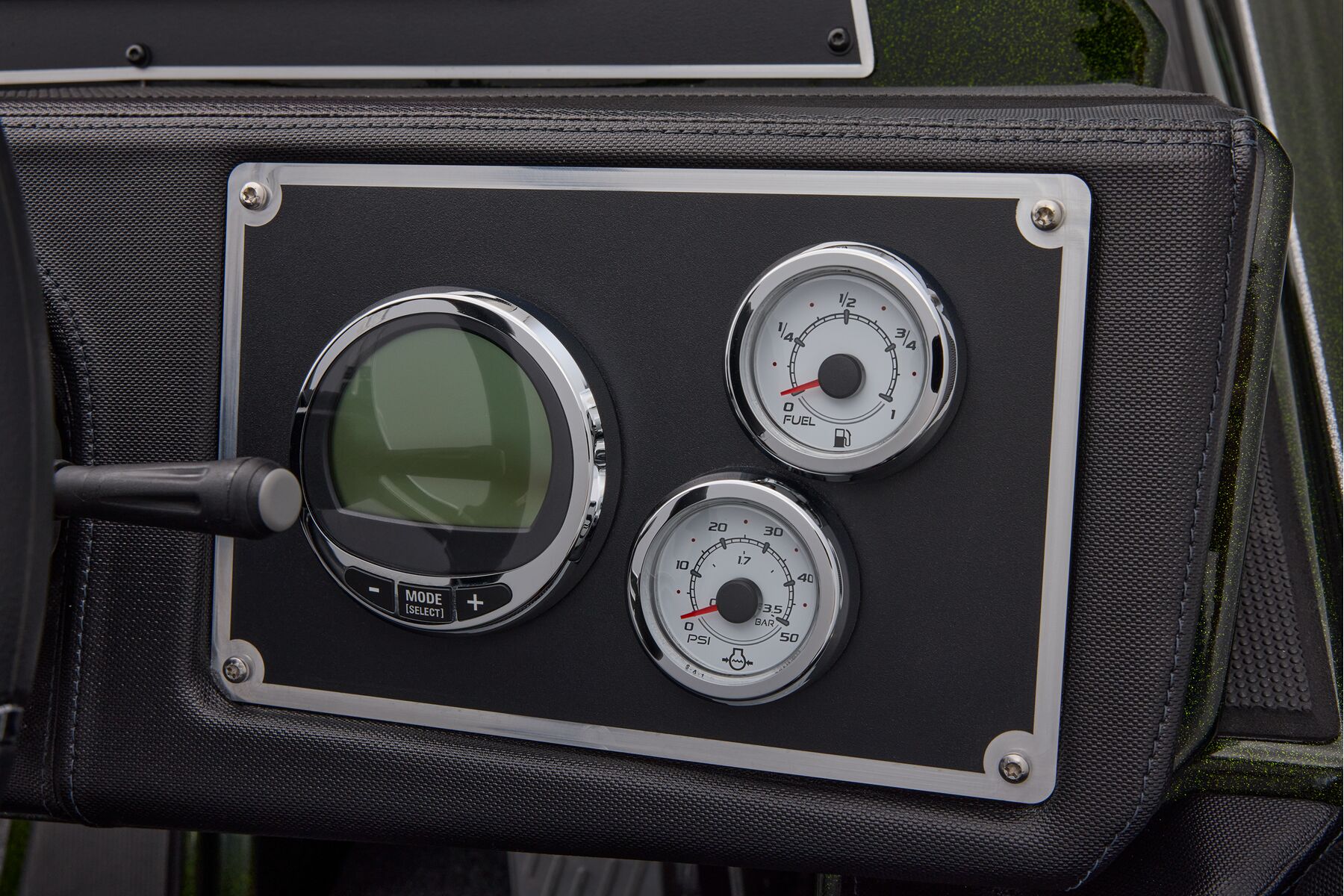

- Mercury SmartCraft MercMonitor gauge package

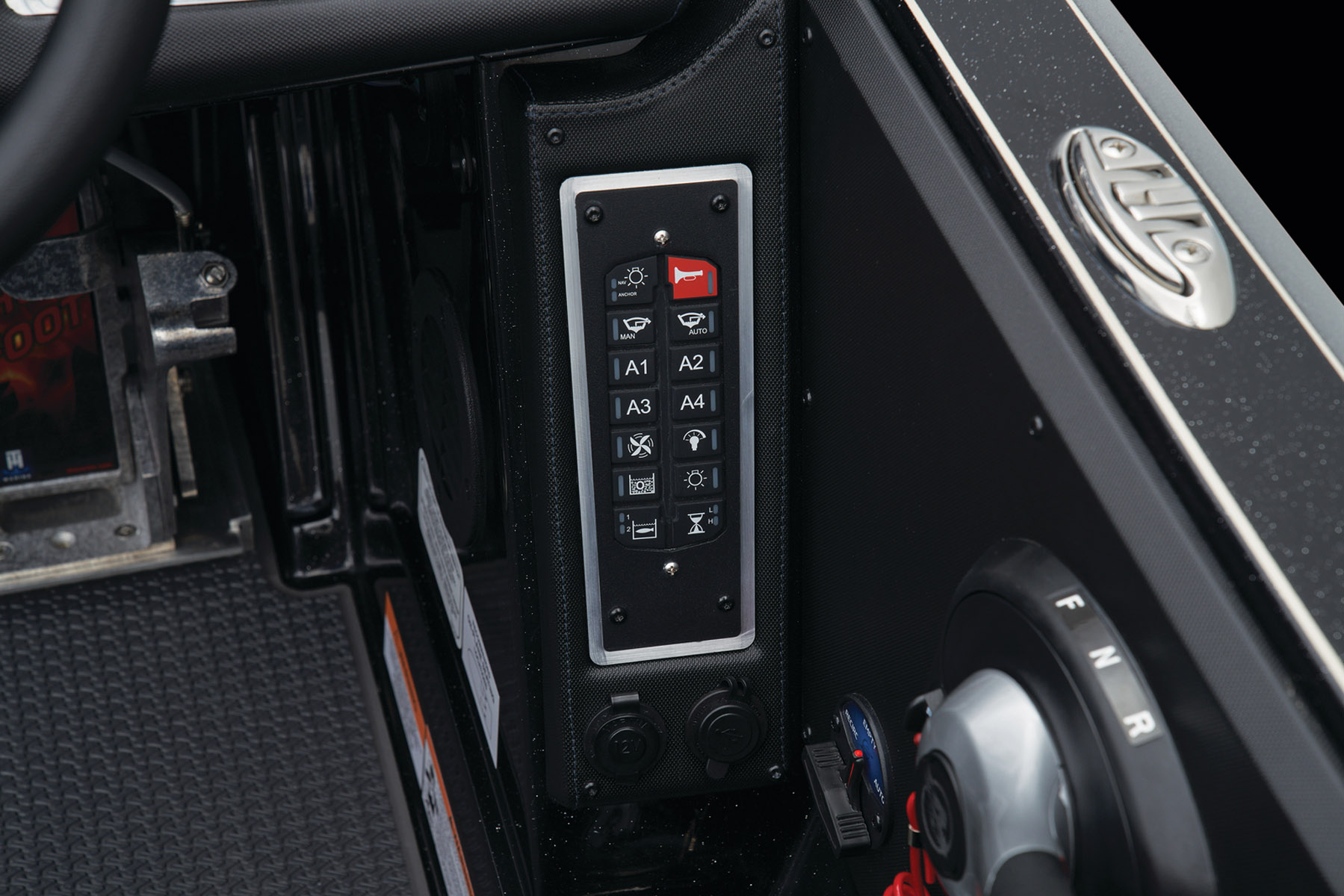

- Push-Button solid-state digital switching

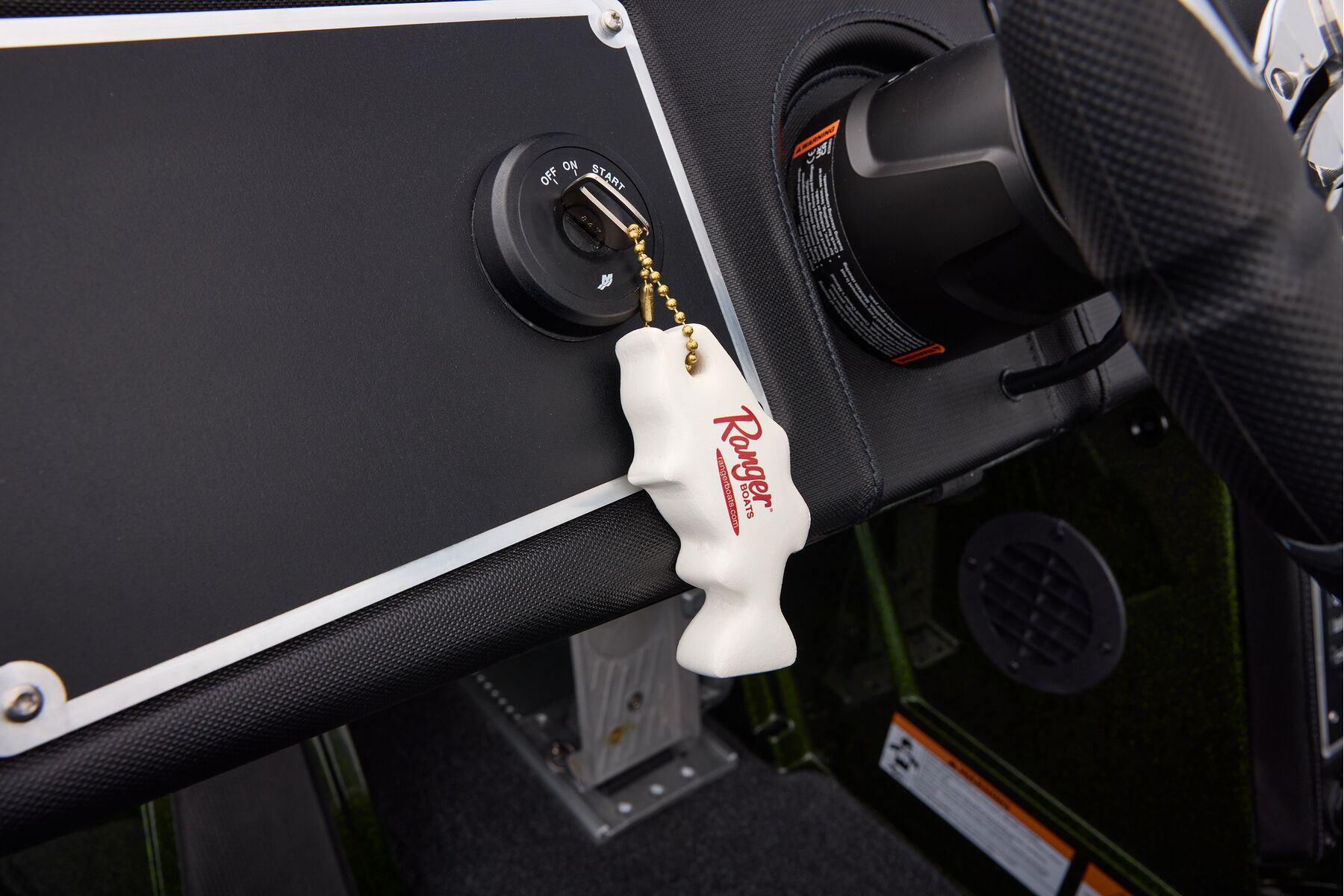

- Keyed ignition

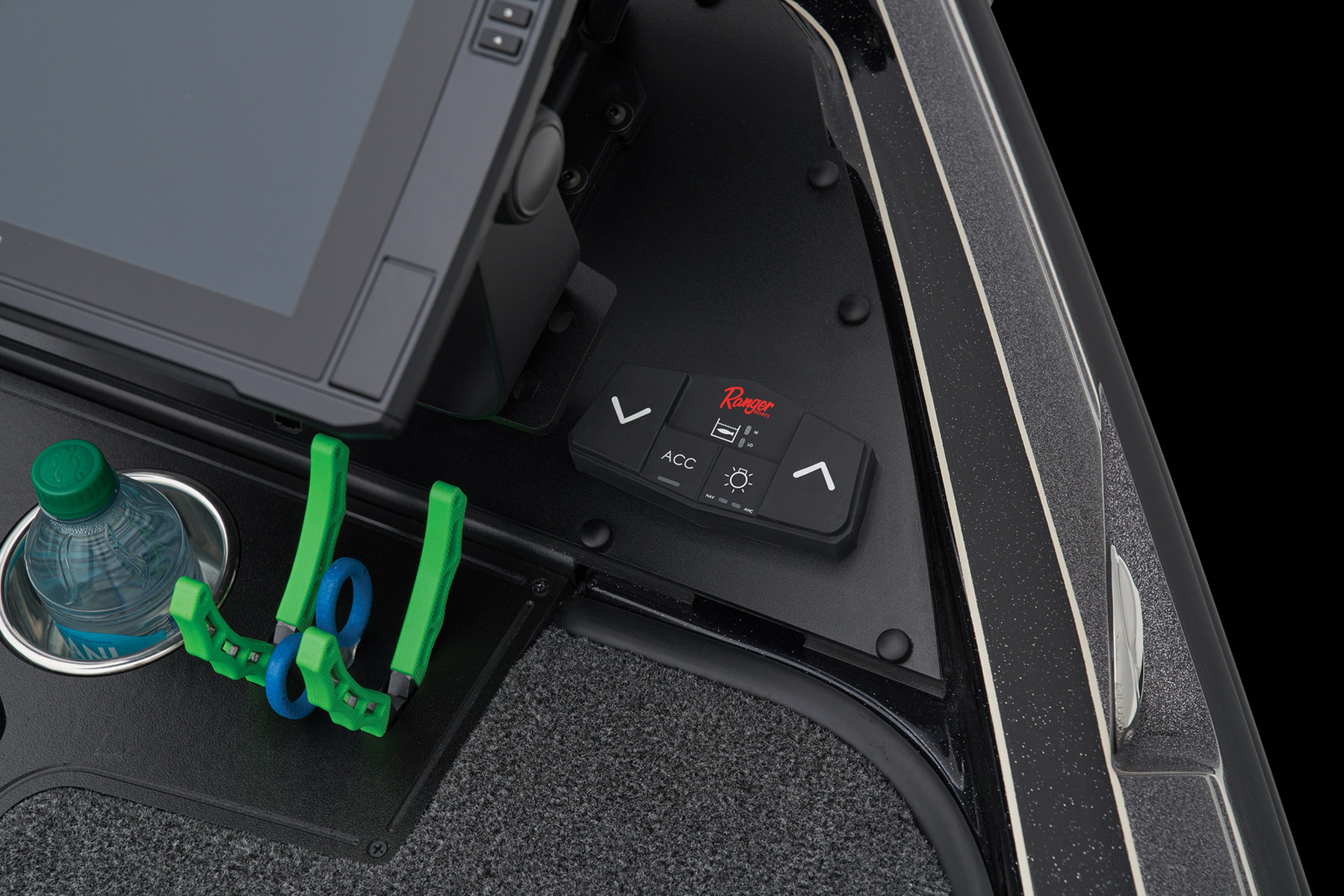

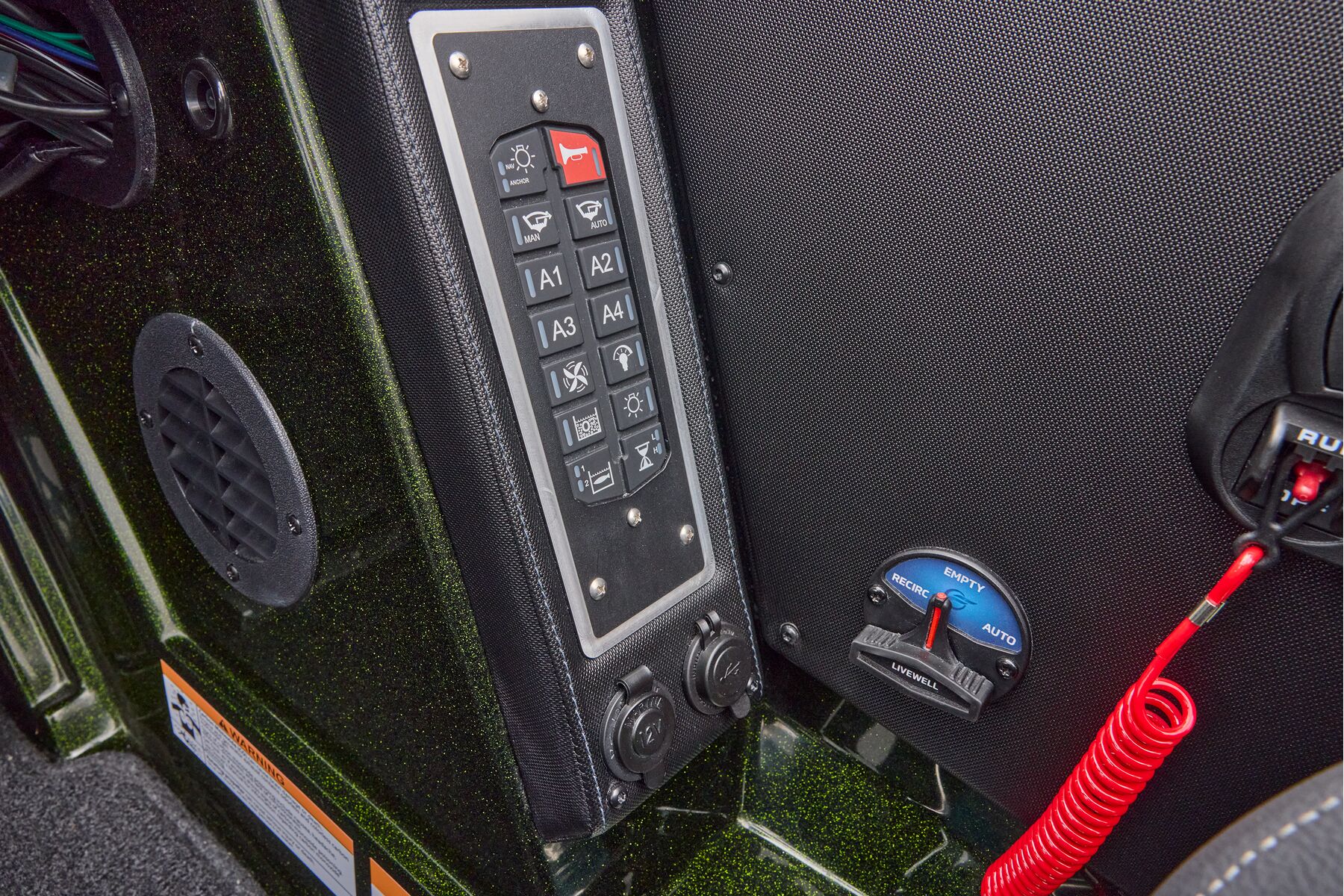

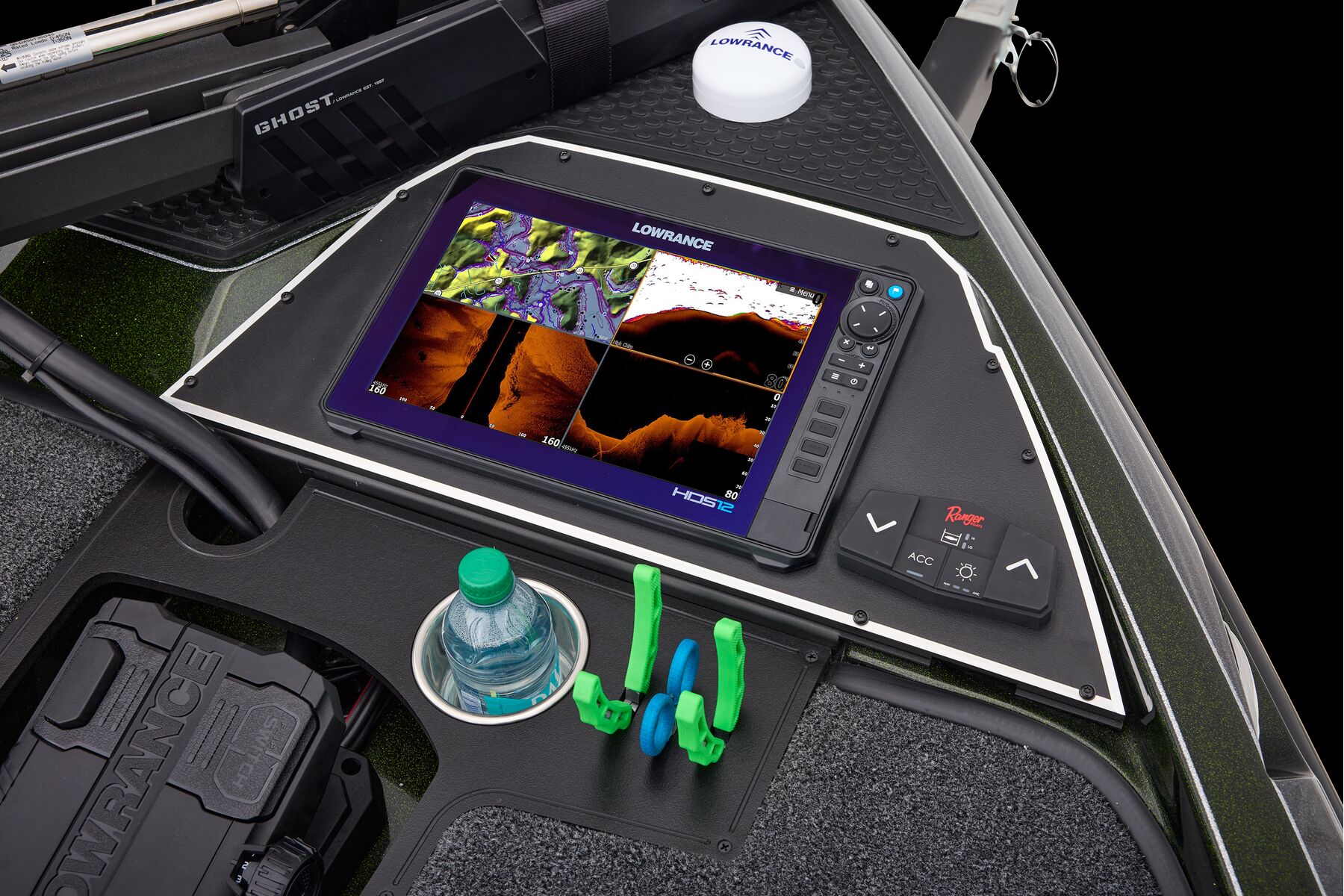

- Solid-state digital keypad at bow with push-button trim switches

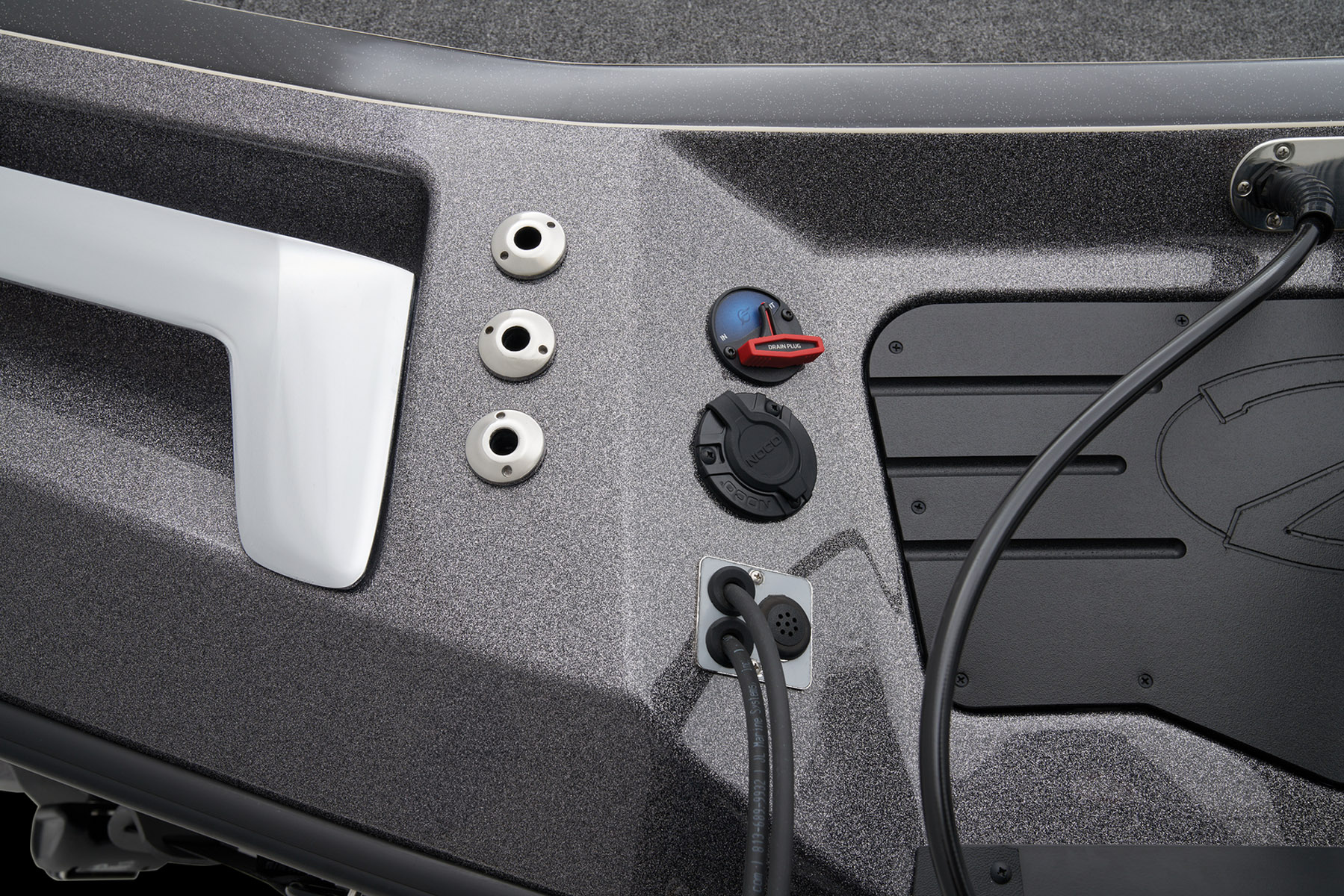

- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
- Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker

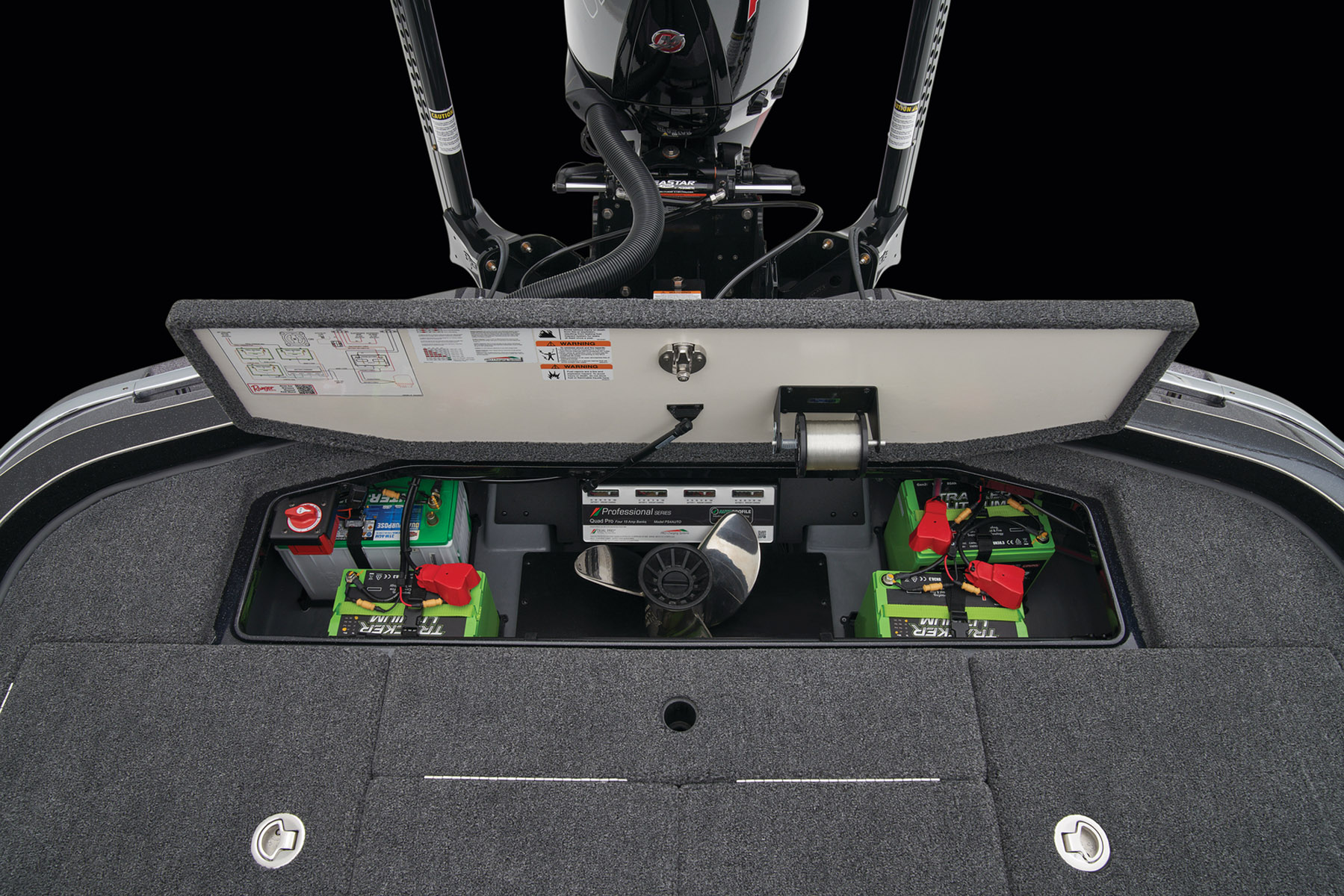

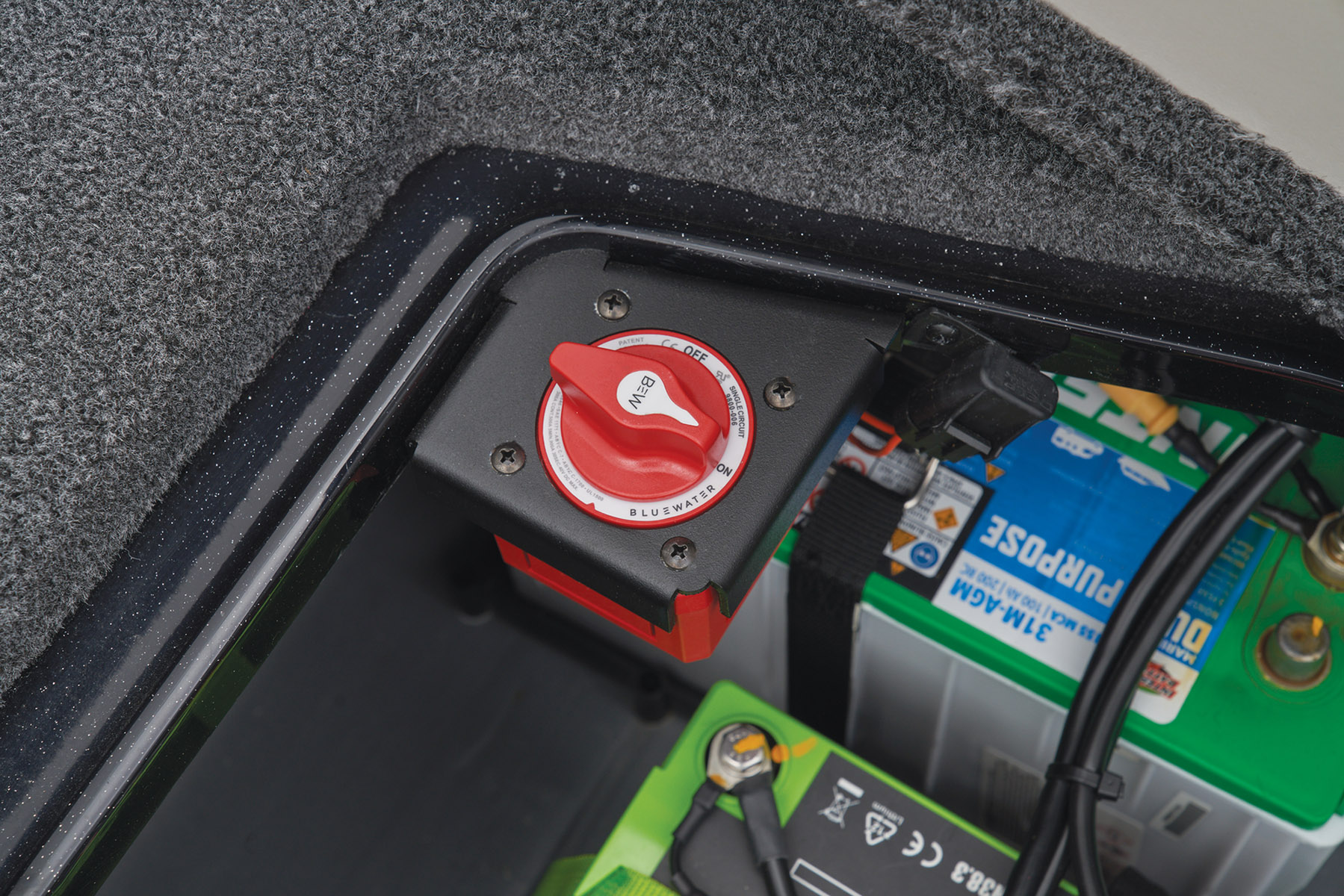

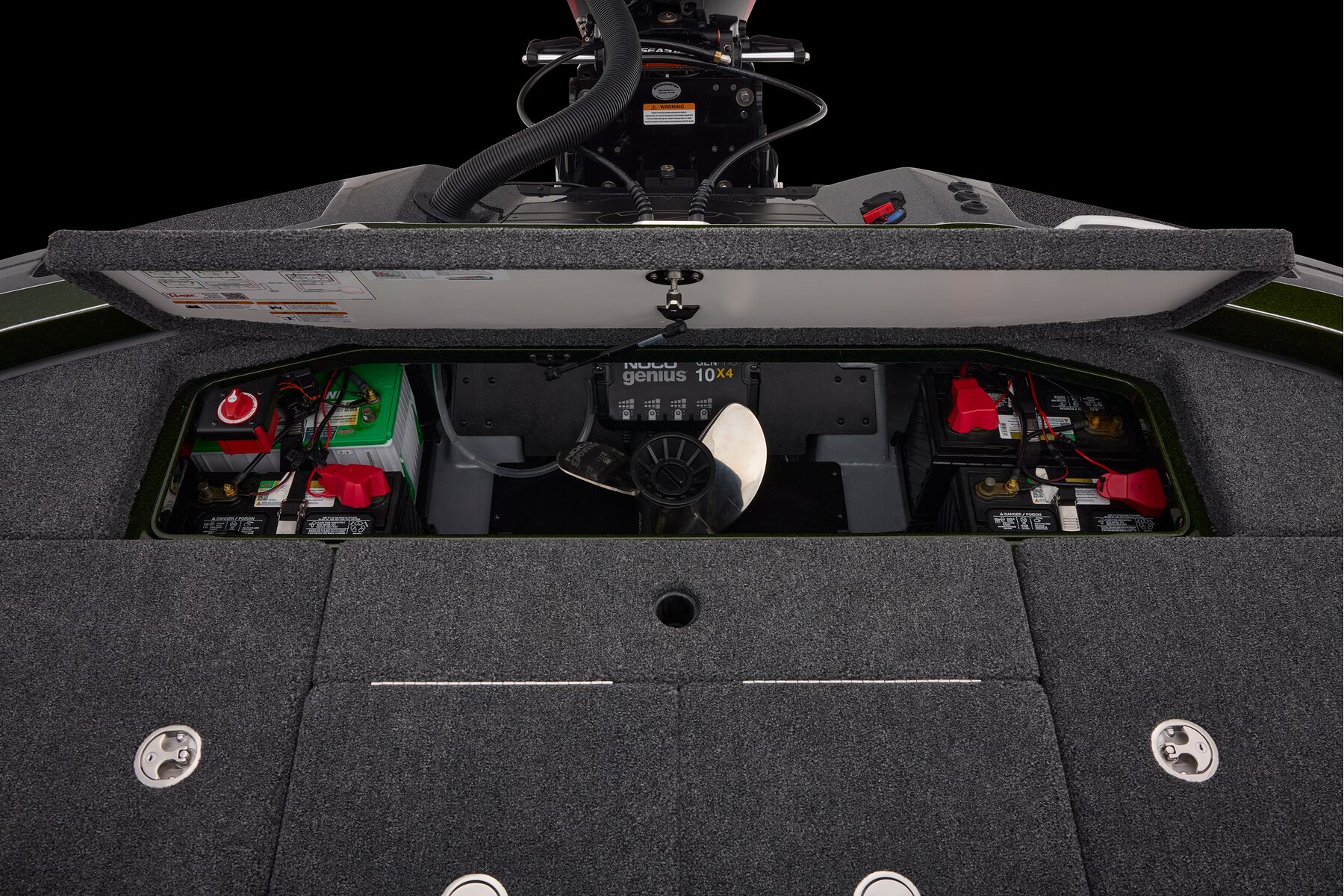

- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging

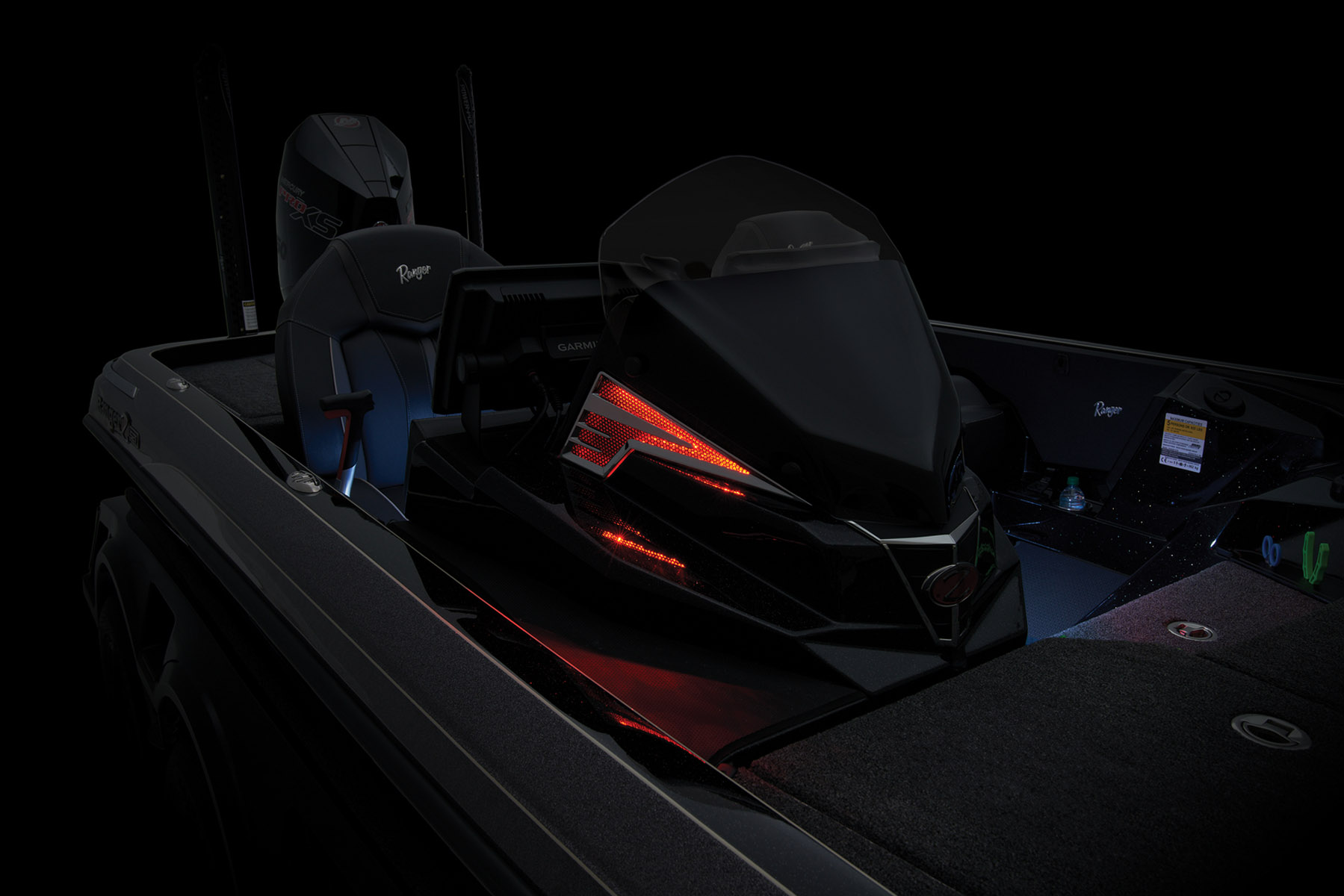

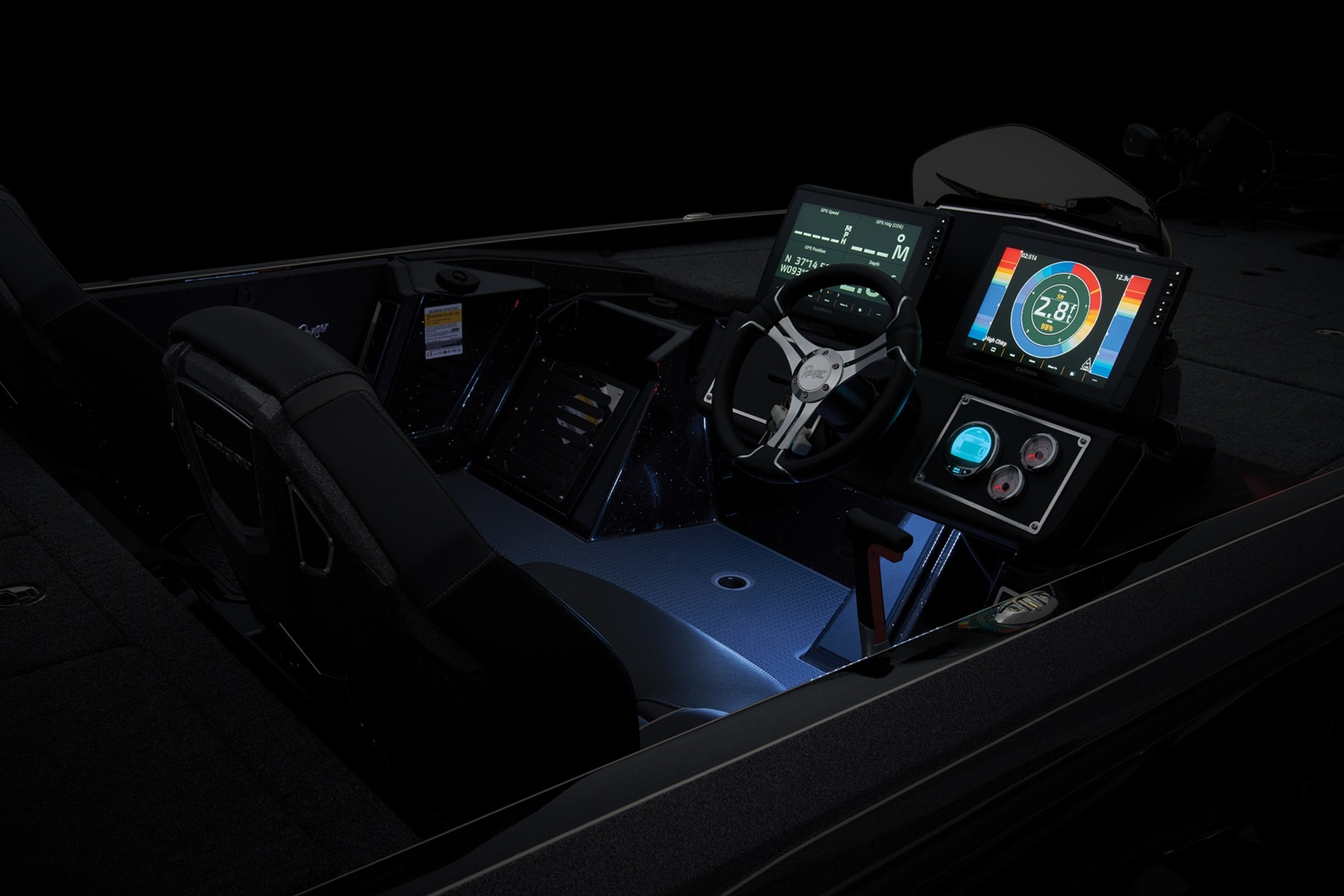

- LED storage compartment lighting & LED courtesy & livewell lighting

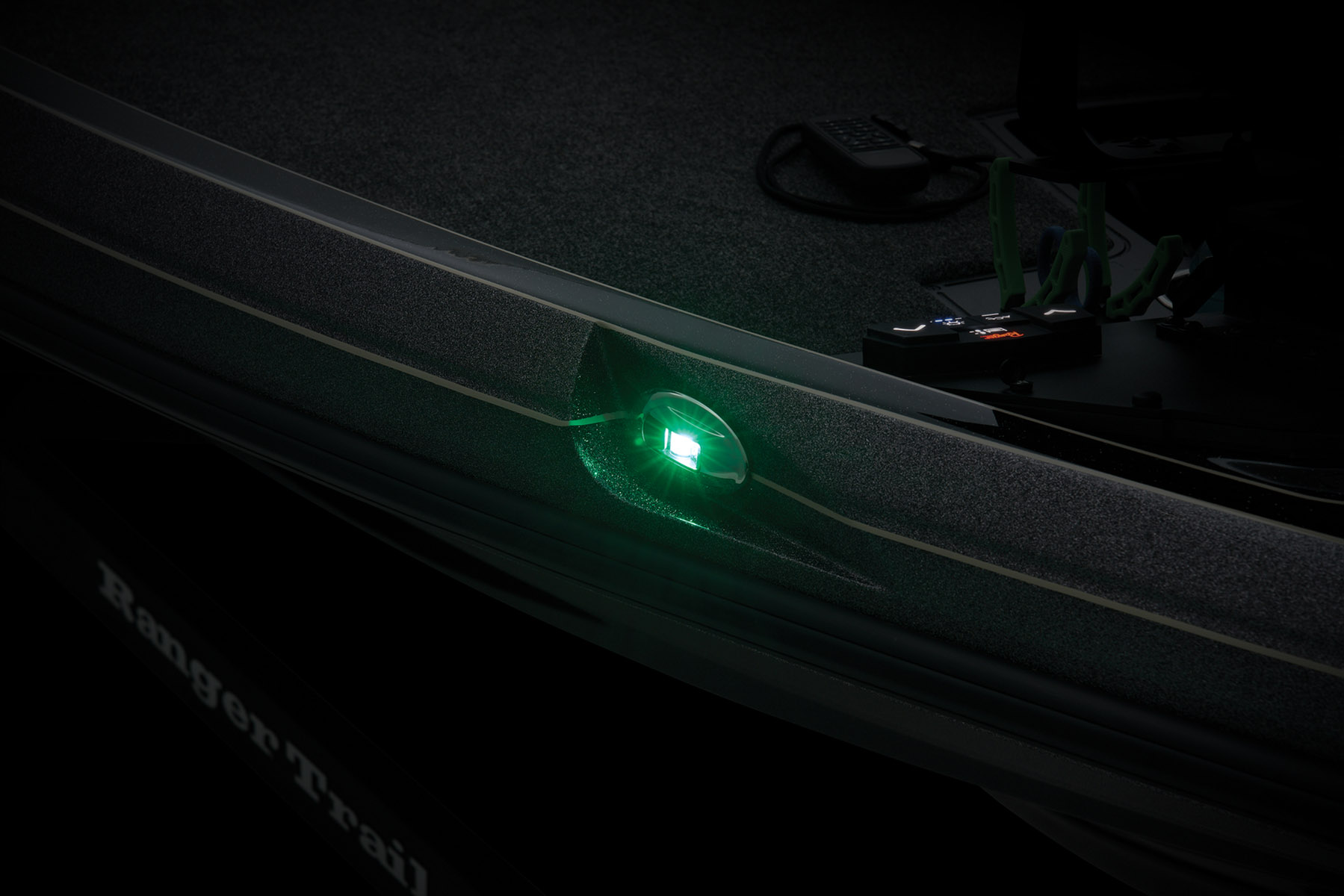

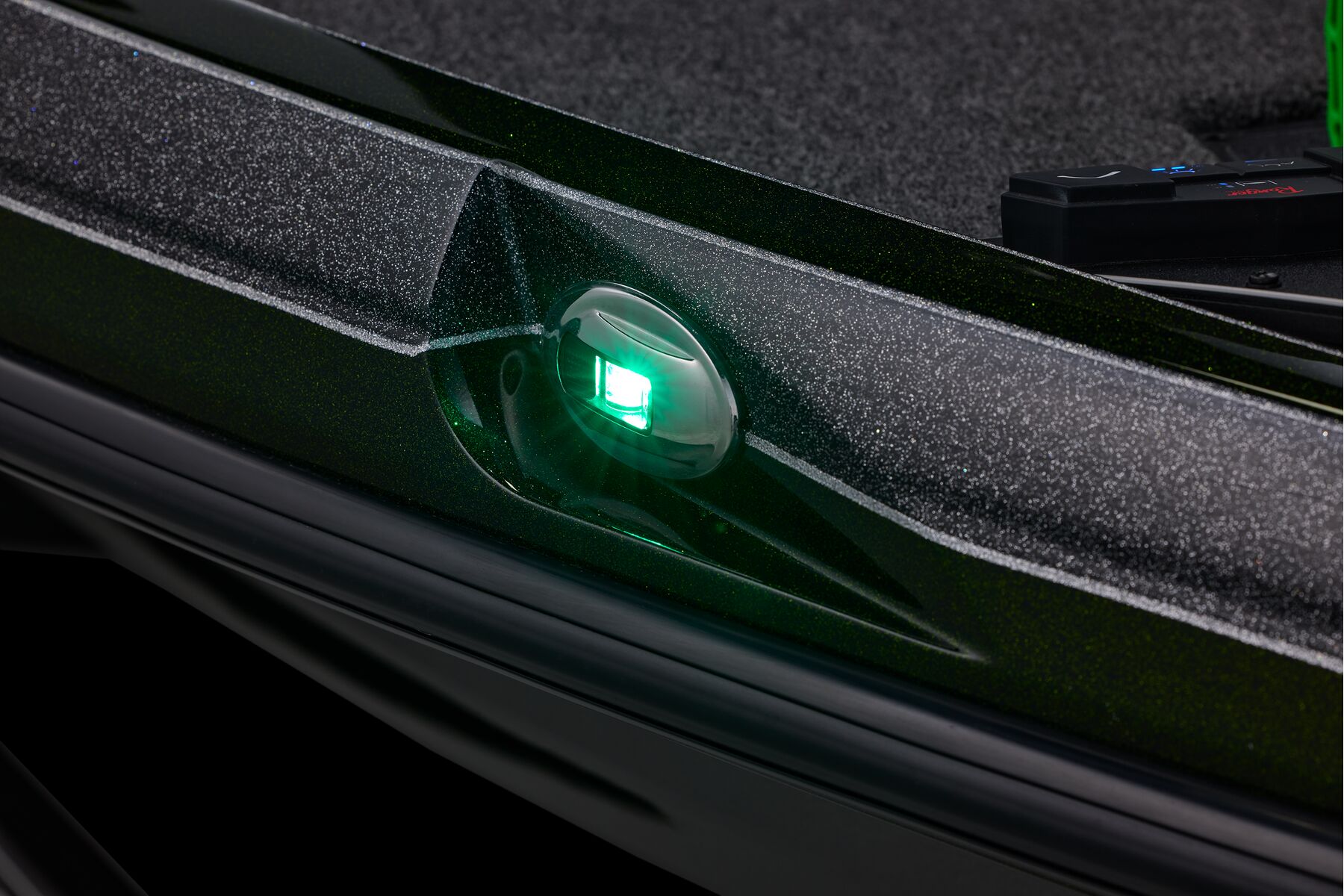

- Integrated LED bow navigation lights & removable LED anchor light

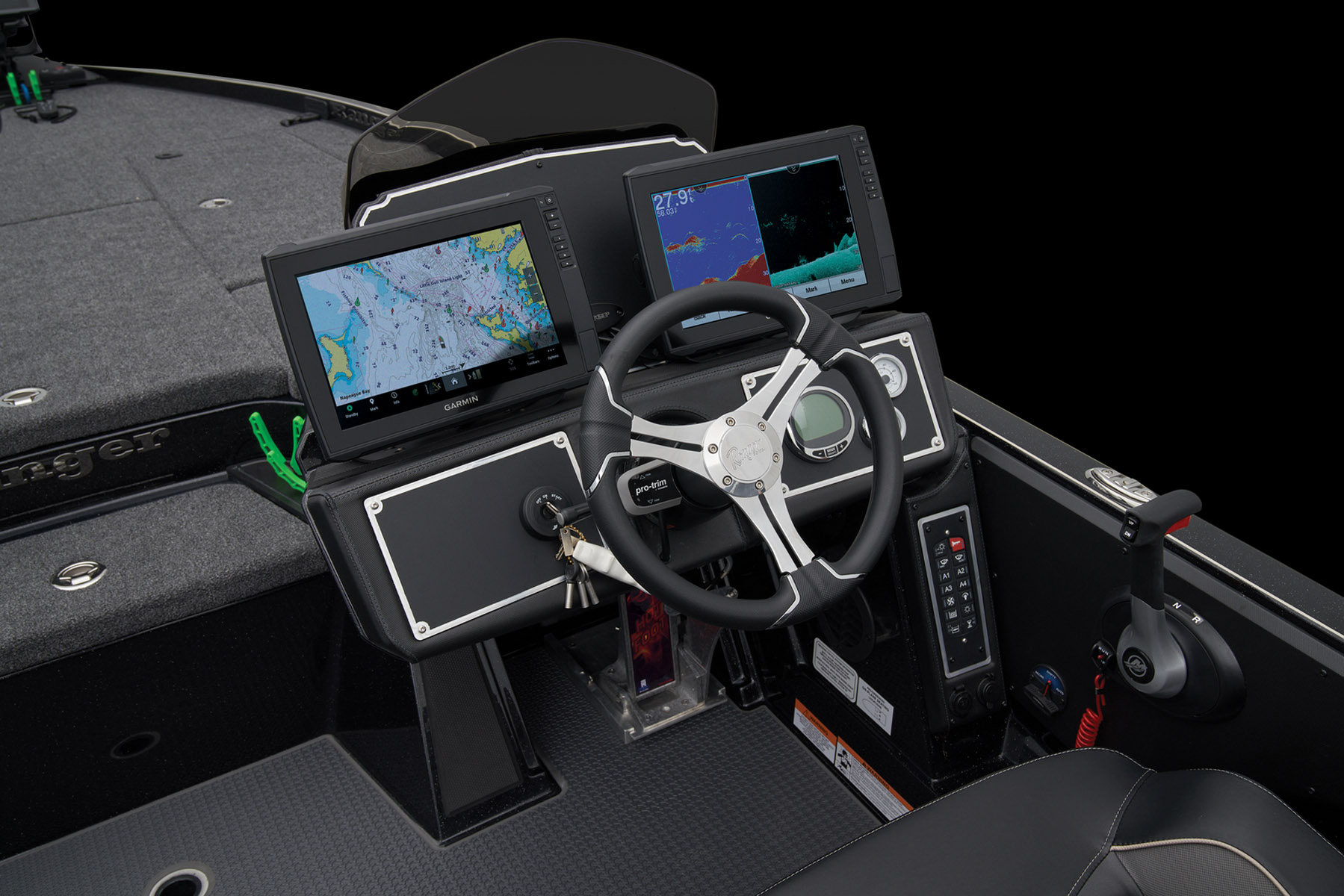

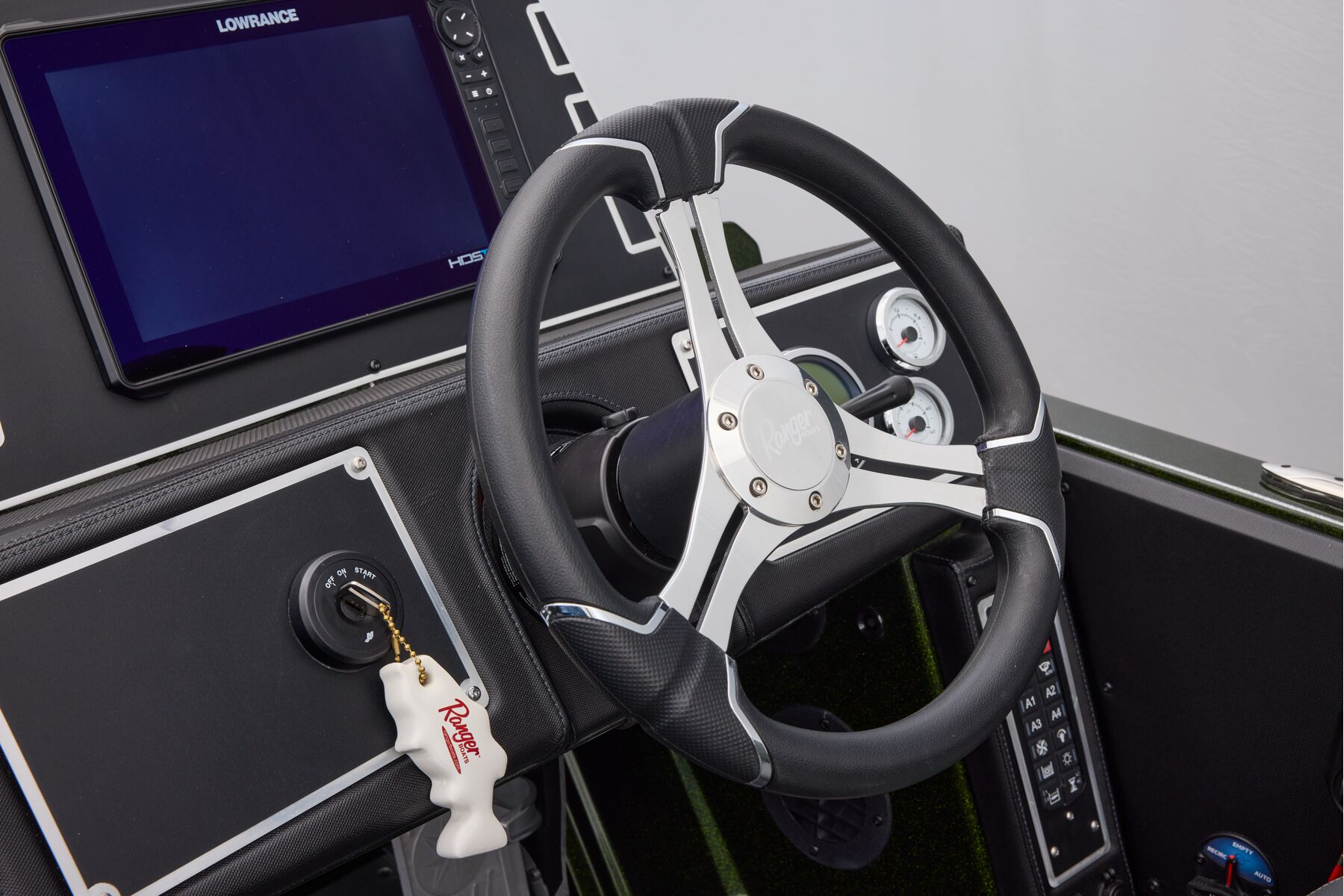

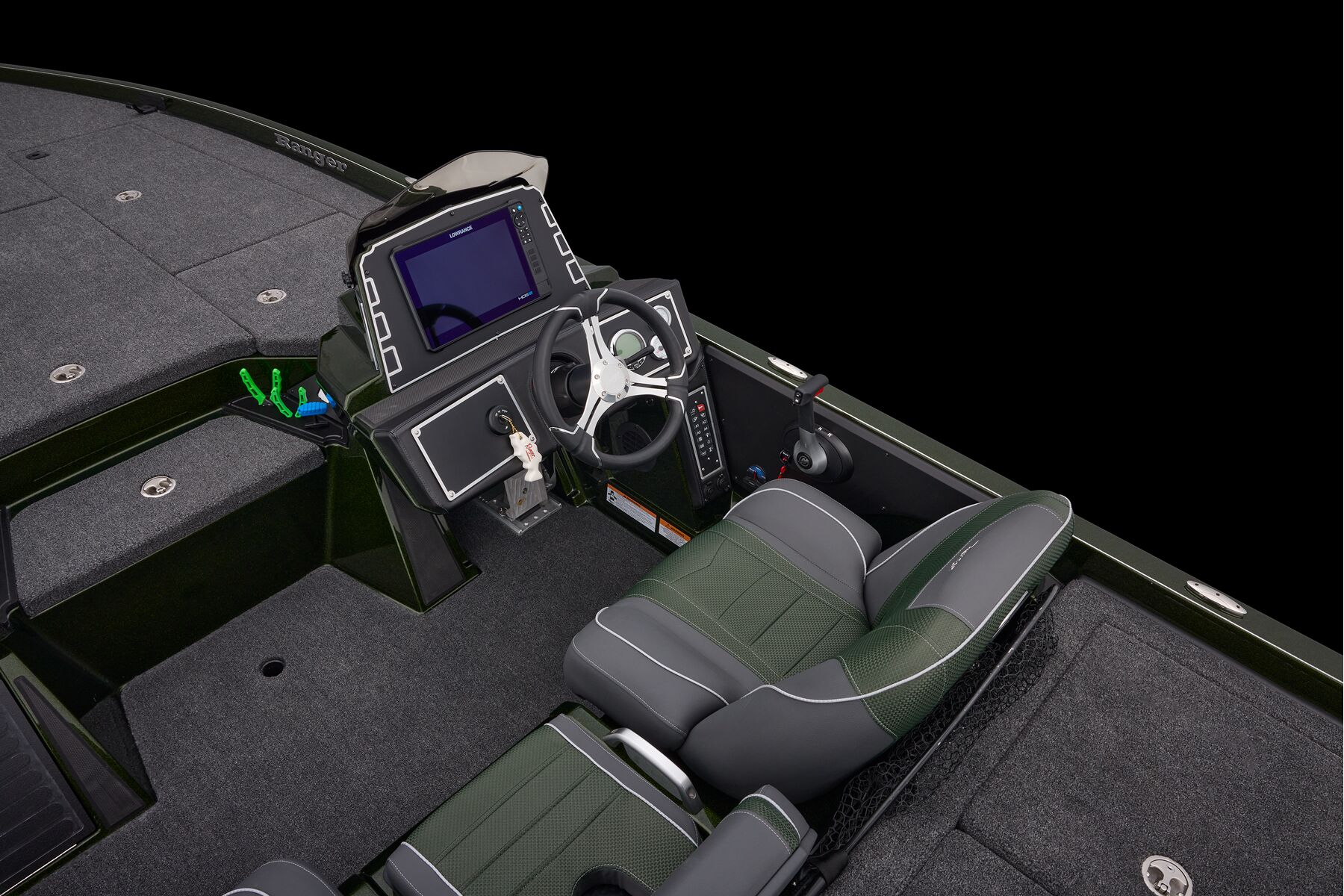

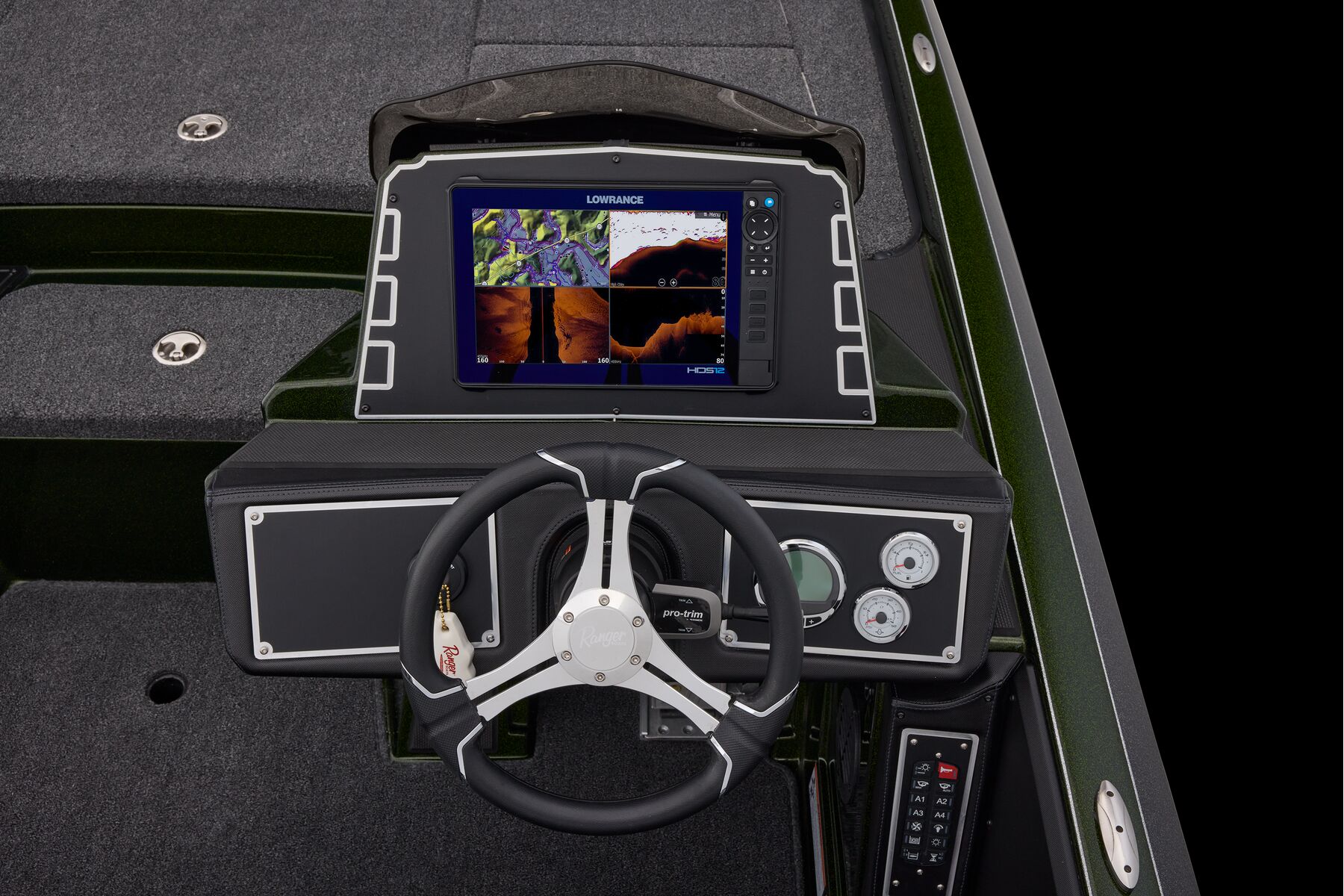

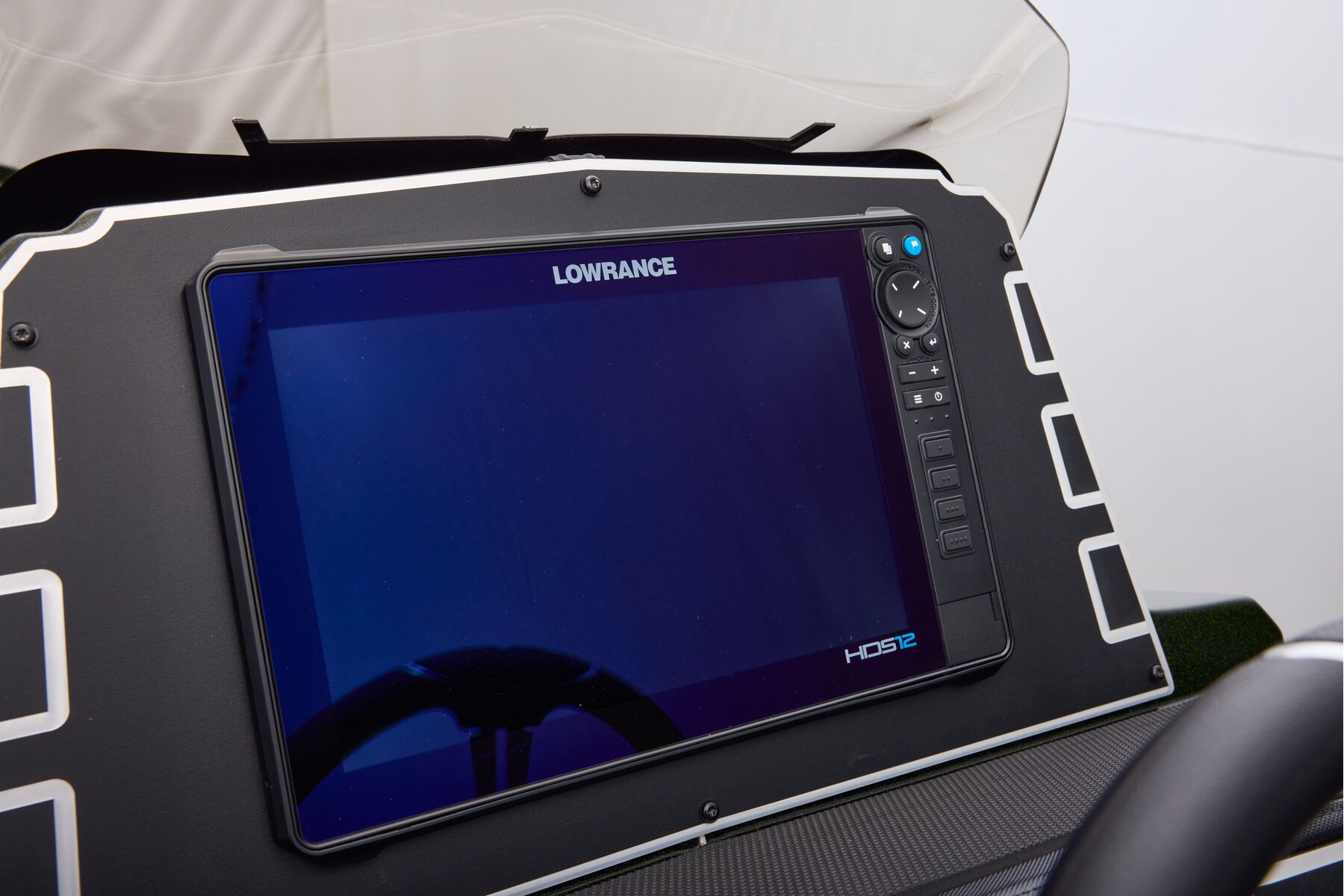

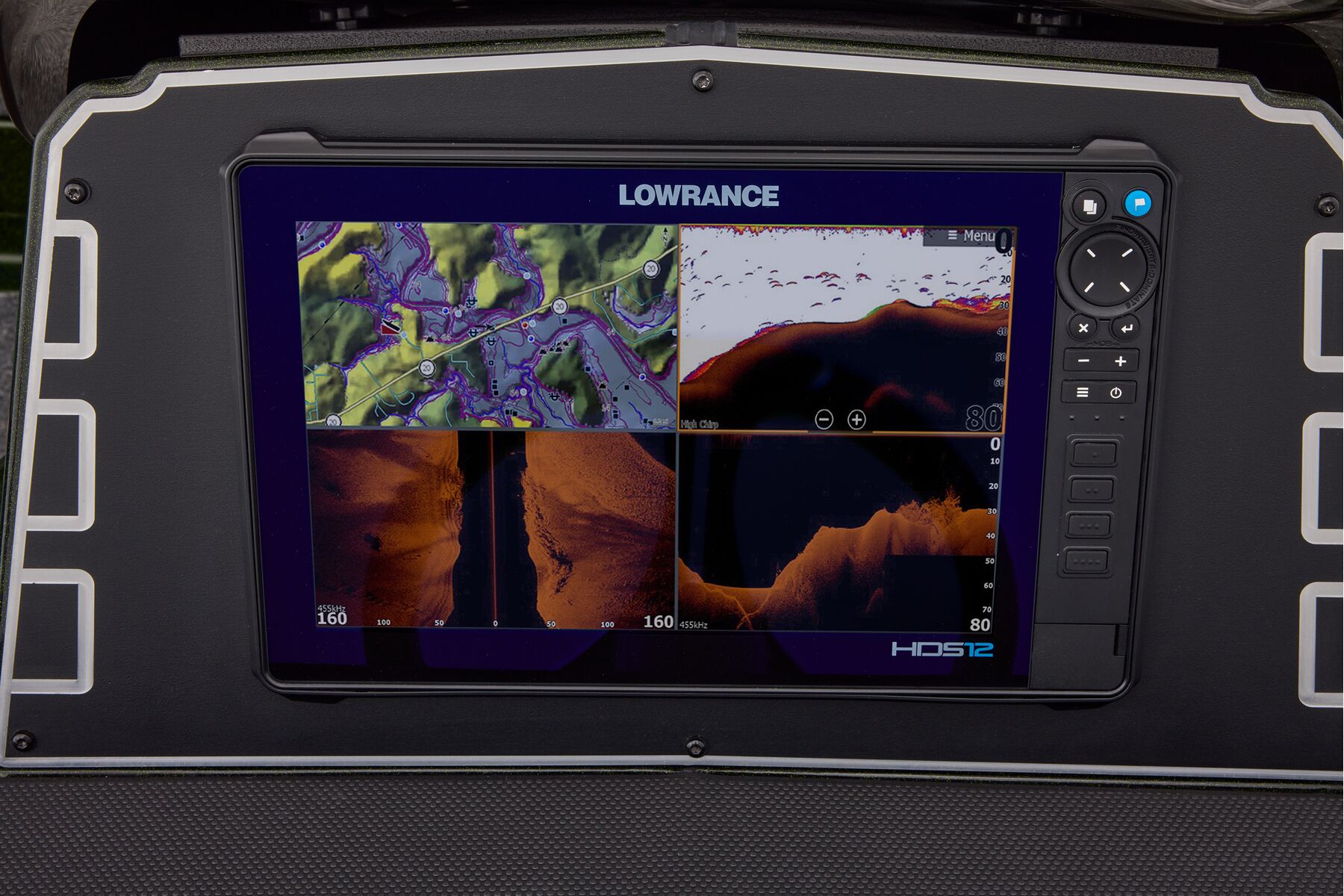

- Lowrance® Elite FS™ 9 w/ Active Imaging™ HD at console
Power/Performance

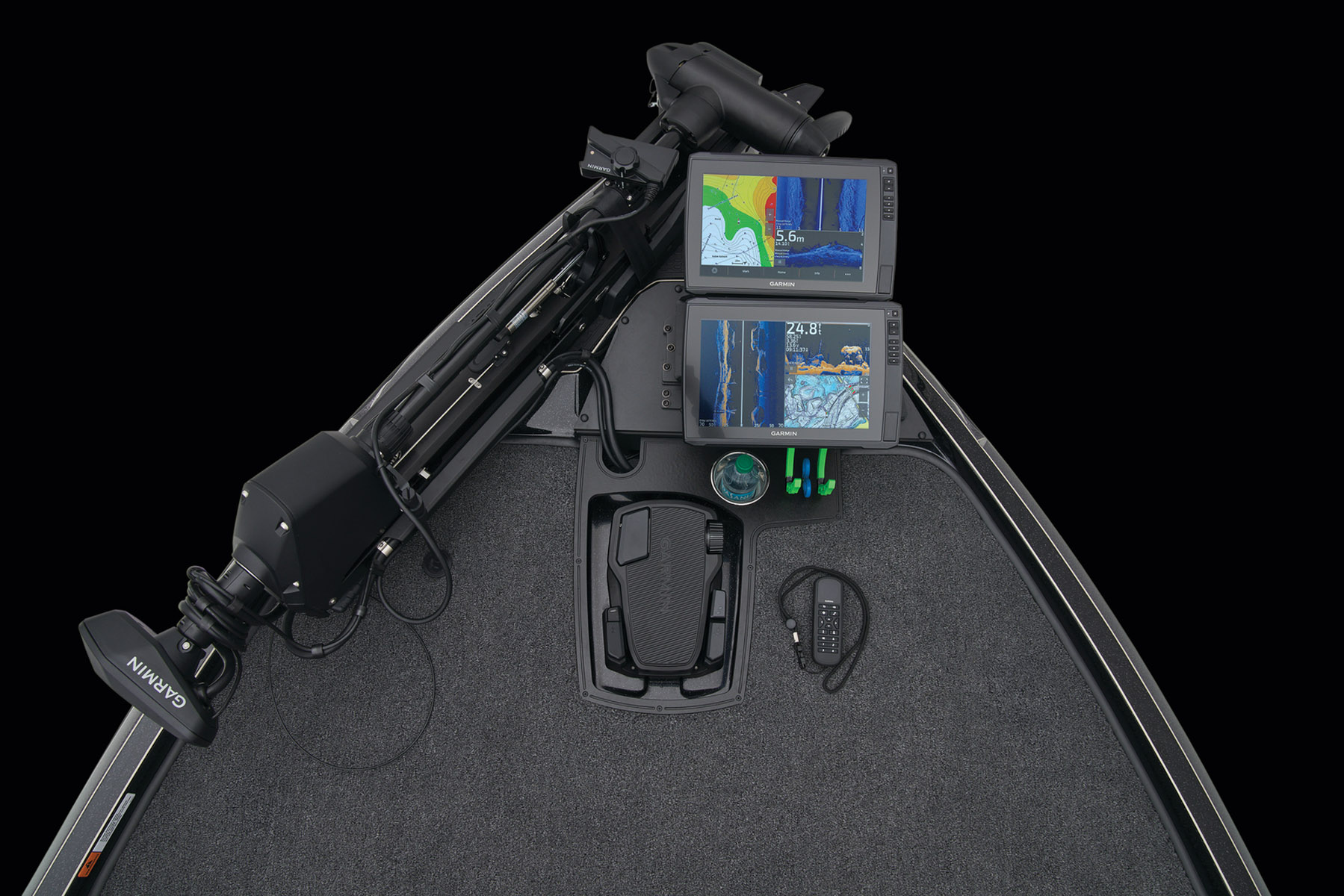

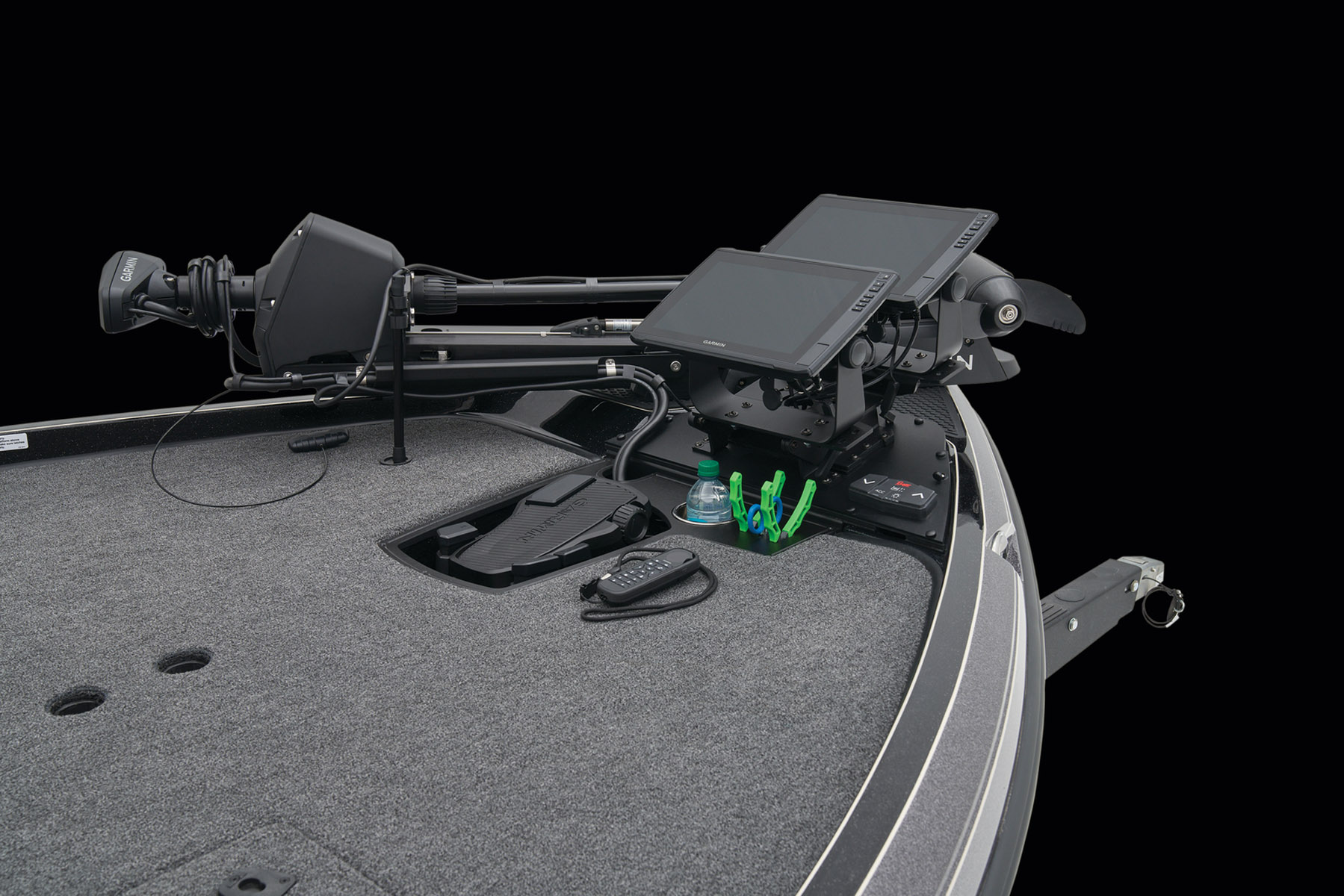

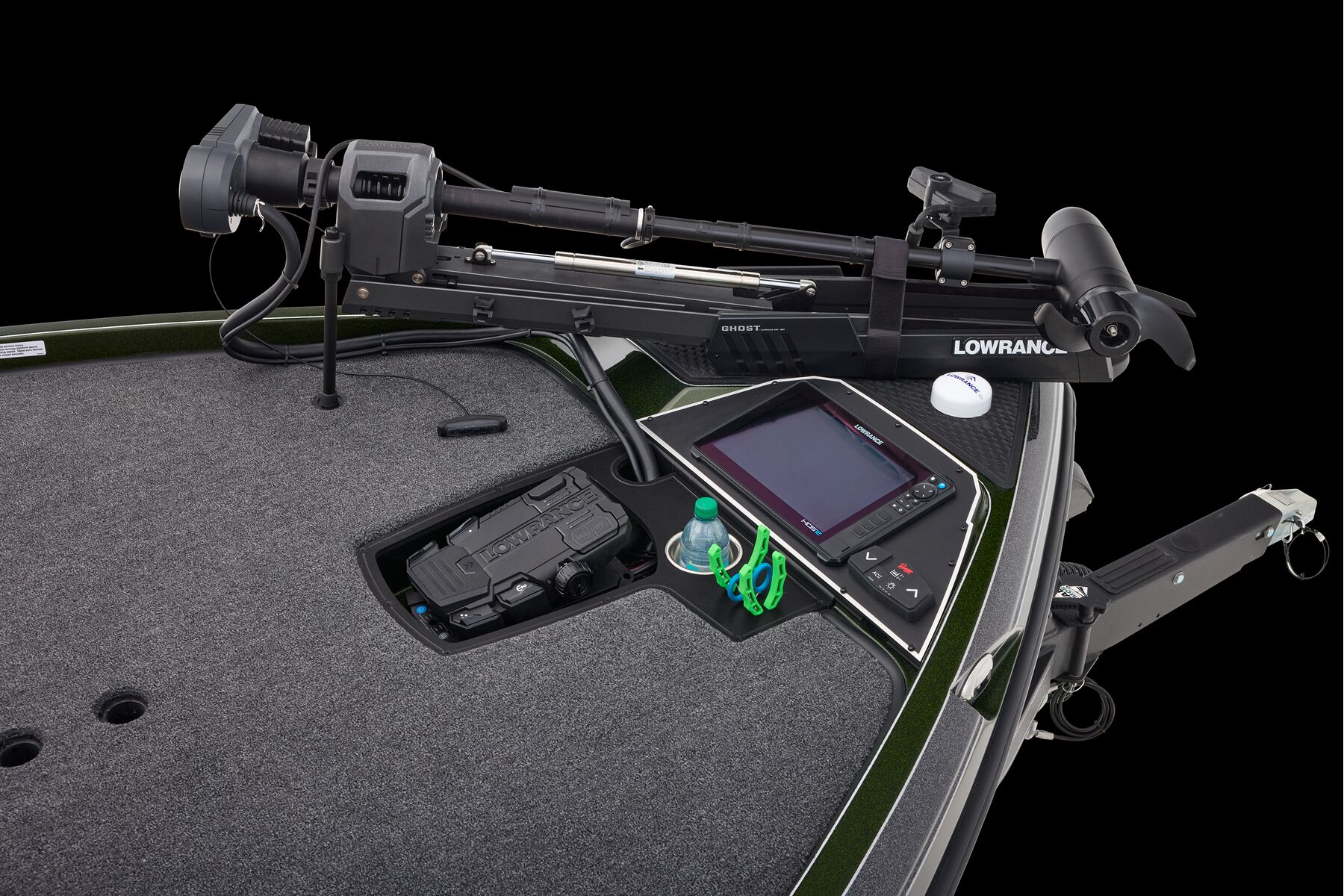

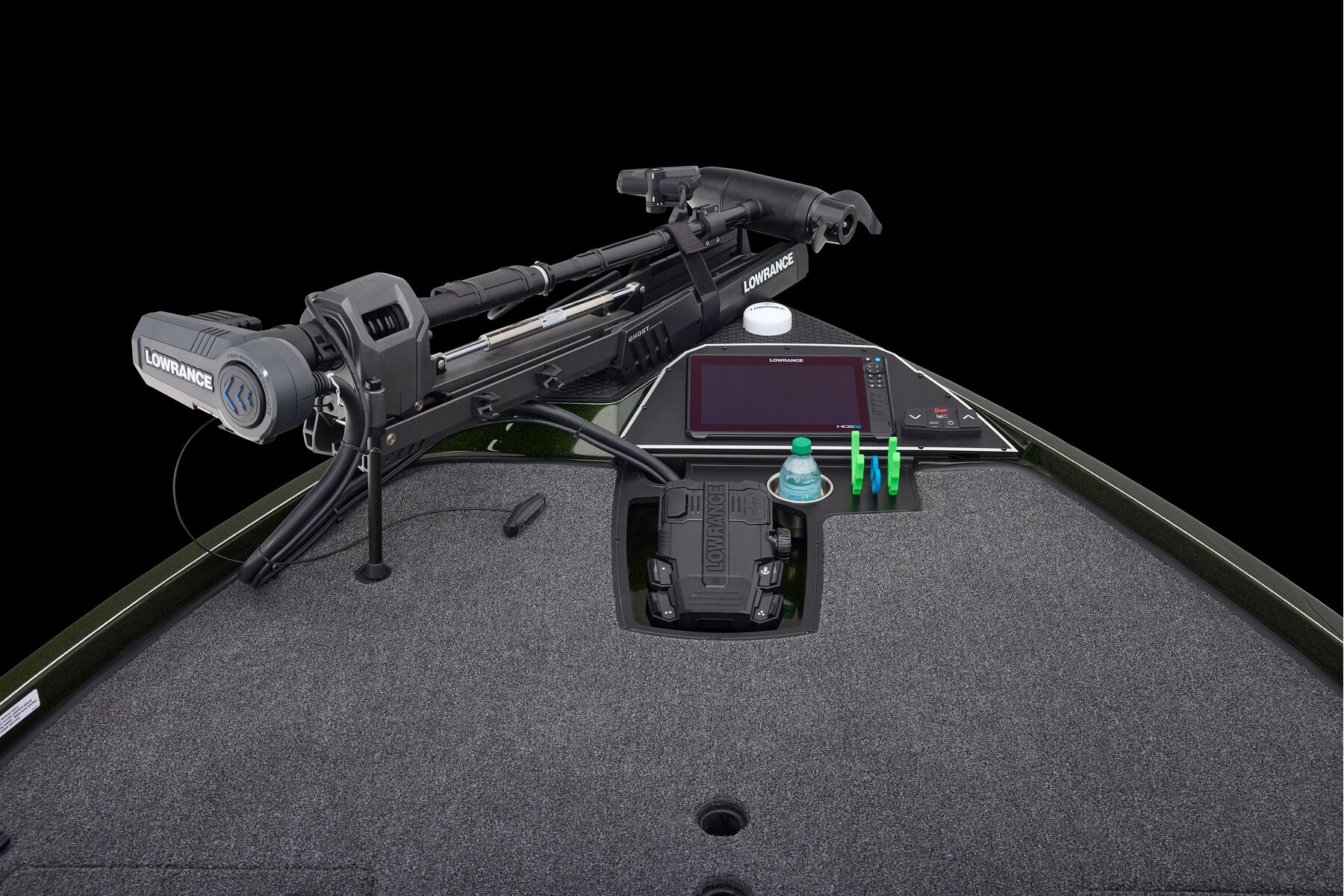

- MinnKota® Fortrex 80lb , 45" DSC 24V trolling motor
- AGM Starting battery w/ tray
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback

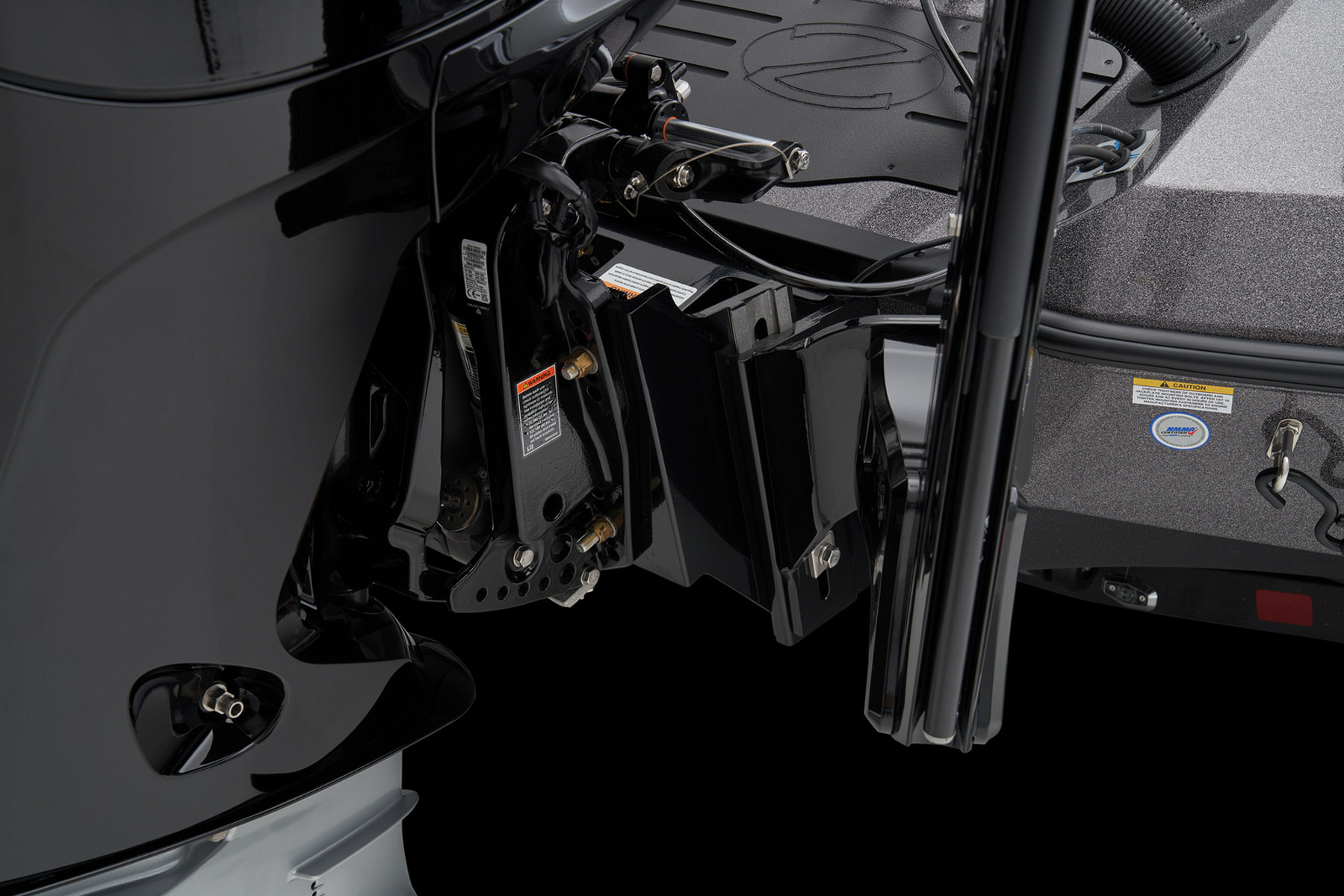

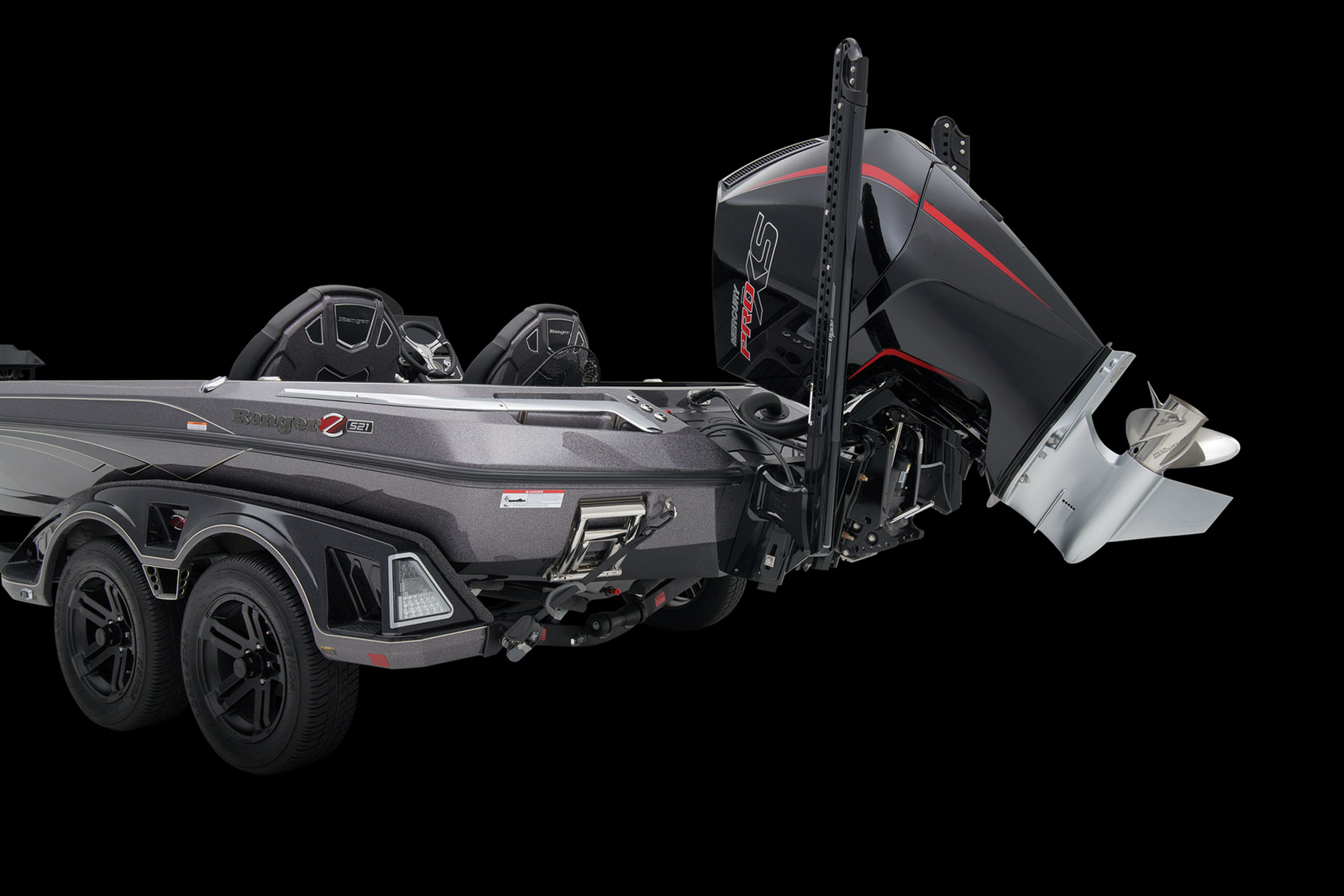

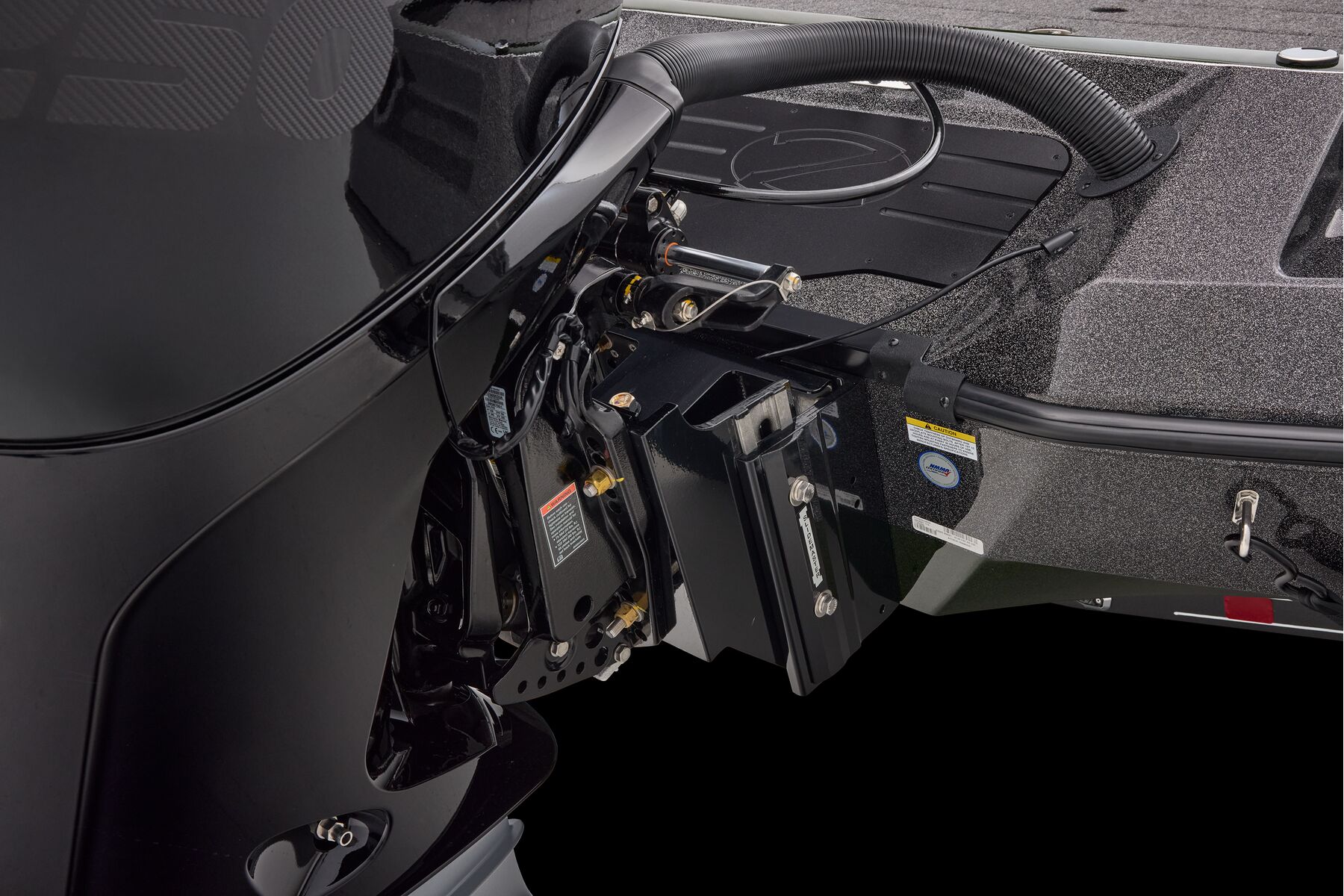

- 12" manual setback plate
- Hydraulic steering

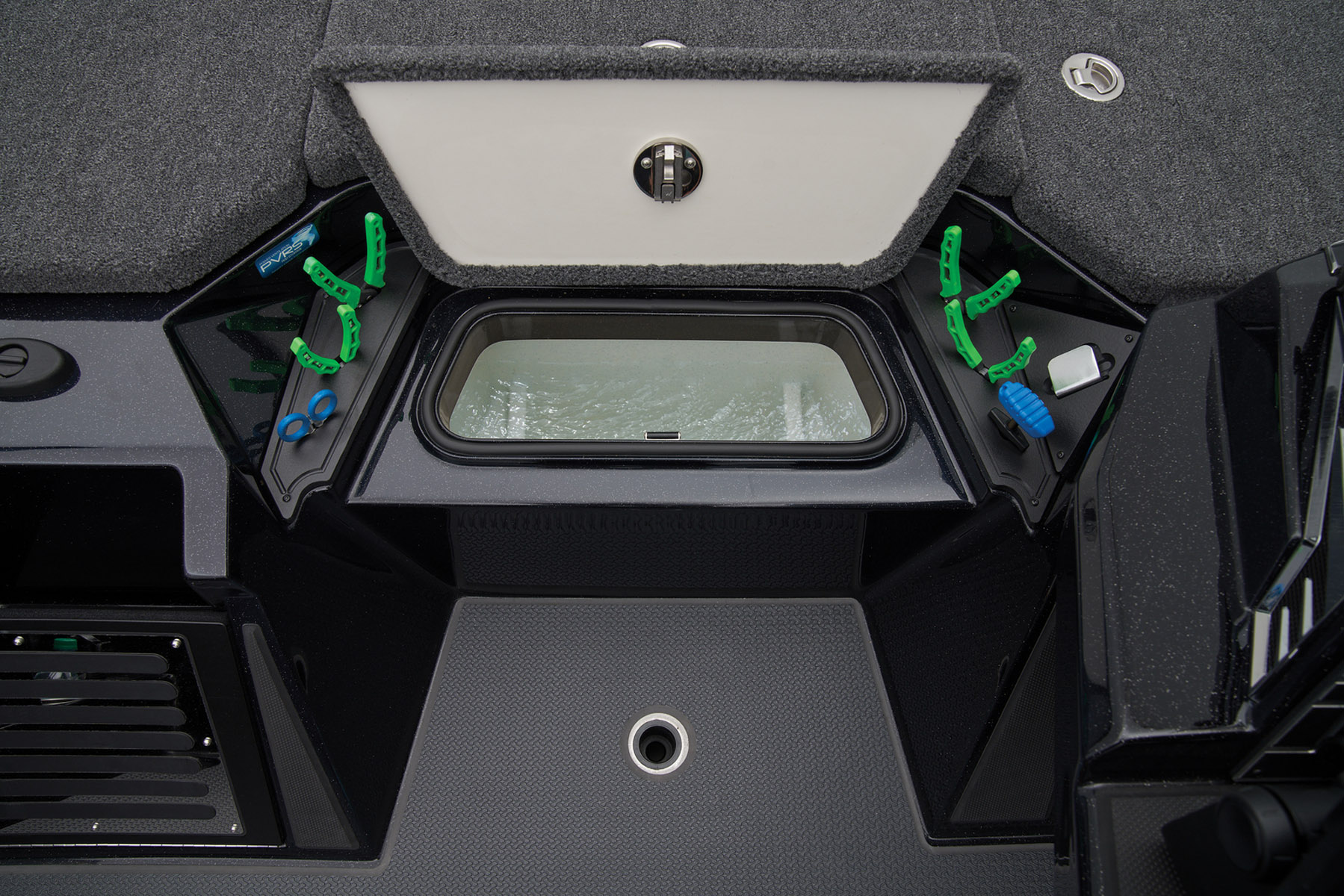

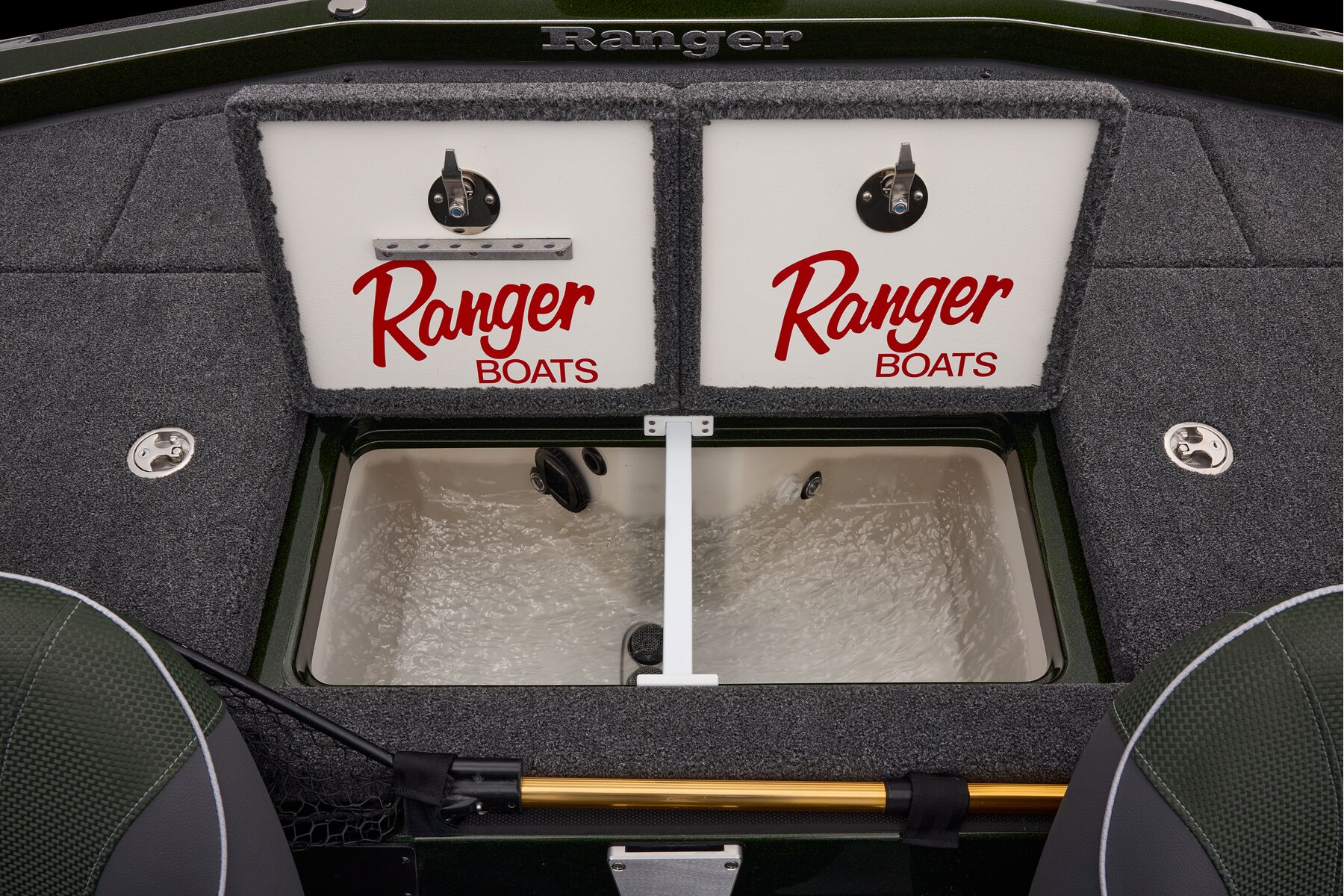

- Recirculating aerated livewell w/ removable divider
- Venturi aeration system

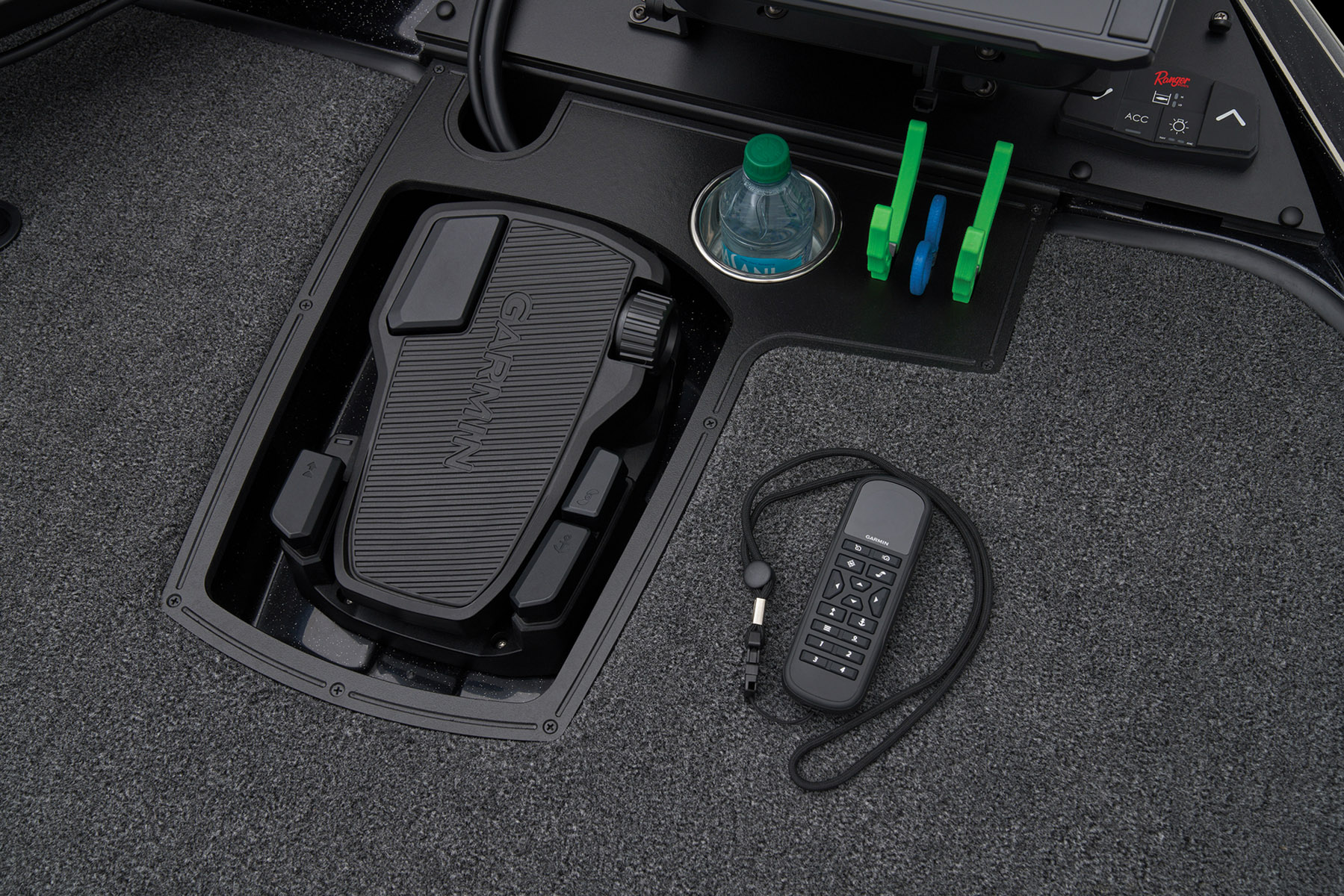

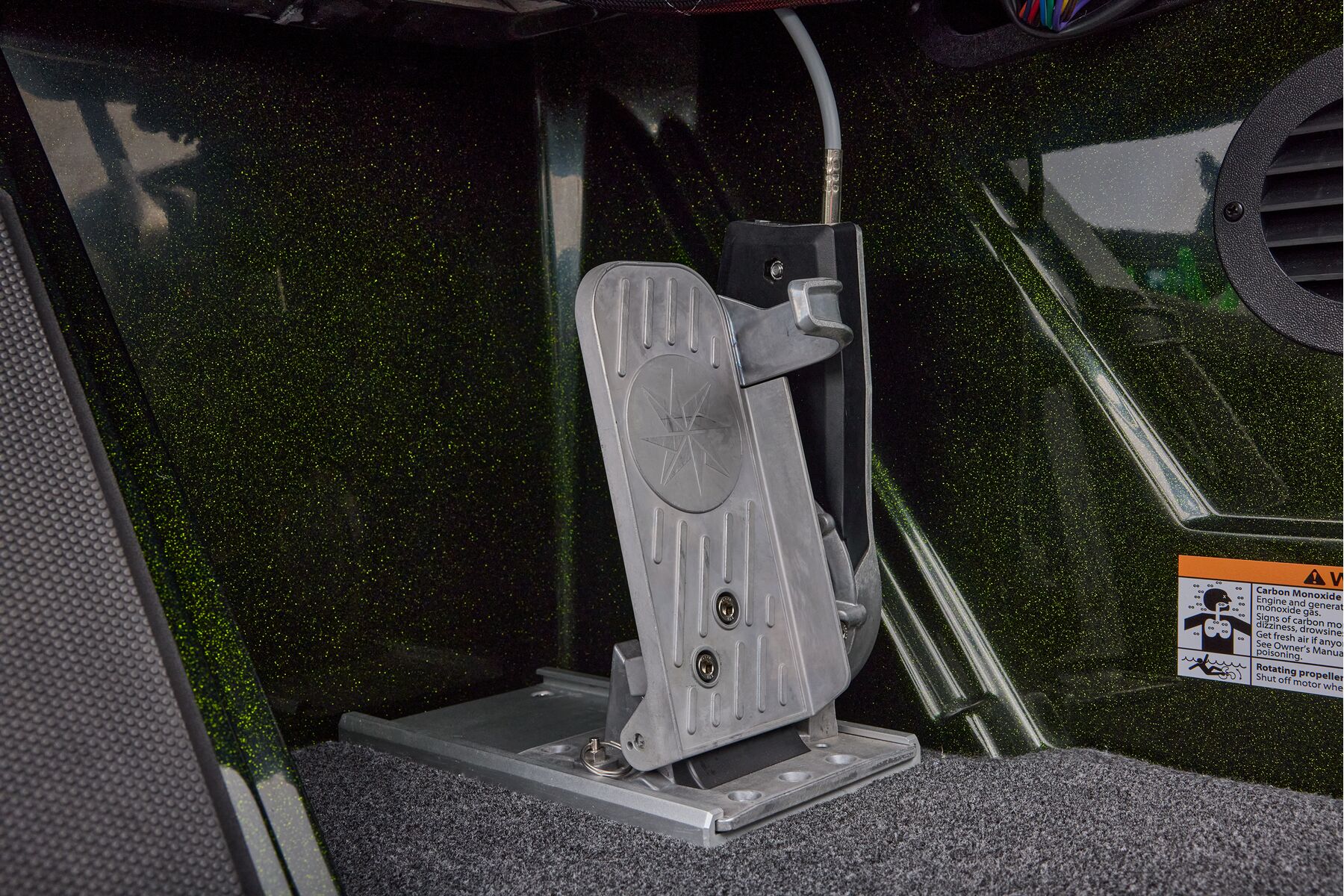

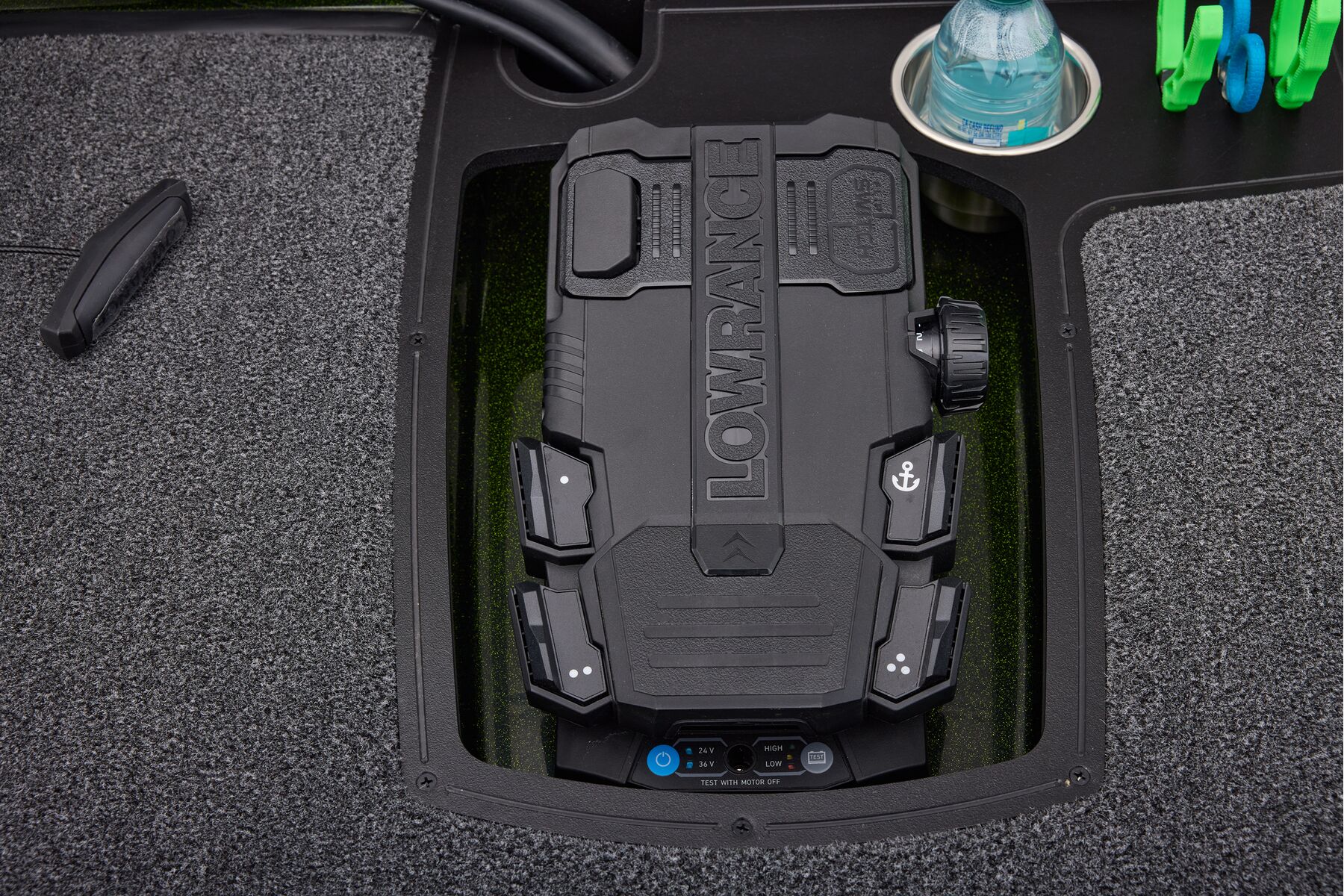

- Recessed trolling motor foot pedal
- High performance stainless steel prop
- Foam-filled fiberglass stringer system
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards

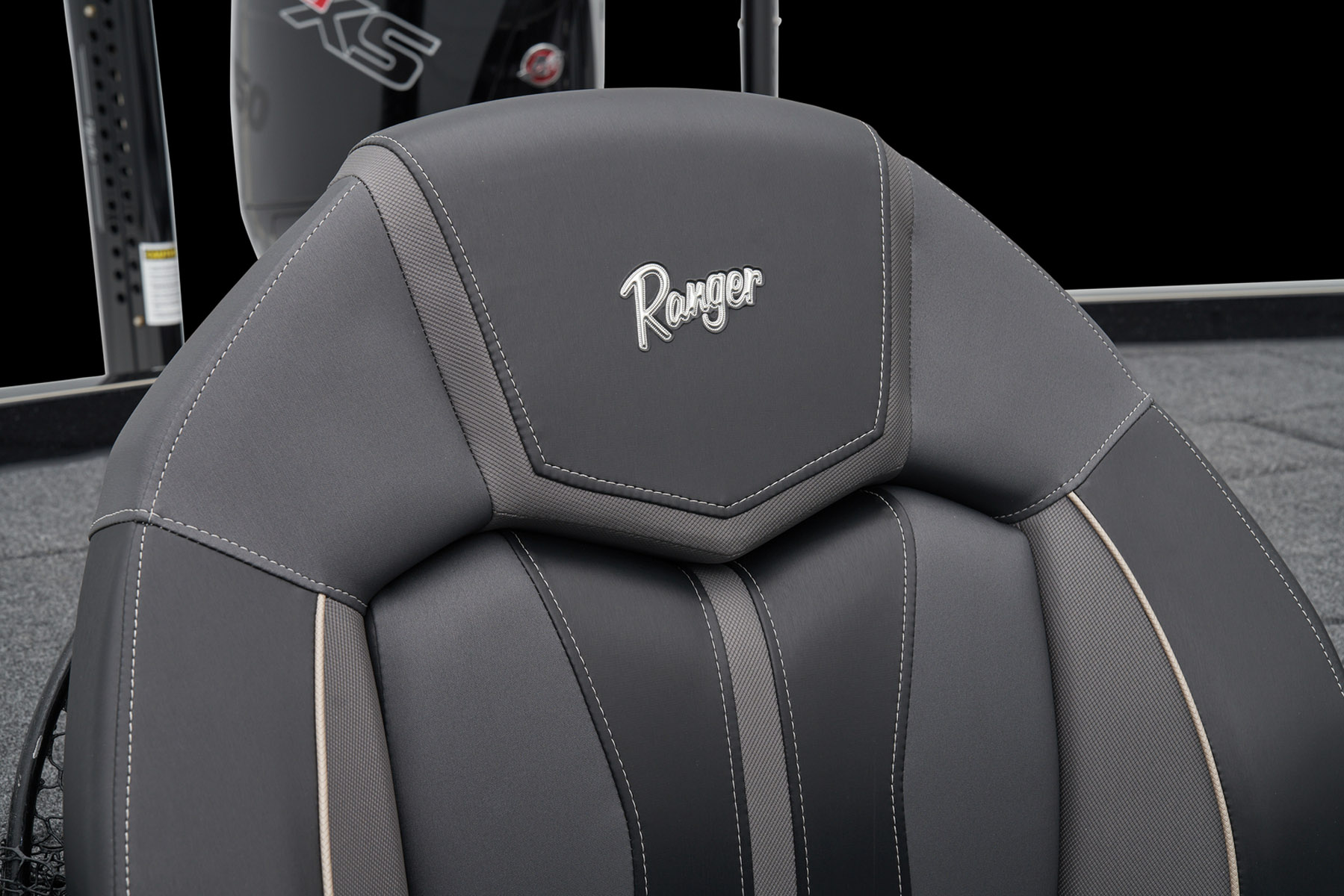

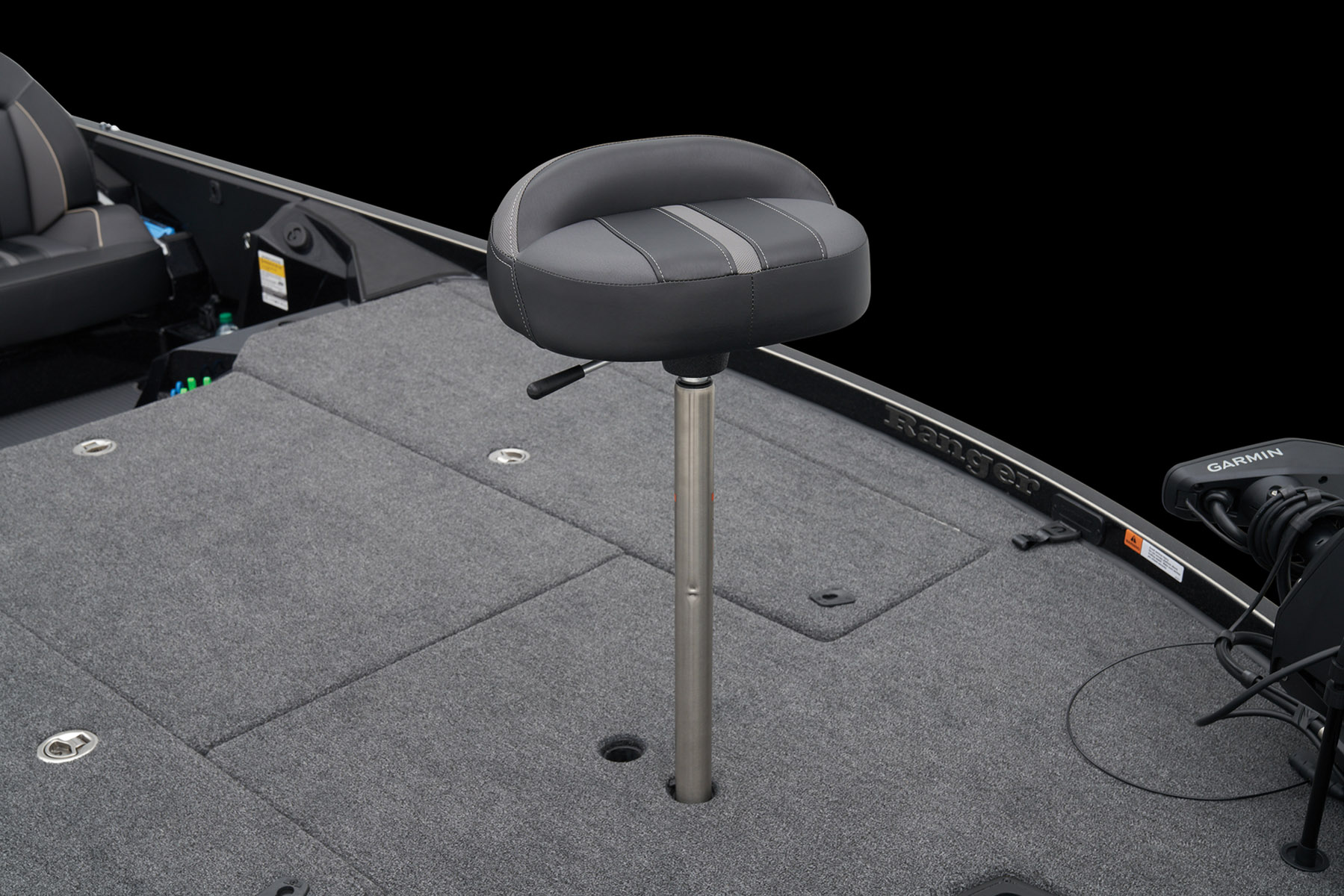

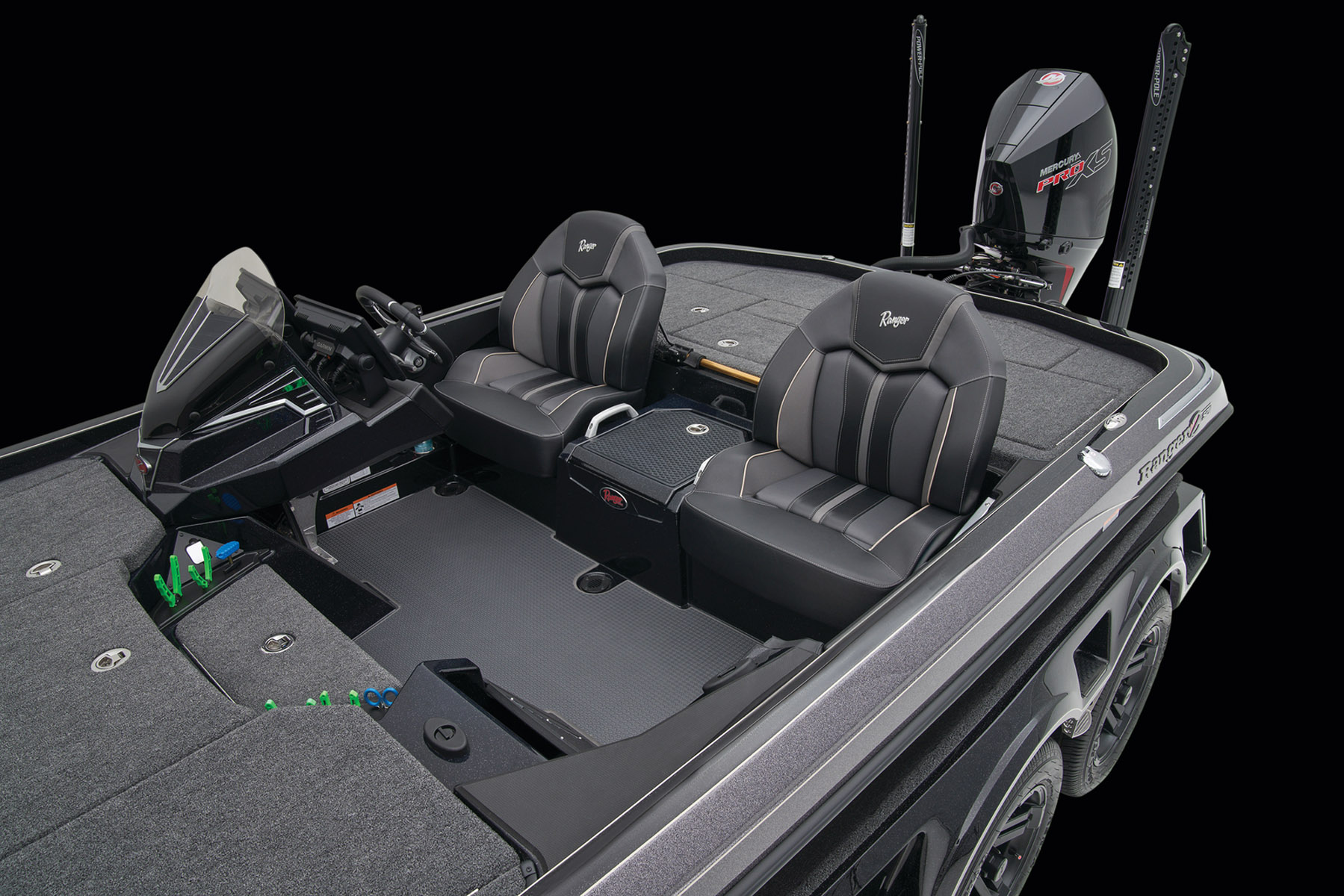

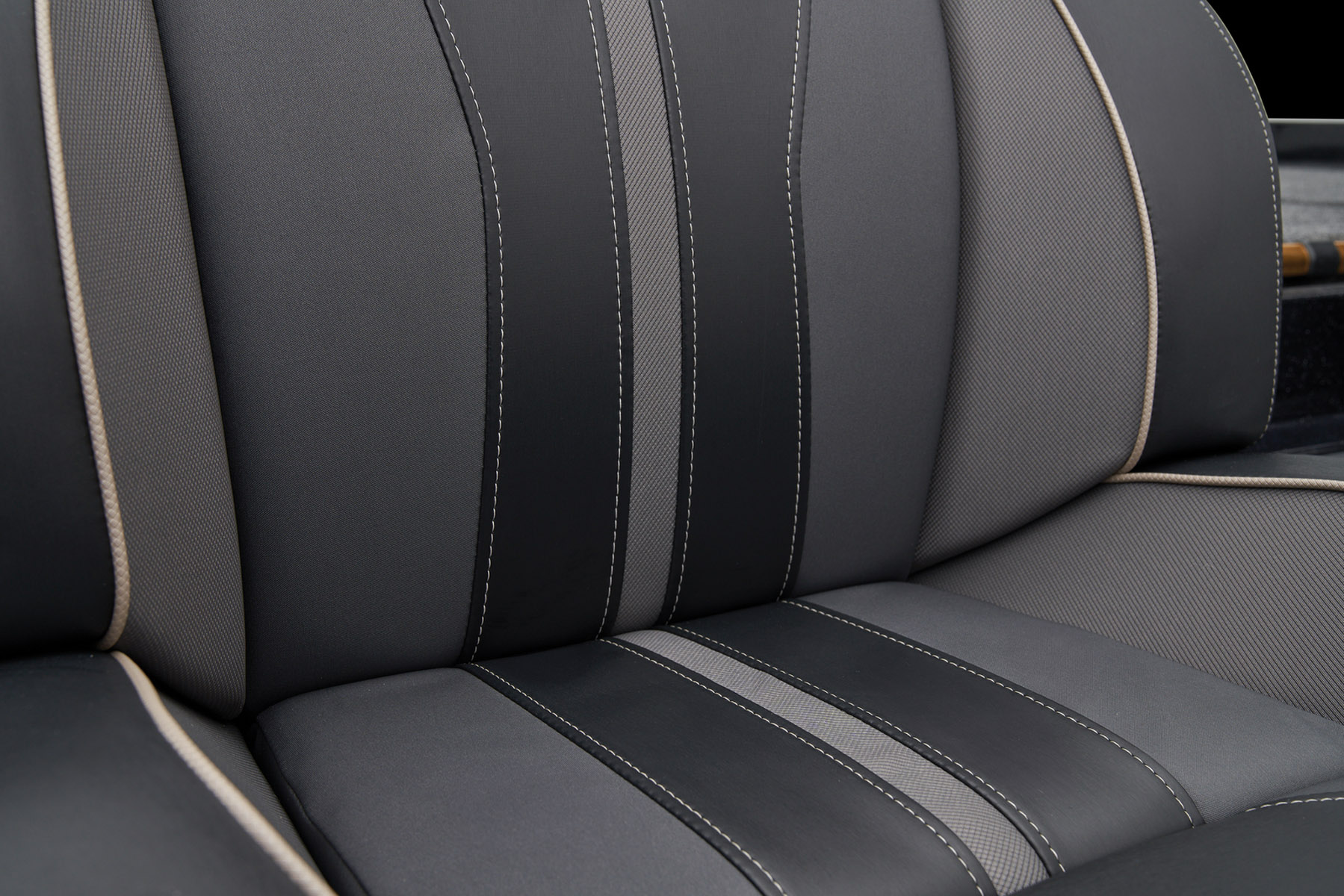

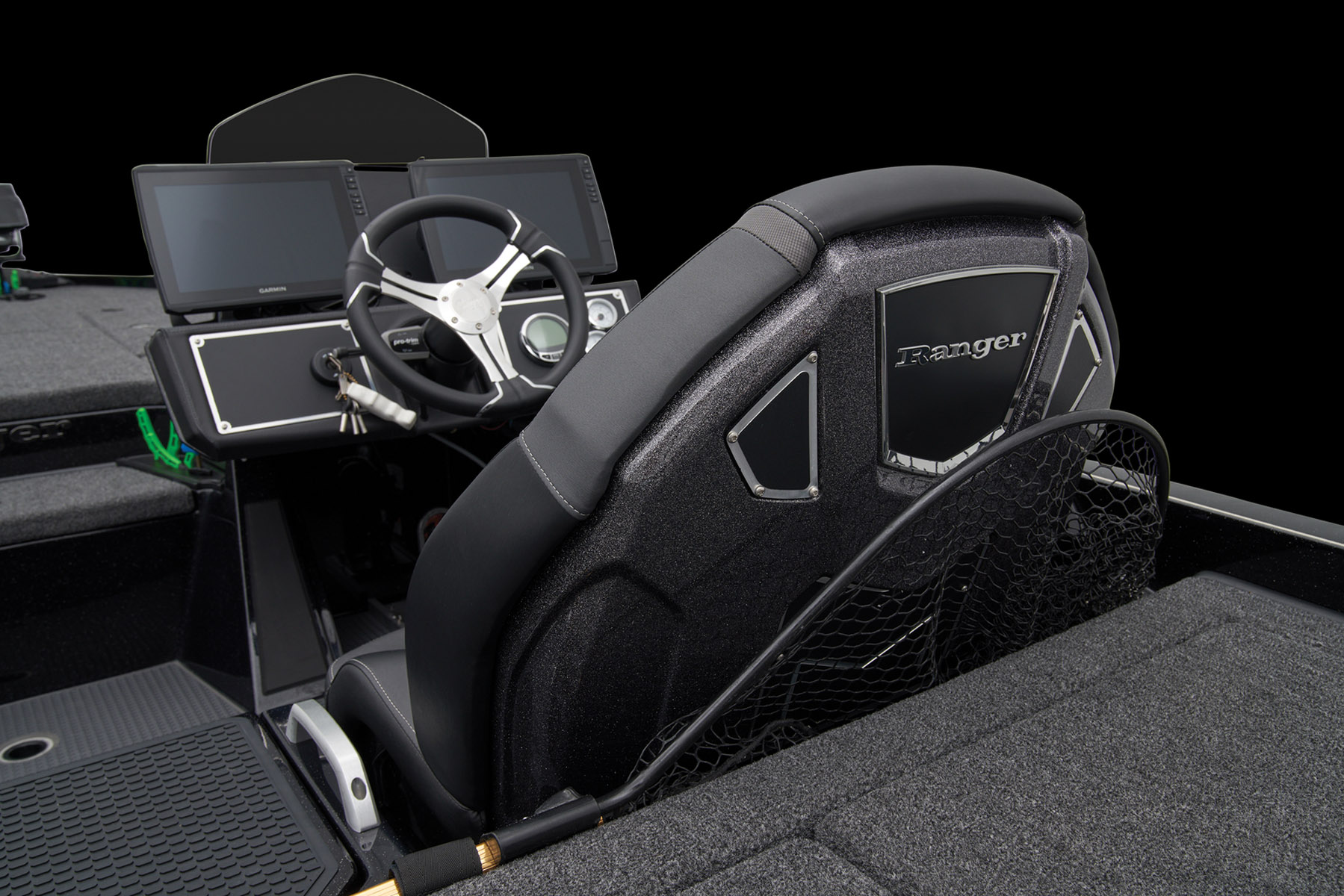

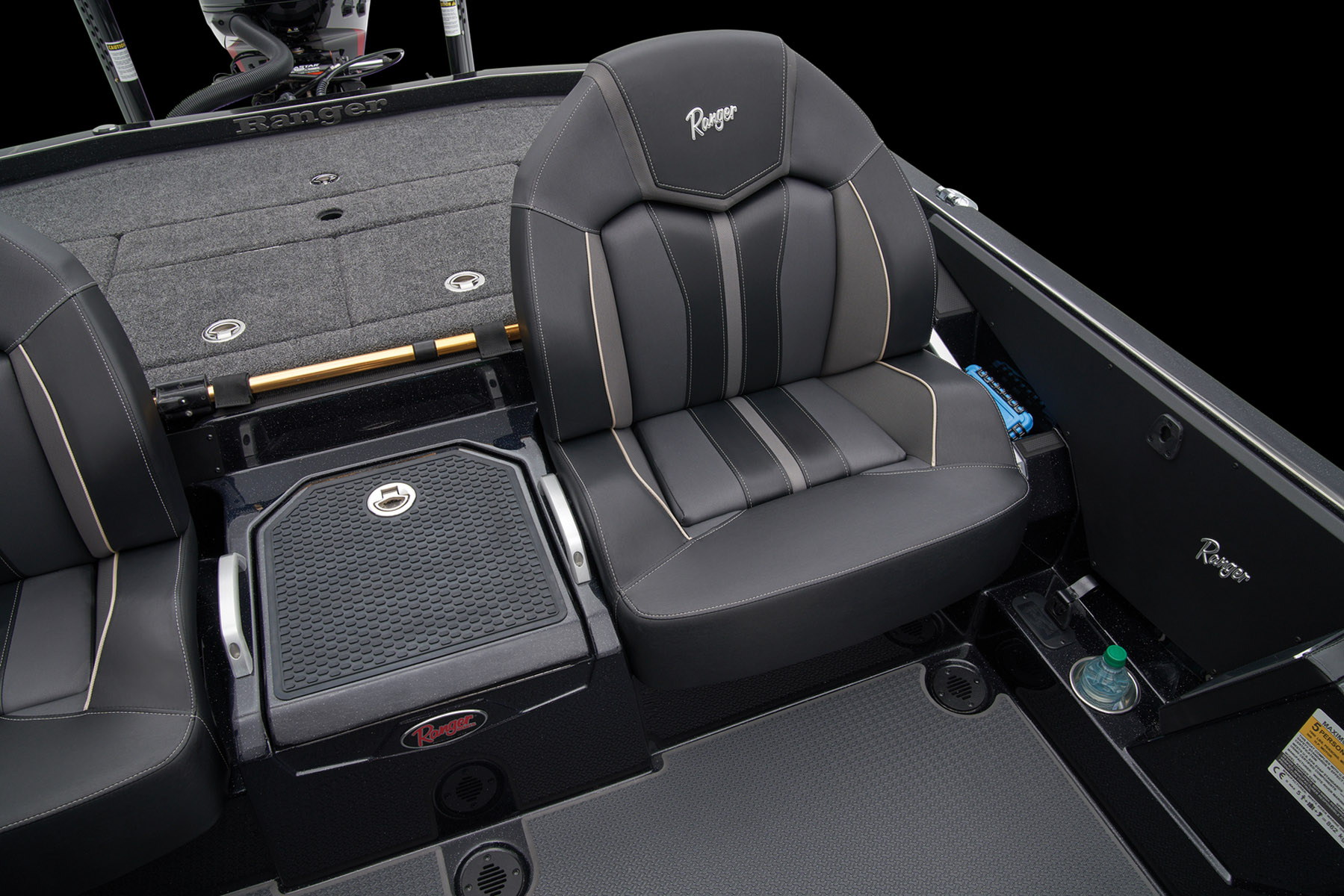

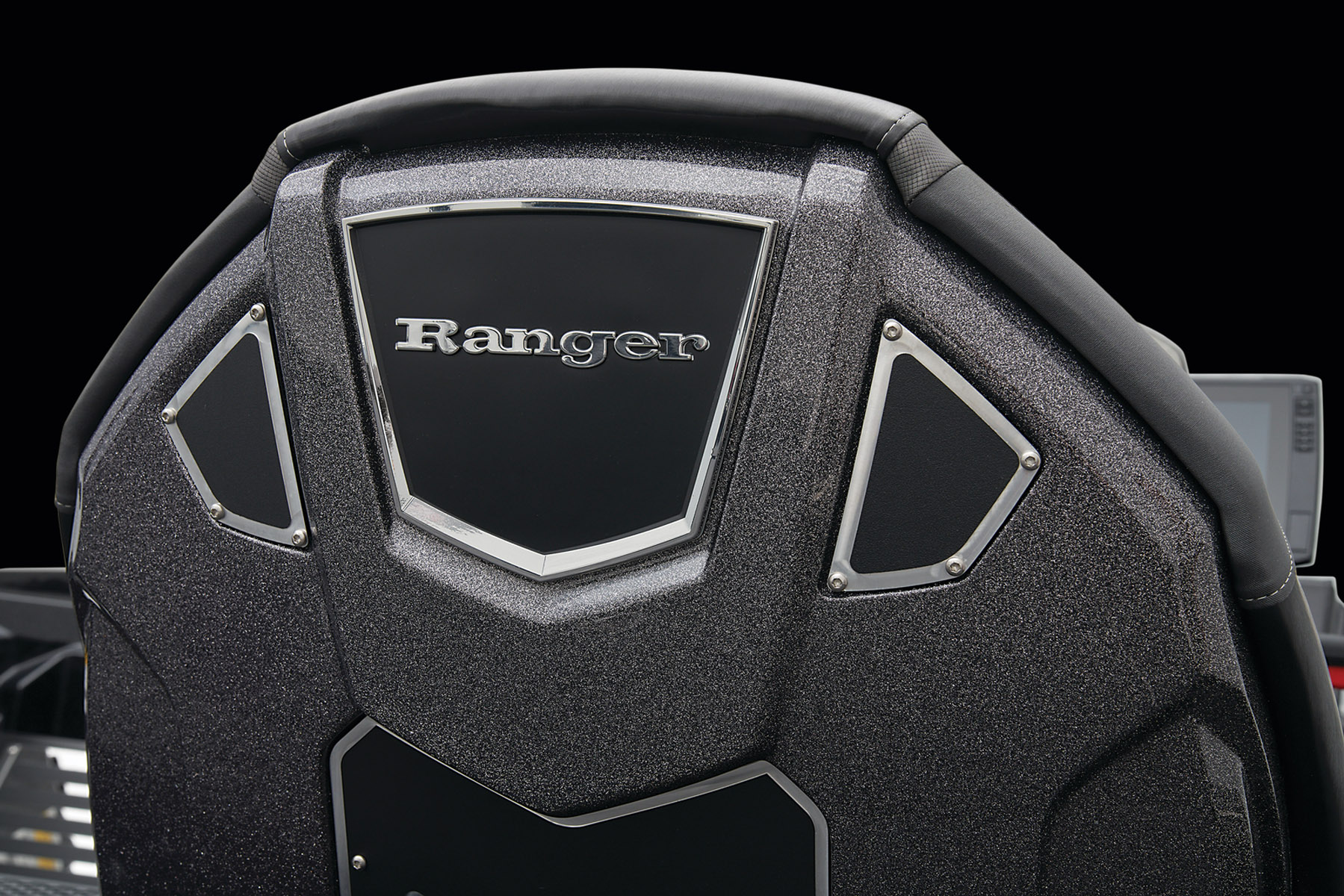

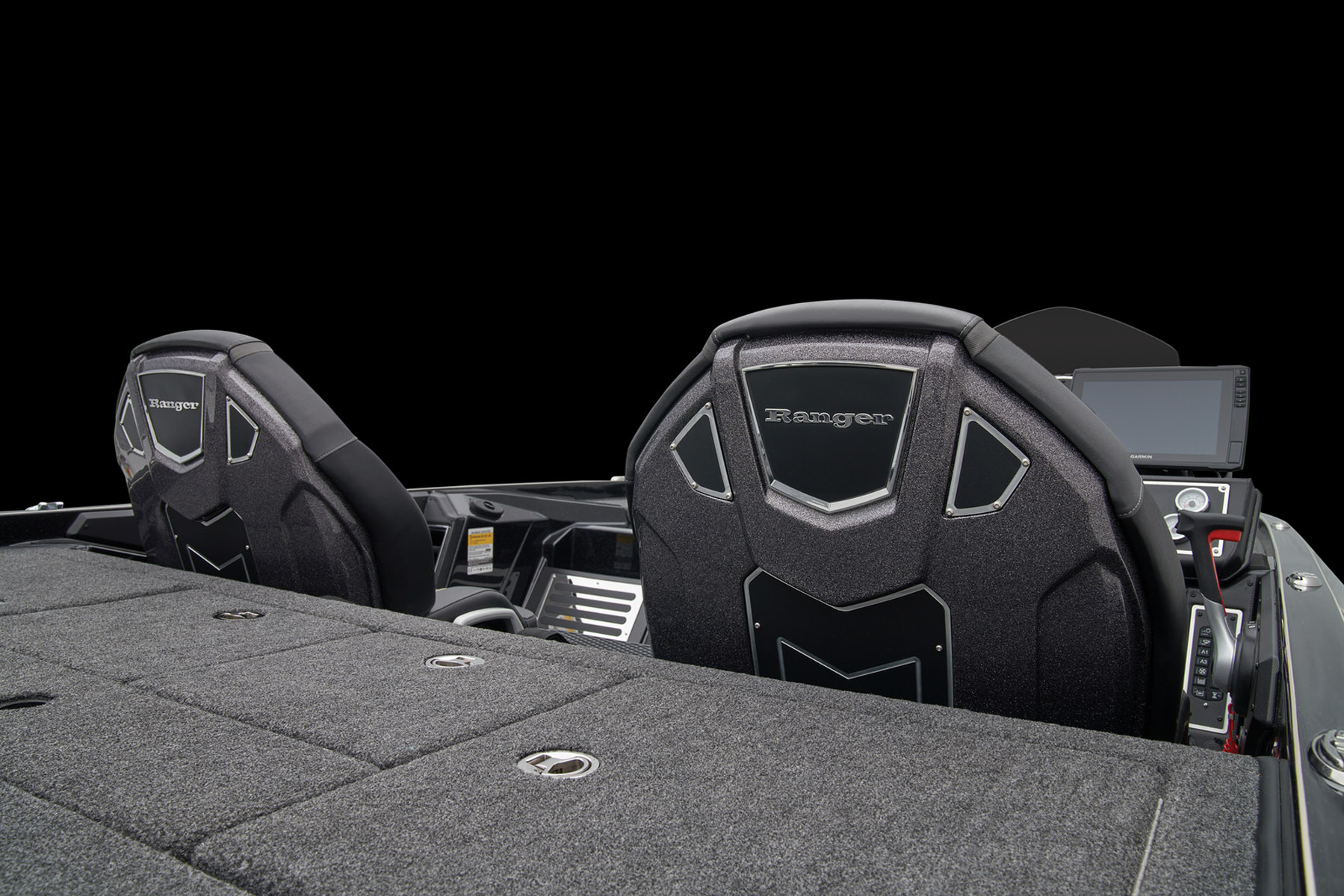

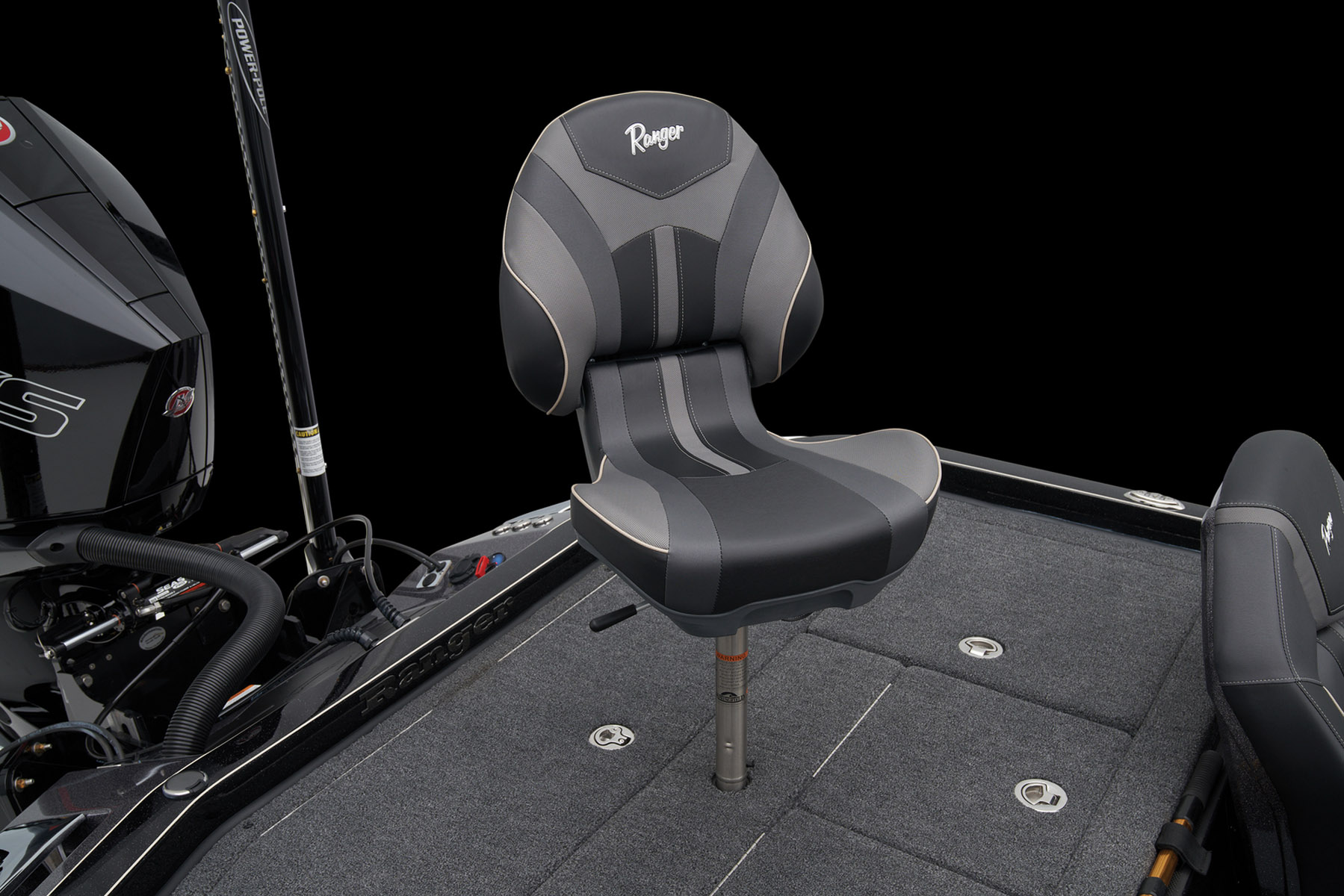

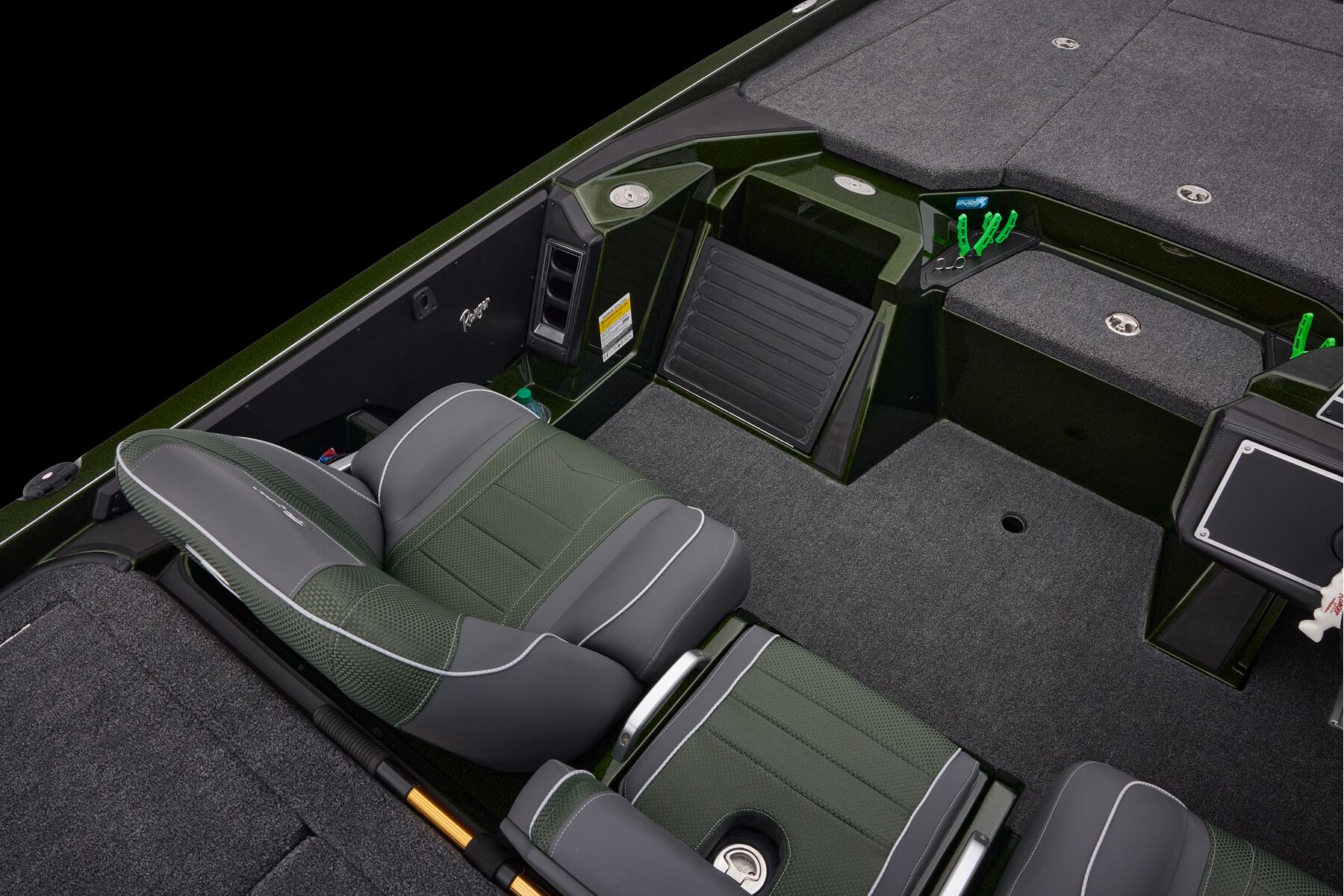

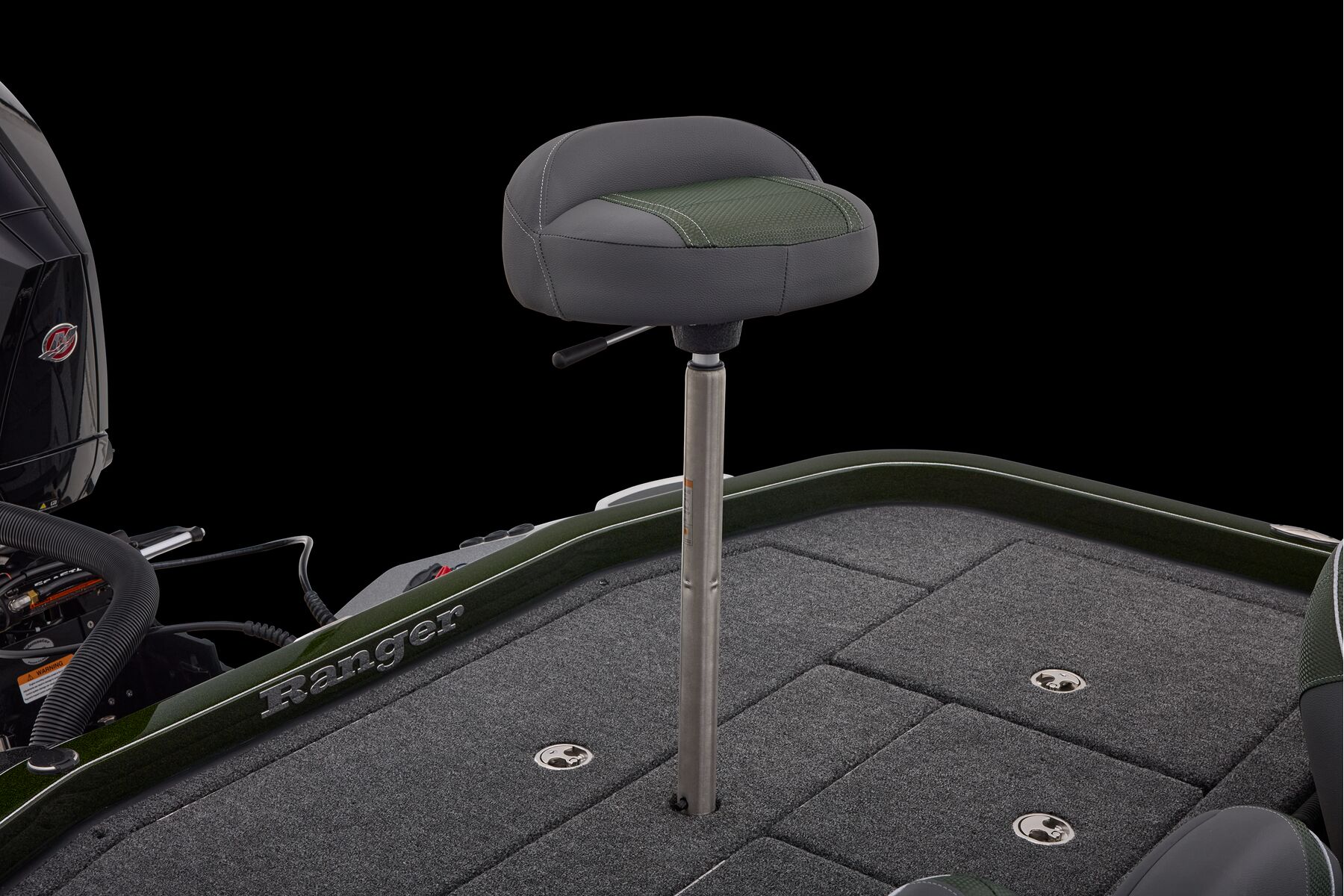

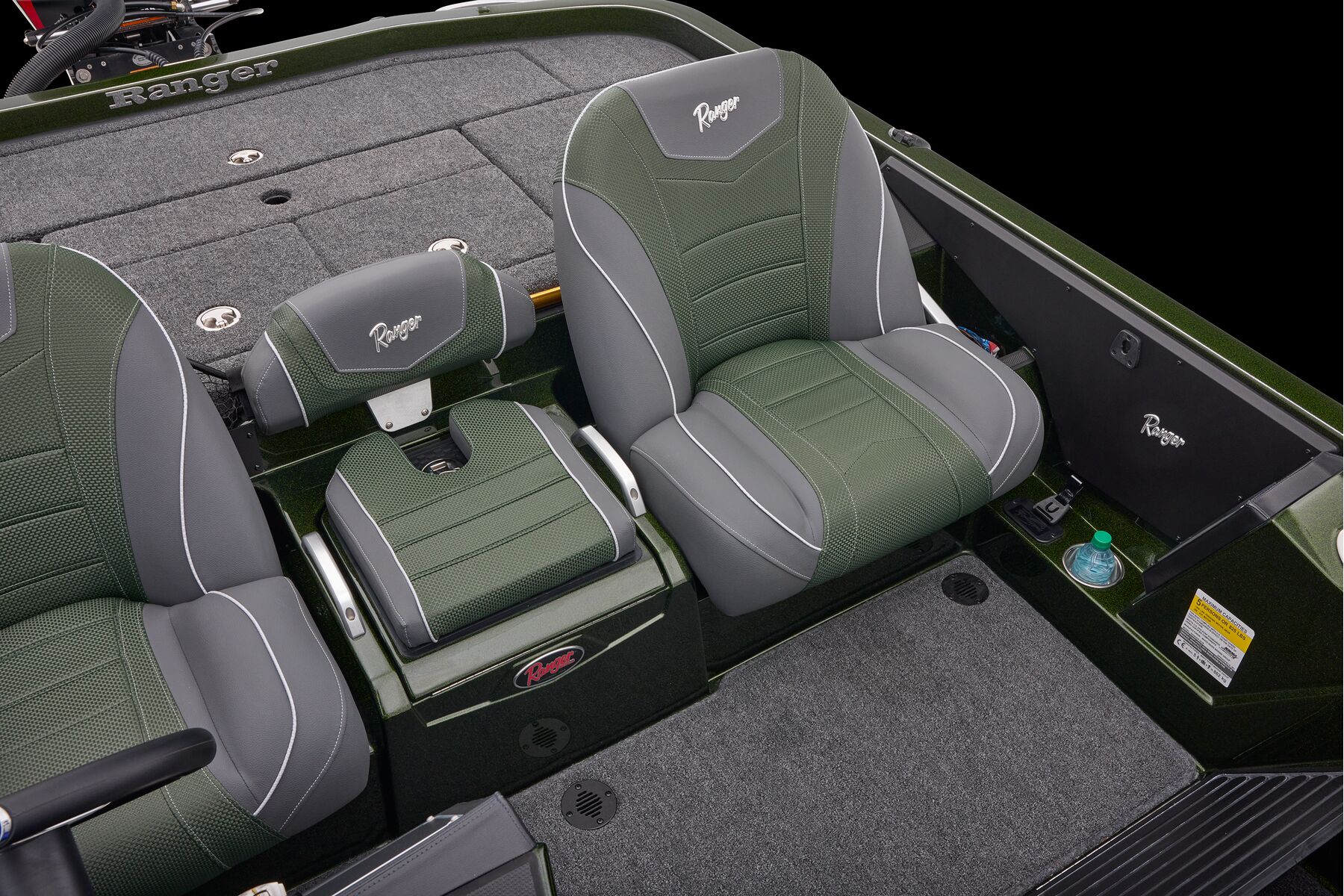

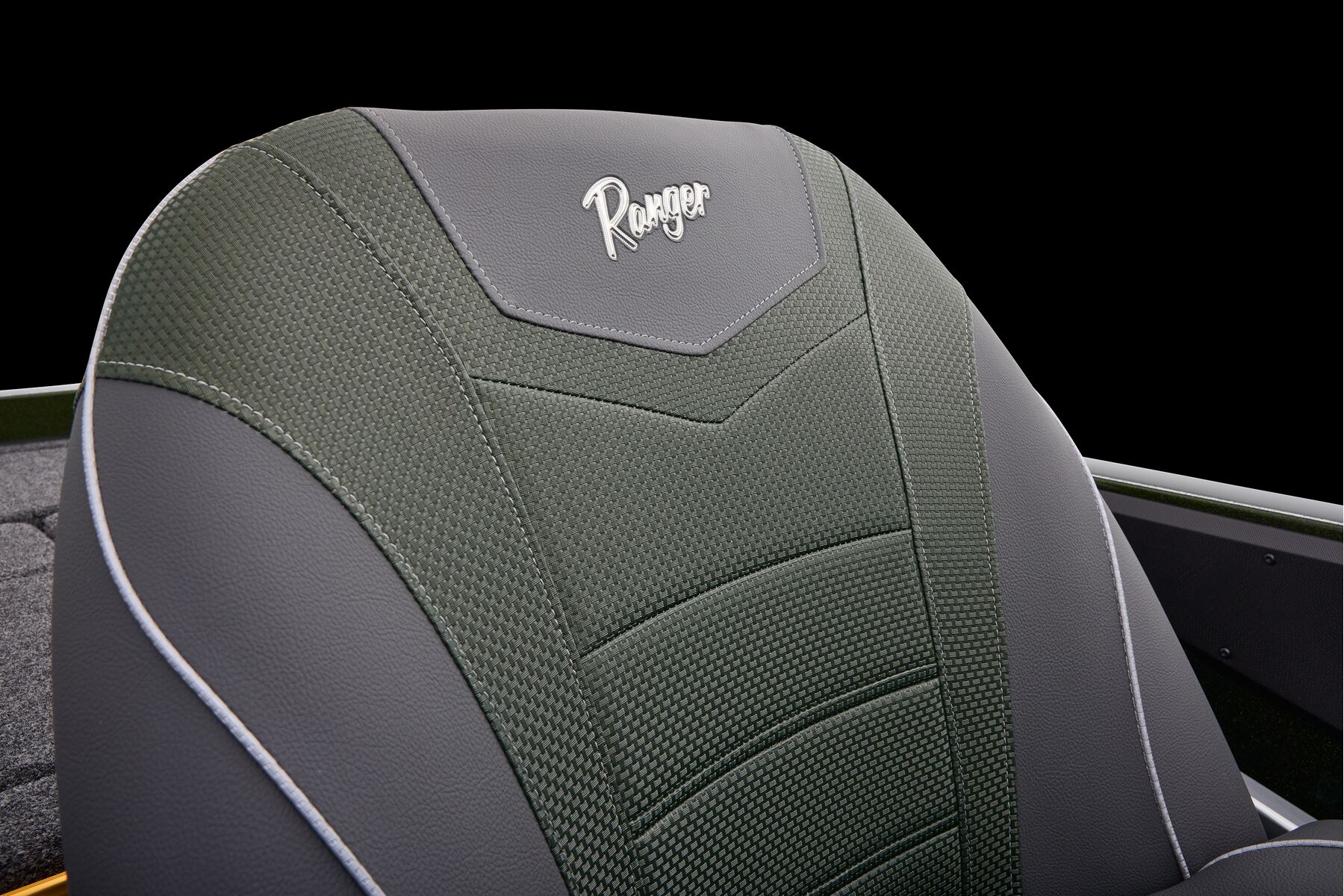

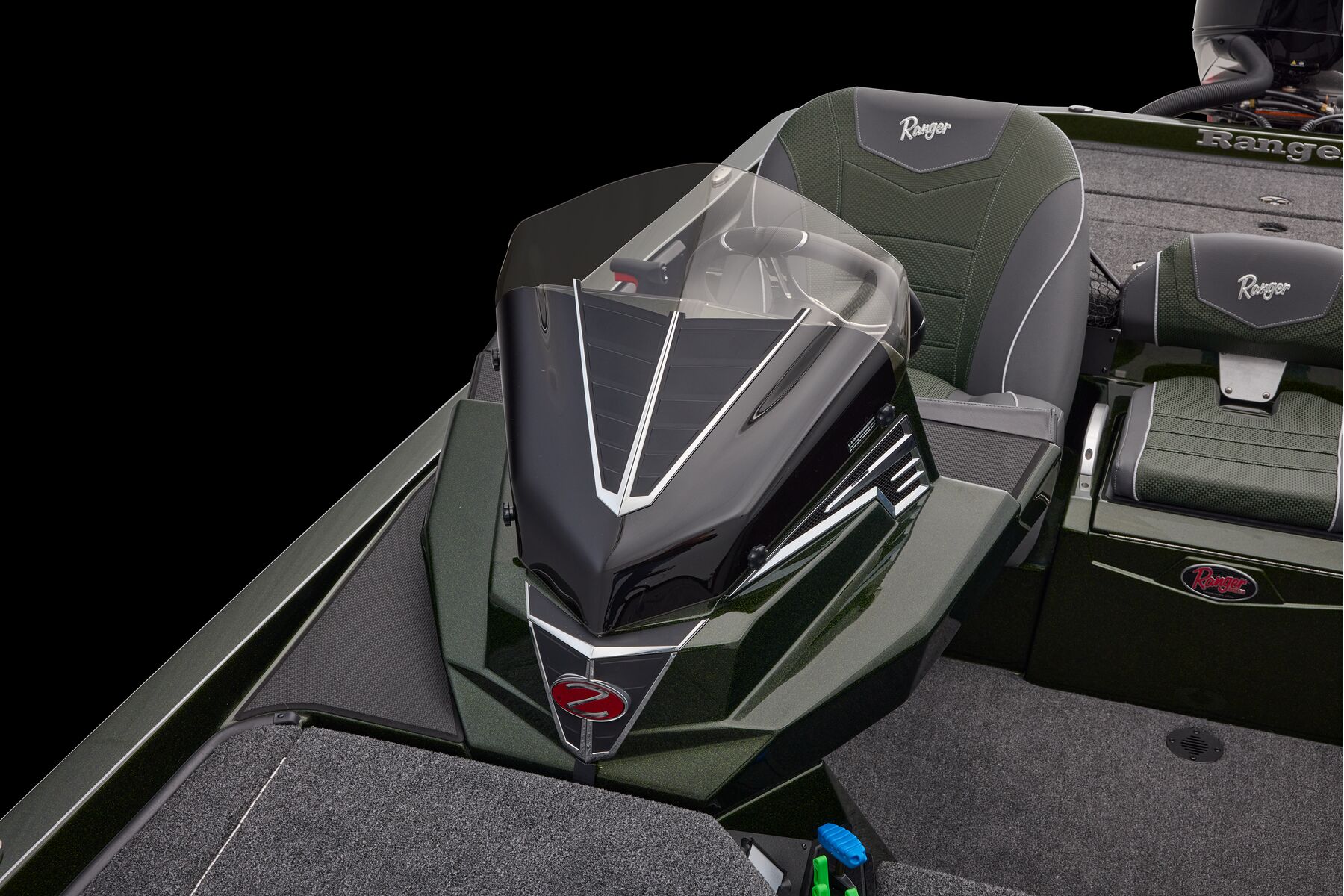

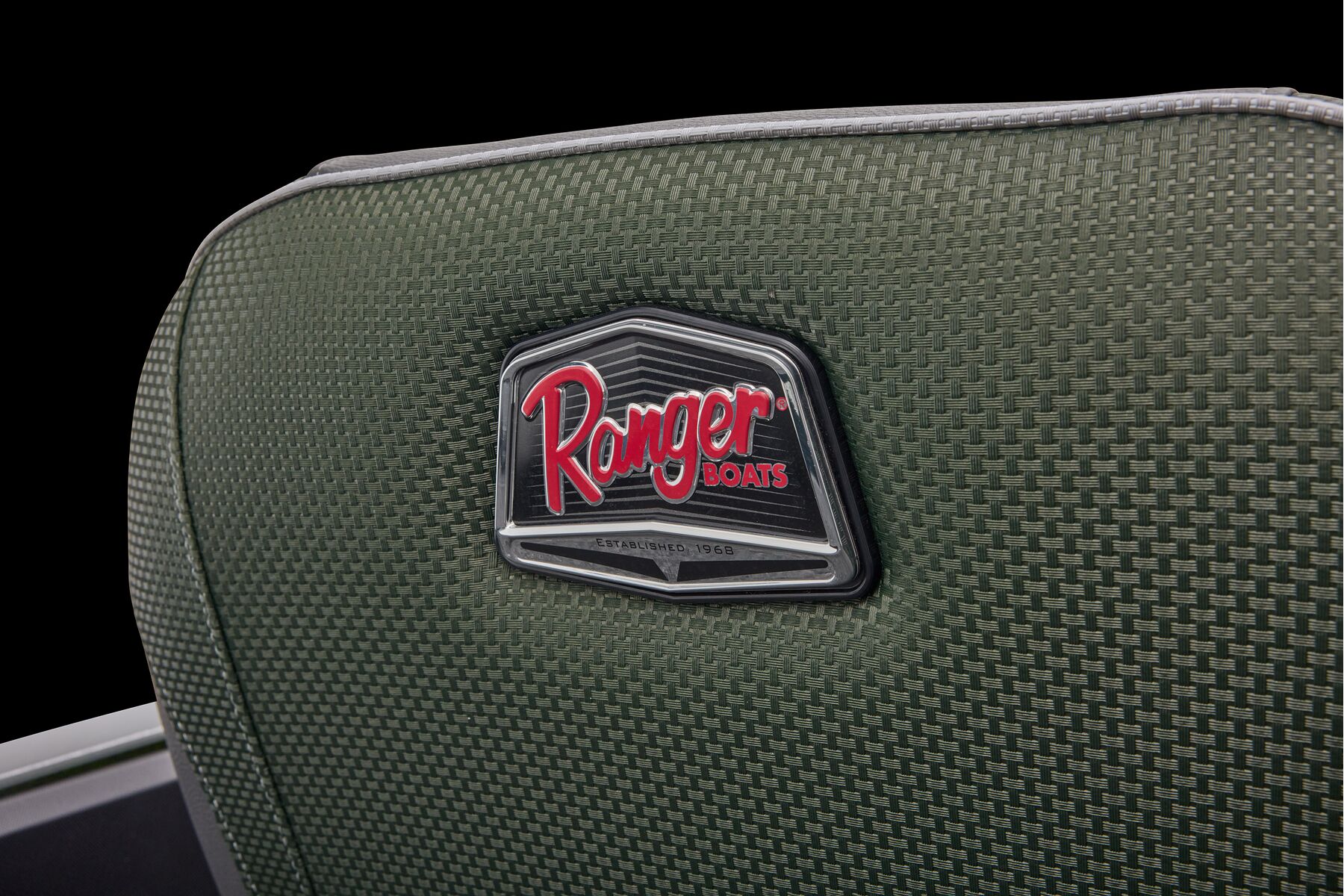

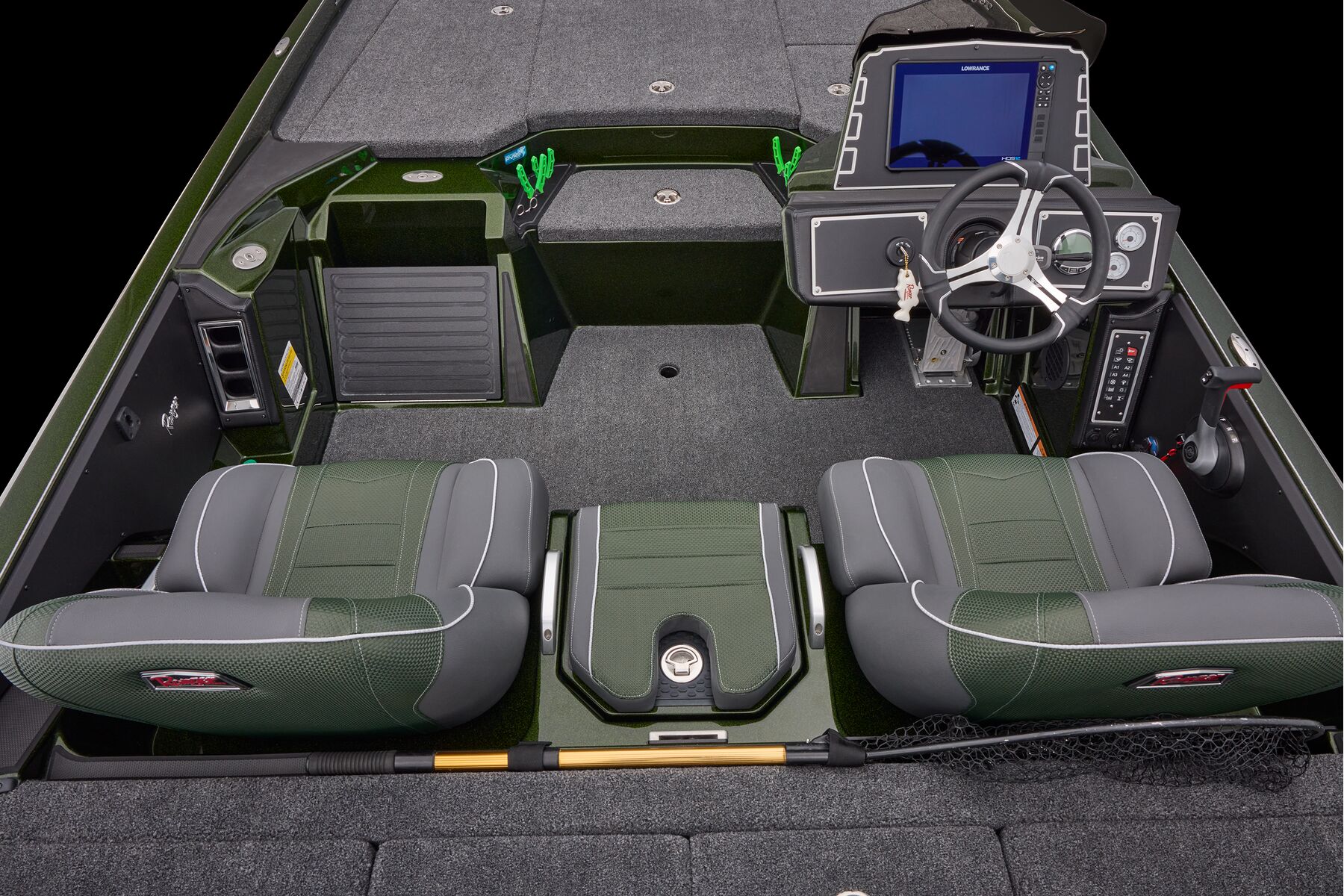

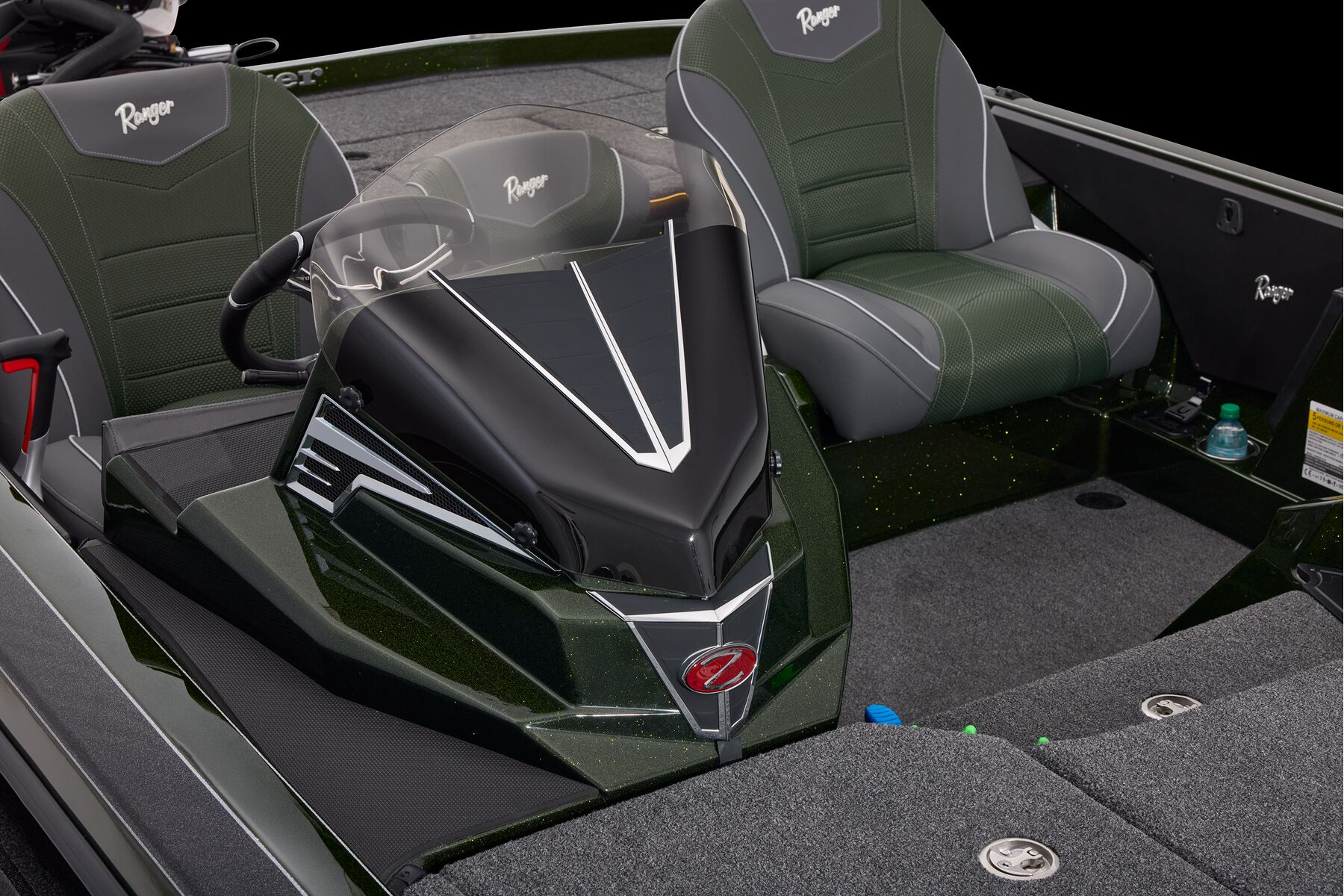

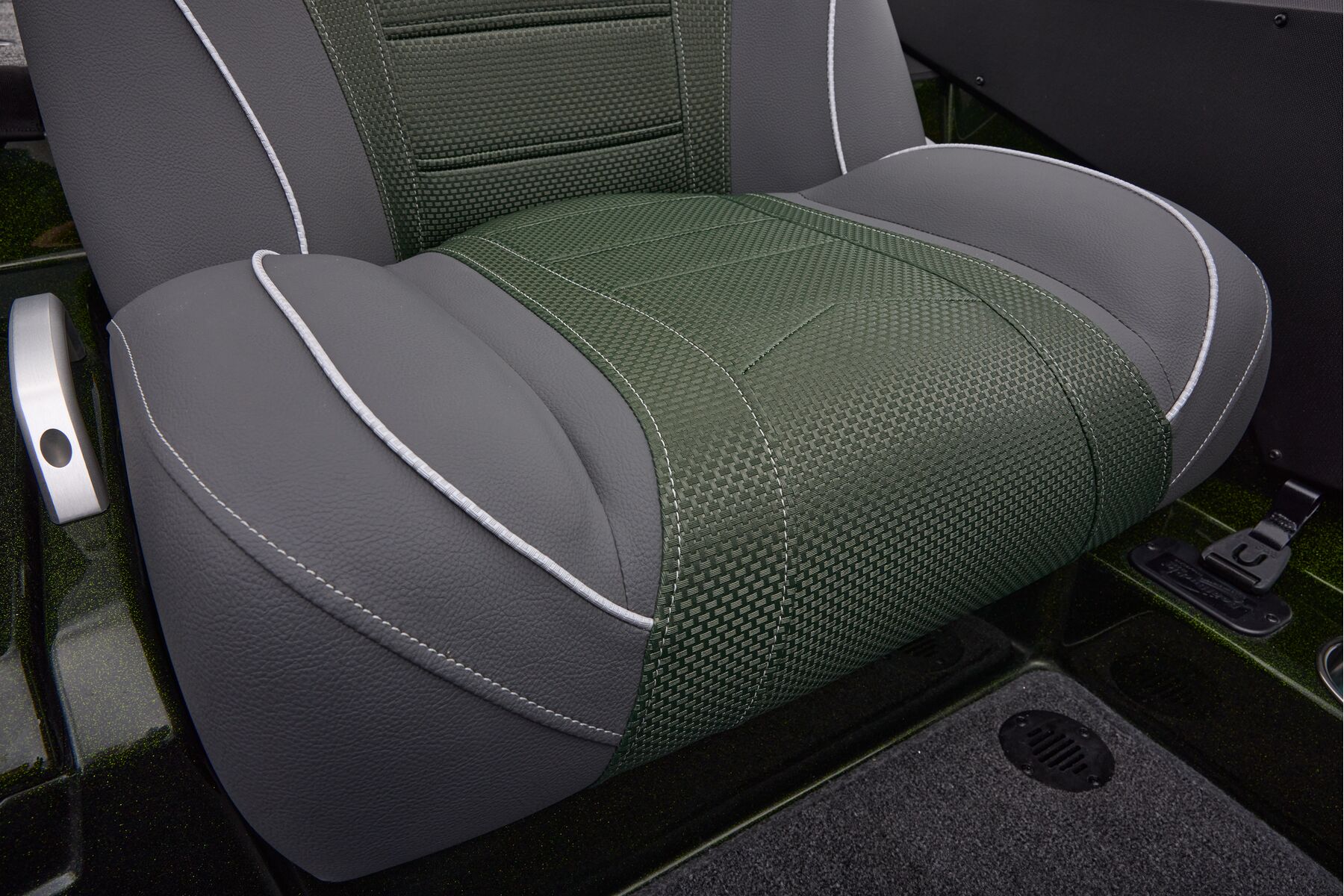

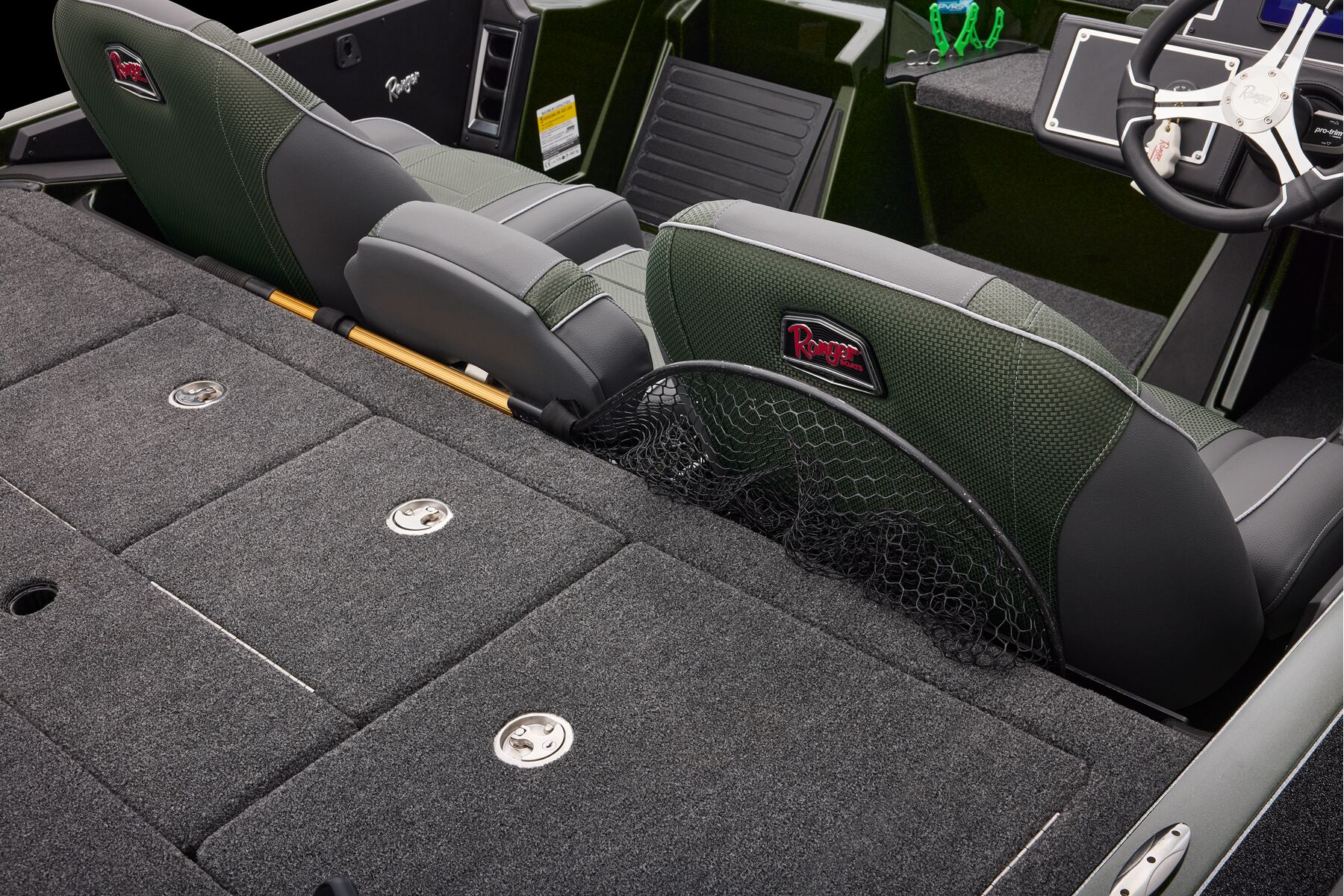

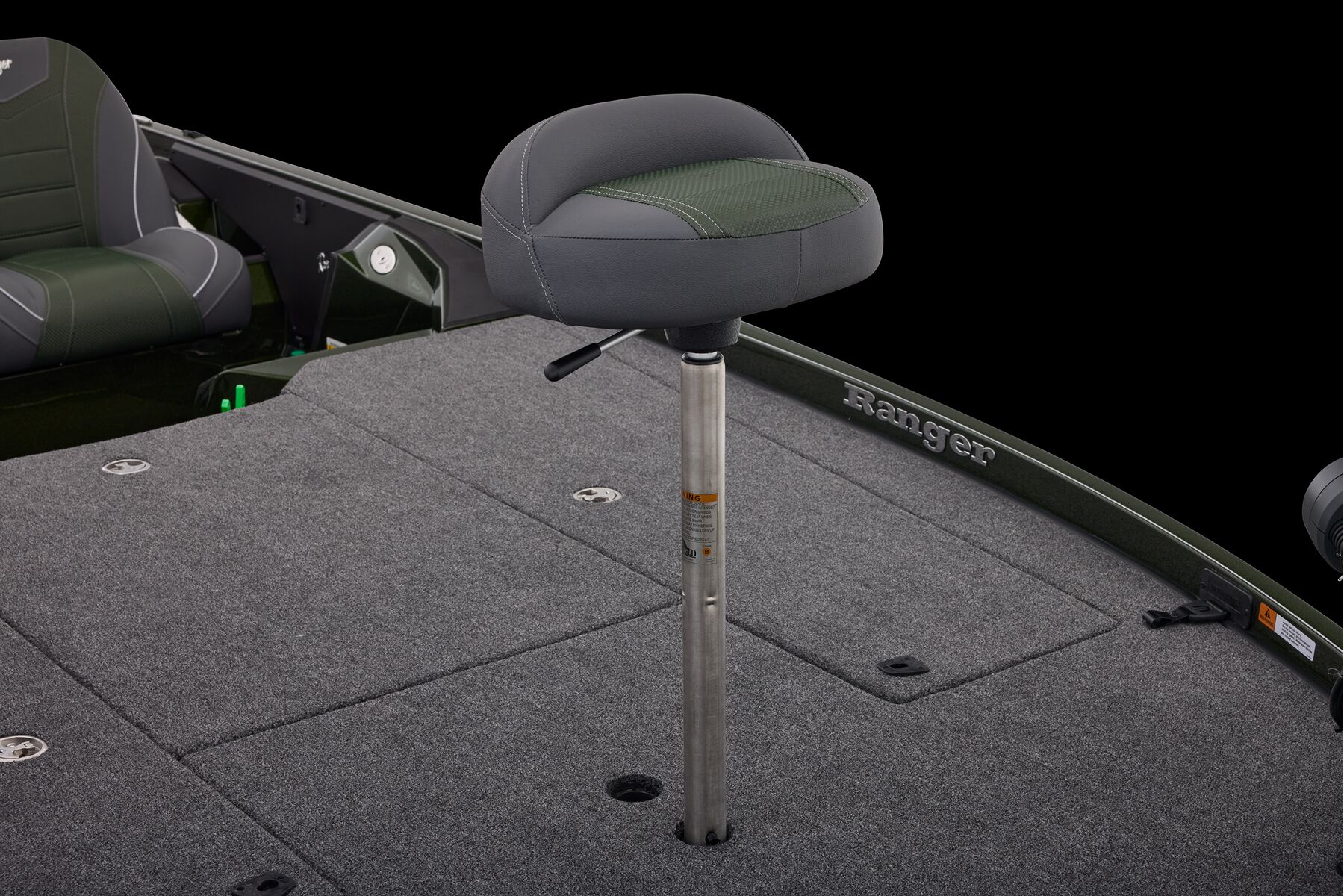

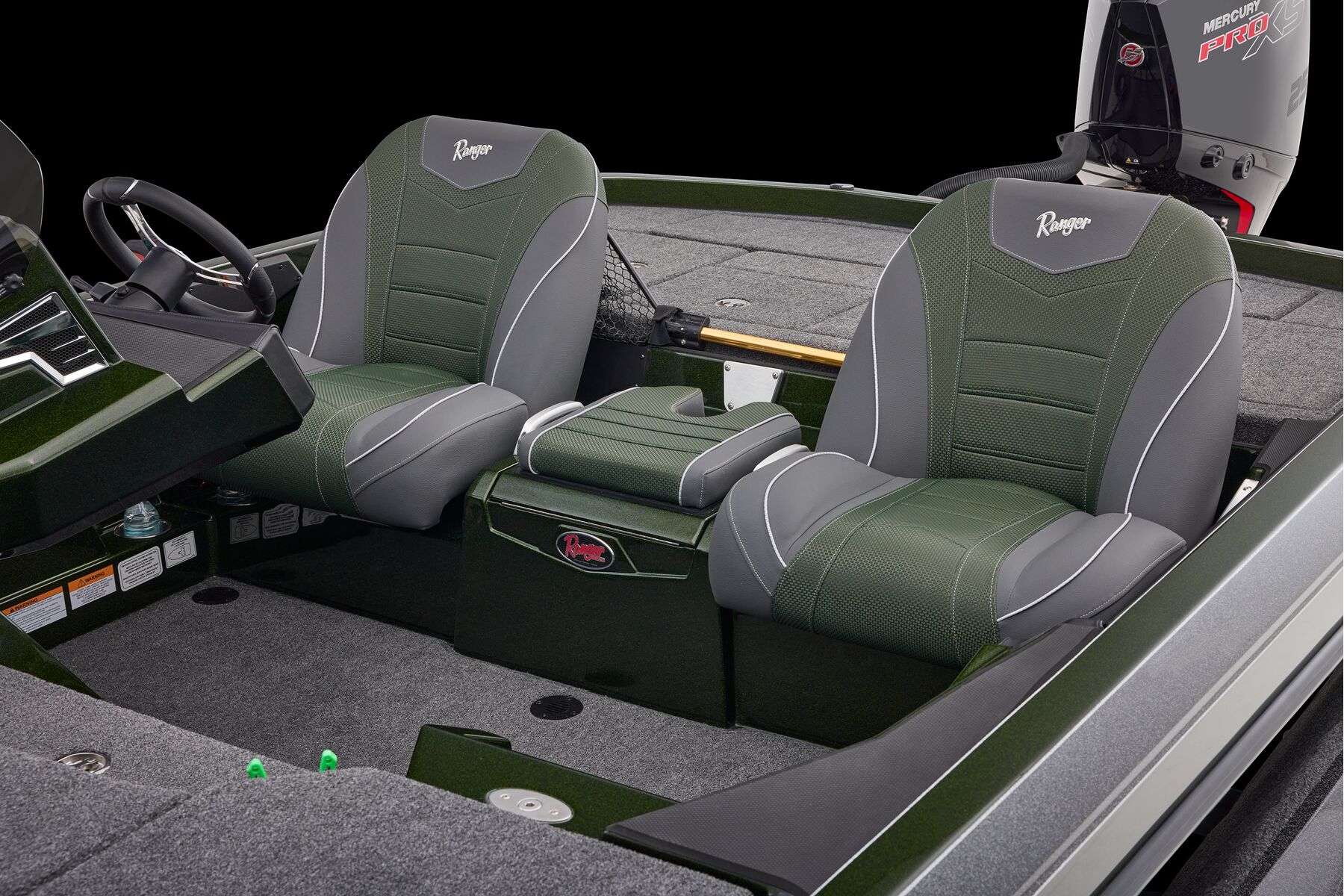

- Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/ power pedestal
- Padded front deck
- Fire extinguisher & horn
- Stainless steel seat bases

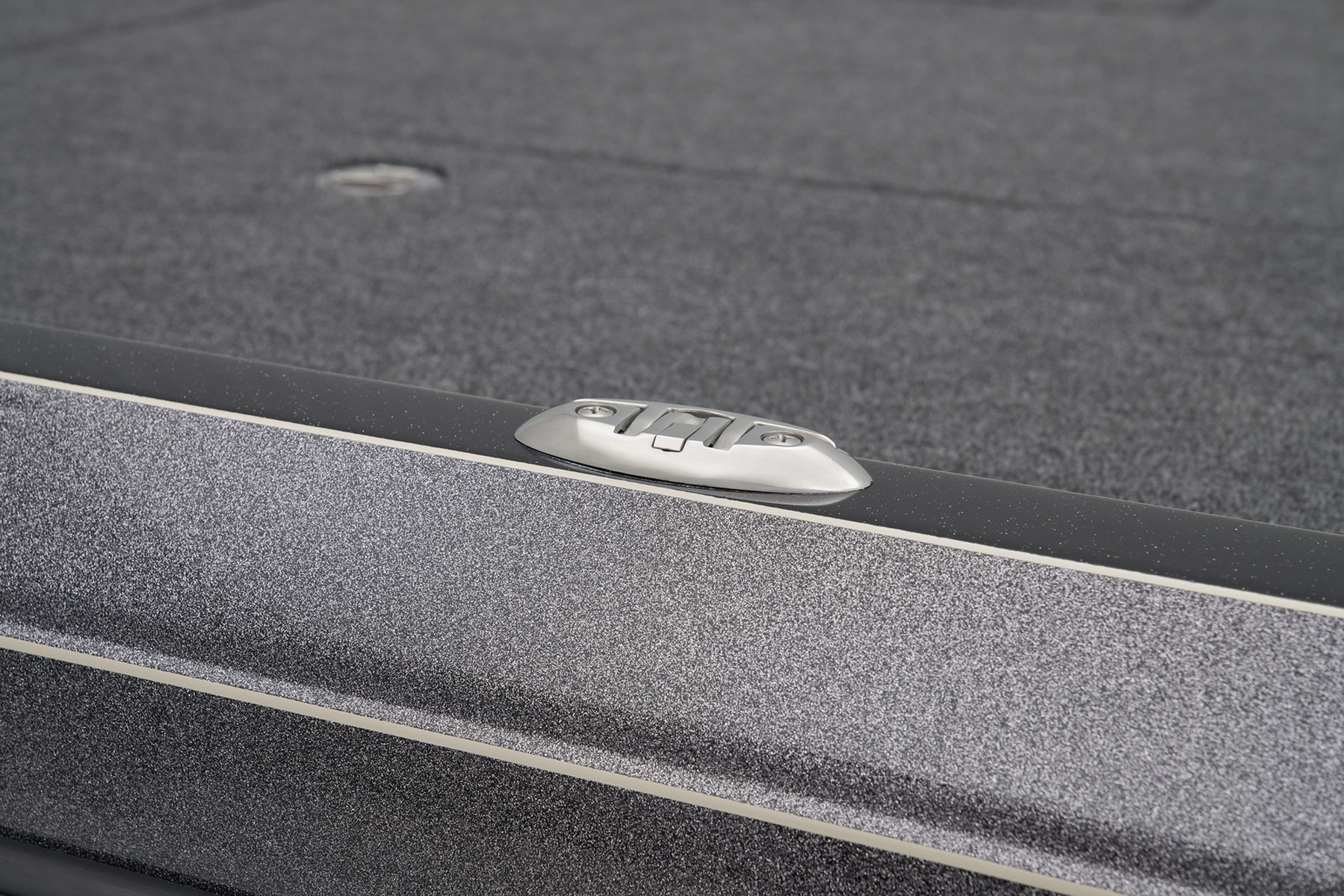

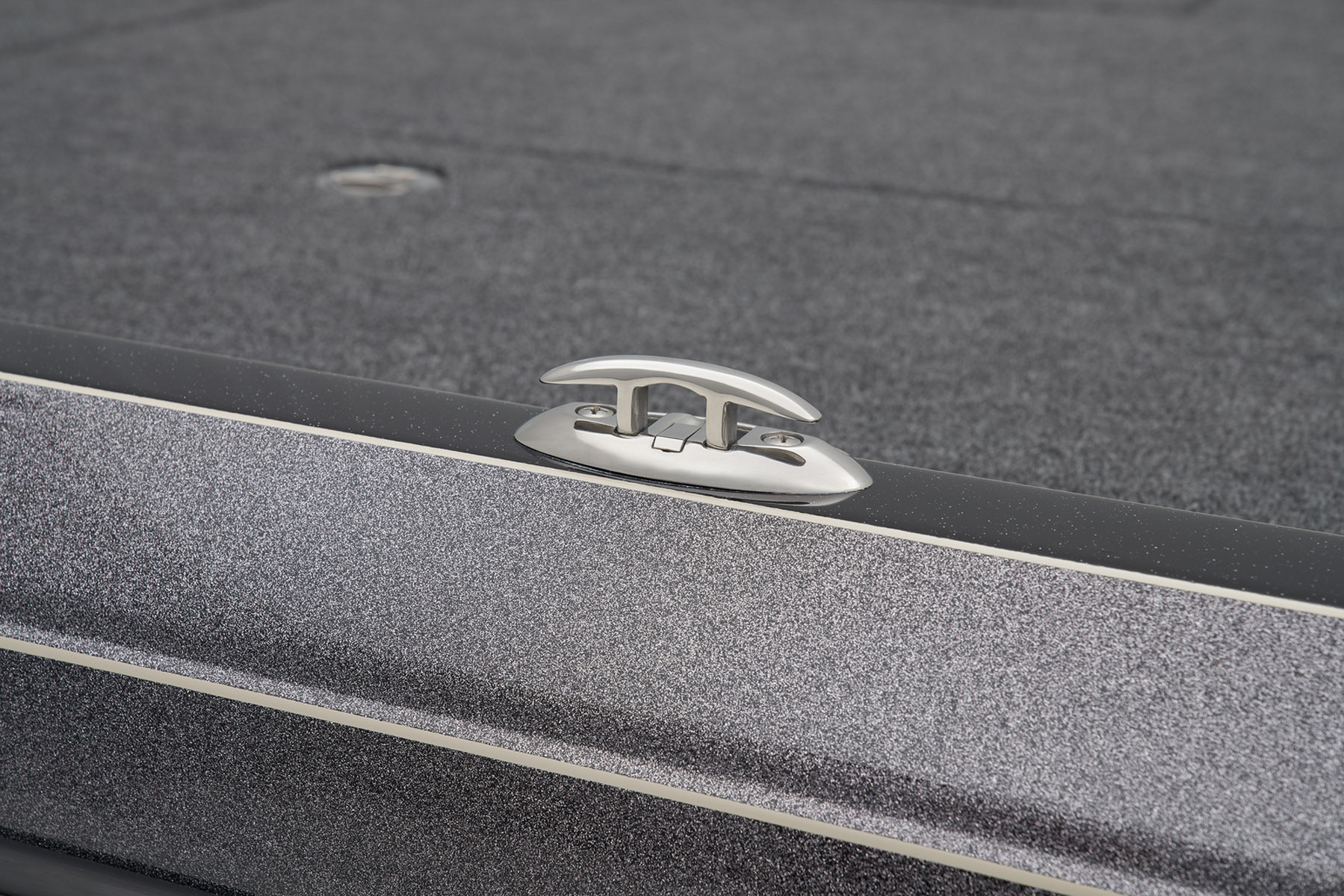

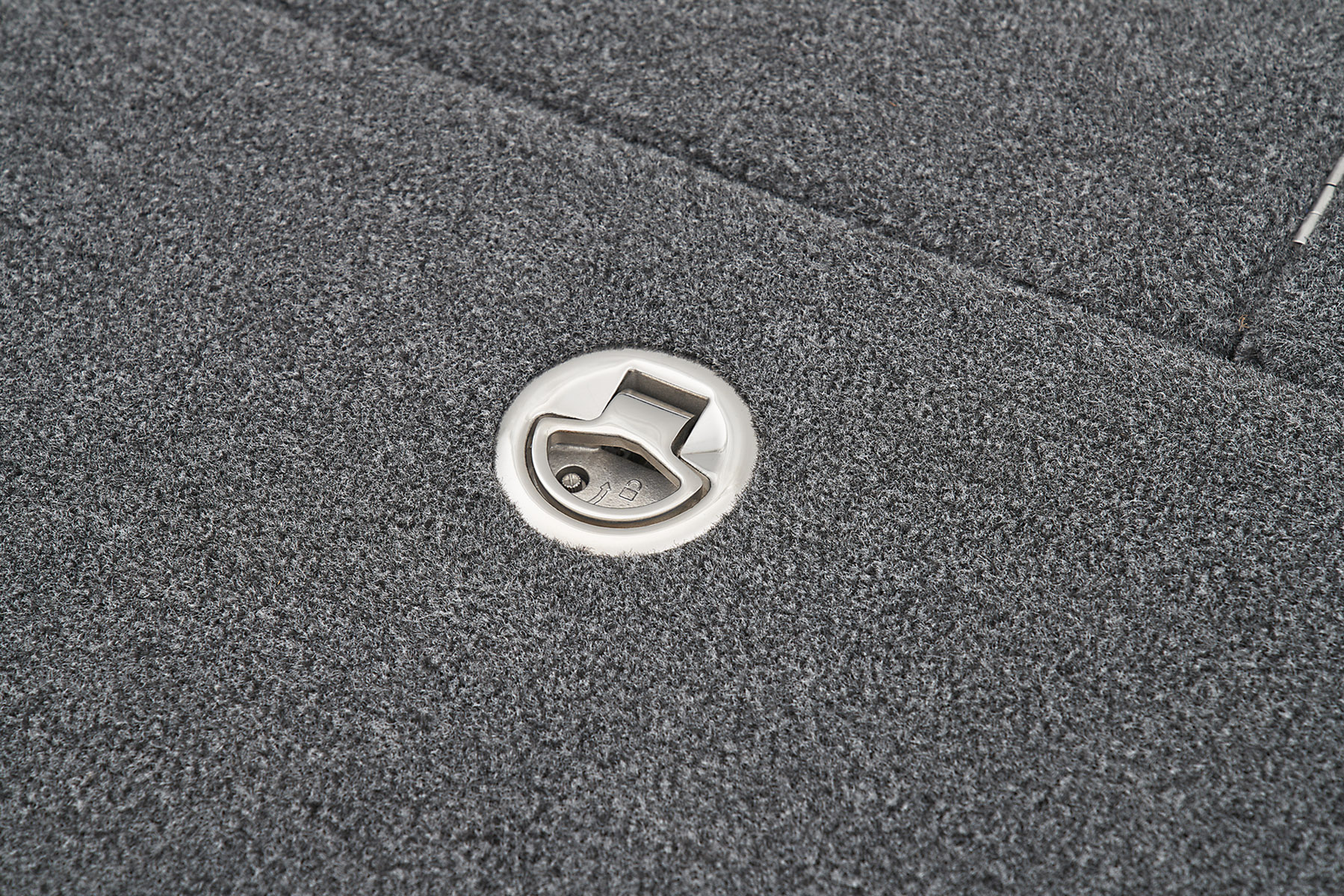

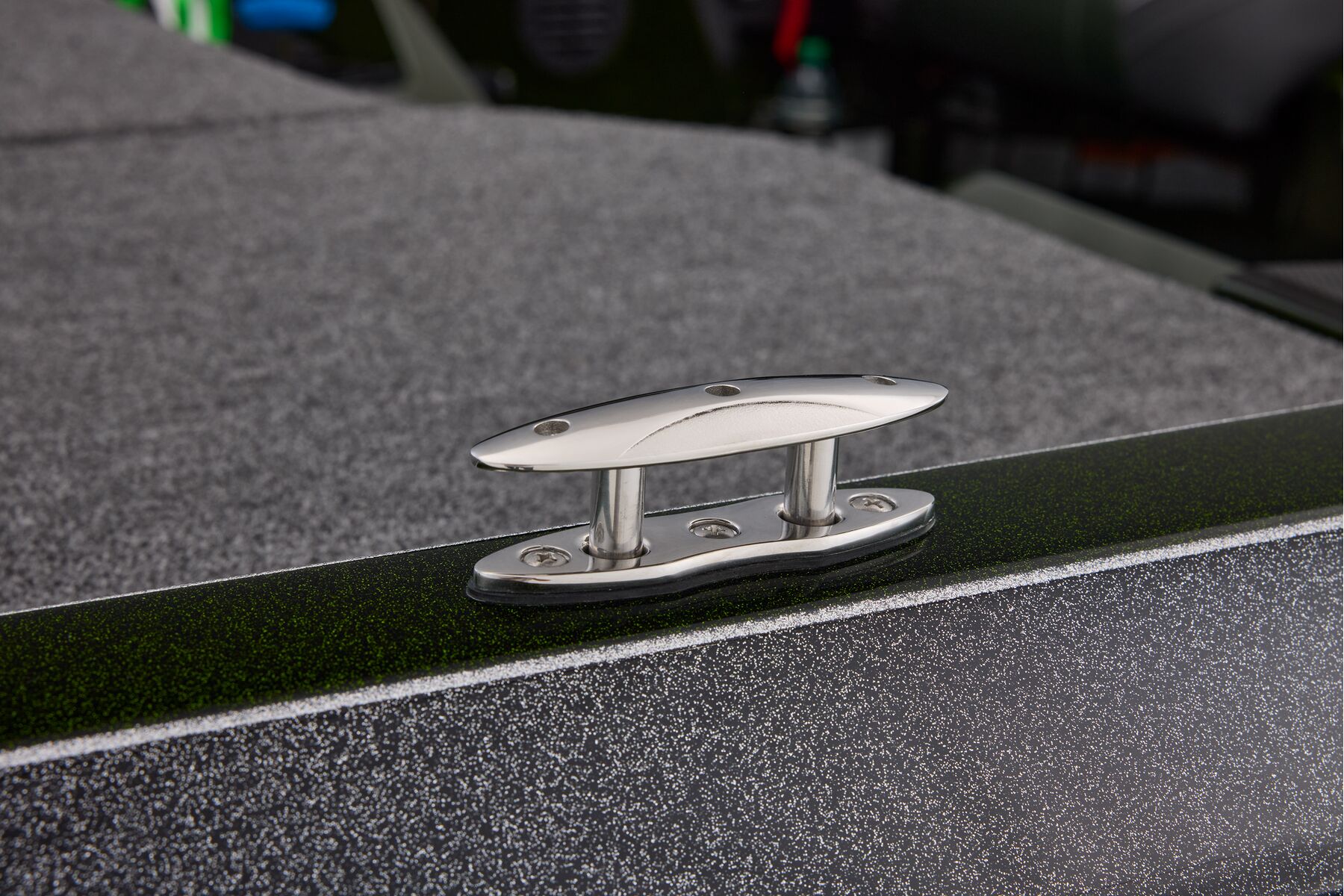

- Pop-up tie cleats
- Integrated grab handles
- Rite Track Keel®
- Automatic & manual bilge pumps
- Integrated re-boarding ladder

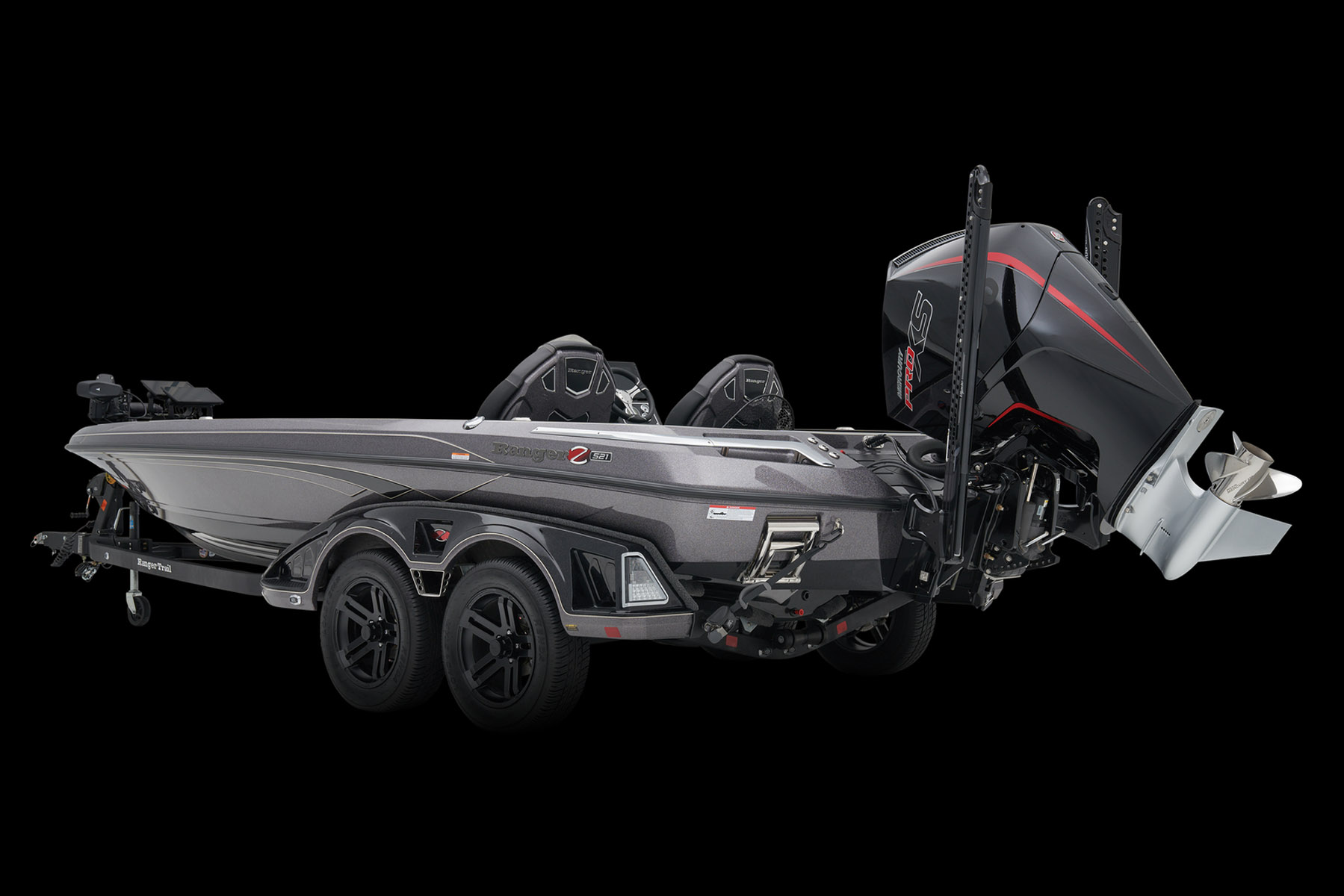

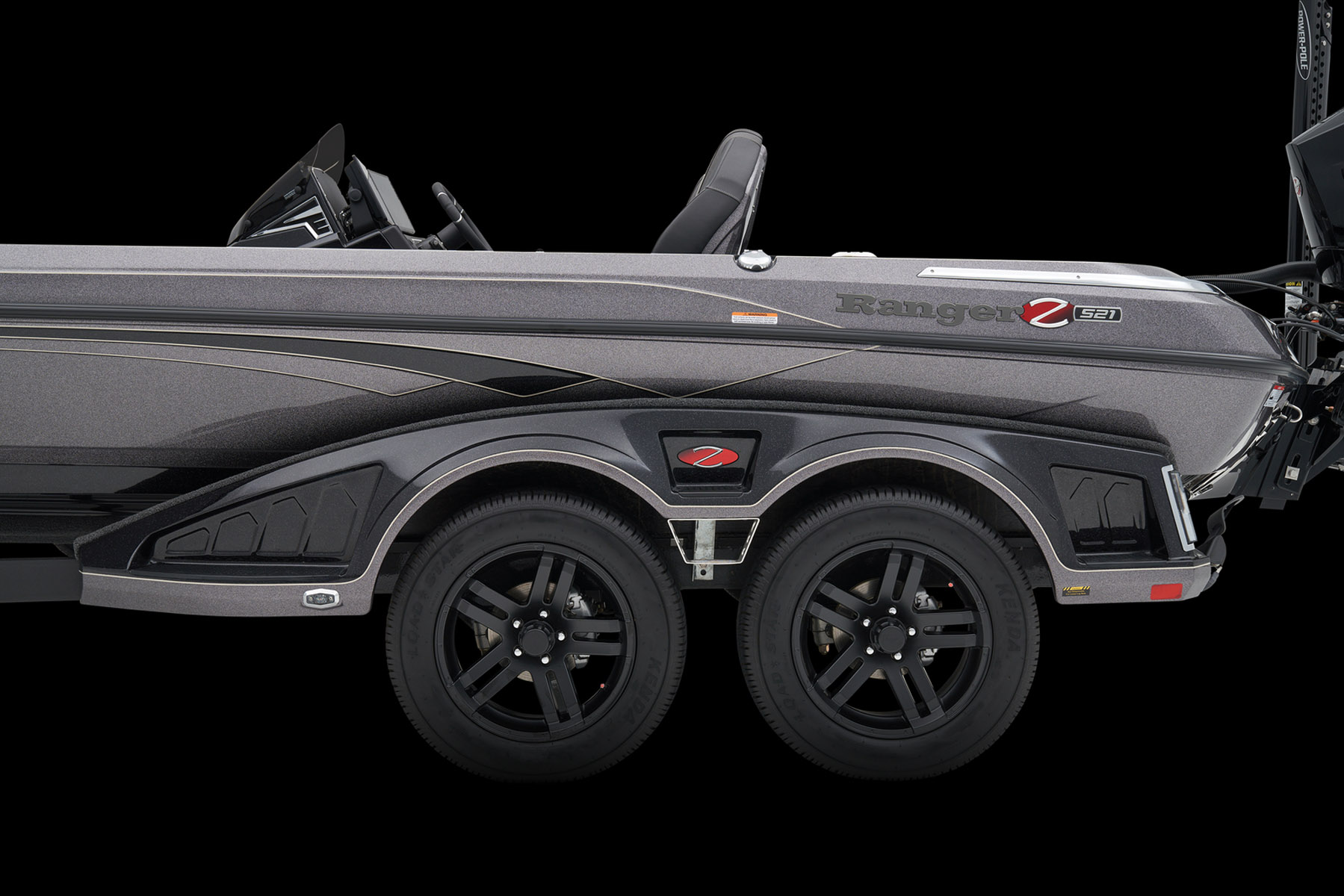

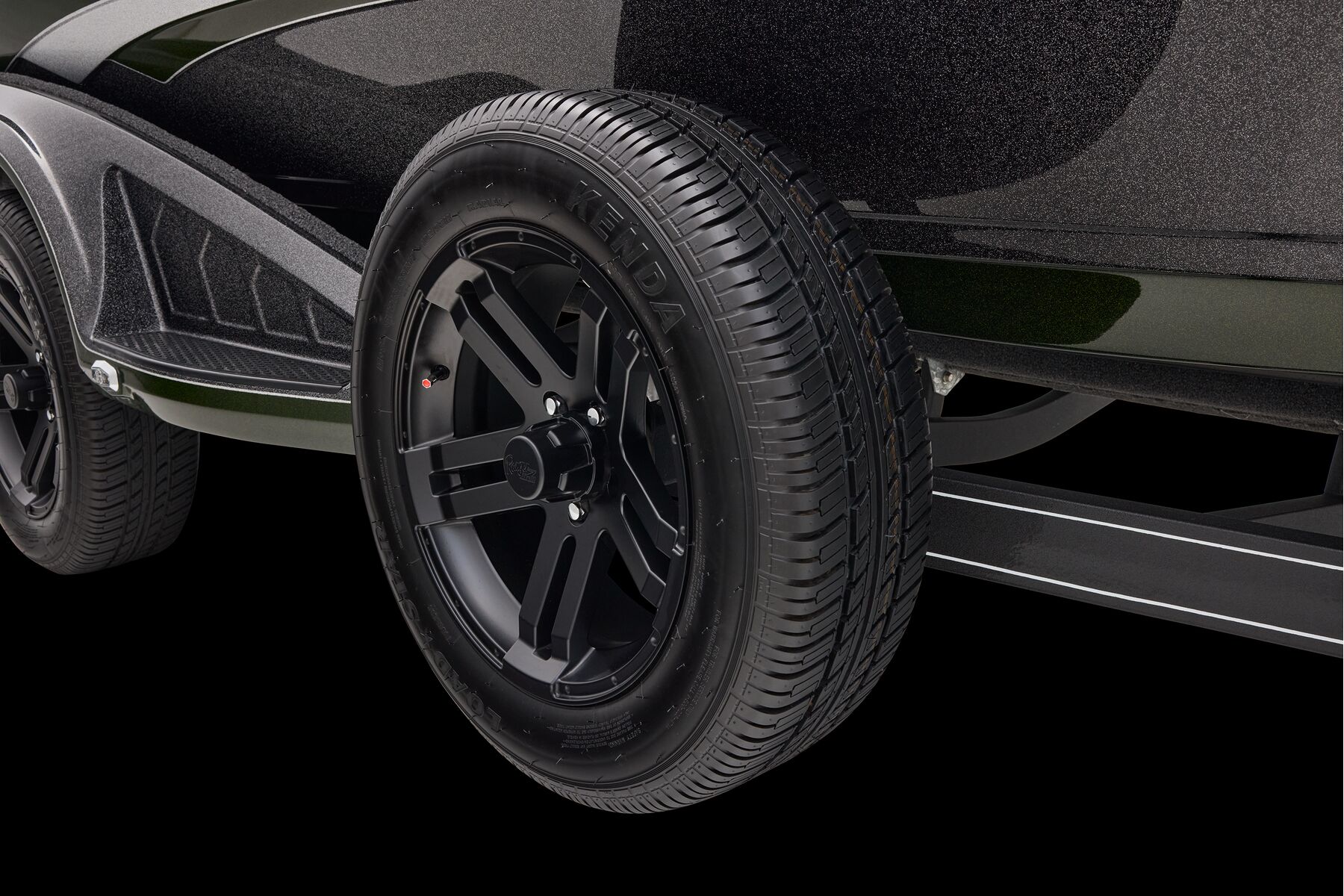

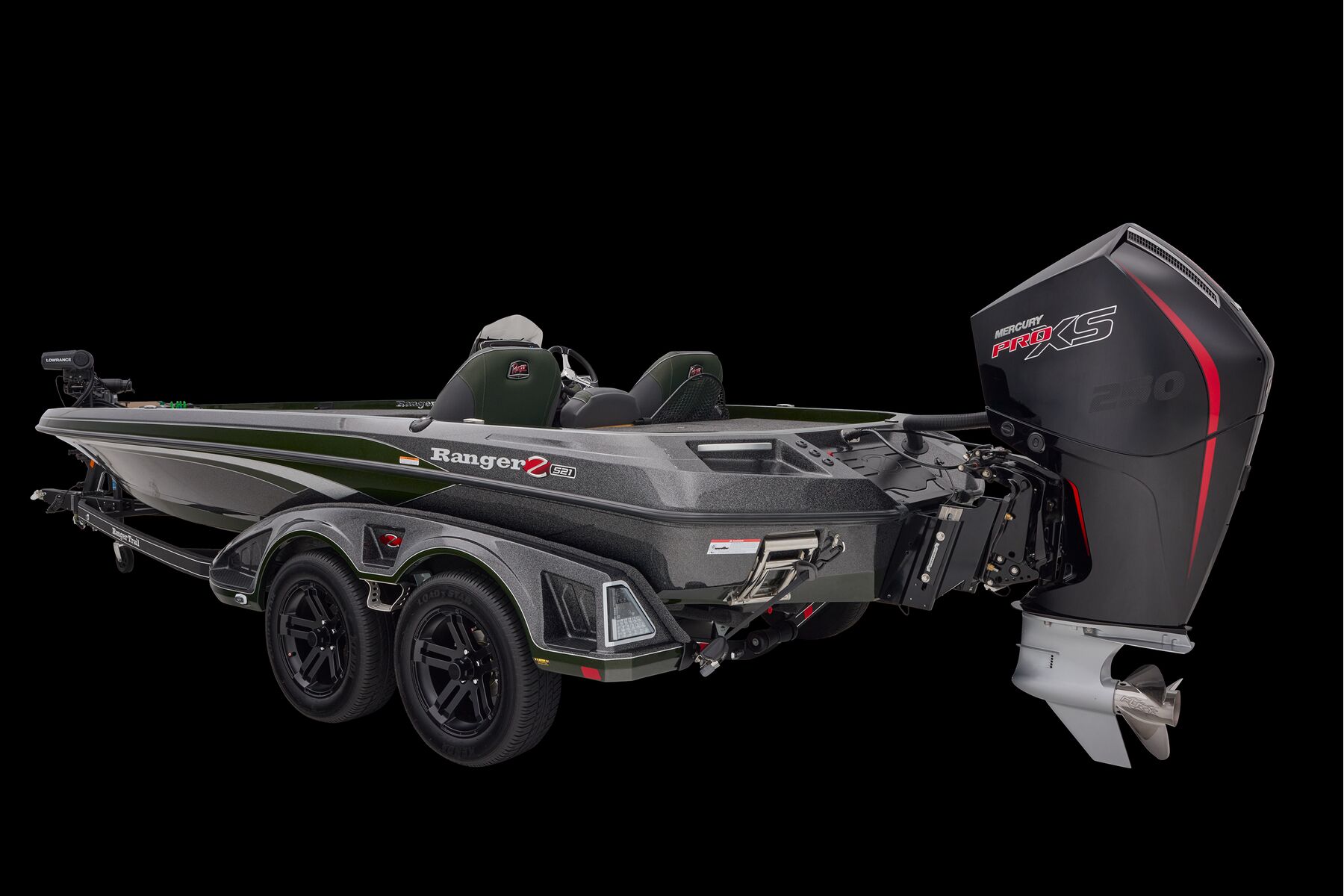

Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating
- Ranger Trail® Vault® Hub lubrication system

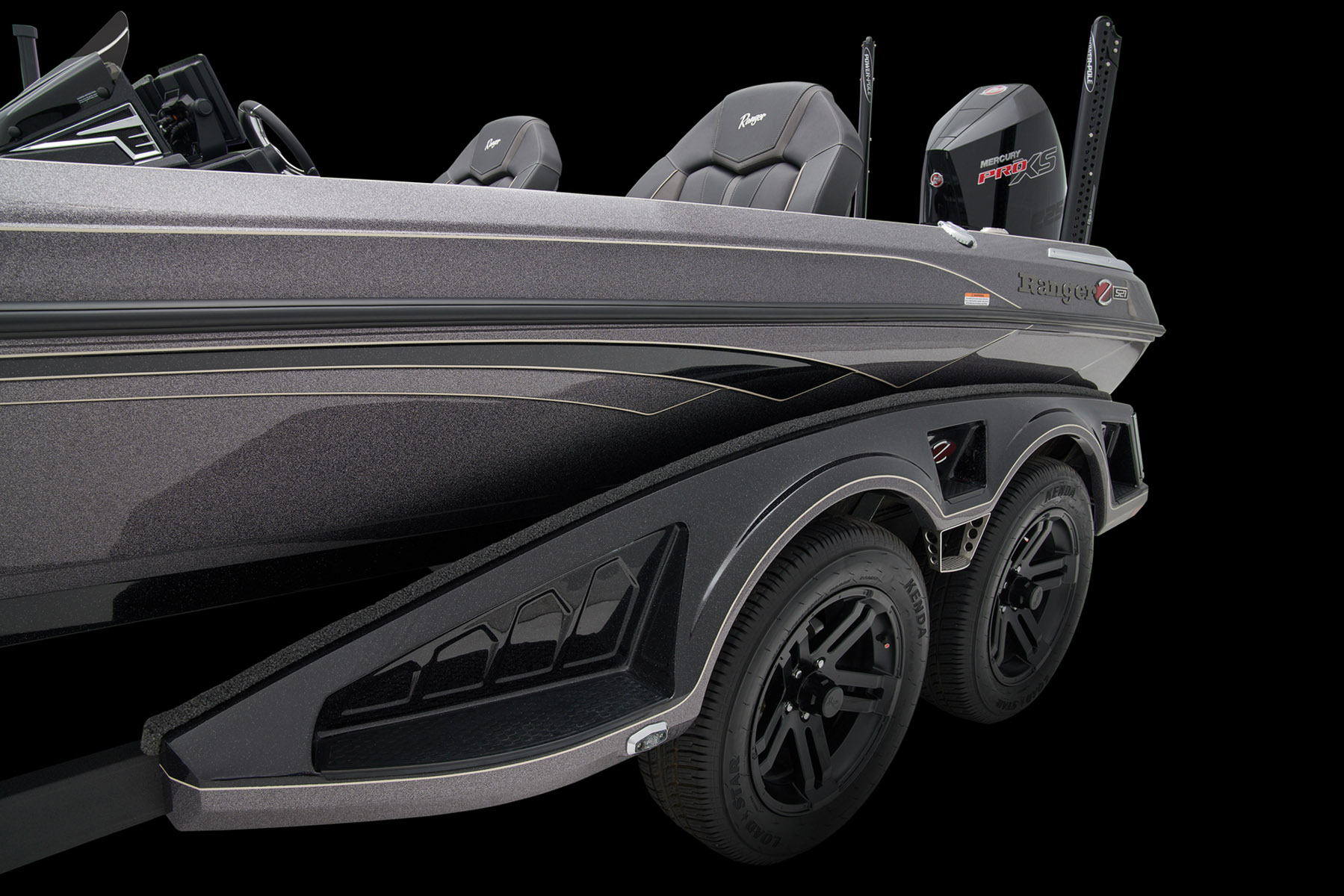

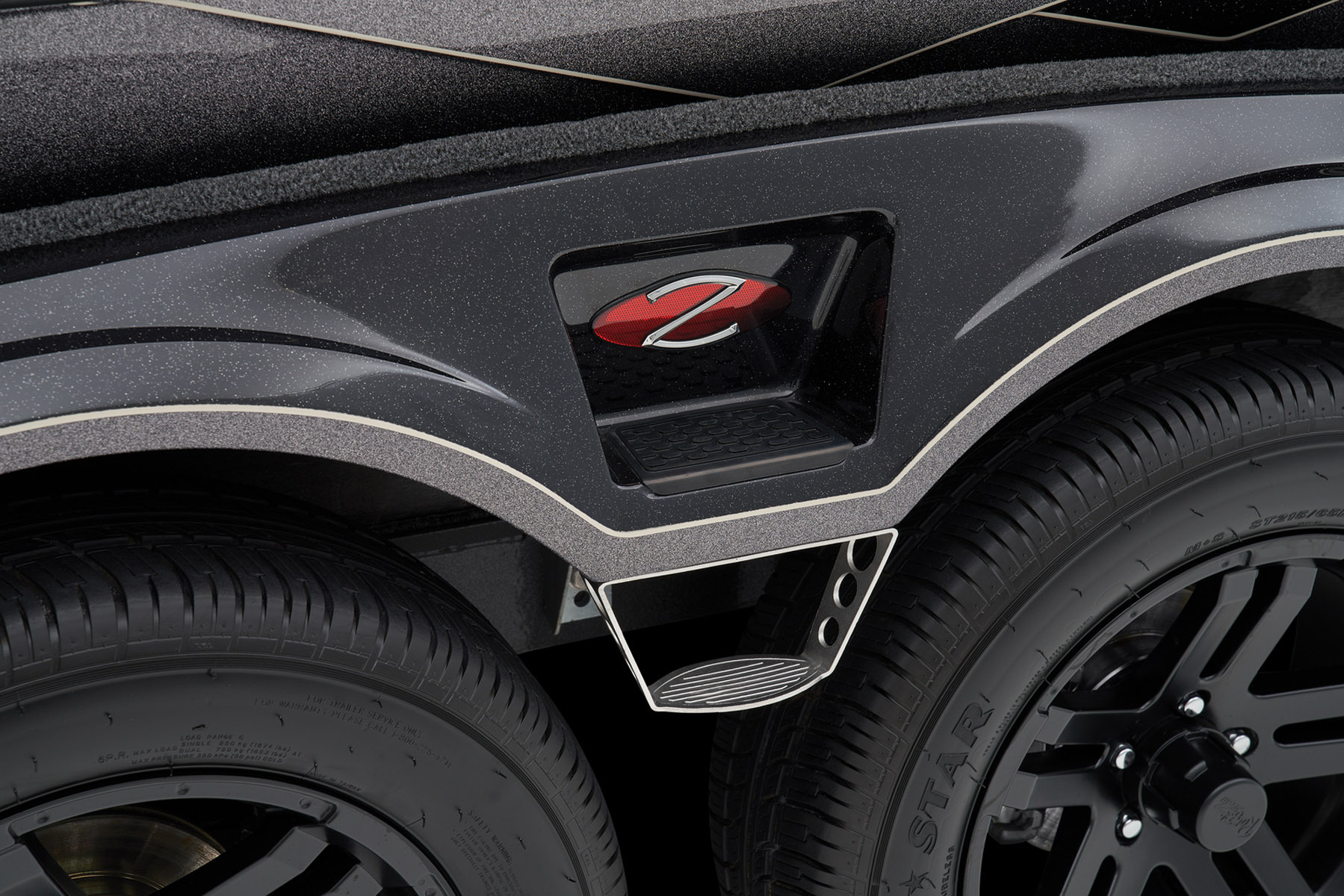

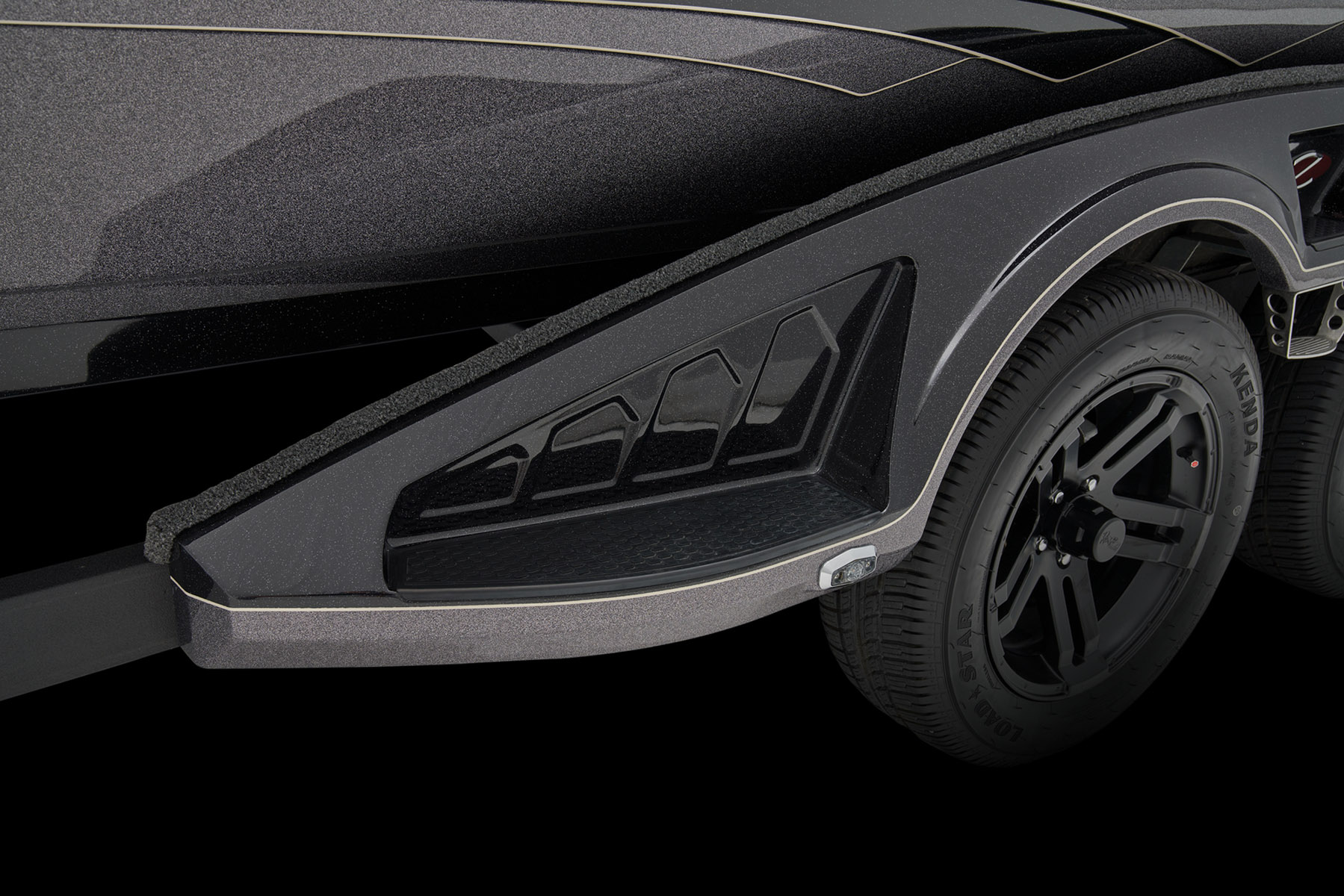

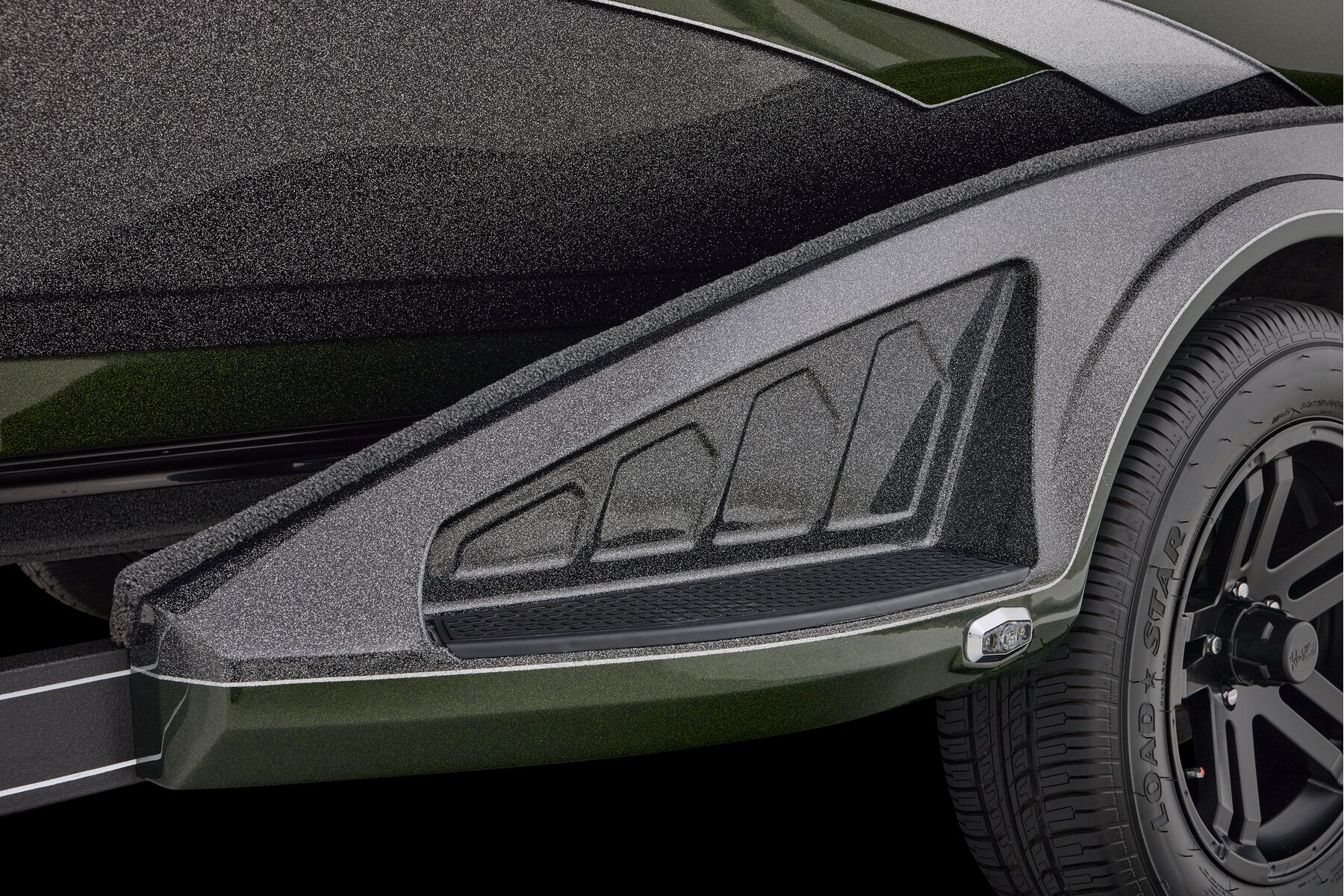

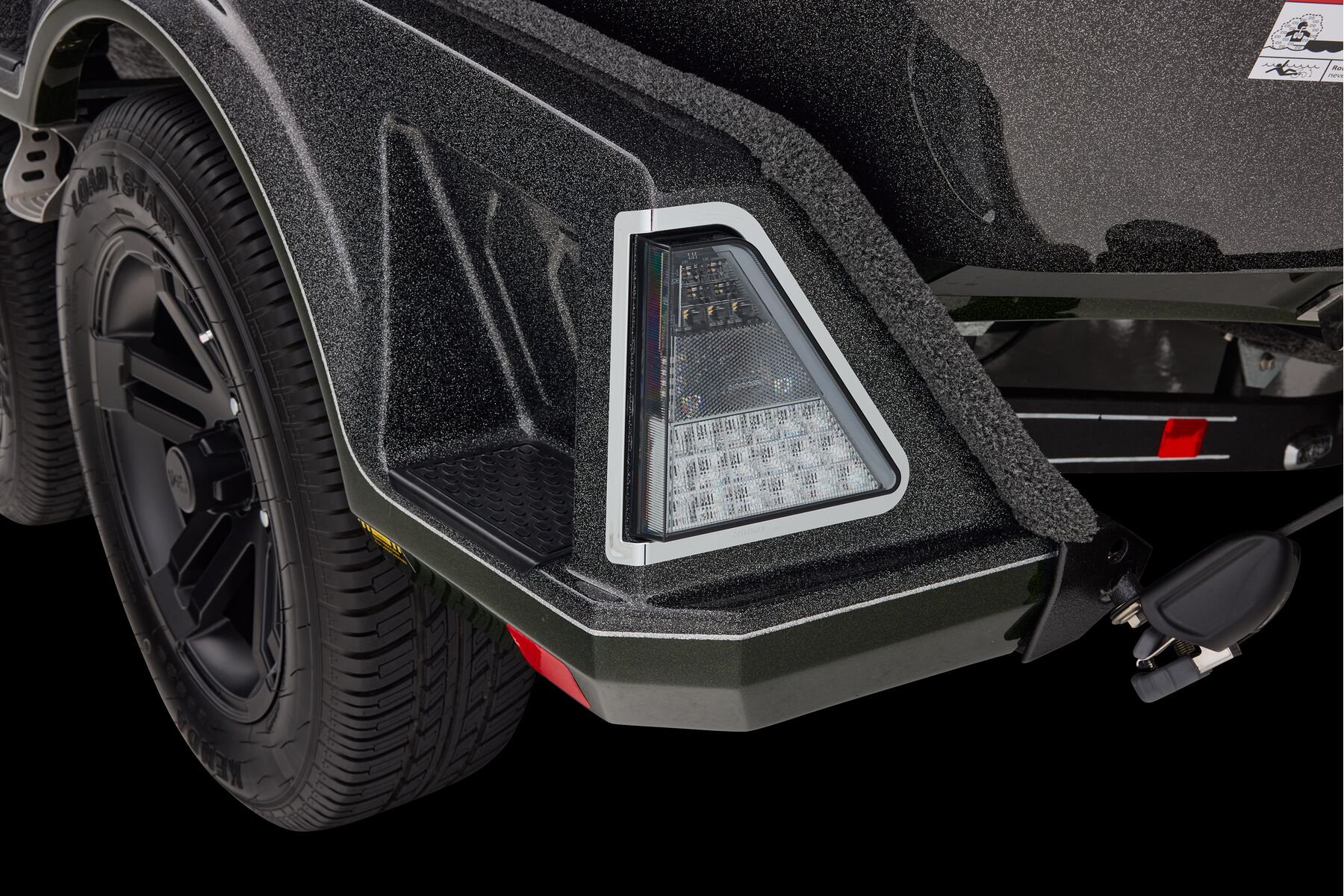

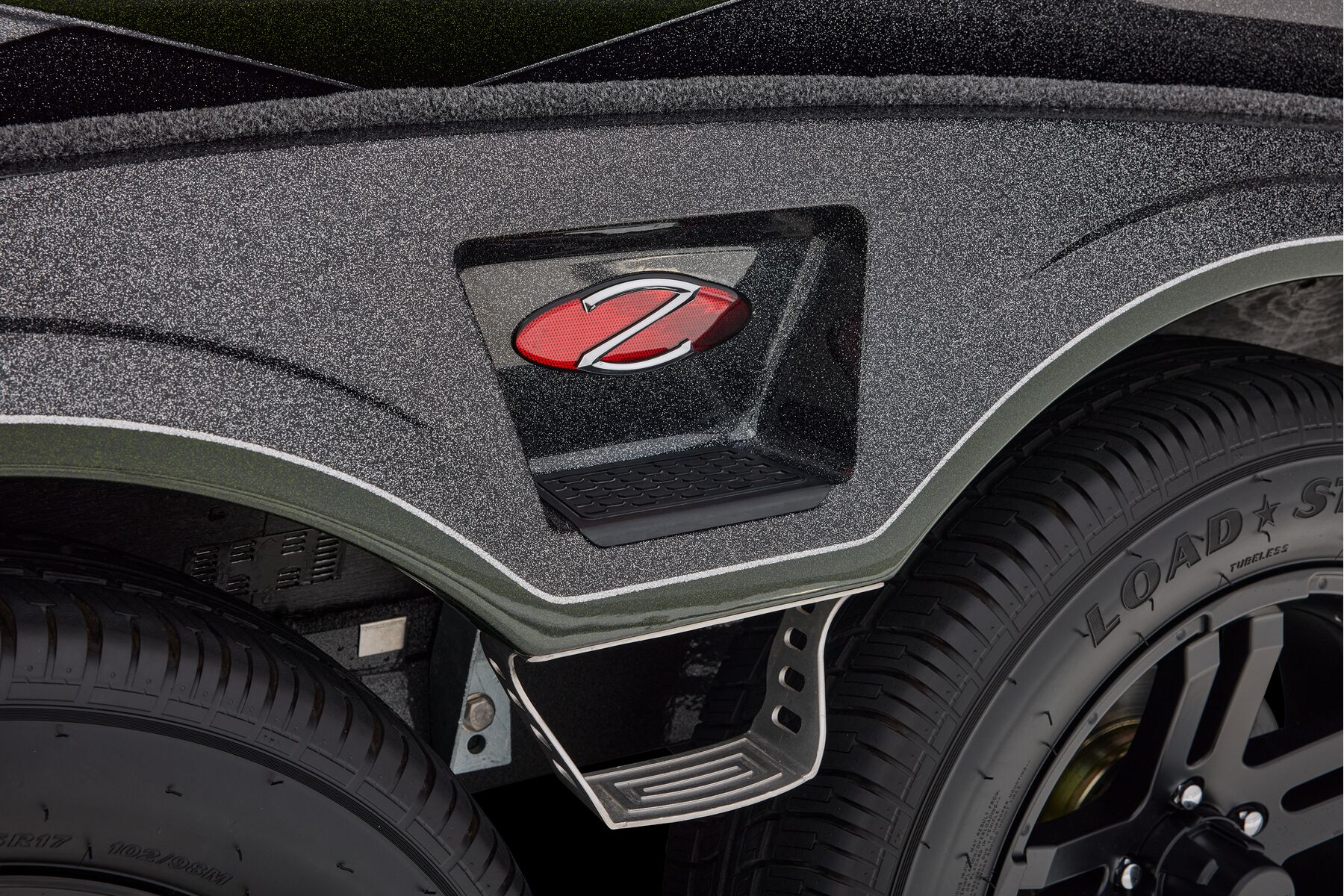

- Fiberglass fenders w/ step pads
- Hydraulic surge disc brakes

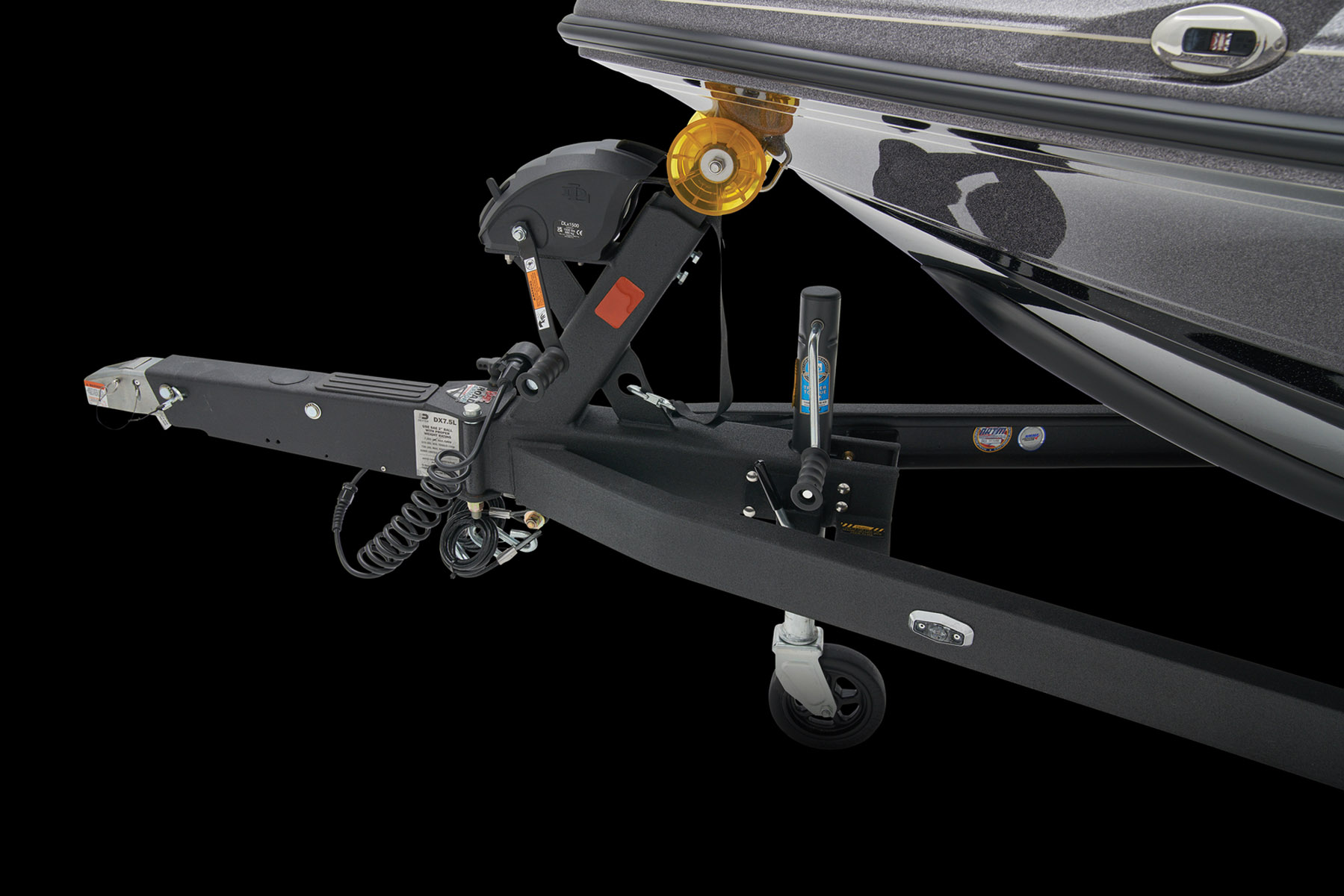

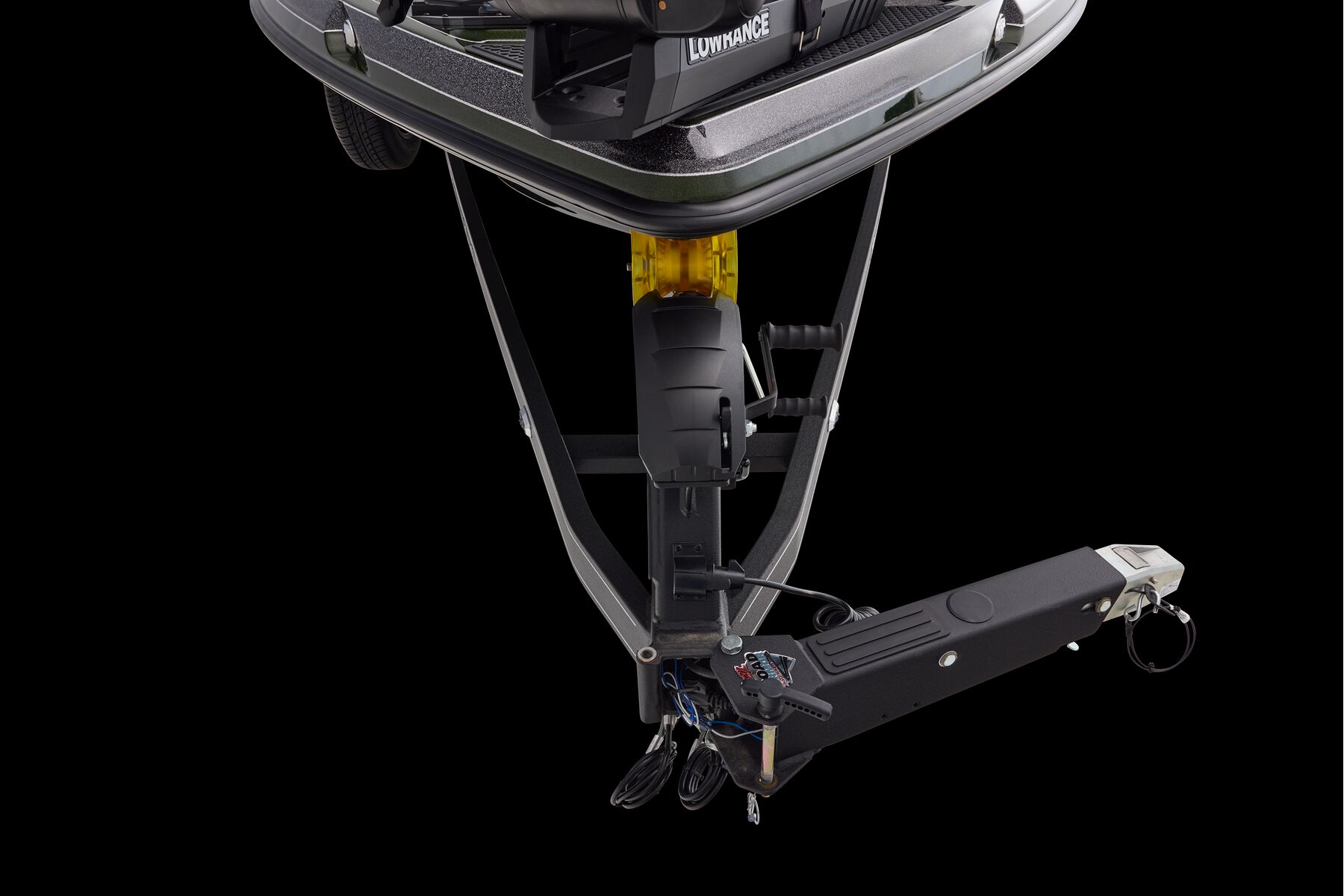

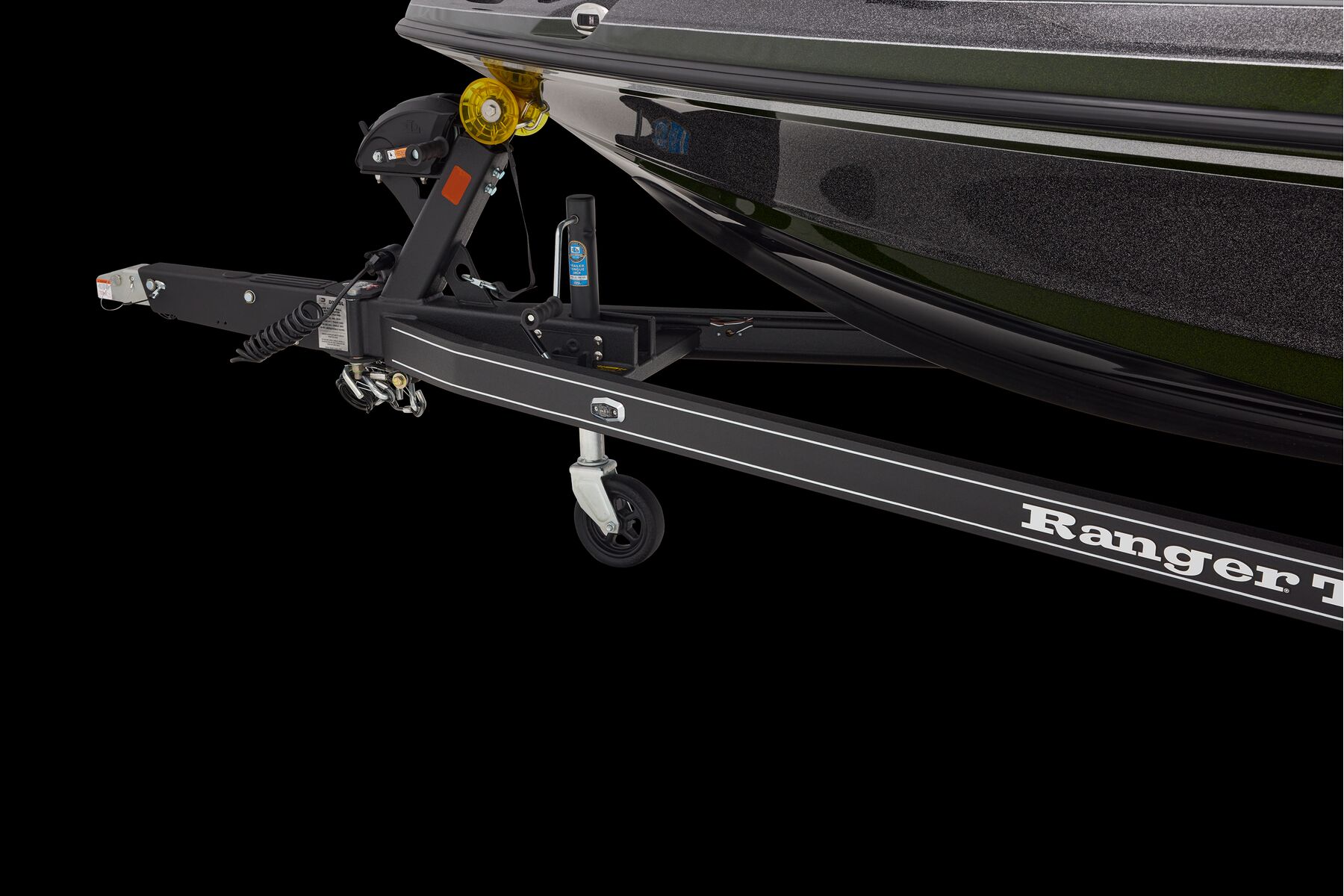

- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie-downs

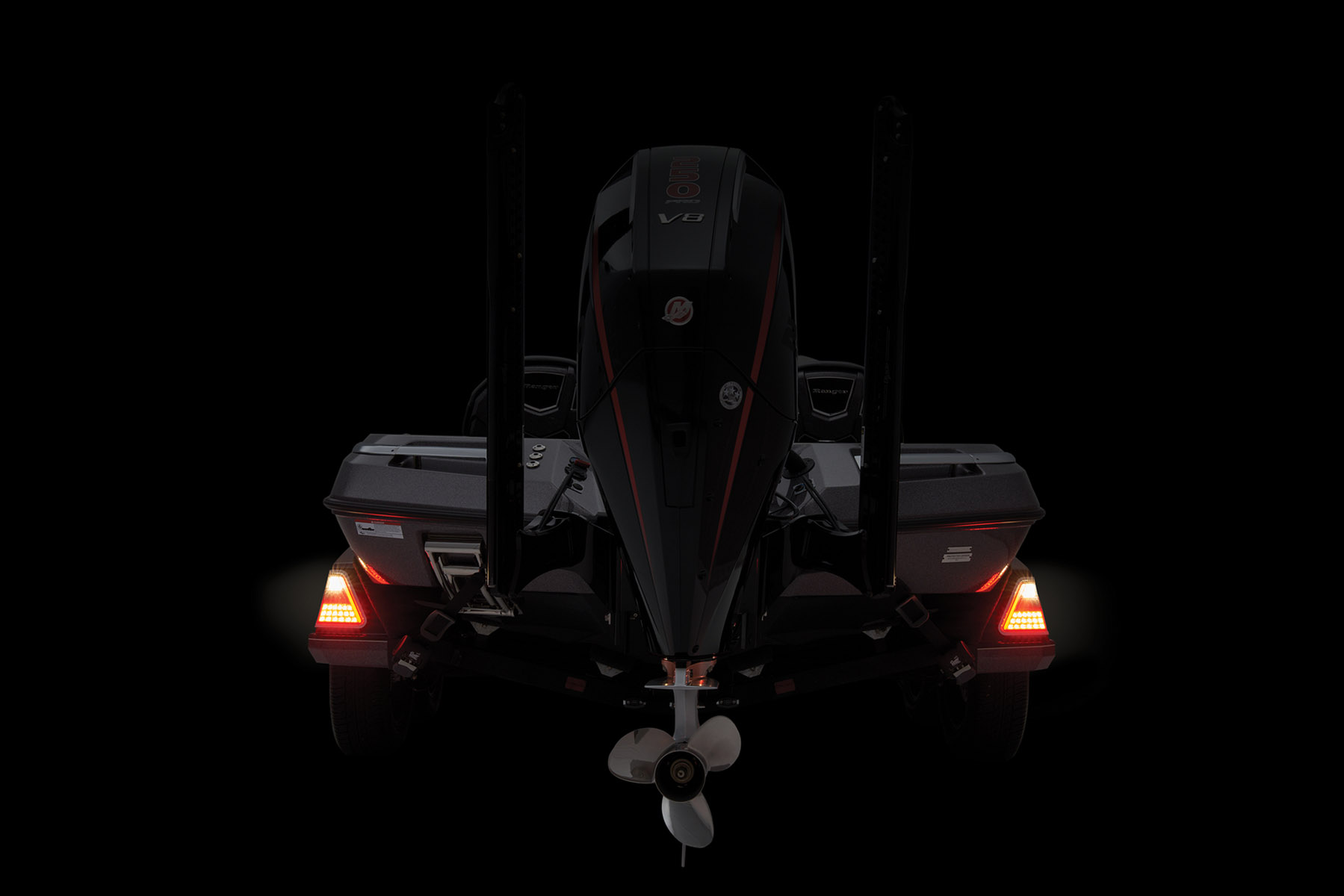

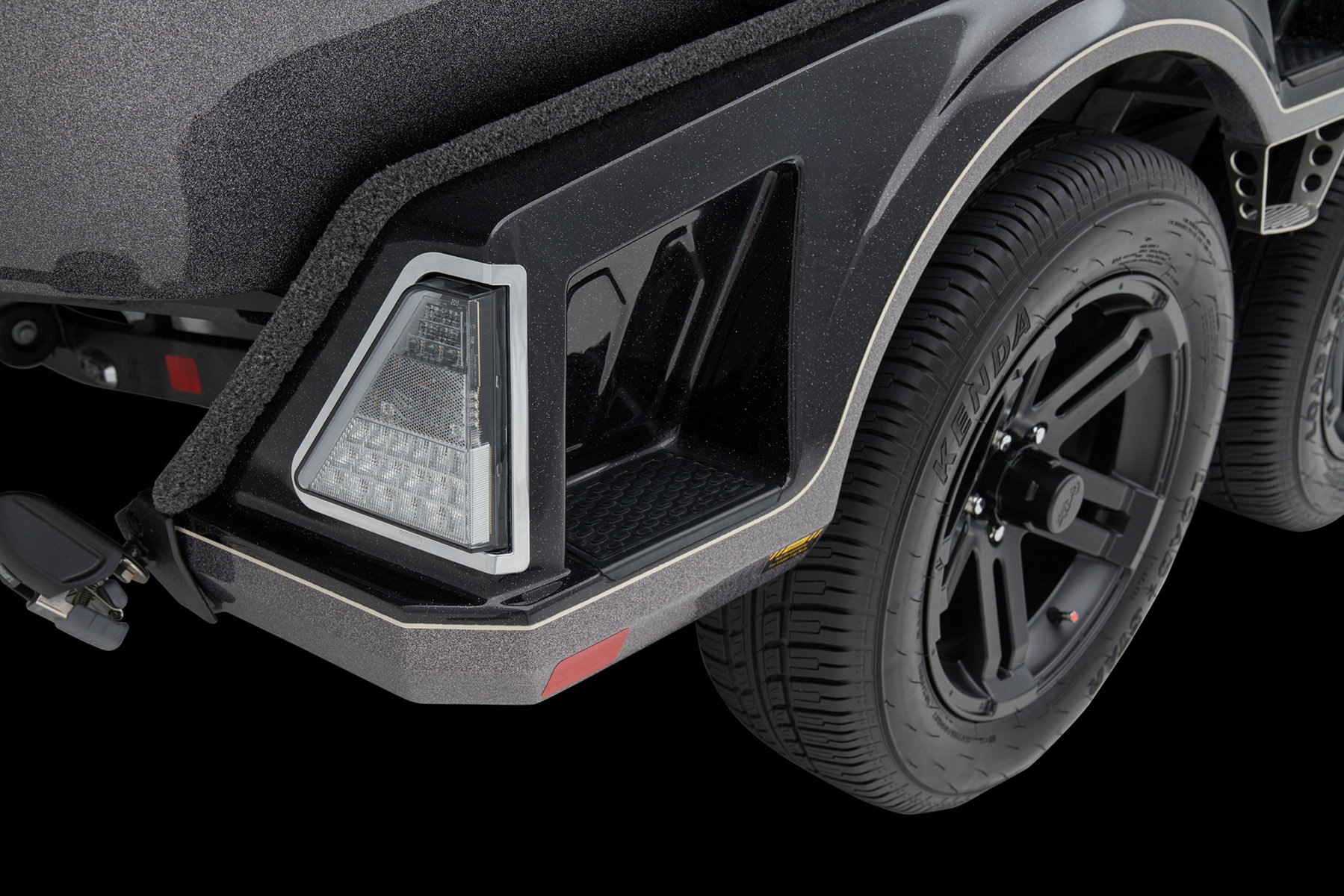

- LED lighting
- LED back-up lights
- NMMA®/NATM certified
