Limited 2024 Availability
RB190
Photos may show optional equipment.
2025

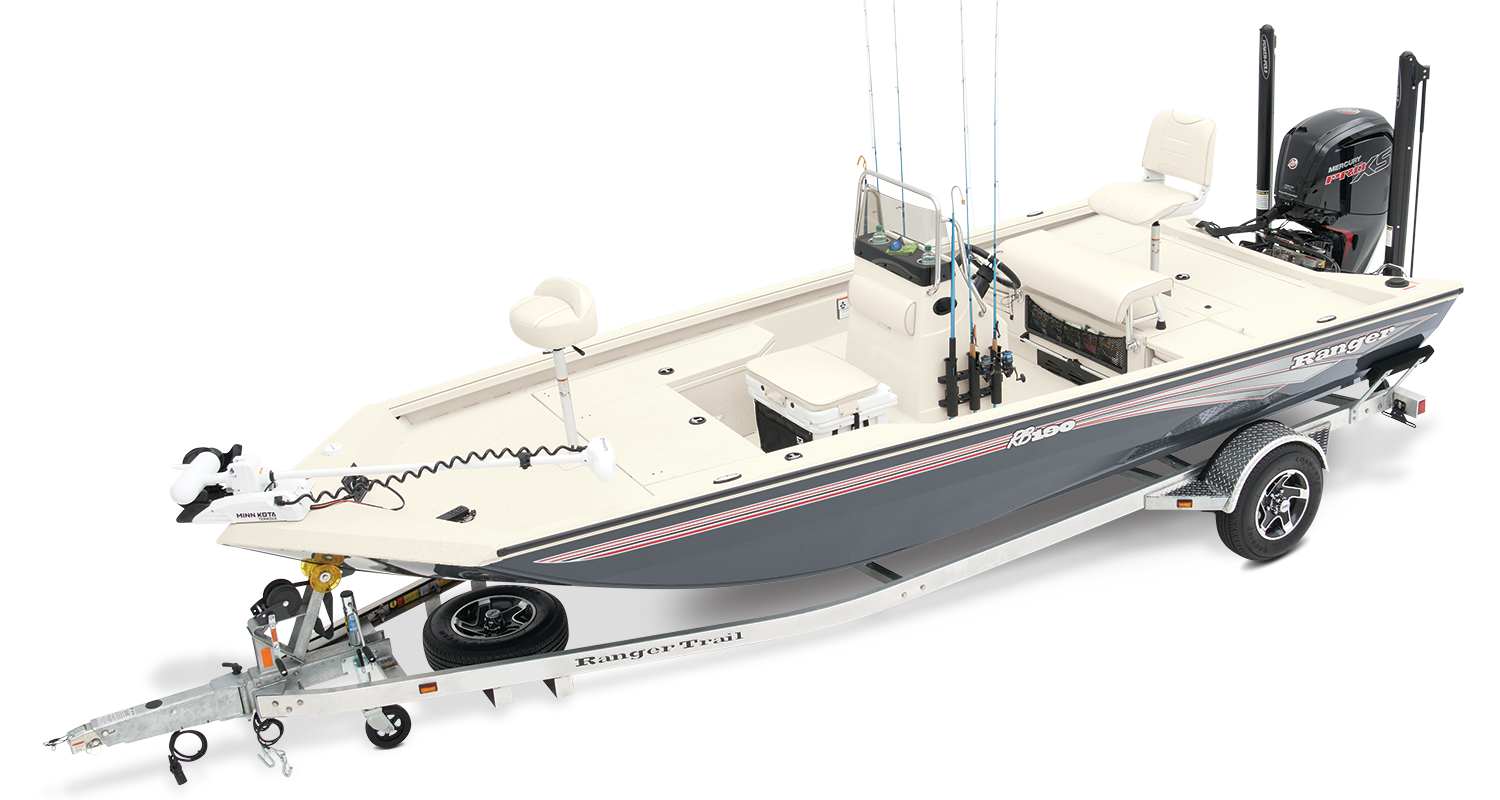

RB190
w/ 90 ELPT FourStroke Mercury®

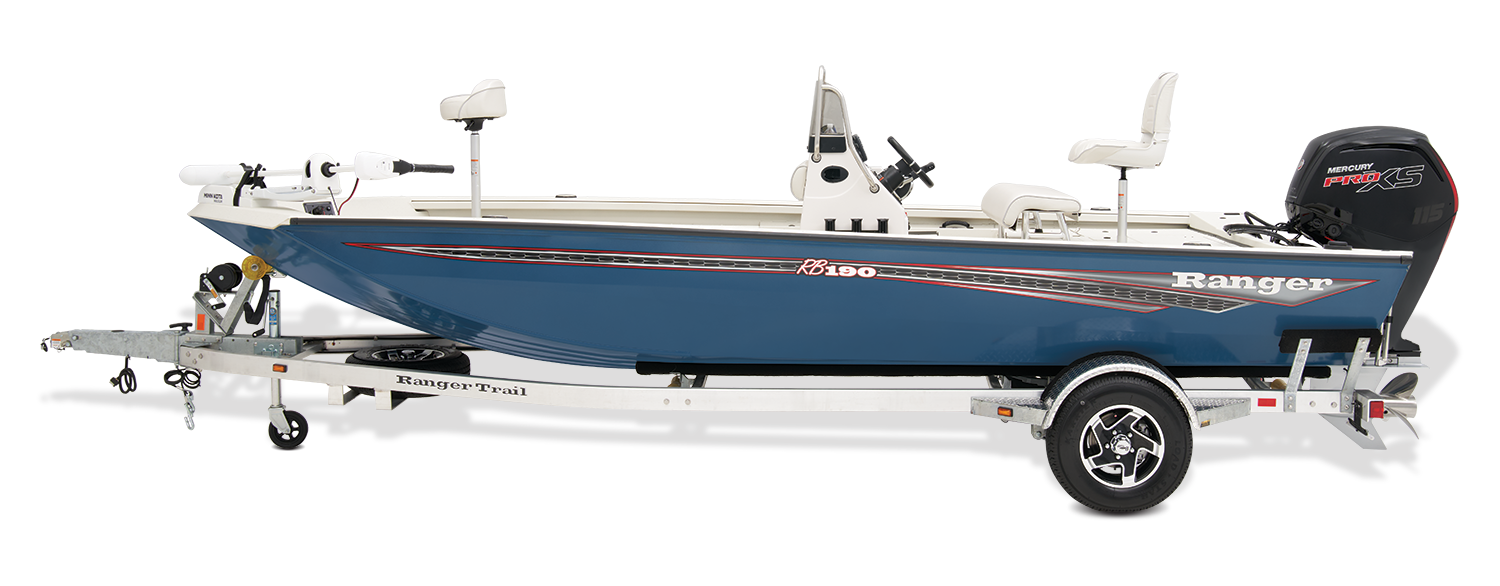

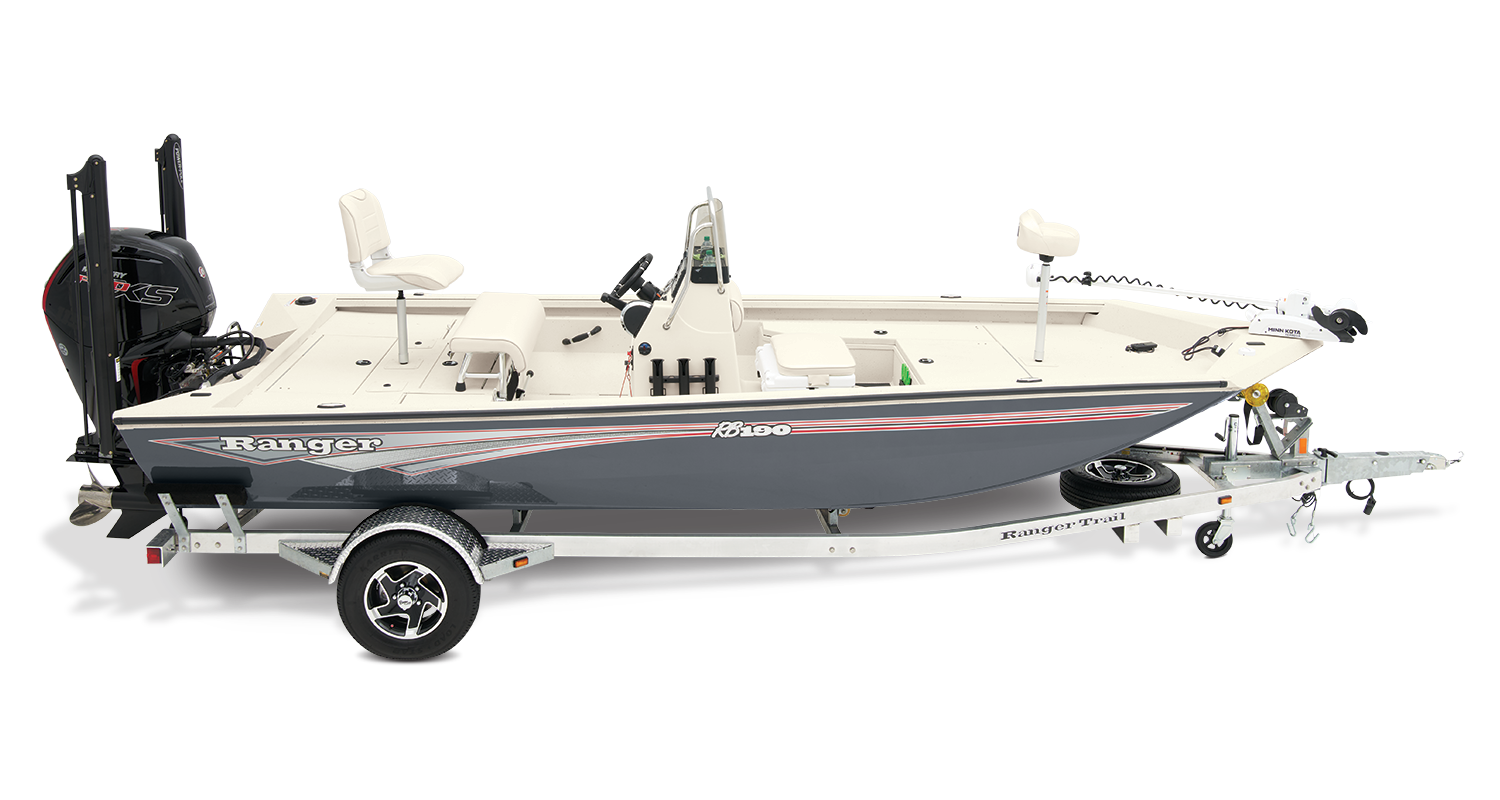

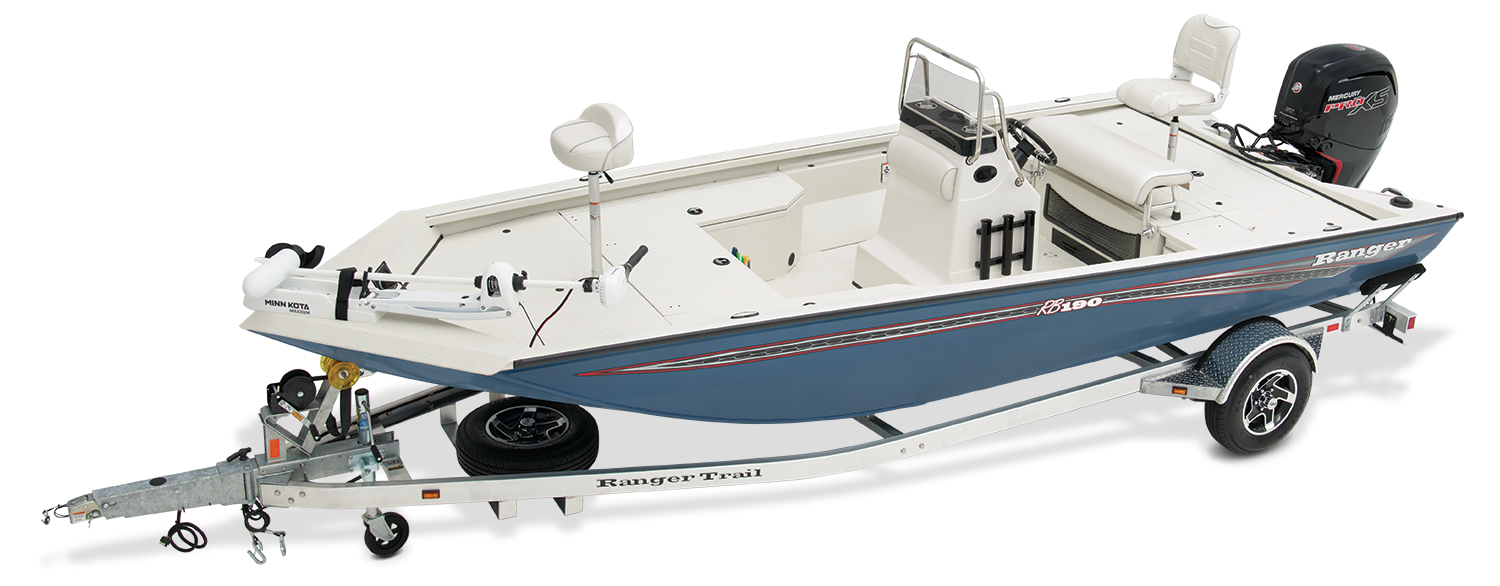

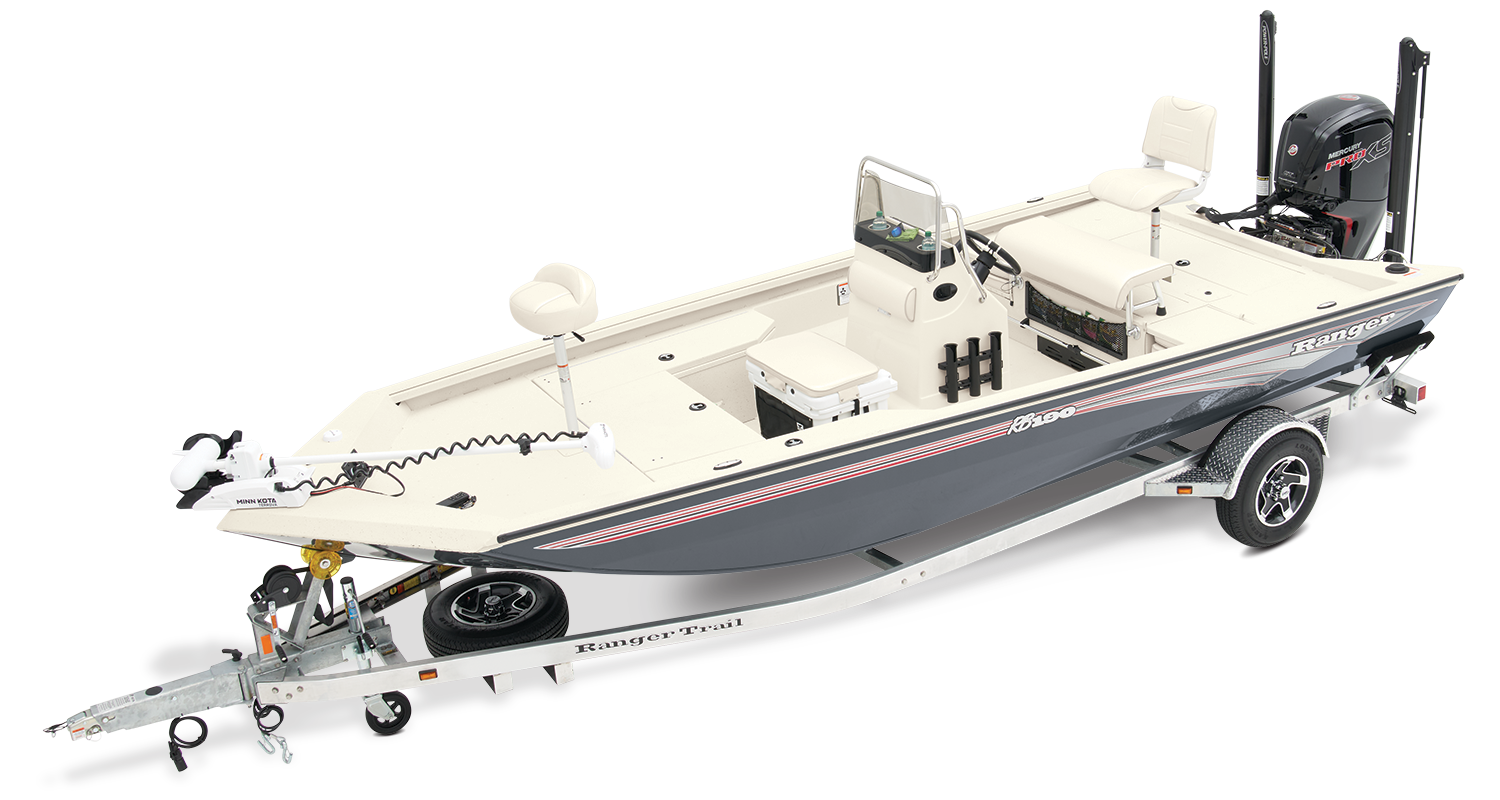

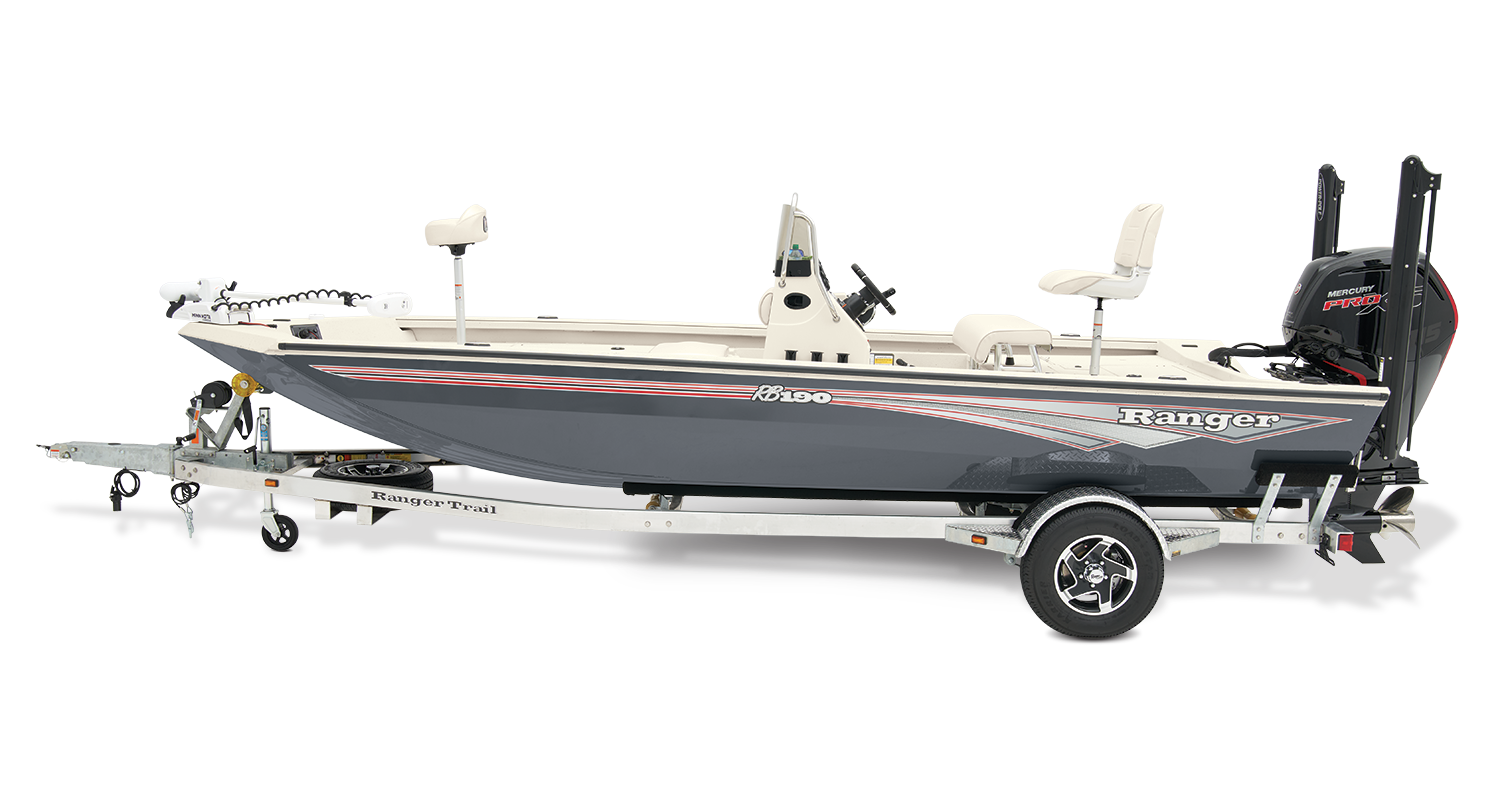

Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$37995
USD
|
Lake, bay, and backwater master

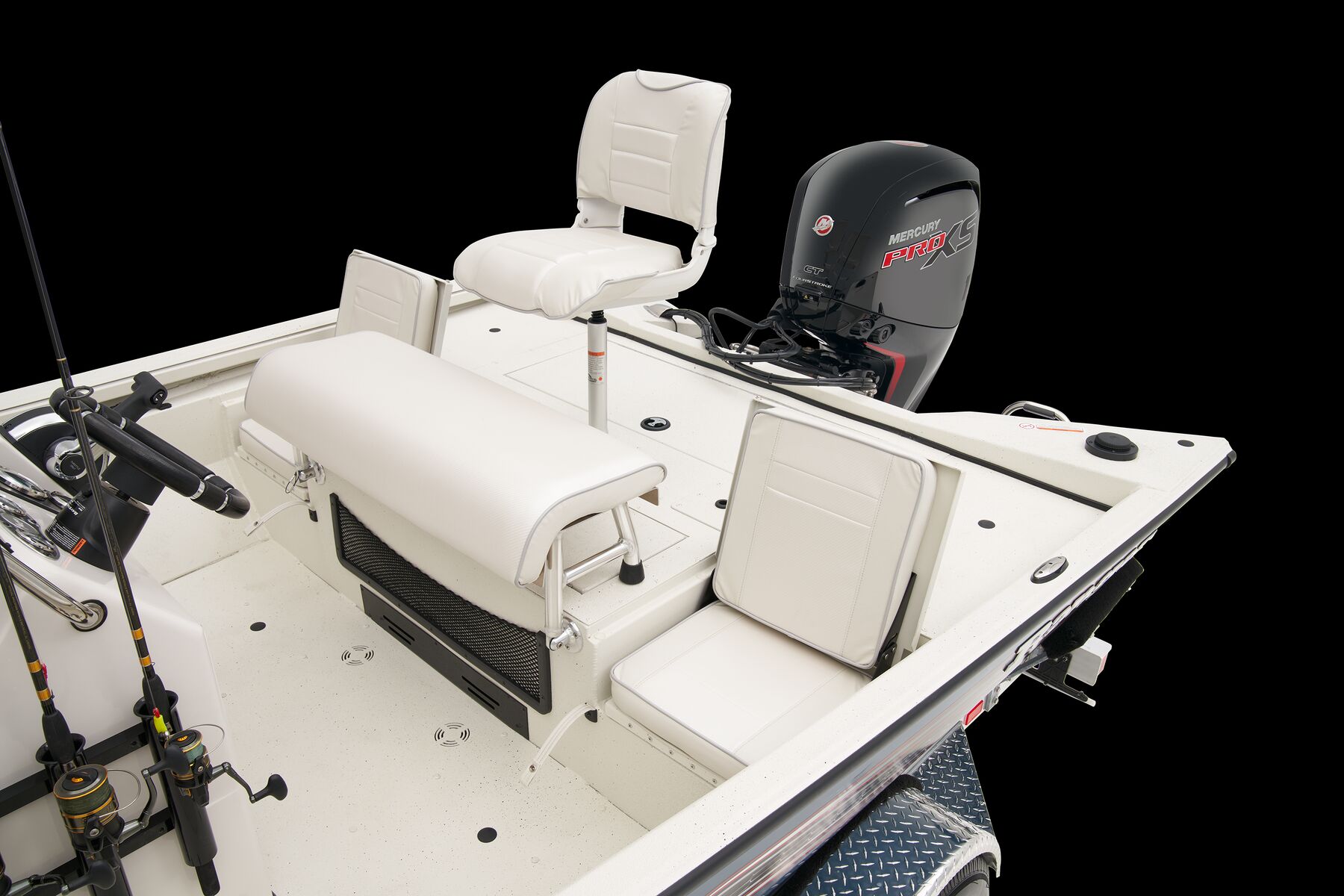

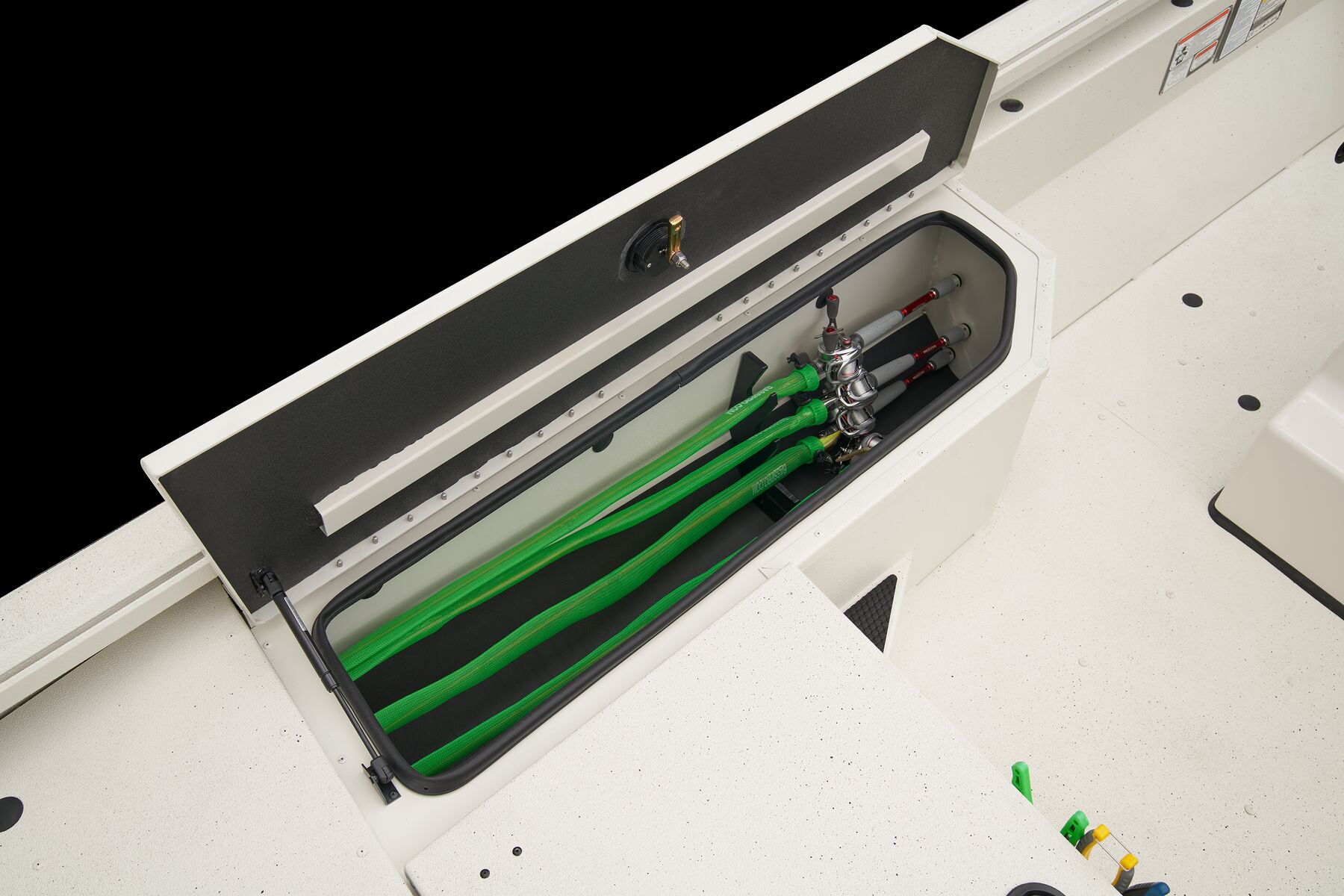

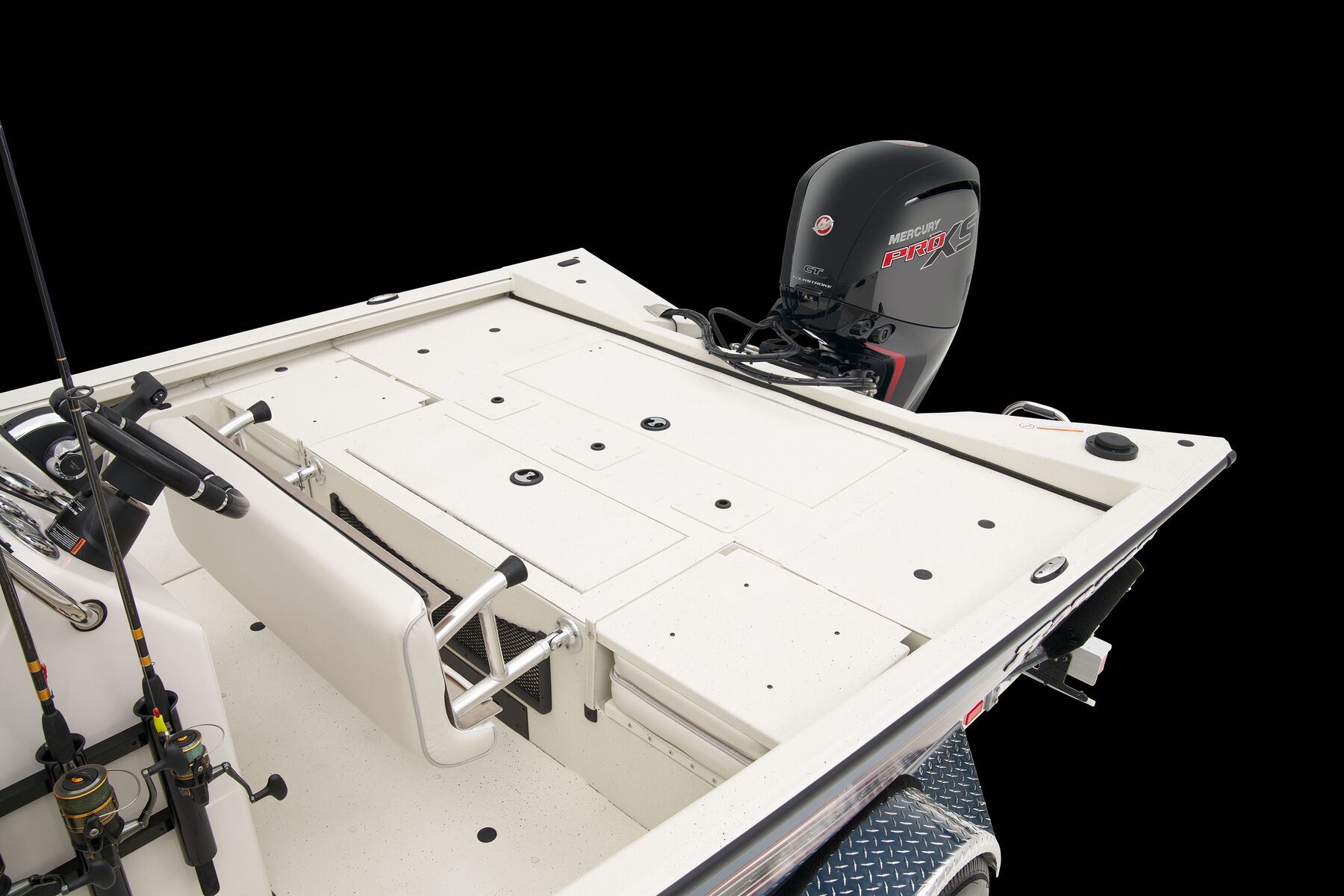

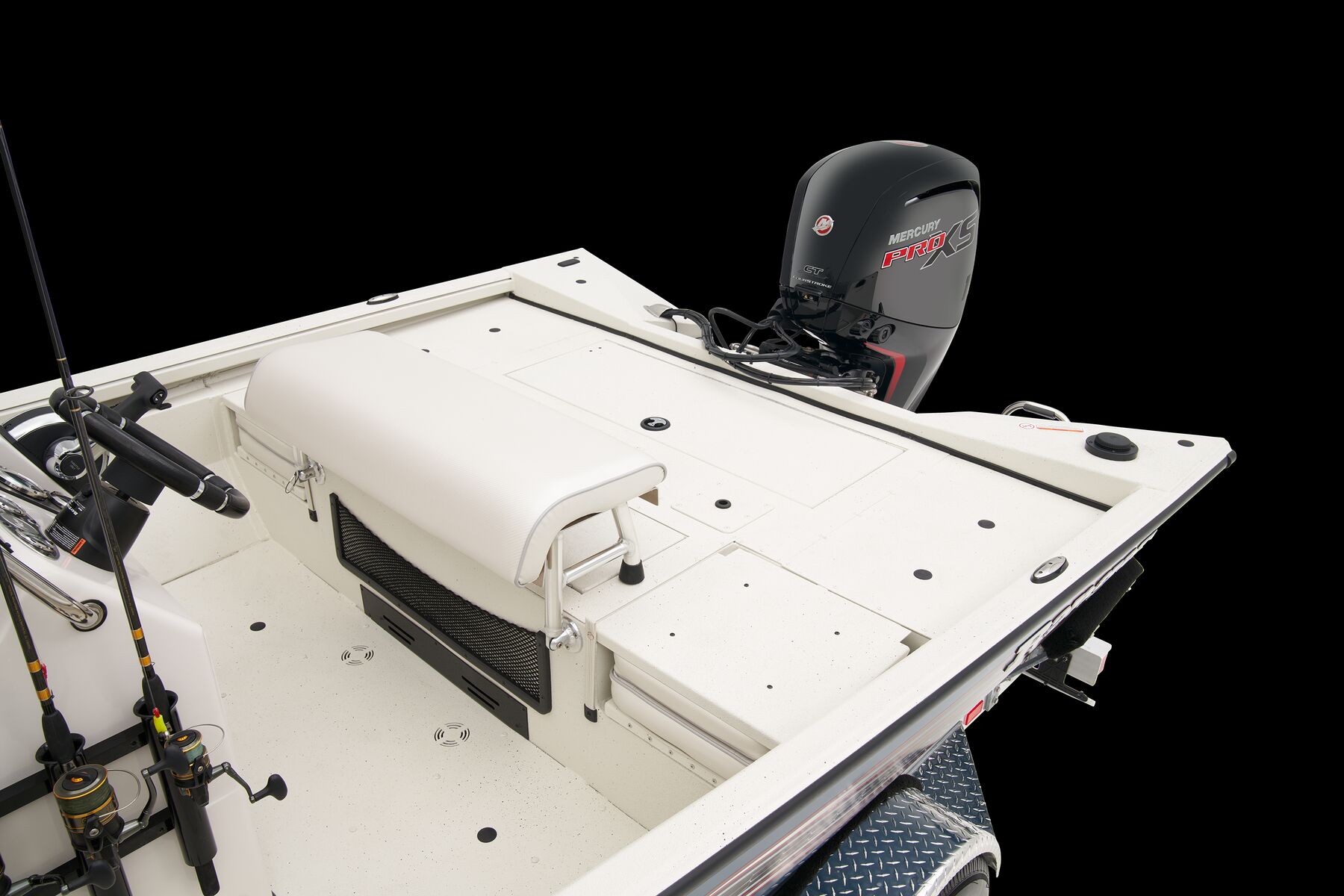

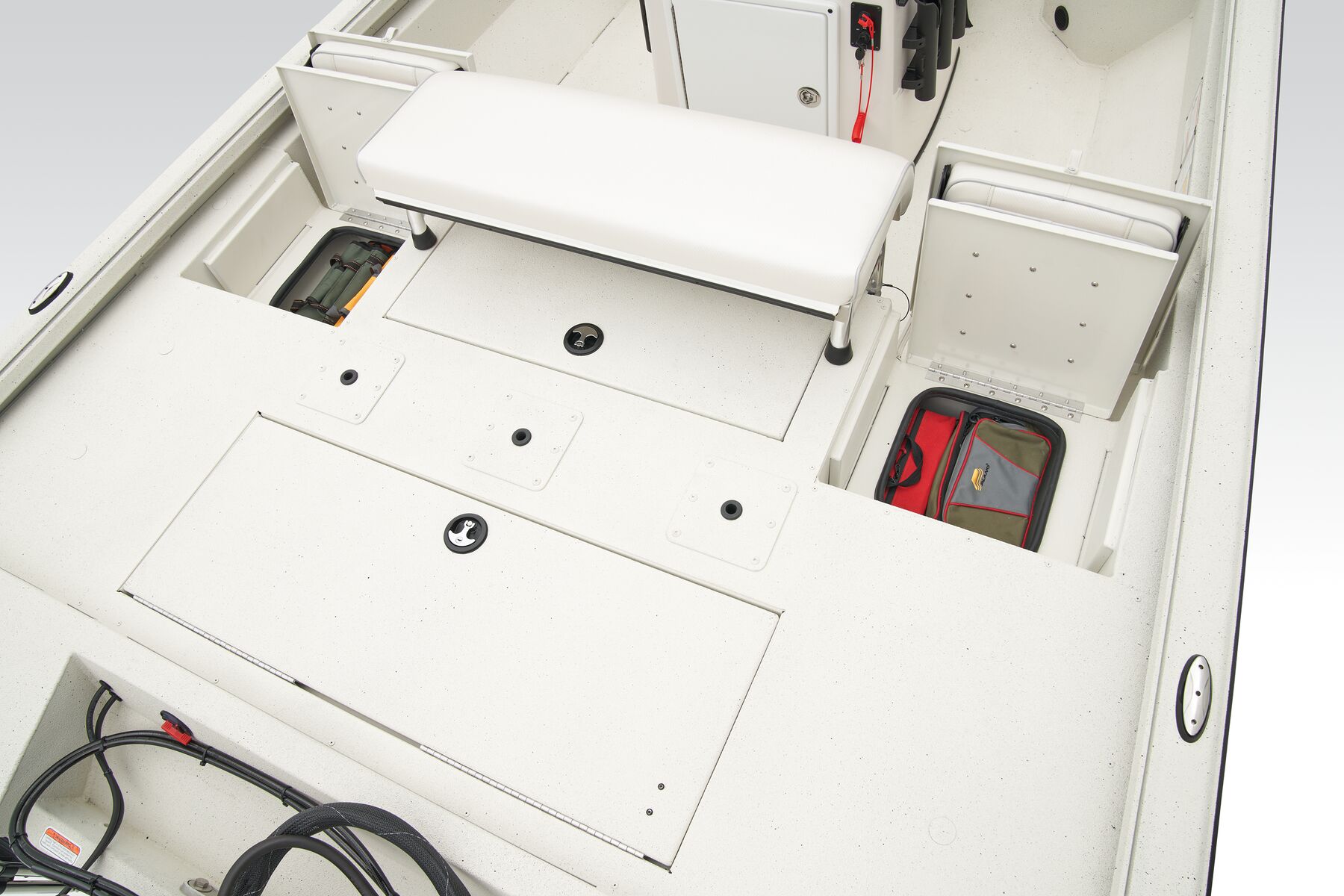

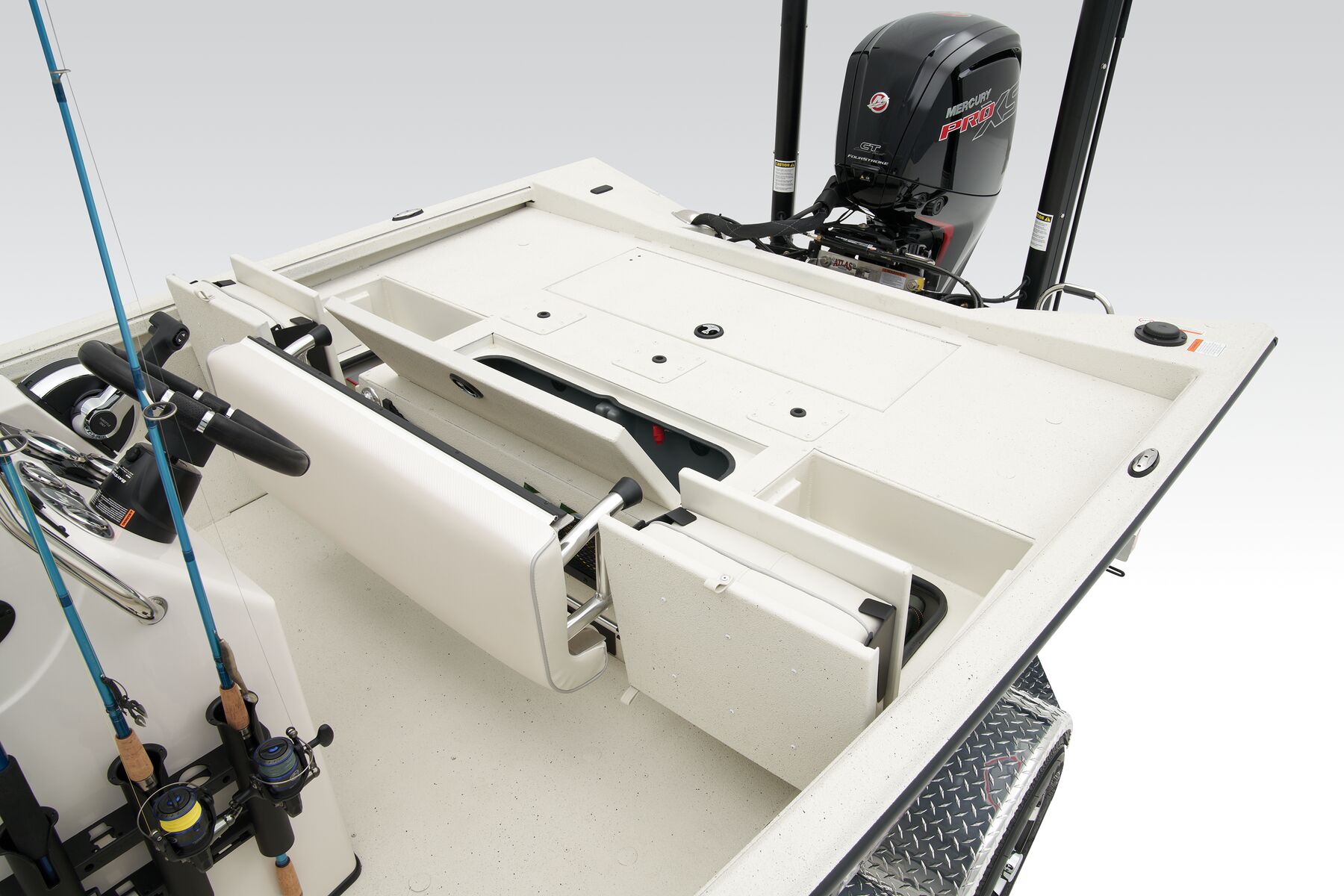

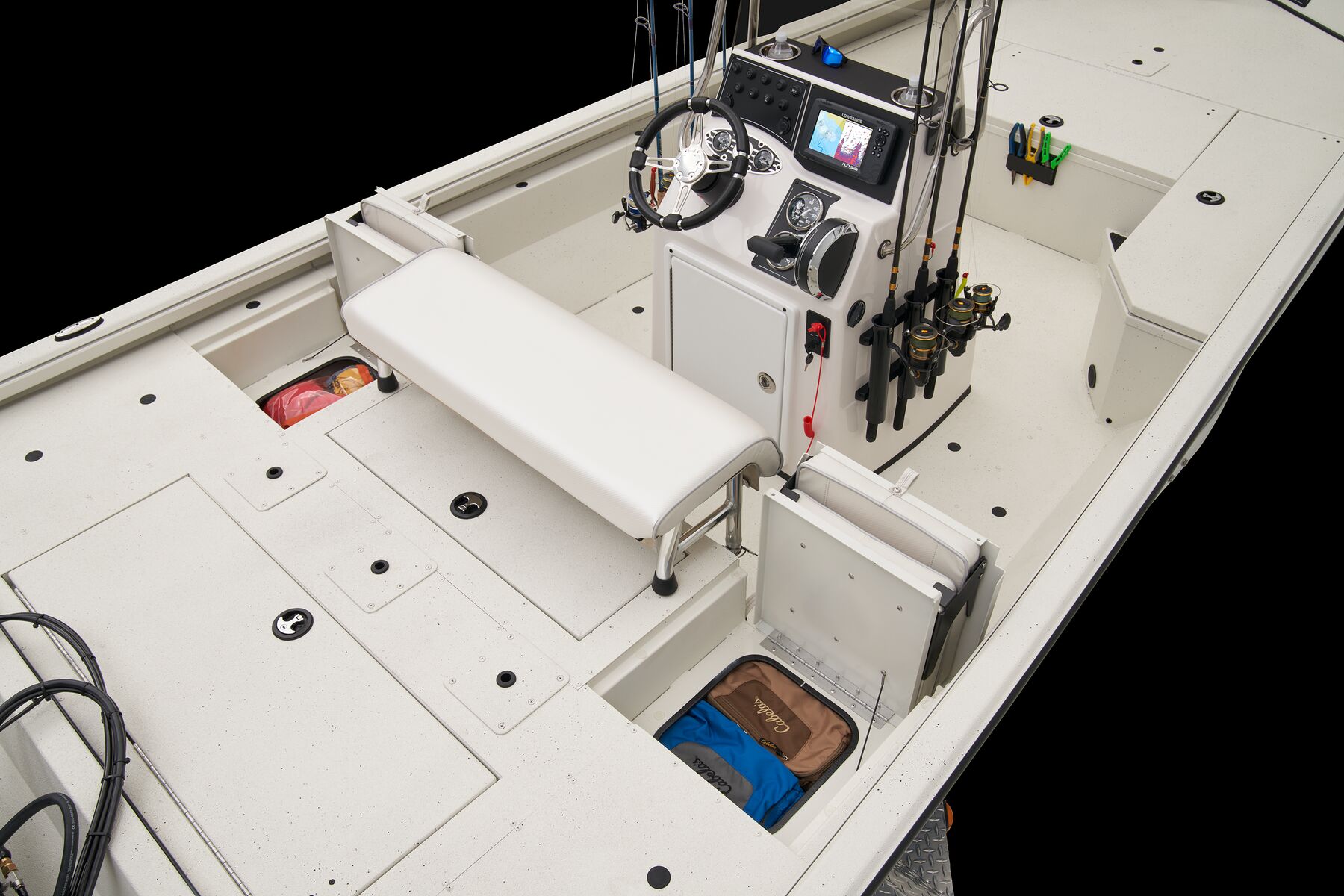

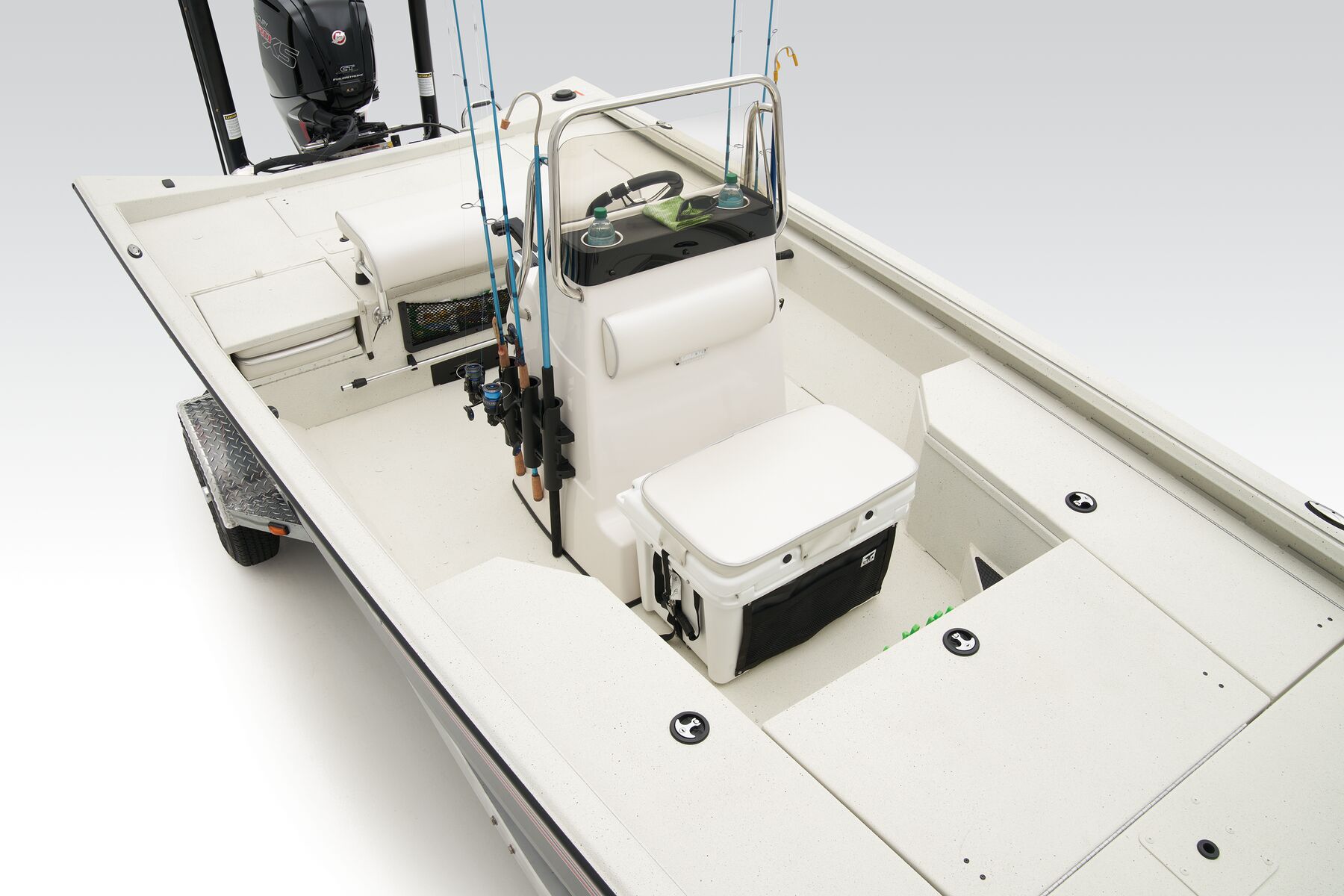

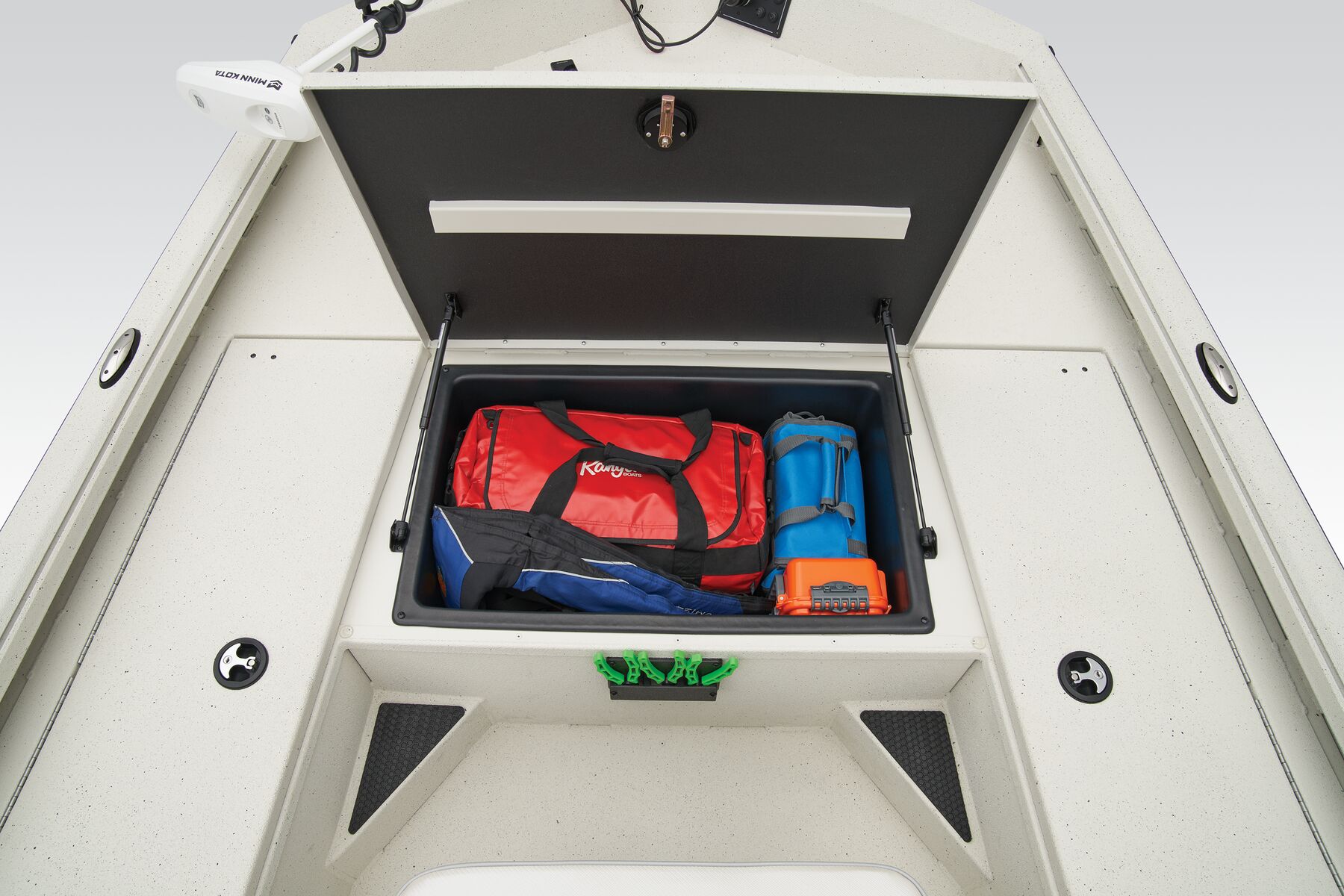

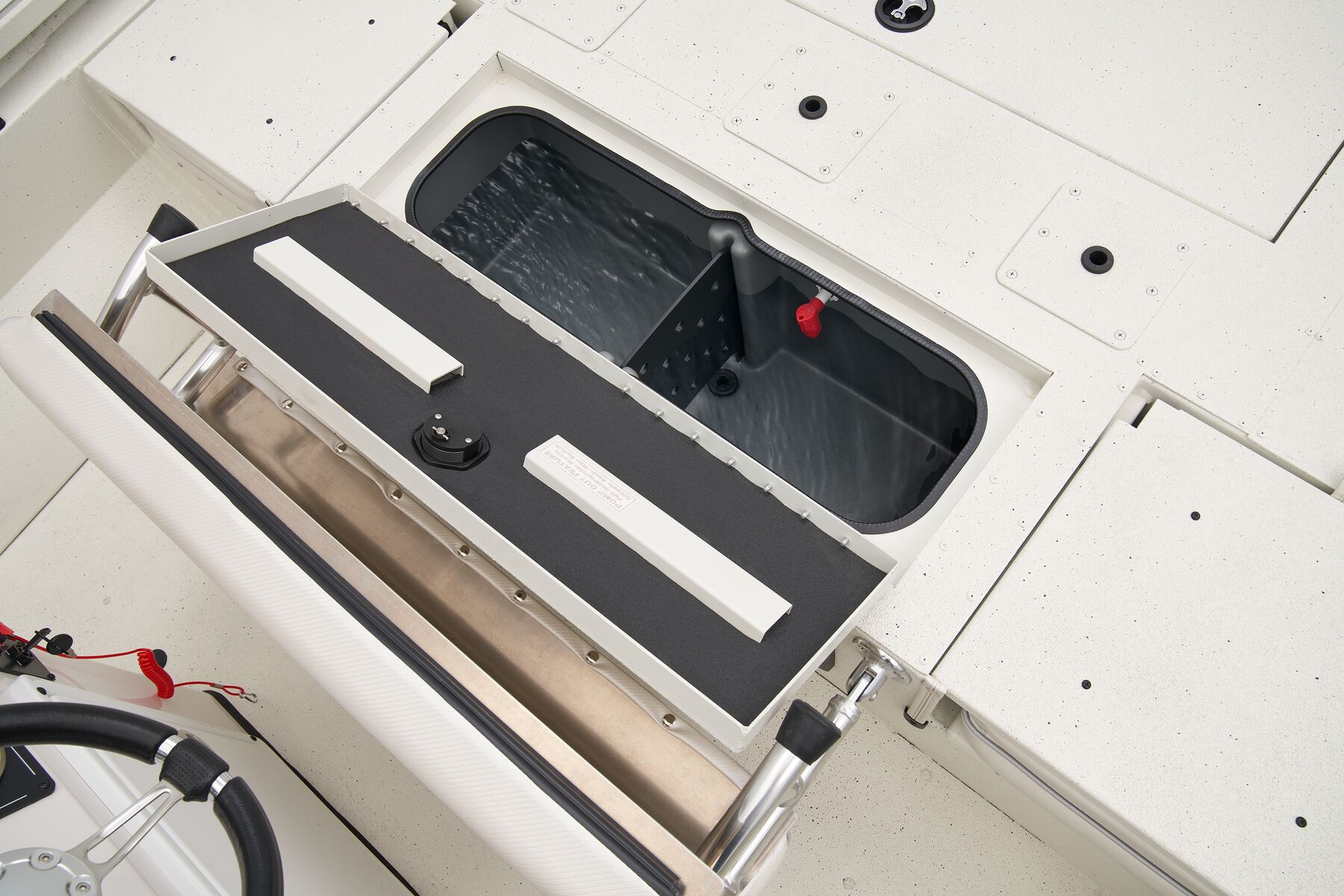

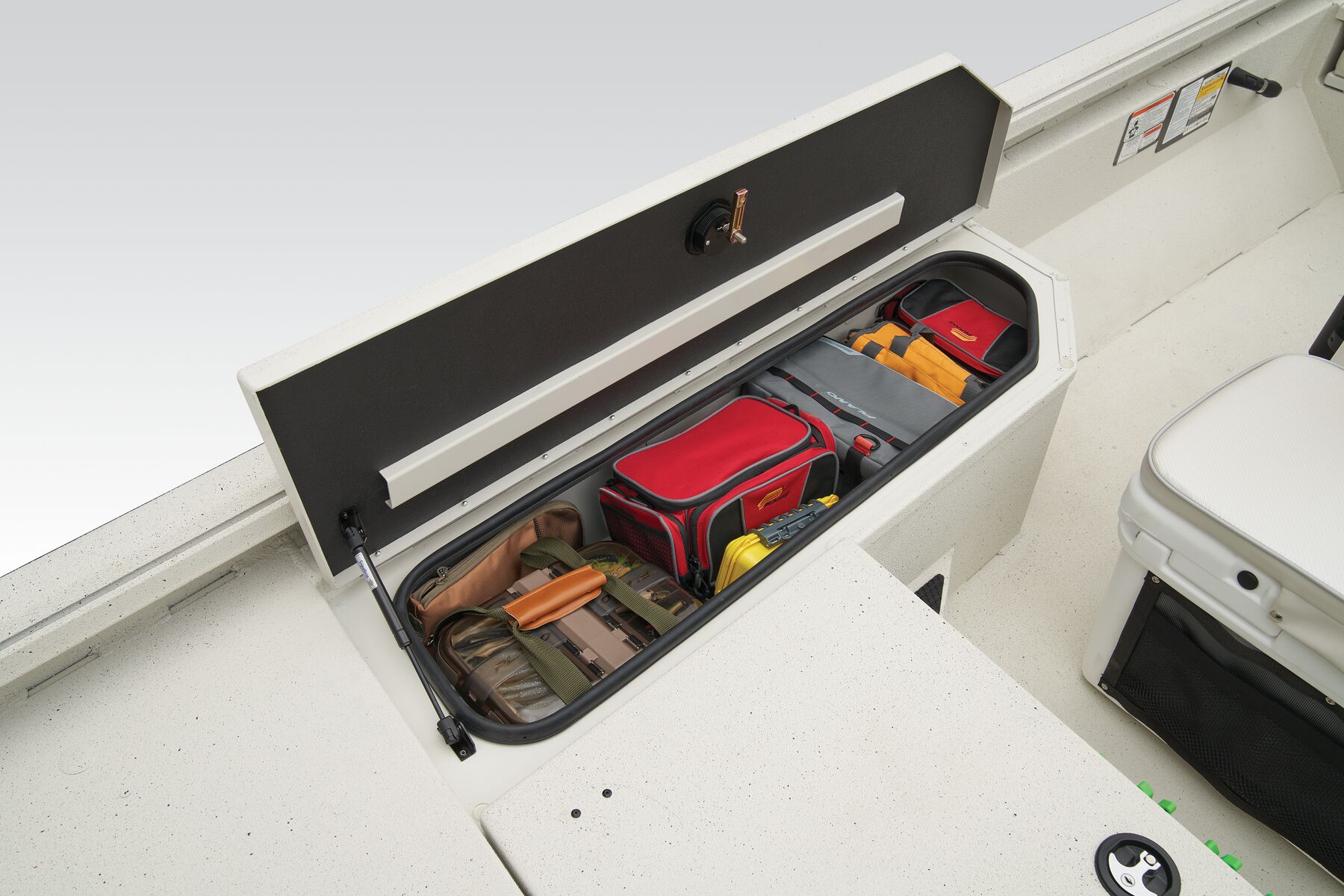

Built for bayous, bays and backwaters, the Ranger® RB190 is a shallow-drafting workhorse that’s ready to take on inshore species with saltwater-savvy touches from the all-aluminum trailer to the grippy, easy-to-clean Rawhide™ interior coating (or optional SeaDek®) and pad-bottom hull for a smooth ride and responsive handling. Dual rear jump seats add deck space when down or seating when up and a padded driver’s leaning post flips down to expose a livewell that’ll accommodate tournament-size reds or a mess of trout. The wide, stable, and shallow-drafting design complements the 115-horsepower rating and slices through chop with nimble and economical performance while BayStar® hydraulic steering keeps you confidently in command. The fiberglass console holds a full set of gauges, including the Ranger RIDE™ system that keeps critical outboard and boat functions and information at your fingertips. Inside, the RB190 features our signature foam flotation and proprietary pultruded fiberglass material in high-stress areas, delivering strength greater pound-for-pound strength than steel, and amazing screw retention. Huge gear storages, new color schemes, twin 8-foot rod boxes and integrated cup and tool holders accentuate the angler-friendly layout and make days on the water easy in this lake, bay and backwater master.
Key Features

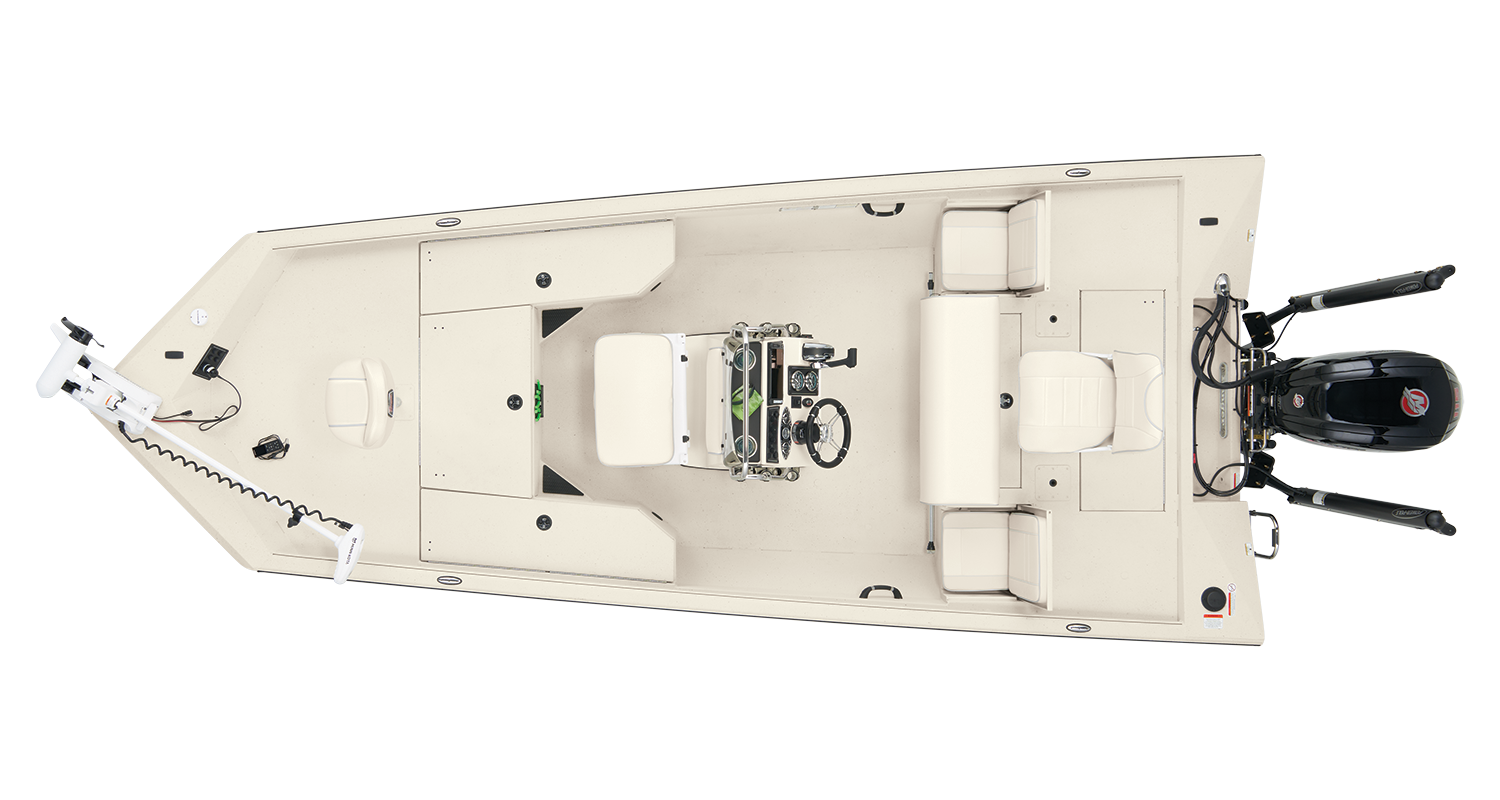

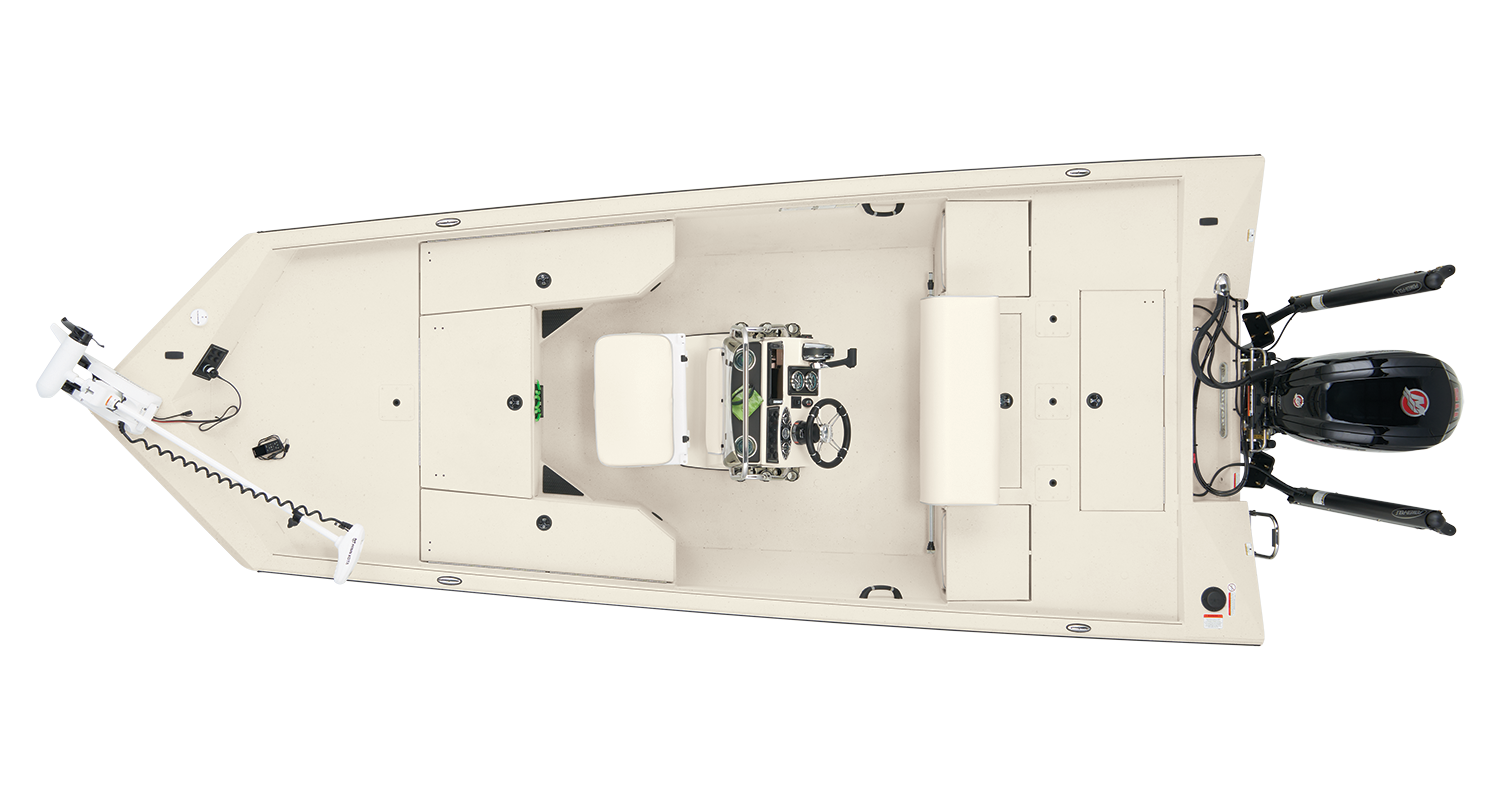

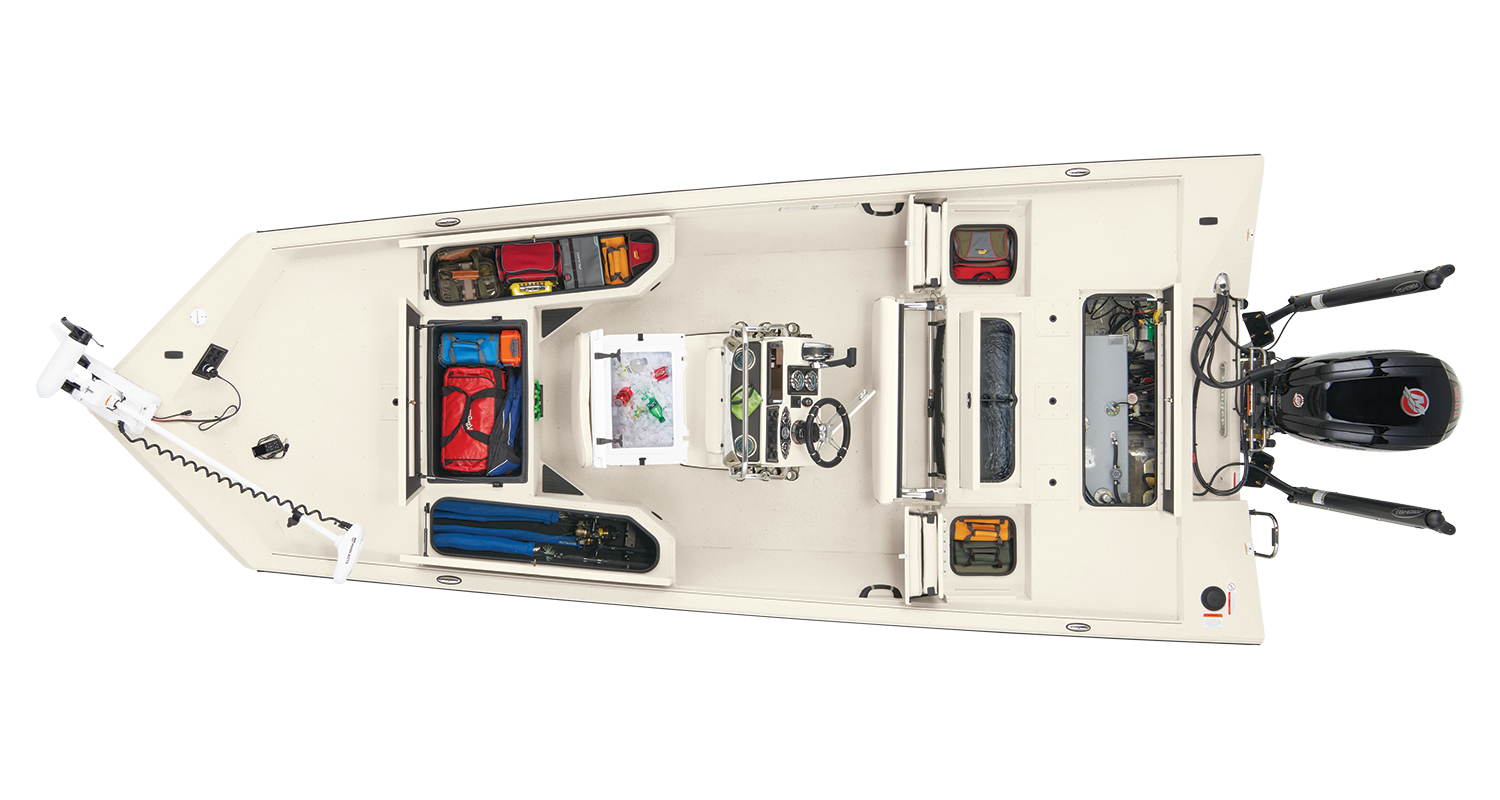

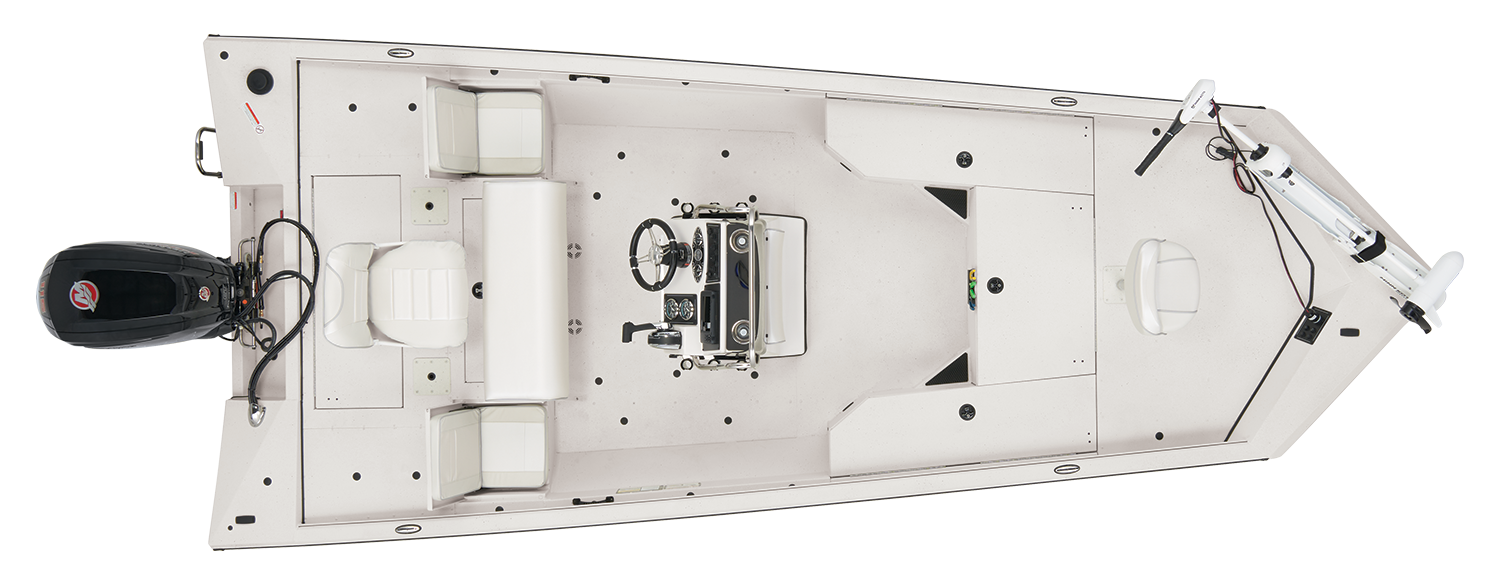

- Wide-open layout and broad, stable beam
- Dry, shallow-drafting hull

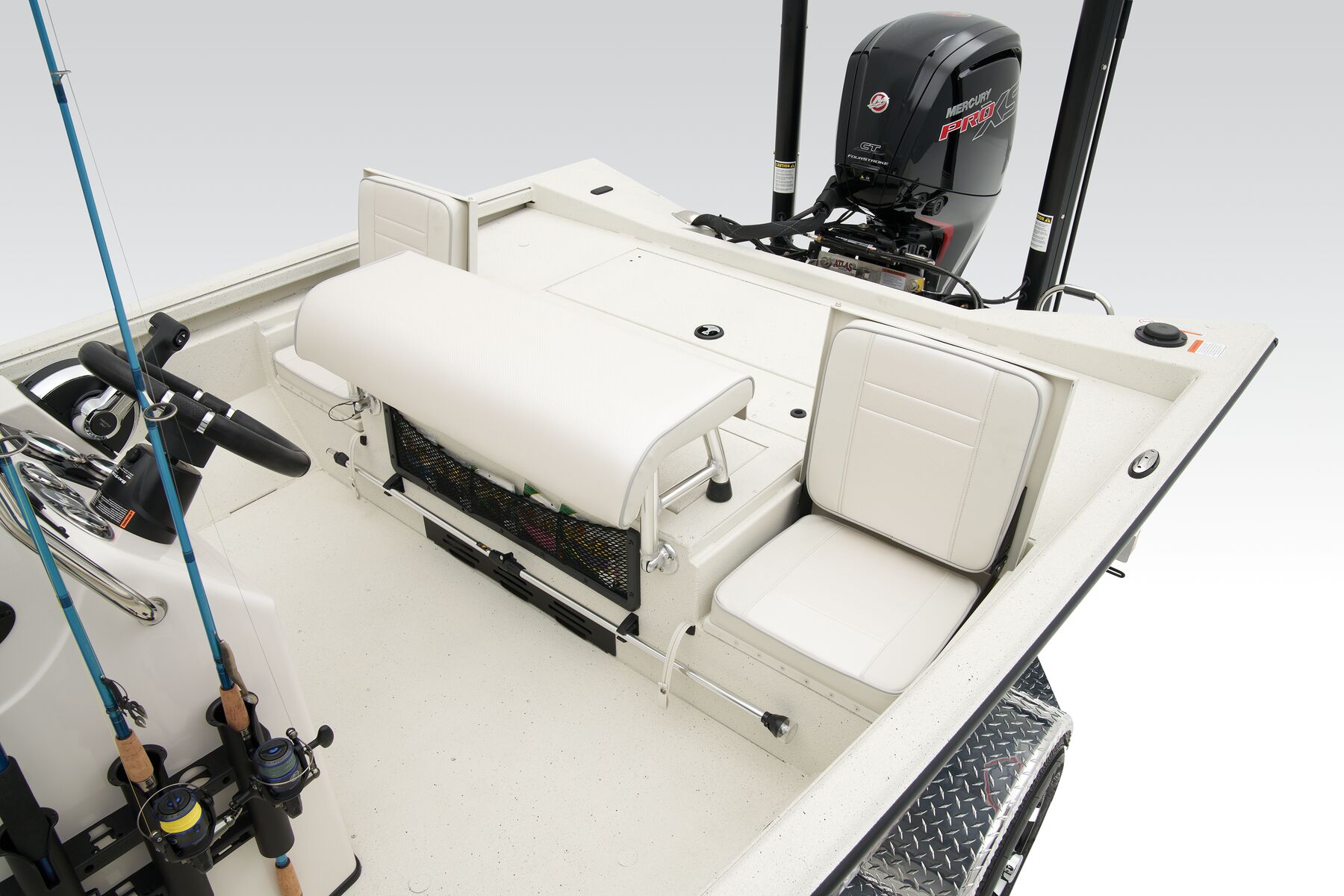

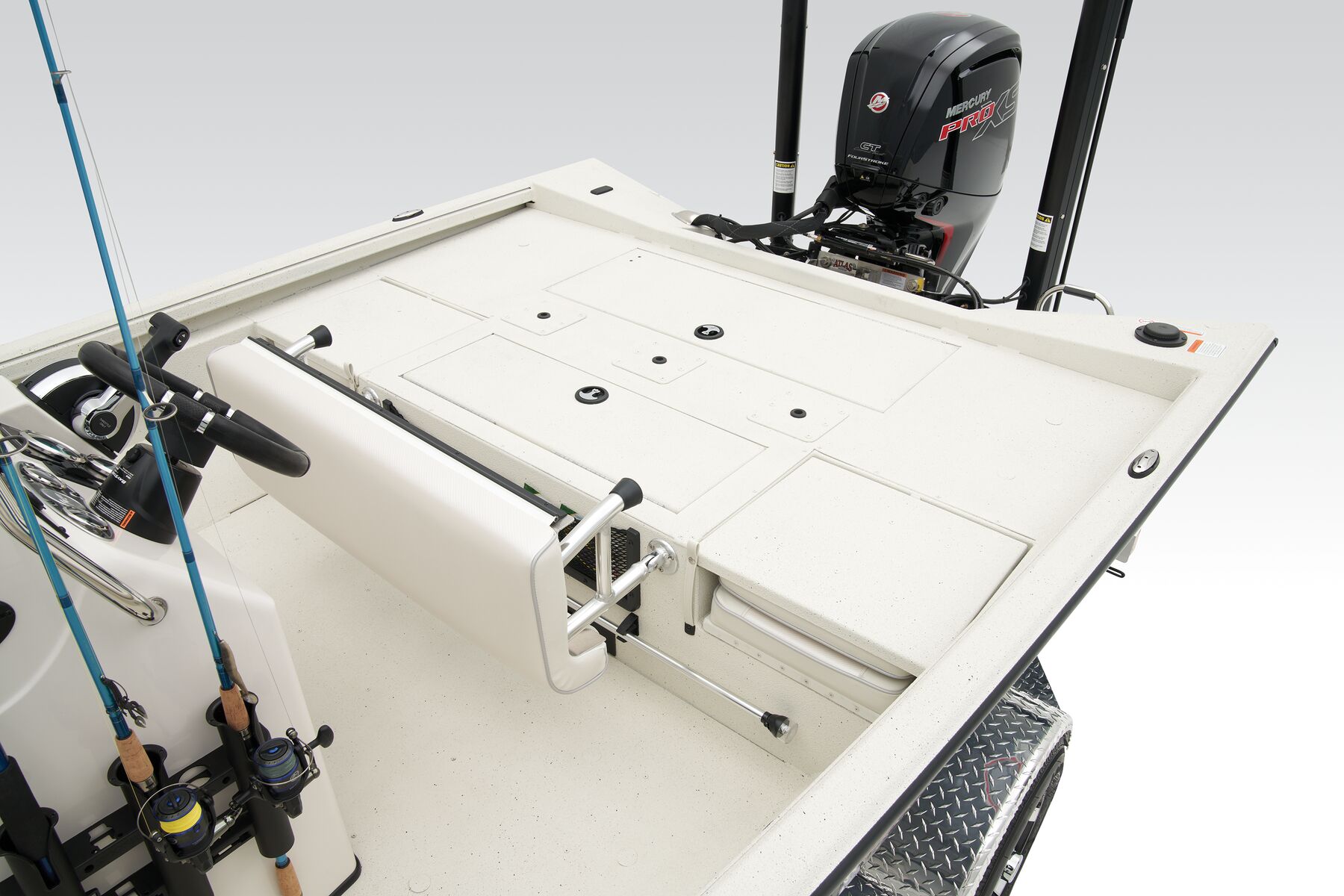

- Fold-down rear seats

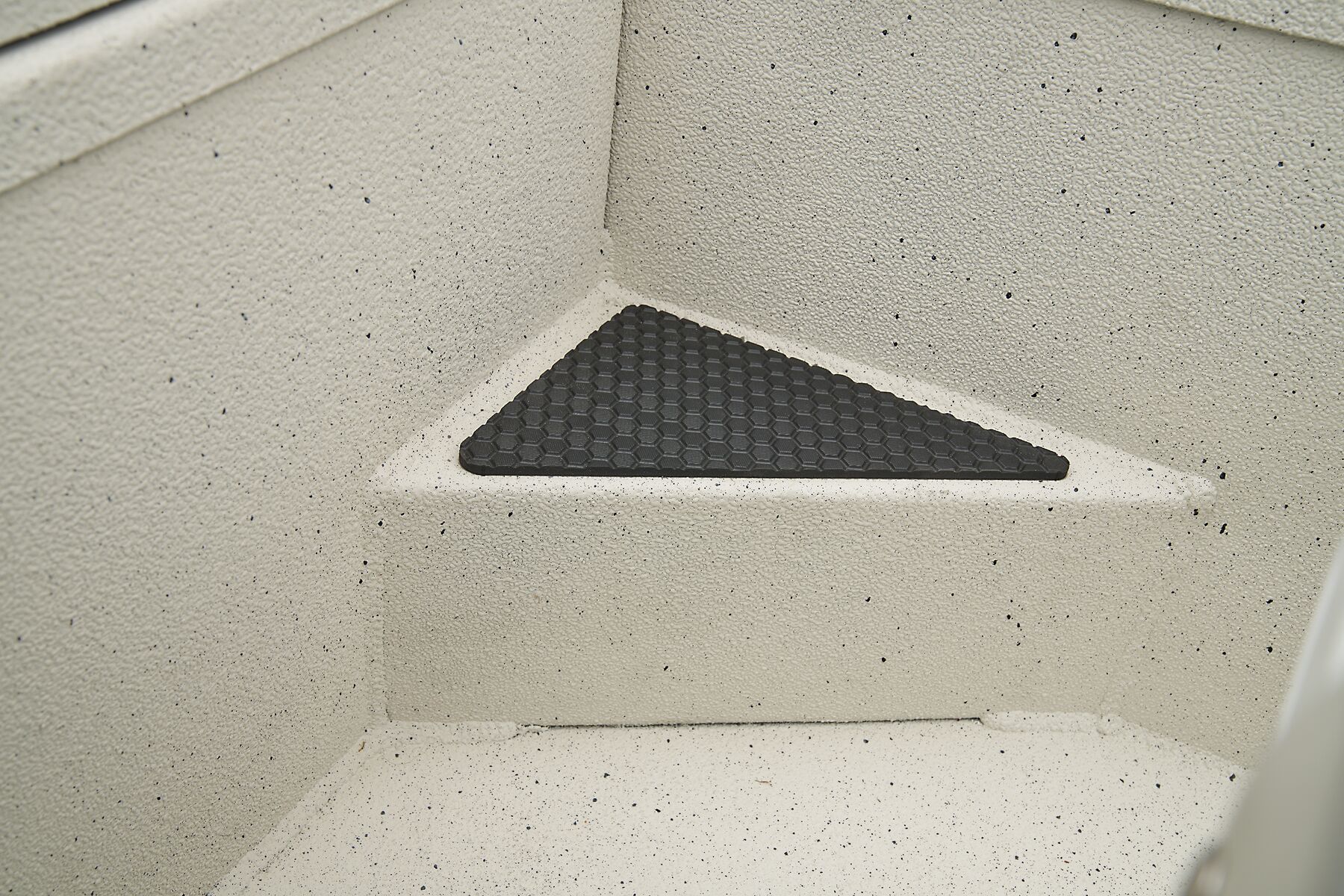

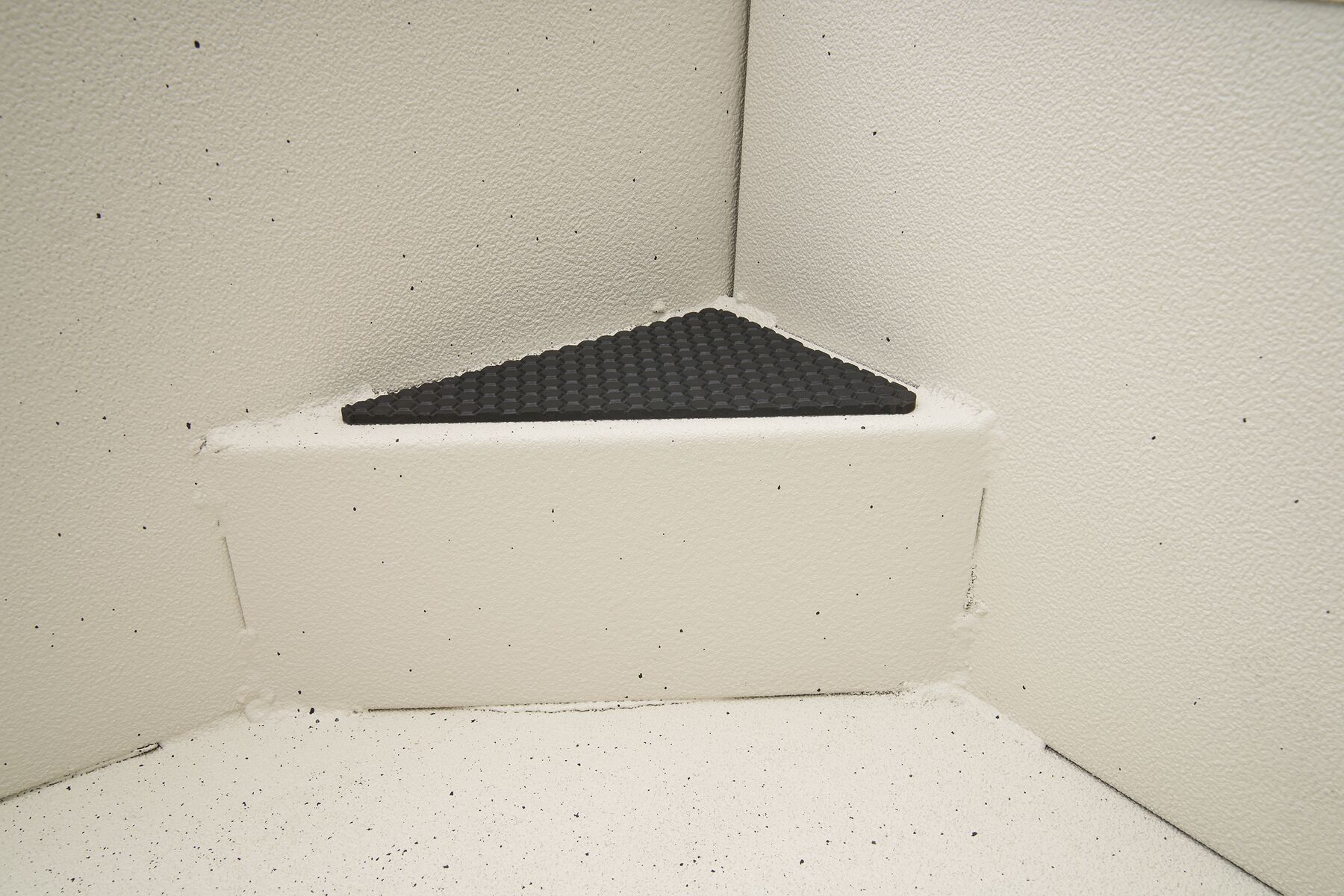

- Rugged, skid-resistant Rawhide™ interior coating
- Aluminum-framed Ranger Trail® trailer
Video
Specifications
| Length | 6.05 m | 19' 10'' |
| Hull Length | 6.05 m | 19' 10'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 115 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Side Depth | 53.34 cm | 21'' |
| Hull Thickness | 0.254 cm | 0.1'' |
| Bottom Width | 1.73 m | 68'' |
| Fuel Capacity | 79.49 L | 21 gal. |
| Approximate Boat Weight | 601.01 kg | 1325 lbs. |

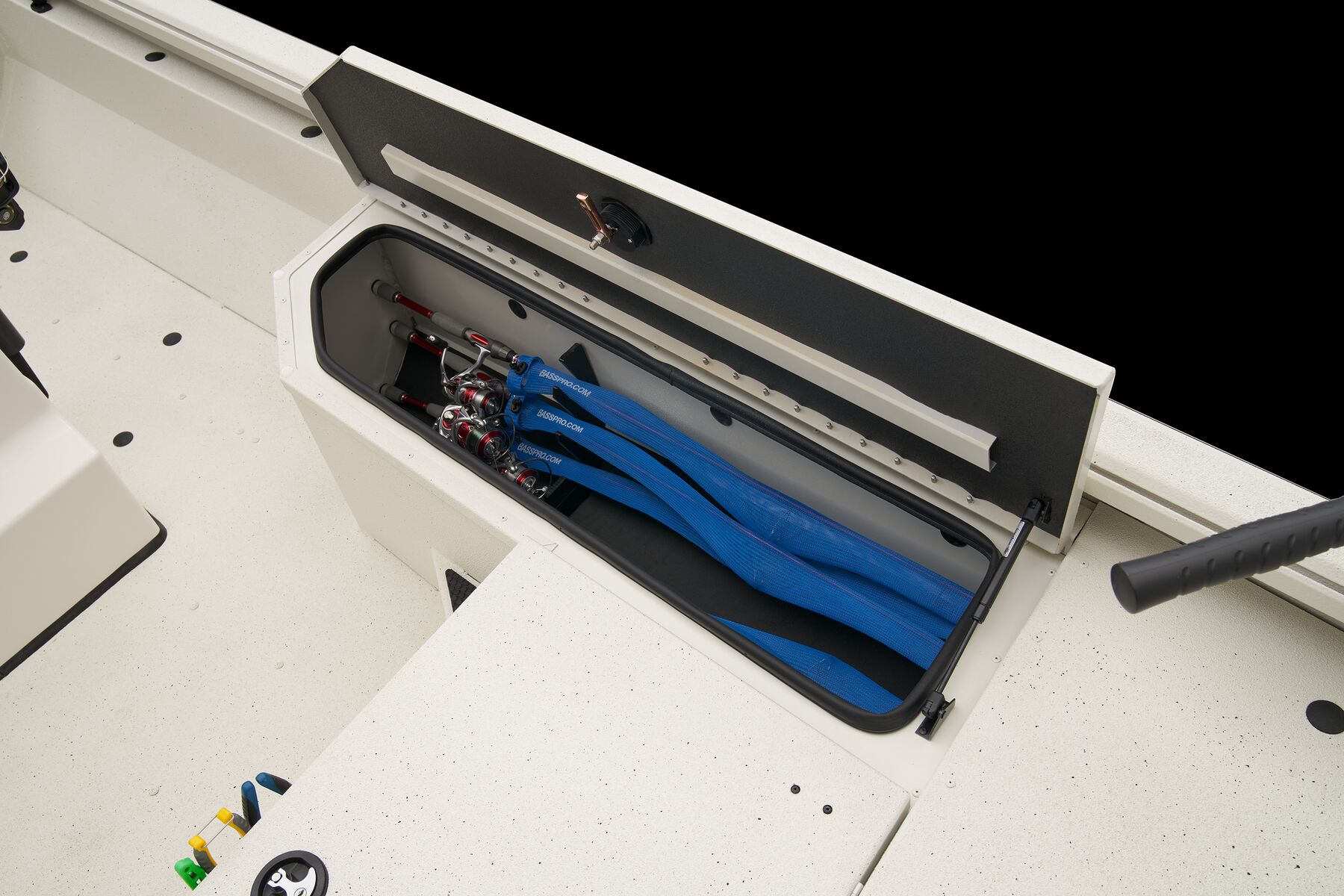

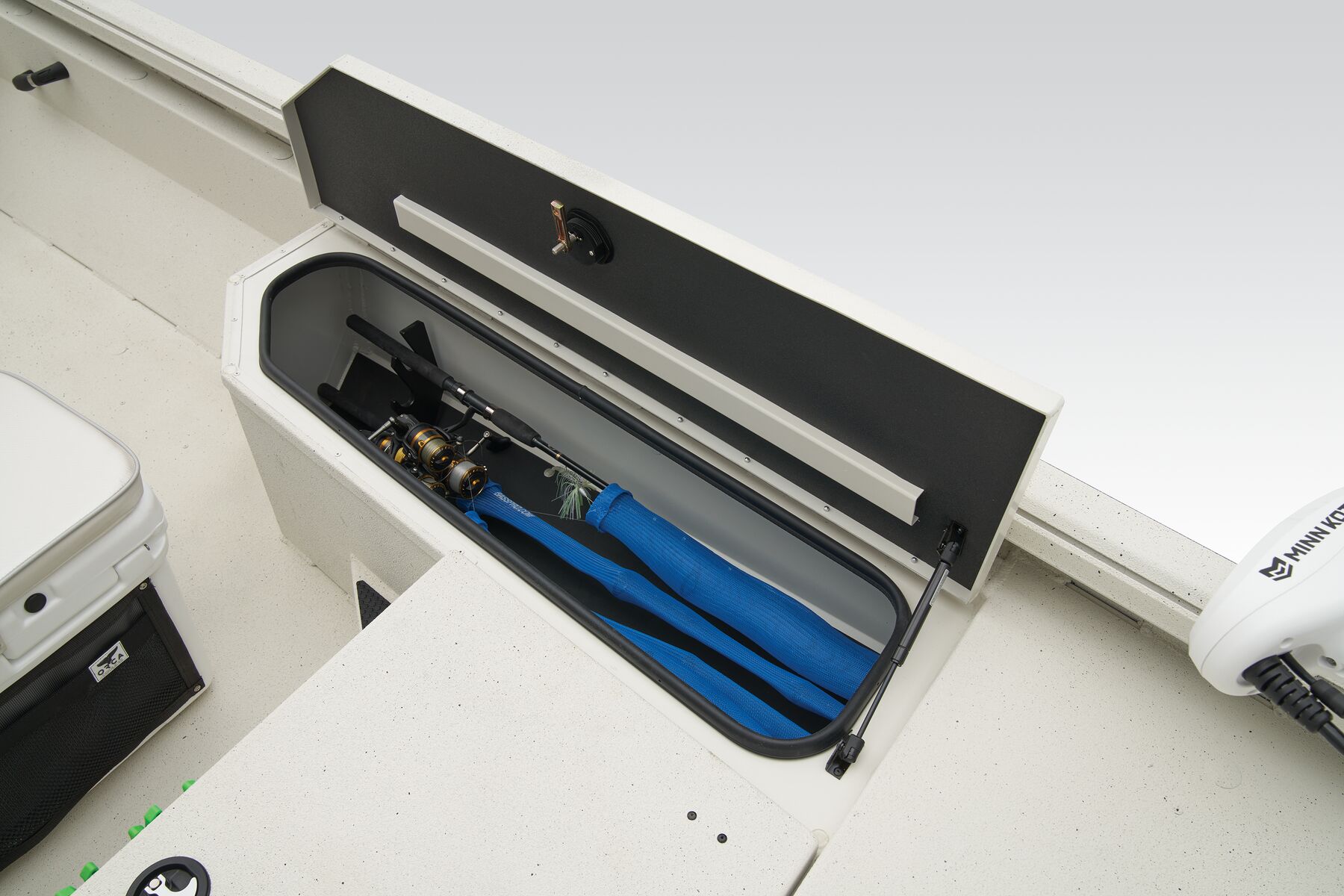

| Rod Box Length - Port | 2.44 m | 8' |
| Rod Box Length - Starboard | 2.44 m | 8' |
| Max. Person Capacity | 5 persons | |
| Trailer GVWR | 1338.1 kg | 2950 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.52 m | 24' 8'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.06 m | 23' 2'' |
| Width On Trailer | 2.44 m | 96'' |
| Height On Trailer | 1.98 m | 78'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 90 ELPT FourStroke |
$37995 USD
|
Select Dealer | |||
| 115 ELPT Pro XS FourStroke Command Thrust |
$40025 USD
|
Select Dealer | |||
Standard Features
Custom Details

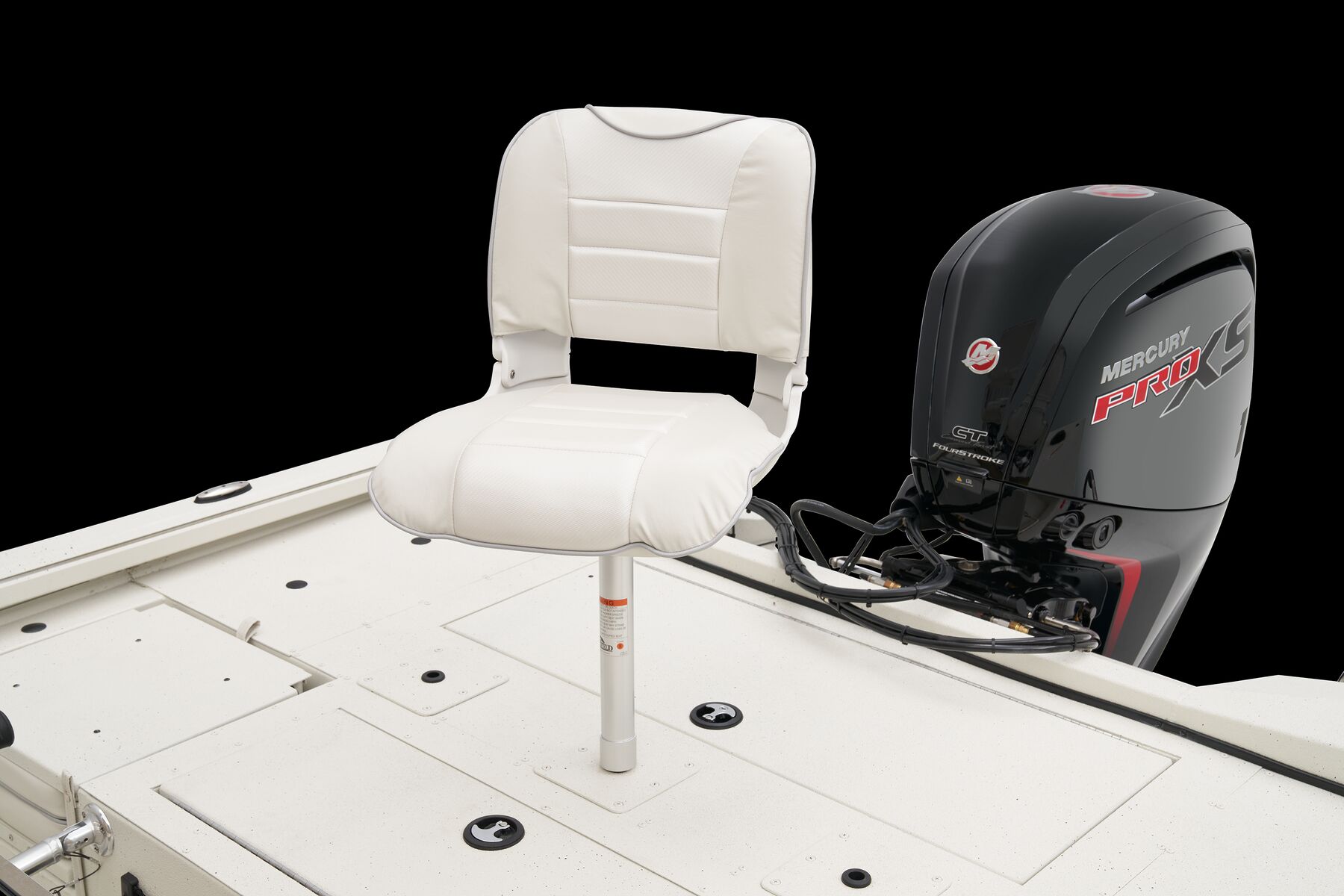

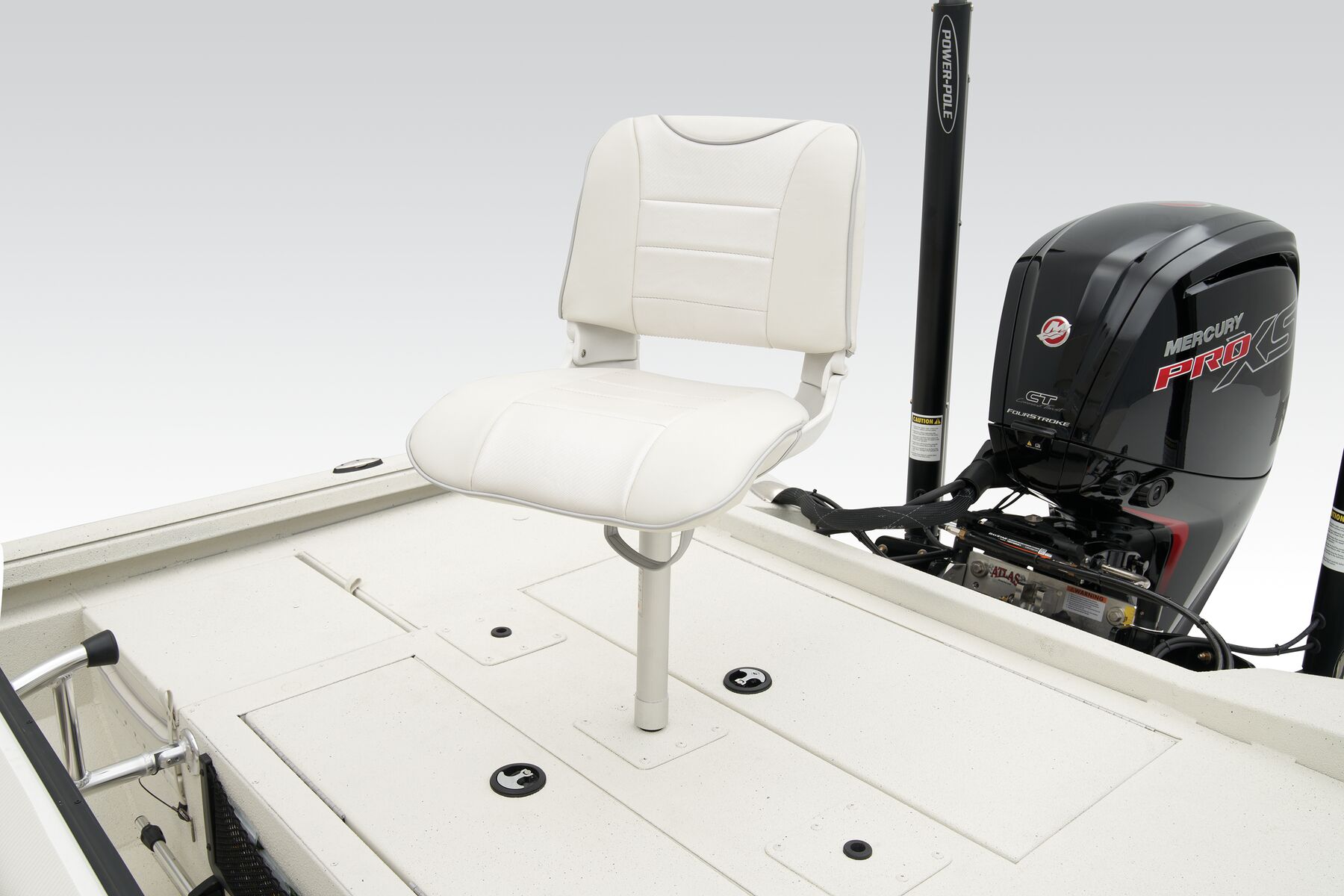

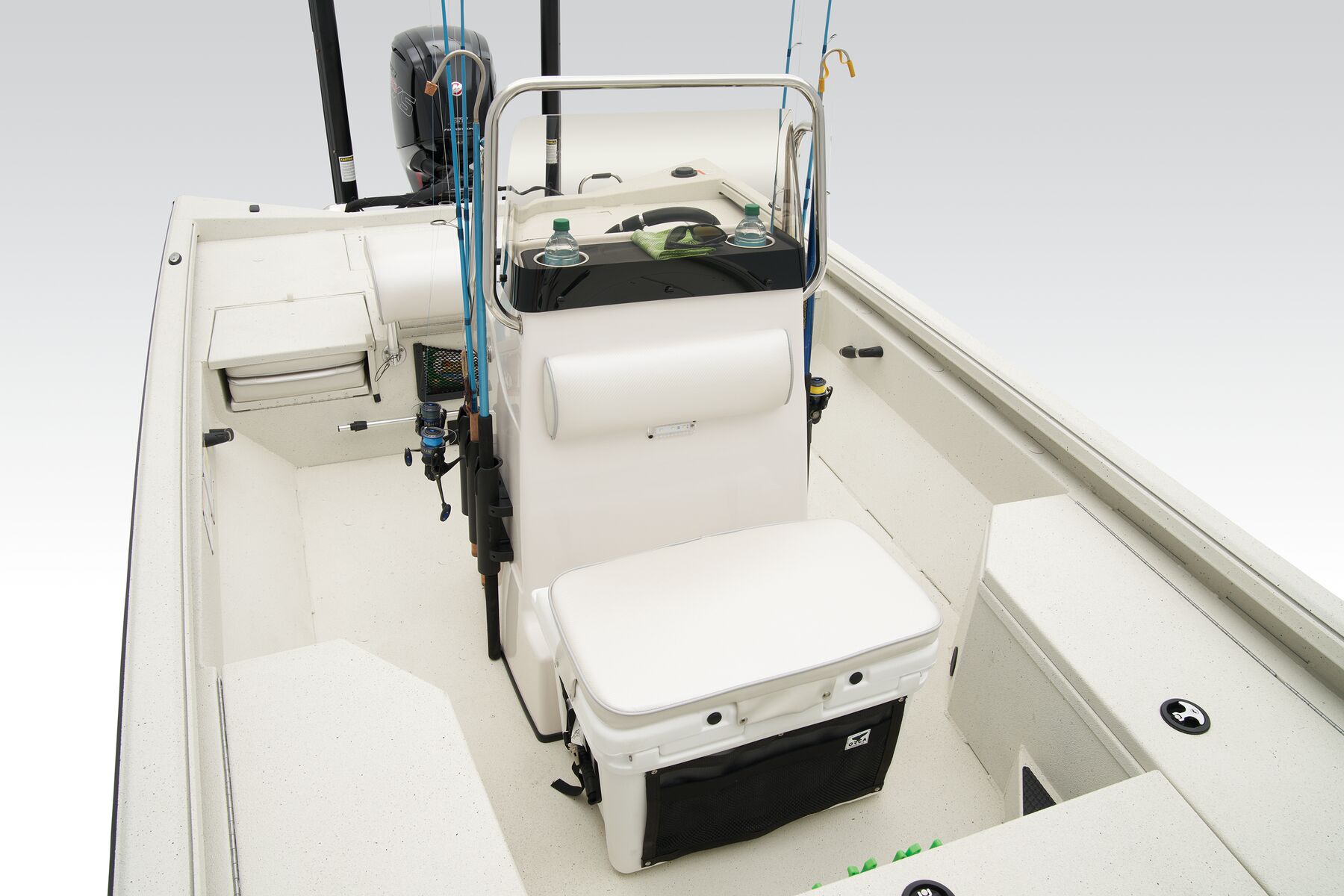

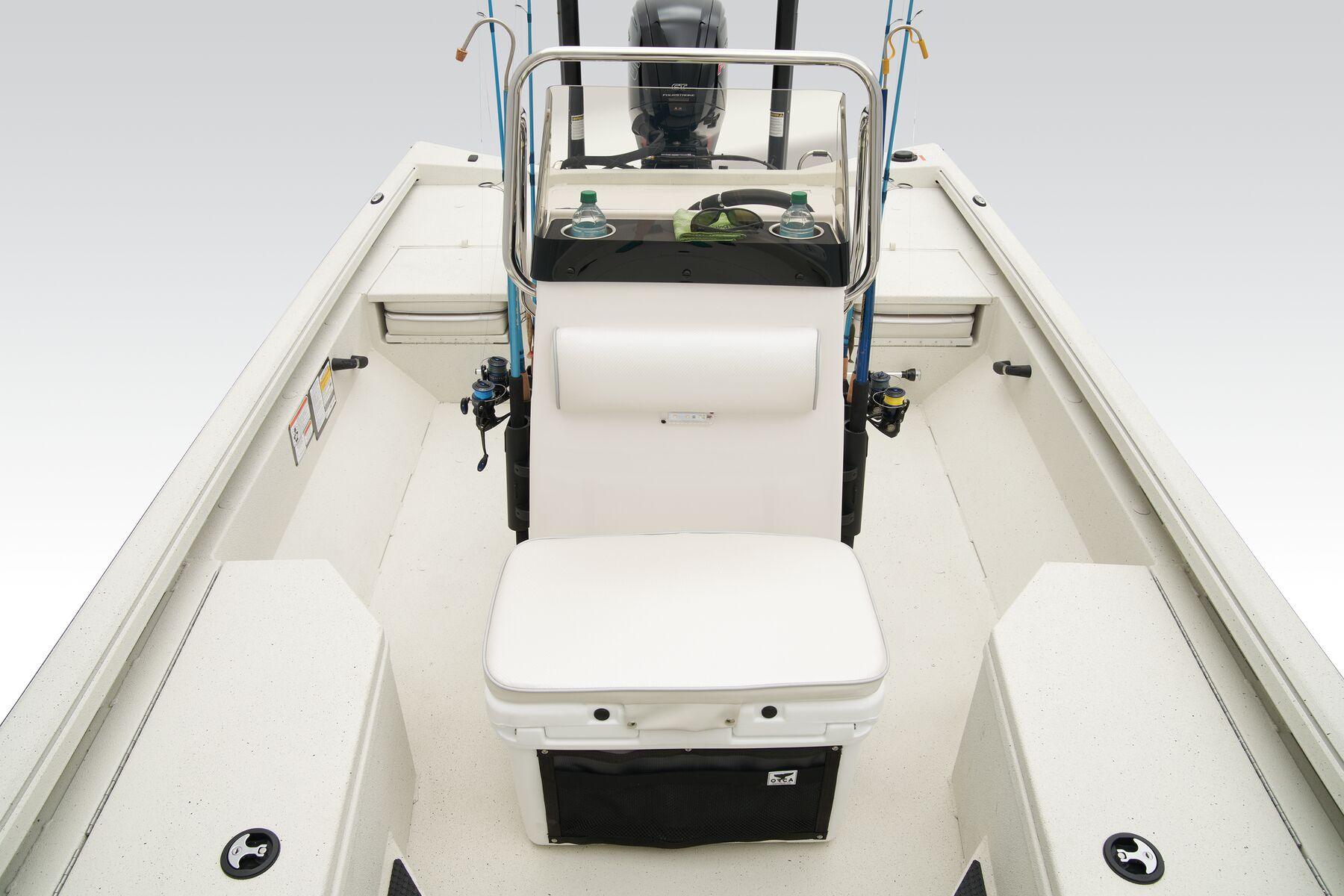

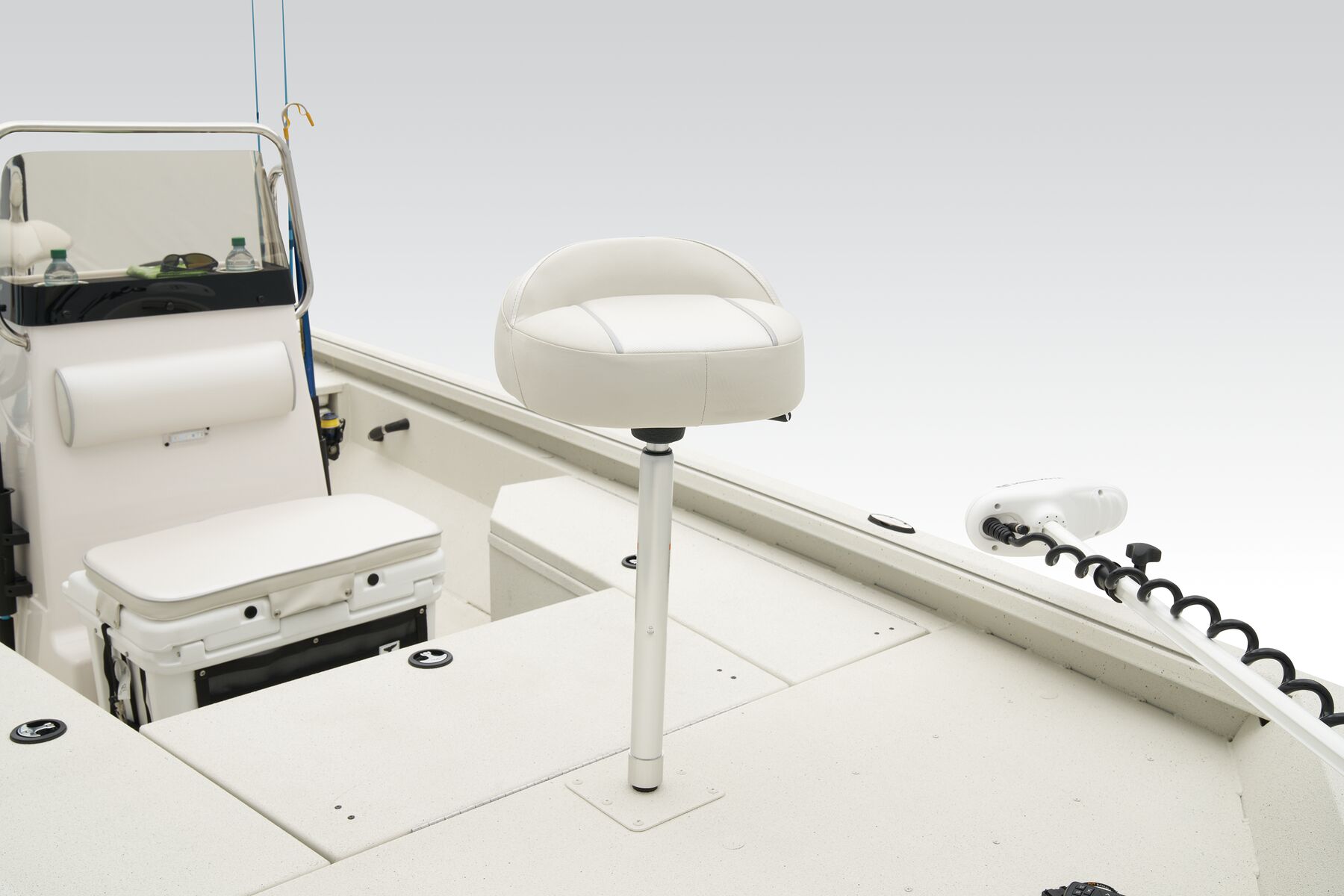

- Custom fitted marine upholstery: aluminum leaning post, (1) fold down, (1) bike, dual jump Seats
- Rawhide™ coating on gunnel & interior

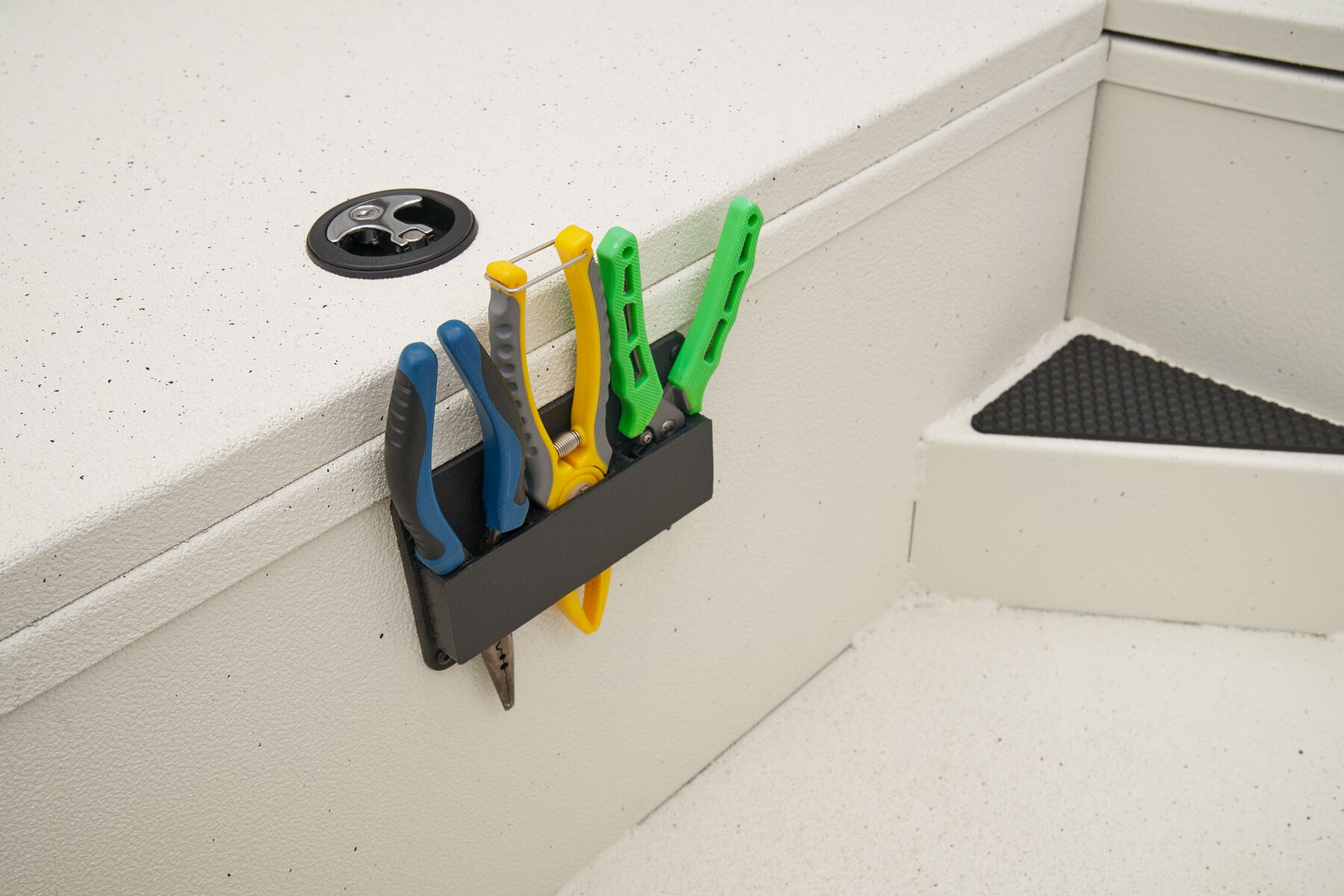

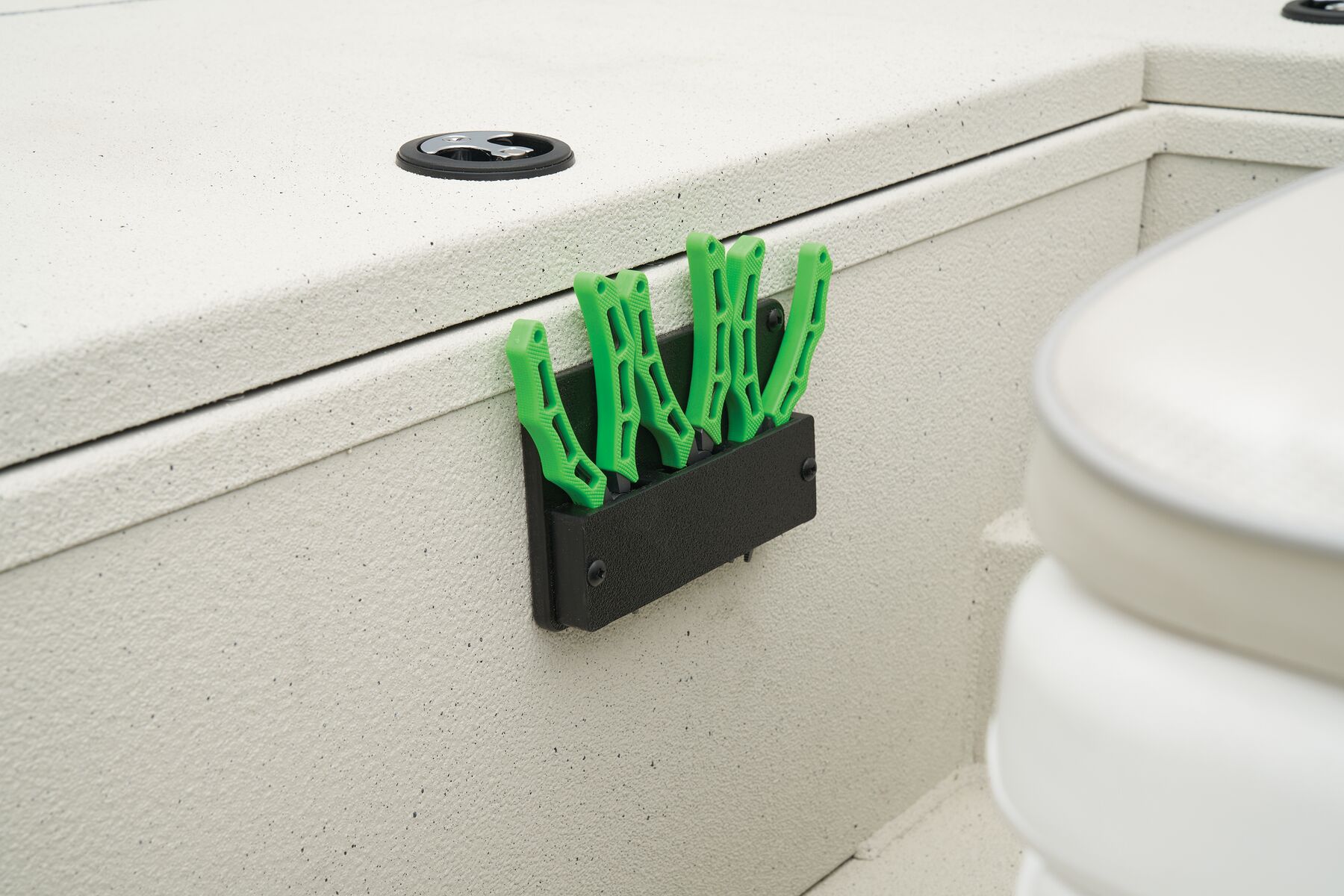

- Integrated cup holders / tool holders

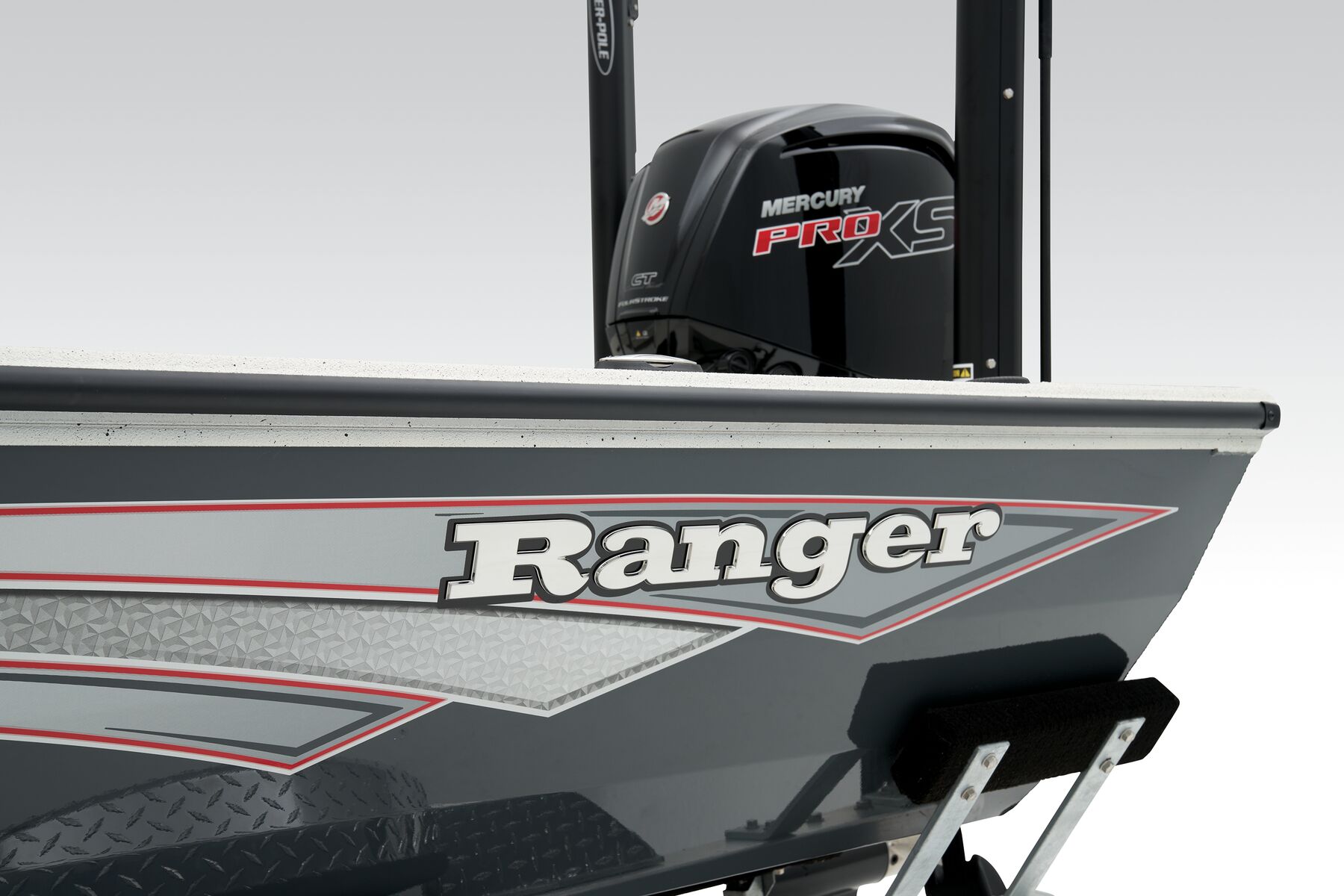

- High gloss metallic paint with custom Ranger® graphics
- Choice of colors: white, teal, carbon, bay blue, or bay green
- Windshield w/ stainless steel handrail
Electronics
- 2 Deep-cycle trolling batteries w/trays
- 8 gauge trolling motor wiring

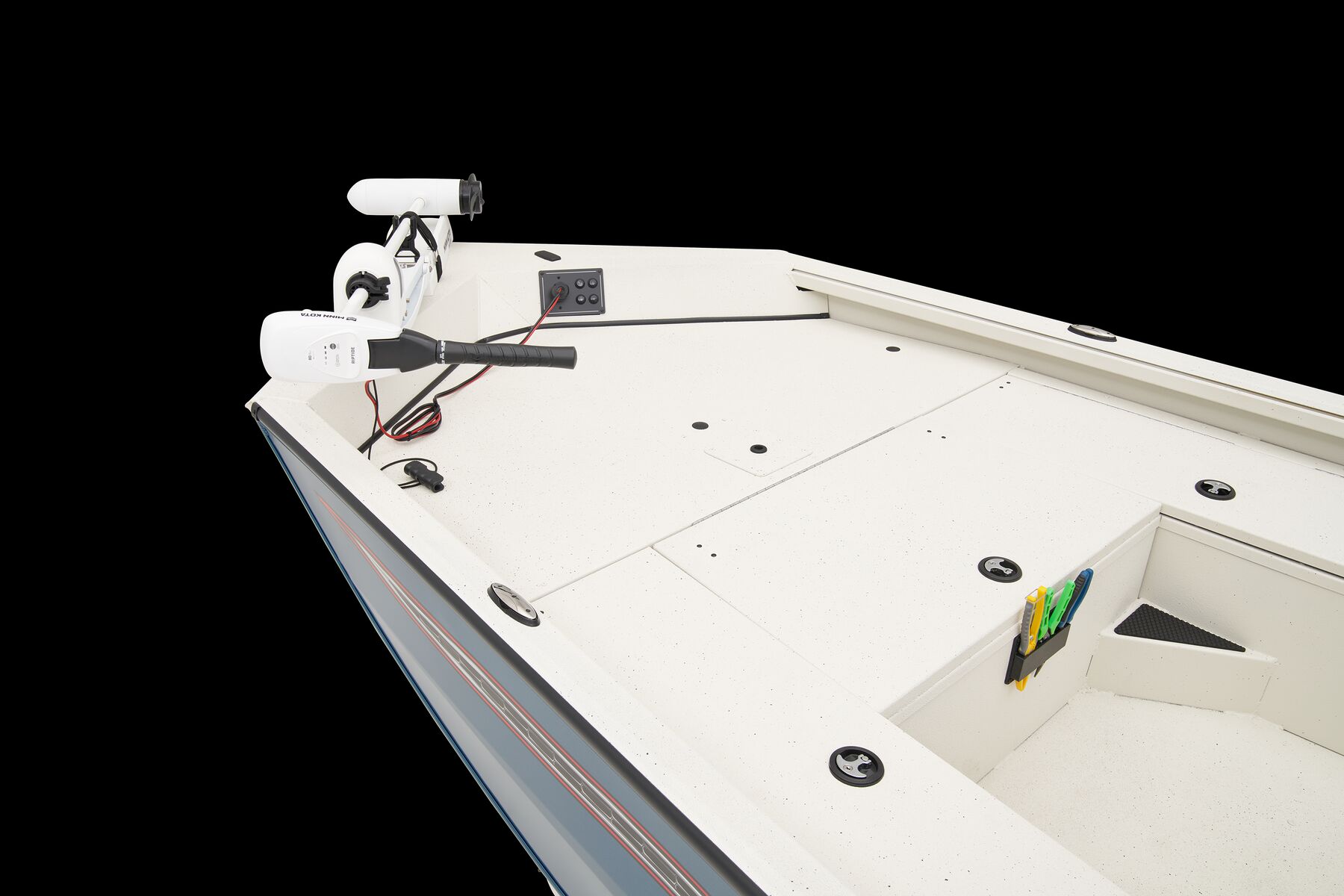

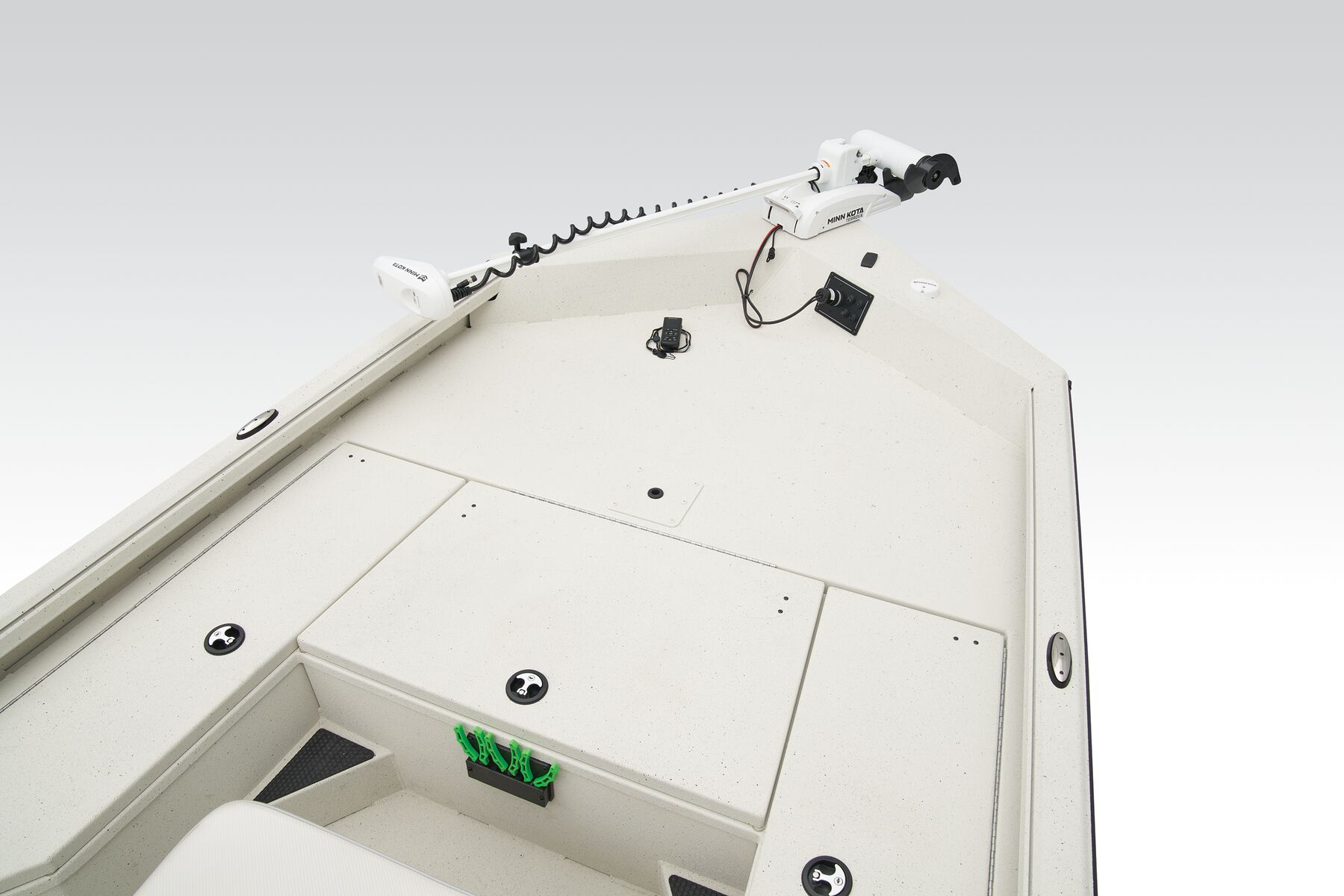

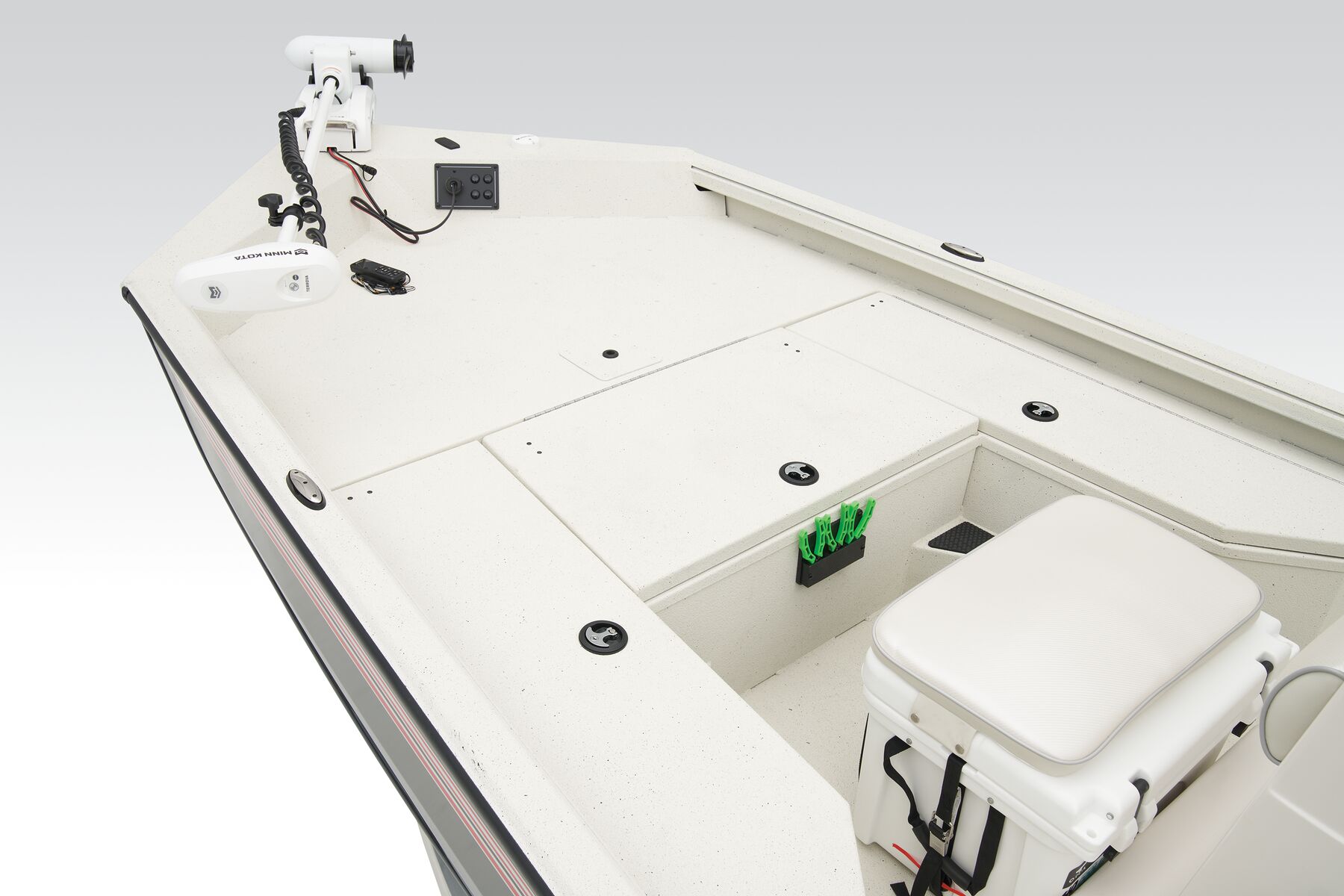

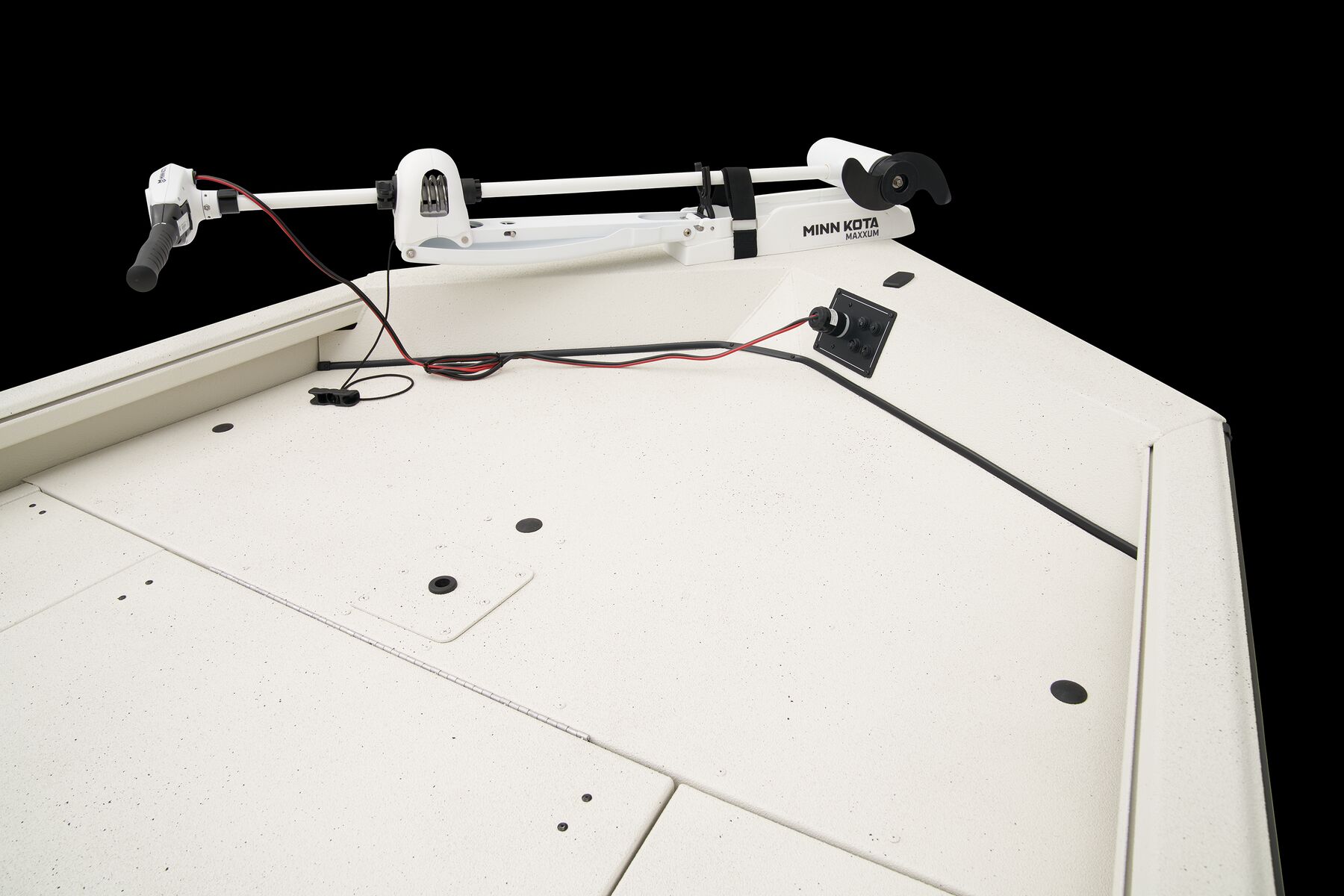

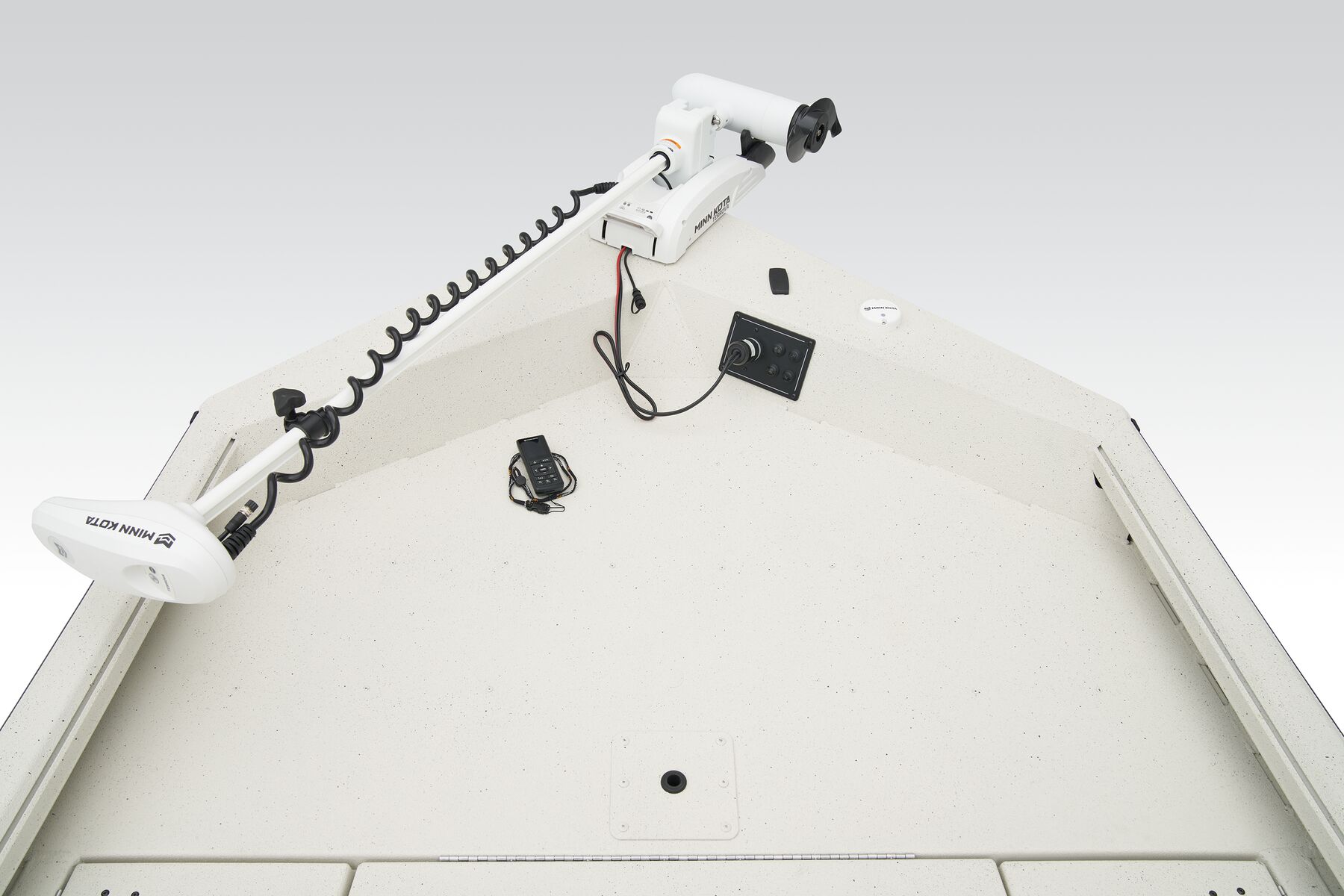

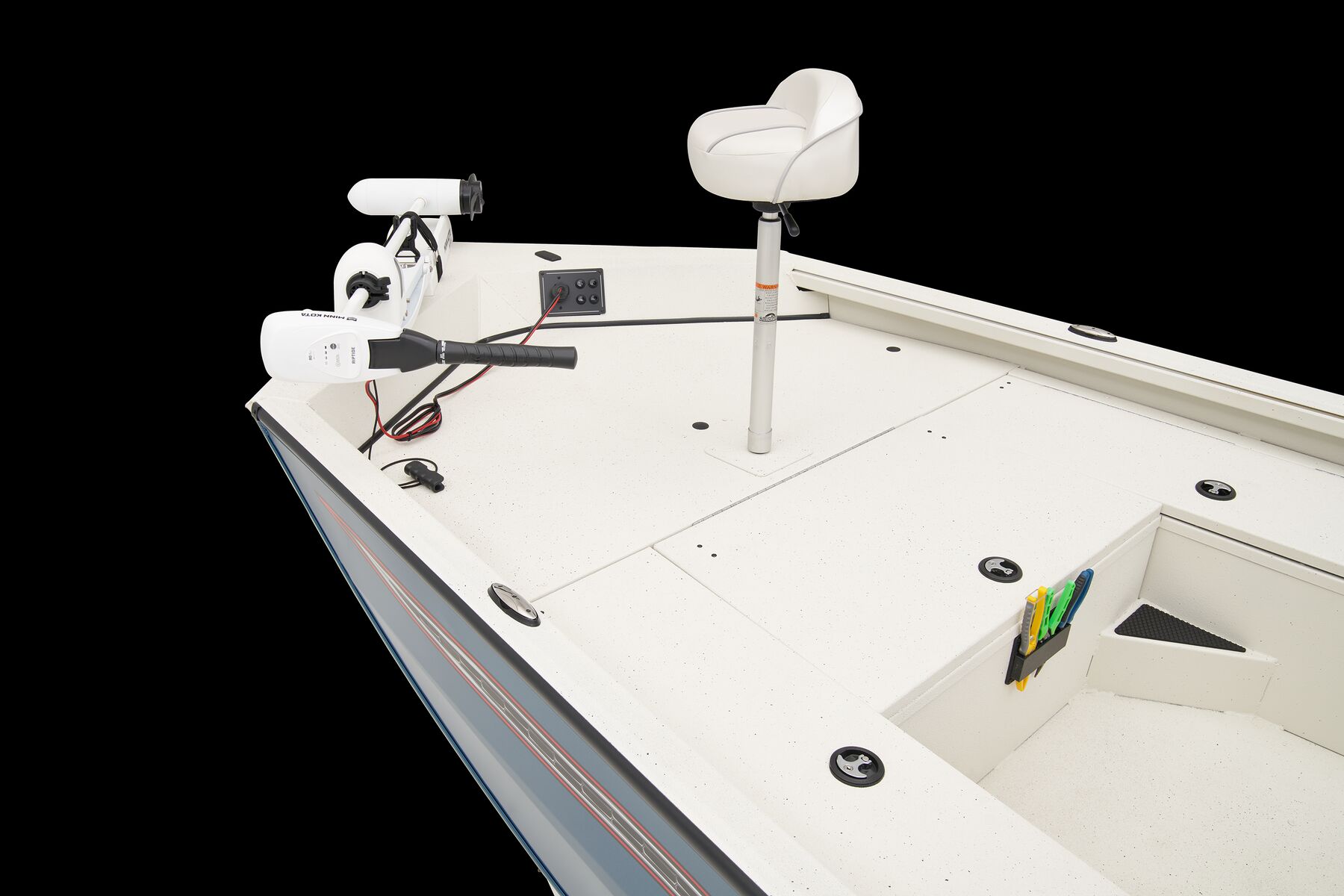

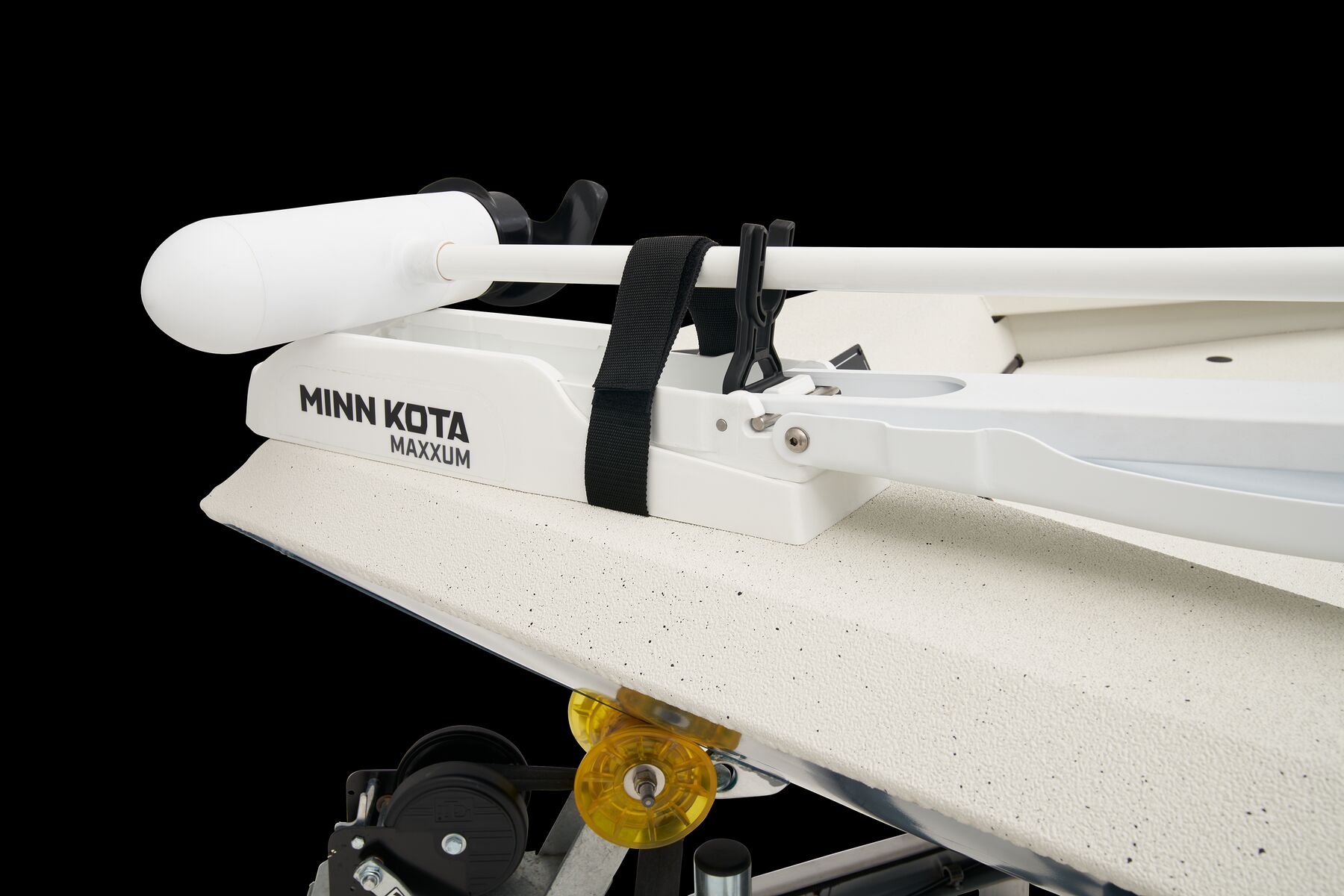

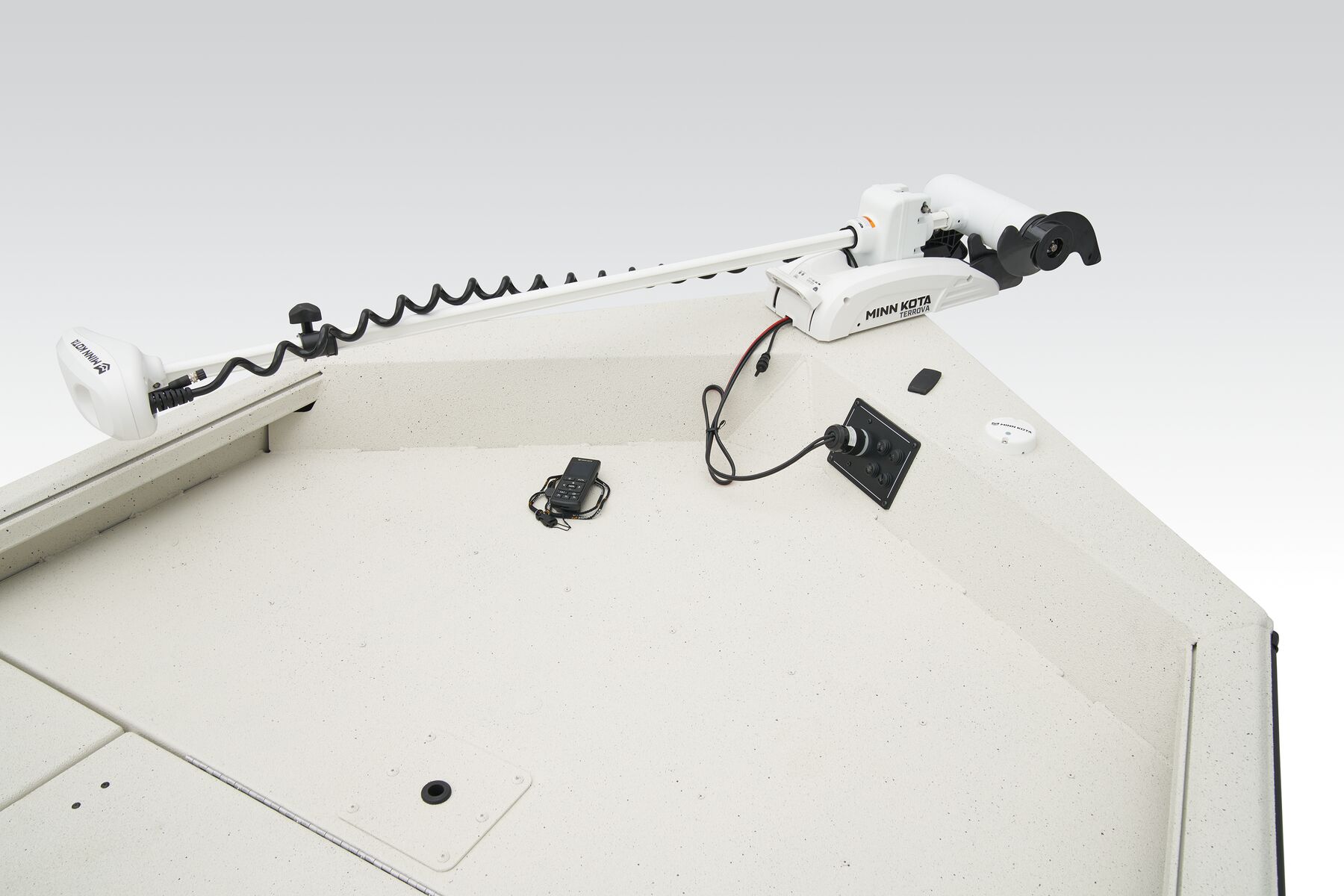

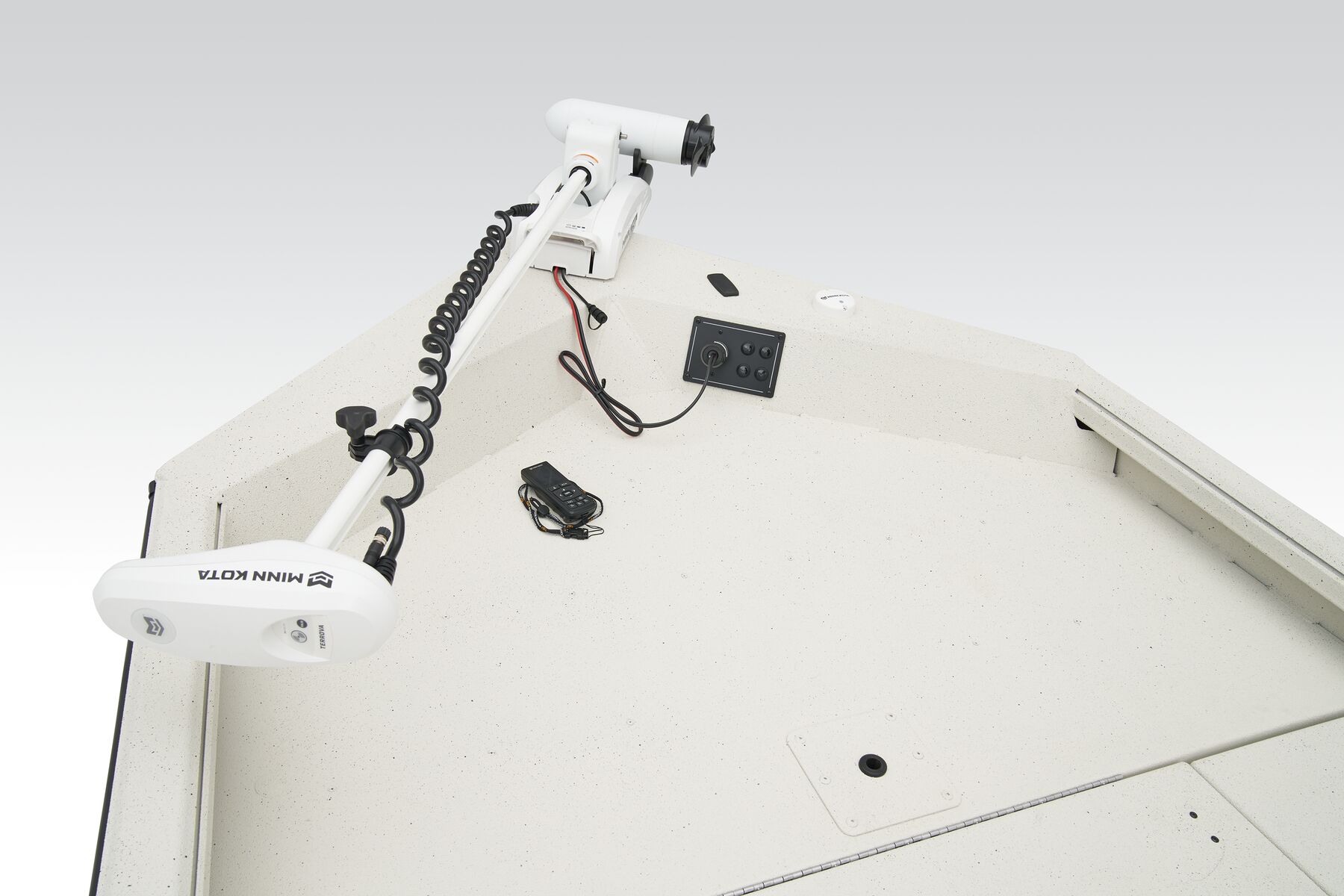

- MinnKota® Riptide Maxxum 80lb / 52in / Hand / Bowguard / 24V (white) trolling motor

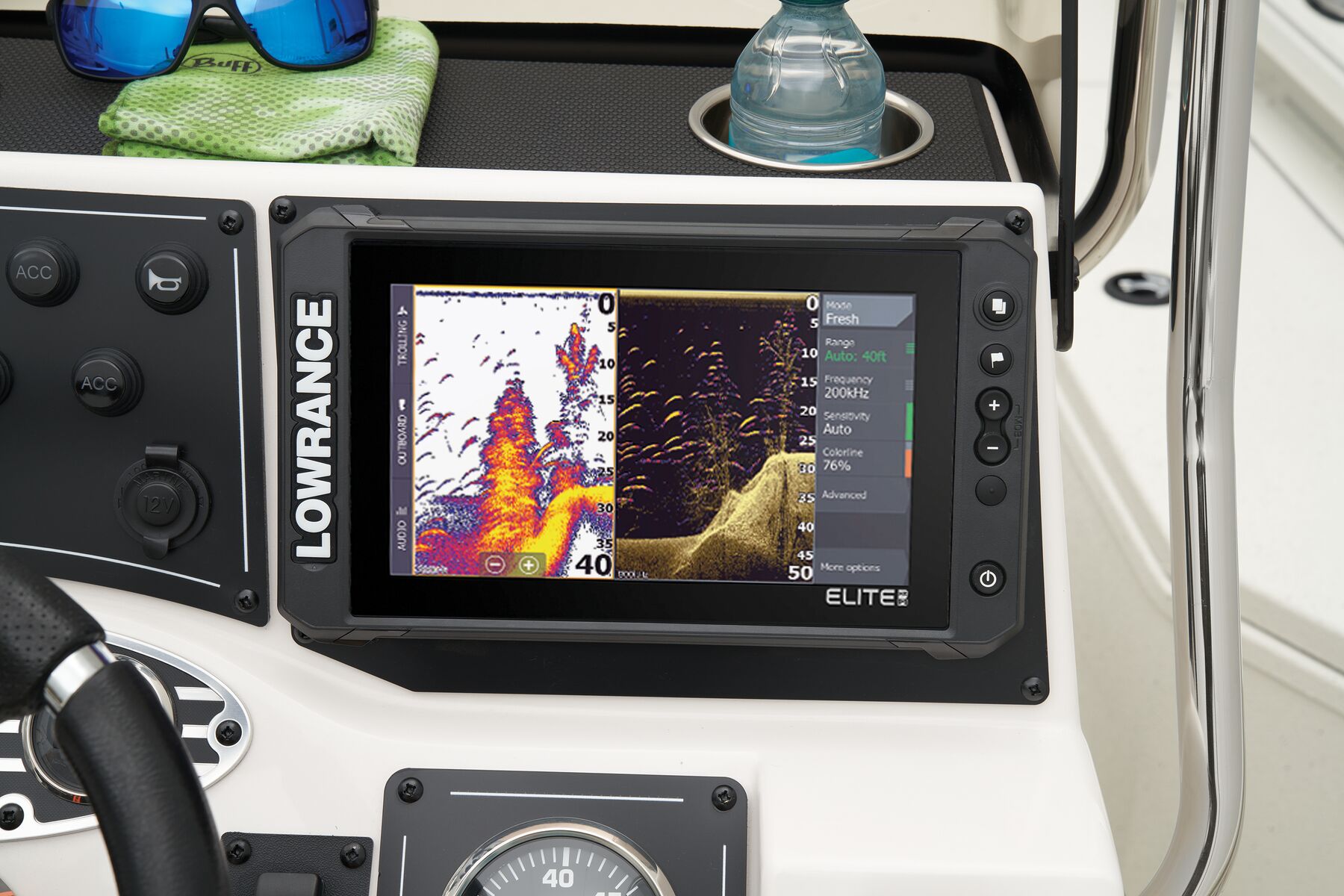

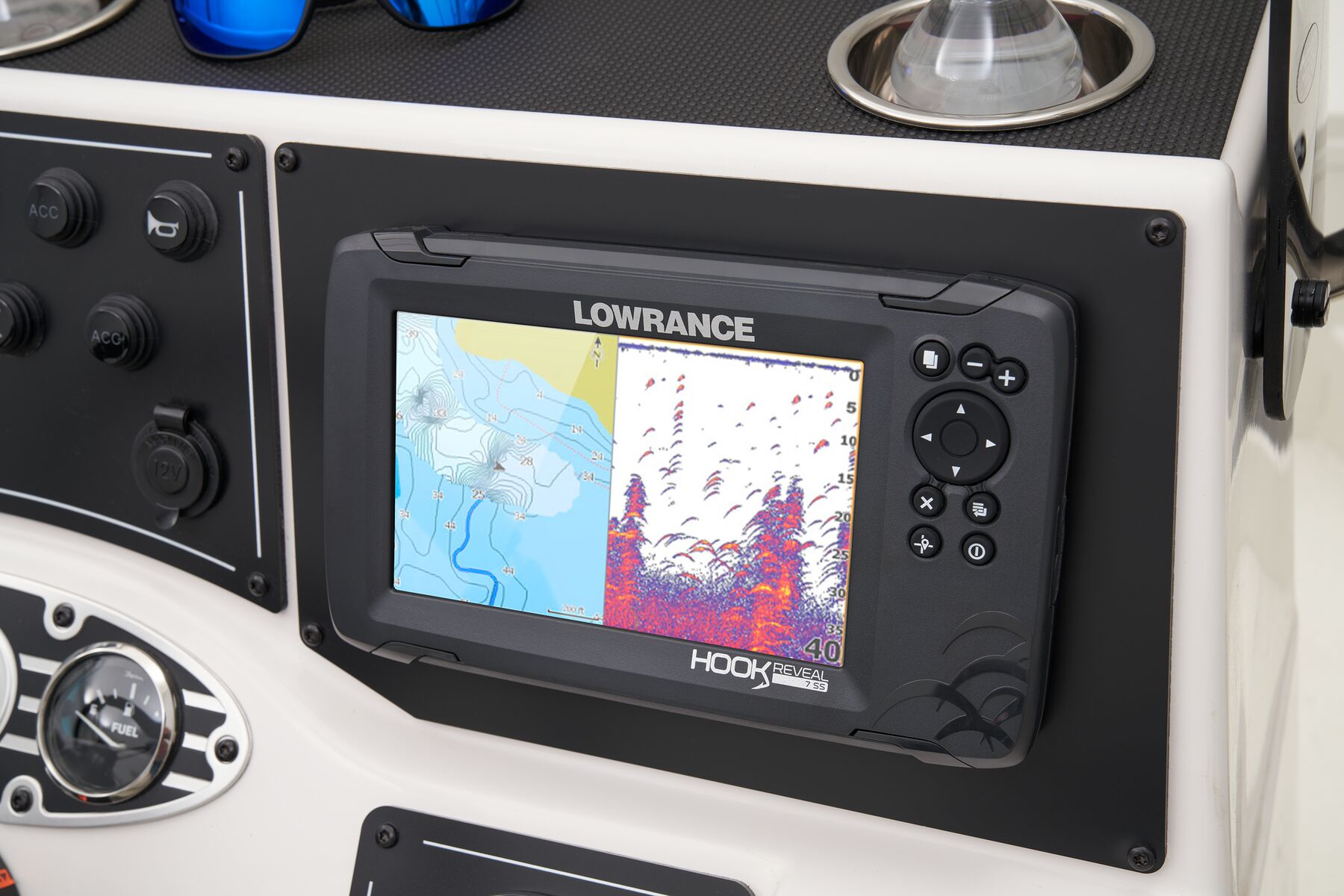

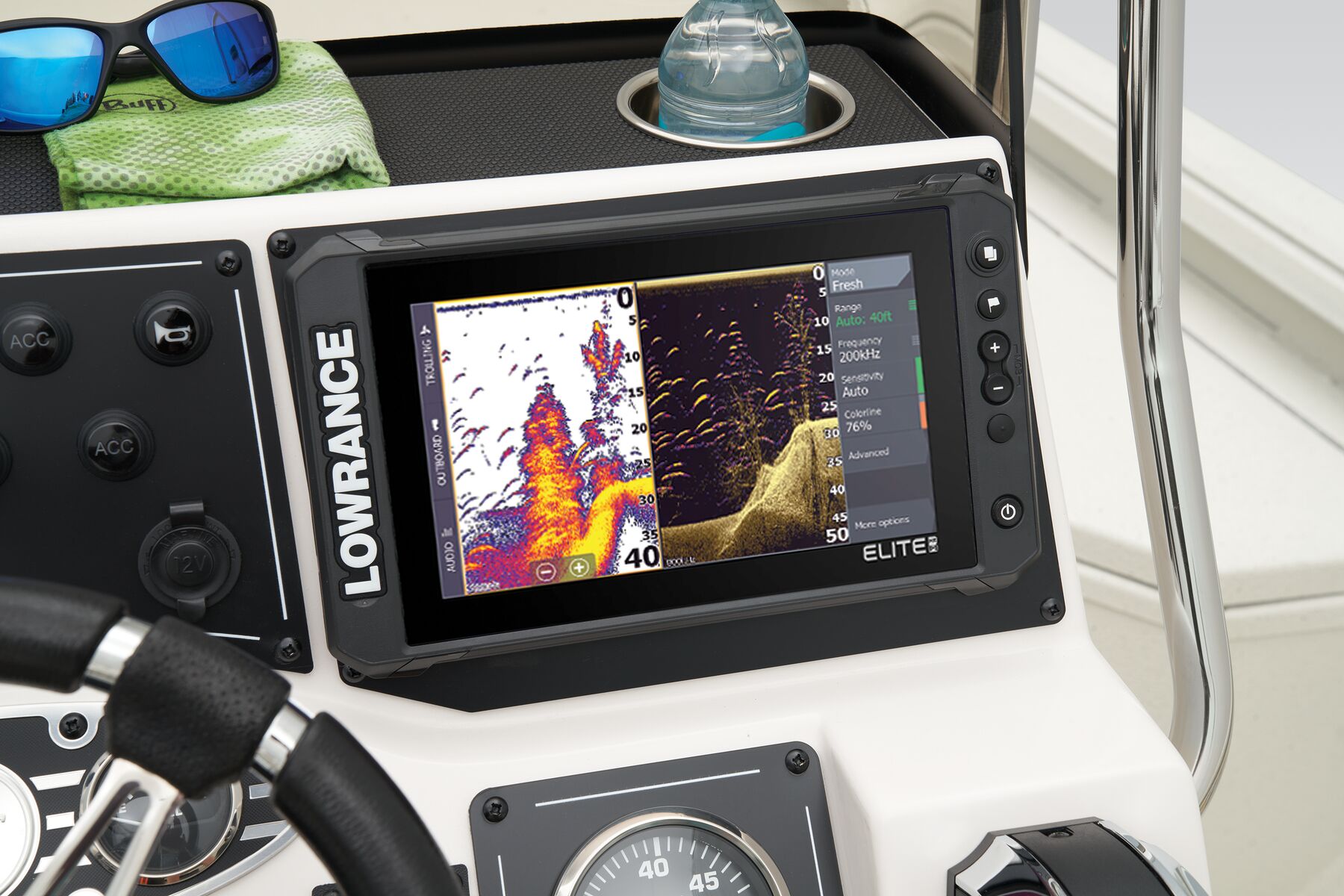

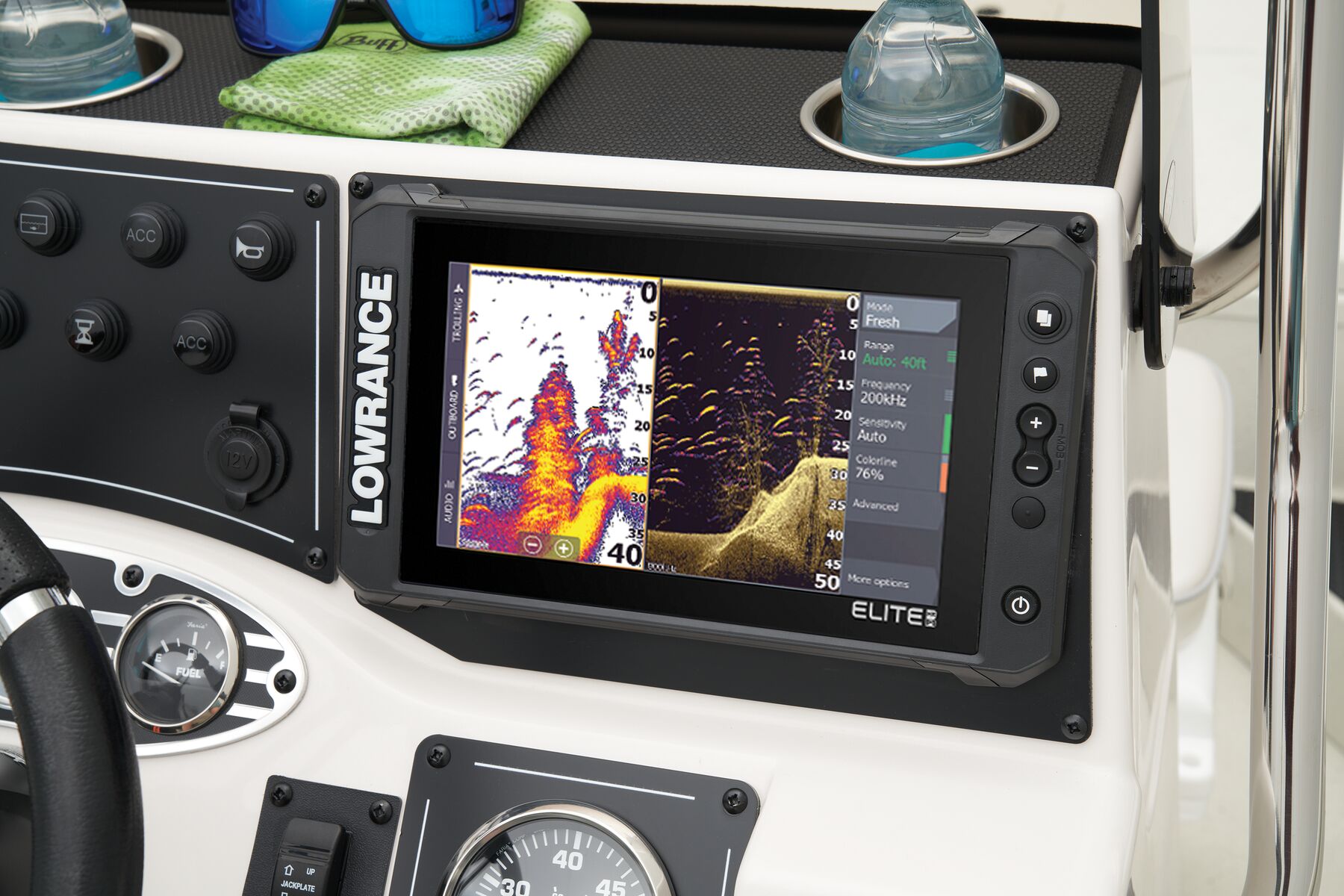

- Lowrance® Hook Reveal 7 Combo depthfinder @ console
- On-board lithium capable charger 6A x 3 bank
- 12V power outlet (USB included)
- Automatic bilge pump

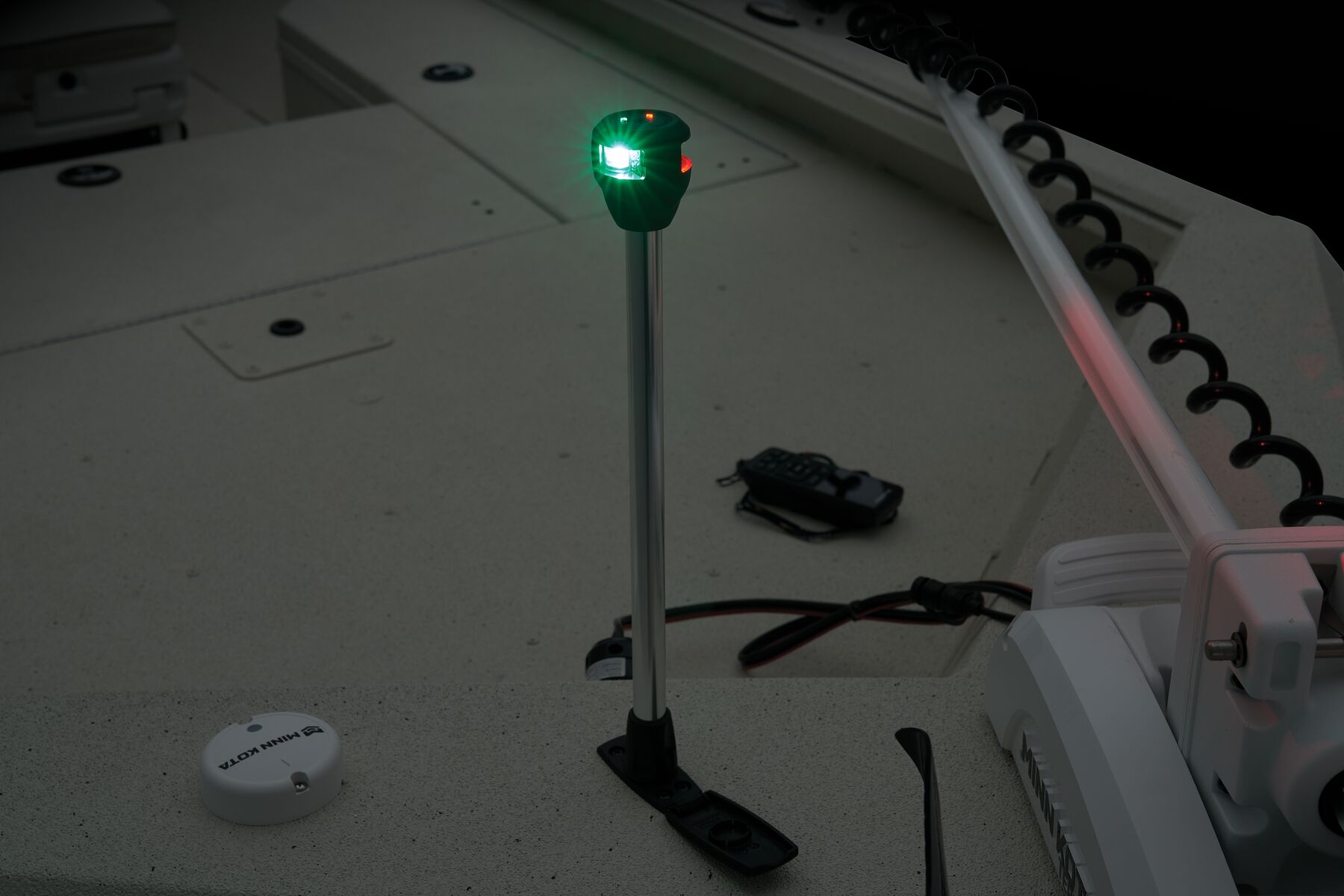

- Removable navigation lights
Power/Performance
- Cranking battery with tray
- Premium steering wheel
- Binnacle mounted remote throttle control
- Power trim

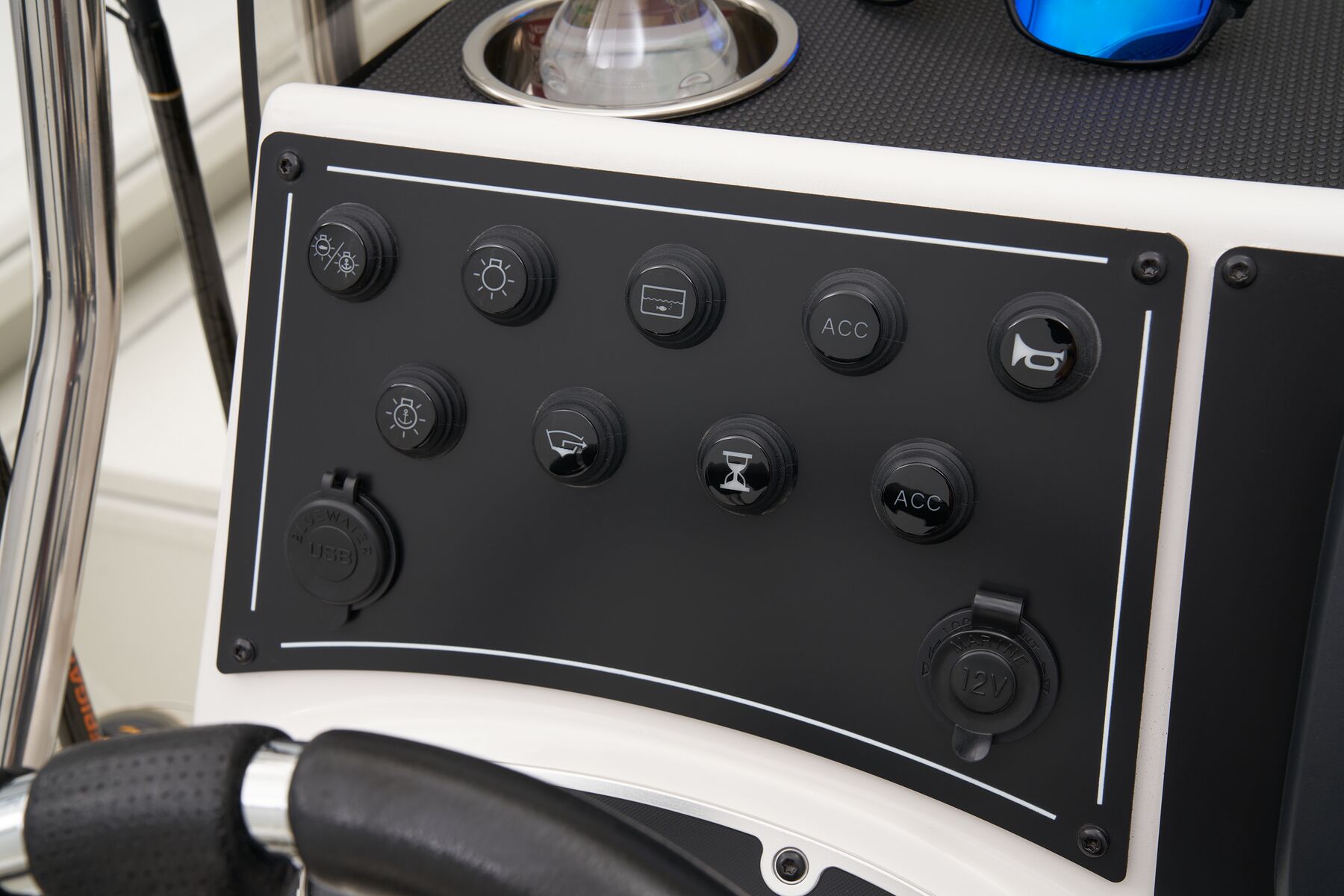

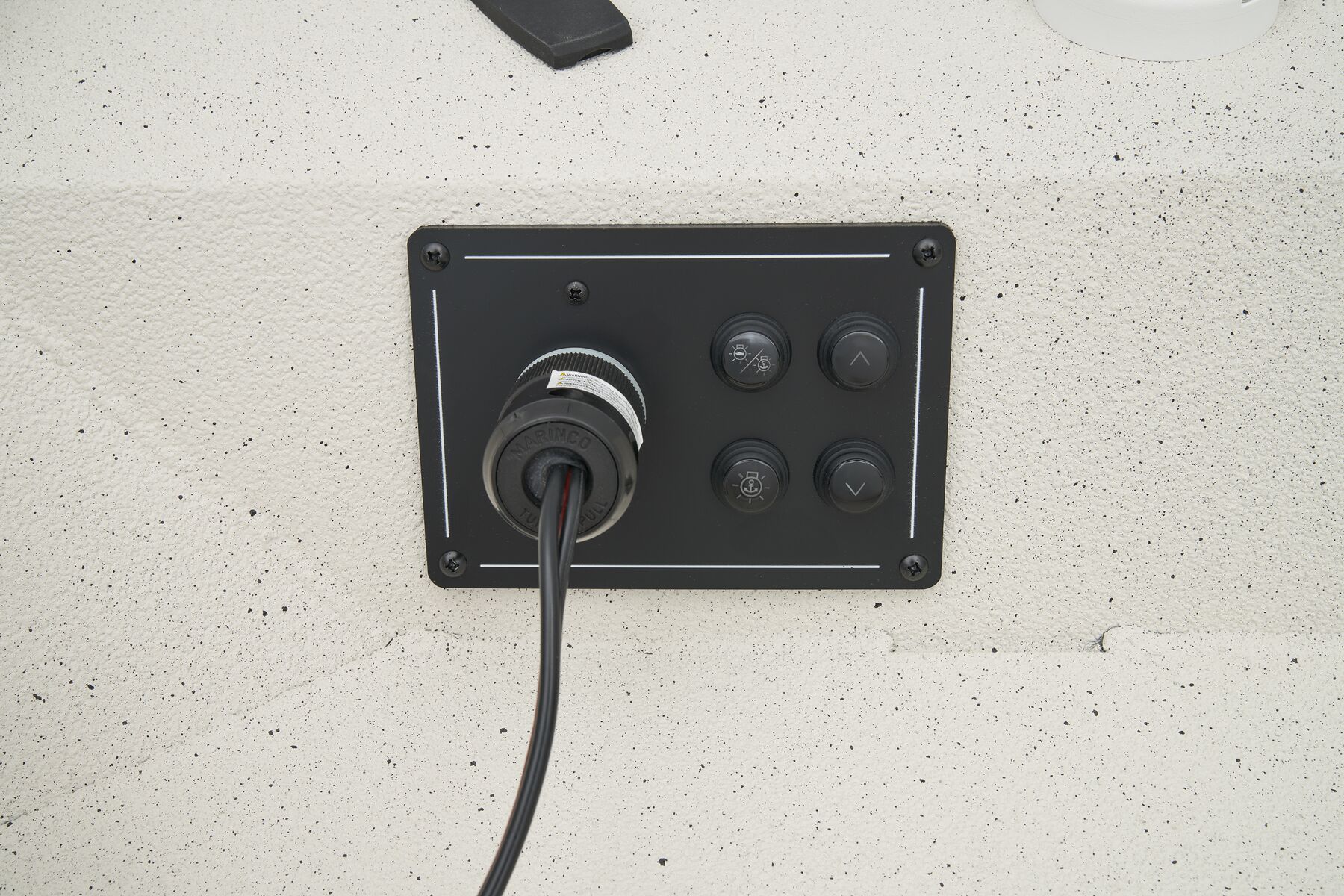

- Bow trim and navigation light switches

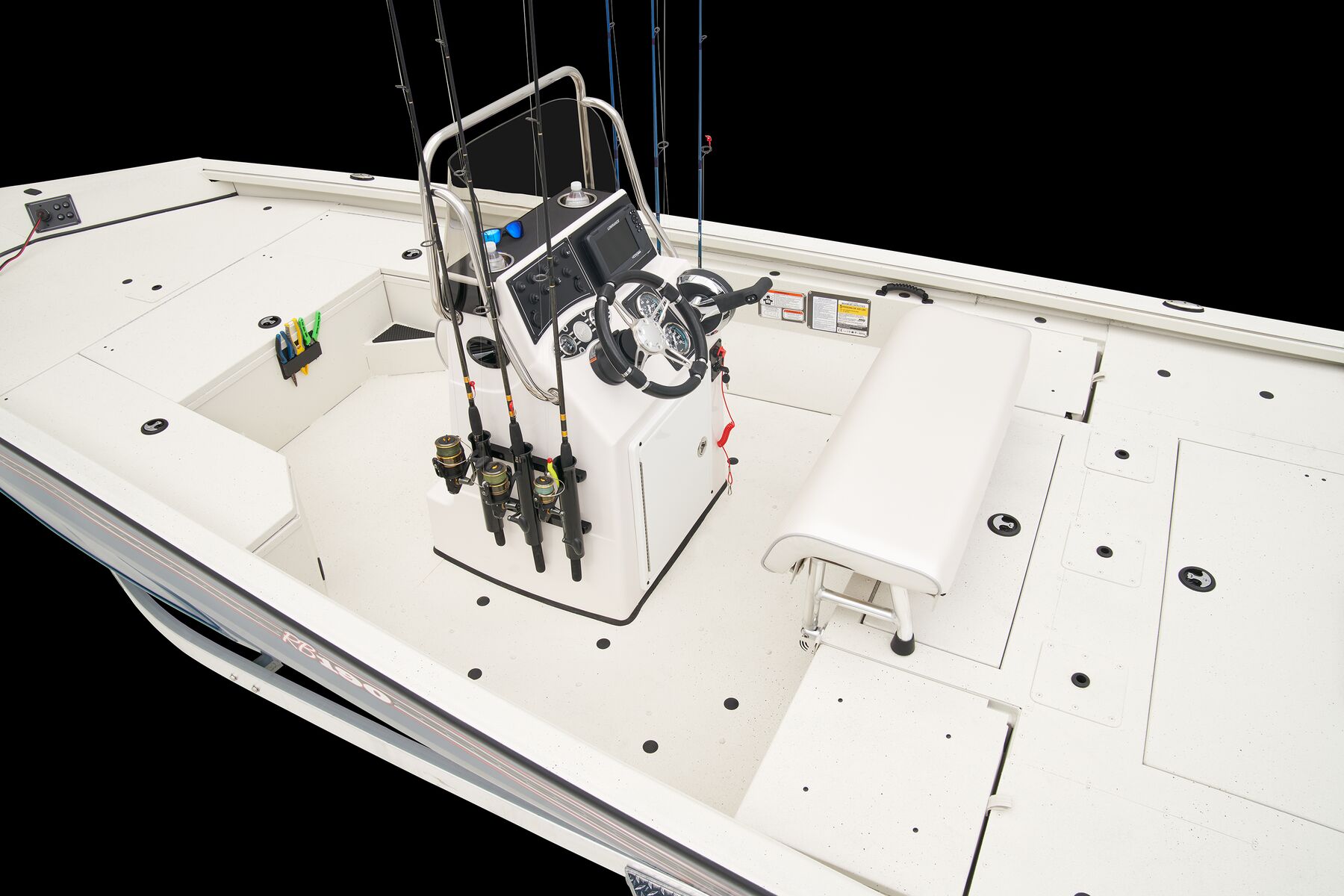

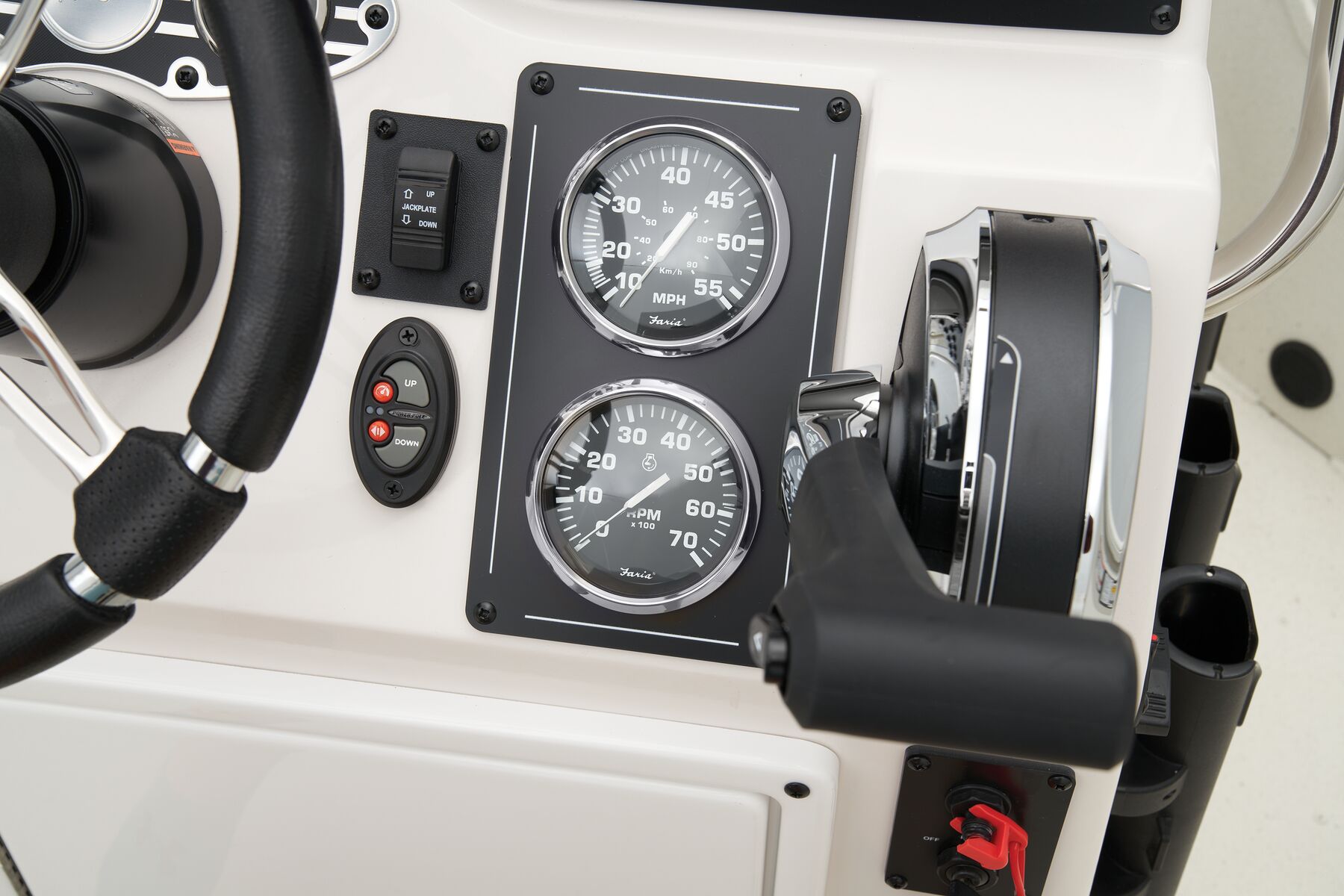

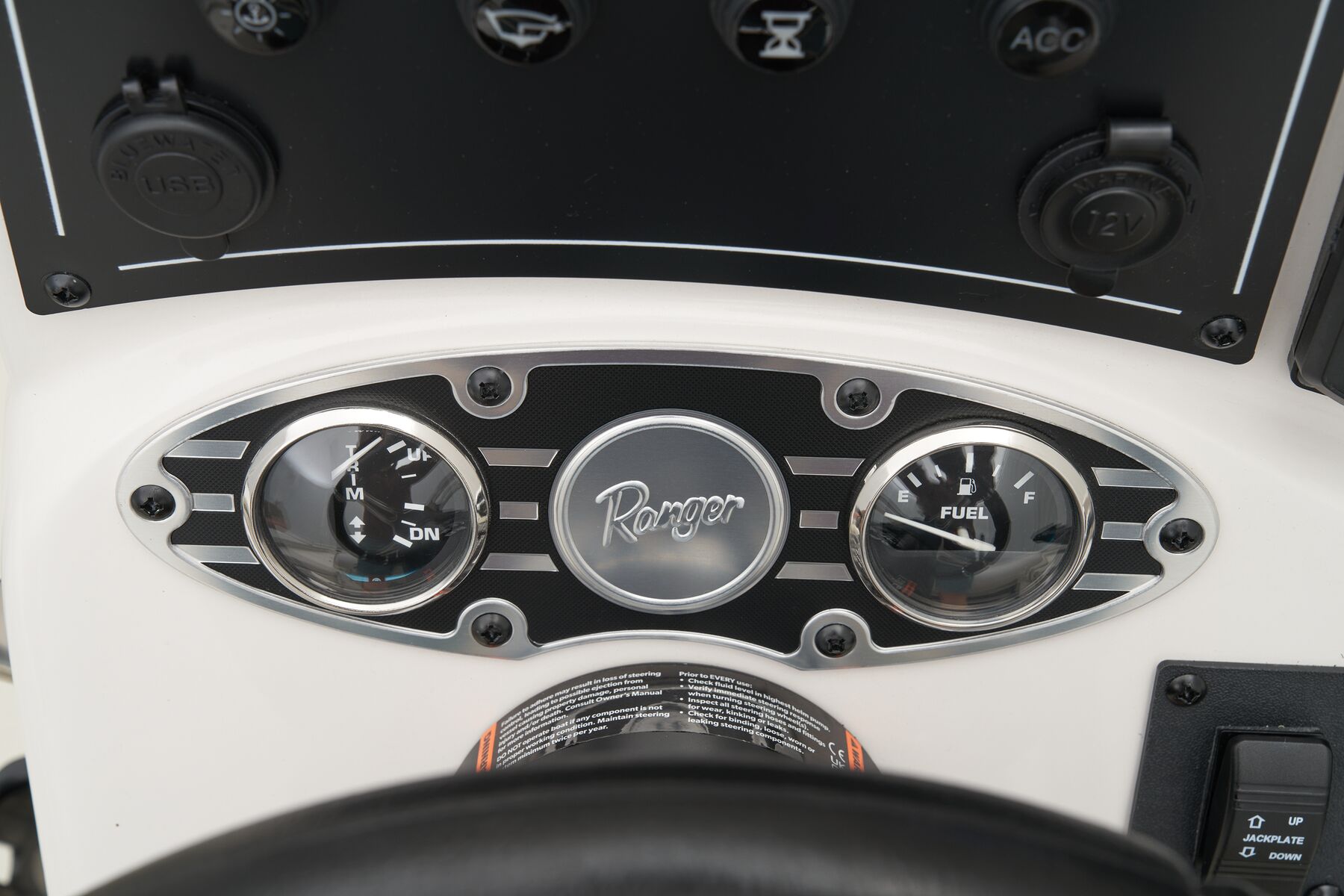

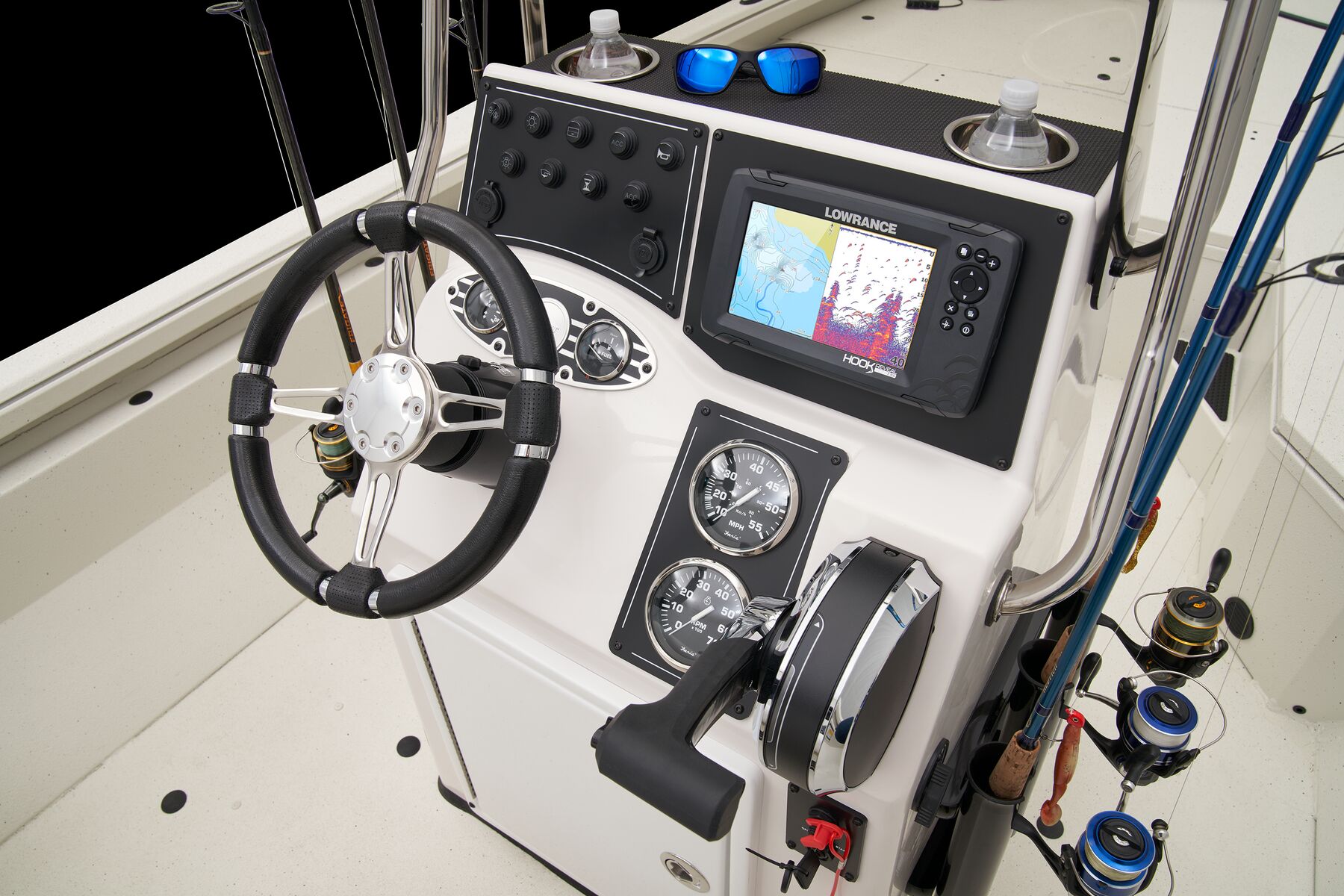

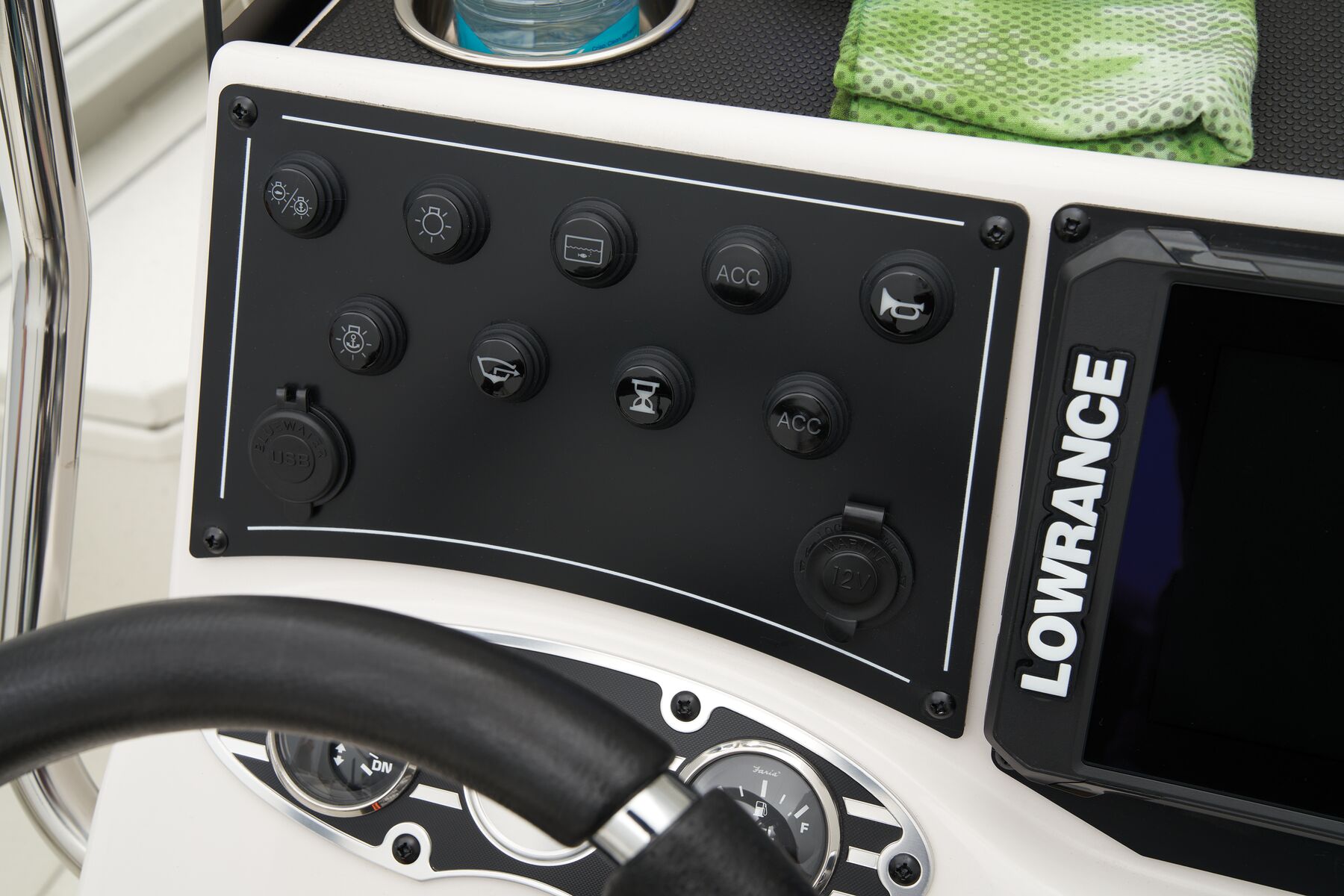

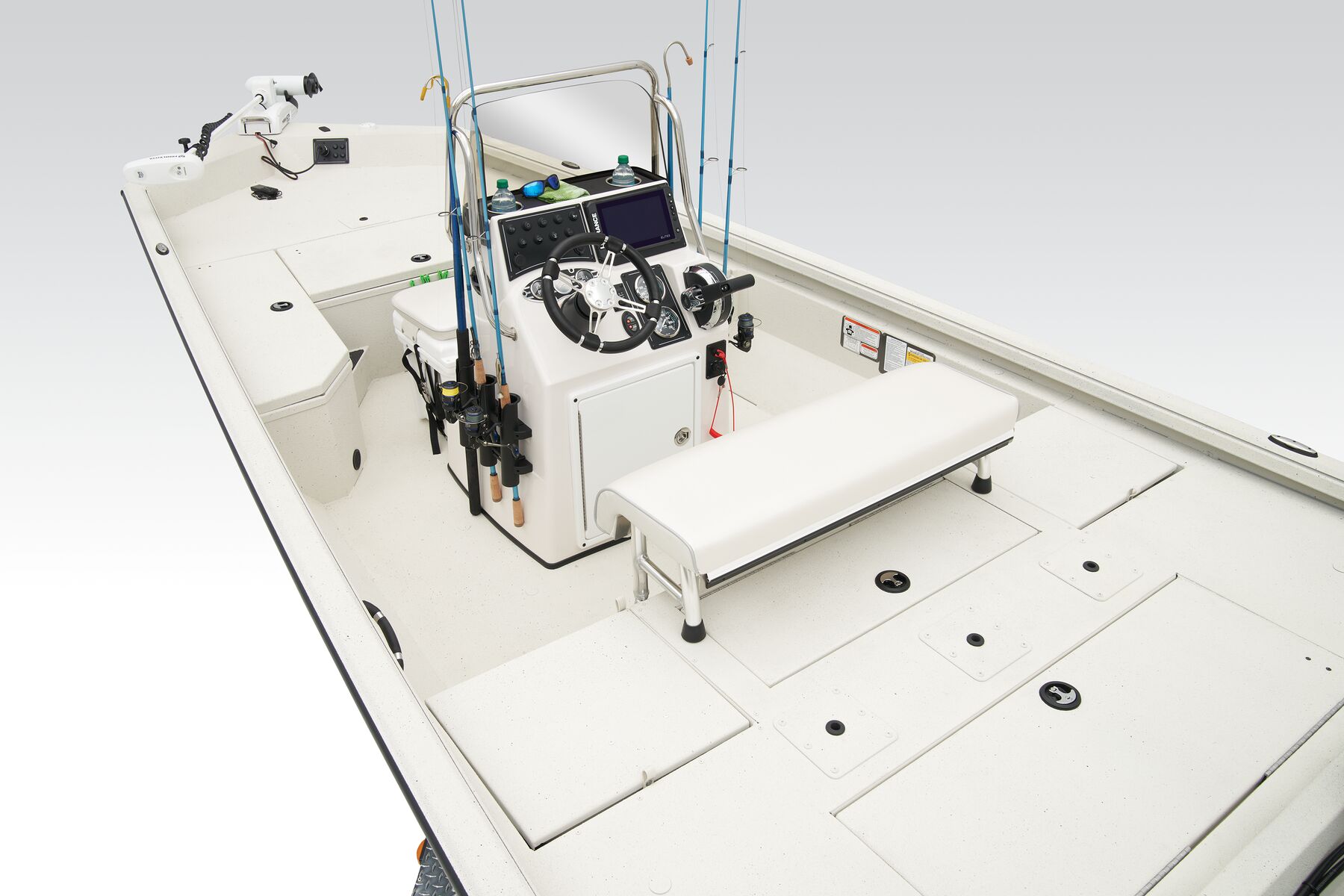

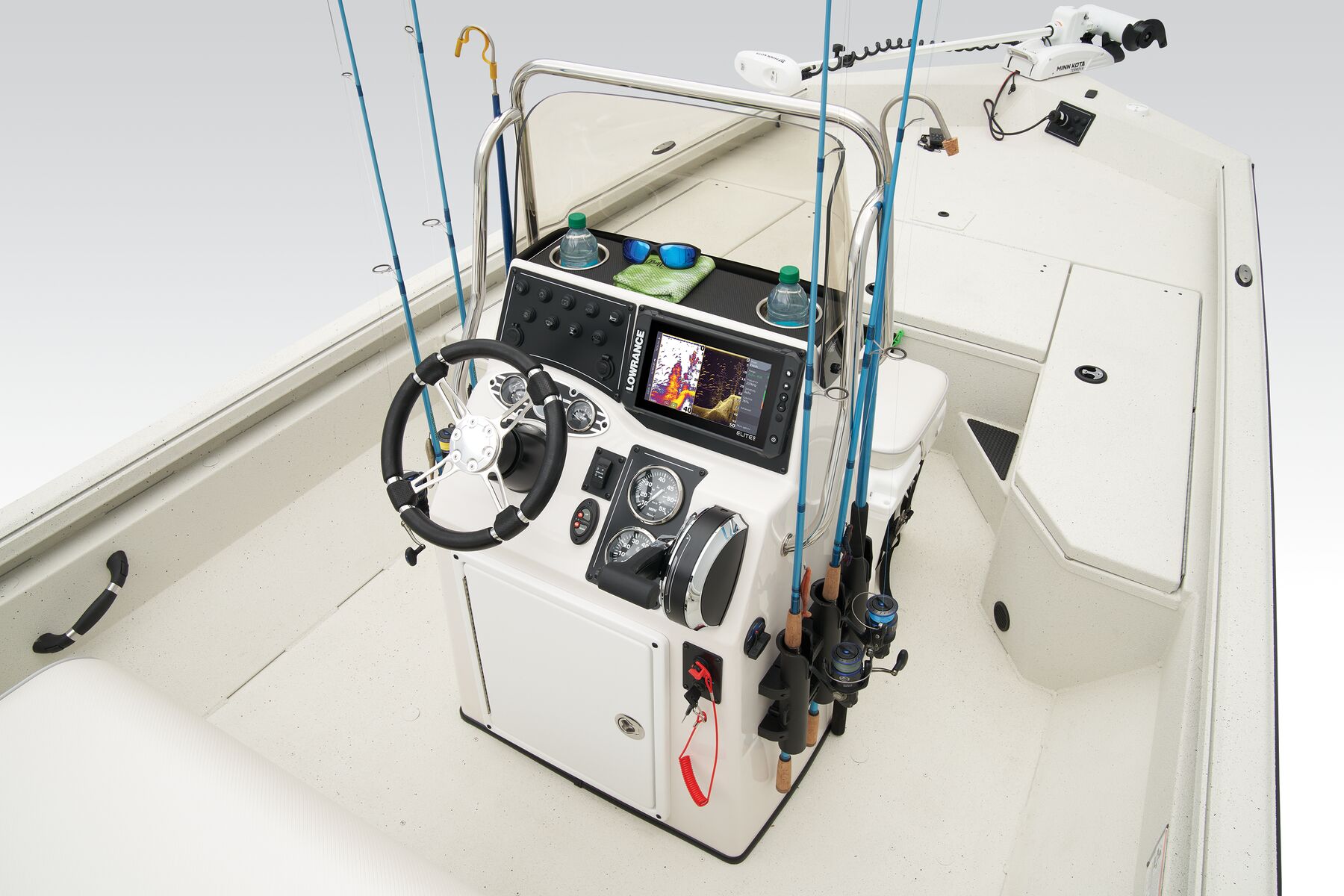

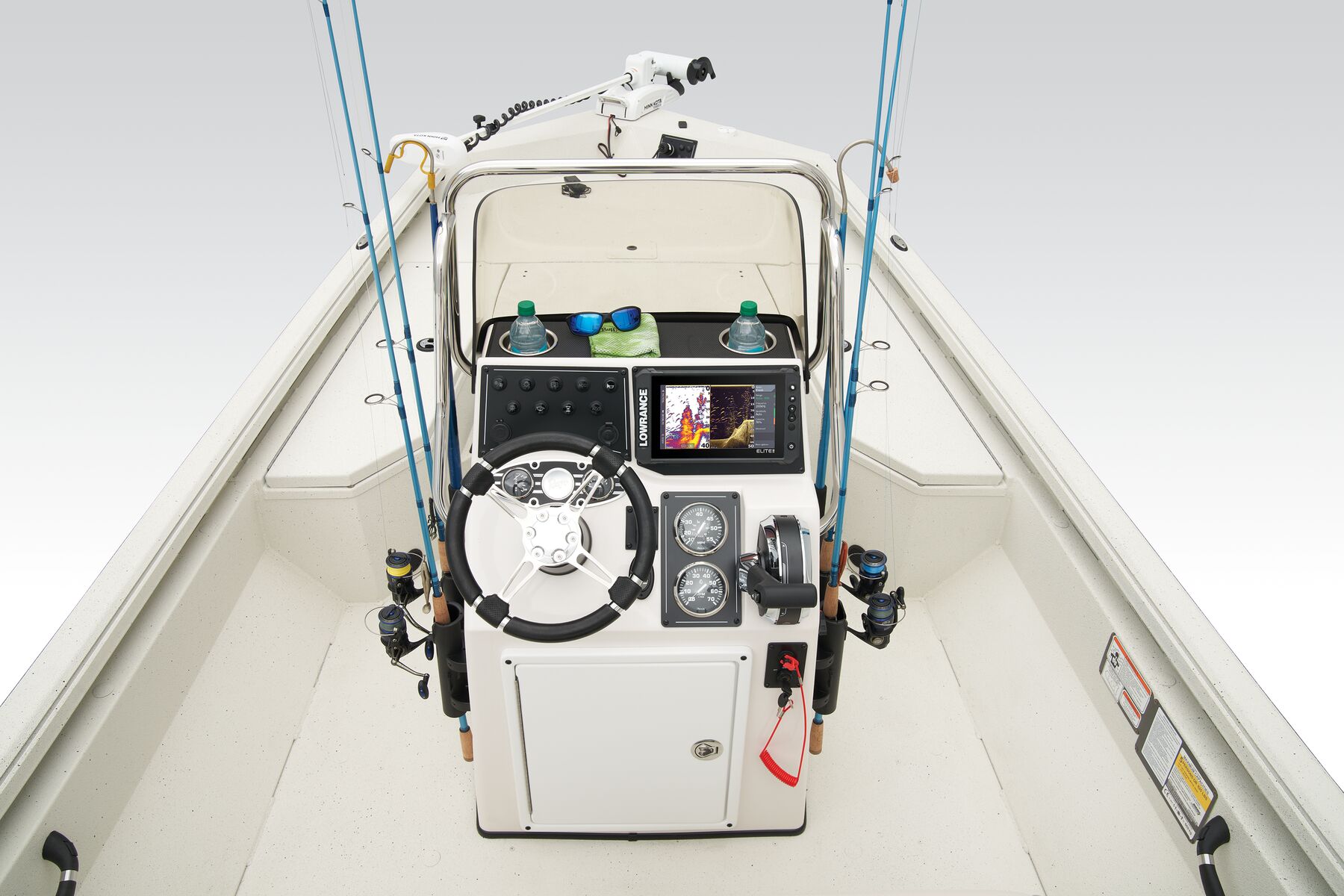

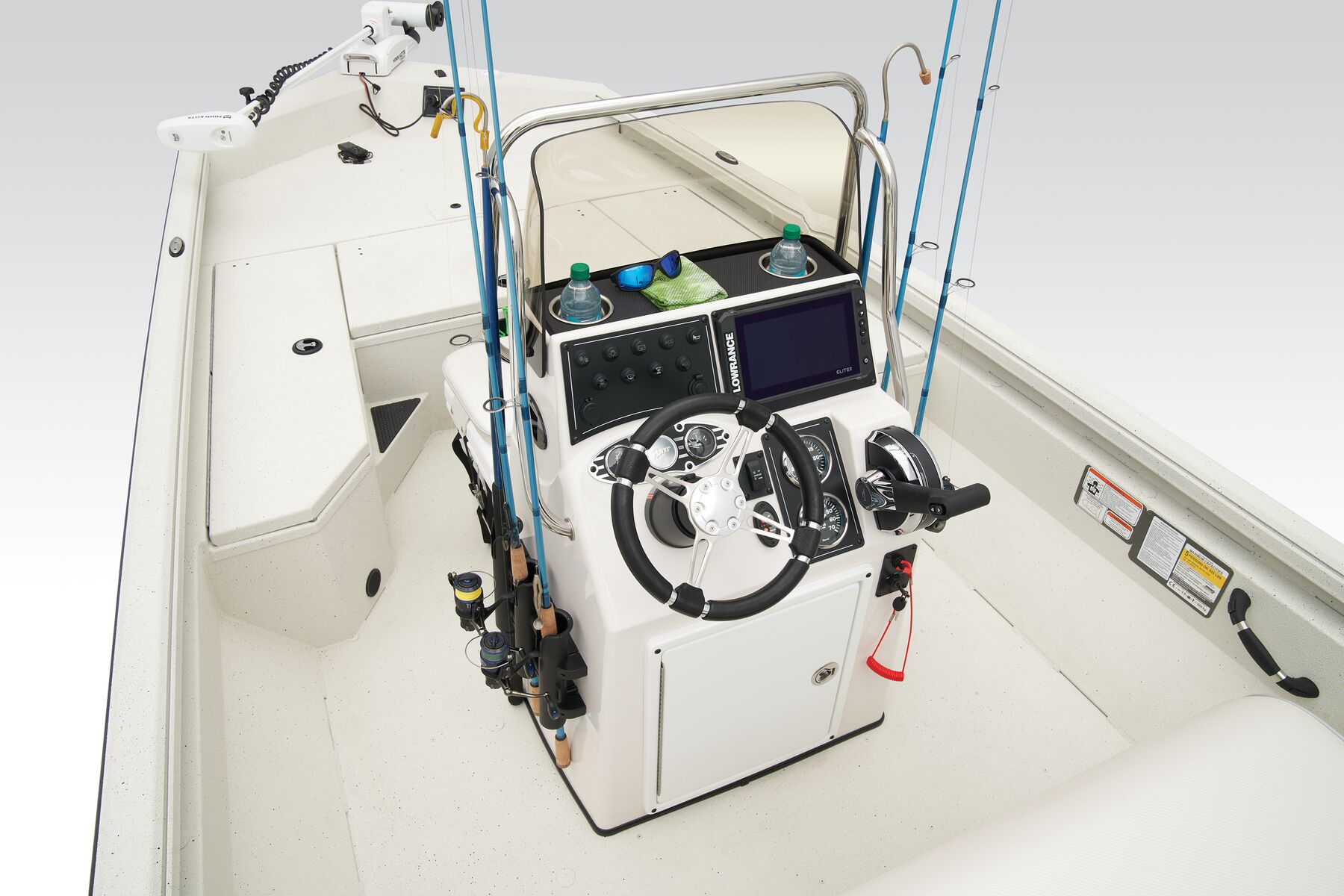

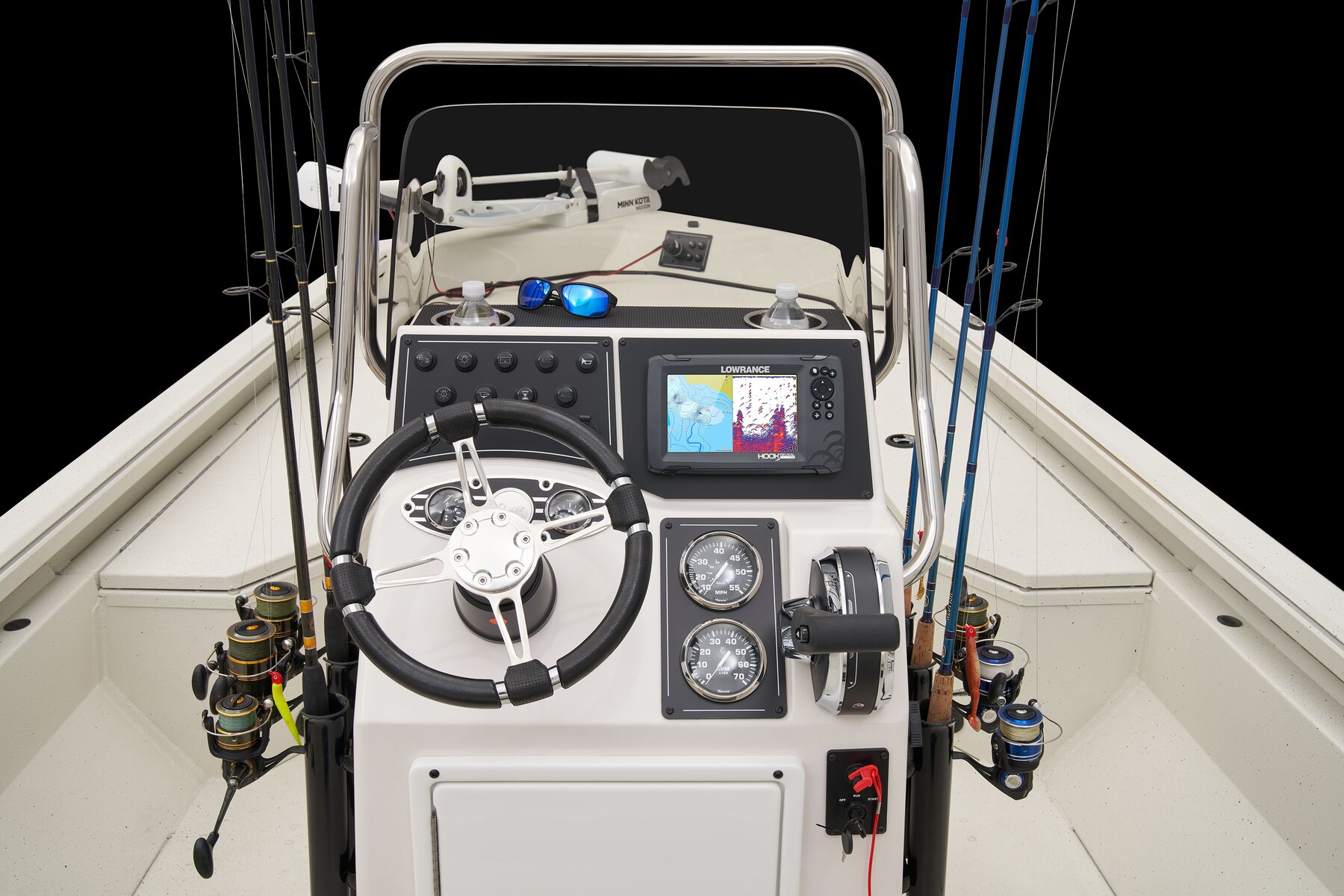

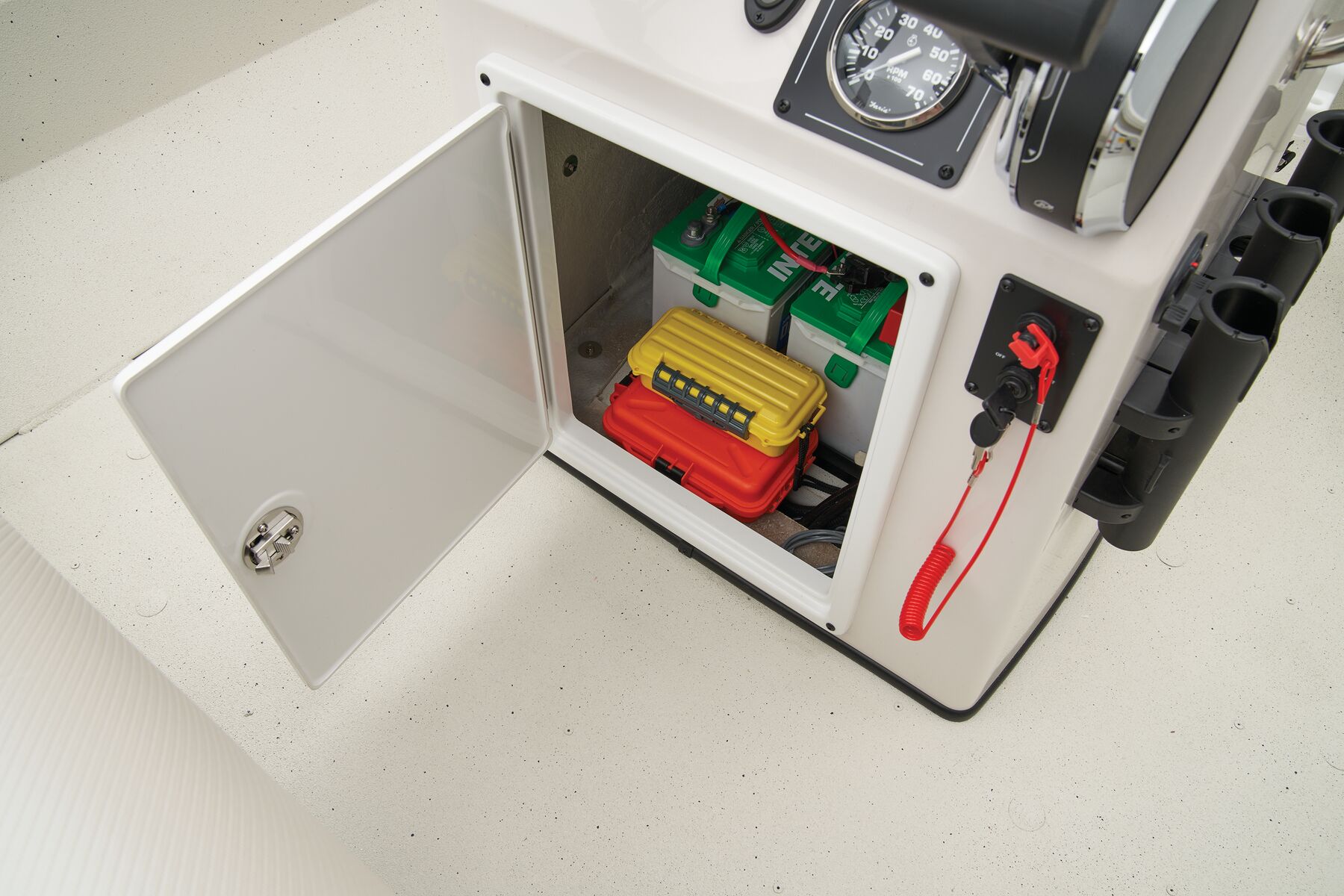

- Custom fiberglass console w/ tach, speed, fuel, trim gauges & easy touch switching

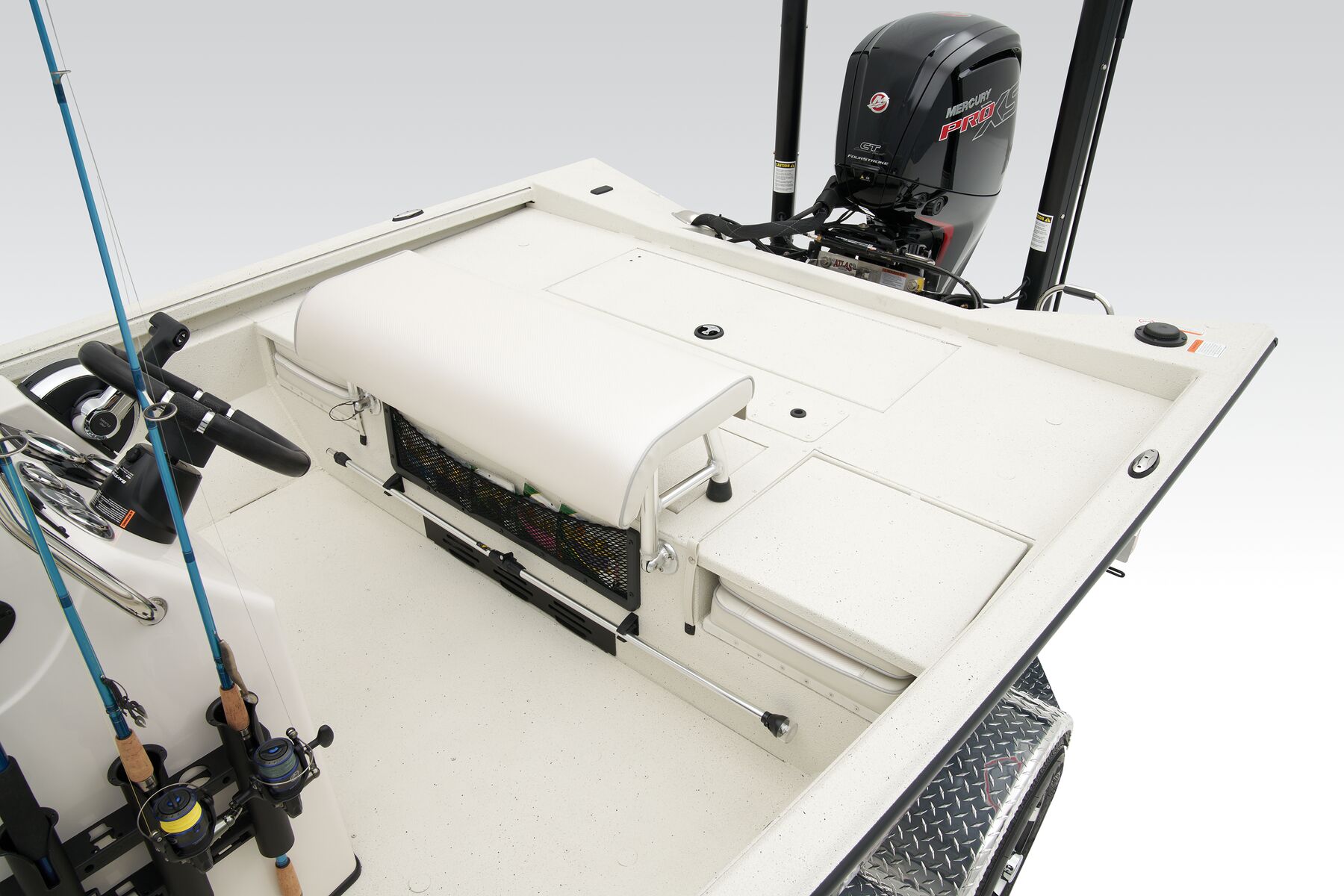

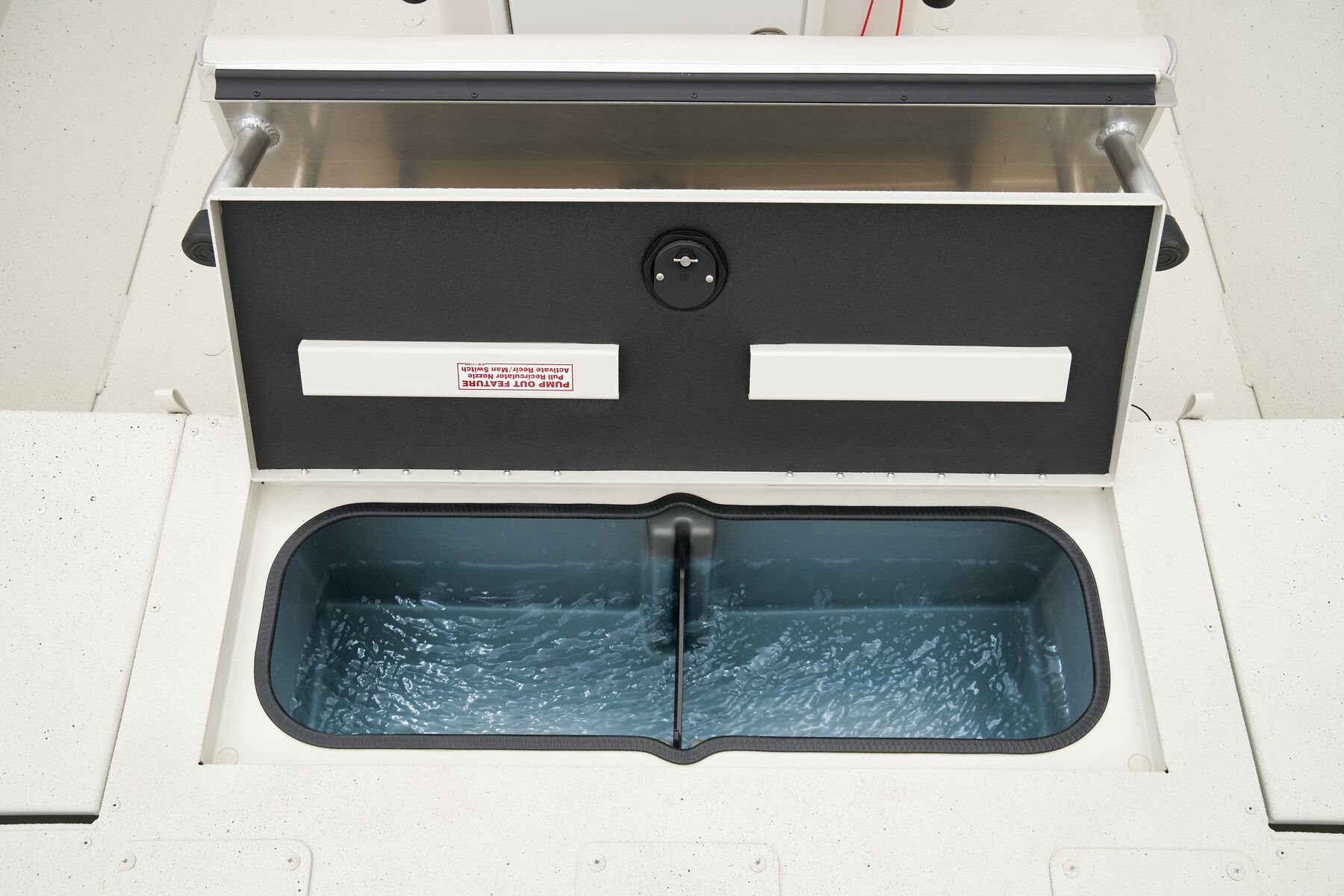

- Recirculating aerated 25 gal livewell on rear deck
- Prop (stainless standard at 115HP and up)
Safety/Comfort
- Broad Beam Stability™
- All-welded construction

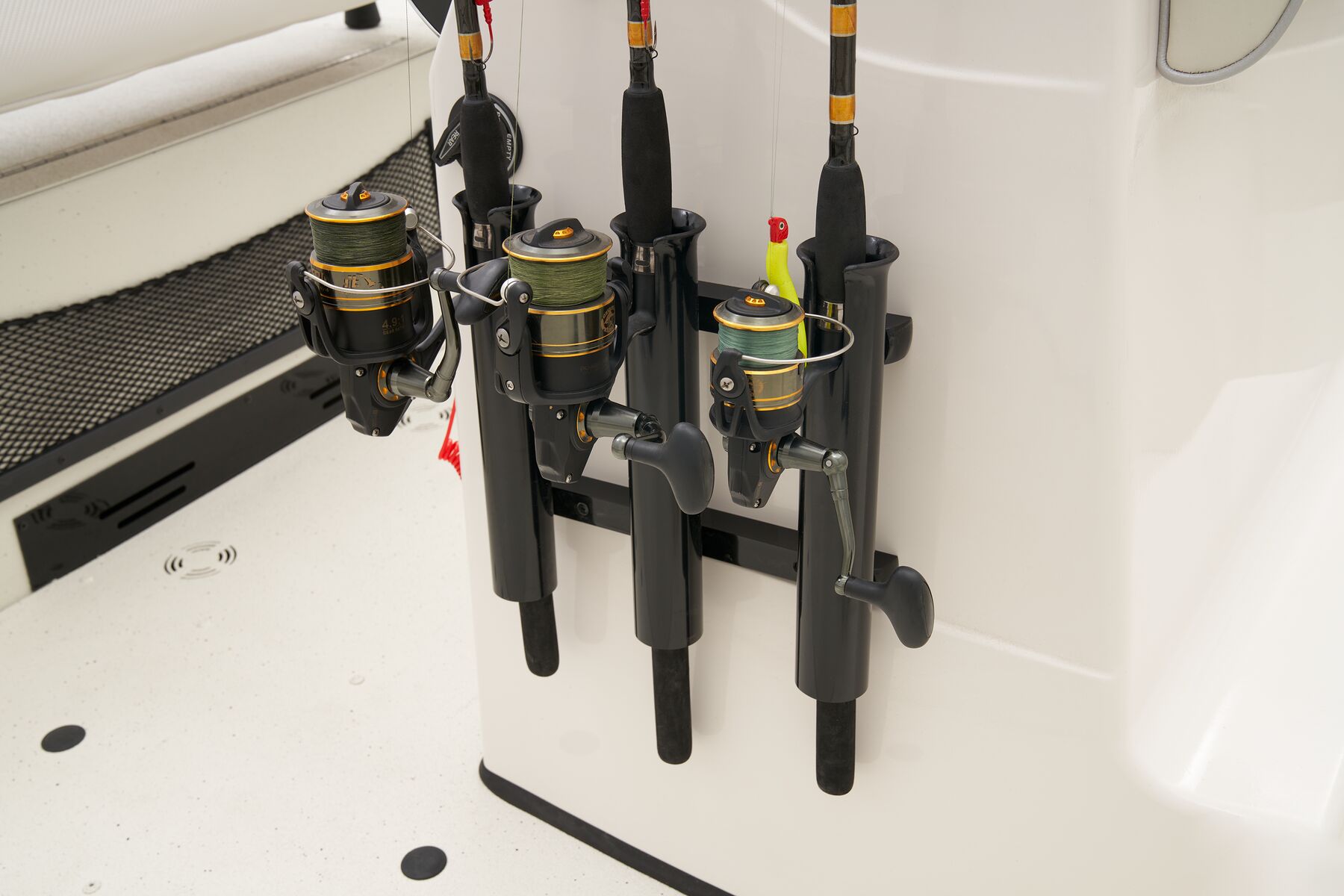

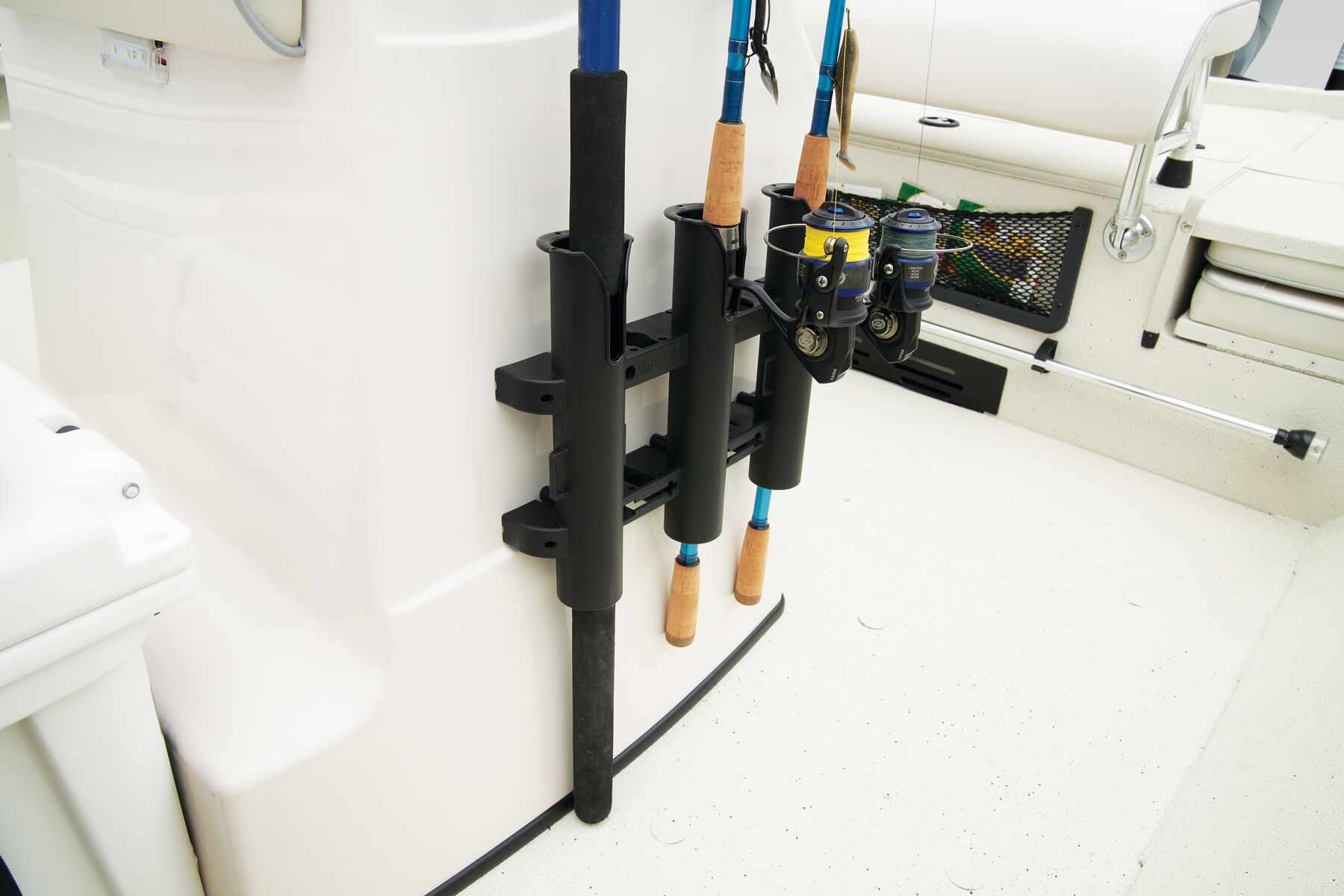

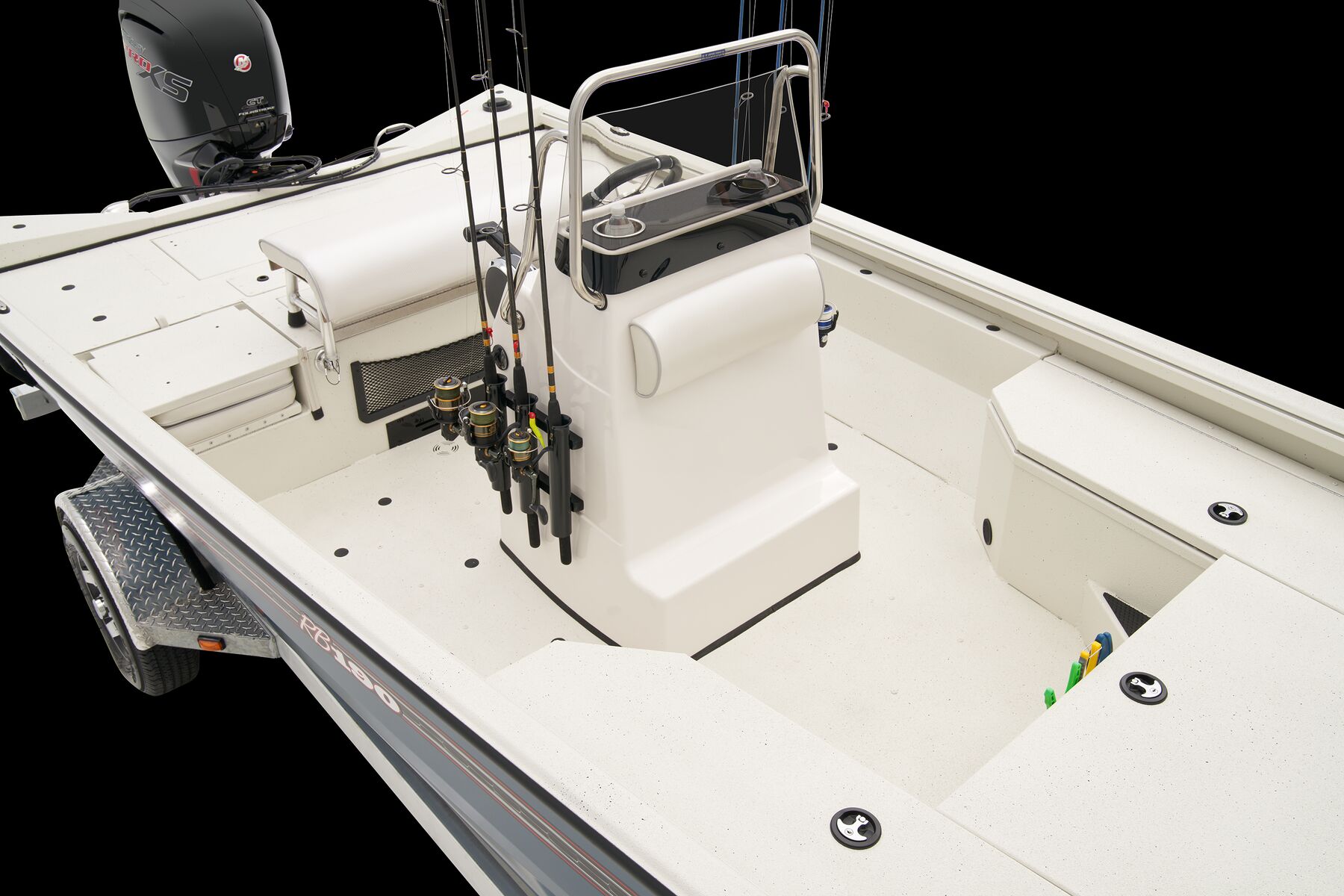

- Console rod rack
- All welded aluminum transom
- Fire extinguisher
- Built-in horn assembly
- NMMA® certified to ABYC® standards

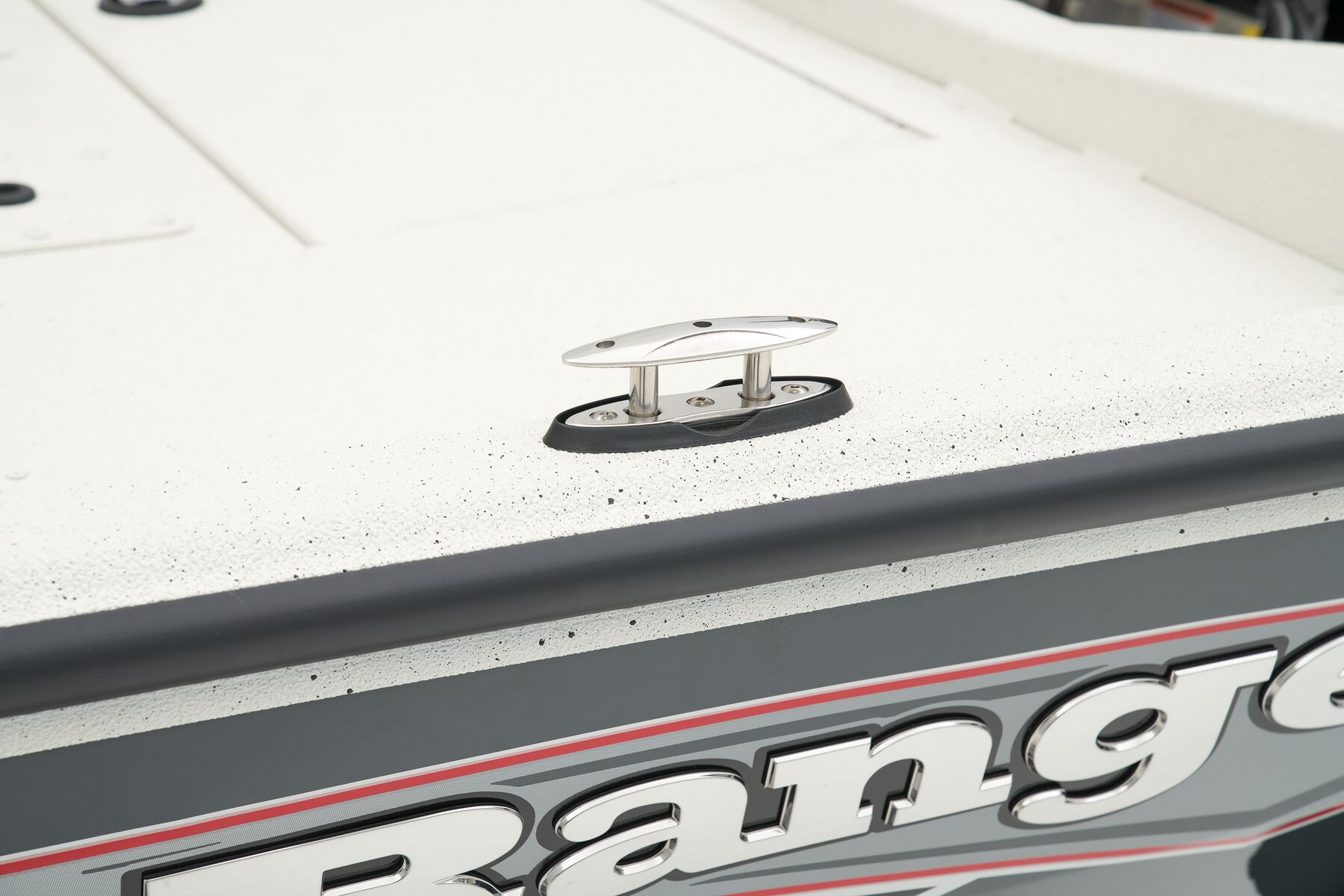

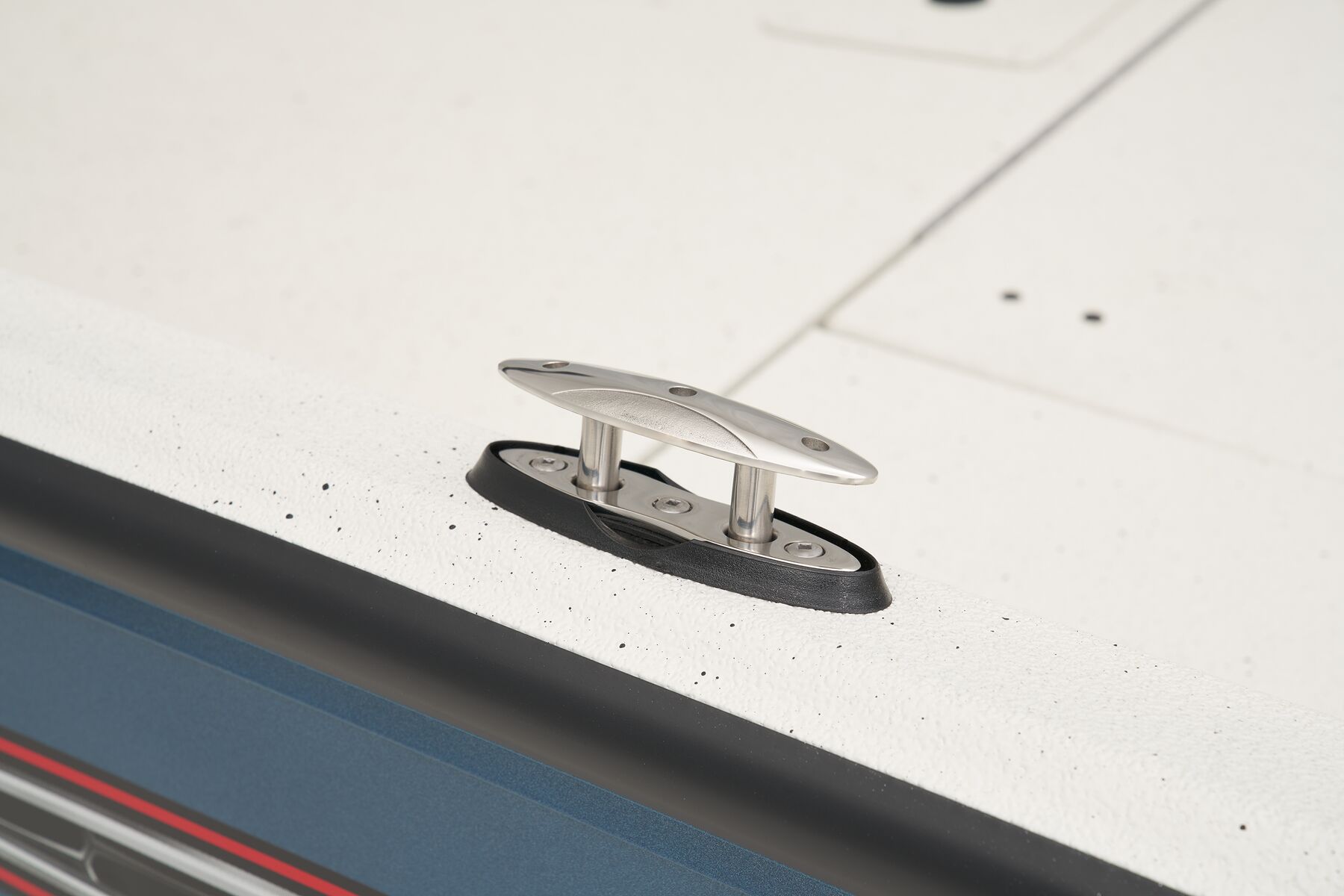

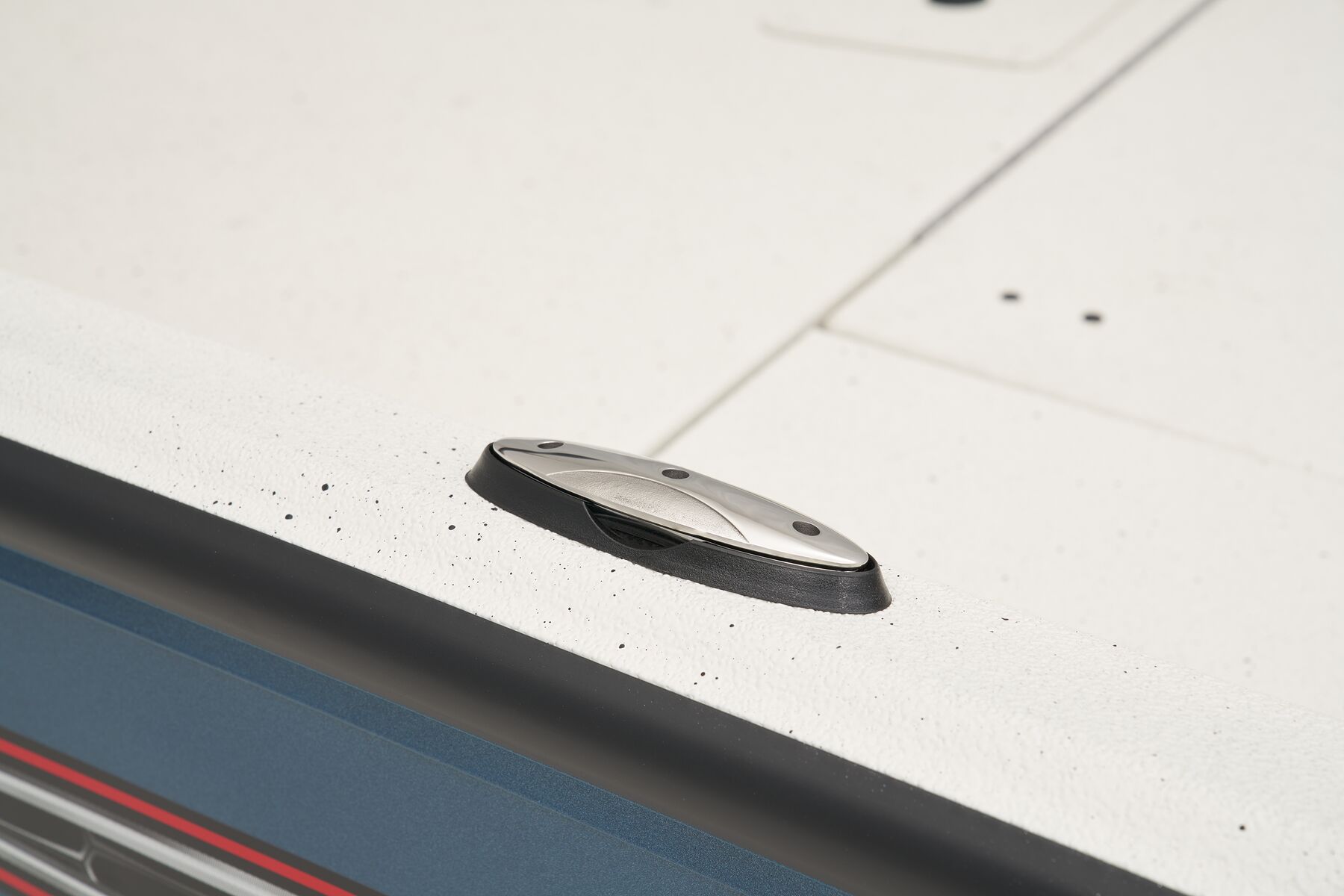

- Pull-up tie cleats (4)
- Heavy duty bow / stern eyes
- All aluminum floors & decks
- Upright, level flotation
- 5052 H34 Marine-grade aluminum
- Foam-filled one-piece construction
- Remote drain plug

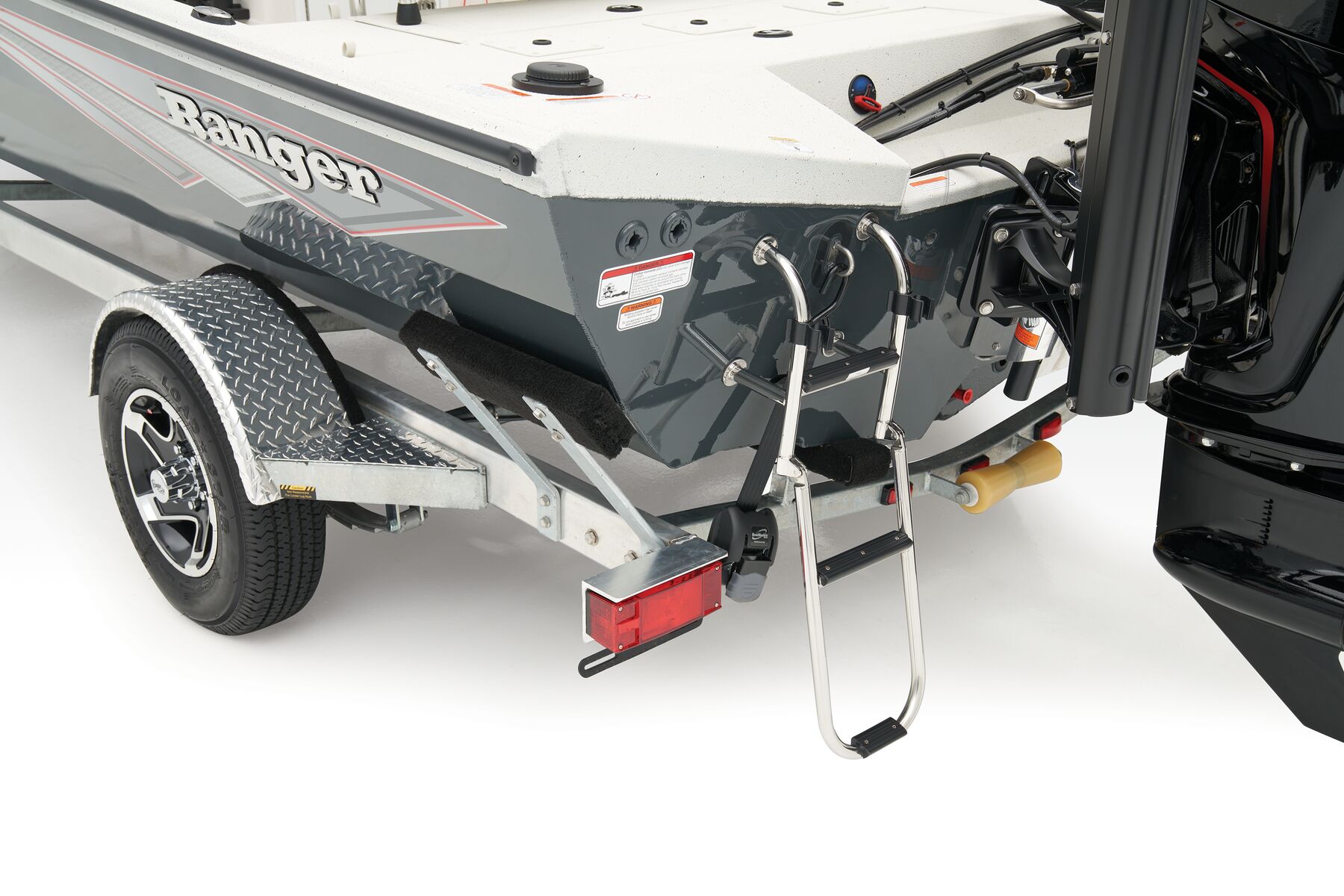

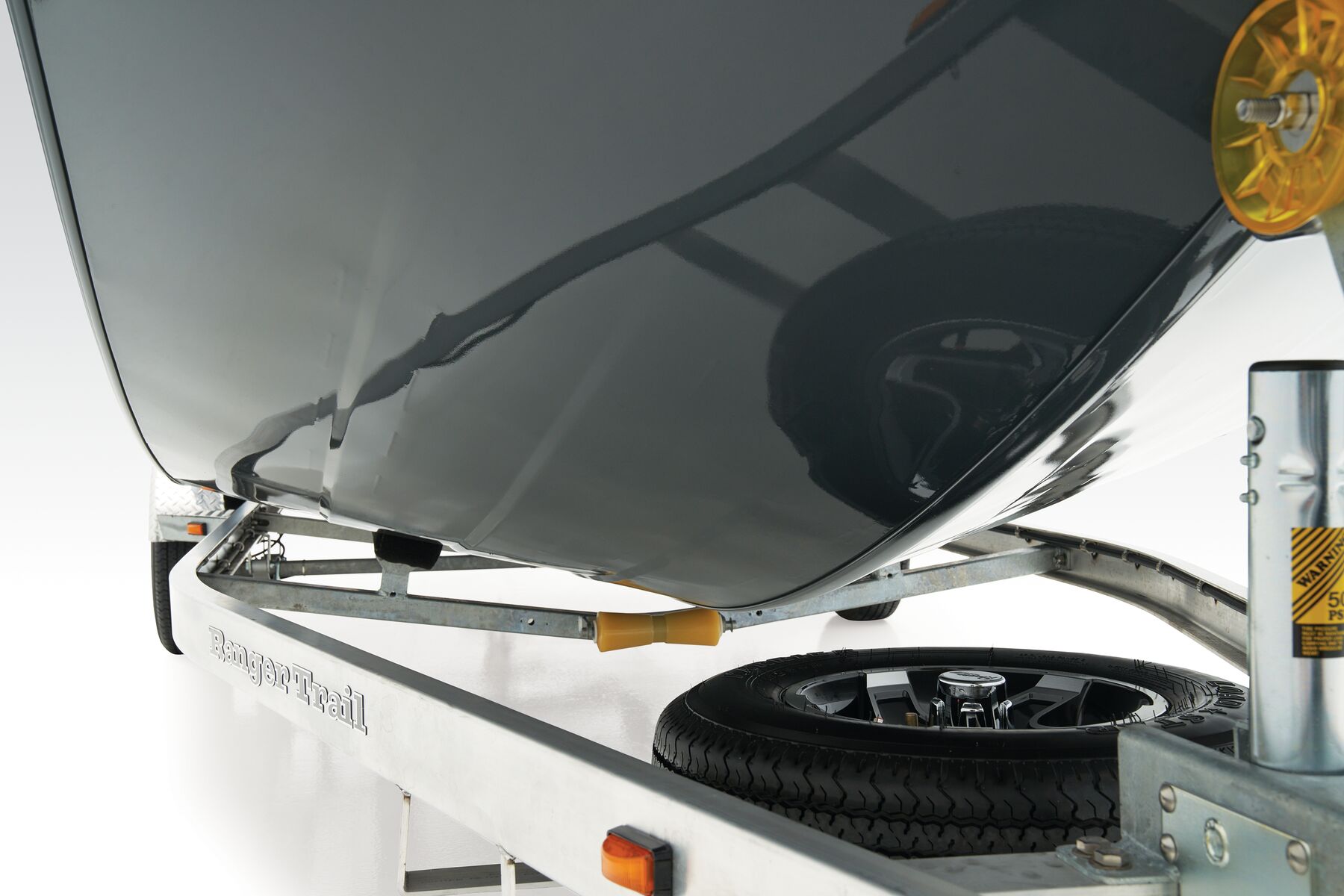

Trailer Features

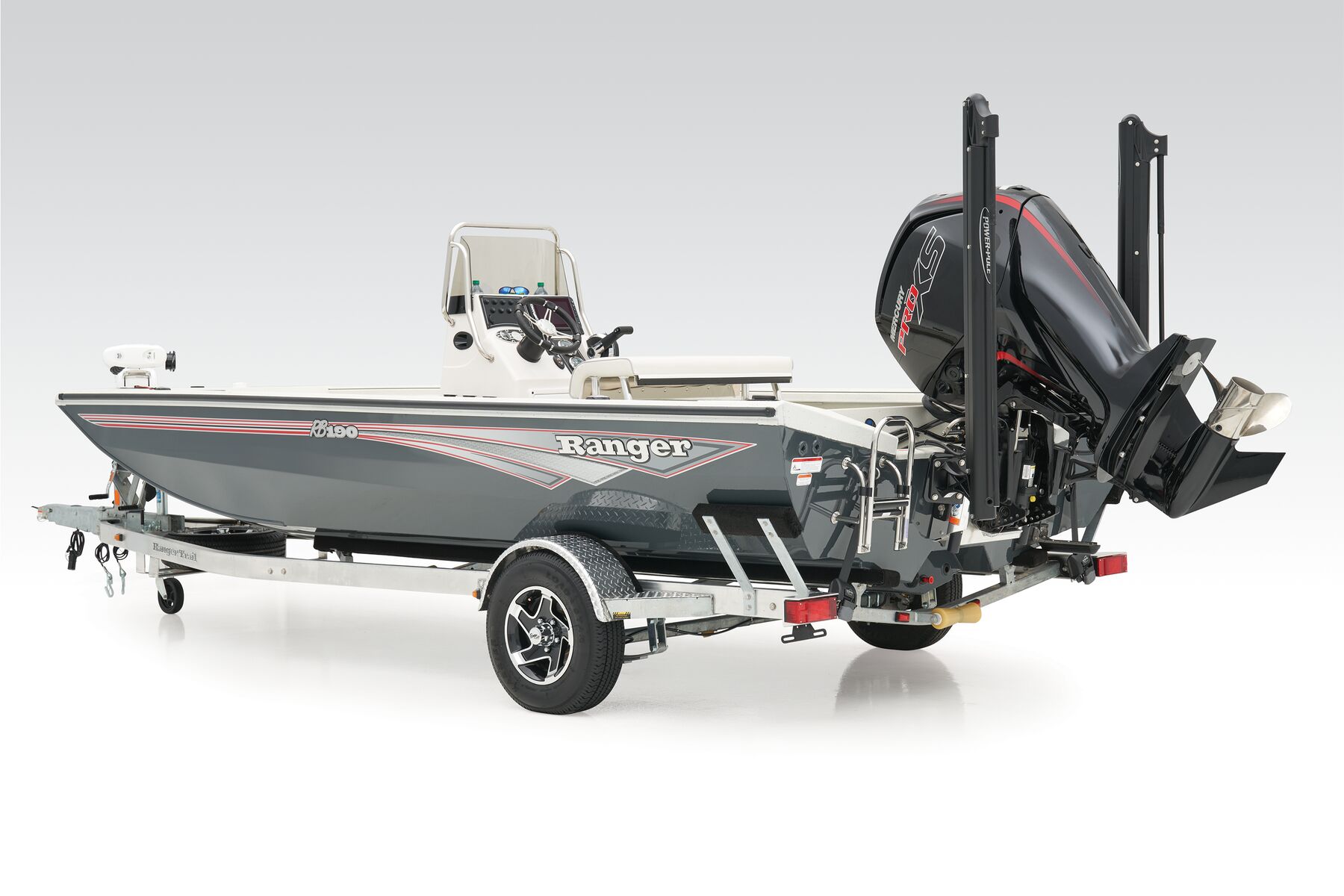

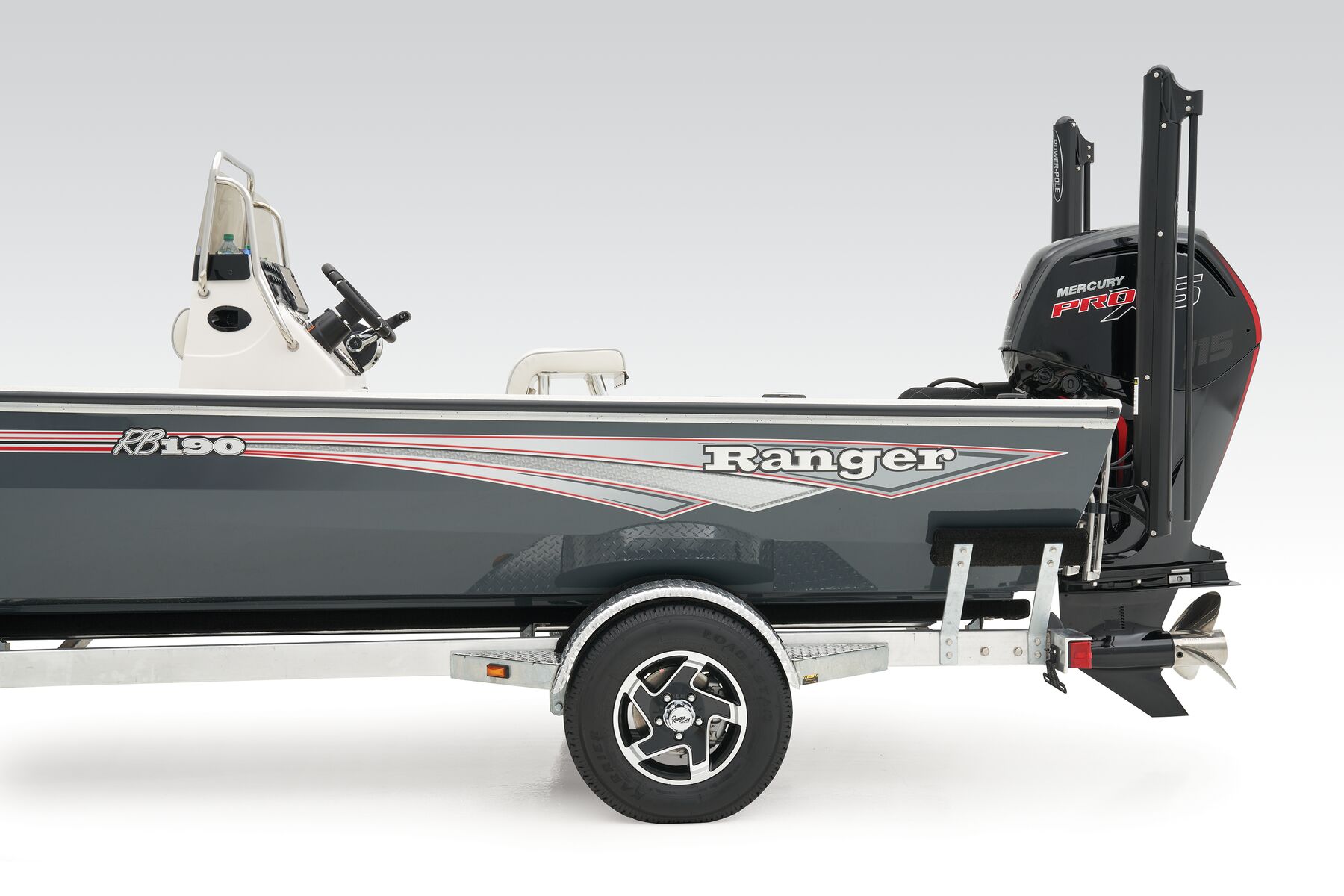

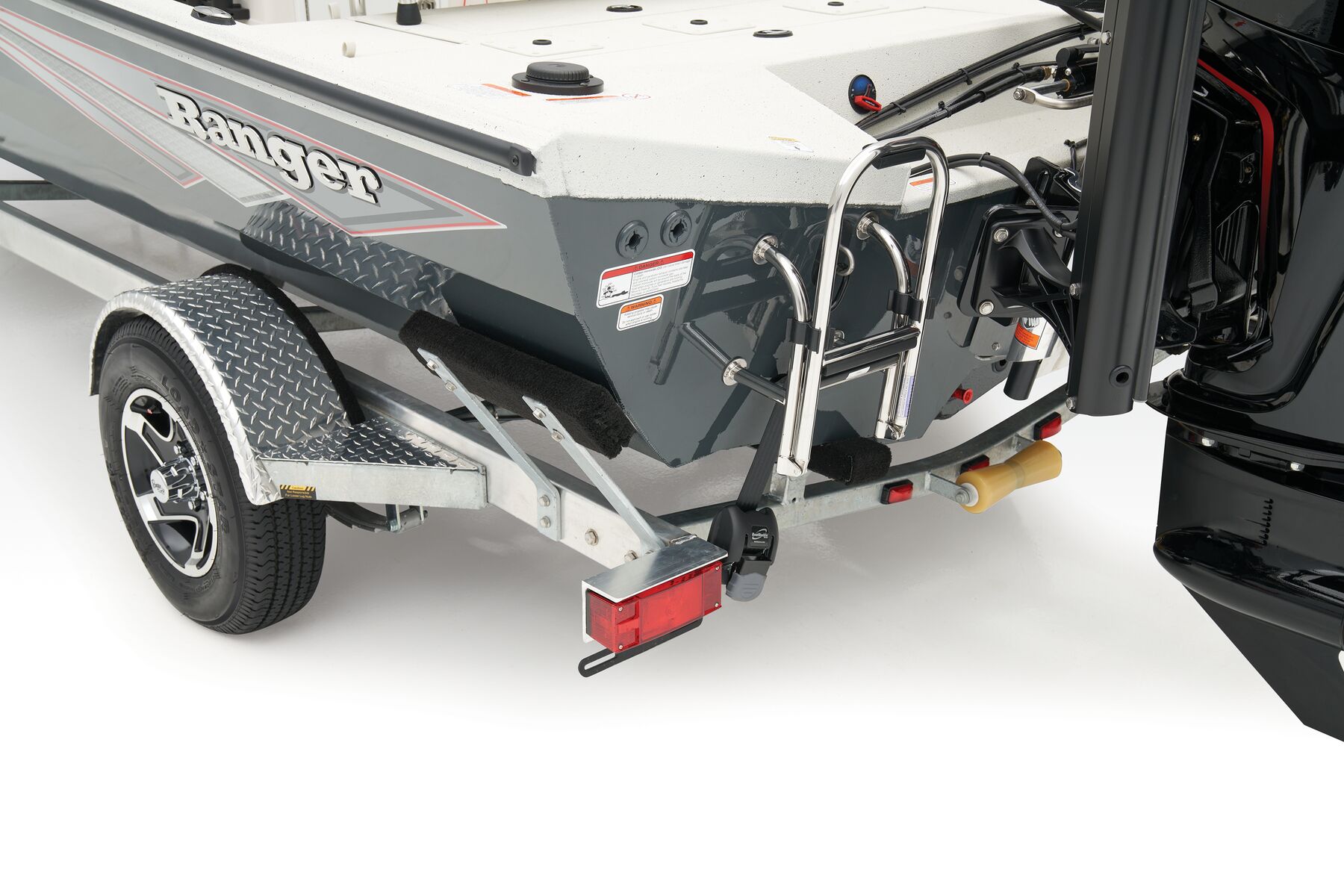

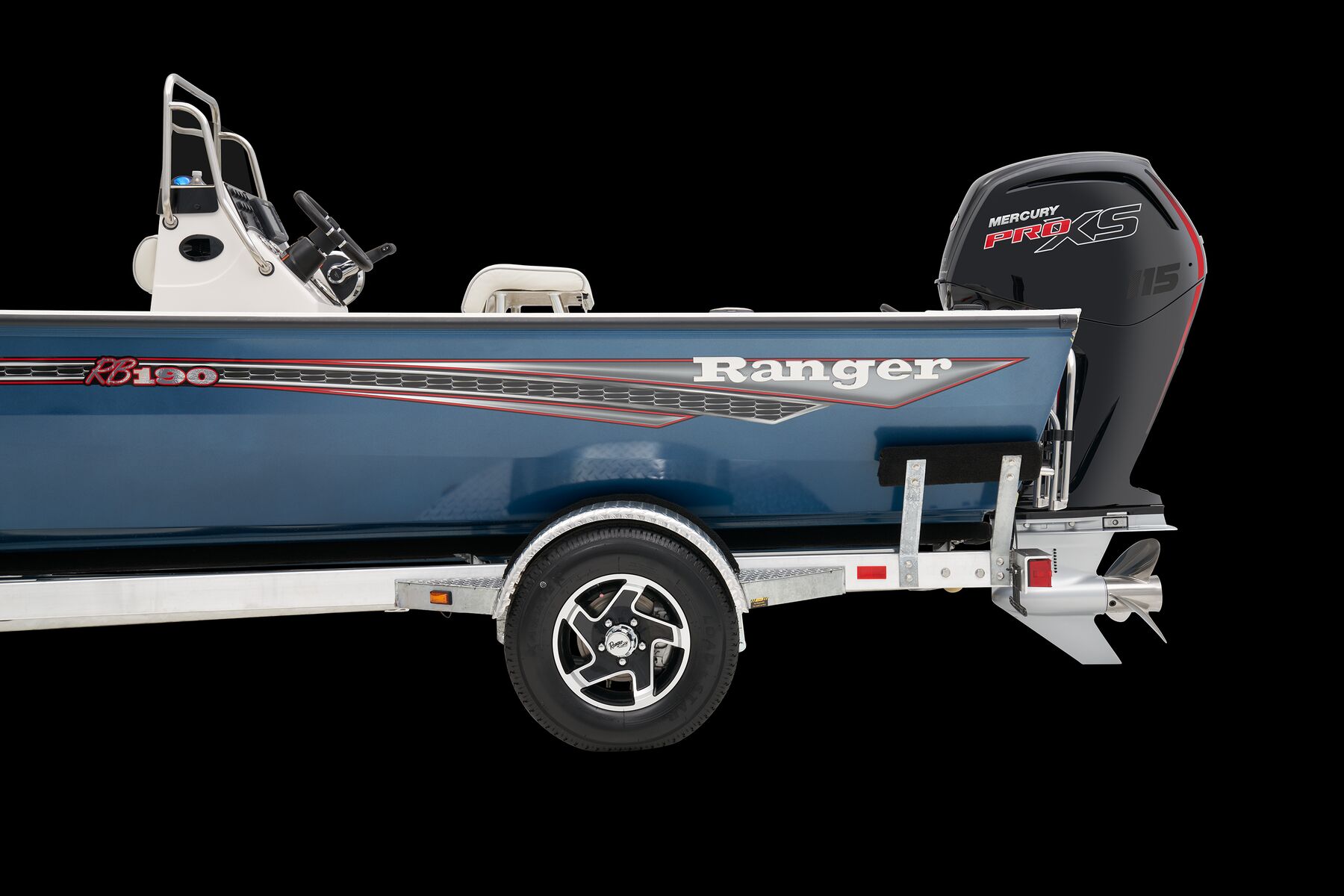

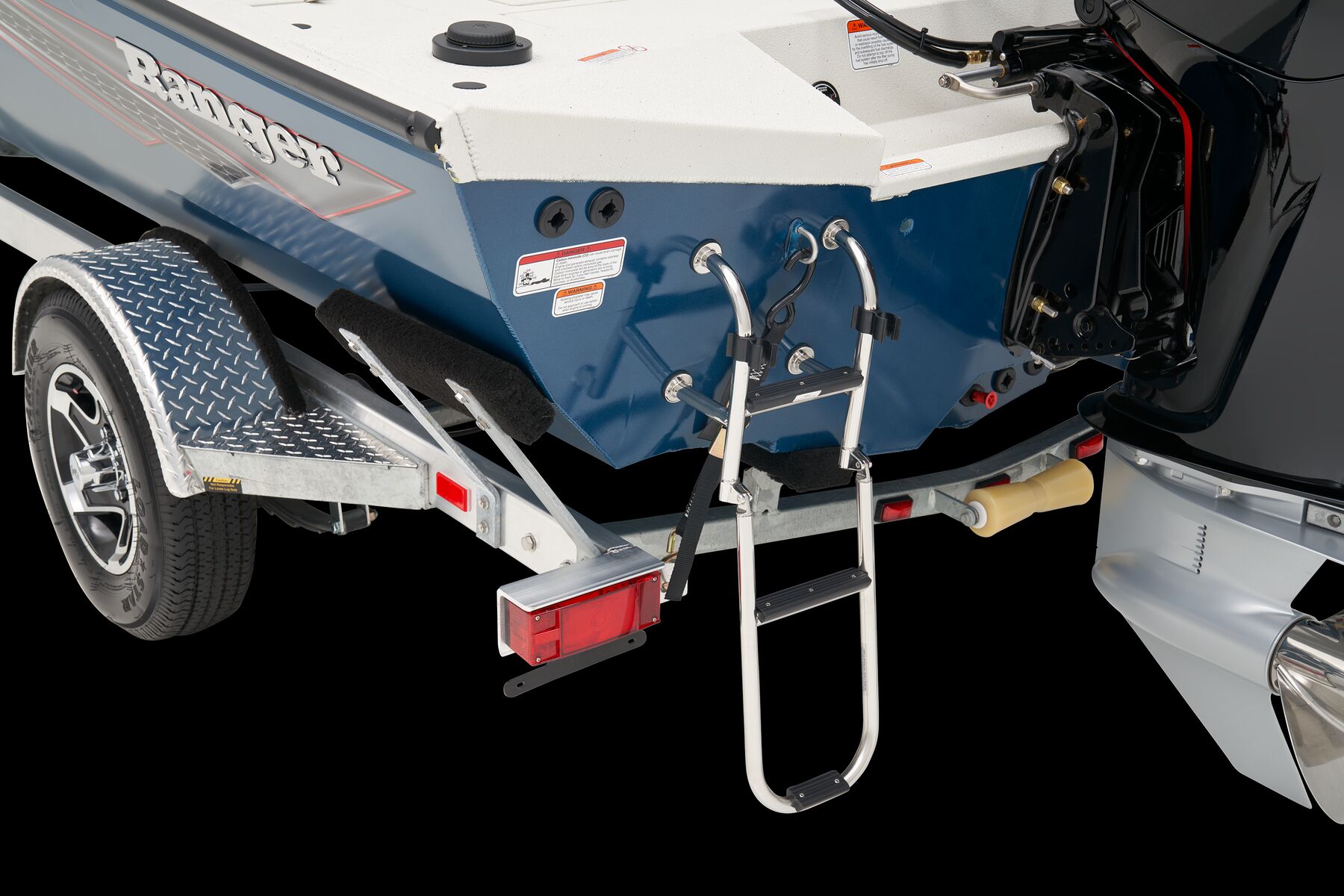

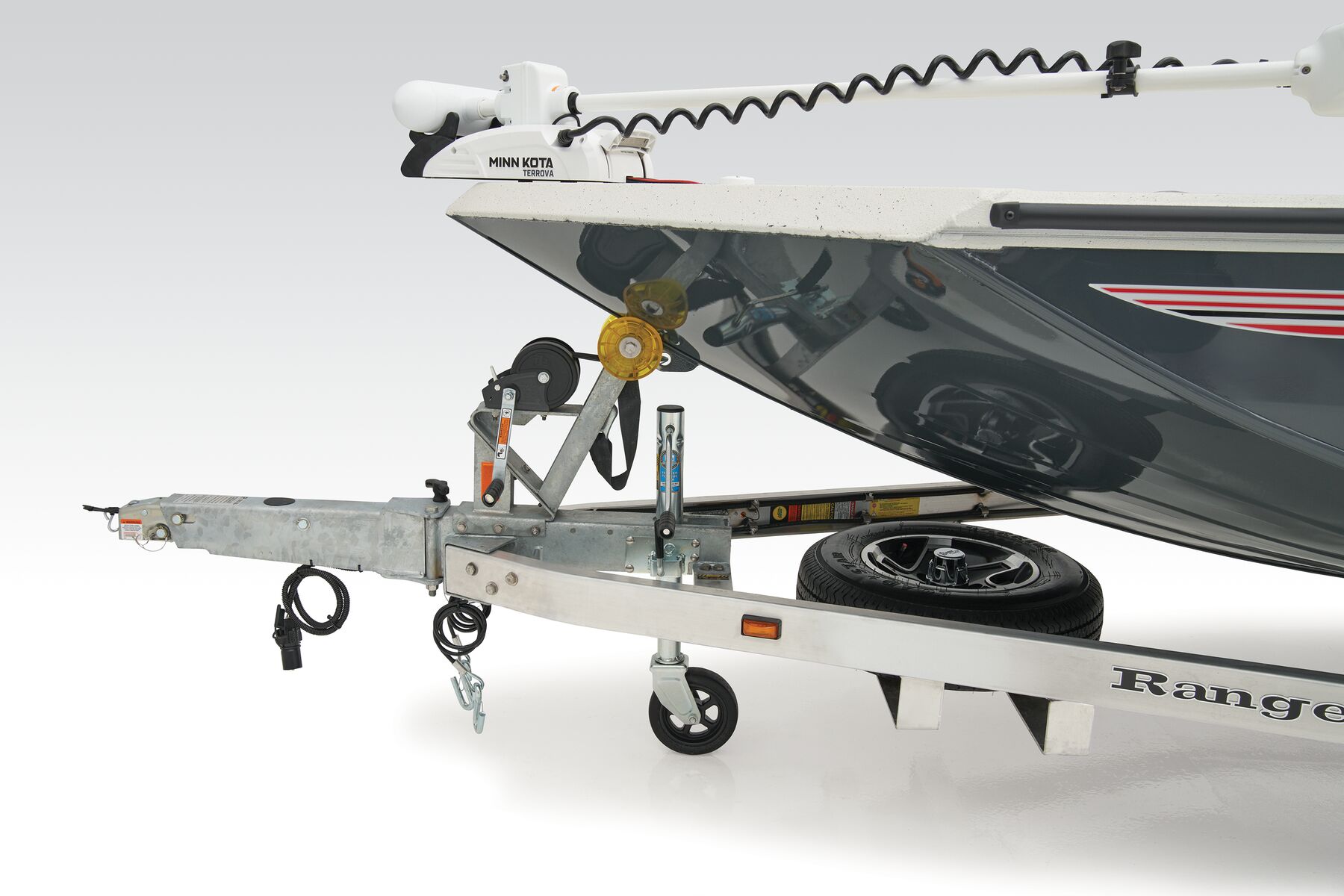

- Custom built Ranger Trail® single axle trailer with aluminum frame
- Aluminum trailer frame w/ galvanized crossmembers and axles

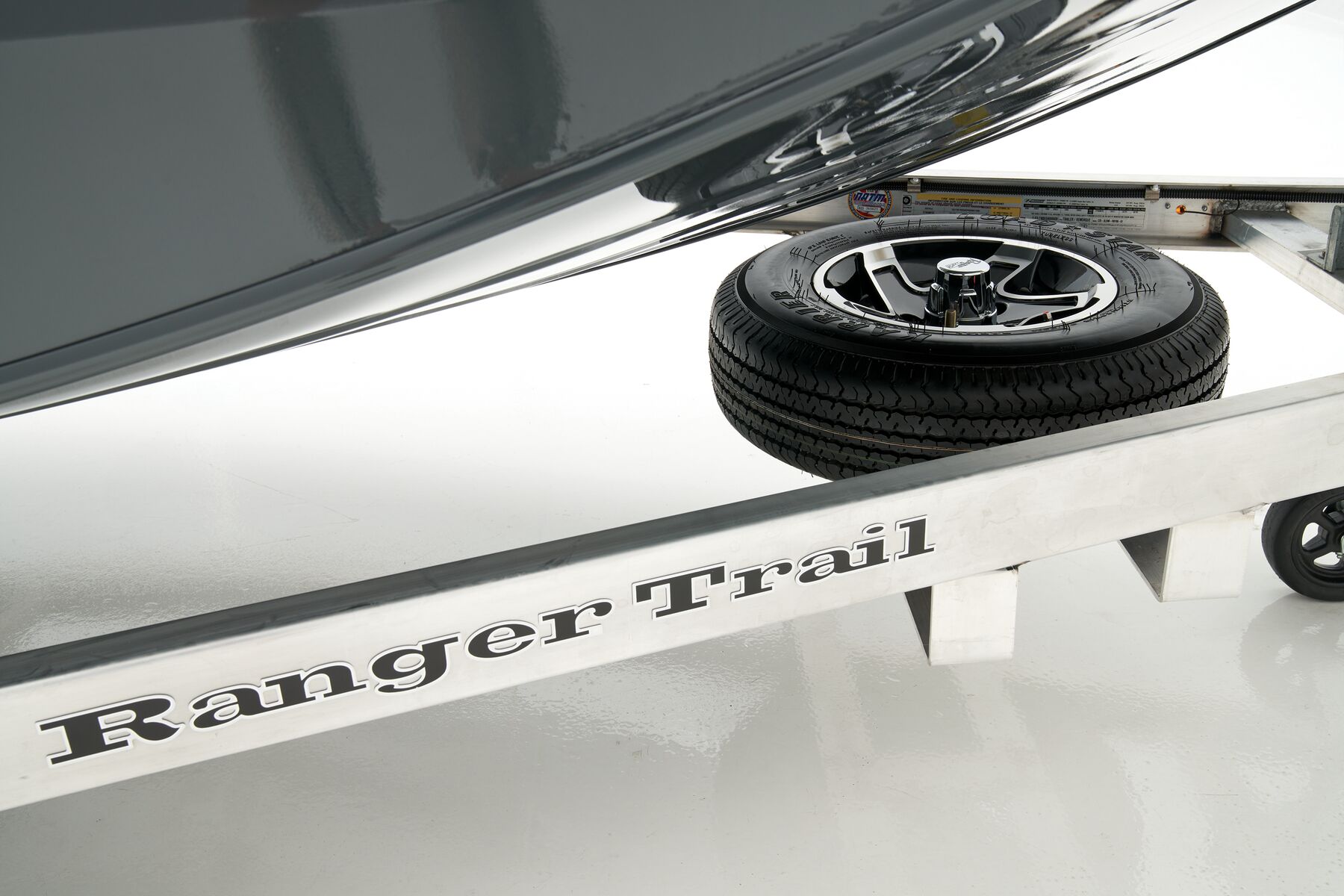

- Custom Ranger Trail® directional aluminum wheels with spare
- Leaf-spring axle
- Swing jack

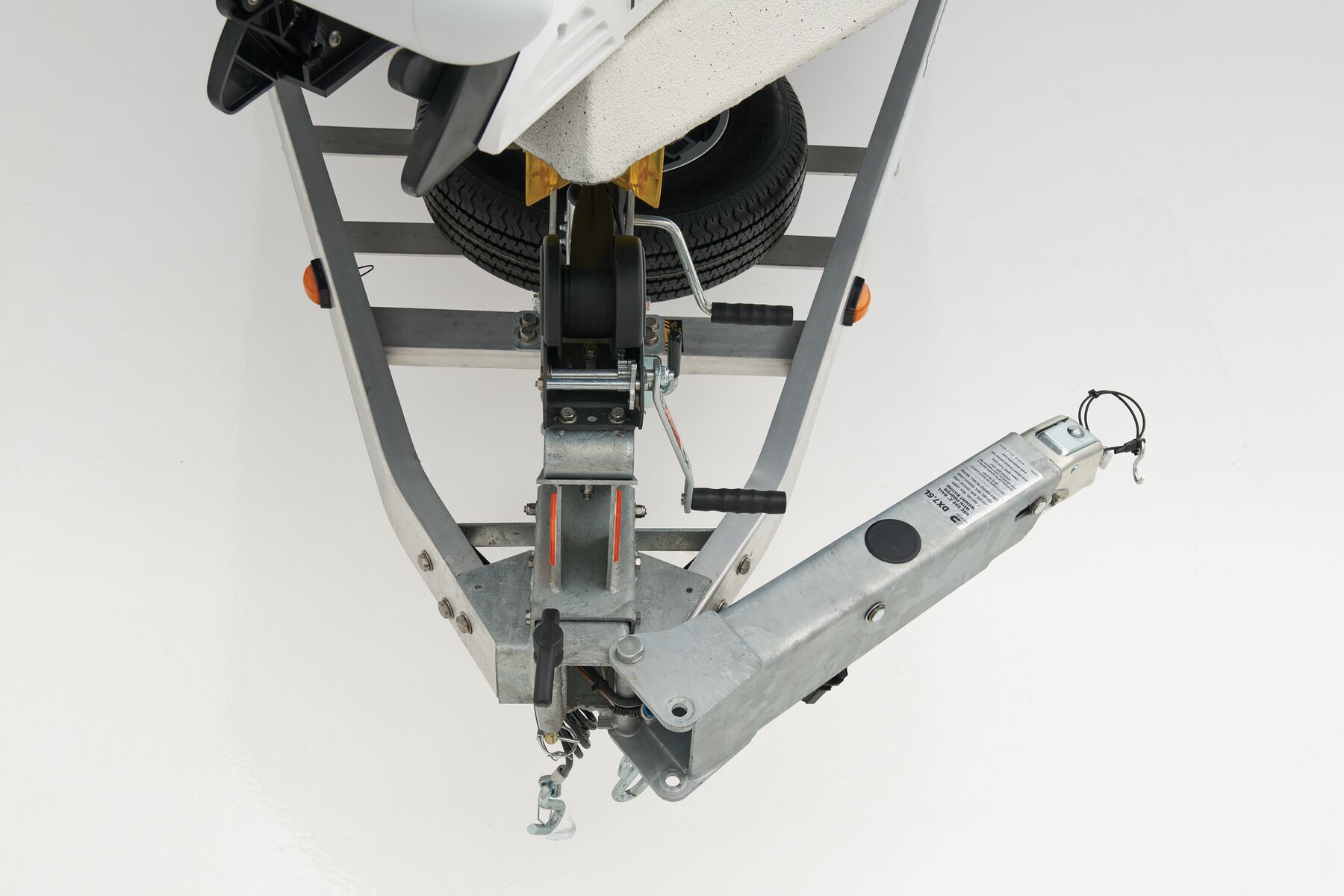

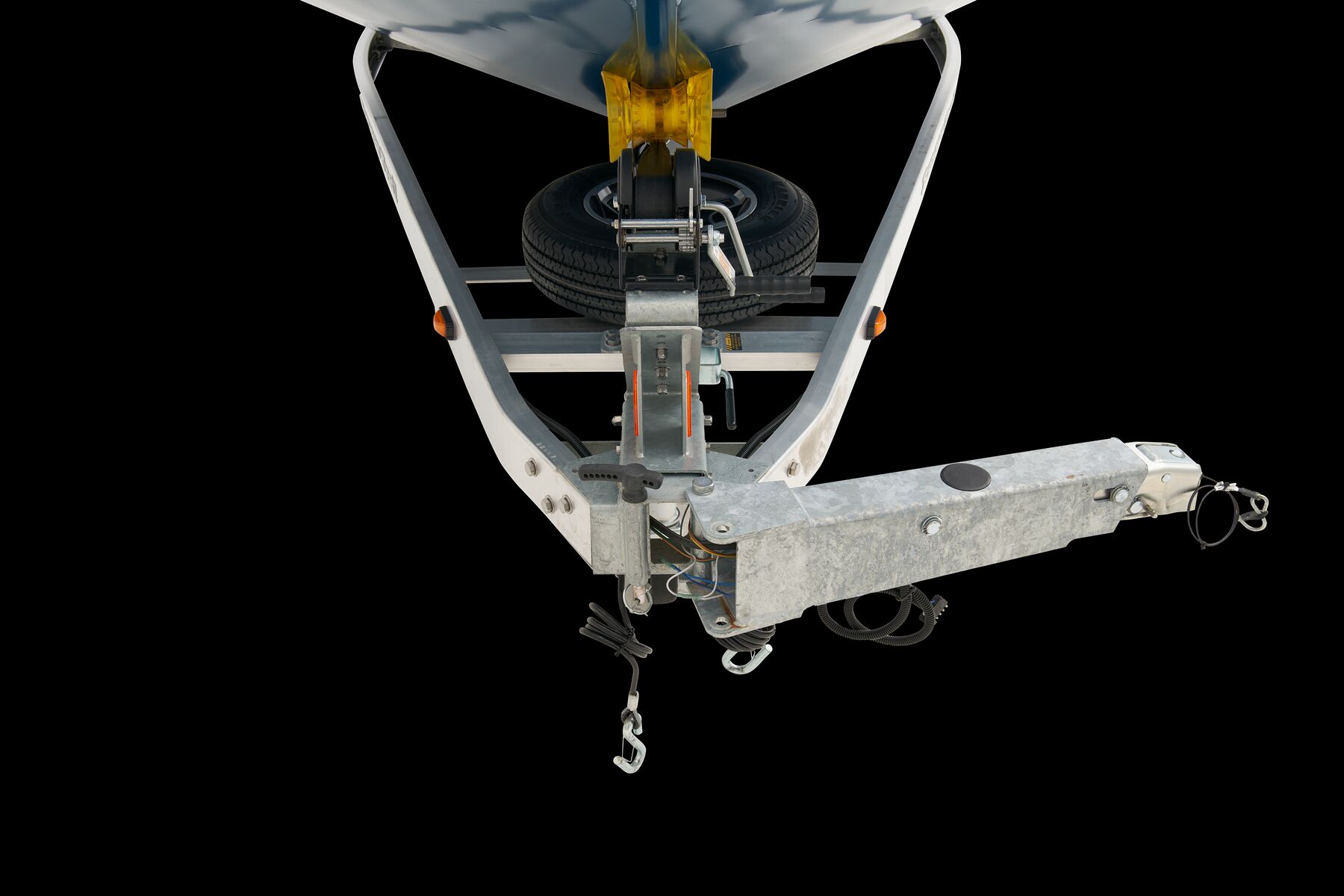

- Swing-away tongue
- Integrated load guides
- NMMA®/NATM certified
- LED lighting
- Retractable trailer tie-downs
Options
