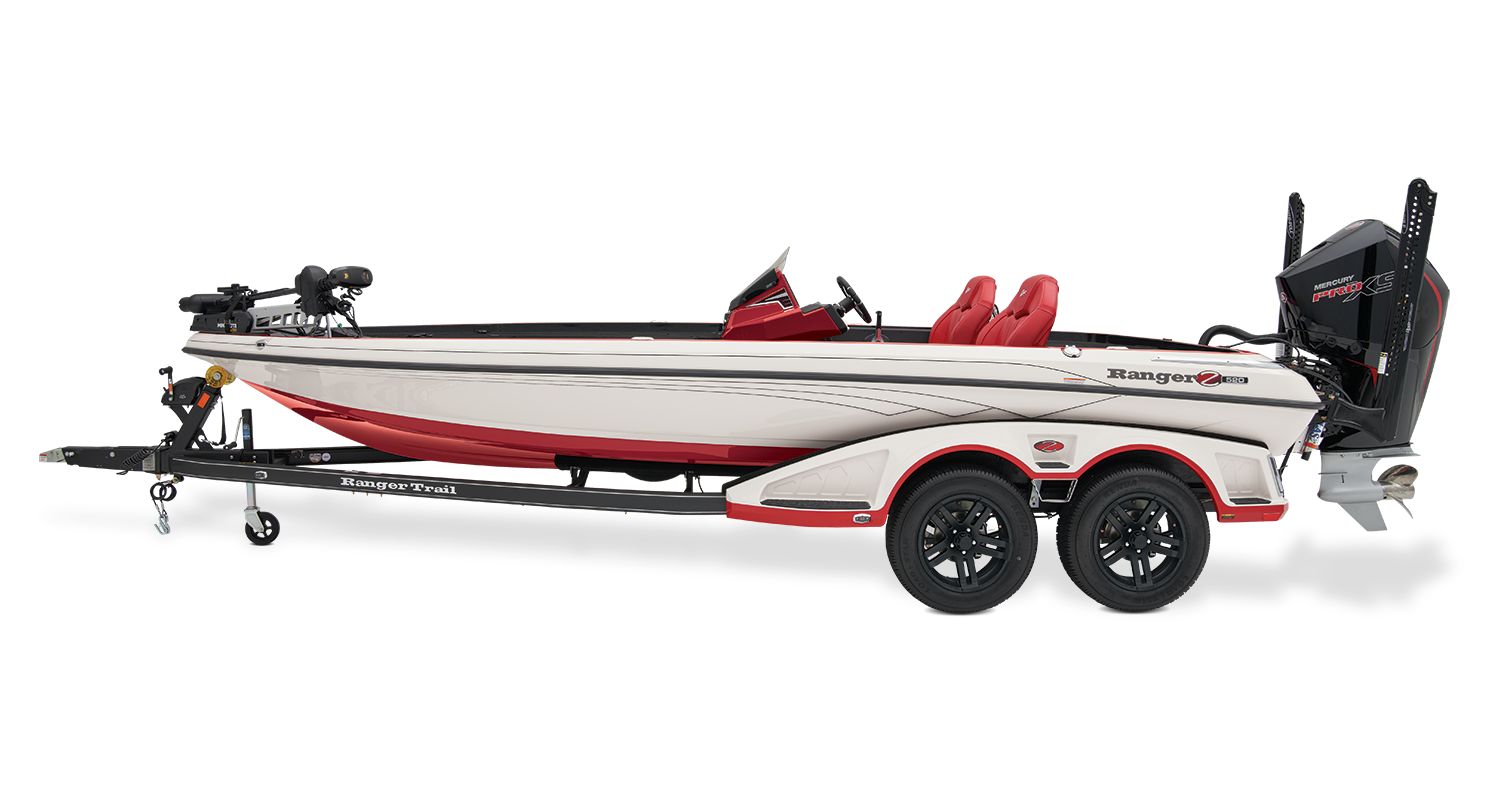

ALL-NEW

Z520

Photos may show optional equipment.

2025

Z520

w/ 250L Pro XS Torque Master Mercury®
Boat, Motor, & Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
$79995
USD

THE NEXT GENERATION OF DOMINATION

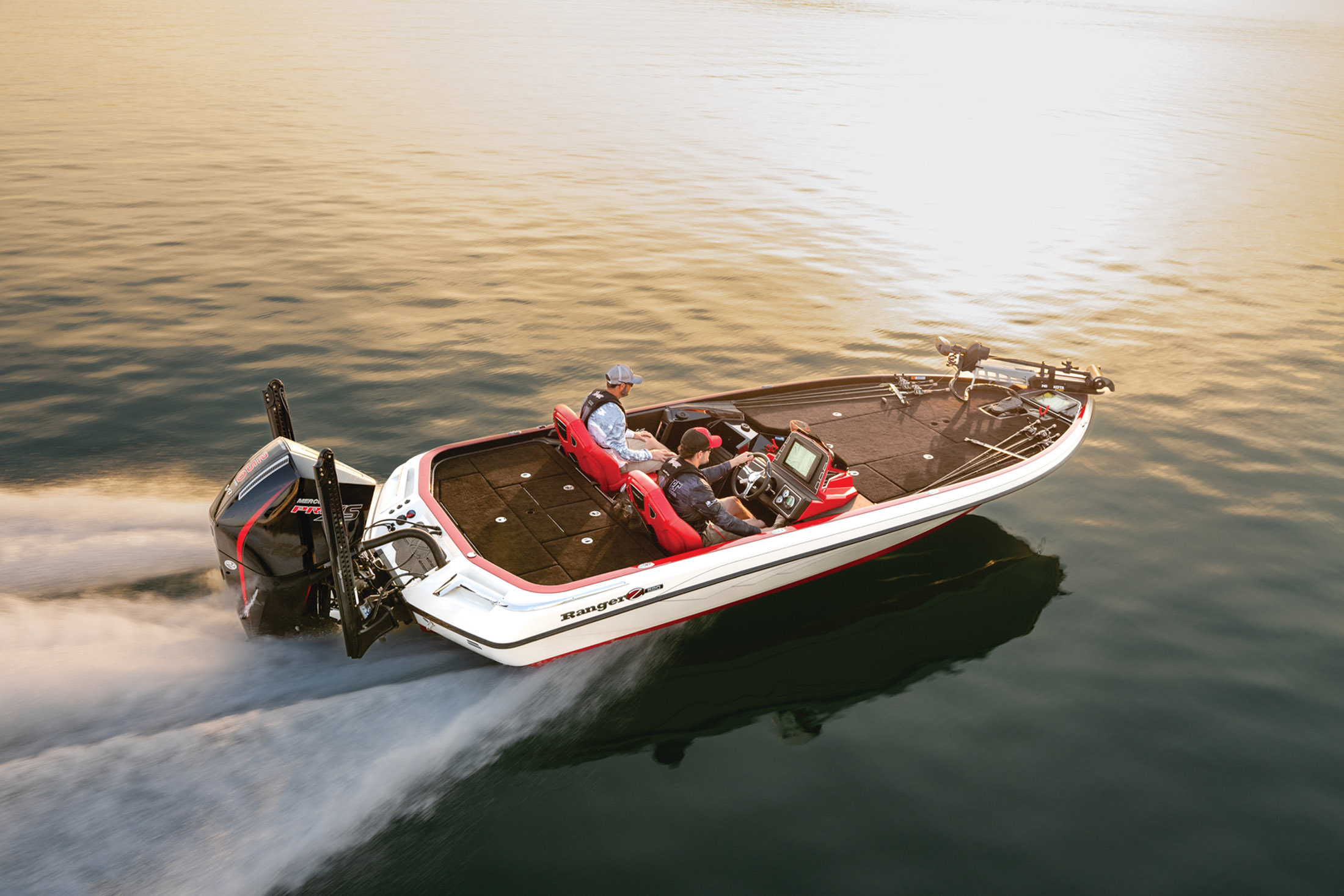

The Ranger Z520 delivers top-tier performance and style in a package that boasts premium essentials you need to be your best on the water. And for 2025, we’ve added in new features that make it an even more capable threat on the water. A Ranger Umbilical™ dedicated electronics harness simplifies wiring, while push-button solid-state switching and a keyed ignition adds more reliability to controls. A MercMonitor with SmartCraft gauges keep you in the know while push-to-close latches remove tripping hazards and make accessing your boxes easier. For increased fishability we’ve added a Minn Kota® Fortrex and optional BBT dual bow graph mount.

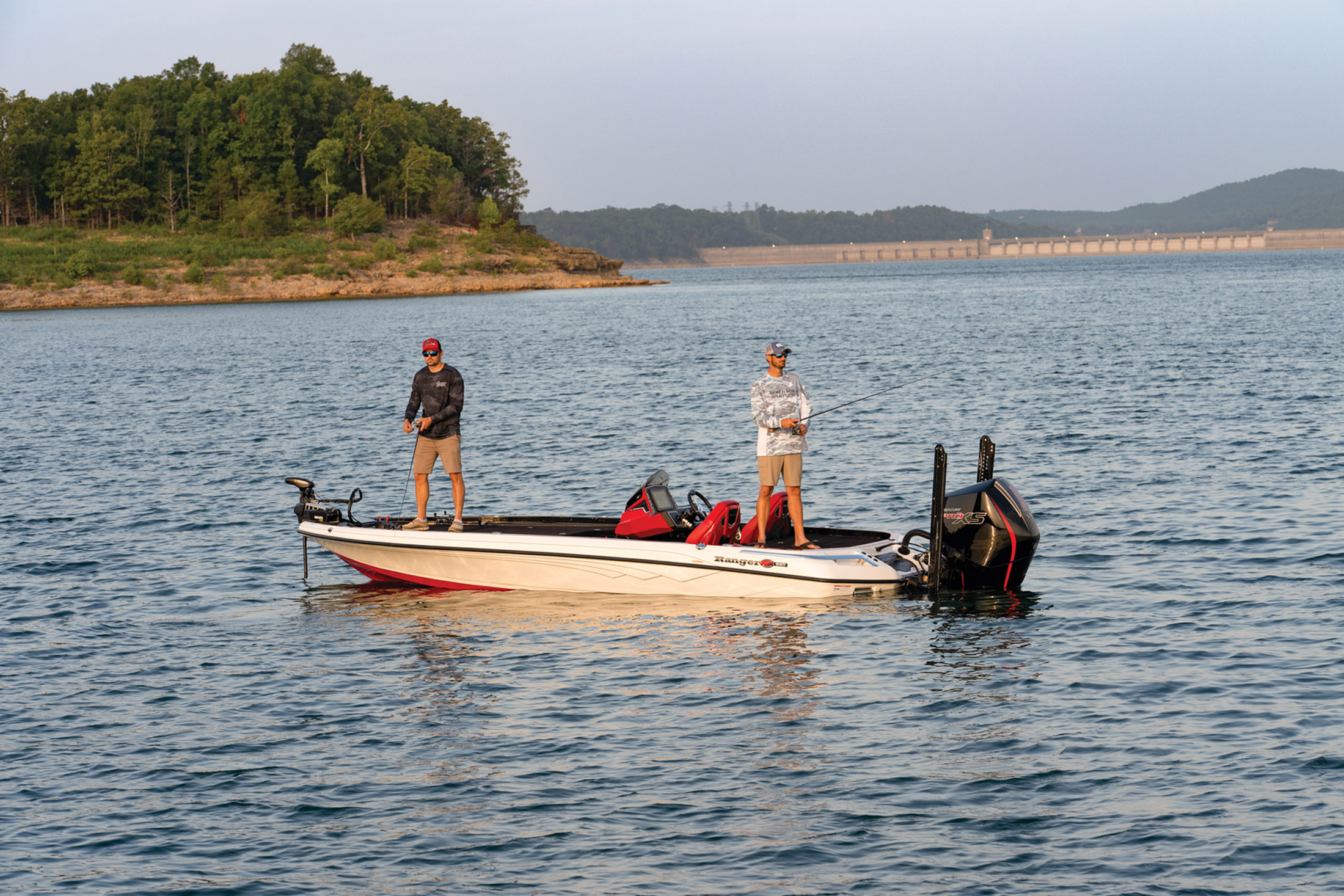

The Z520 is made in our legendary Flippin, Ark., facility with the same materials used in all Rangers by the skilled, dedicated workforce that have brought dreams to life for decades. The Z520 is the size of choice for today’s top tournament pros, thanks to the supreme stability, rock-solid handling, and searing performance this hull offers. Every Z520 is yours for the making, with a choice of trolling motor, electronics, color package, and more. The Z520 delivers unlimited potential so you can unlock yours.



Key Features

  • Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories
  • Push-Button solid-state digital switching

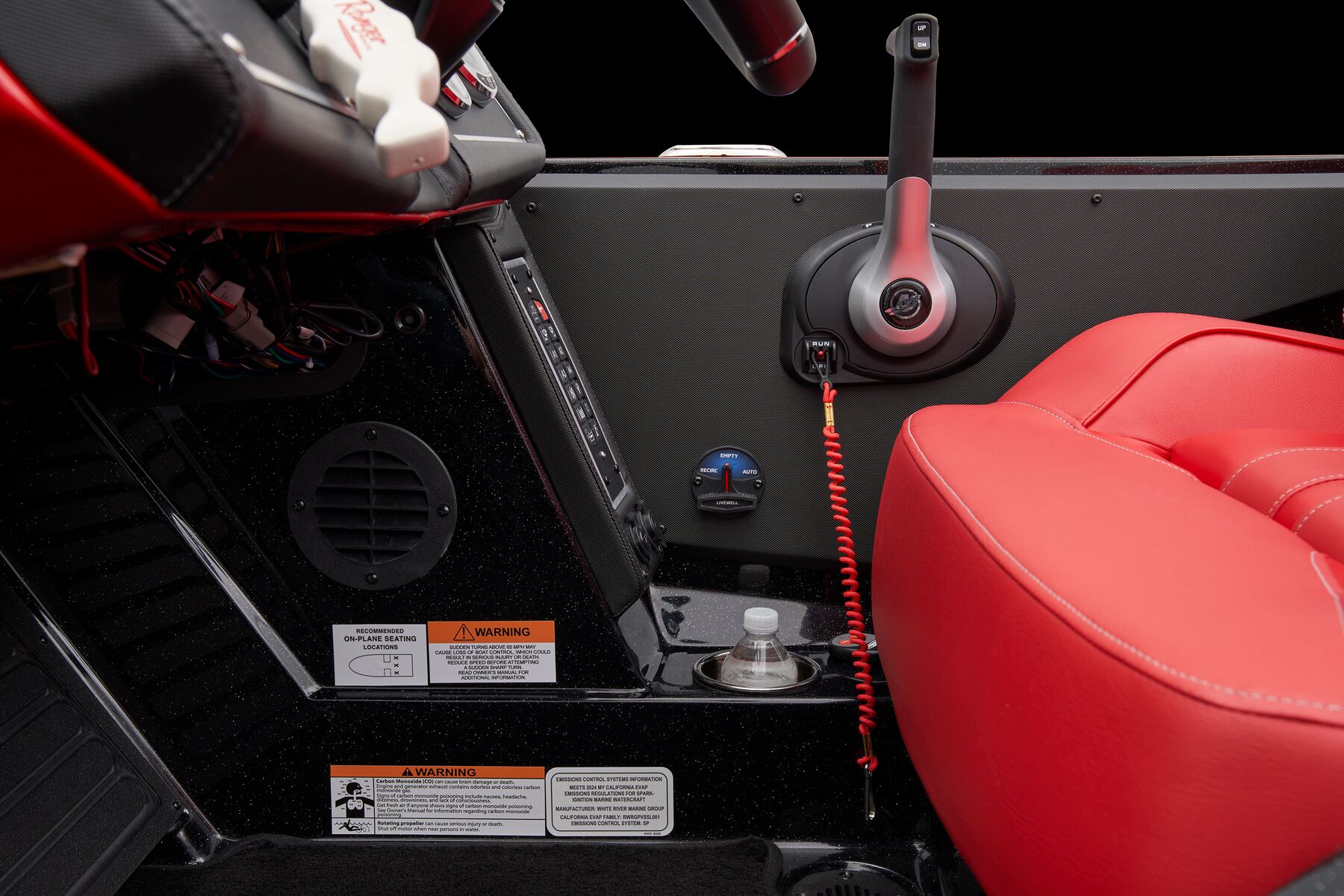

  • Keyed ignition
  • Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
  • Padded Front Casting Deck
  • Pultruded Fiberglass Transom

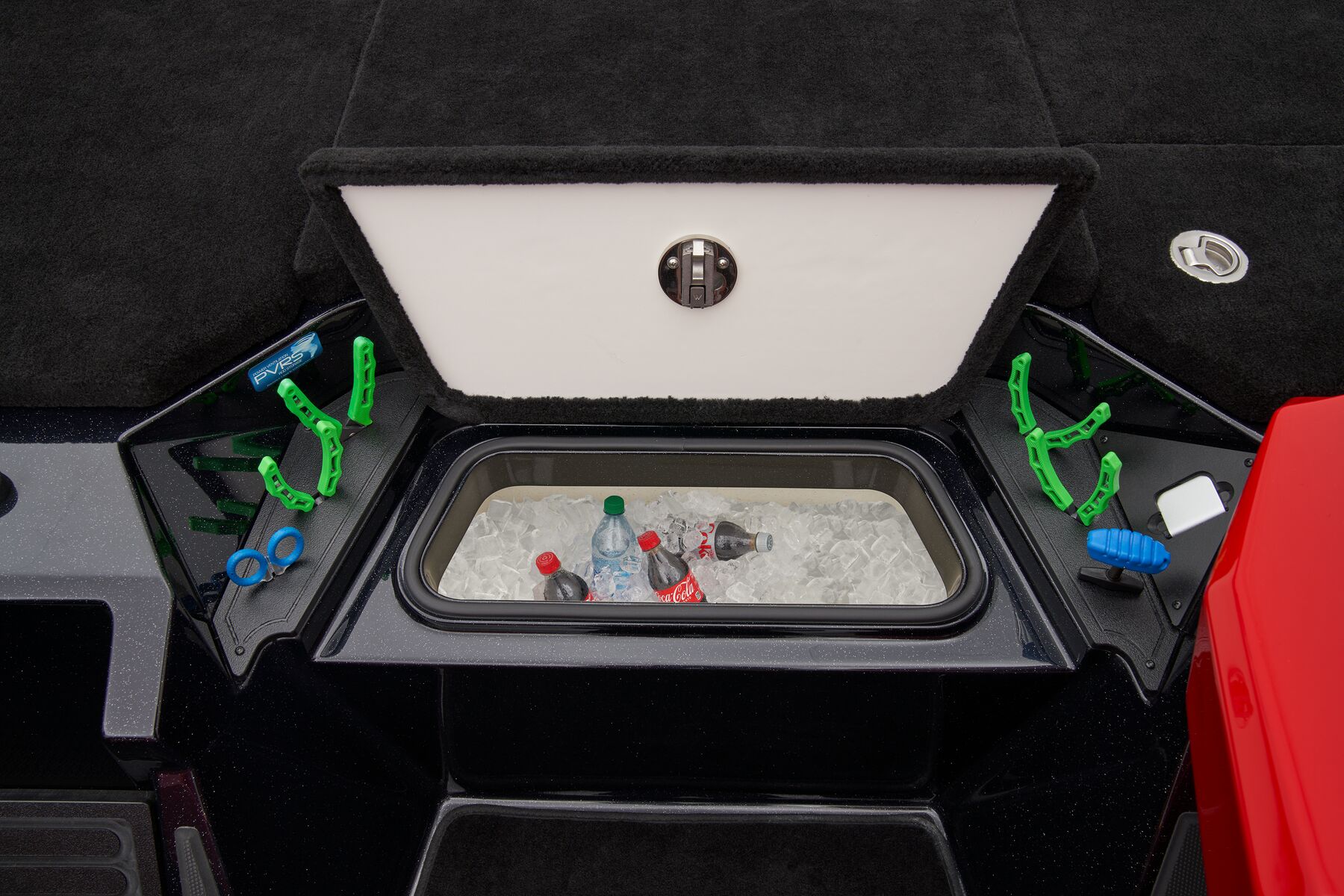

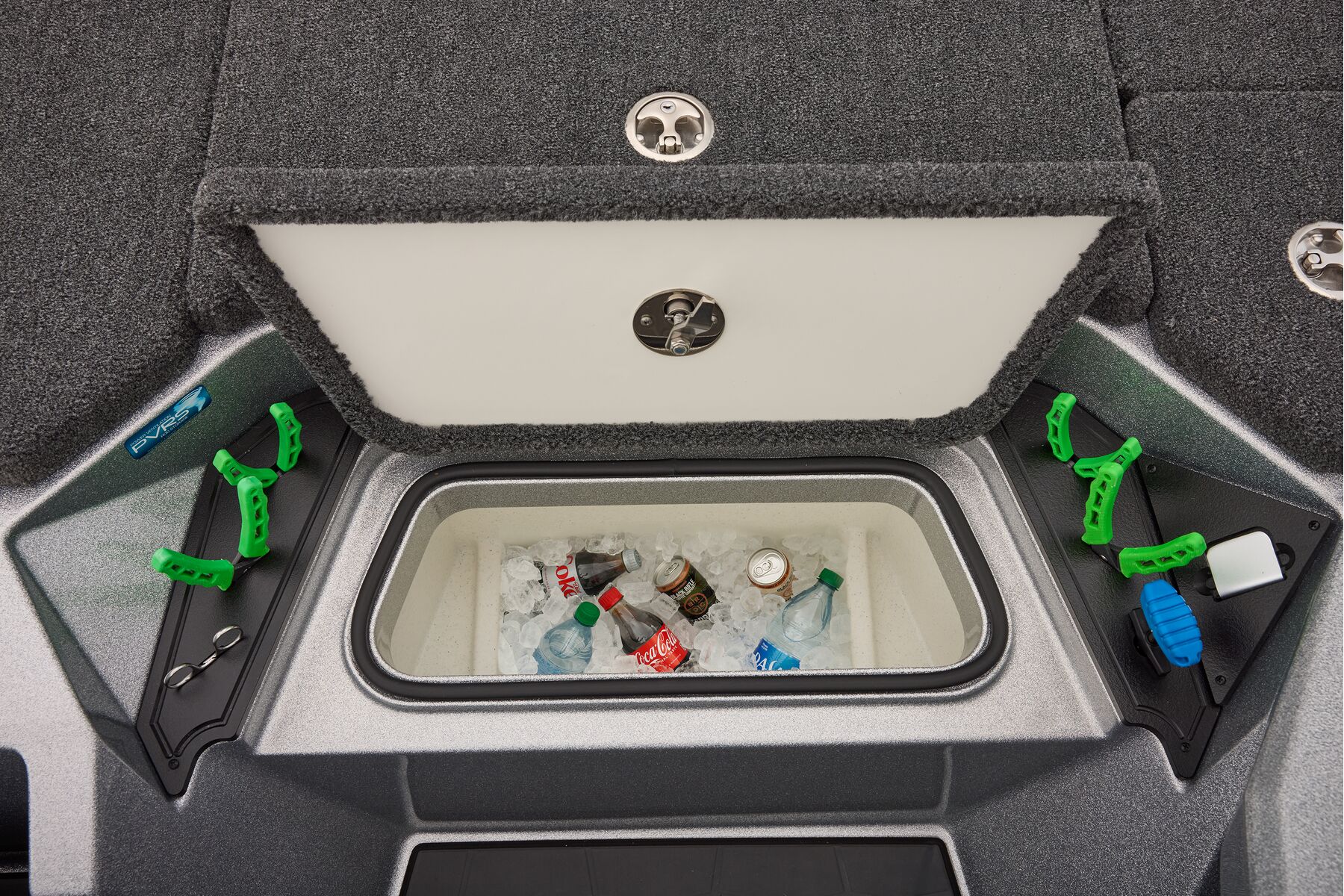

  • Insulated 40 qt. step-up cooler
  • Push-to-Close Latches
rt178
z17
z17

Specifications

Length 6.38 m 20' 11''
Beam 2.44 m 96''
Max. Recommended HP 250 HP
Engine Shaft Length 50.8 cm 20''
Inside Depth 55.88 cm 22''
Fuel Capacity 204.39 L 54 gal.
Livewell Capacity 117.34 L 31 gal.
Total Person, Motor, Gear 748.43 kg 1650 lbs.
Approximate Boat Weight 839.15 kg 1850 lbs.
Rod Box Length - Port 2.44 m 8'
Rod Box Length - Center Row 1 2.44 m 8'
Rod Box Length - Center Row 2 2.29 m 7' 6''
Max. Person Capacity 4 persons
Trailer GVWR 2449.4 kg 5400 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 8.25 m 27' 1''
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 7.62 m 25'
Width On Trailer 2.59 m 102''

Motor Options

AVAILABLE MOTOR
Mercury®

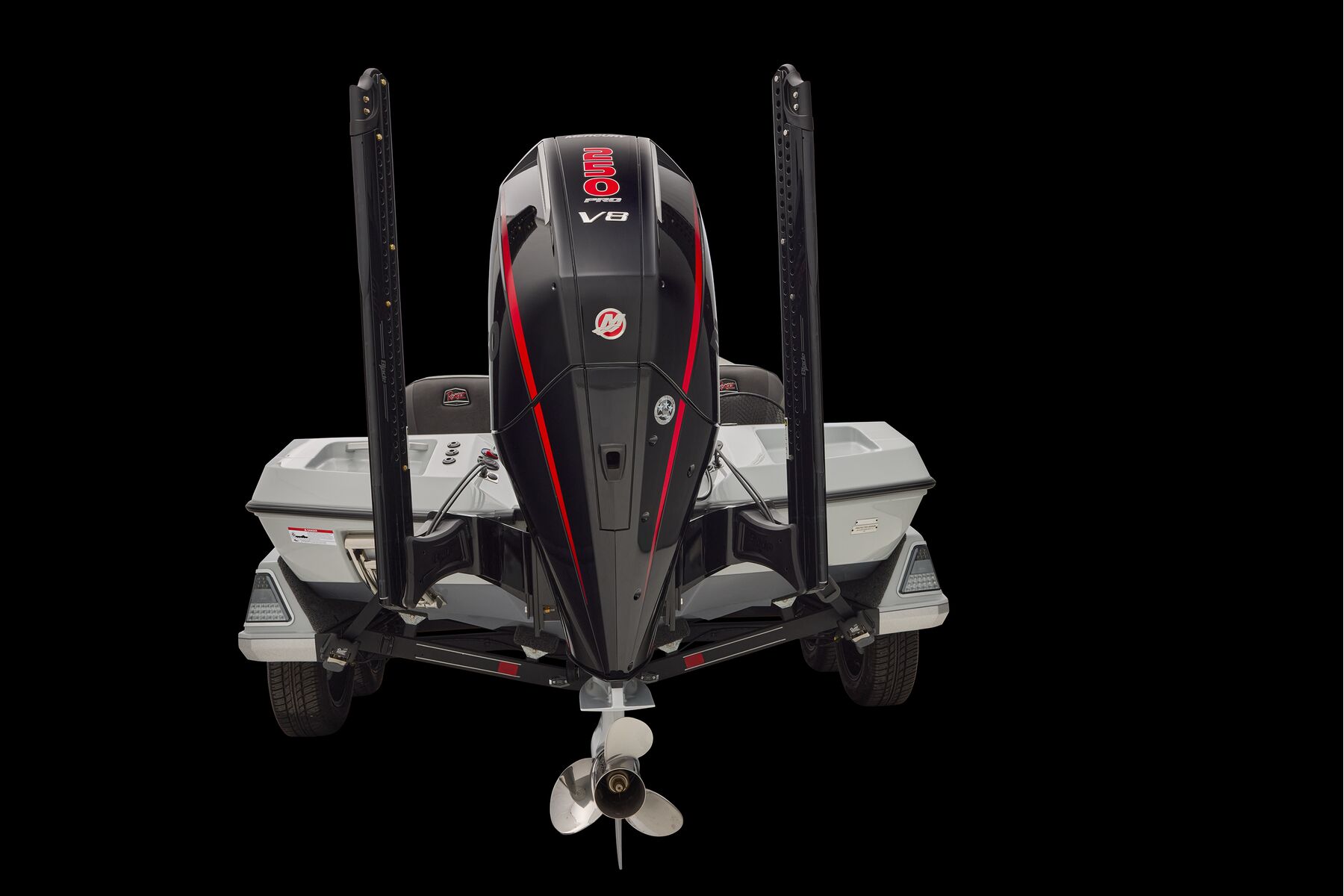

250L Pro XS Torque Master
$79995

USD
Select Dealer

Standard Features

Custom Details

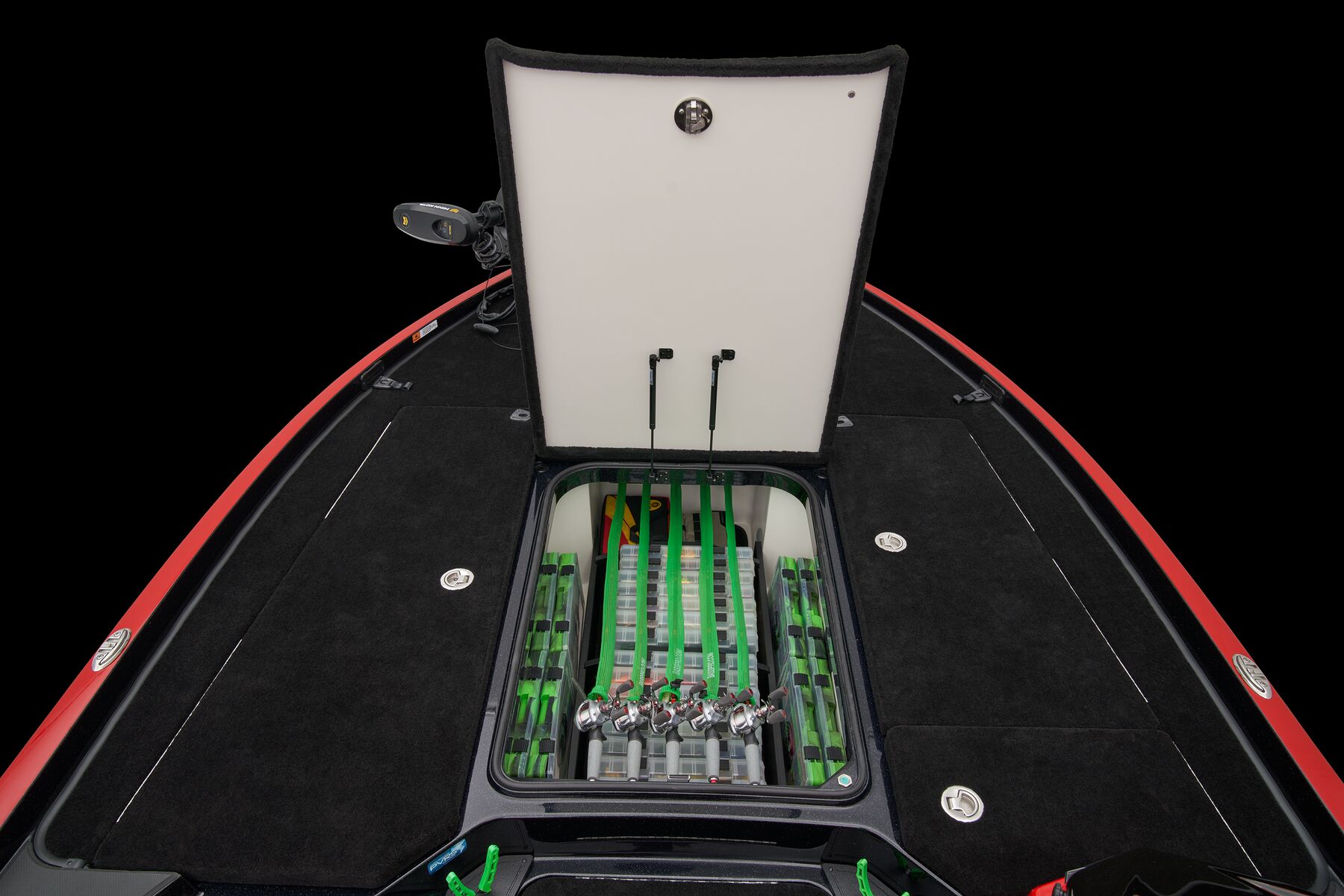

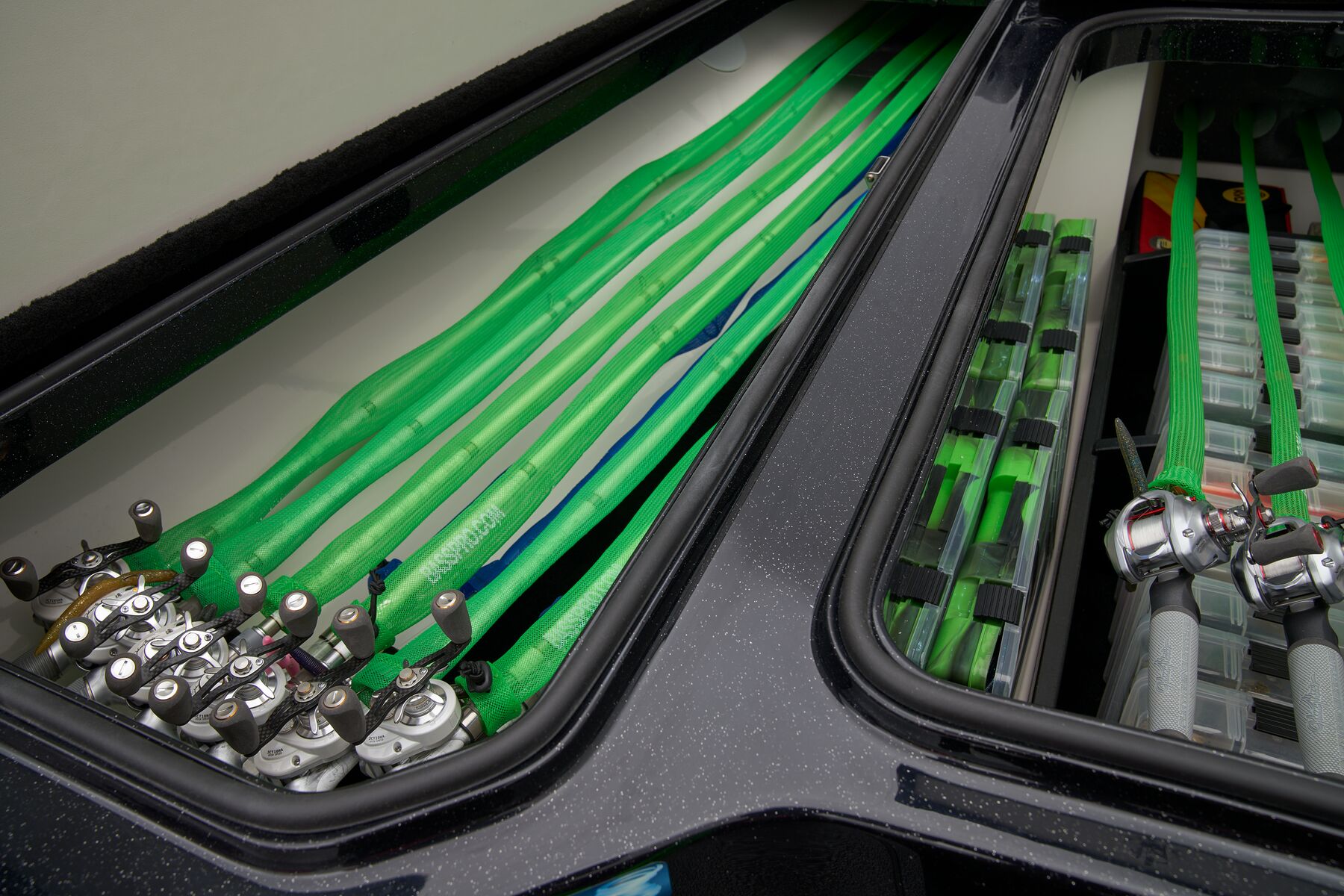

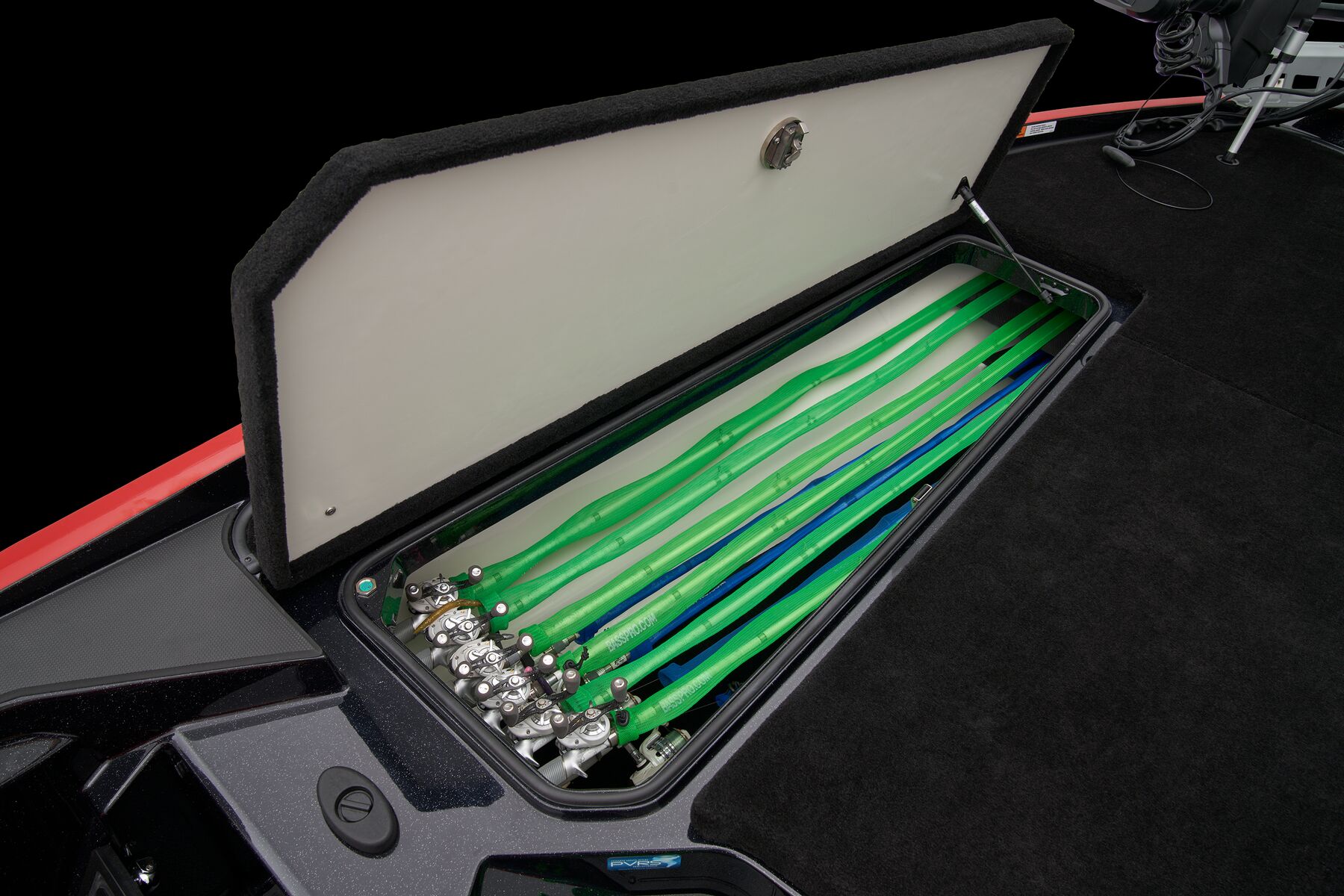

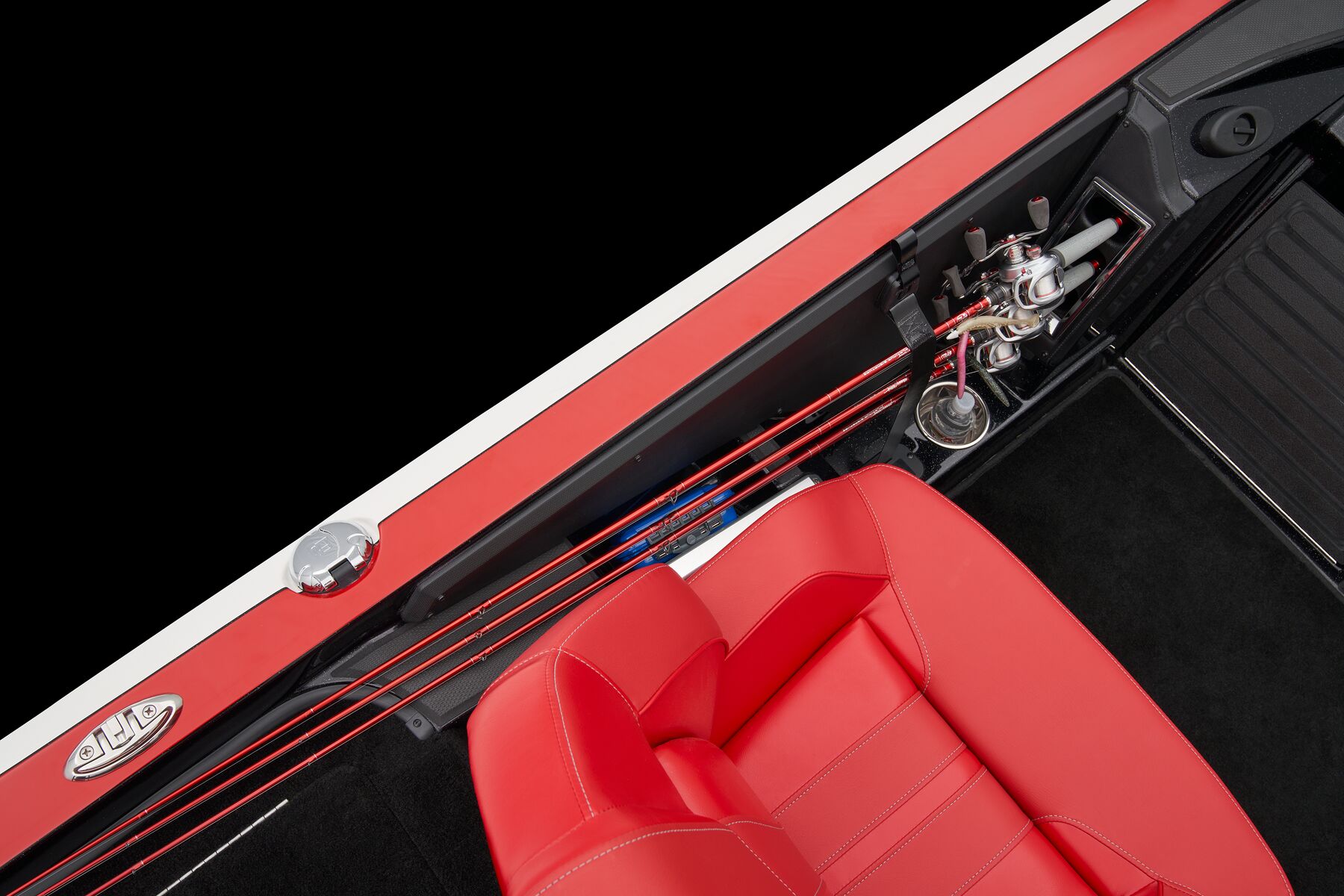

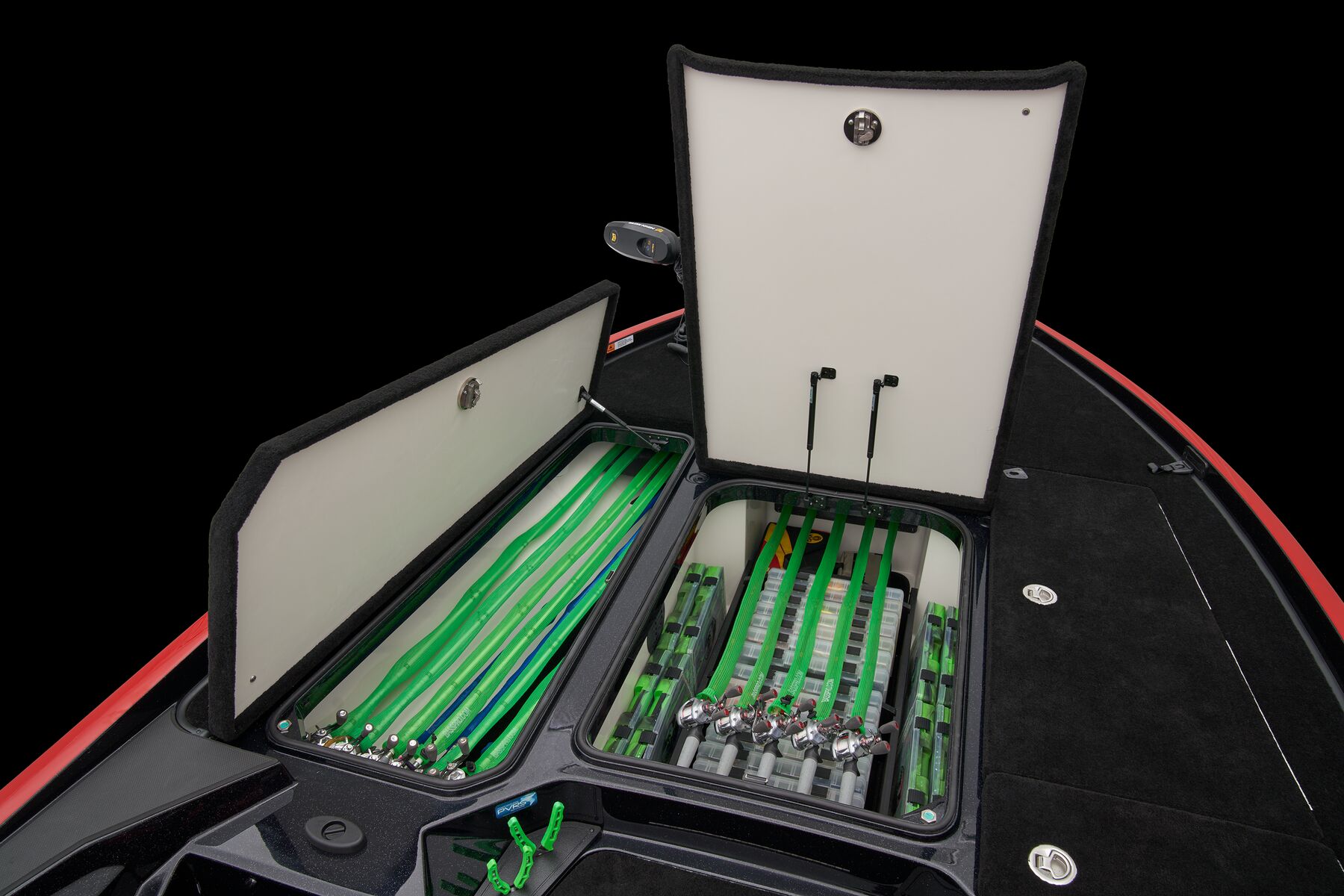

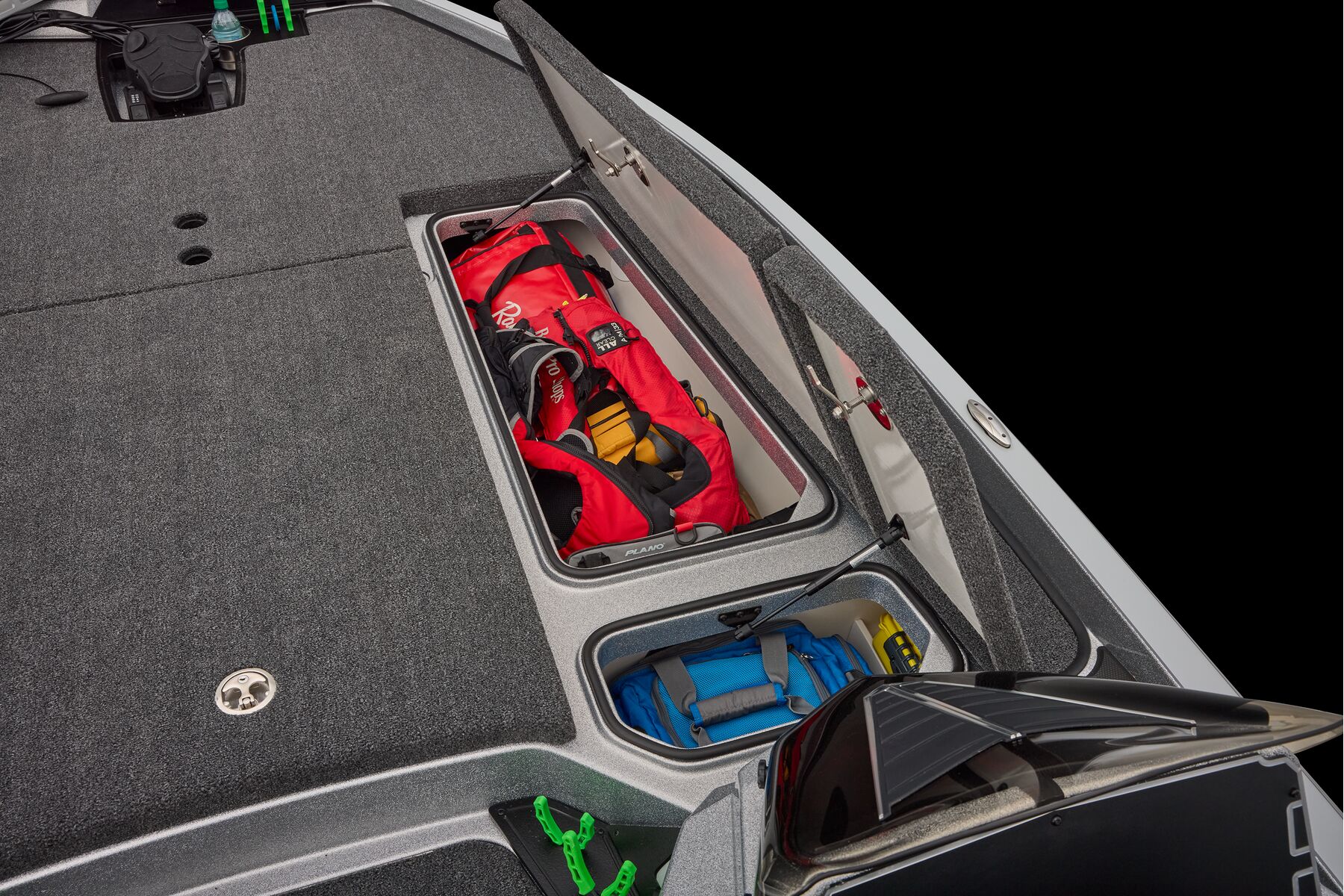

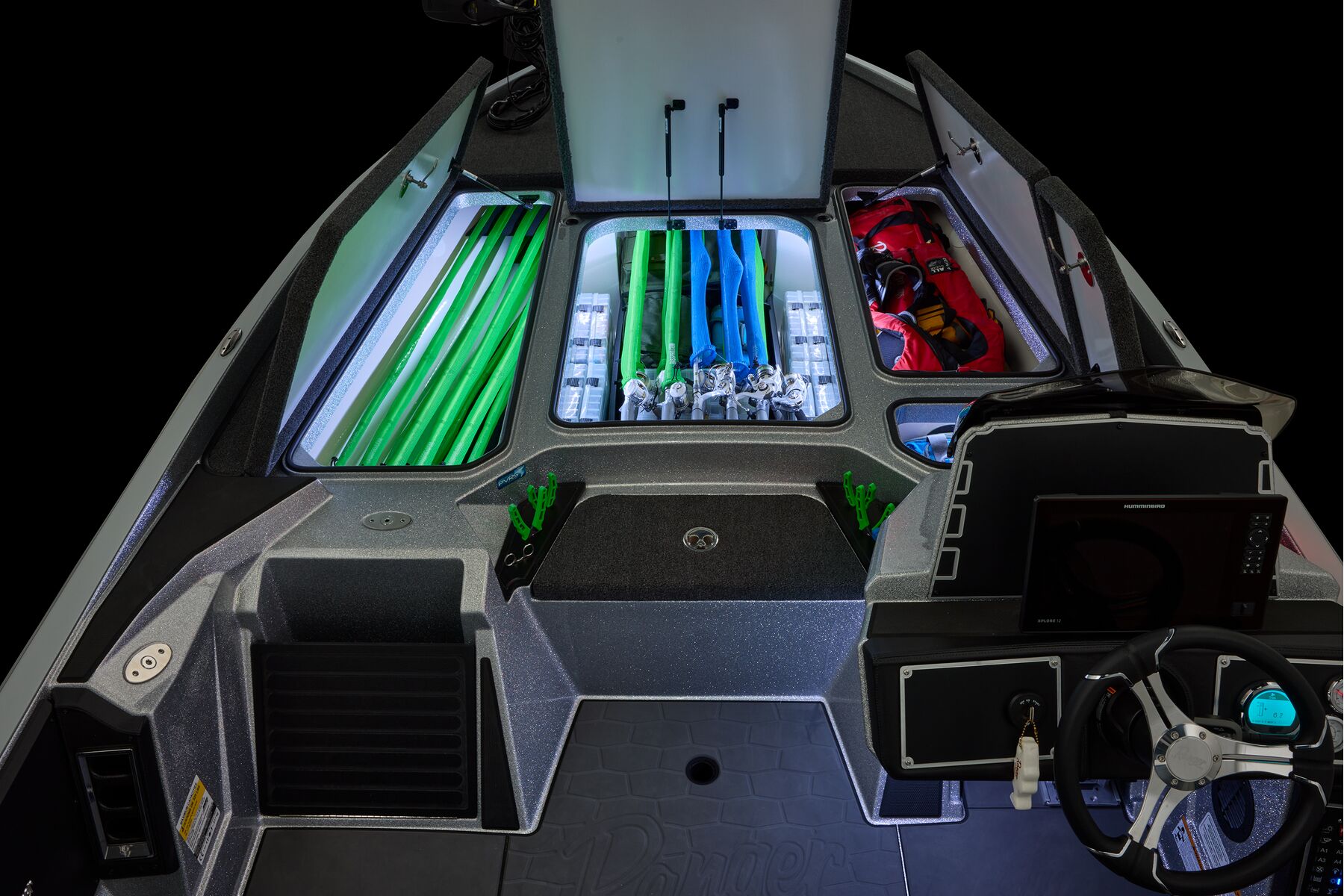

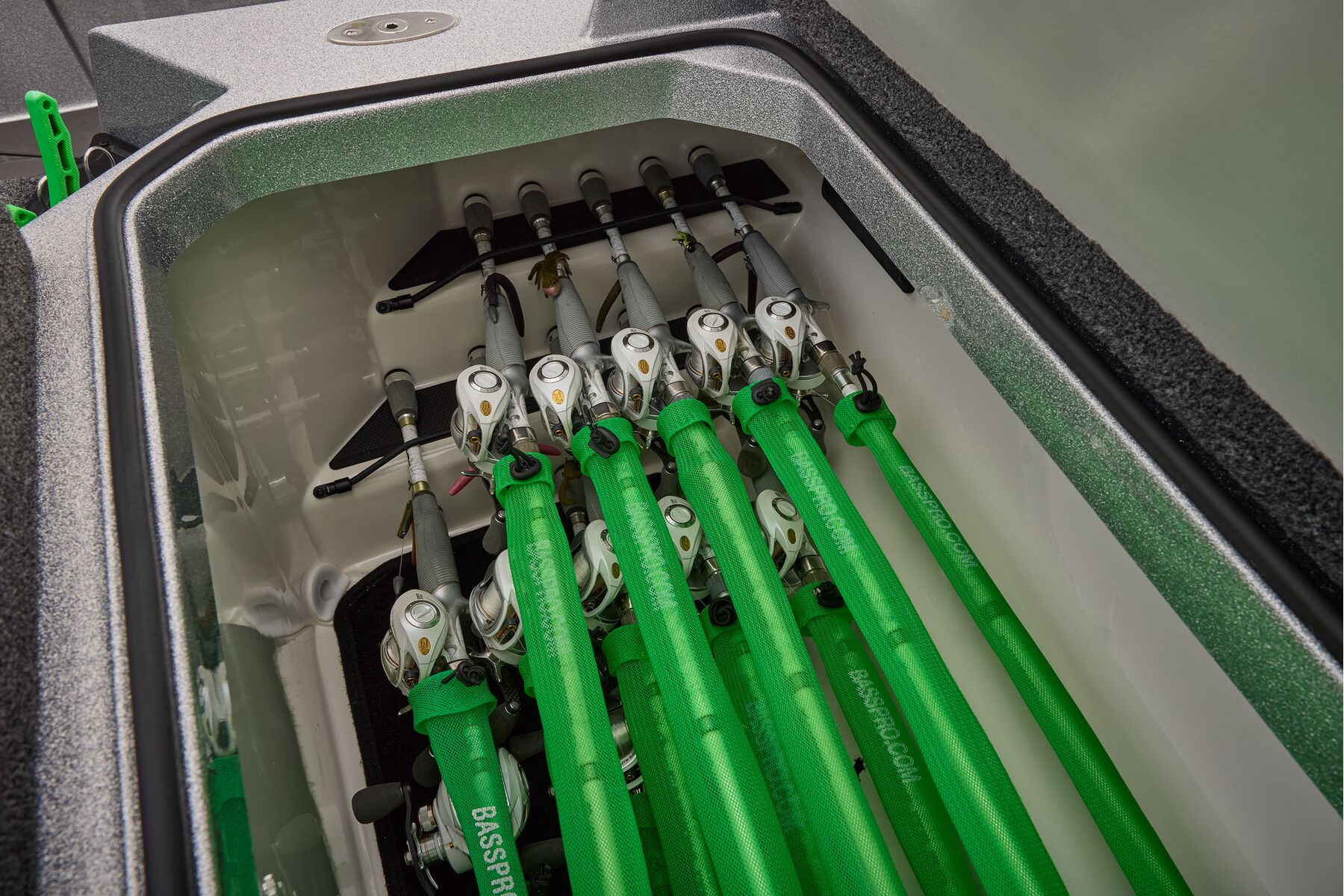

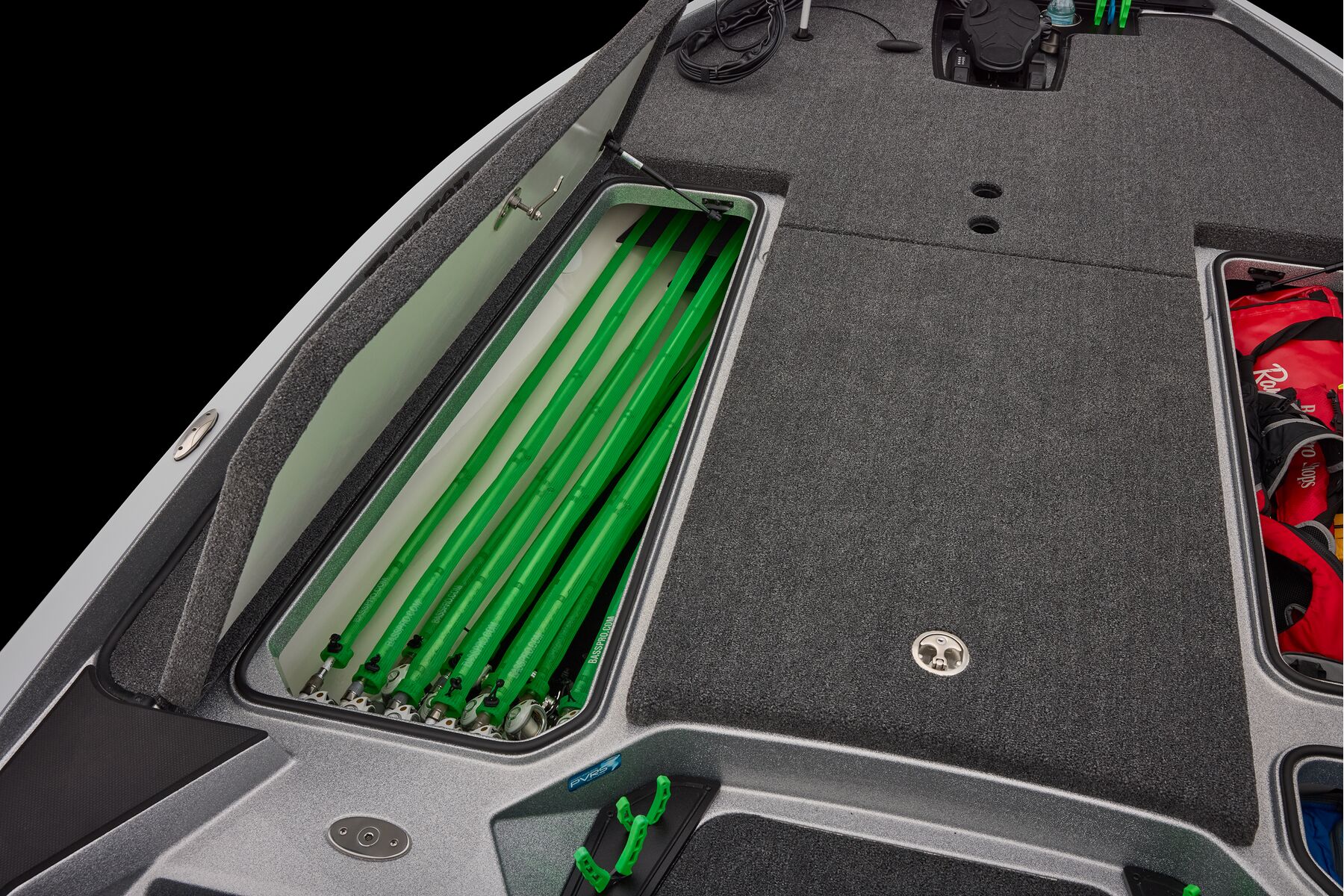

  • Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers

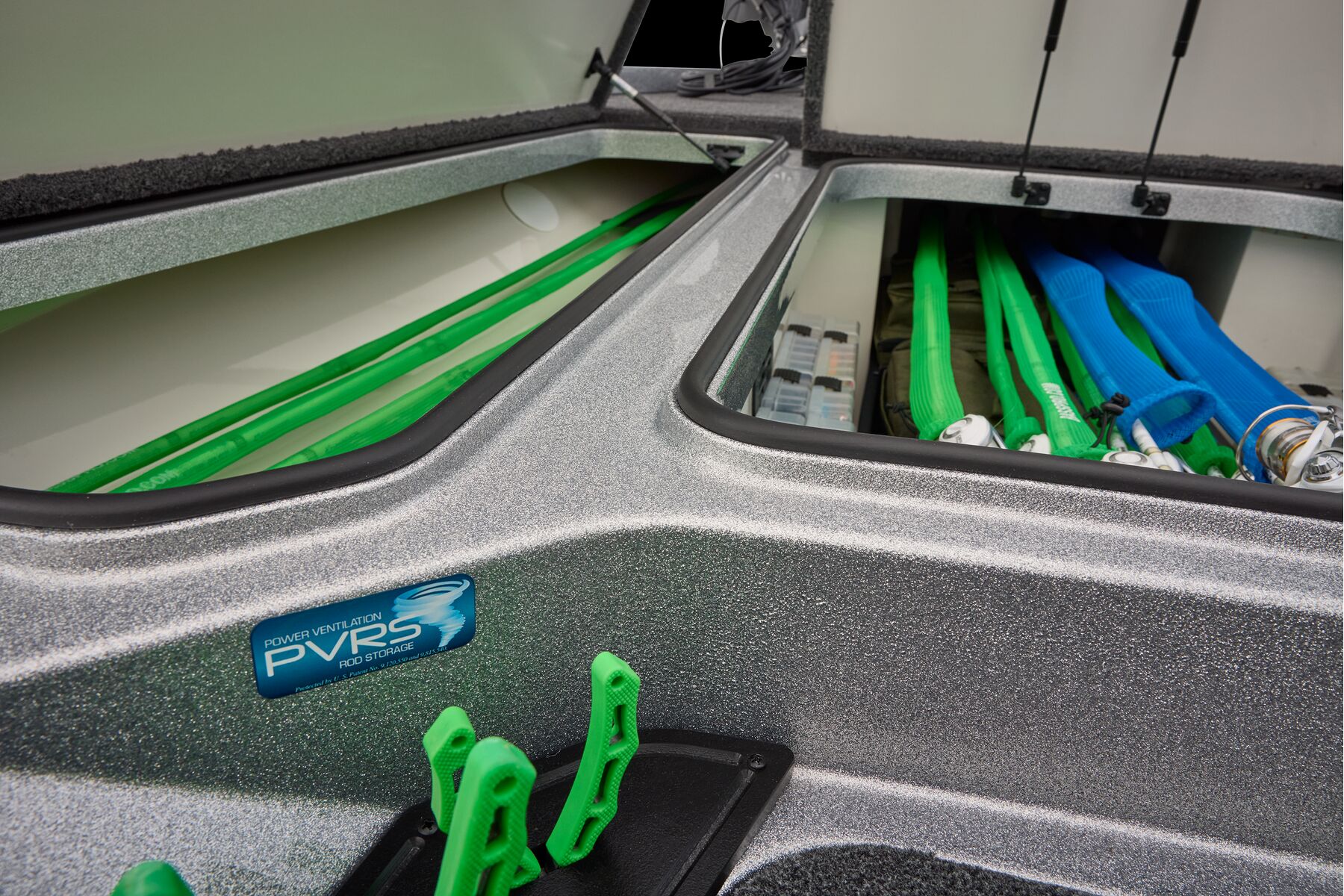

  • Power Ventilation Rod Storage™
  • Insulated 40 qt. step-up cooler

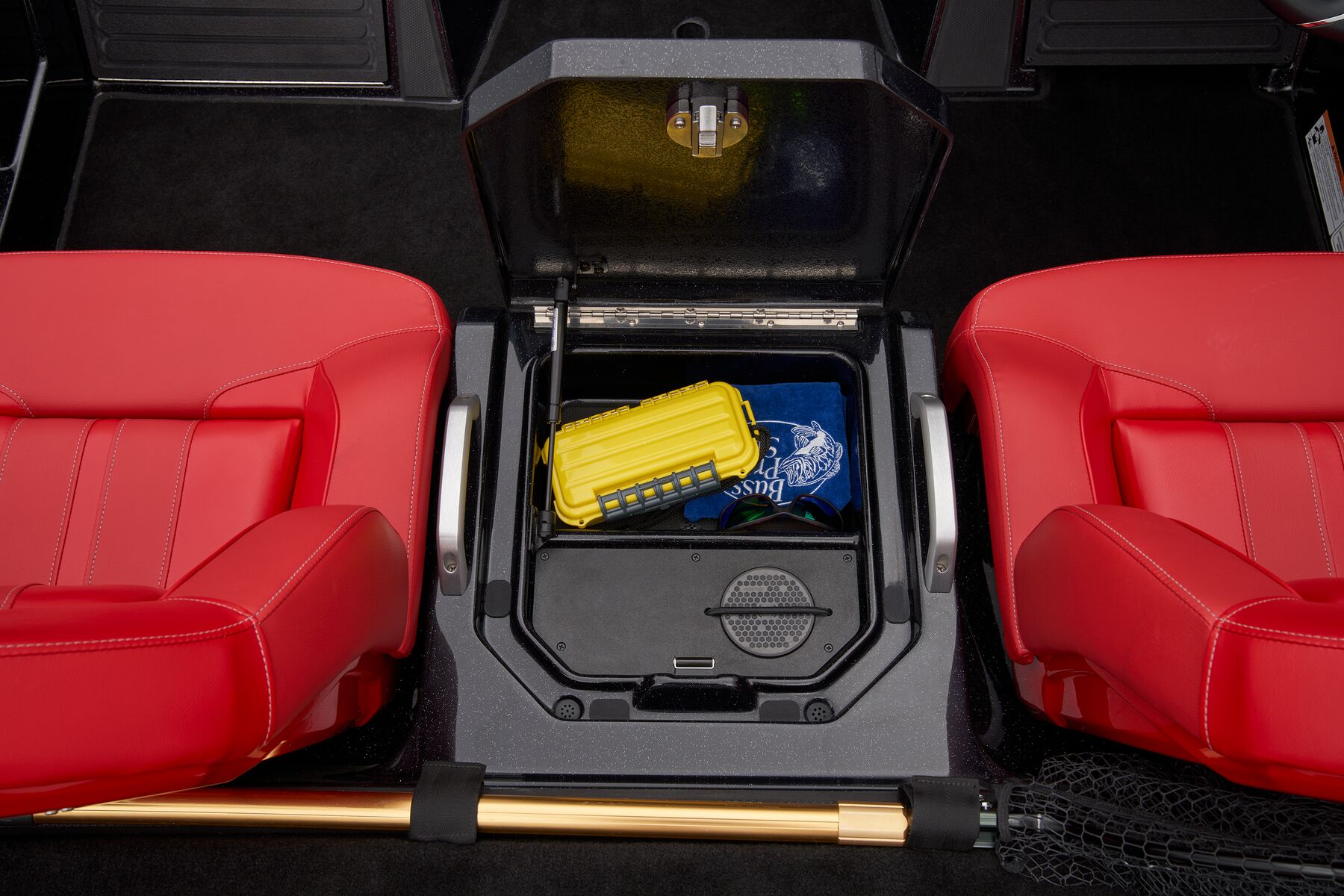

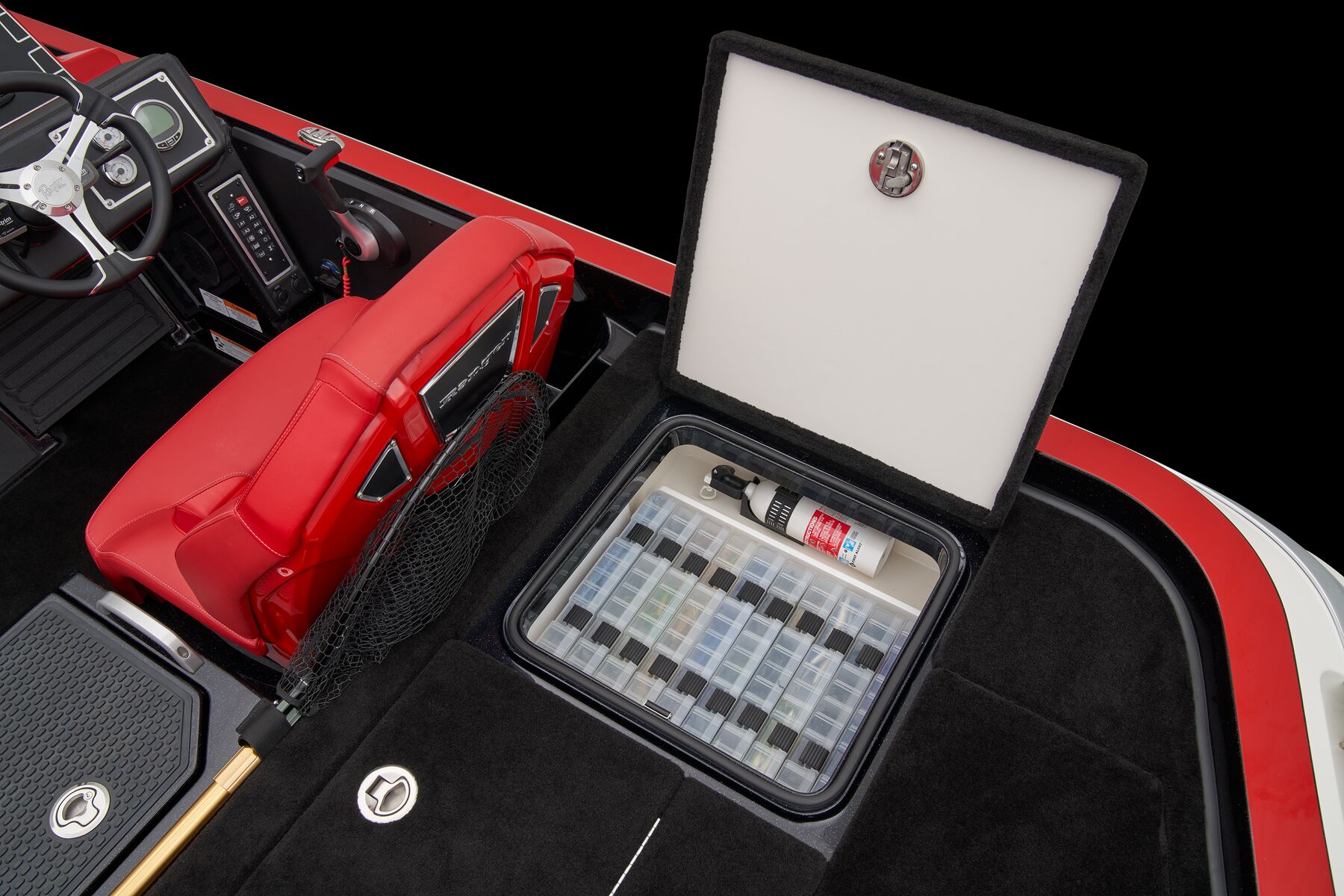

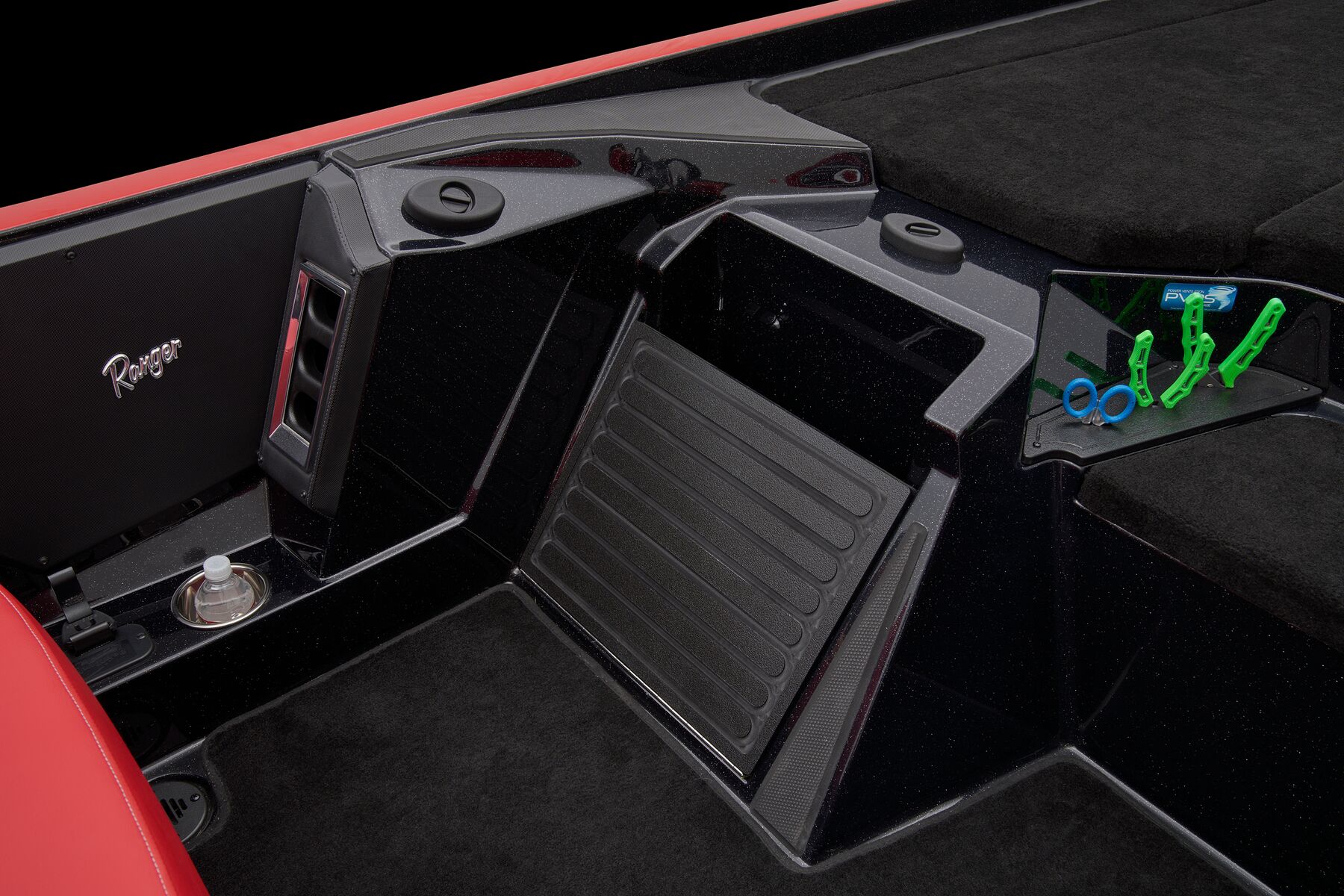

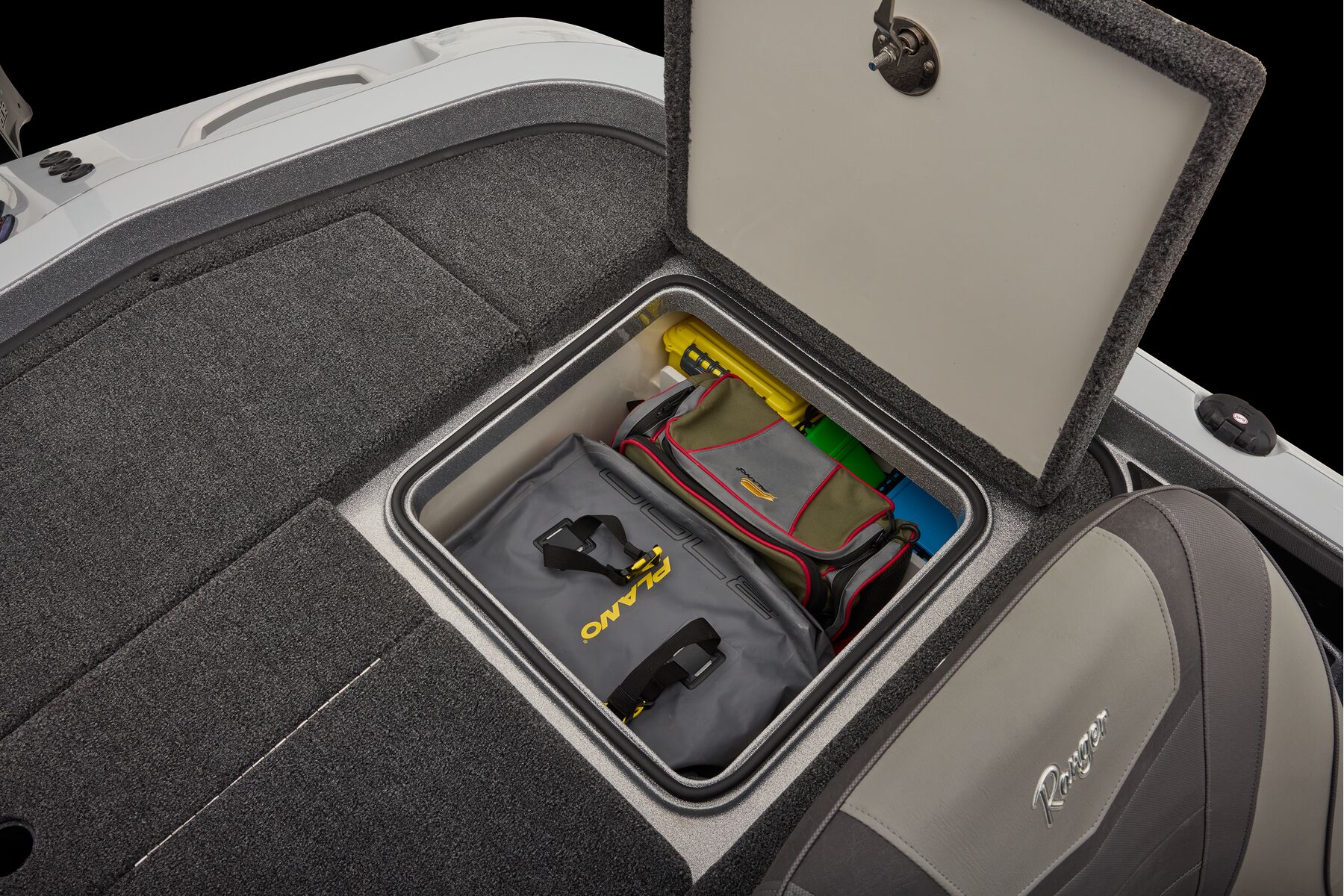

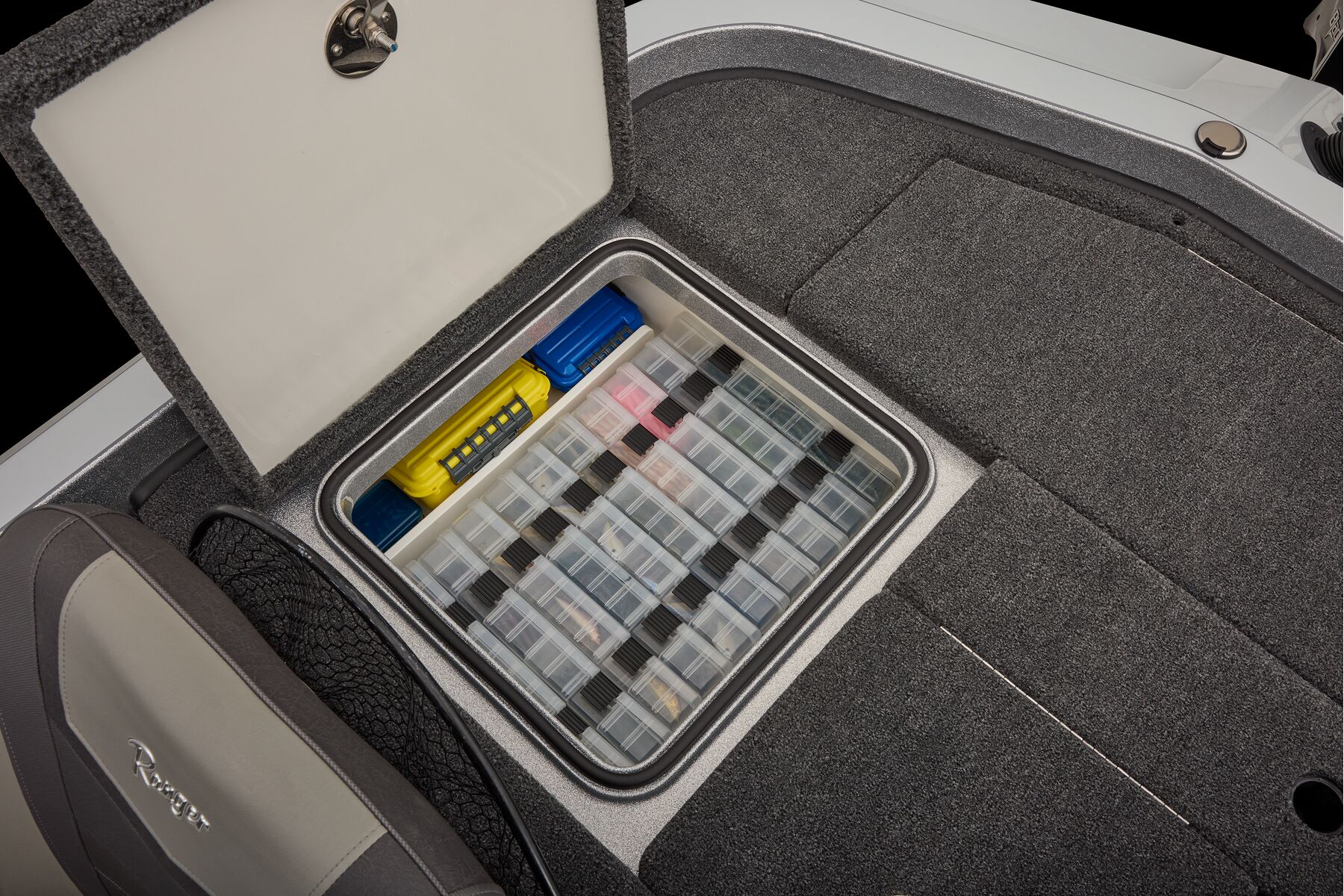

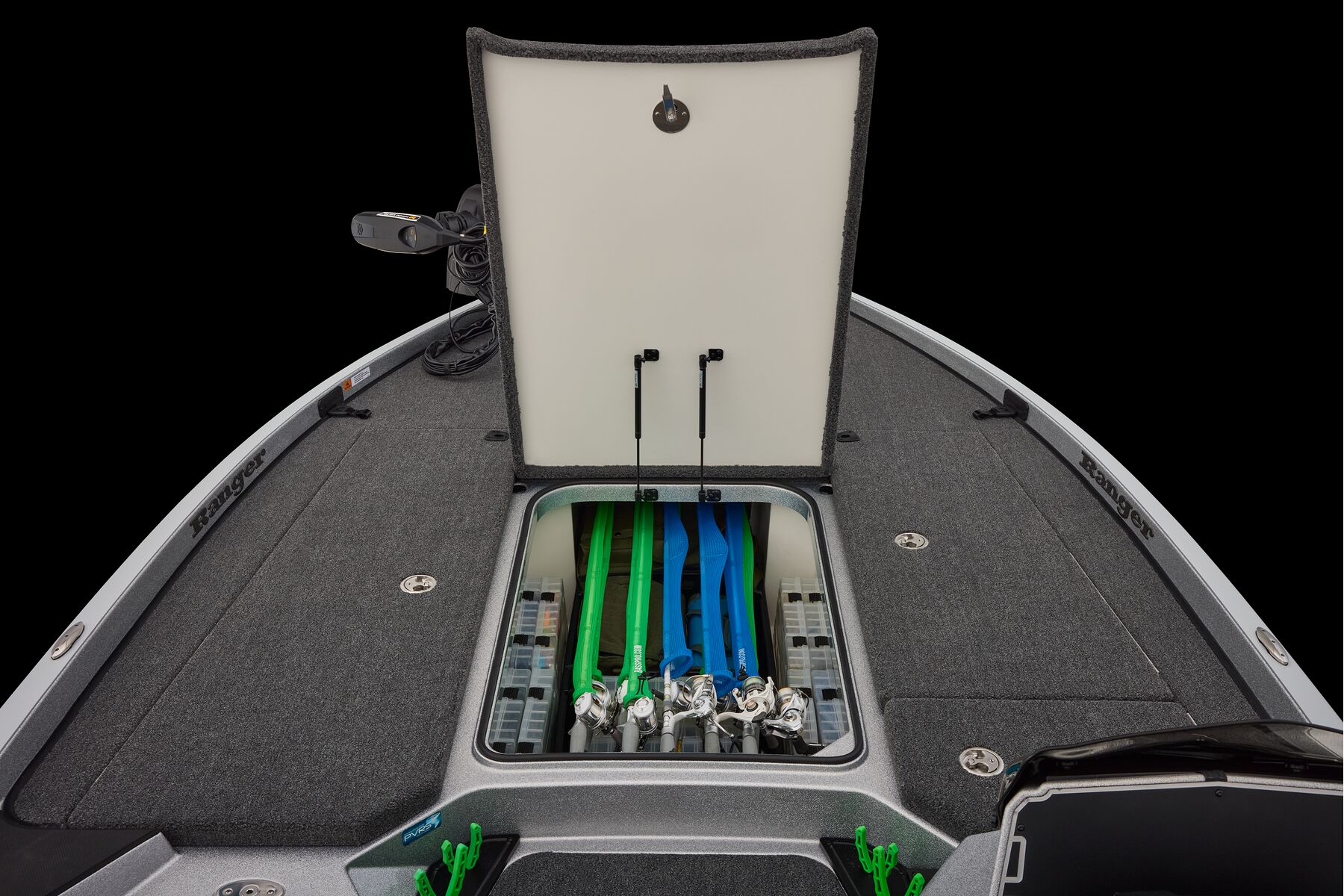

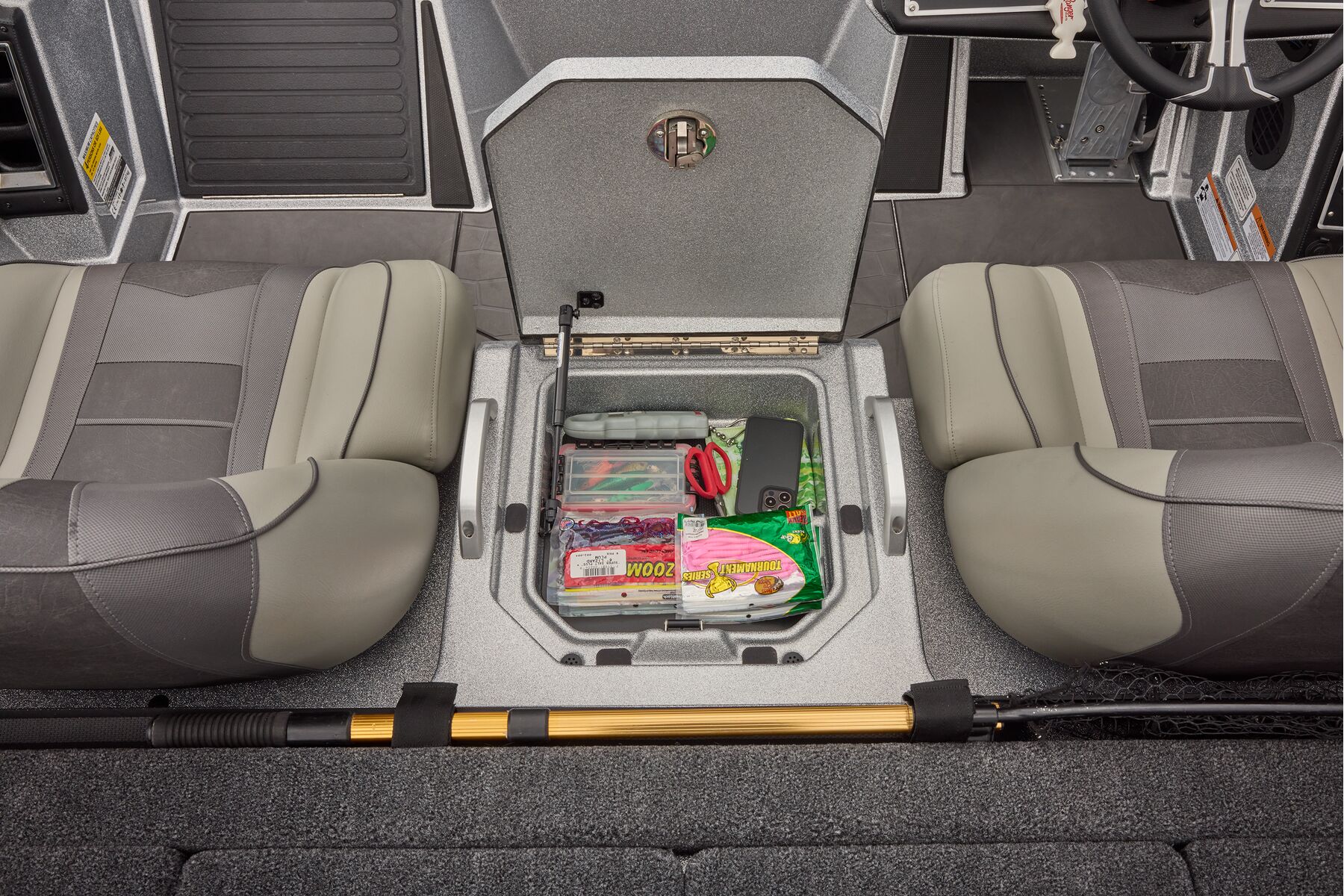

  • Integrated center-storage rod & tackle management system

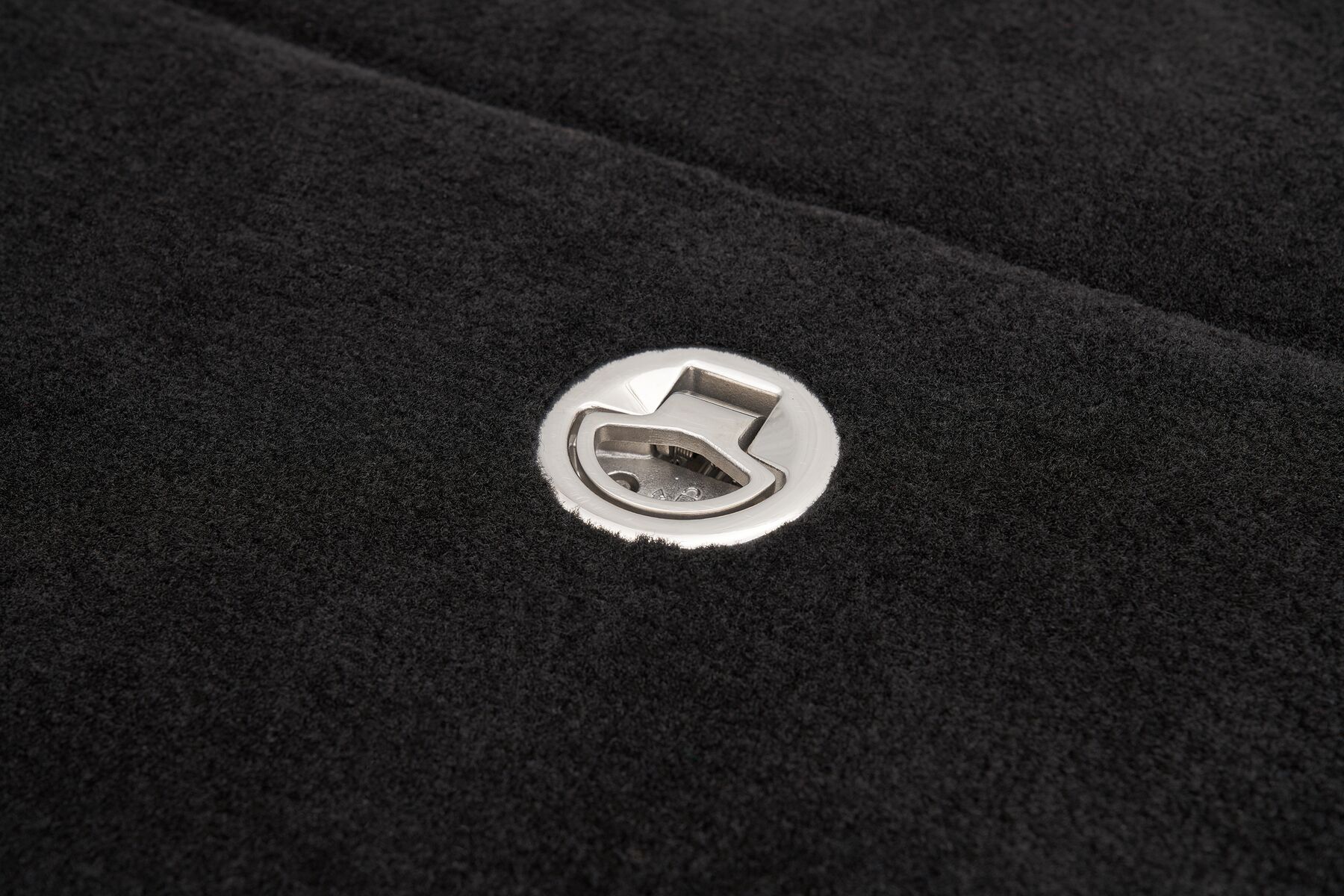

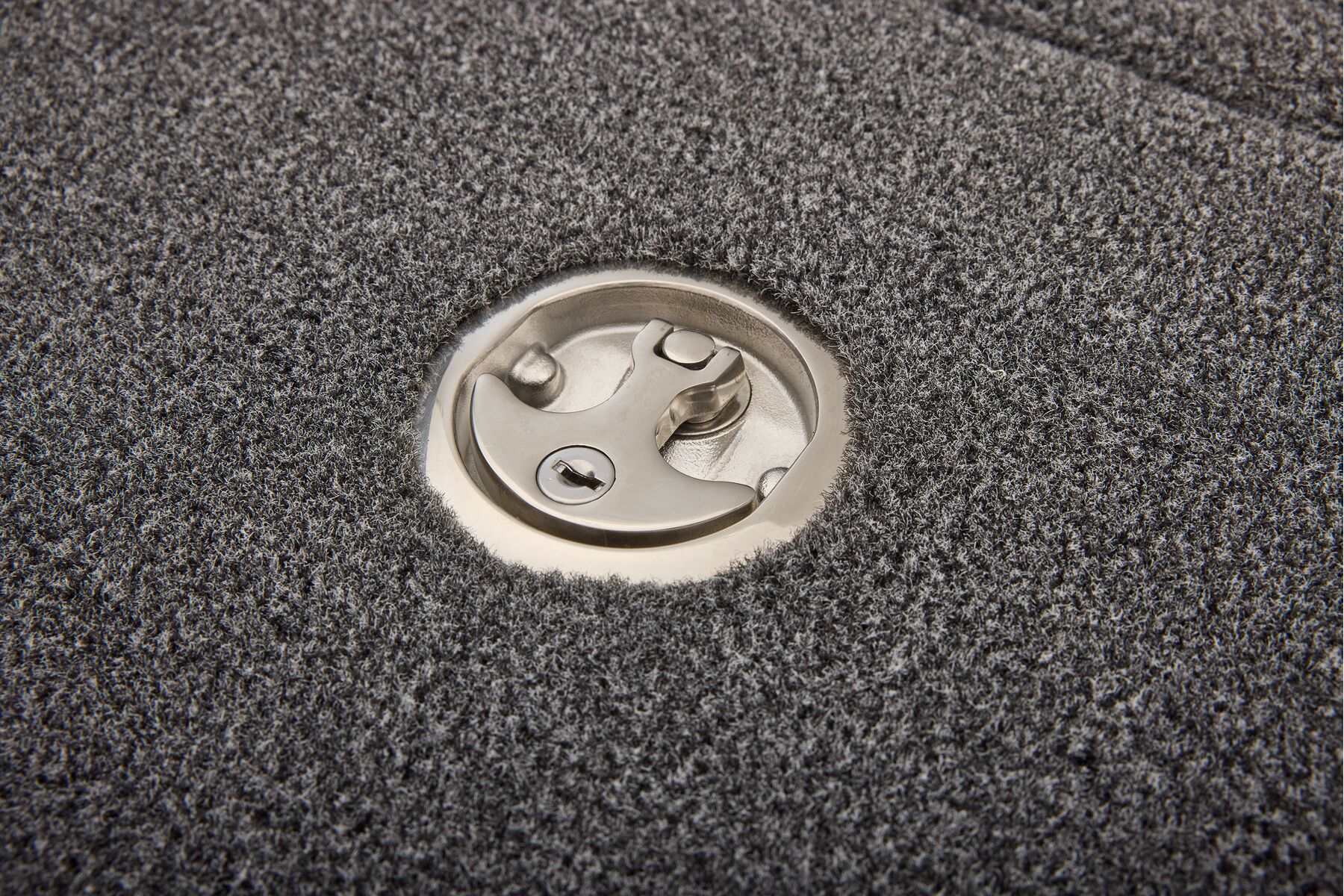

  • Stainless steel push-to-close locking latches
  • Carpeted cockpit floor and compartment liner mats

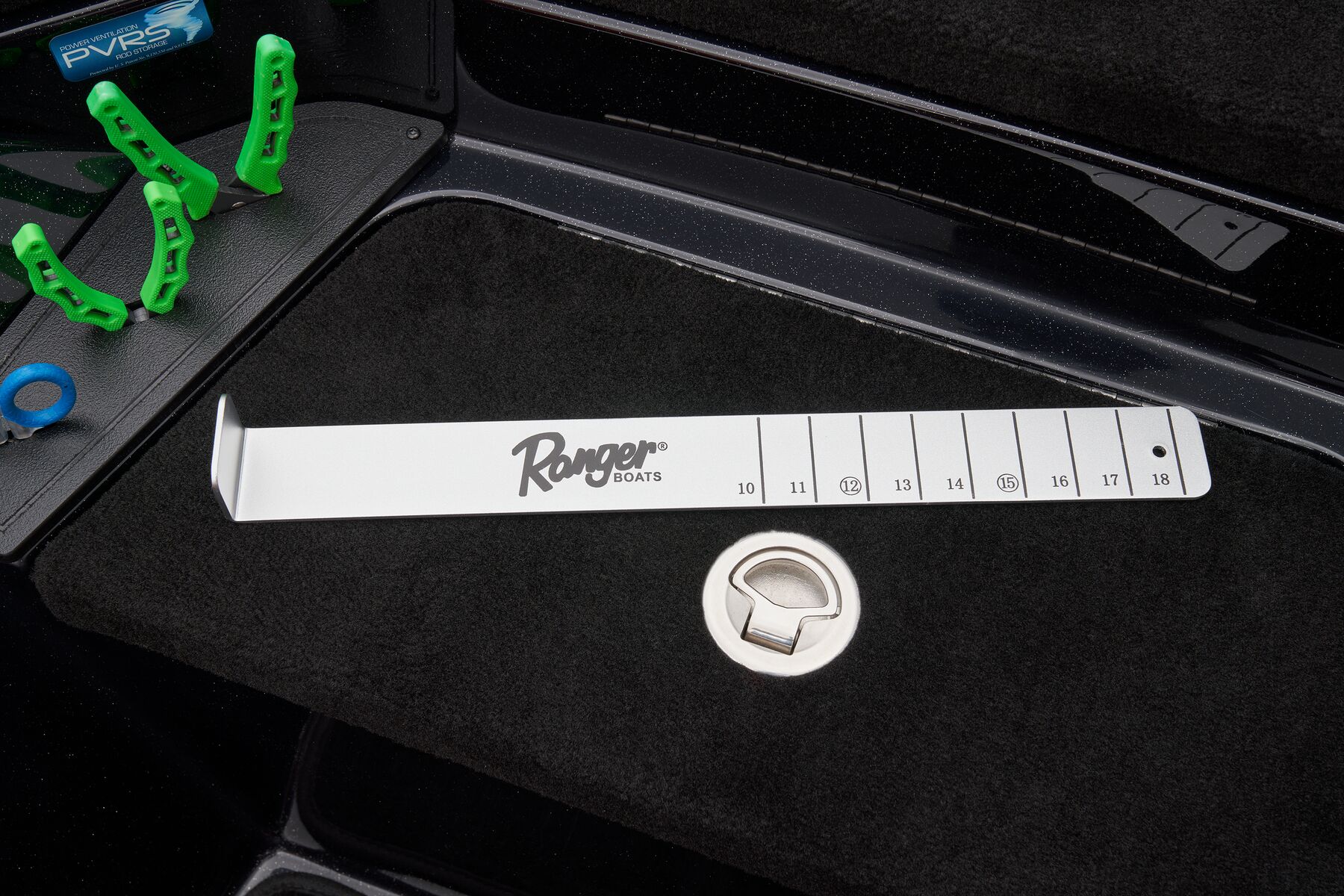

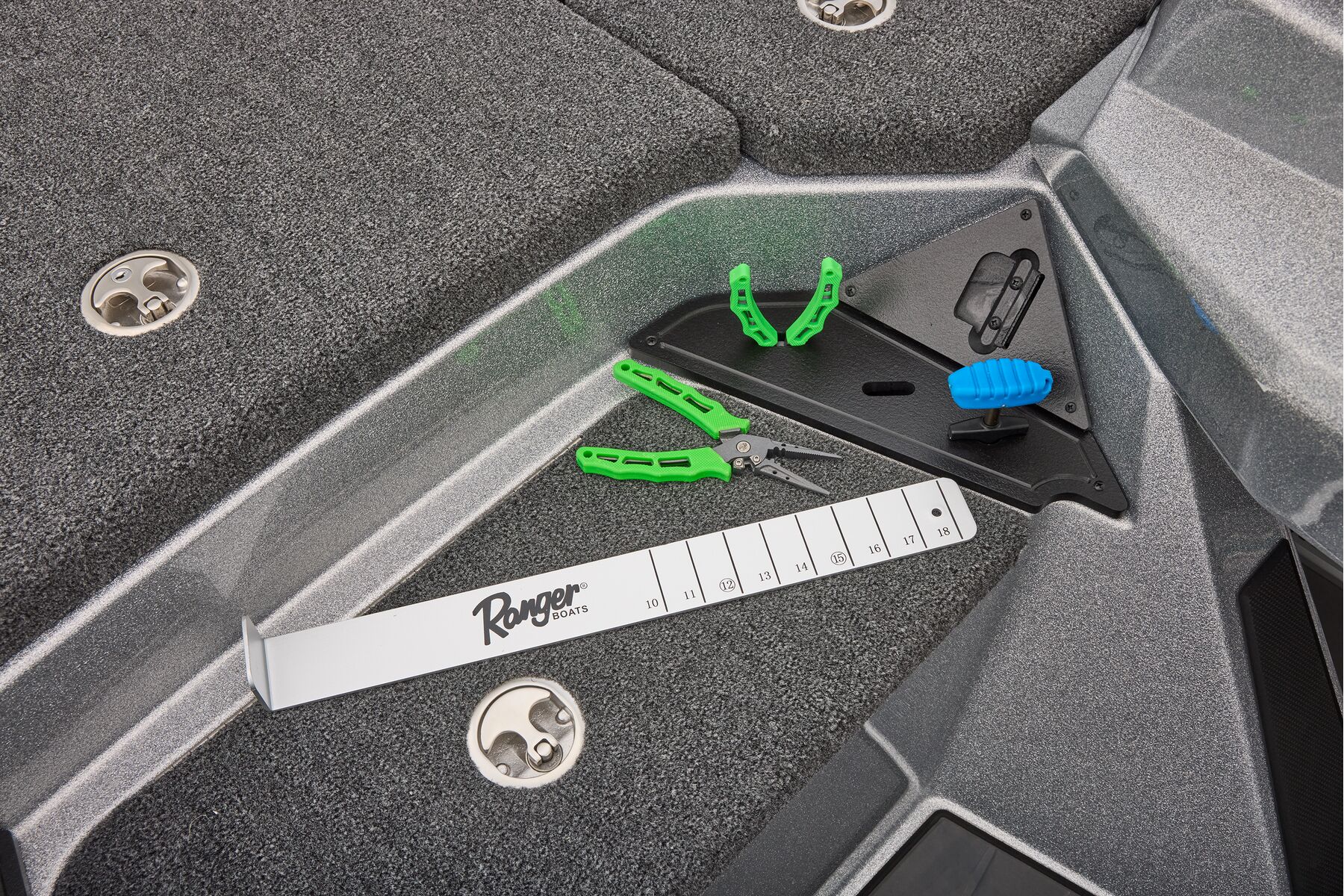

  • Ranger® tournament measuring board integrated at front deck step

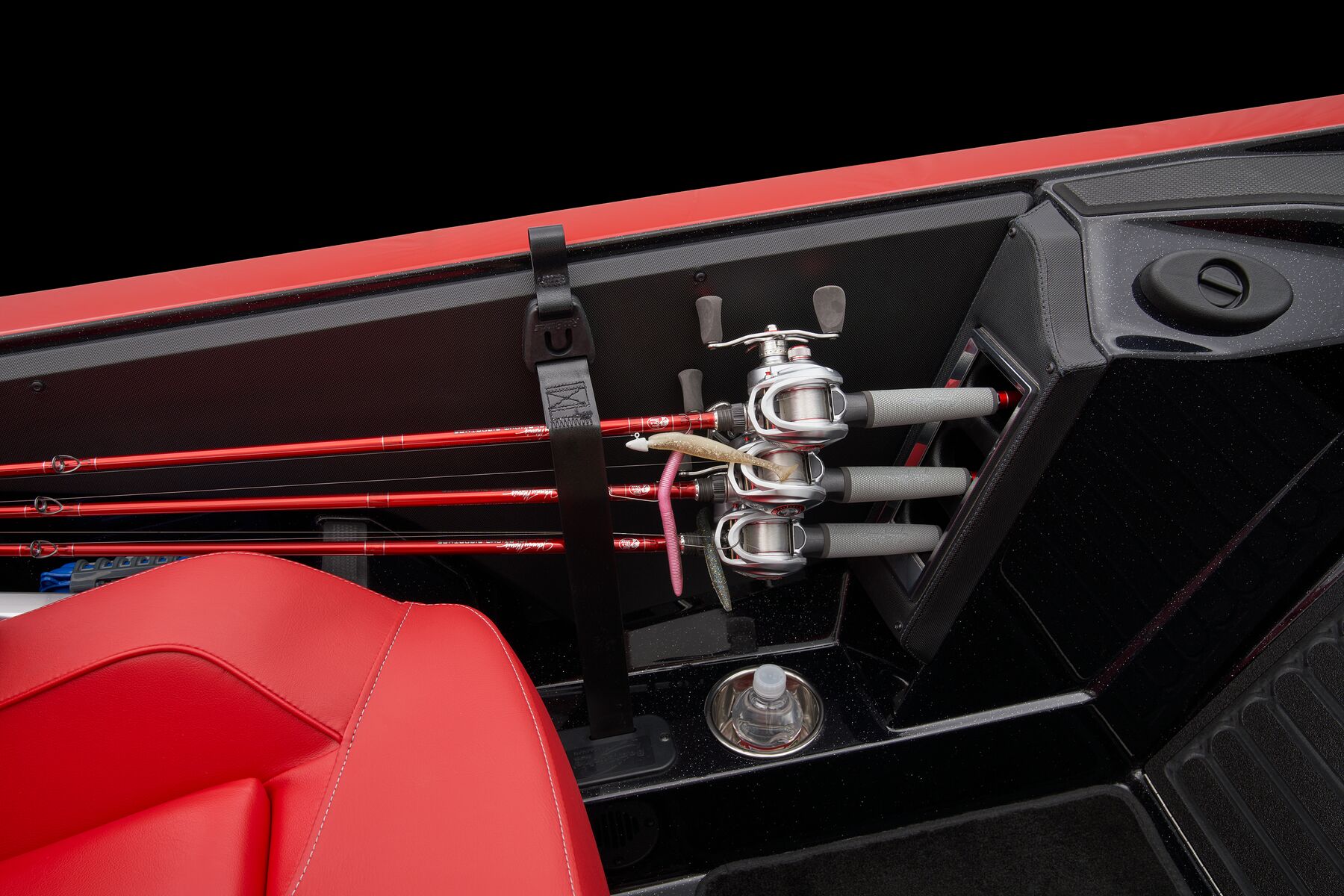

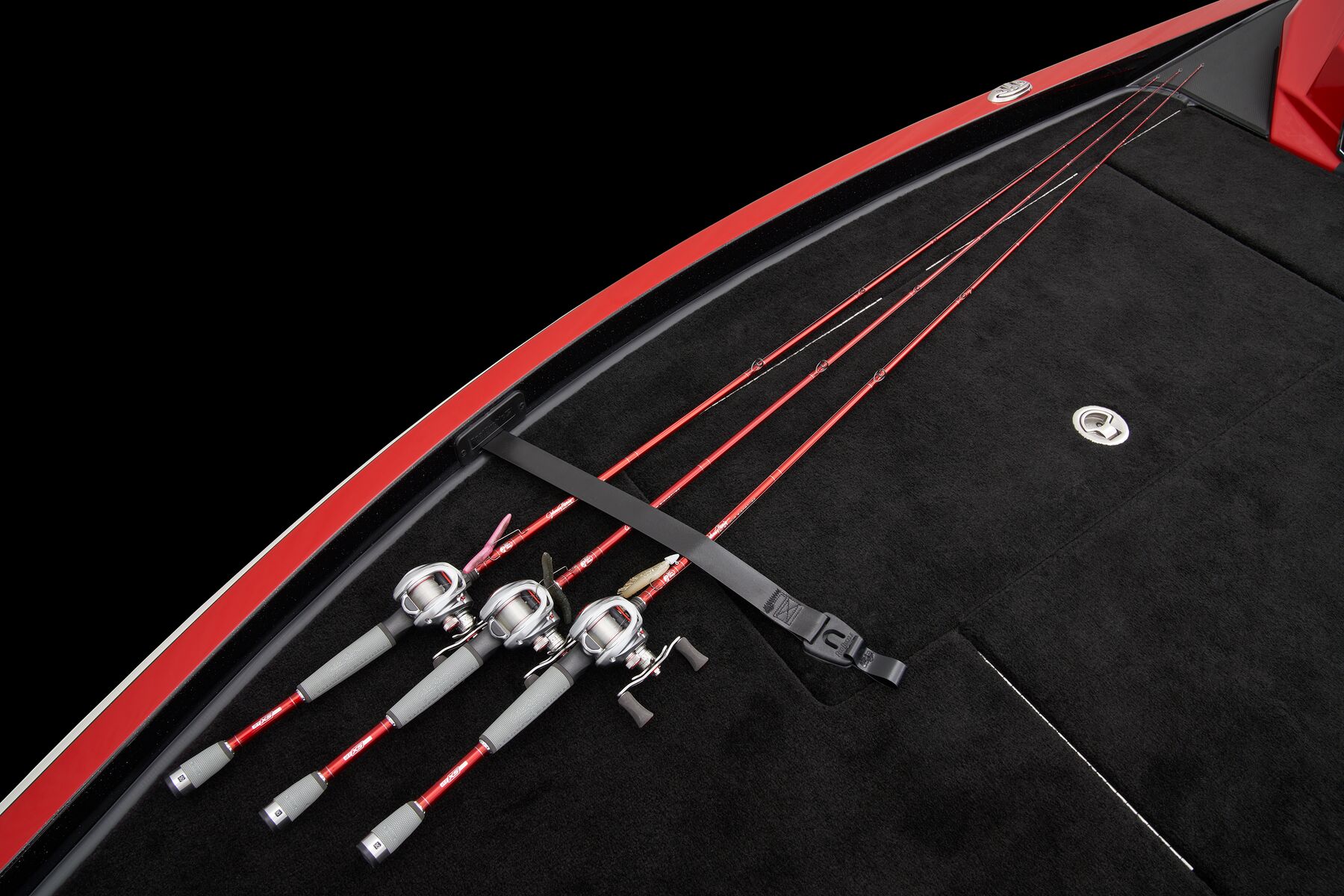

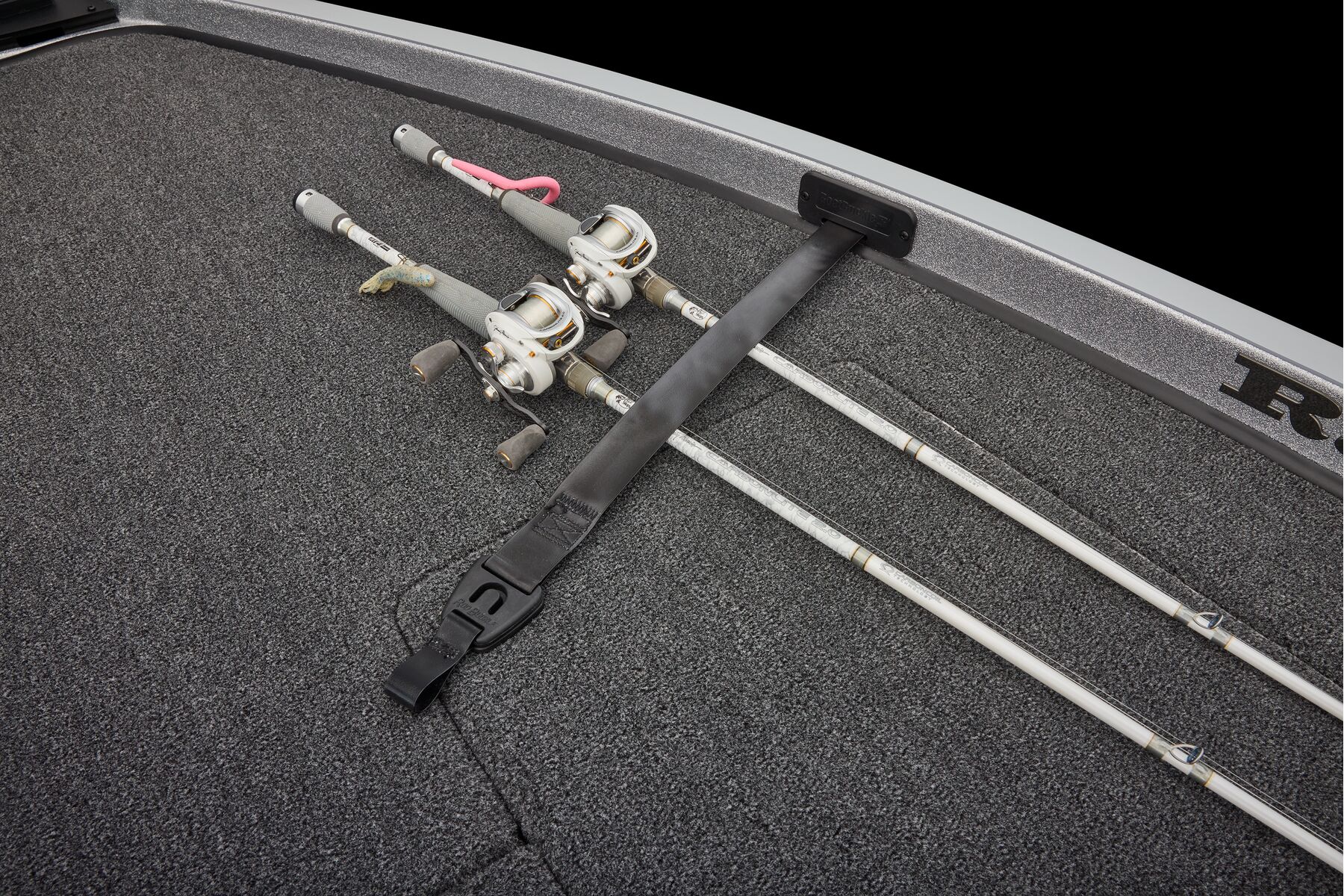

  • Runnin' rod rack w/ retractable strap

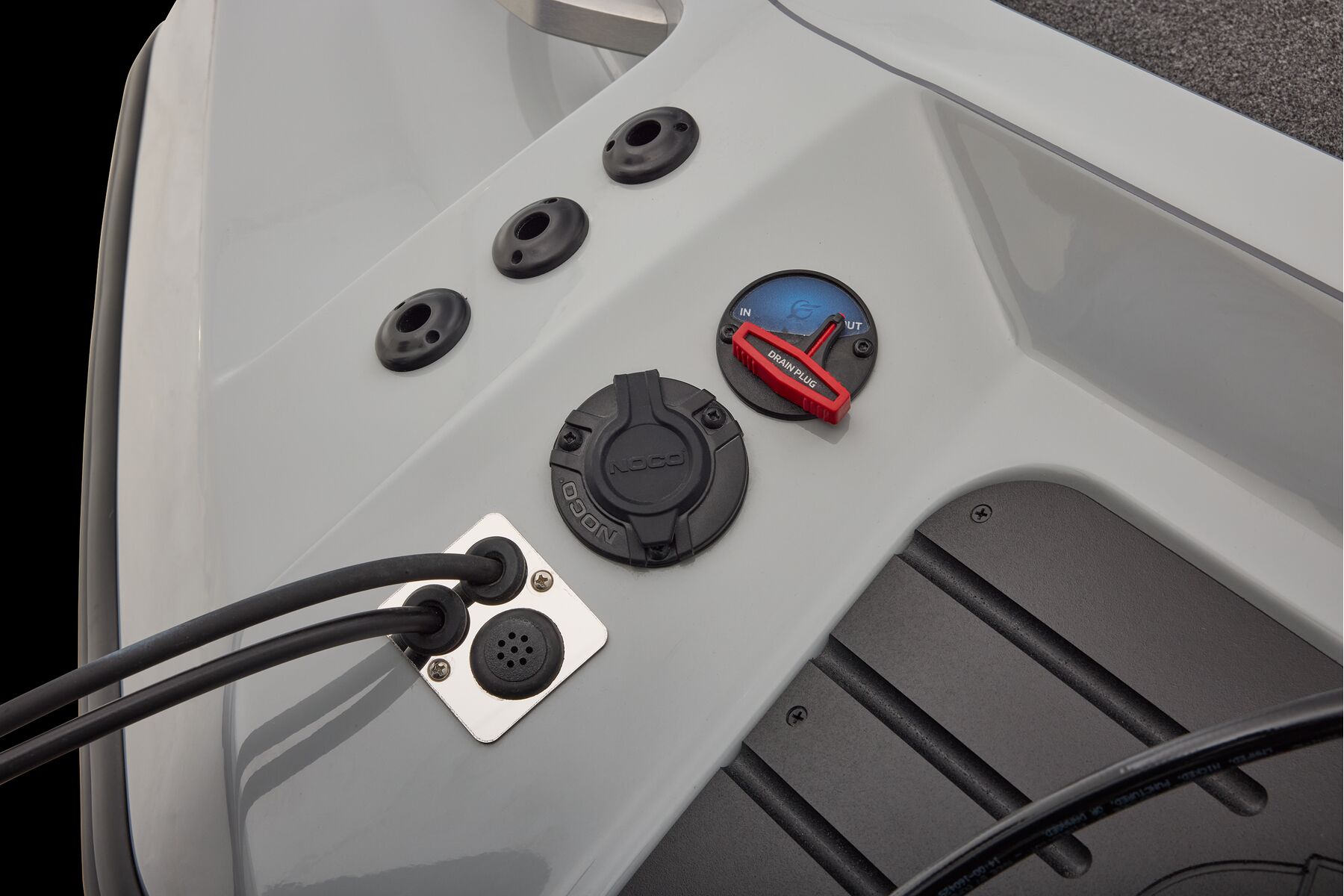

  • Remote drain plug

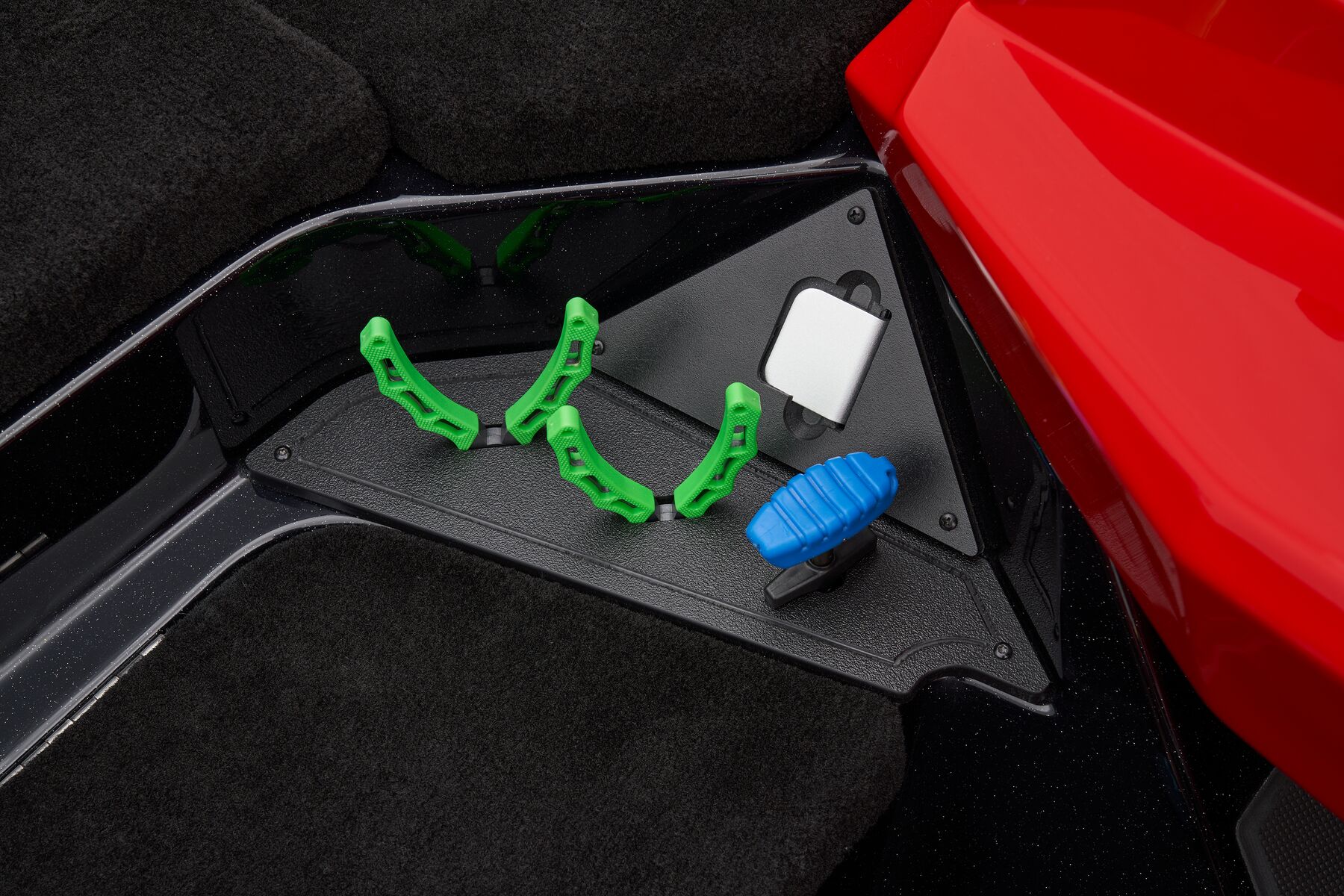

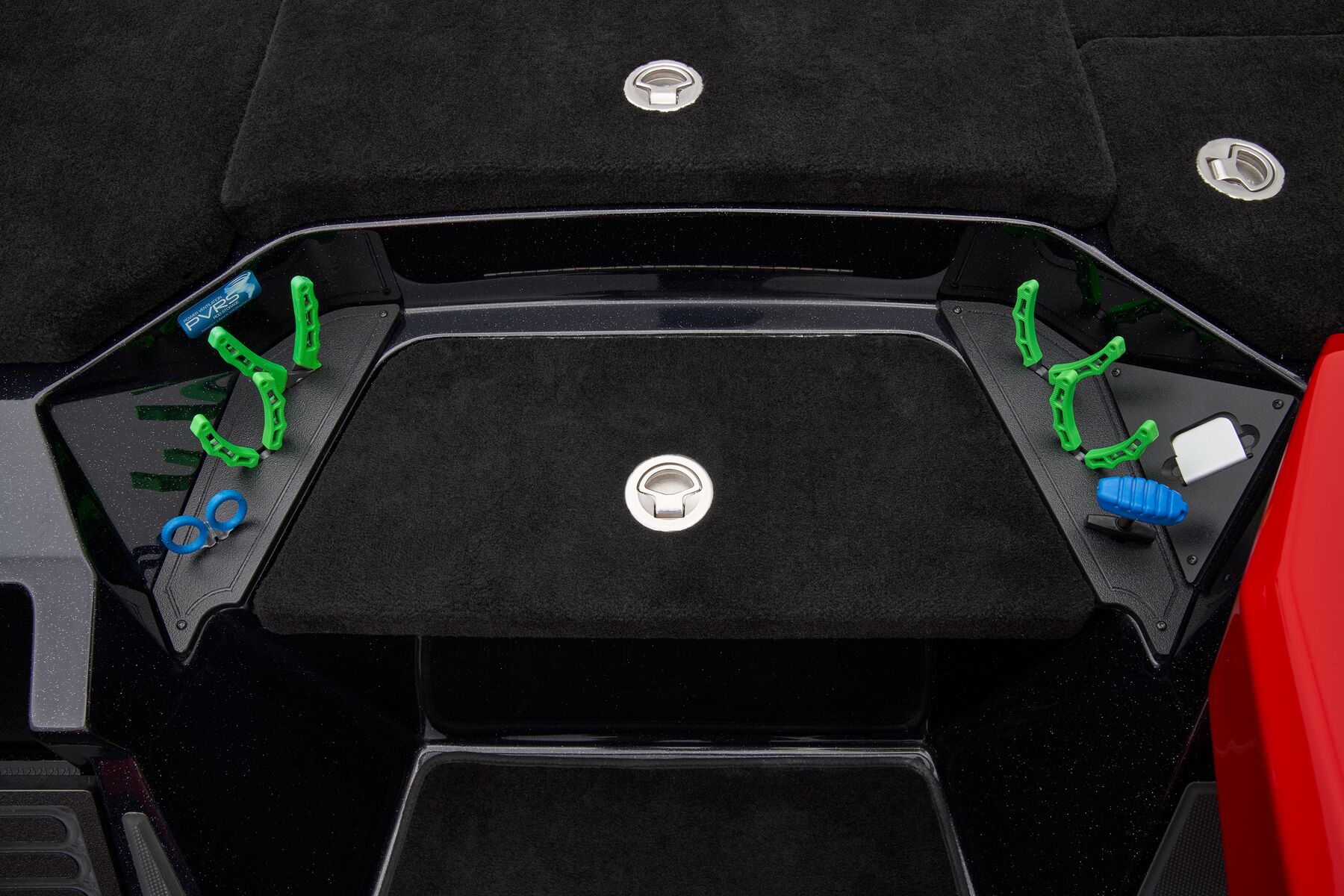

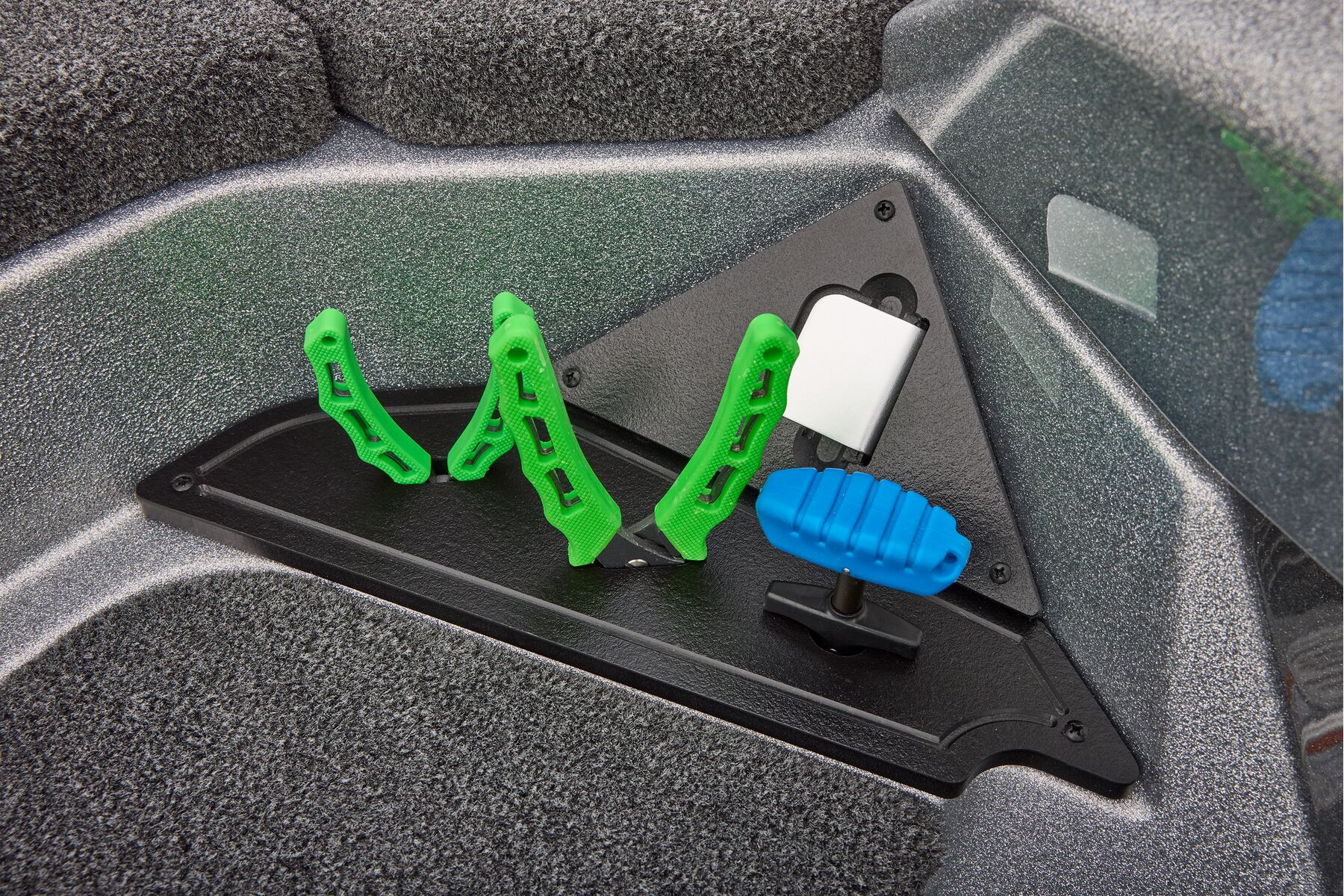

  • Tool holders at bow and front deck step

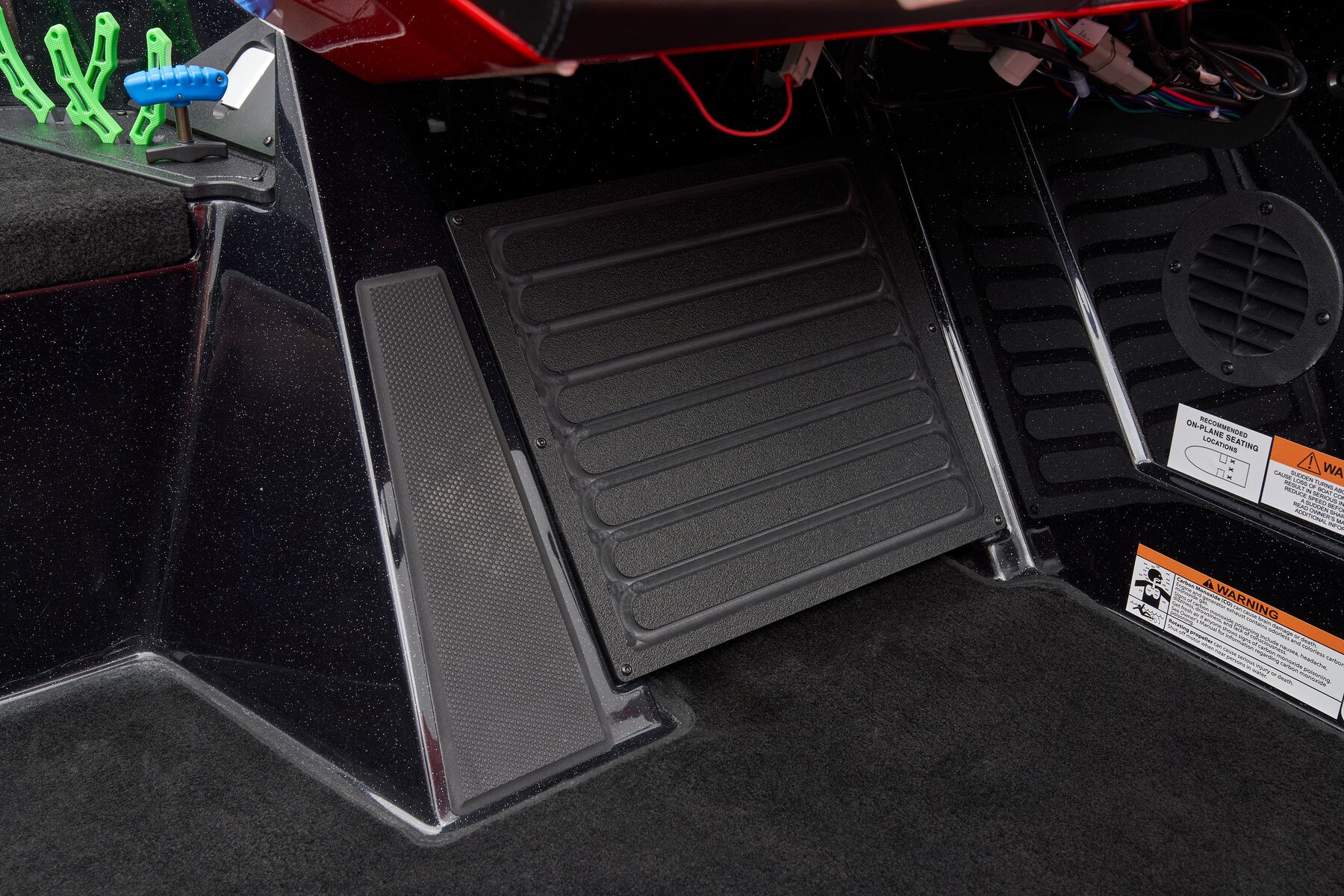

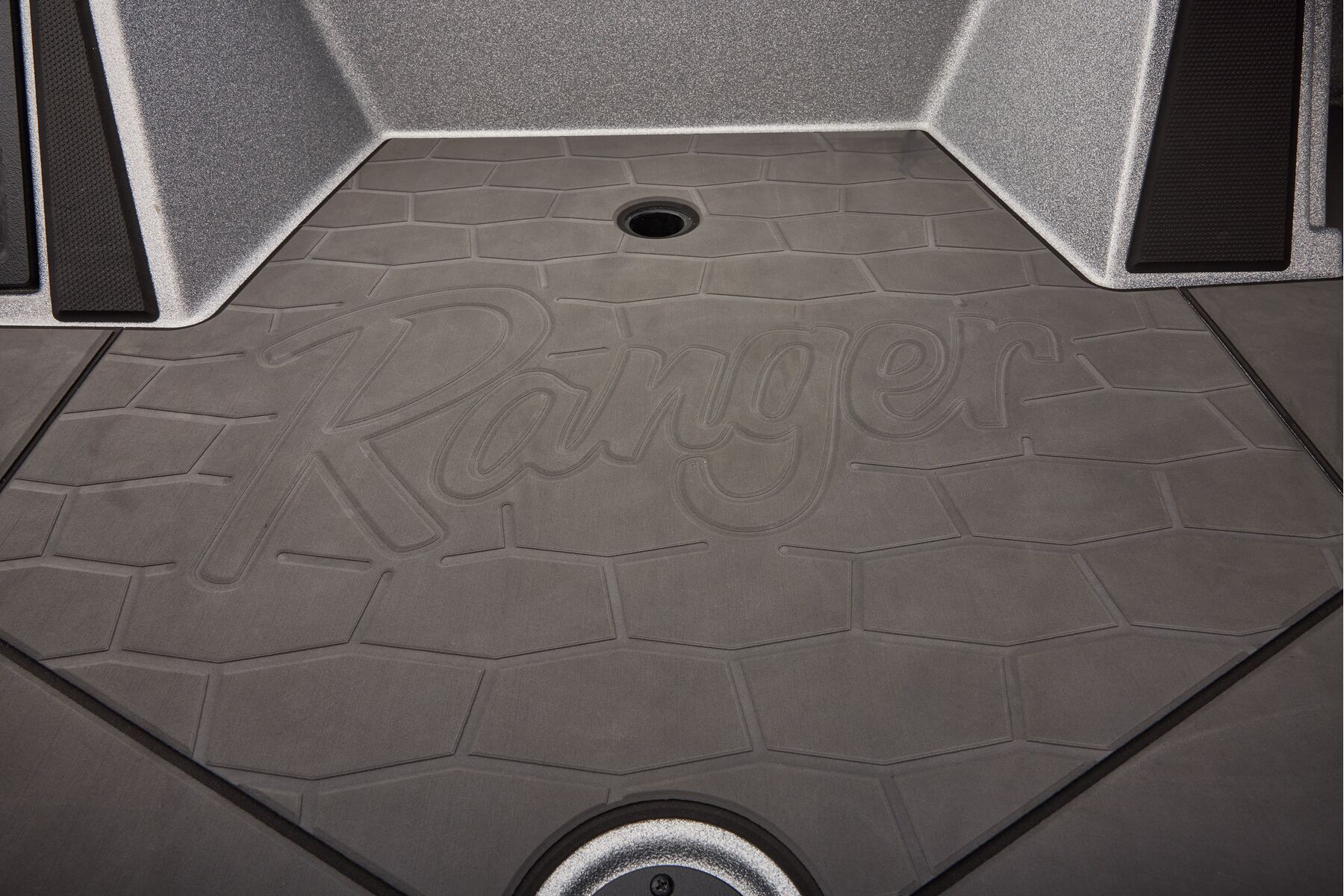

  • Molded-in driver / passenger footrests

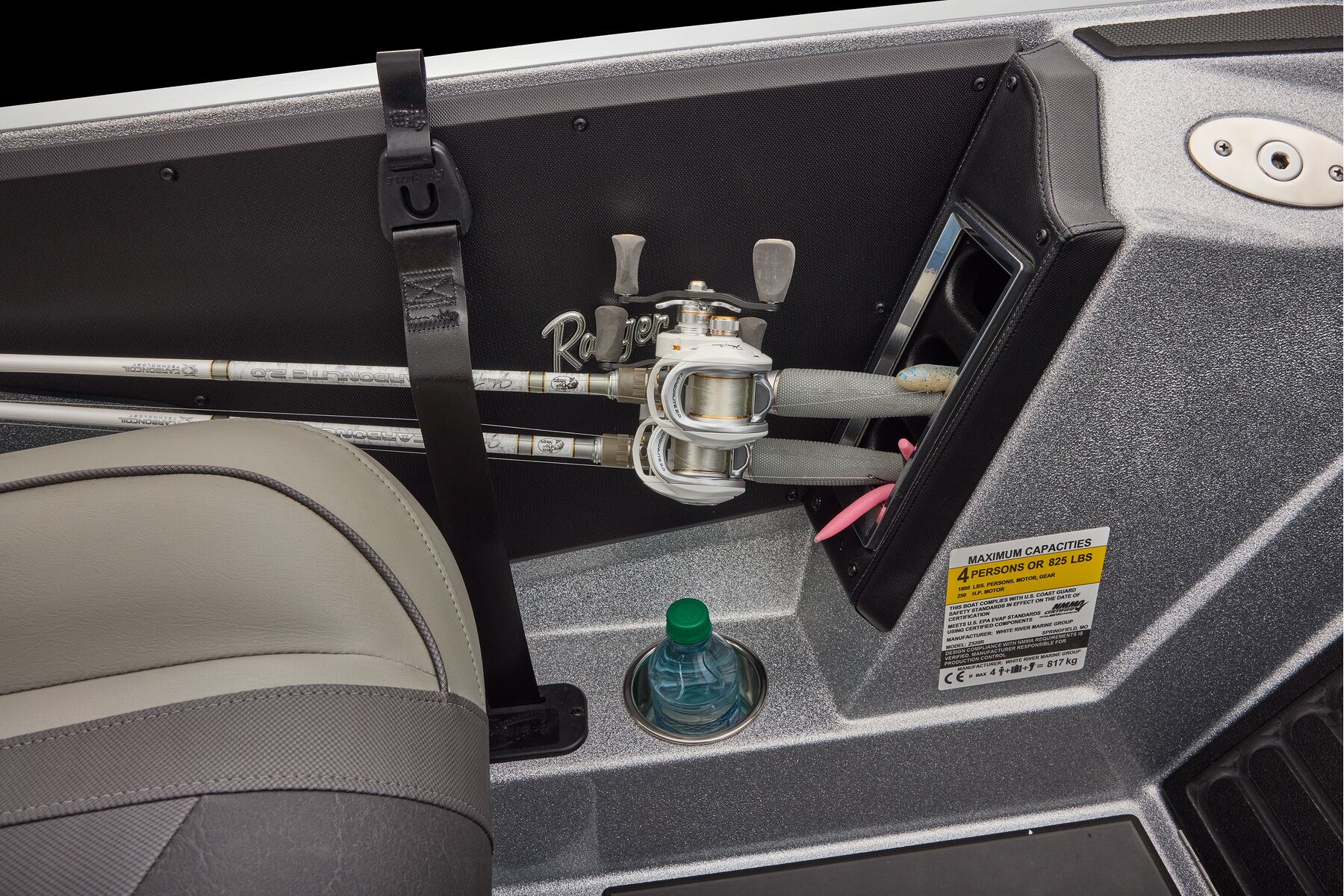

  • Integrated stainless steel cup holders
Electronics
  • Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories

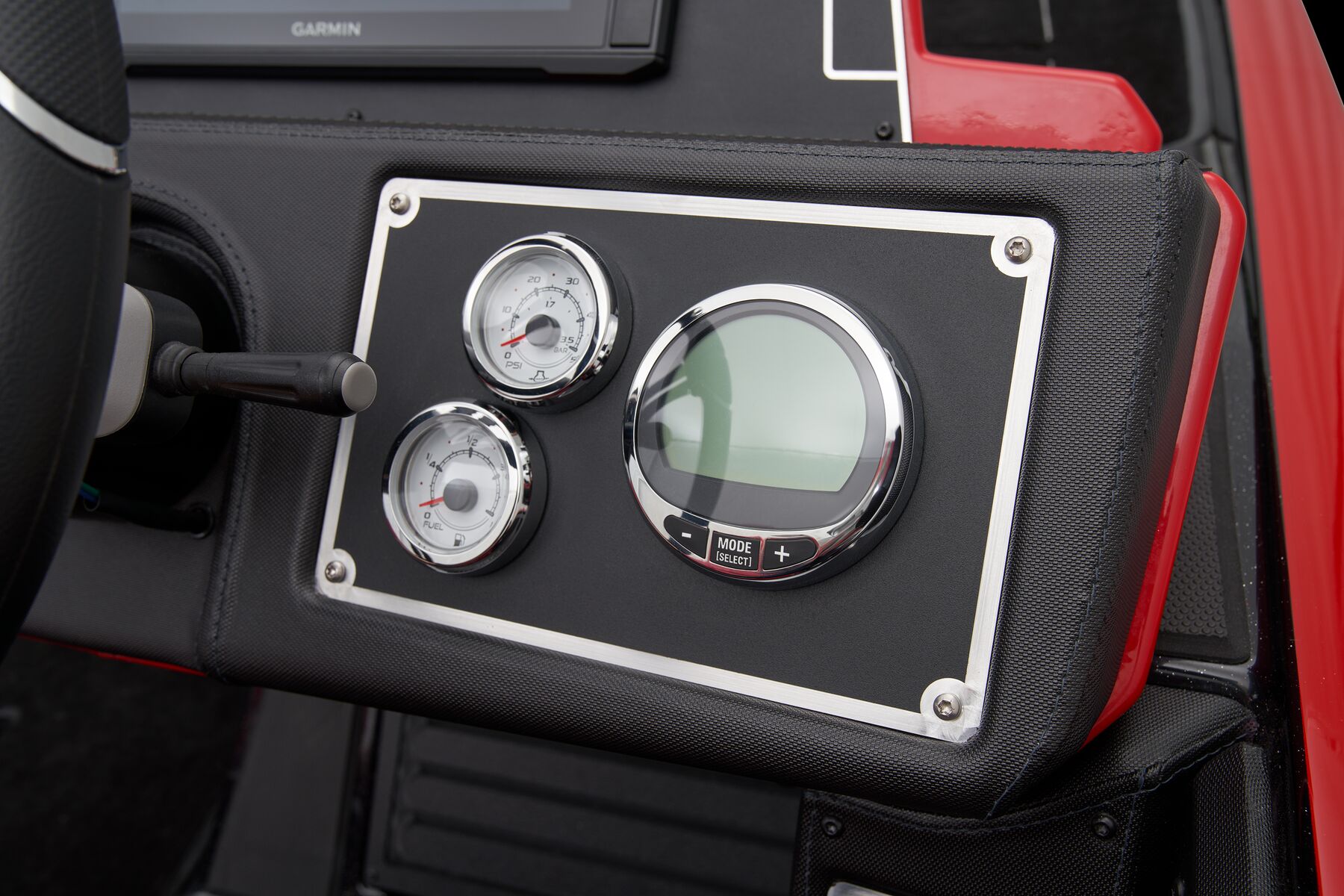

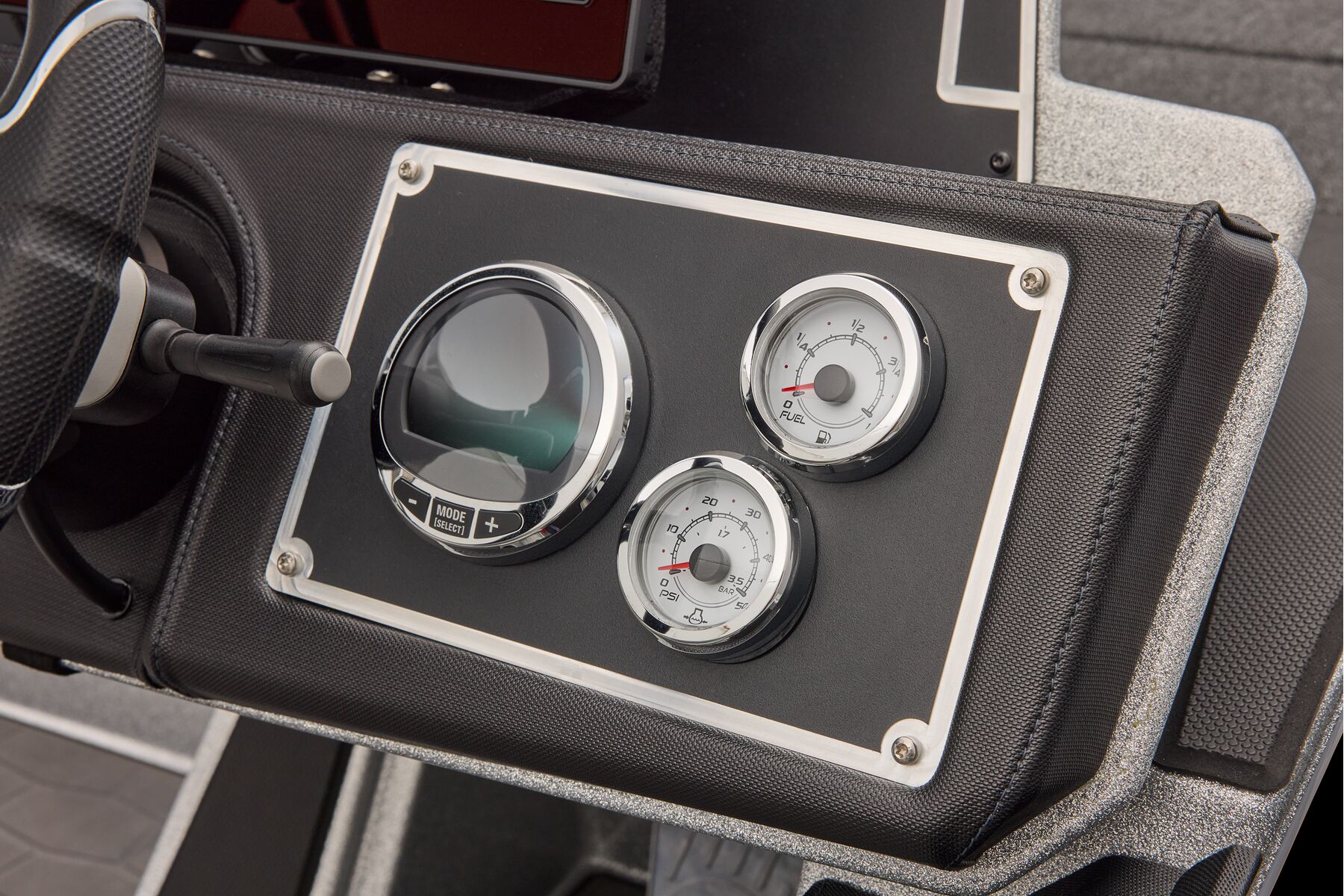

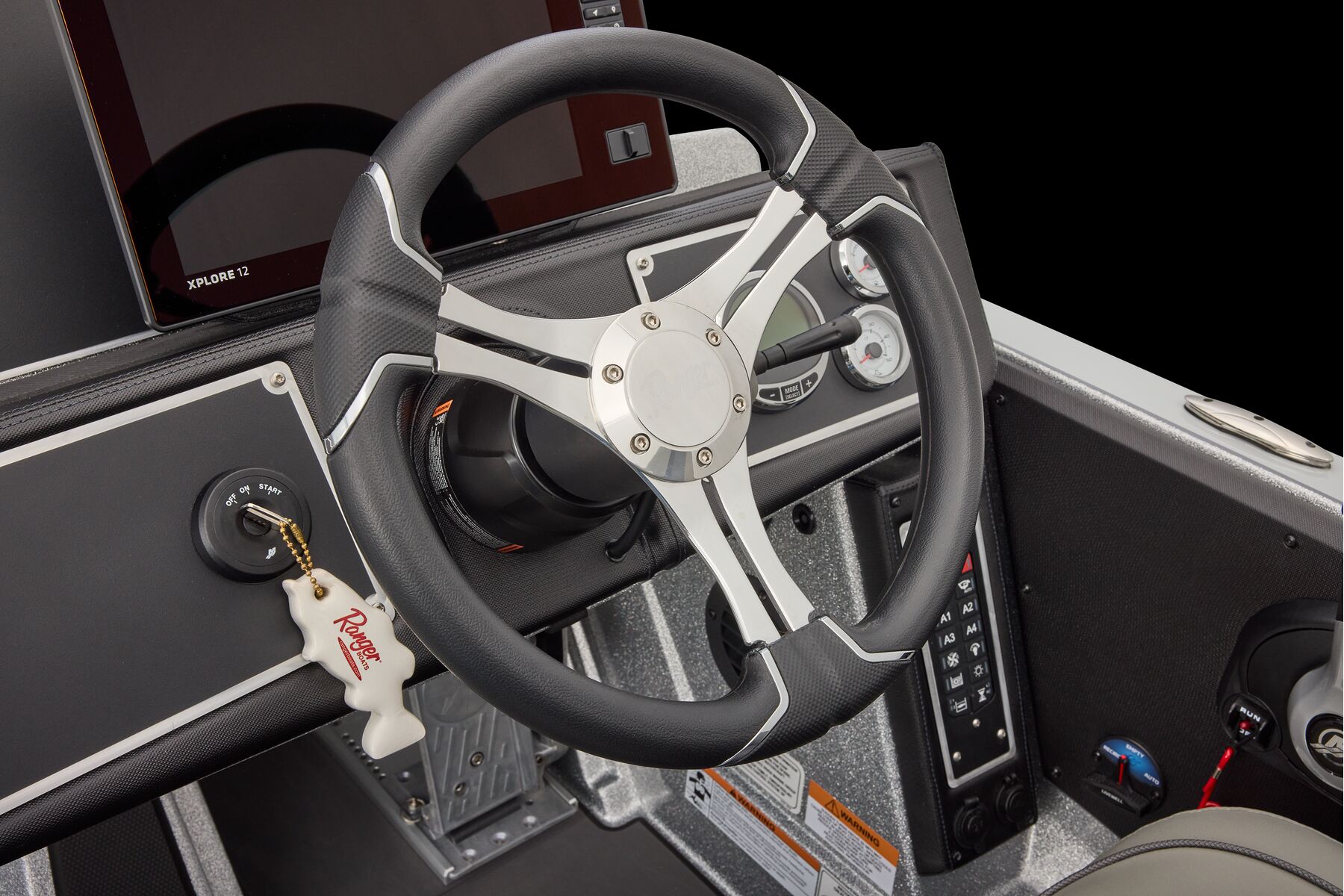

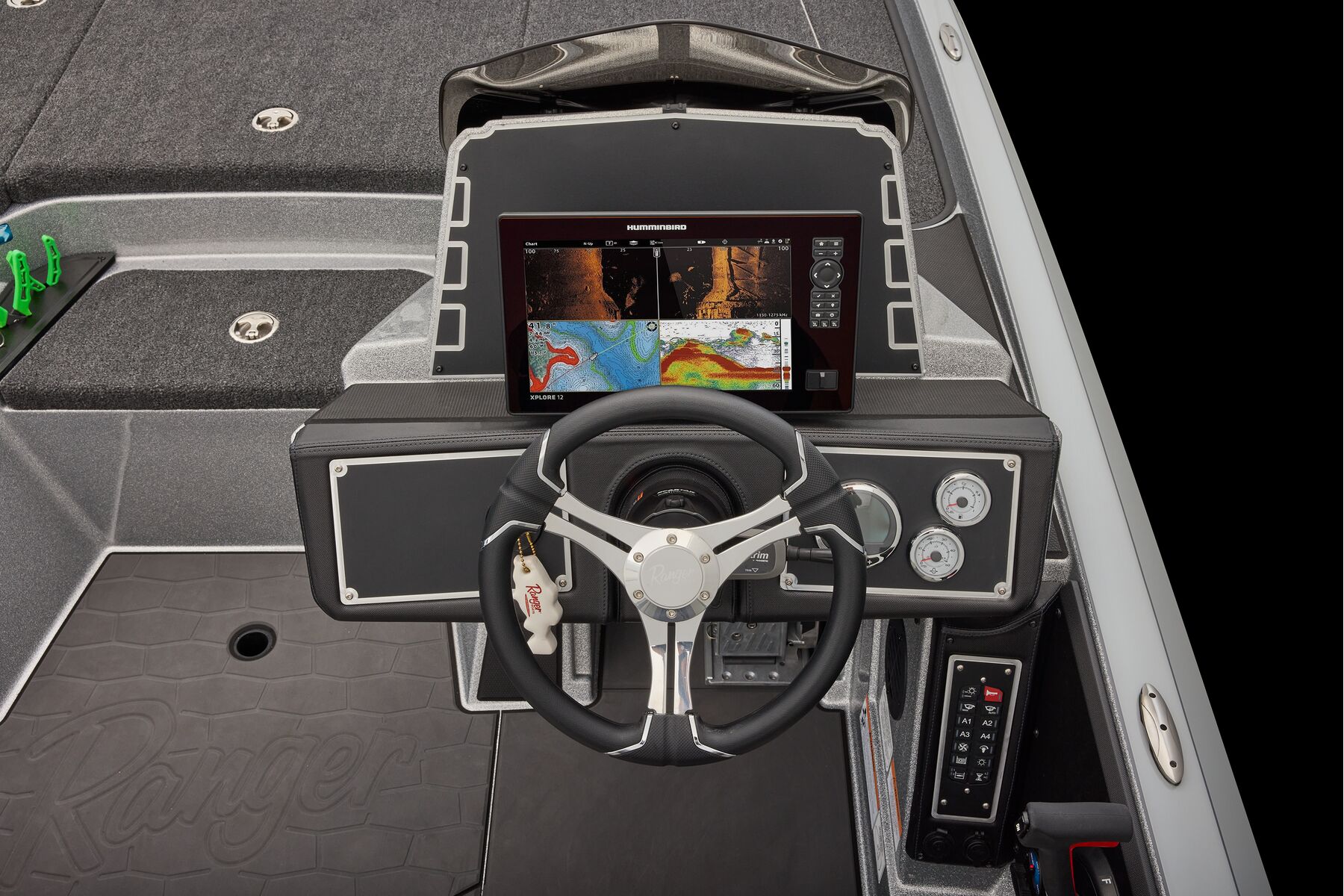

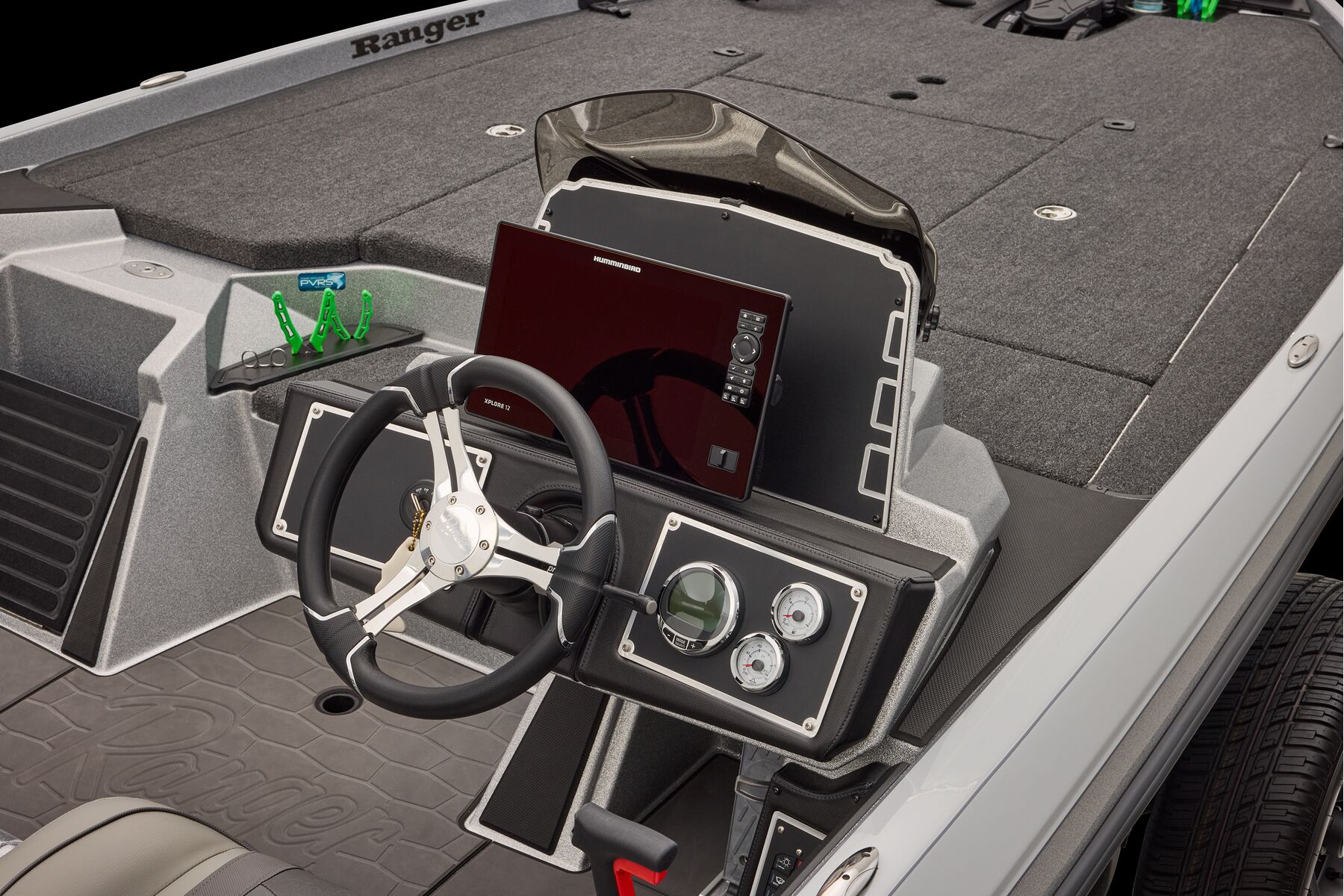

  • Mercury SmartCraft MercMonitor gauge package

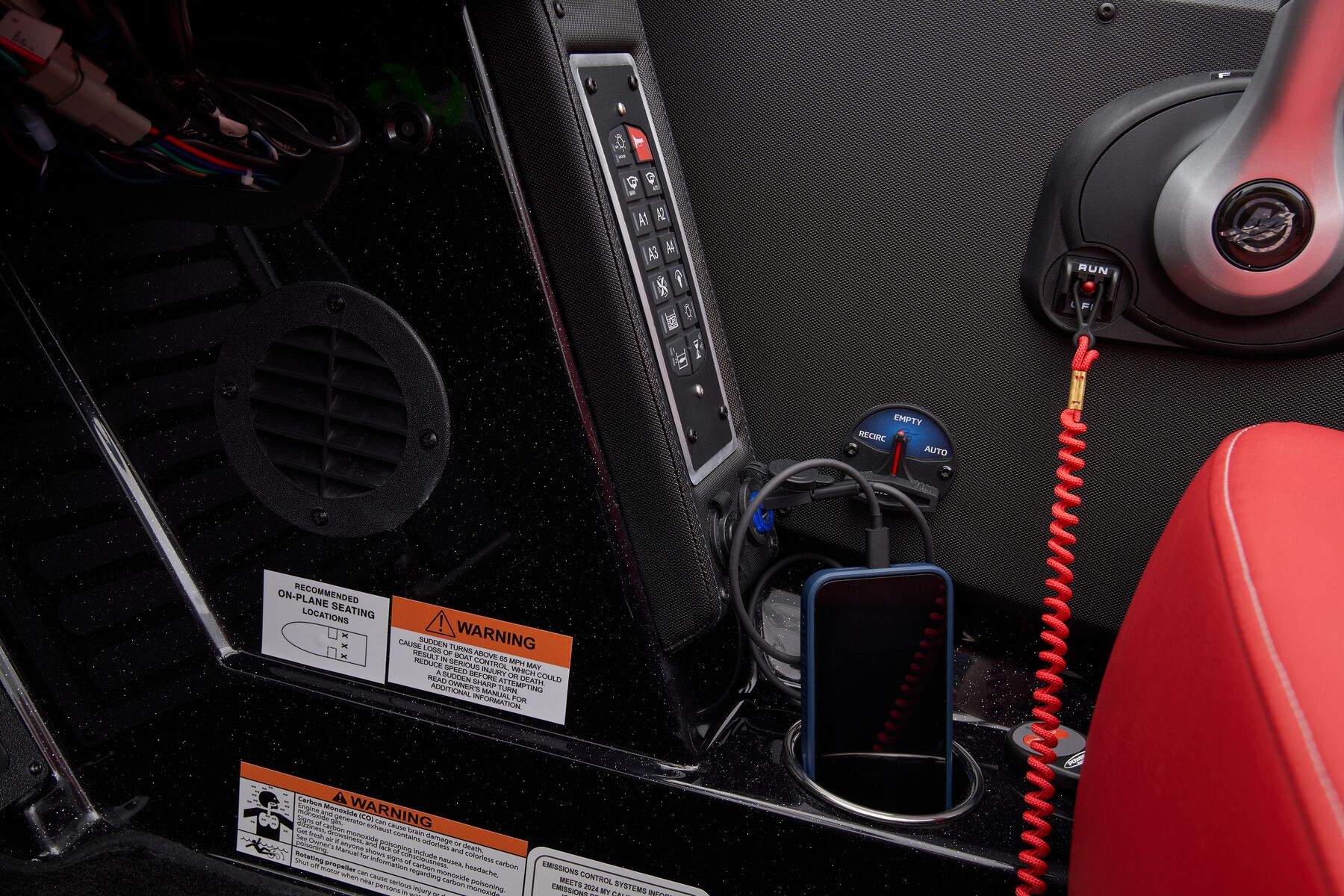

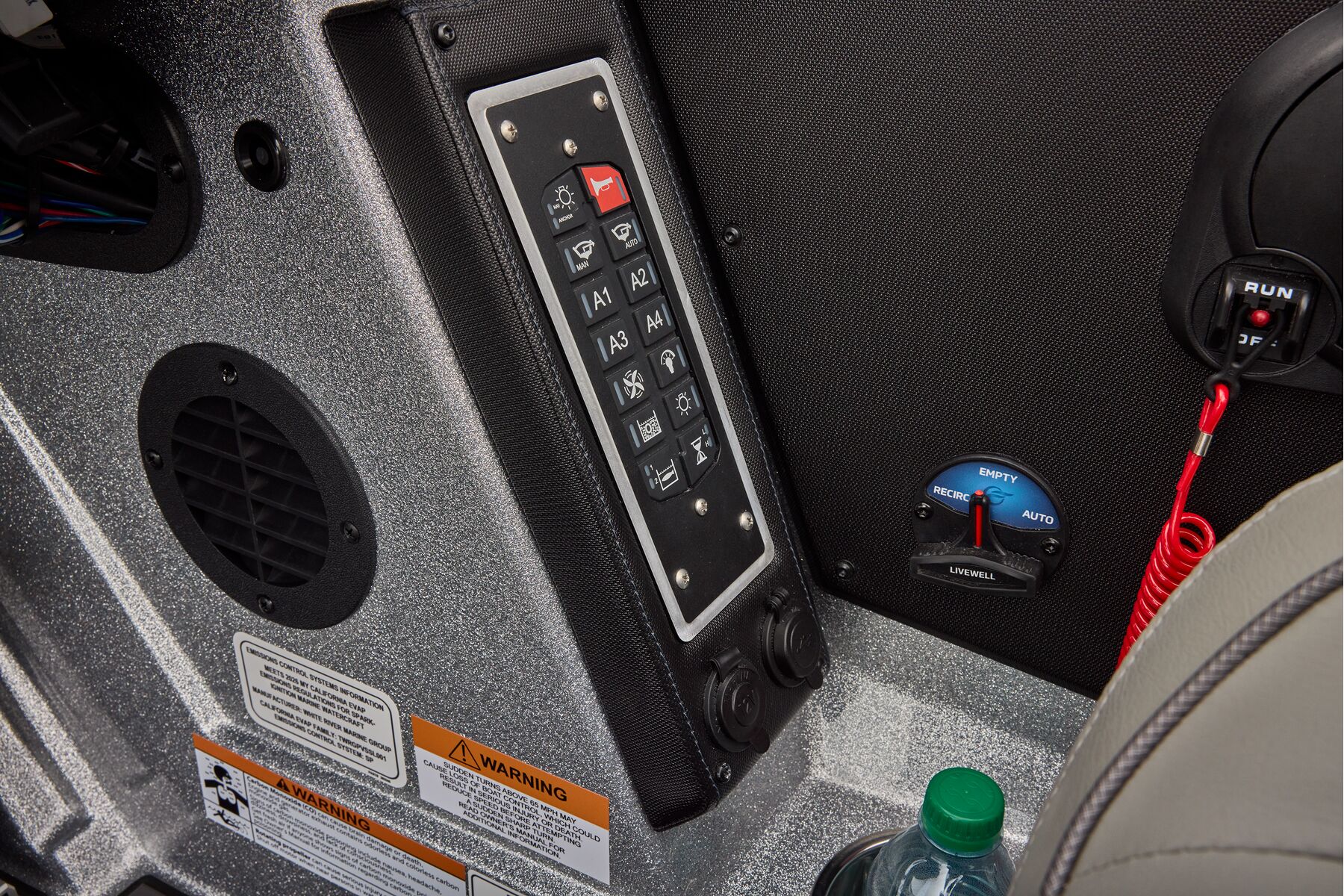

  • Push-Button solid-state digital switching

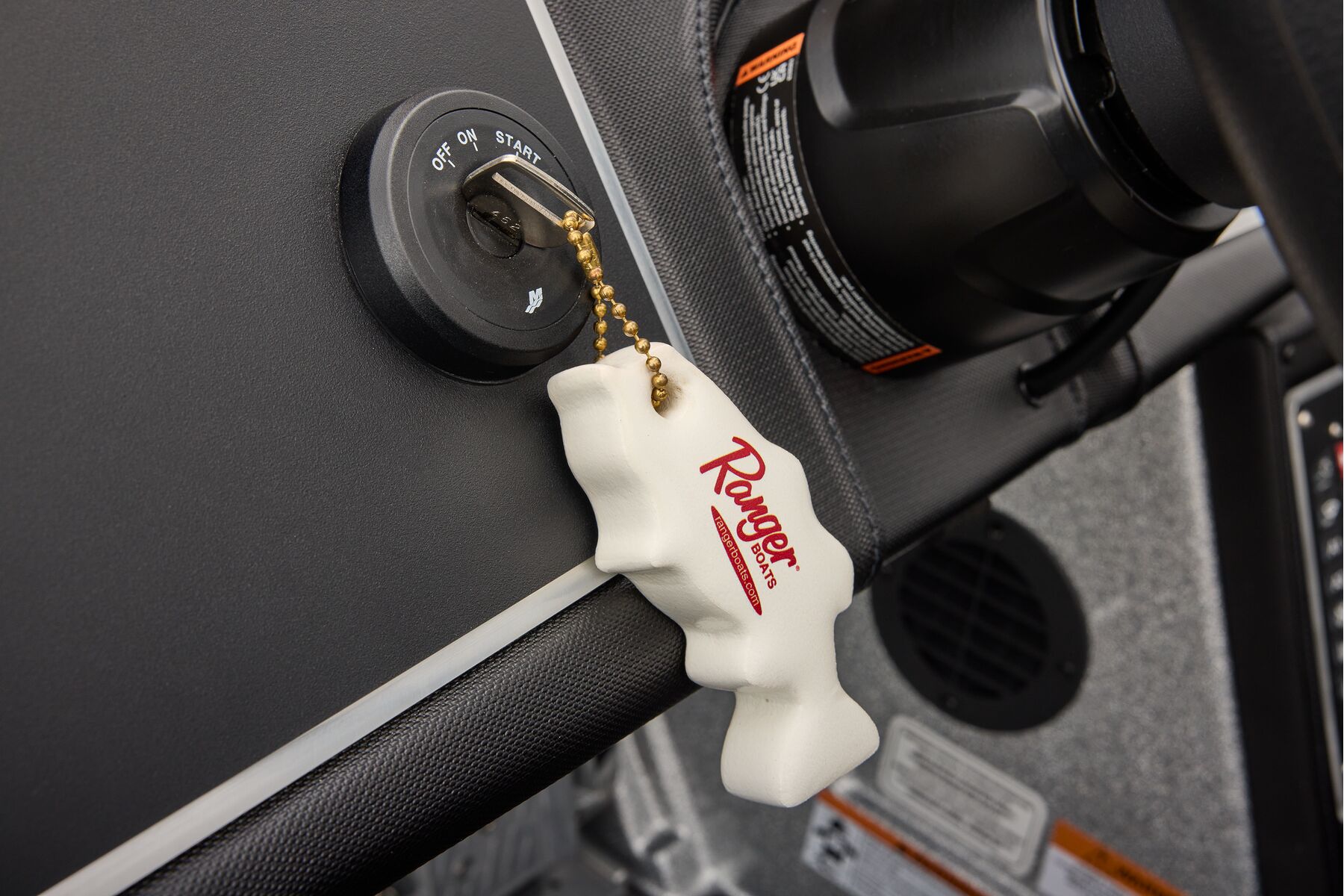

  • Keyed ignition

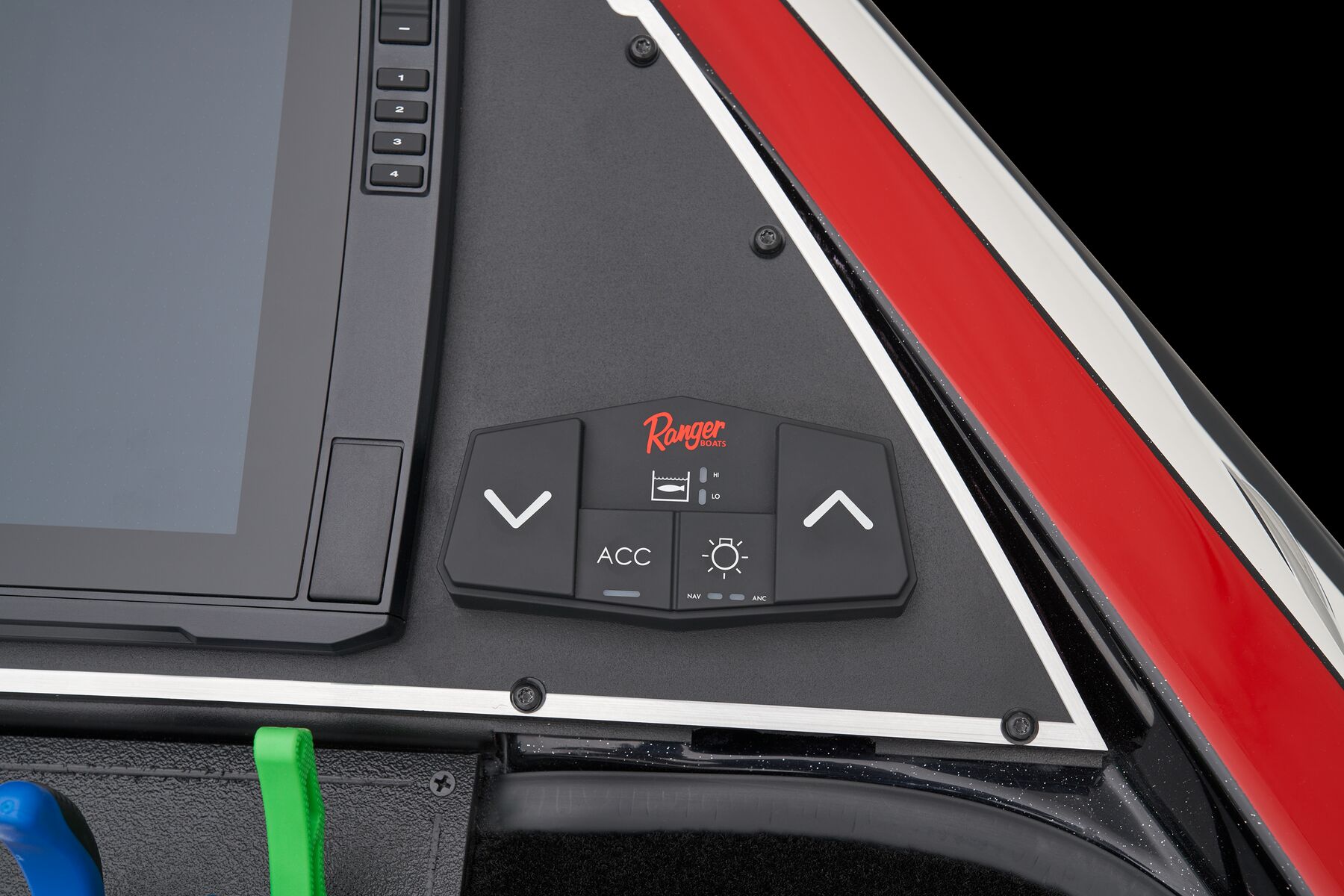

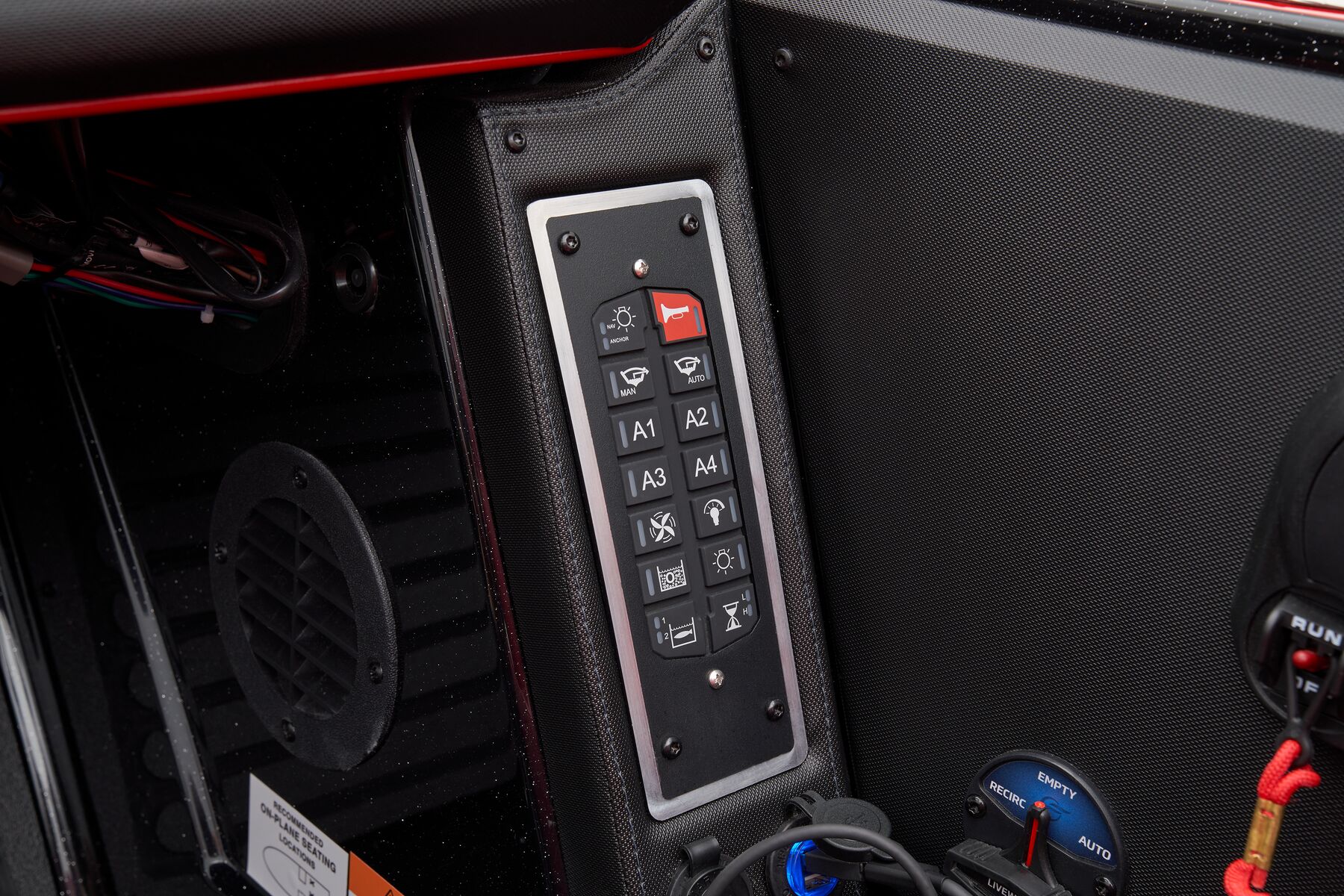

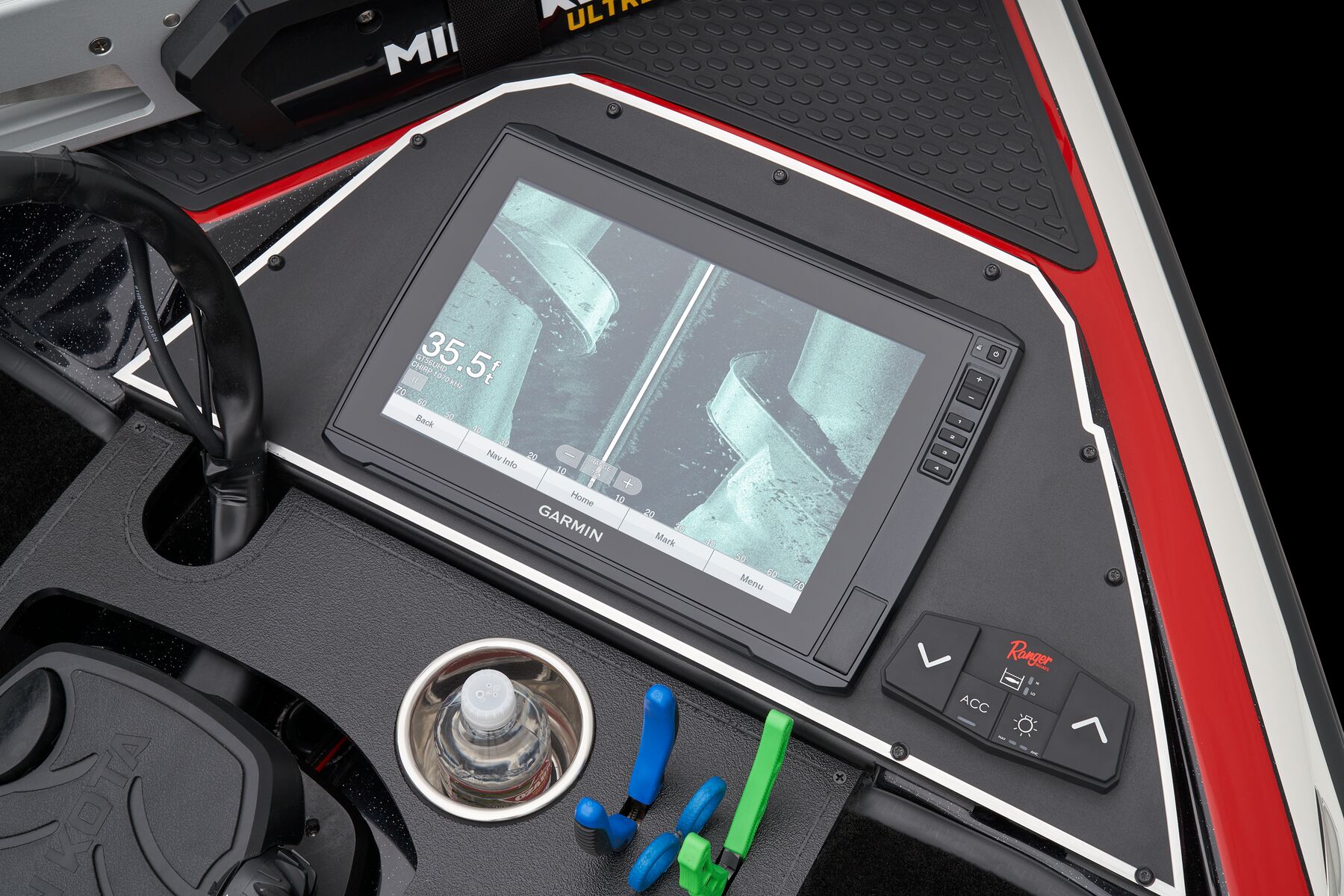

  • Solid-state digital keypad at bow with push-button trim switches
  • Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
  • Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker

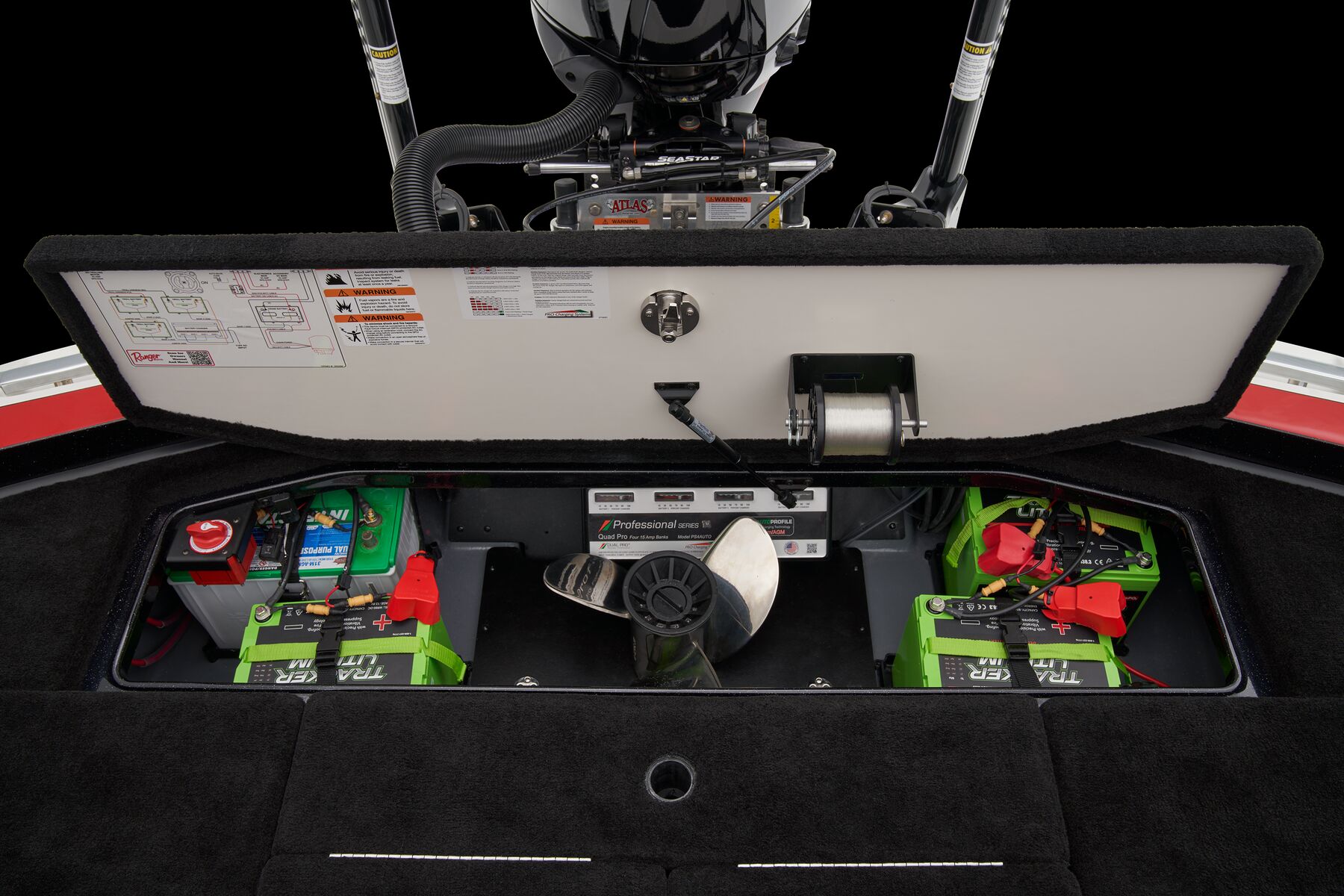

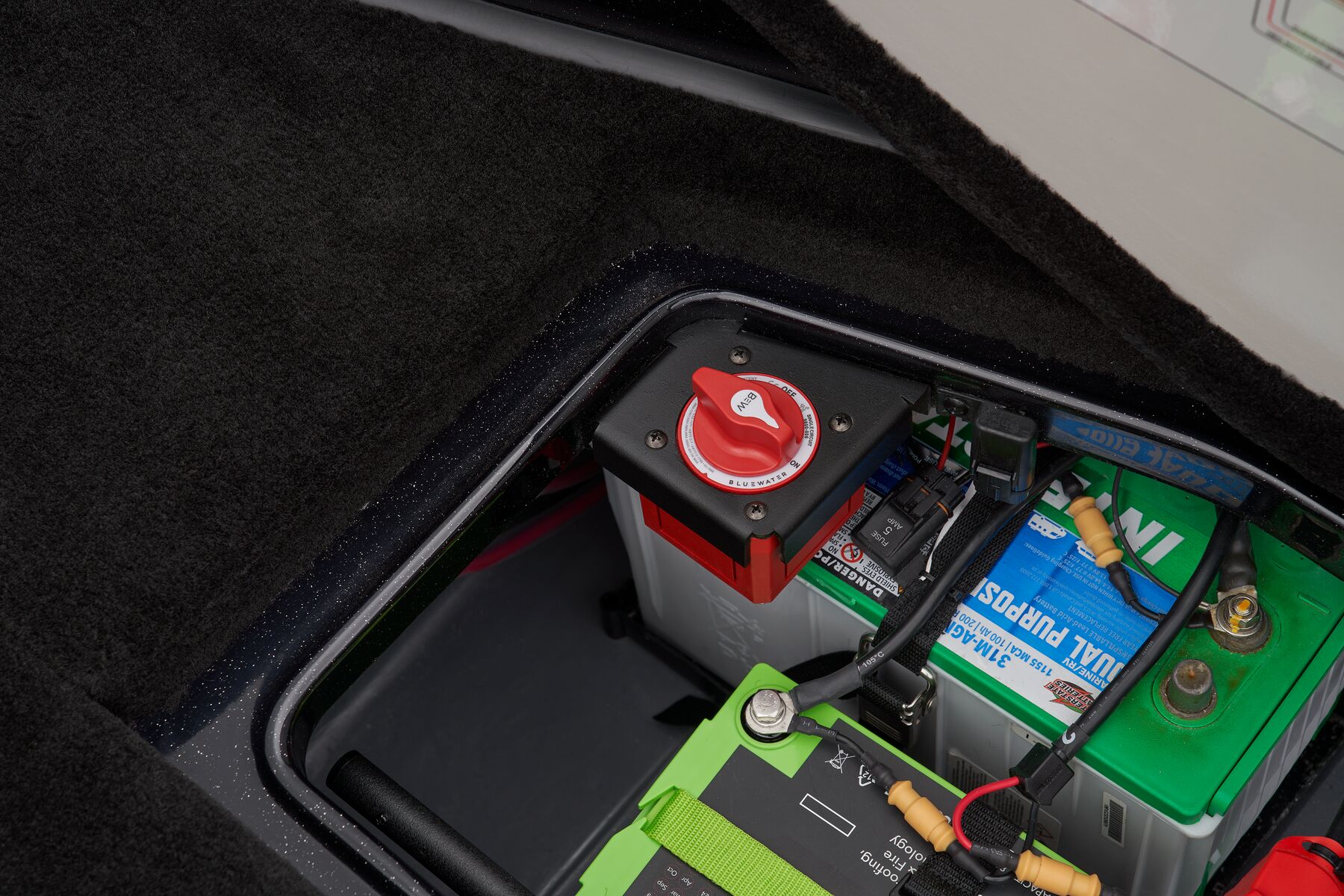

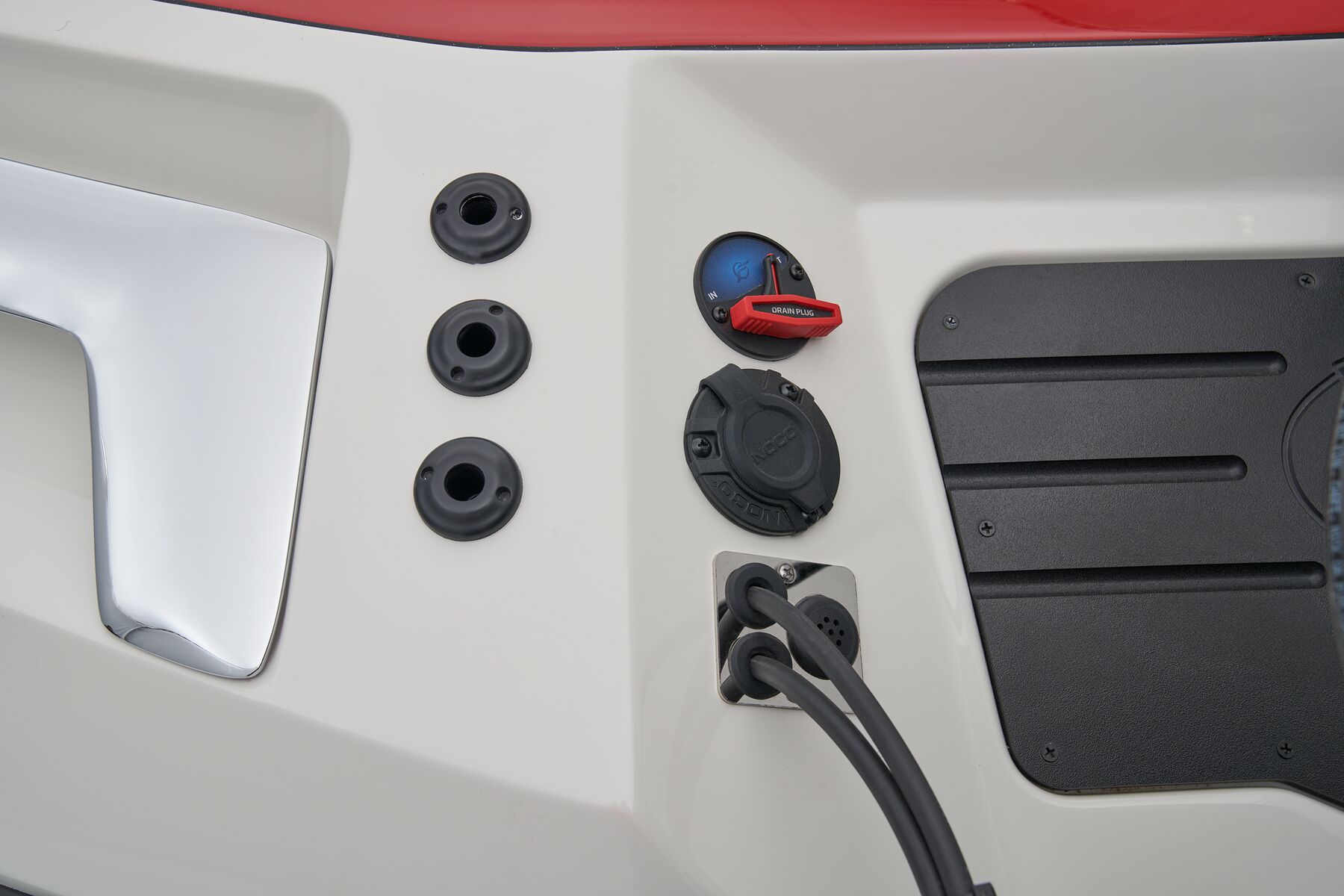

  • Master Power on/off battery disconnect switch
  • NOCO™ GB40 jump starter w/ on-board USB charging
  • LED storage compartment lighting & LED courtesy & livewell lighting

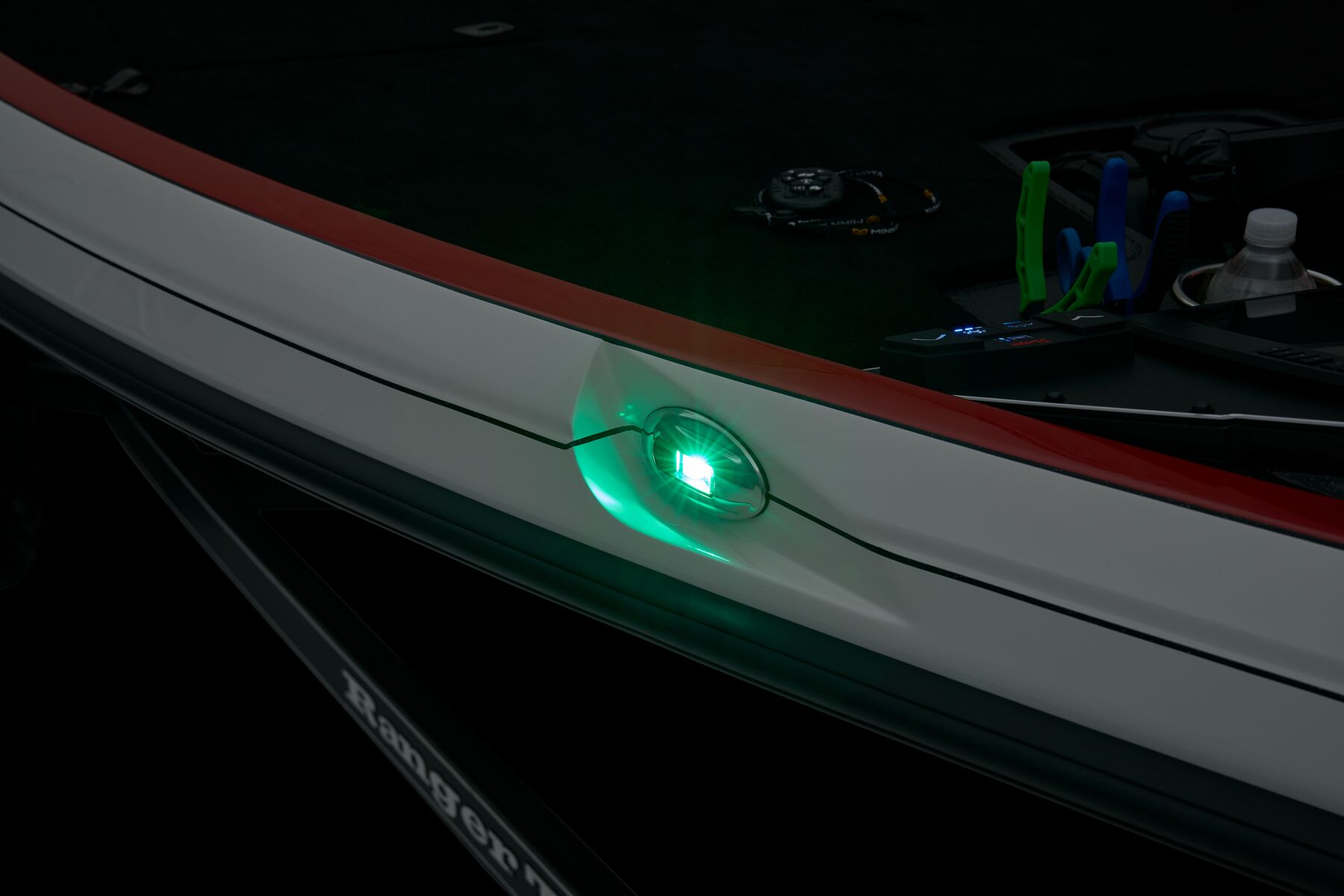

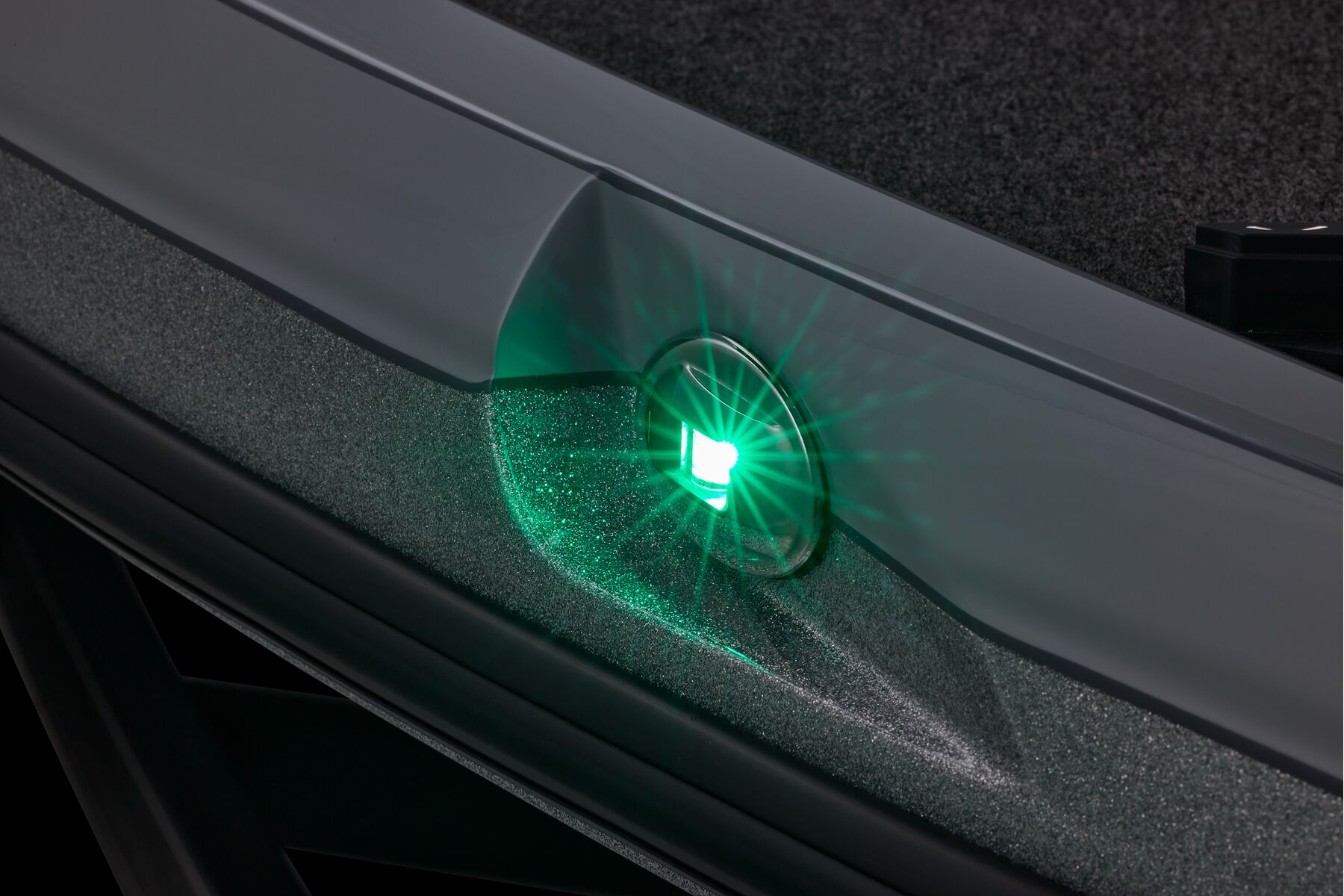

  • Integrated LED bow navigation lights & removable LED anchor light

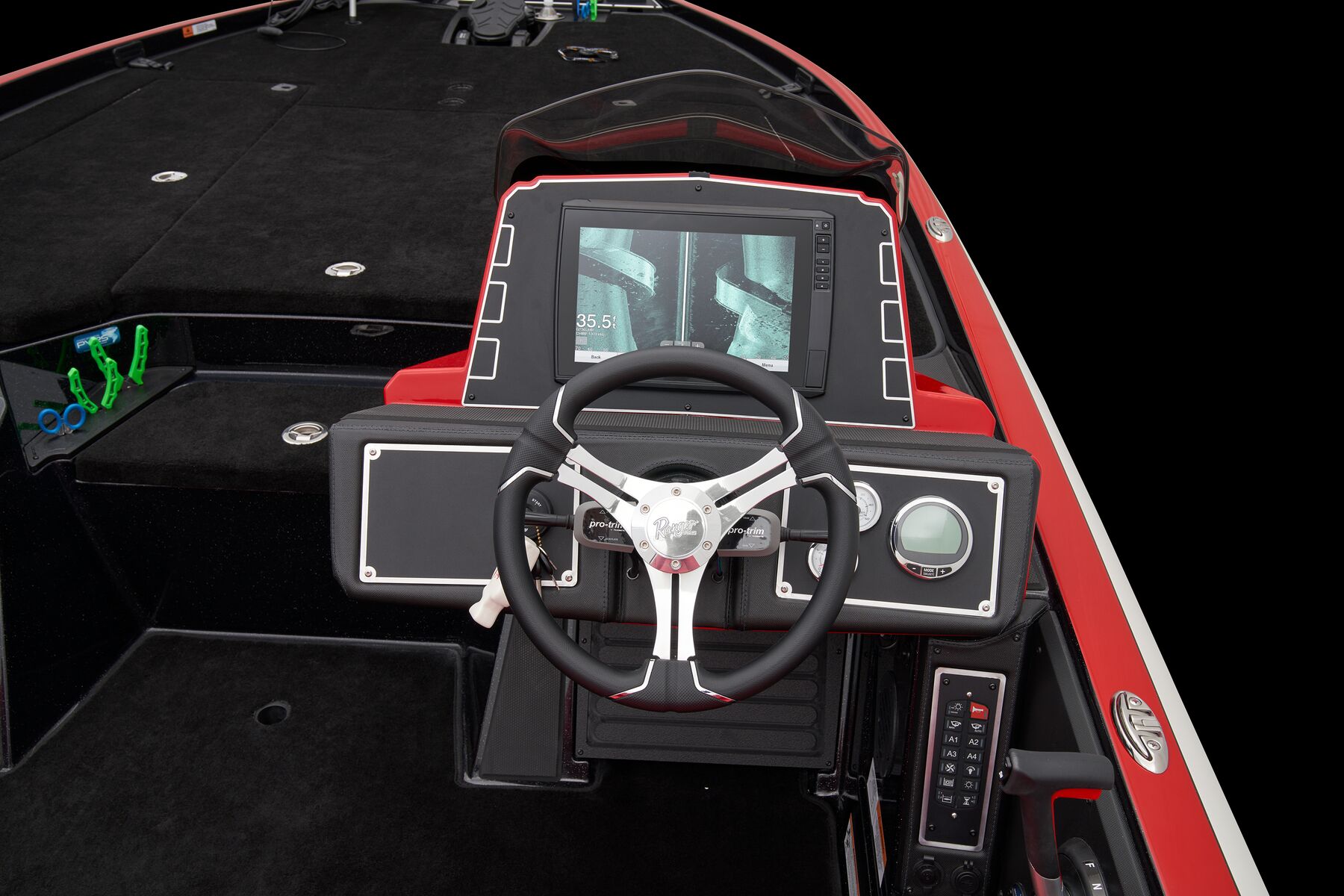

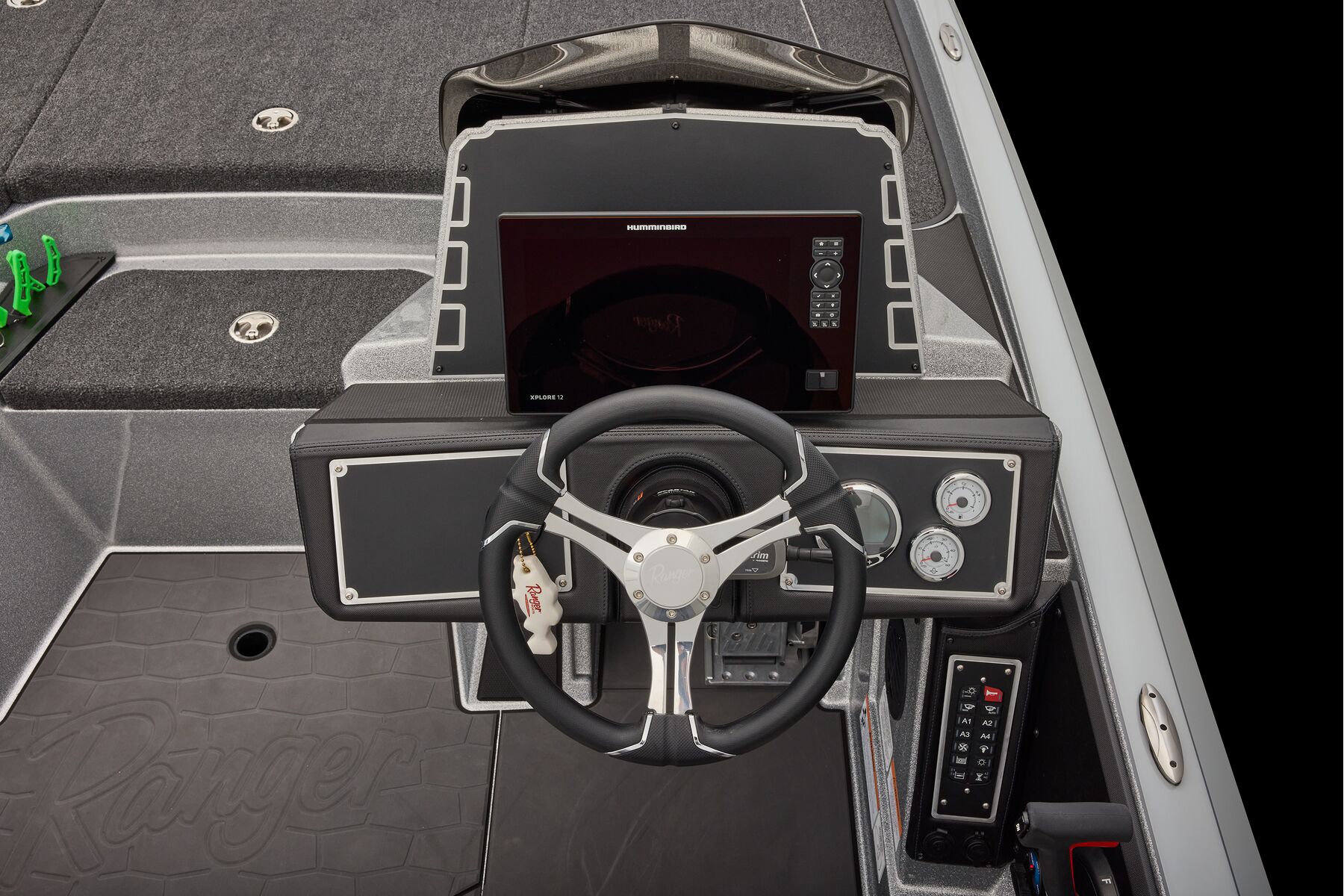

  • Lowrance® Elite FS™ 9 w/ Active Imaging™ HD at console
Power/Performance

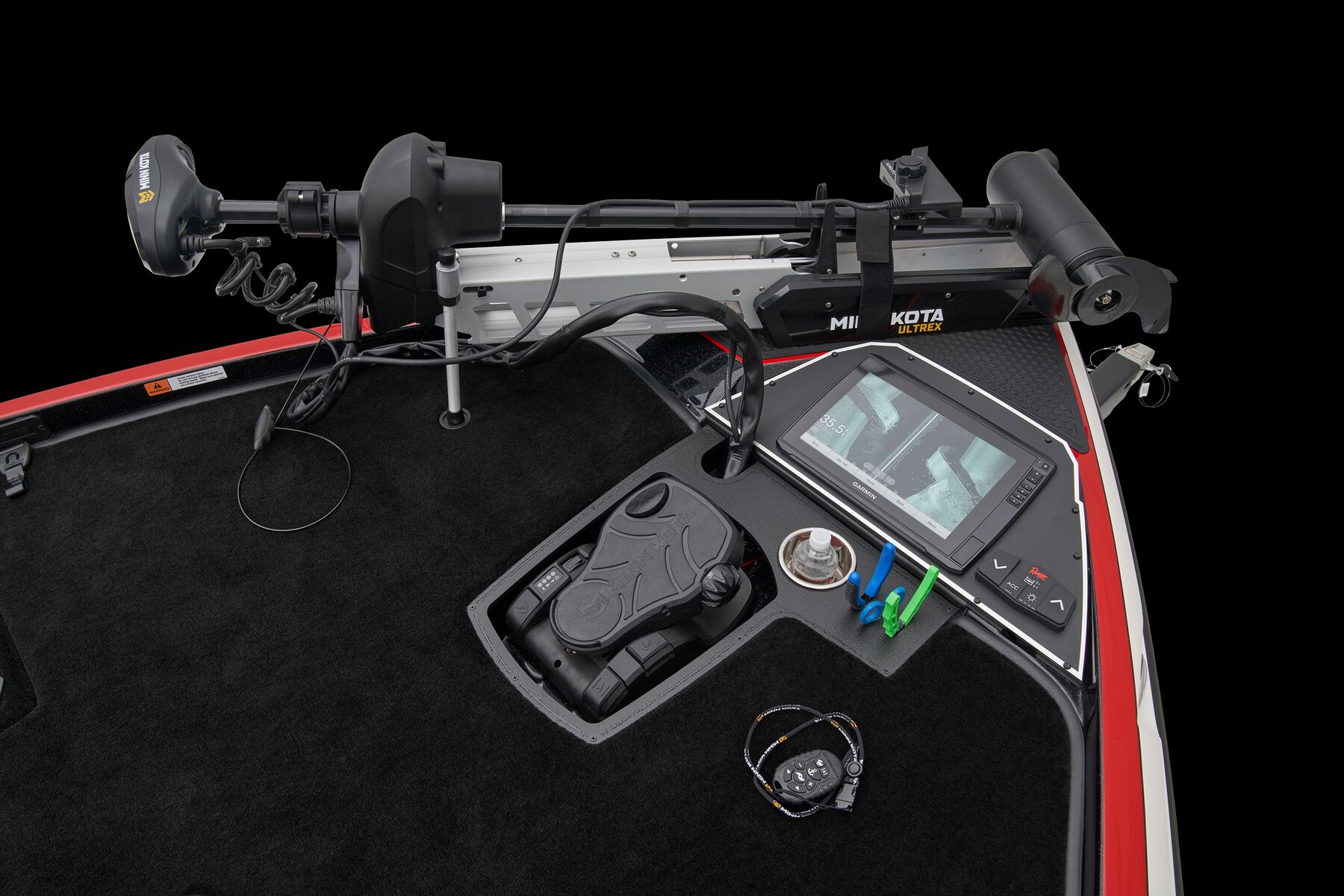

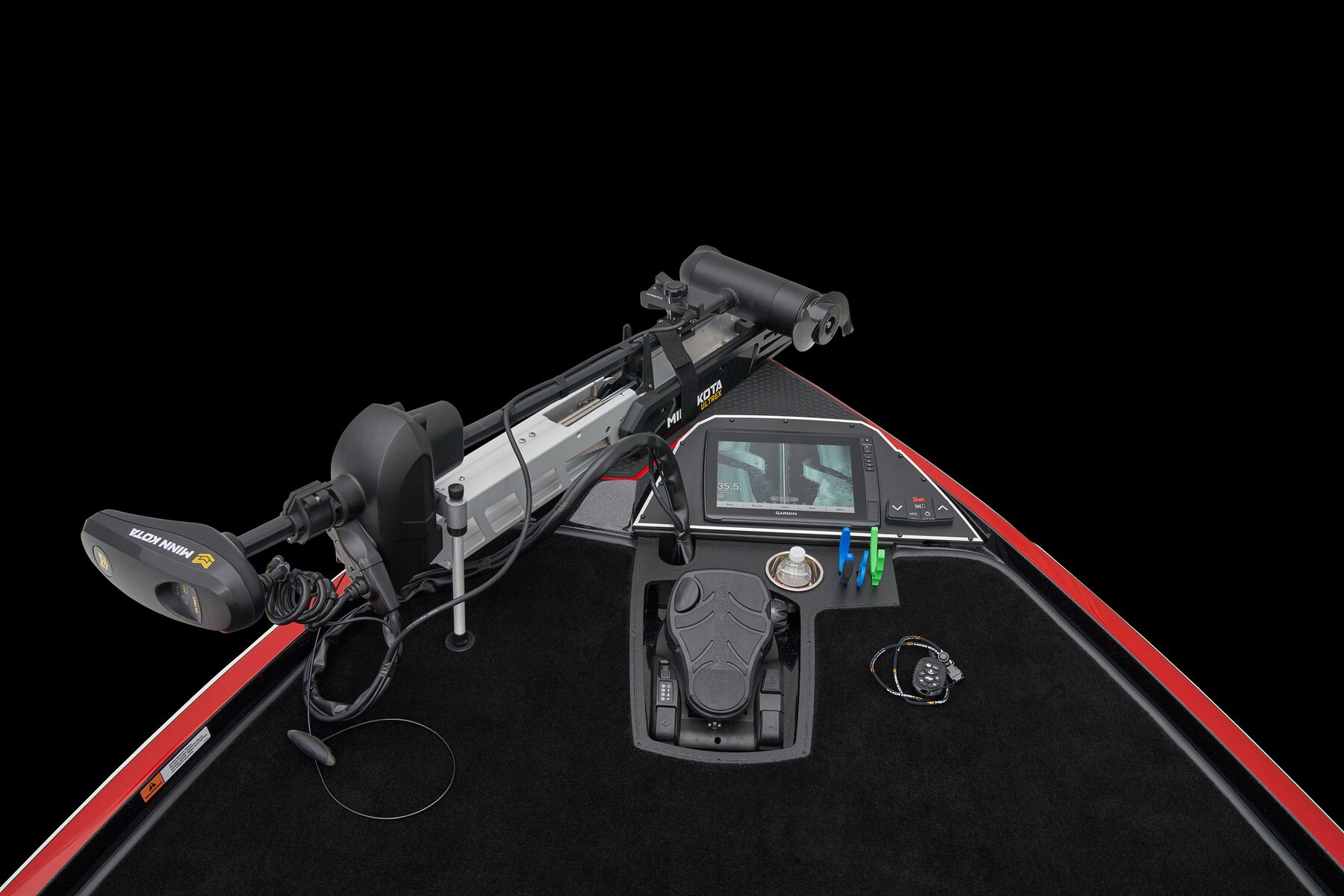

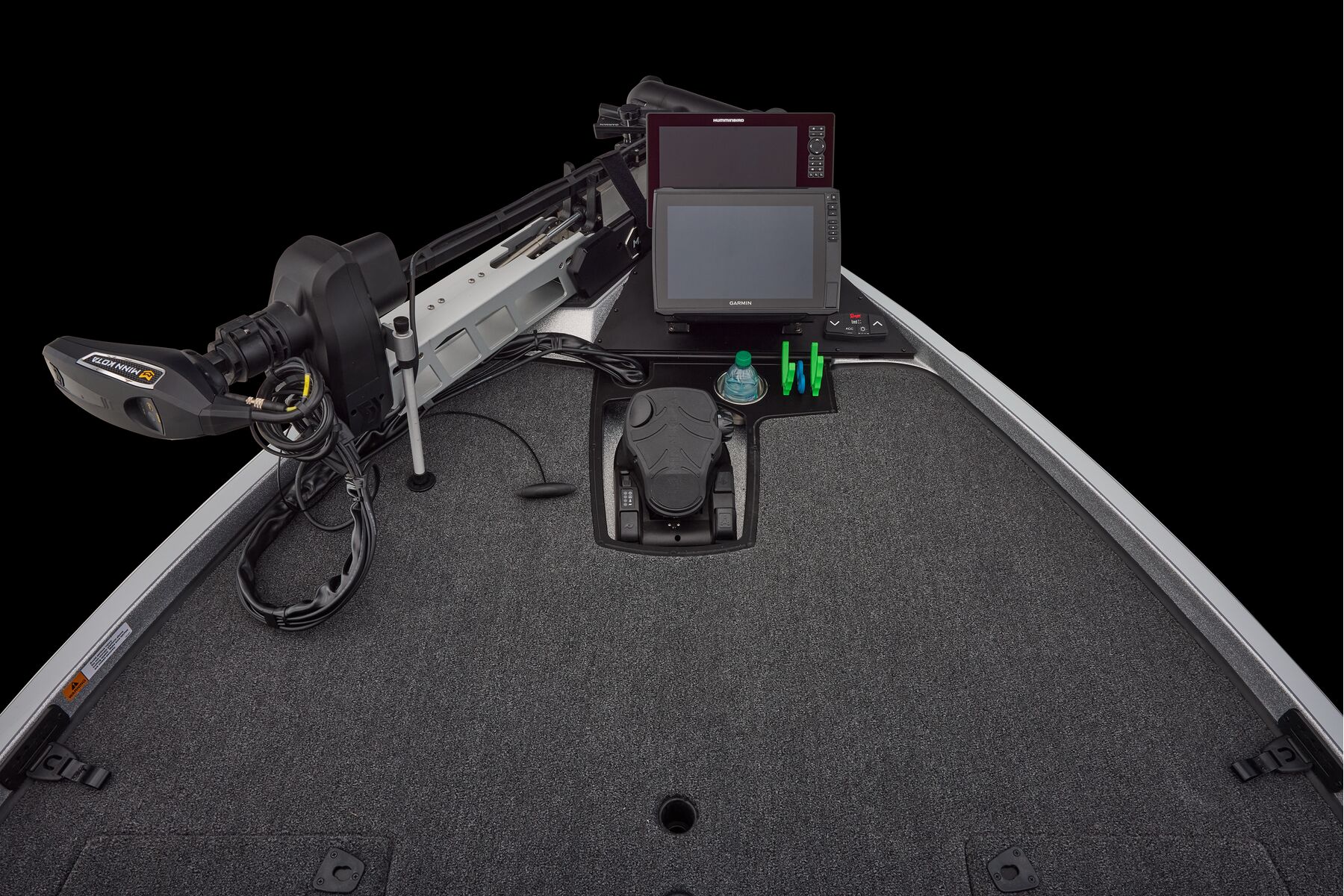

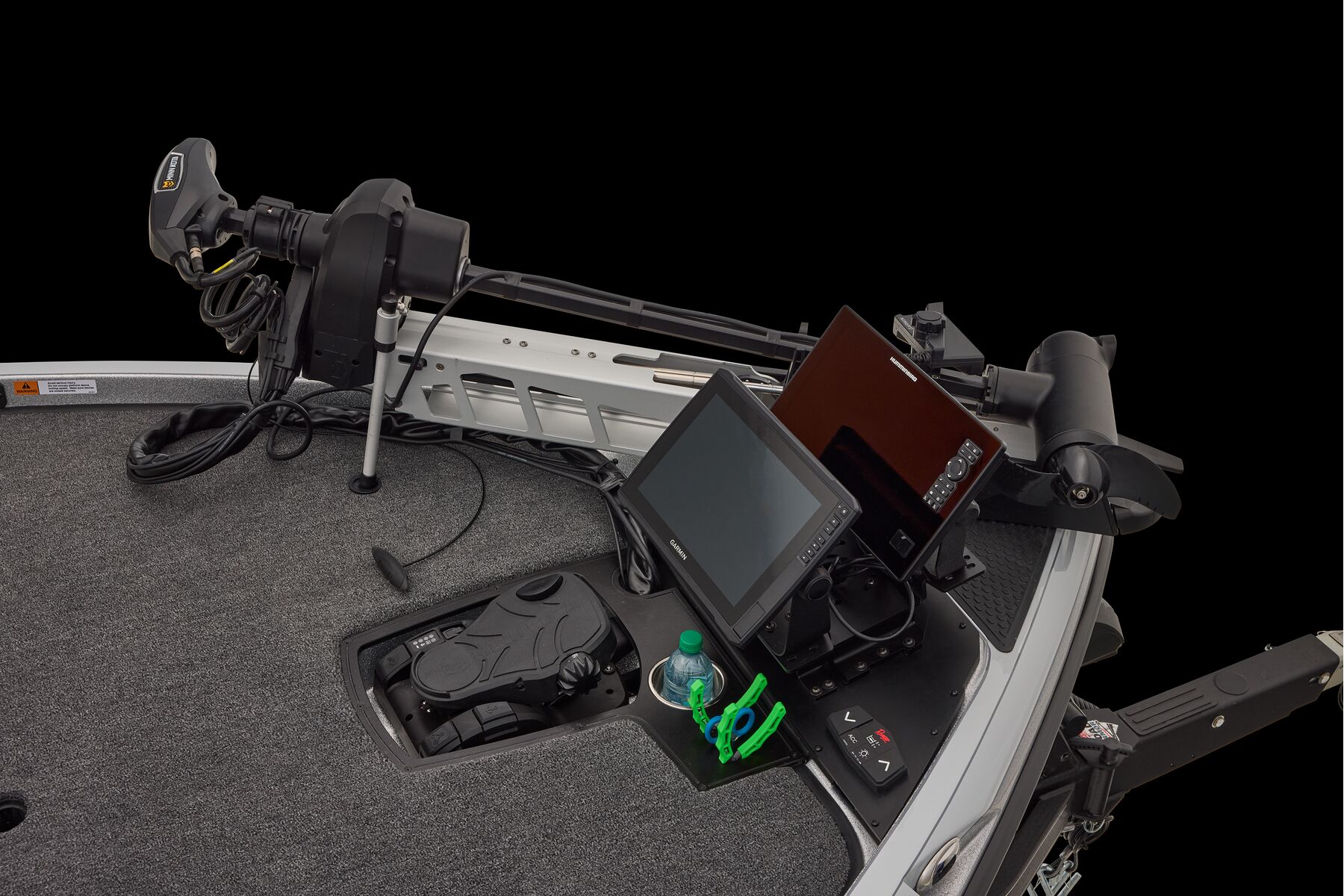

  • MinnKota® Fortrex 80lb , 45" DSC 24V trolling motor

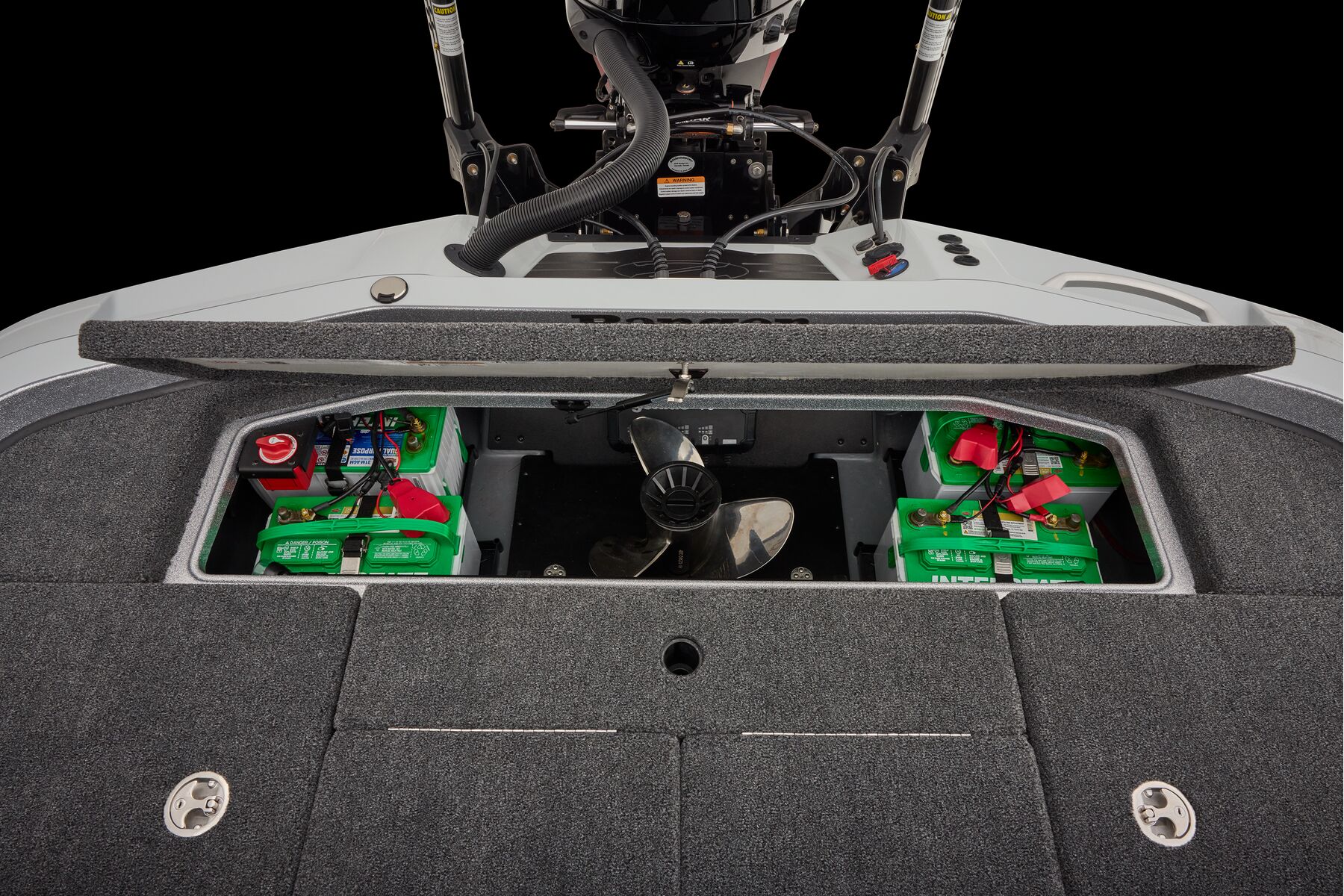

  • AGM Starting battery w/ tray
  • One-Piece-Feel Interloc Construction
  • Pultruded Fiberglass Transom
  • Integrated engine setback

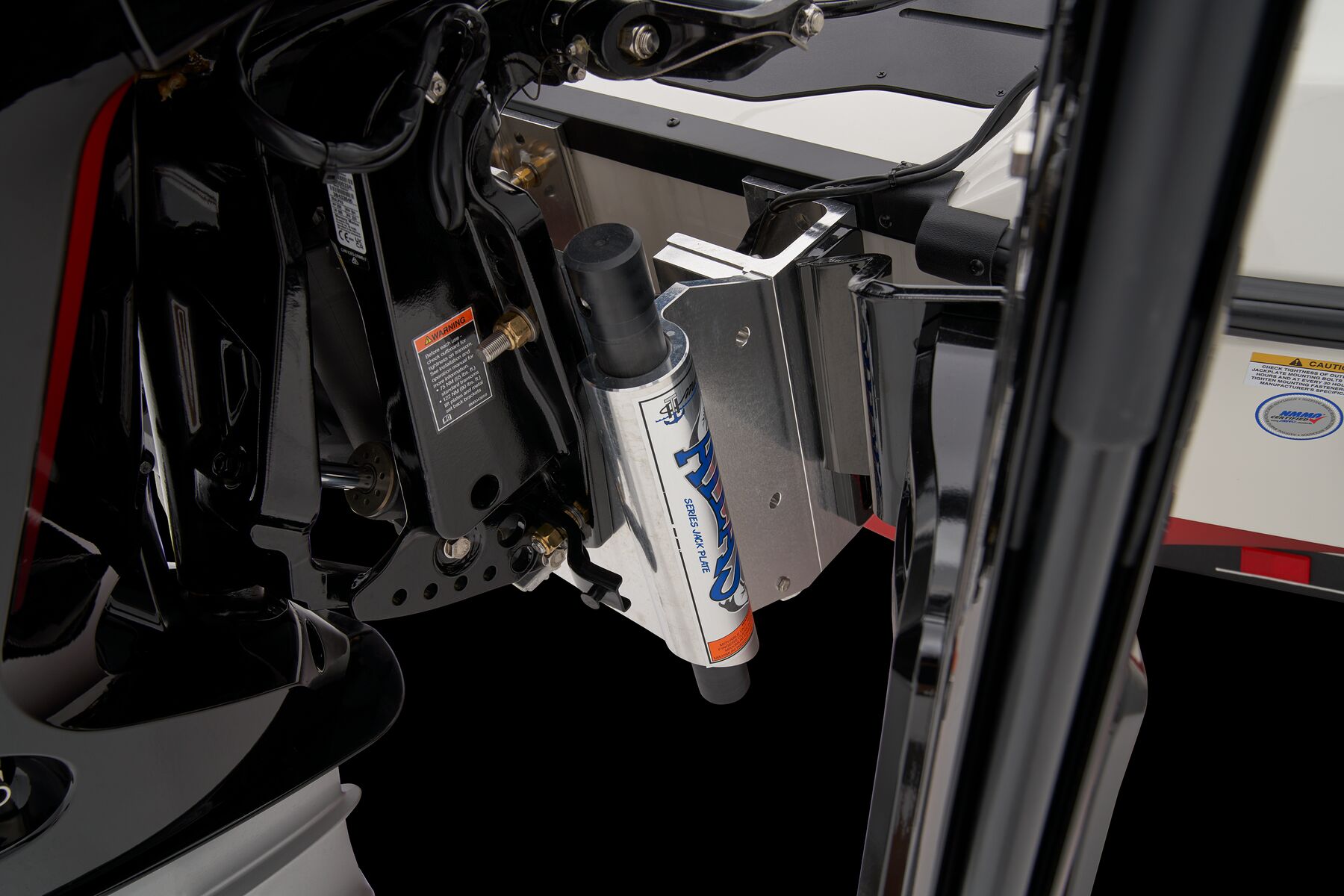

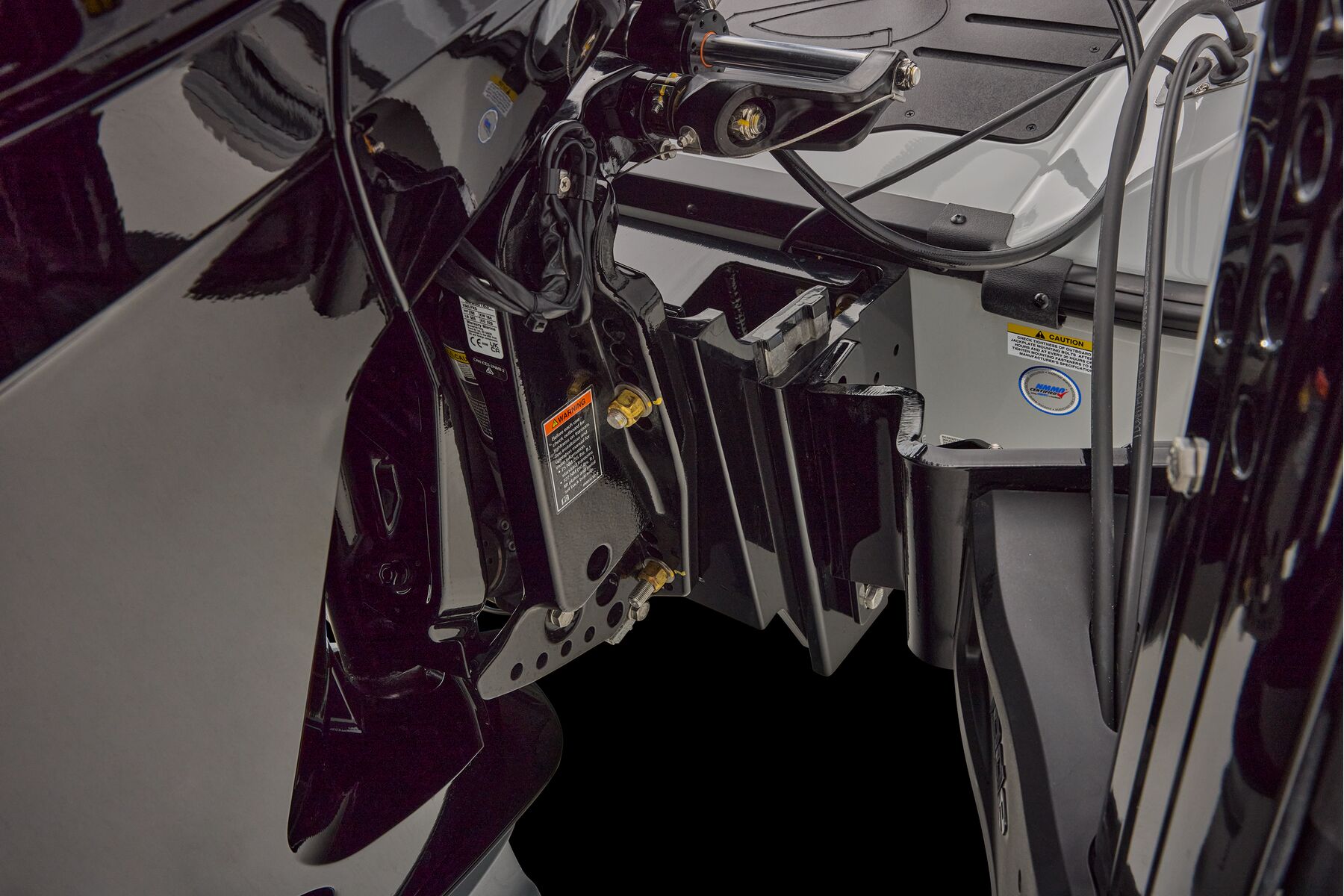

  • 10" manual setback plate
  • Hydraulic steering

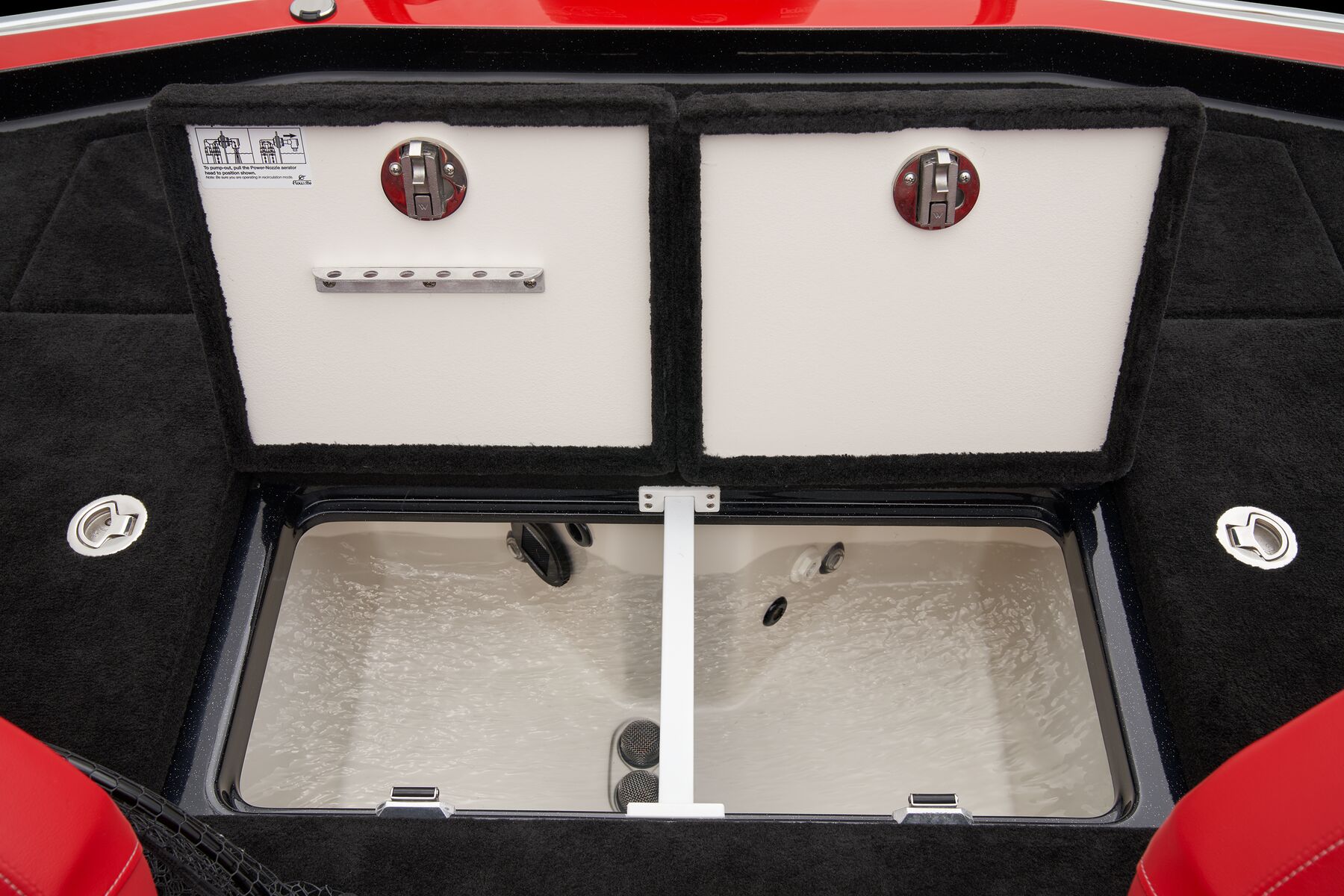

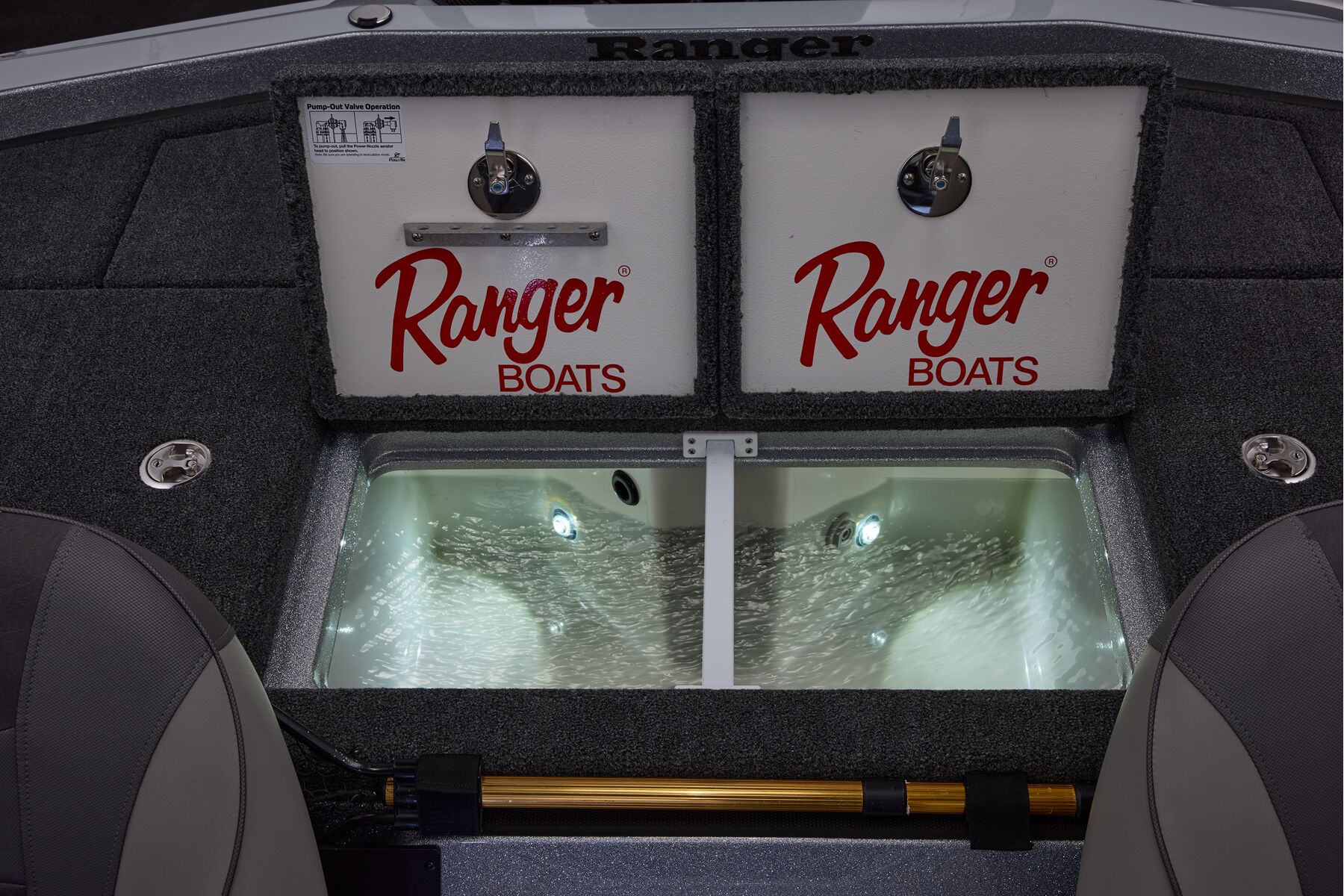

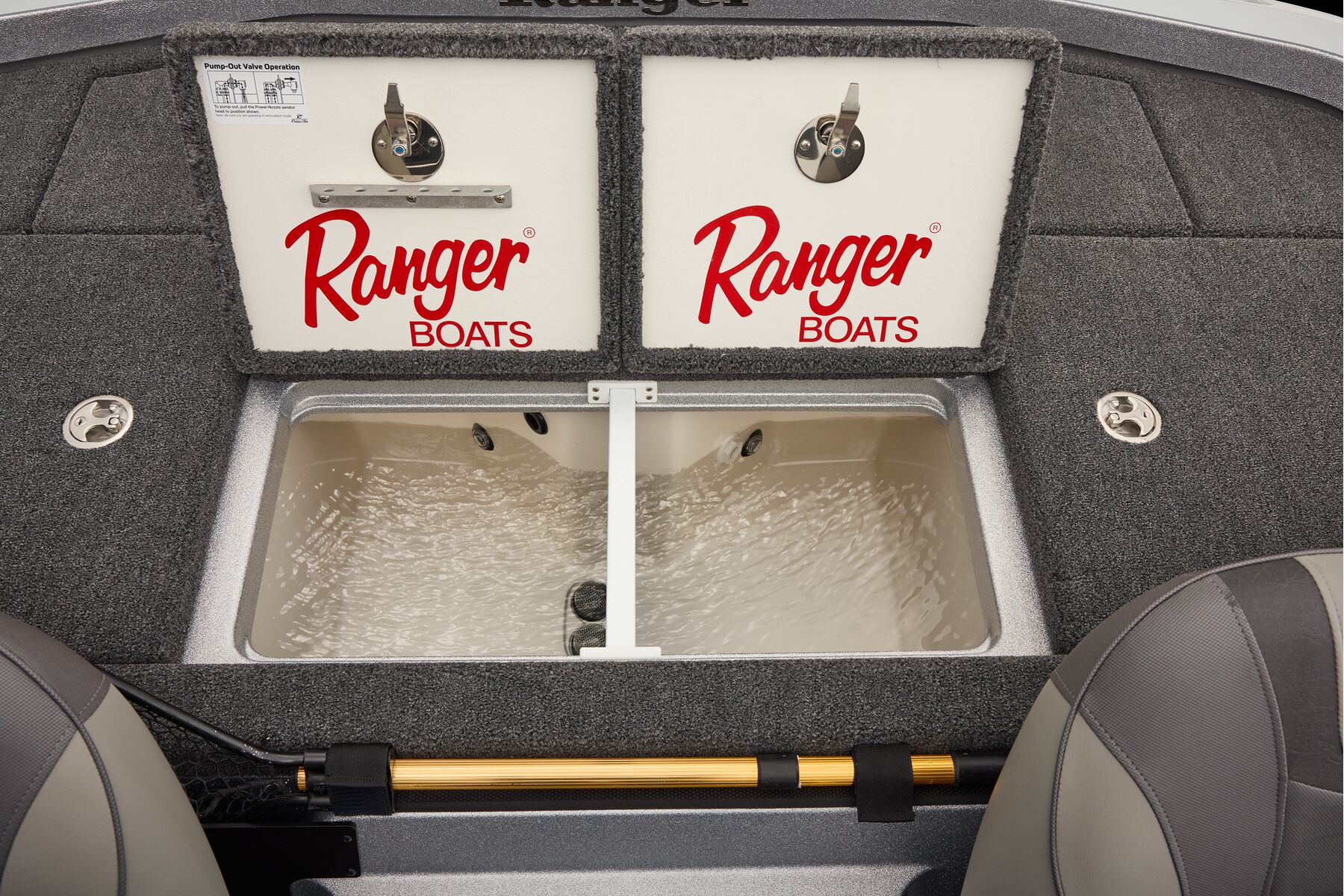

  • Recirculating aerated livewell w/ removable divider
  • Venturi aeration system

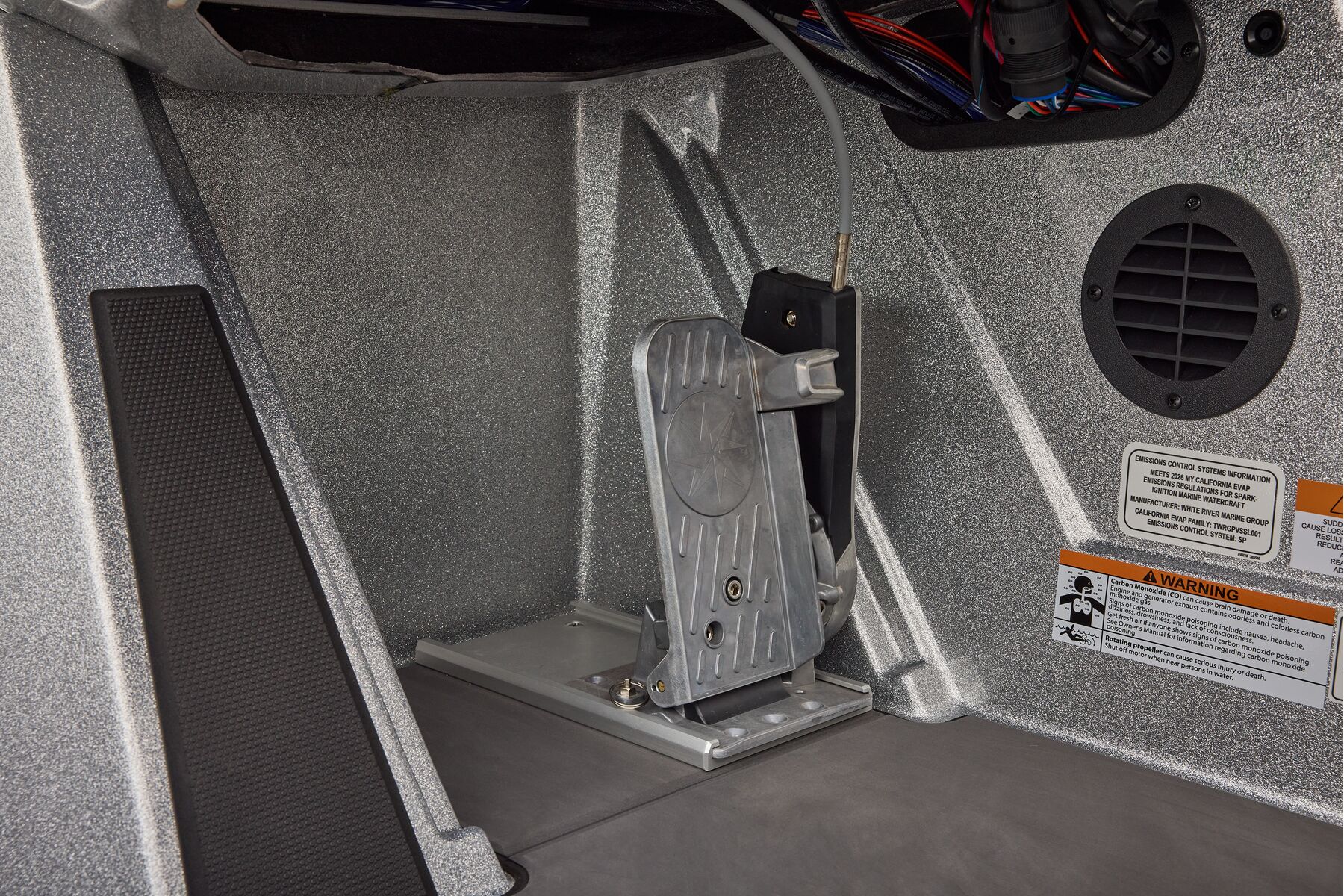

  • Recessed trolling motor foot pedal
  • High performance stainless steel prop
  • Foam-filled fiberglass stringer system
Safety/Comfort
  • Upright Level Flotation exceeding all USCG & NMMA standards

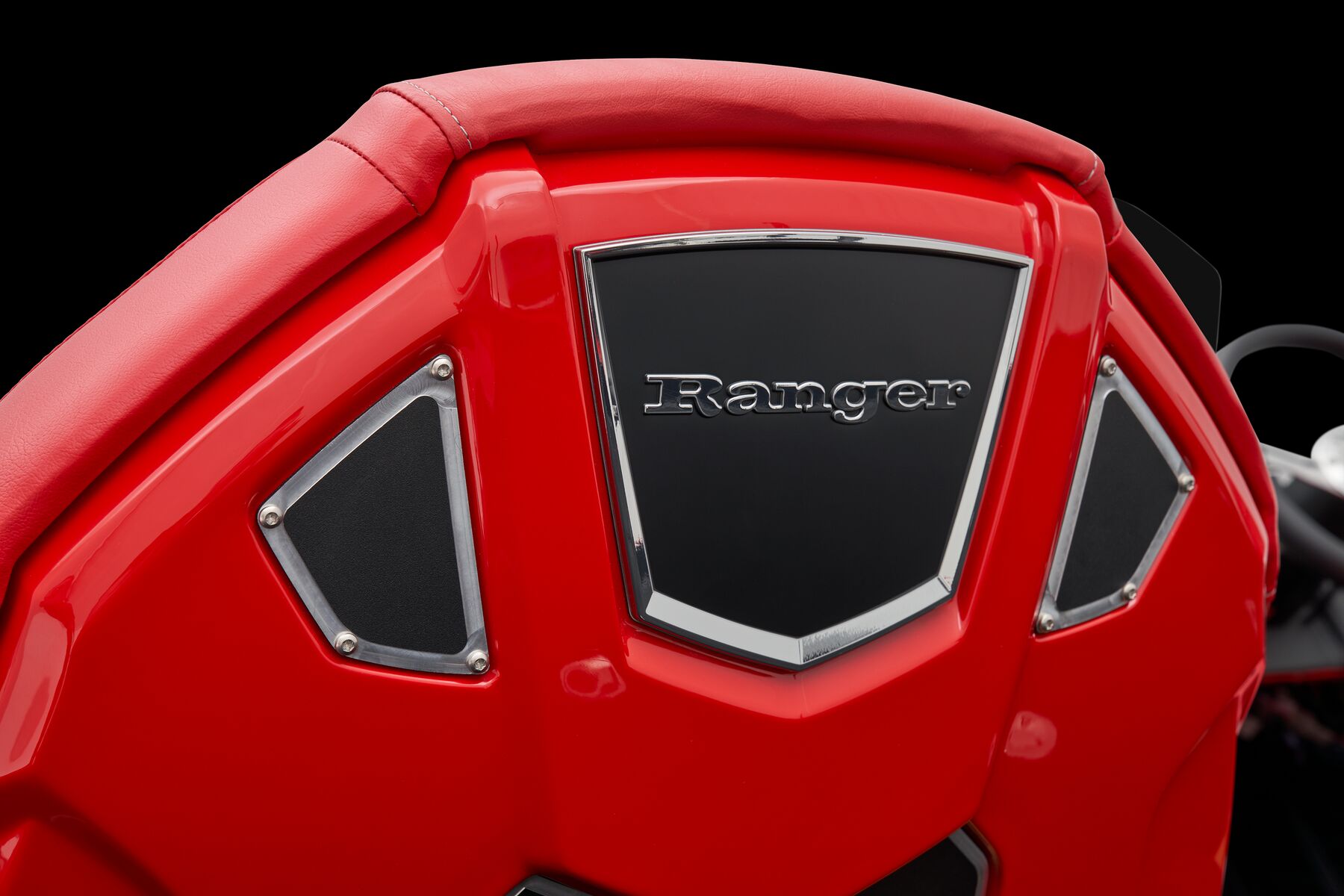

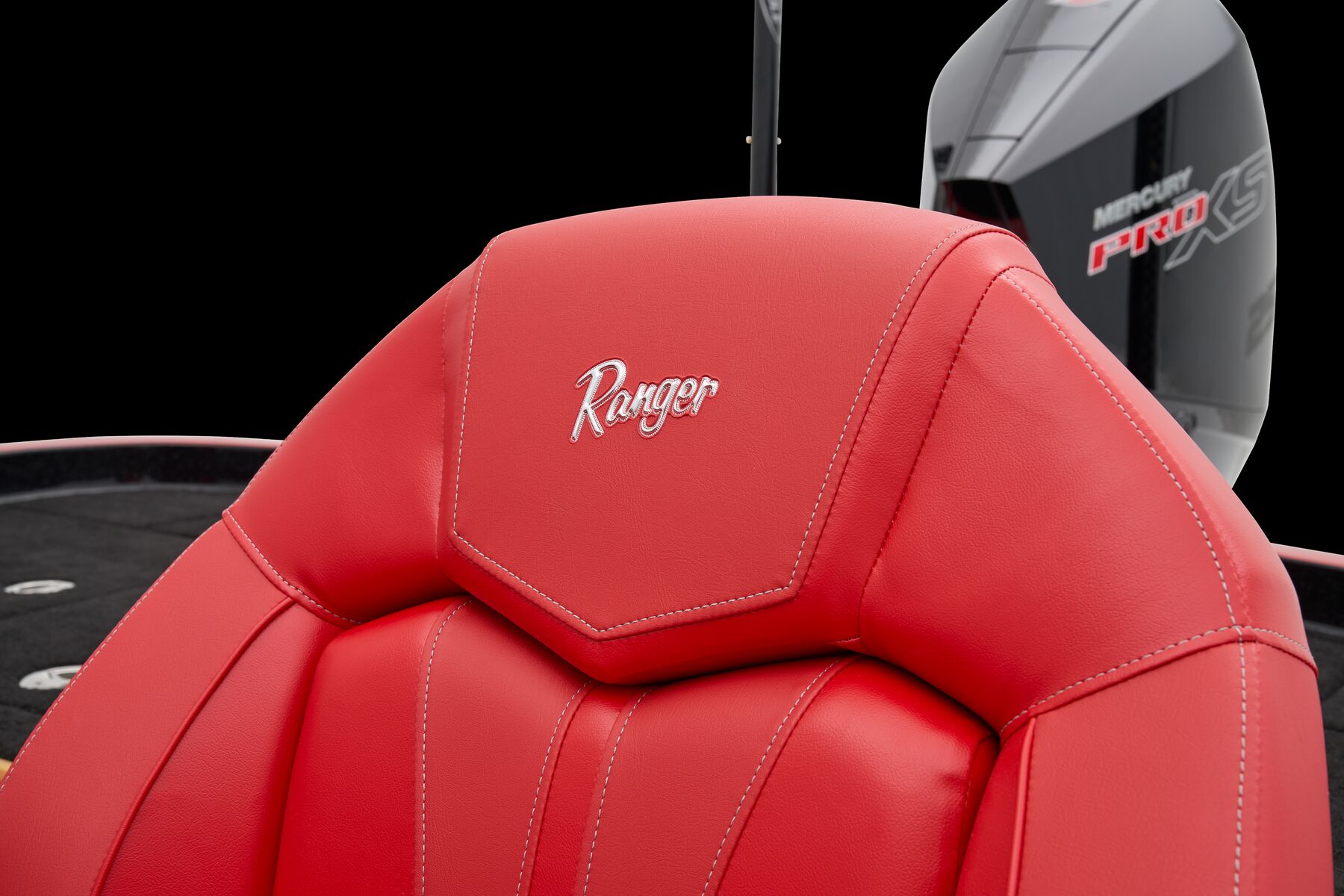

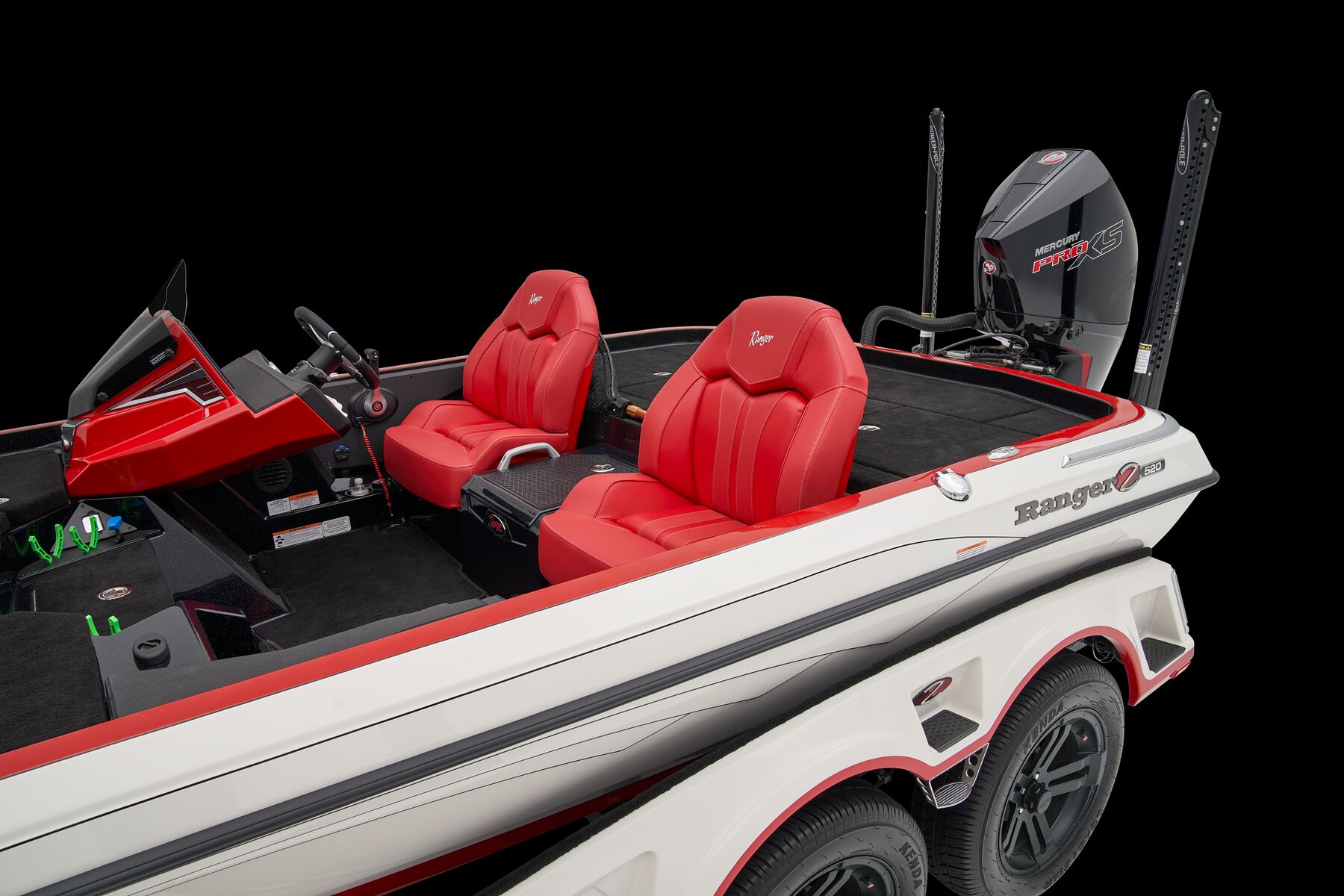

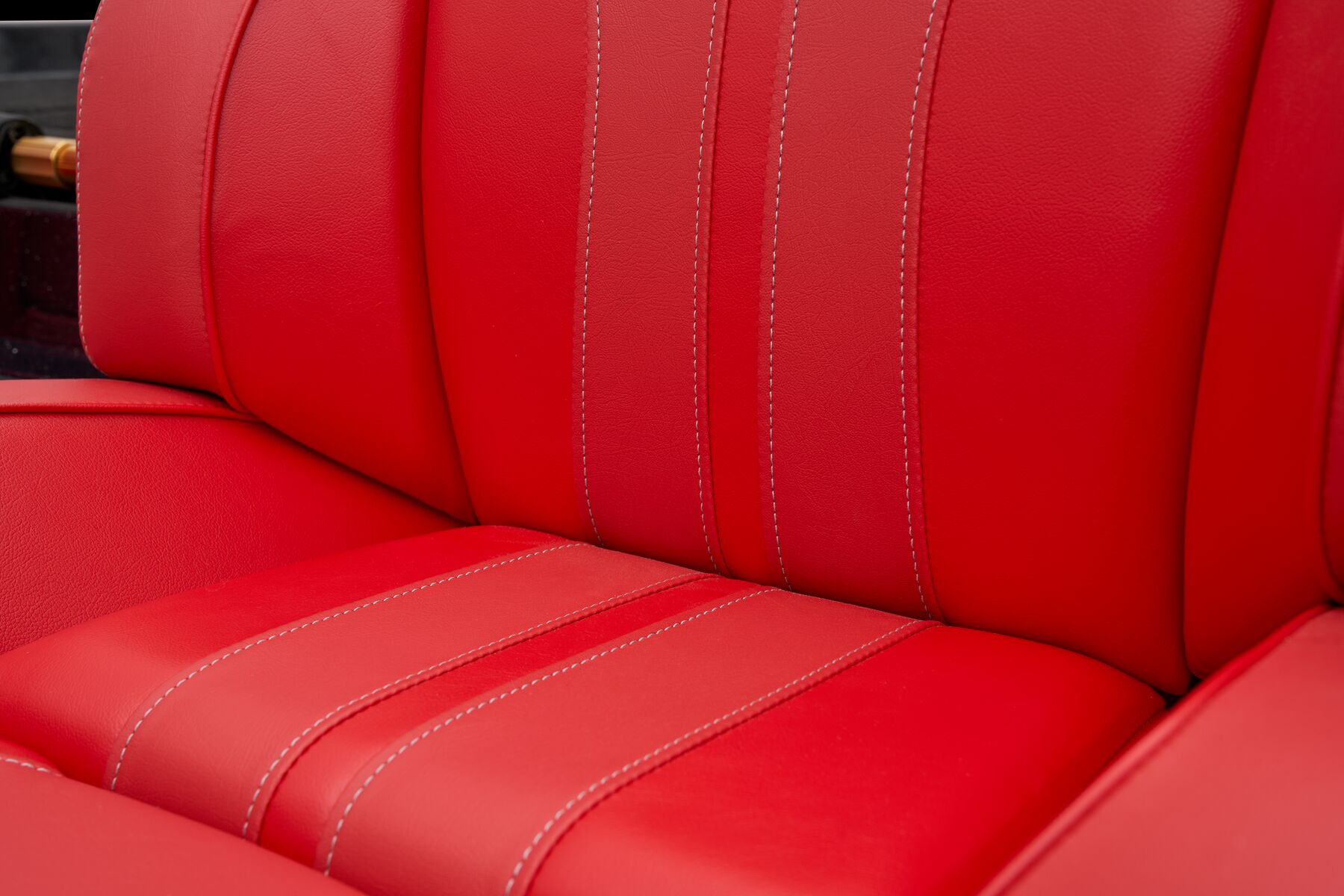

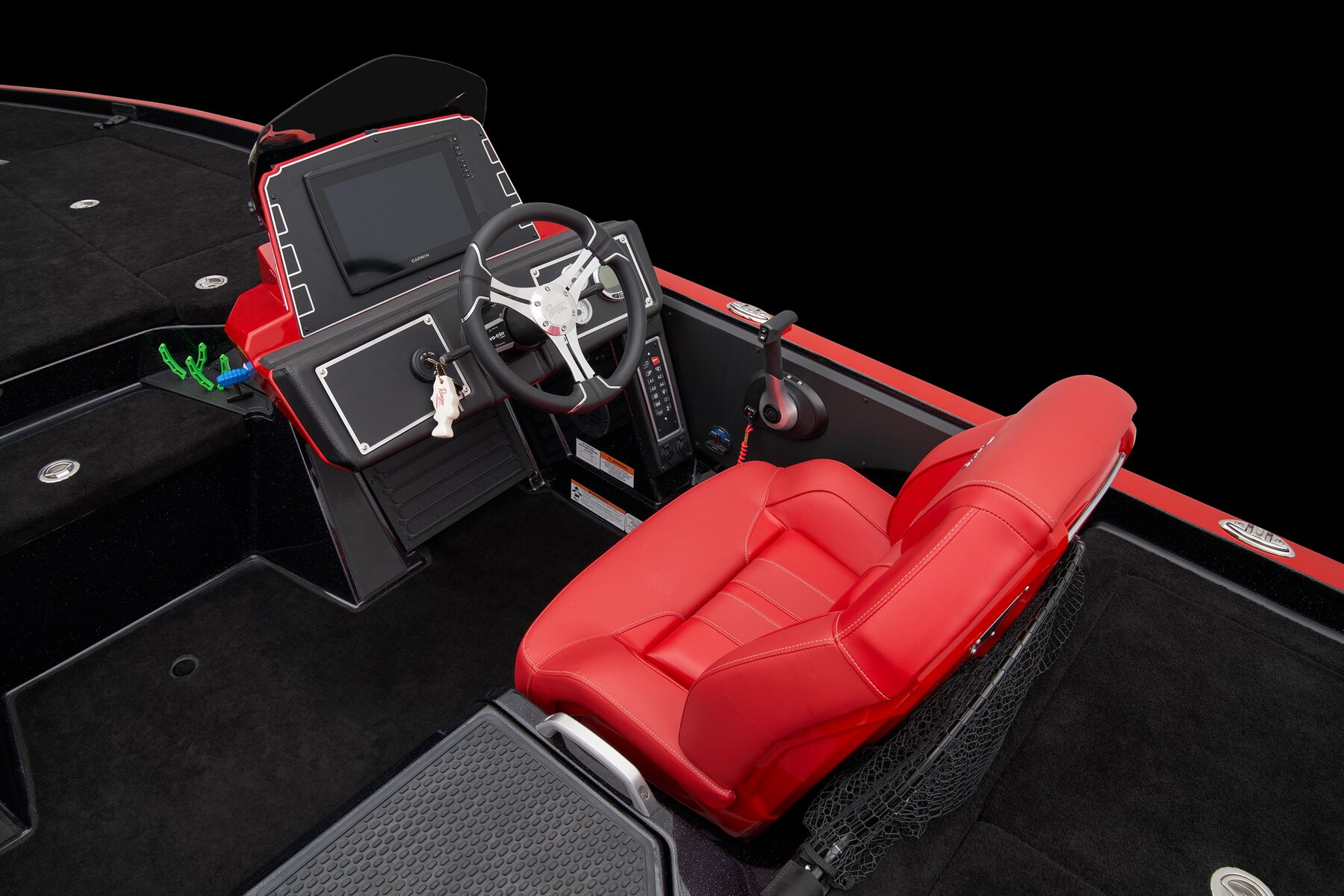

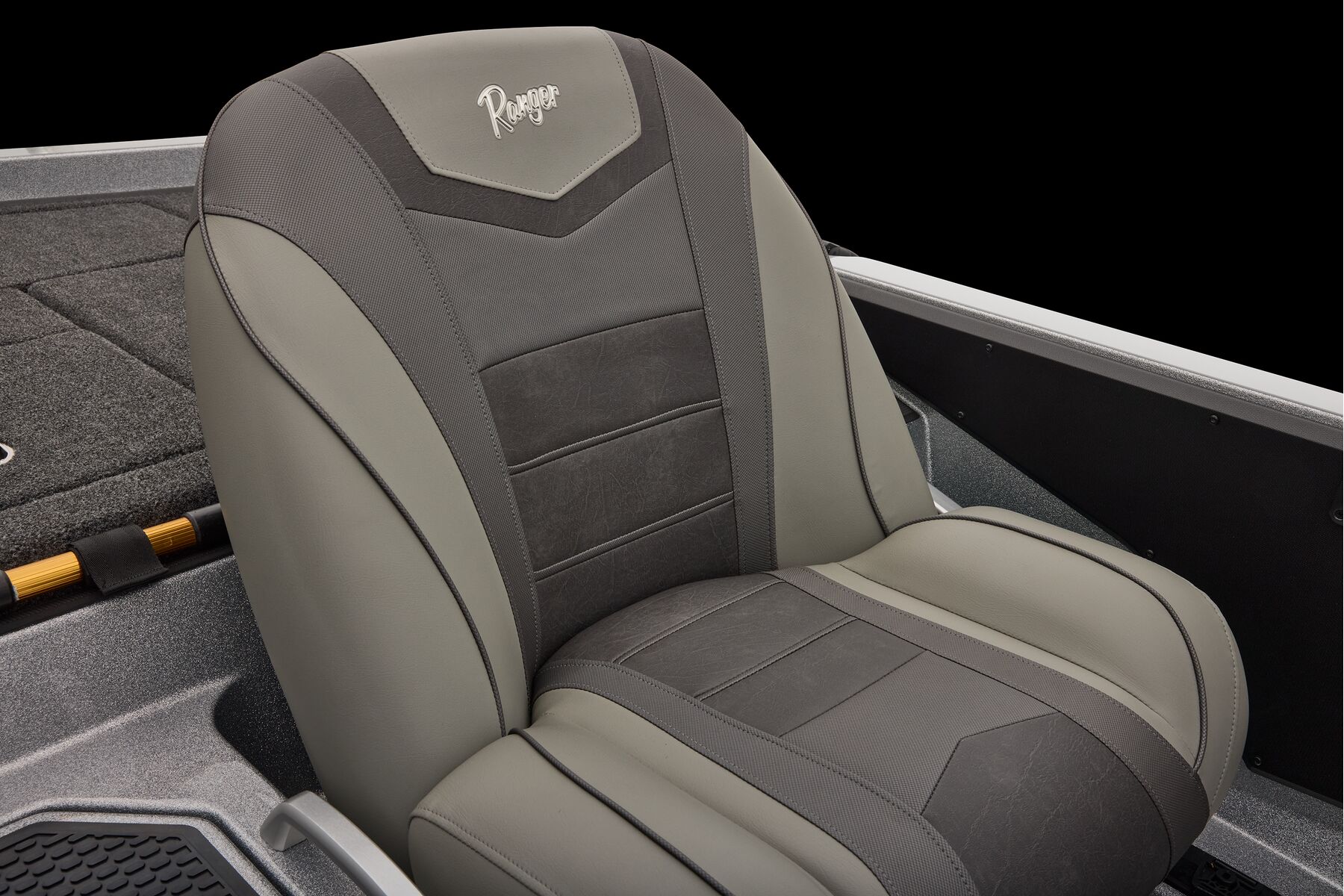

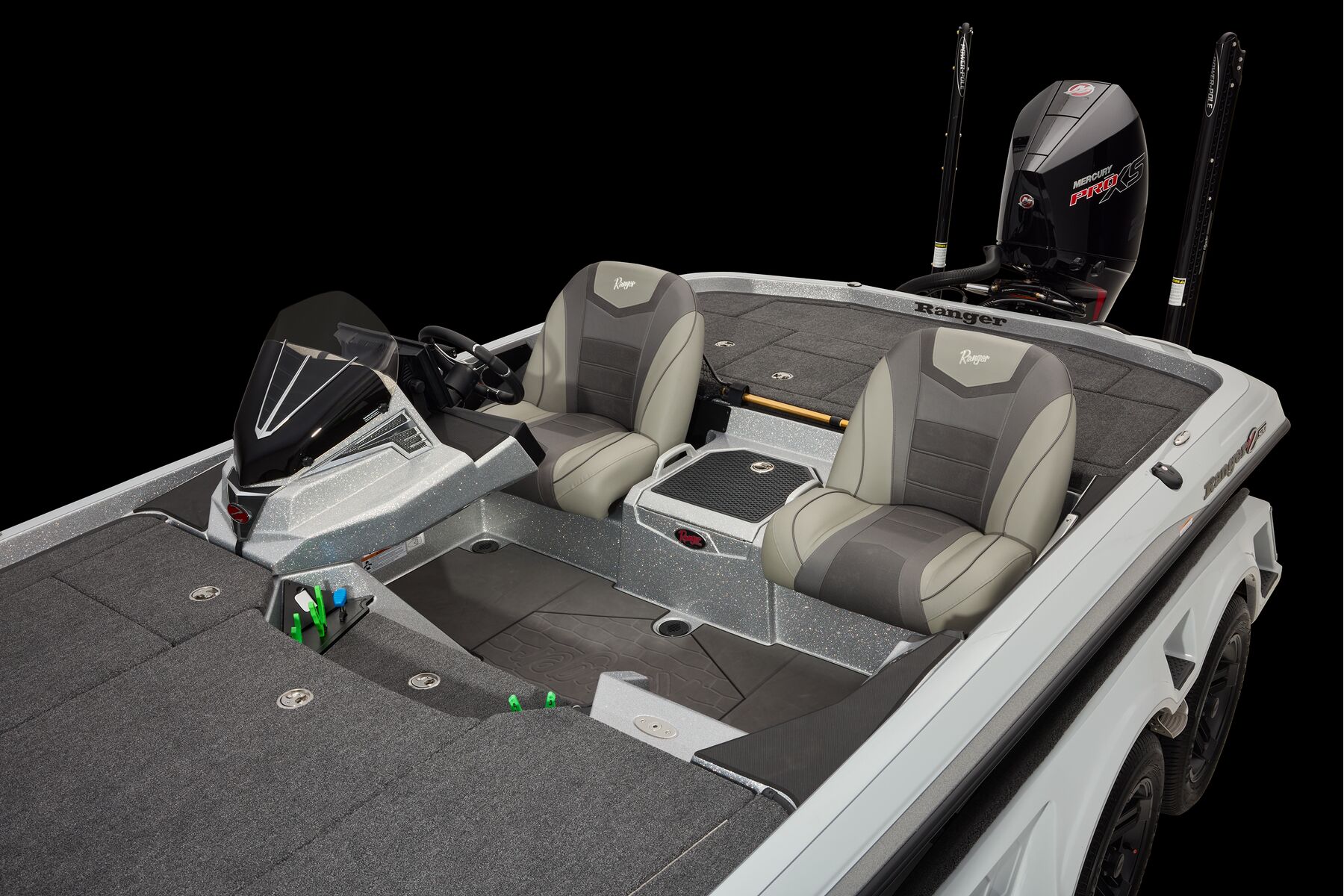

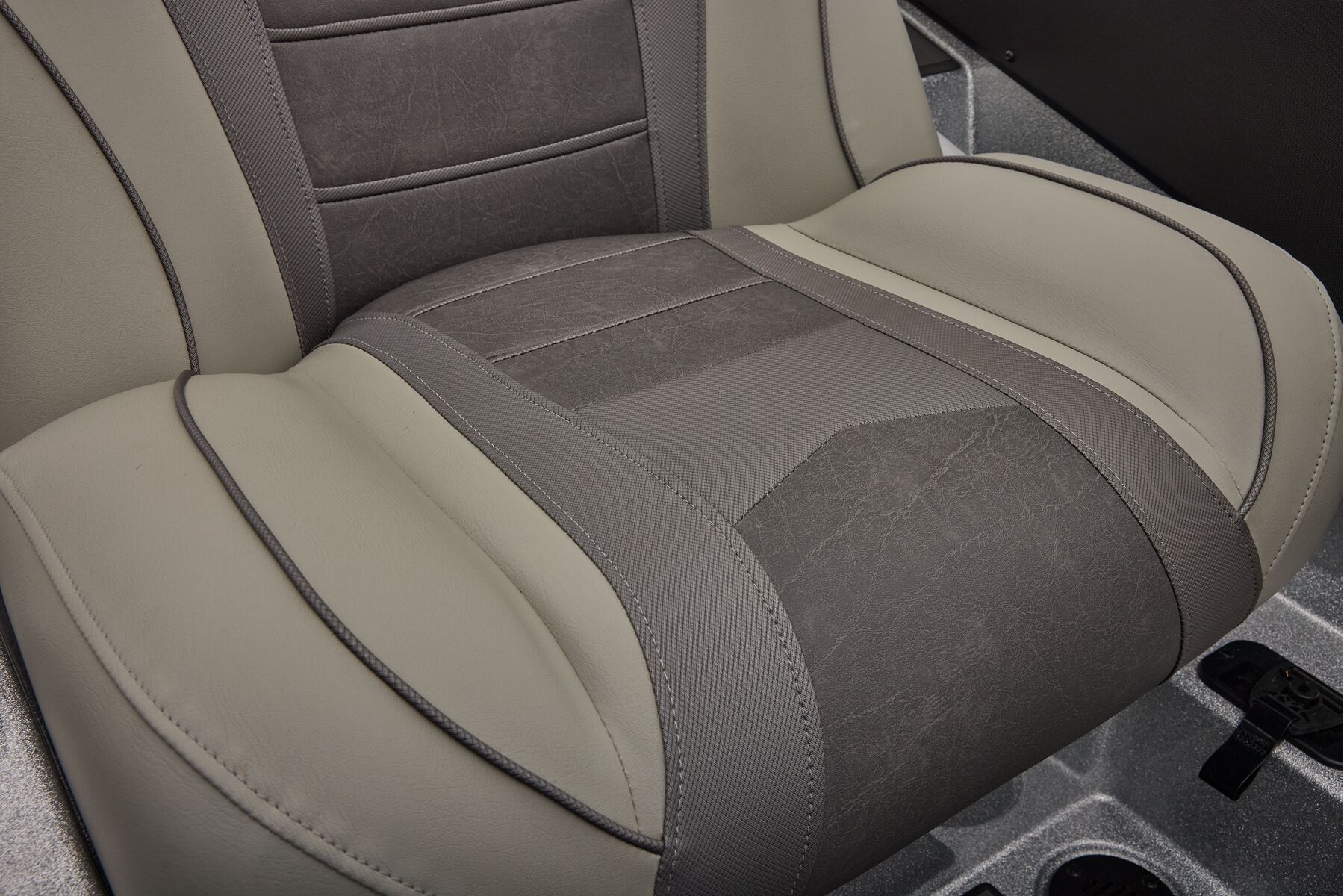

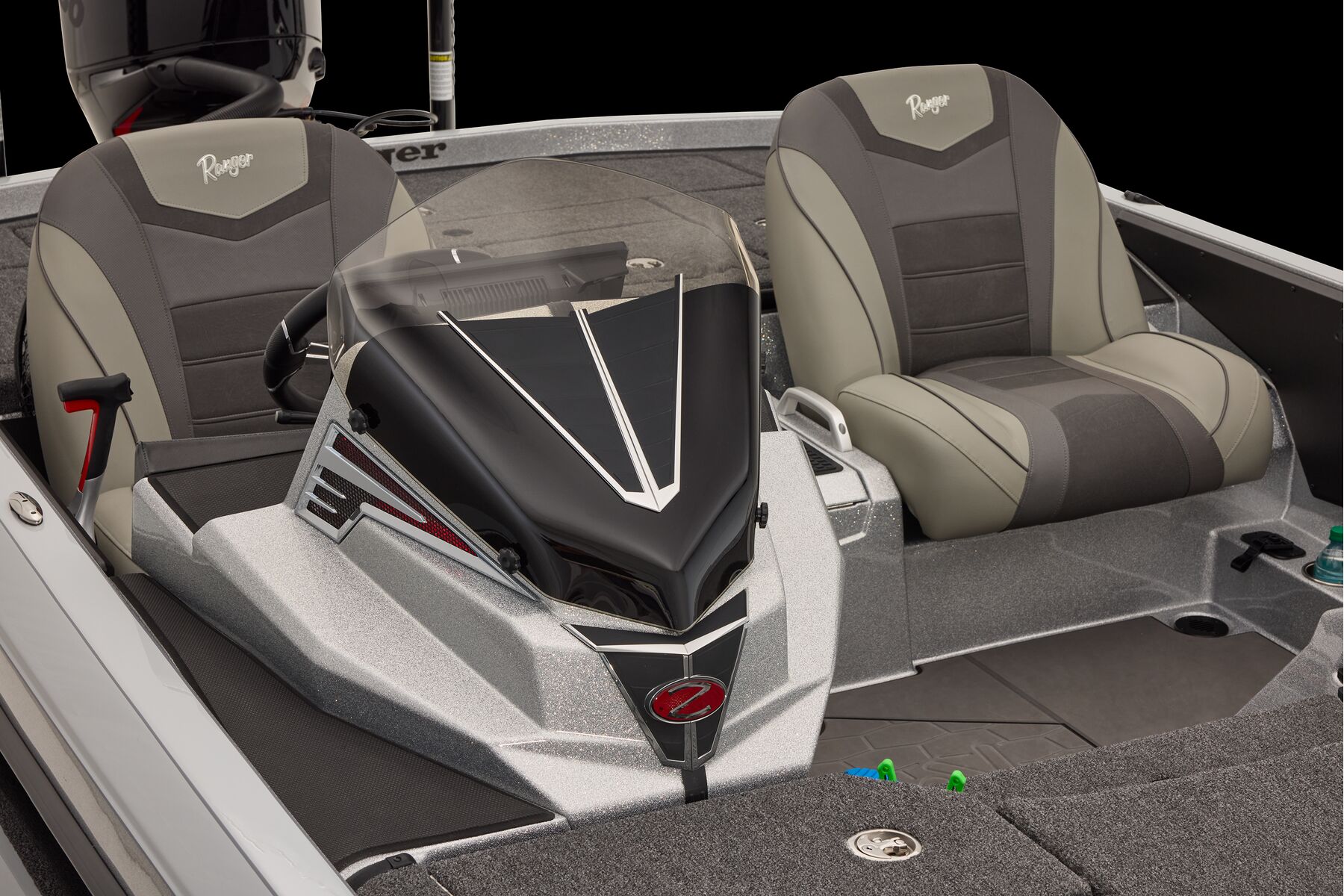

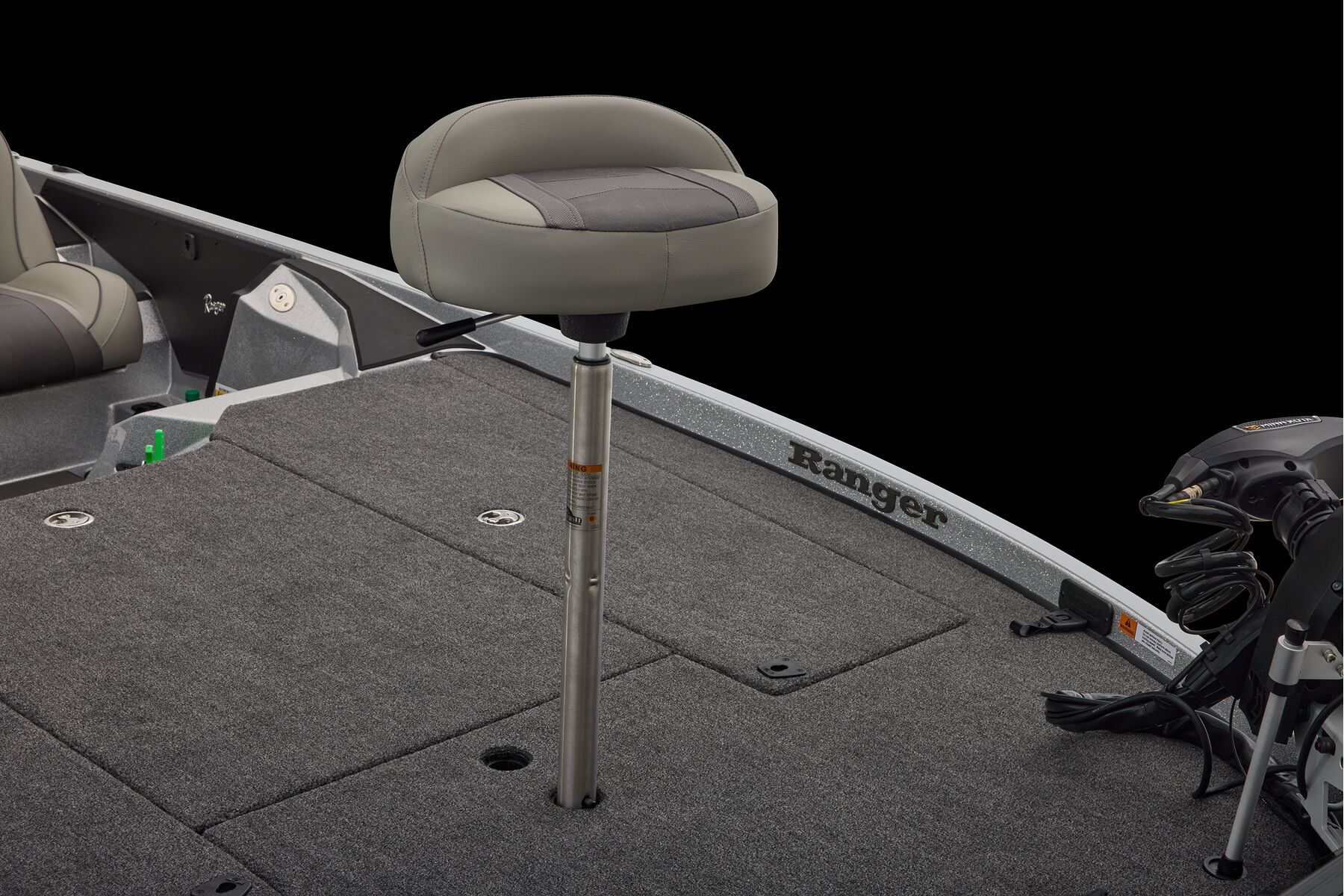

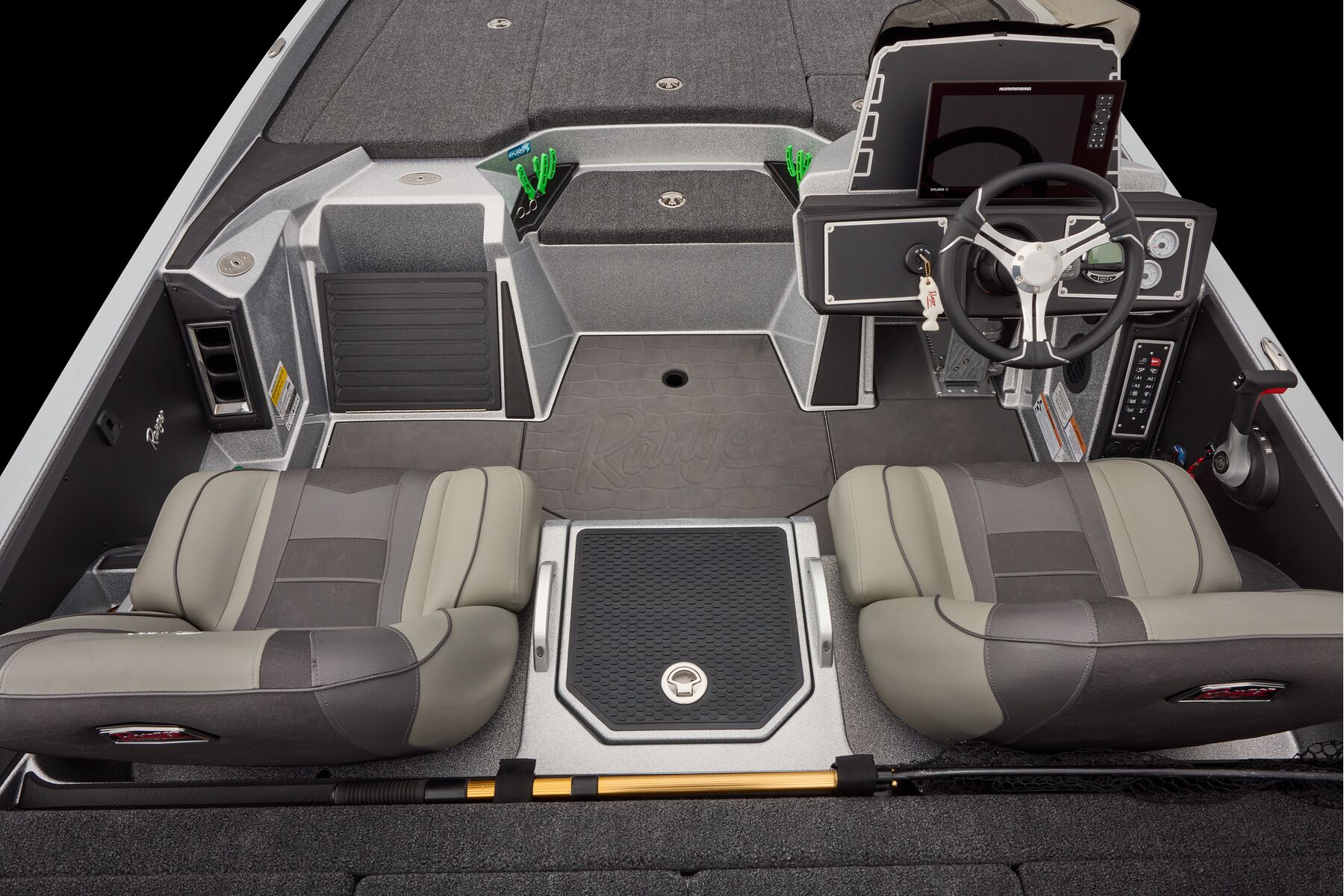

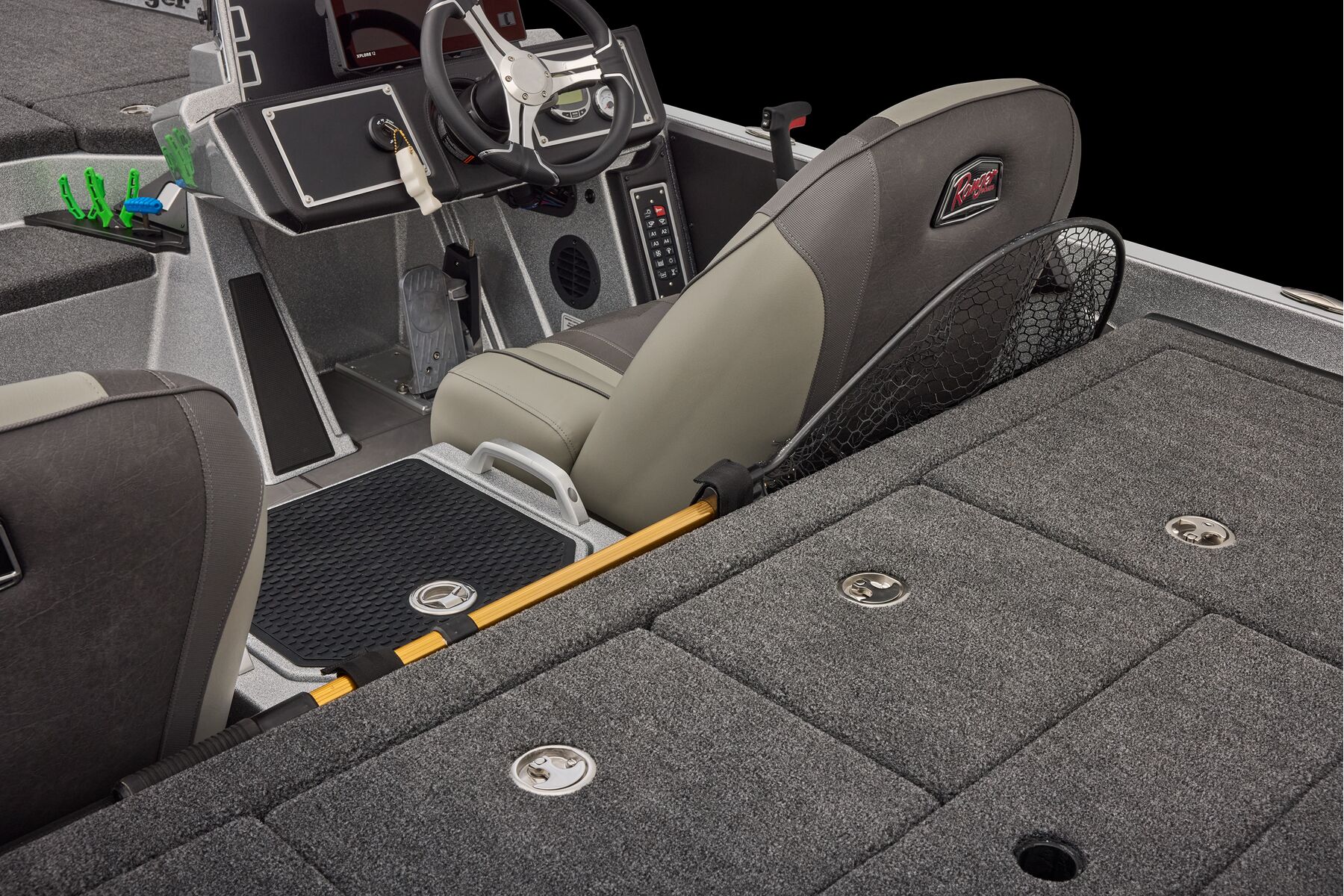

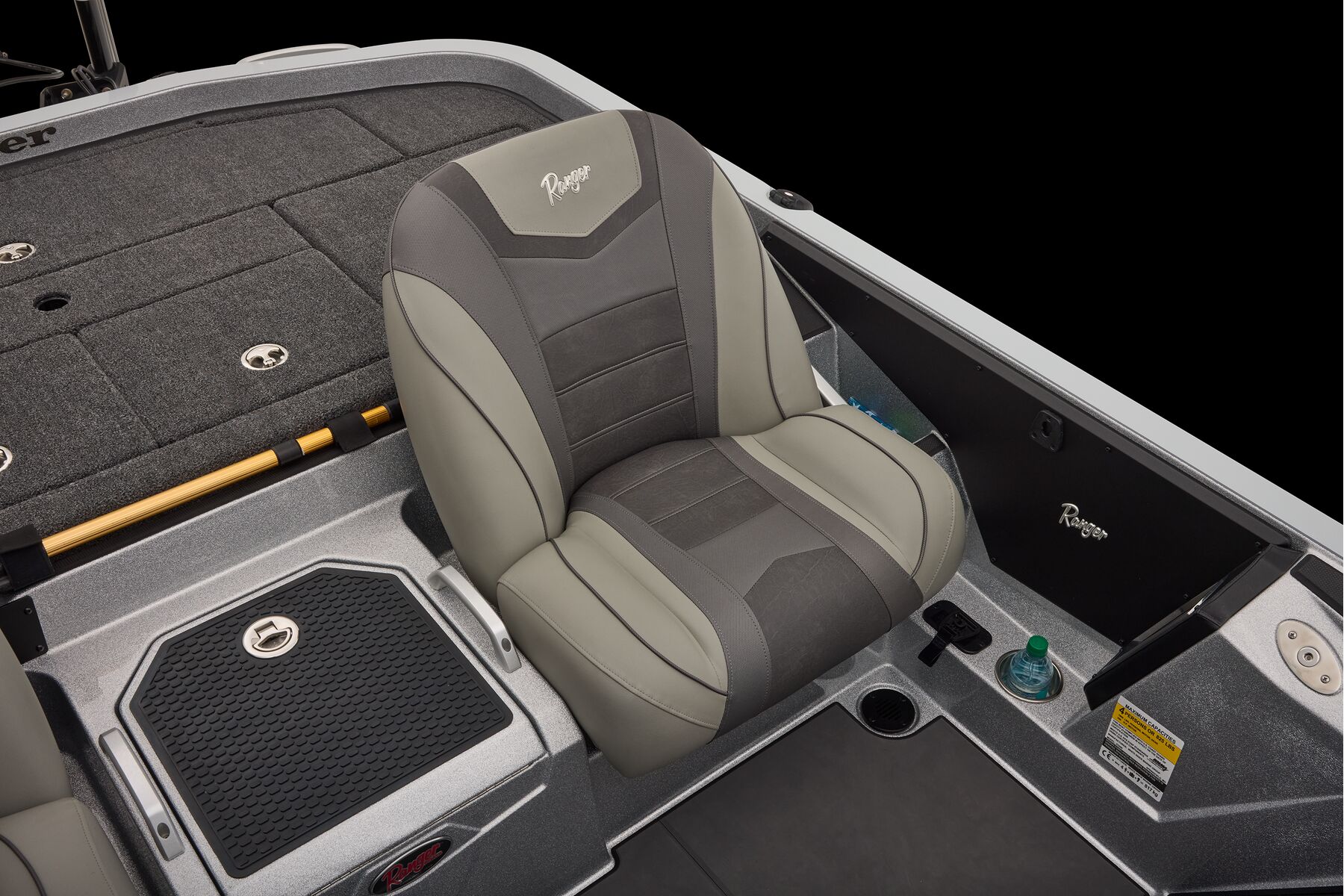

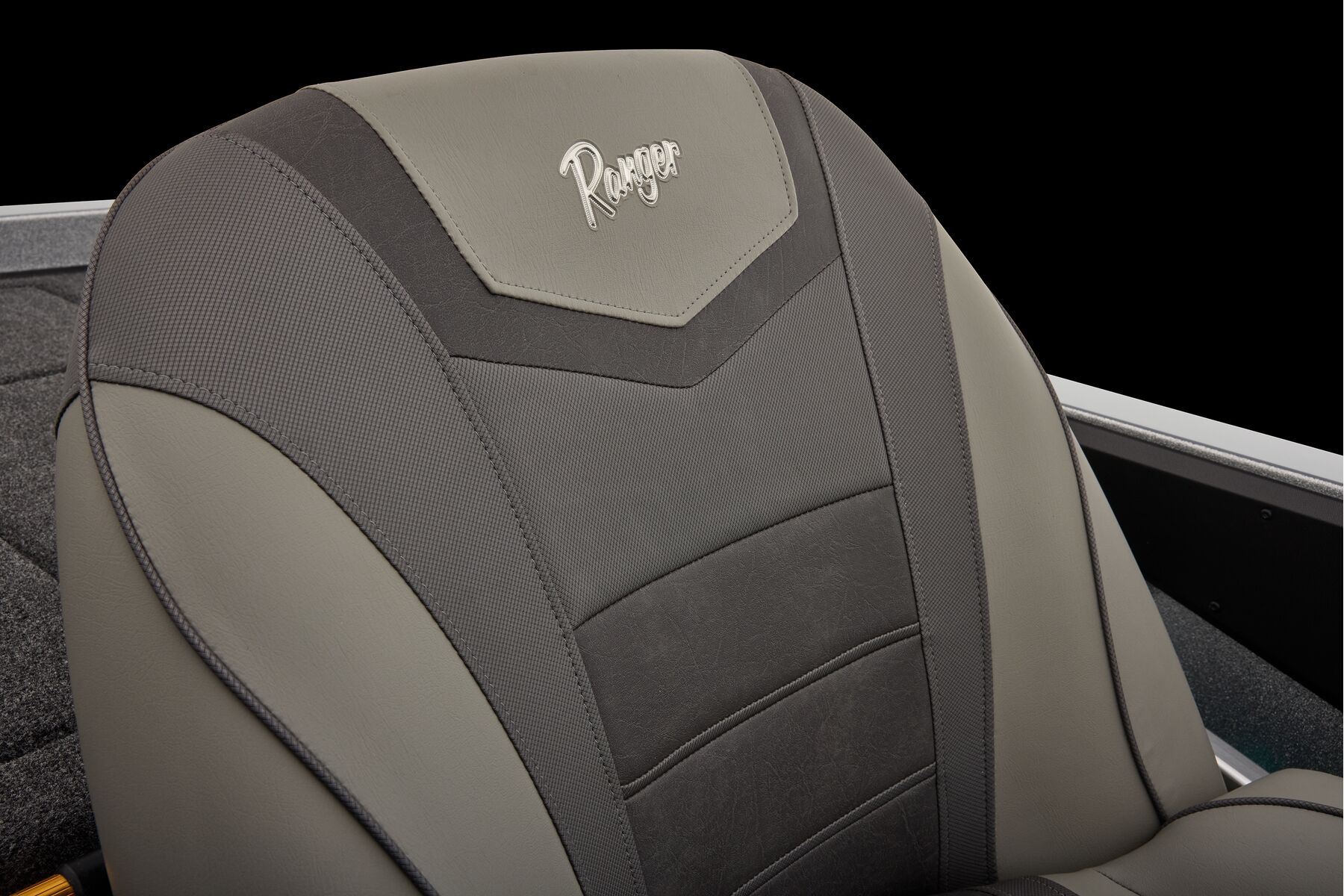

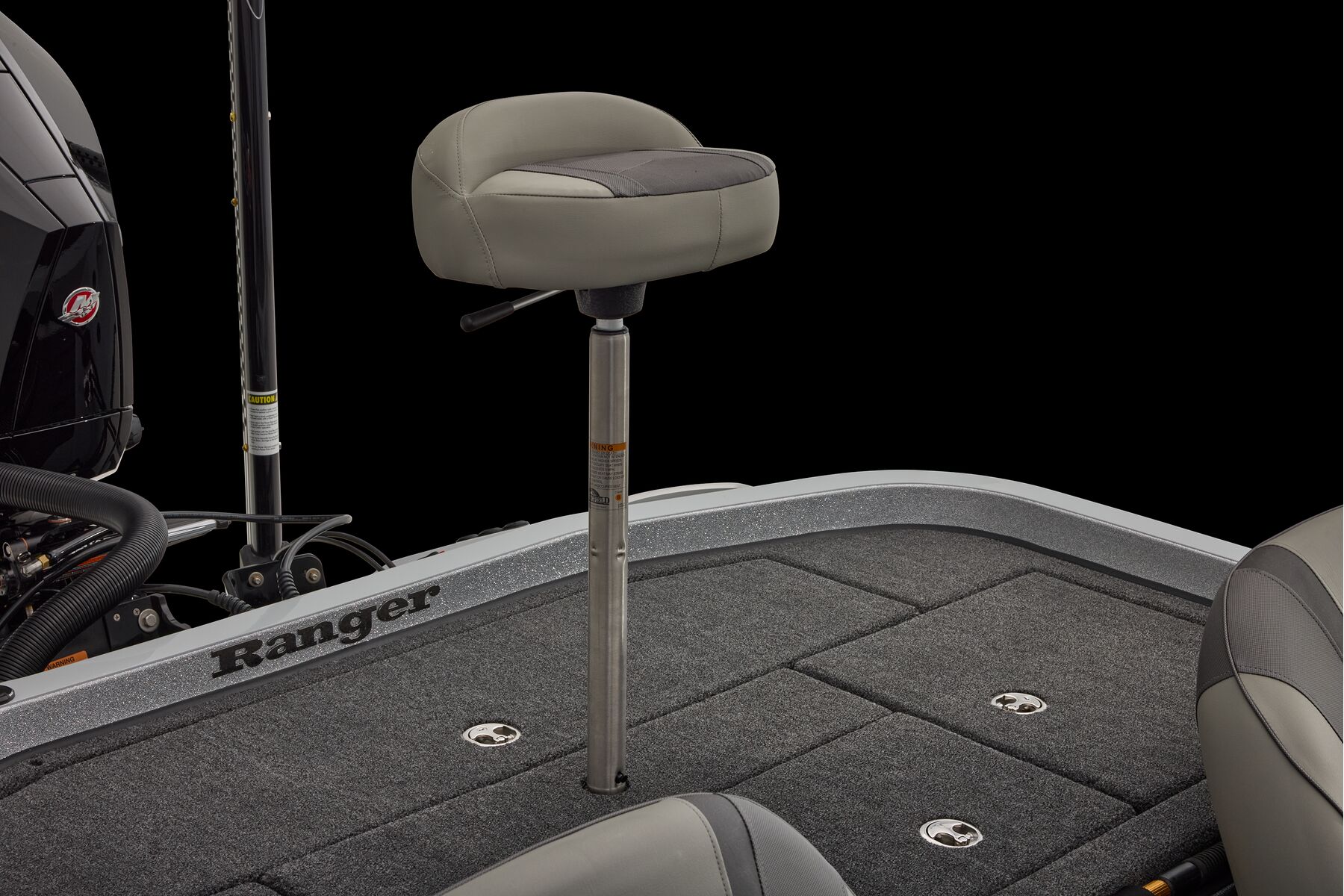

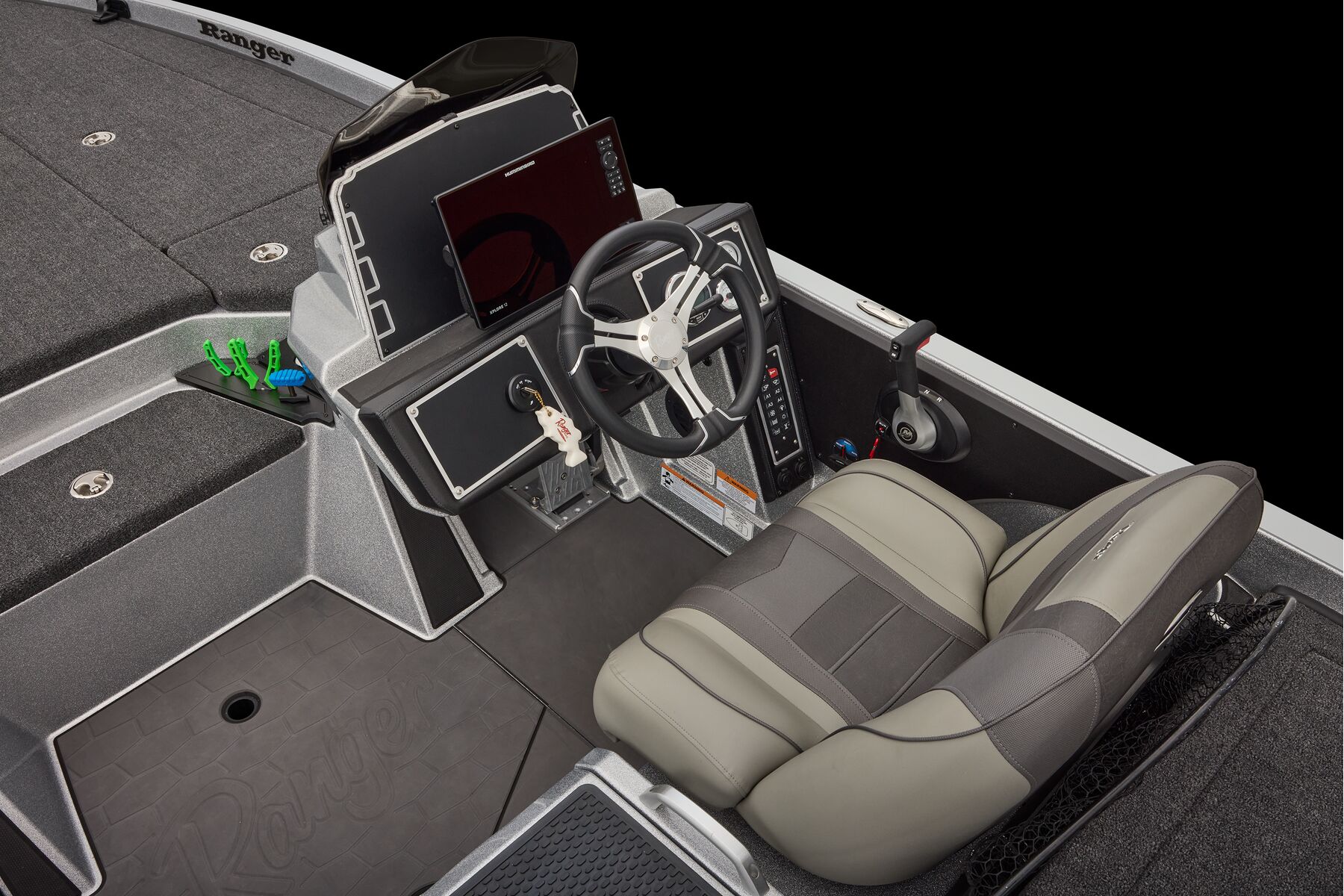

  • Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/ power pedestal
  • Padded front deck
  • Fire extinguisher & horn
  • Stainless steel seat bases

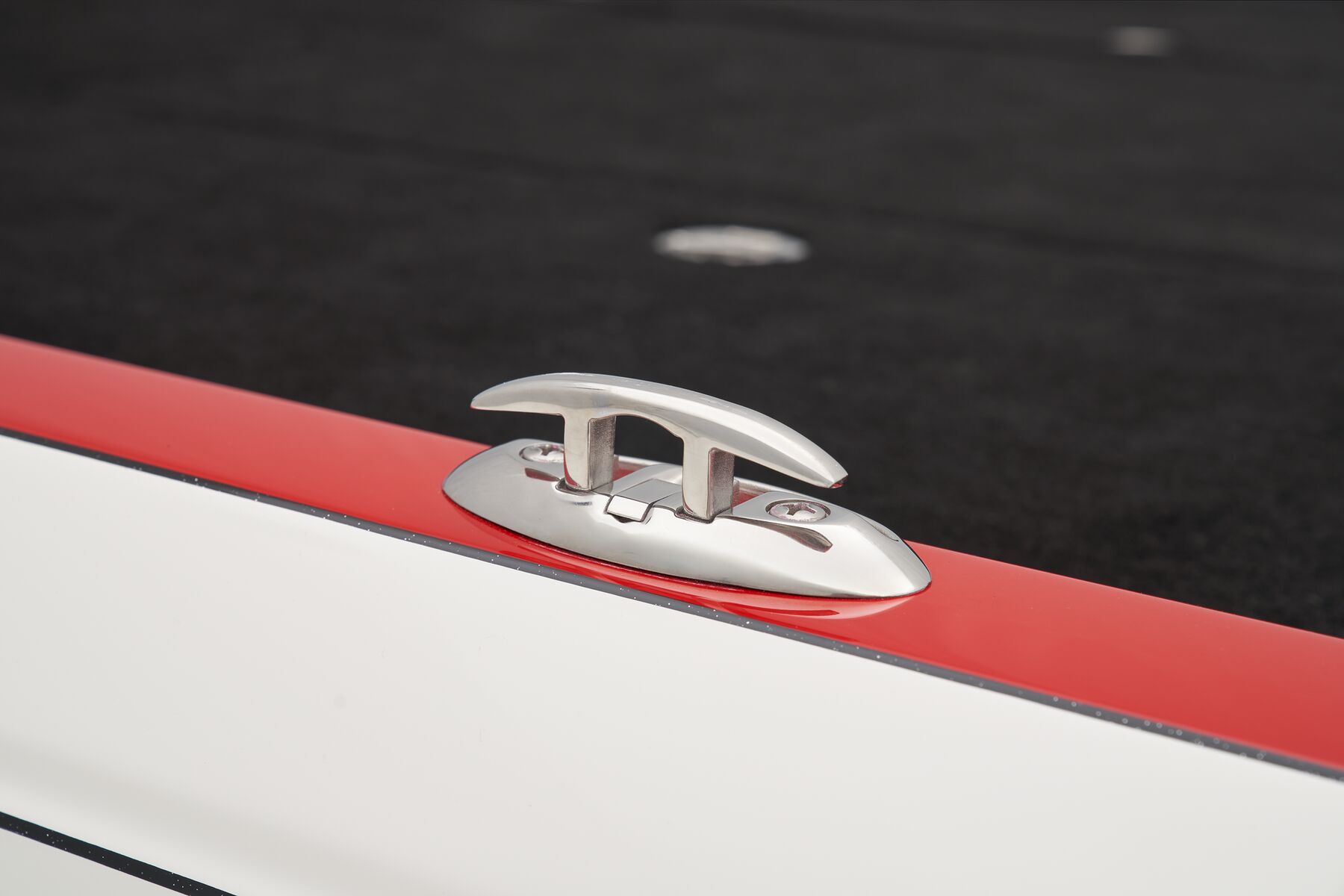

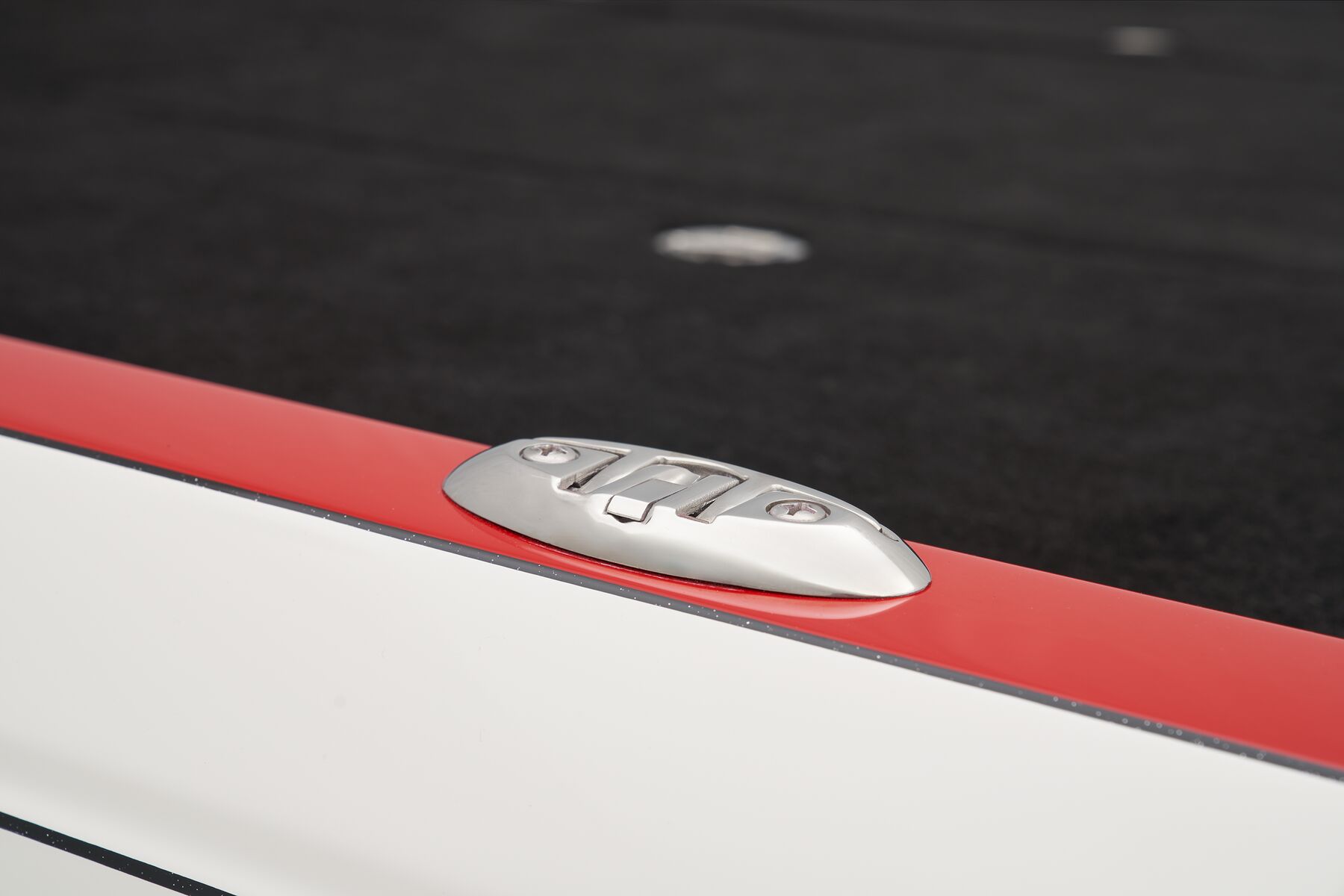

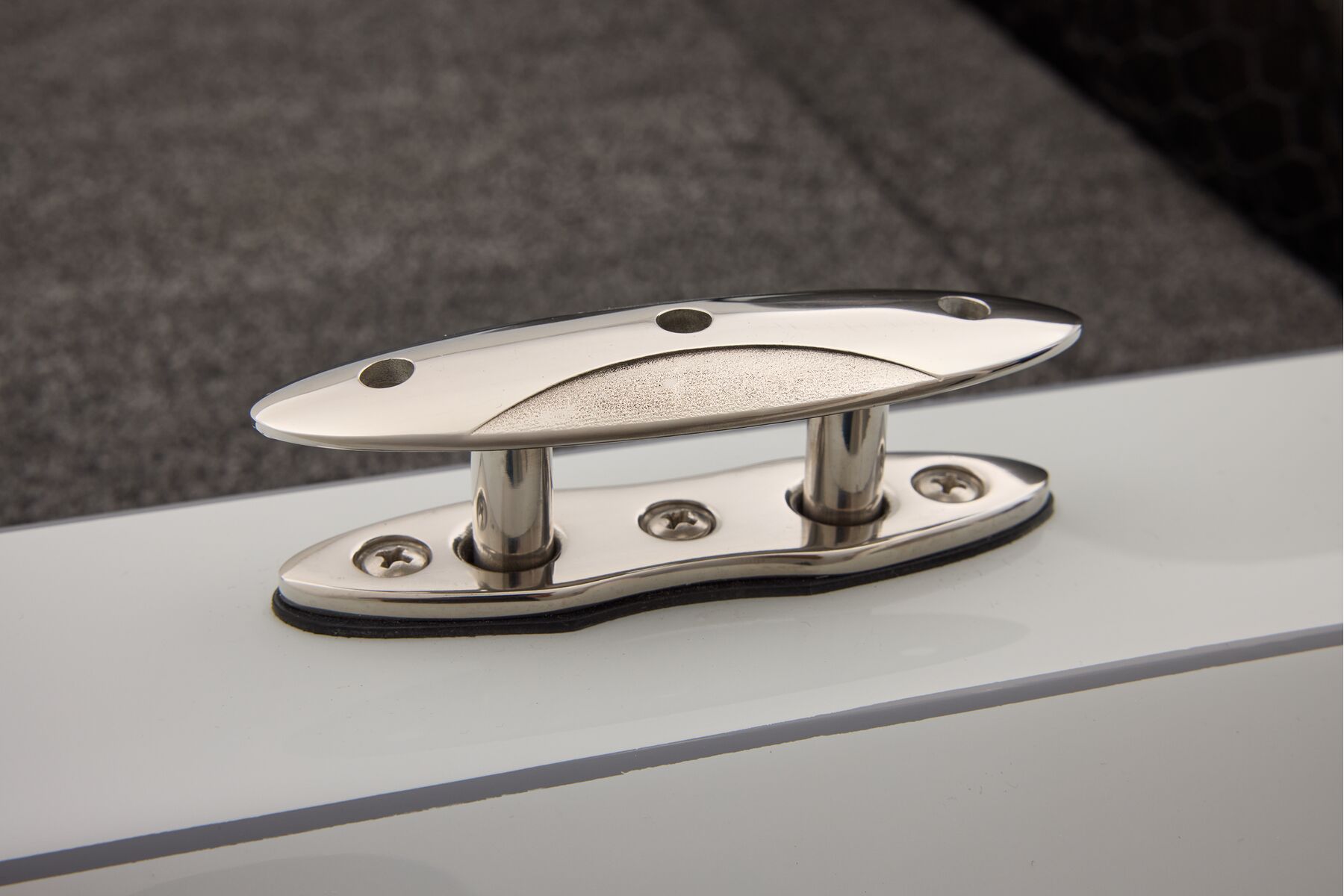

  • Pop-up tie cleats

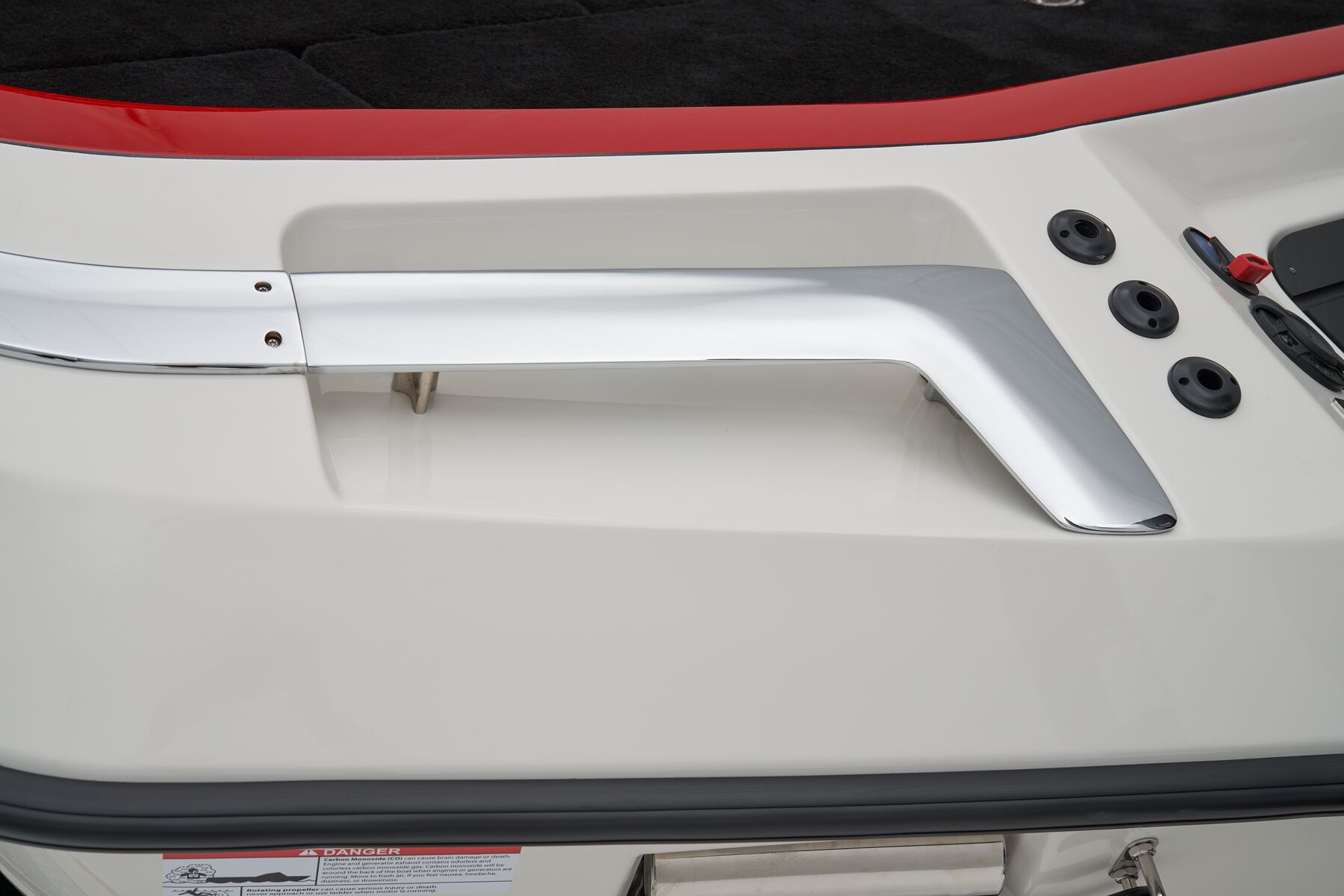

  • Integrated grab handles

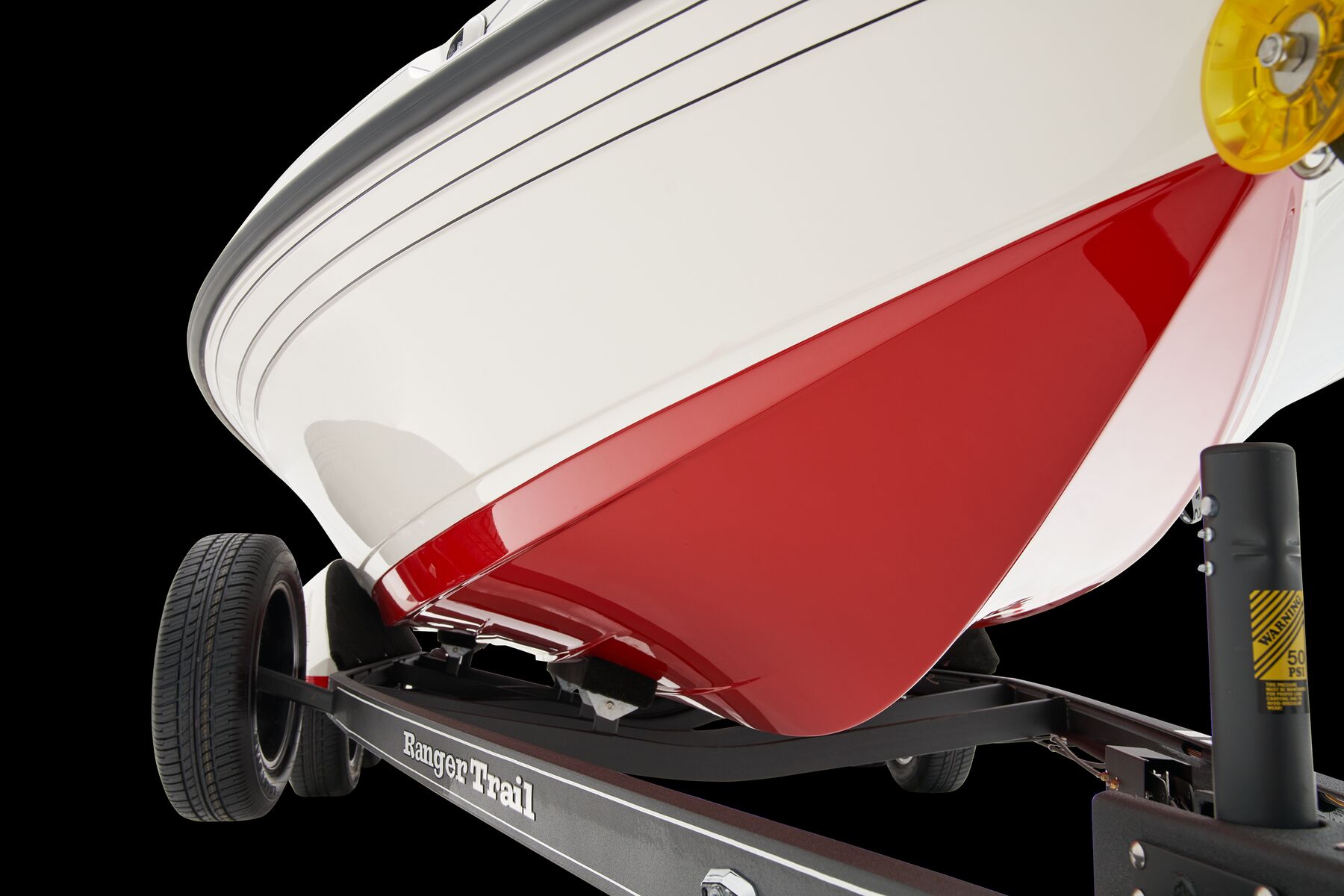

  • Rite Track Keel®
  • Automatic & manual bilge pumps

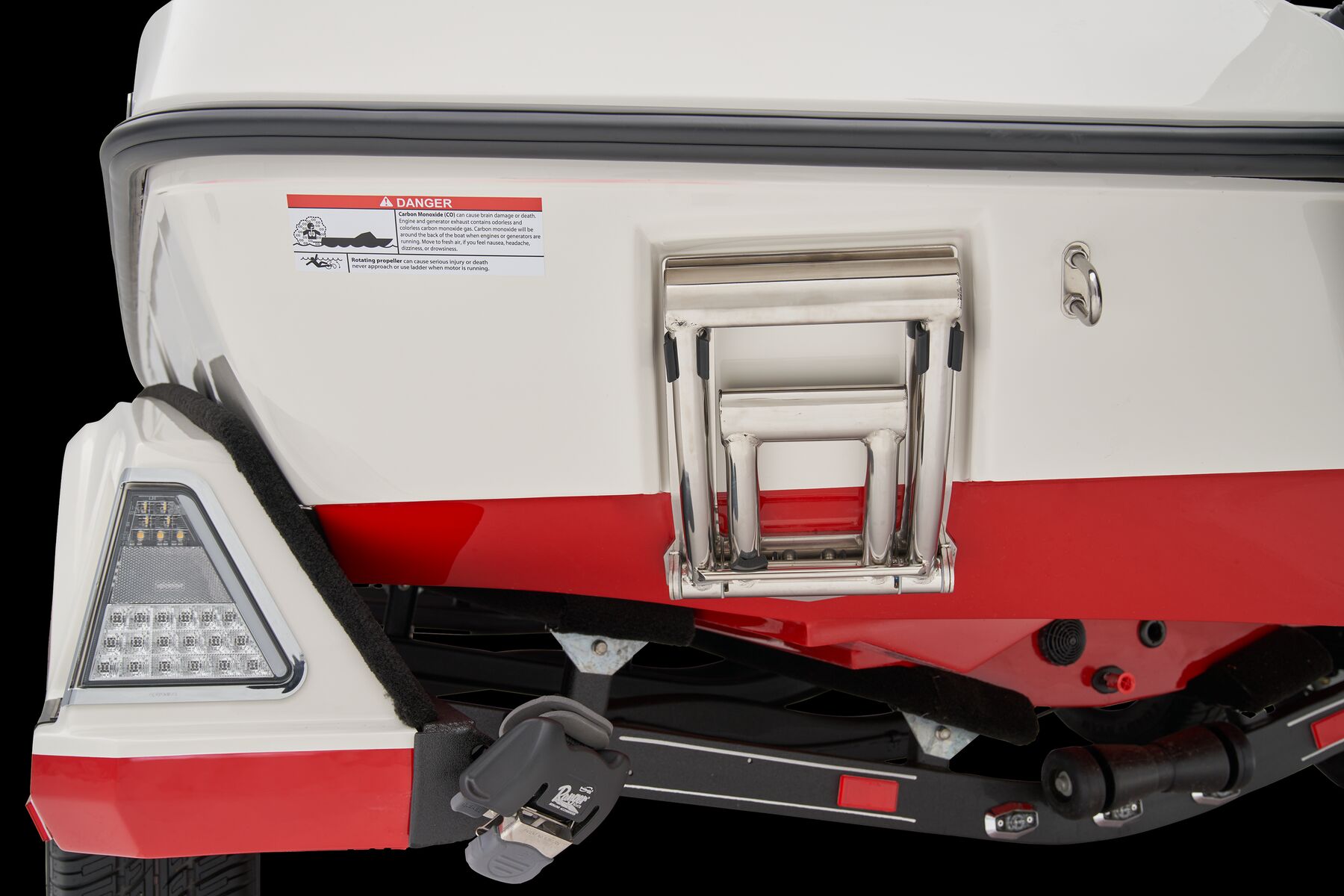

  • Integrated re-boarding ladder

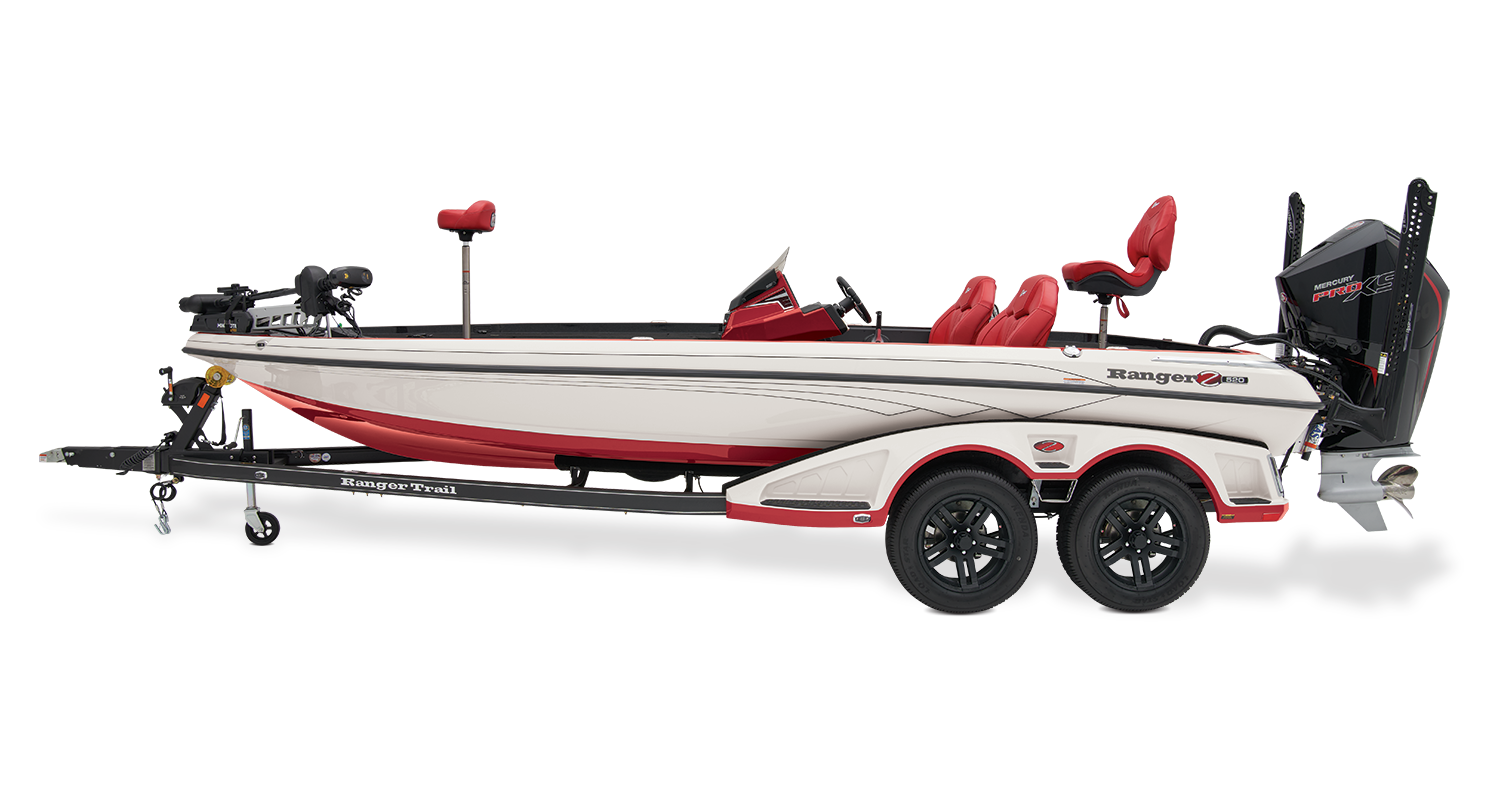

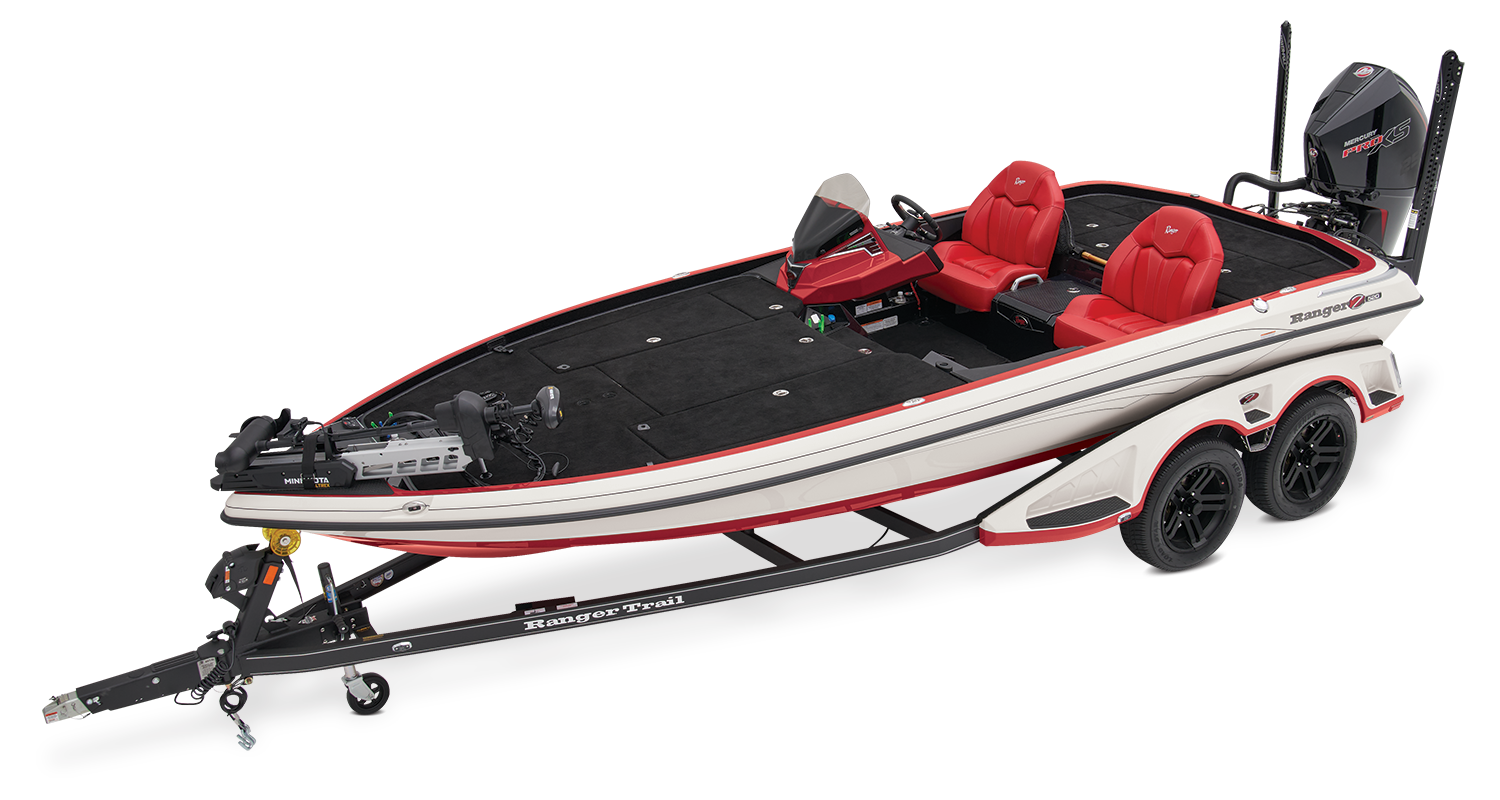

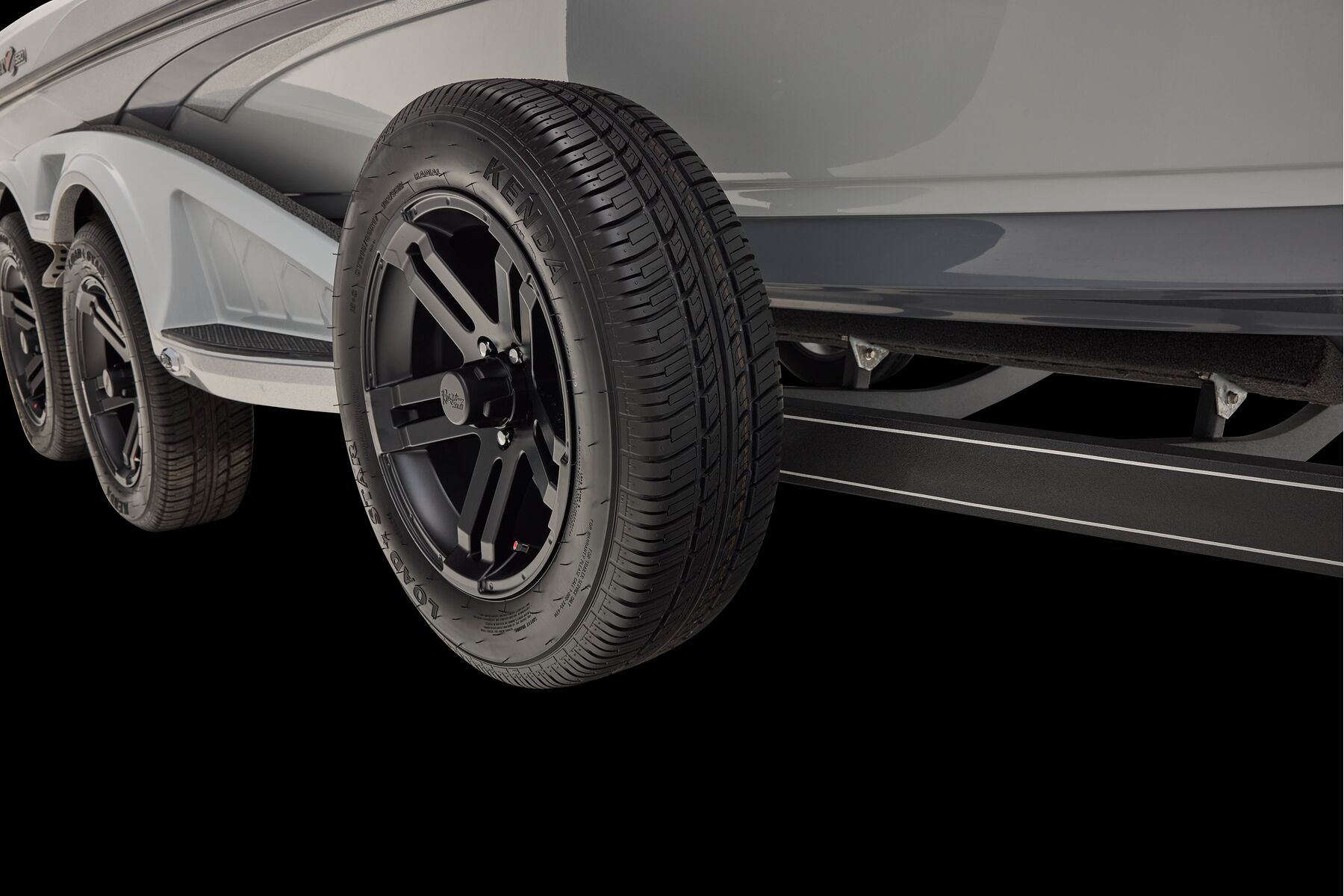

Trailer Features
  • Ranger® Boats Road Armor Equipped® trailer protectant coating
  • Ranger Trail® Vault® Hub lubrication system

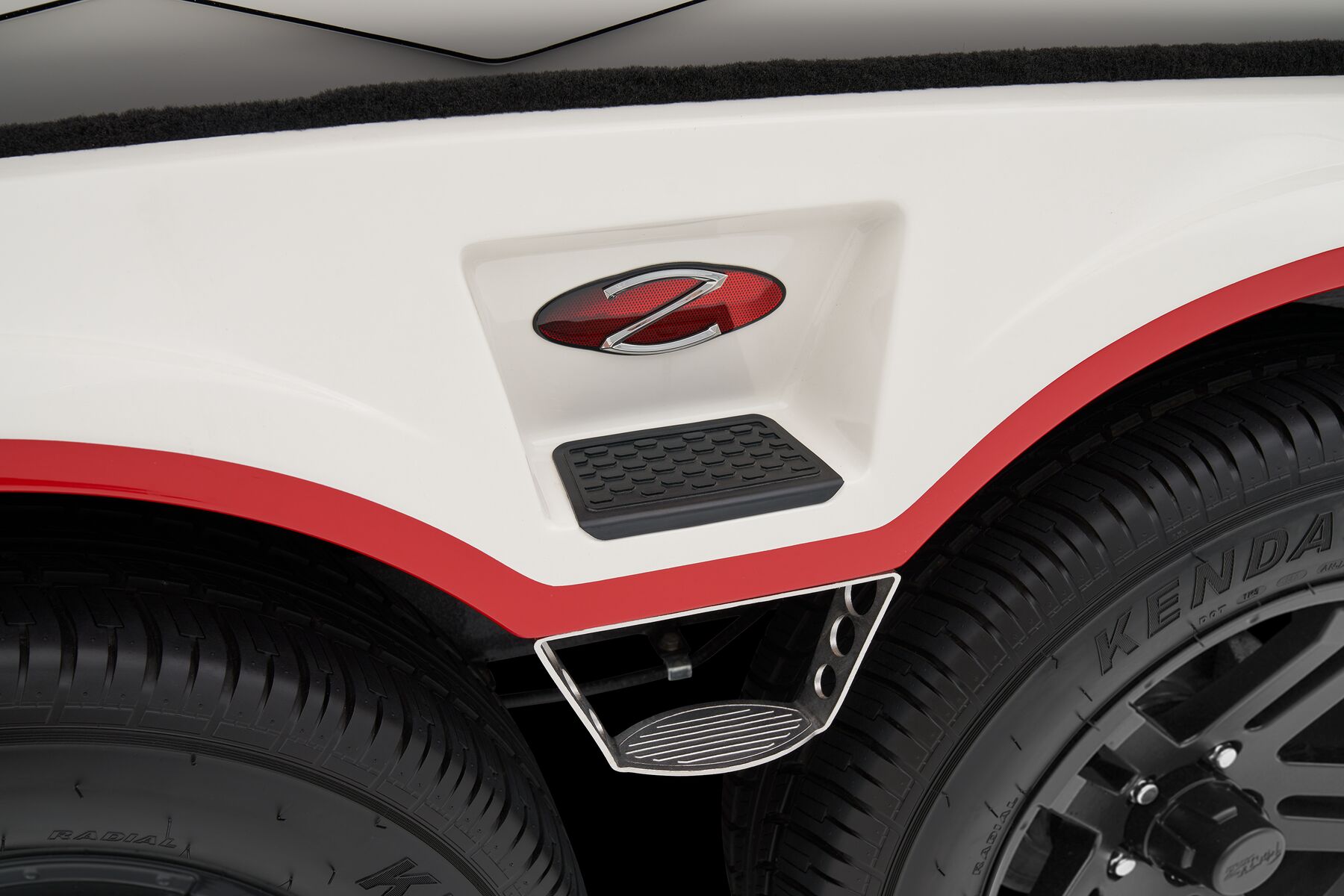

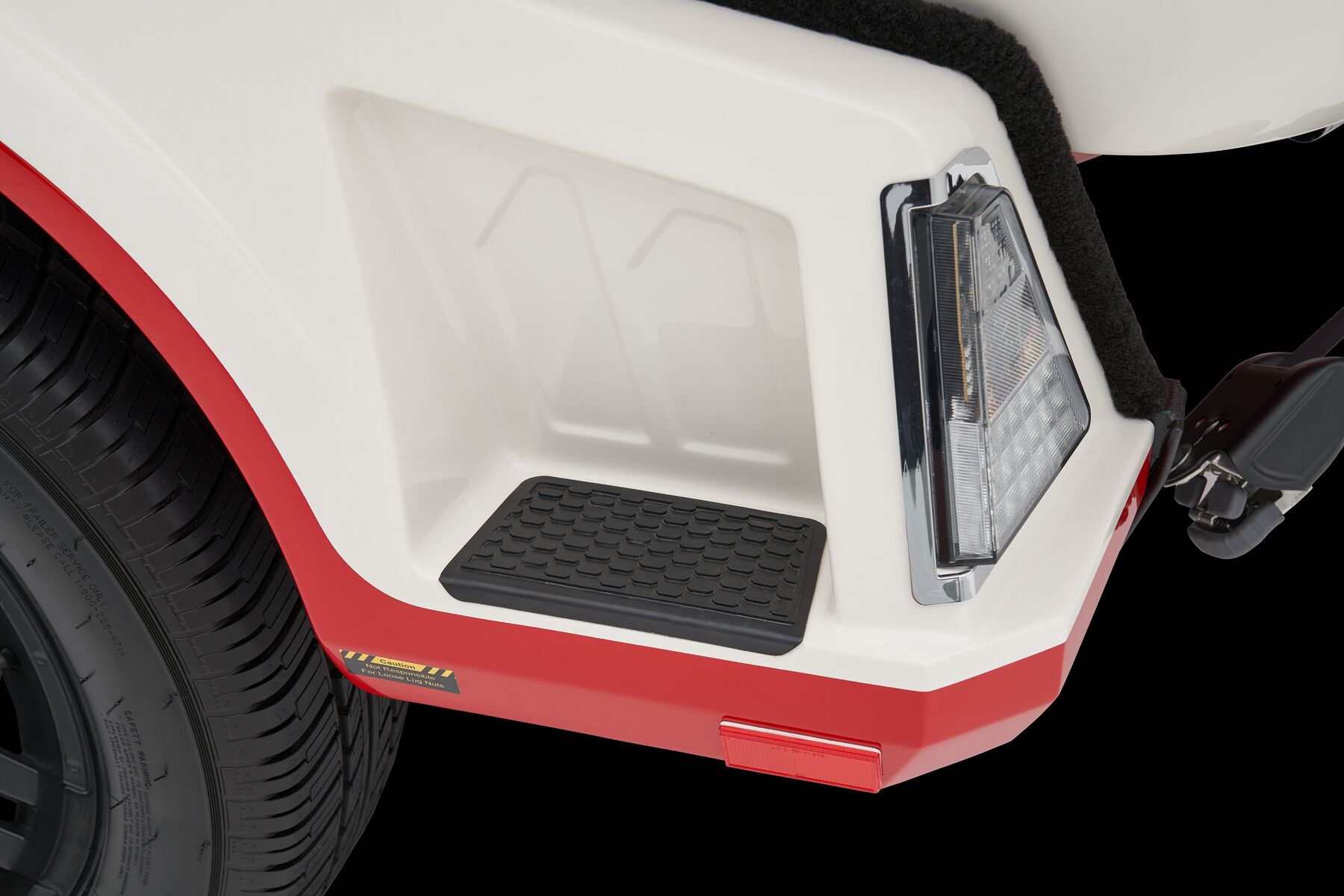

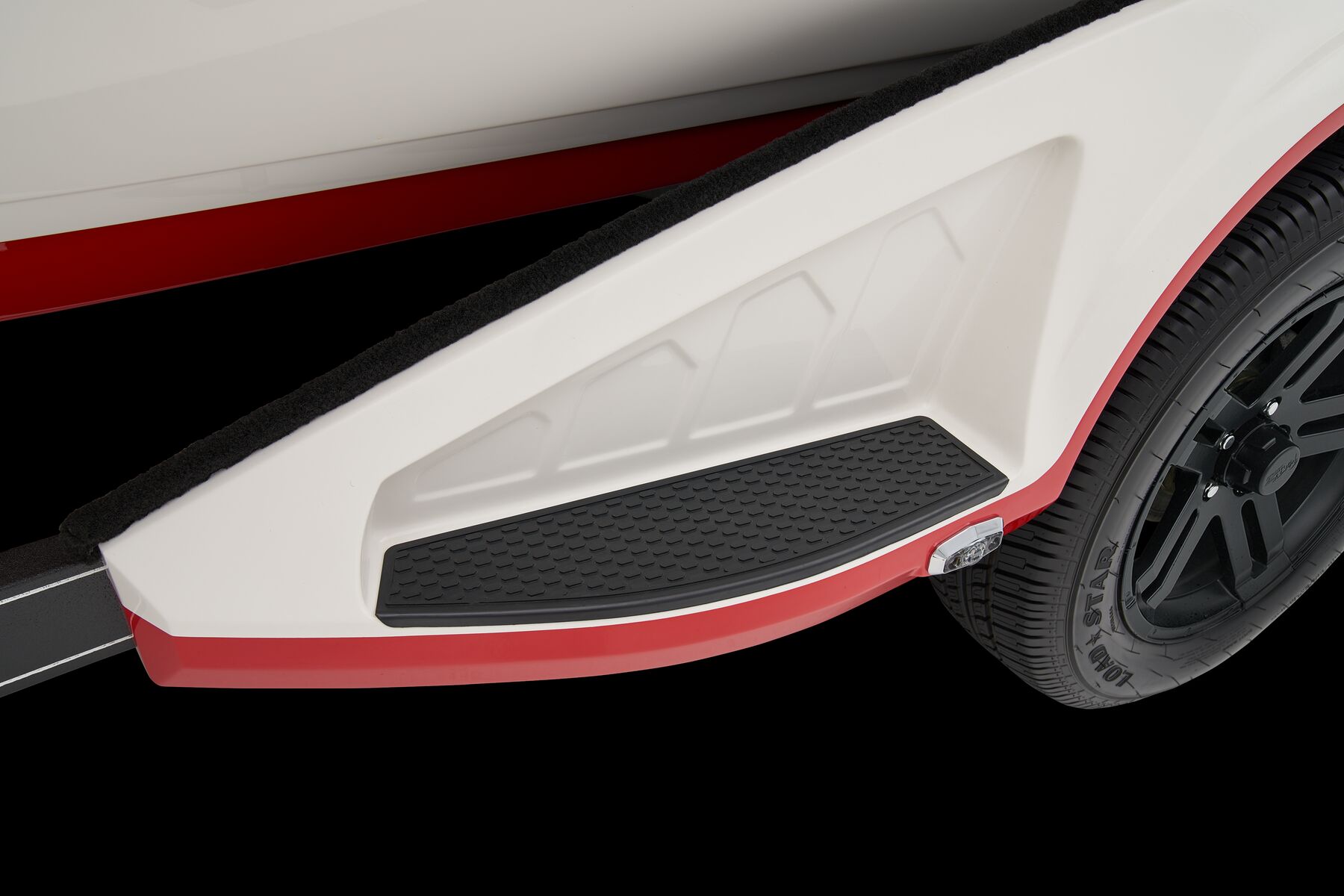

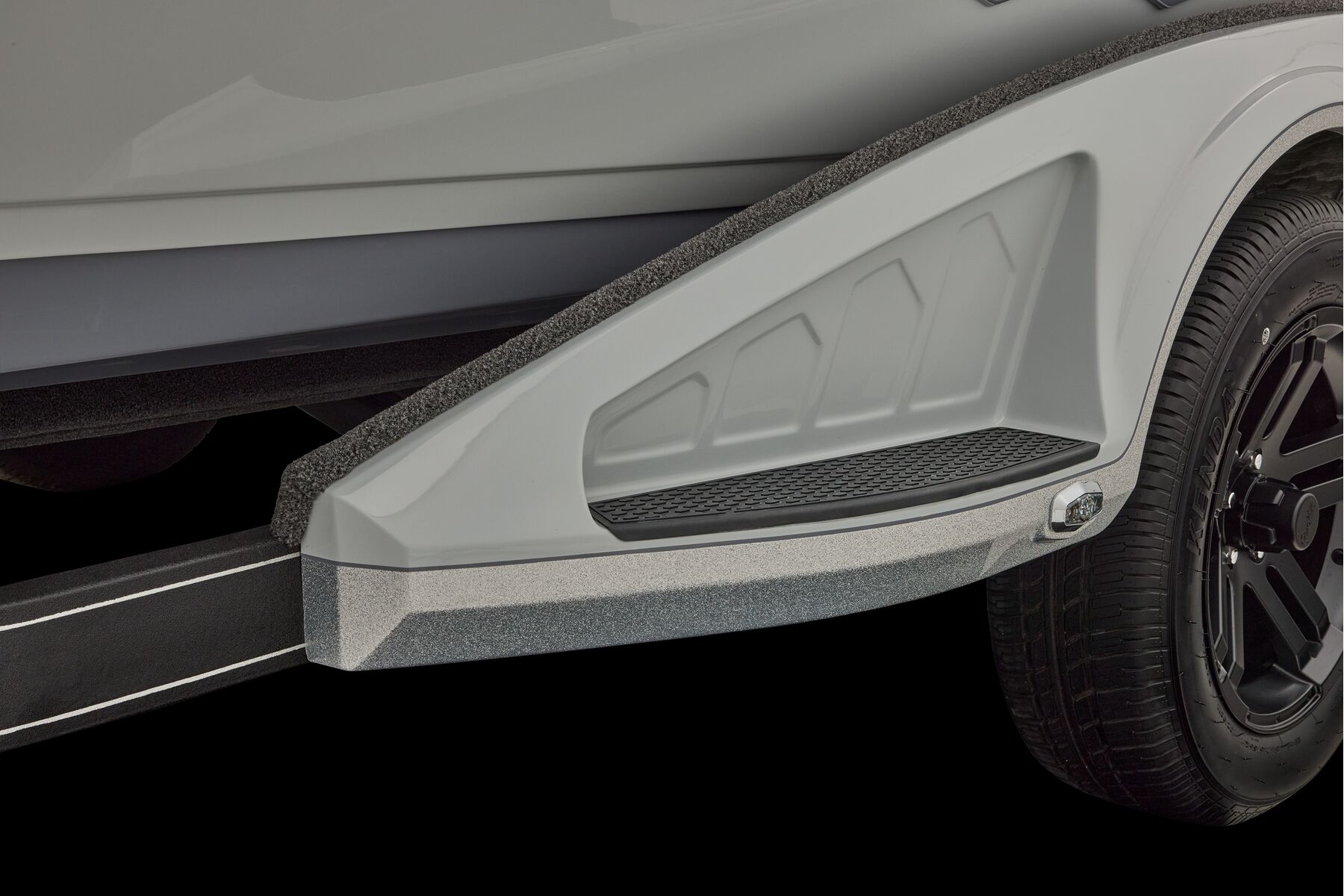

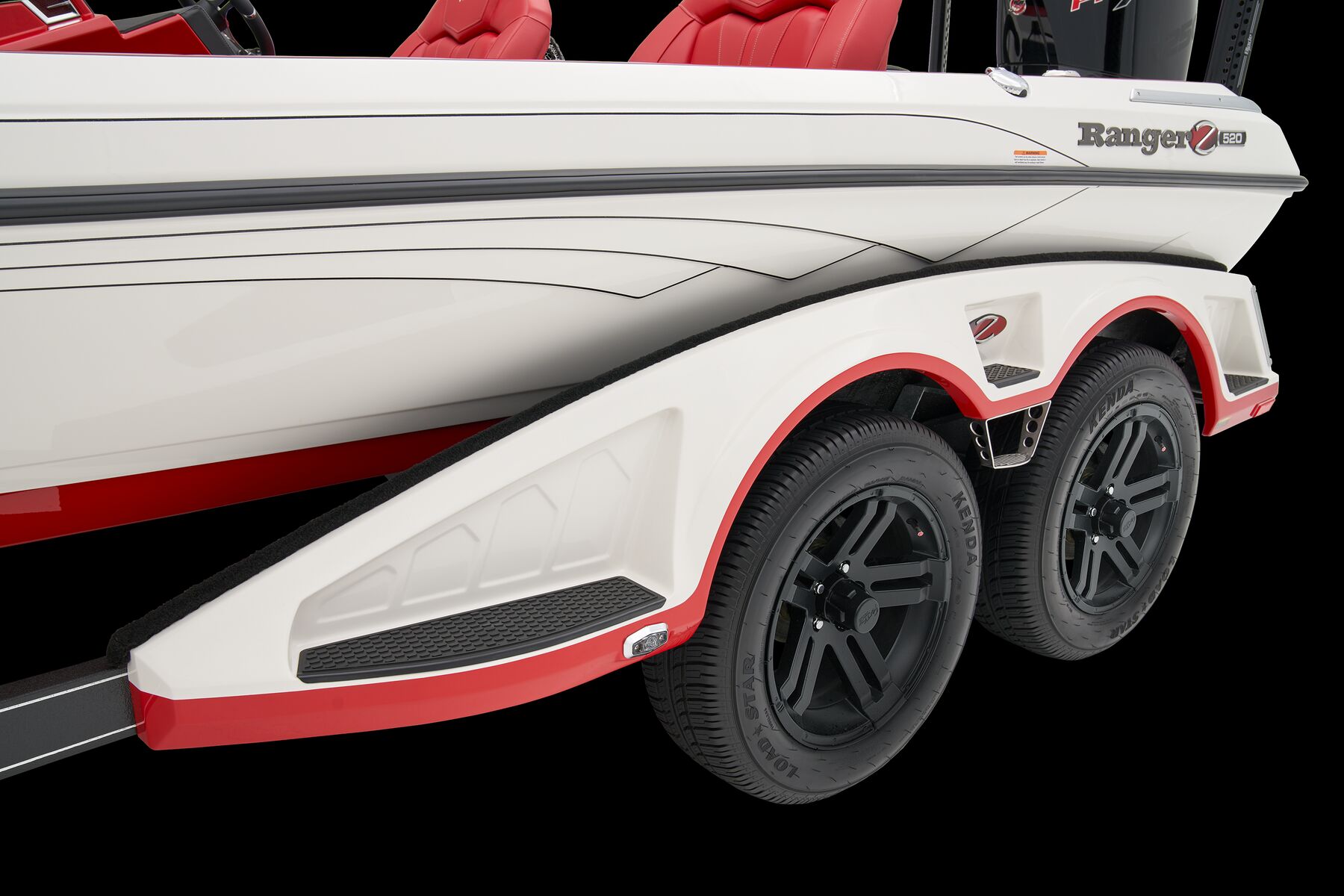

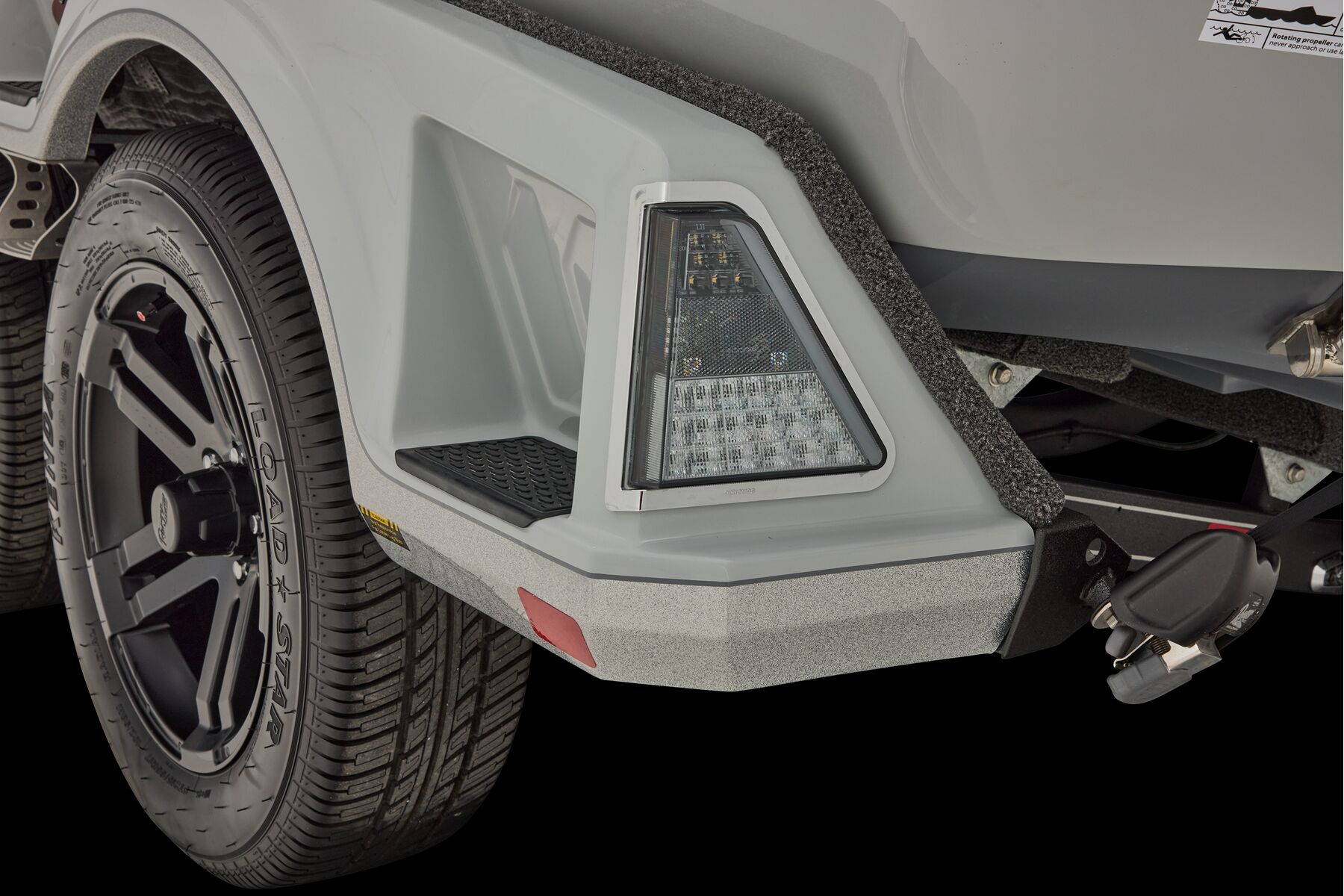

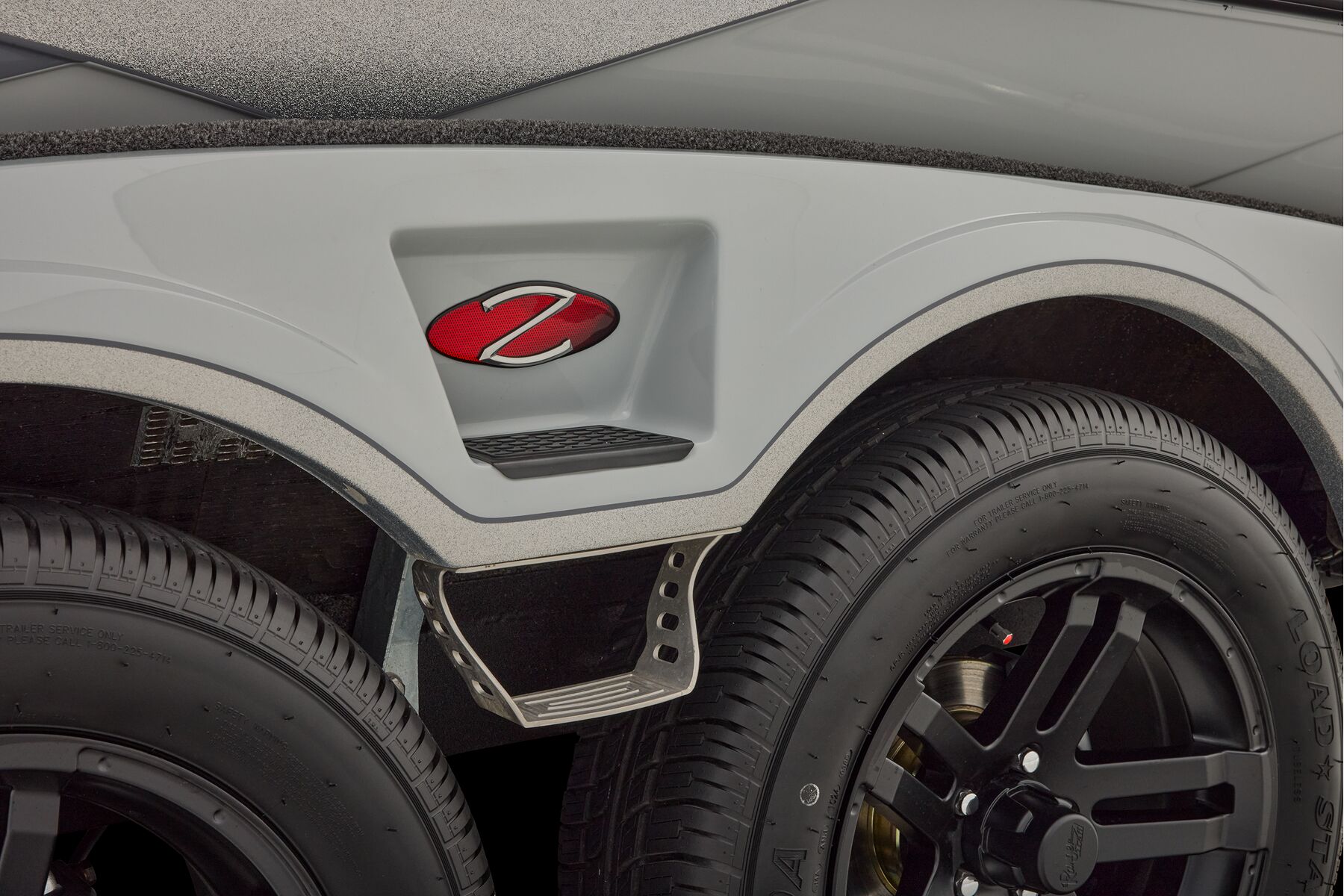

  • Fiberglass fenders w/ step pads
  • Hydraulic surge disc brakes

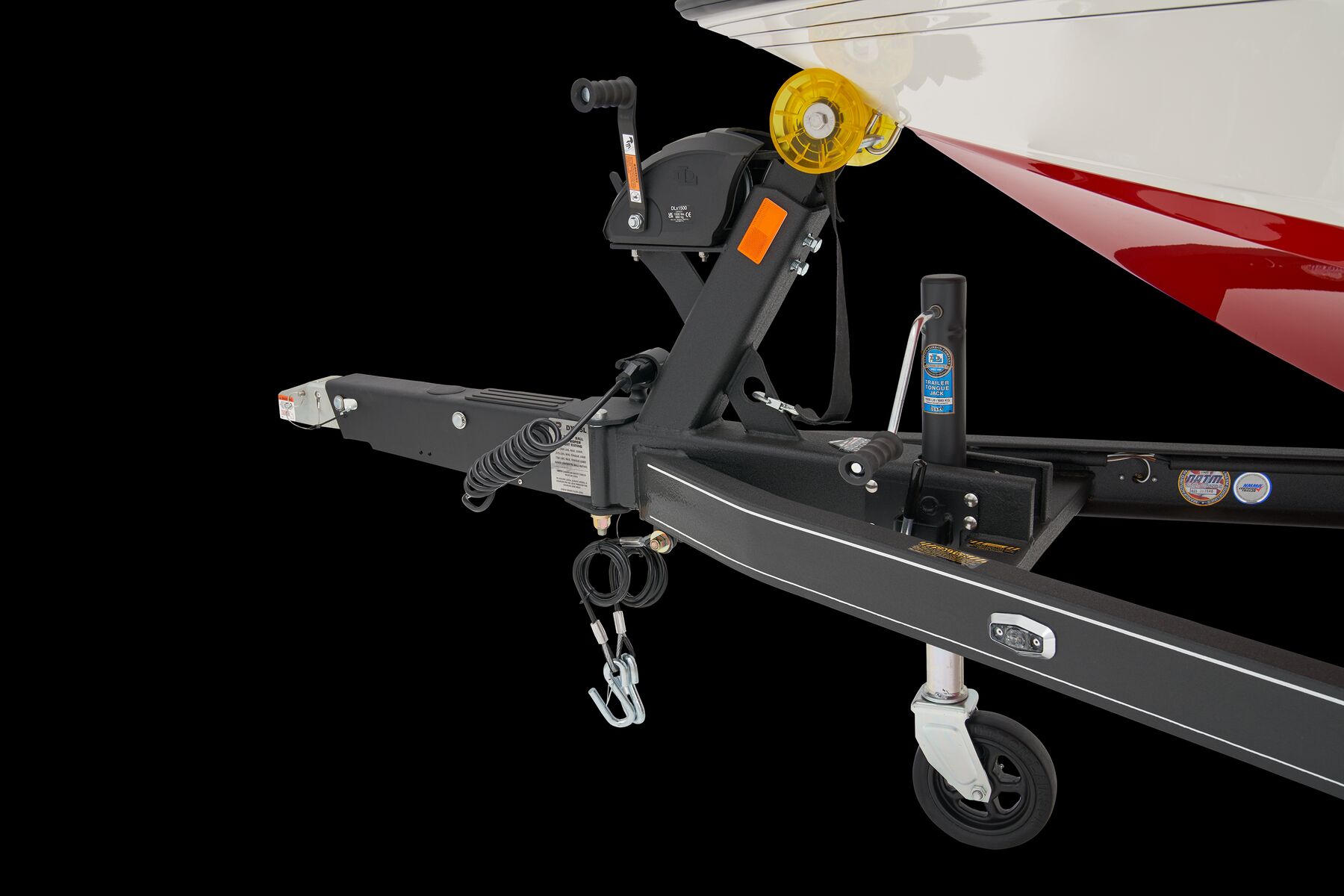

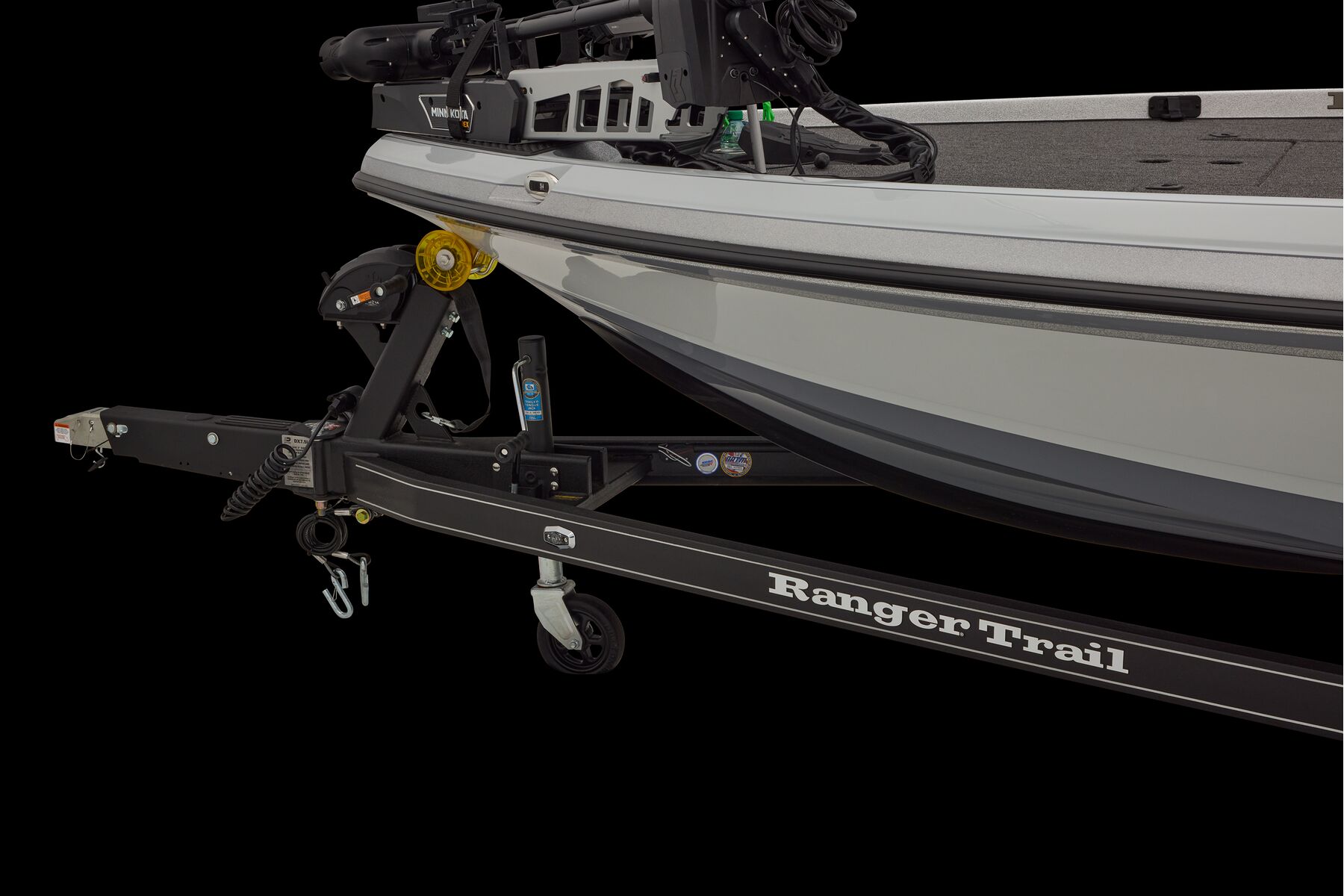

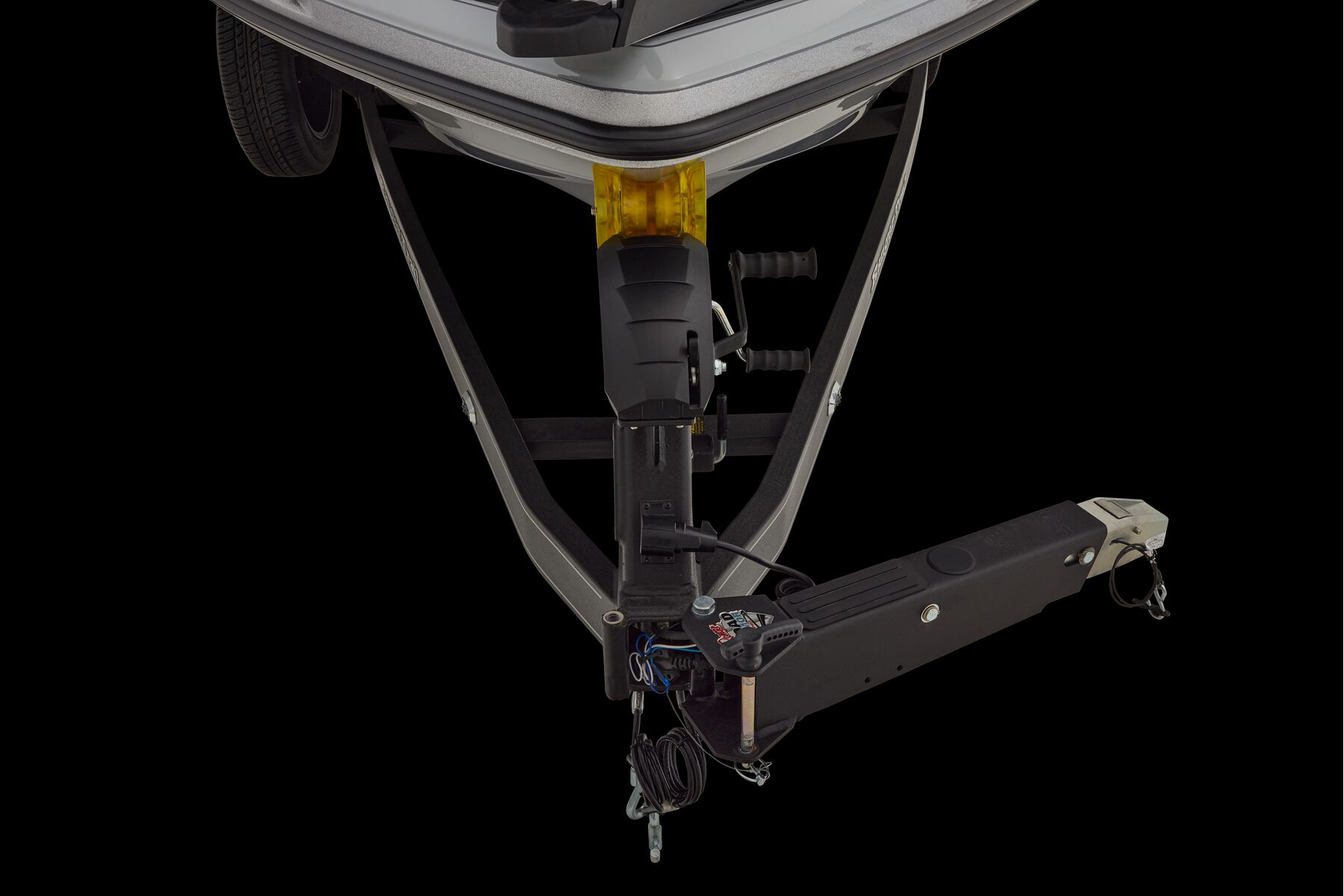

  • Swing-away tongue
  • Integrated center-swing jack finished in black powdercoat
  • Stainless steel ratcheting tie-downs
  • LED lighting
  • LED back-up lights
  • NMMA®/NATM certified
