Z519


Ranger 519

ALL-NEW

Z519R Ranger Cup-Equipped

Photos may show optional equipment.

Ranger Cup Equipped Upgrade Packages
Custom Rigged to Dominate
2025

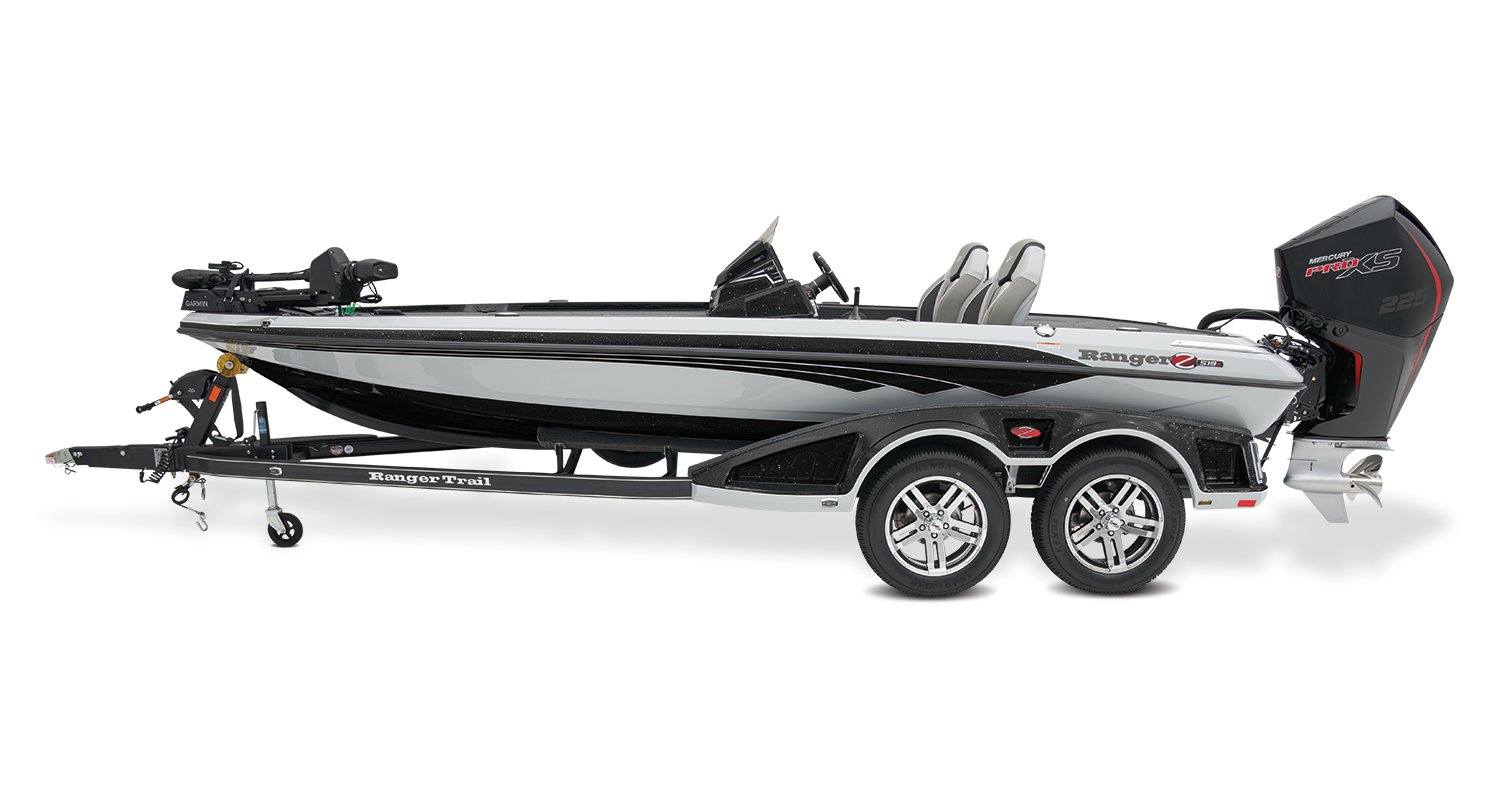

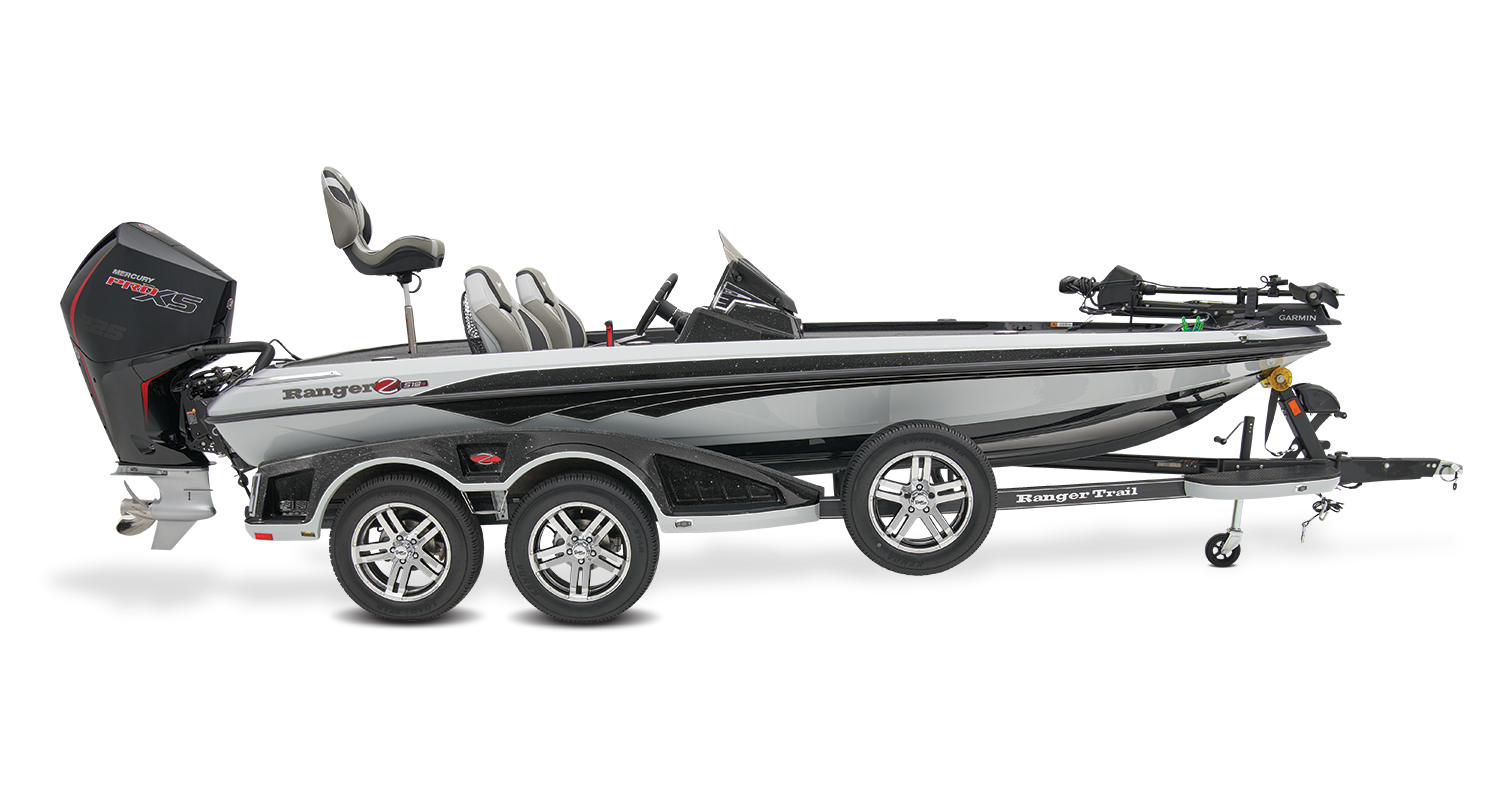

Z519R Cup-Equipped

w/ 225L Pro XS Torque Master Mercury®

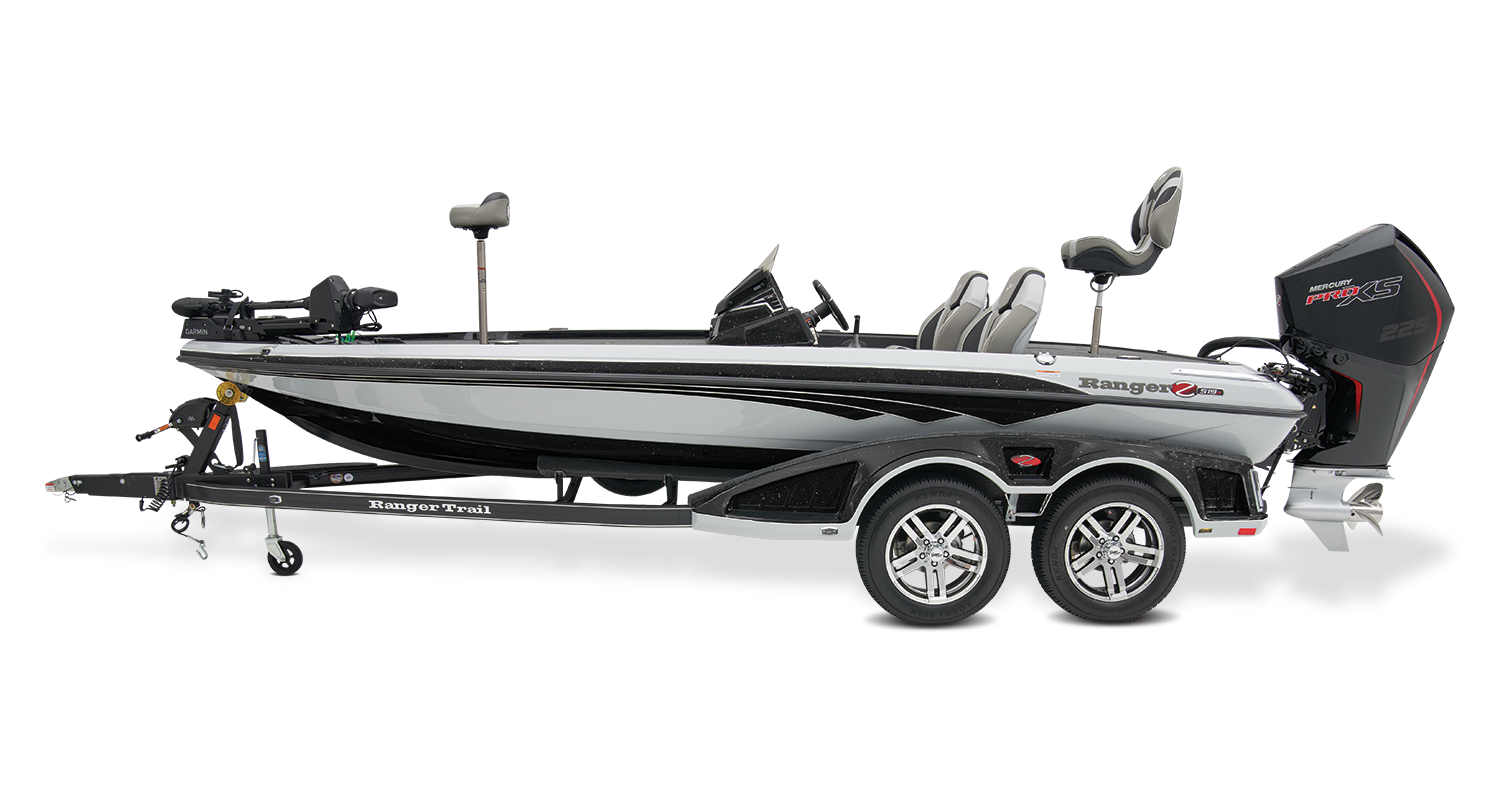

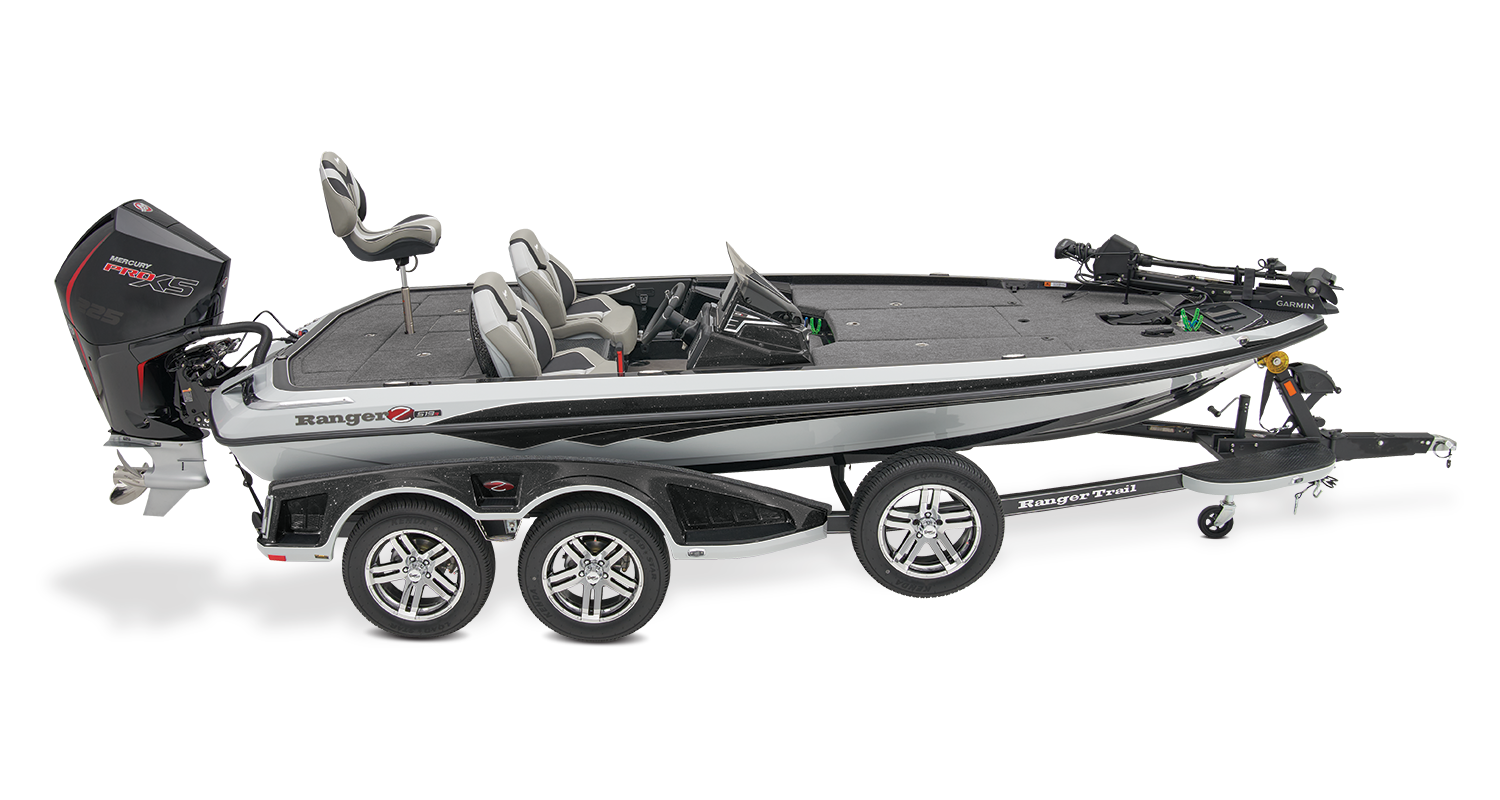

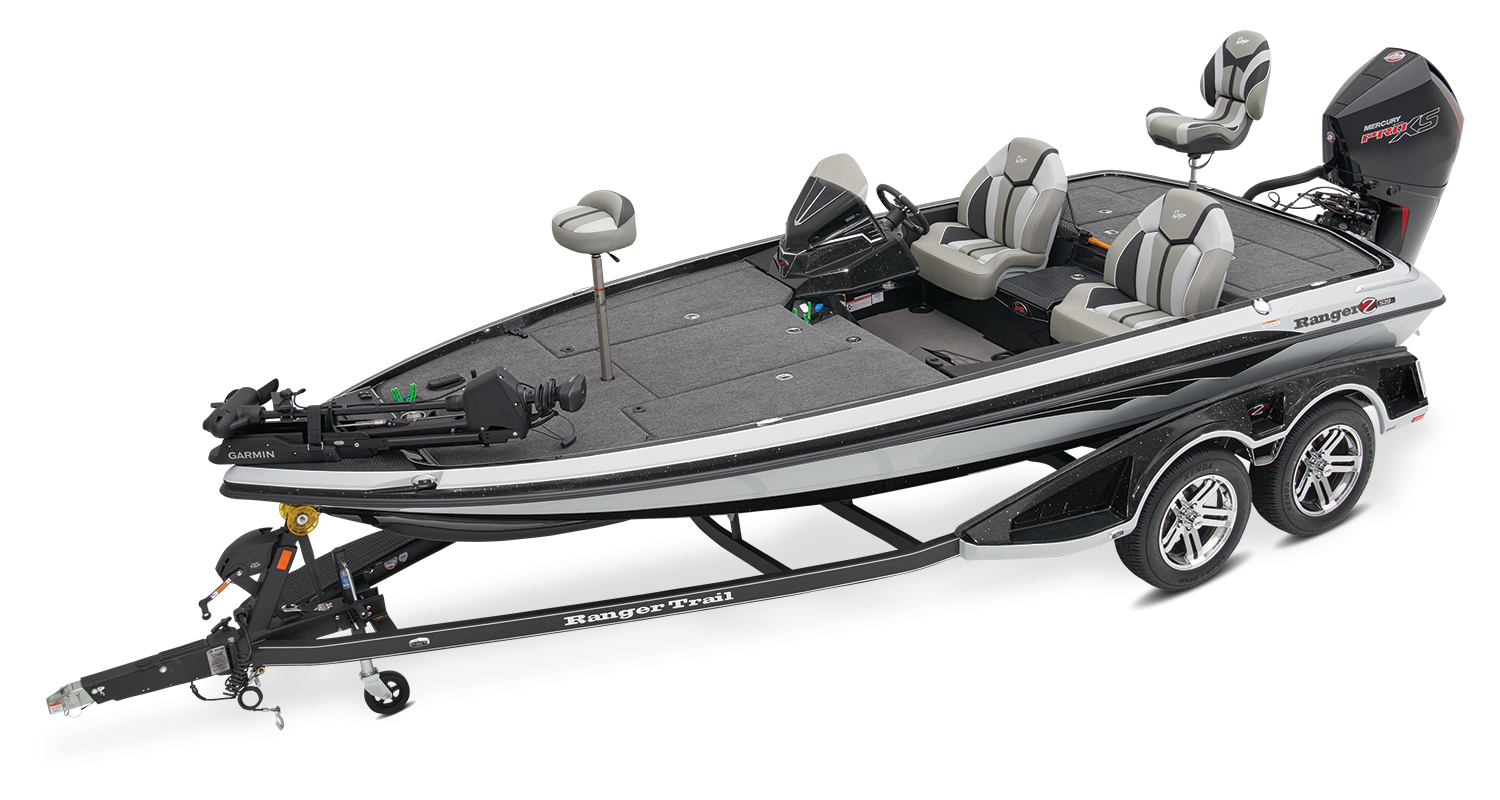

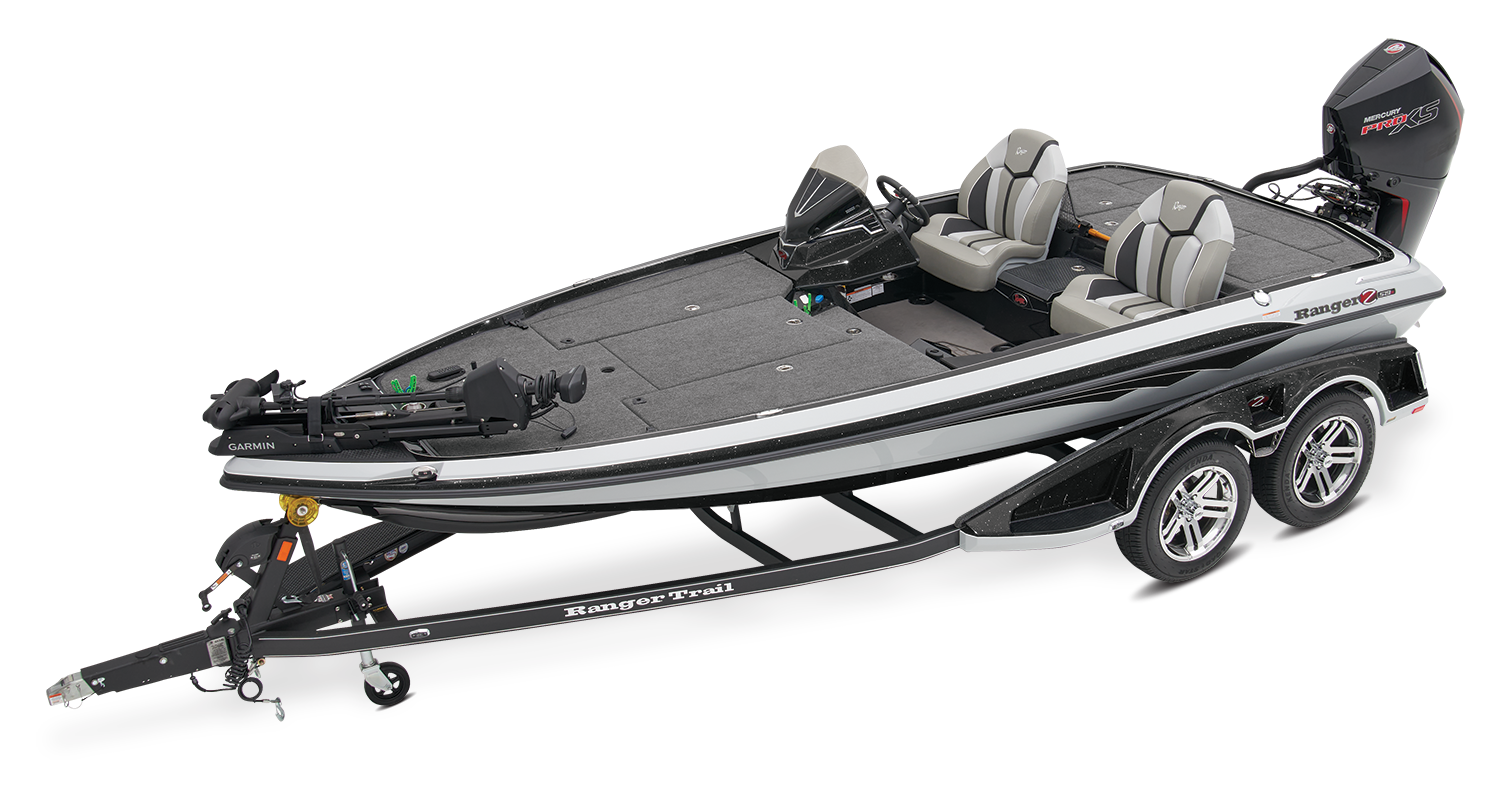

Boat, Motor, & Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
$76995
USD

Standard with your choice of tournament proven technology


Lowrance Upgrade Package

or

Garmin Upgrade Package

DYNAMIC DESIGN WITH LIMITLESS POTENTIAL

The Z519R is the latest in Ranger’s premium R Series lineup, and it comes fully loaded with premium add-ons that give you pro-level capability, packaged for a price savings. Brimming with top-tier features, the Z519R has the fishability and all-around performance you’ve come to expert from Ranger with added touches to set you off on the water and at the ramp.

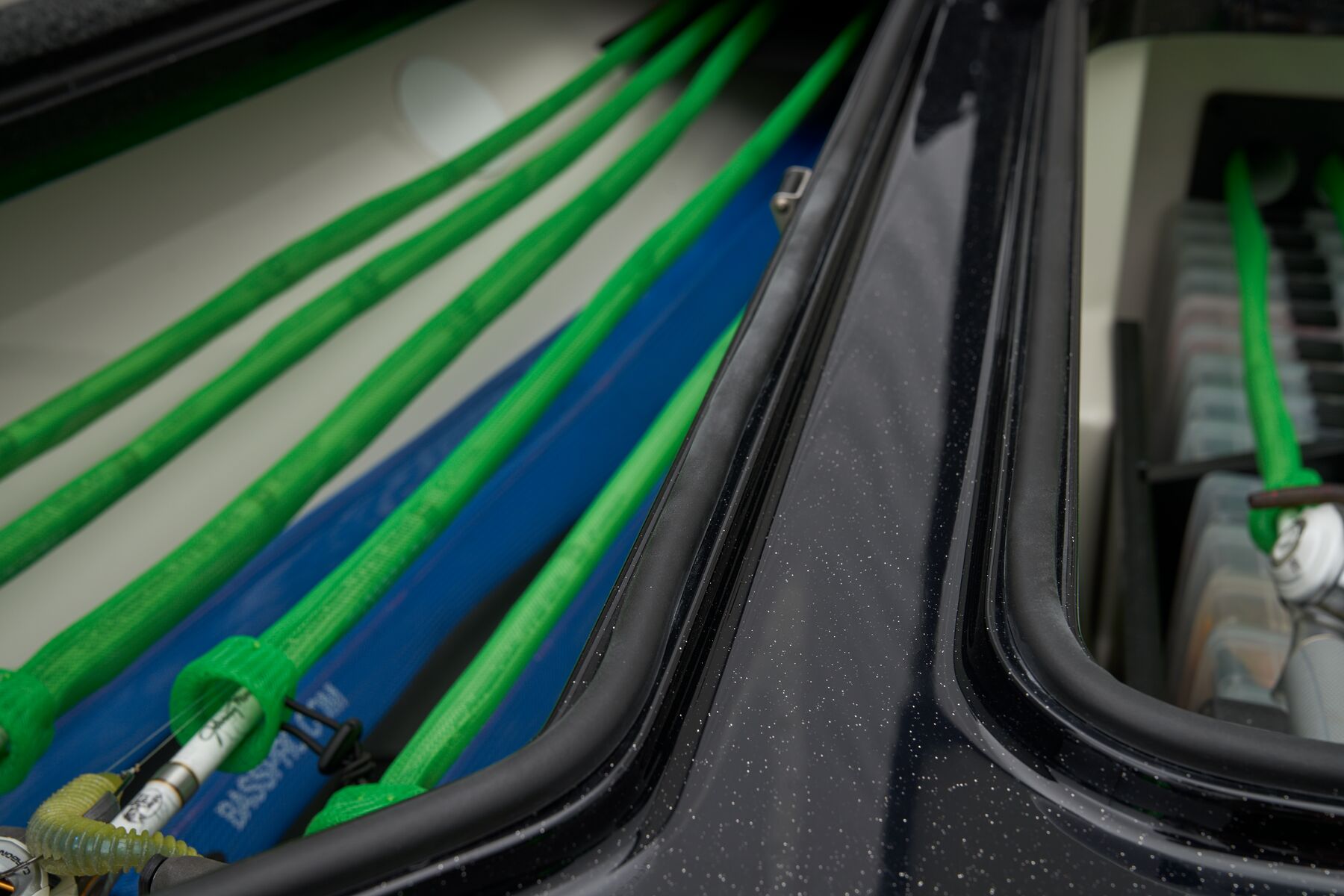

Our proprietary Echelon™ rod storage system keeps loads of sticks secure and handy, while reducing hassle when fetching one. A padded front deck is adorned with push-to-close latches that eliminate tripping hazards associated with twist-to-close latches, and color-matched cockpit liner and compartments liners add classy functionality. Analog switching makes for easy adjustments on the fly, and an insulated 40-quart center step cooler holds more than a day’s worth of drinks.

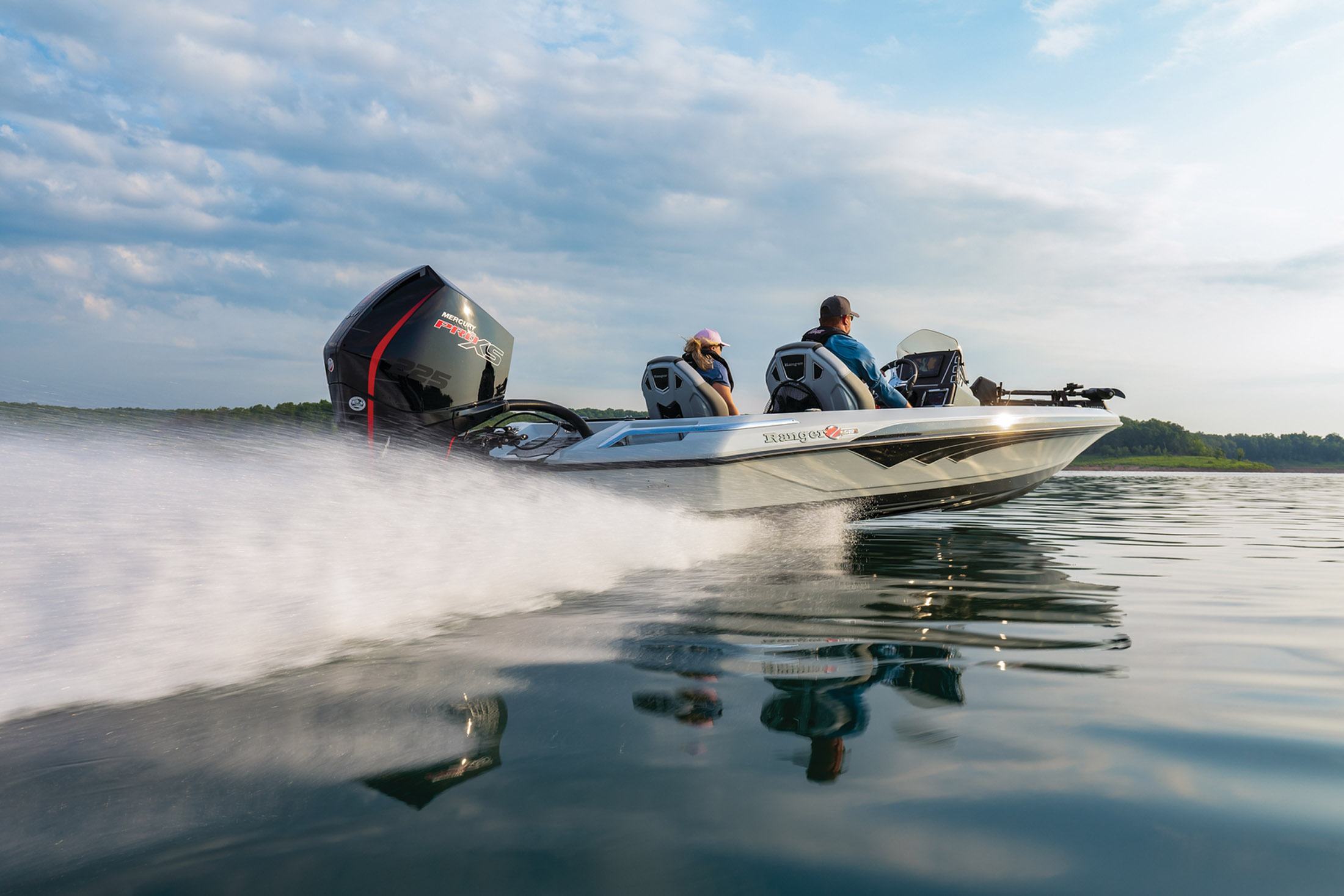

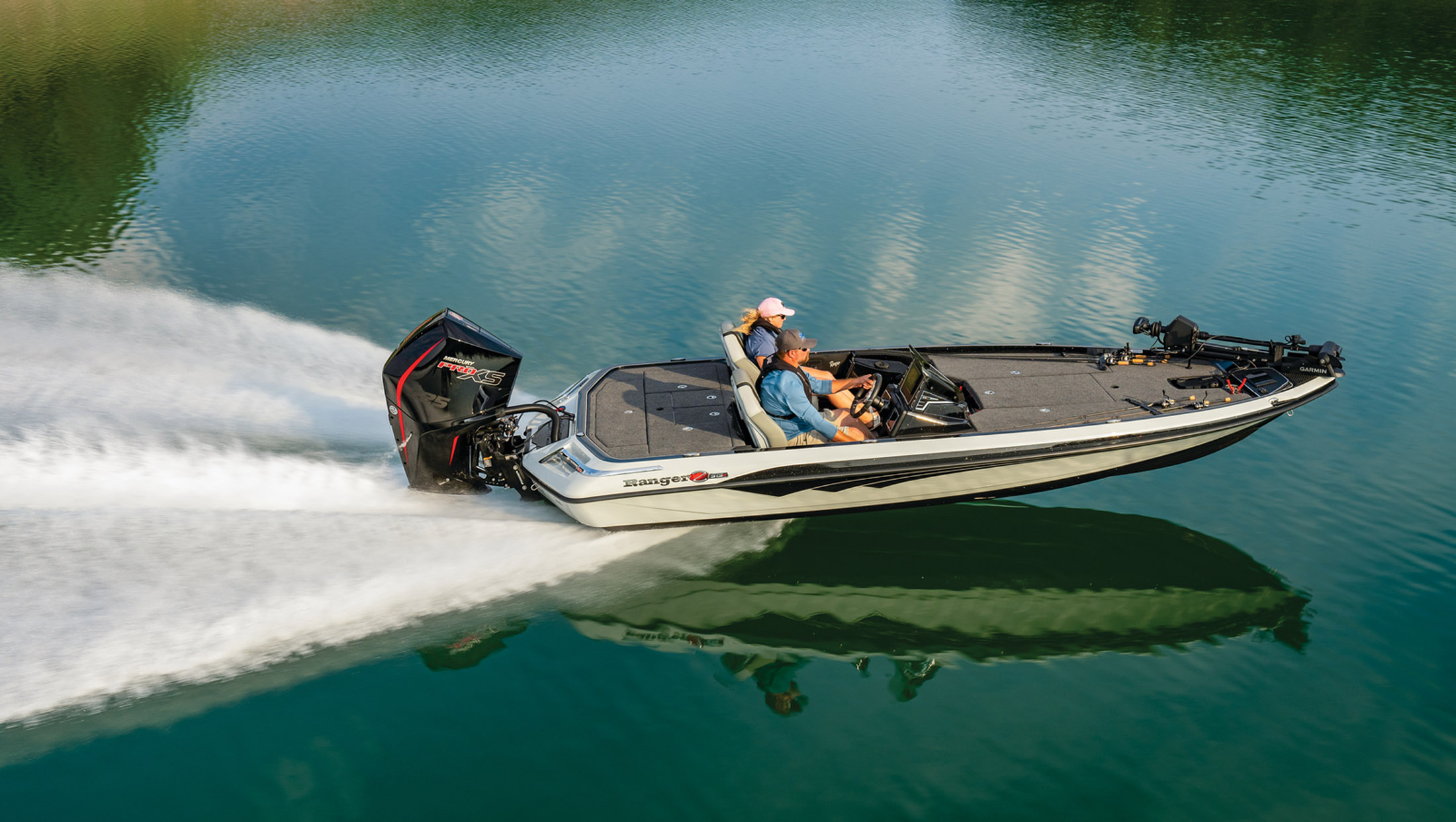

The Ranger touchscreen multifunction display puts engine parameters at your fingertips, while smooth, responsive steering gives effortless control of 225 horses in the Mercury®  FourStroke V8. A refined running surface delivers on-rails handling at speed as well as unbeatable edge-to-edge stability on the trolling motor. A vast front deck gives ample space for two, and a world of storage underfoot. The Z519R is the latest in a long line of premium bassin’ rigs that stem from our unwavering Passion for Perfection™.



Key Features

  • Cup-Equipped™ tournament-ready electronics, trolling motor, and equipment package

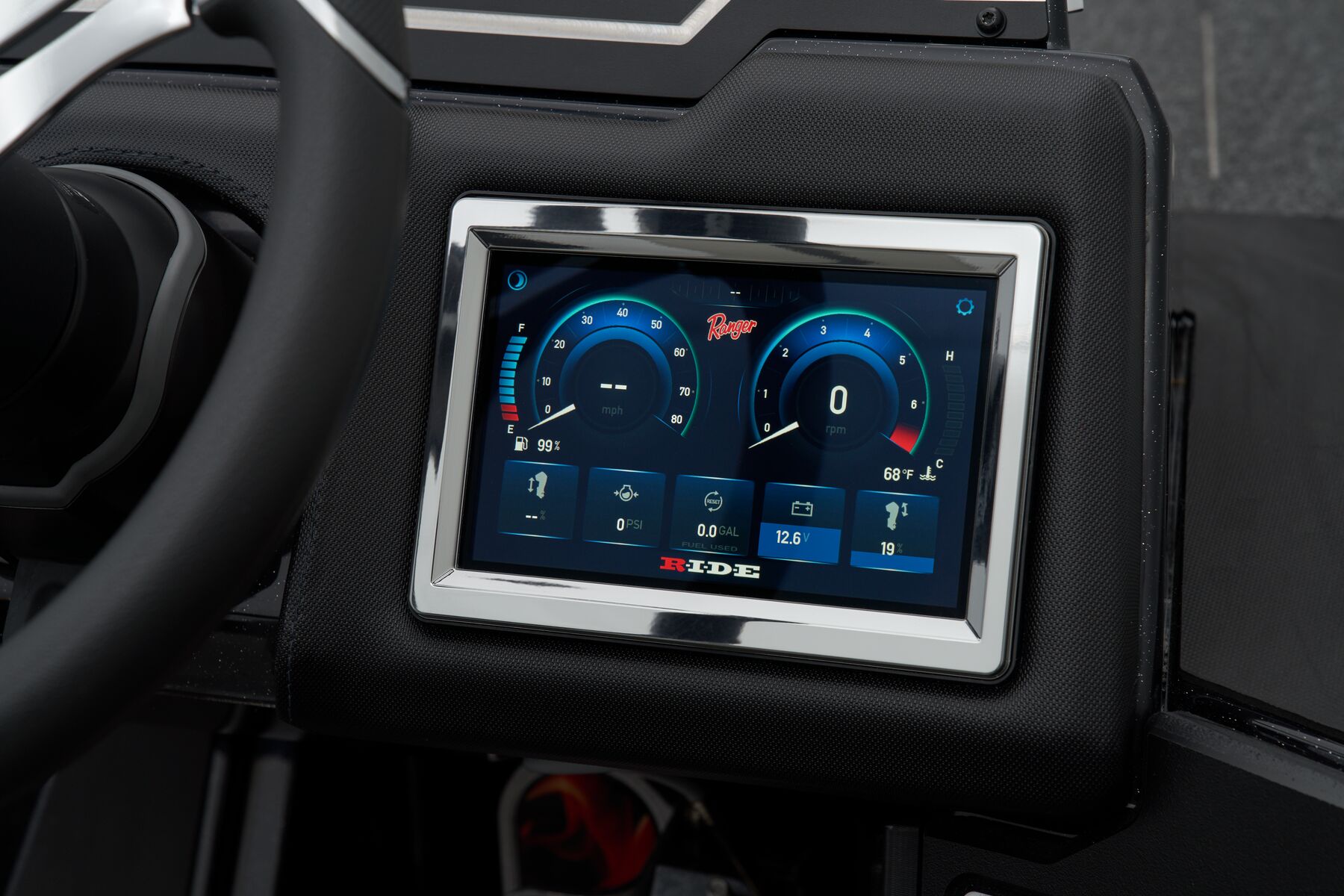

  • Ranger® System Monitor - 7" touchscreen that displays all boat and engine data at a glance

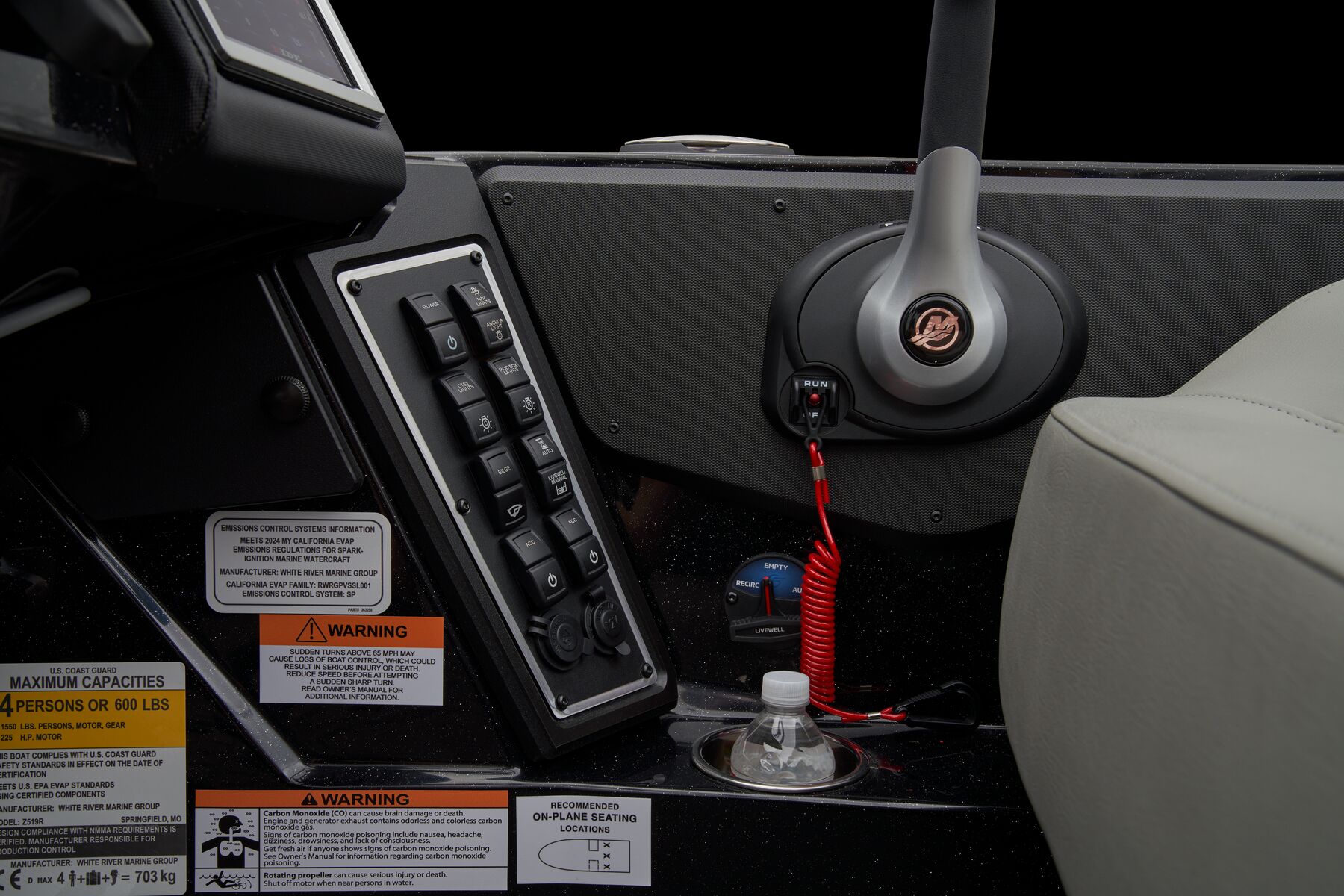

  • Easy-touch analog switching
  • Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker

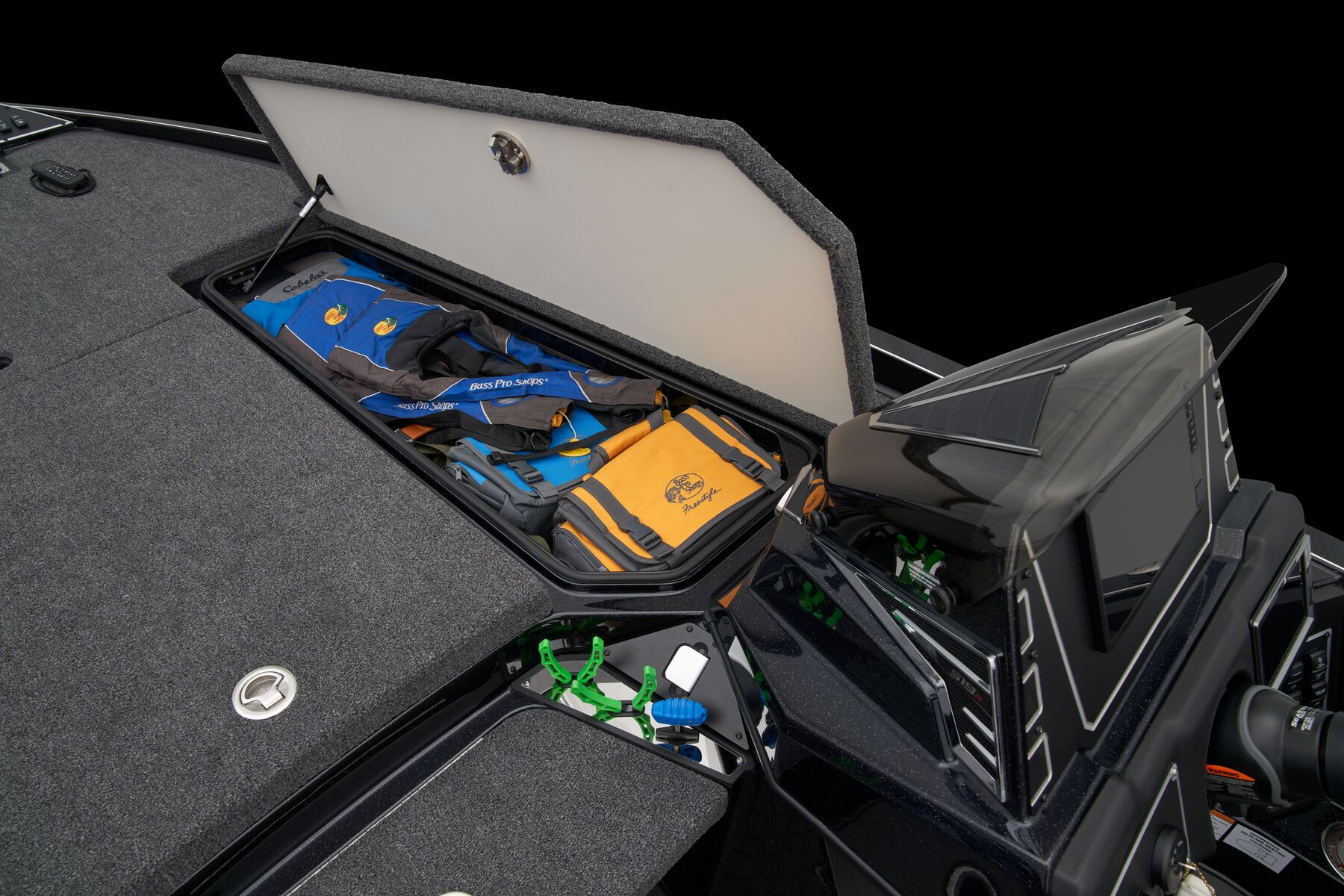

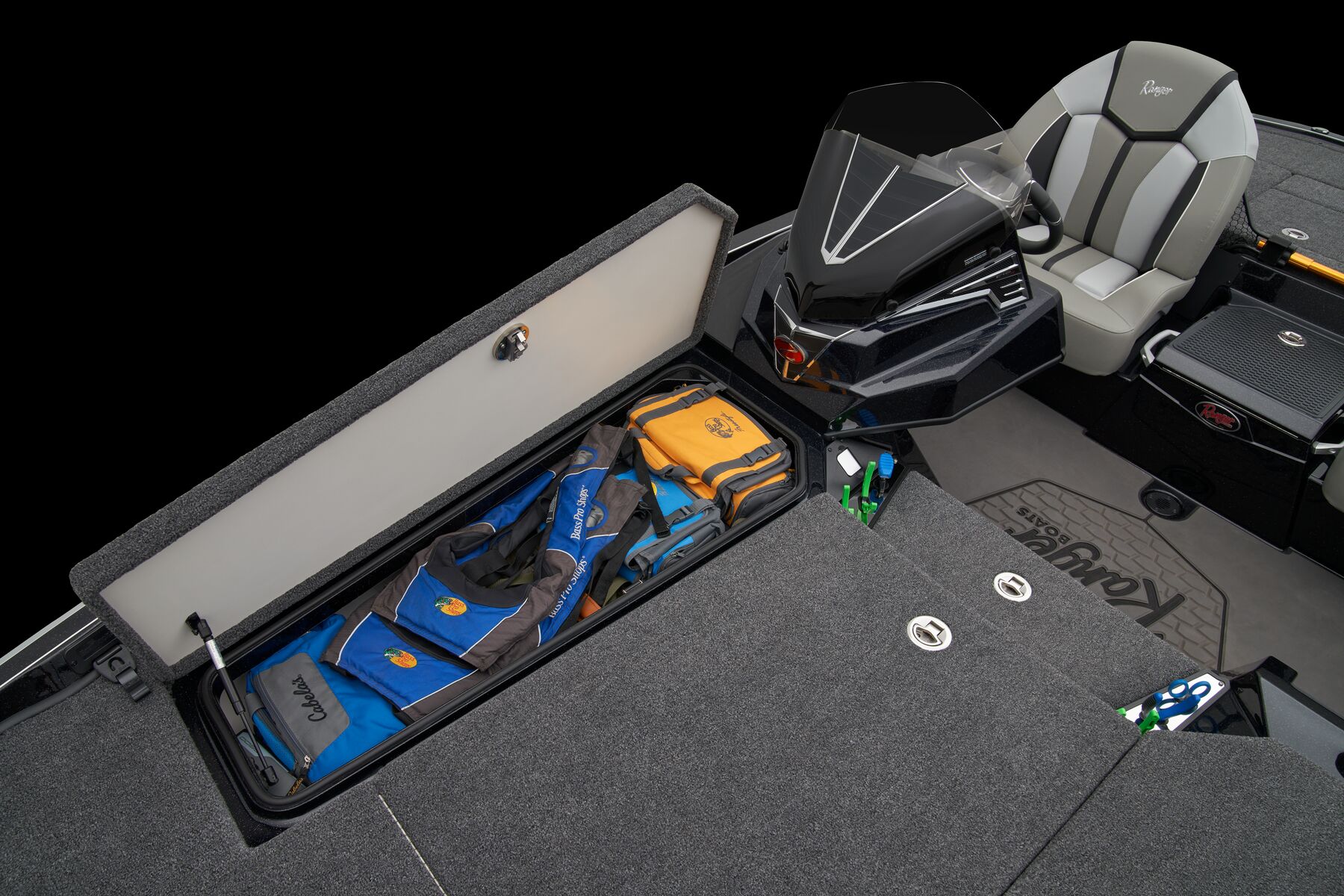

  • Padded Front Casting Deck
  • Pultruded Fiberglass Transom
  • Push-to-Close Latches
Z519R Cup-Equipped
z17
z17

Specifications

Length 6.02 m 19' 9''
Beam 2.44 m 96''
Max. Recommended HP 225 HP
Engine Shaft Length 50.8 cm 20''
Inside Depth 55.88 cm 22''
Fuel Capacity 189.25 L 50 gal.
Livewell Capacity 98.41 L 26 gal.
Total Person, Motor, Gear 716.68 kg 1580 lbs.
Approximate Boat Weight 793.79 kg 1750 lbs.
Rod Box Length - Port Bottom Shelf 2.13 m 7'
Rod Box Length - Port Top Shelf 2.29 m 7' 6''
Rod Box Length - Center Row 1 2.44 m 8'
Rod Box Length - Center Row 2 2.29 m 7' 6''
Rod Box Length - Starboard 2.13 m 7'
Max. Person Capacity 5 persons
Trailer GVWR 2041.17 kg 4500 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 7.8 m 25' 7''
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 7.16 m 23' 6''
Width On Trailer 2.59 m 102''

Motor Options

AVAILABLE MOTOR
Mercury®

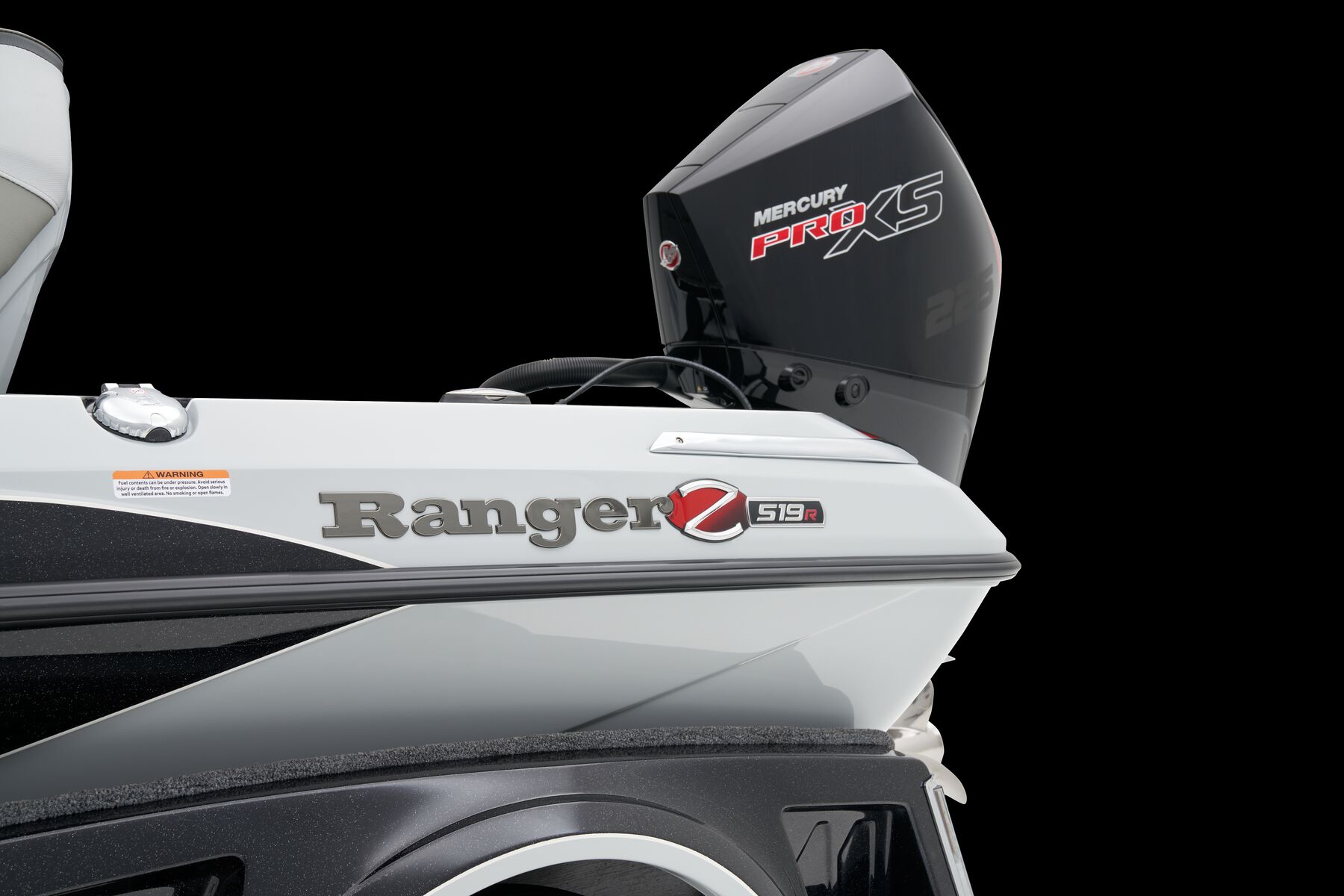

225L Pro XS Torque Master
$76995

USD
Select Dealer

Standard Features

Custom Details

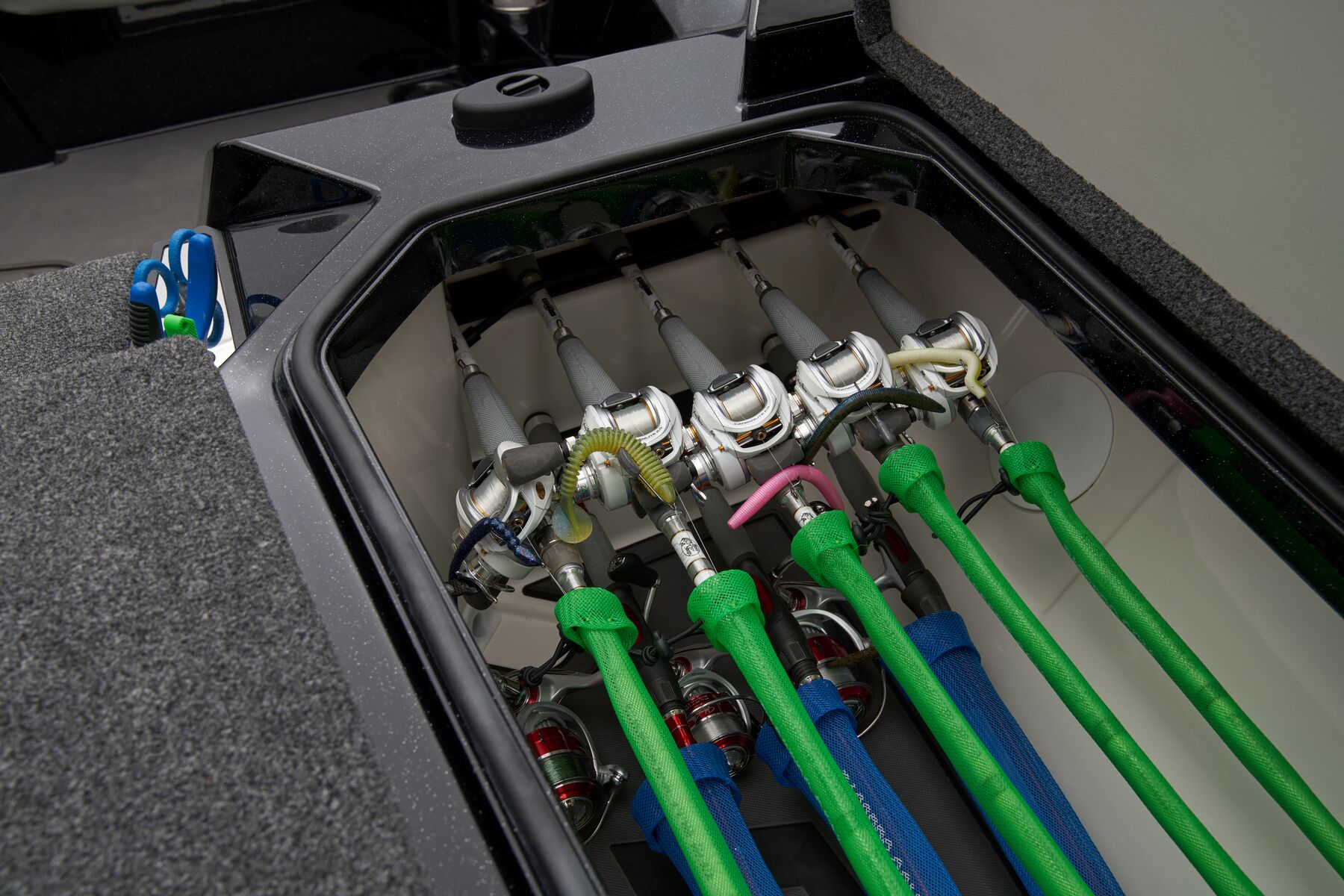

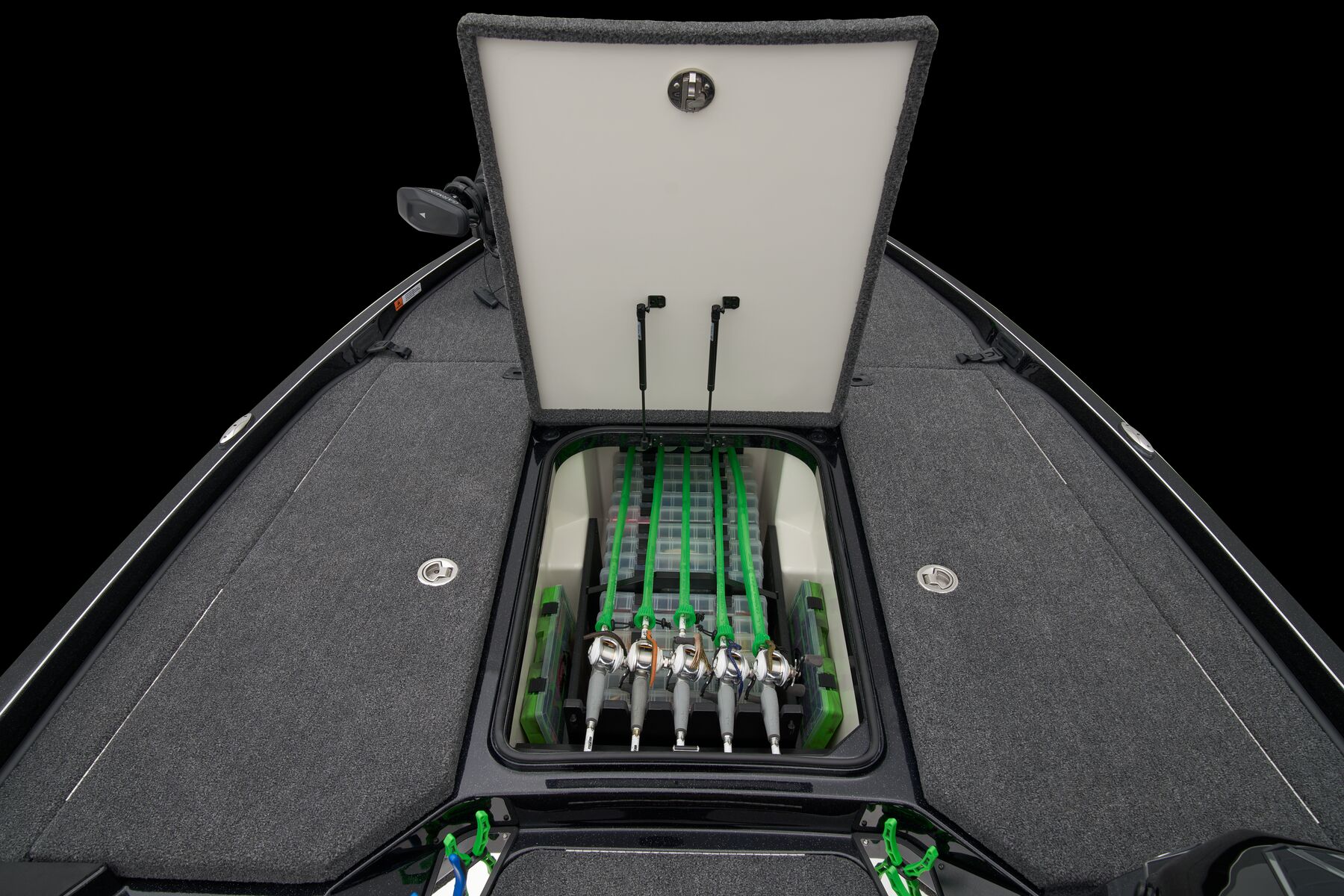

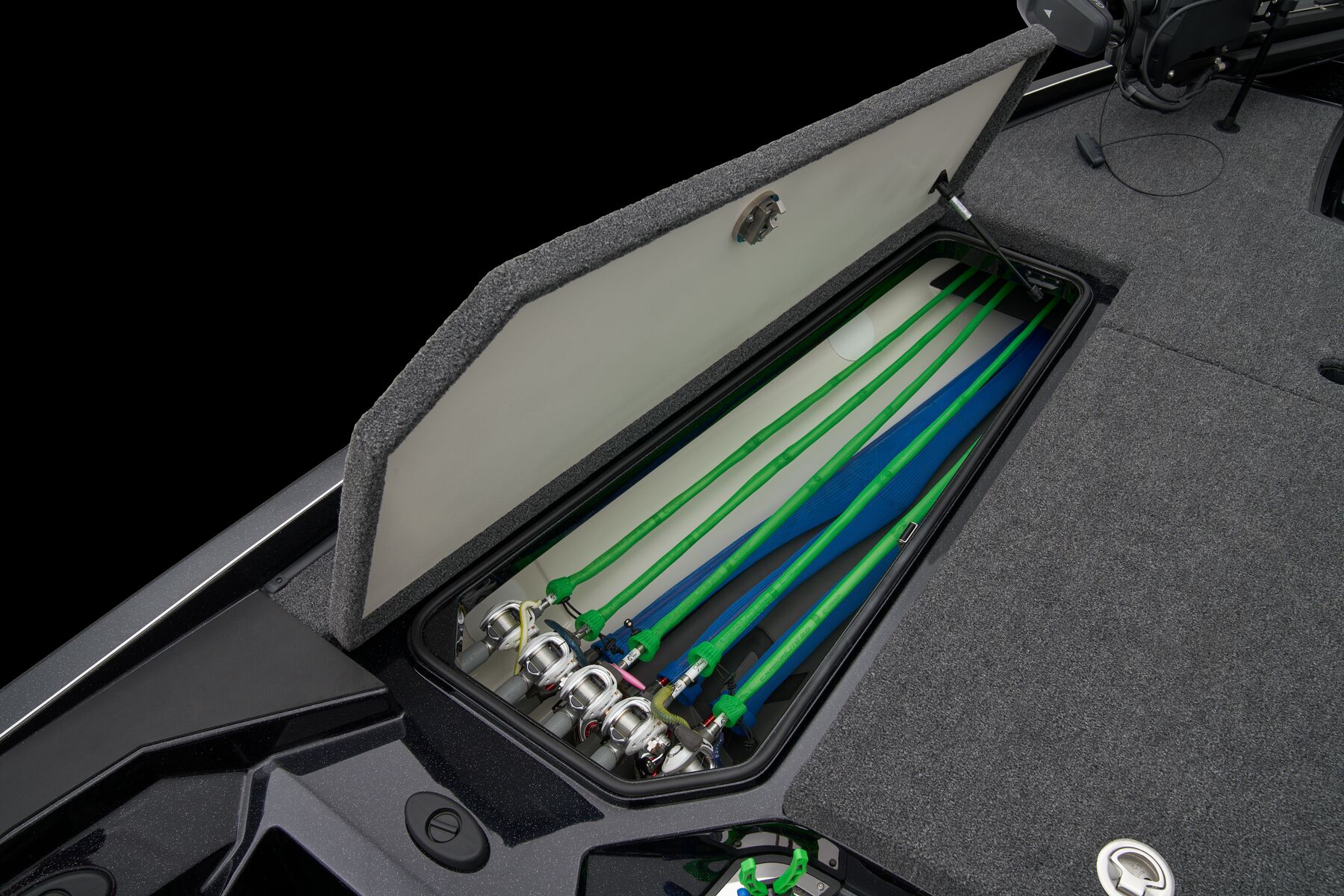

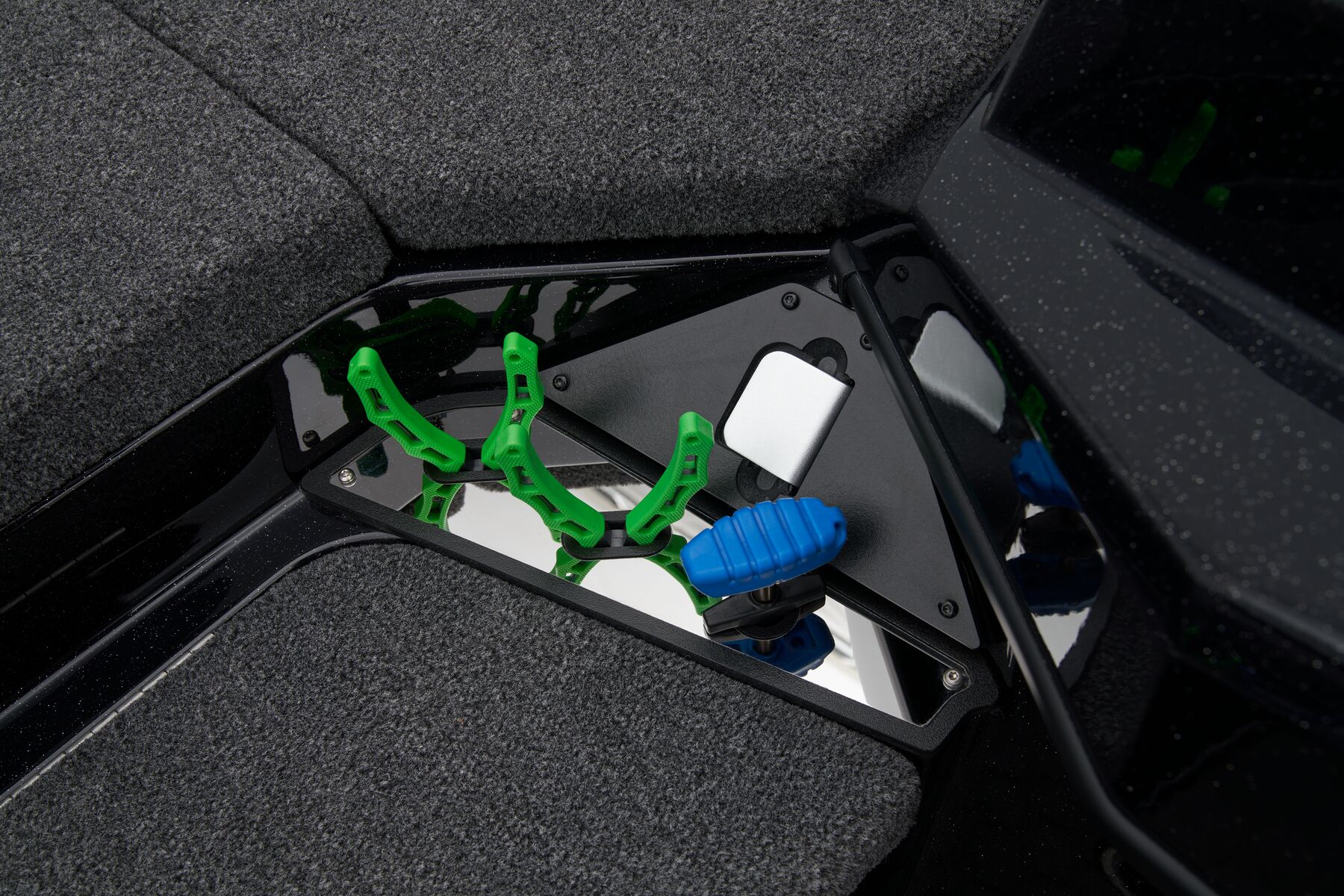

  • Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
  • Power Ventilation Rod Storage™

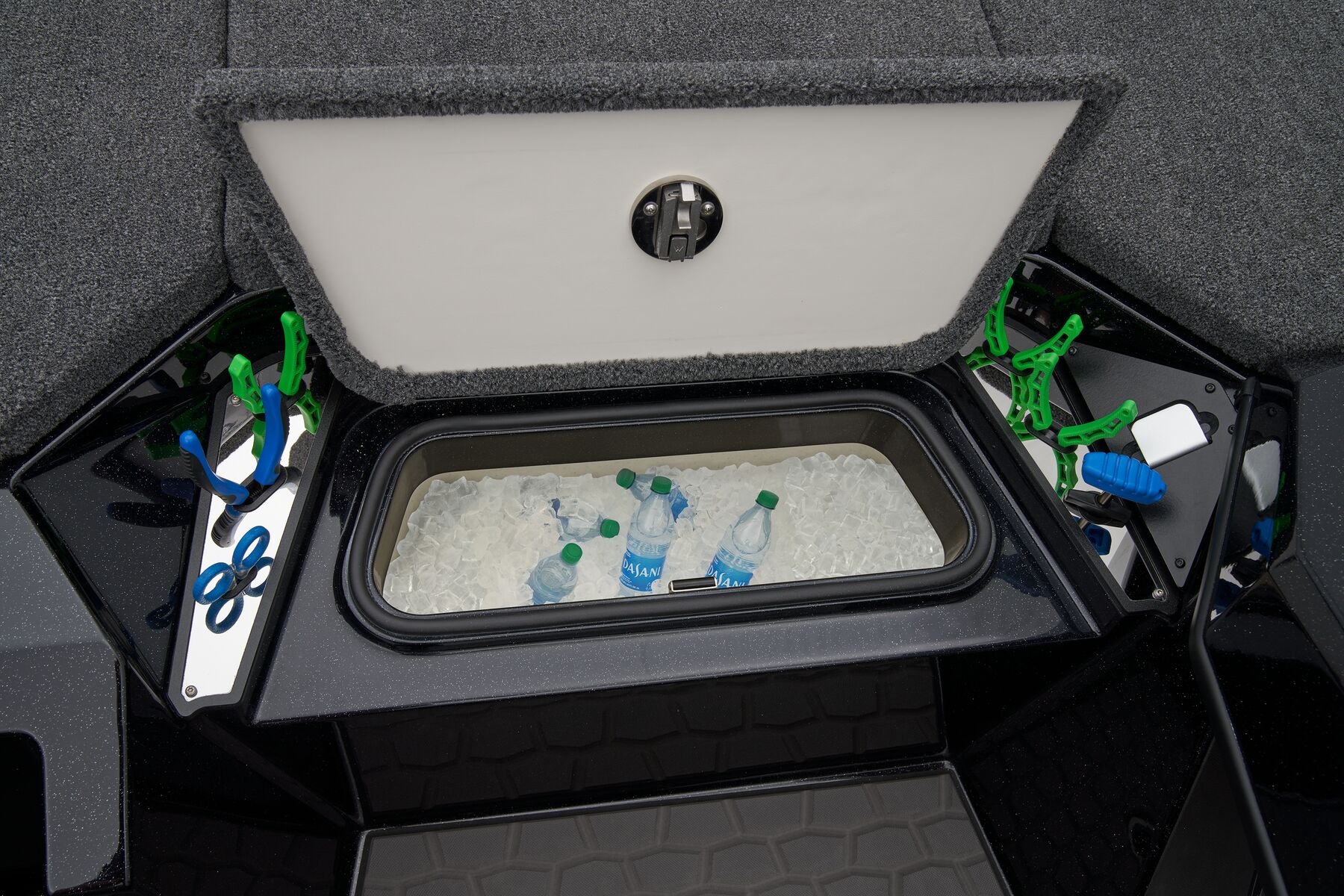

  • Insulated 40 qt. step-up cooler

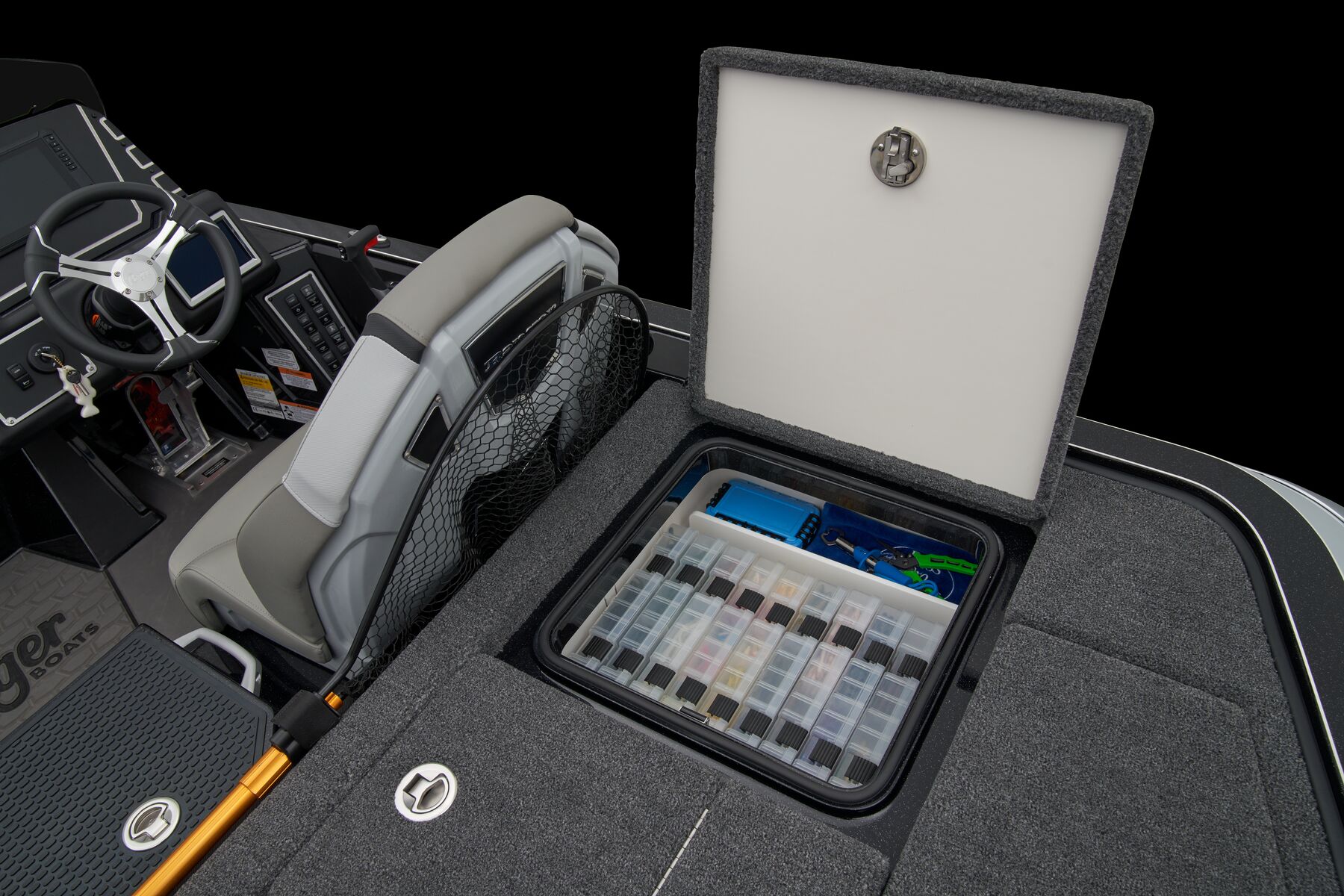

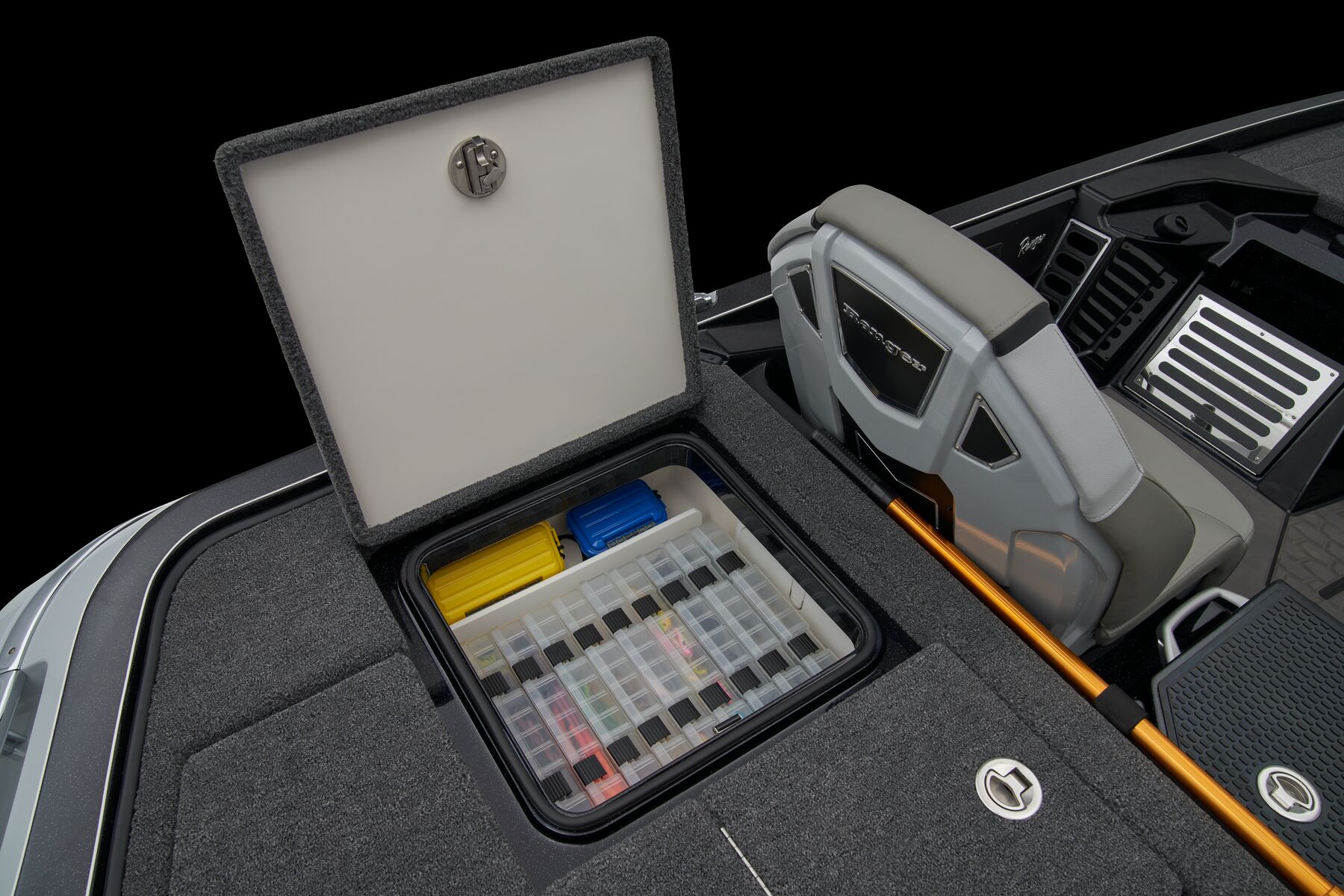

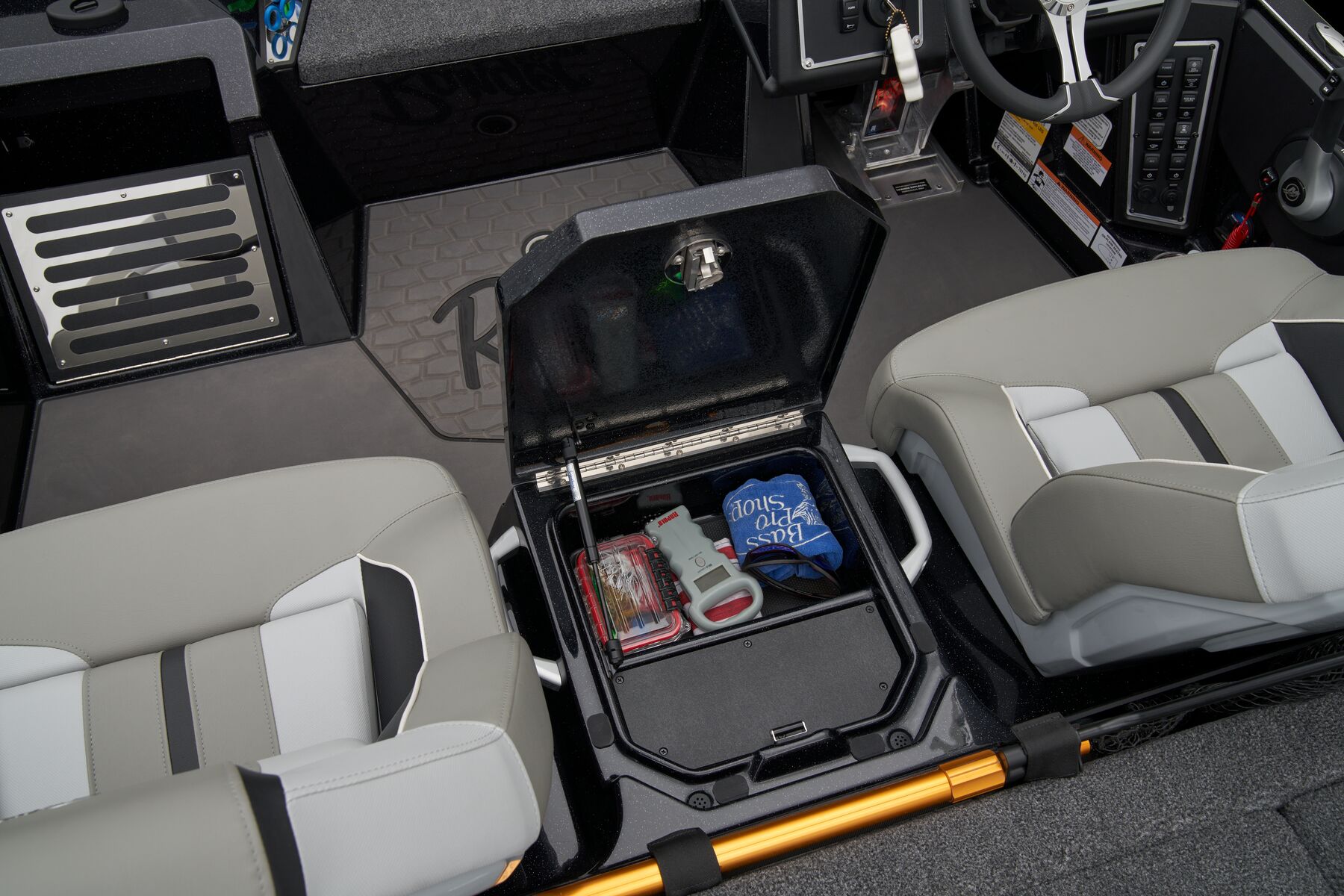

  • Integrated center-storage rod & tackle management system

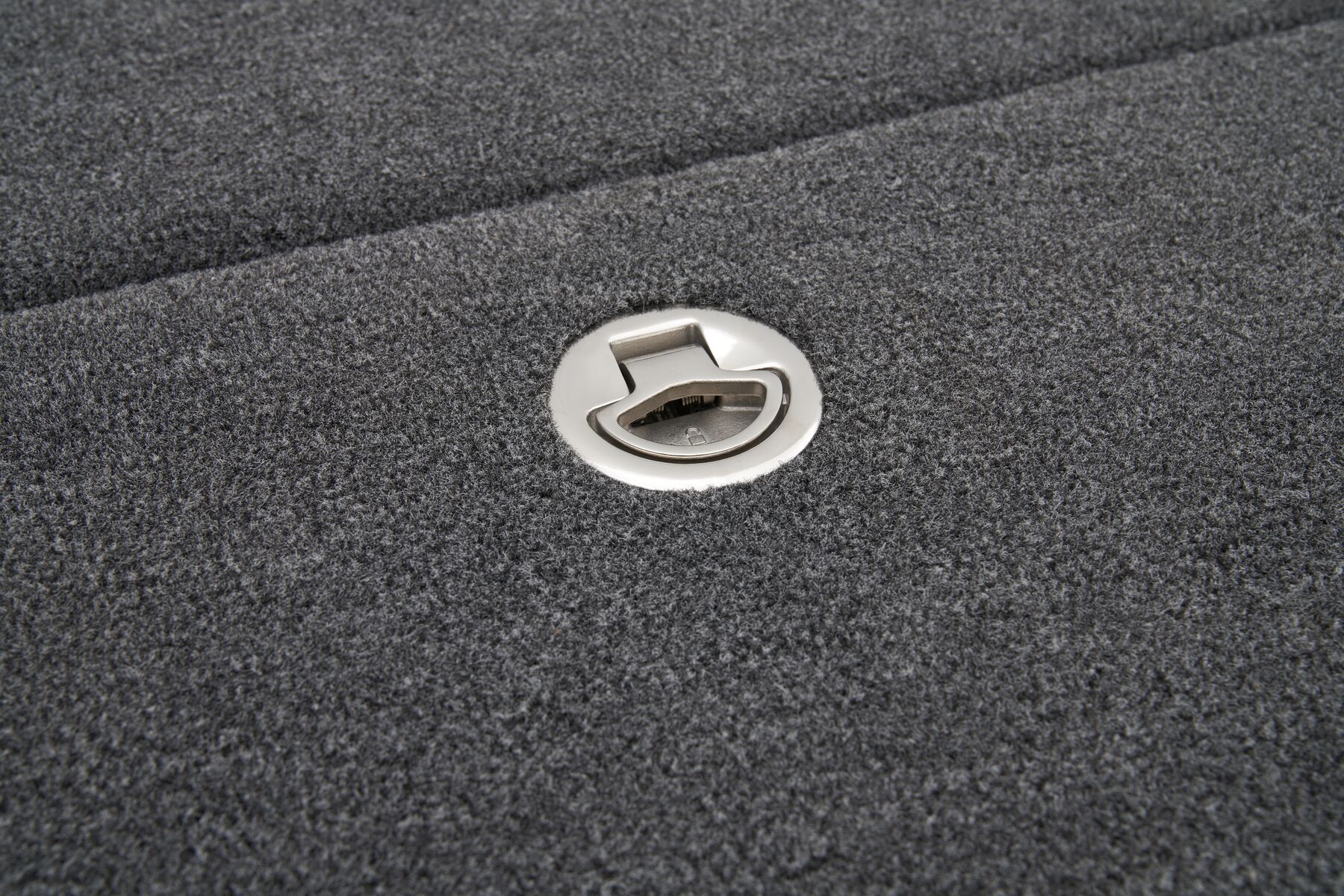

  • Stainless steel push-to-close locking latches

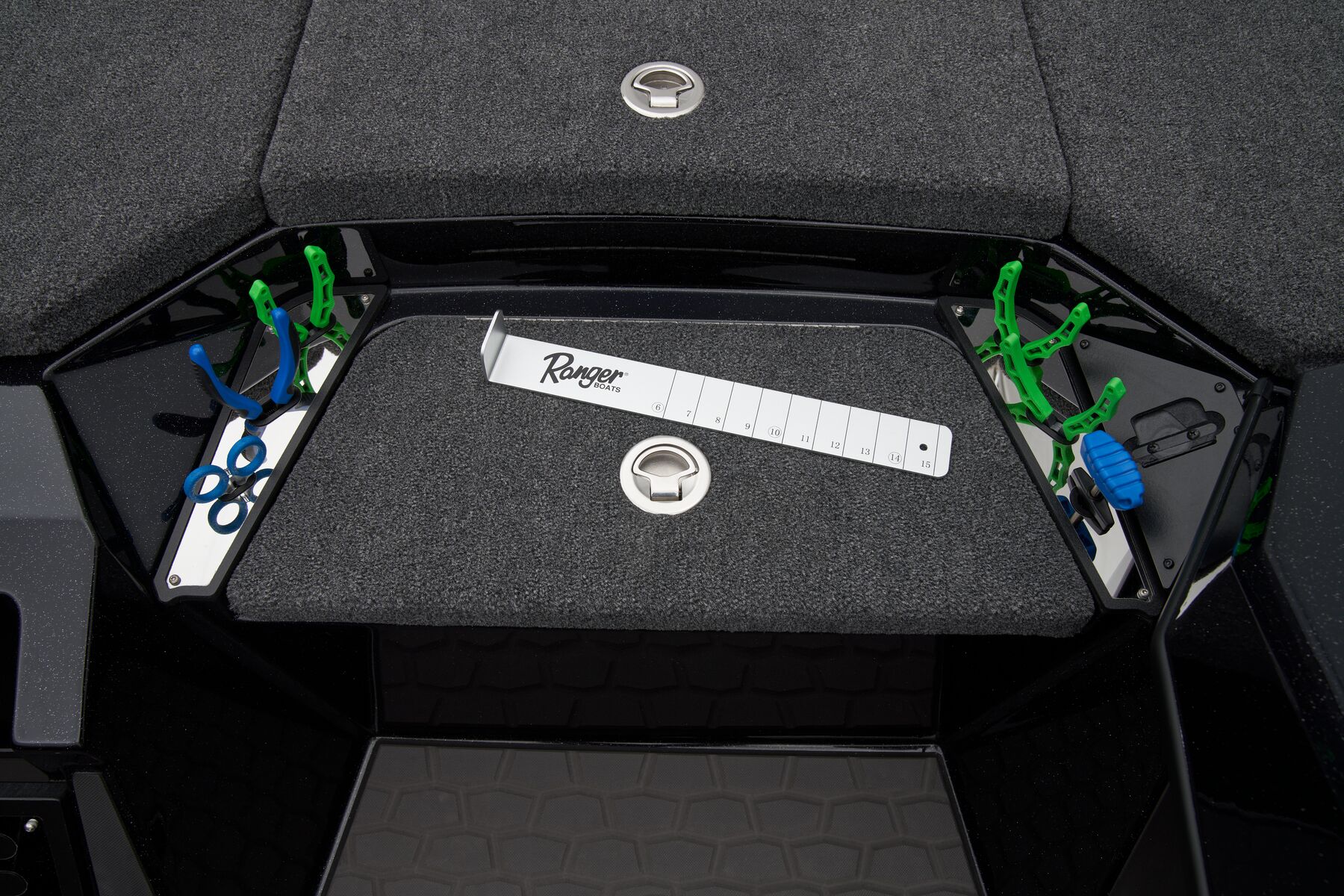

  • Ranger® tournament measuring board integrated at front deck step

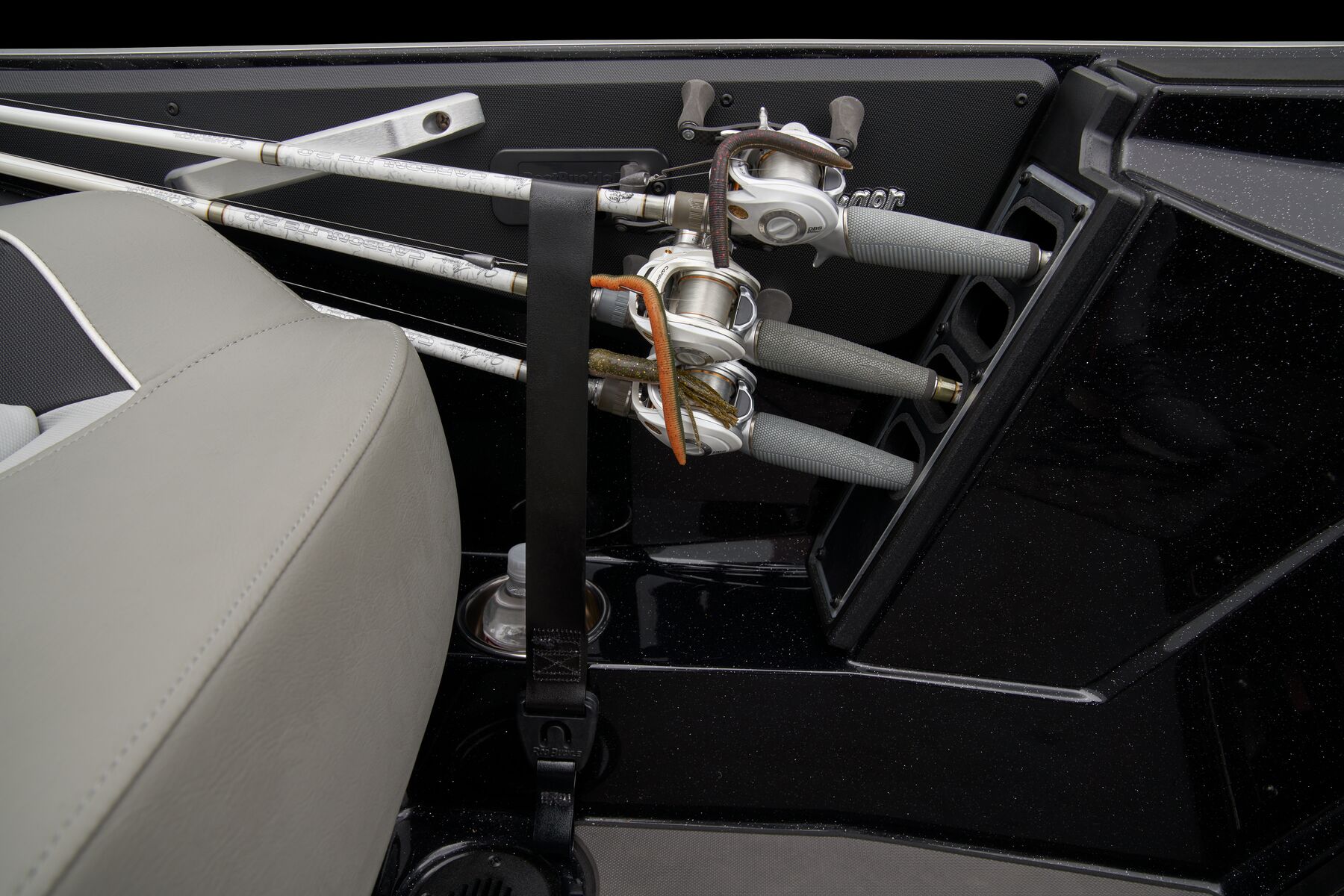

  • Runnin' rod rack w/ retractable strap

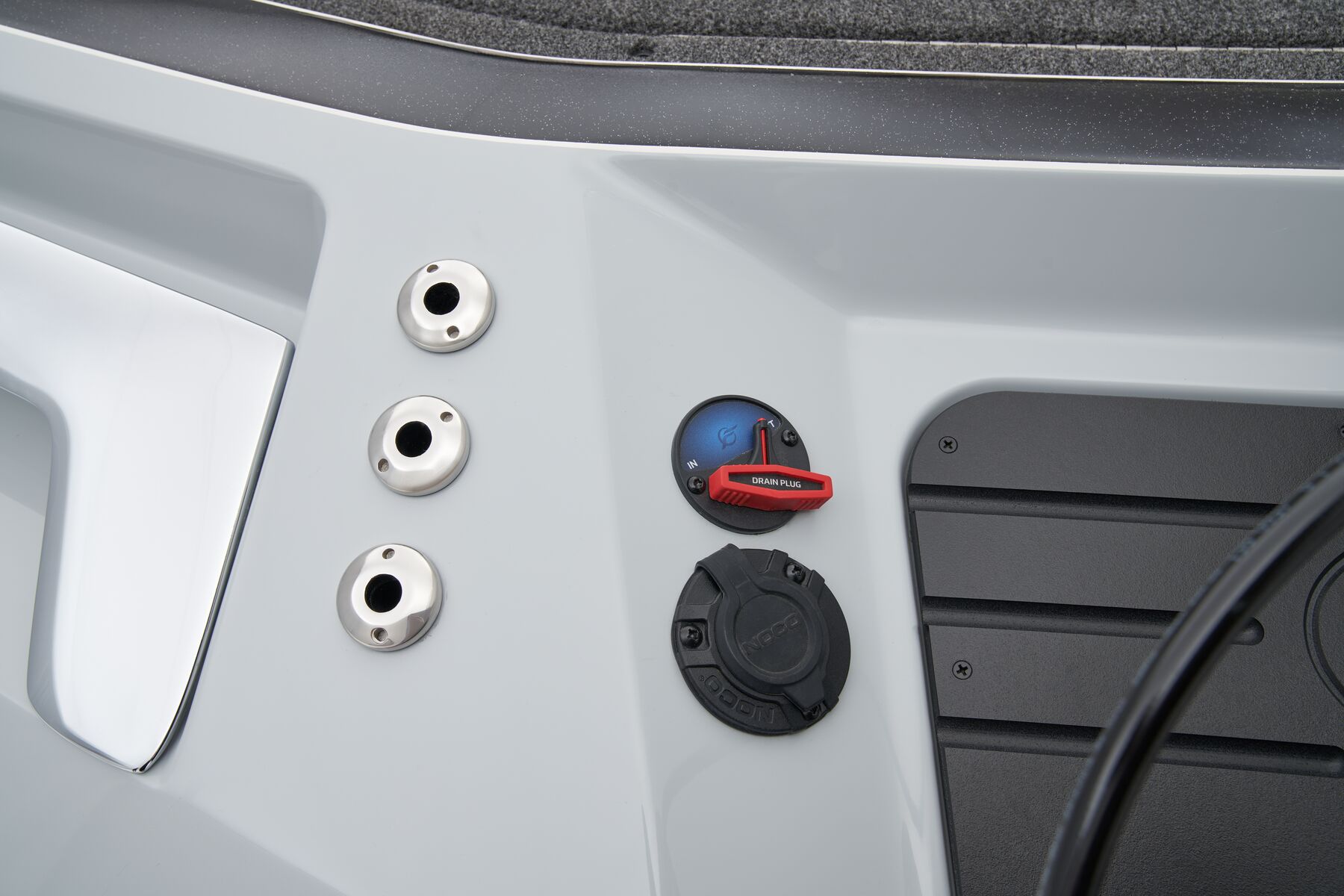

  • Remote drain plug

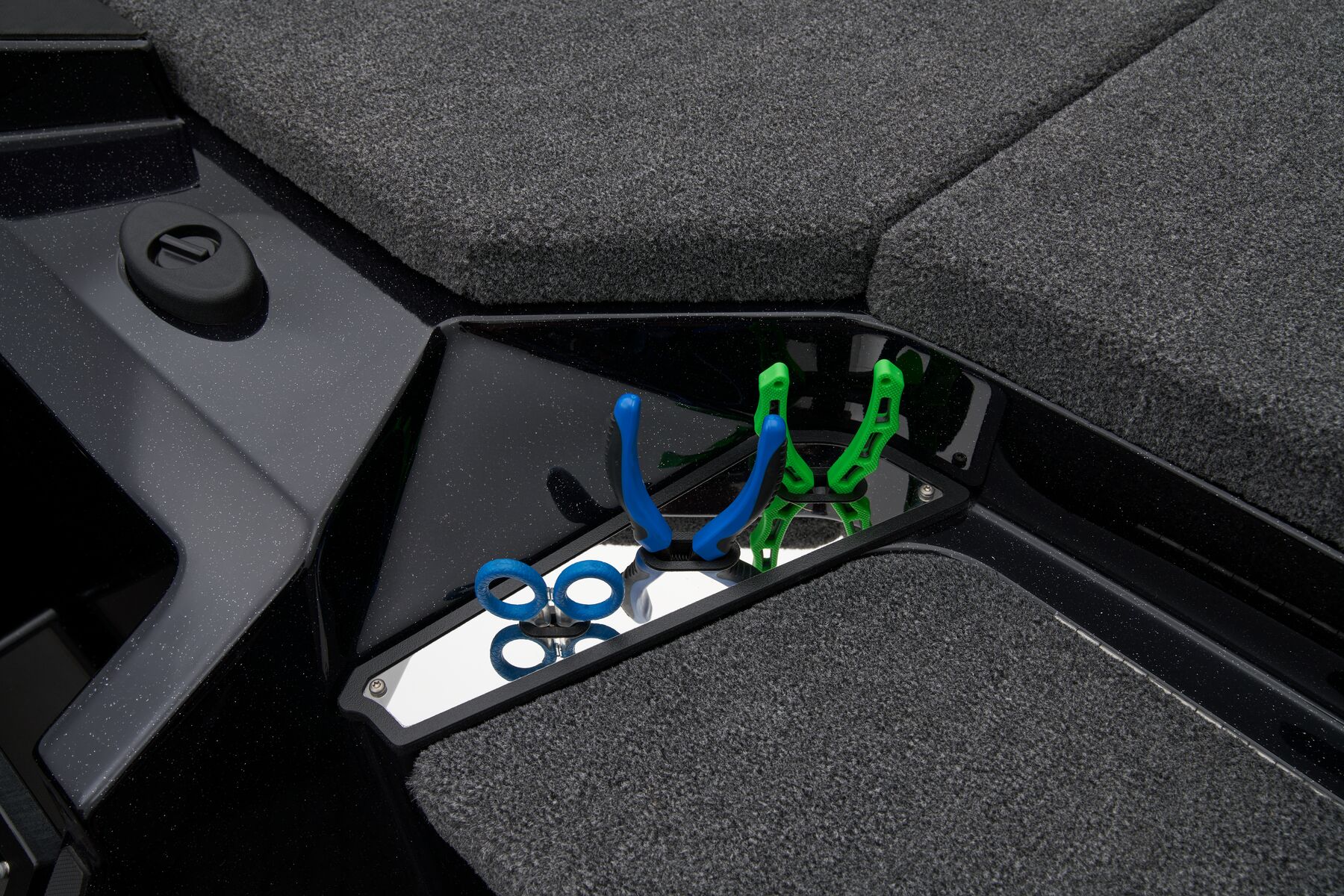

  • Tool holders at bow and front deck step
  • Molded-in driver / passenger footrests

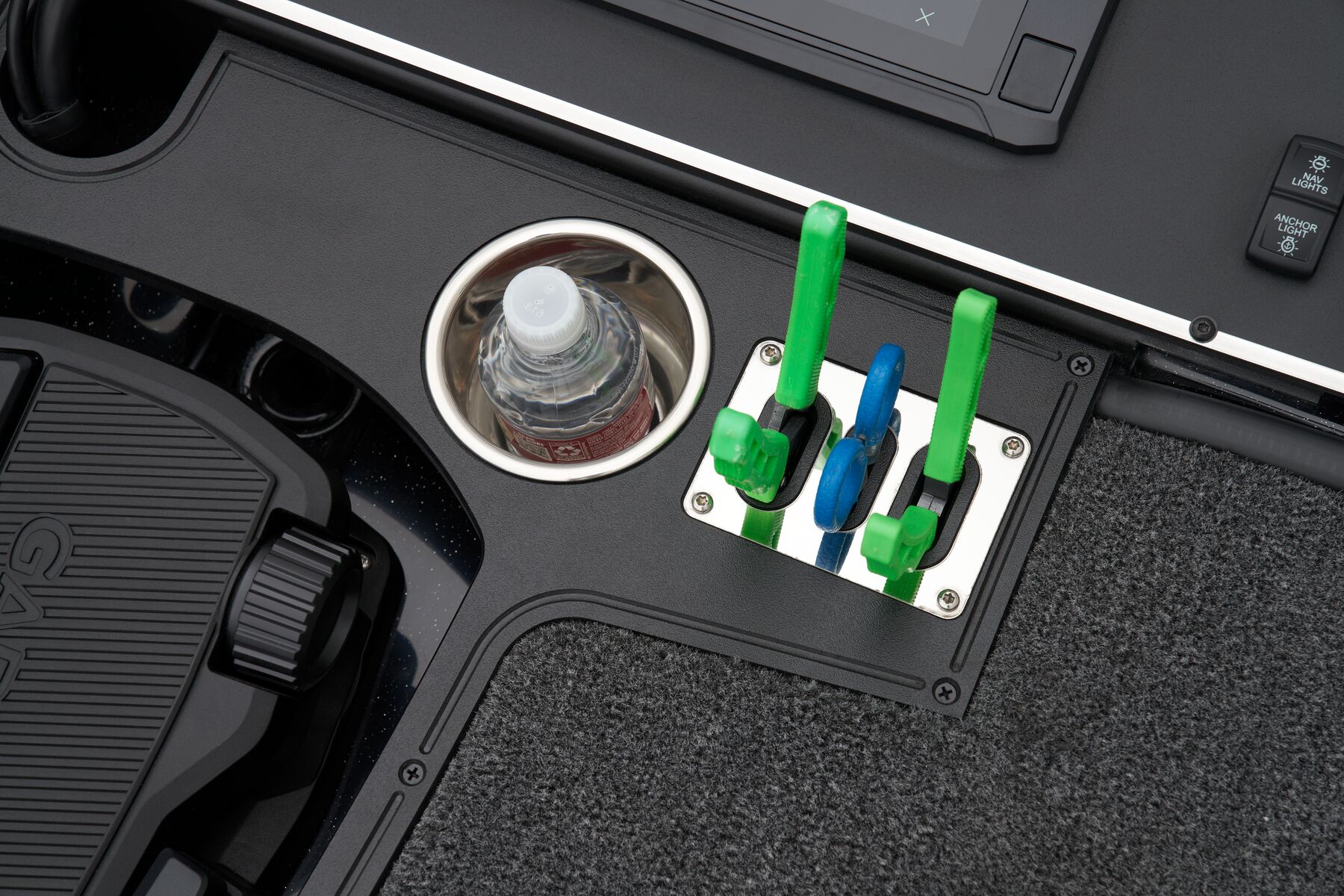

  • Integrated stainless steel cup holders
Ranger Cup Equipped - GARMIN® Package

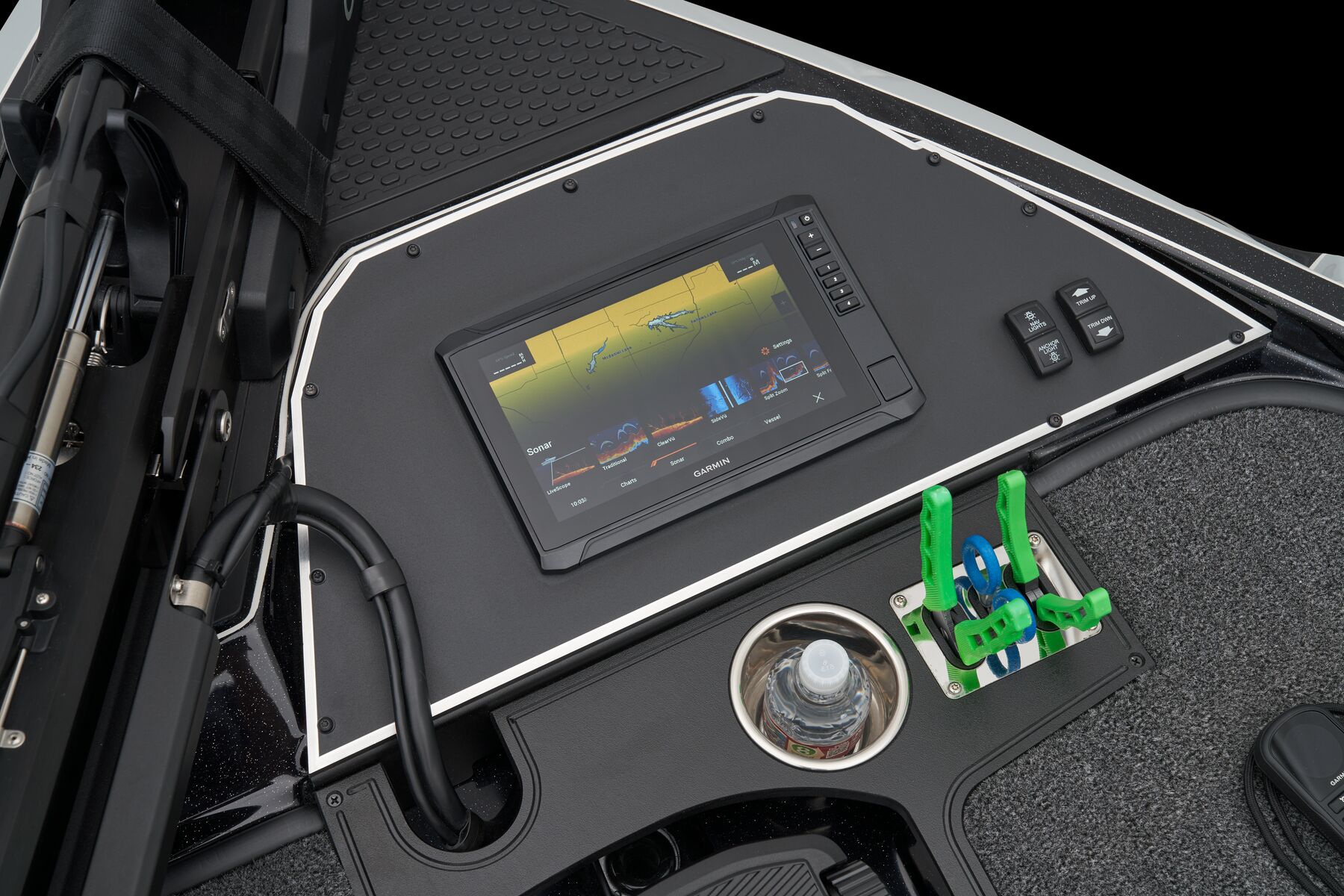

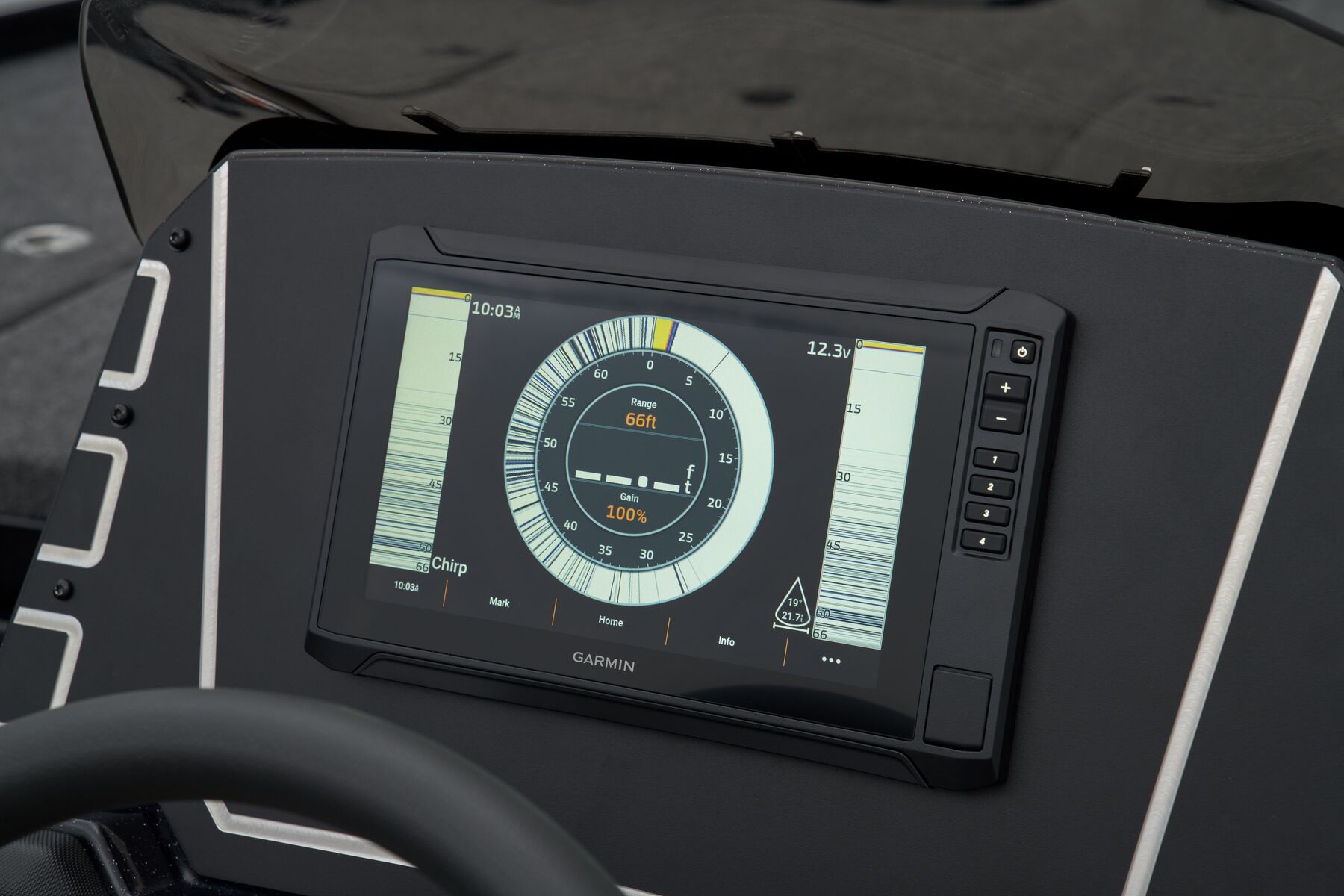

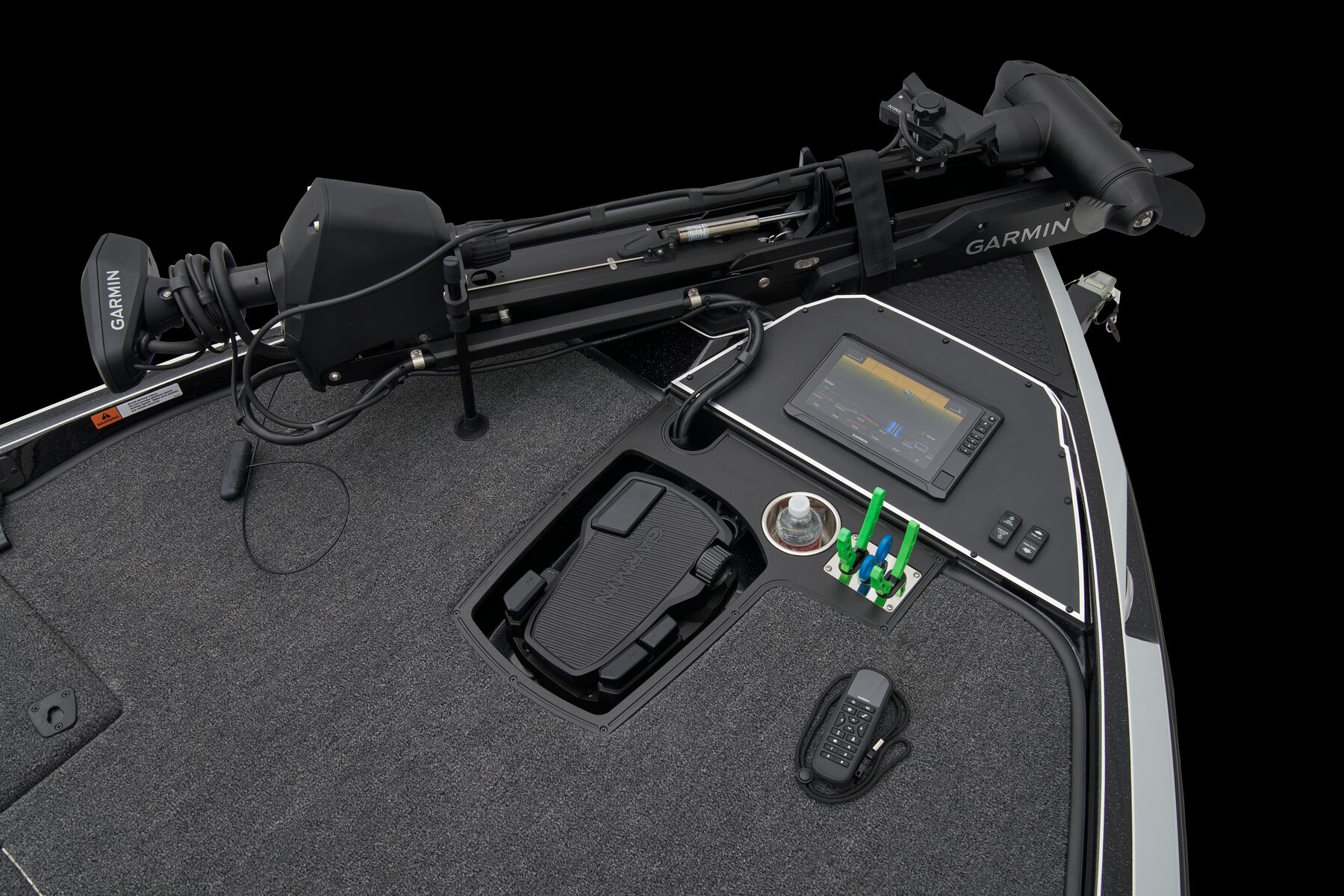

  • GARMIN® ECHOMAP™ UHD2 96sv at bow

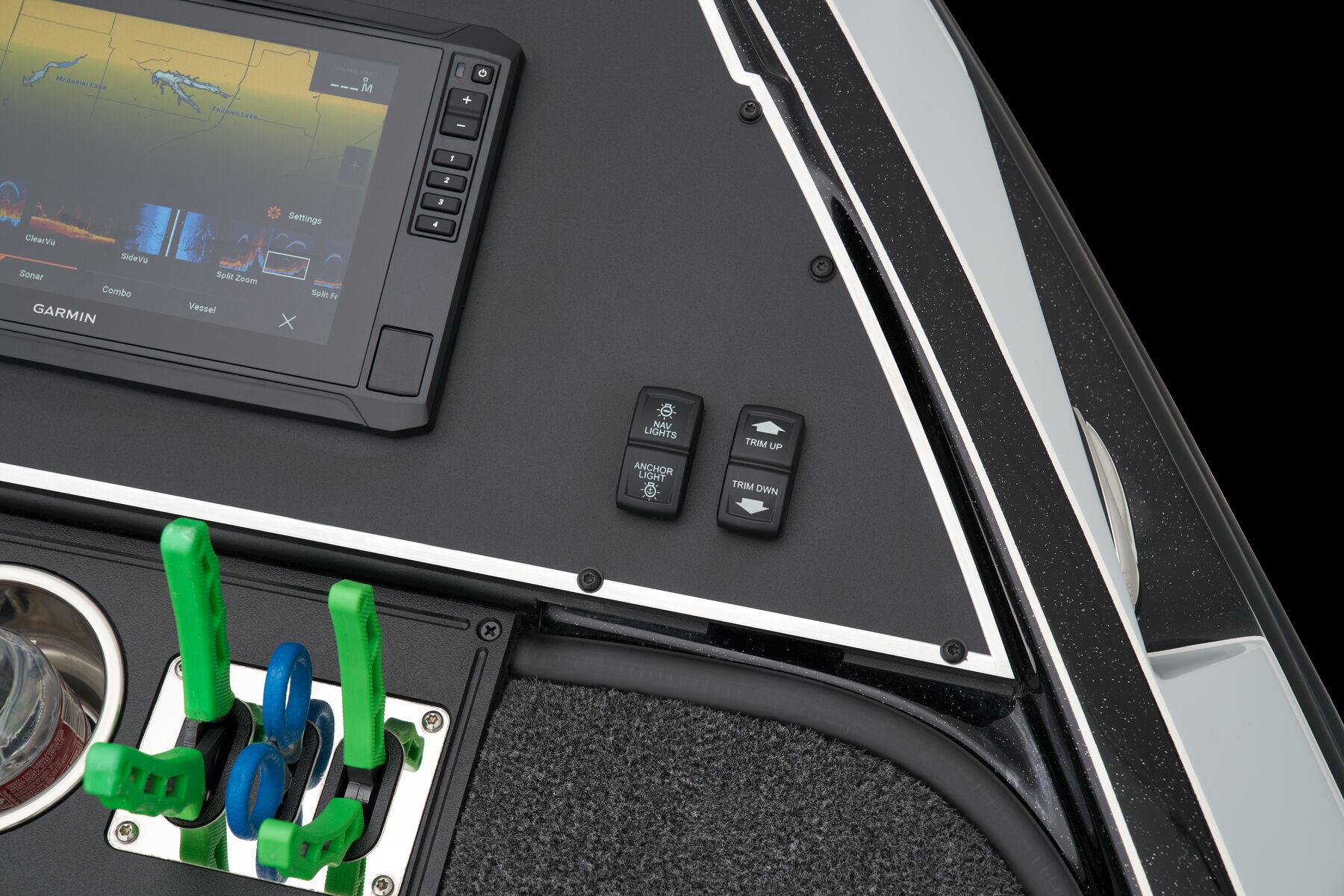

  • GARMIN® ECHOMAP™ UHD2 96sv at console
  • GARMIN® Live Scope™ Plus LVS34 Live Sonar

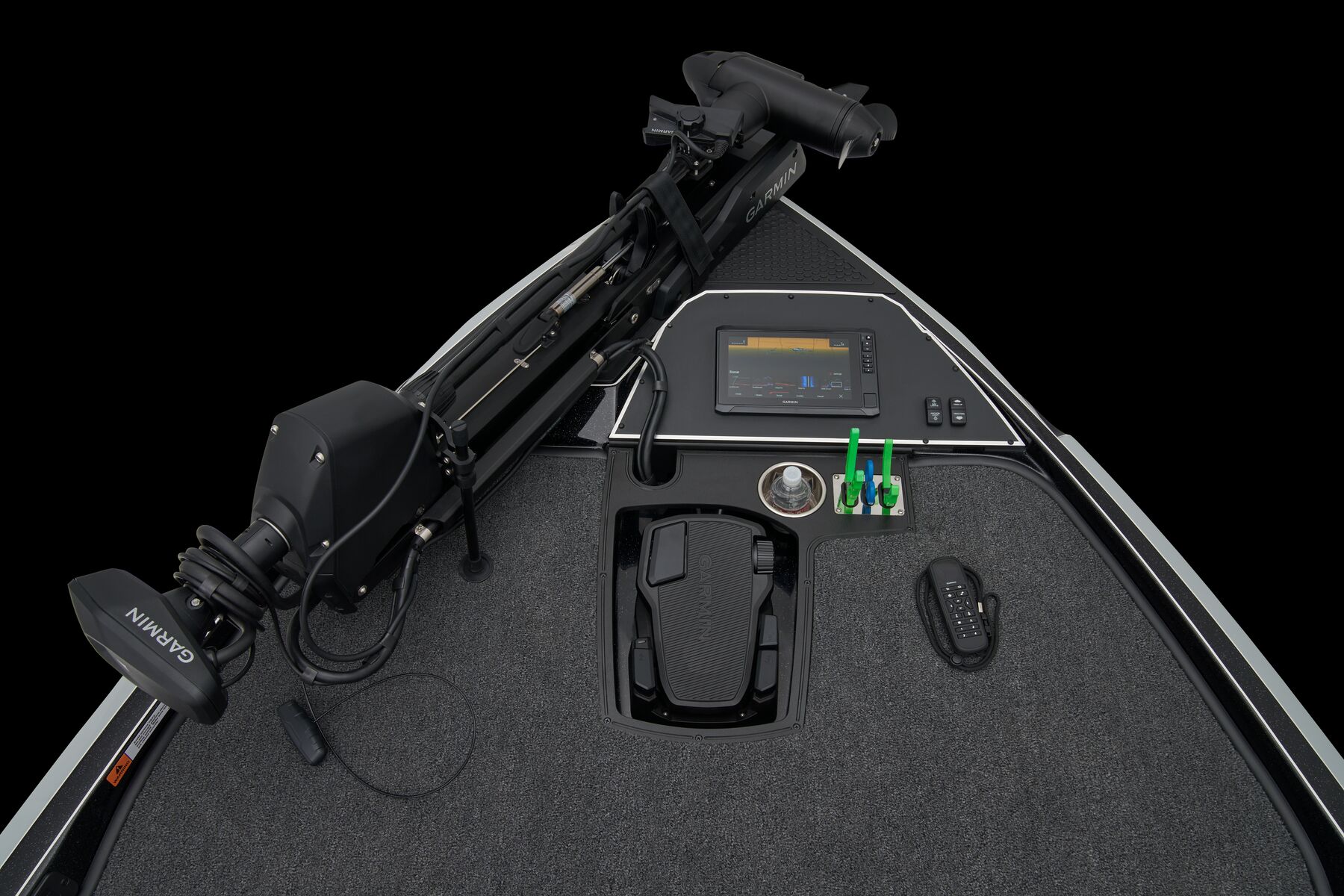

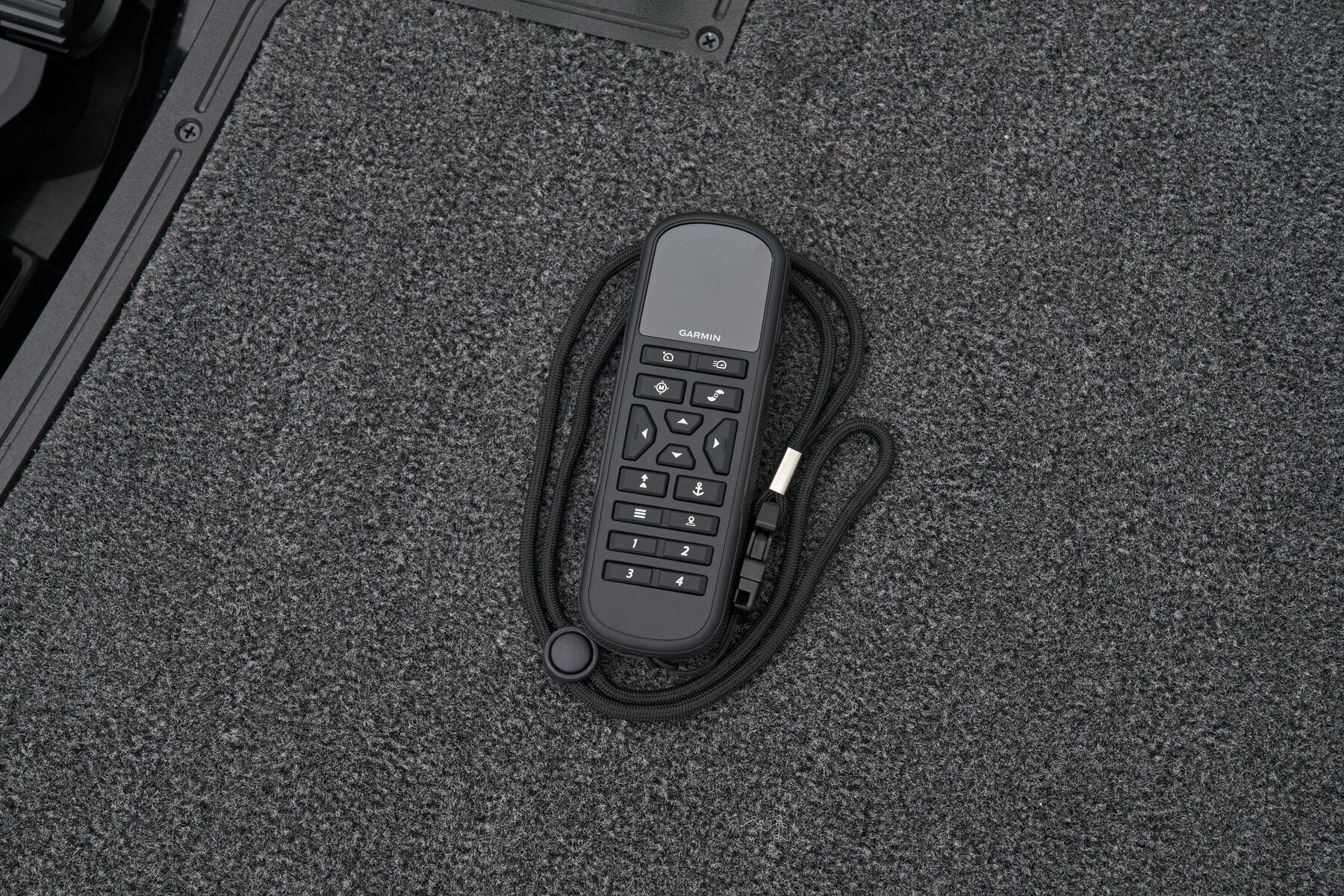

  • GARMIN® Force 45" 36V Trolling Motor
  • Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
  • Blinker Trim

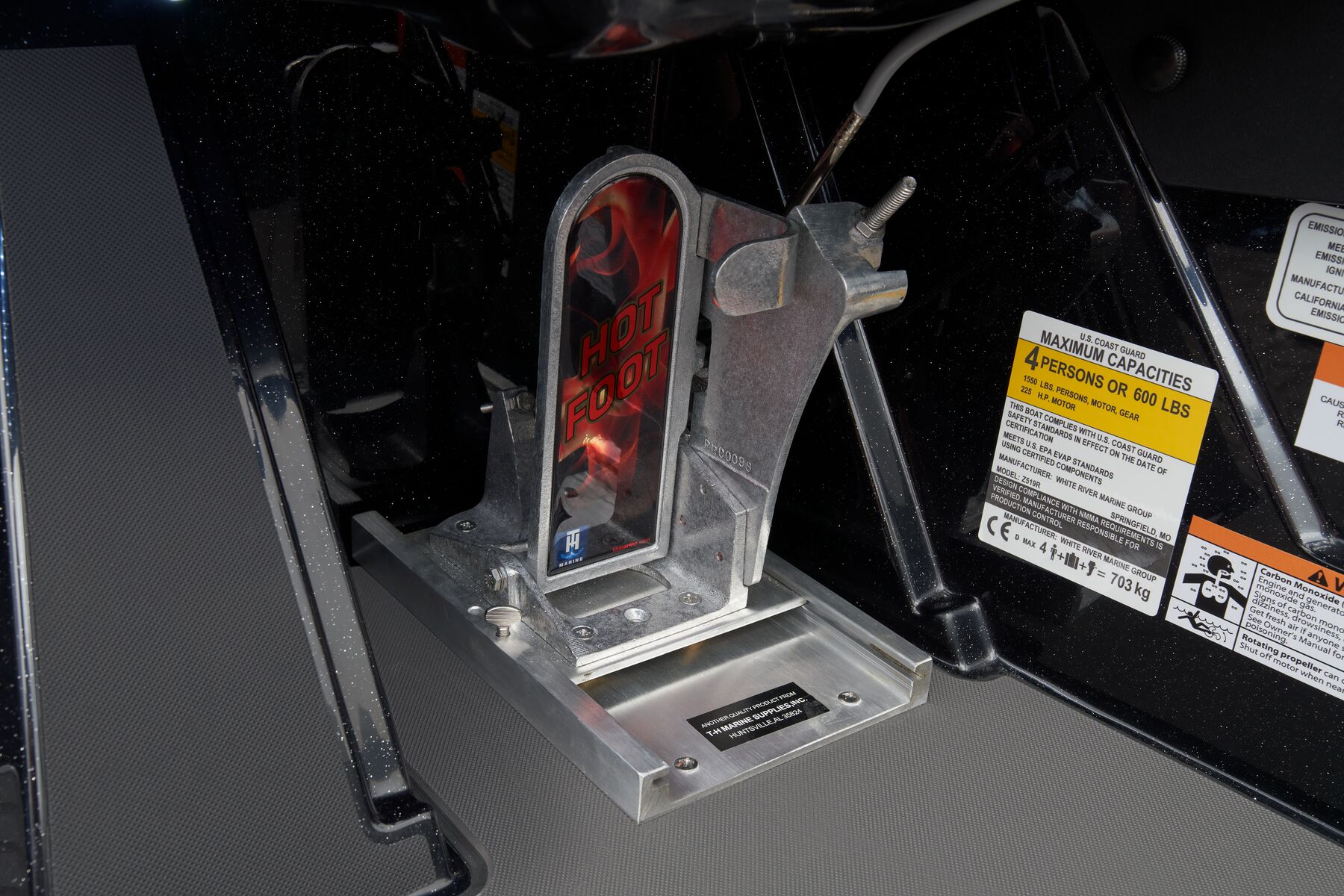

  • Hot Foot
Ranger Cup Equipped - LOWRANCE® Package

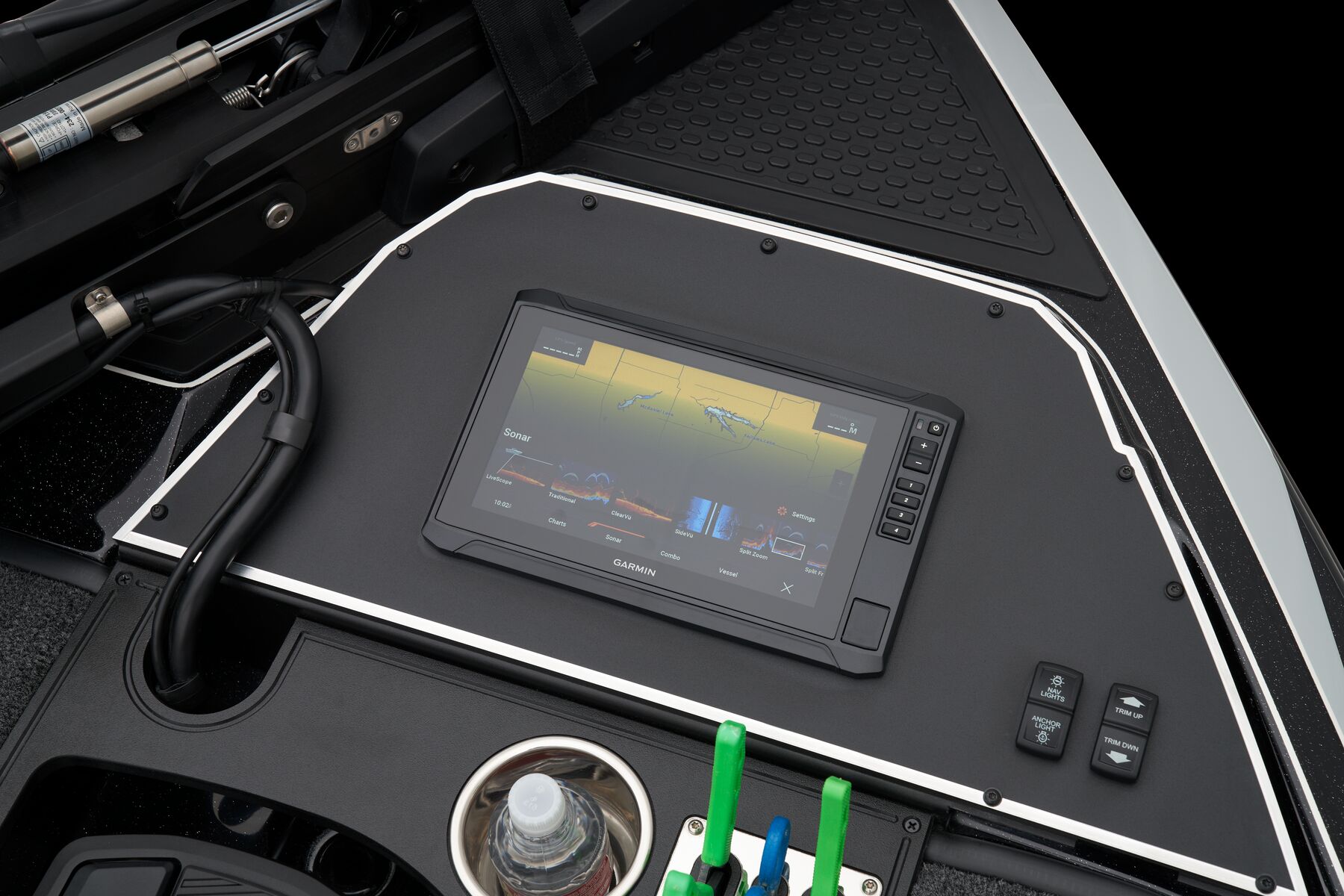

  • Lowrance® HDS® 9 PRO at bow
  • Lowrance® HDS® 9 PRO at console w/ ActiveImaging™ HD
  • Lowrance® Active Target™ 2 Live Sonar
  • Lowrance® Ghost 45" 36V Trolling Motor
  • Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
  • Blinker Trim
  • Hot Foot
Electronics

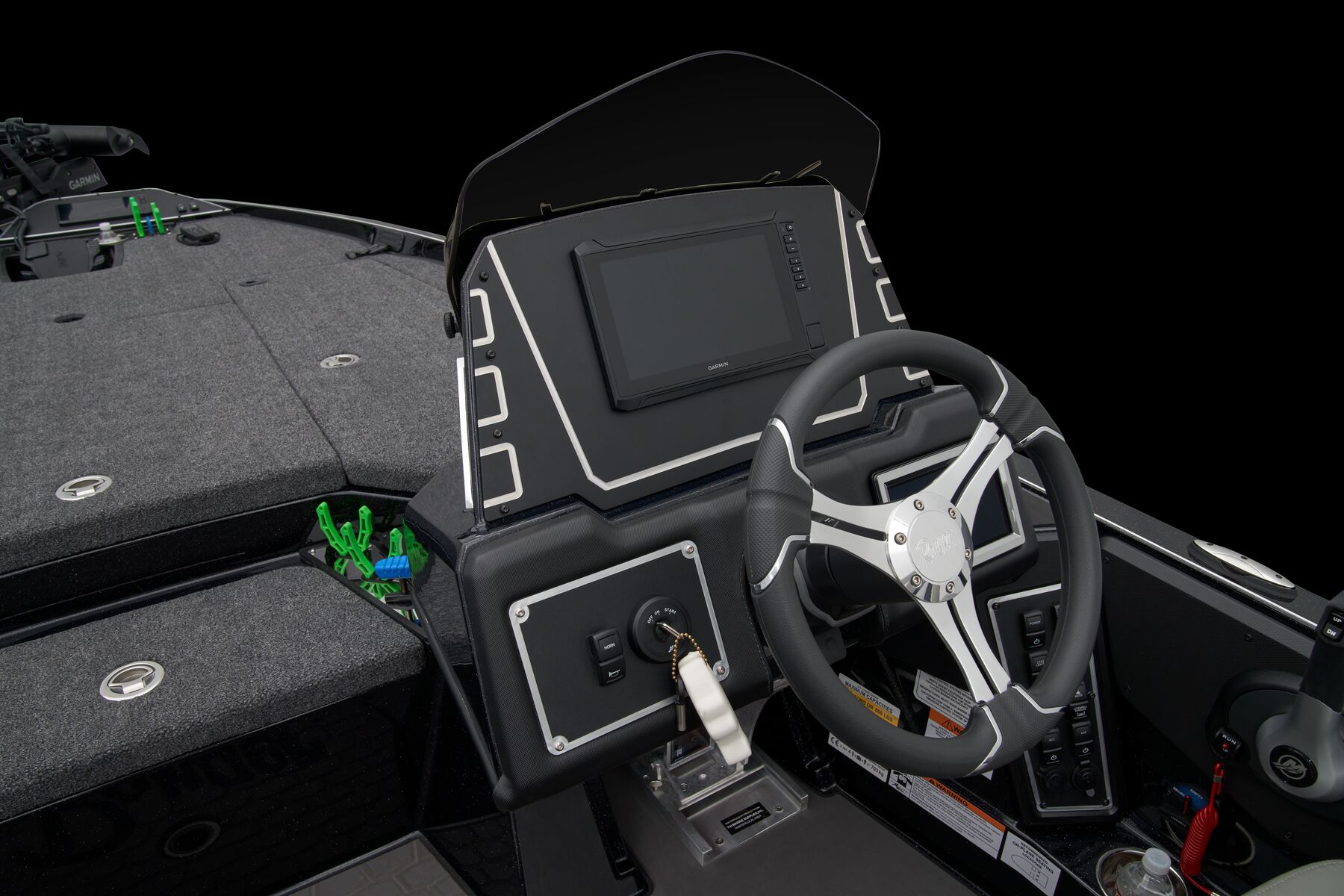

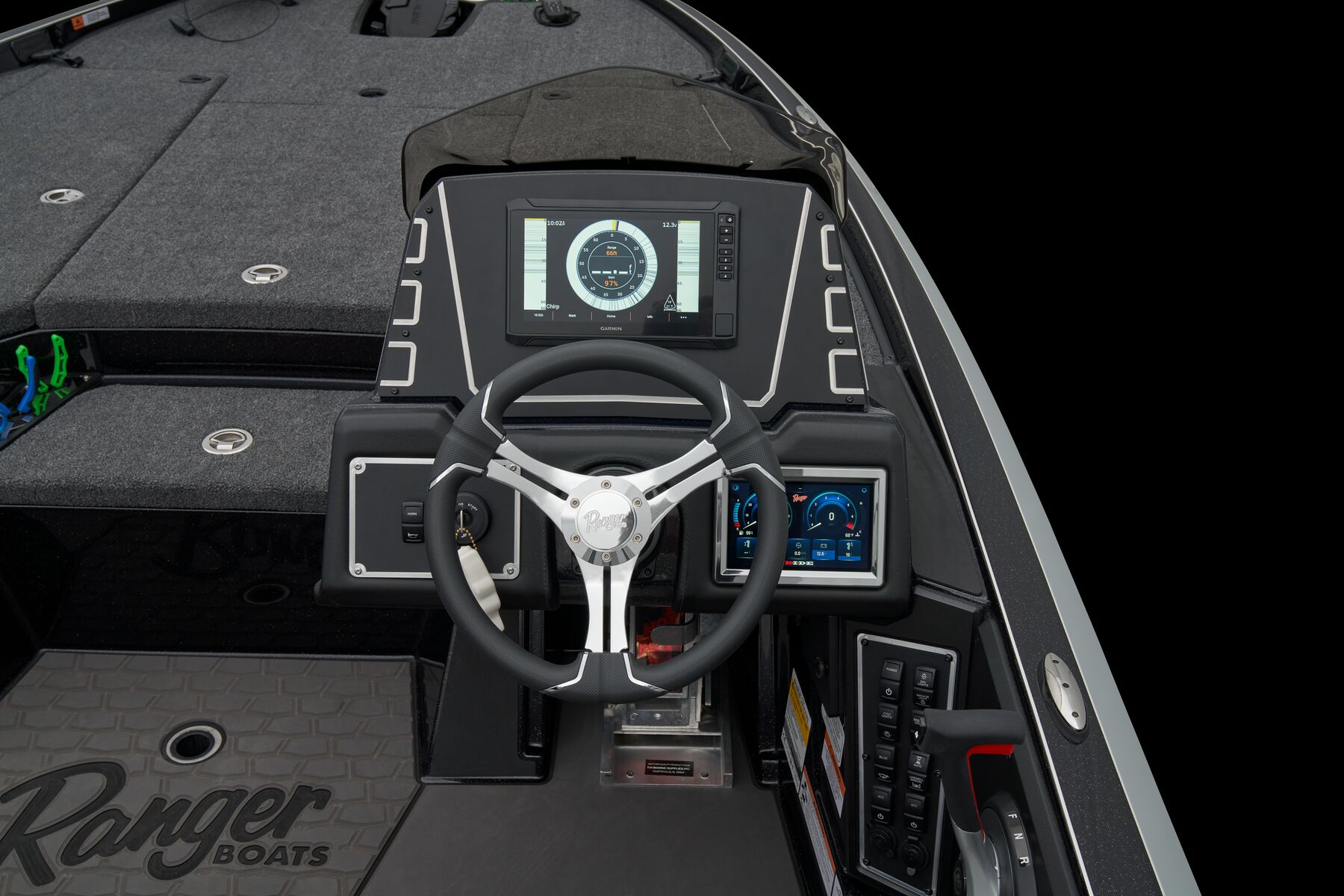

  • Ranger® System Monitor - 7" touchscreen that displays all boat and engine data at a glance

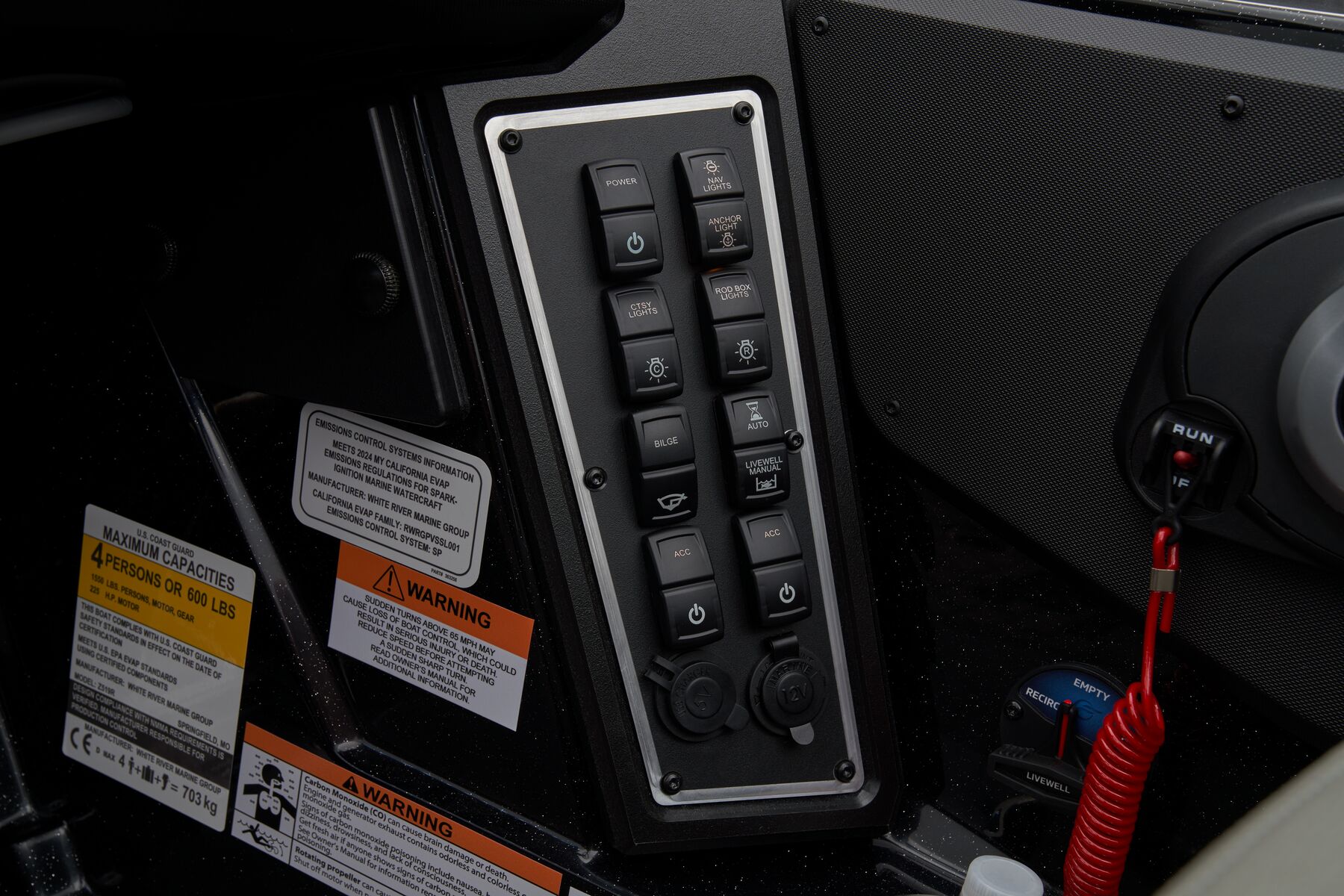

  • Easy-touch analog switching

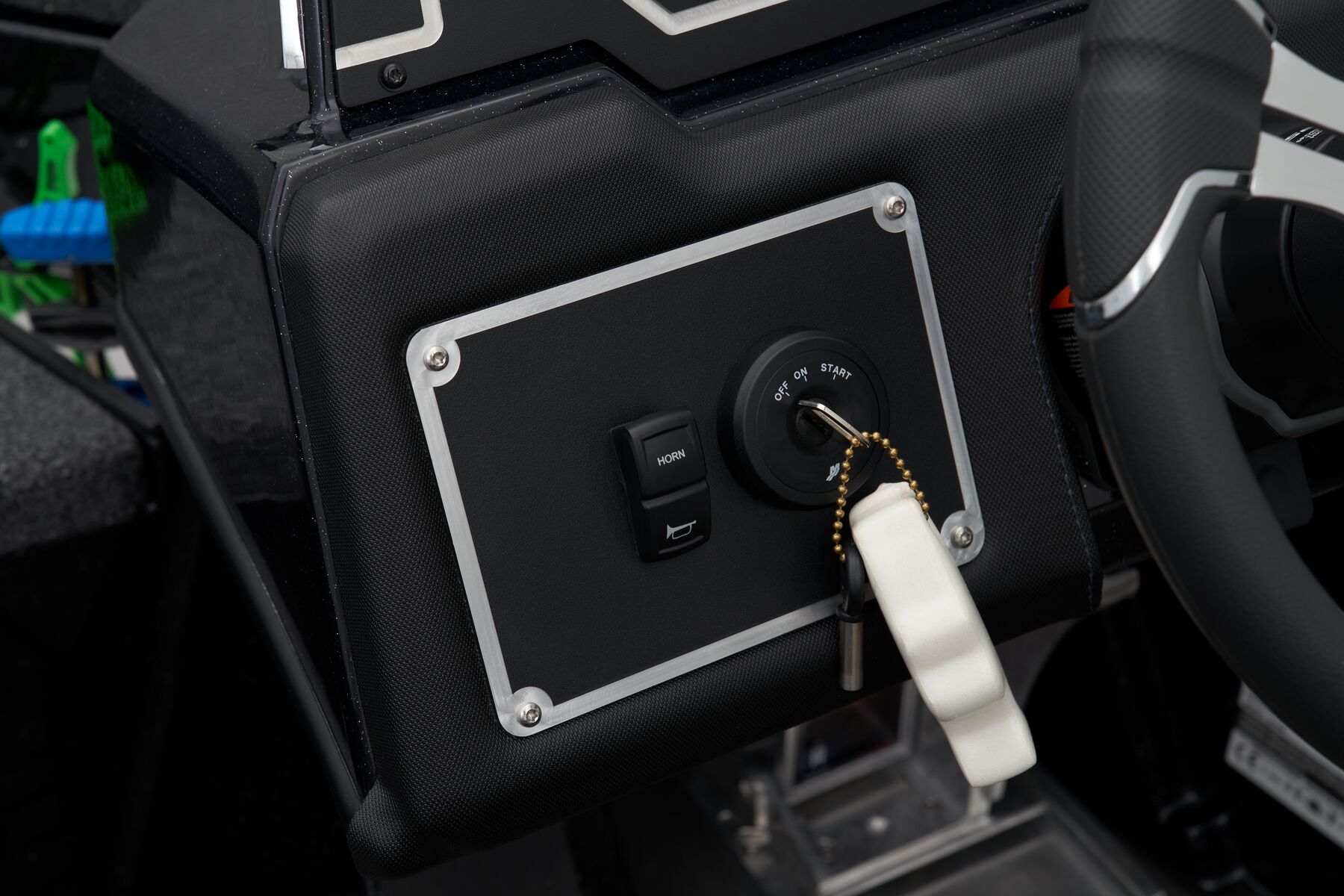

  • Keyed ignition
  • Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
  • Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
  • Master Power on/off battery disconnect switch
  • NOCO™ GB40 jump starter w/ on-board USB charging
  • LED storage compartment lighting & LED courtesy & livewell lighting
  • Integrated LED bow navigation lights & removable LED anchor light
Power/Performance
  • Ranger Cup Equipped Trolling Motor (see RCE Package)

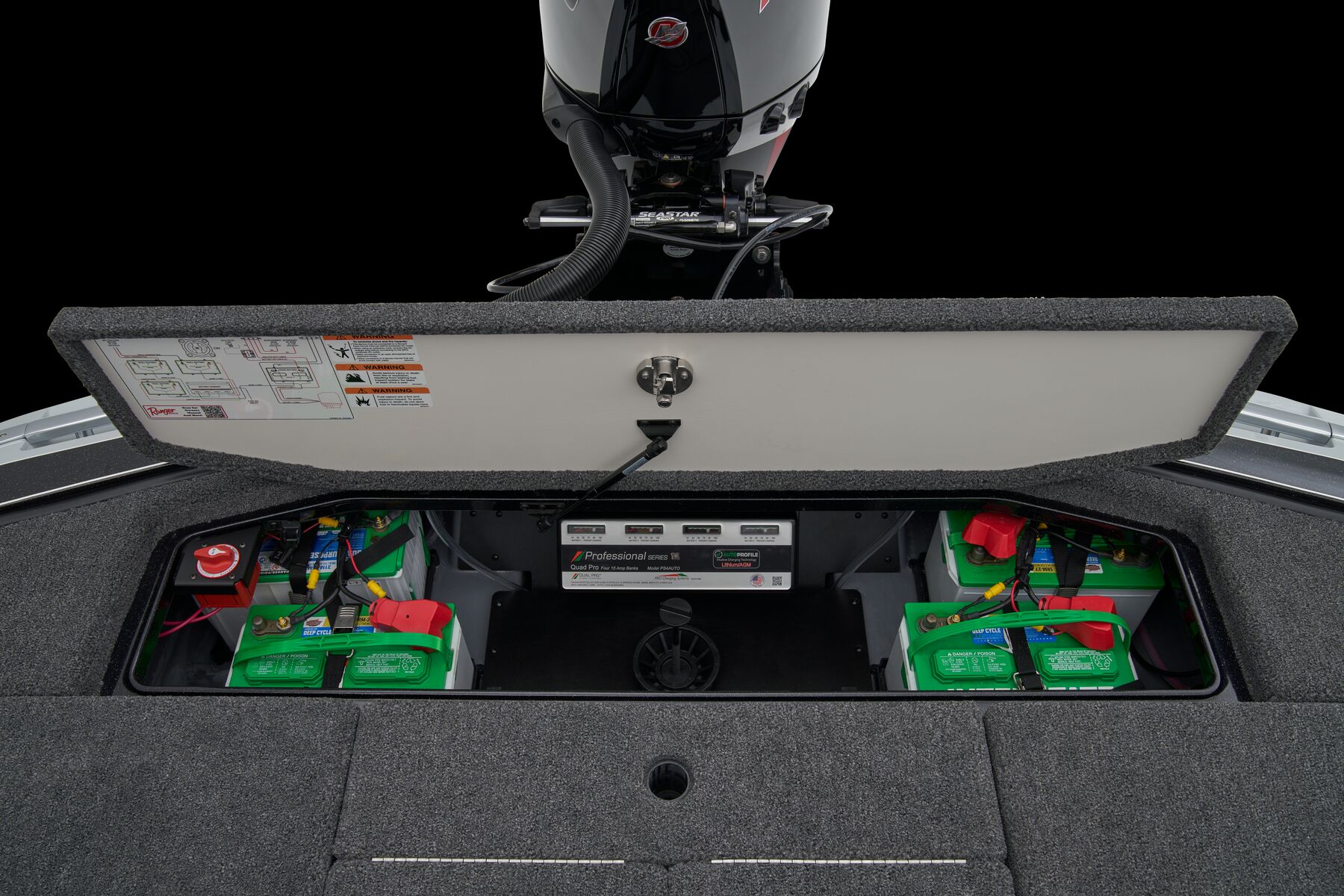

  • AGM Starting battery w/ tray
  • One-Piece-Feel Interloc Construction
  • Pultruded Fiberglass Transom

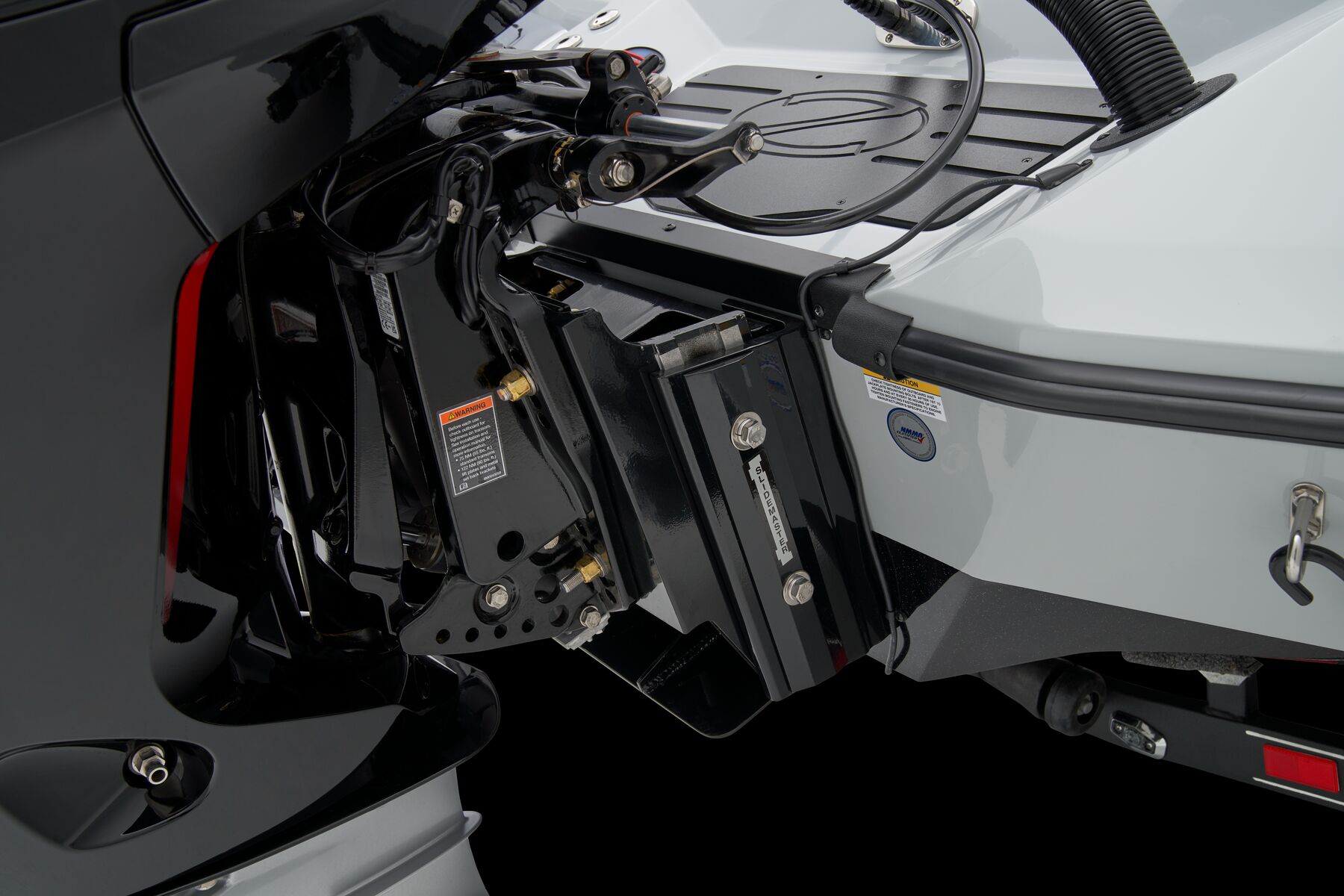

  • Integrated engine setback
  • 8" manual setback plate
  • Hydraulic steering

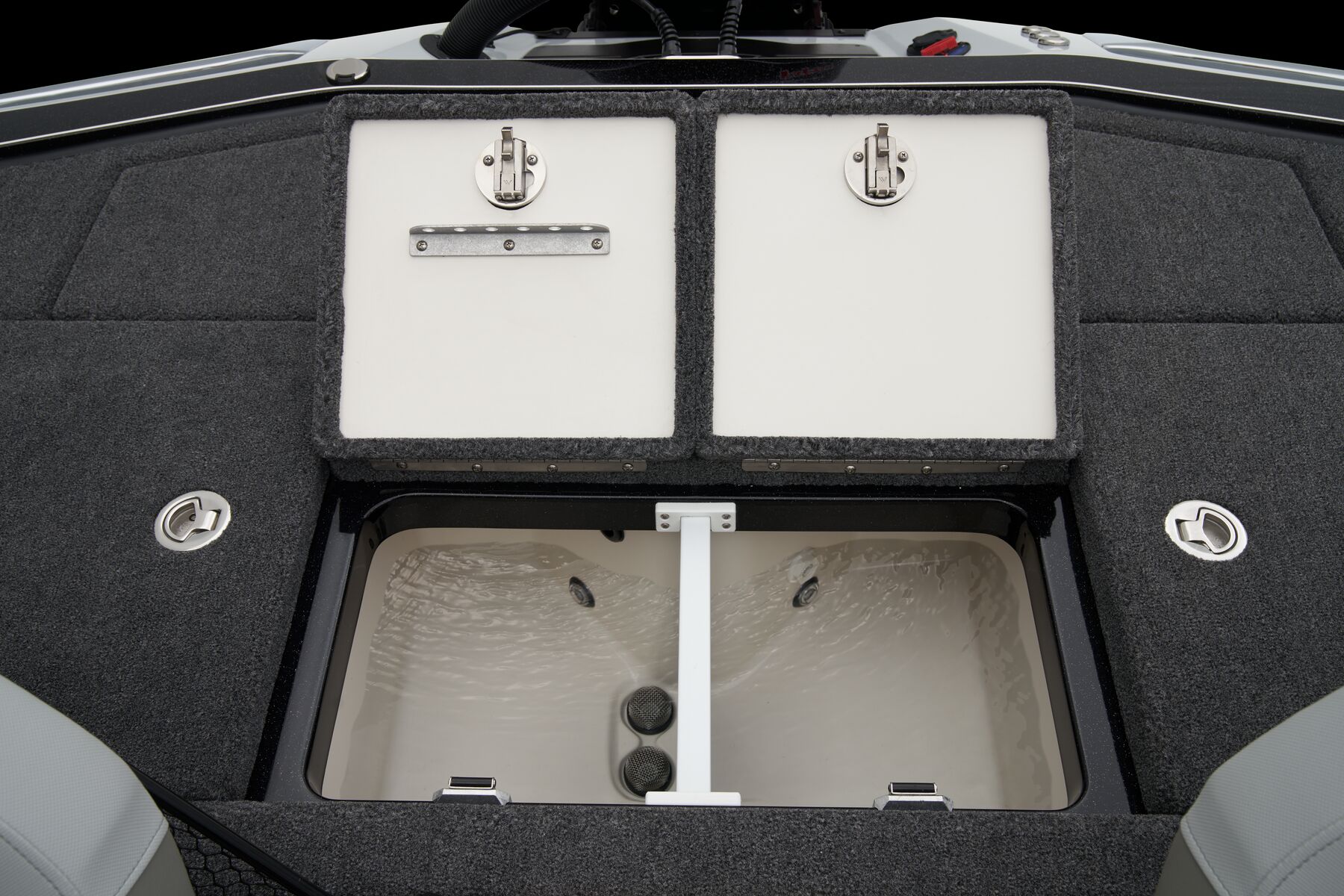

  • Recirculating aerated livewell w/ removable divider
  • Venturi aeration system

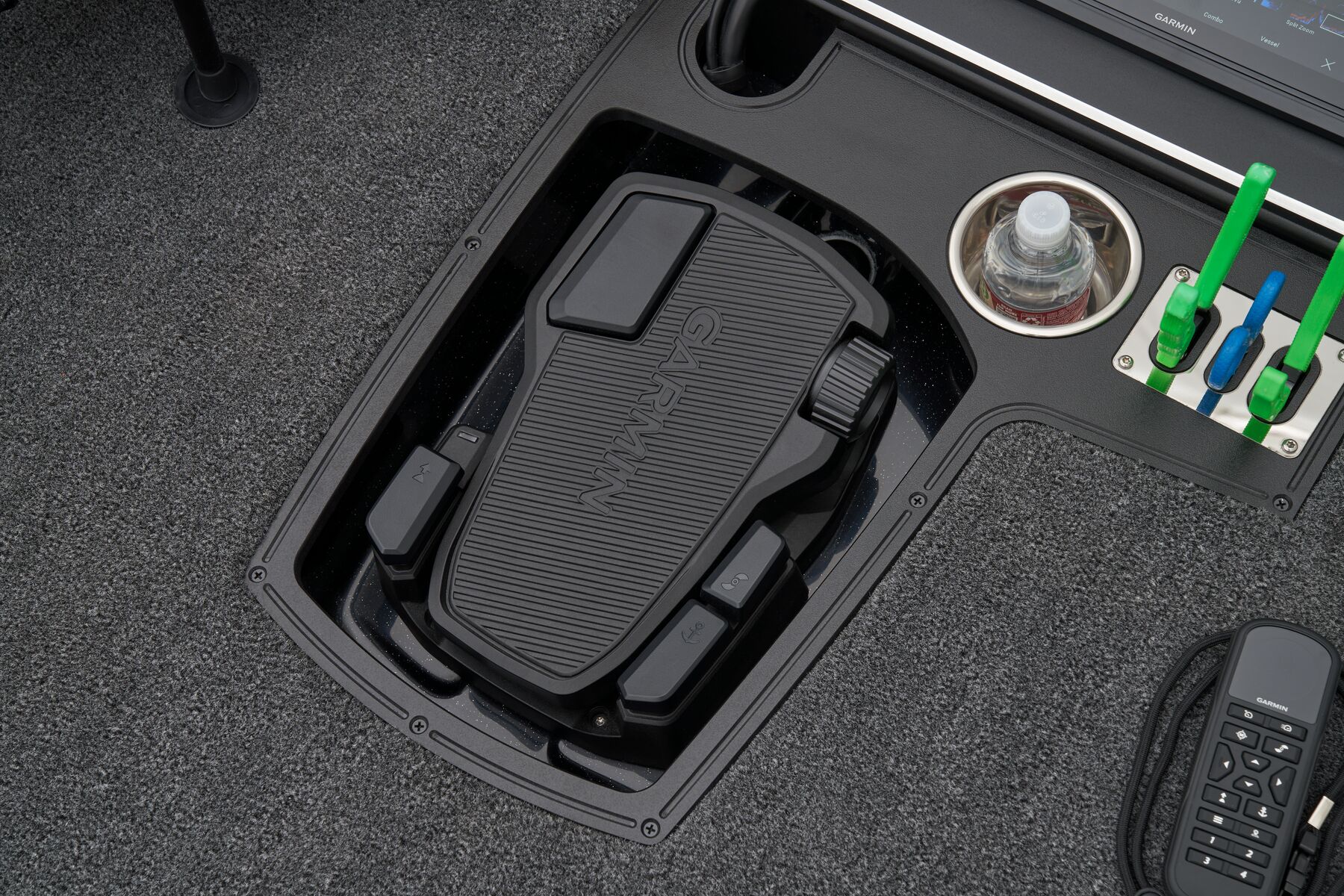

  • Recessed trolling motor foot pedal
  • High performance stainless steel prop
  • Foam-filled fiberglass stringer system
Safety/Comfort
  • Upright Level Flotation exceeding all USCG & NMMA standards

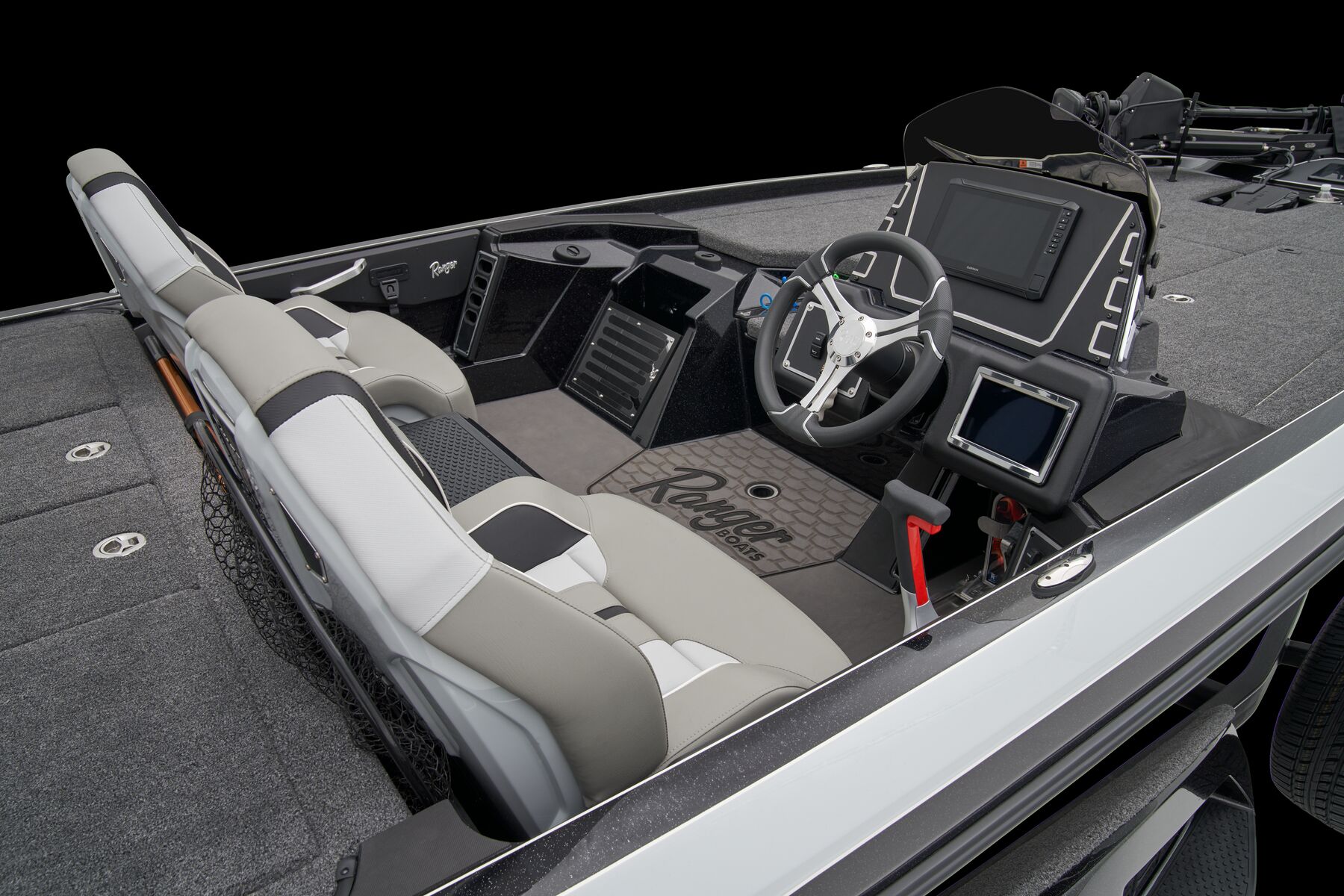

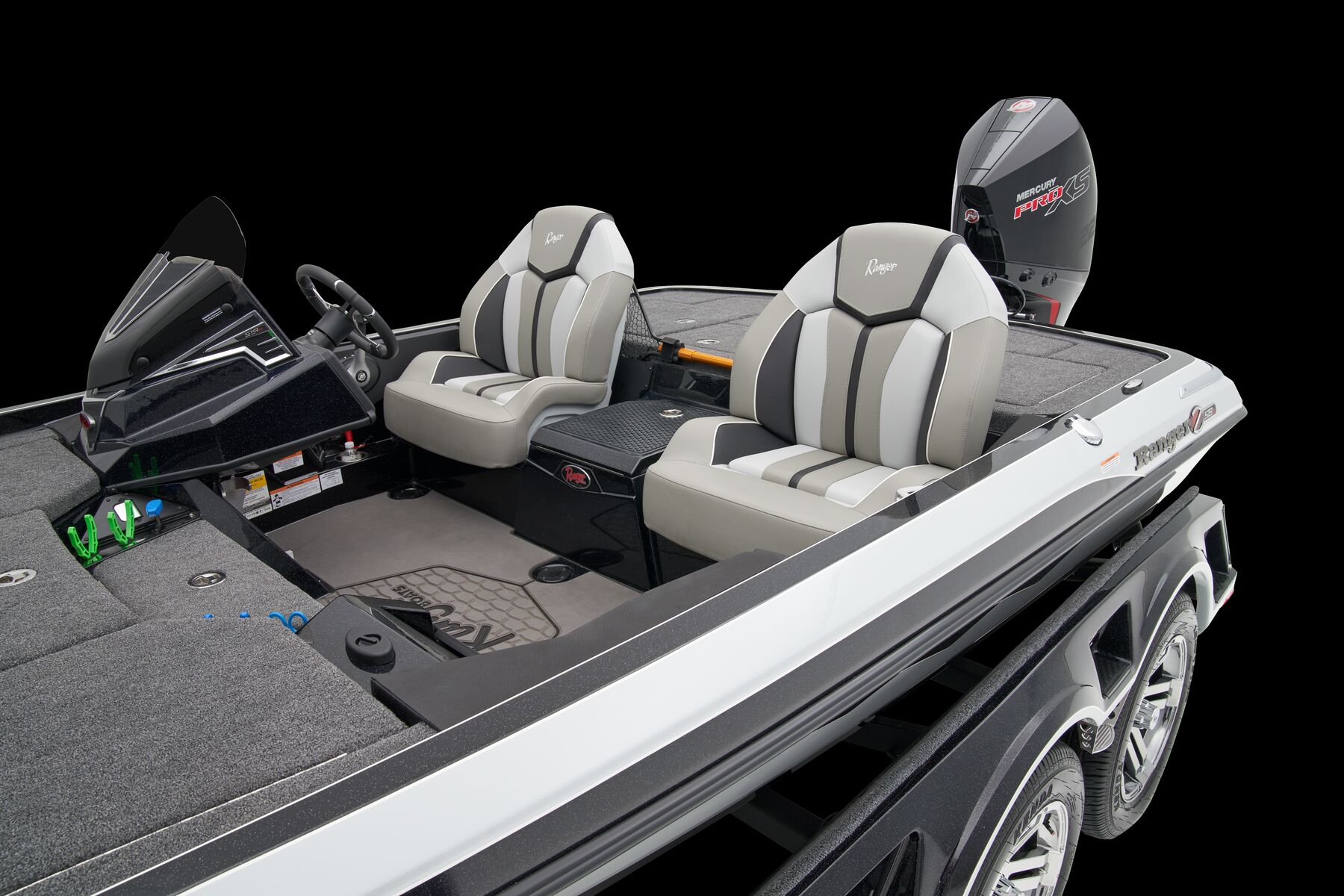

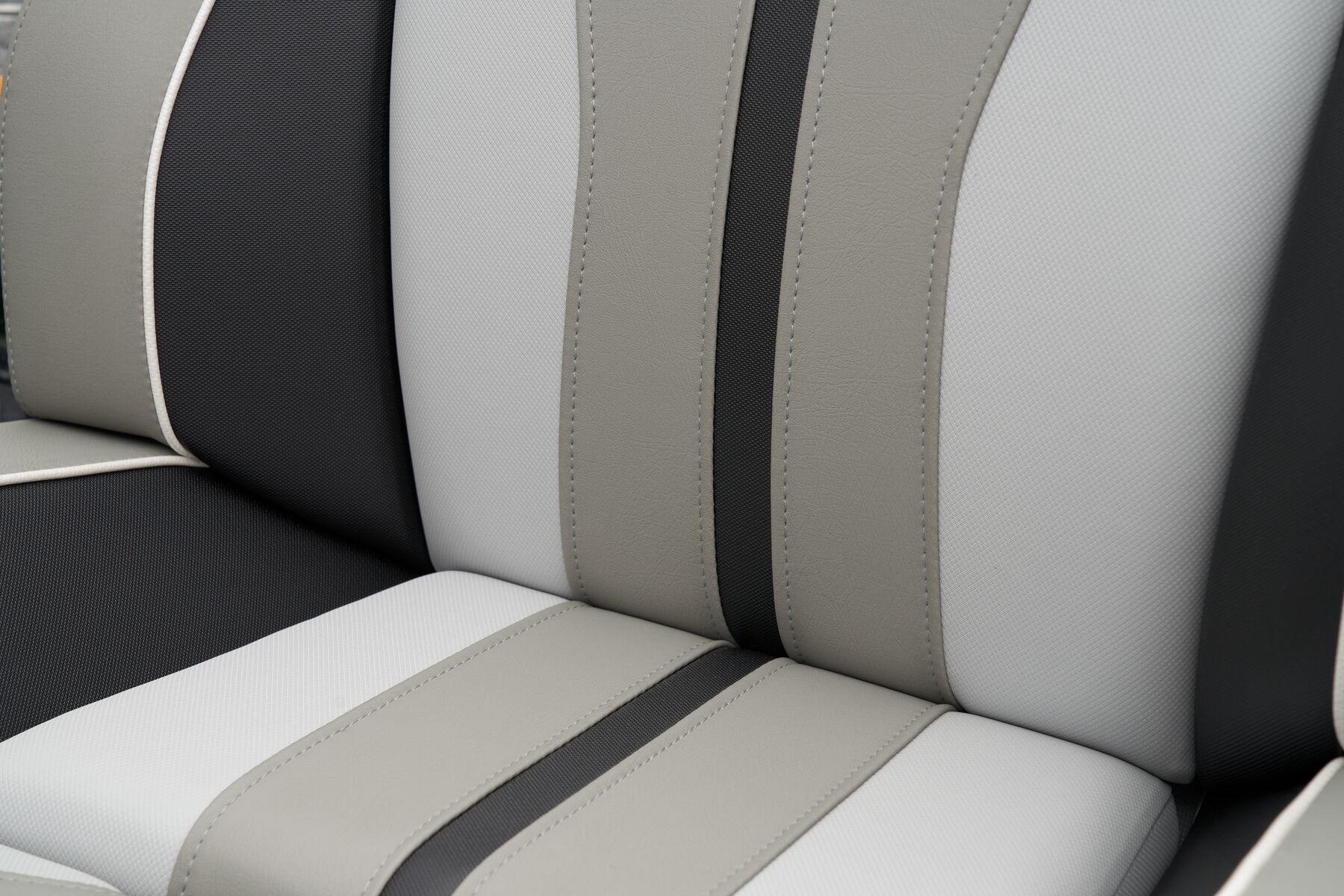

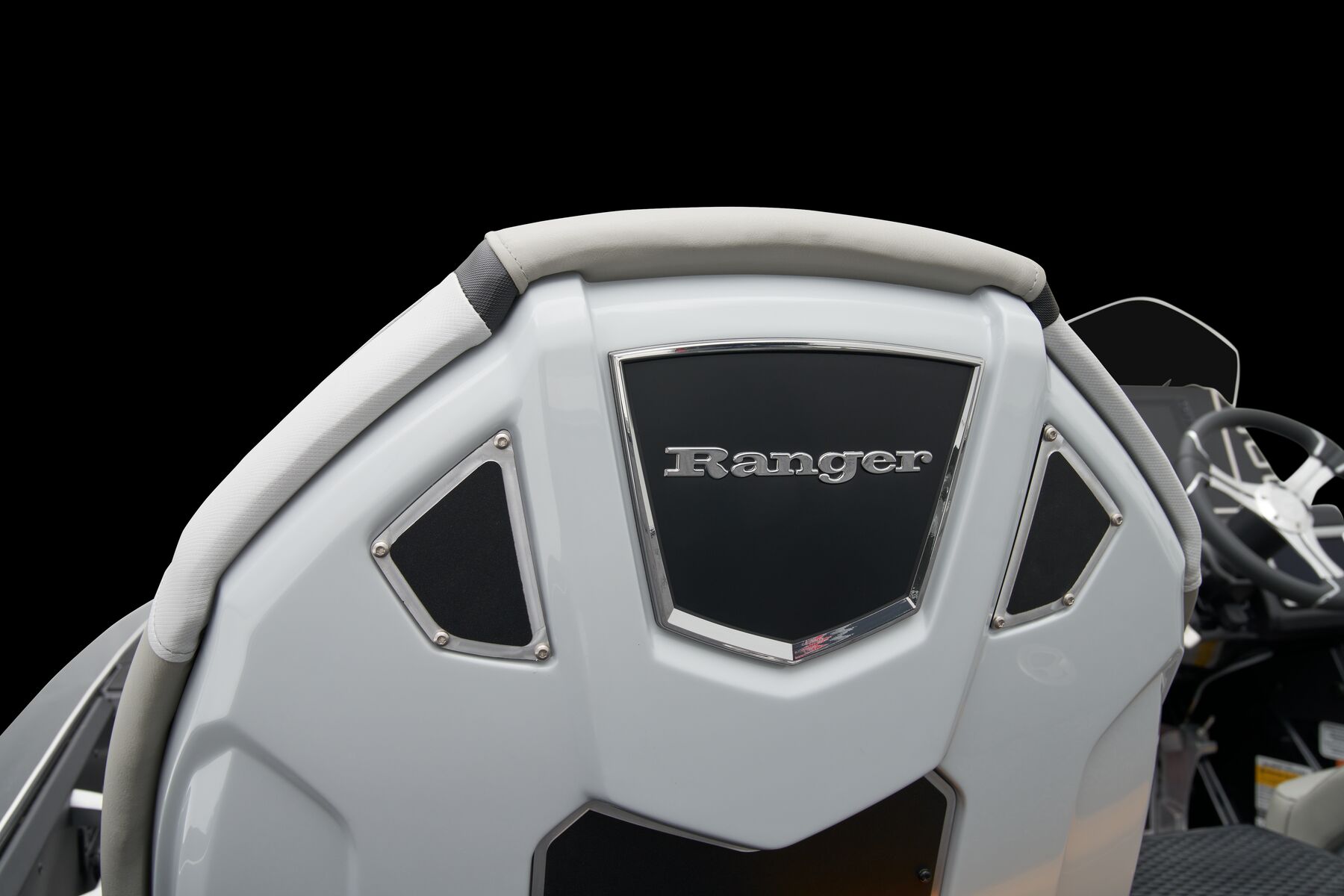

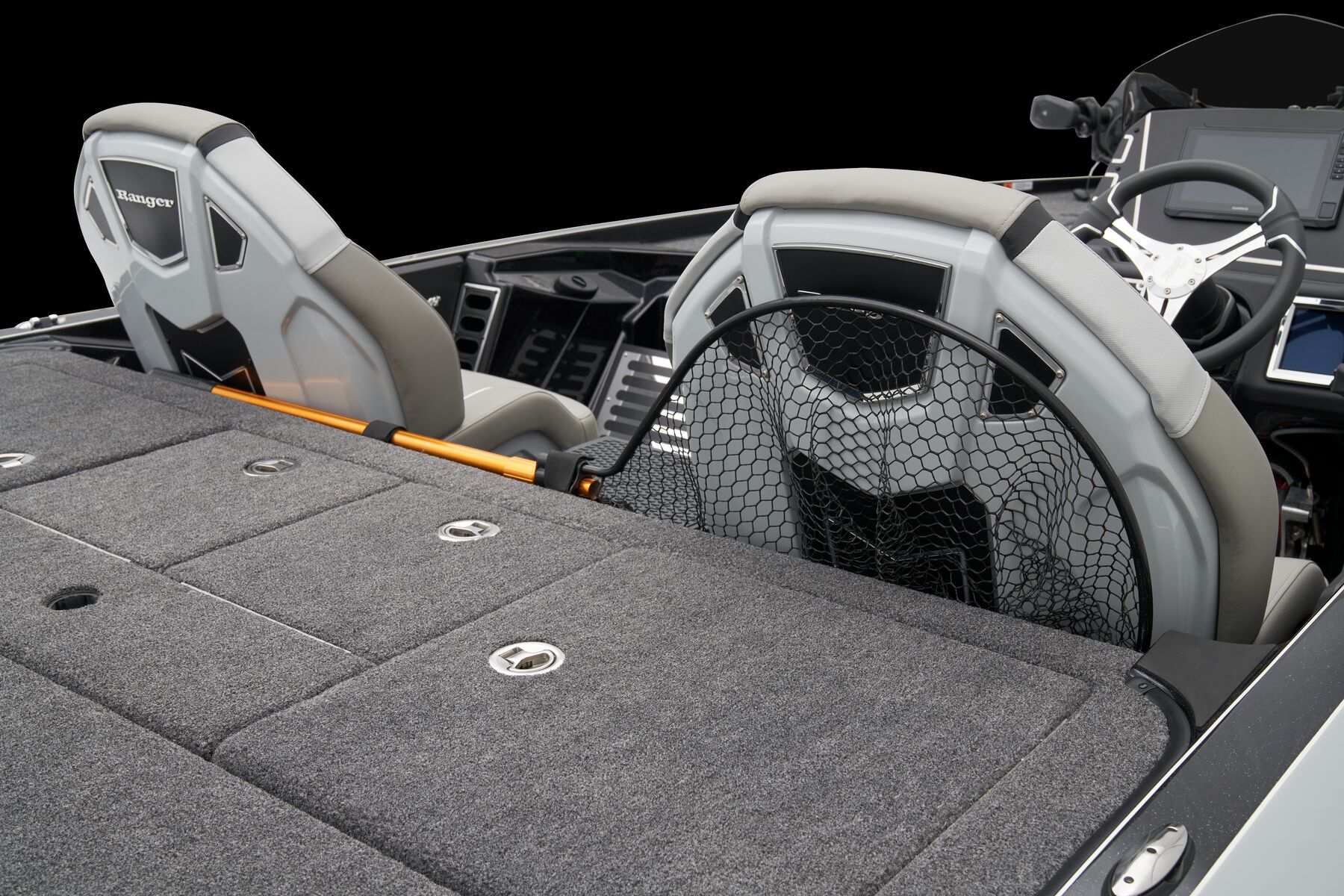

  • Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/ power pedestal
  • Fire extinguisher & horn
  • Stainless steel seat bases

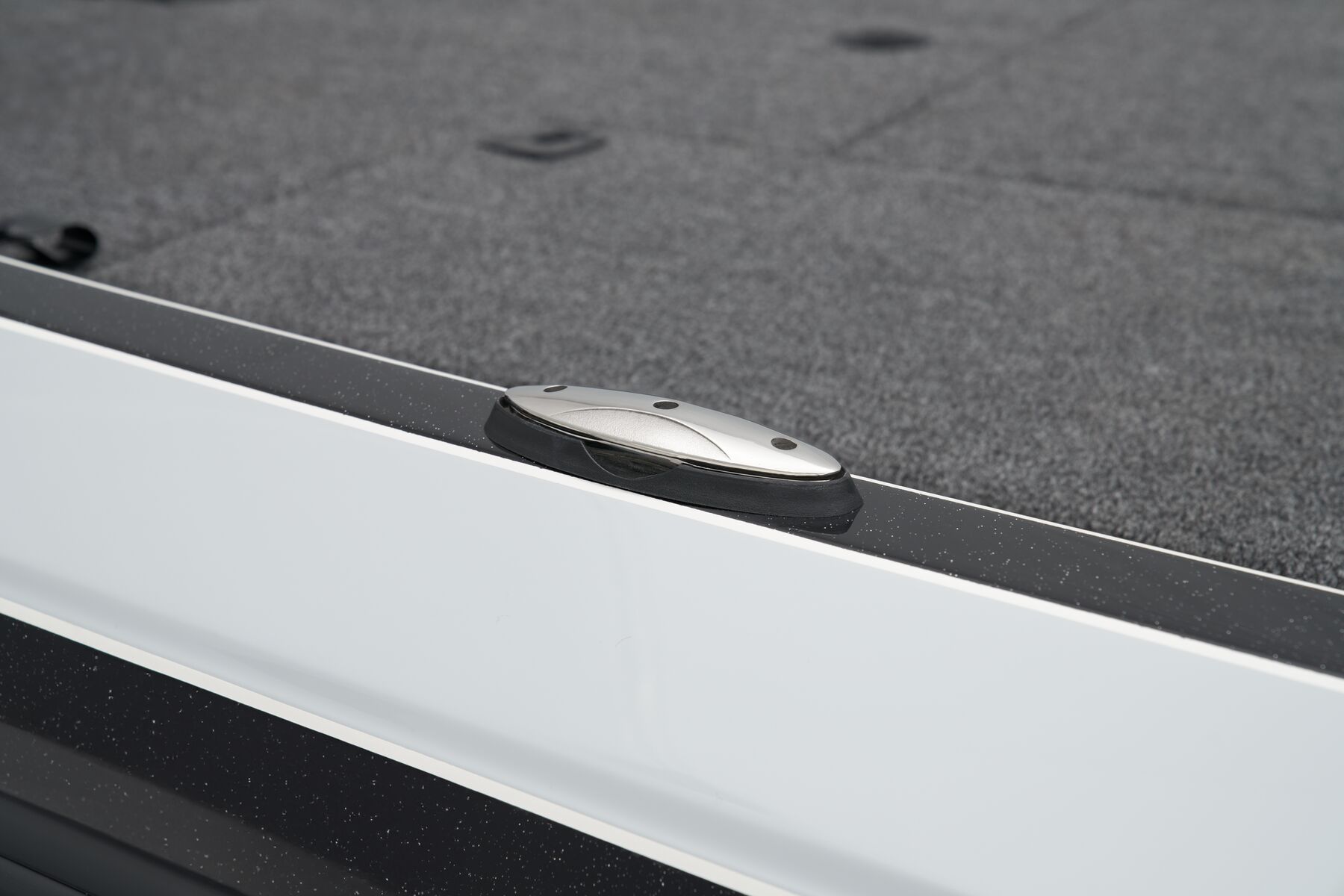

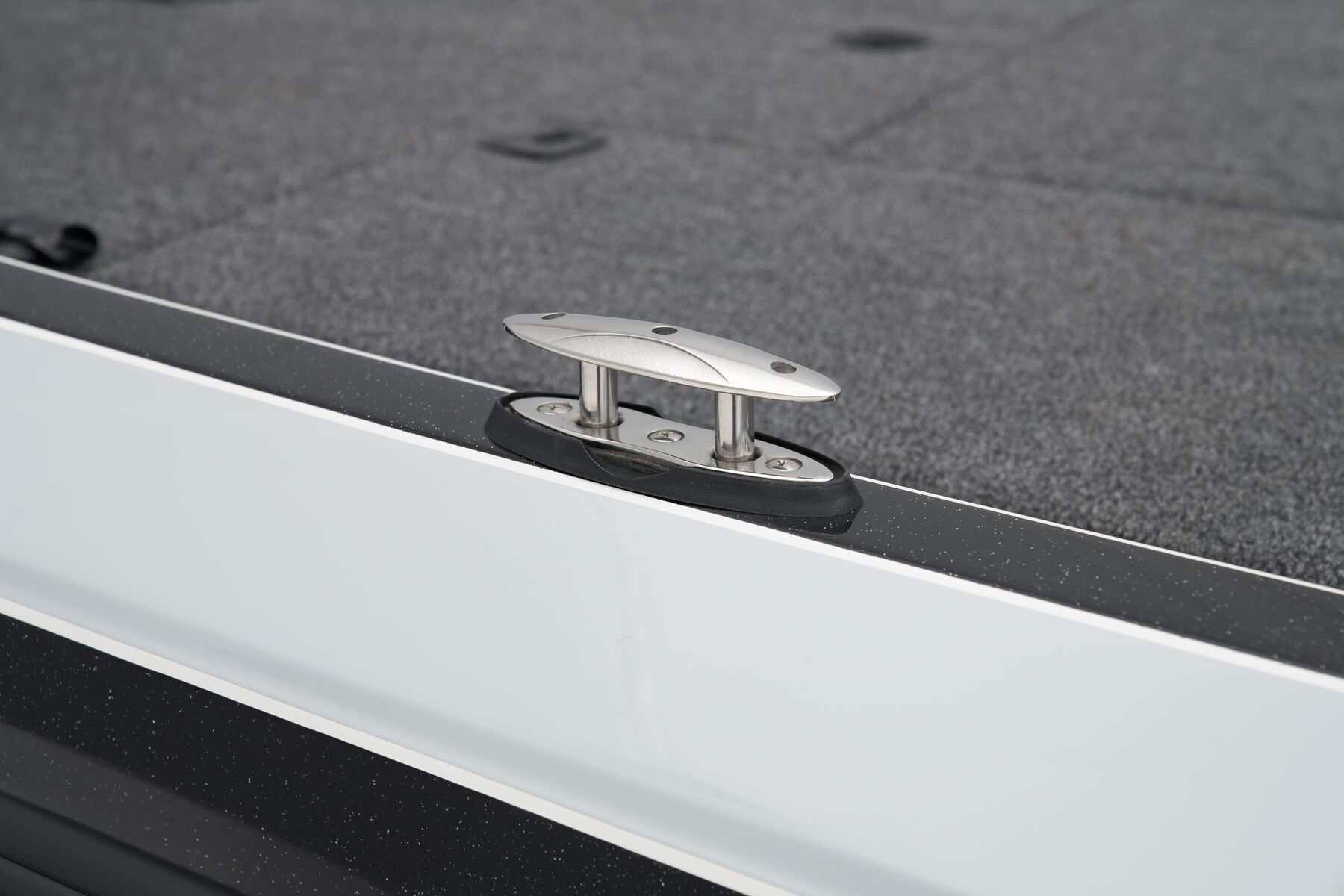

  • Pop-up tie cleats

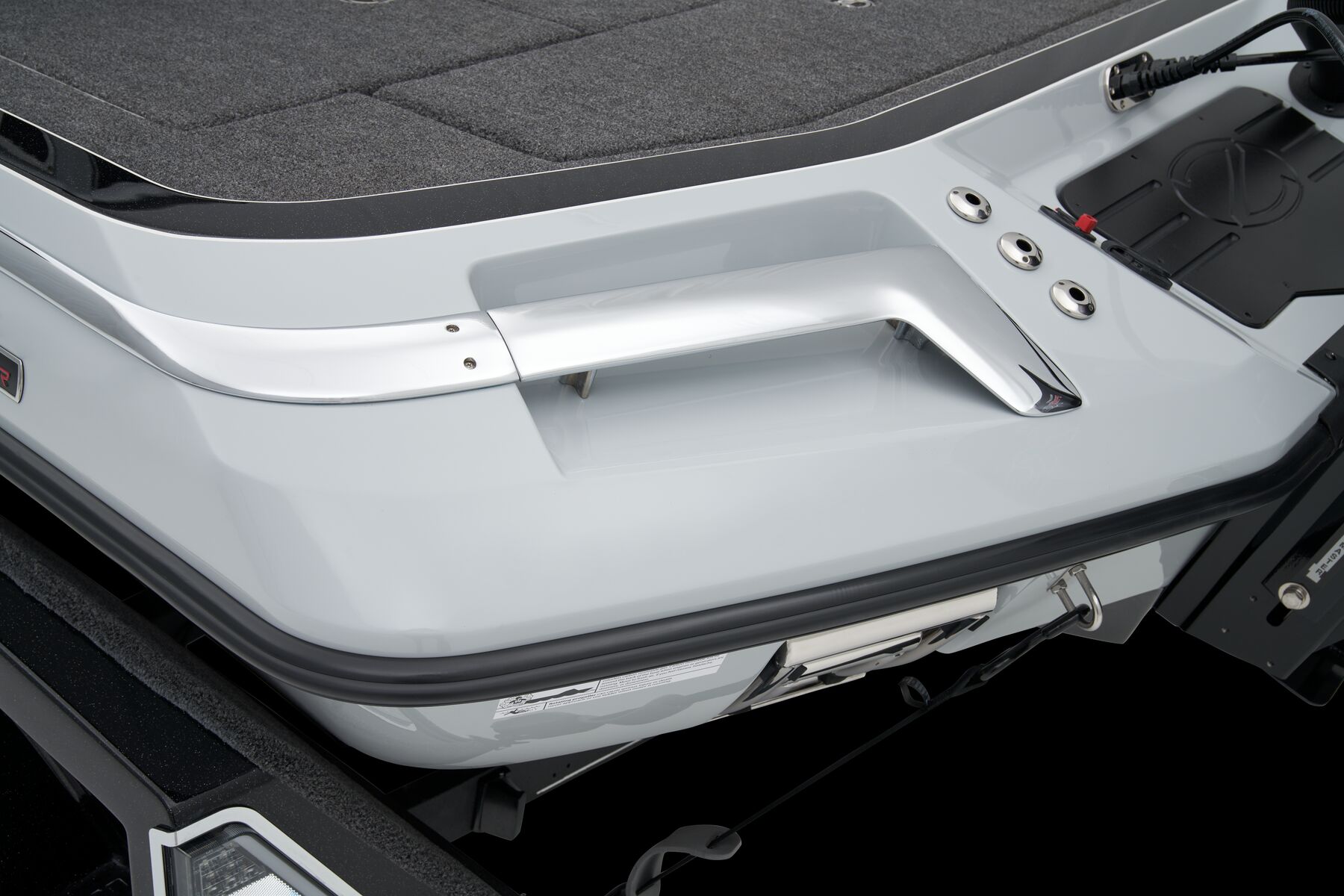

  • Integrated grab handles
  • Rite Track Keel®
  • Automatic & manual bilge pumps
  • Integrated re-boarding ladder

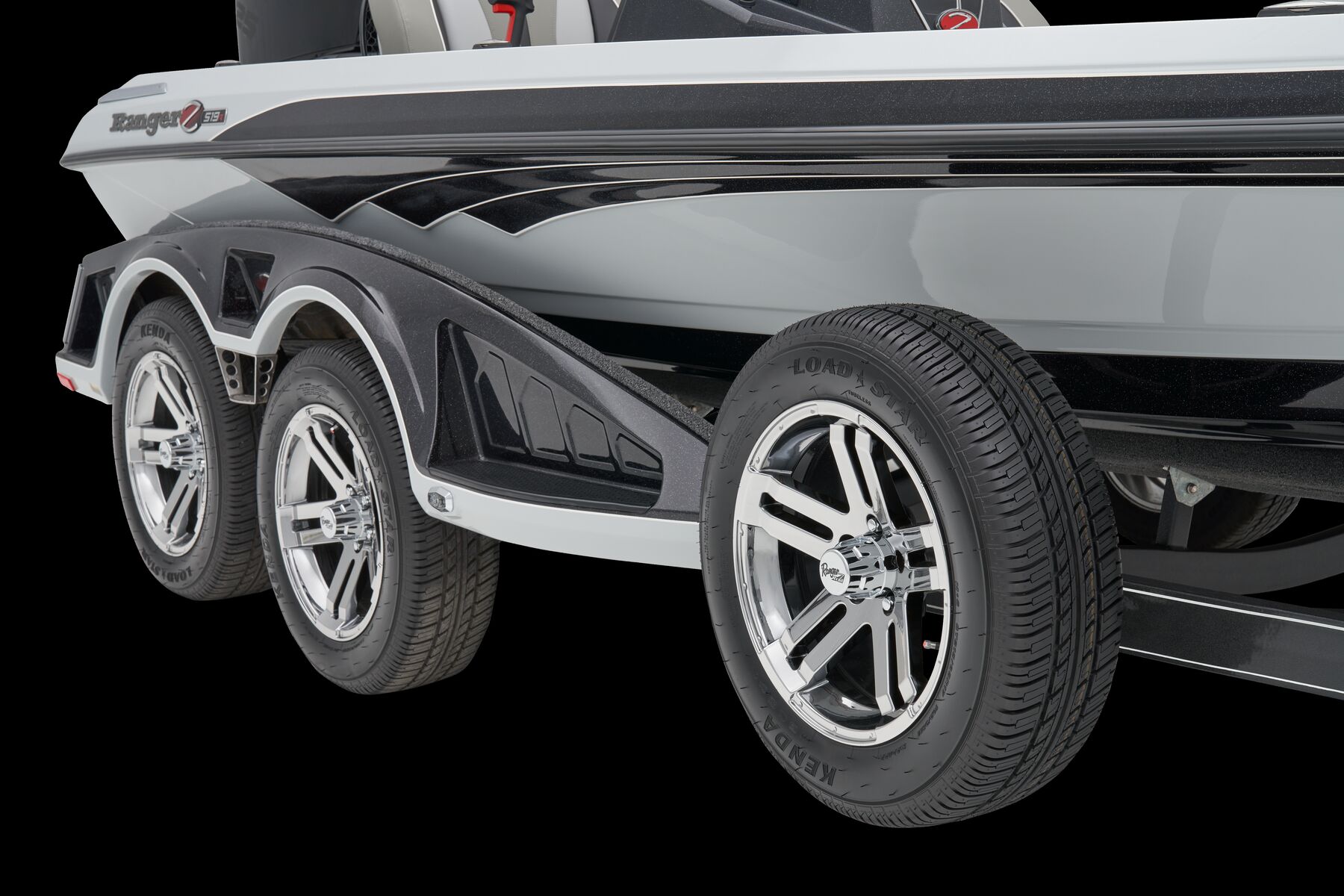

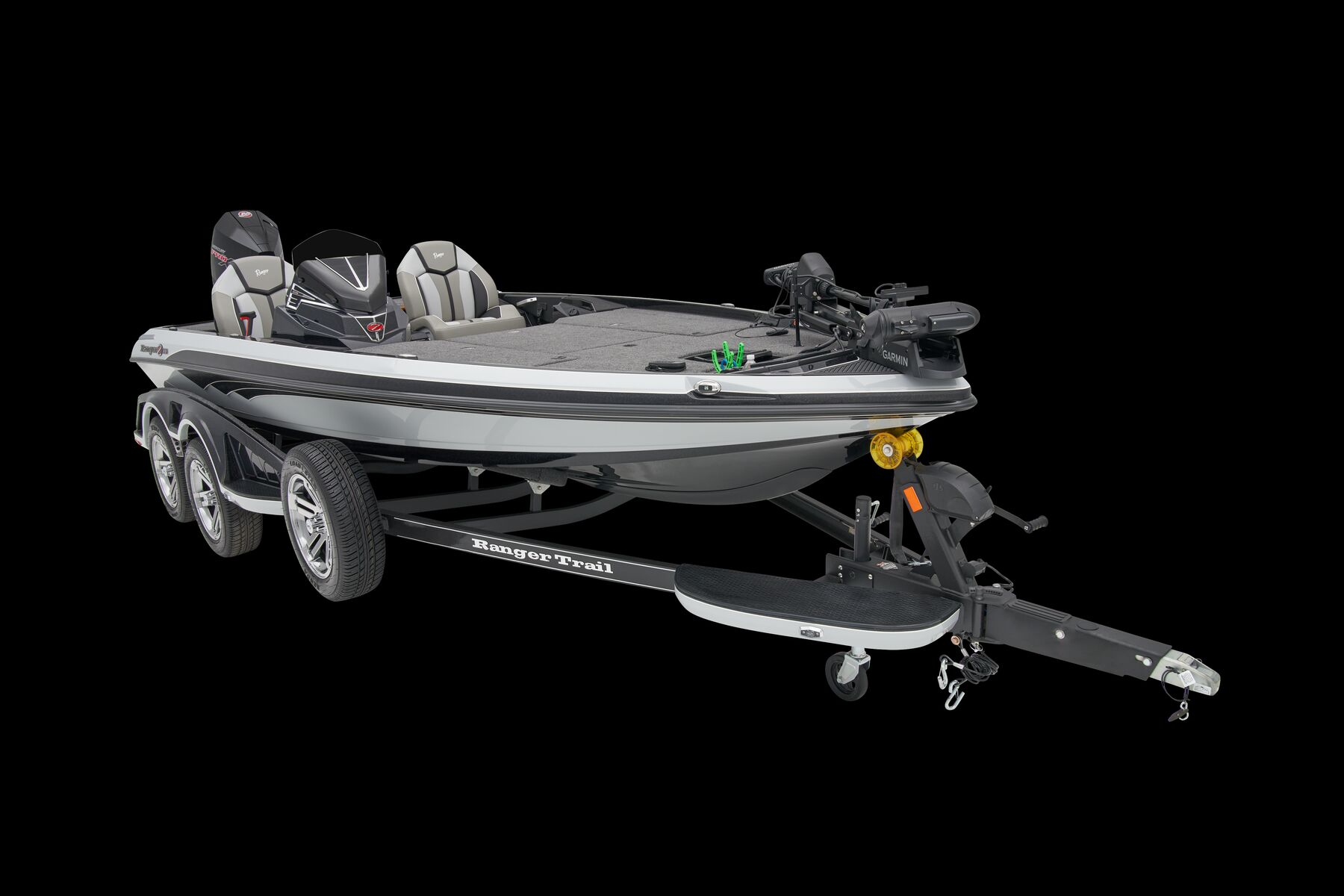

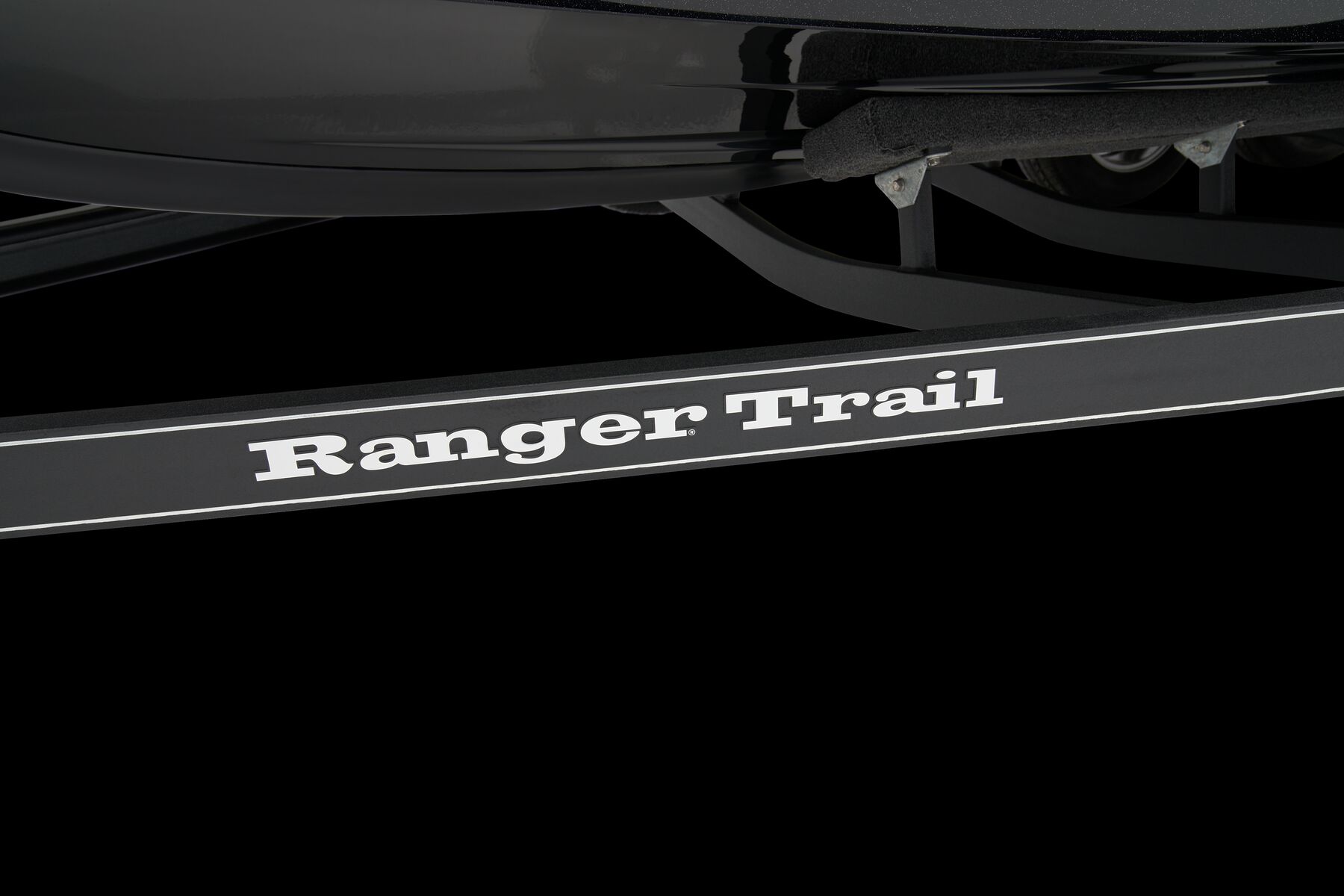

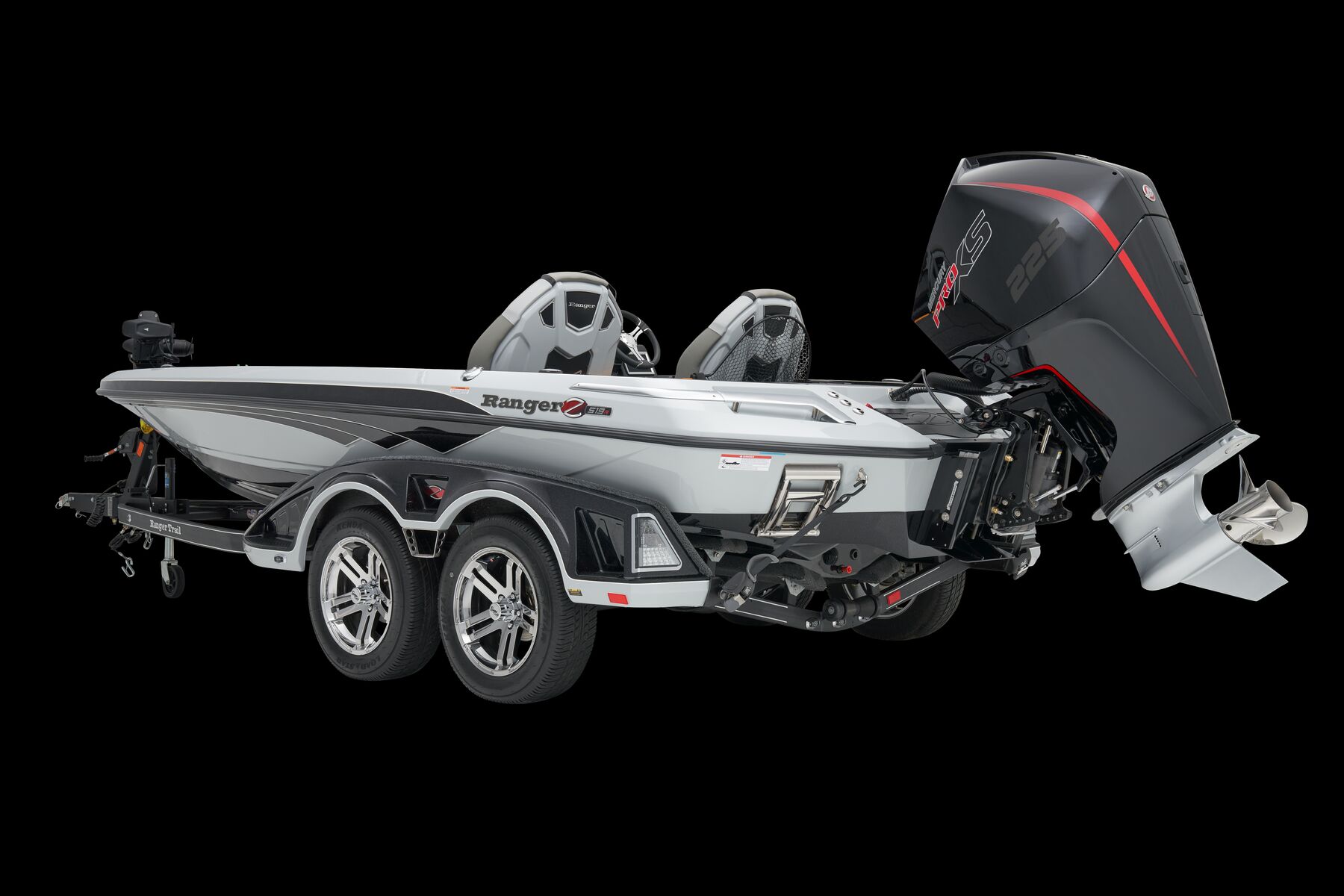

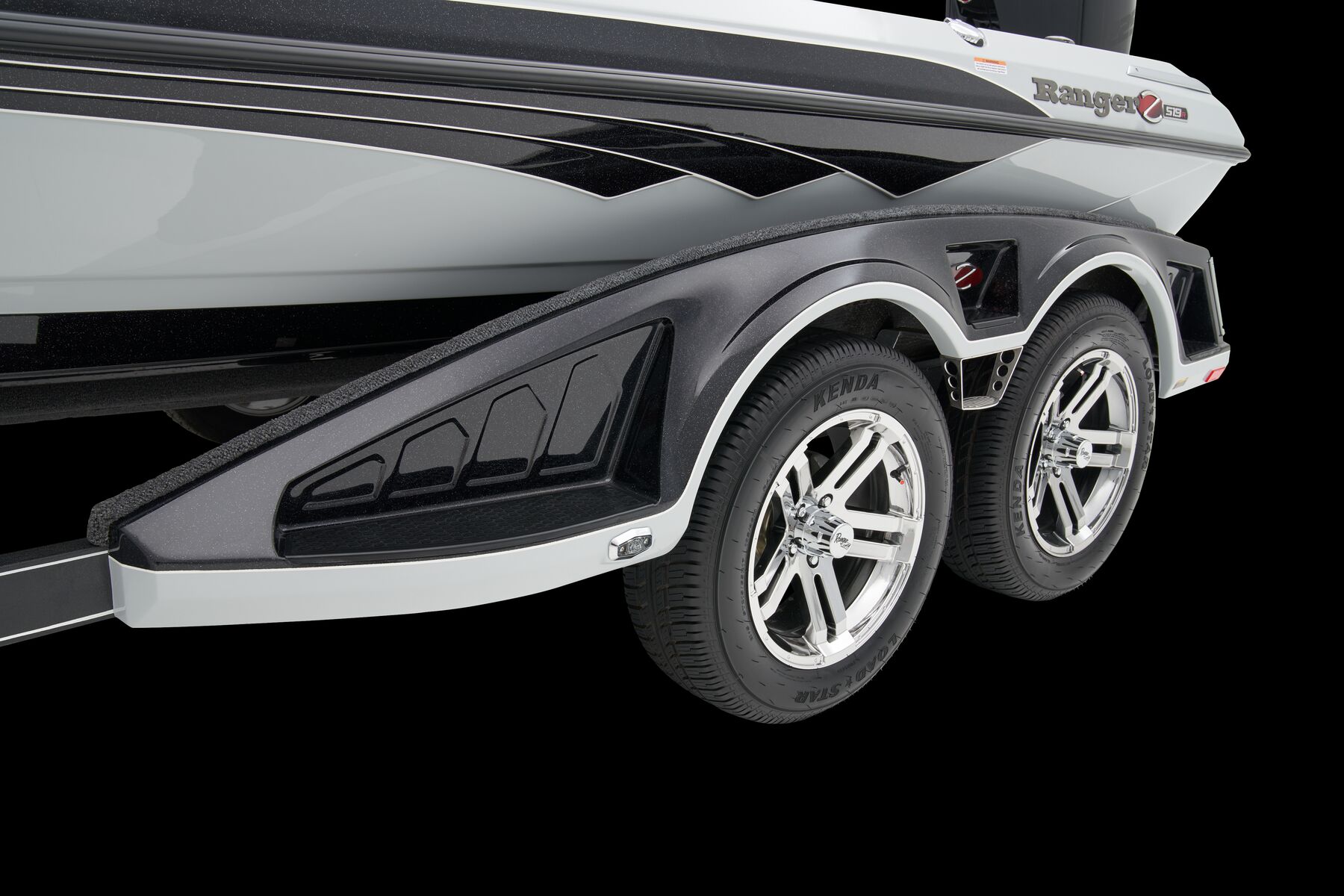

Trailer Features
  • Ranger® Boats Road Armor Equipped® trailer protectant coating
  • Ranger Trail® Vault® Hub lubrication system

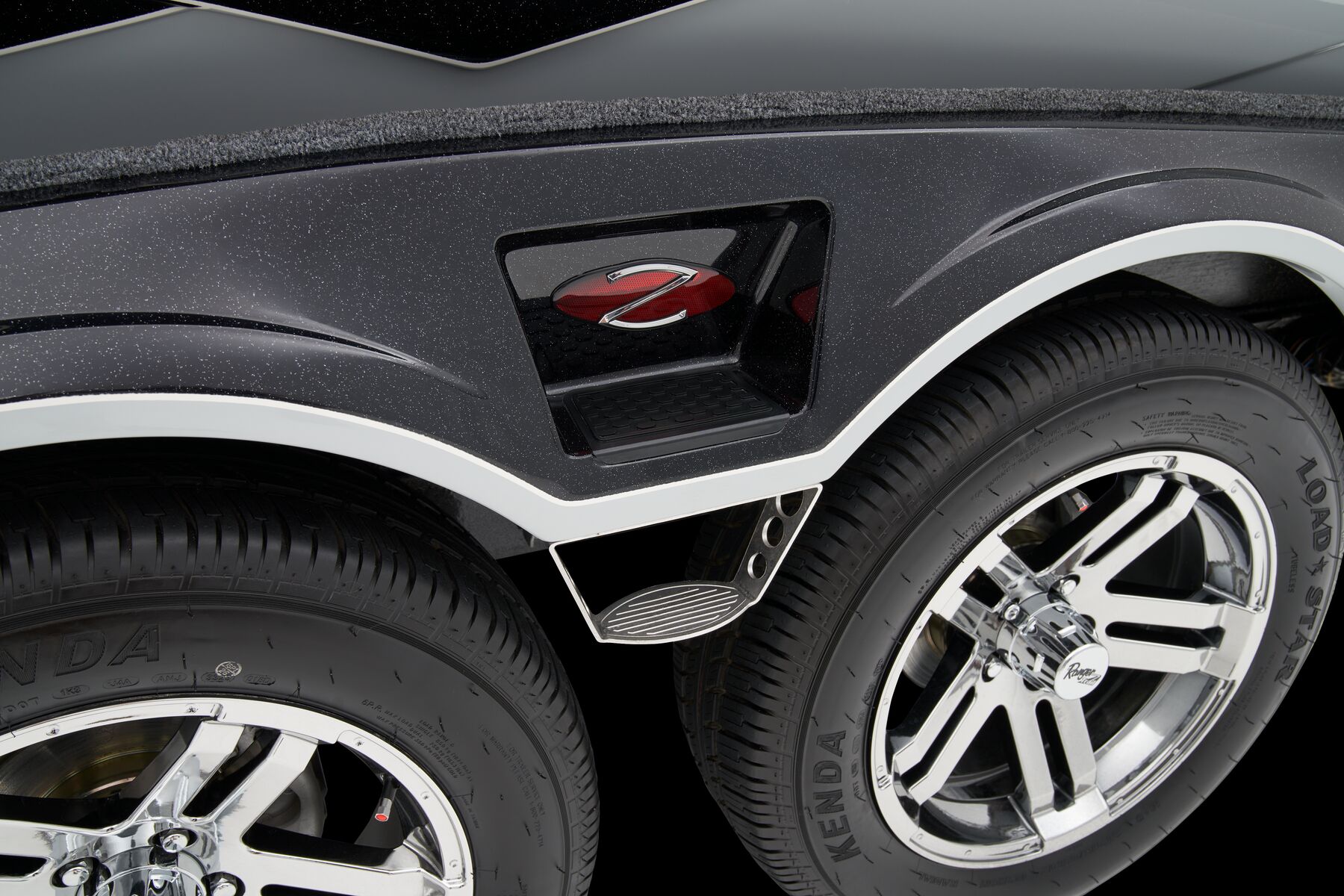

  • Fiberglass fenders w/ step pads
  • Hydraulic surge disc brakes
  • Swing-away tongue
  • Integrated center-swing jack finished in black powdercoat
  • Stainless steel ratcheting tie-downs
  • LED lighting
  • LED back-up lights
  • NMMA®/NATM certified

Options


Choose a Dealer Near You
To view price with dealer prep and freight, use the search box to locate and choose a dealer near you.
