Limited 2024 Availability
ALL-NEW
Z519R
Photos may show optional equipment.
2025

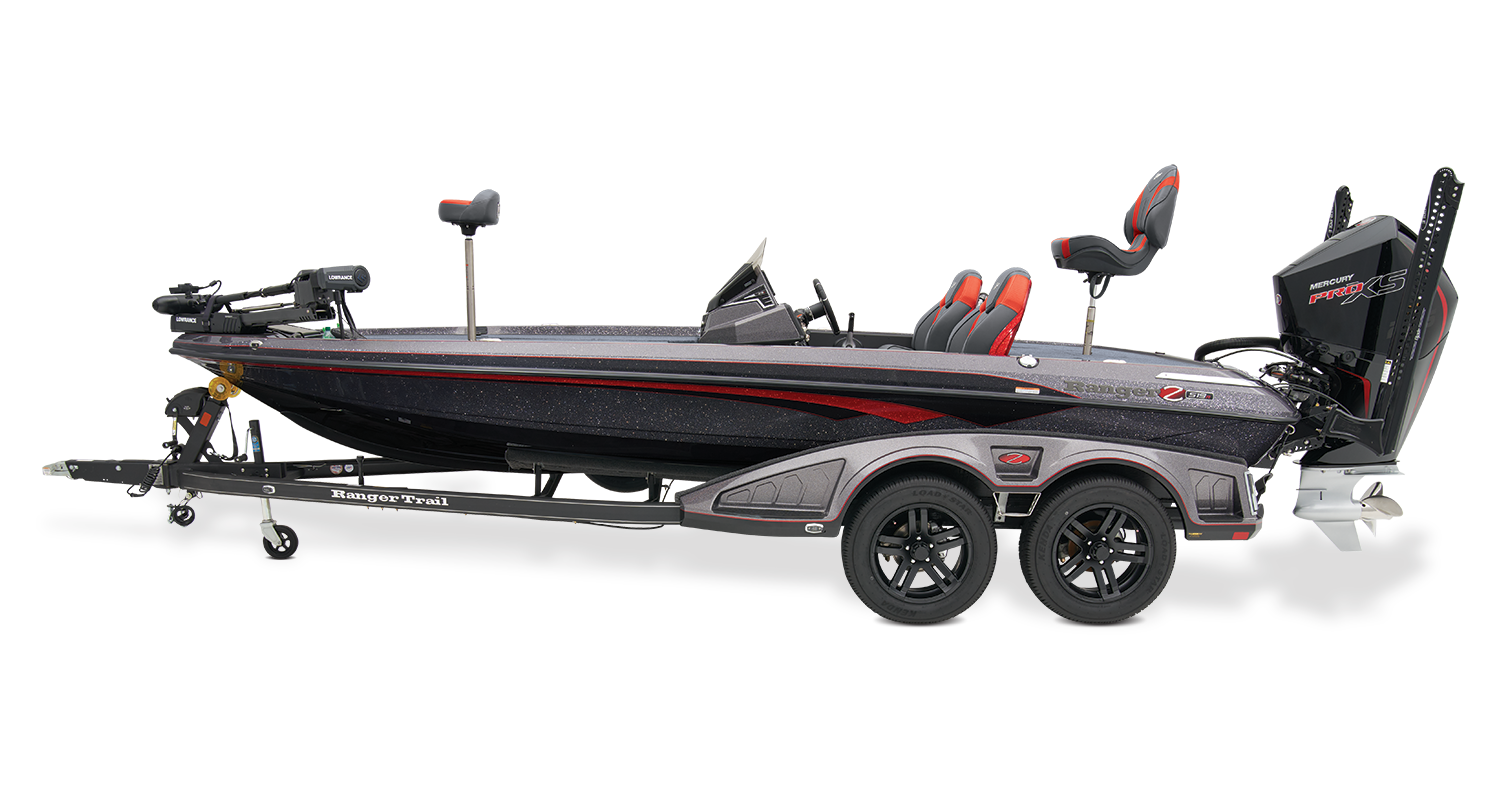

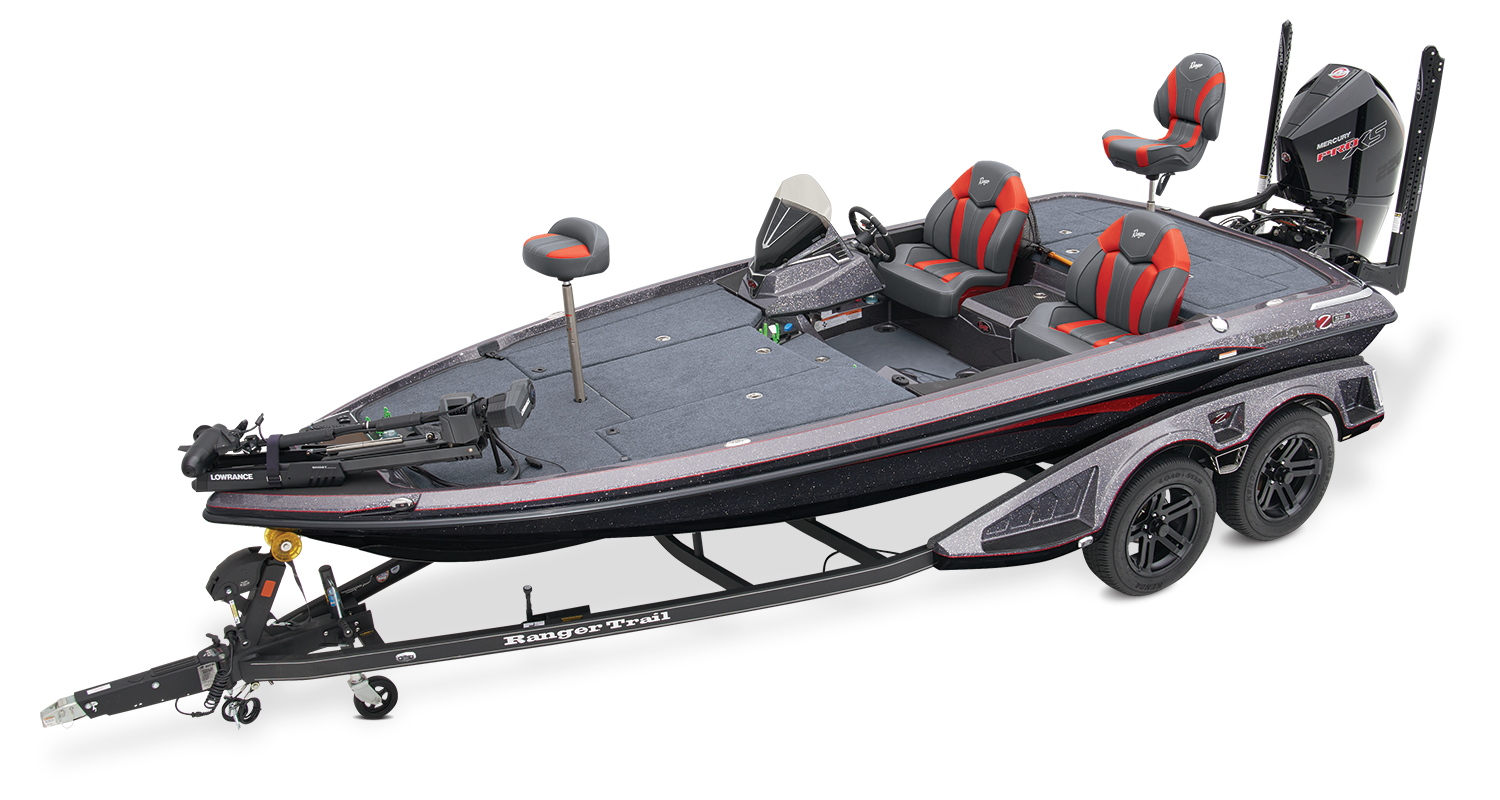

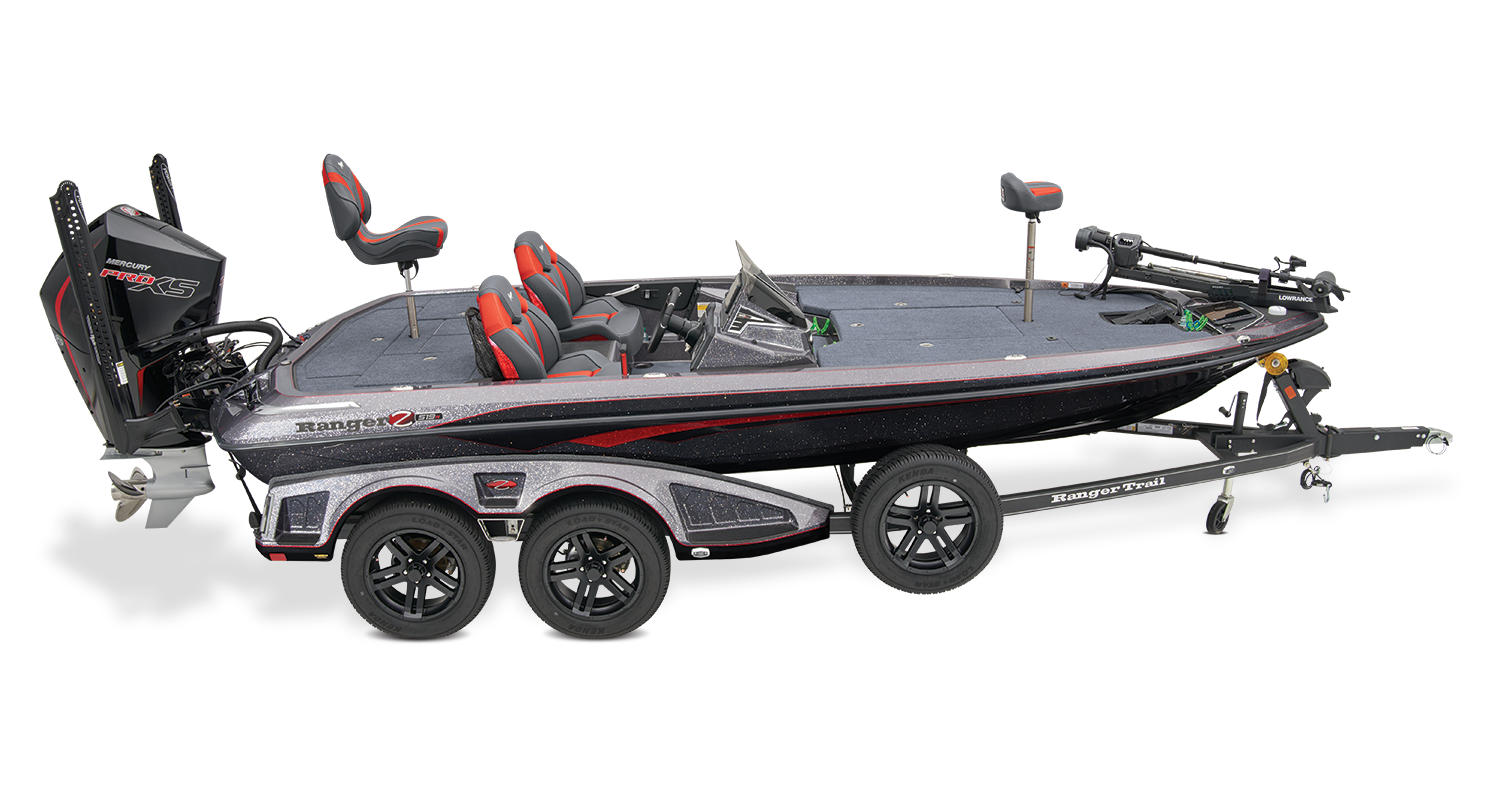

Z519R
w/ 225L Pro XS Torque Master Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$68995
USD
|
NECK-SNAPPING PERFORMANCE, HEAD-TURNING STYLE

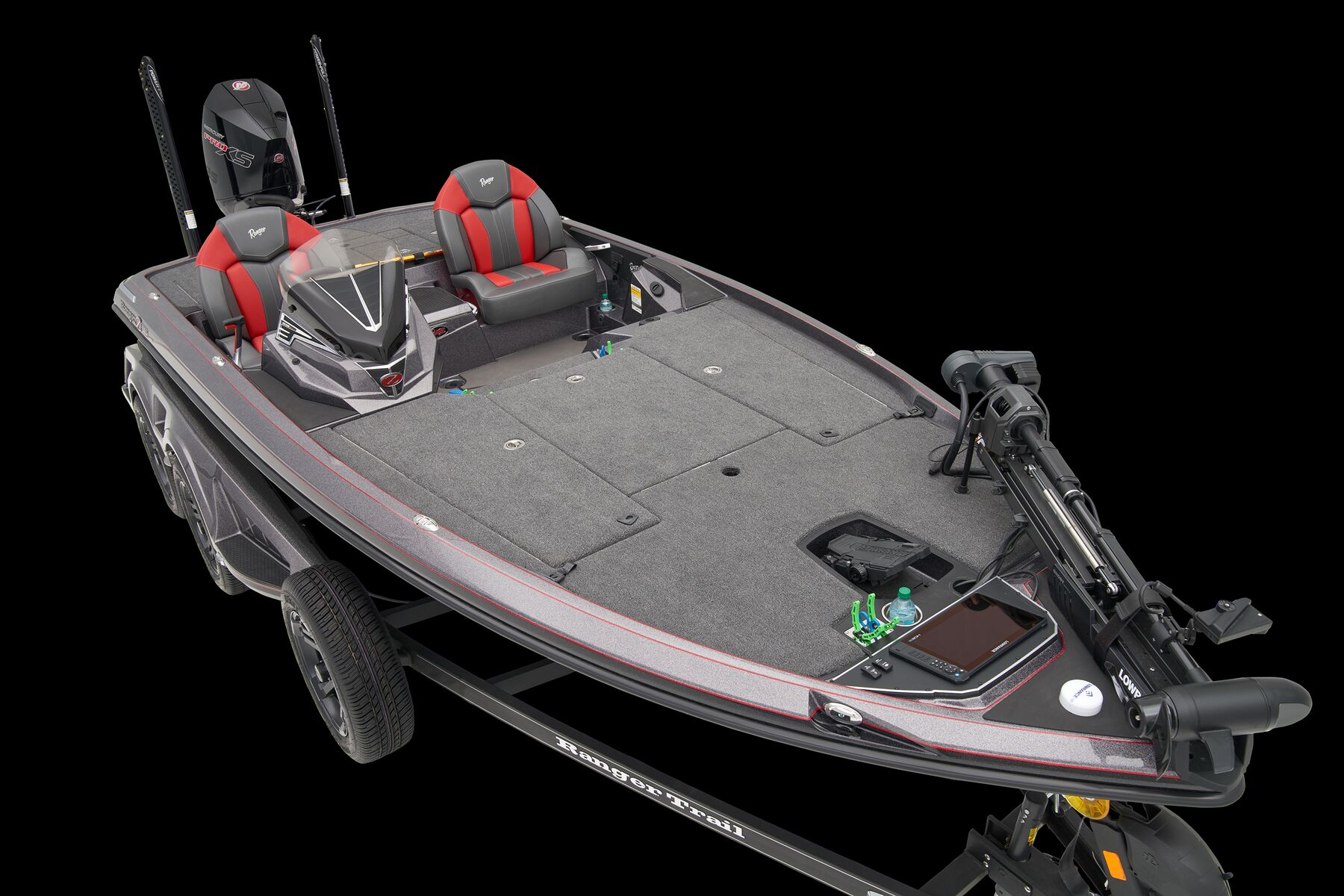

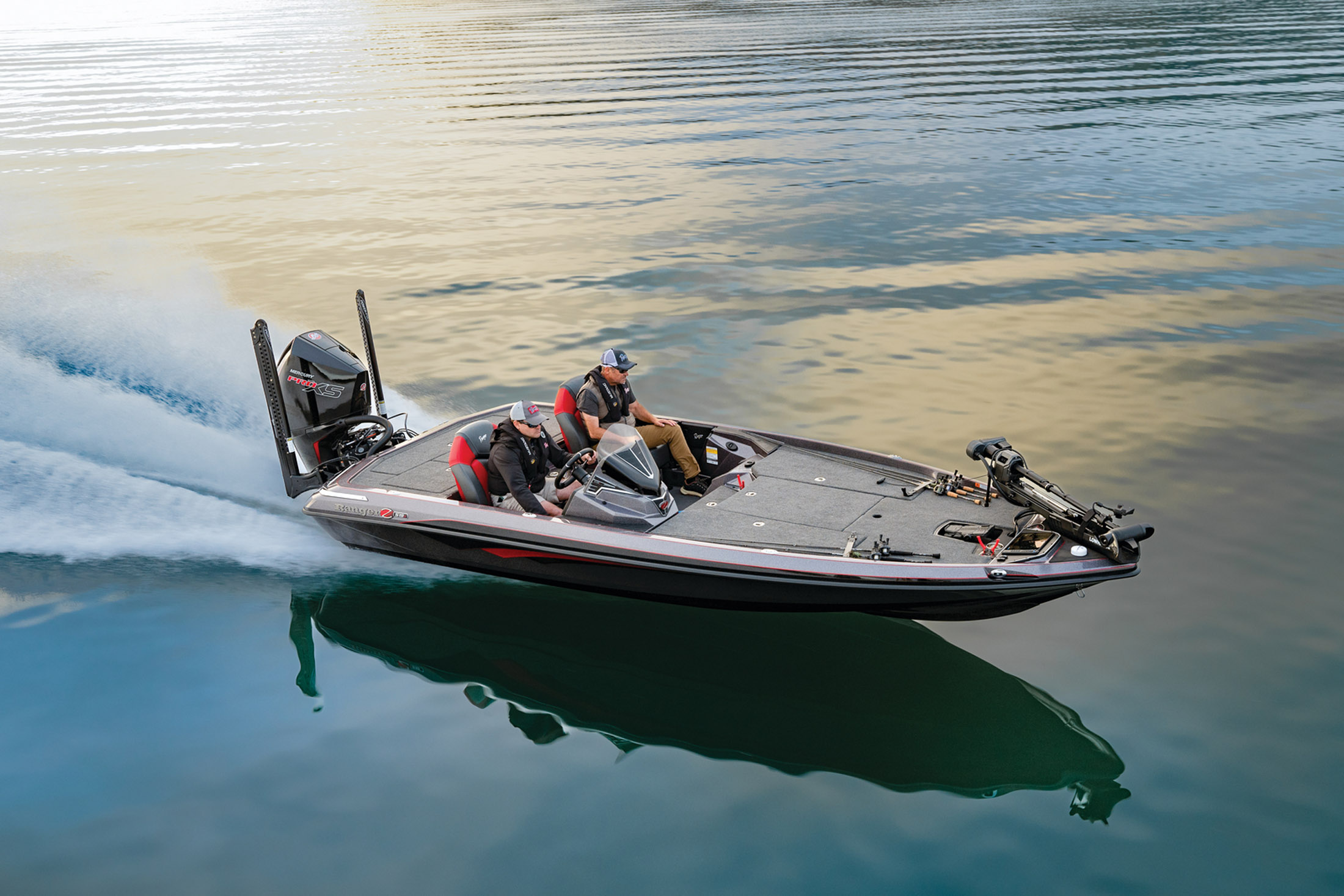

All new for 2025 is the Ranger Z519R, the latest in Ranger’s premium R Series lineup. Brimming with top-tier features, the Z519R has the fishability and all-around performance you’ve come to expect from Ranger with added touches to set you off on the water and at the ramp.
Our proprietary Echelon™ rod storage system keeps loads of sticks secure and handy, while reducing hassle when fetching one. A padded front deck is adorned with push-to-close latches that eliminate tripping hazards associated with twist-to-close latches, and color-matched cockpit liner and compartments liners add classy functionality. Analog switching makes for easy adjustments on the fly, and an insulated 40-quart center step cooler holds more than a day’s worth of drinks.

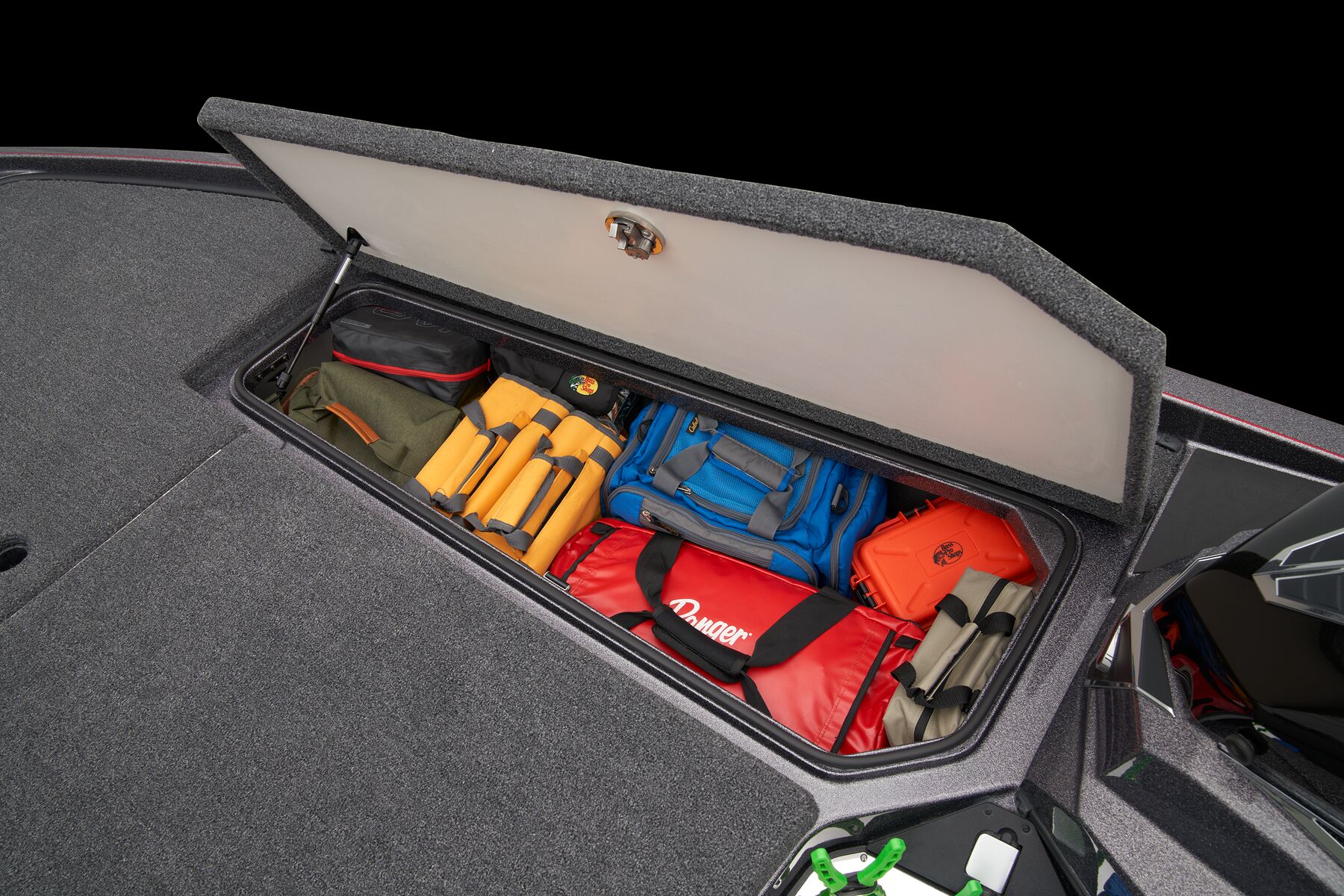

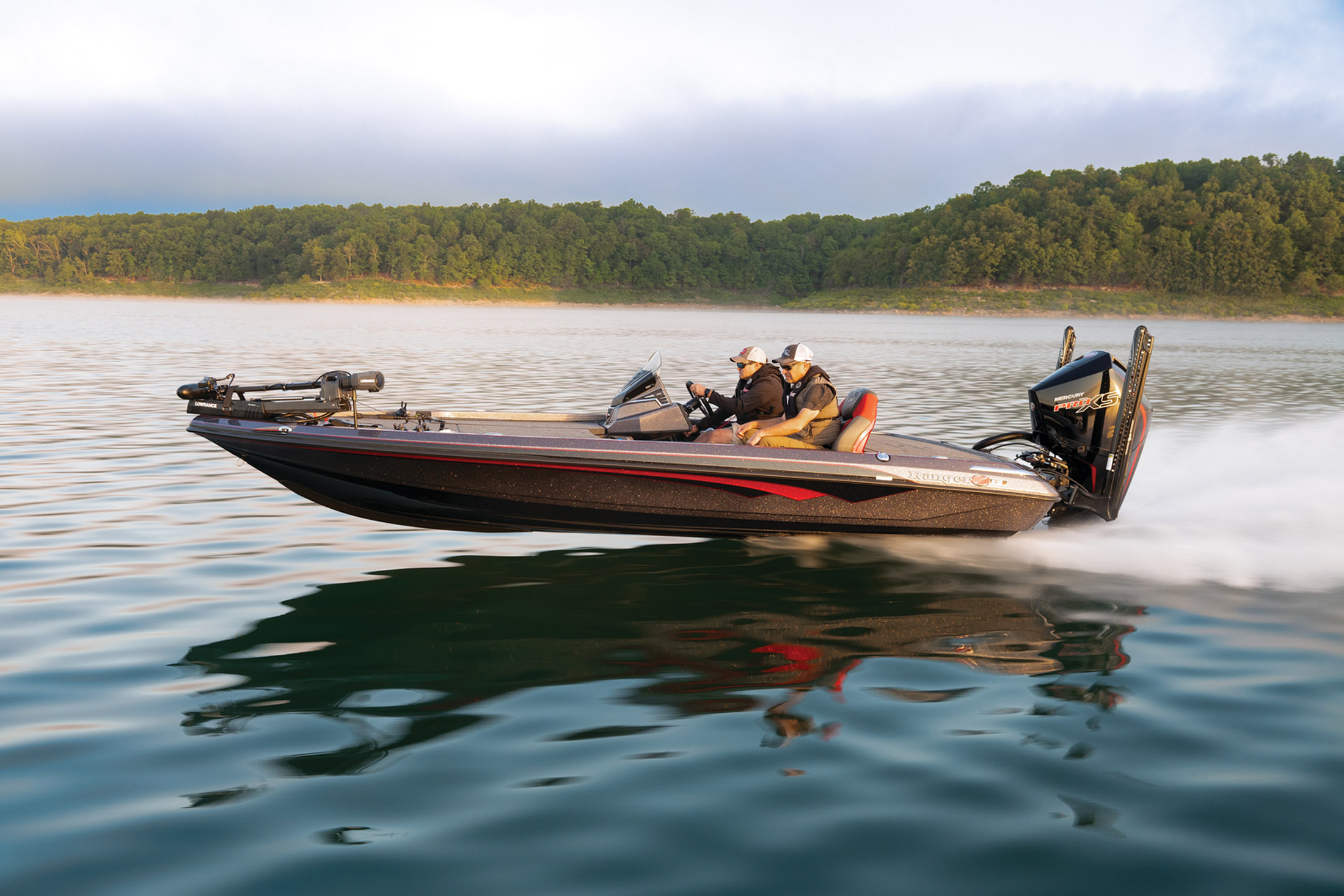

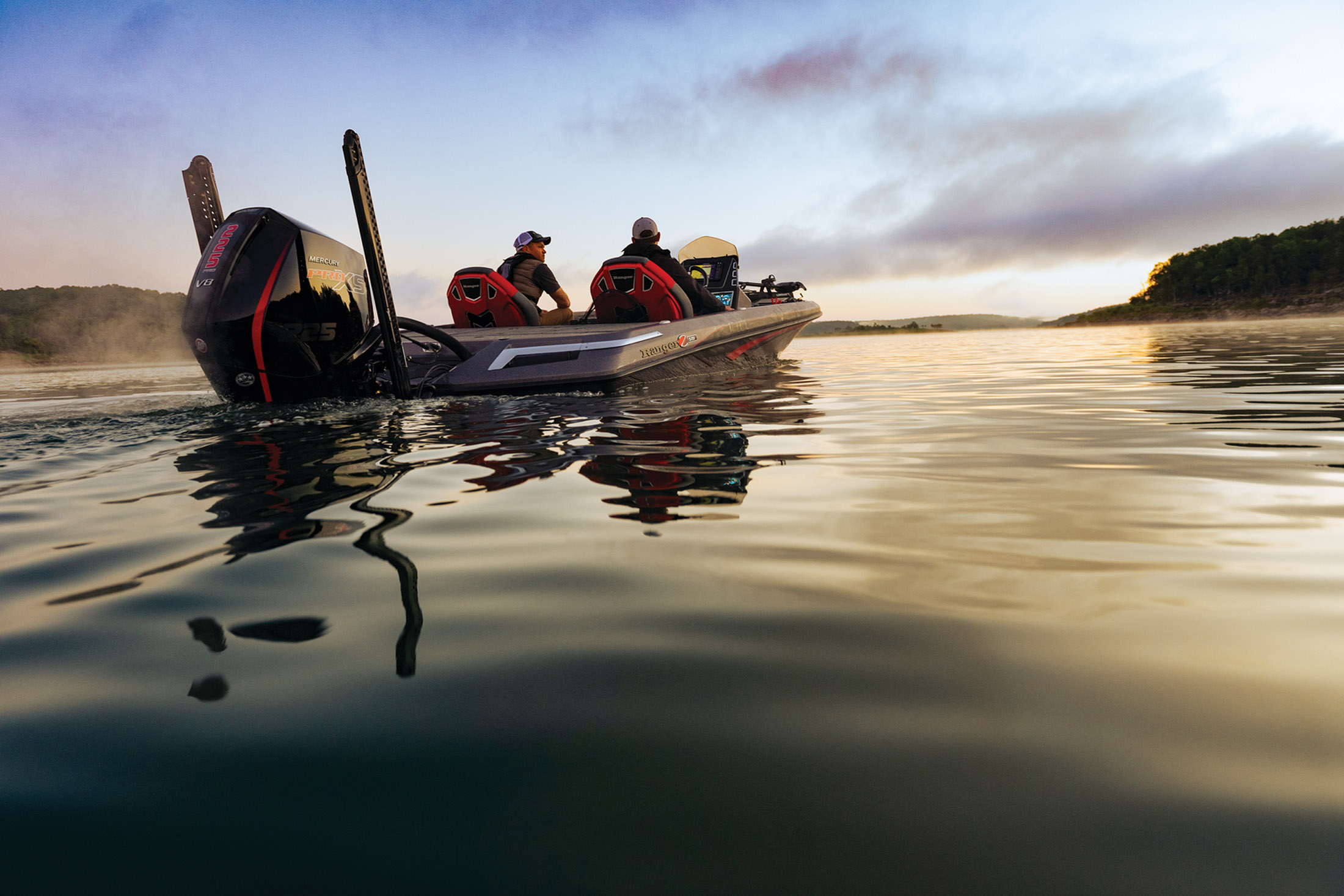

The Ranger touchscreen multifunction System Monitor puts engine parameters at your fingertips, while smooth, responsive steering gives effortless control of 225 horses in the Mercury® FourStroke V8. A refined running surface delivers on-rails handling at speed as well as unbeatable edge-to-edge stability on the trolling motor. A vast front deck gives ample space for two, and a world of storage underfoot. The Z519R is the latest in a long line of premium bassin’ rigs that stem from our unwavering Passion for Perfection™.
Key Features
- Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories

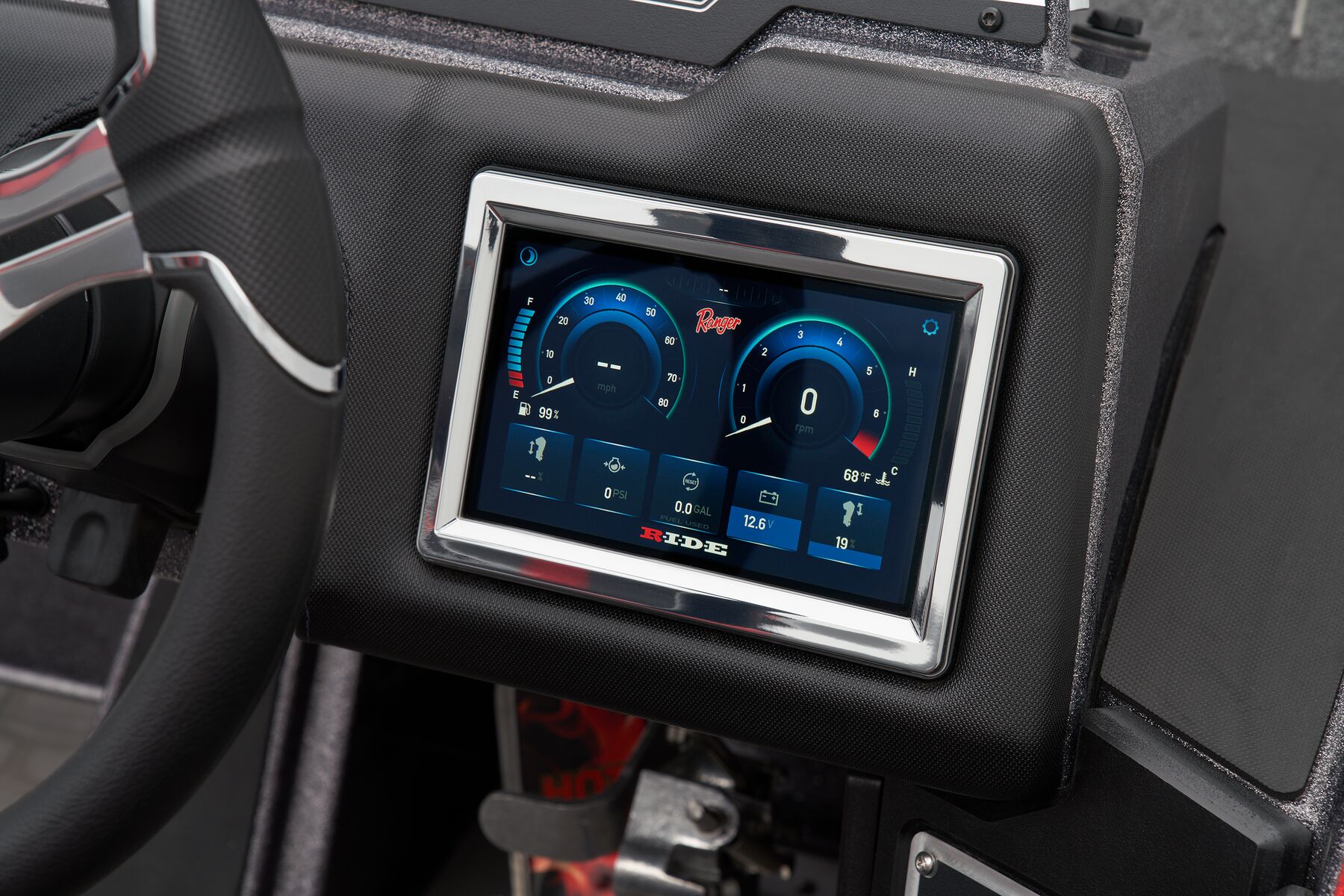

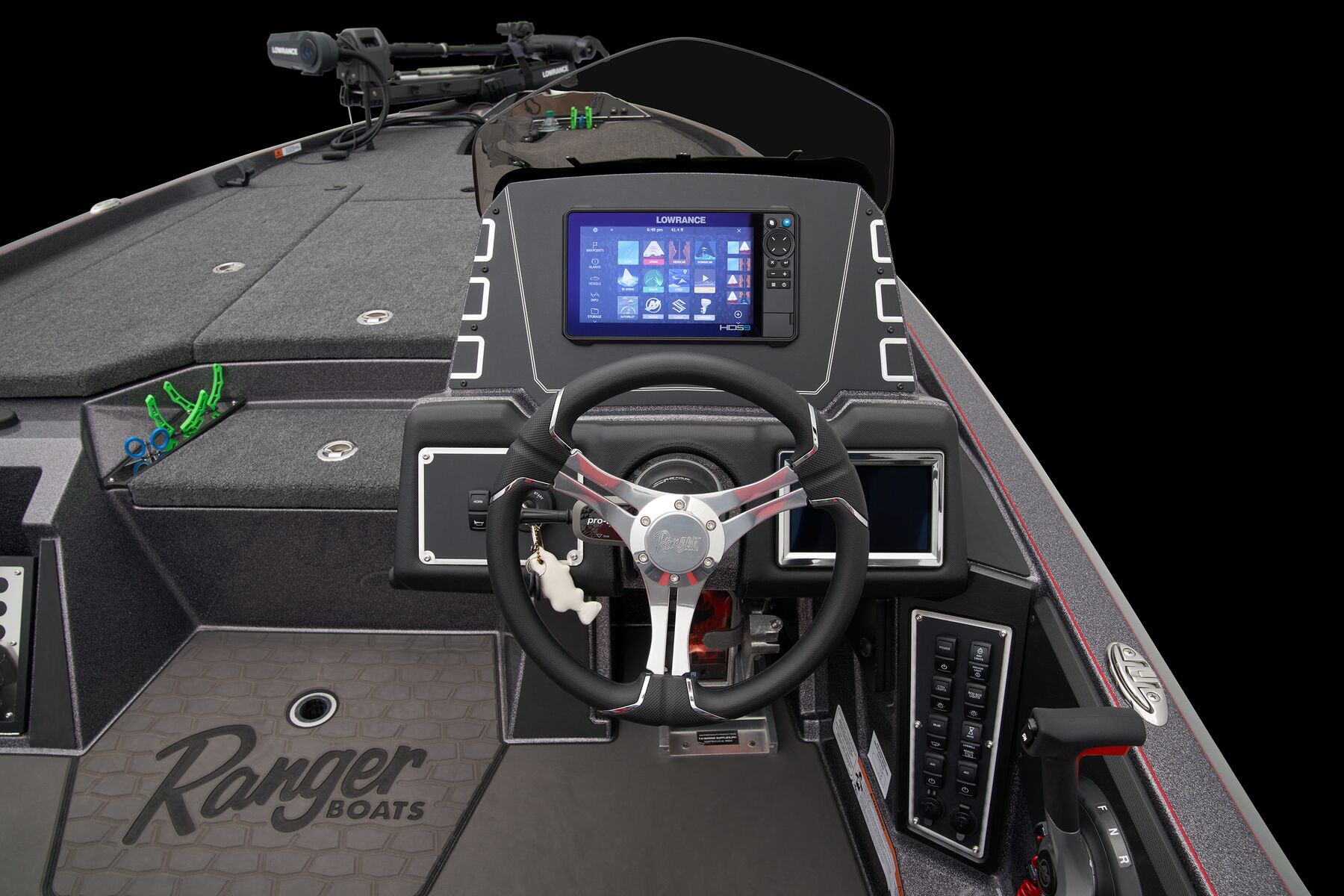

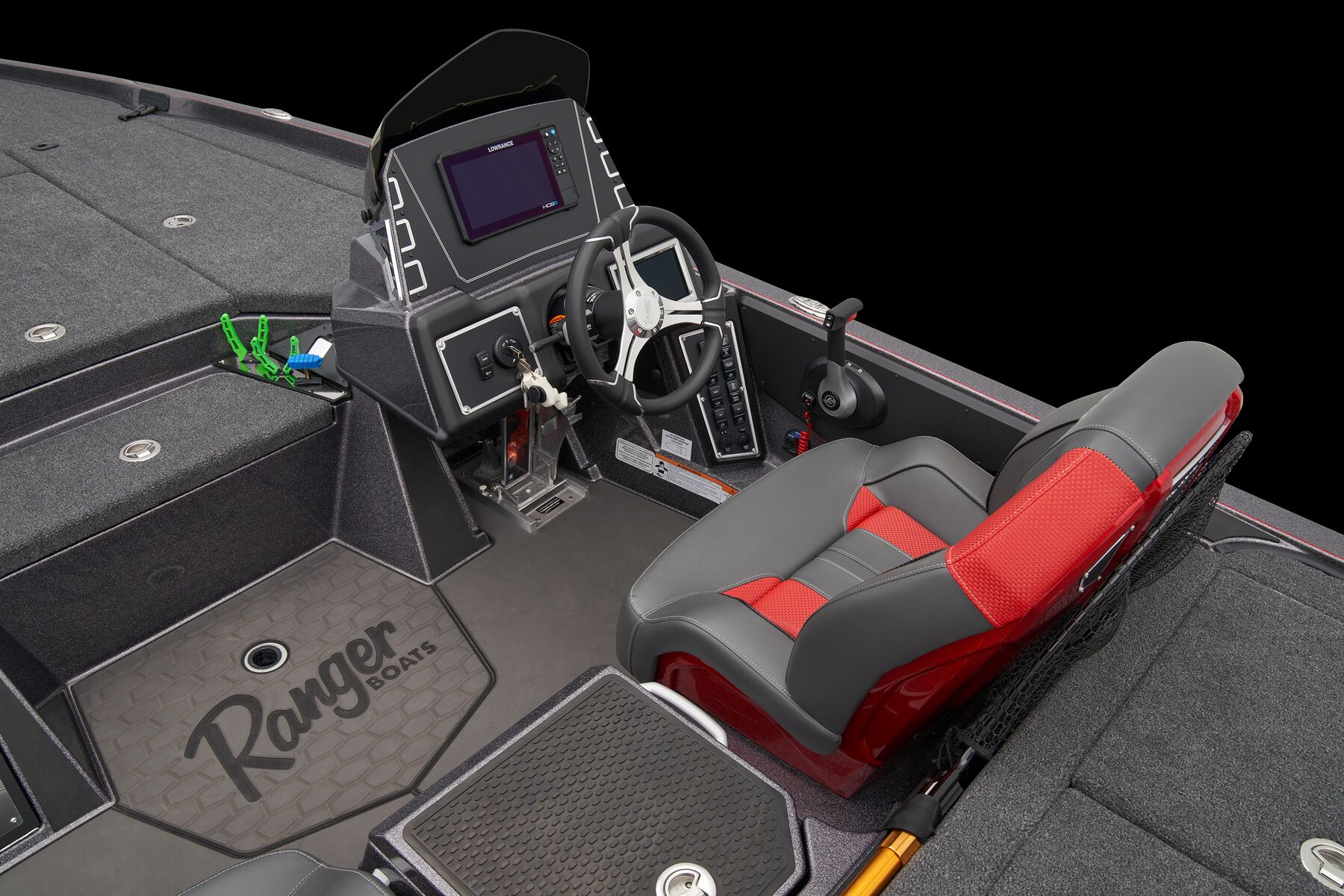

- Ranger® System Monitor - 7" touchscreen that displays all boat and engine data at a glance

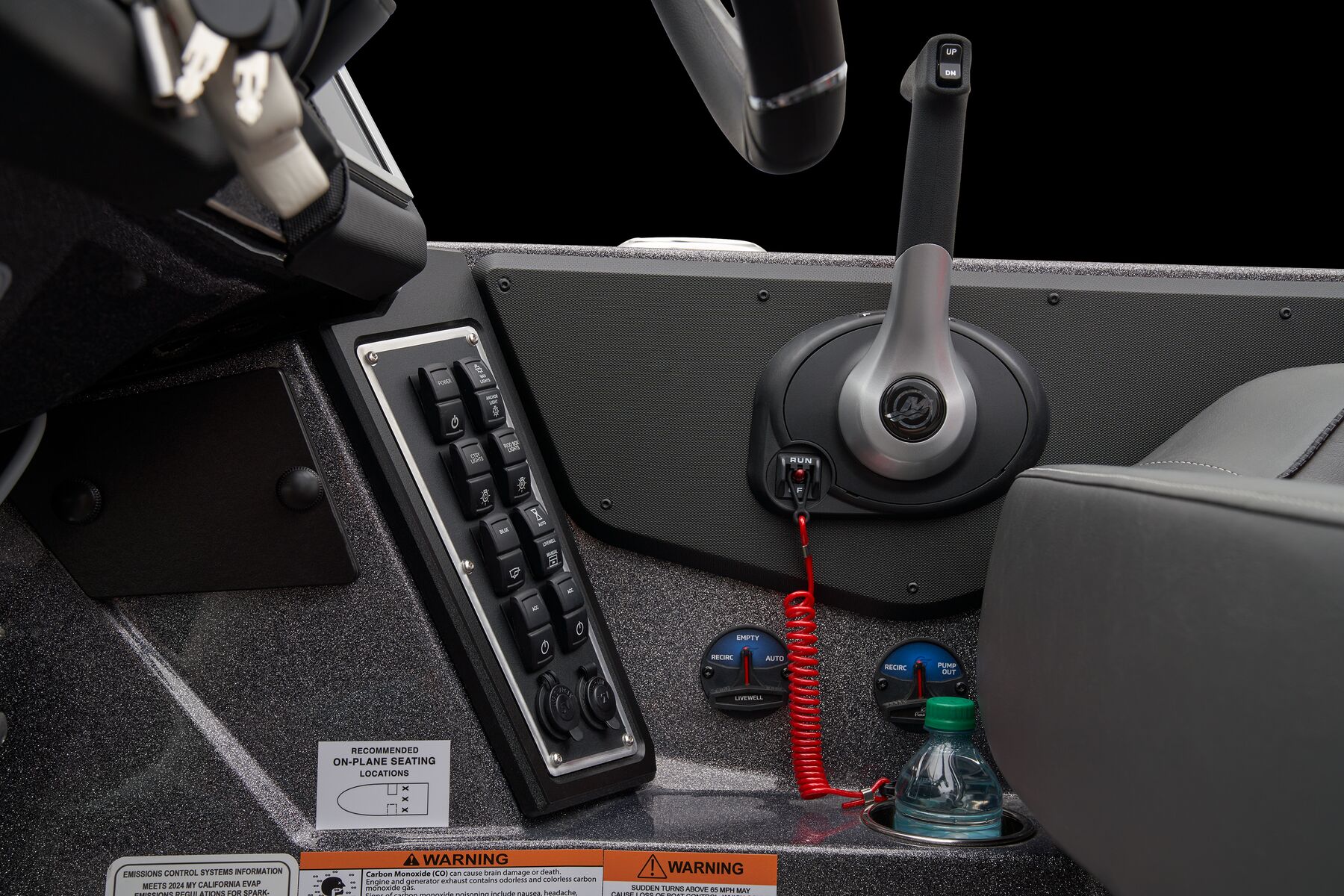

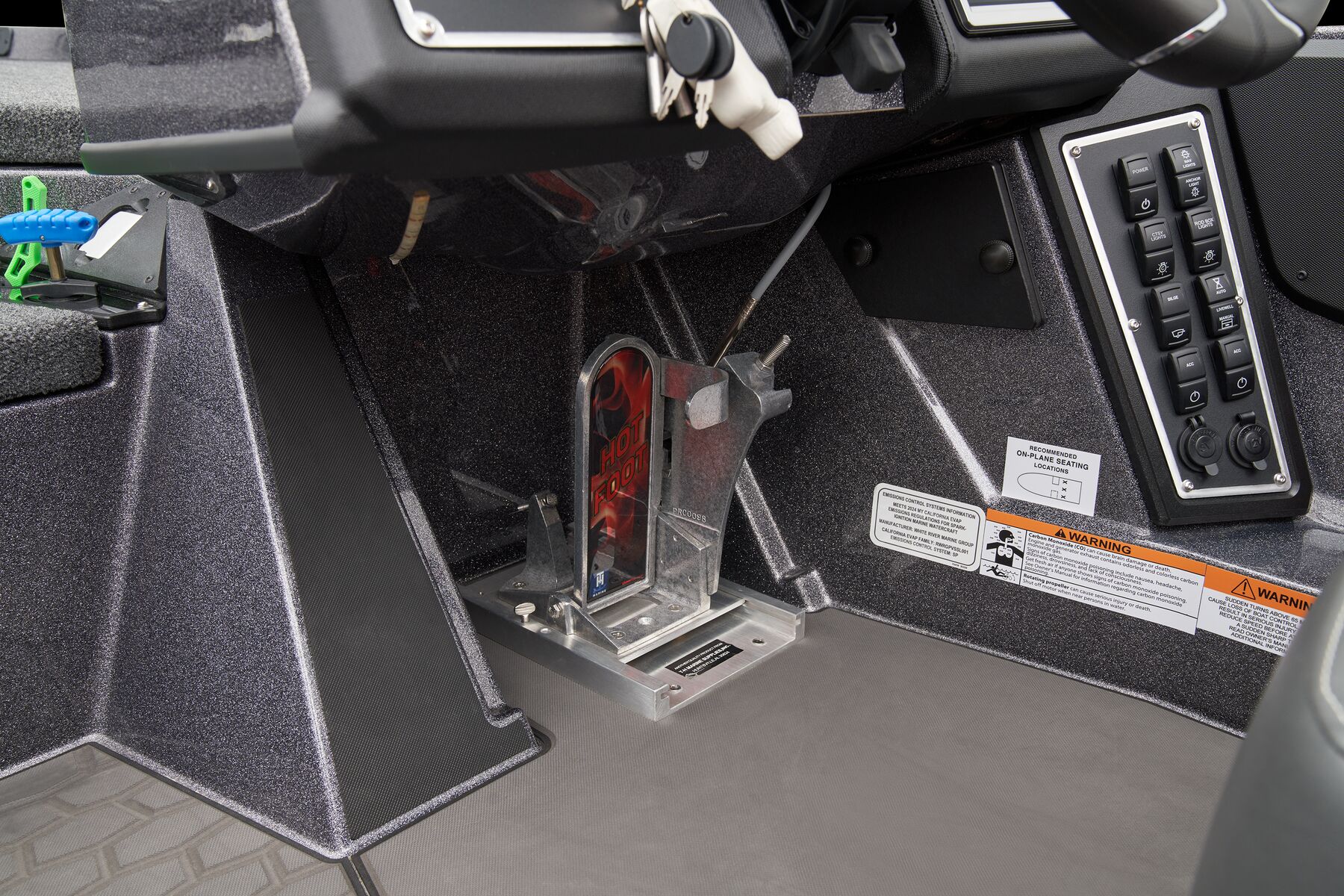

- Easy-touch analog switching
- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
- Padded Front Casting Deck
- Pultruded Fiberglass Transom

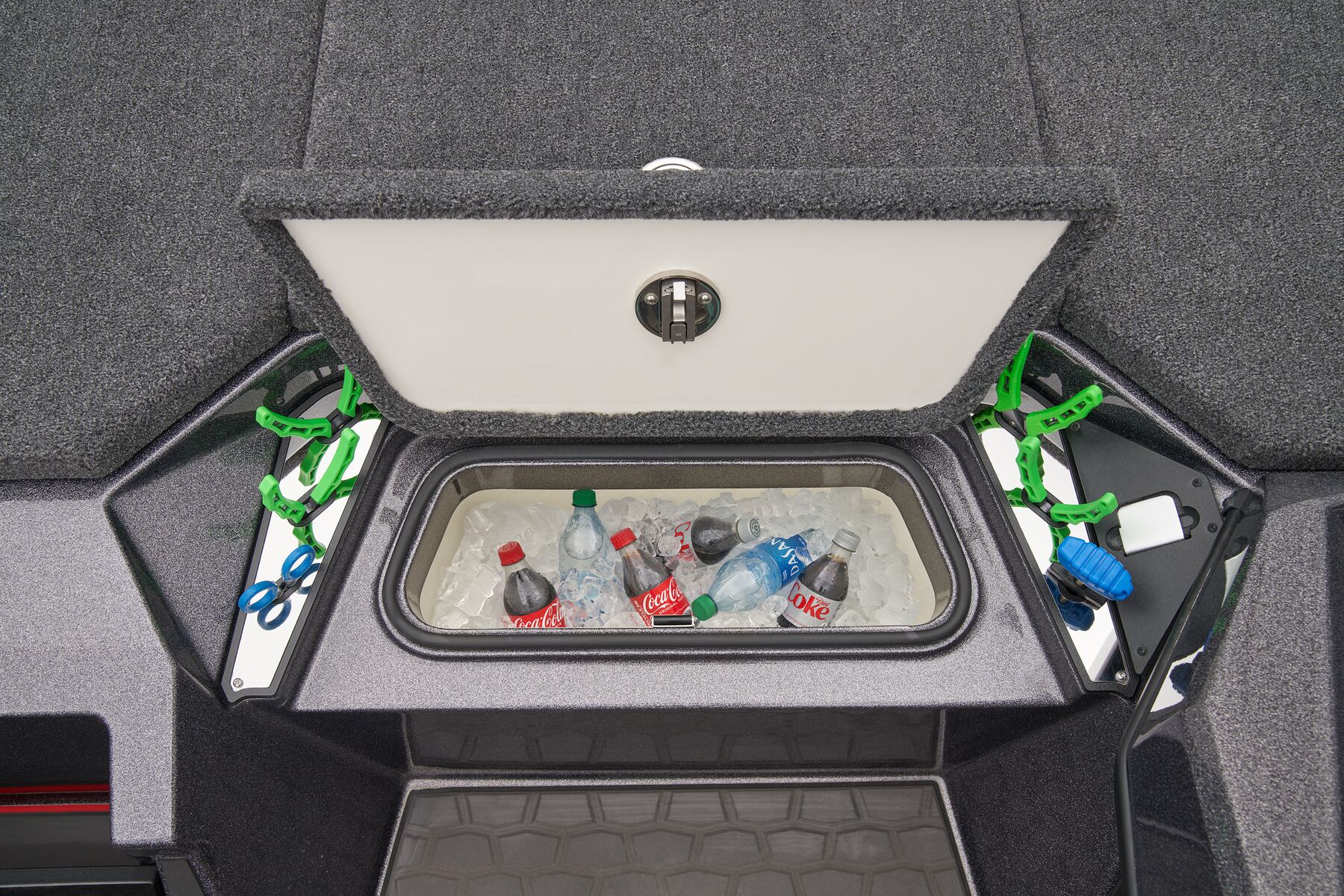

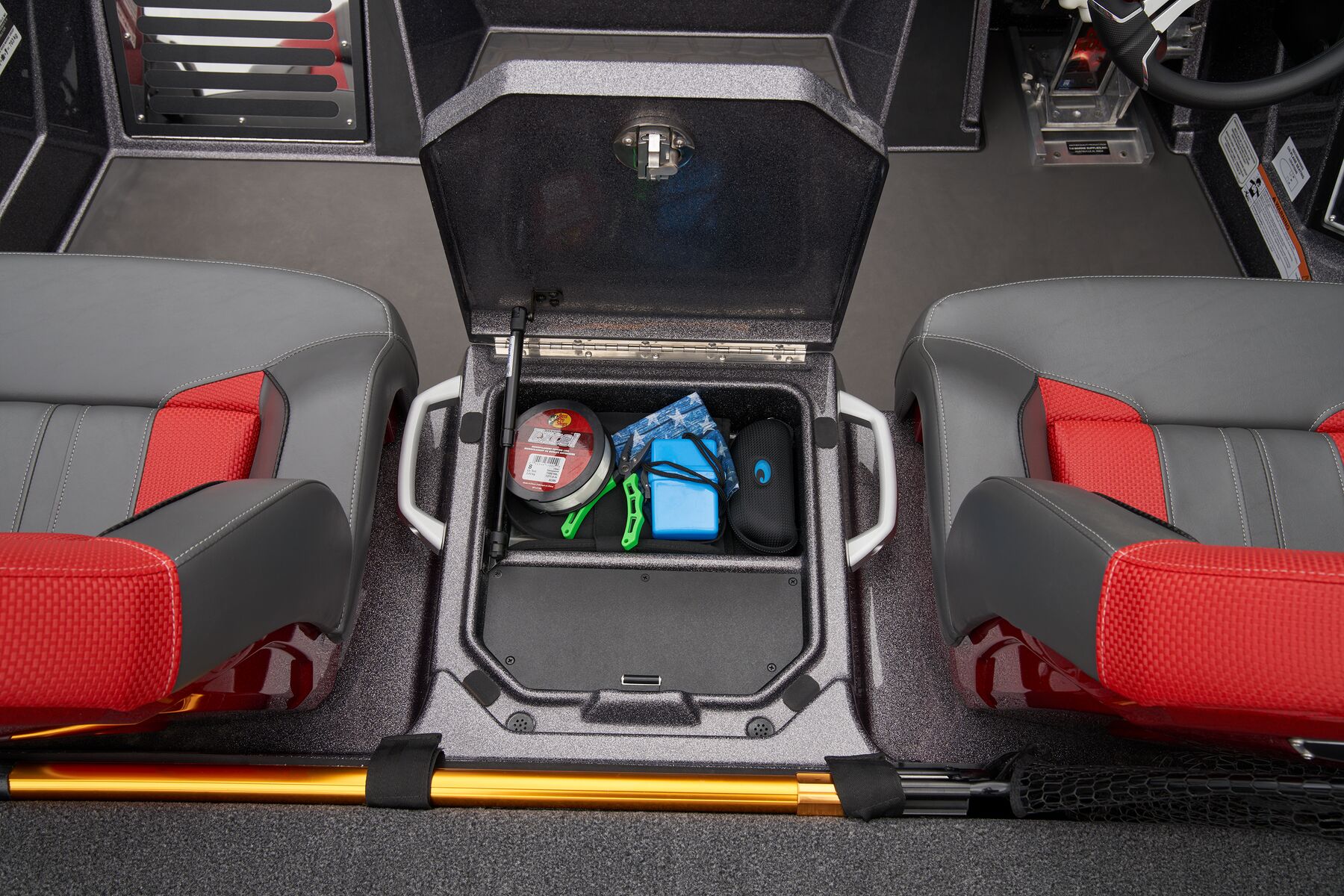

- Insulated 40 qt. step-up cooler
- Push-to-Close Latches
Gallery
Specifications
| Length | 6.02 m | 19' 9'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 225 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 55.88 cm | 22'' |
| Fuel Capacity | 189.25 L | 50 gal. |
| Livewell Capacity | 98.41 L | 26 gal. |
| Total Person, Motor, Gear | 716.68 kg | 1580 lbs. |
| Approximate Boat Weight | 793.79 kg | 1750 lbs. |
| Rod Box Length - Port Bottom Shelf | 2.13 m | 7' |
| Rod Box Length - Port Top Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Center Row 1 | 2.44 m | 8' |
| Rod Box Length - Center Row 2 | 2.29 m | 7' 6'' |
| Rod Box Length - Starboard | 2.13 m | 7' |
| Max. Person Capacity | 5 persons | |
| Trailer GVWR | 2041.17 kg | 4500 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.8 m | 25' 7'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.16 m | 23' 6'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 225L Pro XS Torque Master |
$68995 USD
|
Select Dealer | |||
Standard Features
Custom Details

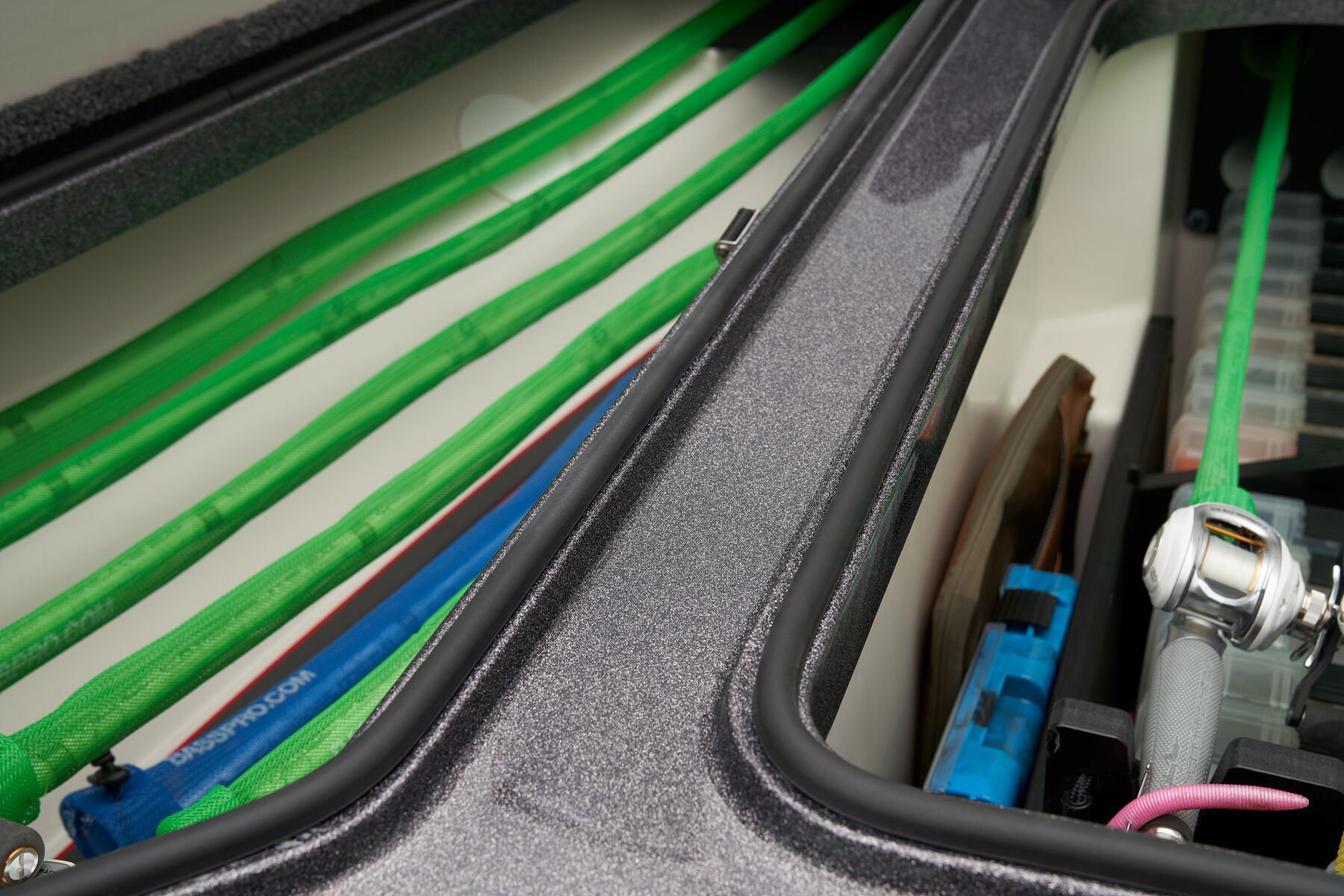

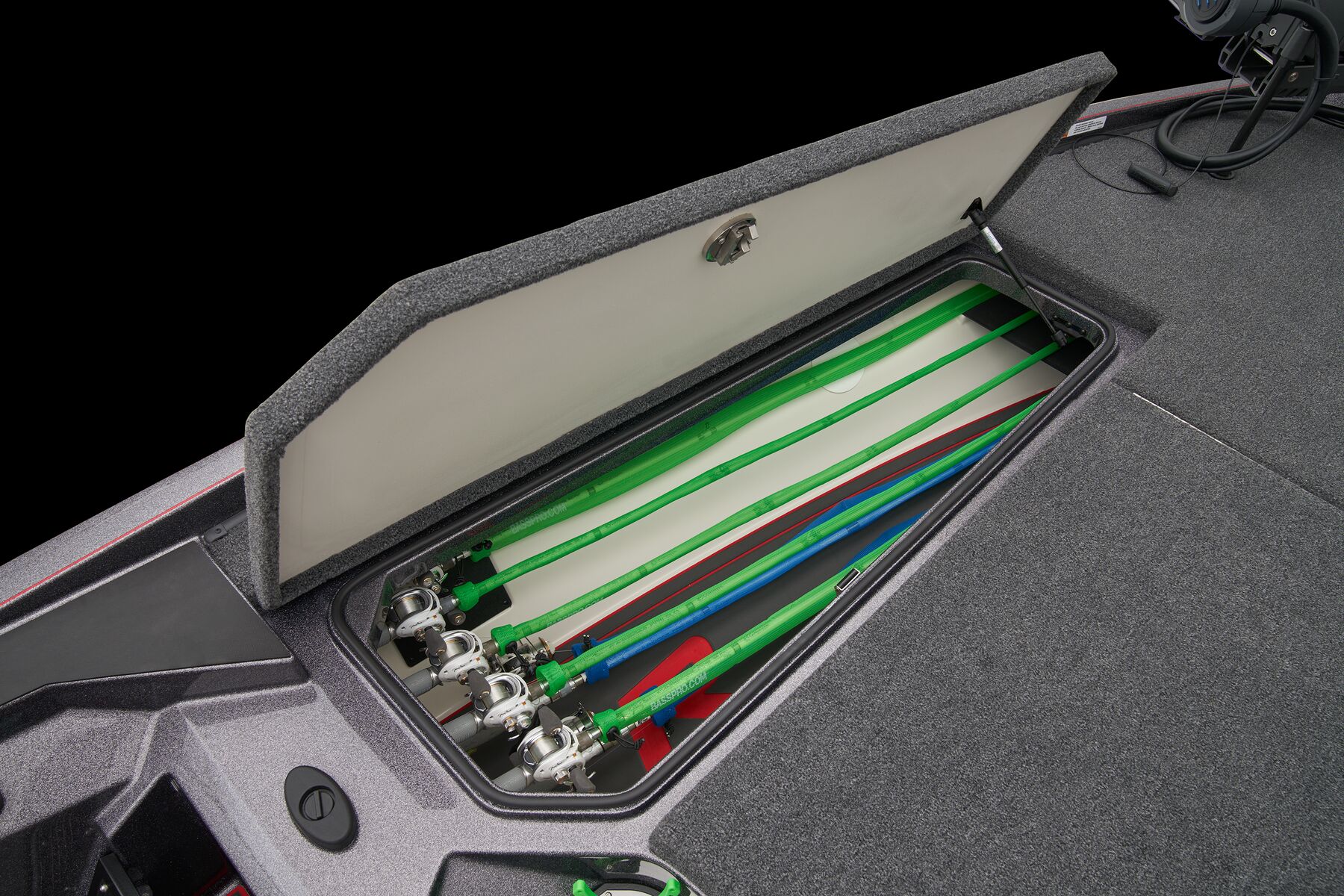

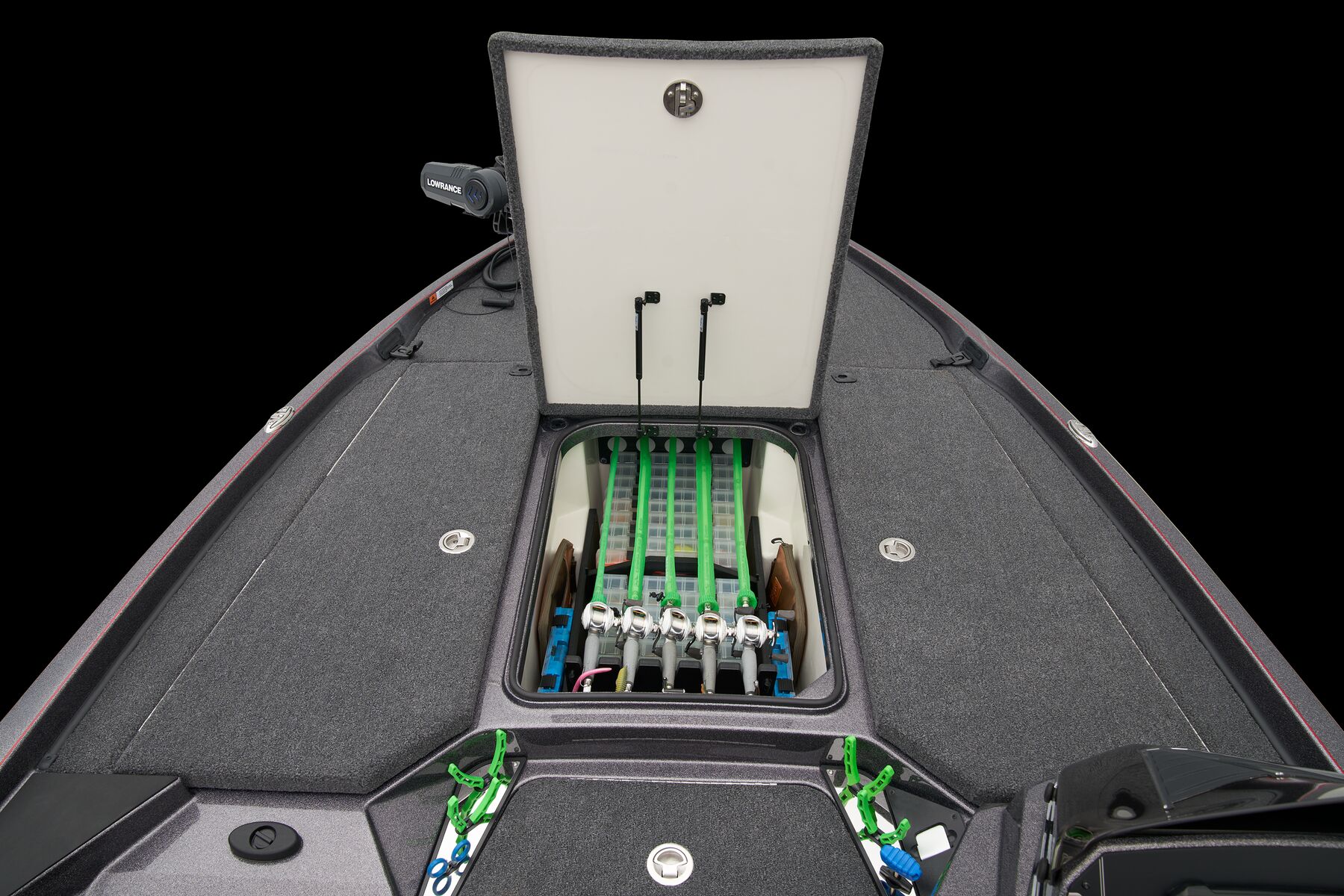

- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
- Power Ventilation Rod Storage™
- Insulated 40 qt. step-up cooler
- Integrated center-storage rod & tackle management system
- Stainless steel push-to-close locking latches

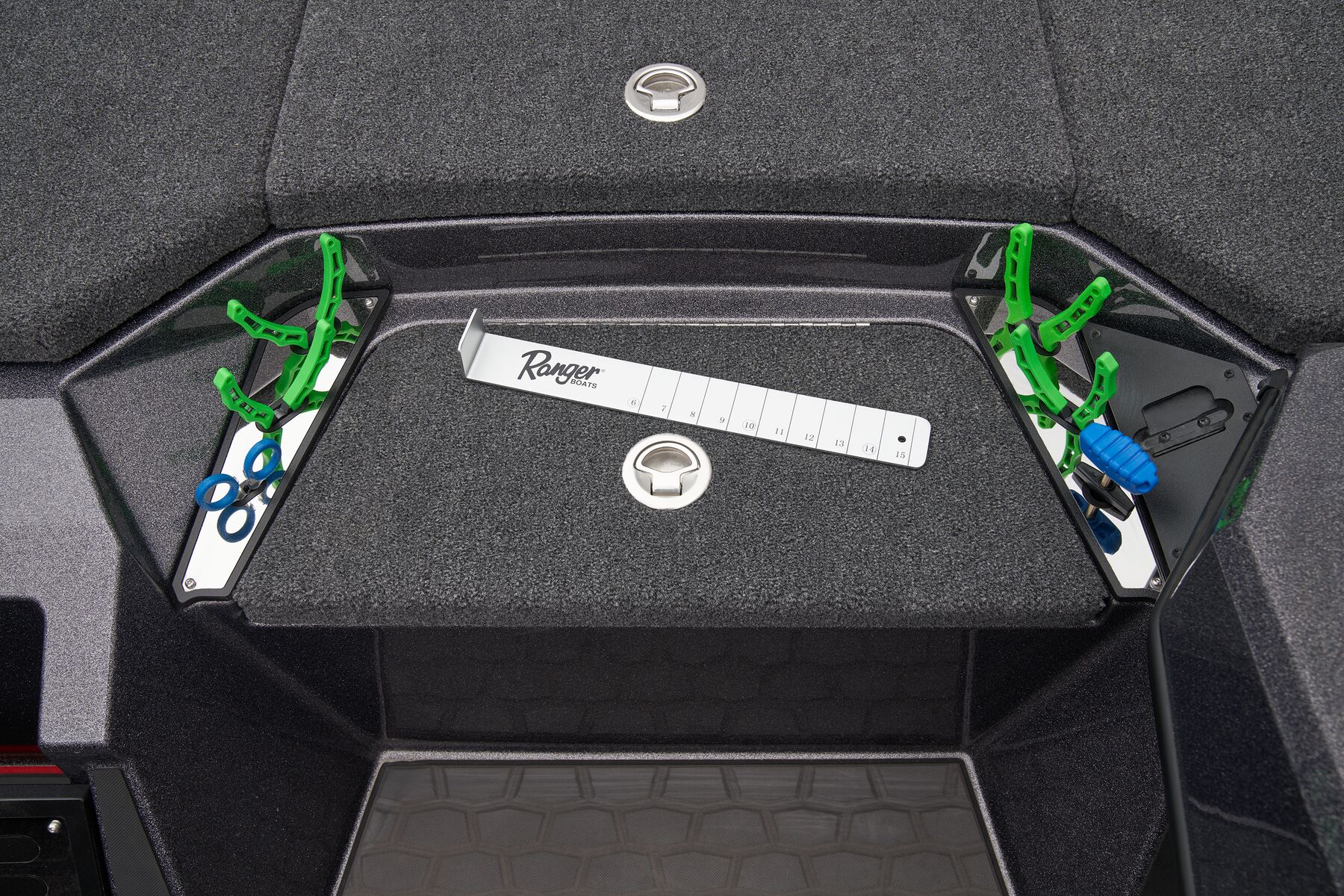

- Ranger® tournament measuring board integrated at front deck step

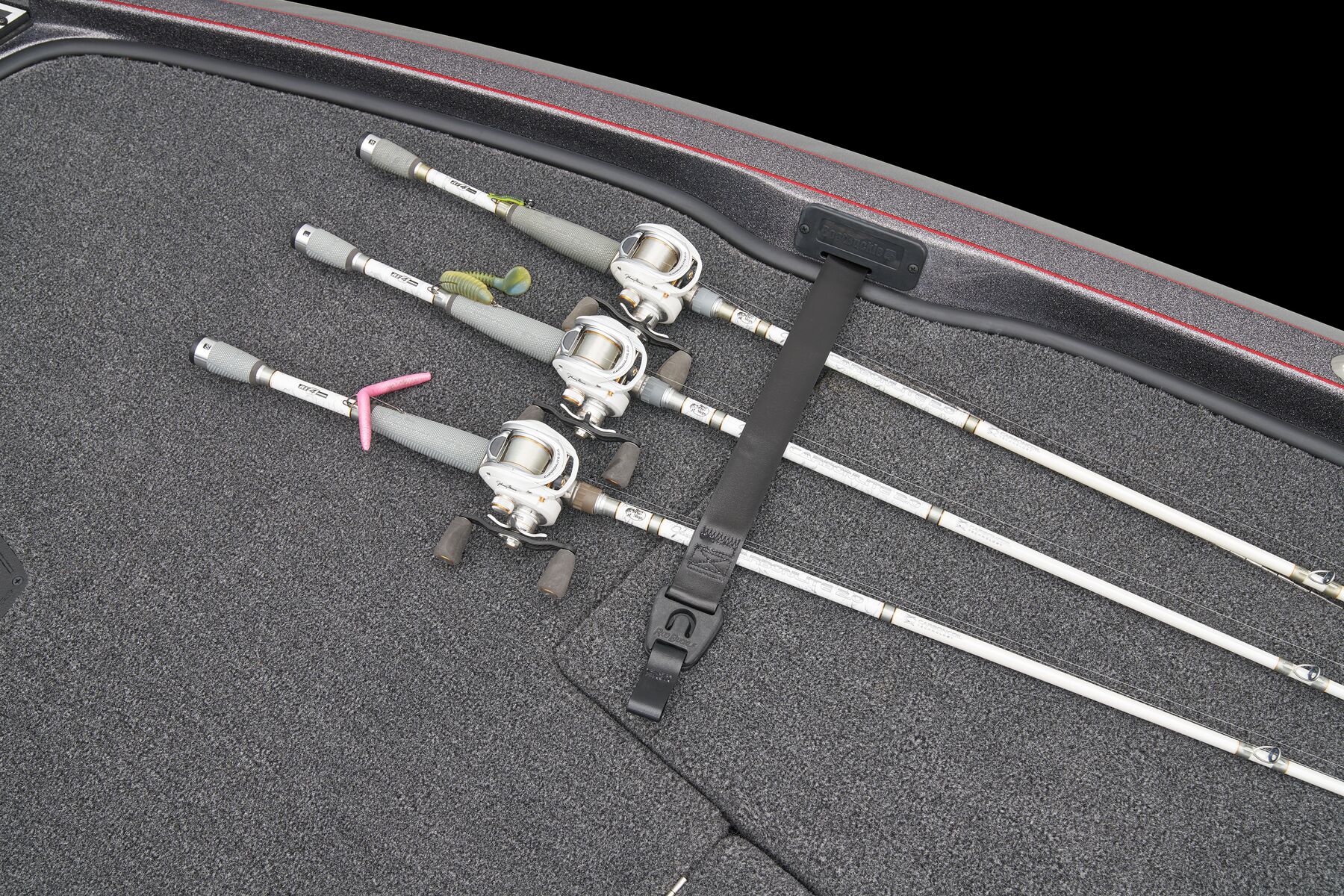

- Runnin' rod rack w/ retractable strap
- Remote drain plug

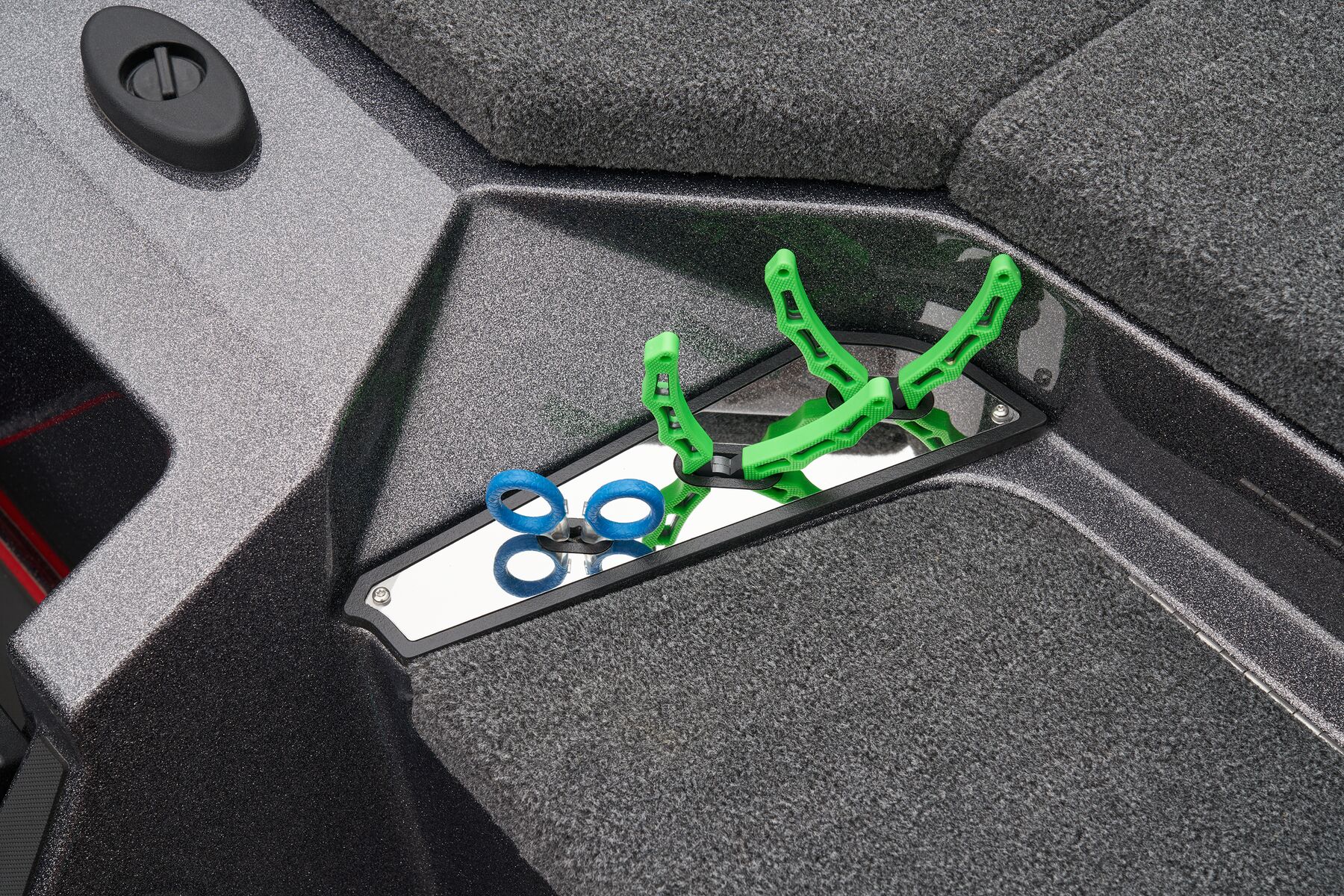

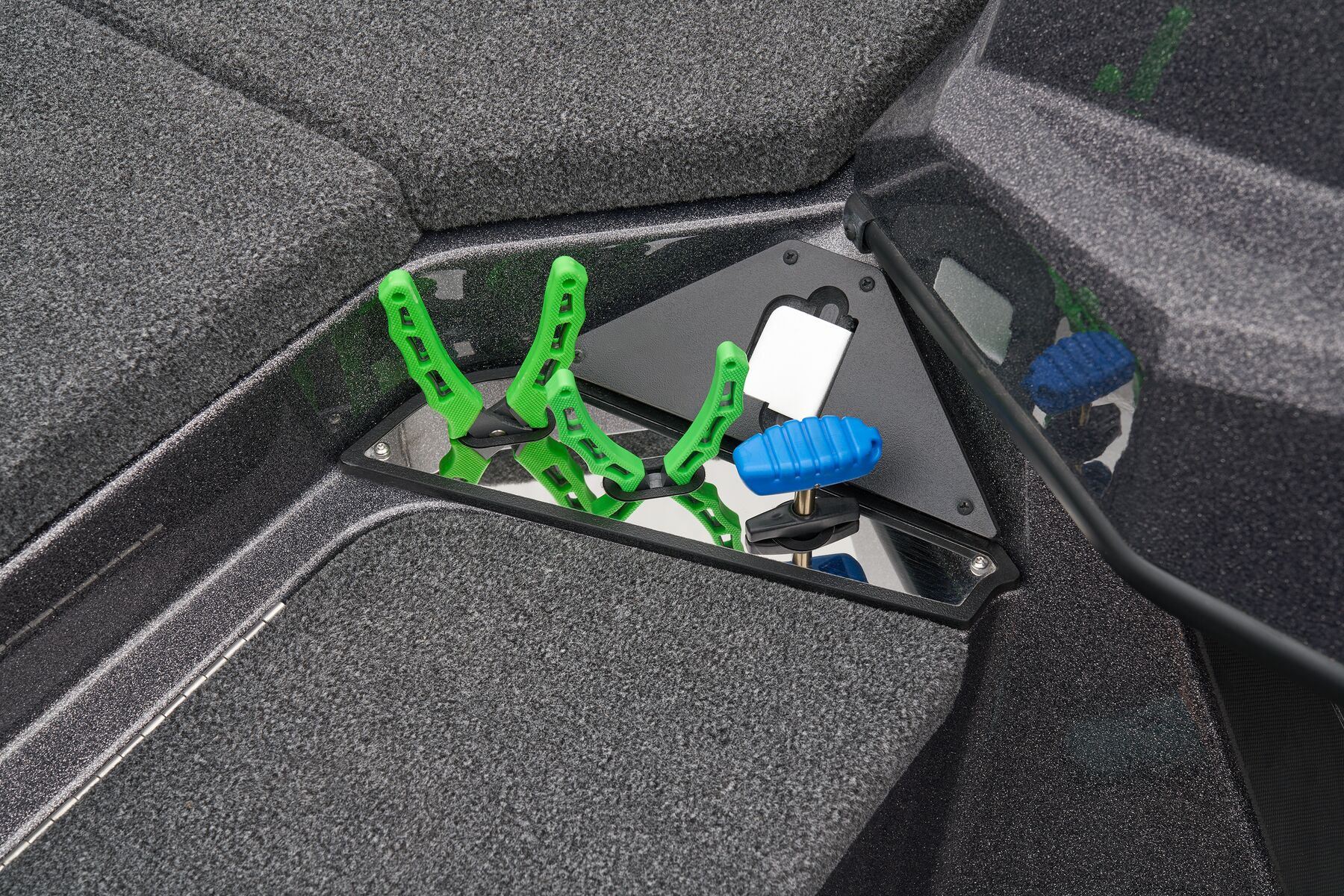

- Tool holders at bow and front deck step
- Molded-in driver / passenger footrests
- Integrated stainless steel cup holders
Electronics
- Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories
- Ranger® System Monitor - 7" touchscreen that displays all boat and engine data at a glance

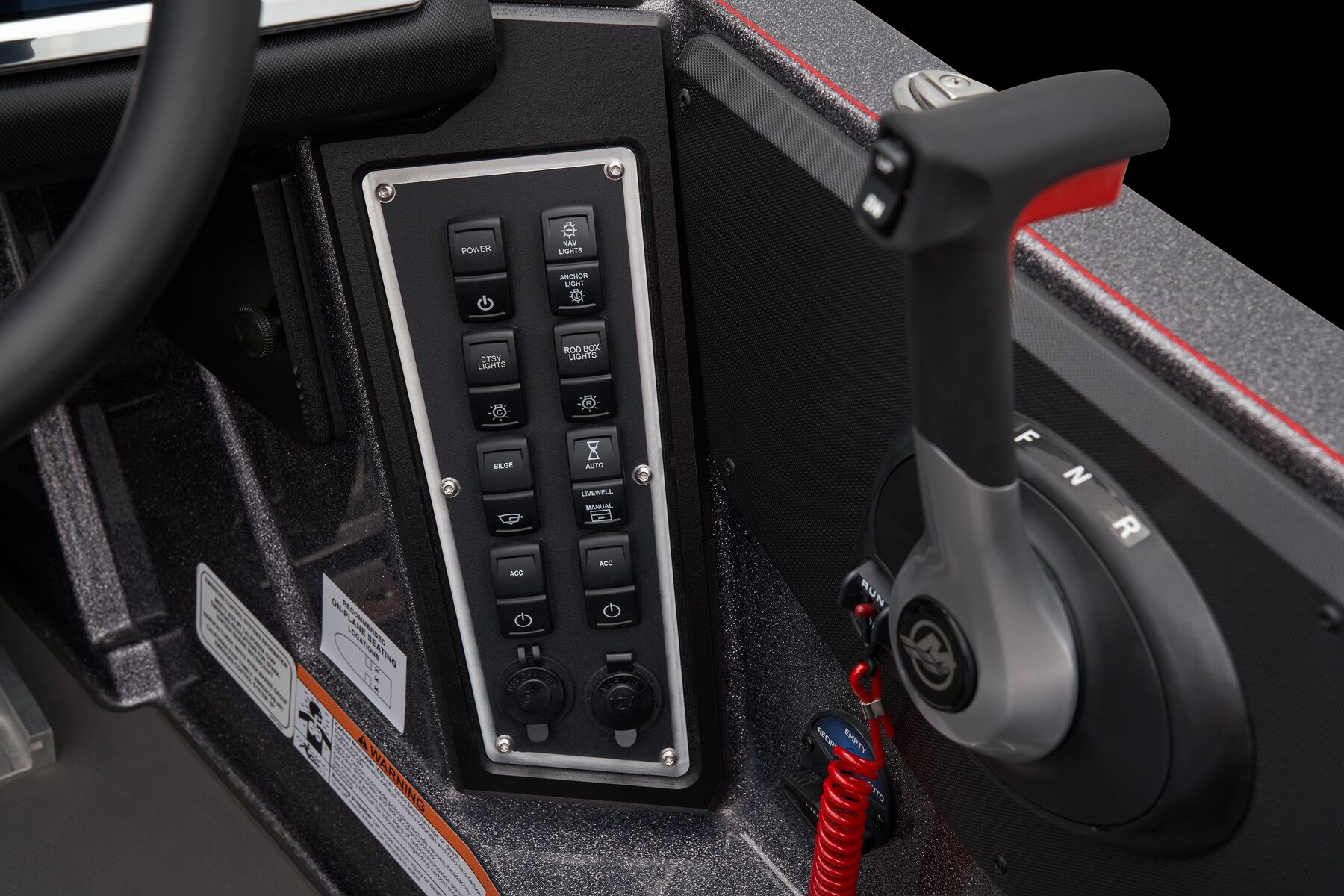

- Easy-touch analog switching

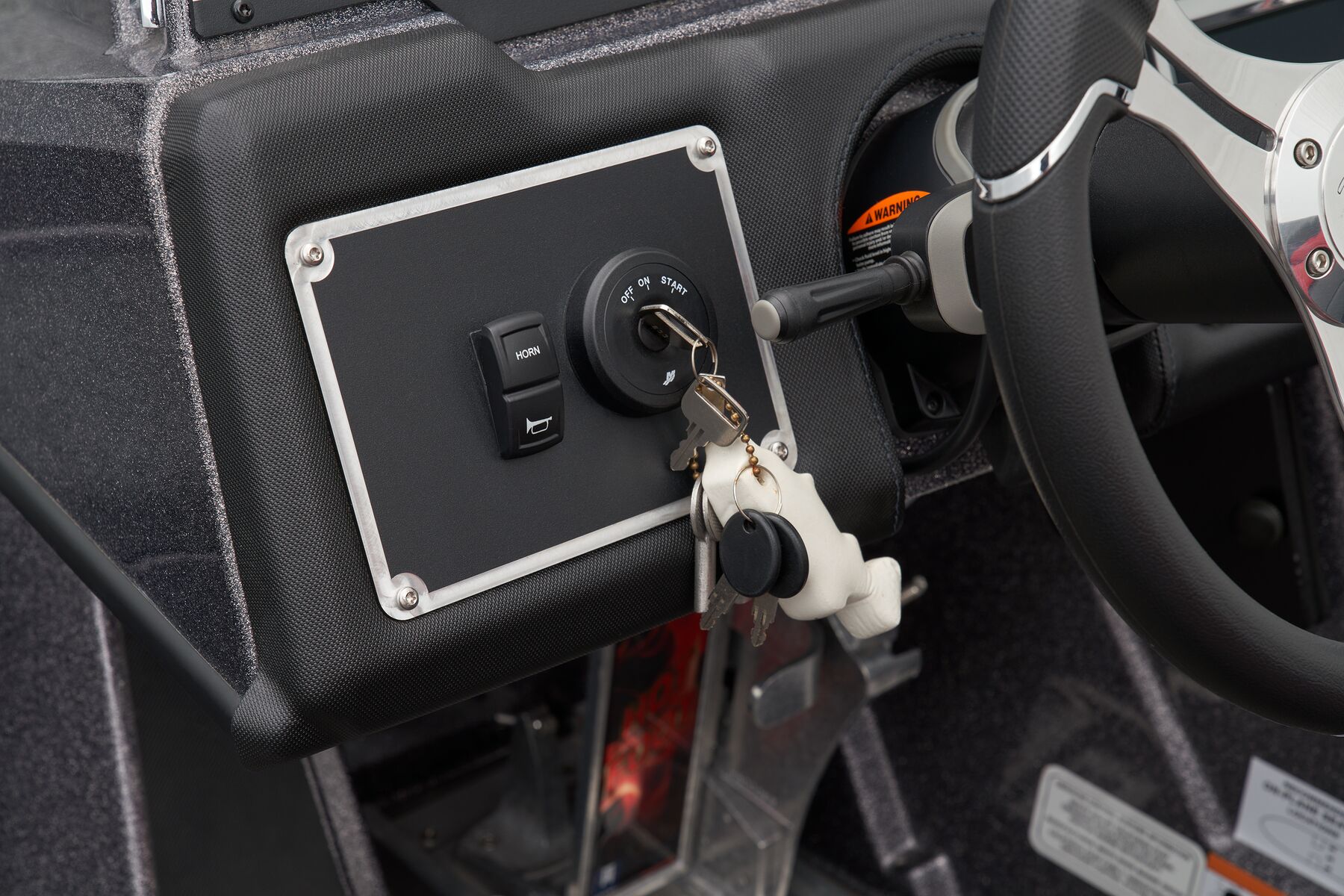

- Keyed ignition
- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
- Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker

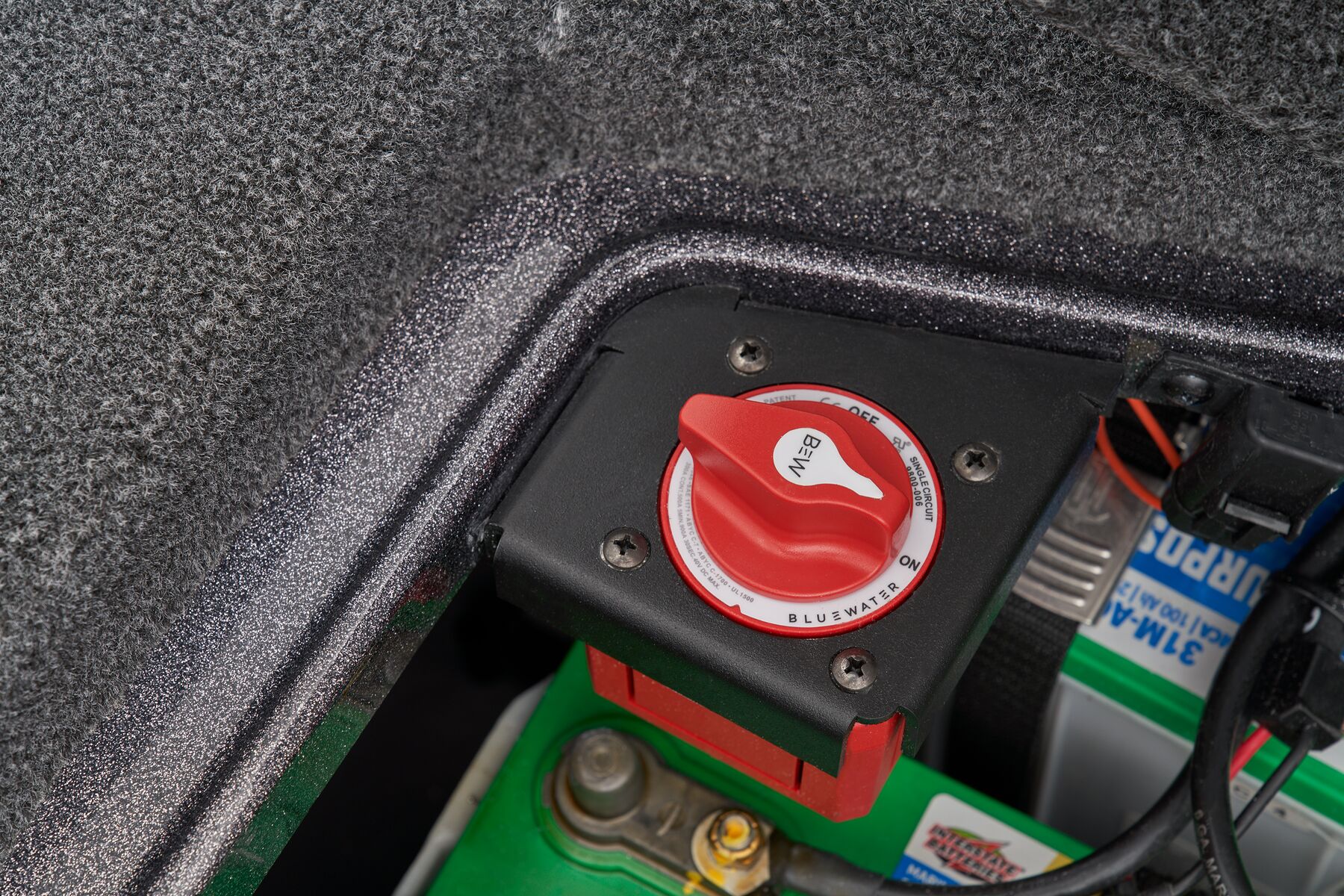

- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging
- LED storage compartment lighting & LED courtesy & livewell lighting

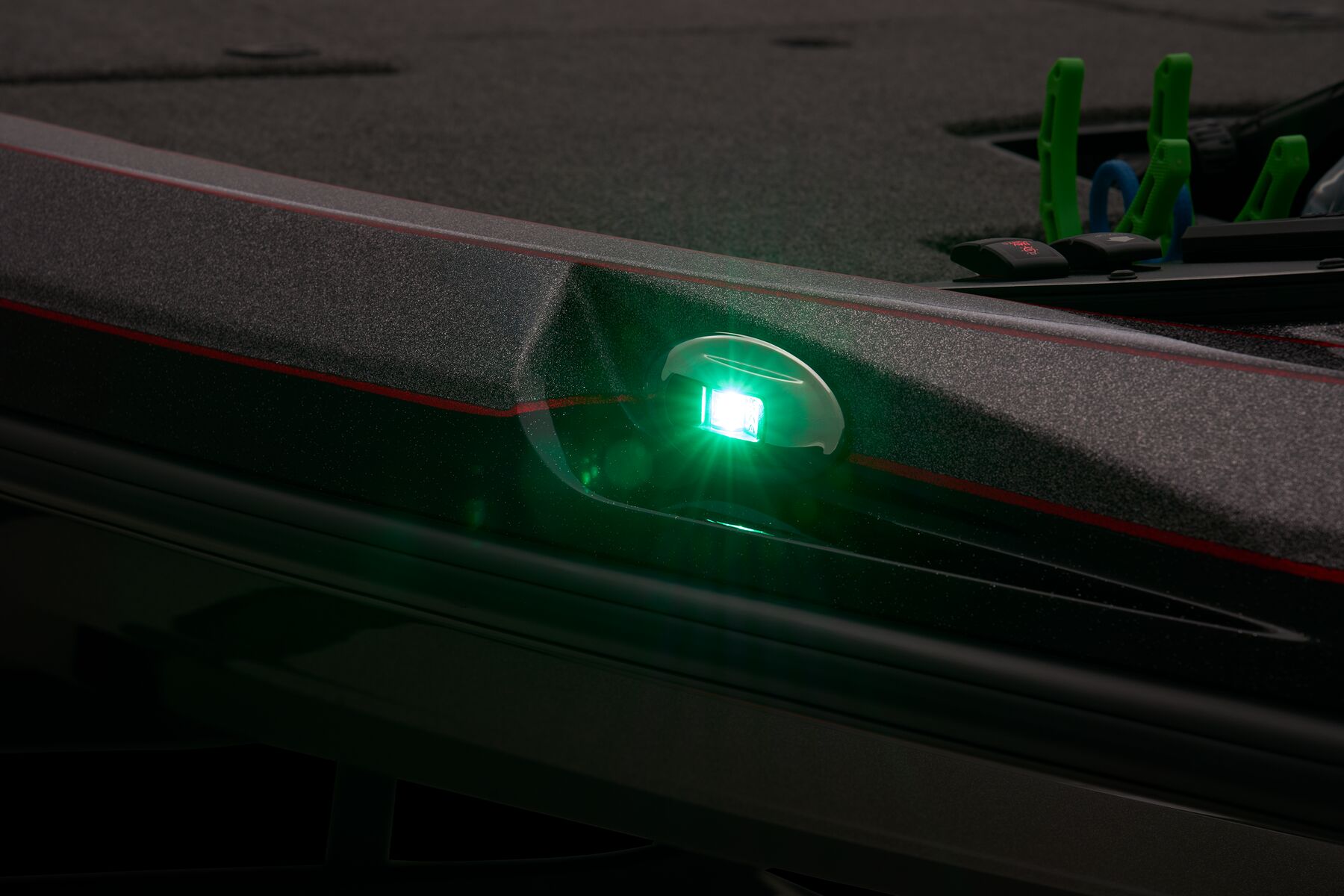

- Integrated LED bow navigation lights & removable LED anchor light
- Lowrance® Eagle 5 at console
Power/Performance

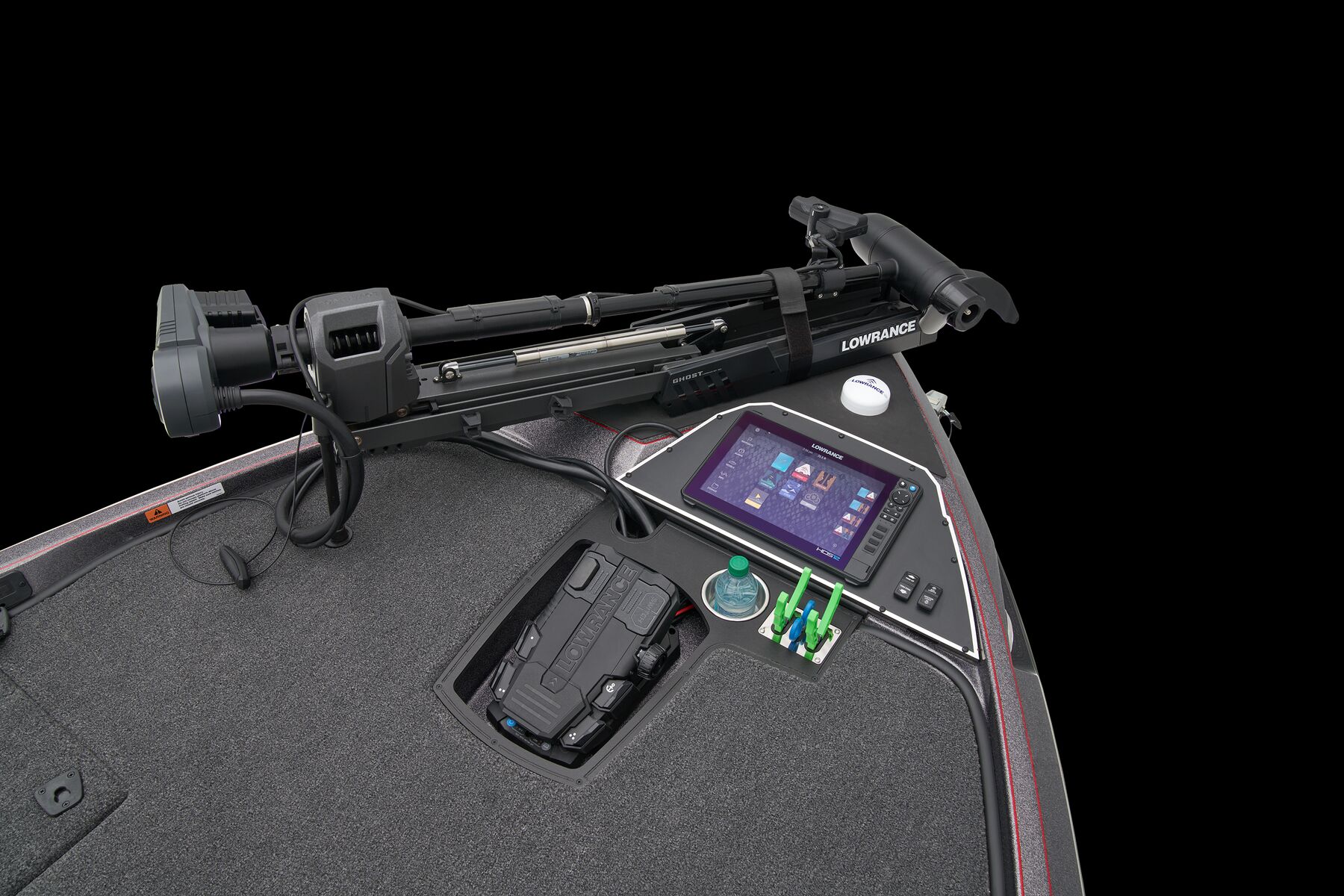

- MinnKota® Fortrex 80lb , 45" DSC 24V trolling motor

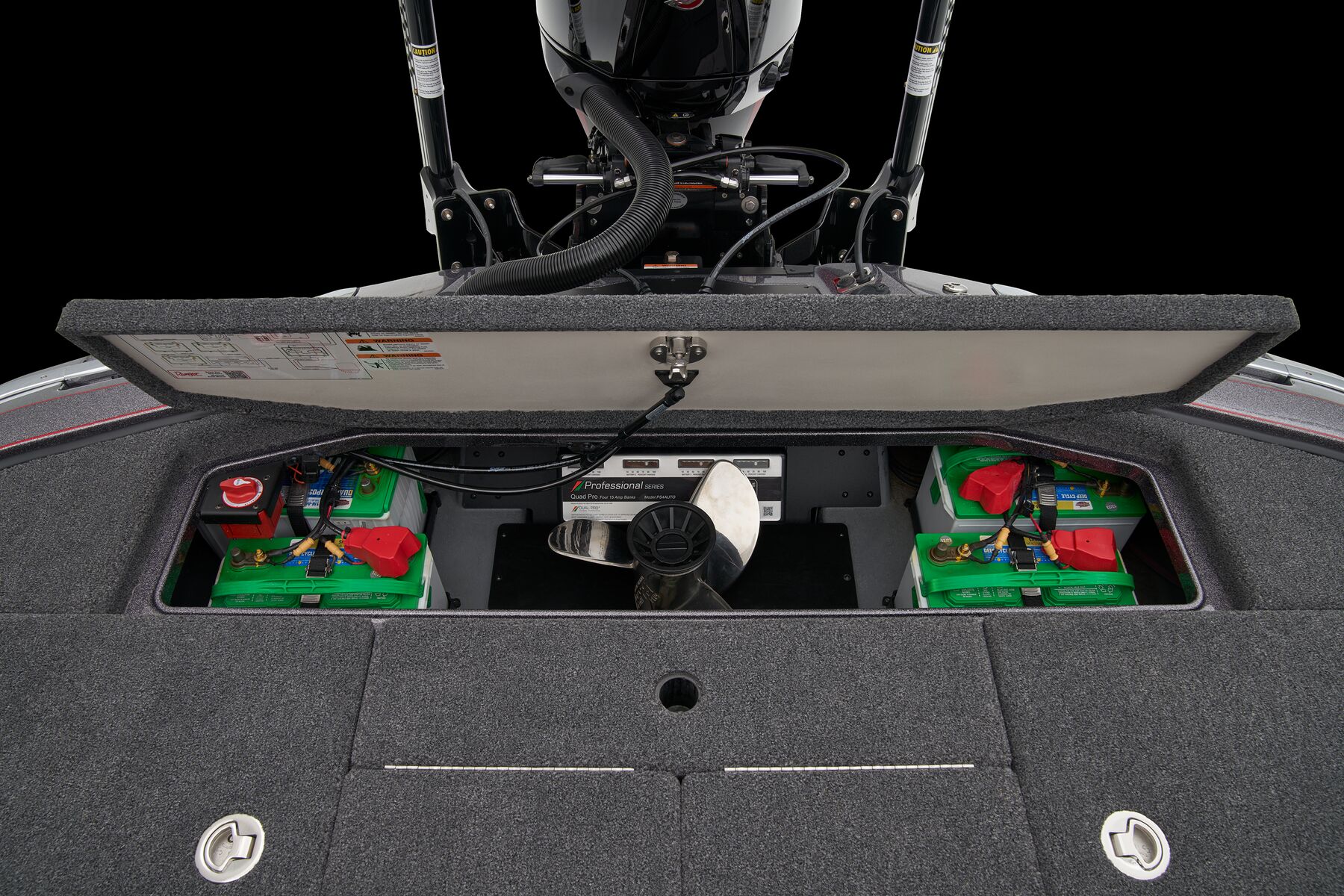

- AGM Starting battery w/ tray
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback
- 8" manual setback plate

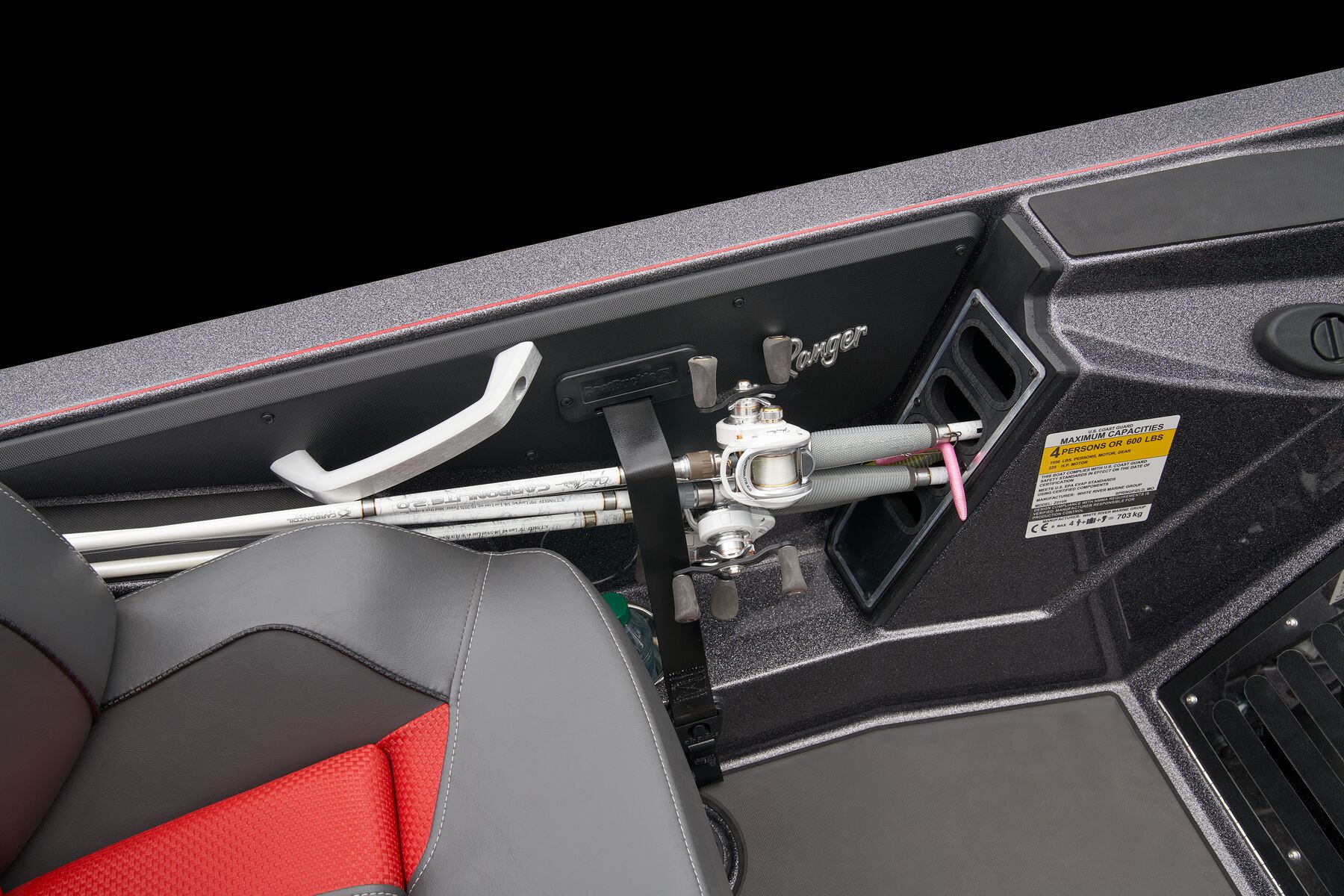

- Hydraulic steering
- Recirculating aerated livewell w/ removable divider
- Venturi aeration system

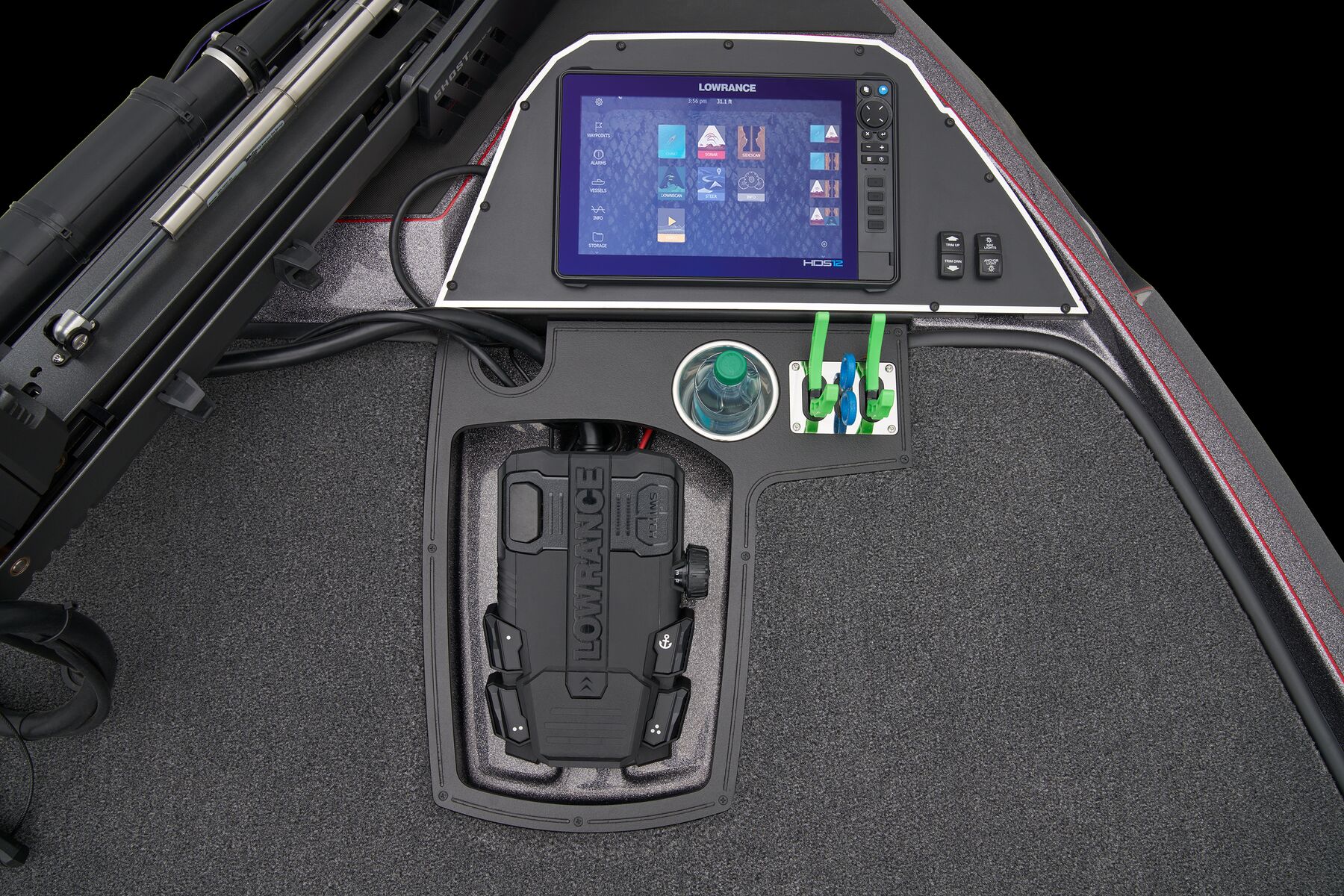

- Recessed trolling motor foot pedal
- High performance stainless steel prop
- Foam-filled fiberglass stringer system
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards

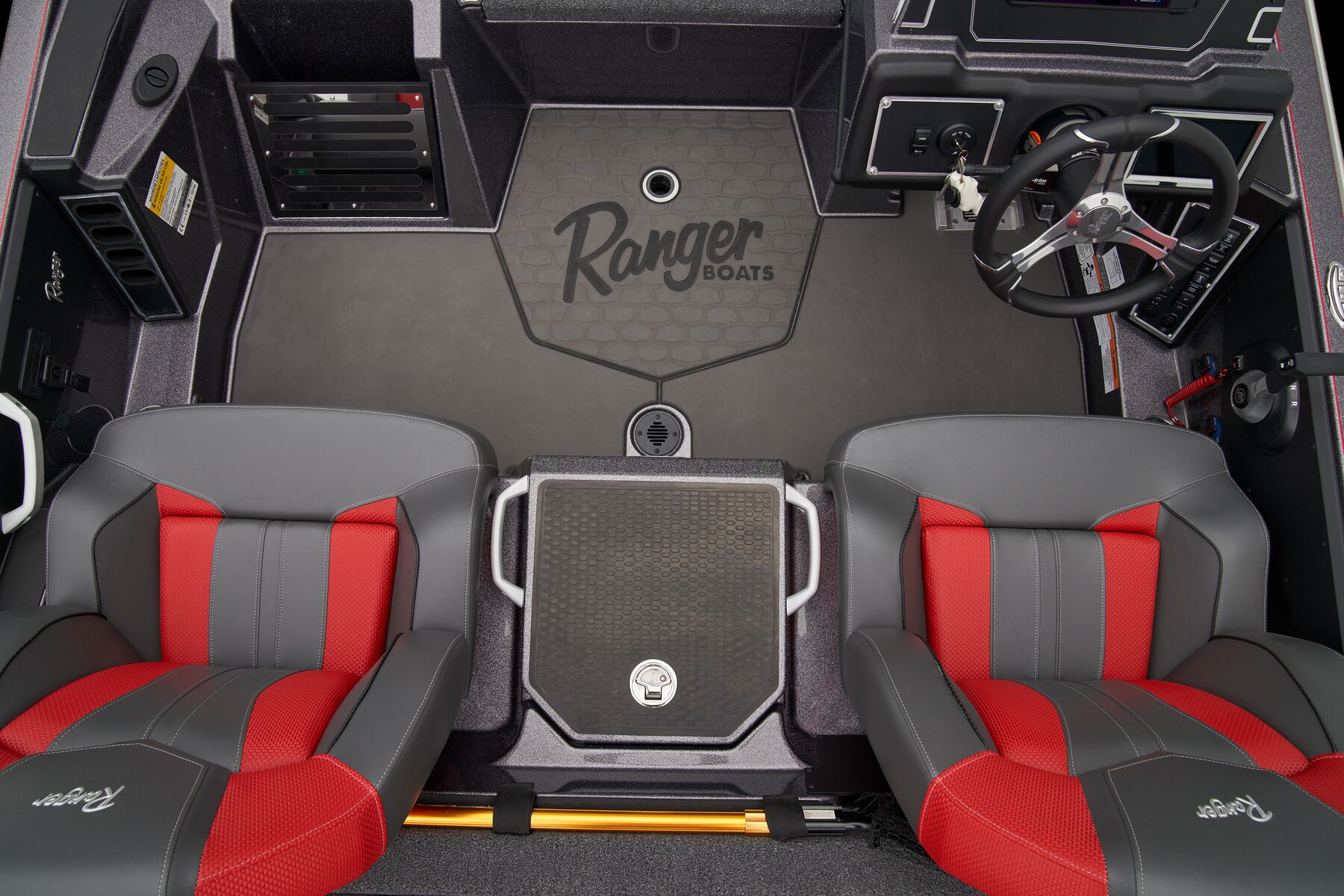

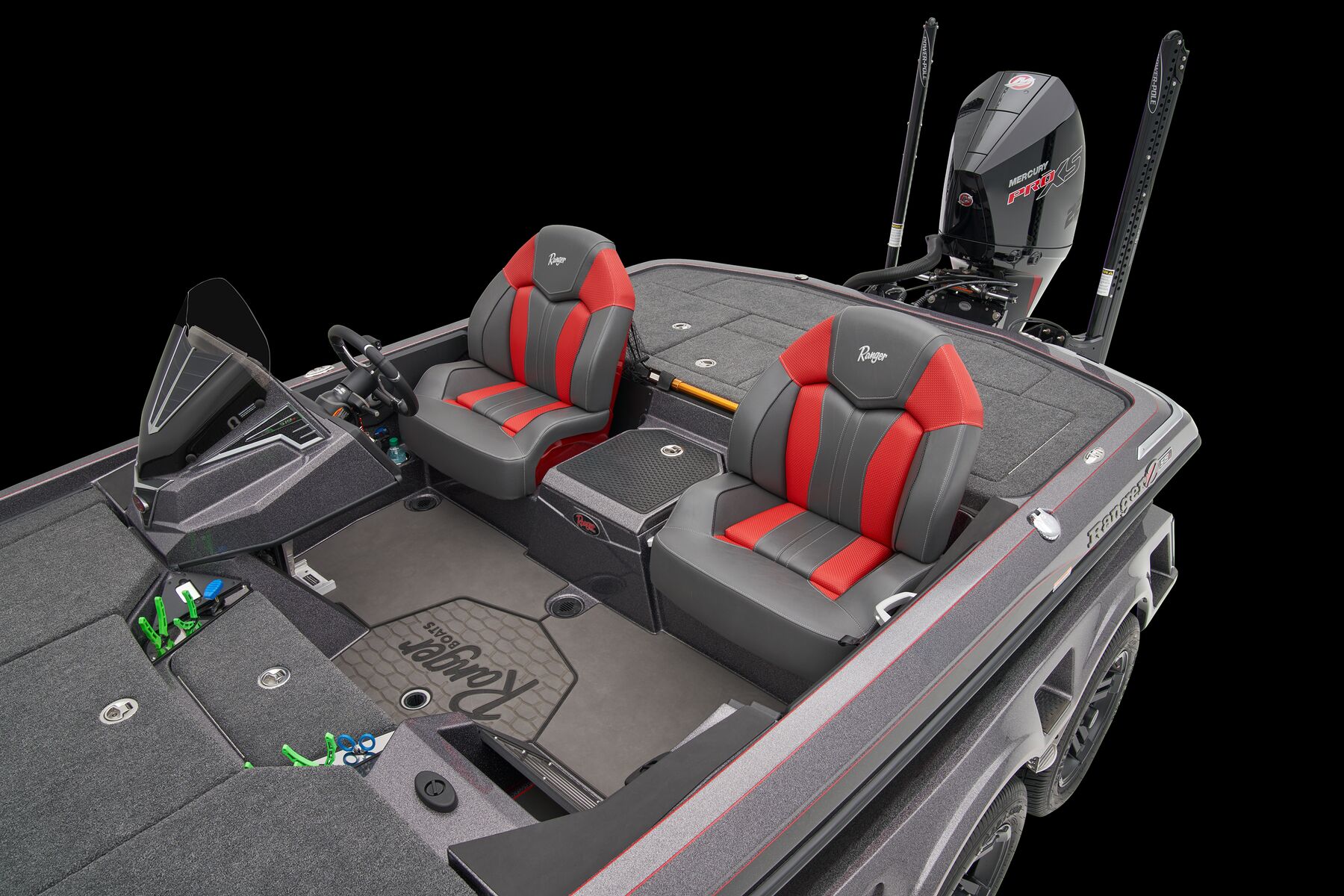

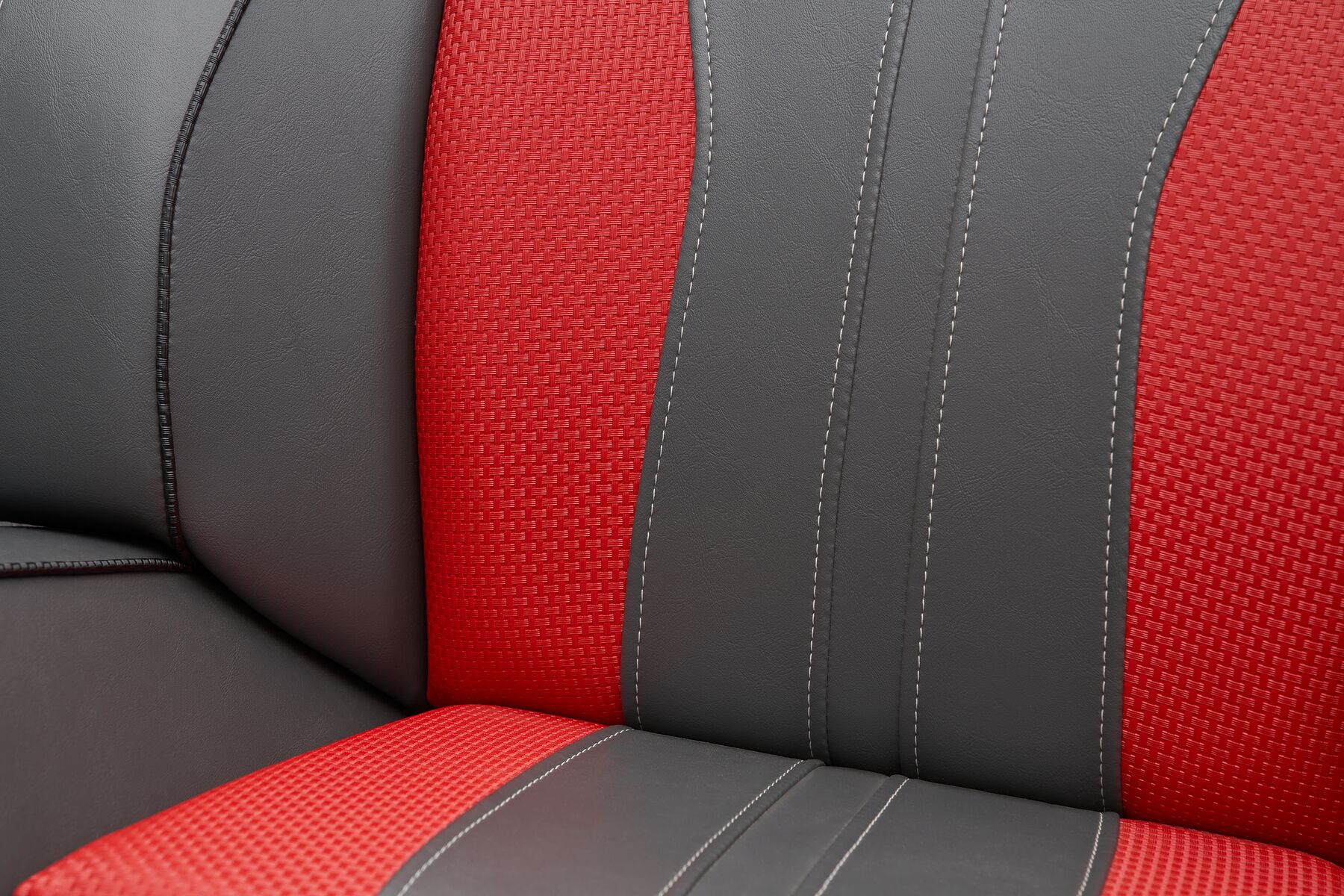

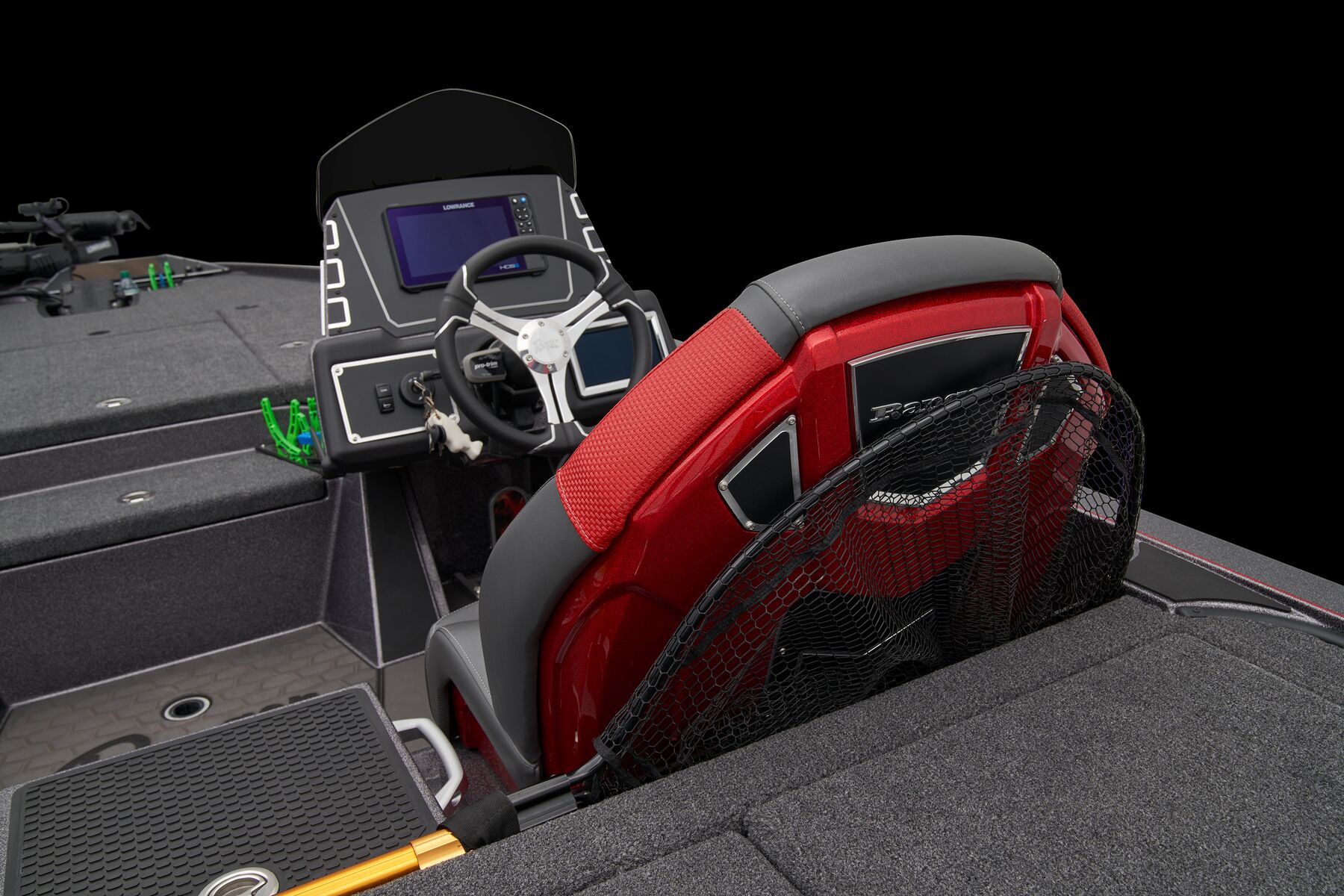

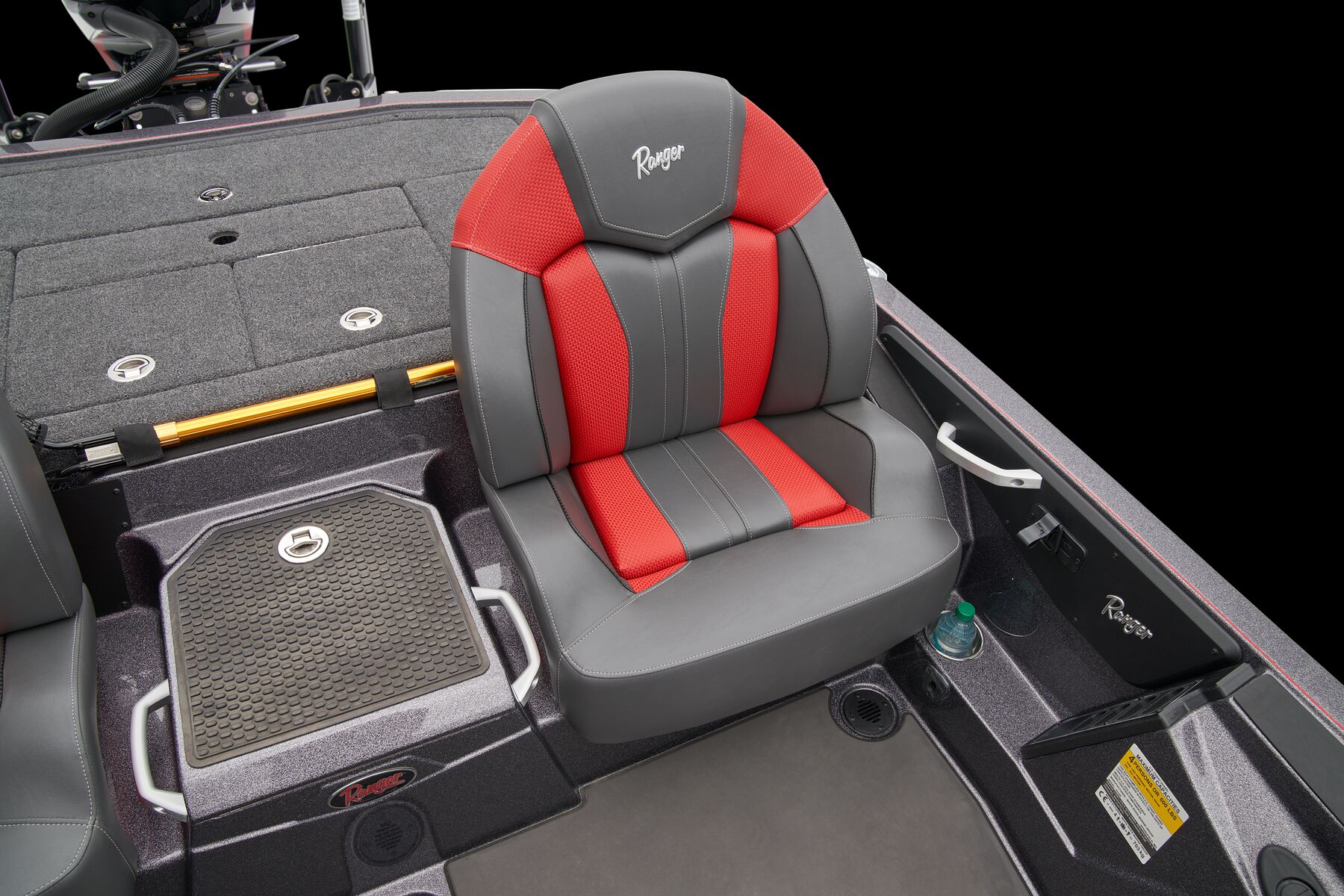

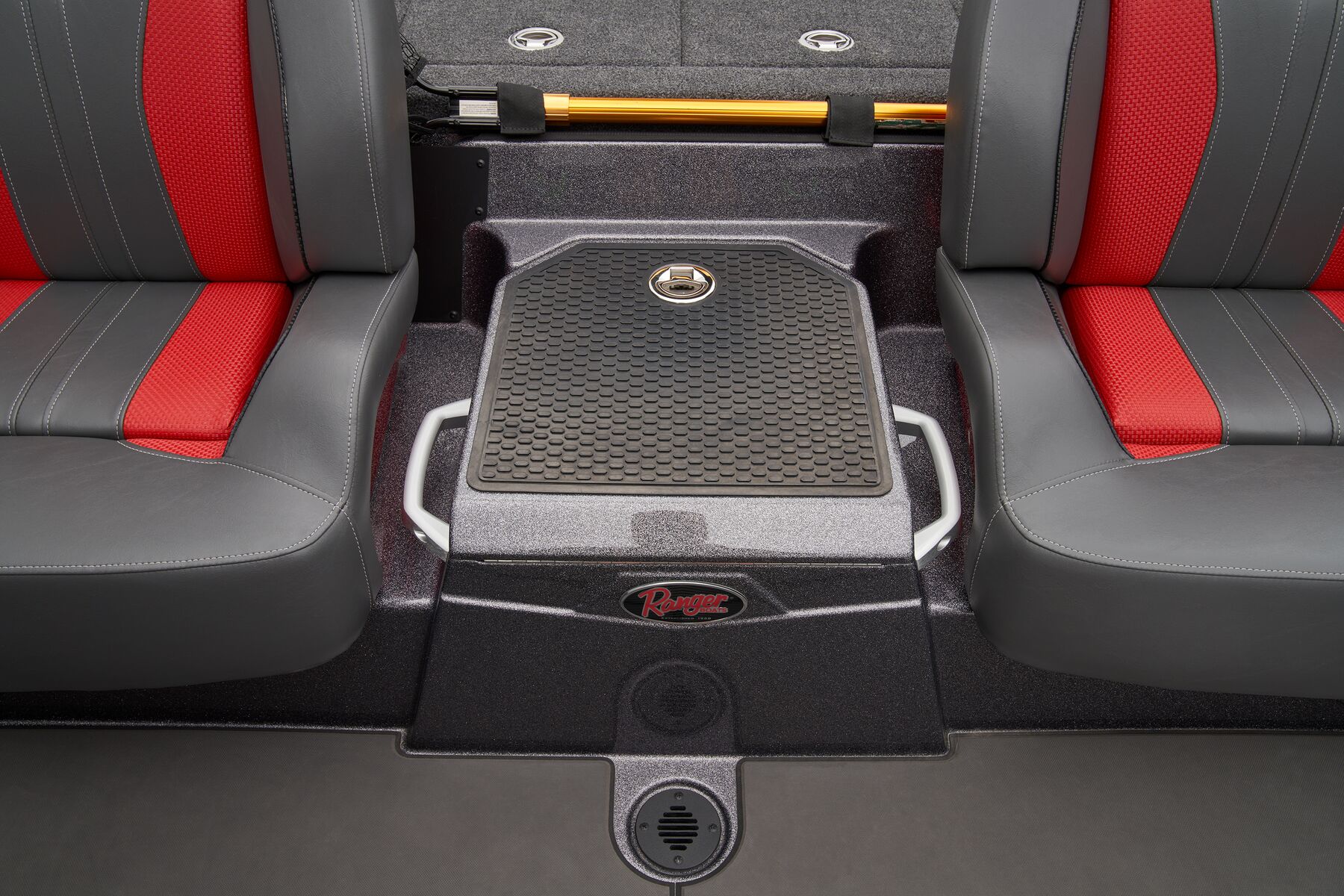

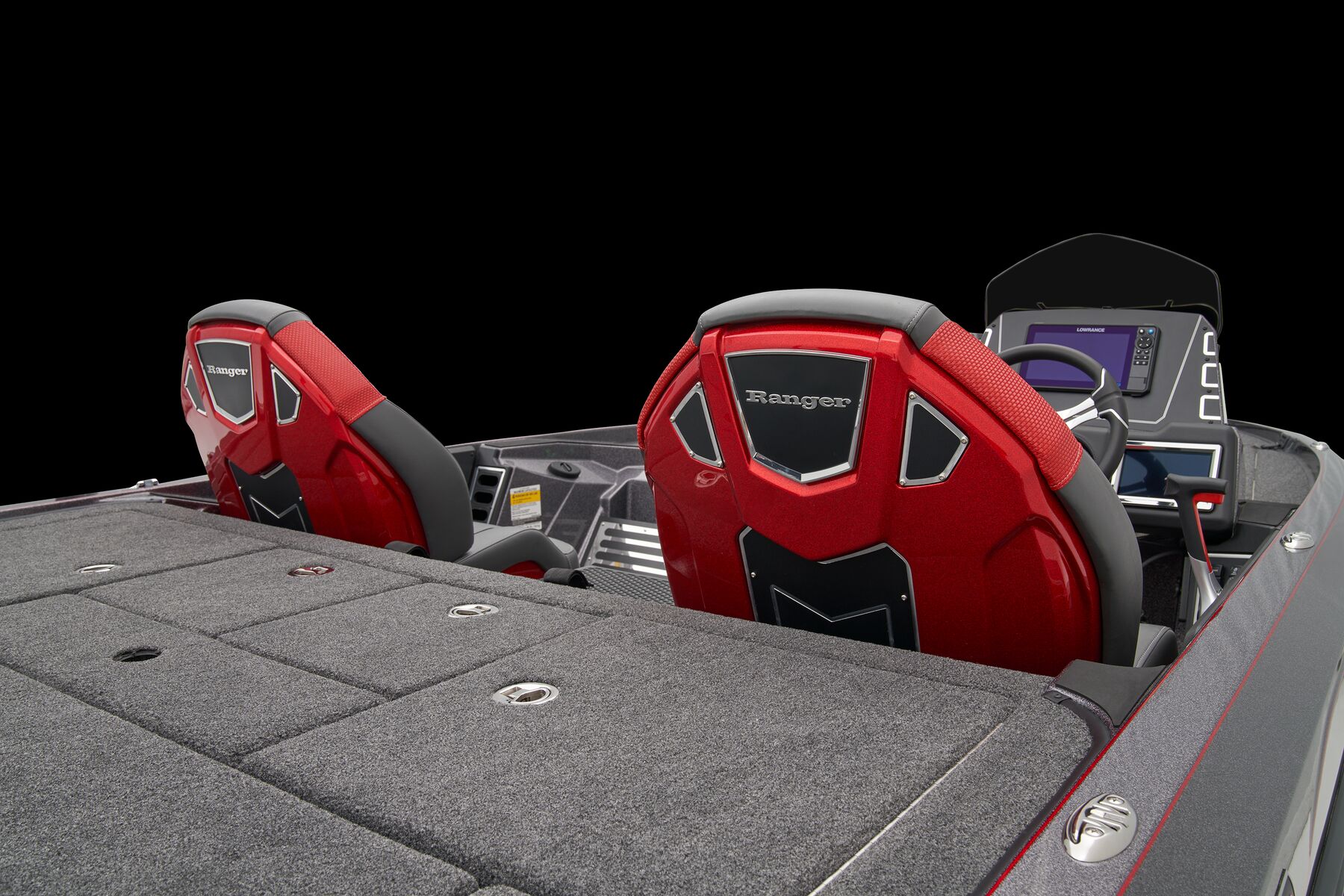

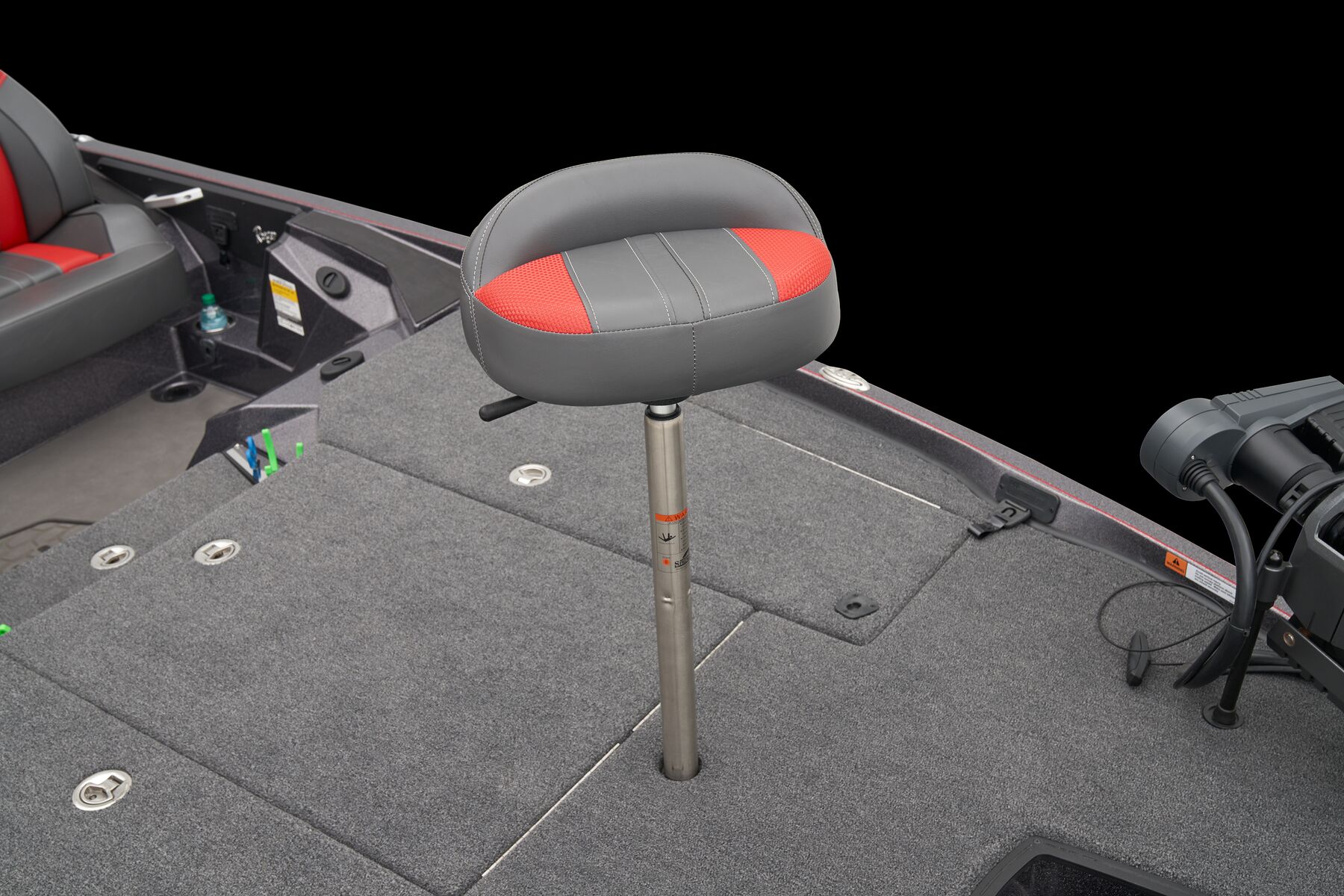

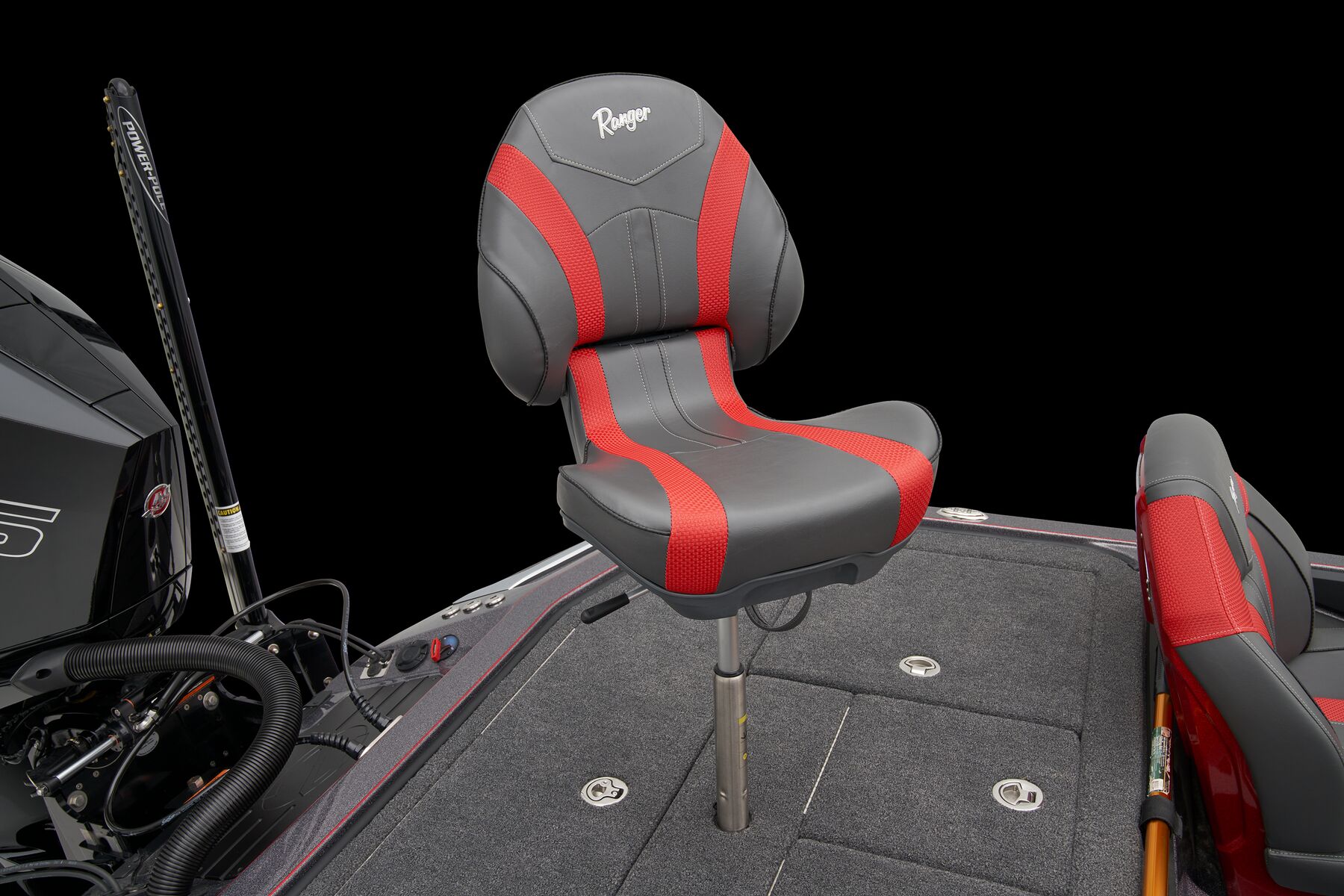

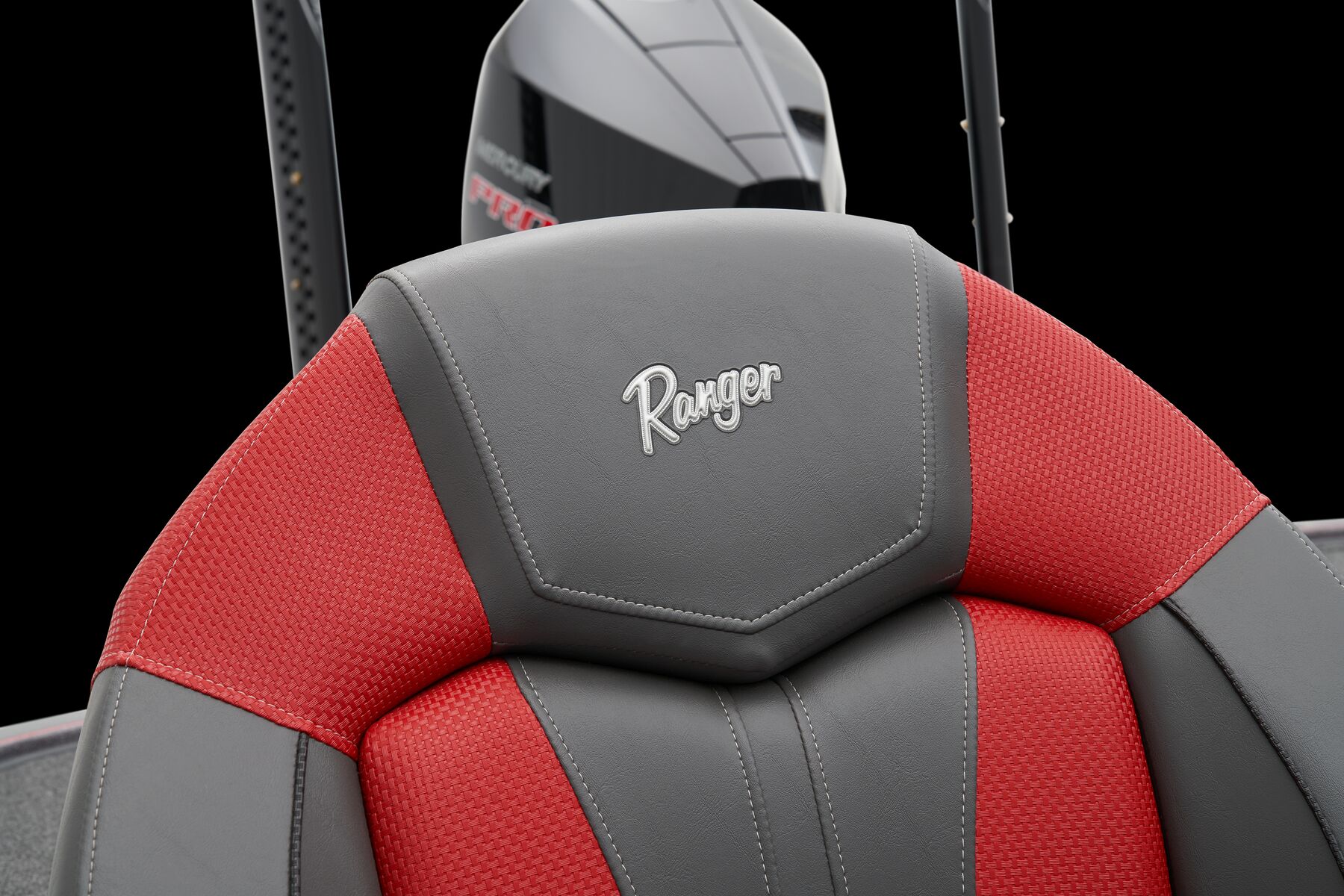

- Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/ power pedestal
- Fire extinguisher & horn
- Stainless steel seat bases

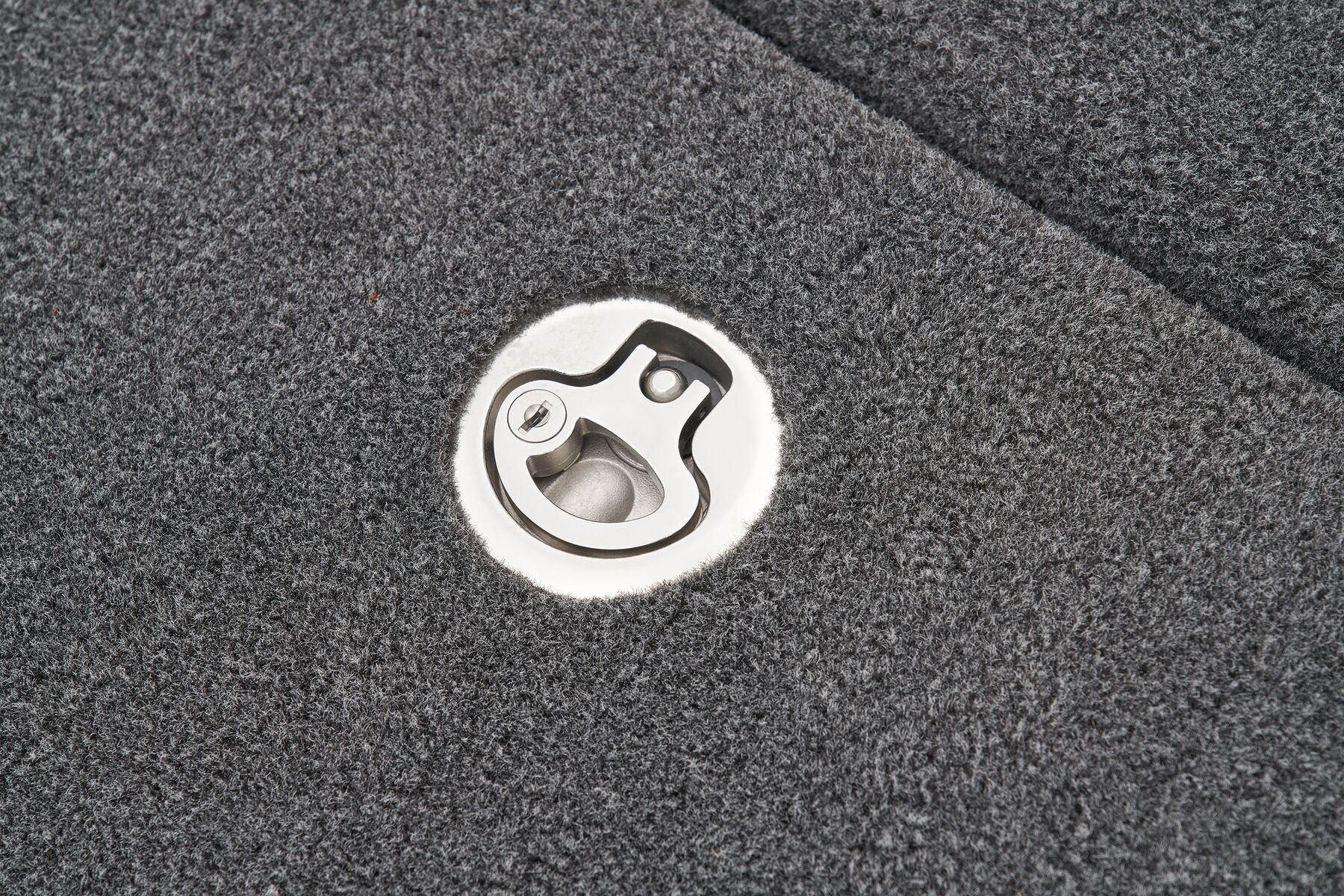

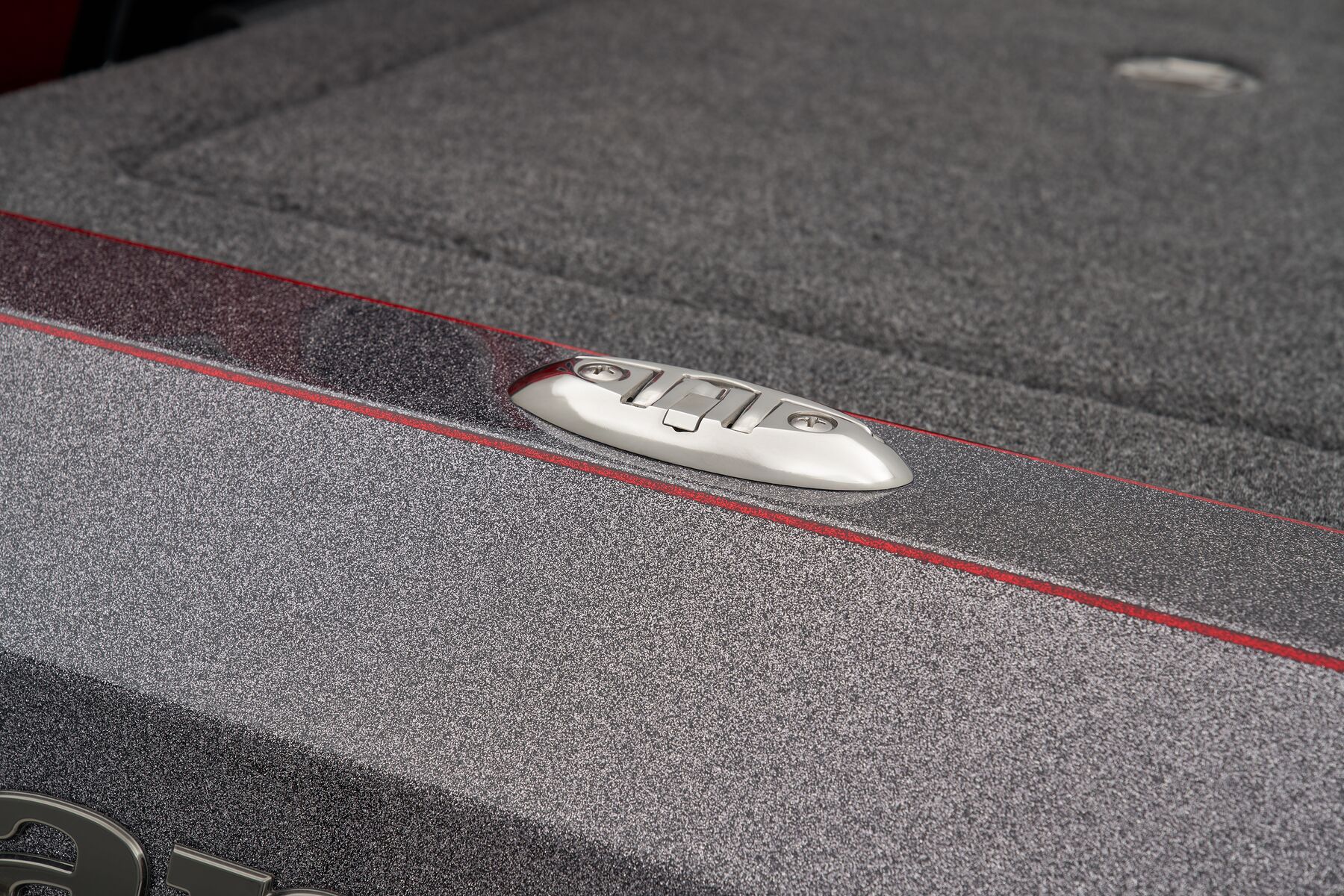

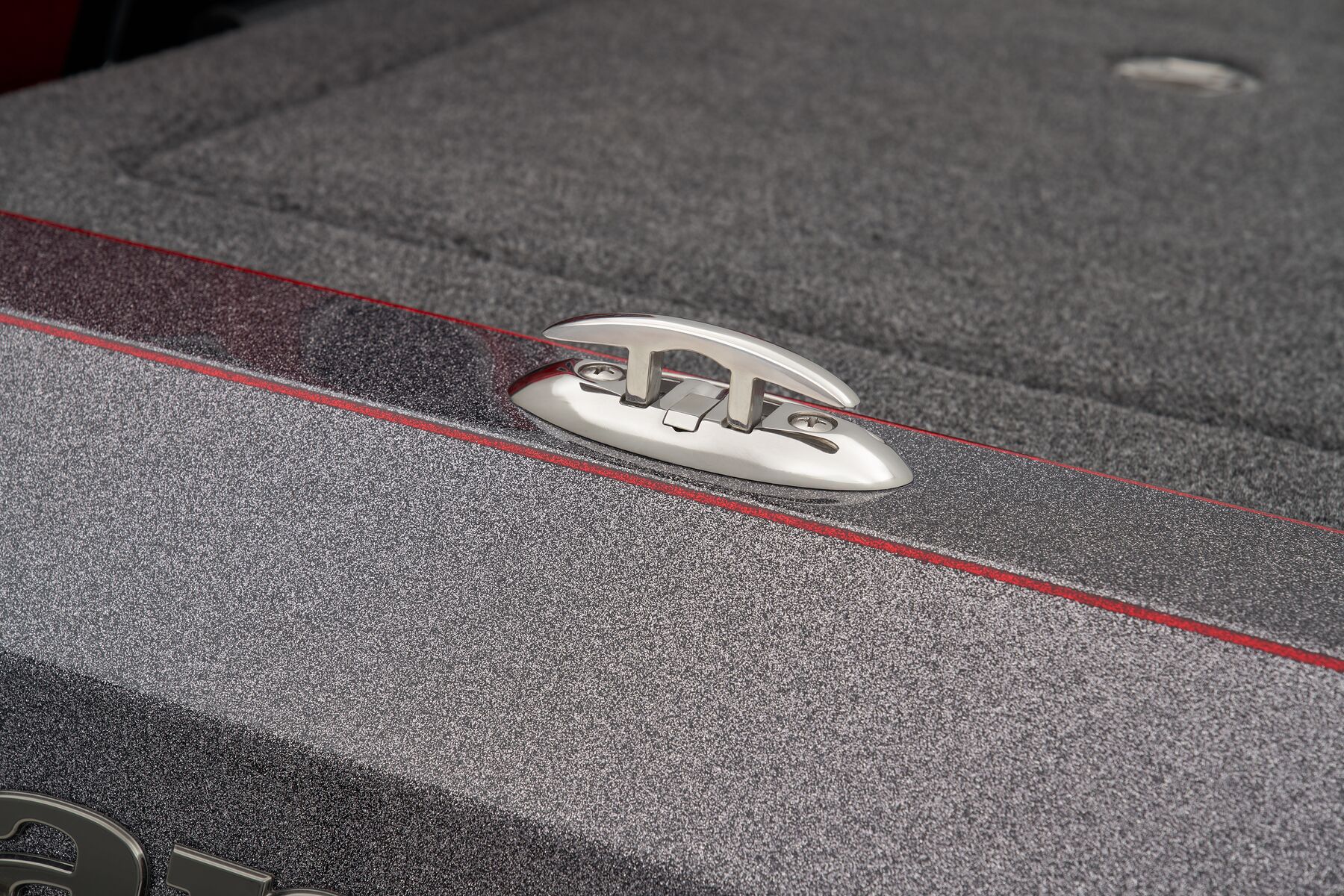

- Pop-up tie cleats
- Integrated grab handles
- Rite Track Keel®
- Automatic & manual bilge pumps
- Integrated re-boarding ladder

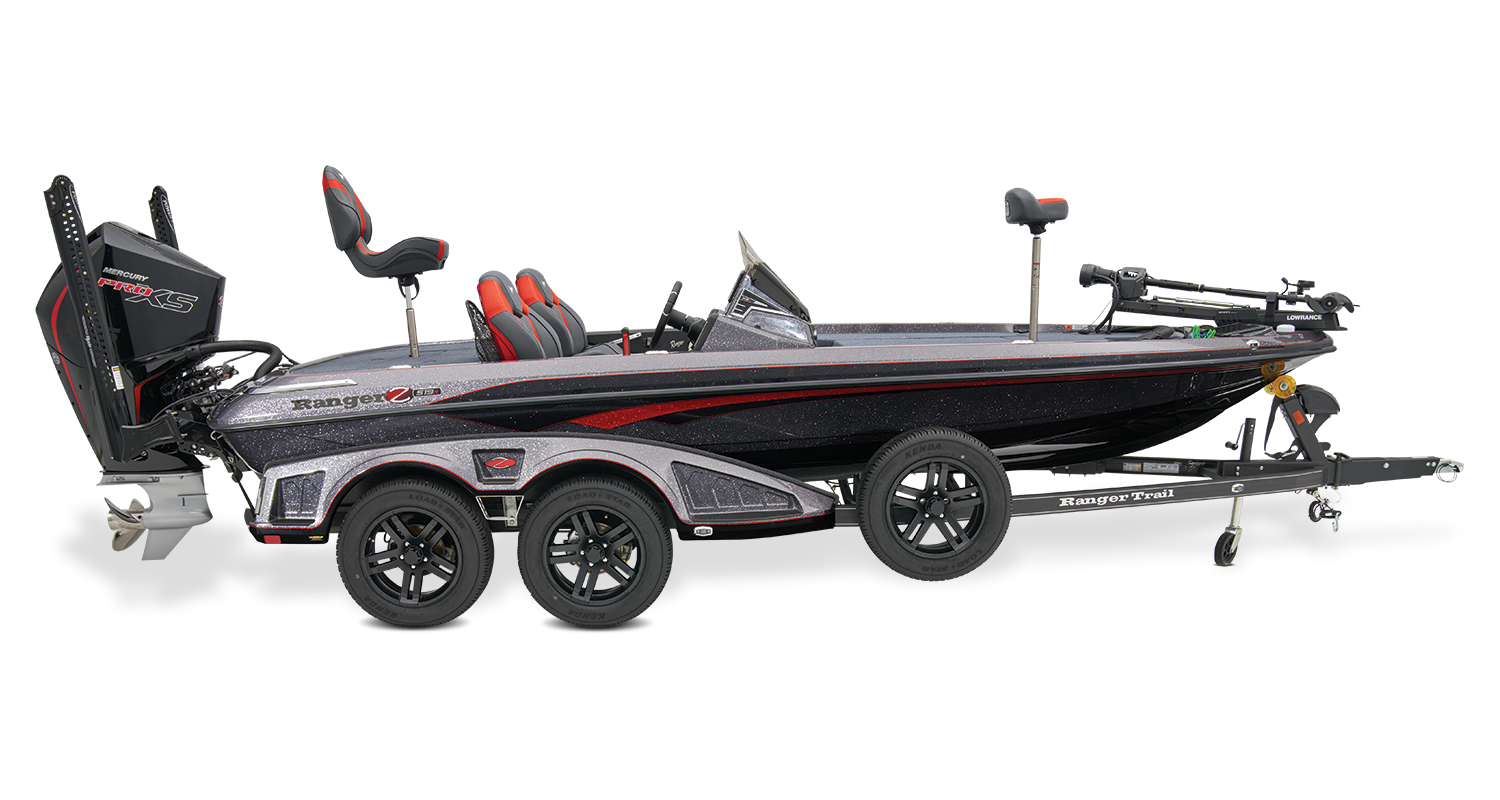

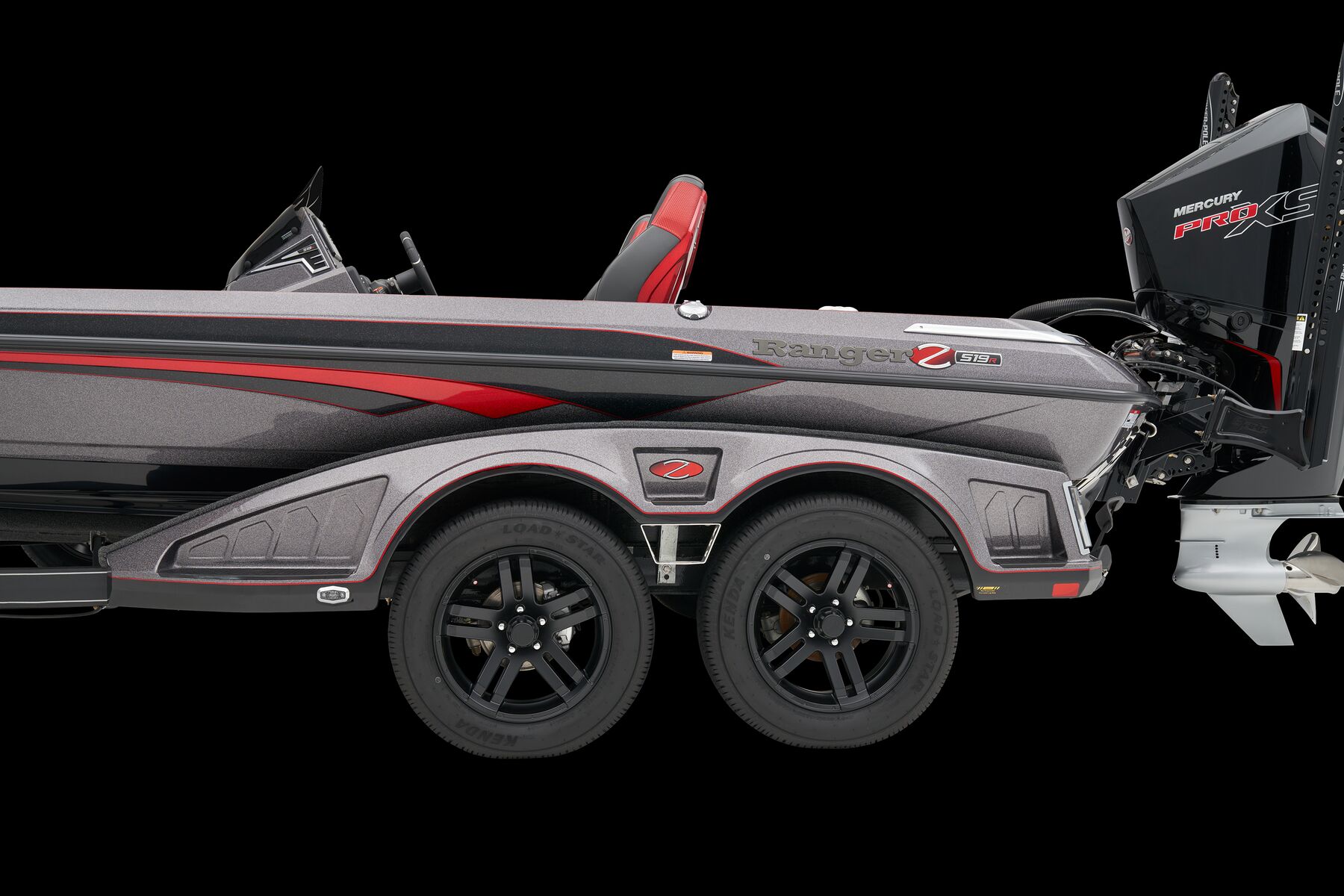

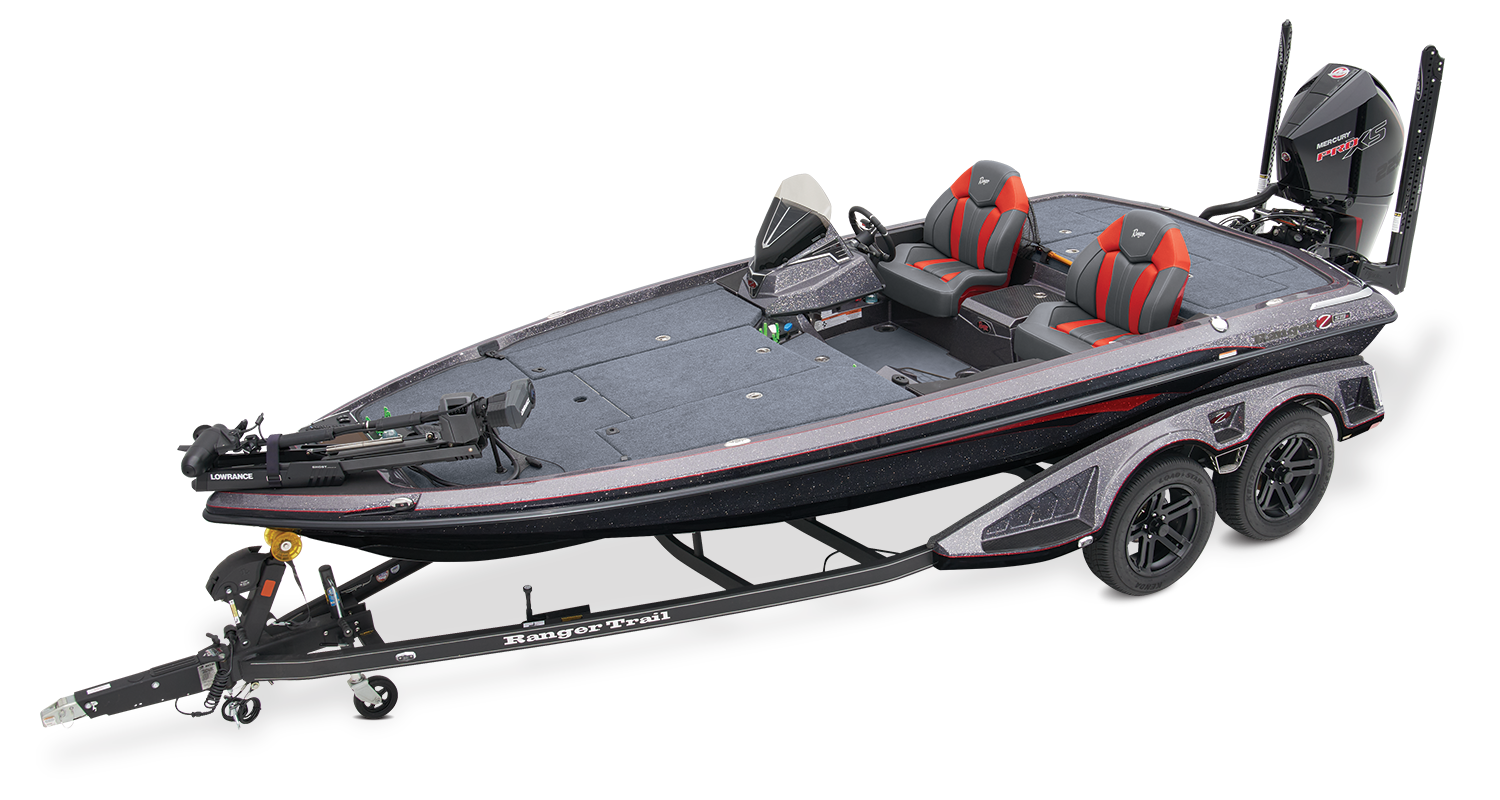

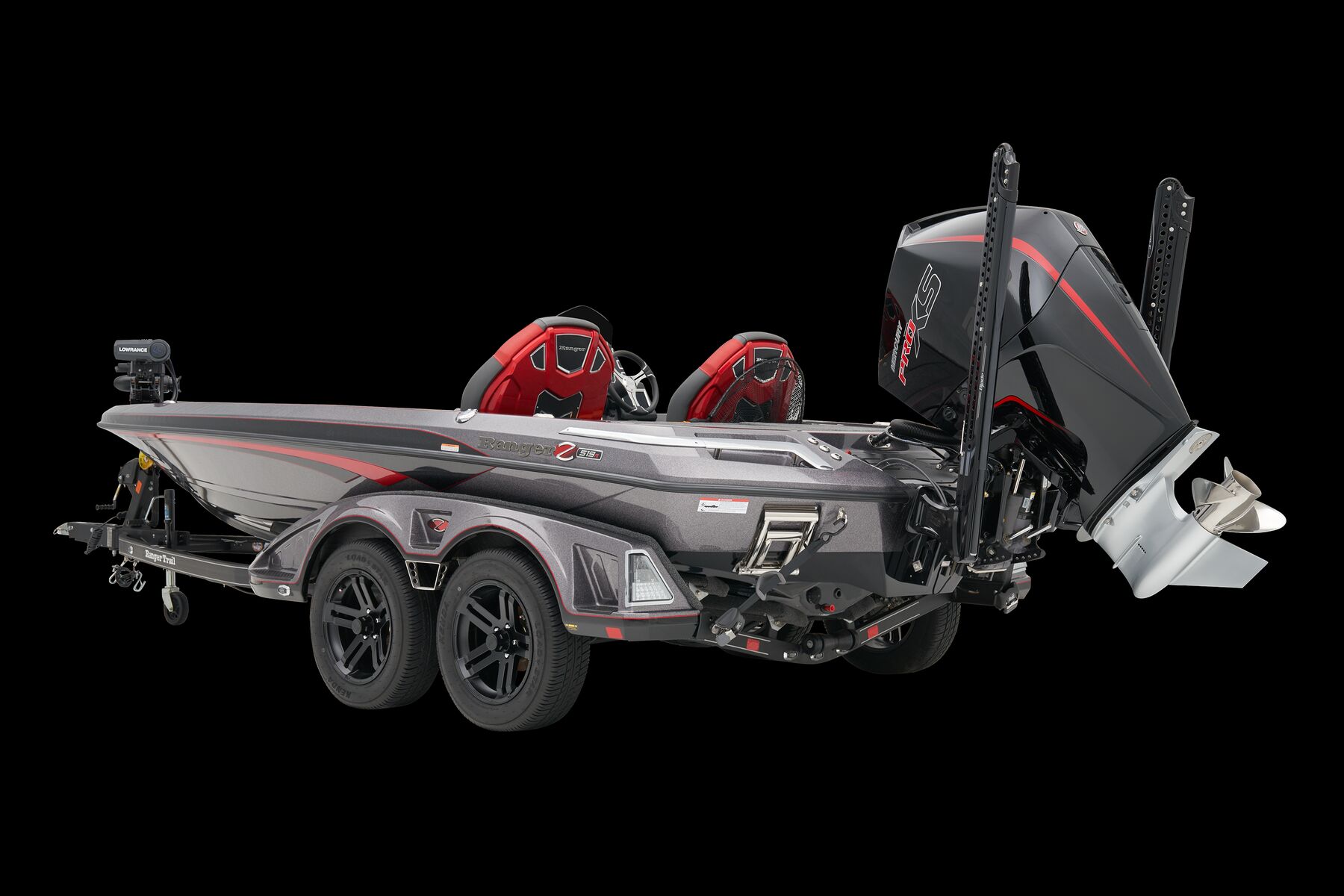

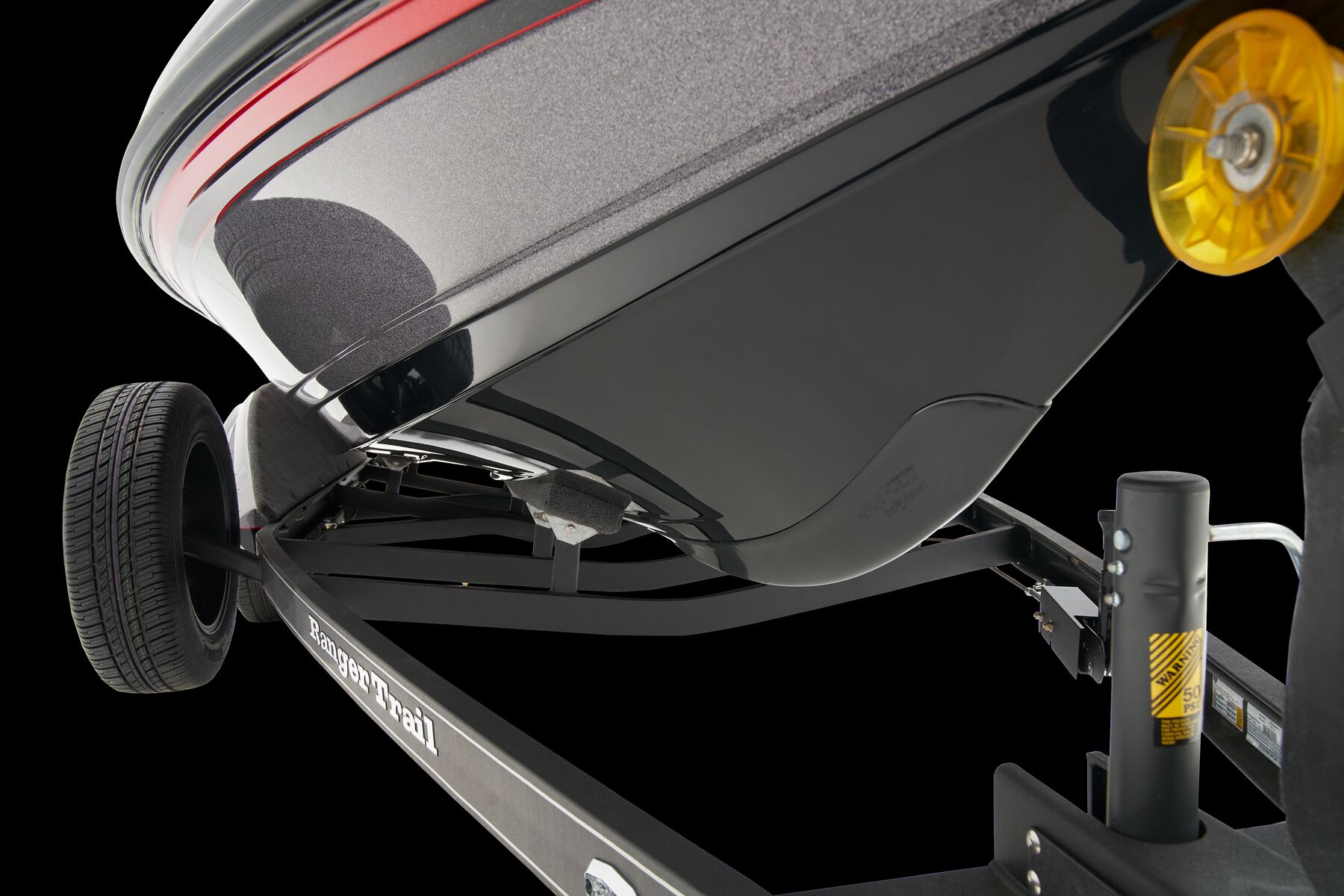

Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating
- Ranger Trail® Vault® Hub lubrication system

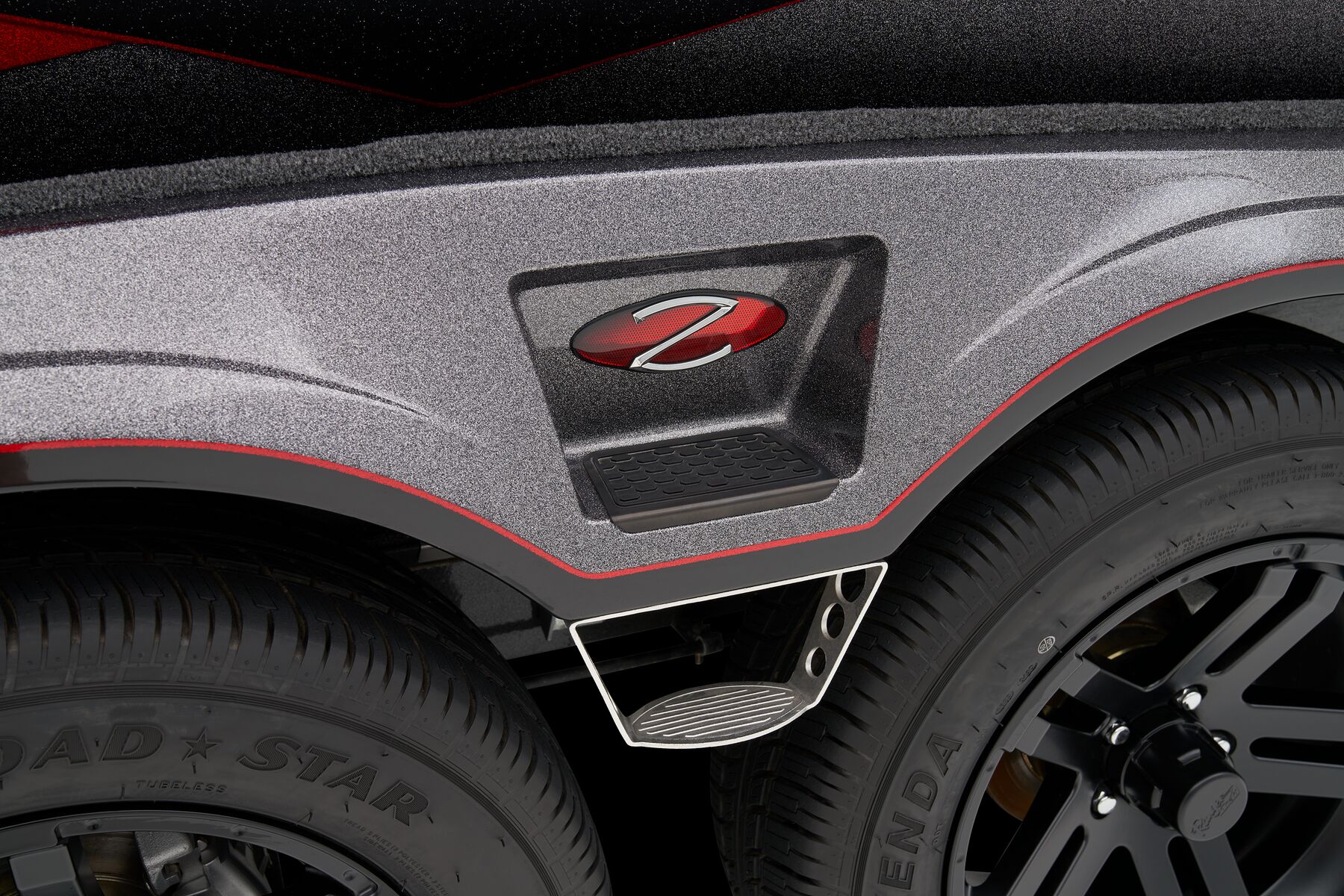

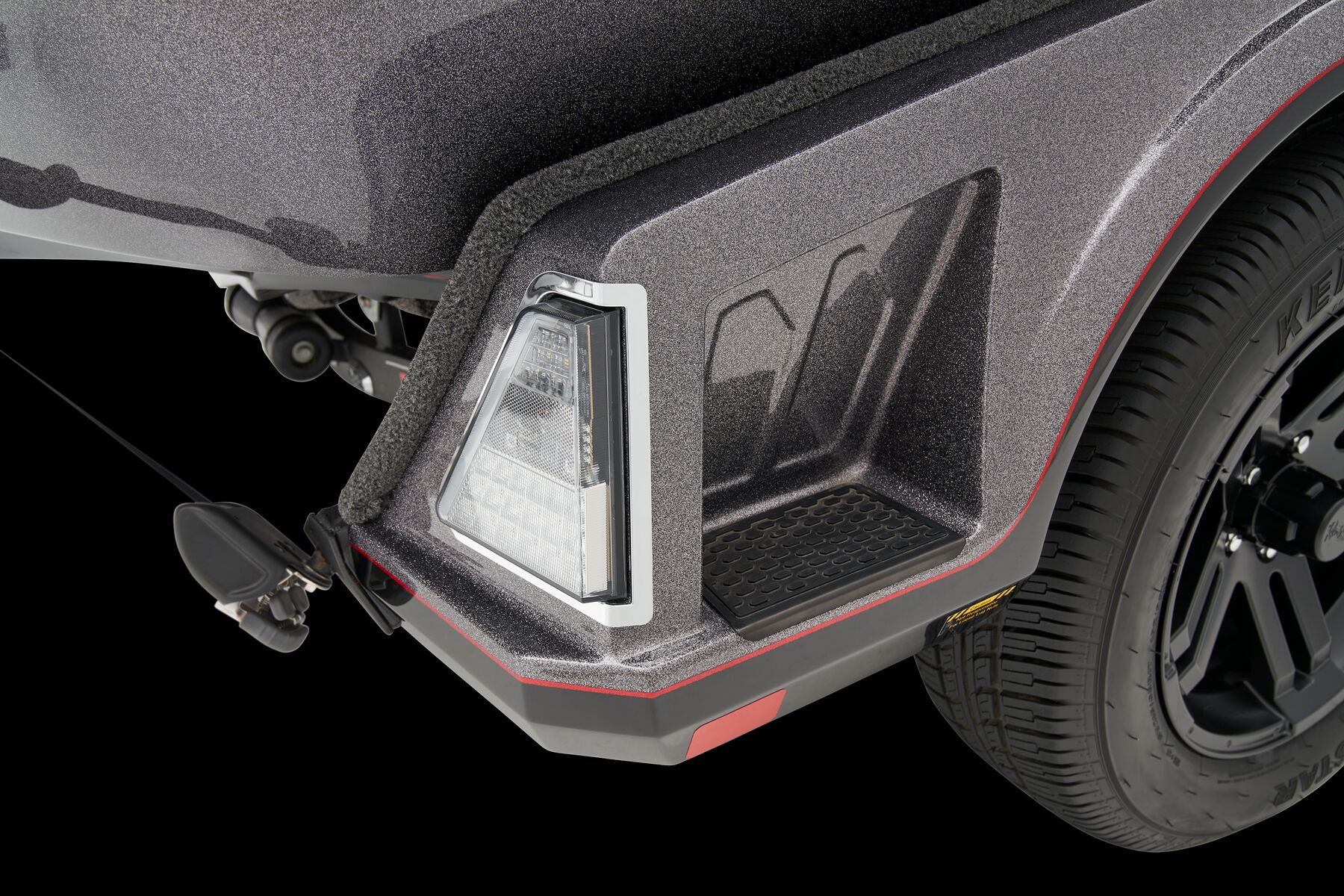

- Fiberglass fenders w/ step pads
- Hydraulic surge disc brakes

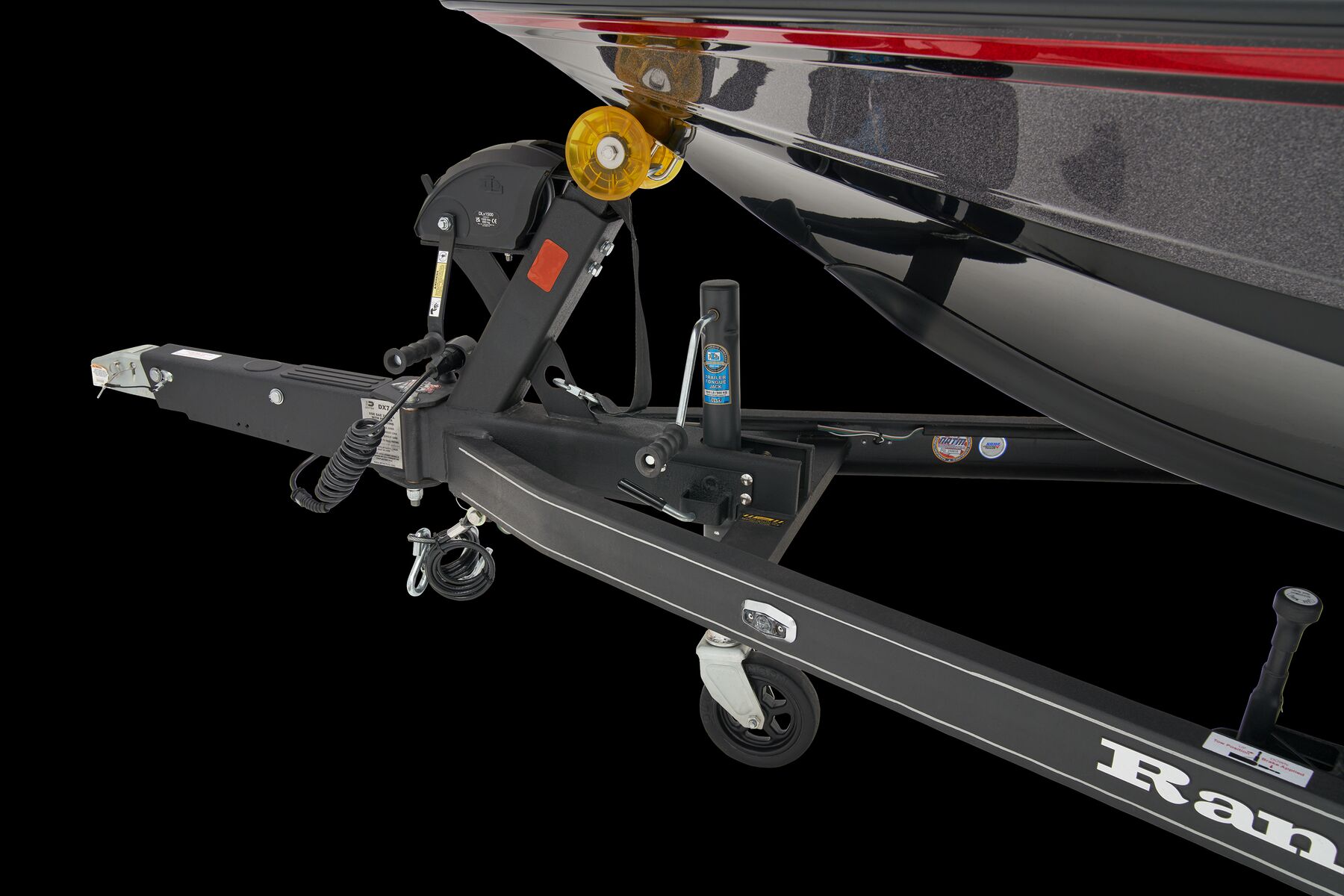

- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie-downs

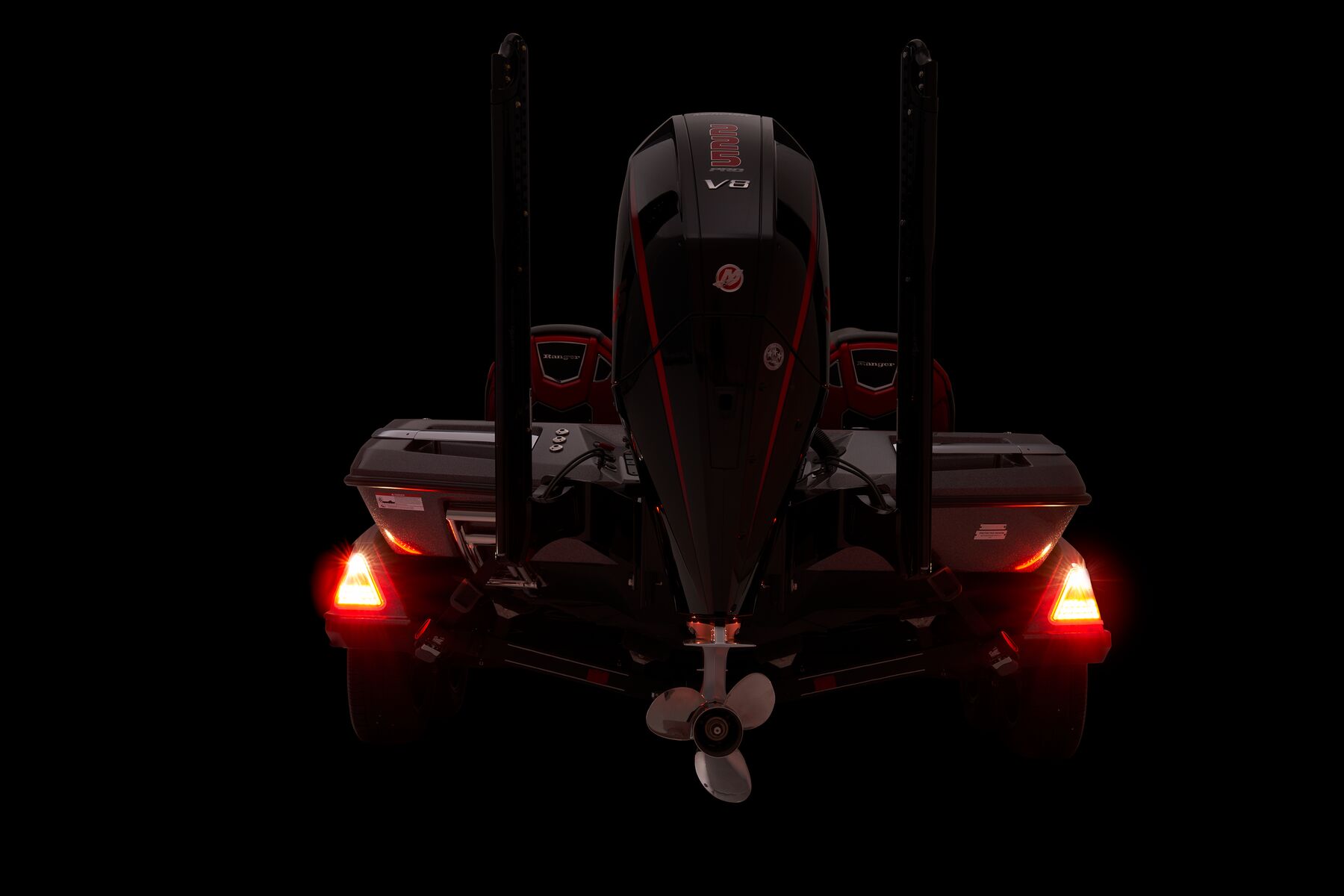

- LED lighting
- LED back-up lights
- NMMA®/NATM certified
