Limited 2024 Availability
620FS Ranger Cup-Equipped
Photos may show optional equipment. Previous model year images shown.
2025
620FS Ranger Cup Equipped
w/ 250 XL Pro XS FourStroke Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$90995
USD
|
ENHANCED FISHABILITY, ELEVATED PERFORMANCE
Boasting greater space and power, the 620FS Ranger Cup Equipped takes your game to the next level with a roster of factory-installed options that are most in-demand by touring pros and guides alike. Now, we’ve added even more options with new Garmin® and Lowrance® packages available.
Ranger Cup Equipped models enjoy huge electronics units, a walk thru windshield, the trolling motor of your choice, three lithium trolling motor batteries and visual upgrades like polished Challenger wheels. Brushed, CNC-machined aluminum grab handles and accents deliver handsome touches that match the custom-designed, stitched trim throughout that replaces plastic. Twin glove boxes in the passenger console give more space, as do the front storage boxes that have been enlarged to their maximum size. Complementing the wealth of new features are time-honored and perfected Ranger build protocols and quality, from our upright and level flotation for more power, more smarts, and more control.
Time you hit the water—hard.
Key Features
- Enhanced big water capability through advanced construction, hull design and interior layout
- Skid-resistant flooring
- Ultimate fishability and control
- Unrivaled flotation and strength
- Stainless steel lockable closures
Specifications
| Length | 6.27 m | 20' 7'' |
| Beam | 2.57 m | 101'' |
| Max. Recommended HP | 250 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 63.5 cm | 25'' |
| Fuel Capacity | 193.04 L | 51 gal. |
| Livewell Capacity | 105.98 L | 28 gal. |
| Baitwell Capacity | 26.5 L | 7 gal. |
| Total Person, Motor, Gear | 907.18 kg | 2000 lbs. |
| Approximate Boat Weight | 1061.41 kg | 2340 lbs. |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 2.44 m | 8' |
| Max. Person Capacity | 7 persons | |
| Trailer GVWR | 2630.84 kg | 5800 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.7 m | 25' 3'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.09 m | 23' 3'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250 XL Pro XS FourStroke |
$90995 USD
|
Select Dealer | |||
Standard Features
Custom Details

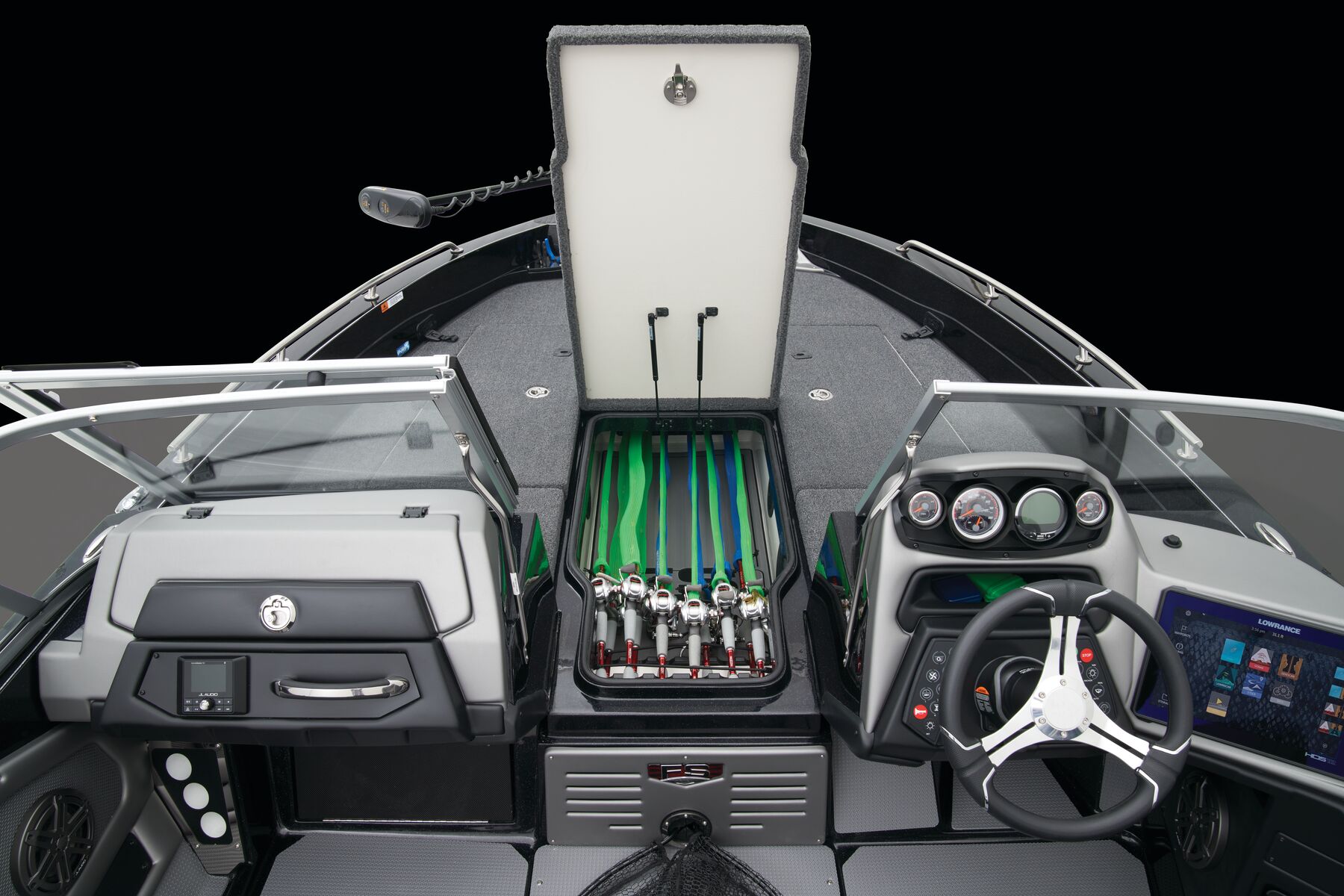

- Power Ventilation Rod Storage™
- Hamby's keel protector
- Soft-touch skid-resistant cockpit floor

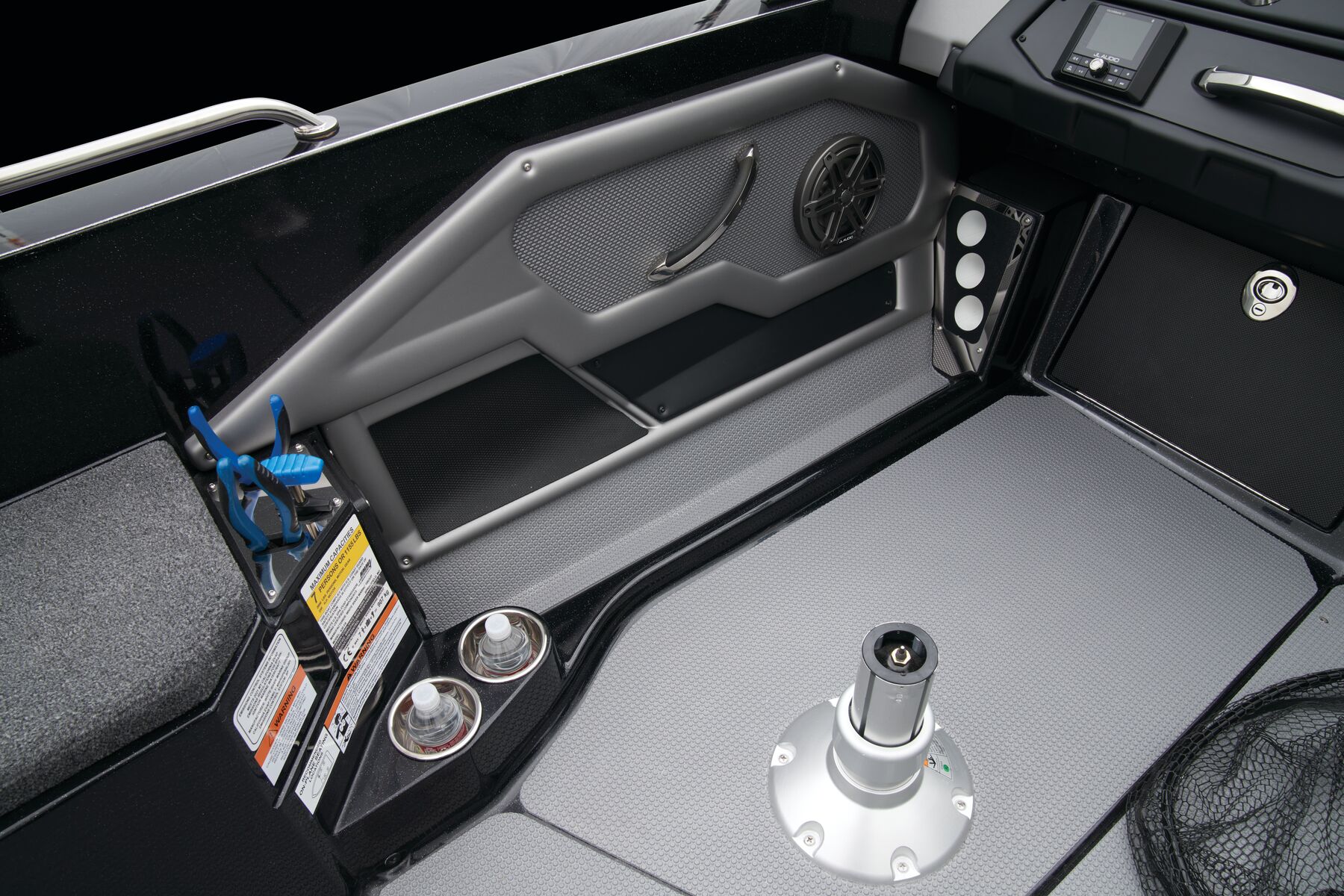

- Under-console storage shelves - port and starboard behind driver console footrest

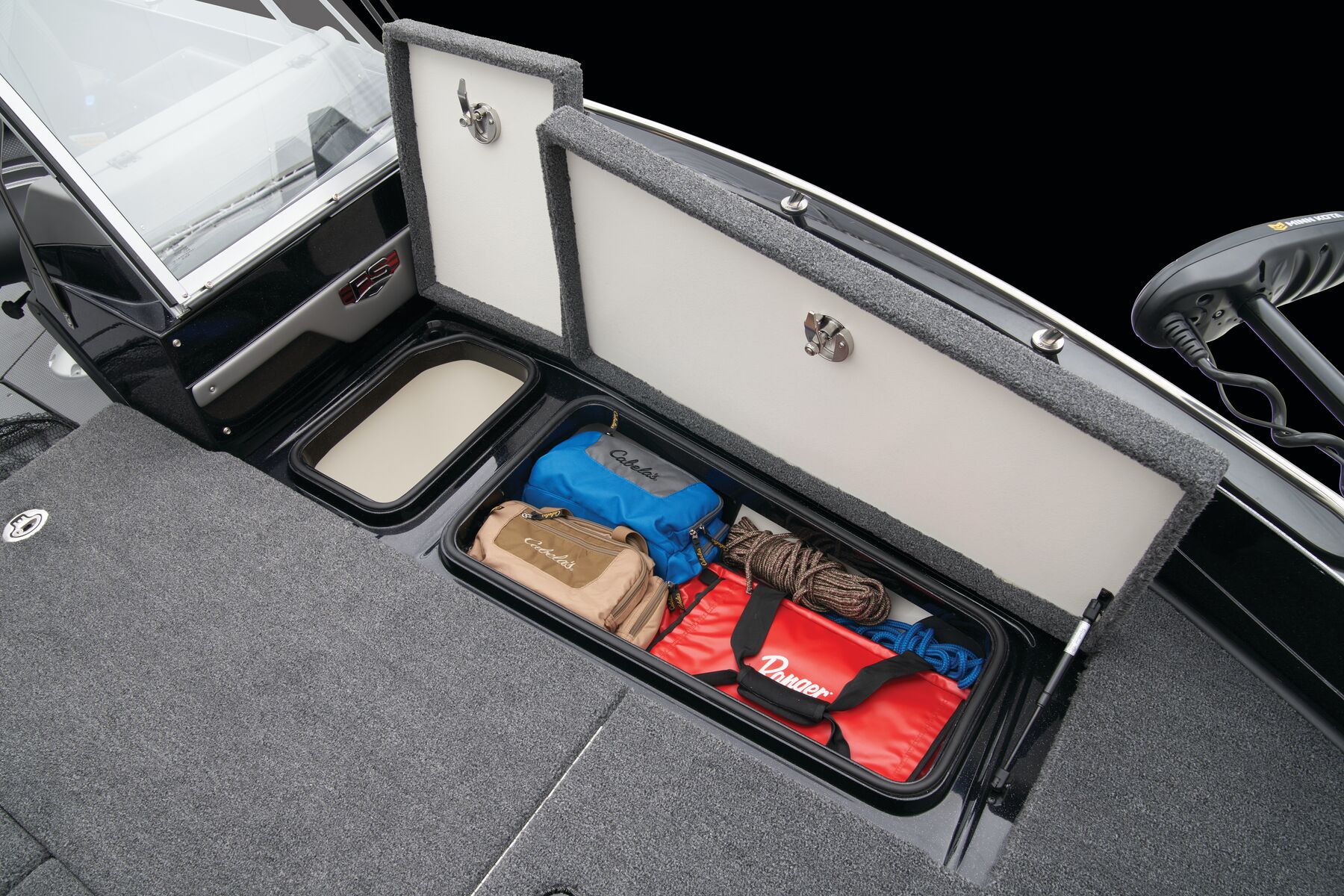

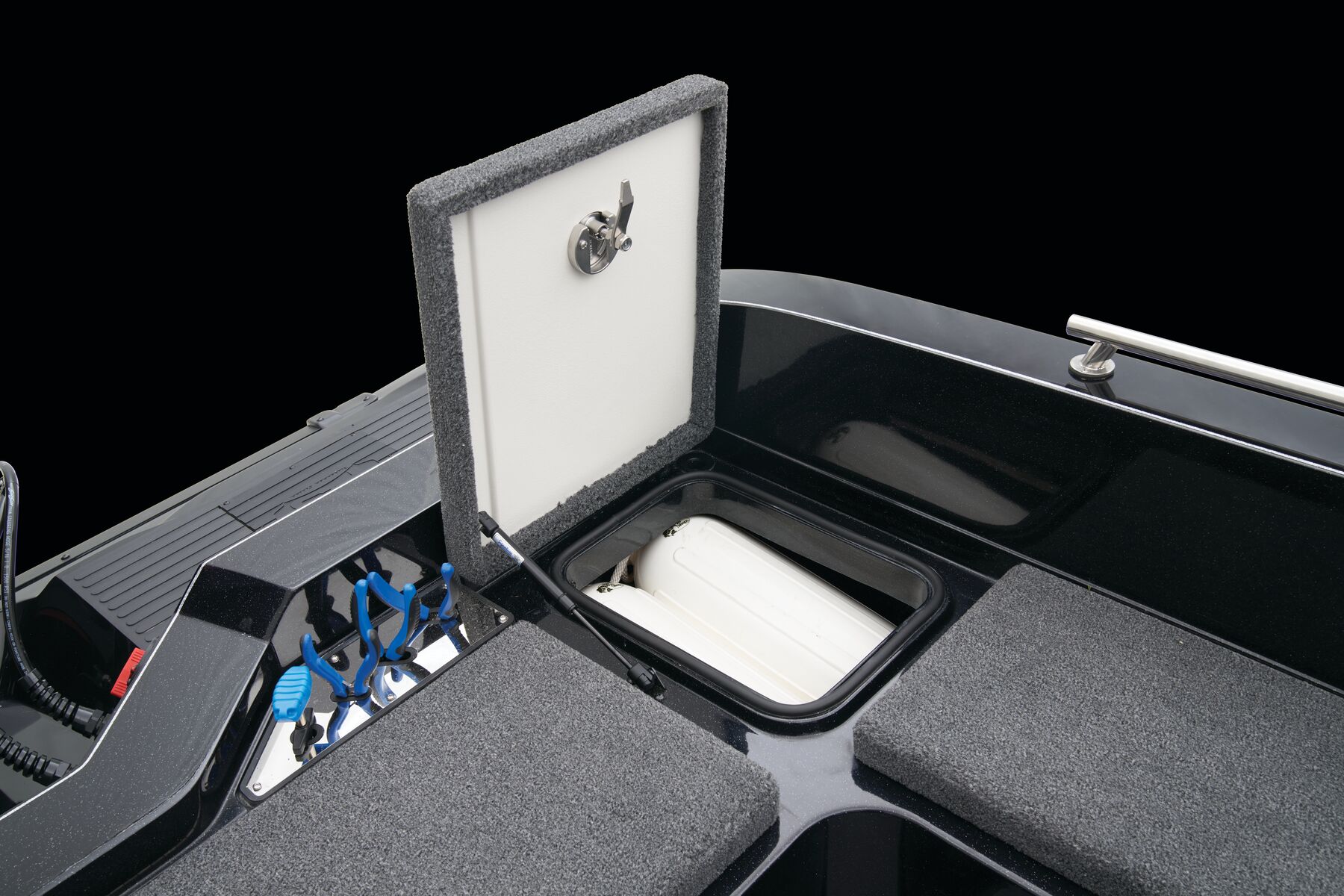

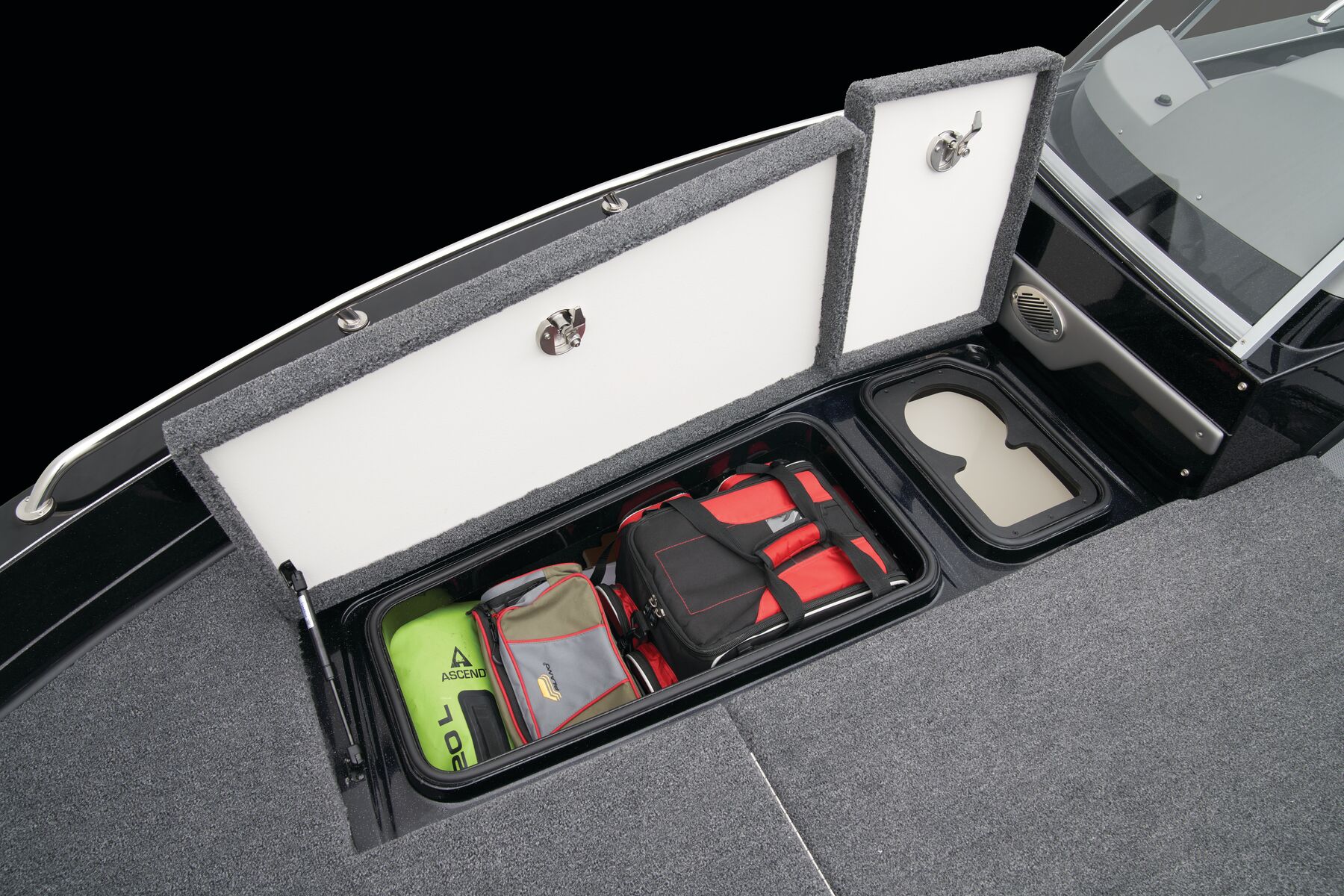

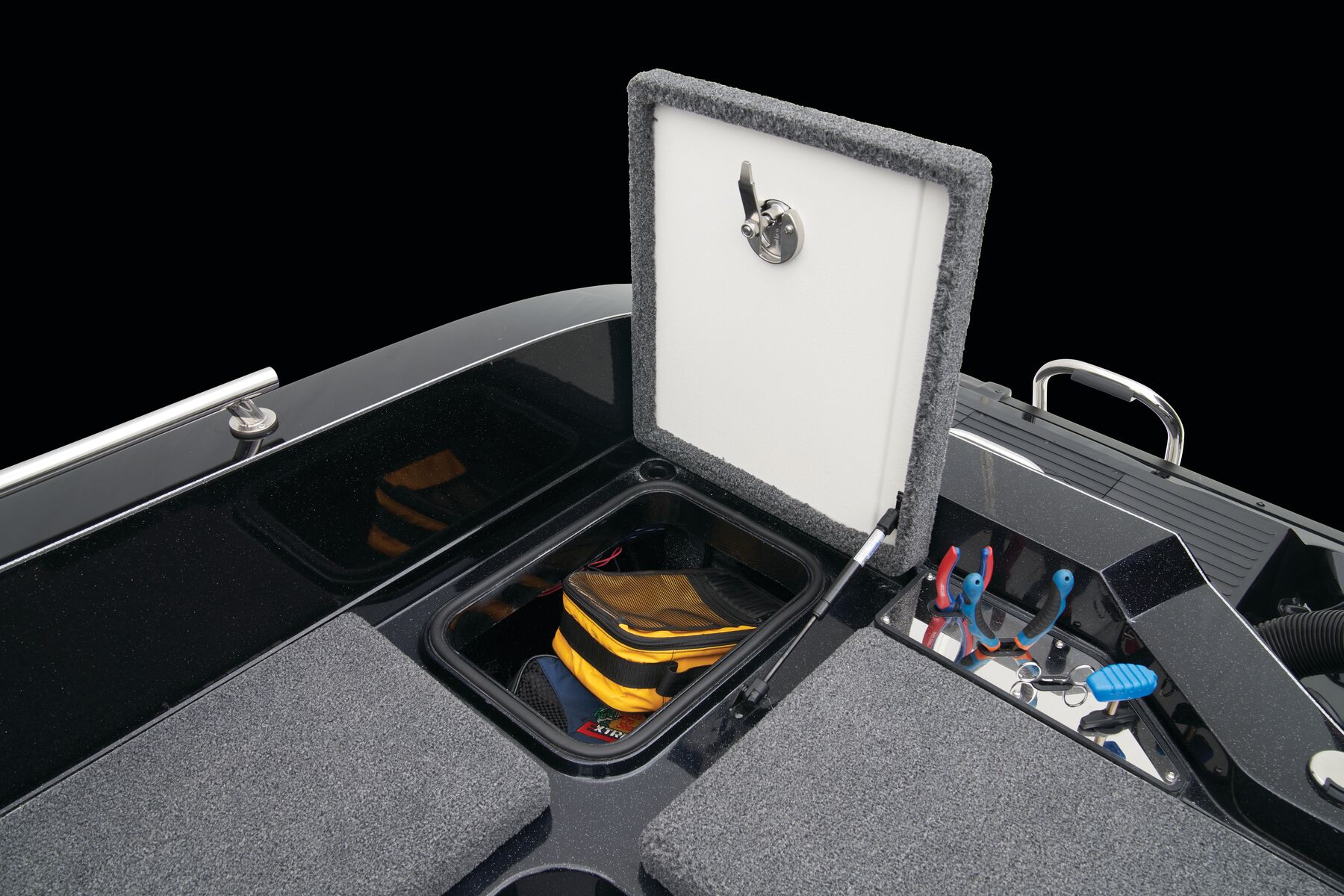

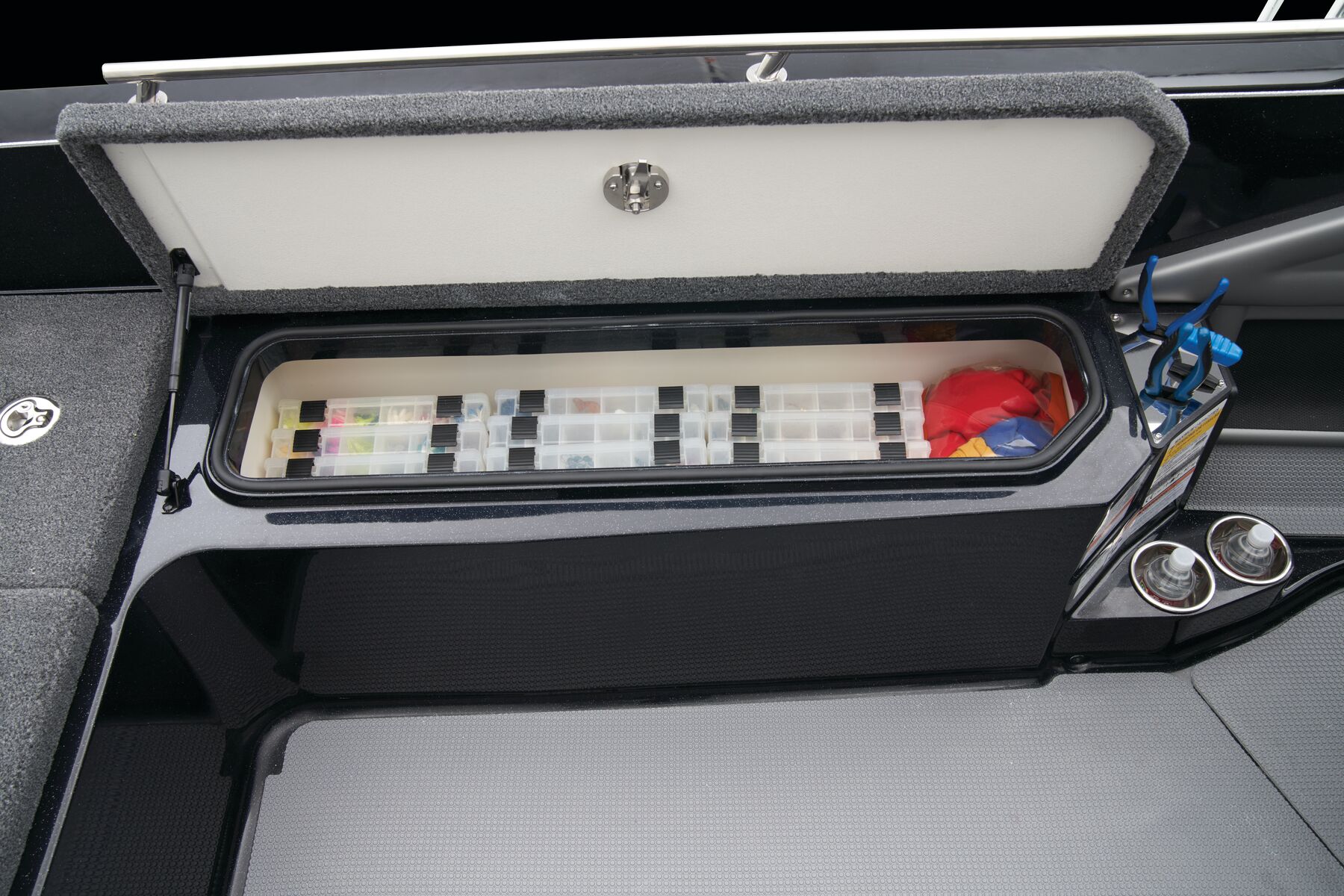

- Lockable storage compartments
- Gas spring lid assists
- Insulated cooler w/ gelcoat liner & drain
- Integrated stainless steel cup holders

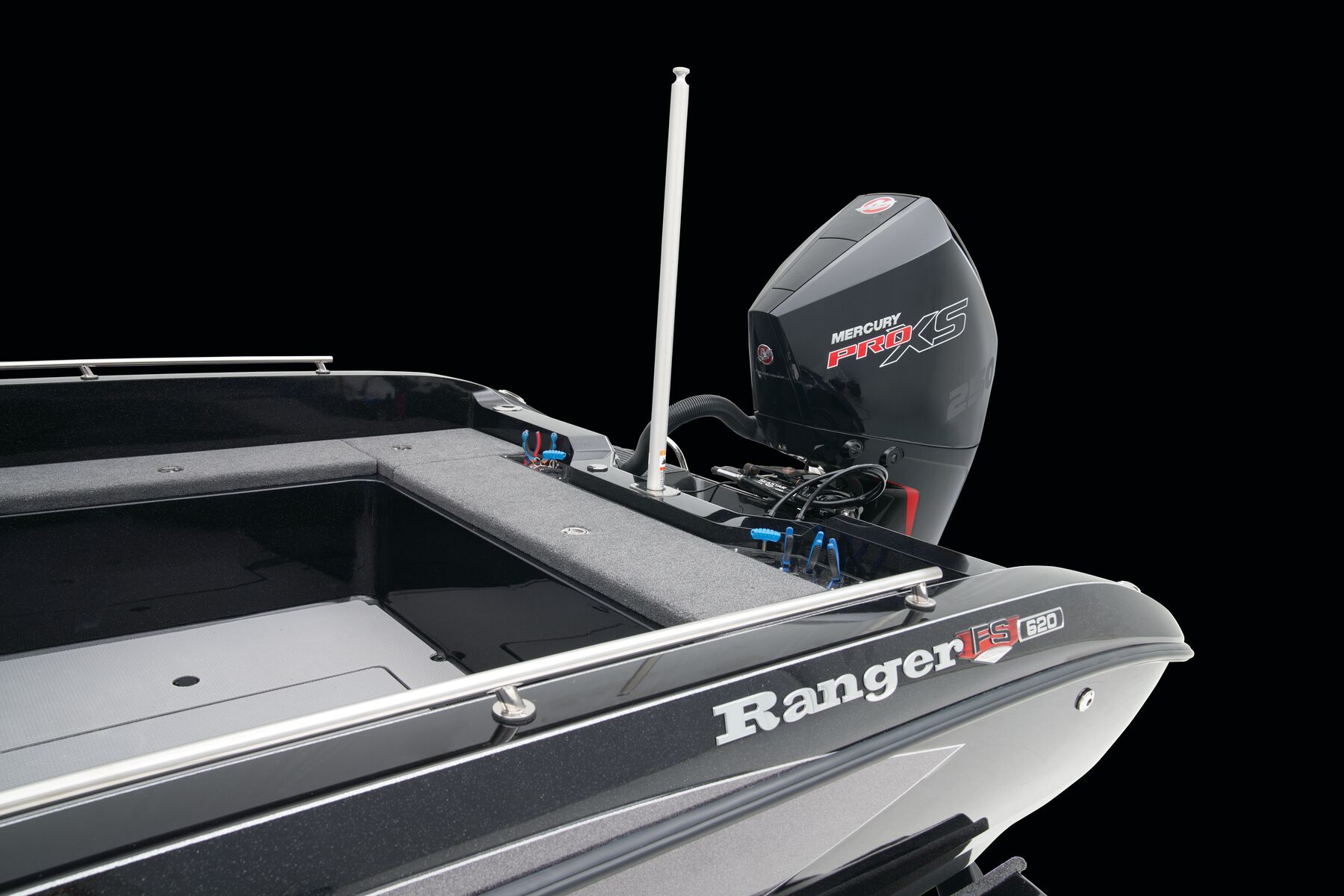

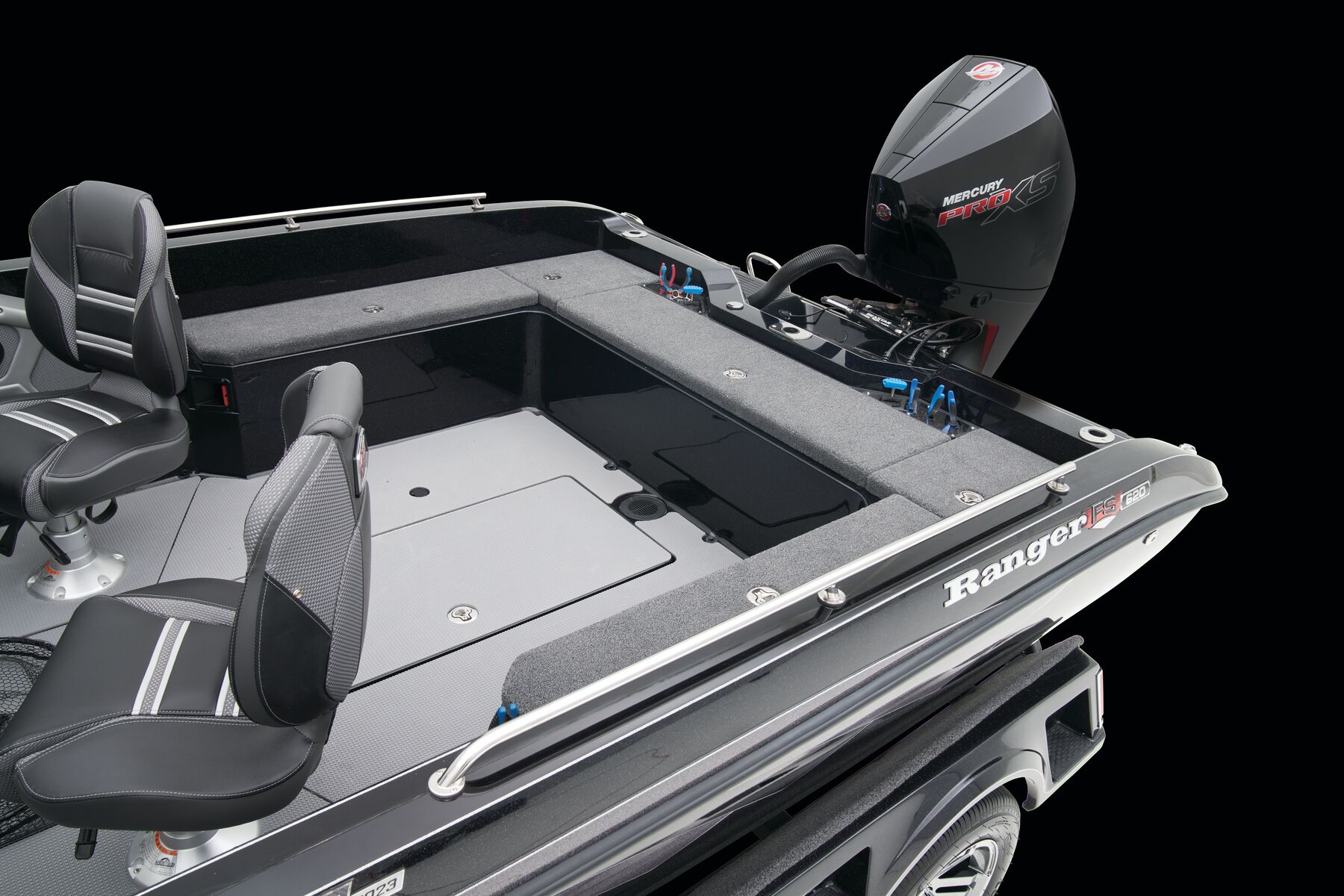

- Stainless steel rear 44" grab rails
- Ranger® tournament measuring board
- Retractable bow rod buckles
- Tool holders - (1) Bow, (1) cockpit, (2) rear

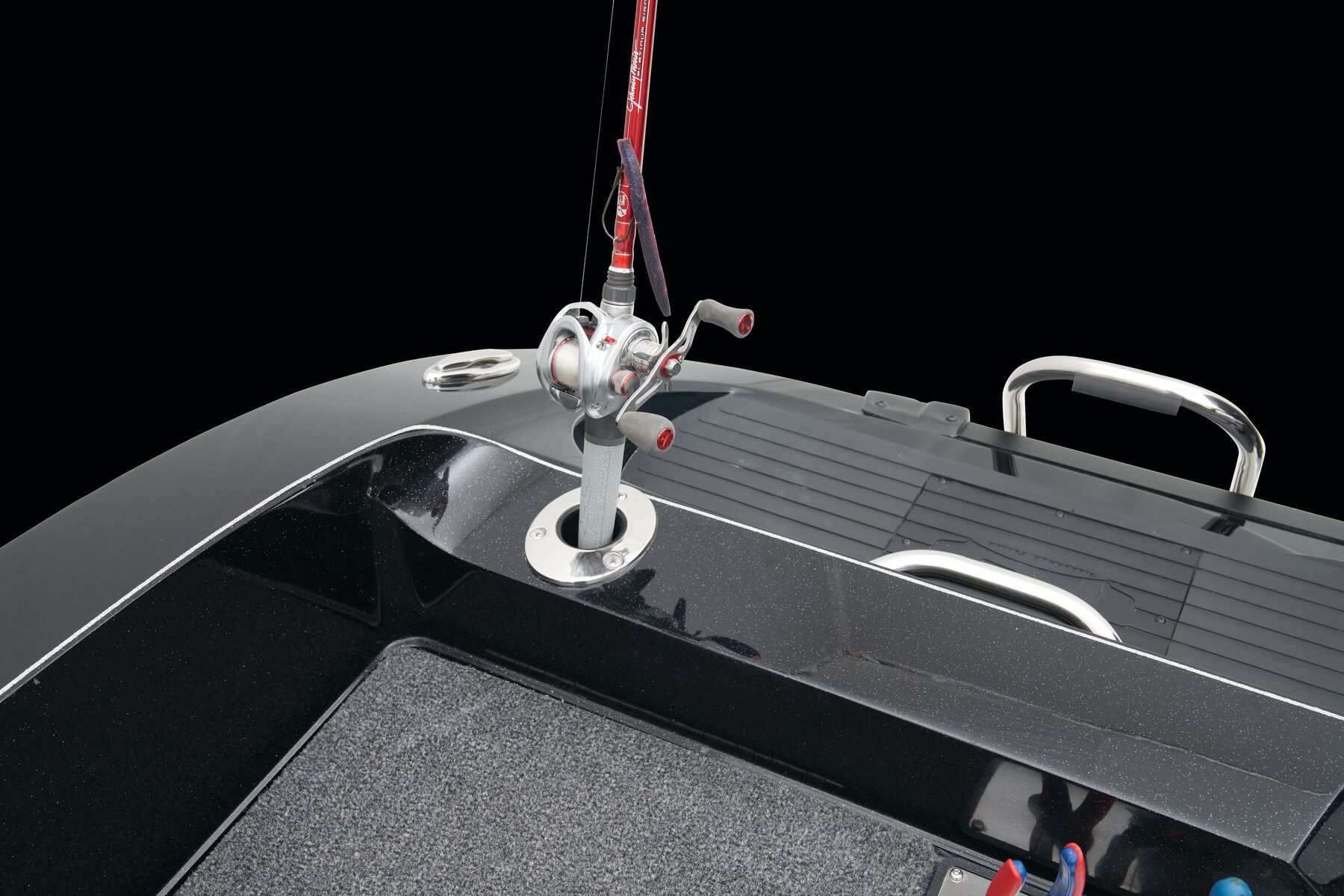

- (2) Deck-mounted stern rod holders

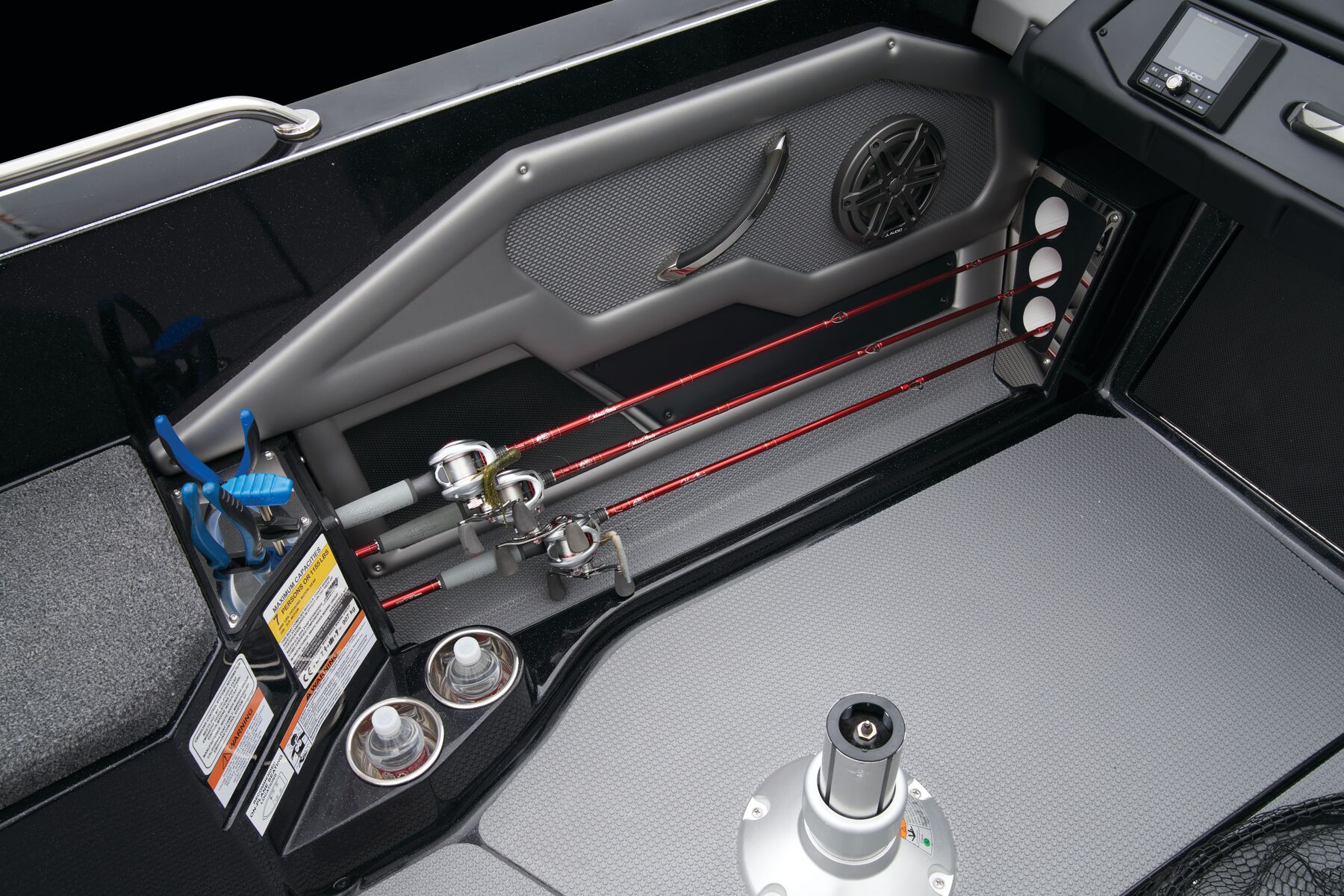

- Runnin' rod rack w/ holder
- Remote drain plug
- Plano® storage under port console and passenger foot rest
Electronics
- Solid-State digital ignition keypad at helm

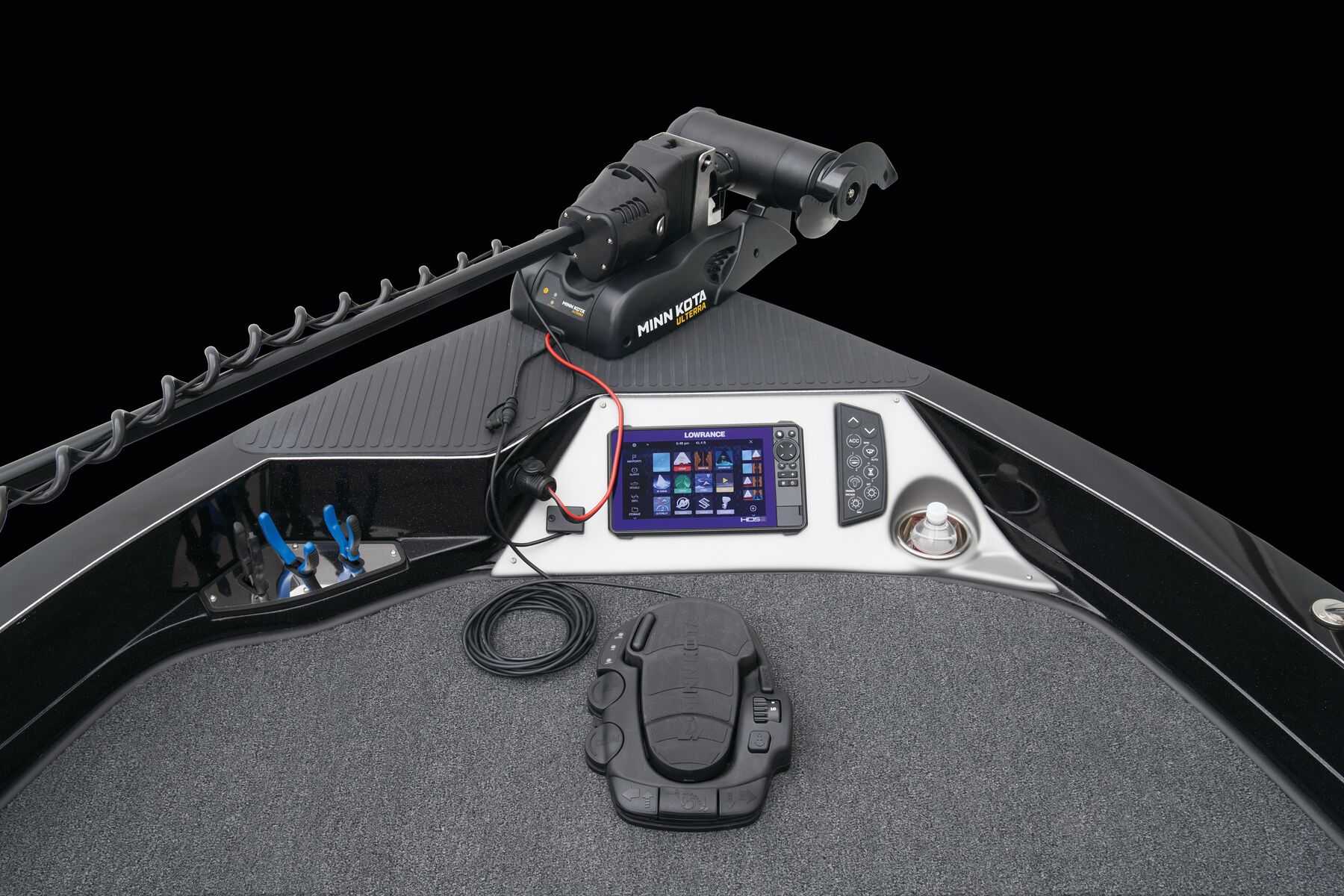

- Solid-state digital keypad at bow with push-button trim switches
- Ranger Cup Equipped Electronics Package (see RCE Package)
- Ranger Cup Equipped Trolling Motor (see RCE Package)
- Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
- LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light
- Integrated LED bow navigation and removable stern lights
- Solid-state re-settable switching with 30A master breaker
- 12V power receptacle with USB
- Additional manual key switch

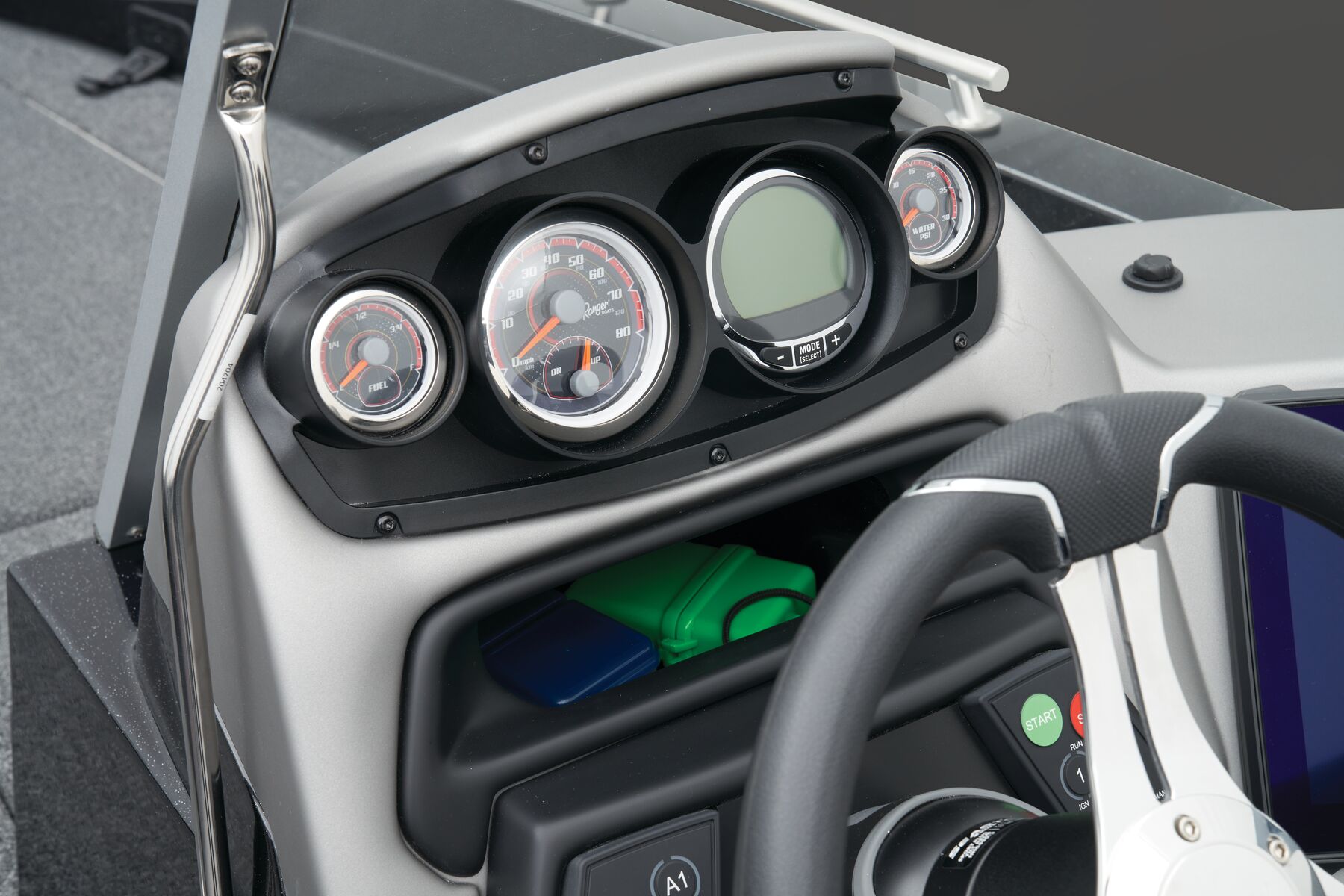

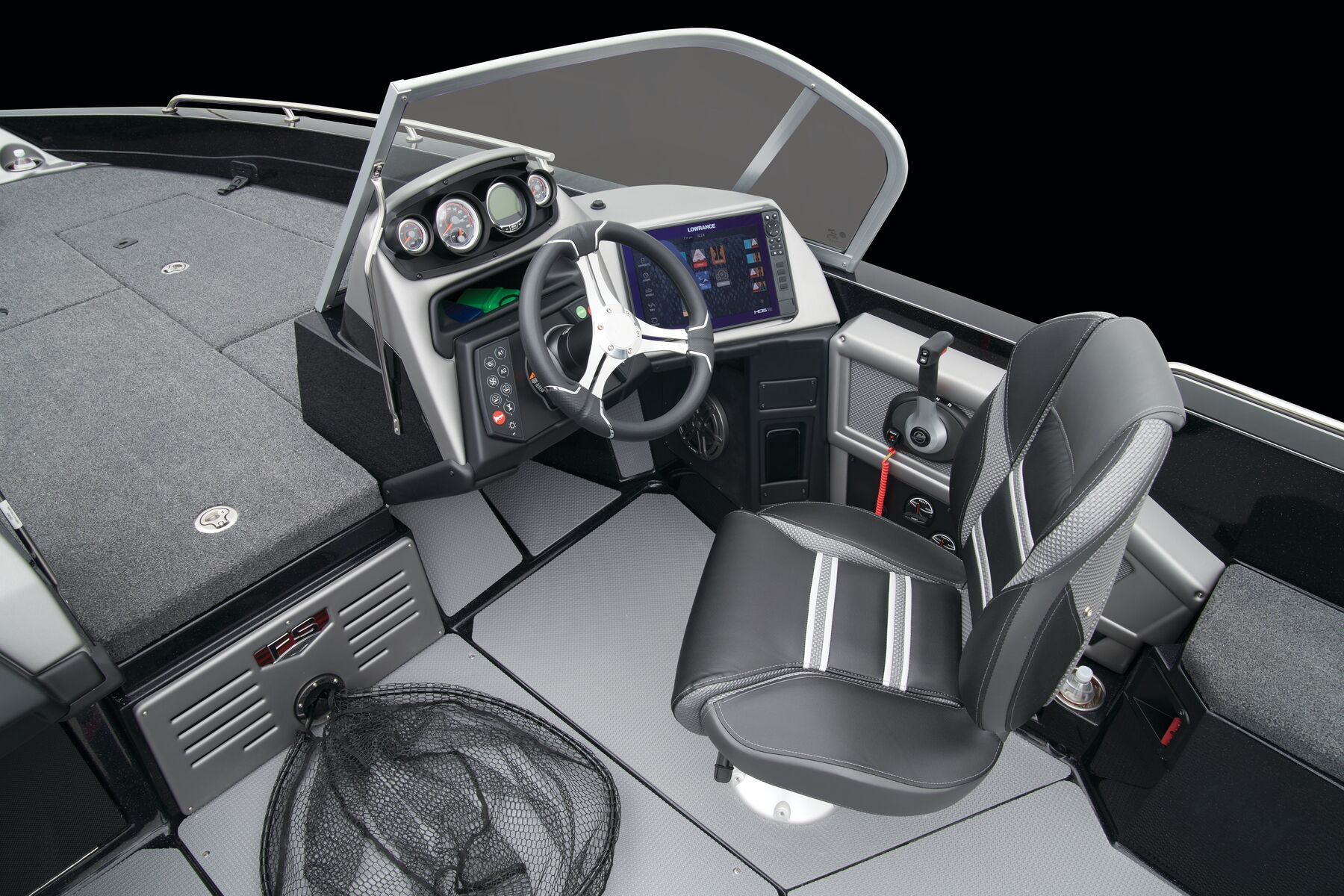

- Console panel with digital switches and custom gauges: position sensing speedometer, tach, fuel, trim, water pressure, volt, clock
- 30A master breaker
Ranger Cup Equipped - GARMIN® Package

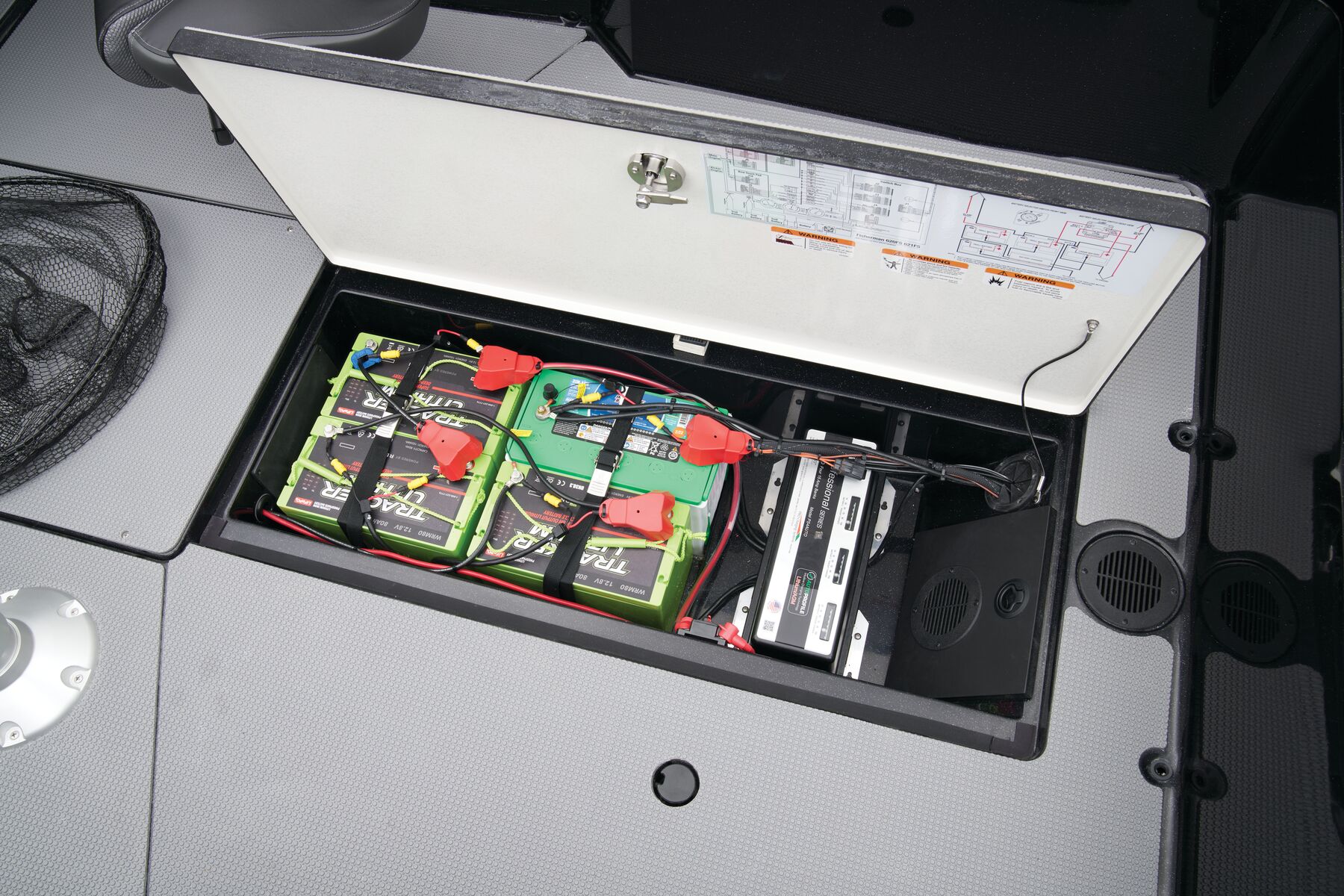

- (3) 80AH Lithium trolling batteries w/trays
- Dual Pro™ on-board 15A x 4 charger

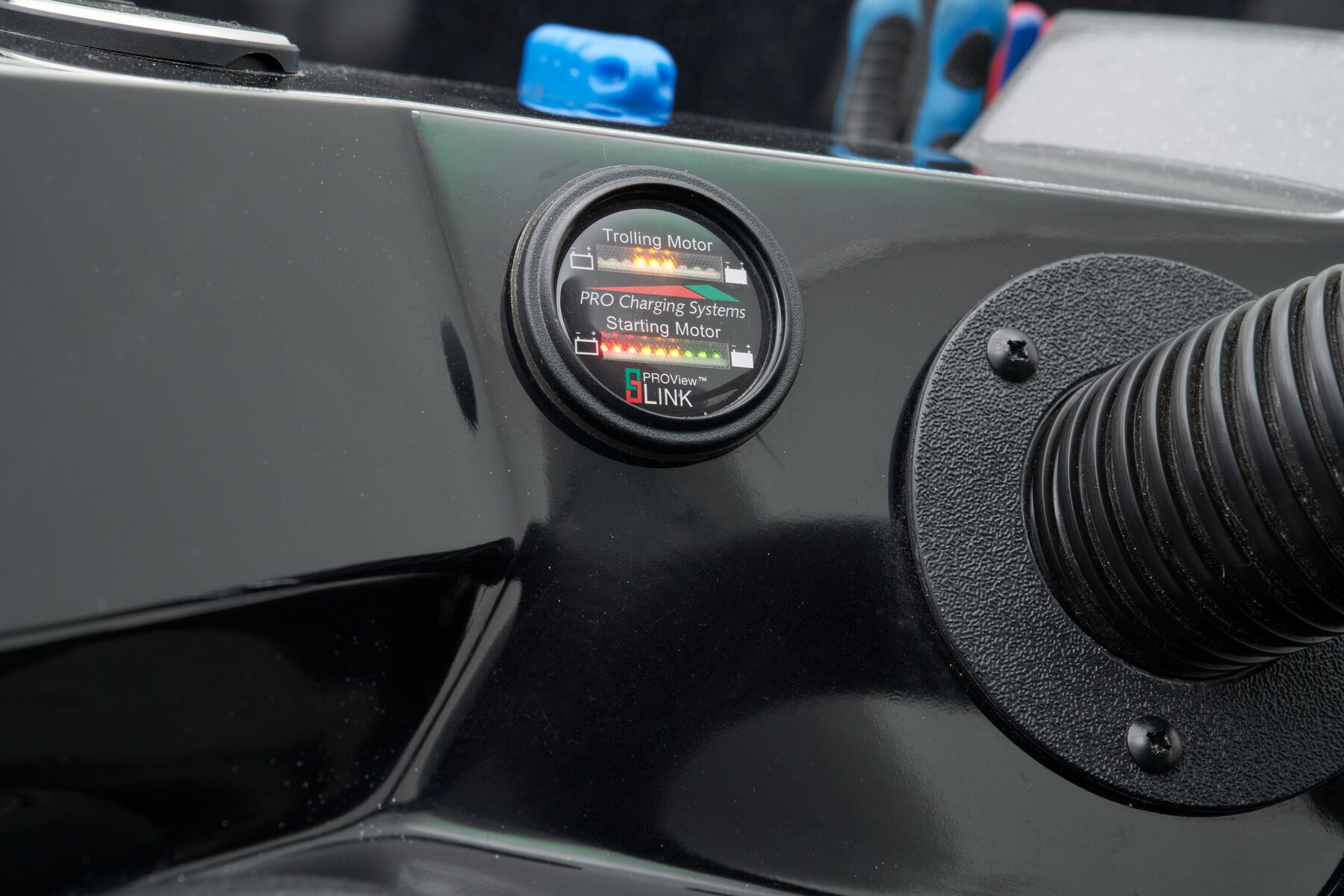

- Battery Charge Gauge

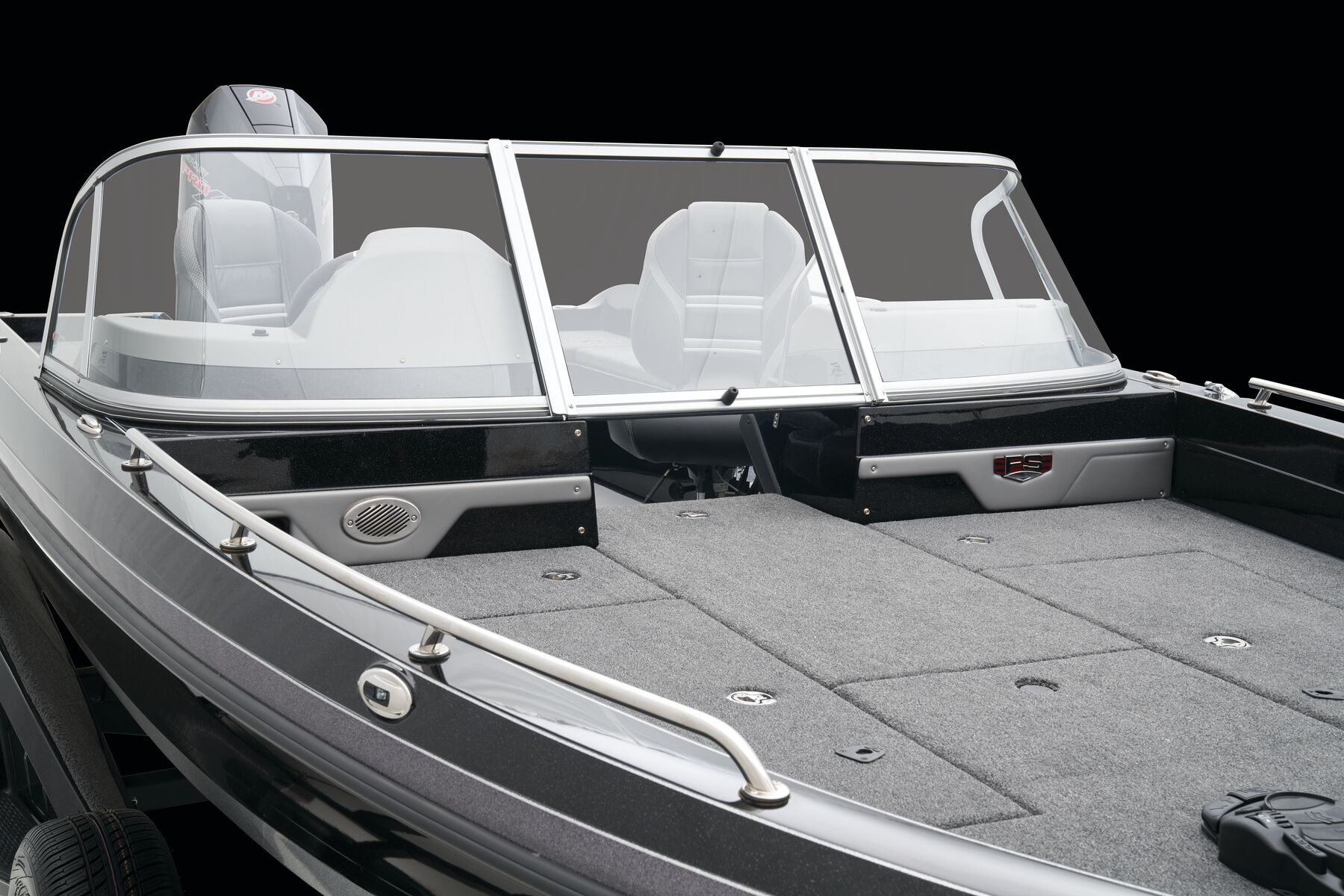

- Walk-thru windshield
- Stainless steel front handrails
- 17" Challenger II wheel upgrade
- Trailer parking brake
Ranger Cup Equipped - LOWRANCE® Package
- Lowrance® Ghost 60" 36V trolling motor
- (3) 80AH Lithium trolling batteries w/trays
- Dual Pro™ on-board 15A x 4 bank charger
- Battery Charge Gauge
- Walk-thru windshield
- Stainless steel front handrails
- 17" Challenger II wheel upgrade
- Trailer parking brake
Power/Performance
- Pultruded Fiberglass Transom
- AGM Starting battery w/ tray
- Battery Charge Gauge
- Tilt hydraulic steering
- Flush-mounted remote throttle control
- Foam-filled fiberglass stringers
- One-Piece-Feel™ Interloc Construction
- High performance steering wheel

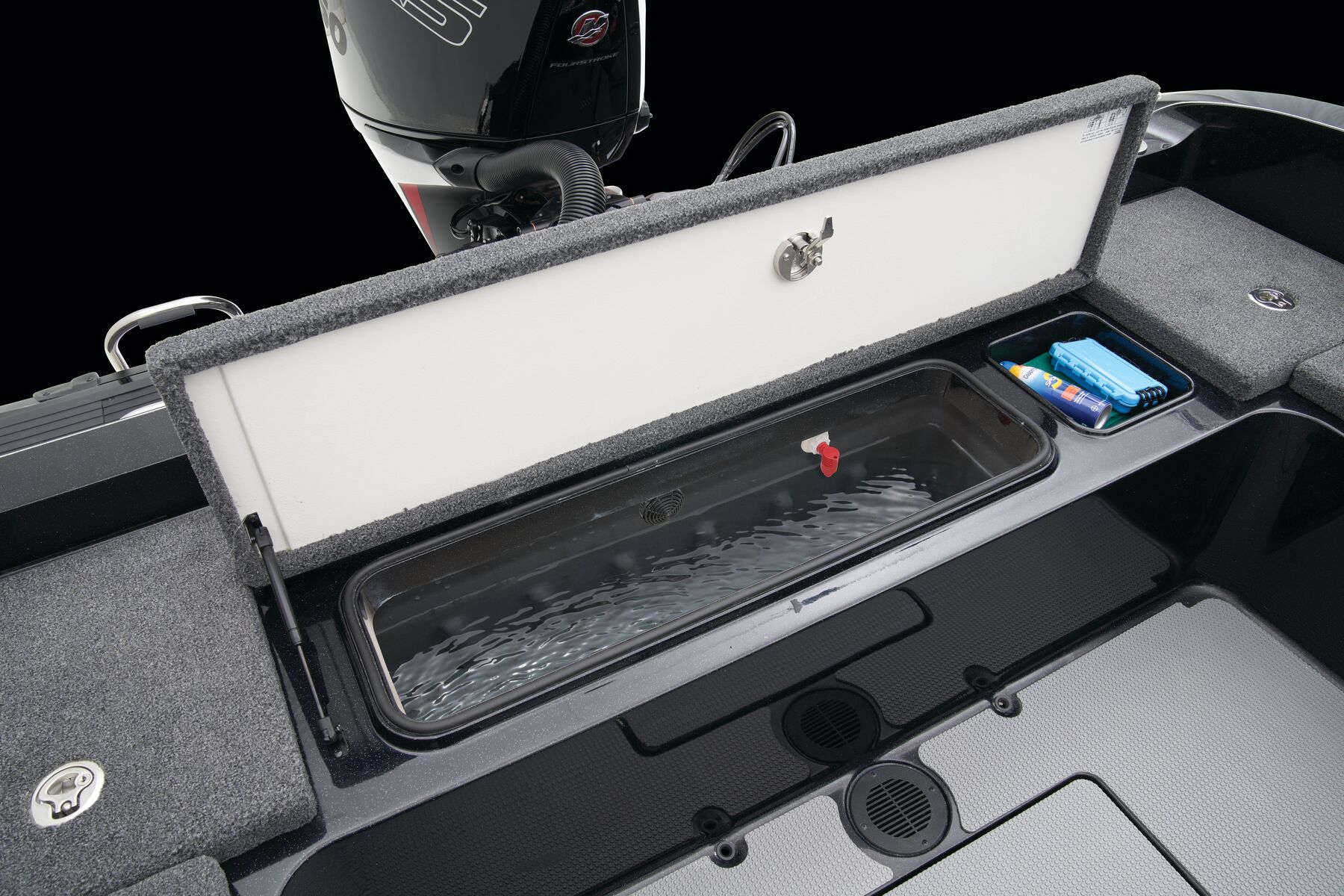

- Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out
- High performance stainless steel prop
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards

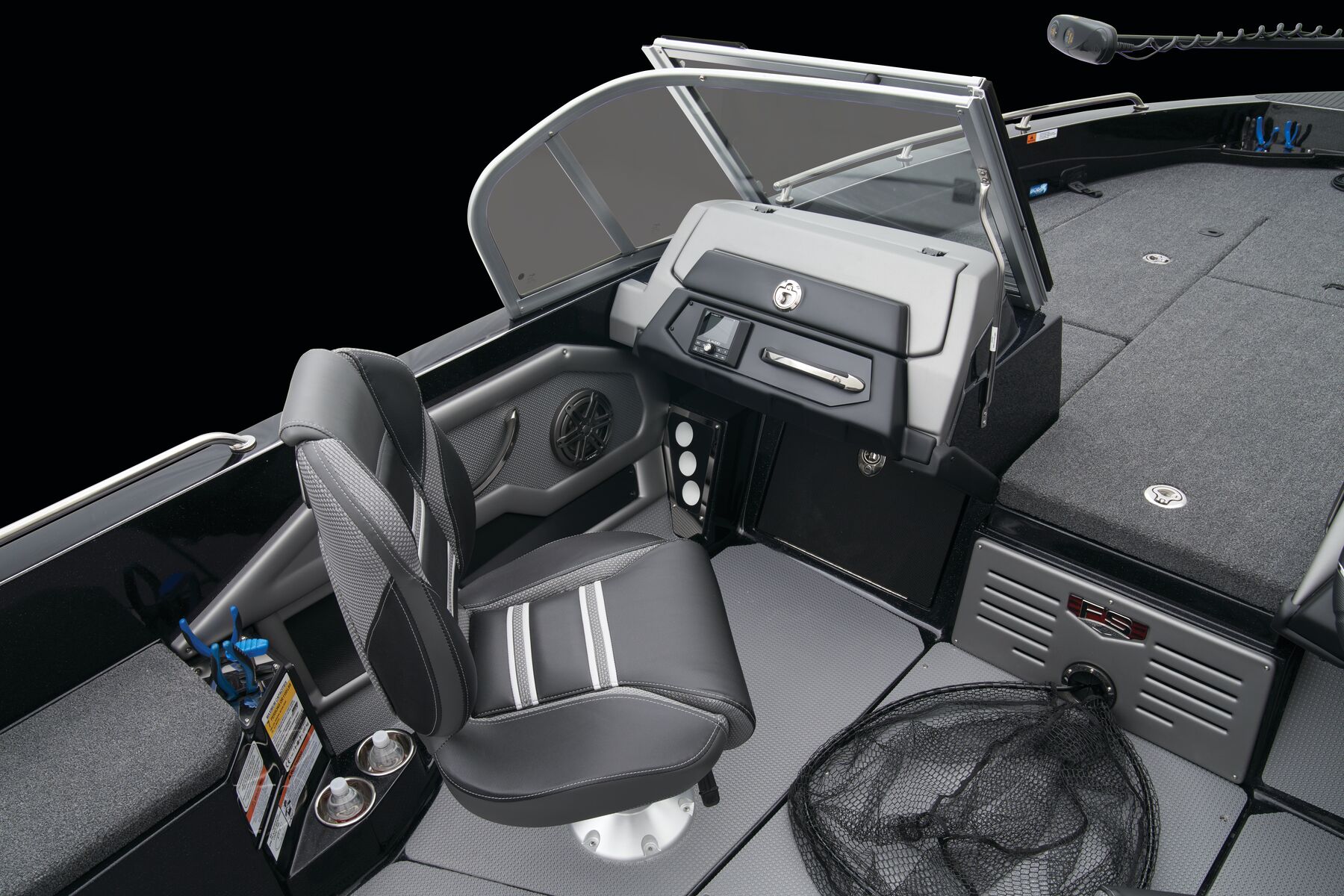

- Custom fitted premium marine upholstery - (2) driver/passenger tall-back Soft Ride Seating (SRS) fold-downs w/ (2) adjustable slides and (2) soft-ride bell pedestals and (2) SRS fold-downs w/ power pedestals
- Fire extinguisher & horn

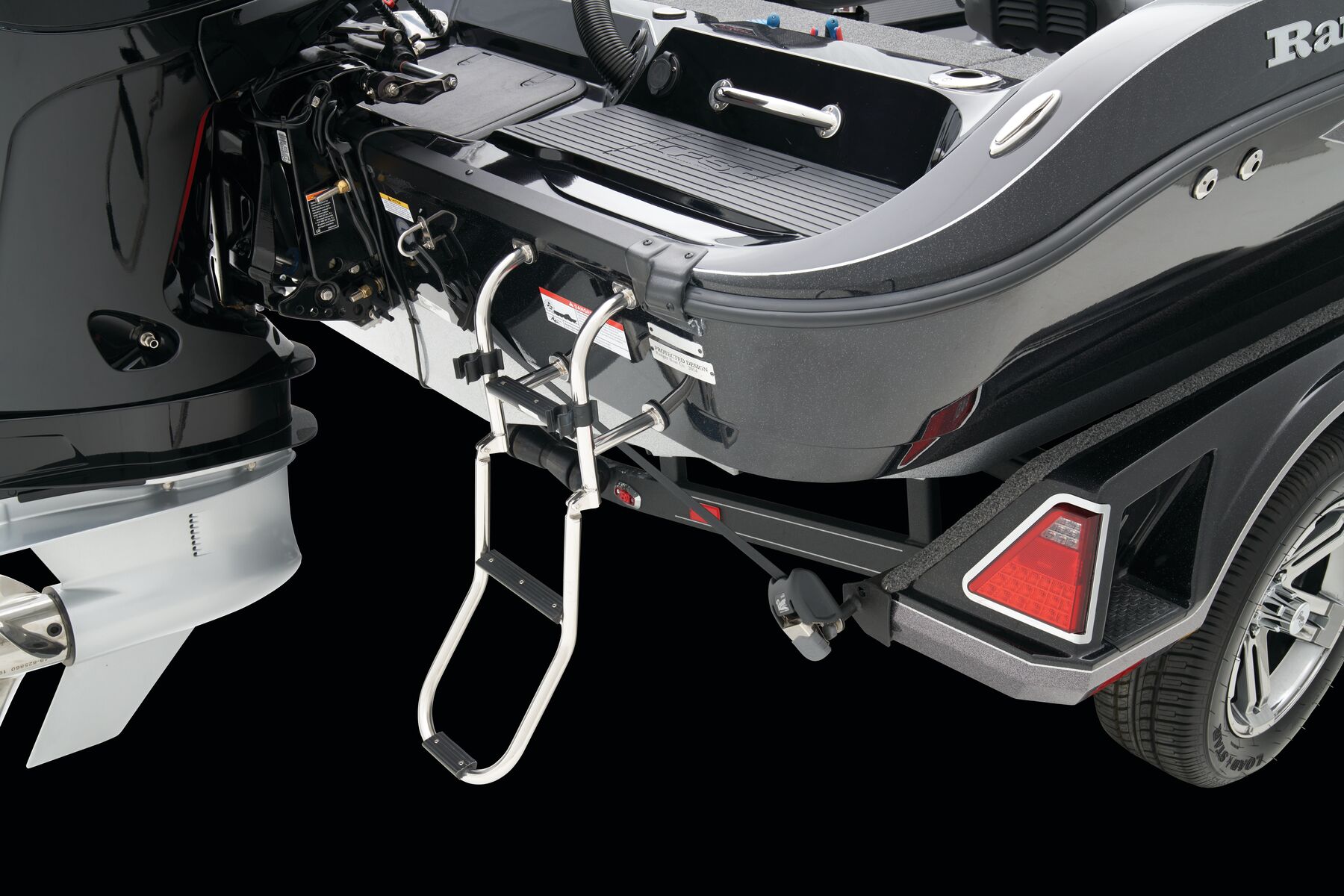

- Boarding ladder

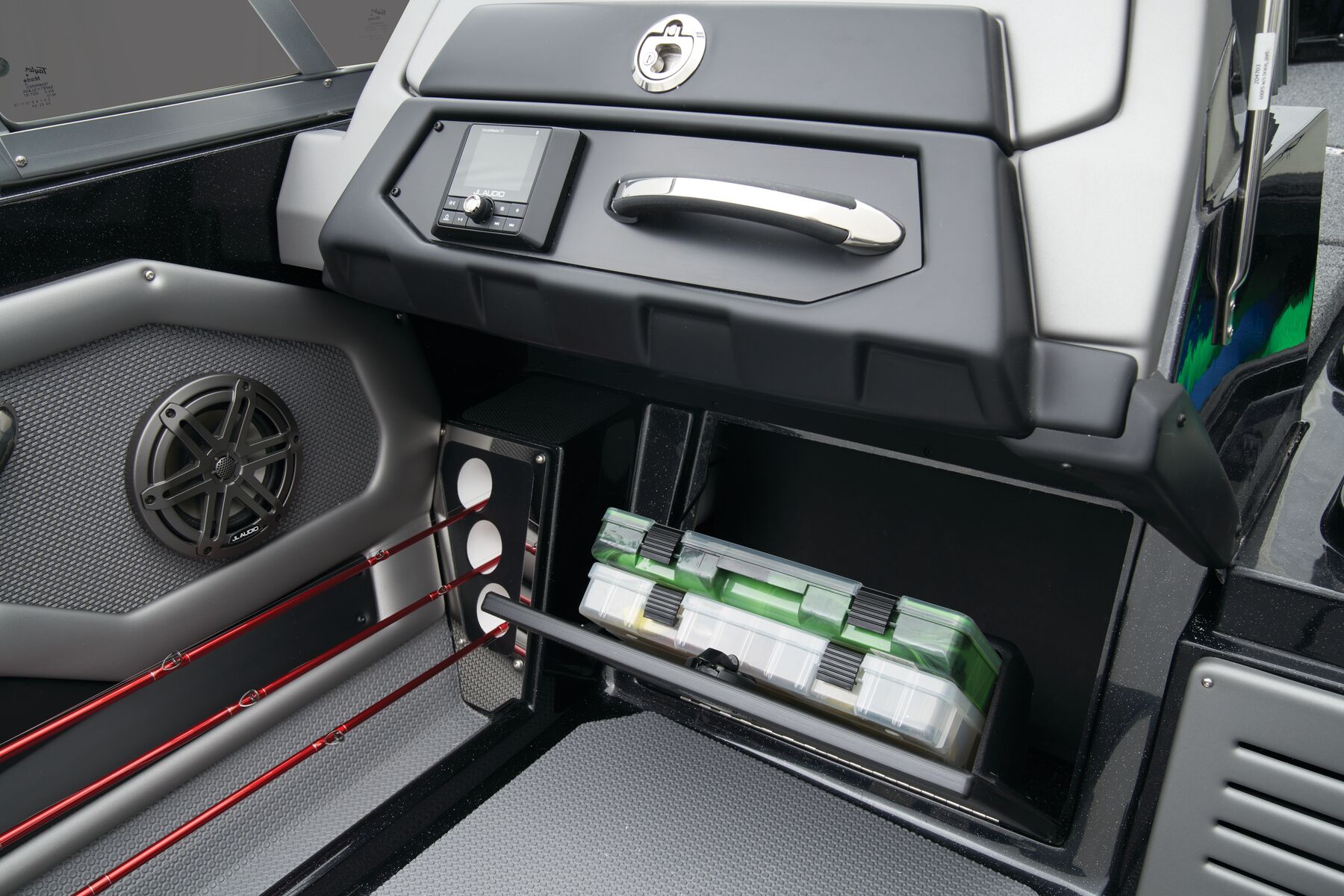

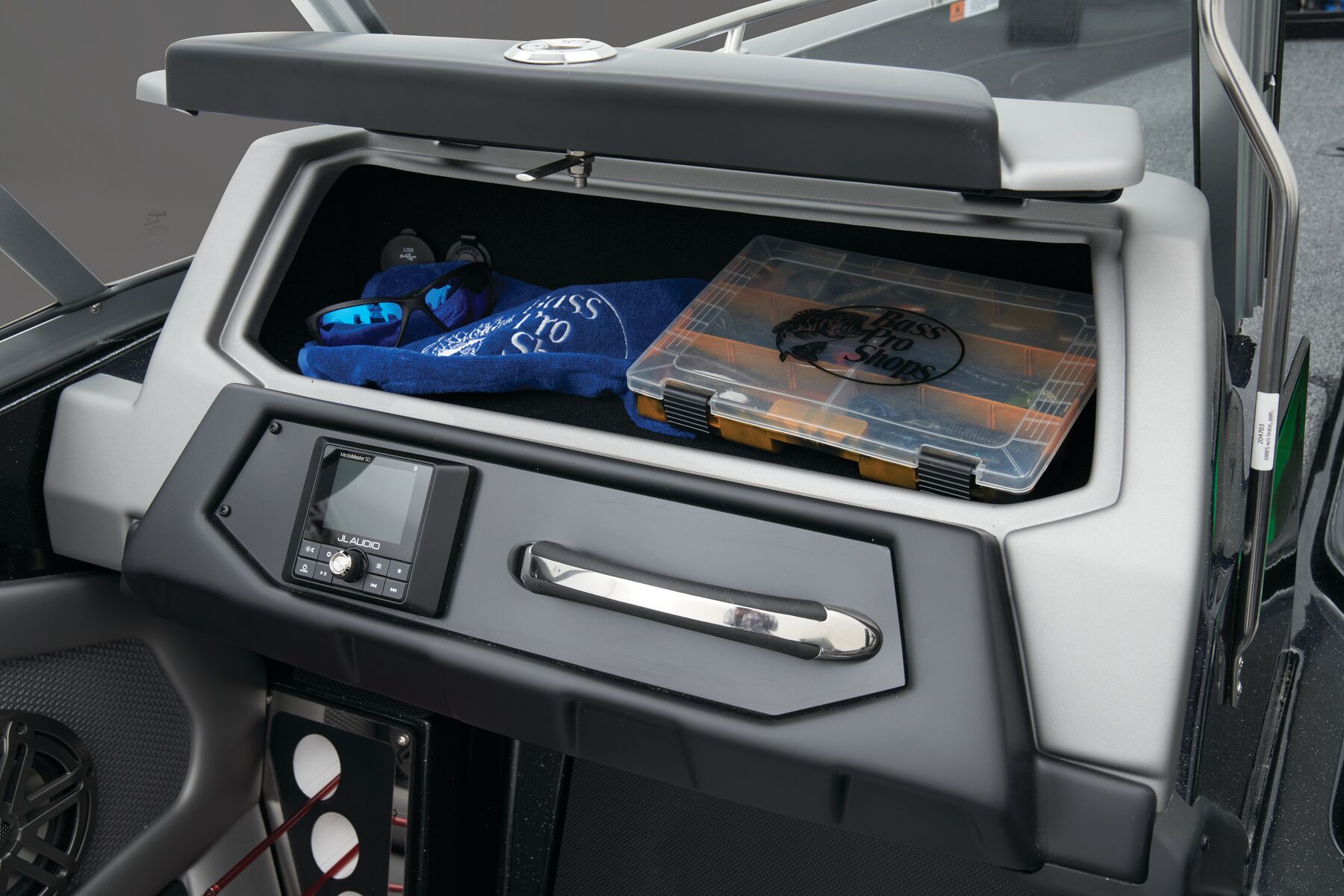

- Passenger Glove Box
- Rite Track Keel®
- Skid-resistant molded rubber step pad on bow

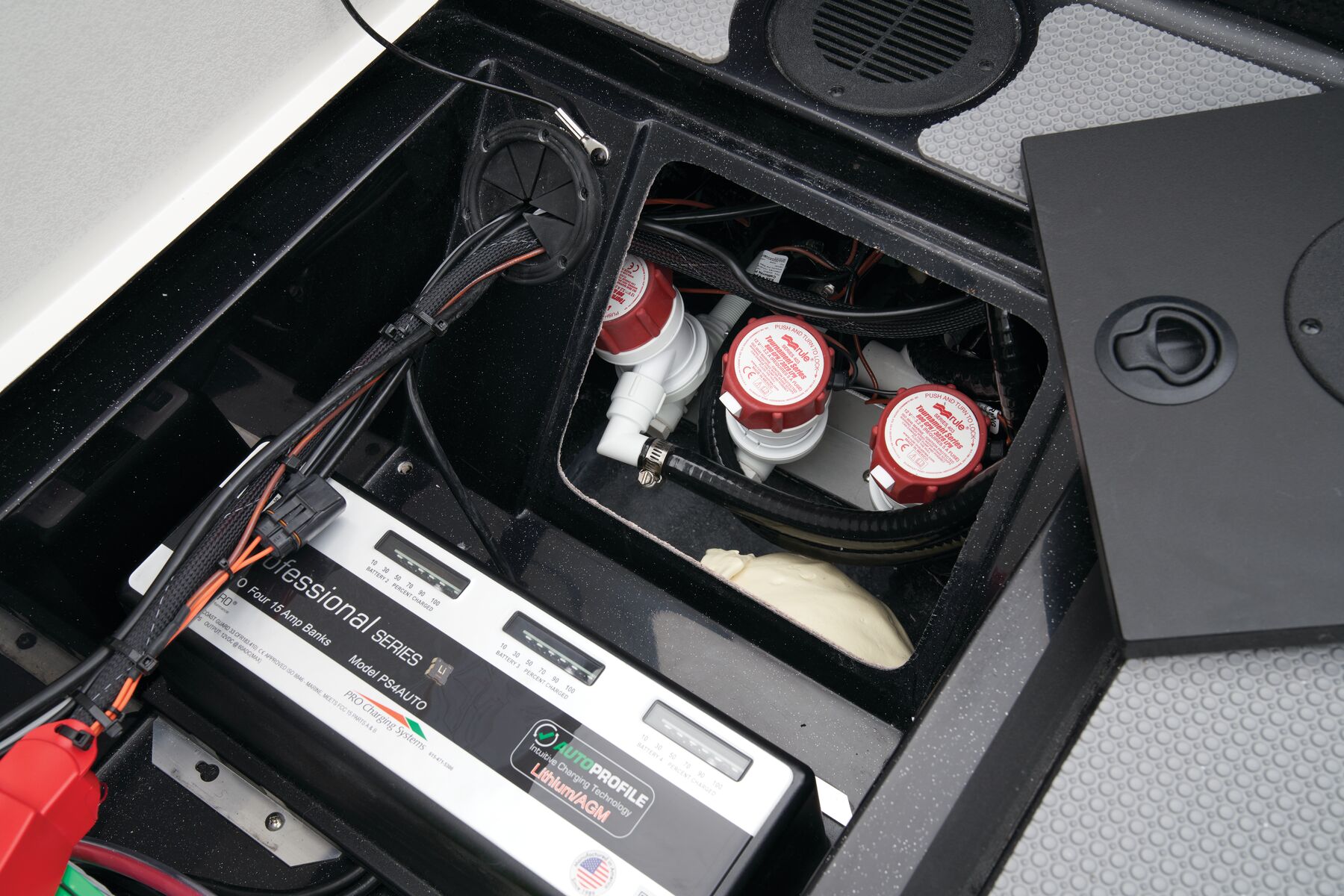

- Automatic and manual bilge pumps
- Walk-thru windshield
- Integrated grab handles

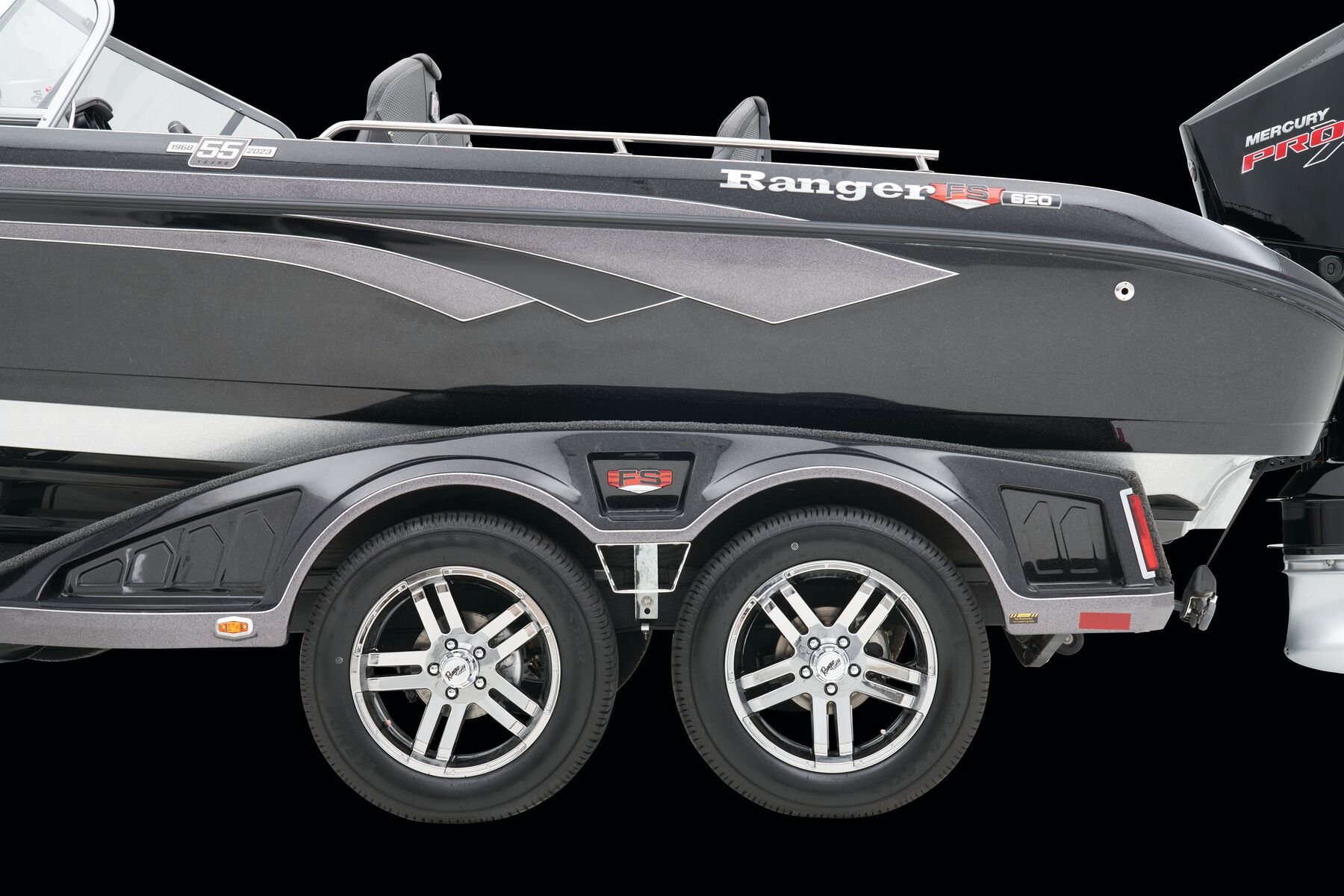

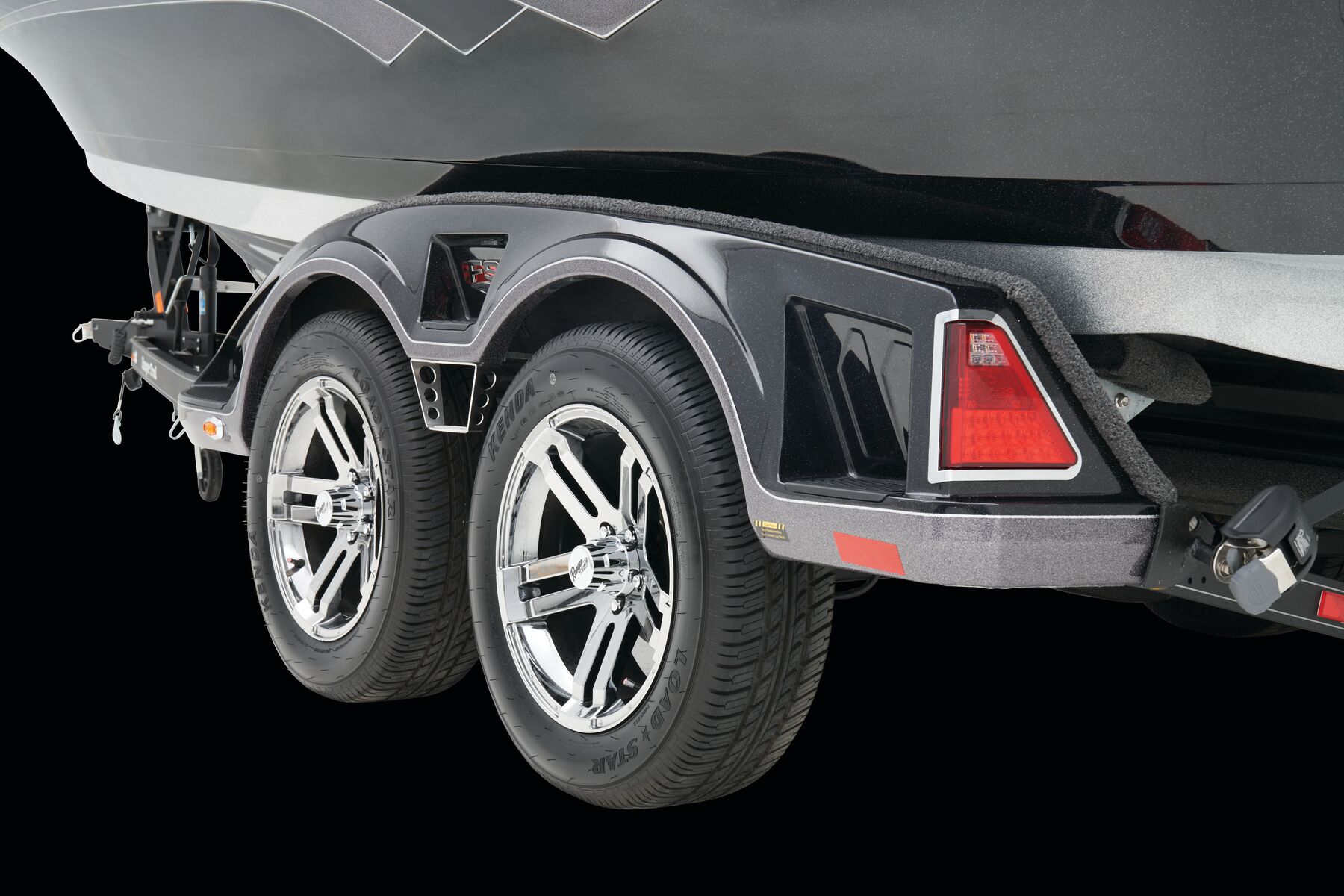

Trailer Features

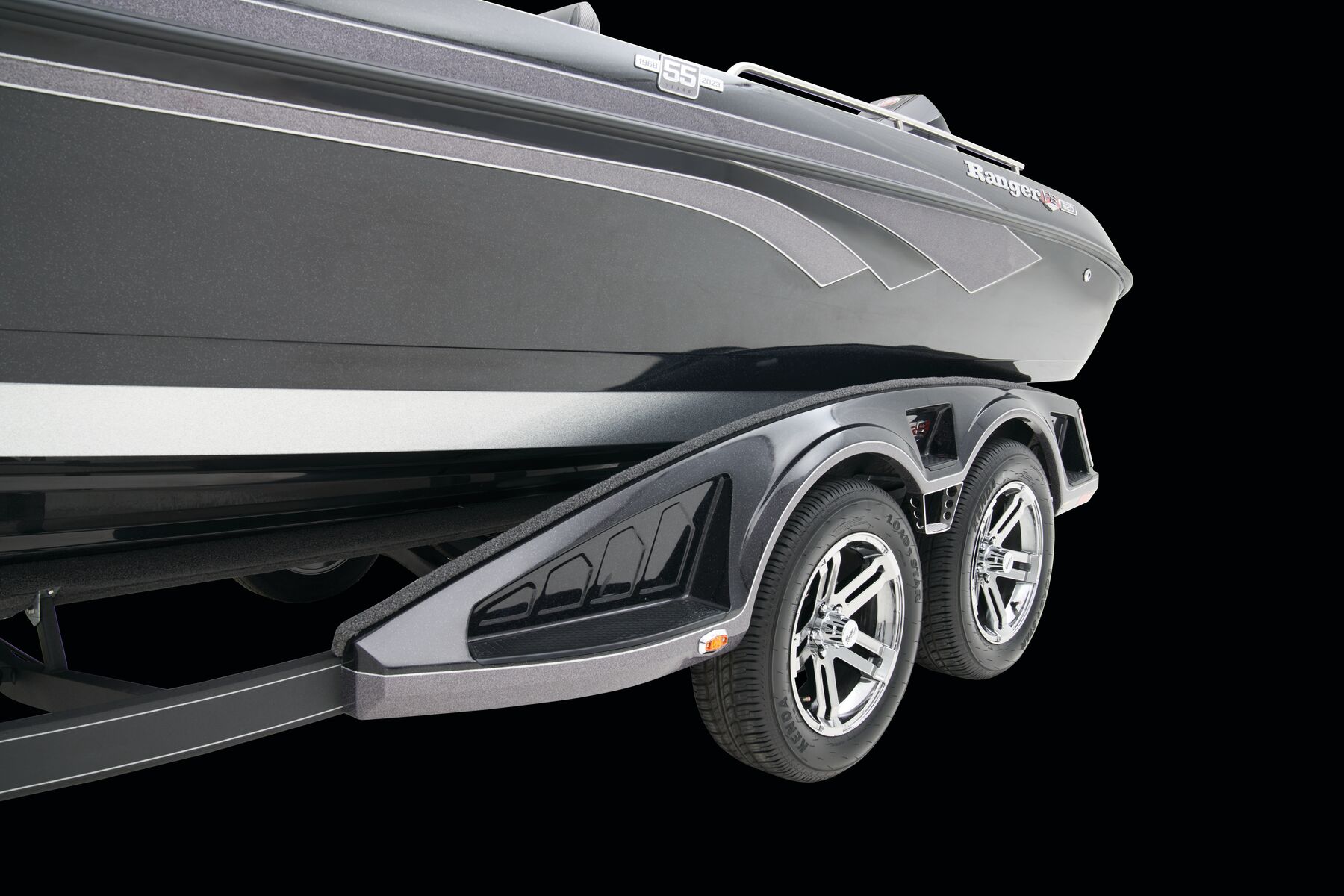

- Ranger Trail® tandem axle trailer w/ torsion axles and c-channel frame
- Ranger® Road Armor Equipped® trailer protectant coating
- 17" Challenger II wheels w/matching spare
- Ranger Trail® Vault® Hub lubrication system
- Fiberglass fenders w/ step pads
- Hydraulic surge disc brakes
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- LED lighting
- LED backup lights
- Parking brake
- Stainless steel ratcheting tie-downs
- NMMA®/NATM certified
