Limited 2024 Availability

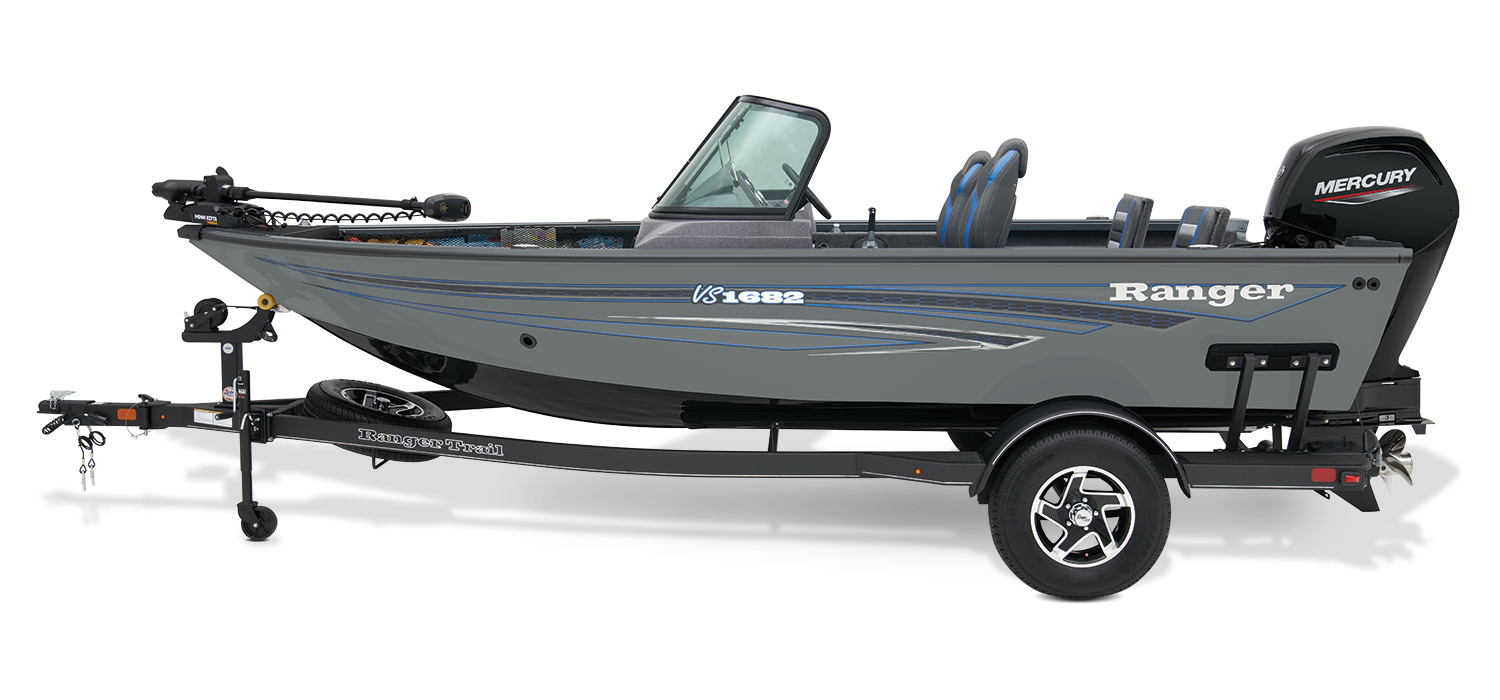

VS1682SC Reata
Photos may show optional equipment.
2025

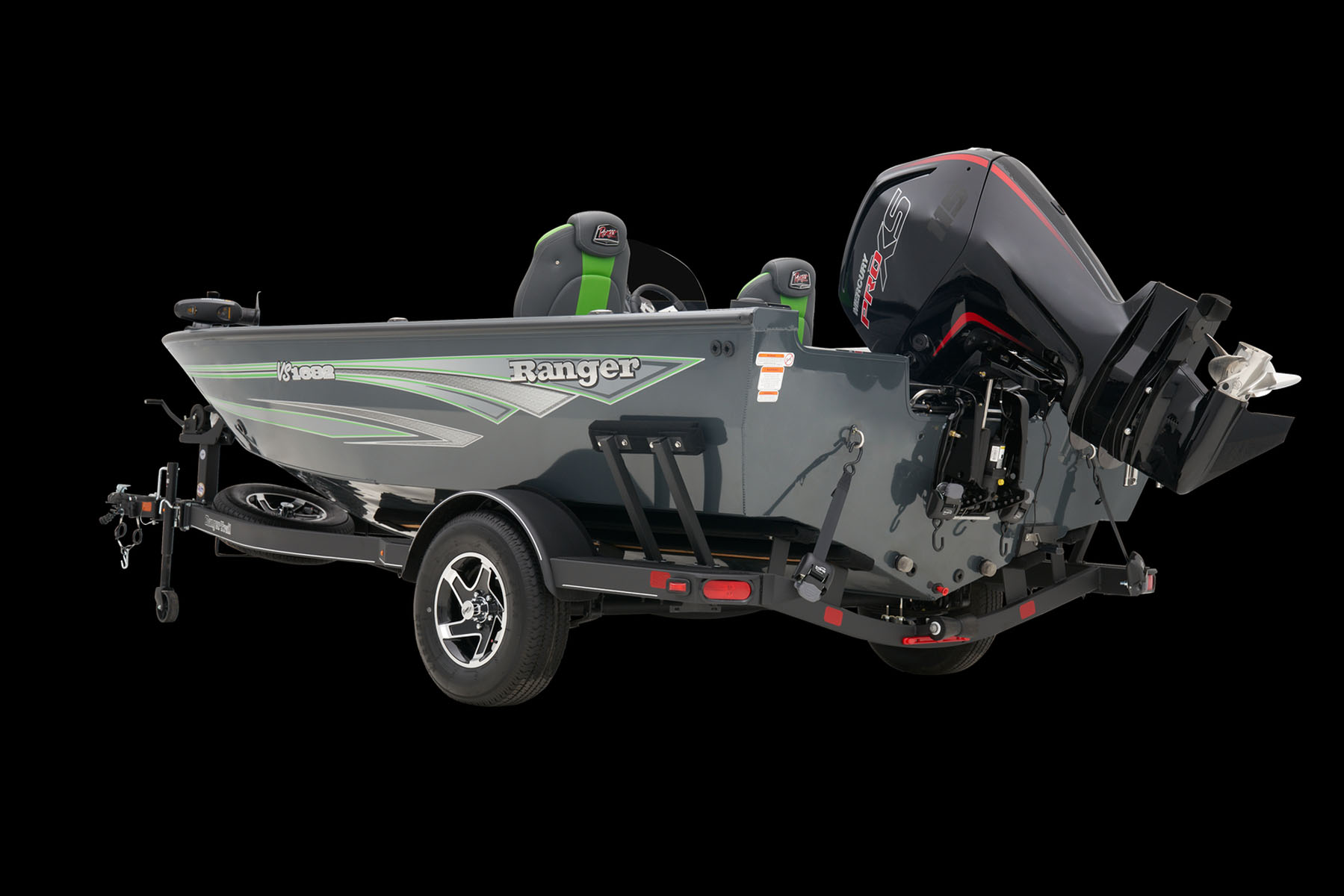

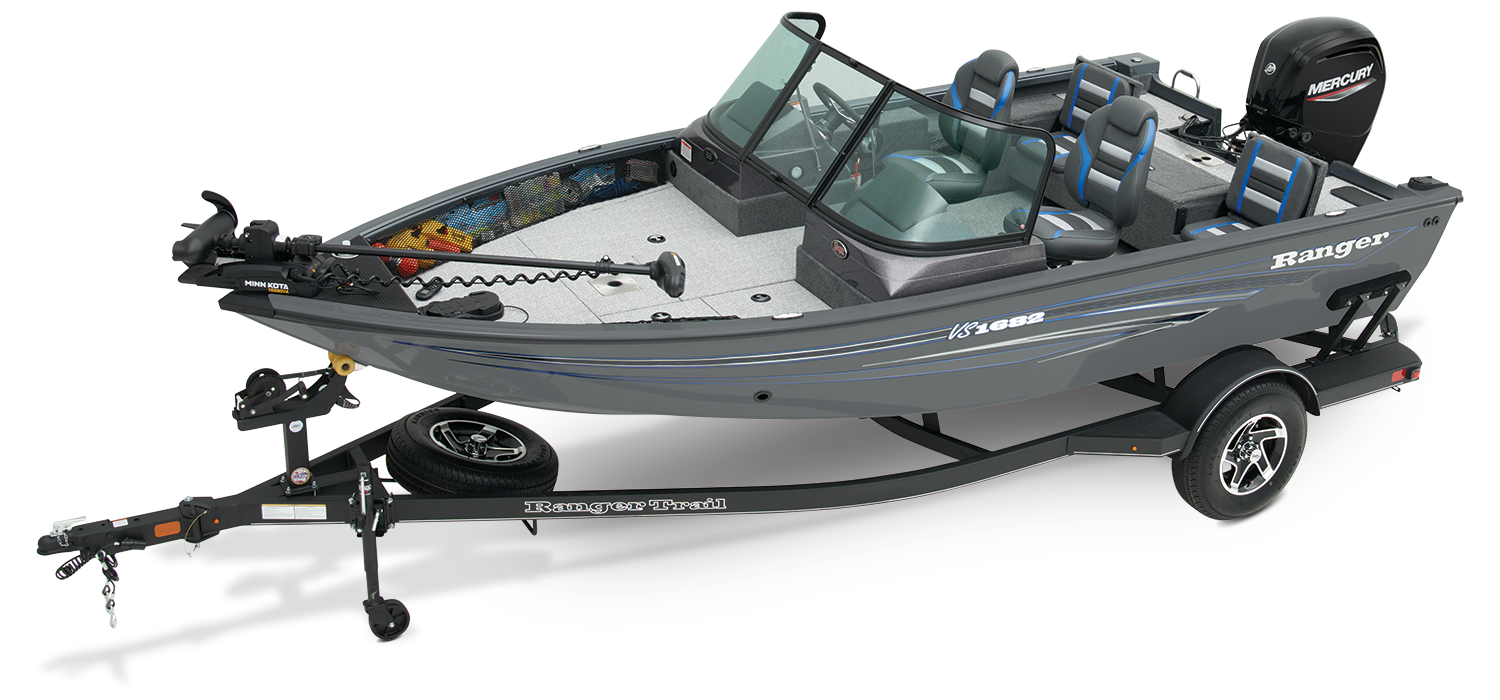

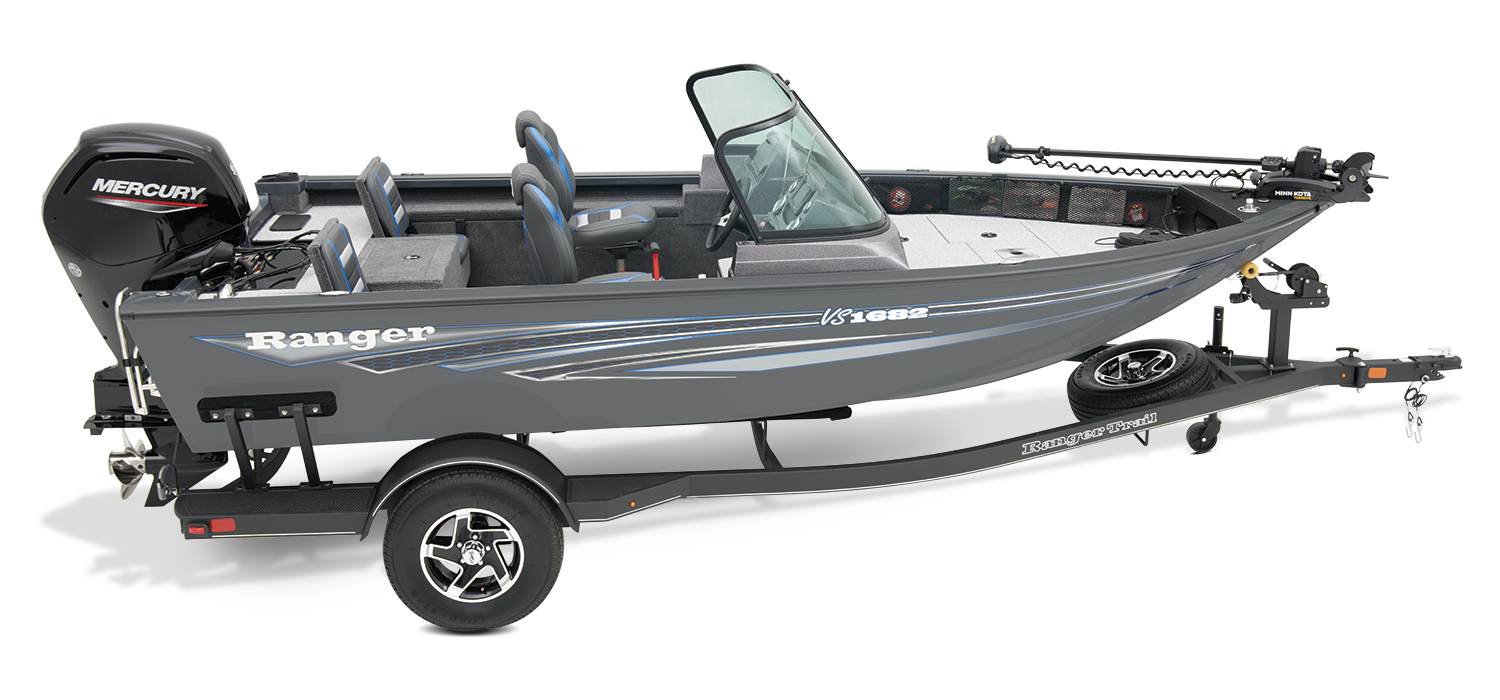

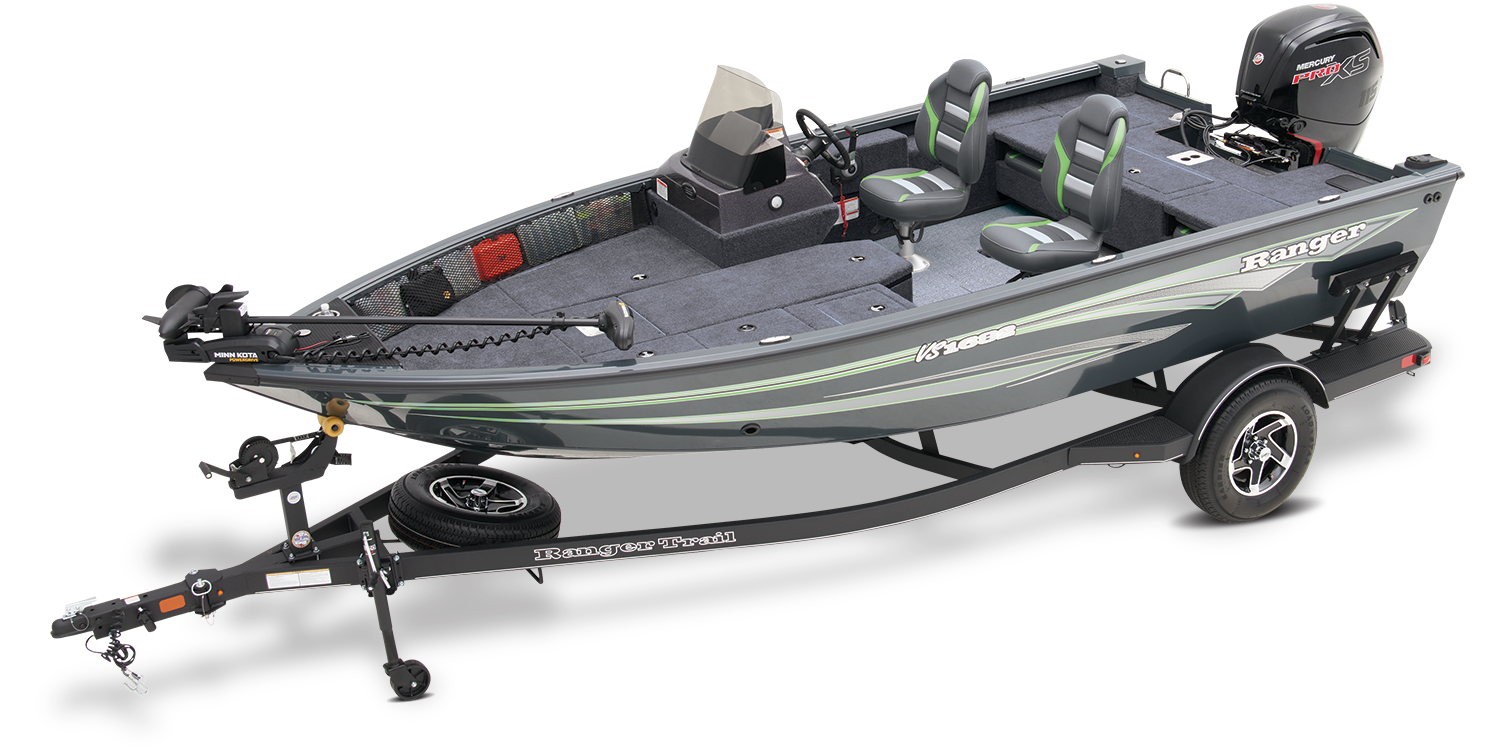

VS1682SC Reata
w/ 90 EXLPT FourStroke Mercury®

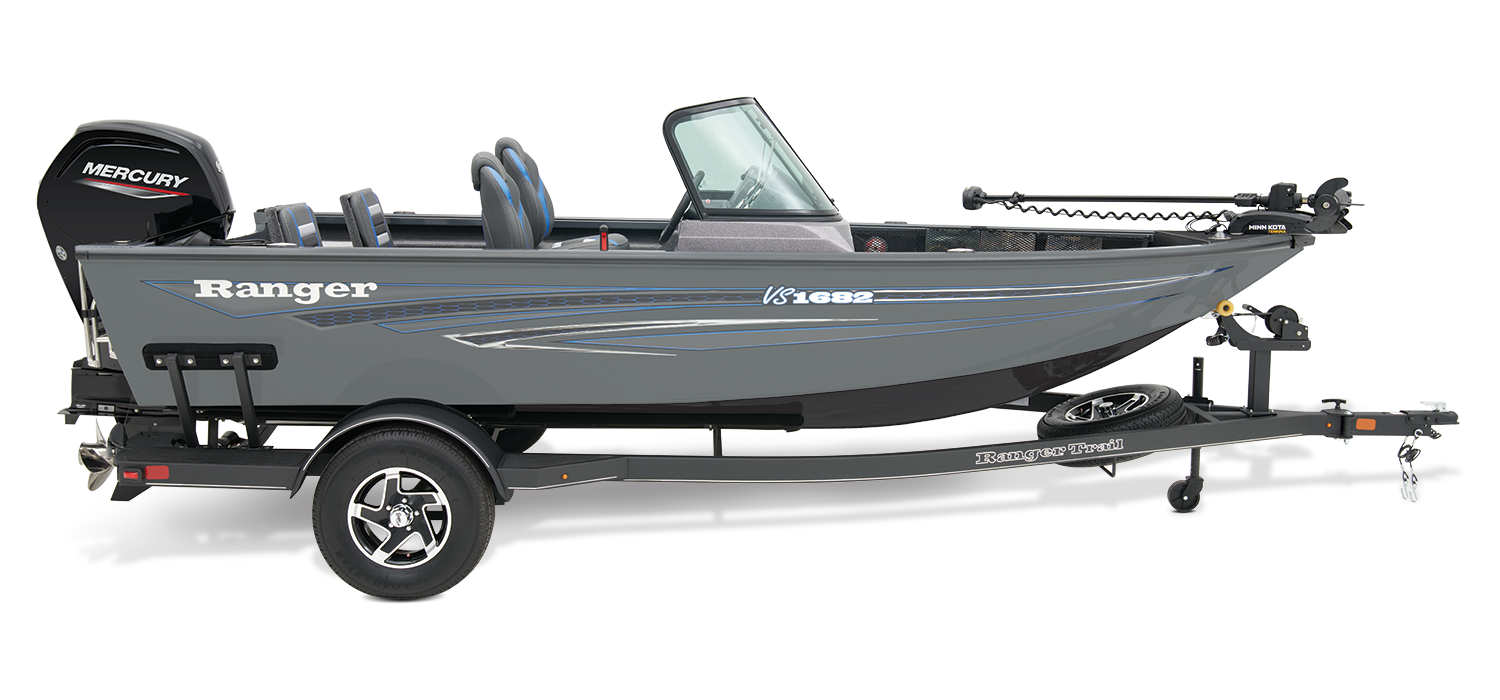

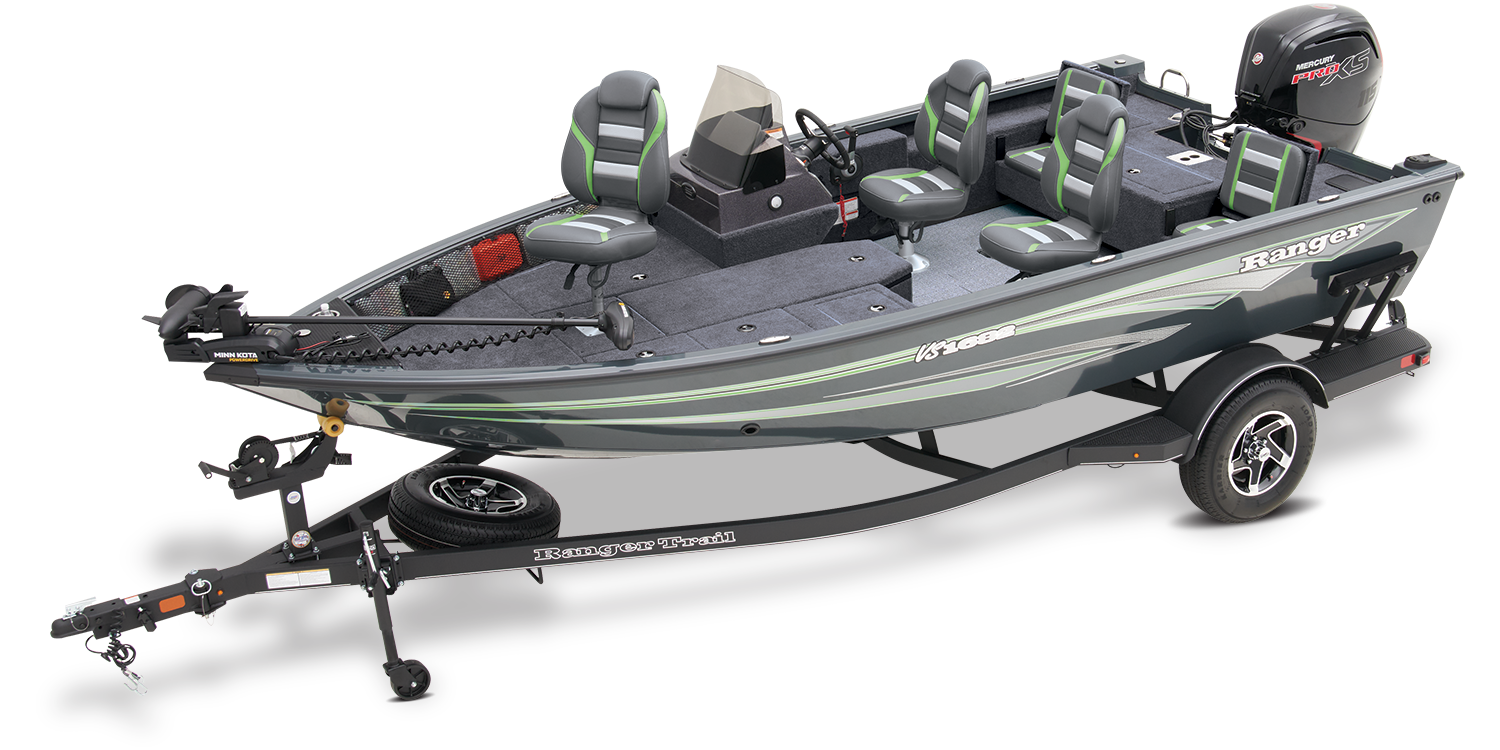

Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$36995
USD
|
BIG OPTIONS, BIG COMFORT, SMALL FOOTPRINT
The VS1682 SC Reata is designed to take on big water and big families with ease. It packs a full dose of confidence and comfort to keep you out longer. Standard features such as hydraulic steering, dual aerated livewells, bow and console trim controls offer a great starting point while upright, level flotation and foam-filled hull, and wood-free, all-welded construction offer peace of mind in all conditions. Integrated Lowrance® electronics and Minn Kota® trolling motor make the VS1682 SC Reata a force on the water when you’re after the fish while plush, marine-grade seating delivers comfort and durability. You’d be hard-pressed to find a more feature-rich boat in the 16-foot class without a Ranger® badge on it.
Key Features
- Huge crossover capability
- Foam-filled hull
- Upright, level flotation

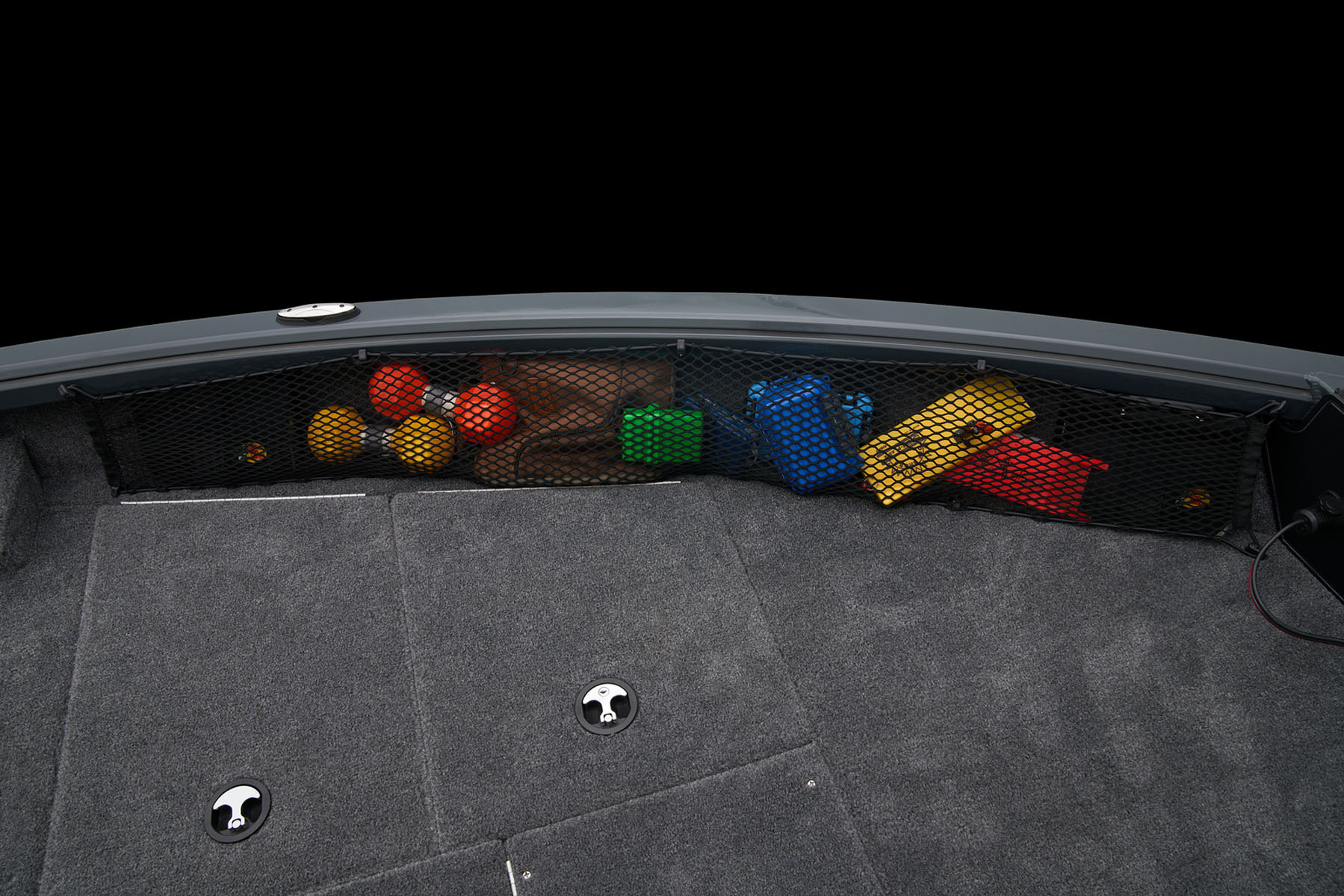

- Ample storage for fishing and fun
- Smooth handling and control
Specifications
| Length | 5.08 m | 16' 8'' |
| Hull Length | 5.08 m | 16' 8'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 115 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 55.88 cm | 22'' |
| Hull Thickness | 0.254 cm | 0.1'' |
| Chine Width | 2.08 m | 82'' |
| Fuel Capacity | 94.63 L | 25 gal. |
| Livewell Capacity | 109.77 L | 29 gal. |
| Total Person, Motor, Gear | 612.35 kg | 1350 lbs. |
| Approximate Boat Weight | 703.07 kg | 1550 lbs. |
| Rod Box Length - Center | 2.29 m | 7' 6'' |
| Max. Person Capacity | 5 persons | |
| Trailer GVWR | 1358.51 kg | 2995 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 6.68 m | 21' 11'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 5.64 m | 18' 6'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||

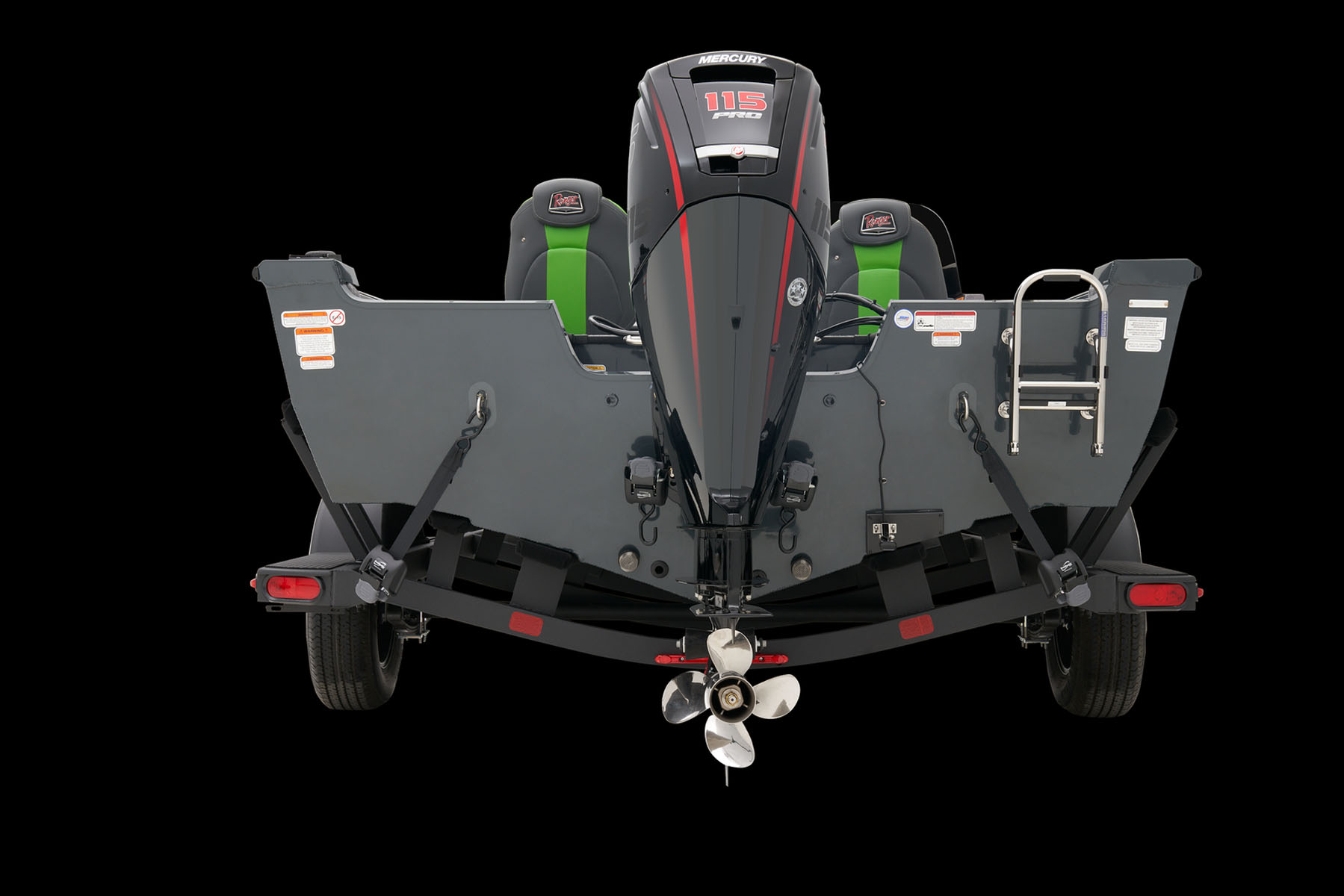

| 115EXLPT Pro XS FourStroke |
$38705 USD
|
Select Dealer | |||
| 90 EXLPT FourStroke |
$36995 USD
|
Select Dealer | |||
Standard Features
Custom Details

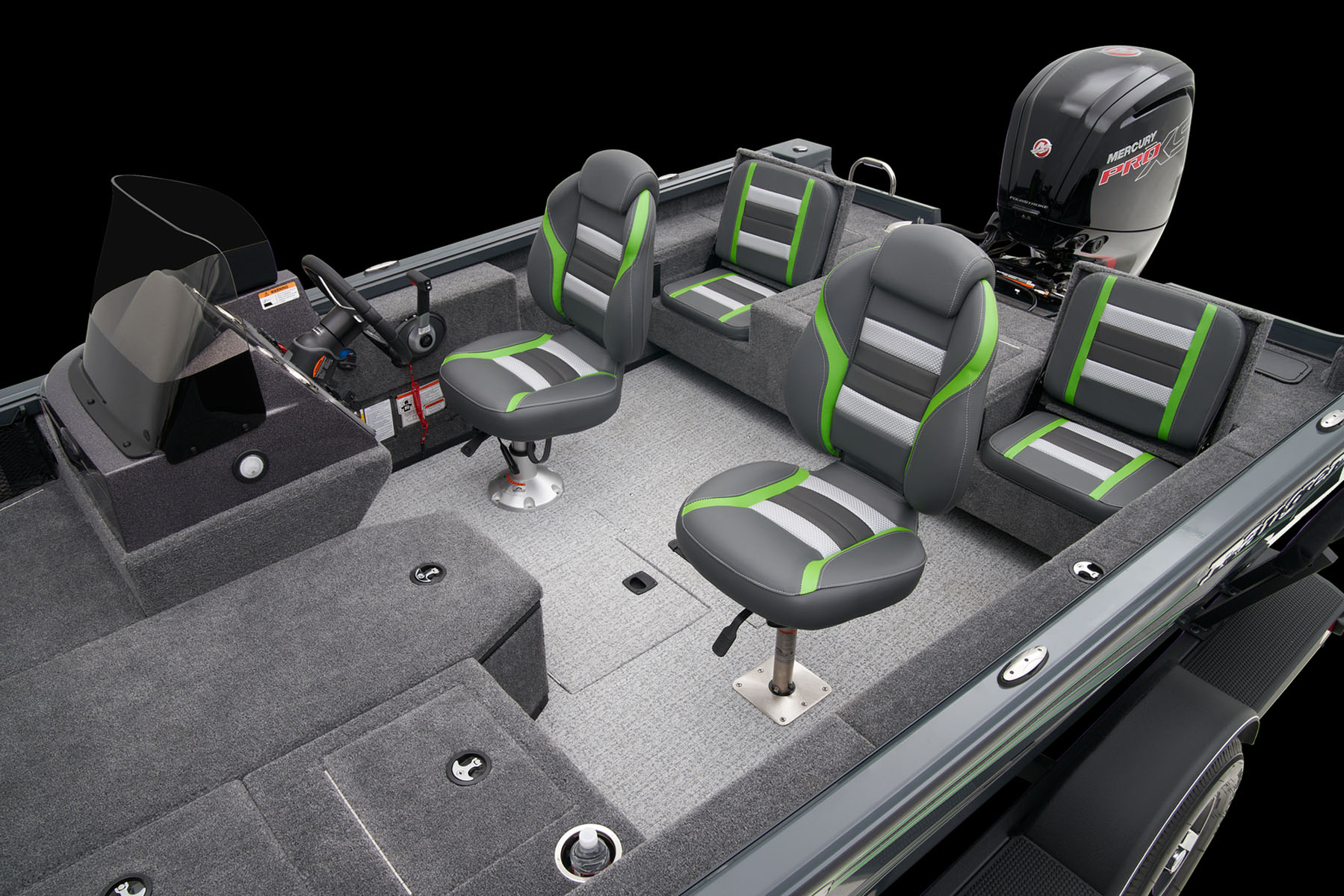

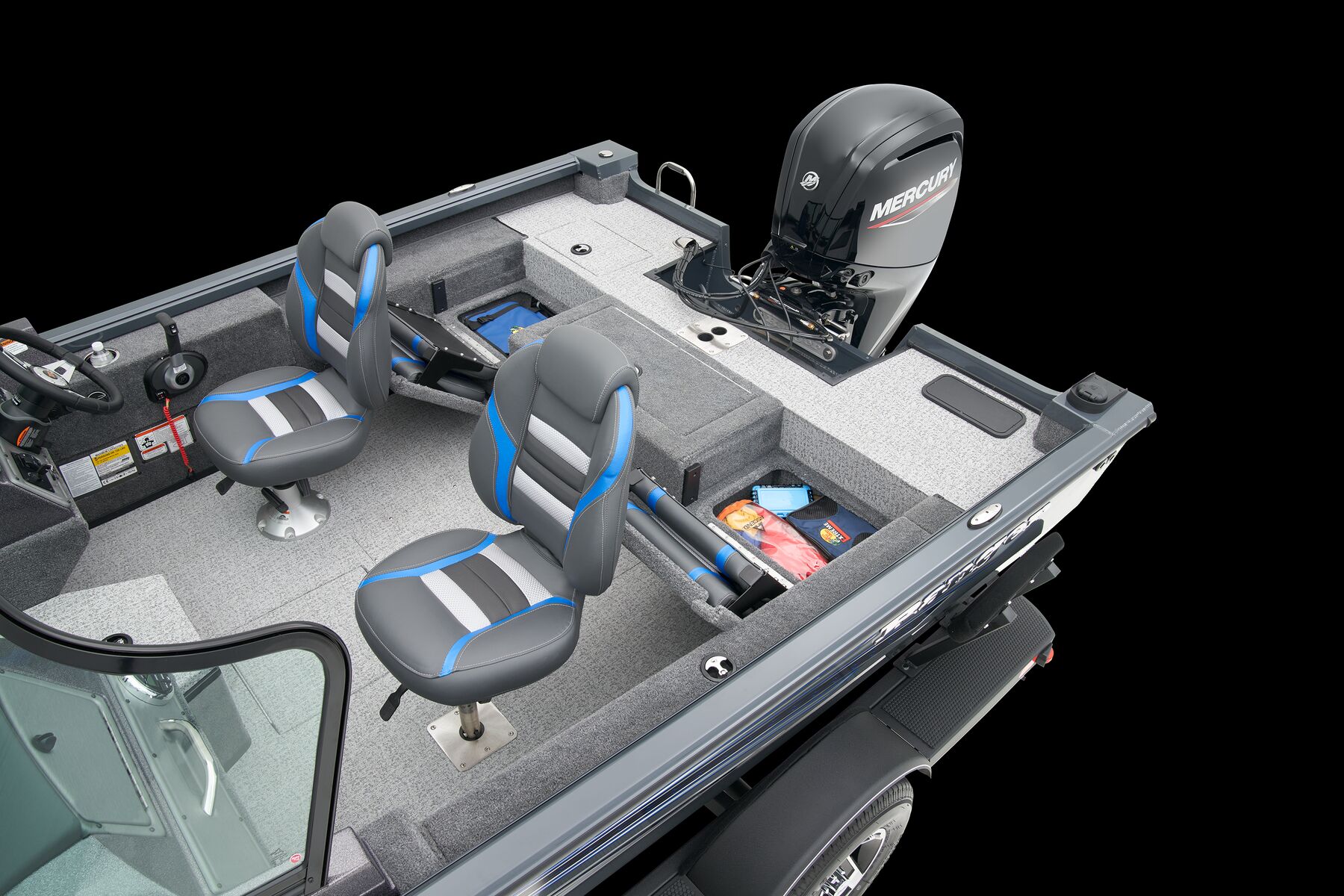

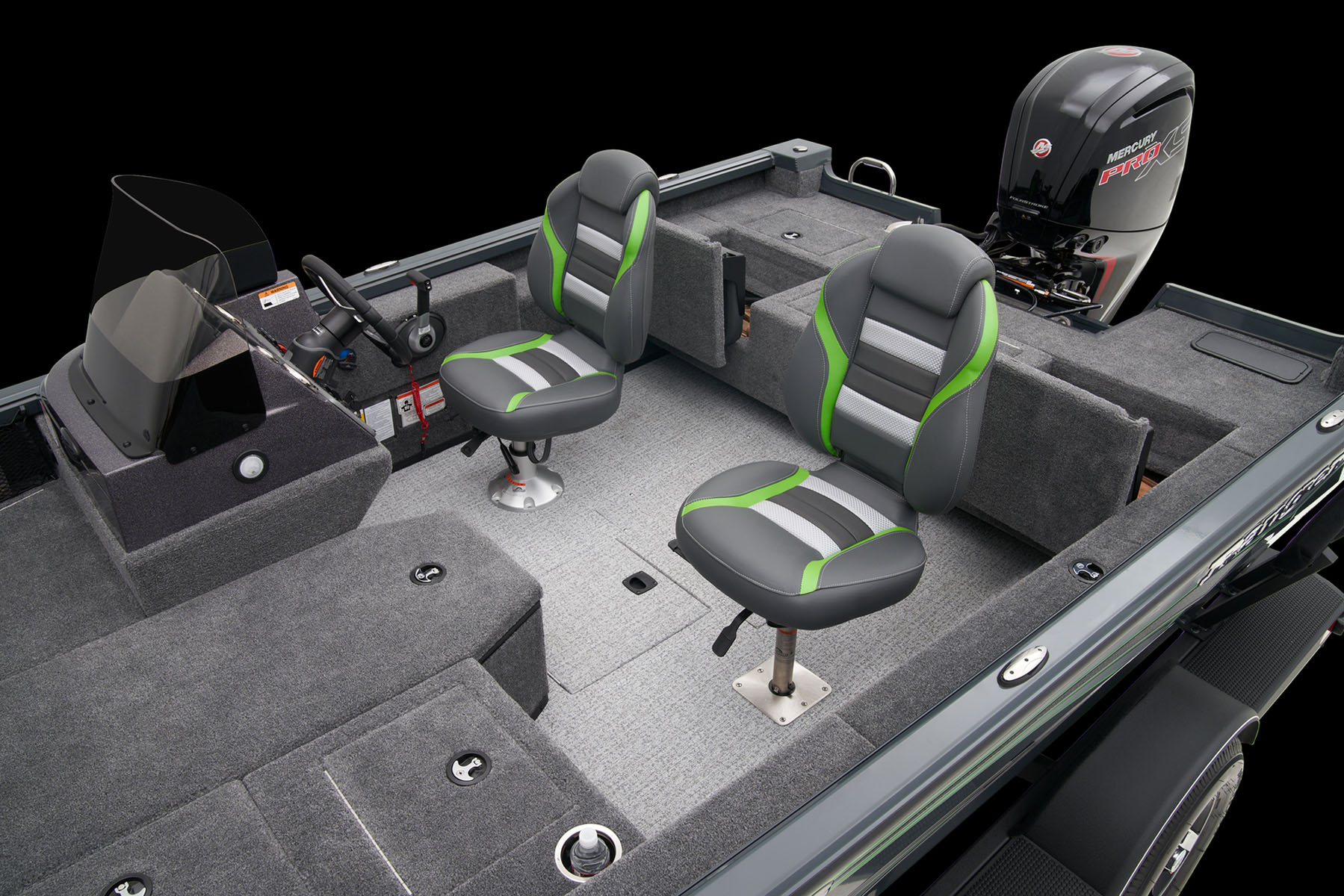

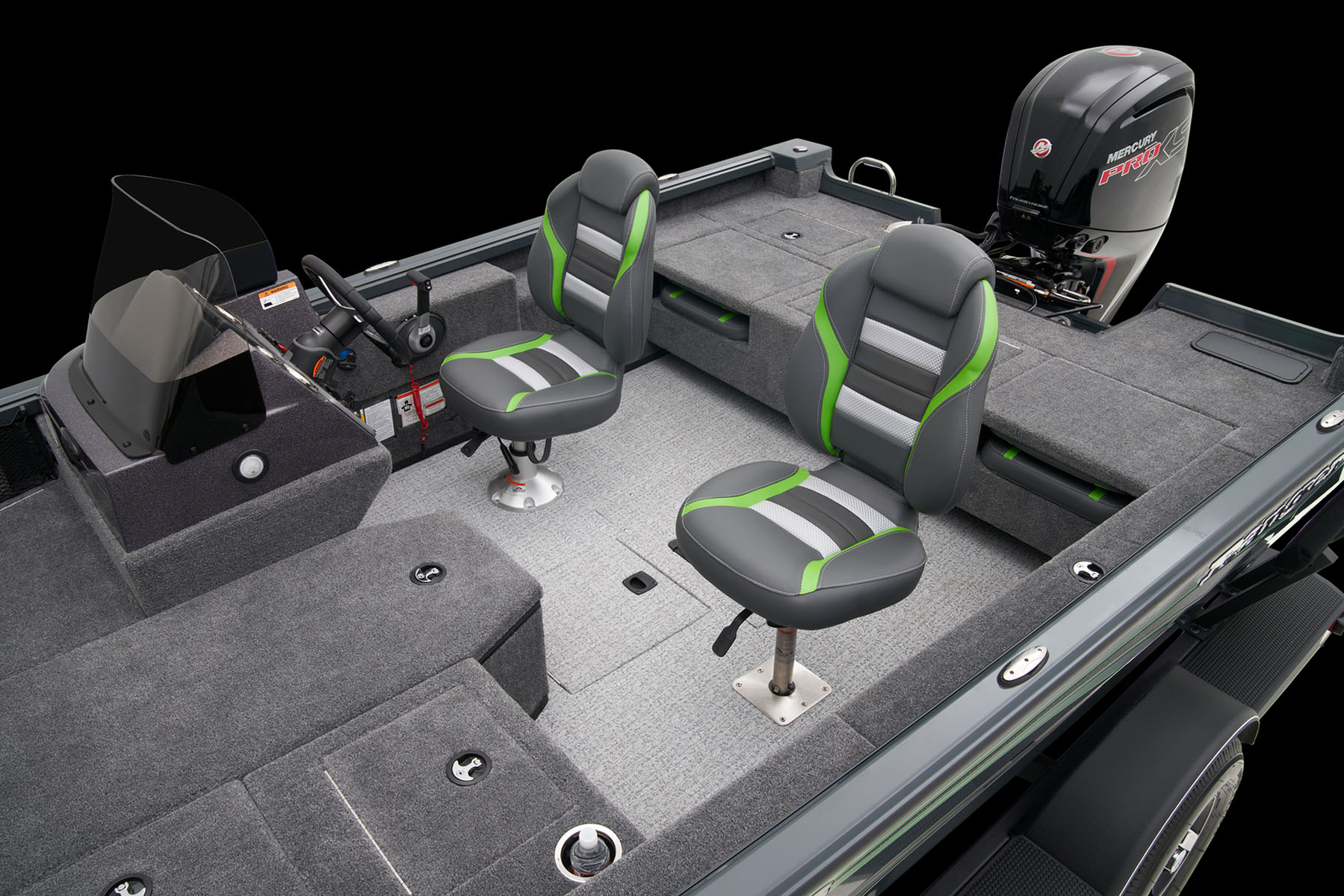

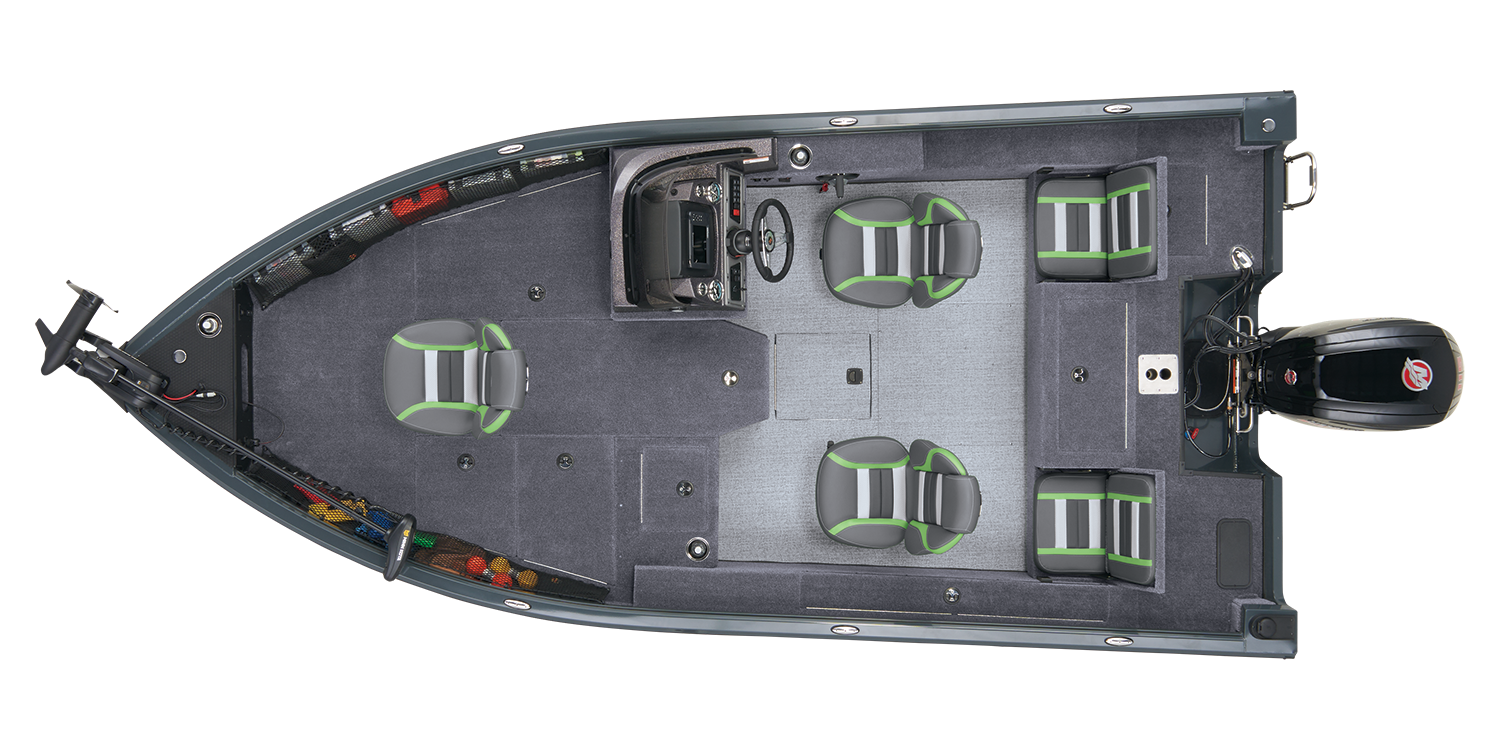

- Custom fitted marine upholstery- (3) matching fishing seats, driver seat slides

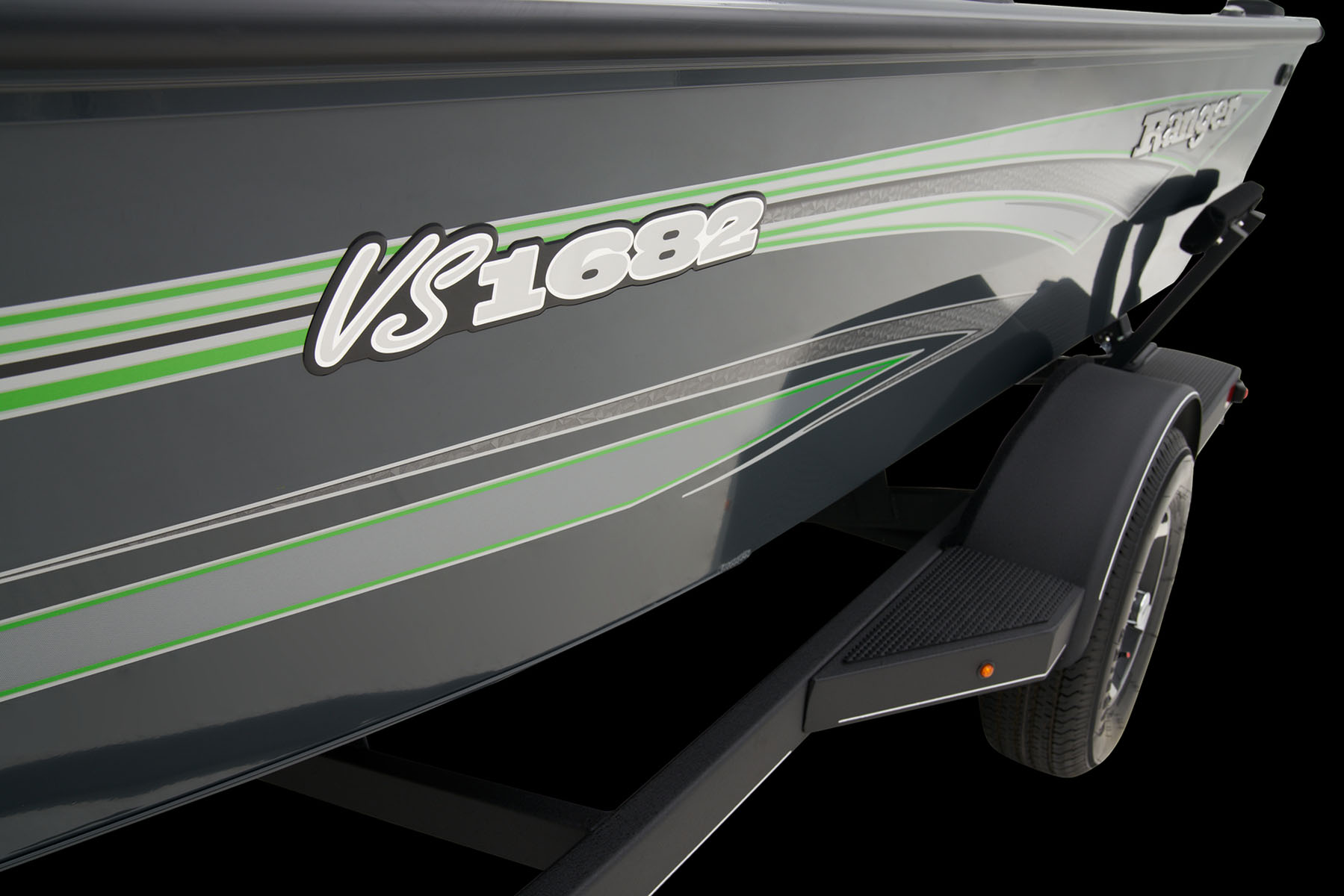

- High gloss metallic paint with custom Ranger® graphics
- Durable marine grade carpet
- Non-skid marine-grade vinyl cockpit flooring
Electronics

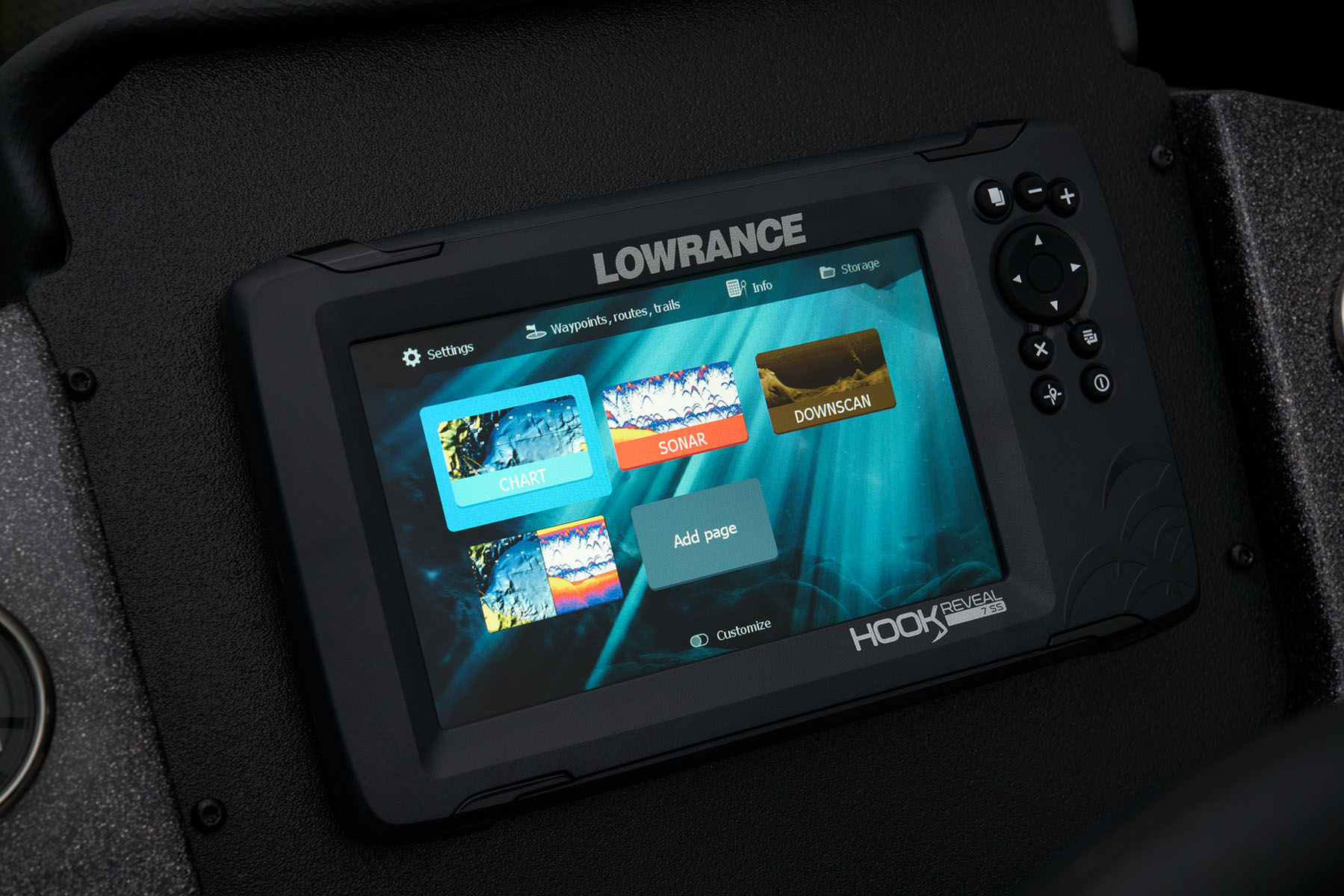

- Lowrance® HOOK Reveal 7 Combo at console
- 8-gauge trolling motor wiring

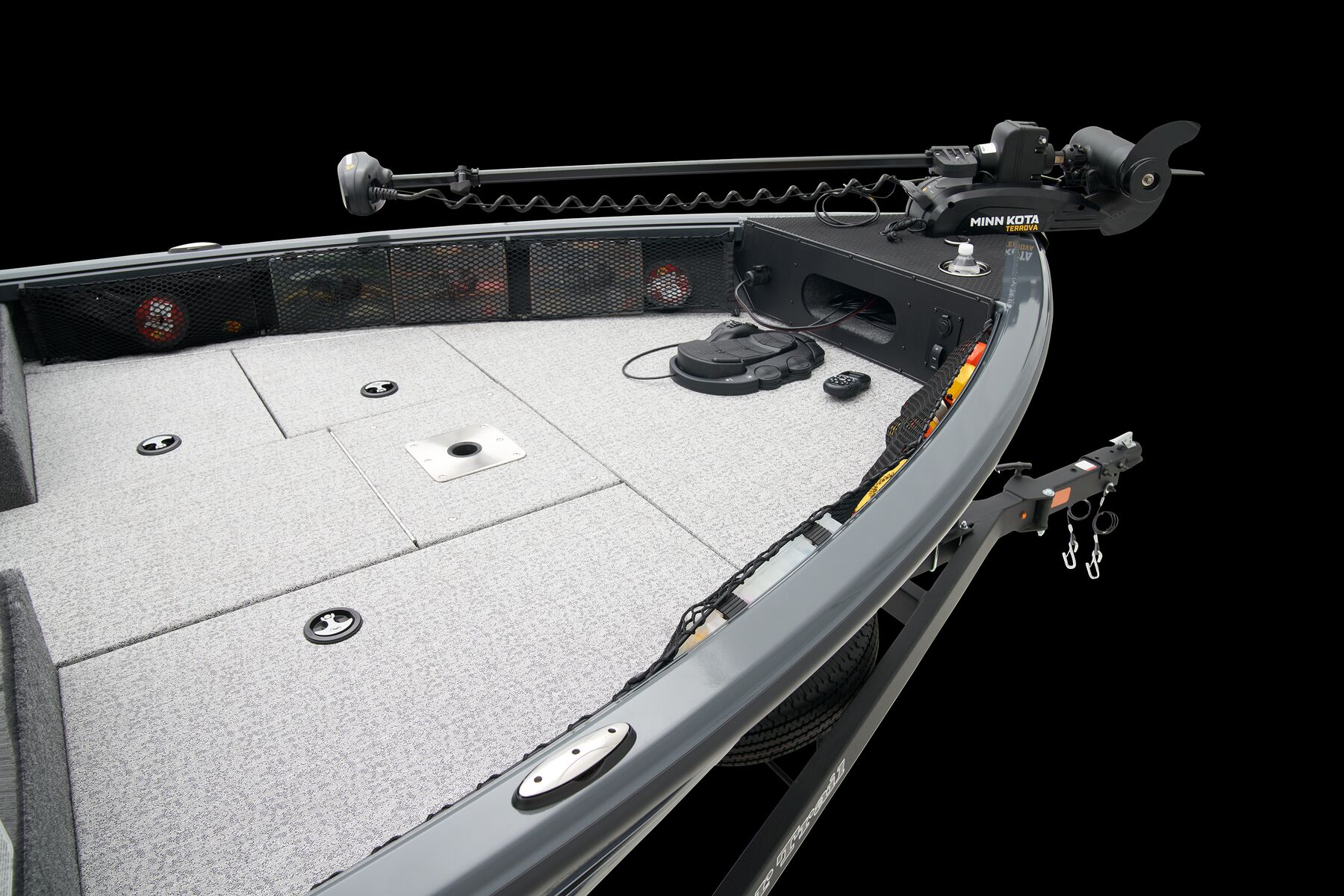

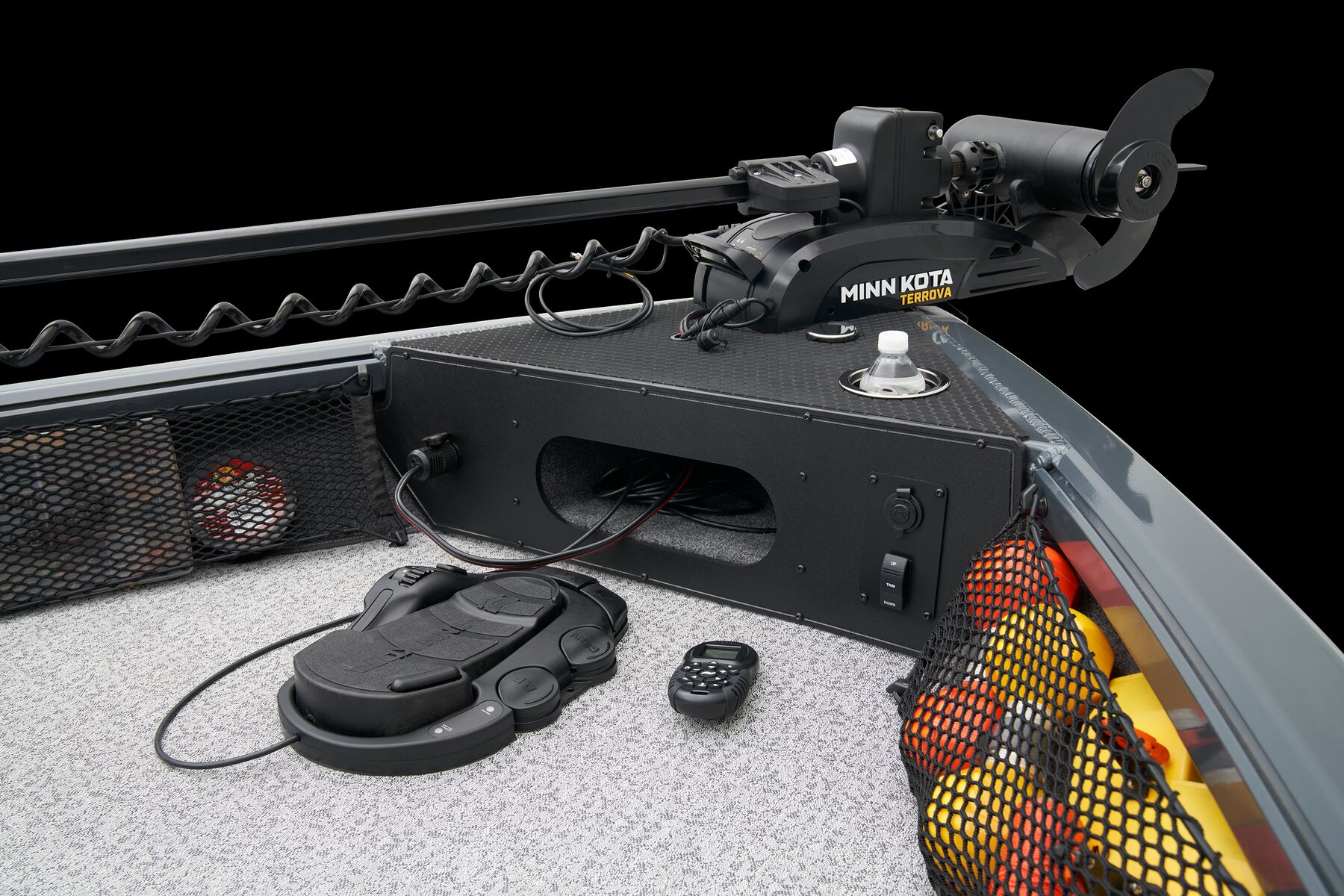

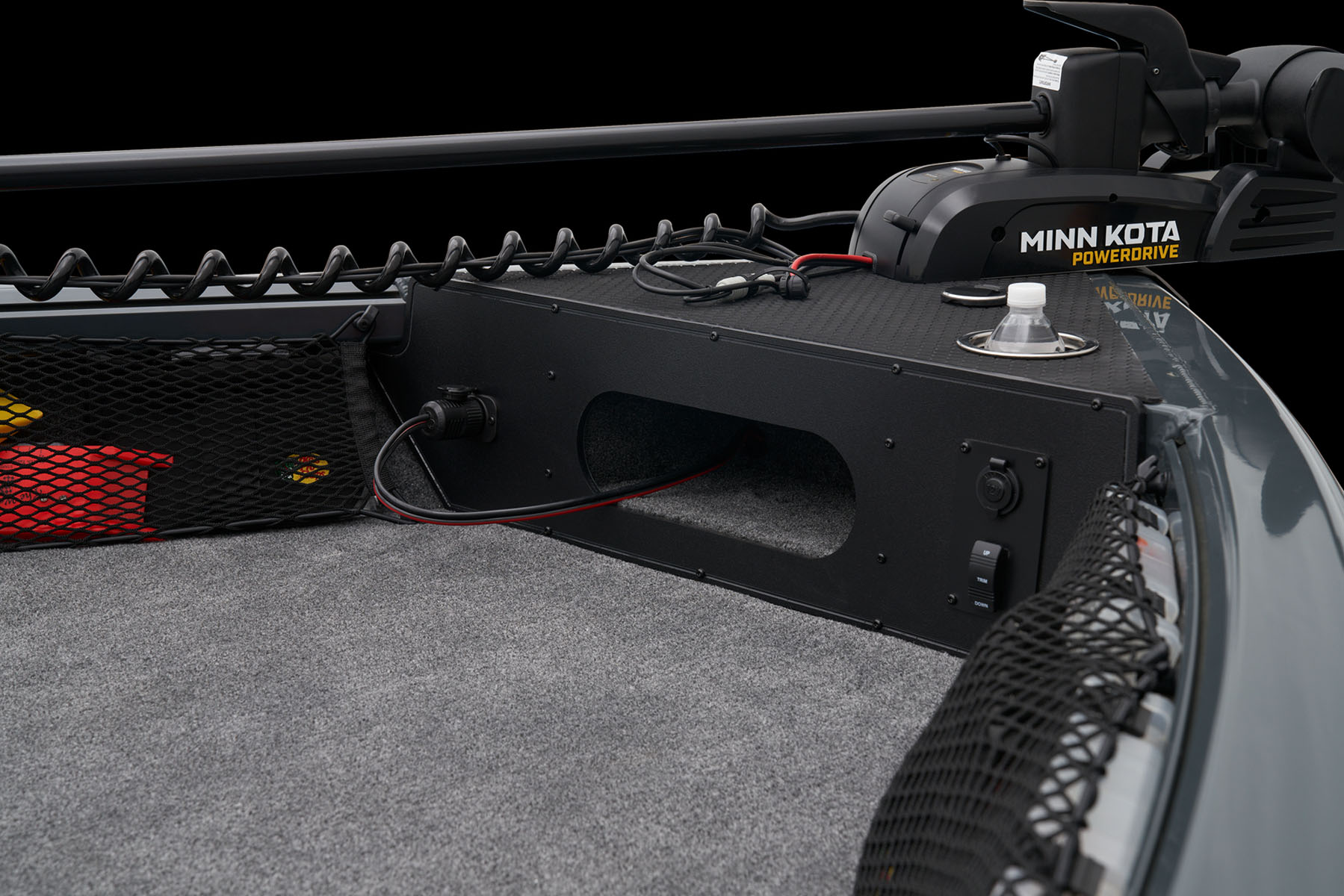

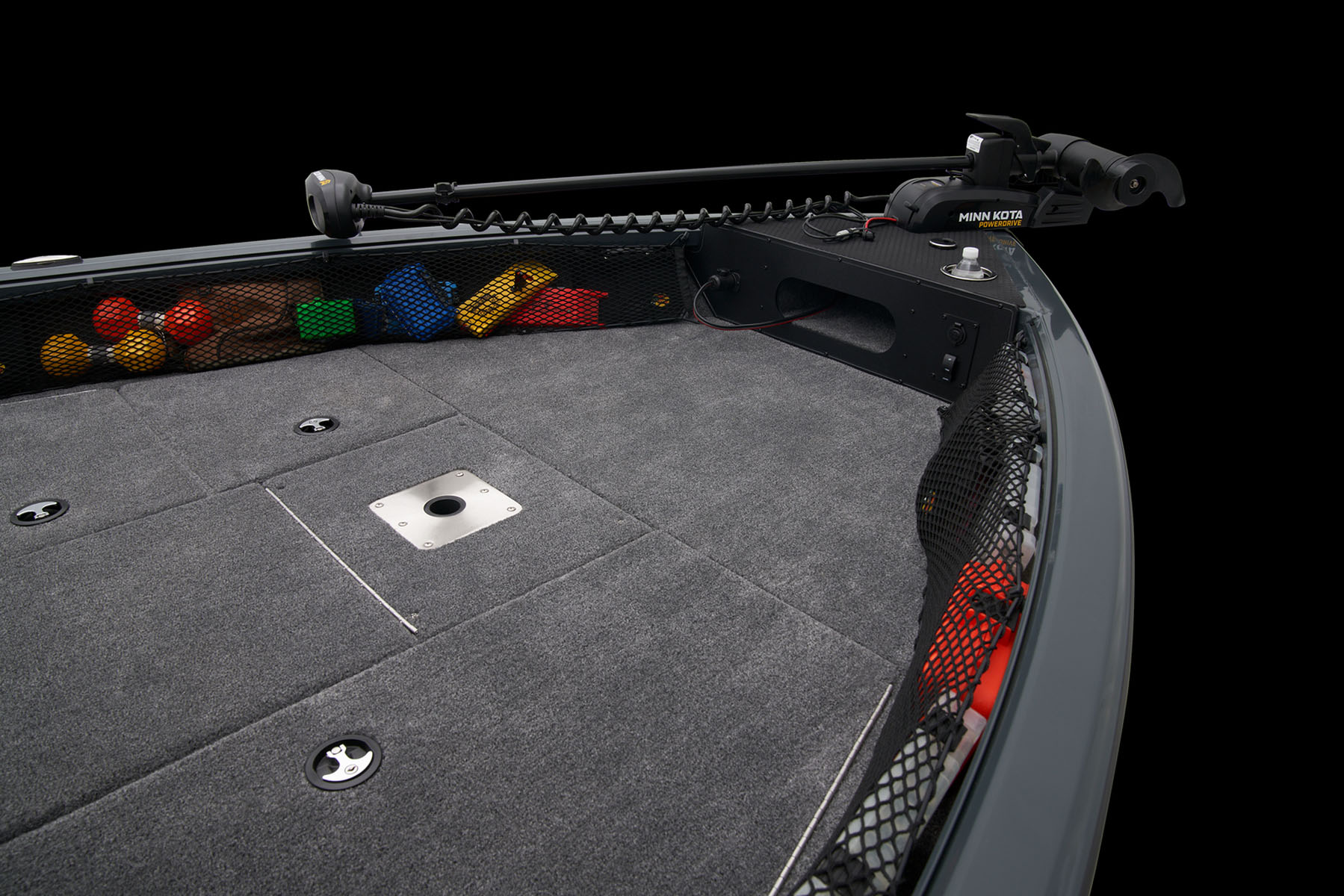

- Minn Kota® PowerDrive 70lb 60" DSC 24V trolling motor
- On-board lithium capable charger, 6A x 3 bank
- 12V power outlet
- Bilge pump
- Removable navigation lights
Power/Performance

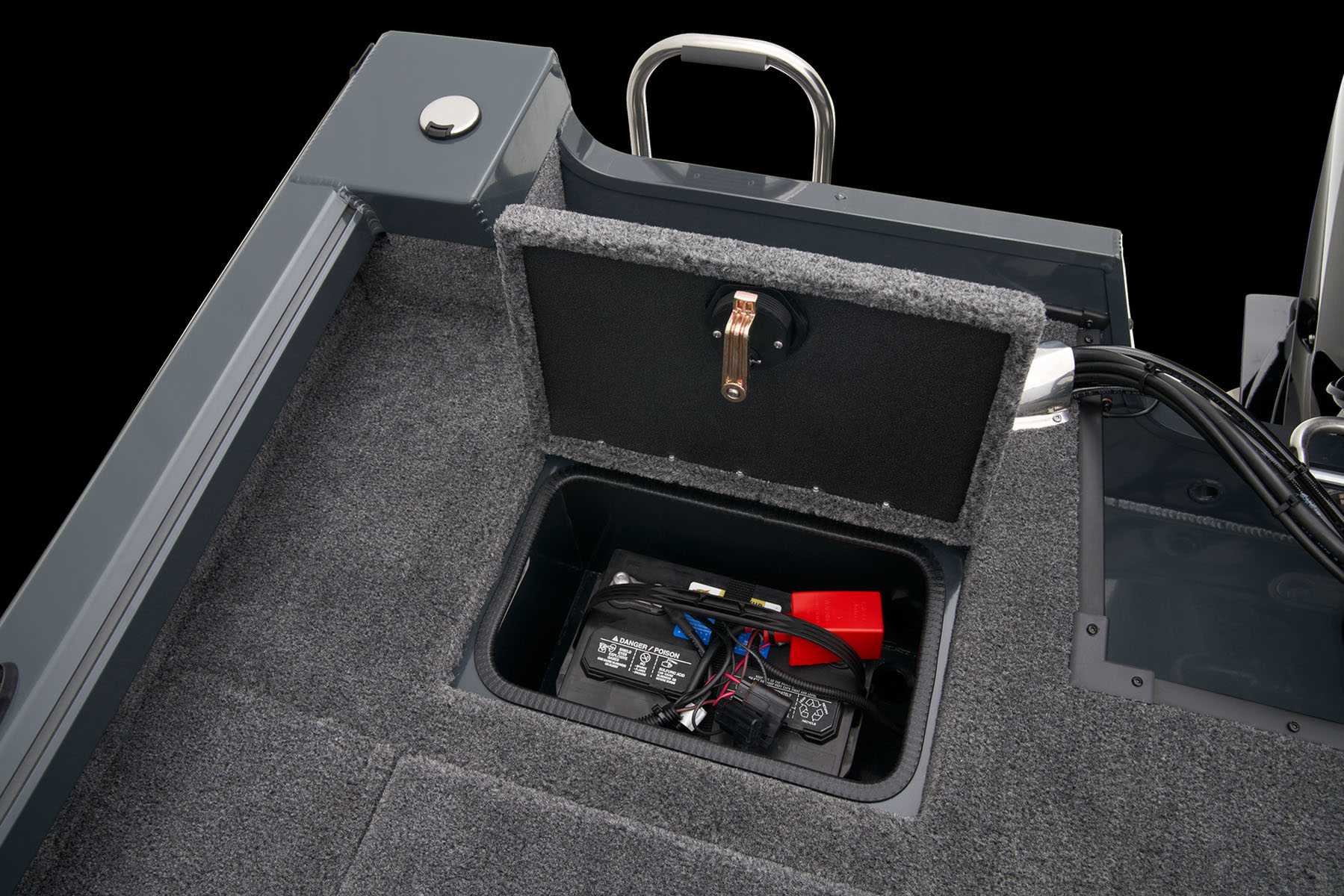

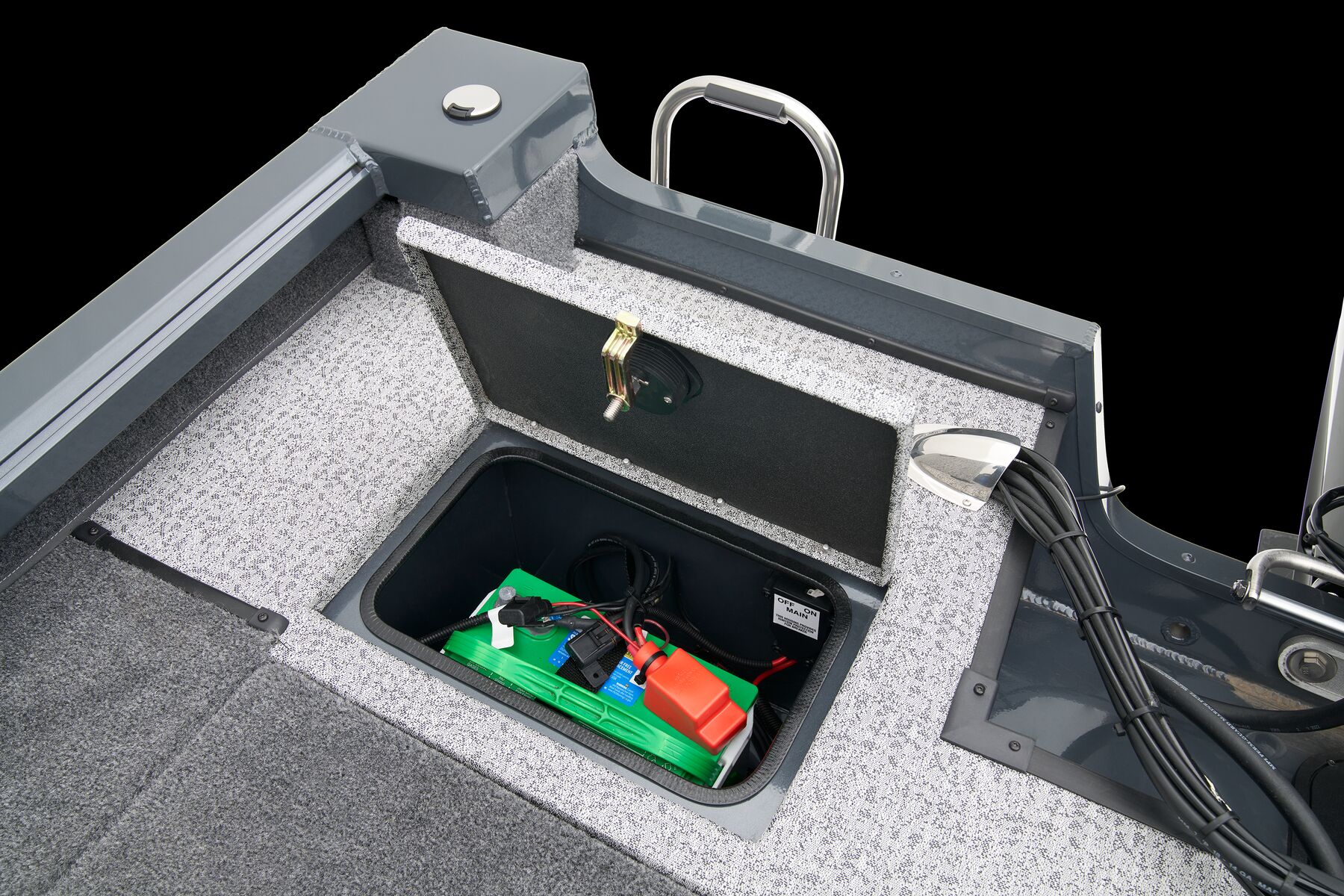

- Cranking battery and 1 trolling motor battery w/ tie-down

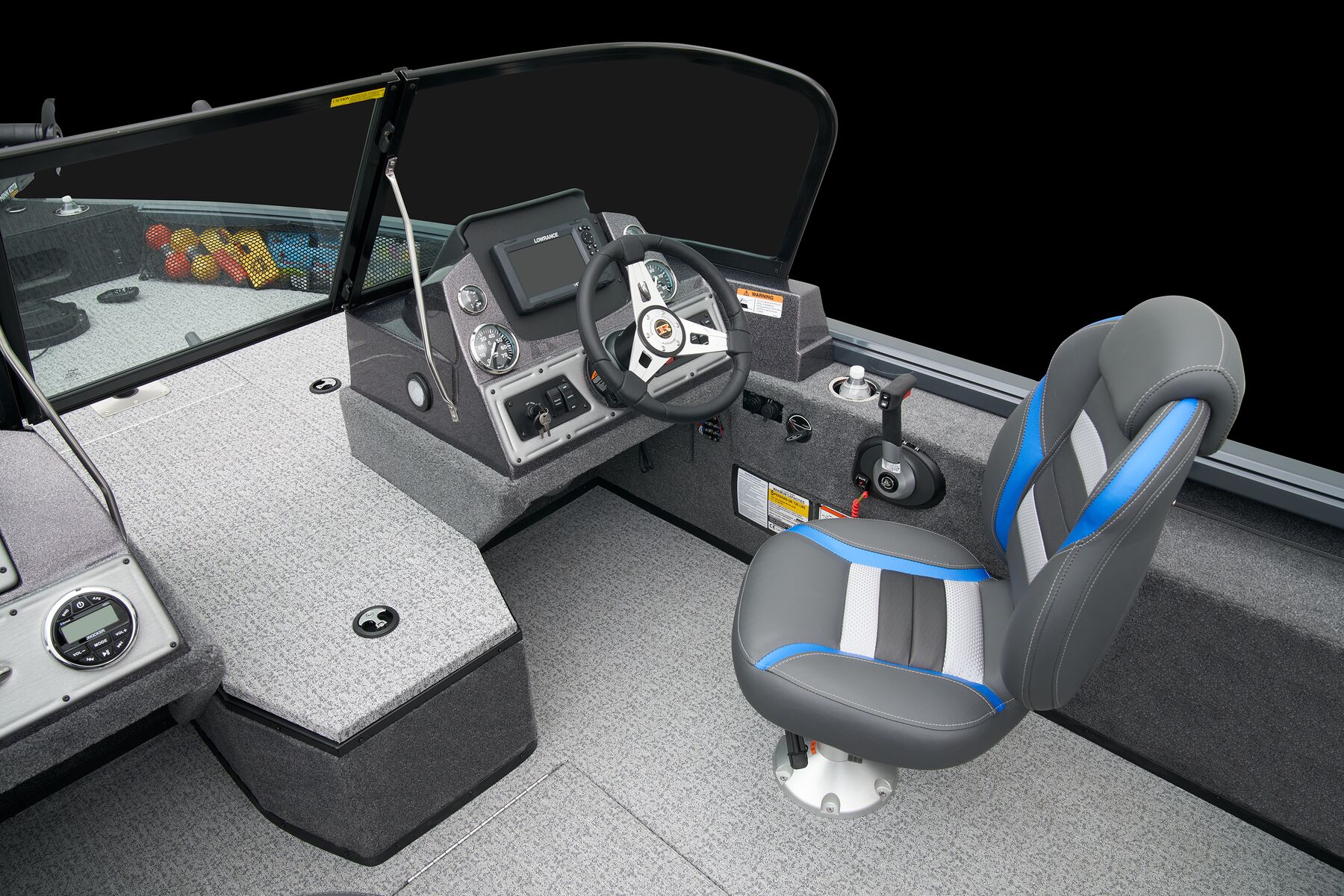

- Competition steering wheel

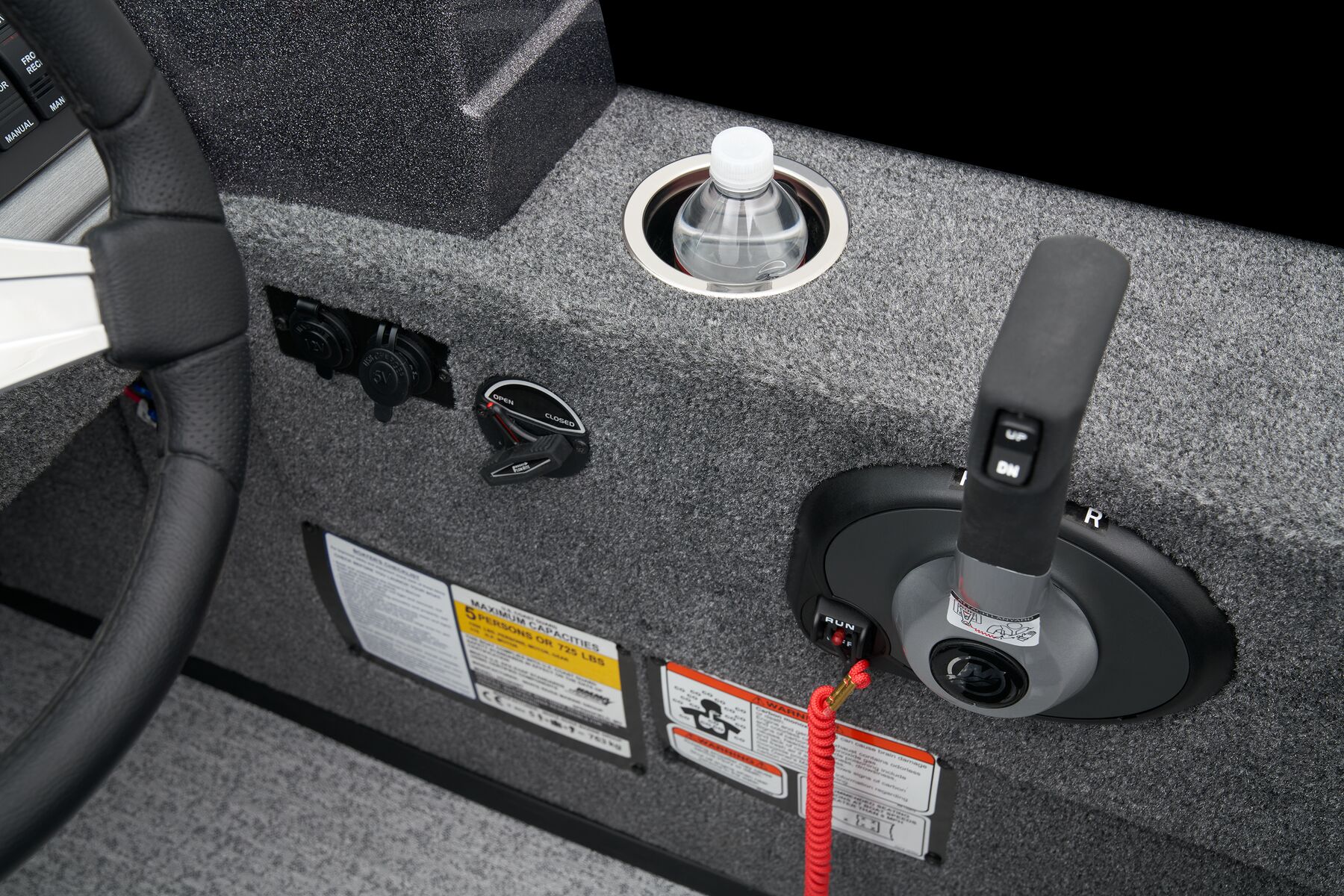

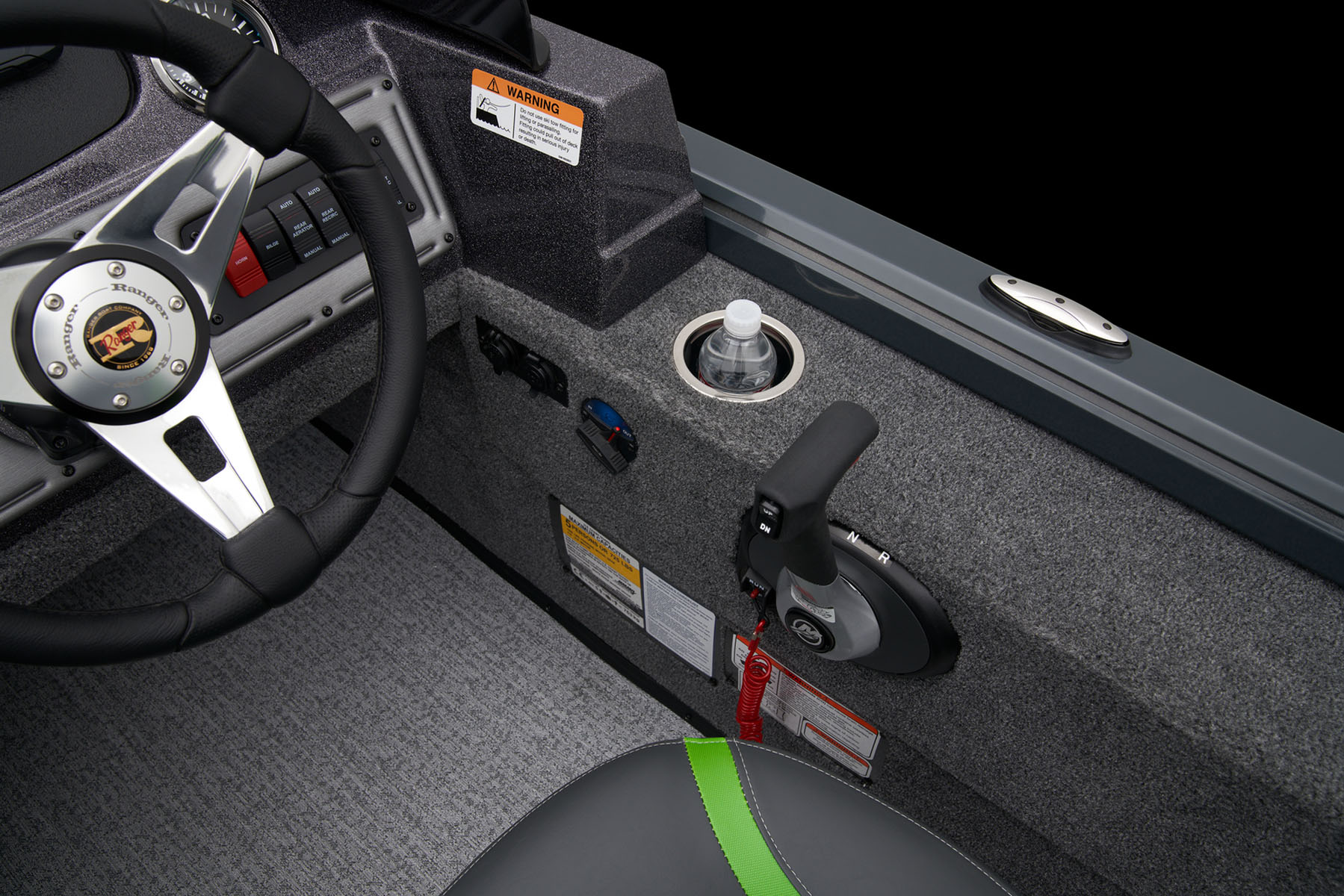

- Flush-mounted remote throttle control

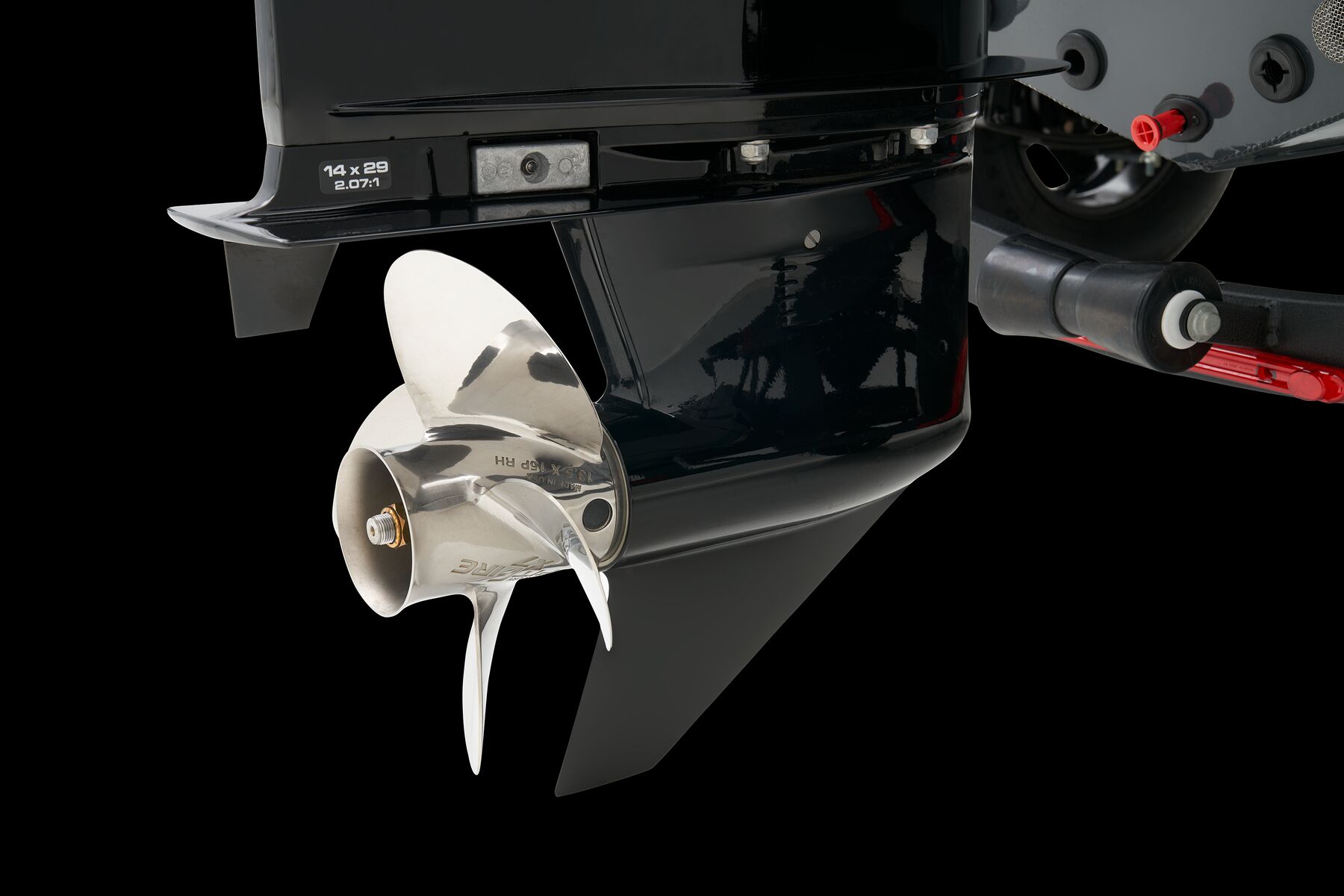

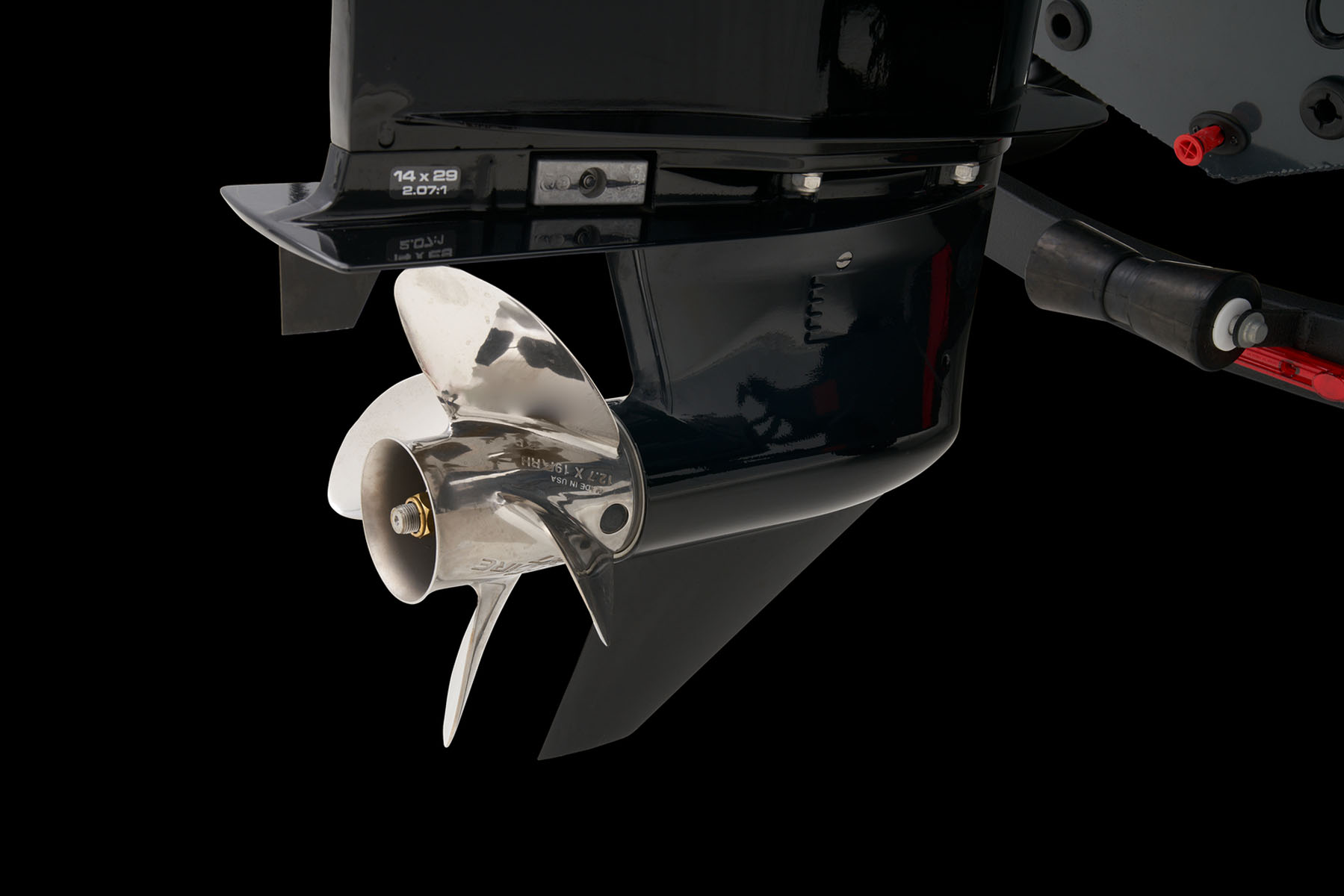

- Prop (stainless standard at 115HP and up)
- Power trim

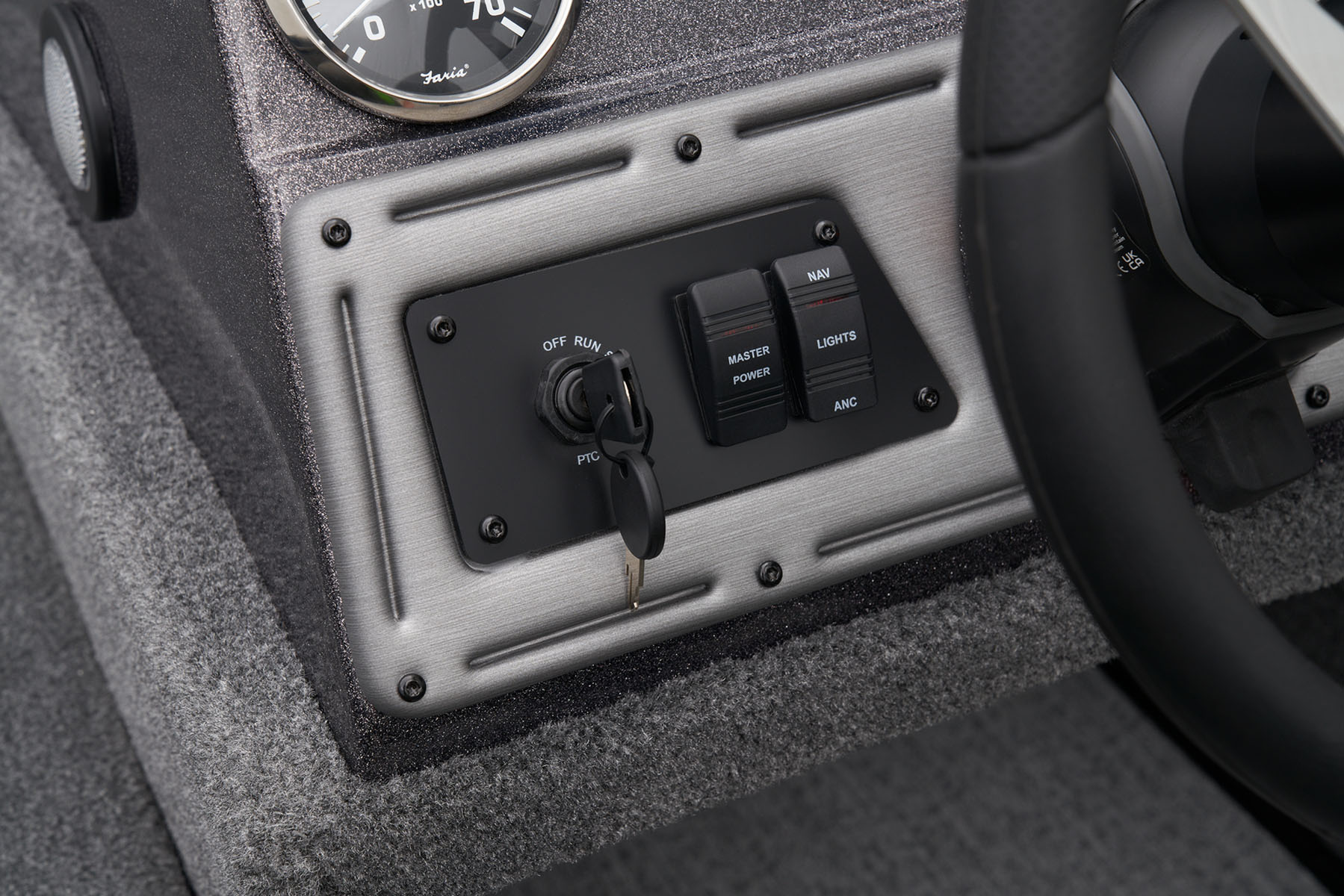

- Bow trim & navigation switches

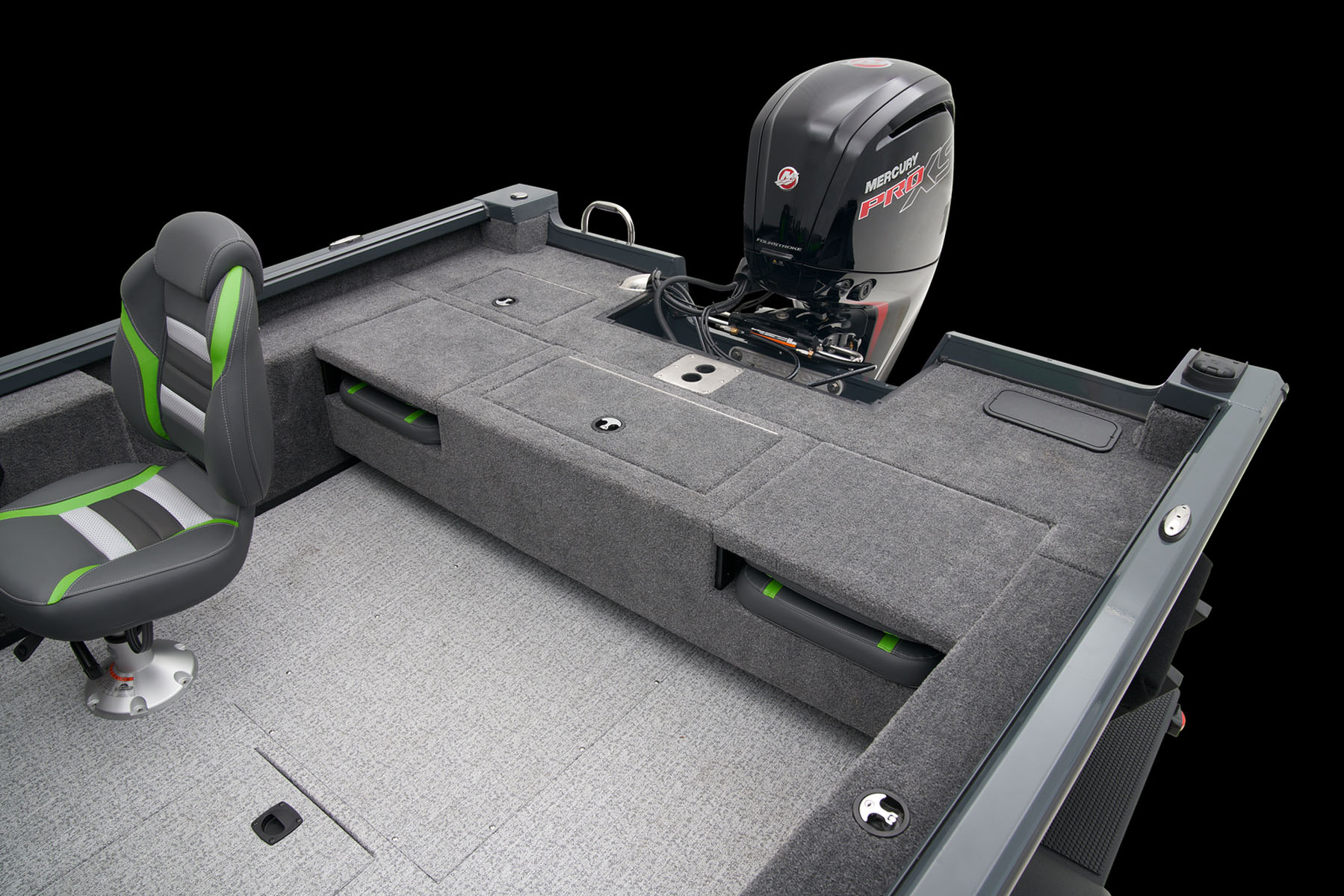

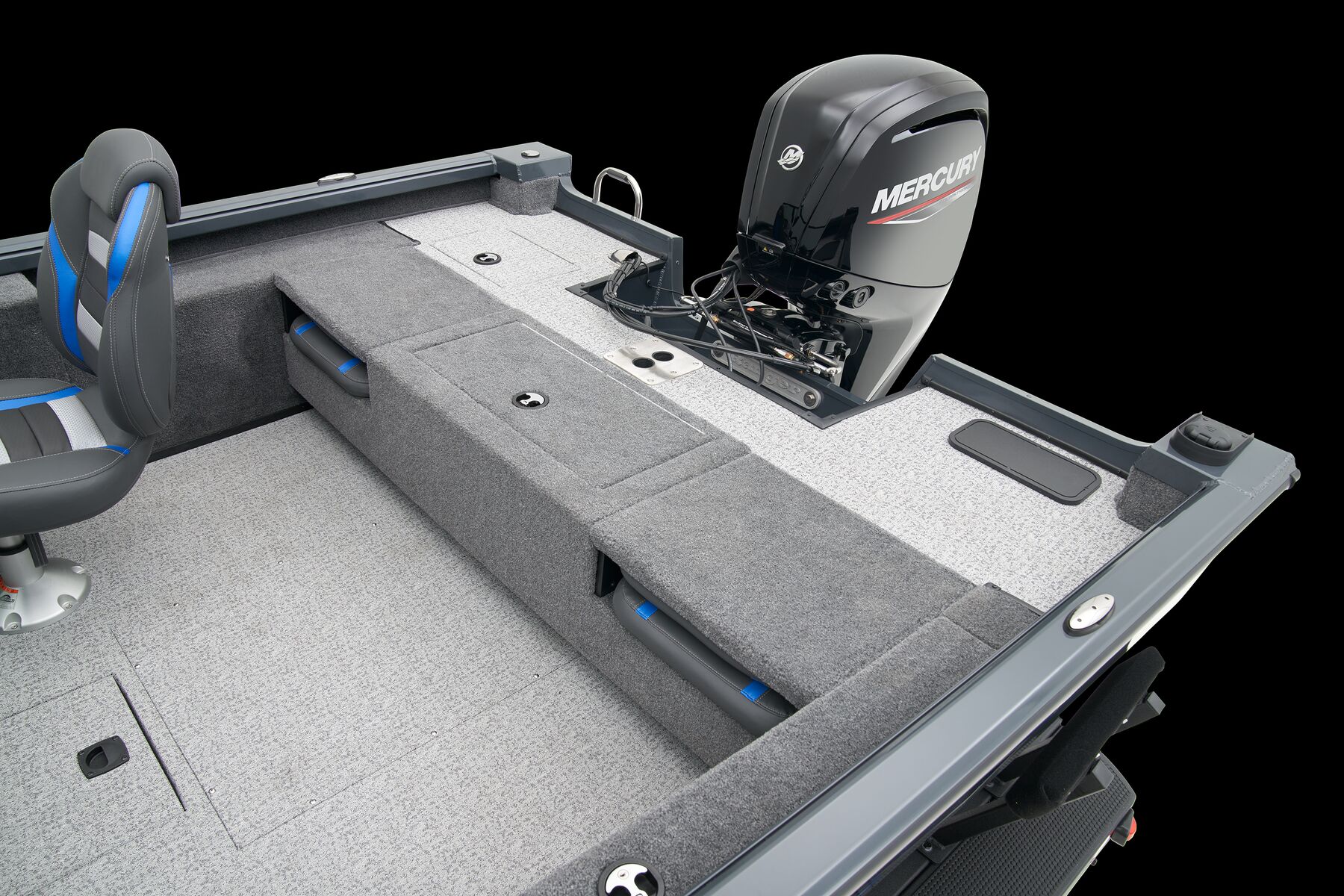

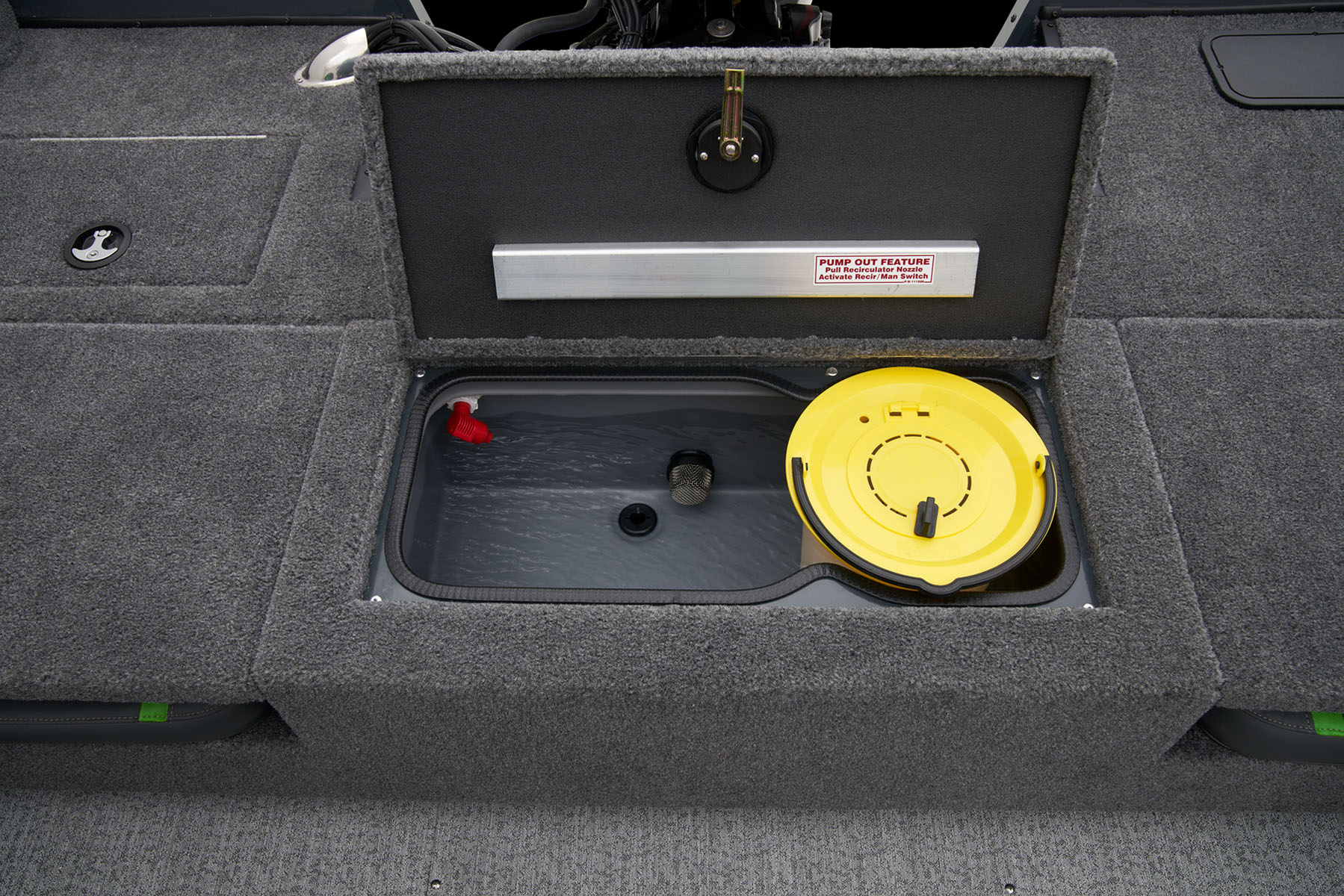

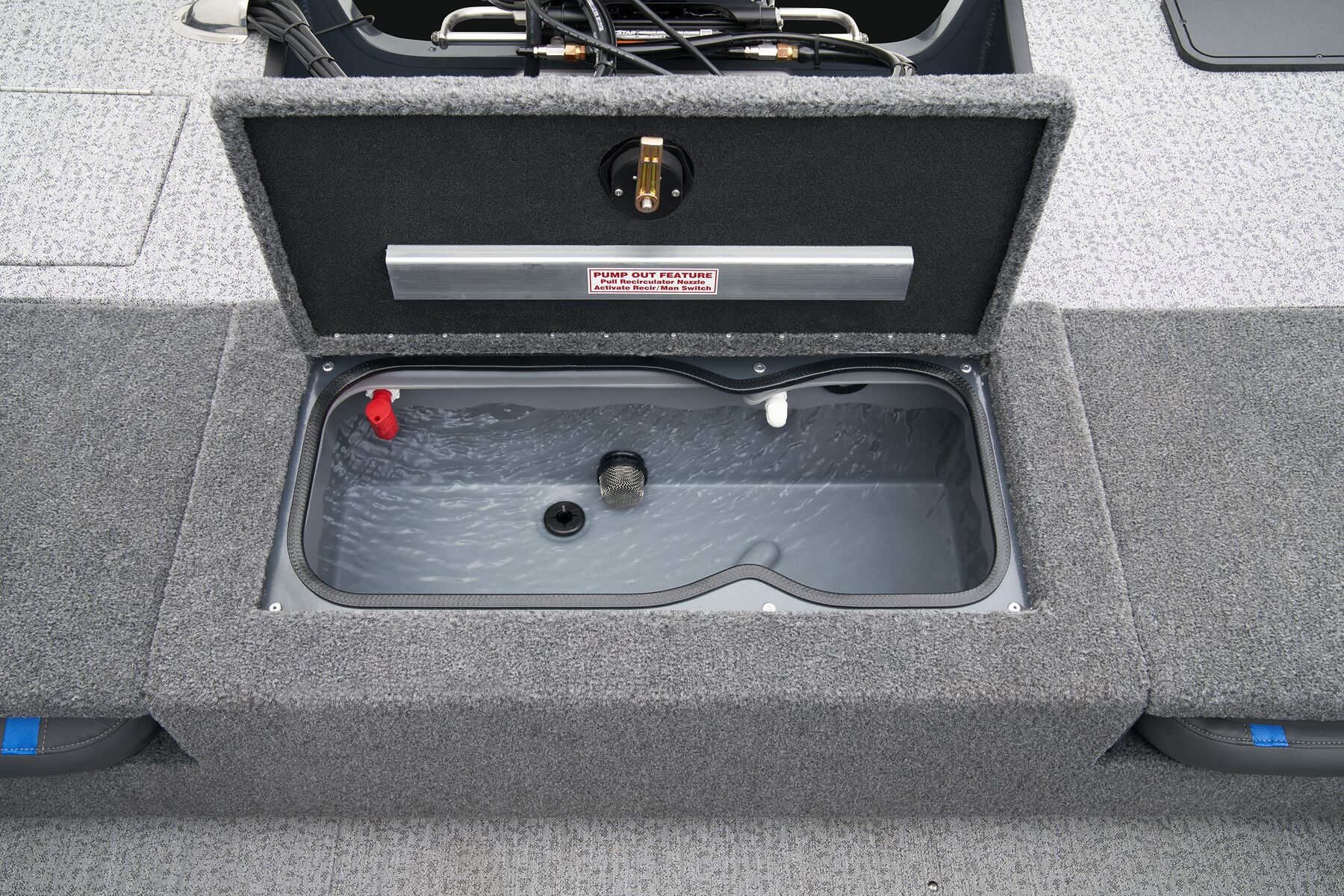

- Aerated divided livewell w/ timer and baitwell on rear deck
- Aerated livewell / baitwell on front deck

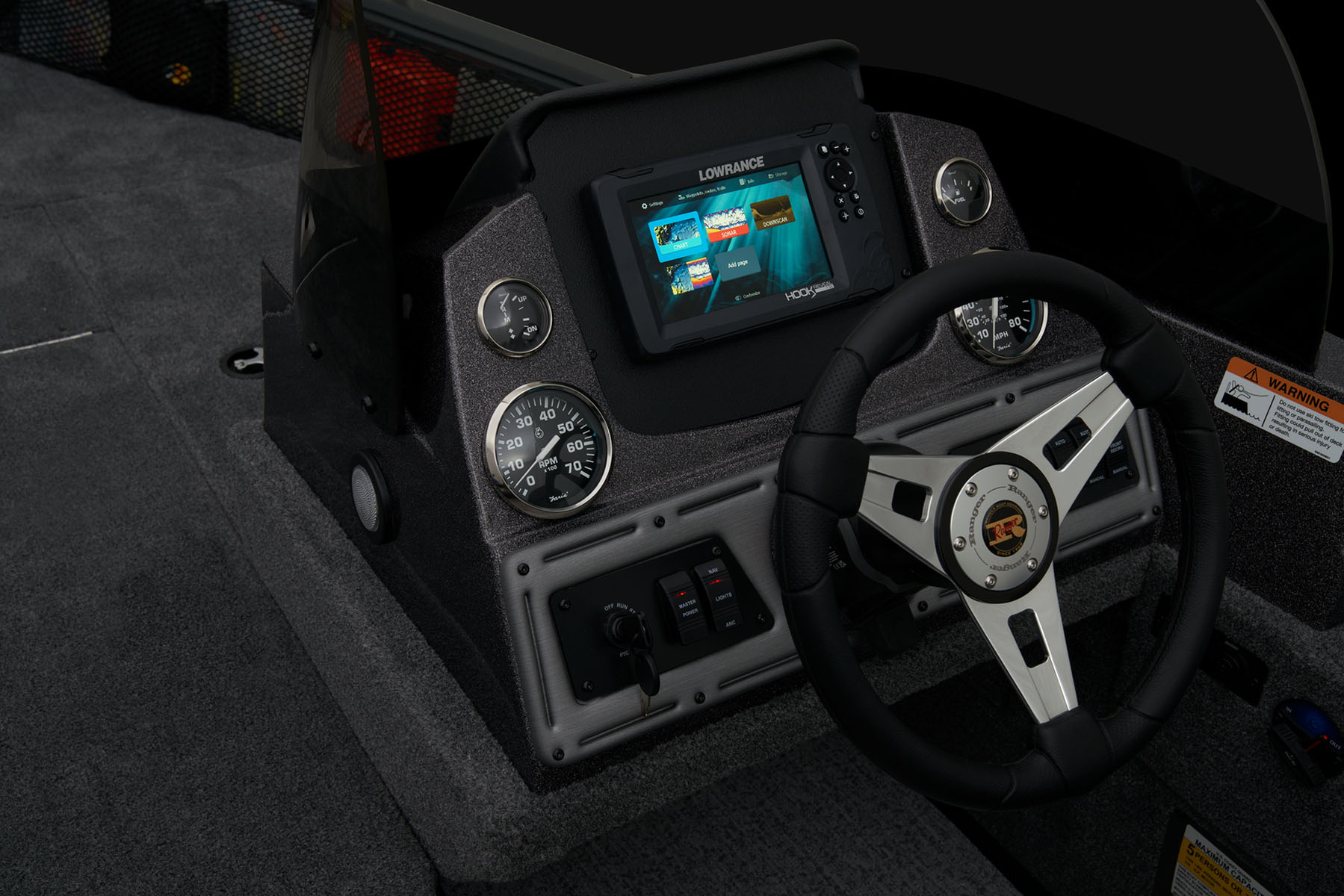

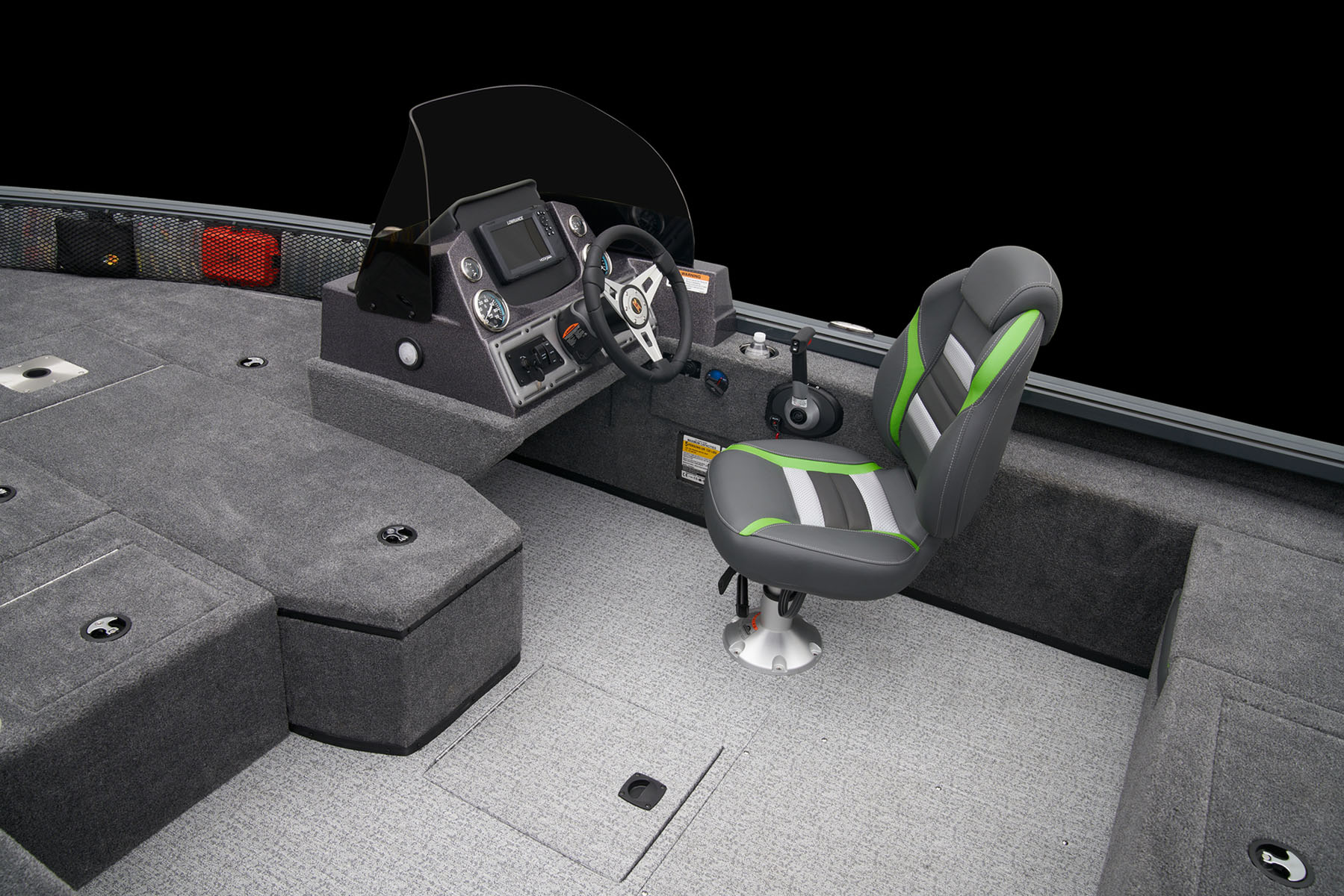

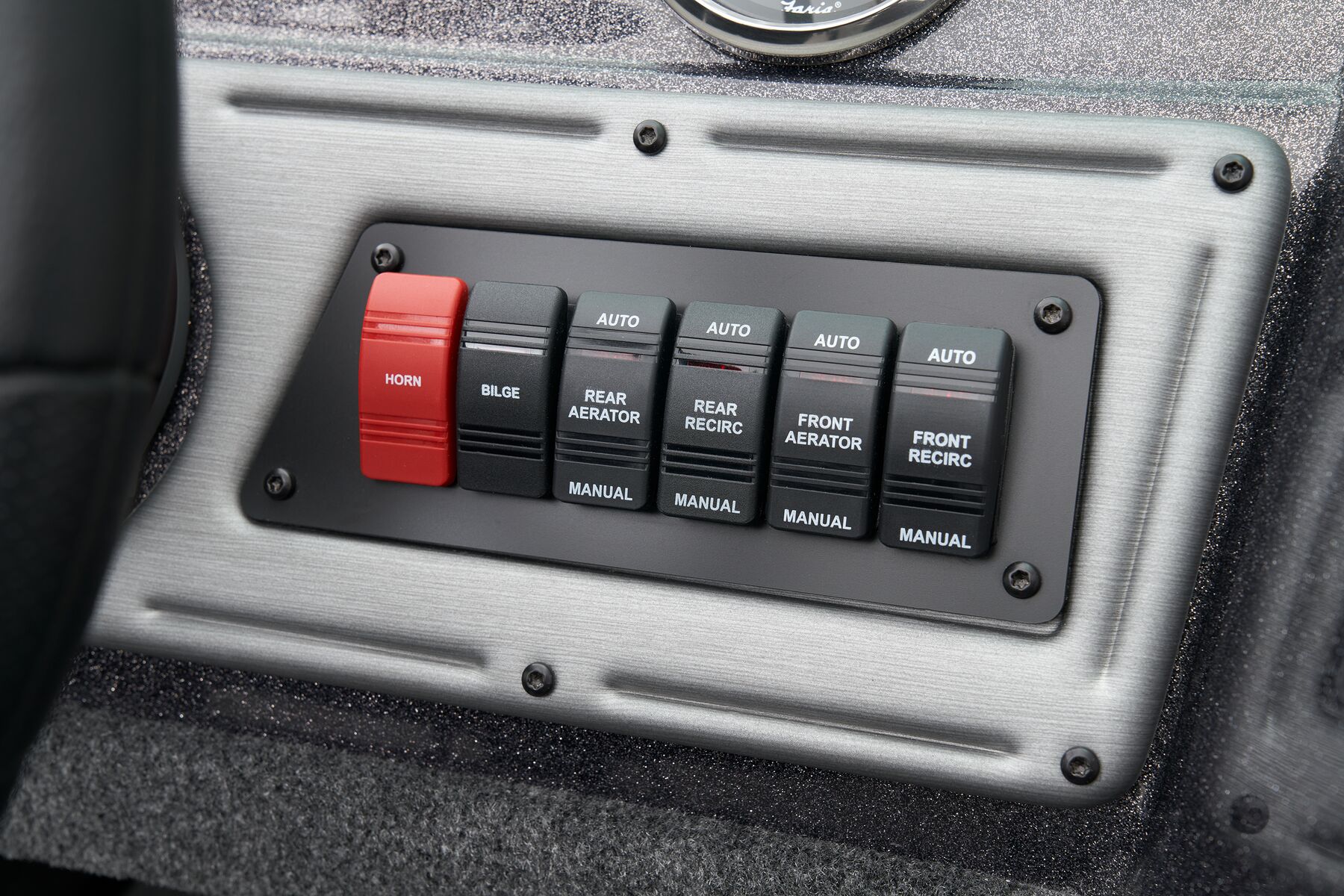

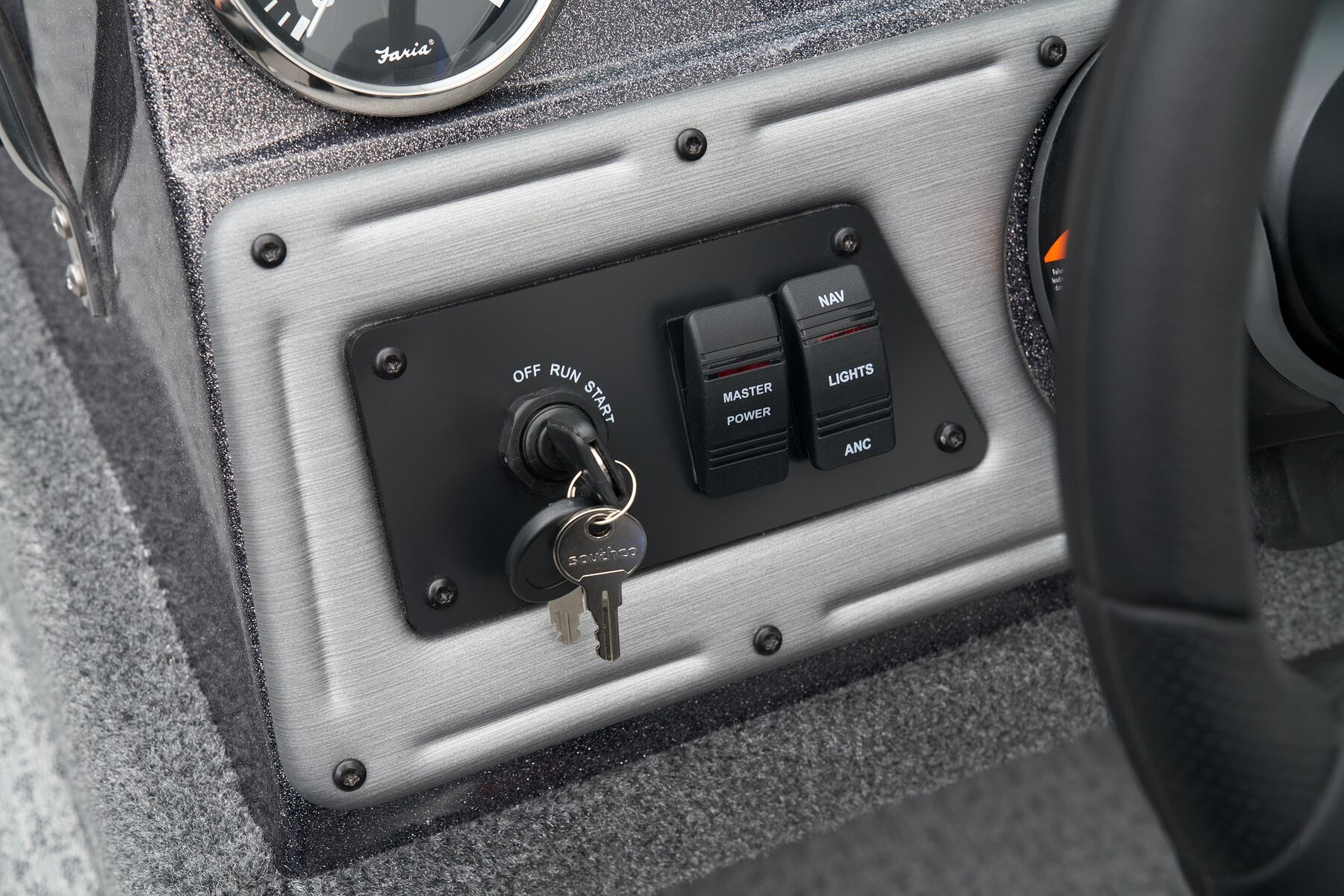

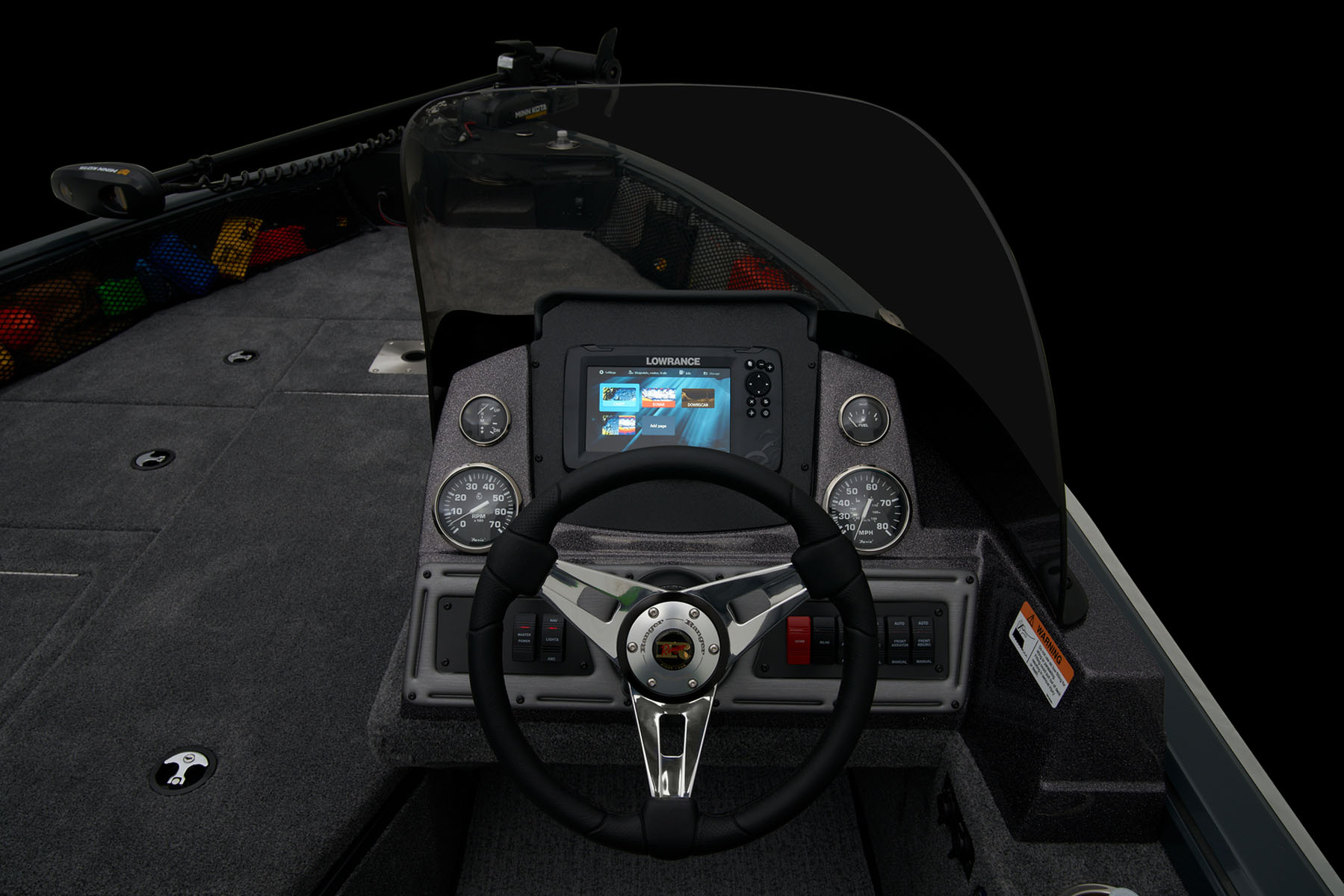

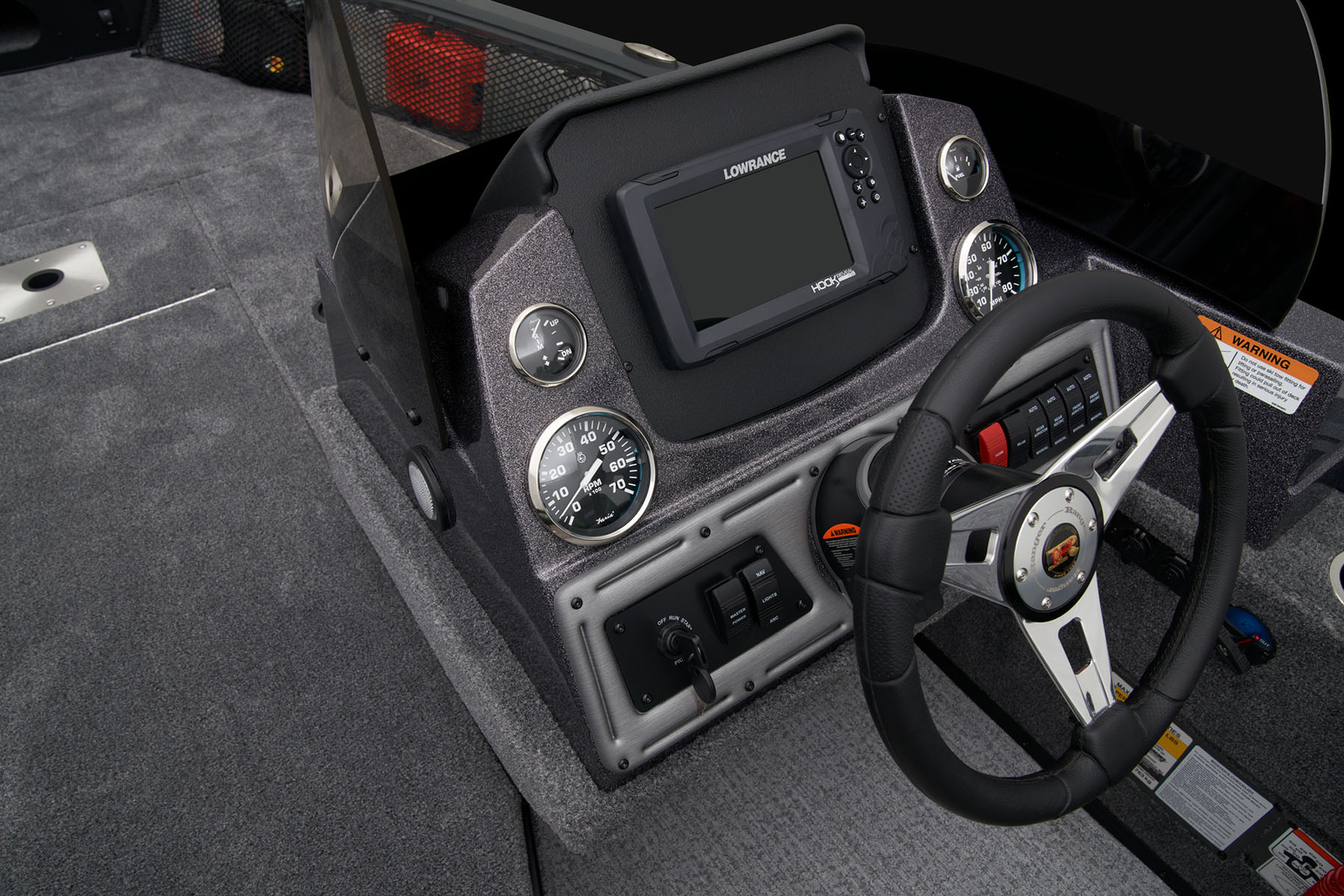

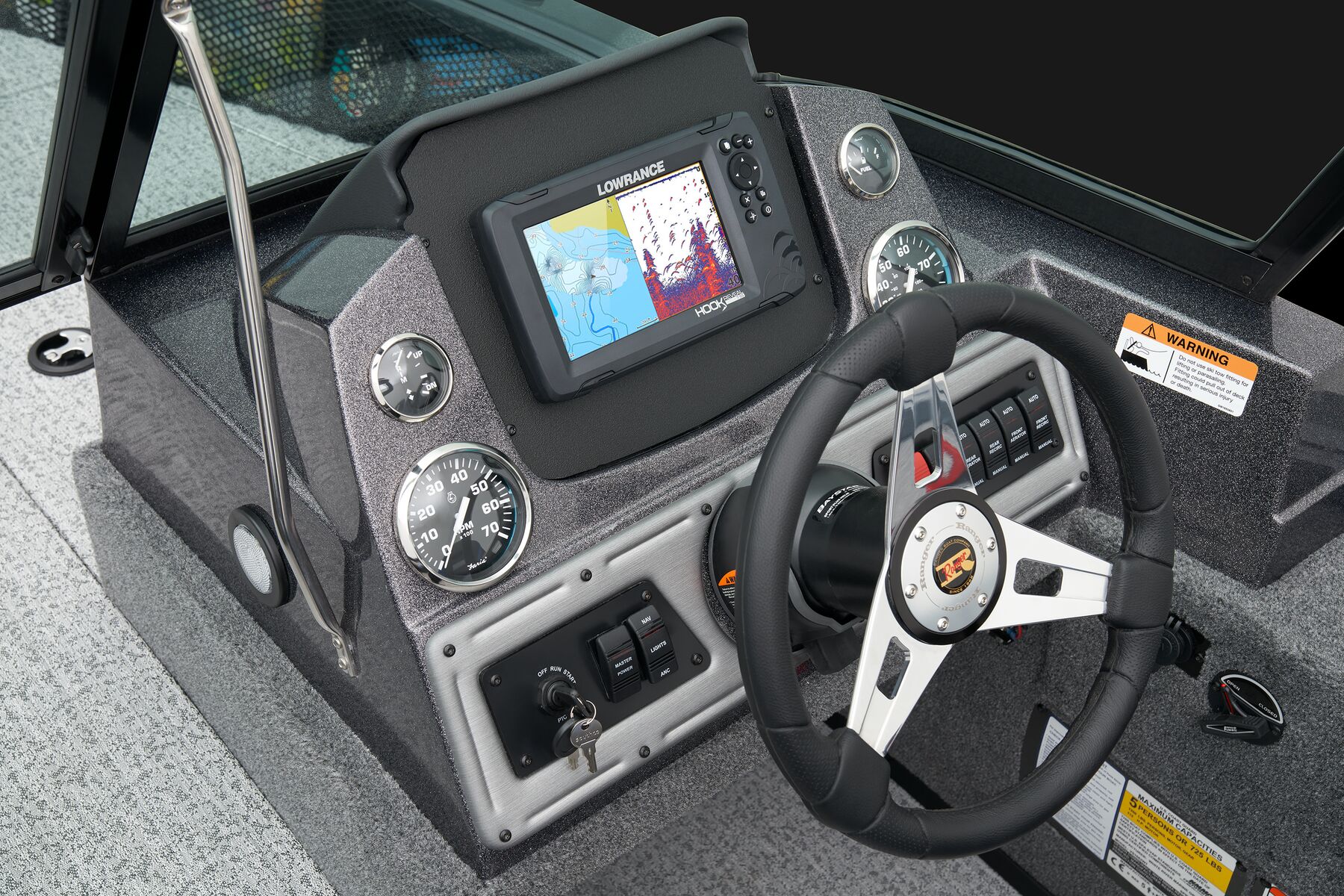

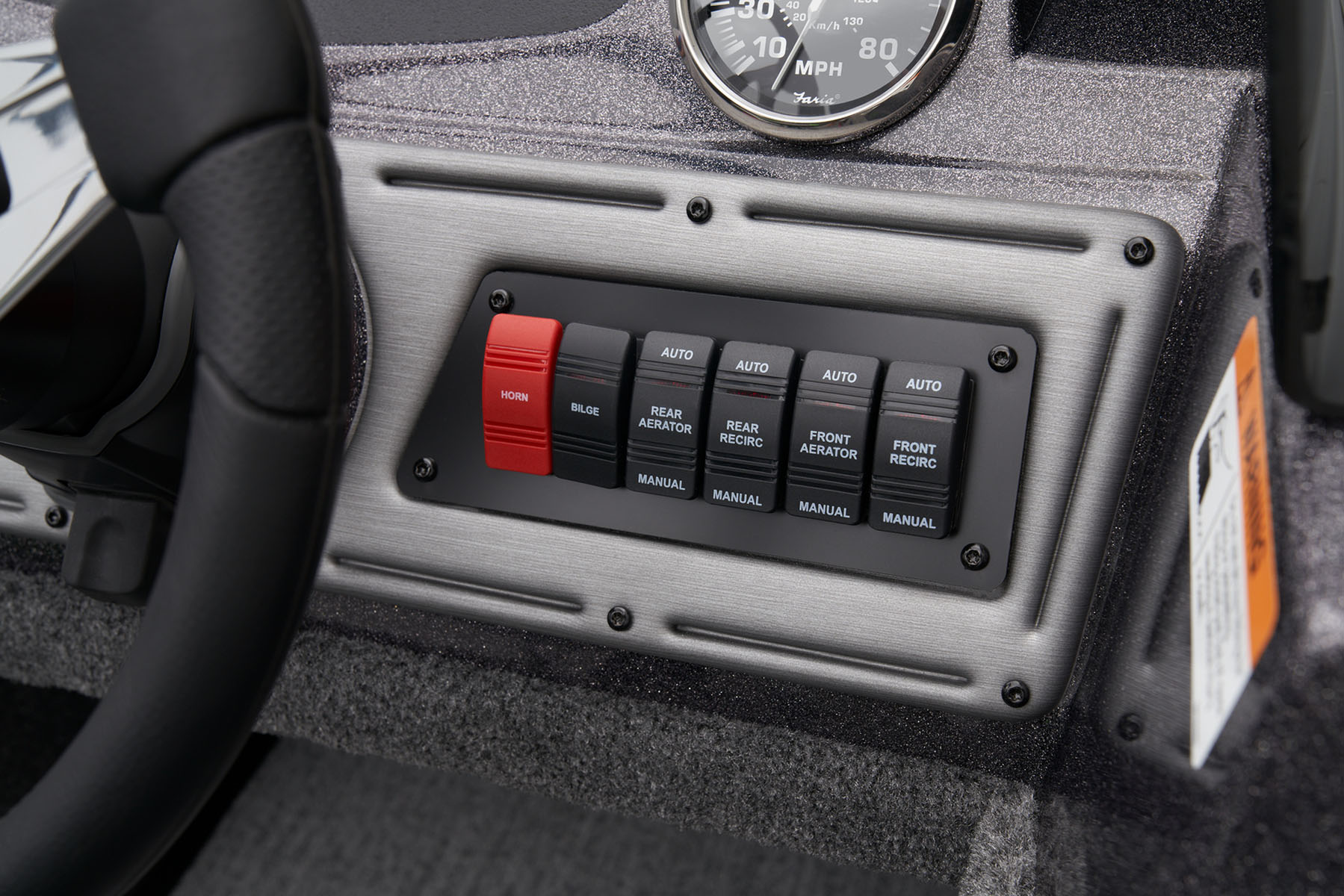

- Custom fiberglass console w/ flush mounted depthfinder, tach, speed, fuel, trim gauges & easy touch switching
Safety/Comfort

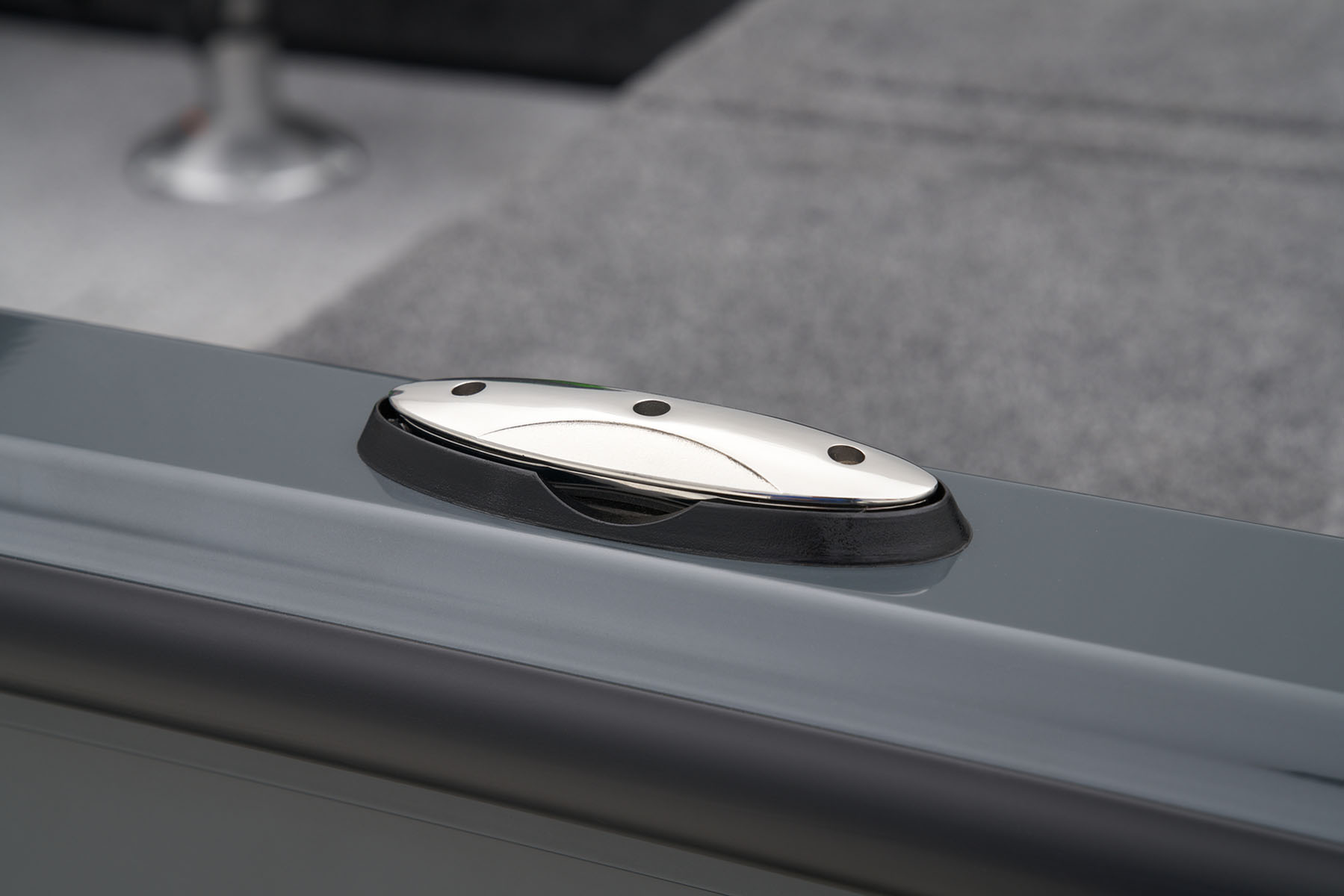

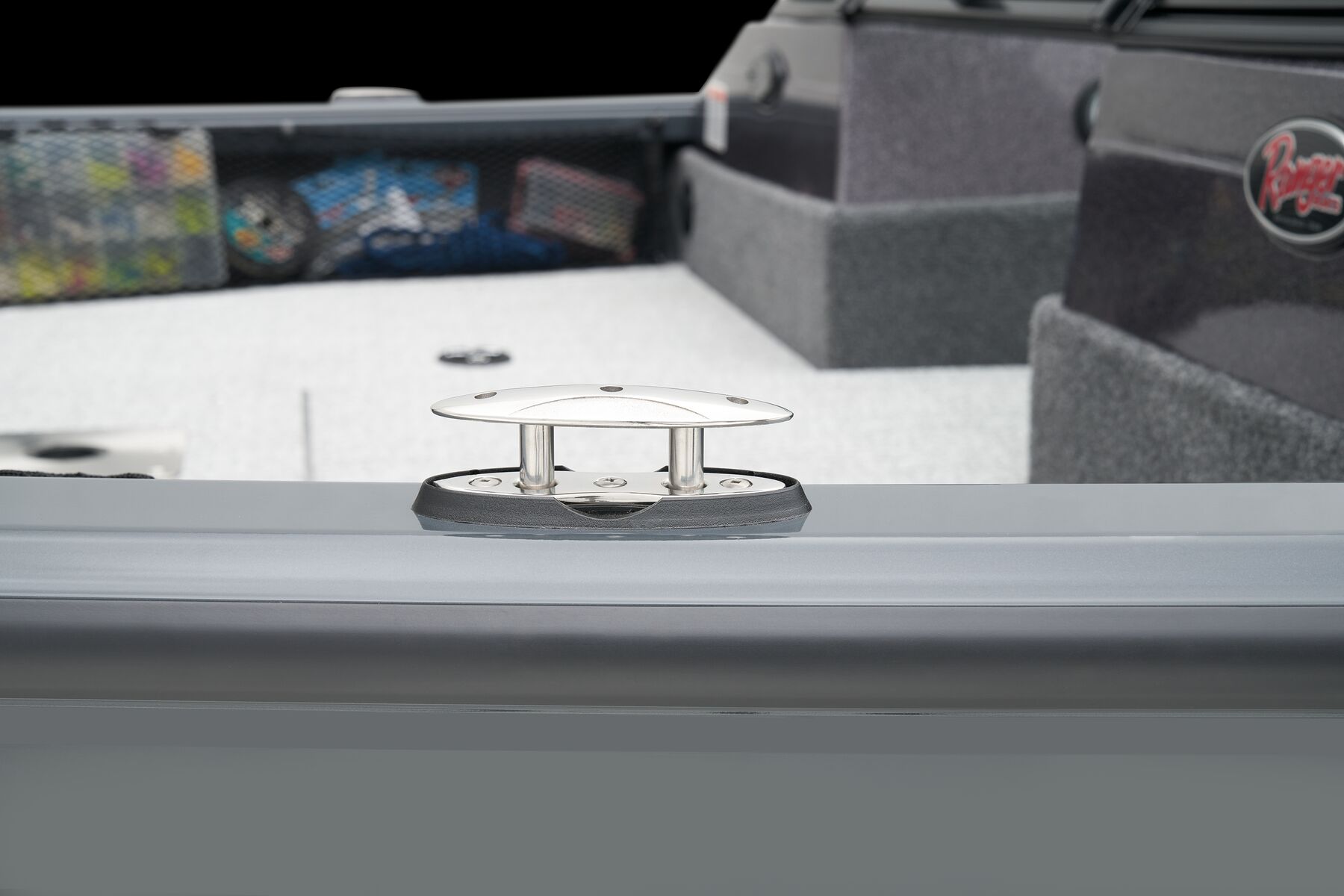

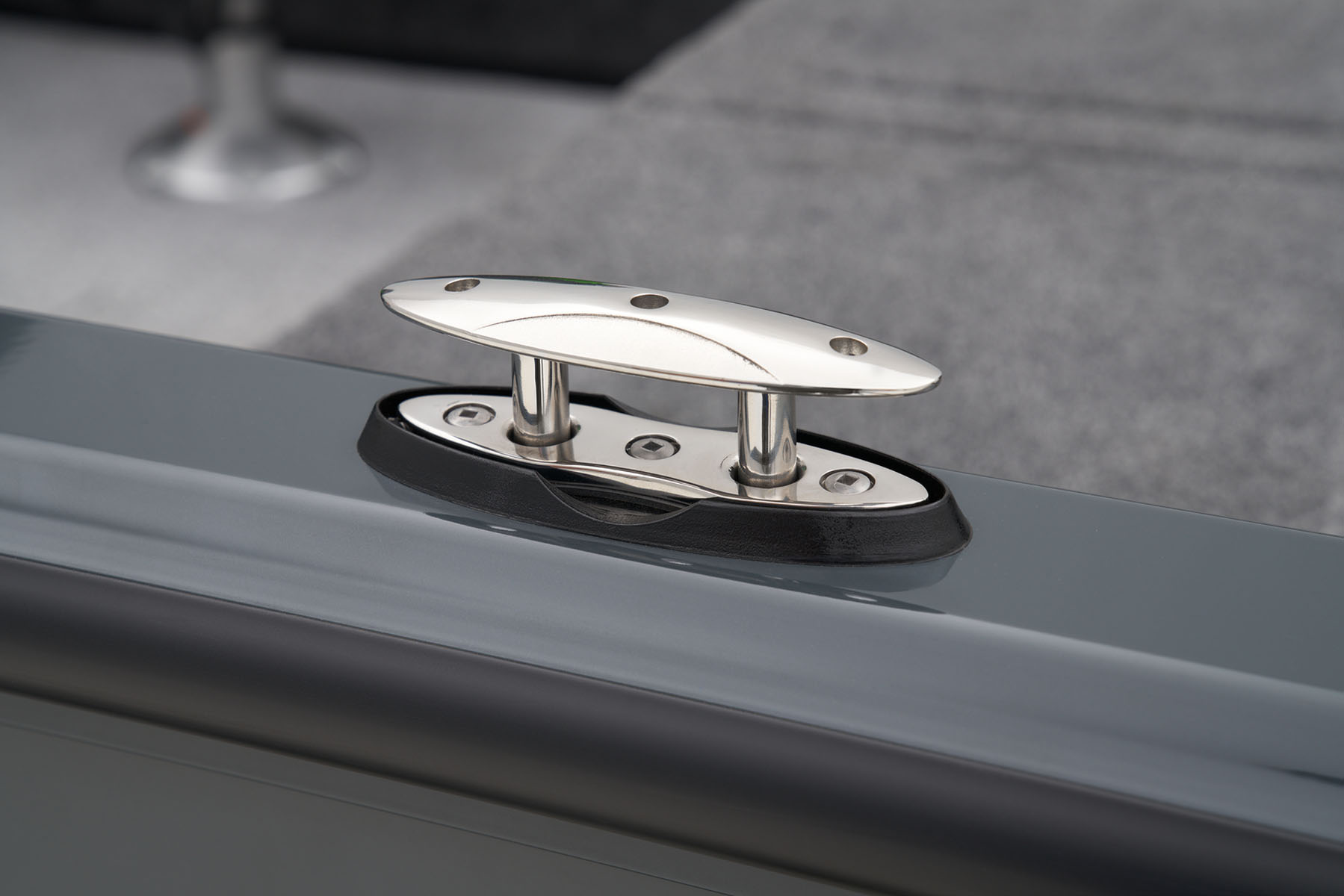

- Pull-up tie cleats (4)
- All-aluminum floor & decks

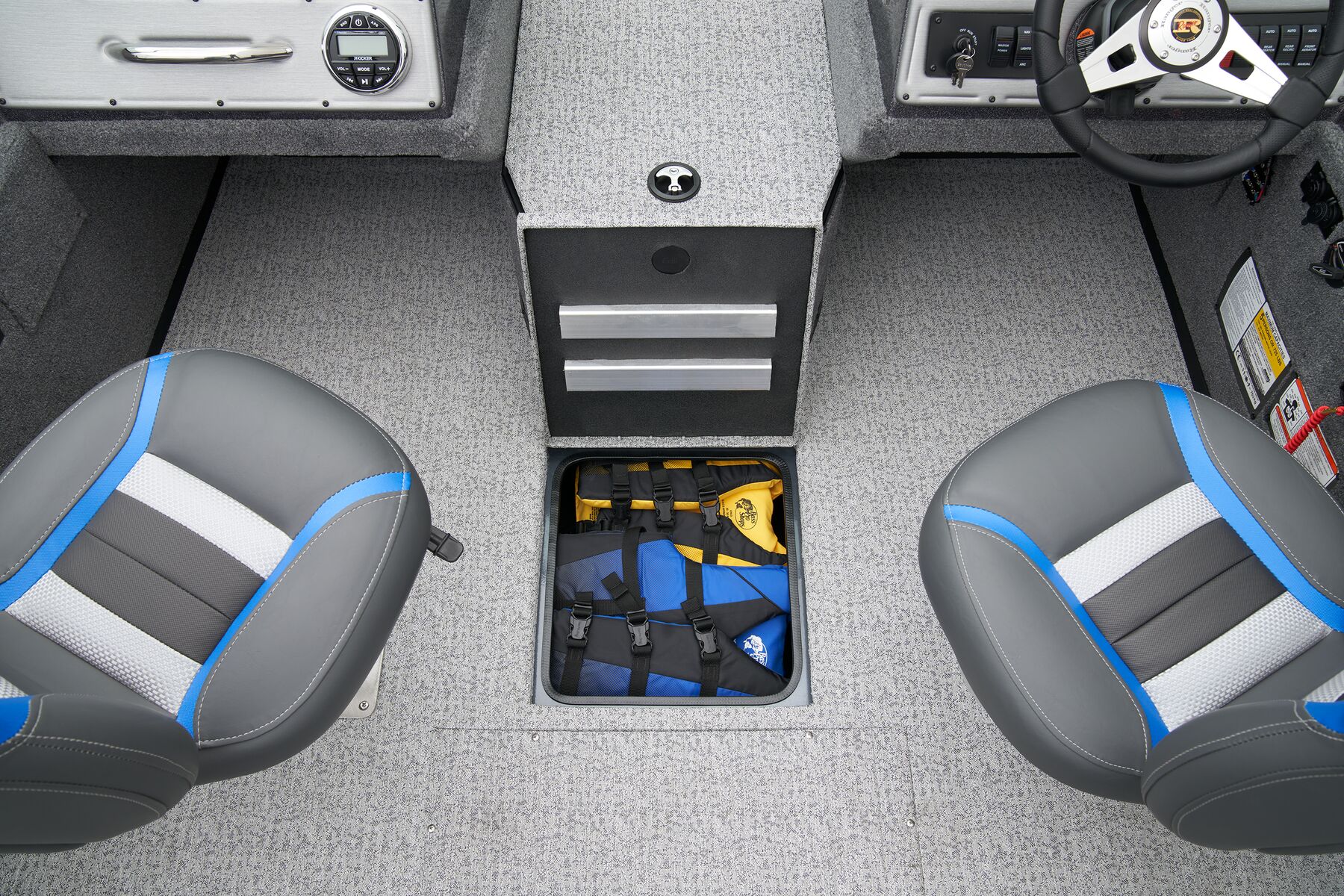

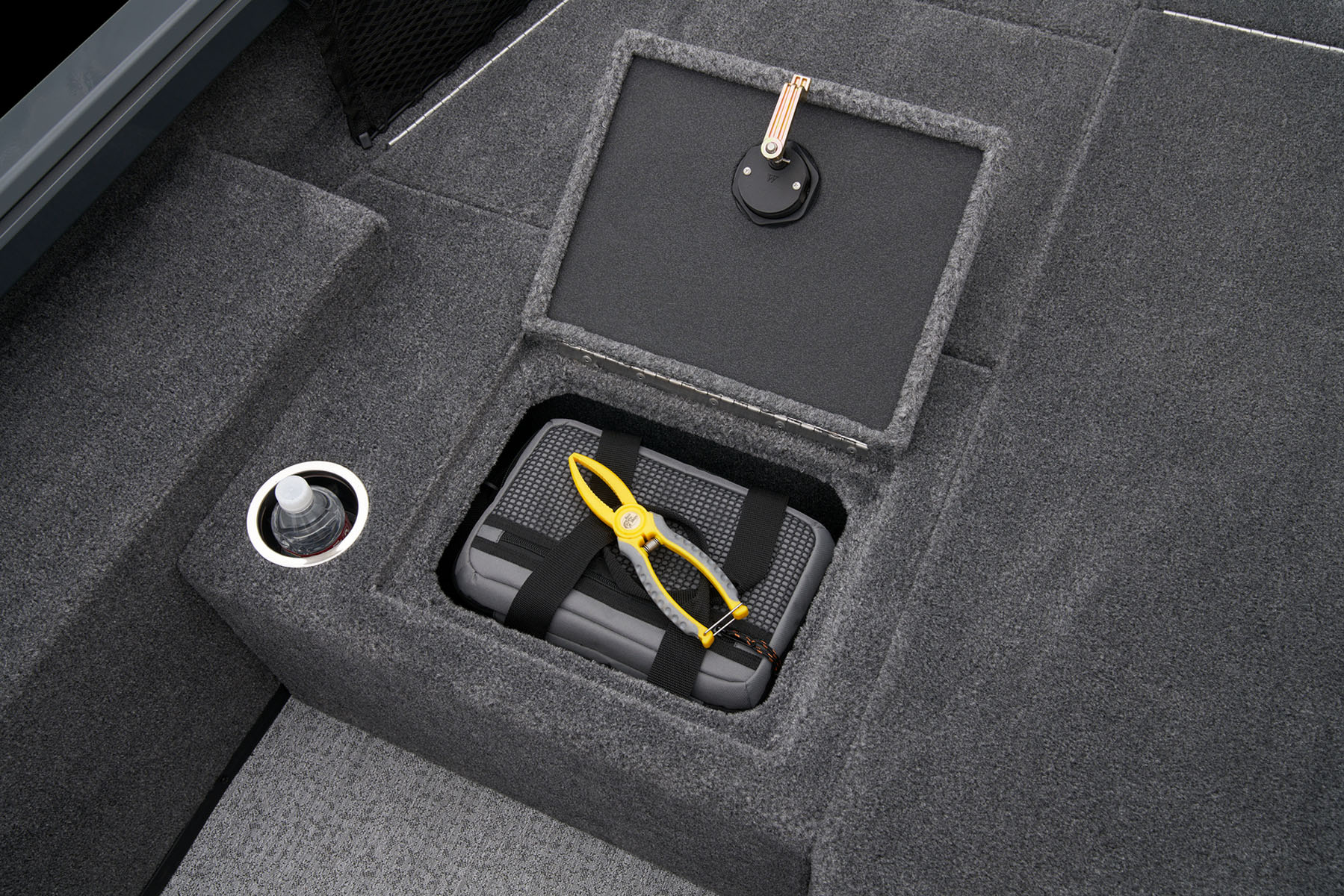

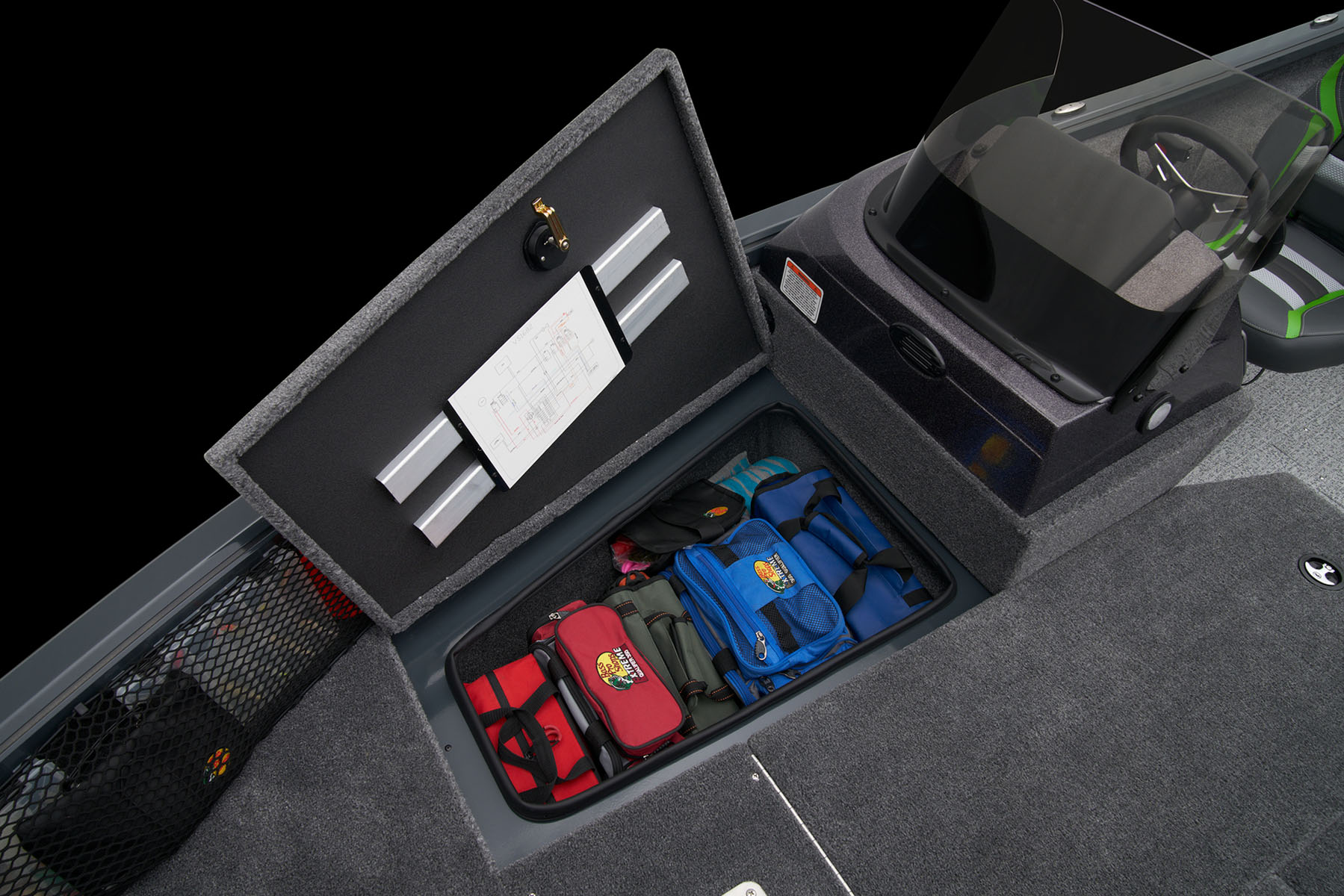

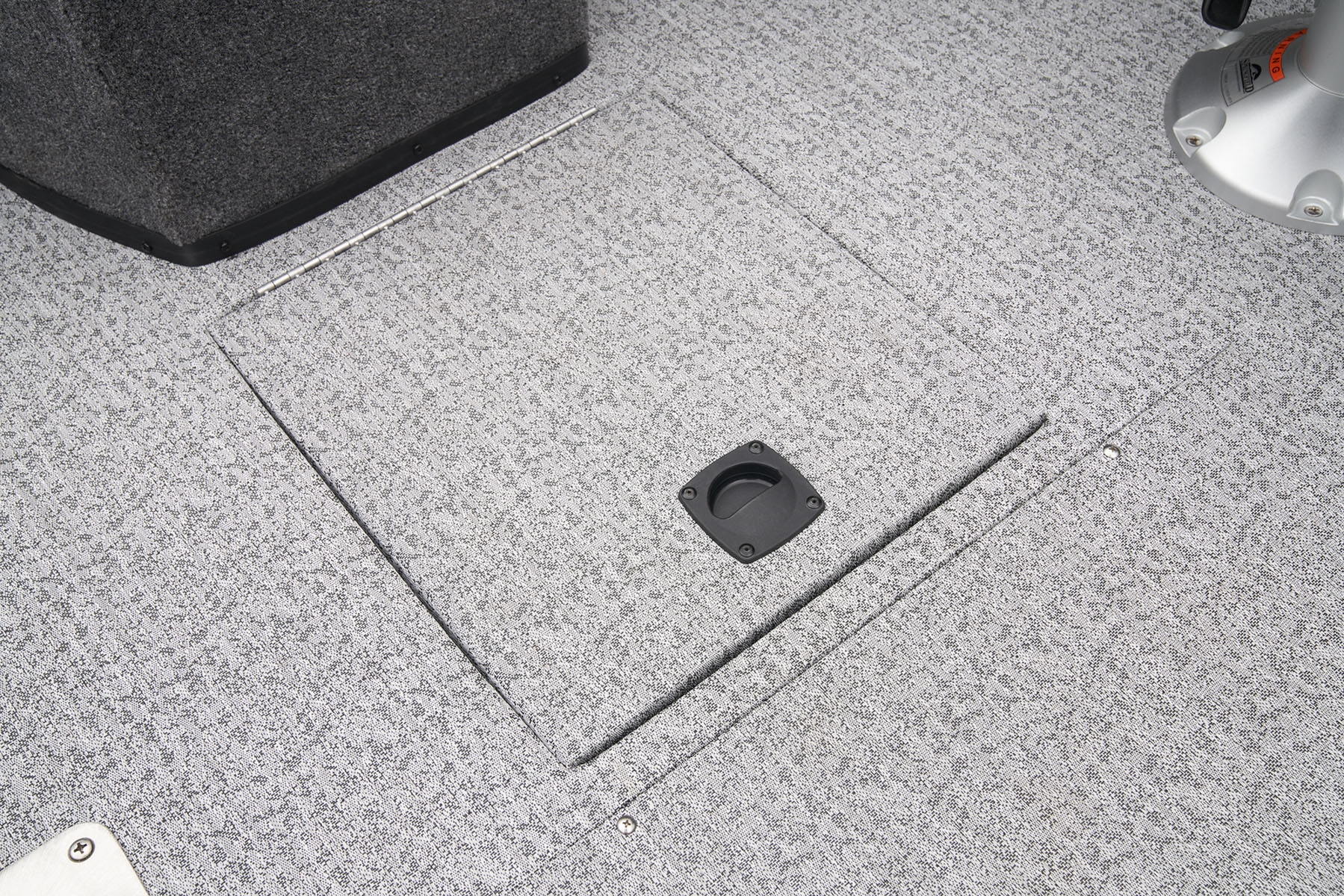

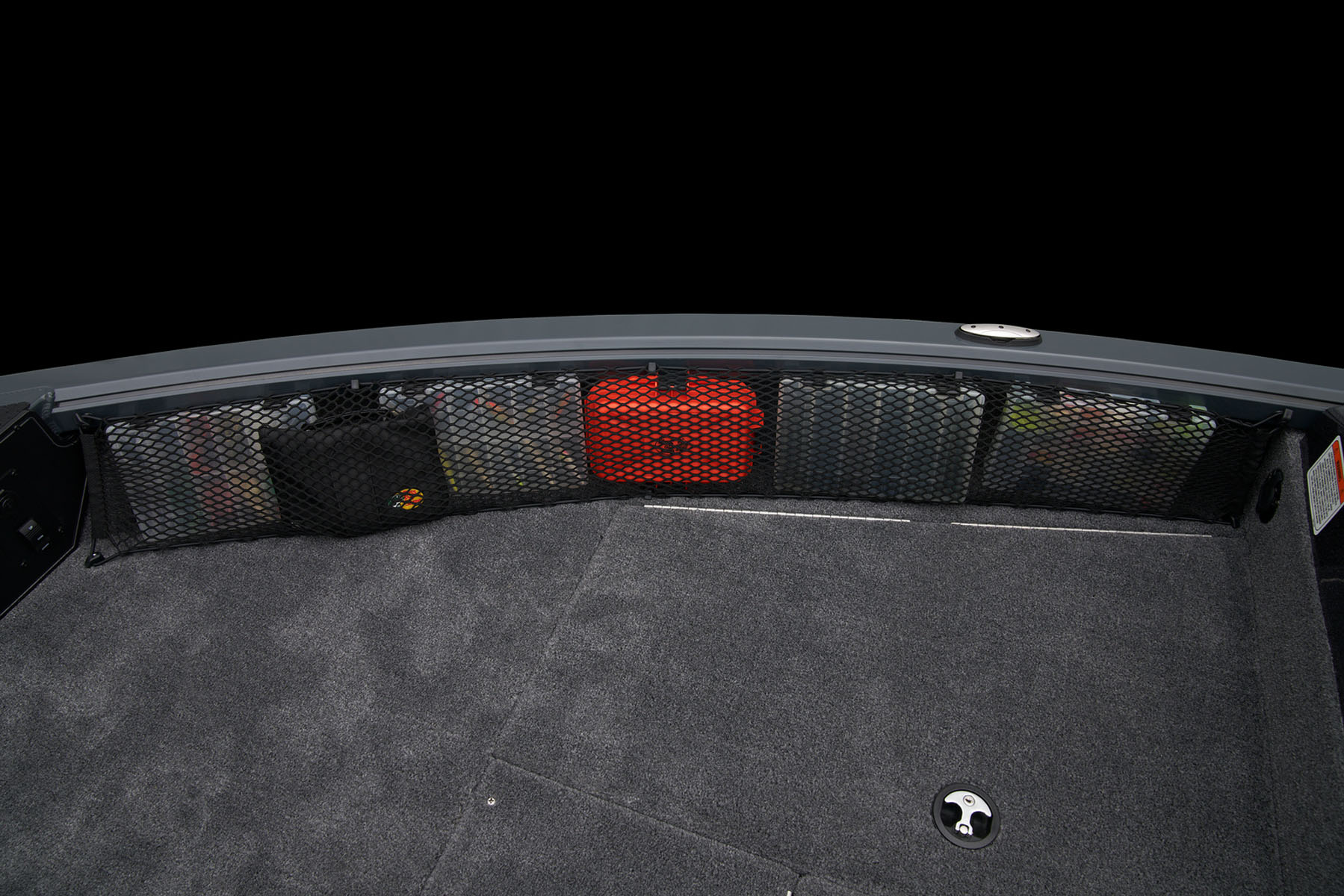

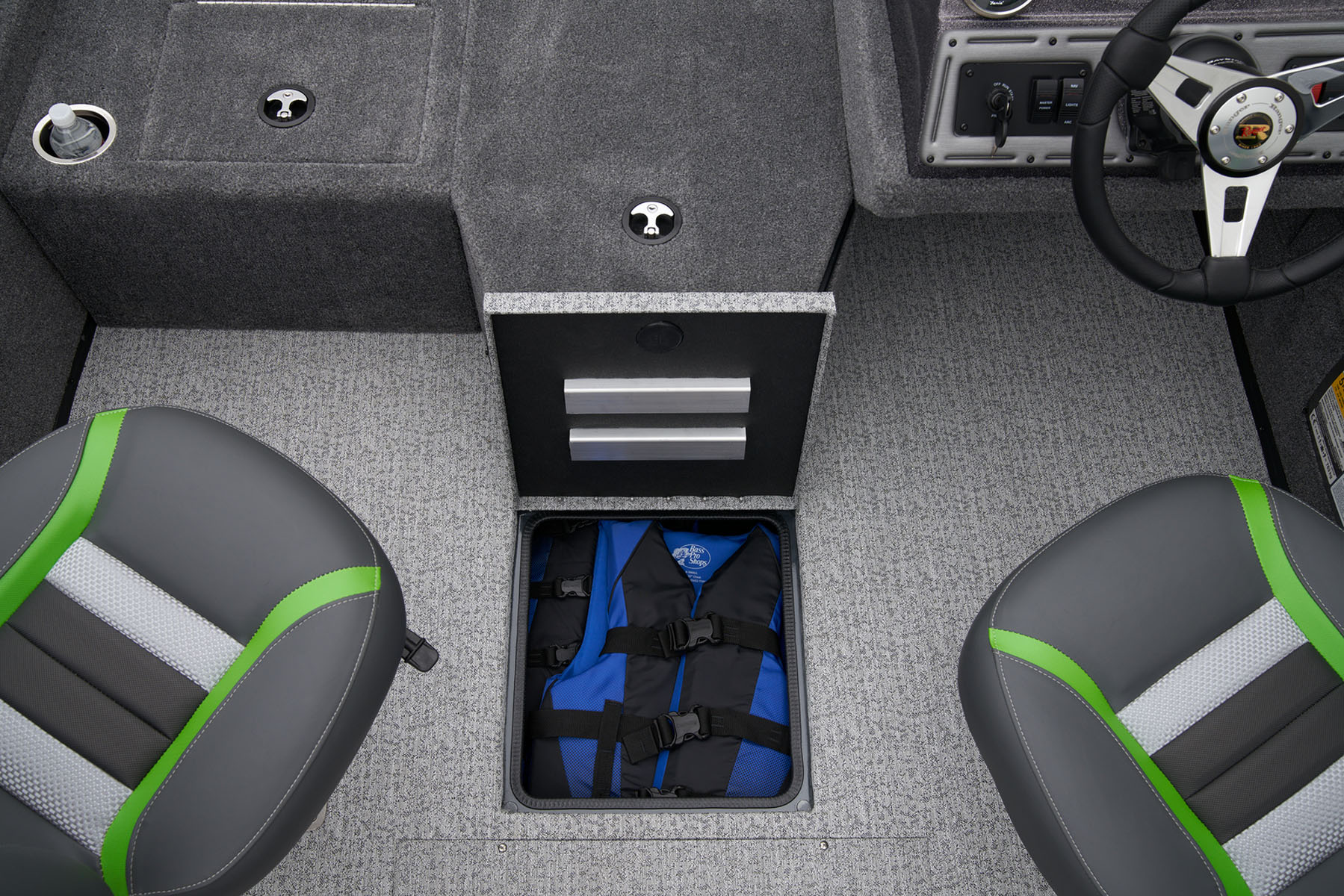

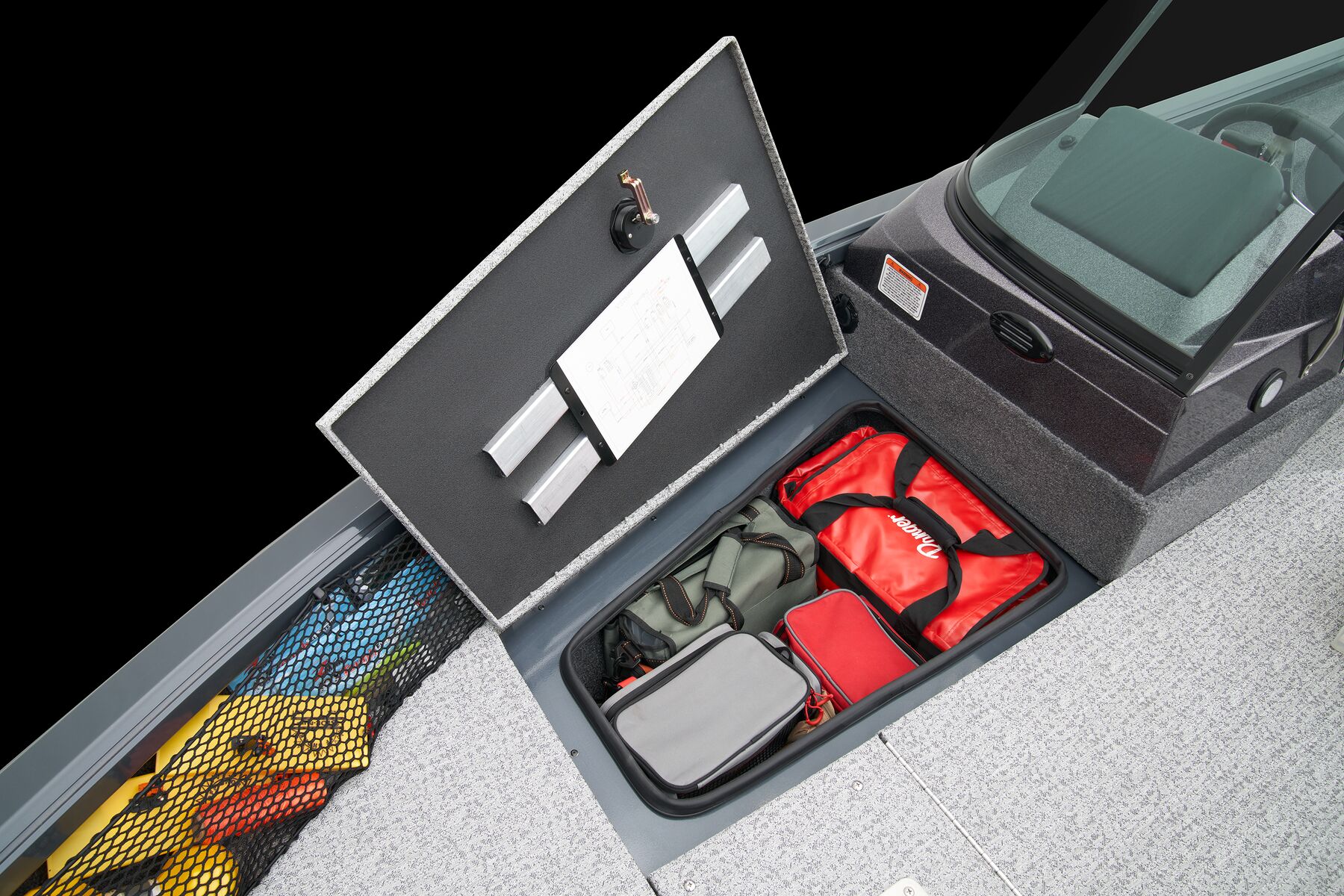

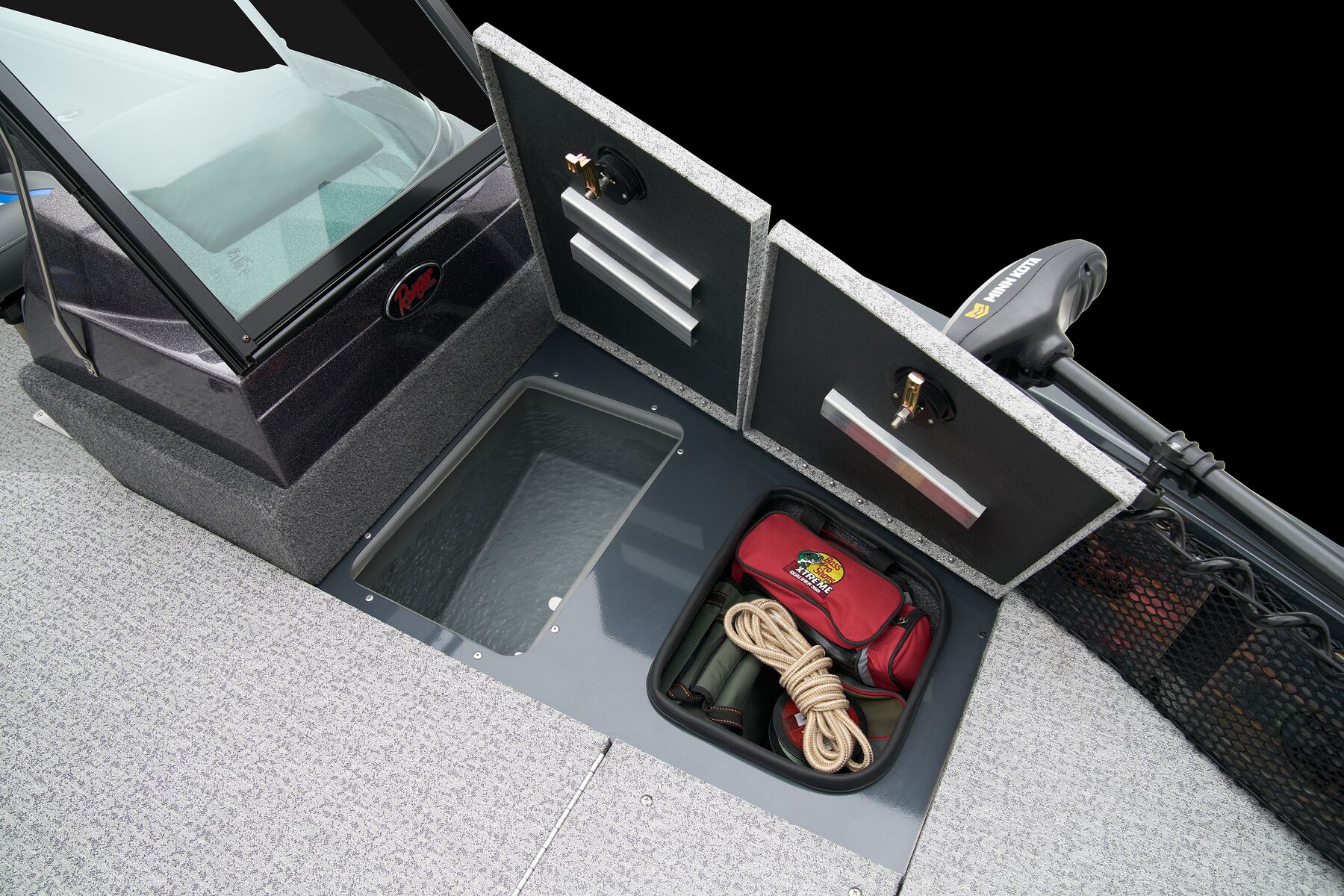

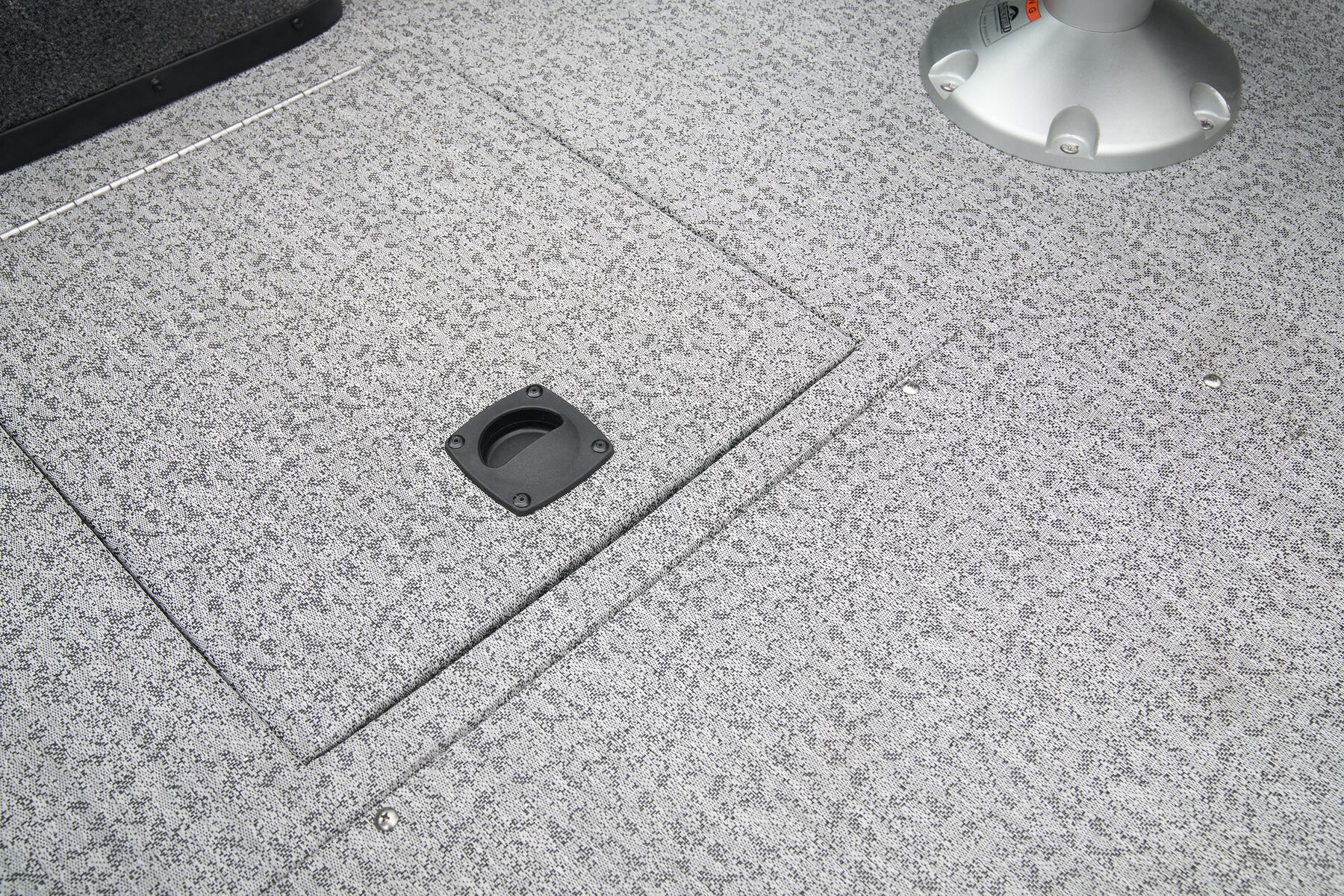

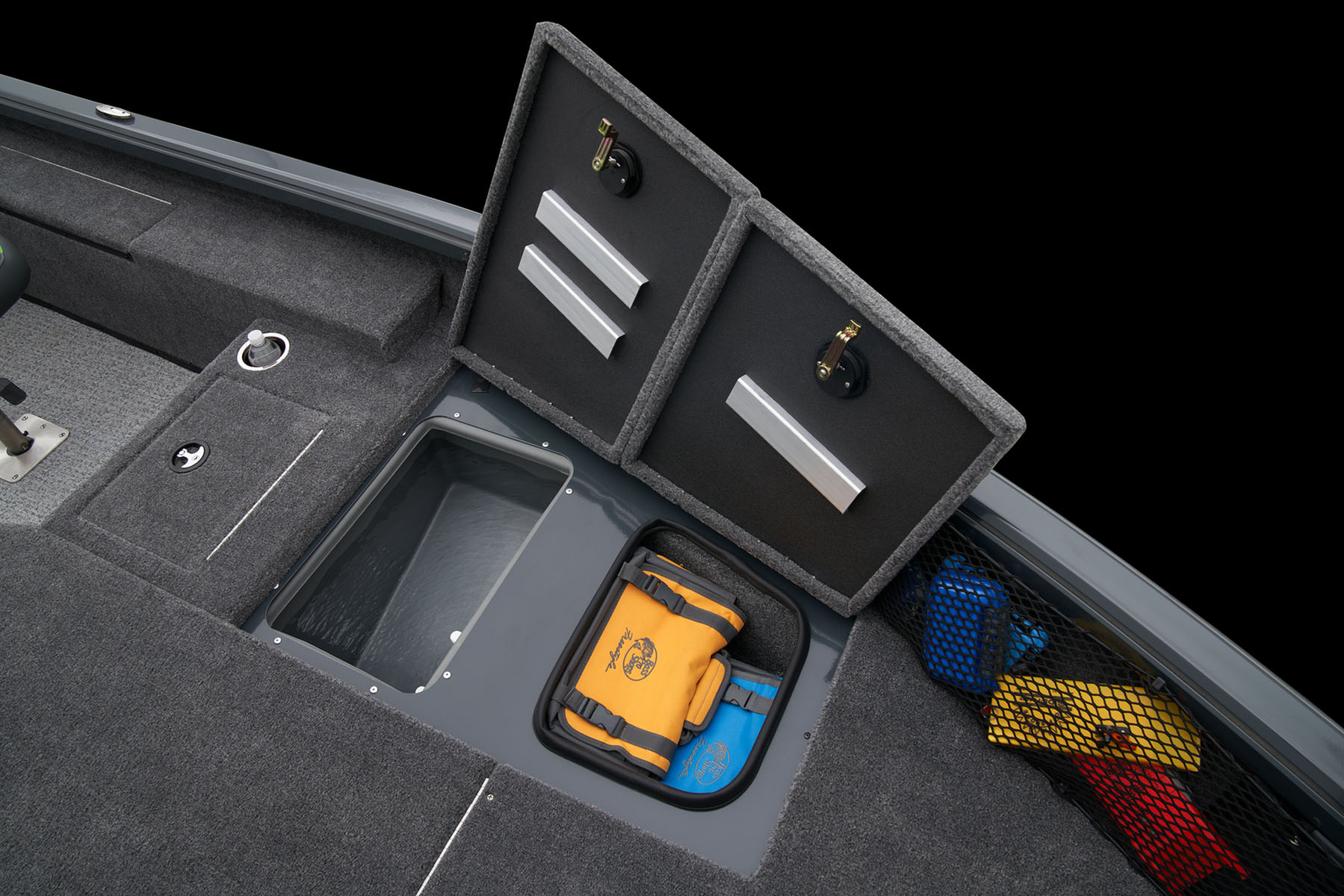

- Lockable storage
- Upright, level flotation

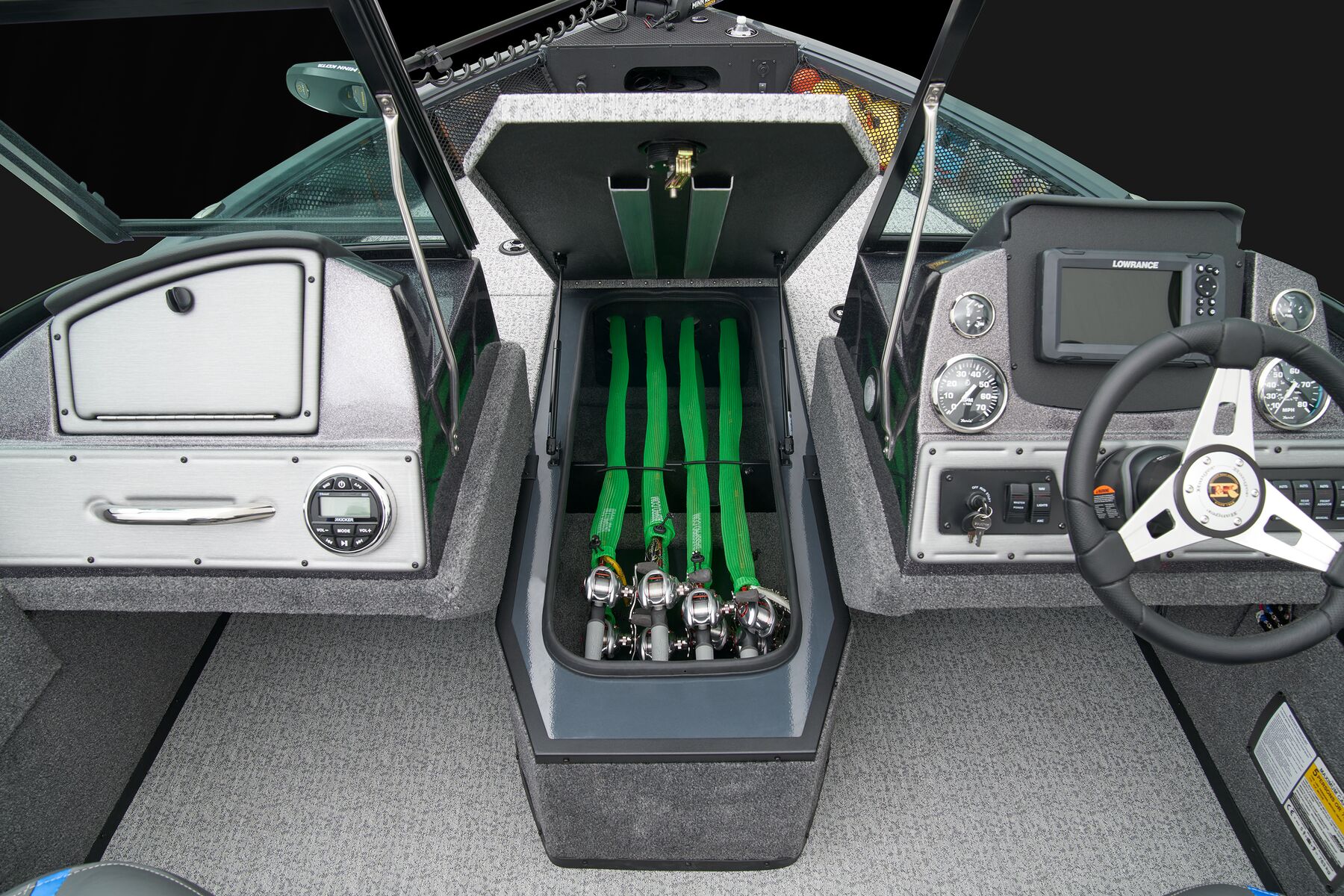

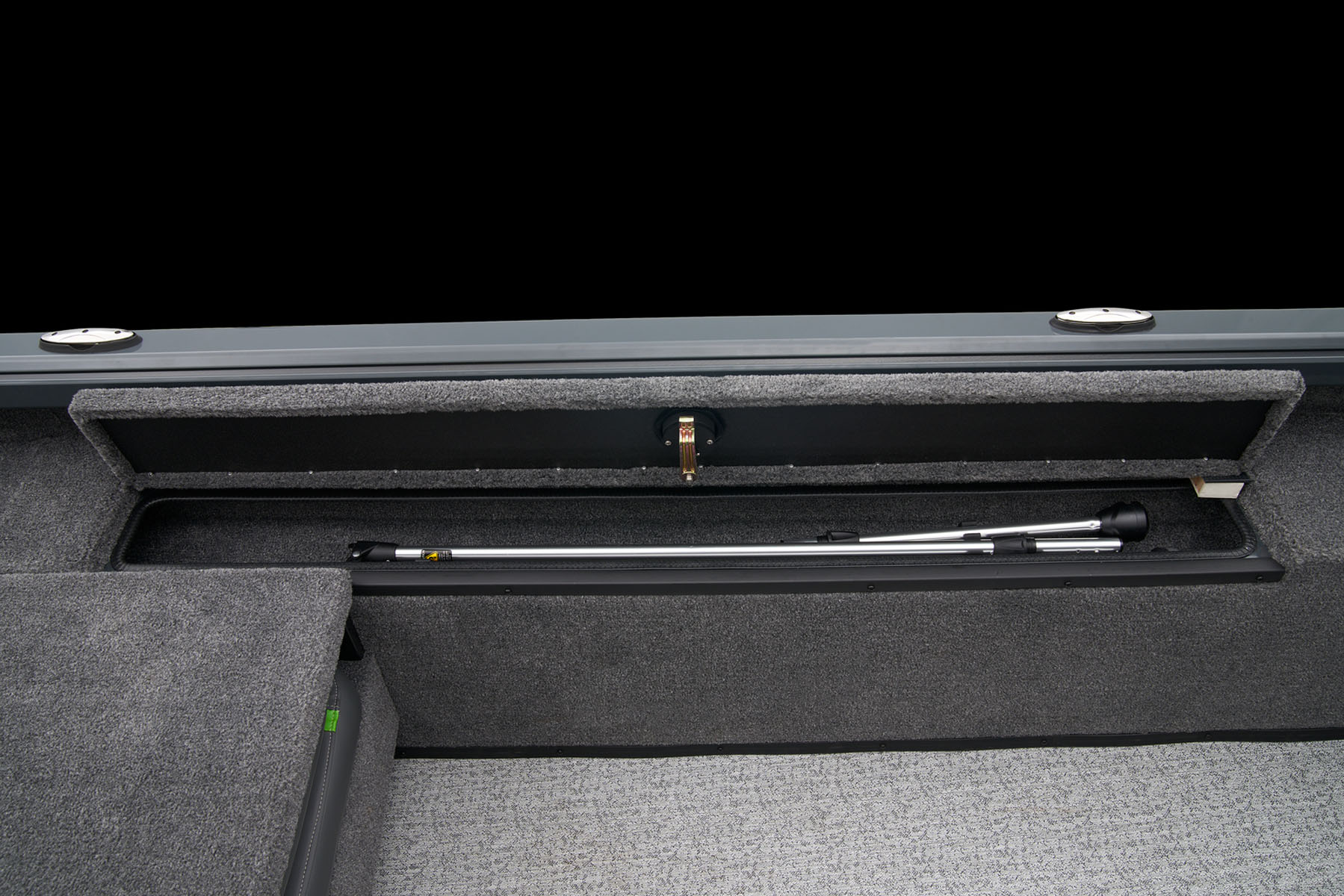

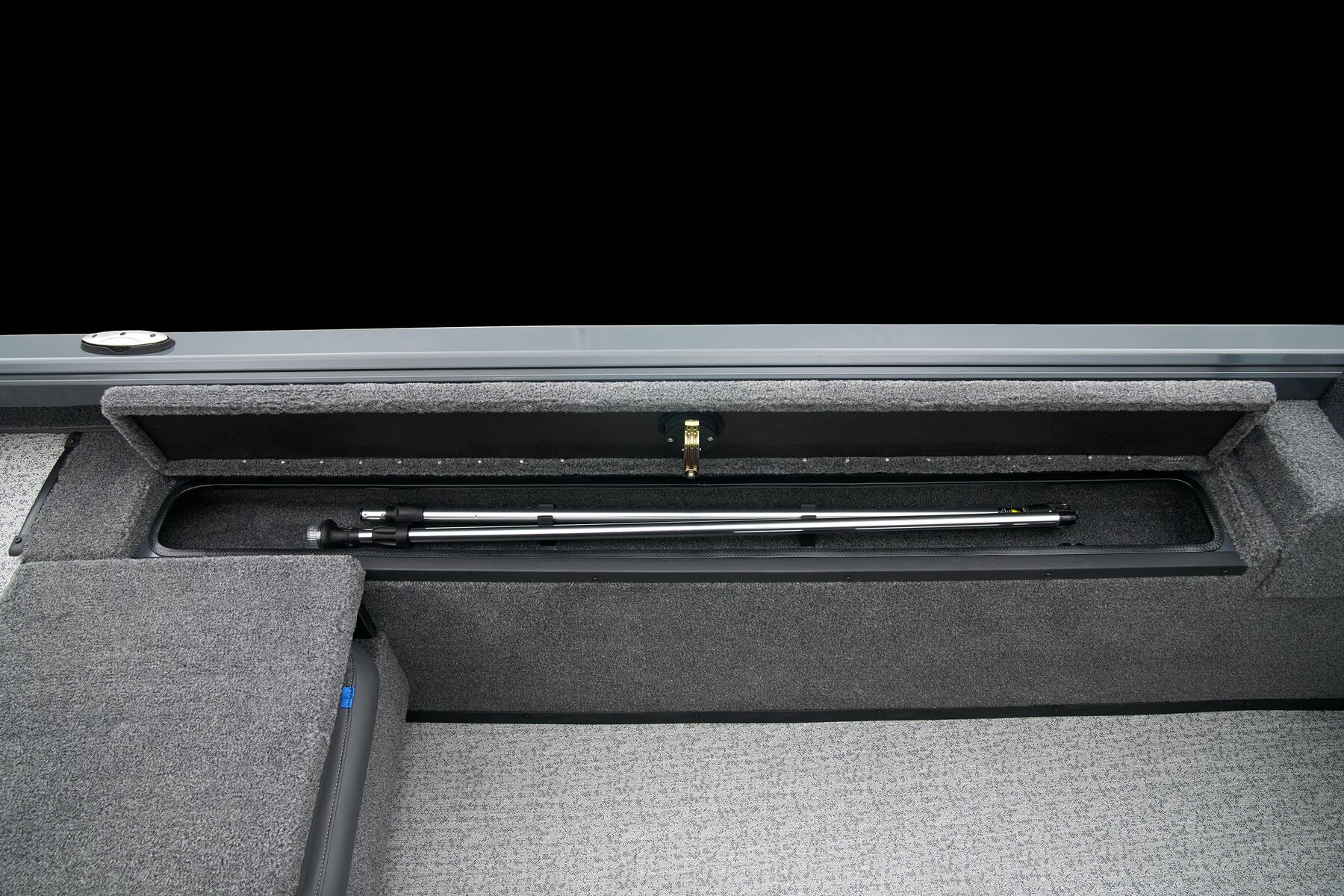

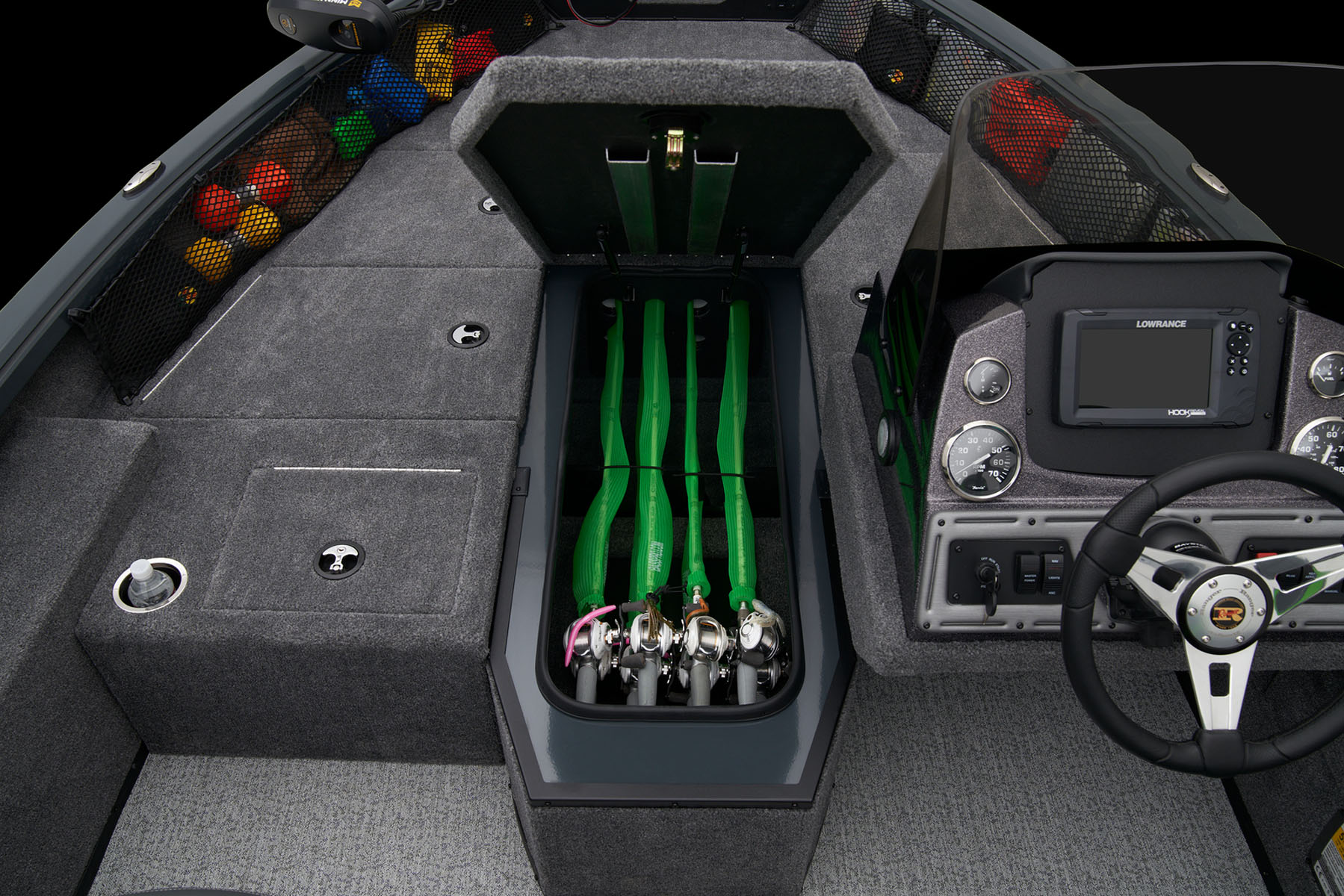

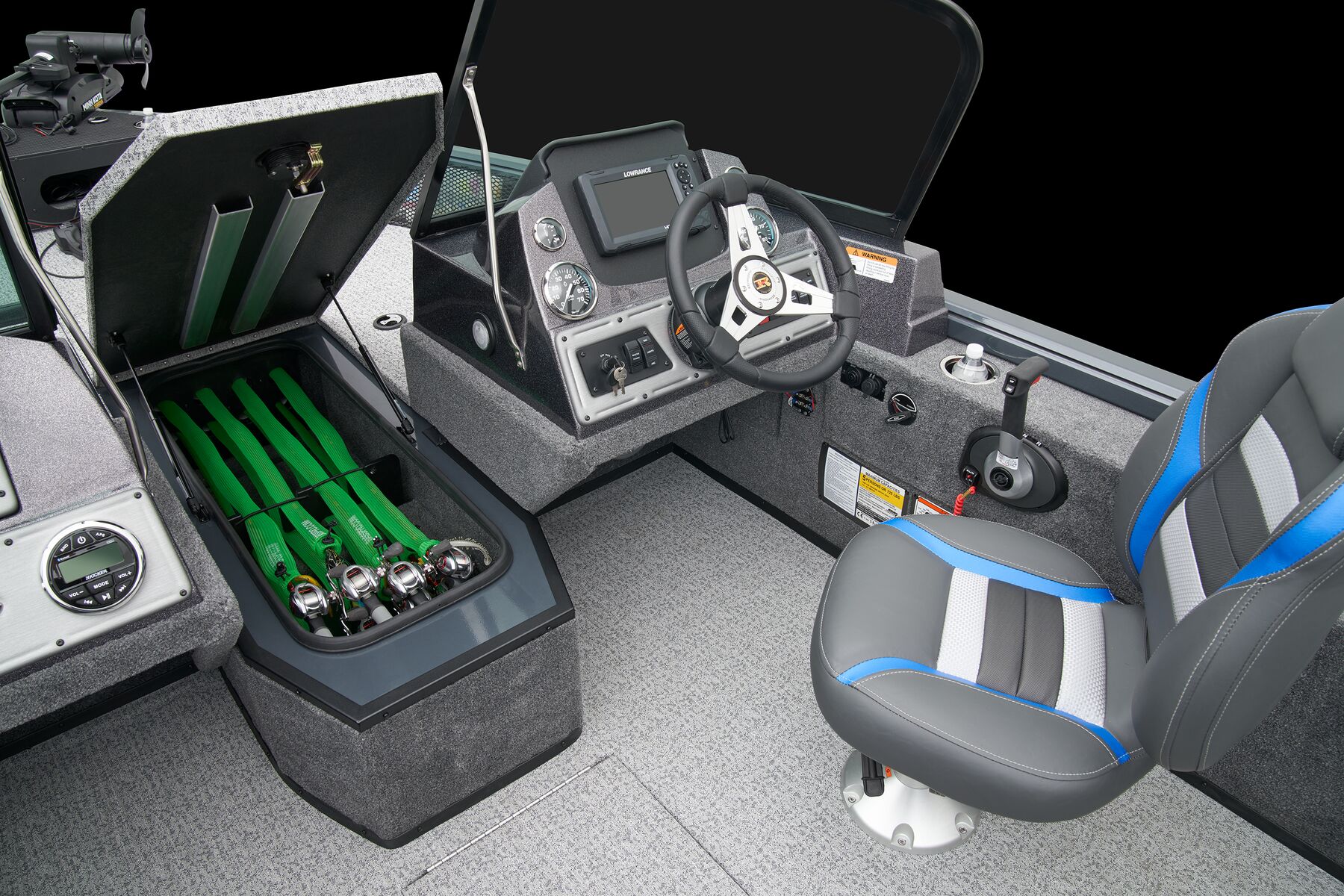

- Lockable rod storage
- 5052 H34 marine grade aluminum
- Foam-filled one-piece construction

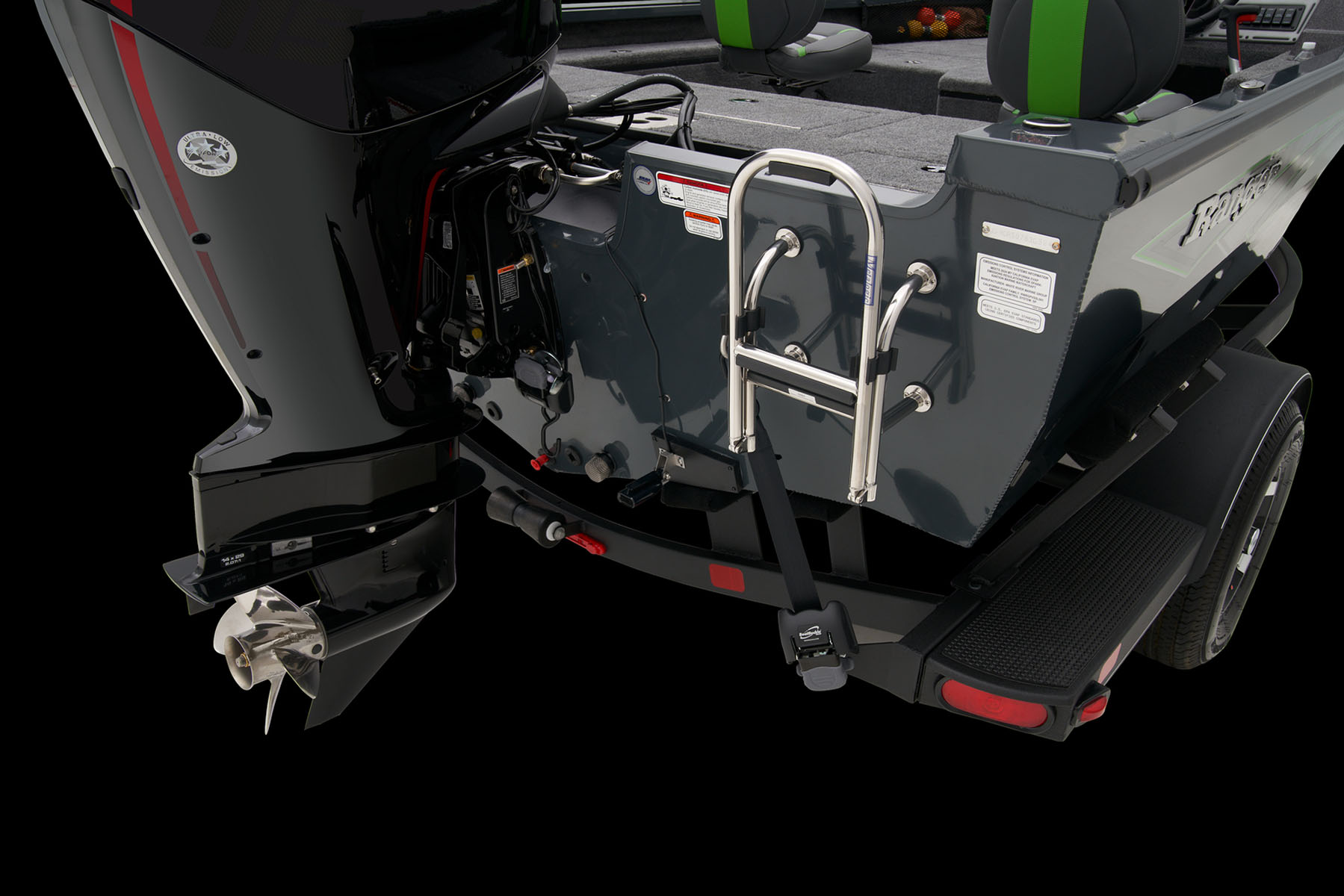

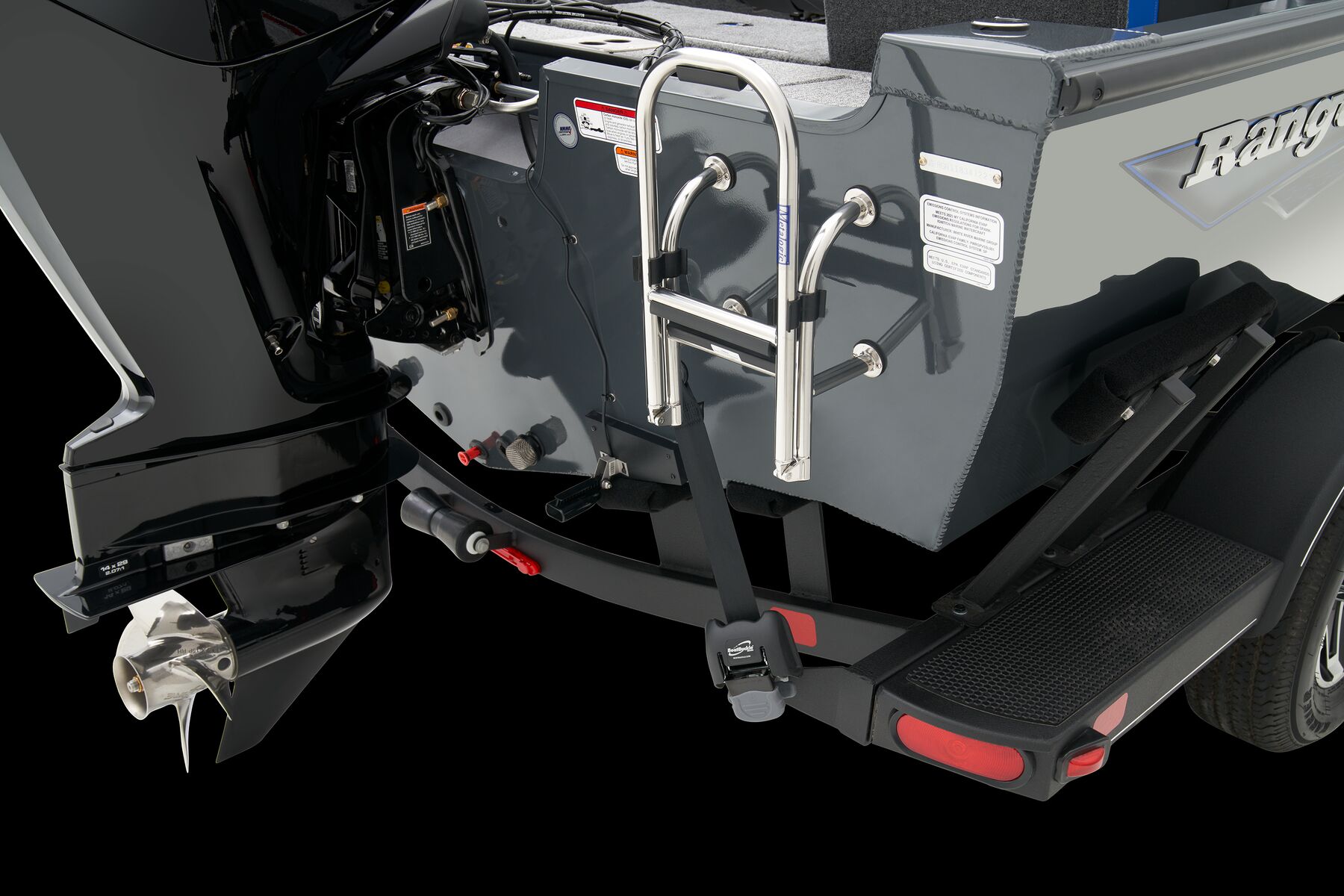

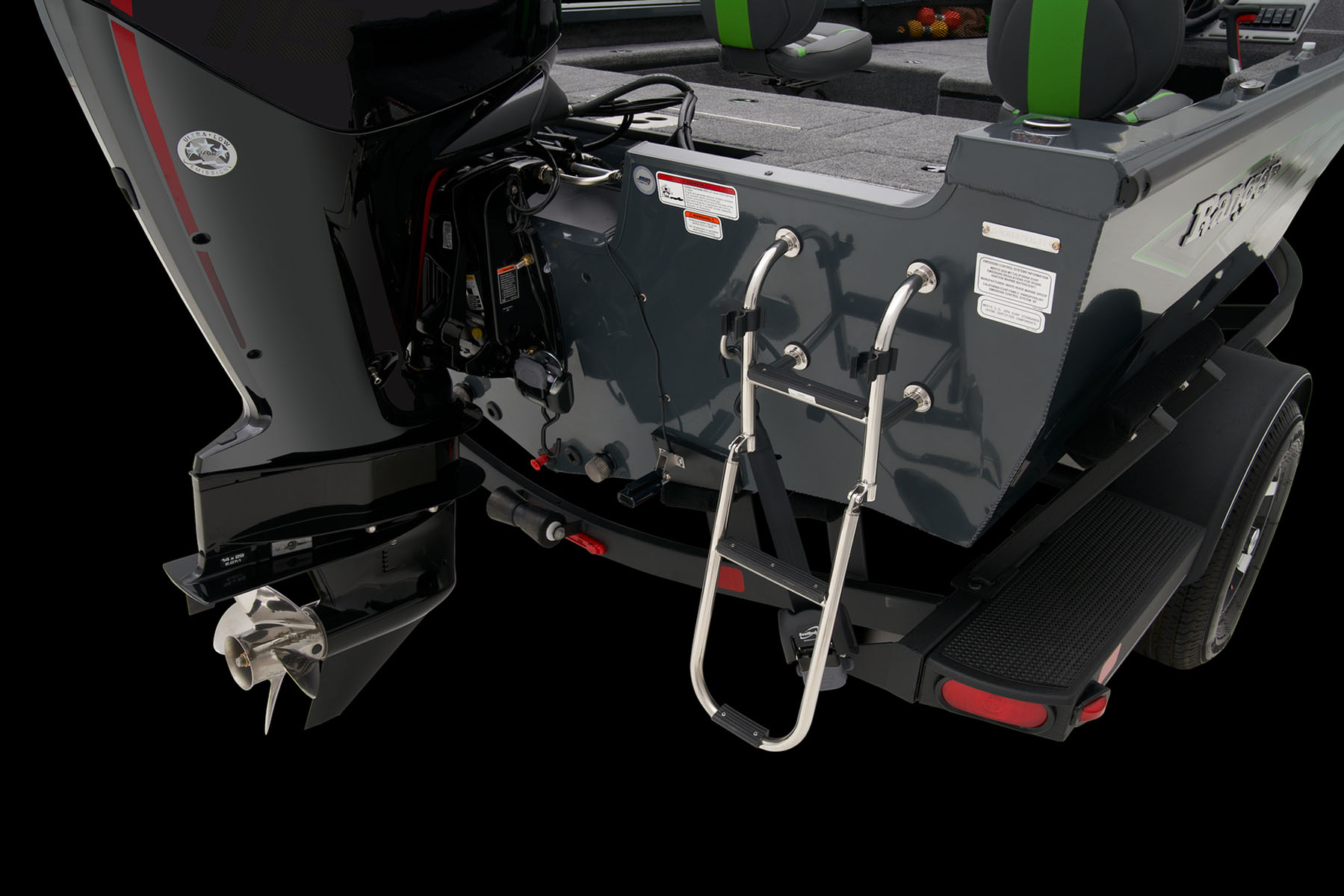

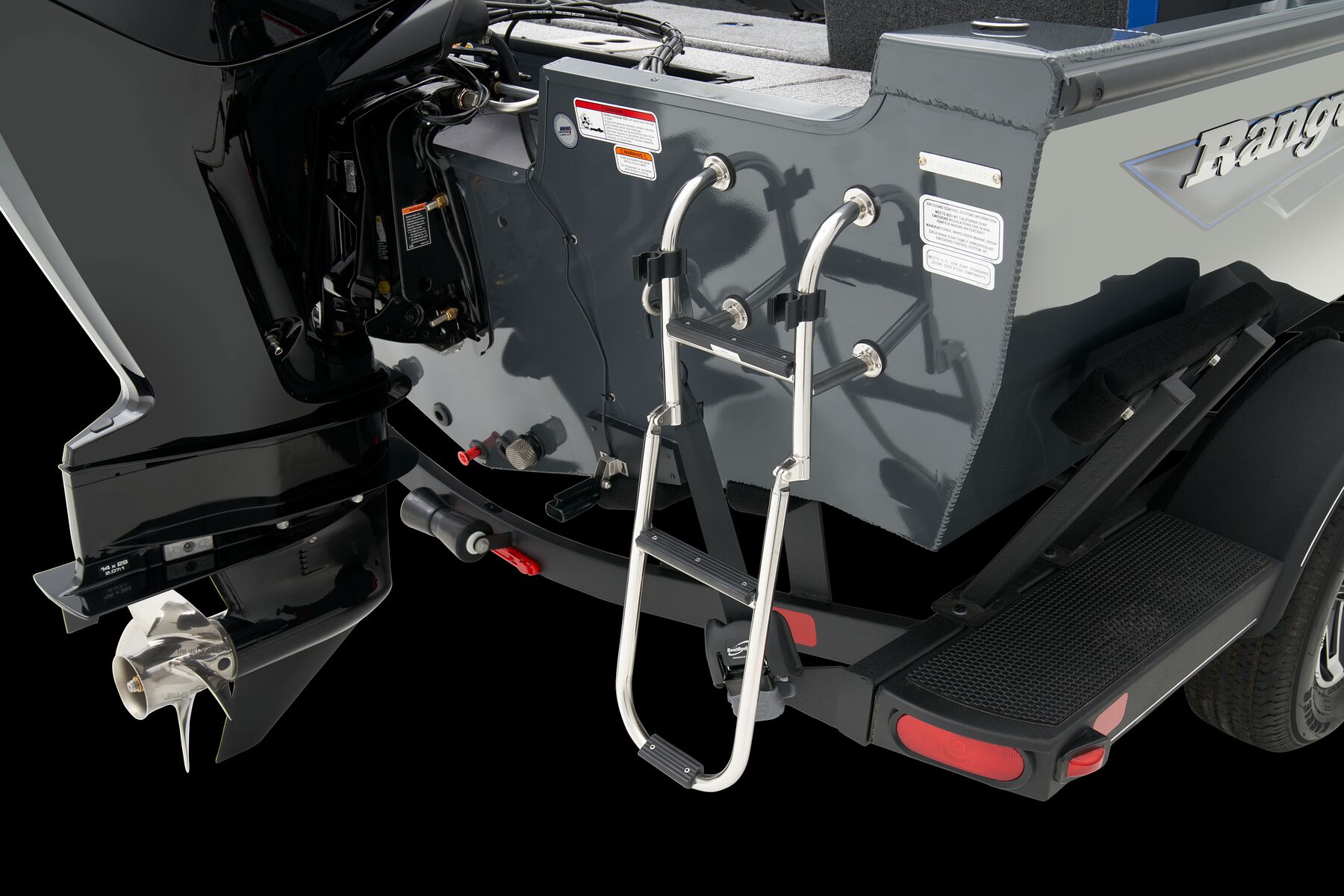

- Stainless steel boarding ladder

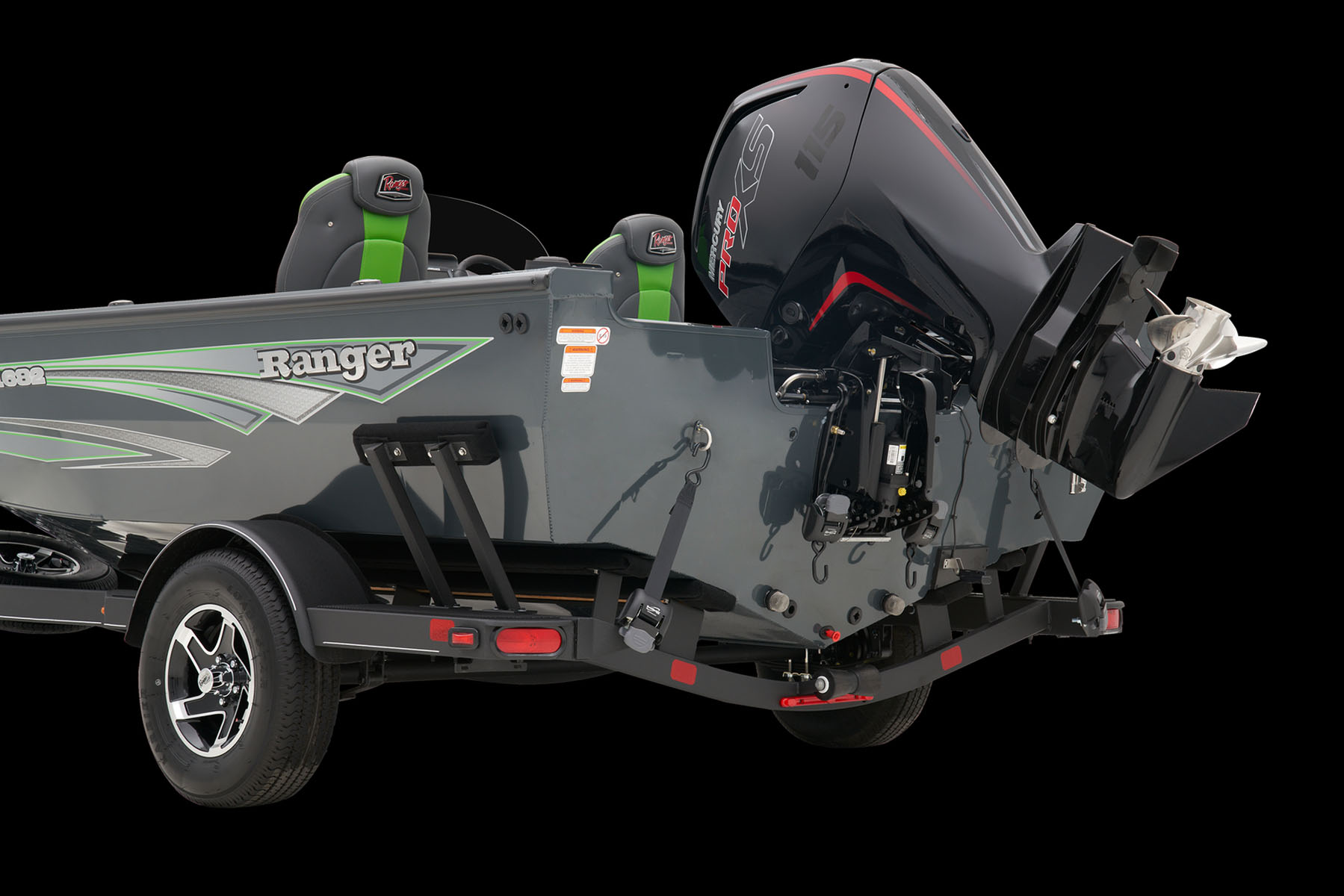

- All welded aluminum transom
- Built-in horn assembly
- Remote drain plug

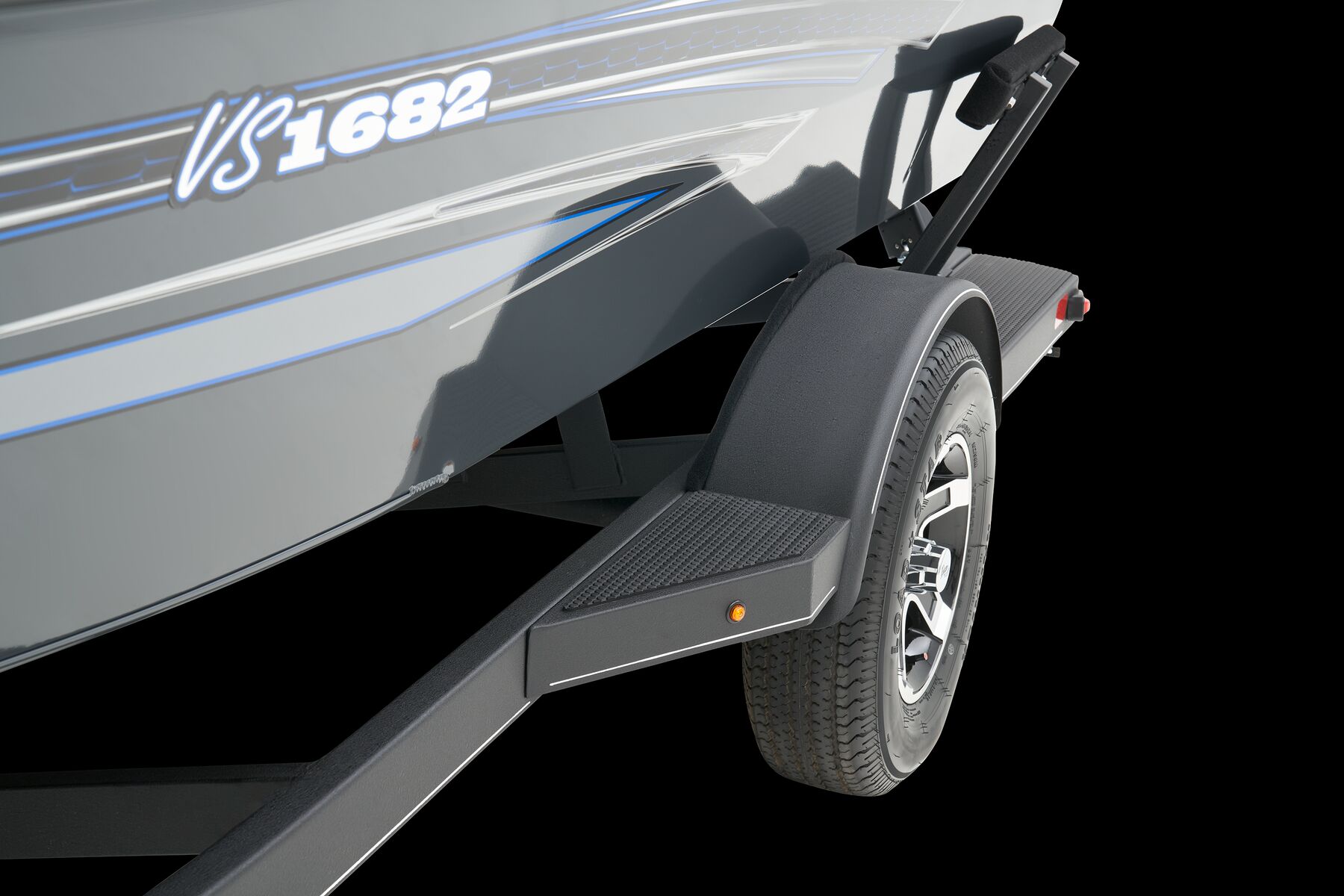

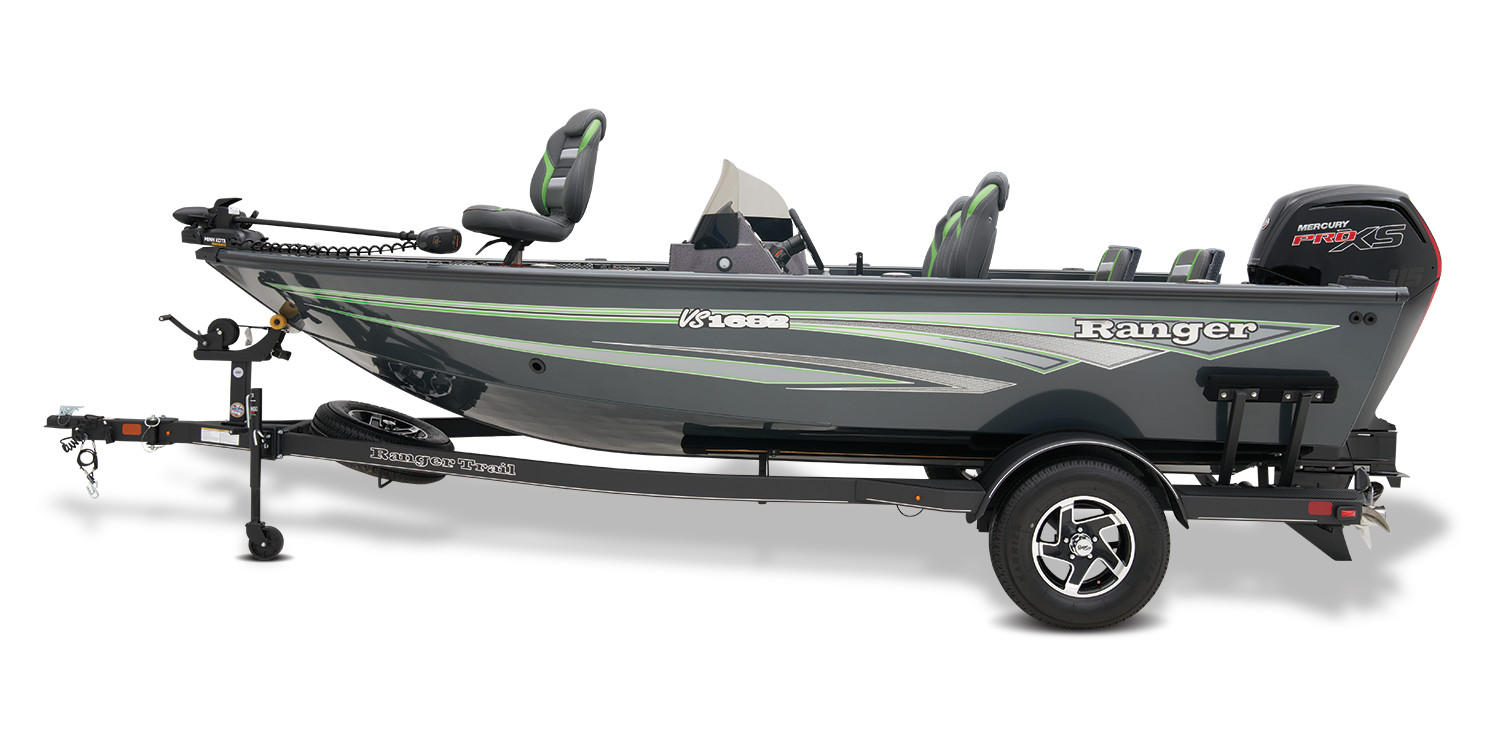

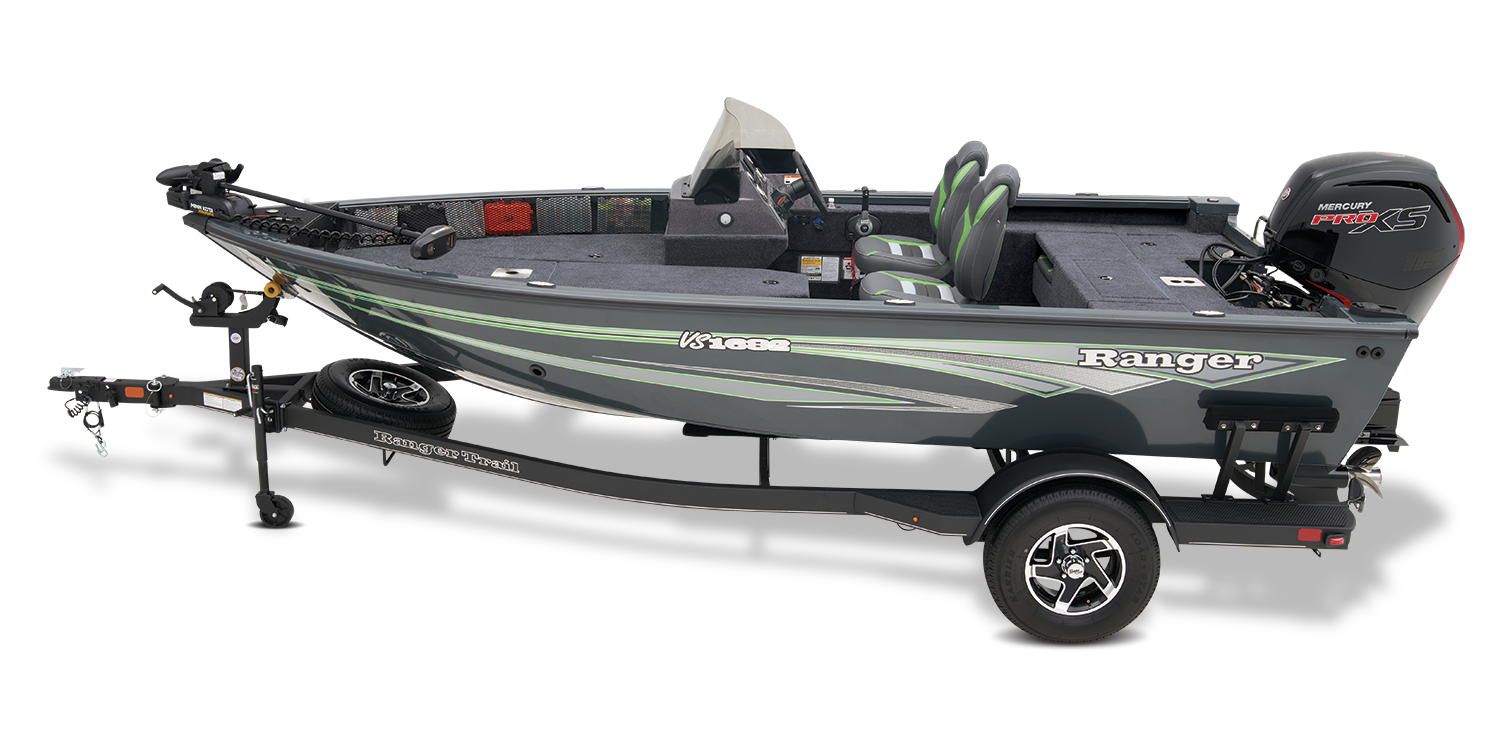

Trailer Features

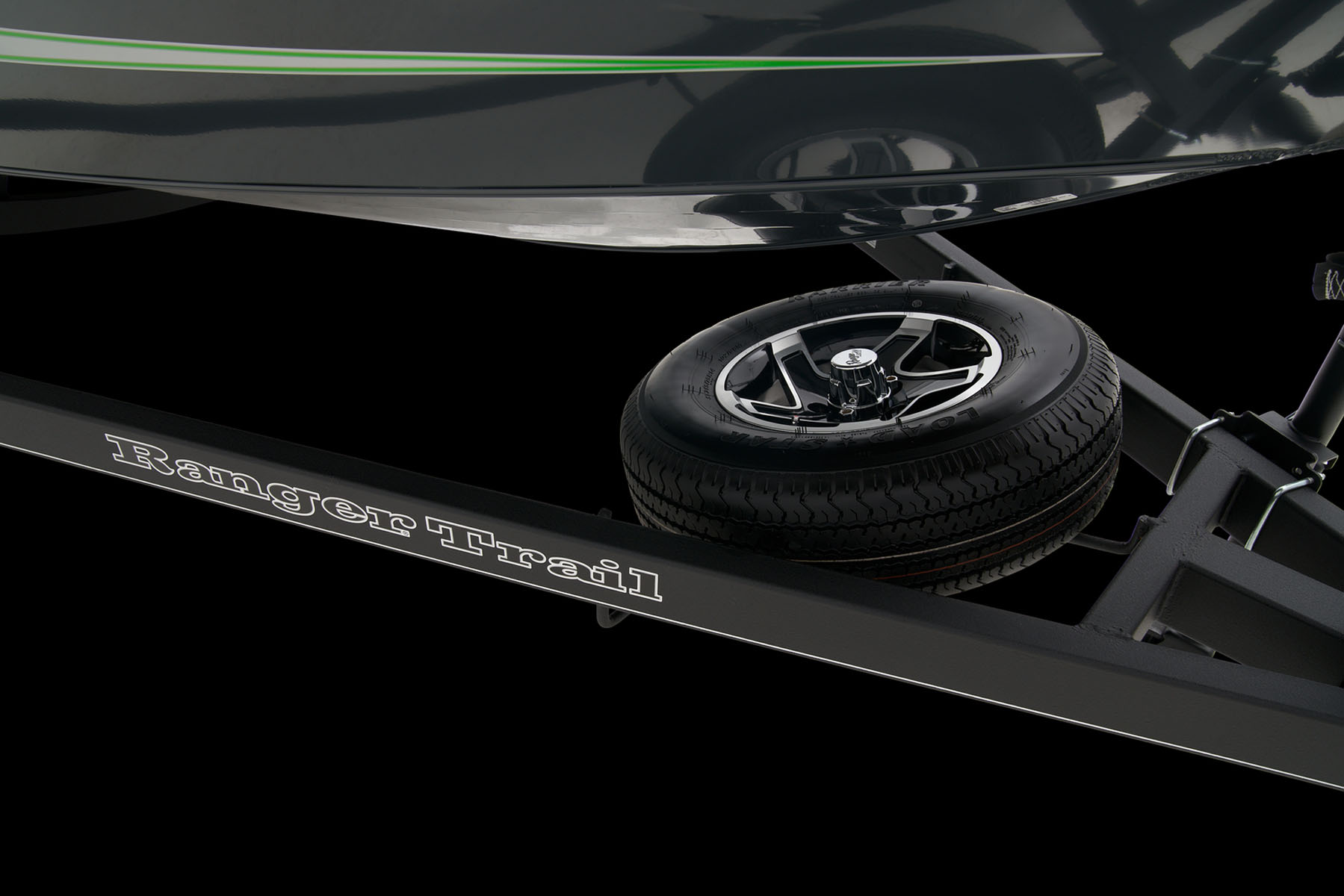

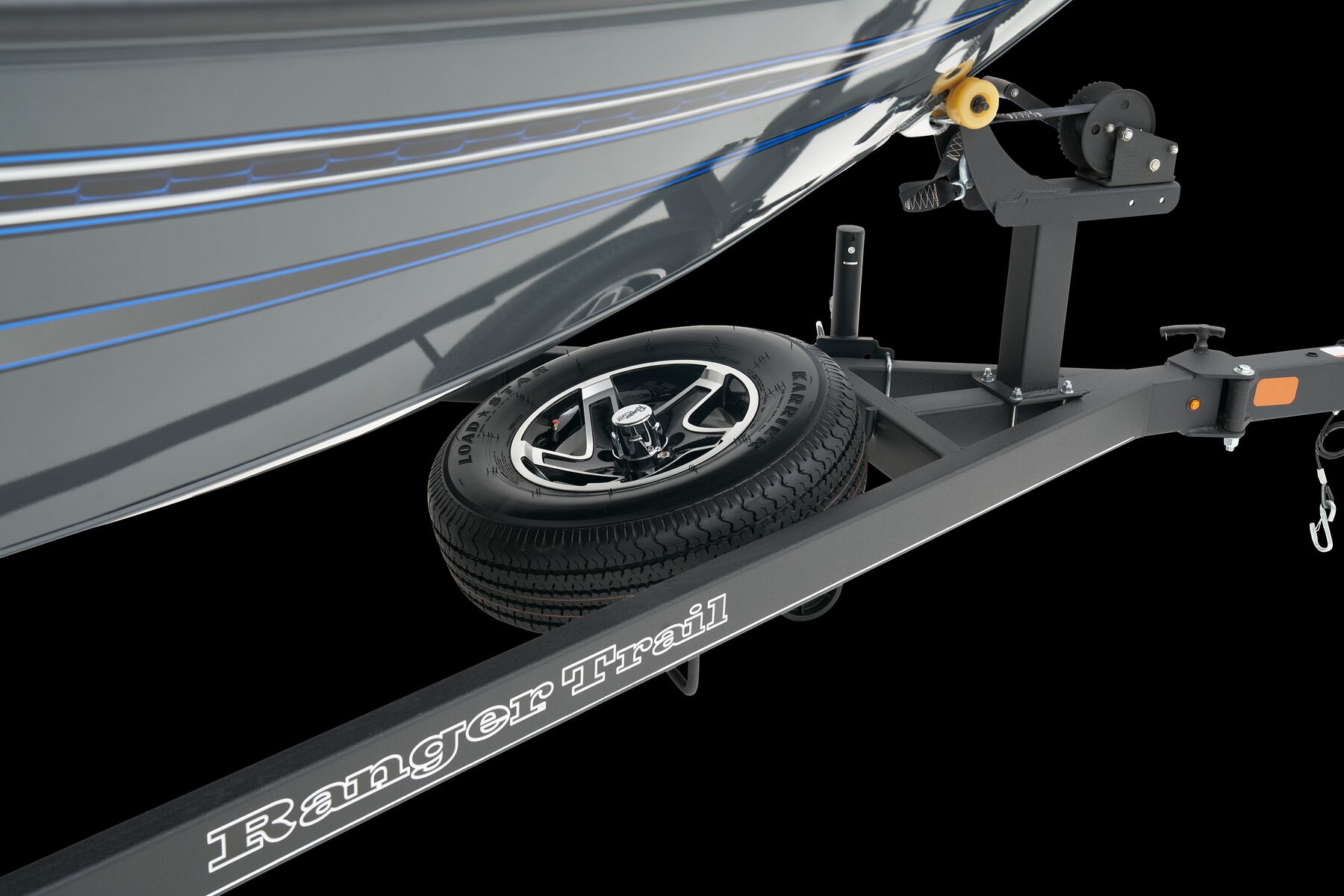

- Custom Ranger Trail® directional aluminum wheels with spare
- Retractable trailer tie downs
- Swing jack

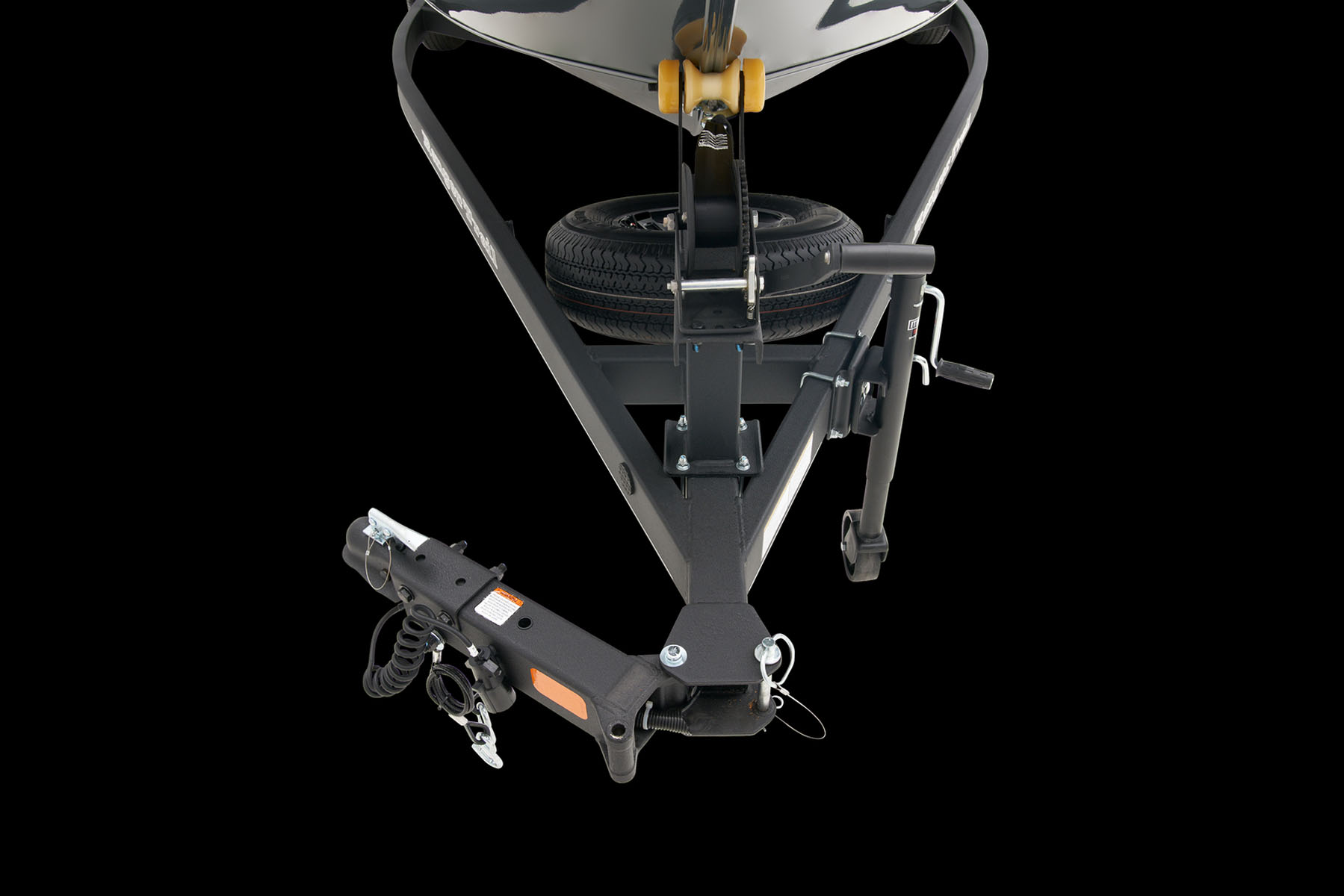

- Custom swing-away tongue
- Integrated load guides
- NMMA® and NATM certified
- Waterproof lights
Options
