621FS Ranger Cup Equipped
* Previous Model Year Images Shown
Photos may show optional equipment.
2023
621FS Ranger Cup Equipped
w/ 300 XL Pro XS FourStroke Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$91995
USD
|
WHERE STREET FIGHTER AND SCIENTIST MEET
Ranger® big water boats redefine the category with higher horsepower ratings, more intelligence and greater capability. In Ranger Cup Equipped trim, these rigs make the competition obsolete.

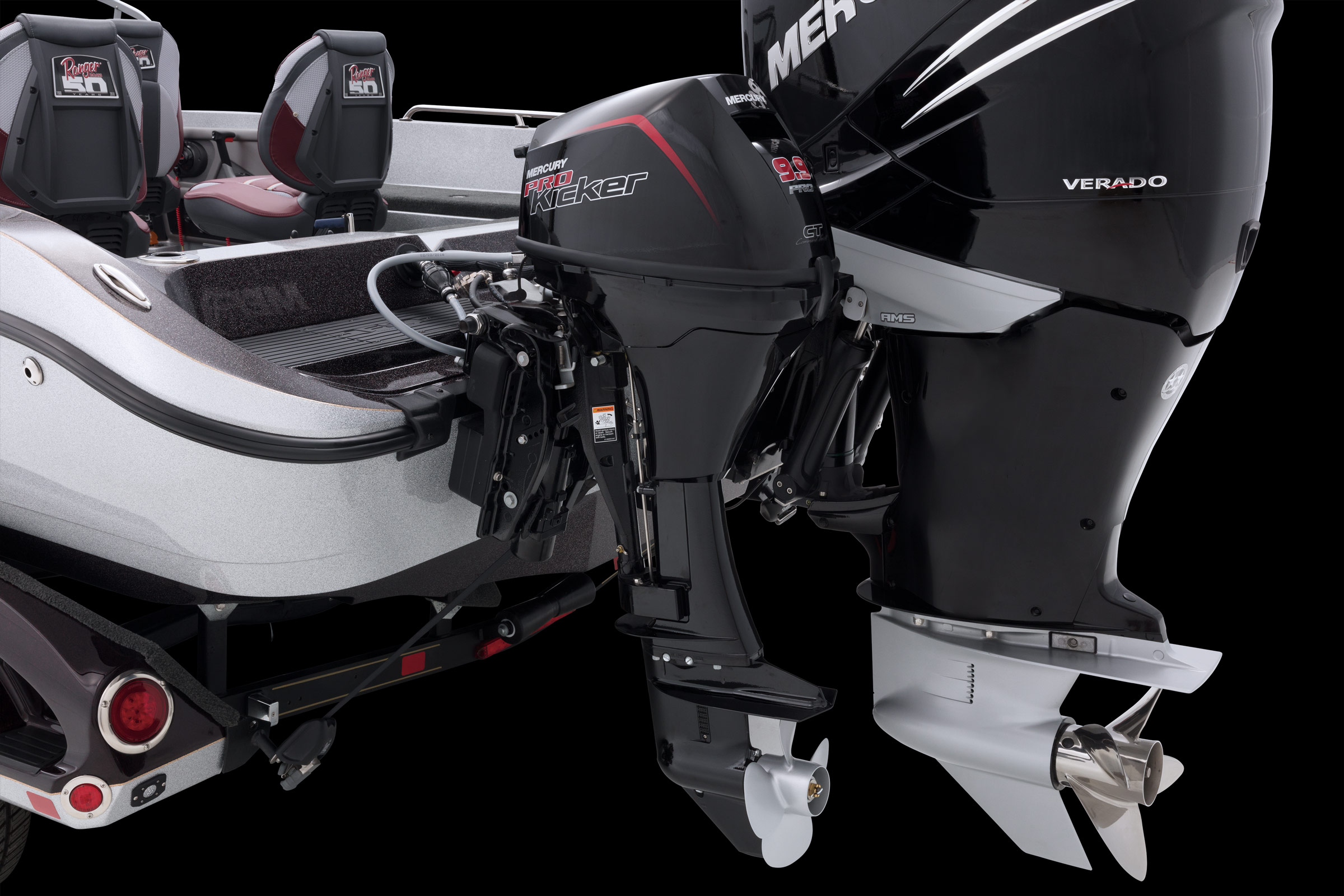

The 621FS Ranger Cup Equipped features a brilliant hull that delivers stout performance with a 350HP outboard and pinpoint tracking and control in rough seas. A full dose of foam flotation and a trusted, proven hull deliver even more strength and peace of mind. The interior defines the category in terms of fishability and storage thanks to feedback and input from top pros and guides. A tough, non-skid floor drains and cleans up easily while all your gear is within arm’s reach in dual side storages and multiple tool holders. With a kicker motor, rails for rod holders and more, the possibilities are limitless.
Standard Lowrance® HDS units, a walk thru windshield, Lowrance Ghost™ trolling motor, three lithium trolling motor batteries and more make this rig ready for derby day right from the factory.
Key Features
- Lowrance HDS-12 LIVE w/AI @ console & HDS-9 LIVE @ bow
- Walk-thru windshield
- Lowrance Ghost 60" trolling motor
- Lithium trolling motor batteries
- Dual Pro® charger, 15 x 4, auto detect lithium capable
- Trailer parking brake
Specifications
| Length | 6.65 m | 21' 10'' |
| Beam | 2.59 m | 102'' |
| Max. Recommended HP | 350 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 63.5 cm | 25'' |
| Fuel Capacity | 211.96 L | 56 gal. |
| Livewell Capacity | 105.98 L | 28 gal. |
| Baitwell Capacity | 26.5 L | 7 gal. |
| Total Person, Motor, Gear | 952.54 kg | 2100 lbs. |
| Approximate Boat Weight | 1088.62 kg | 2400 lbs. |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 2.44 m | 8' |
| Max. Person Capacity | 7 persons | |
| Trailer GVWR | 2630.84 kg | 5800 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.31 m | 27' 3'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.7 m | 25' 3'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 300 XL Pro XS FourStroke |
$91995 USD
|
Select Dealer | |||
| Mercury® Verado® | |||||
| 350 XL Verado® (not available on new orders) |
$96385 USD
|
Select Dealer | |||
| 350 XL Verado® V10 |
$103190 USD
|
Select Dealer | |||
Standard Features
Custom Details
- Special 55th Anniversary badging

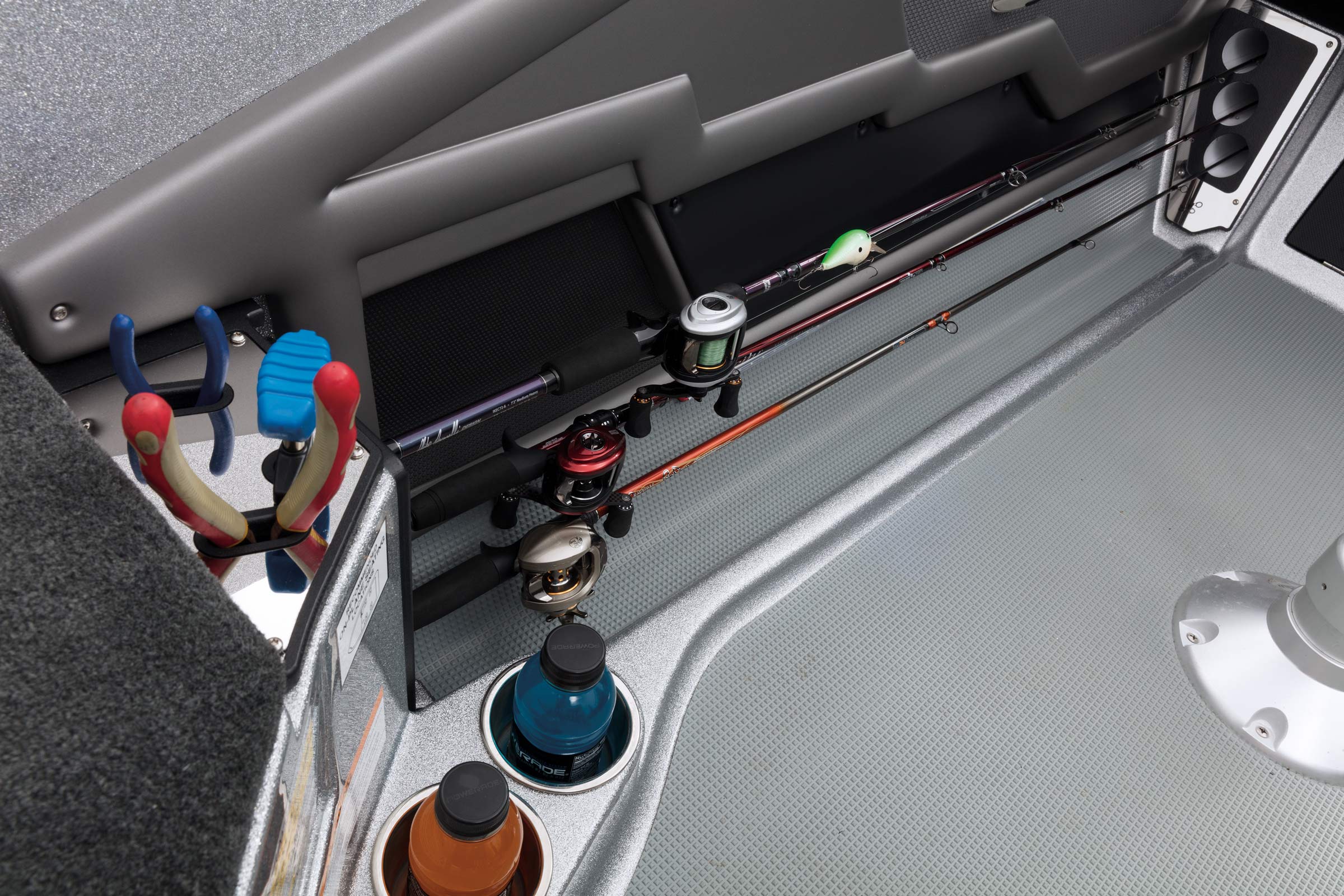

- Patented Power Ventilation Rod Storage™
- Hamby's keel protector
- Soft-touch skid-resistant cockpit floor

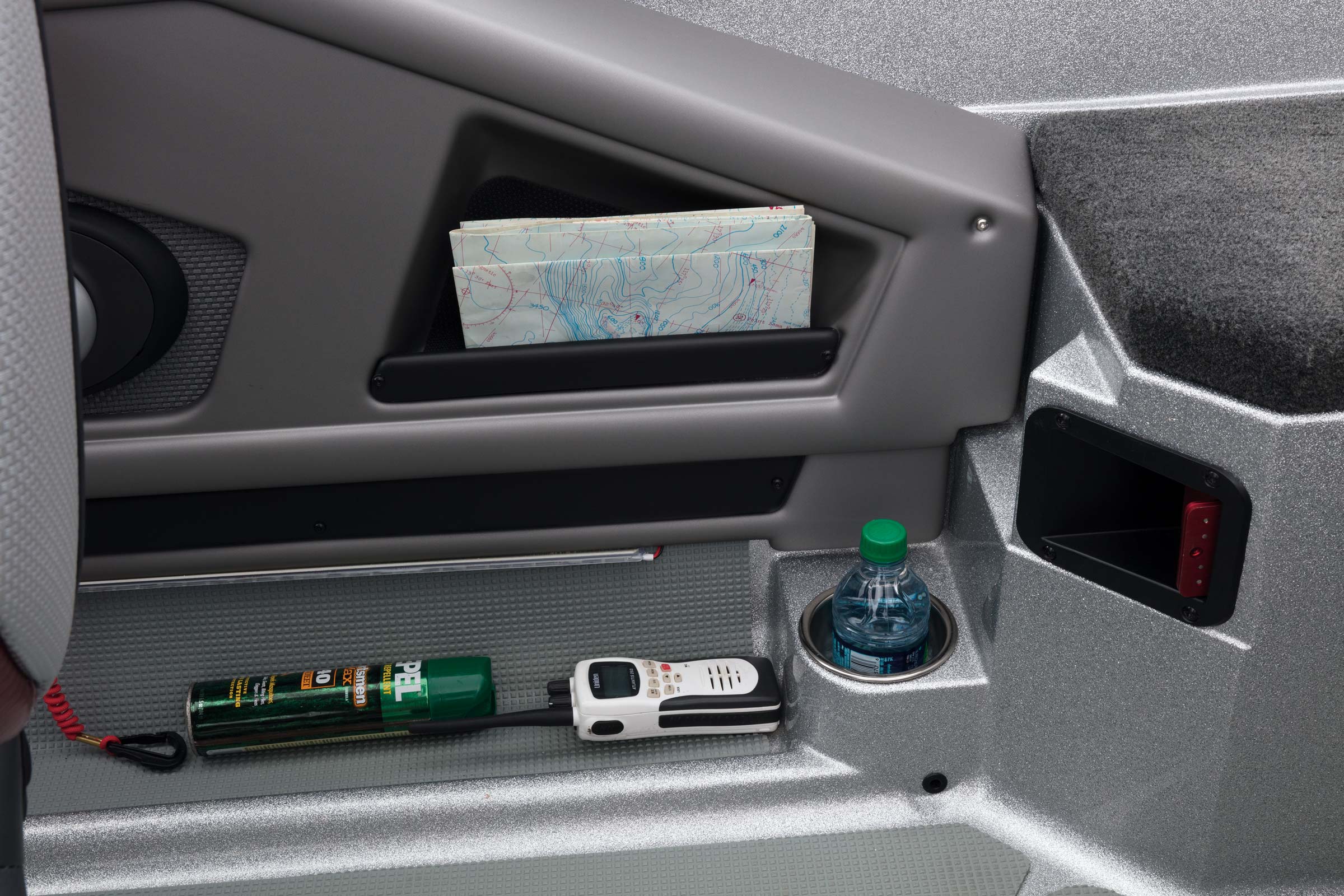

- Under-console storage shelves - port and starboard behind driver console footrest

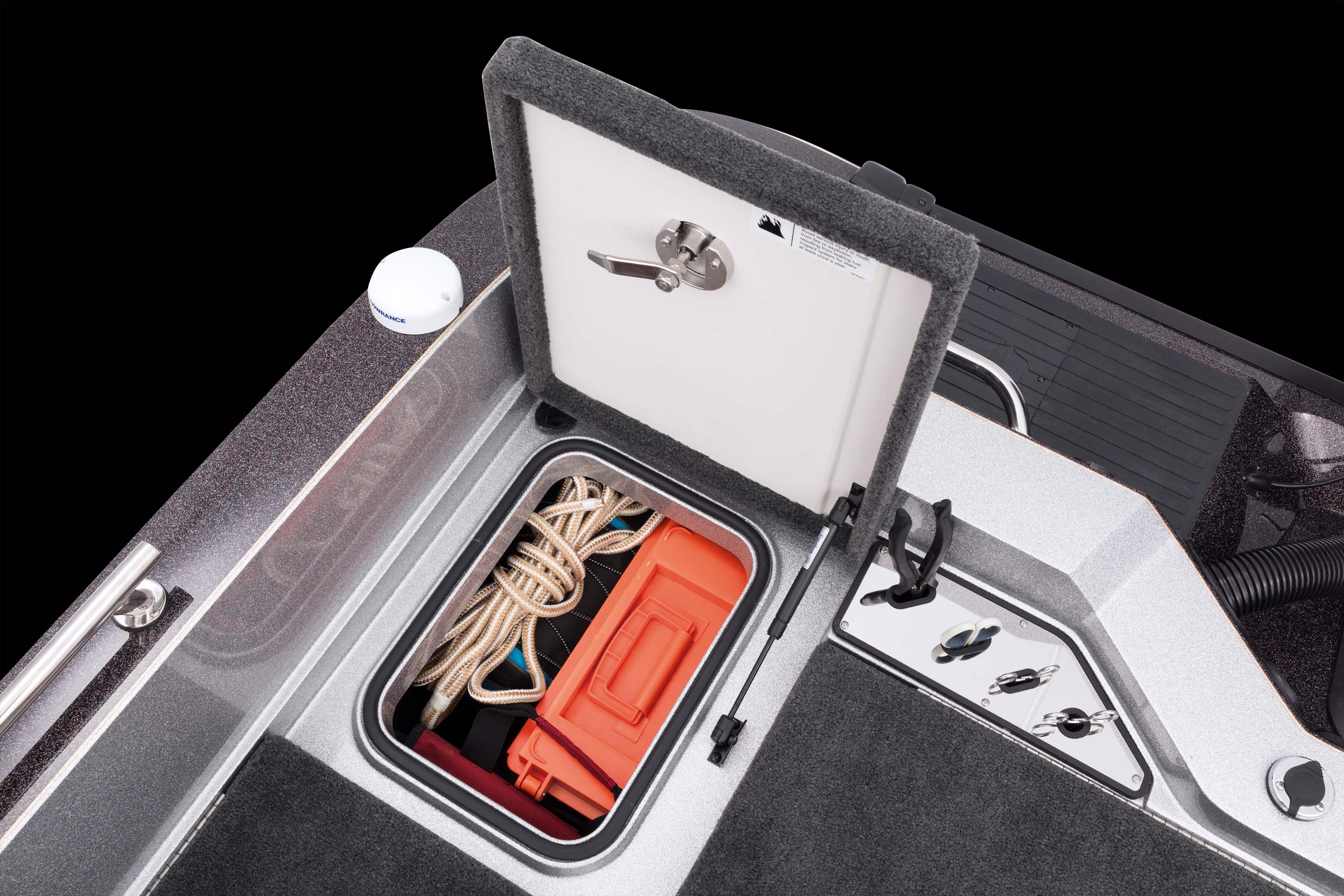

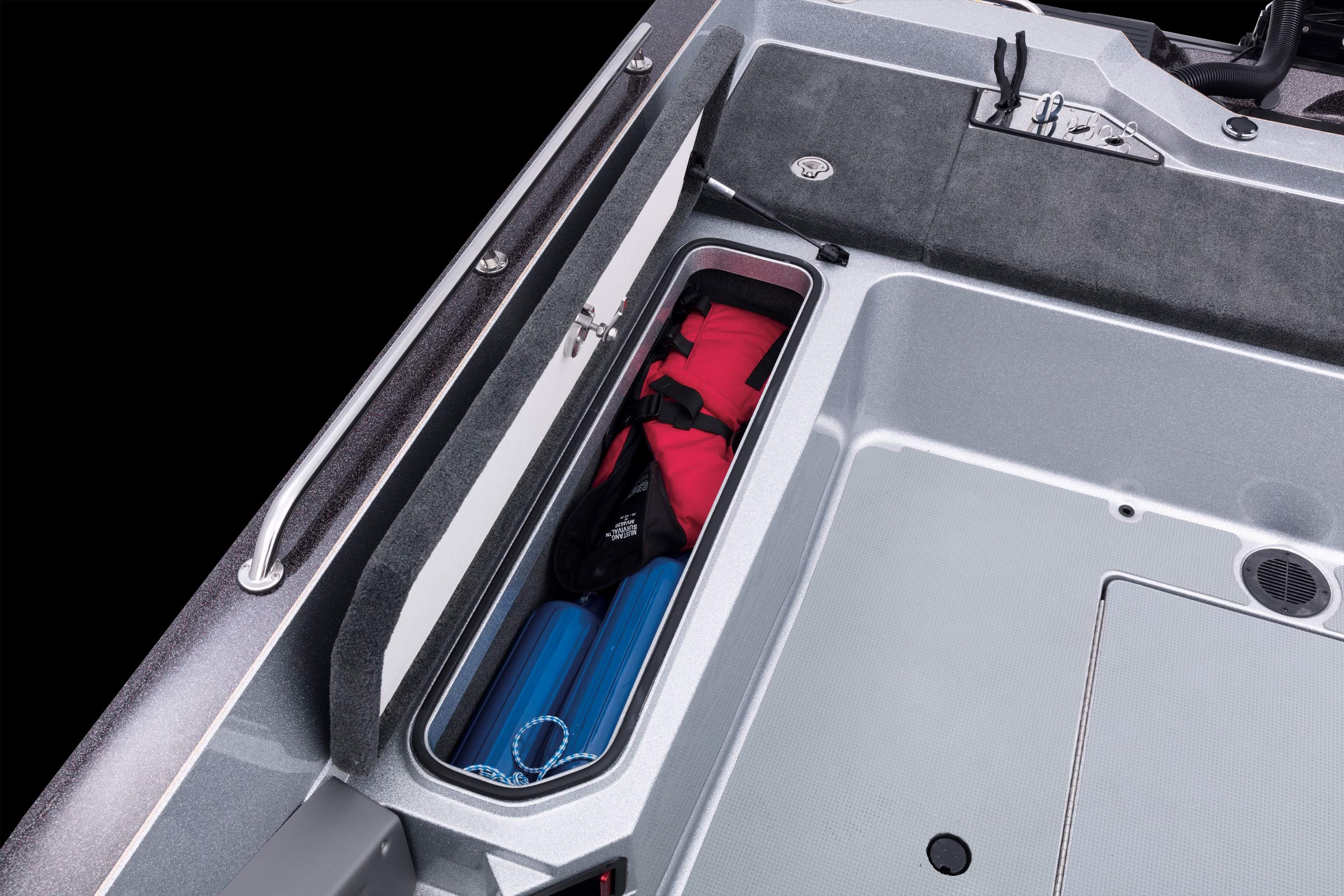

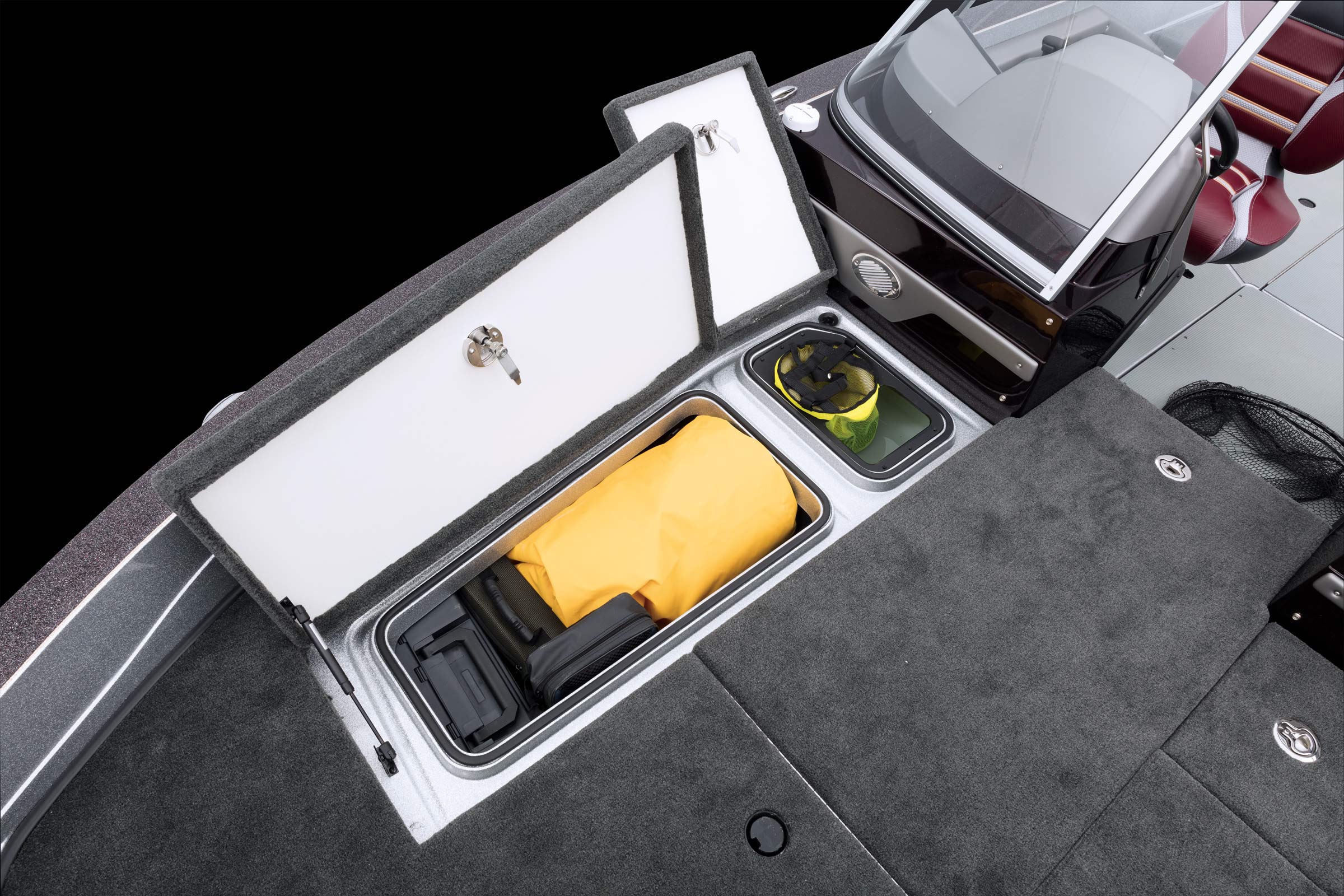

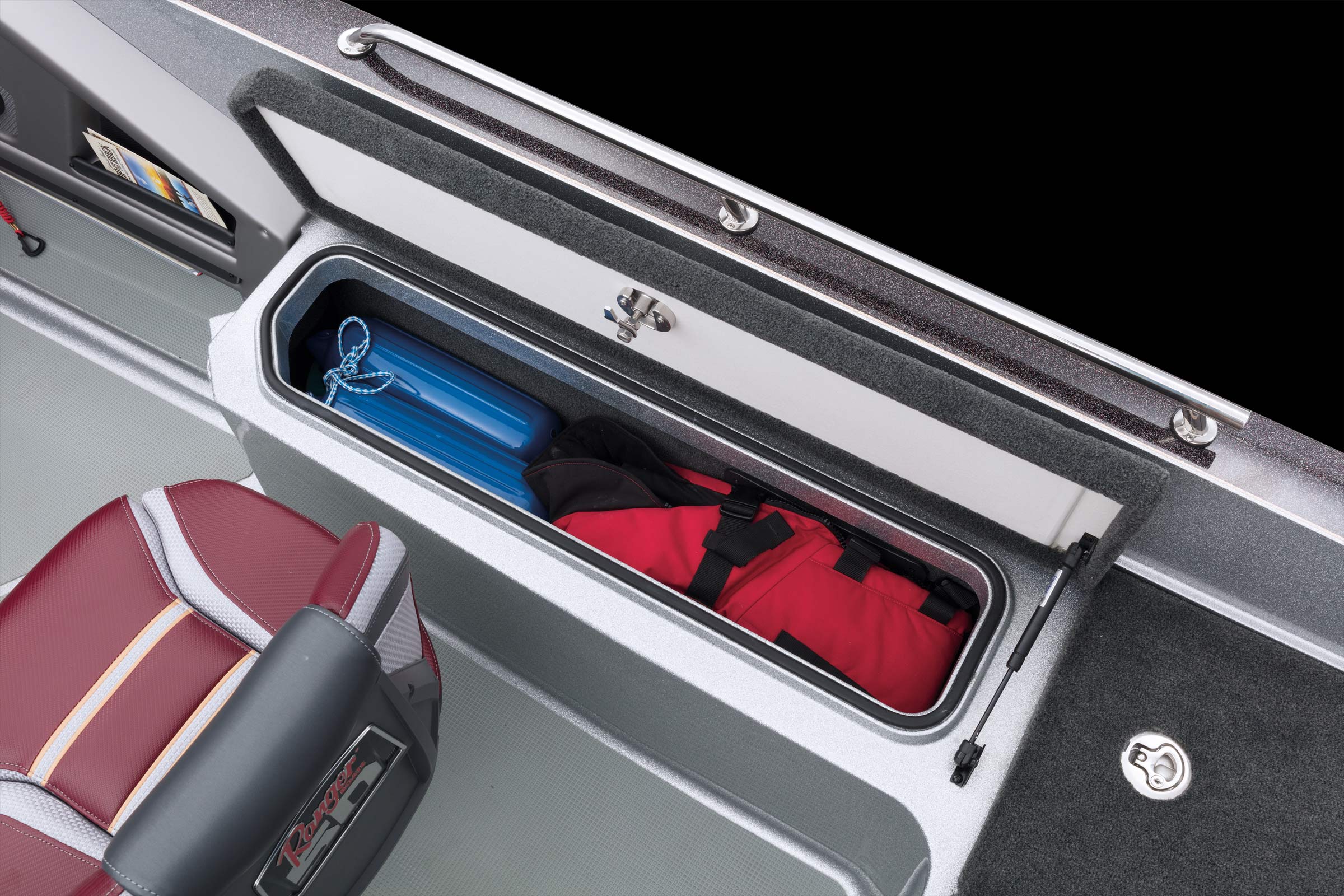

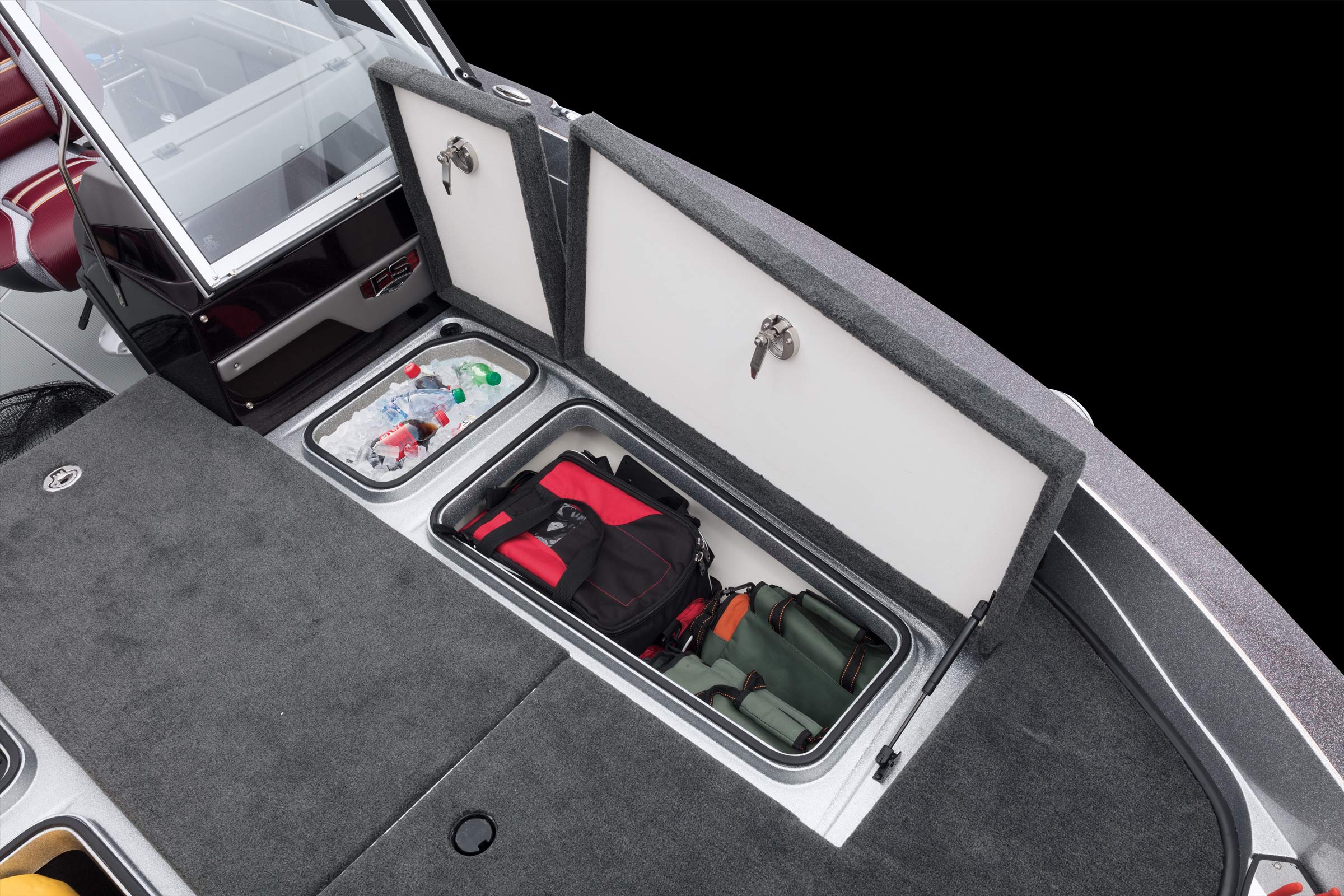

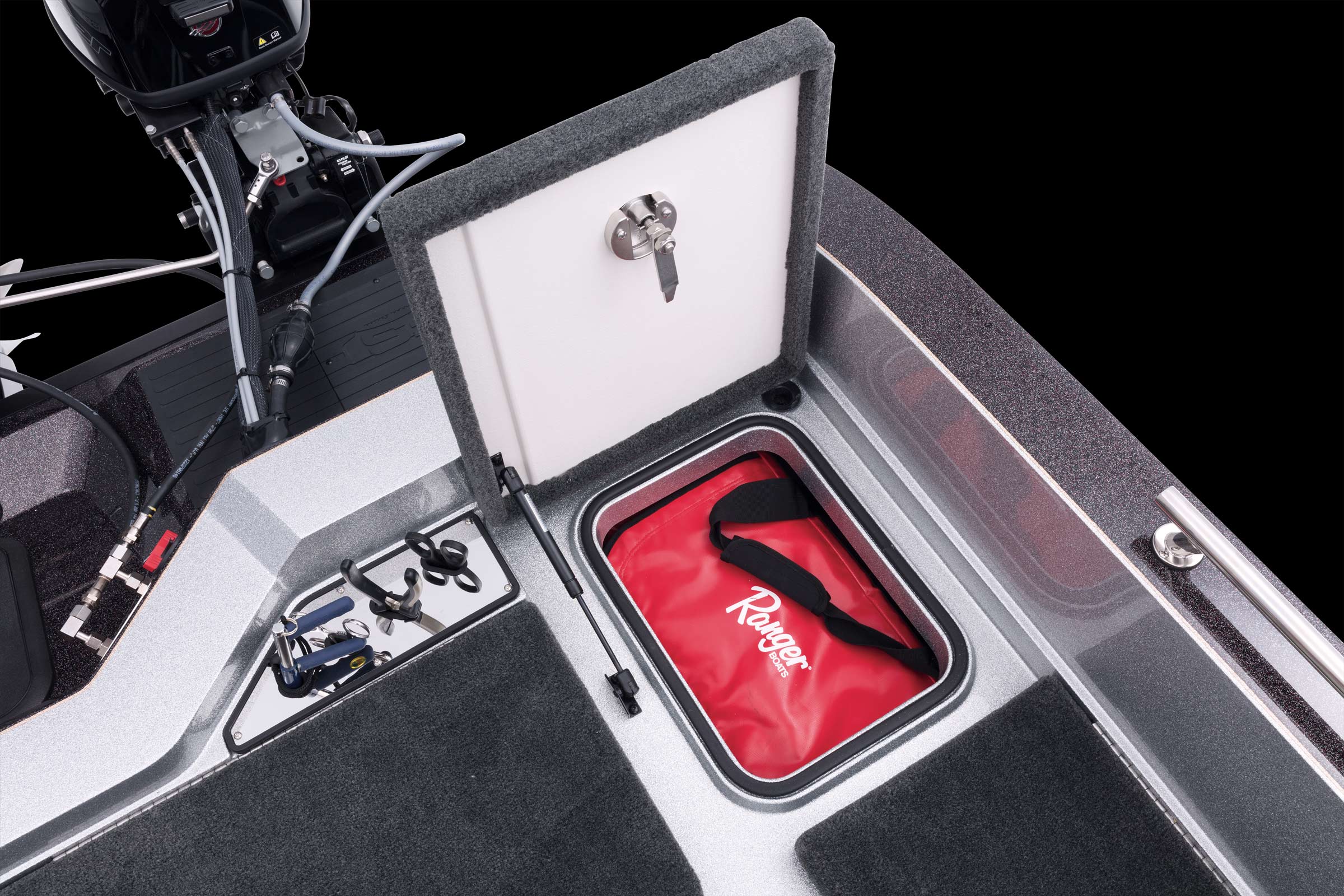

- Lockable storage compartments
- Gas spring lid assists
- Insulated cooler w/ gelcoat liner & drain
- Integrated stainless steel cup holders

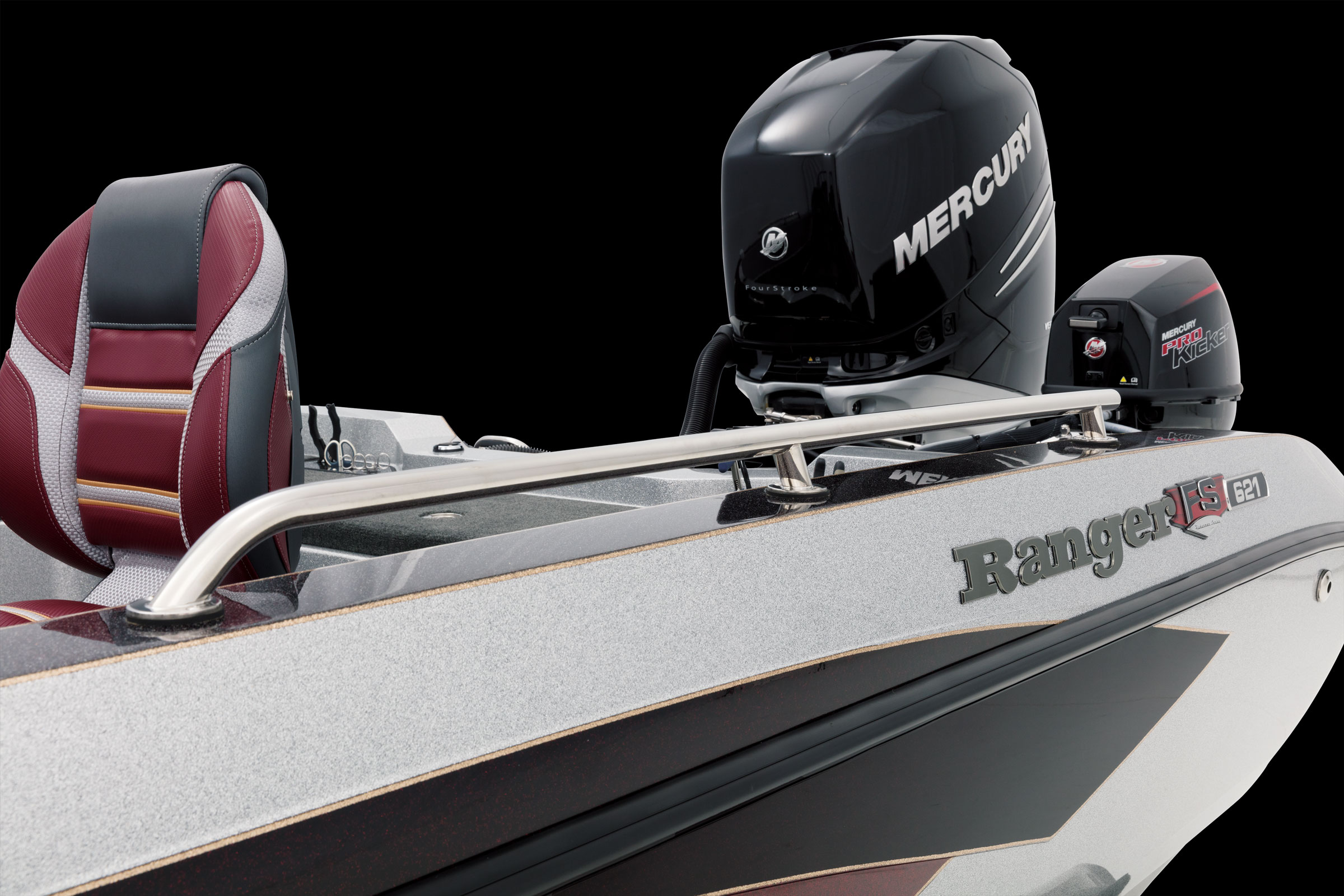

- 44" stainless steel stern grab rails

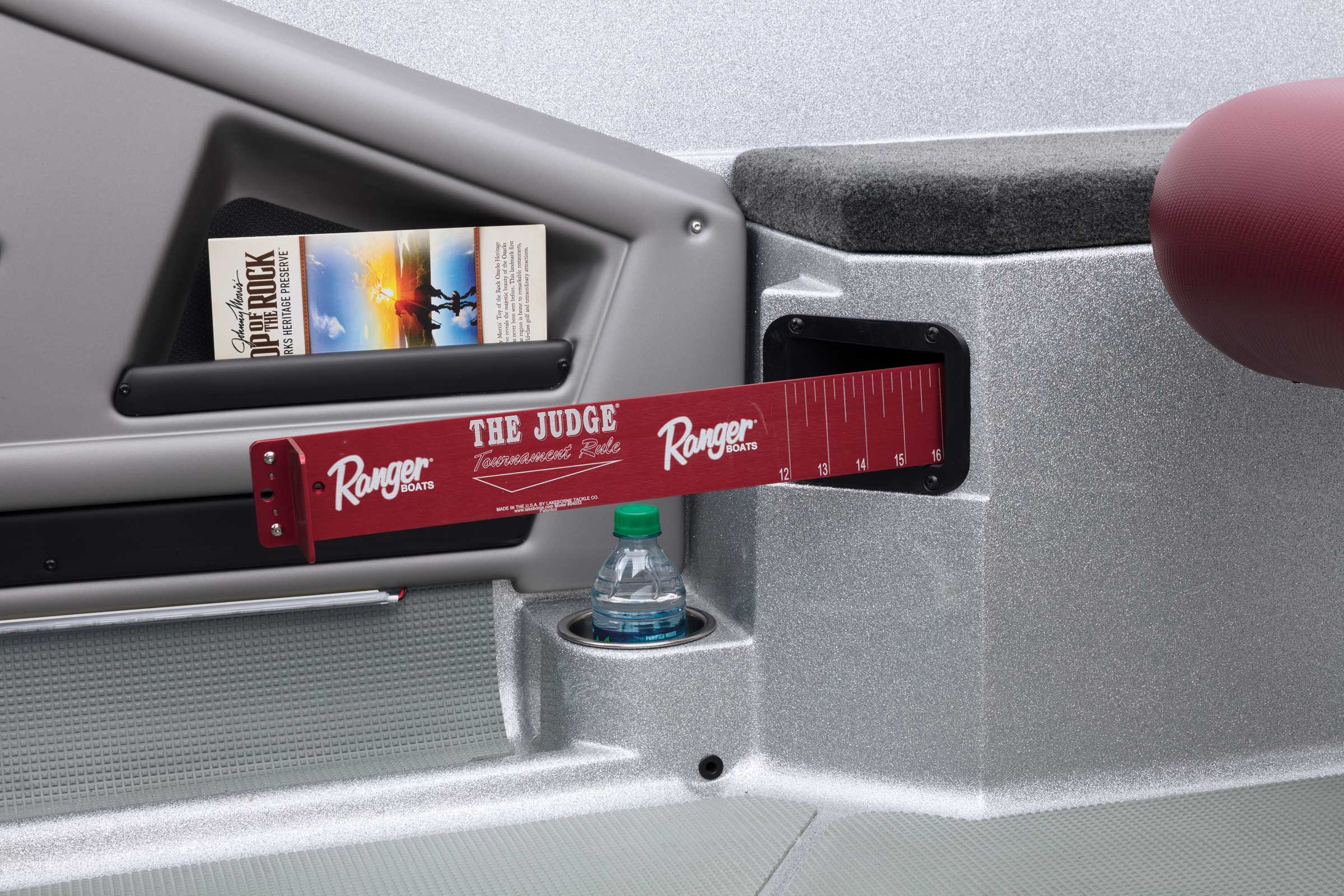

- Ranger® tournament measuring board

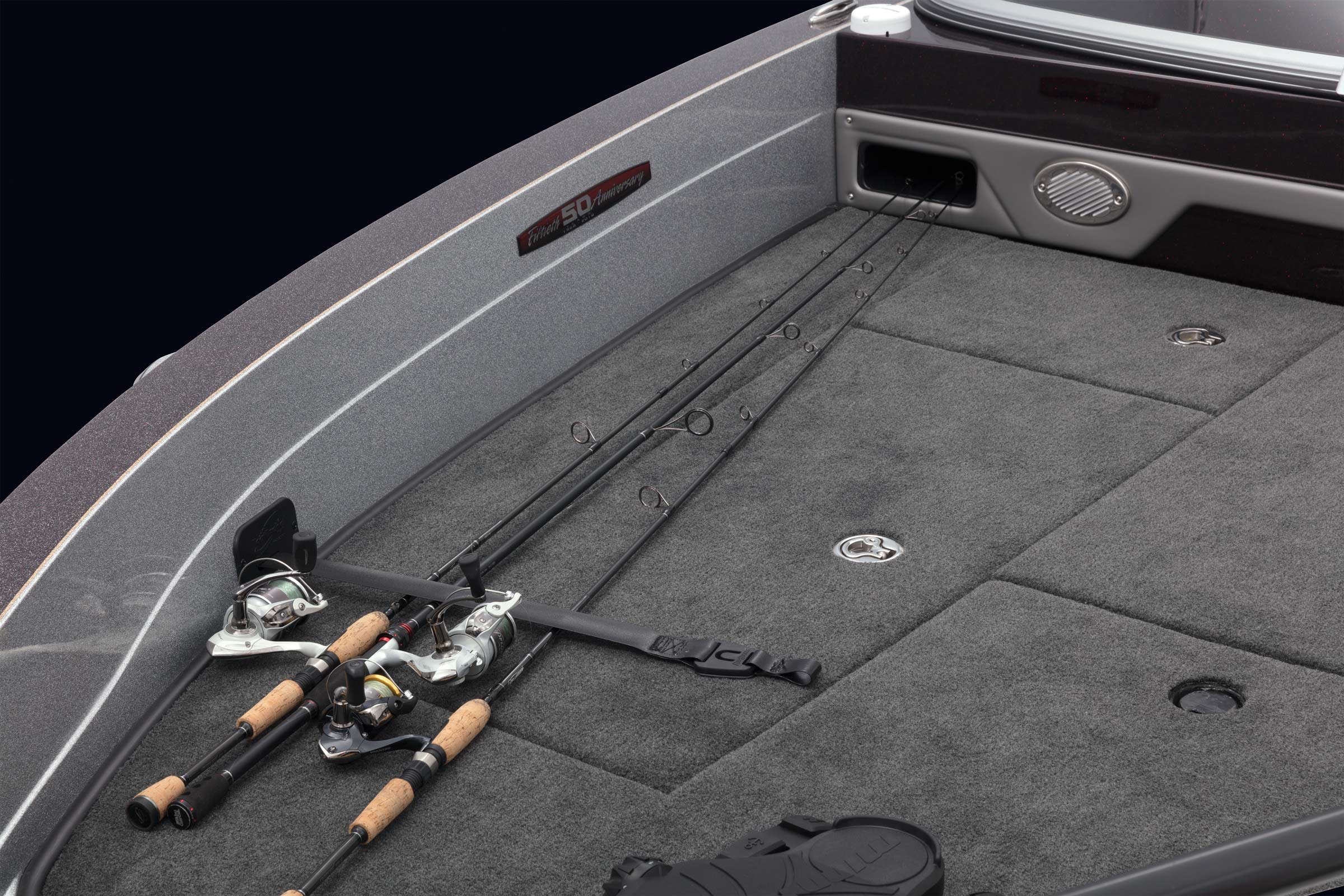

- Retractable bow rod buckles

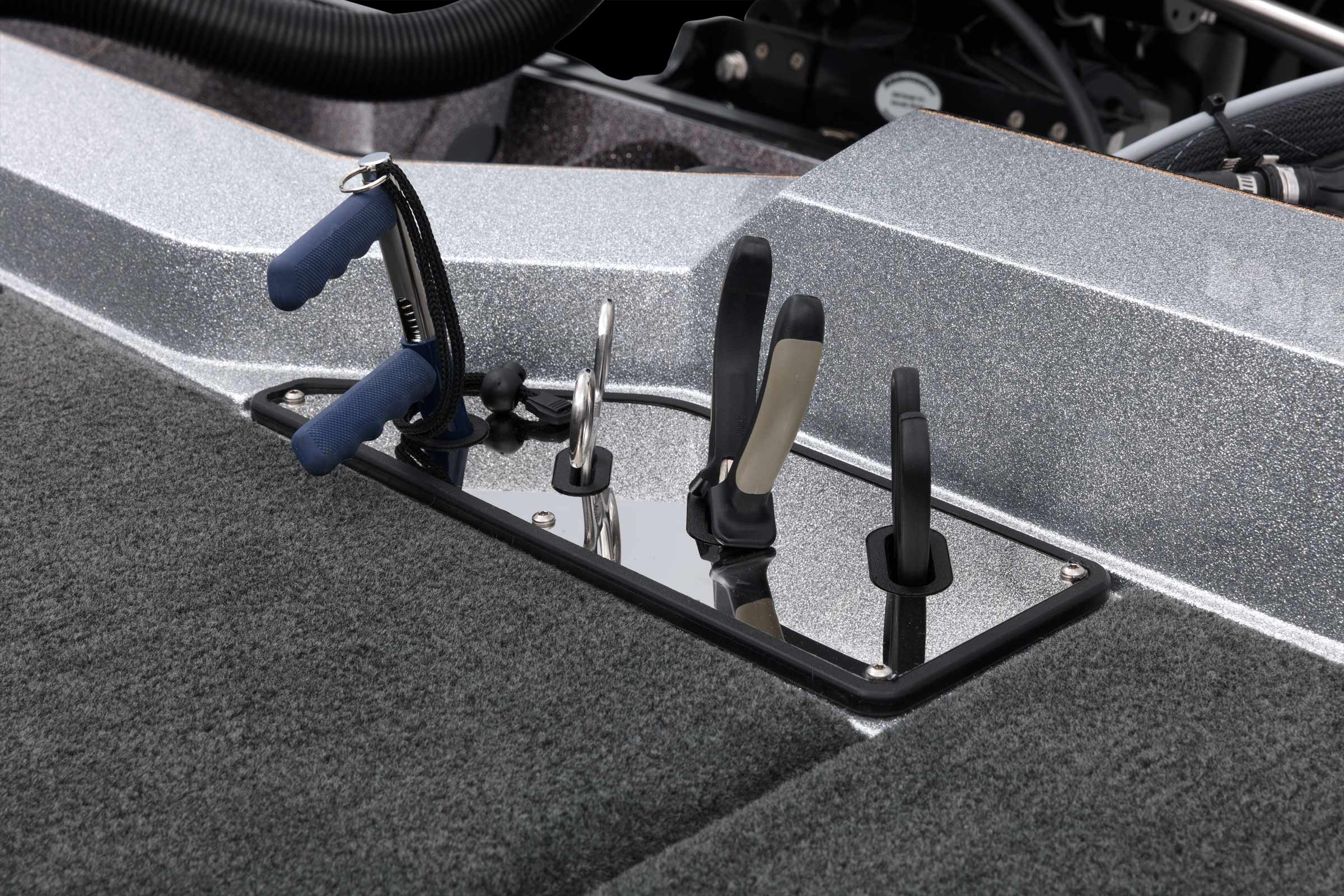

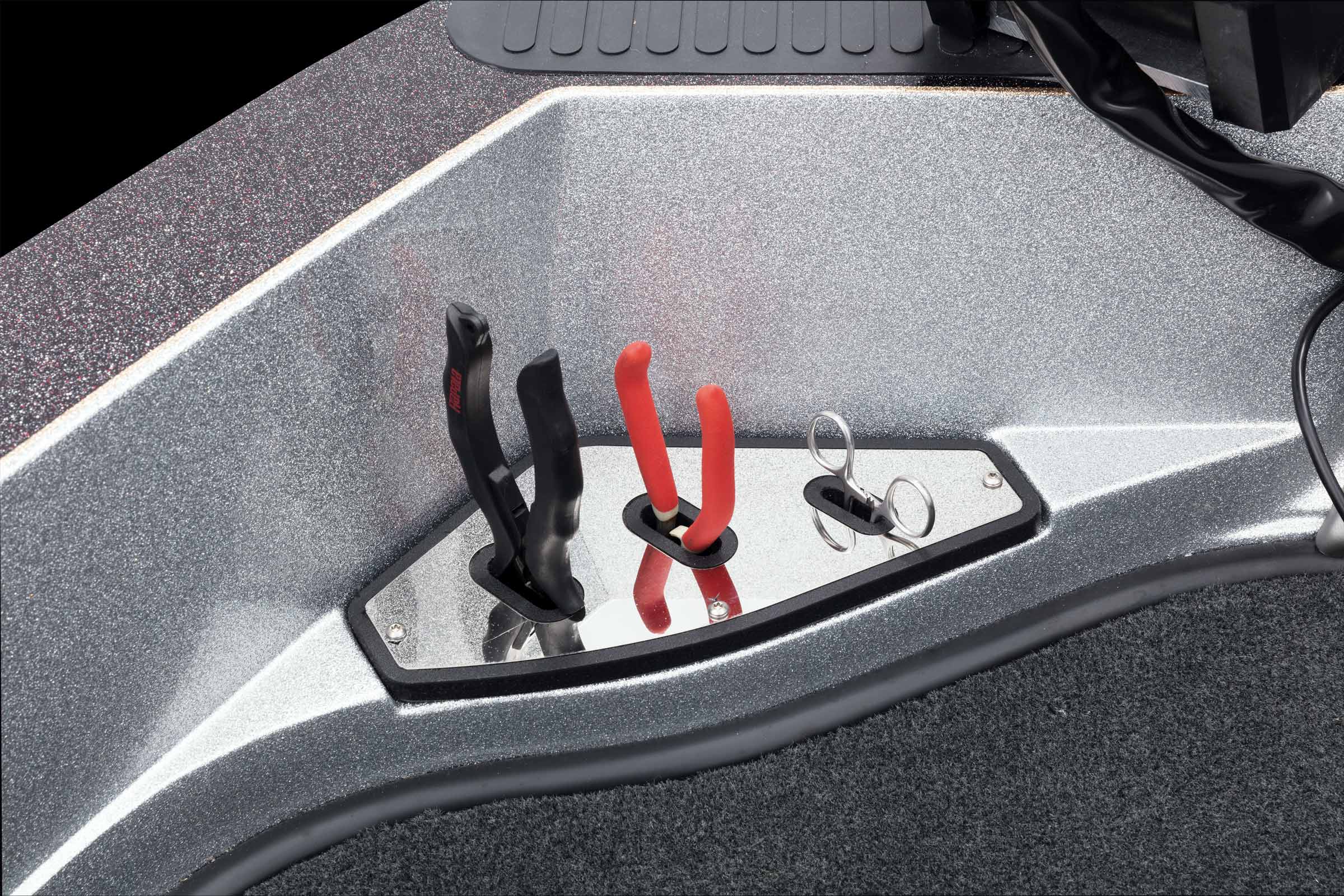

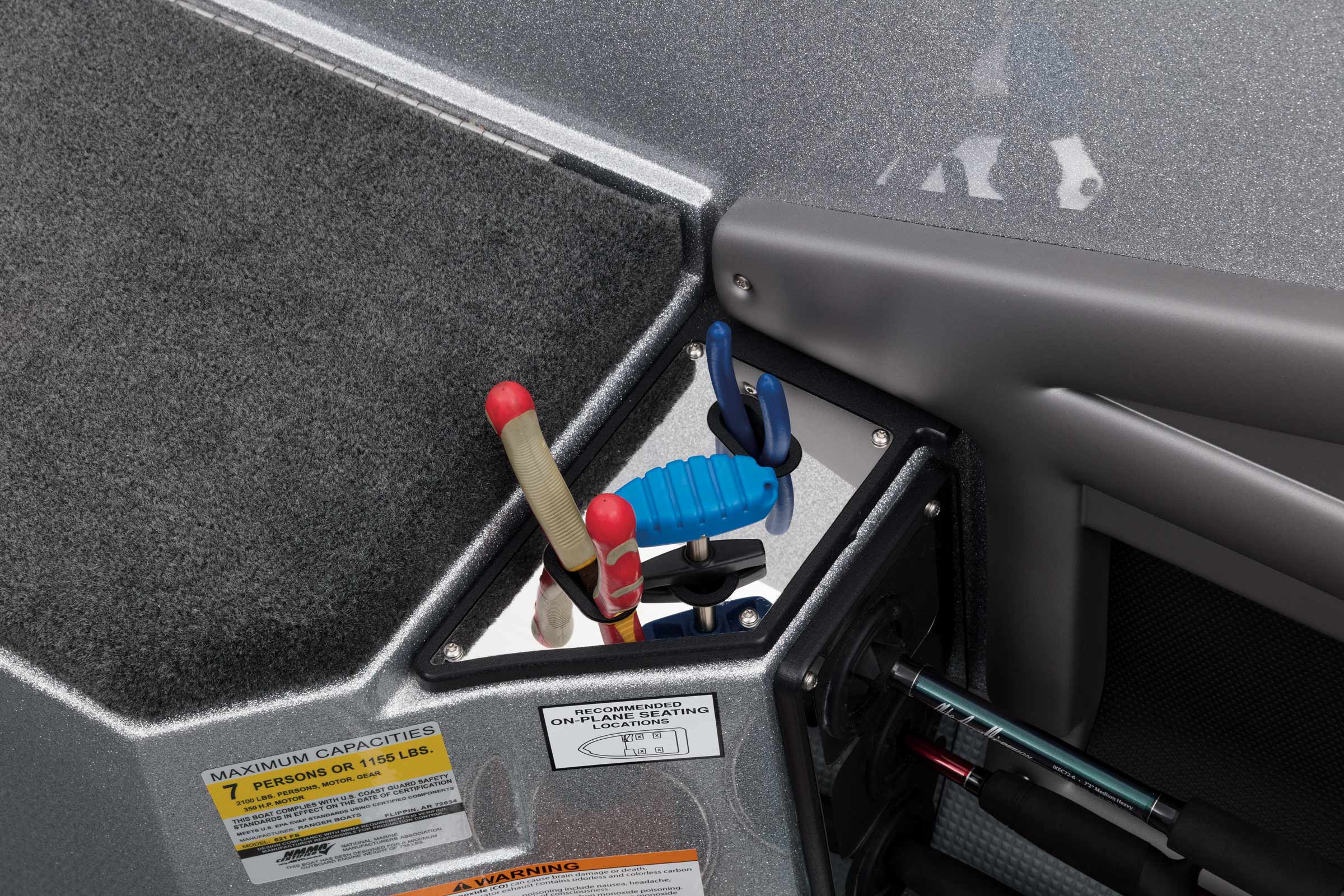

- Tool holders - (1) Bow, (1) cockpit, (2) rear

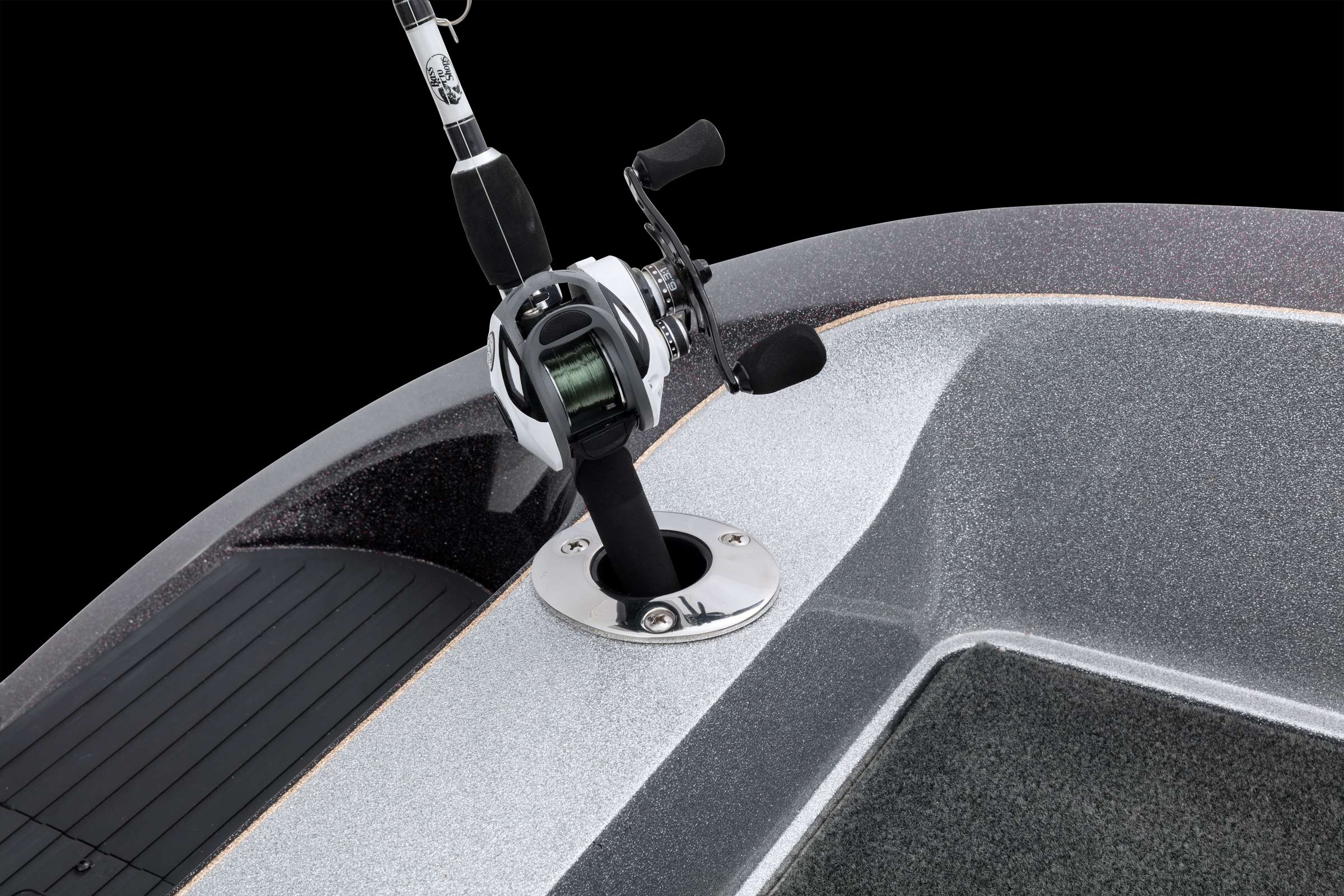

- (2) Deck-mounted stern rod holders
- Runnin' rod rack w/ holder
- Remote drain plug

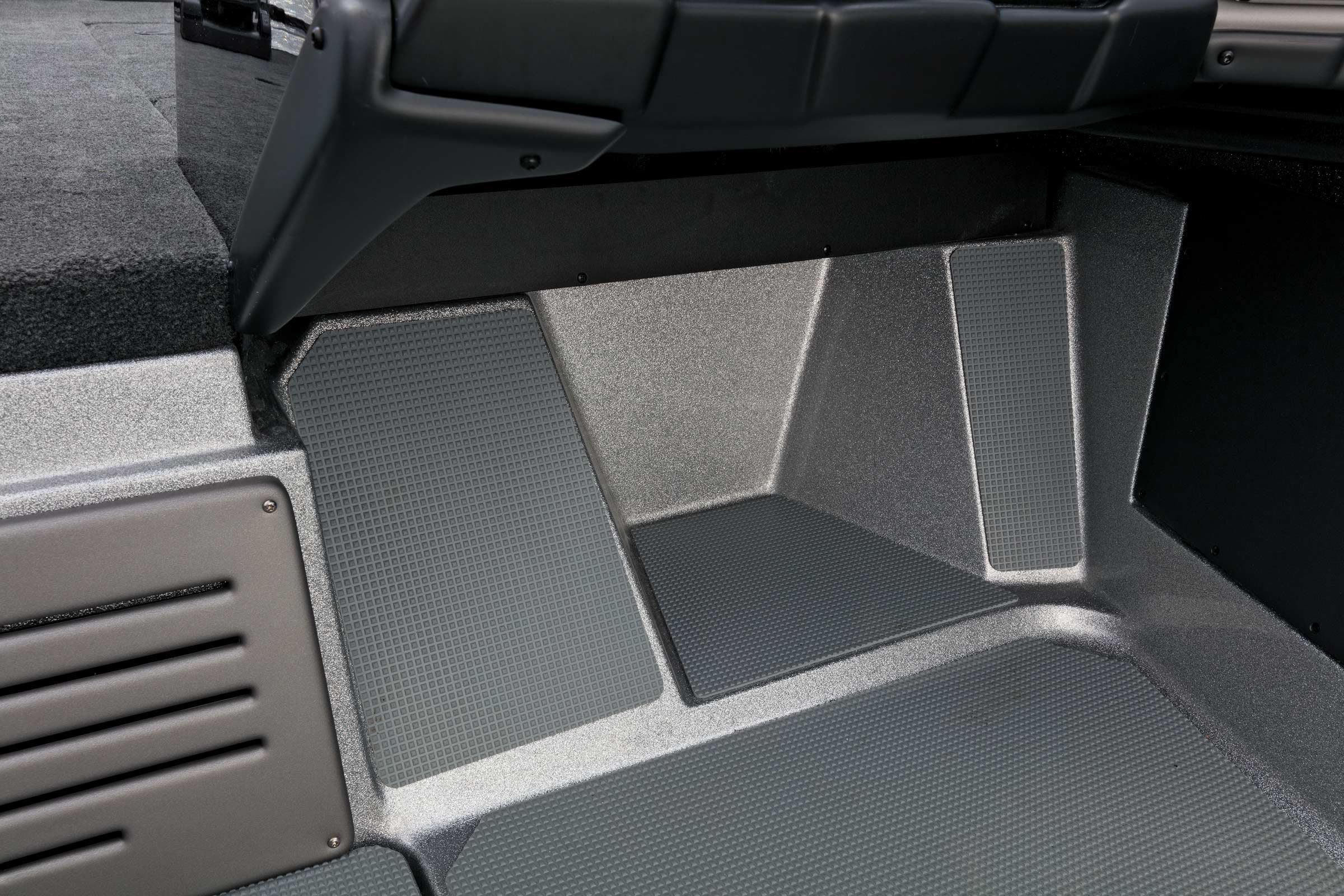

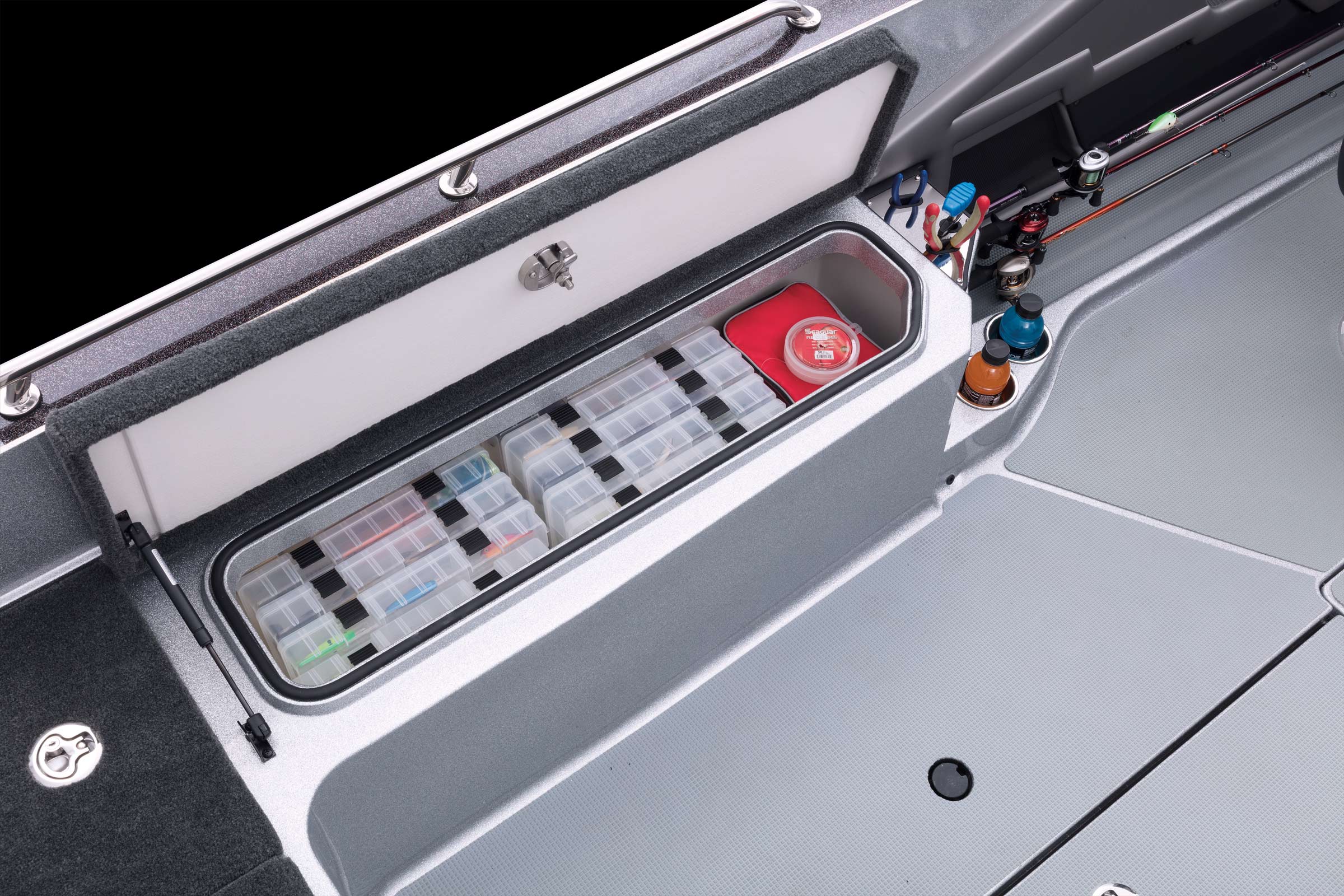

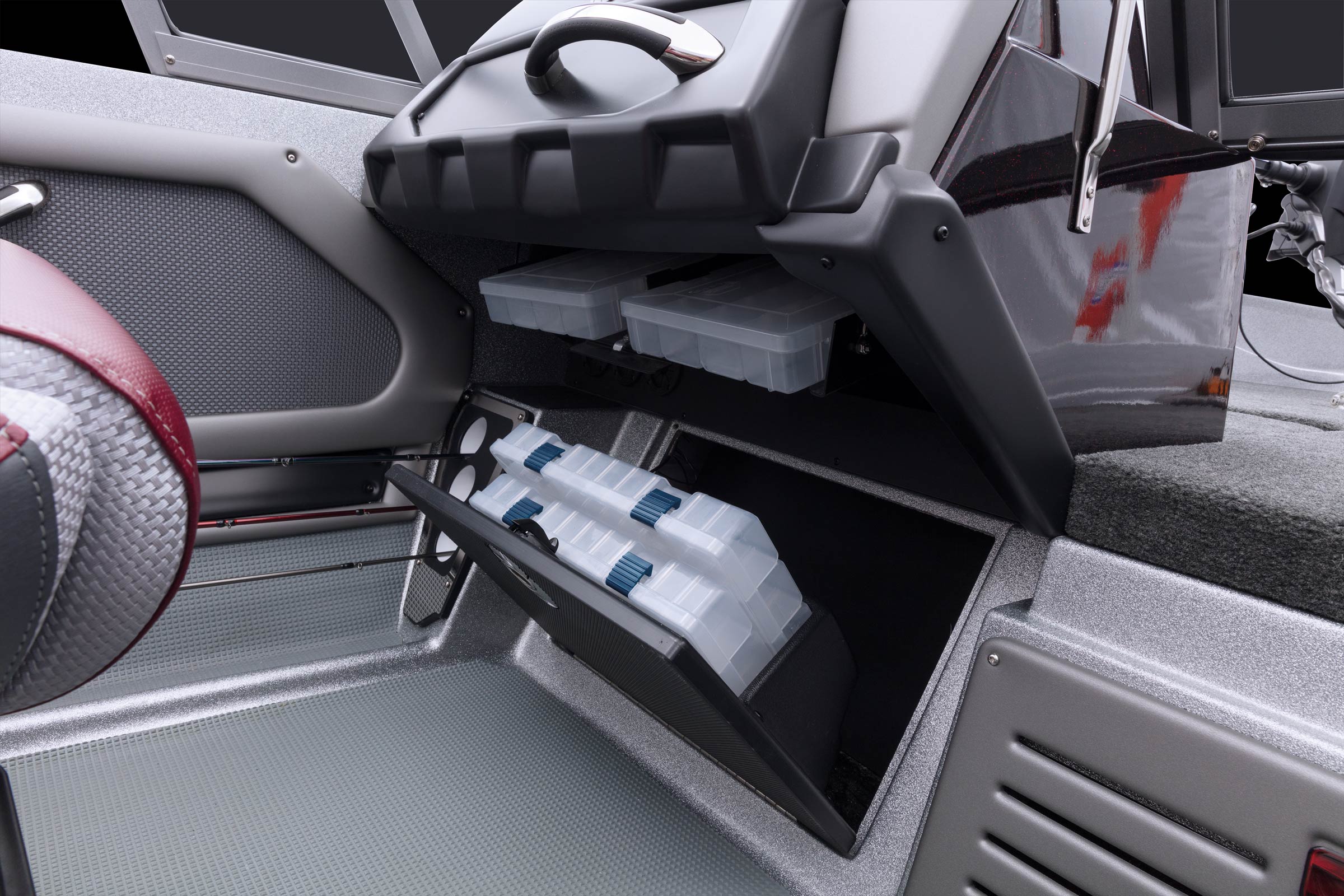

- Plano® storage under port console and passenger foot rest
- Bow rails
Electronics
- 12V DC power receptacle with USB
- Rear charger receptacle
- Heavy-duty 6-gauge trolling motor wiring w/ 60 amp breaker
- LED courtesy light(s)
- LED cockpit, compartment and livewell light package
- LED folding stern light
- Bow panel w/ digital switching

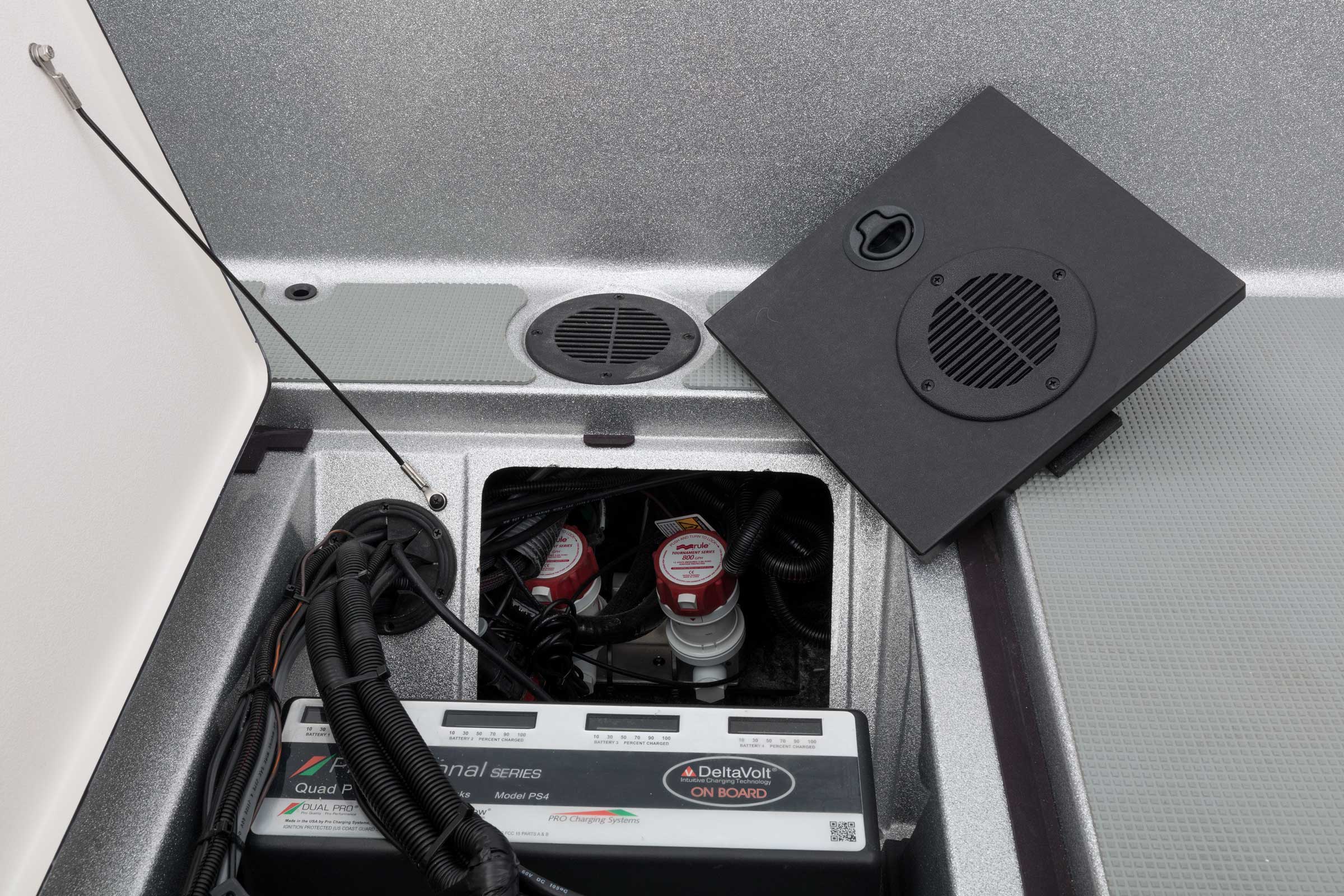

- On-board Dual Pro® charger, 15 x 4, auto detect lithium capable

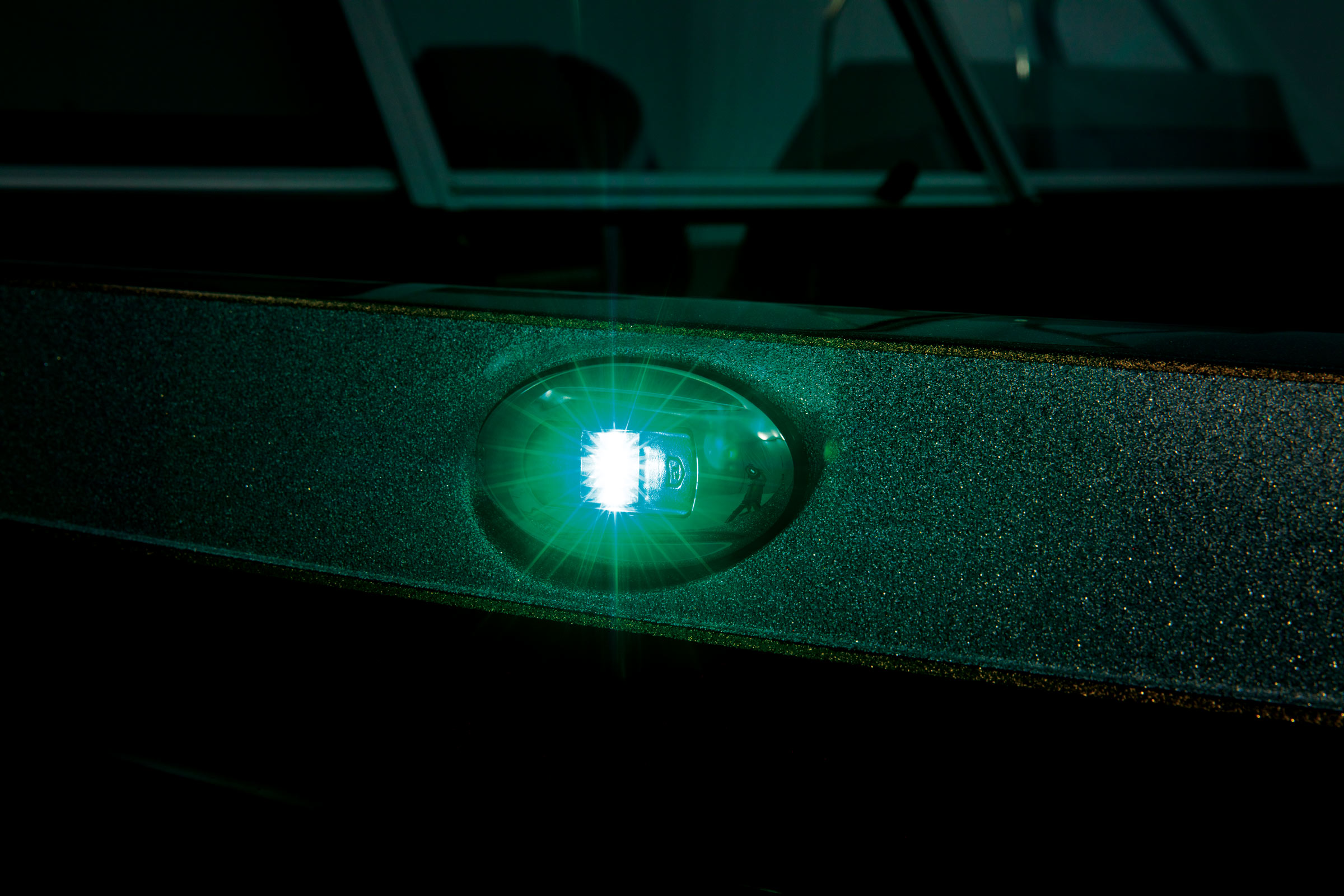

- Integrated LED bow navigation and removable stern lights
- Solid-state re-settable switching with 30A master breaker
- Lowrance® HDS-9 LIVE @ bow
- Lowrance® HDS-12 LIVE w/ Active Imaging @ console

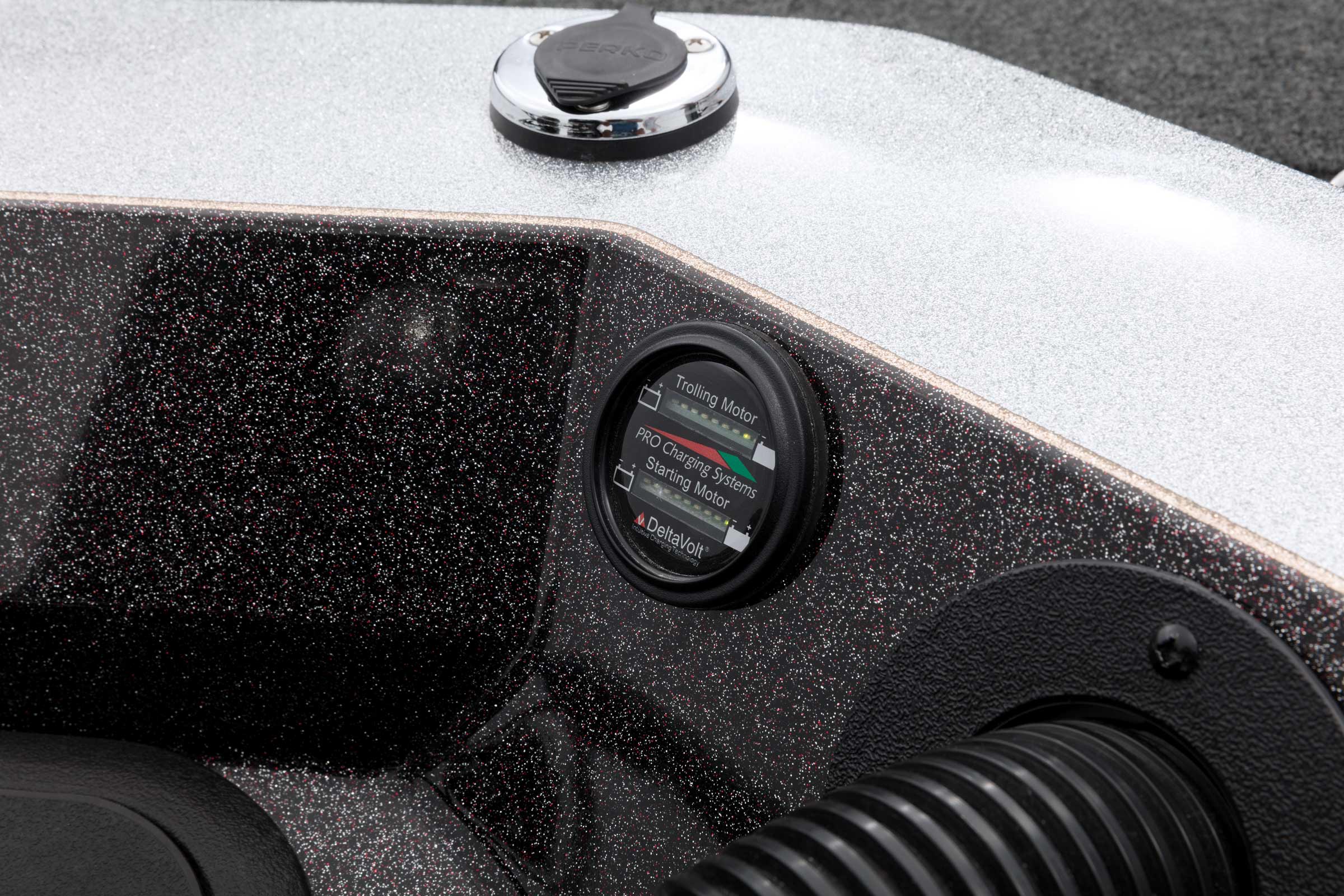

- Battery charger gauge

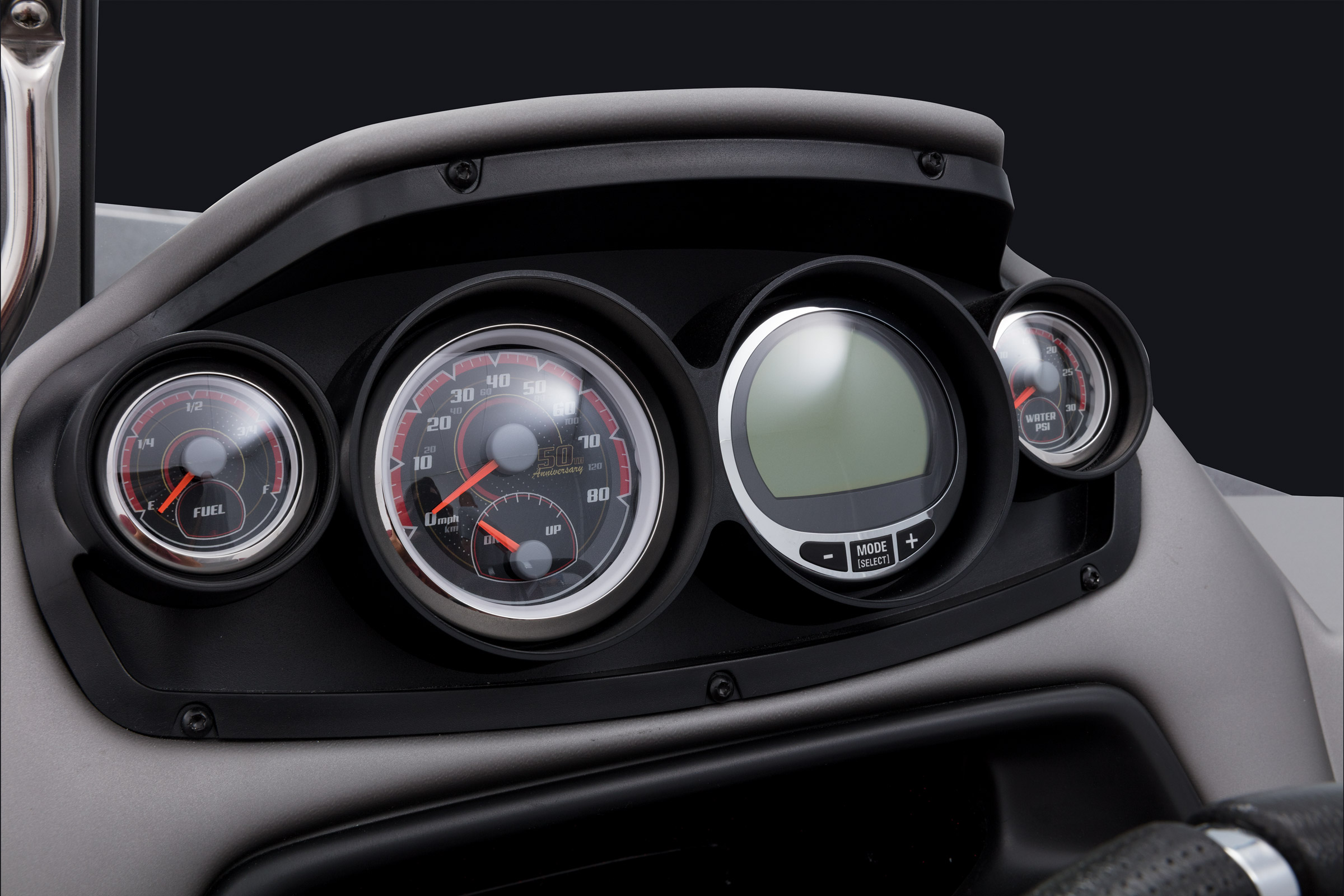

- Console panel with digital switches and custom gauges: position sensing speedometer, tach, fuel, trim, water pressure, volt, clock
- 30A master breaker
Safety/Comfort
- Fire extinguisher & horn
- Automatic & manual bilge pump

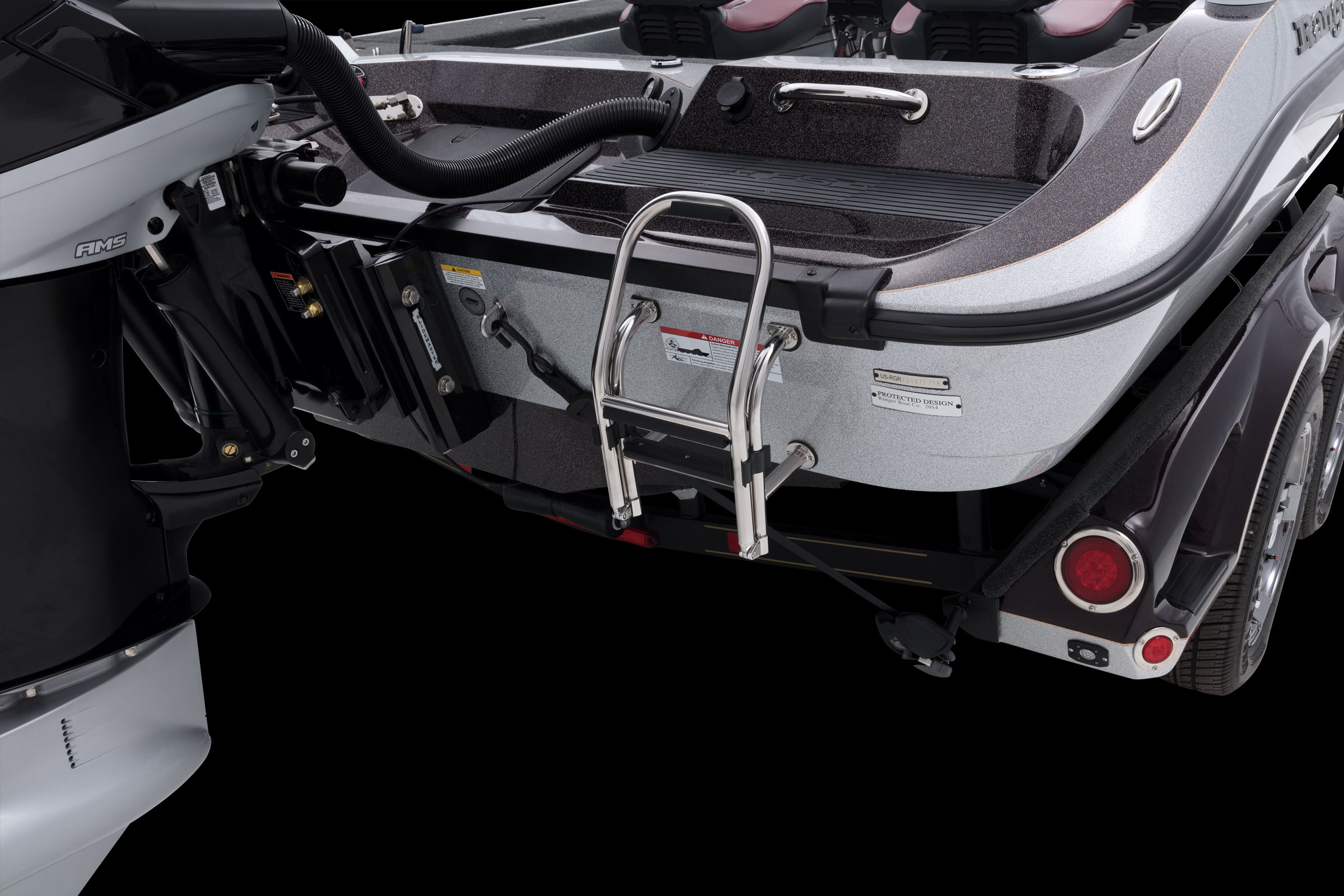

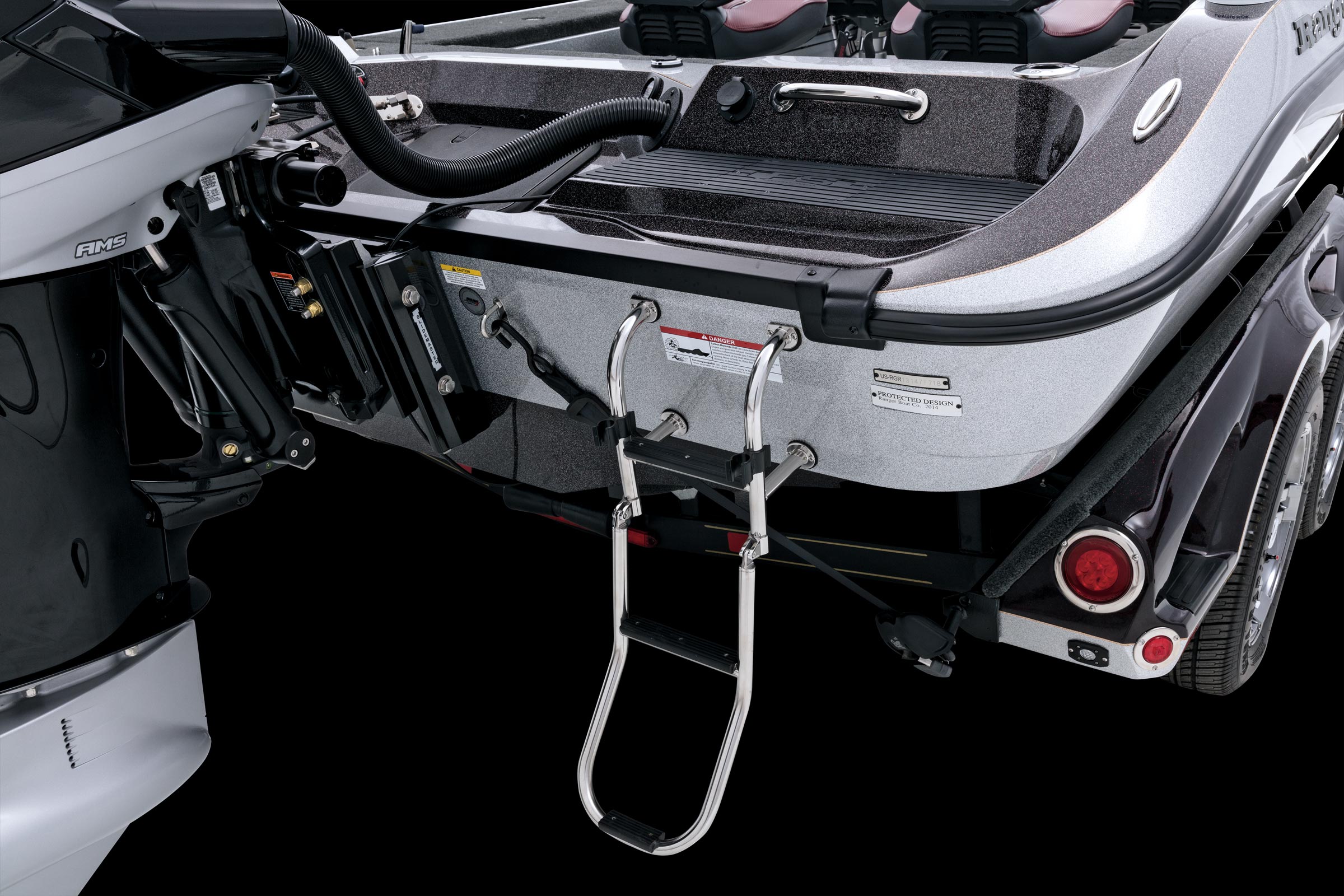

- Boarding ladder

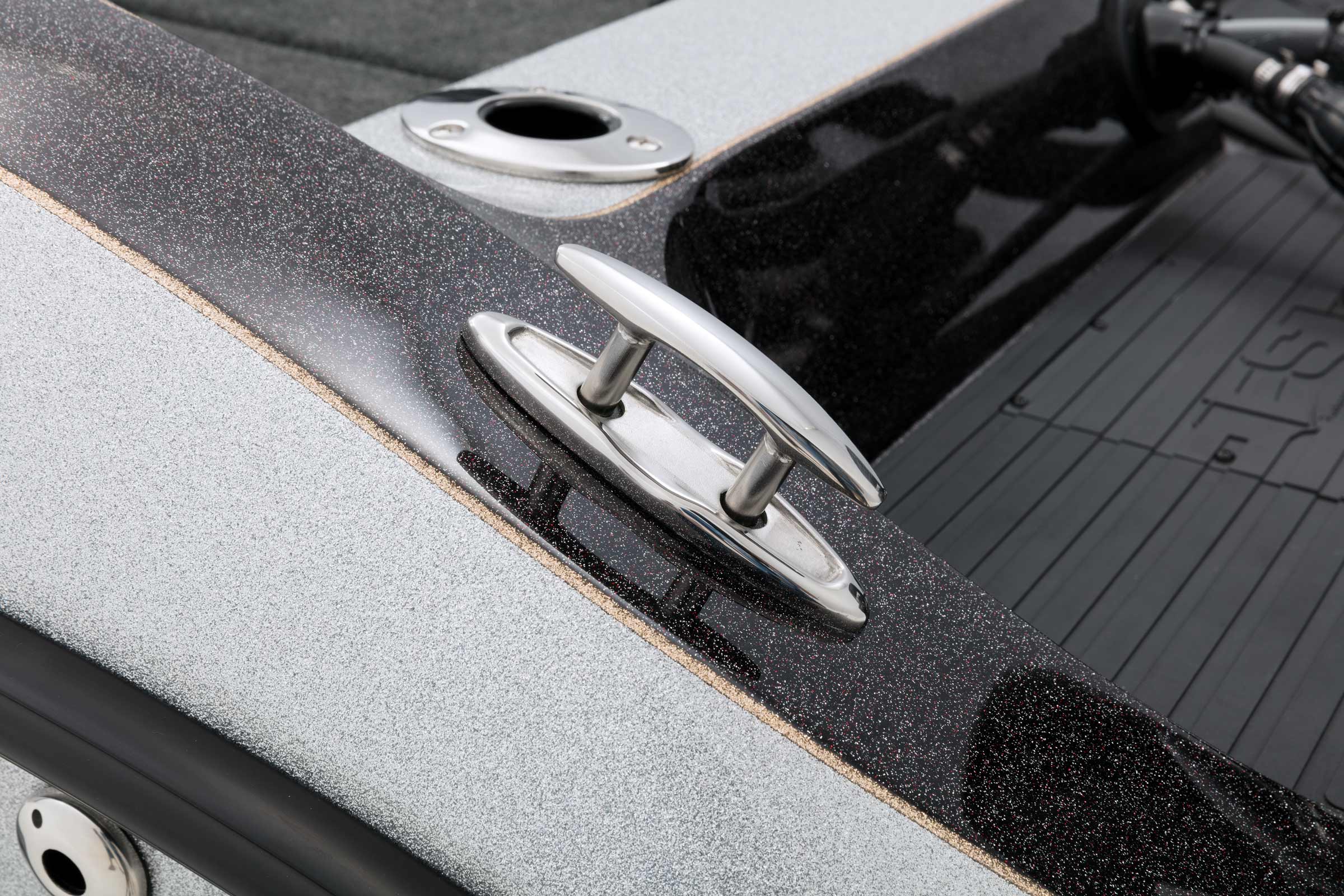

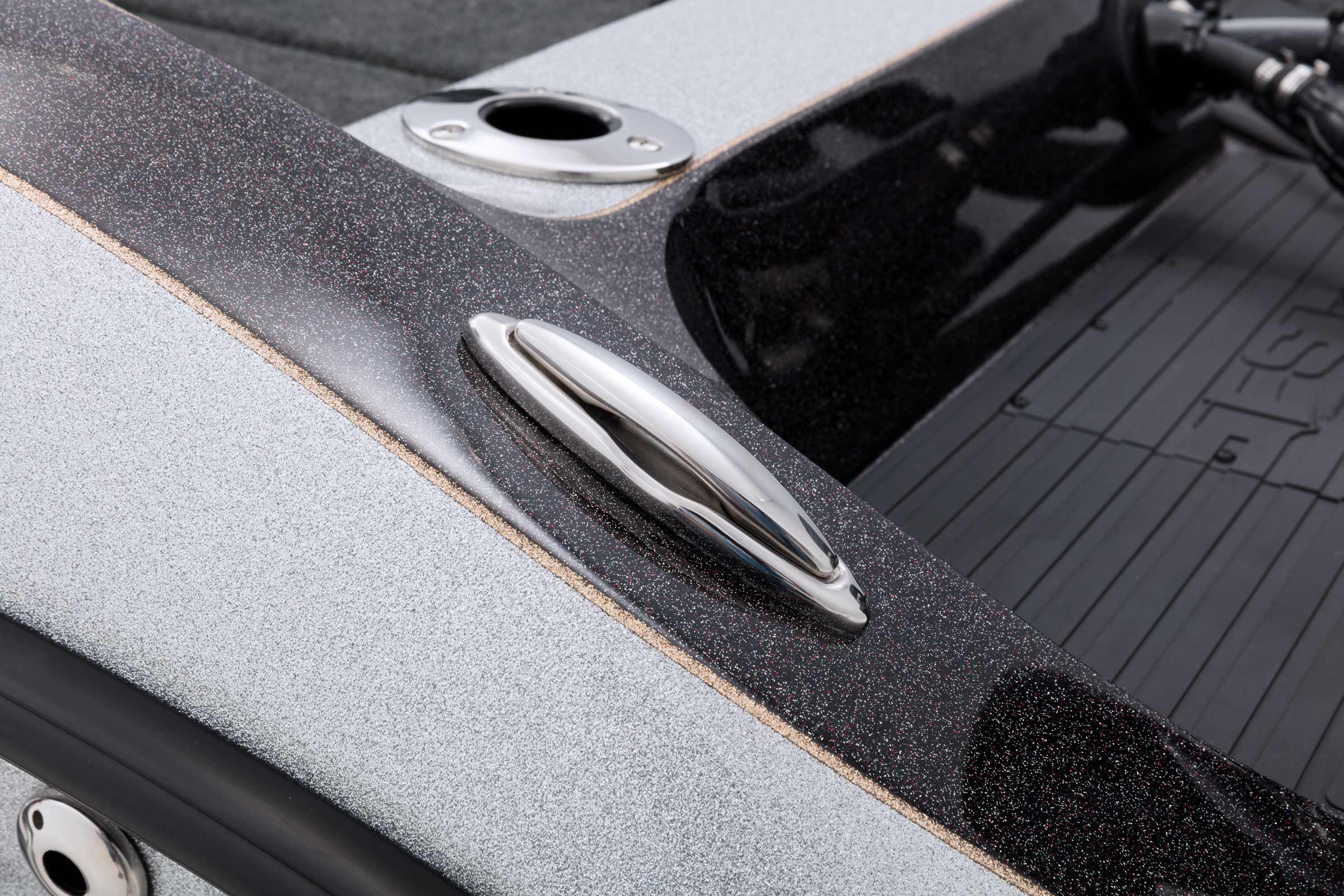

- Pull-up tie cleats

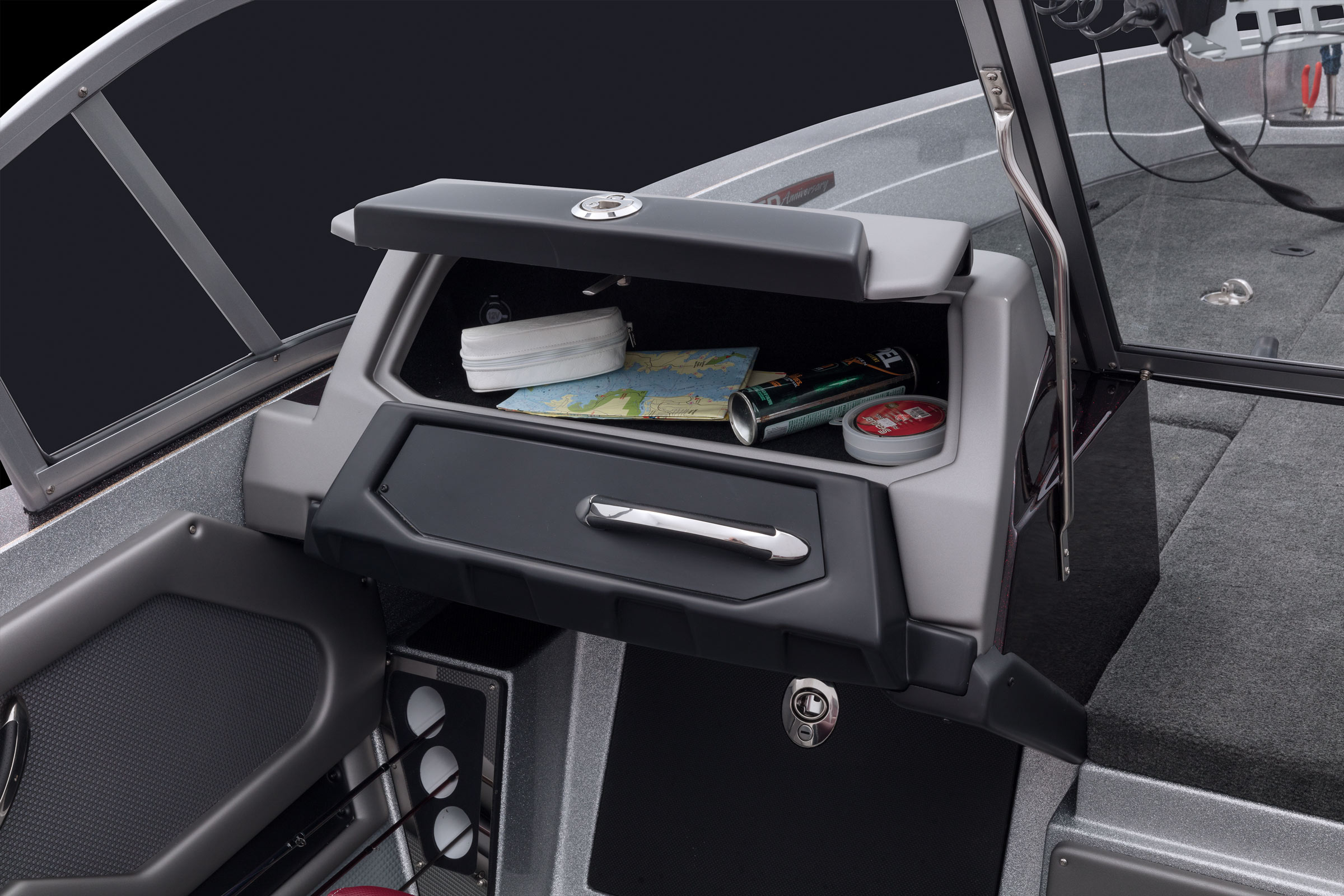

- Passenger glove box (dual console only)
- Skid-resistant material on bow
- Upright, level flotation

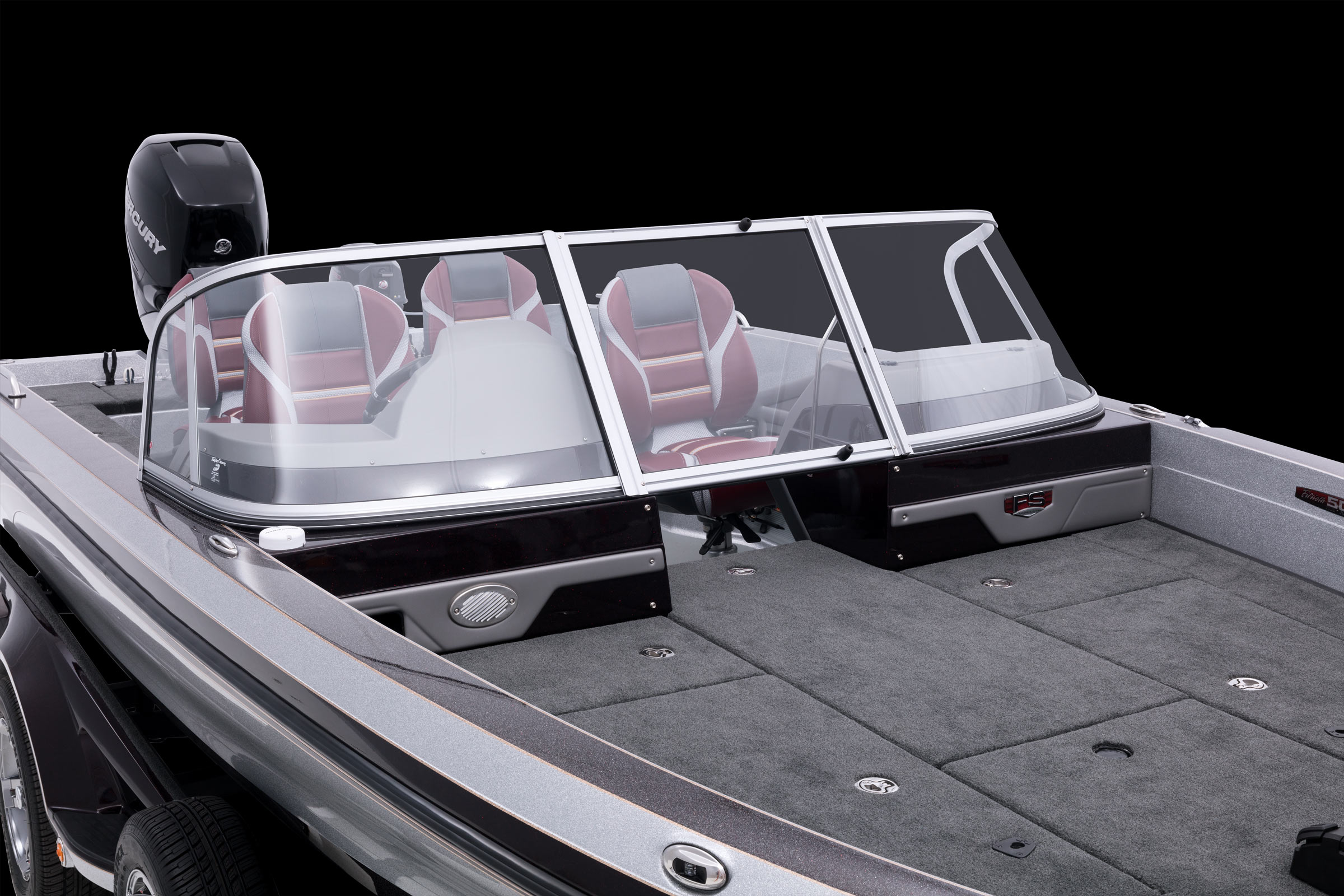

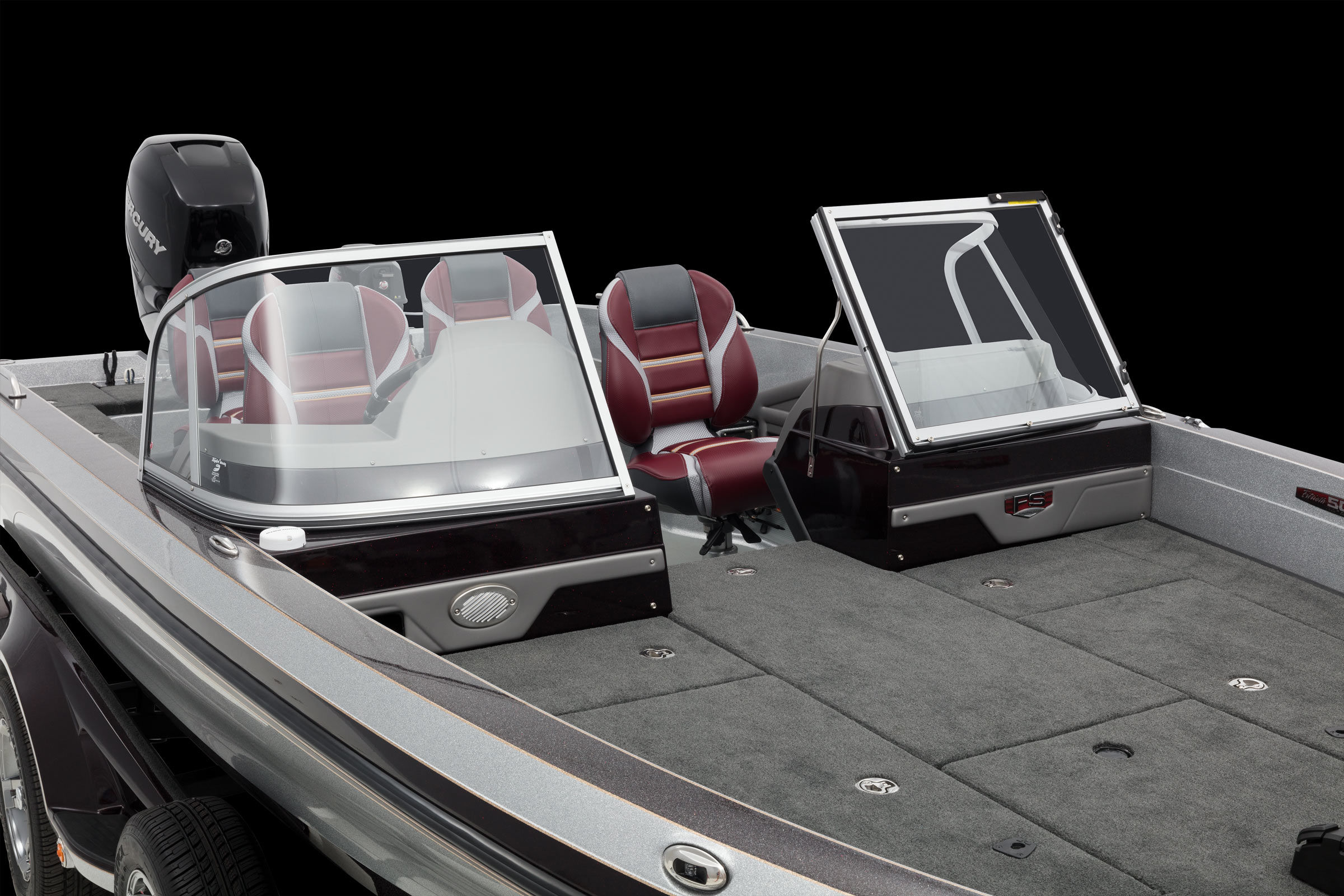

- Walk-thru windshield
- Integrated grab handles

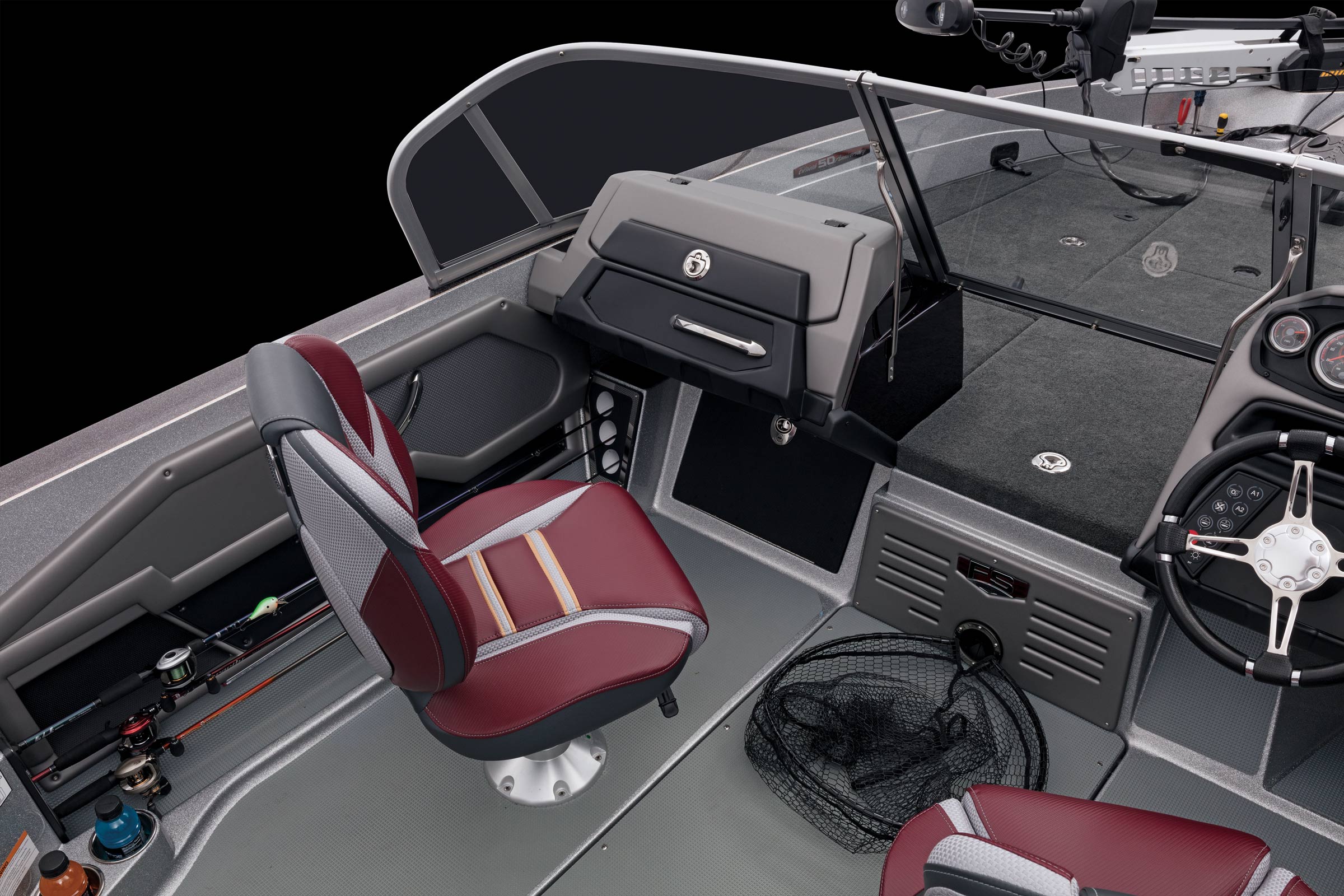

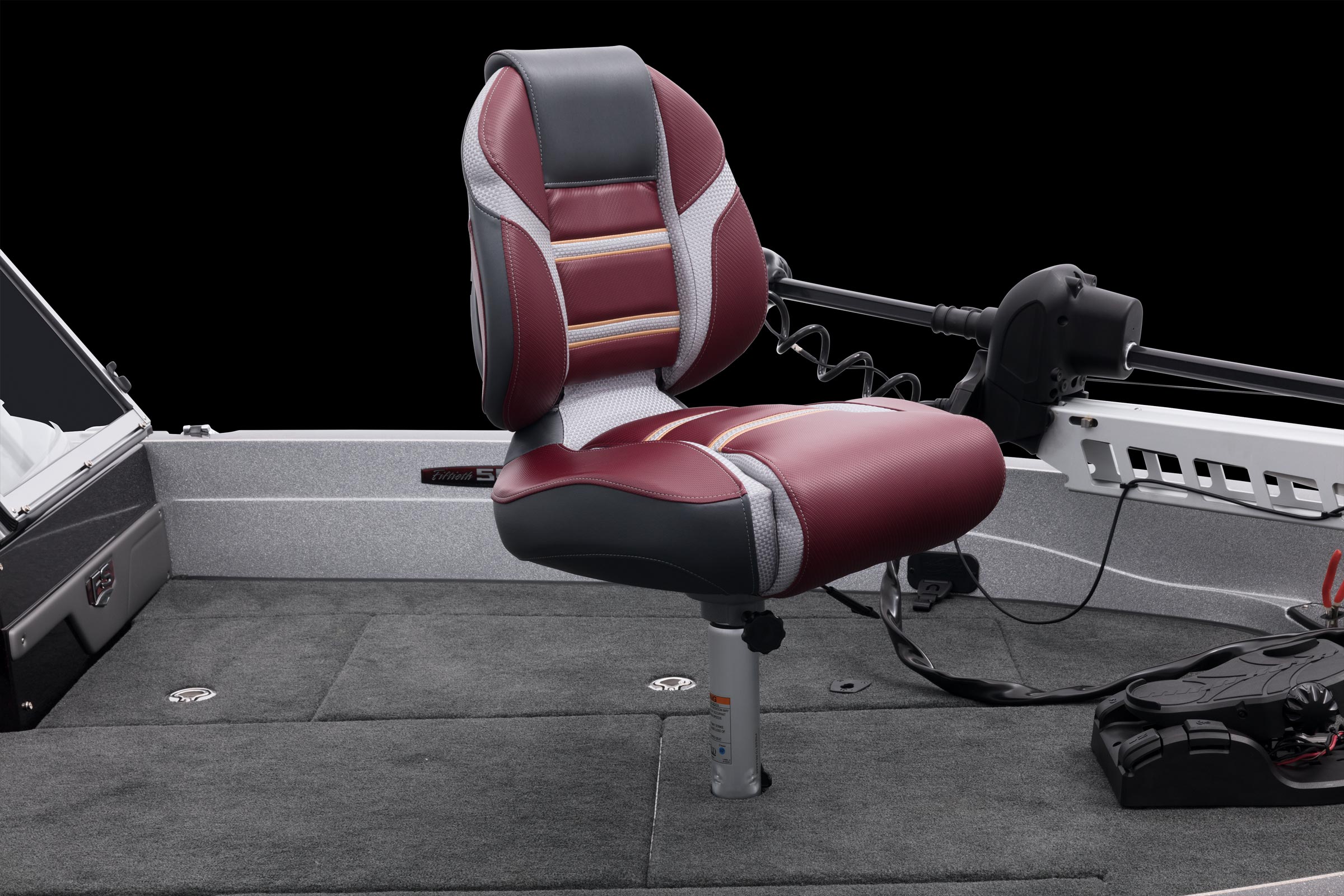

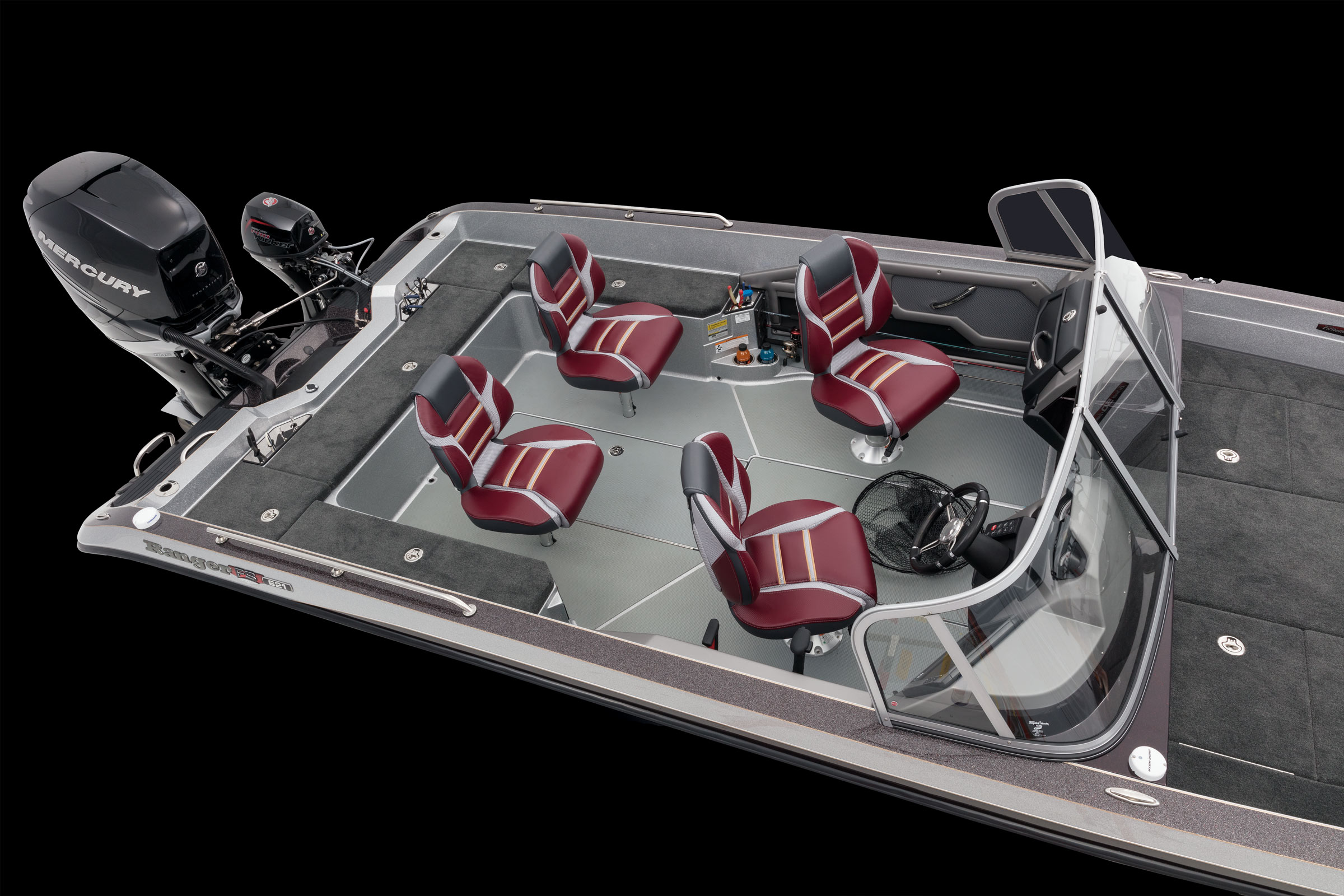

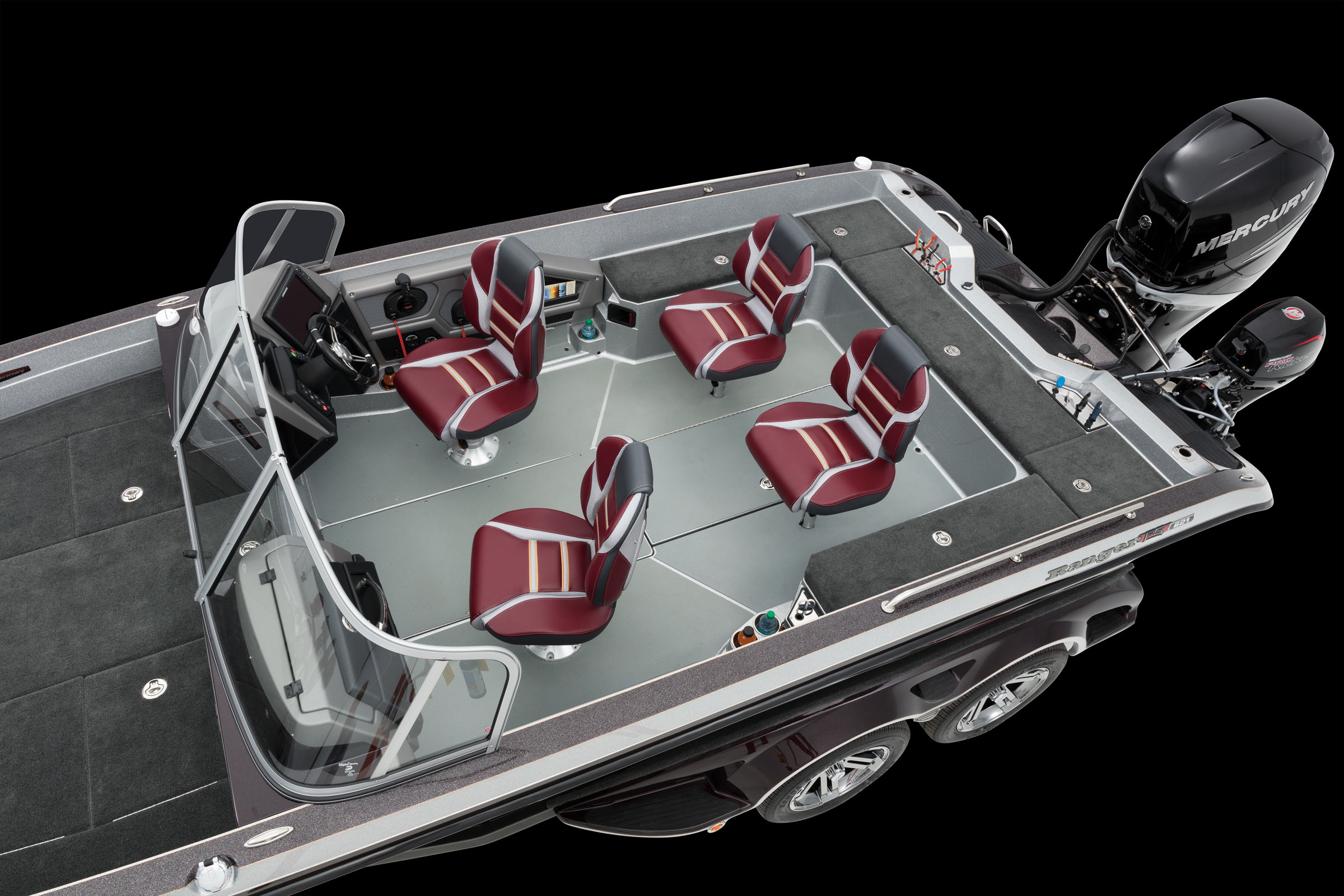

- Custom fitted premium marine upholstery - (4) all-weather SRS fold-downs: (2) w/ slide-swivel, (2) power pedestals
Power/Performance

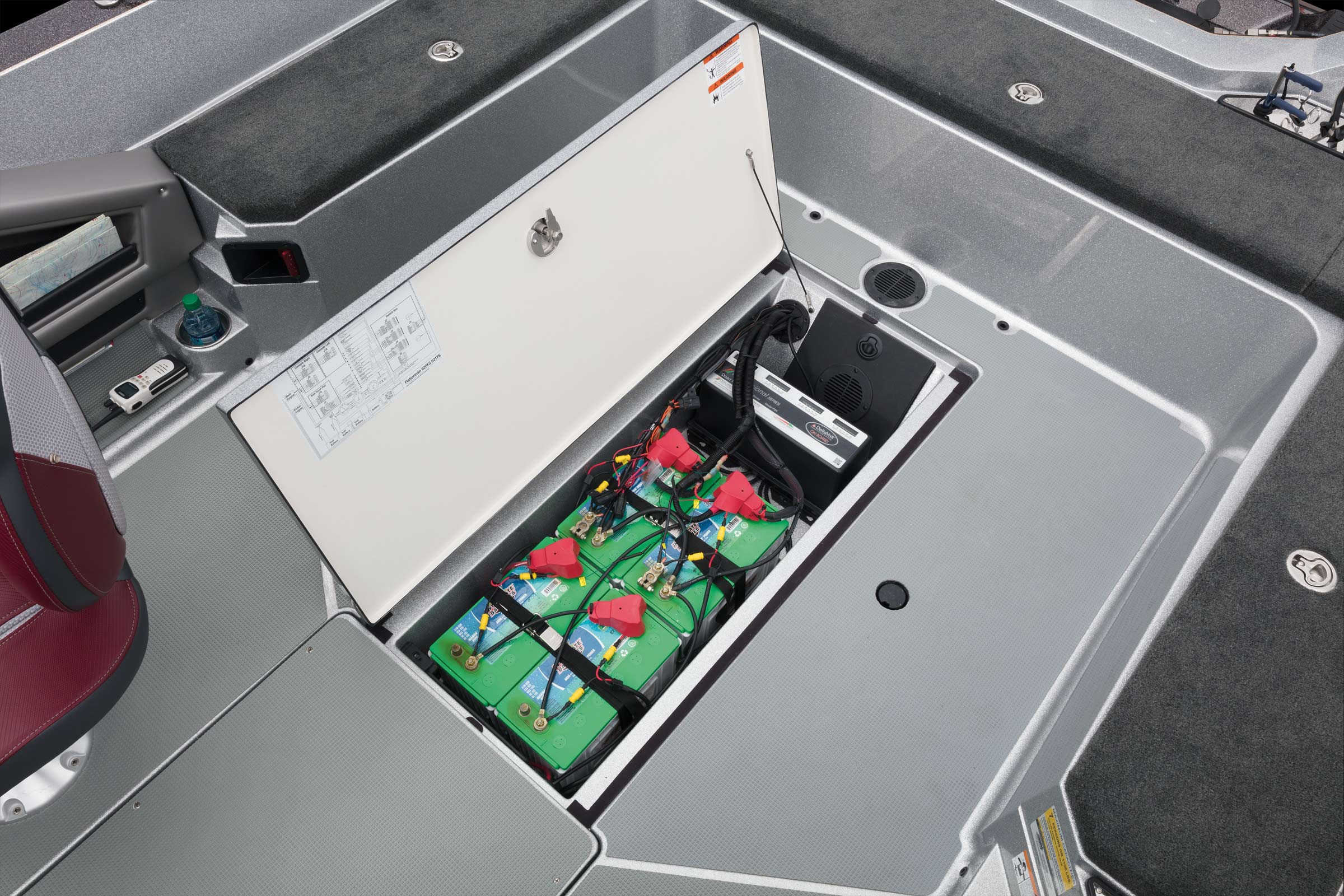

- (3) WRM80 lithium trolling motor batteries
- Electrical system disconnect on/off switch
- NOCO™ GB40 jump starter
- Flush-mounted remote throttle control
- Foam-filled fiberglass stringers
- High performance stainless steel prop
- High performance steering wheel
- Lowrance® Ghost 60" trolling motor
- Pultruded Fiberglass Transom

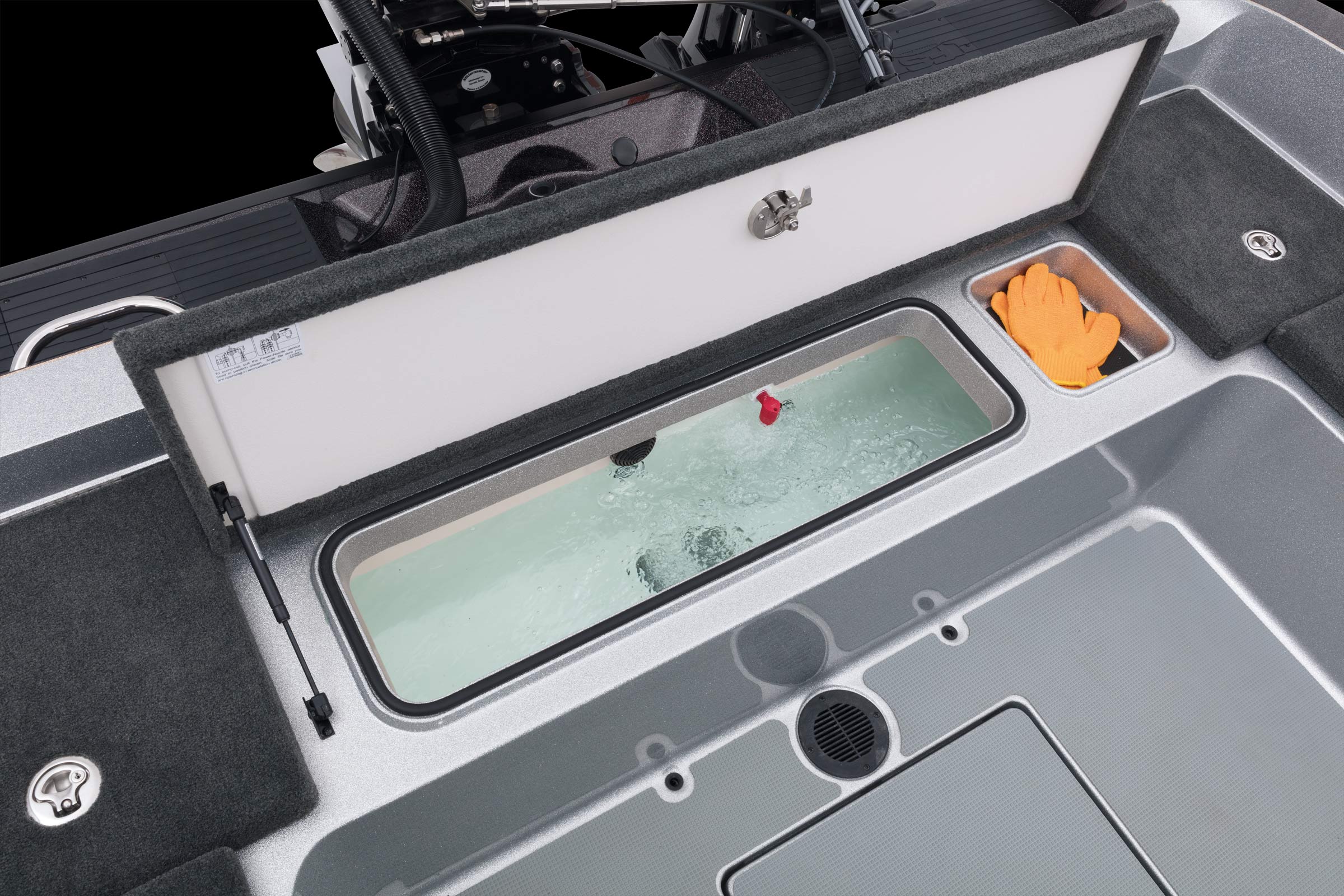

- Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out
- Tilt hydraulic steering
Trailer Features

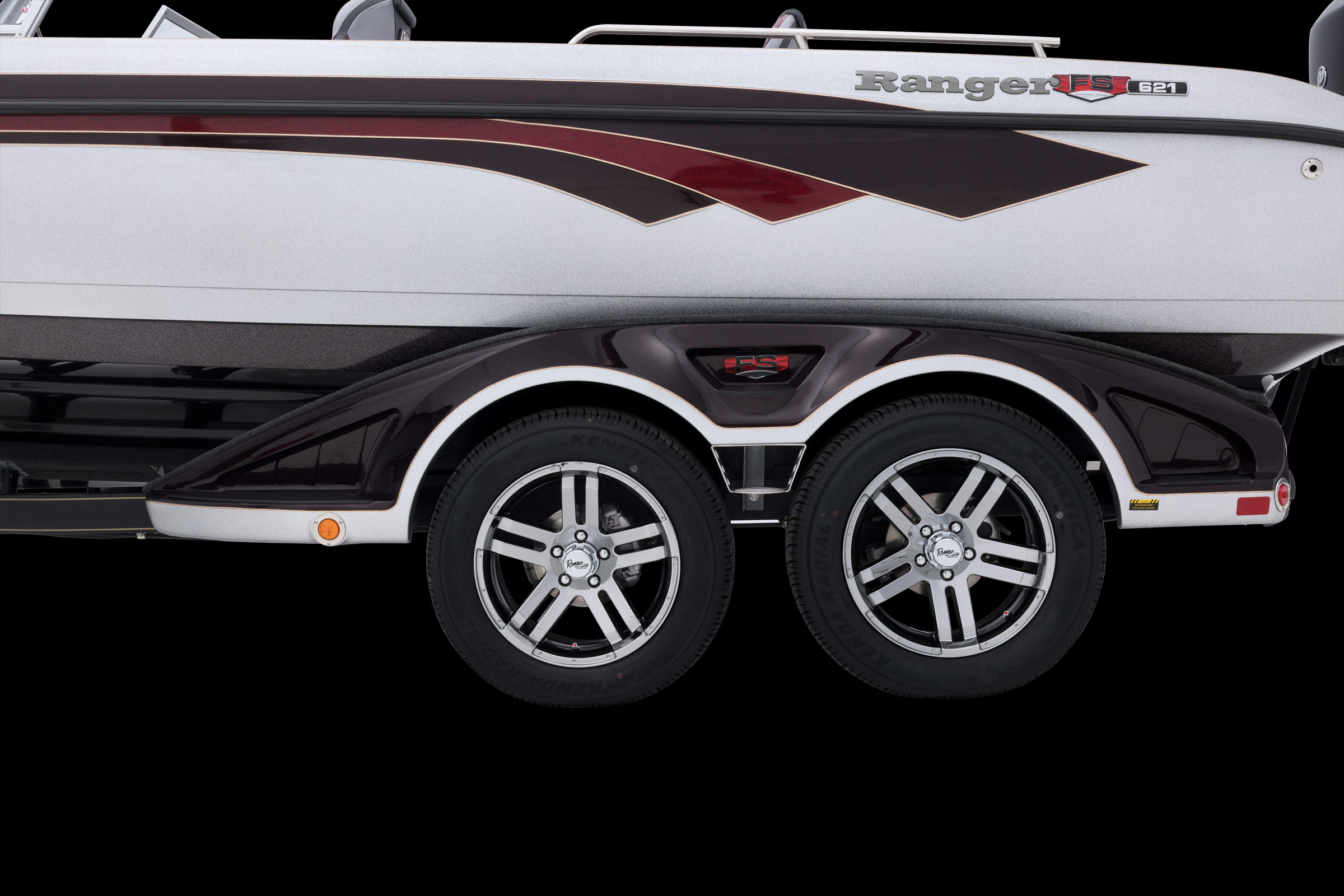

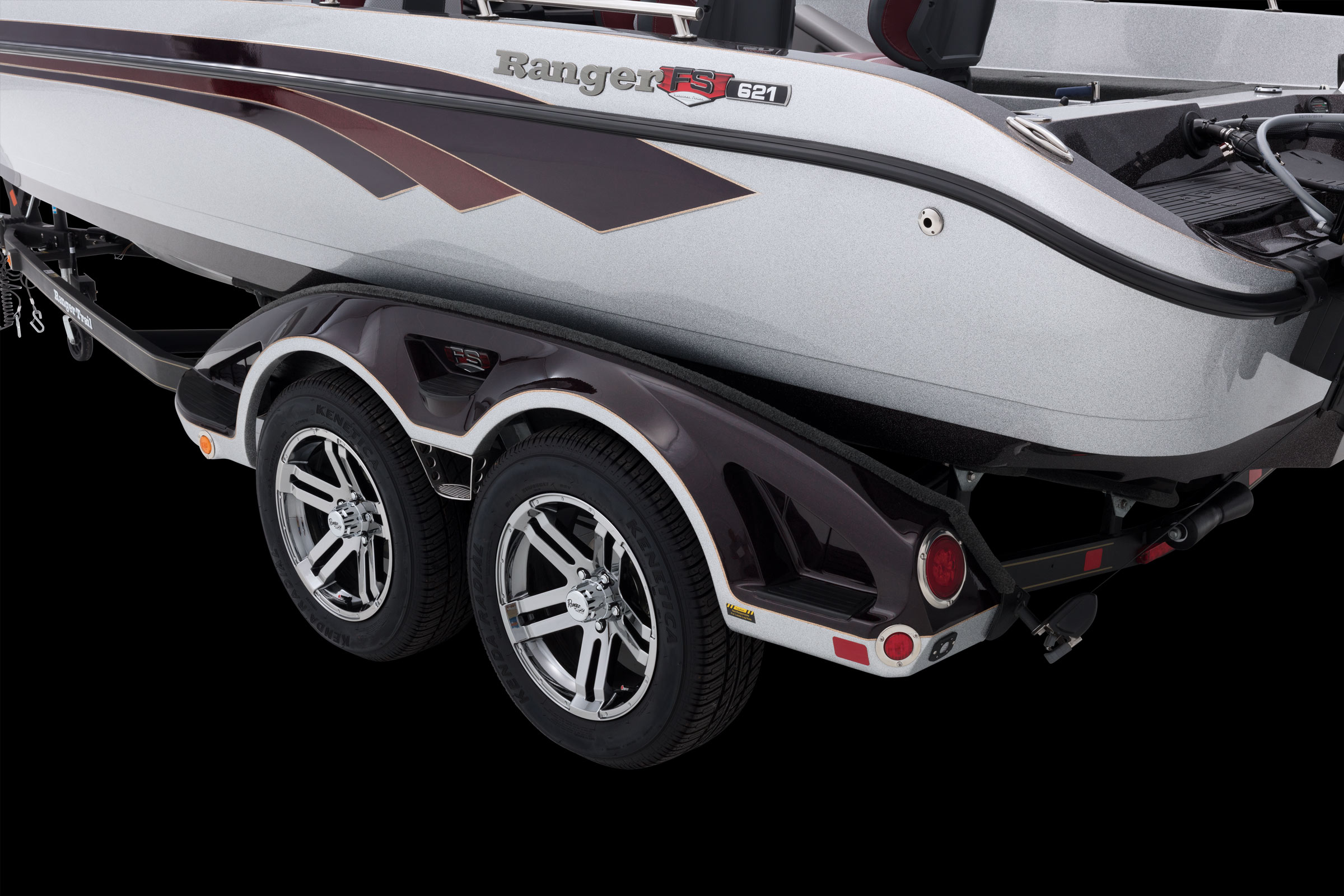

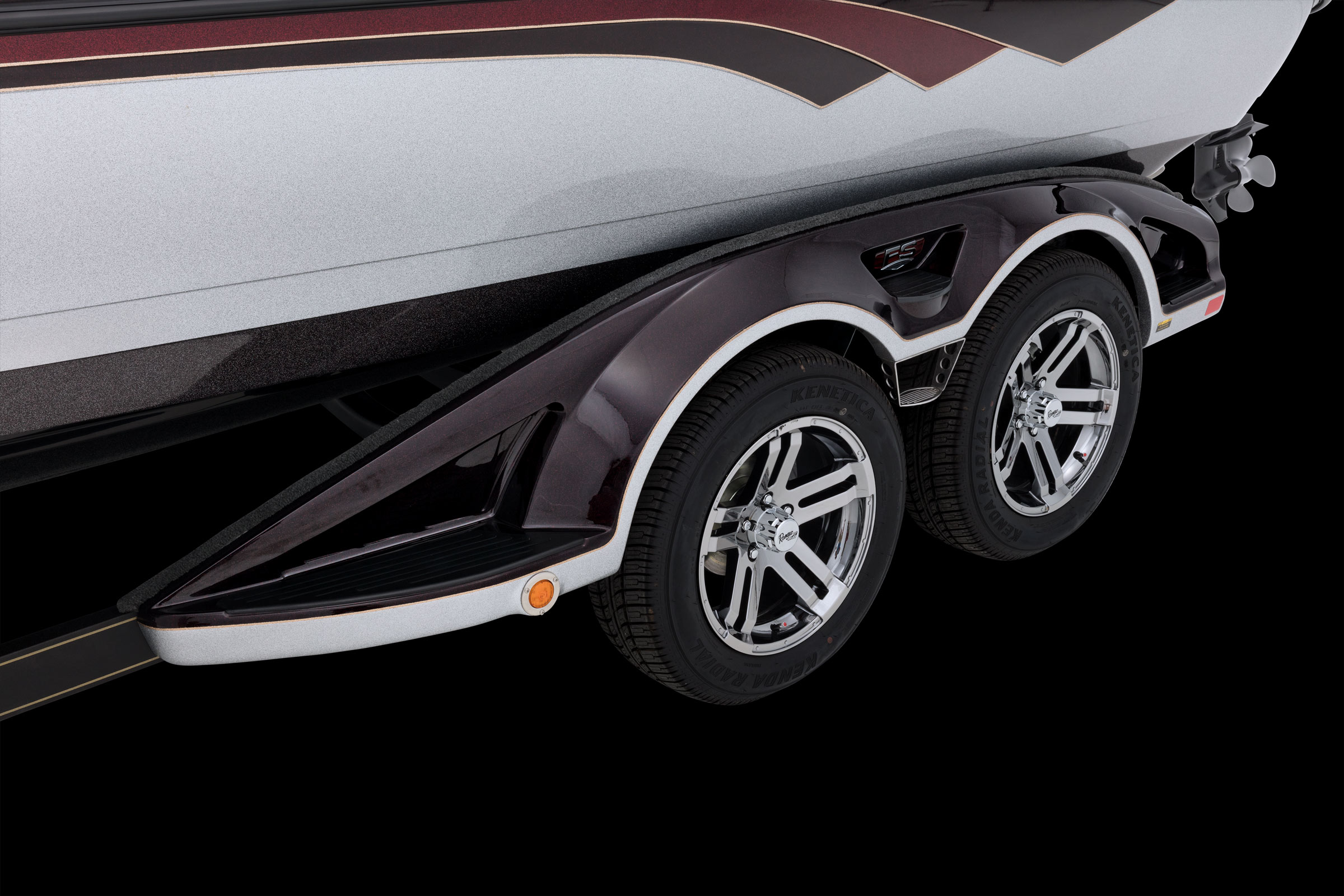

- Tandem axle trailer
- 17" black chrome Challenger wheels
- Stainless steel ratchet trailer tie-downs
- Center-swing jack (black powder coated)
- Swing-away tongue
- Hydraulic surge disc brakes

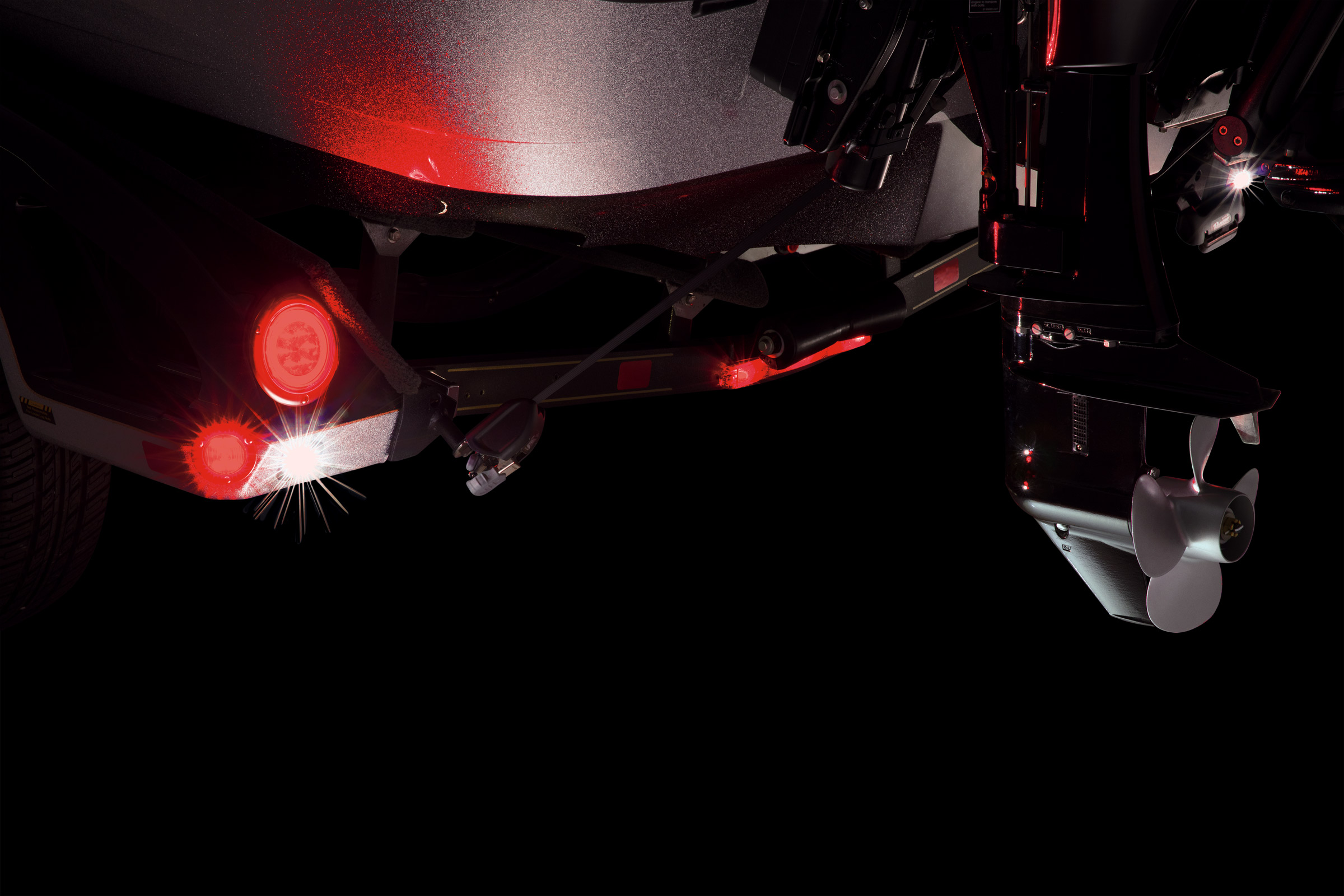

- LED lighting

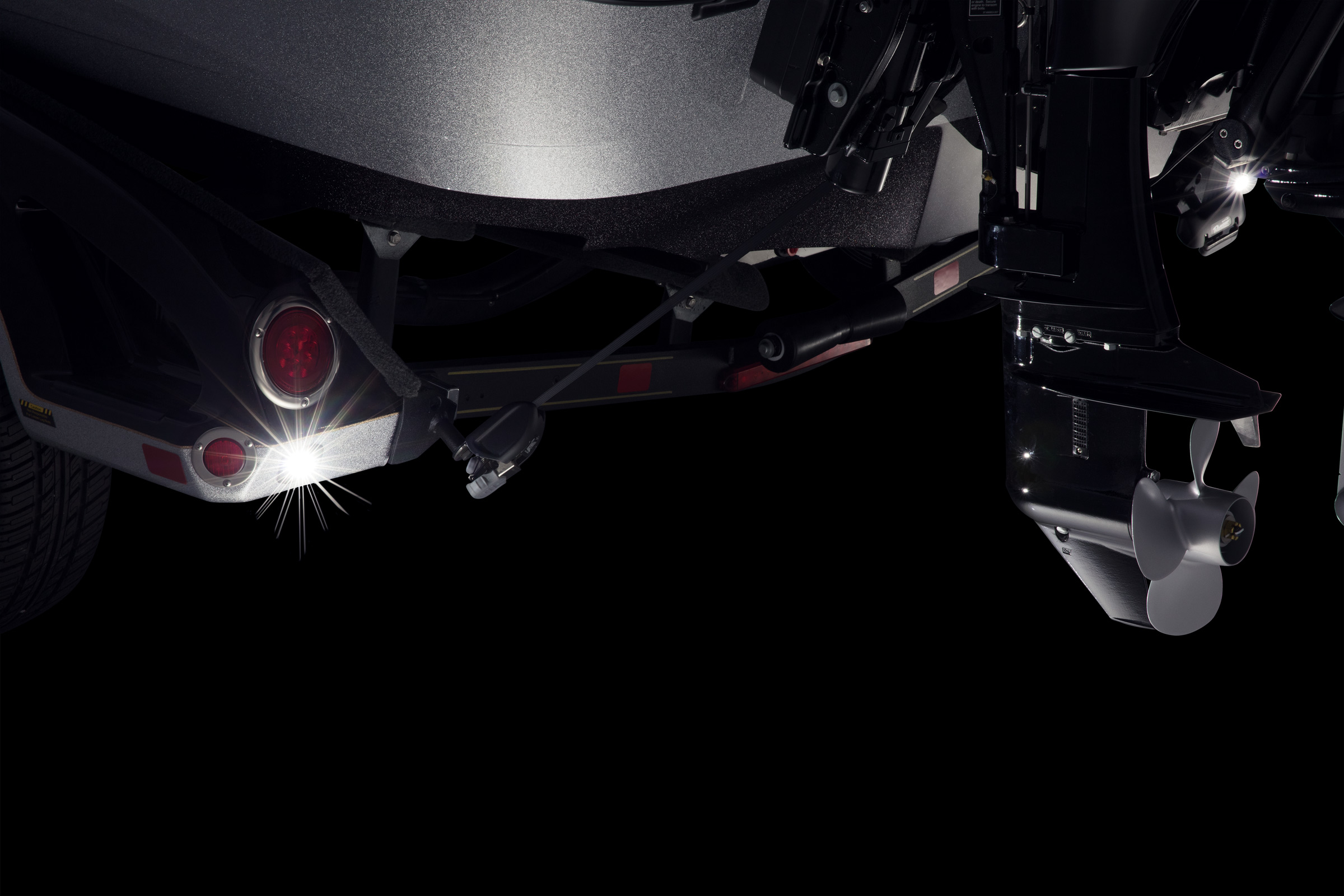

- (2) Backup lights
- Matching fiberglass fenders
- Ranger® Boats Road Armor Equipped® trailer protectant
- Ranger Trail® Vault® Hub lubrication system
- NMMA®/NATM certified

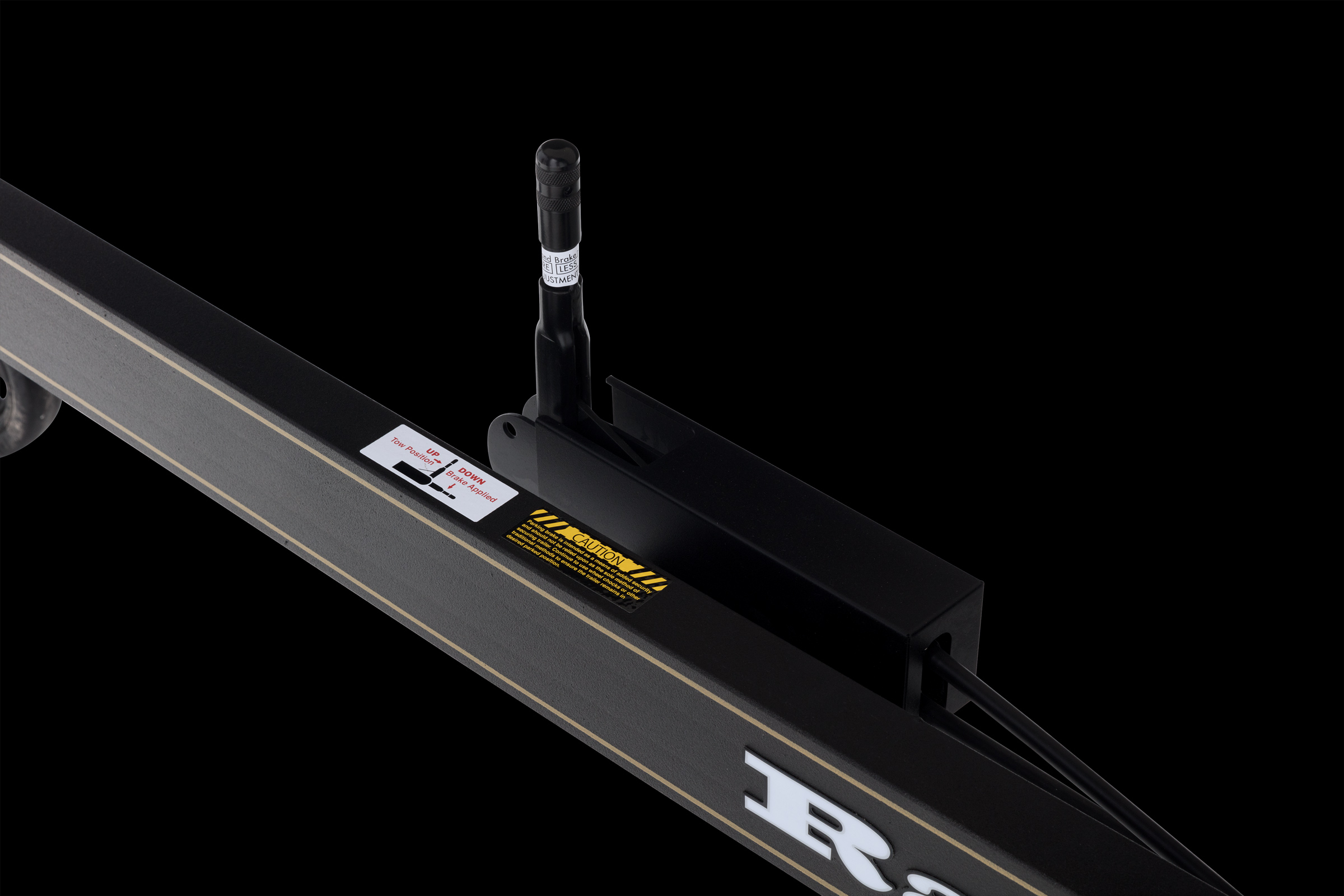

- Parking brake
- Torsion axles
