Limited 2024 Availability
620FS Ranger Cup Equipped
* Previous Model Year Images Shown
Photos may show optional equipment.
2023

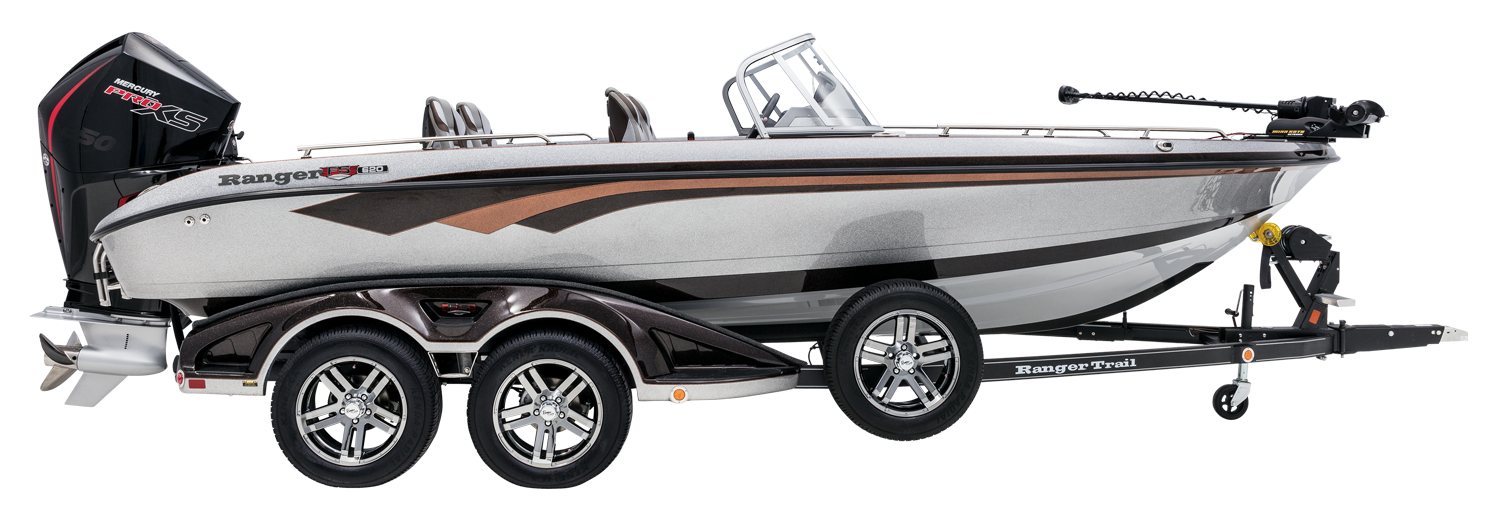

620FS Ranger Cup Equipped

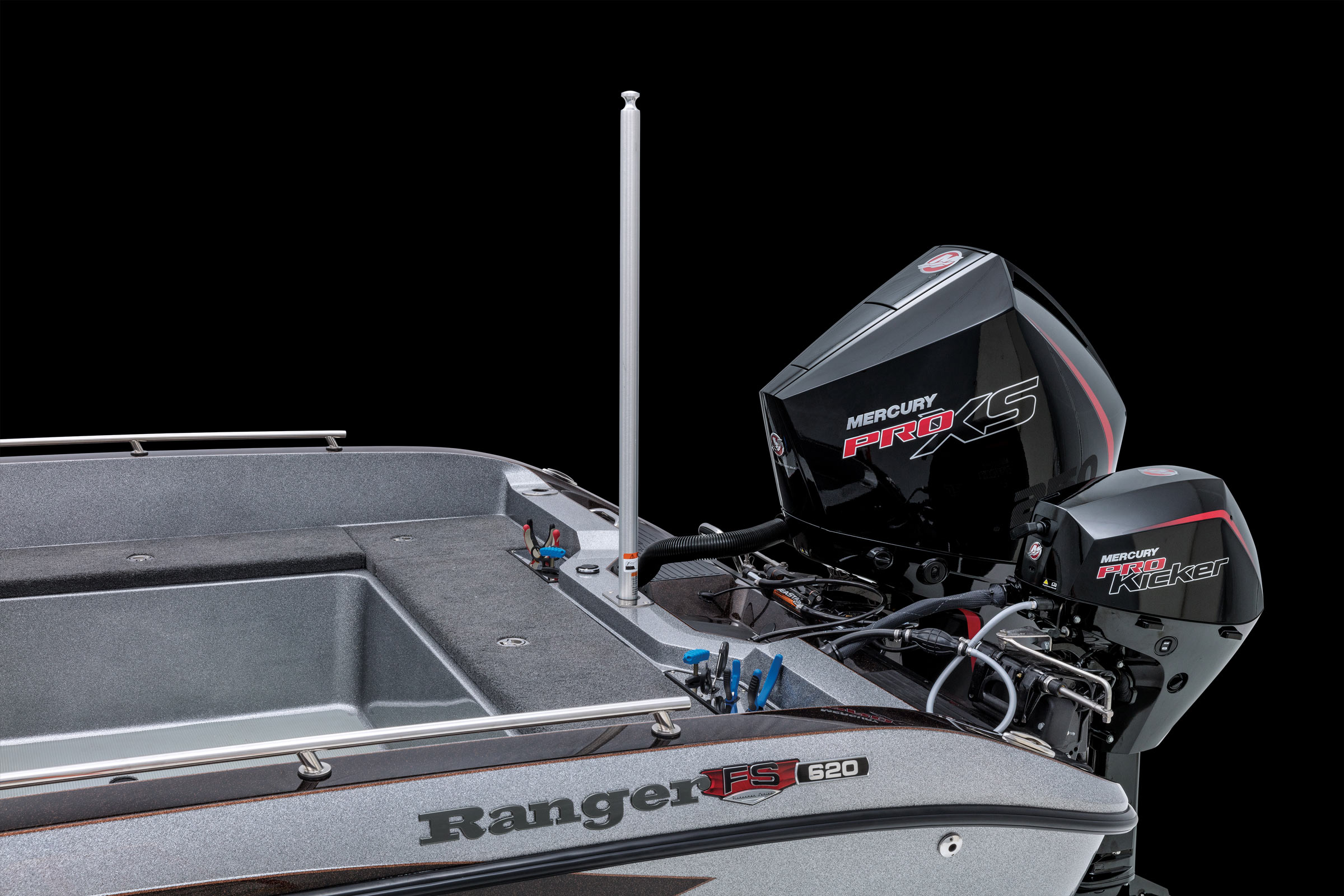

w/ 250 XL Pro XS FourStroke Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$85995
USD
|
ENHANCED FISHABILITY, ELEVATED PERFORMANCE

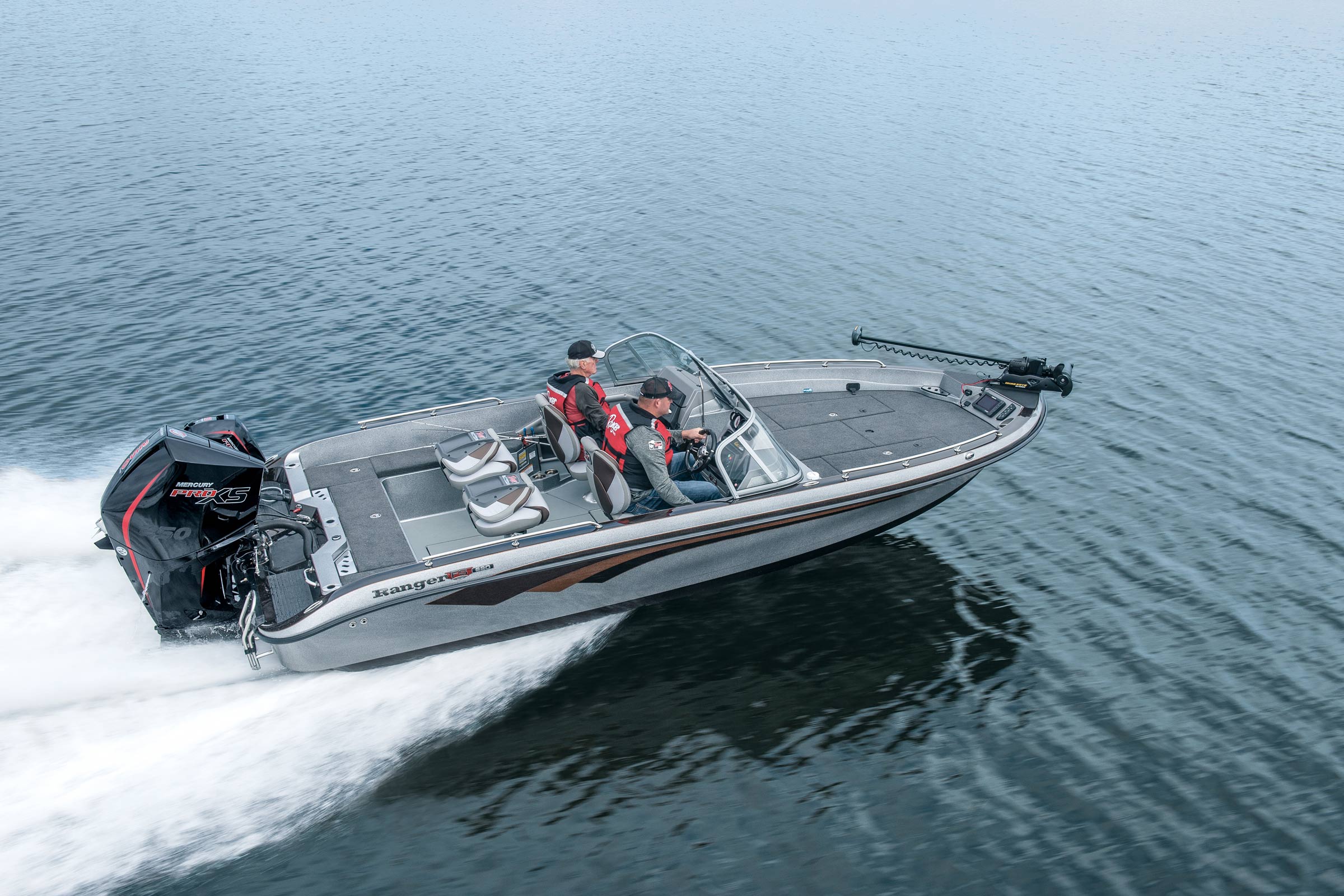

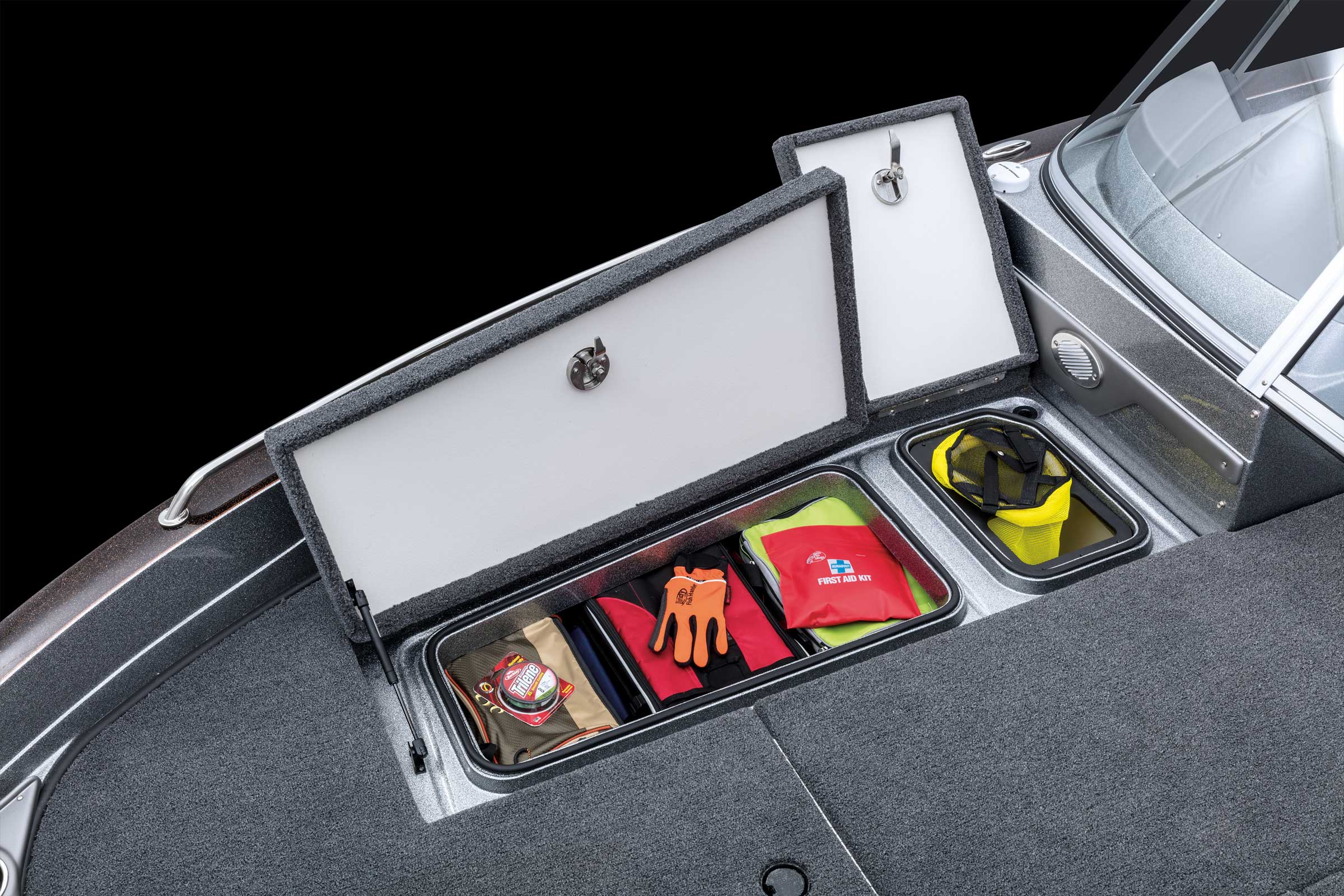

Boasting greater space and power, the 620FS Ranger Cup Equipped takes your game to the next level with a roster of factory-installed options that are most in-demand by touring pros and guides alike. Ranger Cup Equipped models enjoy huge Lowrance® HDS units, a walk thru windshield, Lowrance Ghost trolling motor, three lithium trolling motor batteries and visual upgrades like polished Challenger wheels. Brushed, CNC-machined aluminum grab handles and accents deliver handsome touches that match the custom-designed, stitched trim throughout that replaces plastic. Twin glove boxes in the passenger console give more space, as do the front storage boxes that have been enlarged to their maximum size. Complementing the wealth of new features are time-honored and perfected Ranger build protocols and quality, from our upright and level flotation for more power, more smarts, and more control.
Time you hit the water.
Key Features
- Enhanced big water capability through advanced construction, hull design and interior layout
- Skid-resistant flooring
- Ultimate fishability and control
- Unrivaled flotation and strength
- Stainless steel lockable closures
Video
Specifications
| Length | 6.27 m | 20' 7'' |
| Beam | 2.57 m | 101'' |
| Max. Recommended HP | 250 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 63.5 cm | 25'' |
| Fuel Capacity | 193.04 L | 51 gal. |
| Livewell Capacity | 105.98 L | 28 gal. |
| Baitwell Capacity | 26.5 L | 7 gal. |
| Total Person, Motor, Gear | 907.18 kg | 2000 lbs. |
| Approximate Boat Weight | 1061.41 kg | 2340 lbs. |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 2.44 m | 8' |
| Max. Person Capacity | 7 persons | |
| Trailer GVWR | 2630.84 kg | 5800 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.7 m | 25' 3'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.09 m | 23' 3'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||

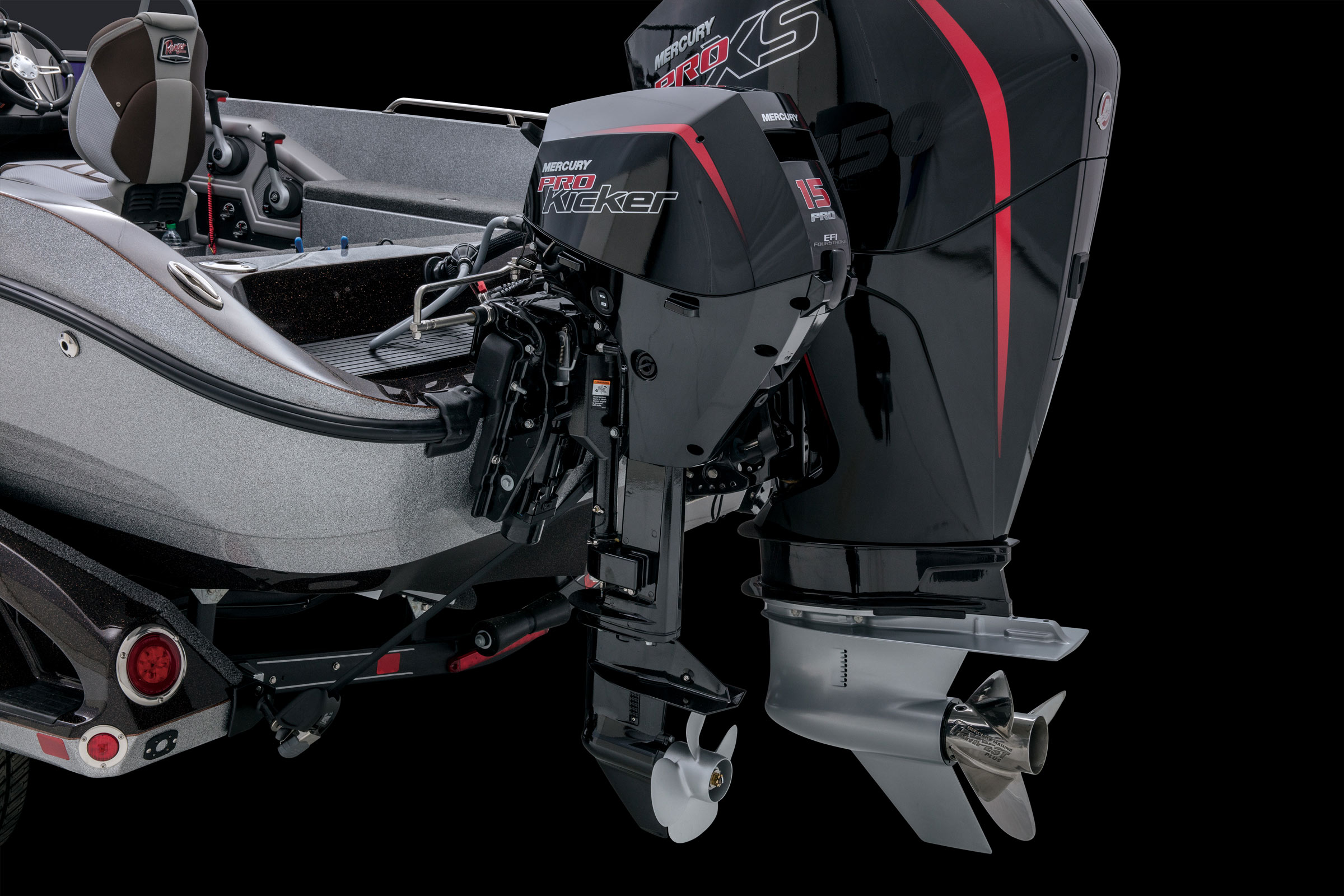

| 250 XL Pro XS FourStroke |
$85995 USD
|
Select Dealer | |||
Standard Features
Custom Details
- Special 55th Anniversary badging
- Patented Power Ventilation Rod Storage™
- Hamby's keel protector

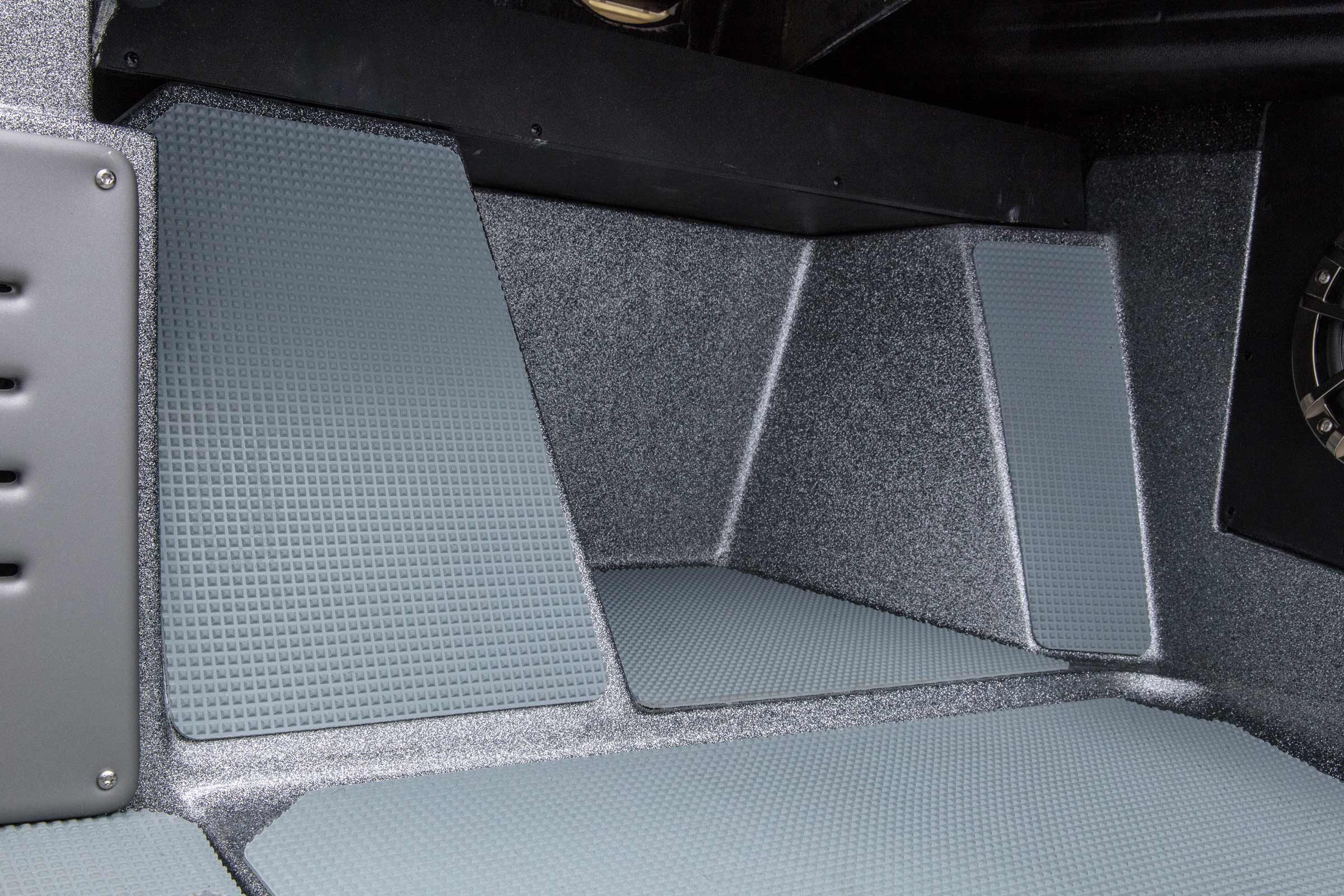

- Soft-touch skid-resistant cockpit floor

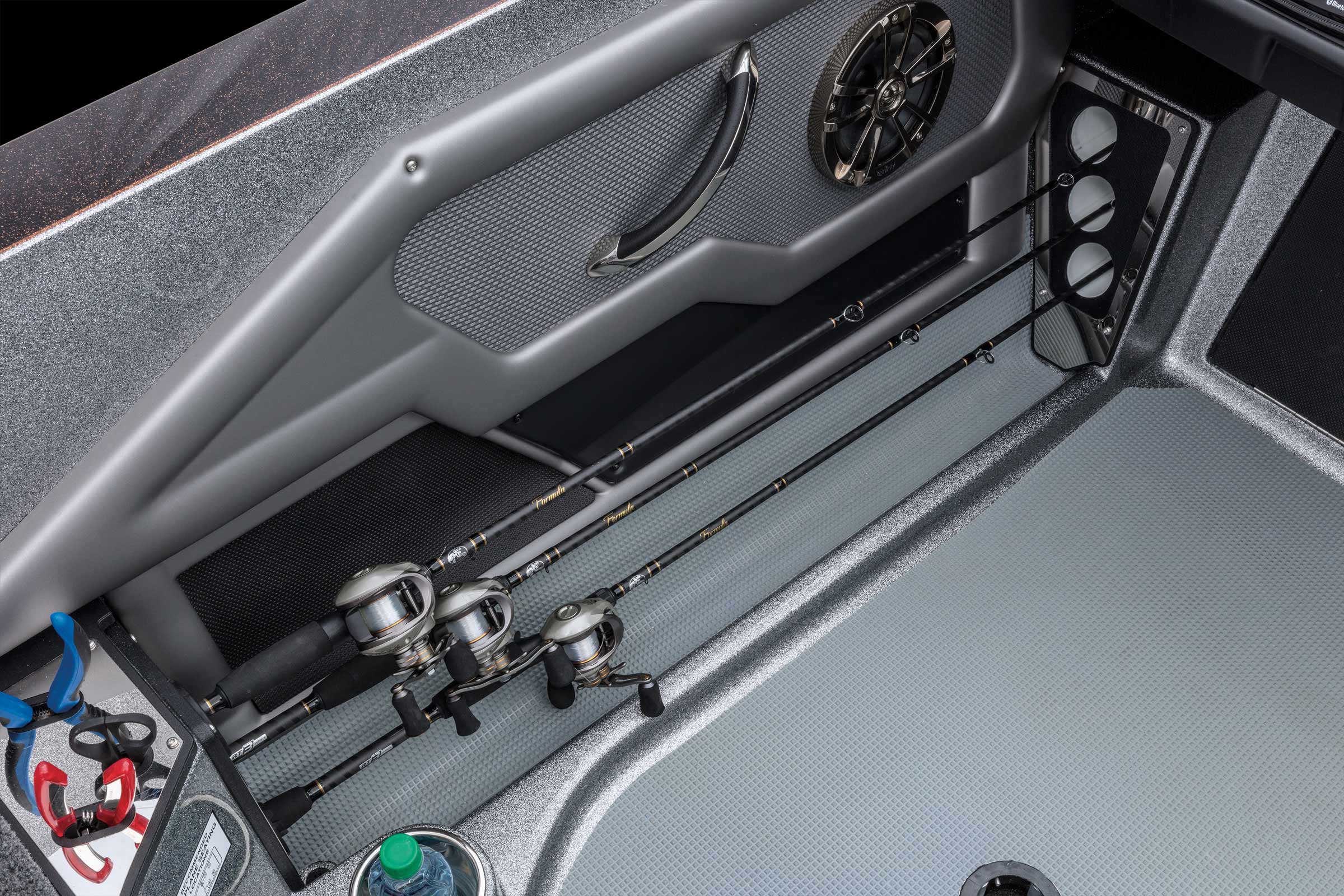

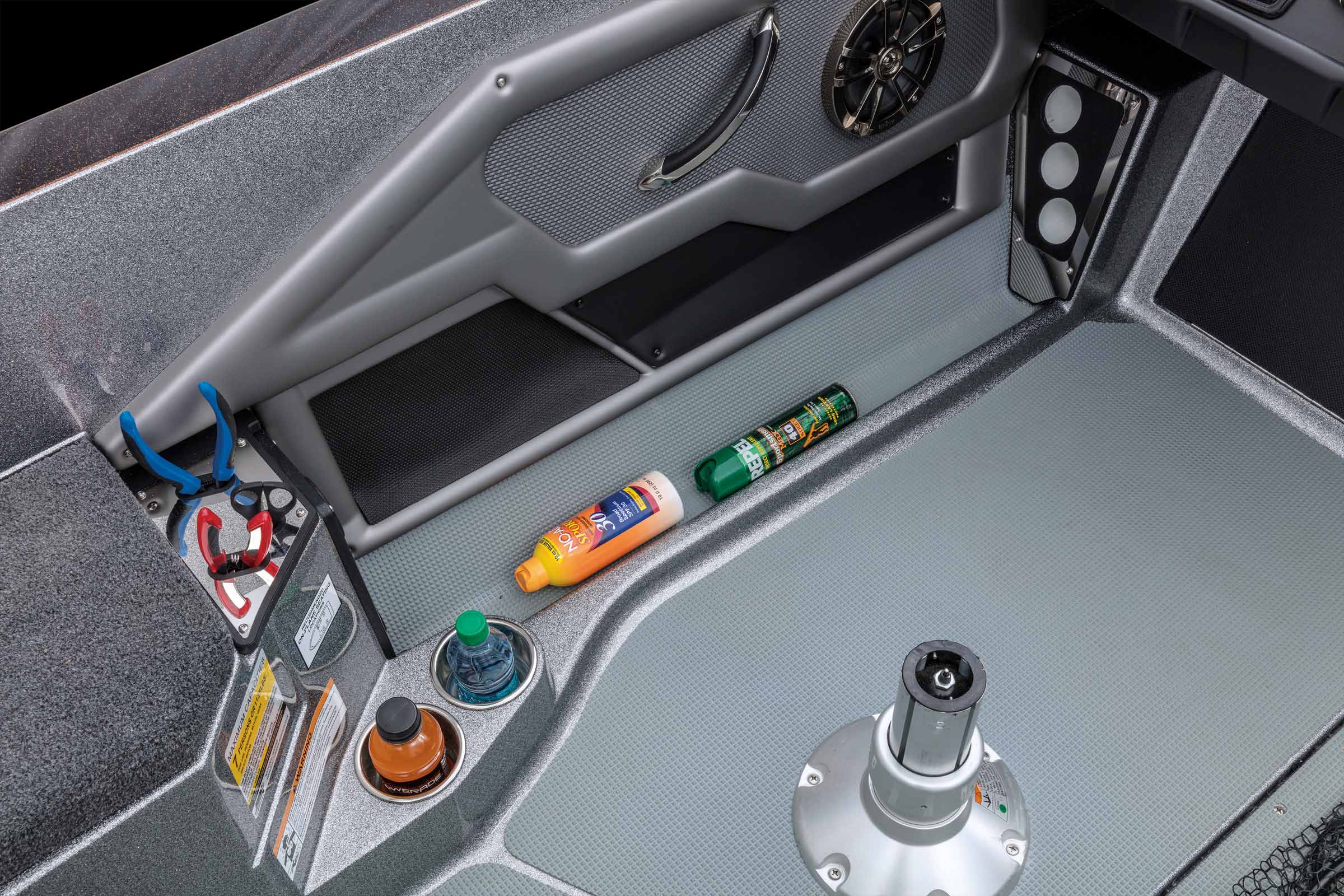

- Under-console storage shelves - port and starboard behind driver console footrest

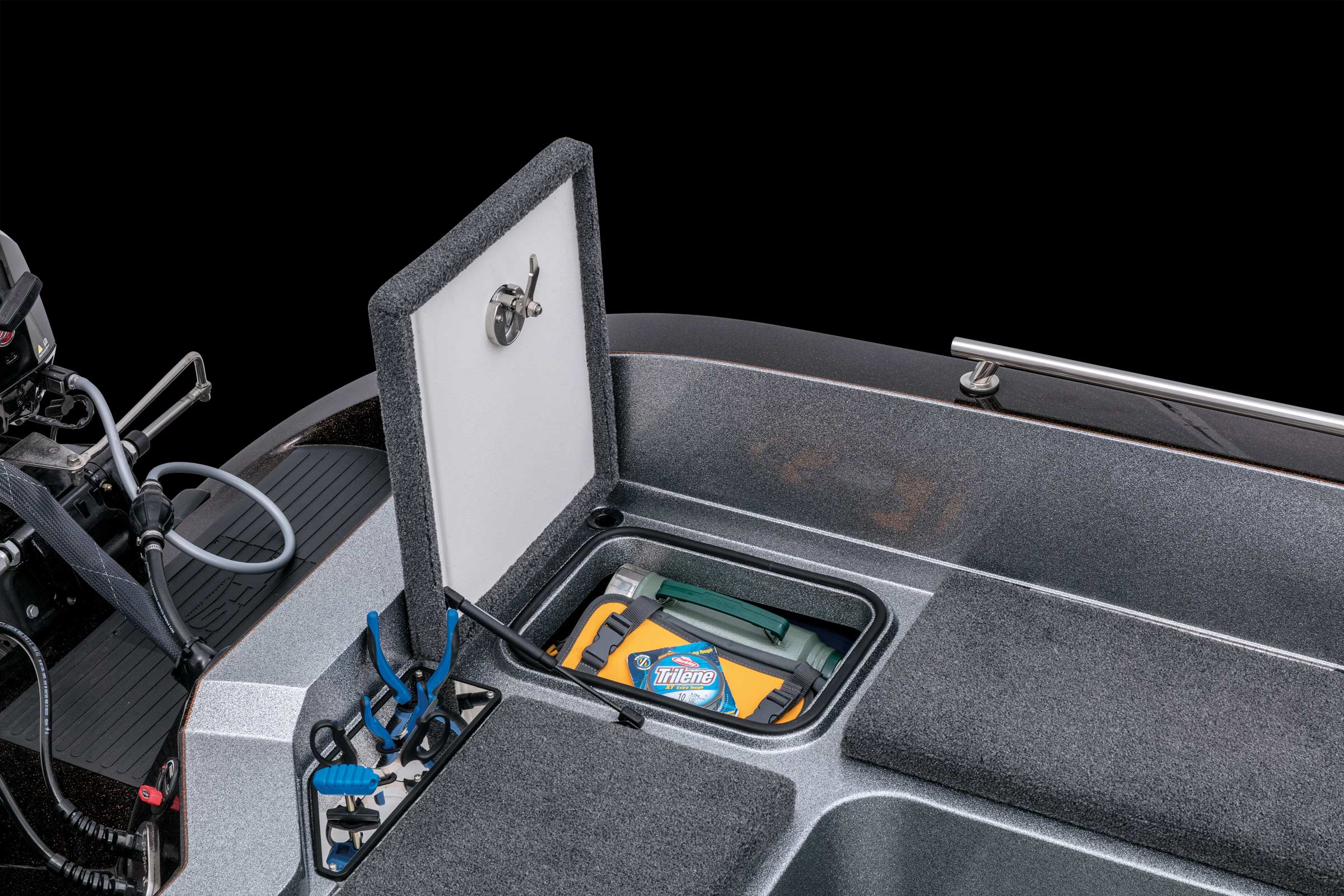

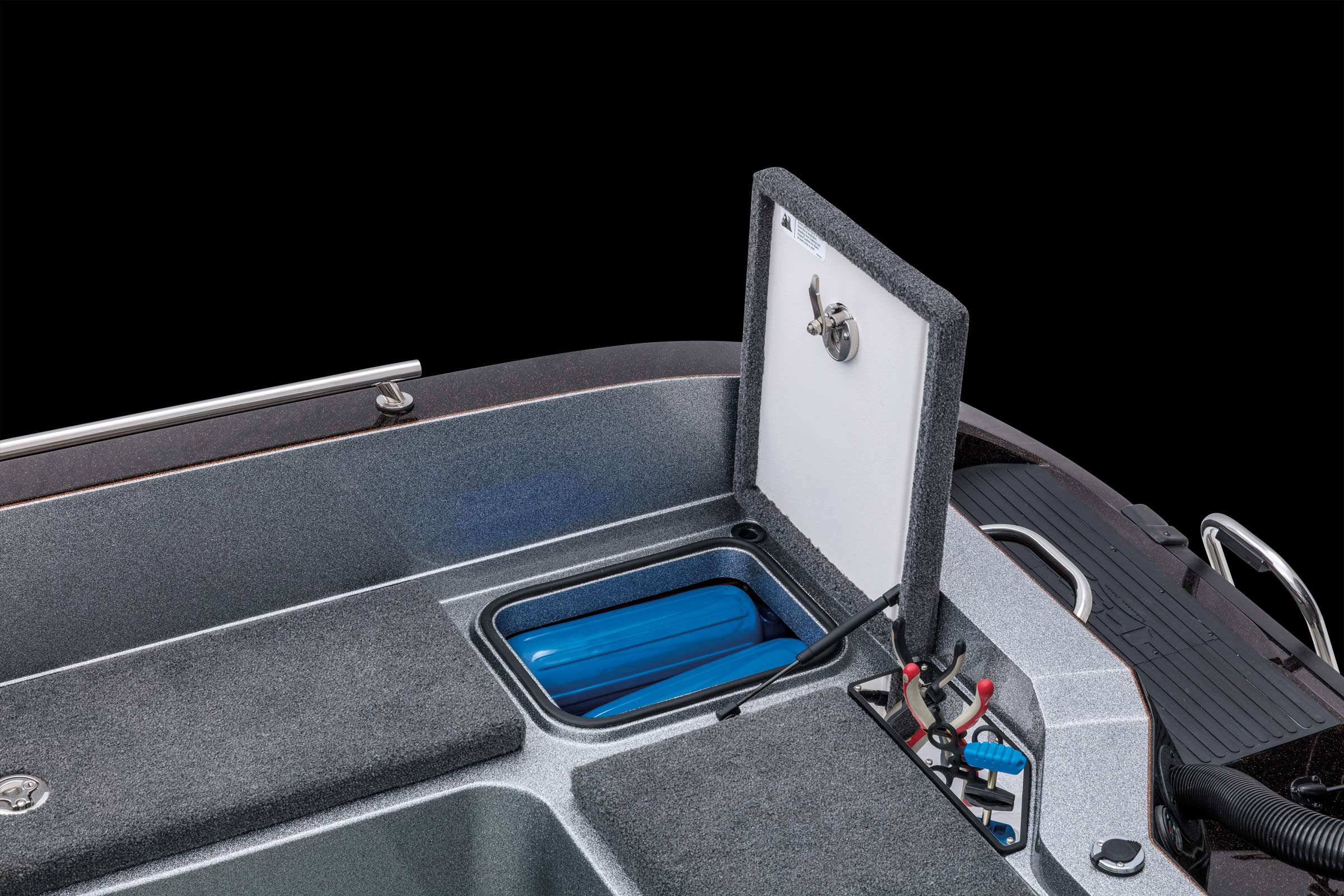

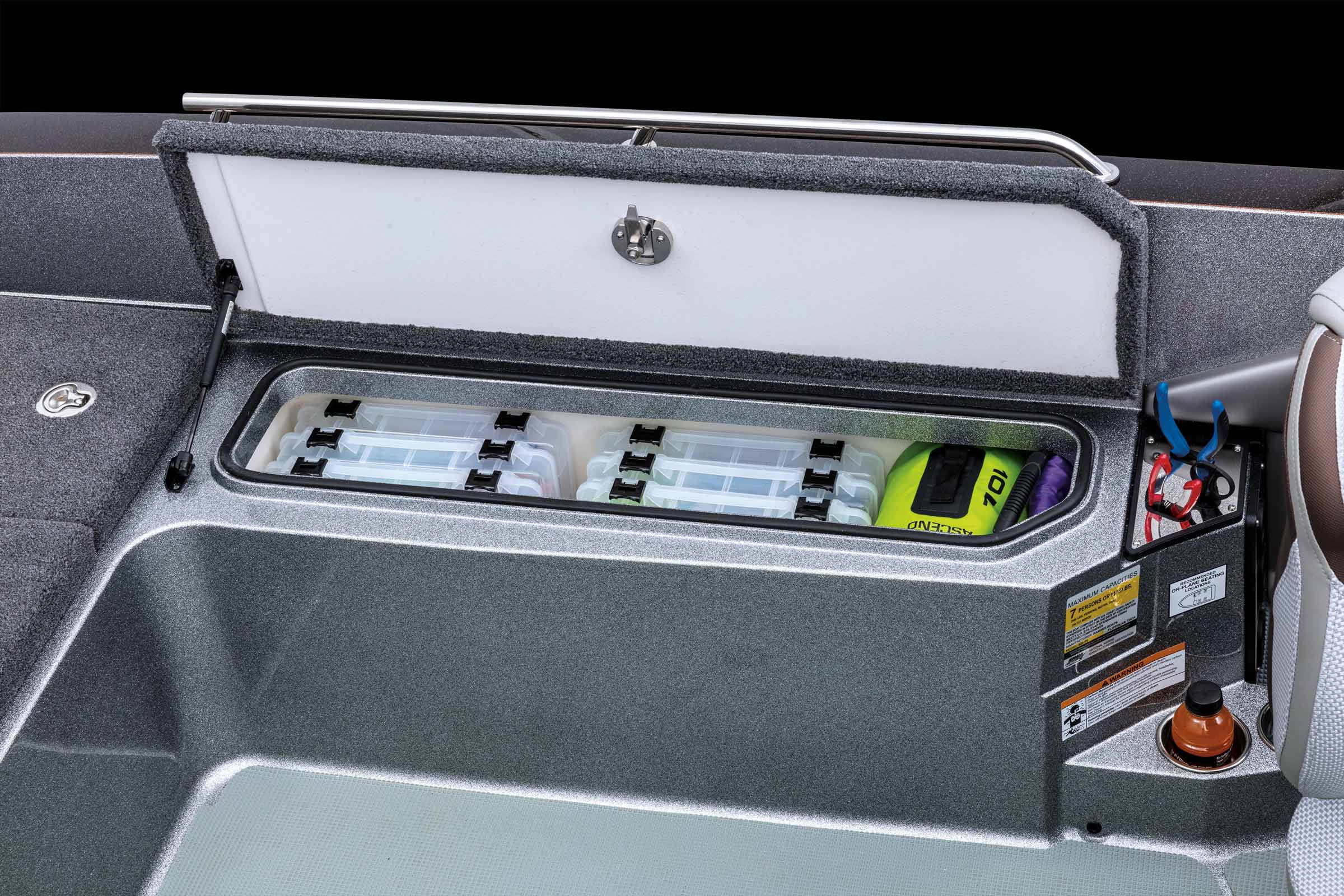

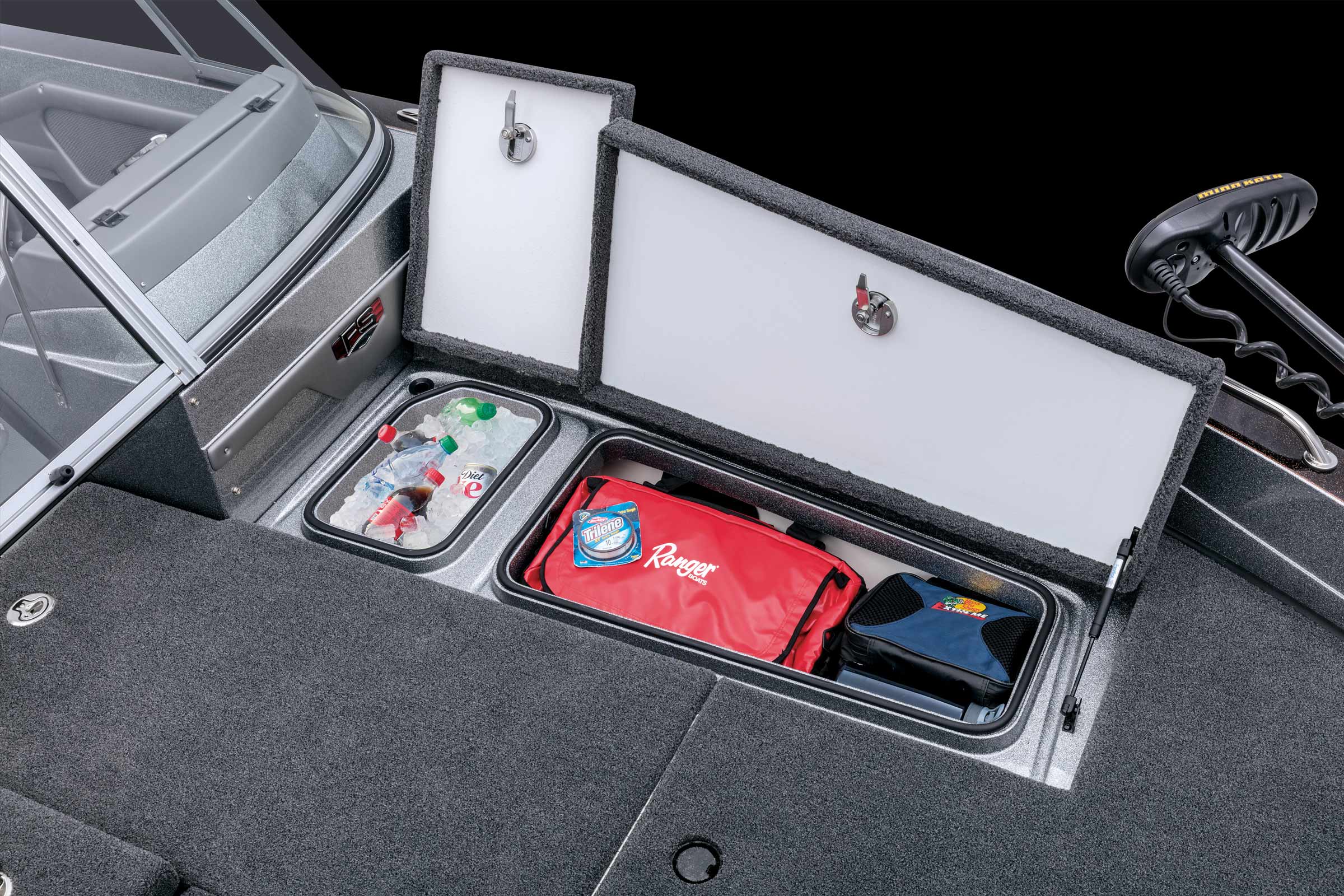

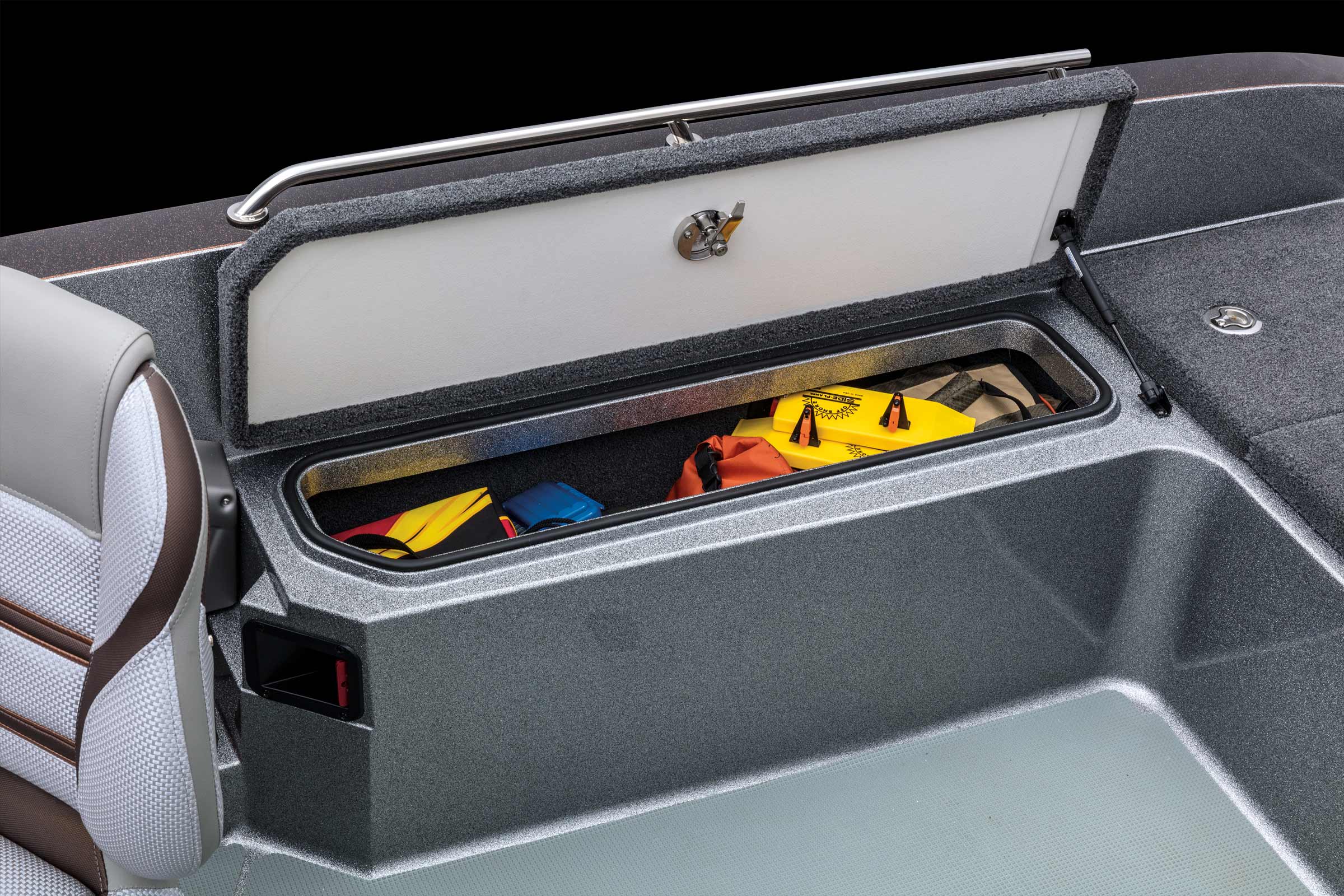

- Lockable storage compartments
- Gas spring lid assists
- Insulated cooler w/ gelcoat liner & drain
- Integrated stainless steel cup holders
- 44" stainless steel stern grab rails

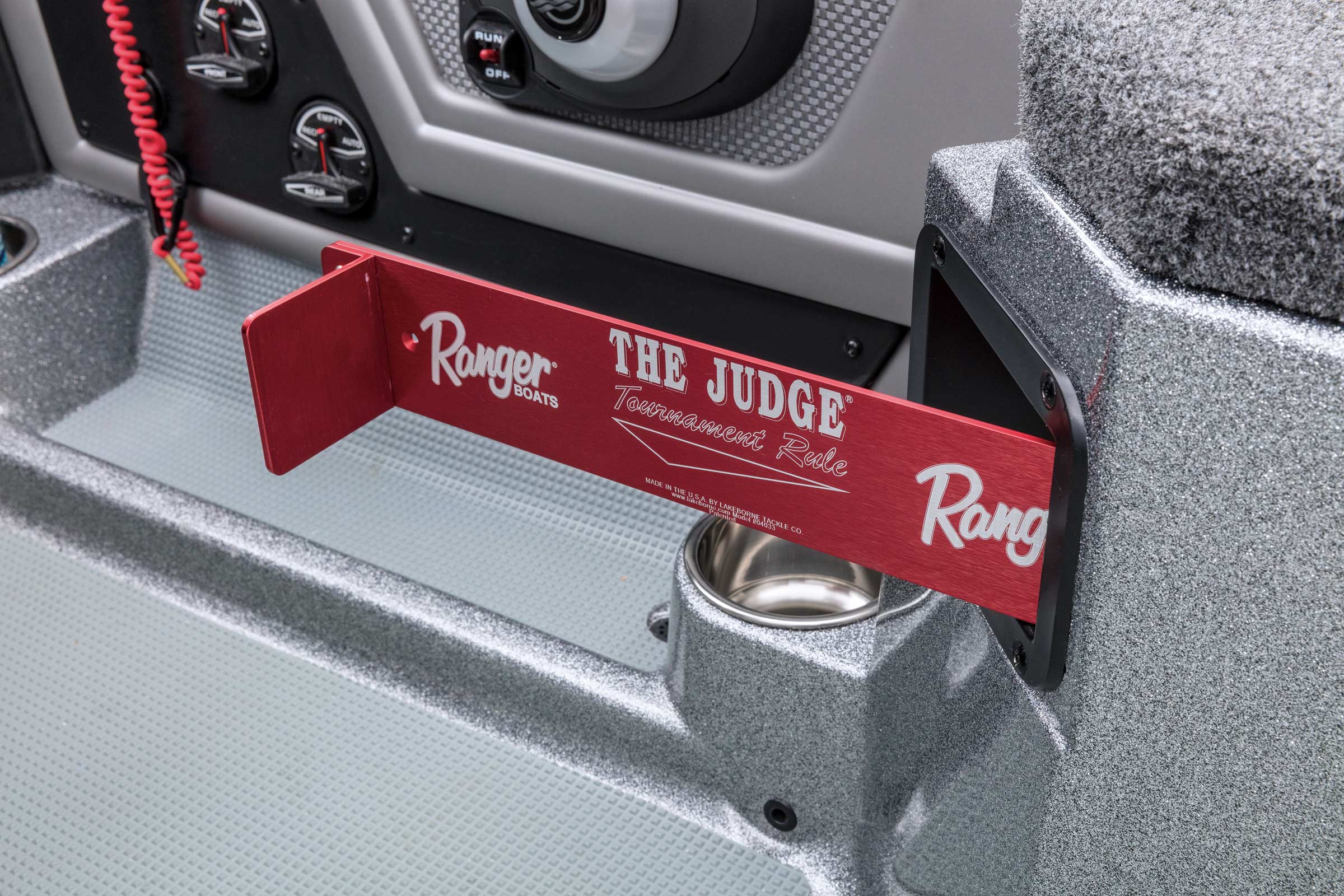

- Ranger® tournament measuring board

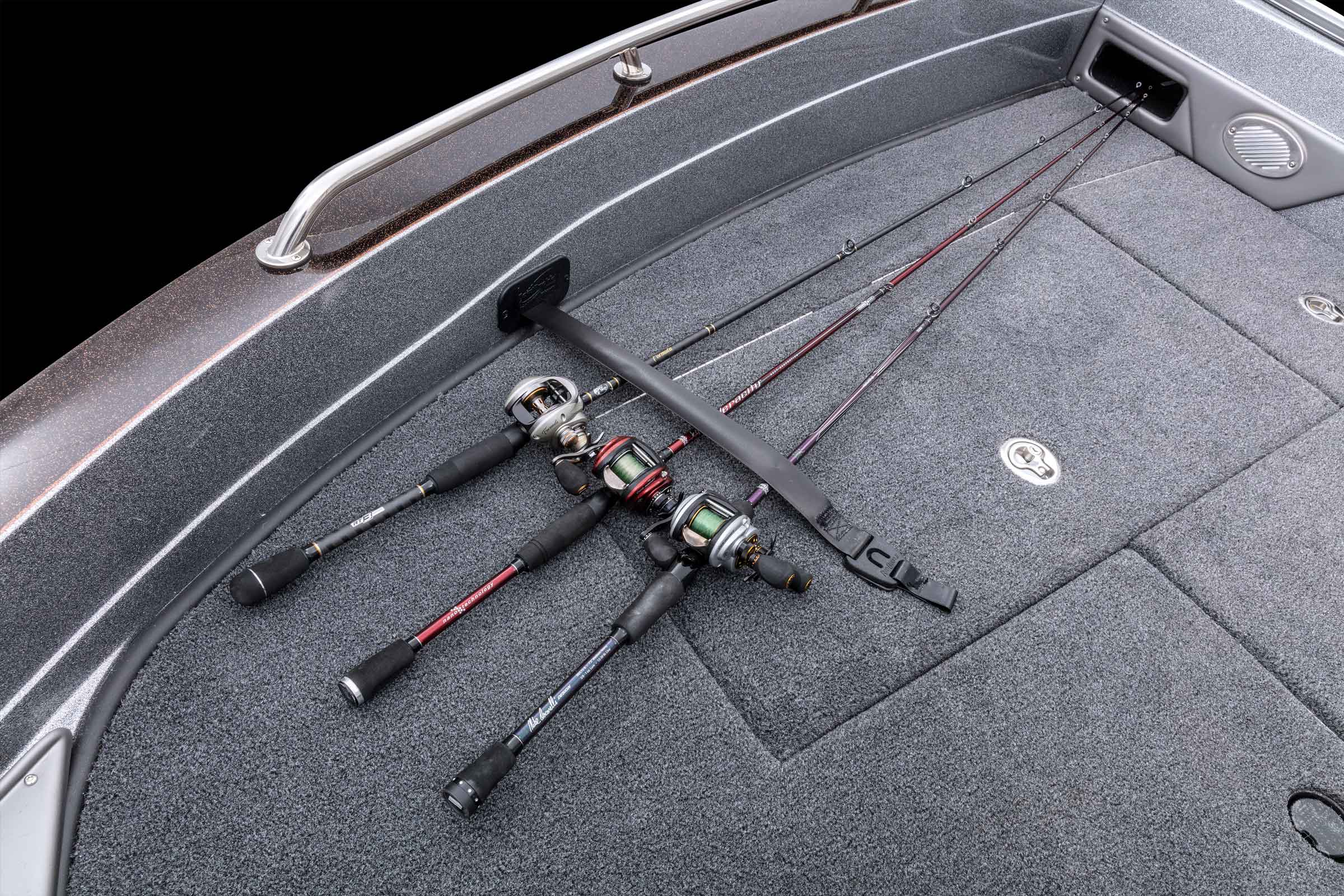

- Retractable bow rod buckles

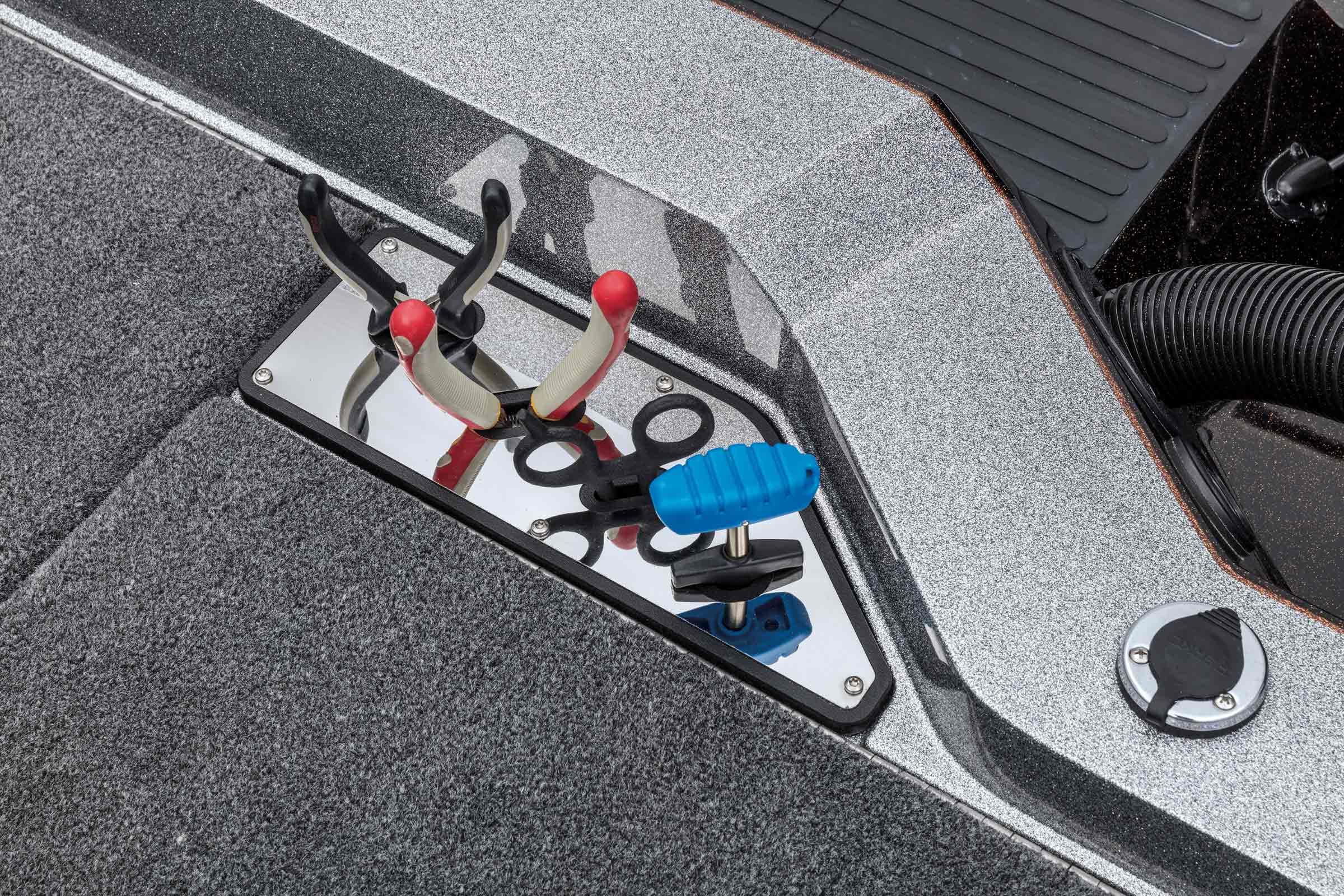

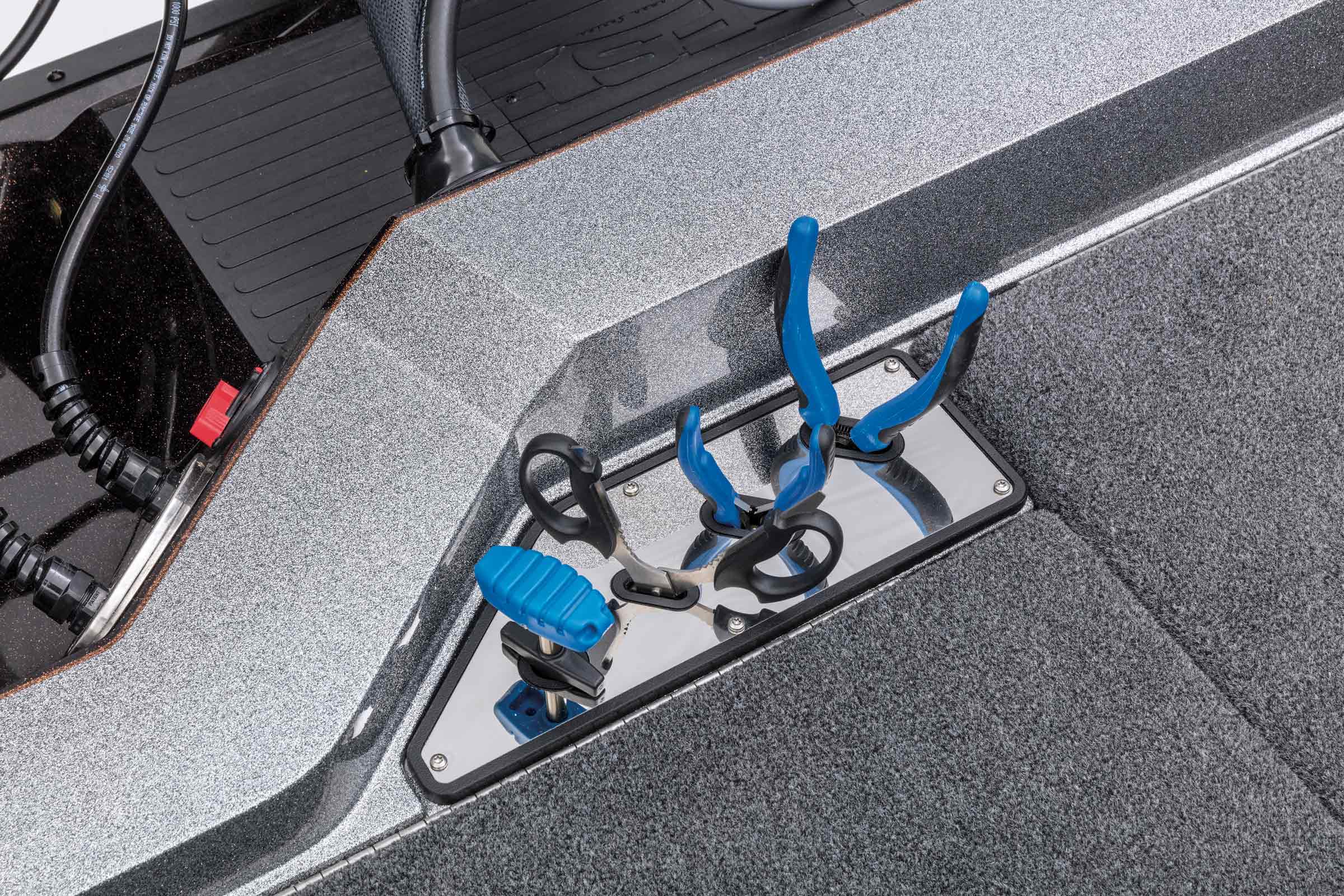

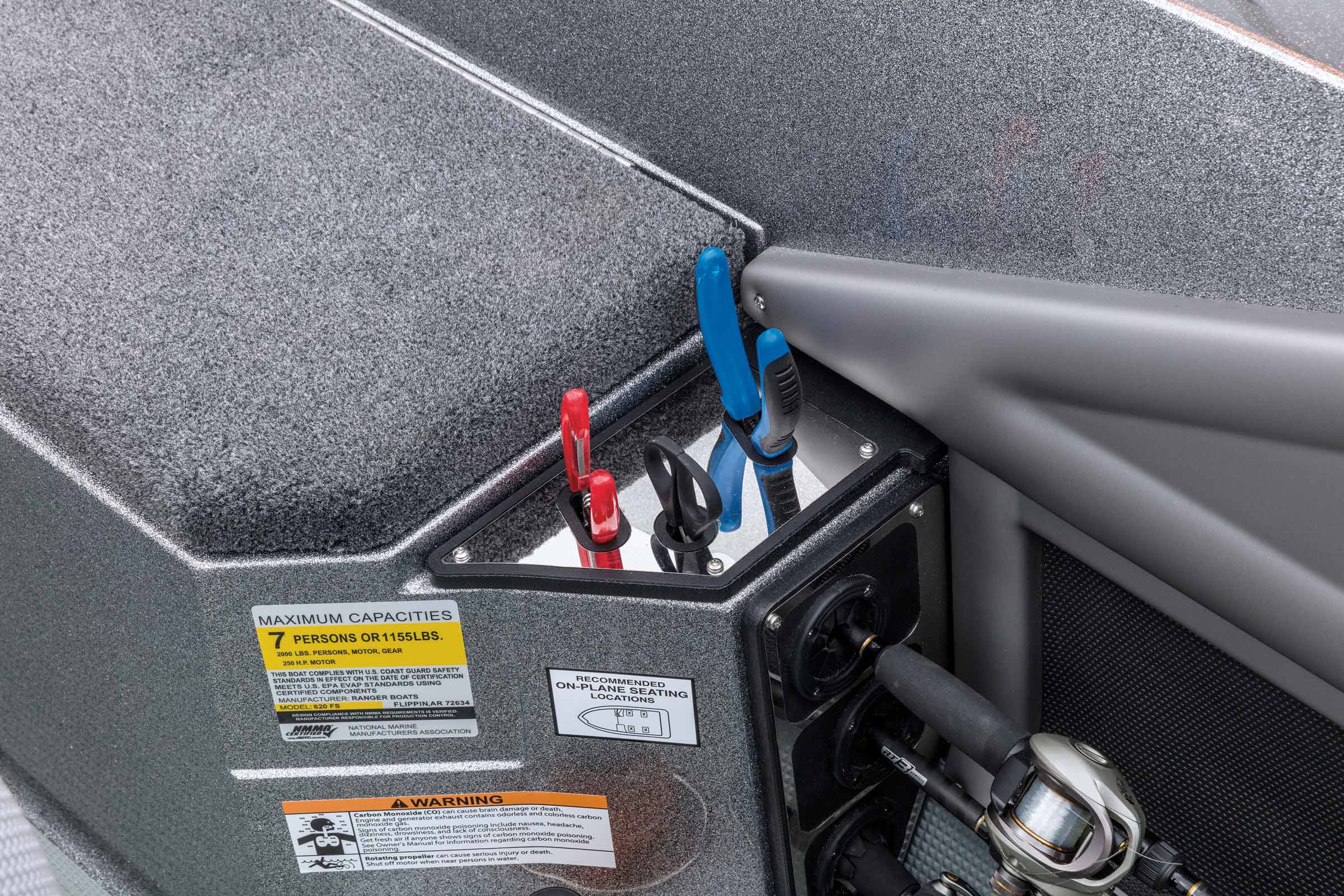

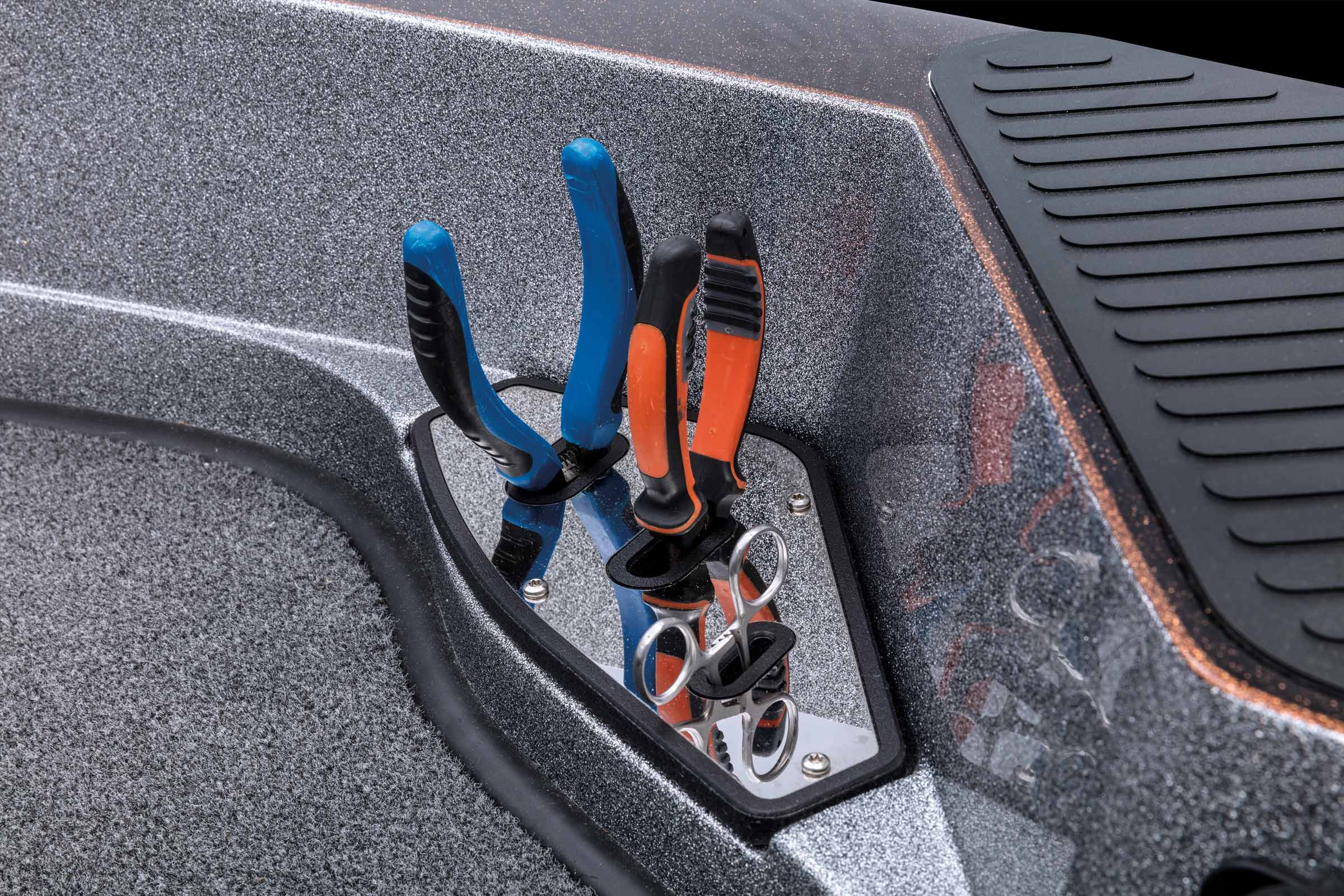

- Tool holders - (1) Bow, (1) cockpit, (2) rear

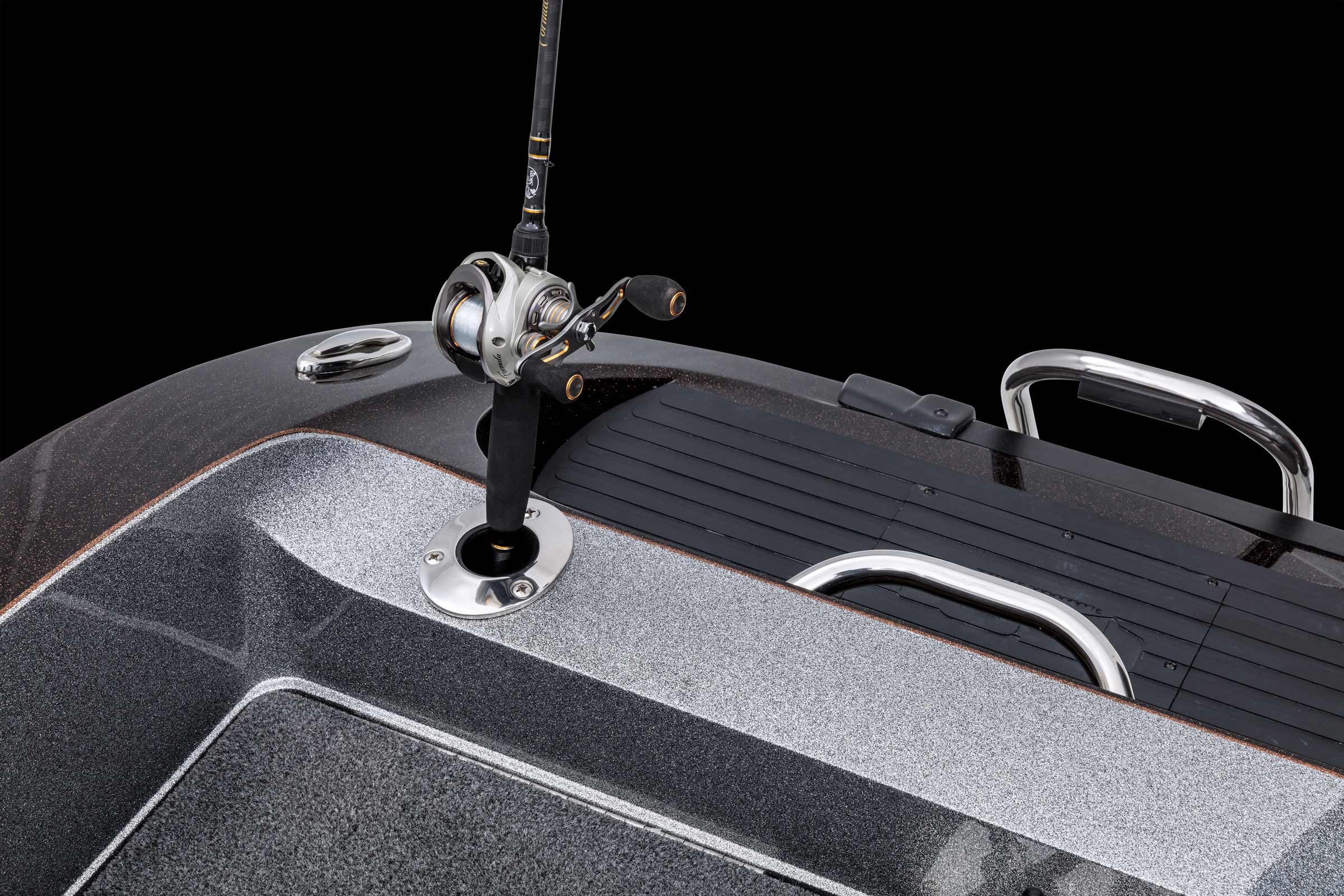

- (2) Deck-mounted stern rod holders
- Runnin' rod rack w/ holder
- Remote drain plug

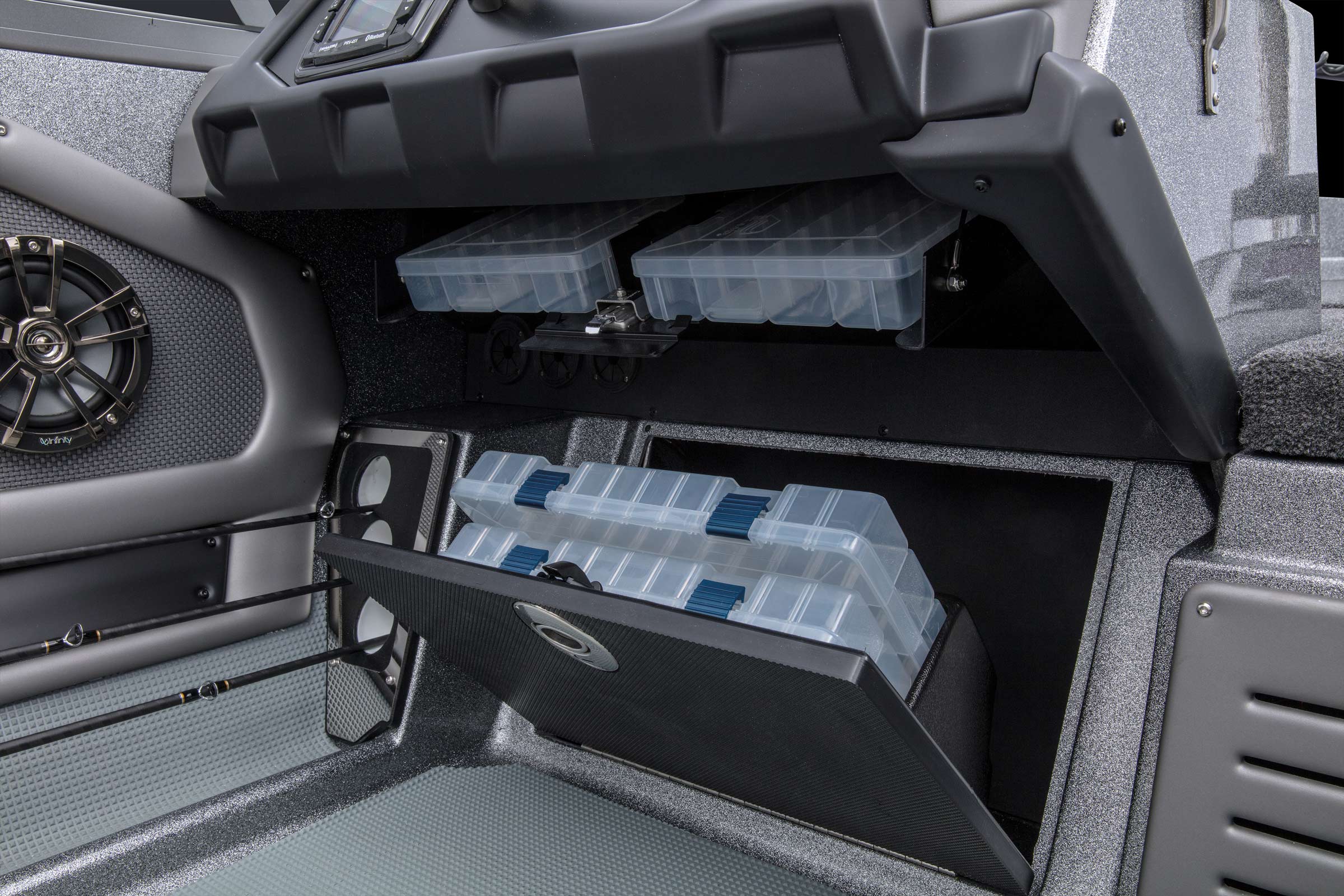

- Plano® storage under port console and passenger foot rest
- Bow rails
Electronics
- 12V DC power receptacle with USB
- Rear charger receptacle
- Heavy-duty 6-gauge trolling motor wiring w/ 60 amp breaker
- LED courtesy light(s)
- LED cockpit, compartment and livewell light package
- LED folding stern light
- Bow panel w/ digital switching

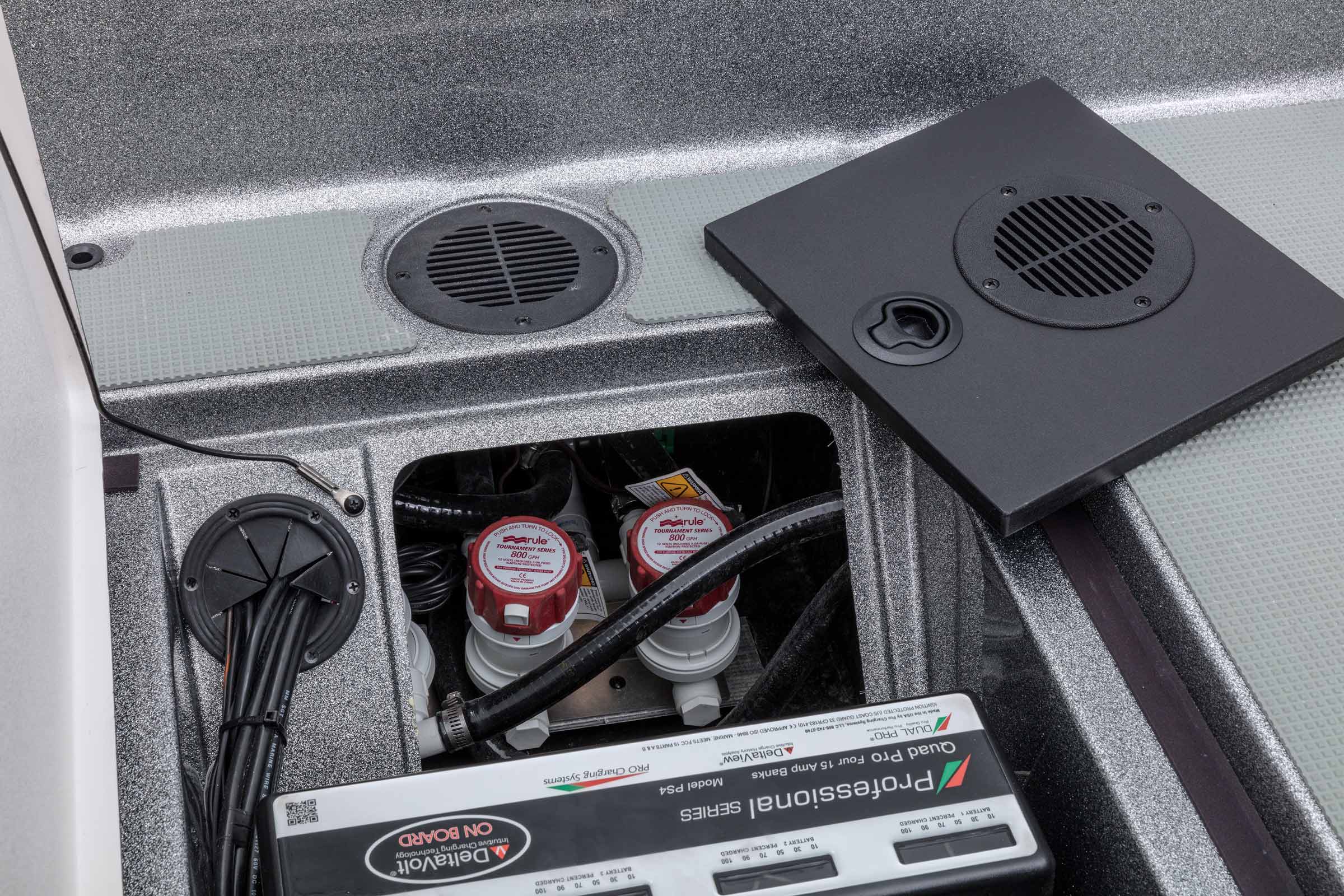

- On-board Dual Pro® charger, 15 x 4, auto detect lithium capable

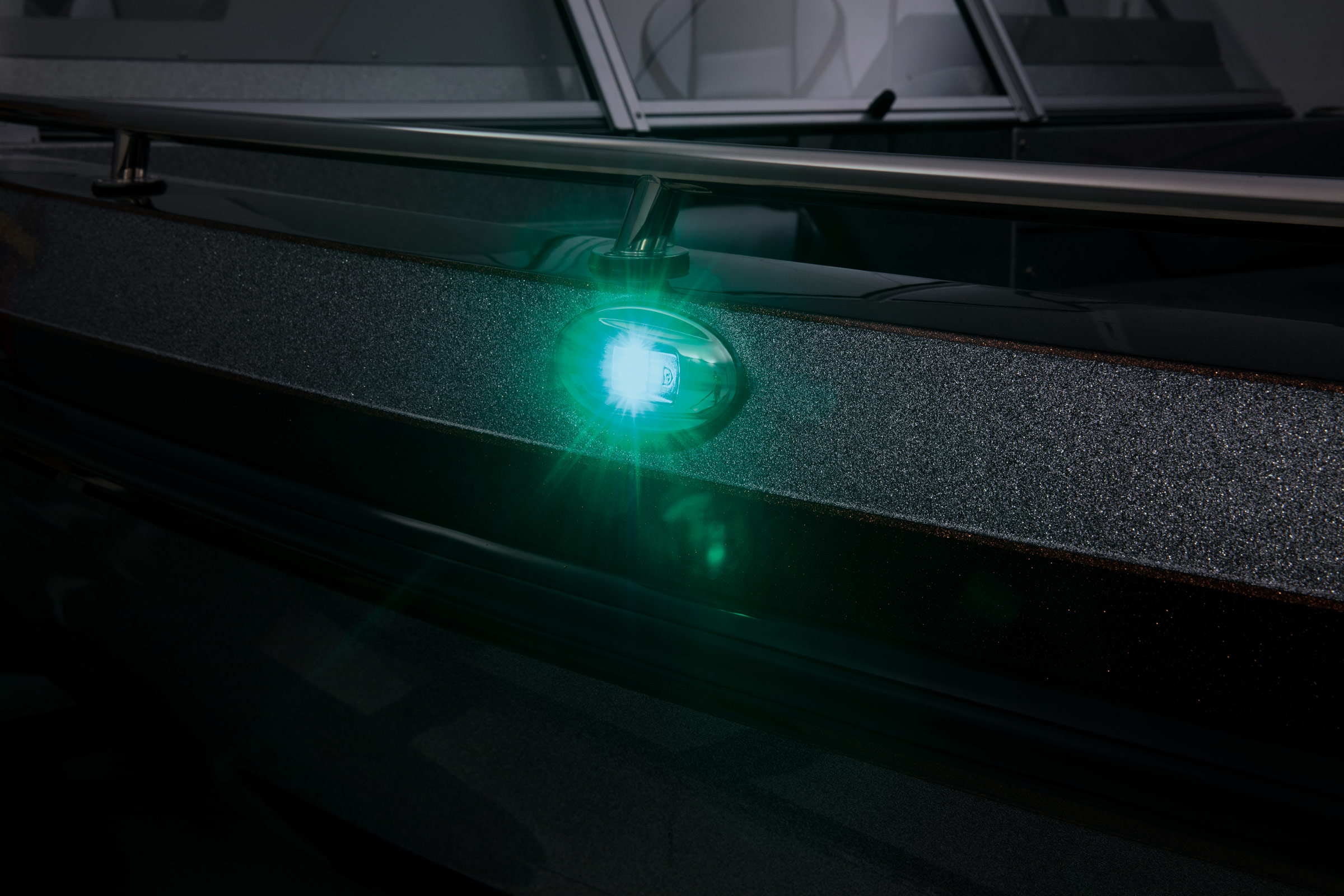

- Integrated LED bow navigation and removable stern lights
- Solid-state re-settable switching with 30A master breaker
- Lowrance® HDS-9 LIVE @ bow
- Lowrance® HDS-12 LIVE w/ Active Imaging @ console

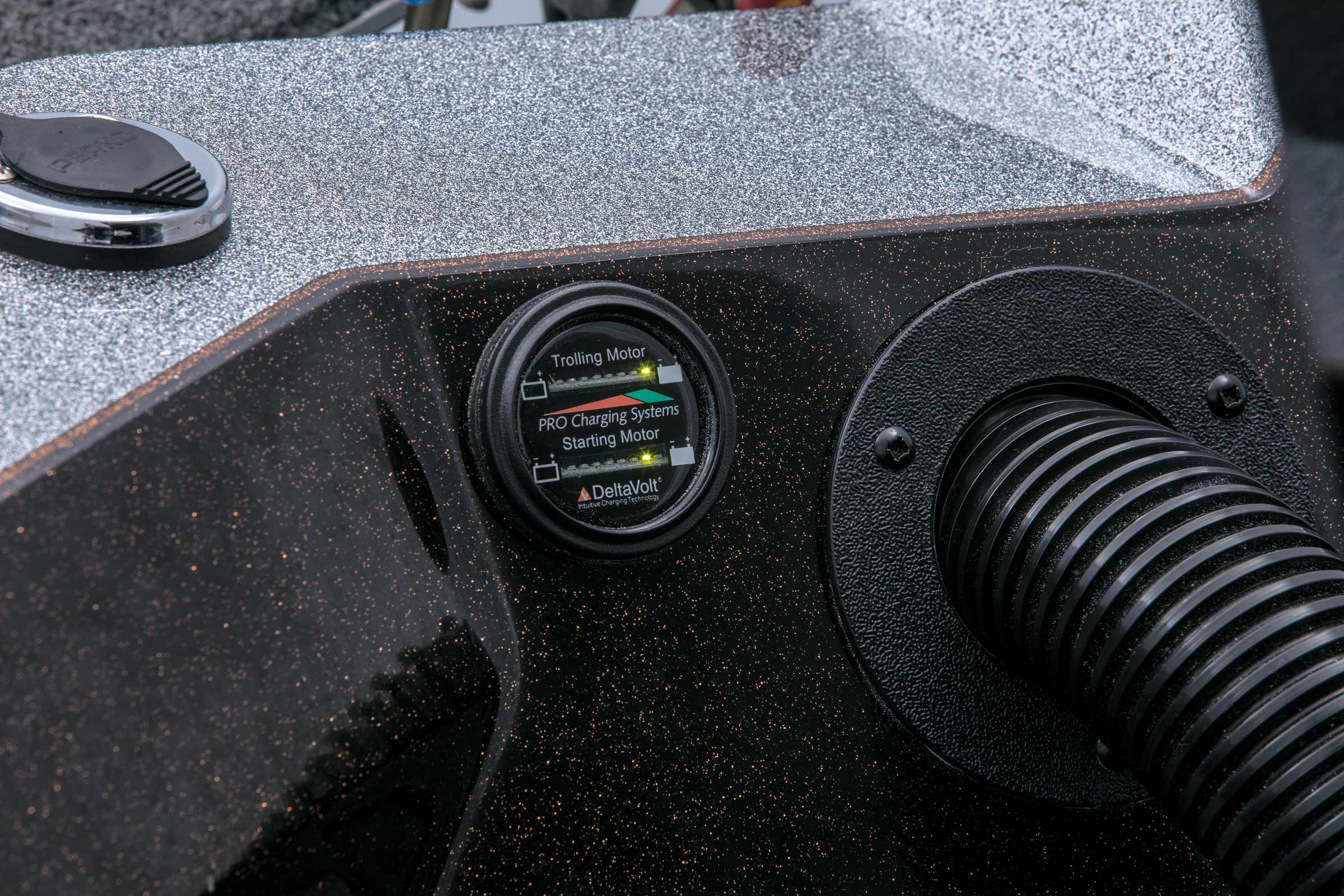

- Battery charger gauge

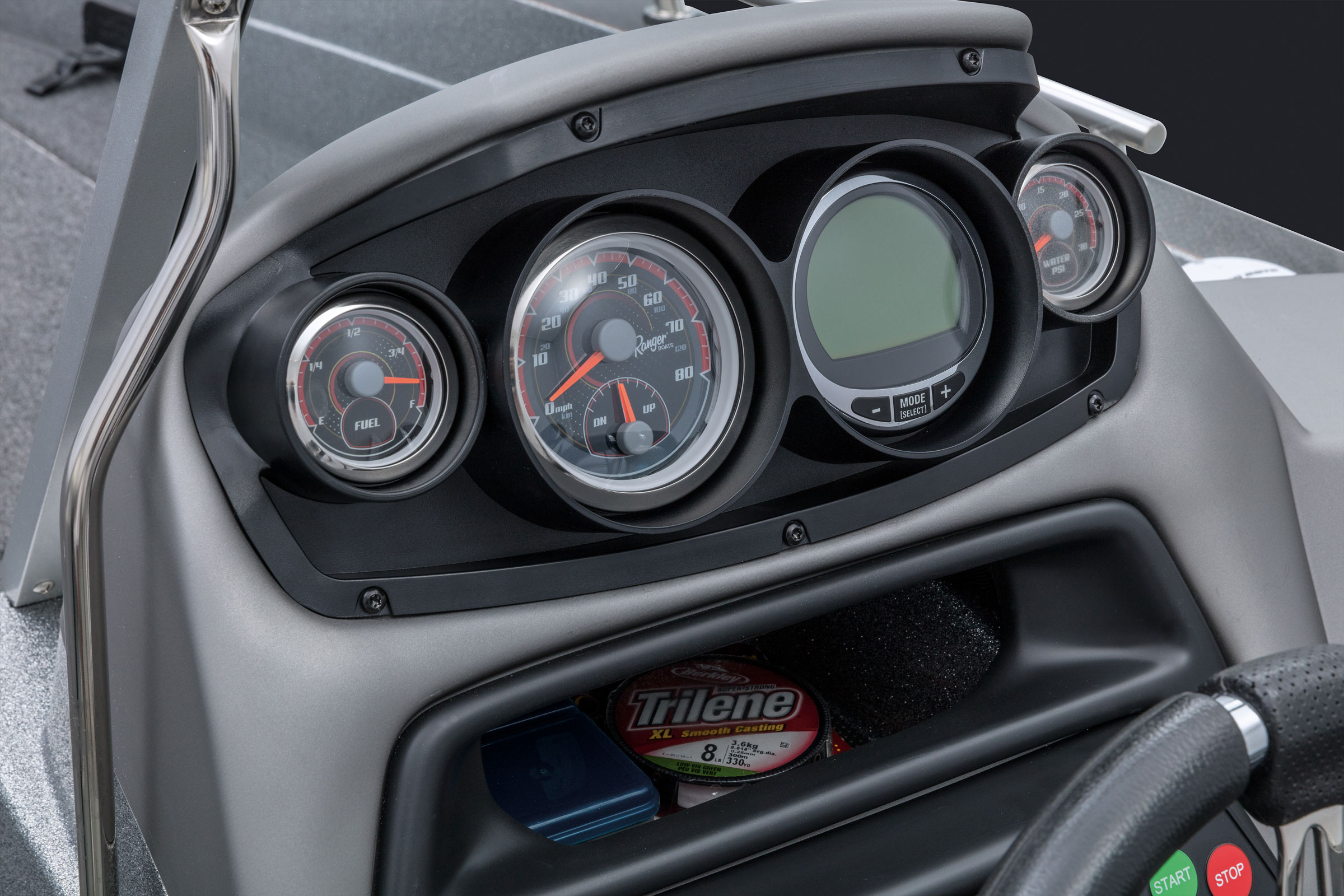

- Console panel with digital switches and custom gauges: position sensing speedometer, tach, fuel, trim, water pressure, volt, clock
- 30A master breaker
Safety/Comfort

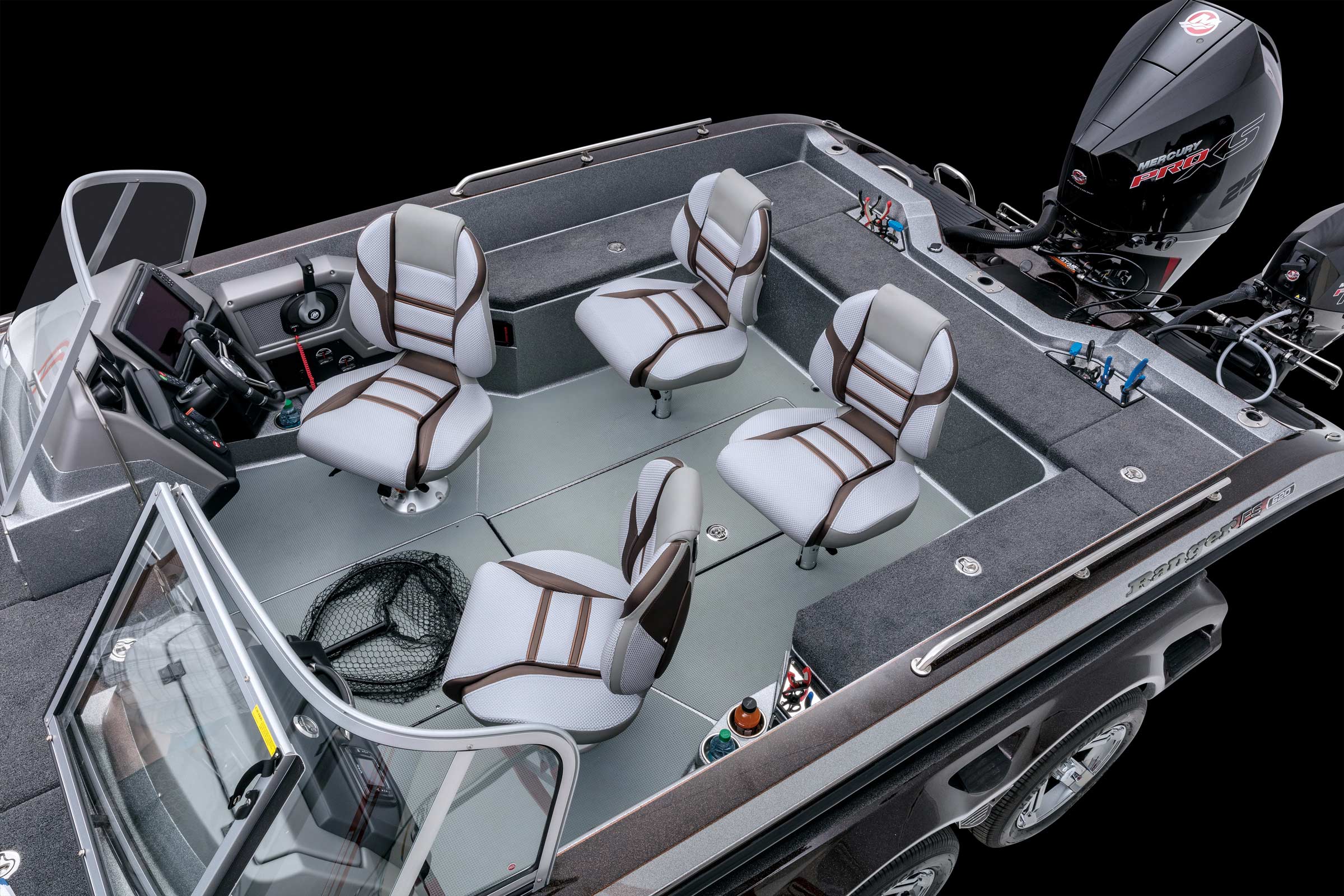

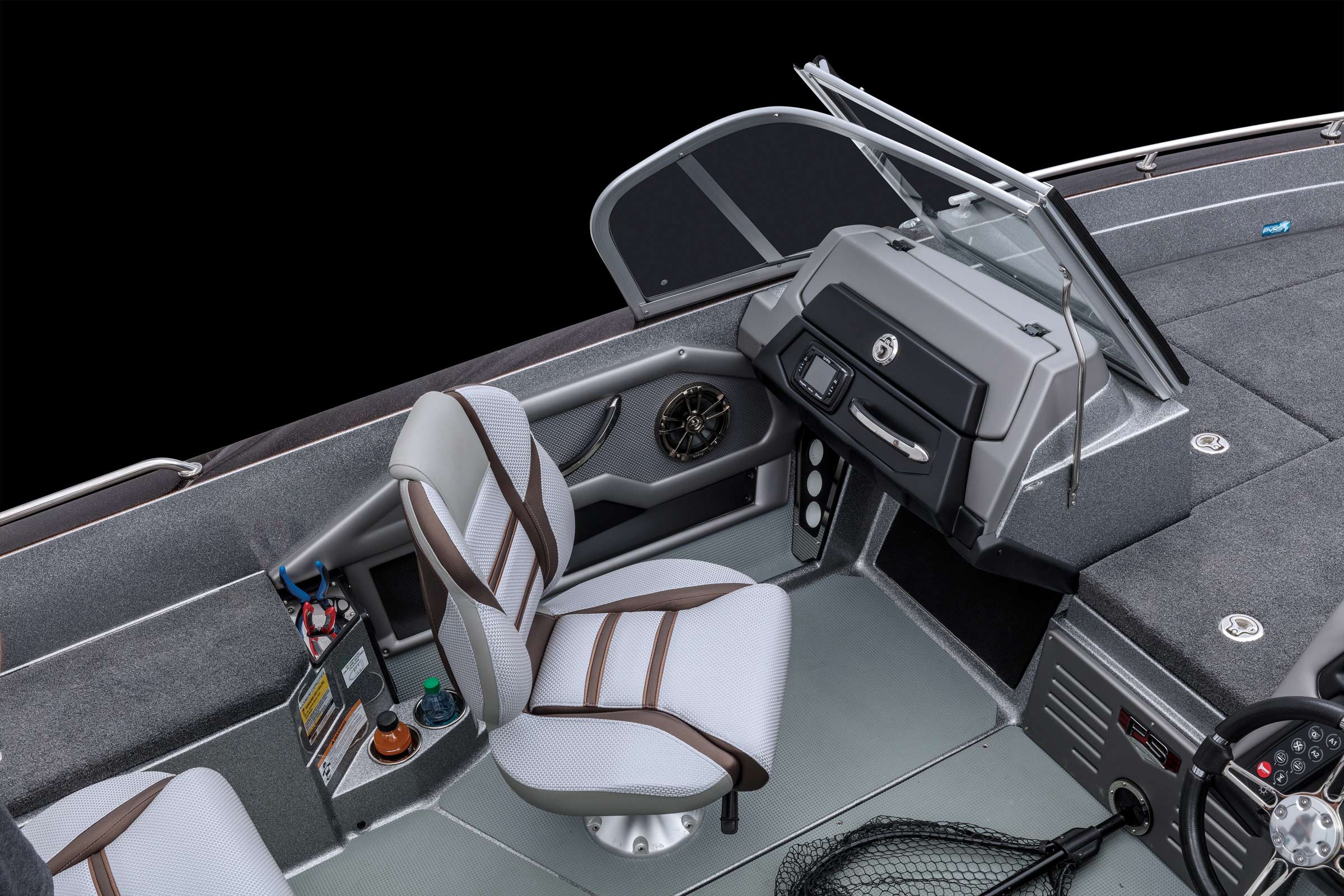

- Custom fitted premium marine upholstery - (2) driver/passenger tall-back Soft Ride Seating (SRS) fold-downs w/ (2) adjustable slides and (2) soft-ride bell pedestals and (2) SRS fold-downs w/ power pedestals
- Fire extinguisher & horn
- Automatic & manual bilge pump

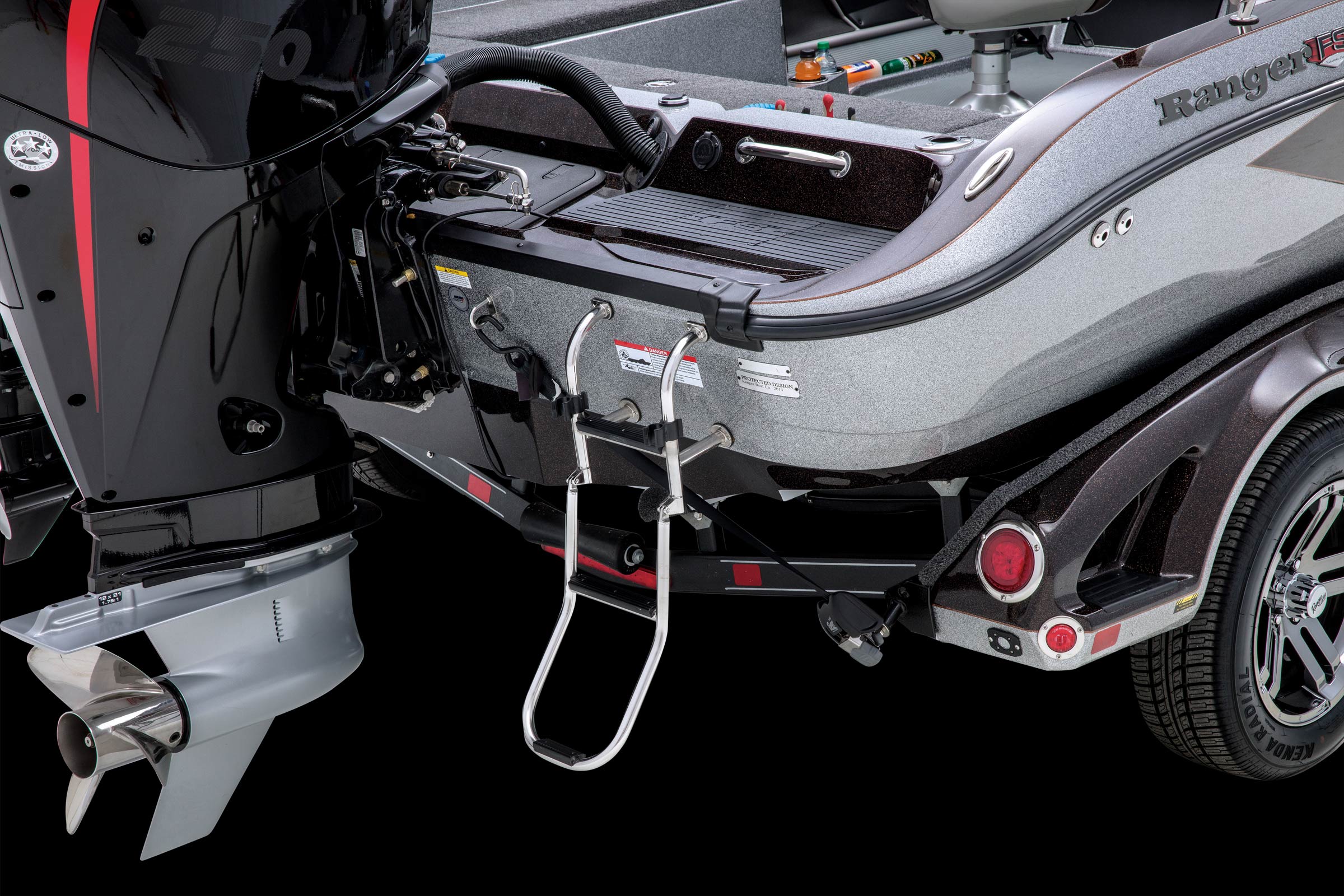

- Boarding ladder

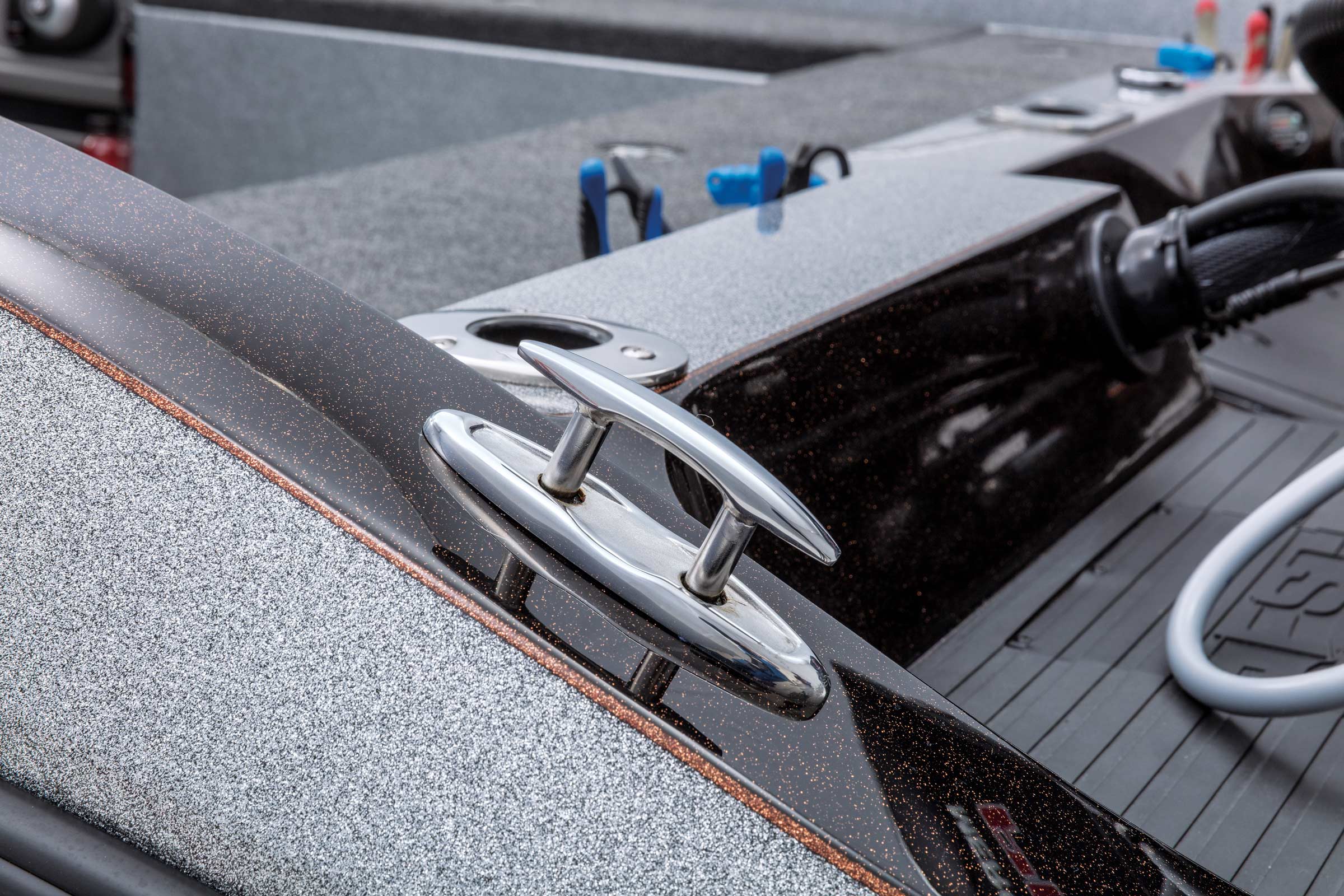

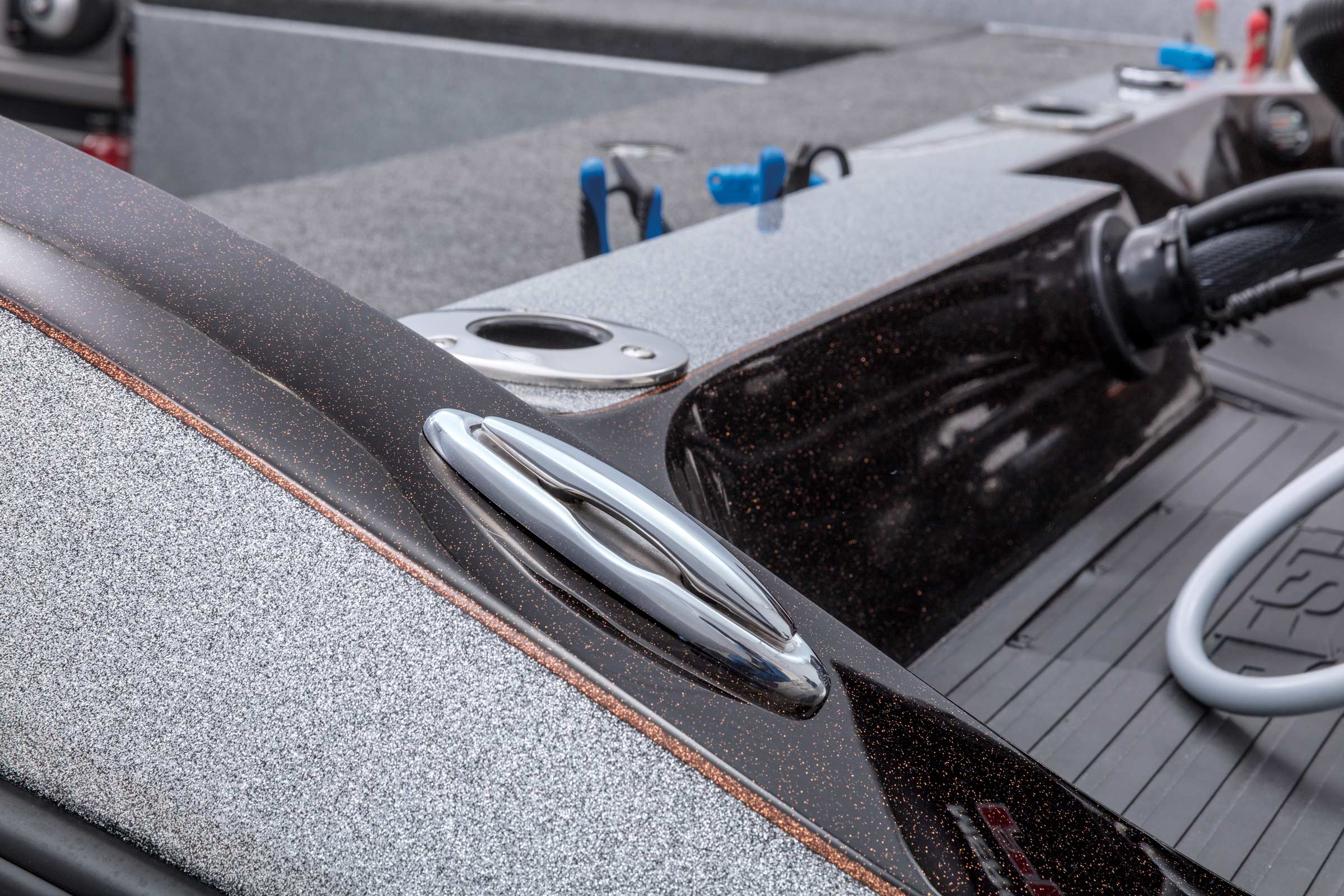

- Pull-up tie cleats

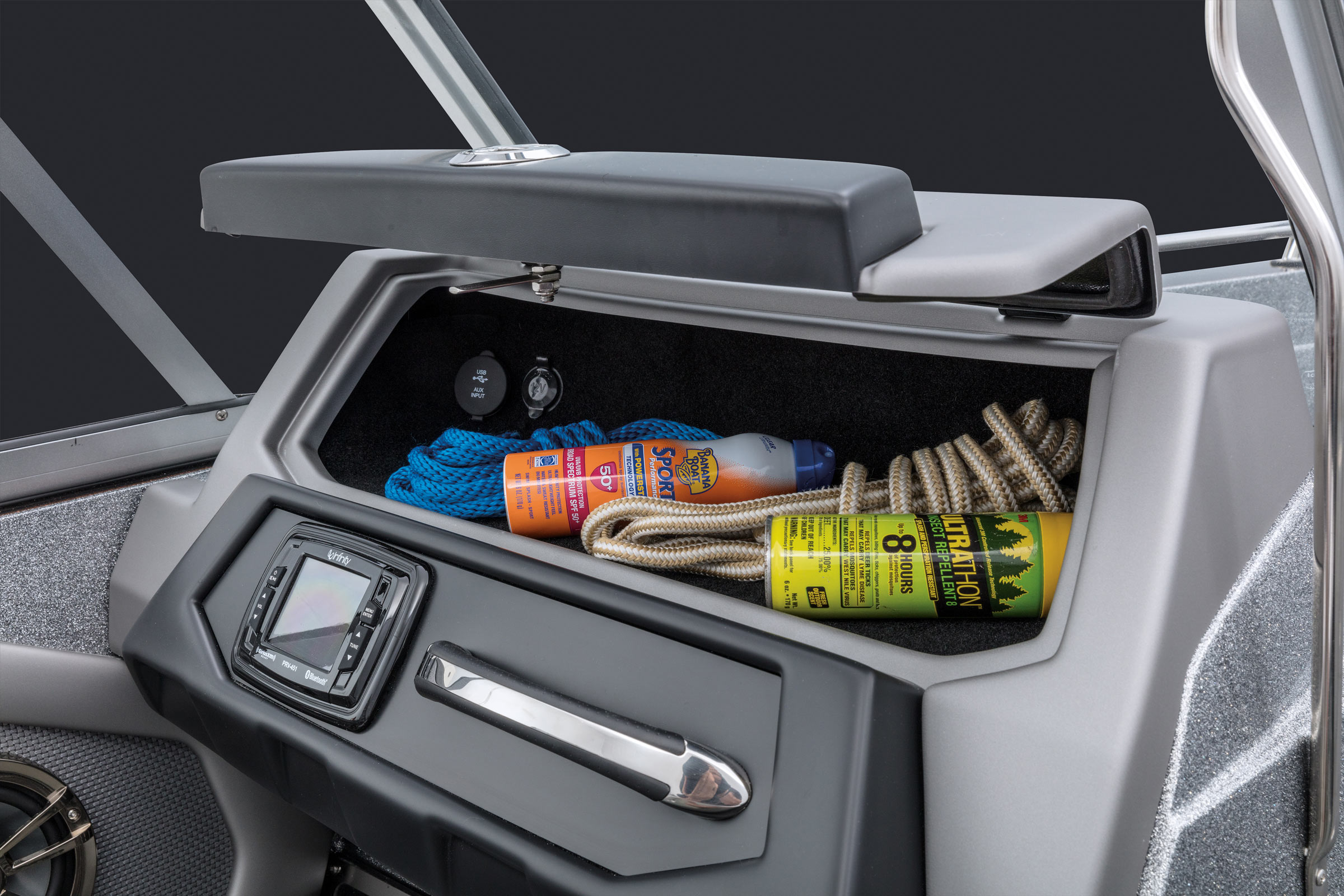

- Passenger glove box (dual console only)
- Skid-resistant material on bow
- Upright, level flotation

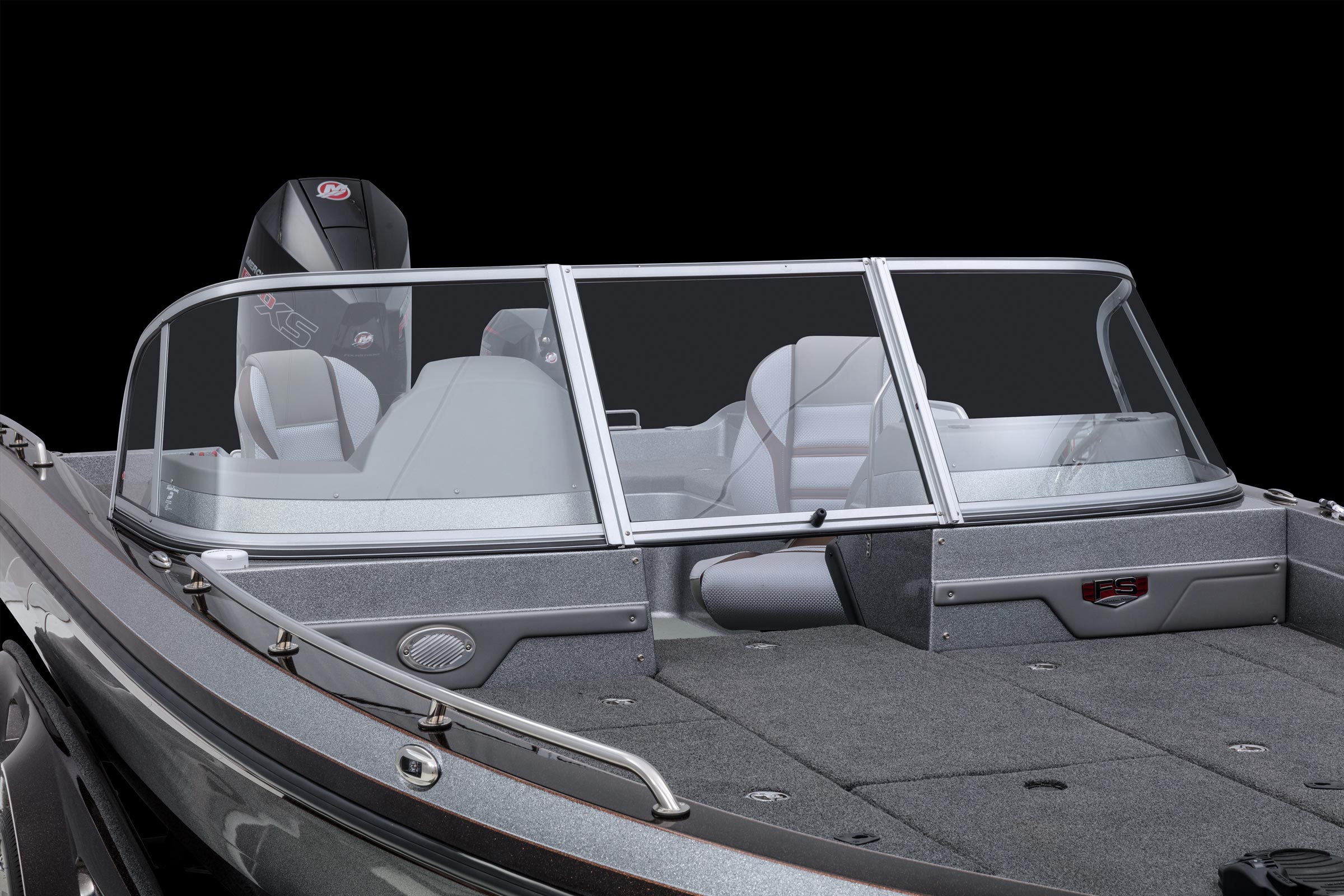

- Walk-thru windshield
- Integrated grab handles
Power/Performance
- (3) WRM80 lithium trolling motor batteries
- Electrical system disconnect on/off switch
- NOCO™ GB40 jump starter
- Flush-mounted remote throttle control
- Foam-filled fiberglass stringers
- High performance stainless steel prop
- High performance steering wheel
- Lowrance® Ghost 60" trolling motor
- Pultruded Fiberglass Transom

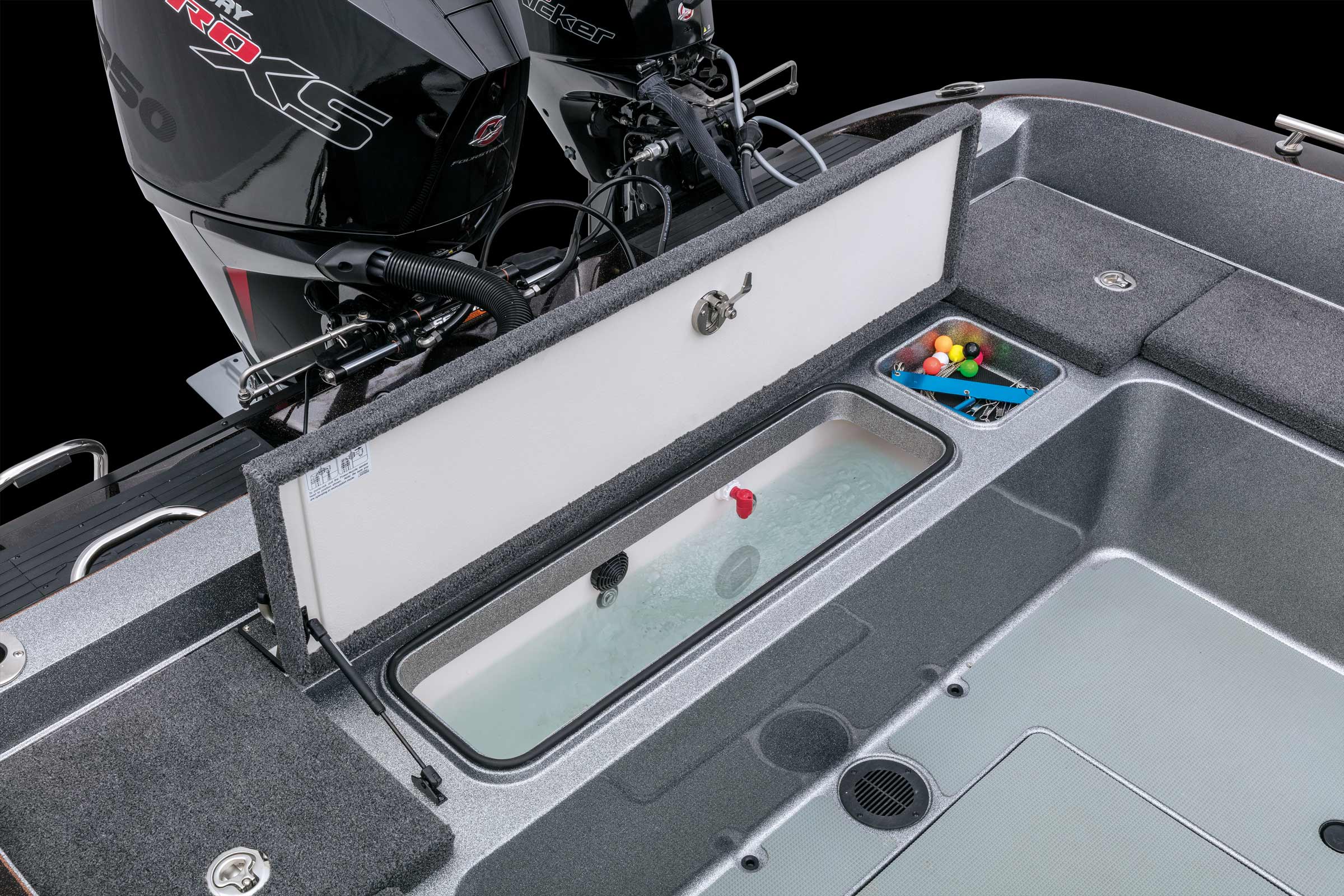

- Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out
- Tilt hydraulic steering

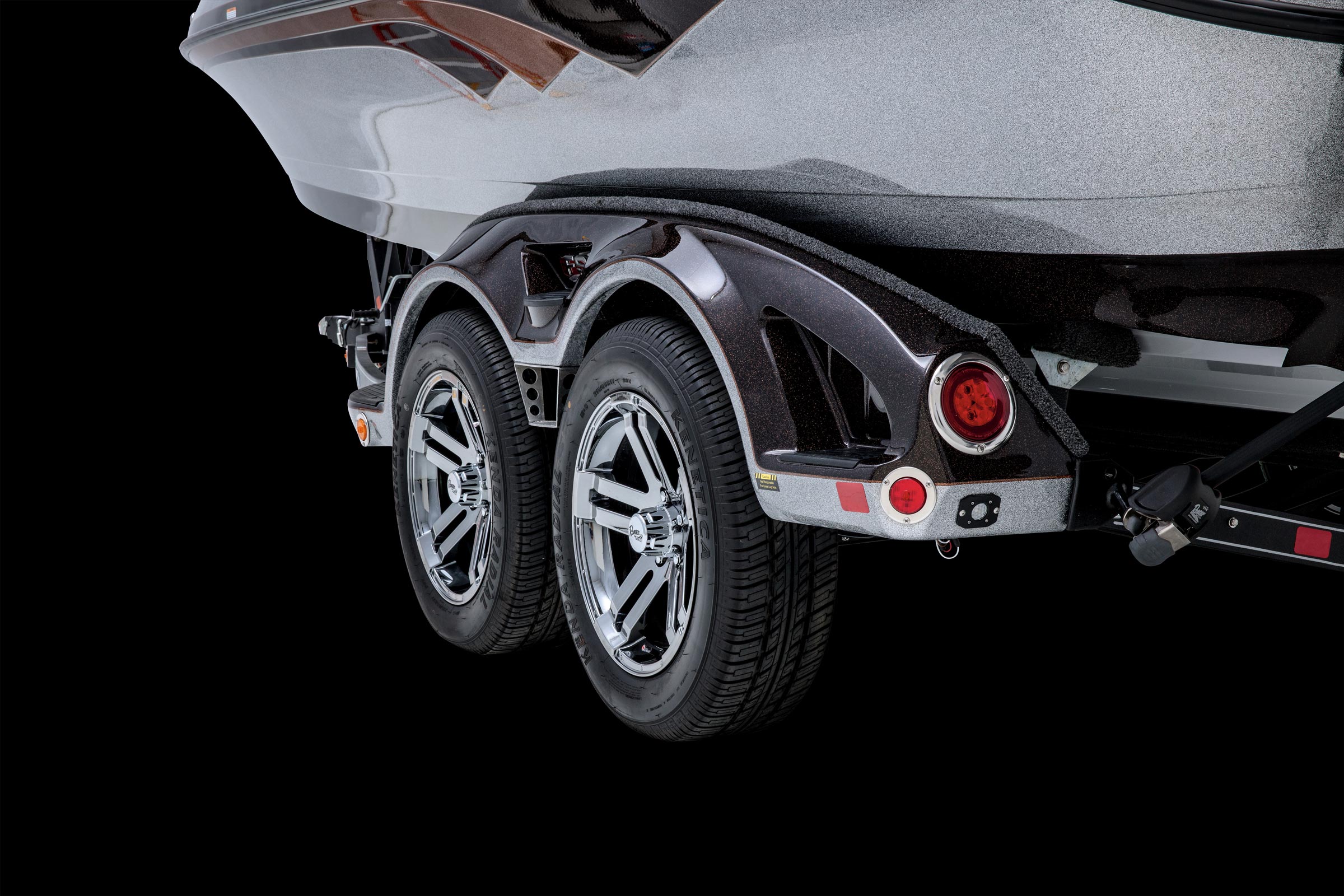

Trailer Features

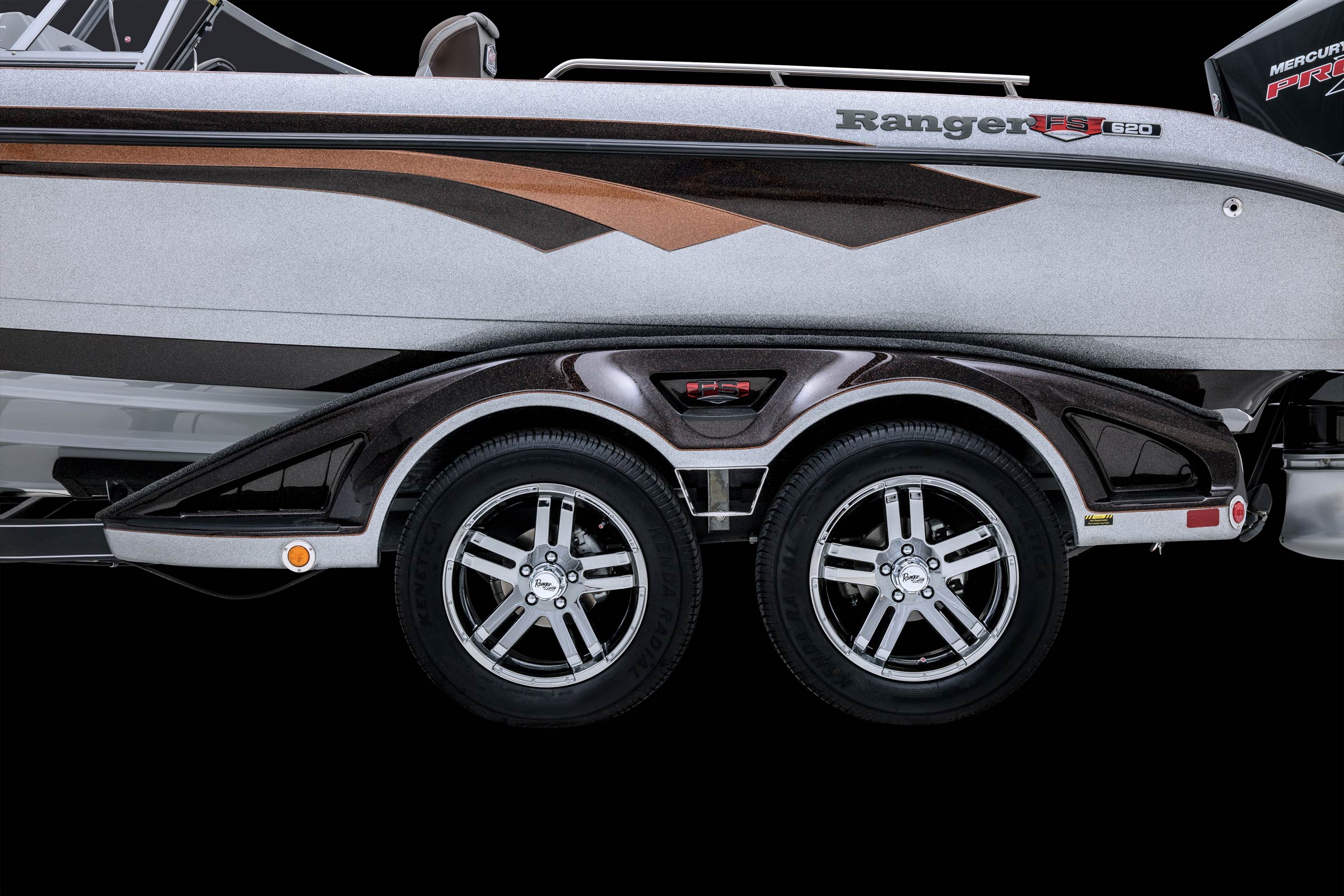

- Tandem axle trailer

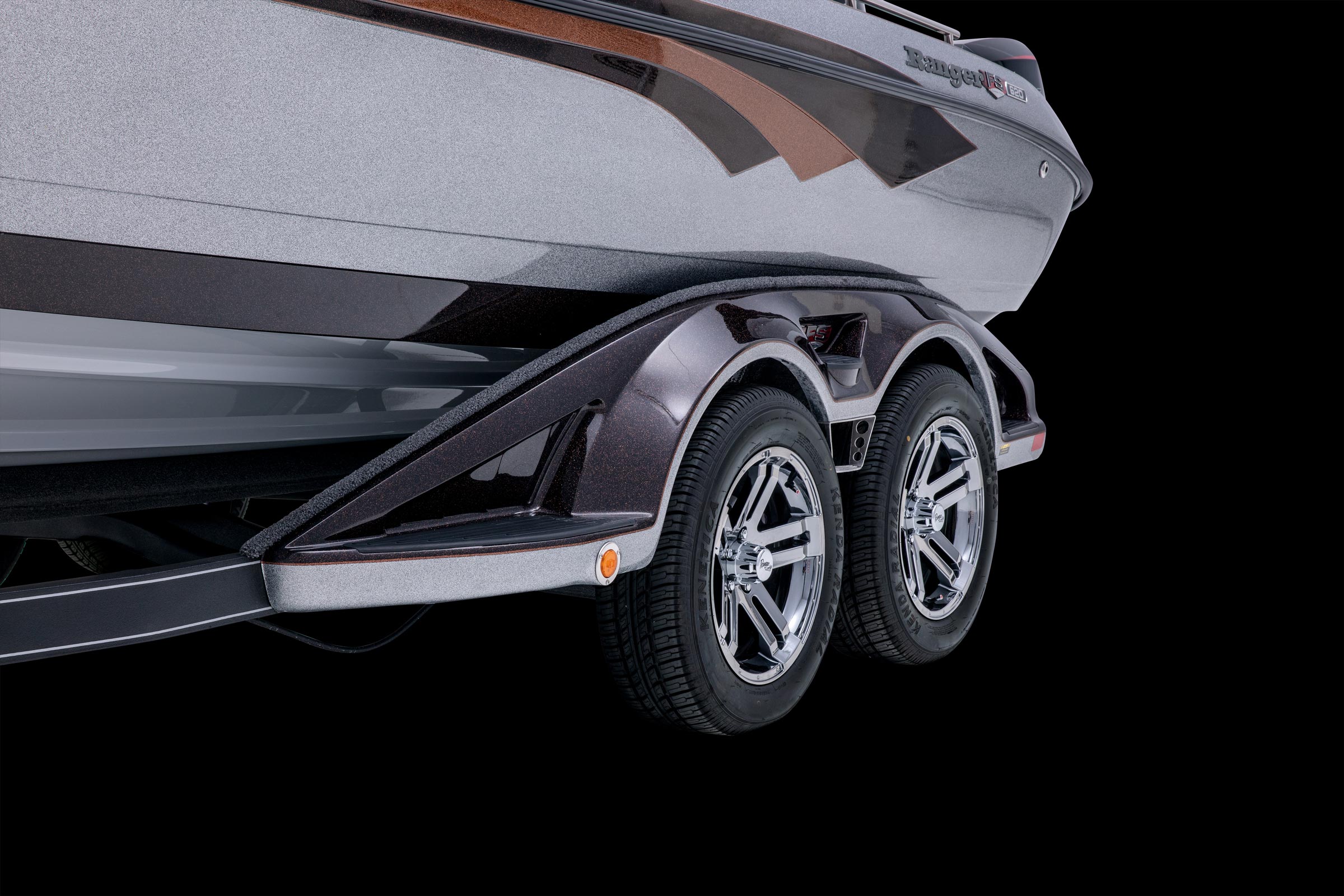

- 17" black chrome Challenger wheels
- Stainless steel ratchet trailer tie-downs
- Center-swing jack (black powder coated)

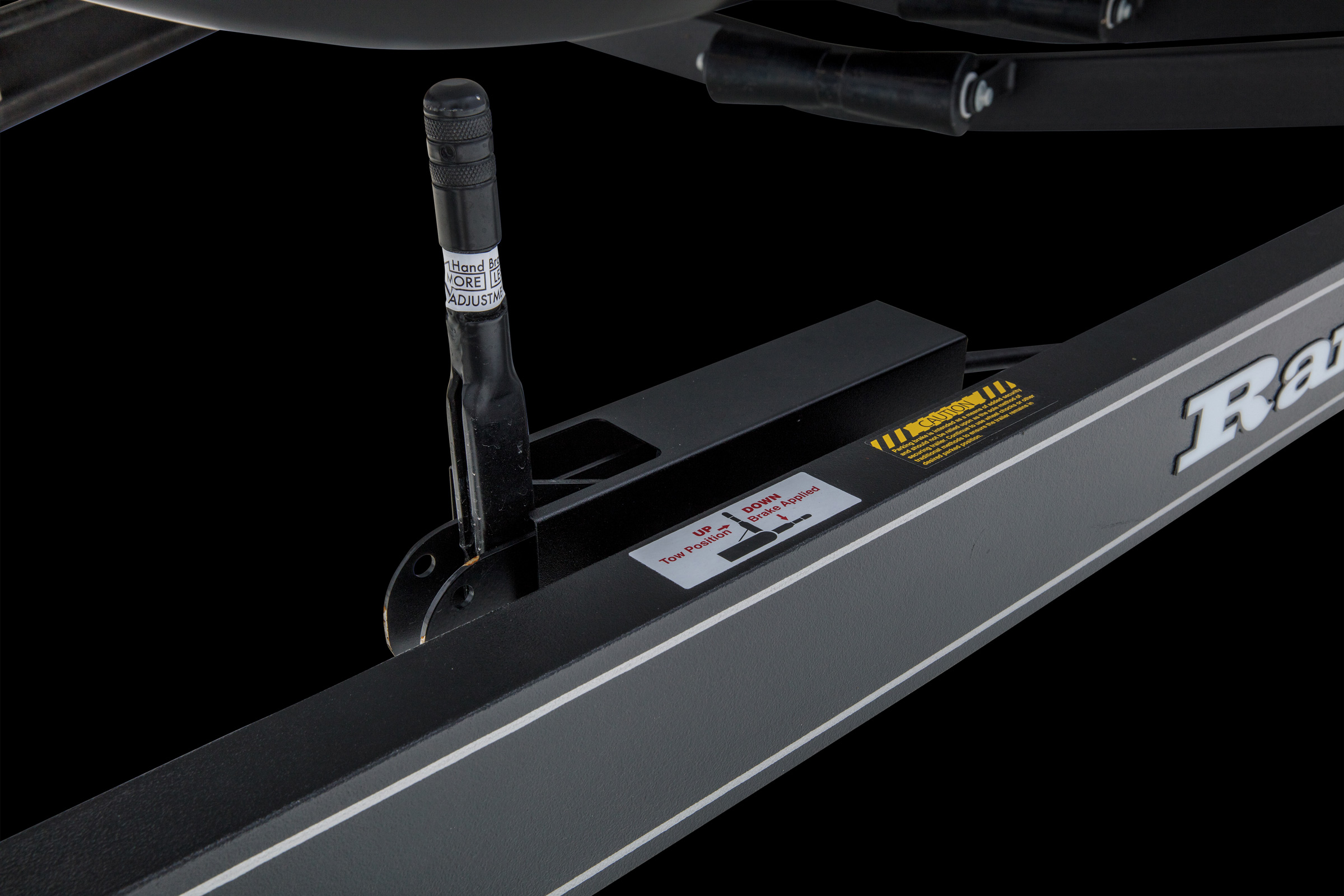

- Swing-away tongue
- Hydraulic surge disc brakes

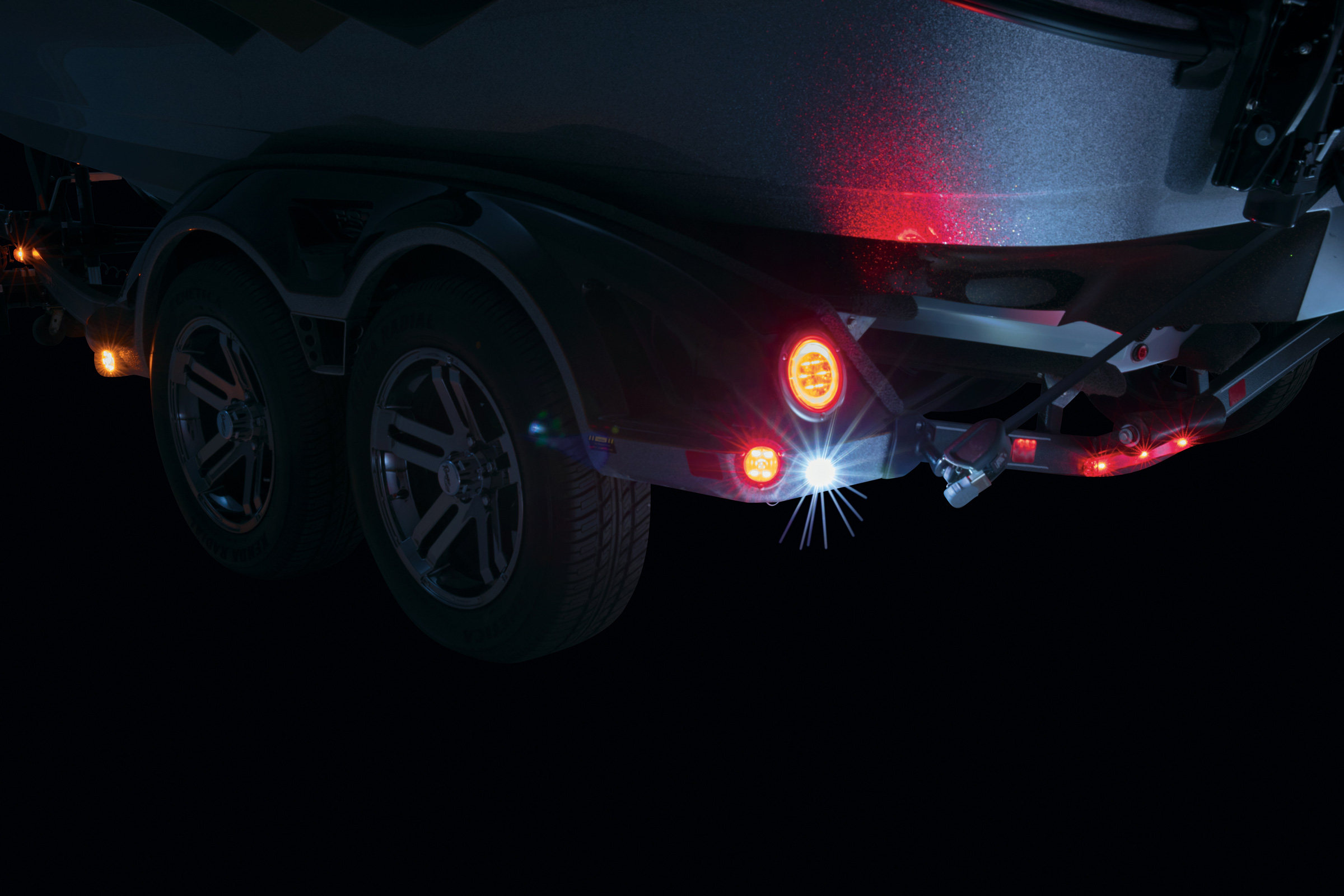

- LED lighting
- (2) Backup lights
- Matching fiberglass fenders
- Ranger® Boats Road Armor Equipped® trailer protectant
- Ranger Trail® Vault® Hub lubrication system
- NMMA®/NATM certified
- Parking brake
- Torsion axles
