Limited 2024 Availability

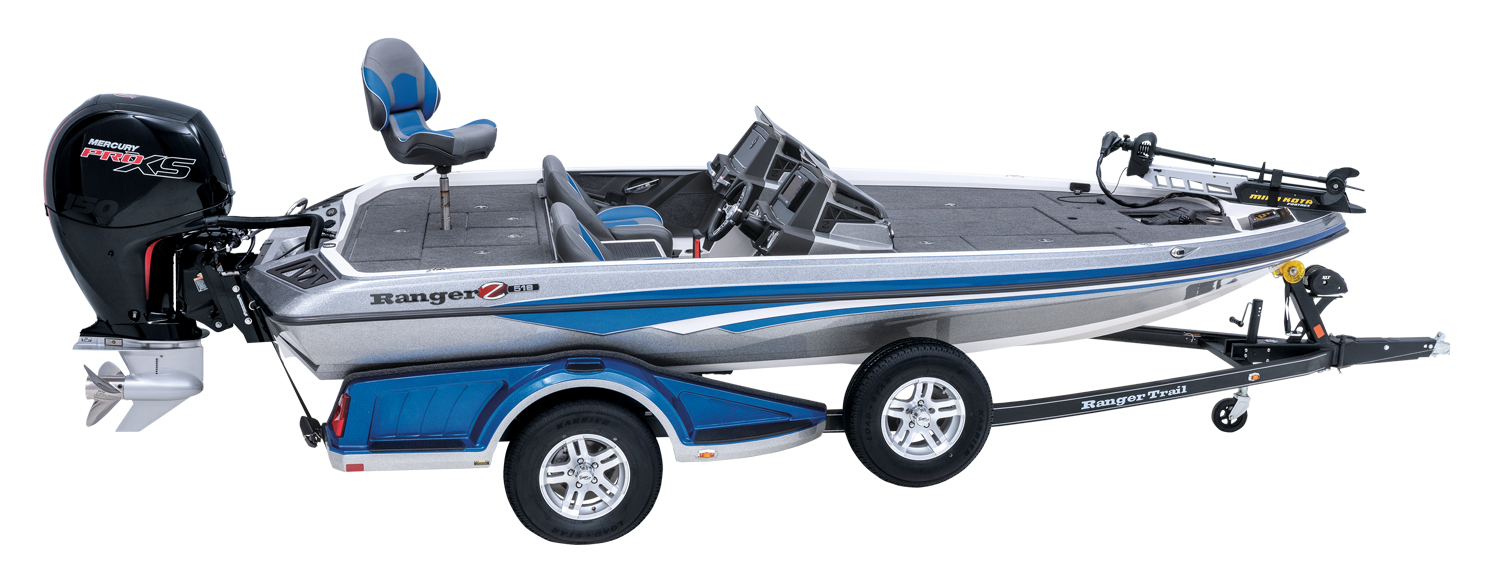

Z518
Photos may show optional equipment.
2023
Z518
w/ 150 L Pro XS FourStroke Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$52995
USD
|
SCREAMING PERFORMANCE AND VALUE
In the 18-foot class, the Ranger® Z518 stands alone in terms of all-out performance, fishability, and features. With the standard 150-horsepower Mercury®, you’ll enjoy invigorating performance and economy, but opting for the 200-horse V8 FourStroke opens the door to a new level of all-out adrenaline-pumping exhilaration.
We’ve maximized storage space up front with a pair of 8-foot rod boxes, a gelcoat-lined, insulated in-deck cooler and spacious starboard gear box. The oversize casting deck and 97-inch beam deliver a stout, stable platform. A foam-filled core and strategically placed pultruded fiberglass material deliver unshakable solidity and a one-piece feel throughout.
The console carries a full complement of precision gauges, the electronics of your choice up to 12” and stylish matte black accents. Integrated LED navigation lights, a recessed trolling motor pedal and SRS Soft-Ride™ seating round out this angler-centric rig that far outperforms its price tag. From daylight to dusk, the Ranger Z518 delivers features and value like none other.
Key Features
- 200HP rating
- Maximized storage throughout, including 8' rod boxes
- Ranger Trail® trailer comes standard
- Recessed trolling motor pedal
- In-deck, gel-coated cooler
Video
Specifications
| Length | 5.74 m | 18' 10'' |
| Beam | 2.46 m | 97'' |
| Max. Recommended HP | 200 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 53.34 cm | 21'' |
| Fuel Capacity | 147.62 L | 39 gal. |
| Livewell Capacity | 90.84 L | 24 gal. |
| Total Person, Motor, Gear | 612.35 kg | 1350 lbs. |
| Approximate Boat Weight | 748.43 kg | 1650 lbs. |
| Rod Box Length - Port | 2.44 m | 8' |
| Rod Box Length - Center | 2.44 m | 8' |
| Max. Person Capacity | 4 persons | |
| Trailer GVWR | 1689.63 kg | 3725 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.19 m | 23' 7'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 6.58 m | 21' 7'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 150 L Pro XS FourStroke |
$52995 USD
|
Select Dealer | |||
| 200 L FourStroke |
$55420 USD
|
Select Dealer | |||
| 200 L Pro XS Torque Master 1.75 |
$56415 USD
|
Select Dealer | |||
Standard Features
Custom Details
- Special 55th Anniversary badging
- Carpet trim
- Carpeted rod storage w/ organizers
- Molded-in driver / passenger footrests
- Lockable storage compartments
- Gas spring lid assists
- Insulated cooler w/ gelcoat liner & drain
- Integrated stainless steel cup holders
- Ranger® tournament measuring board
- Integrated tackle and rod management system in center rod box
- Remote drain plug
- Runnin' rod rack w/ retractable strap
- Stainless steel compression locks
- Tool holders at bow and front deck step
Electronics
- 12V DC power receptacle with USB charging port
- Heavy duty 6-gauge trolling motor wiring w/ 60 amp breaker
- Bow panel w/ switches
- Courtesy light(s)
- Cranking battery w/ tray
- Lowrance® Hook Reveal 5 Combo @ Console
- On-Board Dual Pro® auto detect lithium capable charger, 15x3
- Multi-function gauge package: speedometer, tachometer, fuel, trim, water pressure, temp, volt
- Integrated LED bow navigation lights
- Removable LED stern light
Power/Performance
- Electrical system disconnect / jumper switch
- Flush-mounted remote throttle control
- Foam-filled fiberglass stringer system
- High performance steering wheel
- High performance stainless steel prop
- Integrated engine setback
- Minn Kota® Maxxum 70 42" 24V trolling motor
- Recessed trolling motor foot pedal
- Pultruded Fiberglass Transom
- Recirculating aerated livewell w/ filter screens & timer
- Chrome gas fill
- Power trim
- Tilt hydraulic steering
Safety/Comfort
- Custom-fitted premium marine upholstery Soft Ride Seating (SRS) bucket seats w/ center storage, (1) bike seat w/ pro pole, (1) SRS fold-down w/ power pedestal
- Fire extinguisher & horn
- Automatic & manual bilge pump
- Boarding ladder
- Pull-up tie cleats
- Integrated grab handles
- Integrated tool holder
- Skid-resistant material on bow
- Tinted windshield(s)
- Upright, level flotation
- Venturi aeration system
Trailer Features
- Single axle trailer
- Aluminum wheels w/ matching spare tire & wheel
- Center-swing jack
- Swing-away tongue
- Hydraulic surge disc brakes
- LED lighting
- Matching fiberglass fenders w/ step pads
- Stainless steel ratchet tie downs
- Ranger® Boats Road Armor Equipped® trailer protectant
- Ranger Trail® Vault® Hub lubrication system
- NMMA®/NATM certified
- Torsion axles
Options
Gallery
