Limited 2024 Availability
Z521R
Photos may show optional equipment.
2024
Z521R
w/ 250 L Pro XS Torque Master 1.75 Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$86995
USD
|
Key Features
- Push-to-Start Ignition with proximity keyfob
- Pultruded fiberglass transom
- Industry-leading standard feature set
- Wireless phone charger in coinbox
- Auto-on storage box LEDs
- Double-walled 40-qt. step-up cooler
- Echelon Rod Storage System w/tiered shelves
THE PINNACLE OF PERFECTION
The tallest order in the boating world is creating the next flagship Ranger bass boat. Doing so requires an extensive knowledge of—and appreciation for—the past, while putting forth complete dedication to delivering a paradigm shift in all-around performance, fishability, quality, safety, and style. The all-new Z521R represents countless hours of R&D, testing, and continuously raising the bar, and the boat you see here is not only unquestionably worthy of the Ranger name, but instantly evolves and elevates what a bass boat can be.
From bow to stern, hull to top cap, the Z521R has been tweaked, massaged, enhanced, and perfected across every inch with a passion for perfection. No element of the boat’s design, performance, quality, safety, or fishability was untouched as we crafted this next-generation legend. The culmination of this work has yielded an all-new boat with revamped and elevated all-around performance that melds with aggressive modern styling that sets this rig apart as the apex of bass boats.
Real-world improvements include a perfected hull that delivers rapid lift onto plane and a stronger top end. We’ve also elevated the technology that comes standard on the Z521R. The Ranger R.I.D.E. system lets you monitor and control every critical function while a key fob permits quicker start up and enhanced security when you’re not nearby. The Z521R also features an industry-first push-to-start system that gets you to the next spot fast.
Deep within the Z521R is a reimagined core and stringer system that not only bolsters our One-Piece Feel Interloc™ construction but permits larger storage boxes for even more space. The rod boxes feature an all-new Echelon tiered shelf system for unmatched customization, flexibility, and capacity and the ability to hole sticks up to 9’. Every box features an automatic light sensor that cuts on LEDs when a lid is lifted. A larger day box and massive 40qt. cooler feature the same construction as today’s premium coolers for all-day-long ice.
The Z521R carries more advancements in performance, technology, fishability, and style that not only set it apart from the crowd, but leads it.

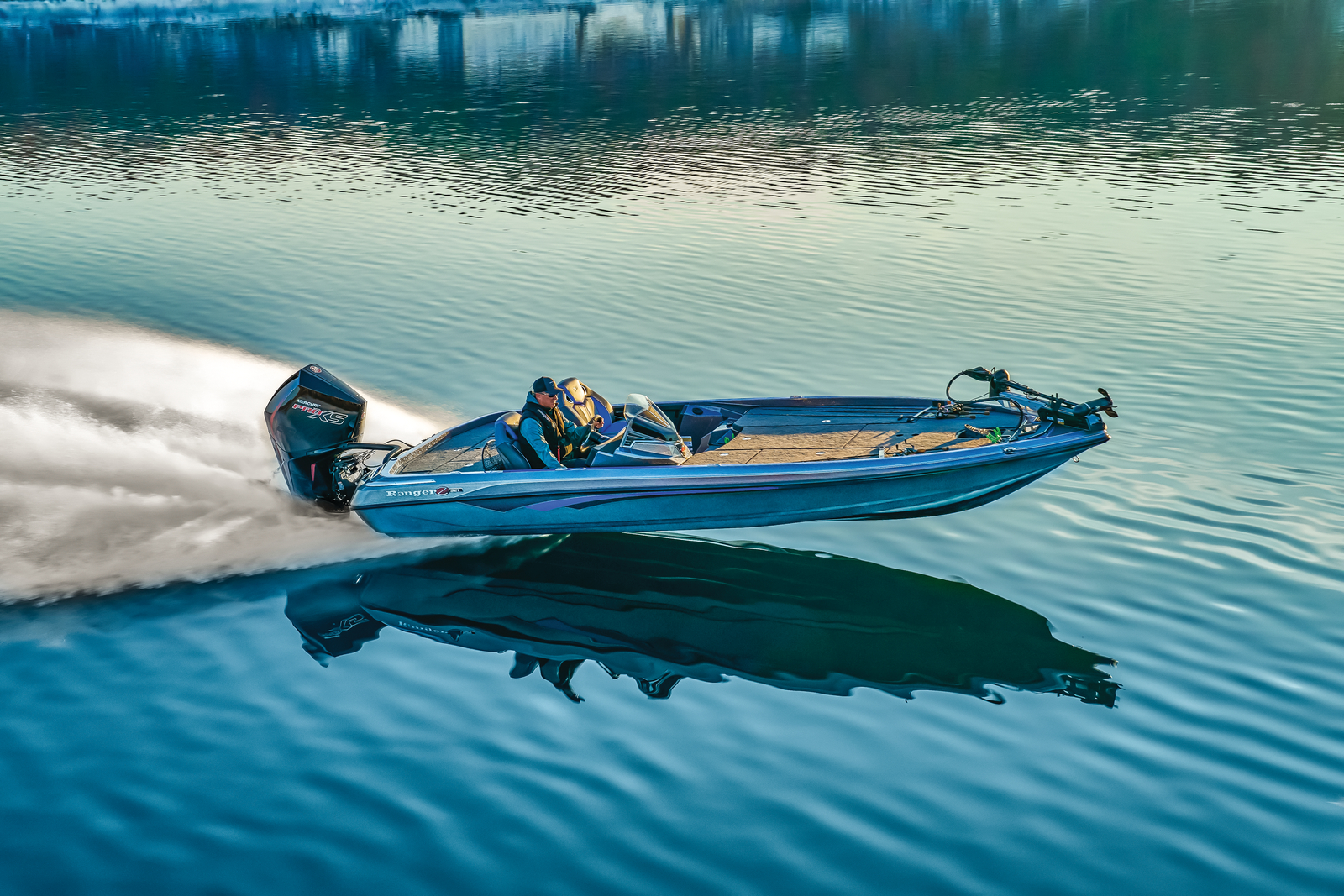

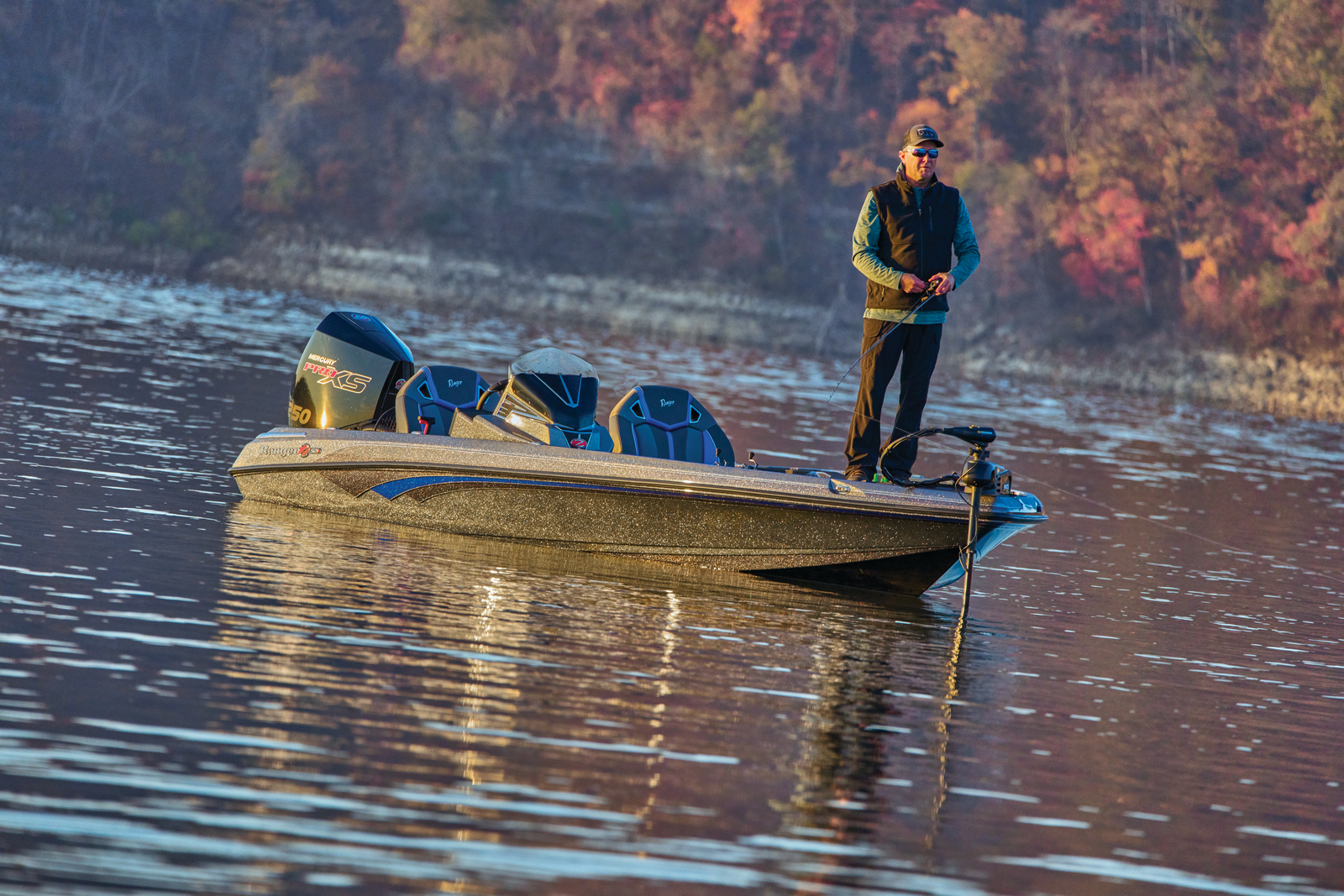

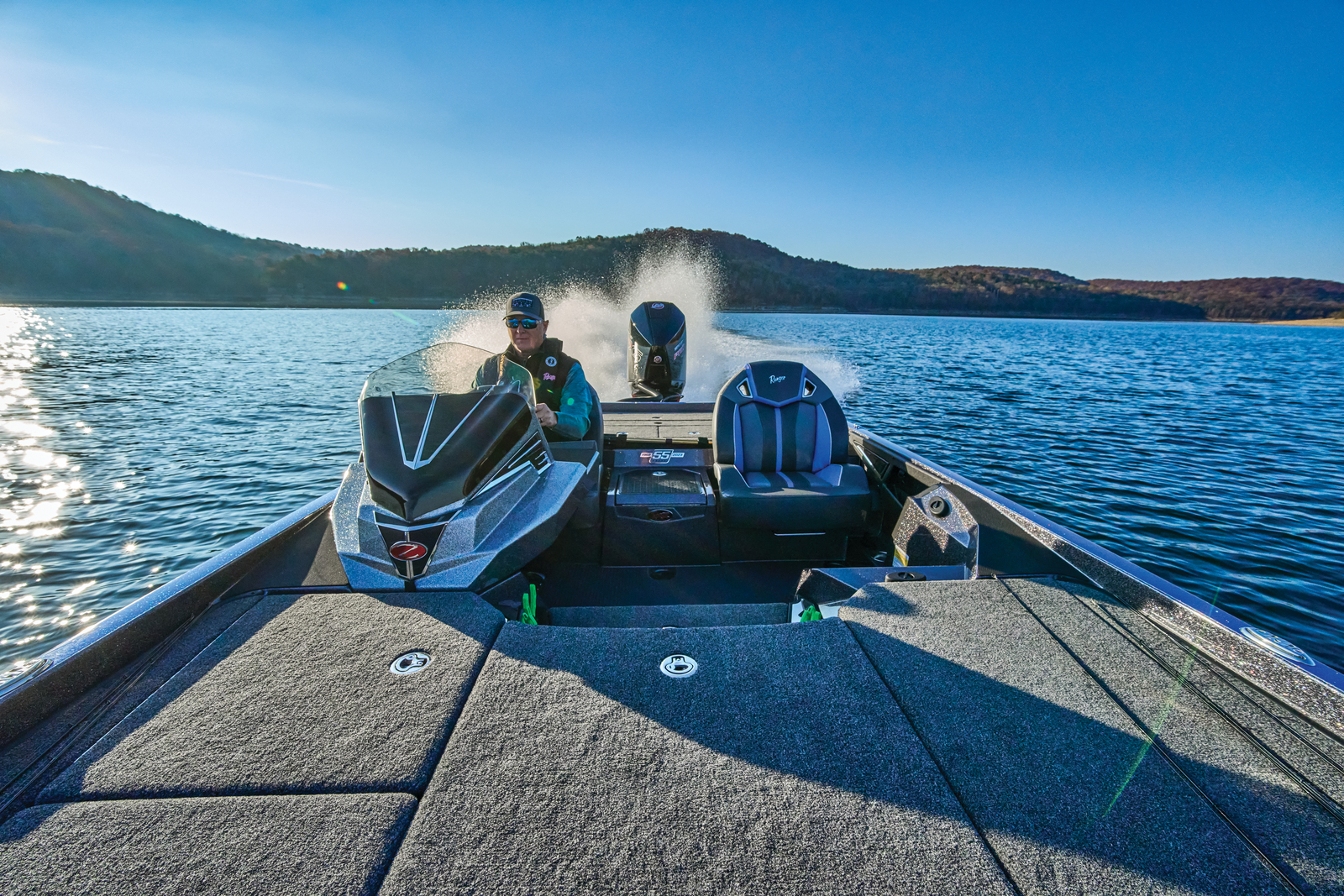

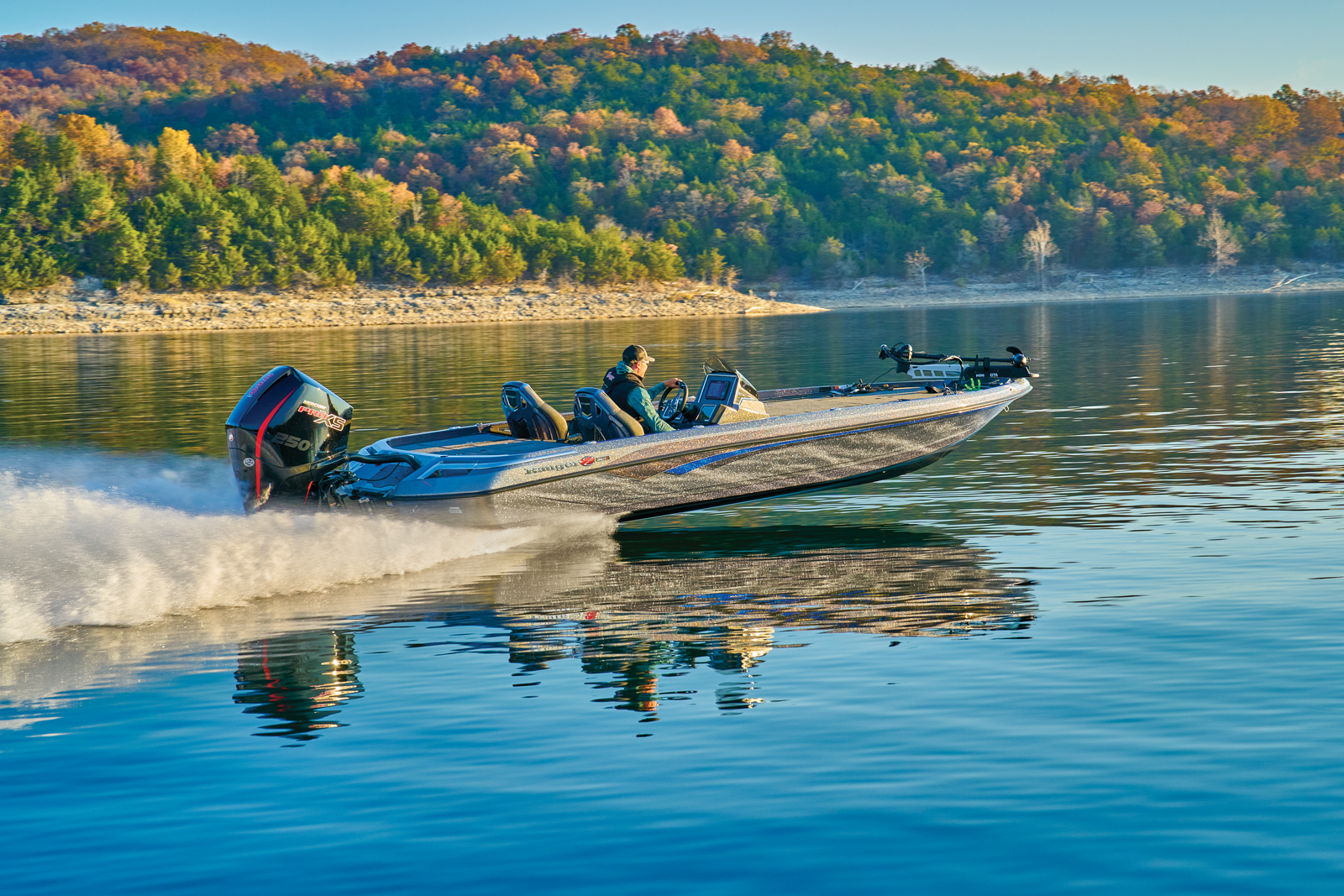

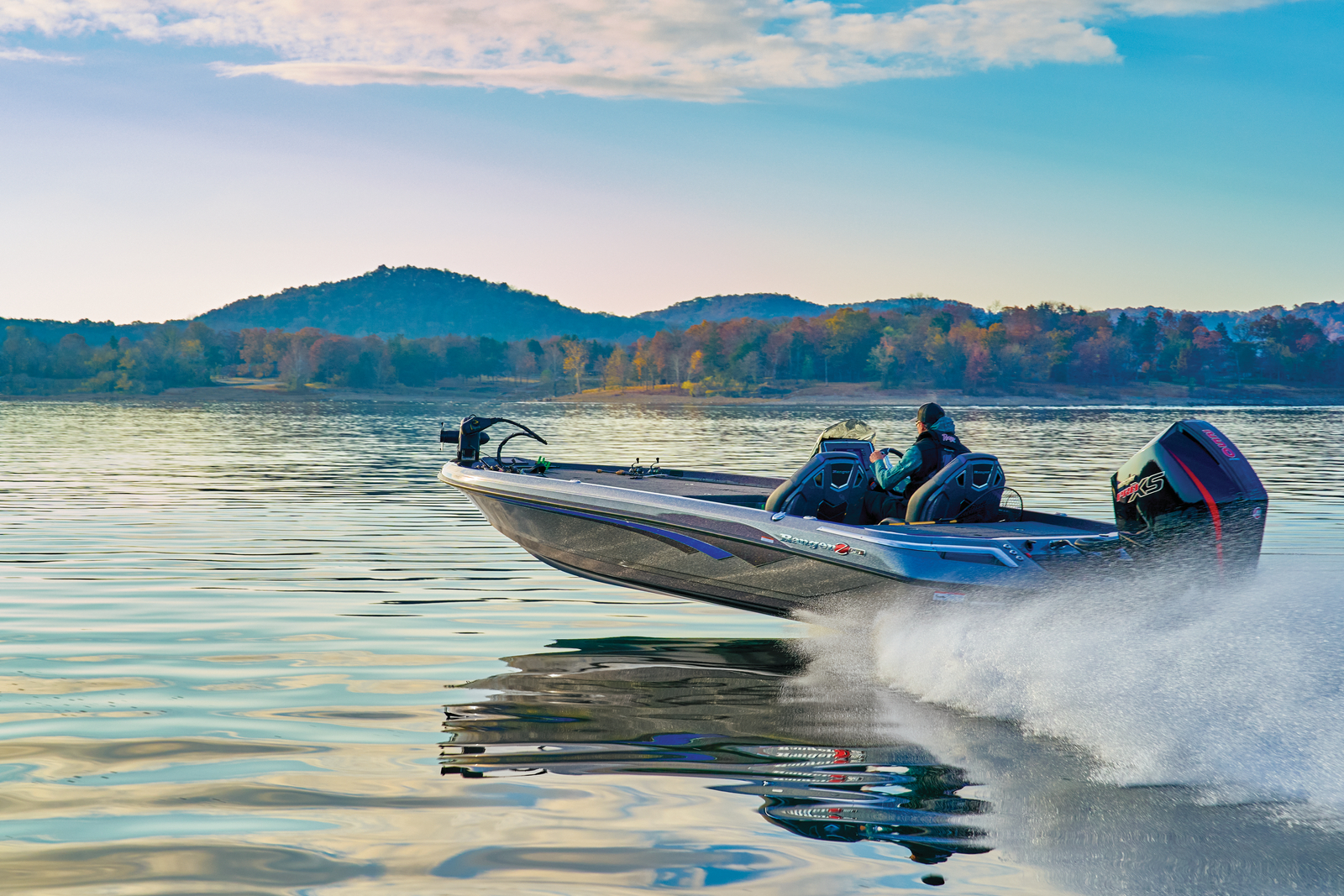

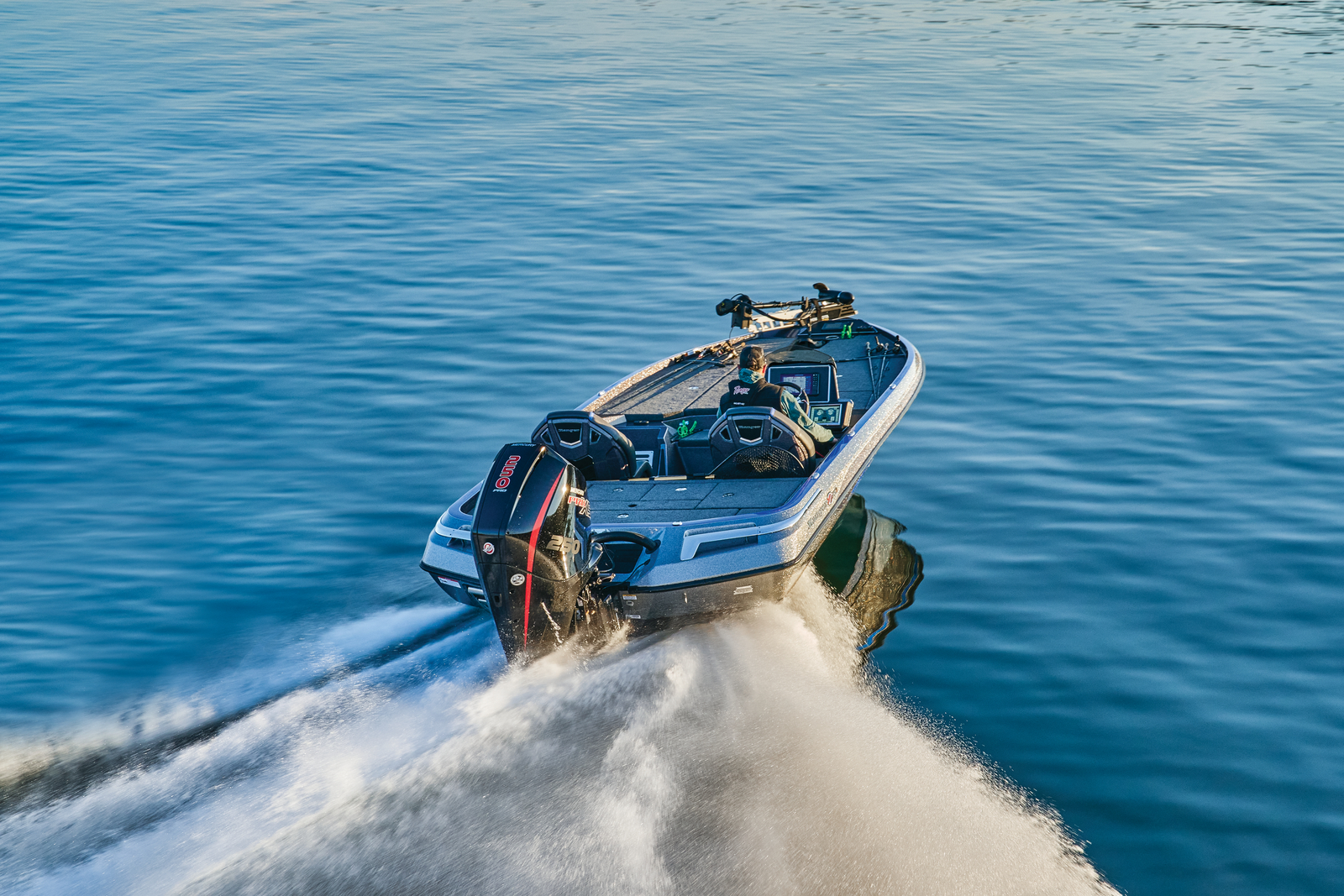

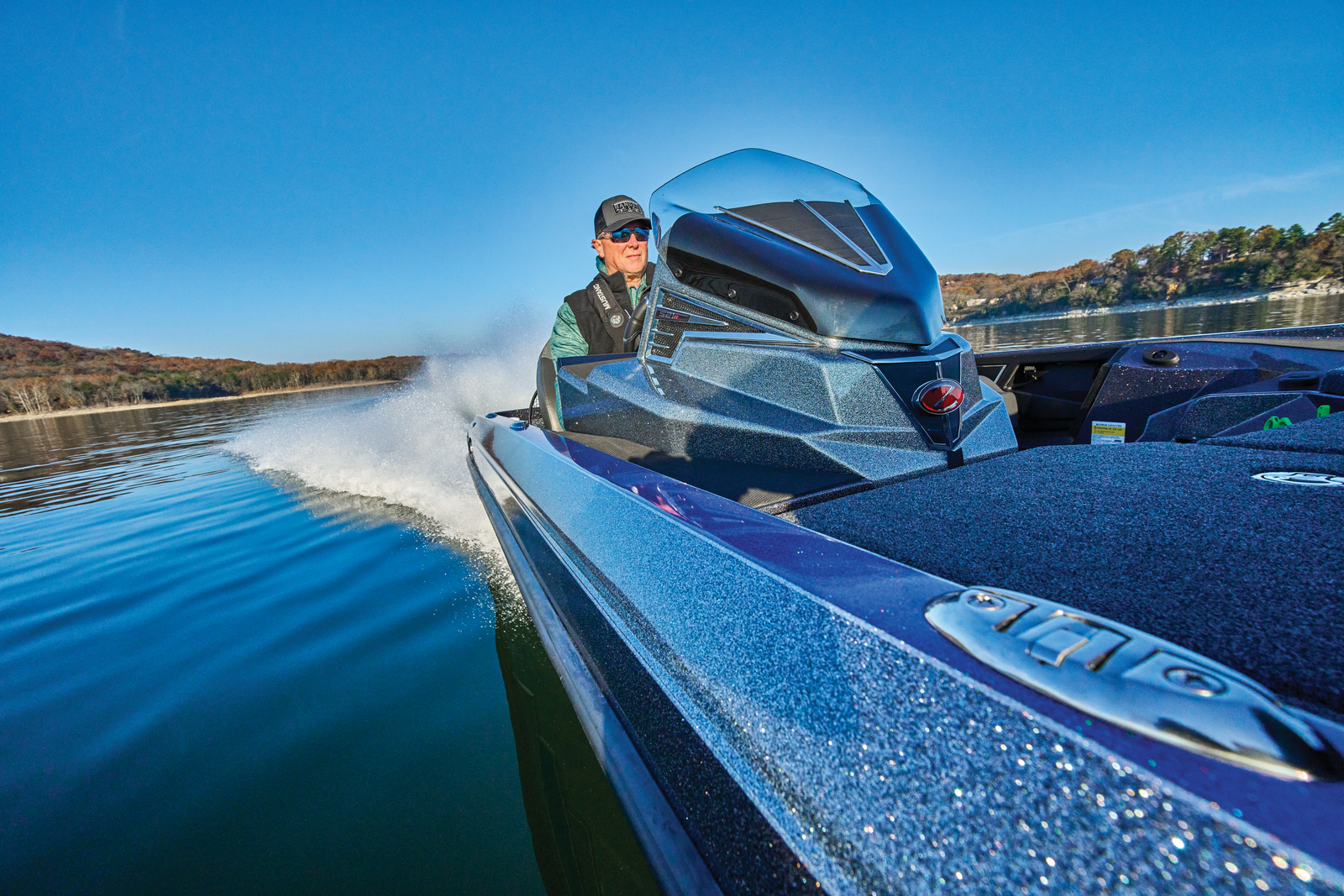

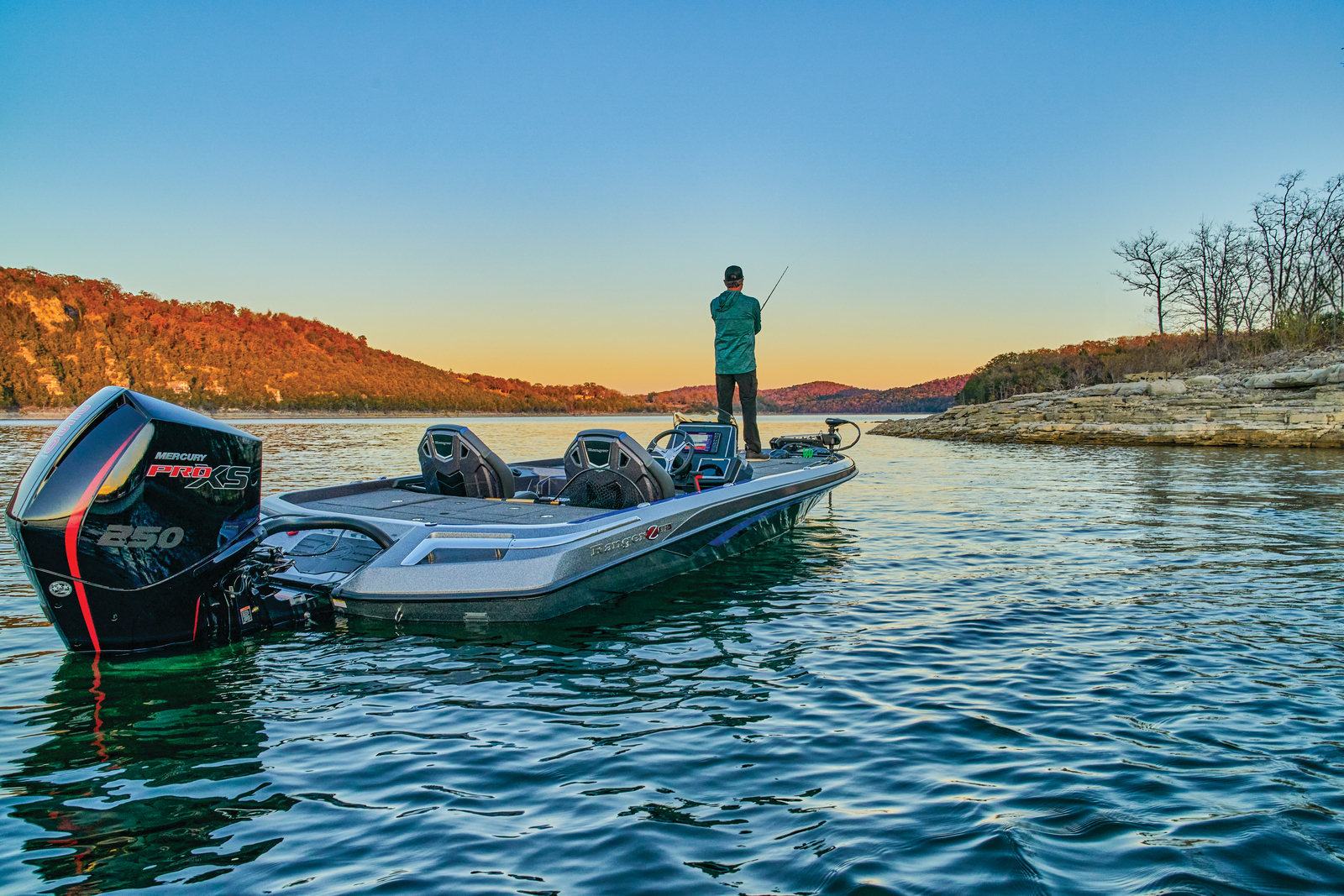

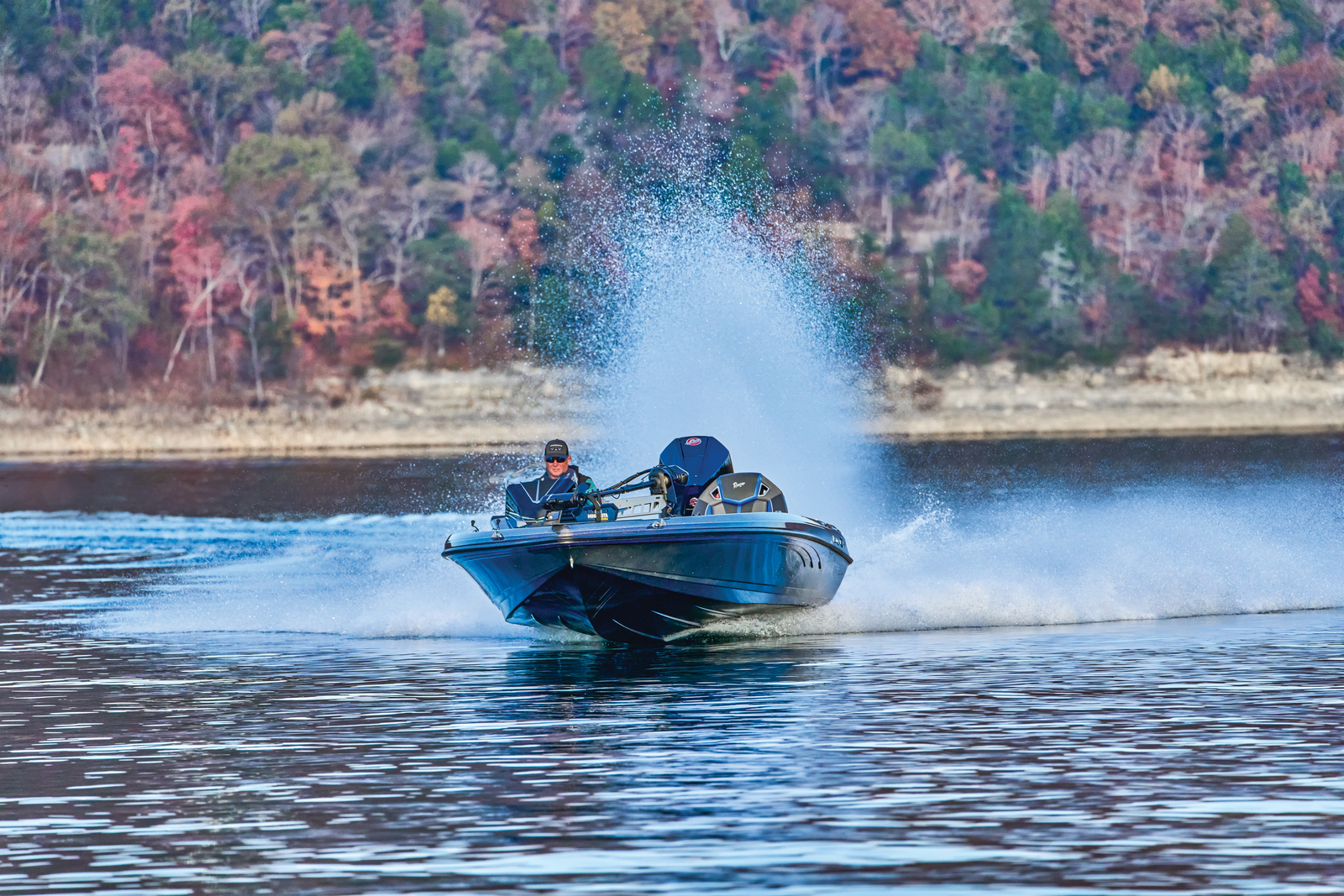

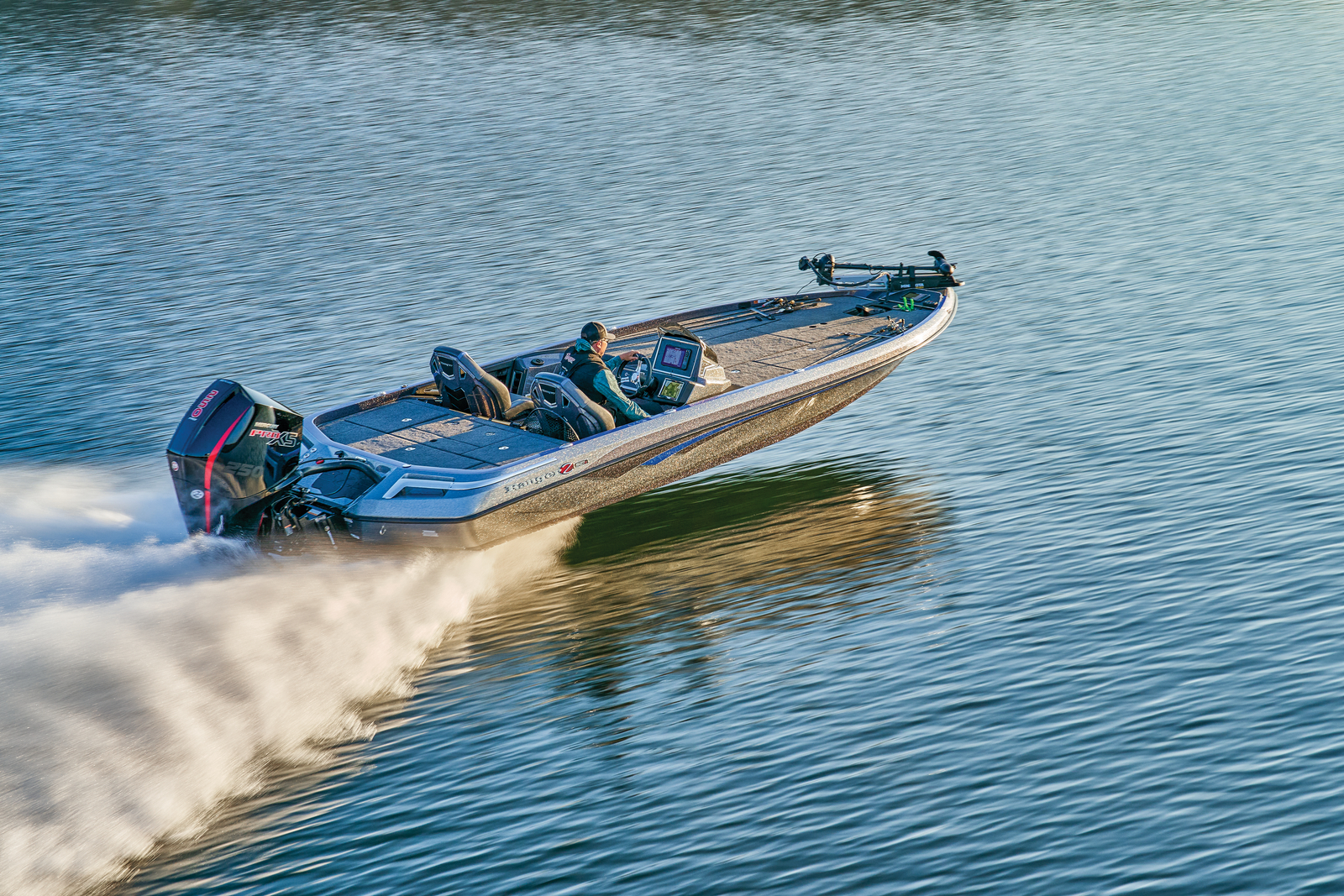

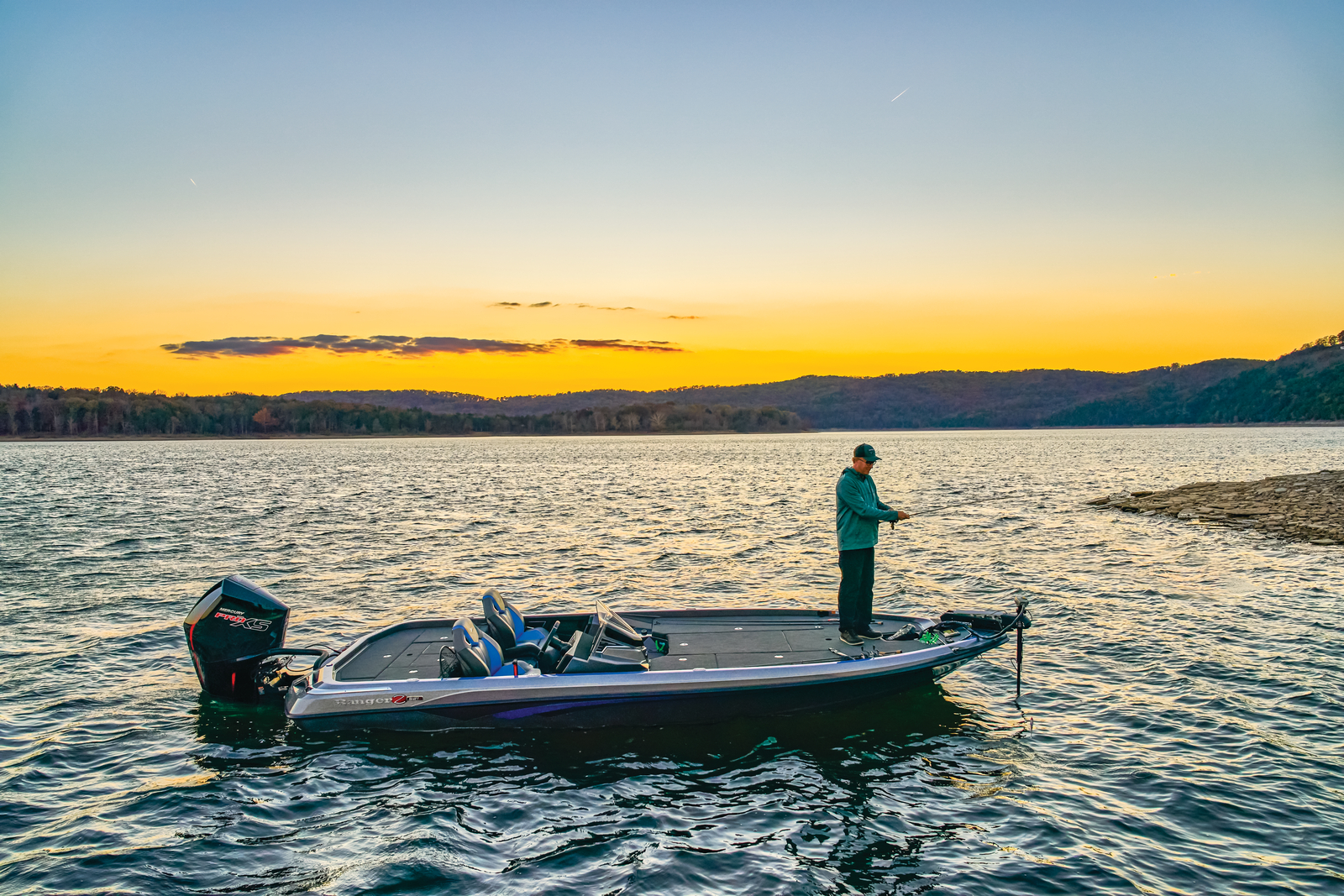

Gallery
Specifications
| Length | 6.63 m | 21' 9'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 300 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 53.34 cm | 21'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 861.83 kg | 1900 lbs. |
| Approximate Boat Weight | 1043.26 kg | 2300 lbs. |
| Rod Box Length - Port Bottom Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Port Middle Shelf | 8 ft. |
| Rod Box Length - Port Top Shelf | 9 ft. | |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 8 ft. | |
| Rod Box Length - Starboard Top Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Starboard Bottom Shelf | 2.03 m | 6' 8'' |
| Max. Person Capacity | 5 persons | |
| Trailer GVWR | 2449.4 kg | 5400 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.51 m | 27' 11'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.65 m | 25' 1'' |
| Width On Trailer | 2.59 m | 102'' |
| Package Height | 2.01 m | 79'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250 L Pro XS Torque Master 1.75 |
$86995 USD
|
Select Dealer | |||
| 300 L Pro XS Torque Master 1.75 |
$90665 USD
|
Select Dealer | |||
Standard Features
Custom Details
- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
- Power Ventilation Rod Storage™
- Integrated center-storage rod & tackle management system
- Spooling station integrated under battery lid
- Ranger® tournament measuring board integrated at front deck step
- Remote drain plug
- Stainless steel compression lid locks
- Stainless steel seat bases
Electronics
- Available with a wide variety of custom-matched electronics, trolling motors & transducers
- Ranger® RIDE™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen
- Push to Start Ignition with proximity key
- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging
- Auto-on LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light
- Wireless charging station in Coin Box
- 12V DC power receptacle with USB
- Lowrance® ELITE FS 9 w/ Active Imaging at console
Power/Performance
- AGM Starting battery w/ tray
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback
- 10" manual setback plate
- Tilt hydraulic steering
- Recirculating aerated livewell w/ removable divider & integrated cull tag system
- Venturi Air & livewell pump-out system
- Recessed trolling motor foot pedal
- High performance stainless steel prop
- MinnKota® Fortrex 80 24V trolling motor
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards
- Padded front deck
- Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/power pedestal
- Stainless steel seat bases
- Fire extinguisher & horn
- Pop-up tie cleats & drivers seat cleat
- Integrated grab handles
- Rite Track Keel®
- Automatic and manual bilge pumps
Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating
- Ranger Trail® Vault® Hub lubrication system
- Fiberglass fenders w/ step pads
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie downs
- LED lighting
- LED back-up lights
- NMMA®/NATM certified
