Z521R Ranger Cup Equipped
Photos may show optional equipment.
2024
Z521R Ranger Cup Equipped
w/ 250L Pro XS Torque Master Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$94995
USD
|
Key Features
- Cup Equipped Graphs, Trolling Motor, and Sonar
- Ranger® Clean & Clear™ dedicated bow-to-stern 6-gauge electronics wiring harness
- Ranger® RIDE System, integrating full-boat control and monitoring via 9" touchscreen
- Push-to-Start Ignition with proximity key
*Base model images shown
Standard with your choice of tournament proven technology
or
CUSTOM RIGGED TO DOMINATE
The Ranger Cup Equipped package adds pro-selected options that let you hit the most daunting tournament trails with even more competitive advantage.
Standard with factory-installed 12" graphs from Lowrance® or GARMIN®, the latest in forward-facing sonar technology, and a host of our most popular equipment from the Z521R options list, the Z521R Cup Equipped package packs-on incredible value to the most hardcore tournament-ready machine on the water.
From bow to stern, hull to top cap, the Z521R has been tweaked, massaged, enhanced, and perfected across every inch with a passion for perfection. No element of the boat’s design, performance, quality, safety, or fishability was untouched as we crafted this next-generation legend. The culmination of this work has yielded an all-new boat with revamped and elevated all-around performance that melds with aggressive modern styling that sets this rig apart as the apex of bass boats.
Real-world improvements include a perfected hull that delivers rapid lift onto plane and a stronger top end. We’ve also elevated the technology that comes standard on the Z521R. The Ranger R.I.D.E. system lets you monitor and control every critical function while a key fob permits quicker start up and enhanced security when you’re not nearby. The Z521R also features an industry-first push-to-start system that gets you to the next spot fast.

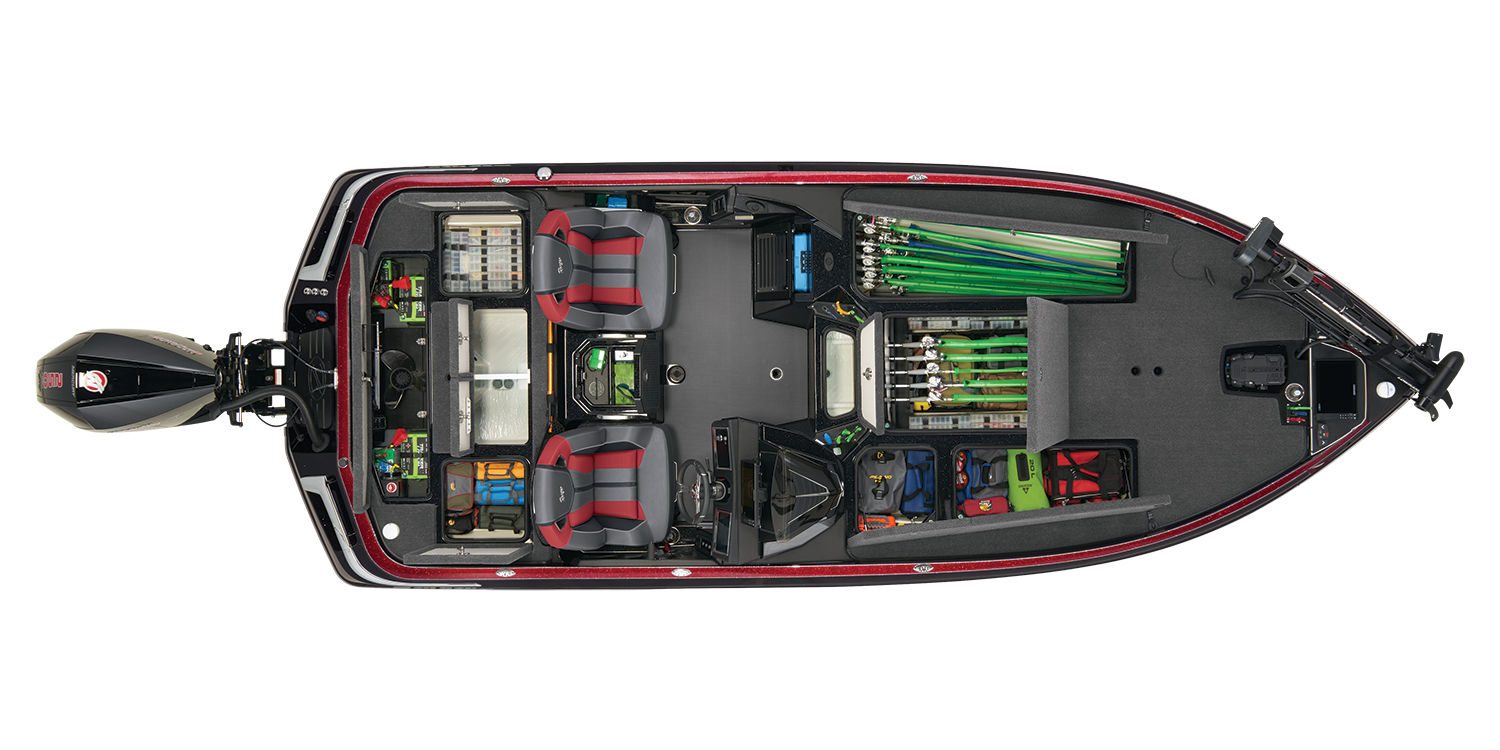

Deep within the Z521R is a reimagined core and stringer system that not only bolsters our One-Piece Feel Interloc™ construction but permits larger storage boxes for even more space. The rod boxes feature Ranger's Echelon Rod Storage system for unmatched customization, flexibility, and capacity and the ability to hold sticks up to 9’. Every box features an auto-on LED light that cuts on when a lid is lifted. A larger day box and 40-quart cooler feature the same construction as today’smost premium coolers for all-day-long ice retention.
The Z521R Cup Equipped carries more advancements in performance, technology, fishability, and style that not only set it apart from the crowd, but leads it.

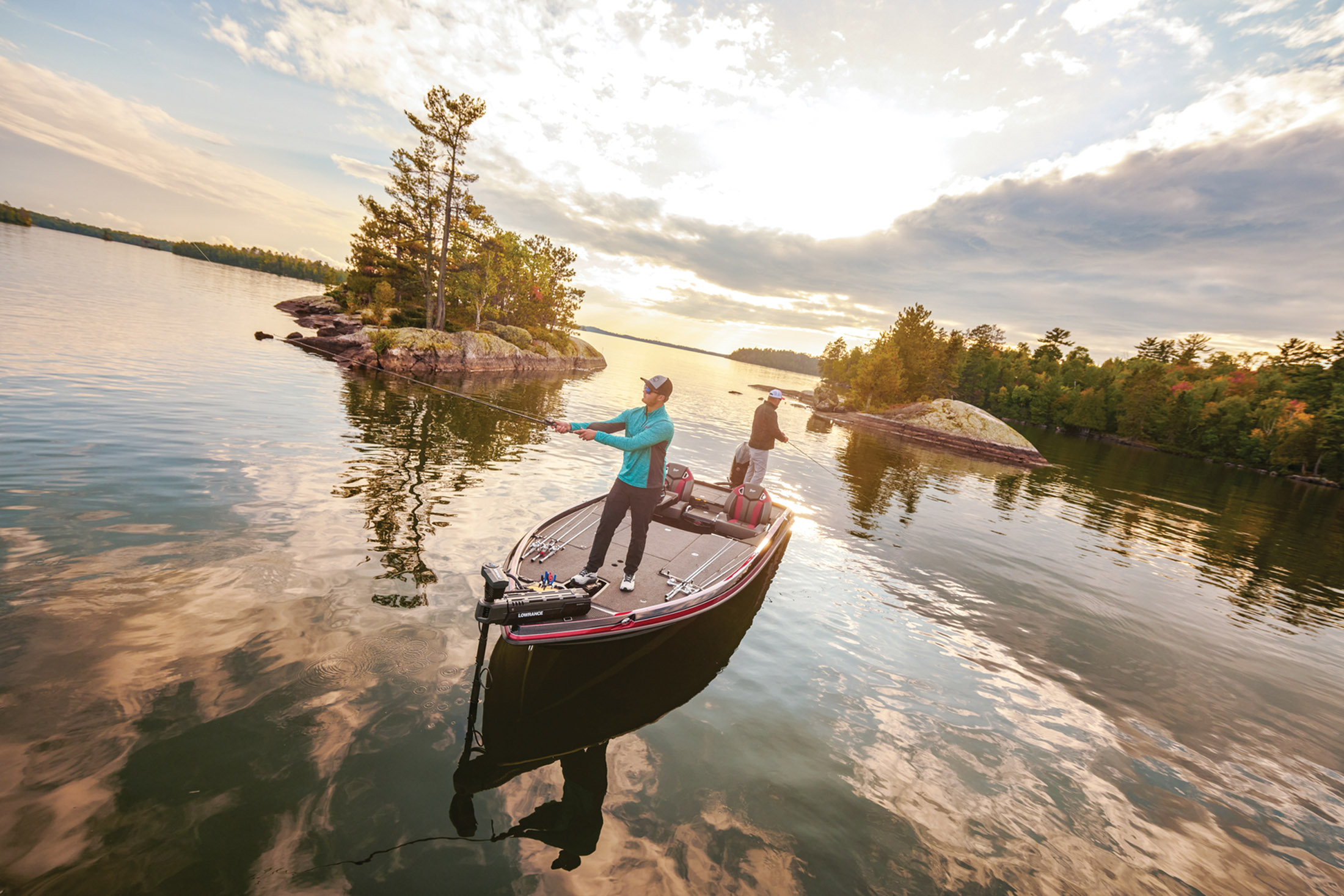

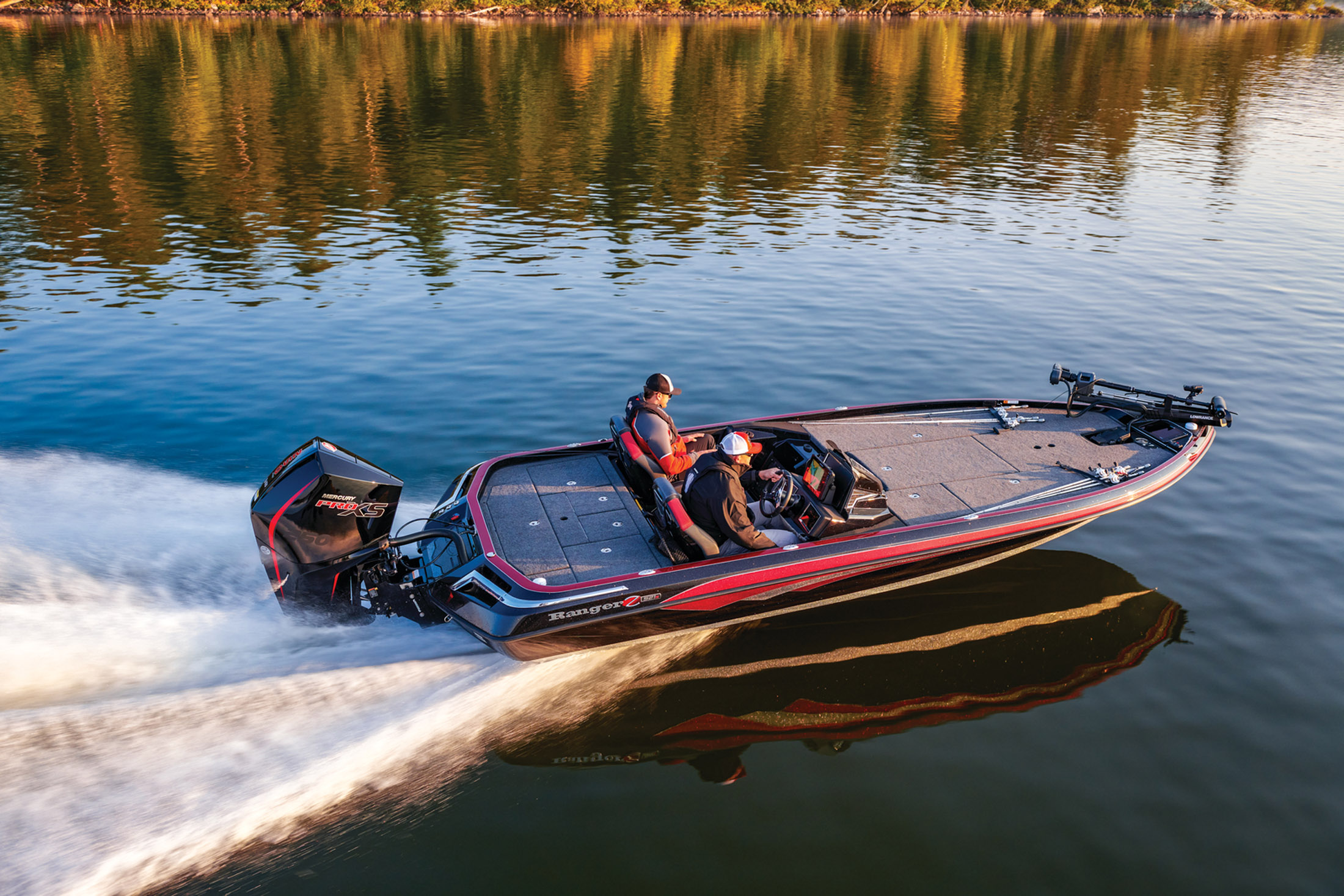

Gallery
Specifications
| Length | 6.63 m | 21' 9'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 300 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 53.34 cm | 21'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 861.83 kg | 1900 lbs. |
| Approximate Boat Weight | 1043.26 kg | 2300 lbs. |
| Rod Box Length - Port Bottom Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Port Middle Shelf | 8 ft. | |
| Rod Box Length - Port Top Shelf | 9 ft. | |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 8 ft. | |
| Rod Box Length - Starboard | 2.13 m | 7' |
| Rod Box Length - Starboard Top Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Starboard Bottom Shelf | 2.03 m | 6' 8'' |
| Max. Person Capacity | 5 persons | |
| Trailer GVWR | 2449.4 kg | 5400 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.51 m | 27' 11'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.65 m | 25' 1'' |
| Width On Trailer | 2.59 m | 102'' |
| Height On Trailer | 2.01 m | 79'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250L Pro XS Torque Master |
$94995 USD
|
Select Dealer | |||
| 300L Pro XS Torque Master |
$98665 USD
|
Select Dealer | |||
Standard Features
Ranger Cup Equipped - LOWRANCE® Package
- Lowrance® HDS® 12 PRO at bow
- Lowrance® HDS® 12 PRO at console w/ ActiveImaging™ HD
- Lowrance® Active Target™ 2 Live Sonar
- Lowrance® Ghost 45" 36V Trolling Motor
- Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
- Blinker Trim
- Hot Foot
- 17" Challenger II wheels w/ matching spare
Ranger Cup Equipped - GARMIN® Package
- GARMIN® ECHOMAP™ Ultra 126sv at bow
- GARMIN® ECHOMAP™ Ultra 126sv at console w/ Transducer
- GARMIN® Live Scope™ Plus LVS34 Live Sonar
- GARMIN® Force 45" 36V Trolling Motor
- Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
- Blinker Trim
- Hot Foot
- 17" Challenger II wheels w/ matching spare
Custom Details
- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
- Power Ventilation Rod Storage™
- Integrated center-storage rod & tackle management system
- Spooling station integrated under battery lid
- Ranger® tournament measuring board integrated at front deck step
- Remote drain plug
- Stainless steel compression lid locks
- Stainless steel seat bases
Electronics
- Ranger® RIDE™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen
- Push to Start Ignition with proximity key
- Ranger Cup Equipped Electronics Package (see RCE)
- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging
- Auto-on LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light
- Wireless charging station in Coin Box
- 12V DC power receptacle with USB
Power/Performance
- Ranger Cup Equipped Trolling Motor (see RCE)
- (3) 80AH Lithium trolling batteries w/trays
- AGM Starting battery w/ tray
- Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback
- 10" manual setback plate
- Tilt hydraulic steering
- Recirculating aerated livewell w/ removable divider & integrated cull tag system
- Venturi Air & livewell pump-out system
- Recessed trolling motor foot pedal
- High performance stainless steel prop
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards
- Padded front deck
- Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/power pedestal
- Stainless steel seat bases
- Fire extinguisher & horn
- Pop-up tie cleats & drivers seat cleat
- Integrated grab handles
- Rite Track Keel®
- Automatic and manual bilge pumps
Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating
- 17" Challenger II wheels w/ matching spare
- Ranger Trail® Vault® Hub lubrication system
- Fiberglass fenders w/ step pads
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie downs
- LED lighting
- LED back-up lights
- NMMA®/NATM certified
