Limited 2024 Availability

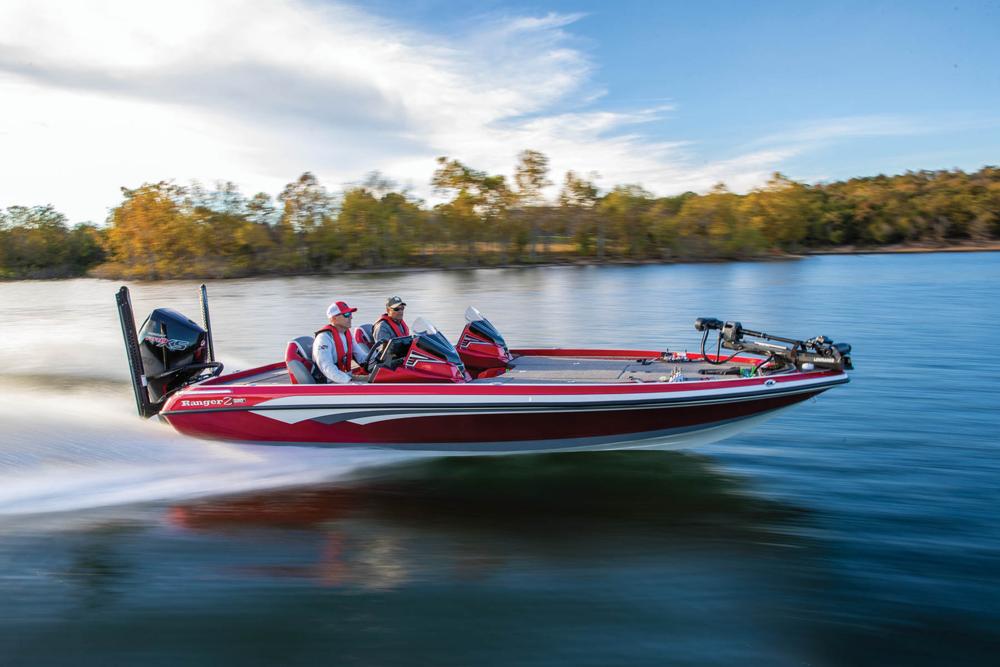

Z520R
Photos may show optional equipment.
2024
Z520R
w/ 250 L Pro XS Torque Master 1.75 Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$81995
USD
|
Key Features
- Performance-driven design with signature Ranger styling
- Ranger R.I.D.E. total boat control & monitoring
- Tournament-proven hull and layout
- Umbilical 6GA Dedicated Electronics Harness
- Legendary Ranger handling & capability
REDEFINING PROFESSIONAL GRADE
With an unmatched legacy and never-ending drive for domination, we’ve created the next iteration of the go-to for anglers at every level. The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at every level. From the outset, we took the legendary Z Comanche “C” hull and digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end.
Every appreciable element of the cockpit, decks, and storage boxes has been revamped to complement the enhanced performance of the R Series. We’ve also gone to great lengths to incorporate more standard technology into the R Series, to not only raise the bar for the industry, but to give you greater comfort, convenience, and peace of mind.

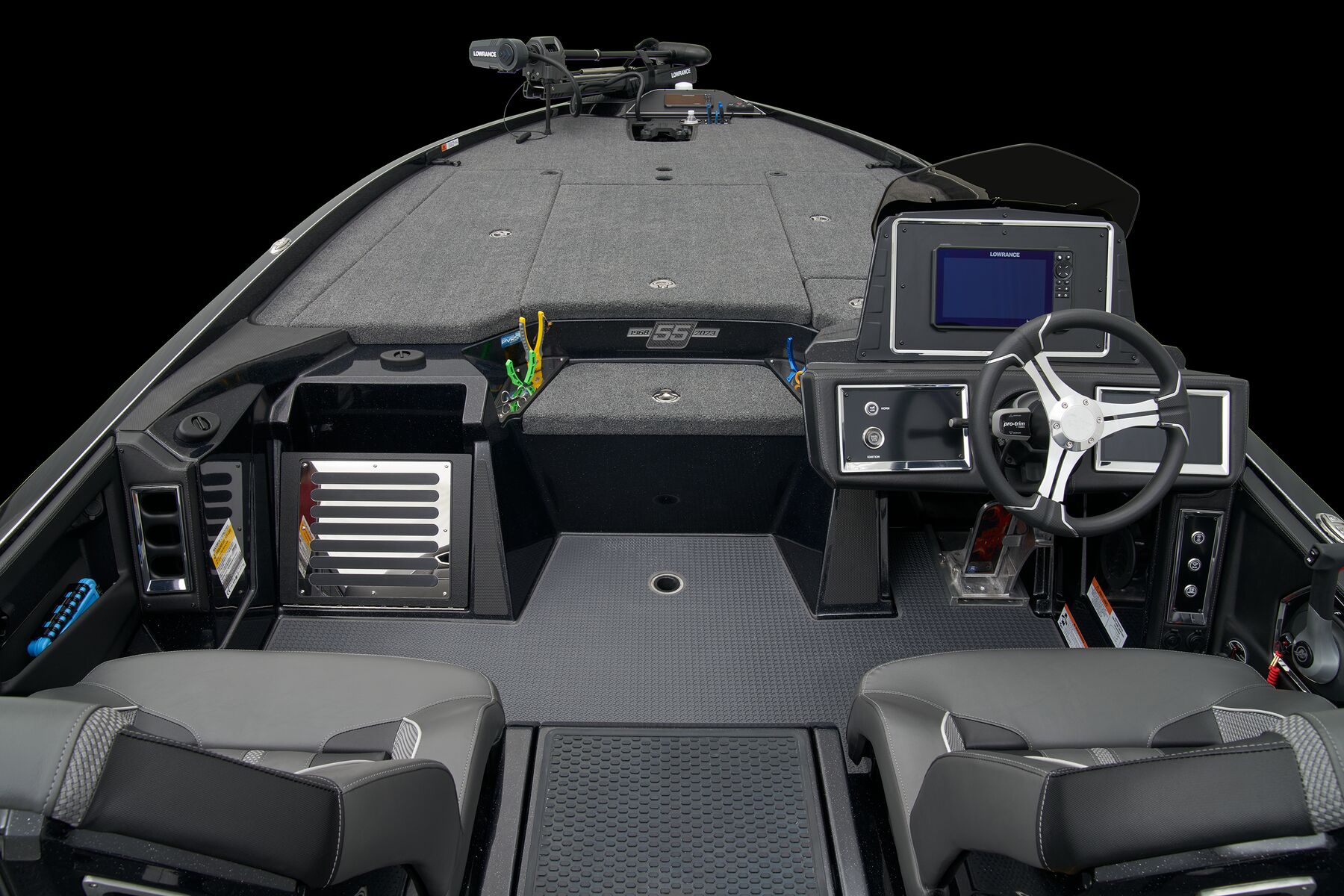

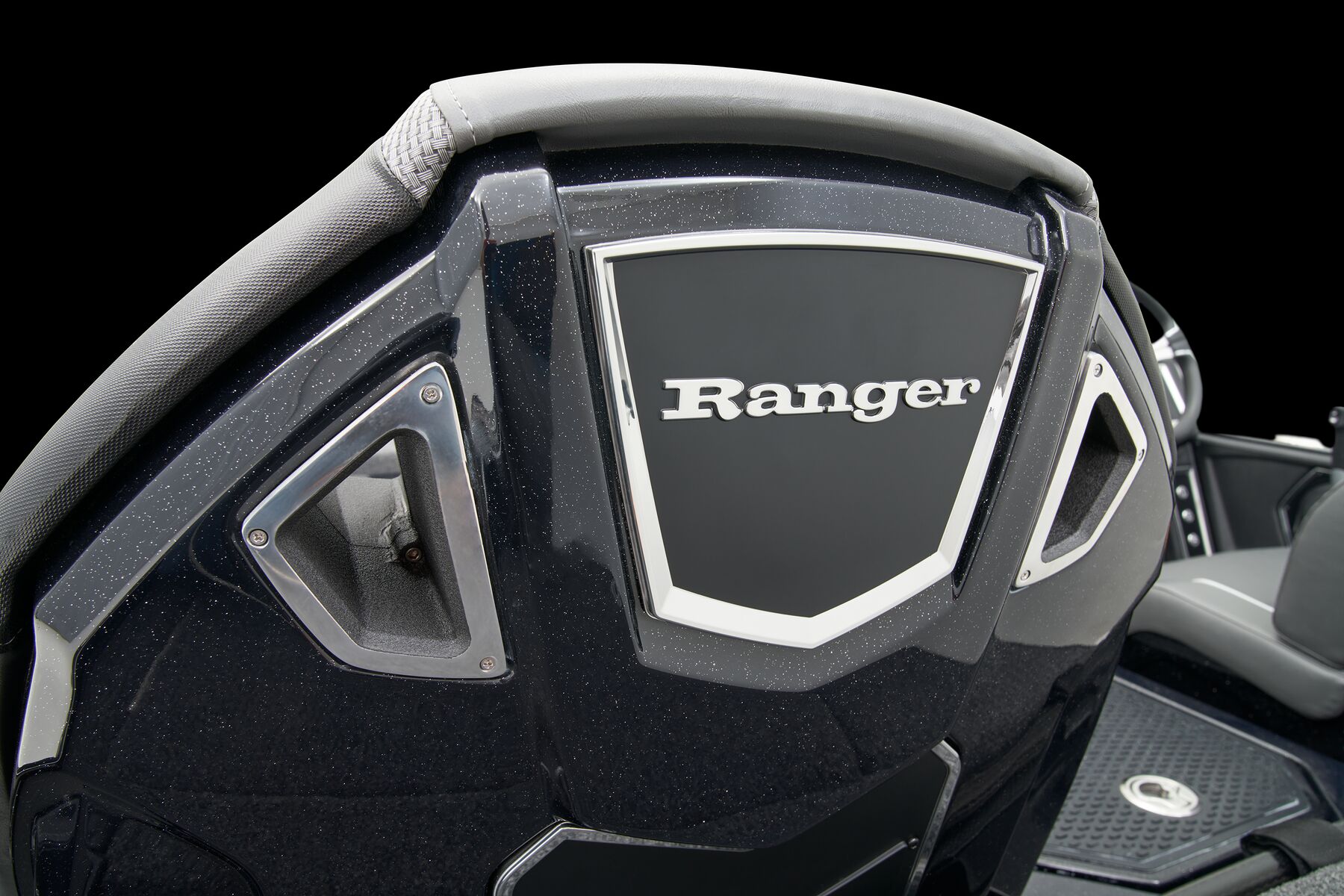

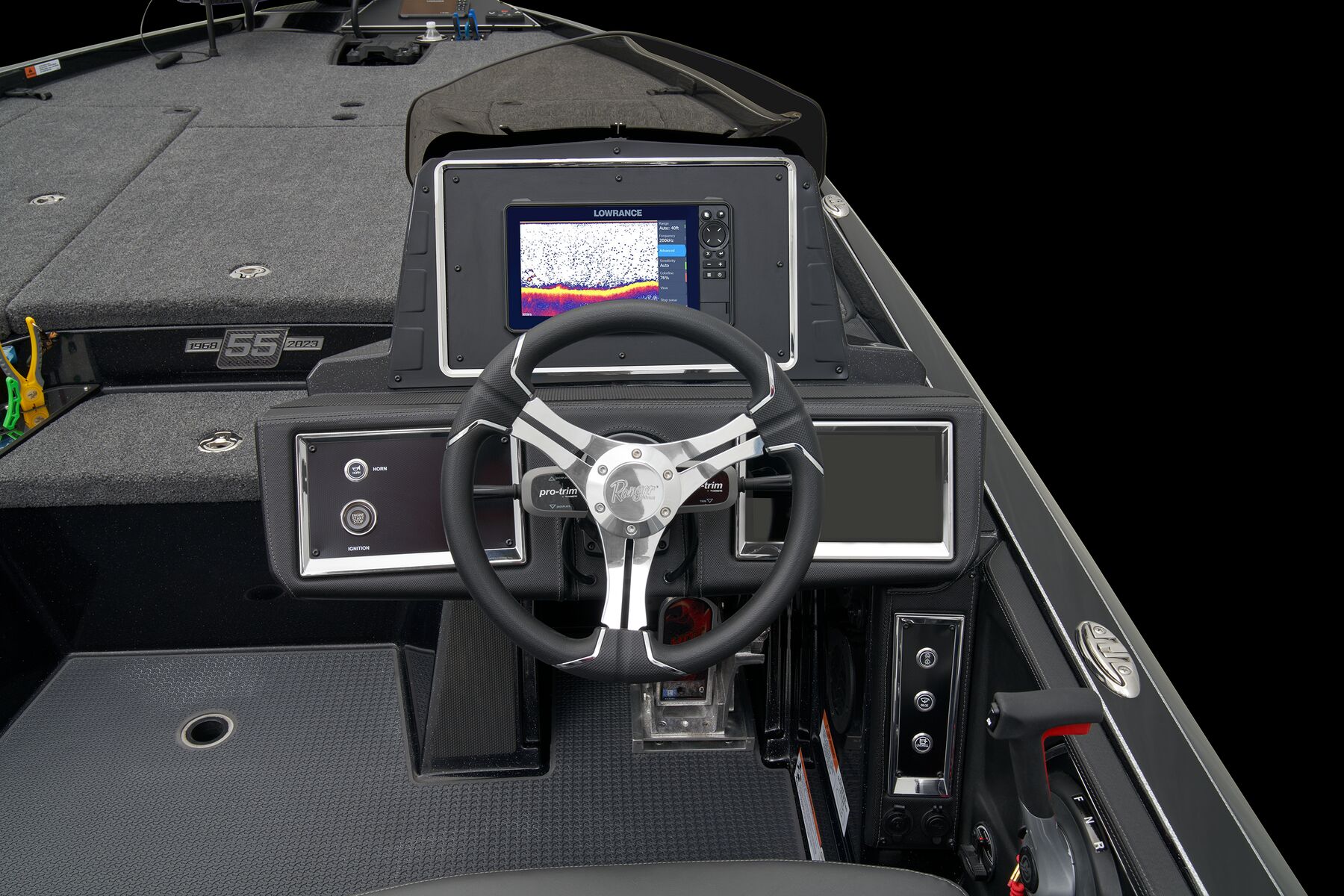

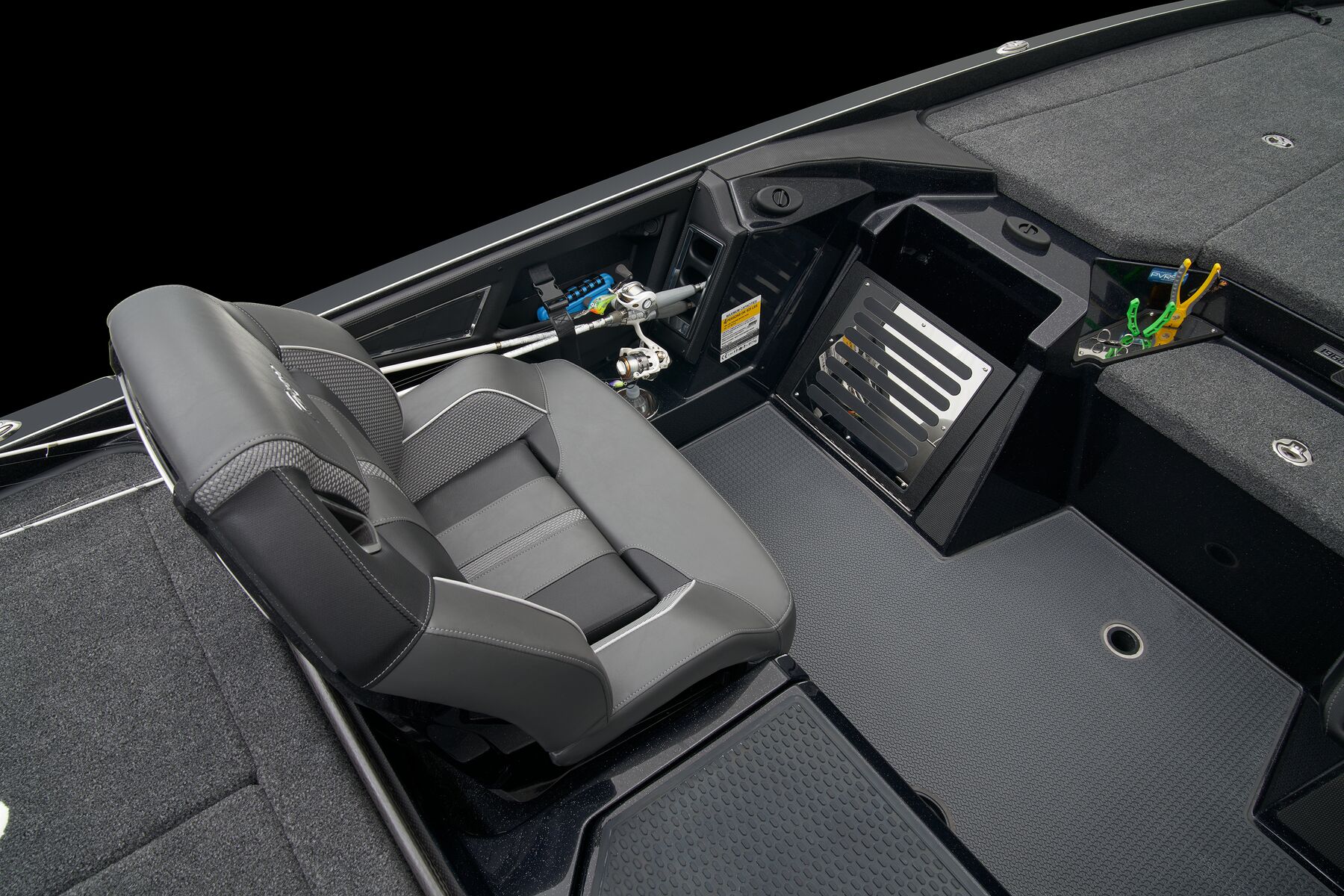

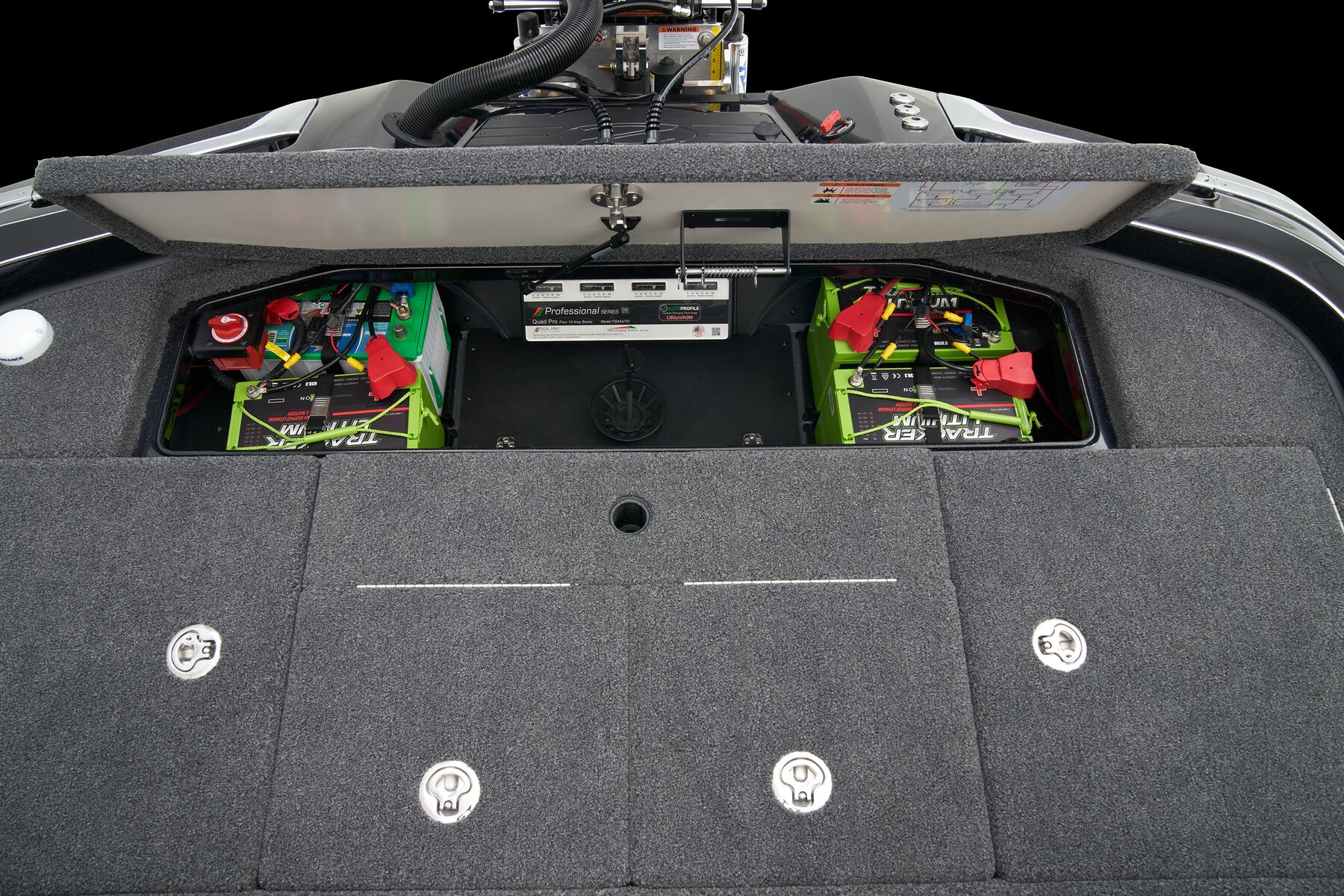

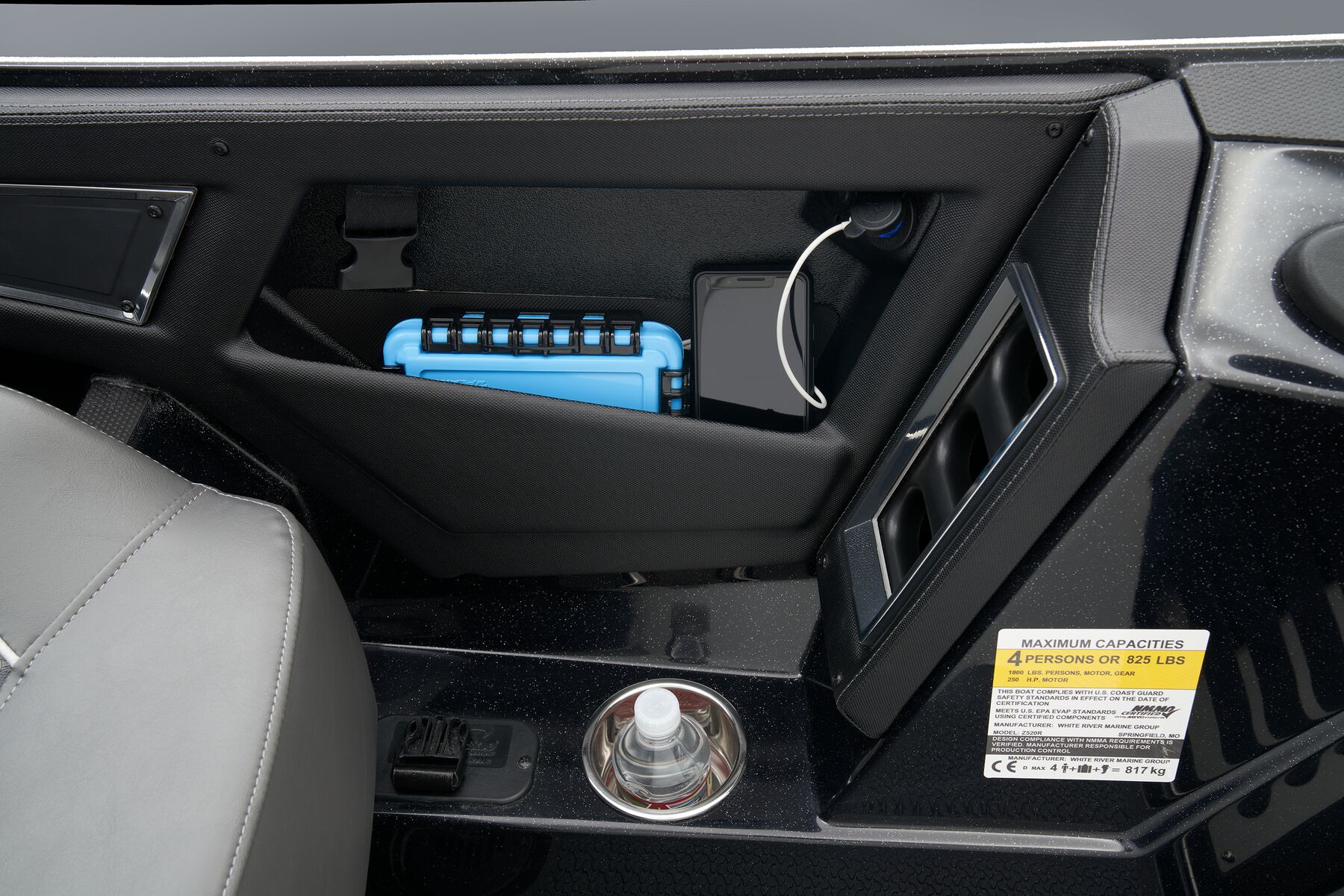

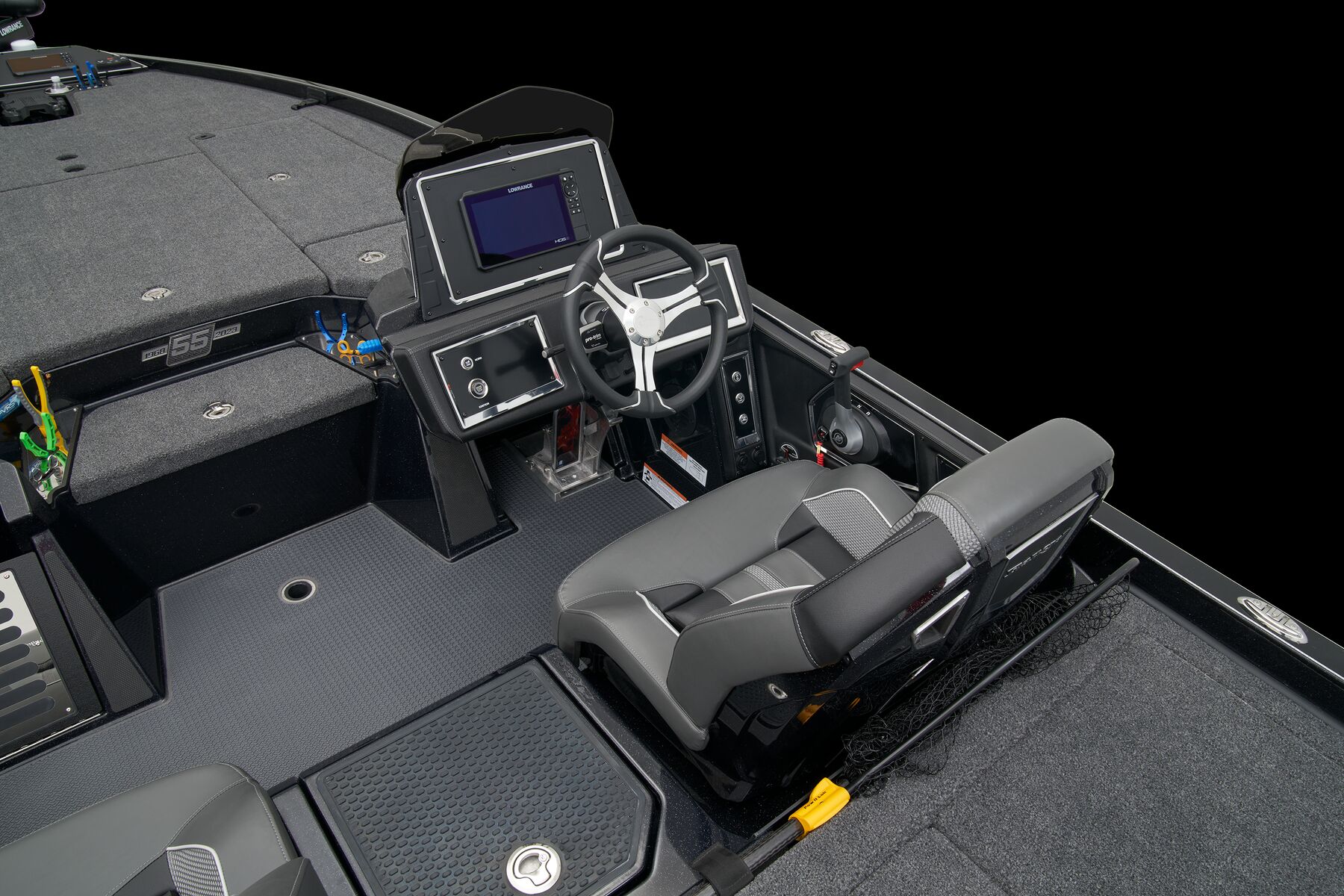

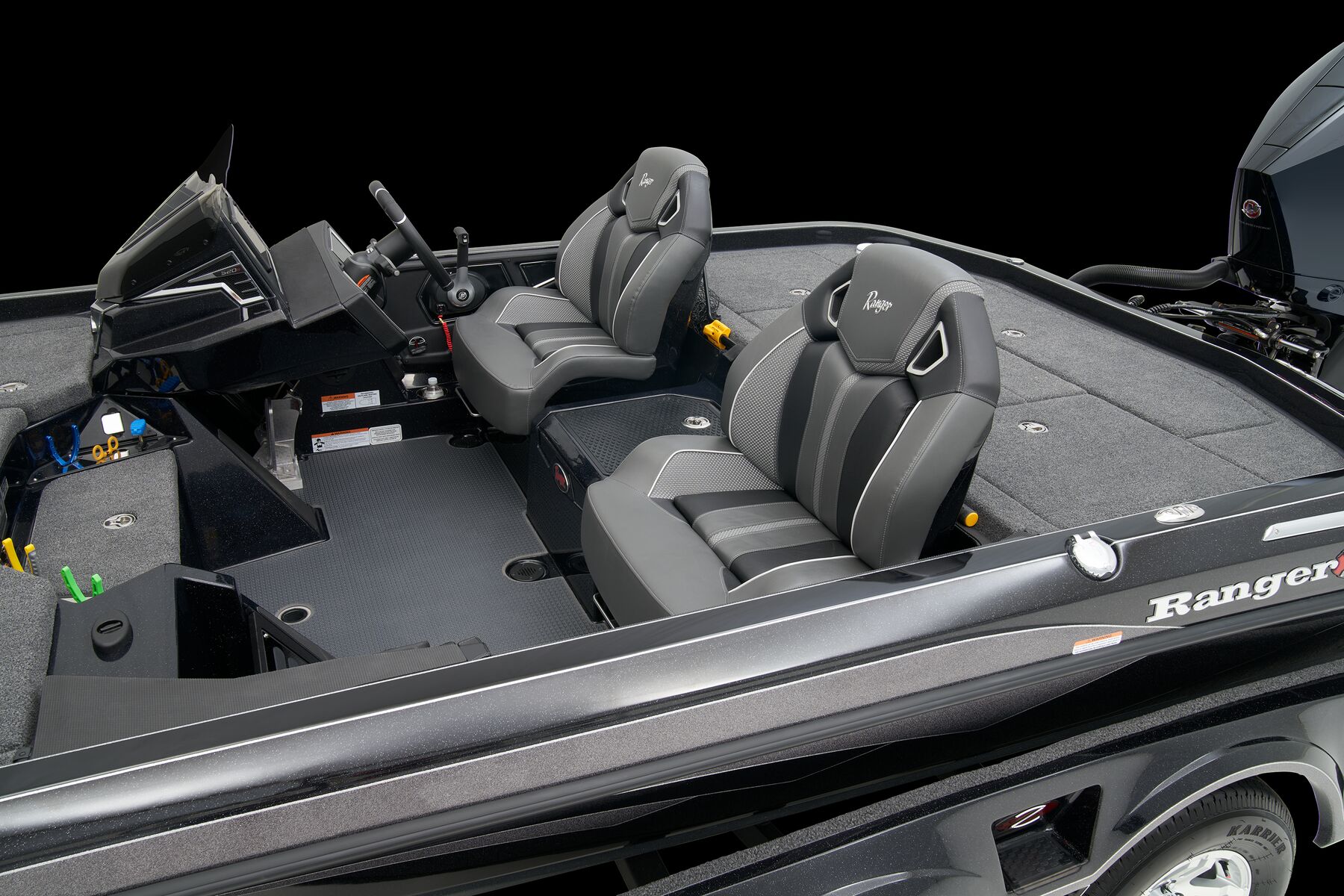

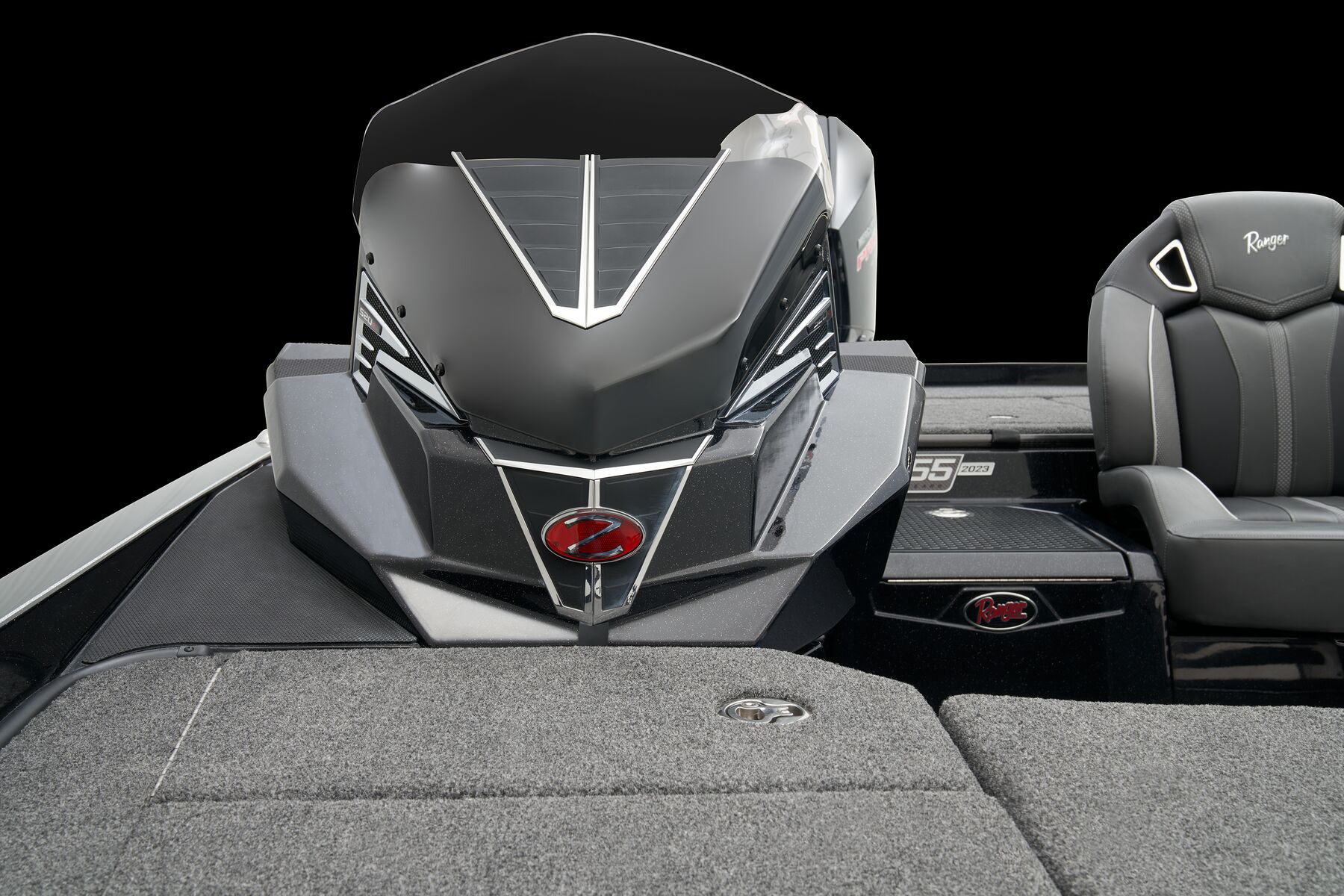

An all-new console carries dual graphs or a single 16” unit and the touchscreen Ranger R.I.D.E. system integrates total control over every boat and engine function. The all-new seats rest on easy-to-adjust slides and the color-matched fiberglass shellbacks take the aesthetic to a new level. A key fob and integrated push-to-start ignition let you start-up quicker and deliver greater security when you’re on the road. Inside the coin box is a wireless phone charger, and in the battery box are standard lithium batteries.

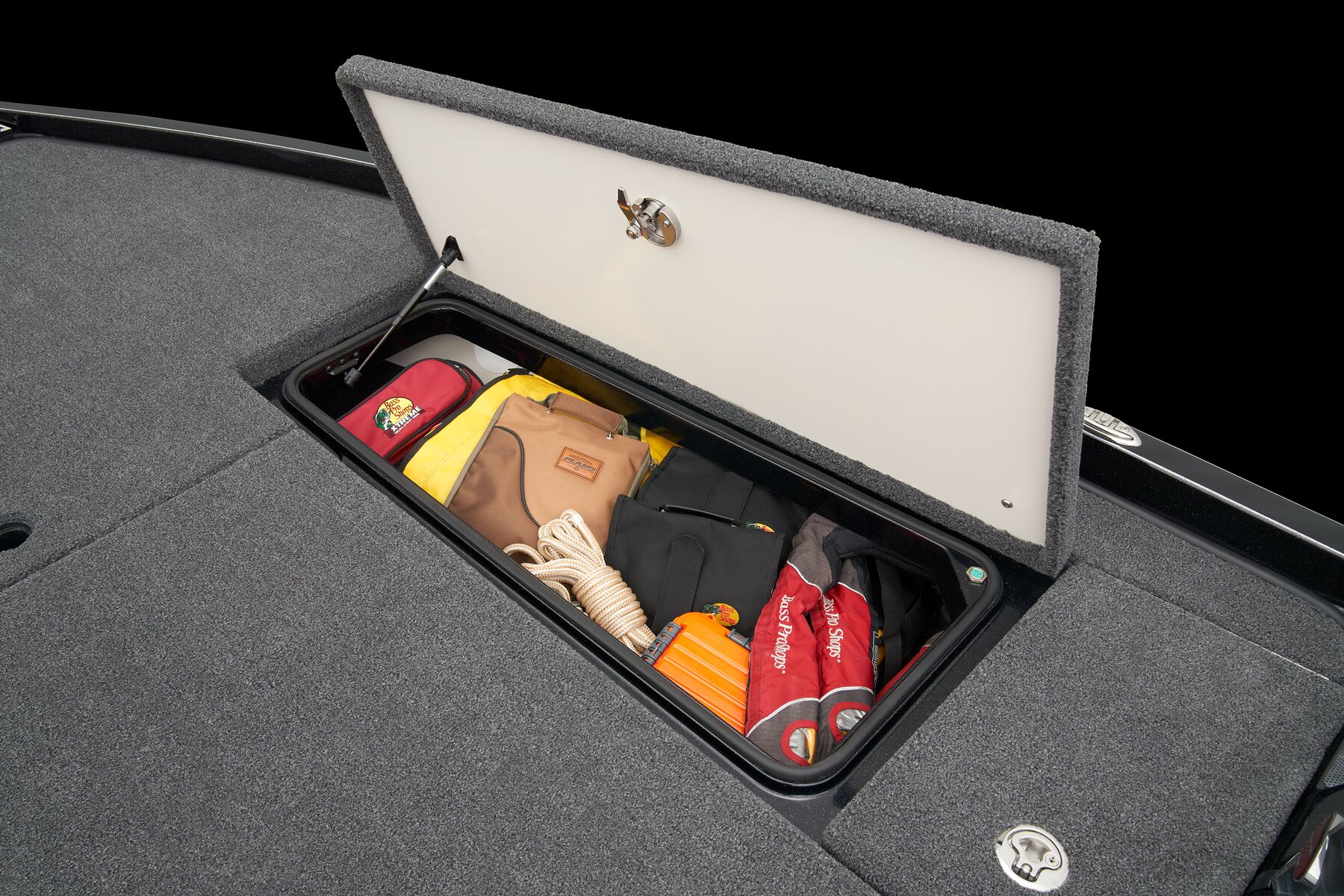

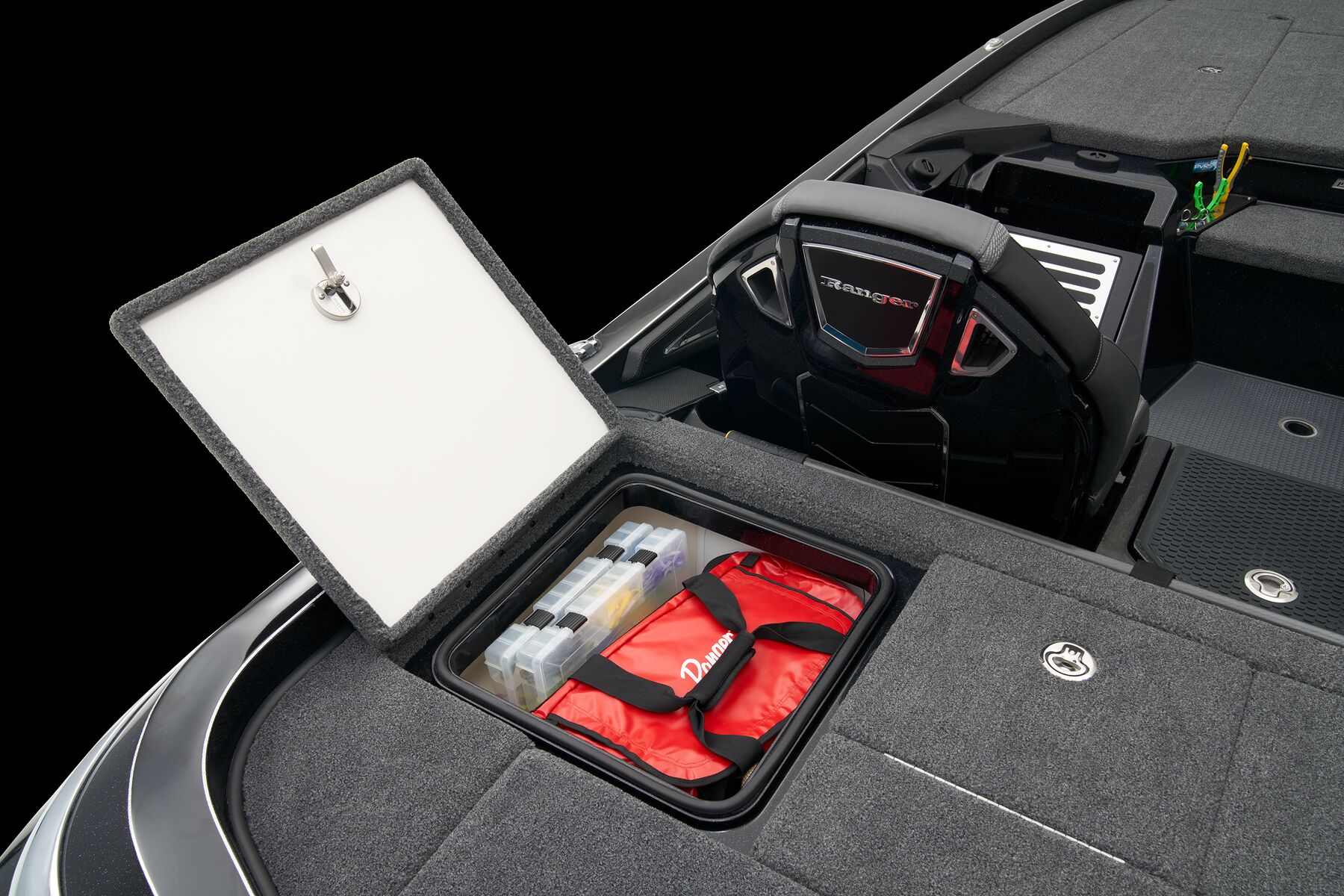

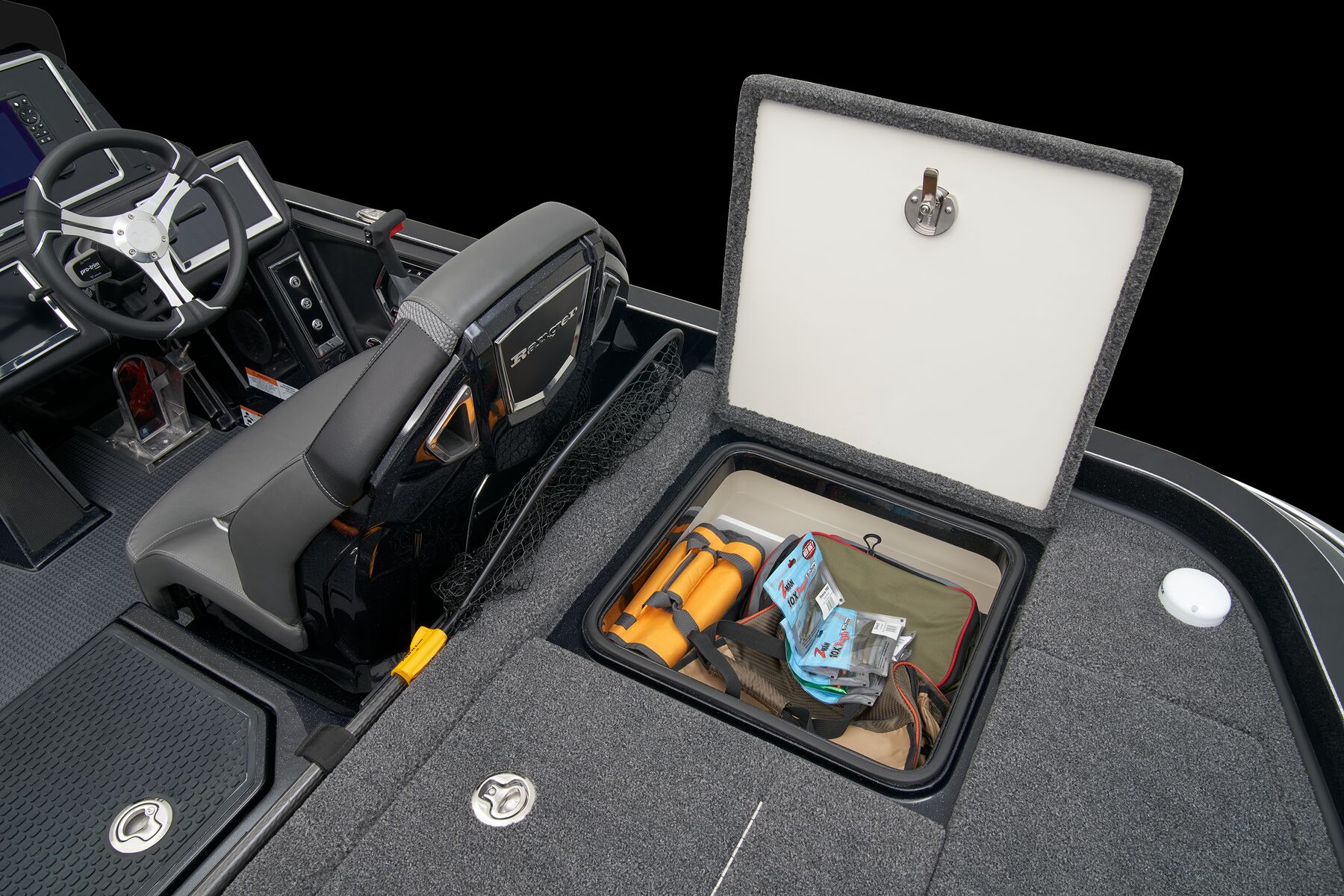

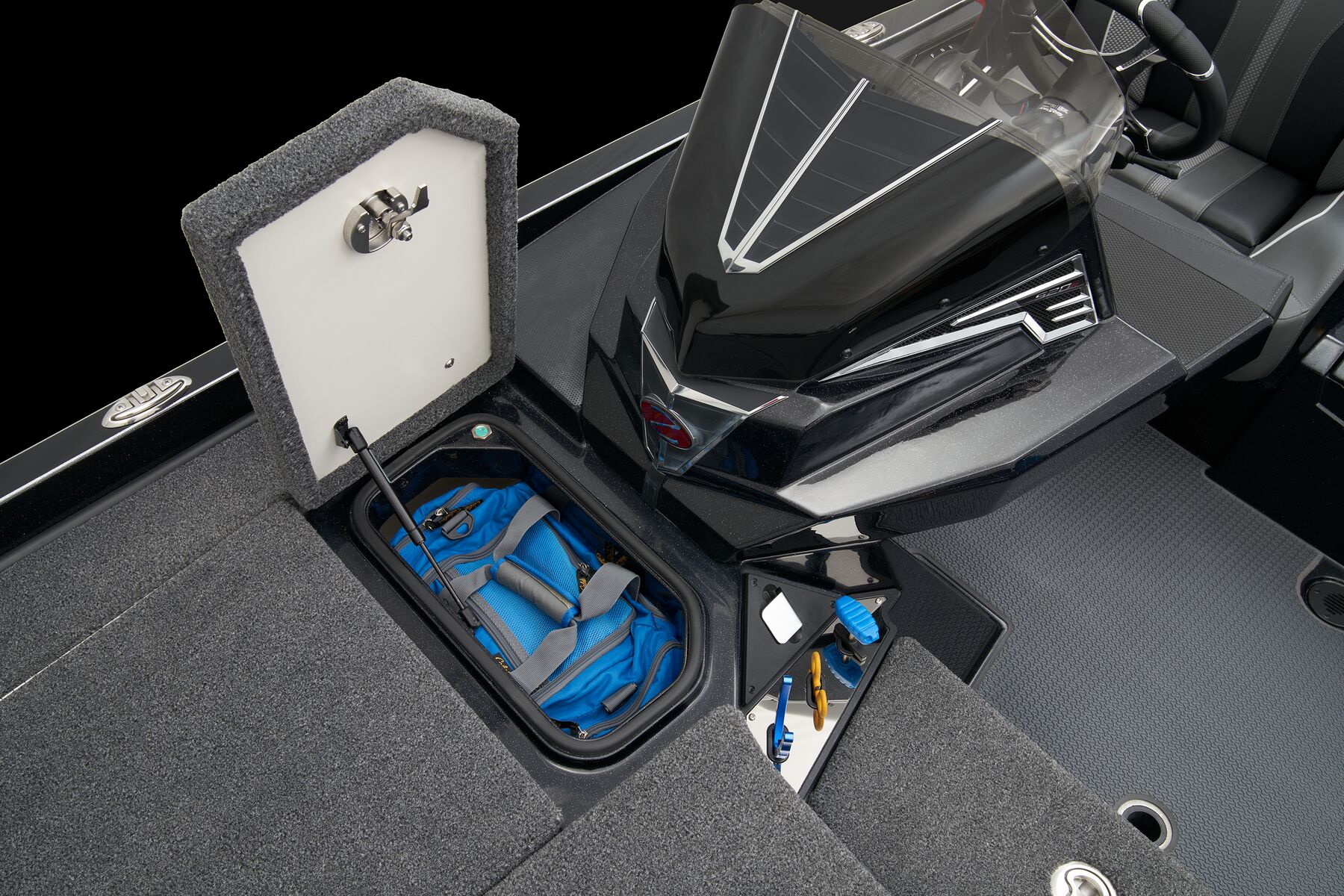

Storage boxes are demonstrably larger, thanks to redesigned stringer system that builds on our One-Piece Feel Interloc™ Construction. The rod boxes feature our Echelon Rod Storage System with a tri-level storage shelf system that simplifies rod management and offers more room for sticks up to 9’.
Inside and out, the Z520R lets you release a new level of domination. The Z520R. It’s a whole new era of Ranger.
Specifications
| Length | 6.38 m | 20' 11'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 250 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 55.88 cm | 22'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 748.43 kg | 1650 lbs. |
| Approximate Boat Weight | 839.15 kg | 1850 lbs. |
| Rod Box Length - Port | 2.44 m | 8' |
| Rod Box Length - Center Row 1 | 2.44 m | 8' |
| Rod Box Length - Center Row 2 | 2.29 m | 7' 6'' |
| Max. Person Capacity | 4 persons | |
| Trailer GVWR | 2449.4 kg | 5400 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.25 m | 27' 1'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.62 m | 25' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250 L Pro XS Torque Master 1.75 |
$81995 USD
|
Select Dealer | |||
Standard Features
Custom Details

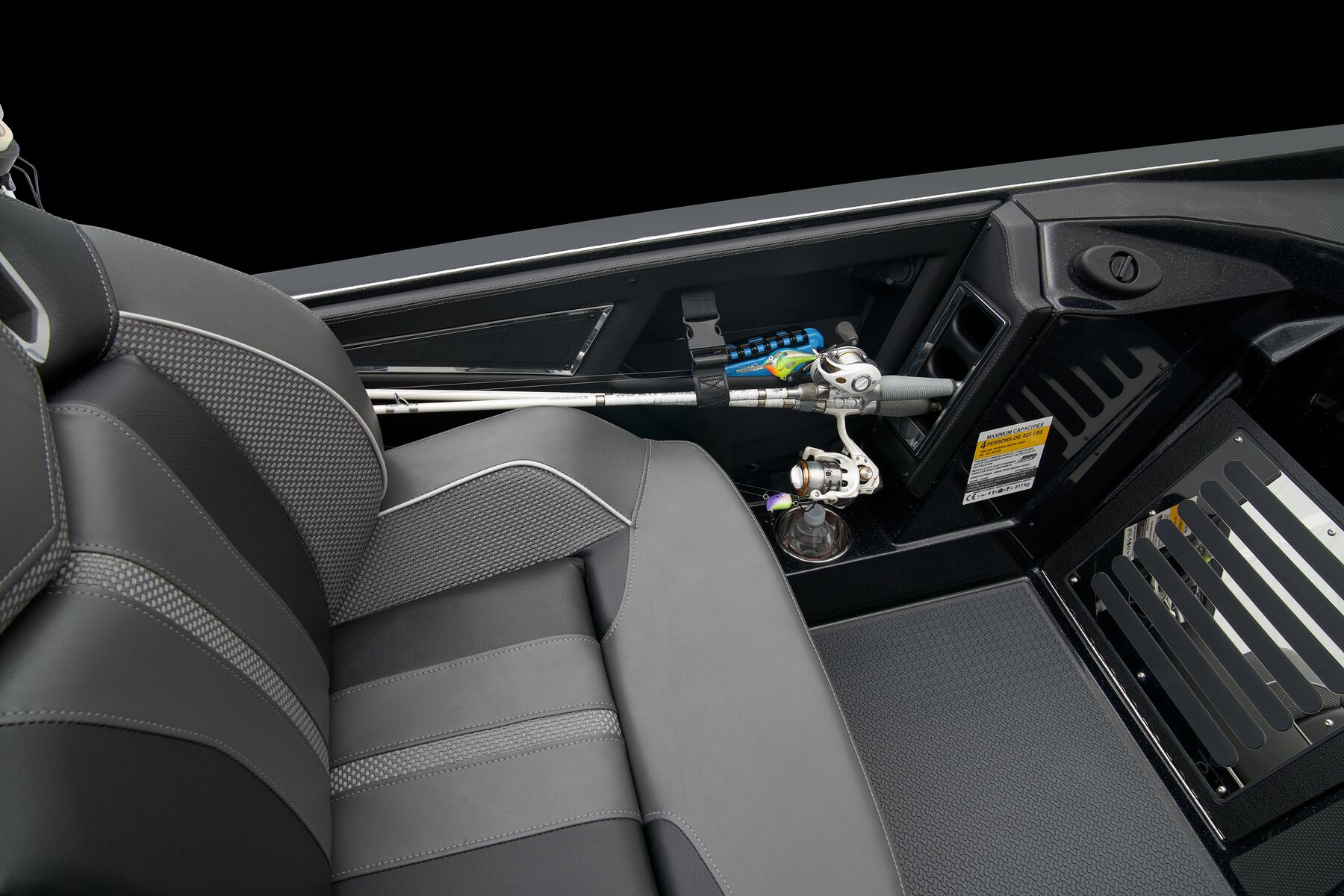

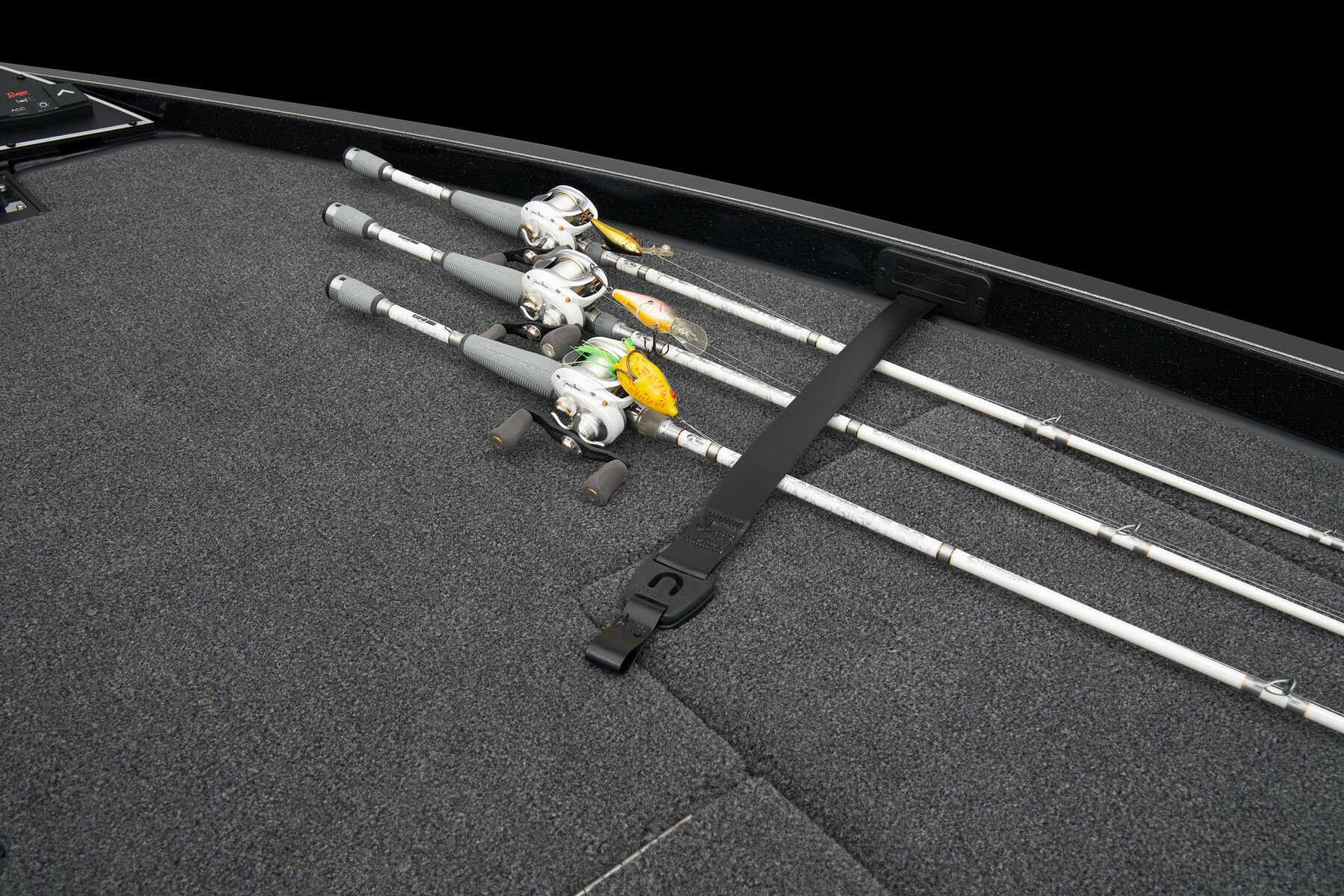

- Runnin' rod rack w/ retractable strap

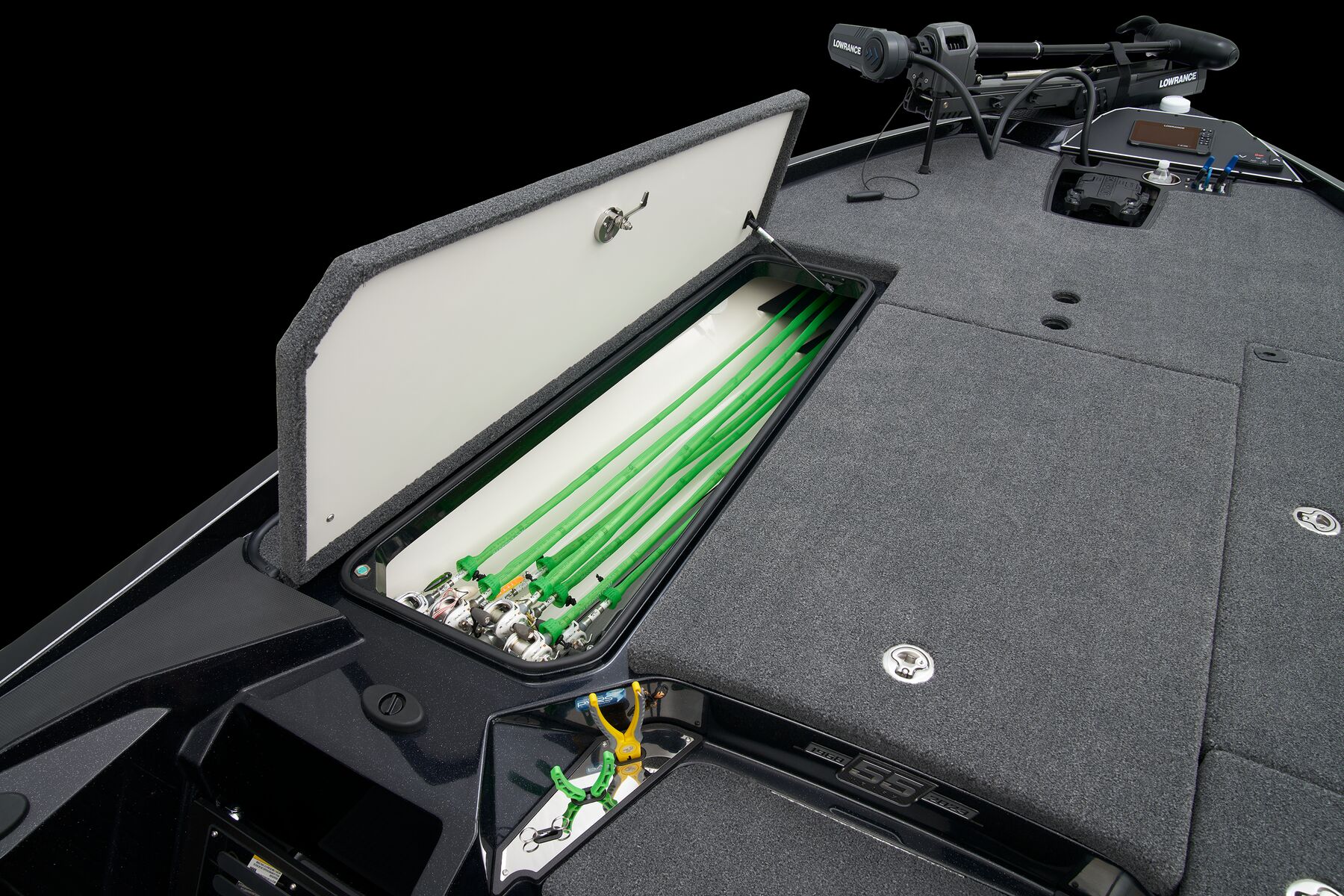

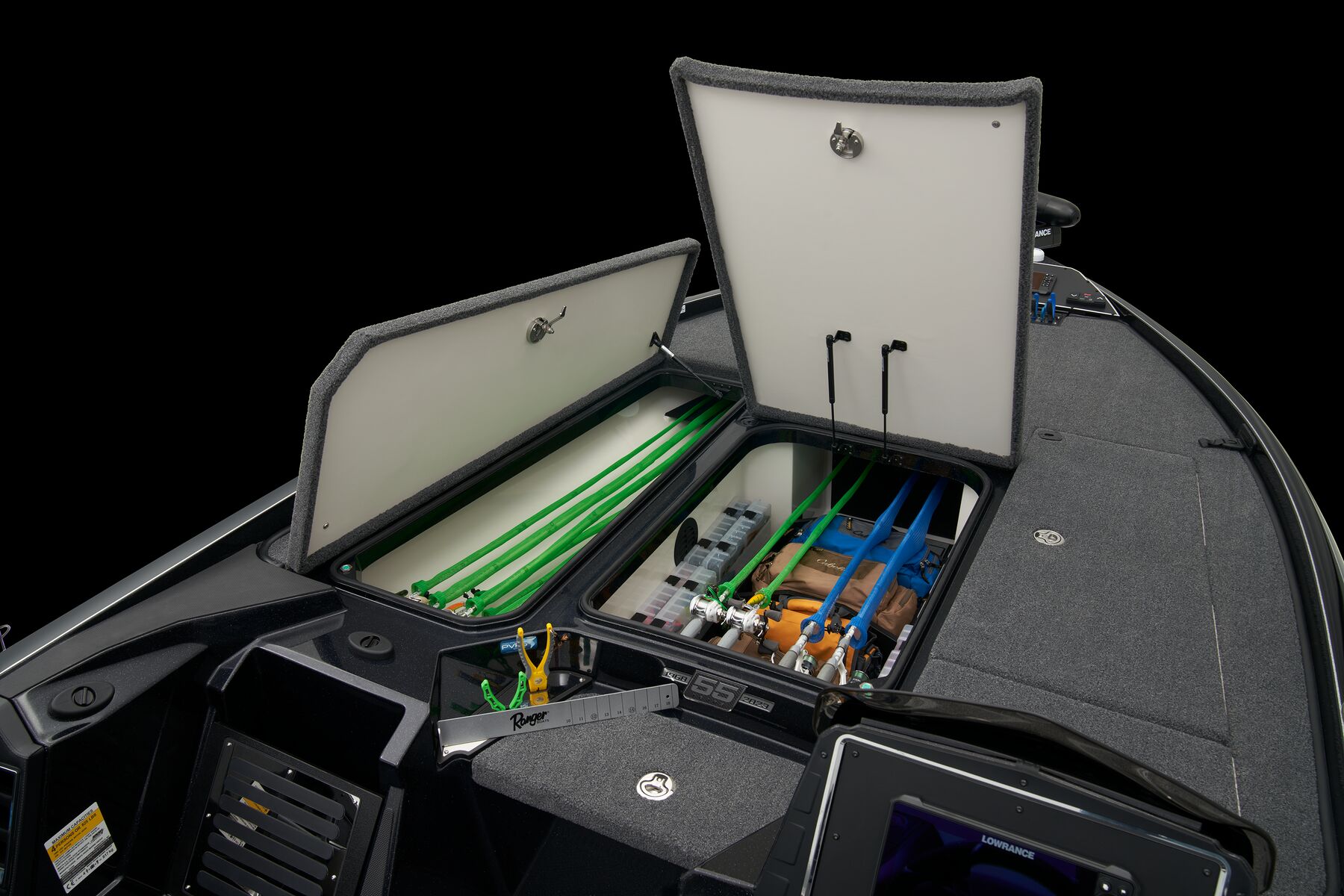

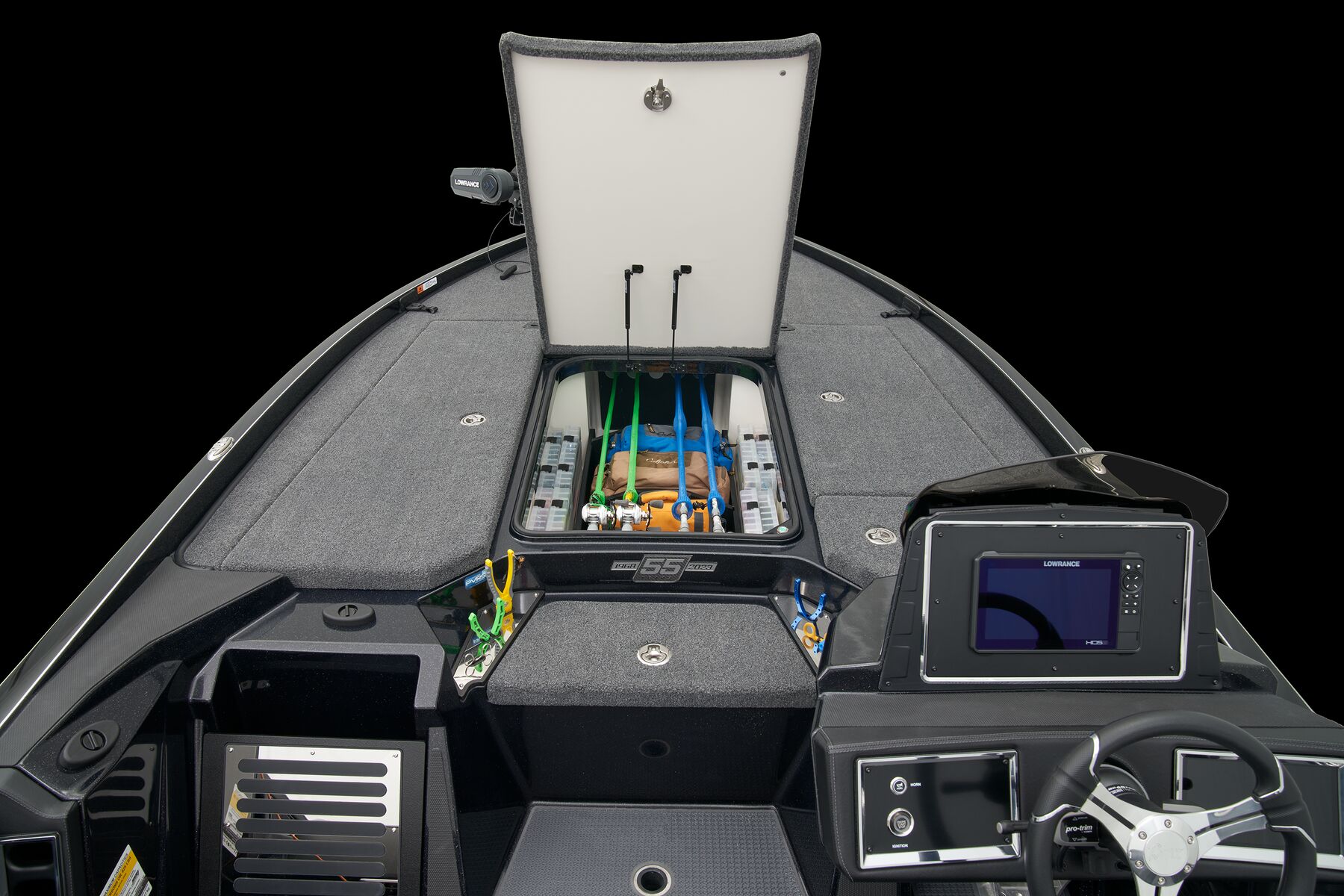

- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
- Power Ventilation Rod Storage™
- Integrated center-storage rod & tackle management system
- Spooling station integrated under battery lid
- Ranger® tournament measuring board integrated at front deck step
- Remote drain plug
- Stainless steel compression lid locks
- Stainless steel seat bases
Electronics
- Available with a wide variety of custom-matched electronics, trolling motors & transducers

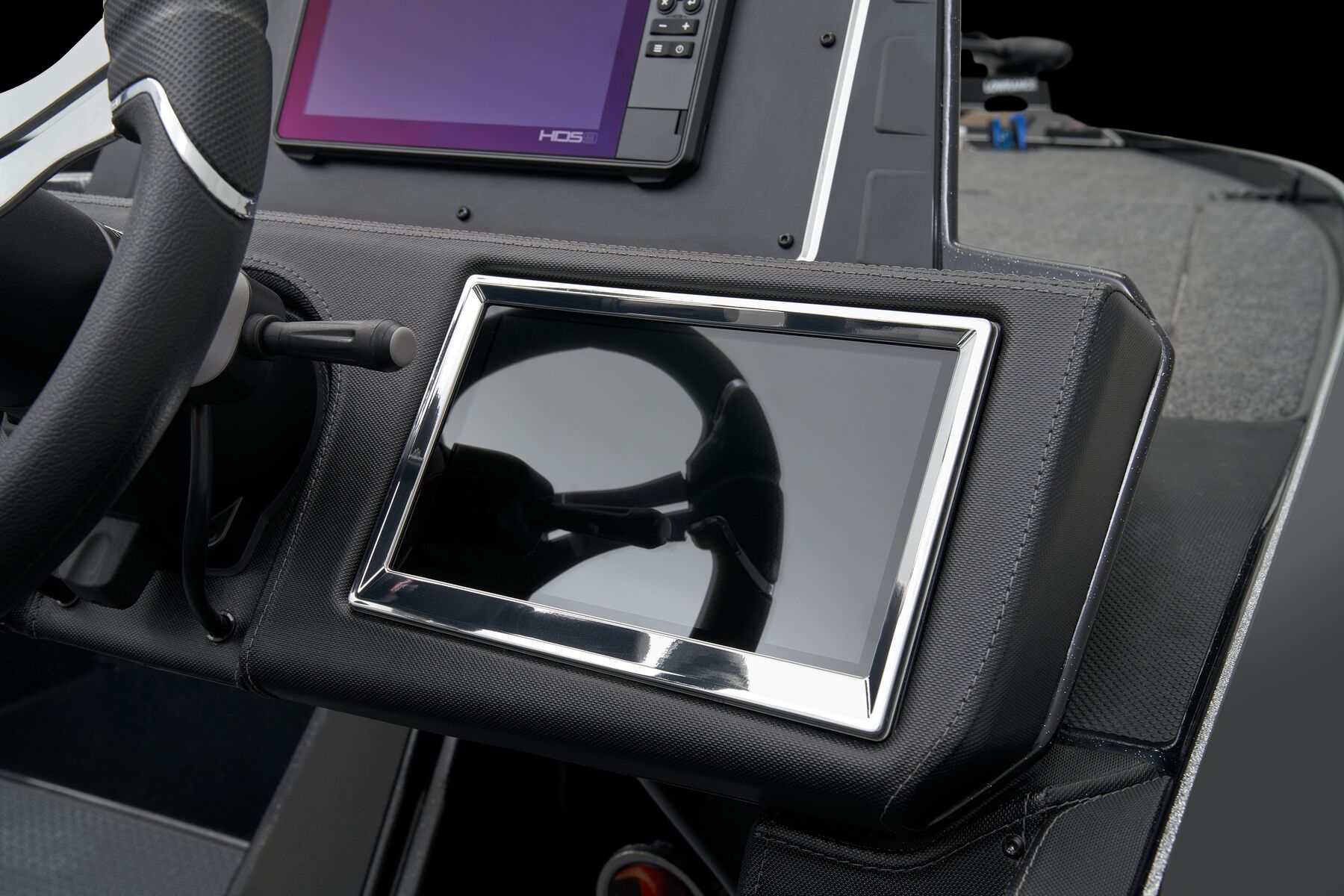

- Ranger® RIDE™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen

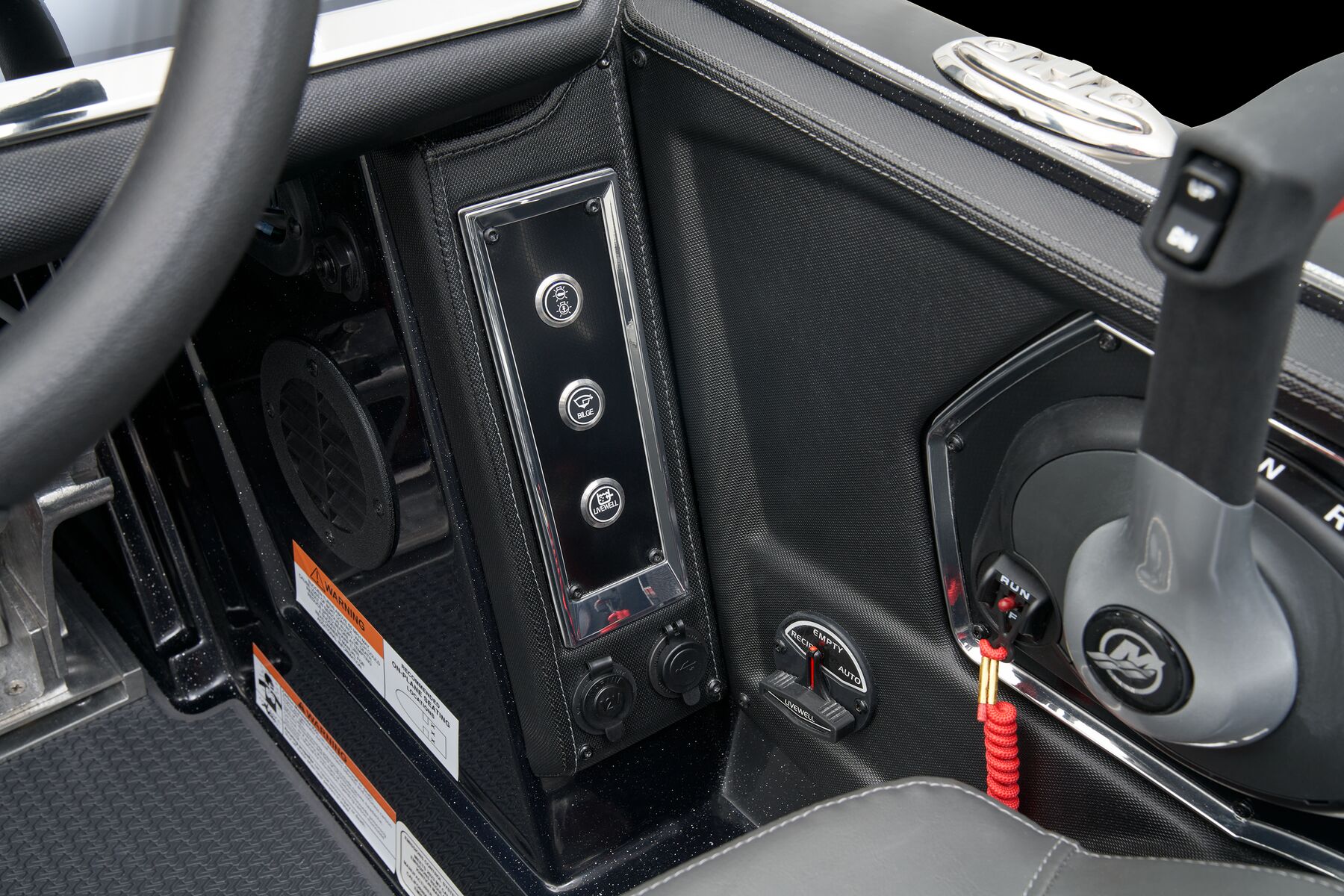

- Push to Start Ignition with proximity key
- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker

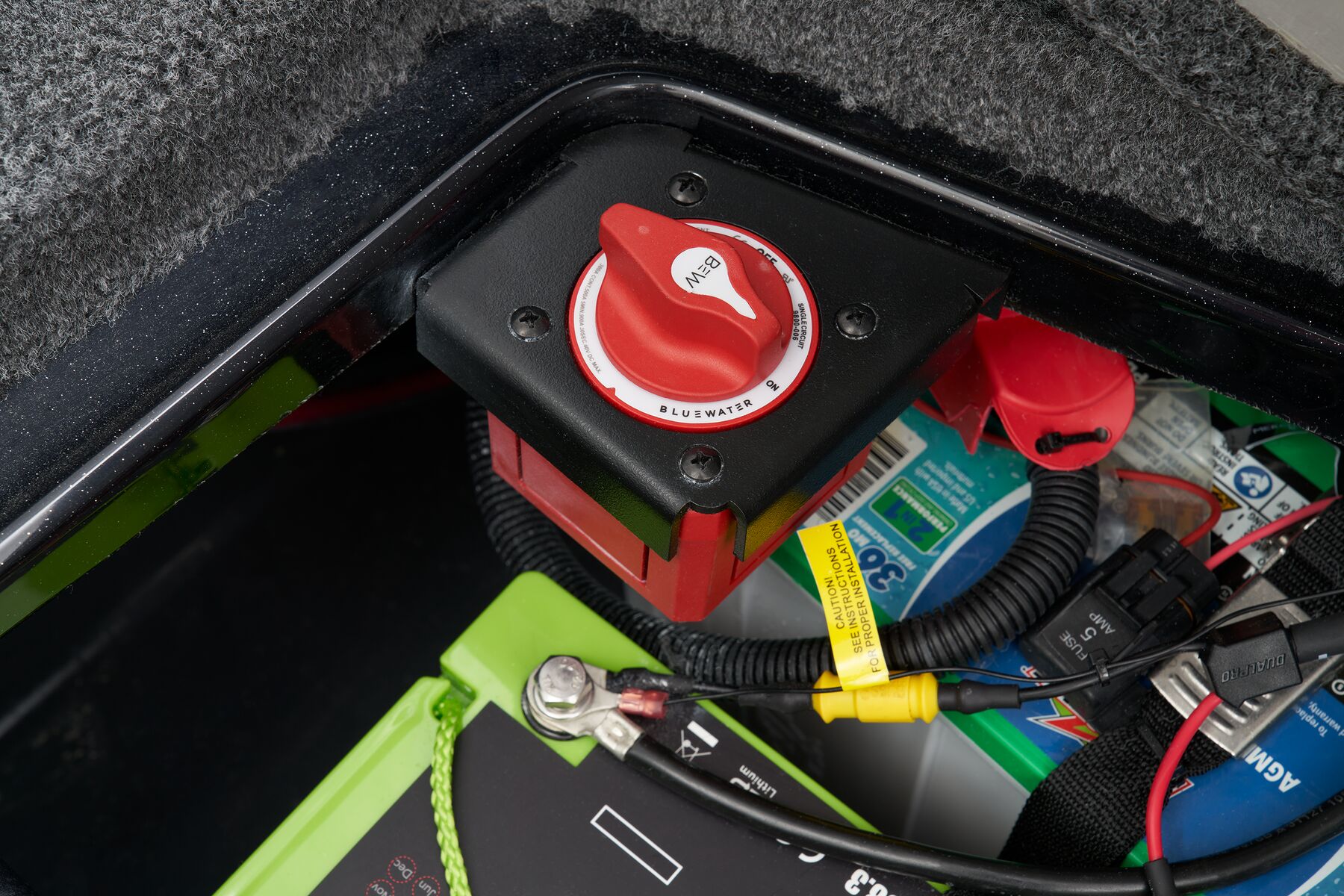

- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging

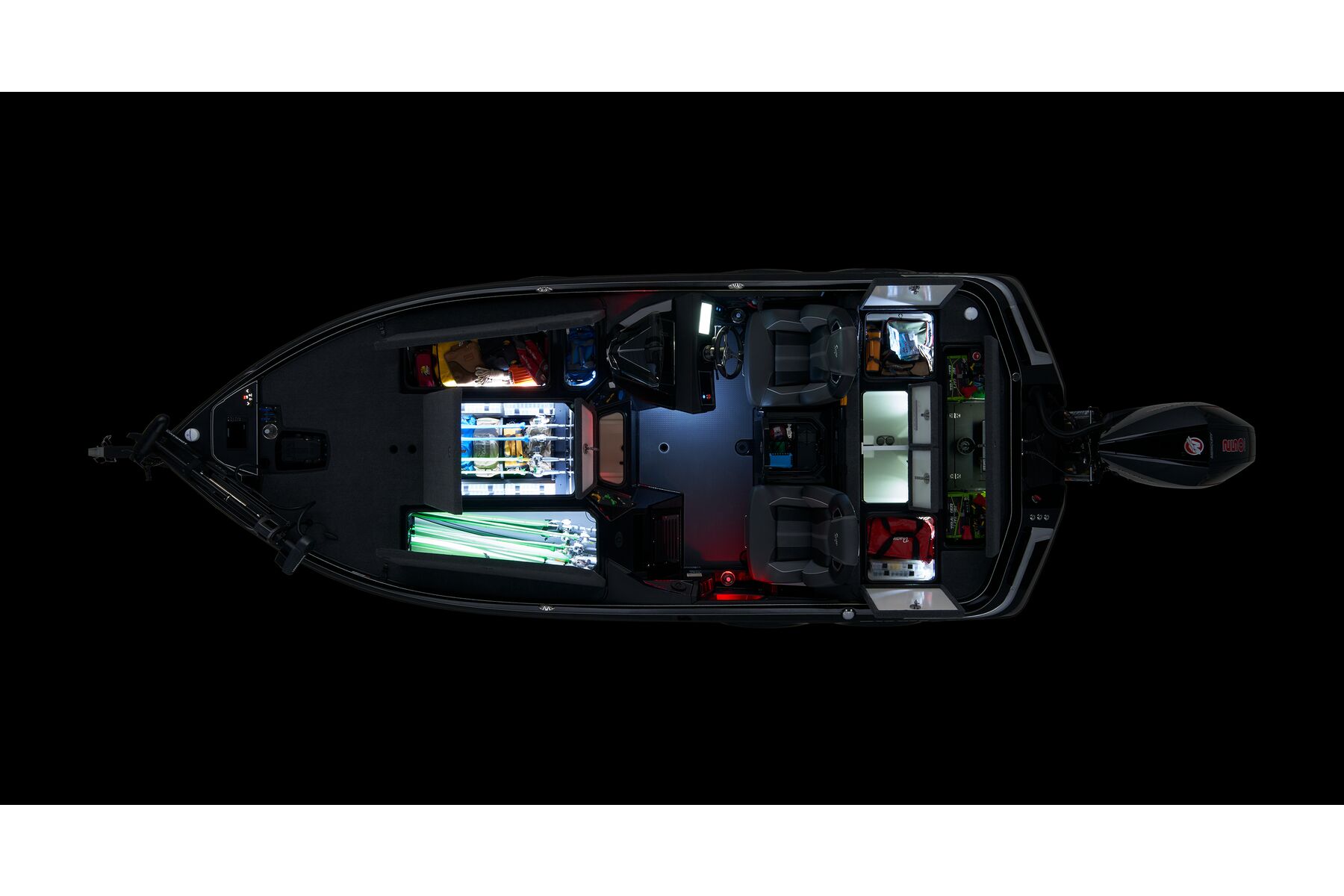

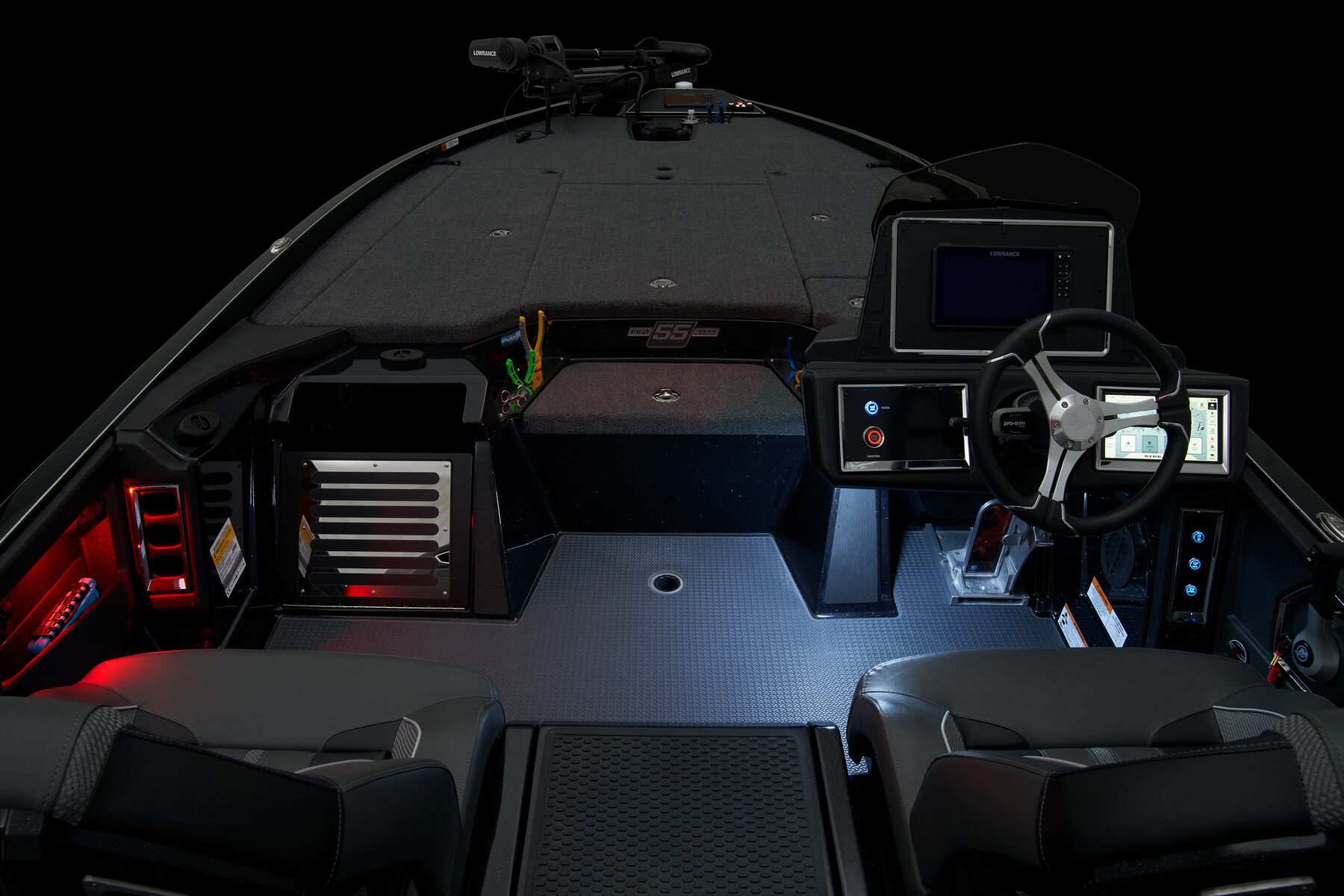

- Auto-on LED storage compartment lighting & LED courtesy & livewell lighting

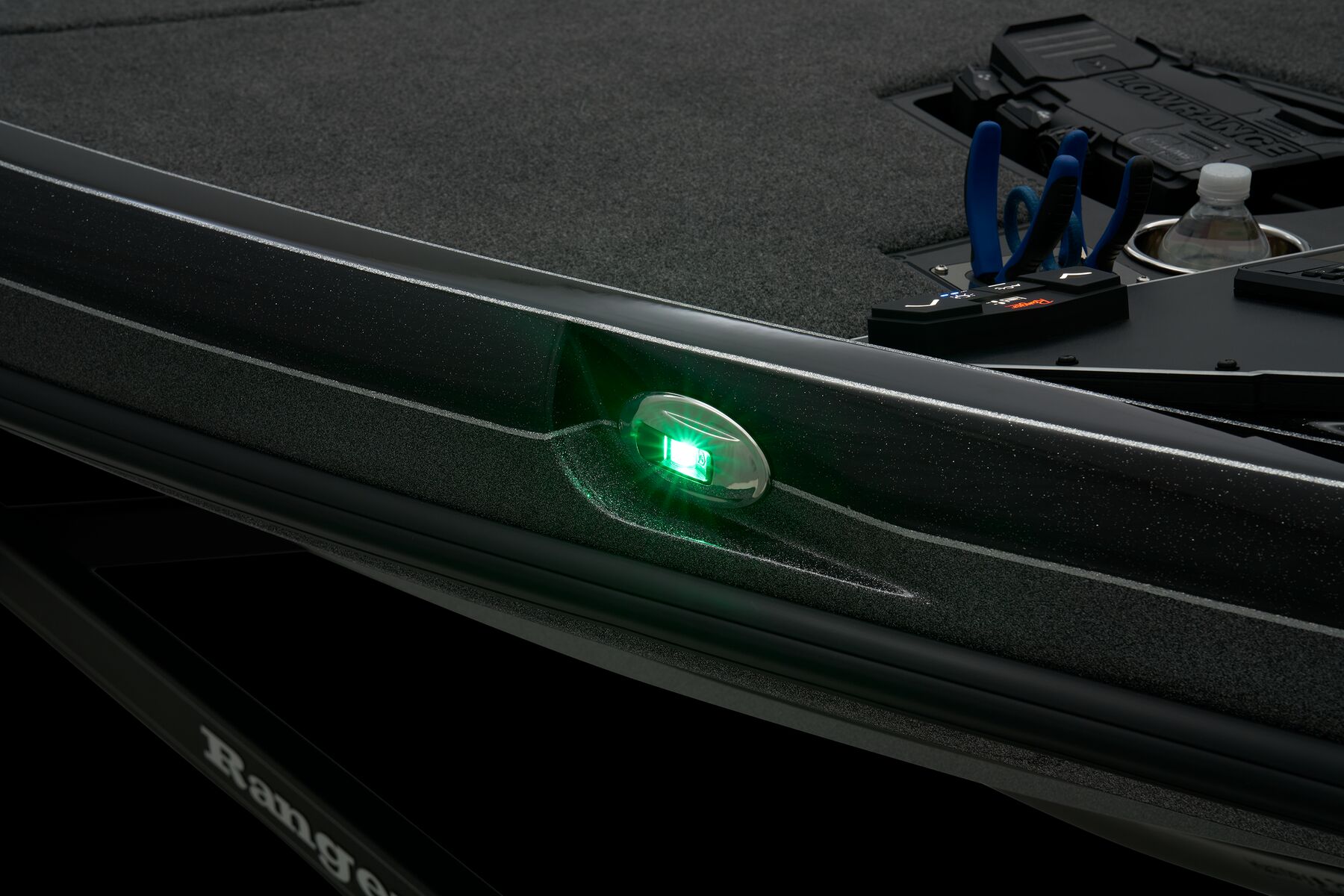

- Integrated LED bow navigation lights & removable LED anchor light

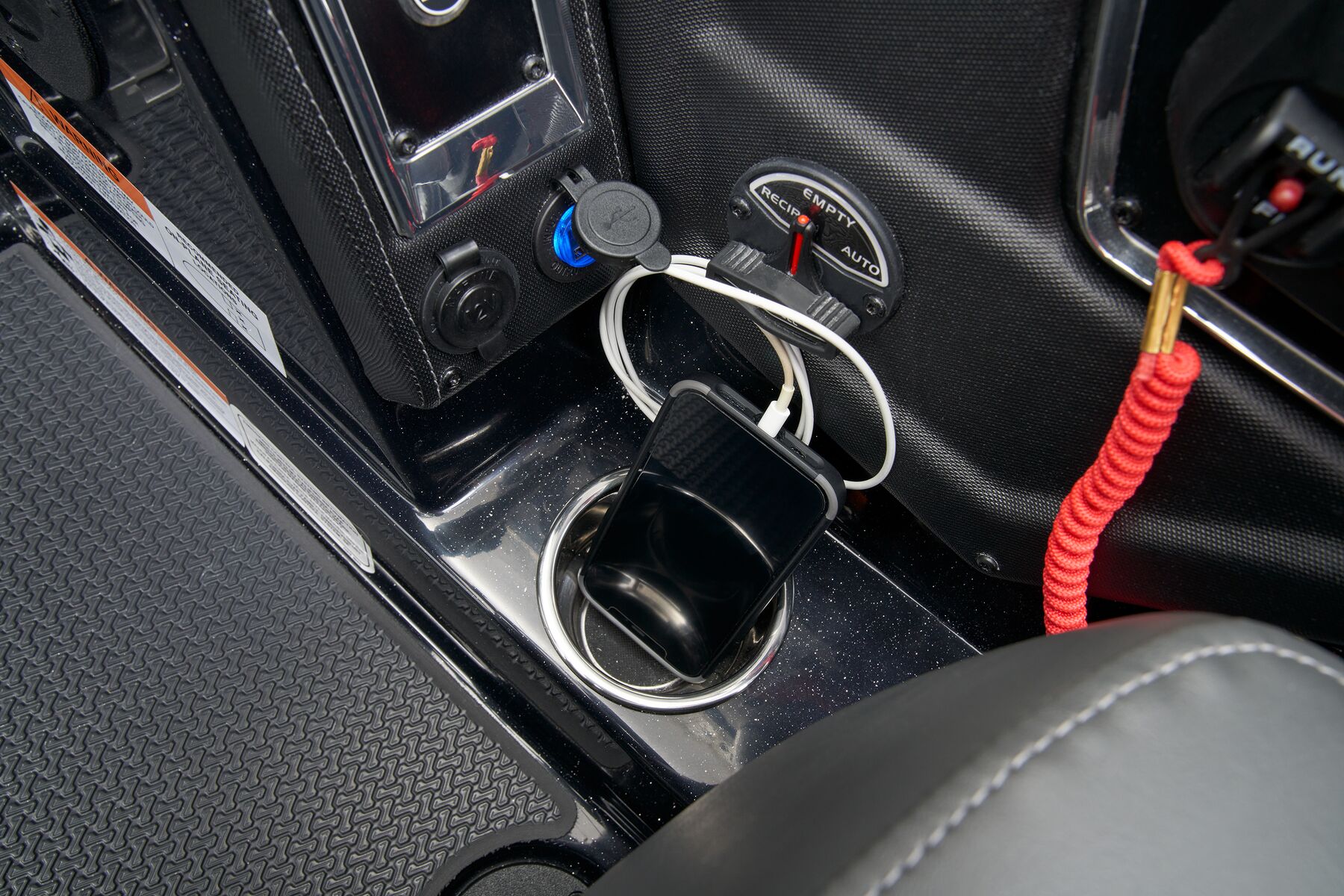

- Wireless charging station in Coin Box

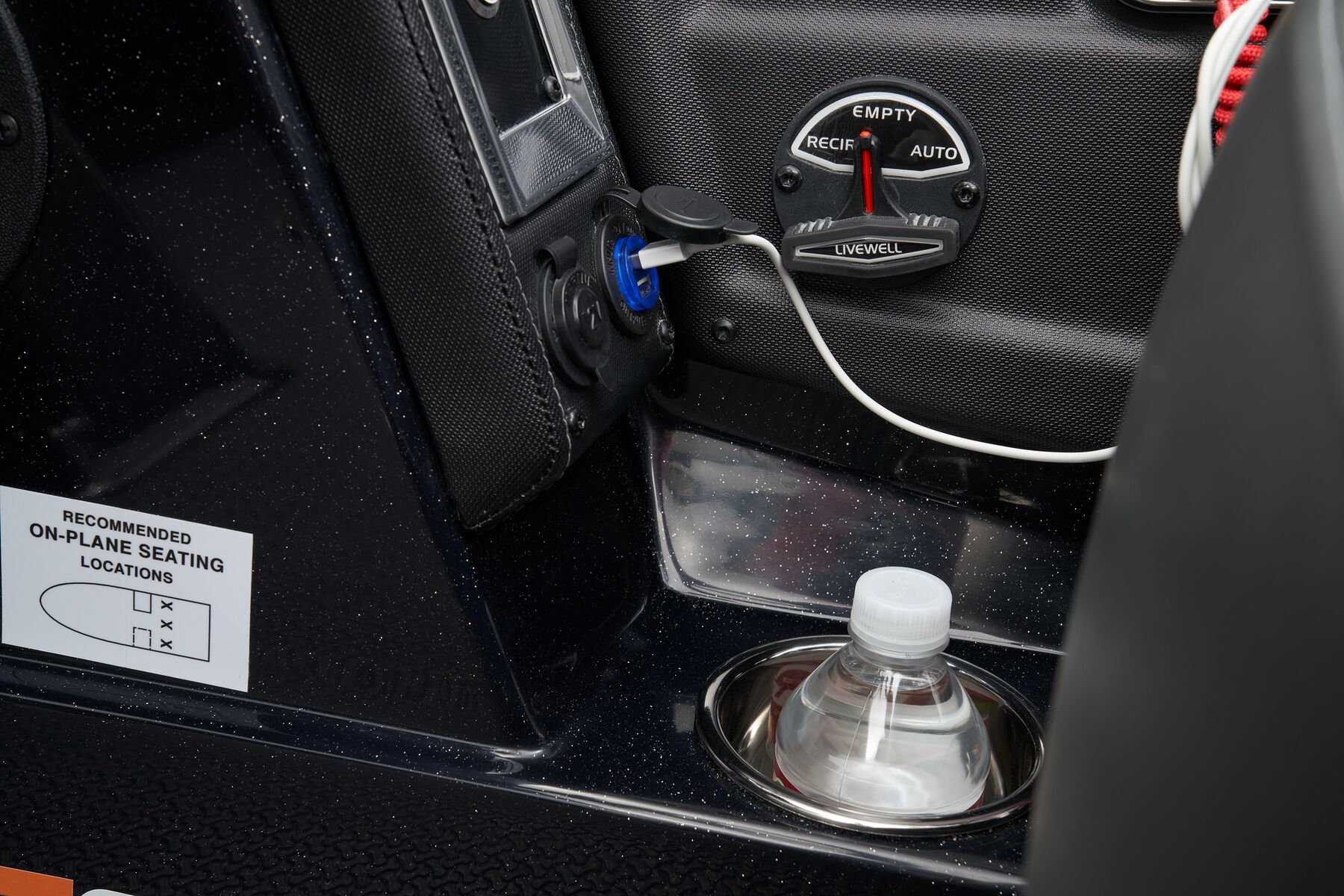

- 12V DC power receptacle with USB

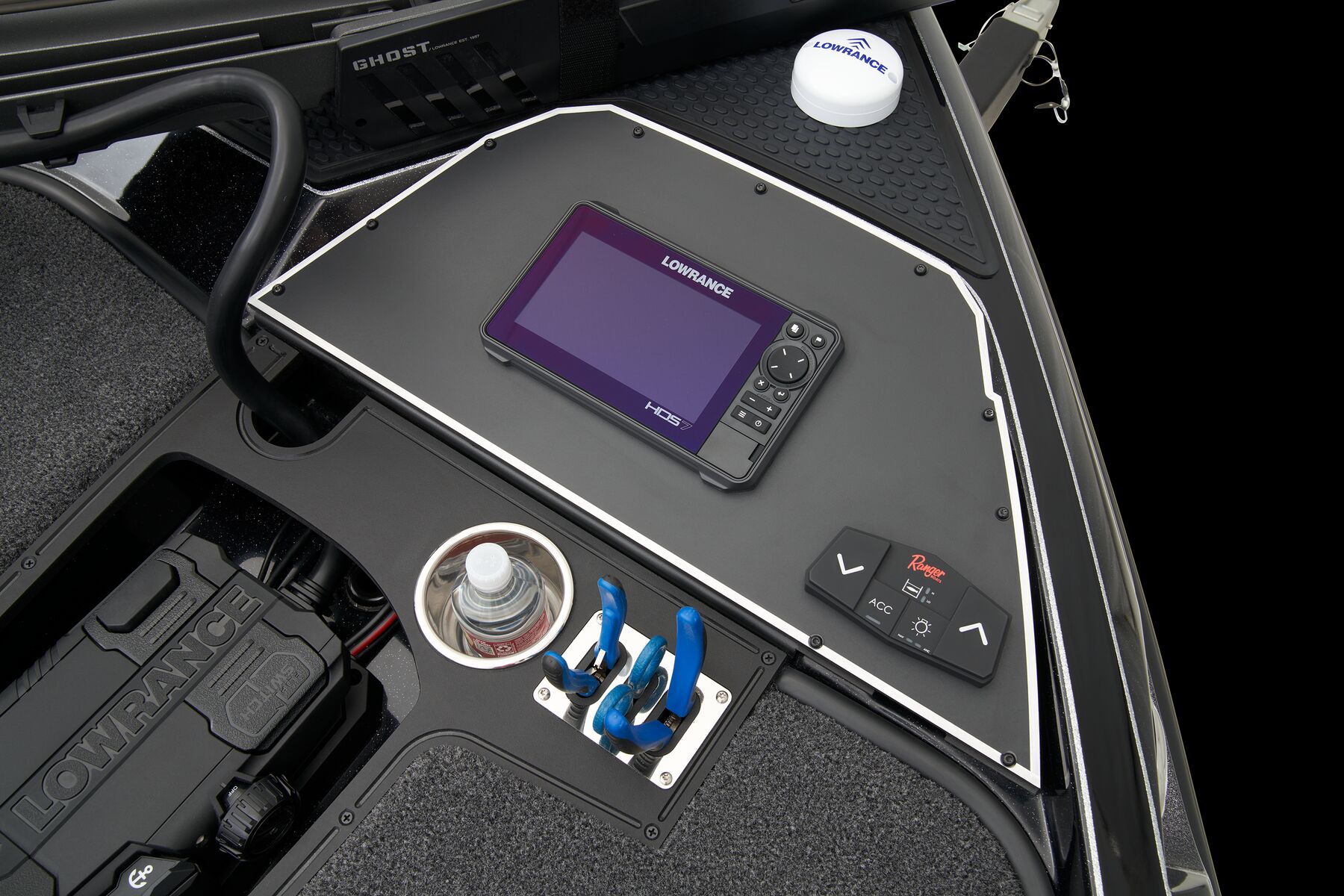

- Lowrance® ELITE FS 9 at bow

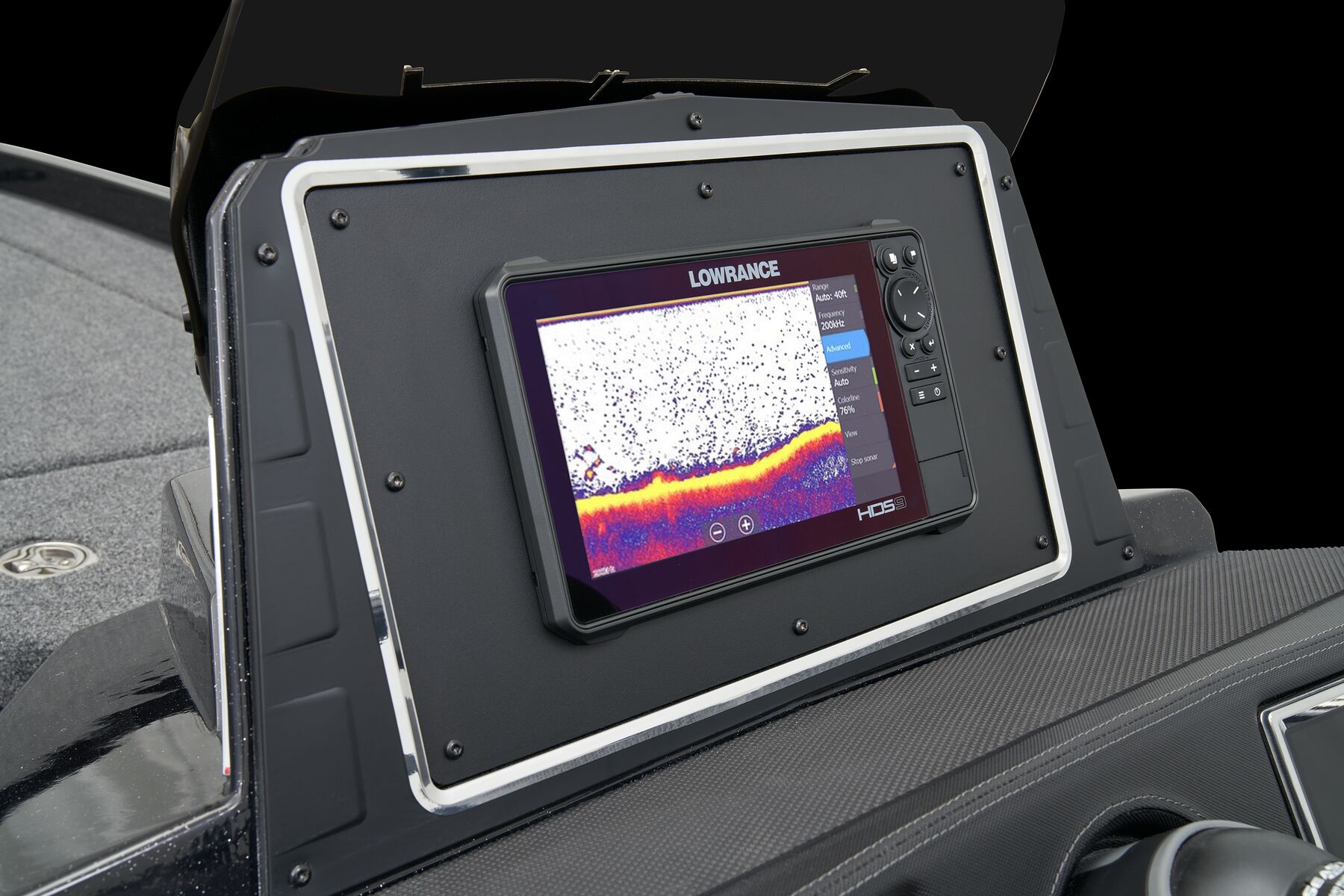

- Lowrance® ELITE FS 9 w/ Active Imaging at console
Power/Performance
- AGM Starting battery w/ tray
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback
- 10" manual setback plate
- Tilt hydraulic steering

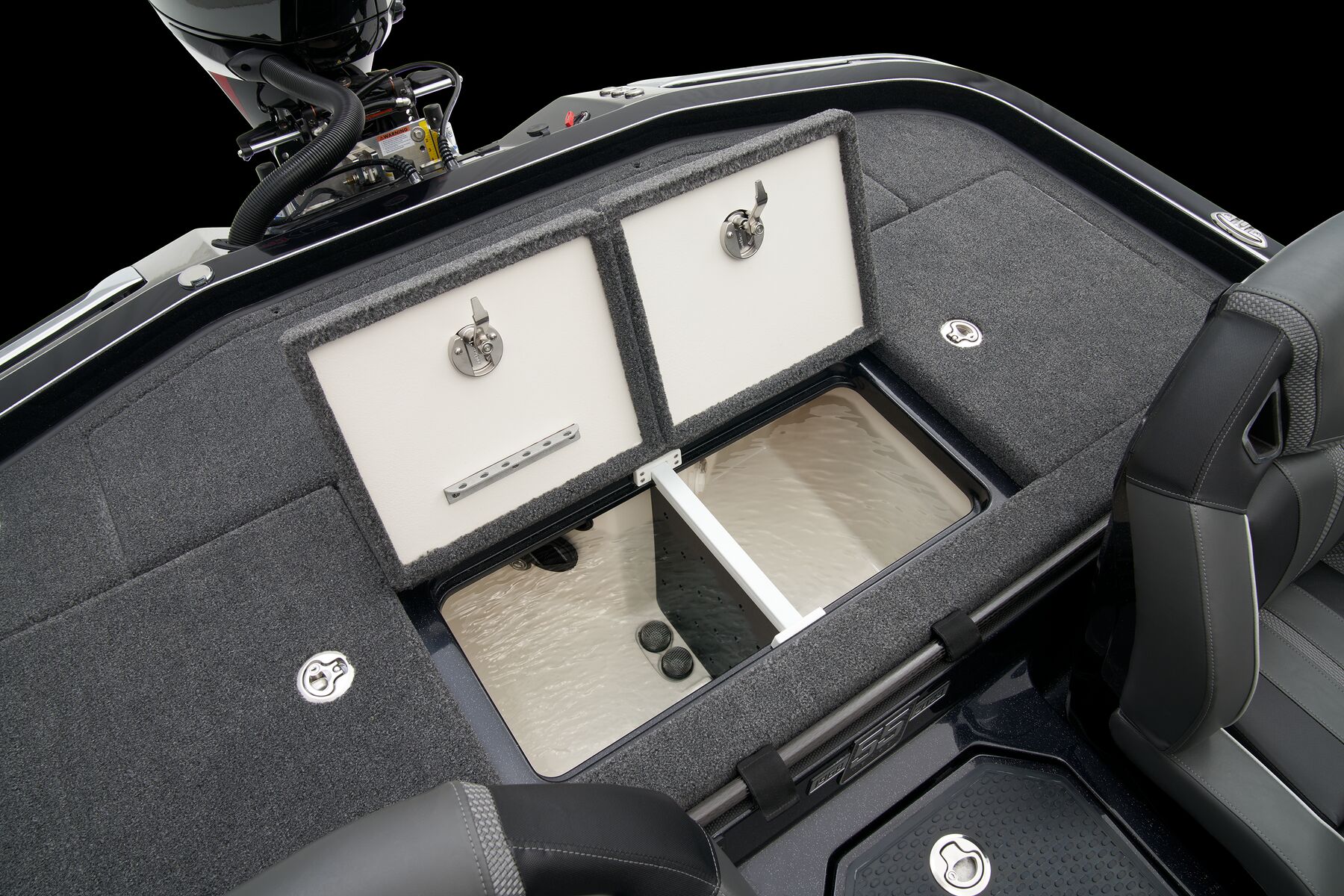

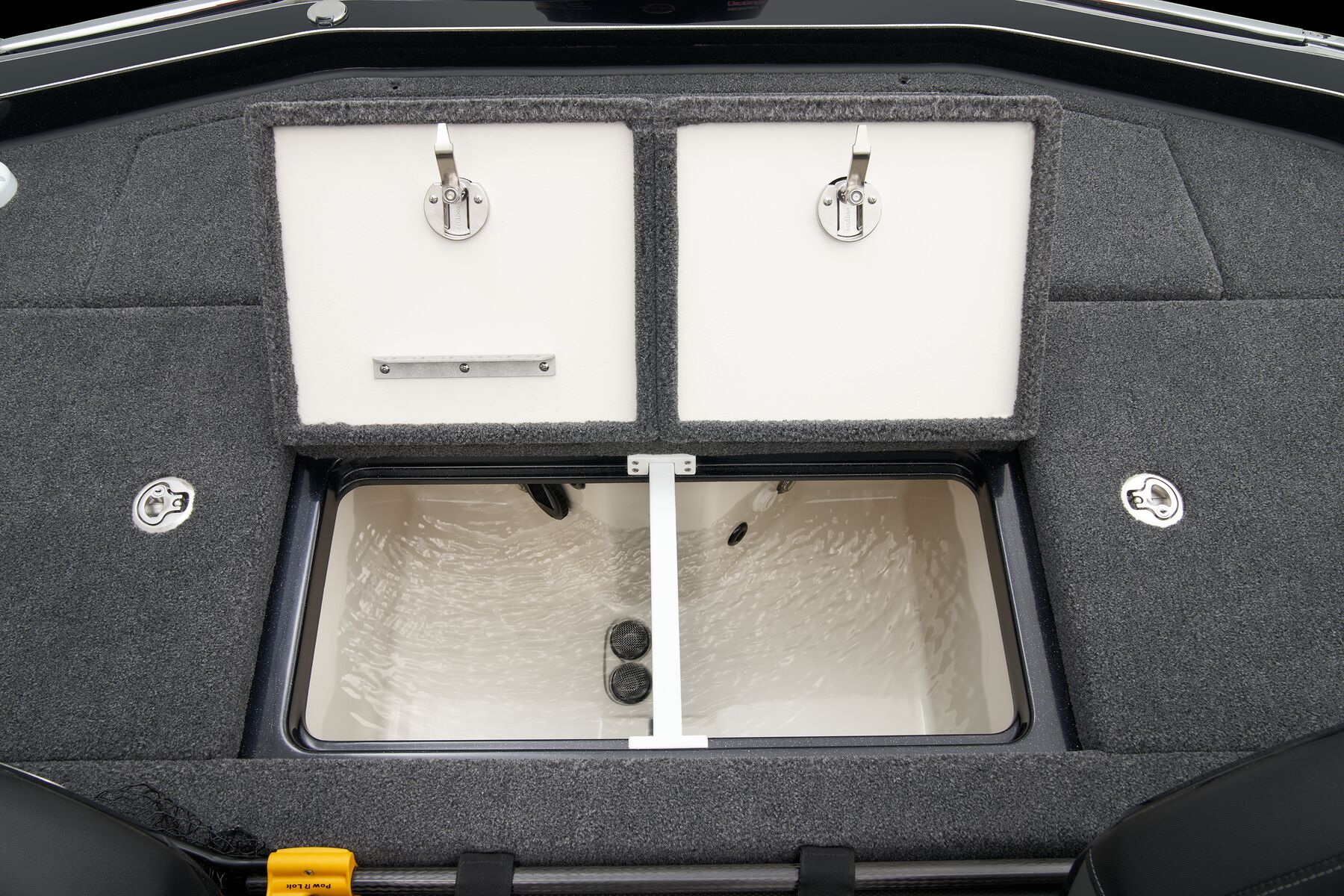

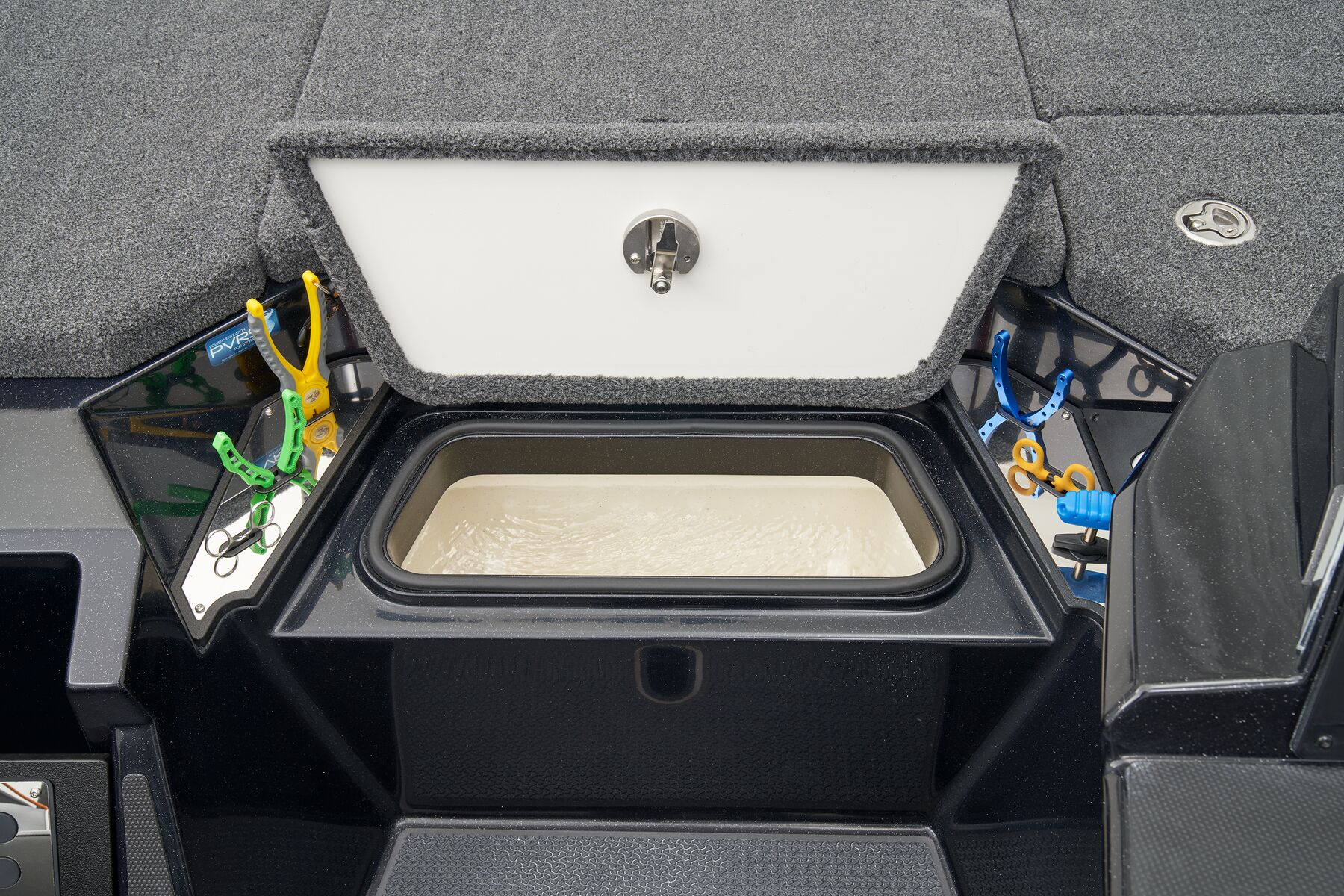

- Recirculating aerated livewell w/ removable divider & integrated cull tag system

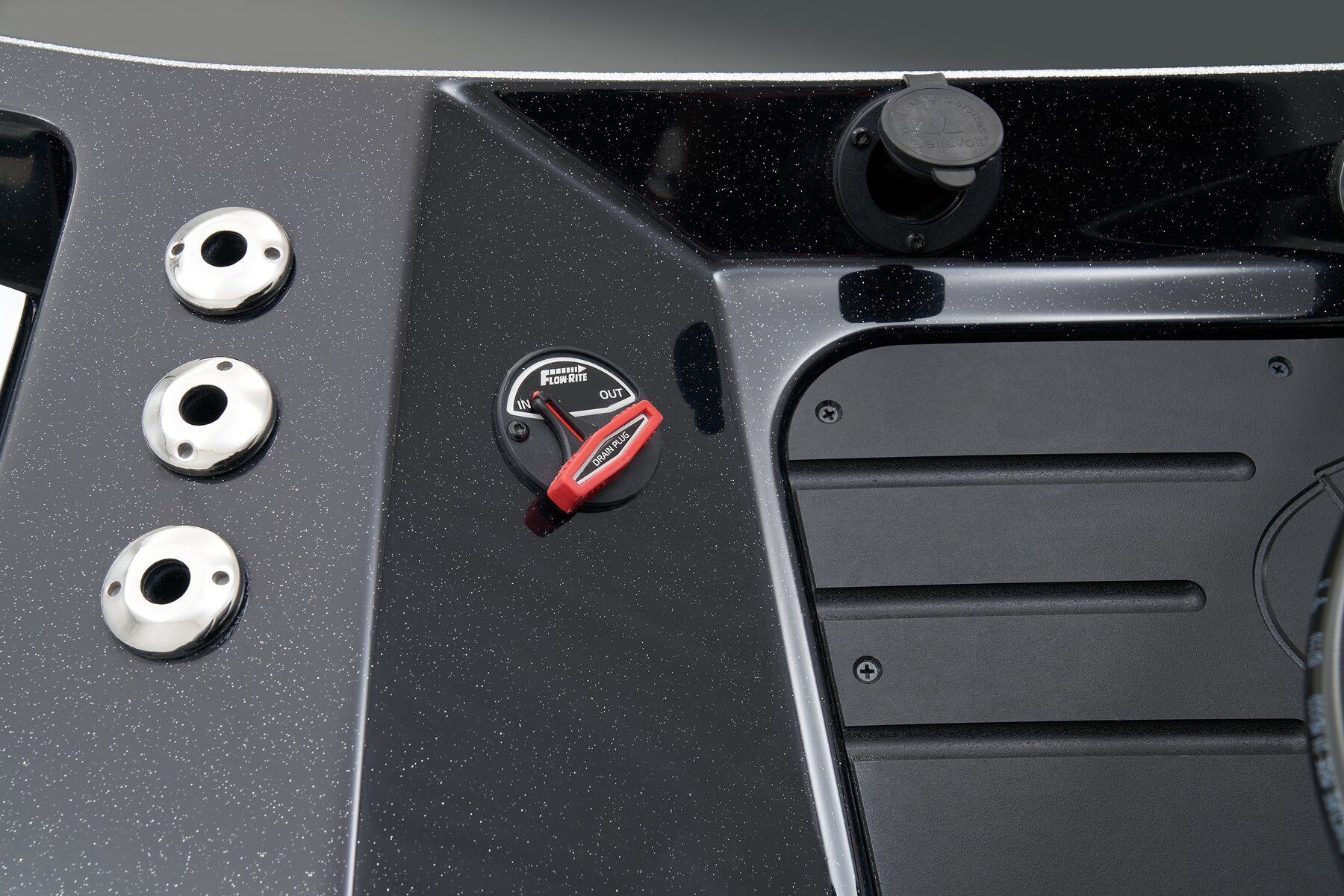

- Venturi Air & livewell pump-out system
- Recessed trolling motor foot pedal
- High performance stainless steel prop

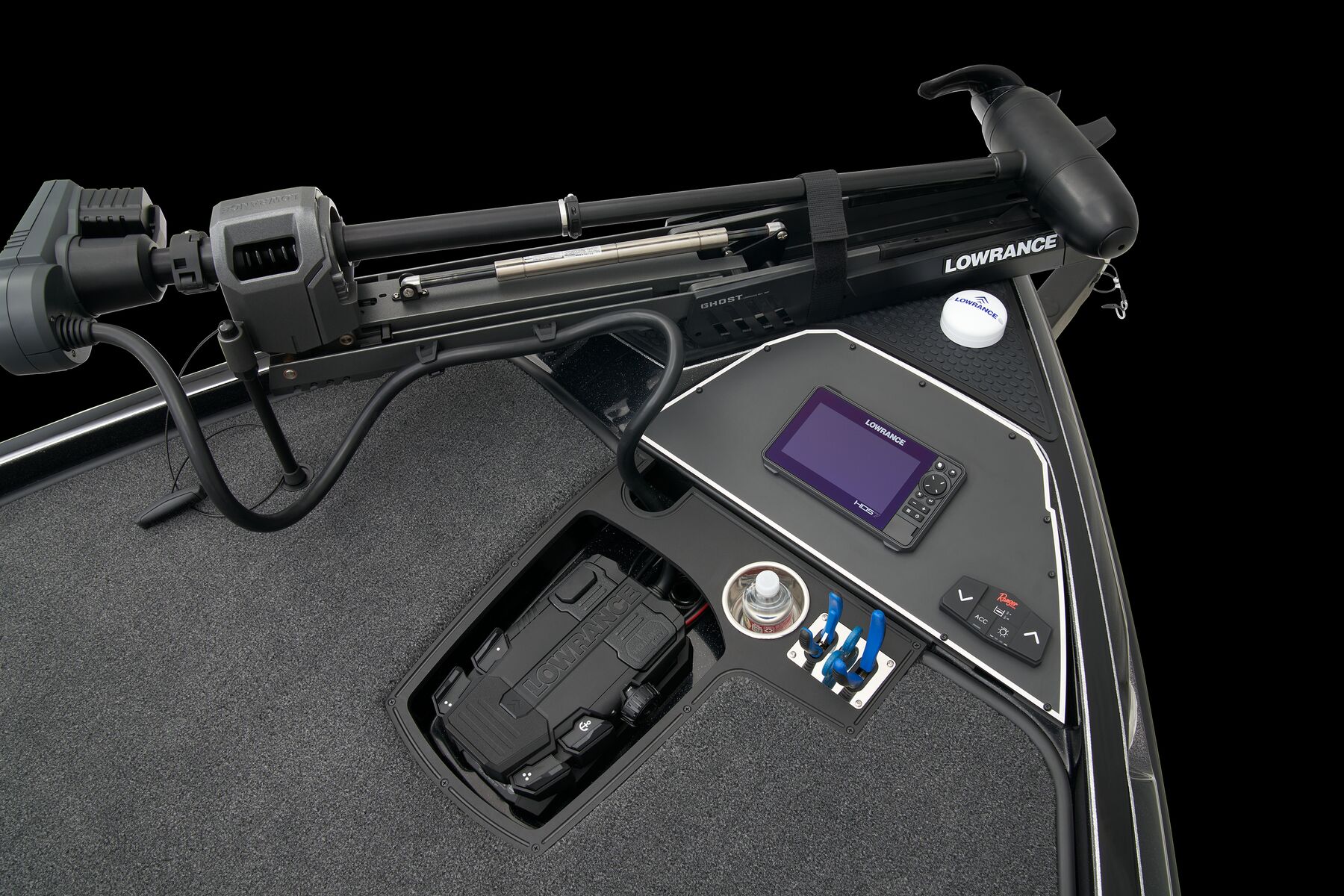

- MinnKota® Fortrex 80 24V trolling motor
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards
- Padded front deck

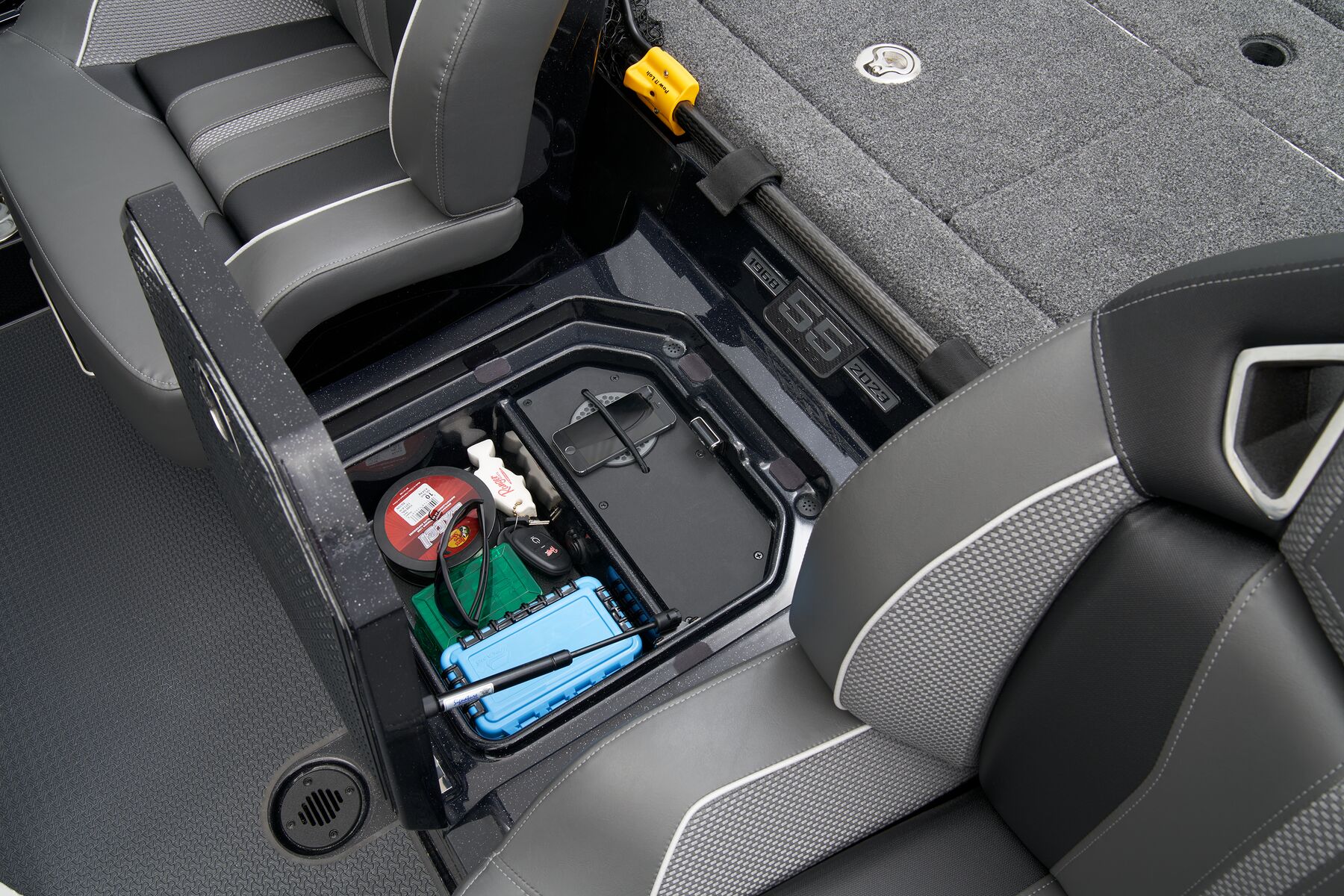

- Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/power pedestal
- Stainless steel seat bases
- Fire extinguisher & horn

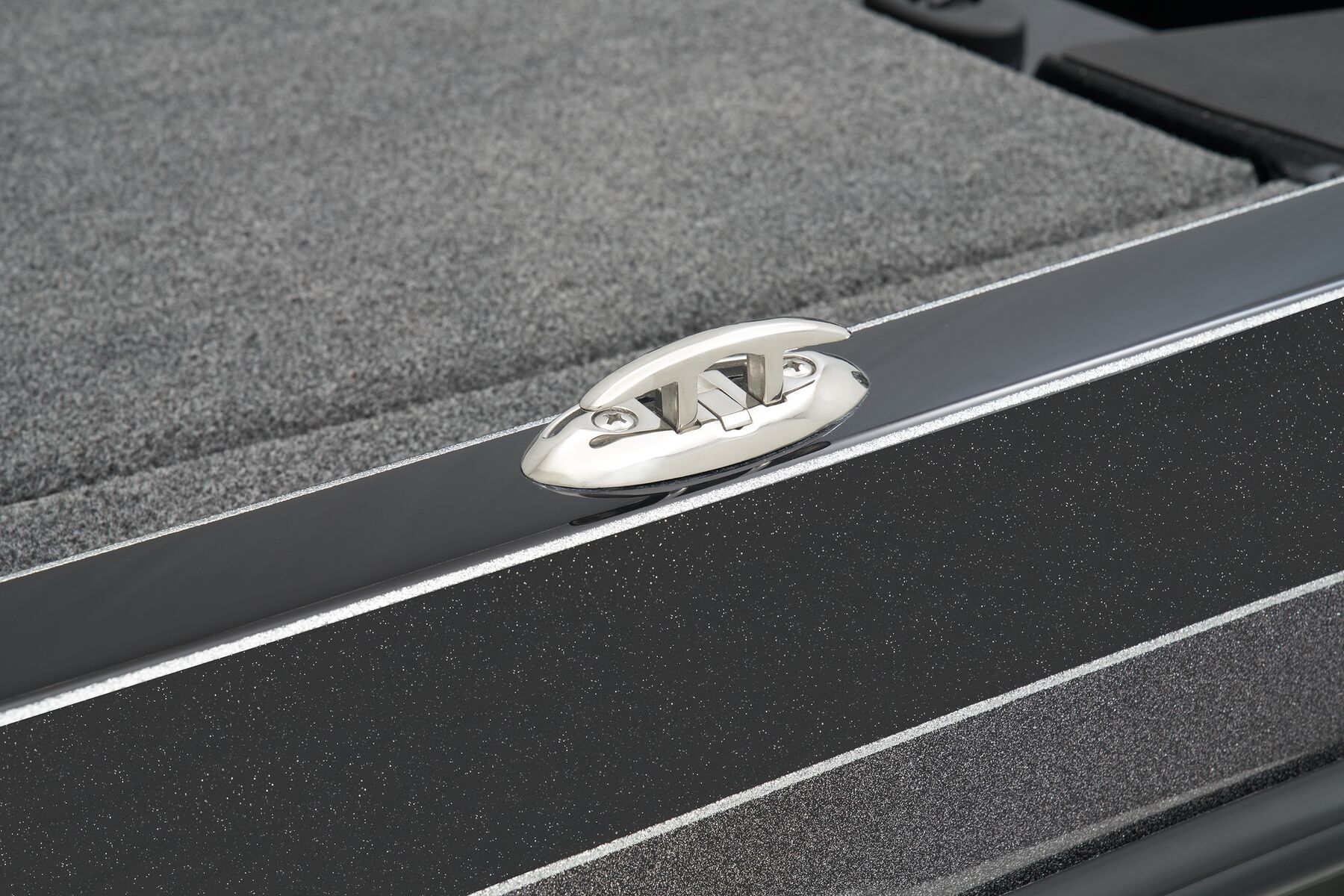

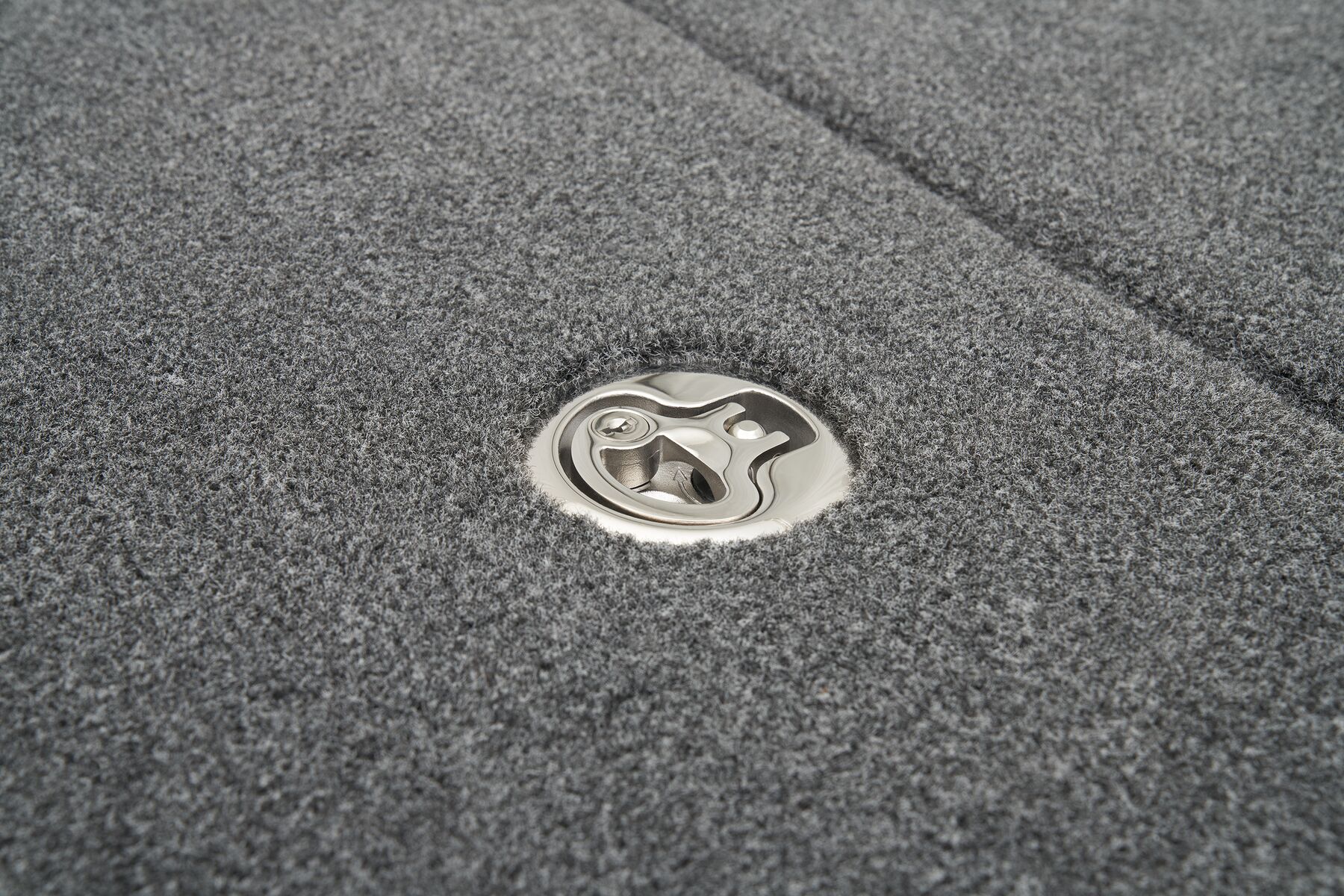

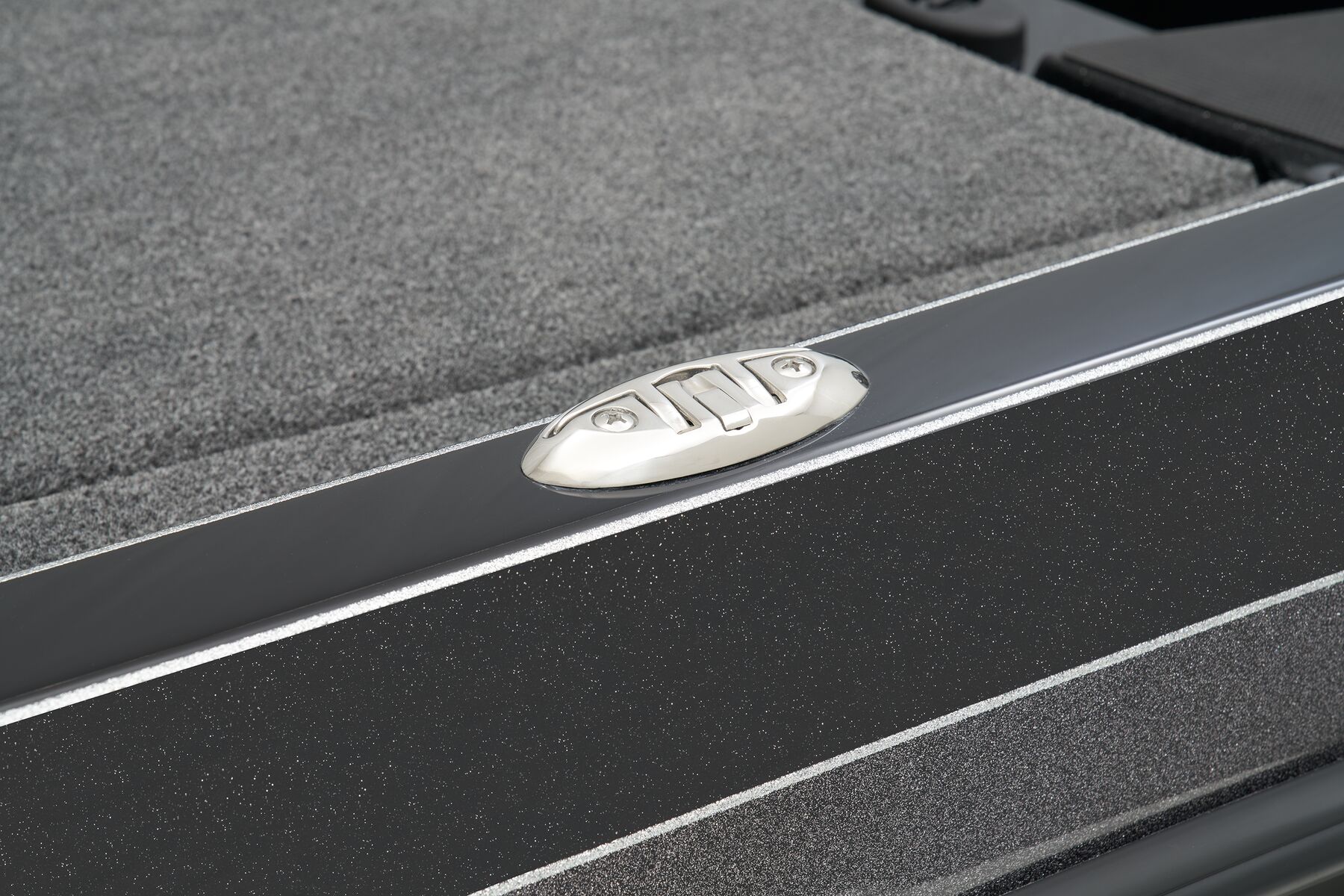

- Pop-up tie cleats & drivers seat cleat

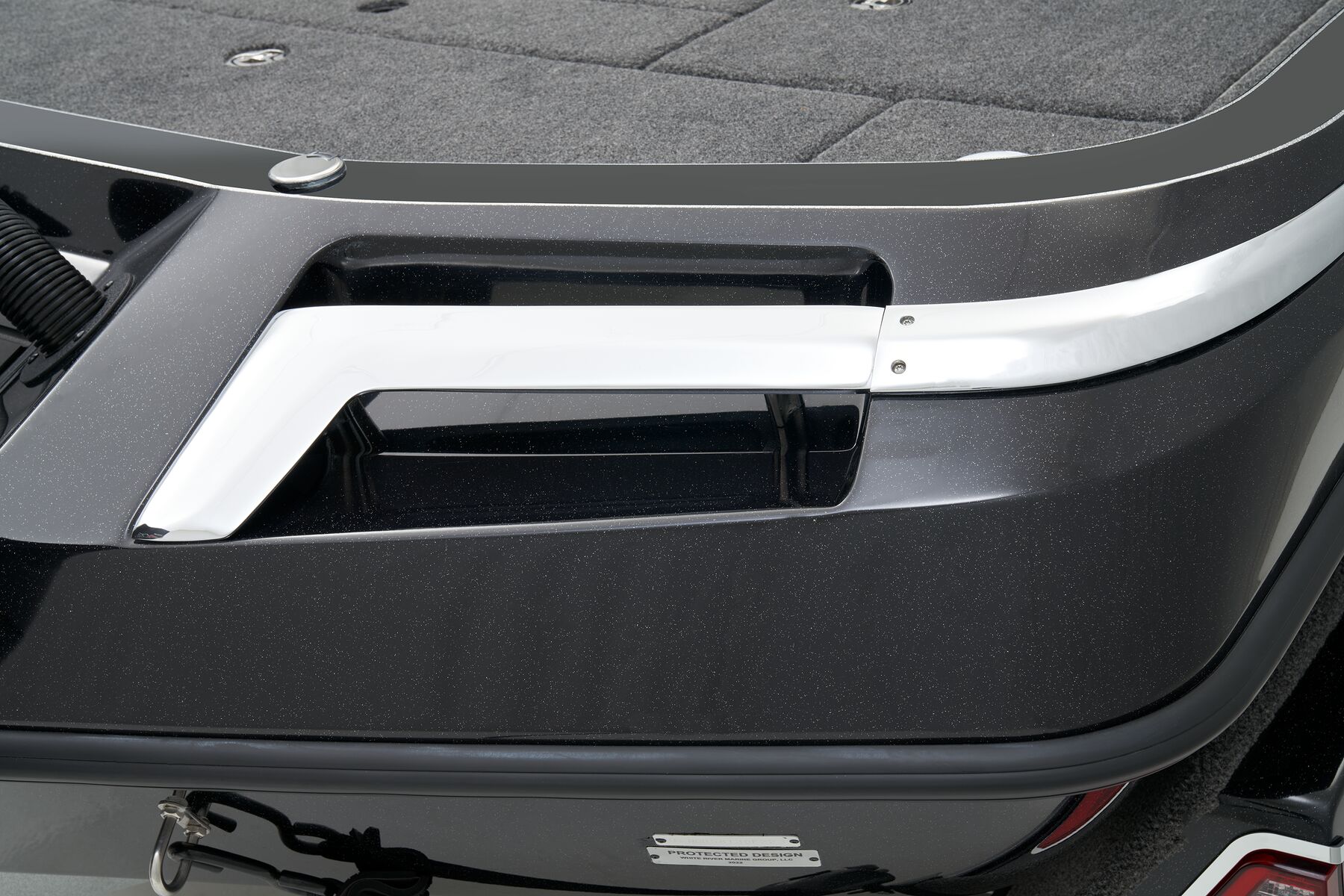

- Integrated grab handles
- Rite Track Keel®
- Automatic and manual bilge pumps

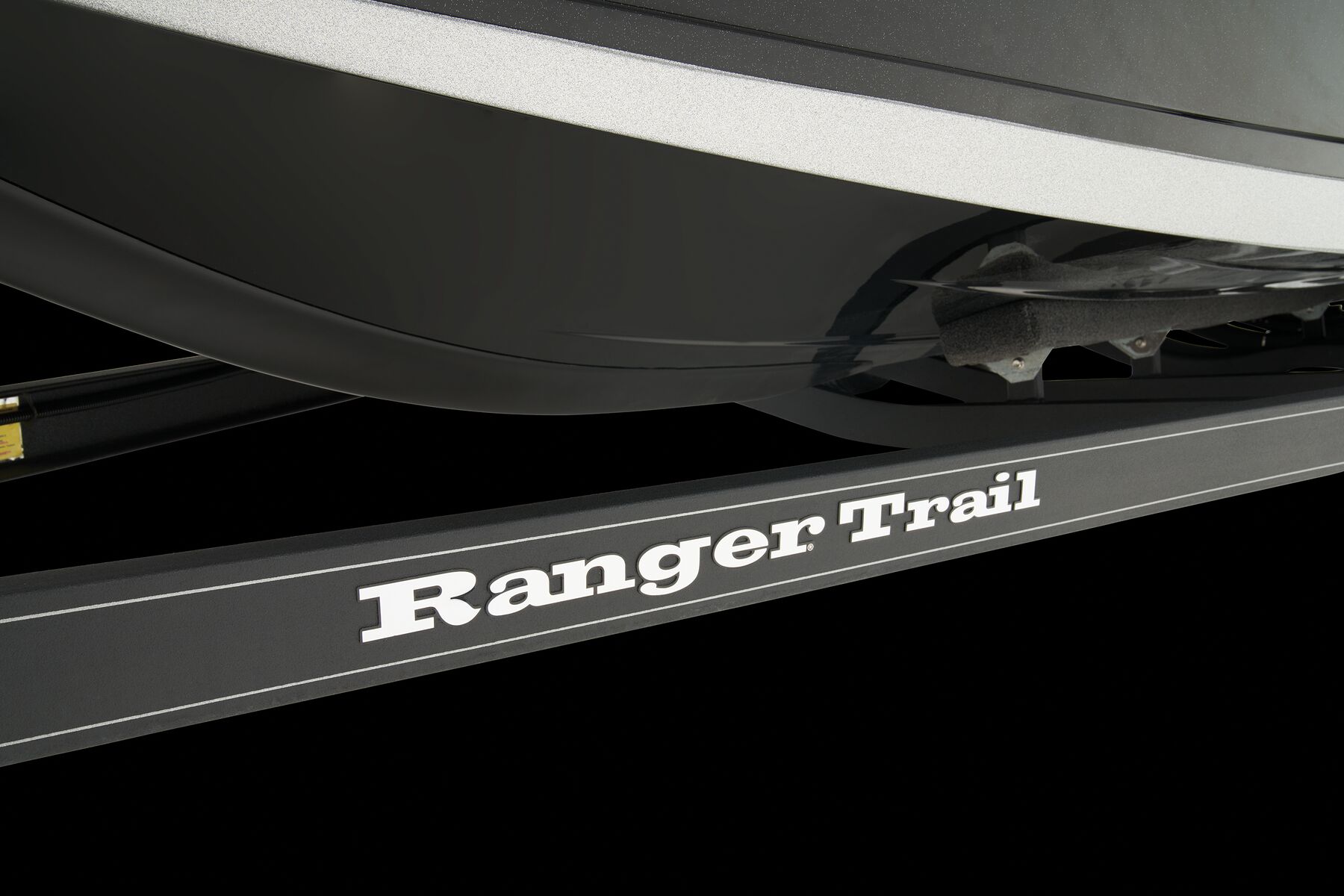

Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating
- Ranger Trail® Vault® Hub lubrication system
- Fiberglass fenders w/ step pads

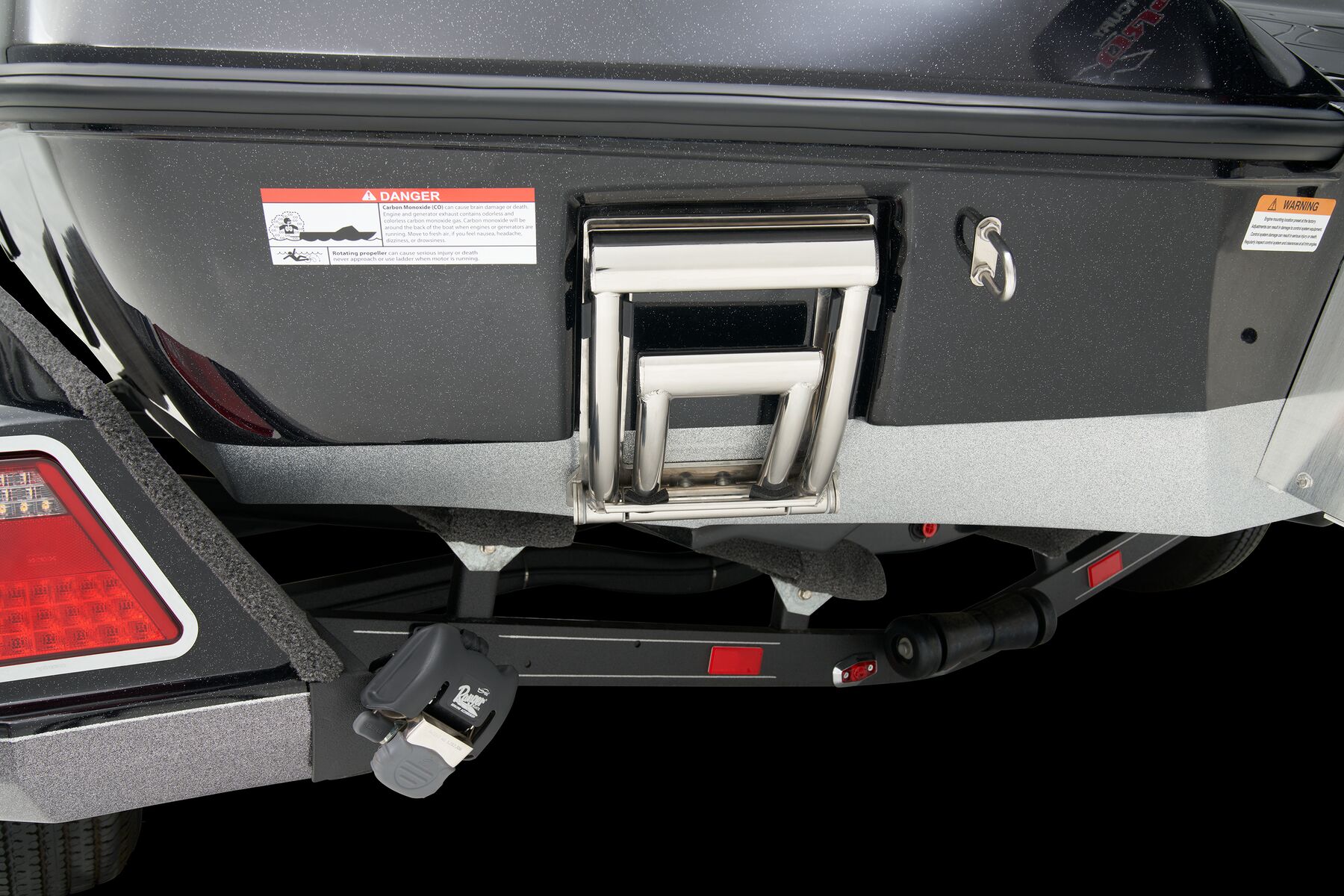

- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie downs
- LED lighting
- LED back-up lights
- NMMA®/NATM certified
