Z520R RANGER CUP EQUIPPED
Photos may show optional equipment.
2024

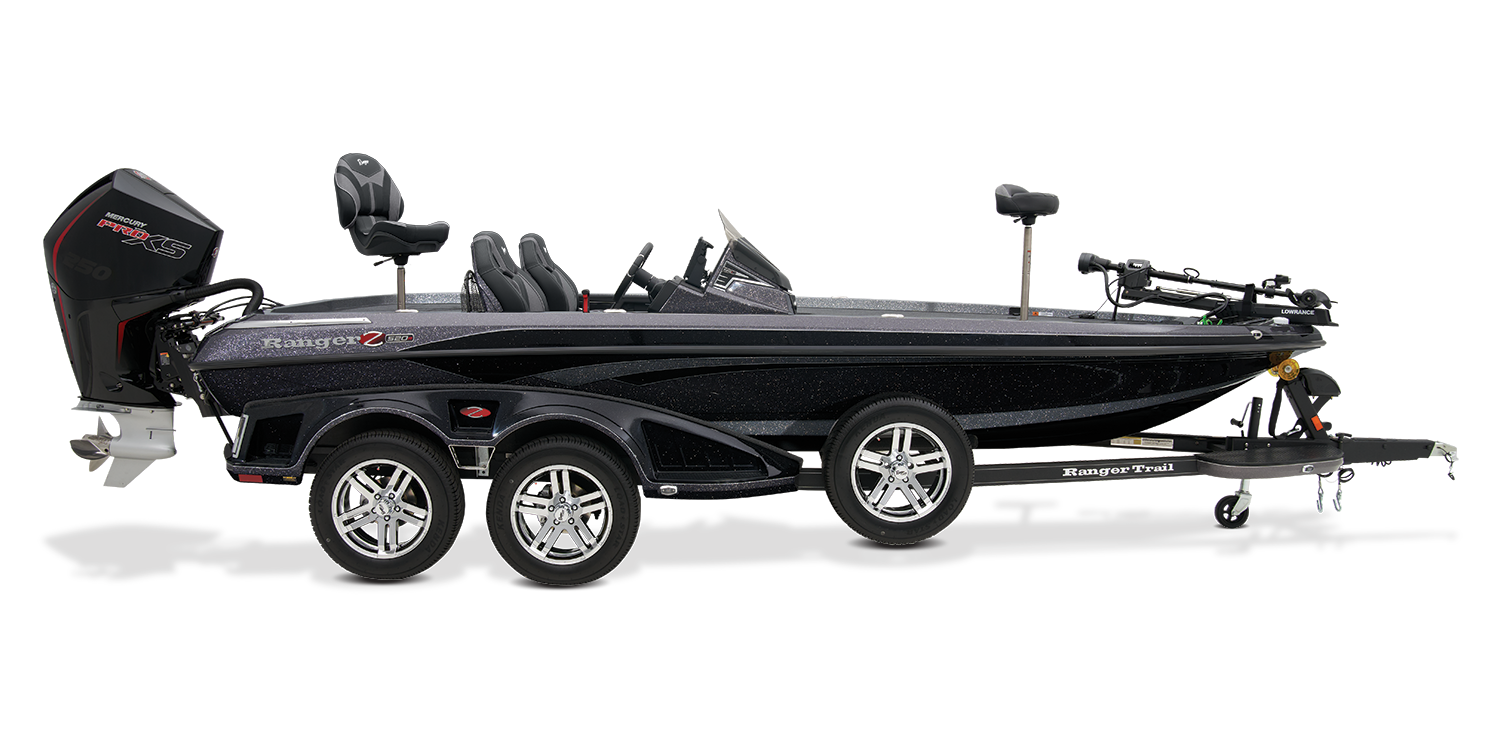

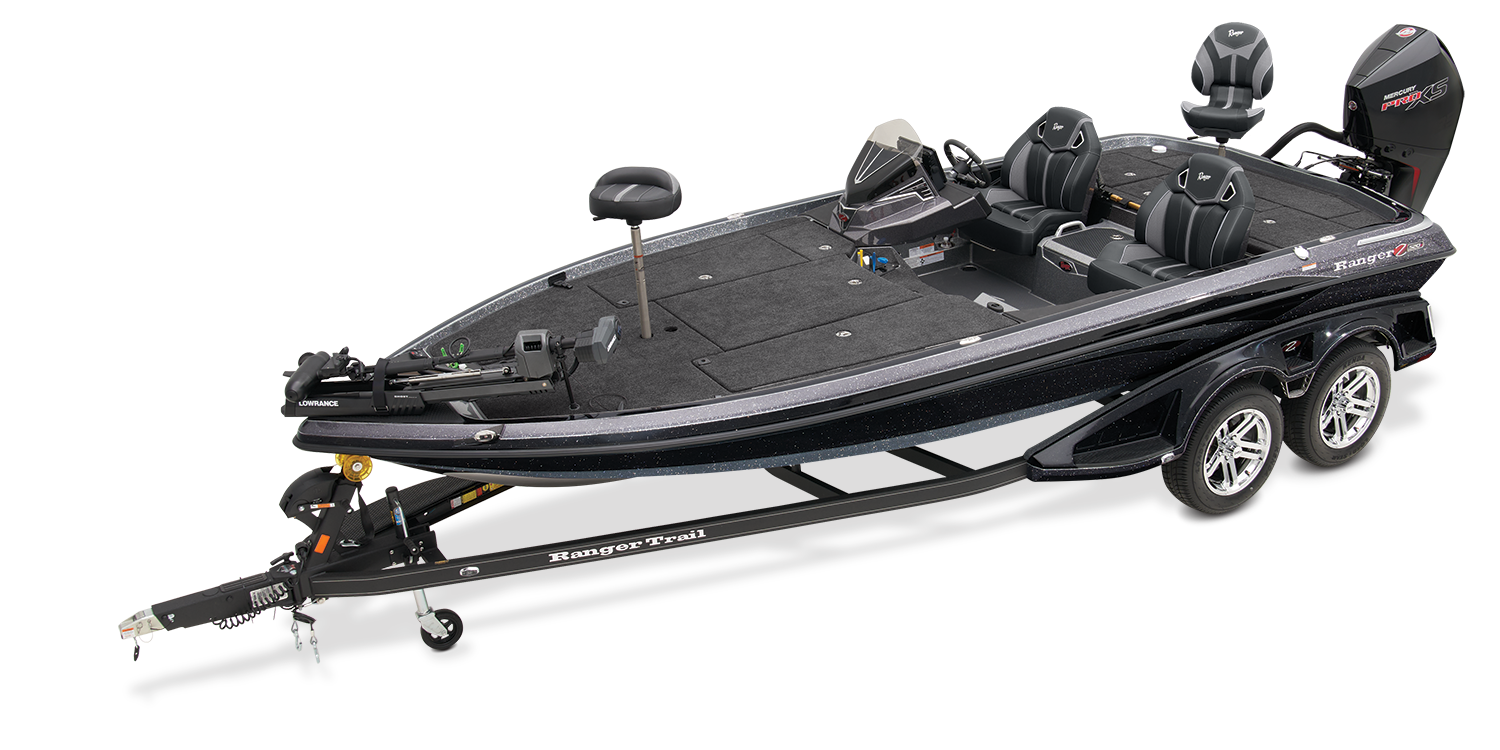

Z520R Ranger Cup Equipped
w/ 250L Pro XS Torque Master Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$89995
USD
|
Standard with your choice of tournament proven technology
or
THE FAST TRACK TO THE PODIUM
With an unmatched legacy and never-ending drive for domination, we’ve created the next iteration of the go-to for anglers at every level. With the Ranger Cup Equipped package, your Z520R comes with pro-preferred, factory-rigged add-ons that let you hit the water running—and saves you a little coin, too.

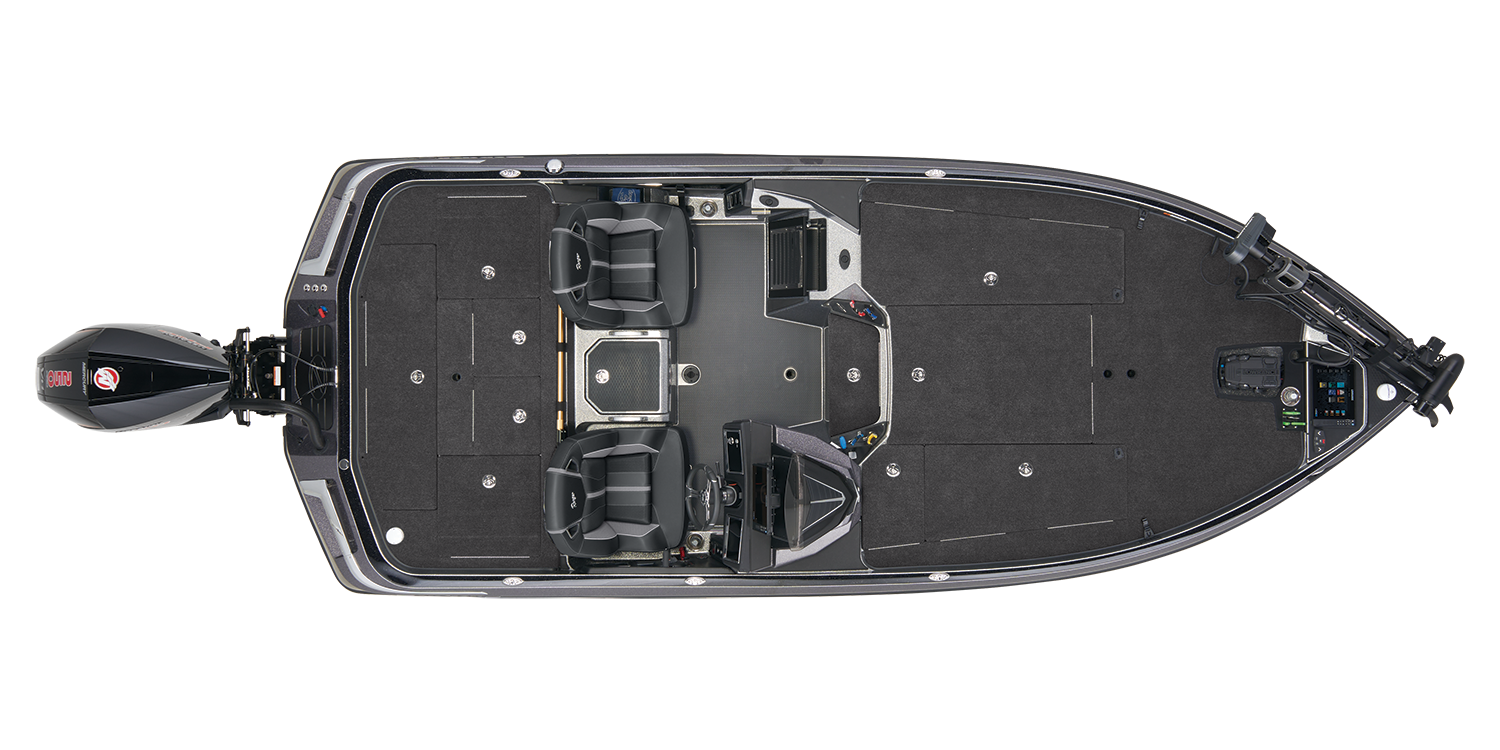

The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at every level. From the outset, we took the legendary Z Comanche “C” hull, digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end. Every appreciable element of the cockpit, decks, and storages has been revamped to complement the enhanced performance of the R Series. We’ve also gone to great lengths to incorporate more standard technology into the R Series to not only raise the bar for the industry, but to give you greater convenience and peace of mind.
An all-new console carries dual graphs or a single 16” unit and the touchscreen Ranger RIDE system that gives you control over every boat and engine function. The all-new seats rest on slides and CloudNine™ air ride shock system that takes the teeth out of chop. A key fob and new push-button ignition let you start up quicker and deliver greater security when you’re on the road. Inside the coin box is a wireless phone charger, and in the battery box are standard lithium batteries.

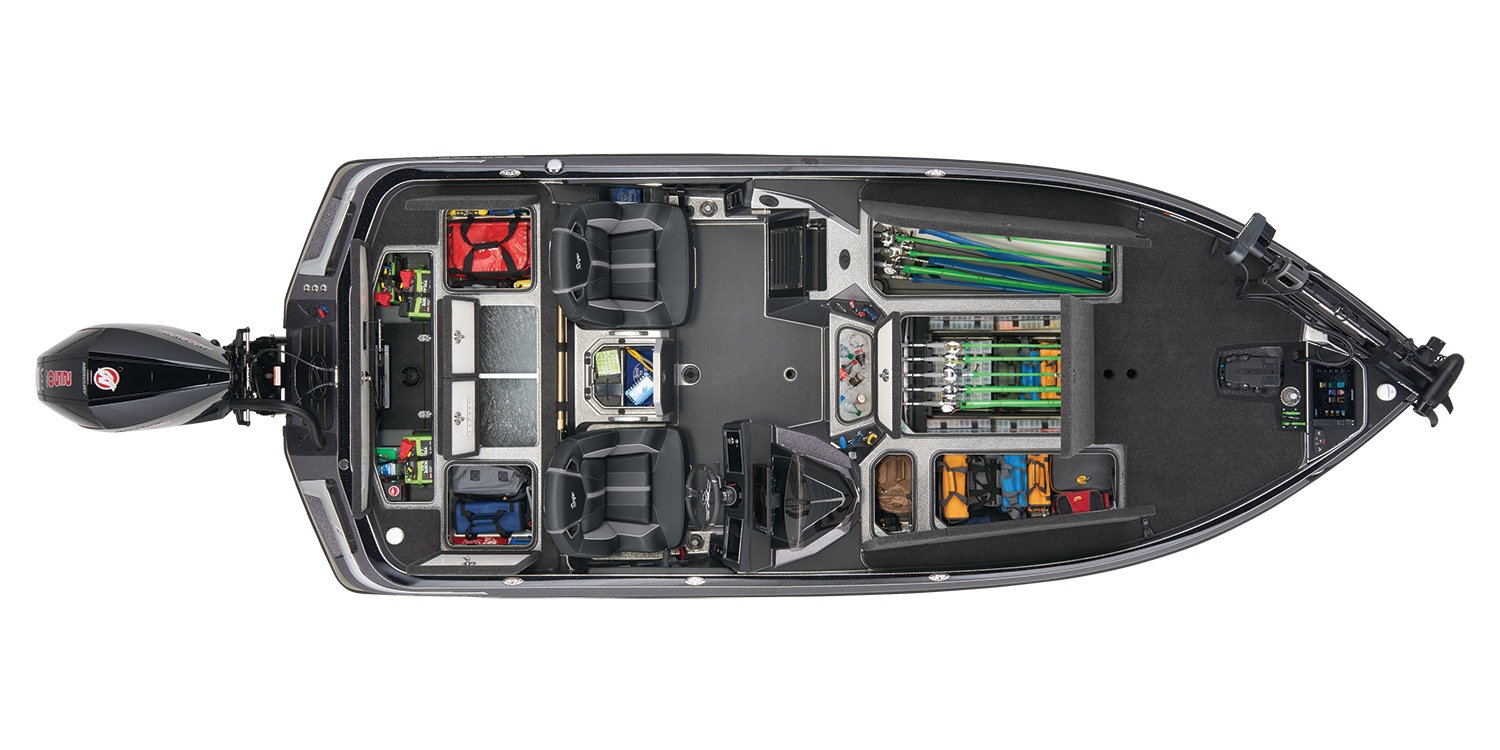

Storage boxes are demonstrably larger, thanks to redesigned stringer system that builds on our One-Piece Feel Interloc™ Construction. The rod boxes feature a tri-level storage shelf system that simplifies rod management and offers more room for sticks up to 9’.
Inside and out, the Z520R lets you release a new level of domination. The Z520R. It’s a whole new era of Ranger.
Gallery
Specifications
| Length | 6.38 m | 20' 11'' |
| Hull Length | 6.38 m | 20' 11'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 250 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 55.88 cm | 22'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 748.43 kg | 1650 lbs. |
| Approximate Boat Weight | 839.15 kg | 1850 lbs. |
| Rod Box Length - Port | 2.44 m | 8' |
| Rod Box Length - Center Row 1 | 2.44 m | 8' |
| Rod Box Length - Center Row 2 | 2.29 m | 7' 6'' |
| Max. Person Capacity | 4 persons | |
| Trailer GVWR | 2449.4 kg | 5400 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.25 m | 27' 1'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.62 m | 25' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250L Pro XS Torque Master |
$89995 USD
|
Select Dealer | |||
Standard Features
Ranger Cup Equipped - LOWRANCE® Package
- Lowrance® HDS® 12 PRO at bow
- Lowrance® HDS® 12 PRO at console w/ ActiveImaging™ HD
- Lowrance® Active Target™ 2 Live Sonar
- Lowrance® Ghost 45" 36V Trolling Motor
- Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
- Blinker Trim
- Hot Foot
- 17" Challenger II wheels w/ matching spare
Ranger Cup Equipped - GARMIN® Package
- GARMIN® ECHOMAP™ Ultra 126sv at bow
- GARMIN® ECHOMAP™ Ultra 126sv at console w/ Transducer
- GARMIN® Live Scope™ Plus LVS34 Live Sonar
- GARMIN® Force 45" 36V Trolling Motor
- Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
- Blinker Trim
- Hot Foot
- 17" Challenger II wheels w/ matching spare
Custom Details
- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
- Power Ventilation Rod Storage™
- Integrated center-storage rod & tackle management system
- Spooling station integrated under battery lid
- Ranger® tournament measuring board integrated at front deck step
- Remote drain plug
- Stainless steel compression lid locks
- Stainless steel seat bases
Electronics
- Ranger® RIDE™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen
- Push to Start Ignition with proximity key
- Ranger Cup Equipped Electronics Package (see RCE)
- Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging
- Auto-on LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light
- Wireless charging station in Coin Box
- 12V DC power receptacle with USB
Power/Performance
- Ranger Cup Equipped Trolling Motor (see RCE)
- (3) 80AH Lithium trolling batteries w/trays
- AGM Starting battery w/ tray
- Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback
- 10" manual setback plate
- Tilt hydraulic steering
- Recirculating aerated livewell w/ removable divider & integrated cull tag system
- Venturi Air & livewell pump-out system
- Recessed trolling motor foot pedal
- High performance stainless steel prop
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards
- Padded front deck
- Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/power pedestal
- Stainless steel seat bases
- Fire extinguisher & horn
- Pop-up tie cleats & drivers seat cleat
- Integrated grab handles
- Rite Track Keel®
- Automatic and manual bilge pumps
Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating
- 17" Challenger II wheels w/ matching spare
- Ranger Trail® Vault® Hub lubrication system
- Fiberglass fenders w/ step pads
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie downs
- LED lighting
- LED back-up lights
- NMMA®/NATM certified
