Limited 2024 Availability

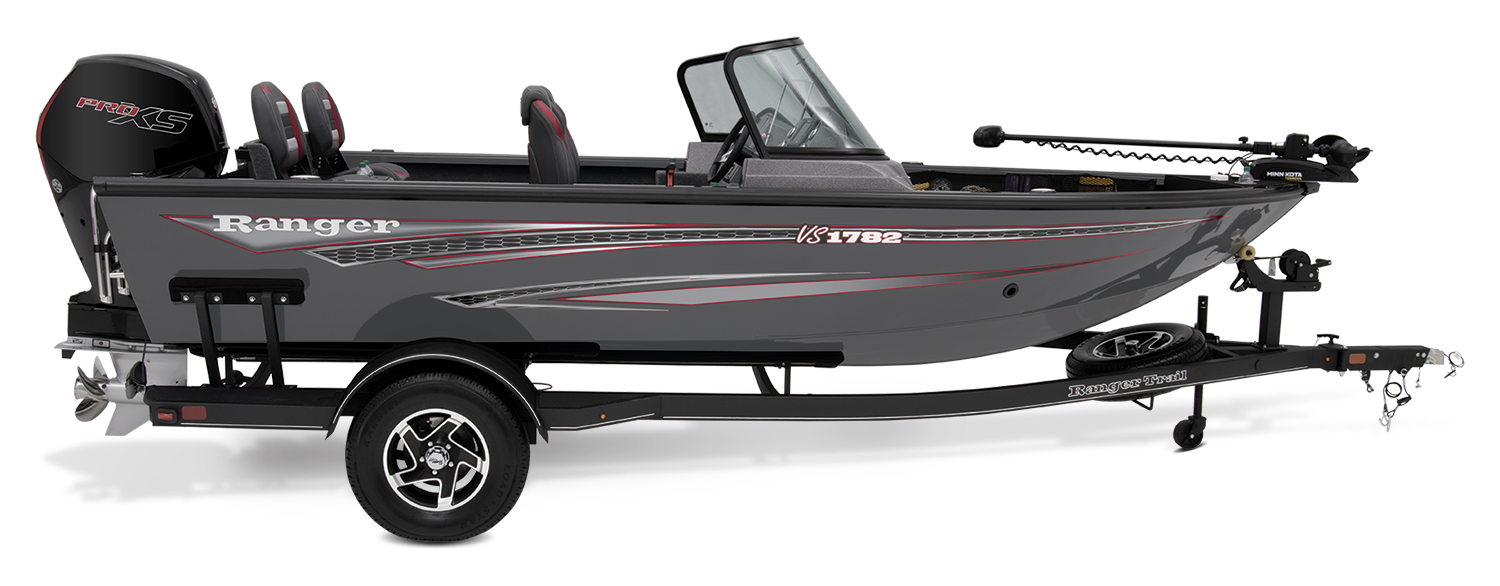

VS1782SC Angler
Photos may show optional equipment.
2023
VS1782SC Angler
w/ 115EXLPT Pro XS Mercury® FourStroke
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$37995
USD
|
Excellence comes standard
When you’re ready to venture farther and test the limits, the VS1782 SC Angler has everything you need. At 17’ 8”, this big-beamed warrior is equipped to take you, your buddies and all your gear deep into open water. With Ranger® quality and construction underneath you, you’ll be able to focus on finding and fighting fish. The 0.125-inch-thick aluminum hull is filled with foam throughout and combines with the wood-free robotically welded transom to offer an unmatched, solid feel with flotation levels that exceed standards set by the Coast Guard. Rugged vinyl flooring in the cockpit and marine-grade carpet up front are designed to remain functional and attractive for years. The layout of the VS1782 SC Angler was designed with comfort and fishability top of mind. A 12-gallon front baitwell and divided, aerated 29-gallon rear livewell are easily accessible while massive storage throughout ensures that you won’t have to leave anything behind.
Key Features
- Wide, stable platform bow to stern
- Stout fiberglass console

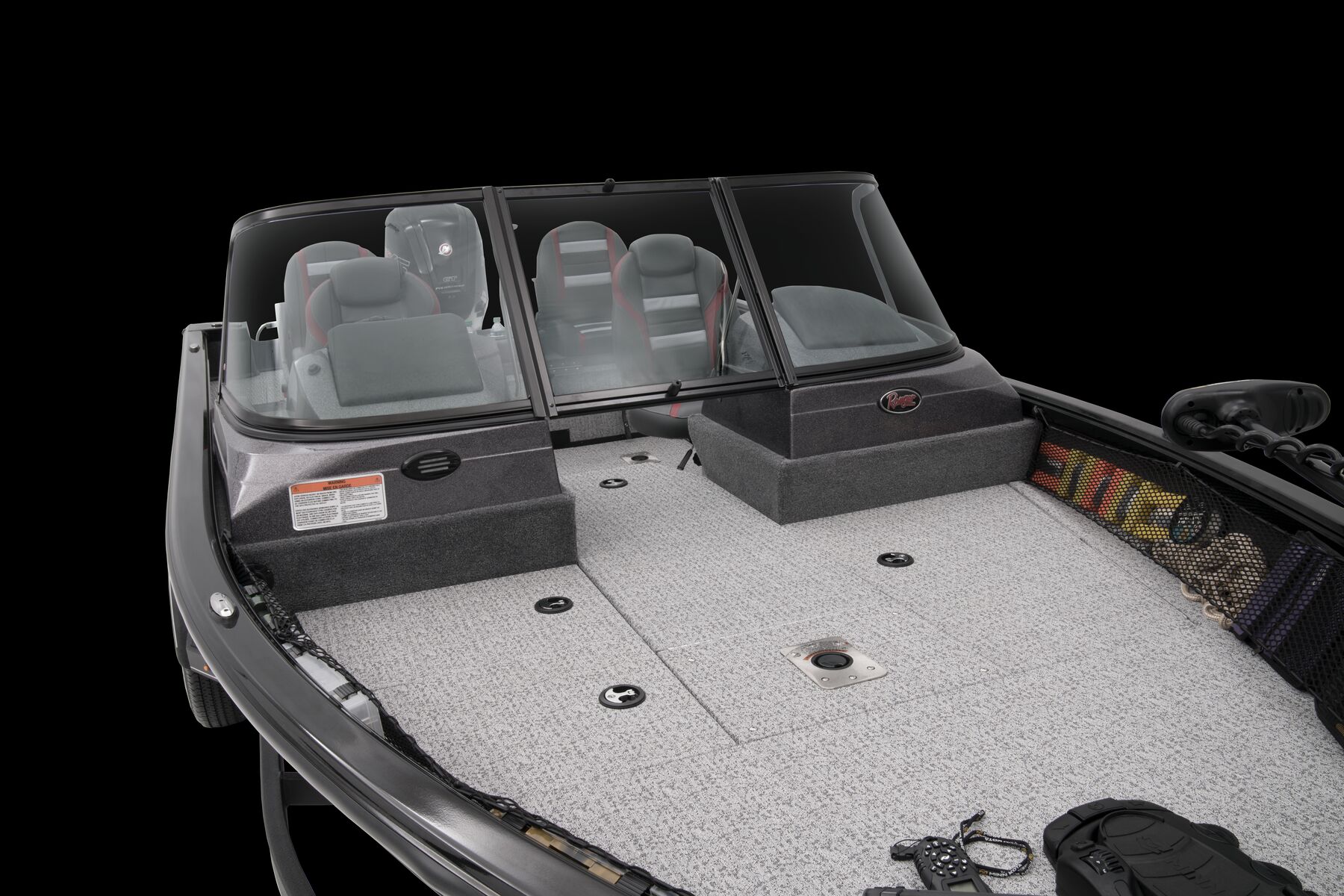

- Easy-to-clean, skid-resistant flooring
- Divided, aerated rear livewell; front baitwell

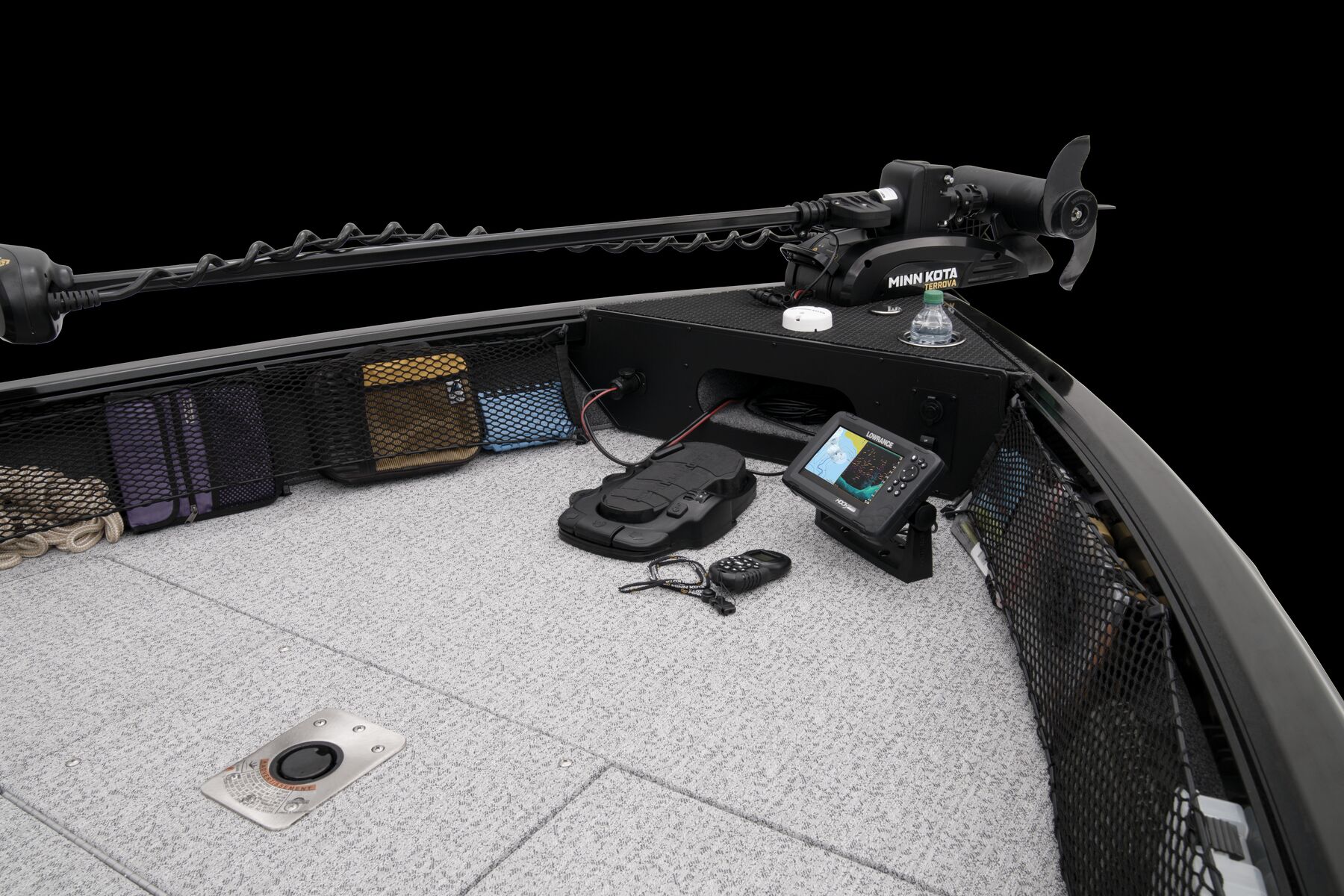

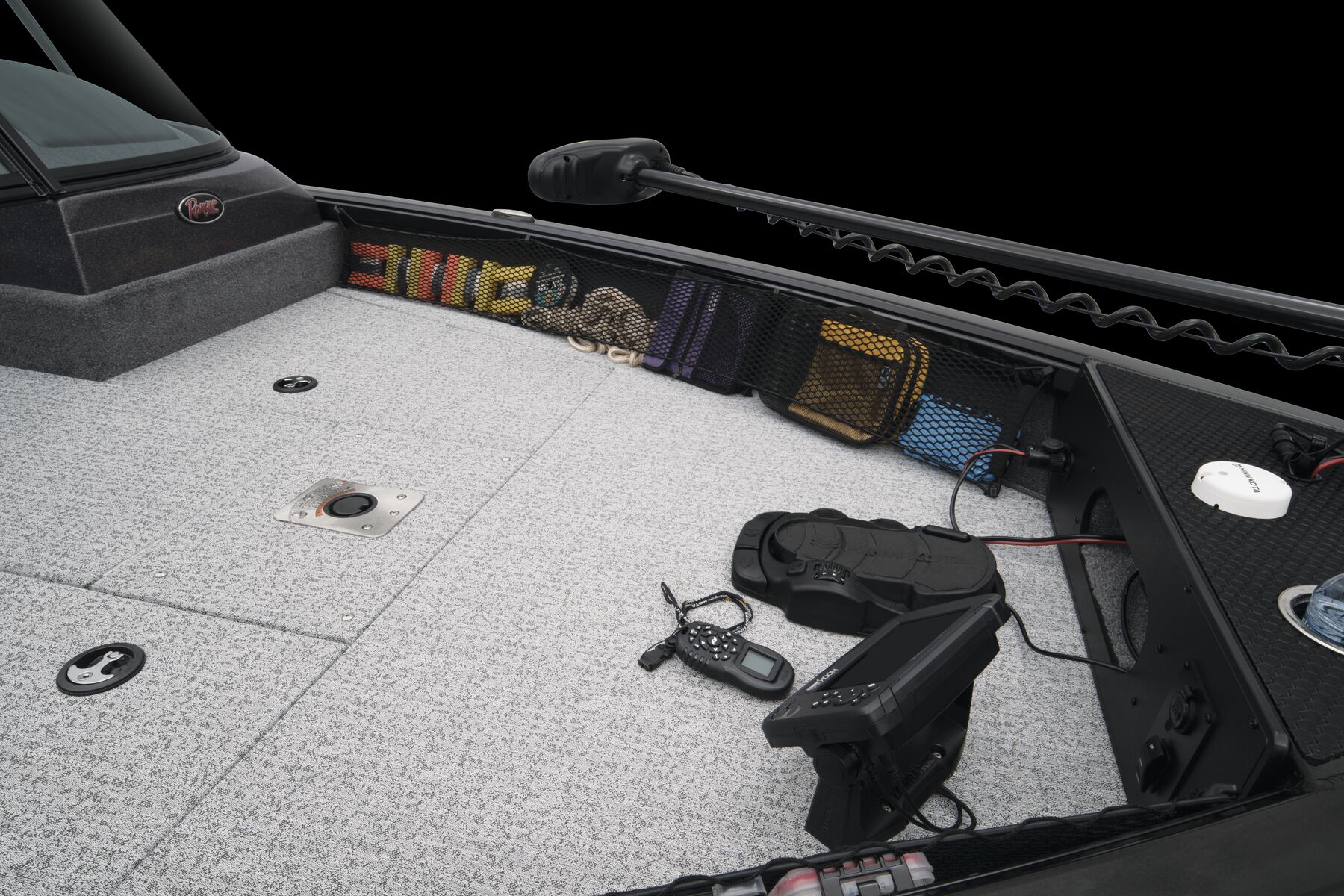

- Mesh tackle web lining at bow
Specifications
| Length | 5.38 m | 17' 8'' |
| Hull Length | 5.38 m | 17' 8'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 150 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 55.88 cm | 22'' |
| Hull Thickness | 0.3175 cm | 0.125'' |
| Chine Width | 2.08 m | 82'' |
| Fuel Capacity | 94.63 L | 25 gal. |
| Livewell Capacity | 109.77 L | 29 gal. |
| Baitwell Capacity | 45.42 L | 12 gal. |
| Total Person, Motor, Gear | 680.39 kg | 1500 lbs. |
| Approximate Boat Weight | 762.04 kg | 1680 lbs. |
| Rod Box Length - Center | 2.29 m | 7' 6'' |
| Max. Person Capacity | 6 persons | |
| Trailer GVWR | 1358.51 kg | 2995 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 6.98 m | 22' 11'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 5.94 m | 19' 6'' |
| Width On Trailer | 2.59 m | 102'' |
| Package Height | 1.96 m | 77'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 150 XL Pro XS FourStroke |
$41400 USD
|
Select Dealer | |||
| 115EXLPT Pro XS |
$37995 USD
|
Select Dealer | |||
Standard Features
Custom Details
- Special 55th Anniversary badging

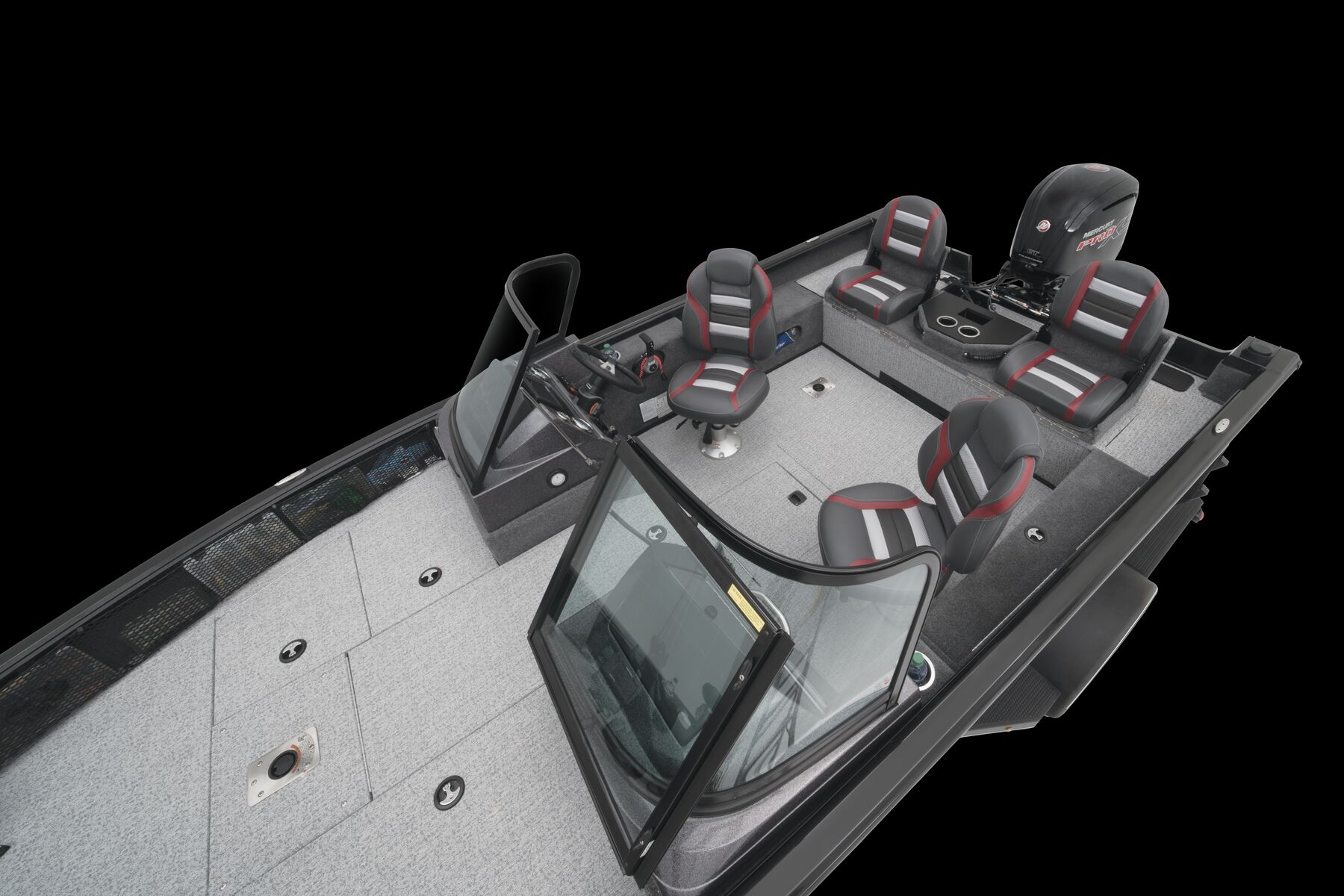

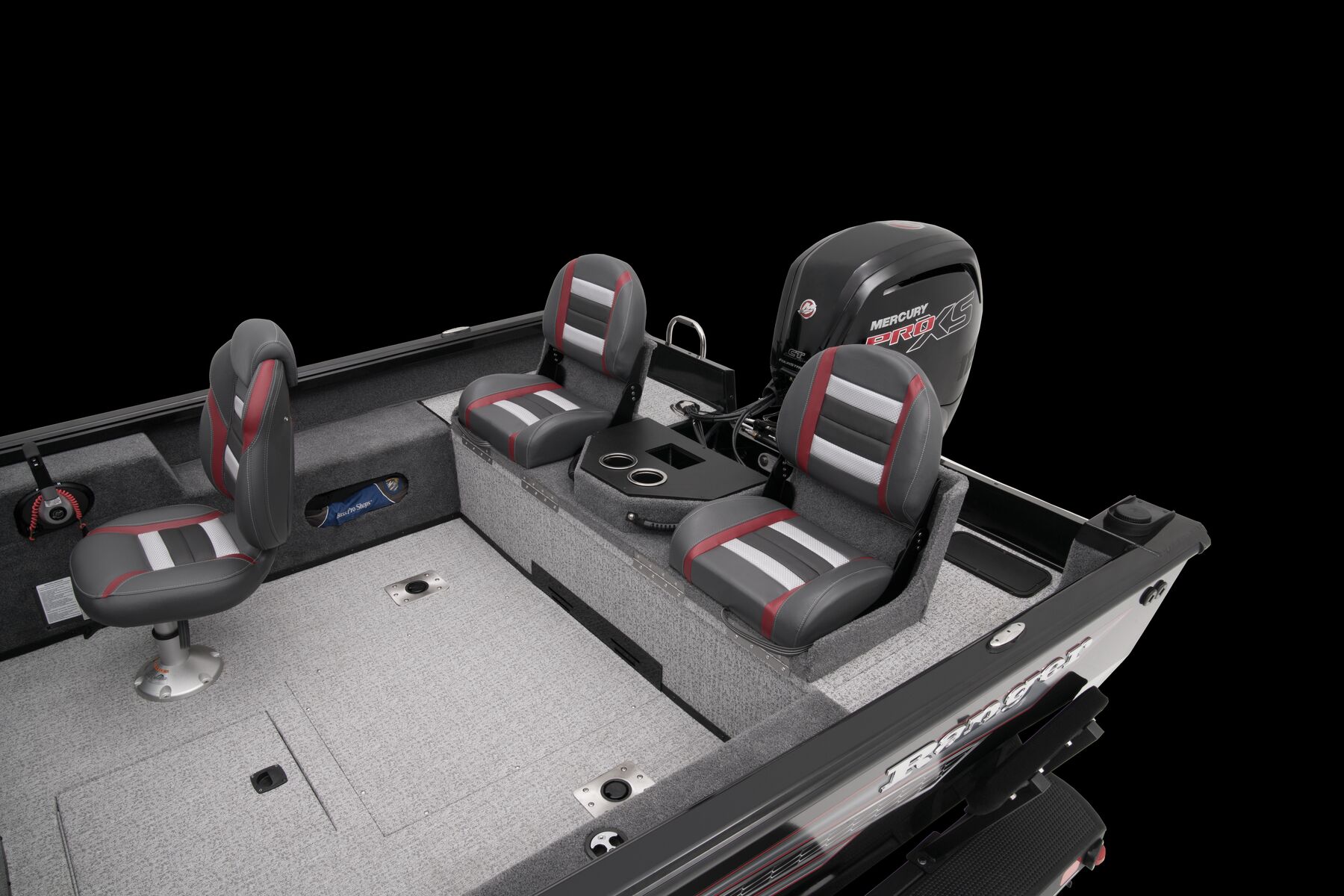

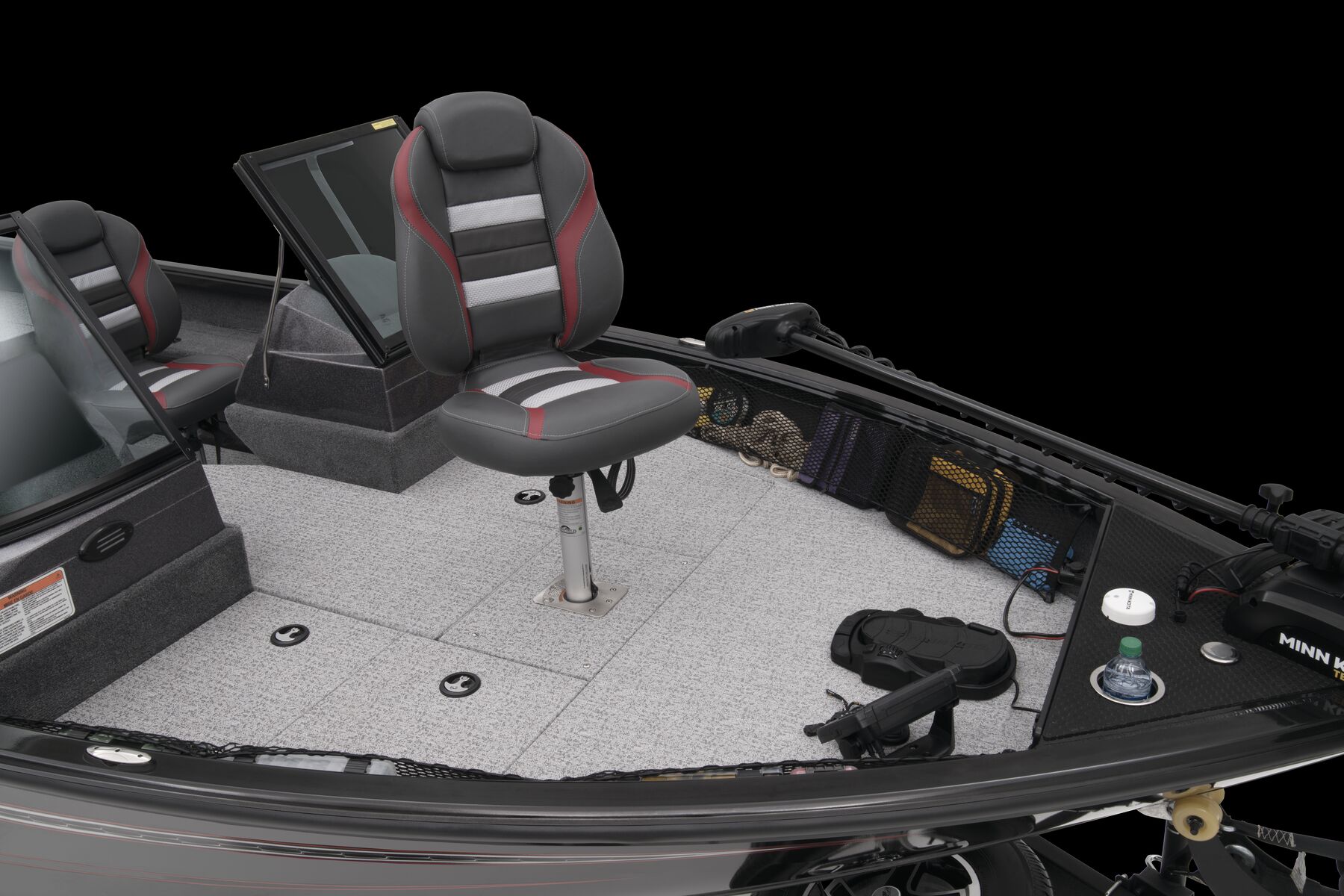

- Custom fitted marine upholstery- (3) matching fishing seats, driver seat slides
- High gloss metallic paint with custom Ranger® graphics
- Durable marine grade carpet
- Non-skid marine-grade vinyl cockpit flooring
Electronics
- Lowrance® HOOK Reveal 7 Combo at console
- 8-gauge trolling motor wiring

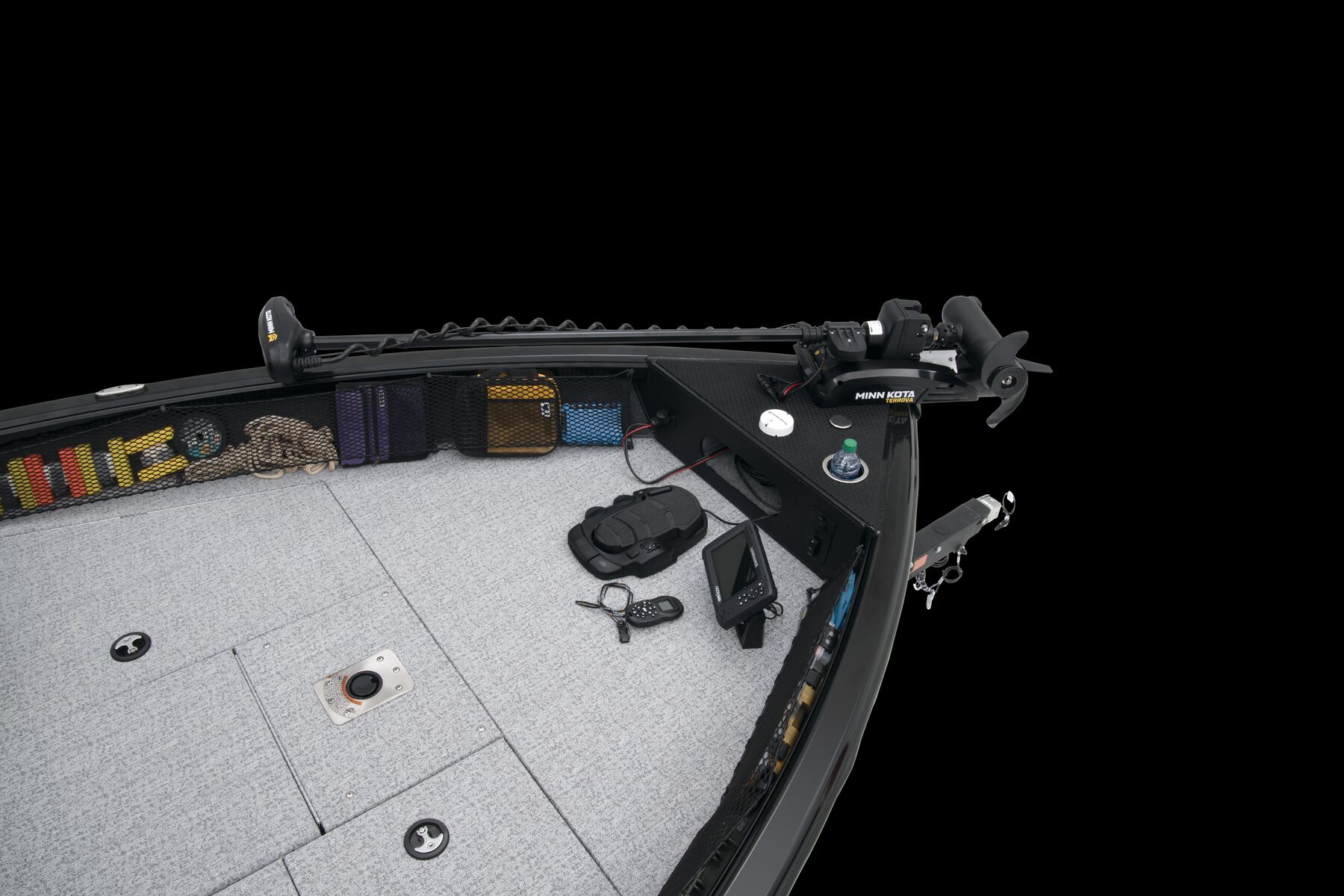

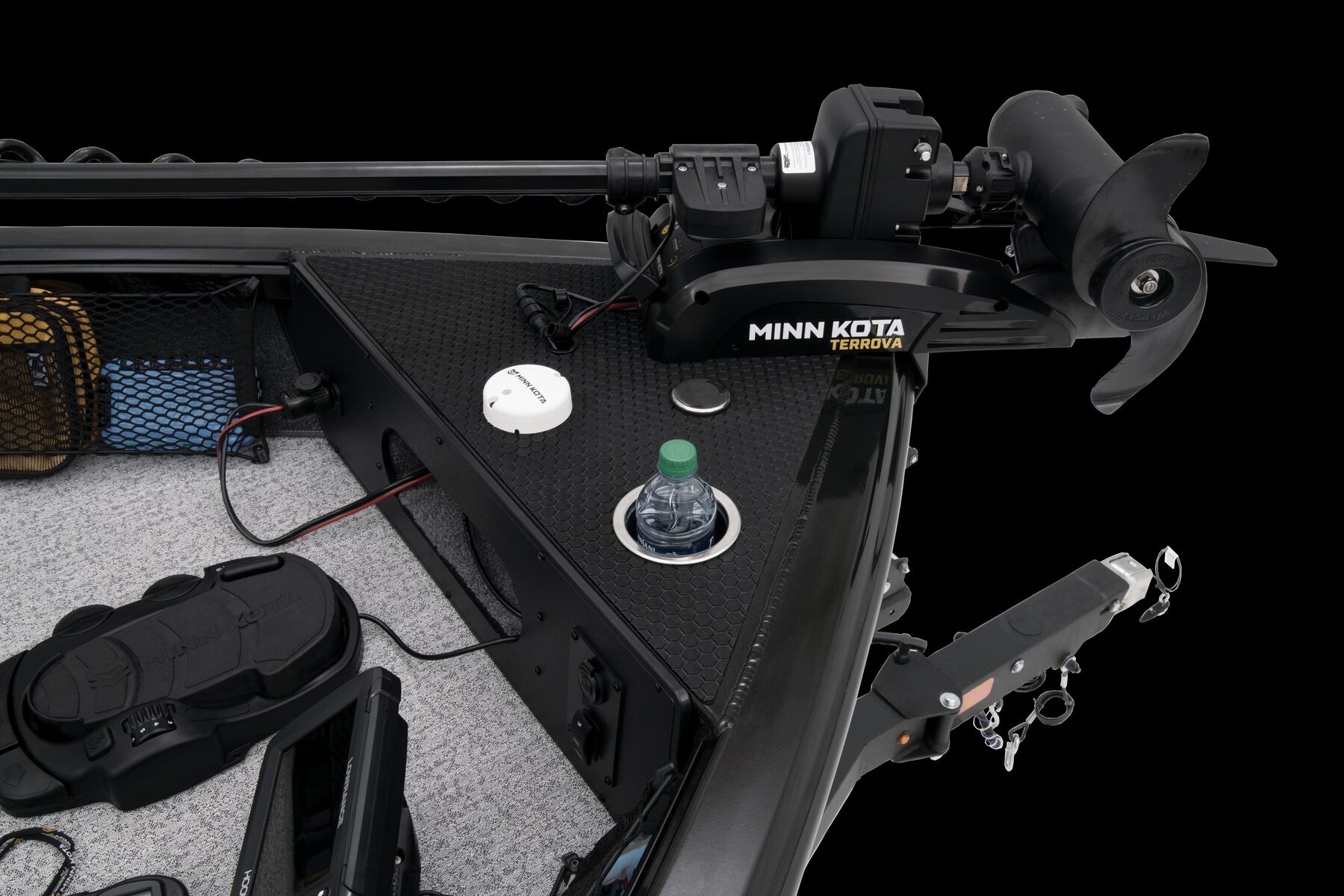

- Minn Kota® Terrova 80lb 60” US2 i-Pilot 24V trolling motor

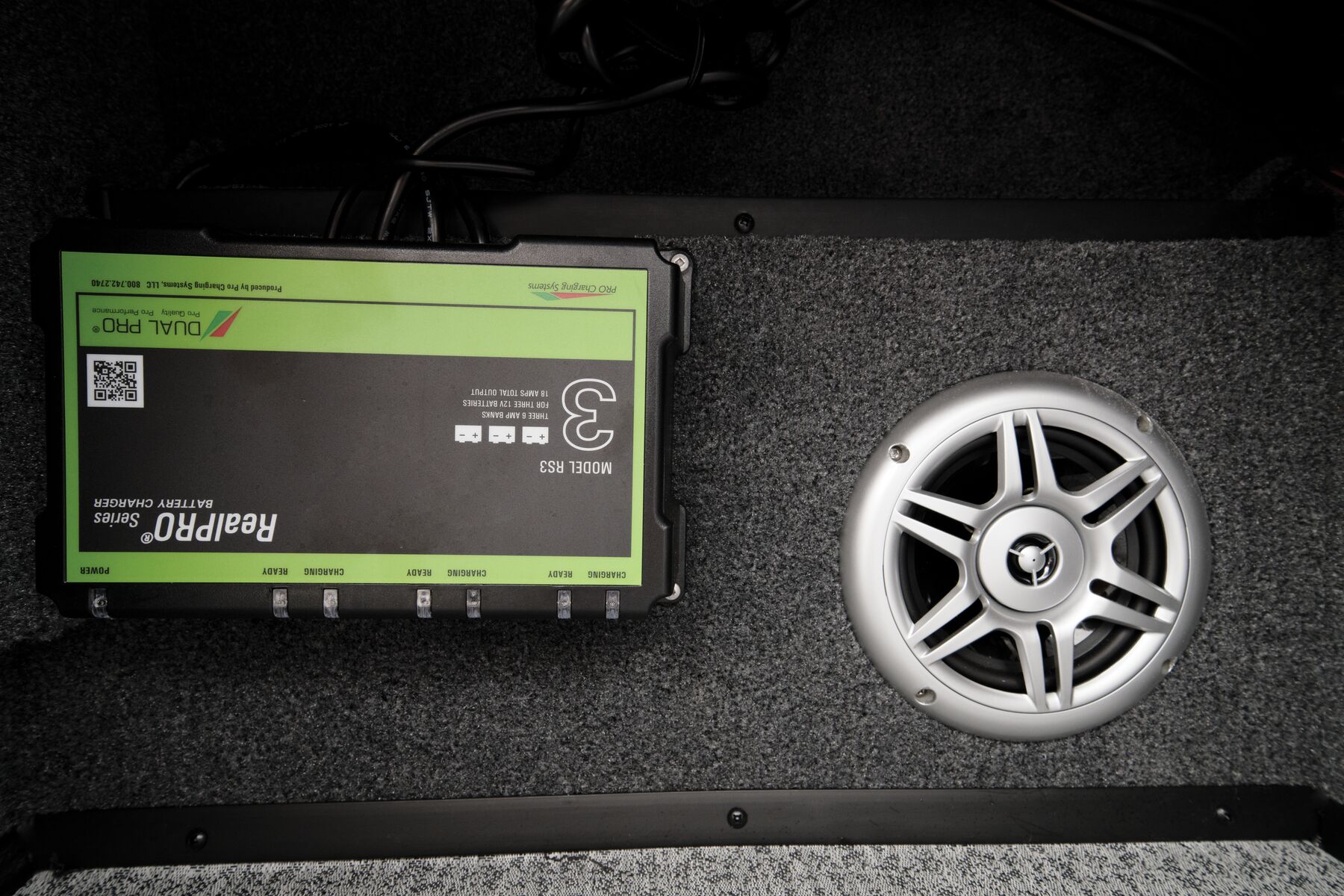

- On-board lithium capable charger, 6A x 3 bank
- 12V power outlet
- Bilge pump
- Removable navigation lights
Power/Performance
- Cranking battery and 2 trolling motor batteries with tie downs

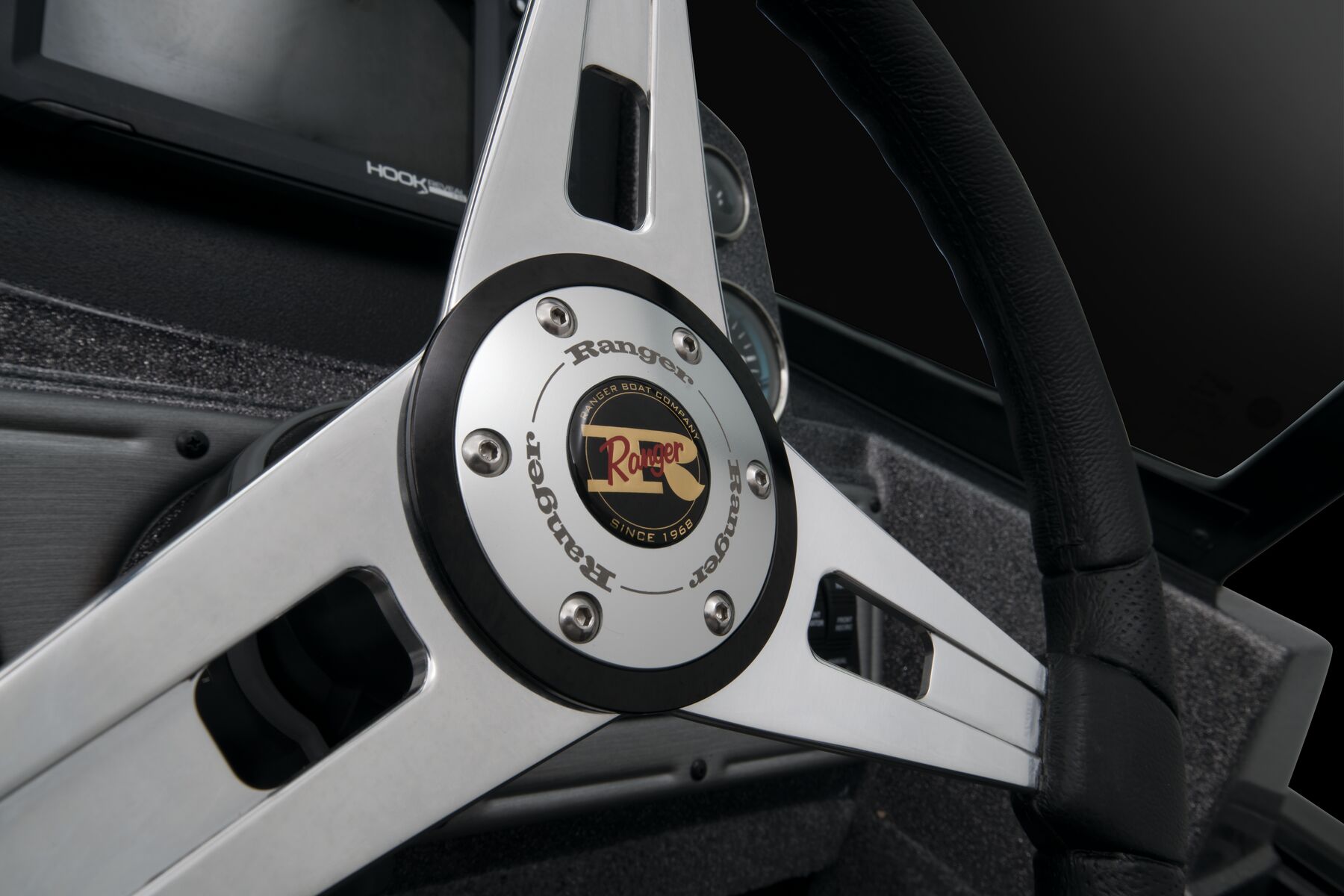

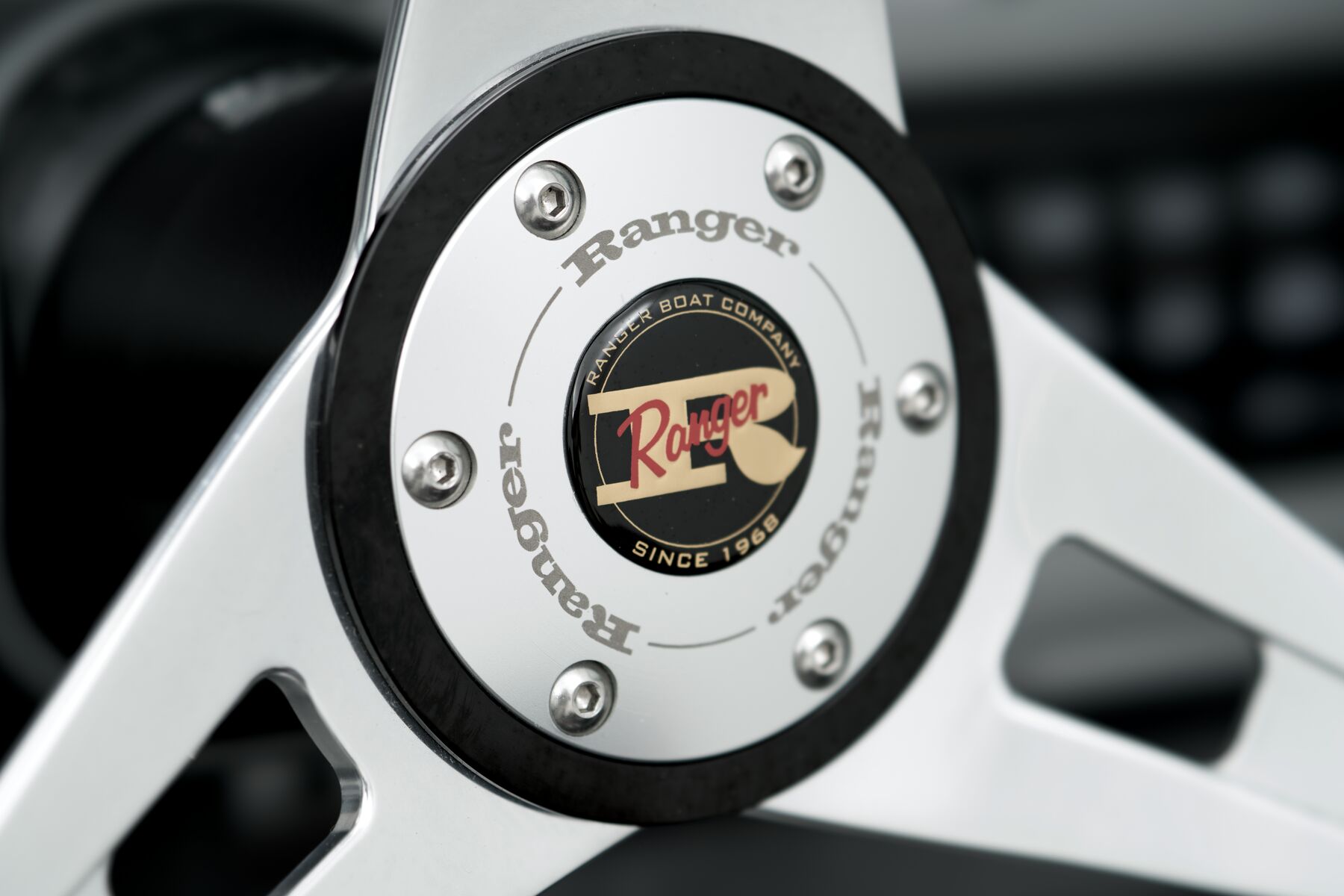

- Competition steering wheel

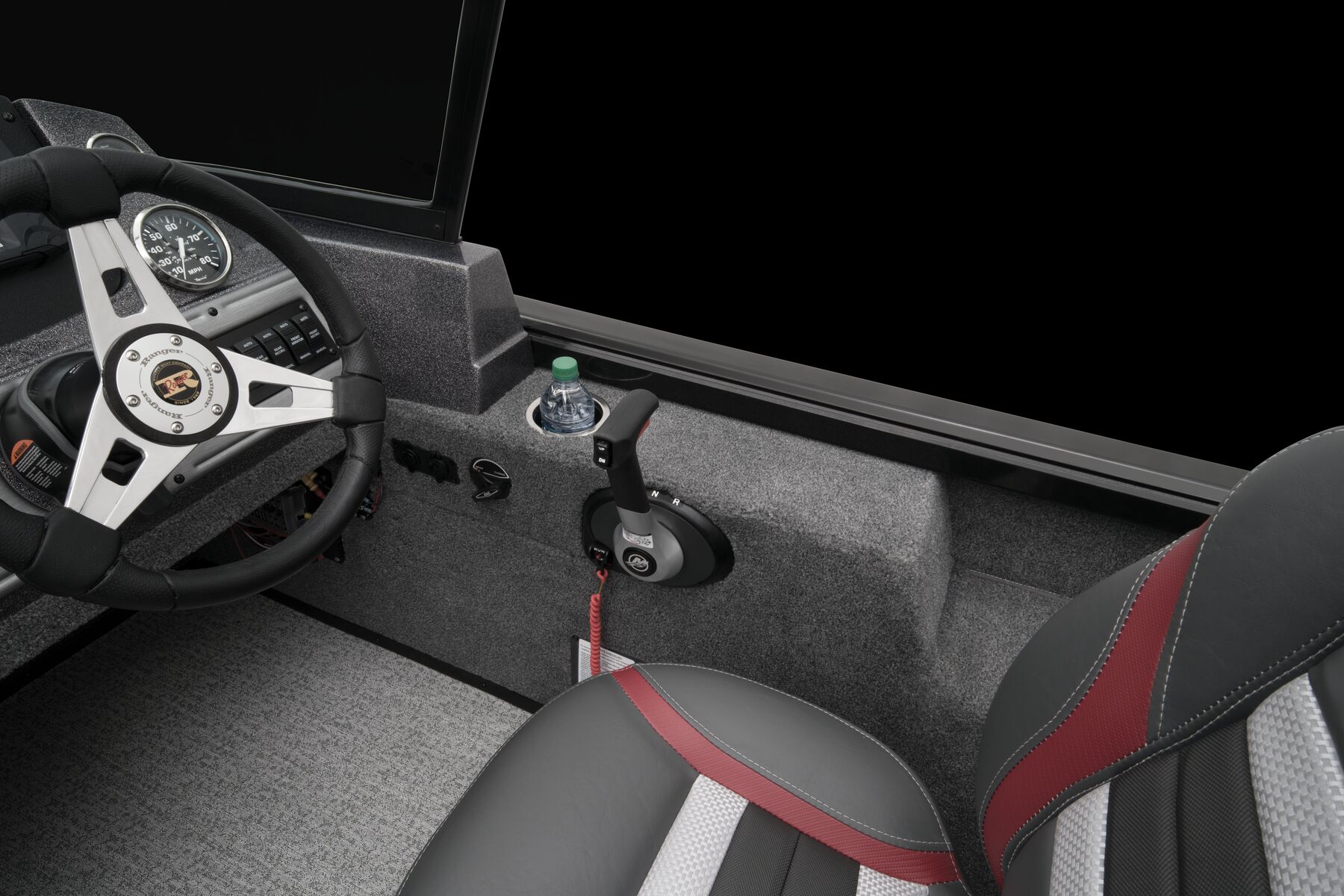

- Flush-mounted remote throttle control
- Tilt hydraulic steering
- Prop (stainless standard at 115HP and up)
- Power trim

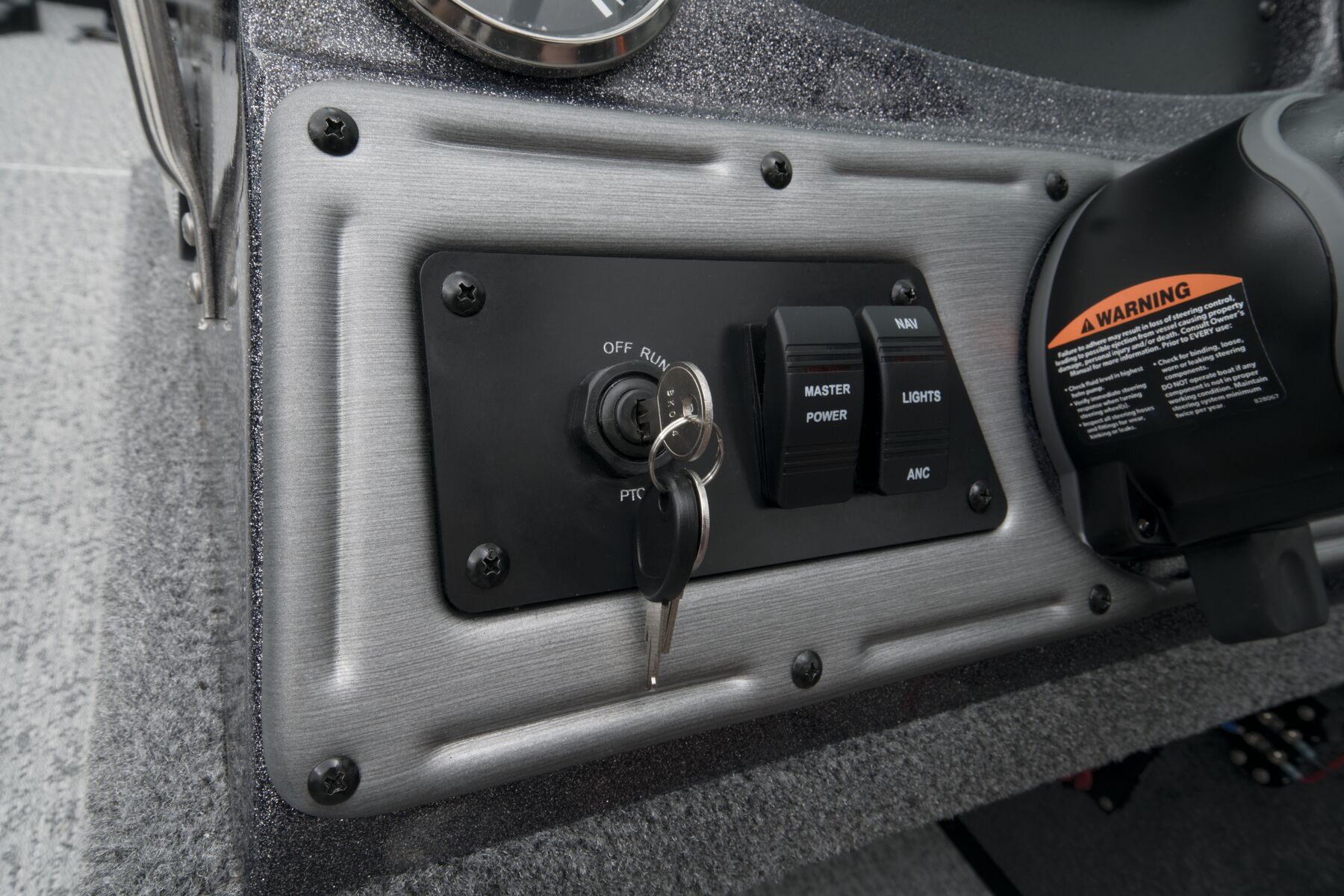

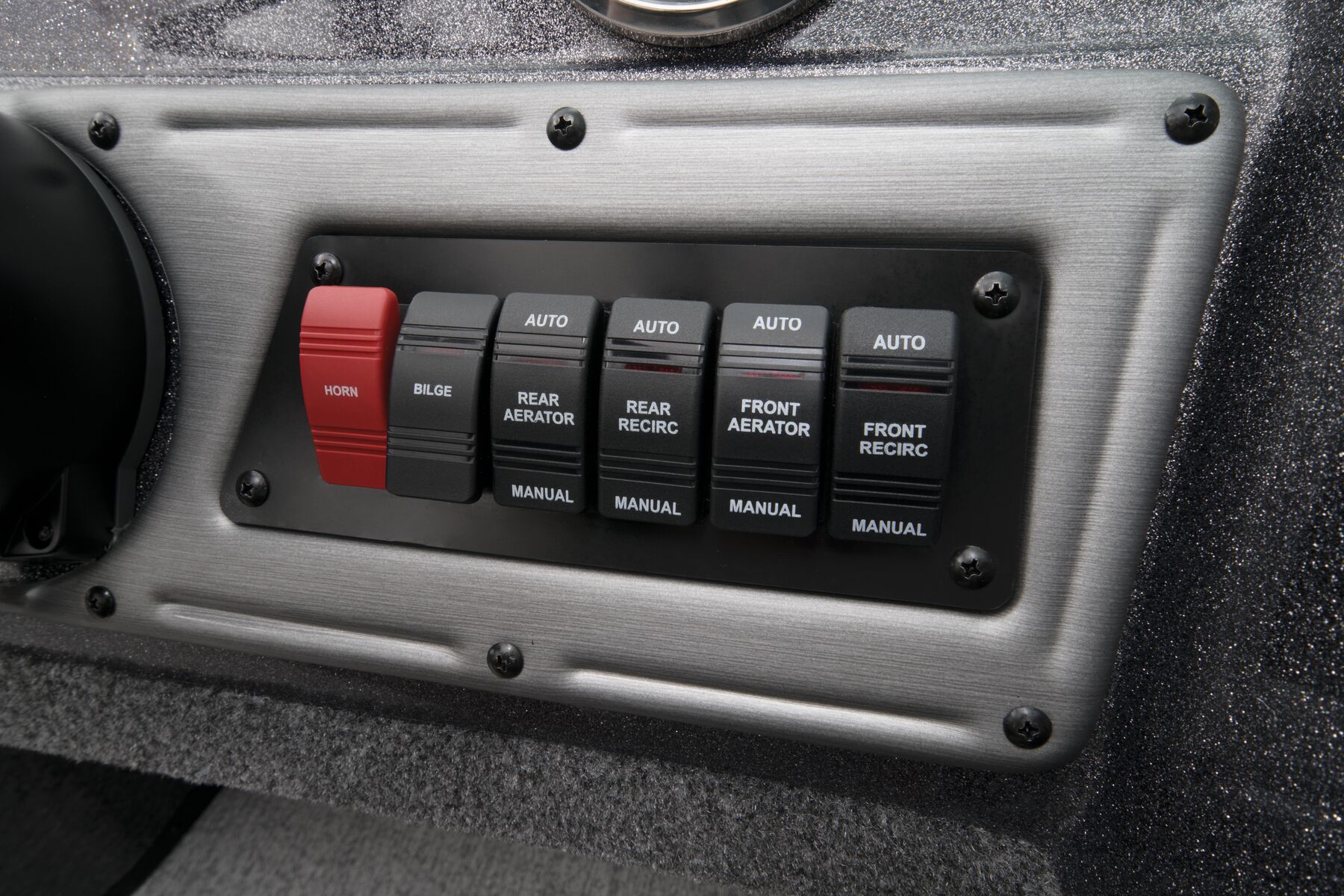

- Bow trim & navigation switches

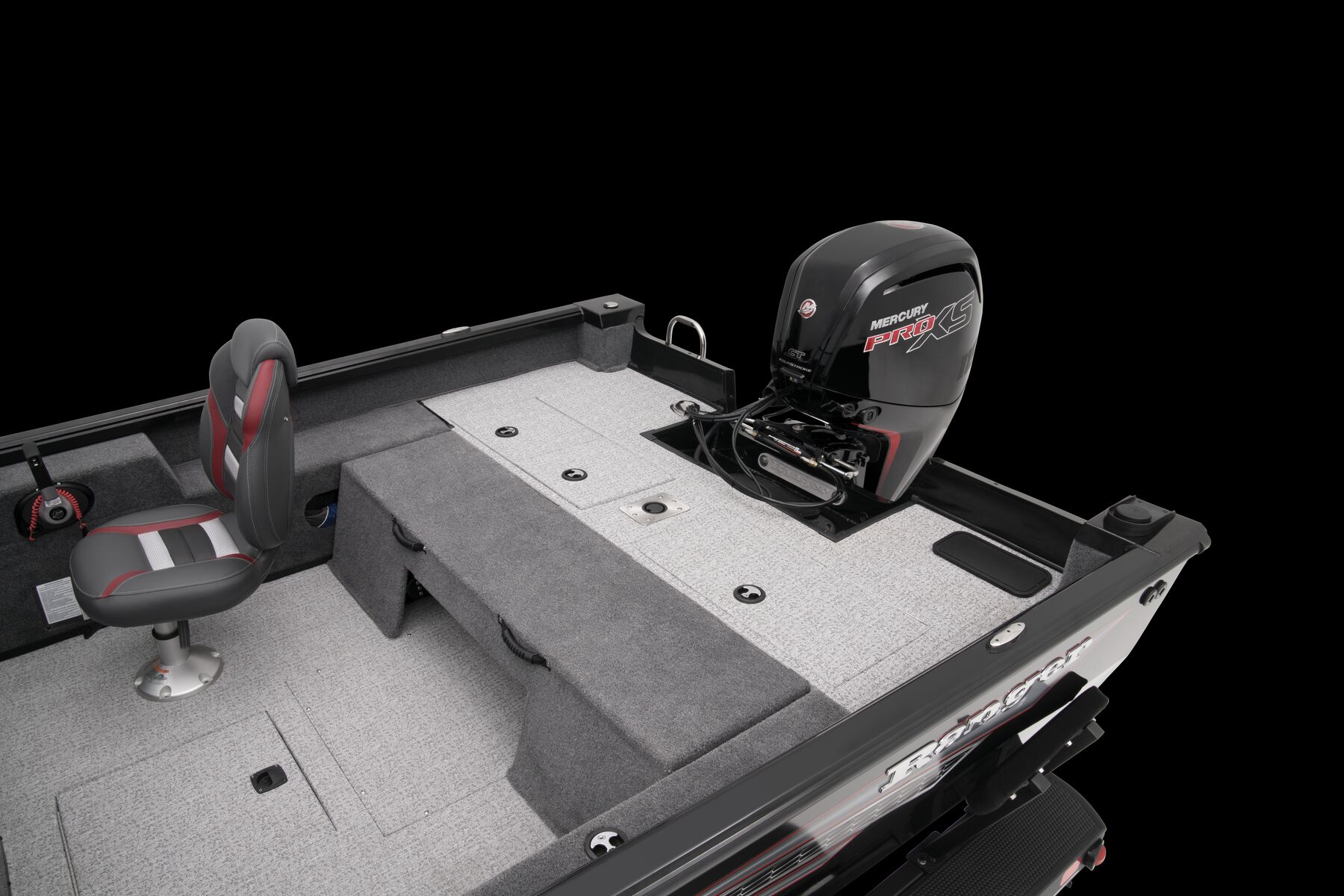

- Aerated divided livewell w/ timer and baitwell on rear deck
- Aerated livewell / baitwell on front deck

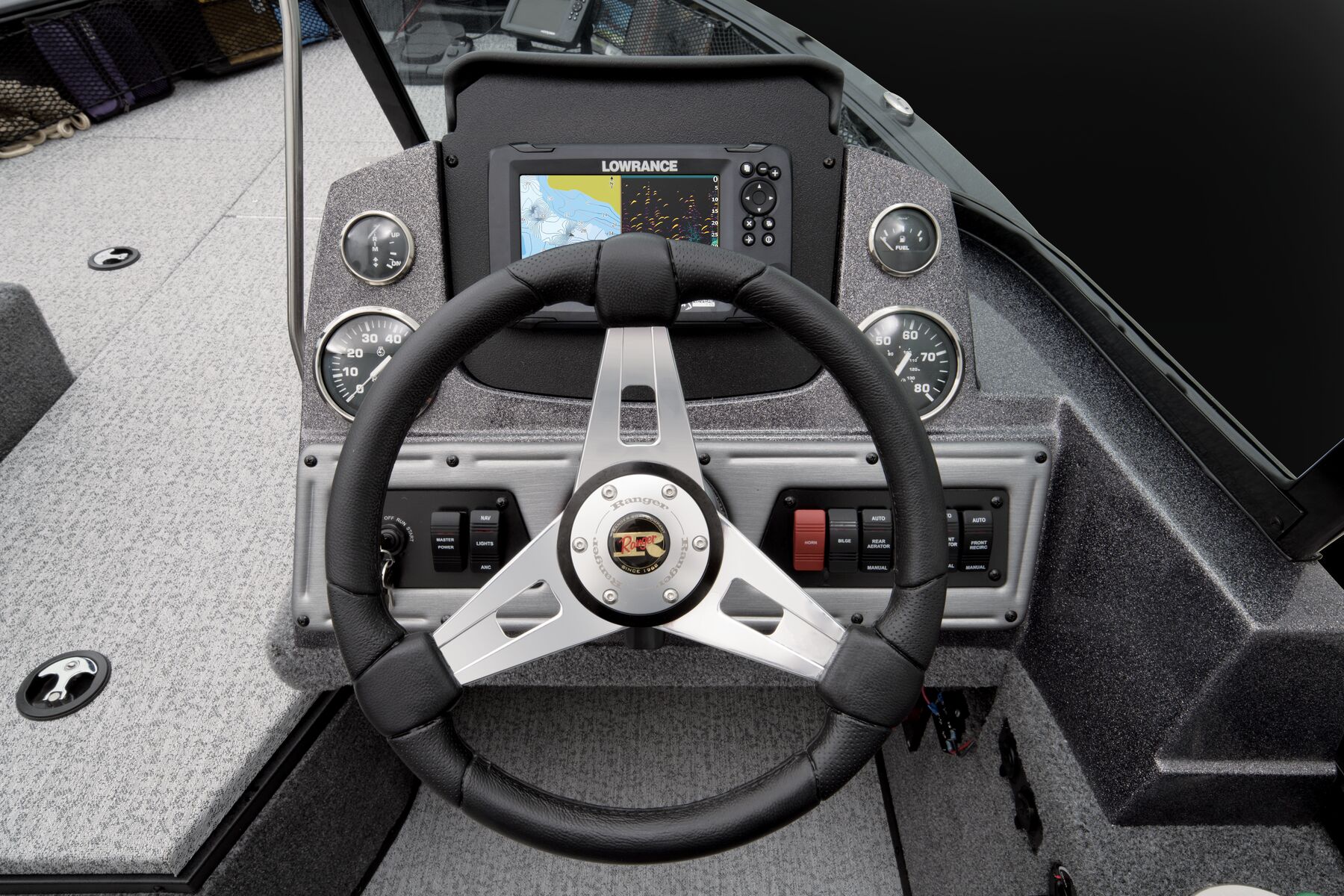

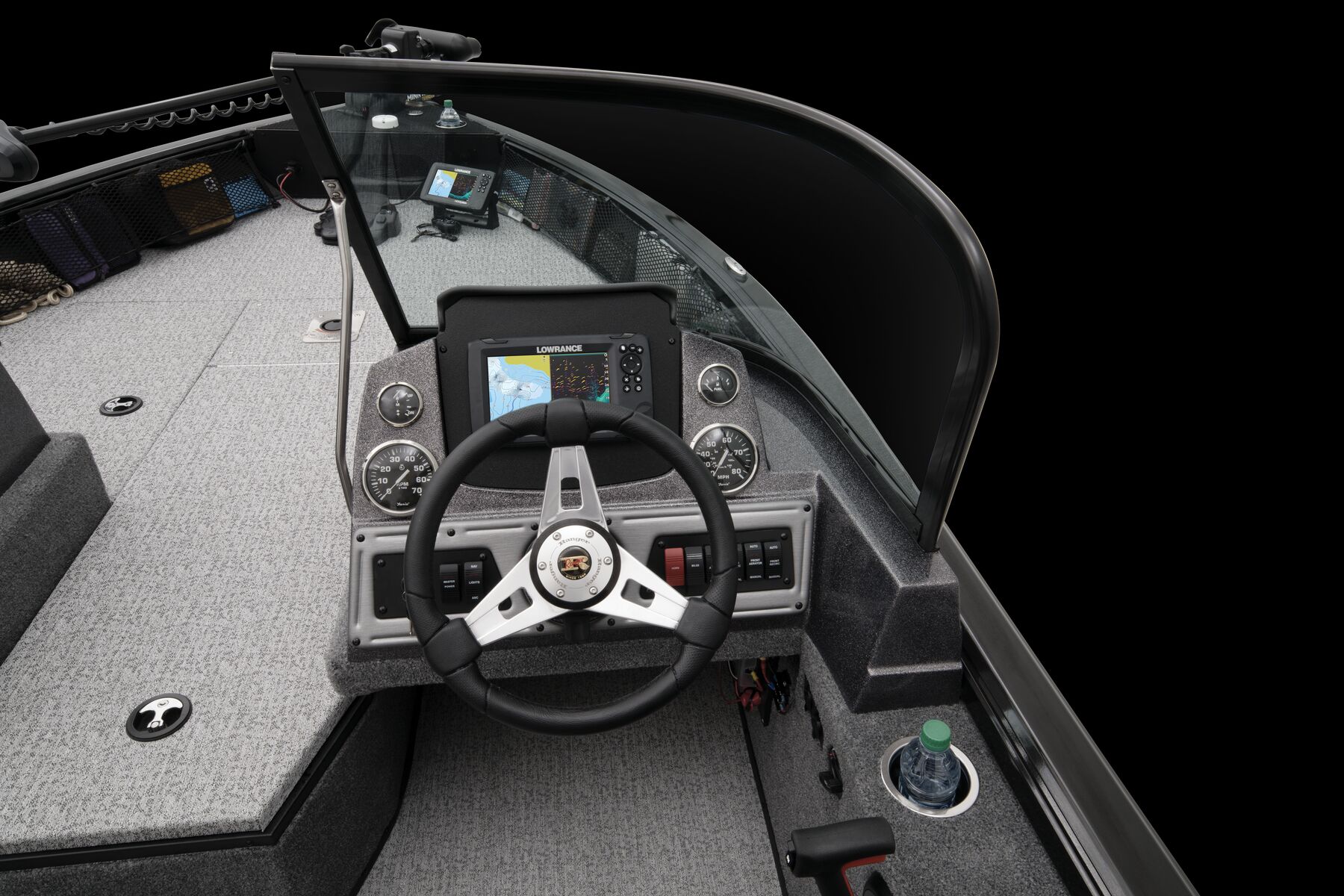

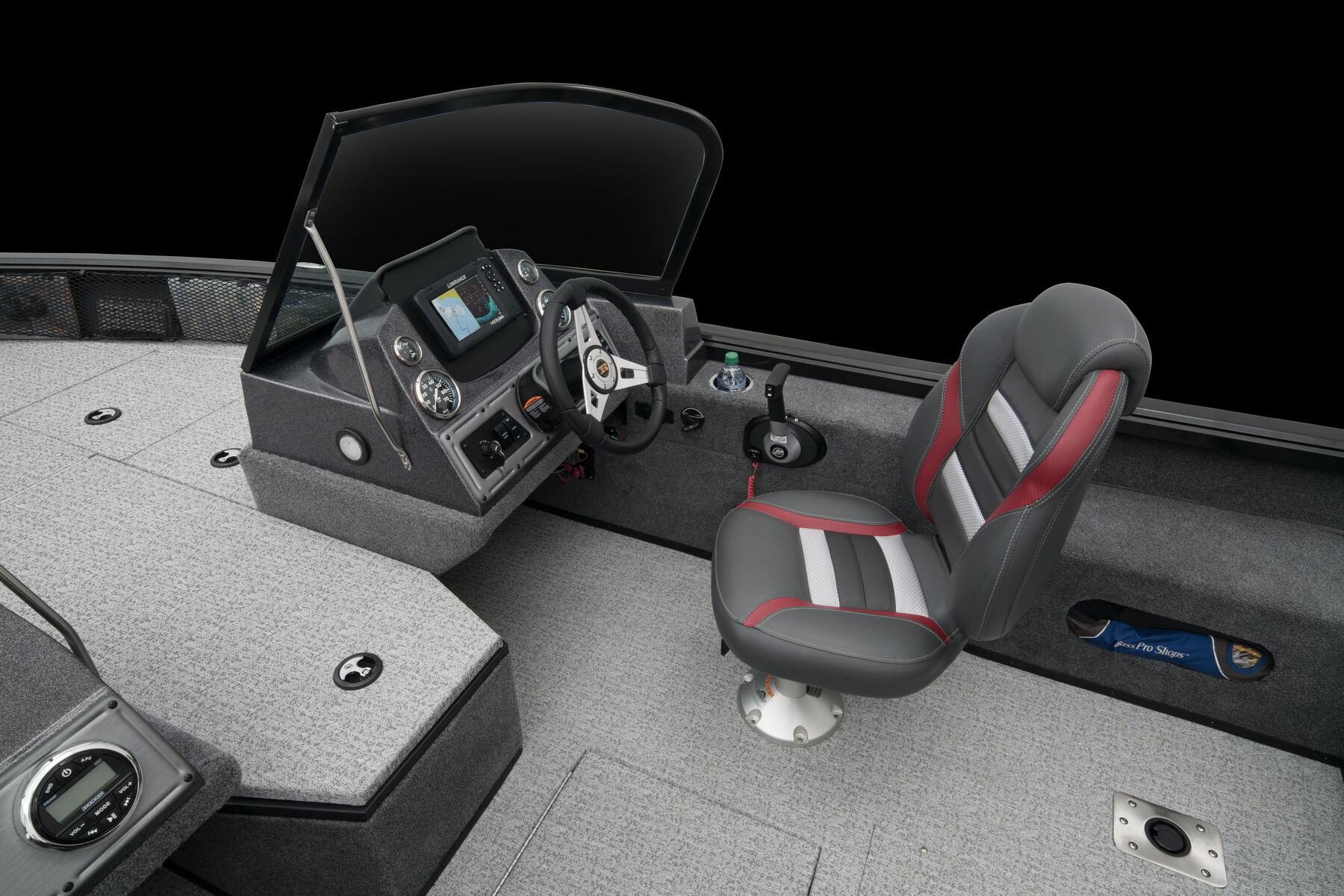

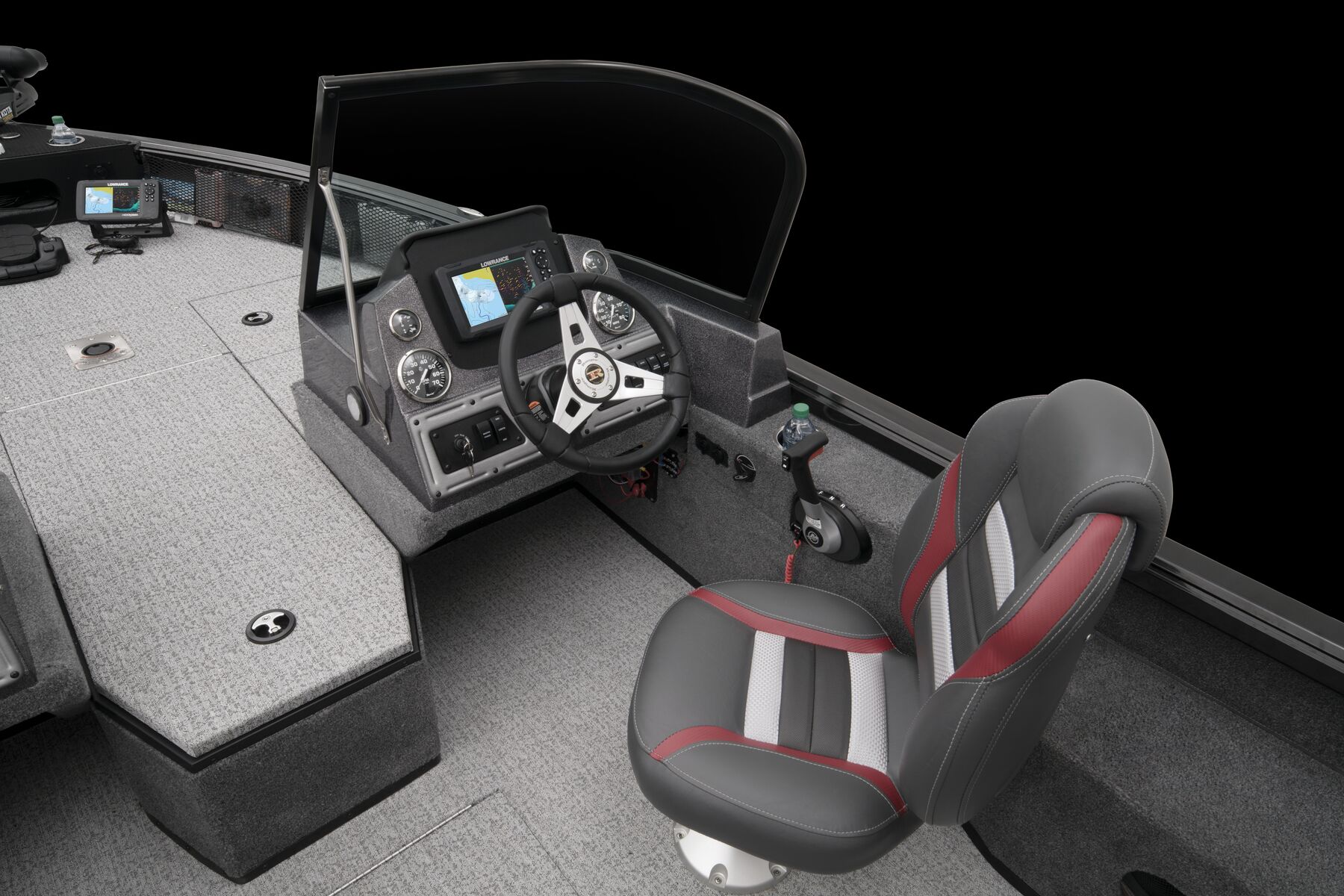

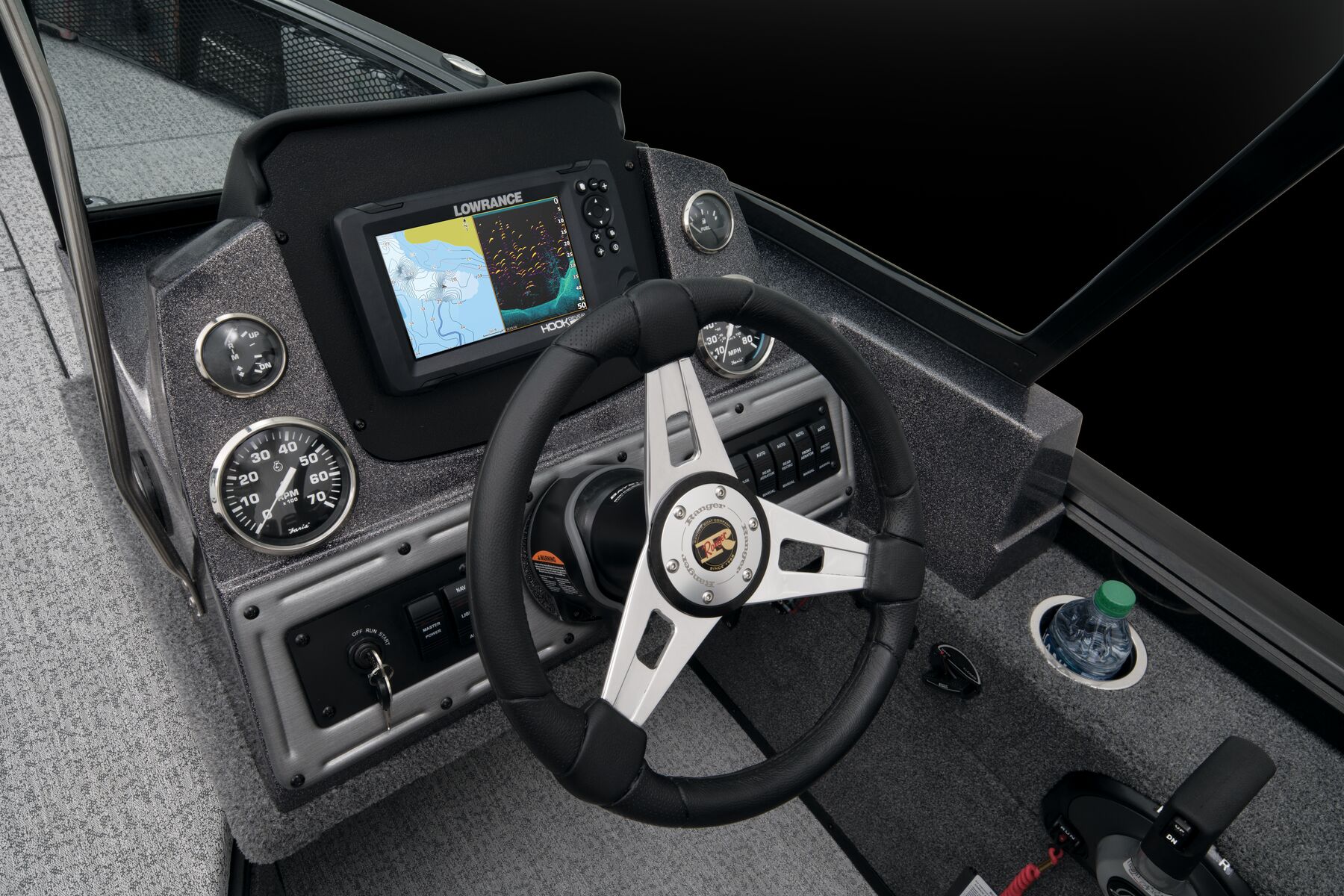

- Custom fiberglass console w/ flush mounted depthfinder, tach, speed, fuel, trim gauges & easy touch switching
Safety/Comfort
- Pull-up tie cleats (4)
- All-aluminum floor & decks

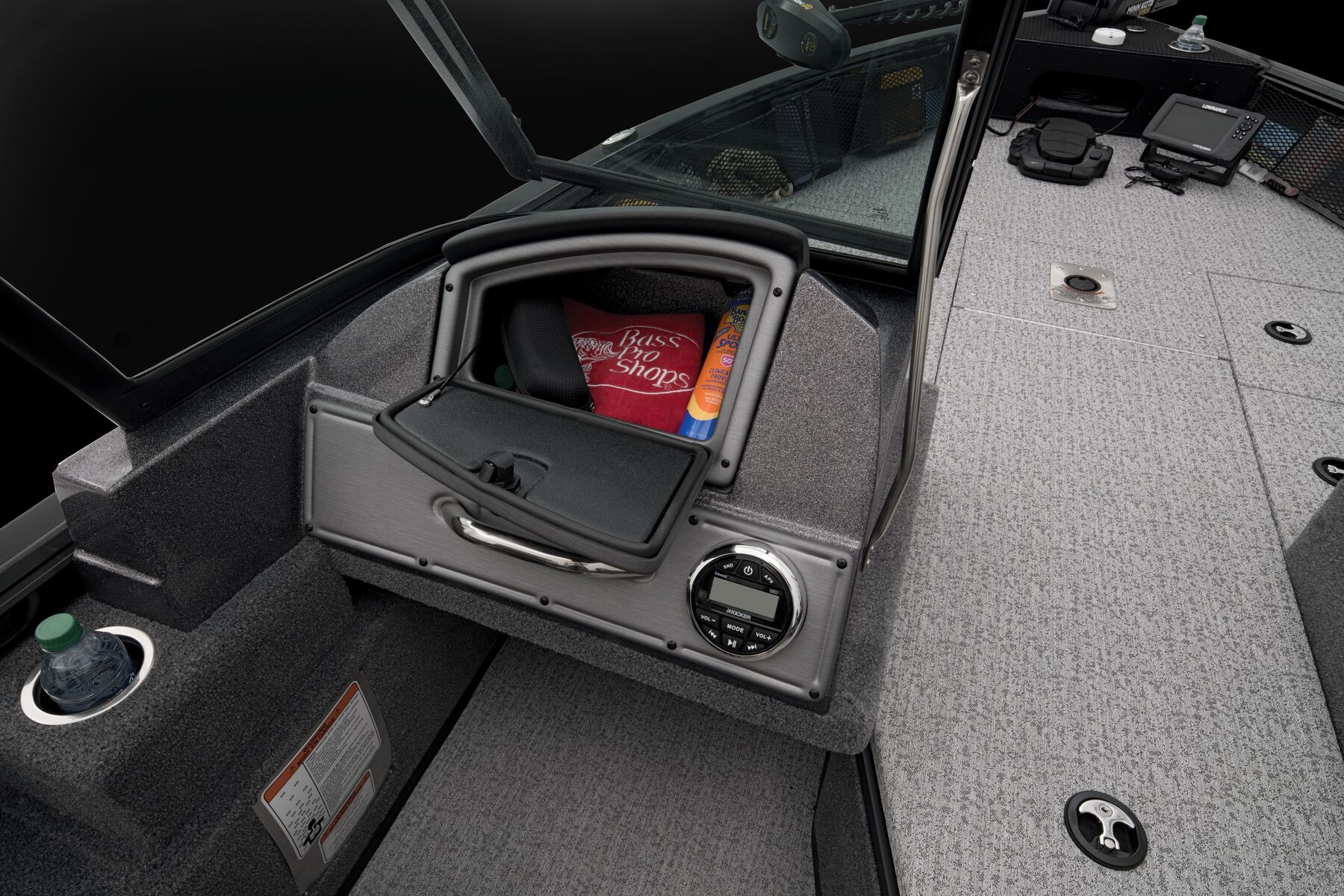

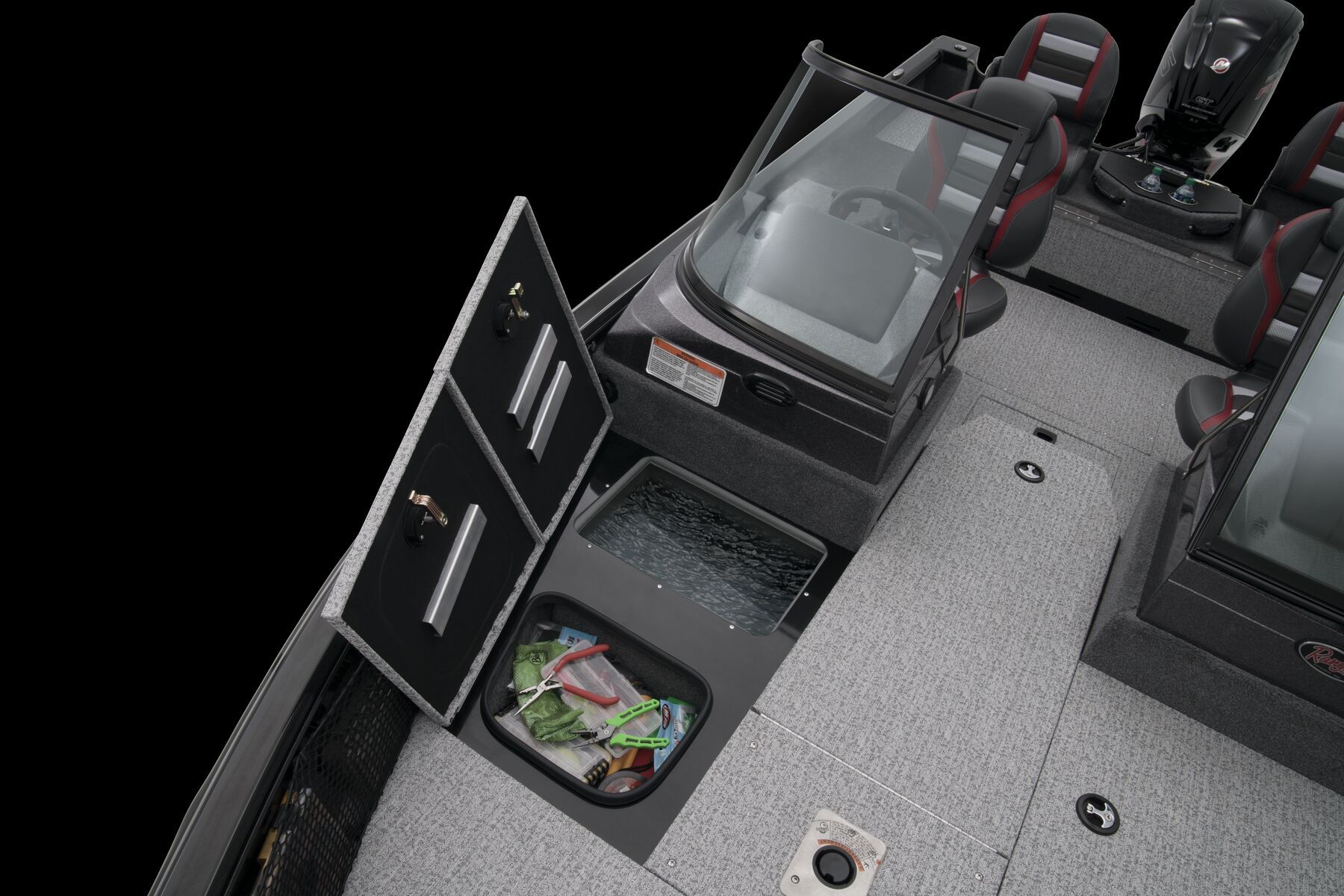

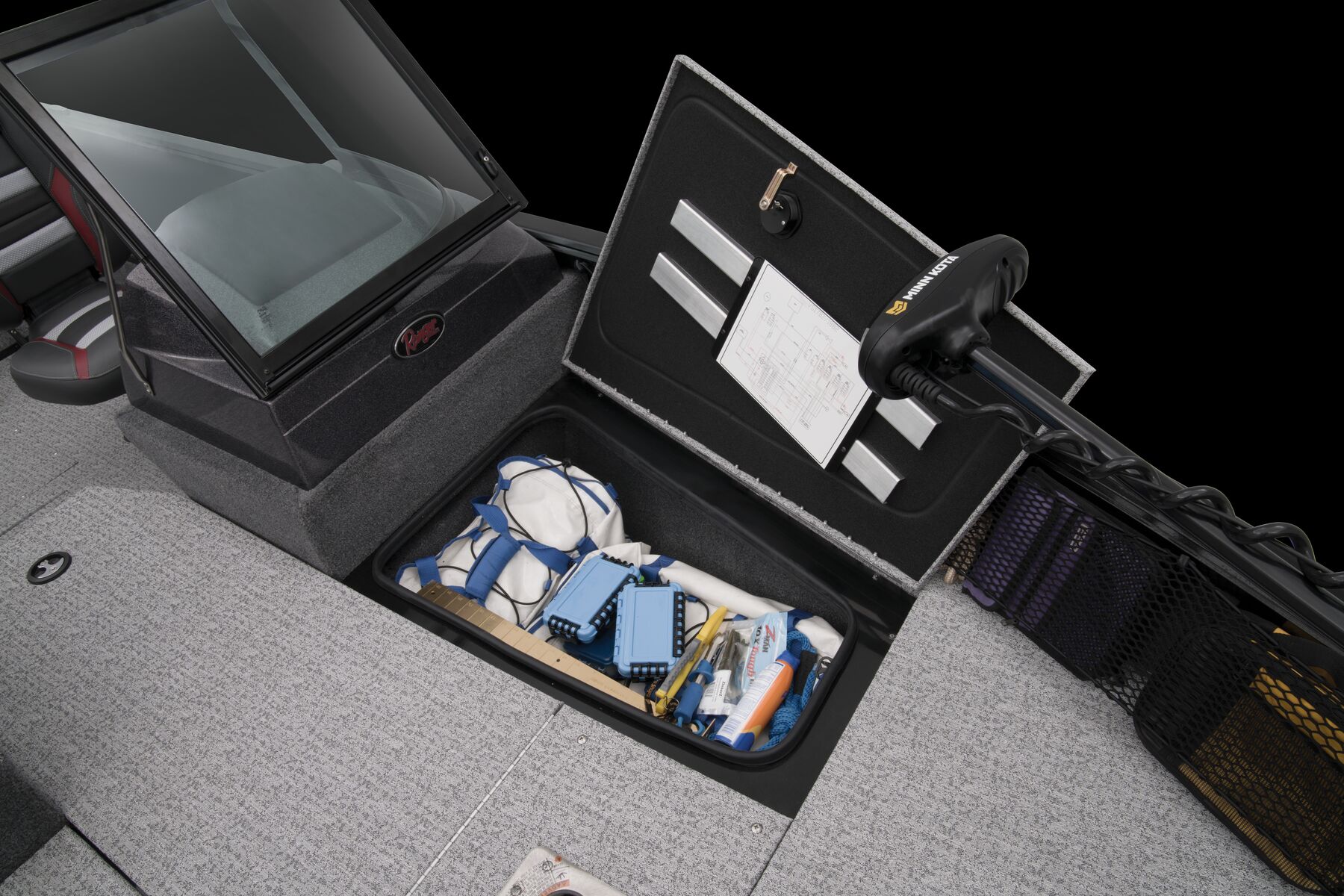

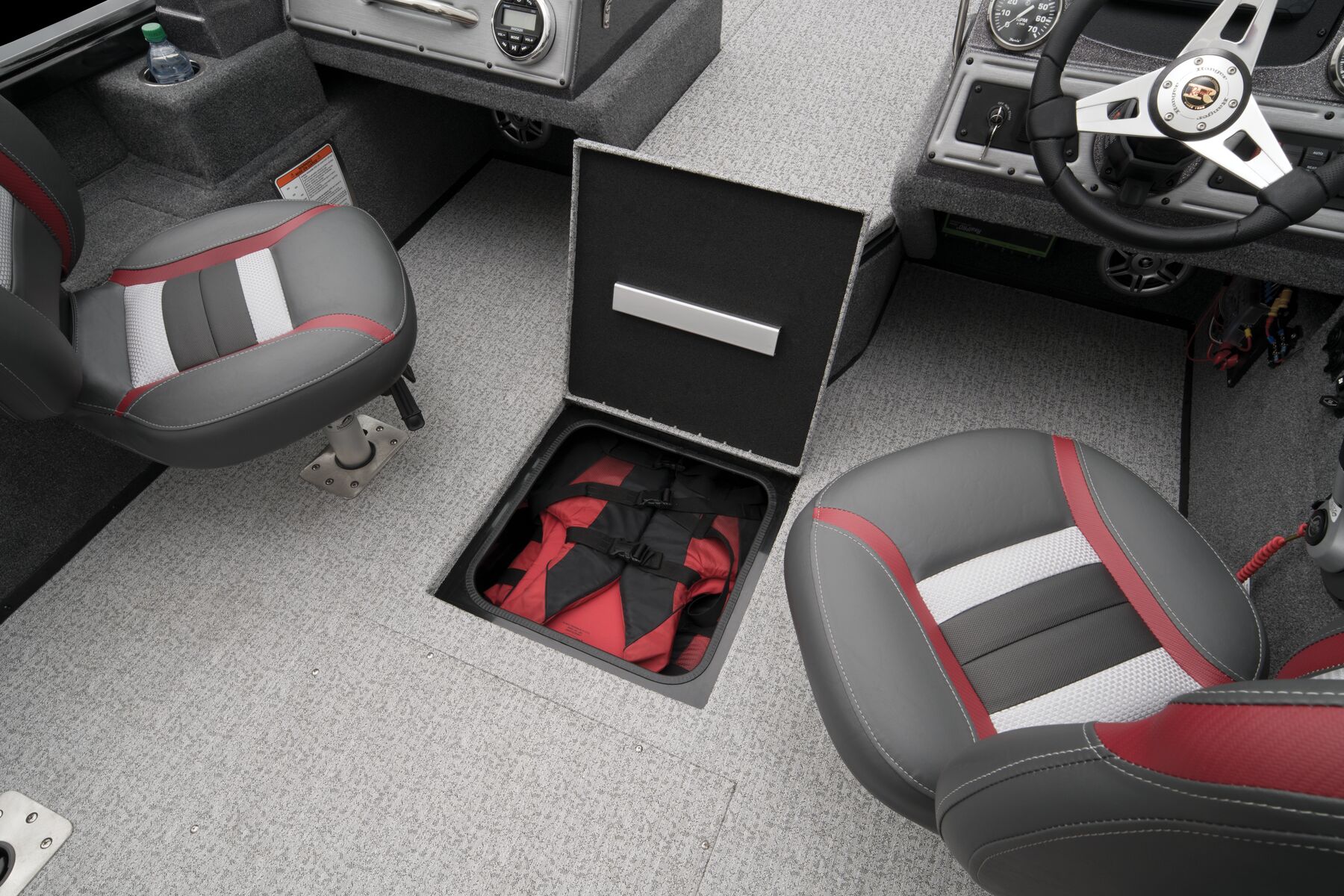

- Lockable storage
- Upright, level flotation

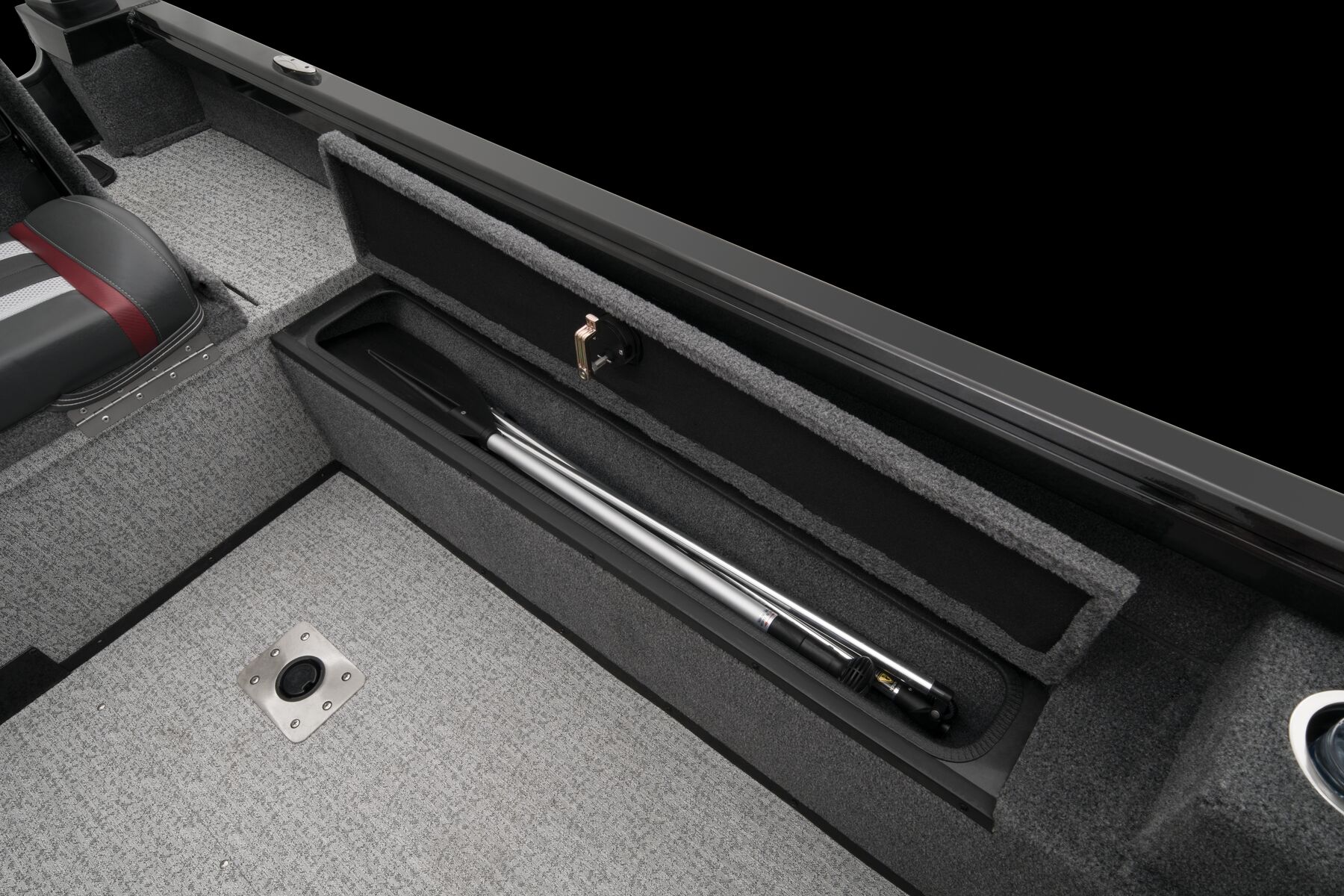

- Lockable rod storage
- 5052 H34 marine grade aluminum
- Foam-filled one-piece construction

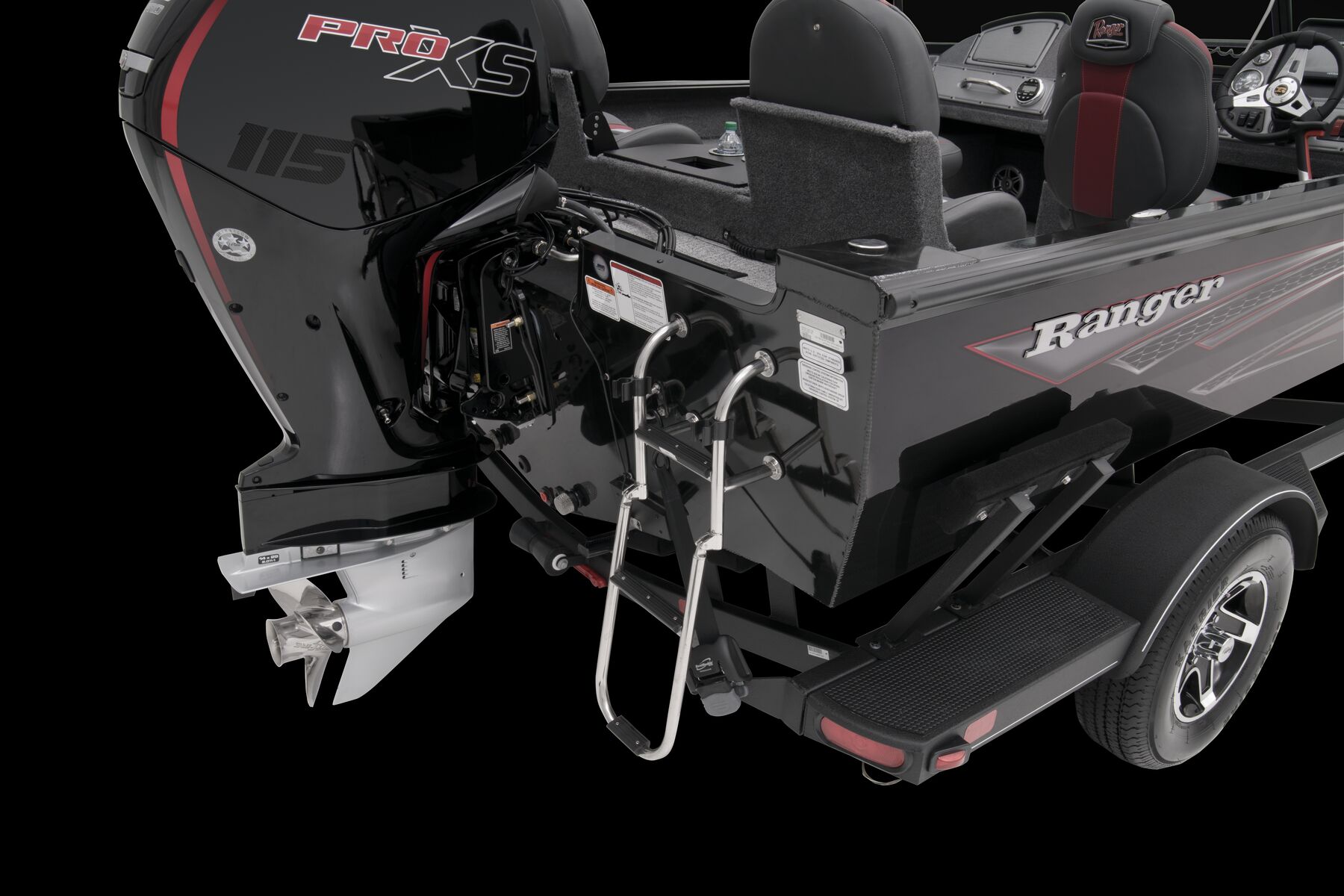

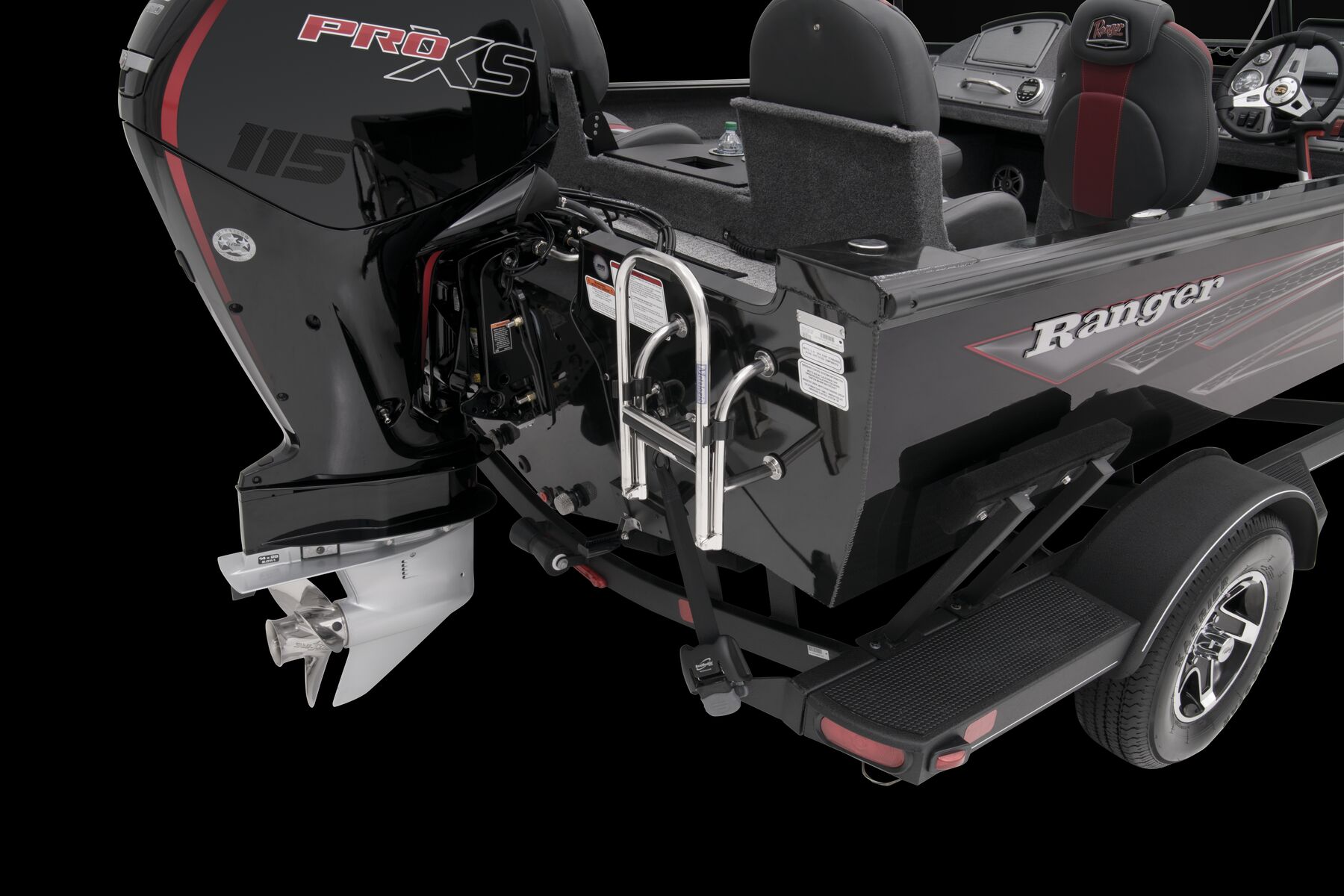

- Stainless steel boarding ladder
- All welded aluminum transom
- Built-in horn assembly

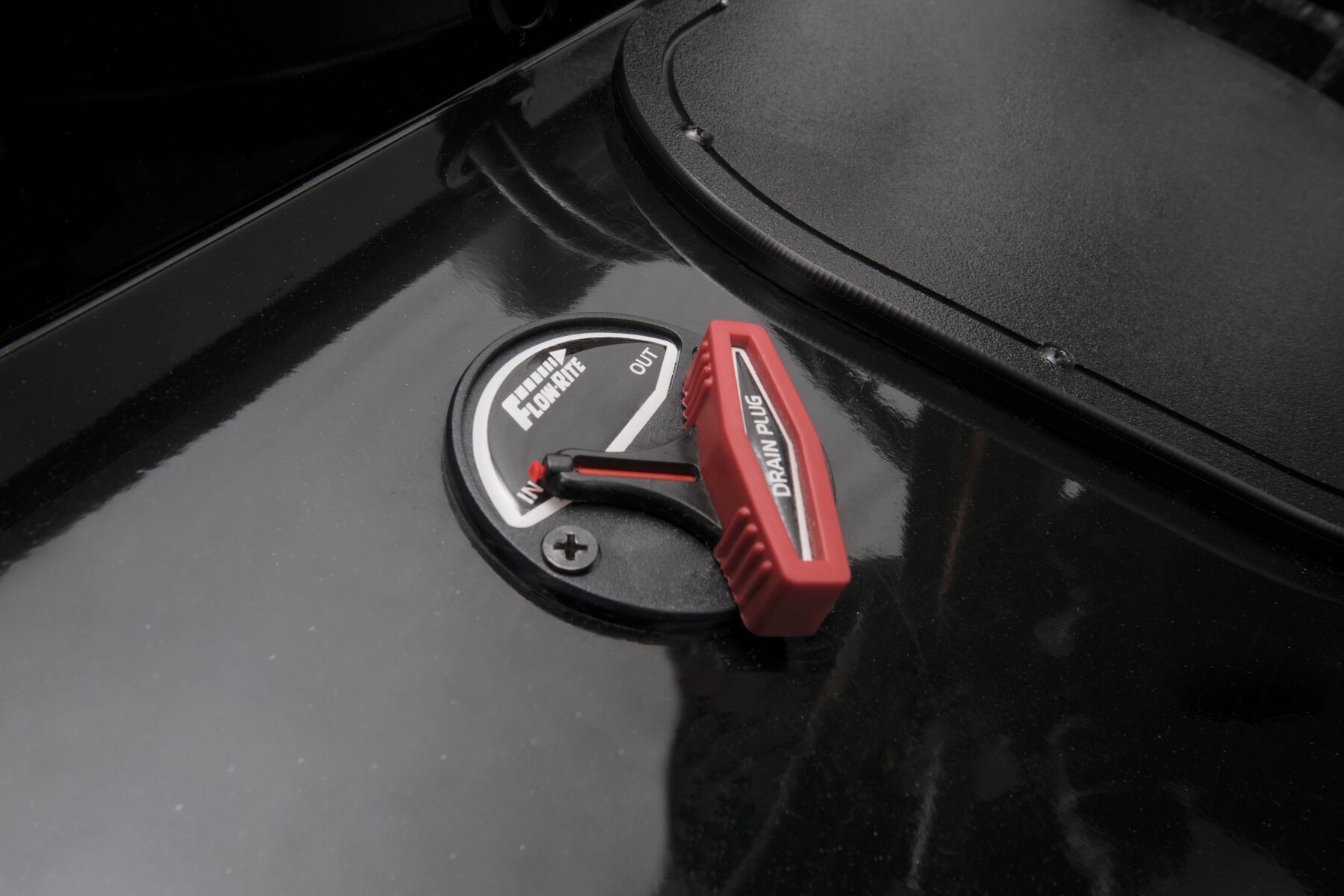

- Remote drain plug

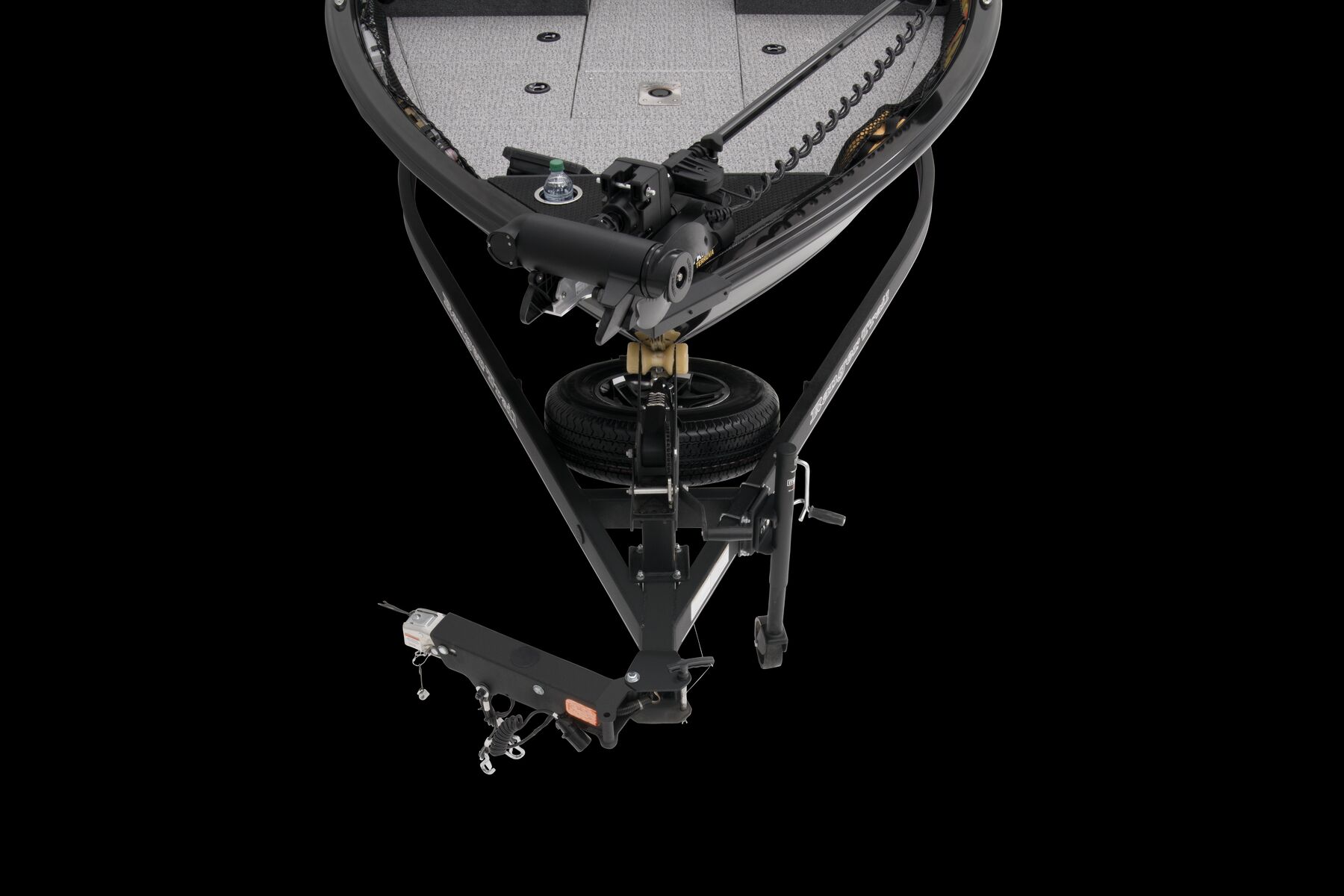

Trailer Features
- Custom built Ranger Trail® single axle trailer
- Custom Ranger Trail® directional aluminum wheels with spare
- Retractable trailer tie downs
- Swing jack
- Custom swing-away tongue
- Leaf spring axle
- Integrated load guides
- NMMA® and NATM certified
- Waterproof lights
- Ranger® Boats Road Armor Equipped® trailer protectant
Options

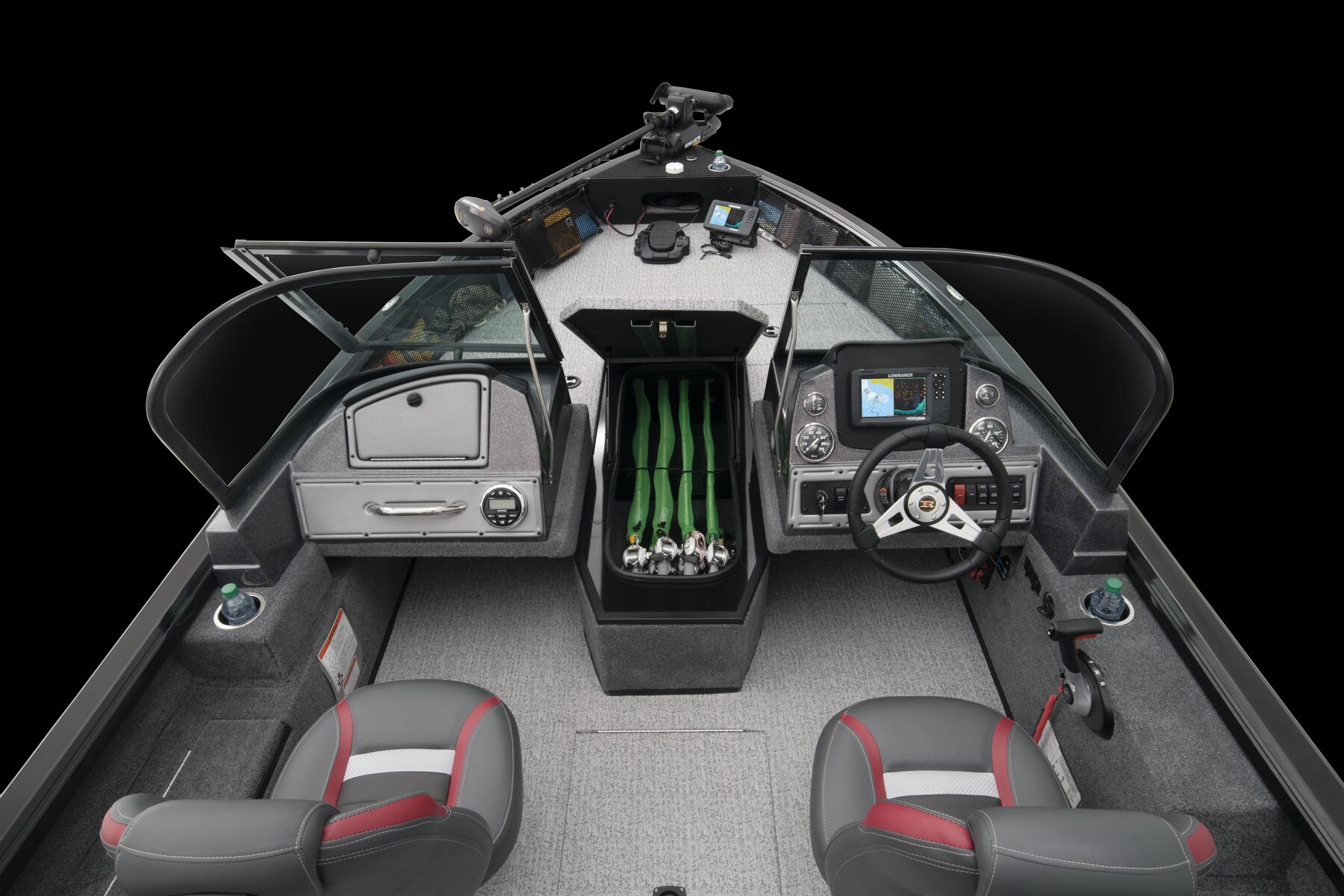

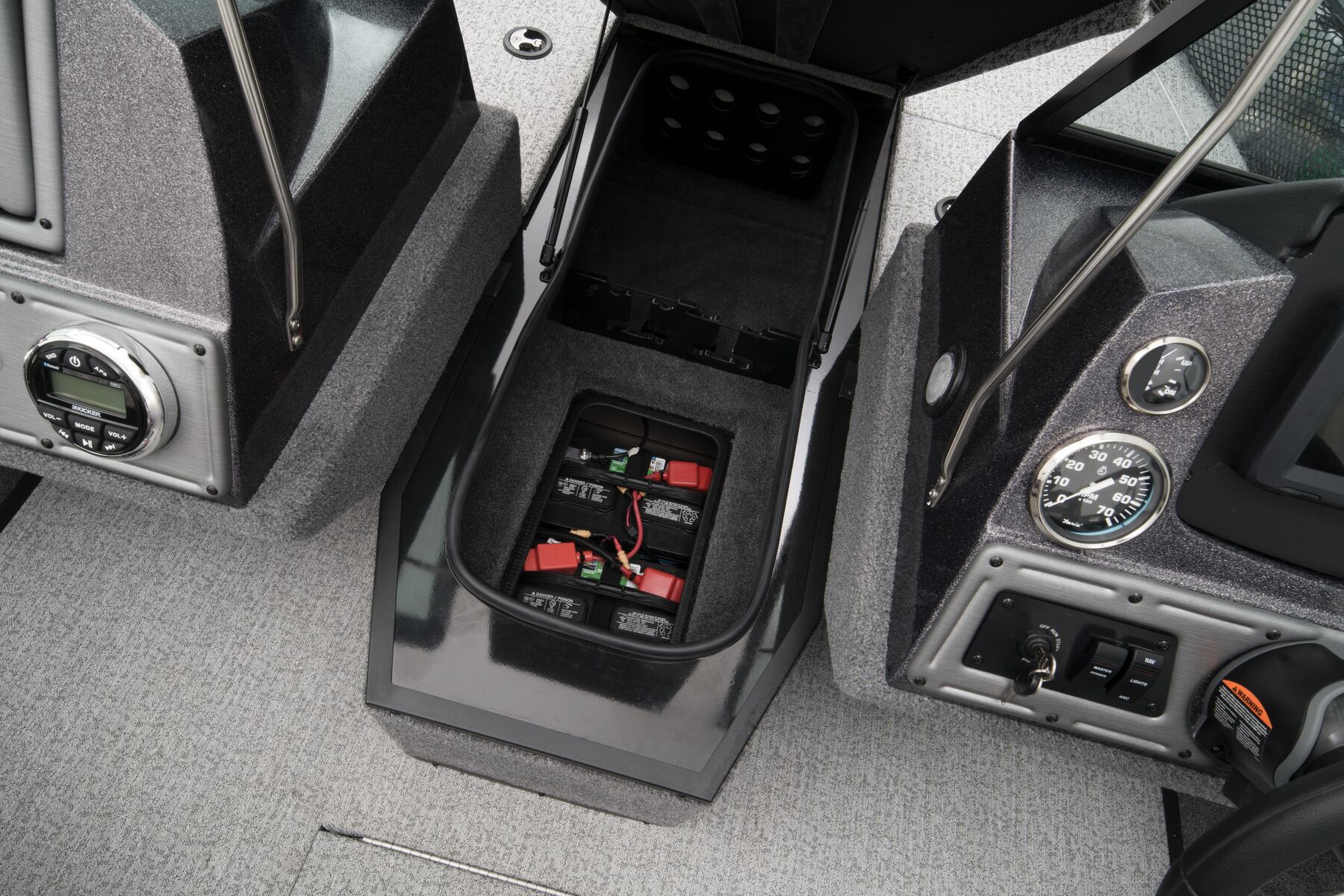

Gallery
Photos show optional equipment.
