RT178
Photos may show optional equipment.
2023
RT178
w/ 60 ELPT FourStroke Mercury®

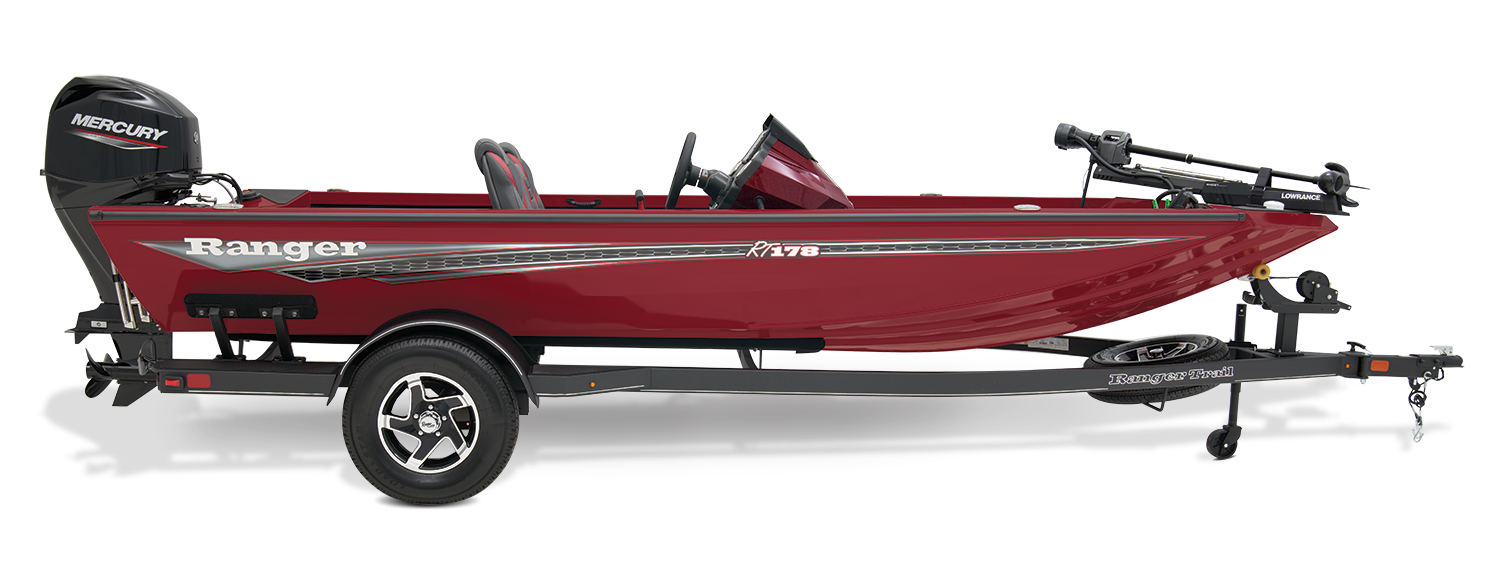

Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$26995
USD
|
Brilliant pedigree with matching performance
The Ranger® RT178 represents the perfect blend of value, features and performance. It enjoys the same build processes as our larger aluminum models, but in a size that will fit in your budget – and your garage. It boasts an 8-foot port rod locker, a recessed trolling motor foot pedal, three tackle-specific storages and an oversized center storage box. The ultra-wide deck and cockpit deliver stability from bow to stern. The .100” hull is filled to the brim with our signature sound-deadening foam flotation for a noticeably smooth and solid feel at all speeds and in all environments. The carpet is rugged all-weather marine-grade, as is the premium vinyl upholstery. A fully featured console houses electronics up to 12 inches, gauges and a cantilevered design to maximize comfort and space. With so much loaded into its 17-foot, 8-inch frame, the RT178 boldly boasts a Brilliant Pedigree With Matching Performance.
Key Features

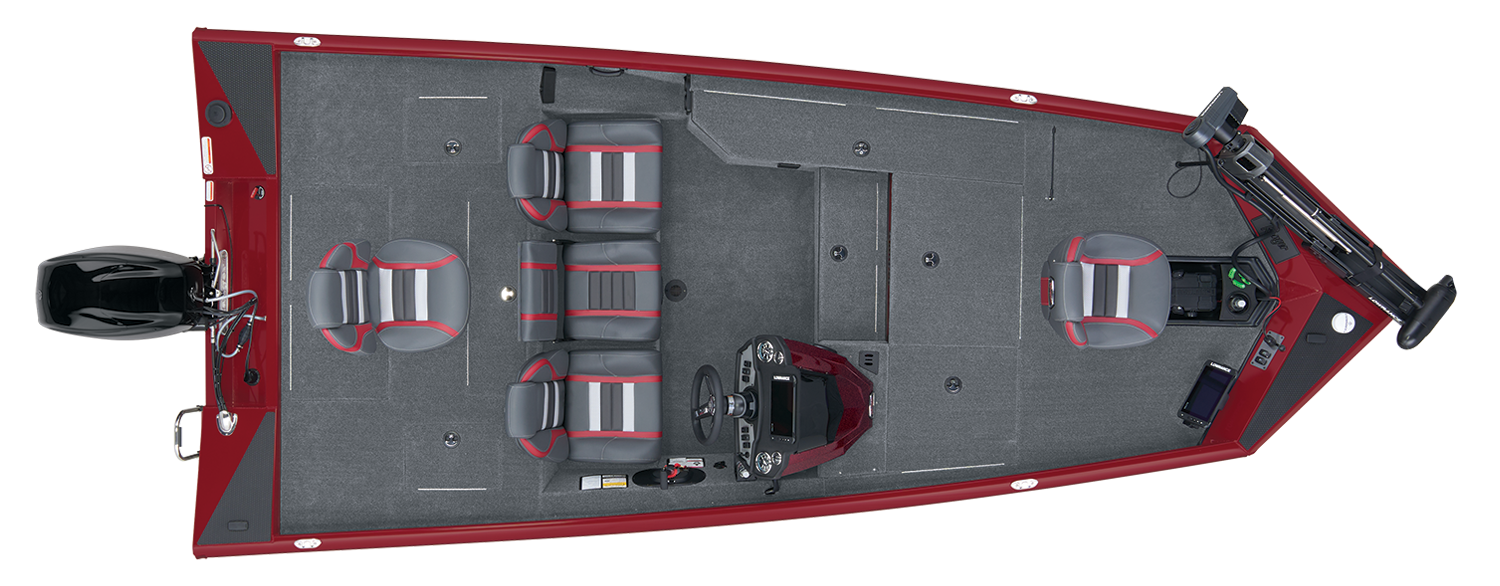

- Roomy, functional layout
- Upright, level flotation
- Wood-free construction
- Recessed trolling motor pedal

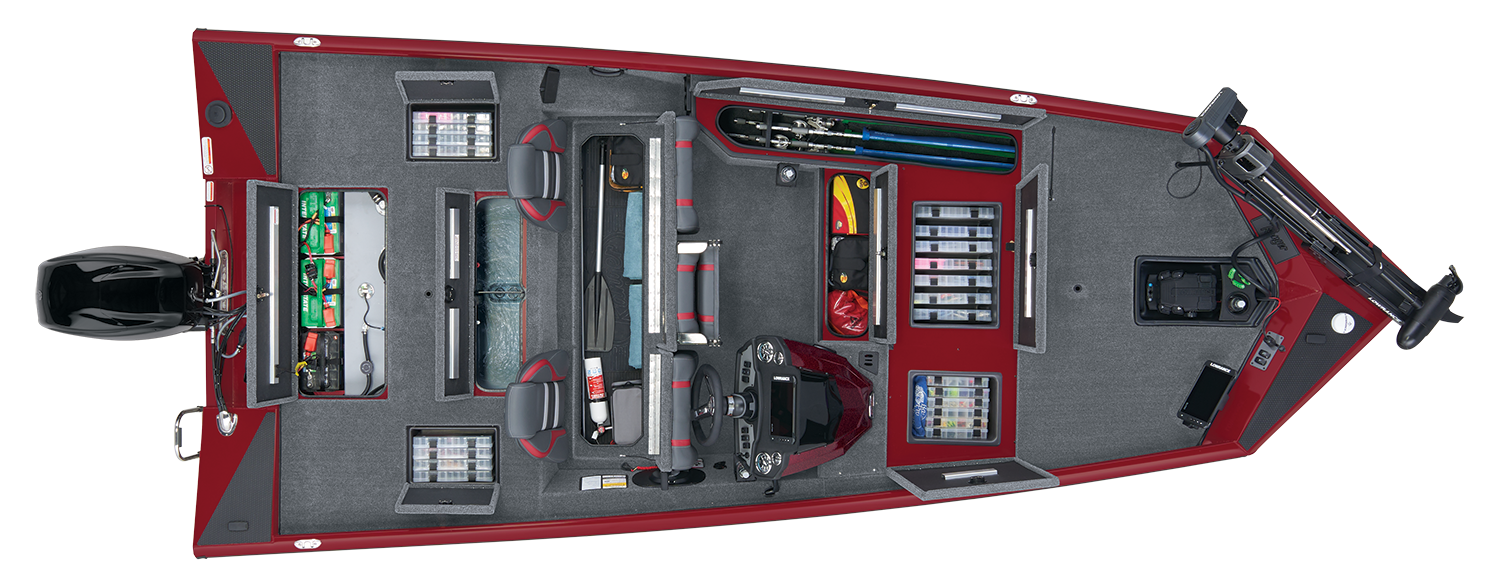

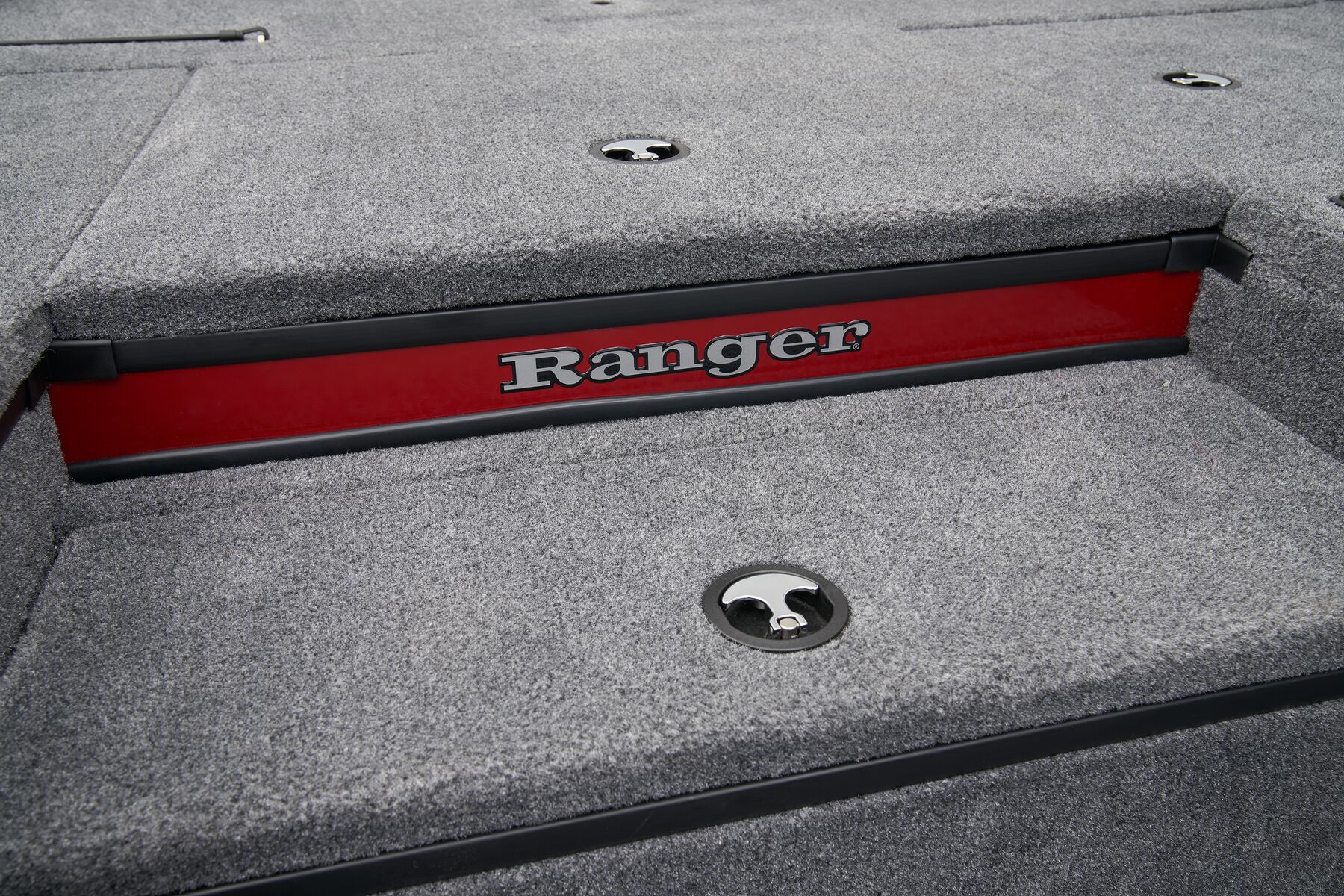

- Dedicated tackle storage under both decks
Video
Specifications
| Length | 5.44 m | 17' 10'' |
| Hull Length | 5.44 m | 17' 10'' |
| Beam | 2.34 m | 92'' |
| Max. Recommended HP | 75 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Side Depth | 50.8 cm | 20'' |
| Hull Thickness | 0.254 cm | 0.1'' |
| Bottom Width | 1.63 m | 64'' |
| Fuel Capacity | 83.27 L | 22 gal. |
| Approximate Boat Weight | 548.85 kg | 1210 lbs. |
| Rod Box Length - Port | 2.44 m | 8' |
| Max. Person Capacity | 4 persons | |
| Trailer GVWR | 1233.77 kg | 2720 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.09 m | 23' 3'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 6.53 m | 21' 5'' |
| Width On Trailer | 2.41 m | 95'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 20 ELPT FourStroke |
$23755 USD
|
Select Dealer | |||
| 60 ELPT FourStroke |
$26995 USD
|
Select Dealer | |||
| 25 ELPT FourStroke |
$24695 USD
|
Select Dealer | |||
| 75 ELPT FourStroke |
$28595 USD
|
Select Dealer | |||
Standard Features
Custom Details
- Special 55th Anniversary badging

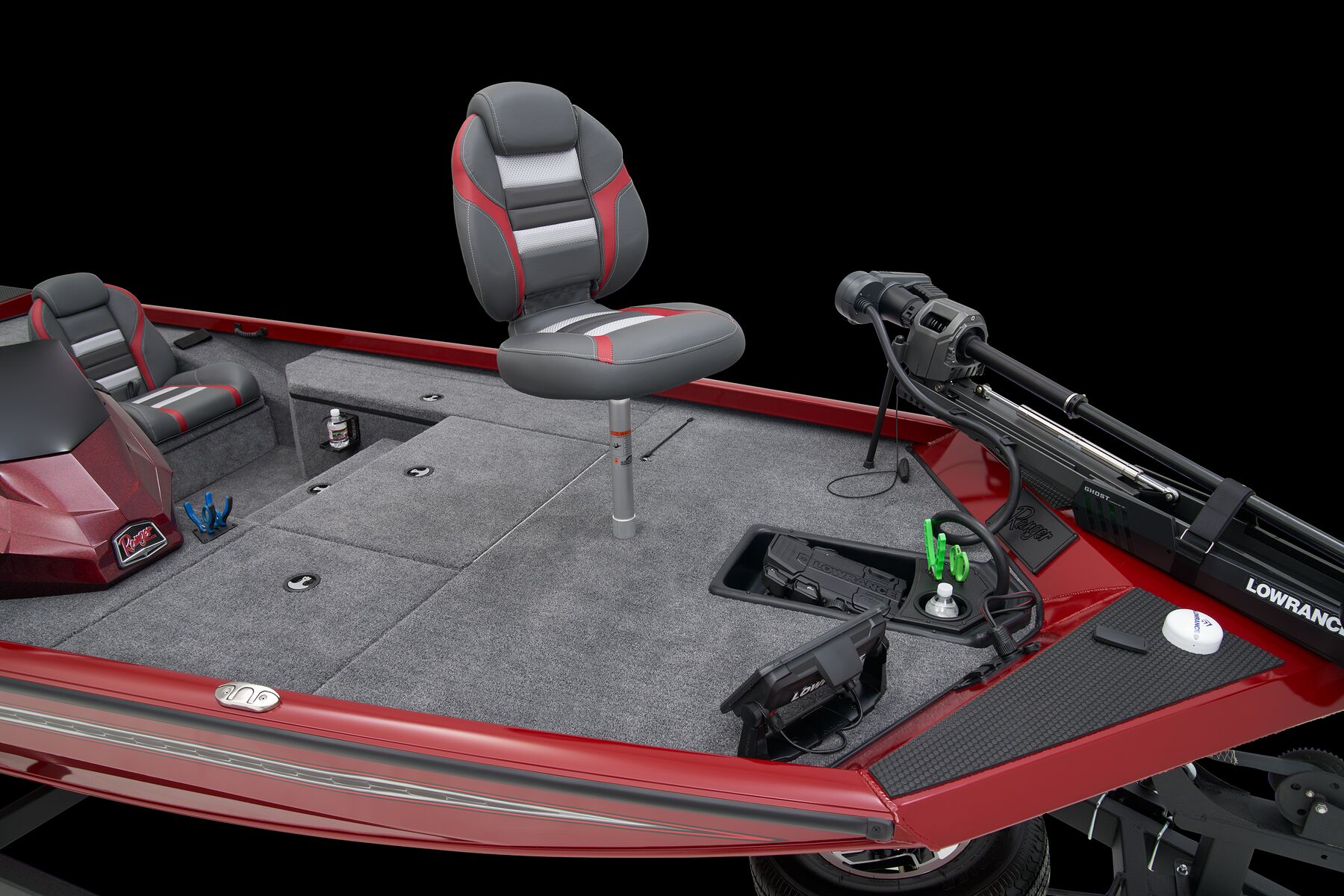

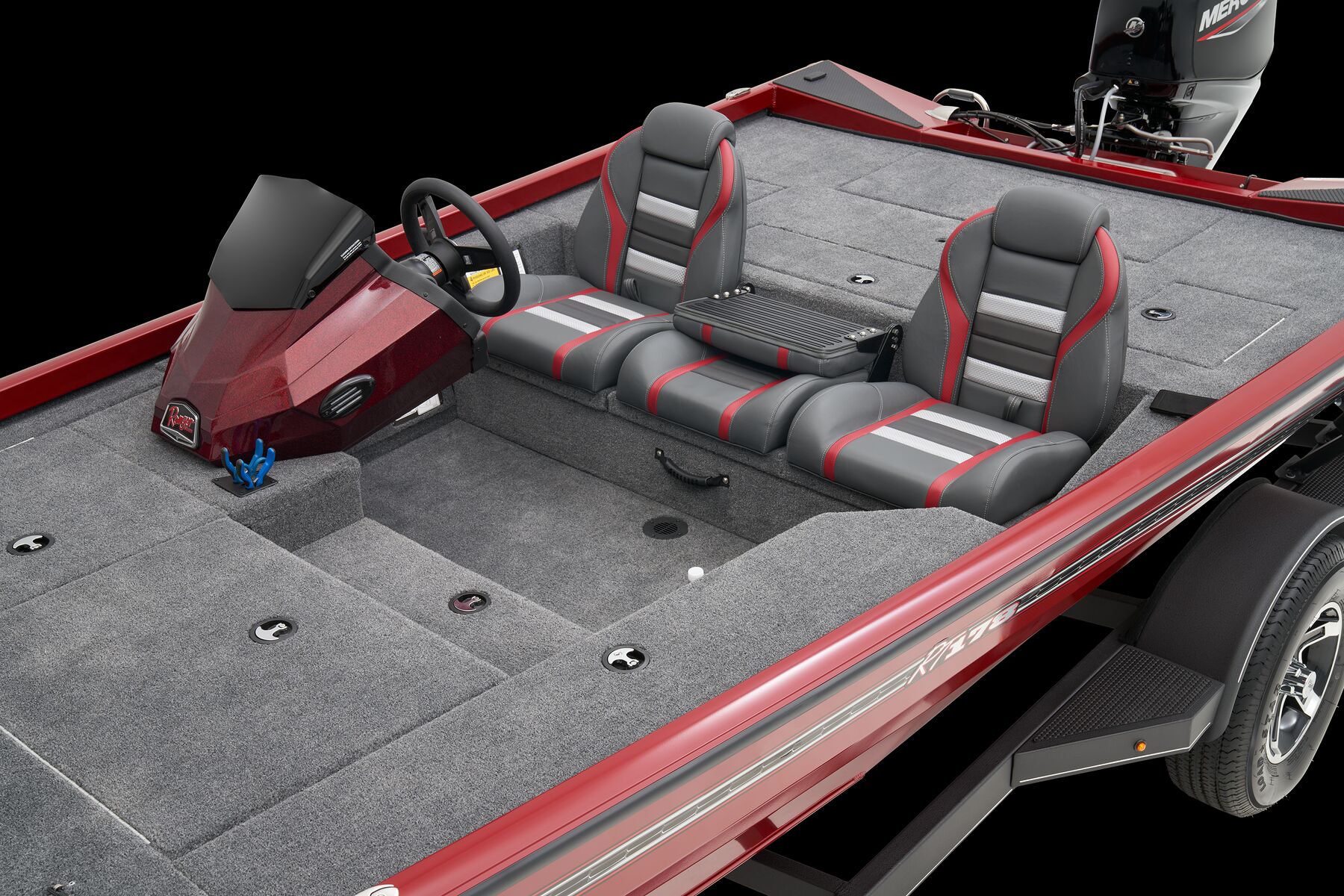

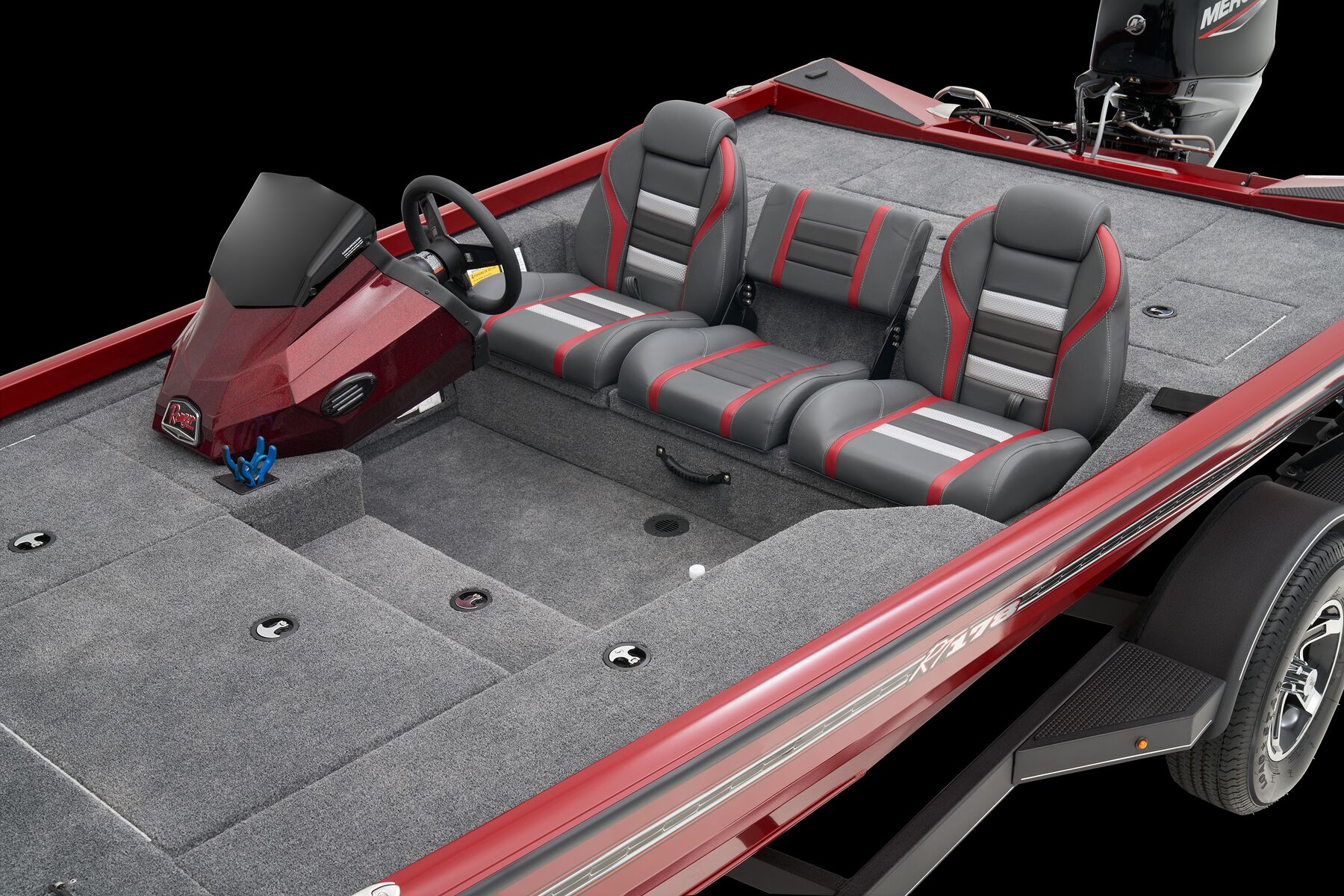

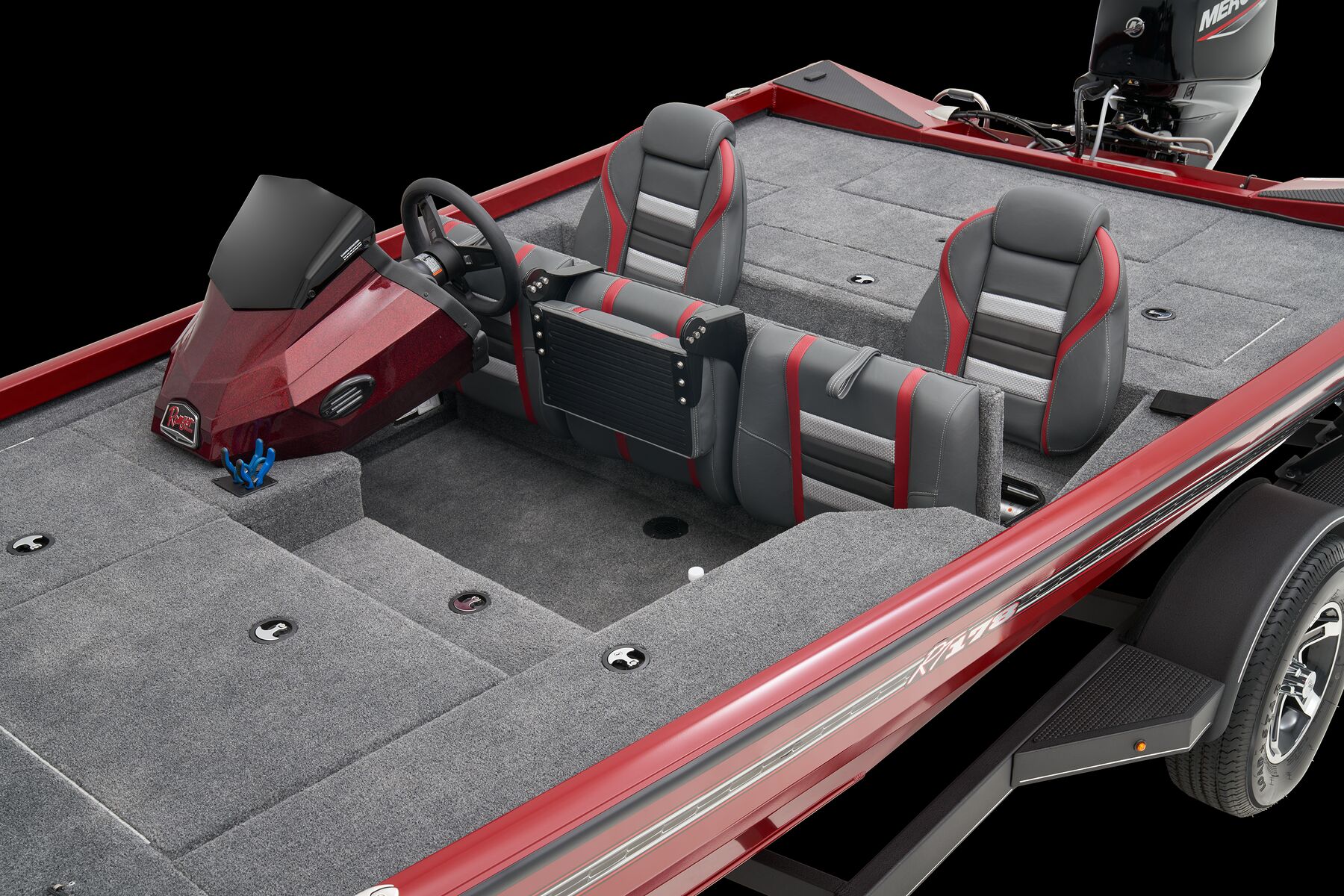

- Custom fitted marine upholstery- driver/passenger bucket seating w/ center fold down & two matching fishing seats

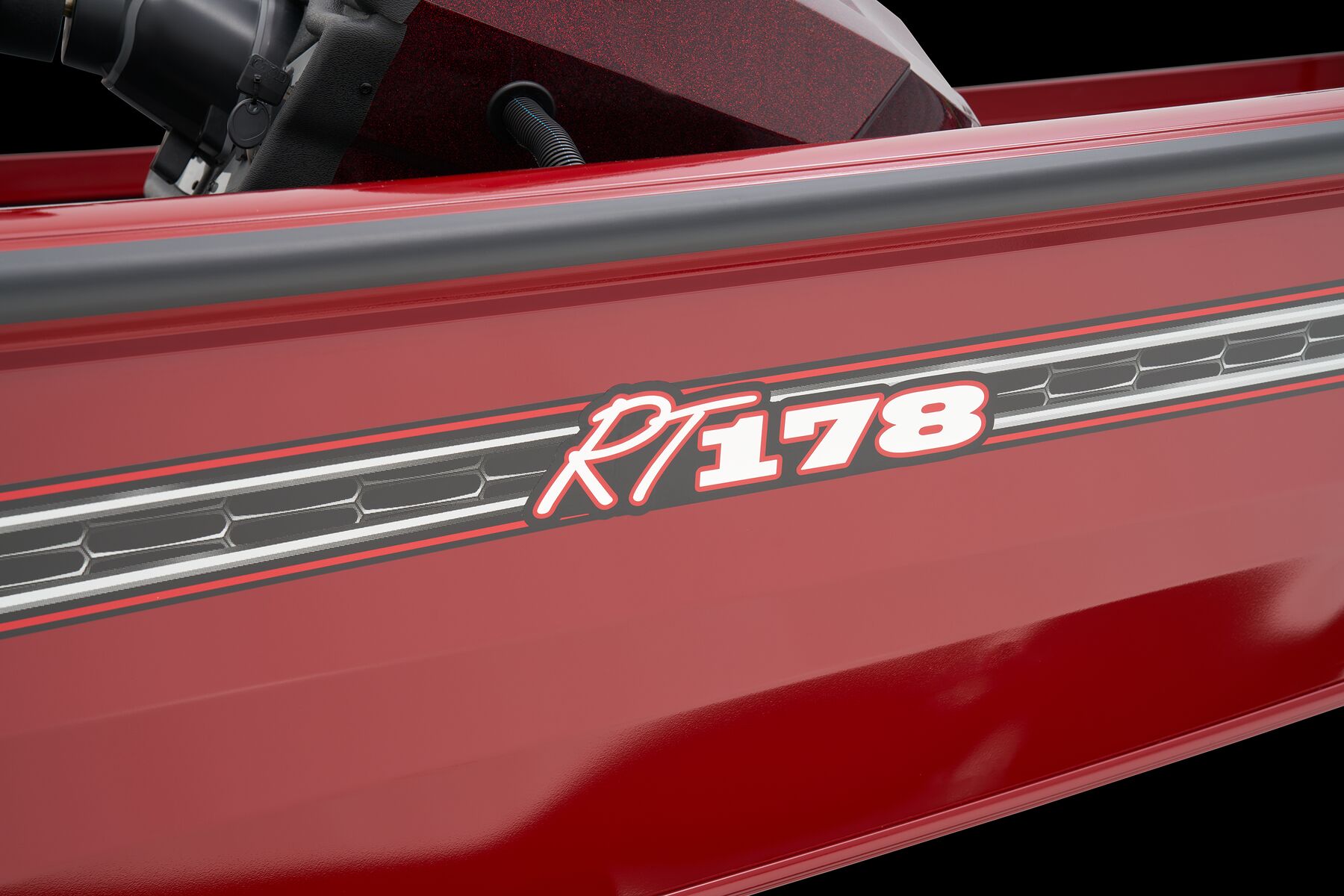

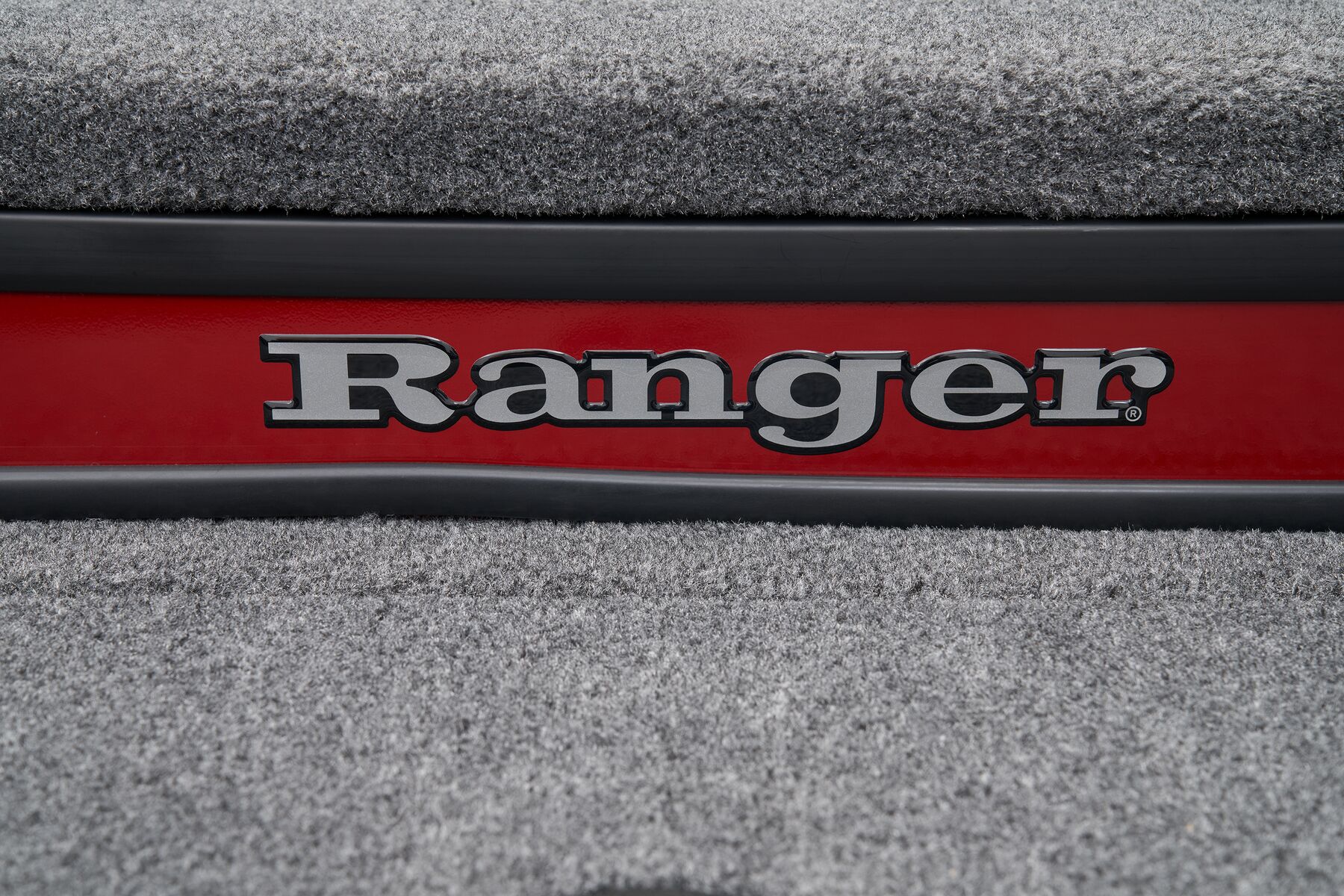

- High gloss metallic paint with custom Ranger® graphics
- Painted gunnel, hull side and bottom
- Choice of colors: white, crystal red, charcoal metallic, midnight blue, carbon, fusion electra lime green, fusion electra blue
- Durable marine grade carpet

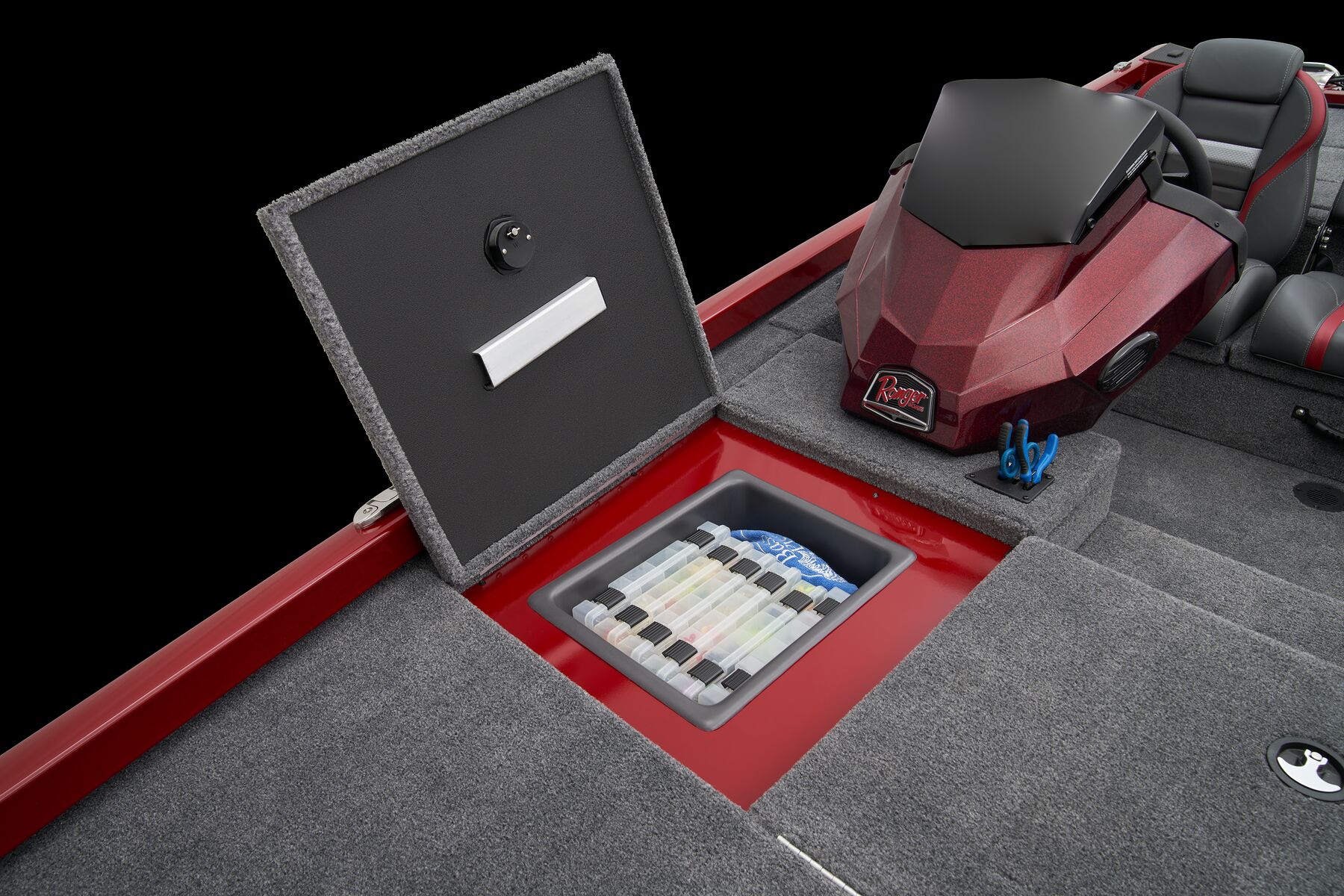

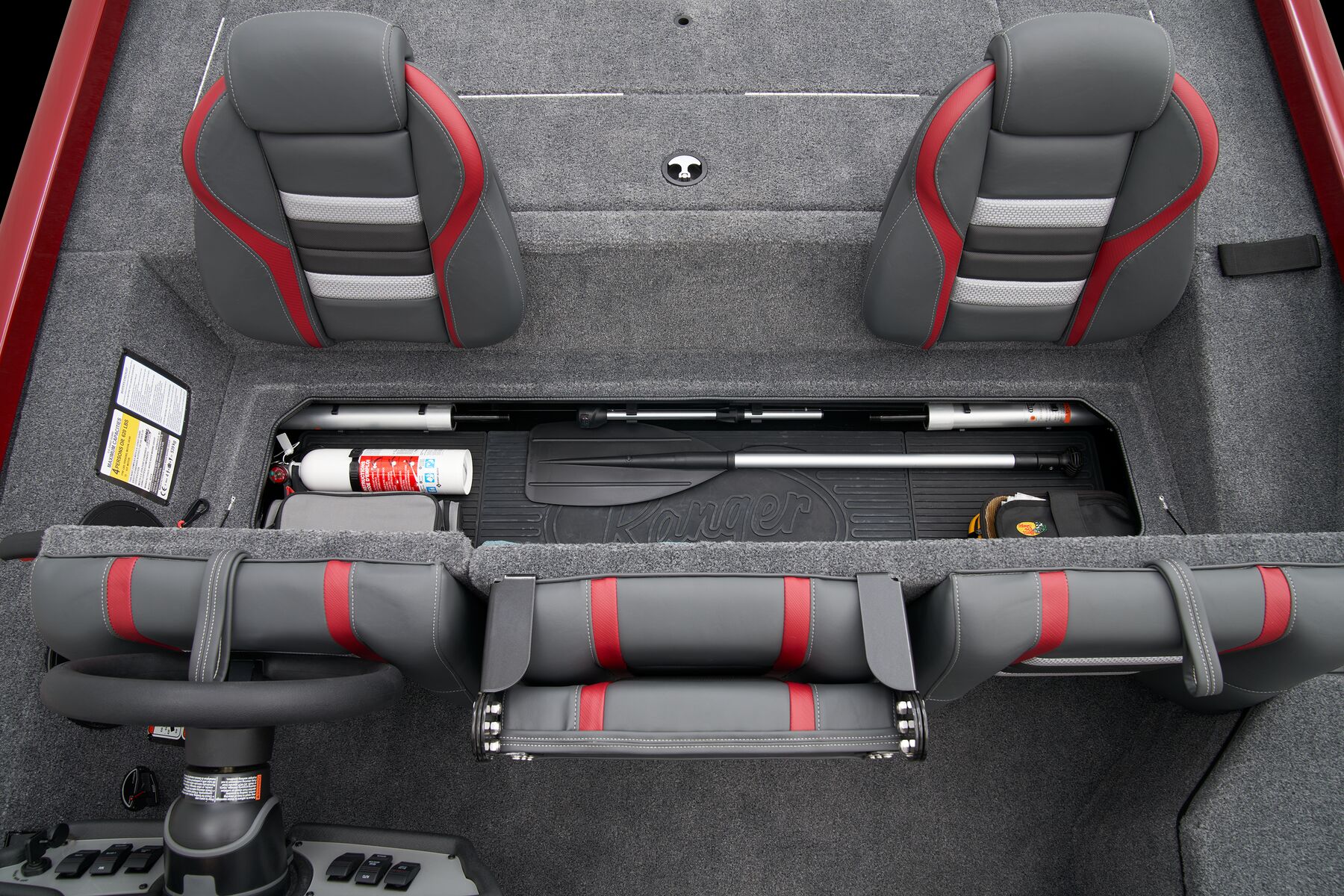

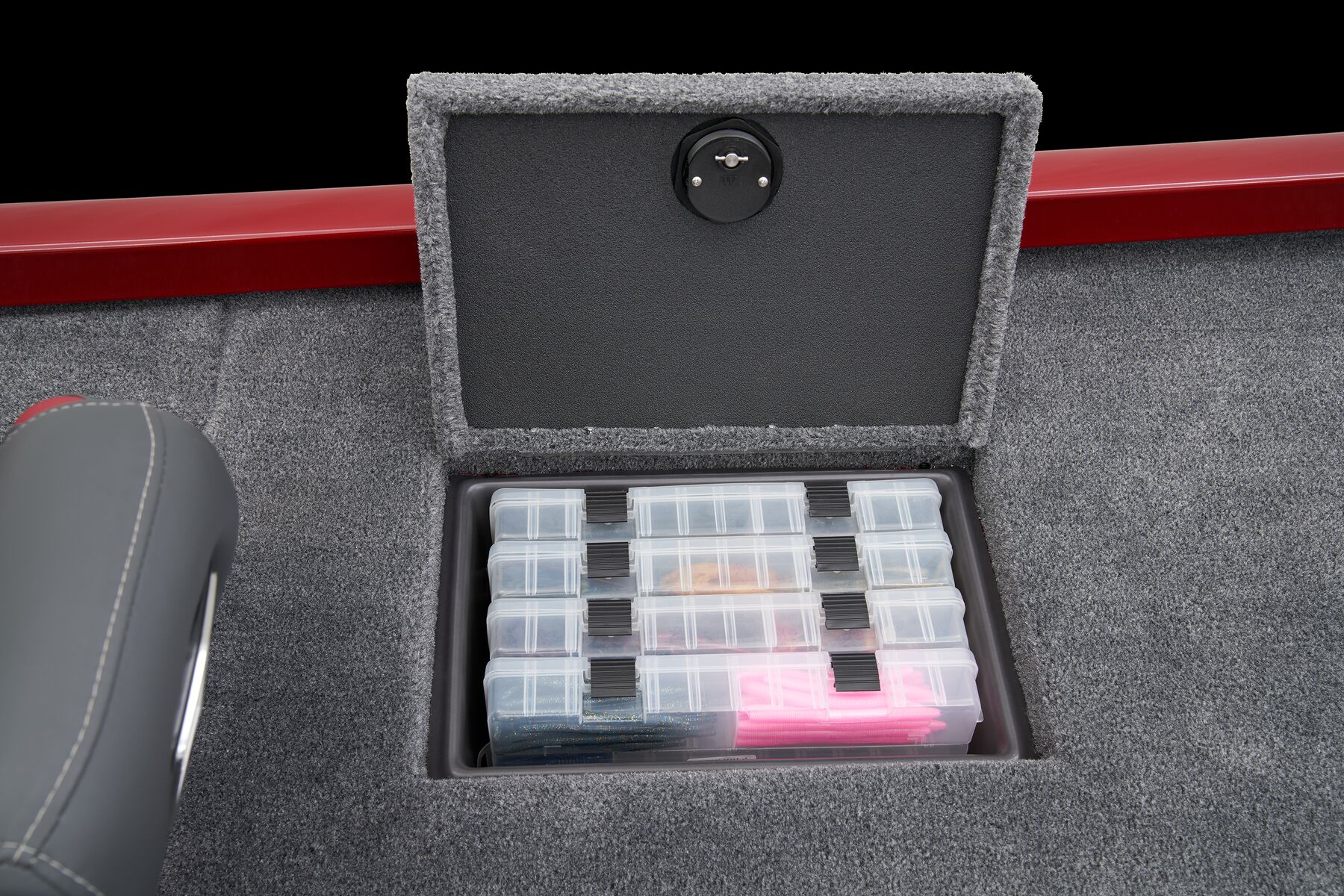

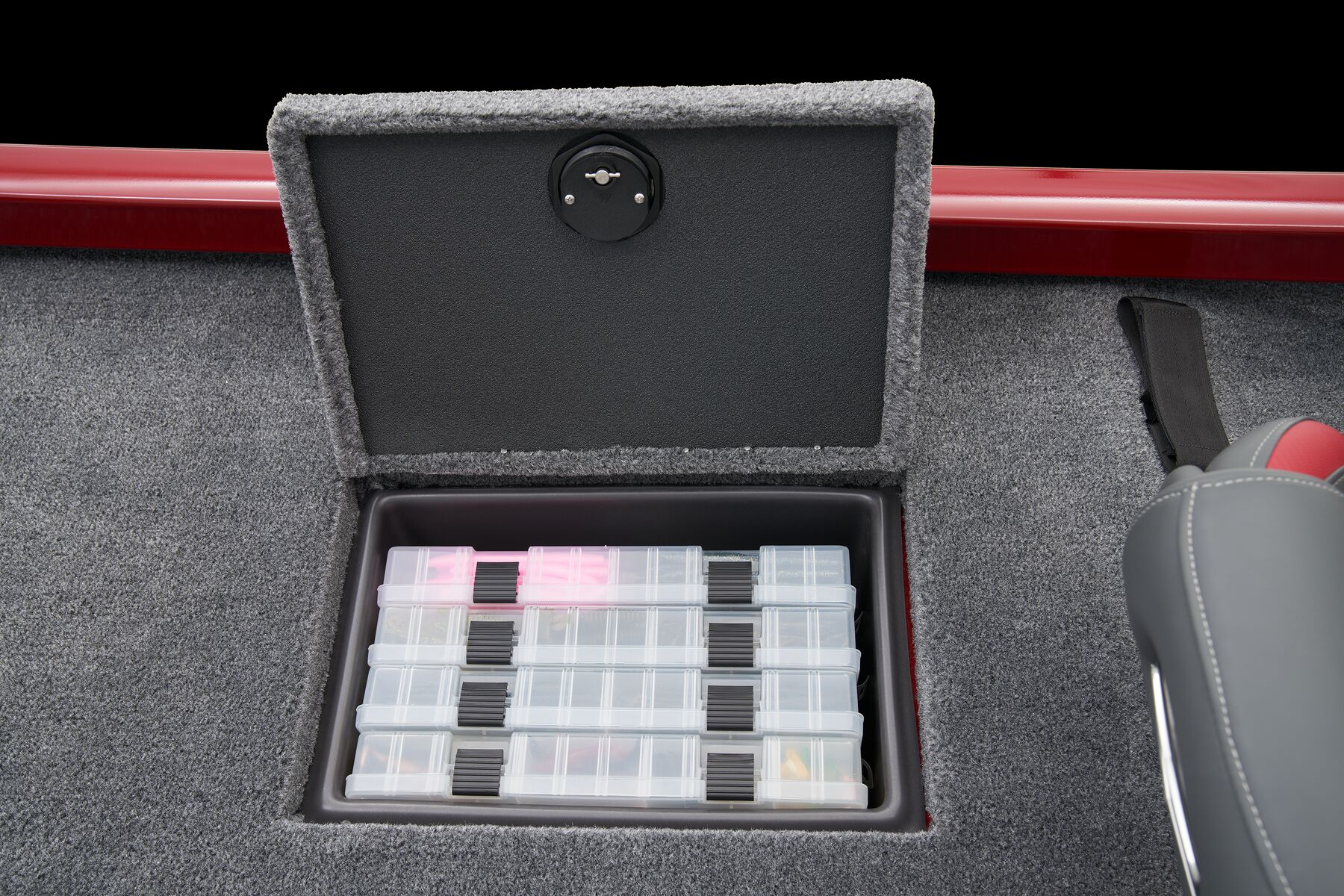

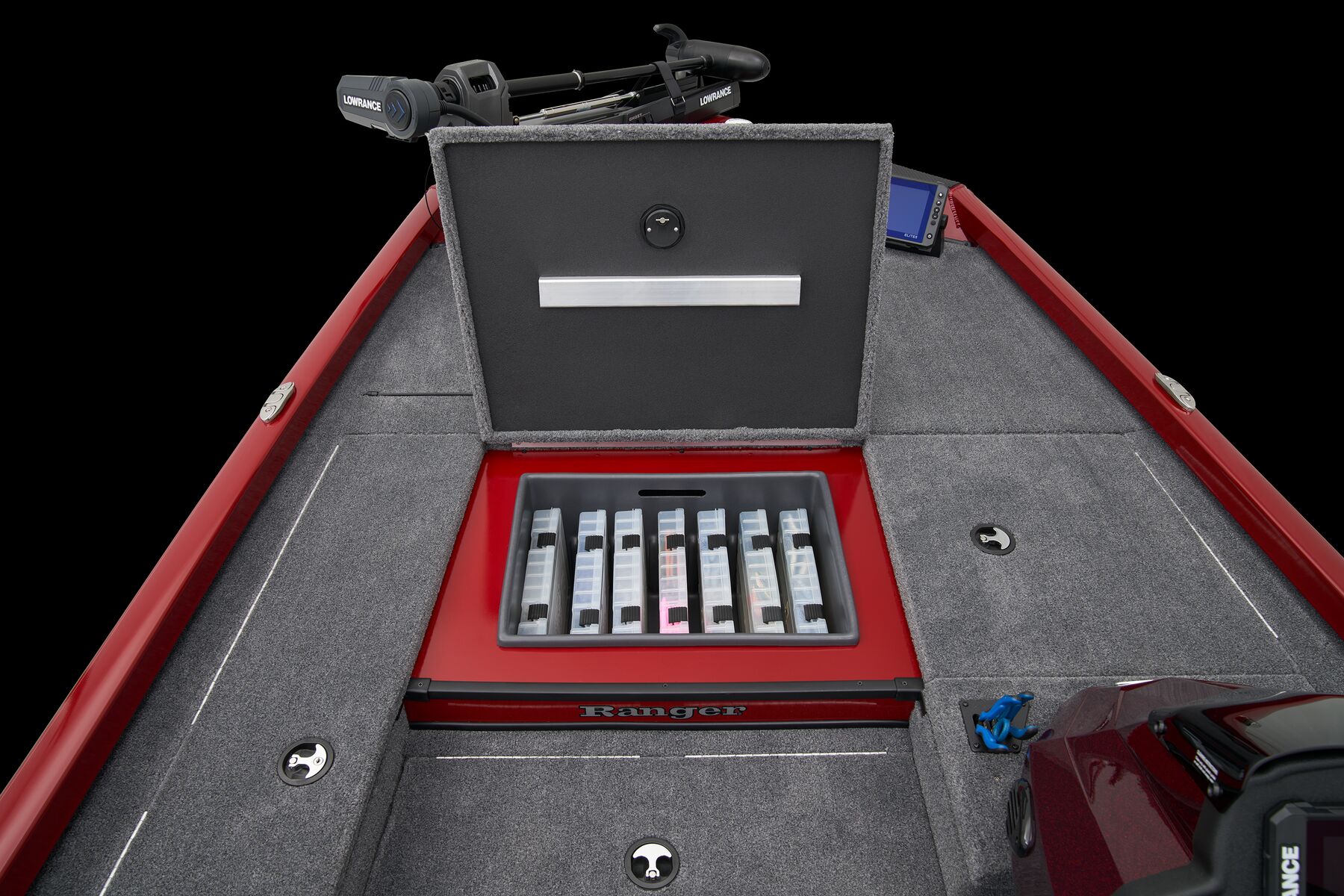

- Oversized tackle organizer storage boxes

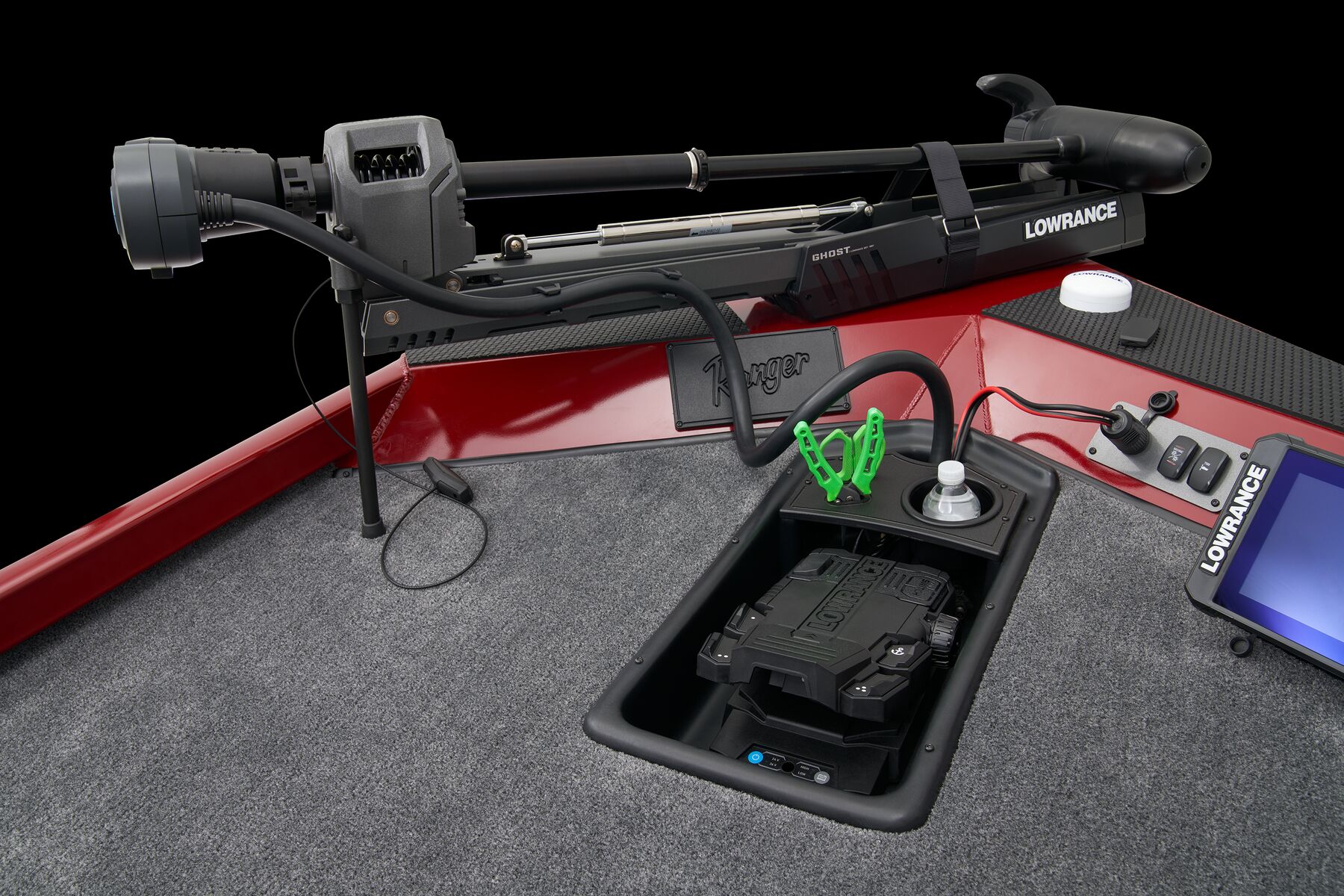

- Recessed trolling motor pedal
- Remote drain plug

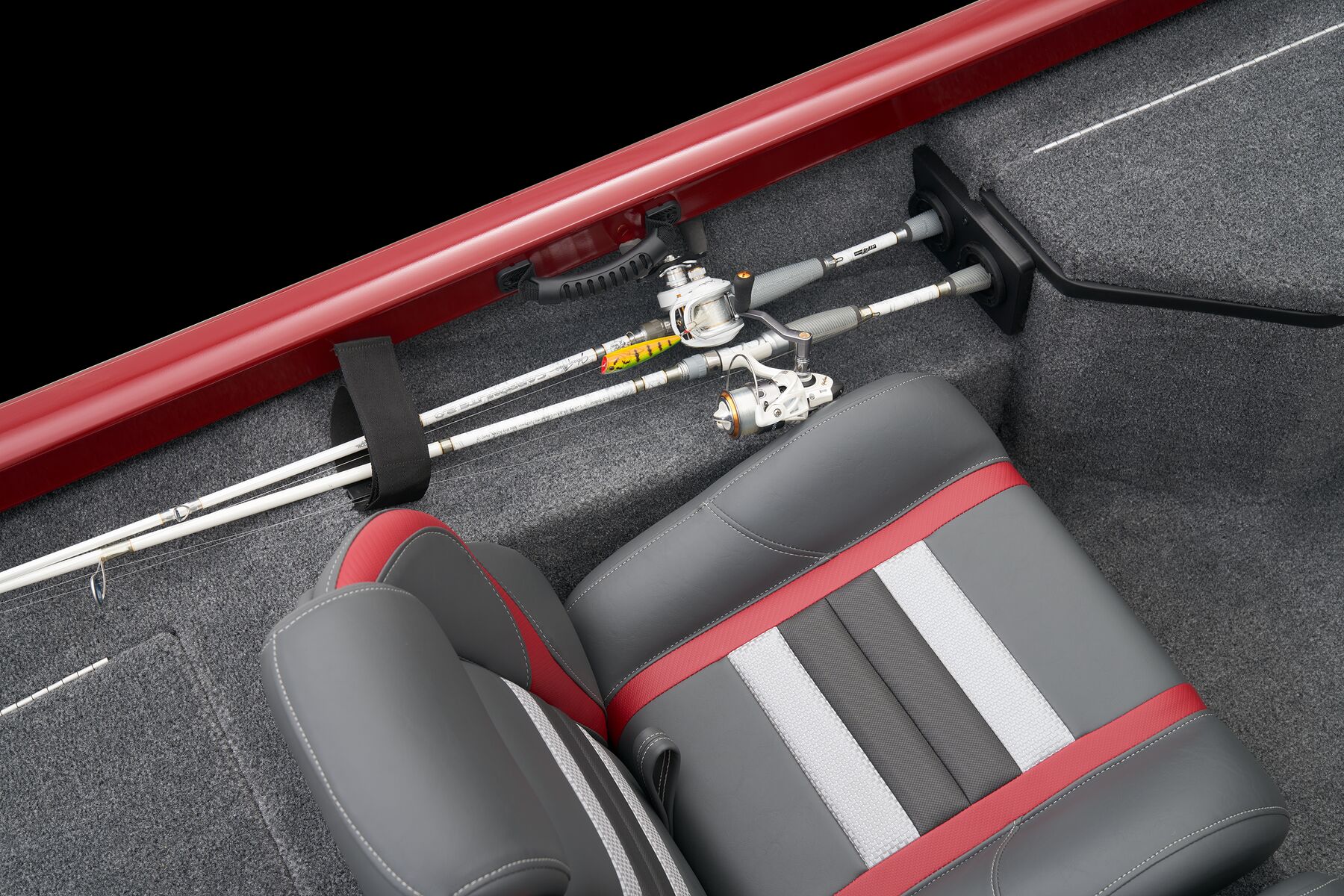

- Retractable rod strap
Electronics

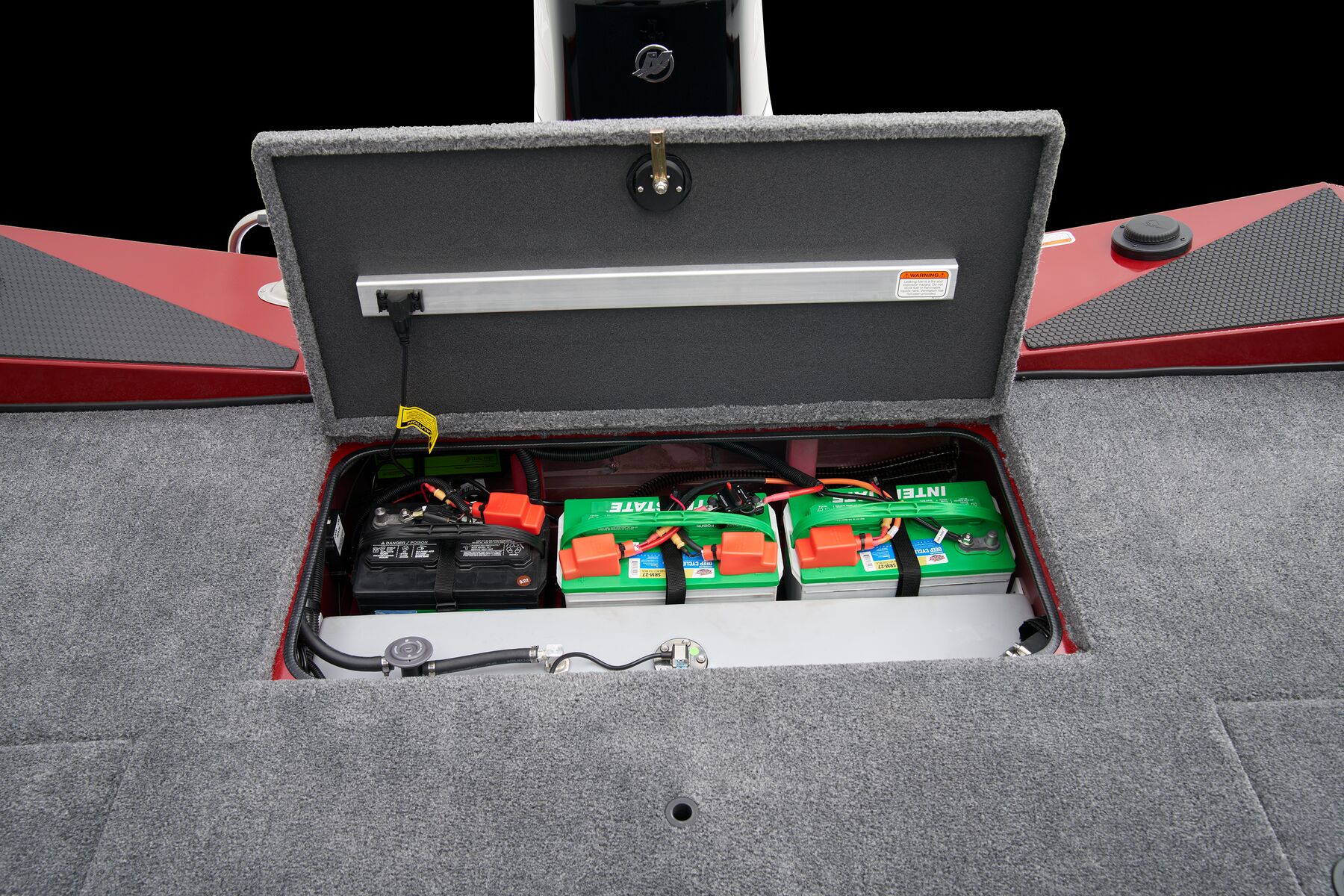

- Deep Cycle trolling battery with tray
- 6-gauge trolling motor harness

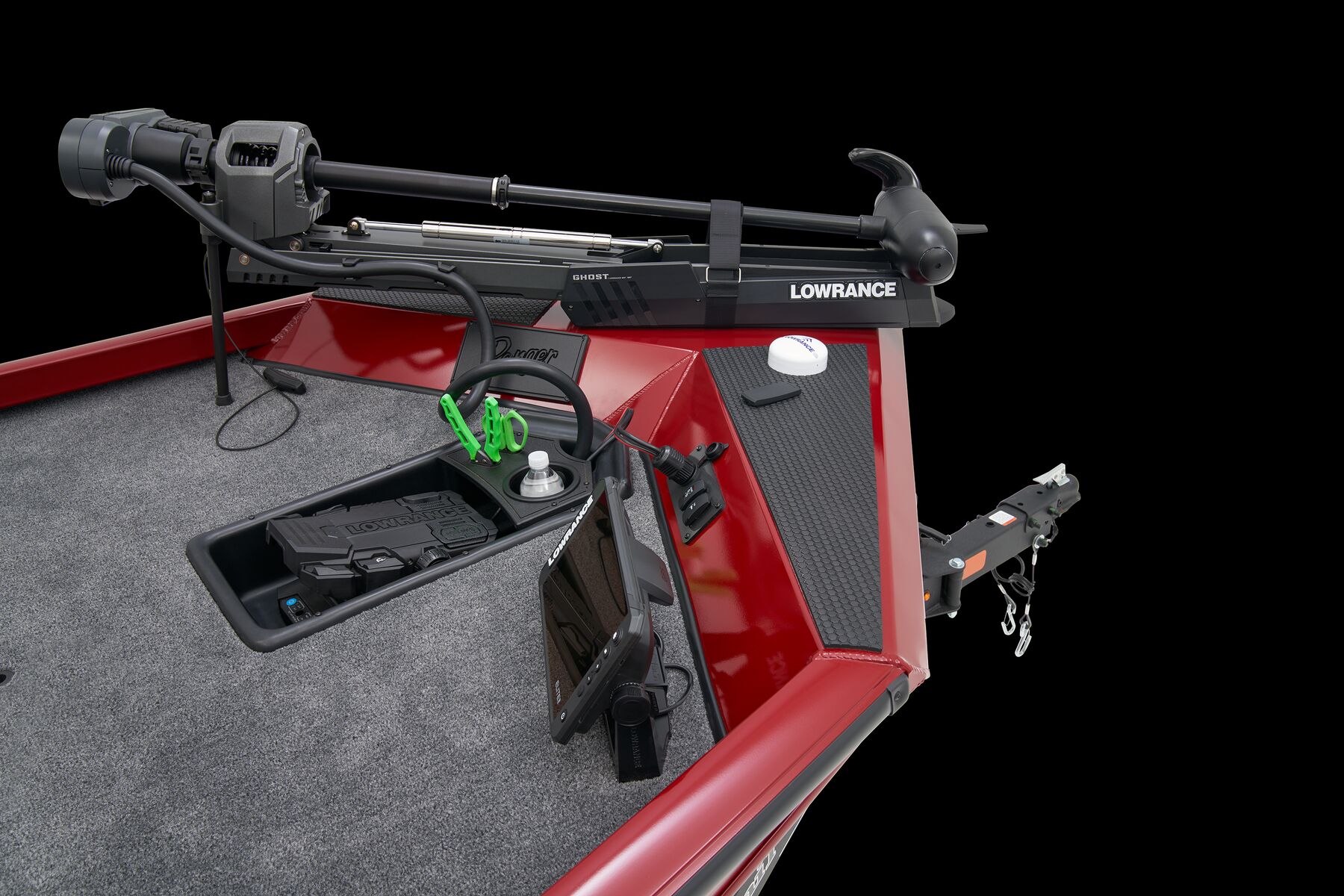

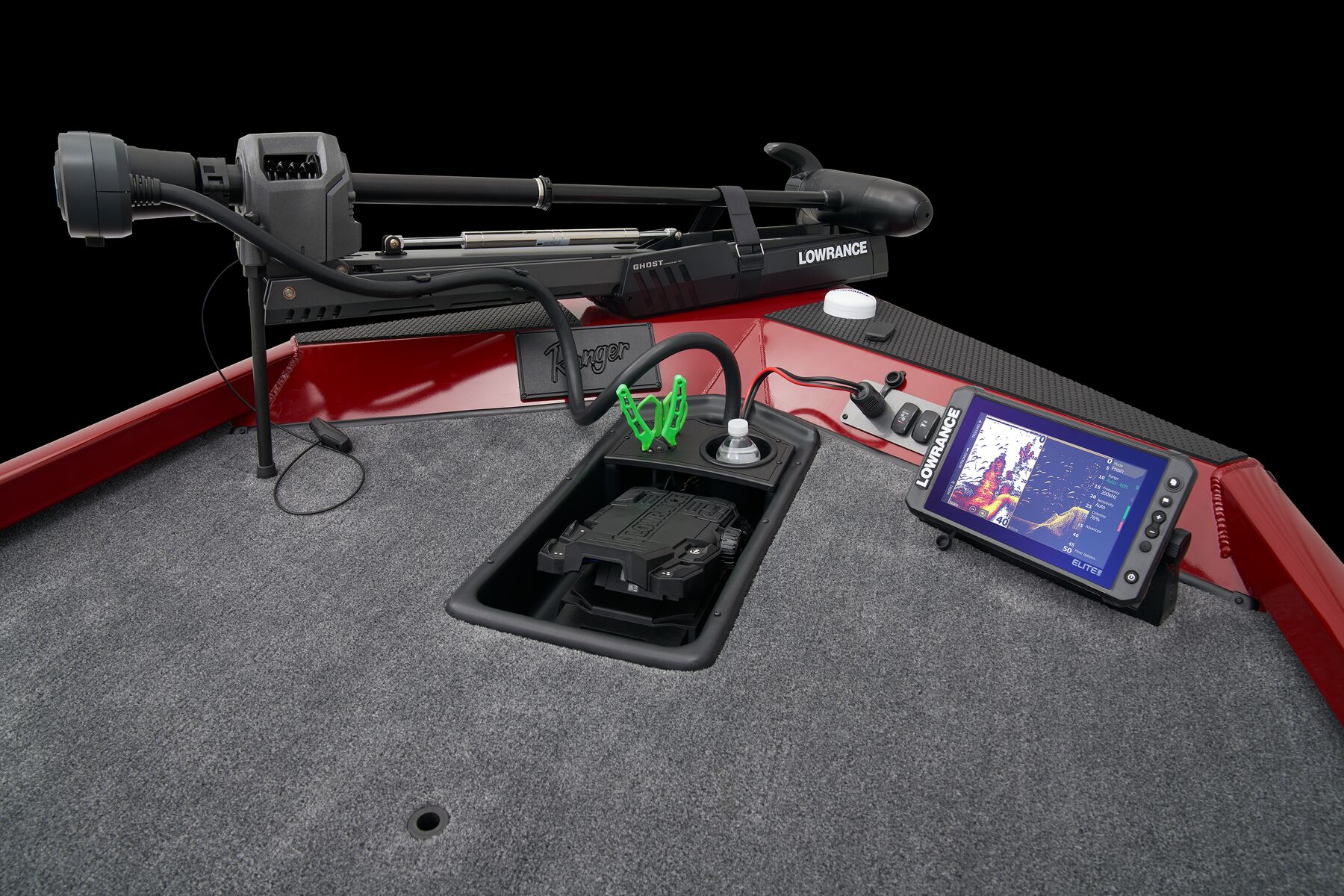

- Minn Kota® Edge 70lb 45" 24V trolling motor

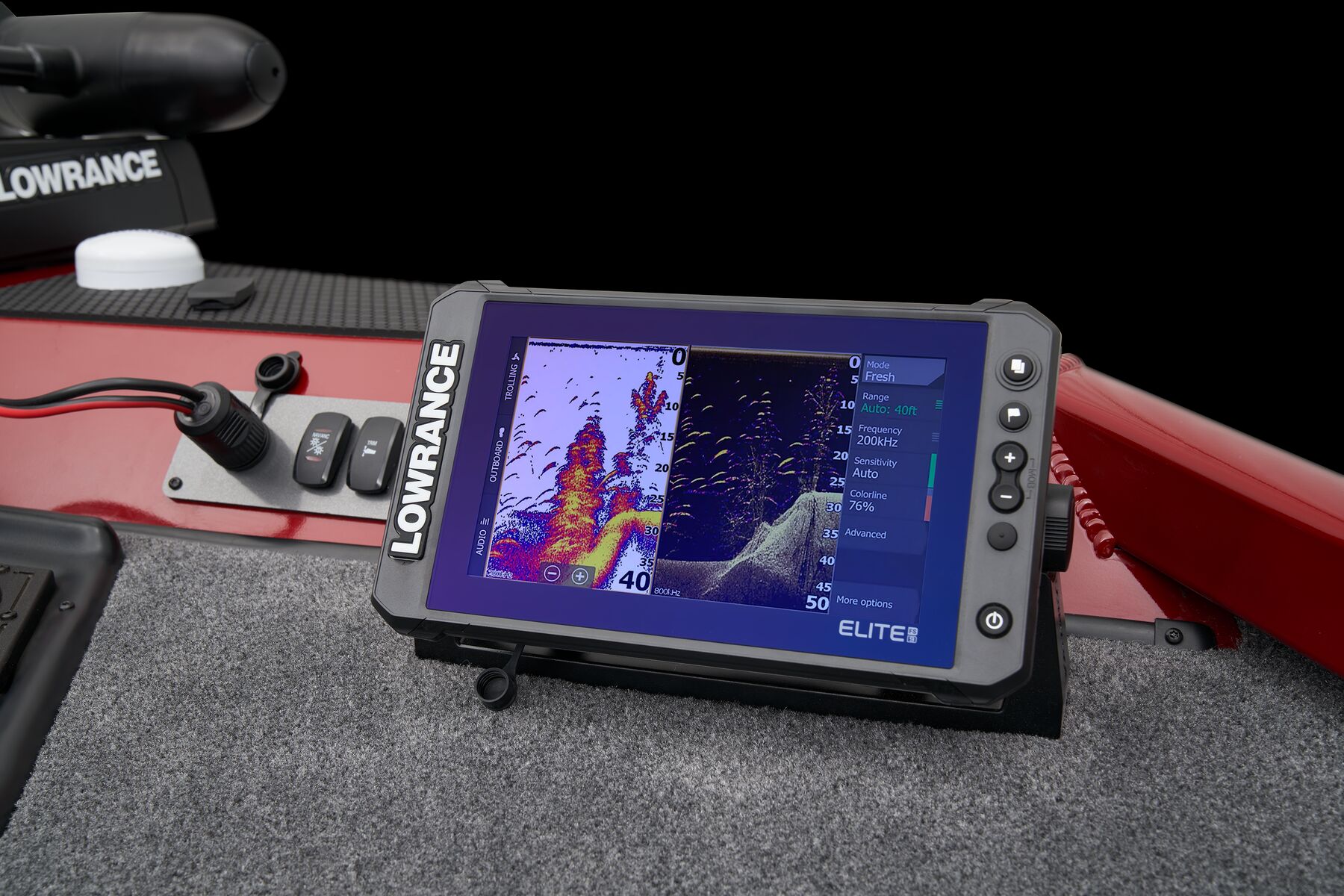

- Lowrance® Hook Reveal 7 Combo @ console
- On-board lithium capable charger, 6A x 3 bank
- 12V power outlet
- Automatic bilge pump
- Removable navigation lights
Power/Performance
- Cranking battery with tie down

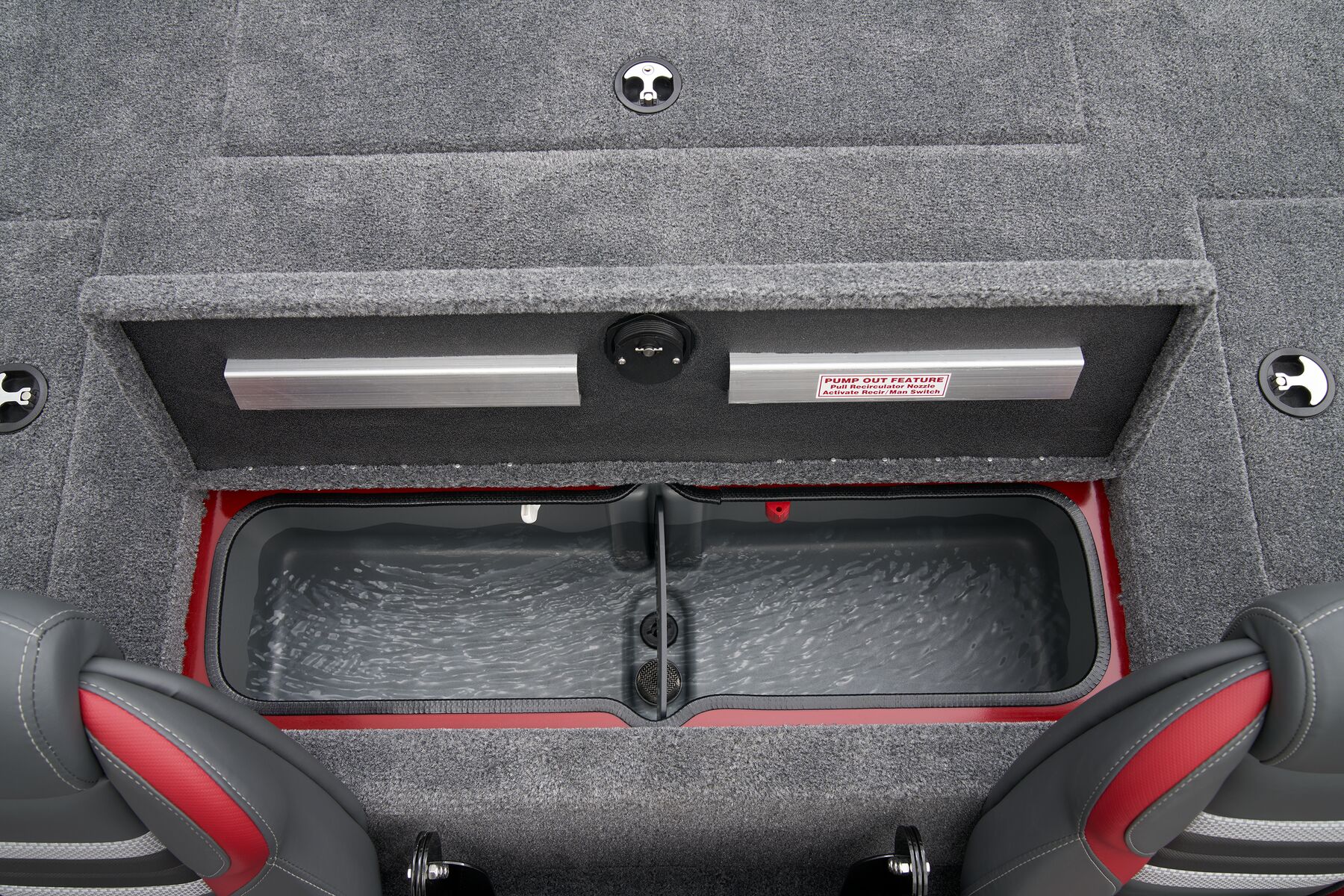

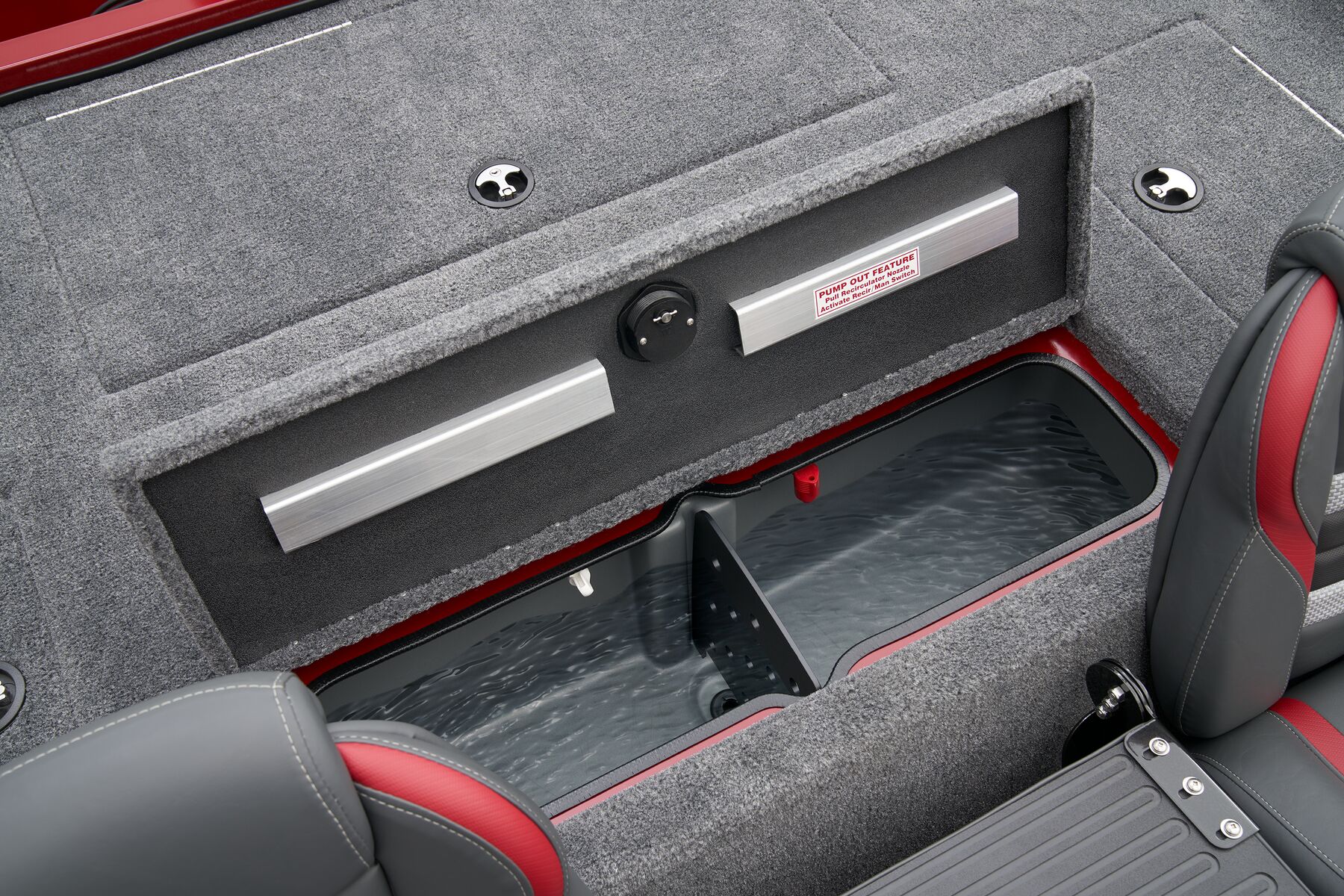

- Divided Livewell with timer
- Competition steering wheel
- Flush mounted remote throttle control
- No-feedback steering
- Power trim

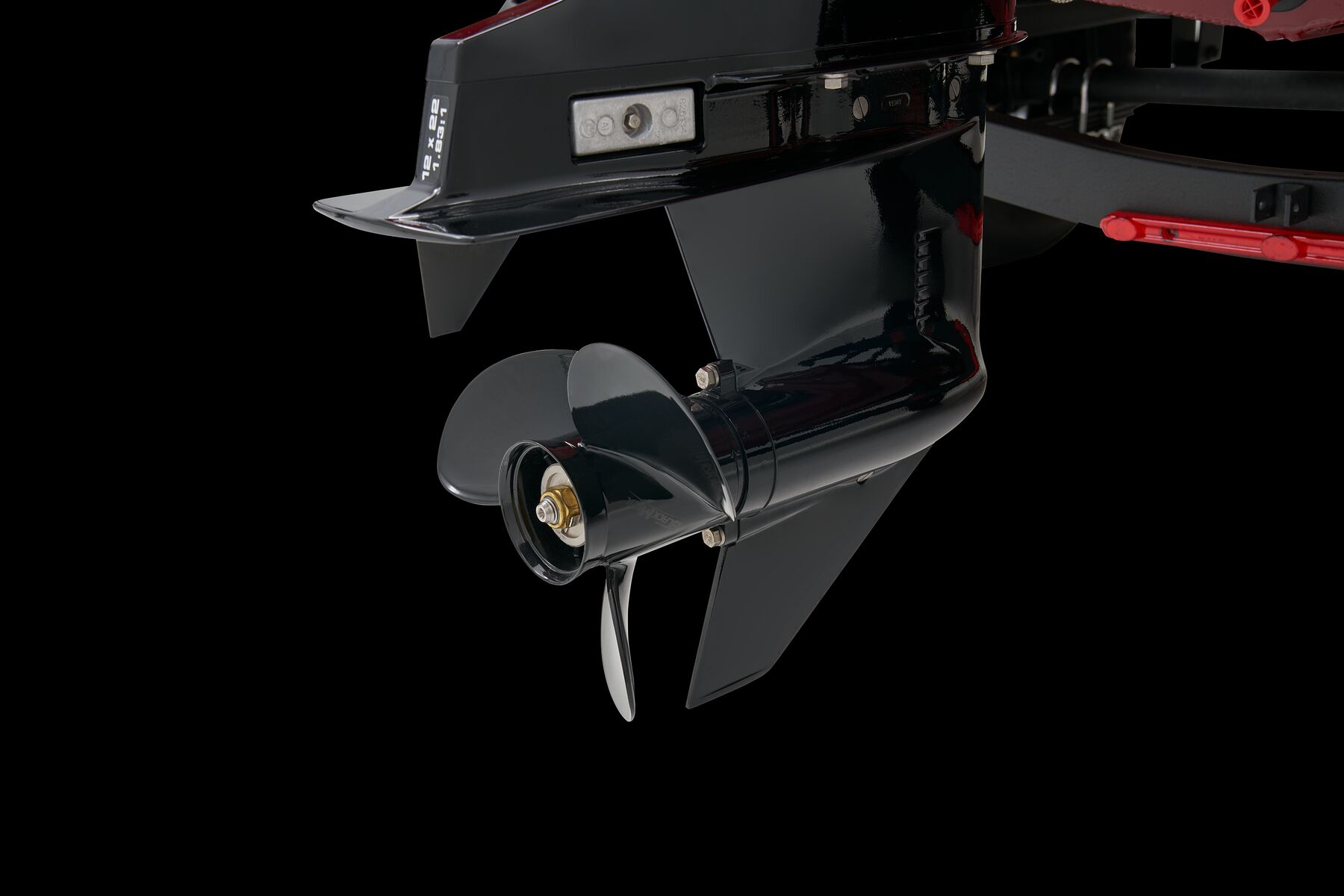

- Prop (stainless standard at 115HP and up)
- Bow trim & navigation switches

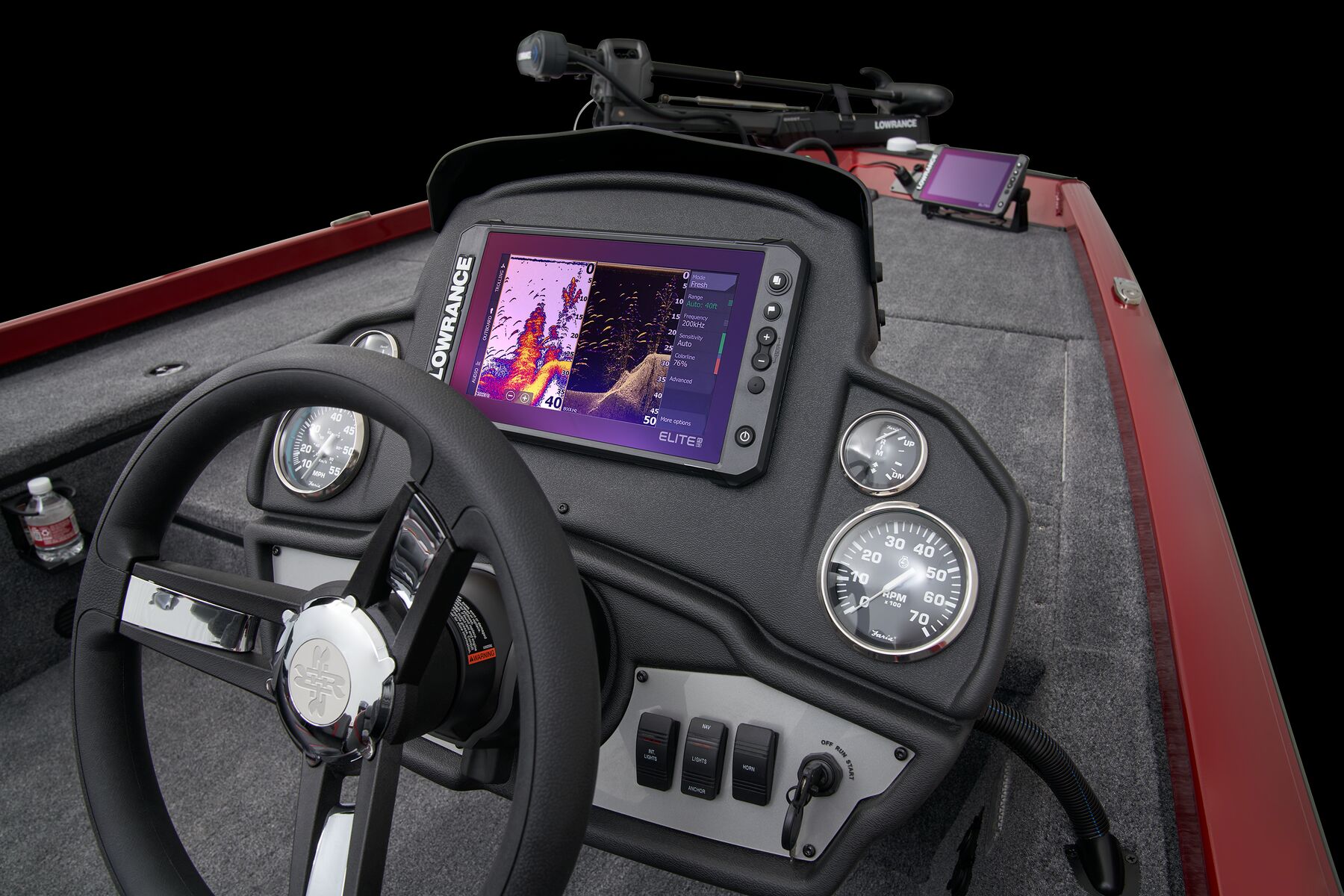

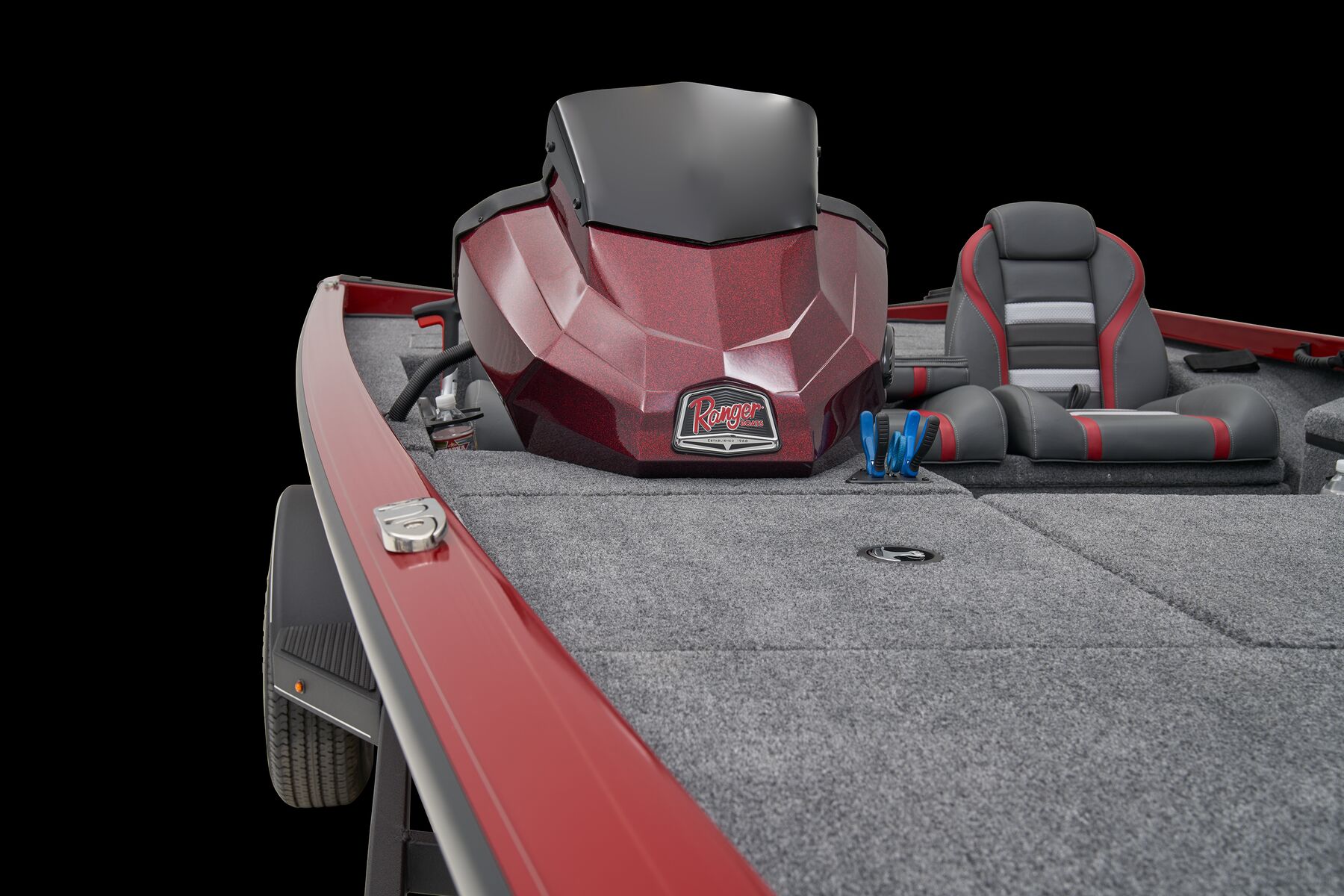

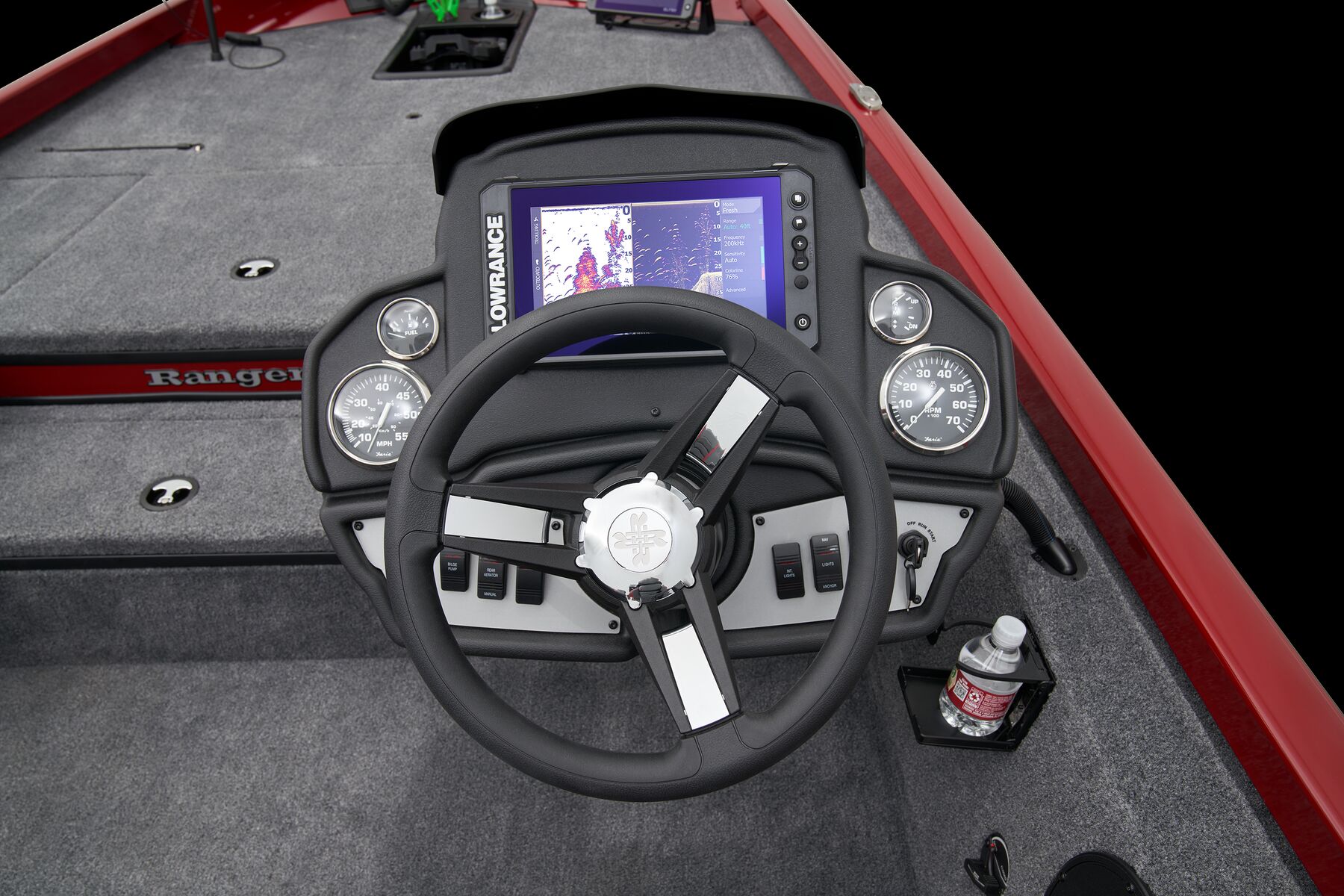

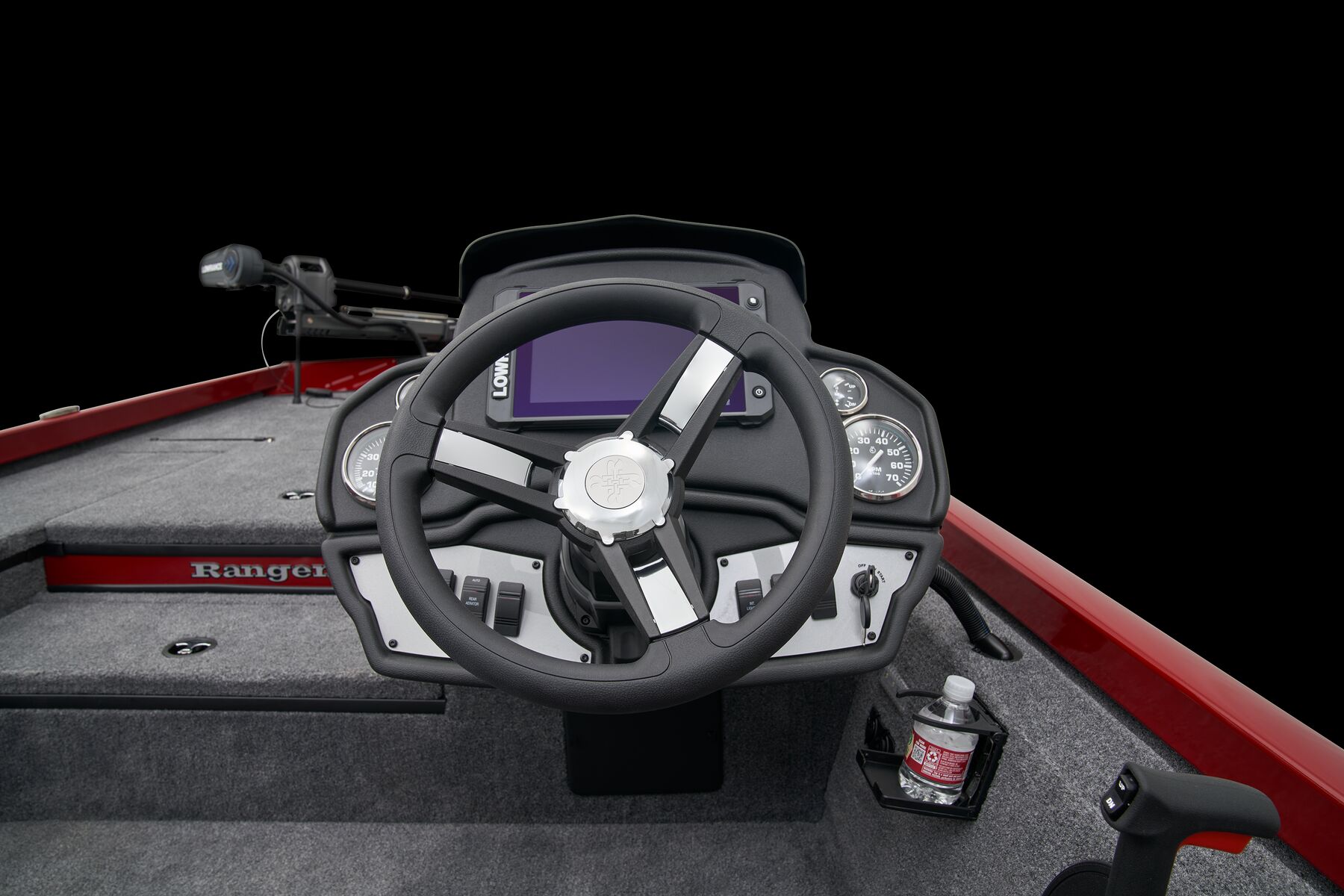

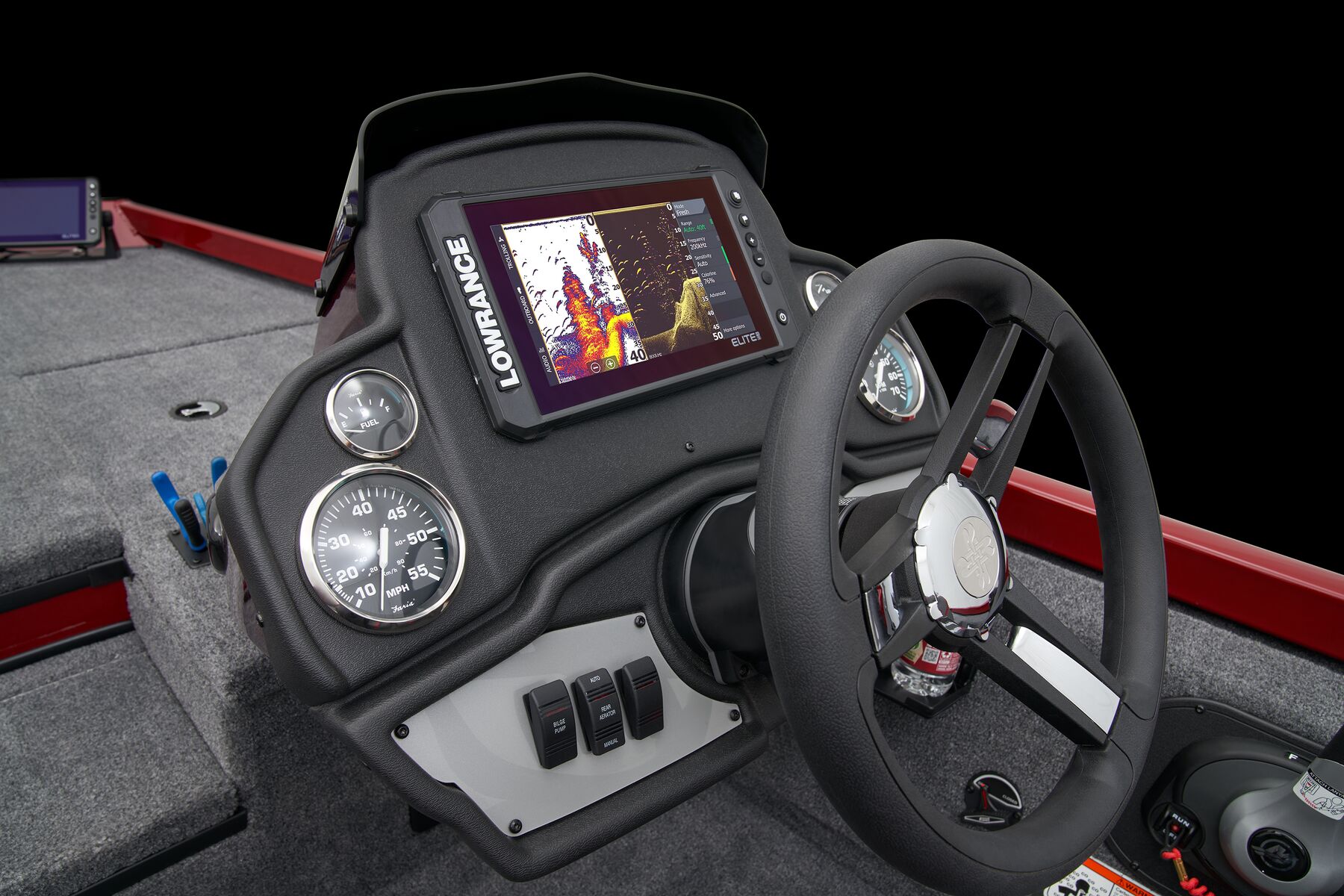

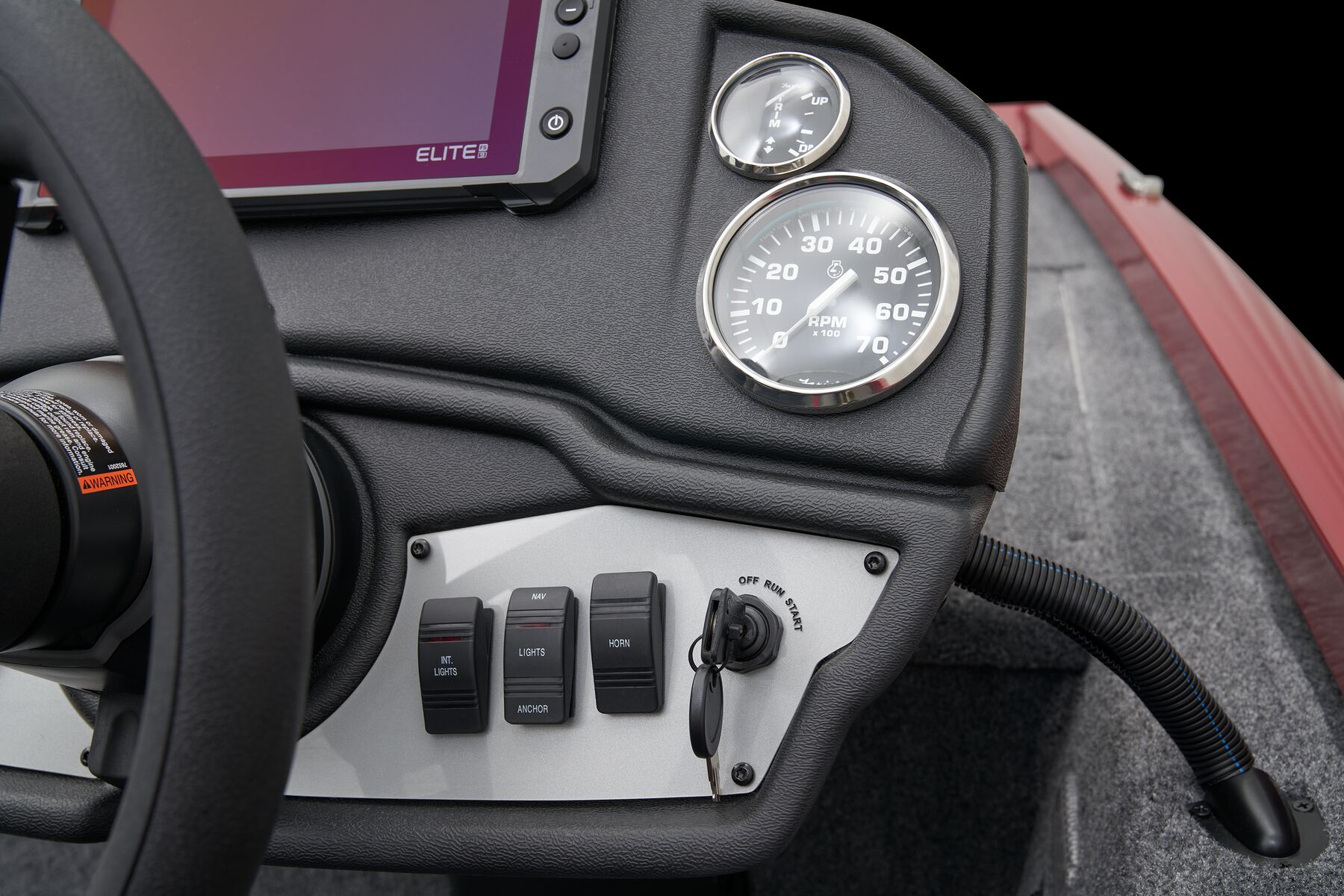

- Custom fiberglass console w/ flush-mounted depthfinder, tach, speed, fuel, trim gauge & easy touch switching
Safety/Comfort
- Broad Beam Stability™
- All aluminum welded transom
- Built-in horn assembly

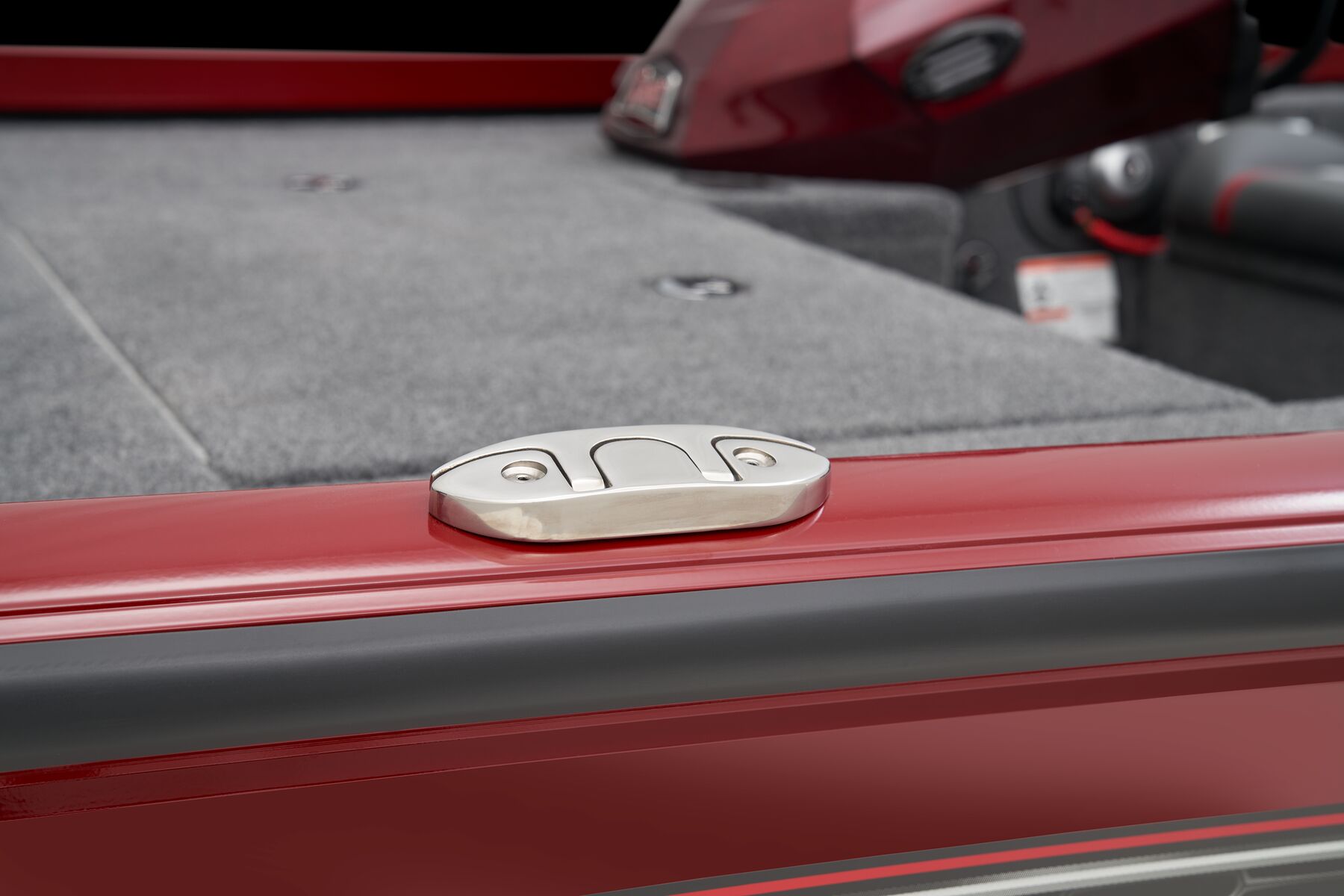

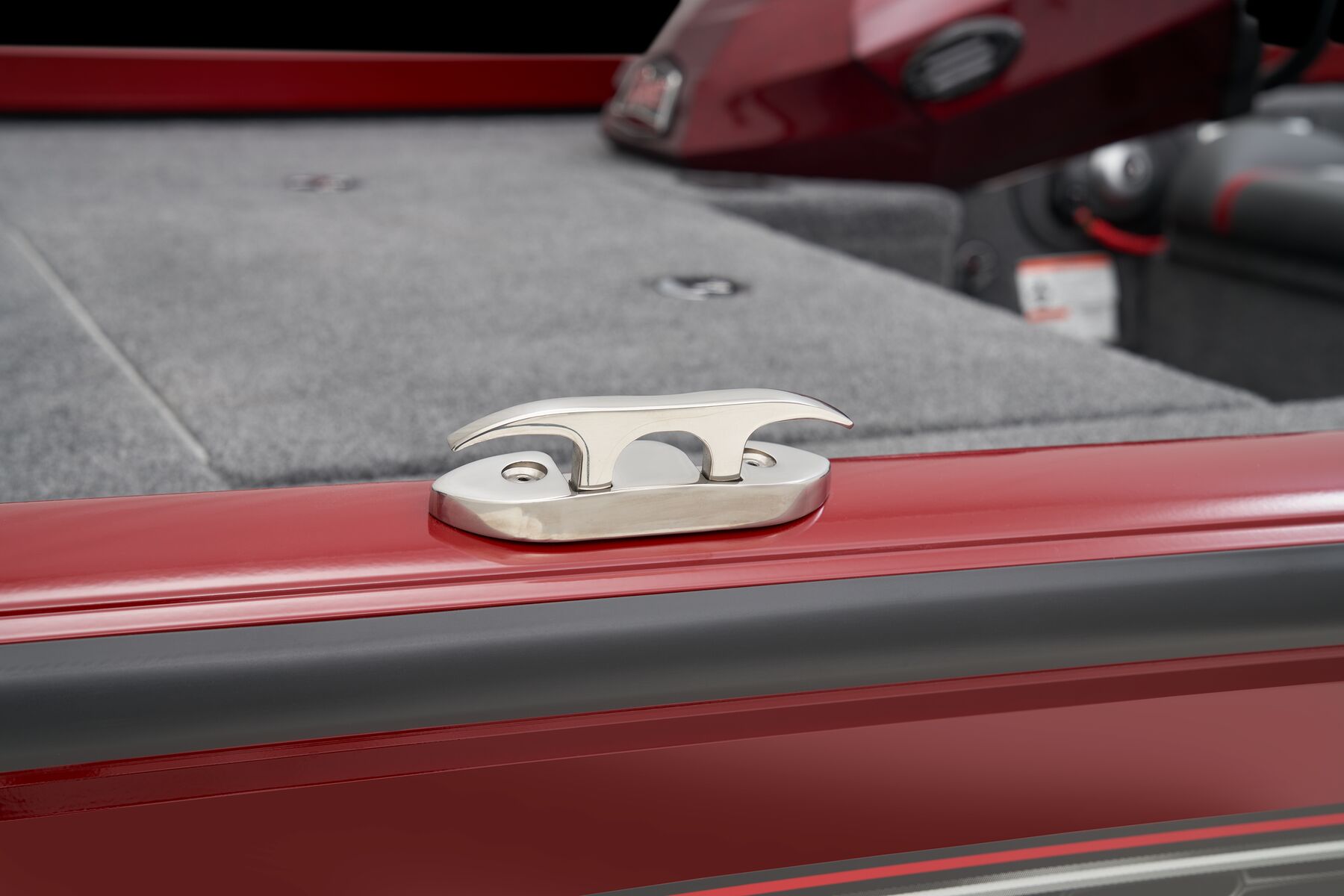

- Tie cleats (4)
- All aluminum floors & decks
- Passenger grab handles

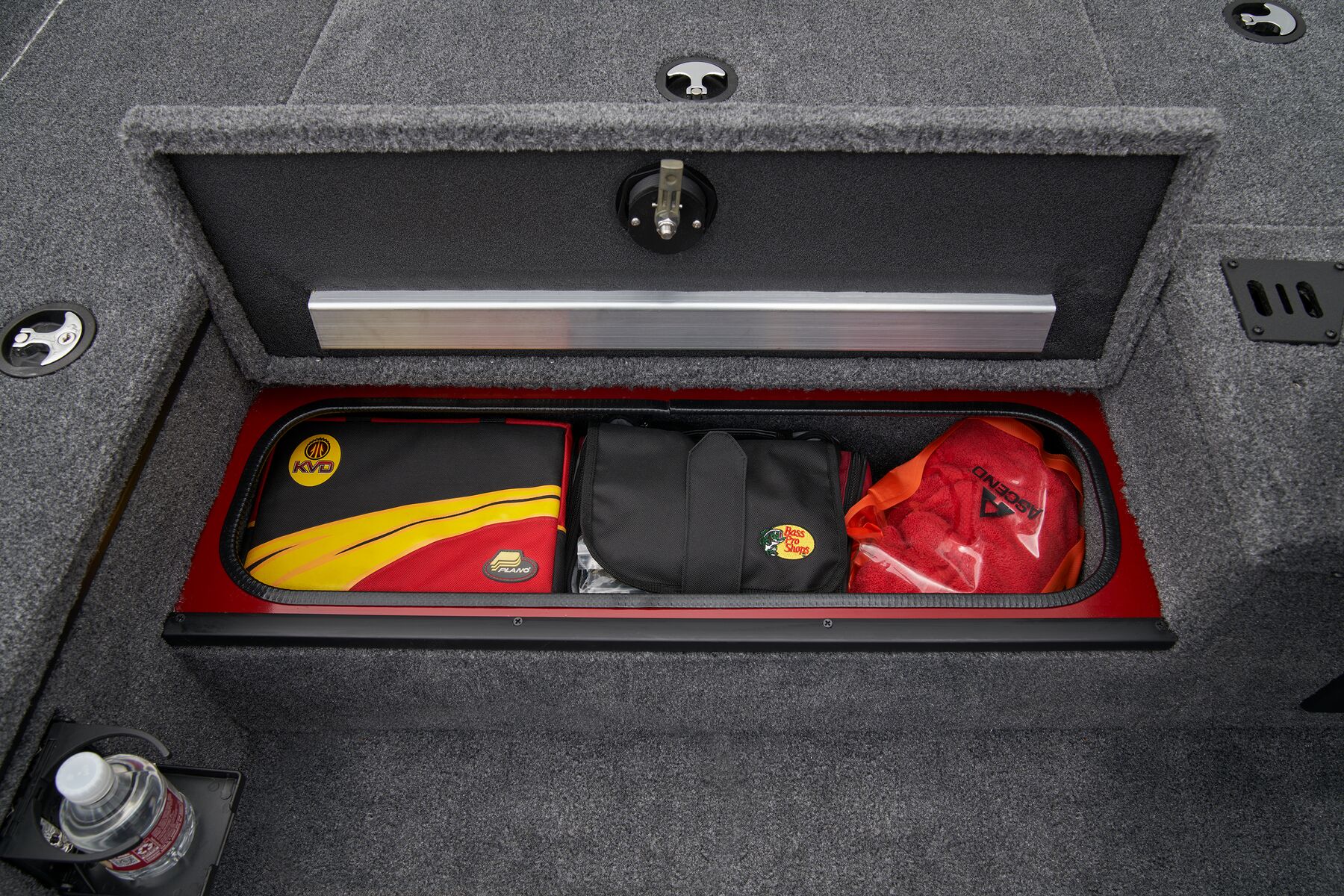

- Lockable storage
- Upright, level flotation

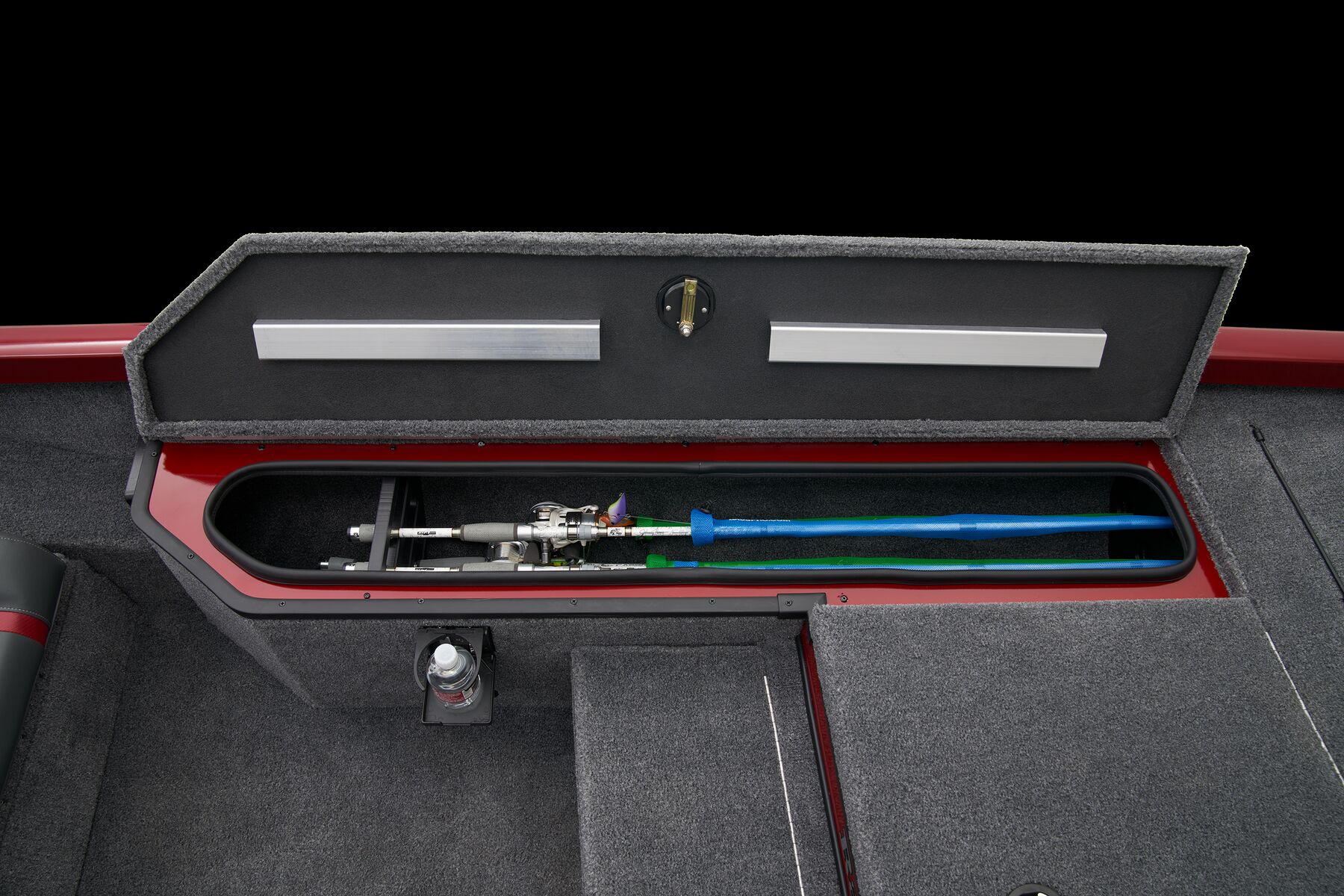

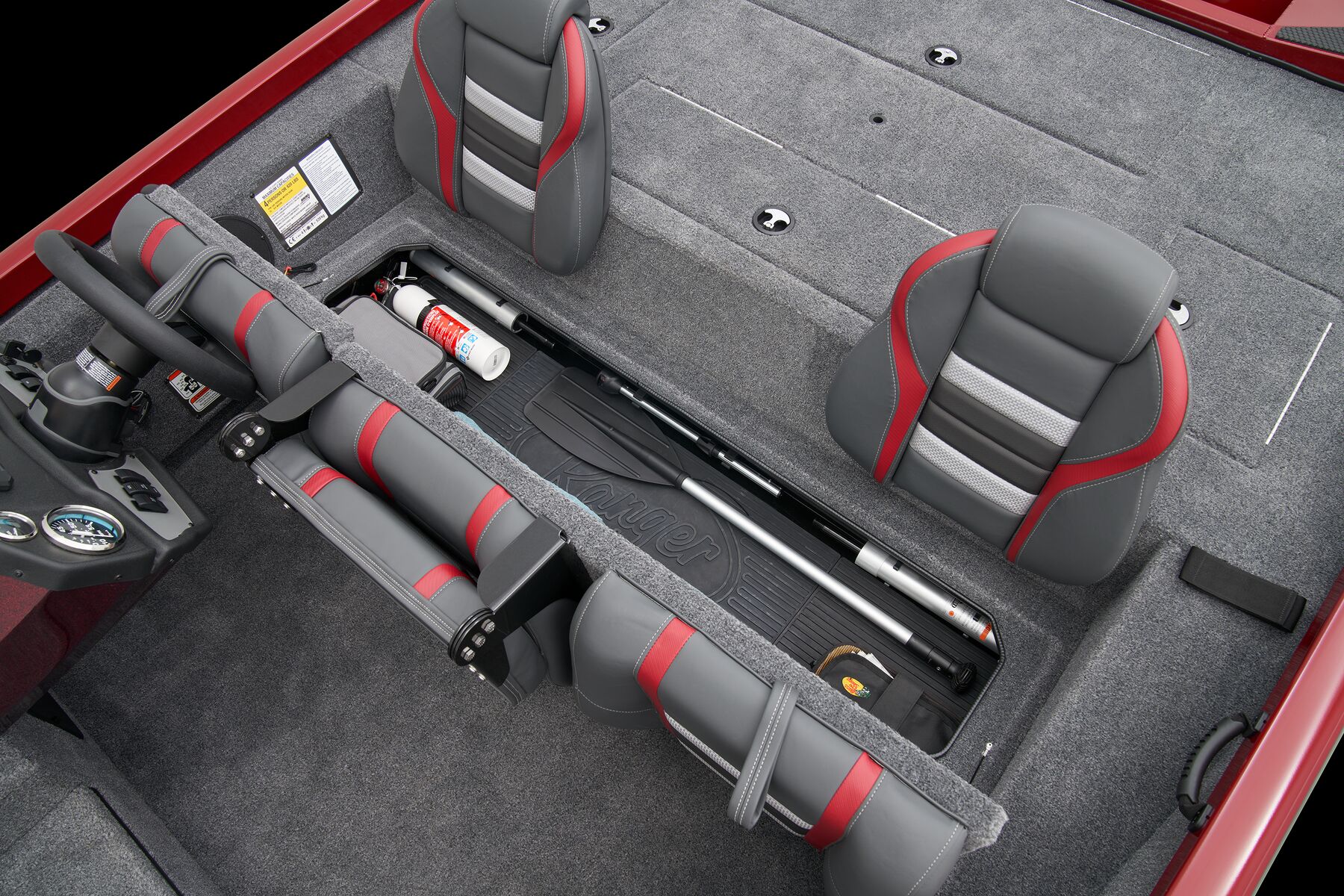

- Lockable rod storage
- 1 1/2" strakes on bottom
- Foam-filled one-piece construction

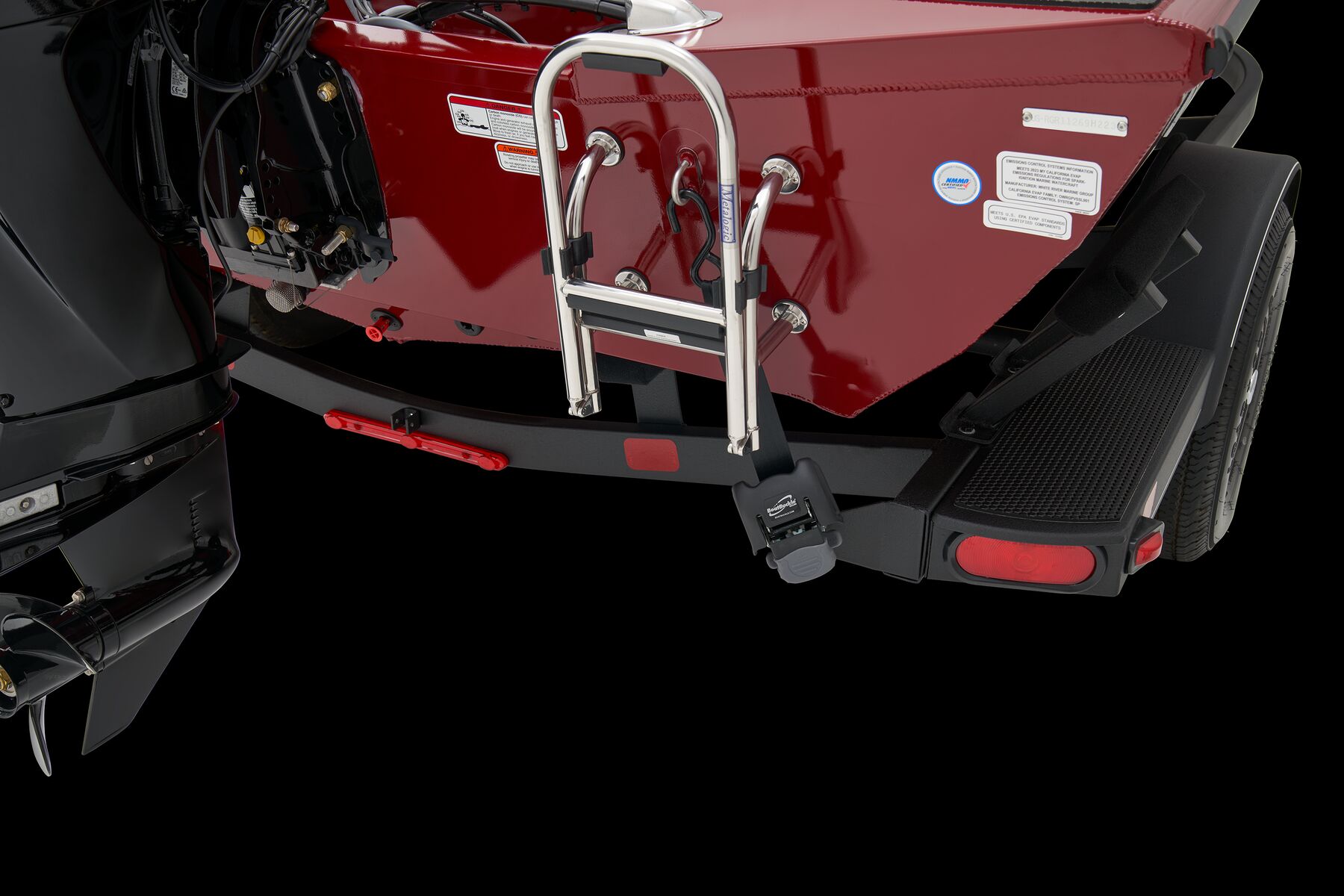

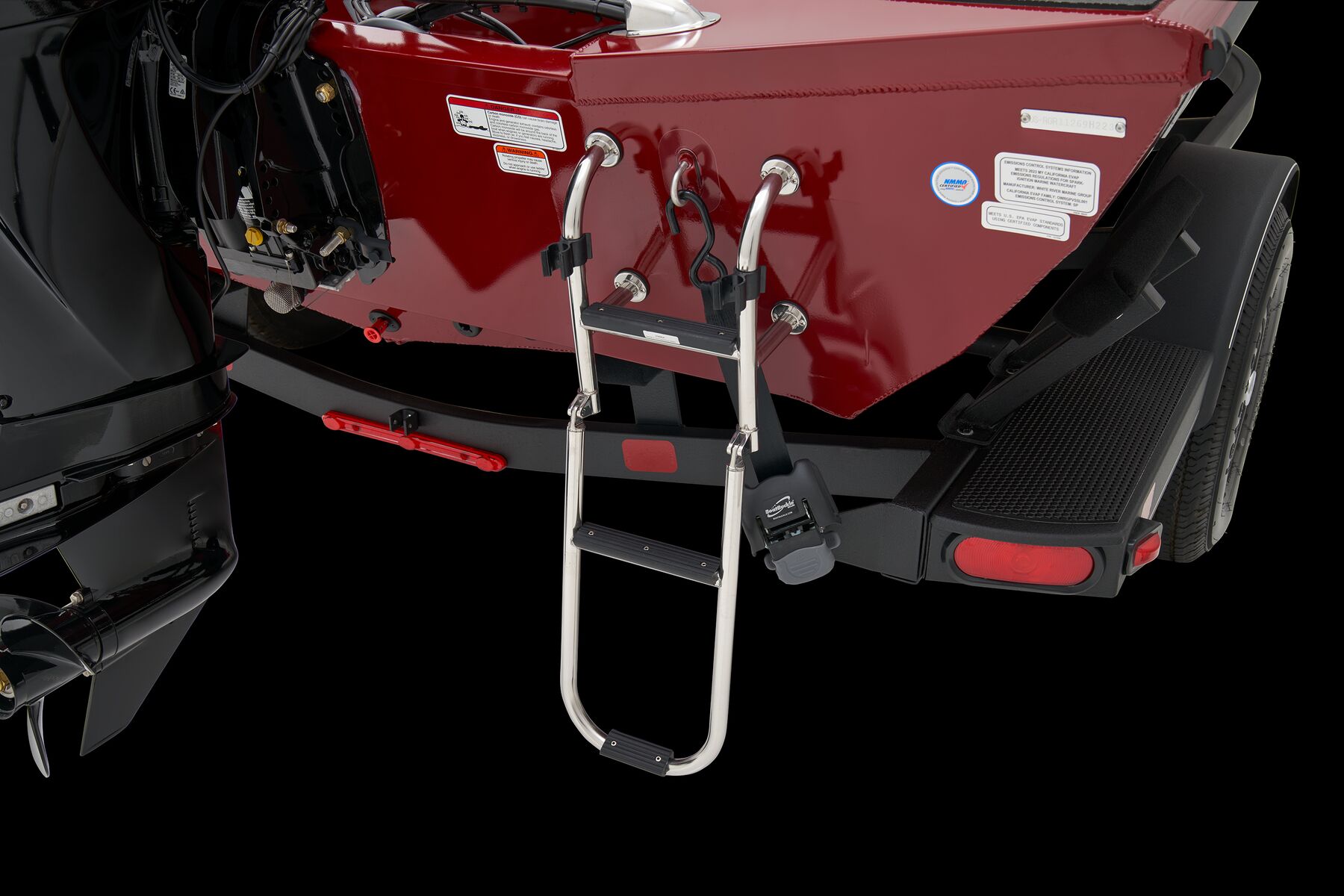

- Stainless steel boarding ladder
Trailer Features

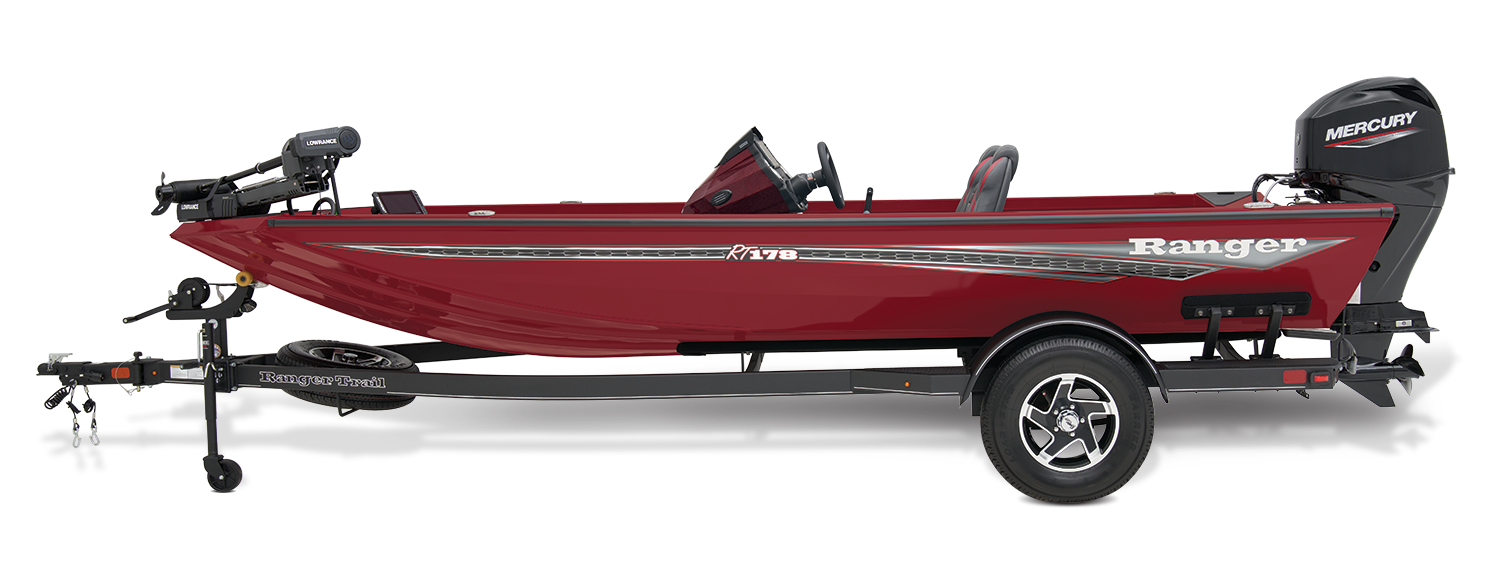

- Custom built Ranger Trail® single axle trailer
- Swing jack
- Swing-away tongue

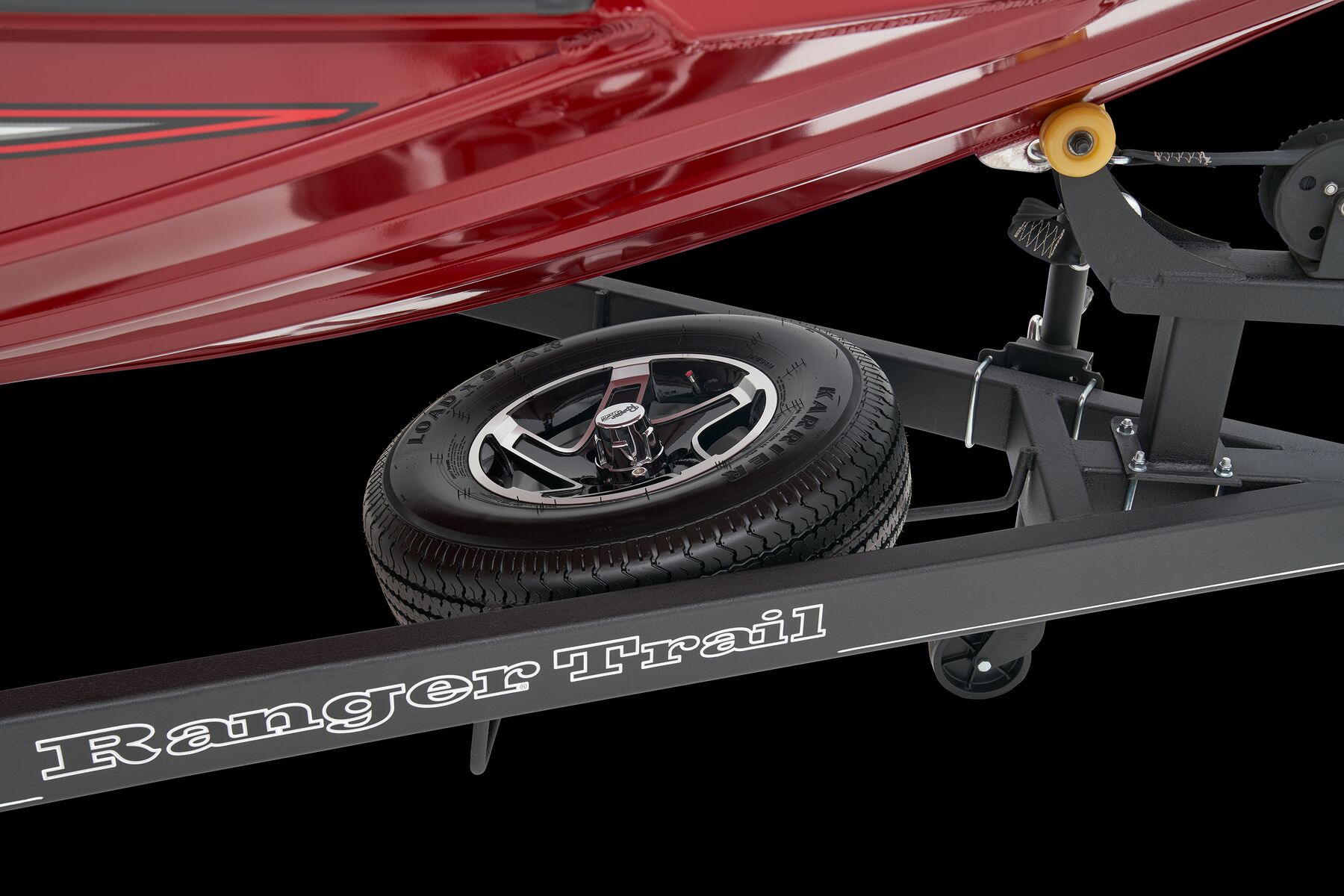

- Custom Ranger Trail® directional aluminum wheels with spare
- Leaf spring axle
- Ranger® Boats Road Armor Equipped® trailer protectant
- Retractable trailer tie downs
- NMMA®/NATM certified
- Integrated load guides
- Waterproof lights
