Z520R 55th Anniversary Limited Edition

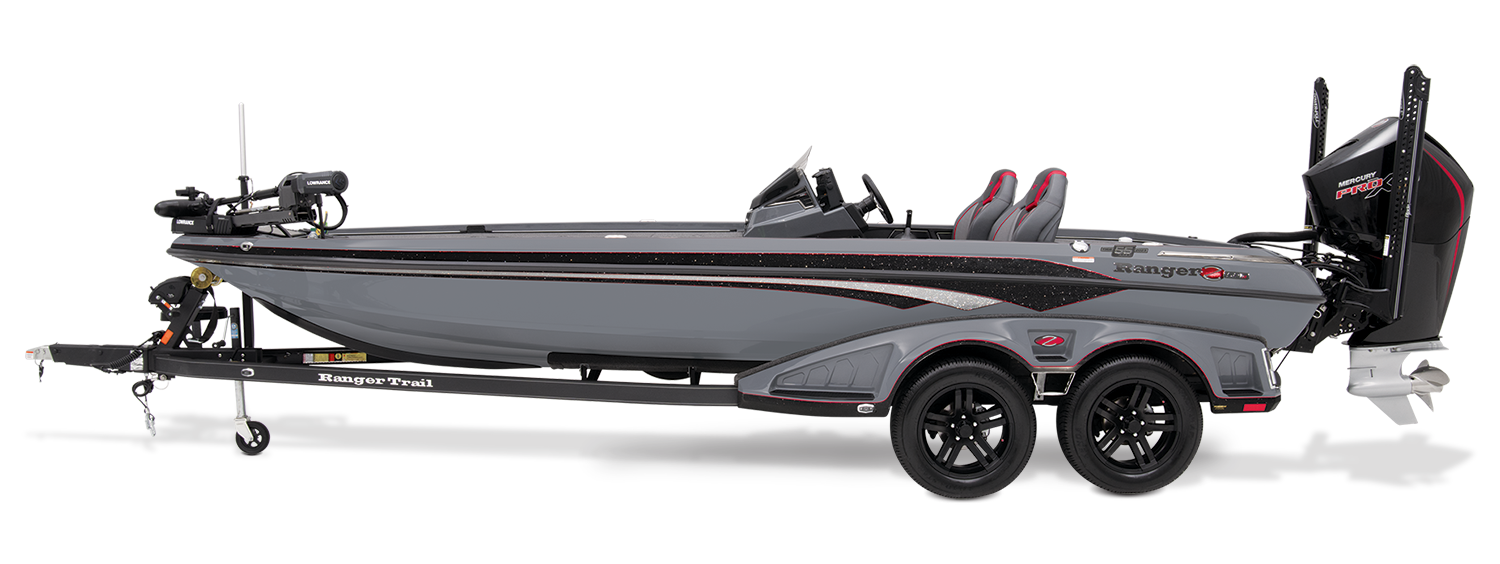

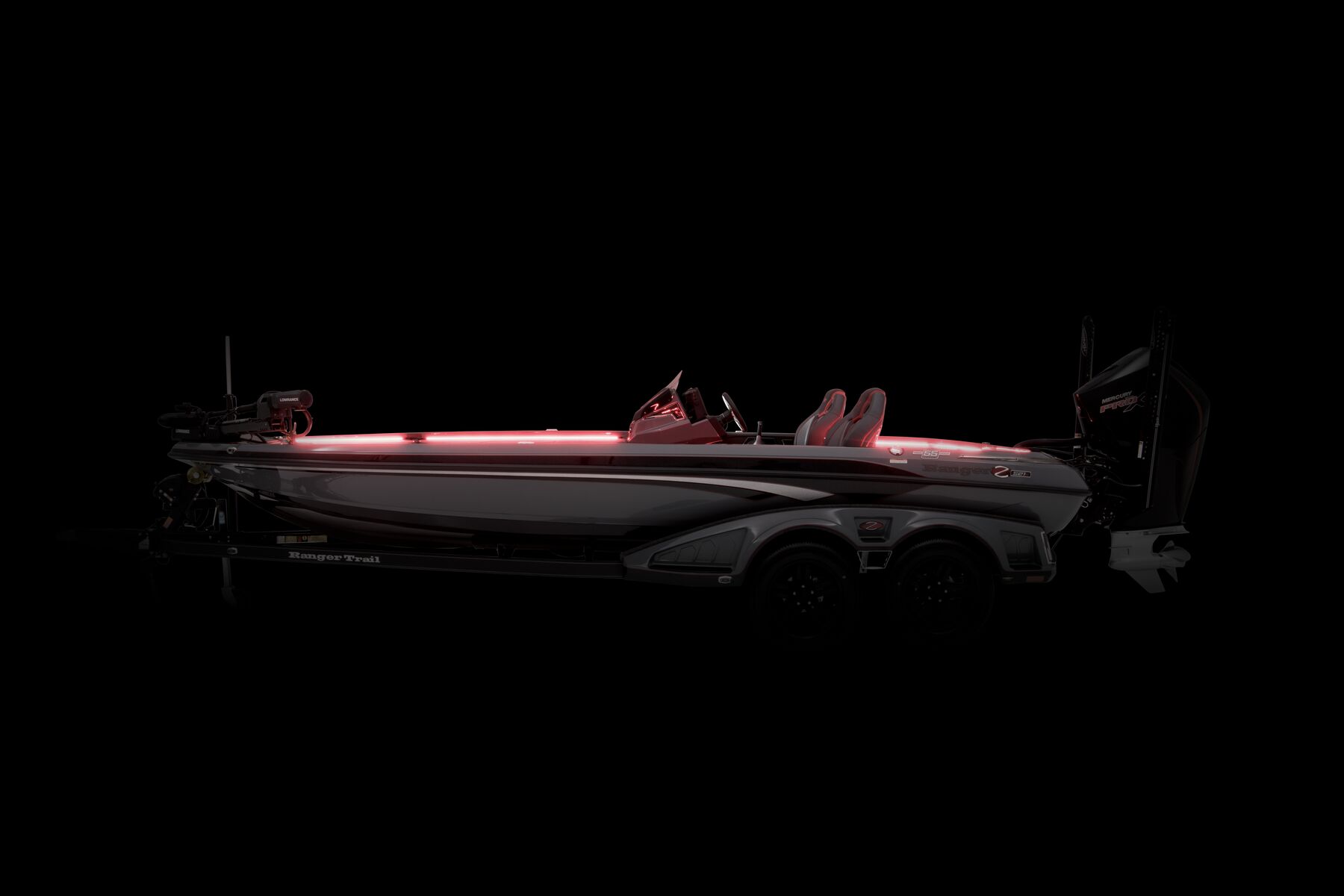

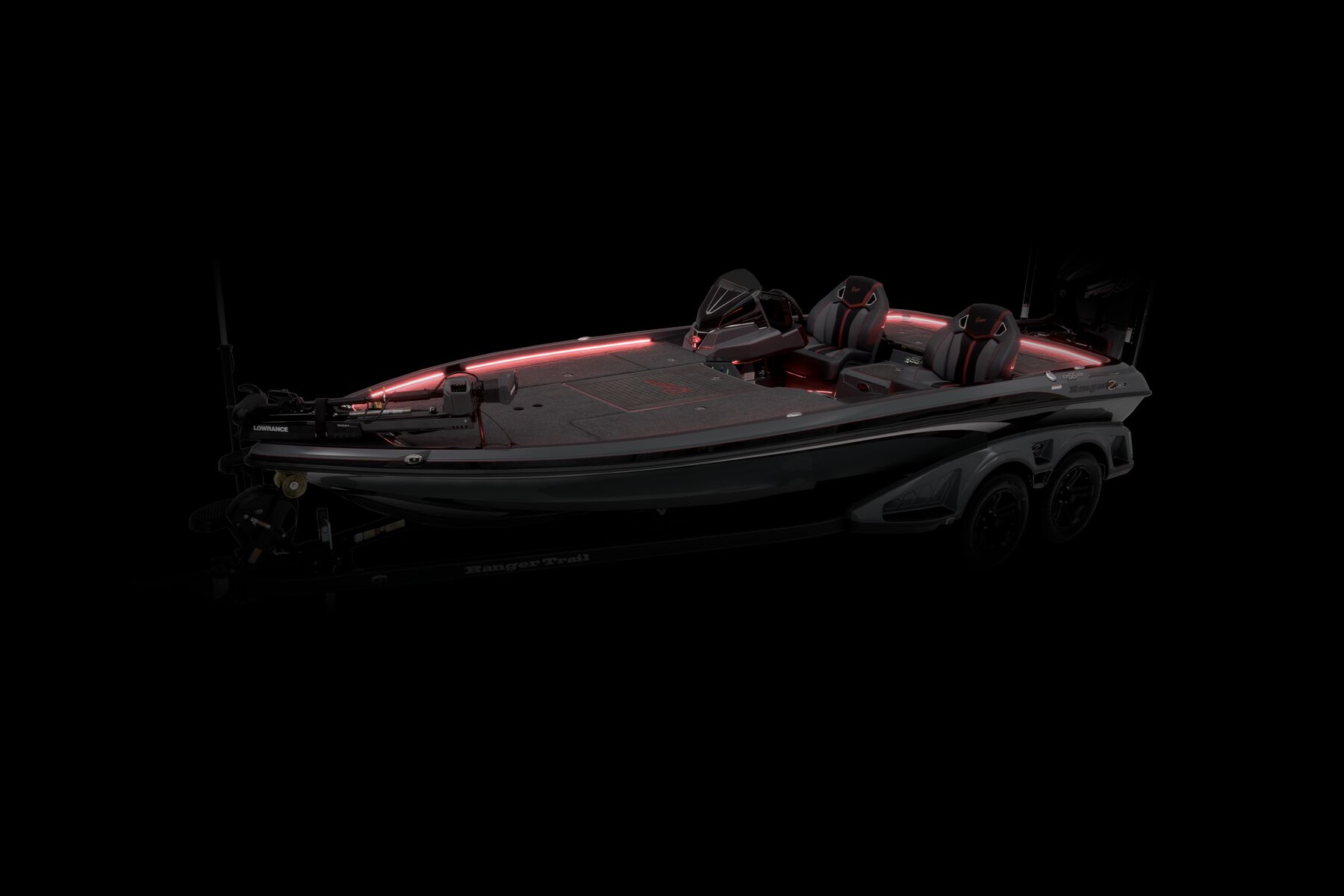

Z521R 55th Anniversary Limited Edition Model Shown for representation
2023
Z520R 55th Anniversary Limited Edition
w/ 250 L Pro XS Torque Master 1.75 Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$104995
USD
|
LIMITED EDITION WITH UNLIMITED APPEAL
When you’re stronger than ever after more than a half-century, there’s cause to celebrate. And we’re celebrating the only way we know how - by releasing a limited-edition boat worthy of this milestone.

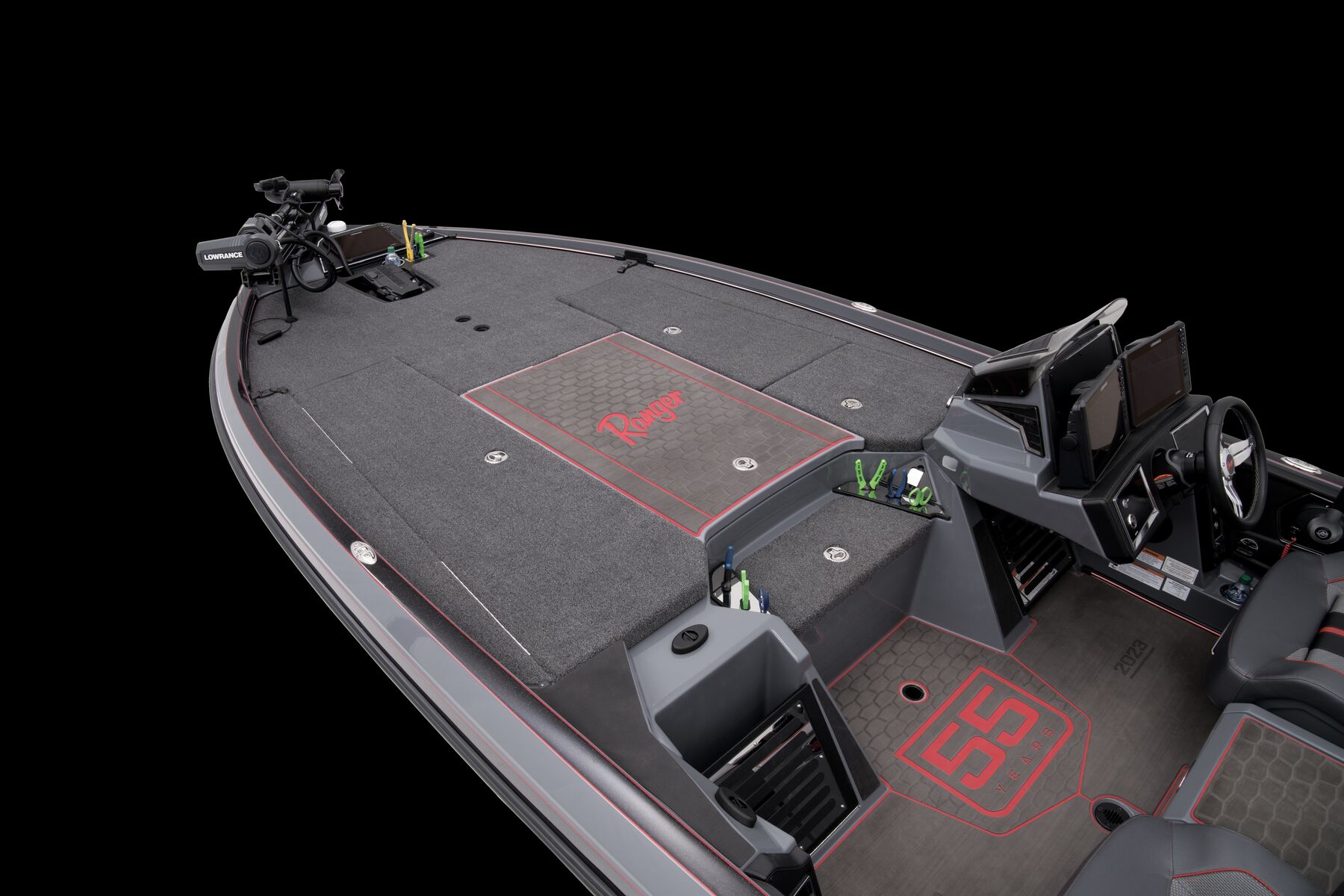

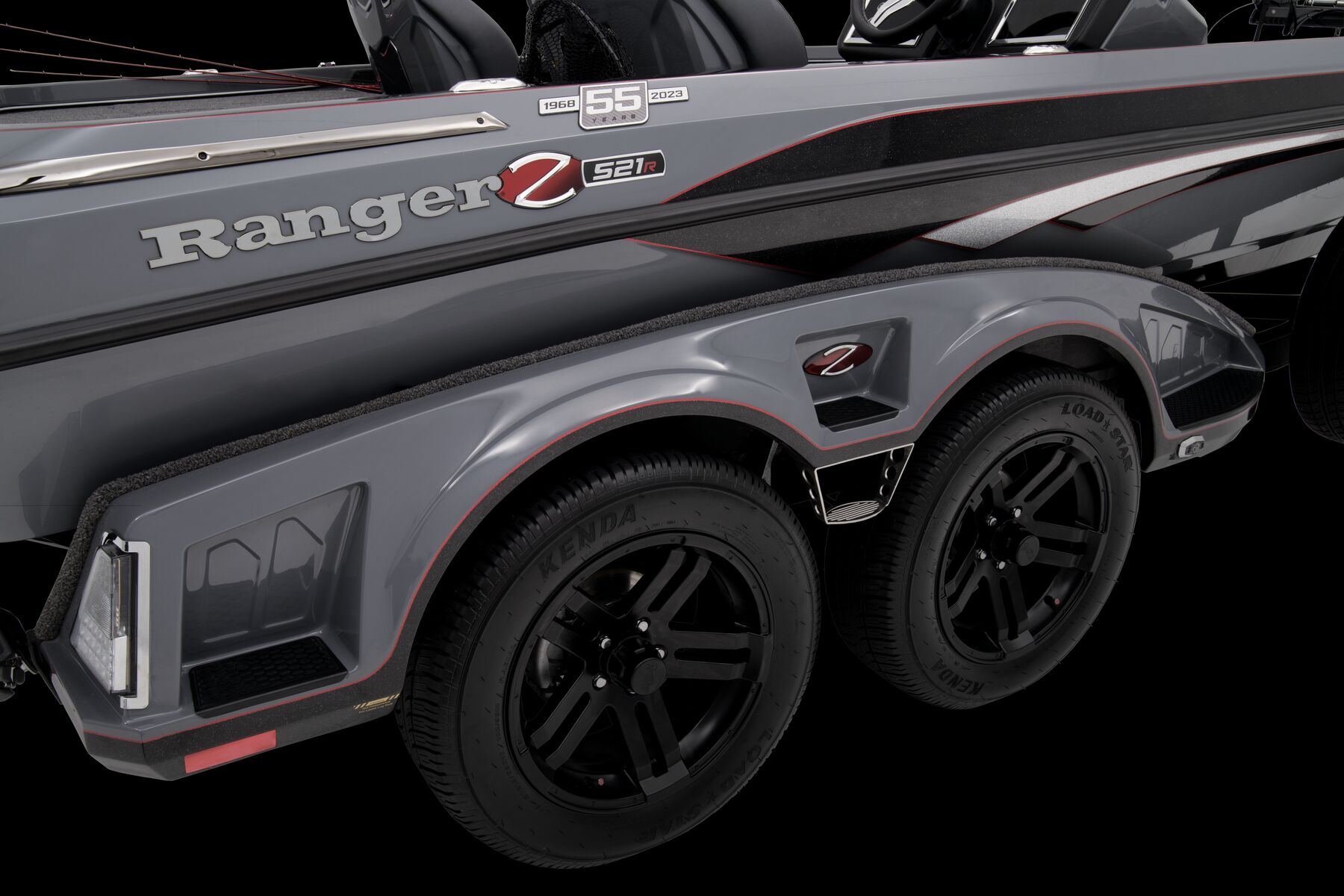

The 55th Anniversary Limited Edition Z521R and Z520R Z-Comanche boats feature the complete Ranger Cup Equipped package elevated with a one-off color scheme inside and out, commemorative 55th badging throughout, RGB carpet trim lights, custom black chrome accents, and a premium heated driver’s seat with shock-absorbing air bladders in the bottom and seat back. The trailer features custom-matched fenders, 17” black Challenger wheels, and matching smoked taillights for a complete package that’ll turn heads for another 55 years.
Key Features
- Ranger Cup Equipped package and more
- Dual Lowrance HDS 12s at console
- HDS 12 @ bow with Active Target
- Lowrance Ghost trolling motor
- Dual Power-Poles
- Heated seat bottom
- Adjustable air bladder in seatback and bottom
- Custom 55th Anniversary badging throughout
Specifications
| Length | 6.38 m | 20' 11'' |
| Hull Length | 6.38 m | 20' 11'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 250 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 55.88 cm | 22'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 748.43 kg | 1650 lbs. |
| Approximate Boat Weight | 839.15 kg | 1850 lbs. |
| Rod Box Length - Port | 2.44 m | 8' |
| Rod Box Length - Center Row 1 | 2.44 m | 8' |
| Rod Box Length - Center Row 2 | 2.29 m | 7' 6'' |
| Max. Person Capacity | 4 persons | |
| Trailer GVWR | 2449.4 kg | 5400 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.25 m | 27' 1'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.62 m | 25' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250 L Pro XS Torque Master 1.75 |
$104995 USD
|
Select Dealer | |||
Standard Features
Custom Details

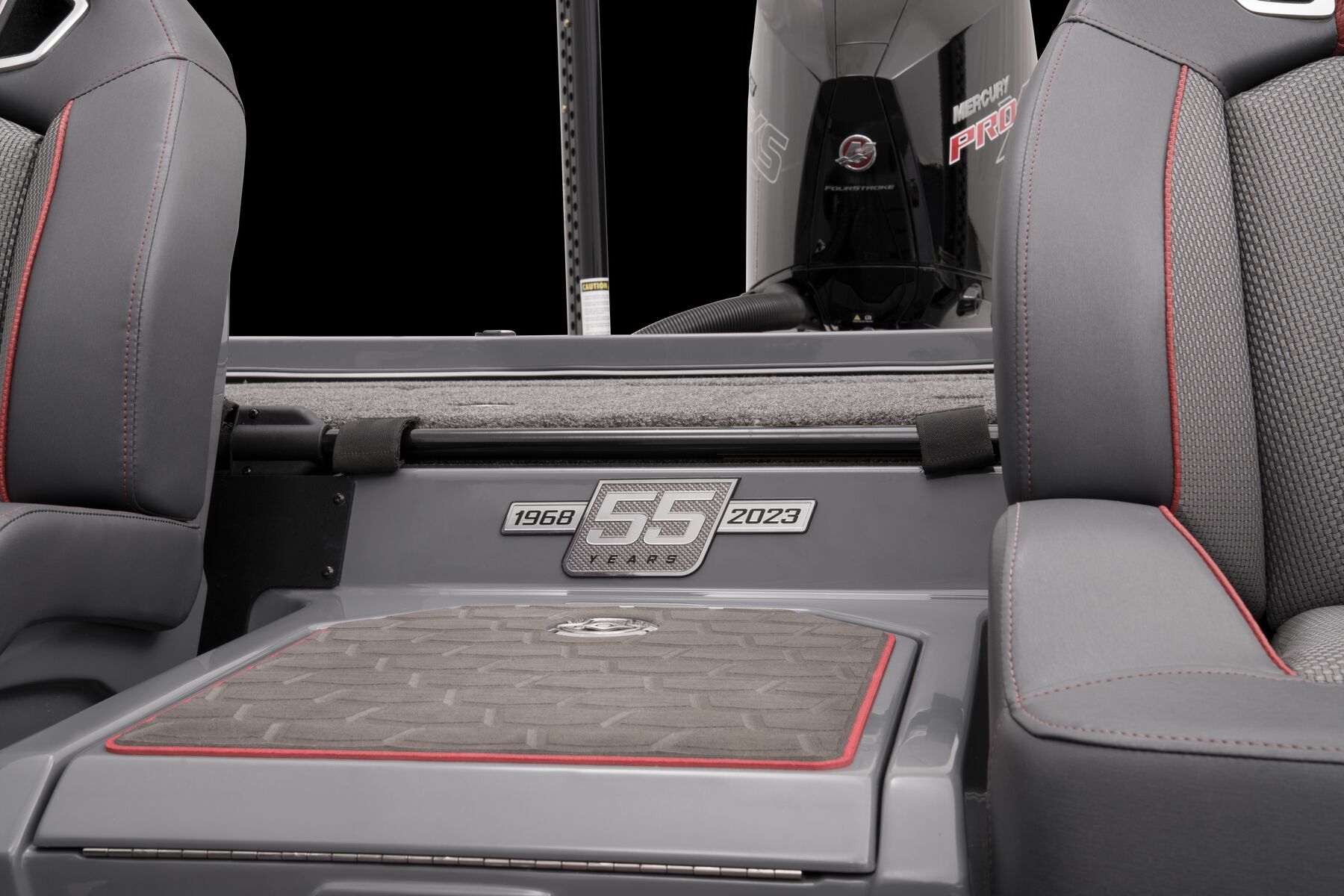

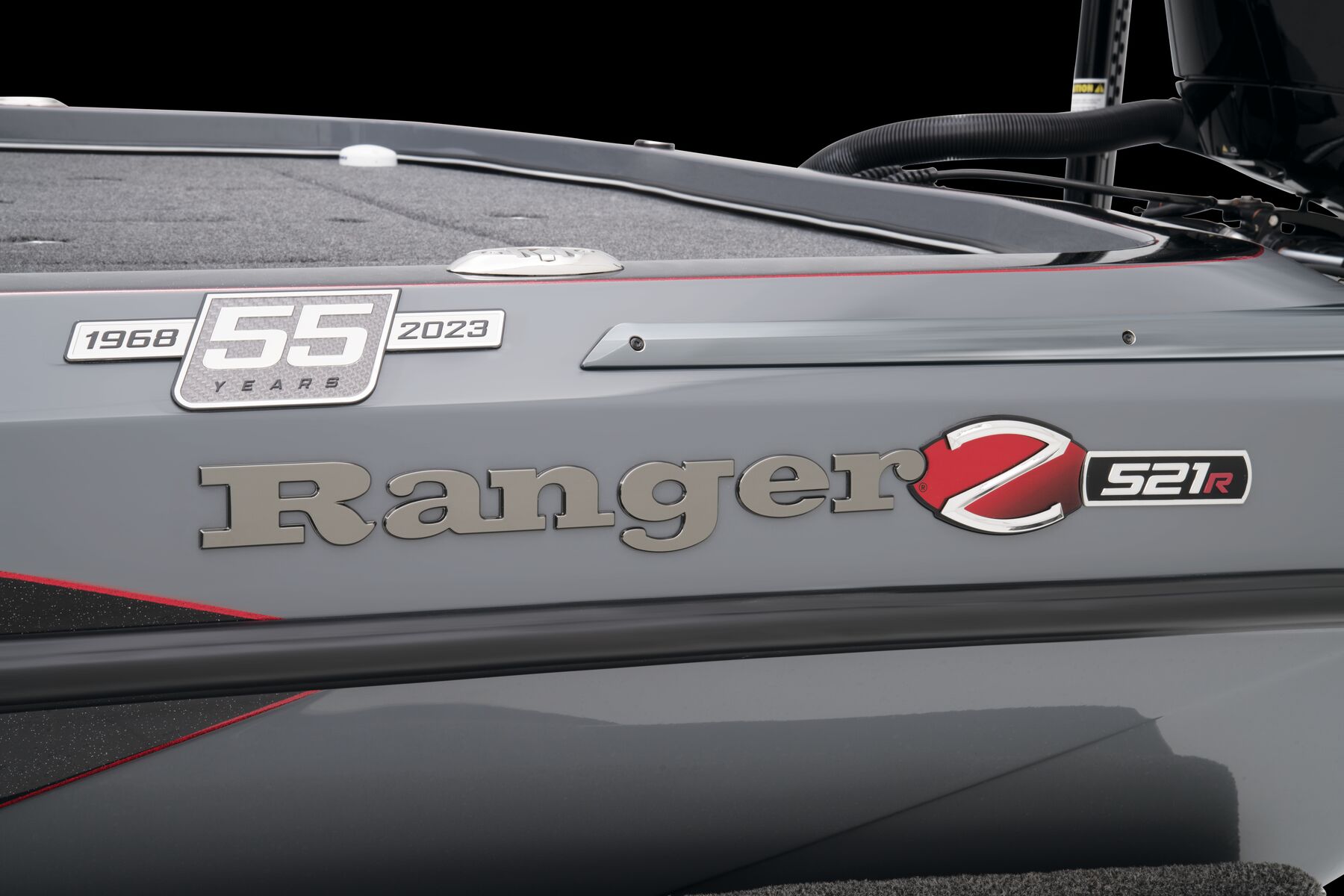

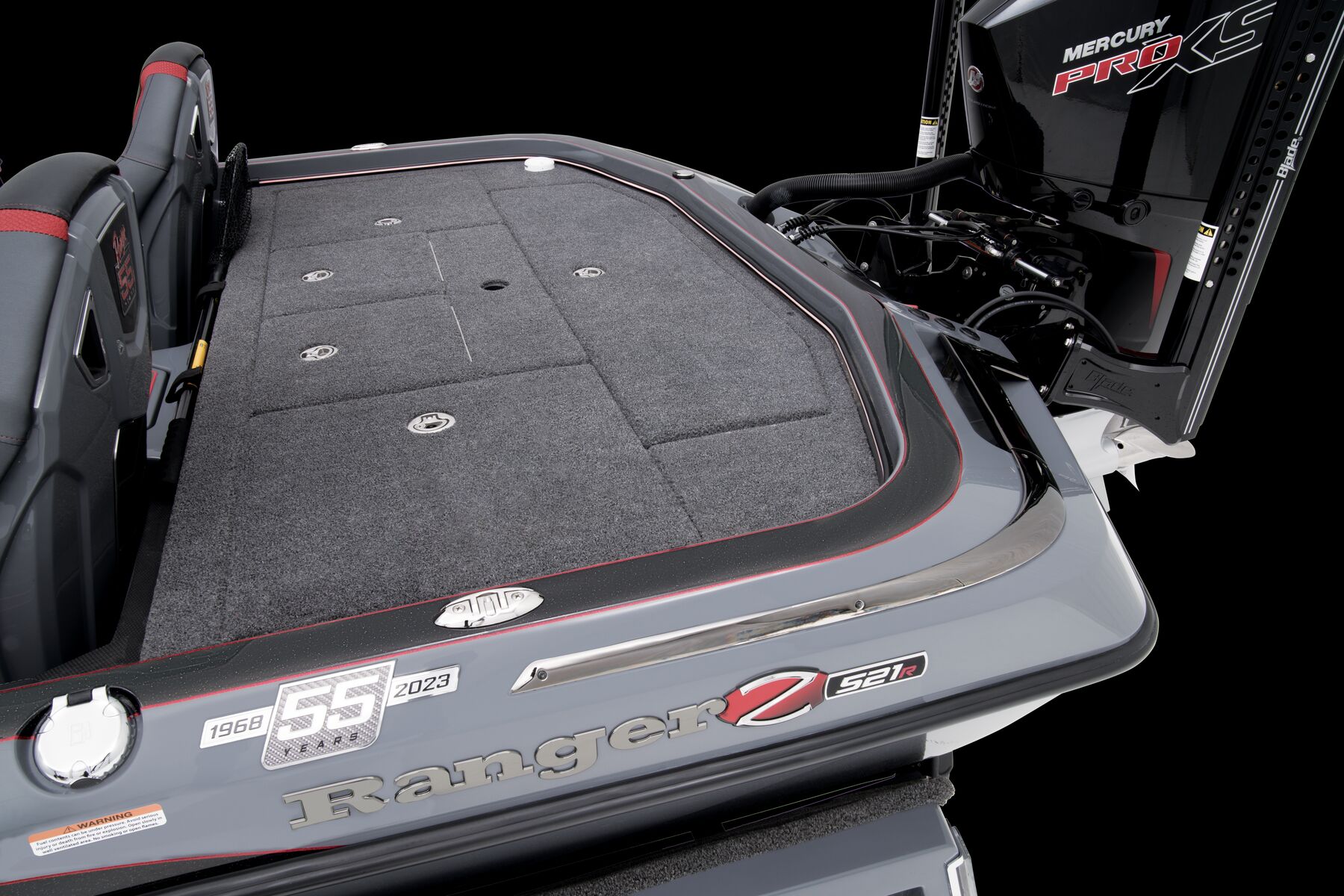

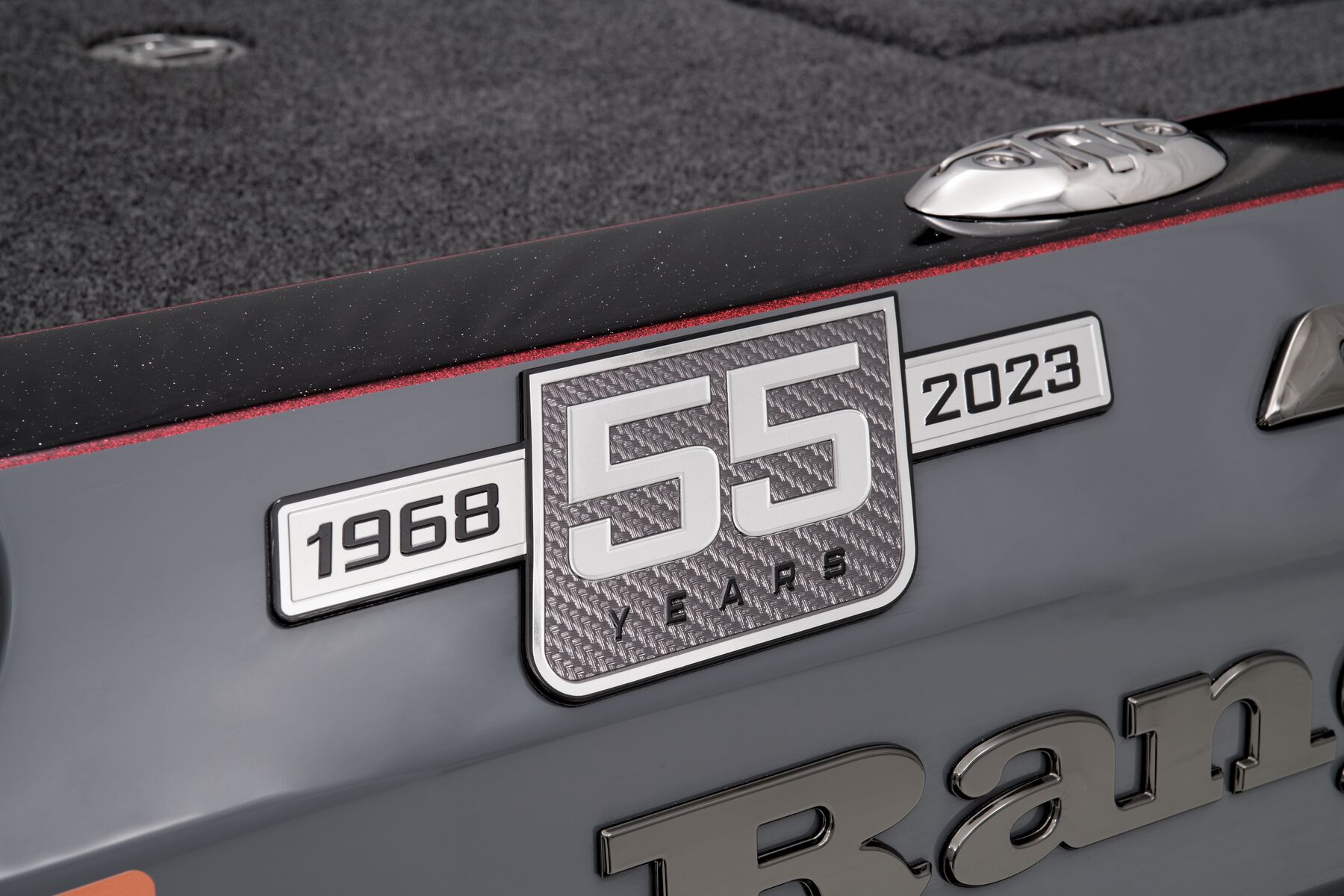

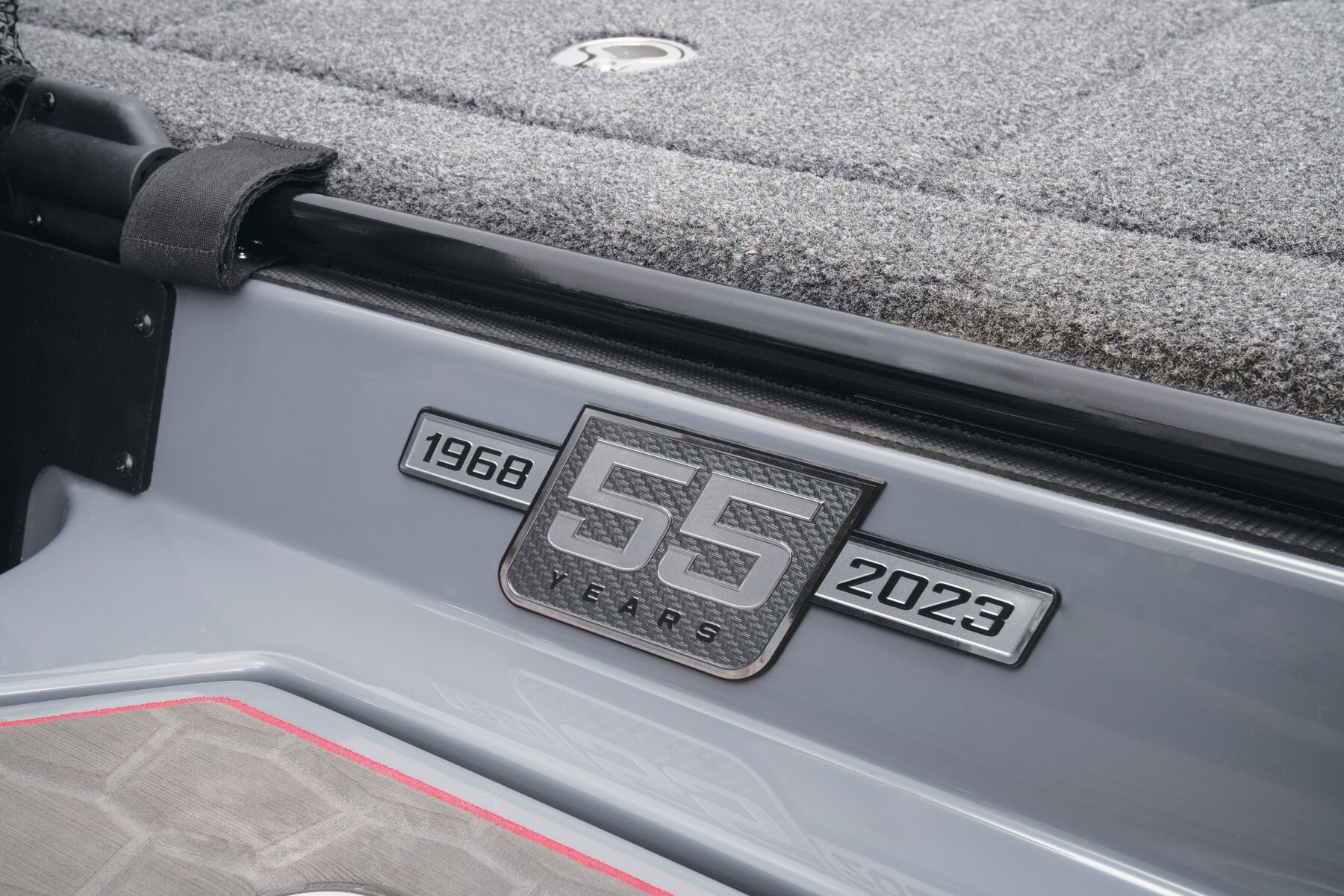

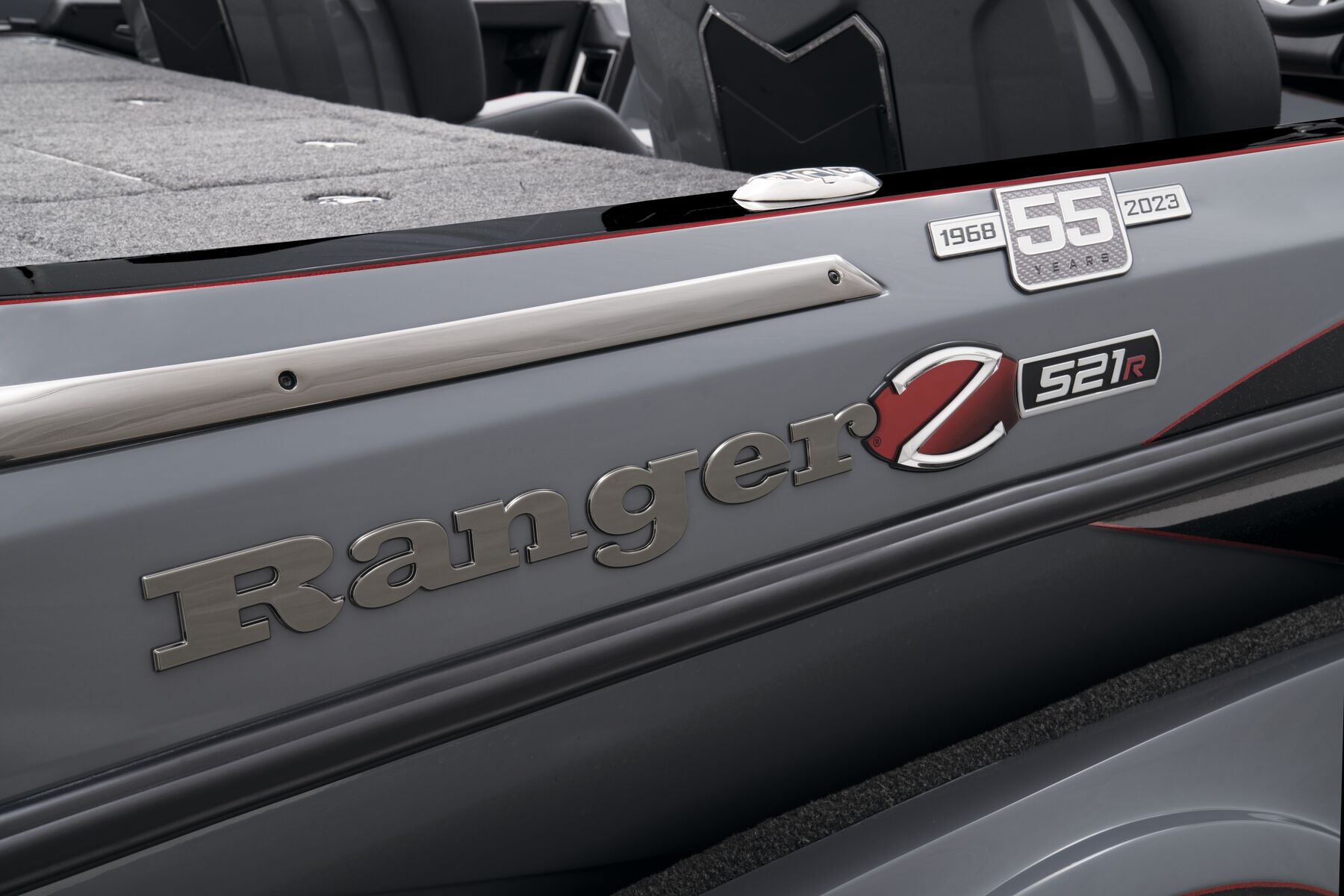

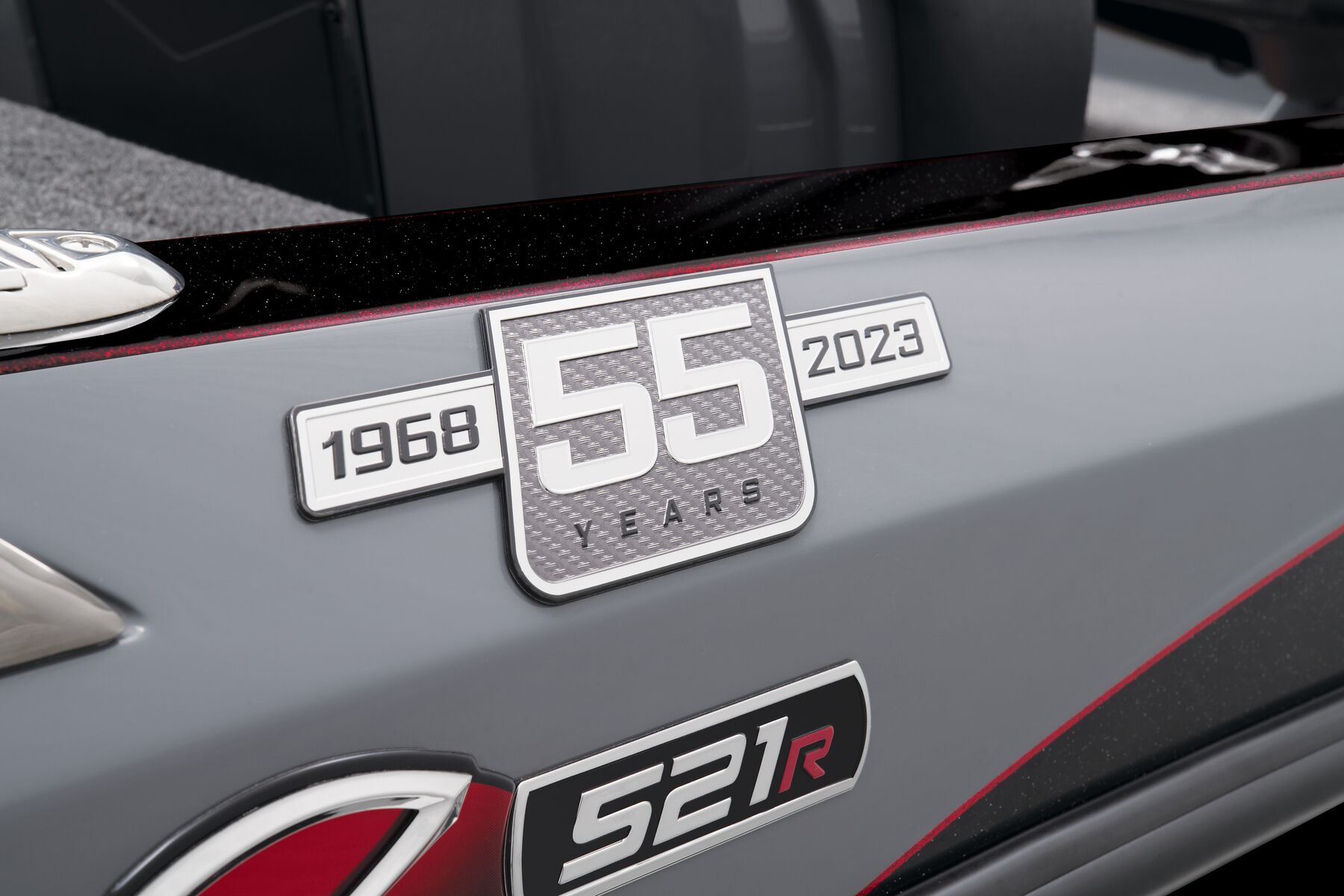

- Special 55th Anniversary badging
- Special 55th Anniversary color package
- 3 Level rod shelves port rod locker
- 2 Level rod shelves STBD rod locker
- Power Ventilation Rod Storage™

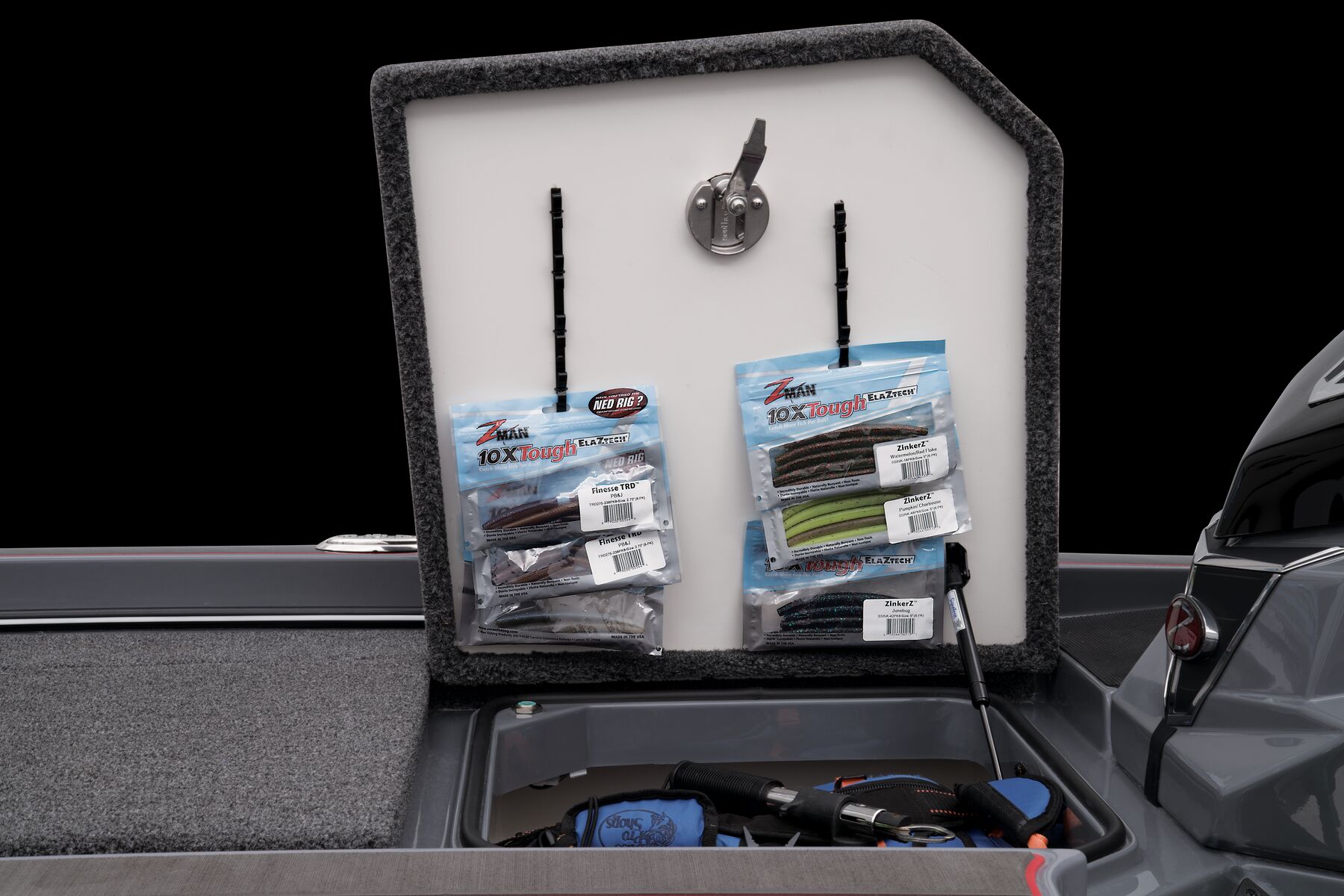

- Ez View tackle organizer day box lid
- Integrated rod and tackle management system
- Double wall insulated cooler (10 gal) w/ drain
- Stainless steel seat bases
- Line spooling station under aft lid
- Gas spring lid assists
- Molded-in driver/ passenger footrests

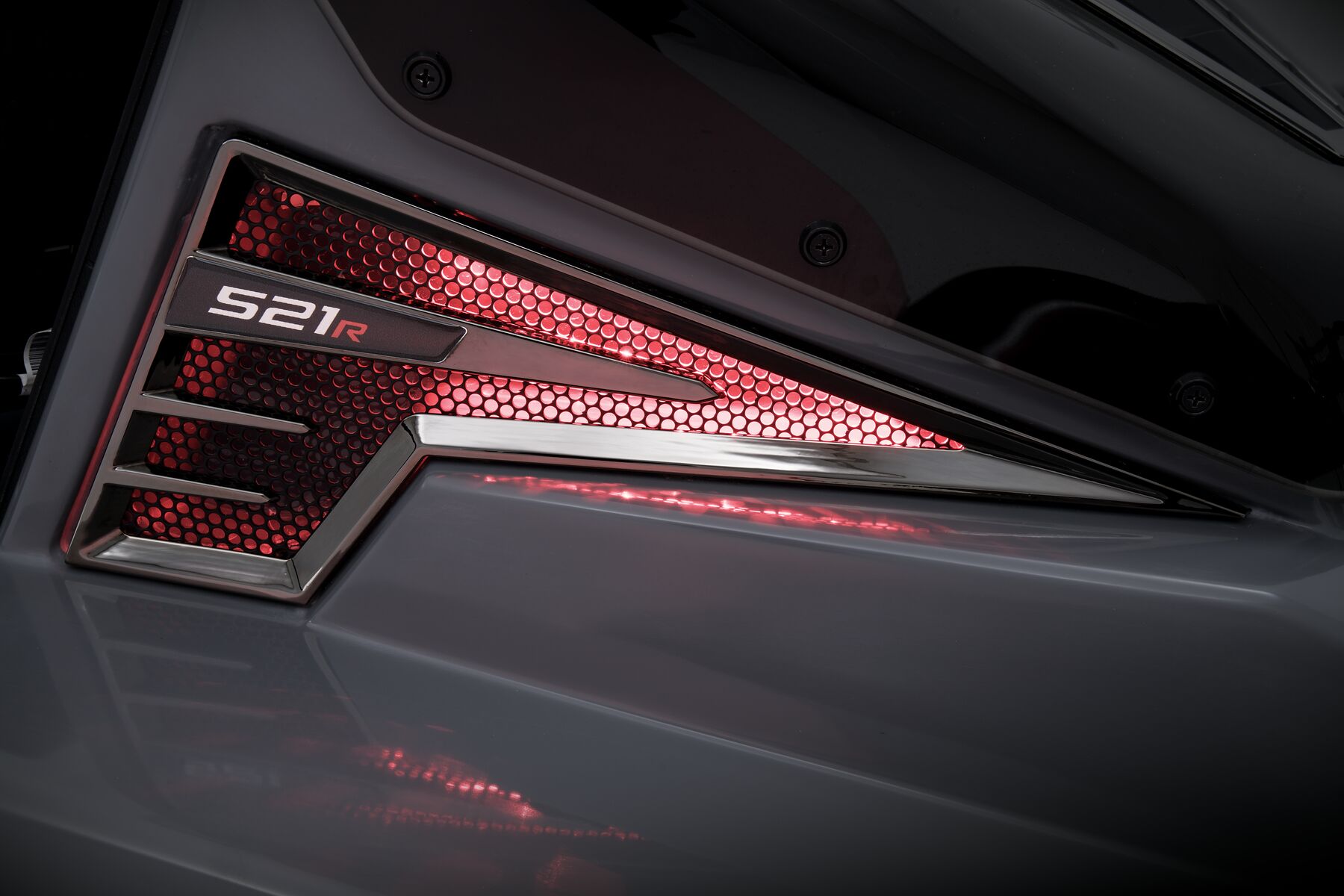

- Trim package featuring exclusive custom black chrome and black chrome accents
- Ranger® tournament measuring board
- Remote drain plug
- Stainless steel compression lid locks
Electronics

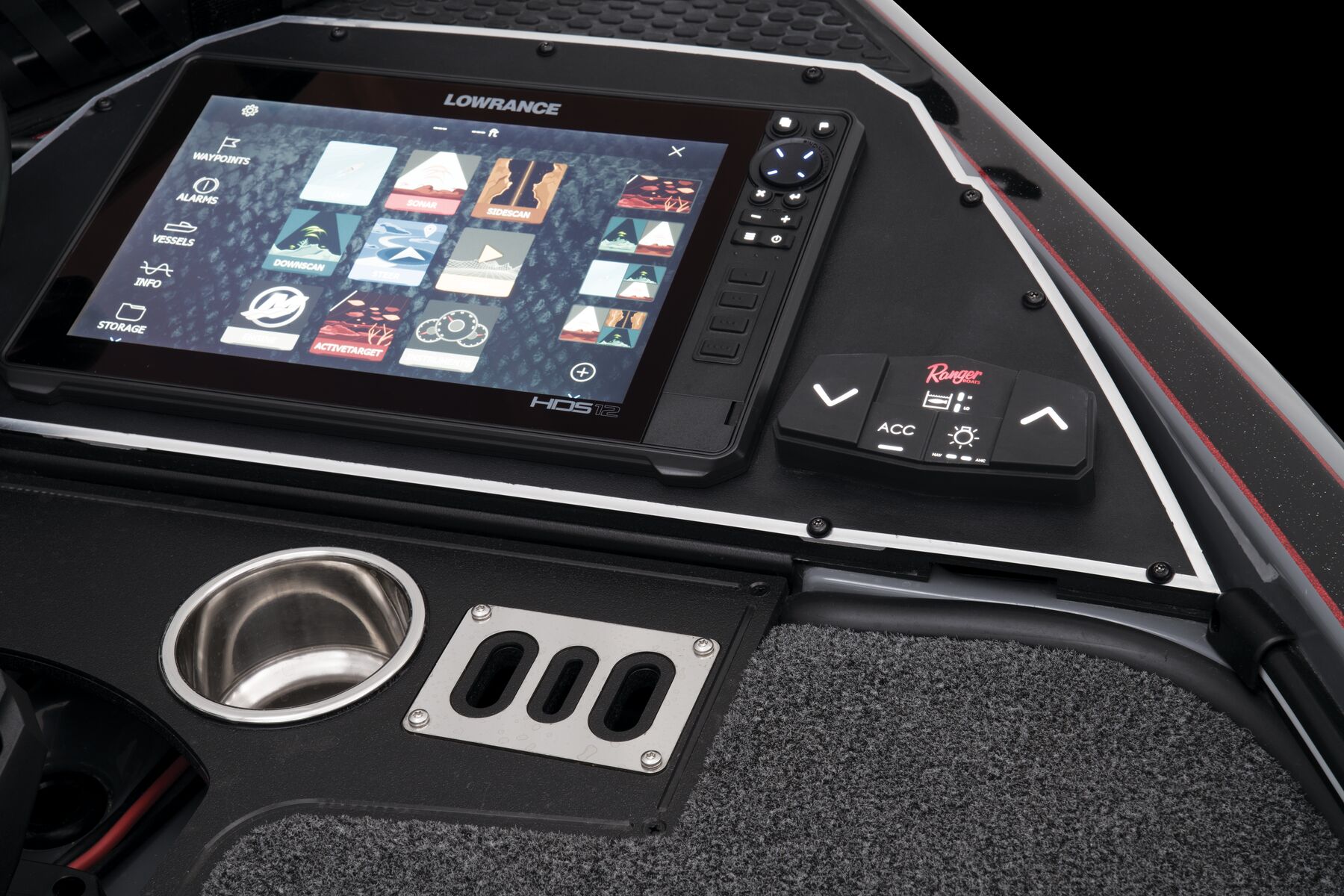

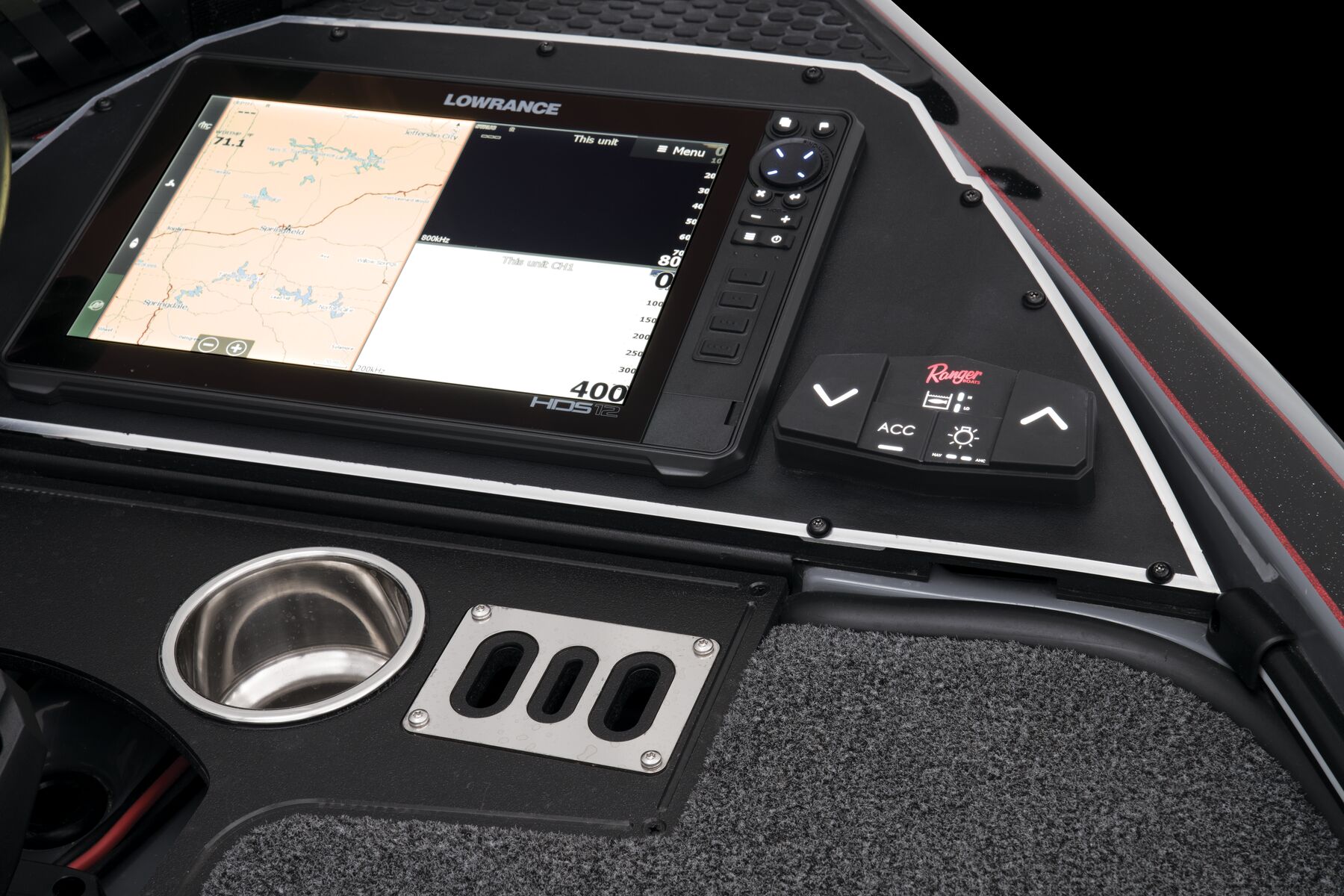

- Lowrance® HDS-12 LIVE w/ active target transducer at bow

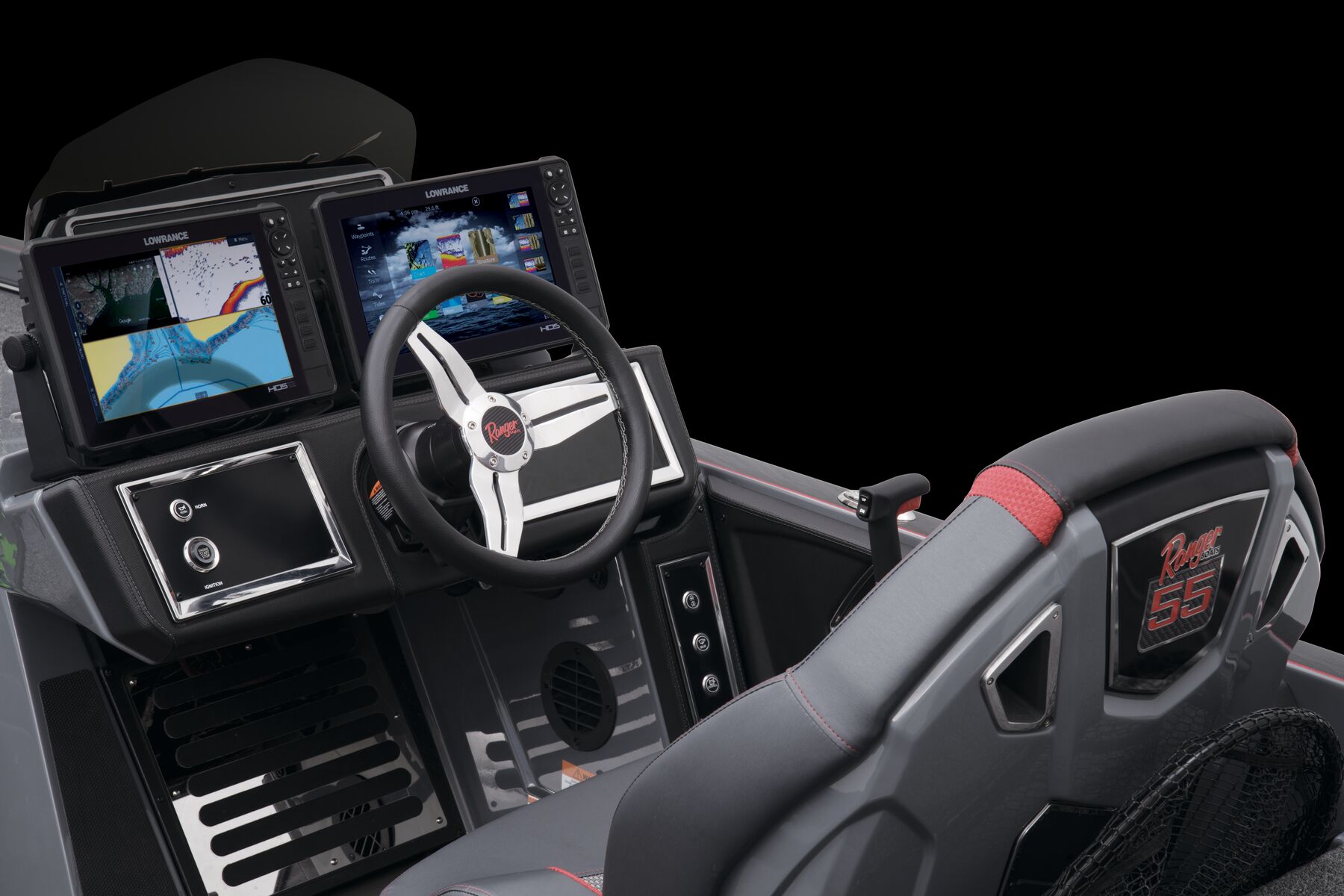

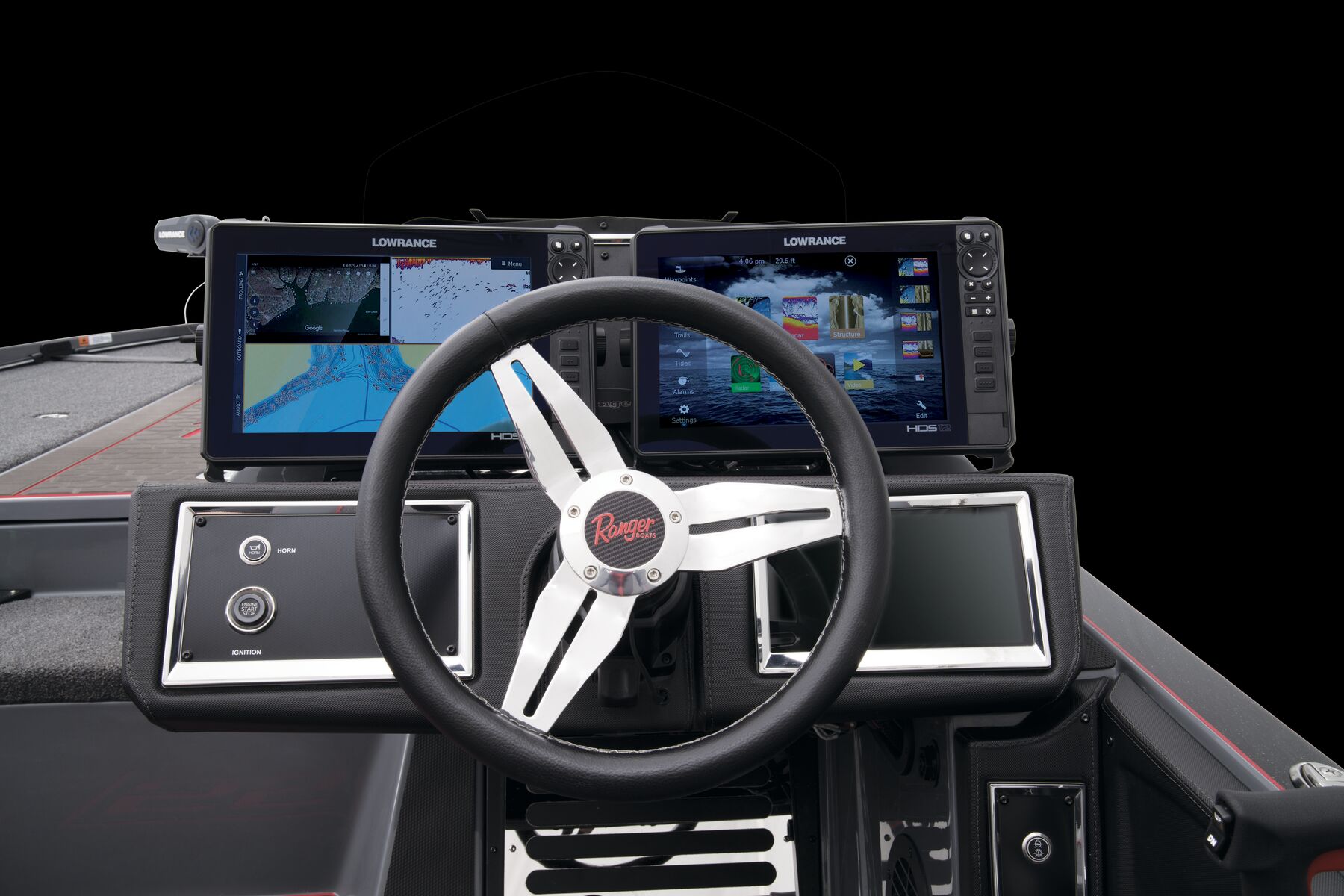

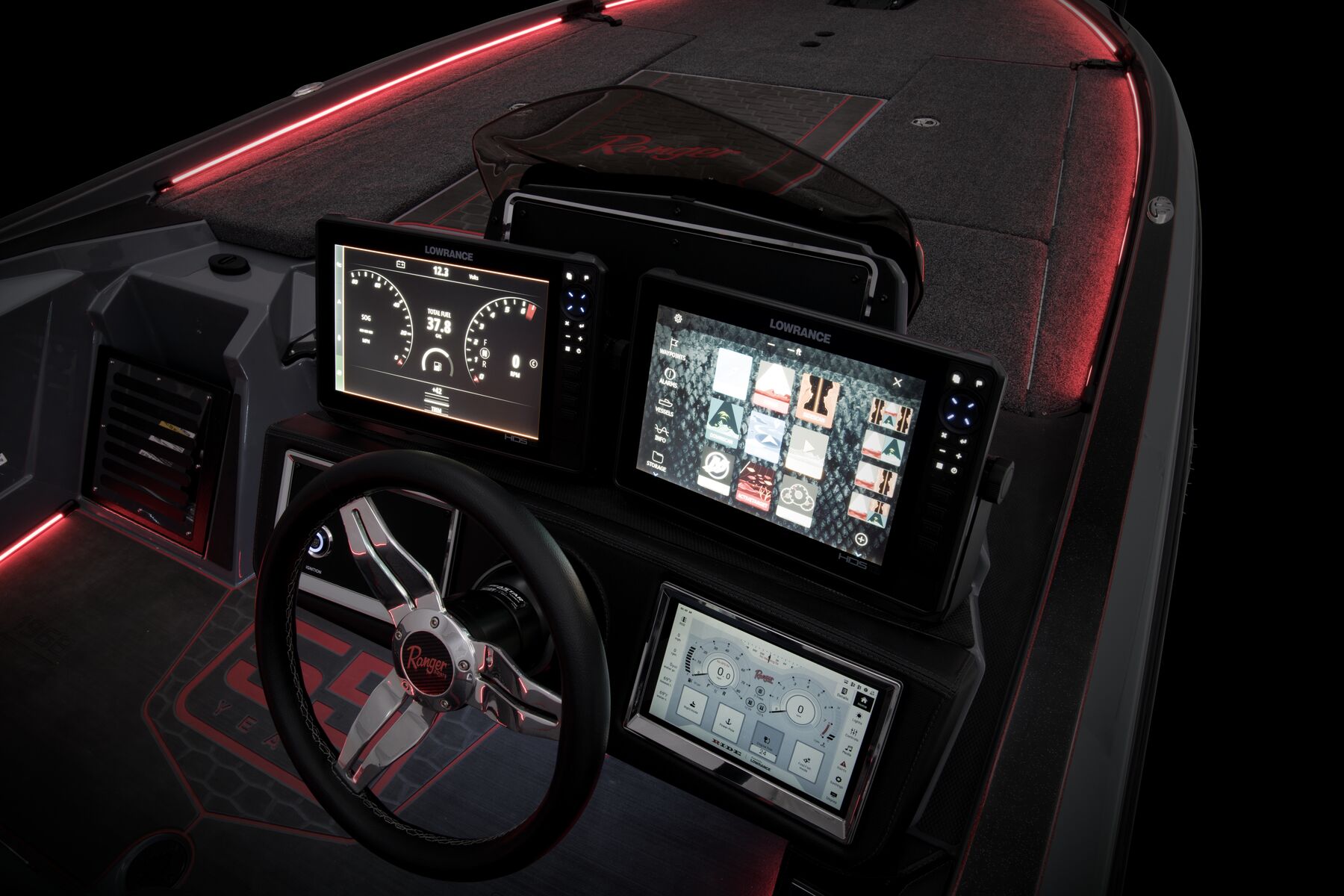

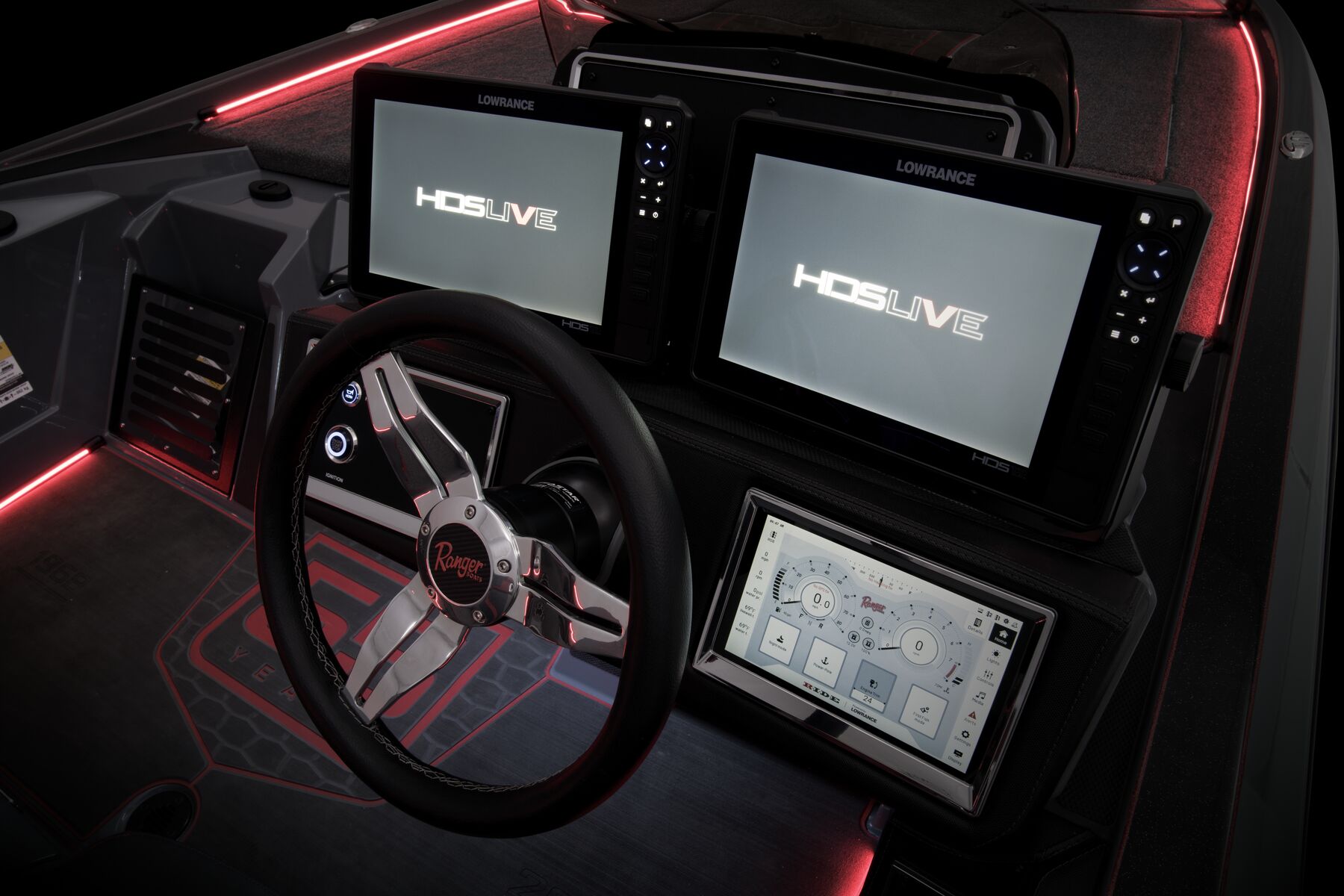

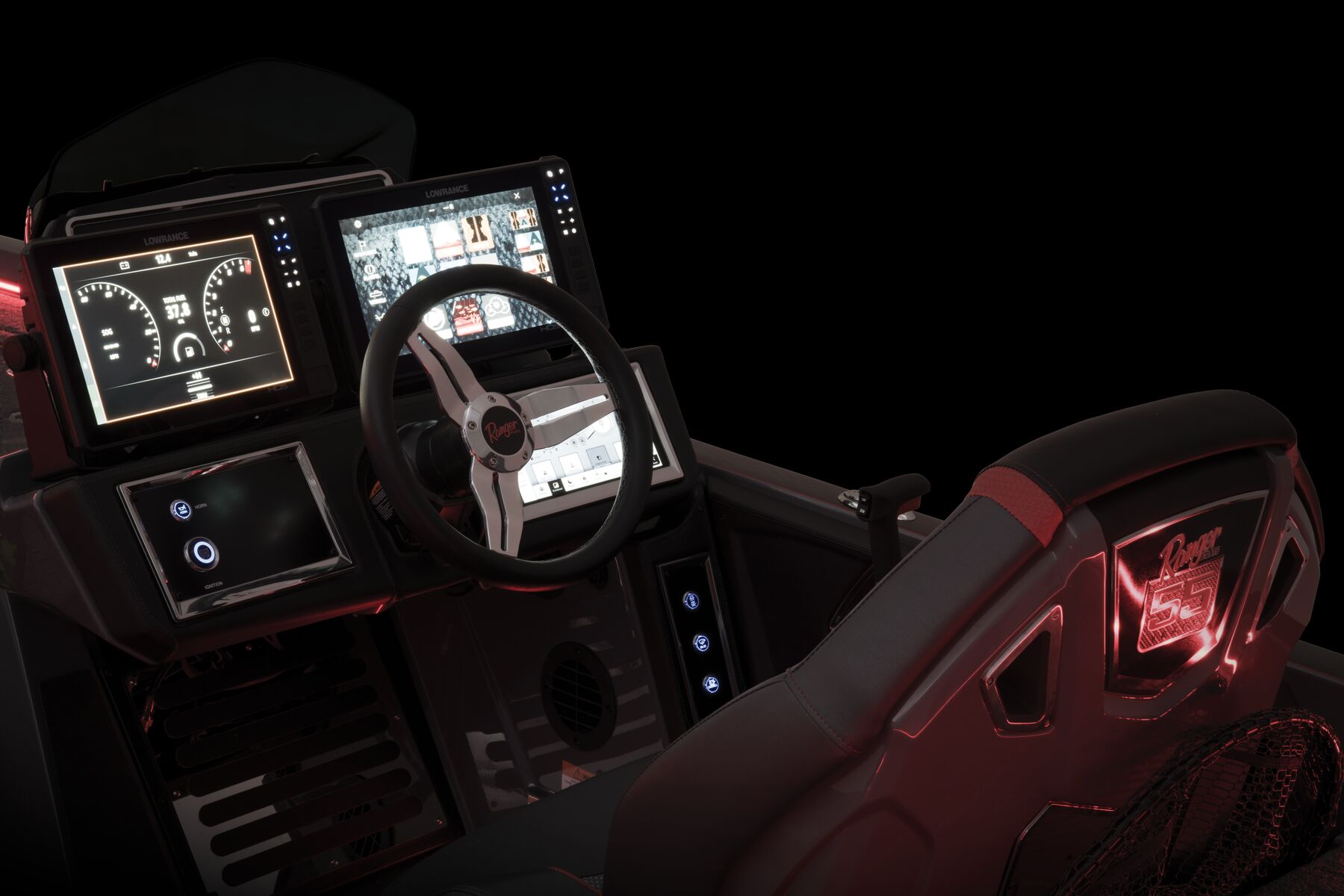

- Dual Lowrance® HDS-12 LIVE w/ active imaging graphs at console
- On-board Dual Pro™ charger, 15 x 4, auto detect lithium capable
- Push to Start Ignition system with proximity keyfob

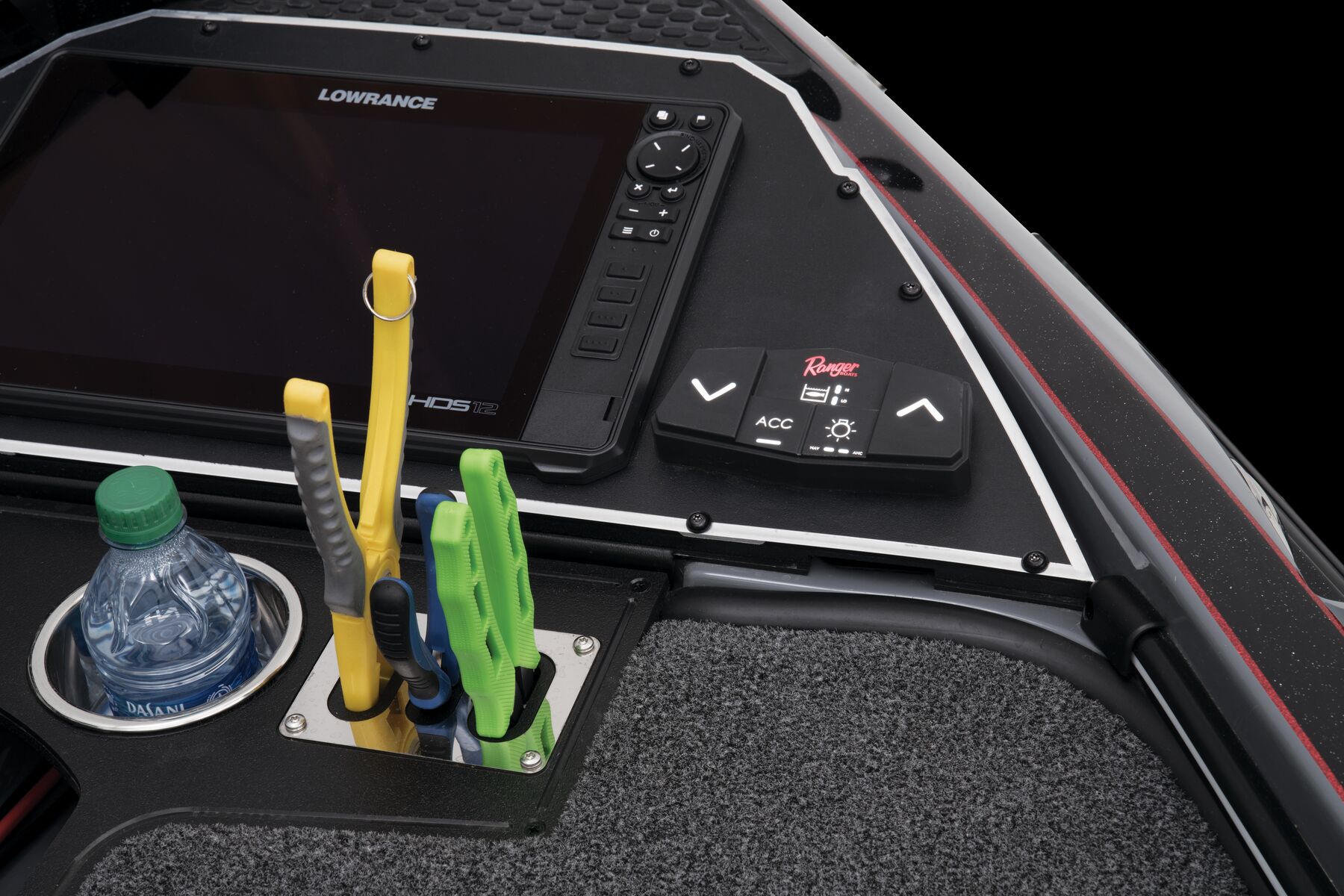

- New Digital switching at bow with foot activated trim buttons

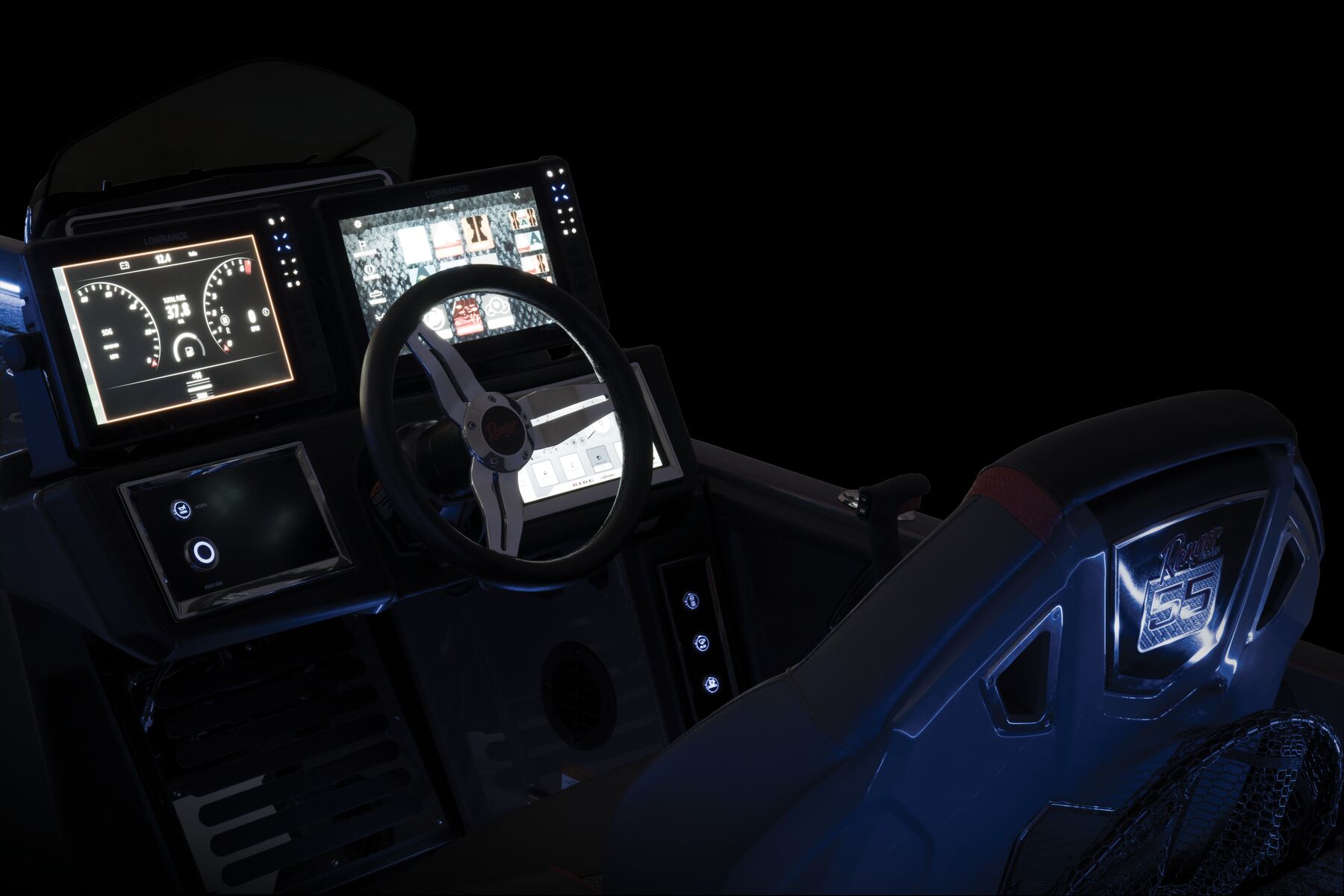

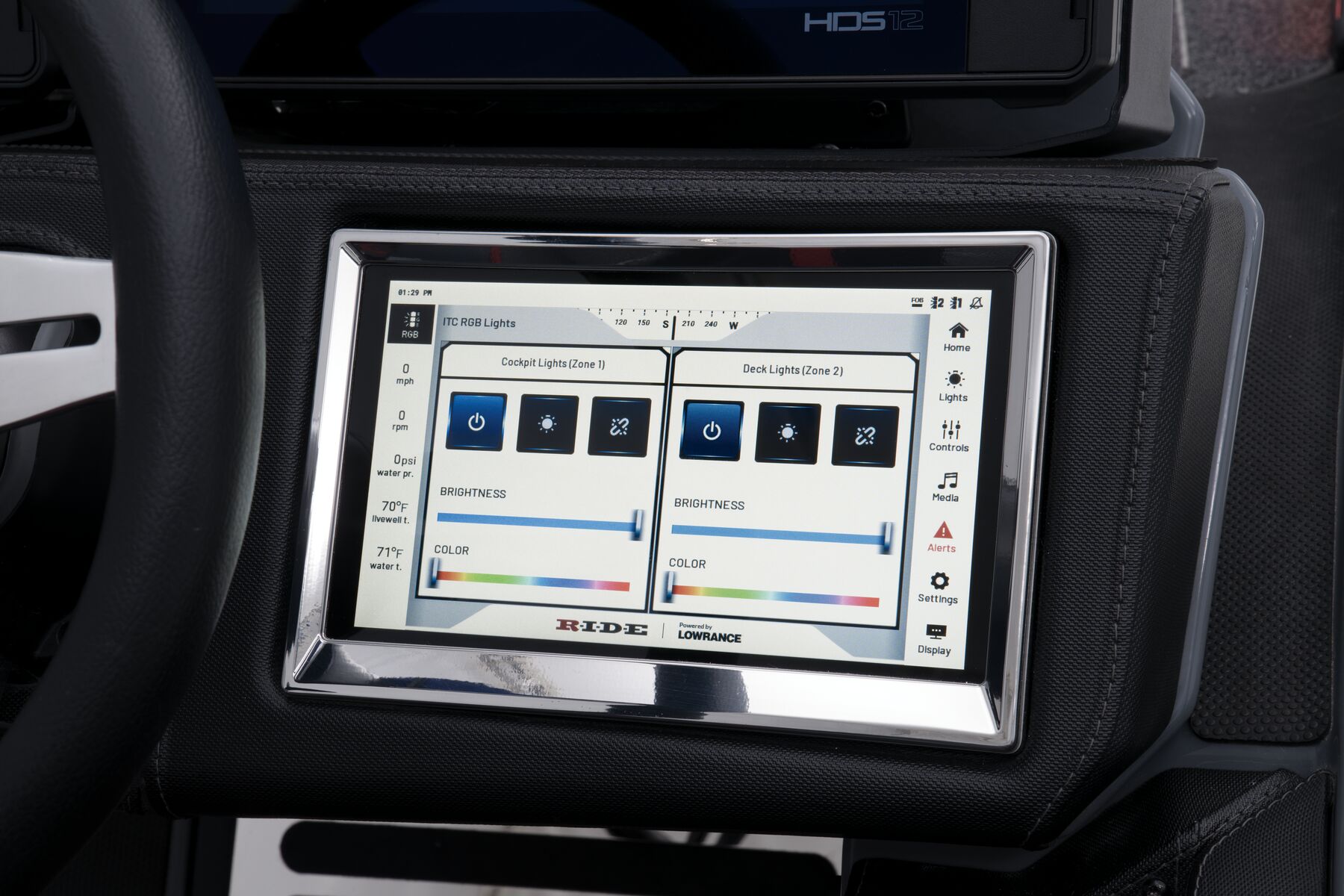

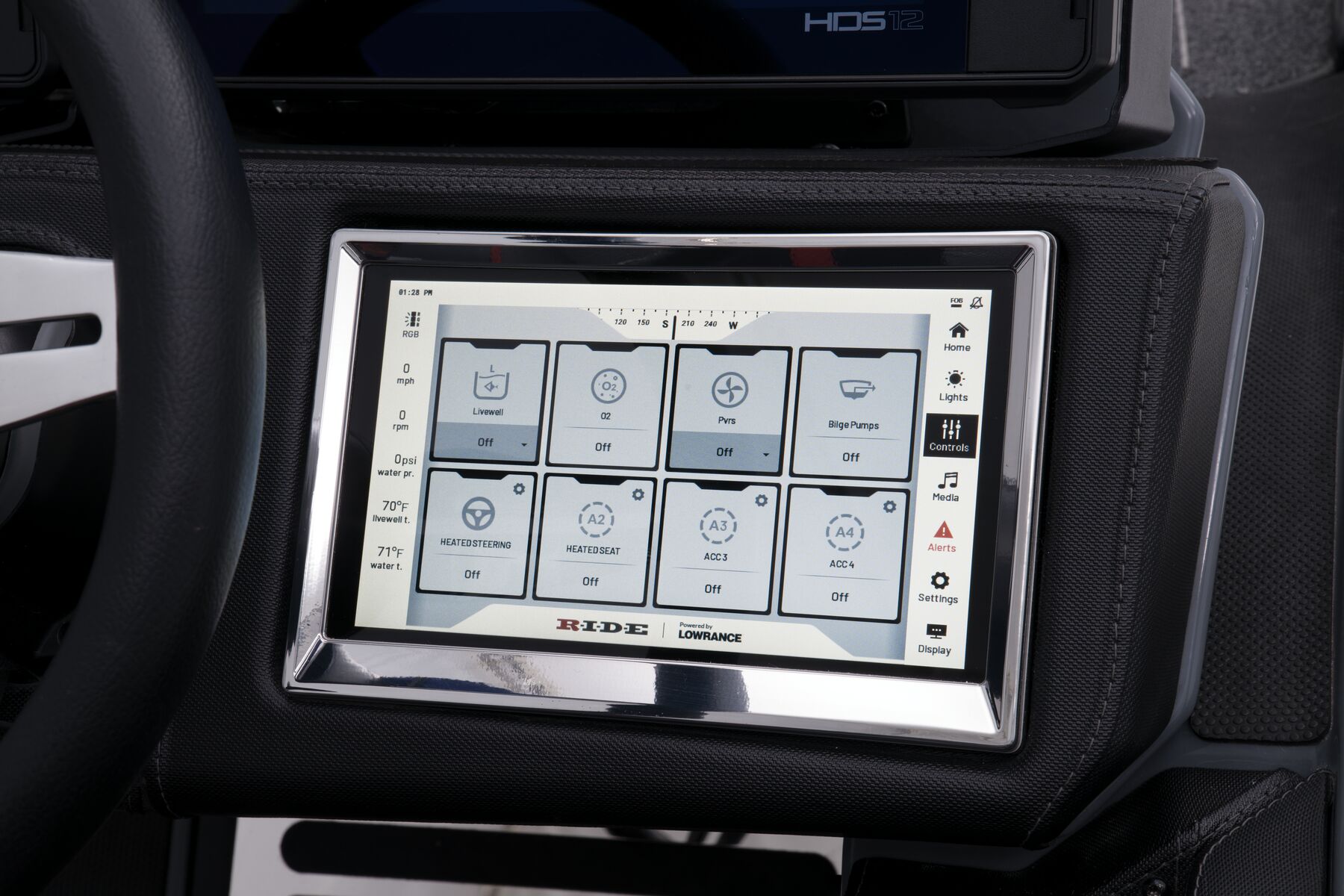

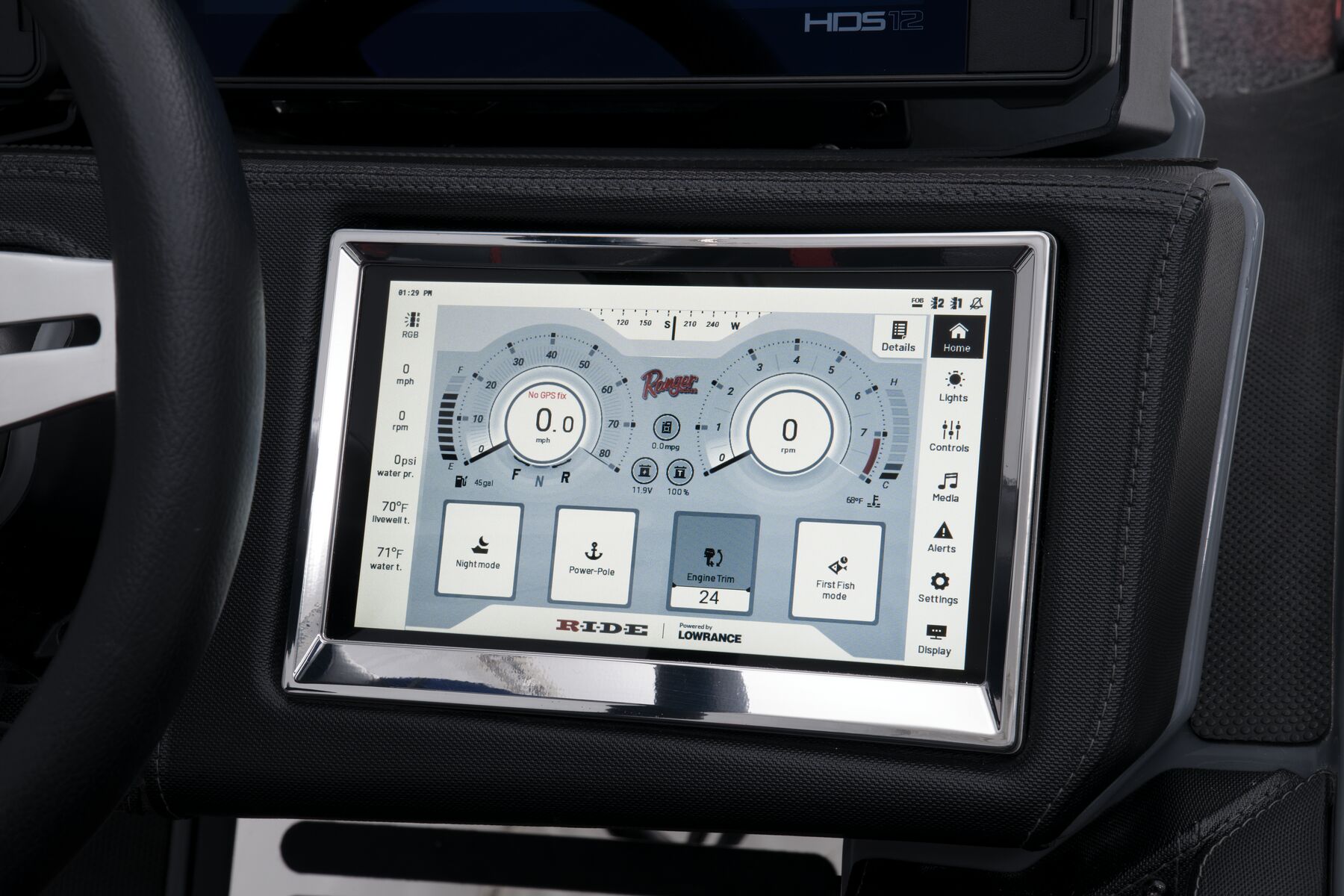

- Console panel w/ Ranger® RIDE System (Ranger Intelligent Display Engine), integrating full-boat control and monitoring via 9" touchscreen
- Heavy duty 6-gauge trolling motor wiring w/ 60 amp breaker
- 12V DC power receptacle with USB
- LED compartment & livewell light package

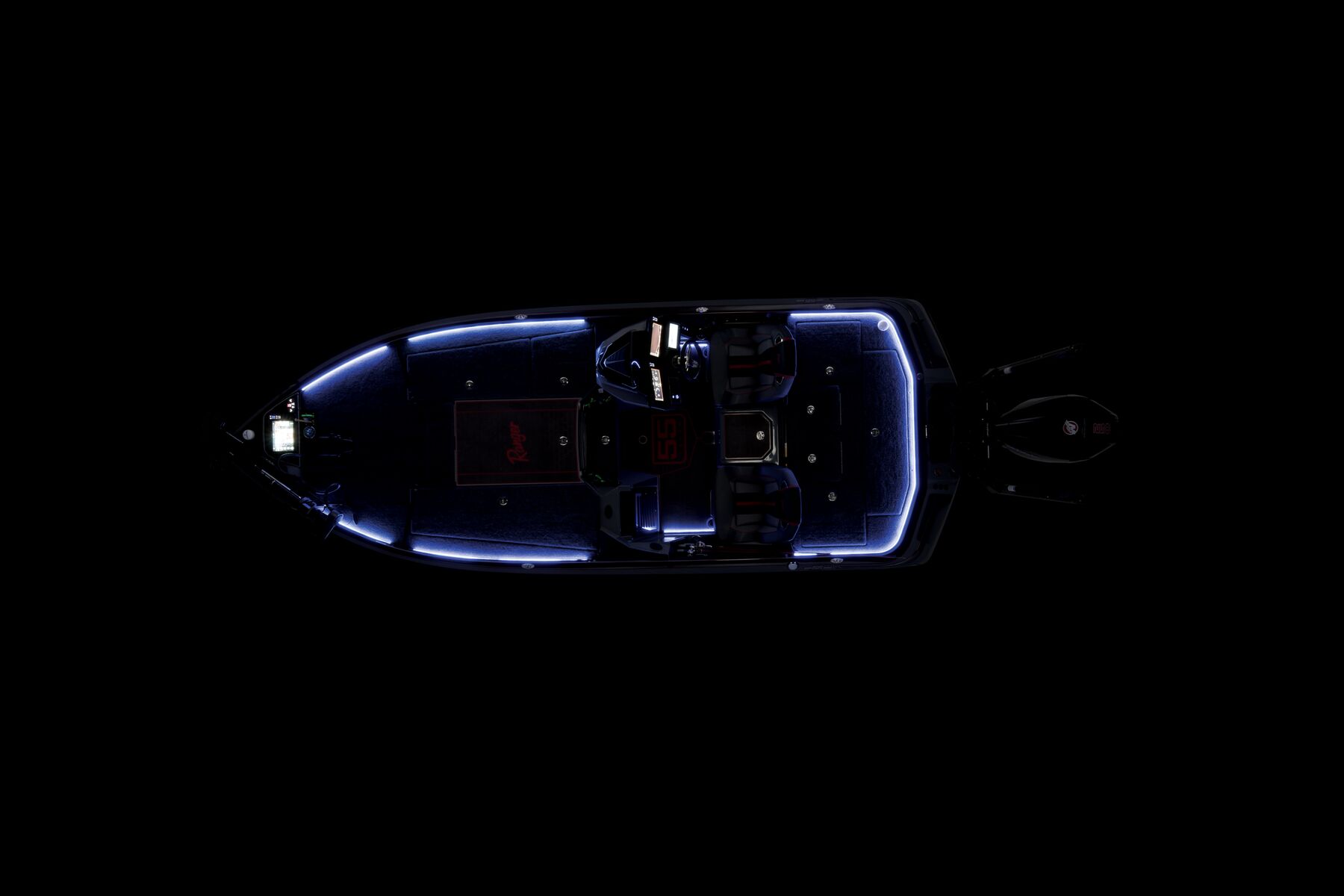

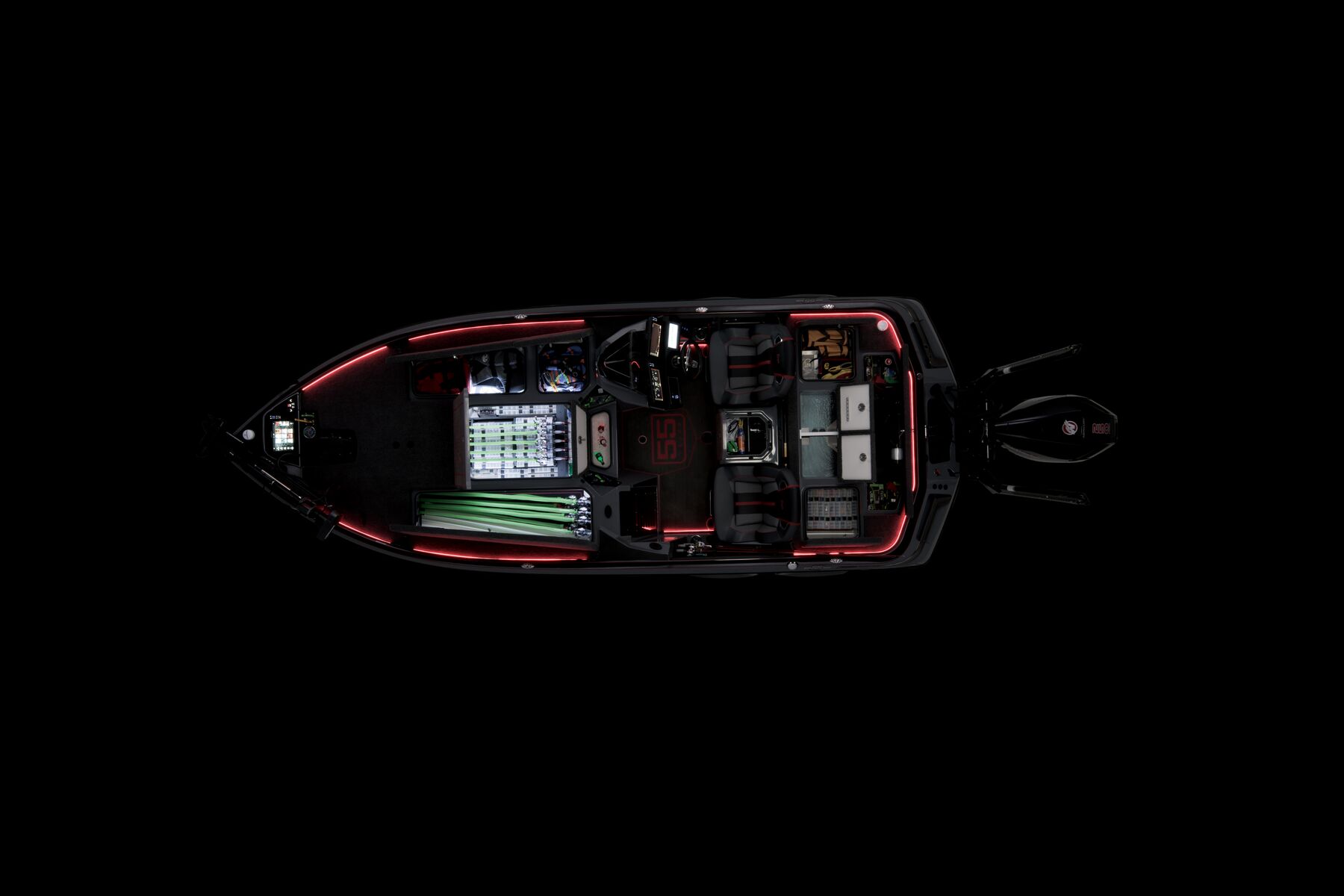

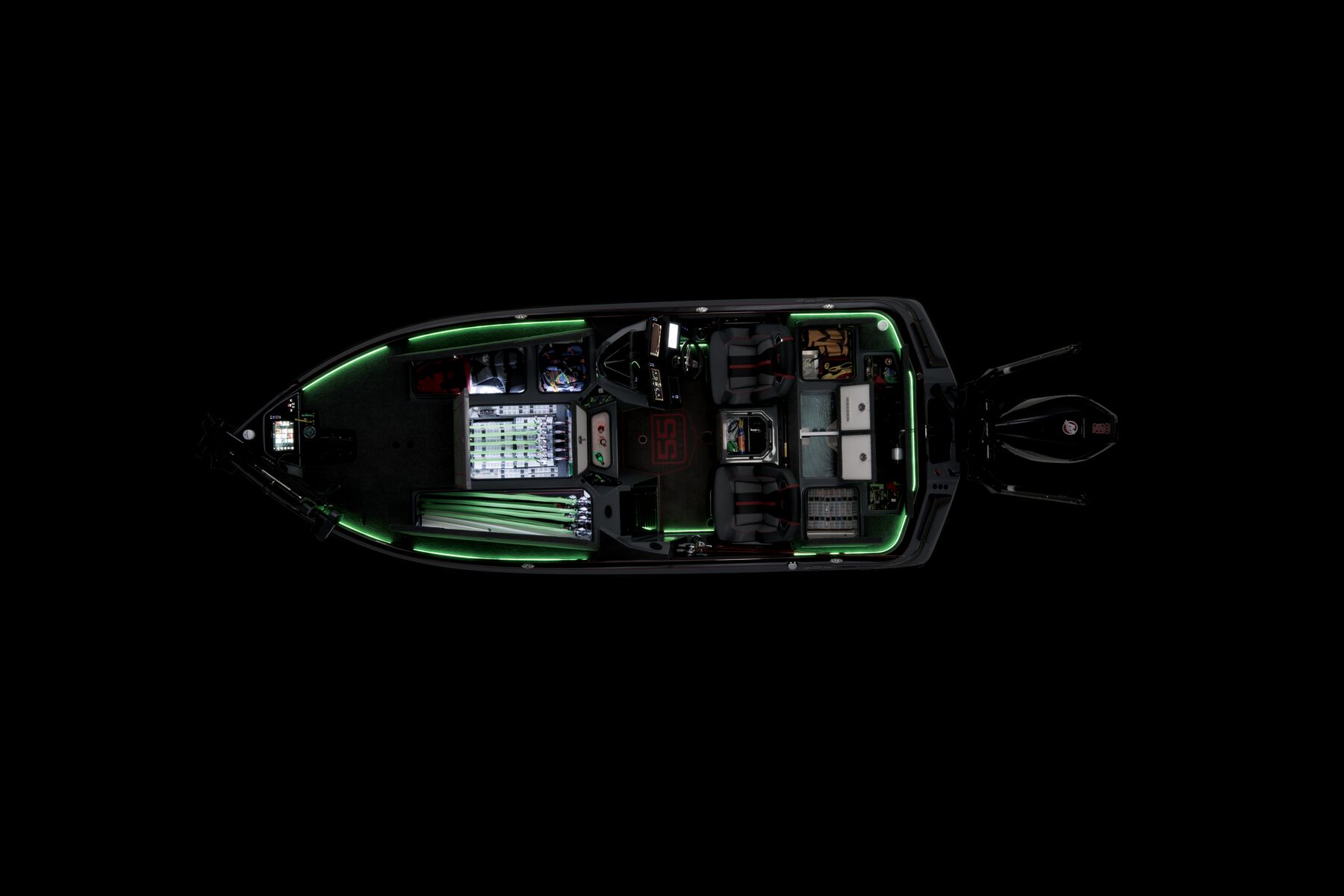

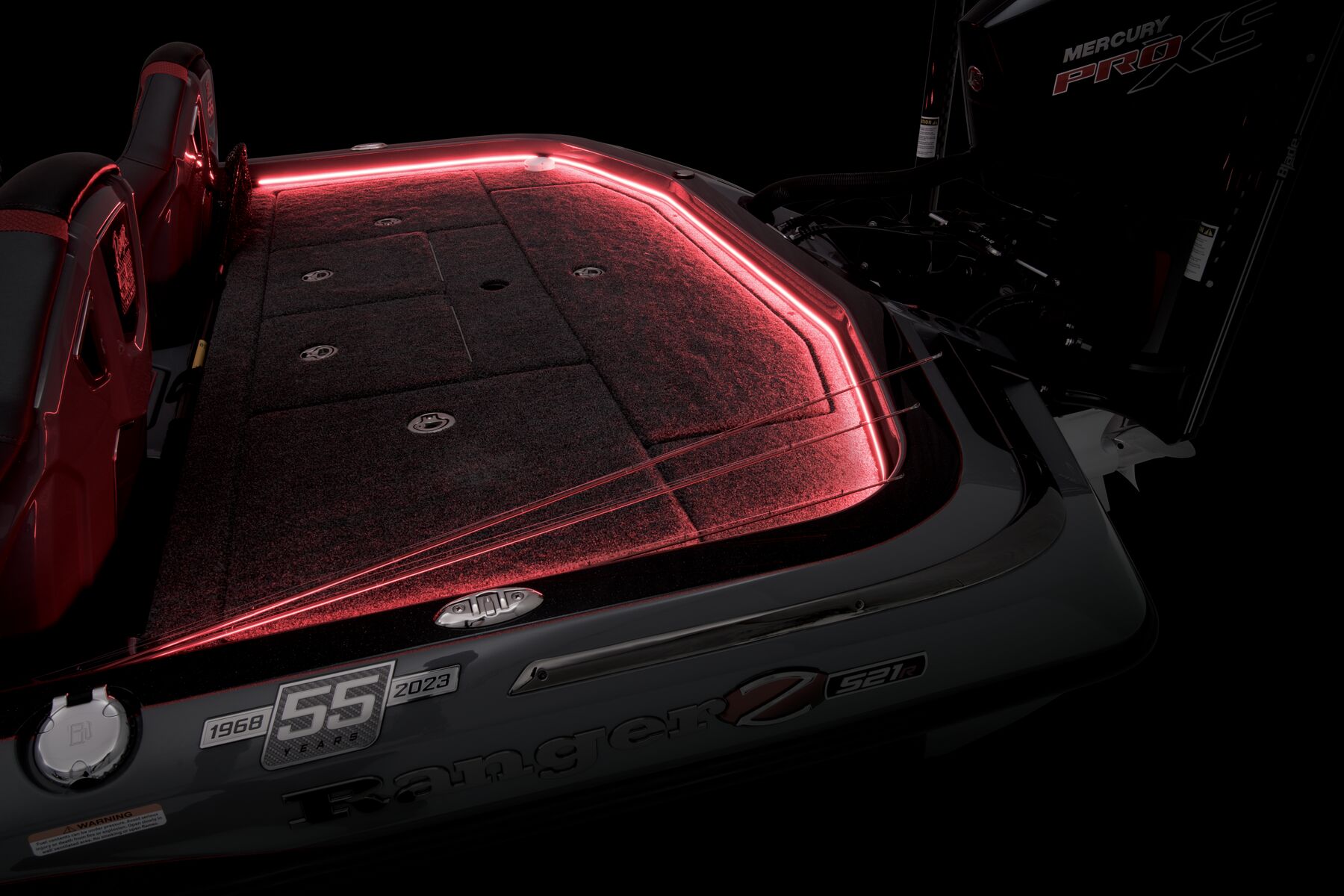

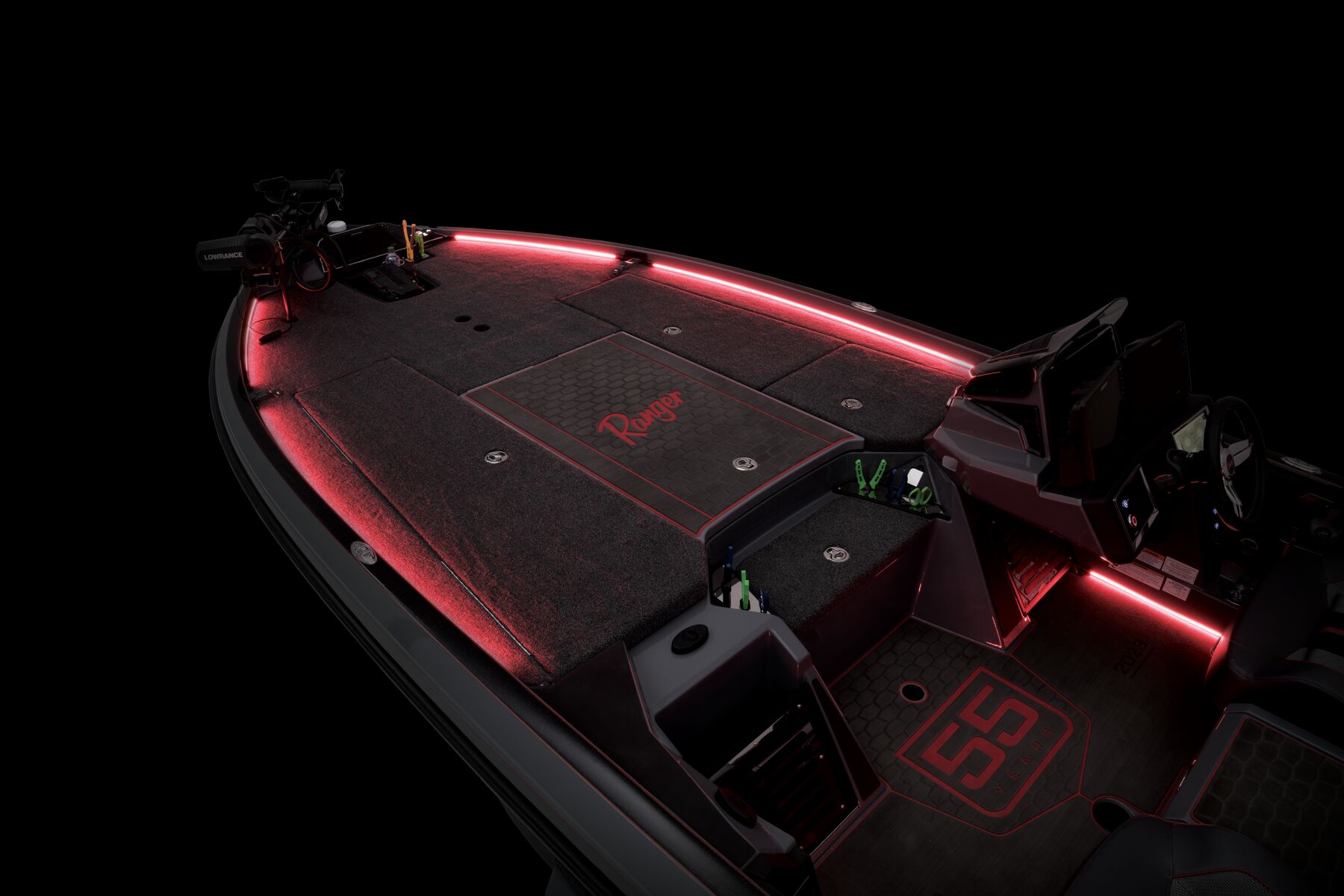

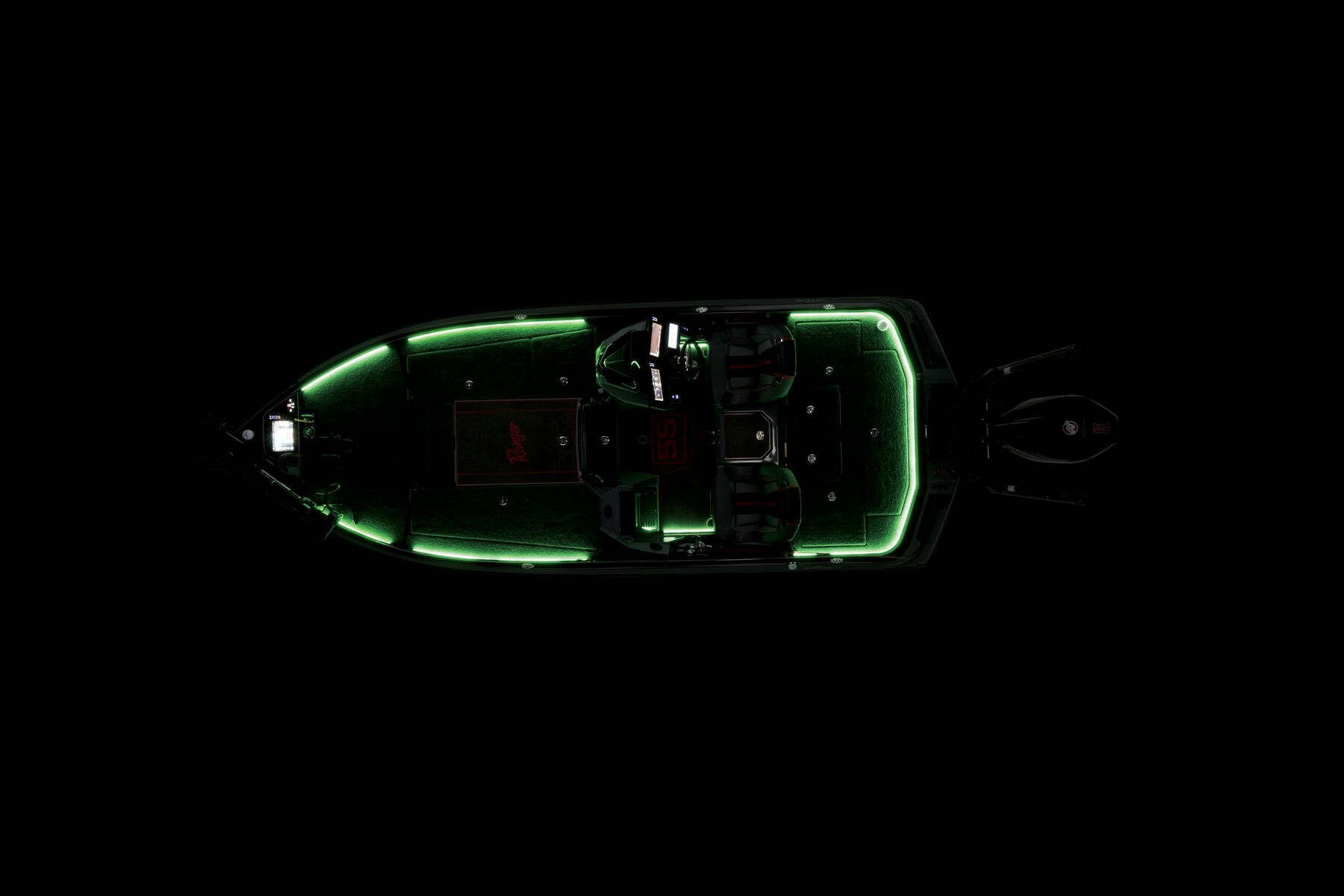

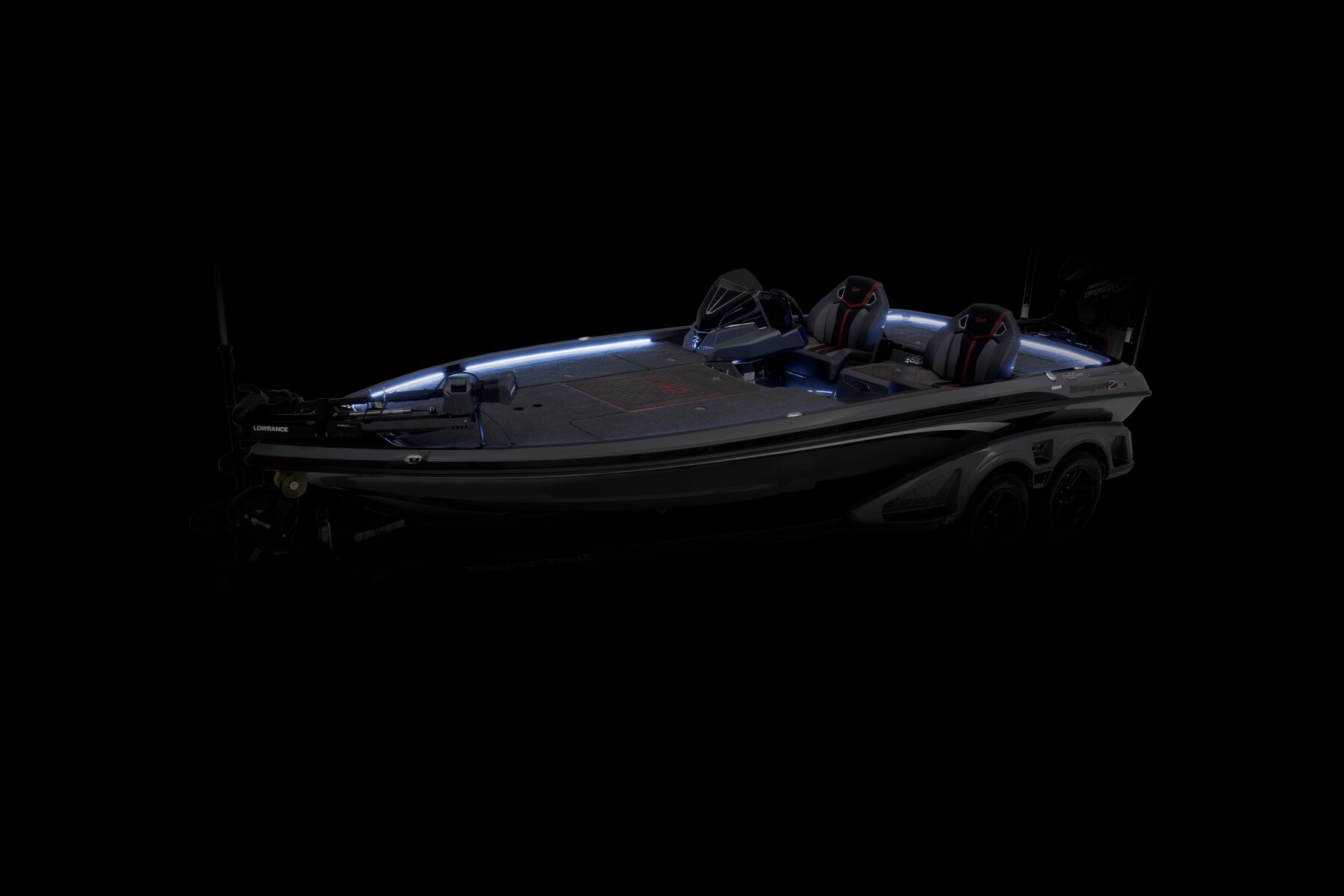

- Exclusive Anniversary edition front deck, cockpit and aft deck RGB lighting controlled thru Ranger® RIDE System
- Automatic box light sensors
- Integrated LED bow navigation lights
- Removable LED stern light
- LED courtesy light(s)
- Heavy duty 6-gauge electronics (MFD) wiring w/ 30 amp breaker
- Solid state resettable switching w/ 30A master breaker
- Wireless phone charger in coin box
Power/Performance
- AGM Starting battery w/ tray
- 47” Lowrance Ghost 36V trolling motor
- High performance stainless steel prop
- Flush-mounted remote throttle control
- (3) WRM80 lithium trolling motor batteries

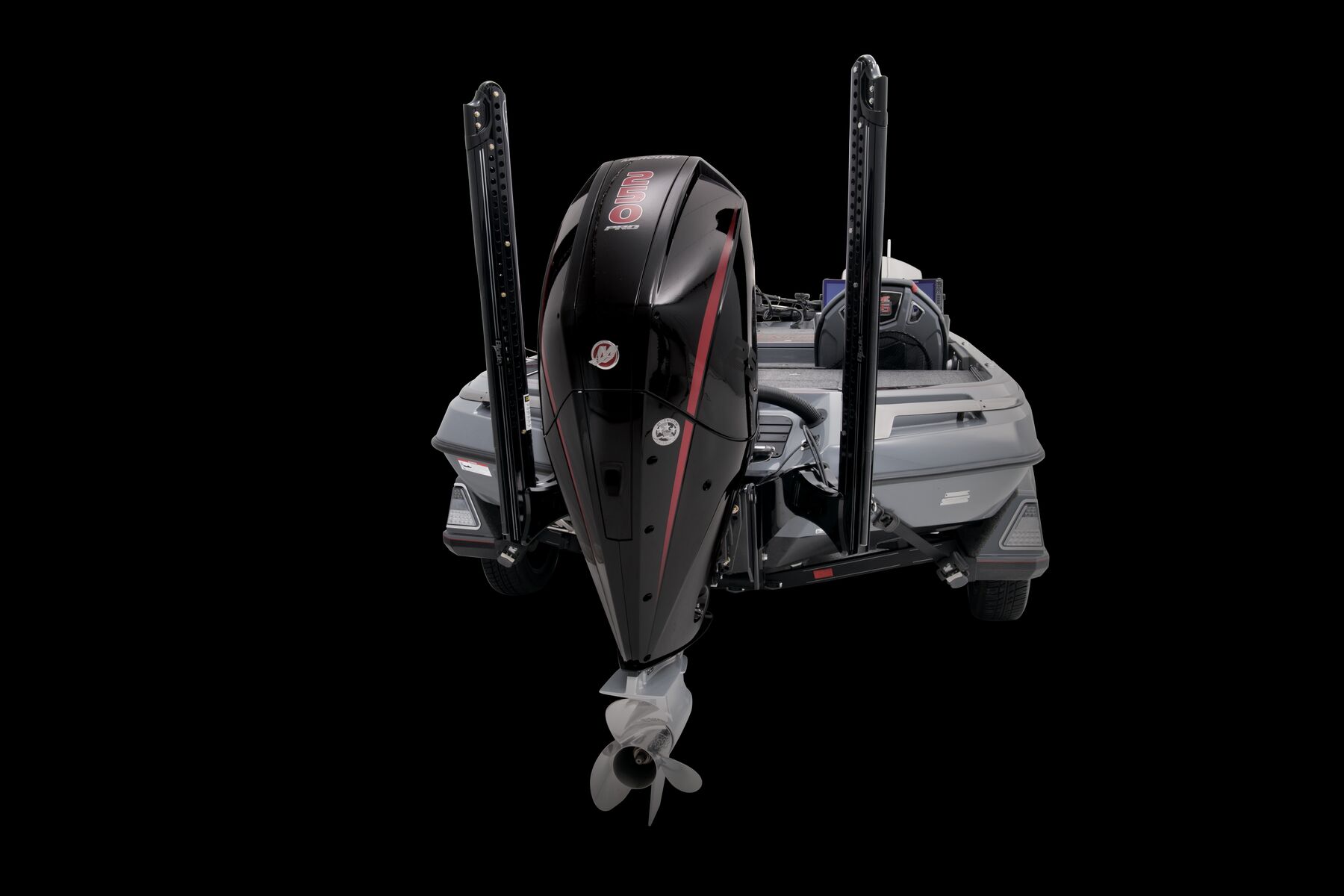

- Power-Pole® Anchor Blade Series - 8' - dual
- Foam-filled unitized 1 pc fiberglass stringer system
- Ranger I Beam Pultruded Fiberglass transom
- Manual 10" setback plate

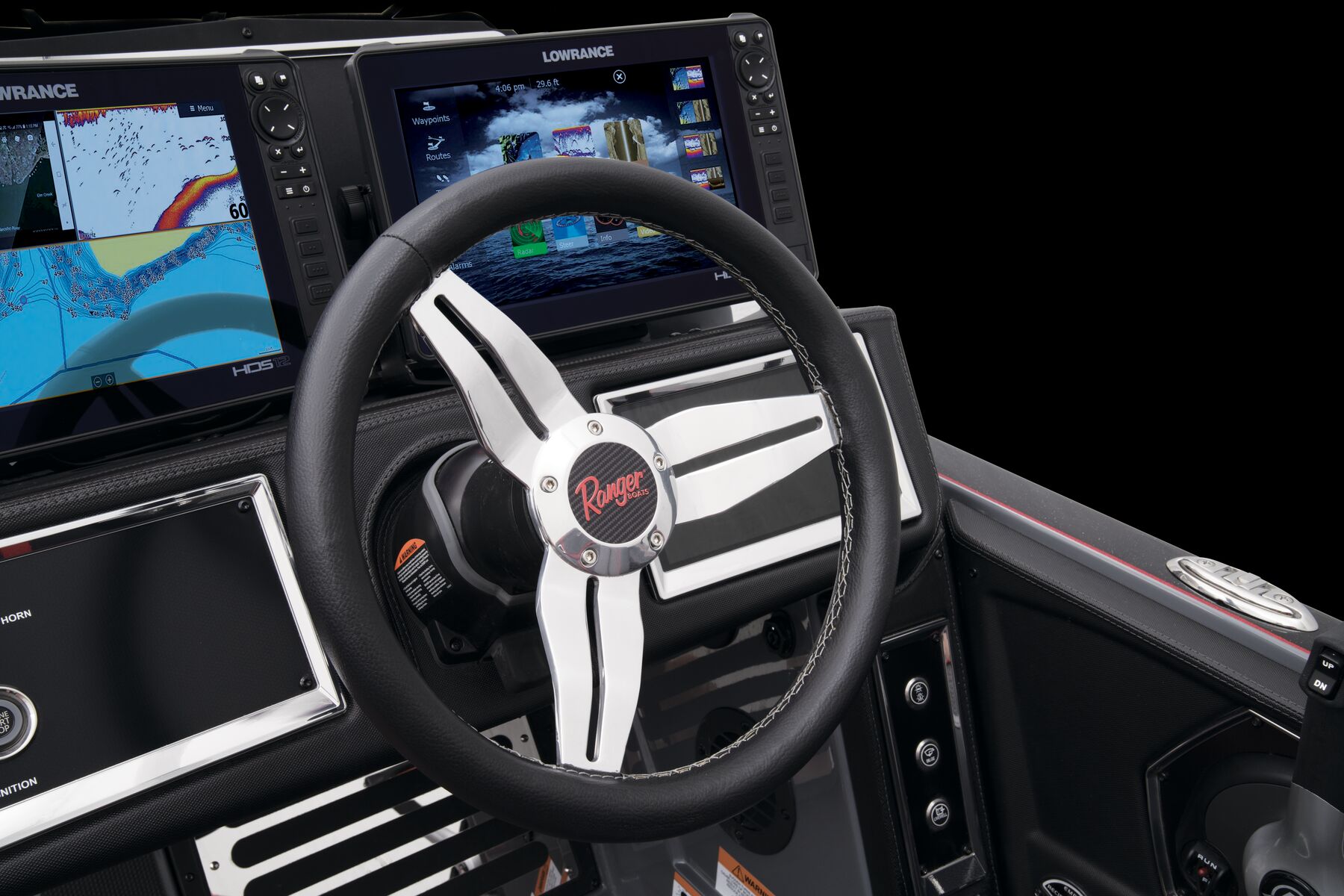

- New high performance heated steering wheel
- Recirculating aerated livewell w/ removable divider
- Dual livewell lids with cull bouy organizer STBD side
- Venturi Air & livewell pump-out system
- Integrated engine setback
- Electrical system disconnect on/off switch
- NOCO™ GB40 jump starter
- Tilt hydraulic steering
- Power trim
- Recessed trolling motor foot pedal
- Remote pump-out
- Trim lever
- Hot foot
- Hamby's keel guard
Safety/Comfort
- Upright, level flotation
- Fire extinguisher & horn
- Tinted windshield(s)

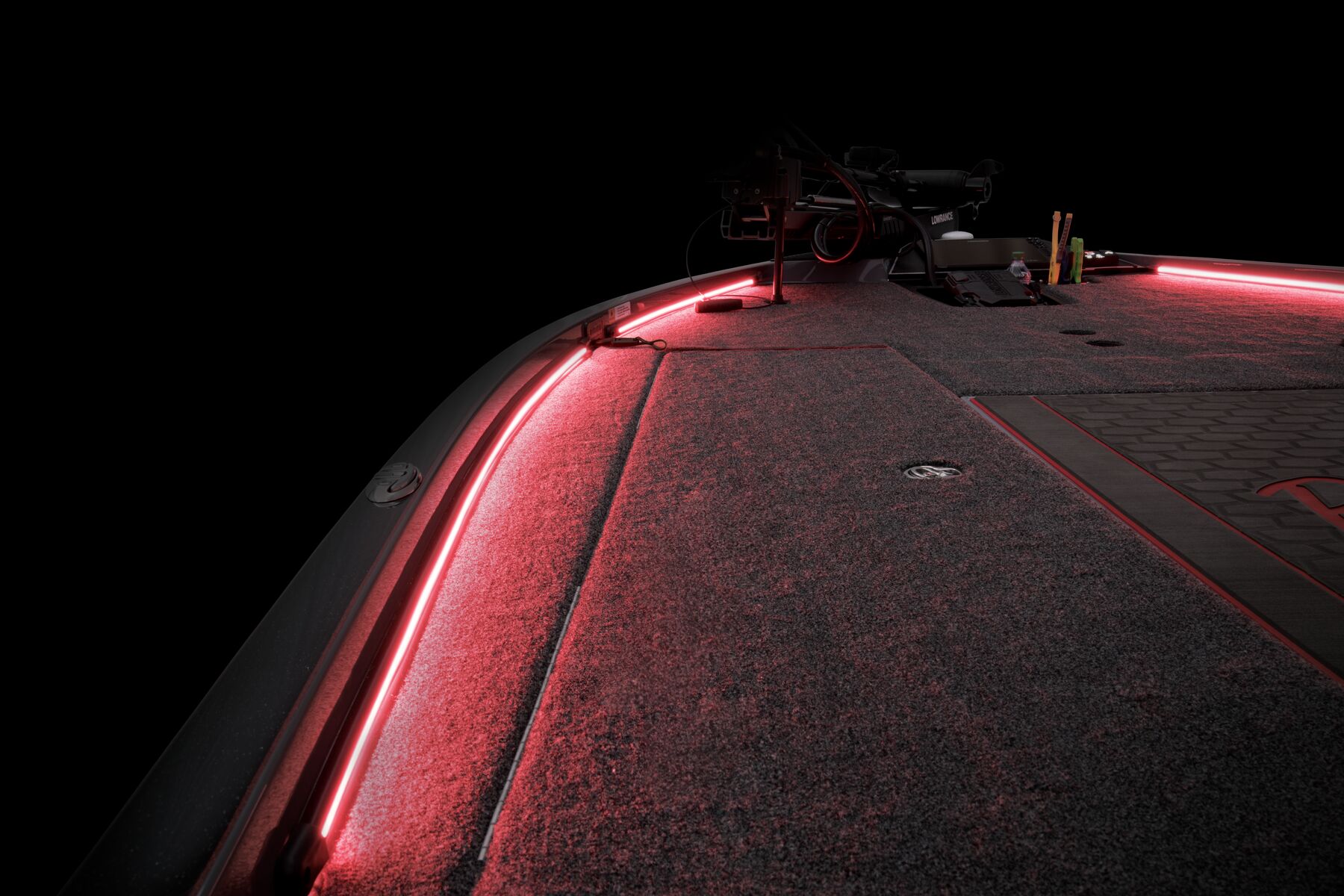

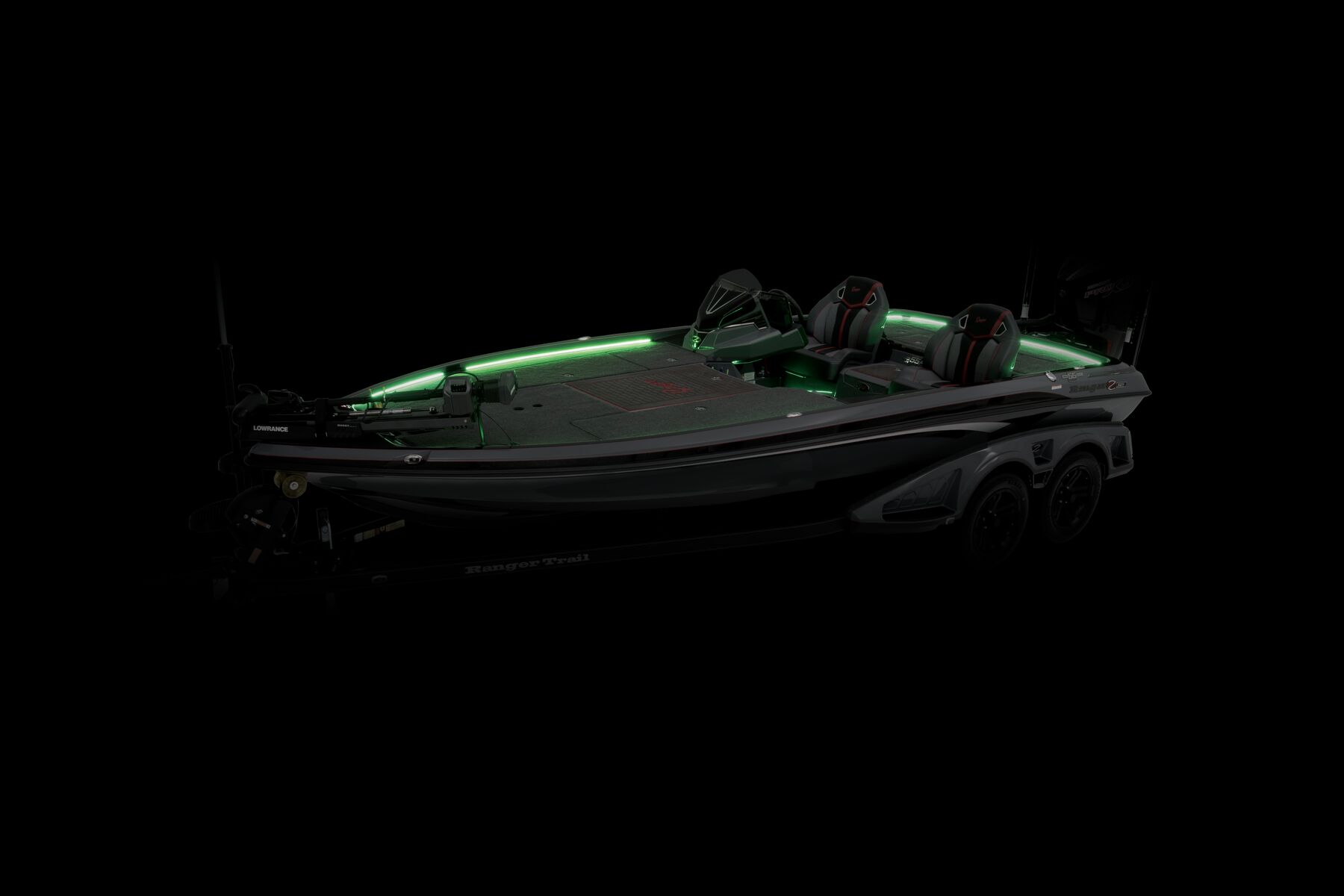

- Carpet trim LED lights

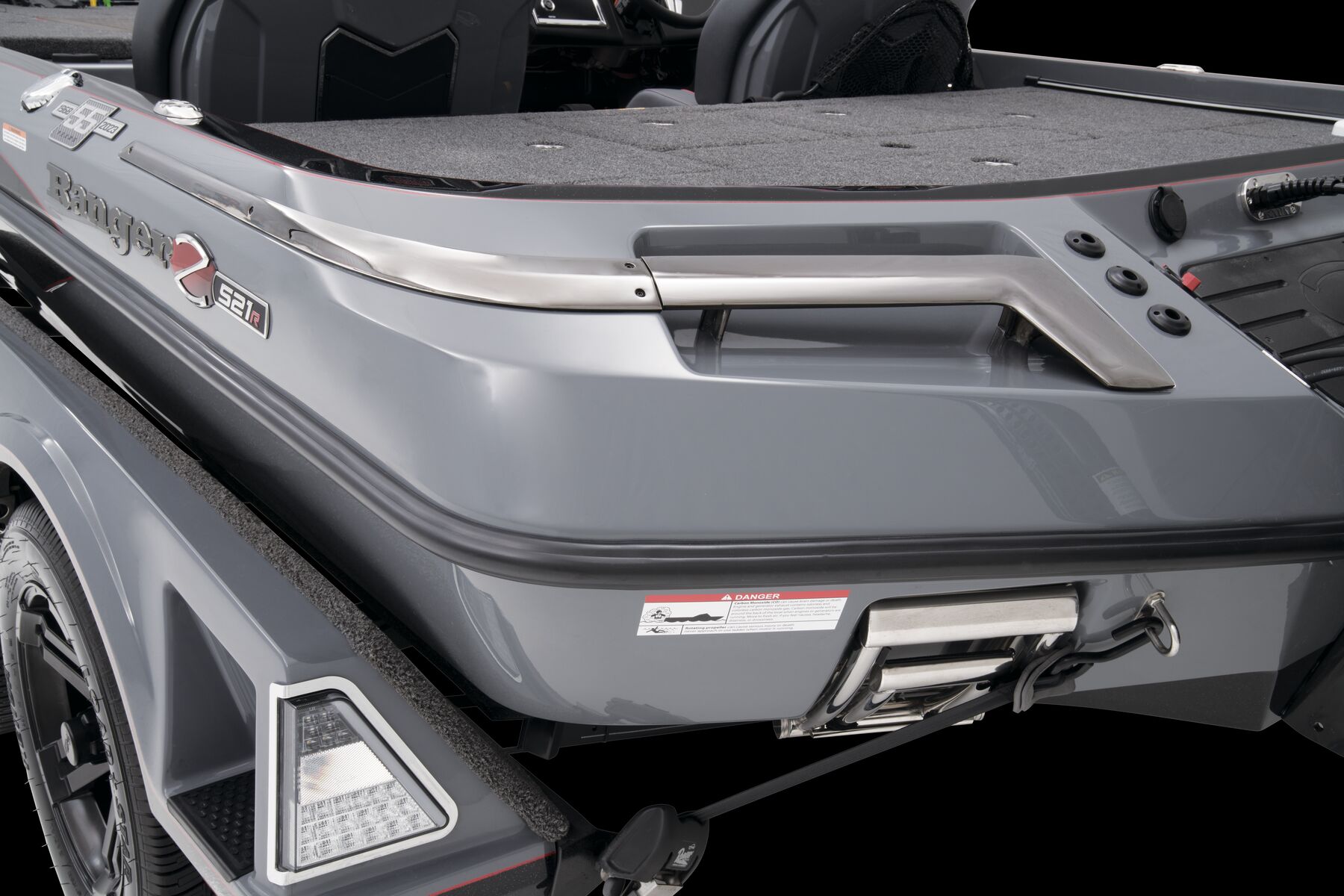

- Custom black chrome grab handles
- Pop-up tie cleats (drivers side cleat for easy tie up STD)
- Integrated grab handles
- Skid resistant material on bow
- Exclusive Anniversary edition CCBM center box lid w/ exclusive 55th Anniversary mat graphics

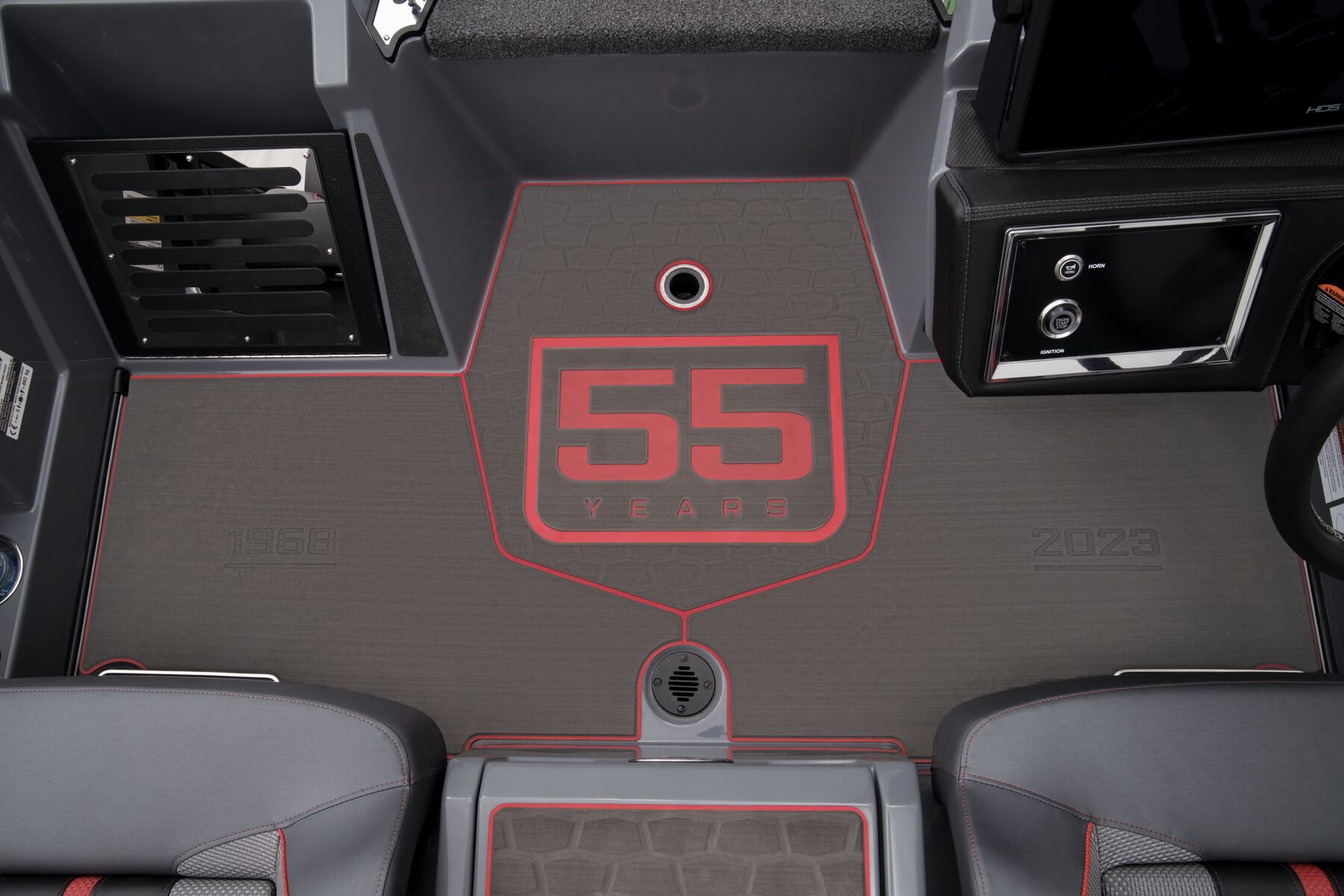

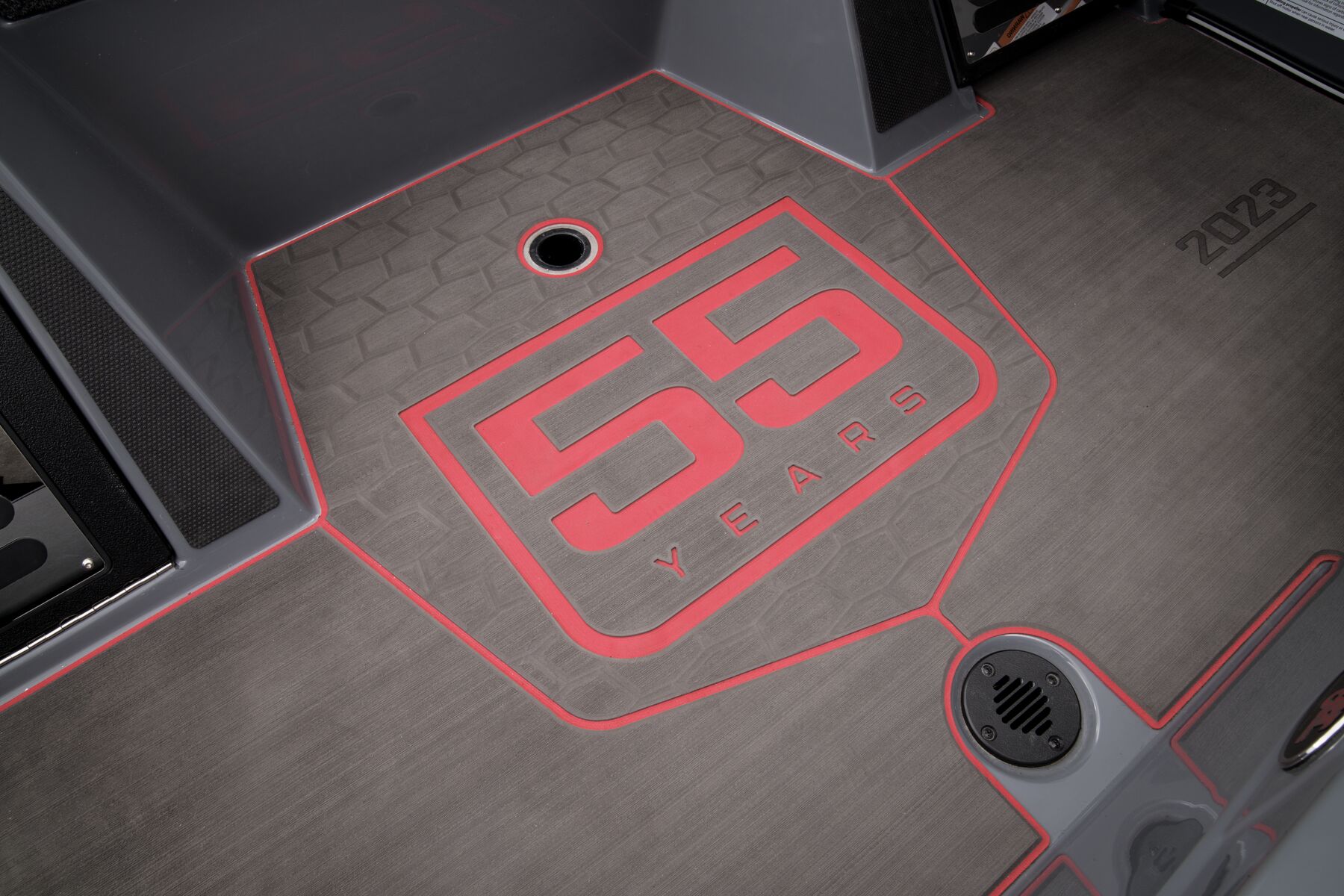

- Exclusive 55th Anniversary cockpit mat graphics
- Automatic and manual bilge pump

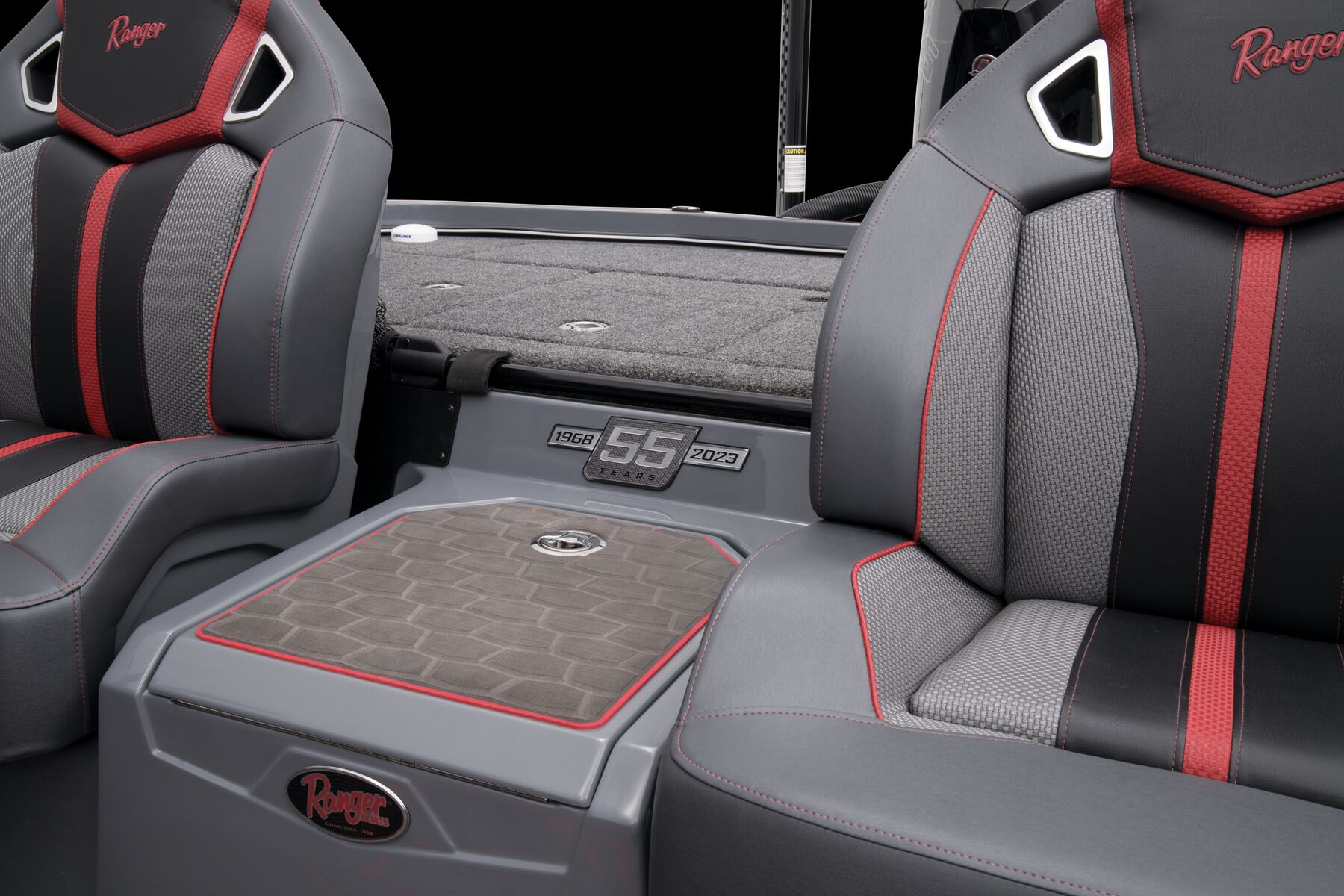

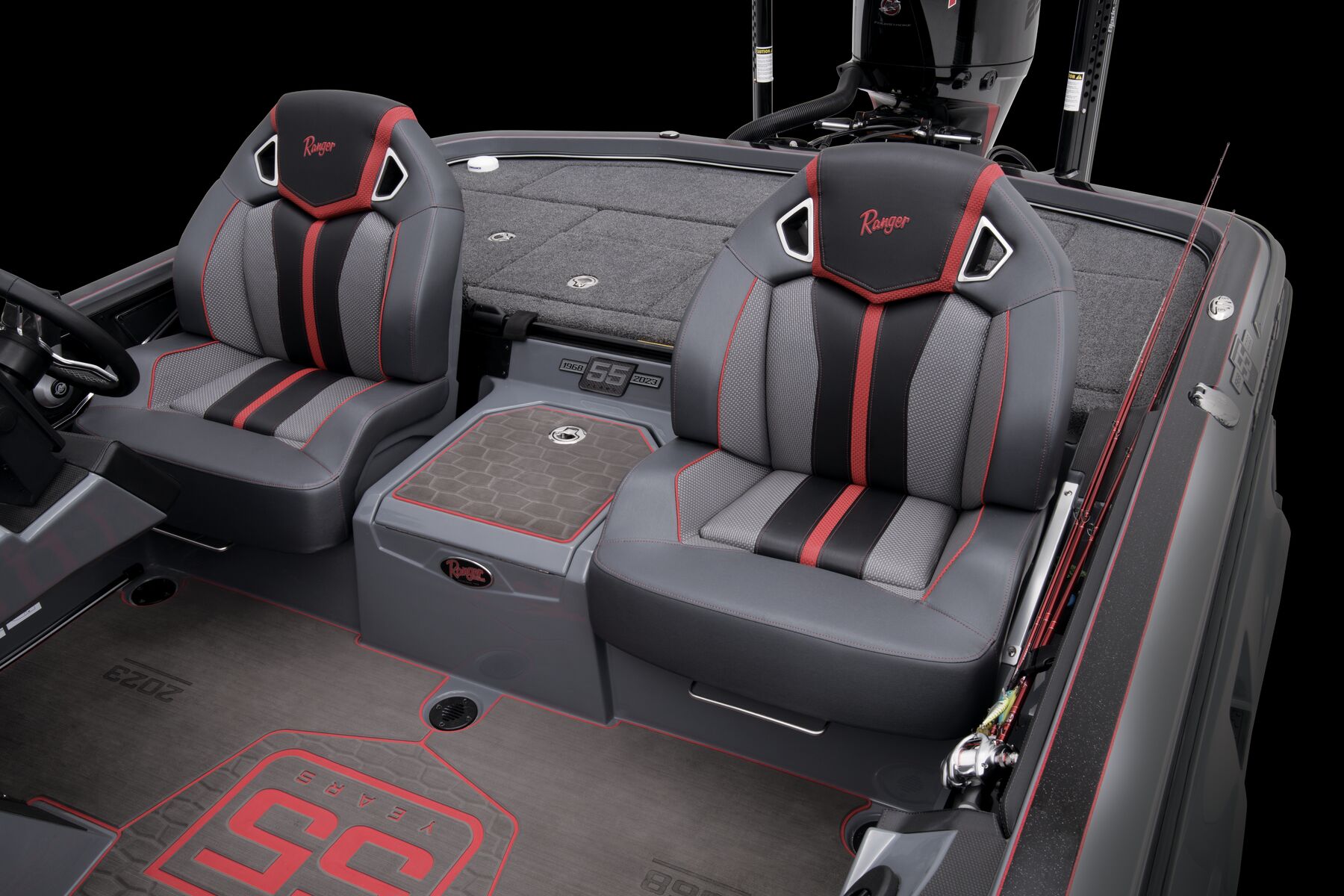

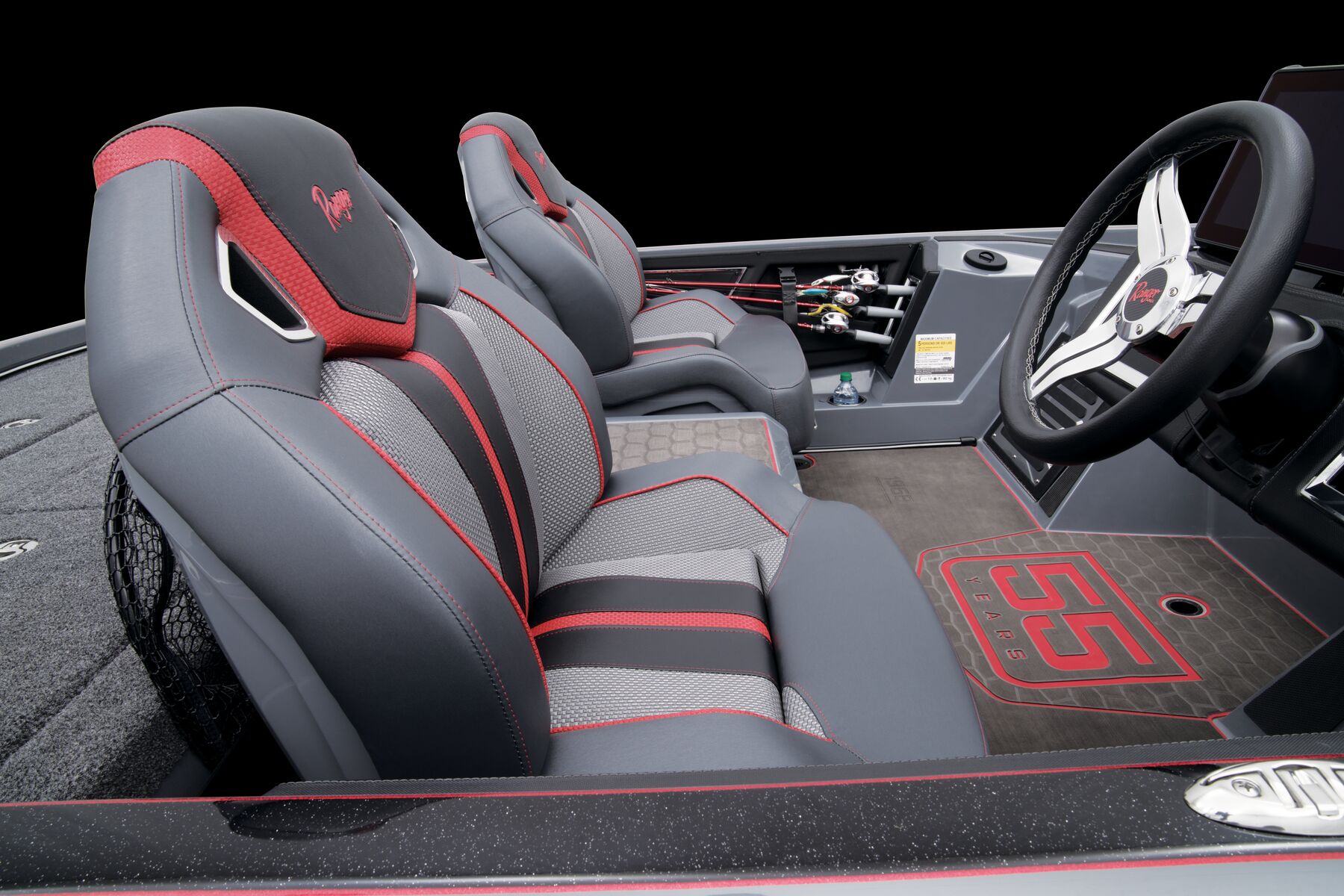

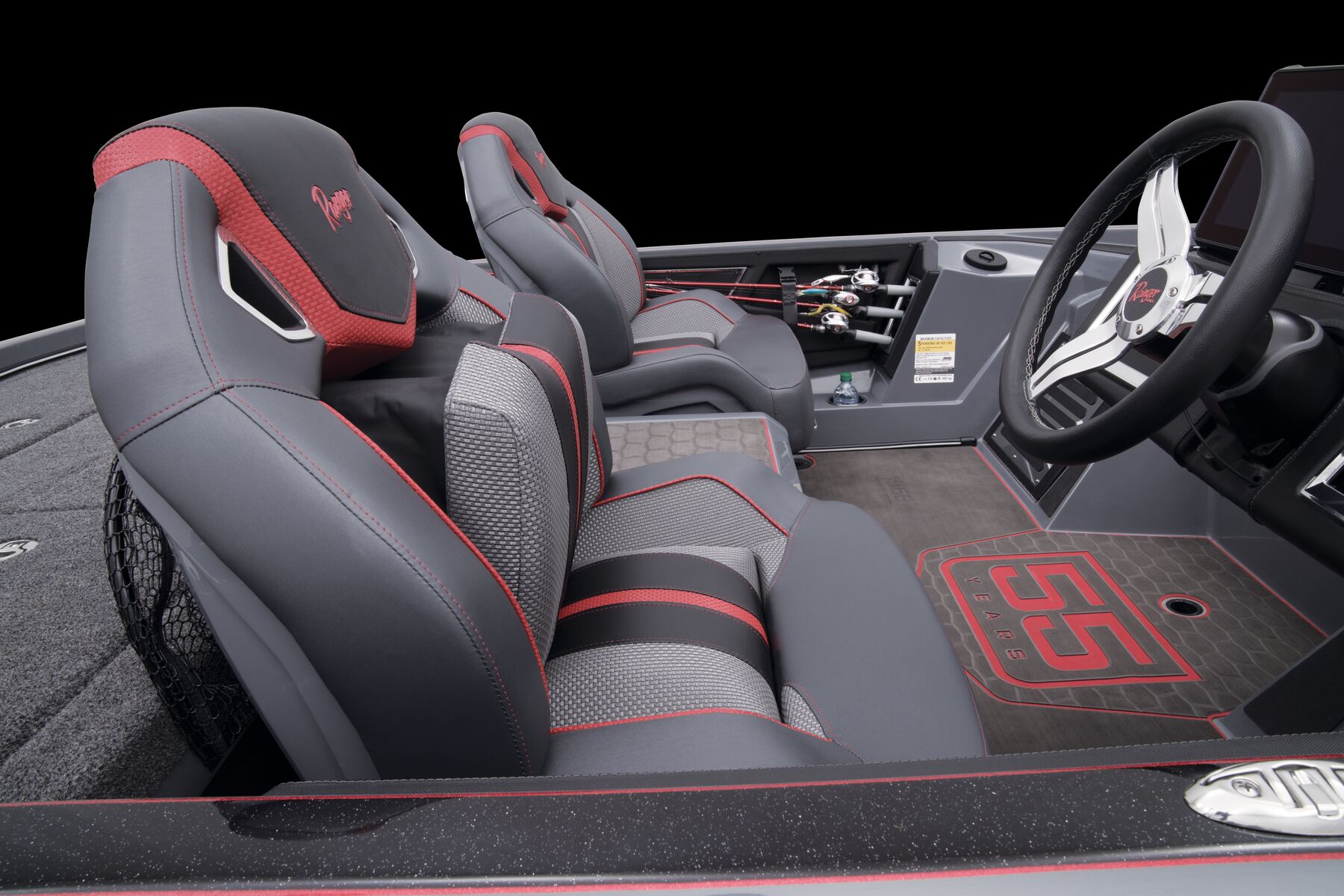

- Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ center storage, (1) bike seat w/ pro pole, (1) SRS all-weather fold down w/ power pedestal

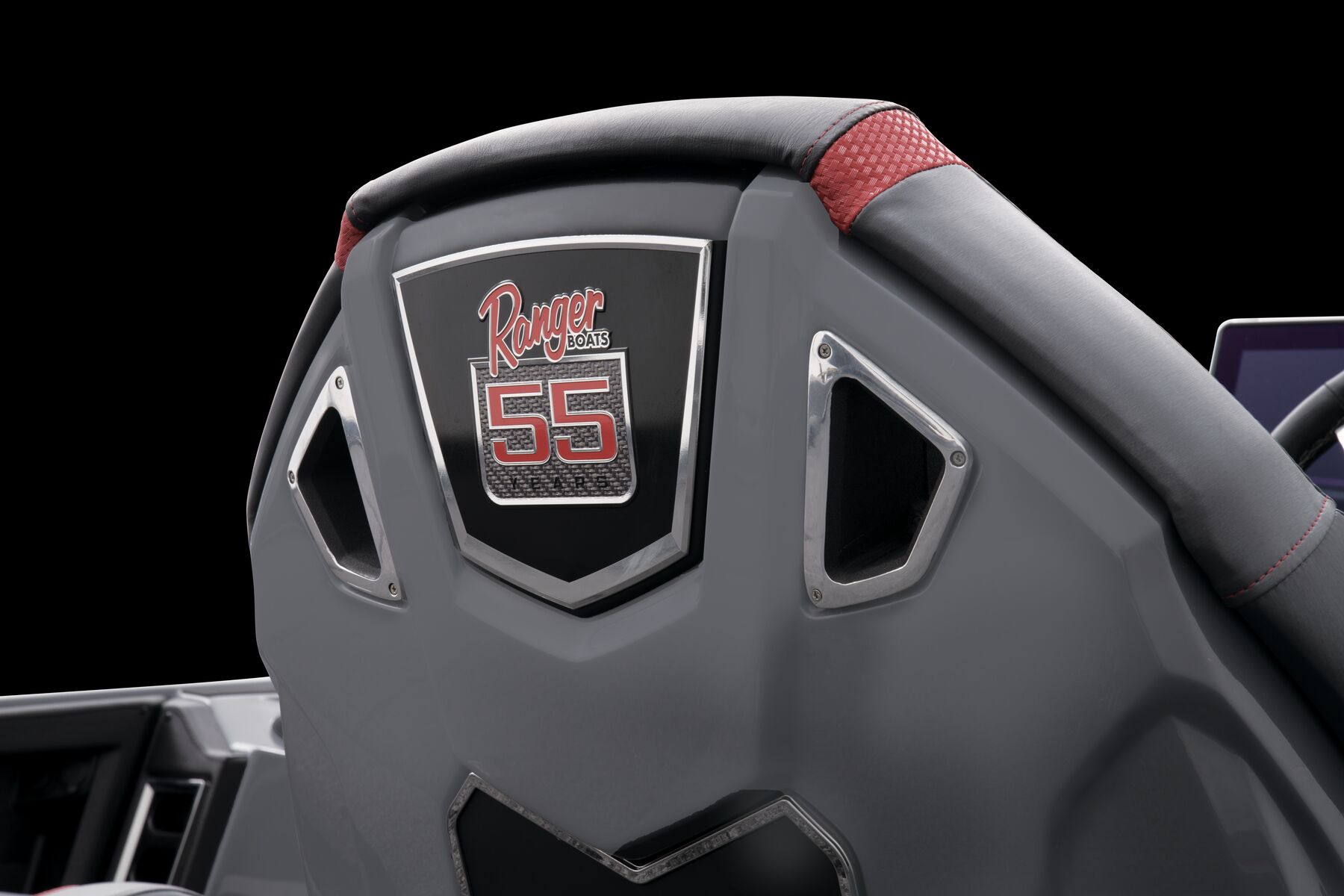

- NASCAR-inspired molded fiberglass (CCBM) seat back color matched to boat with custom 55th Anniversary graphics
- Exclusive Anniversary edition Cloud 9 Cruise Air suspension and seat heater drivers side
- Stainless steel seat bases
- NEW integrated boarding ladder
- Padded front deck

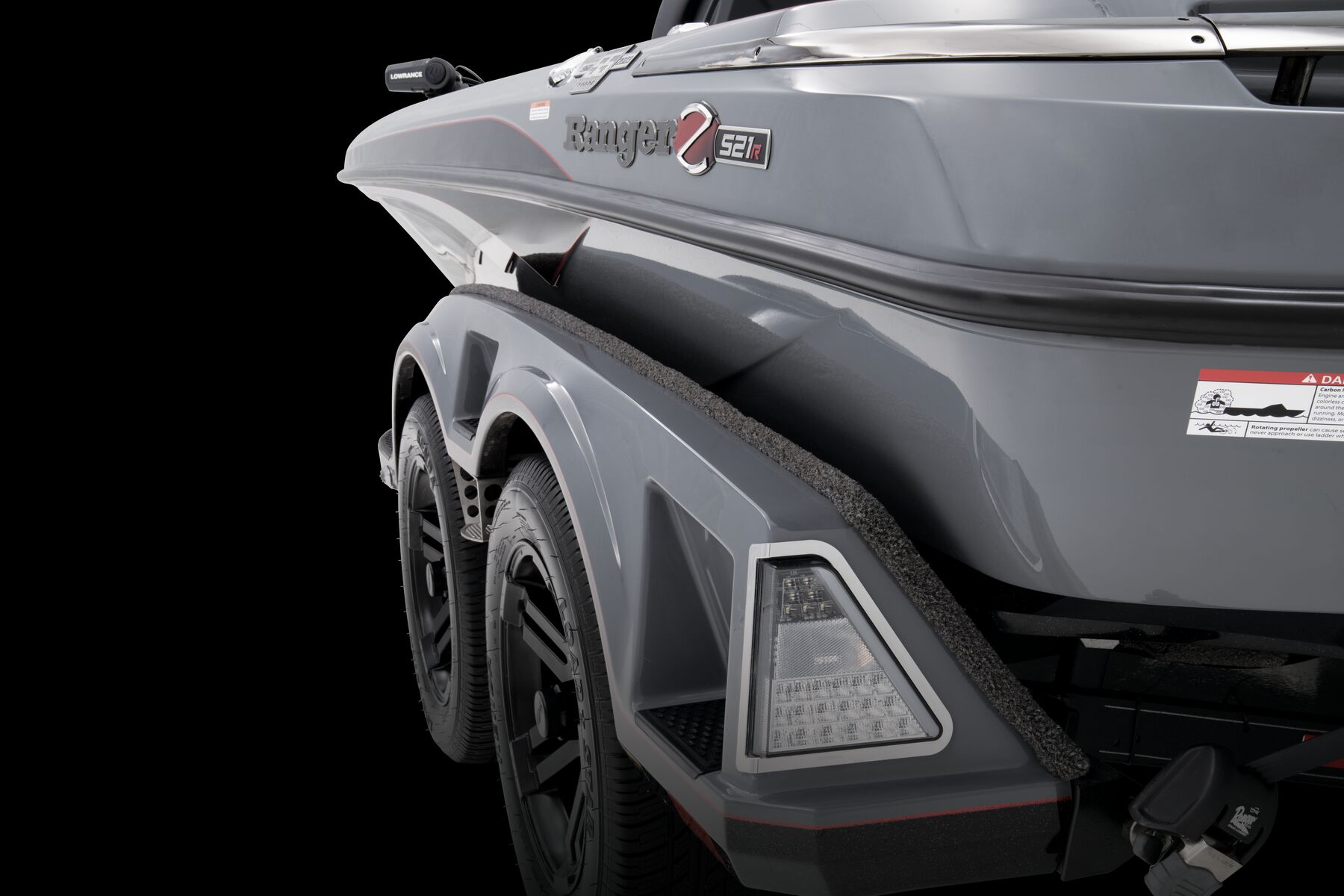

Trailer Features
- Tandem axle trailer
- Custom 17" black Challenger wheels
- Matching fiberglass fenders w/ step pads
- Fiberglass bow entry step system
- Hydraulic surge disc brakes
- Swing-away tongue
- Center swing jack (black powder coated)
- NMMA®/NATM certified
- Ranger Trail® Vault® Hub lubrication system
- Ranger® Boats Road Armor Equipped® trailer protectant
- Torsion axles
- LED lighting

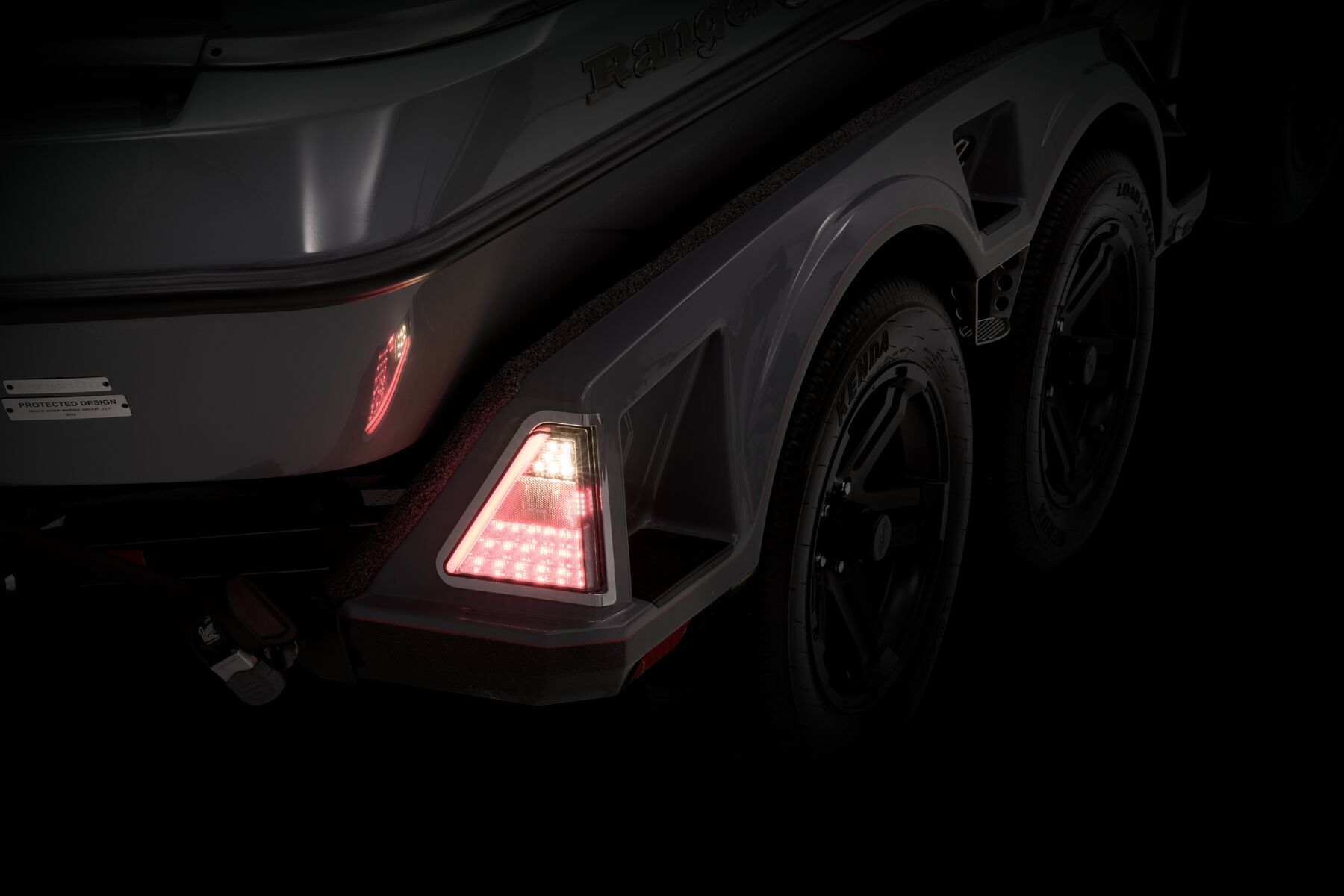

- Exclusive Anniversary edition custom smoke LED lighting
- Stainless steel ratchet tie downs
- (2) Back-up lights
Options
Gallery

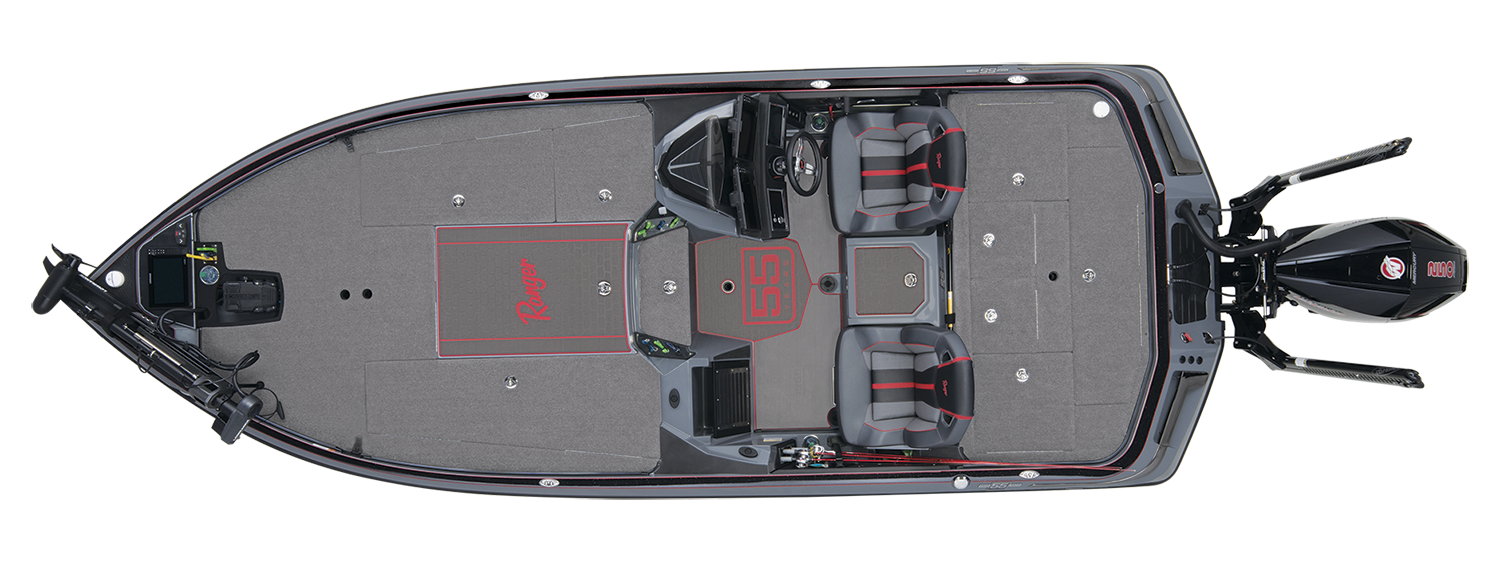

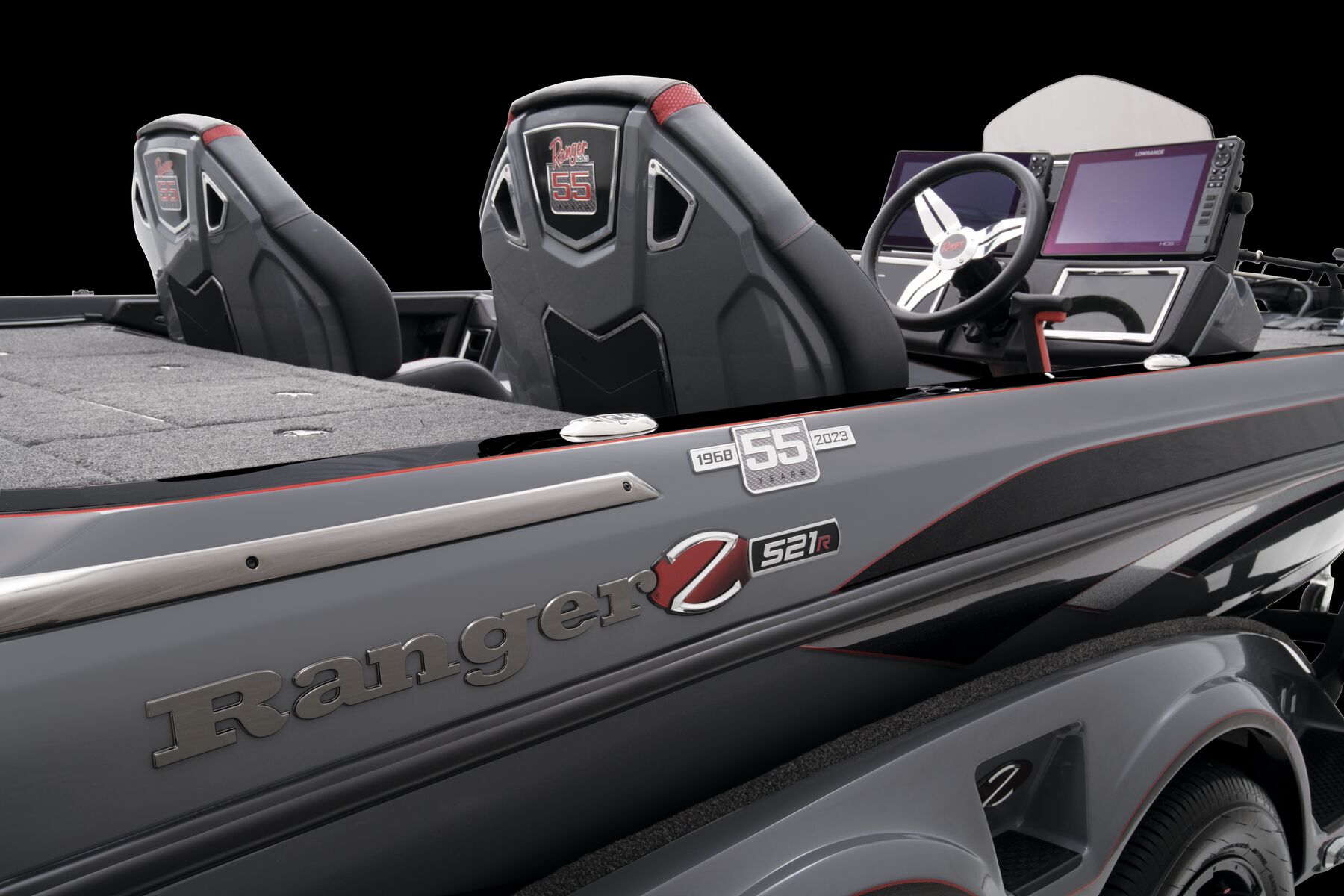

Z521R 55th Anniversary Limited Edition Model Shown for representation
