Limited 2024 Availability

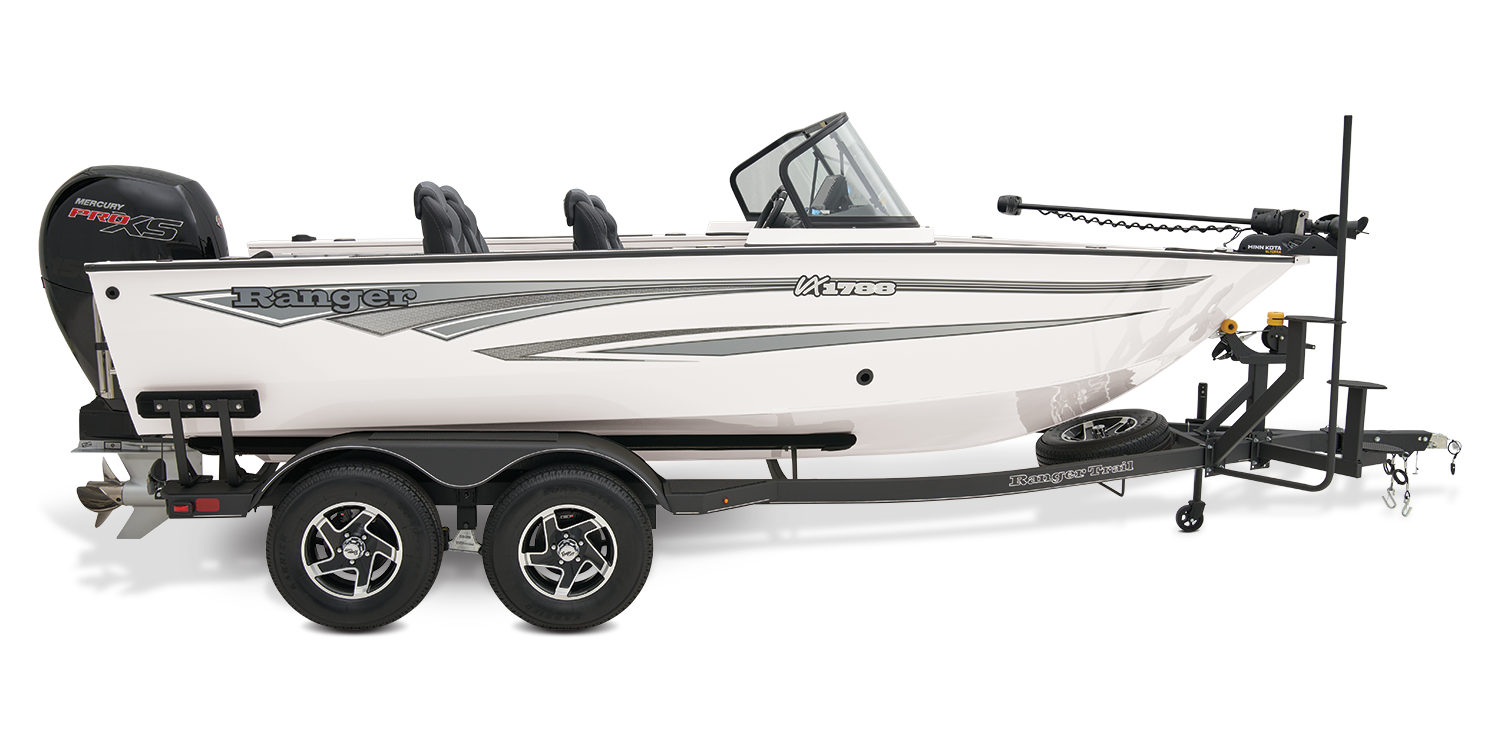

VX1788WT
Photos may show optional equipment.
2024
VX1788 WT
w/ 150 XL Pro XS FourStroke Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$51995
USD
|
Built for big water, big fish and big families

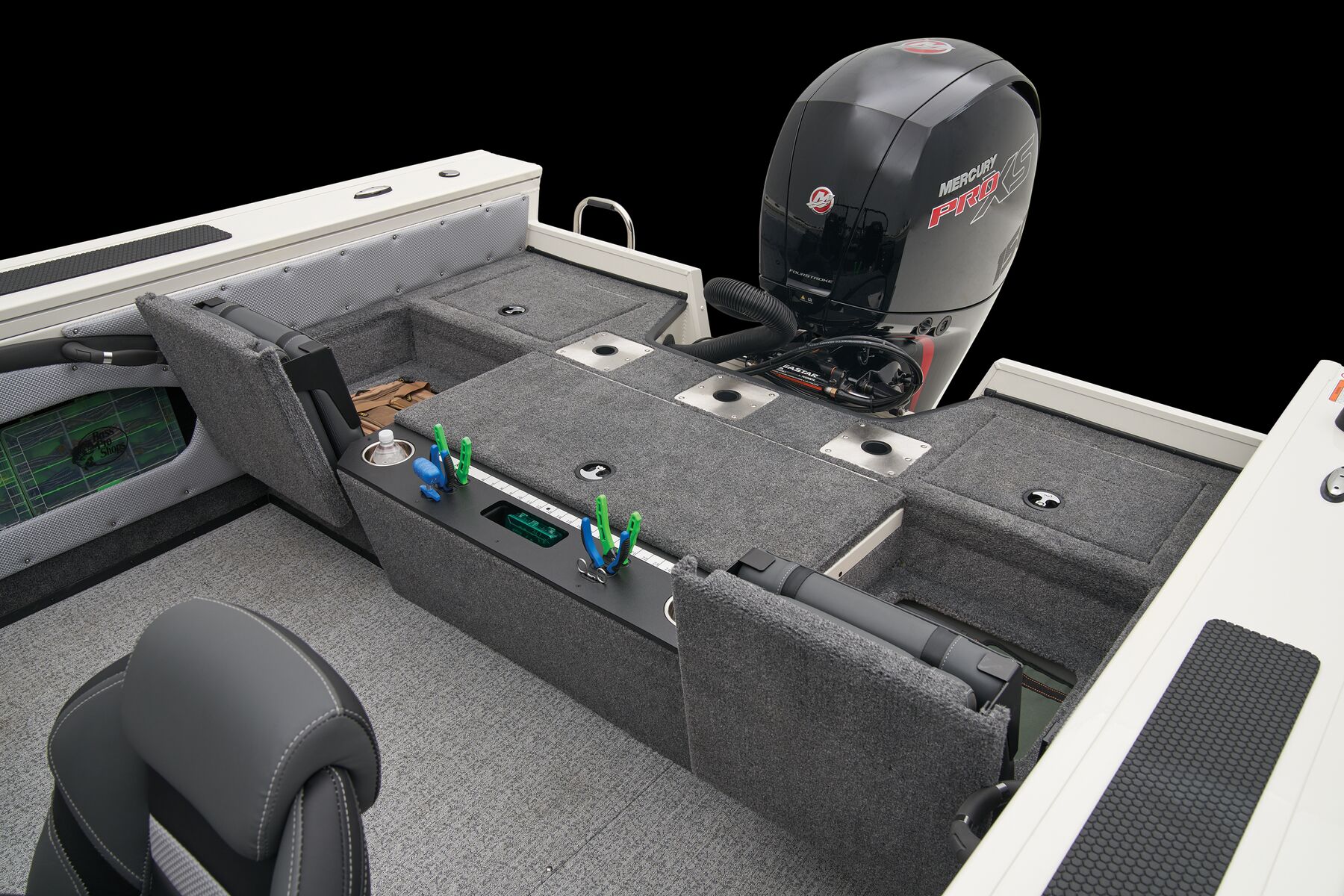

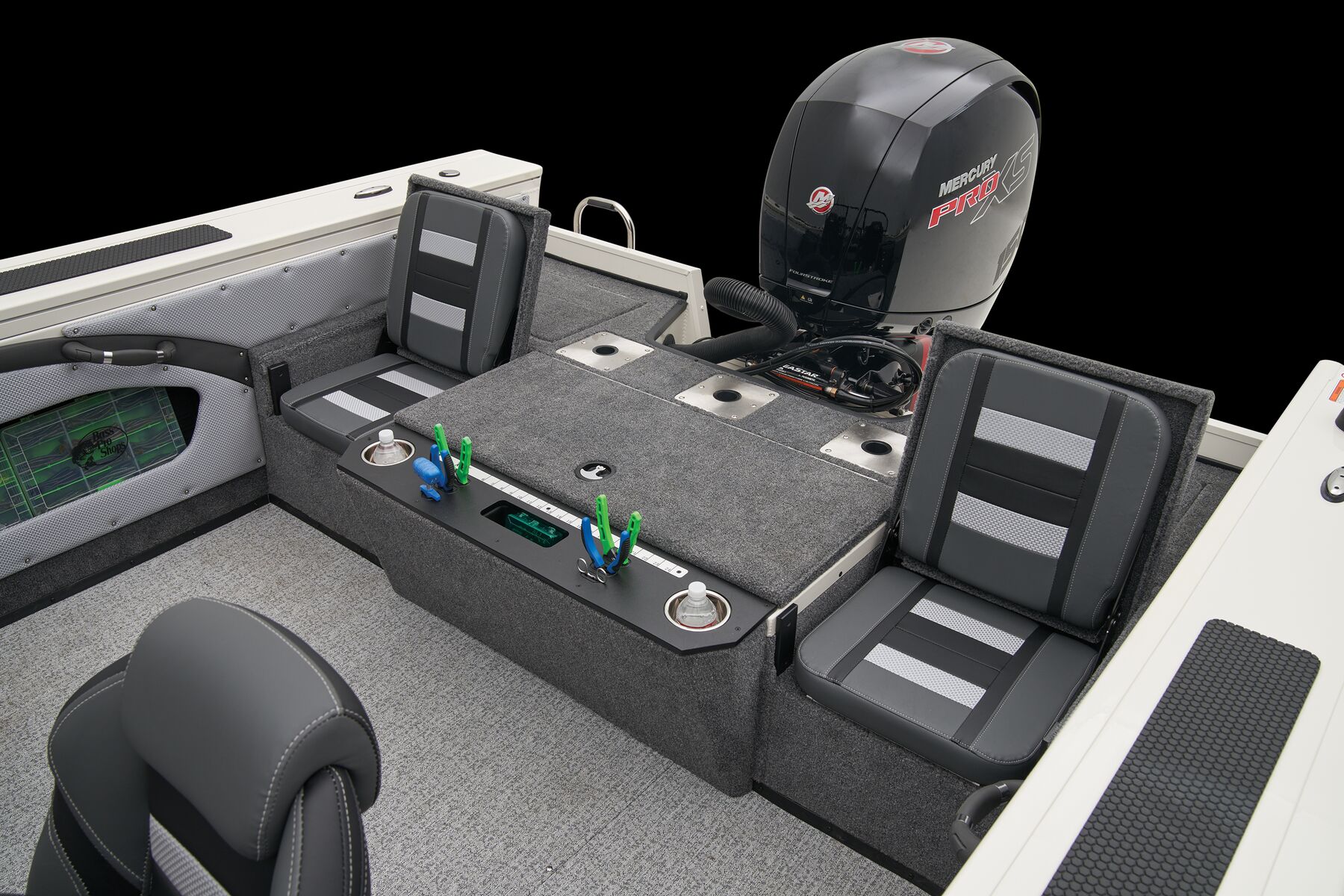

The Ranger® VX1788WT is the answer for the family who wants it all: fishing chops with all-day comfort, enviable features, and maximum value. Every inch of the VX1788WT is designed for convenience and utility, with ingenuity built in from the rear jump seats with concealed storage to the in-floor cooler and oversized storages and baitwell in the front deck. This rig is brimming with angling prowess thanks to standard Lowrance® electronics and Minn Kota® trolling motor with storage up front to stow the pedal when not in use. Smooth hydraulic steering delivers commanding control over the foam-filled and all-welded hull while a deck extension offers a large, solid platform up front. Storage options are everywhere you look, proving the VX1788WT is Built For Big Water, Big Fish And Big Families.
Key Features
- Designed for strength, stability, and versatility

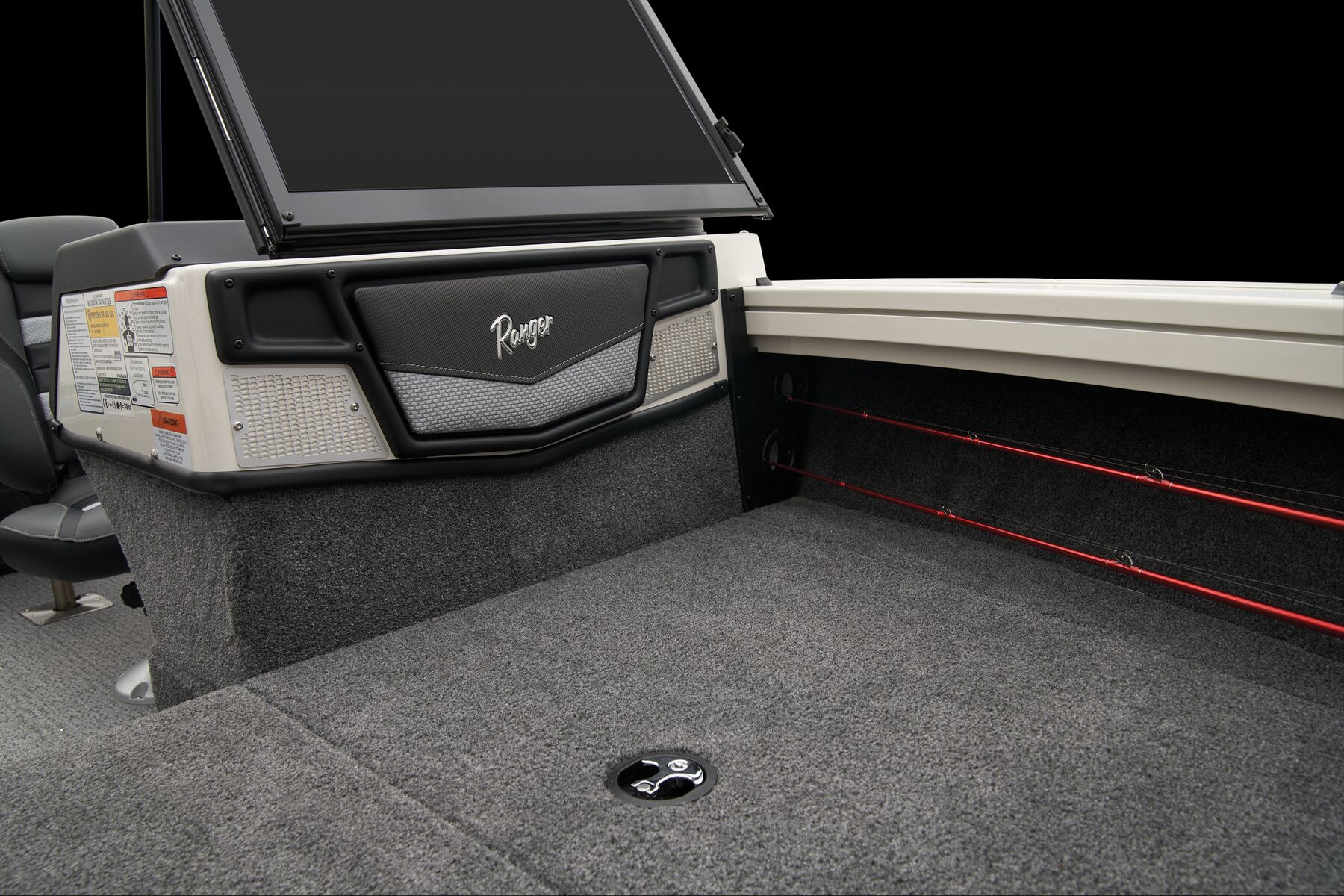

- Fiberglass consoles for functional strength and good looks

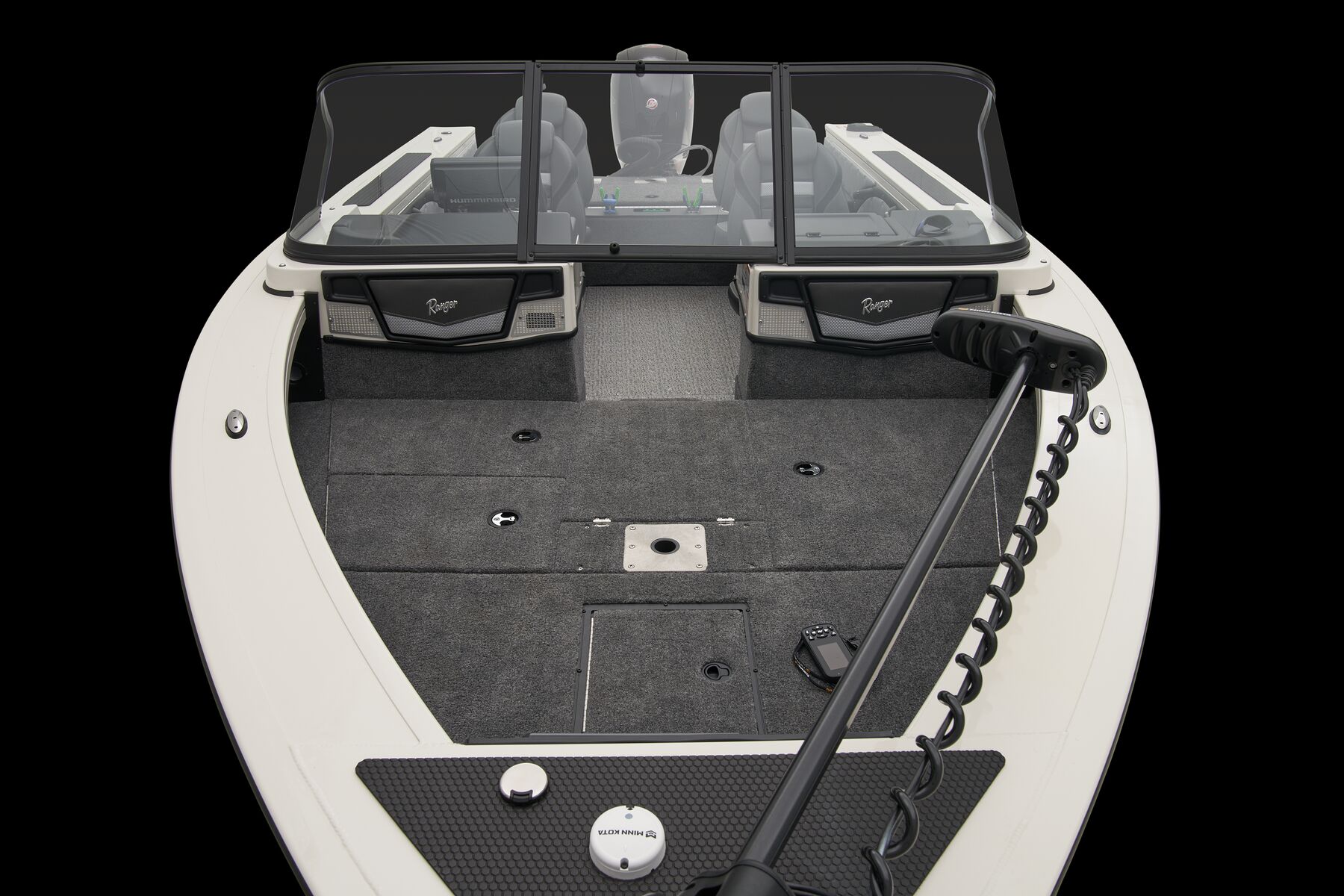

- Front deck extension for maximum capability

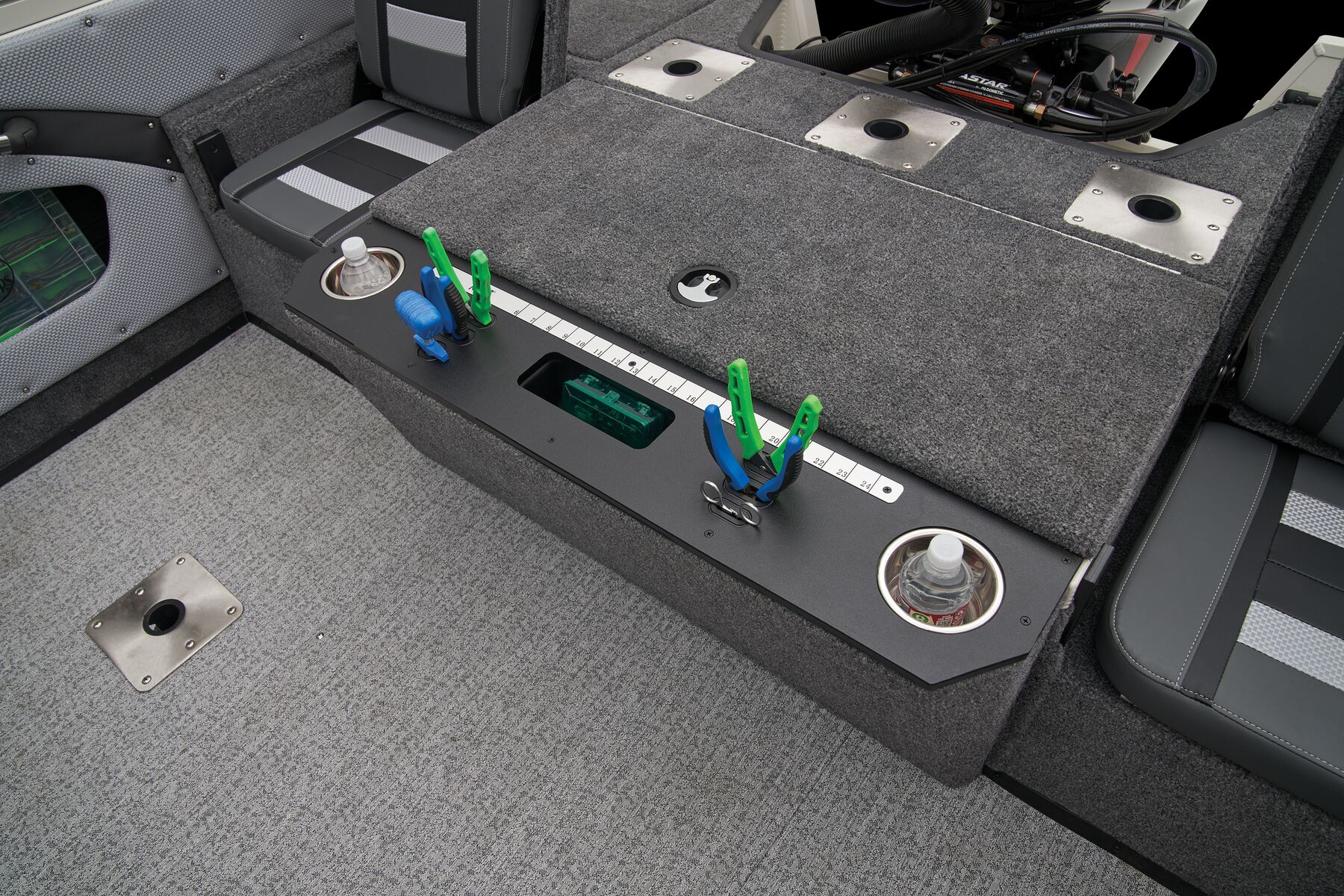

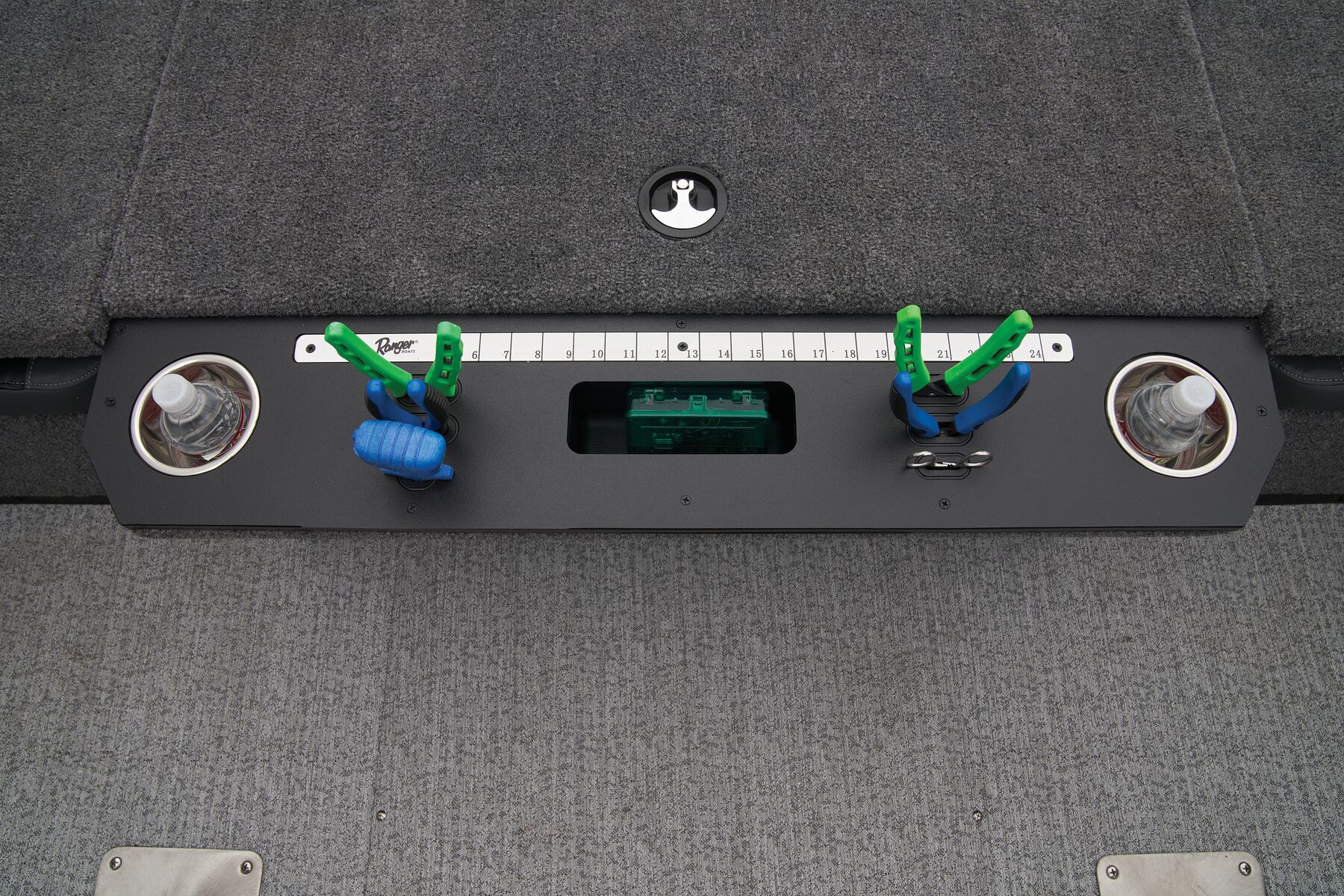

- Dual livewells, integrated tool, cup, and tackle holders
- Non-skid flooring in cockpit, optional on decks
Specifications
| Length | 5.54 m | 18' 2'' |
| Hull Length | 5.54 m | 18' 2'' |
| Beam | 2.59 m | 102'' |
| Max. Recommended HP | 175 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 71.12 cm | 28'' |
| Hull Thickness | 0.3175 cm | 0.125'' |
| Chine Width | 2.24 m | 88'' |
| Fuel Capacity | 151.4 L | 40 gal. |
| Livewell Capacity | 75.7 L | 20 gal. |
| Baitwell Capacity | 26.5 L | 7 gal. |
| Total Person, Motor, Gear | 748.43 kg | 1650 lbs. |
| Approximate Boat Weight | 884.51 kg | 1950 lbs. |
| Rod Box Length - Port | 2.59 m | 8' 6'' |
| Rod Box Length - Center | 2.29 m | 7' 6'' |
| Max. Person Capacity | 6 persons | |
| Tandem Axle Trailer GVWR | 1905.09 kg | 4200 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.26 m | 23' 10'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 6.63 m | 21' 9'' |
| Width On Trailer | 2.59 m | 102'' |
| Height On Trailer | 2.13 m | 84'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 150 XL Pro XS FourStroke |
$51995 USD
|
Select Dealer | |||
| 175 XL Pro XS FourStroke |
$55720 USD
|
Select Dealer | |||
Standard Features
Custom Details

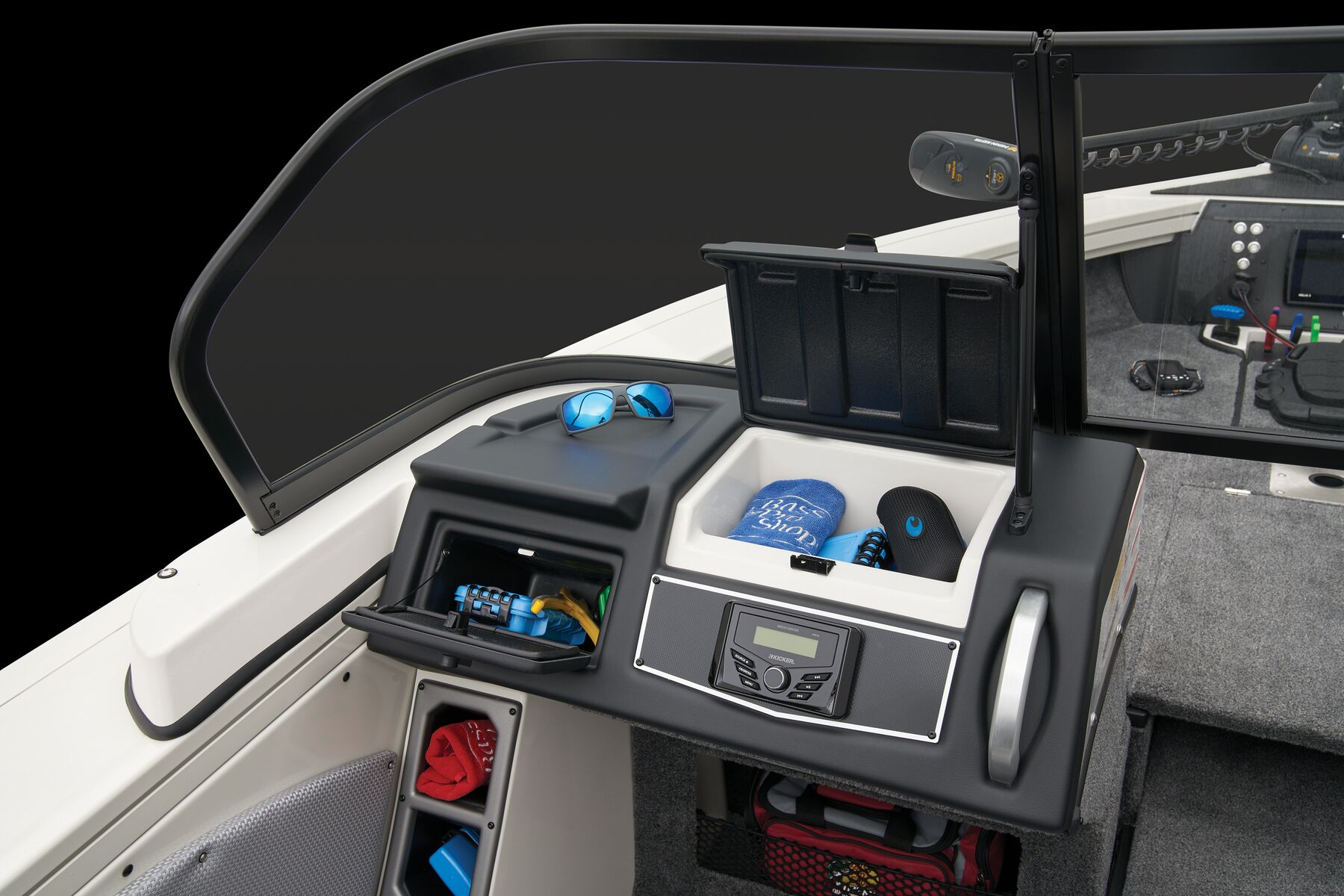

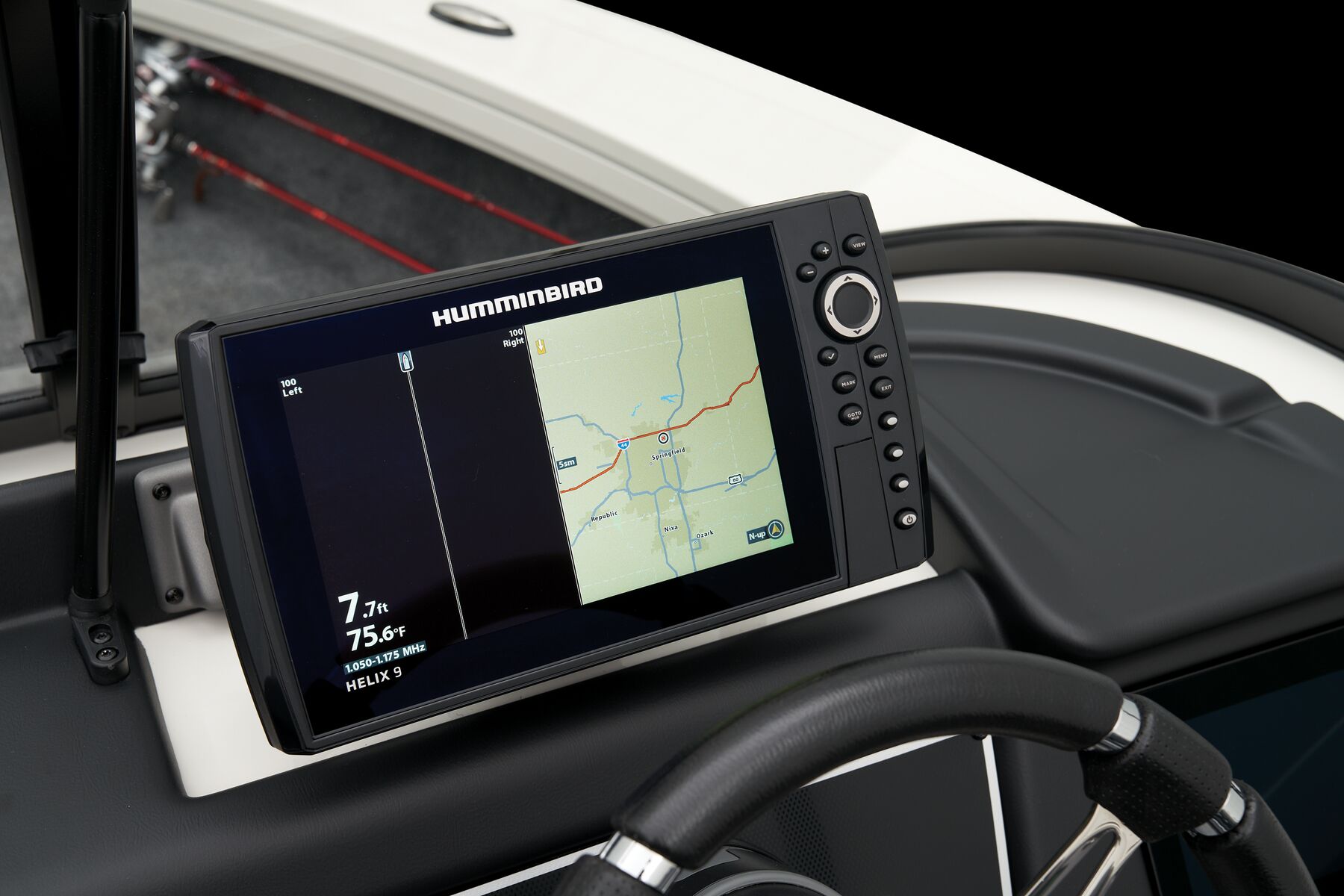

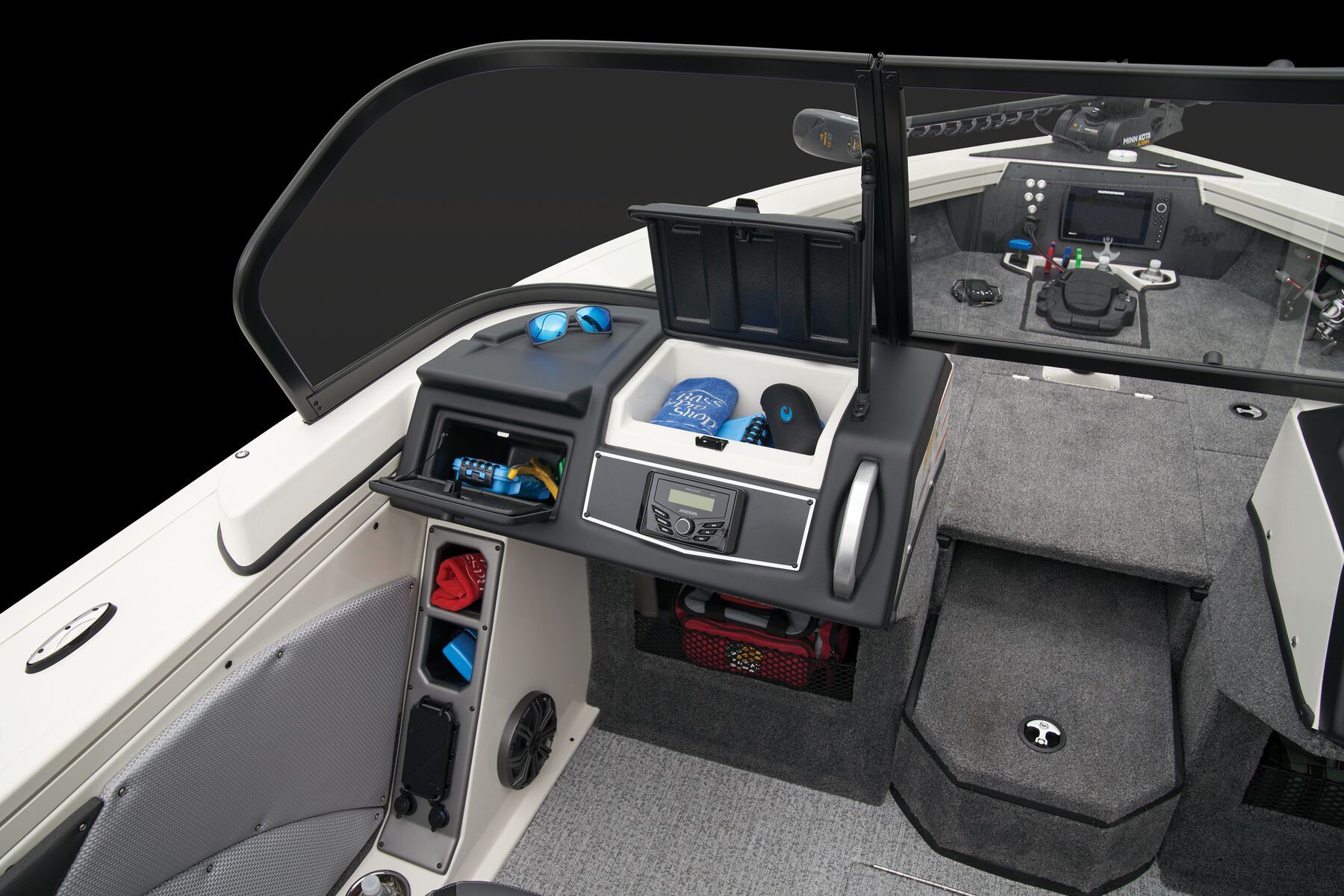

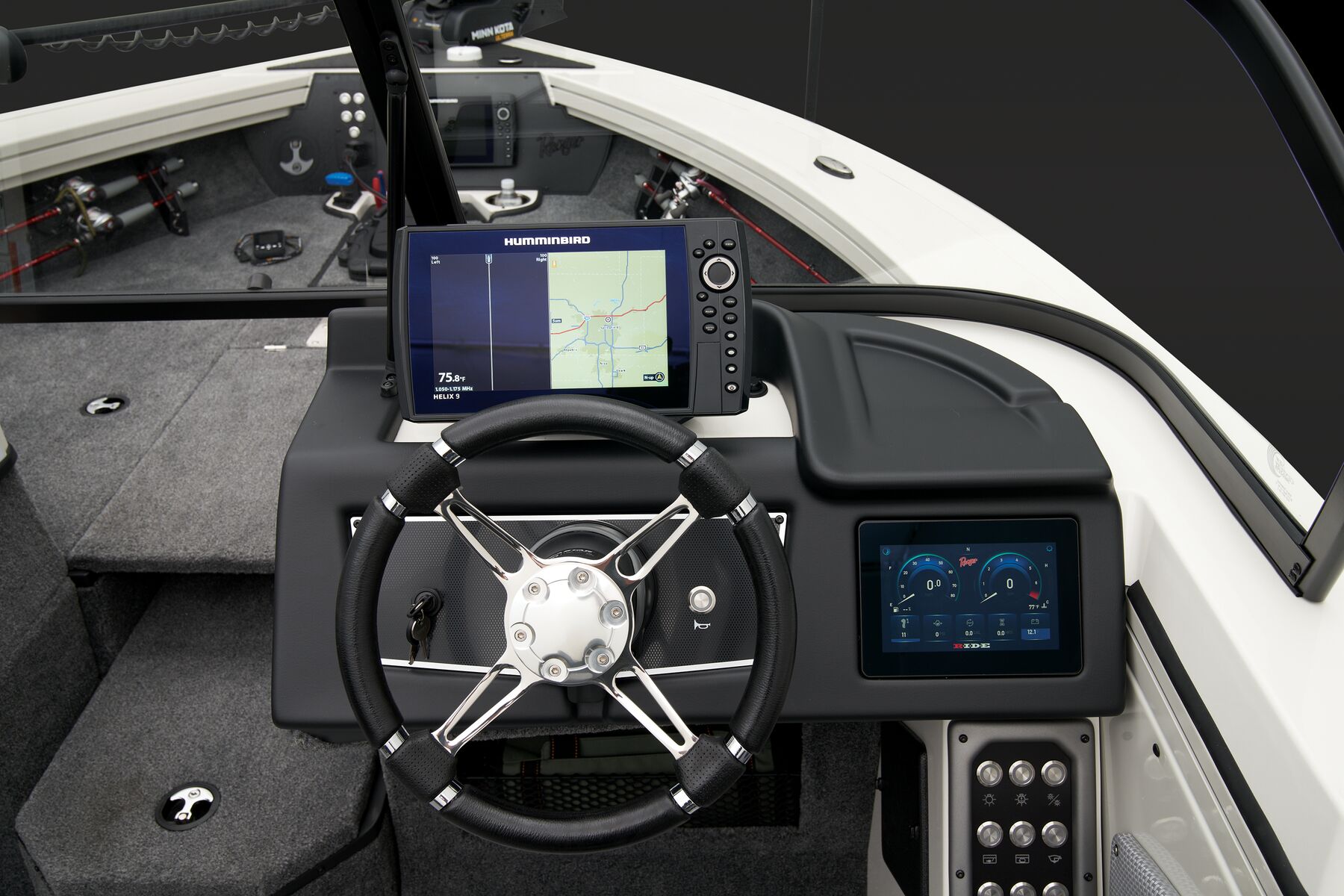

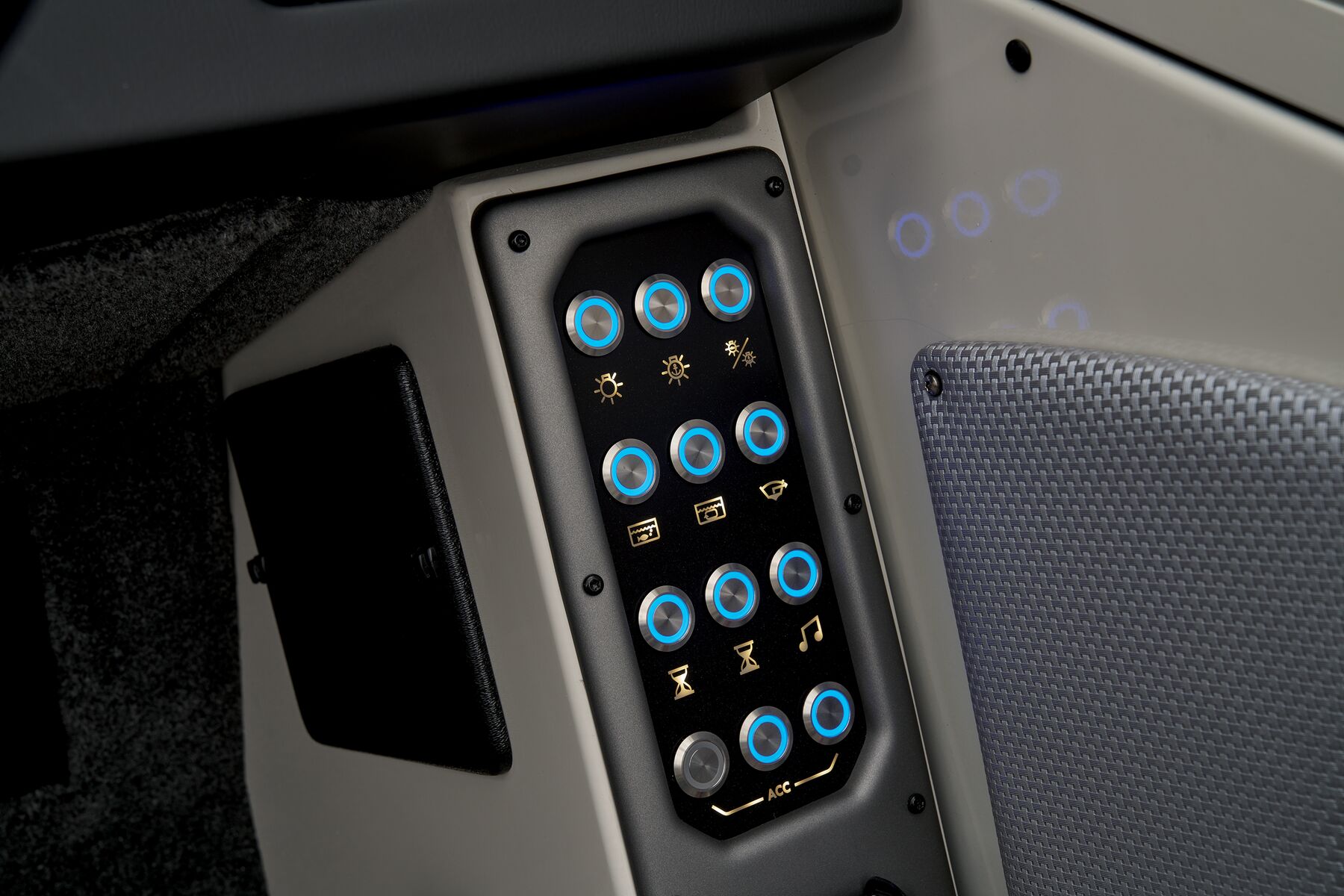

- Fiberglass consoles w/ flushmounted R.I.D.E. System Monitor, gimbal-mounted depthfinder & easy touch switching
- Custom fitted marine upholstery- (2) matching fishing seats

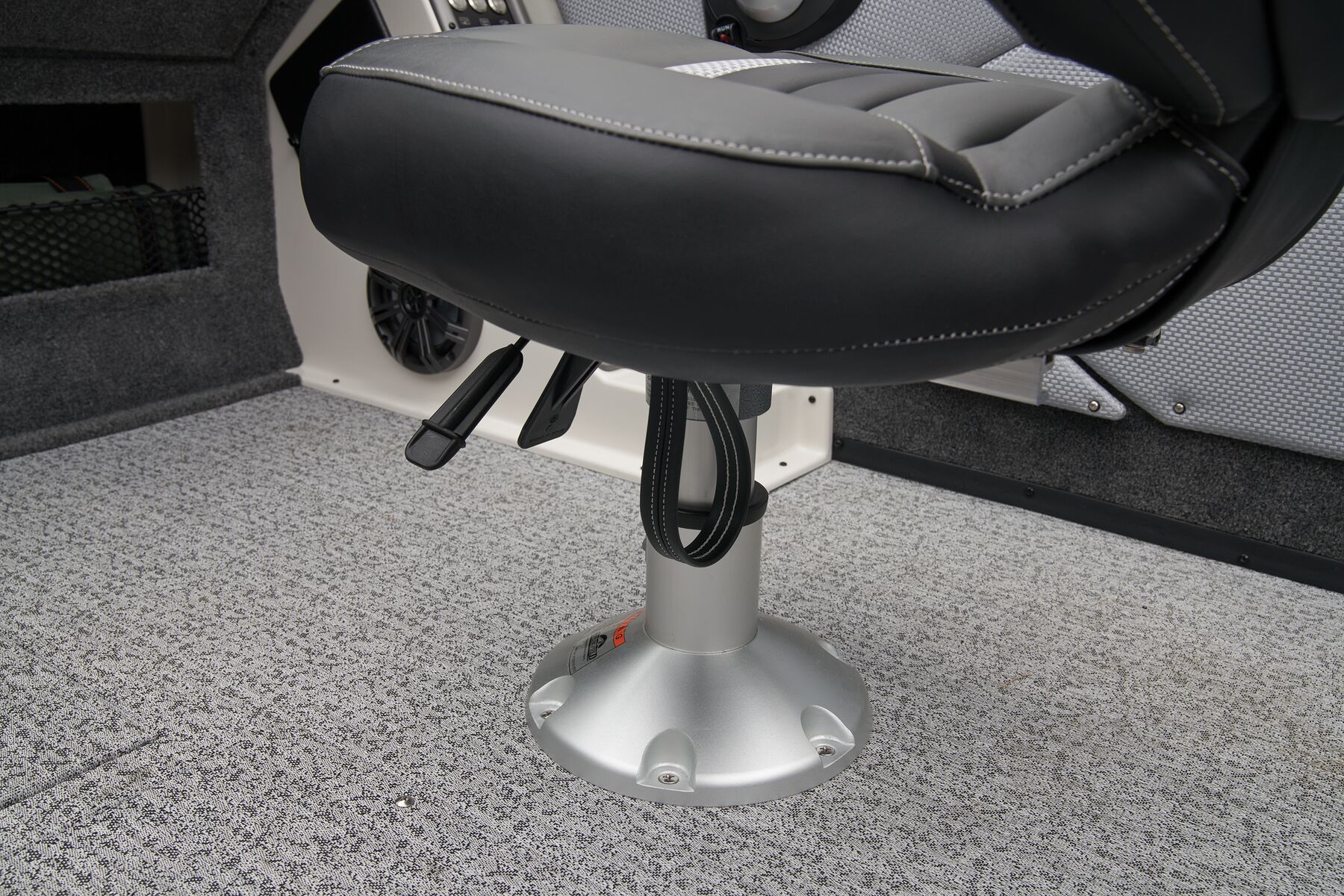

- Driver and passenger air ride seats w/ seat slides

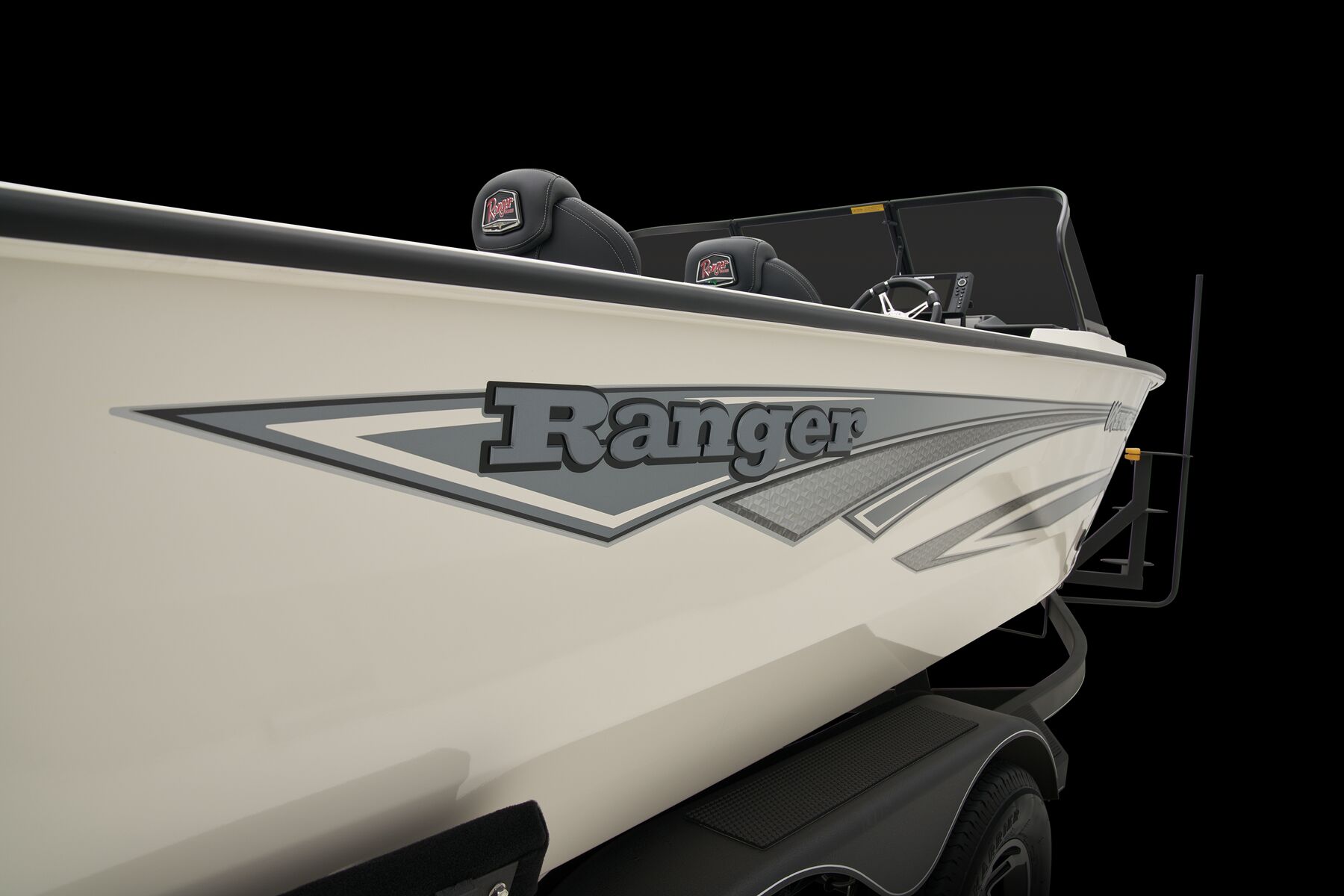

- High gloss paint w/ custom chrome Ranger® graphics
- Choice of colors: white, crystal red, charcoal metallic, midnight blue, carbon, fusion electra lime green, fusion electra blue
- Durable marine grade carpet
- Non-skid marine grade vinyl cockpit flooring

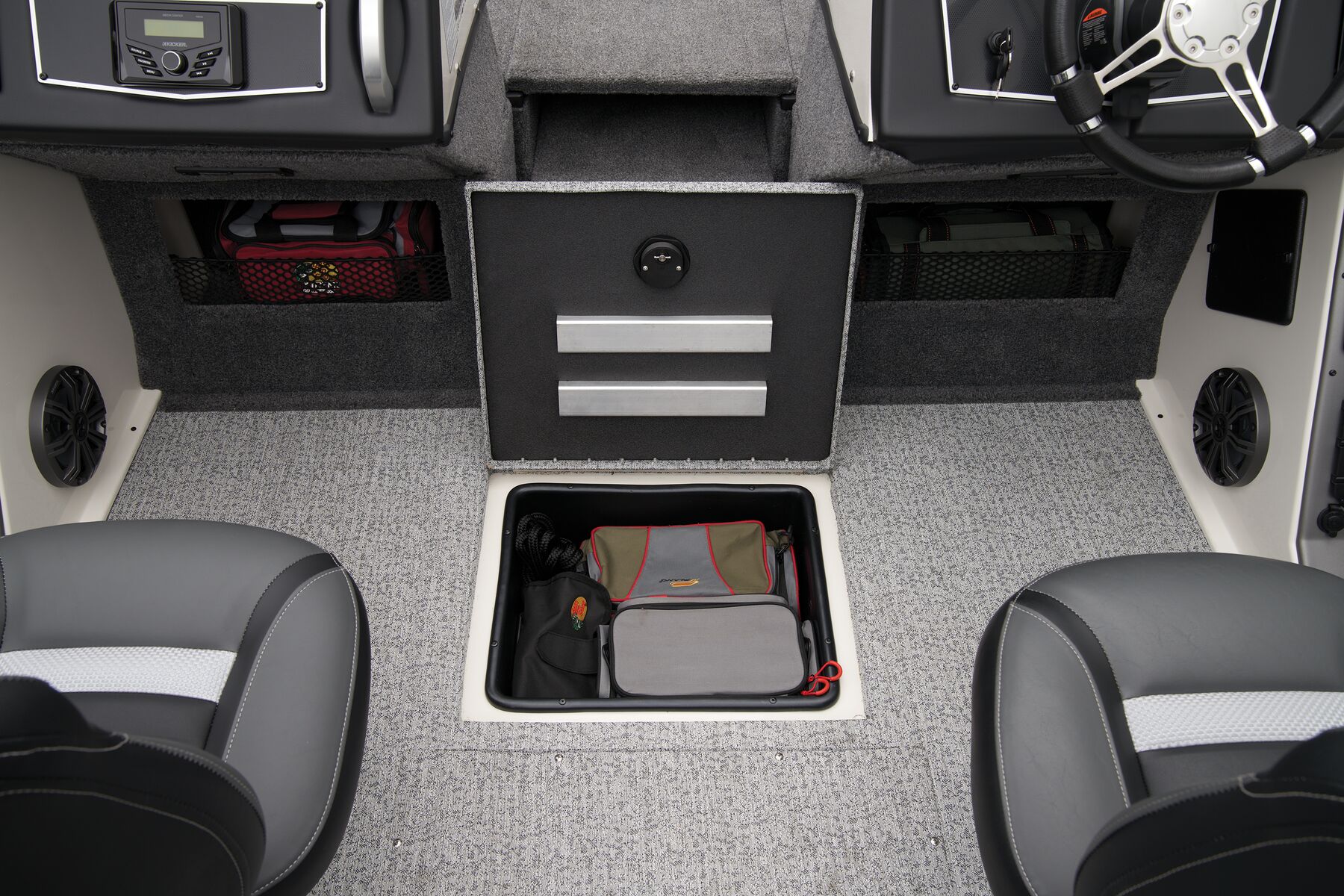

- In-floor cooler
Electronics

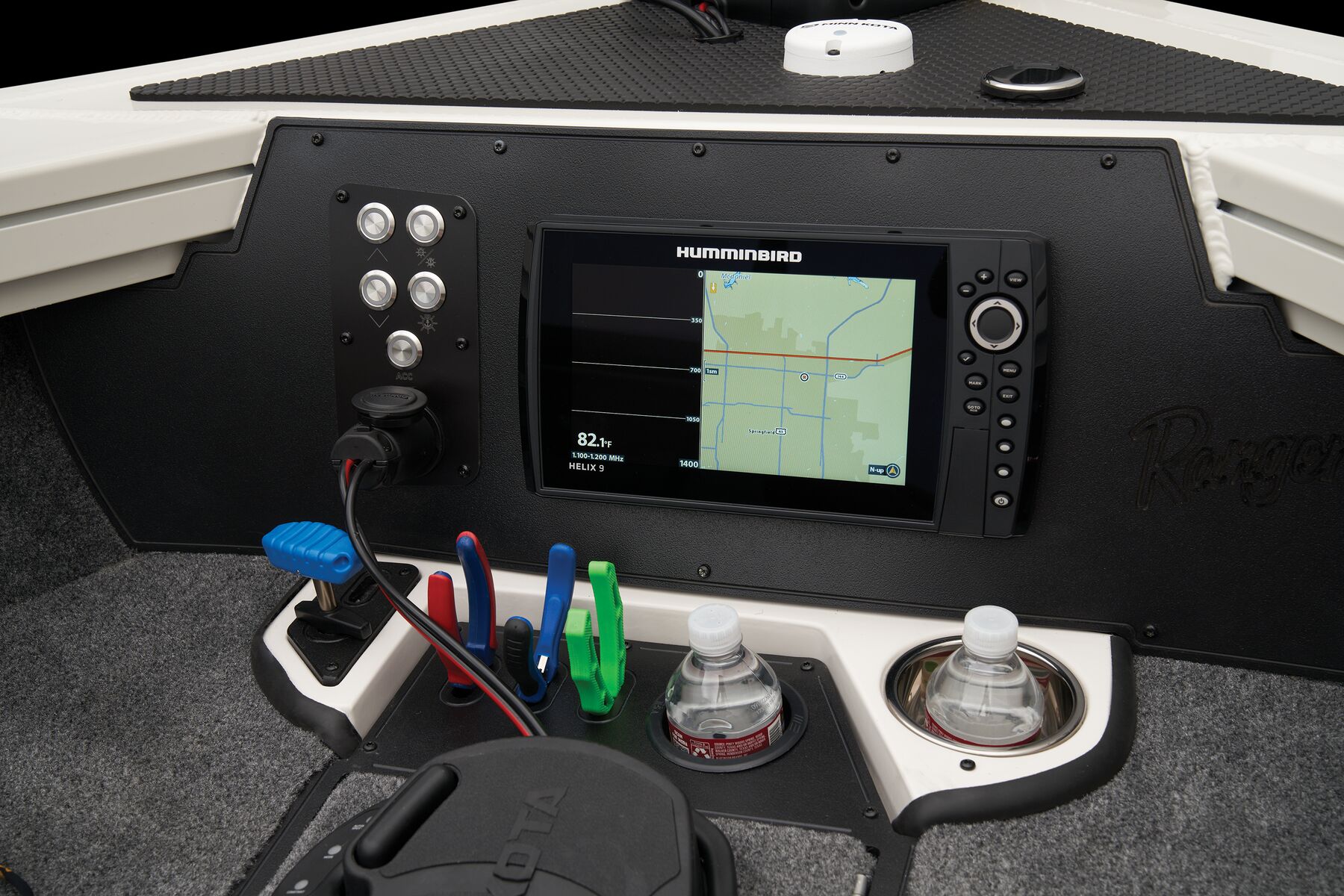

- Lowrance® HOOK Reveal 7 Combo console

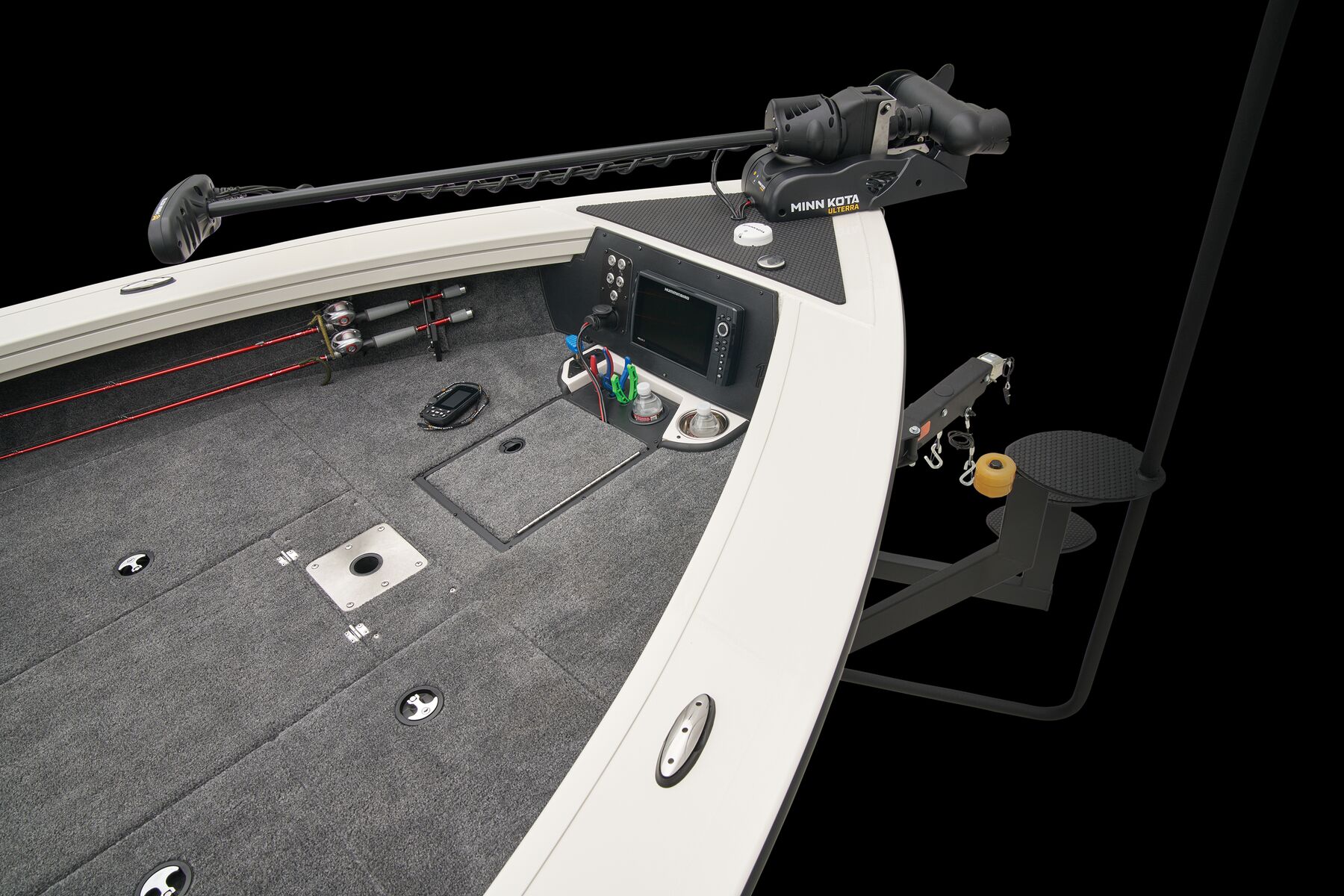

- MinnKota® Terrova 80lb / 60in / DSC / 24V trolling motor

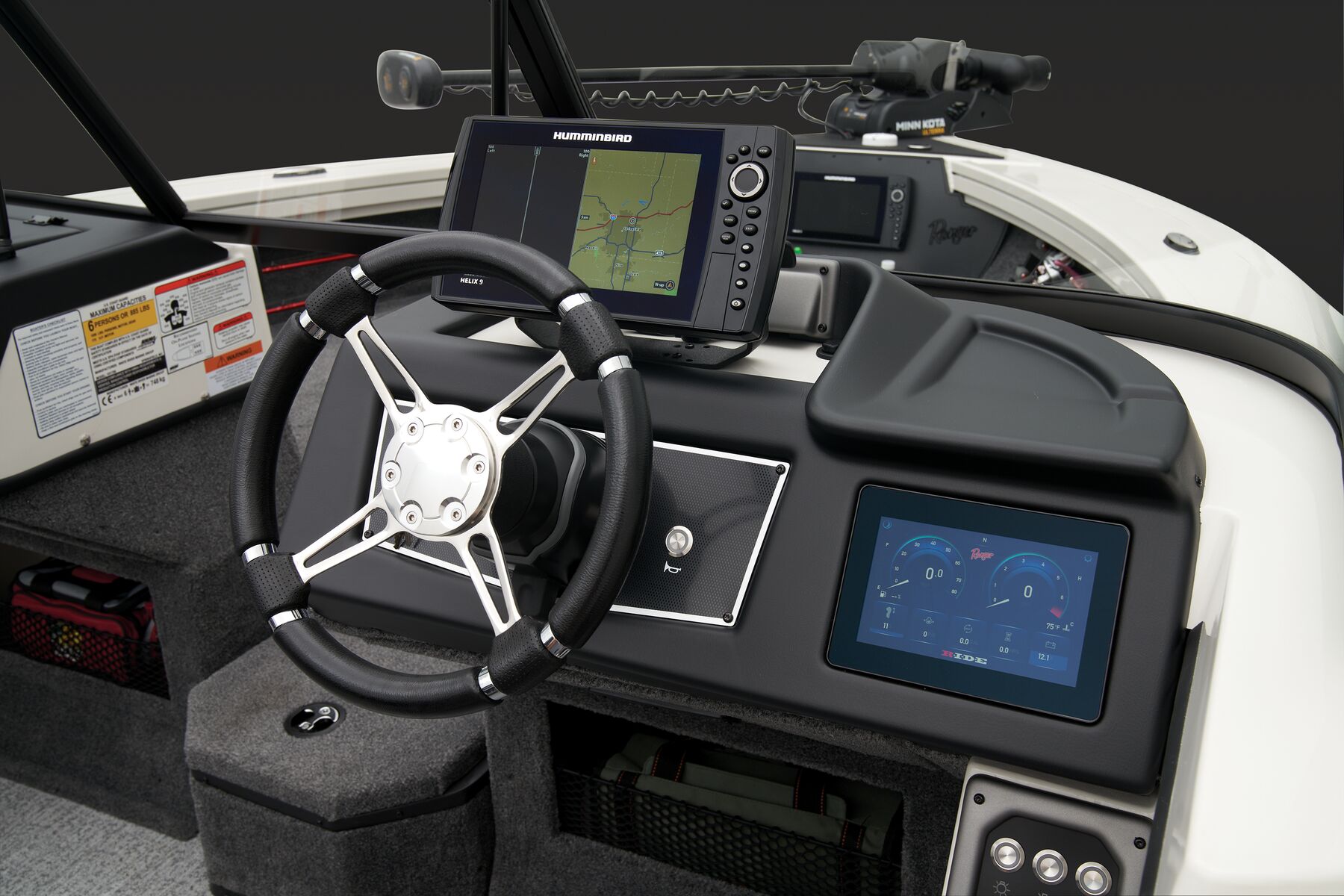

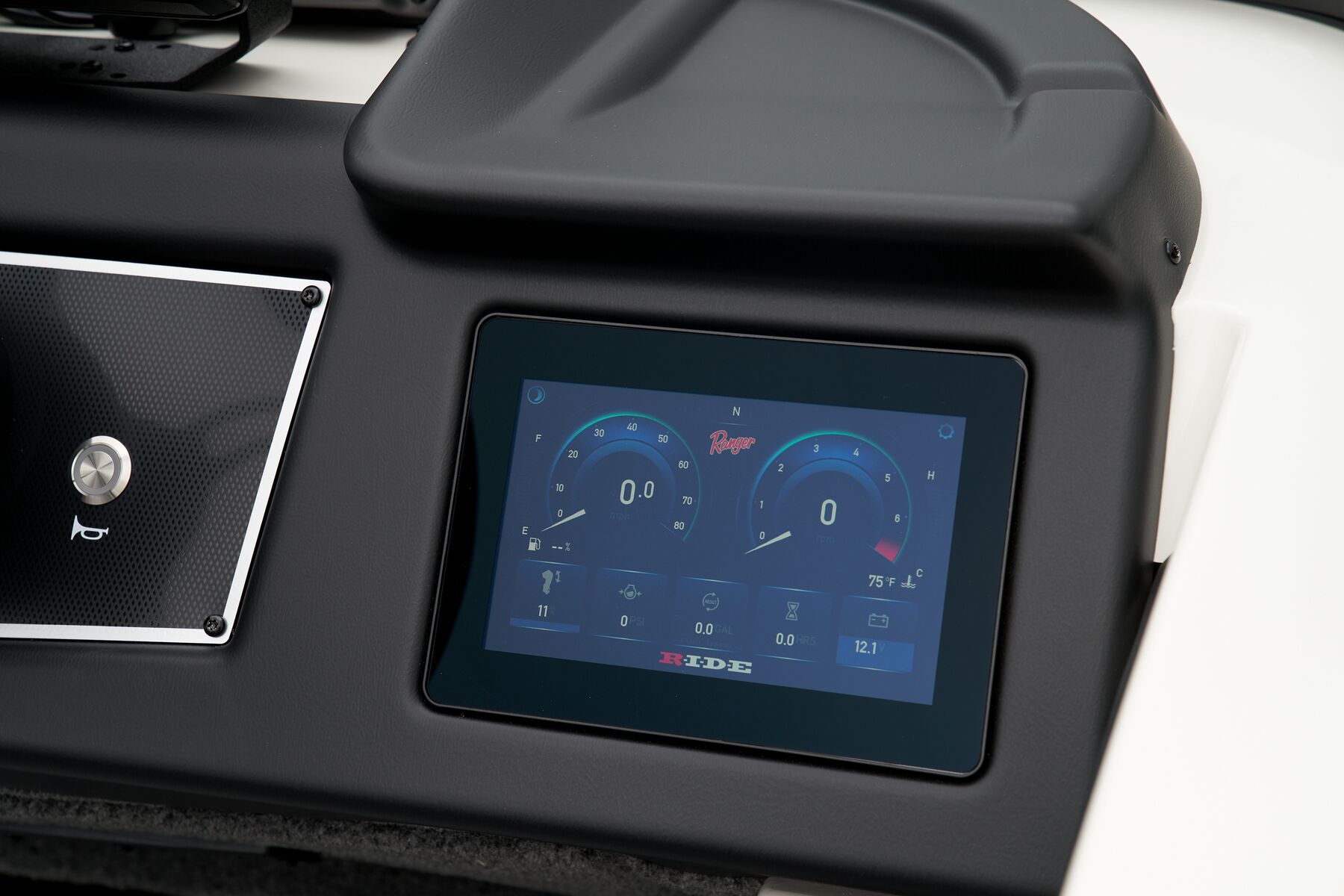

- Ranger R.I.D.E. System Monitor - 7" Touchscreen that displays all boat and engine data at a glance, eliminating the need for gauges
- 6-gauge trolling motor wiring

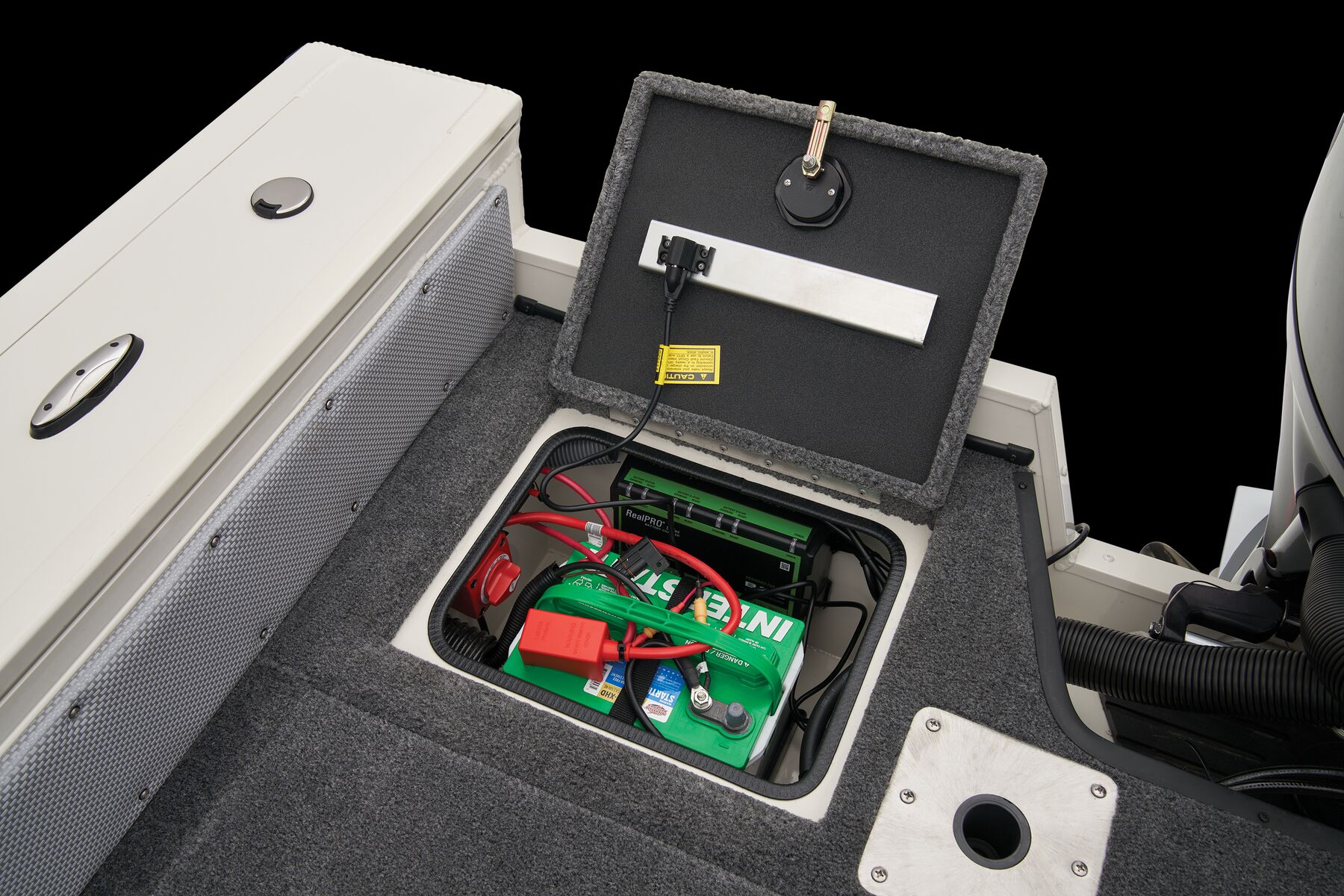

- Trolling motor battery trays
- On-board lithium charger, 6A x 3 bank charger

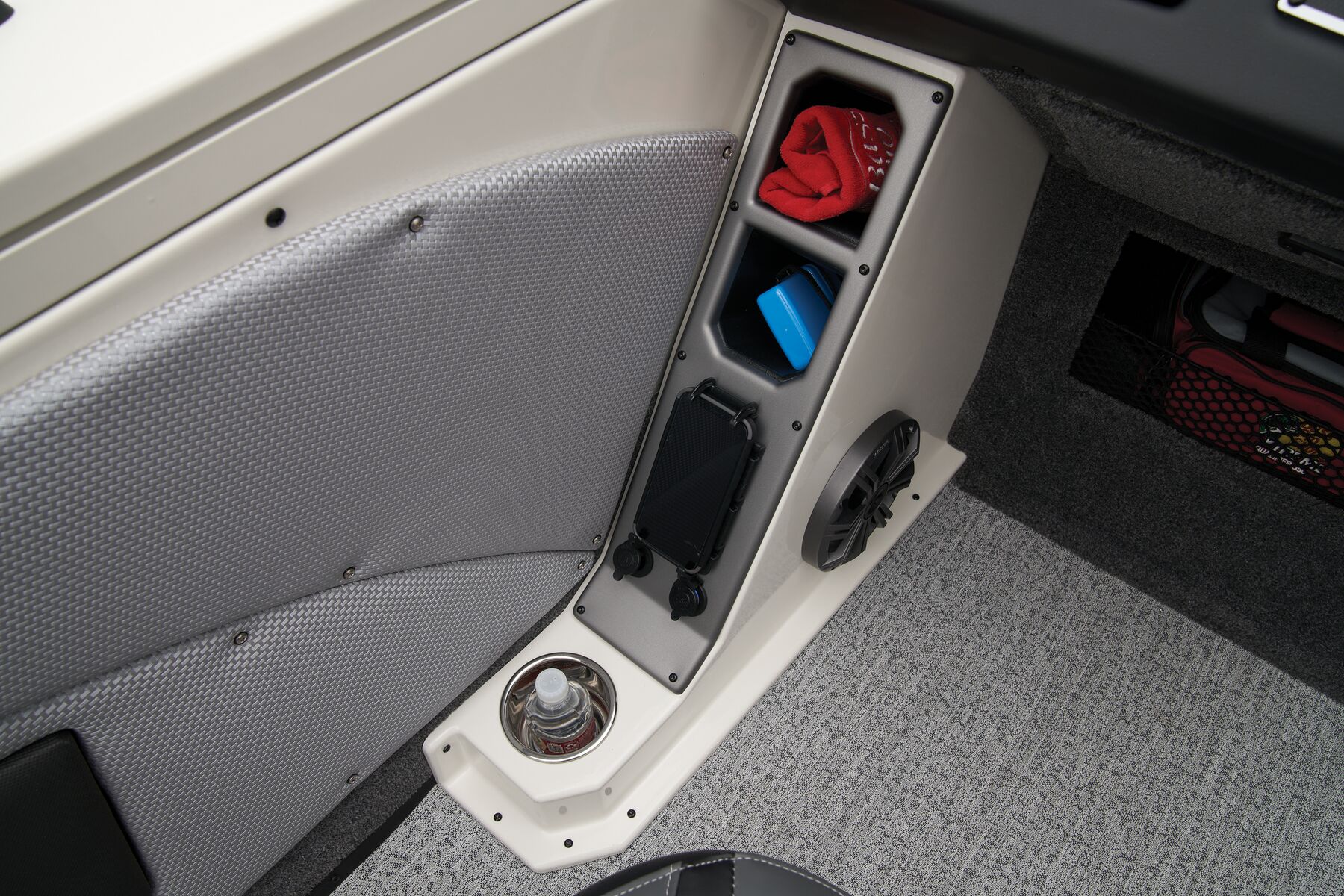

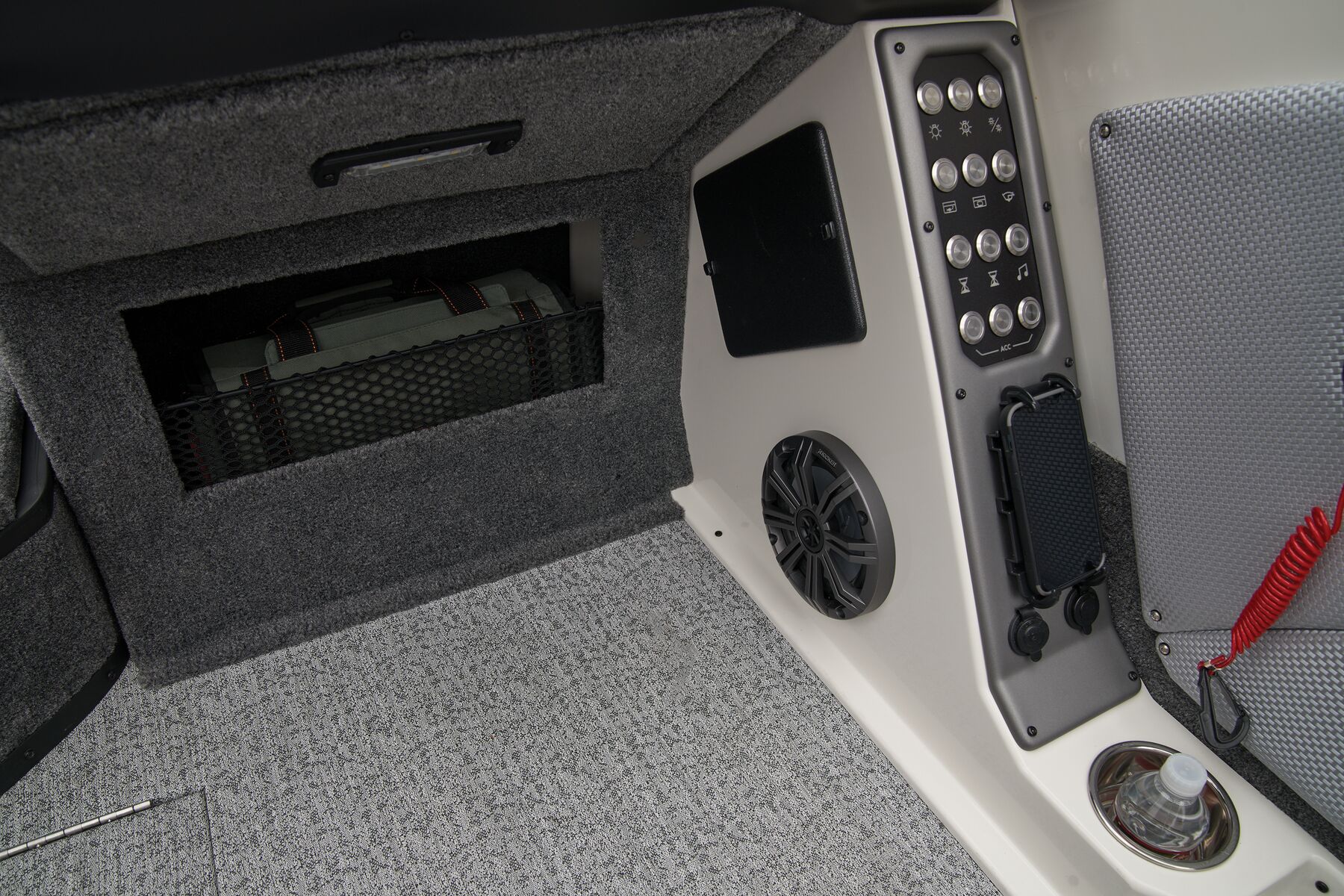

- 12V power and USB outlets on port and starboard side panels
- Bilge pump
- Removable navigation lights

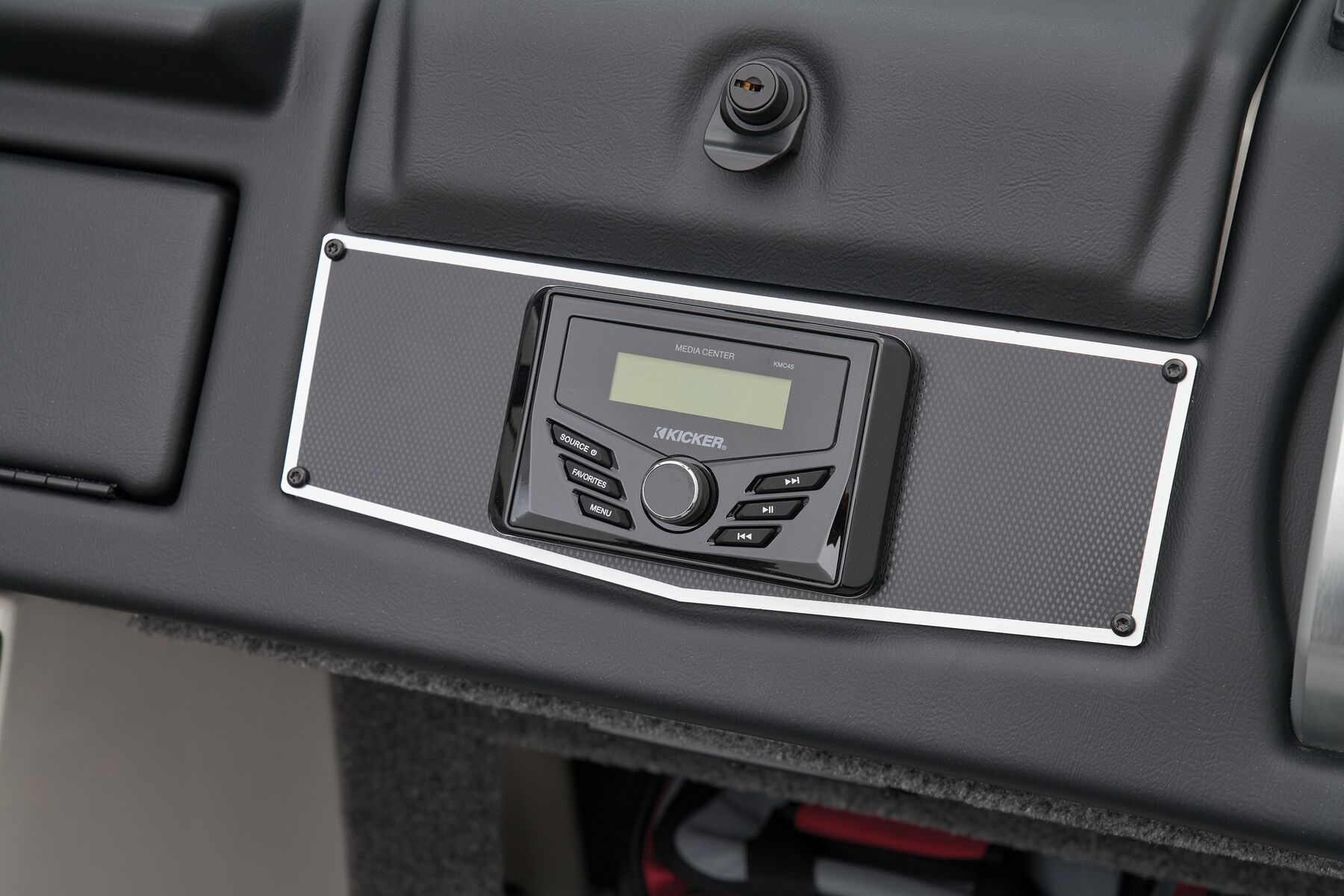

- Stereo w/ 2 speakers
Power/Performance

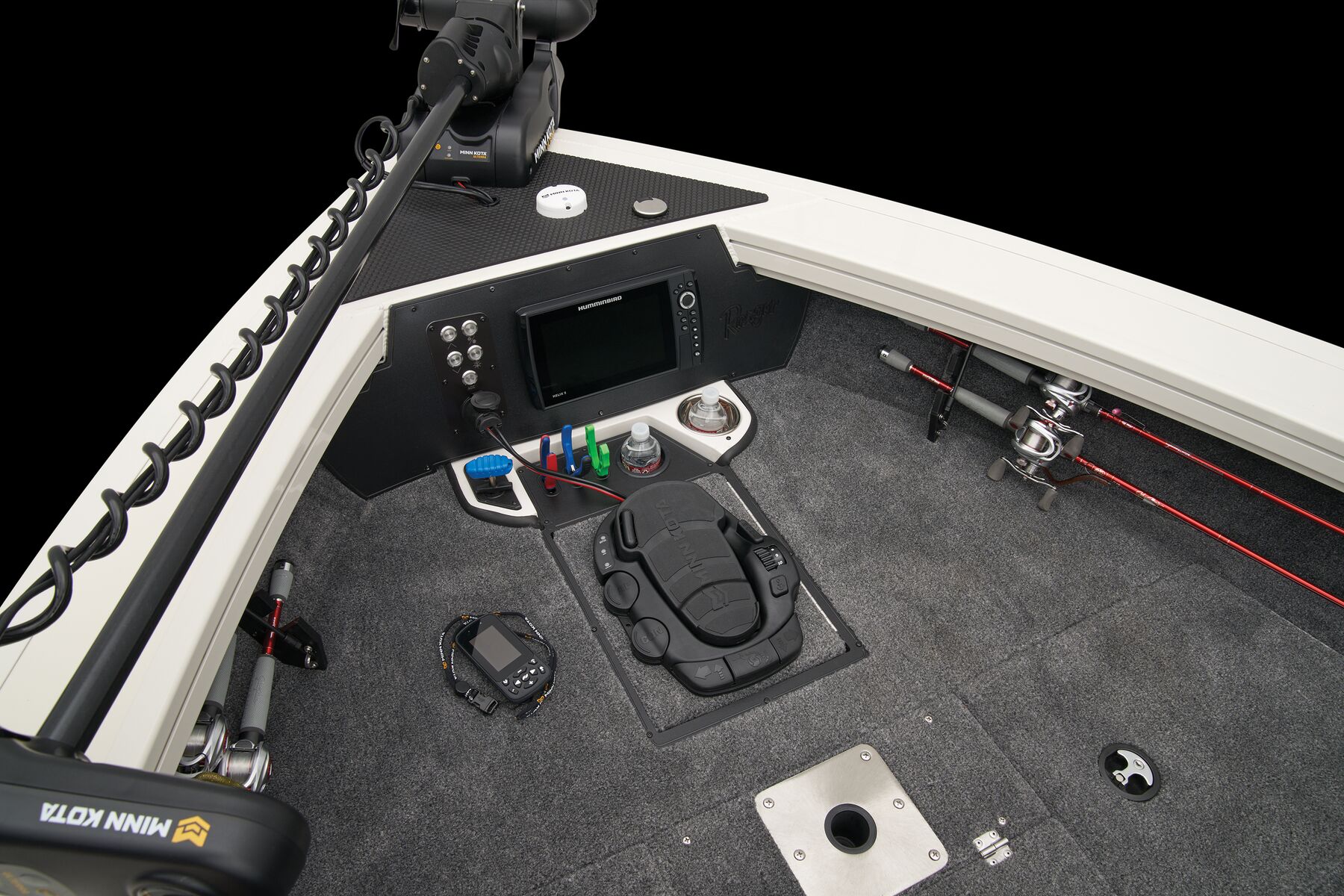

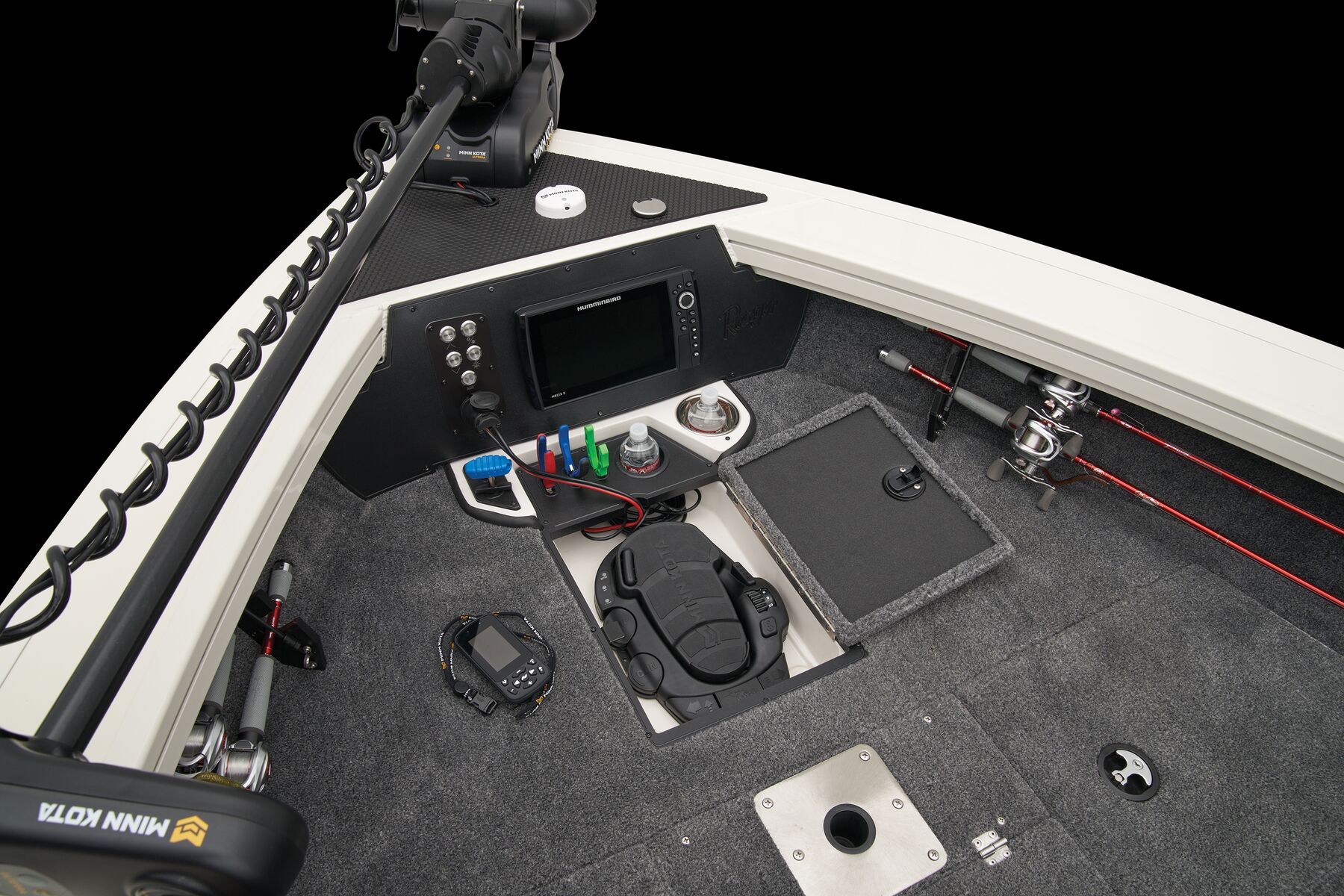

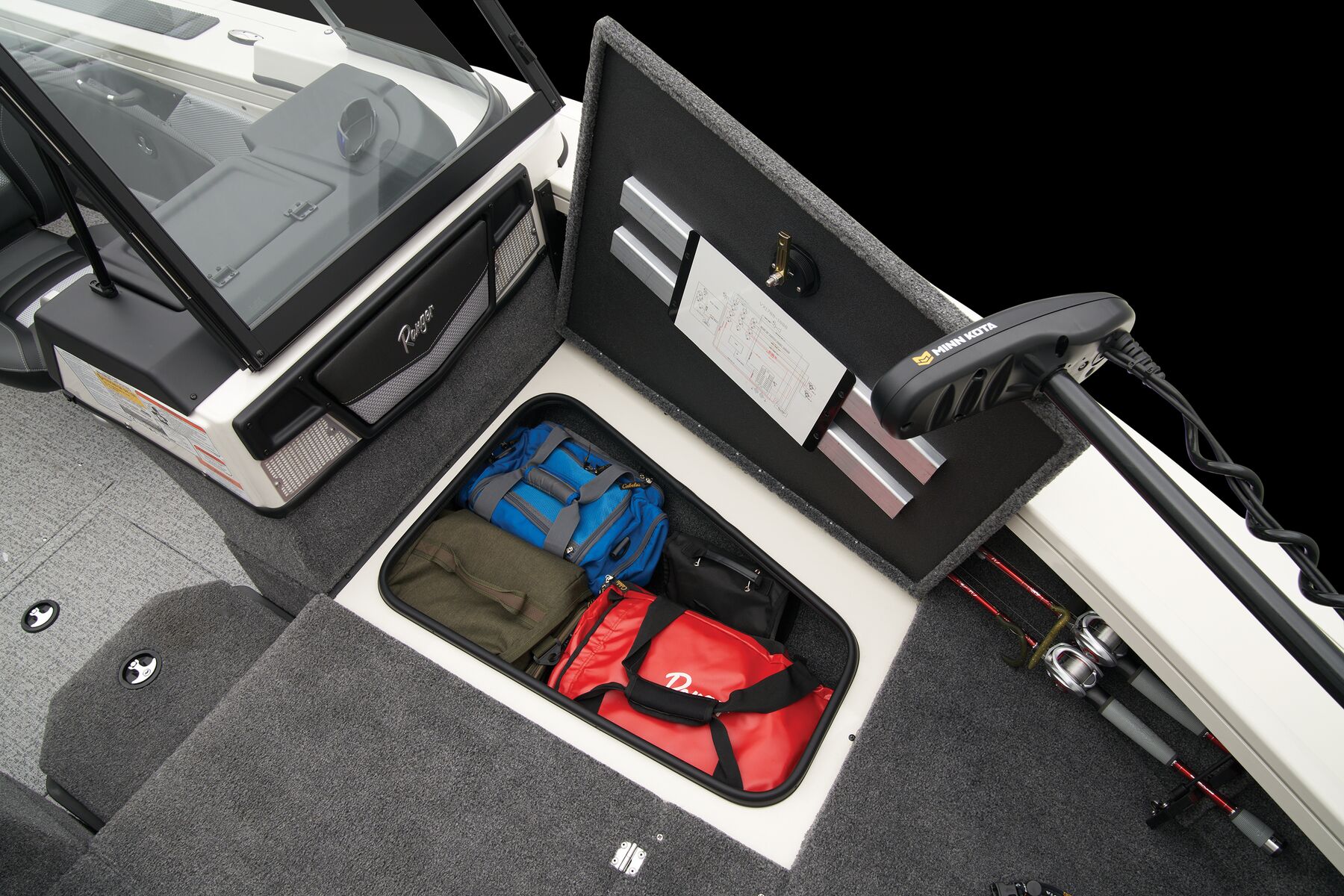

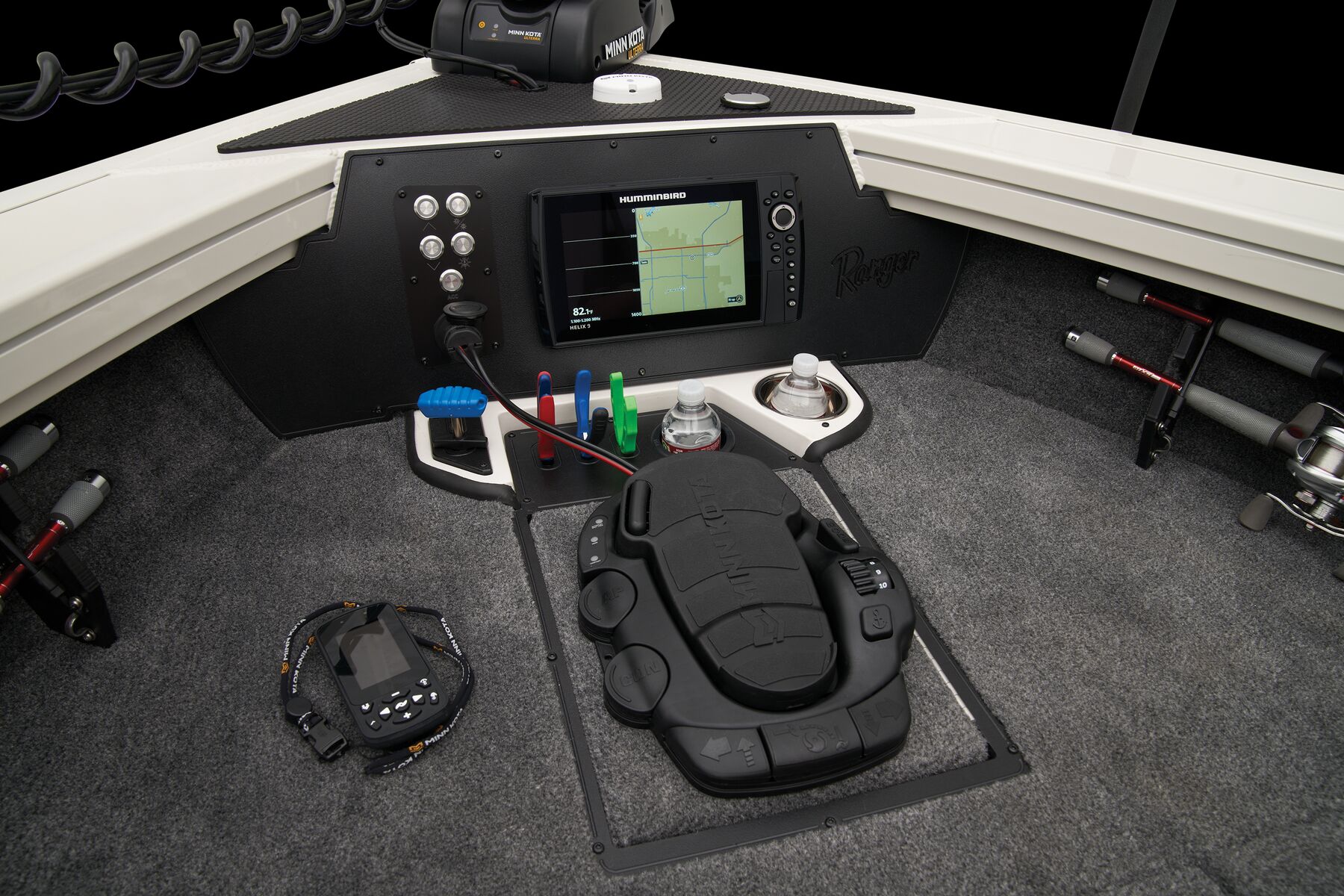

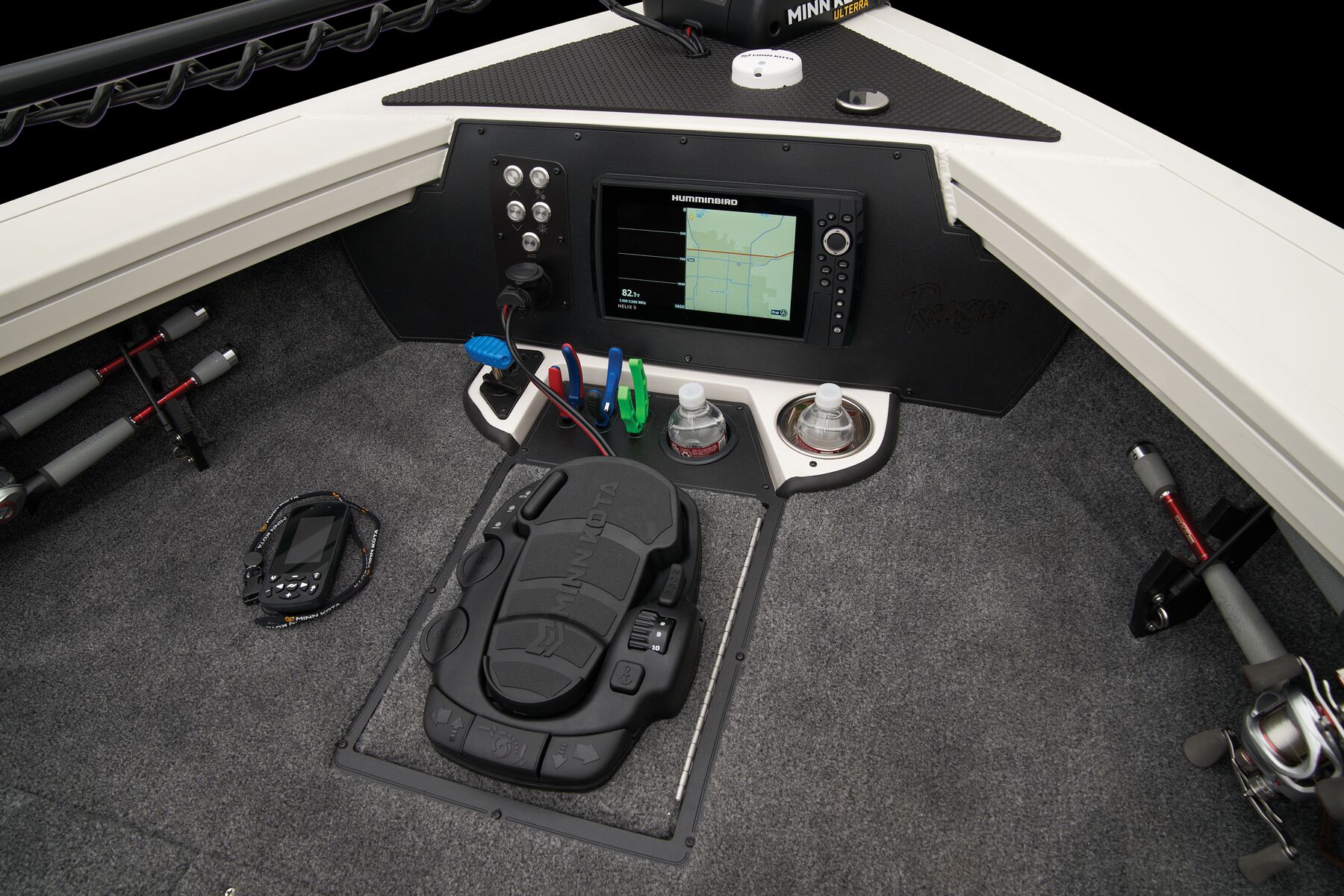

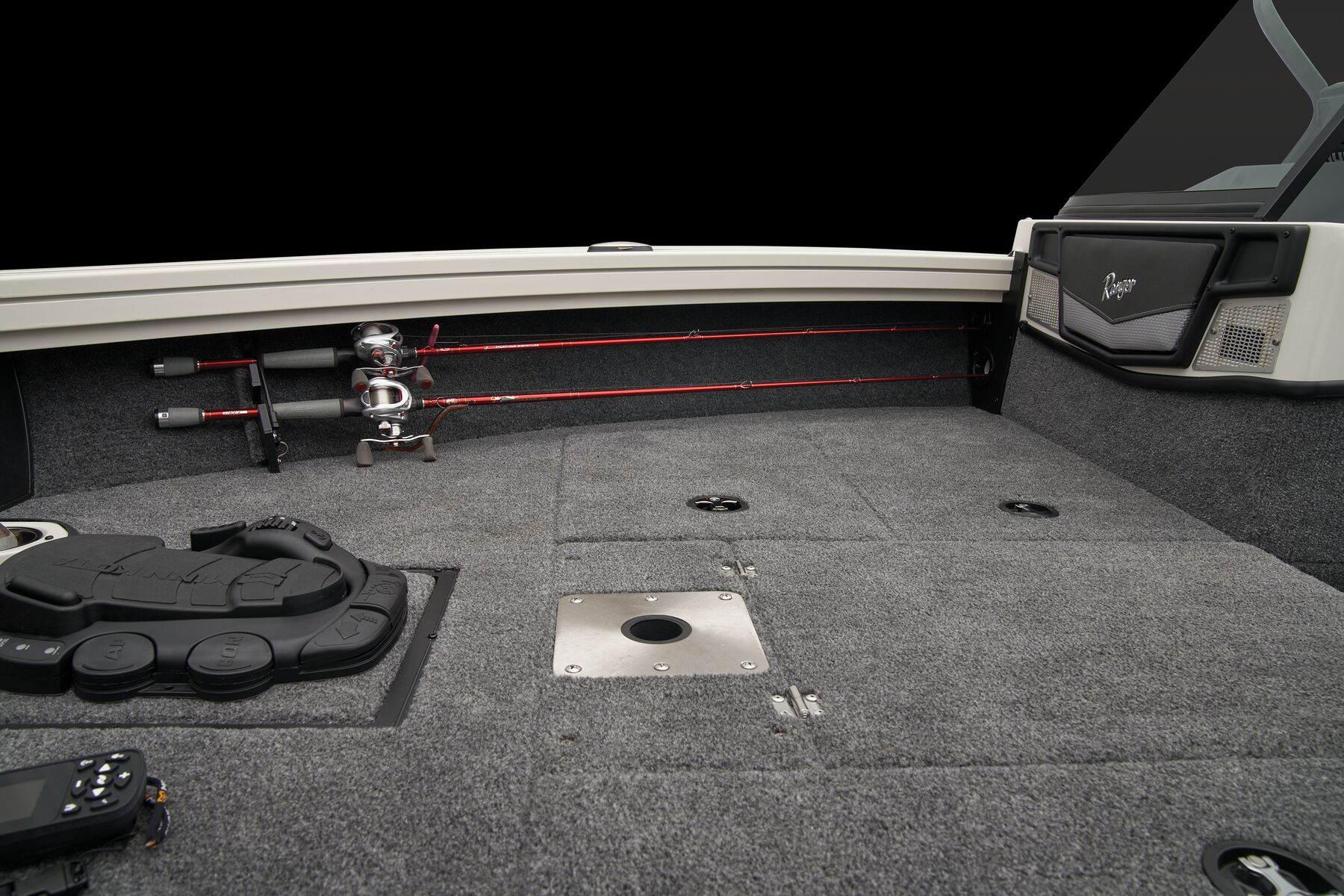

- Trolling motor pedal lid (hinged lid over recessed trolling motor pedal)
- Competition steering wheel

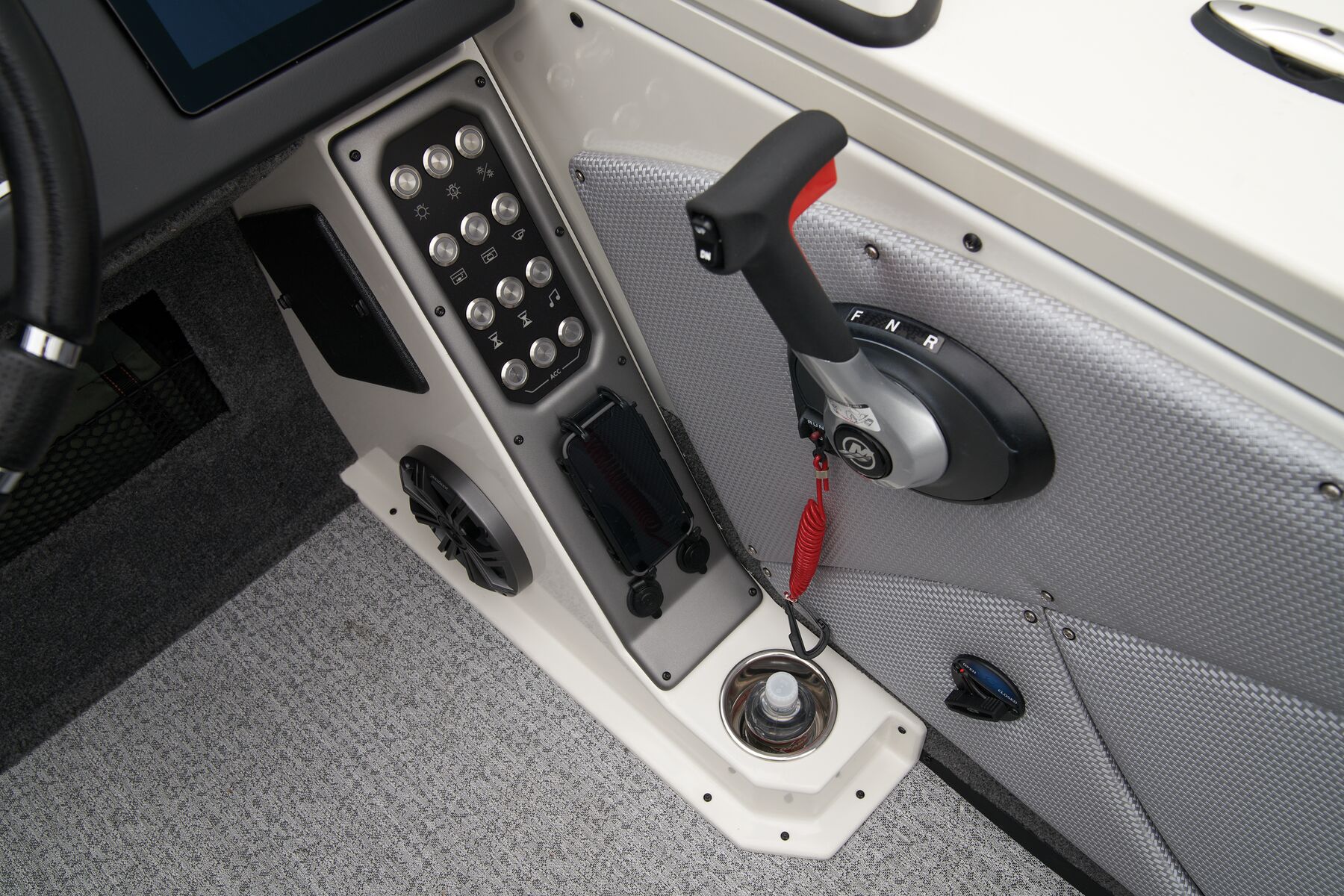

- Flush-mounted remote throttle control
- Prop
- Power trim
- Bow trim & navigation switches

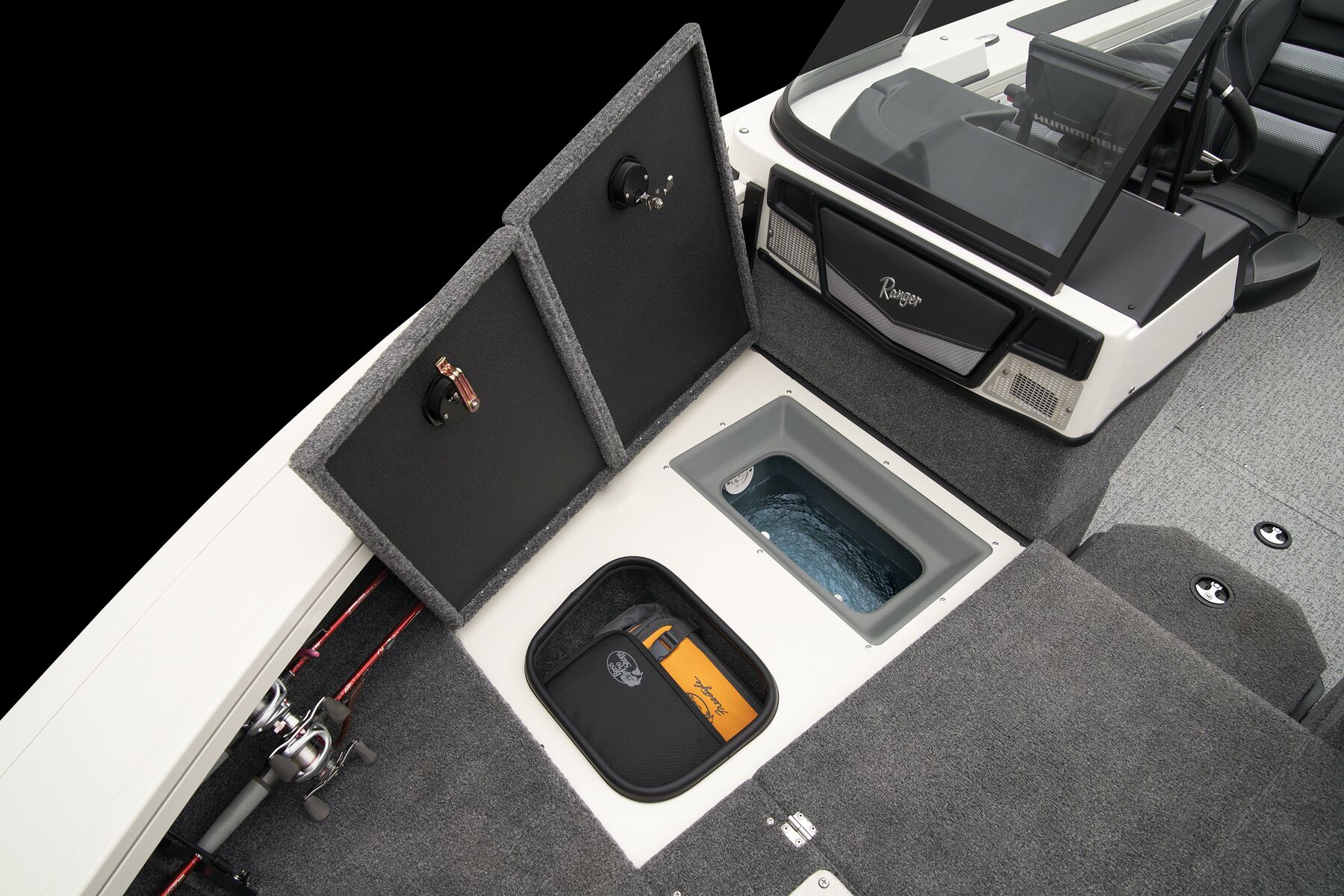

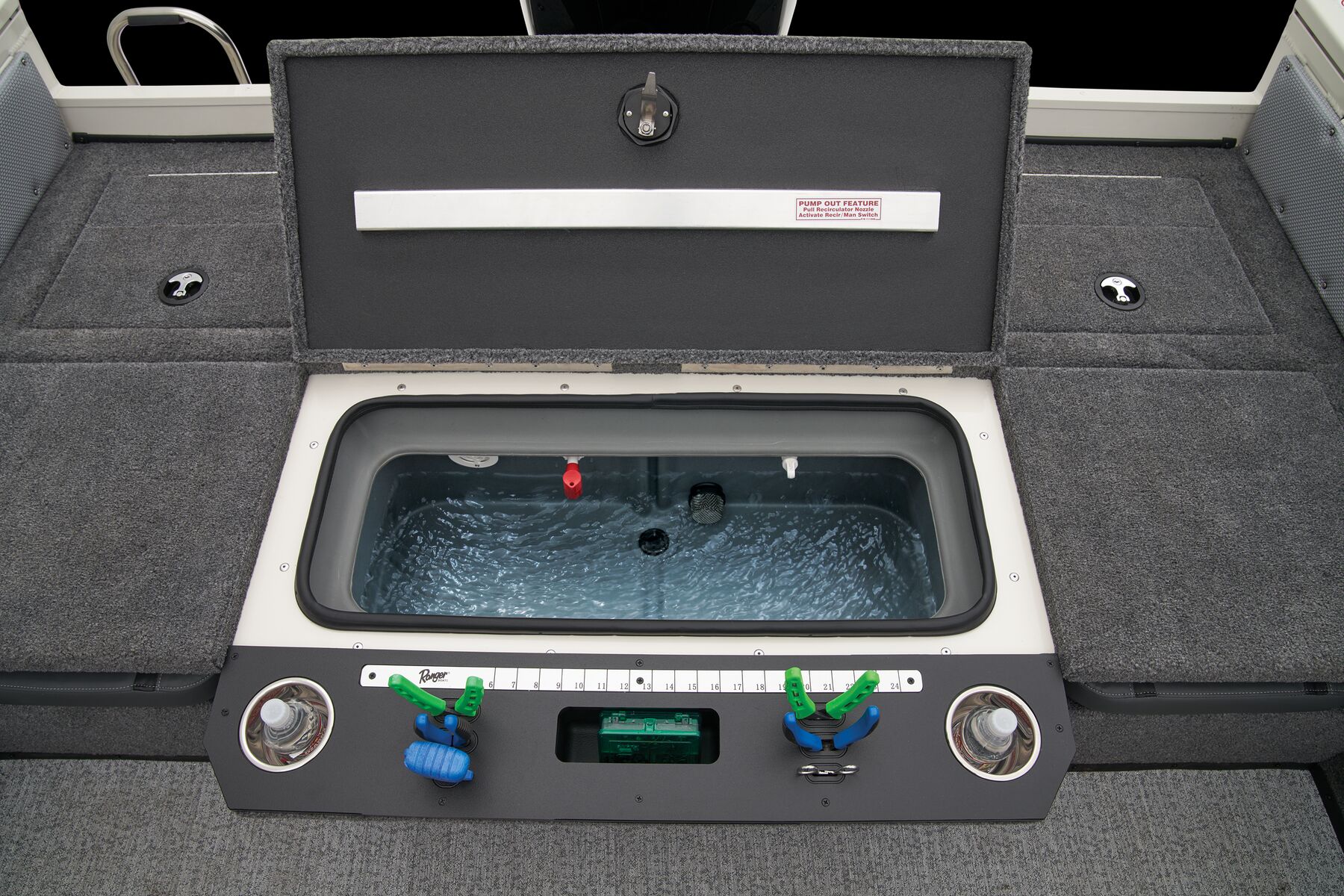

- Aerated livewell/ baitwell on front deck

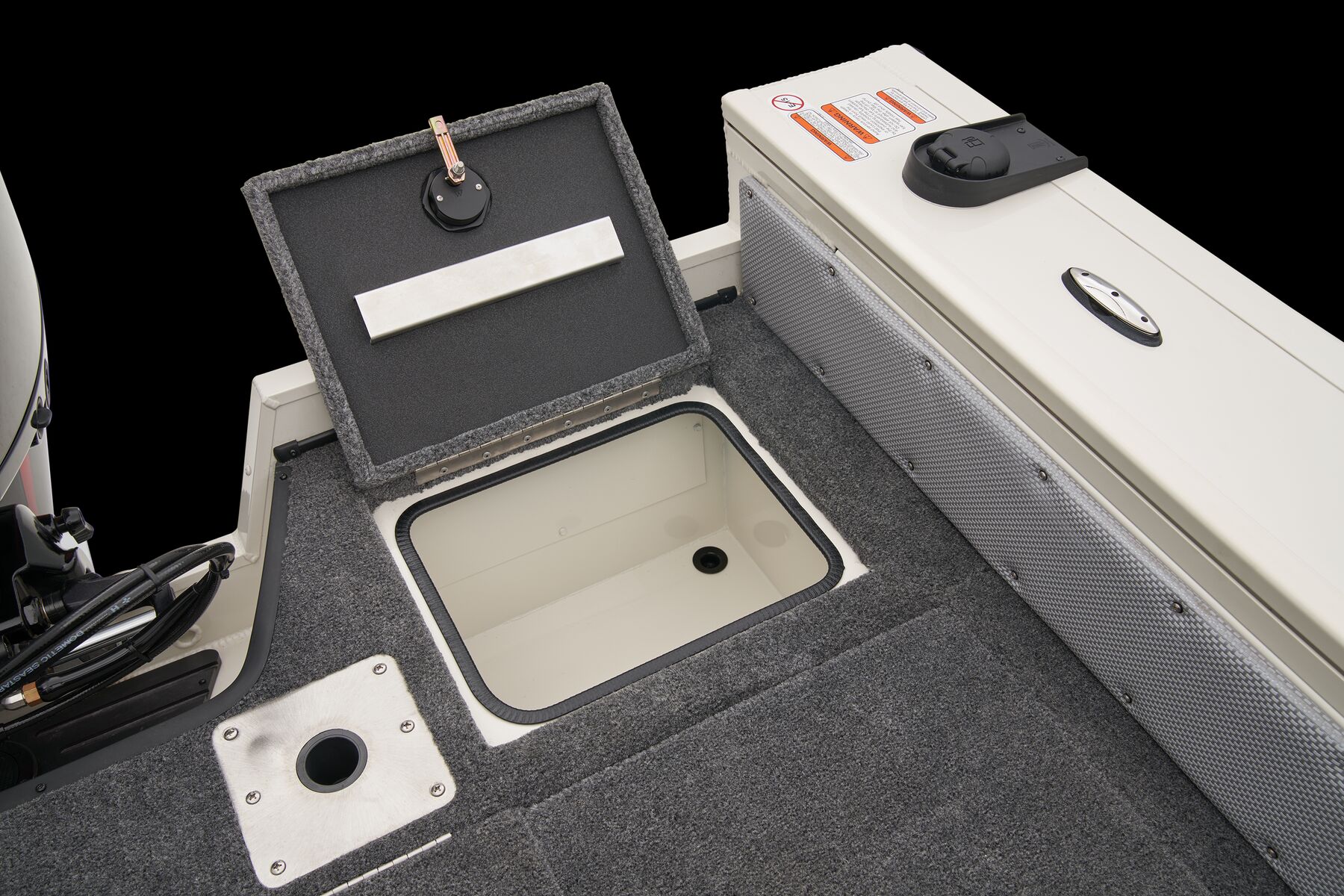

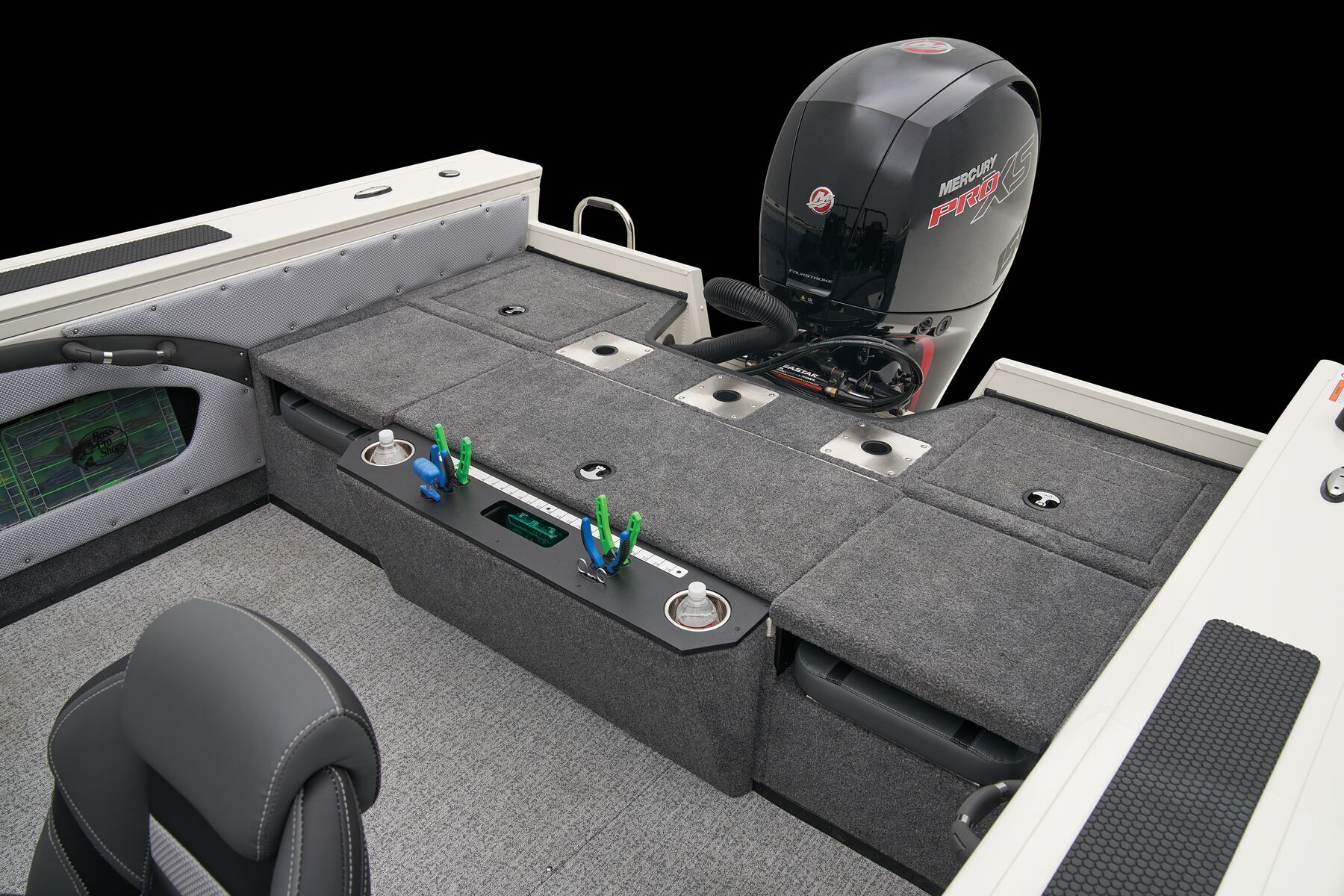

- Aerated divided livewell w/ timer on rear deck
Safety/Comfort
- Aluminum transom
- Automatic bilge
- Built-in horn assembly

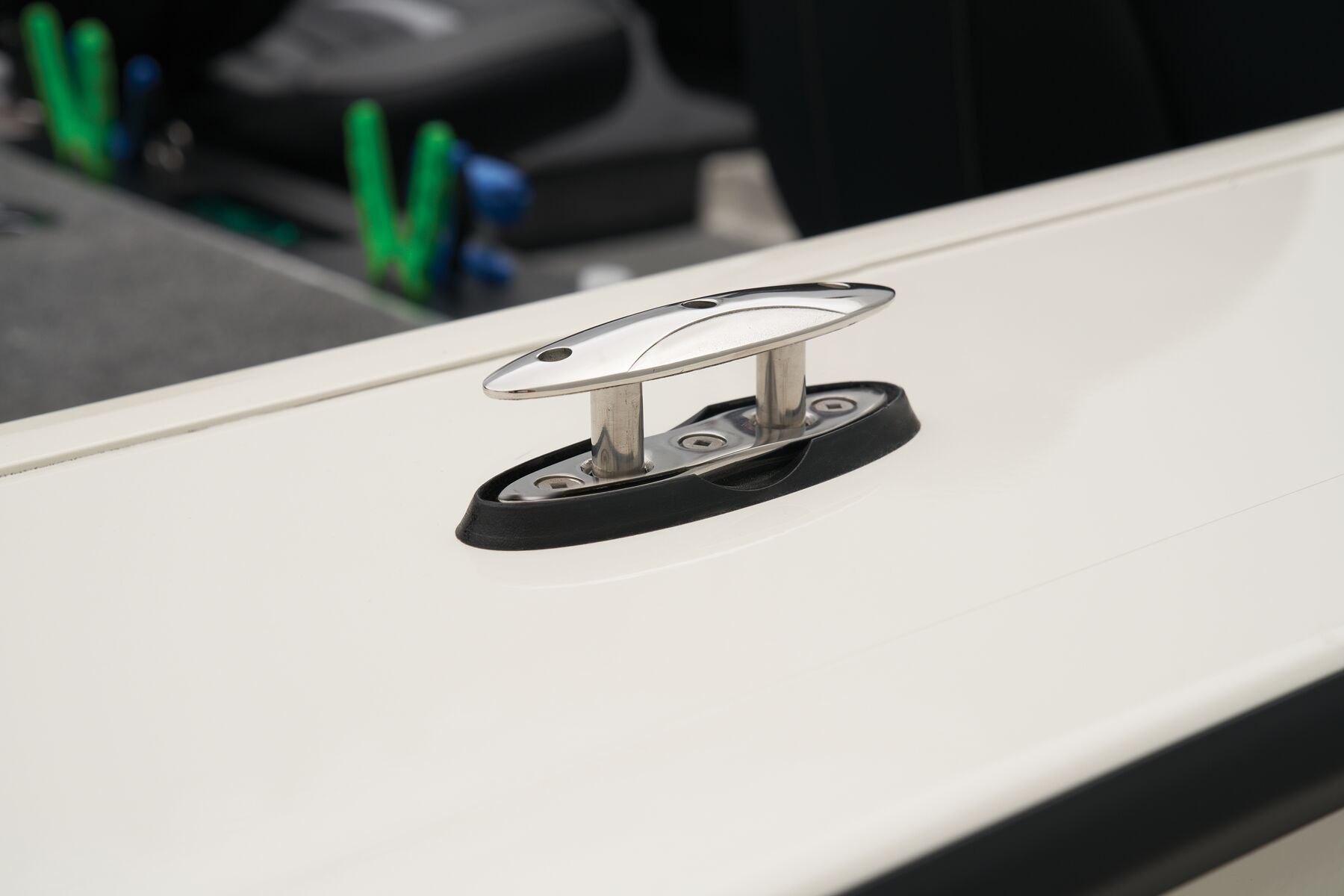

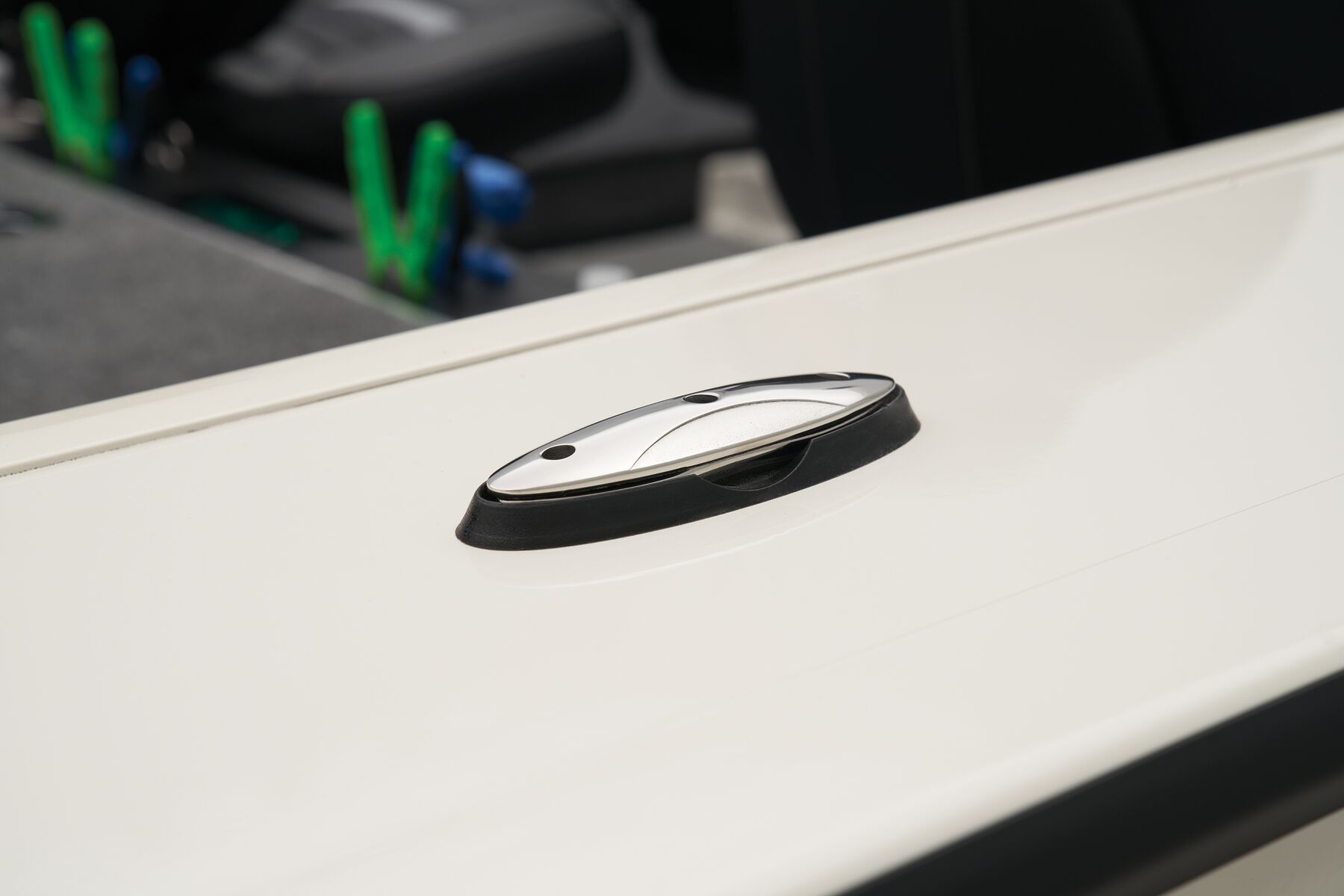

- Pull-up tie cleats (4)
- Bow and stern eyes
- Grab handle at console
- All-aluminum floor & decks

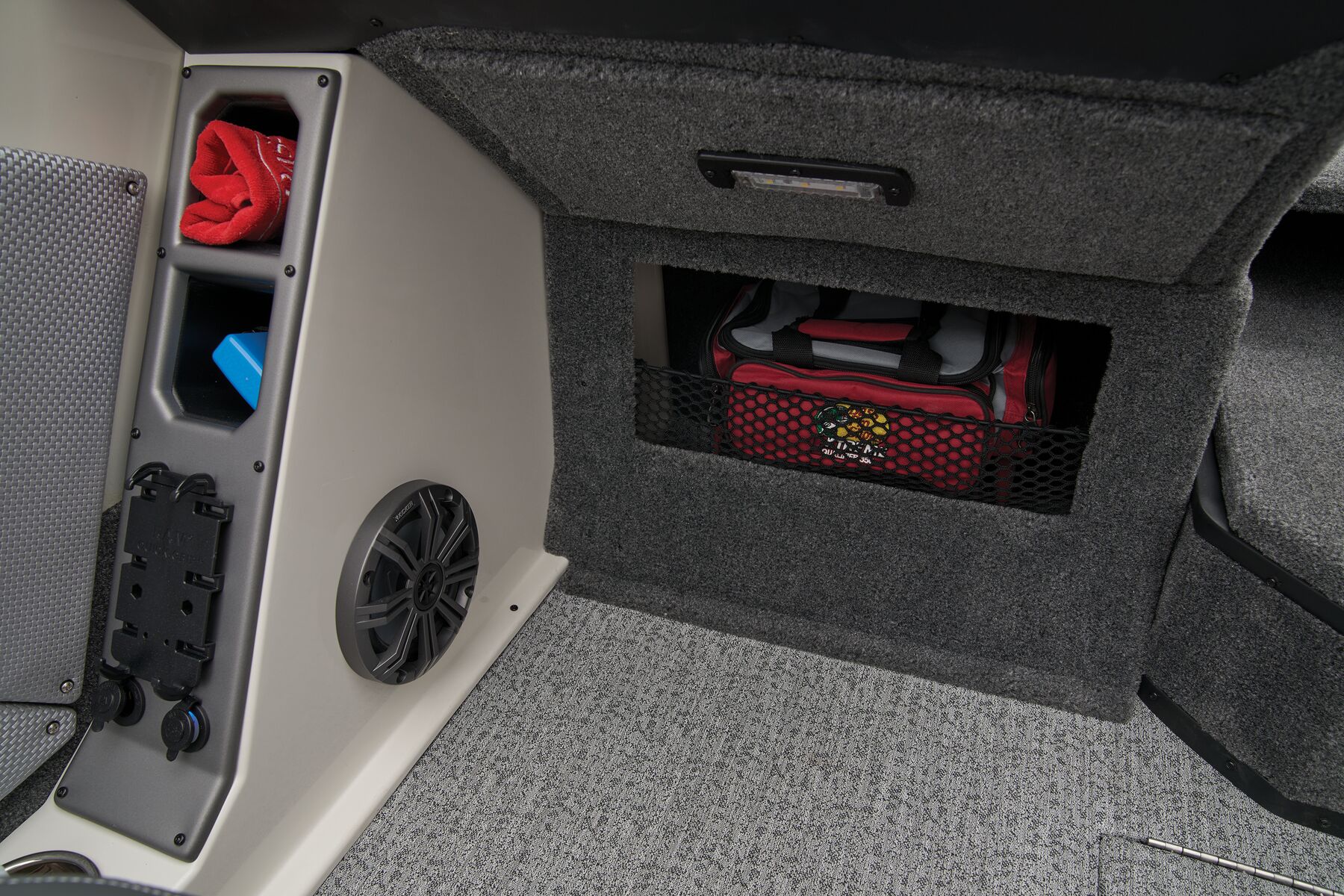

- Lockable storage
- Upright, level flotation

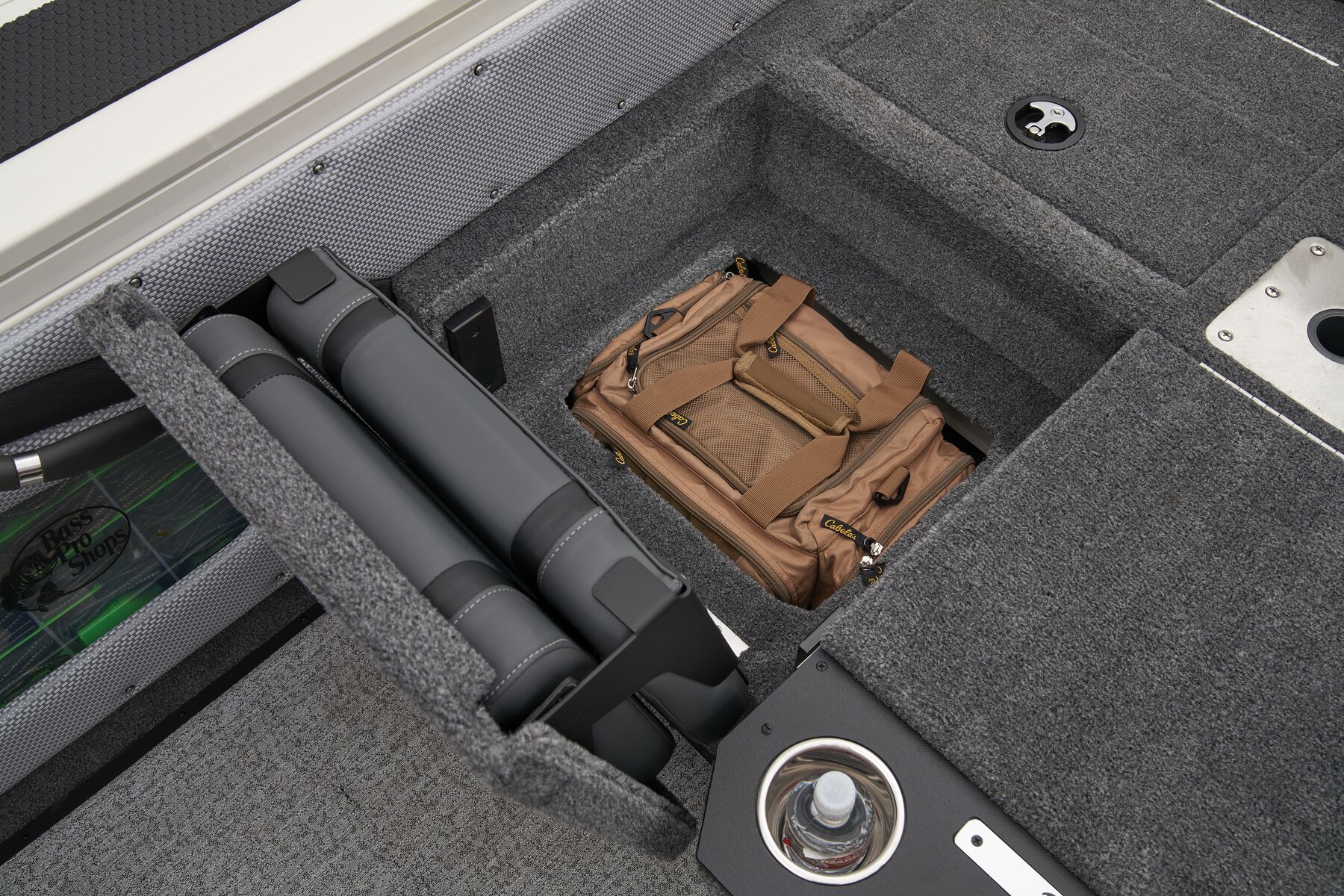

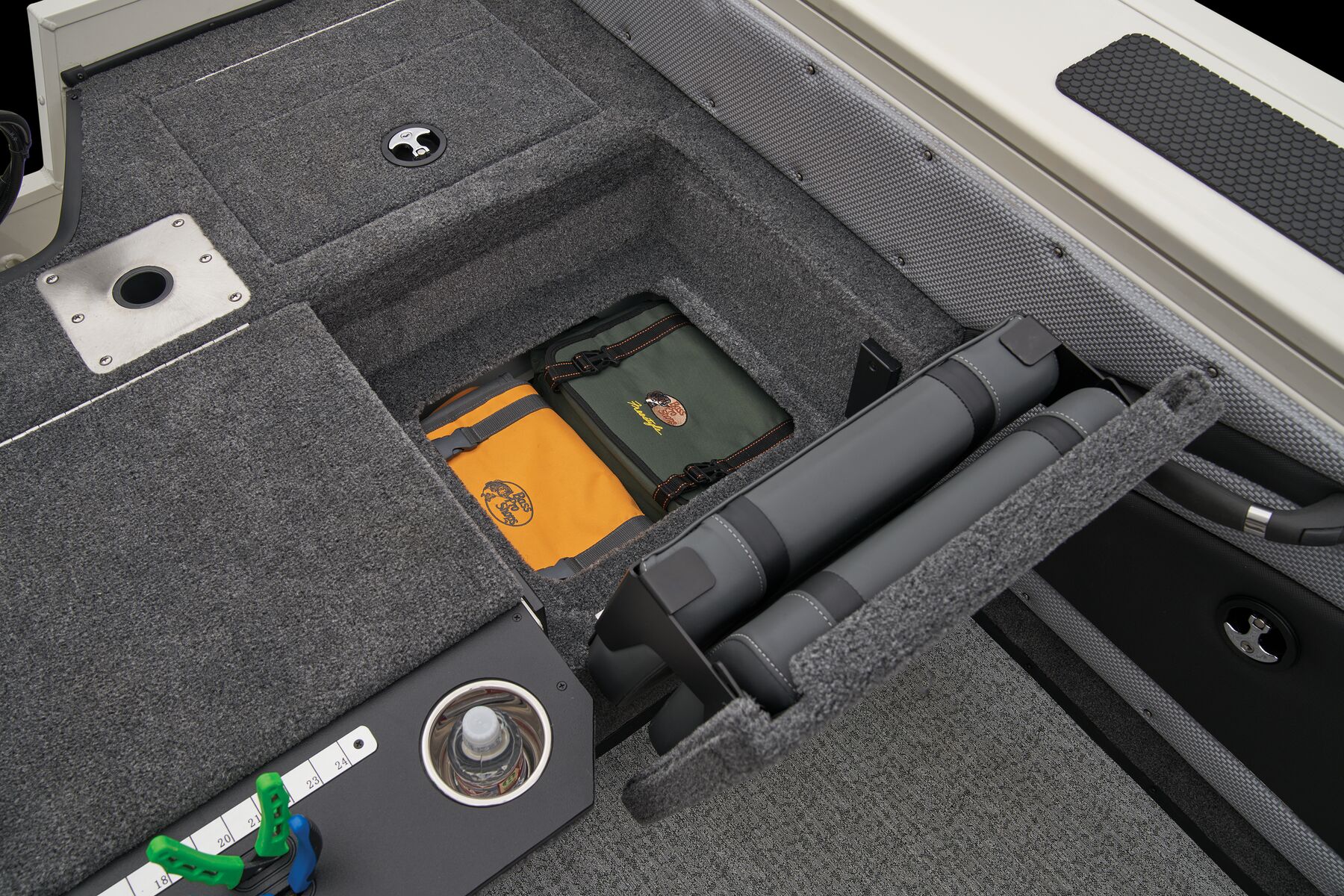

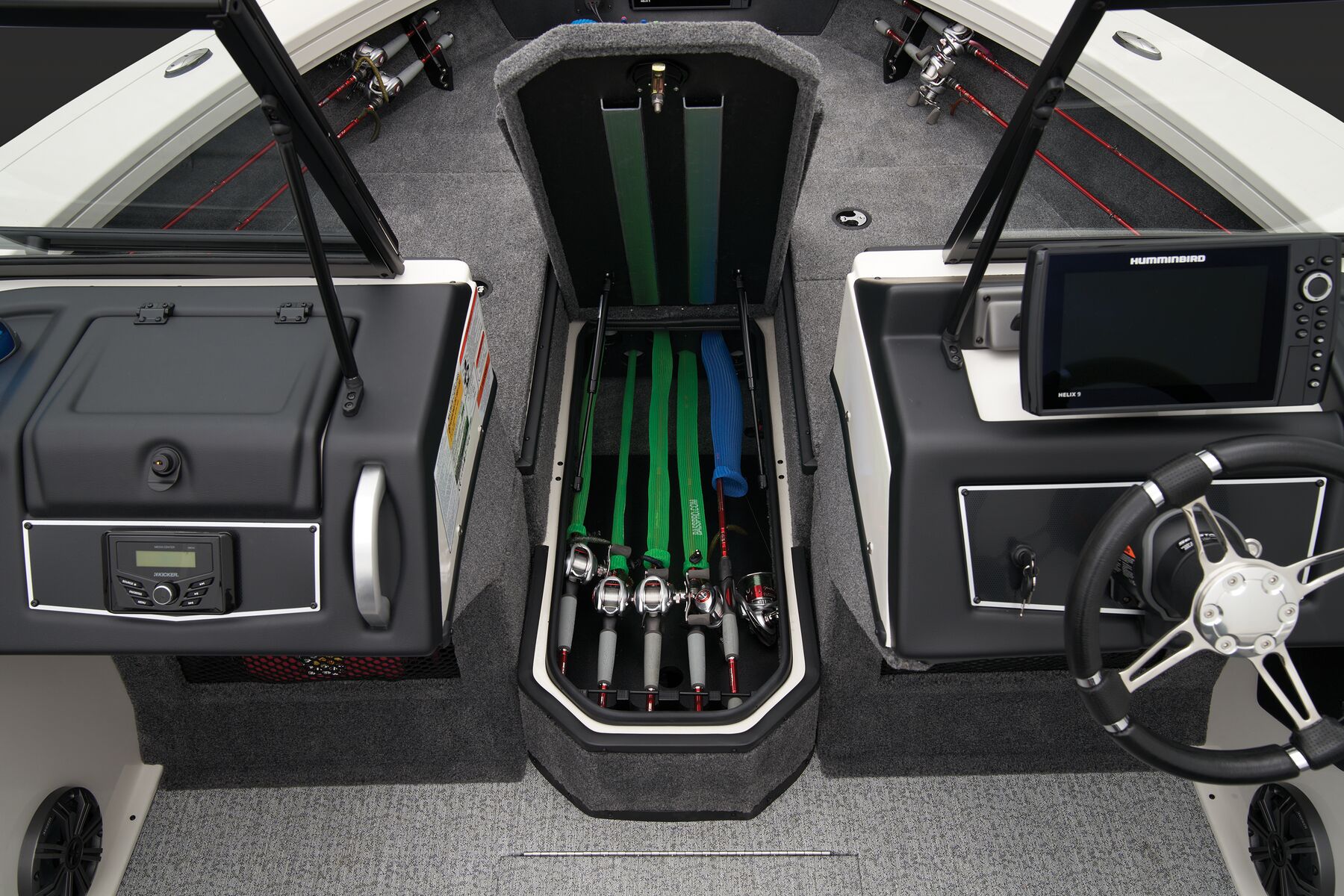

- Lockable rod storage
- 5052 H34 marine grade aluminum
- Foam-filled one-piece construction
- All-welded construction

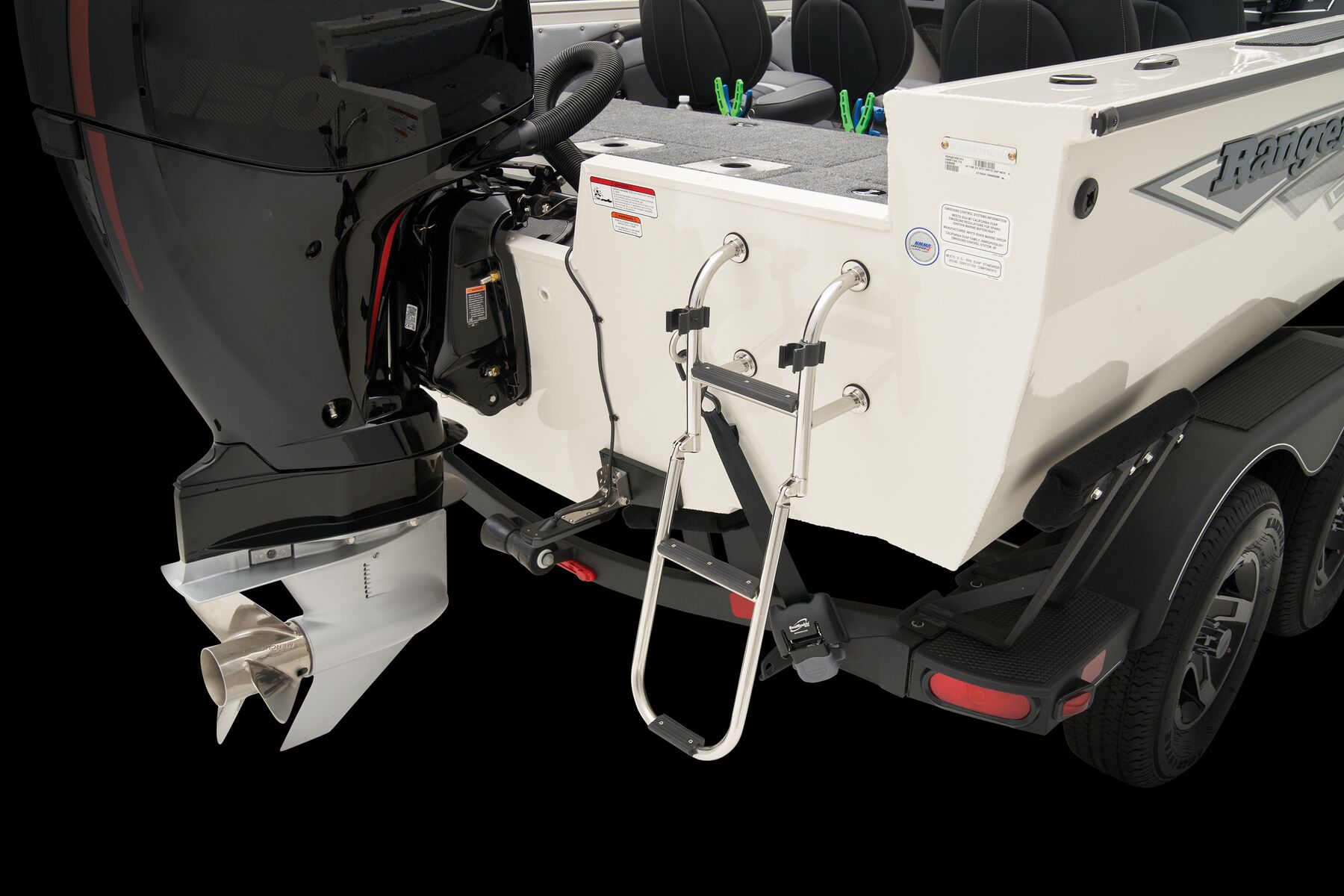

- Stainless steel boarding ladder
- Remote drain plug
Trailer Features

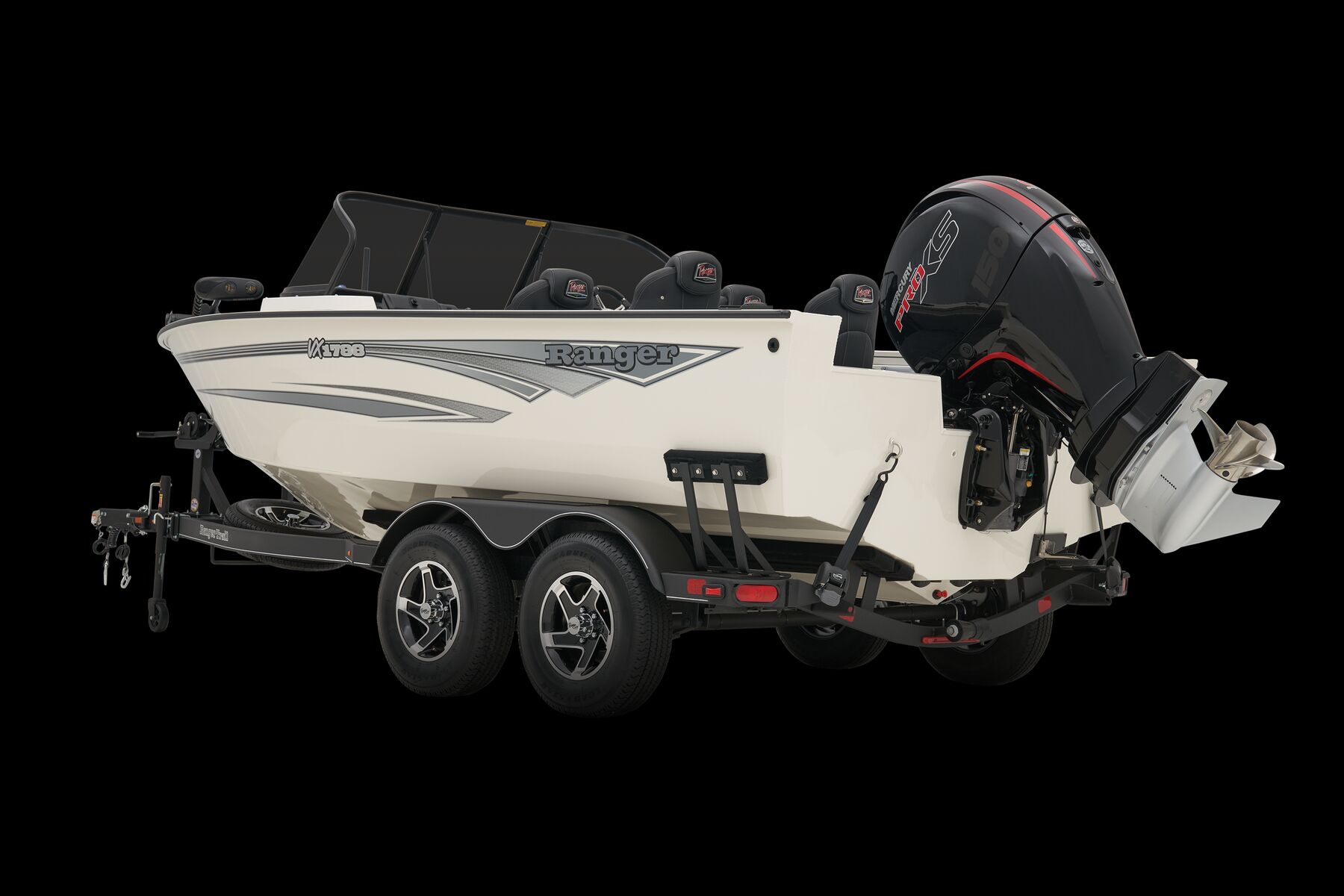

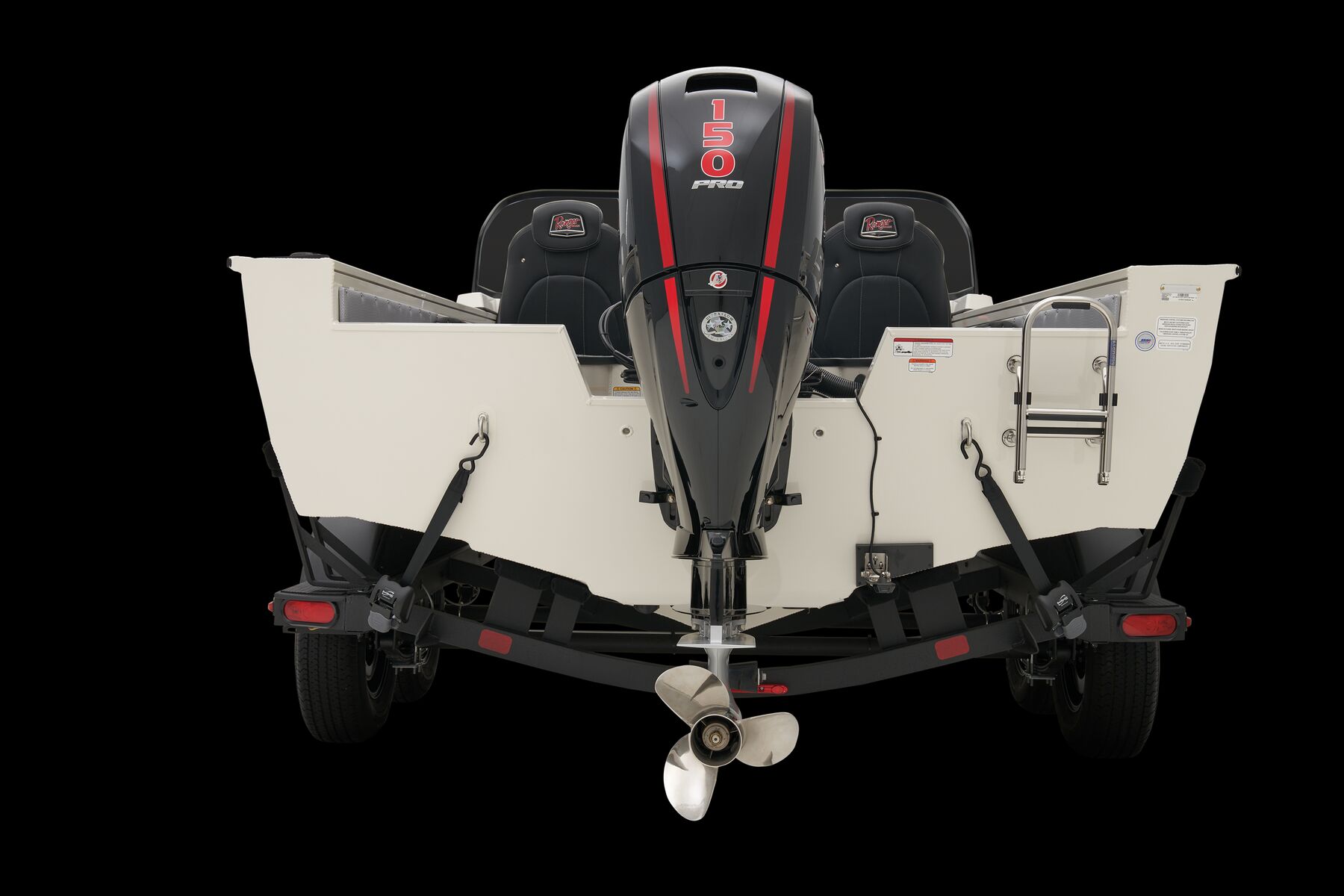

- Custom built Ranger Trail® trailer / tandem axle
- 14" aluminum wheels
- Swing jack

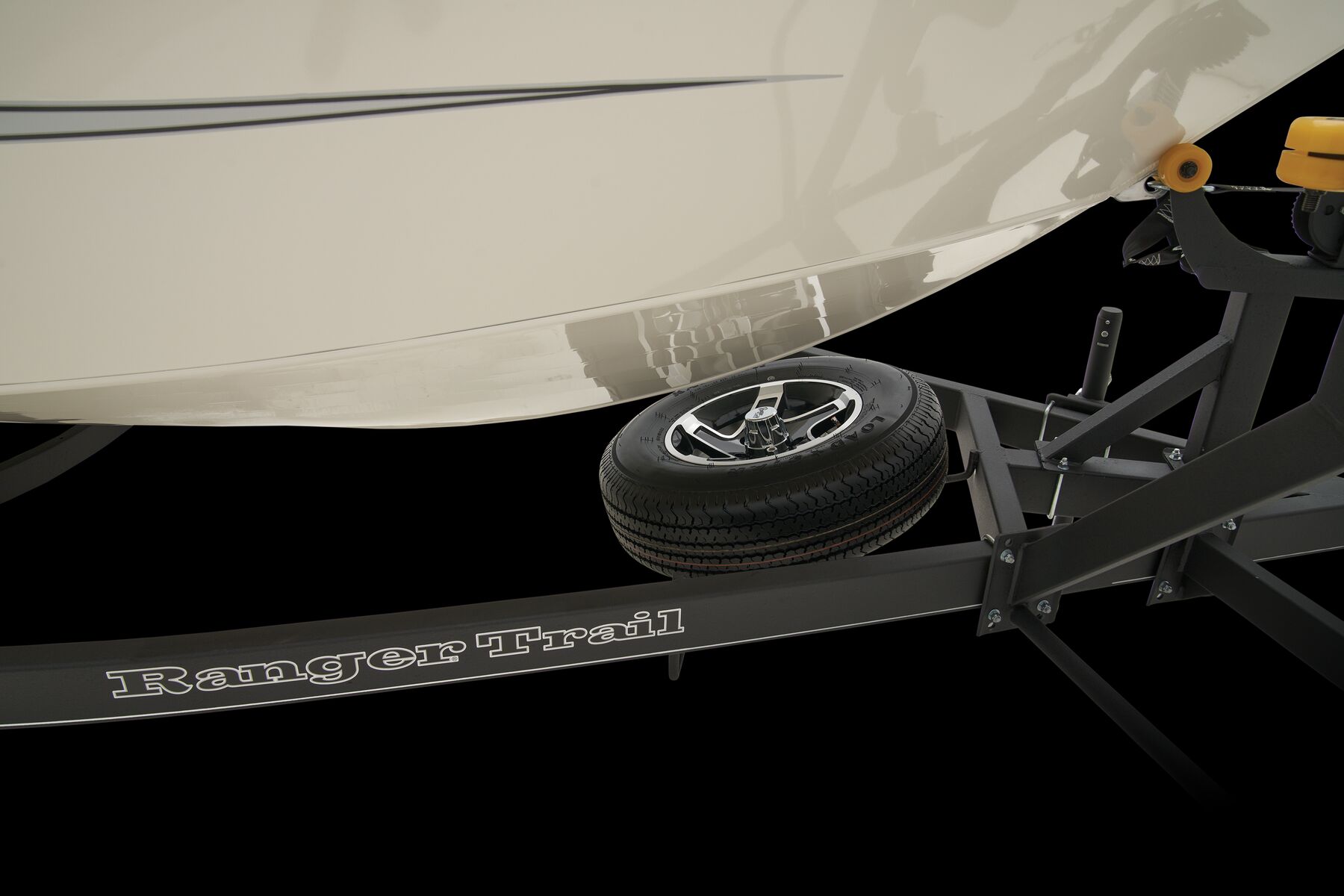

- Spare tire carrier w/ matching spare
- Boarding steps and safety handle
- Retractable trailer tie downs
- Integrated load guides
- Swing-away tongue
- NMMA®/NATM certified
- Waterproof lights
