vS1682SC Angler
Photos may show optional equipment.
2024

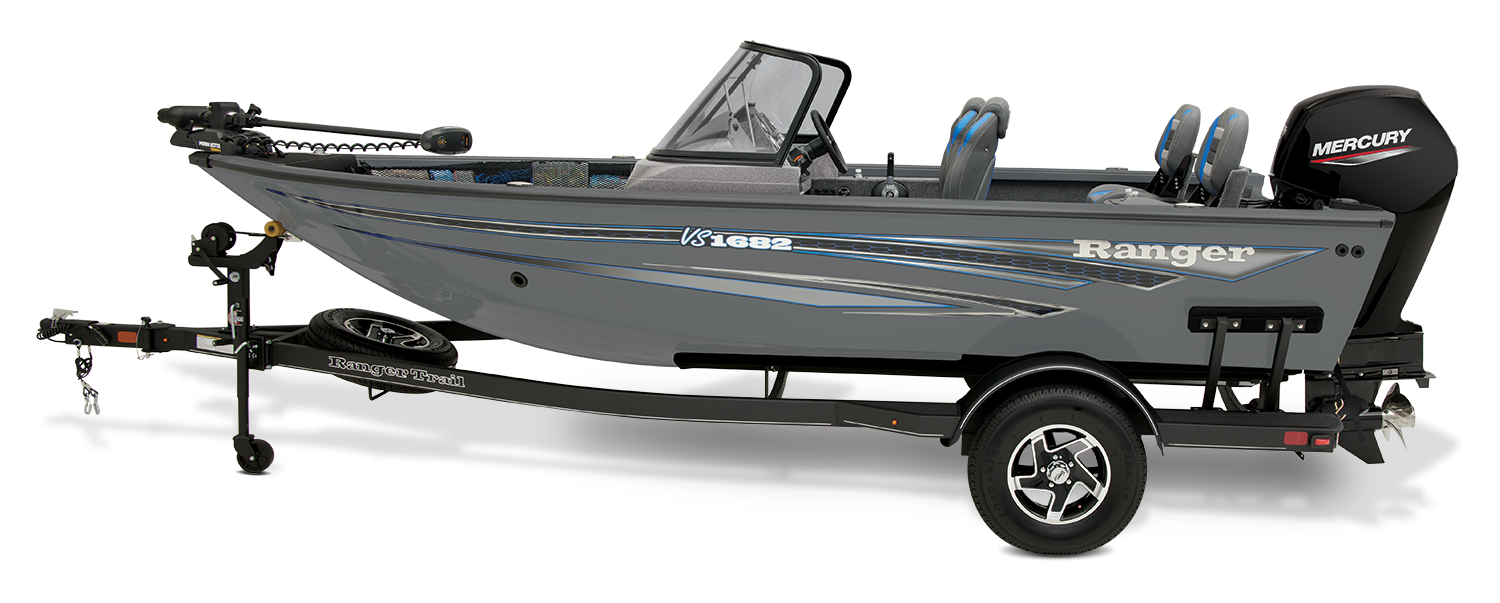

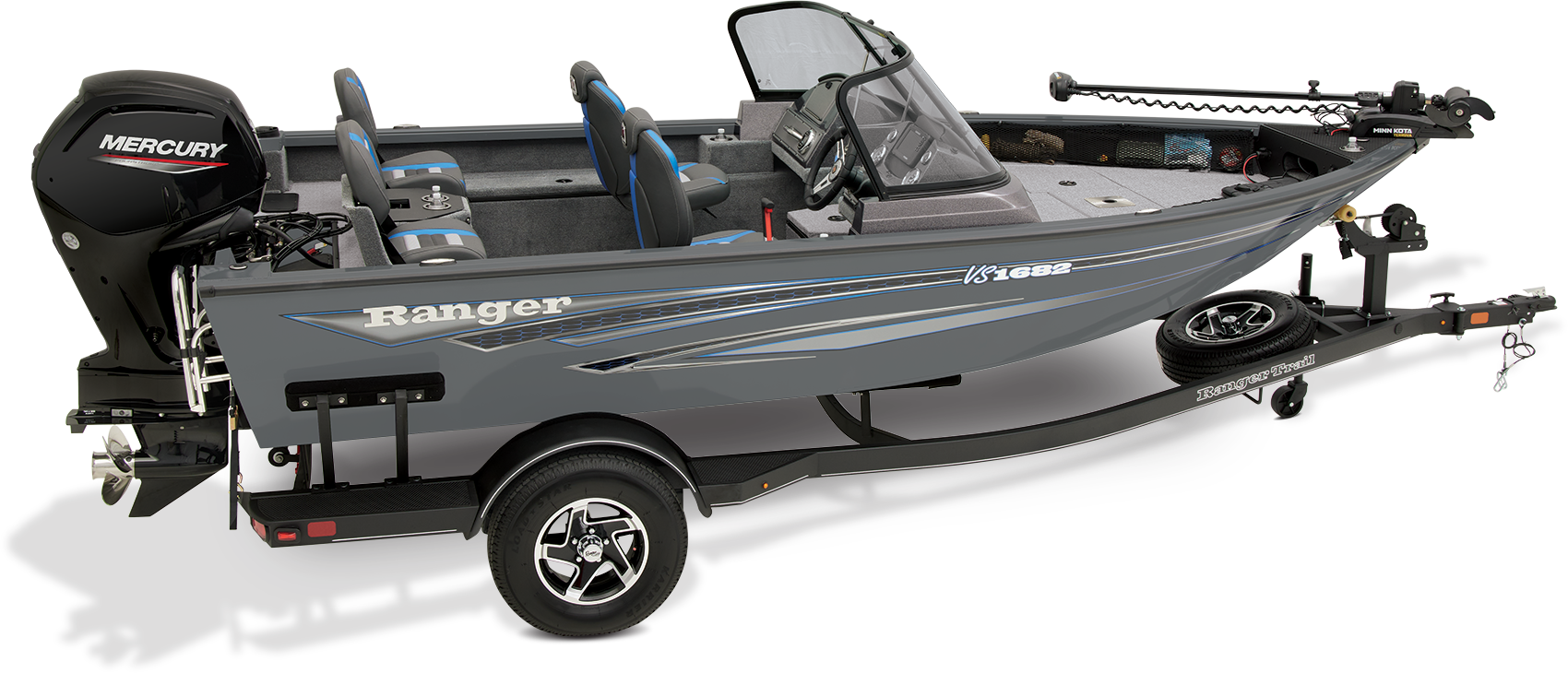

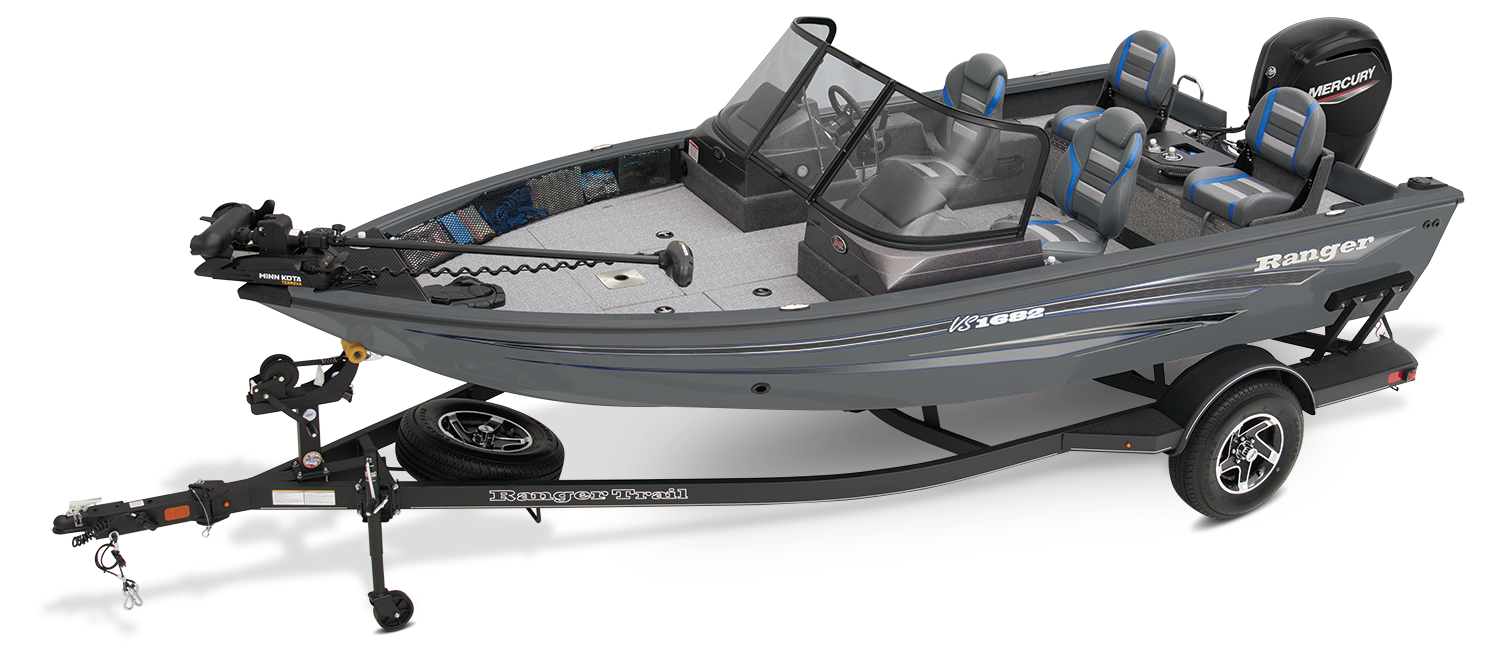

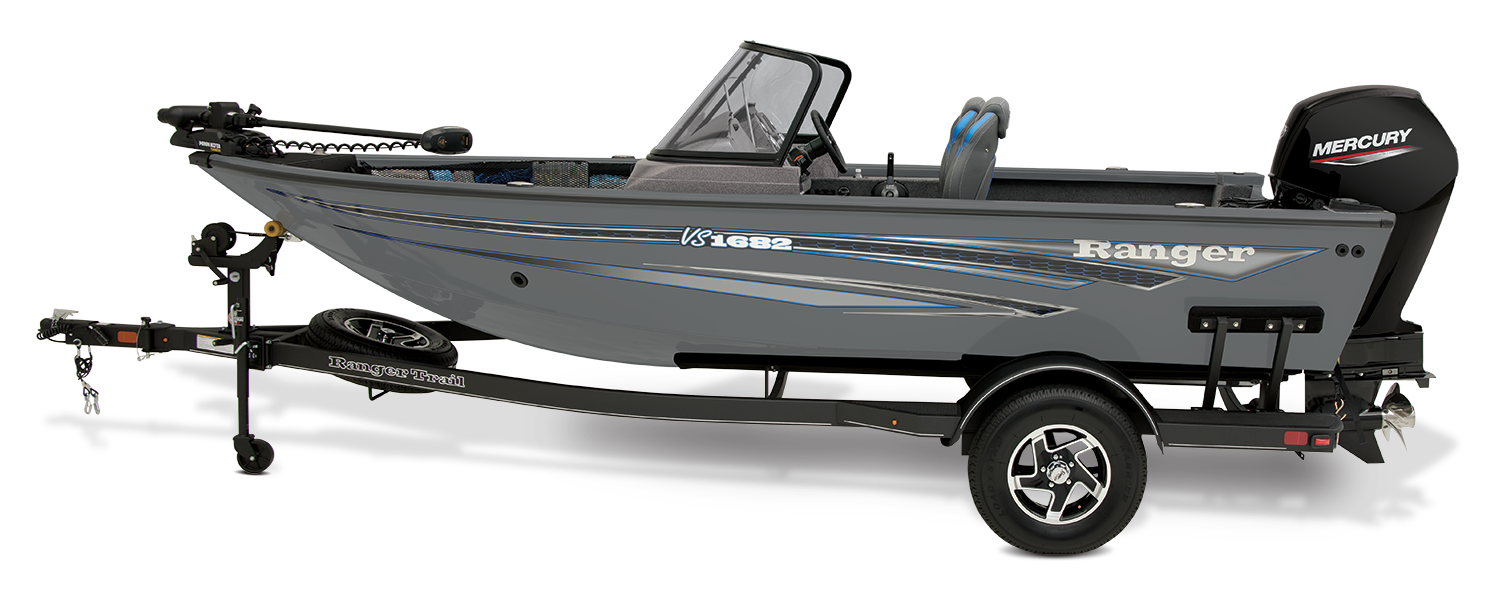

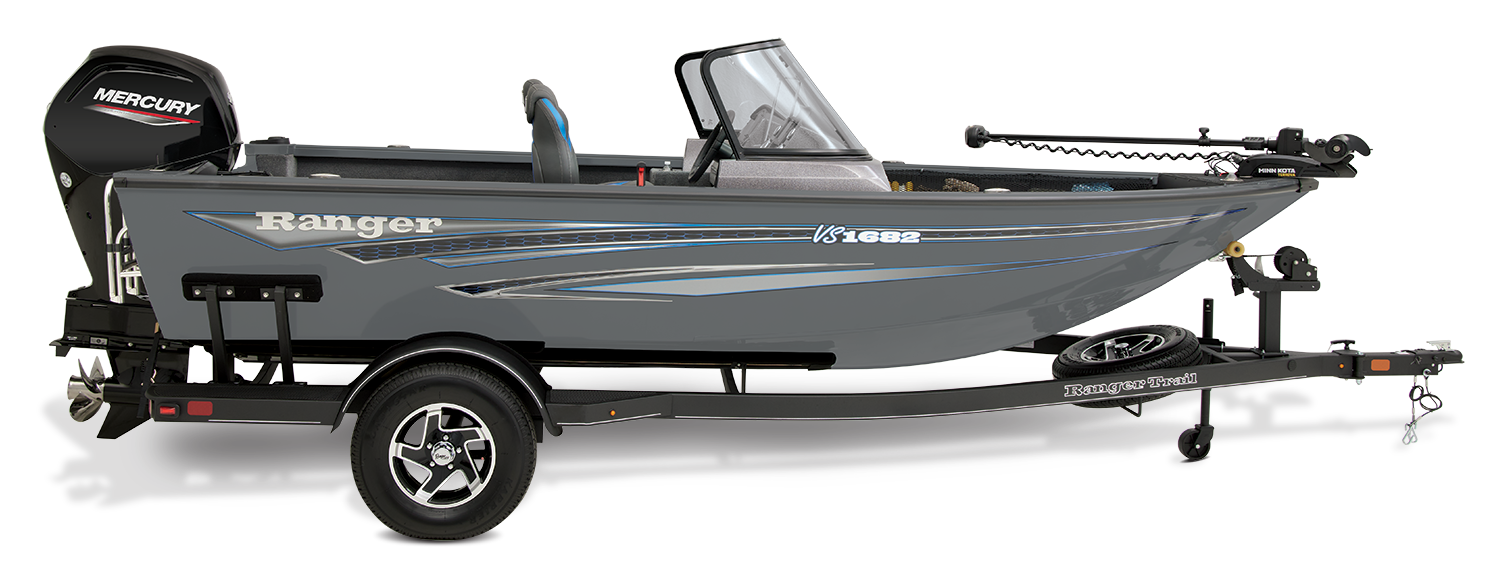

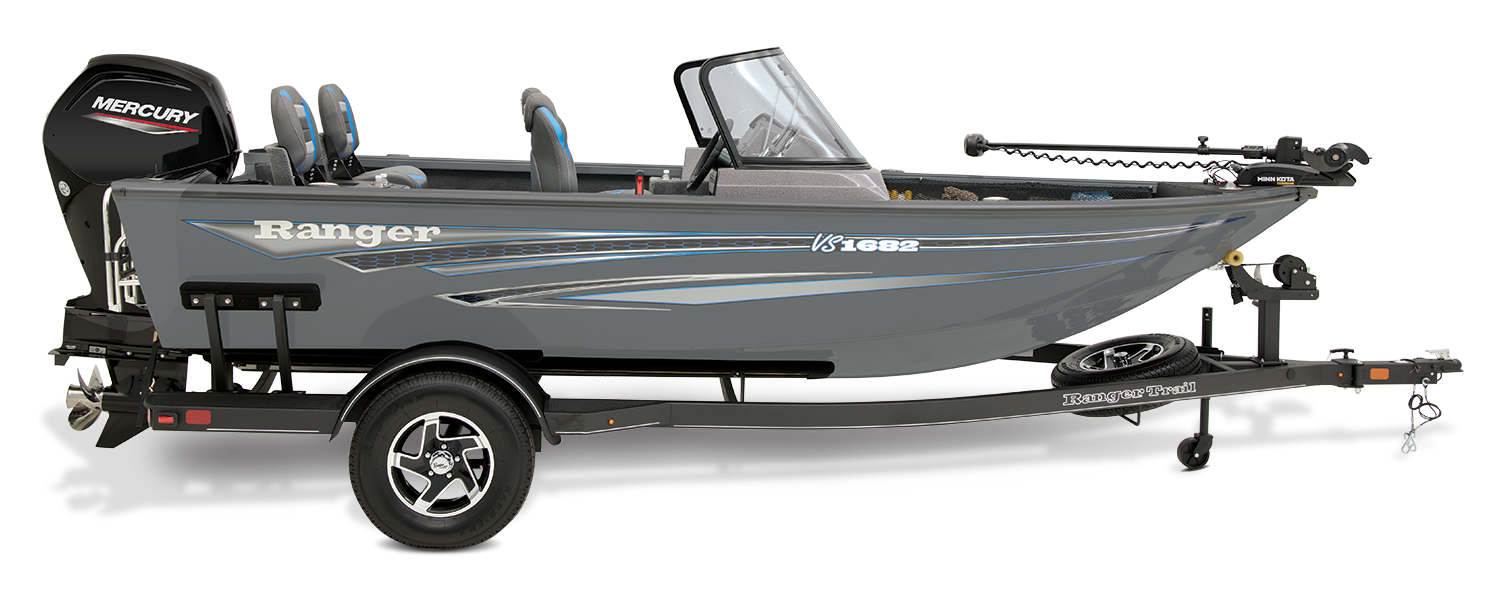

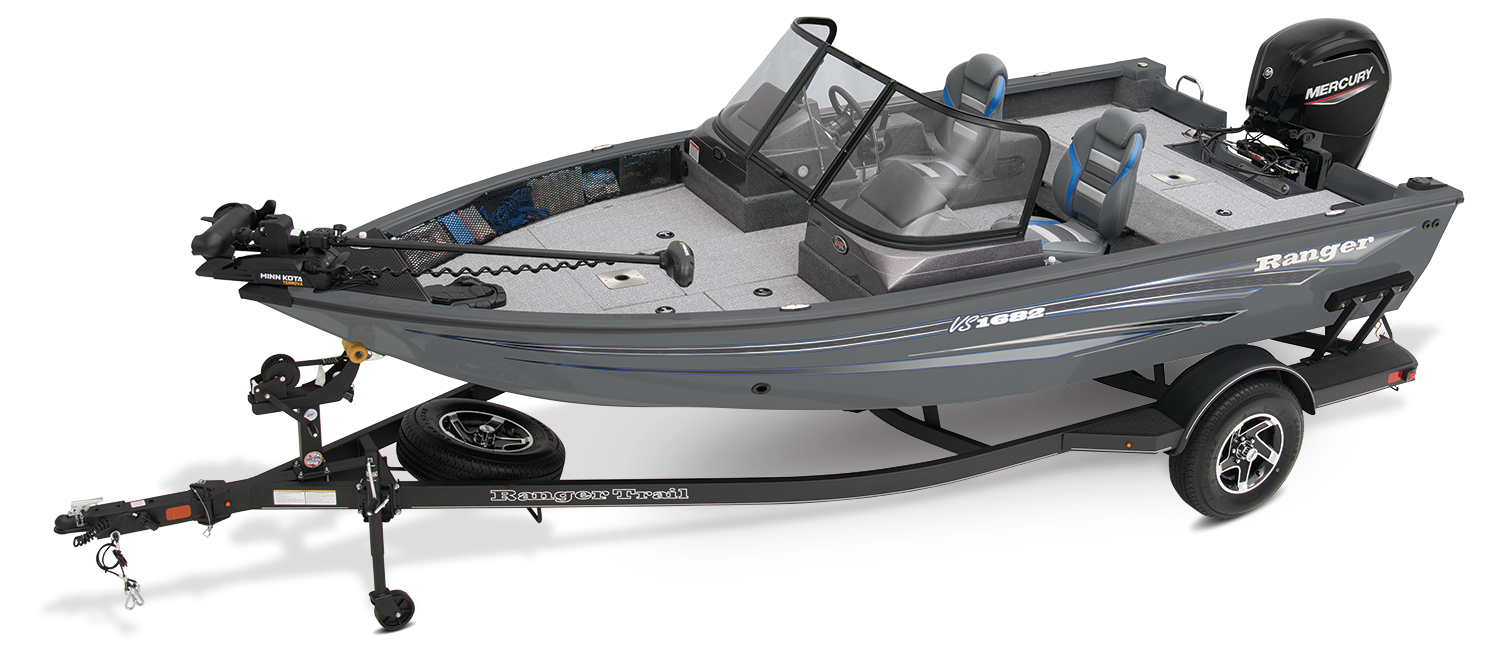

VS1682SC Angler
w/ 90 EXLPT FourStroke Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
|
$35995
USD
|
Compact in size, long on features

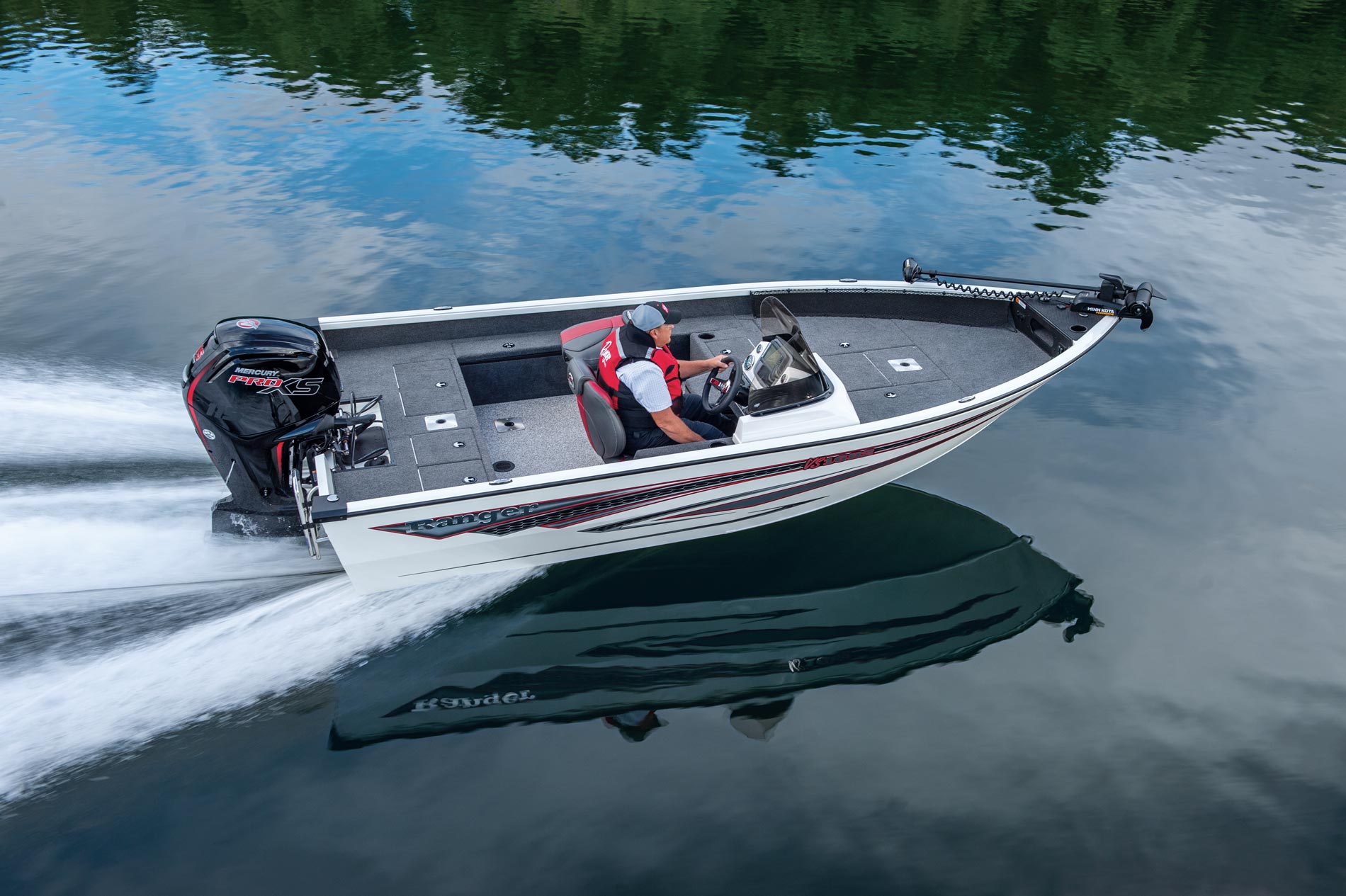

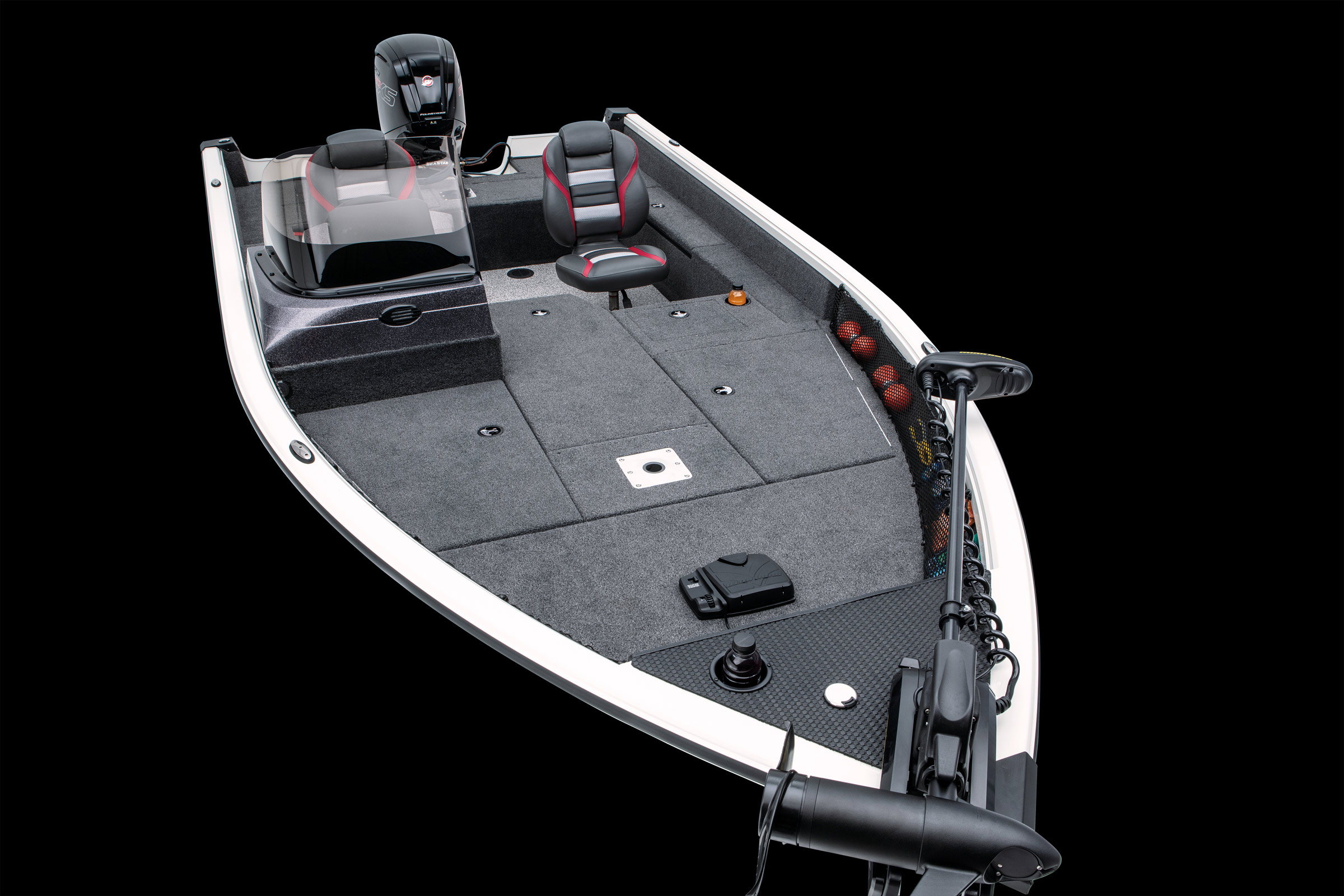

The Ranger® VS1682 SC Angler is designed to tame swells and rough water like a big deep V, but in a shorter size that’s long on legendary Ranger quality. The VS1682 SC Angler has a wealth of features built in from the factory that offer unmatched on-the-water comfort, control and performance. Power trim at the console and bow, hydraulic steering, aerated livewells fore and aft and a single fiberglass console are just a few of the standard niceties. From there, a host of options are available to precisely suit your needs. Regardless of how you outfit your VS1682 SC Angler, the wide beam offers rock-like stability and ample workspace to play fish and rig gear while the deeper V hull is designed to keep you dry and riding smooth in big water. Cavernous storage for tackle and huge wells for live bait ensure that you won’t ever be short on gear, while a 25-gallon fuel tank will keep you trolling for hours. Rated up to 115 horsepower, the VS1682 SC Angler punches well above its weight.
Key Features

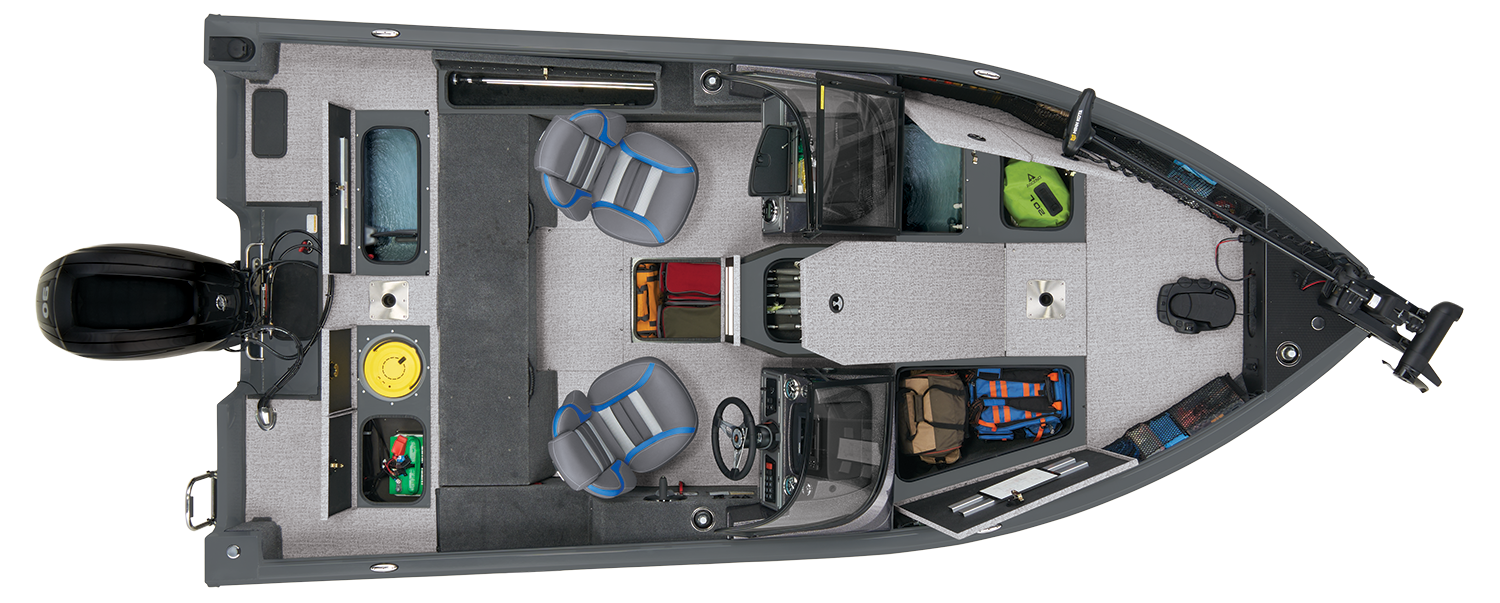

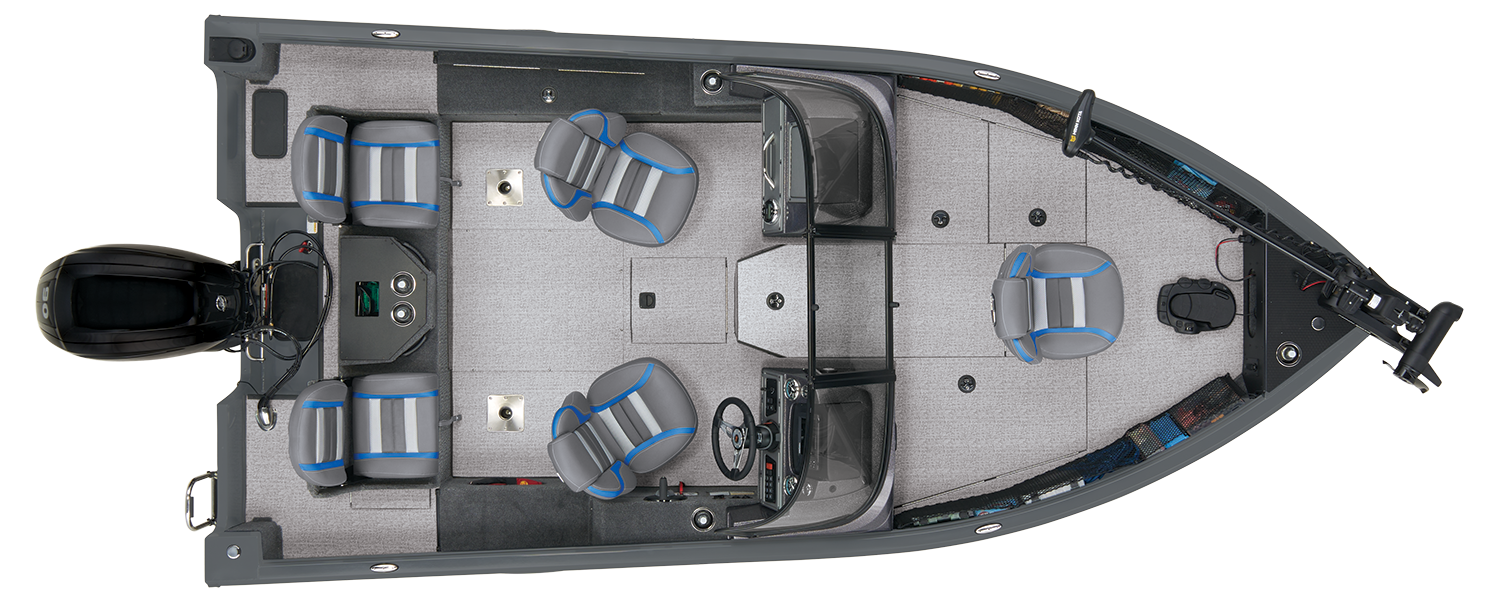

- Maximized fishing space and storage

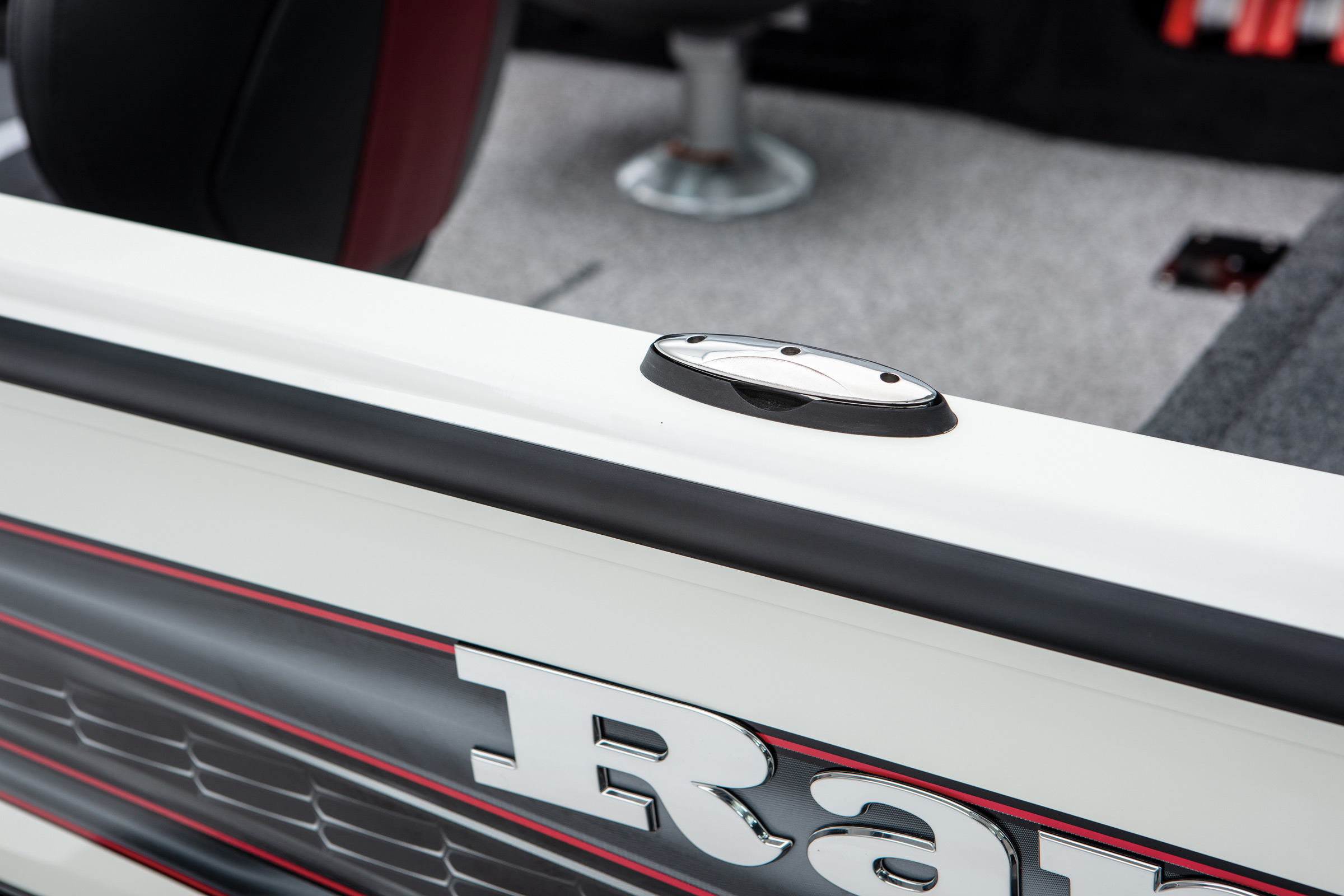

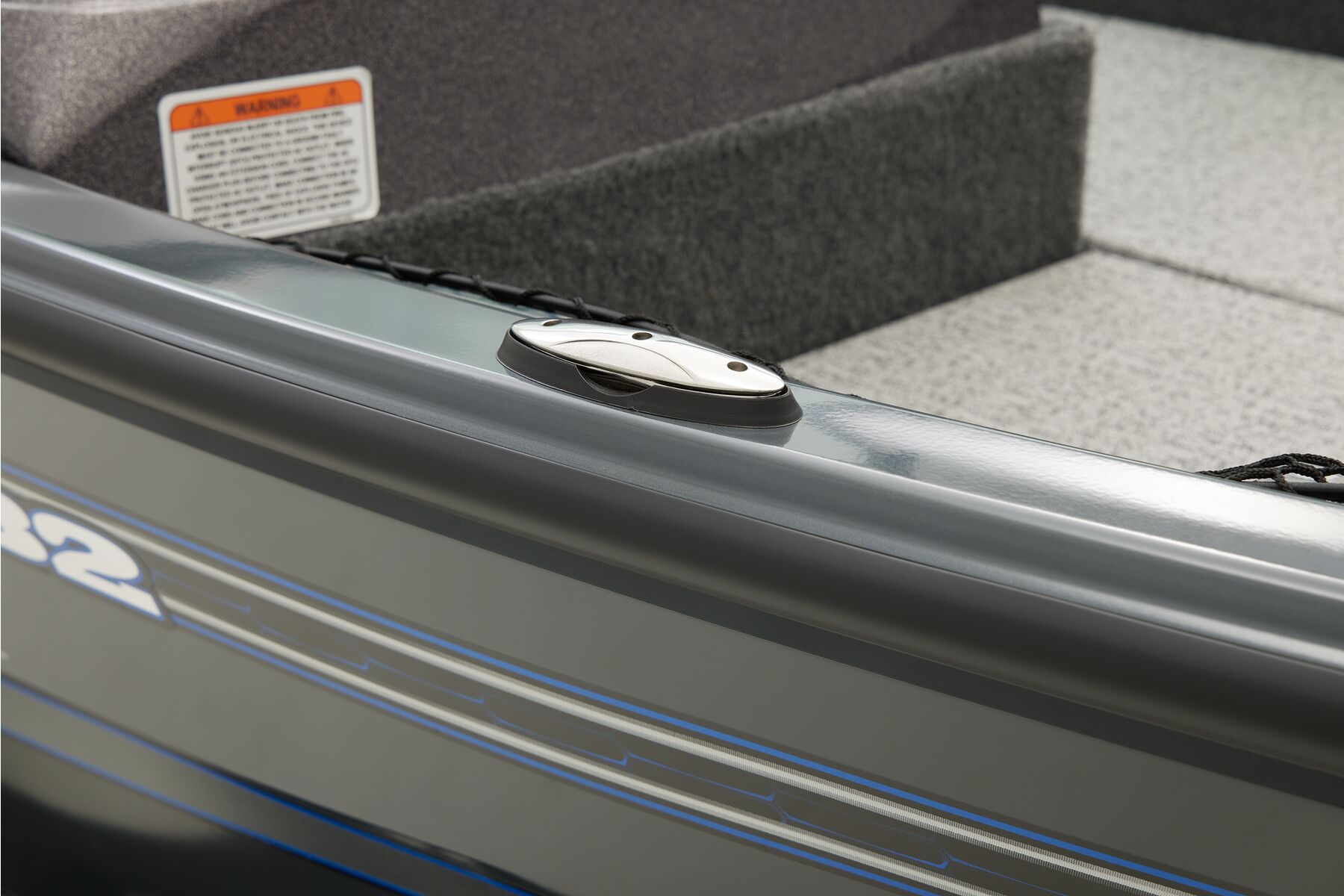

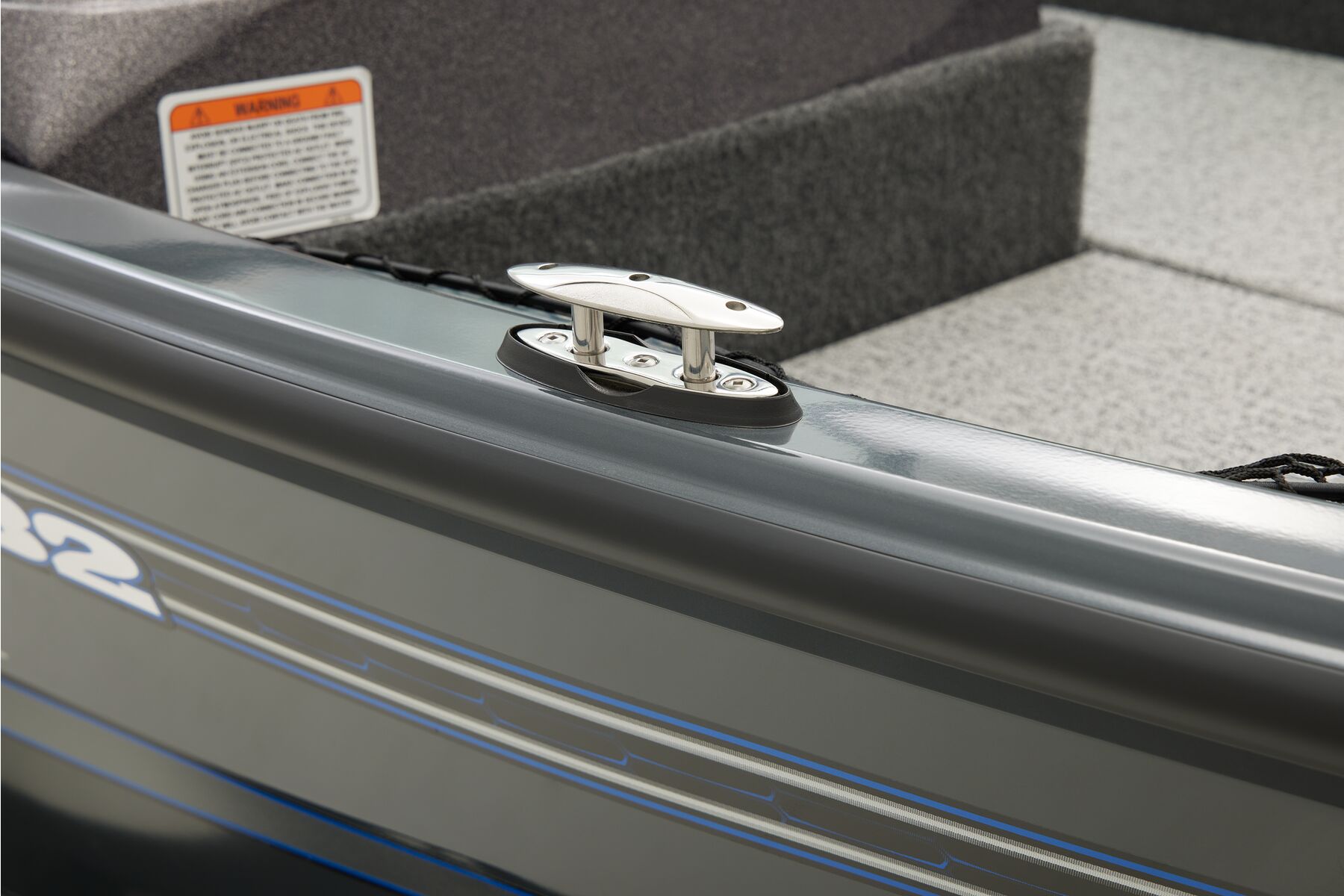

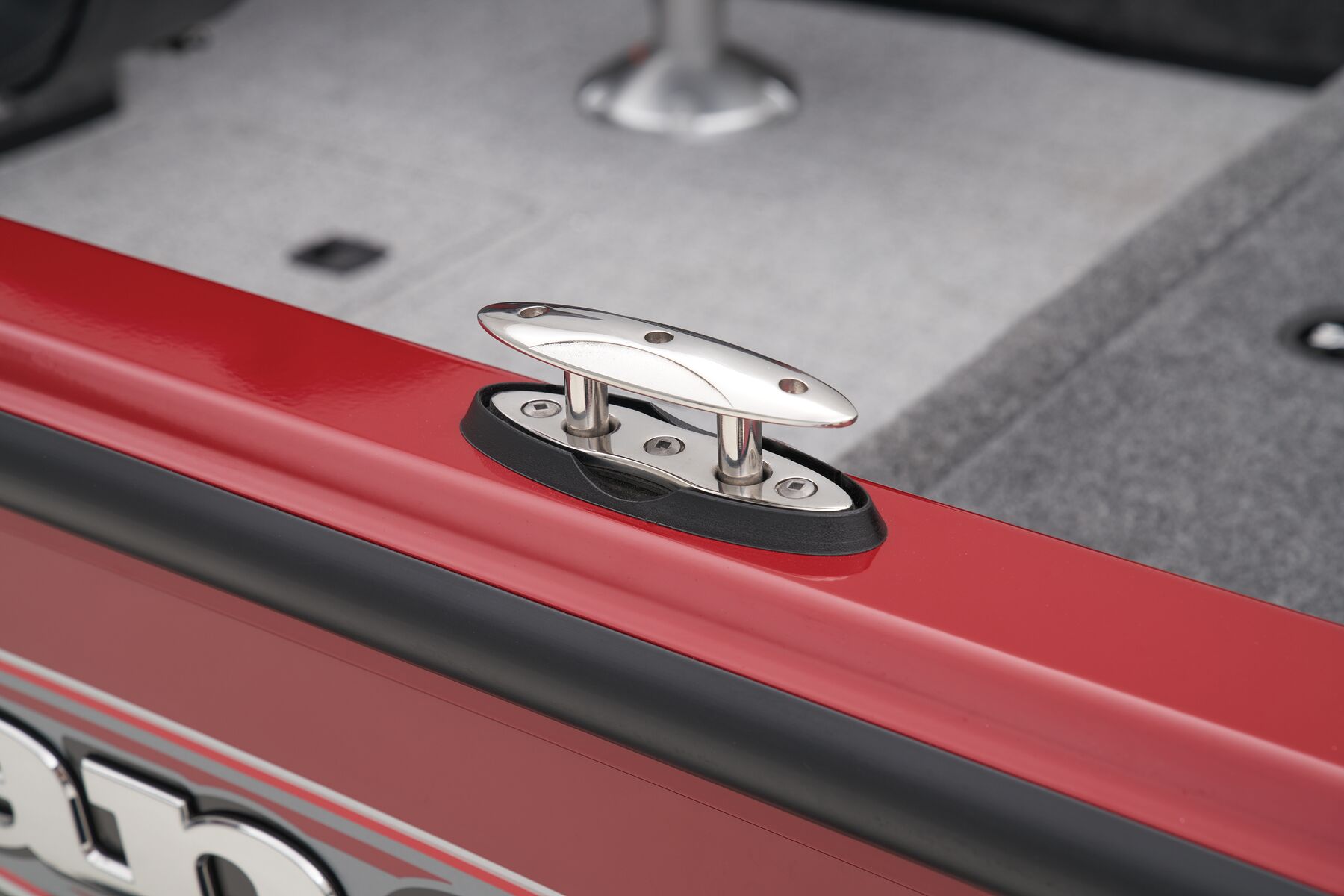

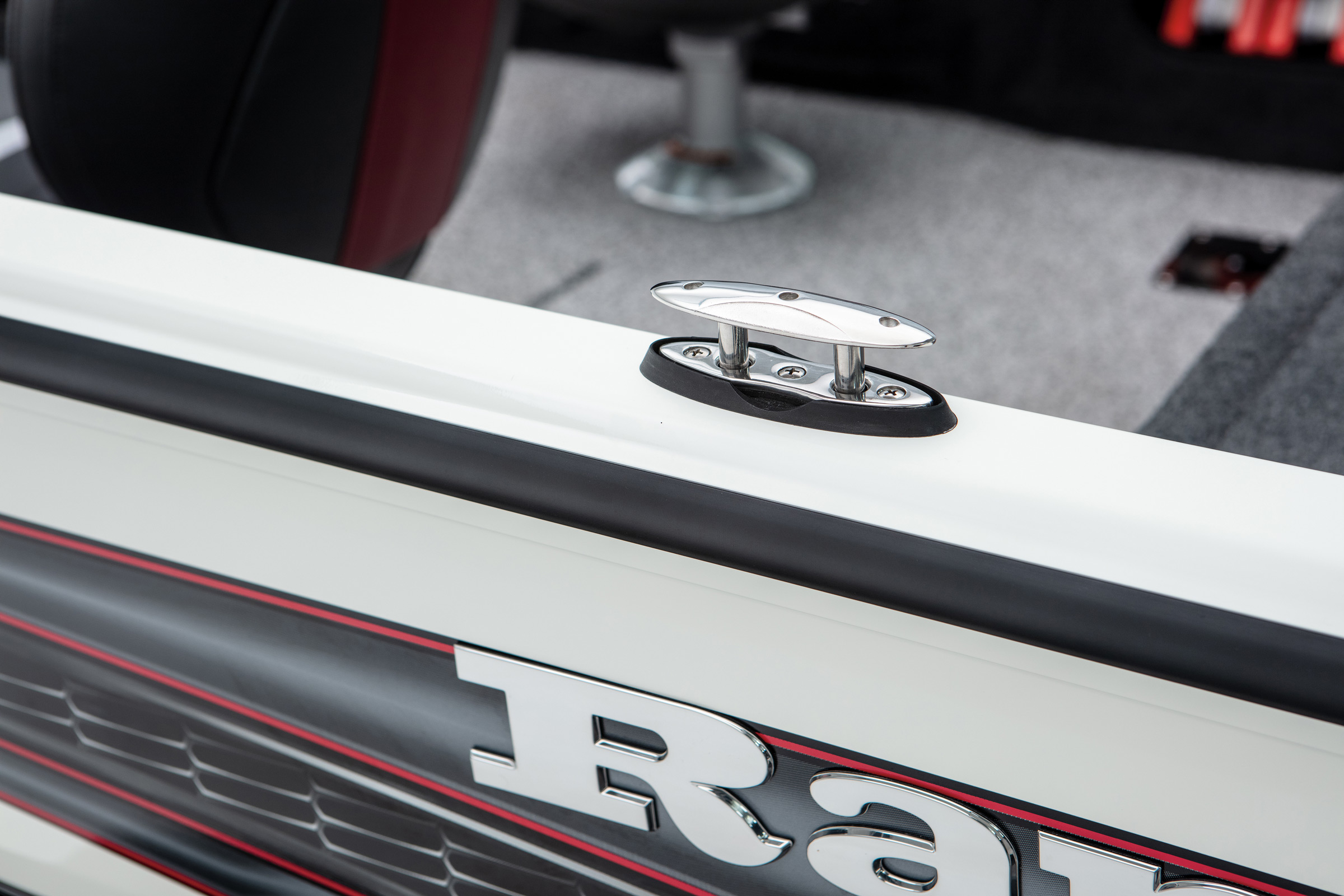

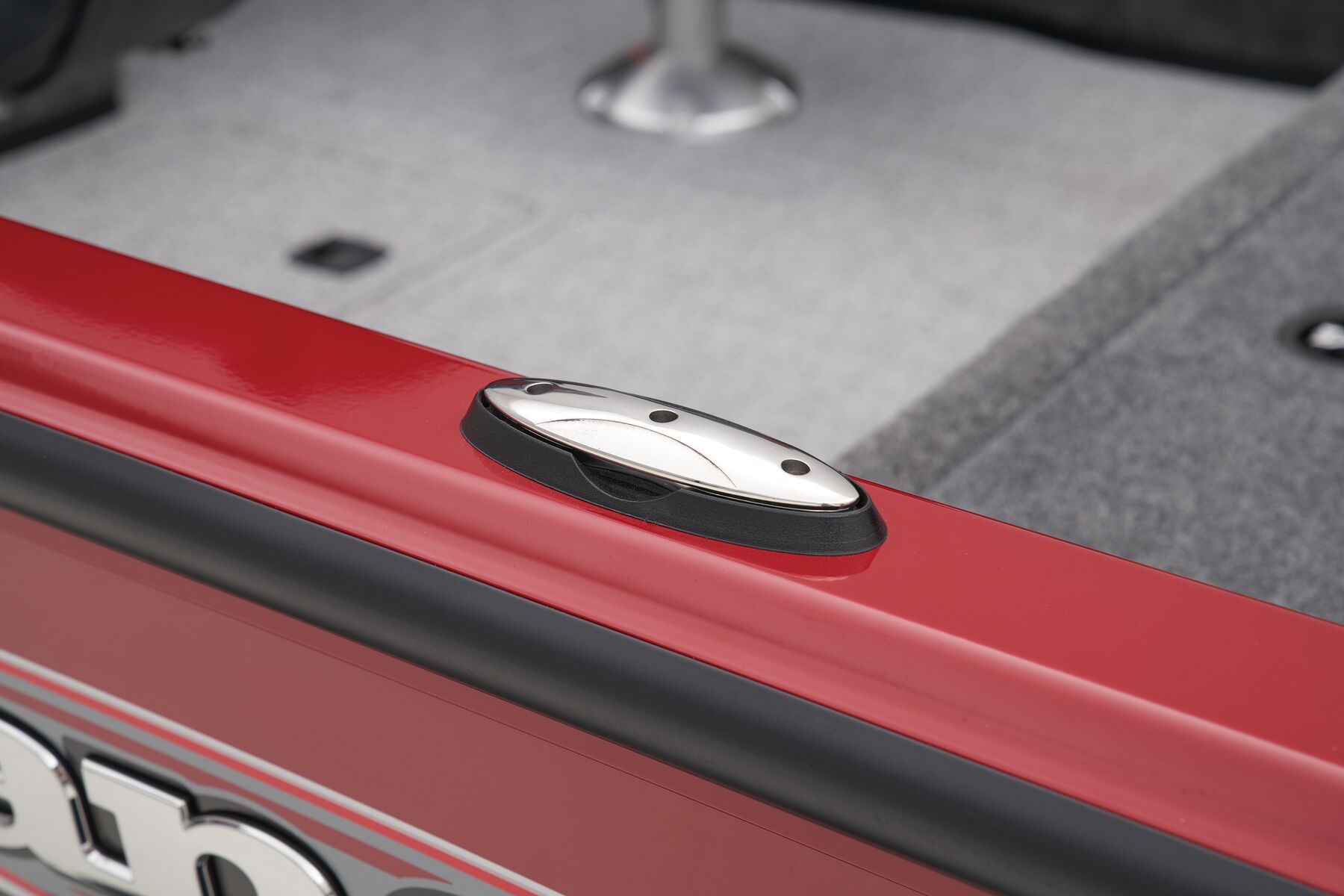

- Pop-up cleats for snag-free gunnels

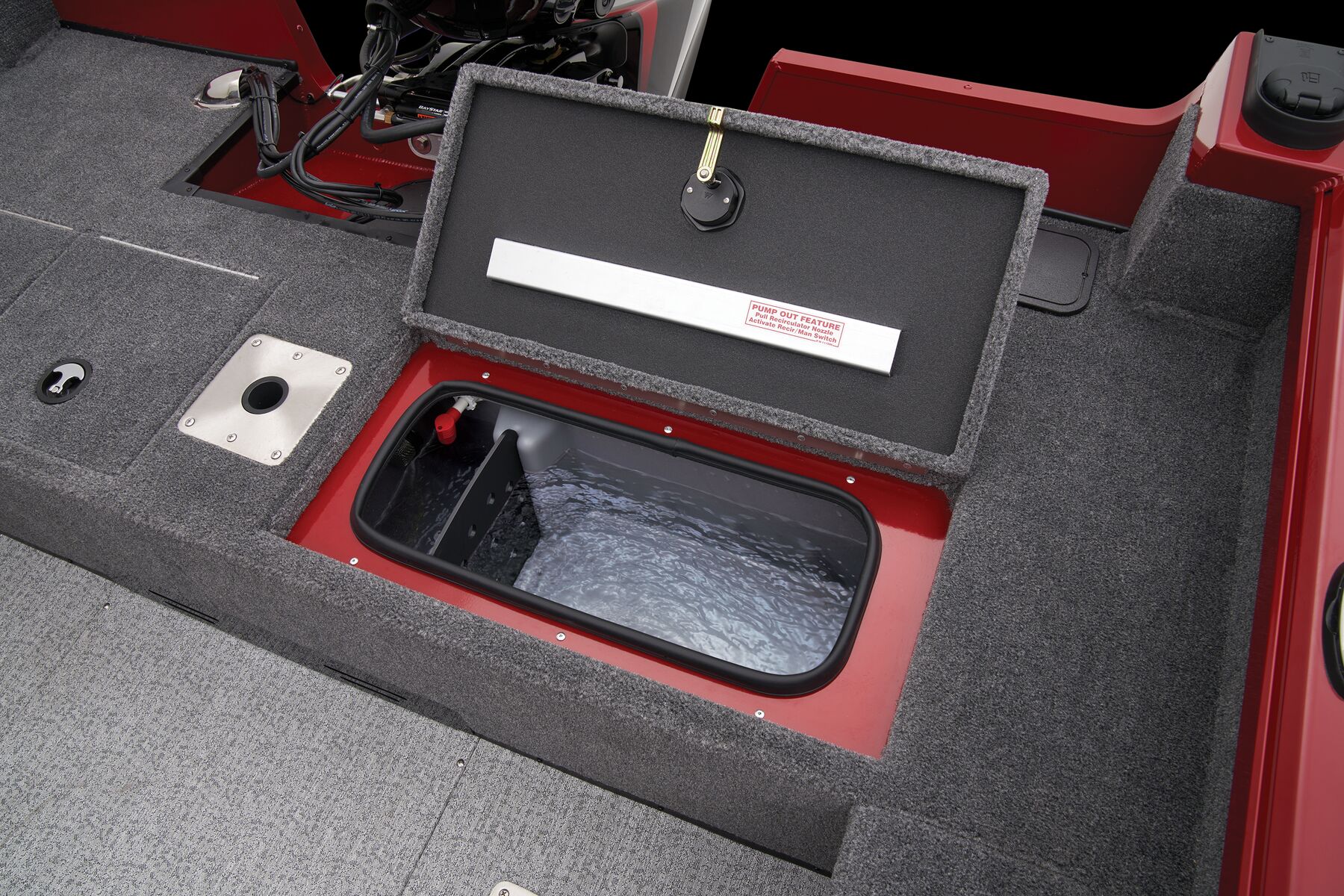

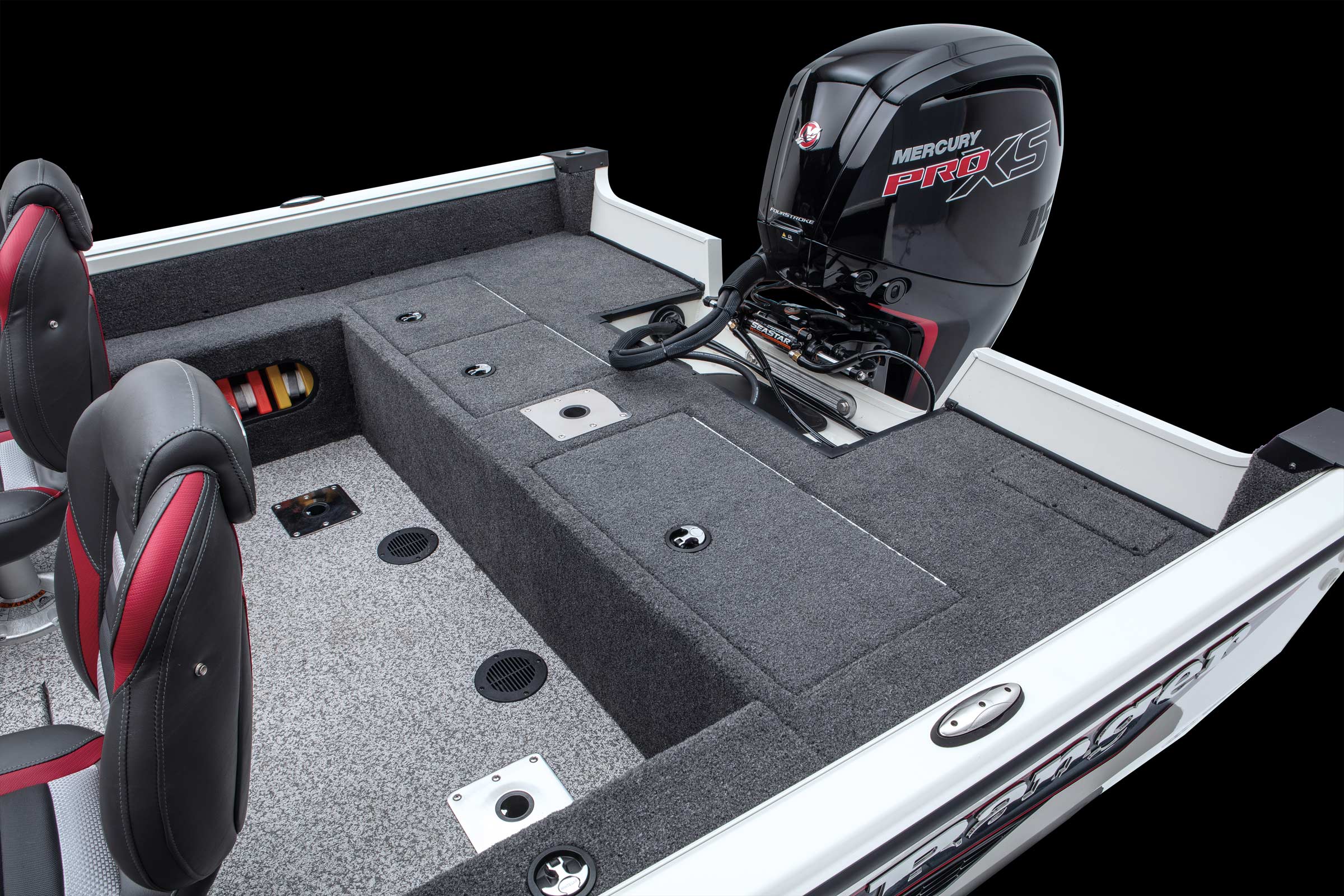

- Large aerated and divided livewell in rear adjacent to baitwell

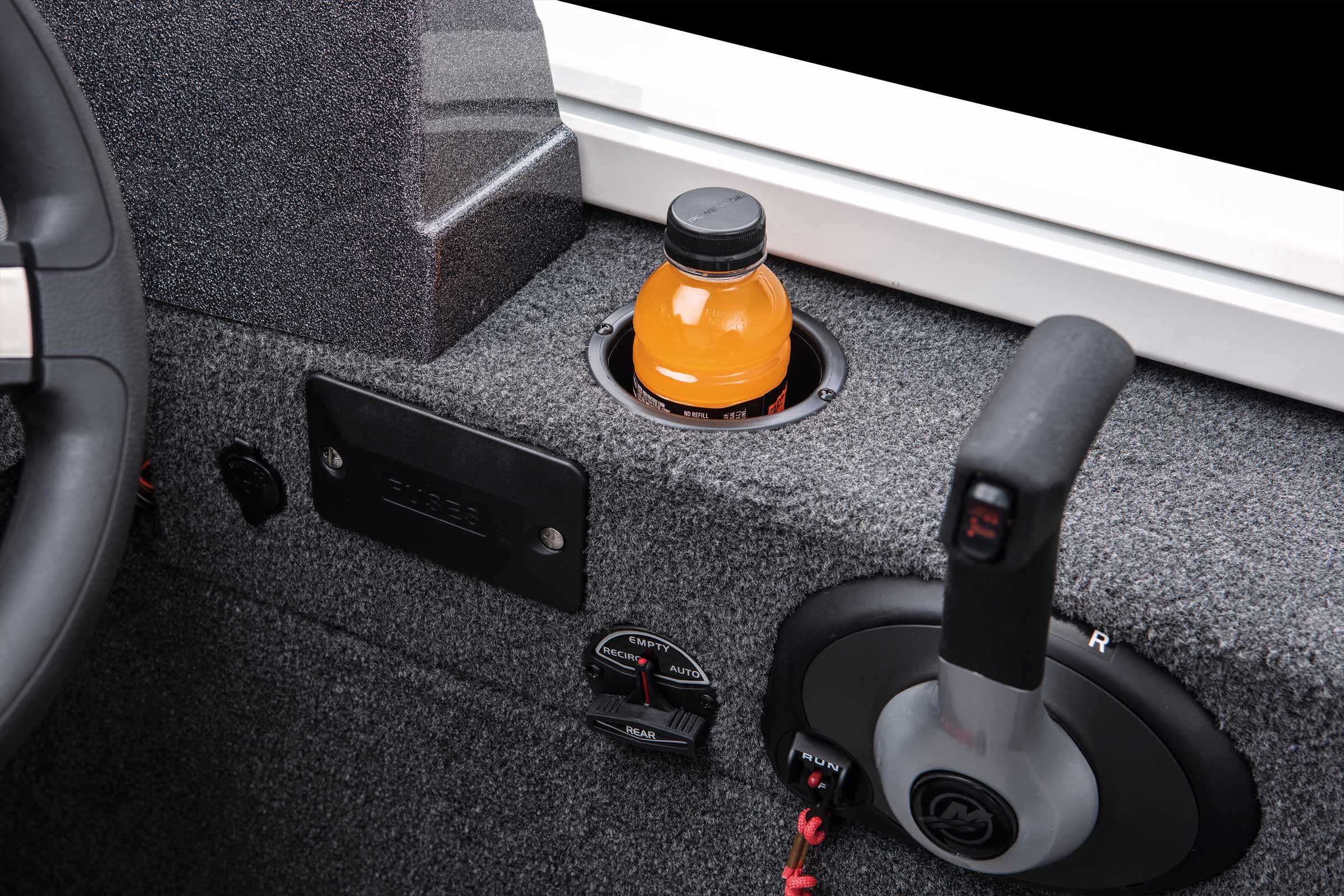

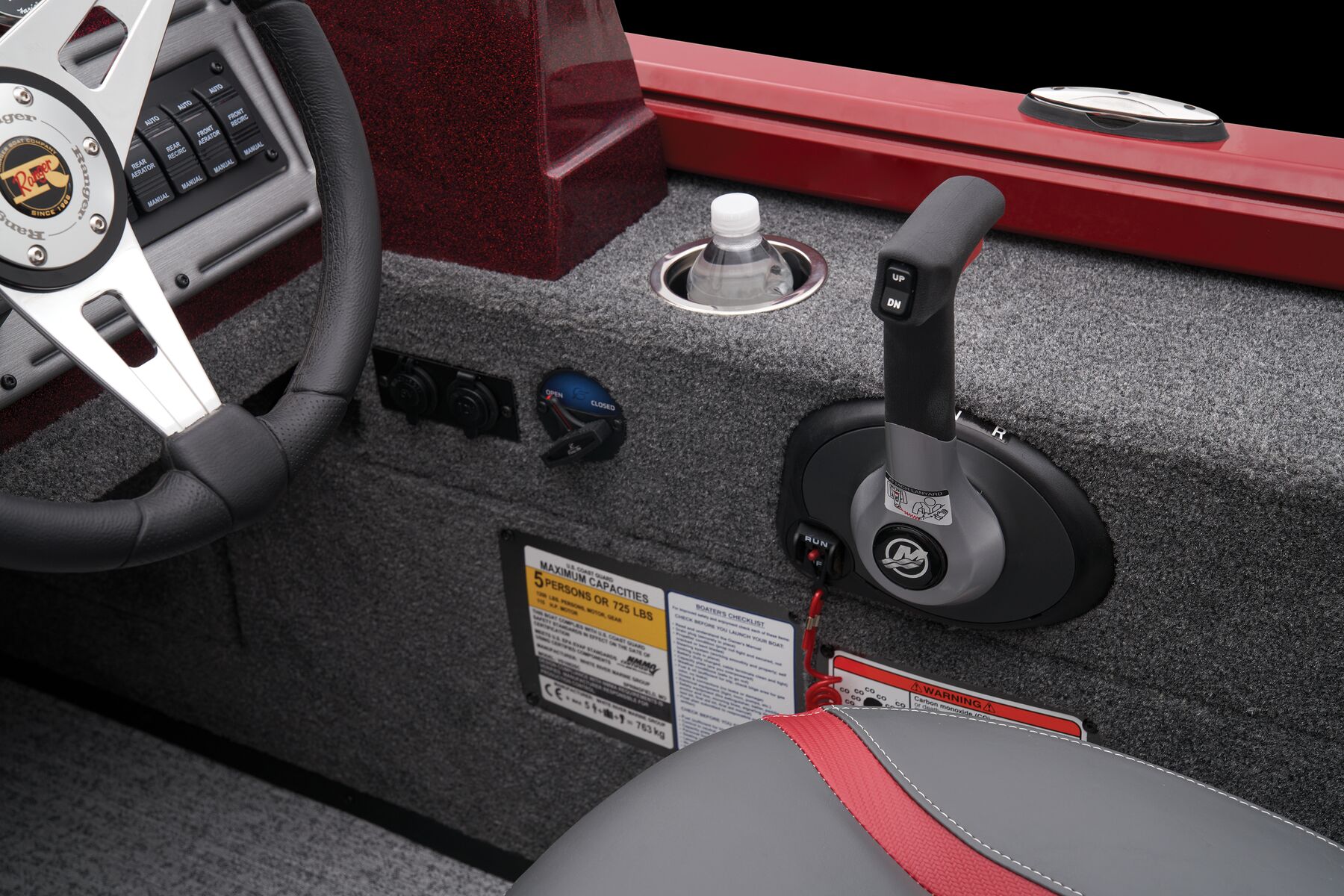

- Flush-mounted throttle control

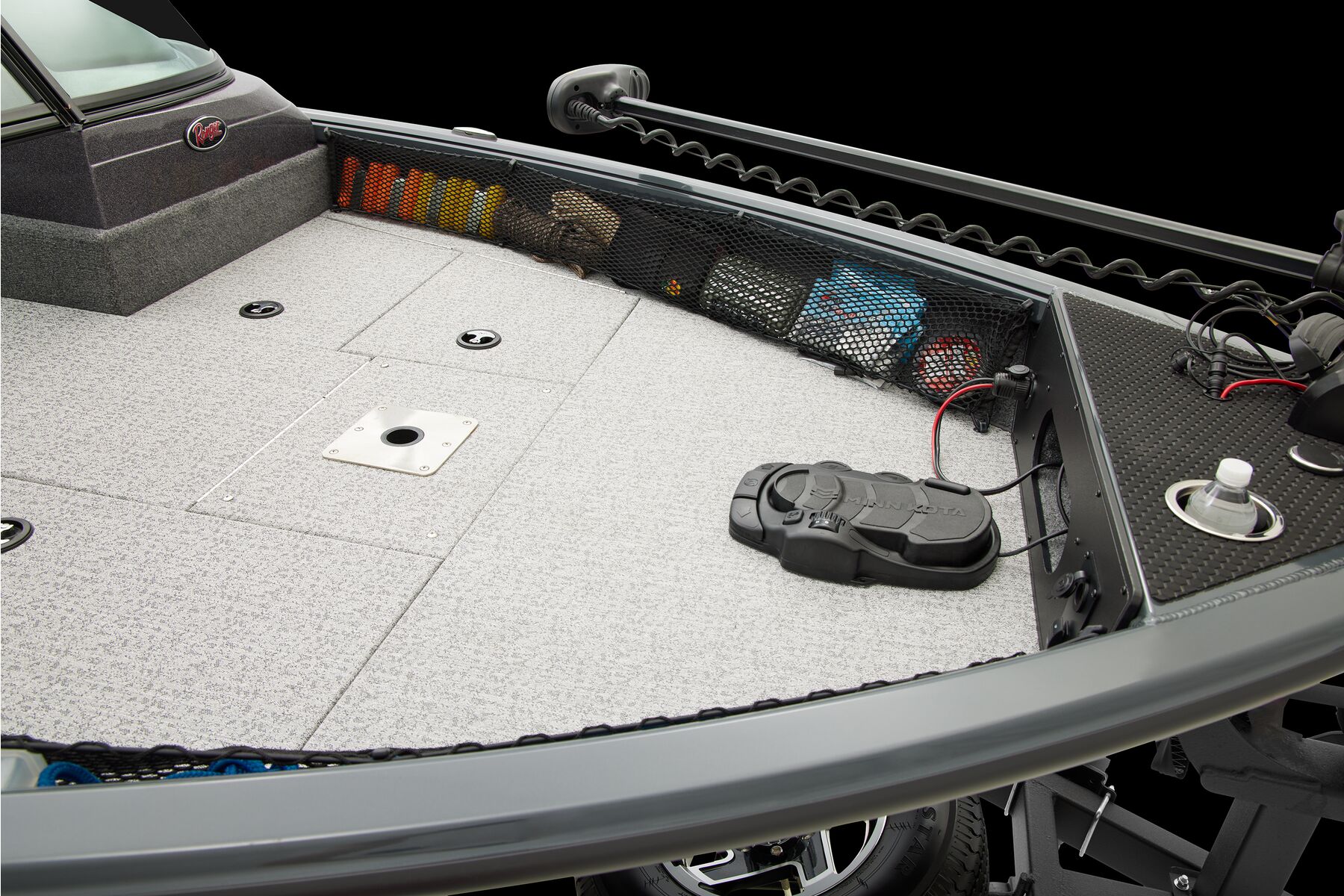

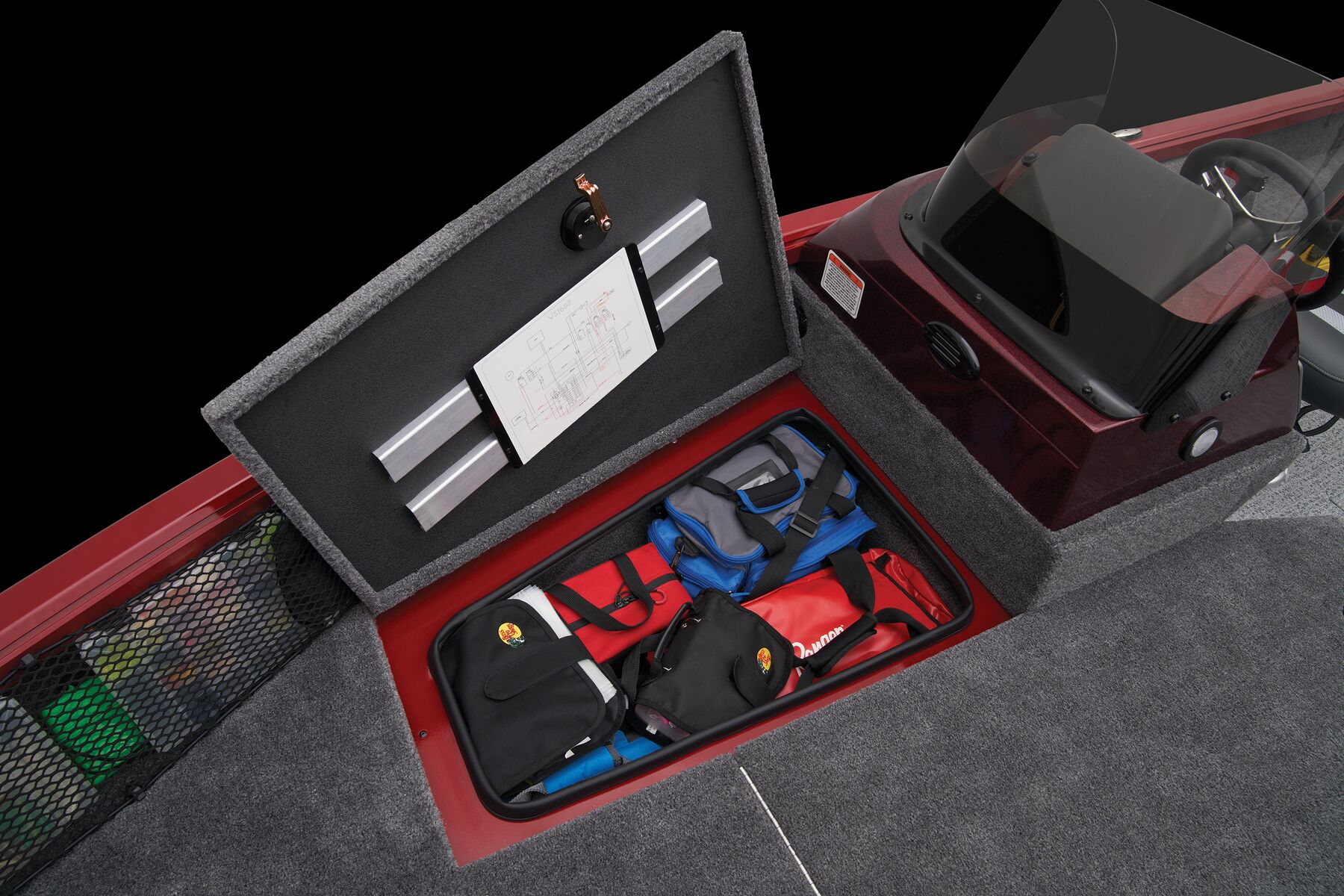

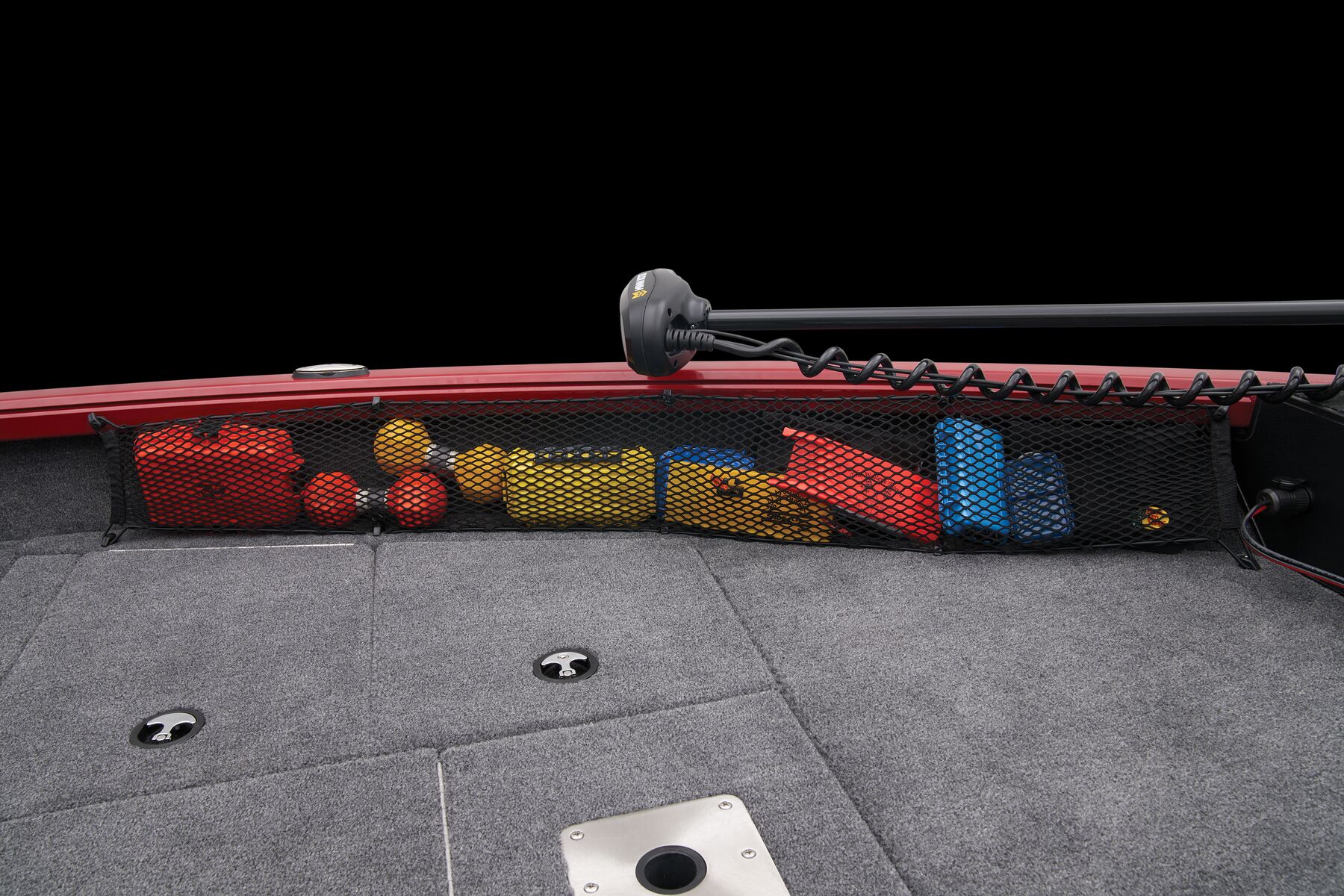

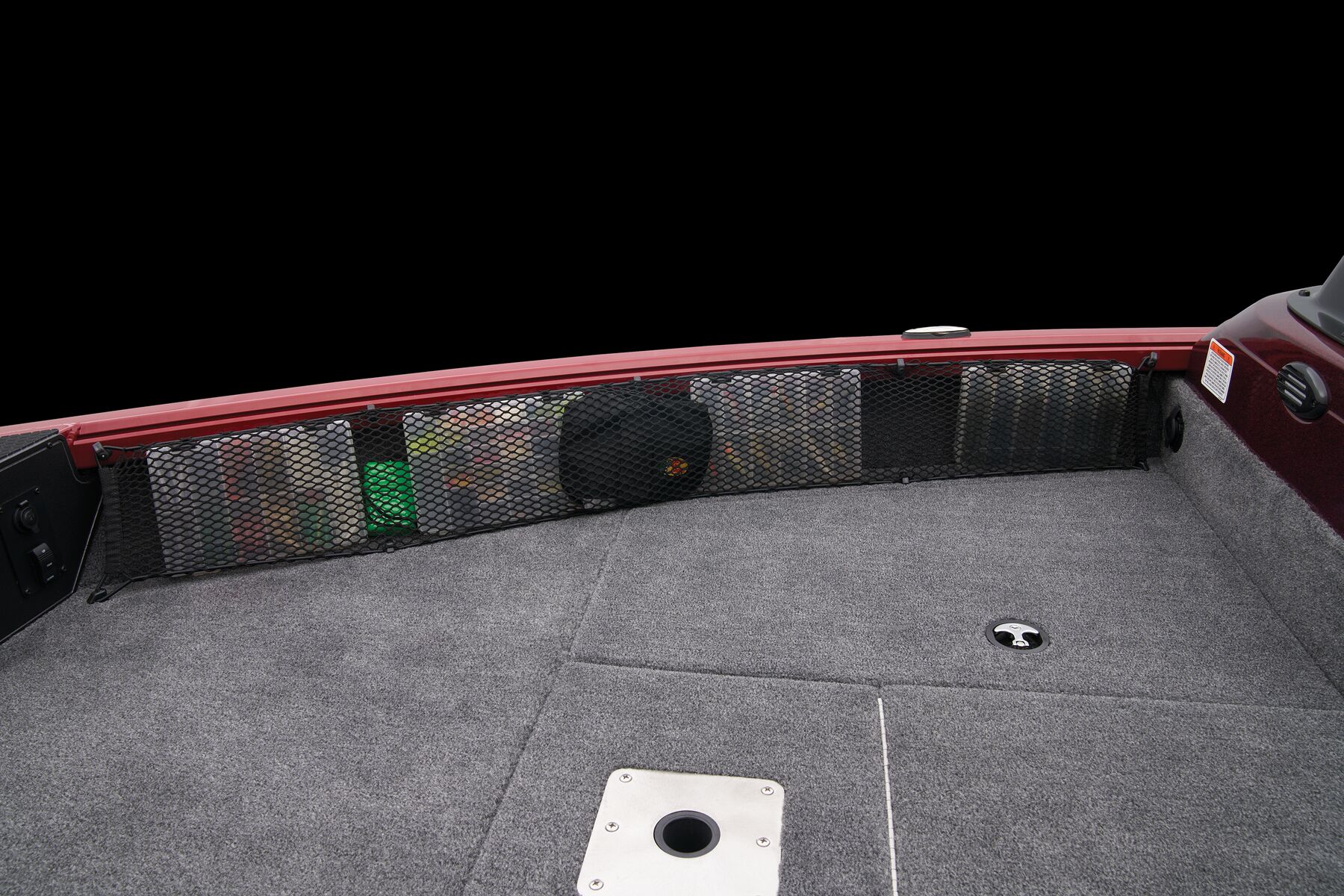

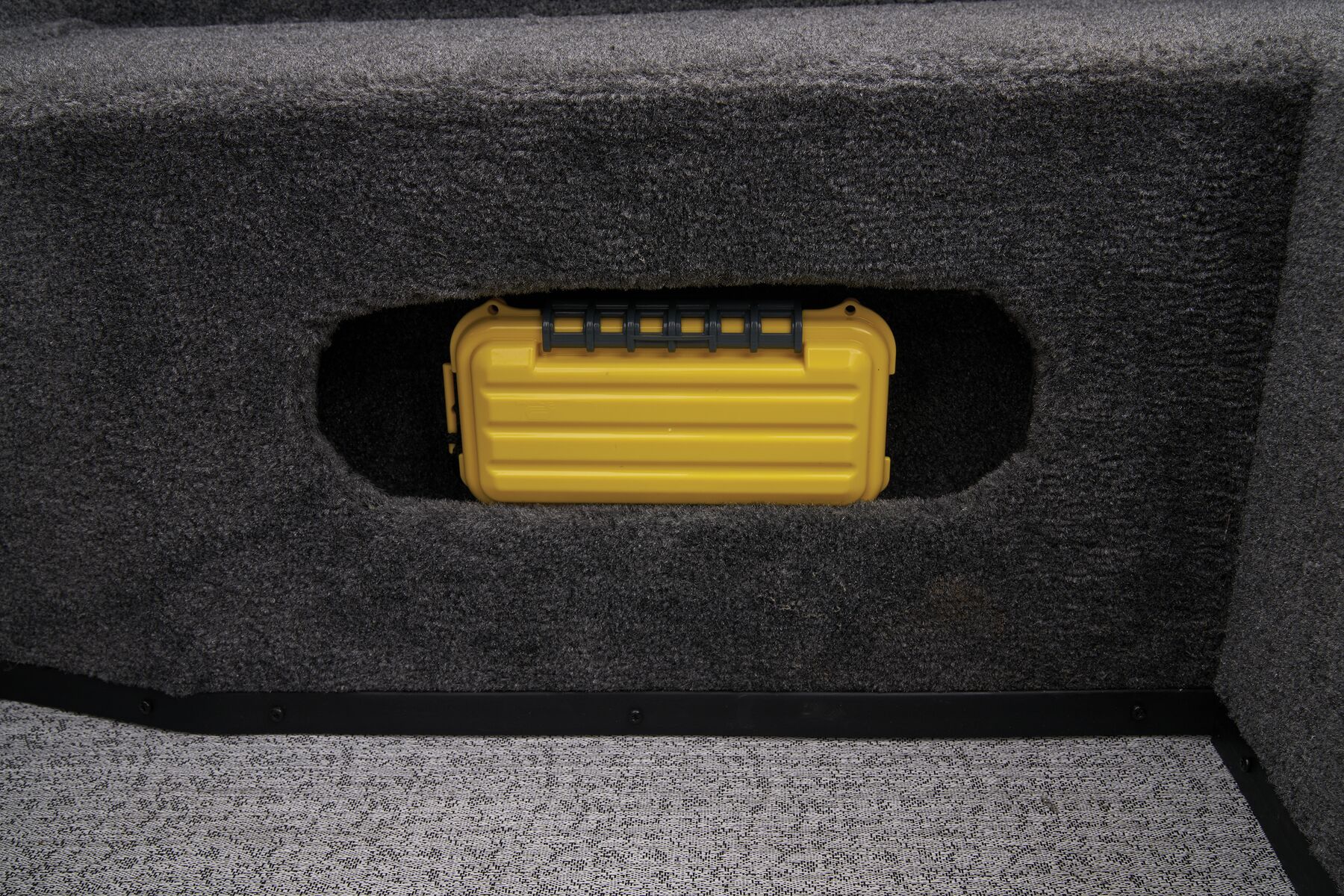

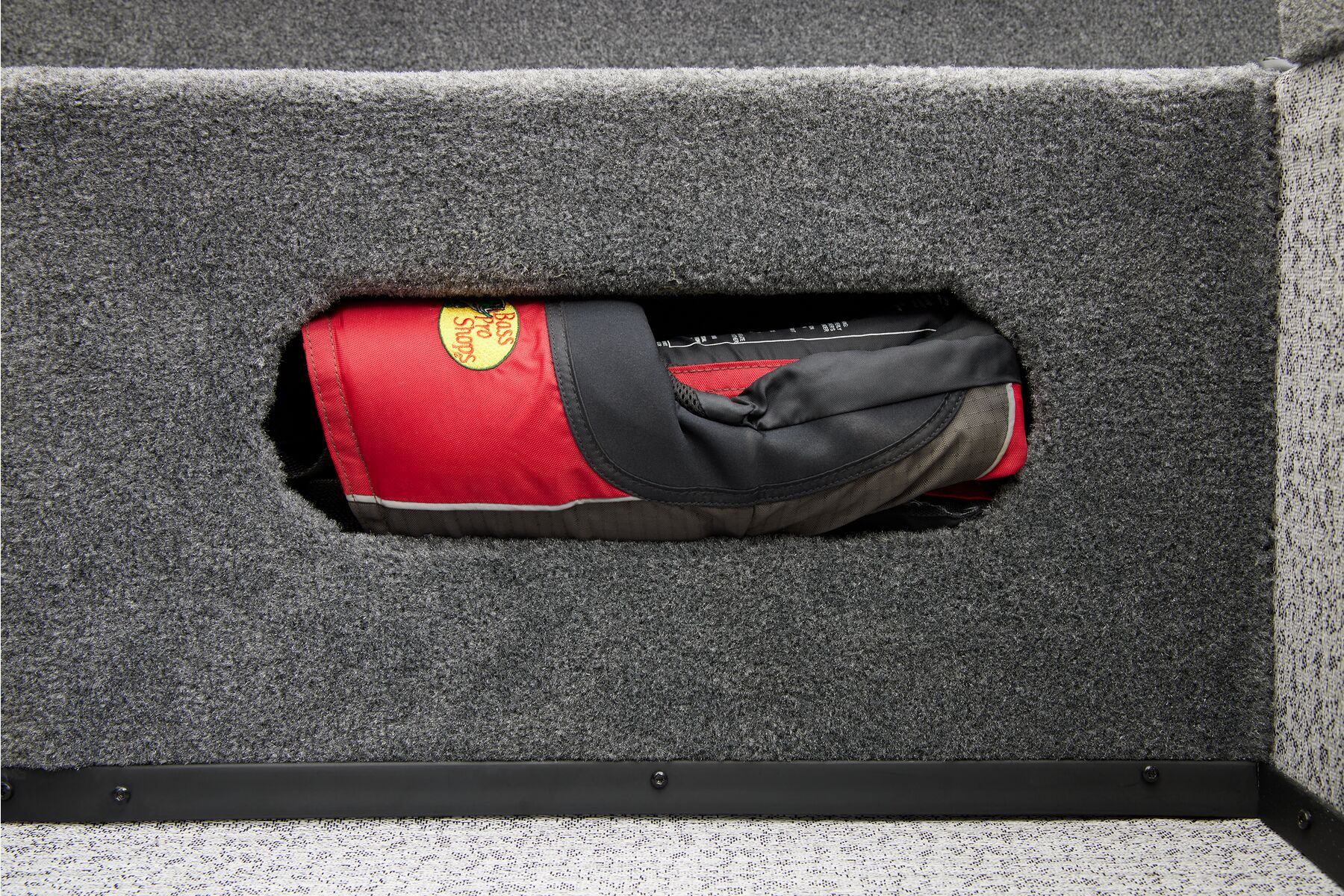

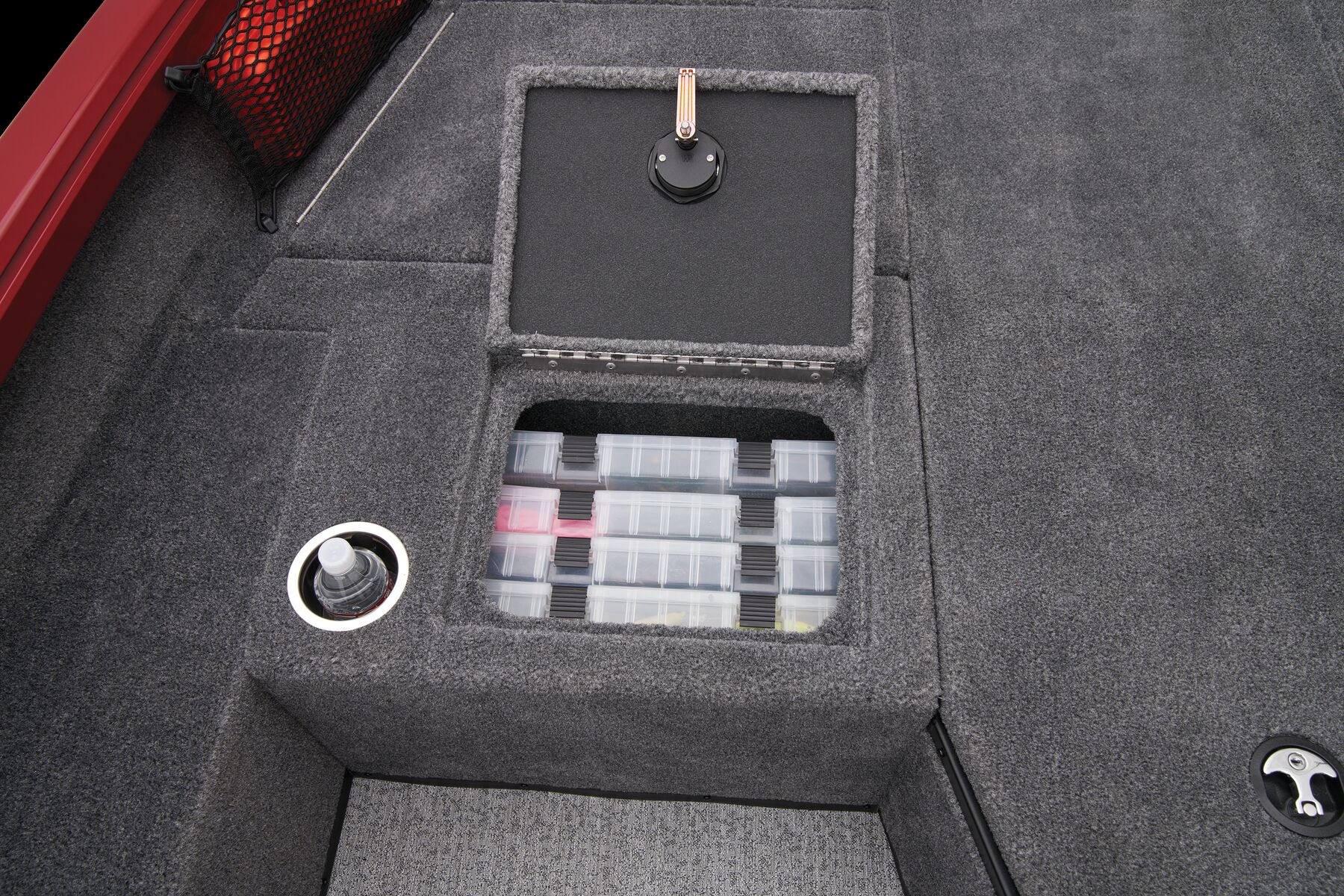

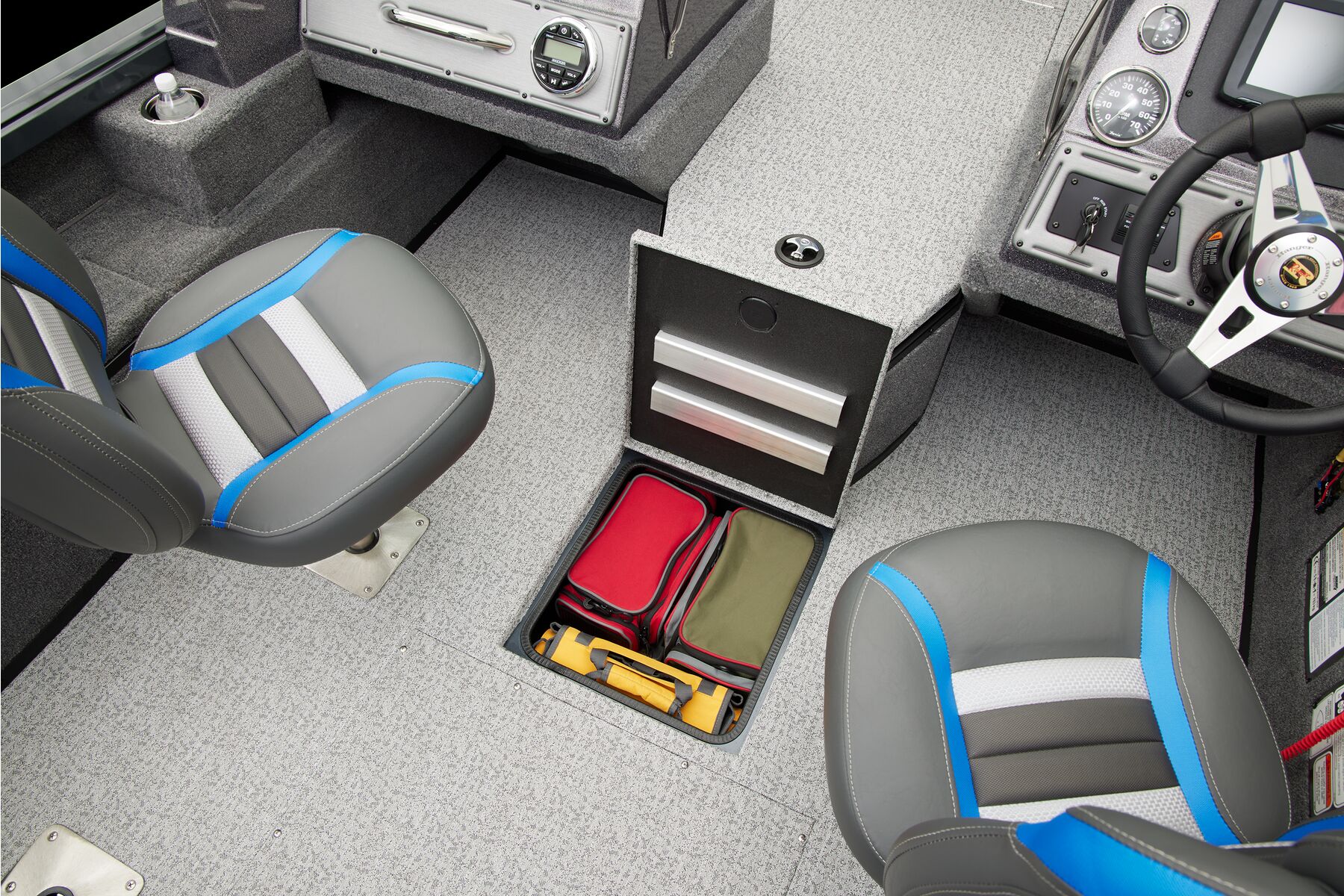

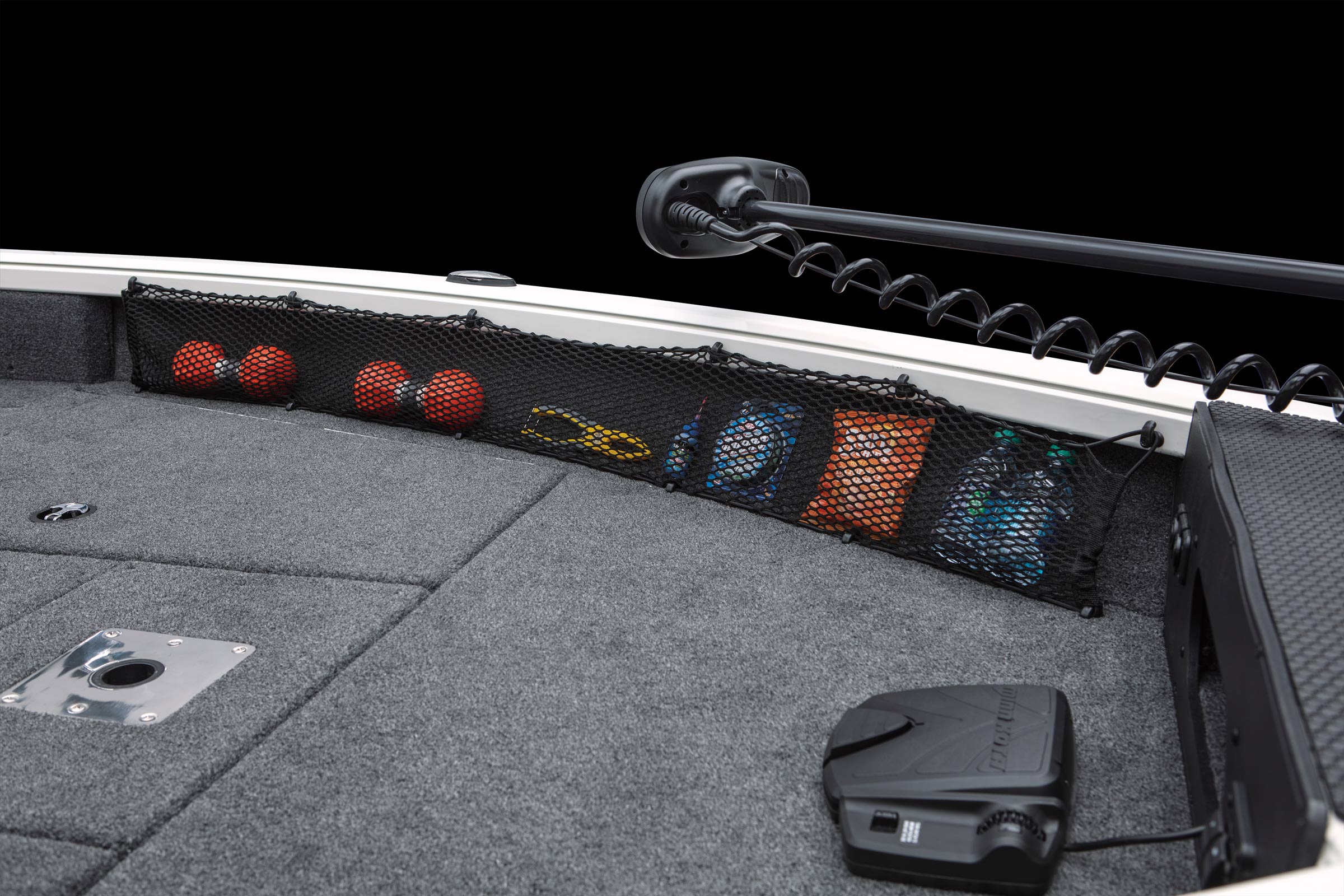

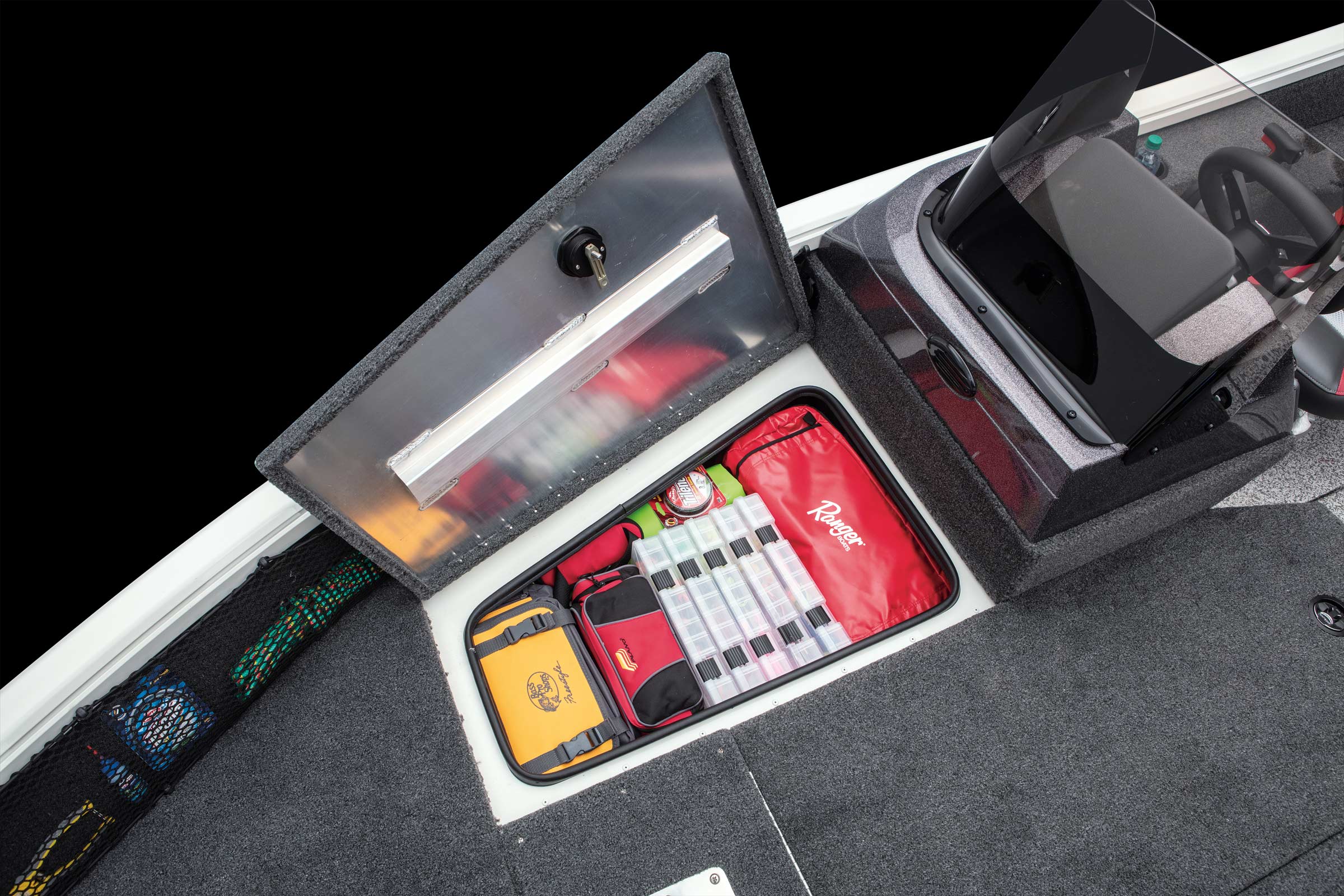

- Ample storage fore and aft
Specifications
| Length | 5.08 m | 16' 8'' |
| Hull Length | 5.08 m | 16' 8'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 115 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 55.88 cm | 22'' |
| Hull Thickness | 0.254 cm | 0.1'' |
| Chine Width | 2.08 m | 82'' |
| Fuel Capacity | 94.63 L | 25 gal. |
| Livewell Capacity | 109.77 L | 29 gal. |
| Total Person, Motor, Gear | 612.35 kg | 1350 lbs. |
| Approximate Boat Weight | 703.07 kg | 1550 lbs. |
| Rod Box Length - Center | 2.29 m | 7' 6'' |
| Max. Person Capacity | 5 persons | |
| Trailer GVWR | 1358.51 kg | 2995 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 6.68 m | 21' 11'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 5.64 m | 18' 6'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 115EXLPT Pro XS FourStroke |
$37705 USD
|
Select Dealer | |||
| 90 EXLPT FourStroke |
$35995 USD
|
Select Dealer | |||
Standard Features
Custom Details

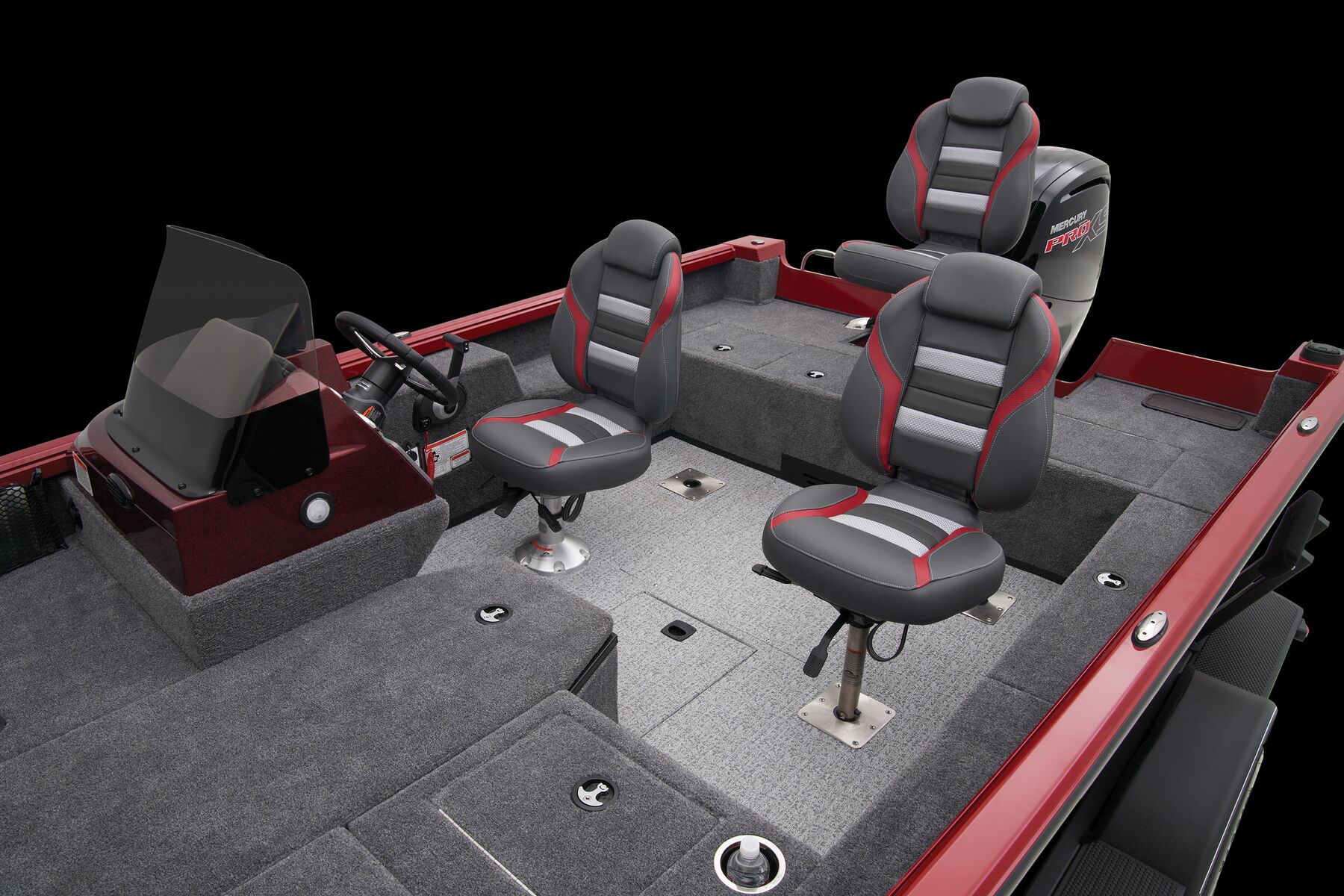

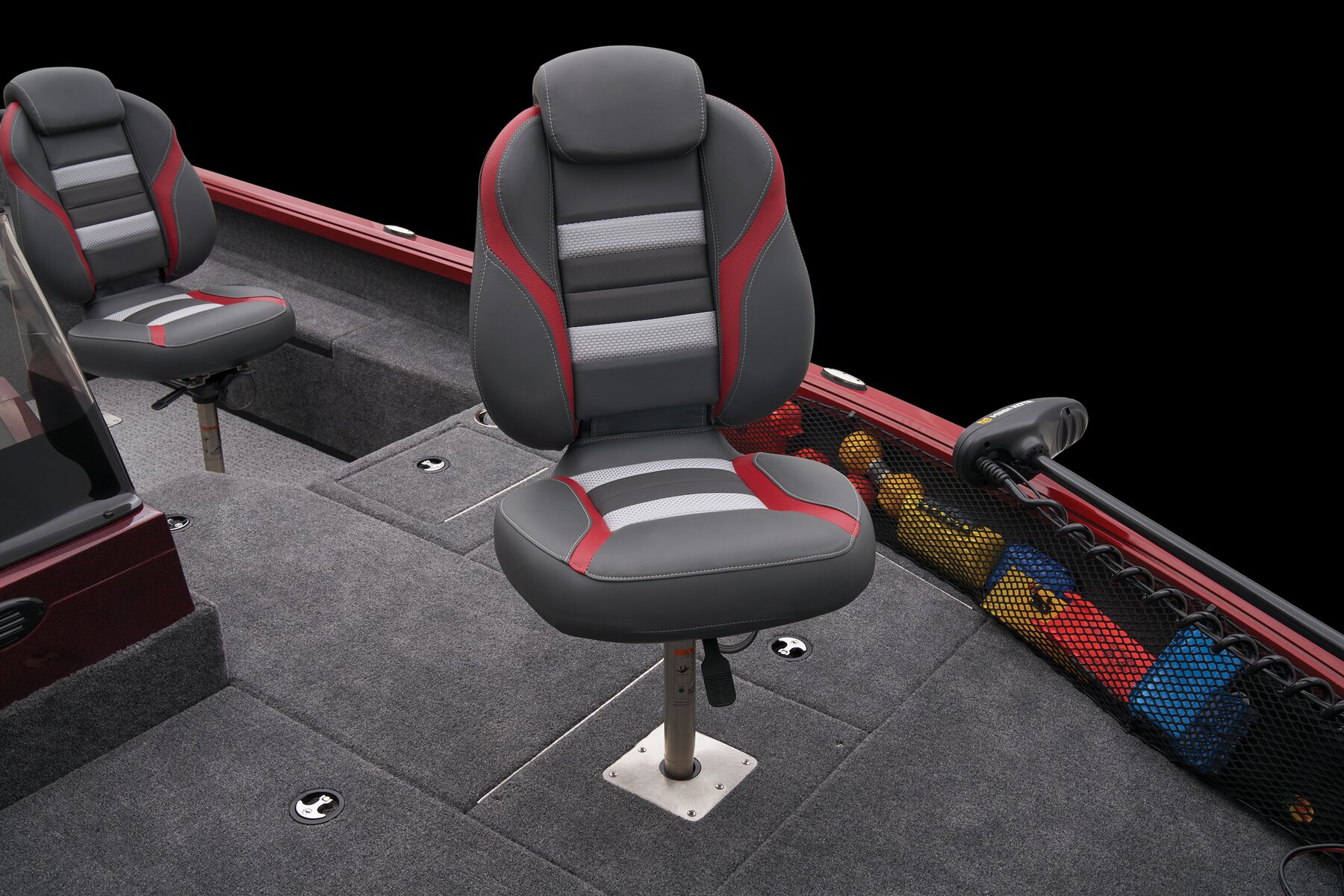

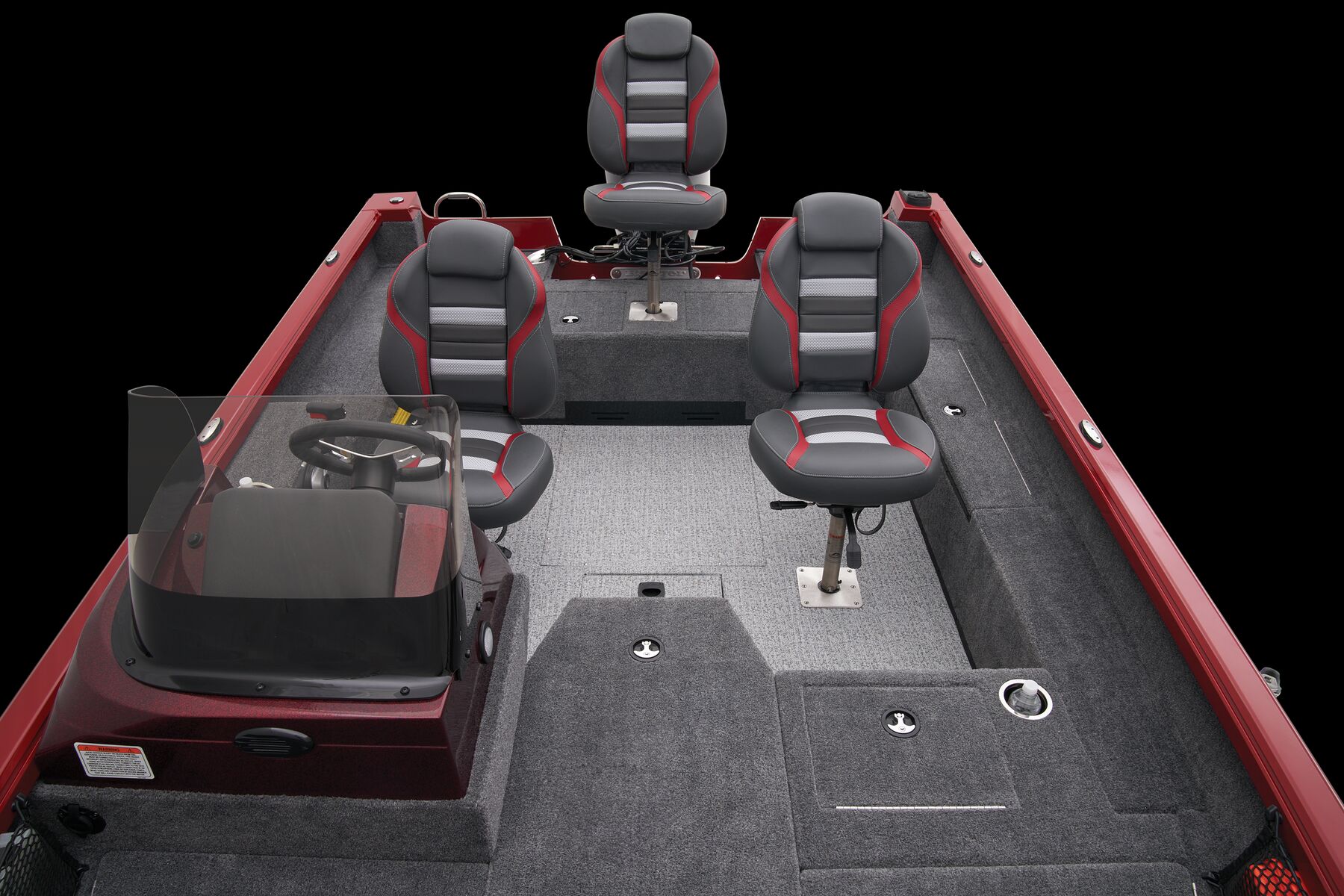

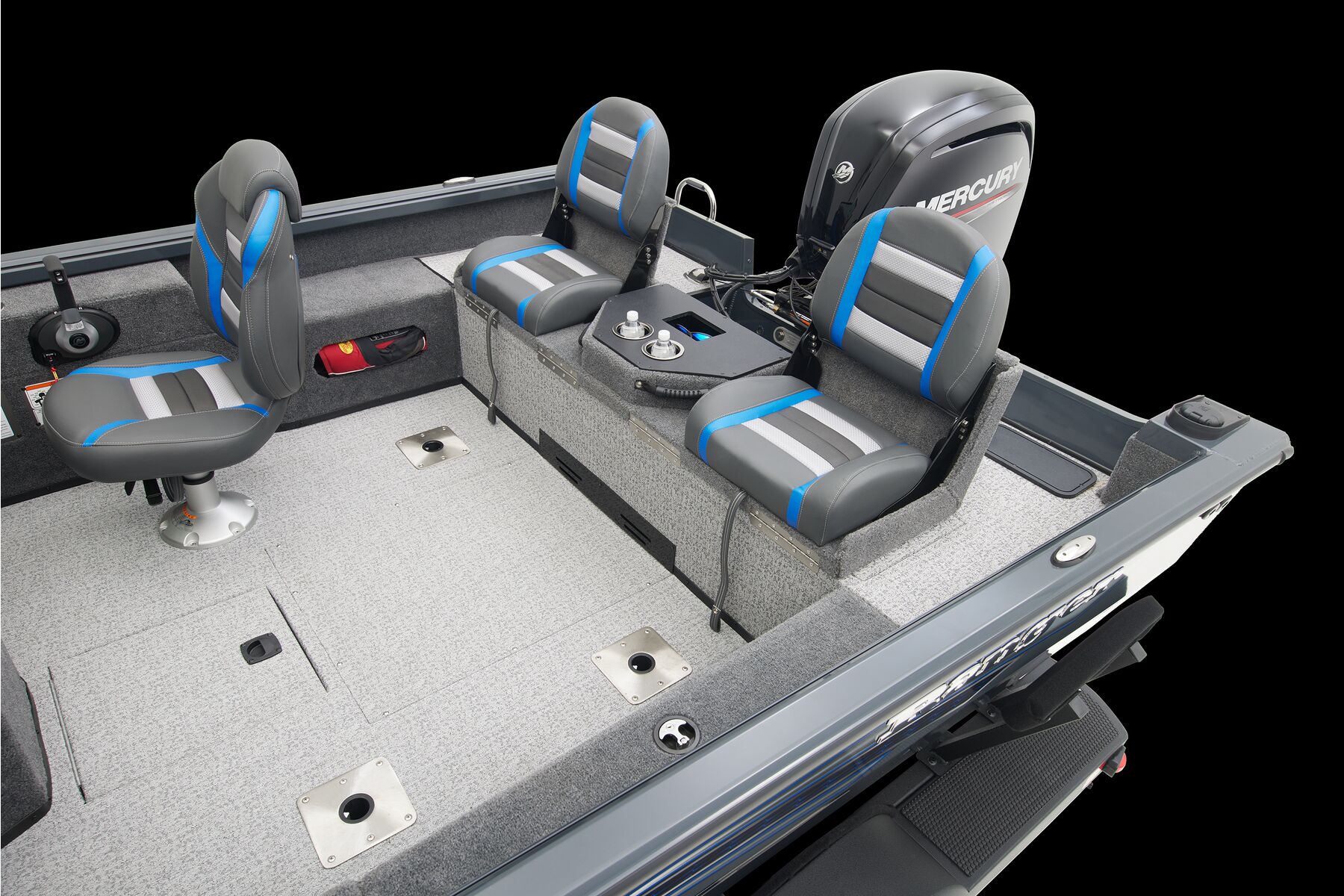

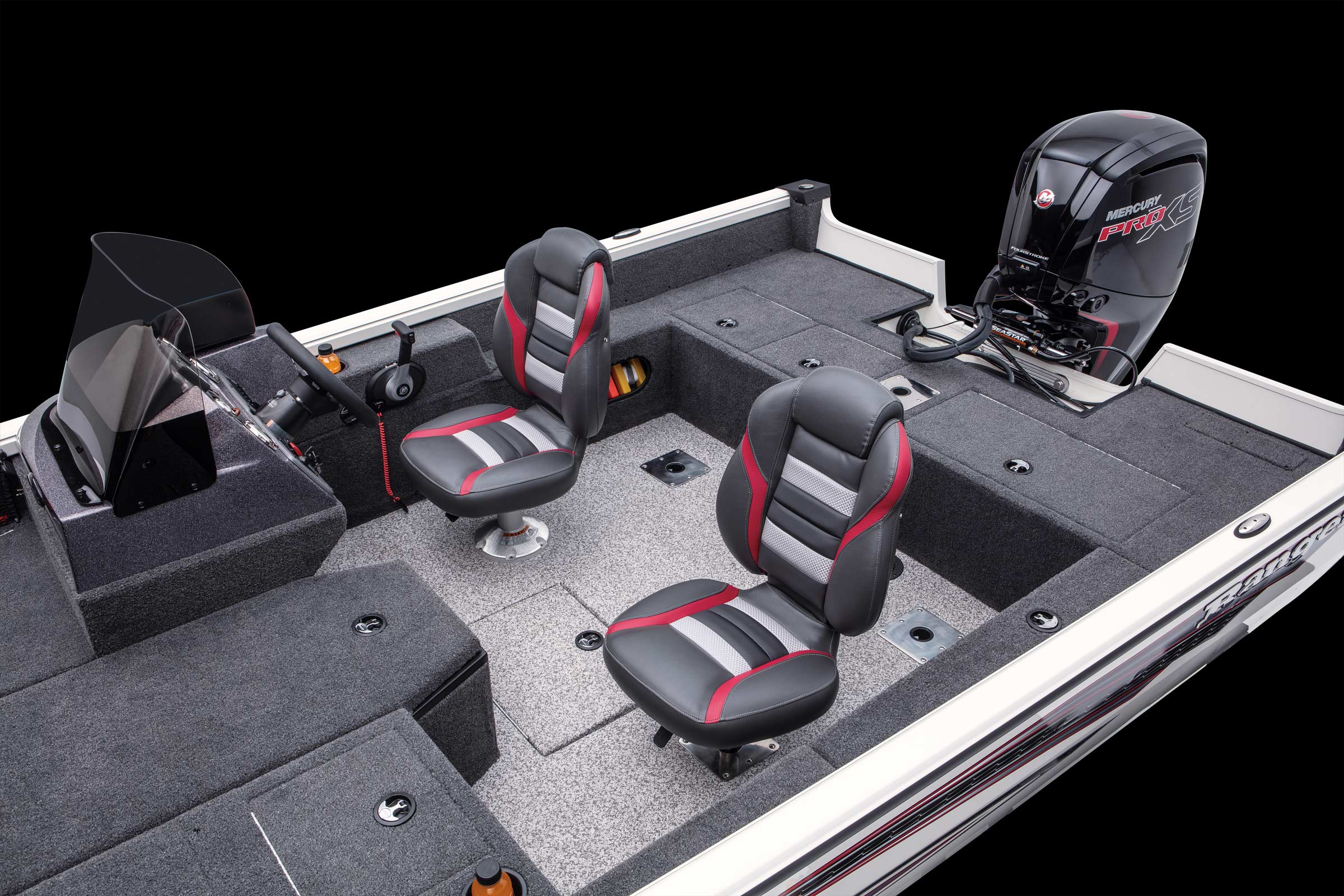

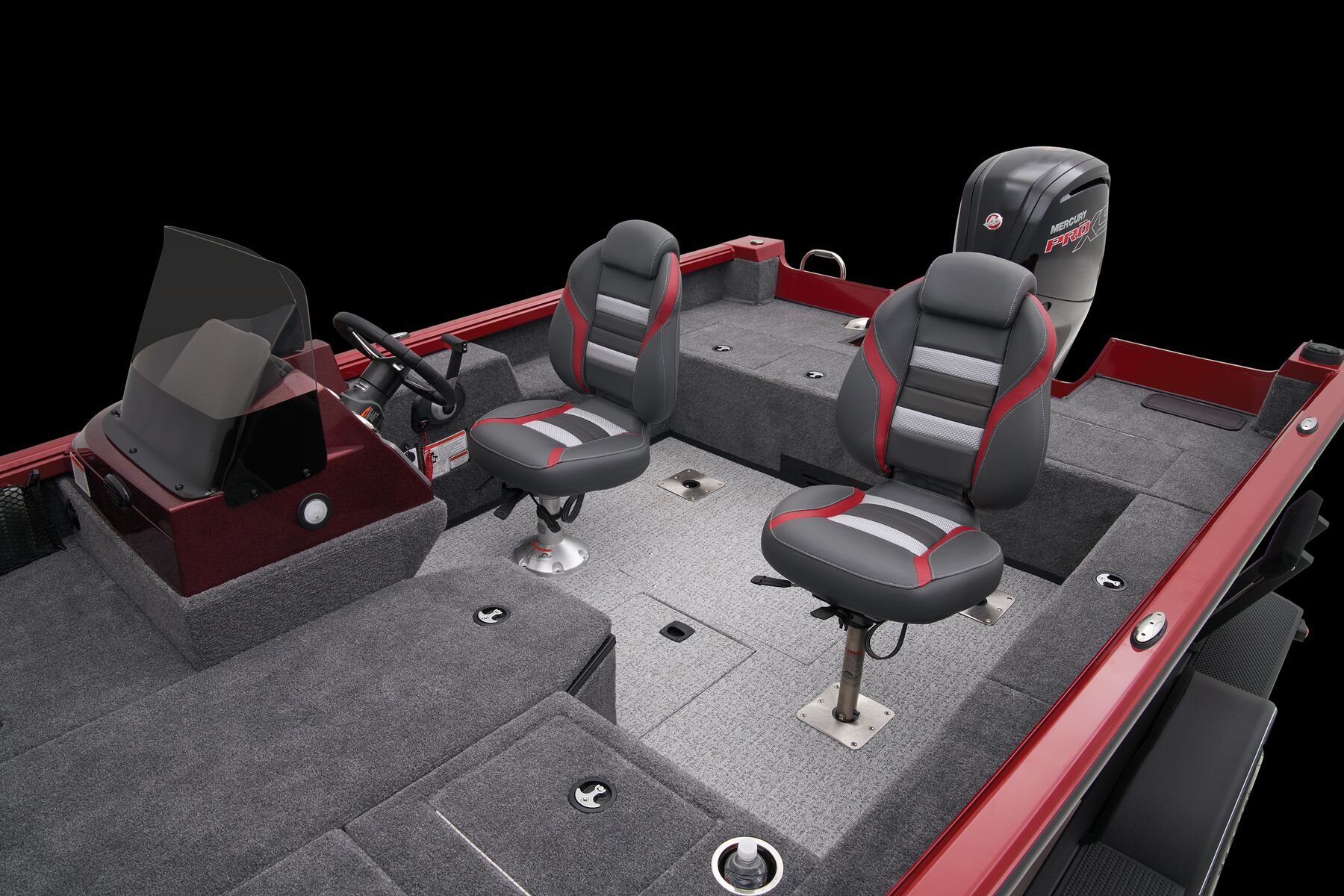

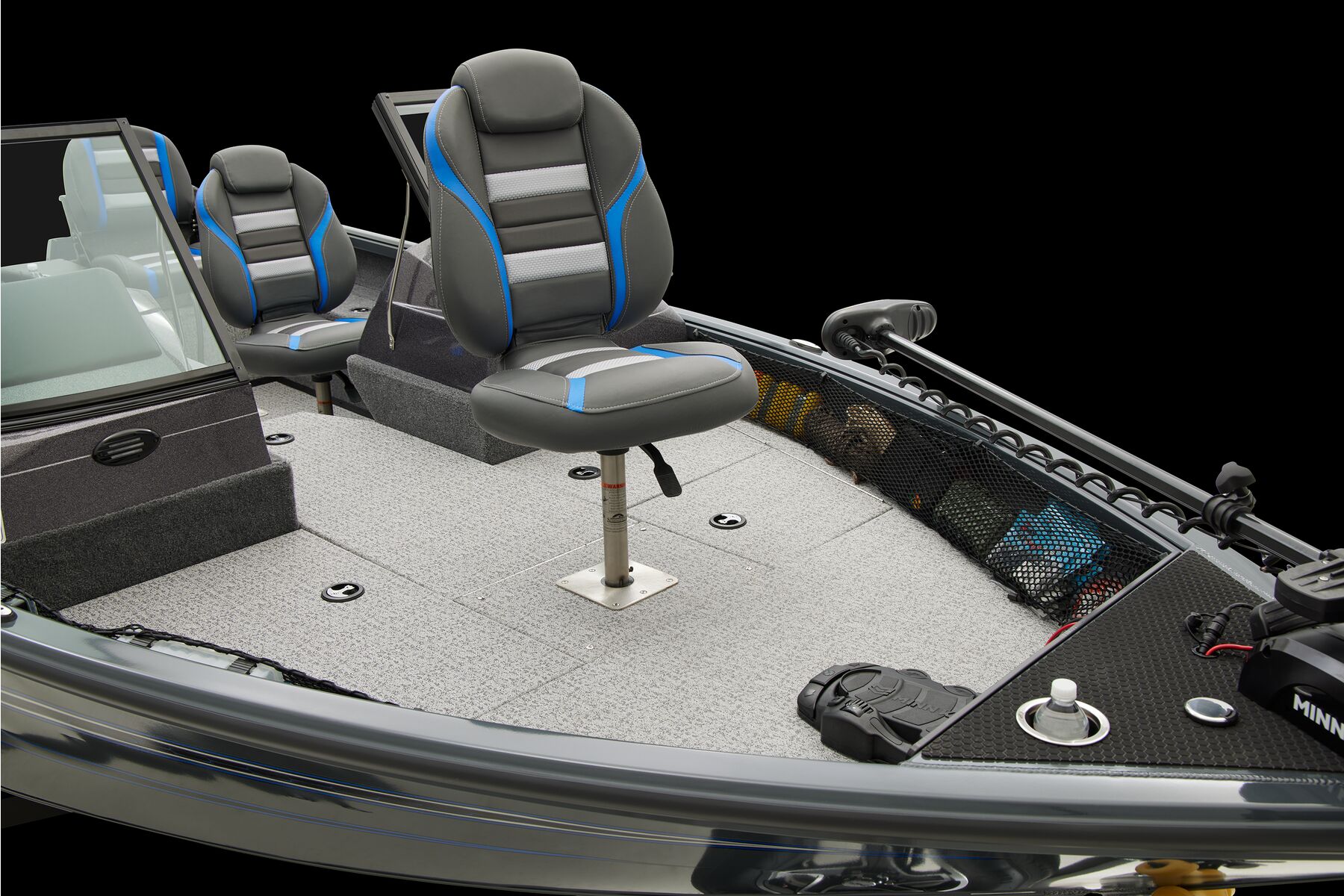

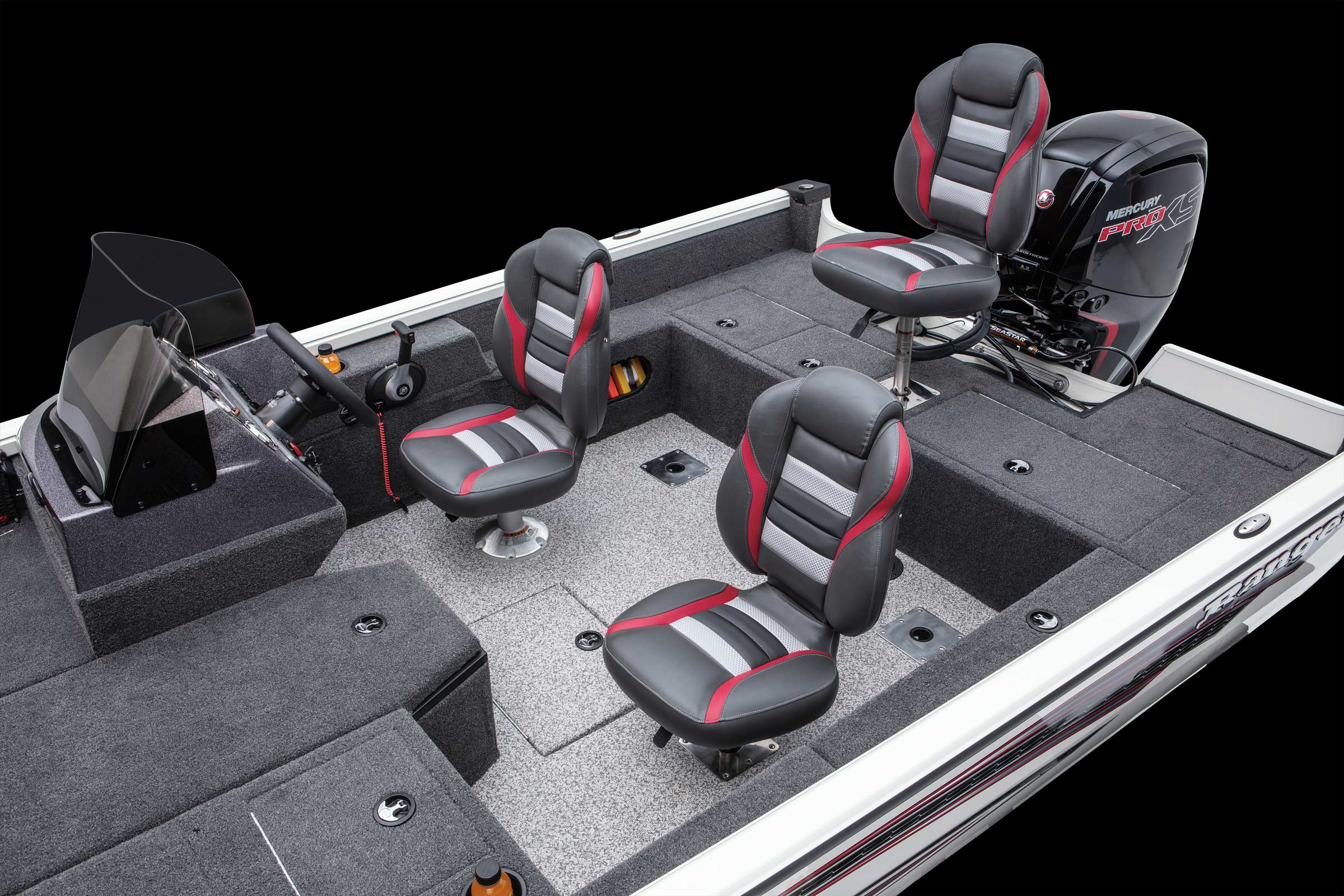

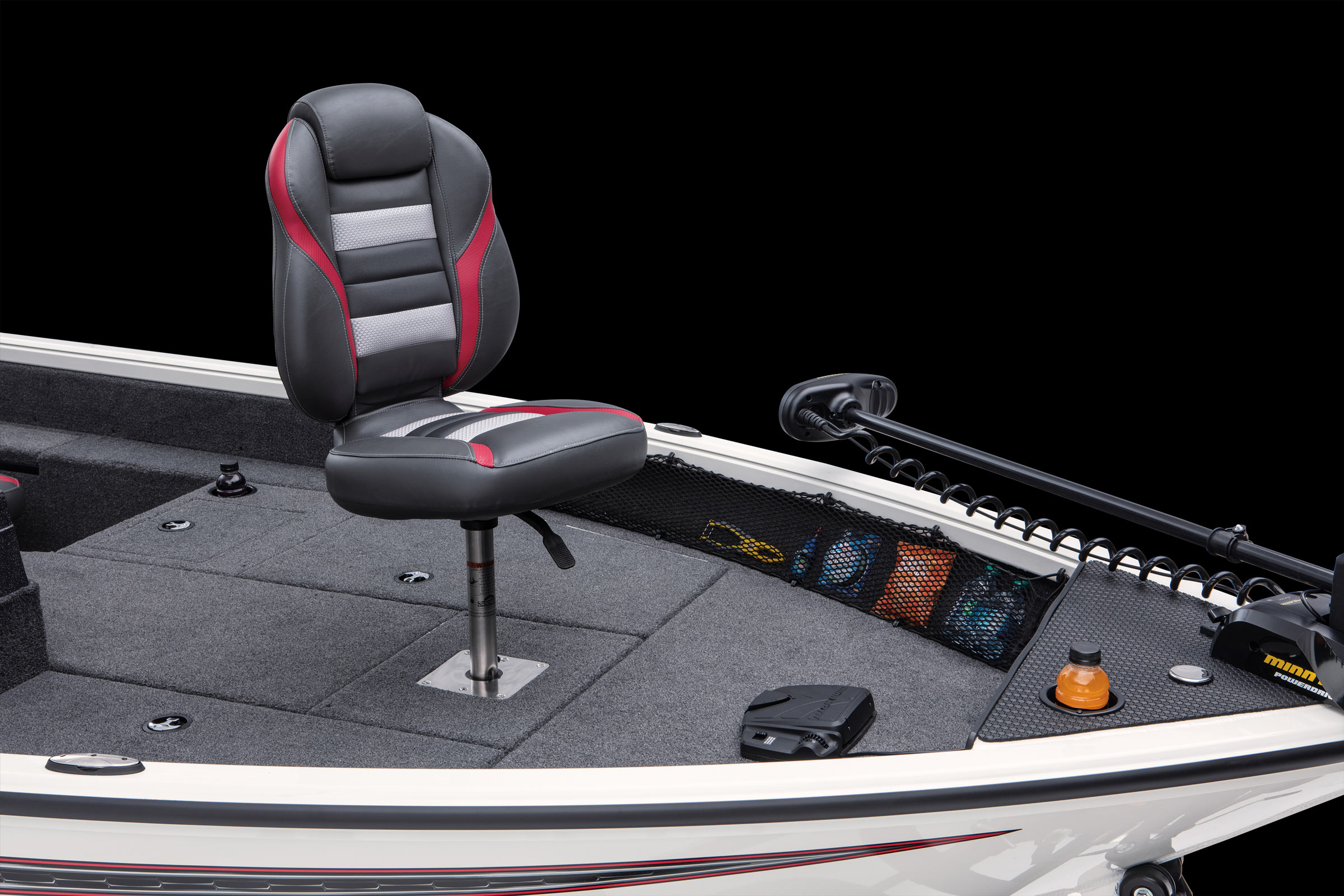

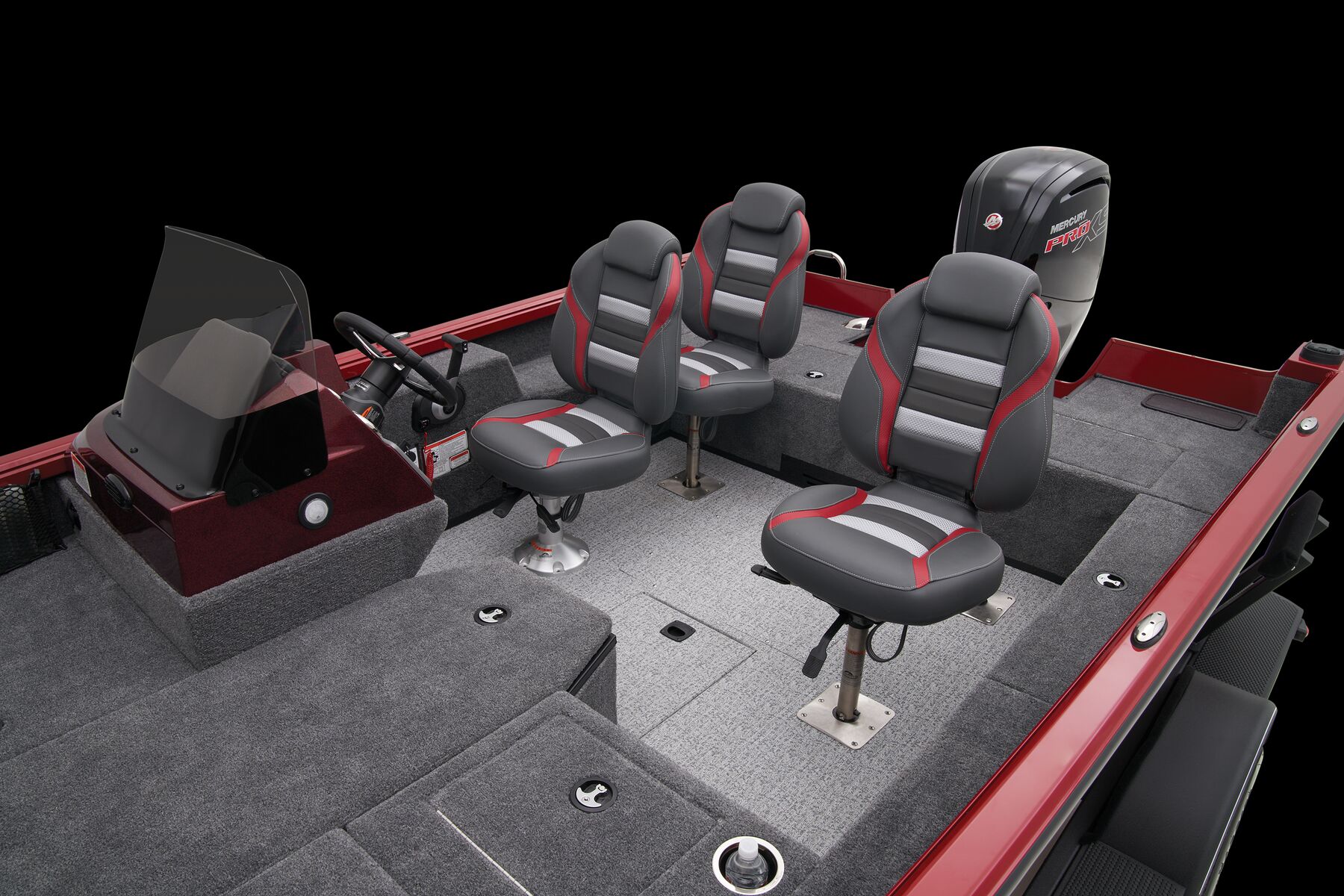

- Custom fitted marine upholstery- (3) matching fishing seats, driver seat slides

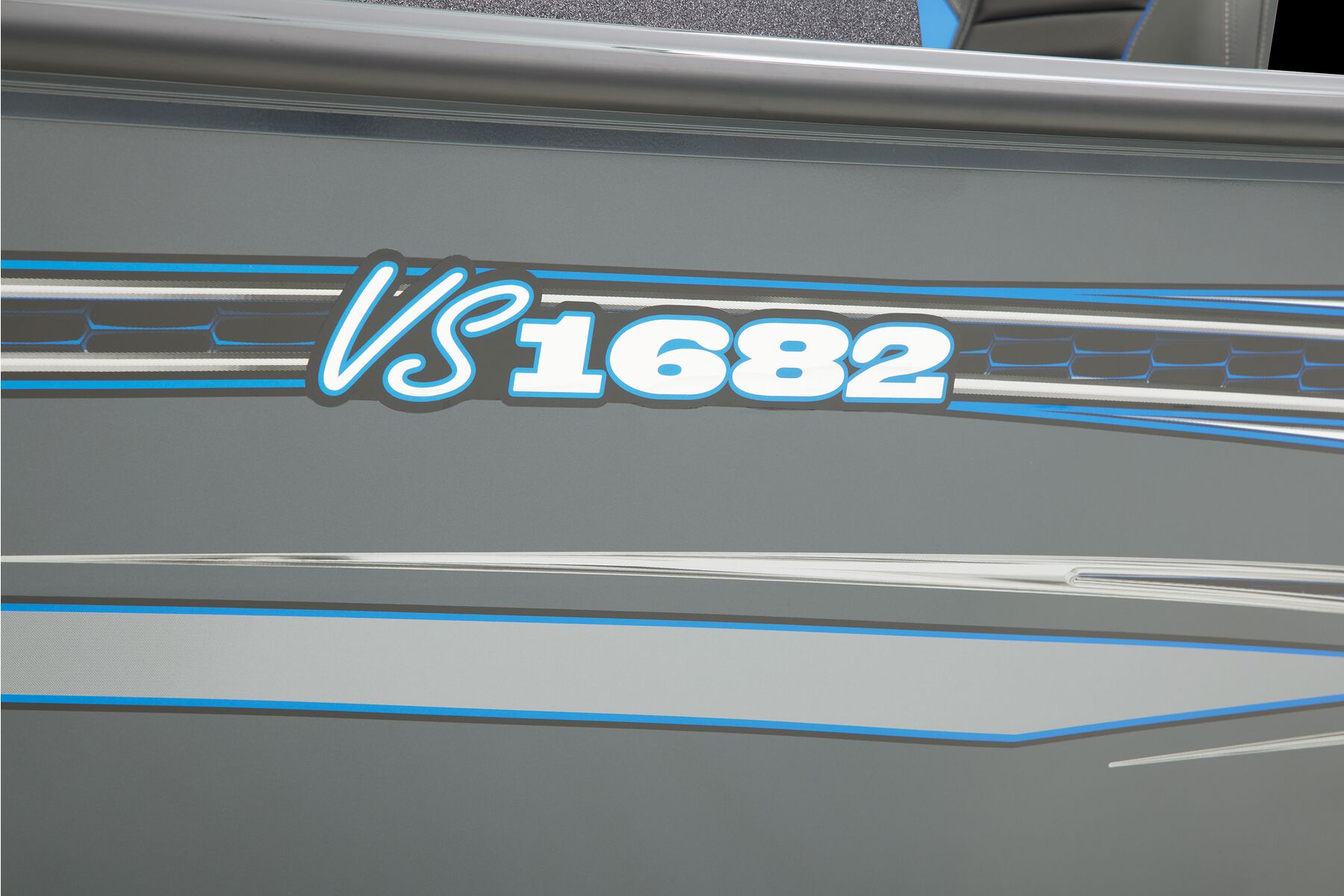

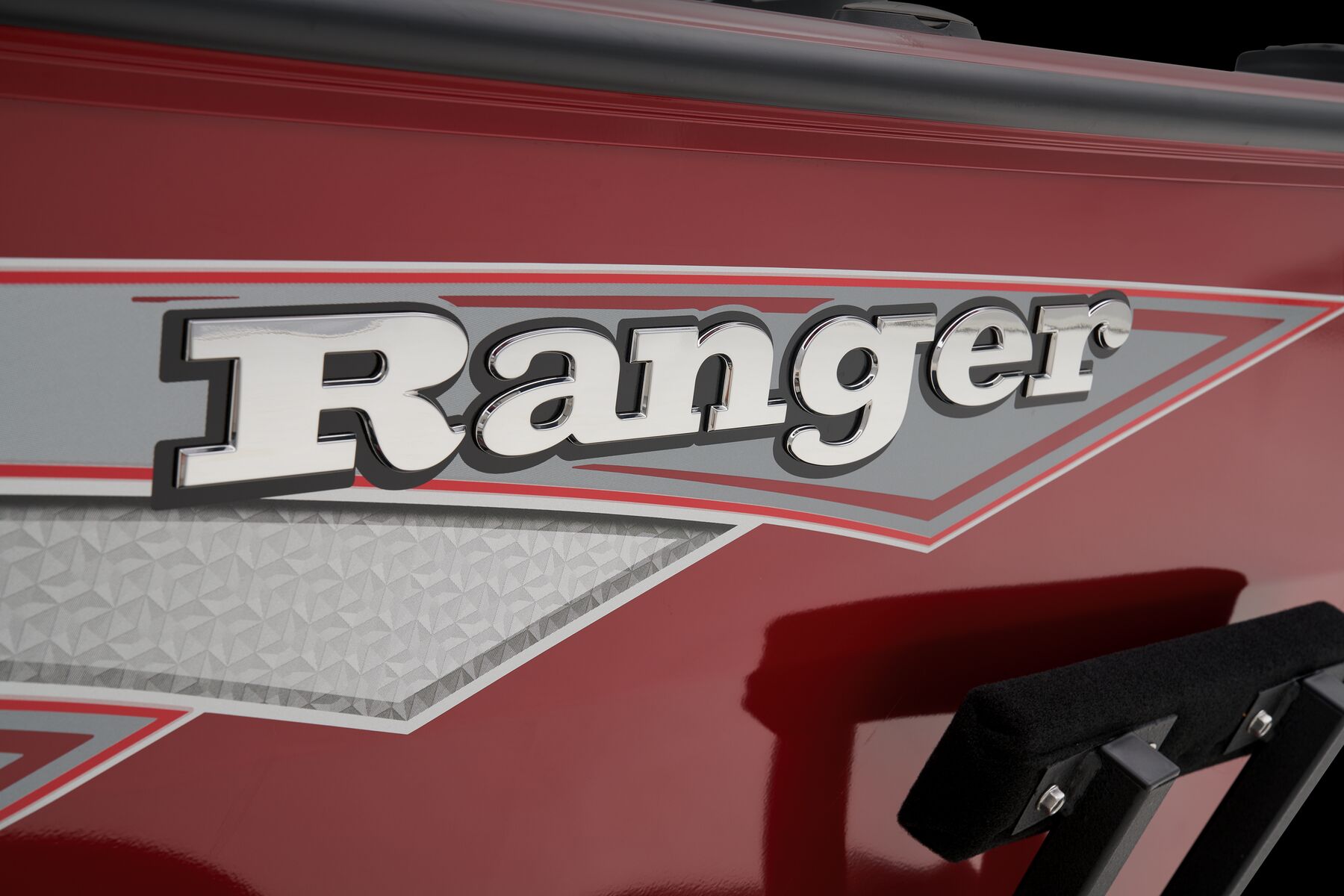

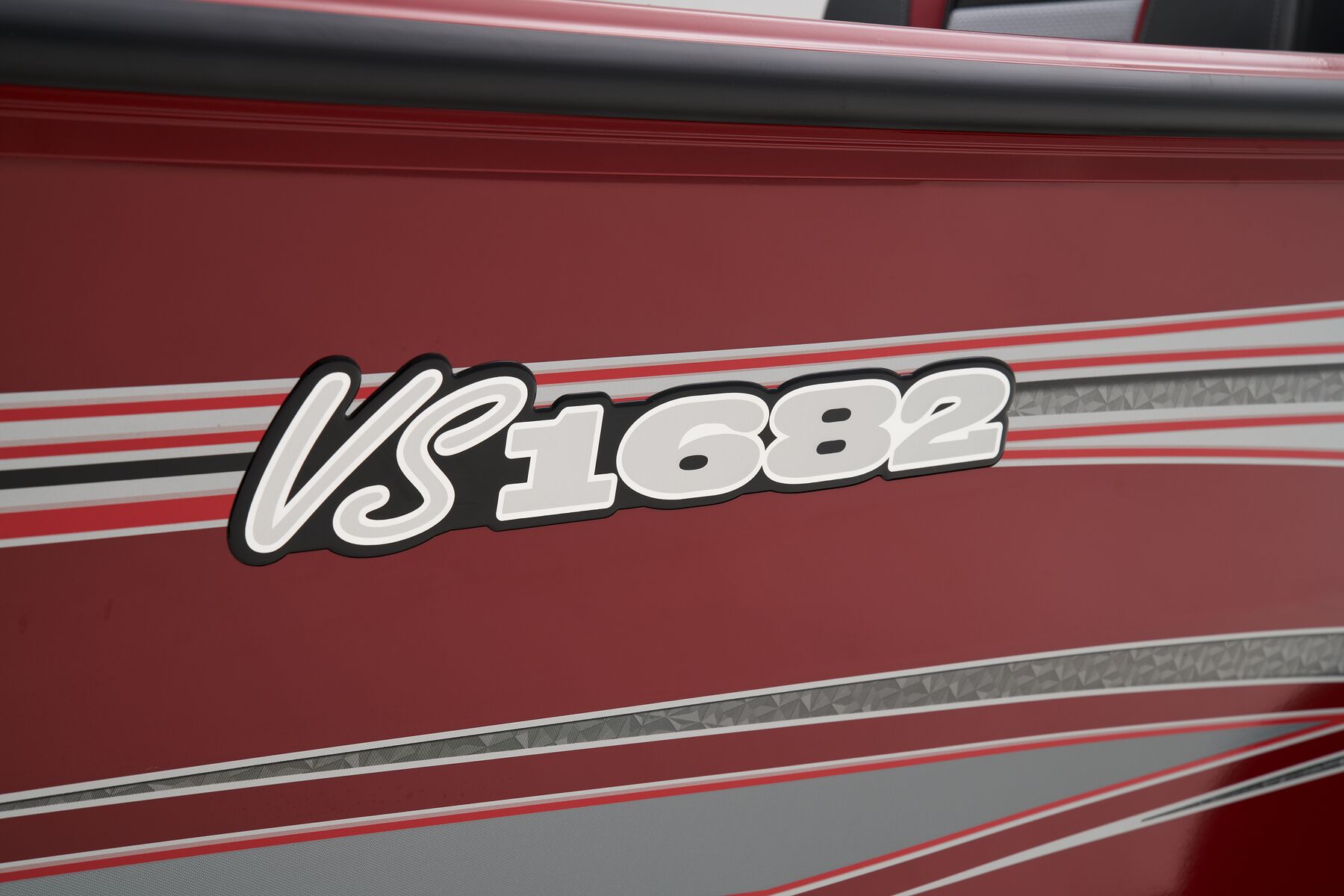

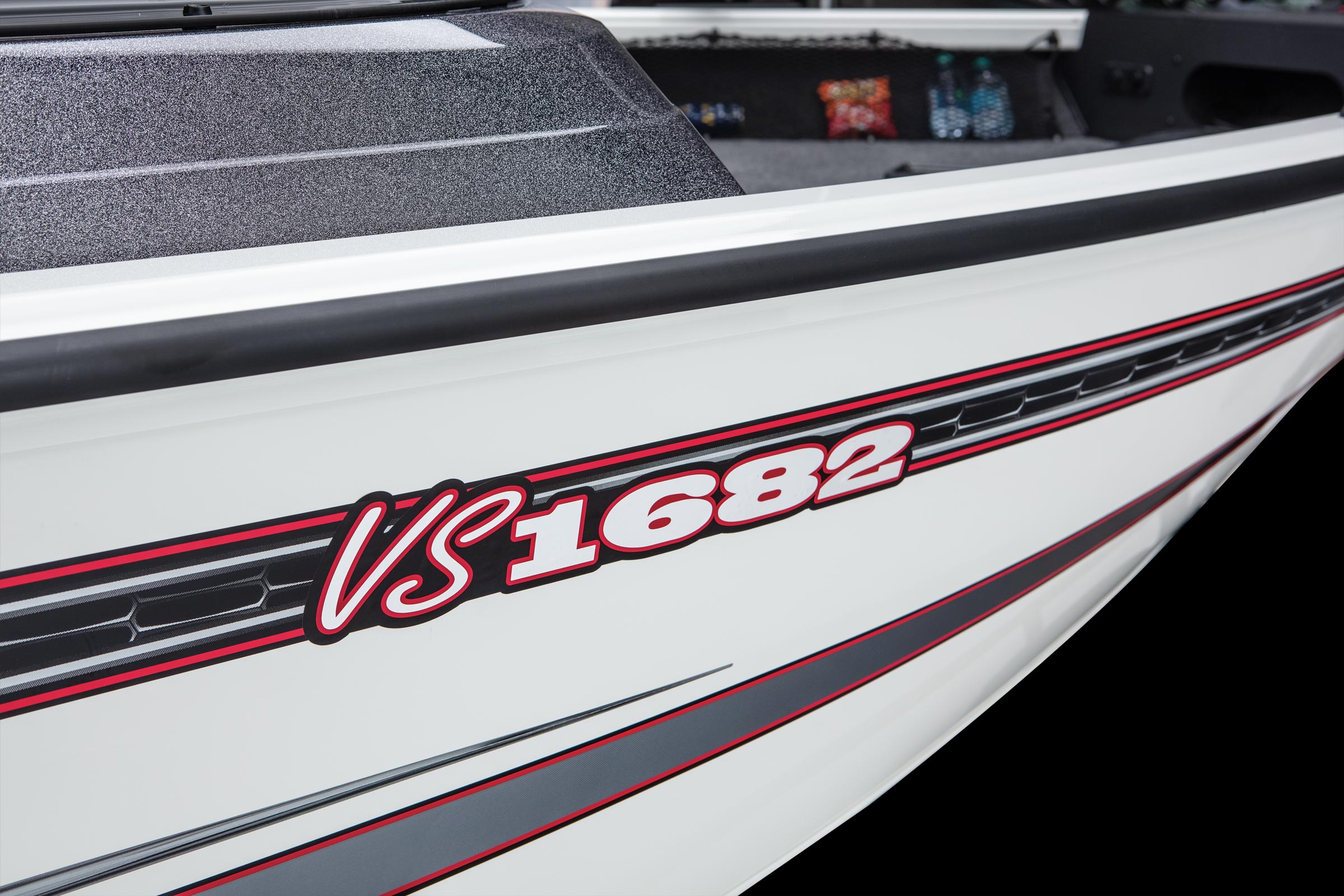

- High gloss metallic paint with custom Ranger® graphics
- Durable marine grade carpet

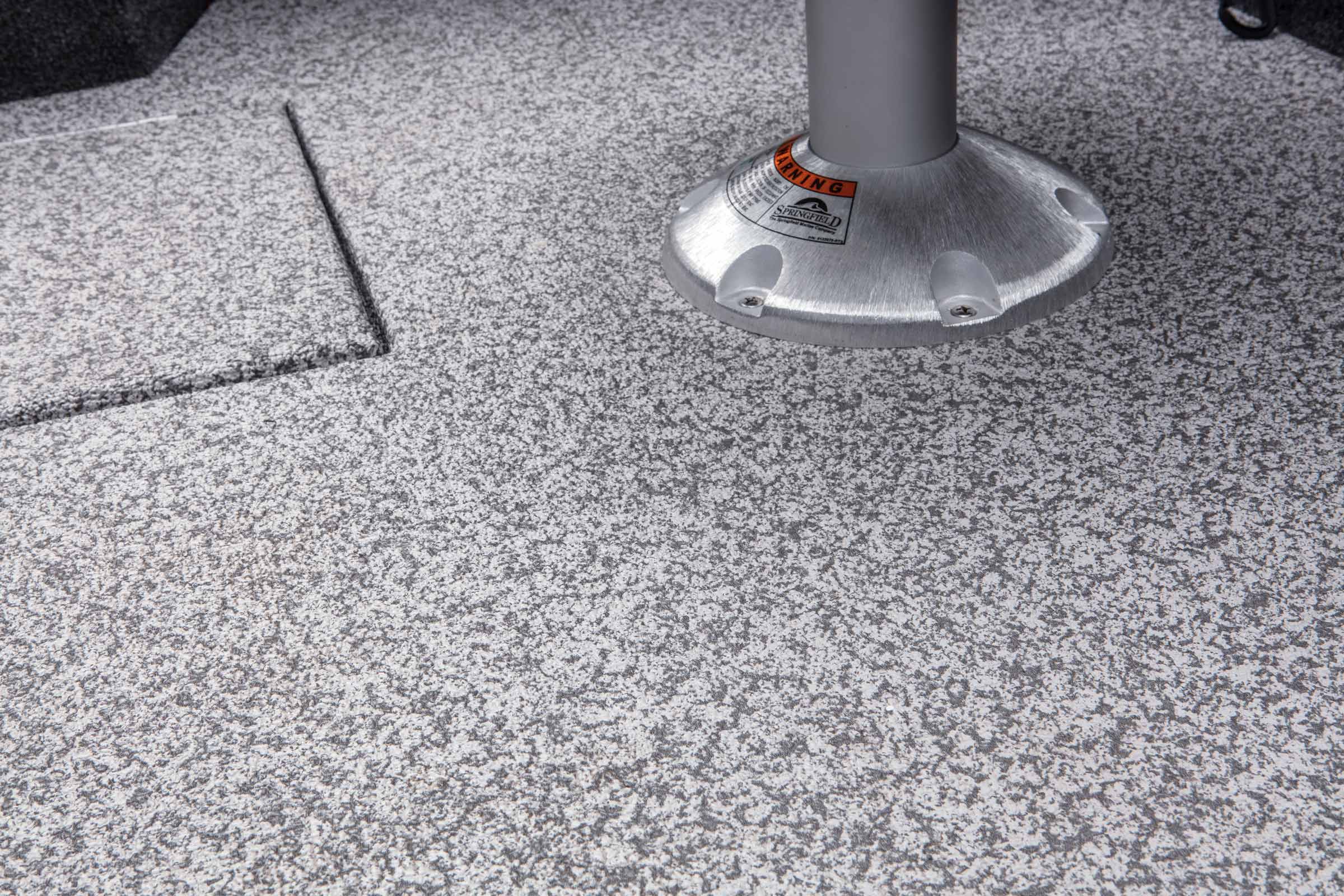

- Non-skid marine-grade vinyl cockpit flooring
Electronics

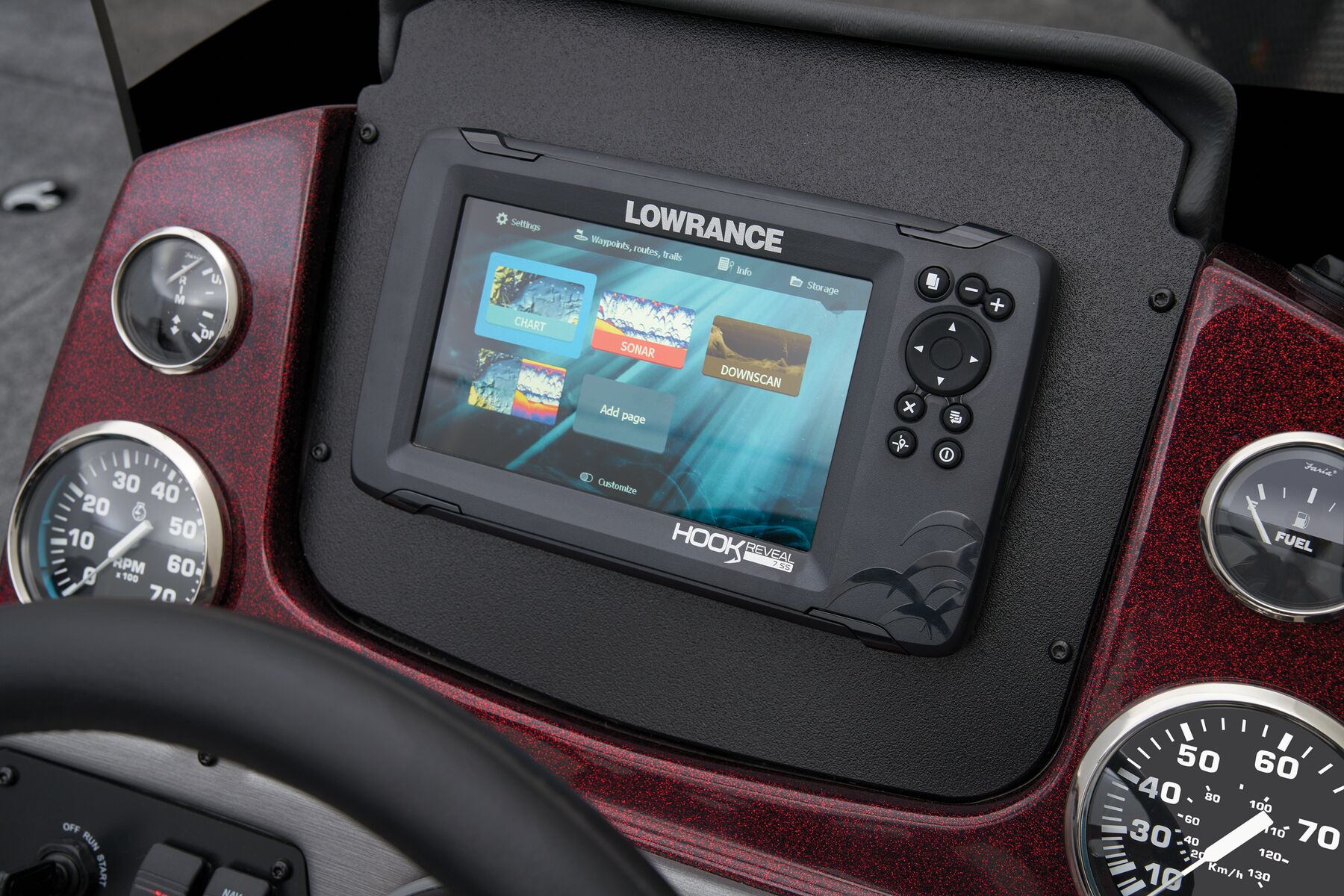

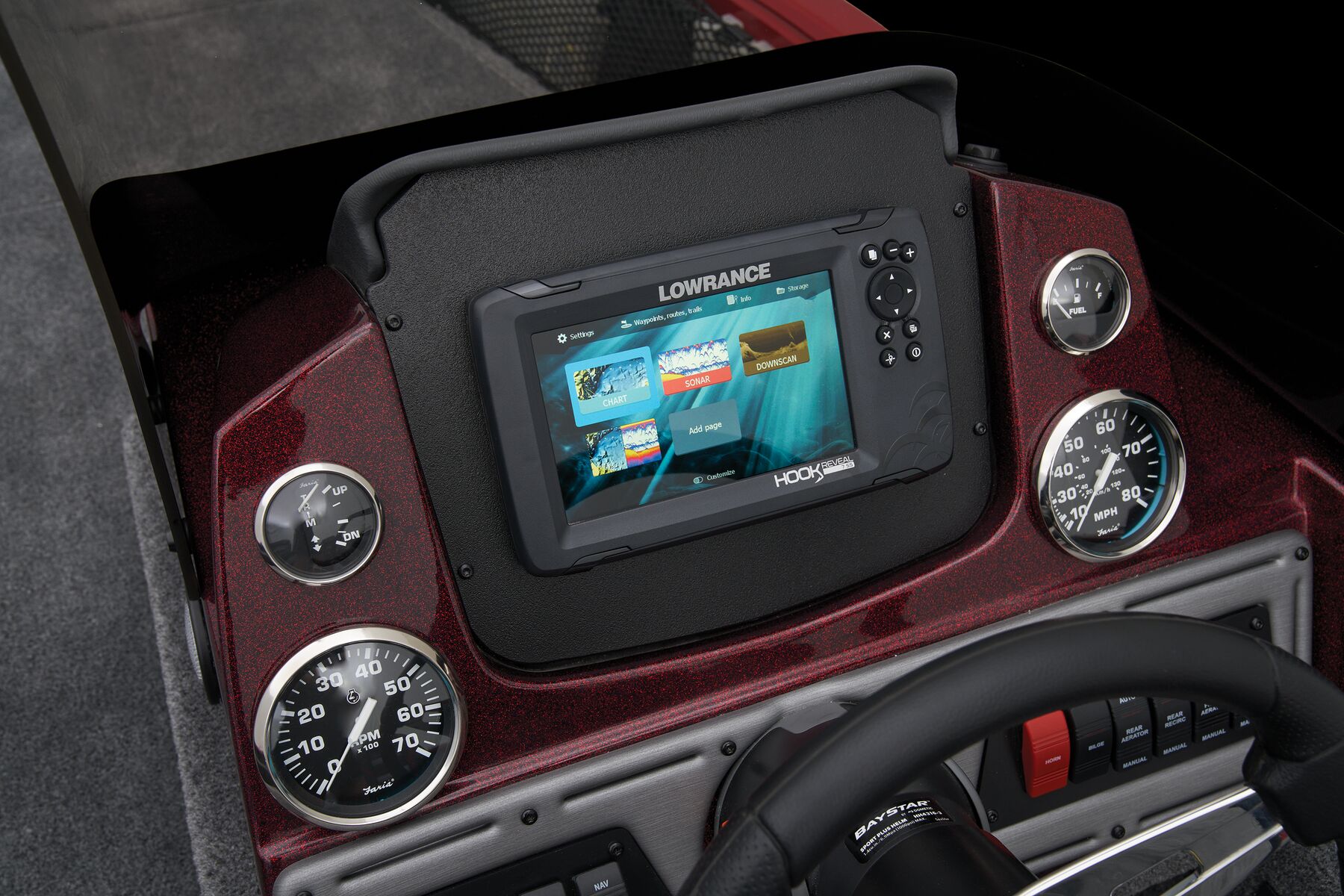

- Lowrance® HOOK Reveal 7 Combo at console
- 8-gauge trolling motor wiring

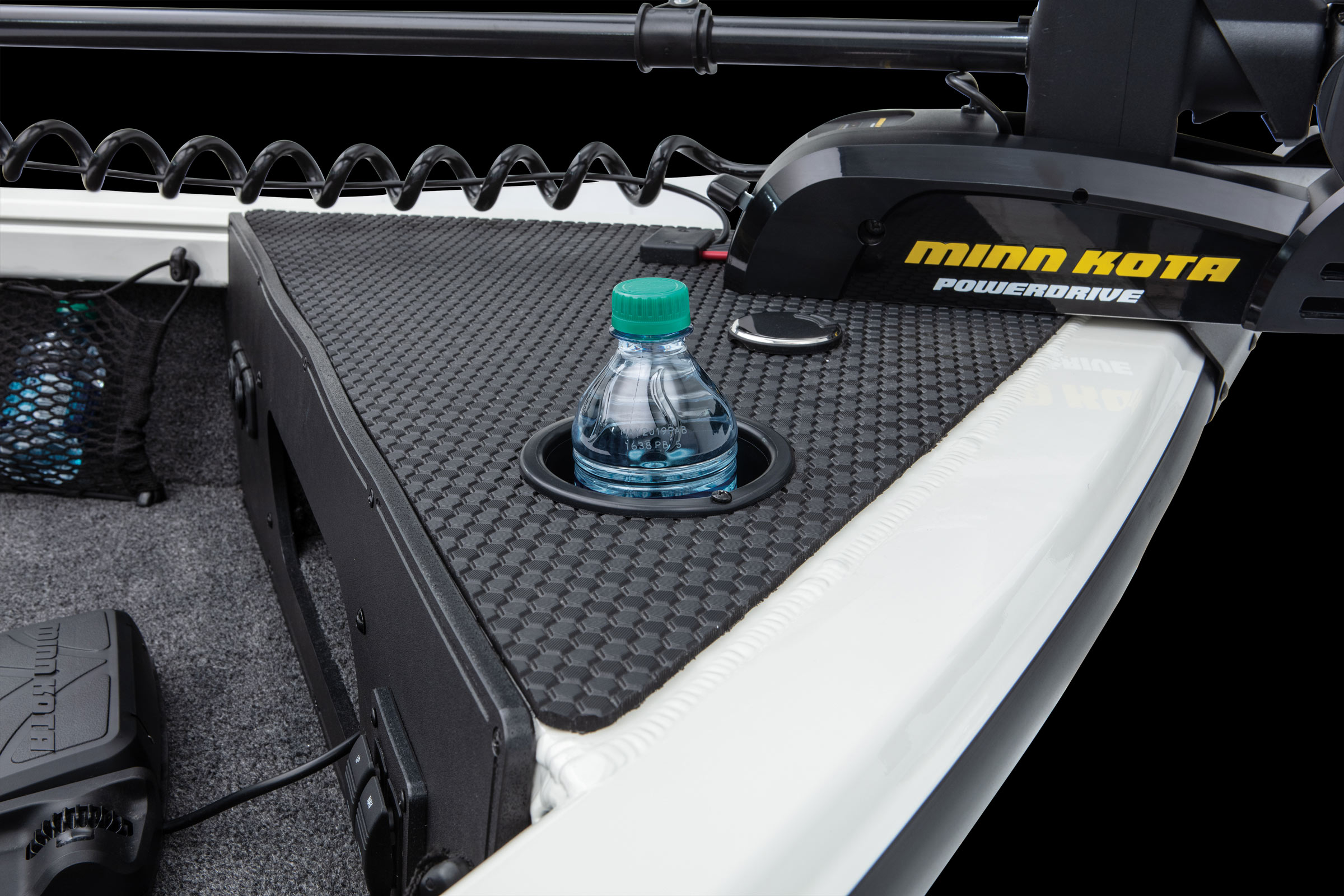

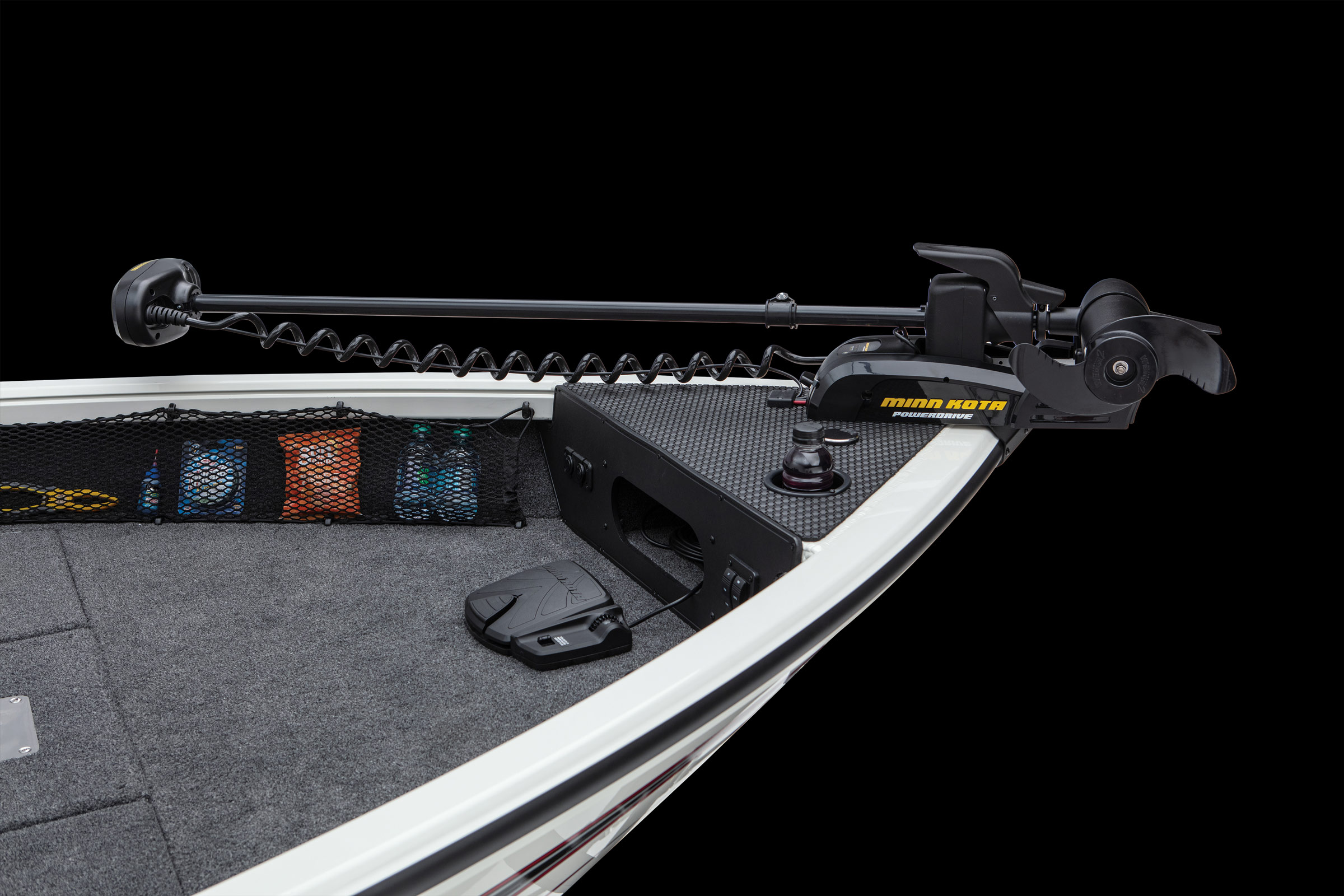

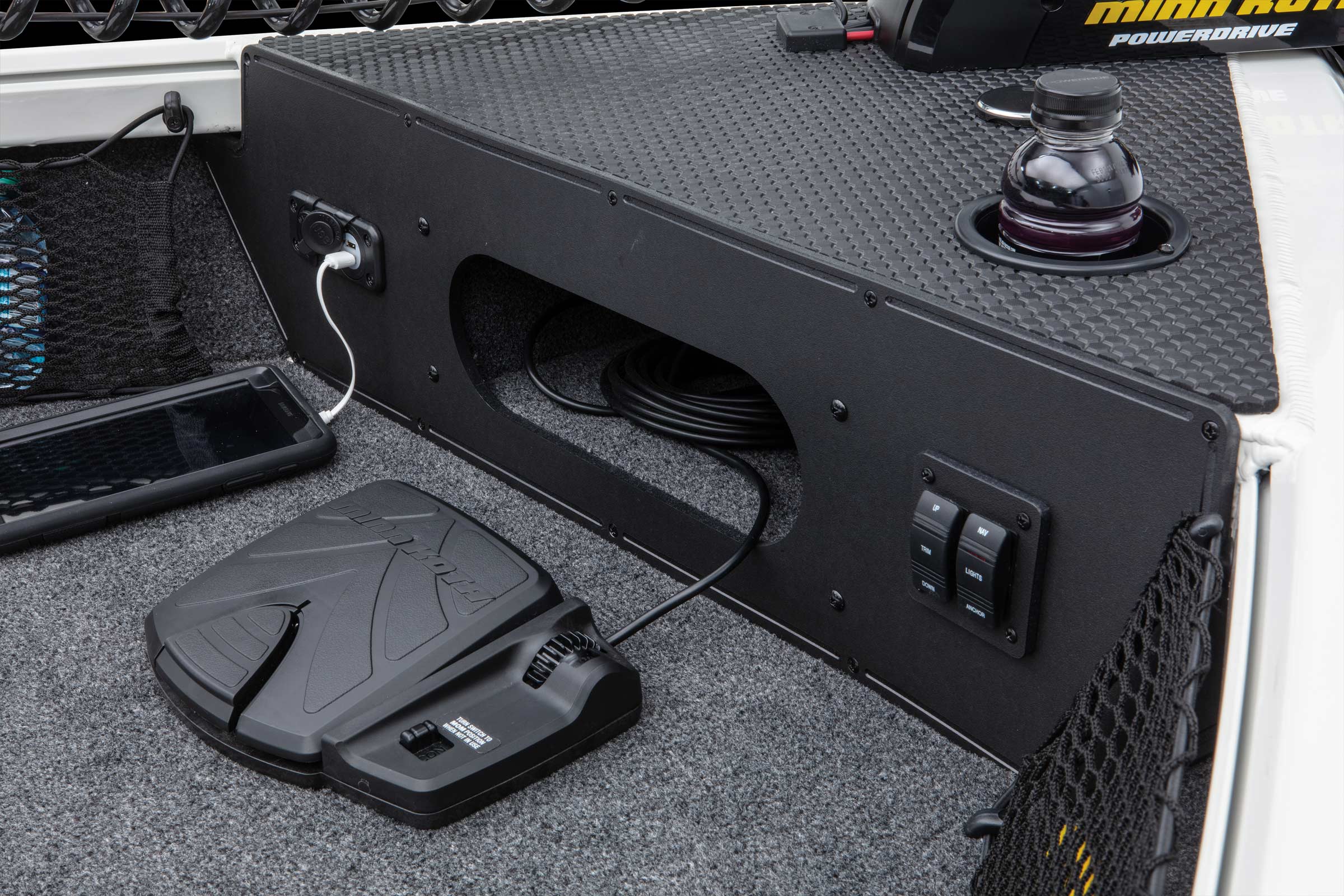

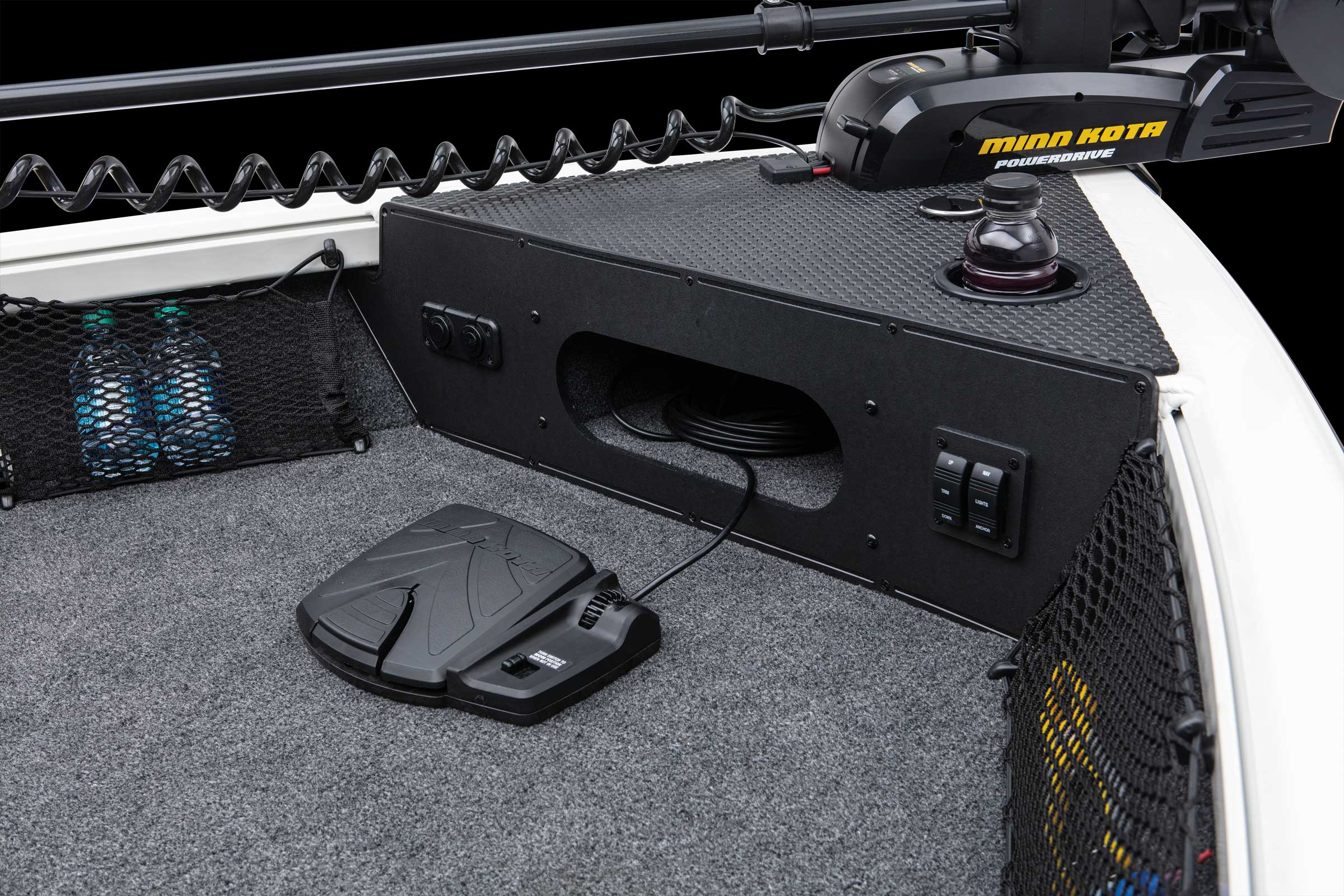

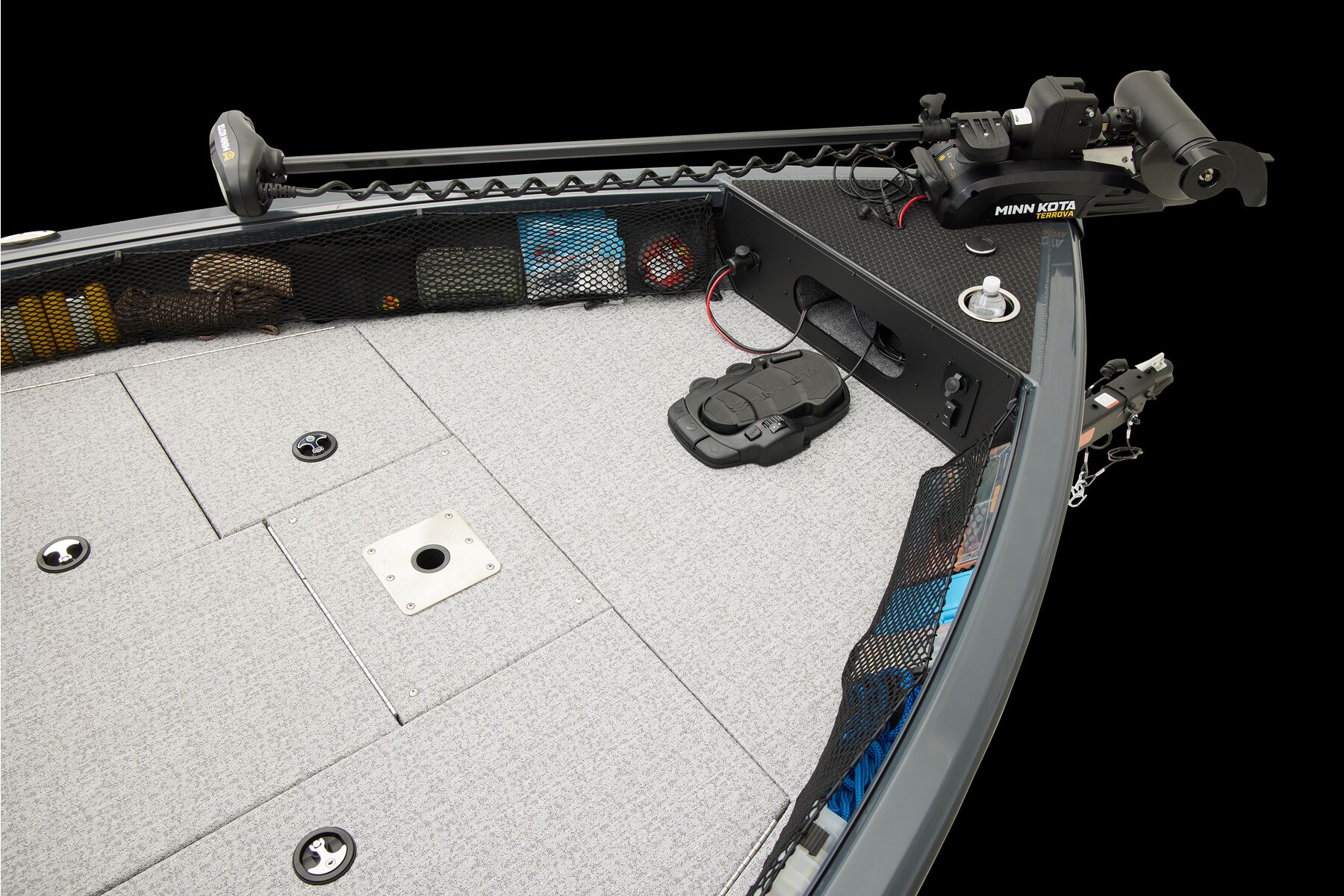

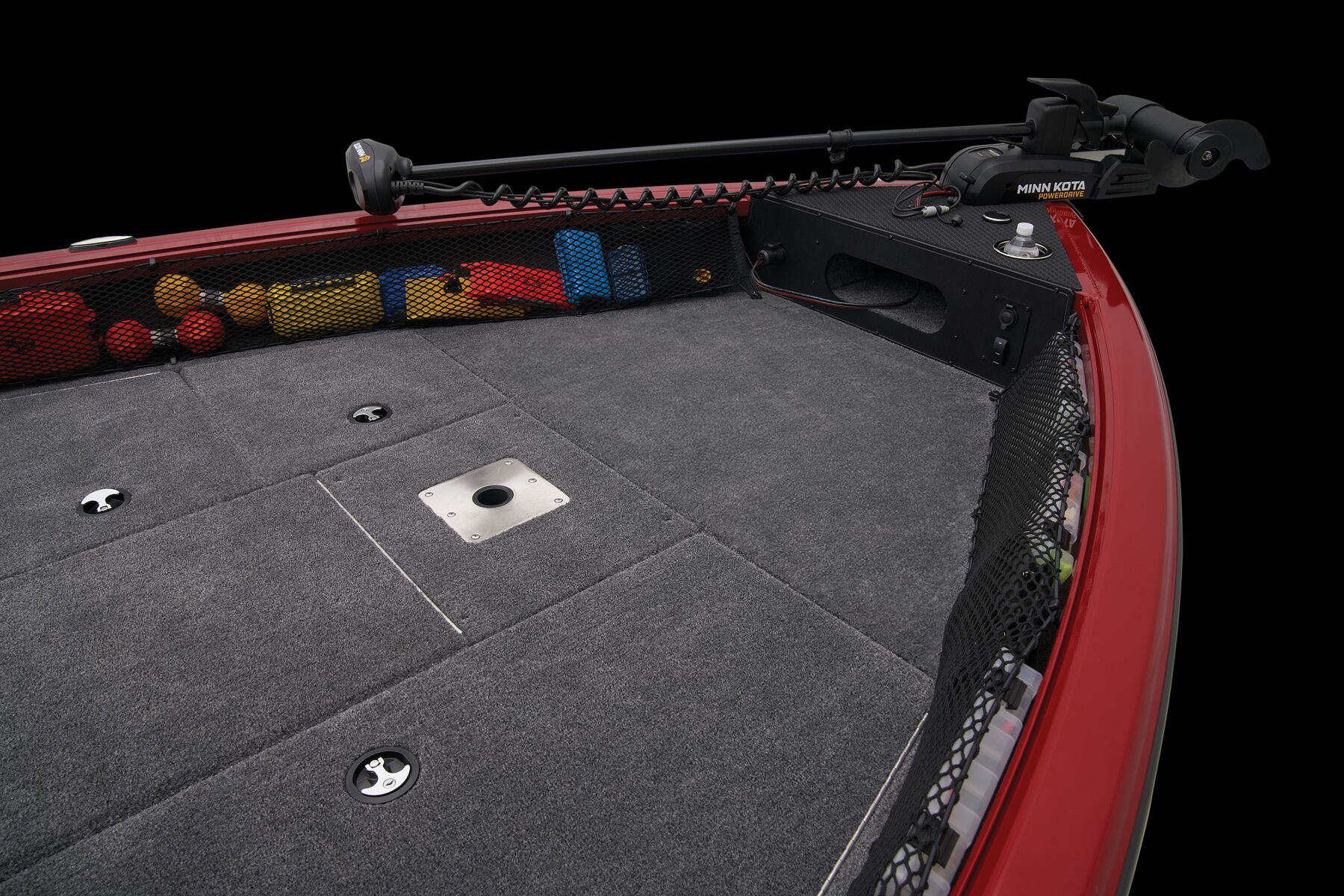

- Minn Kota® PowerDrive 70lb 60" DSC 24V trolling motor
- On-board lithium capable charger, 6A x 3 bank

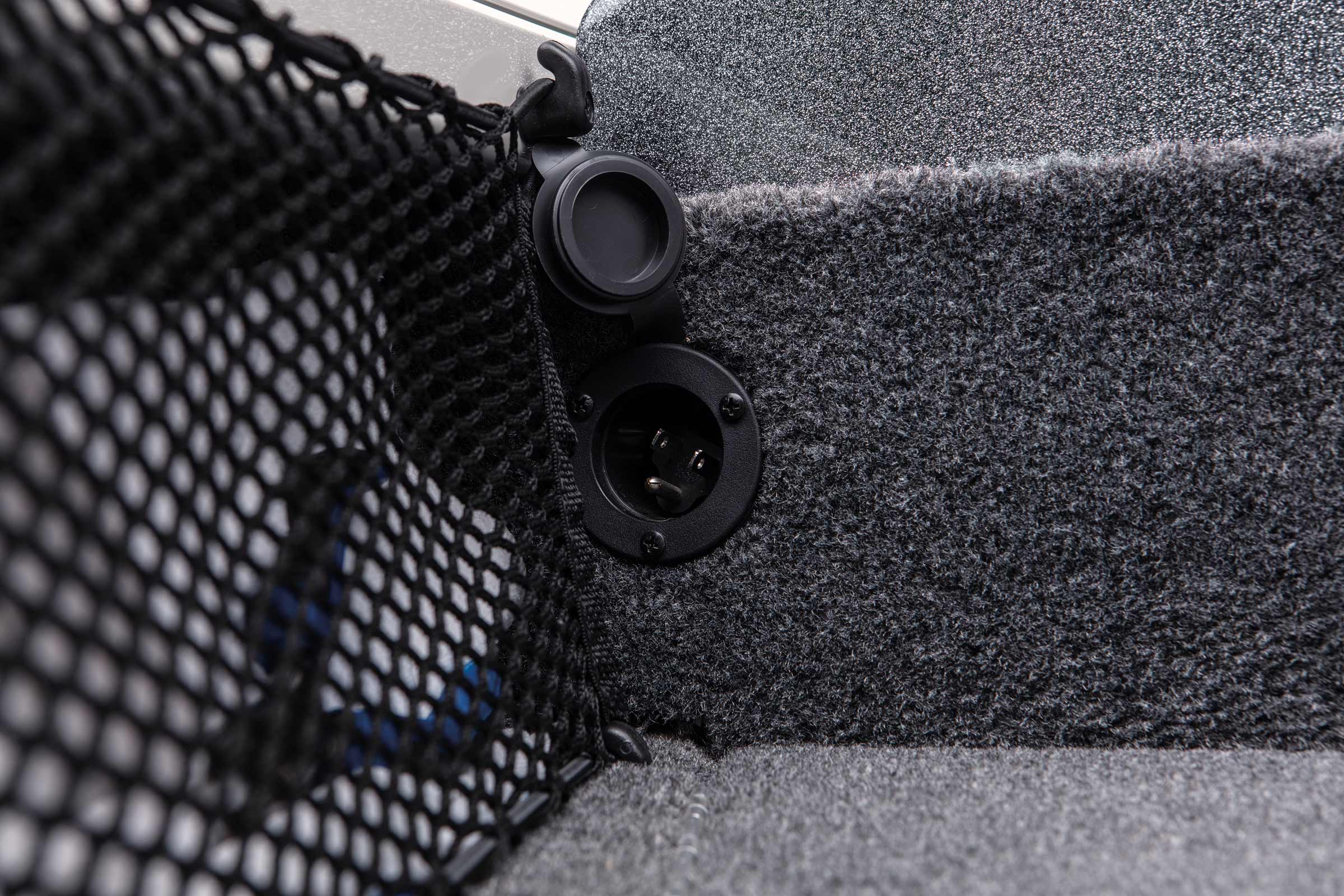

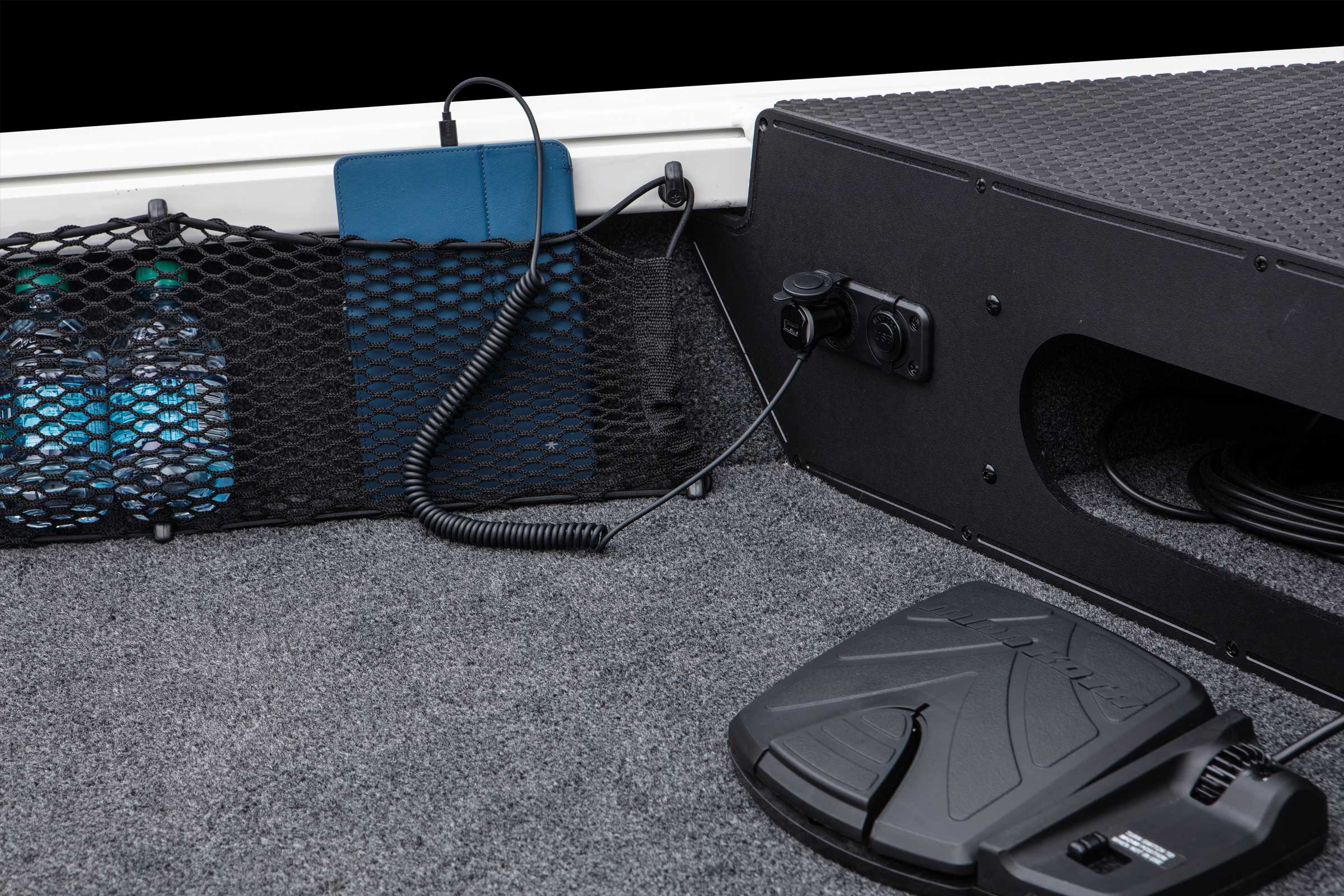

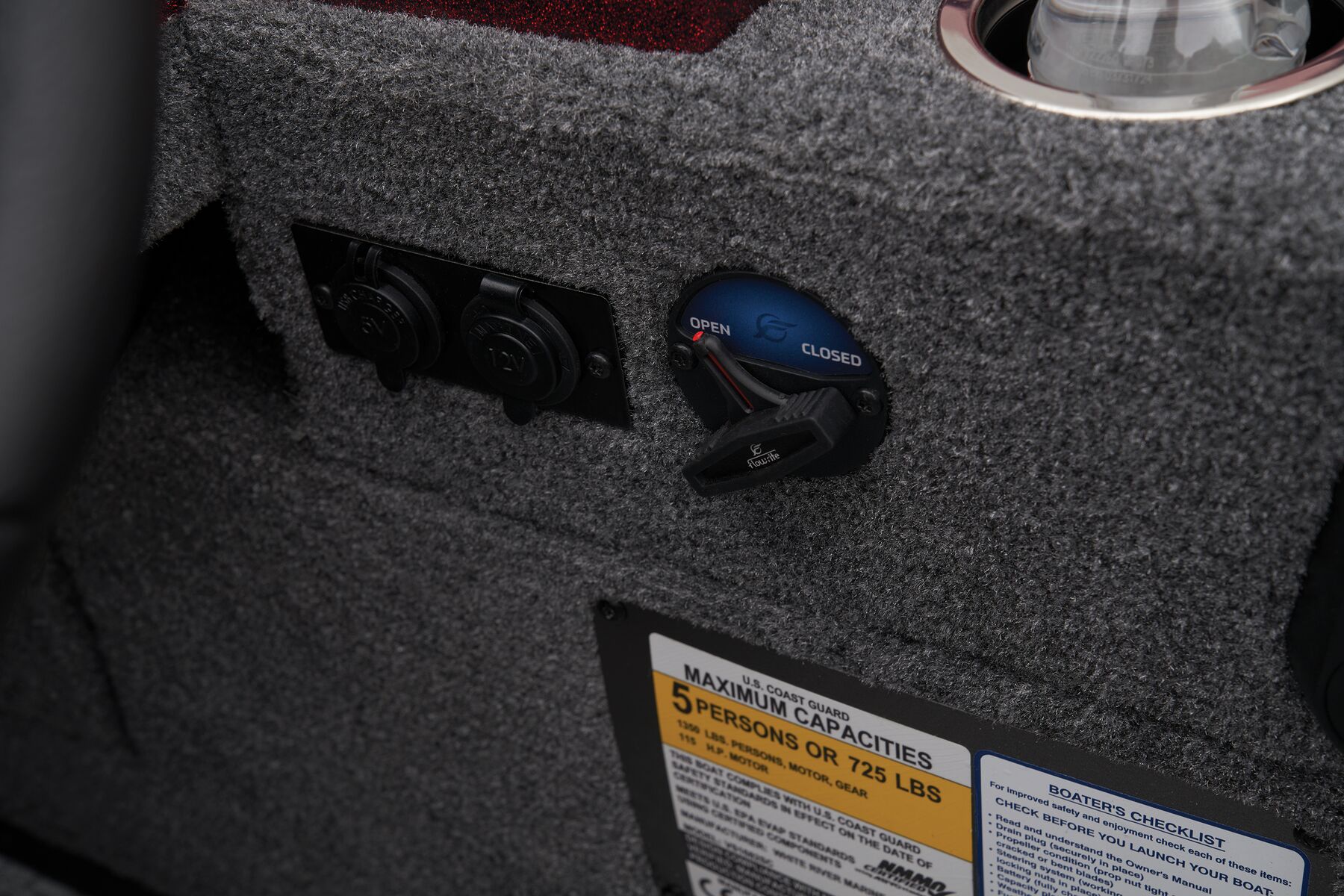

- 12V power outlet
- Bilge pump
- Removable navigation lights
Power/Performance

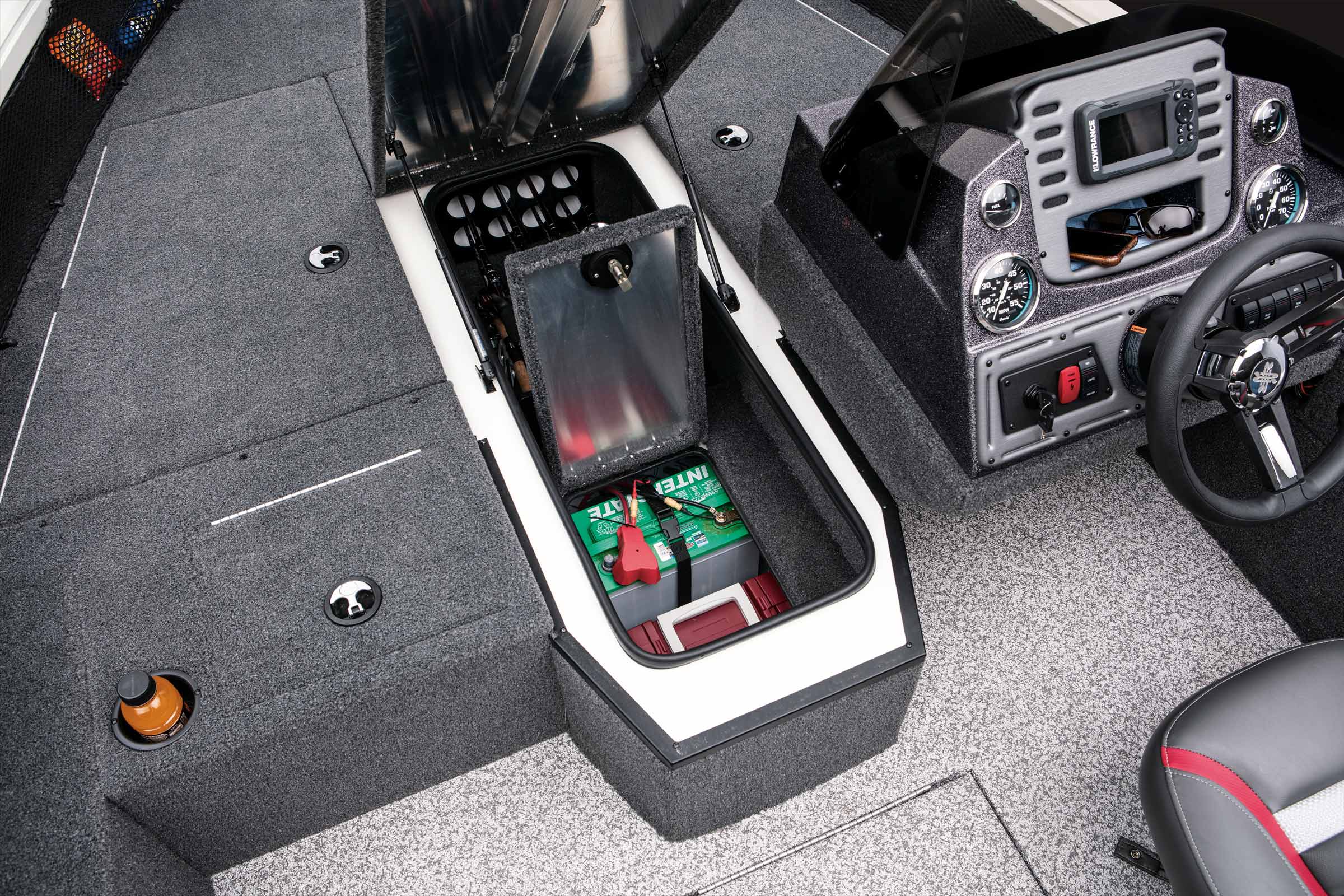

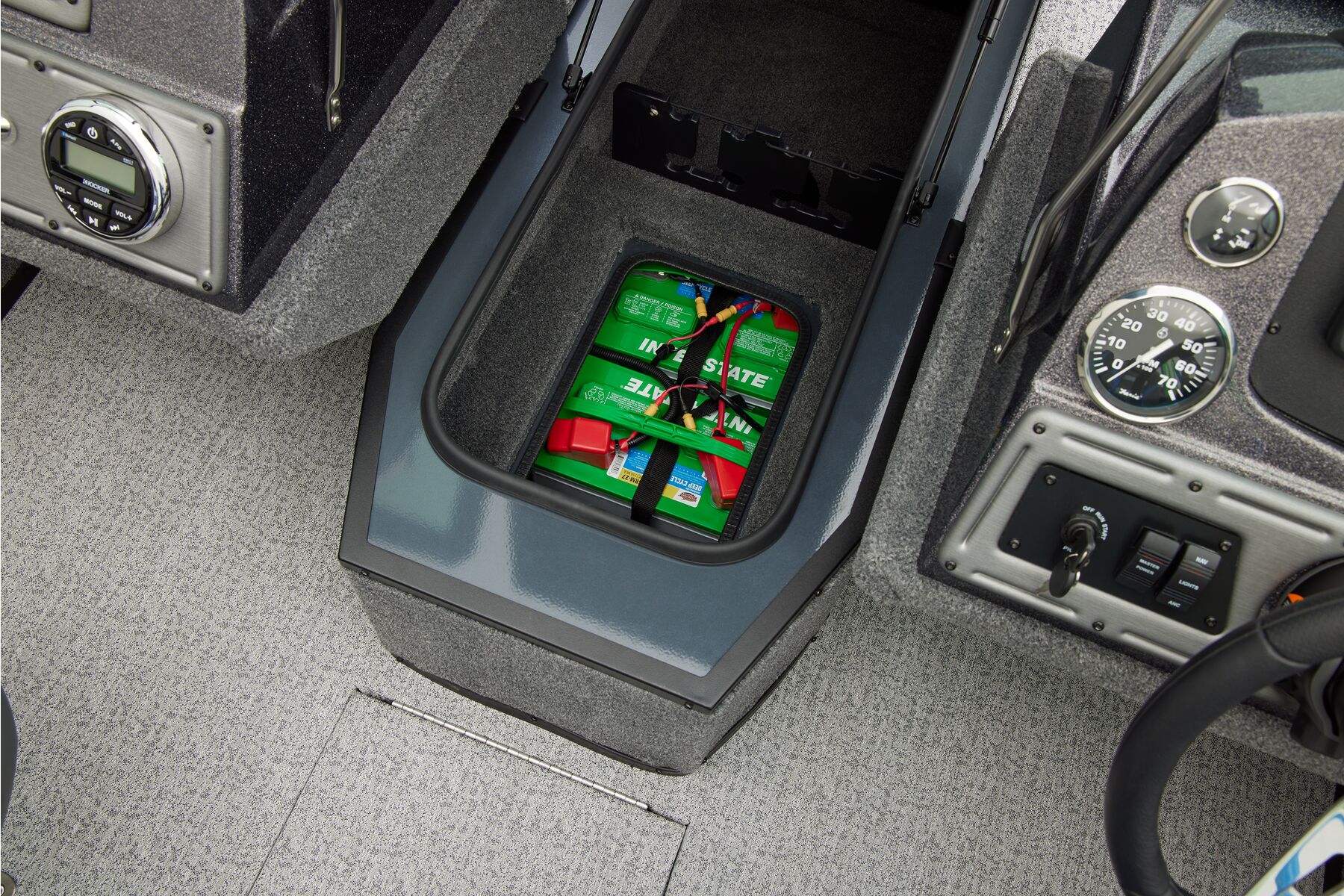

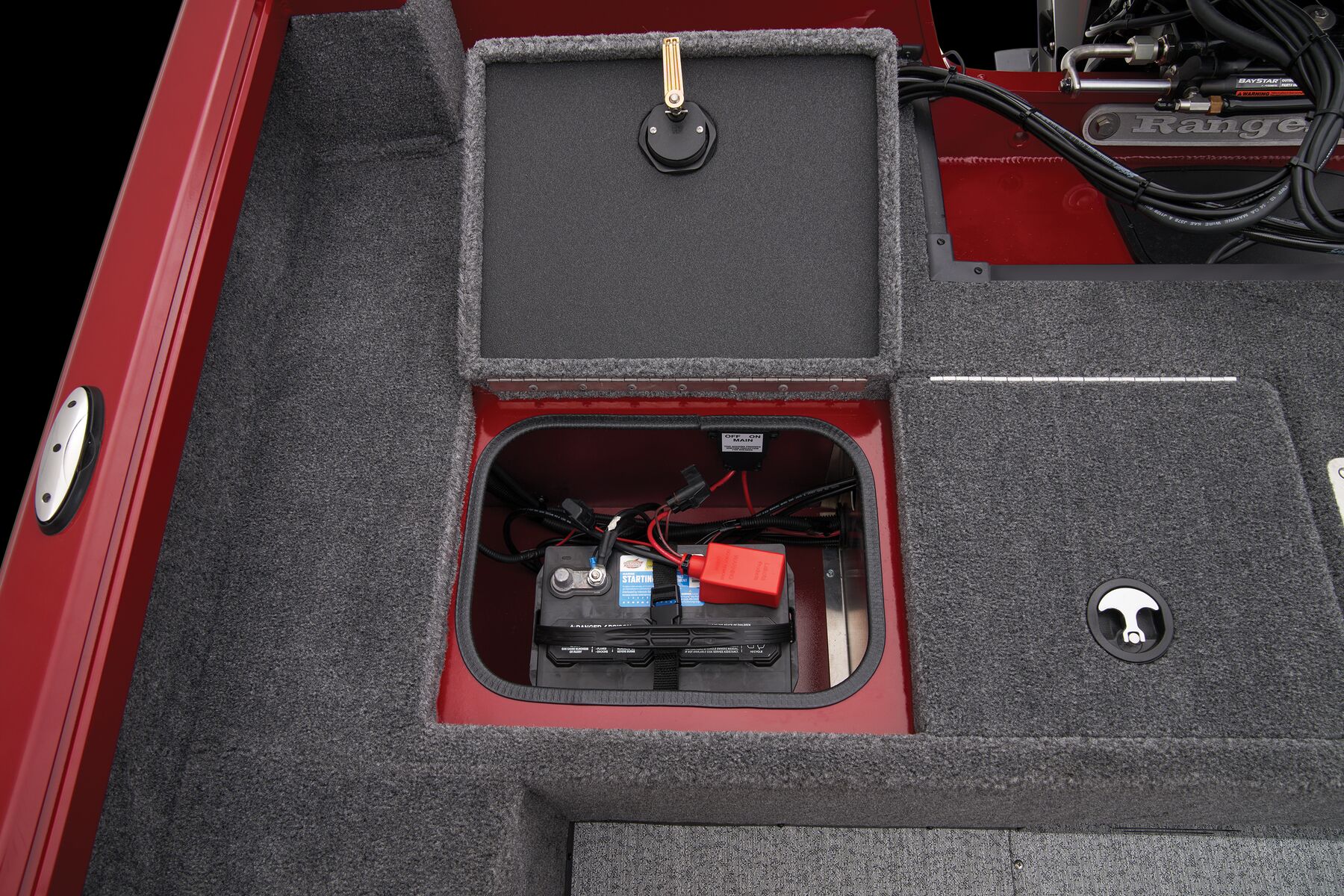

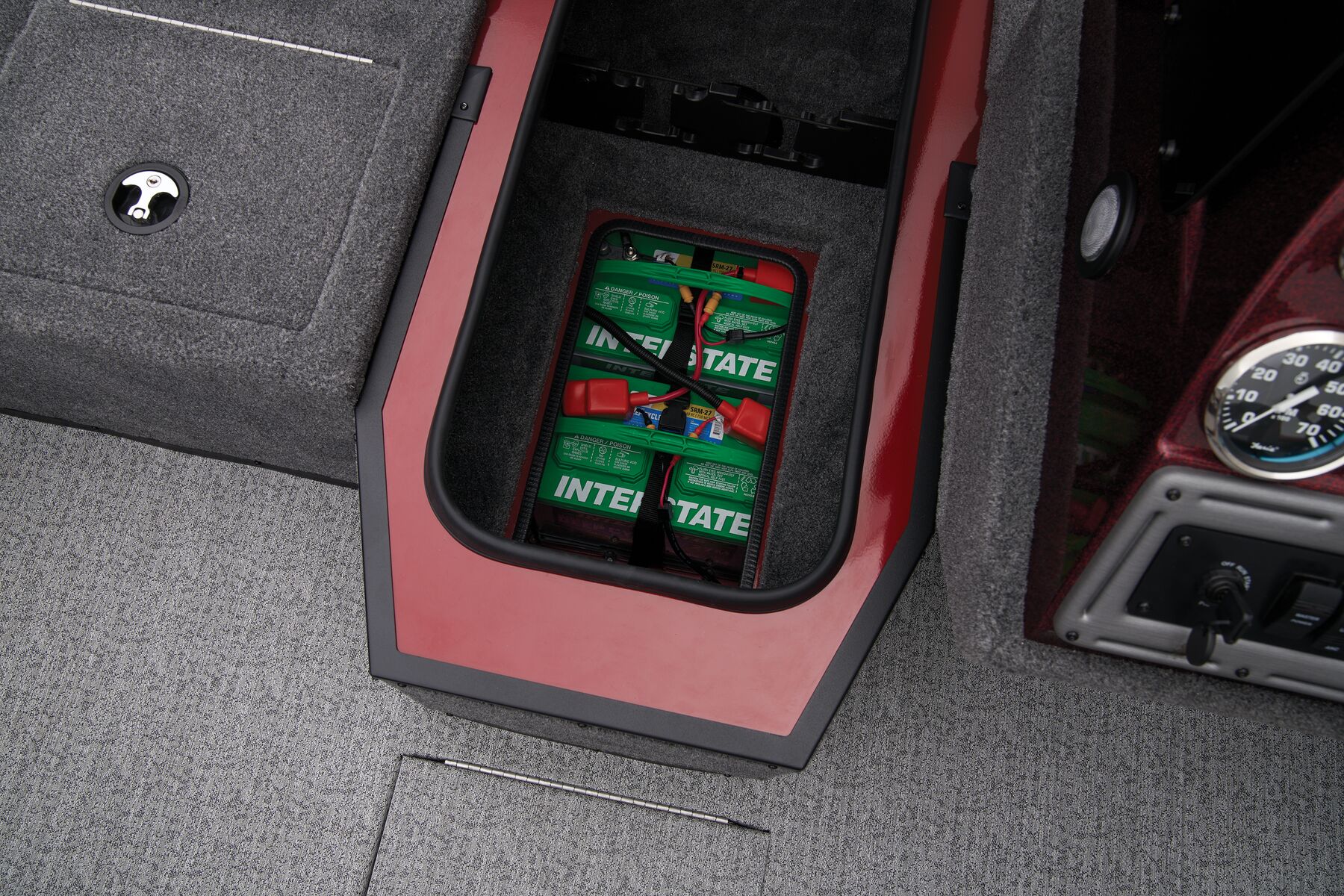

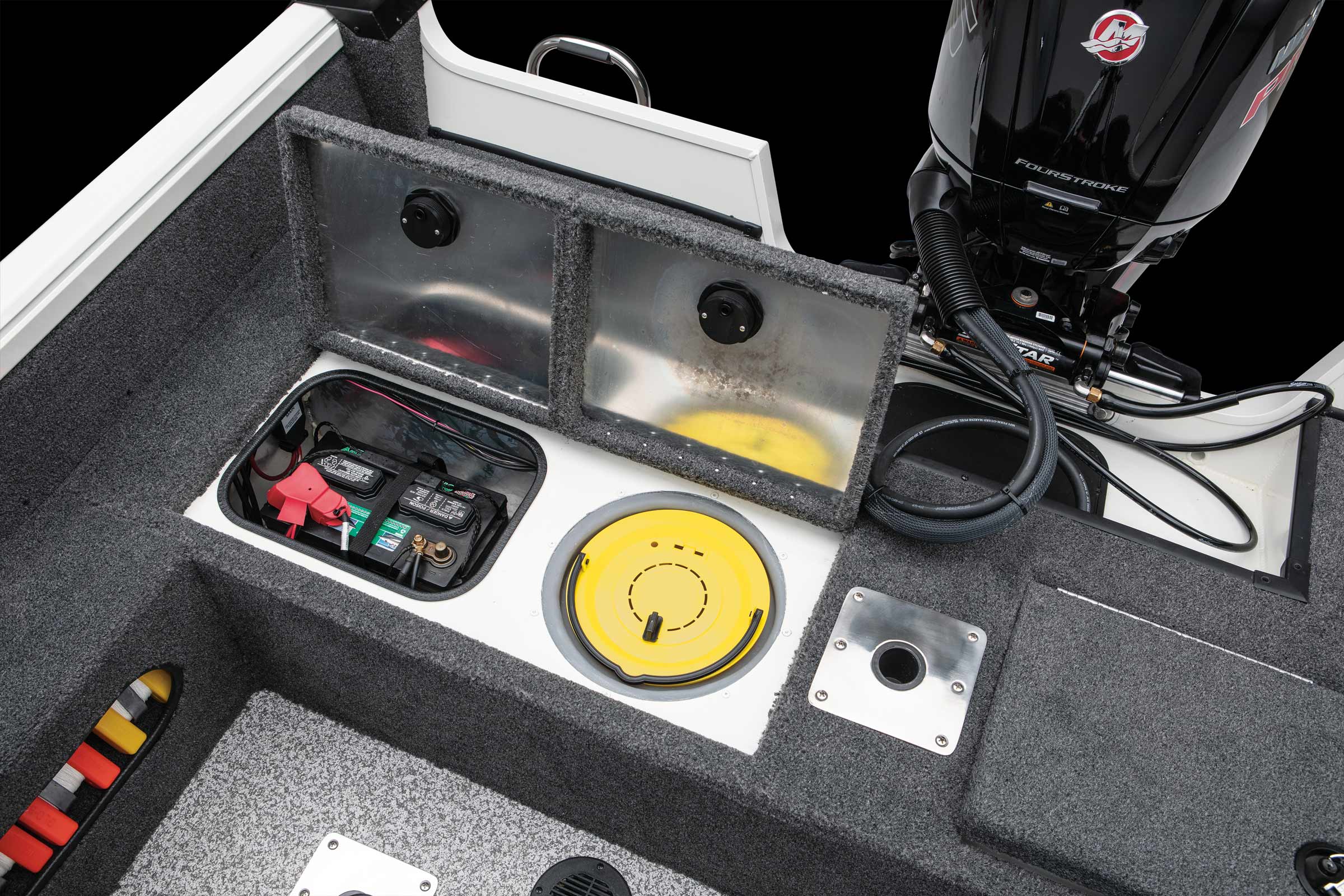

- Cranking battery and 1 trolling motor battery w/ tie-down
- Competition steering wheel

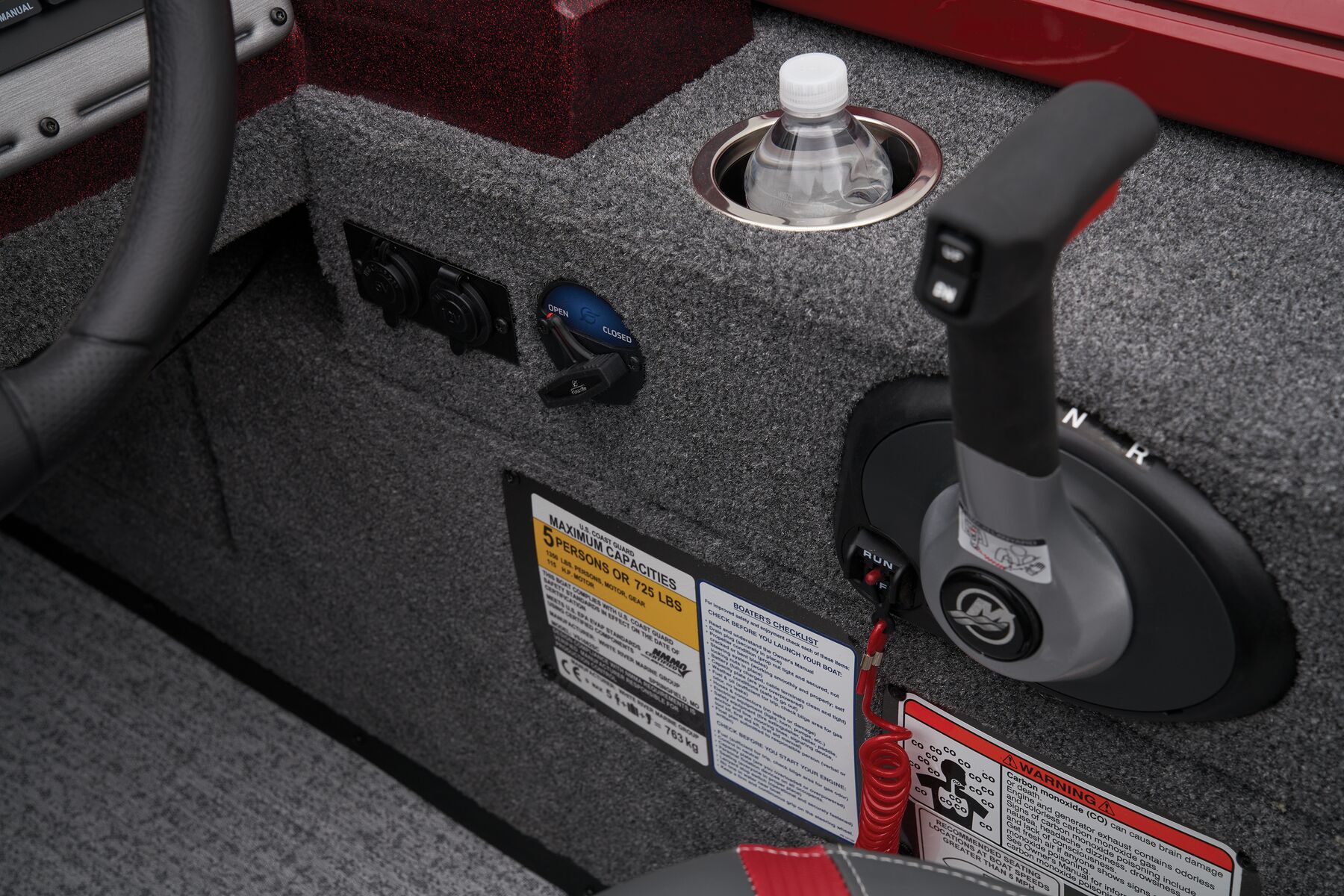

- Flush-mounted remote throttle control
- Prop (stainless standard at 115HP and up)
- Power trim

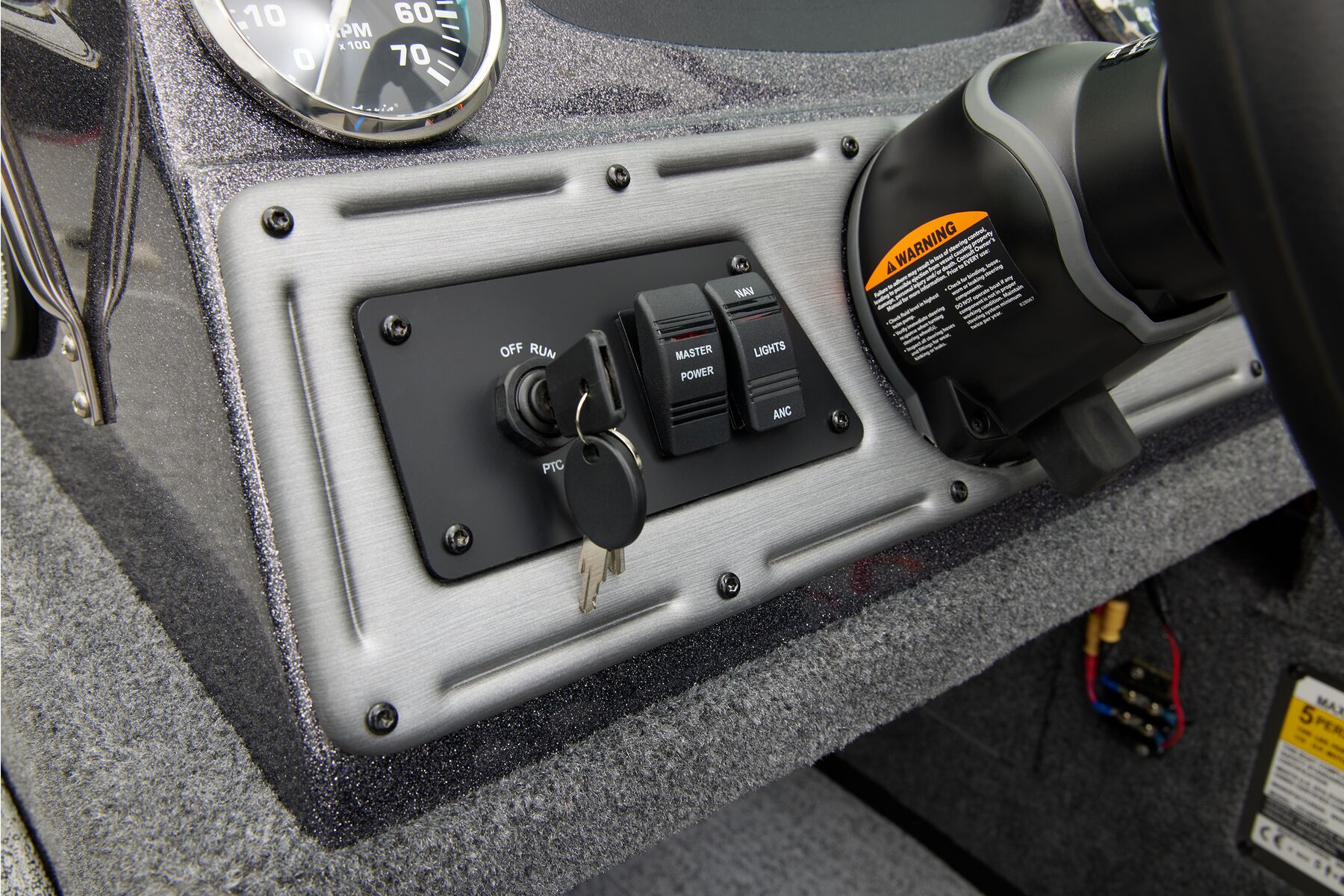

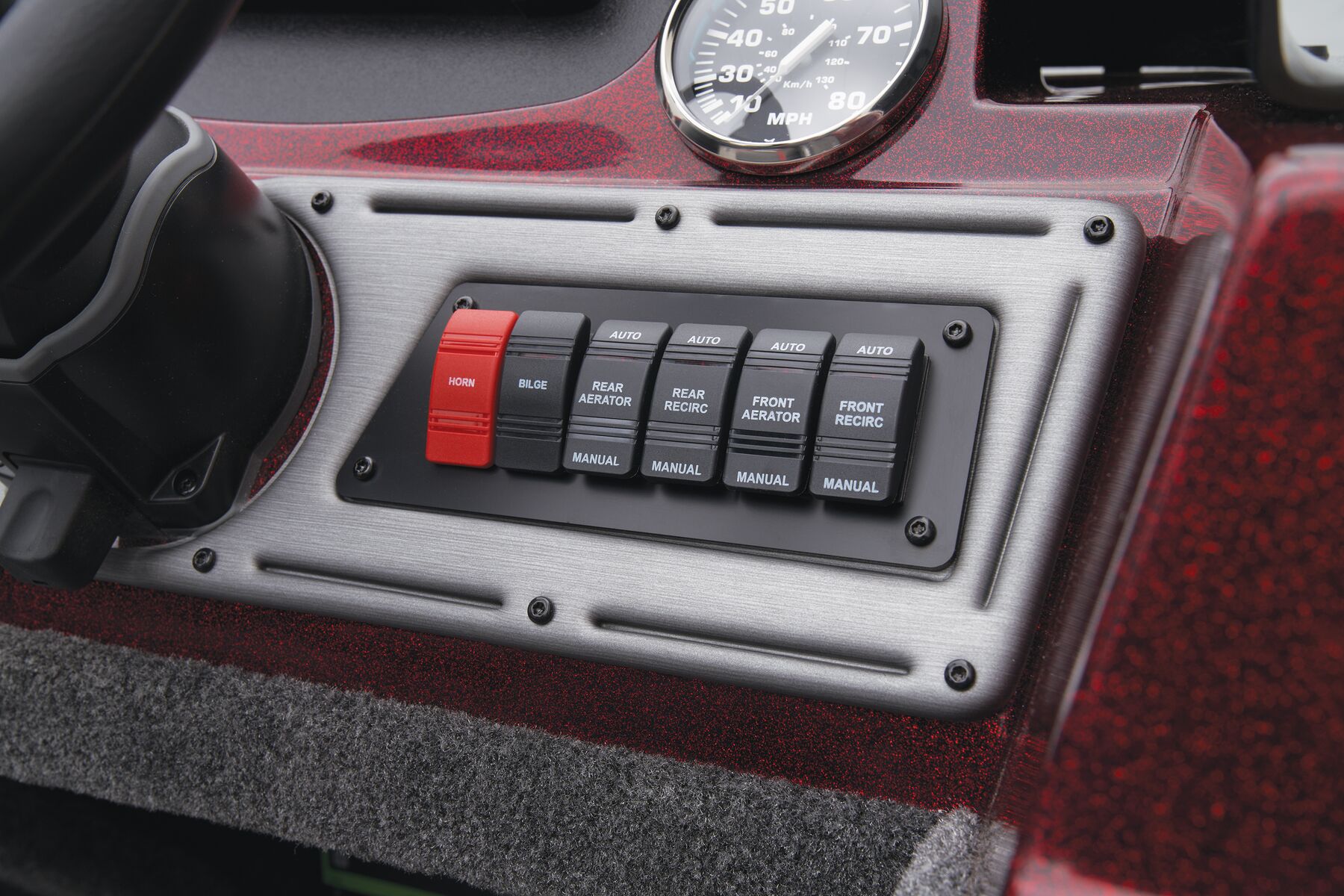

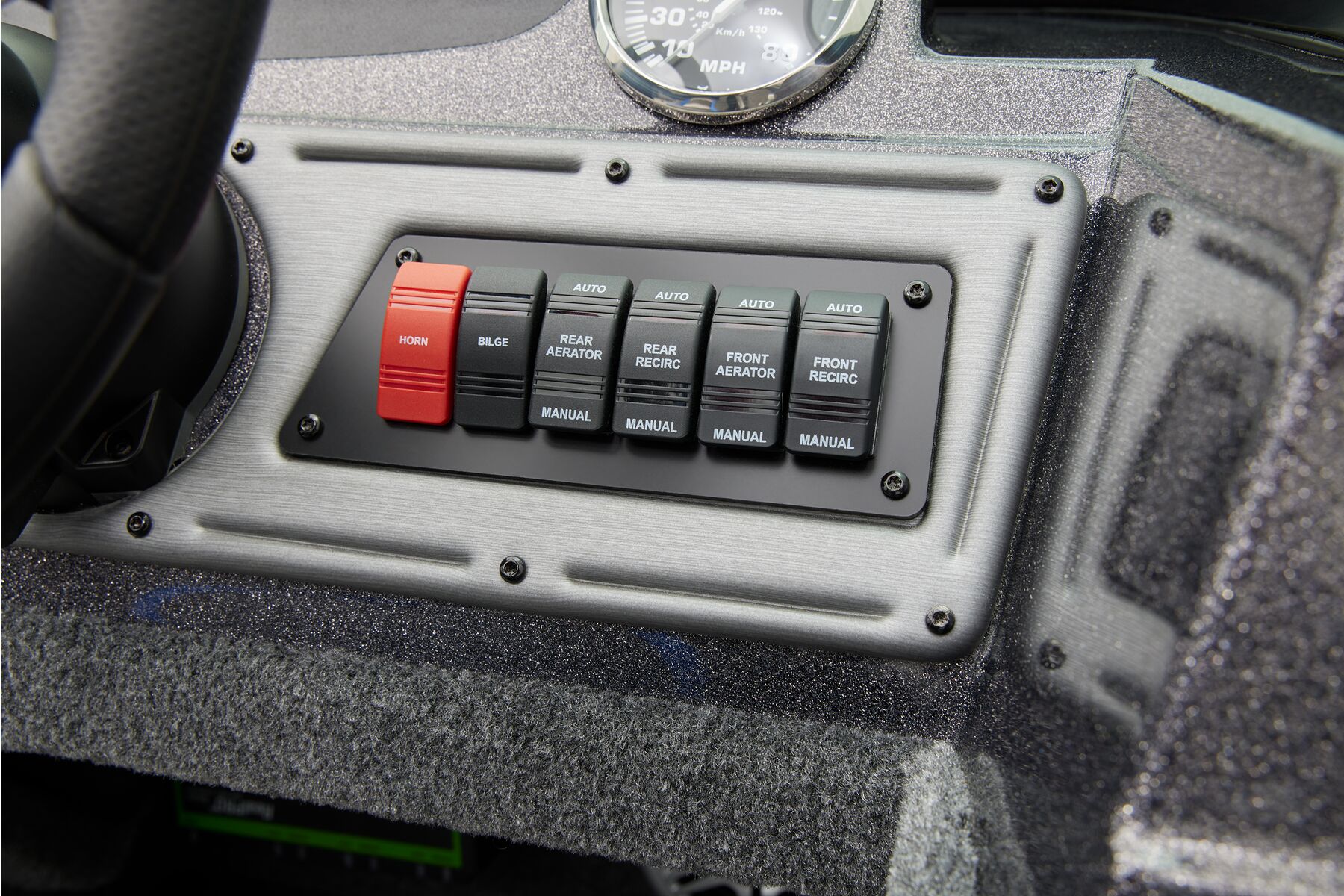

- Bow trim & navigation switches

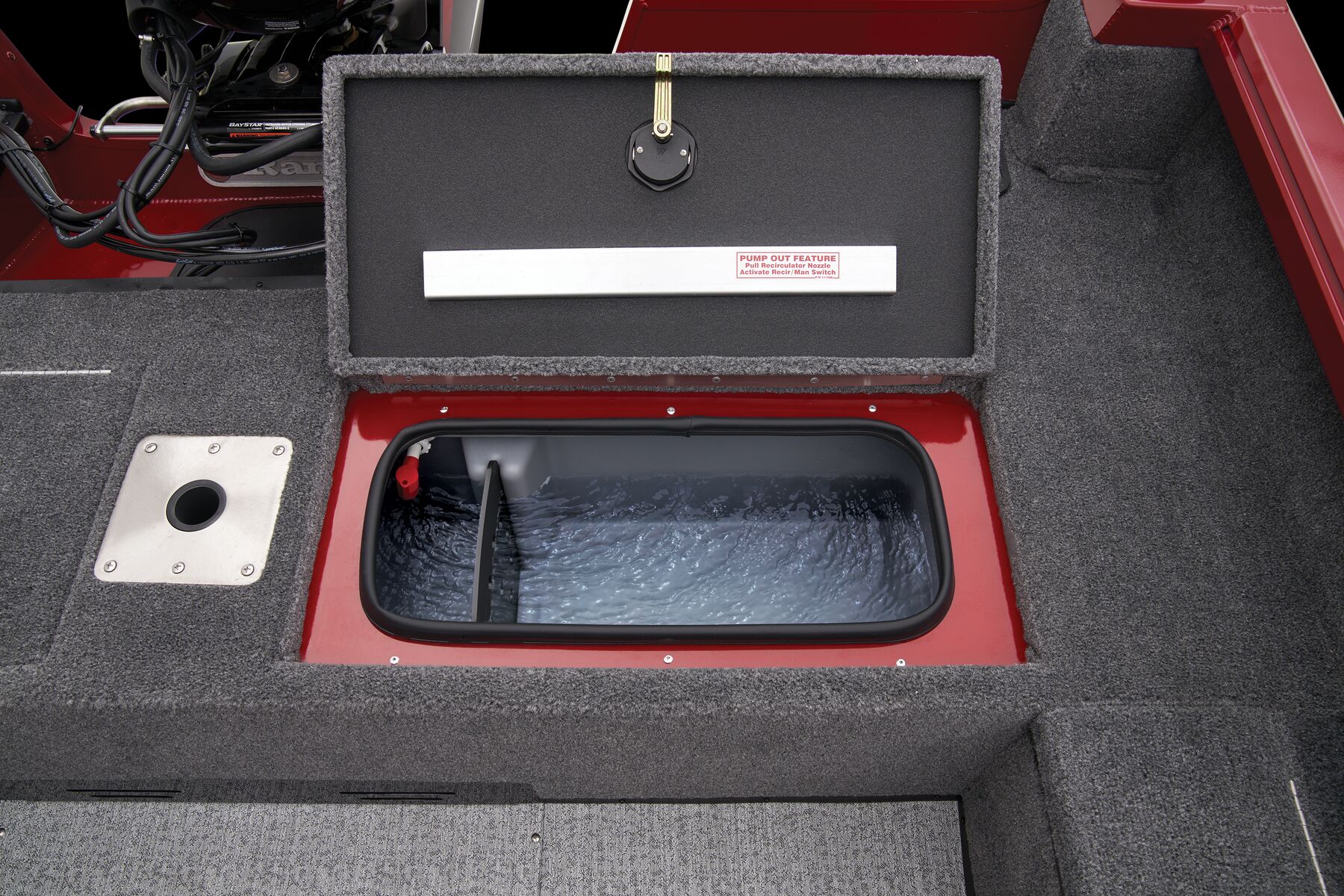

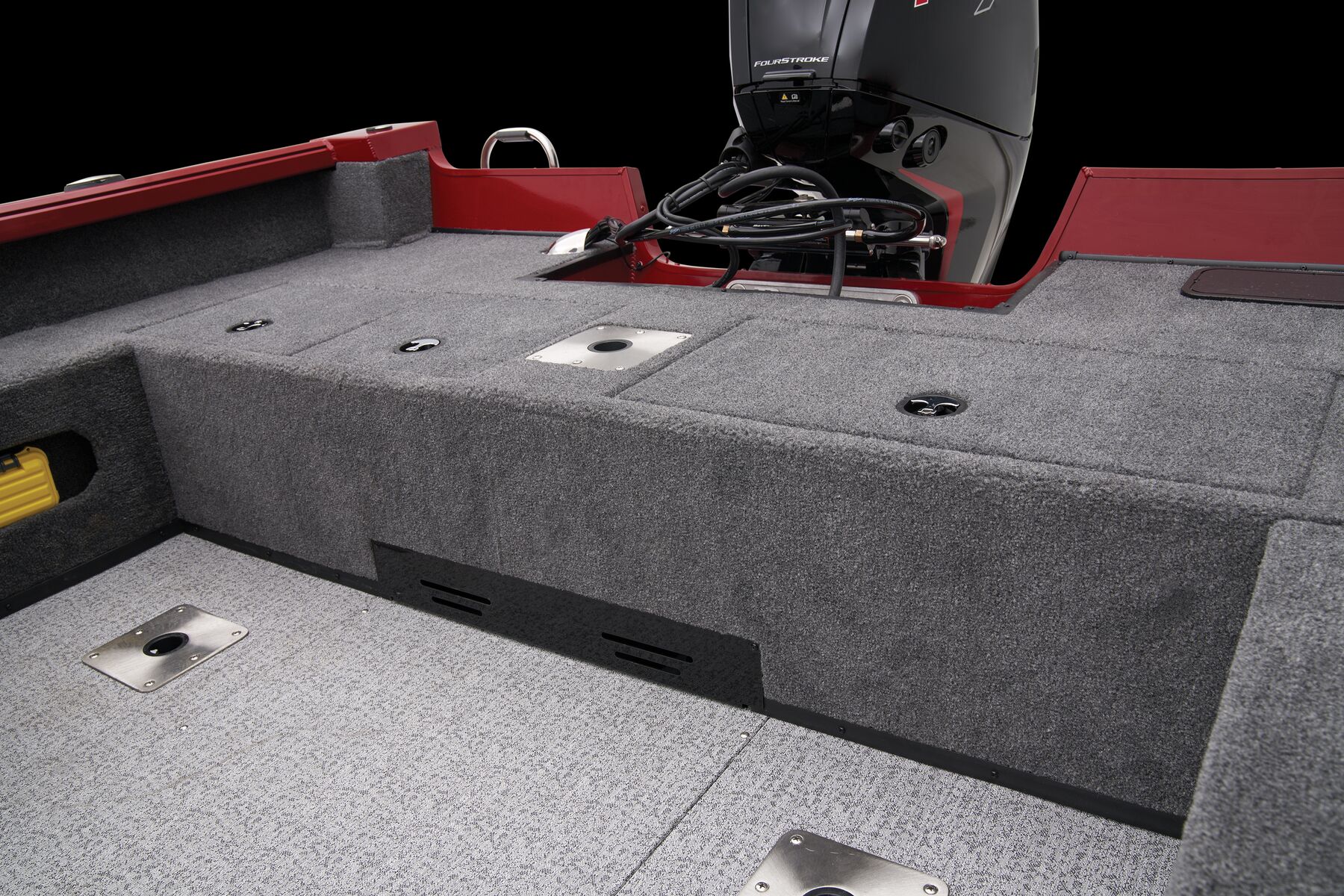

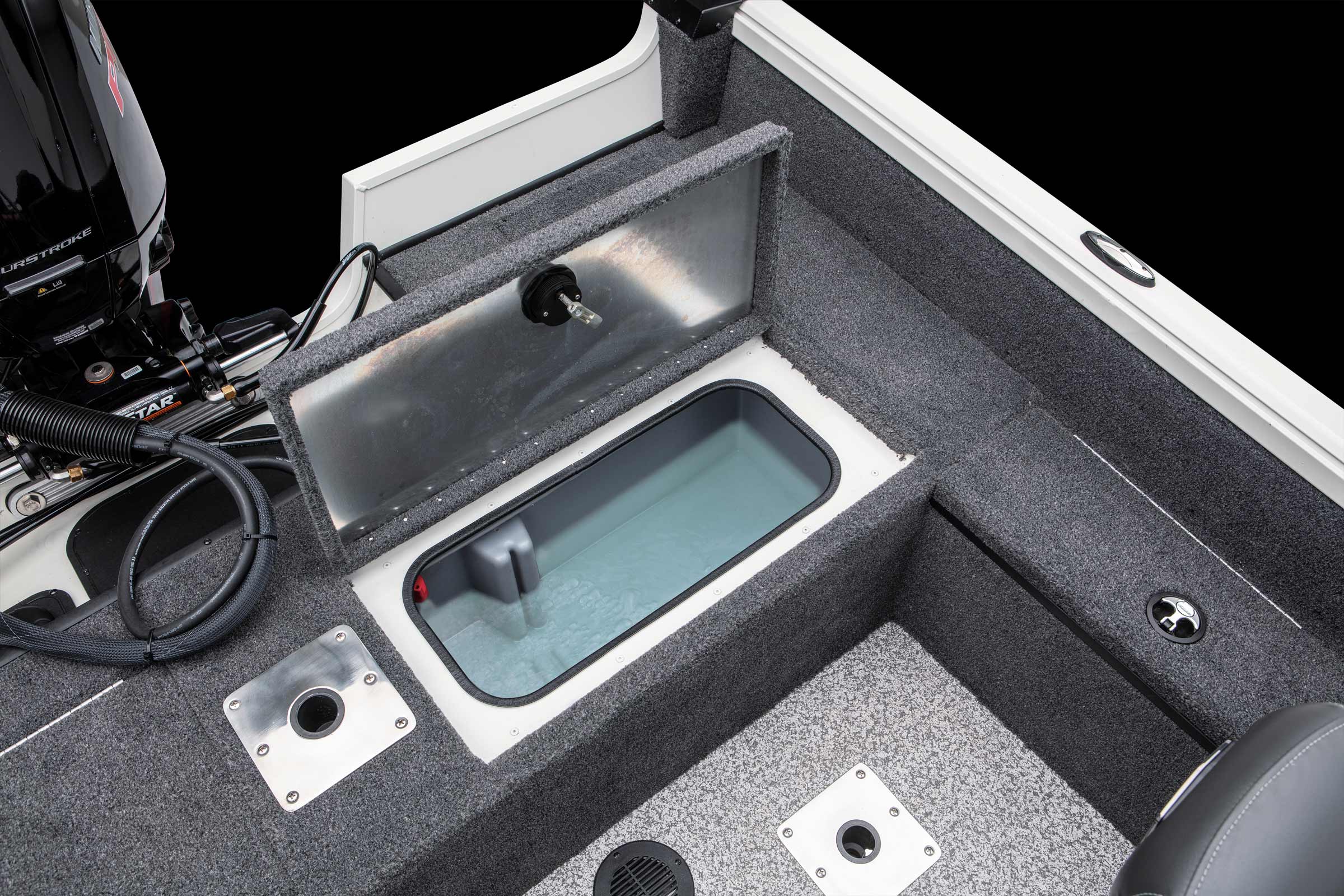

- Aerated divided livewell w/ timer and baitwell on rear deck

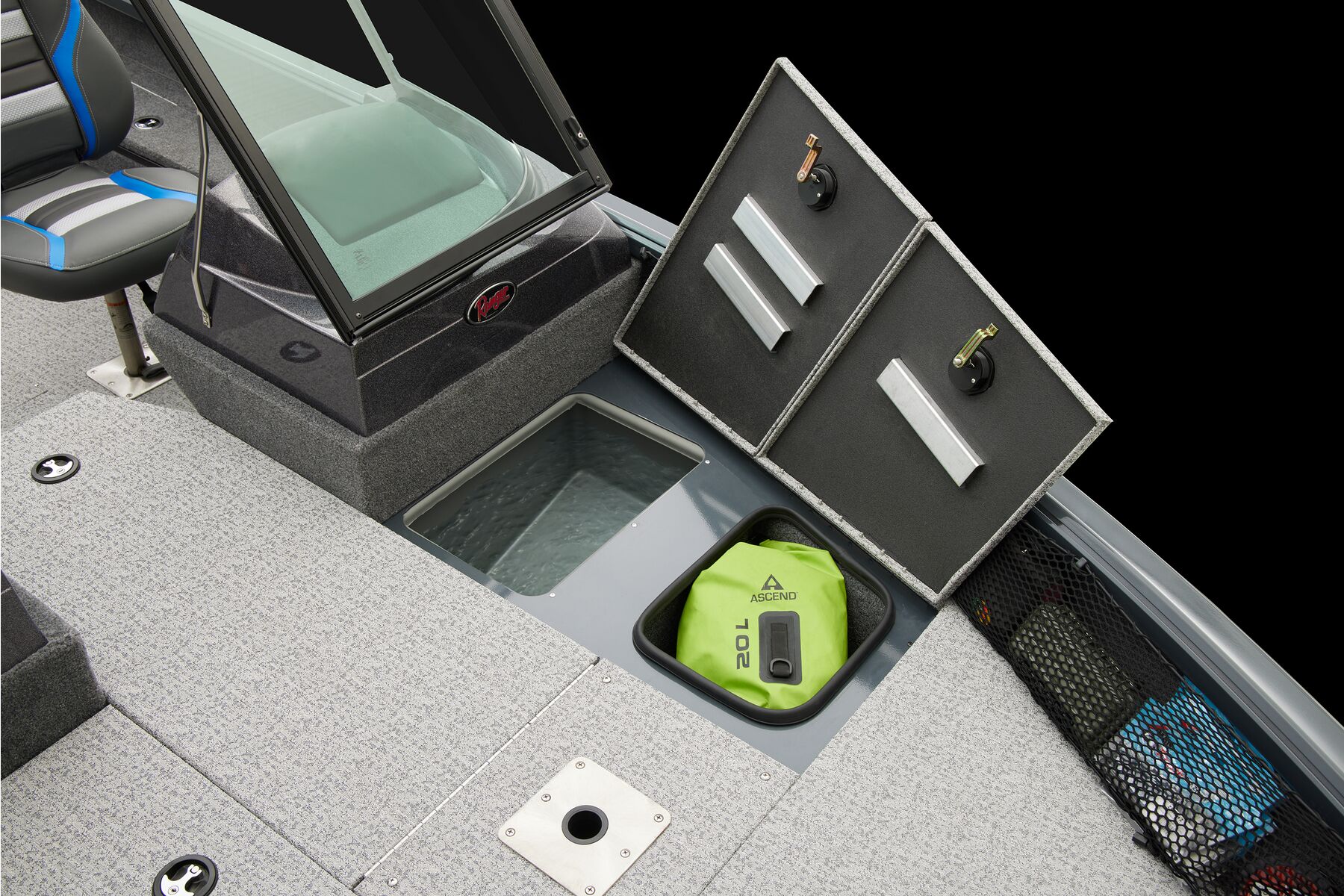

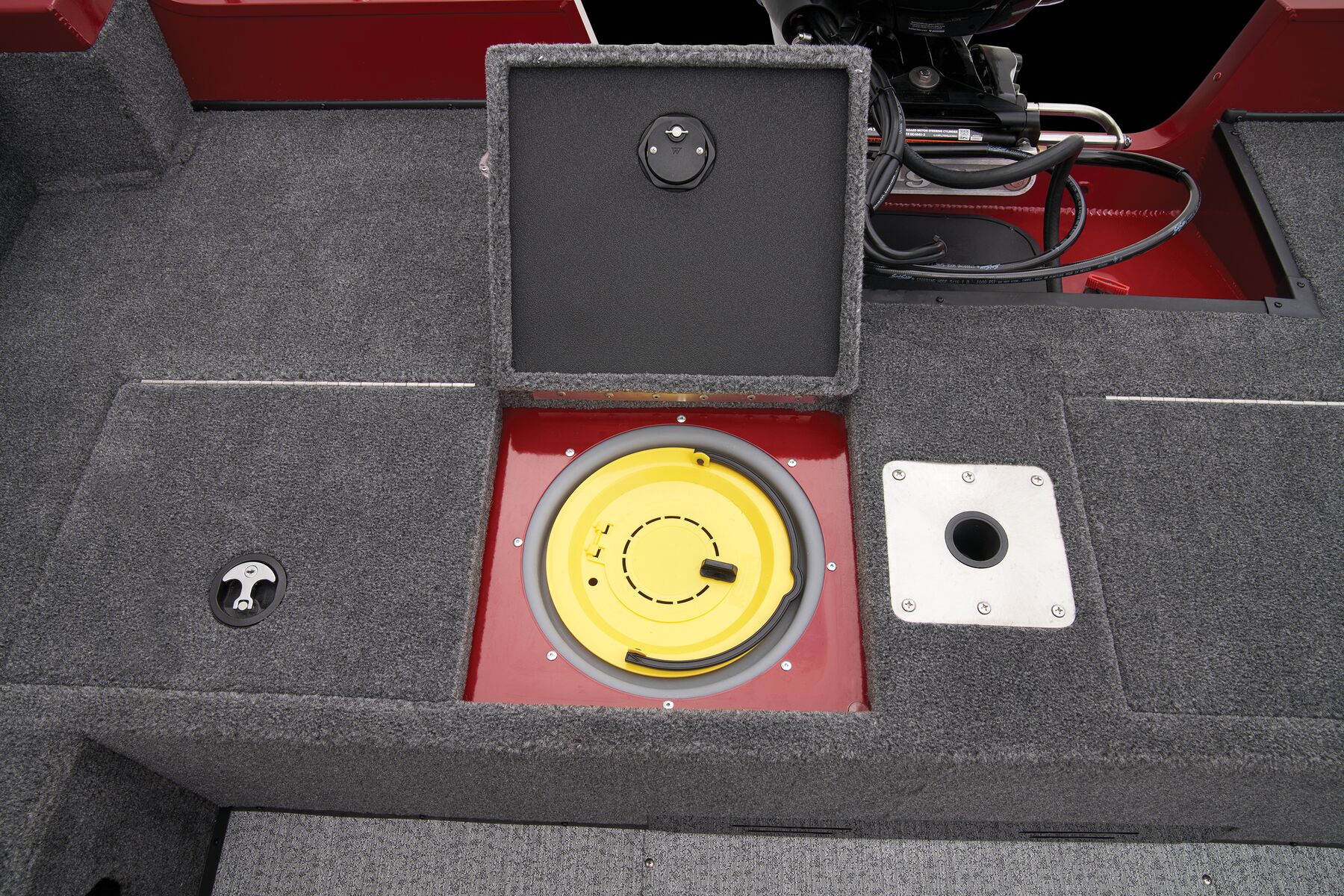

- Aerated livewell / baitwell on front deck

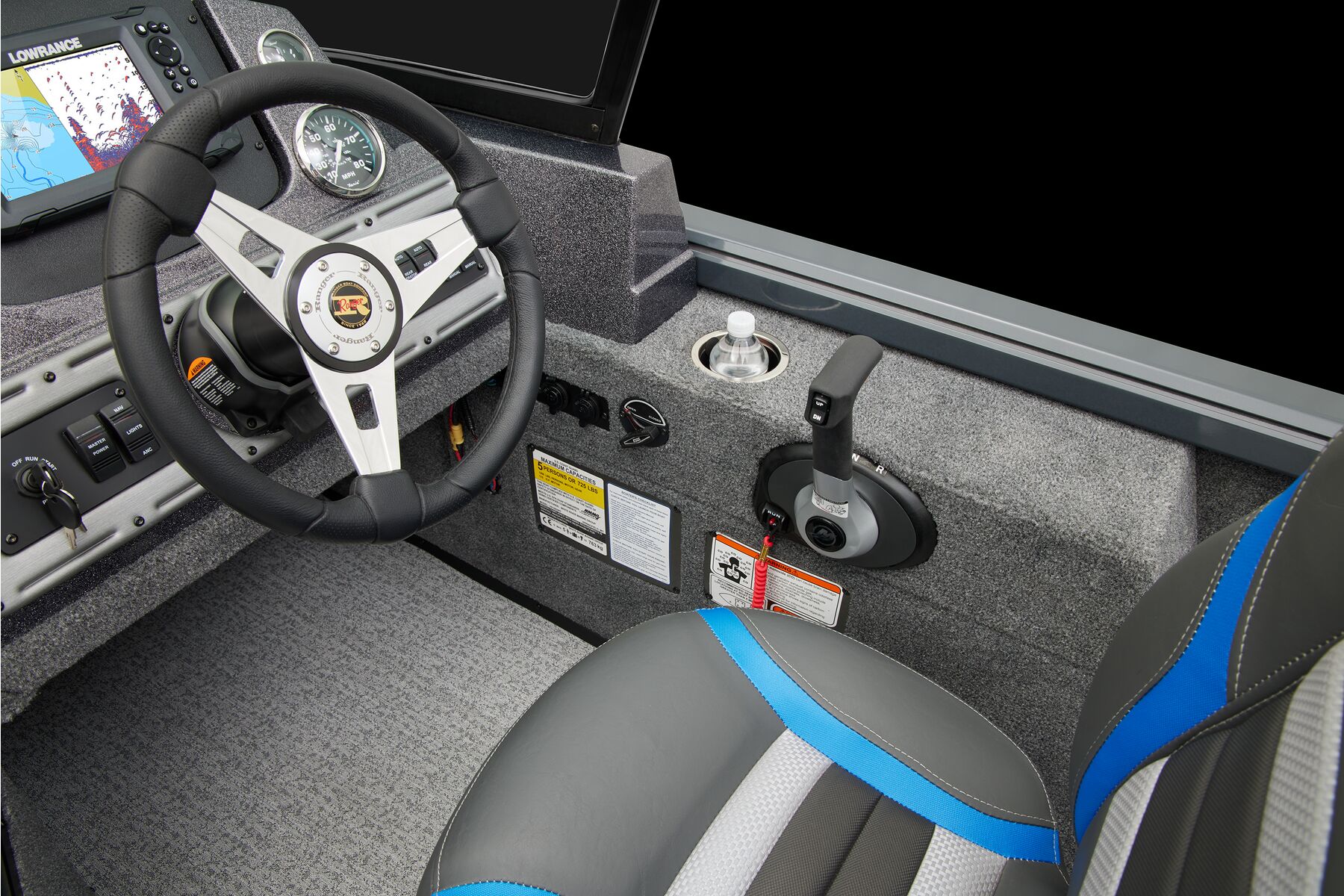

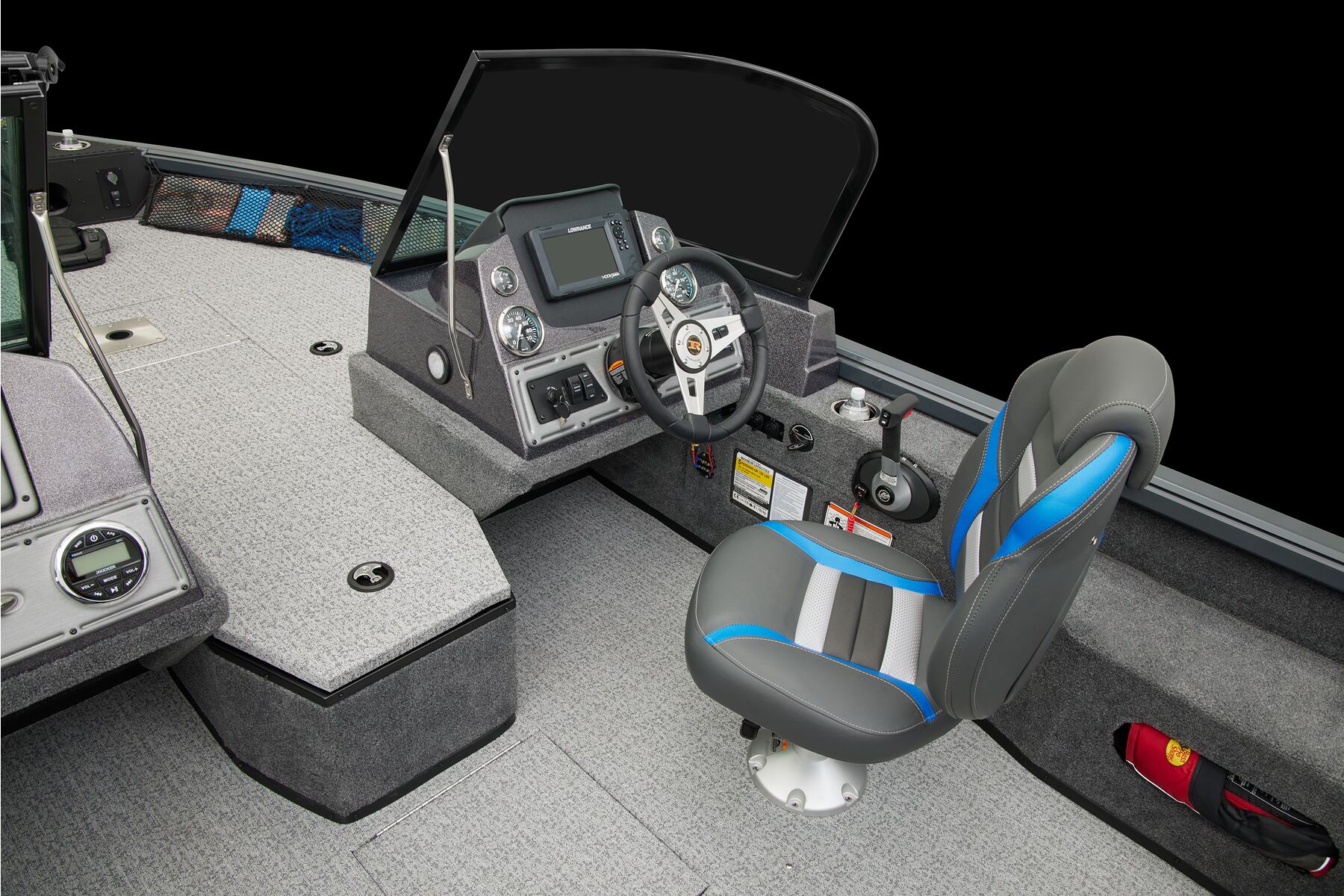

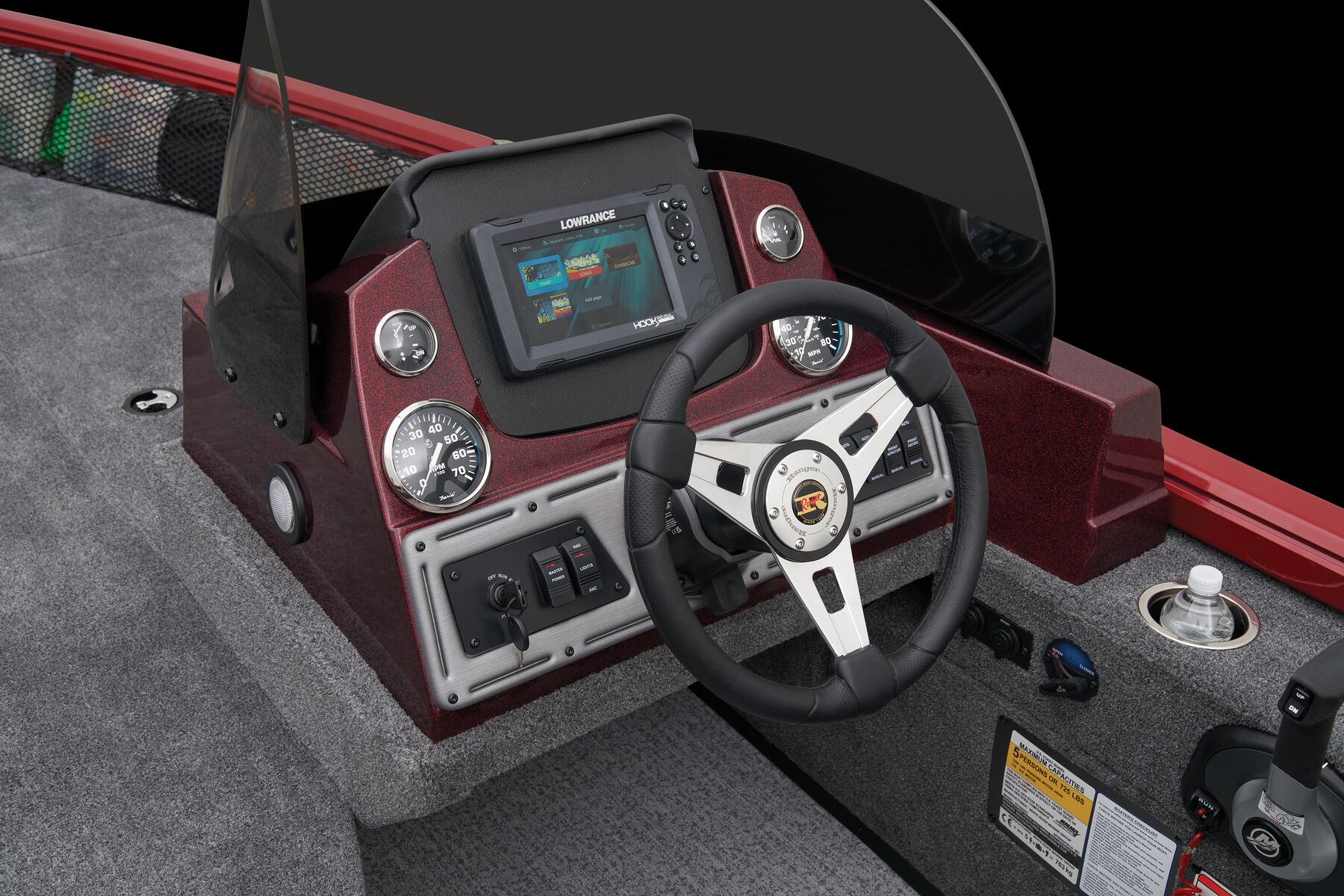

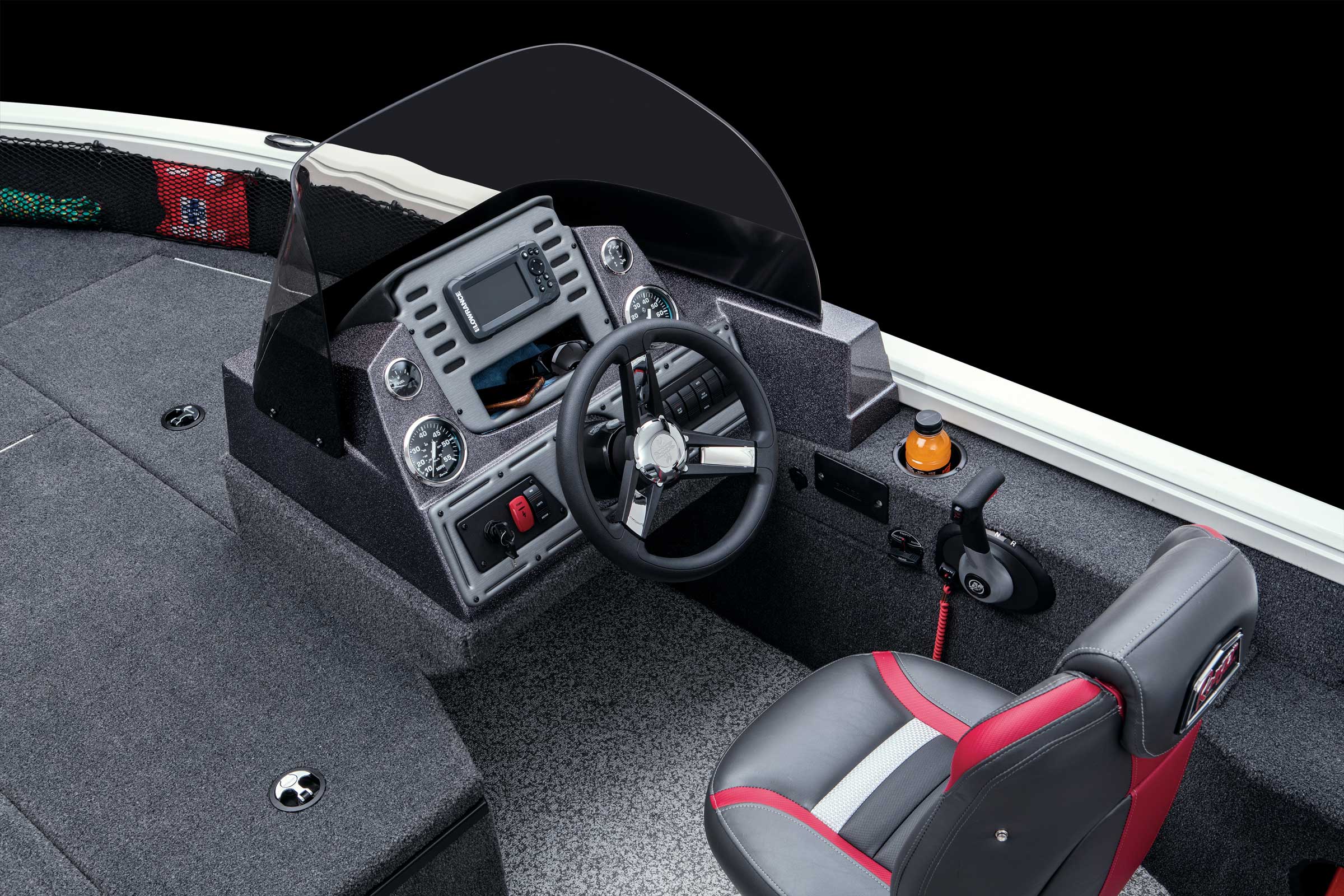

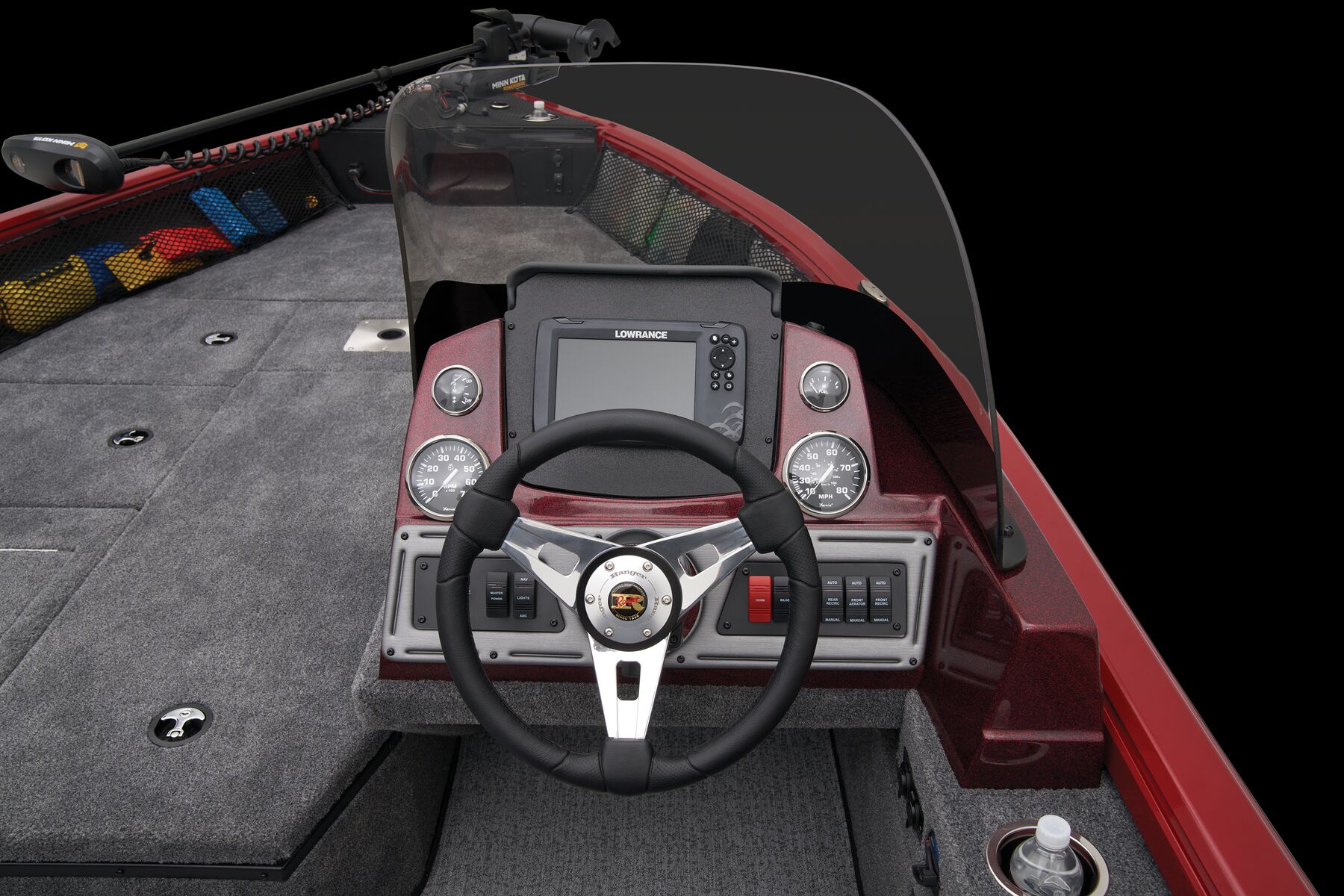

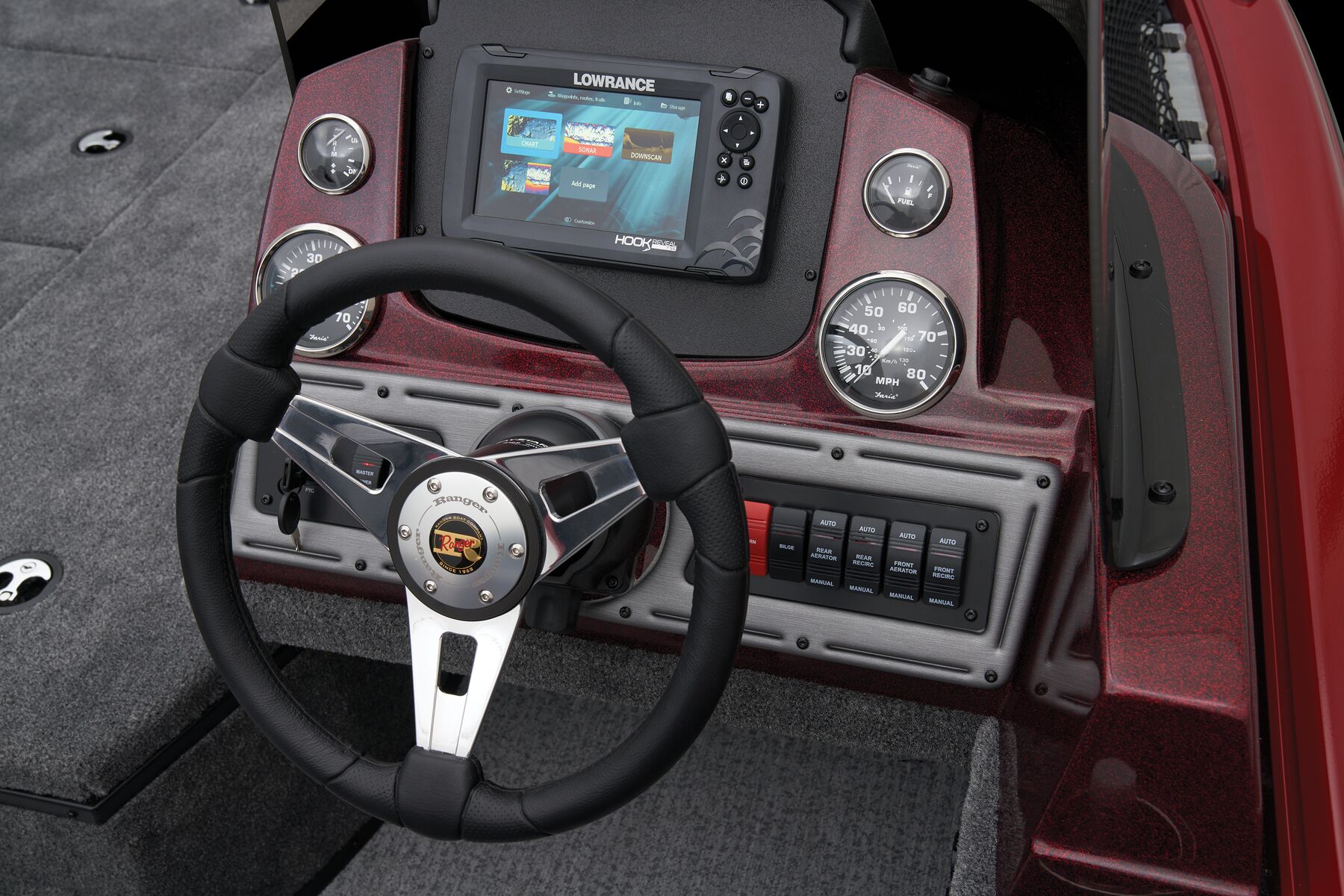

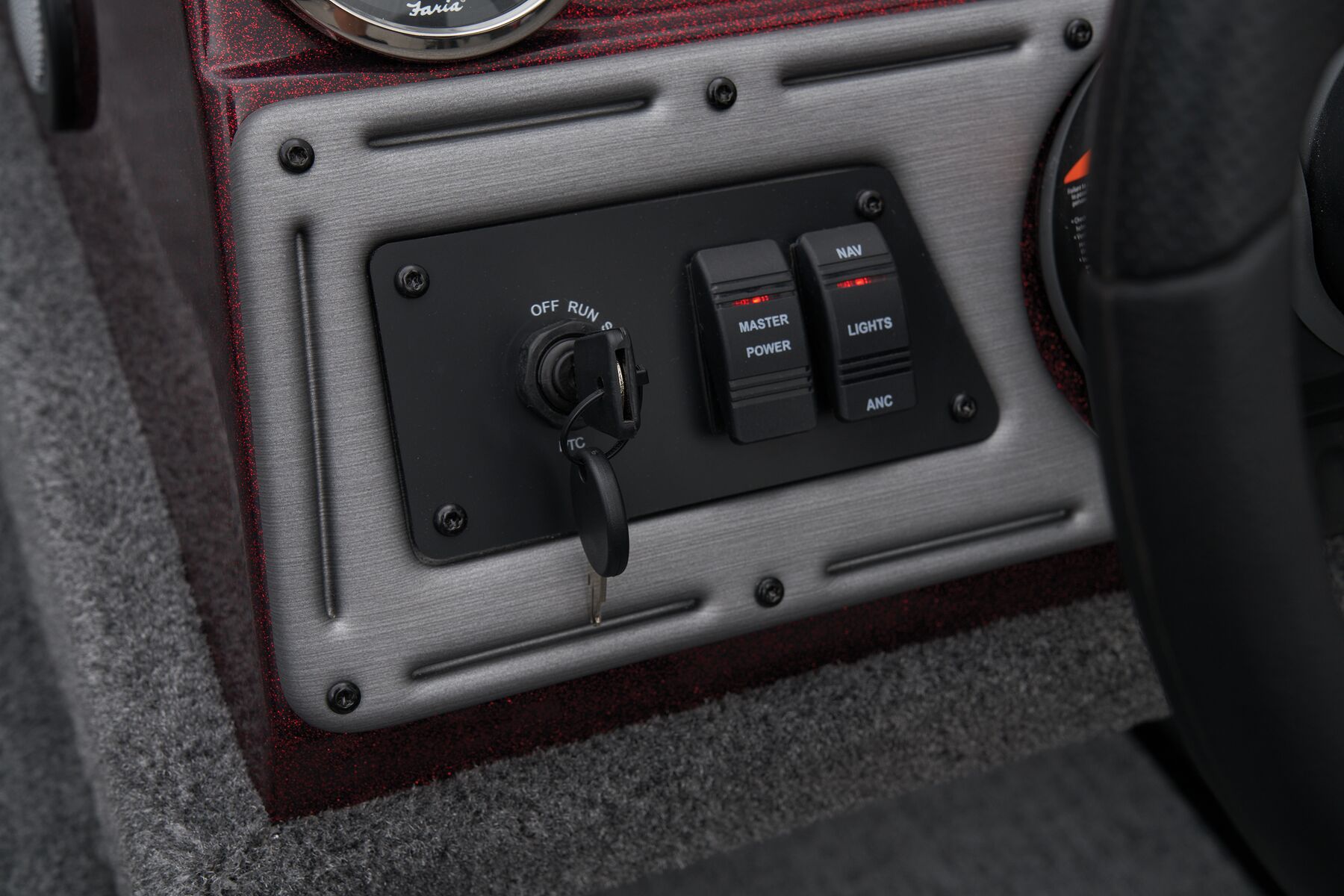

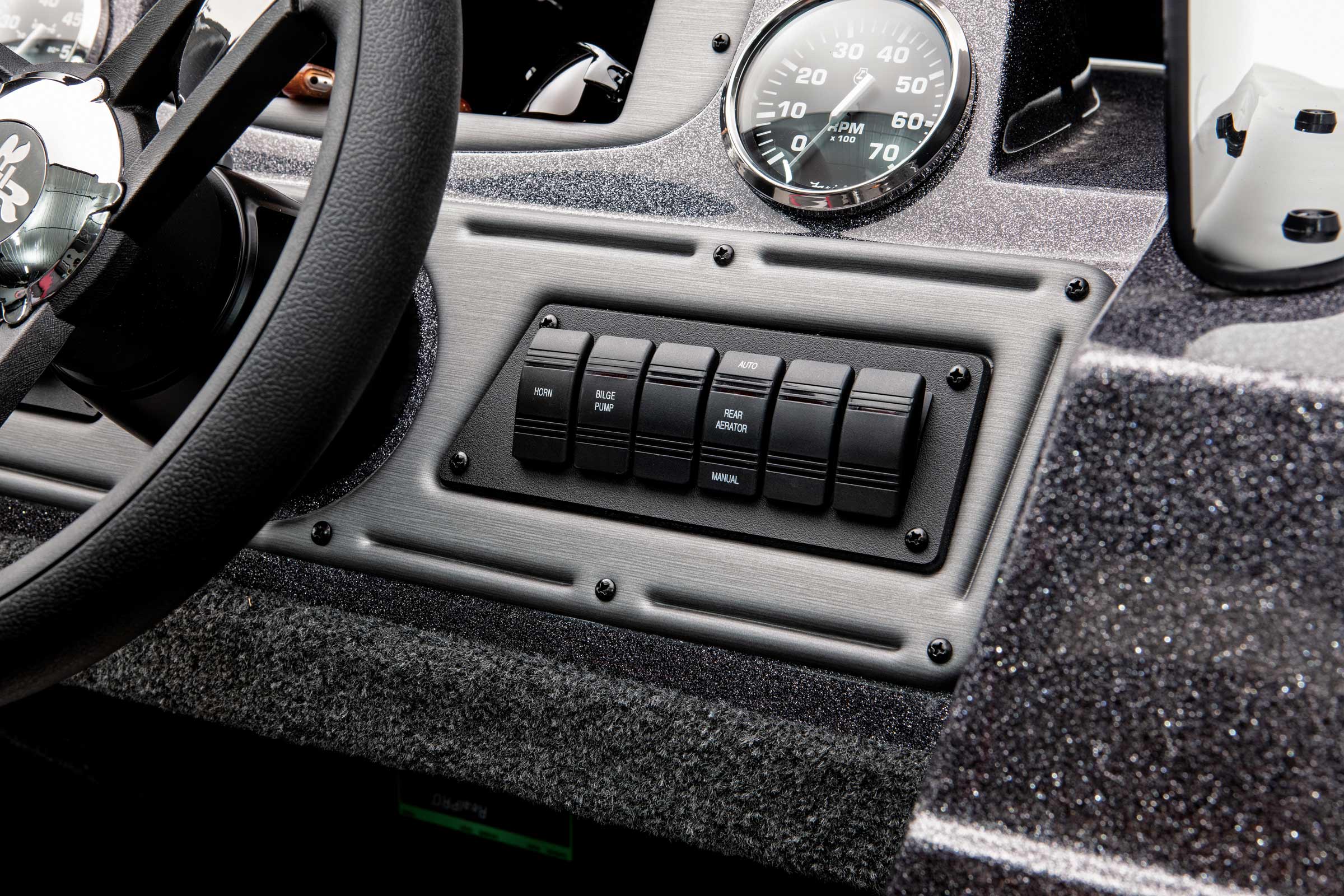

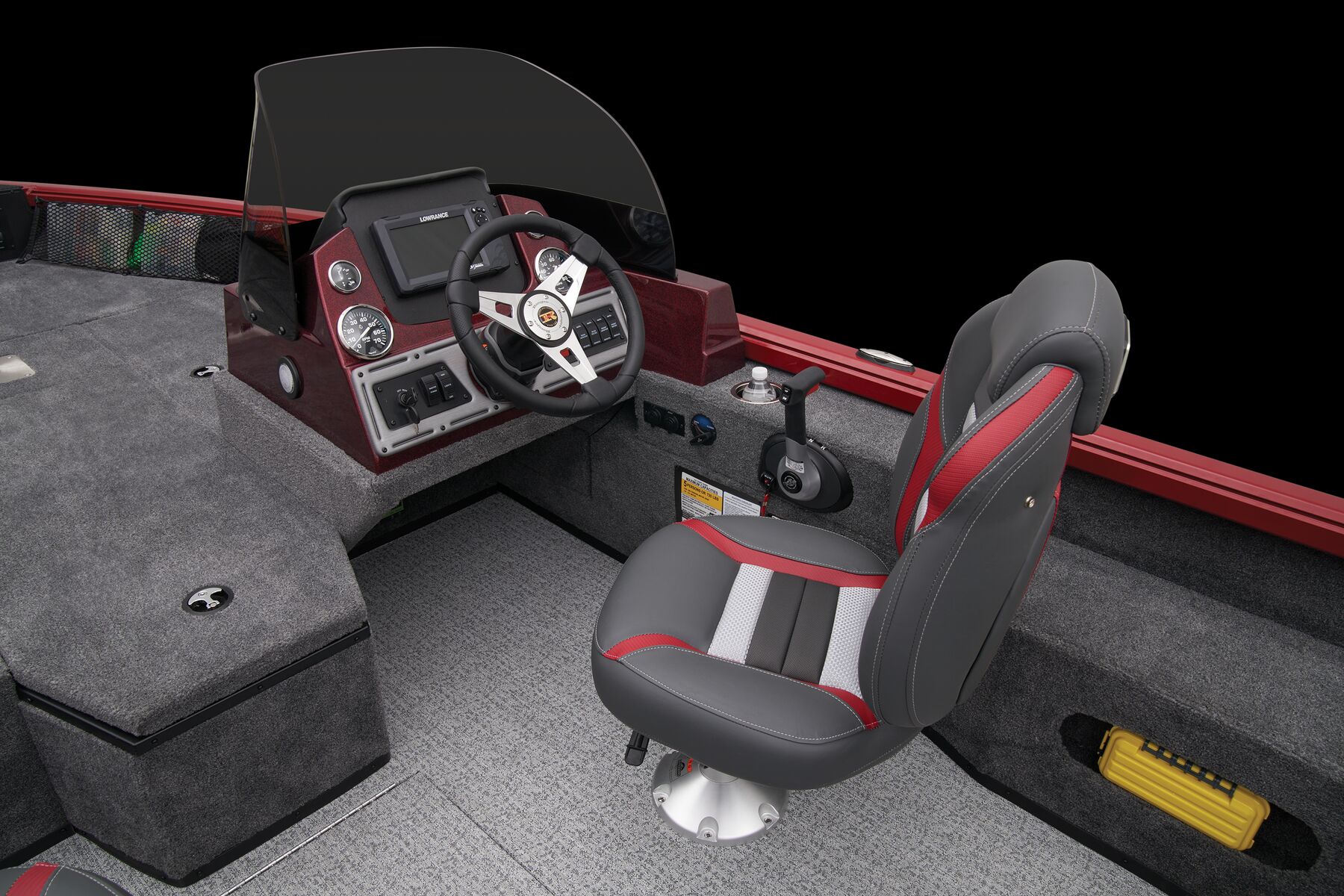

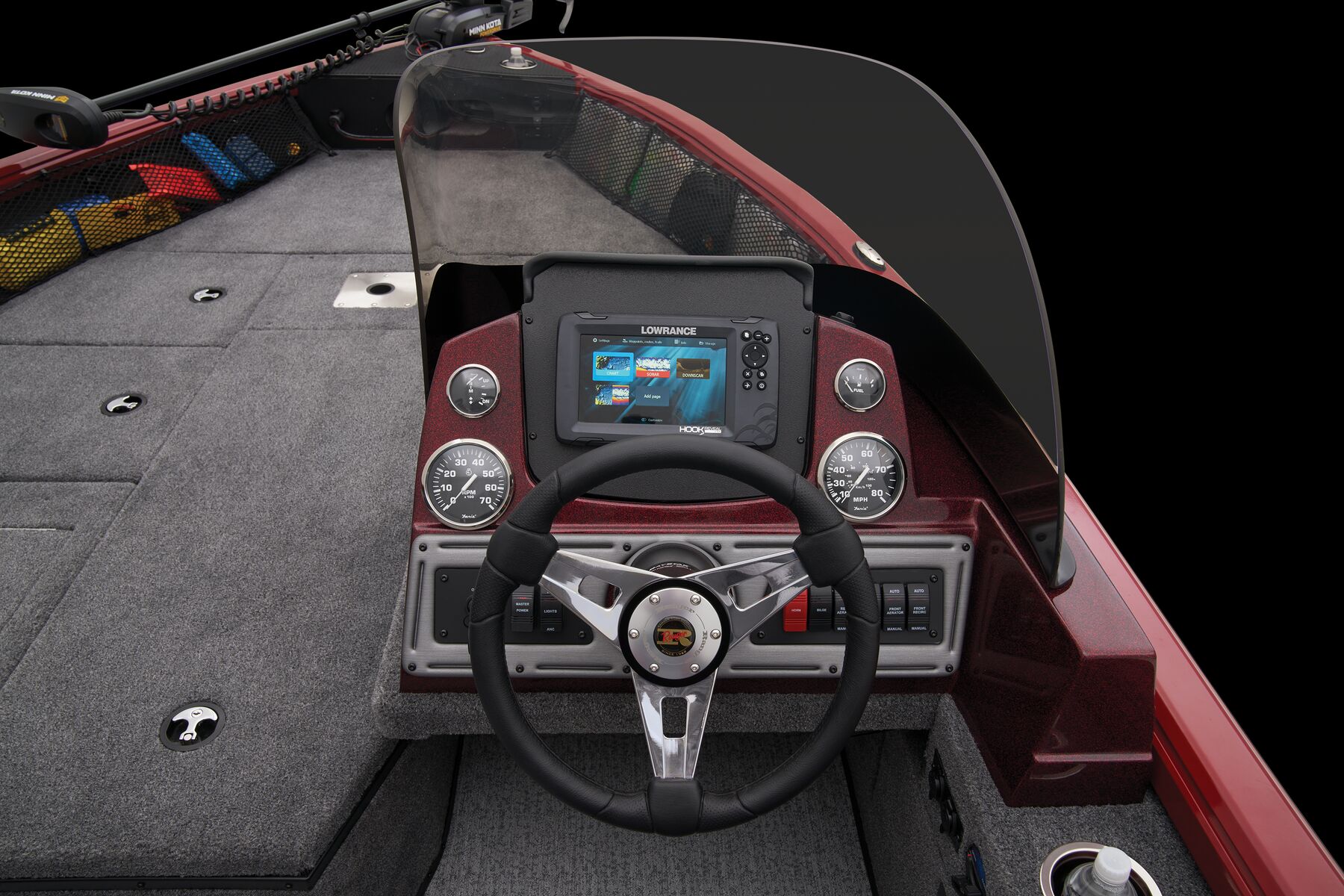

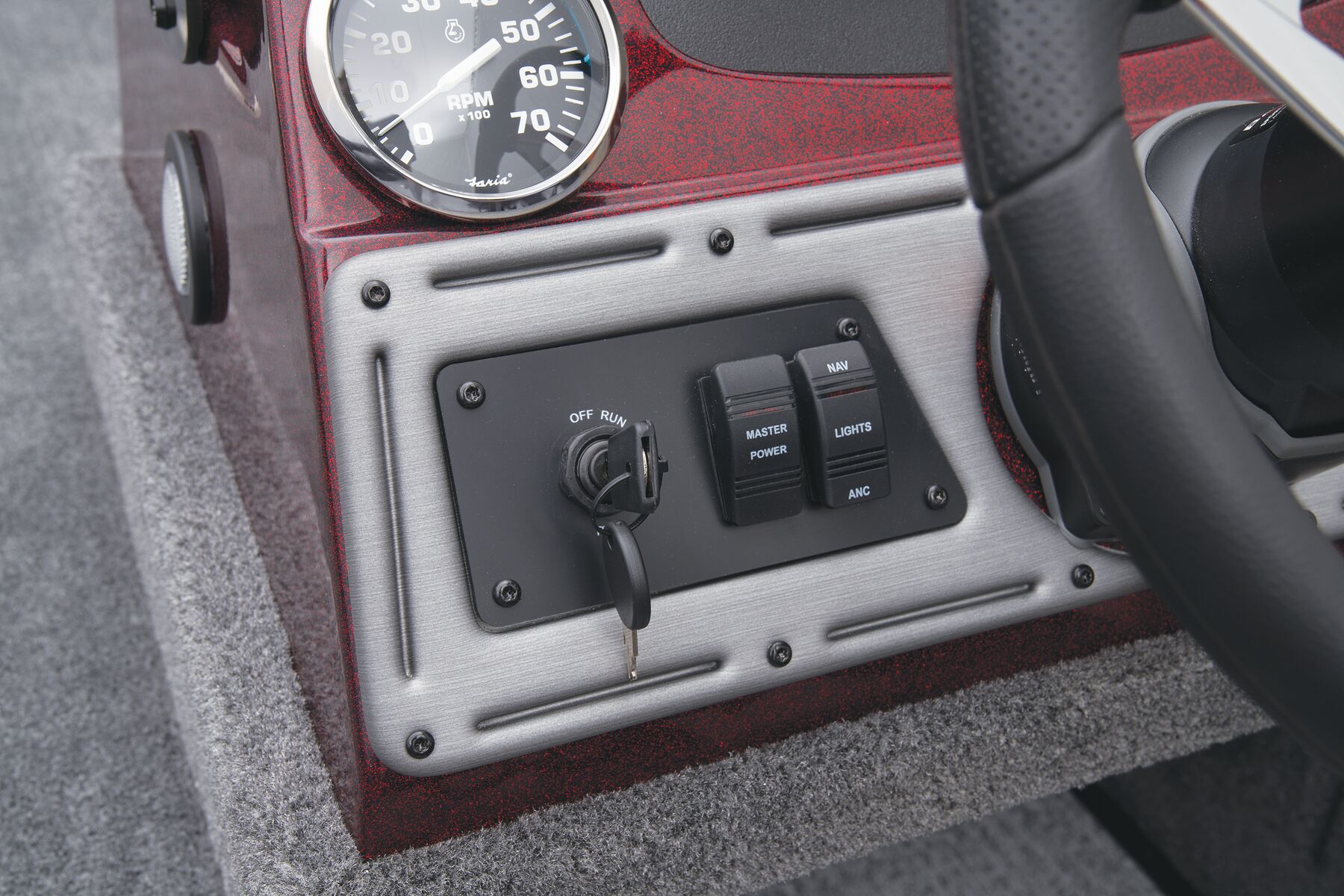

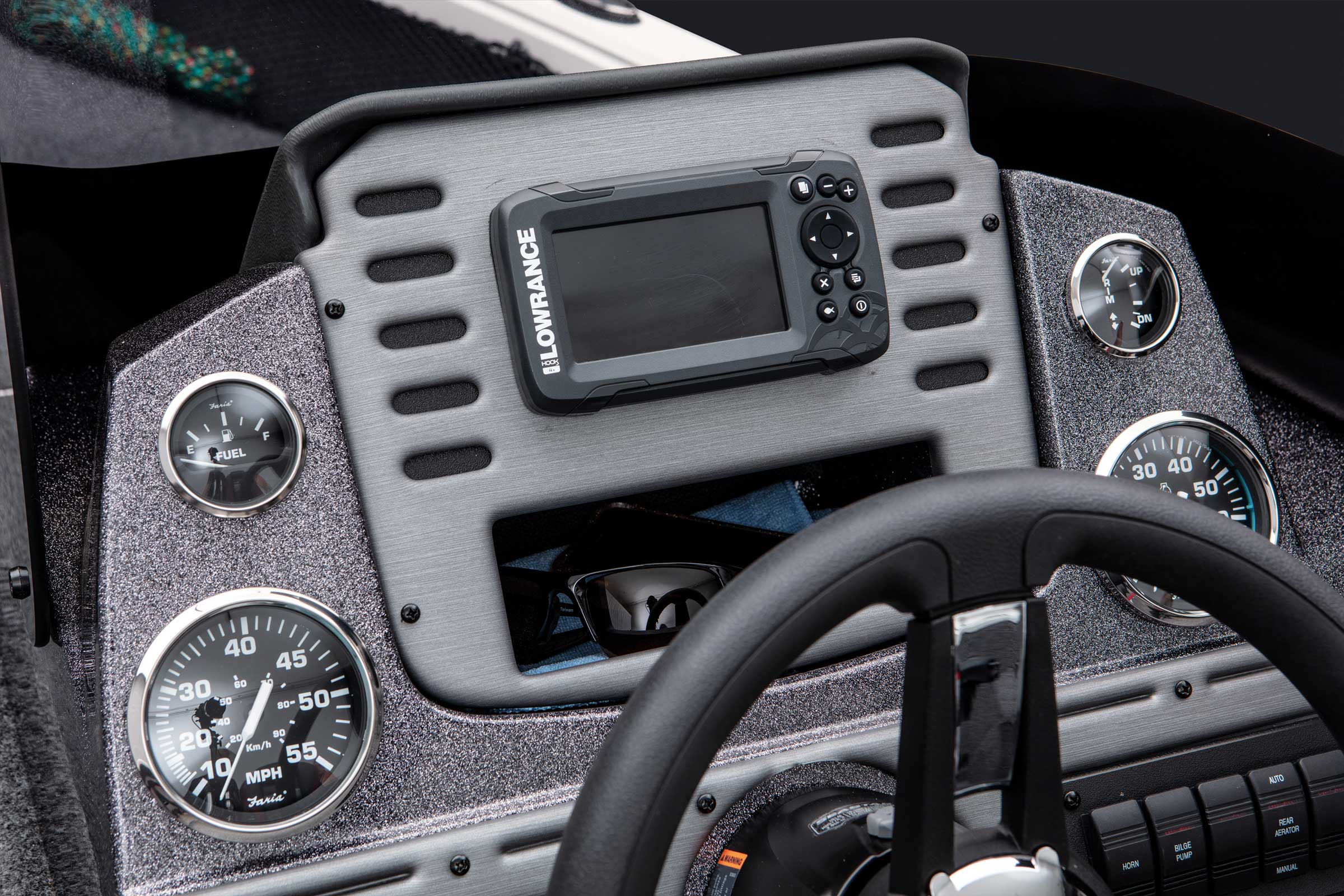

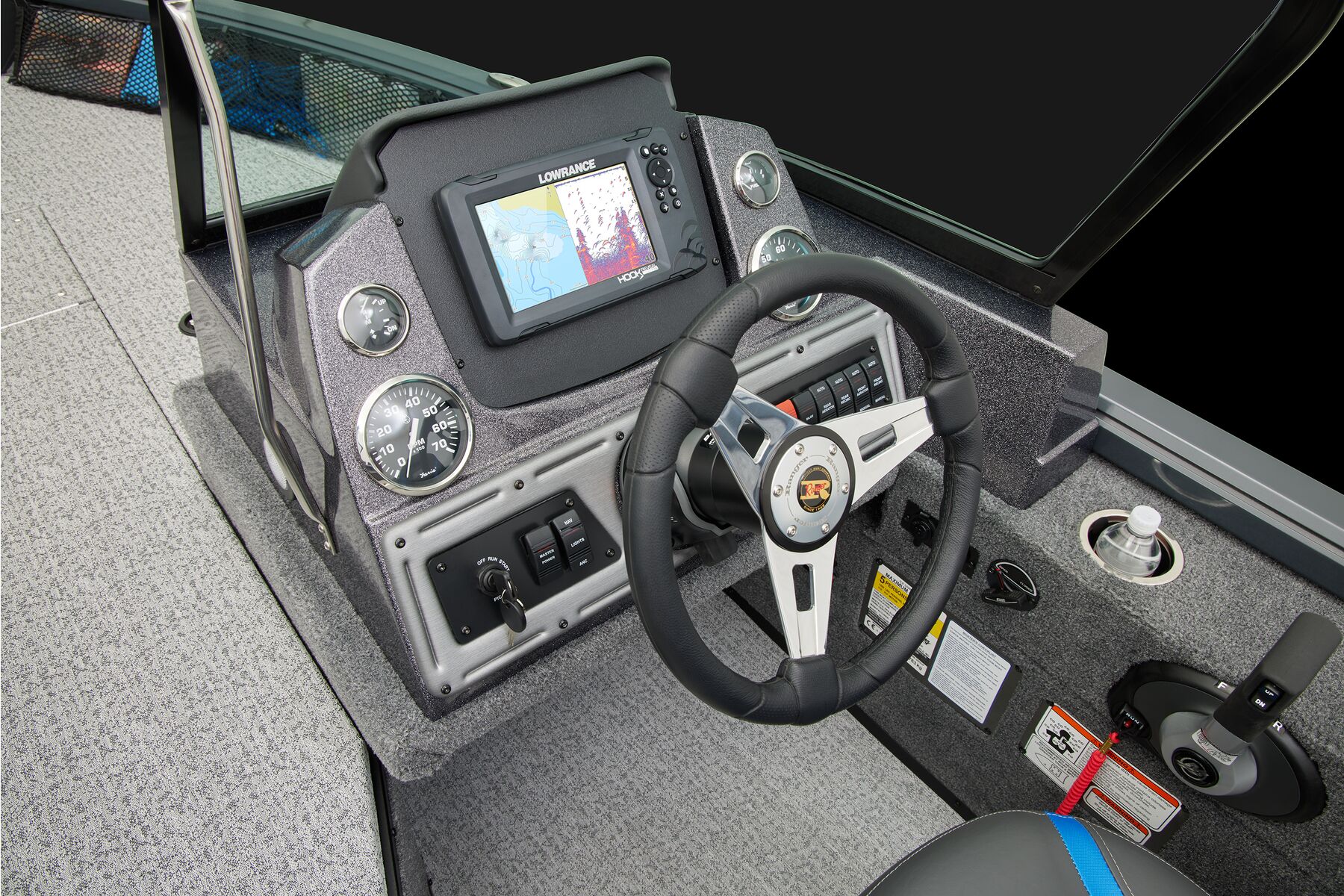

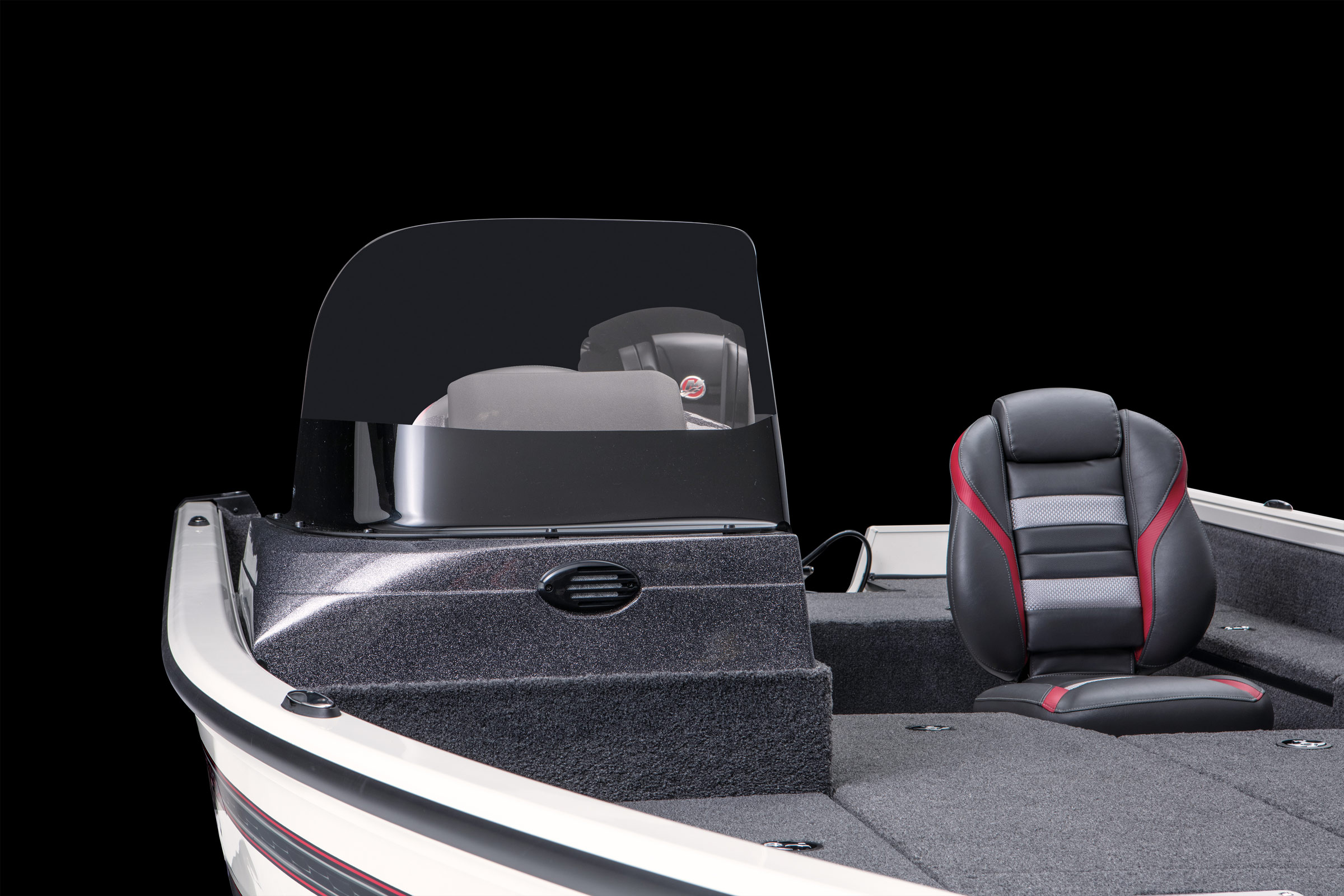

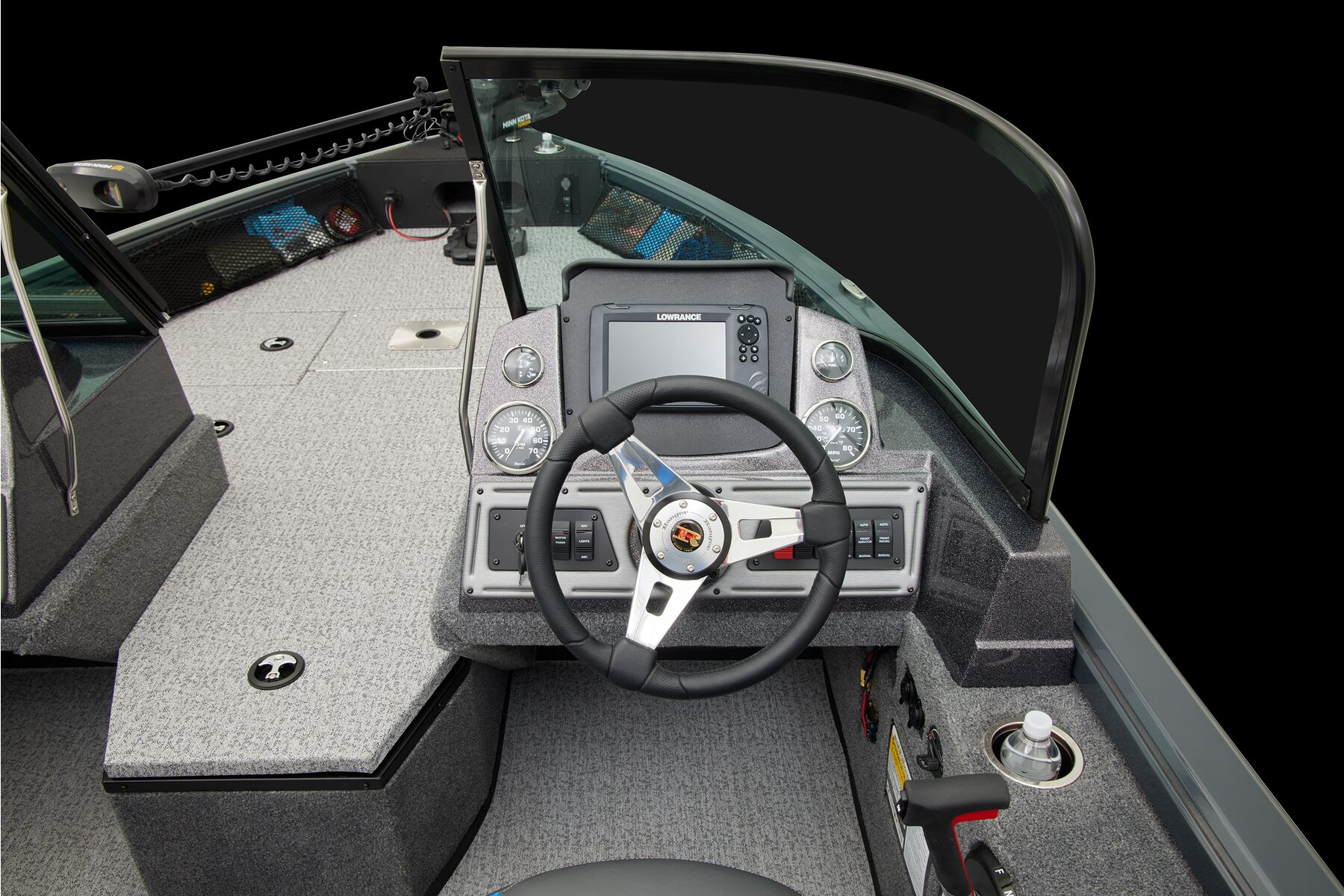

- Custom fiberglass console w/ flush mounted depthfinder, tach, speed, fuel, trim gauges & easy touch switching
Safety/Comfort
- Pull-up tie cleats (4)
- All-aluminum floor & decks

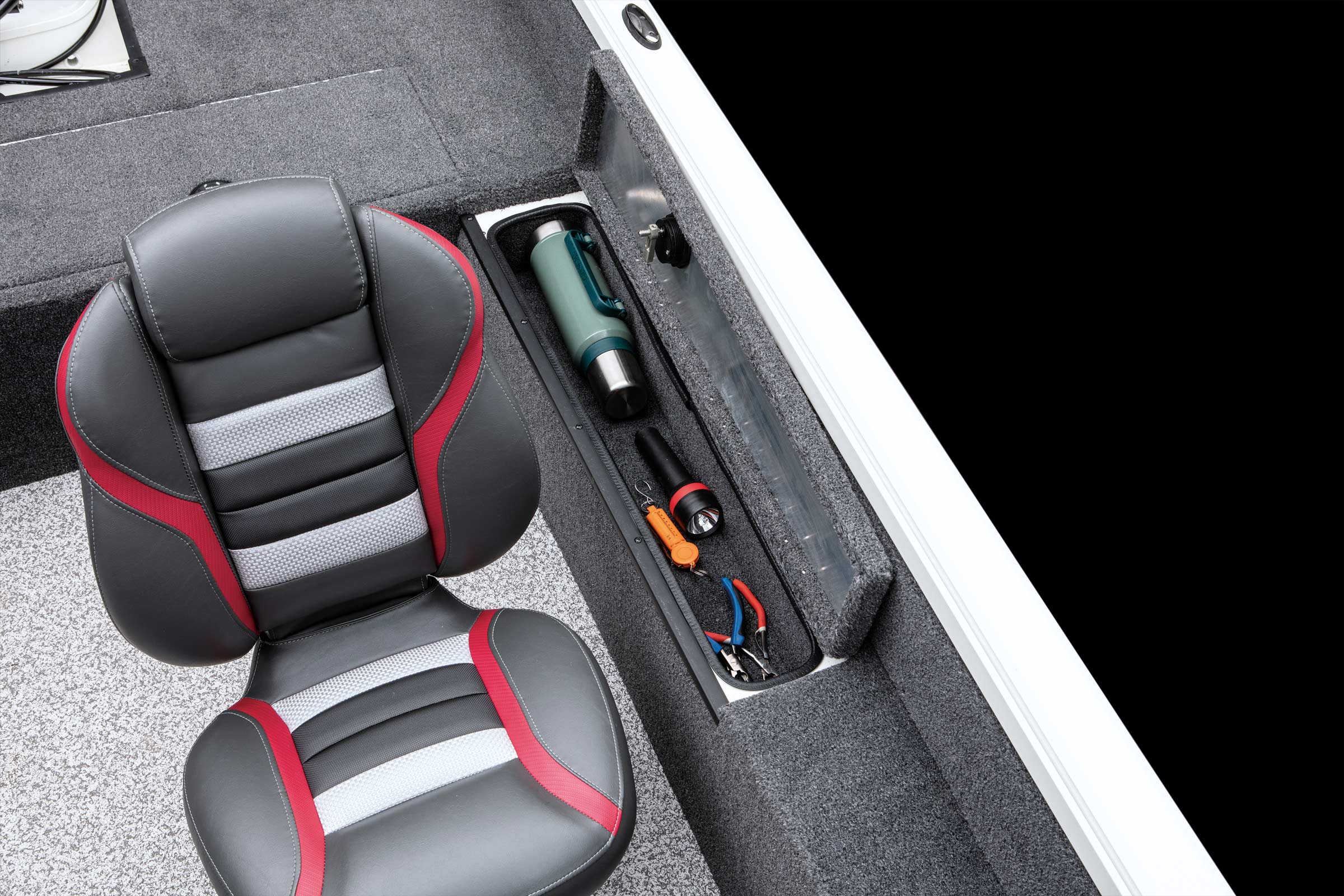

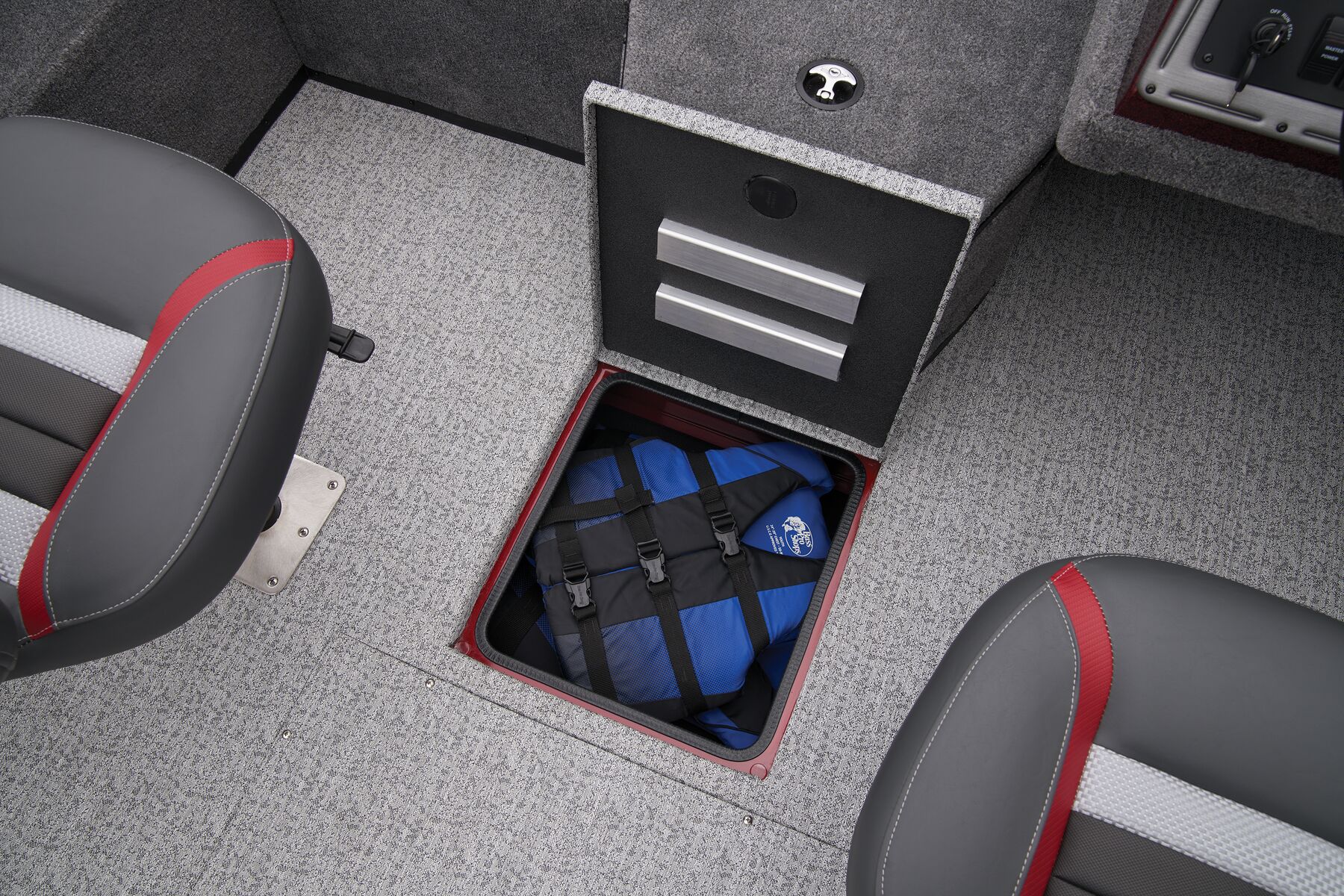

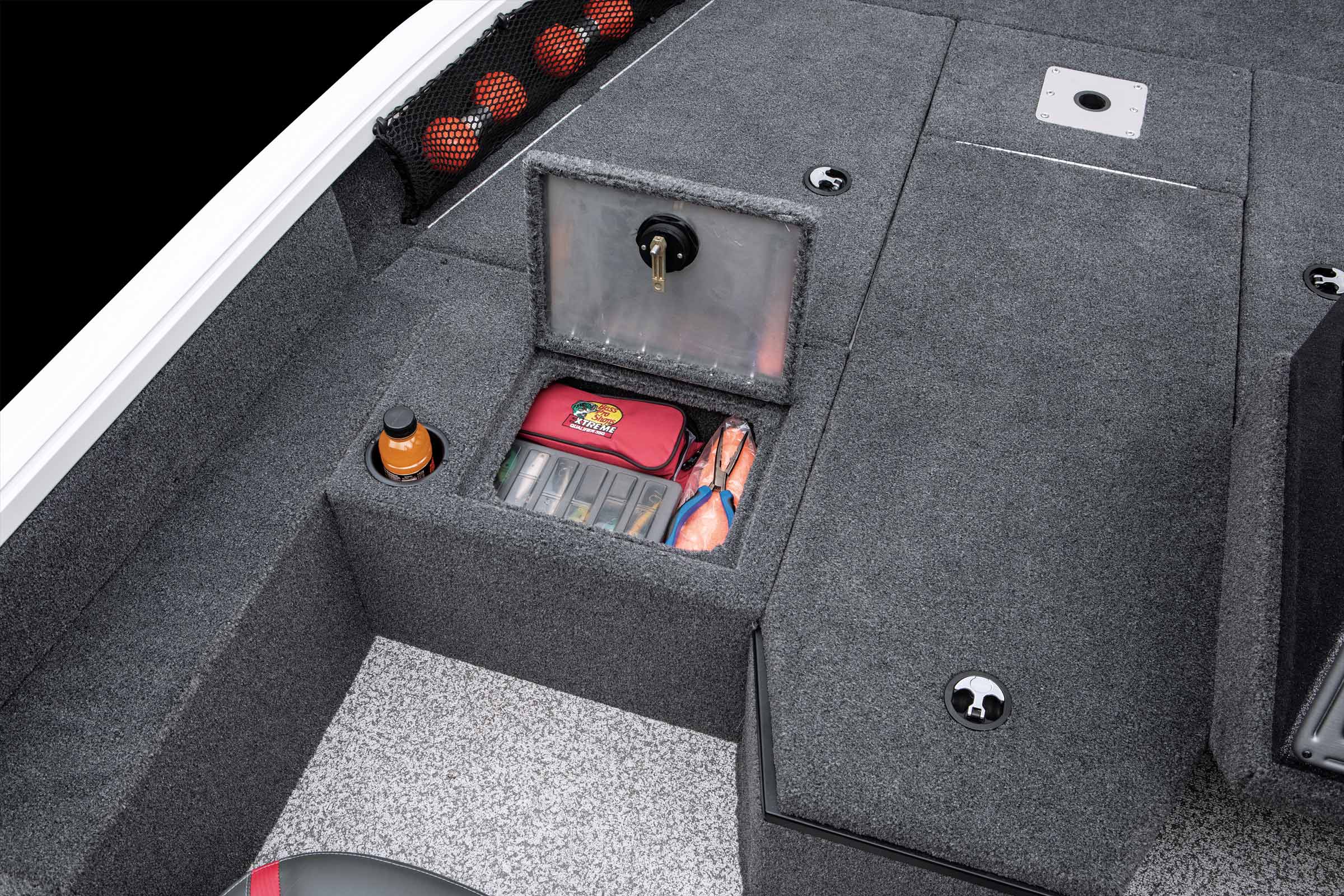

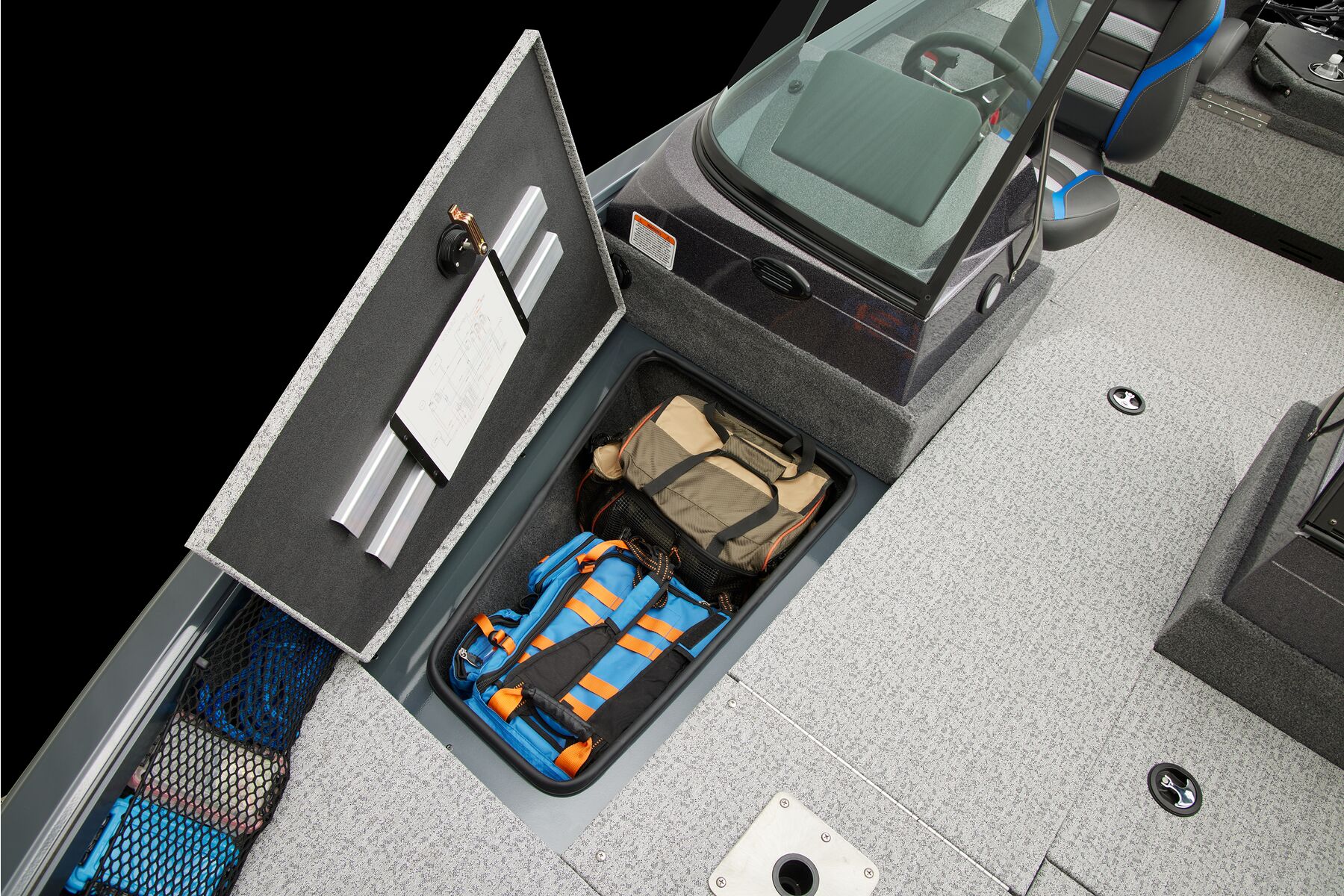

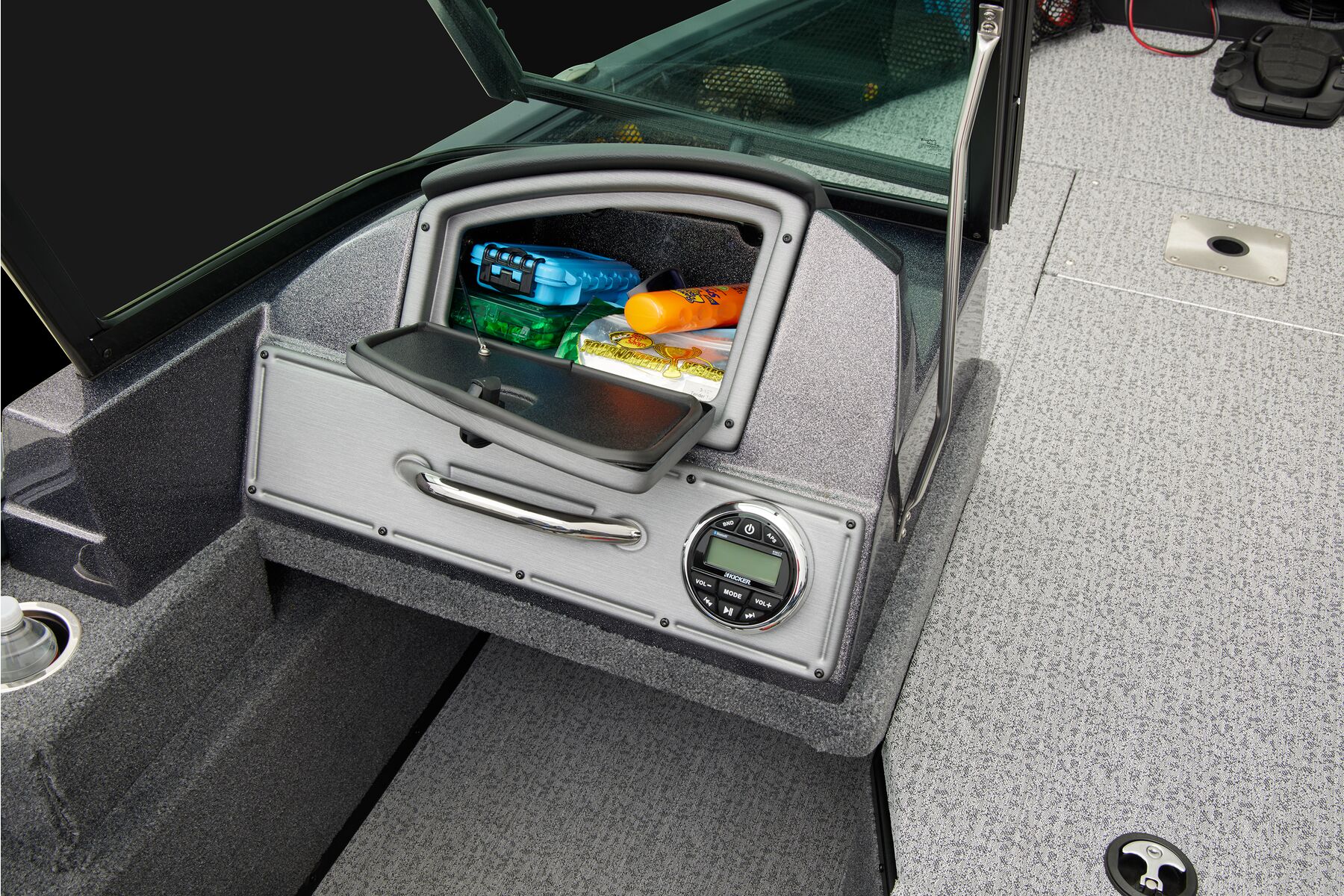

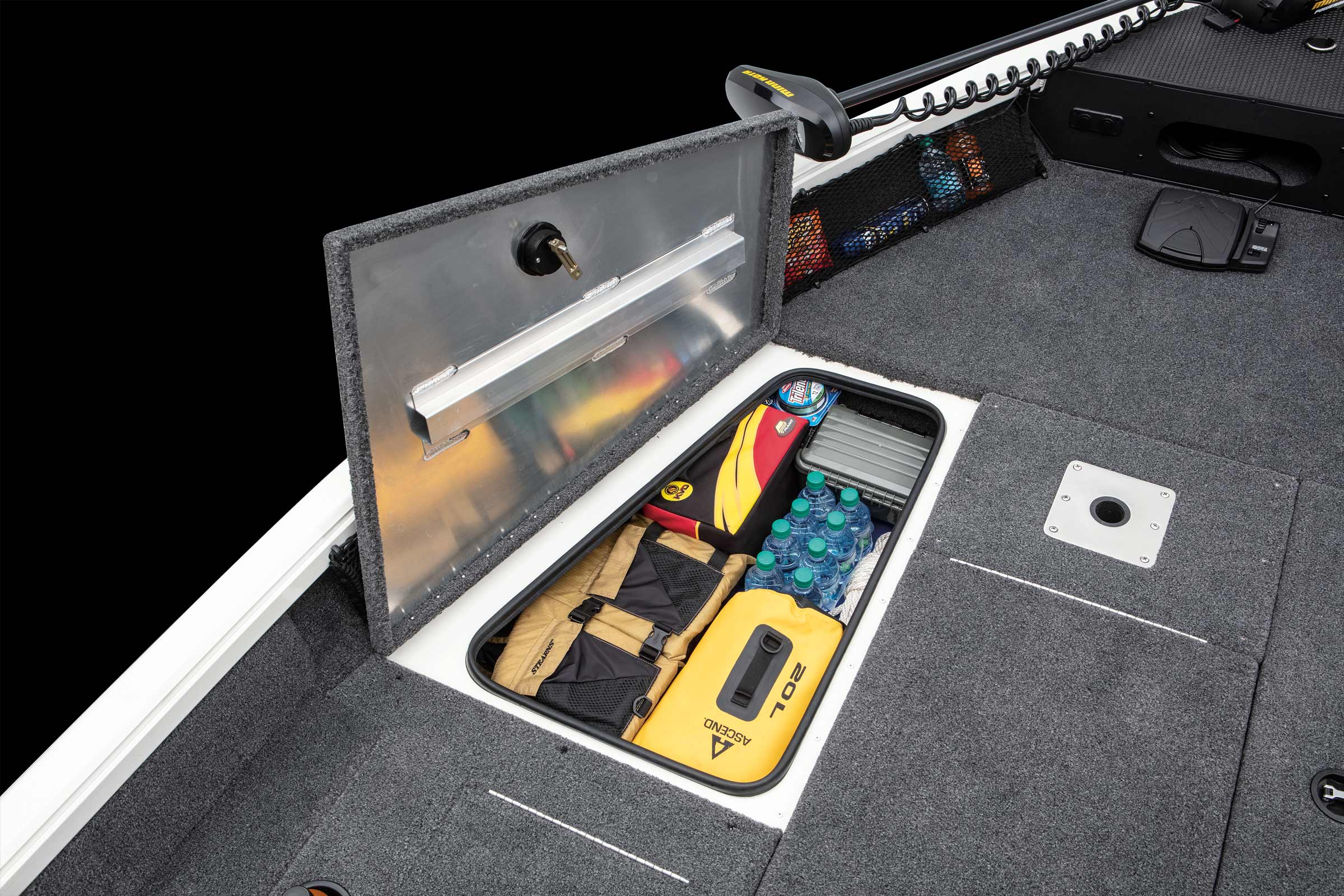

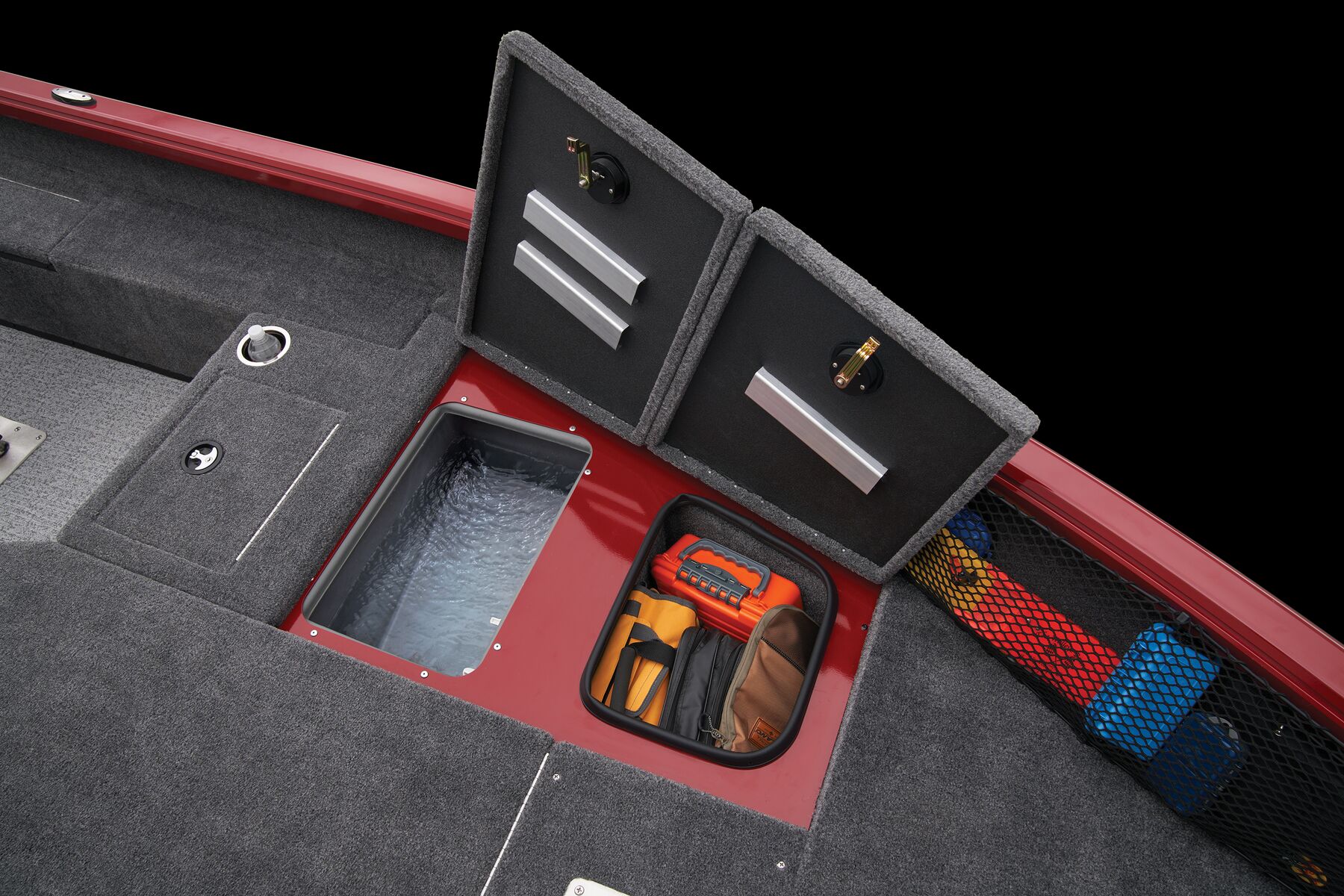

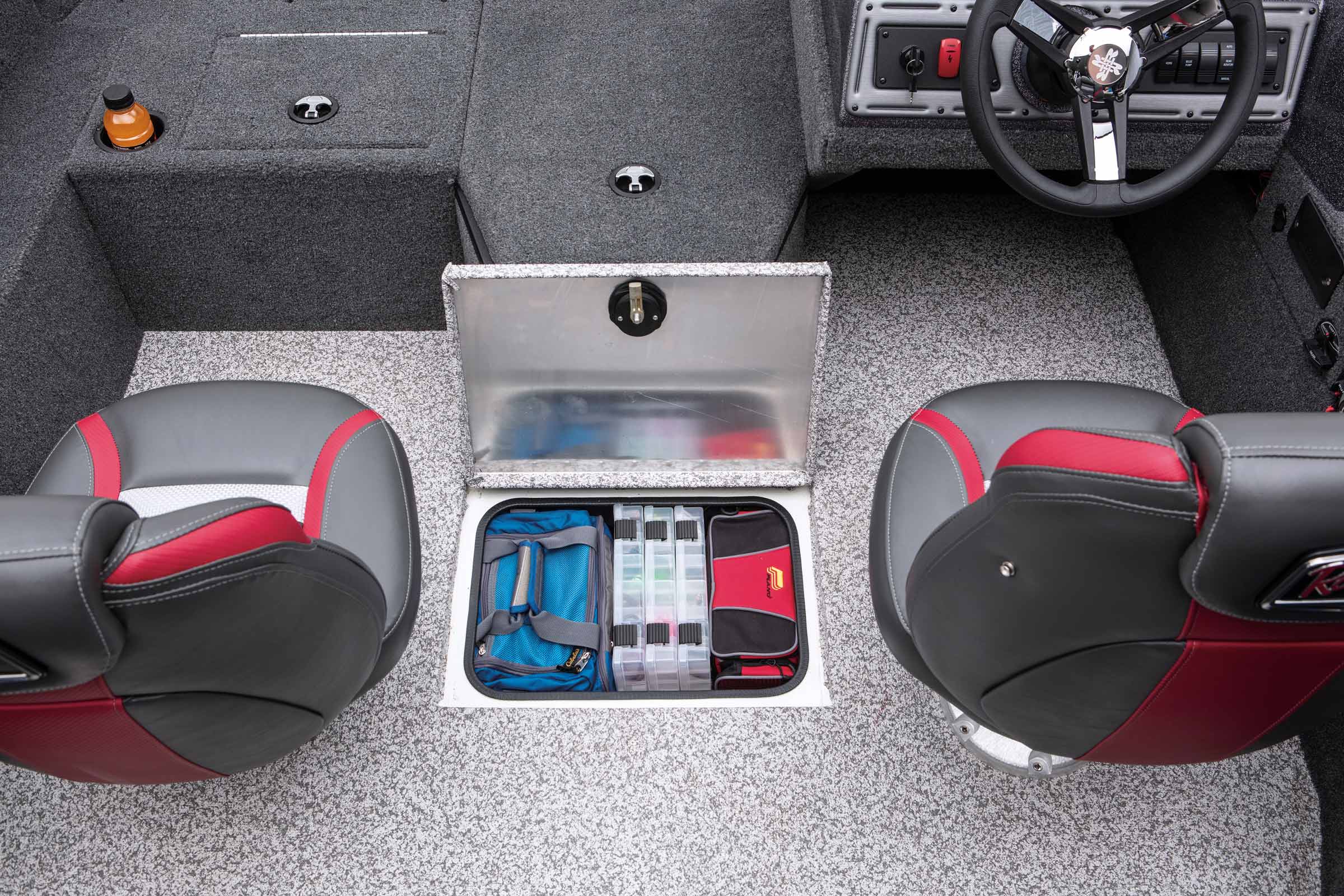

- Lockable storage
- Upright, level flotation

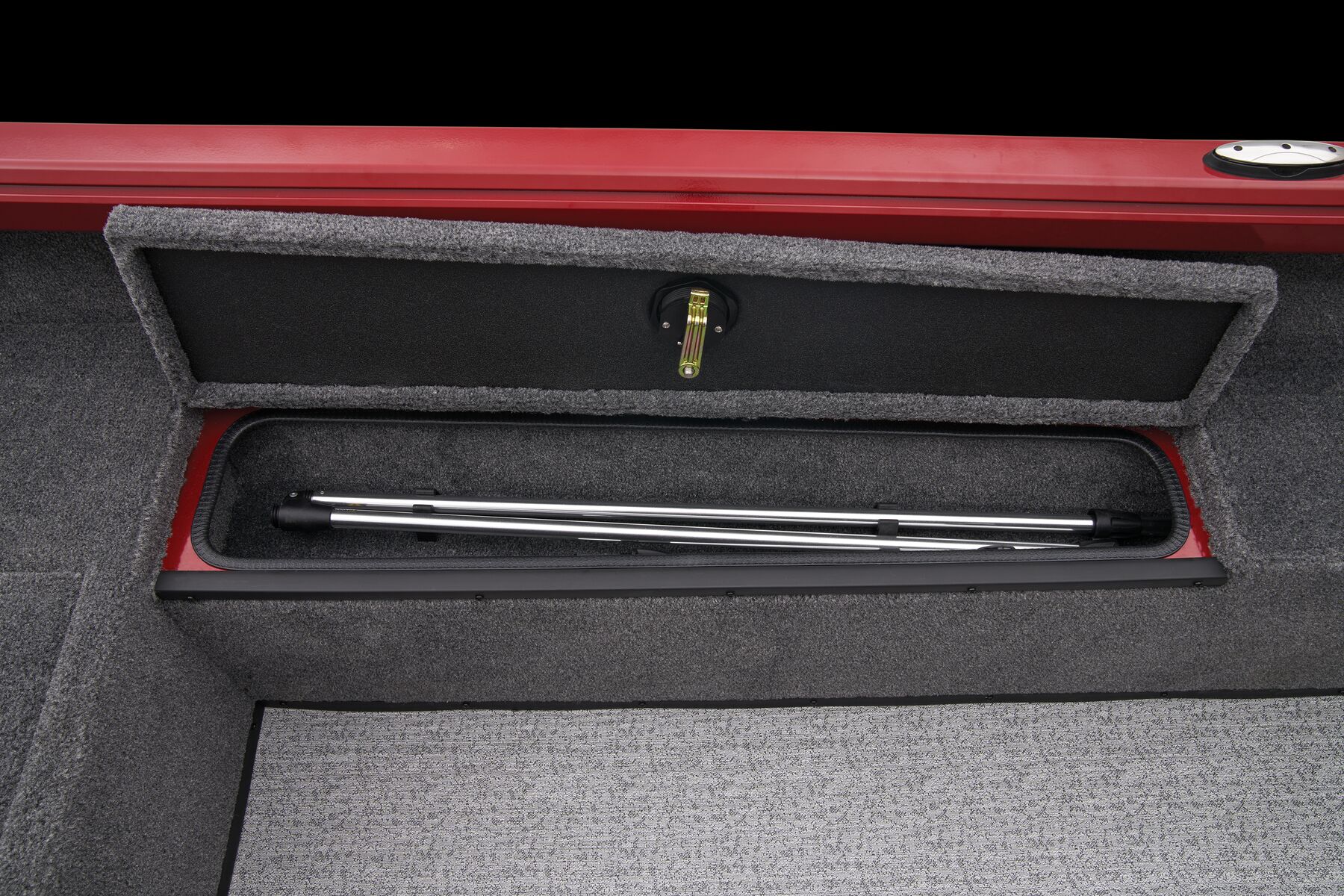

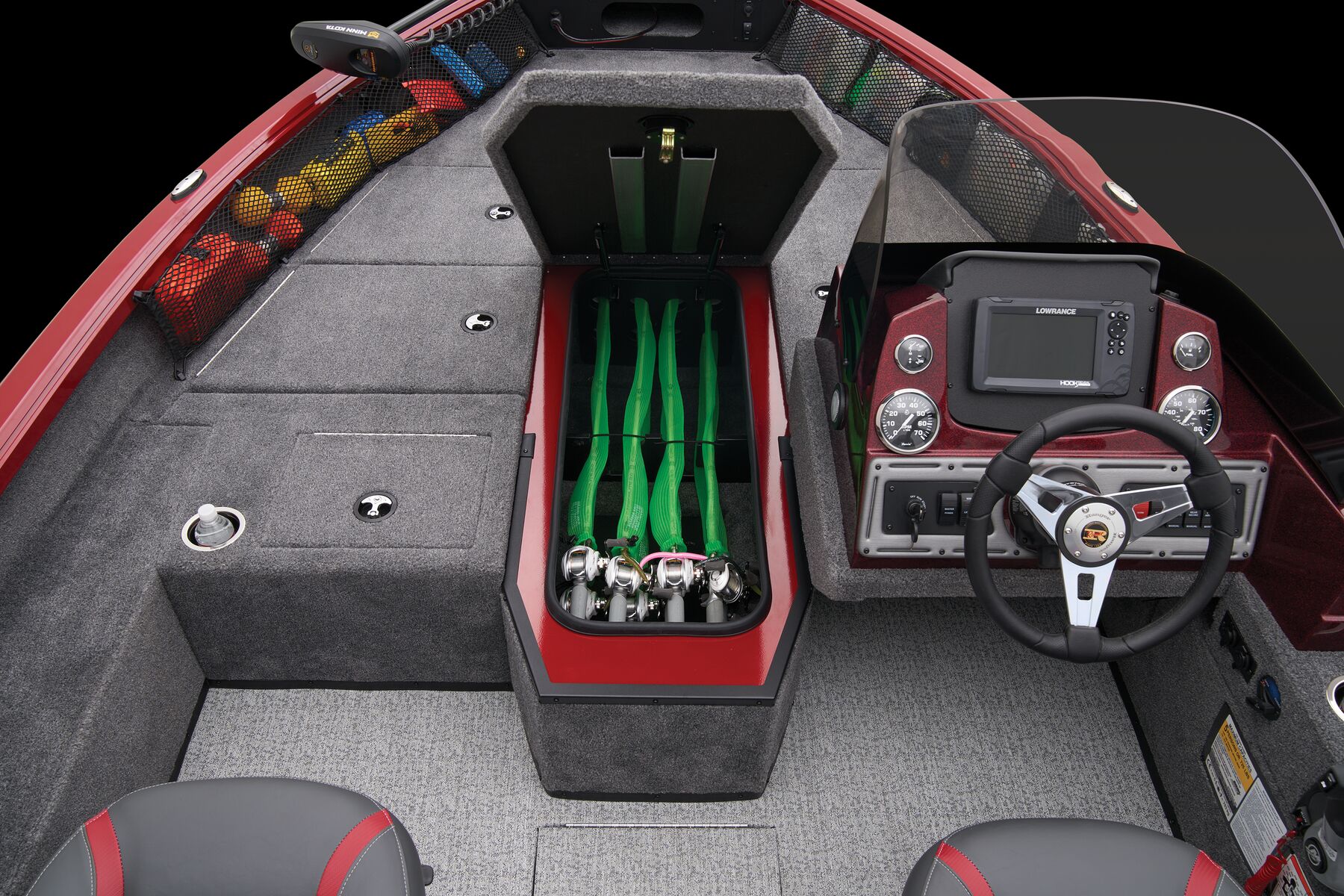

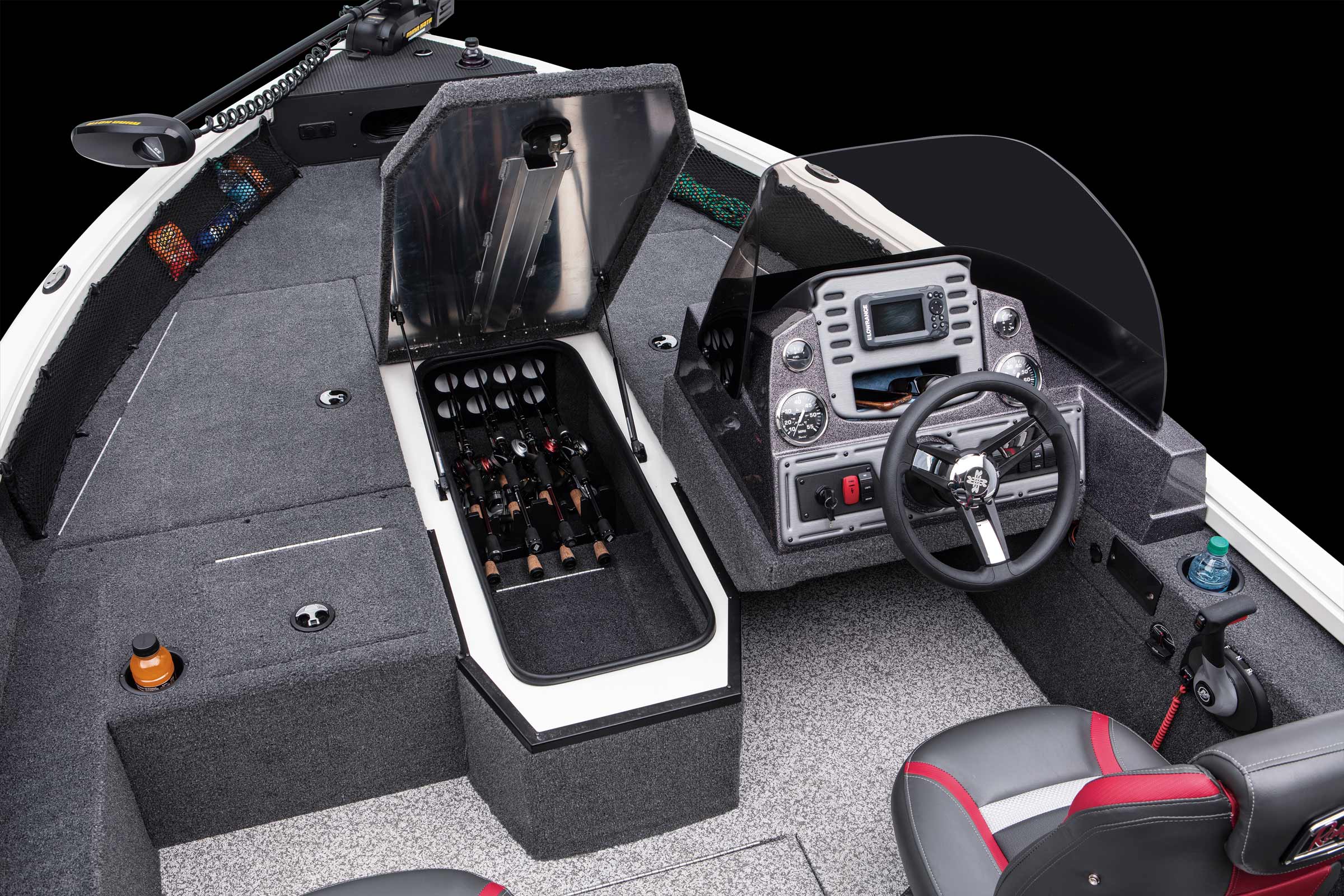

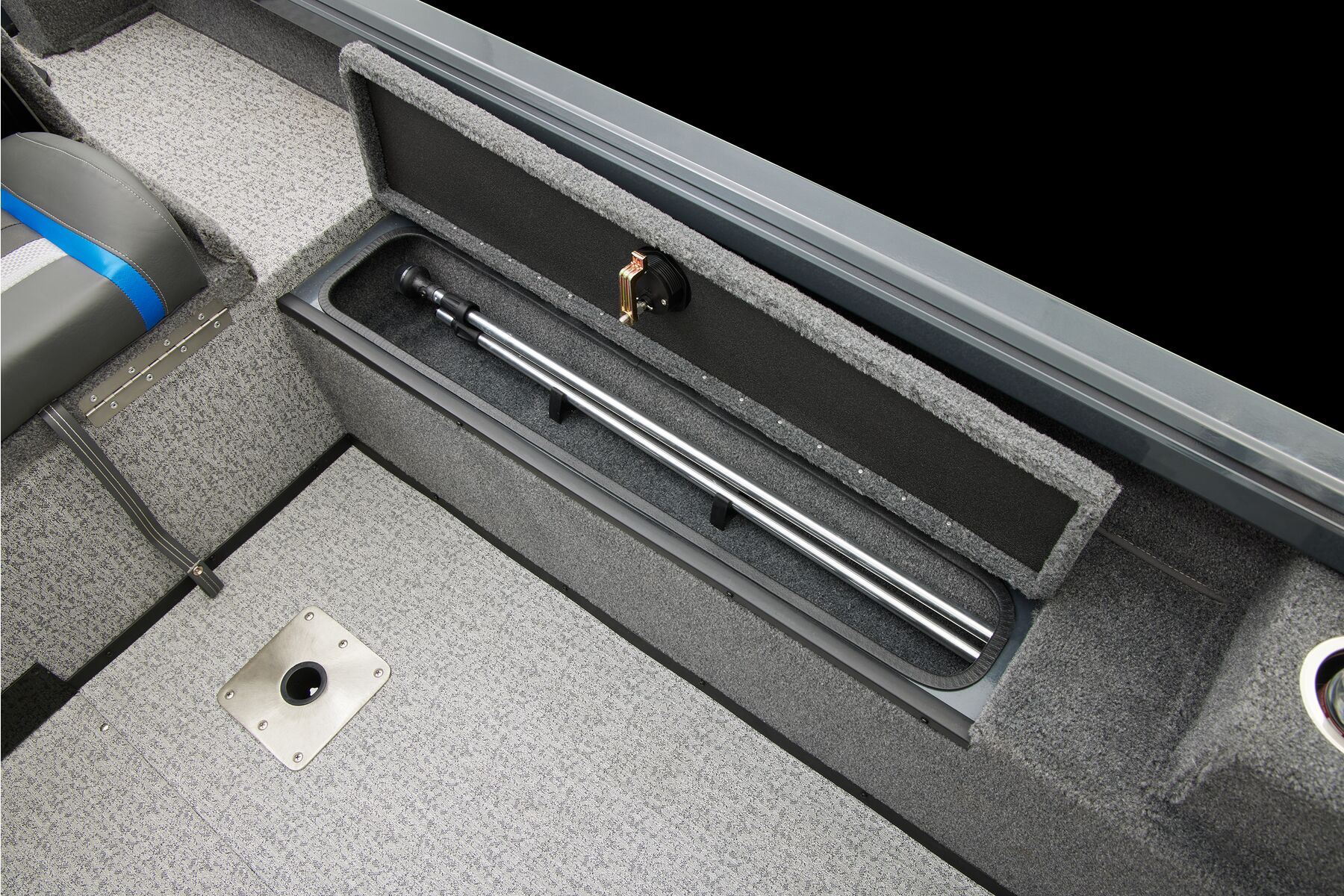

- Lockable rod storage
- 5052 H34 marine grade aluminum
- Foam-filled one-piece construction

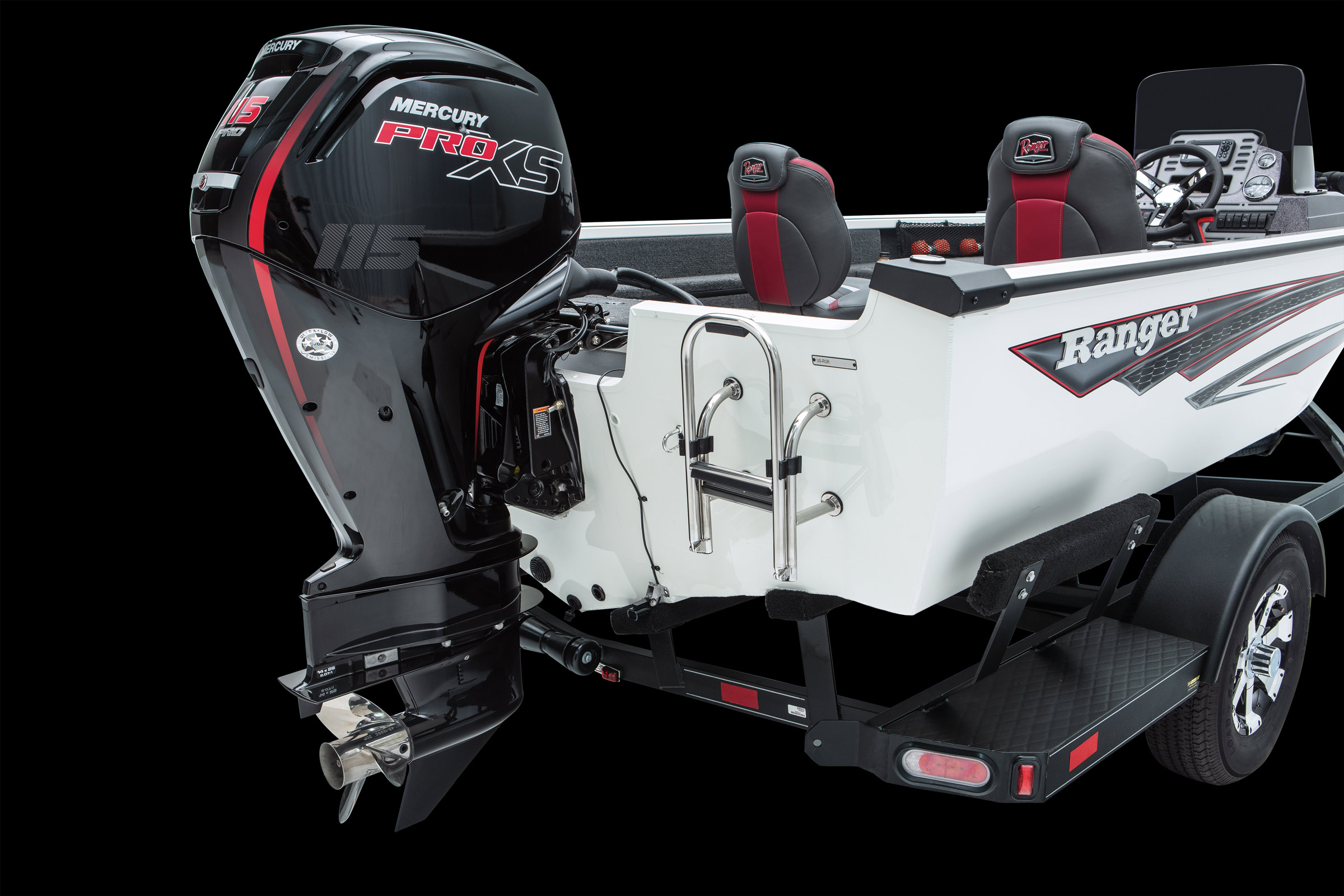

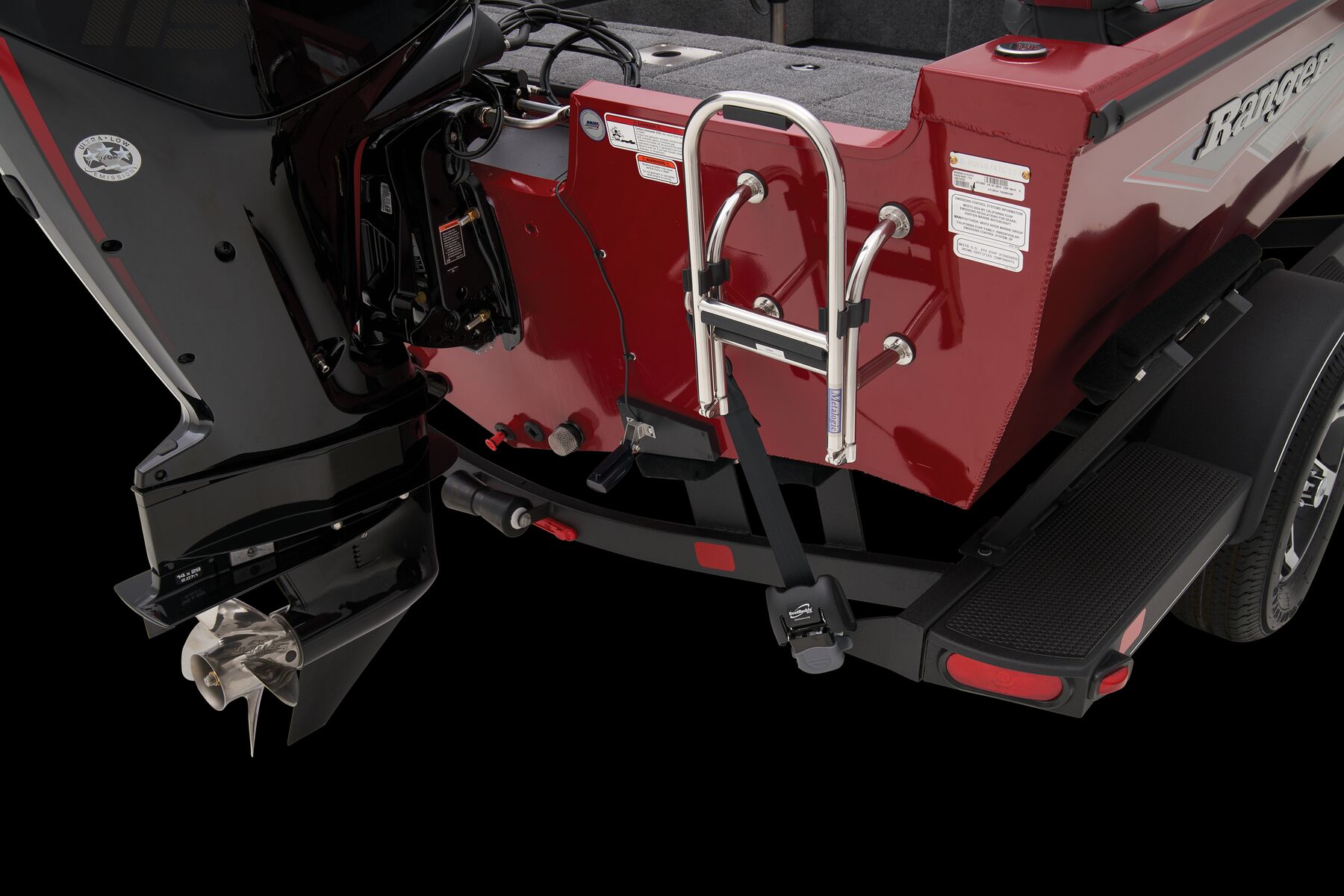

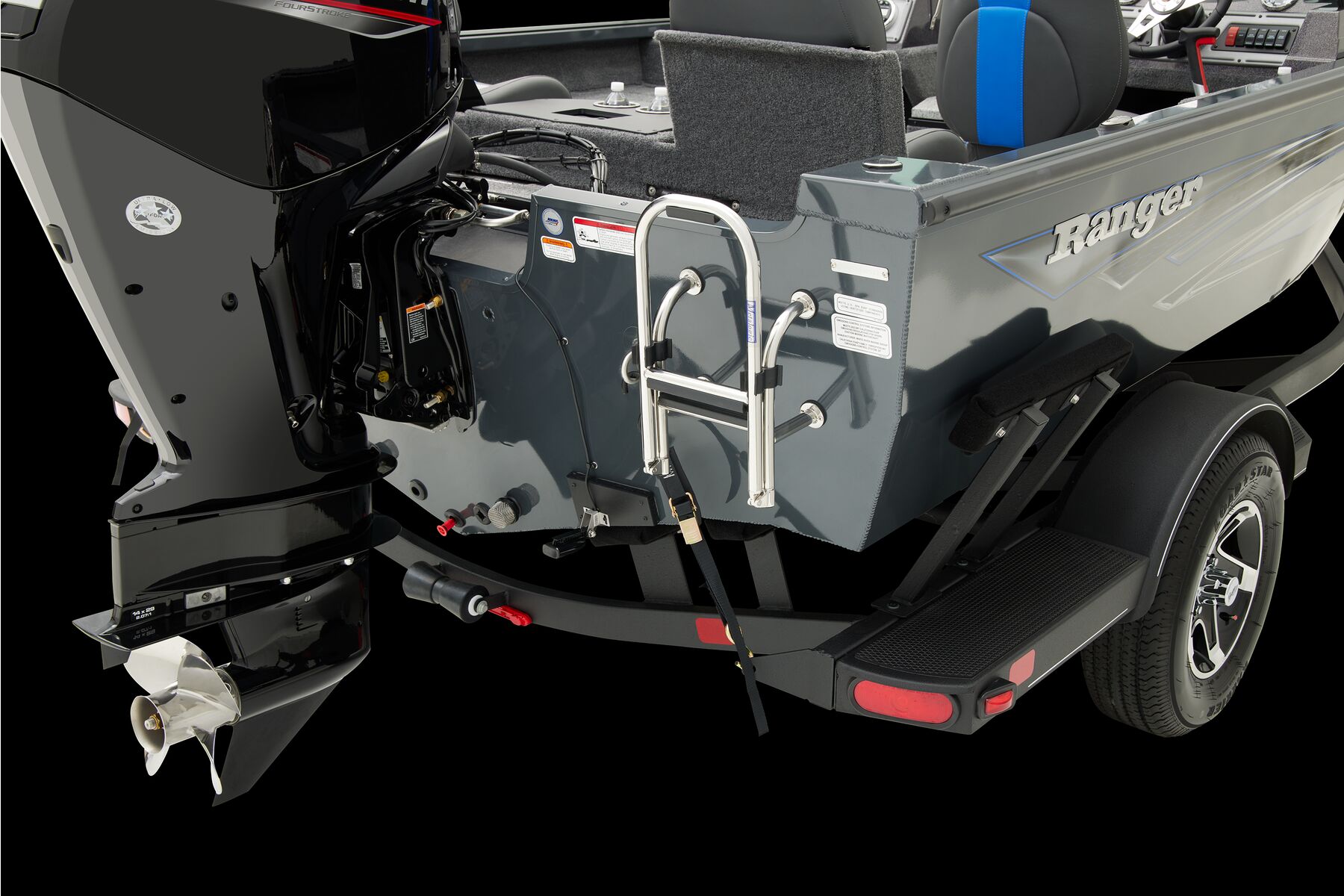

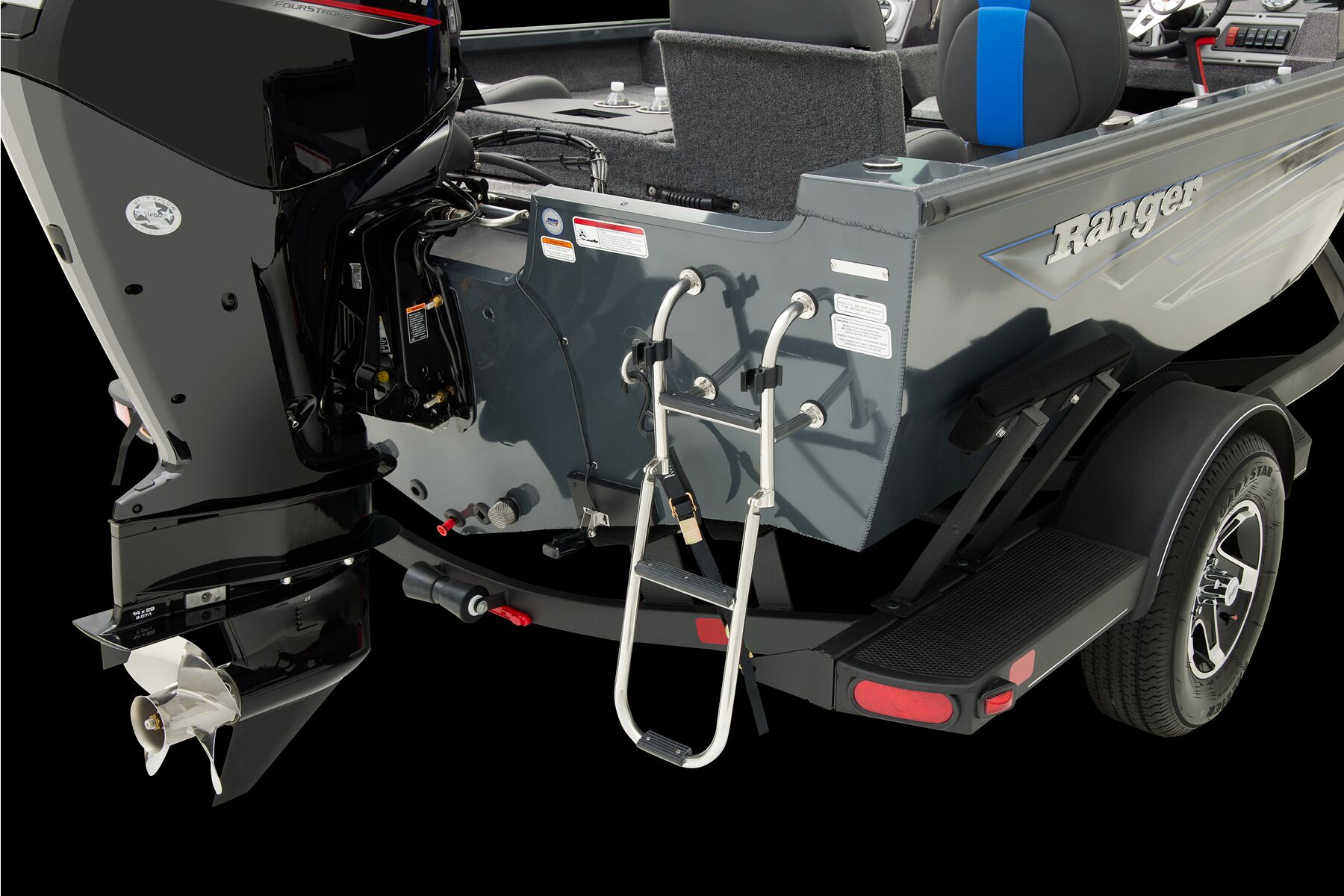

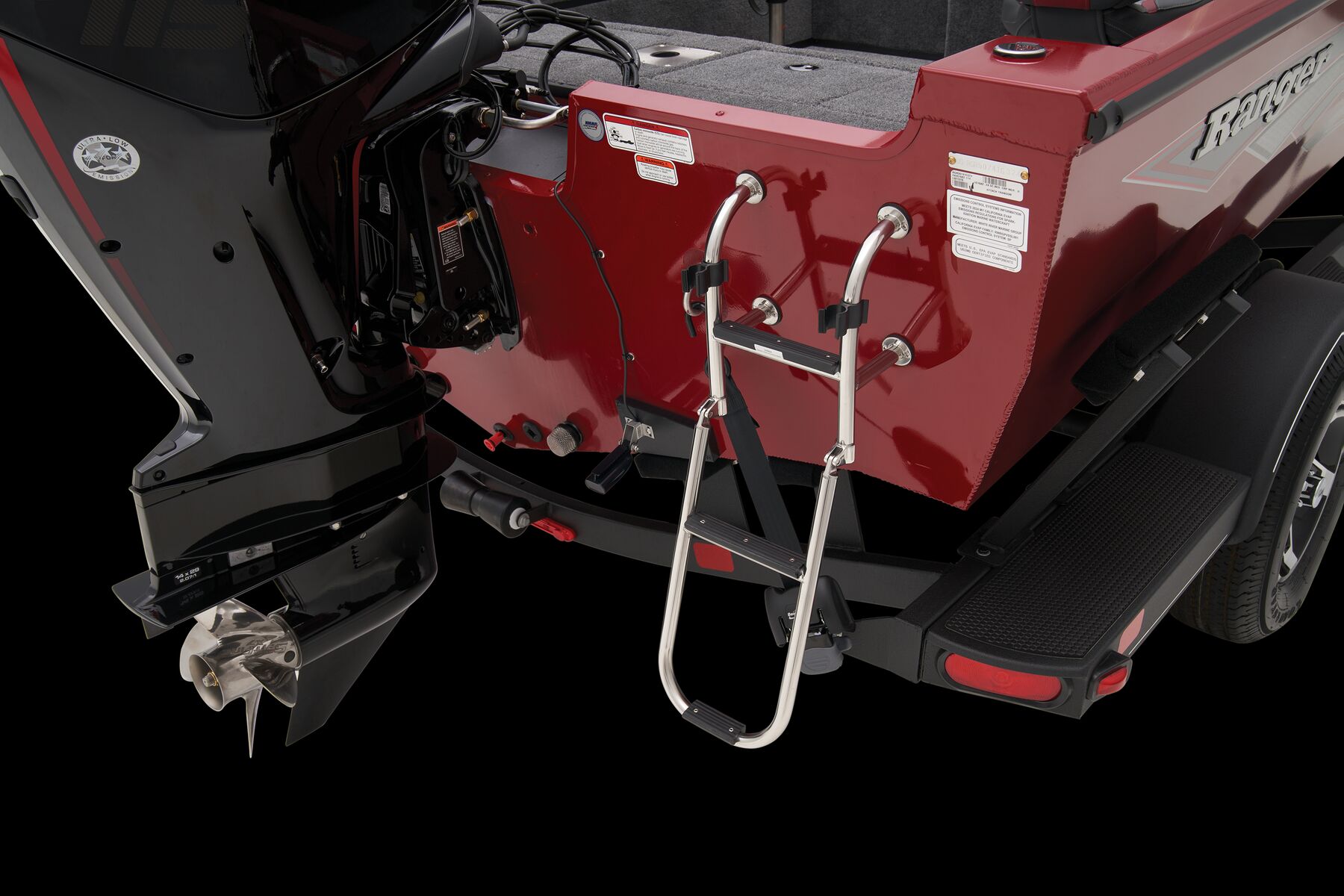

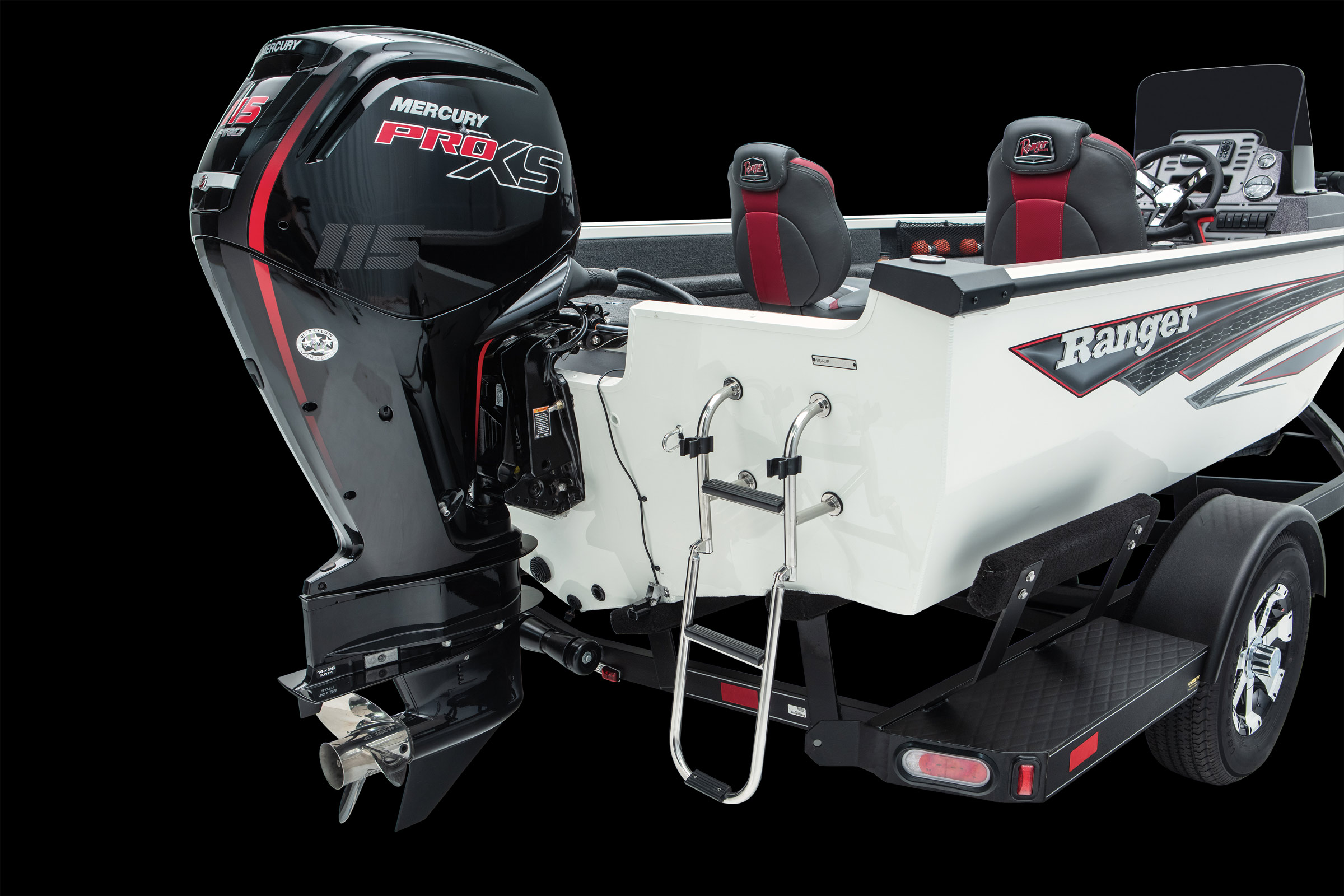

- Stainless steel boarding ladder

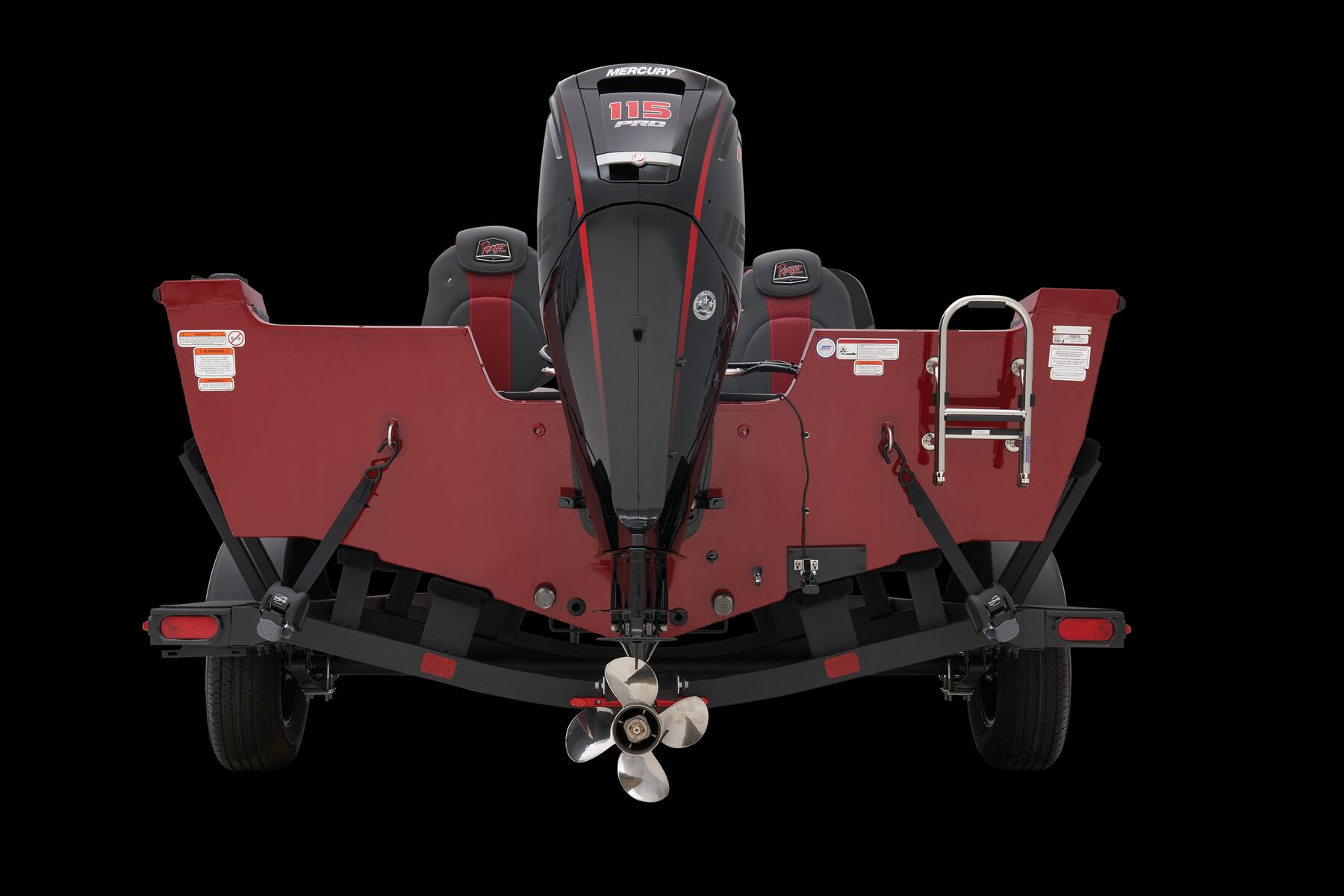

- All welded aluminum transom
- Built-in horn assembly

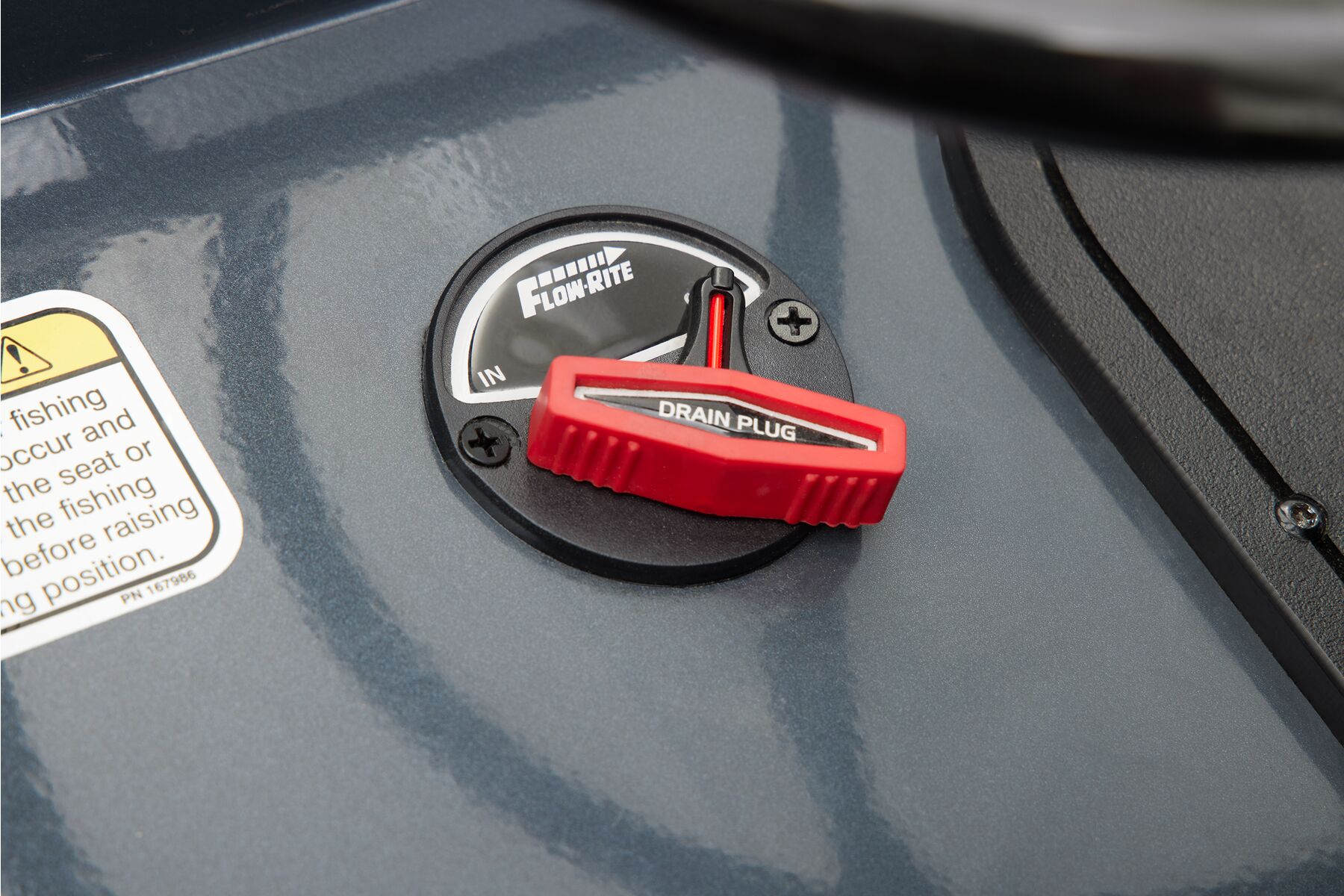

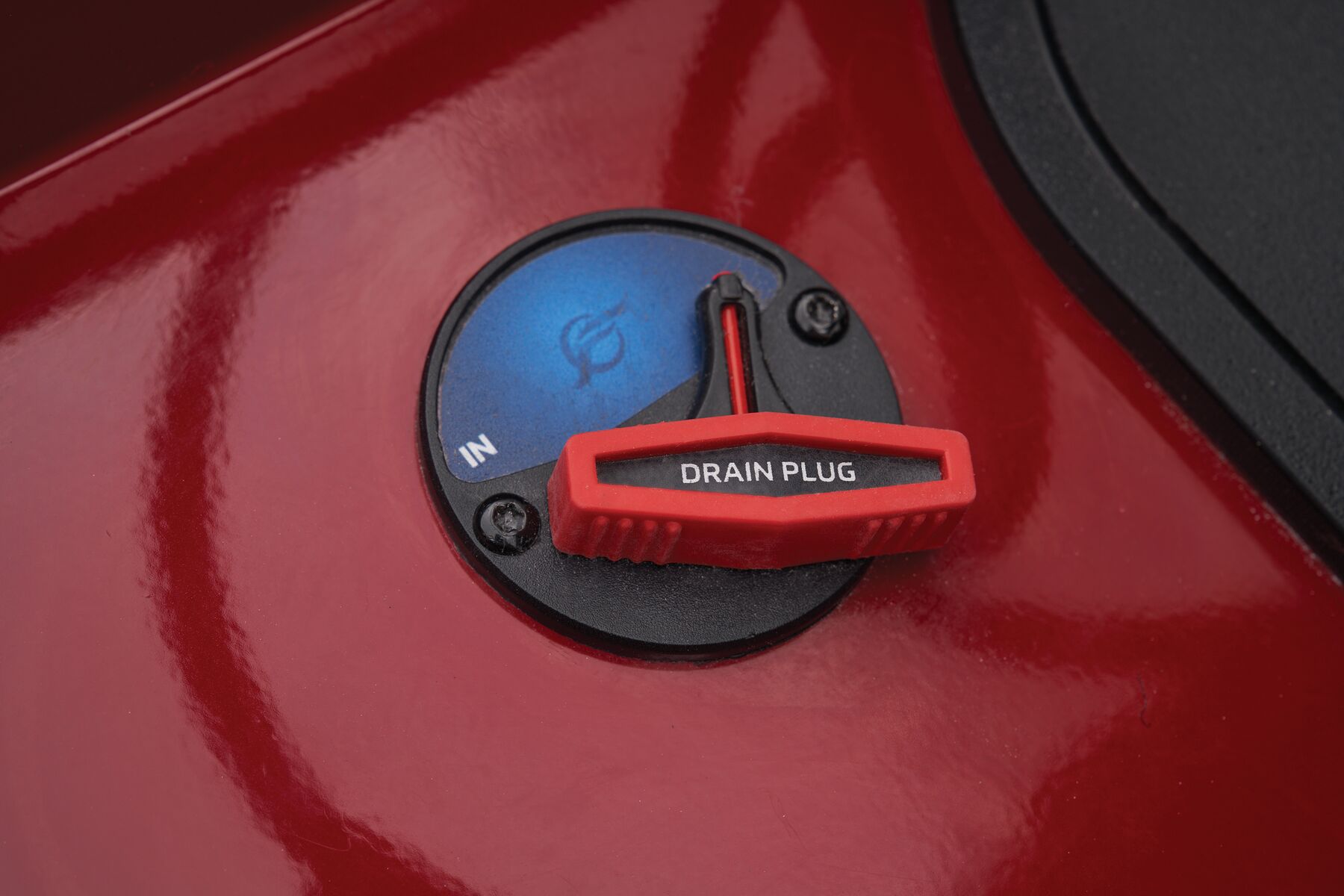

- Remote drain plug

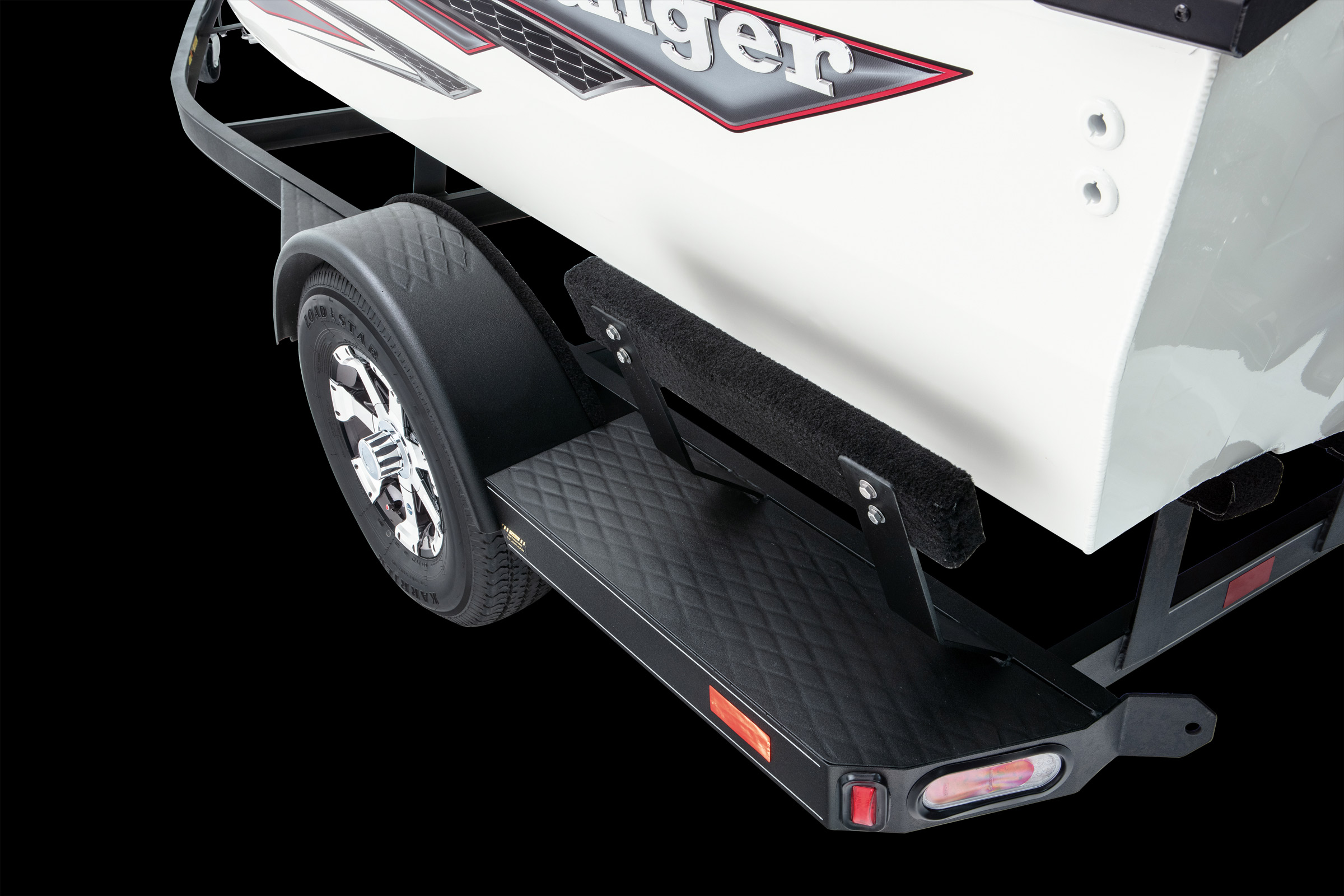

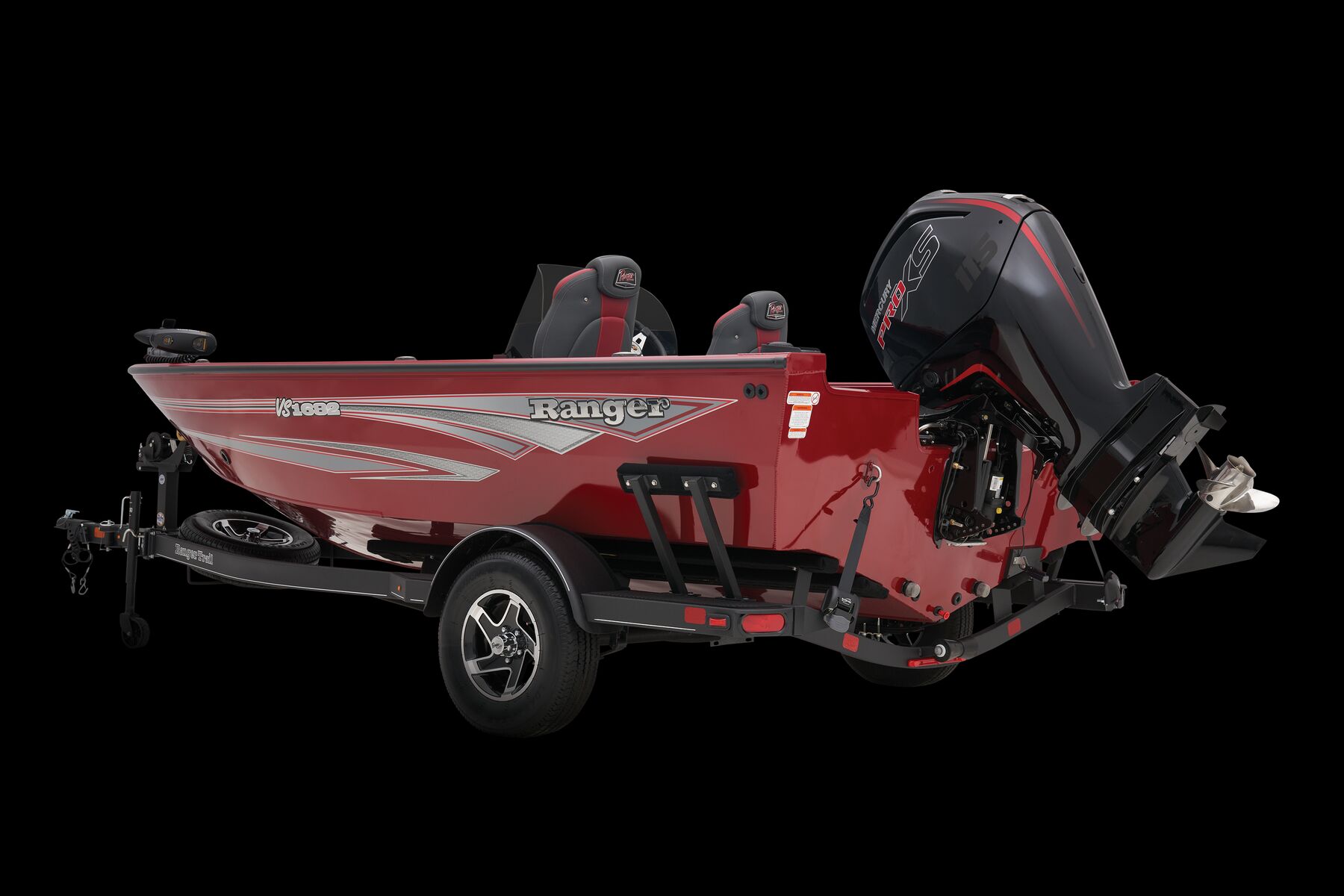

Trailer Features

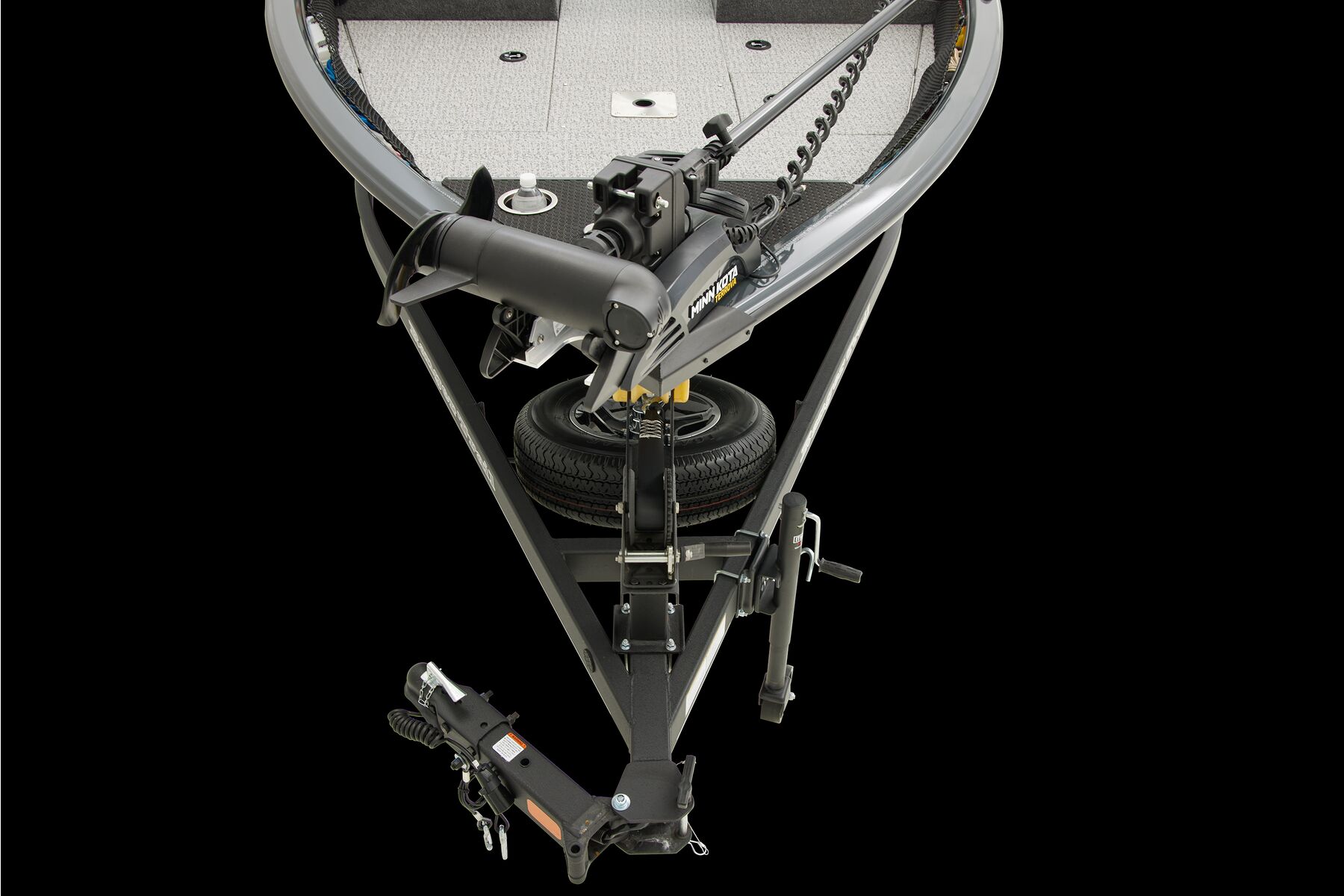

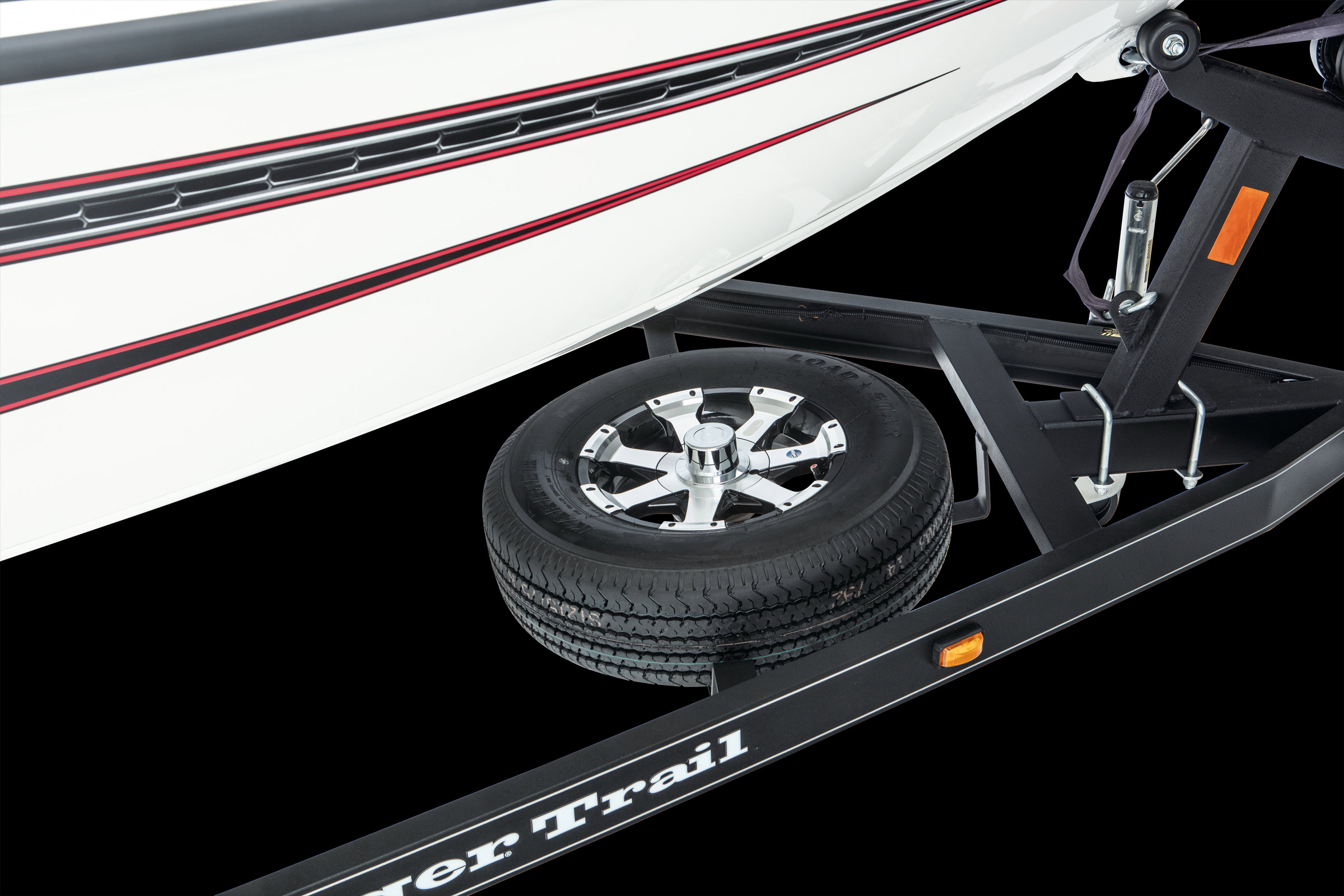

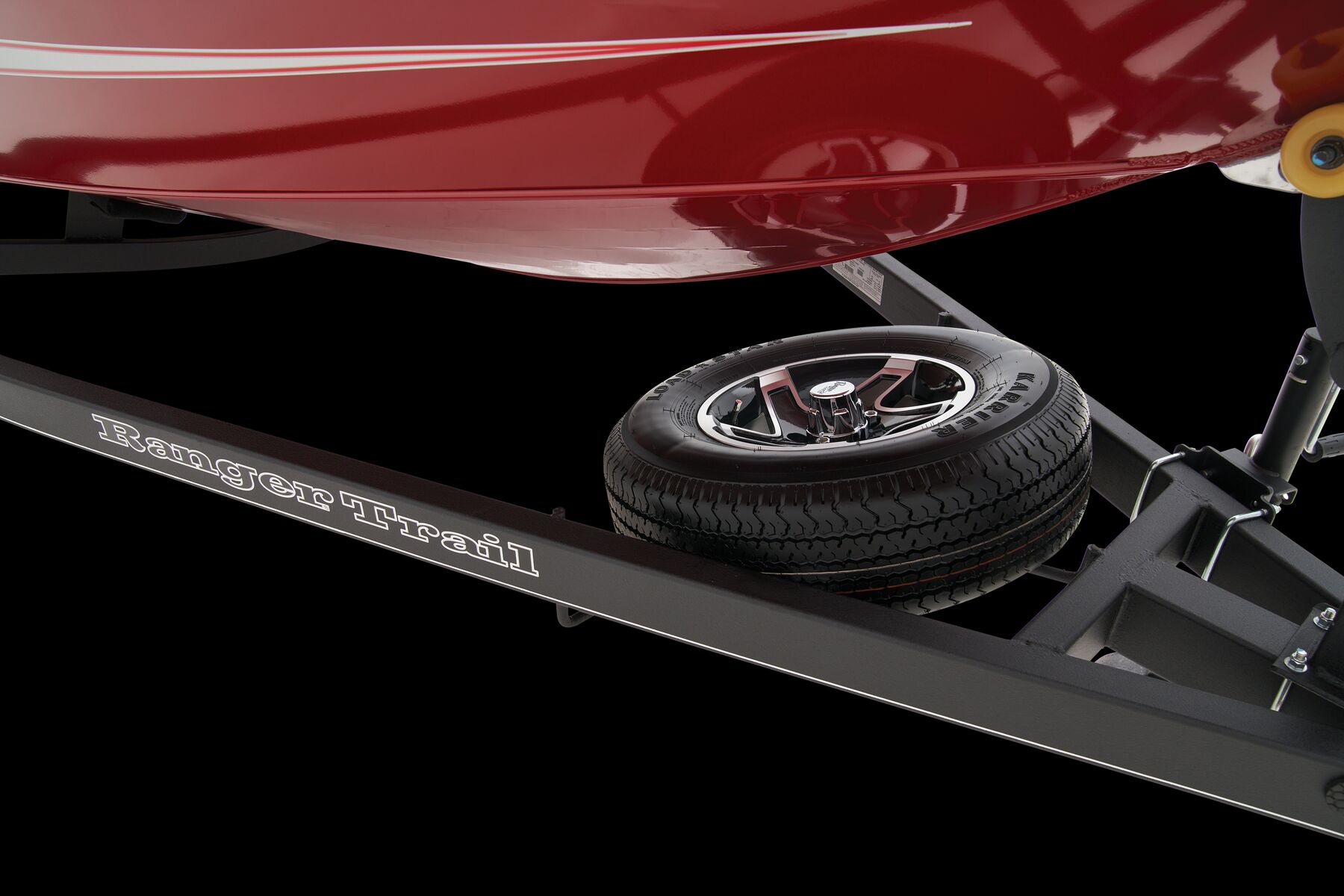

- Custom Ranger Trail® directional aluminum wheels with spare
- Retractable trailer tie downs
- Swing jack

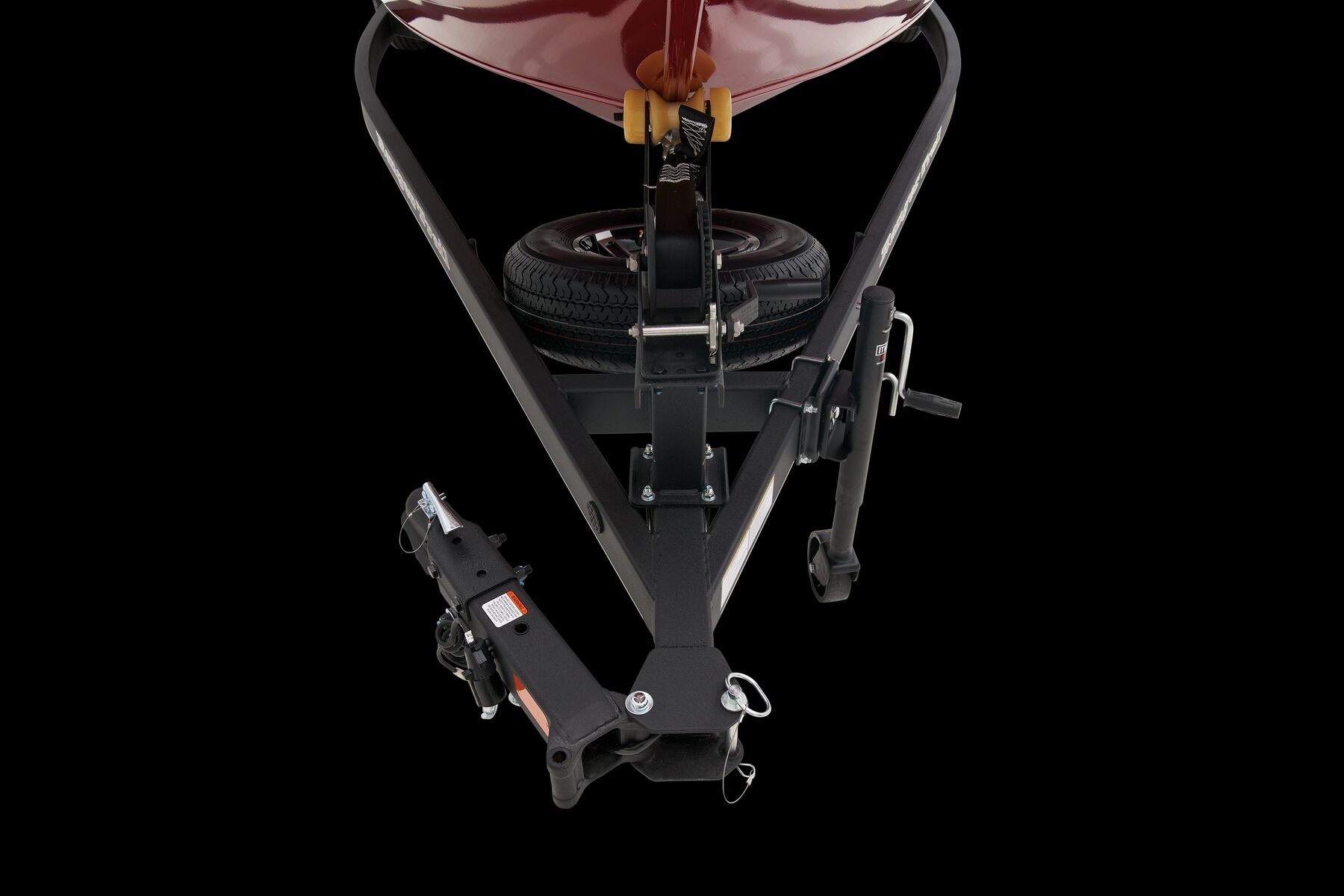

- Custom swing-away tongue
- Integrated load guides
- NMMA® and NATM certified
- Waterproof lights
